Conexant Systems 37101P-10 2.4GHz WLAN PC Card User Manual ISL37400M EVAL

Conexant Systems Inc. 2.4GHz WLAN PC Card ISL37400M EVAL

Contents

Users Manual

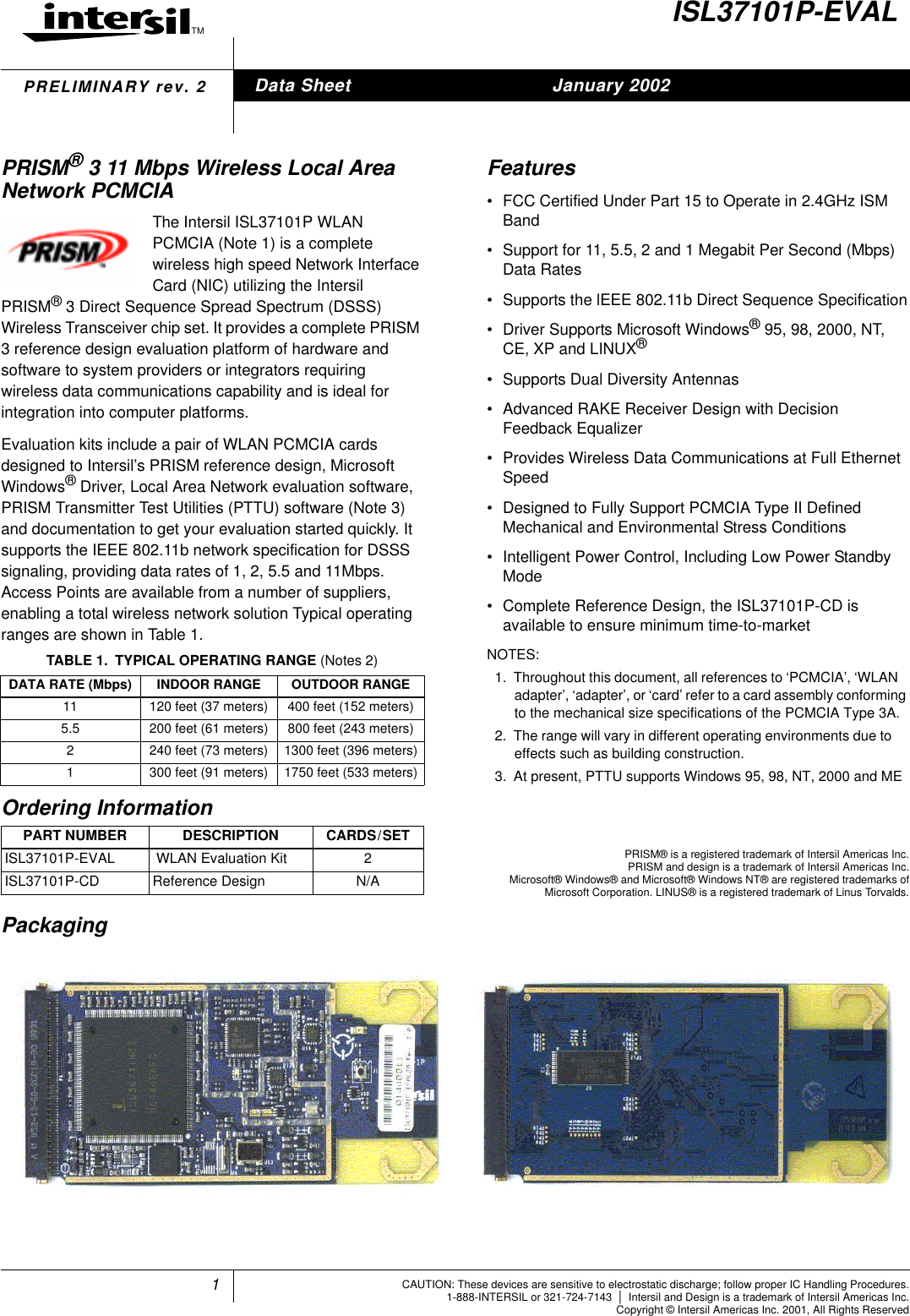

1TM8024CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.1-888-INTERSIL or 321-724-7143 |Intersil and Design is a trademark of Intersil Americas Inc.Copyright © Intersil Americas Inc. 2001, All Rights ReservedPRELIMINARY rev. 2ISL37101P-EVALPRISM®3 11 Mbps Wireless Local AreaNetwork PCMCIAThe Intersil ISL37101P WLANPCMCIA (Note 1) is a completewireless high speed Network InterfaceCard (NIC) utilizing the IntersilPRISM®3 Direct Sequence Spread Spectrum (DSSS)Wireless Transceiver chip set. It provides a complete PRISM3 reference design evaluation platform of hardware andsoftware to system providers or integrators requiringwireless data communications capability and is ideal forintegration into computer platforms.Evaluation kits include a pair of WLAN PCMCIA cardsdesigned to Intersil’s PRISM reference design, MicrosoftWindows®Driver, Local Area Network evaluation software,PRISM Transmitter Test Utilities (PTTU) software (Note 3)and documentation to get your evaluation started quickly. Itsupports the IEEE 802.11b network specification for DSSSsignaling, providing data rates of 1, 2, 5.5 and 11Mbps.Access Points are available from a number of suppliers,enabling a total wireless network solution Typical operatingranges are shown in Table 1.Features• FCC Certified Under Part 15 to Operate in 2.4GHz ISMBand• Support for 11, 5.5, 2 and 1 Megabit Per Second (Mbps)Data Rates• Supports the lEEE 802.11b Direct Sequence Specification• Driver Supports Microsoft Windows®95, 98, 2000, NT,CE, XP and LINUX®• Supports Dual Diversity Antennas• Advanced RAKE Receiver Design with DecisionFeedback Equalizer• Provides Wireless Data Communications at Full EthernetSpeed• Designed to Fully Support PCMCIA Type II DefinedMechanical and Environmental Stress Conditions• Intelligent Power Control, Including Low Power StandbyMode• Complete Reference Design, the ISL37101P-CD isavailable to ensure minimum time-to-marketNOTES:1. Throughout this document, all references to ‘PCMCIA’, ‘WLANadapter’, ‘adapter’, or ‘card’ refer to a card assembly conformingto the mechanical size specifications of the PCMCIA Type 3A.2. The range will vary in different operating environments due toeffects such as building construction.3. At present, PTTU supports Windows 95, 98, NT, 2000 and MEPackagingTABLE 1. TYPICAL OPERATING RANGE (Notes 2)DATA RATE (Mbps) INDOOR RANGE OUTDOOR RANGE11 120 feet (37 meters) 400 feet (152 meters)5.5 200 feet (61 meters) 800 feet (243 meters)2 240 feet (73 meters) 1300 feet (396 meters)1 300 feet (91 meters) 1750 feet (533 meters)Ordering InformationPART NUMBER DESCRIPTION CARDS/SETISL37101P-EVAL WLAN Evaluation Kit 2ISL37101P-CD Reference Design N/AData Sheet January 2002PRISM® is a registered trademark of Intersil Americas Inc.PRISM and design is a trademark of Intersil Americas Inc.Microsoft® Windows® and Microsoft® Windows NT® are registered trademarks ofMicrosoft Corporation. LINUS® is a registered trademark of Linus Torvalds.

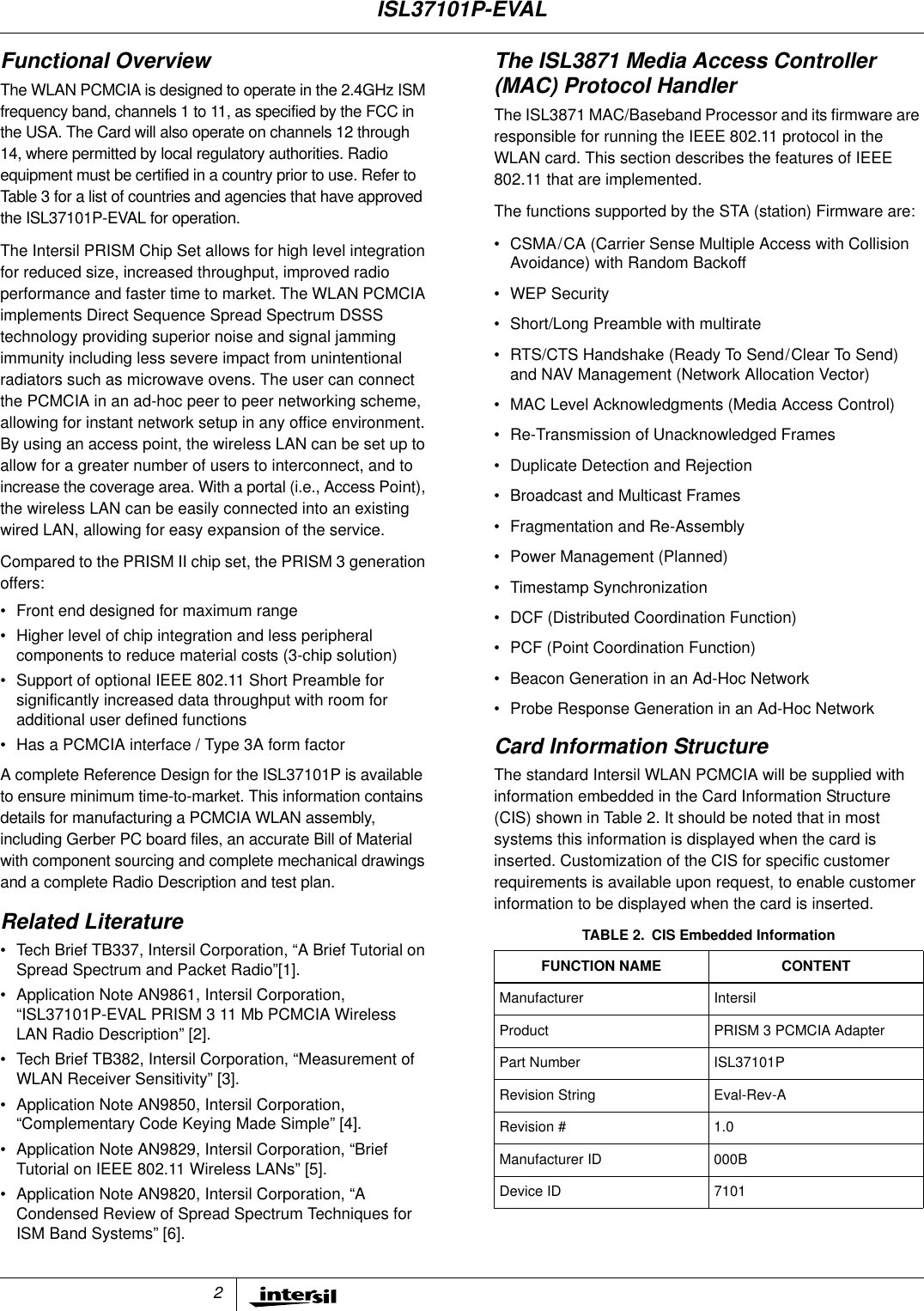

2Functional OverviewThe WLAN PCMCIA is designed to operate in the 2.4GHz ISMfrequency band, channels 1 to 11, as specified by the FCC inthe USA. The Card will also operate on channels 12 through14, where permitted by local regulatory authorities. Radioequipment must be certified in a country prior to use. Refer toTable 3 for a list of countries and agencies that have approvedthe ISL37101P-EVAL for operation.The Intersil PRISM Chip Set allows for high level integrationfor reduced size, increased throughput, improved radioperformance and faster time to market. The WLAN PCMCIAimplements Direct Sequence Spread Spectrum DSSStechnology providing superior noise and signal jammingimmunity including less severe impact from unintentionalradiators such as microwave ovens. The user can connectthe PCMCIA in an ad-hoc peer to peer networking scheme,allowing for instant network setup in any office environment.By using an access point, the wireless LAN can be set up toallow for a greater number of users to interconnect, and toincrease the coverage area. With a portal (i.e., Access Point),the wireless LAN can be easily connected into an existingwired LAN, allowing for easy expansion of the service.Compared to the PRISM II chip set, the PRISM 3 generationoffers:• Front end designed for maximum range• Higher level of chip integration and less peripheralcomponents to reduce material costs (3-chip solution)• Support of optional IEEE 802.11 Short Preamble forsignificantly increased data throughput with room foradditional user defined functions• Has a PCMCIA interface / Type 3A form factorA complete Reference Design for the ISL37101P is availableto ensure minimum time-to-market. This information containsdetails for manufacturing a PCMCIA WLAN assembly,including Gerber PC board files, an accurate Bill of Materialwith component sourcing and complete mechanical drawingsand a complete Radio Description and test plan.Related Literature• Tech Brief TB337, Intersil Corporation, “A Brief Tutorial onSpread Spectrum and Packet Radio”[1].• Application Note AN9861, Intersil Corporation,“ISL37101P-EVAL PRISM 3 11 Mb PCMCIA WirelessLAN Radio Description” [2].• Tech Brief TB382, Intersil Corporation, “Measurement ofWLAN Receiver Sensitivity” [3].• Application Note AN9850, Intersil Corporation,“Complementary Code Keying Made Simple” [4].• Application Note AN9829, Intersil Corporation, “BriefTutorial on IEEE 802.11 Wireless LANs” [5].• Application Note AN9820, Intersil Corporation, “ACondensed Review of Spread Spectrum Techniques forISM Band Systems” [6].The ISL3871 Media Access Controller(MAC) Protocol HandlerThe ISL3871 MAC/Baseband Processor and its firmware areresponsible for running the IEEE 802.11 protocol in theWLAN card. This section describes the features of IEEE802.11 that are implemented.The functions supported by the STA (station) Firmware are:• CSMA/CA (Carrier Sense Multiple Access with CollisionAvoidance) with Random Backoff• WEP Security• Short/Long Preamble with multirate• RTS/CTS Handshake (Ready To Send/Clear To Send)and NAV Management (Network Allocation Vector)• MAC Level Acknowledgments (Media Access Control)• Re-Transmission of Unacknowledged Frames• Duplicate Detection and Rejection• Broadcast and Multicast Frames• Fragmentation and Re-Assembly• Power Management (Planned)• Timestamp Synchronization• DCF (Distributed Coordination Function)• PCF (Point Coordination Function)• Beacon Generation in an Ad-Hoc Network• Probe Response Generation in an Ad-Hoc NetworkCard Information StructureThe standard Intersil WLAN PCMCIA will be supplied withinformation embedded in the Card Information Structure(CIS) shown in Table 2. It should be noted that in mostsystems this information is displayed when the card isinserted. Customization of the CIS for specific customerrequirements is available upon request, to enable customerinformation to be displayed when the card is inserted.TABLE 2. CIS Embedded InformationFUNCTION NAME CONTENTManufacturer IntersilProduct PRISM 3 PCMCIA AdapterPart Number ISL37101PRevision String Eval-Rev-ARevision # 1.0Manufacturer ID 000BDevice ID 7101ISL37101P-EVAL

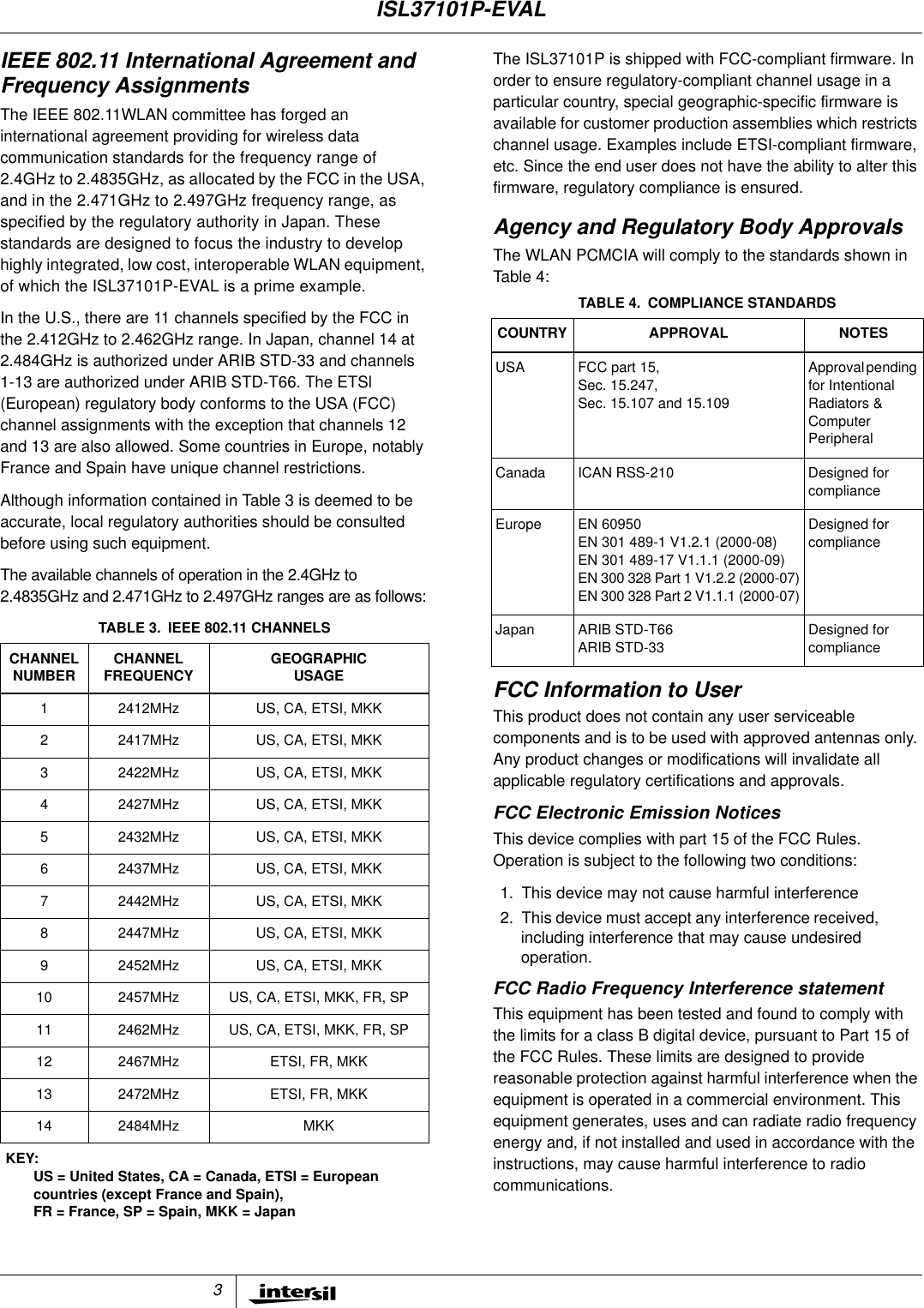

3IEEE 802.11 International Agreement andFrequency AssignmentsThe IEEE 802.11WLAN committee has forged aninternational agreement providing for wireless datacommunication standards for the frequency range of2.4GHz to 2.4835GHz, as allocated by the FCC in the USA,and in the 2.471GHz to 2.497GHz frequency range, asspecified by the regulatory authority in Japan. Thesestandards are designed to focus the industry to develophighly integrated, low cost, interoperable WLAN equipment,of which the ISL37101P-EVAL is a prime example.In the U.S., there are 11 channels specified by the FCC inthe 2.412GHz to 2.462GHz range. In Japan, channel 14 at2.484GHz is authorized under ARIB STD-33 and channels1-13 are authorized under ARIB STD-T66. The ETSl(European) regulatory body conforms to the USA (FCC)channel assignments with the exception that channels 12and 13 are also allowed. Some countries in Europe, notablyFrance and Spain have unique channel restrictions.Although information contained in Table 3 is deemed to beaccurate, local regulatory authorities should be consultedbefore using such equipment.The available channels of operation in the 2.4GHz to2.4835GHz and 2.471GHz to 2.497GHz ranges are as follows:The ISL37101P is shipped with FCC-compliant firmware. Inorder to ensure regulatory-compliant channel usage in aparticular country, special geographic-specific firmware isavailable for customer production assemblies which restrictschannel usage. Examples include ETSI-compliant firmware,etc. Since the end user does not have the ability to alter thisfirmware, regulatory compliance is ensured.Agency and Regulatory Body ApprovalsThe WLAN PCMCIA will comply to the standards shown inTable 4:FCC Information to UserThis product does not contain any user serviceablecomponents and is to be used with approved antennas only.Any product changes or modifications will invalidate allapplicable regulatory certifications and approvals.FCC Electronic Emission NoticesThis device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference2. This device must accept any interference received,including interference that may cause undesiredoperation.FCC Radio Frequency Interference statementThis equipment has been tested and found to comply withthe limits for a class B digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed to providereasonable protection against harmful interference when theequipment is operated in a commercial environment. Thisequipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radiocommunications.TABLE 3. IEEE 802.11 CHANNELSCHANNELNUMBER CHANNELFREQUENCY GEOGRAPHICUSAGE1 2412MHz US, CA, ETSI, MKK2 2417MHz US, CA, ETSI, MKK3 2422MHz US, CA, ETSI, MKK4 2427MHz US, CA, ETSI, MKK5 2432MHz US, CA, ETSI, MKK6 2437MHz US, CA, ETSI, MKK7 2442MHz US, CA, ETSI, MKK8 2447MHz US, CA, ETSI, MKK9 2452MHz US, CA, ETSI, MKK10 2457MHz US, CA, ETSI, MKK, FR, SP11 2462MHz US, CA, ETSI, MKK, FR, SP12 2467MHz ETSI, FR, MKK13 2472MHz ETSI, FR, MKK14 2484MHz MKKKEY:US = United States, CA = Canada, ETSI = Europeancountries (except France and Spain),FR = France, SP = Spain, MKK = JapanTABLE 4. COMPLIANCE STANDARDSCOUNTRY APPROVAL NOTESUSA FCC part 15,Sec. 15.247,Sec. 15.107 and 15.109Approvalpendingfor IntentionalRadiators &ComputerPeripheralCanada ICAN RSS-210 Designed forcomplianceEurope EN 60950EN 301 489-1 V1.2.1 (2000-08)EN 301 489-17 V1.1.1 (2000-09)EN 300 328 Part 1 V1.2.2 (2000-07)EN 300 328 Part 2 V1.1.1 (2000-07)Designed forcomplianceJapan ARIB STD-T66ARIB STD-33Designed forcomplianceISL37101P-EVAL

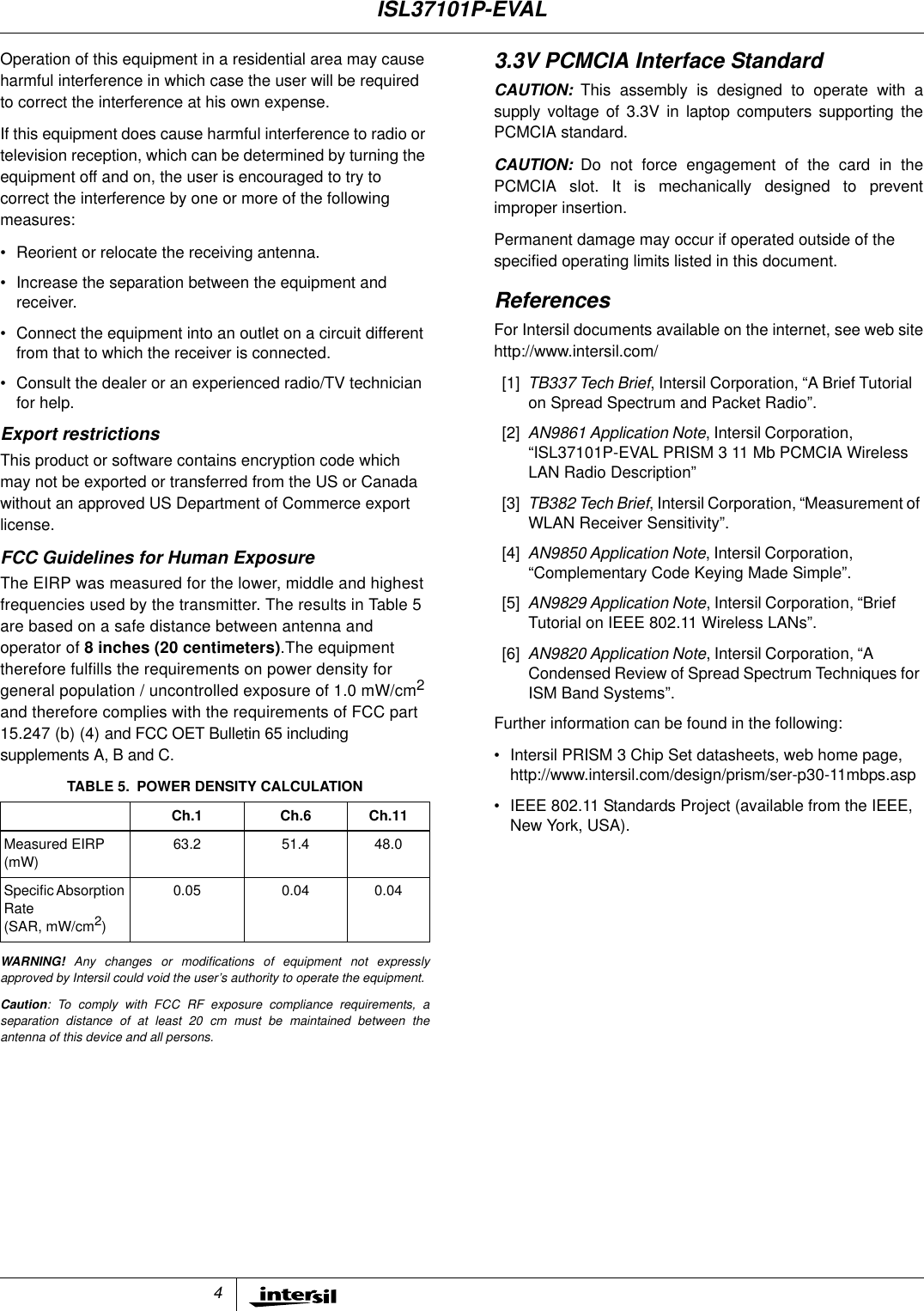

4Operation of this equipment in a residential area may causeharmful interference in which case the user will be requiredto correct the interference at his own expense.If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning theequipment off and on, the user is encouraged to try tocorrect the interference by one or more of the followingmeasures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment andreceiver.• Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technicianfor help.Export restrictionsThis product or software contains encryption code whichmay not be exported or transferred from the US or Canadawithout an approved US Department of Commerce exportlicense.FCC Guidelines for Human ExposureThe EIRP was measured for the lower, middle and highestfrequencies used by the transmitter. The results in Table 5are based on a safe distance between antenna andoperator of 8 inches (20 centimeters).The equipmenttherefore fulfills the requirements on power density forgeneral population / uncontrolled exposure of 1.0 mW/cm2and therefore complies with the requirements of FCC part15.247 (b) (4) and FCC OET Bulletin 65 includingsupplements A, B and C.WARNING! Any changes or modifications of equipment not expresslyapproved by Intersil could void the user’s authority to operate the equipment.Caution: To comply with FCC RF exposure compliance requirements, aseparation distance of at least 20 cm must be maintained between theantenna of this device and all persons.3.3V PCMCIA Interface StandardCAUTION: This assembly is designed to operate with asupply voltage of 3.3V in laptop computers supporting thePCMCIA standard.CAUTION: Do not force engagement of the card in thePCMCIA slot. It is mechanically designed to preventimproper insertion.Permanent damage may occur if operated outside of thespecified operating limits listed in this document.ReferencesFor Intersil documents available on the internet, see web sitehttp://www.intersil.com/[1] TB337 Tech Brief, Intersil Corporation, “A Brief Tutorialon Spread Spectrum and Packet Radio”.[2] AN9861 Application Note, Intersil Corporation,“ISL37101P-EVAL PRISM 3 11 Mb PCMCIA WirelessLAN Radio Description”[3] TB382 Tech Brief, Intersil Corporation, “Measurement ofWLAN Receiver Sensitivity”.[4] AN9850 Application Note, Intersil Corporation,“Complementary Code Keying Made Simple”.[5] AN9829 Application Note, Intersil Corporation, “BriefTutorial on IEEE 802.11 Wireless LANs”.[6] AN9820 Application Note, Intersil Corporation, “ACondensed Review of Spread Spectrum Techniques forISM Band Systems”.Further information can be found in the following:• Intersil PRISM 3 Chip Set datasheets, web home page,http://www.intersil.com/design/prism/ser-p30-11mbps.asp• IEEE 802.11 Standards Project (available from the IEEE,New York, USA).TABLE 5. POWER DENSITY CALCULATIONCh.1 Ch.6 Ch.11Measured EIRP(mW)63.2 51.4 48.0SpecificAbsorptionRate(SAR, mW/cm2)0.05 0.04 0.04ISL37101P-EVAL

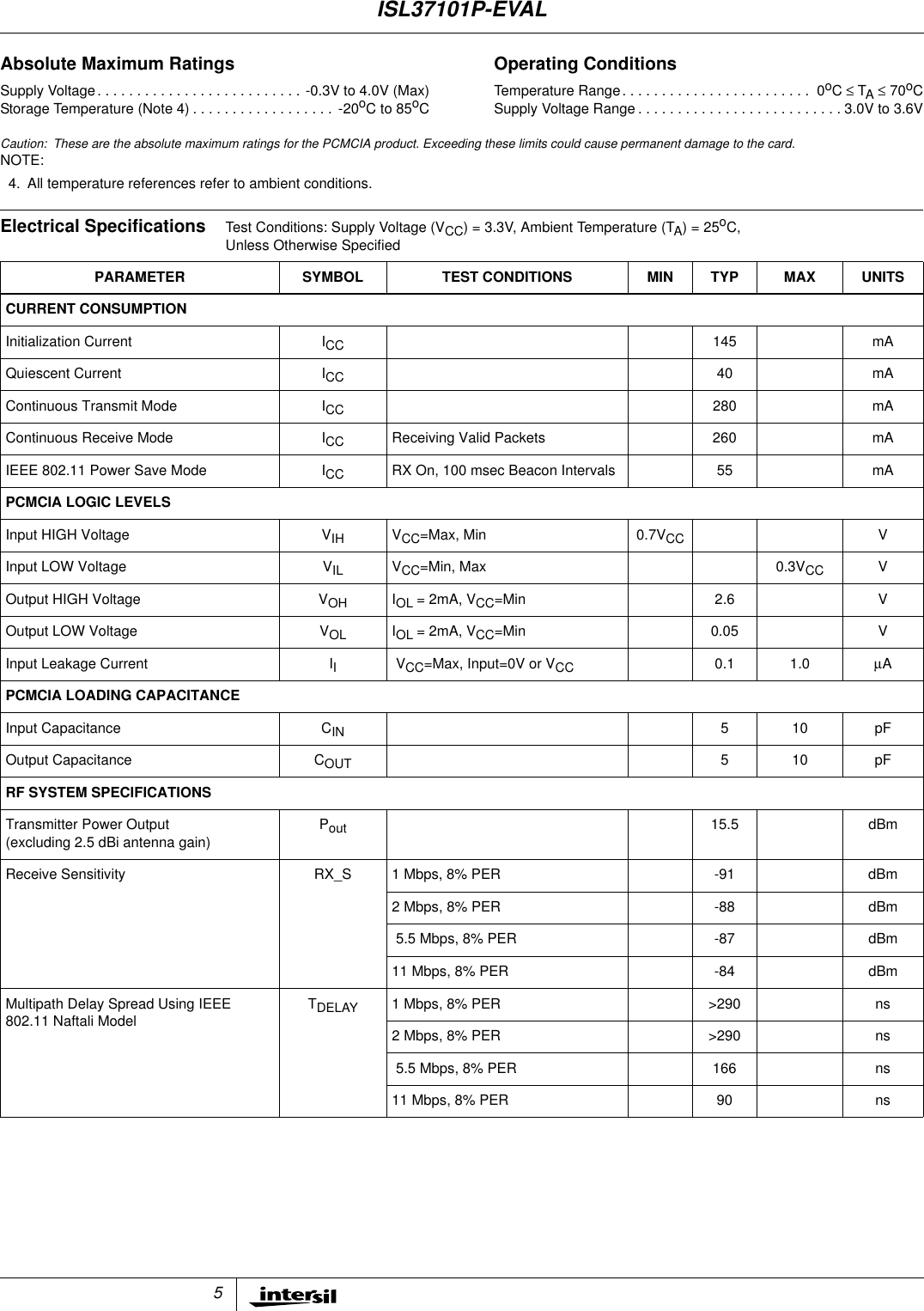

5Absolute Maximum Ratings Operating ConditionsSupply Voltage..........................-0.3Vto4.0V(Max)StorageTemperature(Note4).................. -20oCto85oCTemperatureRange........................ 0oC≤ TA≤70oCSupply Voltage Range . .........................3.0Vto3.6VCaution: These are the absolute maximum ratings for the PCMCIA product. Exceeding these limits could cause permanent damage to the card.NOTE:4. All temperature references refer to ambient conditions.Electrical Specifications Test Conditions: Supply Voltage (VCC) = 3.3V, Ambient Temperature (TA)=25oC,Unless Otherwise SpecifiedPARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITSCURRENT CONSUMPTIONInitialization Current ICC 145 mAQuiescent Current ICC 40 mAContinuous Transmit Mode ICC 280 mAContinuous Receive Mode ICC Receiving Valid Packets 260 mAIEEE 802.11 Power Save Mode ICC RX On, 100 msec Beacon Intervals 55 mAPCMCIA LOGIC LEVELSInput HIGH Voltage VIH VCC=Max, Min 0.7VCC VInput LOW Voltage VIL VCC=Min, Max 0.3VCC VOutput HIGH Voltage VOH IOL =2mA,VCC=Min 2.6 VOutput LOW Voltage VOL IOL =2mA,VCC=Min 0.05 VInput Leakage Current IIVCC=Max, Input=0V or VCC 0.1 1.0 µAPCMCIA LOADING CAPACITANCEInput Capacitance CIN 510 pFOutput Capacitance COUT 510 pFRF SYSTEM SPECIFICATIONSTransmitter Power Output(excluding 2.5 dBi antenna gain)Pout 15.5 dBmReceive Sensitivity RX_S 1 Mbps, 8% PER -91 dBm2 Mbps, 8% PER -88 dBm5.5 Mbps, 8% PER -87 dBm11 Mbps, 8% PER -84 dBmMultipath Delay Spread Using IEEE802.11 Naftali ModelTDELAY 1 Mbps, 8% PER >290 ns2 Mbps, 8% PER >290 ns5.5 Mbps, 8% PER 166 ns11 Mbps, 8% PER 90 nsISL37101P-EVAL

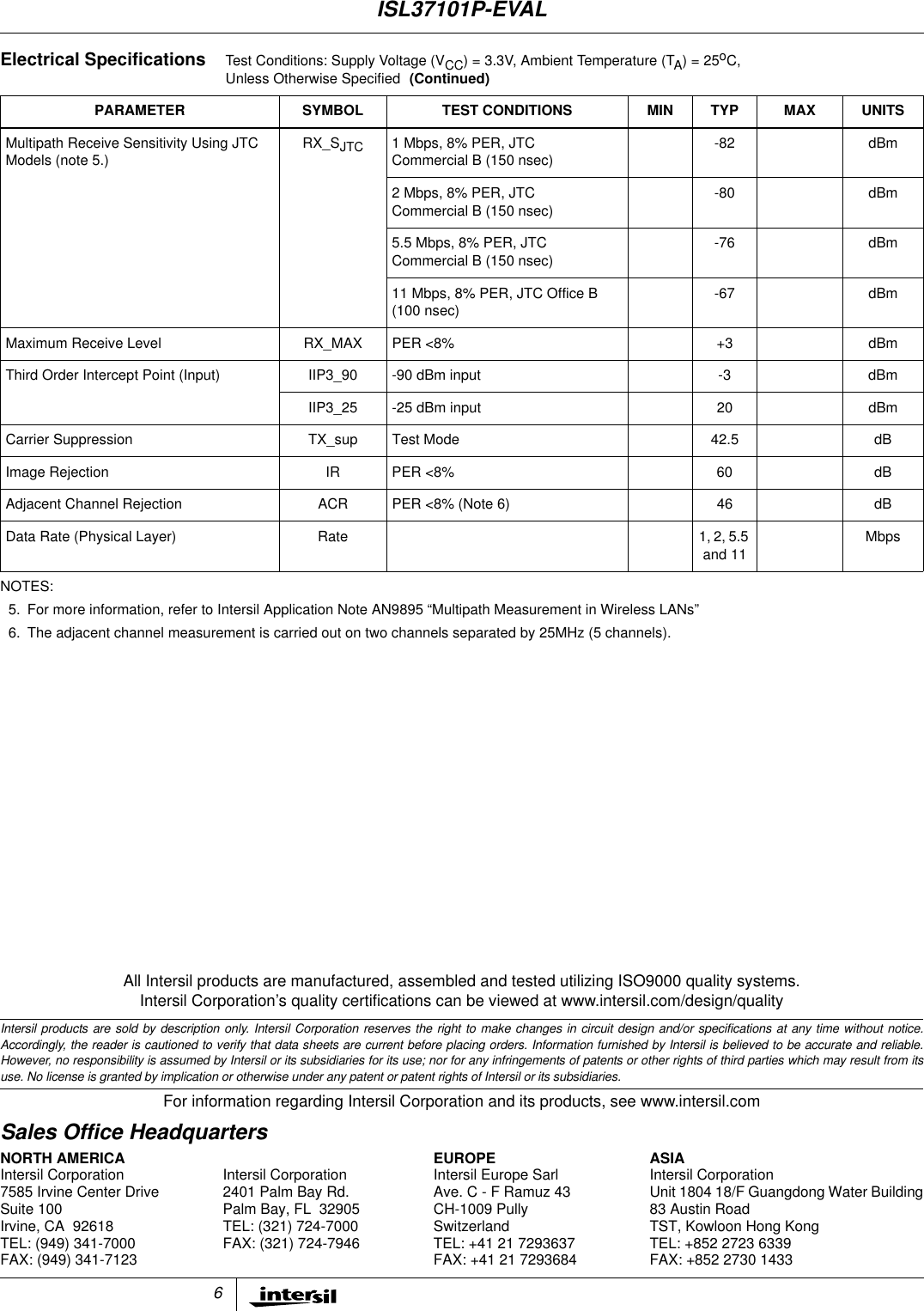

6All Intersil products are manufactured, assembled and tested utilizing ISO9000 quality systems.Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/qualityIntersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable.However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from itsuse. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.For information regarding Intersil Corporation and its products, see www.intersil.comSales Office HeadquartersNORTH AMERICAIntersil Corporation7585 Irvine Center DriveSuite 100Irvine, CA 92618TEL: (949) 341-7000FAX: (949) 341-7123Intersil Corporation2401 Palm Bay Rd.Palm Bay, FL 32905TEL: (321) 724-7000FAX: (321) 724-7946EUROPEIntersil Europe SarlAve. C - F Ramuz 43CH-1009 PullySwitzerlandTEL: +41 21 7293637FAX: +41 21 7293684ASIAIntersil CorporationUnit 1804 18/F Guangdong Water Building83 Austin RoadTST, Kowloon Hong KongTEL: +852 2723 6339FAX: +852 2730 1433Multipath Receive Sensitivity Using JTCModels (note 5.)RX_SJTC 1Mbps,8%PER,JTCCommercial B (150 nsec)-82 dBm2Mbps,8%PER,JTCCommercial B (150 nsec)-80 dBm5.5 Mbps, 8% PER, JTCCommercial B (150 nsec)-76 dBm11 Mbps, 8% PER, JTC Office B(100 nsec)-67 dBmMaximum Receive Level RX_MAX PER <8% +3 dBmThird Order Intercept Point (Input) IIP3_90 -90 dBm input -3 dBmIIP3_25 -25 dBm input 20 dBmCarrier Suppression TX_sup Test Mode 42.5 dBImage Rejection IR PER <8% 60 dBAdjacent Channel Rejection ACR PER <8% (Note 6) 46 dBData Rate (Physical Layer) Rate 1, 2, 5.5and 11MbpsNOTES:5. For more information, refer to Intersil Application Note AN9895 “Multipath Measurement in Wireless LANs”6. The adjacent channel measurement is carried out on two channels separated by 25MHz (5 channels).Electrical Specifications Test Conditions: Supply Voltage (VCC) = 3.3V, Ambient Temperature (TA)=25oC,Unless Otherwise Specified (Continued)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITSISL37101P-EVAL
