1 FXE3000-US
IEEE802.11n/a/b/g Wireless LAN
Access Point Board

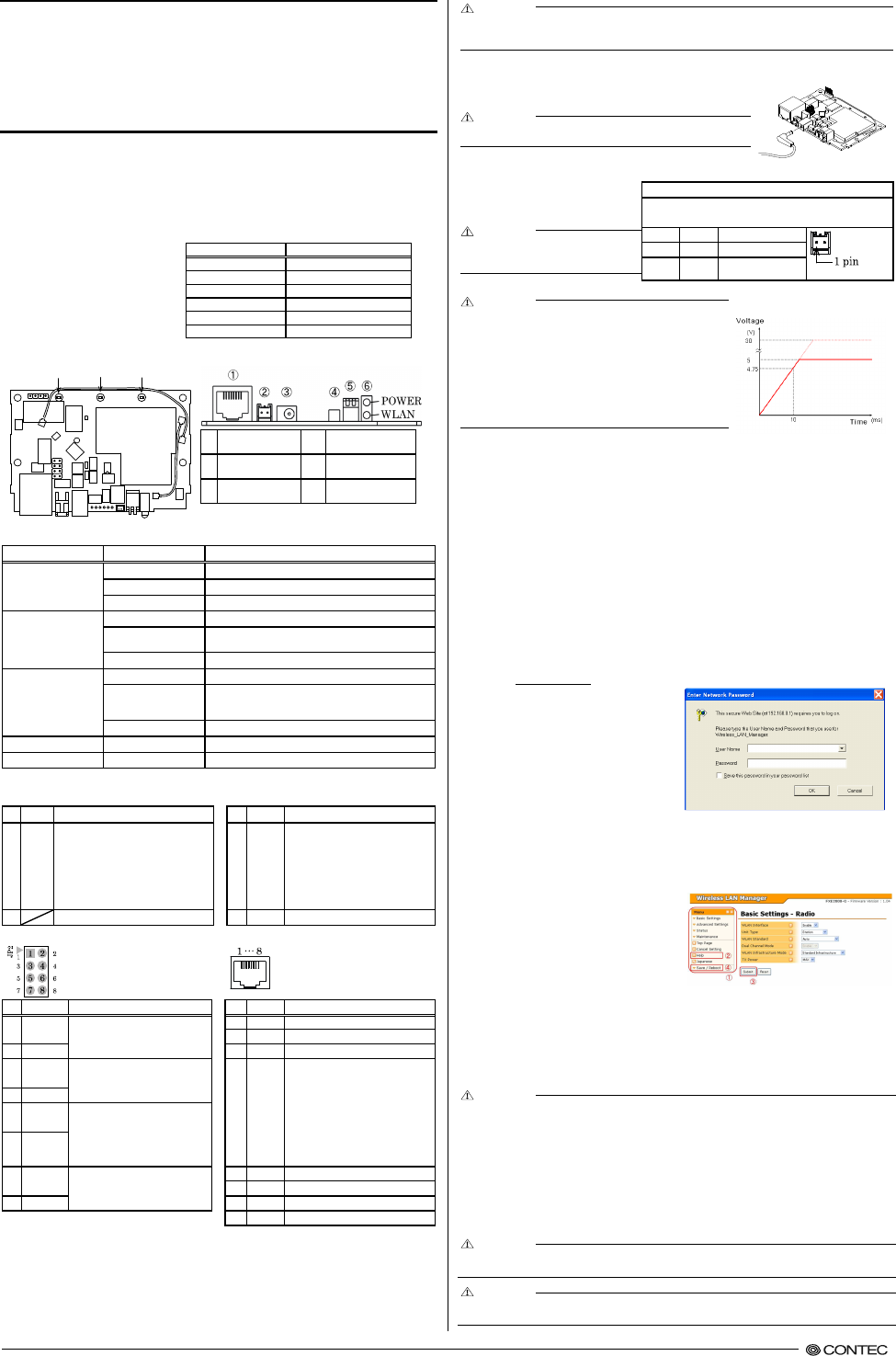

FXE3000-US Setup Guide
CONTEC CO., LTD.
The FXE3000-US is a wireless LAN board that conforms to IEEE 802.11n/a/b/g standards of various
countries and features a wide input power supply (5 to 30 VDC) and can be configured either as an
access point or station.
Packing List
- Main unit (FXE3000-US)...1 - Setup Guide...1
Default setting
This product is set up via a network using a Web
browser. Connect this product to the PC with a
LAN cable using the wired LAN connection and
then access the default IP address in a web
browser. This product's default settings are shown
in the table to the right.
Setting Item Default setting
IP Address 192.168.0.1
Subnet Mask 255.255.255.0
ESSID LocalGroup
Security Disable
Username admin
Password pass
Component Locations
(1)
LAN port (2) Power connector
(3)
DC JACK (4) INIT connector
(5)
DIP Switches (6) DIP LED
LED display
LED name Status Indicator
POWER
ON Indicates that the device is operating.
Flashing Indicates that the device is being started (This device turned on)
OFF Indicates that the device is power off.
LAN
ON Indicates that a wired LAN has been connected.
Flashing Indicates that the product is transmitting/receiving data to/from
the connected terminal through wired LAN.
OFF Indicates that a wired LAN not logged-in.
WLAN
ON Indicates that the device has been connected.
Flashing Indicates data is being transmitted to or received from the device
connected through wireless LAN.
OFF Indicates that the device has been no connected.
POWER/ LAN/ WLAN Flashing (simultaneously)
Indicates that firmware has been reprogrammed. *1
POWER/LAN Blinking twice / On DHCP error
*1 Not include LogFile
DIP switches
INIT connector
No.
Name
Operation / function
No.
Name Operation / function
1
INIT
Turning on this switch flashes the POWER,
WLAN LEDs.If the switch is turned off before
the LEDs change their status from flashing to
ON (about 3 seconds), all the settings are
restored to the default settings after the
product is started next time. Reboot the
product after the LEDs stop flashing. *1
1
INIT Short the INIT signal with the GND so
that the POWER, WLAN, and LAN LEDs
will flash. Then if you open the INIT signal
before the LEDs turn on (approx. 3
seconds), the settings are restored to the
default settings the next time the product
is started.
2
-
2
GND GND
P
in he
a
der (JP2)
LAN connector
No.
Name Operation / function
No.
Name Operation / function
1
LAN port
4pin
The INIT (initialization) signal can be
connected to via pin 4 on the LAN port
by shorting pin 1 and pin 2.
1 TX+ Transmit (+)
2 TX- Transmit (-)
2
INIT
3 RX+ Receive (+)
3
LAN port
5pin
The GND can be connected to via pin 5
on the LAN port by shorting pin 3 and
pin 4.
4 INIT/NC
Short the INIT signal with the GND so
that the POWER, WLAN, and LAN LEDs
will flash. Then if you open the INIT signal
before the LEDs turn on (approx. 3
seconds), the settings are restored to the
default settings the next time the product
is started.*1
* Usable when JP2 No. 1 and No. 2 are
connected.
4
GND
5
LAN port
7pin The power supply line can be connected
to via pin 7 on the LAN port by shorting
pin 5 and pin 6.
6
24VDC
7
LAN port
8pin
The GND can be connected to via pin 8
on the LAN port by shorting pin 7 and
pin 8.
5 GND GND
6 RX- Receive (-)
8
GND
7 24VDC Power Supply
8 GND GND
*1 Usable when JP2 No. 1 and No. 2 are connected. When initializing the product by turning the INIT signal on and off, the L
EDs will continue
flashing for a short time after the signal is turned off. This indicates the internal memory files are being deleted. If the power is turned off while the
LEDs are flashing, the internal memory files may be damaged and the product may no longer be able to start properly. Always restart the product
after the LEDs stop flashing.
When supplying power via the LAN connector, do not use a combination of power supplied from the power connector and the AC
adapter.
- For PoE wire route only in the same building
Power Supply
Using the DC JACK
The power plug to be used must conform to EIAJ voltage classification 2.
When supplying power via the LAN connector, do not use a combination of power
supplied from the power connector and the AC adapter.
Using the
Power connector
The power connector in Figure 1 can be used to
supply power from an external source. Use the
following power cable or its equivalent.
When supplying power from the power connector,
do not use a combination of power supplied via the
LAN connector and the AC adapter.
Power connector
Housing: JST S02B-PASK-2(LF)(SN)
Cable: AWG28-16(equivalent to it)
Pin No.
Nome Operation / function
1
Vi+
5-30VDC±5%)
2
Vi-
GND
When supplying the LAN cable power
- Create the power cable correctly as specified. Using the power cable with the
housing pins assigned wrong numbers may result in device faults or accidents.
- The input voltage range of this product is from 5 to 24 VDC ±5%. Supply
power outside that range may result in device faults or accidents.
-
Use the power supply whose supply voltage rises to at least 4.75VDC within the
input voltage range within 10ms. Using a power supply which does not satisfy
this condition may result in device faults or accidents.
- Input voltage range: 5 to 30 VDC ± 5%. Use a power supply that rises to 4.75
VDC or higher in the input voltage range within 10 ms. There is a risk of
damage to the device or accident if a power supply outside this range is used.
Installation
Read and understand the following precautions before installation :
- Leaving a metal object in the vicinity of 30mm from the antenna board affects the antenna characteristics.
Do not place metal objects near the antenna as possible.
- This product has a protrusion of up to 14mm on the front surface and a protrusion of up to 3mm on the rear surface. Allow
clearance around this product and use it within the range of ambient temperatures satisfying the environment conditions for
installation.
- Figure 2 shows the locations the mounting holes for installing this product and external dimensions.
- Use M3 screws for the mounting holes (φ2.3 mm).
- The lower right mounting hole is the FGND (grounding) hole. Connect it to FGND (ground).
* 1 Always reboot the product after the flashing stops. The flashing continues for a little while after the product is switched off during
initialization by switching on and off the INIT switch. This indicates internal memory files are being deleted. The internal
memory files may be damaged and the product may not start up properly if the power is switched off before the flashing stops.
Connecting to This Product Using Web Browser
Start up a Web browser and enter the IP address of this product after “http: //” in the address bar. If
connecting for the first time, enter the default IP address. When the default setting IP address is
192.168.0.1, enter as follows.
http://192.168.0.1/
Connecting to this product displays the “Wireless LAN
Manager” login screen/ If the login screen is not displayed,
the IP address setting for PC, browser settings, or the URL
entered in the address bar of the browser may be incorrect.
Enter a password on the login screen and then click “Login” to log in.
When connecting for the first time, Default setting is Username=”admin” & Password=”pass” and just
click “OK” .
If the login is successful, the following setup screen will be displayed after a little while.
Setup Using Web Browser
Select the desired setting items from the opened menu
(1).
Information such as setting items will be displayed in the
right-hand frame.
For more information about a setting item, please refer to
"help" (2).
Click “Submit” (3) after changing settings on each page to
temporarily save the settings in this product.
The settings become enabled when the product is restarted
after all the setup procedure is completed and the settings
are stored. Click “Save & Reboot” (4) on the left-hand
menu.
There will be no problem if you just save the settings now but reboot the product later when necessary.
In this case, saving the settings does not actually change the settings of the product. Therefore, make
sure to reboot the product later
It takes approximately 5 - 10 seconds to save settings (writing to internal flash memory). During that period,
the LEDs for POWER, LAN and WLAN at the front part of the main unit blink simultaneously. Do not reboot
or turn off the product until the screen indicates the completion of the saving process. The setup file data and
firmware data may be damaged and the product may not operate properly if it is rebooted or switched off
during the saving process.
Safety Information
This document provides safety information using the following symbols to prevent accidents resulting in injury or
death and the destruction of equipment and resources. Understand the meanings of these labels to operate the
equipment safely.
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury or in property damage.
WLAN POWER LAN
C A U TIO N
C A U TIO N
C A U TIO N
C A U TIO N
C A U TIO N
D A N G E R
C A U TIO N
![](/img.php?id=3074814&img=bg2.png)
FXE3000-US Setup Guide

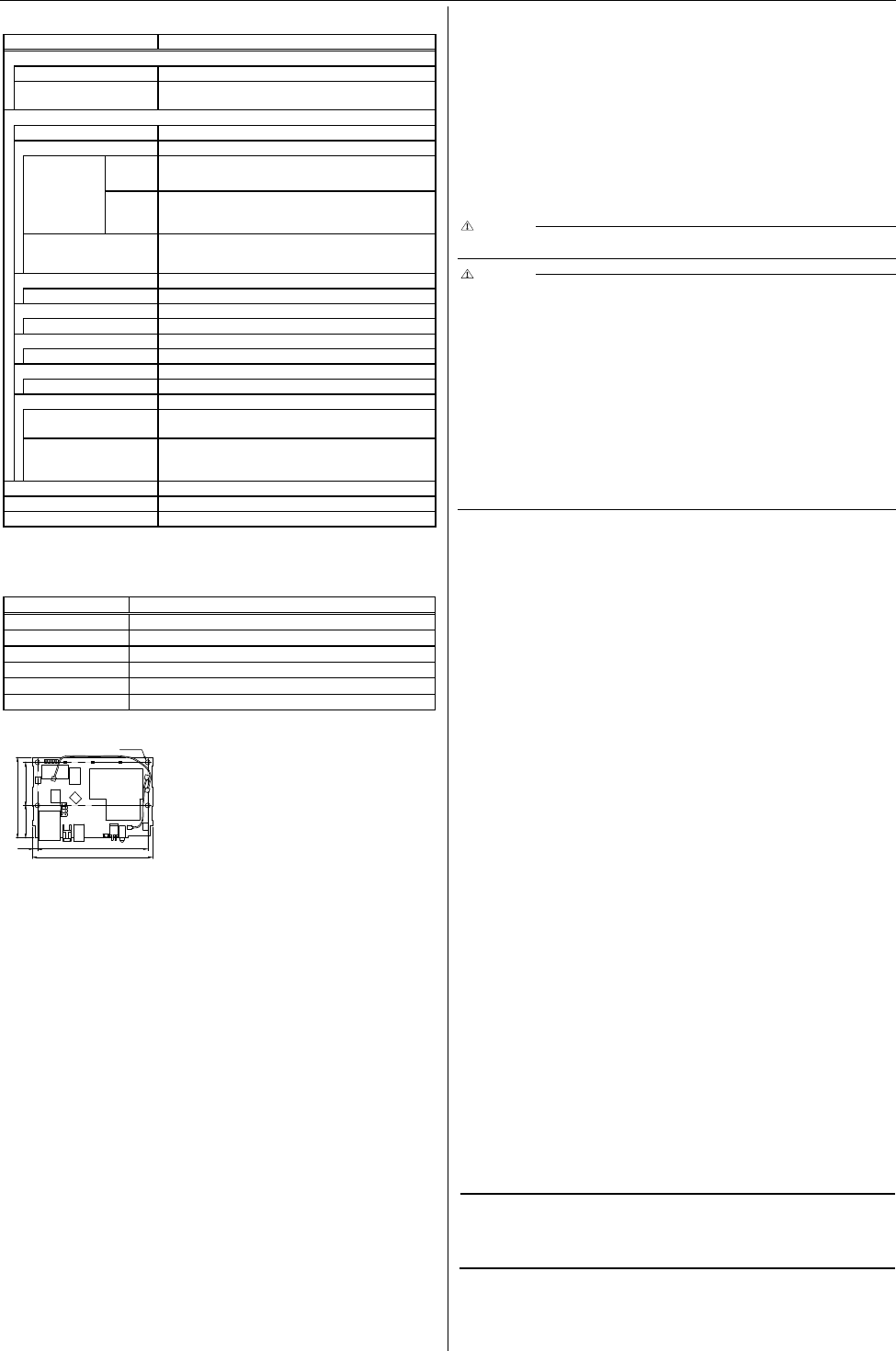

Specifications
Name Specification
Wired LAN
Ethernet standard IEEE802.3(10BASE-T), IEEE802.3u(100BASE-TX)
Port Speed / Communication type /
Number of ports 10/100Mbps/Half Duplex, Full Duplex/ 1
Wireless LAN
Wireless Networking Standard IEEE802.11n, IEEE802.11a, IEEE802.11b, IEEE802.11g
Channel*1
USA
(FCC)
IEEE802.11n
IEEE802.11a
Access point
5GHz: 9ch(36, 40, 44, 48ch[W52]
149, 153, 157, 161, 165ch [W58] )
Station
5GHz: 21ch(36, 40, 44, 48ch[W52], 52, 56, 60, 64ch[W53],
100, 104, 108, 112, 116, 132, 136, 140ch[W56]
149, 153, 157, 161, 165ch [W58] ):]
IEEE802.11n IEEE802.11g
IEEE802.11b
2.4GHz: 11ch (1 - 11)
IEEE802.11n
Data transmission speed *2 300 - 6.5Mbps[MCS0 - 15, Short/Long GI] (Fixed/Auto)
IEEE802.11a
Data transmission speed *2 54, 48, 36, 24, 18, 12, 9, 6Mbps (Fixed/Auto)
IEEE802.11b
Data transmission speed *2 11, 5.5, 2, 1Mbps (Fixed/Auto)
IEEE802.11g
Data transmission speed *2 54, 48, 36, 24, 18, 12, 9, 6Mbps (Fixed/Auto)
Security
IEEE802.11n WPA(AES), WPA2(AES), WPA-PSK(AES), WPA2-PSK(AES),
WSL(combination mentioned above are possible)
IEEE802.11a/b/g
WEP(open/ Shared Key /Auto), WPA(AES, TKIP), WPA-PSK(AES,TKIP),
WPA2(AES, TKIP), WPA2-PSK(AES,TKIP), IEEE802.1X(EAP-TLS, PEAP),
WSL(combination mentioned above are possible)
Antenna chip-antenna×2 MIMO
External dimension (mm) 60.0(W) x 89.2(D) x 17.5(H)
Weight 50g
*1 Varies depending on the country in which the product is used
*2 These are theoretical values based on their respective wireless LAN standards; they do not indicate actual data
transfer rates.
Environmental Specifications
Name Specification
Input voltage range 5VDC±5% (DC Jack), 5 - 30VDC±5% (power connector), 24VDC±10% (PoE)
Rating input current 0.83A (5VDC input), 0.15A (30VDC input) (Max.), 0.18A (PoE input 24V)
Operating ambient temperature 0 - 50°C
Operating ambient humidity 10 - 90%RH (No condensation)
Floating dust particles
Not extreme
Corrosive gases
None
External Dimensions
Precaution on use
It is prohibited to modify the inside of this product. The product cannot be used in any country other than those
authorized for use.
Security Precautions
Wireless LAN uses radio waves instead of LAN cables to send and receive data between a computer and a wireless
access point, making it possible to freely establish a LAN connection within a range of the radio waves. However,
radio waves can be received through obstacles, such as walls, when within the range. Therefore, if security settings
are not made, the following problems may occur. Unauthorized viewing of data An unauthorized third party can
intercept the radio waves and view e-mail messages and personal information, such as user ID and password or
your credit card information. Unauthorized access An unauthorized third party can access a personal or corporate
network and cause the following damage:
- Intercepting personal information and confidential information (information leak)
- Using a false identity to communicate and disclose information illegally (identity theft)
- Changing and transmitting intercepted data (tampering)
- Damaging data and systems by spreading a computer virus (destruction)
The wireless LAN card and wireless access point have security features to counter these problems. Using the
security settings of the wireless LAN equipment can help prevent these problems from occurring. The security
settings of the wireless LAN equipment are not configured at the time of purchase.
To reduce security problems, configure all security settings of the wireless LAN equipment according to the
manual before using the wireless LAN card and wireless access point. Please be aware that the security settings
do not provide complete security protection due to wireless LAN specifications. If you are unable to configure the
security settings yourself, please contact your local authorized dealer. The customer is responsible for configuring
the security settings and understanding the risks inherent in using the product without the security settings
configured.
Notes on Radio Interface
The 2.4 GHz band used by this product covers the operating frequencies of mobile-identification local radio stations
(requiring the license), specific low-power radio stations (requiring no license) and amateur wireless stations
(requiring the license) as well as industrial, scientific, and medical equipment such as microwave ovens.
1. Before using this product, make sure that there is no mobile-identification local radio station, specific low-power
radio station and amateur wireless station operating near the product.
2. If the product should cause radio interface with any mobile-identification local radio station or specific
low-power radio station, immediately change the operating frequency to avoid the radio interface.
3. Placing wireless terminals near each other may slows down their data rate because of their mutual
interference. You should allow a minimum clearance of about 1m between stations, 3m between access point
and station, and 3m between access points.
4. Contact your local retailer or CONTEC if the product has trouble such as recurrent radio interface with
mobile-identification local radio stations or specific low-power radio stations
About the speed mark
The link speed shown for the transmission rate in this manual, the setup screens, and elsewhere is the theoretical
maximum value based on the wireless LAN standard and does not represent the actual data transfer rate.
Usage limitation
This product has not been developed or manufactured to be used in systems including the equipment which is
directly related to human lives *1 or the equipment which involves human safety and may significantly affect the
maintenance of public functions *2. Therefore, do not use the product for such purposes. In addition, do not use the
product within 20cm from a human body on a regular basis.
*1: Medical devices such as life-support equipment and devices used in an operating theater.
*2: Main control systems at nuclear power stations, safety maintenance systems at nuclear facilities, other
important safety-related systems, operation control systems within group transport systems, air-traffic control
systems, etc.
If using the IEEE802.11a standard, ensure that you comply with all relevant laws in the country of use. Outdoor
use of IEEE802.11a is prohibited in some countries. It is not possible to use it by limiting Radio Law in Japan.
Handling Precautions
Do not use the product where it is exposed to flammable or corrosive gas. Doing so may result in an explosion,
fire, electric shock, or failure.
- This product contains precision electronic elements and must not be used in locations subject to physical shock
or strong vibration. Otherwise, the board may malfunction, overheat, or cause a failure.
- Do not use or store this device in high temperature or low temperature surroundings, or do not expose it to
extreme temperature changes. Otherwise, the board may malfunction, overheat, or cause a failure.
- Do not use or store this device where it is exposed to direct sunlight or near stoves or other sources of heat.
Otherwise, the board may malfunction, overheat, or cause a failure.
- Do not use or store this device near strong magnetic fields or devices emitting electromagnetic radiation.
Otherwise, the board may malfunction, overheat, or cause a failure.
- If an unusual smell or overheat is noticed, unplug the power cable immediately In the event of an abnormal
condition or malfunction, please contact your retailer.
- The specifications of this product are subject to change without notice for enhancement and quality
improvement. Even when using the product continuously, be sure to read the manual and understand the
contents.
- Do not attempt to modify this device. The manufacturer will bear no responsibility whatsoever for the device if
it has been modified.
- The product must always be associated with the instruction manual.
- Regardless of the foregoing statements, CONTEC is not liable for any damages whatsoever (including damages
for loss of business profits) arising out of the use or inability to use this CONTEC product or the information
contained herein.
Federal Communications Commission
FCC Caution: Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
Data transmission is always initiated by software, which is the passed down through the MAC, through the digital
and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the
only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the
packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In
other words, this device automatically discontinue transmission in case of either absence of information to
transmit or operational failure. Frequency Tolerance: 20ppm
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and
meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure
rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from
person’s body.
End Product Labeling this transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users.
The final end product must be labeled in a visible area with the following: “Contains FCC ID: PQRFXE3000-US”.
The grantee's FCC ID can be used only when all FCC compliance requirements are met.
Users in Canada
Contains Transmitter Module IC: XXXXXX-YYYYYYYYYYY
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two
conditions:(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the
device. This radio transmitter (IC Number(XXXXXX-YYYYYYYYYYY) identify the device by certification number
or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Antenna Name Antenna Type Peak Gain(dBi)
FX-ANT-A8 CHIP 4
FXE3000-ANT CHIP 4
MR-1700-W Vehicle 4
MPR-6000 Vehicle 4
5150-5250 MHz band is restricted to indoor operation only. High-power radars are allocated as primary users (i.e.
priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference
and/or damage to LE-LAN devices. Compliance with IC requirement RSS-210 A9.4.4 Data transmission is always
initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and
finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital
baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the
transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this
device automatically discontinue transmission in case of either absence of information to transmit or operational
failure.
CONTEC CO.,LTD.
3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan
January2016Edition
Japanese http://www.contec.co.jp/ English http://www.contec.com/
Chinese http://www.contec.com.cn/
NA04034(LYSM171)
[1801
201
6
]
No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LT
D.
4-φ3.5
82
89.2
3.6
60
32.2
24.2
D A N G E R
C A U TIO N
