Continental Advanced Antenna RKE213E1 Transceiver Module User Manual

KATHREIN Automotive GmbH & Co. KG Transceiver Module

User manual

Functional description of testsetup
Project BR213 , FCC ID:2ACC7RKE213E1
A. Stuffer / CEE 1 30.06.2015
Functional Description
of
testsetup (RKE213E1)
Taiwan
Functional description of testsetup
Project BR213
A. Stuffer / CEE 2 30.06.2015

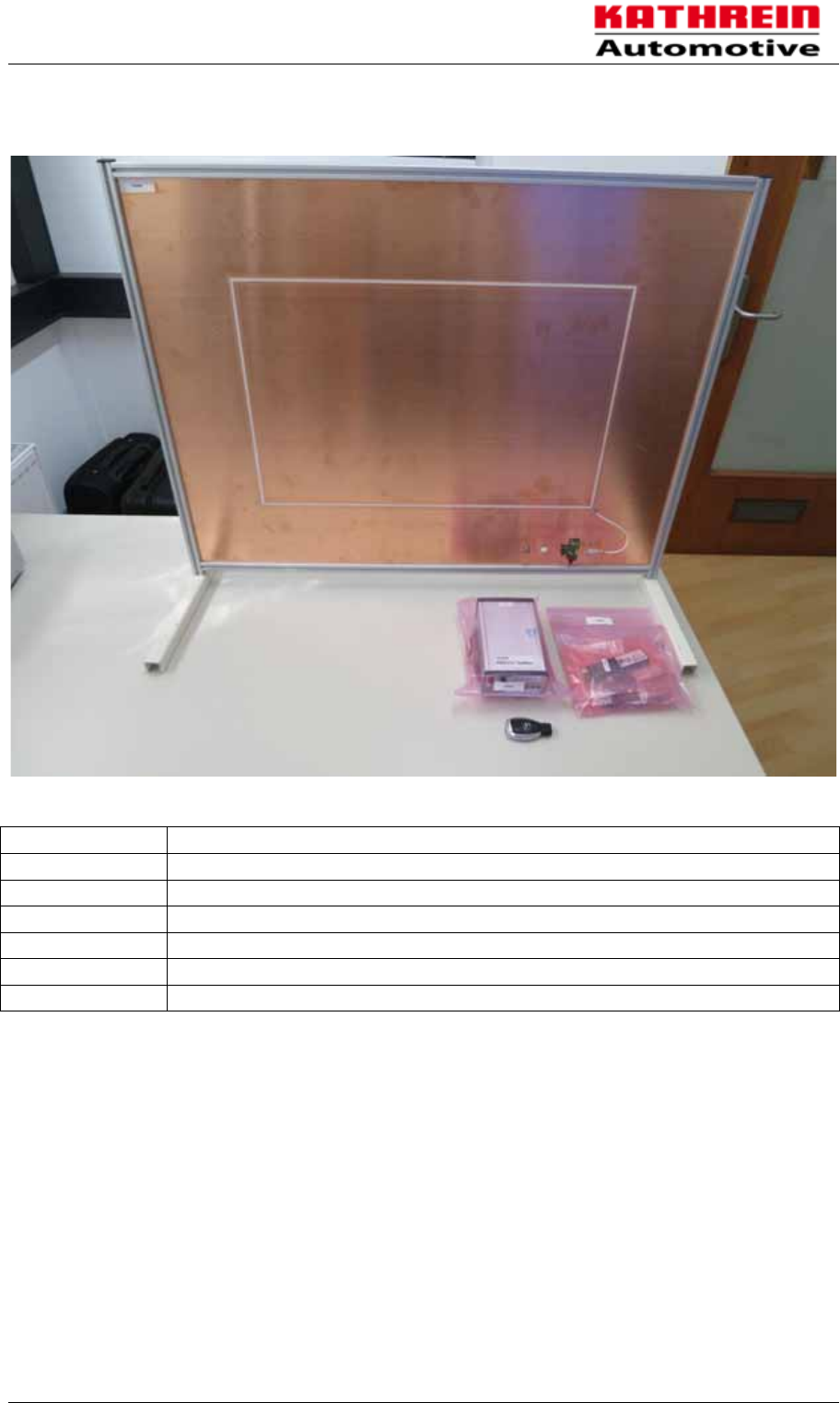

1 6FRSHRIGHOLYHU\
1 RKE-Screenantenna
1 RKE213 Testbox with data-cable
1 RKE-Key
1 RKE_Sample_Application-Mode
1 RKE_Sample_CW-mode_CH1 (433,47 MHz)
1 RKE_Sample_CW-mode_CH2 (434,37 MHz)
1 RKE_Sample_CW-mode_CH3 (433,92 MHz)
Functional description of testsetup
Project BR213
A. Stuffer / CEE 3 30.06.2015
2 $VVHPEO\LQVWUXFWLRQ±6FUHHQDQWHQQD
Screenantenna as-delivered

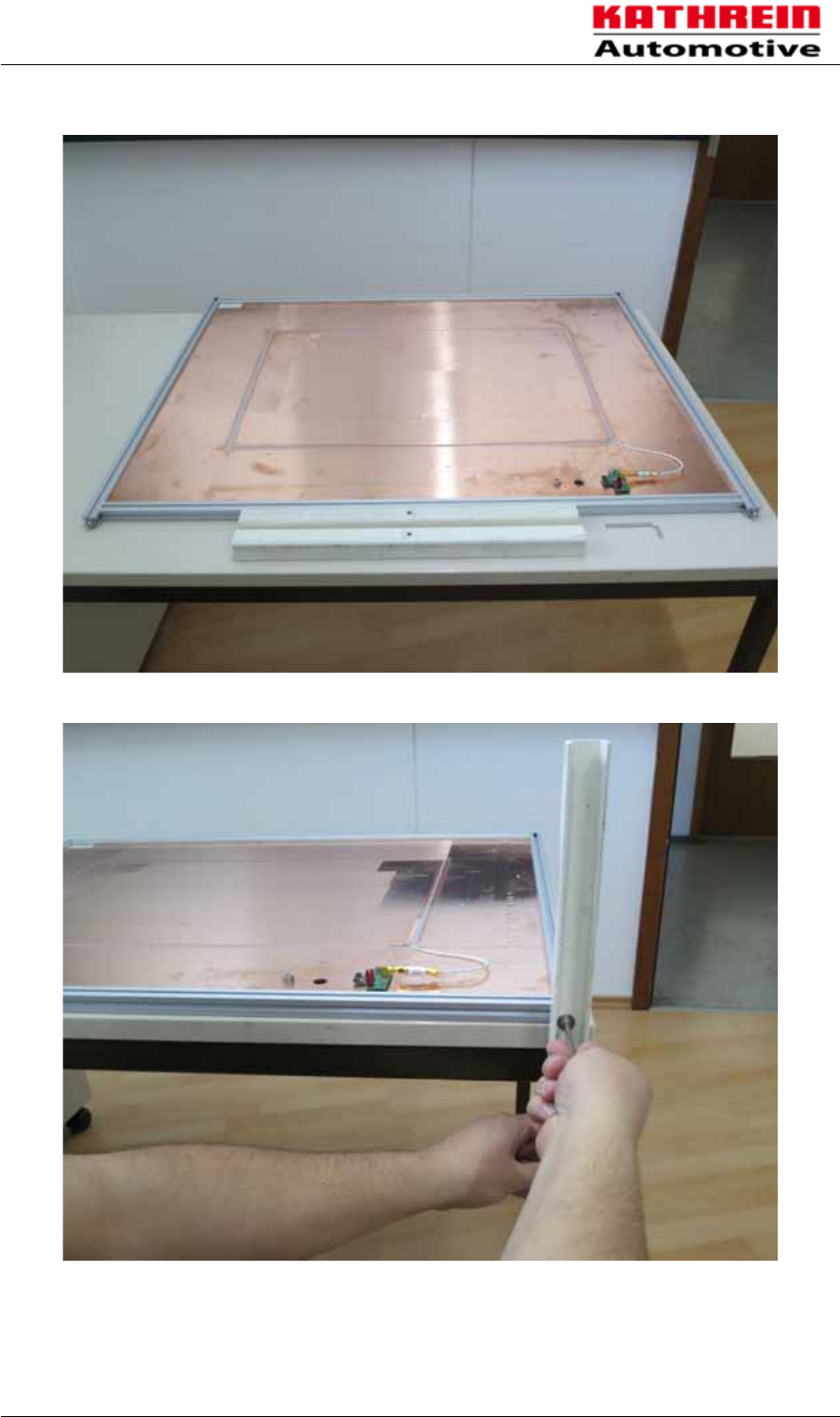

Assemble the pedestal (screws are implemented on the antenna-frame)
Functional description of testsetup
Project BR213
A. Stuffer / CEE 4 30.06.2015
3 $VVHPEO\LQVWUXFWLRQ-7HVWVHWXS

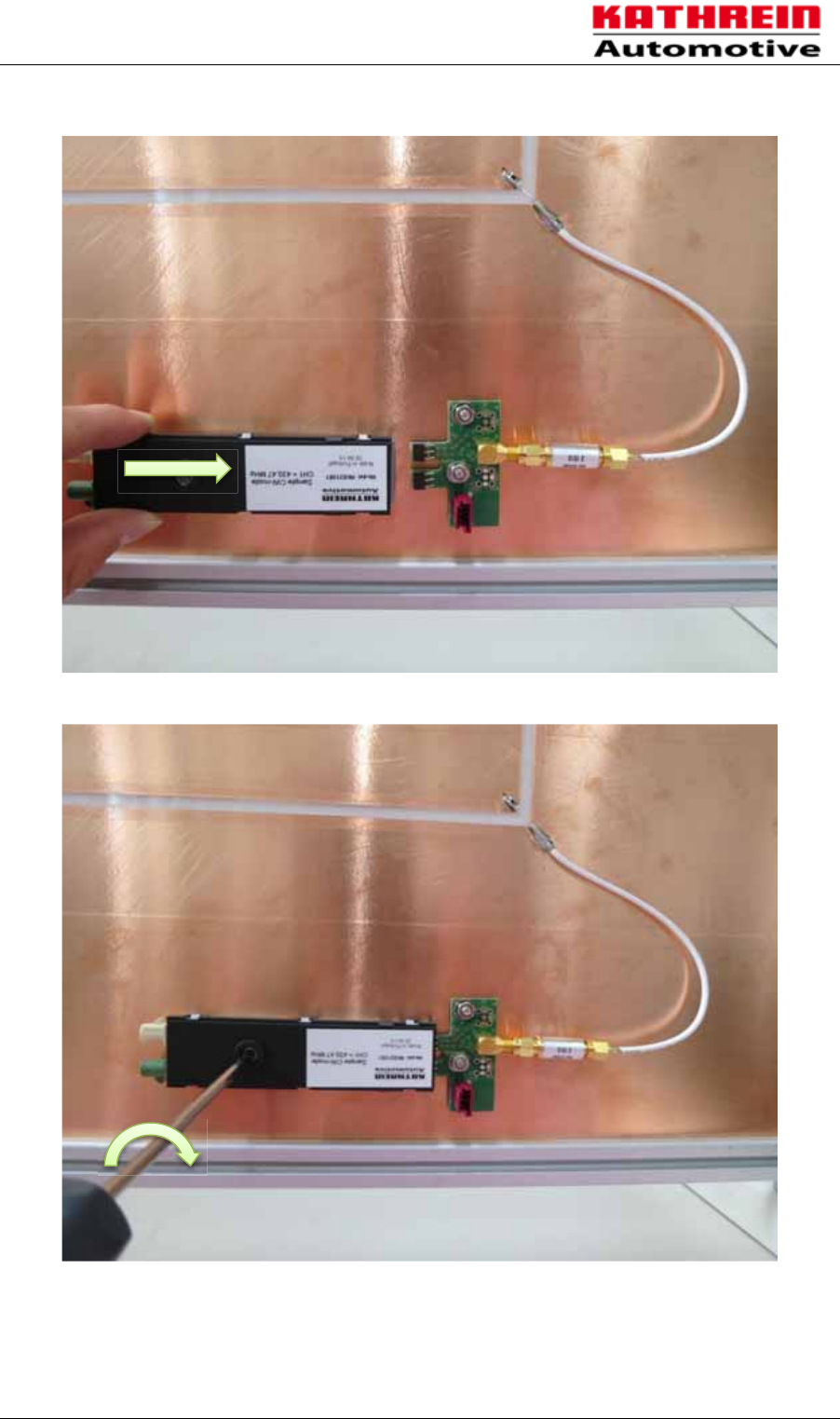

Plug the RKE-sample (CW- or Application-sample) to the antenna-interface
Tighten the mounting-screw
Functional description of testsetup
Project BR213
A. Stuffer / CEE 5 30.06.2015

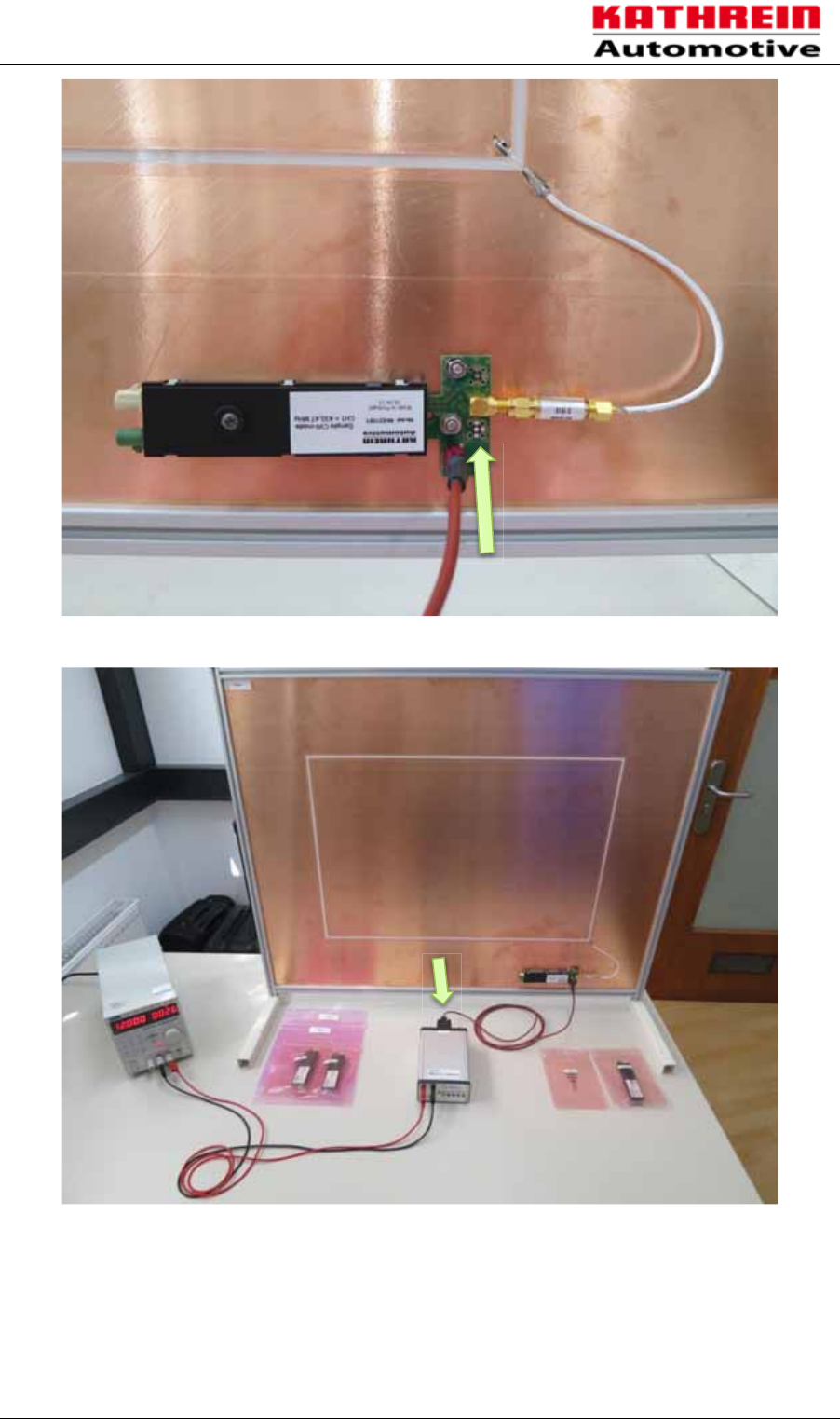

Plug the data-cable in the antenna-interface
Connect the data-cable with the RKE-Testbox (DATA I/O)
Supply the RKE-Testbox with +12 Volt
(+12V | GND | Current consumption < 100 mA)
Functional description of testsetup
Project BR213
A. Stuffer / CEE 6 30.06.2015
4 7HVWLQJ&:-PRGH
Take care: Works only with CW-sample on Testsetup!

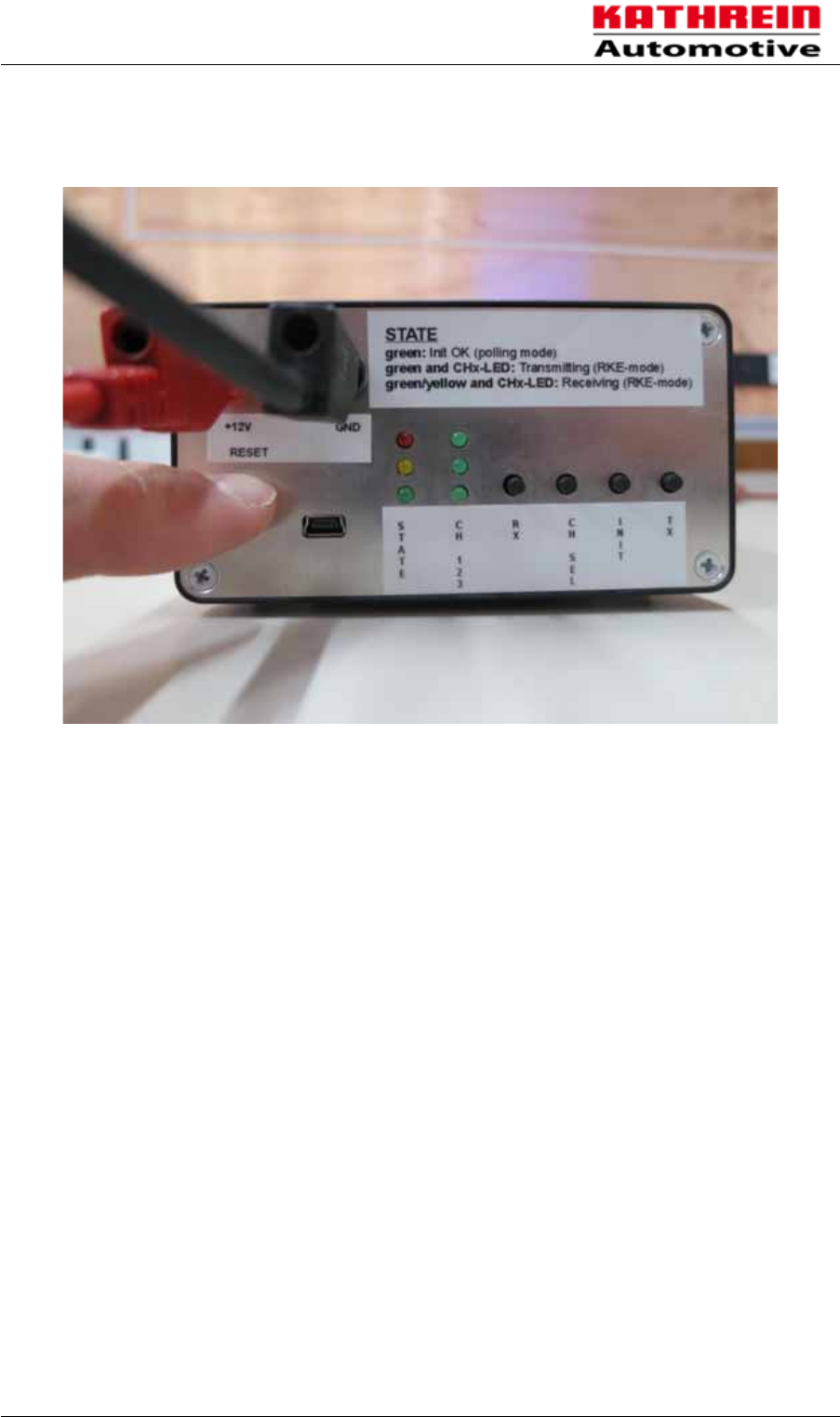

3UHVVÄ5(6(7³EHIRUHHYHU\PHDVXUHPHQW
CW-mode: no LED is burning
Functional description of testsetup
Project BR213
A. Stuffer / CEE 7 30.06.2015
5 7HVWLQJSROOLQJ-PRGH5HFHLYLQJ-PRGH
Take care: Works only with Application-sample on Testsetup!
3UHVVÄ5(6(7³EHIRUHHYHU\PHDVXUHPHQW

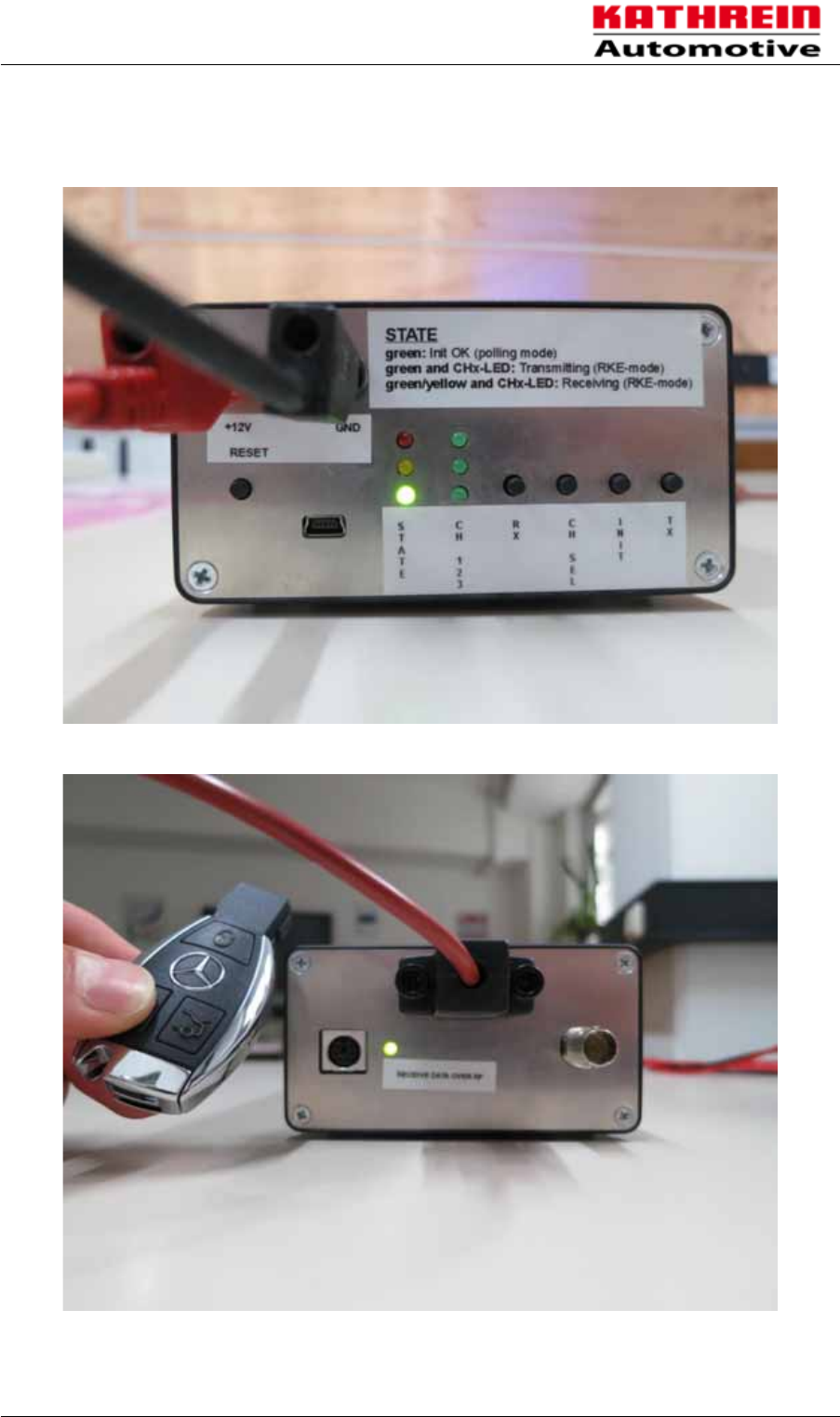

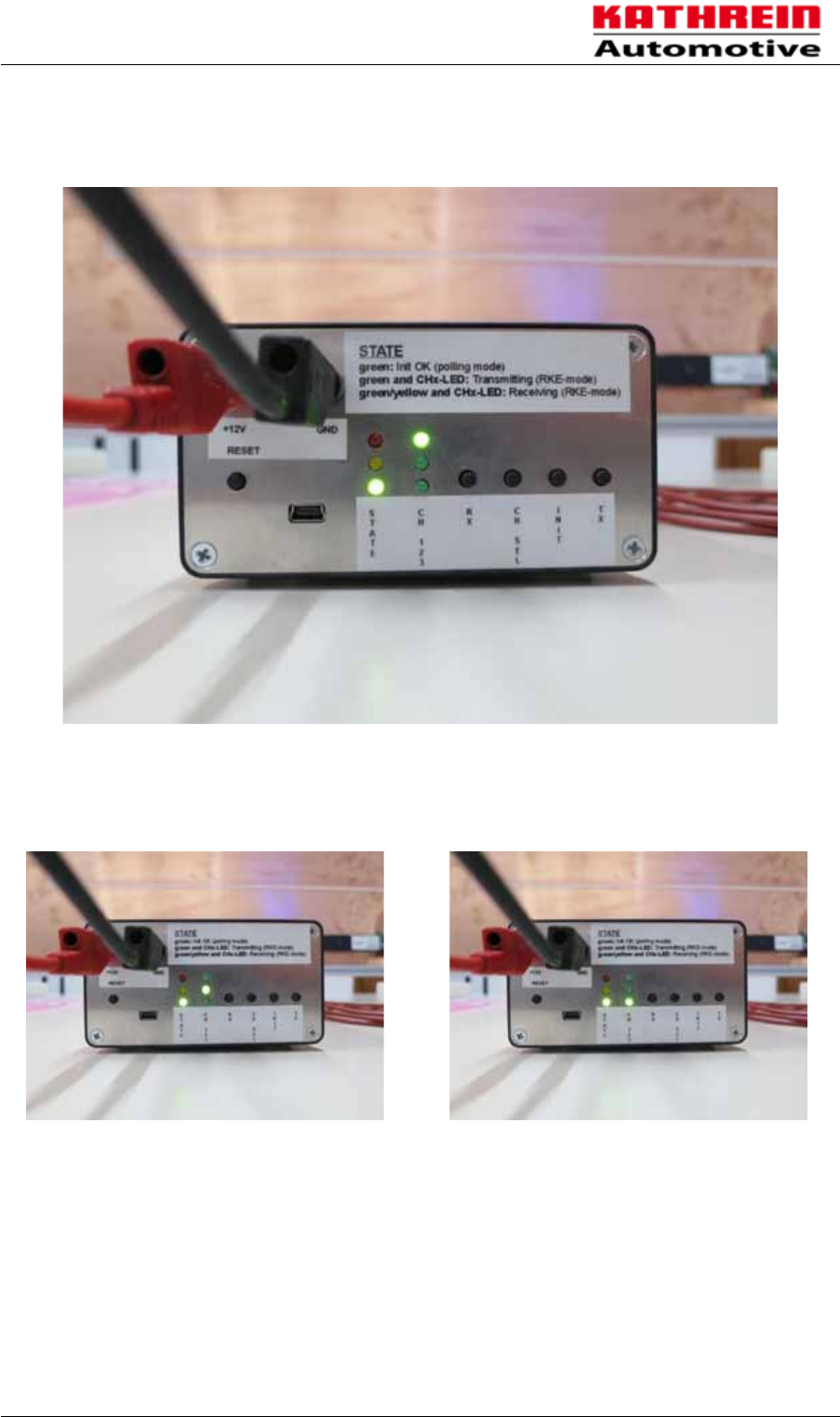

polling-mode: the green STATE LED is burning
Press any button at the RKE-Key
/('Ä5(&(,9('$7$29(55)³EXUQV-> RKE-Reception is OK
Functional description of testsetup
Project BR213
A. Stuffer / CEE 8 30.06.2015
6 7HVWLQJ7UDQVPLWWLQJ-PRGH
Take care: Works only with Application-sample on Testsetup!
3UHVVÄ5(6(7³EHIRUHHYHU\PHDVXUHPHQW
3UHVVWKHÄ7;³-button
3UHVVWKHÄCH SEL³-button until your desired CH is aktive
In this case: Tx-mode with CH 1 (433,47 MHz)
Tx-mode with CH 2 (434,37 MHz)
Tx-mode with CH 3 (433,92 MHz)
Product information radio frequency transmitter

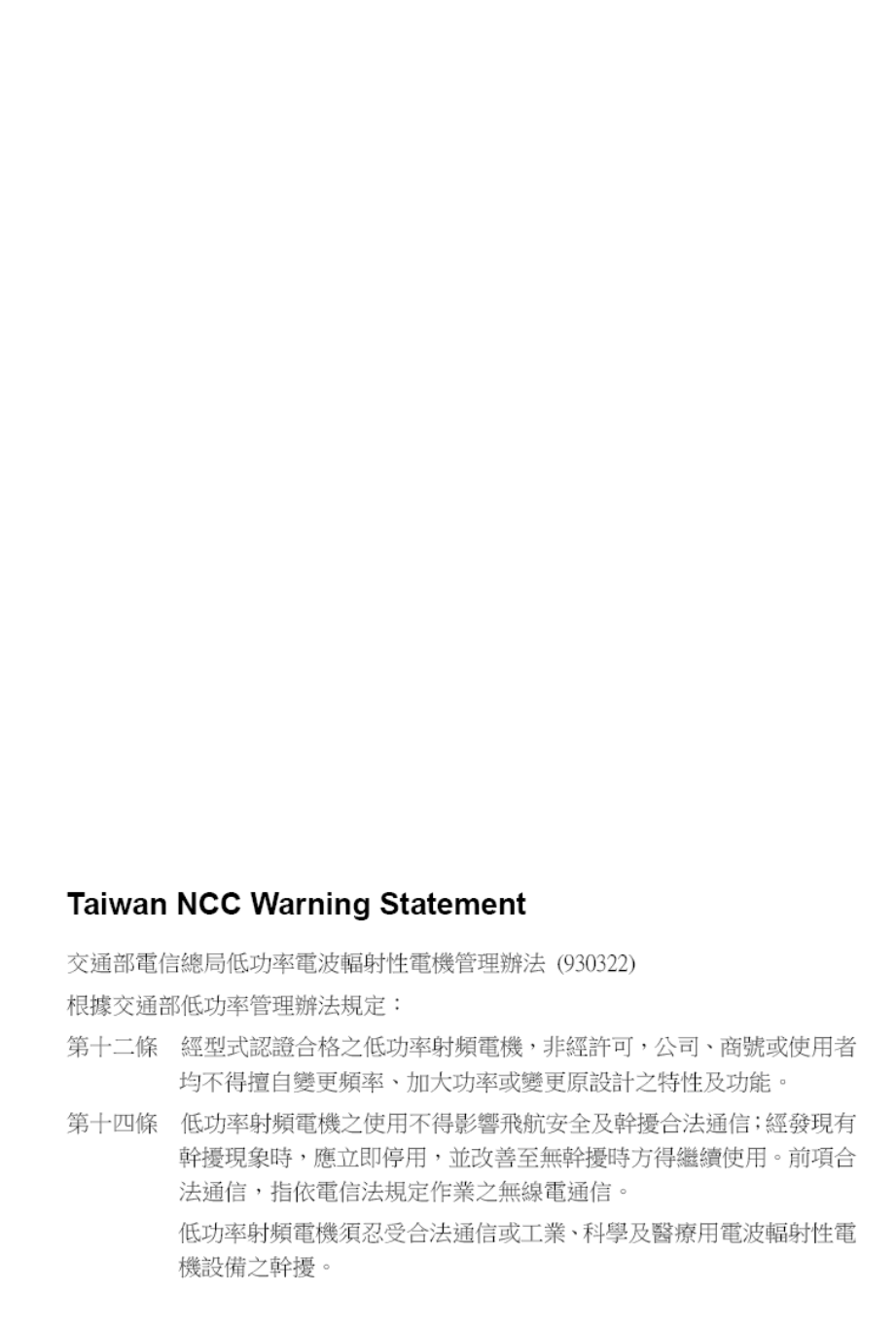

Taiwan NCC Warning Statement
Article 12
Without permission, any company, firm or user shall not alter the frequency, increase
the power, or change the characteristics and functions of the original design of the
certified lower power frequency electric machinery.
Article 14
The application of low power frequency electric machineries shall not affect the
navigation safety nor interfere a legal communication, if an interference is found, the
service will be suspended until improvement is made and the interference no longer
exists.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
