™NOTE: Video Intercom using 802.11b is not

recommended or supported for Video

Intercom. (2) Wireless-N is recommended

for Video Intercom. Even with Wireless-N,

broadcasting to several devices will

degrade Video Intercom response time and

images. Broadcasting to additional devices

will further degrade performance. See

“Wireless Network Limitations.”

Requirements

To install the 7” In-Wall Touch Screen with Camera,

Control4 requires the following:

• A Home Controller fully installed and conﬁgured

with a Control4® system.

• Control4 7” Touch Screen custom back box

installed (OS 2.2.1 or later). See “Accessories.”

• IfusingEthernetwithPoEpower:

- Ethernet network installed and available that

includes a gateway/router/switch

- Control4 PoE Injector (model #AC-POE1-B)

or another third-party PoE Injector or switch

(certiﬁed to UL/ANSI standards).

- Two (2) Ethernet CAT5 cables: (1) one that

runs from the Ethernet gateway/router/switch

to the PoE Injector/switch and (2) one that runs

from the PoE Injector/switch to the Ethernet

connection in the Touch Screen’s back box.

• IfusingEthernetwithACpower:

- Ethernet network installed and available that

includes a gateway/router/switch

- Access to in-wall AC power (a neutral

connection is required)

- One (1) Ethernet CAT5 cable that runs from

the Ethernet gateway/router/switch to the Touch

Screen

- A 14-gauge electrical wire long enough to pull

between the Touch Screen and the power source

• IfusingwirelesswithACpower:

- Wireless network (WiFi 802.11 b/g/n) installed

and available with a wireless access point (WAP)

- Access to in-wall AC power (a neutral

BackView

Figure 2. Back View - 7” In-Wall Touch Screen with

Camera and Power Box

1 Wire Connection. Hot (H) uses Black wire; Return

(R) uses White wire.

2 RJ-45 port for Ethernet Connection. Ethernet

port available for either a standard Ethernet

source that provides network communication

only OR a PoE source that provides power to the

device and network communication.

Touch Screen Placement

Place the Touch Screen in a convenient location at

eye level, typically near the entrance of the room,

approximately 57 to 61 inches (145 cm to 155 cm)

from the ﬂoor (see Figure 3).

NOTE: Consider the camera on the panel and

the height of the people in the home who will

use the camera for Video Intercom.

Figure 3. Touch Screen Placement

LED Indicator

The LED on the Touch Screen indicates the camera

status of the camera and booting information as

described in the next table.

connection is required)

- A 14-gauge electrical wire long enough to pull

between the Touch Screen and the power source

Front and Rear Panel Descriptions

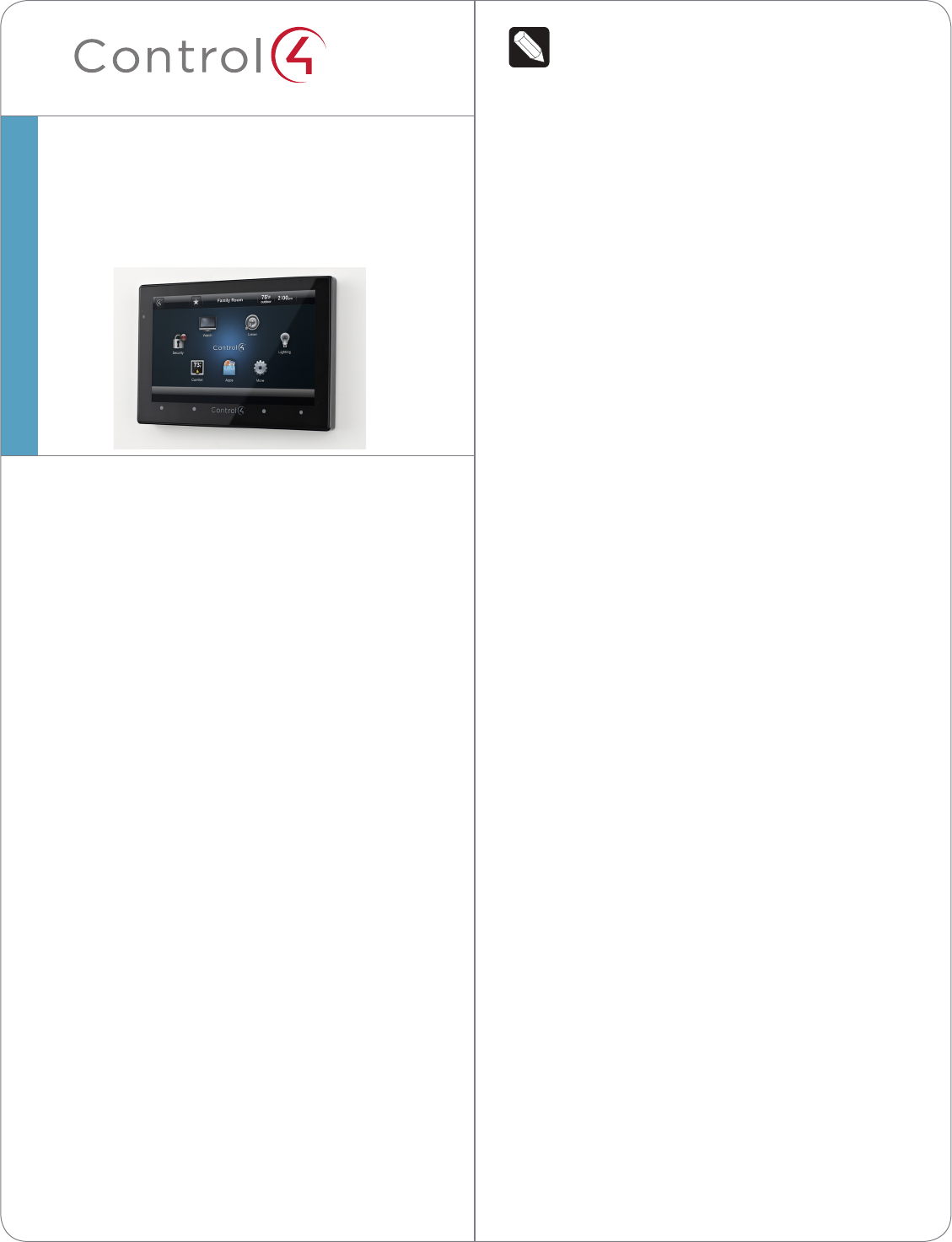

FrontView

Figure 1. Front View - 7” In-Wall Touch Screen

1 Display. 7” viewing area, Touch Screen with 800 x

480 resolution.

2 Shortcut buttons (4). For custom programming;

to initiate an action or sequence of actions. Use

Composer Pro or Composer HE to conﬁgure

these buttons.

3 Green LED. Lets you know the camera is on.

4 Camera. For Video Intercom calls.

Dimensions

- Front dimensions. 7” Touch Screen (H x W x D):

4.88” x 7.2” x .60” (124 mm x 183 mm x

15.24 mm)

- Back box dimensions. 7” Touch Screen

(H x W x D): 2.7” x 4.1” x 2.4” (68 mm x 104 mm

x 61 mm)

- Power box dimensions. 7” Touch Screen (H x W

x D): 2.8” x 4.5” x 1.8” (71 mm x 114 mm x 46 mm)

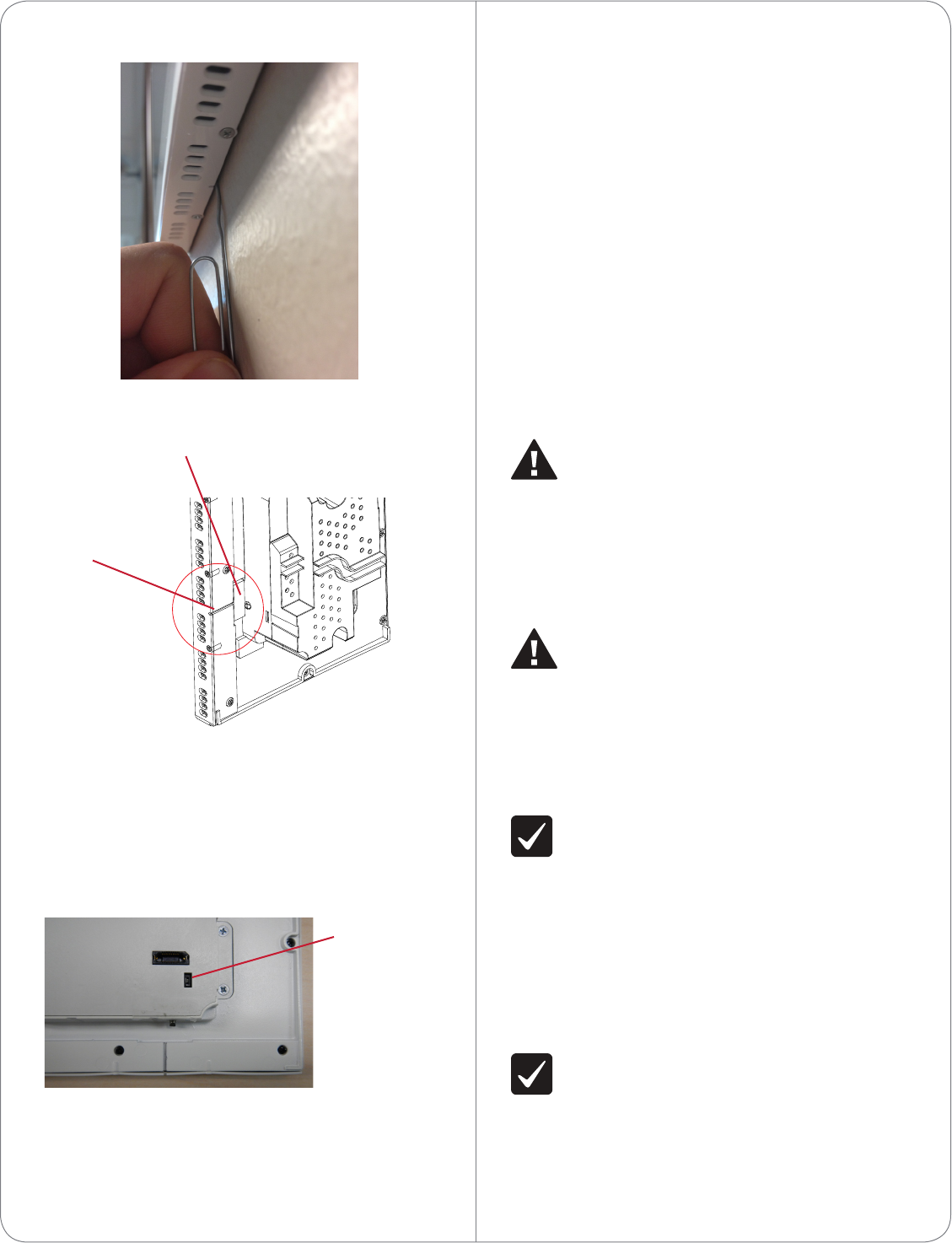

Touch Screen Removal

Use the small hole located under the Touch Screen to

remove the Touch Screen from the wall (for details,

see Figure 10 in “Troubleshooting”).

New Device

AC Power

(unless using PoE)

CAUTION! Do not attempt to use PoE and

AC power at the same time. Choose only one

power option.

ATTENTION! Ne pas tenter d’utiliser PoE et

AC en même temps. Choisir une seule option

d’alimentation.

Option1:EthernetConnectionwithaPoEInjectoror

aThird-PartyInjectororSwitch

PoE supplies DC power on the Ethernet cable using

a PoE Injector (model #AC-POE1-B) or a third-party

PoE solution to provide the Touch Screen with power

and a network connection. The Touch Screen works

with the Control4 PoE Injector or a third-party PoE

Injector.

To set up your PoE and Ethernet connection with a

PoE Injector, see Figure 4.

1 Attach the PoE Injector according to the

instructions in your PoE’s installation guide if

provided. Control4 PoE Injector instructions are

provided later in this document.

2 Pull the Ethernet cable from that location to

where you want to install the Touch Screen.

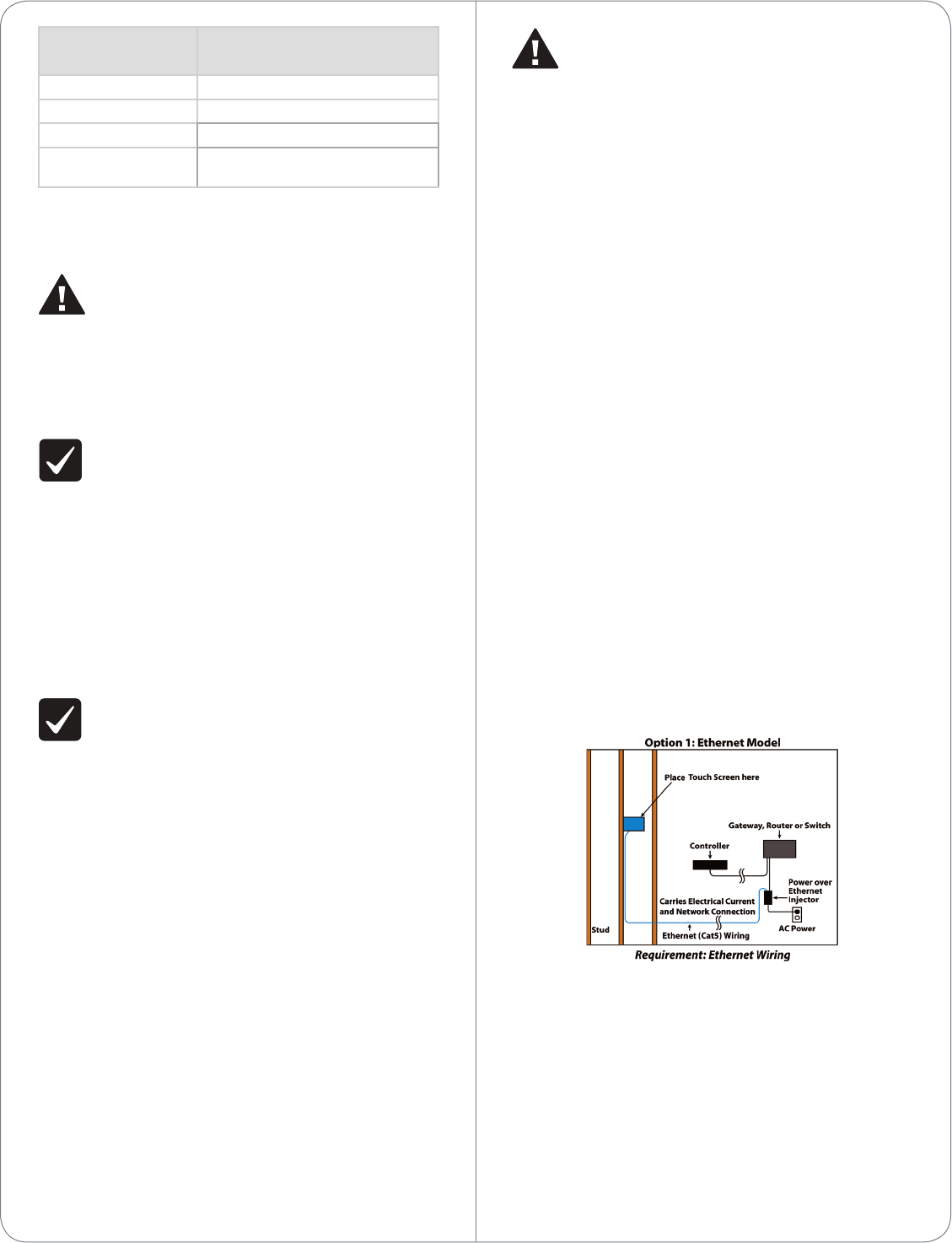

Figure 4. Ethernet with PoE - Requires Ethernet

Connection to PoE Injector

Option2:EthernetConnectionwithAC

The Ethernet is connected directly to the switch

(see Figure 5). This power connection requires both

neutral and hot connections.

CameraLEDColor/

State

TouchScreenStatus

O - Camera is o

Green - Camera is on

Green (blinks slowly) - Booting up

Green (blinks

rapidly)

- Restoring (during a factory

restore)

Installation

WARNING! Before installing the Touch Screen,

switch o the circuit breaker or remove the

fuse from the fuse box.

AVERTISSEMENT! Pour l’endroit où vous

installez l’écran tactile, coupez le disjoncteur

ou enlevez le fusible de la boîte de fusible.

IMPORTANT! Before you can complete the

instructions below, you must have a 7” Touch

Screen back box installed according to the

documentation provided in the back box kit.

See “Accessories” for details.

IMPORTANT! En coupant l’ouverture pour la

boîte de mur, ne coupez pas l’ouverture trop

grande. Soyez conservateur et agrandissez-

avec précaution la comme nécessaire. Voyez

que <<Accessories>>.

IMPORTANT! When cutting the opening for

the back box, DO NOT cut the opening too

large. Be conservative and cautiously enlarge it

as needed.

IMPORTANT! En coupant l’ouverture pour la

boîte de mur, ne coupez pas l’ouverture trop

grande. Soyez conservateur et agrandissez-

avec précaution la comme nécessaire.

Power and Network Installation Options

This device uses an Ethernet or WiFi network

connection, and can be powered using PoE or AC

power.

Choose one of the following options to install the

power and network communication.

Figure 5. Ethernet - Requires a Connection to

Ethernet and AC Power

Option3:WiFiConnectionwithAC

Place the Touch Screen above a power source, for

example, an outlet. Ensure that you have WiFi in the

home (see Figure 6).

NOTES: (1) Video Intercom. Although this

device supports b/g/n, 802.11 b is not

supported for Video Intercom use. (2)

Wireless-N is recommended for Video

Intercom. See the Composer Pro User Guide

for details about the 7” In-Wall Touch Screen

with Camera properties.

WirelessNetworkLimitations

Many WiFi Access Points handle Multicasts

(WiFi simultaneously sent to multiple devices,

for example, when the 7” In-Wall Touch Screen

with Camera broadcasts video to all stations)

by slowing down transmission speed to the

1 Mb basic rate. This can cause overall WiFi

congestion in the WiFi network during the

broadcast. Video Intercom response times and

images may degrade at each device.

If a home requires a large number of WiFi

Video Intercom devices, ensure that you have

a robust WiFi network (possibly consisting of

multiple access points).

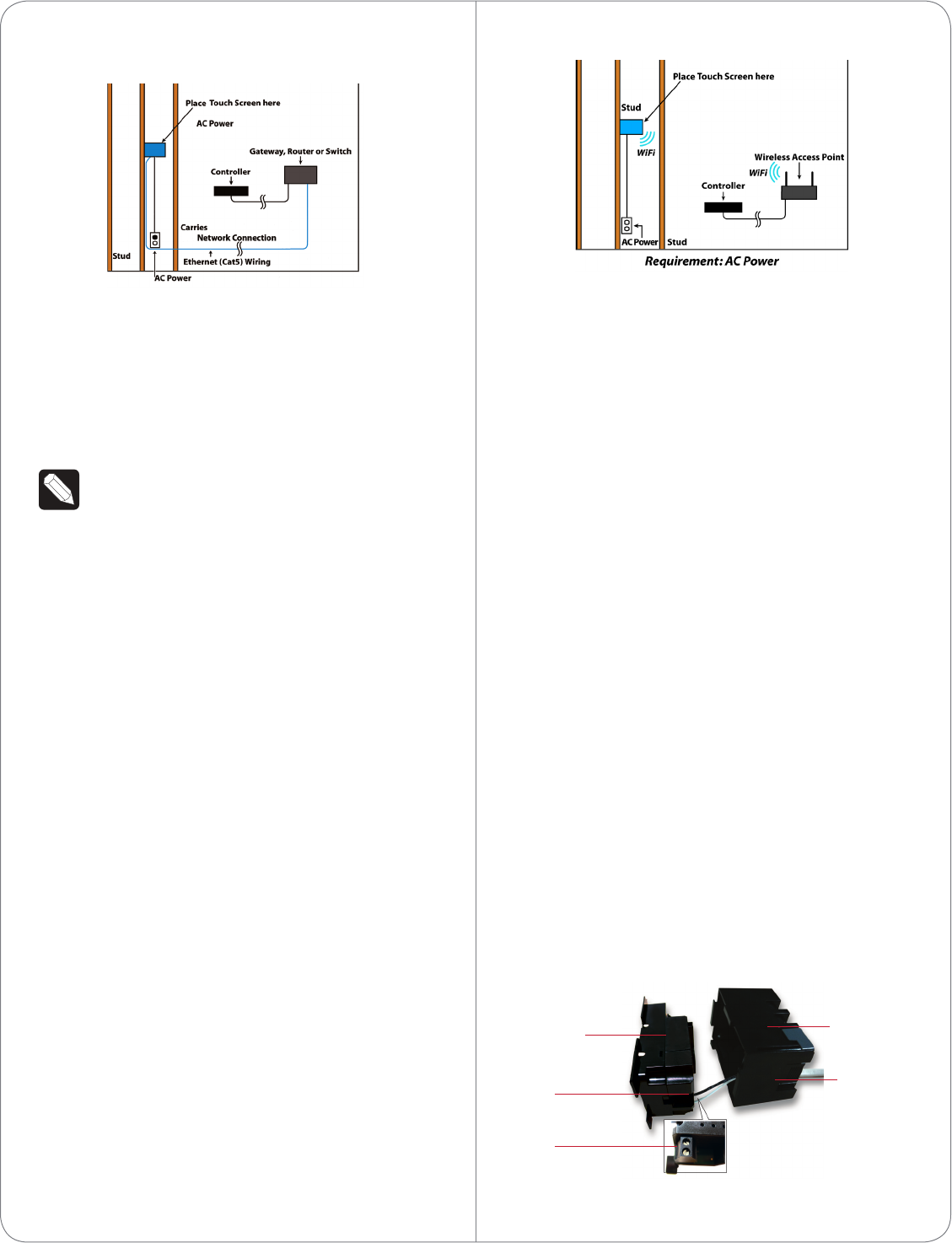

Figure 6. WiFi - Requires AC Power and WAP

Power Installation

Prepare the plastic power box for installation into the

back box by inserting either the Ethernet cable or the

AC power cable into the power box (see Figures 7

and 8), and then follow the instructions next.

ACPowerConnection

The steps below represent a typical U.S. installation.

1 Connect the wires to the AC power source for

the Touch Screen according to the national and

local electrical codes. Installation may require

alternative wires and the use of a terminal block.

2 Thread the power cable through the bottom back

hole of the back box to the terminal block (see

Figure 7).

3 Strip the black and white power wire ends to 1/4”

as necessary. Using a ﬂathead screwdriver, loosen

the screws on the power box’s terminal block and

connect the power wires to each terminal (see

Figure 7).

4 Cap the ground wire from the wall if you are

using a plastic back box. Attach the ground wire

to the back box if using a metal back box.

Figure 7. AC Power Connection

Power Box Back Box

Power Cable

Terminal

Block

Connect

Wires

to Terminal

Block

5 Align and bend the wires carefully to ﬁt them

inside the back box.

6 Align and carefully slide the power box into the

back box.

7 Secure the power box into the back box using

the screws provided.

NOTE: Overtightening the power box screws

could result in a poor connection between the

Touch Screen and the power box and could

also cause the Touch Screen to warp.

8 Align and slide the back of the Touch Screen into

the power box. The Touch Screen is magnetic

and should snap into place easily.

9 (Optional) To secure the Touch Screen inside the

power box, remove the tape covering the bottom

security pin (see Figure 10) before attaching the

Touch Screen to the power box.

PowerOverEthernet(PoE)Connection

Connect the PoE Injector to power and the network,

and then connect it to the power box.

The steps below describe how to install a Control4

PoE Injector.

1 Connect the Control4 PoE Injector to an AC

outlet using the power cord.

2 Connect one of the RJ-45 LAN ports on the

gateway/router/switch to the PoE Injector’s LAN

port using the RJ-45 Ethernet cable.

3 Connect the PoE Injector’s PWR LAN-OUT

port to the RJ-45 Ethernet cable that will be

connected to the Touch Screen.

4 Pull the Ethernet cable through the top back hole

of the back box to the Ethernet connector on the

top back of the power box, and then connect it

(see Figure 8).

5 Align and carefully slide the power box into the

back box until the Touch Screen is attached to

the power box.

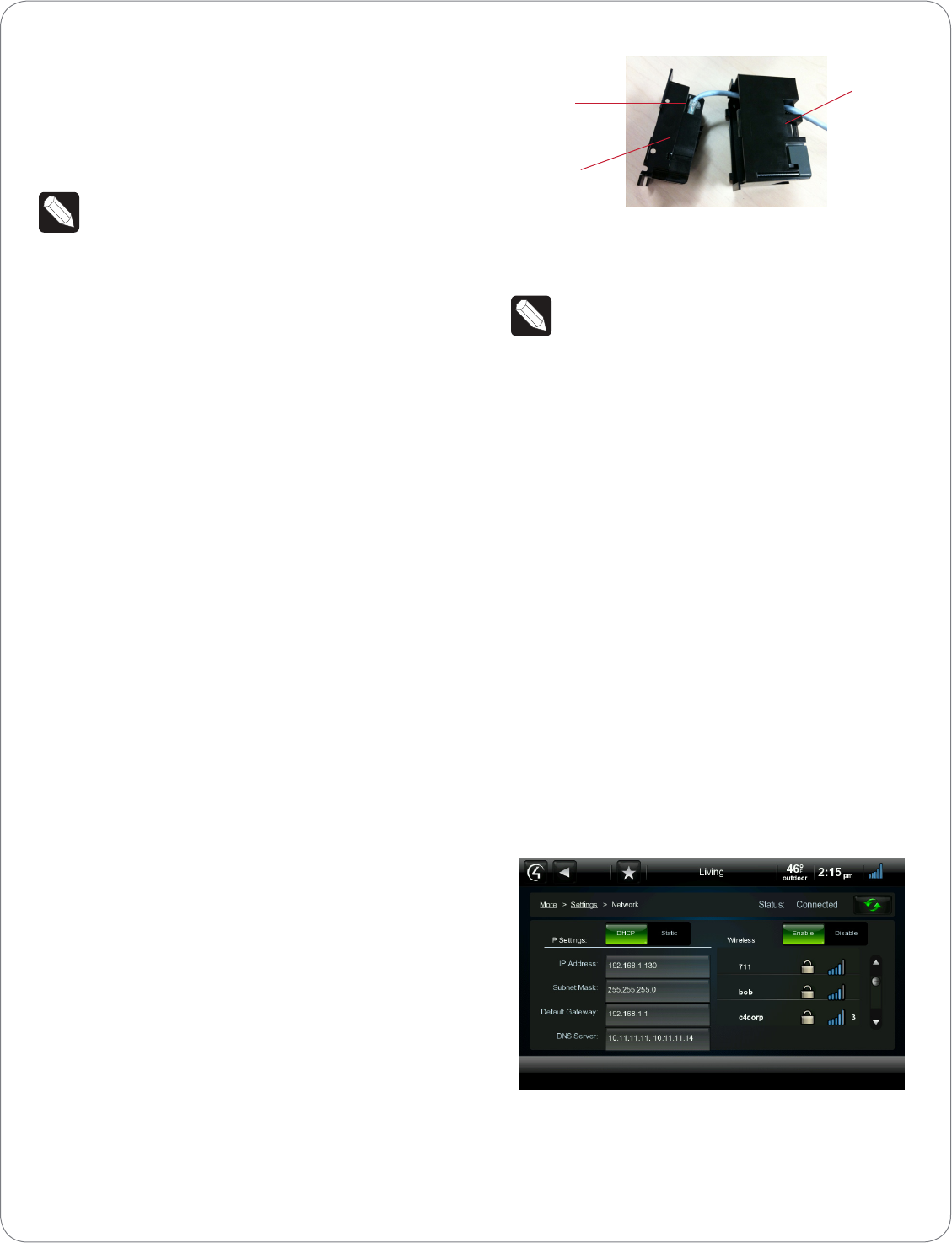

Figure 8. Ethernet Connection

6 Secure the power box into the back box using

the screws provided.

NOTE: Overtightening the power box screws

could result in a poor connection between the

Touch Screen and the power box and could

also cause the Touch Screen to warp.

7 Align and slide the back of the Touch Screen into

the power box. The Touch Screen is magnetic

and should snap into place easily.

8 (Optional) To secure the Touch Screen inside the

power box, remove the tape covering the bottom

security pin (see Figure 10) before attaching the

Touch Screen to the power box.

Conﬁguration

Conﬁgure for Wireless

(WiFi only) Connect to a WAP on the Touch Screen

(see Figure 9):

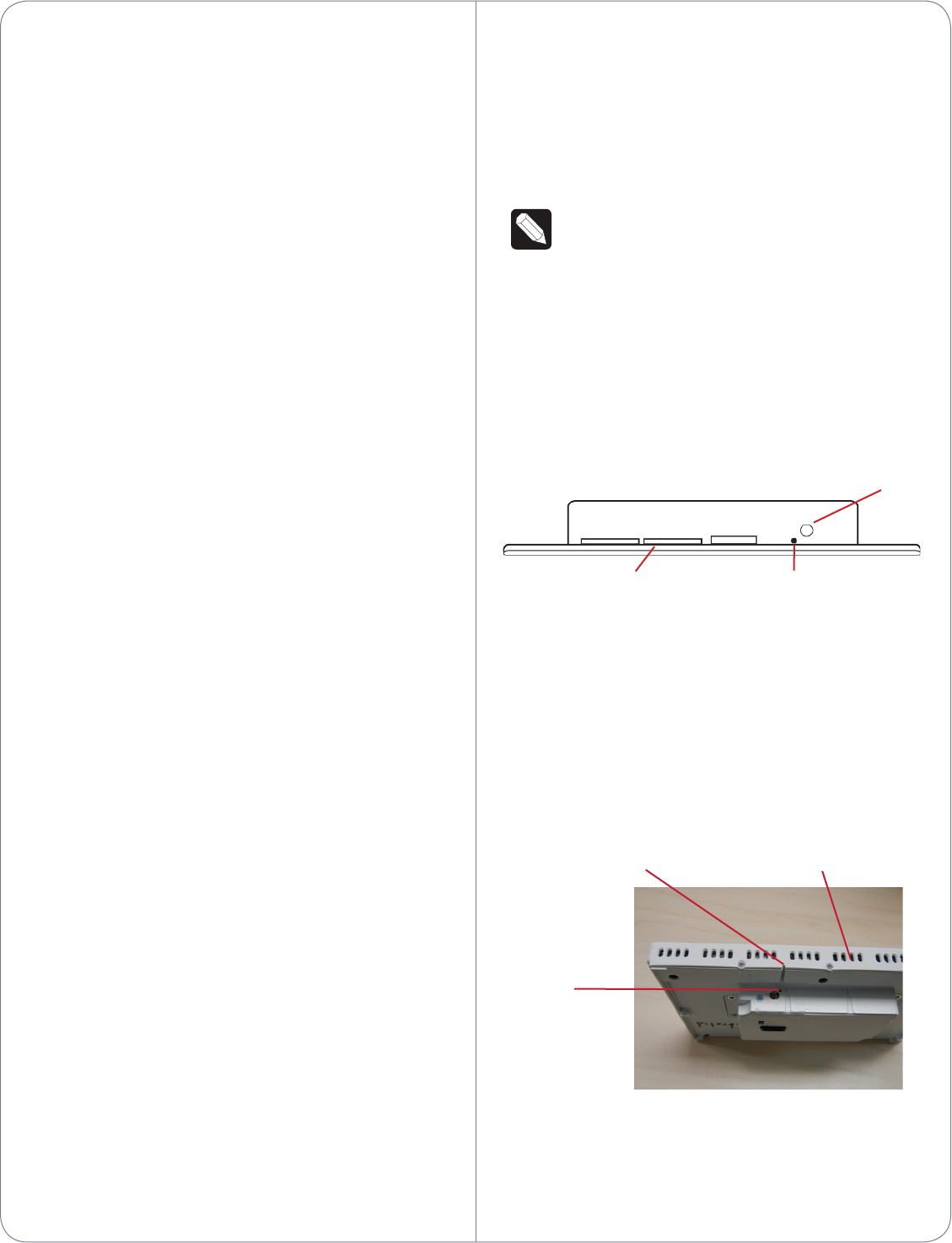

Figure 9. Wireless Conﬁguration

1 After initialization, press and hold the large White

4in the center of the Touch Screen to enter the

conﬁguration screen.

2 Press the Network button on the Touch Screen’s

Ethernet

Connection

Power Box

Back Box

conﬁguration page. The network conﬁguration

screen displays.

3 Under Wireless, select Enable. If you don’t see

the network you want, select Other.

4 At Network Name, select to add the SSID or

wireless network when the keyboard appears.

Select Done.

5 At Security, select None, WEP64, WEP128,

WPA, or WPA2.

6 At Password, type the password on the keyboard

that appears. Press Done.

7 Select Connect. Notice that the IP settings

change. The IP address is set to DHCP by default.

8 (Optional) If you need to set a static IP address

instead, complete the following steps:

a On the Network page, press Static.

b Select each box one at a time and type the

address: IP Address, Subnet Mask, Default

Gateway, Preferred DNS, and Alternate DNS.

c When the keyboard appears, type the

address, and then press Done.

9 Press OK to return to the Network page. You can

now connect to a Control4 Director running on a

Control4 device on the network.

10 Press OK.

Conﬁgure in Composer Pro

When the Touch Screen is physically installed and

appears on the home network, you can add and

conﬁgure it for the Control4 System using Composer

Pro. Choose theIn-Wall7”TouchScreenV2 driver in

Composer and add it to your project.

See the Composer Pro User Guide for information

about how to add and identify the Touch Screen to

the Control4 System.

Troubleshooting

Boot Up

When the device is booting up, it may take 30

seconds or longer before the Green LED turns on.

When it turns on, it blinks slowly for a time and then

turns o. After that, you will see an image on the

Touch Screen.

Restore to Factory Default

If the camera’s LED blinks on and o for more than

30 seconds, the device will need to be restored.

To access the Factory Restore switch, you’ll ﬁrst need

to remove the Touch Screen.

NOTE: If there’s tape on the bottom of the

power box, simply lift the Touch Screen o

(see Steps 3 through 6). Remove the tape to

lock the Touch Screen in place. If there’s no

tape, the Touch Screen is locked into place. In

this case, follow the instructions below.

1 Locate the small hole underneath the Touch

Screen’s faceplate (see Figures 10 - 13).

Figure 10. Touch Screen Underside - Pin and Pinhole

2 Using a small unbent paper clip, insert the paper

clip straight up and into the small hole (about

1/4”) or as far as you can. There’s another small

hole inside the Touch Screen which the paper clip

needs to insert into also (see Figures 11 through

13). You may need to wiggle the paper clip a bit

to get it into the second small hole.

Figure 11. Locate Touch Screen Hole

Speaker Insert paper clip here to

remove Touch Screen

Security pin

Insert Paper Clip Here

Insert Paper Clip

Through this Hole

Too

Bottom of Touch Screen

Figure 12. Insert Paper Clip Through Small Hole

Figure 13. Paper Clip Needs to Engage Release Plate

3 With both hands, tilt the bottom of the Touch

Screen out and gently remove the Touch Screen.

4 On the back of the Touch Screen locate the small

switch (see Figure 14).

Figure 14. Factory Restore Switch

5 Using the tip of a straight pin or paper clip,

change the position of the switch, for example, if

the switch is in the down position, push it to the

up position. The Touch Screen will then sense the

change on the next power up, and will initiate the

restore process.

6 When you are ﬁnished with the restore, reattach

the Touch Screen into the power box in the wall—

top ﬁrst—and then snap the bottom of the Touch

Screen back into place.

7 The Touch Screen will reboot and the factory

default ﬁrmware image will be installed. All

settings will reset to the factory default settings.

See “LED Indicator” for information about how

the LED behaves during a factory restore.

8 After a restore, the Touch Screen will need to be

updated to the same image version of the project

(e.g., OS 2.2.2 or later).

Warnings/Considerations

WARNING! The Touch Screen must be

protected by an external circuit breaker or

a fuse rated at 6A maximum when used in

Europe.

AVERTISSEMENT! Pour réduire le risque du

feu ou de choc électrique, n’exposez pas cet

appareil à la pluie ou à l’humidité.

WARNING! Do not place the Touch Screen

near sources of heat or expose to direct

sunlight for an extended period of time.

AVERTISSEMENT! Ne placez pas l’unité

près des sources de chaleur ou exposition

pour diriger la lumière du soleil pendant une

période prolongée.

IMPORTANT! Do not use pens or sharp

objects to navigate or make selections on

the Touch Screen. To select an item or scroll

through a list, use your ﬁngertip.

IMPORTANT! N’employez pas les stylos ou les

objets pointus pour diriger ou pour faire des

choix sur l’écran. Pour choisir un article ou un

rouleau par une liste, employez votre bout du

doigt.

IMPORTANT! Improper use or installation can

cause DAMAGE OF PROPERTY.

IMPORTANT! L’utilisation ou l’installation

inexacte peut causer DAMAGE DE

PROPRIÉTÉ.

Factory Restore

Switch

C4-7” TOUCH SCREEN IN WALL-V21:1 SCALE

Security plate

Pinhole

IMPORTANT! Using this product in a manner

other than outlined in this document voids

your warranty. Further, Control4 is NOT liable

for any damage incurred with the misuse of

this product. See “Warranty.”

IMPORTANT! Utilisant ce produit en quelque

sorte autre que décrit dans ce document vide

votre garantie. De plus, Control4 n’est pas

responsable d’aucun dommage encouru avec

l’abus de ce produit. Voyez que «Warranty.»

WARNING! Install in accordance with all

national, state, and local electrical

CODES.

AVERTISSEMENT! Installez selon tous les

national, état, et codes électriques locaux.

WARNING! This product generates heat. The

room must have adequate VENTILATION or

the ability to dissipate heat eectively.

AVERTISSEMENT! Ce produit produit de la

chaleur. La salle doit avoir à VENTILATION

proportionnée ou la capacité d’absorber la

chaleur ecacement.

WARNING! This product must be grounded in

accordance with the National Electrical Code

(NEC) requirements.

AVERTISSEMENT! Ce produit doit être fondu

selon les conditions électriques nationales de

code (NEC).

WARNING! Use this product only in dry

locations.

AVERTISSEMENT! Employez ce produit

seulement dans des endroits secs.

CAUTION! This product is for residential use

only.

ATTENTION! Ce produit est pour à l’usage

résidentiel ou commercial seulement.

MAGNET WARNING! Located within the

plastic enclosures of this product are strong

(rare earth) magnets that are used to

attach the face plate to the electrical box. If

someone handling or using the product has a

pacemaker, deﬁbrillator, or similar electronic

device used for health purposes, avoid close

proximity (closer than 20 inches) to the

product until you consult your physician.

Magnetic ﬁelds can cause damage to

magnetic storage media (for example, credit

cards, video tapes, computer hard drives, etc).

Keep all magnets at least 20 inches away from

all types of magnetic media. Certain electronic

devices are sensitive to magnetic

FIELDS and may be damaged permanently or

temporarily disabled if exposed to a magnetic

ﬁeld that is too strong. Consult the owner’s

manuals of your electronic devices for further

information. INGESTED magnets can cause

serious injuries and may result in death. If

magnets have been ingested (or you suspect

they might have been), seek competent

medical attention immediately.

AVERTISSEMENT! Aimants! Dans l’emballage

en plastique de ce produit sont inclus des

aimants très puissants utilisés pour attacher

les plaques de surface aux boites électriques.

Si quelqu’un, manipulant ou utilisant ce produit

est muni d’un pacemaker, déﬁbrillateur ou

autre dispositif d’ordre médical, il doit éviter

de se trouver à proximité (moins de 20

pouces) de ce produit avant d’avoir consulté

son médecin. Les champs magnétiques des

aimants peuvent endommager le stockage

d’information d’ordre magnétique (ex :

cartes de crédit, bandes vidéo, disques durs

d’ordinateur, etc.) Gardez tous les aimants au

moins à 20 pouces de distance de tout type

de stockage d’information d’ordre magnétique.

Certains dispositifs électroniques sont

sensibles aux champs magnétiques et peuvent

être endommagés de façon permanente

ou être désactivés si ils sont exposés à un

champs magnétique trop puissant. Pour plus

d’information, consultez le manuel d’utilisateur

propre à votre pièce électronique.

SI avalés, les aimants peuvent causer des

blessures graves et aussi causer la mort. Si

des aimants ont été avalés (ou vous doutez

qu’ils ont pu l’être) obtenez les soins médicaux

de personnes compétentes immédiatement.

the United States and/or other countries. All other names and brands may be claimed as the property of their respective owners.

control4.com | ™

Third-PartyTrademarks

Libertas

Libertas Firmware copyright statement for Touch Screens 6/26/09

Redistribution. Redistribution and use in binary form, without modiﬁcation, are

permitted provided that the following conditions are met:

* Redistributions must reproduce the above copyright notice and the following

disclaimer in the documentation and/or other materials provided with the

distribution.

* Neither the name of Marvell Corporation nor the names of its suppliers may

be used to endorse or promote products derived from this software without

speciﬁc prior written permission.

* No reverse engineering, decompilation, or disassembly of this software is

permitted.

* You may not use or attempt to use this software in conjunction with any

product that is oered by a third party as a replacement, substitute or

alternative to a Marvell Product where a Marvell Product is deﬁned as a

proprietary wireless LAN embedded client solution of Marvell or a Marvell

Aliate.

DISCLAIMER. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR

CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;

LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,

STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)

ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF

ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

GNU

GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING,

DISTRIBUTION AND MODIFICATION (Section 3.b.)

You may copy and distribute the Program (or a work based on it, under Section

2) in object code or executable form under the terms of Sections 1 and 2 above

provided that you also do one of the following:

Accompany it with a written oer, valid for at least three years, to give any

third party, for a charge no more than your cost of physically performing

source distribution, a complete machine-readable copy of the corresponding

source code, to be distributed under the terms of Sections 1 and 2 on a medium

customarily used for software interchange.

The complete text for this license is available on the Control4 website at: http://

www.control4.com.

Regulatory/Safety/Other

Information

To review regulatory information for your particular Control4

products, see the information located on the Control4 website at:

http://www.control4.com/regulatory/.

Patent Information

Protected under U.S. Patents 7,335,845, 7,106,261 and licensed under

U.S. Patents 5,905,442 and 5,982,103

Warranty

Limited 2-year Warranty. Refer to http://www.control4.com/warranty.

About this Document

Part Number: 200-00288, Rev B, 6/11/2012

Regulatory Compliance & Safety Information for Contol4 Model C4-TW7C0-XX.

Electrical Safety Advisory

Important Safety Information

Read the safety instructions before using this product.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two blades

and a third grounding prong. The wide blade or the third prong is provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement of

the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the apparatus. When a cart is used, use caution when moving the

cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

This equipment uses AC power which can be subjected to electrical surges, typically

lightning transients which are very destructive to customer terminal equipment connected

to AC power sources. The warranty for this equipment does not cover damage caused

by electrical surge or lightning transients. To reduce the risk of this equipment becoming

damaged it is suggested that the customer consider installing a surge arrestor.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Use the mains plug to disconnect the apparatus from the AC mains. The mains plug shall

remain readily operable.

16. To completely disconnect unit power from the AC mains, disconnect the unit’s power cord

from the mains socket. To reconnect power, plug the unit’s power cord into the mains

socket following all safety instructions and guidelines.

17. CAUTION: As with all batteries, there is a risk of explosion or personal injury if the

battery is replaced by an incorrect type. Dispose of used battery according to the

instructions of the battery manufacturer and applicable environmental guidelines. Do not

open, puncture or incinerate the battery, or expose it to conducting materials, moisture,

liquid, fire or heat above 54° C or 130° F.

18. Never push objects of any kind into this product through cabinet slots as they may touch

dangerous voltage points or short out parts that could result in fire or electric shock.

19. This product can interfere with electrical equipment such as tape recorders, TV sets,

radios, computers and microwave ovens if placed in close proximity.

The lightning flash and arrow head within the triangle is a warning sign alerting

you of dangerous voltage inside the product

Caution: To reduce the risk of electric shock, do not remove cover (or back). No

user serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within the triangle is a warning sign alerting you of

important instructions accompanying the product.

See marking on bottom / back of product

Warning!: To reduce the risk of electrical shock, do not expose this

apparatus to rain or moisture

AVERTISSEMENT! Pour réduire le risque de choc électrique,

n'exposez pas cet appareil à la pluie ou à l'humidité.

WARNUNG! Um das Risiko des elektrischen Schlages zu verringern,

setzen Sie diesen Apparat nicht Regen oder Feuchtigkeit aus.

Save these instructions

Compliance of this equipment is confirmed by the following label that is placed on the equipment:

USA & Canada Compliance

FCC Part 15, Subpart B / ICES-003Unintentional Emissions Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules and Industry Canada ICES-003. These limits are designed

to provide reasonable protection against harmful interference when the equipment is operated in

a residential installation. This equipment generates uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

 Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules and Industry Canada ICES-003. Operation is

subject to the following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause

undesired operation.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio

exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne

doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

IMPORTANT! Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment.

IMPORTANT! Tous les changements ou modifications pas expressément approuvés par la partie

responsable de la conformité ont pu vider l’autorité de l’utilisateur pour actionner cet équipement.

Ferrite clamp installation. When installing a Control4® 7” In-Wall Touch Screen, also install the

enclosed ferrite clamp as described in this document.

Ethernet cable. Install the ferrite clamp on the Ethernet cable no farther than 6 inches from the

Ethernet jack.

Compliance of this equipment is confirmed by the following label that is placed on the equipment:

FCC Part 15, Subpart C / RSS-210 Intentional Emissions Interference Statement

Compliance of this equipment is confirmed by the following certification numbers that are placed

on the equipment:

Notice: The term “FCC ID:” and “IC” before the certification number signifies that FCC and

Industry Canada technical specifications were met.

FCC ID: R33C4TW7C0

IC: 7848A-C4TW7C0

This equipment must be installed by qualified professionals or contractors in accordance with

FCC Part 15.203 & IC RSS-210, Antenna Requirements. Do not use any antenna other than the

one provided with the unit.

RF Radiation Exposure Statement

This equipment complies with the FCC/IC radiation exposure limits set fourth for portable

transmitting devices operation in an uncontrolled environment. End users must follow the specific

operating instructions to satisfy RF exposure compliance.

 The equipment should only be used or installed at locations where there is normally at

least a 20cm separation between the antenna and all persons.

 This transmitter must not be co-located or operation in conjunction with any other

antenna or transmitter.

 Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment.

European Compliance

Conformity of the equipment with the guidelines below is attested by the application of the CE

mark.

CE Declaration of Conformity

Manufacturer’s Name: CONTROL4 CORPORATION

Manufacturer’s Address: 11734 S. ELECTION ROAD SUITE 200

SALT LAKE CITY

UT 84020 USA

EU Representative Name: CONTROL4 EMEA LIMITED

EU Representative Address: UNIT3, GREEN PARK BUSINESS CENTRE

SULTON-ON-THE FOREST

YORK YO61 IET, UNITED KINGDOM

Product Name(s): Touch Screen

Brand: Contol4

Model(s): C4-TW7C0-XX

Product Standard(s) to which Conformity of the Council Directive(s) is declared:

EMC - 2004/108/EC “Electromagnetic Compatibility (EMC) Directive”:

(Emissions) EN 55022:2010, (Immunity) EN 55024:1998, EN 301 489-1:2008, EN 301 489-

17:2009, EN 61000-3-2:2004 & EN 61000-3-3:2002

Safety – 206/95/EC “Low Voltage Directive (LVD)”:

EN 60950-1:2006 (2nd Edition) .

Telecom & Radio - 1999/5/EC Radio equipment and Telecommunications Terminal

Equipment (R&TTE) Directive:

EN 300 328 V1.7.1 (2006-10)

RoHS - 2002/95/EC Restriction of the Use of certain Hazardous Substances in Electrical

and Electronic Equipment (EEE) & WEEE - 2002/96/EC Waste of Electrical and Electronic

Equipment (EEE).

We, the undersigned, hereby declare that the equipment specified above conforms to the above

directives and standards. Date of Issue: June 5, 2012

Legal Representative

Signature

Roger Midgley

Sr. Regulatory Compliance Engineer

National Restrictions

This product may be used in all EU countries (and other countries following the EU directive

1999/5/EC) without any limitation except for the countries mentioned below:

Ce produit peut être utilisé dans tous les pays de l'UE (et dans tous les pays ayant transposés la

directive 1999/5/CE) sans aucune limitation, excepté pour les pays mentionnés ci-dessous:

Questo prodotto è utilizzabile in tutte i paesi EU (ed in tutti gli altri paesi che seguono le direttive

EU 1999/5/EC) senza nessuna limitazione, eccetto per i paesii menzionati di seguito:

Das Produkt kann in allen EU Staaten ohne Einschränkungen eingesetzt werden (sowie in

anderen Staaten die der EU Direktive 1999/5/CE folgen) mit Außnahme der folgenden

aufgeführten Staaten:

France

In case the product is used outdoors, the output power is restricted in some parts of the band.

See Table 1 below or check http://www.arcep.fr/ for more details.

Dans la cas d'une utilisation en extérieur, la puissance de sortie est limitée pour certaines parties

de la bande. Voir la table ci-dessous ou visitez http://www.arcep.fr/ pour de plus amples details

Table 1 Applicable Power Levels in France

Location Frequency Range (MHz) Power (EIRP)

Indoor (No restrictions) 2400-2483.5 100 mW (20 dBm)

Outdoor 2400-2454

2454-2483.5 100 mW (20 dBm)

10 mW (10 dBm)

Recycling

Control4 understands that a commitment to the environment is essential for a health life and

sustainable growth for future generations. We are committed to supporting the environmental

standards, laws, and directives that have been put in place by various communities and countries

that deal with concerns for the environment. This commitment is represented by combining

technological innovation with sound environmental business decisions.

WEEE Compliance

Control4 is committed to meeting all requirements of the Waste Electrical and Electronic

Equipment (WEEE) directive (2002/96/EC). The WEEE directive requires the manufacturers of

electrical and electronic equipment who sell in EU countries: (1) label their equipment to notify

customers that it needs to be recycled, and (2) provide a way for their products to be

appropriately disposed of or recycled at the end of their product lifespan. For collection or

recycling of Control4 products, please contact your local Control4 representative or dealer.

Australia / New Zealand Compliance

Compliance of this equipment is confirmed by the following label that is placed on the equipment:

About this Document

registered trademarks or trademarks of Control4 Corporation in the United States and/or other countries.

Part Number 200-00292 Rev A, 6/5/2012

Control4 C4TW7C0 TOUCH SCREEN INTERFACE DEVICE User Manual

Control4 TOUCH SCREEN INTERFACE DEVICE Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
