Controlled Entry Distributors 318LIPW1K Models 318LIPW1K, 318DOPW1K User Manual IS TM13DCCUK
Controlled Entry Distributors, Inc. Models 318LIPW1K, 318DOPW1K IS TM13DCCUK
Exhibit 8
CONTENTS
1A - General information
1B - Technical specifications
1C - Main components
1 - TRANSMITTER OVERVIEW
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
1B - Technical specifications
Operating frequency 318 MHz
Number of keys: 1
Battery life: 18 24 months
Battery : 2 x 3V lithium batteries CR2016
÷
Number combinations : 65,536
Protocol : Linear compatible
Different Facilities codes 16
Operating temperature: -20°F÷+131°F (-20°C÷+55°C)
Overall dimensions: 2.4”x1.4”x0.51” (61x36x13 mm)
Weight: 0.49 oz. (14 gr.)

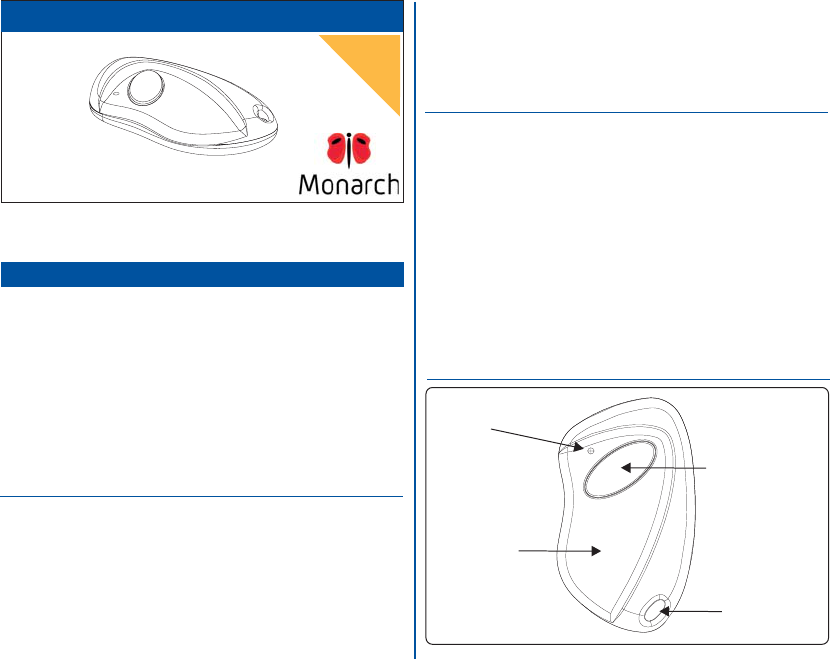

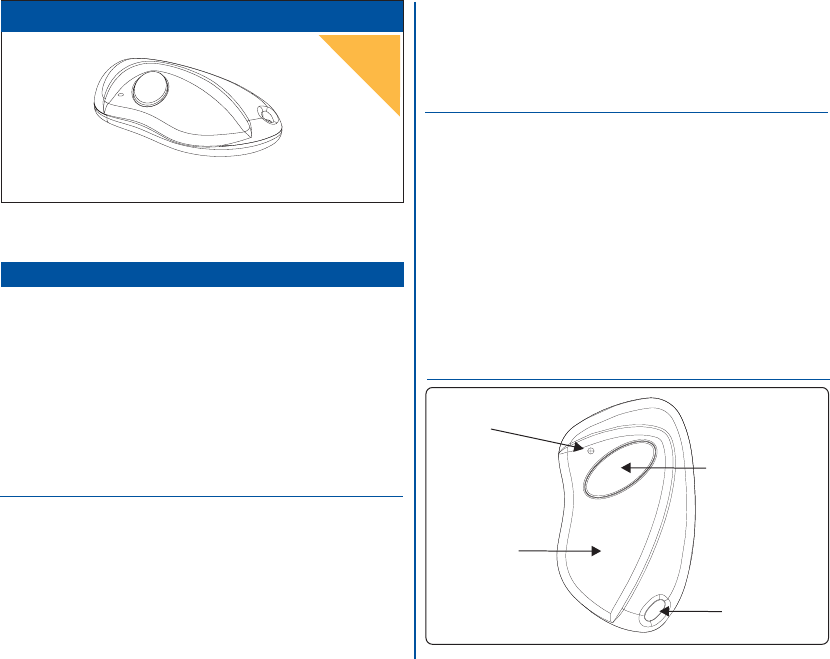

1C - Main components
Red
LED
Key
holder
ring
Blue
push-button
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions
6 - TROUBLESHOOTING
Manual
MONARCH 318LIPW1K
Dark grey
case
Fig. 2
1A - General information
The Transmitter Solutions - Monarch 318LIPW1K transmitter is a key
chain style mini transmitter operating at 318 MHz. It has been designed
for use with programmable telephone entry, security, and access control
systems operating with a 318 MHz frequency receiver. The code sent by
the transmitter includes a 16 bit security code which allows up to
65,536 code combinations and 4 bits of facility code which allows up to
16 facility codes .
The Transmitter Solutions - 318R receiver which operates with this
transmitter has a Wiegand 26 bit output and can operate any type of
access control system equipped with the same protocol. The CR 2016
lithium batteries of the transmitter have a shelf life of about 6 months.
Part 15 of FCC Regulations andThe product fully complies with the
European Directives 99/5/CE, 89/336/CEE, 73/23/CEE.
2 - NUMBERING 6 - TROUBLESHOOTING
PROBLEM SOLUTION
The operating range is reduced
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries
IS-TM13LCCUK Rev. 1 del 22.03.2006

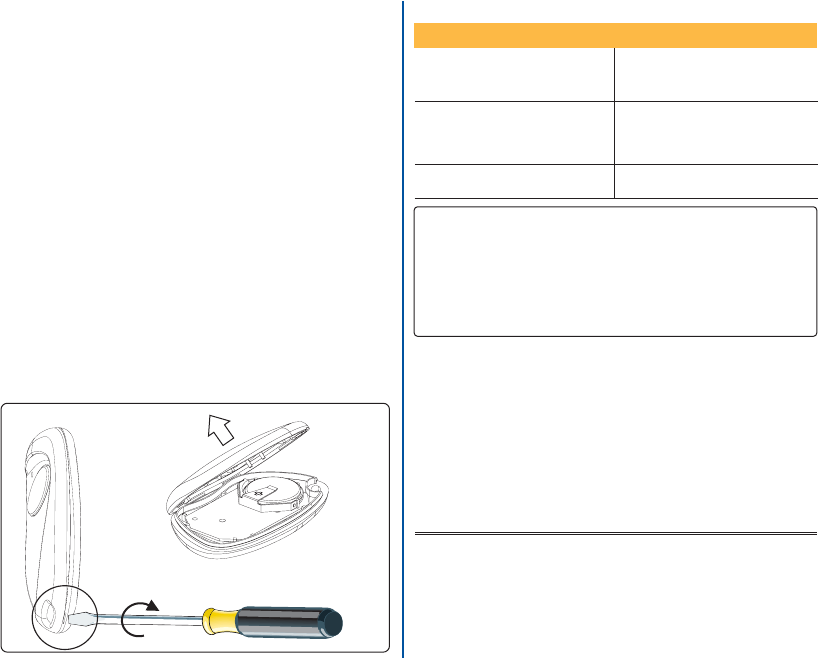

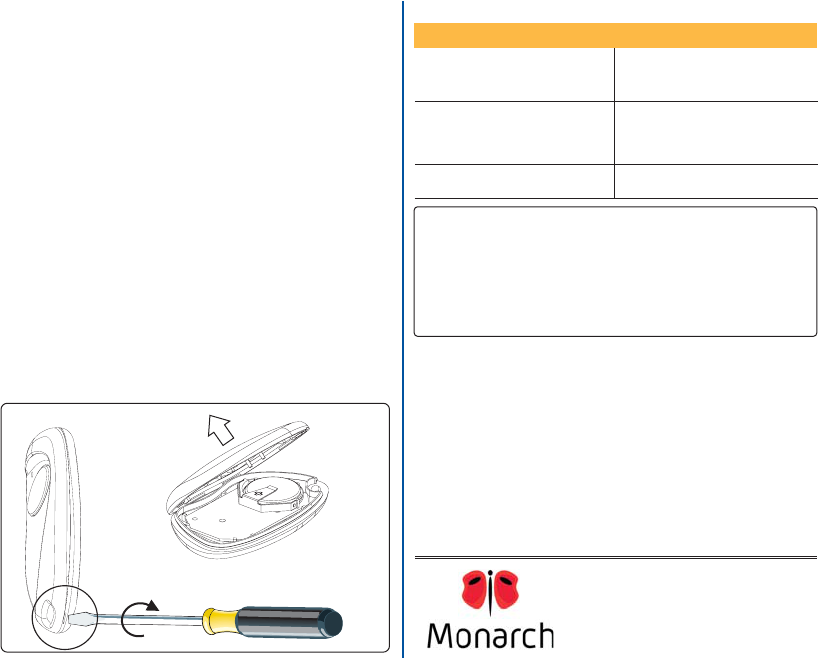

To access the battery open the case with a screwdriver acting on the slot between
the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b.
Slide out the old batteries and replace them with the new ones ]
respecting the polarity, with the positive (+) side upward.
[CR2016
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
the button is pushed.
5 - BATTERY ACCESS
3 - PROGRAMMING
Each transmitter is manufactured and sold with a different factory-set serial
number .
The transmitter must be programmed into your system memory.
Your own installer or reseller will provide you the necessary instructions for your
system.
Replace the transmitter
batteries
The warranty period of 318 transmitters is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does operate correctly, due to a defective component, the product will be
repaired or replaced at the sole discretion of .
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of or to battery life.
Transmitter Solutions
Transmitter Solutions
Transmitter Solutions
WARRANTY
Transmitter Solutions - Type : 318LIPW1K
FCC ID : SU7318LIPW1K
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part.15ofthe
Notice
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty.
Transmitter Solutions
Transmitter Solutions
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The system does not receiver the
transmitter signal.
The transmitter LED will not light
4 - OPERATION
A - Firmly depress the button until the small red LED illuminates.
B - After the LED has illuminated, release the button.
If the device you are attempting to activate does not respond, repeat steps A and B
or consult section 6 ( Troubleshooting ) of this manual.
TRANSMITTER SOLUTIONS
2505 Chandler Avenue, Suite, 1
Las Vegas, NV 89120 -
(866)975-0101 - (866) 975-0404 Fax
sales@transmittersolutions.com
Fig. 3a
Fig. 3b
CONTENTS
1A - General information
1B - Technical specifications
1C - Main components
1 - TRANSMITTER OVERVIEW
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
1B - Technical specifications
Operating frequency 318 MHz
Number of keys: 1
Battery life: 18 24 months
Battery : 2 x 3V lithium batteries CR2016
÷
Number combinations : 16,384
Protocol : MicroCLIK® compatible
Different Facilities codes 64
Operating temperature: -20°F÷+131°F (-20°C÷+55°C)
Overall dimensions: 2.4”x1.4”x0.51” (61x36x13 mm)
Weight: 0.49 oz. (14 gr.)
1C - Main components
Red
LED
Key
holder
ring
Red
push-button
6 - TROUBLESHOOTING
Manual
MONARCH 318DOPW1K
Dark grey
case
Fig. 2
1A - General information
The Transmitter Solutions - Monarch 318DOPW1K transmitter is a key
chain style mini transmitter operating at 318 MHz. It has been designed
for use with programmable telephone entry, security, and access control
systems operating with a 318 MHz frequency receiver. The protocol is
MicroCLIK® compatible and the code sent by the transmitter includes a
14 bit security code which allows up to 16384 code combinations and
6 bits of facility code, which allows up to 64 facility codes .
The Transmitter Solutions - 318R receiver which operates with this
transmitter has a Wiegand 26 bit output and can operate any type of
access control system equipped with the same protocol. The CR 2016
lithium batteries of the transmitter have a shelf life of about 6 months.
Part 15 of FCC Regulations andThe product fully complies with the
European Directives 99/5/CE, 89/336/CEE, 73/23/CEE.
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions
2 - NUMBERING 6 - TROUBLESHOOTING
PROBLEM SOLUTION
The operating range is reduced
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries
IS-TM13DCCUK Rev. 4 del 06.06.2006
To access the battery open the case with a screwdriver acting on the slot between
the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b.
Slide out the old batteries and replace them with the new ones ]
respecting the polarity, with the positive (+) side upward.
[CR2016
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
the button is pushed.
5 - BATTERY ACCESS
3 - PROGRAMMING
Each transmitter is manufactured and sold with a different factory-set serial
number .
The transmitter must be programmed into your system memory.
Your own installer or reseller will provide you the necessary instructions for your
system.
Replace the transmitter
batteries
WARRANTY
Transmitter Solutions - Type : 318DOPW1K
FCC ID : SU7318LIPW1K
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part.15ofthe
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The system does not receiver the
transmitter signal.
The transmitter LED will not light
4 - OPERATION
A - Firmly depress the button until the small red LED illuminates.
B - After the LED has illuminated, release the button.
If the device you are attempting to activate does not respond, repeat steps A and B
or consult section 6 ( Troubleshooting ) of this manual.
Fig. 3a
Fig. 3b
Notice
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty.
Transmitter Solutions
Transmitter Solutions
The warranty period of 318 transmitters is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does operate correctly, due to a defective component, the product will be
repaired or replaced at the sole discretion of .
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of or to battery life.
Transmitter Solutions
Transmitter Solutions
Transmitter Solutions
TRANSMITTER SOLUTIONS
2505 Chandler Avenue, Suite, 1
Las Vegas, NV 89120 -
(866) 975-0101 - (866) 975-0404 Fax
sales@transmittersolutions.com
® : “Doorking” and “MicroCLIK” are registered trademarks of Doorking, Inc."
