The Transmitter Solutions - T3 PLUS transmitter is a key chain style mini
transmitter operating at 433,92 MHz. It has been designed for the control of
automatic closing systems and anti-burglar systems, thanks to its very high
security coding system (KeeLoq® Hopping code).
The code sent by the transmitter changes at each activation, avoiding any
scanning and copying risk. A special algorithm allows to keep synchronized
transmitter and receiver.
The CR2032 battery of the transmitter have a shelf life of about 24 months.
The product fully complies with Part 15 of FCC Regulations.
3 CHANNELS TRANSMITTER
T3 PLUS
Thank you for choosing this Transmitter Solutions product.
Please read this manual carefully before installing the product.
CONTENTS
1. TRANSMITTER OVERVIEW
1A - General information
1B - Technical specication
1C - Main components
2. NUMBERING
3. PROGRAMMING
4. OPERATION
5. BATTERY ACCESS
6. TROUBLESHOOTING
1A - General information
2/4 6-1621768 rev00 02/03/2016
1B - Technical specications
Operating frequency:
Number of keys:
Battery:
Battery life:
Security Code:
Number combinations:
Operating temperature:
Overall dimensions:
Weight:
433,92 MHz
3
3V lithium battery CR2032
18 - 24 months
KEELOQ® Hopping code
2exp64
23°F - +131°F (-5°C - +55°C)
2.46’’ x 1.26’’ x 0.39’’ (62.4 x 32 x 10 mm)
0.55 oz. (15.5gr.)

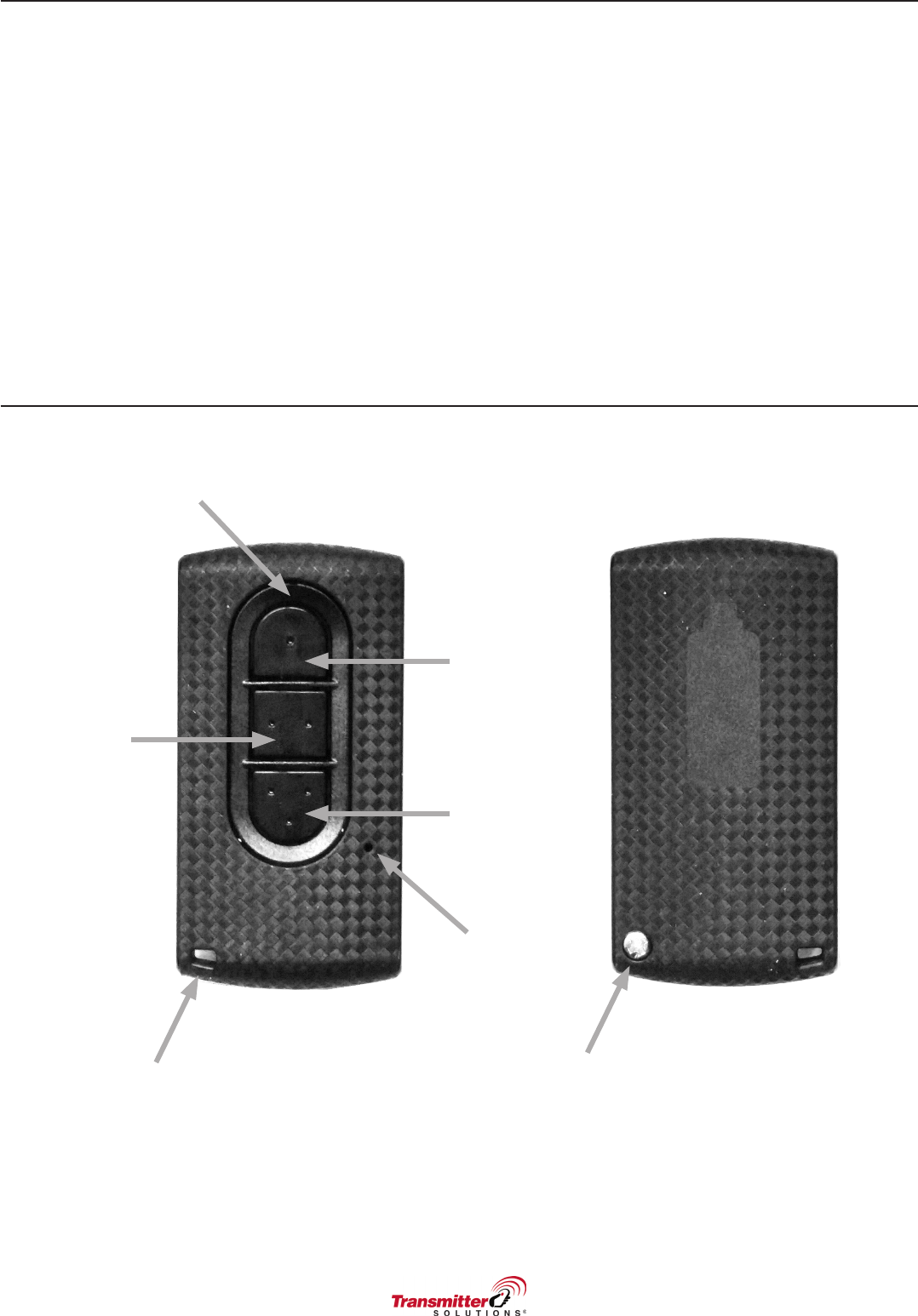

1C - Main components
Hidden key
Keyring
holder
Key 1
Red LED
Key 2
Key 3
Screw
3/4
6-1621768 rev00 02/03/2016
2 - NUMBERING
Each transmitter is manufactured and sold with a different factory-set serial
number.
3 - PROGRAMMING
The transmitter must be programmed into your system memory.
Your own installer or reseller will provide you the necessary instructions for
your system.
4 - OPERATION
A- Firmly depress the button until the red LED illuminates.
B- After the LED has illuminated, release the button.
If the device you are attempting to activate does not respond, repeat steps A
and B or consult section 6 ( Troubleshooting ) of this manual.
5 - BATTERY ACCESS
To access the battery, remove the rear screw with a screwdriver and open the
case.
Slide out the old battery and replace them with the new ones [CR2032]
respecting the polarity, with the positive (+) side upward.
NOTE: Please dispose of the batteries properly according to local laws and regulations.
Test proper battery installation by verifying that the red LED illuminates when the
button is pushed.
6 - TROUBLESHOOTING
PROBLEM SOLUTION
The system does not receiver the
transmitter signal.
The transmitter LED will not light
Replace the transmitter
batteries
The system does not receiver the
transmitter signal.
The transmitter LED is ON
Check to verify the transmitter is
programmed into your sistem
The operating range is reduced Replace the transmitter
batteries
4/4 6-1621768 rev00 02/03/2016
Transmitter Solutions - Type: T3 PLUS
FCC ID: SU7T3PLUS
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
The warranty period of Transmitter Solutions 433 transmitters is 60 months,
beginning from the manufacturing date of the transmitter. During this period,
if the product does not operate correctly, due to a defective component, the
product will be repaired or replaced at the sole discretion of Transmitter
Solutions.
The warranty does not extend to the transmitter case which can be damaged
by conditions outside the control of Transmitter Solutions or to battery life.
NOTICE
WARRANTY
Any changes or modication to Transmitter Solutions equipment not expressly
approved by Transmitter Solutions could void the manufacturer’s warranty
and the user’s authority to operate this product.
