Cooper Lighting 2CL60WXSW Wireless Wall Switch User Manual 14 0074 Exhibit Cover
Cooper Lighting Wireless Wall Switch 14 0074 Exhibit Cover
Manual
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598
Certification Exhibit
FCC ID: 2AC542CL60WXSW
IC: 4706H-2CL60WXSW
FCC Rule Part: 15.247
IC Radio Standards Specification: RSS-247
ACS Project Number: 14-0074
Manufacturer: Cooper Lighting
Model: WOSW, WVSW
Installation Instructions INTERNAL ONLY Greengate
WOSW & WVSW
General Information
Read all instructions on both sides of this sheet first
For indoor use only
Install in accordance with ALL local codes
Supports up to 64 paired wireless devices, 16K Groups
Occupancy and Vacancy models available
Wireless solution for meeting basic ASHRAE 2010 and
CA Title 24 occupancy detection
Easy installation and setup
Agency Listing and Compliance
MODEL: WOSW/WVSW
FCC ID: 2AC542CL60WXSW
IC: 4706H-2CL60WXSW
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesirable
operation:
Warning: Changes or modifications to this device not
expressly approved by Eaton Lighting systems could
void the user’s authority to operate the equipment.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Industry Canada licence-
exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage,
et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
2
Specifications
www.eaton.com/lightingsystems
RF Exposure: This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with
minimum distance 20cm between the radiator and your
body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Cet équipement est conforme aux limites FCC d’exposition
aux radiations définies pour un incontrôlée environnement.
Cet équipement doit être installé et utilisé à distance
minimum de 20cm entre le radiateur et votre corps. Cet
émetteur ne doit pas être co-localisées ou opérant en
conjointement avec une autre antenne ou émetteur.
Specifications
Model WOSW/WVSW
Technology IEEE 802.11b/g/n Wireless
Frequency
Band
2.4GHz
Networking
and Security
WPA-PSK and WPA2-PSK
Channels 11 channels
Wireless LAN Standard:
802.11b/g/n at 2.4 GHz
Data Rates:
802.11b: 1,2,5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72
Mbps
Modulation:
802.11b: CCK, DSSS
802.11g: OFDM with BPSK, QPSK, 16-QAM,
64-QAM
802.11n: OFDM
Internet Protocol:
IPv6
Electrical
Ratings
120 VAC
Incandescent/ELV/MLV: 1680W
LED/Electronic Ballast: 10A
MLV: 1680VA
Motor Load: ½ HP
277 VAC
LED/Electronic Ballast: 5A
MLV: 1385VA
Motor Load: ½ HP
Operating
Environment
Temperature: 32° to 104°F (0° to 40°C)
Relative Humidity: 20% to 90%, non-condensing
Indoor use only
Housing Durable injection molded housing. Resin com-
plies with UL 94V-0
Size Mounting Plate/Strap Dimensions:
4.2”H x 1.8”W (106.5mm x 46mm)
Product housing Dimensions:
2.87”H x 1.6”W x 1.42”D (72.8mm x 40.7mm x
36mm)
LED Indicators Blue LED for operations status indication
3
Product Description
www.eaton.com/lightingsystems
Product Description
The Greengate Wireless Wall Switch Controller is a wireless
control device that combines simple and secure user setup
with robust communication offered by its industry leading
802.11 based architecture. The Wireless Wall Switch is used
with companion WOAC-P Series Occupancy Sensors for
energy savings and convenience
Wiring
CAUTION: Before installing or performing any service on
a Greengate system, the power MUST be turned OFF at
the branch circuit breaker. According to NEC 240-83(d), if
the branch circuit breaker is used as the main switch for
a fluorescent lighting circuit, the circuit breaker should be
marked “SWD”. All installations should be in compliance
with the National Electric Code and all state and local code.
NOTE REGARDING COMPACT FLUORESCENT LAMPS:
The life of some compact fluorescent lamps (CFLs) is
shortened by frequent automatic or manual switching.
Check with CFL and ballast manufacturer to determine
the effects of cycling.
1. Make sure power is turned OFF at the branch circuit
breaker.

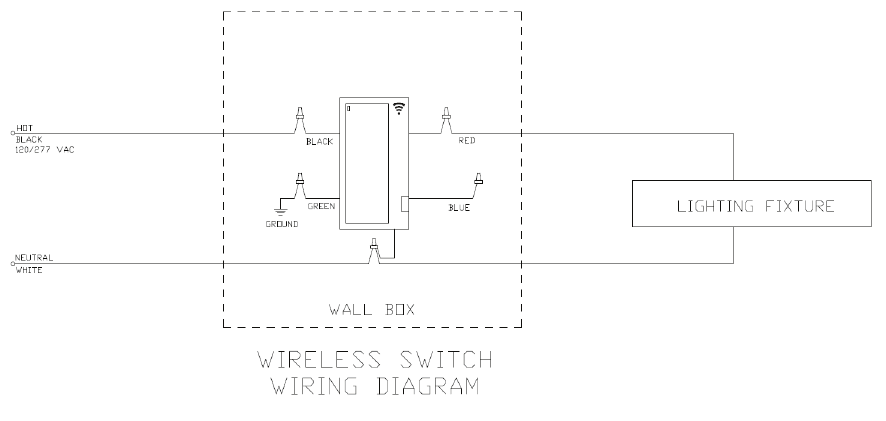

2. Wire units as shown in wiring diagrams per applicable
voltage requirements.
3. Mount unit to Wall Box.
4. Turn power back ON at the branch circuit breaker and
wait 30seconds for the unit to stabilize.
5. Make any necessary adjustments.
6. Install Wall Switch plate.
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
Eaton
Lighting systems
203 Cooper Circle
Peachtree City, GA 30269
www.eaton.com/lightingsystems
© 2015 Eaton
All Rights Reserved
Printed in USA
P/N: 9850-000450-00
October 21, 2015
Eaton is a registered trademark.
All trademarks are property
of their respective owners. INTERNAL ONLY
WARRANTIES AND LIMITATION OF LIABILITY
Please refer to www.eaton.com/lightingsystems under the Legal section for our terms and conditions.
