Cooper Lighting HWB1BLE40 HALO Home Internet Access Bridge User Manual
Cooper Lighting LLC HALO Home Internet Access Bridge
User manual
eaton.com/halohome
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Canada Sales
5925 McLaughlin Road
Mississauga, Ontario L5R 1B8
P: 905-501-3000
F: 905-501-3172
© 2017 Eaton
All Rights Reserved
Printed in China
Publication No. IB518105EN
October 12, 2017 4:07 PM
Eaton is a registered trademark.
All trademarks are property
of their respective owners.
Product availability, specifications,
and compliances are subject to
change without notice.
HWB1BLE40AWH
Simple. Secure.
SMART INTERNET ACCESS BRIDGE
*Note: For the wireless downlight to communicate
with the app the fixture will need constant power.
internet access
bridge

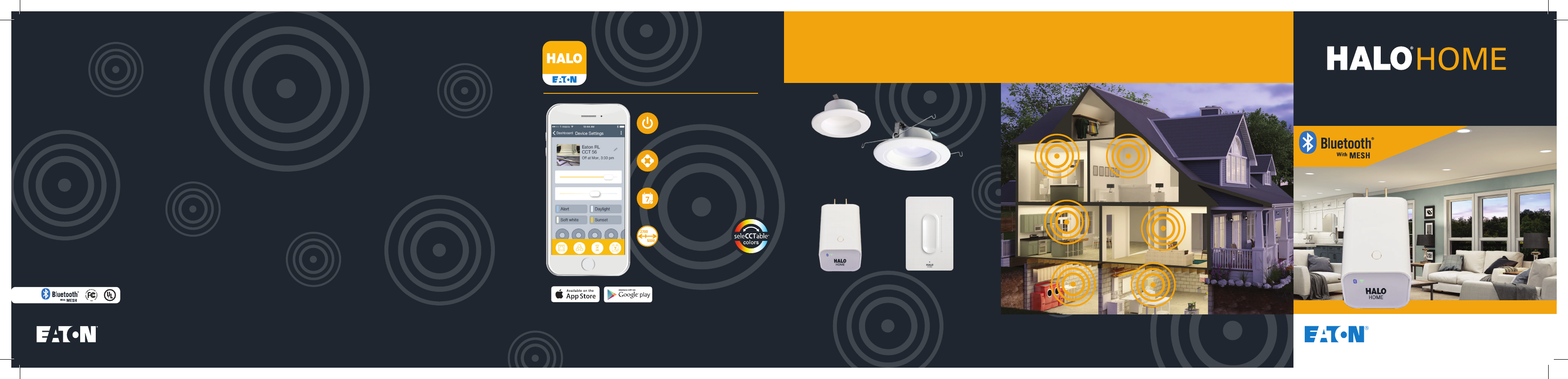

See more products at eaton.com/halohome
Mix and match Halo Home products
to personalize your lighting.
Halo LED modules*
App Features
On/Off/Dim
Scheduling
Adjustable Color
Temperature
(2700K - 5000K)
Grouping
Search for “Halo Home” in your app store.
Note: System limits user to 10 groups, 10 scenes and
10 schedules.
anyplace bluetooth
dimmer switch
5-YEAR LIMITED WARRANTY
THE FOLLOWING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES,
WHETHER EXPRESS, IMPLIED OR STATUTORY INCLUDING, BUT NOT LIMITED TO, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
Eaton warrants to customers that, for a period of five years from the date of purchase,
Eaton products will be free from defects in materials and workmanship. The obligation of
Eaton under this warranty is expressly limited to the provision of replacement products.
This warranty is extended only to the original purchaser of the product. A purchaser’s
receipt or other proof of date of original purchase acceptable to Eaton. This is required
before warranty performance shall be rendered. This warranty does not apply to Eaton
products that have been altered or repaired that have been subjected to neglect, abuse,
misuse or accident (including shipping damages). This warranty does not apply to products
not manufactured by Eaton which have been supplied, installed, and/or used in conjunction
with Eaton products. Damage to the product caused by replacement bulbs or corrosion or
discoloration of brass components are not covered by this warranty.
LIMITATION OF LIABILITY:
IN NO EVENT SHALL EATON BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES (REGARDLESS OF THE FORM OF ACTION, WHETHER IN
CONTRACT, STRICT LIABILITY, OR IN TORT INCLUDING NEGLIGENCE), NOR FOR LOST
PROFITS; NOR SHALL THE LIABILITY OF EATON FOR ANY CLAIMS OR DAMAGE ARISING
OUT OF OR CONNECTED WITH THESE TERMS OR THE MANUFACTURE, SALE, DELIVERY,
USE, MAINTENANCE, REPAIR OR MODIFICATION OF EATON PRODUCTS, OR SUPPLY
OF ANY REPLACEMENT PARTS THEREFORE, EXCEED THE PURCHASE PRICE OF EATON
PRODUCTS GIVING RISE TO A CLAIM. NO LABOR CHARGES WILL BE ACCEPTED TO
REMOVE OR INSTALL FIXTURES.
To obtain warranty service, please contact Eaton, at 1-800-334-6871, press option 2 for
Customer Service, or via e-mail ConsumerProducts@eaton.com and include the following
information:
• Name, address and telephone number
• Date and place of purchase
• Catalog and quantity purchase
• Detailed description of problem
All returned products must be accompanied by a Return Goods Authorization Number
issued by the Company and must be returned freight prepaid. Any product received
without a Return Goods Authorization Number from the Company will be refused. Eaton
is not responsible for merchandise damaged in transit. Repaired or replaced products
shall be subject to the terms of this warranty and are inspected when packed. Evident or
concealed damage that is made in transit should be reported at once to the carrier making
the delivery and a claim filed with them. Reproductions of this document without prior
written approval of Eaton are strictly prohibited.
2Add to the app:
Launch the HALO HOME app,
go to the “Add device” screen
and tap the “+” icon to scan
available devices.
Important: You will need to
have at least one Halo Home
compatible device already set
up and powered on before you
try to connect the Bridge.
3
Control your lights from anywhere in the world.
Simple. Secure.
SMART INTERNET ACCESS BRIDGE
4
What does the Bridge do?
The Bridge creates a secure private connection to your local Halo Home
network and the Halo Home cloud service using your Wi-Fi router. With
the Bridge you will be able to control and manage your local Halo Home
devices from anywhere using your mobile device or web browser and
the voice control assistant Alexa.
+ +
Having trouble?
There are two ways to refresh your Bridge. You can either reboot it or
factory reset it.
Reboot:
Press the button on the Bridge for one second to reboot the Bridge.
This will refresh the Bridge’s connection with the internet.
Factory Reset:
Having trouble and want to start over? Press the reset button for
12 seconds to reset your Bridge back to factory settings.
Light must be installed and paired before starting.
1Setup: Unbox the Internet Access Bridge
and plug it in to a 110V/277V
socket making sure the Bridge is
within 50 feet of your Wi-Fi router
and 30-70 feet of the nearest Halo
Home compatible device.
50
feet
30 - 70
feet
Select your Bridge from the
list of scanned devices and
press “Done”.
Choose your preferred Wi-Fi network from the list populated on the
app, then enter the Wi-Fi network password to complete the setup.
Note: Your wifi network password and your Halo Home password
may be different.
eaton.com/halohome
110/220v compatible
Manual reset
Bluetooth and Wi-Fi
indicators
FCC
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment must be installed and operated in
accordance with provided instructions and the antenna(s) used for this transmitter
must be installed to provide a separation distance of at least 20 cm from all
persons.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CAUTION!
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Bluetooth
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Eaton is under license. Other
trademarks and trade names are those of their respective owners.
Industry Canada
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject
to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS
102 and compliance with RSS-102 RF exposure, users can obtain Canadian information
on RF exposure and compliance.
Le dispositif rencontre l’exemption des limites courantes d’évaluation dans la section
2.5 de RSS 102 et la conformité à l’exposition de RSS-102 rf, utilisateurs peut obtenir
l’information canadienne sur l’exposition et la conformité de rf.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu’aucune
autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une
distance minimum de 20 centimètres entre le radiateur et votre corps.
