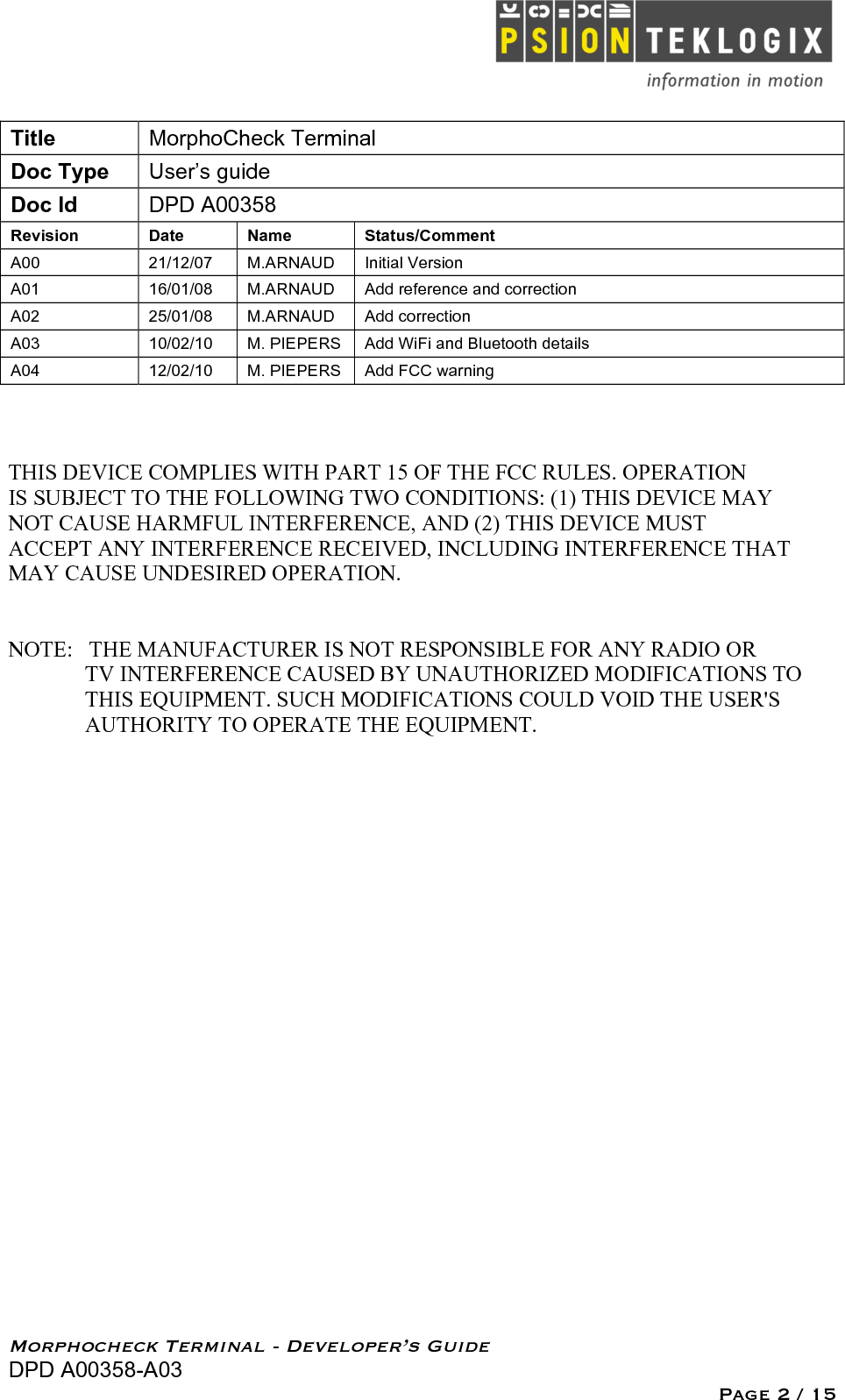

Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 2 / 15 Title MorphoCheck Terminal Doc Type User’s guide Doc Id DPD A00358 Revision Date Name Status/Comment A00 21/12/07 M.ARNAUD Initial Version A01 16/01/08 M.ARNAUD Add reference and correction A02 25/01/08 M.ARNAUD Add correction A03 10/02/10 M. PIEPERS Add WiFi and Bluetooth details A04 12/02/10 M. PIEPERS Add FCC warning THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 3 / 15 TABLE OF CONTENT 1.!INTRODUCTION.......................................................................... 4!1.1.!About this Manual....................................................................................4!2.!DEVELOPMENT TOOLS ............................................................ 5!2.1.!WorkAboutPRO HDK .Net Wrapper.......................................................5!3.!INTERFACE BOARD................................................................... 6!3.1.!Overview ..................................................................................................6!3.2.!Serial Communication Settings................................................................7!3.3.!General Power Supply..............................................................................8!3.4.!Dual Reader............................................................................................10!3.5.!Fingerprint Reader..................................................................................12!4.!SCANNER CONNECTOR.......................................................... 13!4.1.!Overview ................................................................................................13!4.2.!MRZ Reader...........................................................................................14!4.3.!Imager Reader ........................................................................................15!5.!Bluetooth radio............................................................................. 15!6.!WiFi 802.11b/g radio ................................................................... 15!
Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 4 / 15 1. INTRODUCTION 1.1. About this Manual This manual provides guidance on how to access and control the peripherals of the Sagem MorphoCheck terminal base on the WorkAboutPRO G2 device. Chapter 1: Introduction Provides an overview of this manual. Chapter 3: Development tools Describes the libraries available for .Net and C++ developers Chapter 3: Interface board Describes how the dual (contact-less and contact) reader and the fingerprint reader are connected to the WorkAboutPRO G2 device through the interface board. Chapter 4: Scanner port Describes how to use the MRZ reader and the Imager module on the WorkAboutPRO. Chapter 5: Bluetooth radio and Psion Teklogix Mobile Device SDK Management of Bluetooth radio Chapter 6: WiFi radio and Psion Teklogix Mobile Device SDK Management of WiFi radio
Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 5 / 15 2. DEVELOPMENT TOOLS 2.1. WorkAboutPRO HDK .Net Wrapper The WorkAboutPRO HDK is intended to support developers of third-party hardware for Psion Teklogix WorkAboutPRO Hand-Held Computer. On top of that, a library has been designed to wrap these low level functions for .Net developer. In this chapter all the code sample are extracted from the .Net wrapper, but can be easily translated to C++, see the WorkAboutPRO HDK .Net Wrapper documentation for more information. Everything you need to install and use the WorkaboutPro HDK .Net Wrapper can be downloaded on the Partner Database page of the Psion Teklogix website.

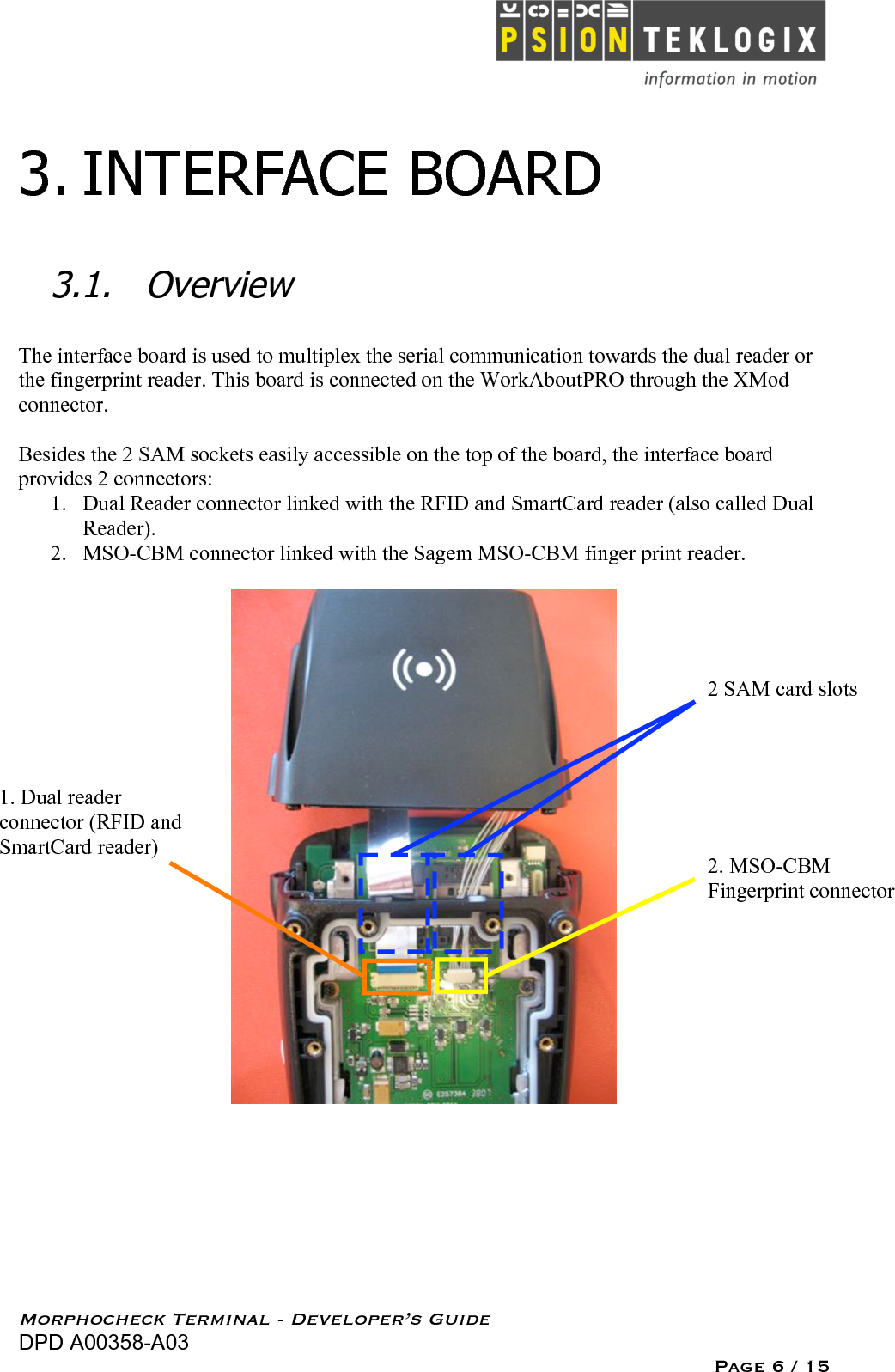

Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 6 / 15 3. INTERFACE BOARD 3.1. Overview The interface board is used to multiplex the serial communication towards the dual reader or the fingerprint reader. This board is connected on the WorkAboutPRO through the XMod connector. Besides the 2 SAM sockets easily accessible on the top of the board, the interface board provides 2 connectors: 1. Dual Reader connector linked with the RFID and SmartCard reader (also called Dual Reader). 2. MSO-CBM connector linked with the Sagem MSO-CBM finger print reader. 2 SAM card slots 2. MSO-CBM Fingerprint connector 1. Dual reader connector (RFID and SmartCard reader)
Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 7 / 15 3.2. Serial Communication Settings To enable the serial interface on the WorkAboutPRO expansion slot, you need to set the registry key as follows: HKLM\Drivers\PsionTeklogix\Expansion Slot\FFUART = dword:1 A warm reset of the terminal is mandatory after completion. The communication to both readers is multiplexed through the port number COM1. WorkAboutPRO .Net Wrapper sample code: using PsionTeklogix.WorkAboutPro; public class DeviceInterface { public static void Init() { WorkAboutPro WAP = new WorkAboutPro(); // Enable the serial port COM1 by setting the registry key // HKLM\Drivers\PsionTeklogix\Expansion Slot\FFUART = dword:1 if( !WAP.COM1Active ) { WAP.COM1Active = true; WAP.Reboot(); } } }

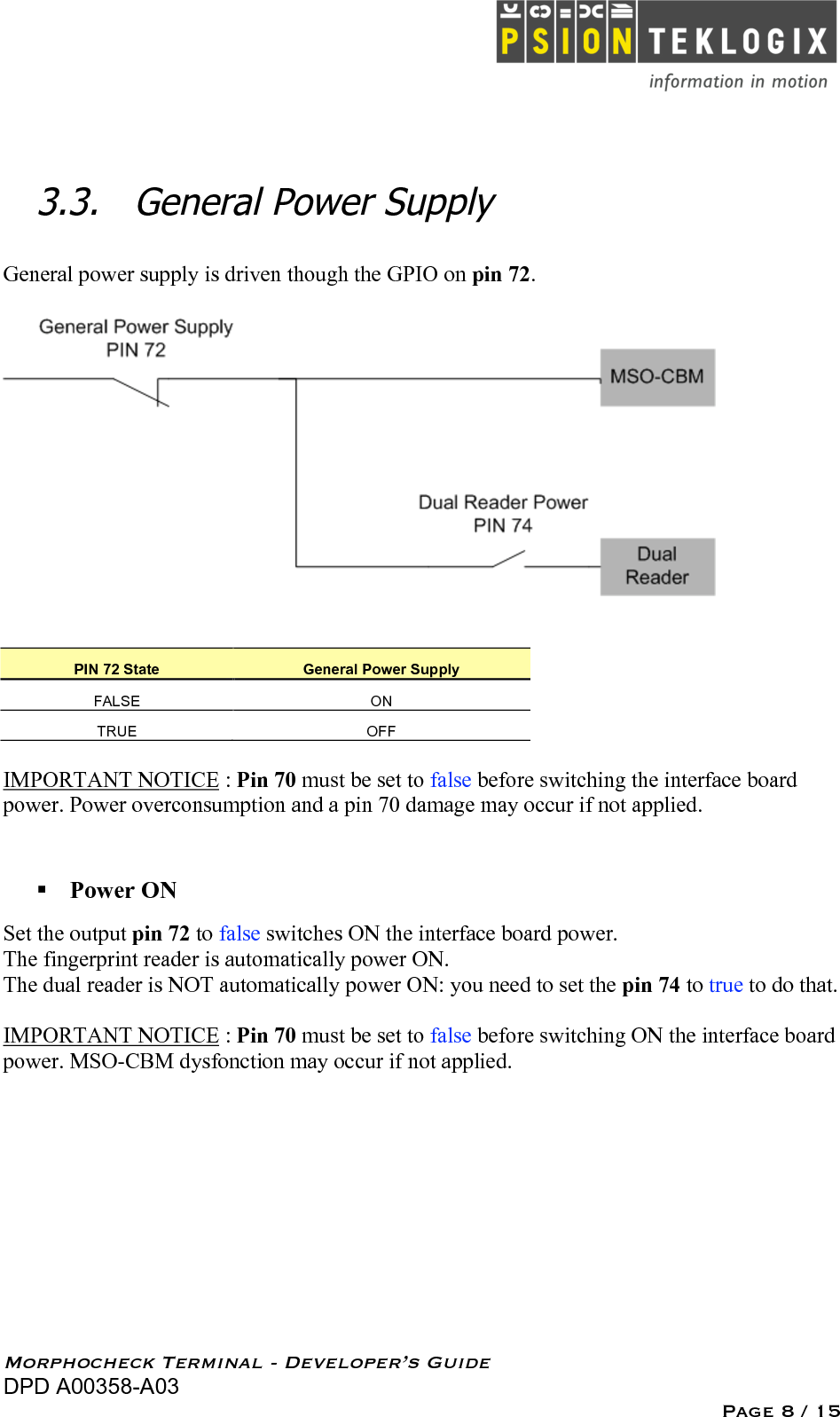

Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 8 / 15 3.3. General Power Supply General power supply is driven though the GPIO on pin 72. PIN 72 State General Power Supply FALSE ON TRUE OFF IMPORTANT NOTICE : Pin 70 must be set to false before switching the interface board power. Power overconsumption and a pin 70 damage may occur if not applied.  Power ON Set the output pin 72 to false switches ON the interface board power. The fingerprint reader is automatically power ON. The dual reader is NOT automatically power ON: you need to set the pin 74 to true to do that. IMPORTANT NOTICE : Pin 70 must be set to false before switching ON the interface board power. MSO-CBM dysfonction may occur if not applied.

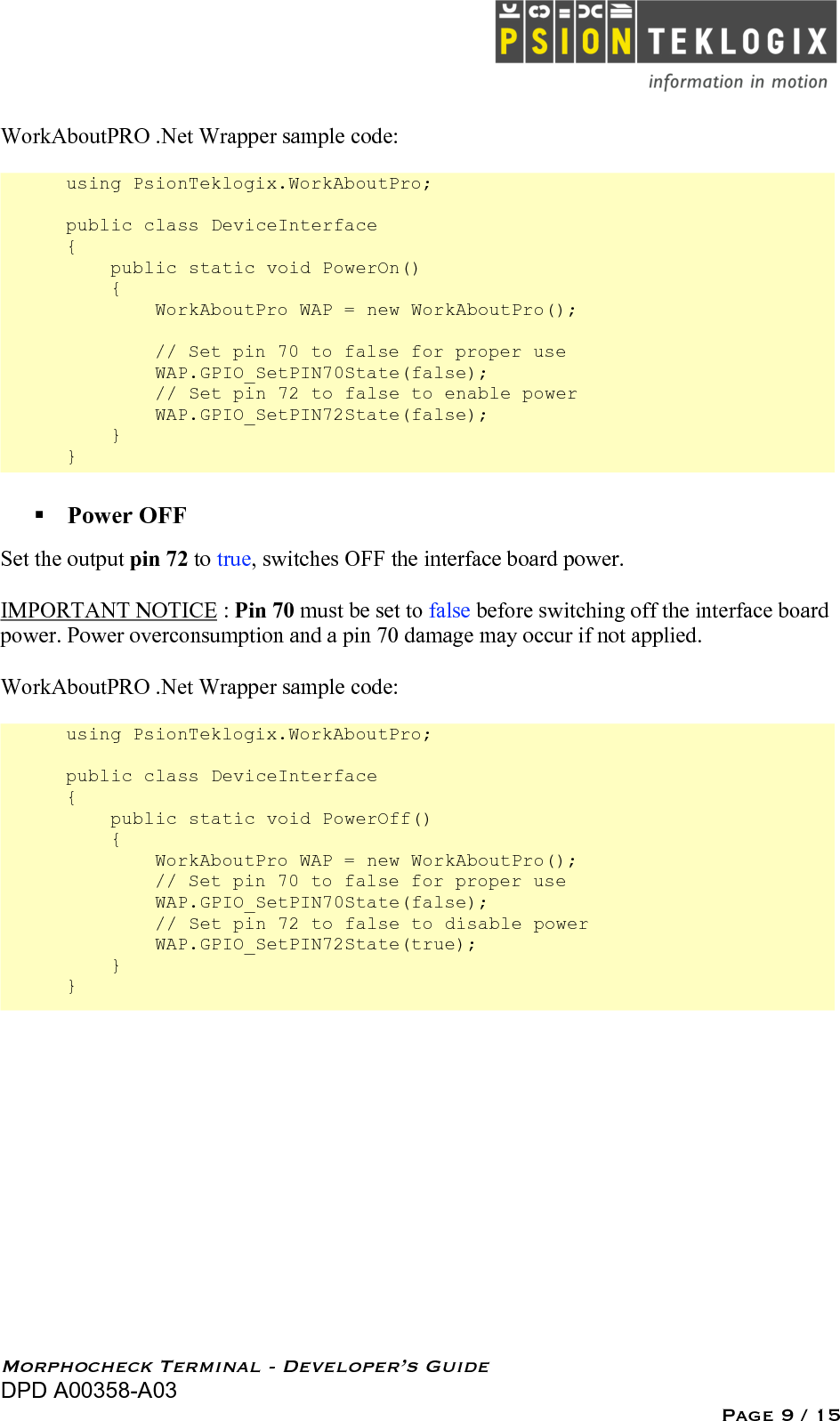

Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 9 / 15 WorkAboutPRO .Net Wrapper sample code: using PsionTeklogix.WorkAboutPro; public class DeviceInterface { public static void PowerOn() { WorkAboutPro WAP = new WorkAboutPro(); // Set pin 70 to false for proper use WAP.GPIO_SetPIN70State(false); // Set pin 72 to false to enable power WAP.GPIO_SetPIN72State(false); } }  Power OFF Set the output pin 72 to true, switches OFF the interface board power. IMPORTANT NOTICE : Pin 70 must be set to false before switching off the interface board power. Power overconsumption and a pin 70 damage may occur if not applied. WorkAboutPRO .Net Wrapper sample code: using PsionTeklogix.WorkAboutPro; public class DeviceInterface { public static void PowerOff() { WorkAboutPro WAP = new WorkAboutPro(); // Set pin 70 to false for proper use WAP.GPIO_SetPIN70State(false); // Set pin 72 to false to disable power WAP.GPIO_SetPIN72State(true); } }

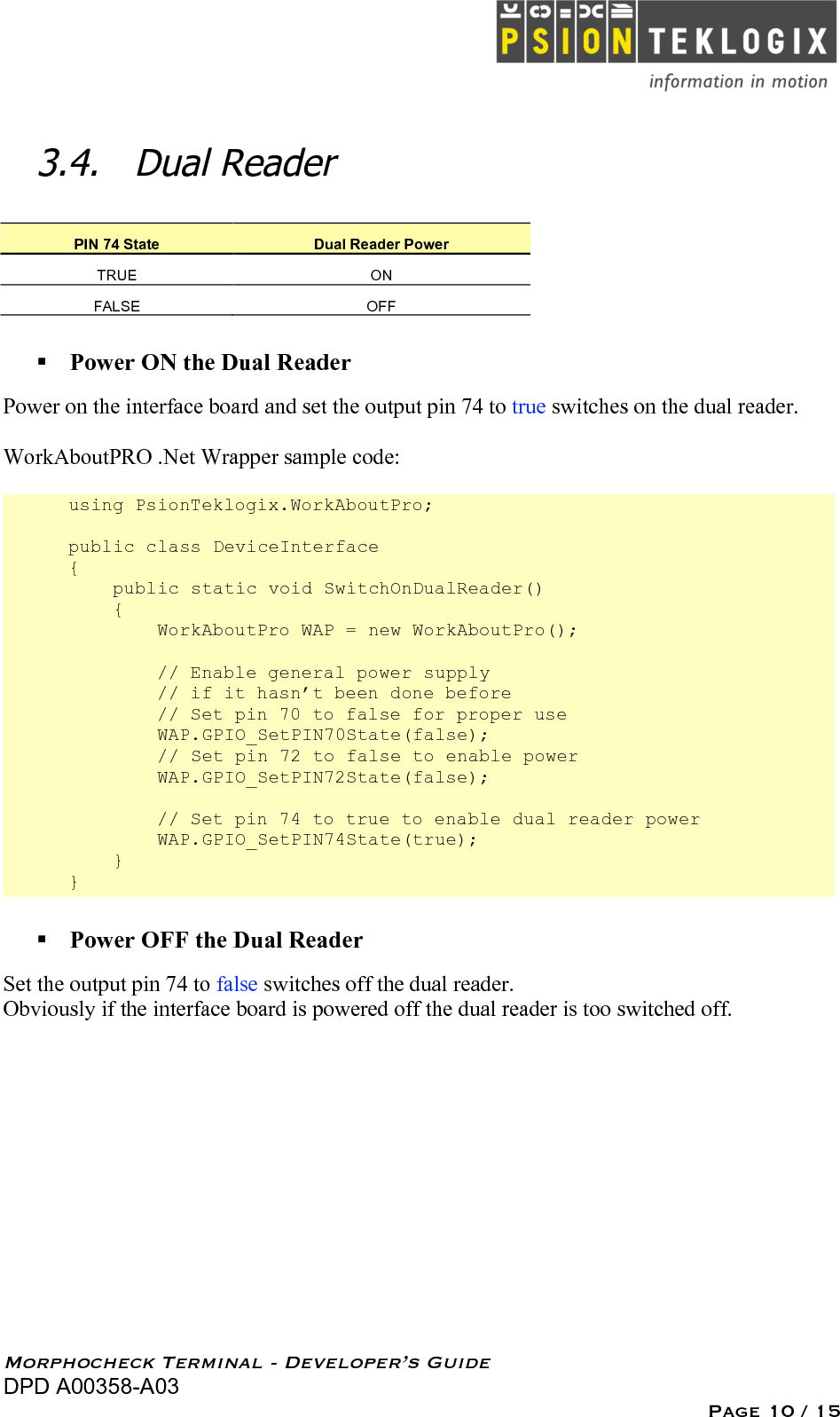

Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 10 / 15 3.4. Dual Reader PIN 74 State Dual Reader Power TRUE ON FALSE OFF  Power ON the Dual Reader Power on the interface board and set the output pin 74 to true switches on the dual reader. WorkAboutPRO .Net Wrapper sample code: using PsionTeklogix.WorkAboutPro; public class DeviceInterface { public static void SwitchOnDualReader() { WorkAboutPro WAP = new WorkAboutPro(); // Enable general power supply // if it hasn’t been done before // Set pin 70 to false for proper use WAP.GPIO_SetPIN70State(false); // Set pin 72 to false to enable power WAP.GPIO_SetPIN72State(false); // Set pin 74 to true to enable dual reader power WAP.GPIO_SetPIN74State(true); } }  Power OFF the Dual Reader Set the output pin 74 to false switches off the dual reader. Obviously if the interface board is powered off the dual reader is too switched off.

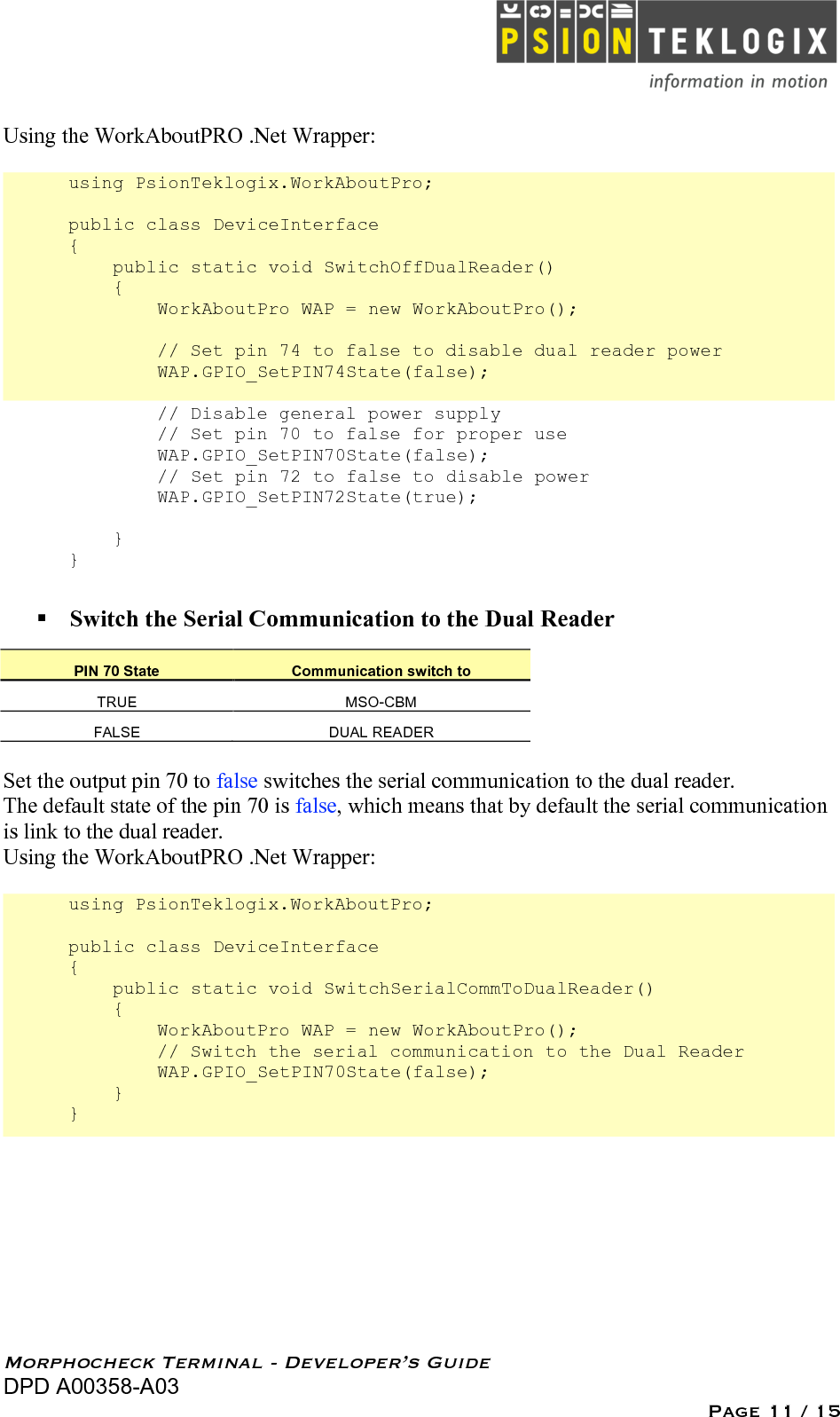

Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 11 / 15 Using the WorkAboutPRO .Net Wrapper: using PsionTeklogix.WorkAboutPro; public class DeviceInterface { public static void SwitchOffDualReader() { WorkAboutPro WAP = new WorkAboutPro(); // Set pin 74 to false to disable dual reader power WAP.GPIO_SetPIN74State(false); // Disable general power supply // Set pin 70 to false for proper use WAP.GPIO_SetPIN70State(false); // Set pin 72 to false to disable power WAP.GPIO_SetPIN72State(true); } }  Switch the Serial Communication to the Dual Reader PIN 70 State Communication switch to TRUE MSO-CBM FALSE DUAL READER Set the output pin 70 to false switches the serial communication to the dual reader. The default state of the pin 70 is false, which means that by default the serial communication is link to the dual reader. Using the WorkAboutPRO .Net Wrapper: using PsionTeklogix.WorkAboutPro; public class DeviceInterface { public static void SwitchSerialCommToDualReader() { WorkAboutPro WAP = new WorkAboutPro(); // Switch the serial communication to the Dual Reader WAP.GPIO_SetPIN70State(false); } }

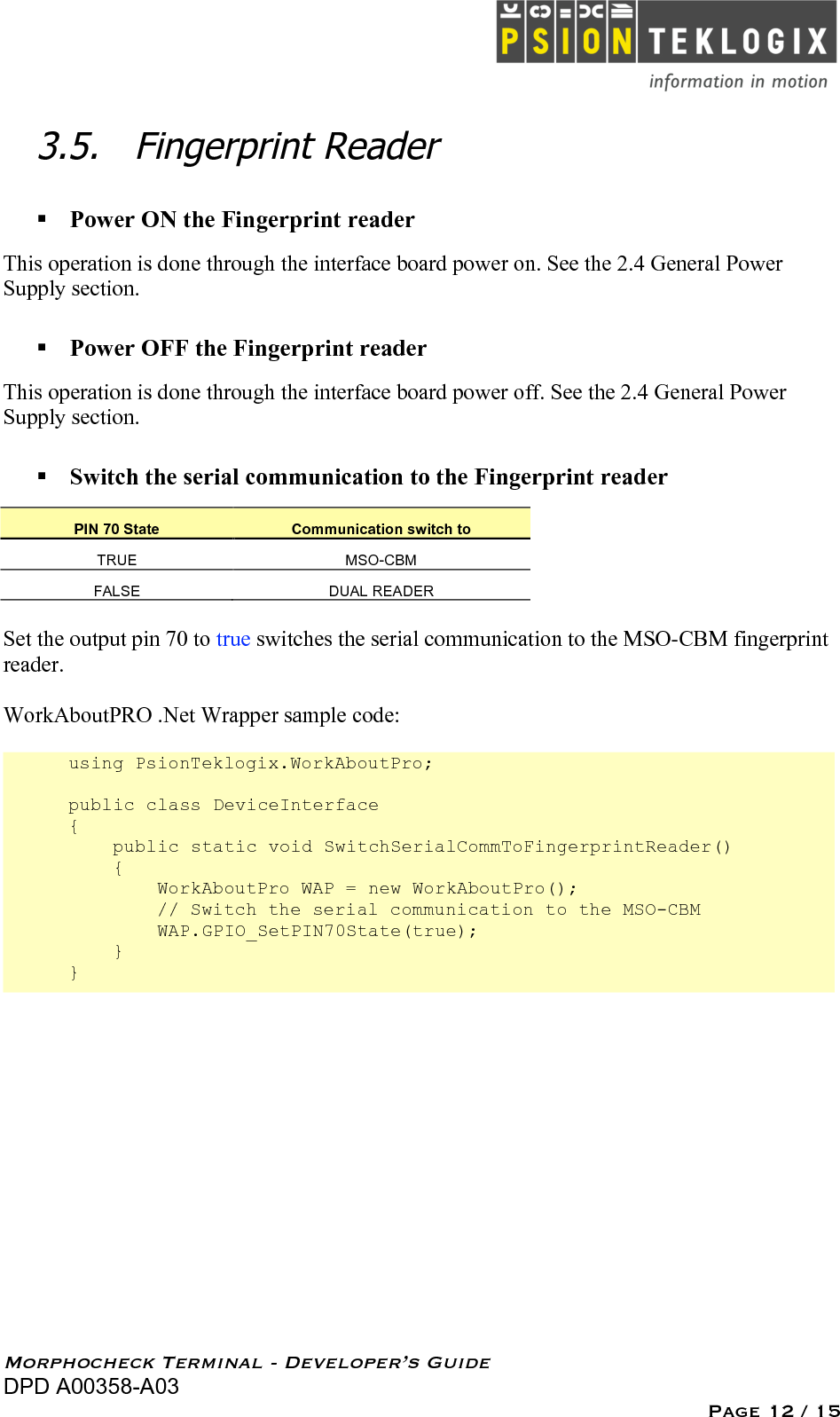

Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 12 / 15 3.5. Fingerprint Reader  Power ON the Fingerprint reader This operation is done through the interface board power on. See the 2.4 General Power Supply section.  Power OFF the Fingerprint reader This operation is done through the interface board power off. See the 2.4 General Power Supply section.  Switch the serial communication to the Fingerprint reader PIN 70 State Communication switch to TRUE MSO-CBM FALSE DUAL READER Set the output pin 70 to true switches the serial communication to the MSO-CBM fingerprint reader. WorkAboutPRO .Net Wrapper sample code: using PsionTeklogix.WorkAboutPro; public class DeviceInterface { public static void SwitchSerialCommToFingerprintReader() { WorkAboutPro WAP = new WorkAboutPro(); // Switch the serial communication to the MSO-CBM WAP.GPIO_SetPIN70State(true); } }

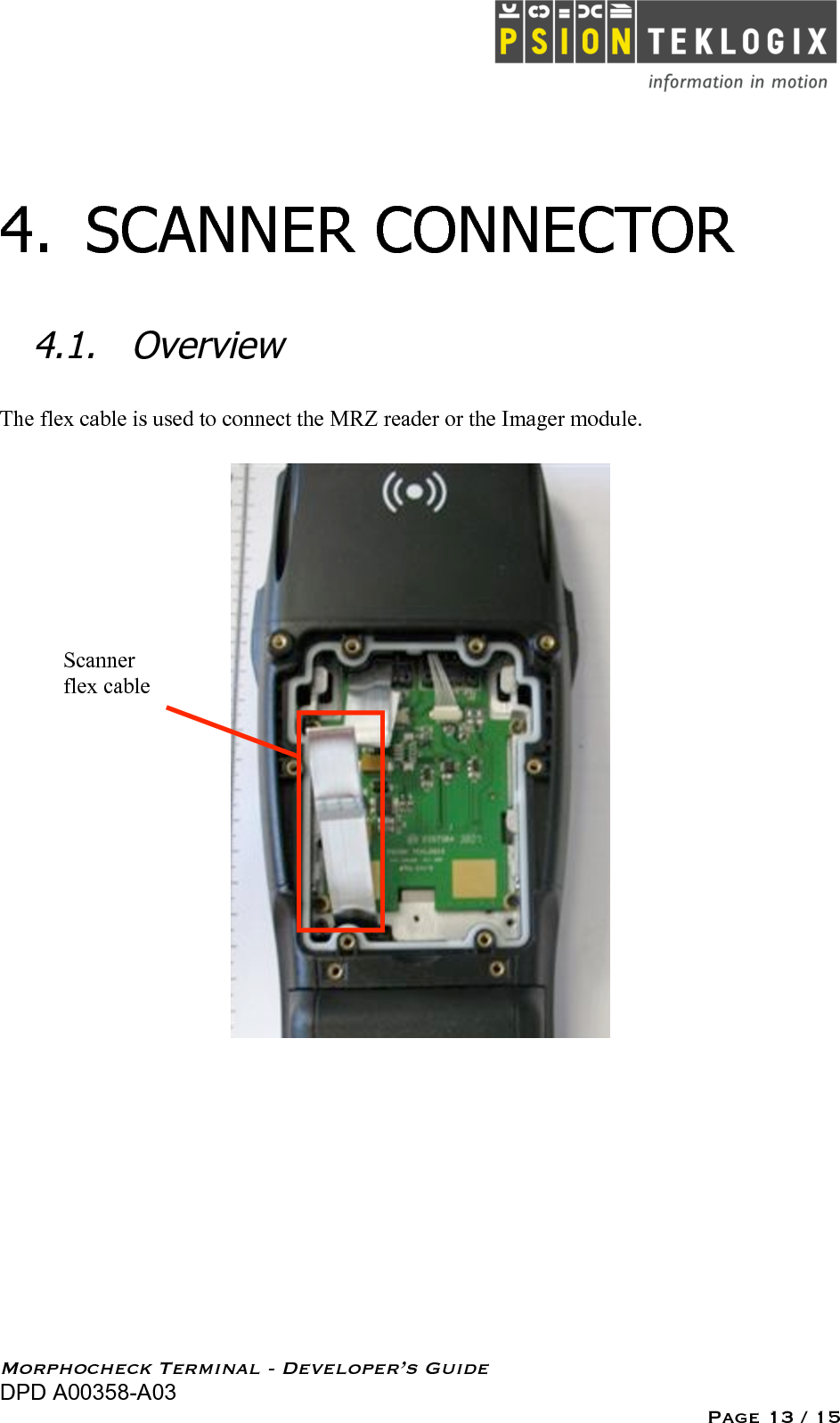

Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 13 / 15 4. SCANNER CONNECTOR 4.1. Overview The flex cable is used to connect the MRZ reader or the Imager module. Scanner flex cable

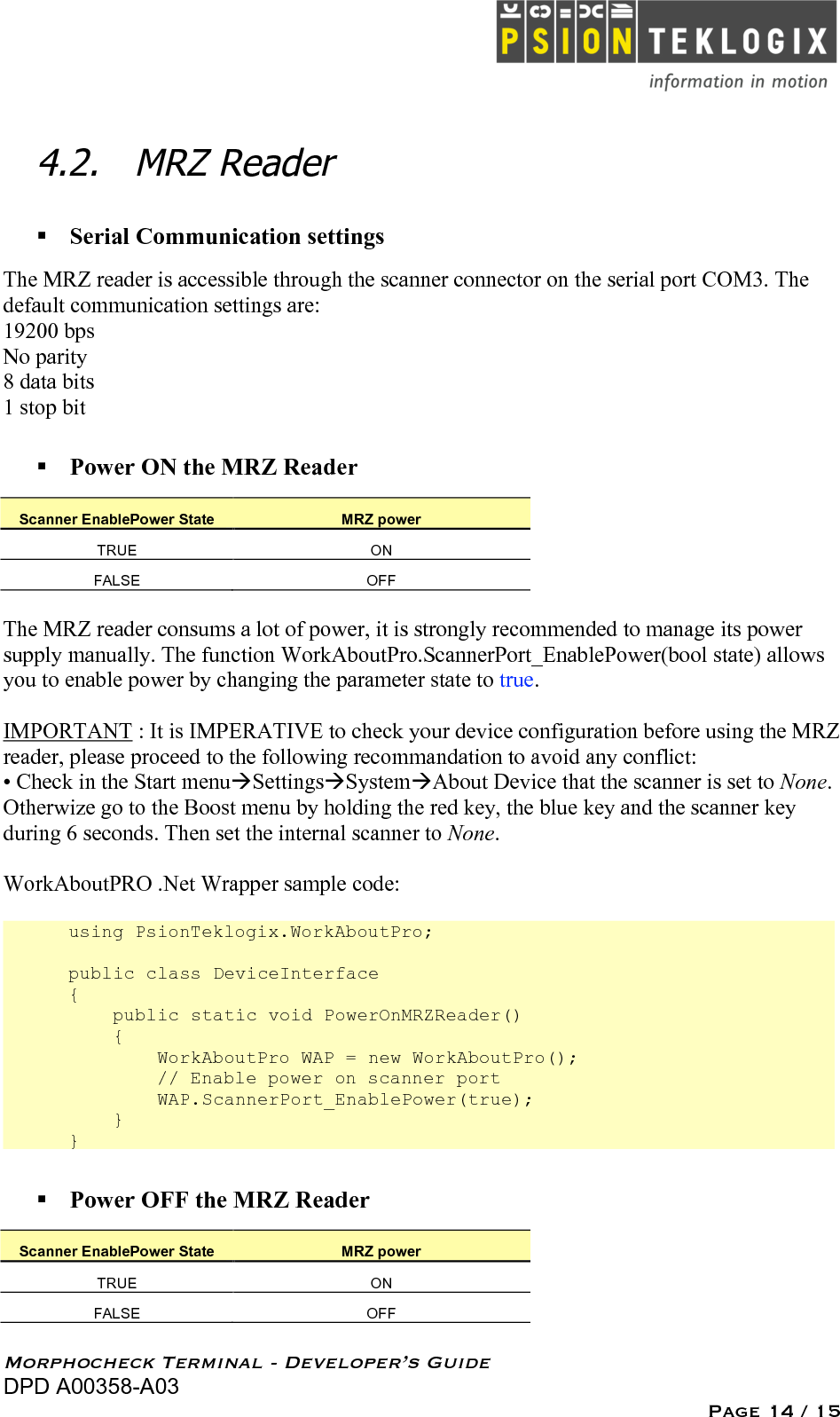

Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 14 / 15 4.2. MRZ Reader  Serial Communication settings The MRZ reader is accessible through the scanner connector on the serial port COM3. The default communication settings are: 19200 bps No parity 8 data bits 1 stop bit  Power ON the MRZ Reader Scanner EnablePower State MRZ power TRUE ON FALSE OFF The MRZ reader consums a lot of power, it is strongly recommended to manage its power supply manually. The function WorkAboutPro.ScannerPort_EnablePower(bool state) allows you to enable power by changing the parameter state to true. IMPORTANT : It is IMPERATIVE to check your device configuration before using the MRZ reader, please proceed to the following recommandation to avoid any conflict: • Check in the Start menuSettingsSystemAbout Device that the scanner is set to None. Otherwize go to the Boost menu by holding the red key, the blue key and the scanner key during 6 seconds. Then set the internal scanner to None. WorkAboutPRO .Net Wrapper sample code: using PsionTeklogix.WorkAboutPro; public class DeviceInterface { public static void PowerOnMRZReader() { WorkAboutPro WAP = new WorkAboutPro(); // Enable power on scanner port WAP.ScannerPort_EnablePower(true); } }  Power OFF the MRZ Reader Scanner EnablePower State MRZ power TRUE ON FALSE OFF

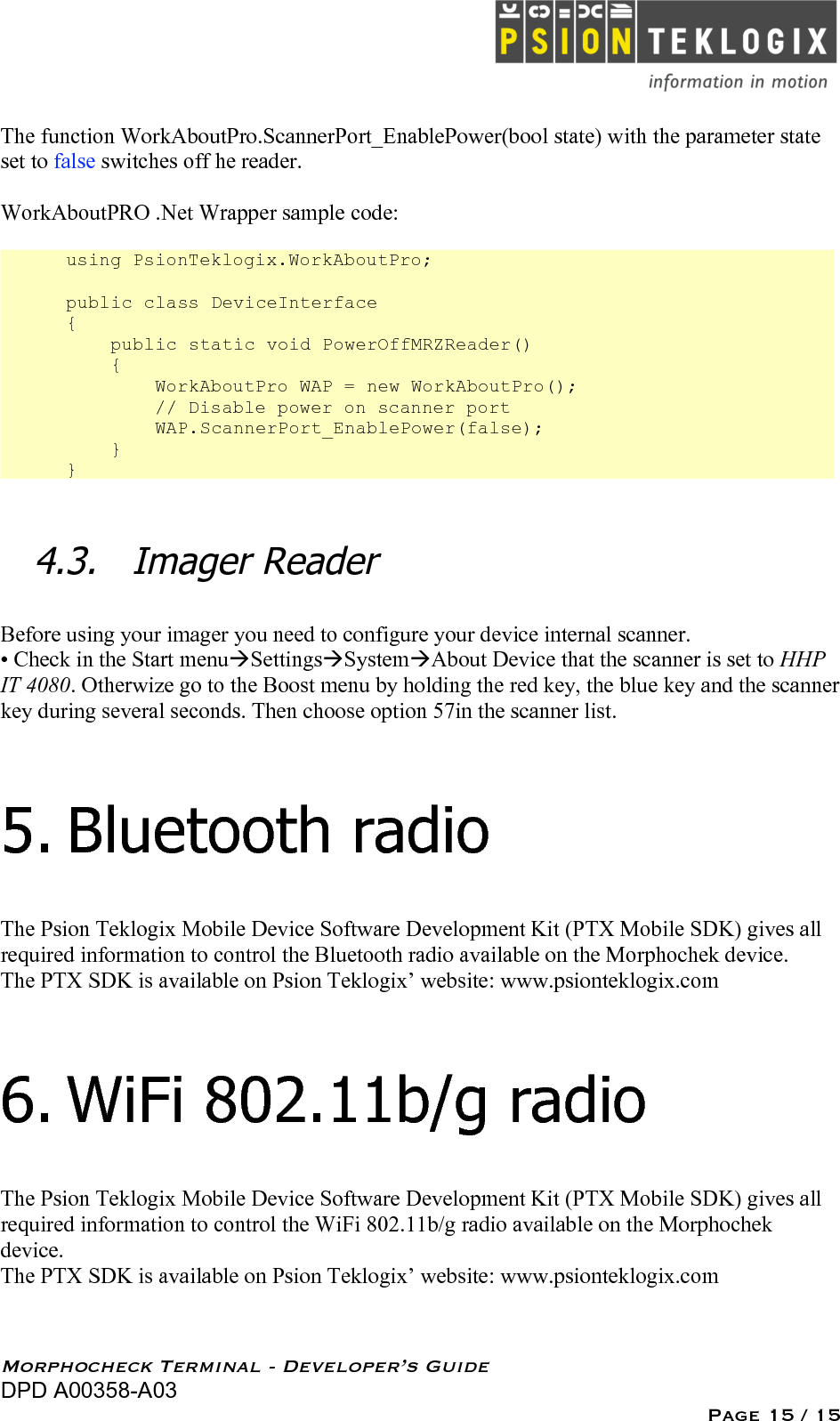

Morphocheck Terminal - Developer’s Guide DPD A00358-A03 Page 15 / 15 The function WorkAboutPro.ScannerPort_EnablePower(bool state) with the parameter state set to false switches off he reader. WorkAboutPRO .Net Wrapper sample code: using PsionTeklogix.WorkAboutPro; public class DeviceInterface { public static void PowerOffMRZReader() { WorkAboutPro WAP = new WorkAboutPro(); // Disable power on scanner port WAP.ScannerPort_EnablePower(false); } } 4.3. Imager Reader Before using your imager you need to configure your device internal scanner. • Check in the Start menuSettingsSystemAbout Device that the scanner is set to HHP IT 4080. Otherwize go to the Boost menu by holding the red key, the blue key and the scanner key during several seconds. Then choose option 57in the scanner list. 5. Bluetooth radio The Psion Teklogix Mobile Device Software Development Kit (PTX Mobile SDK) gives all required information to control the Bluetooth radio available on the Morphochek device. The PTX SDK is available on Psion Teklogix’ website: www.psionteklogix.com 6. WiFi 802.11b/g radio The Psion Teklogix Mobile Device Software Development Kit (PTX Mobile SDK) gives all required information to control the WiFi 802.11b/g radio available on the Morphochek device. The PTX SDK is available on Psion Teklogix’ website: www.psionteklogix.com
