ED4200, ED4200M, ED4200MA
ED4200S, ED4200SM, ED4200SMA
Series Rim & SecureBolt Exit Devices
Installation Instructions FM 316 6/09 (617419090)
(Single Doors or Pairs with Mullion)

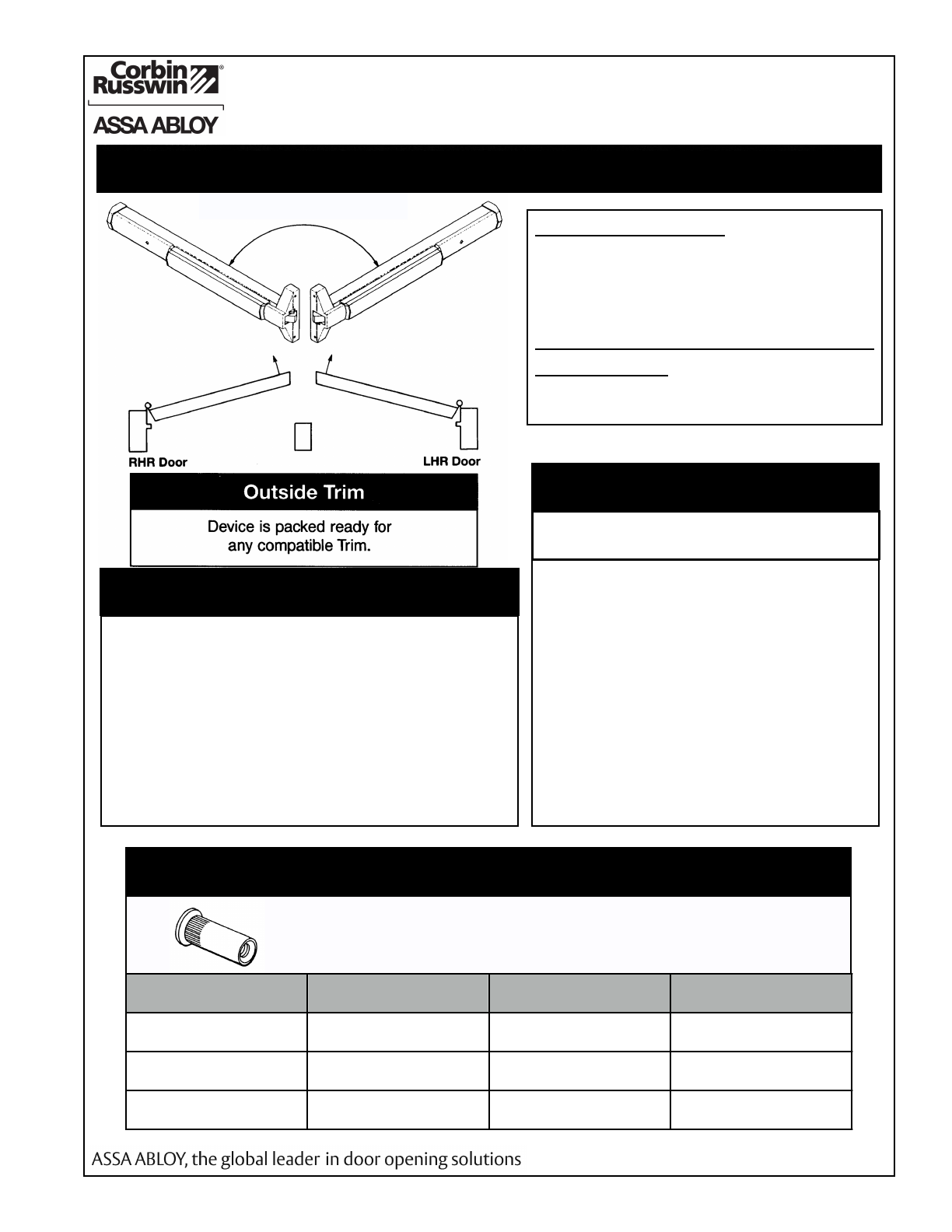

1
Note: These installation instructions cover standard product only. To install options, such as
shim kits or interlock brackets, refer to the instructions packed with the optional component.
Packed for reinforced metal doors.
Optional sex nuts required for unreinforced metal and composite wood doors and are
furnished standard with all fire-rated (A) devices.
Outside Trim: Device is packed ready for any applicable Corbin Russwin Trim.
Not a feature of Fire Rated Devices
(3) #10-24 PFHMS
Rim Device Shown
SecureBoltTM
®
2
ED 4200, ED4200S
For Narrow Stile Metal Doors of Either
Hand
ED 4200M, ED4200MA, ED4200S,
ED 4200SMA
For Metal, Composite and Wood Doors of
Either Hand
Shim Kit Option
Kit consists of (2) Latch Head Shims
(Device Cover seats on shim) and (2)
End Cap Shims (End Cap Shims (End
Cap seats on shim).
Each shim is 1/8ʼ (3.2mm) thick.
More than two shim thicknesses
1/4” (6.4mm), require longer device
mounting screws (not included).
Device
Rim Qty
SecureBolt™ Qty
Size
(No Trim)
4
6
1/4 - 20
(With Trim)
2
2
1/4 - 20
Fire Mullion (Add)
4
4
10 - 24
Recommended for un-reinforced metal doors.
Standard for Fire Rated Doors.
Maintenance
1. Periodically remove covers and coat mechanisms with a
silicone base lubricant. This is particularly required in
corrosive environments for proper product function.
2. Check mounting fasteners periodically. Retighten if
found loose. Apply screw looking compound (available
at automotive part stores) or change part fasteners if
screws continue back up.
3. Periodic checks and adjustments of strike are required to
compensate for changes in the opening (e.g.; door
sagging, etc....).
General Information
Specify Finish
697F35-8, Black Finish

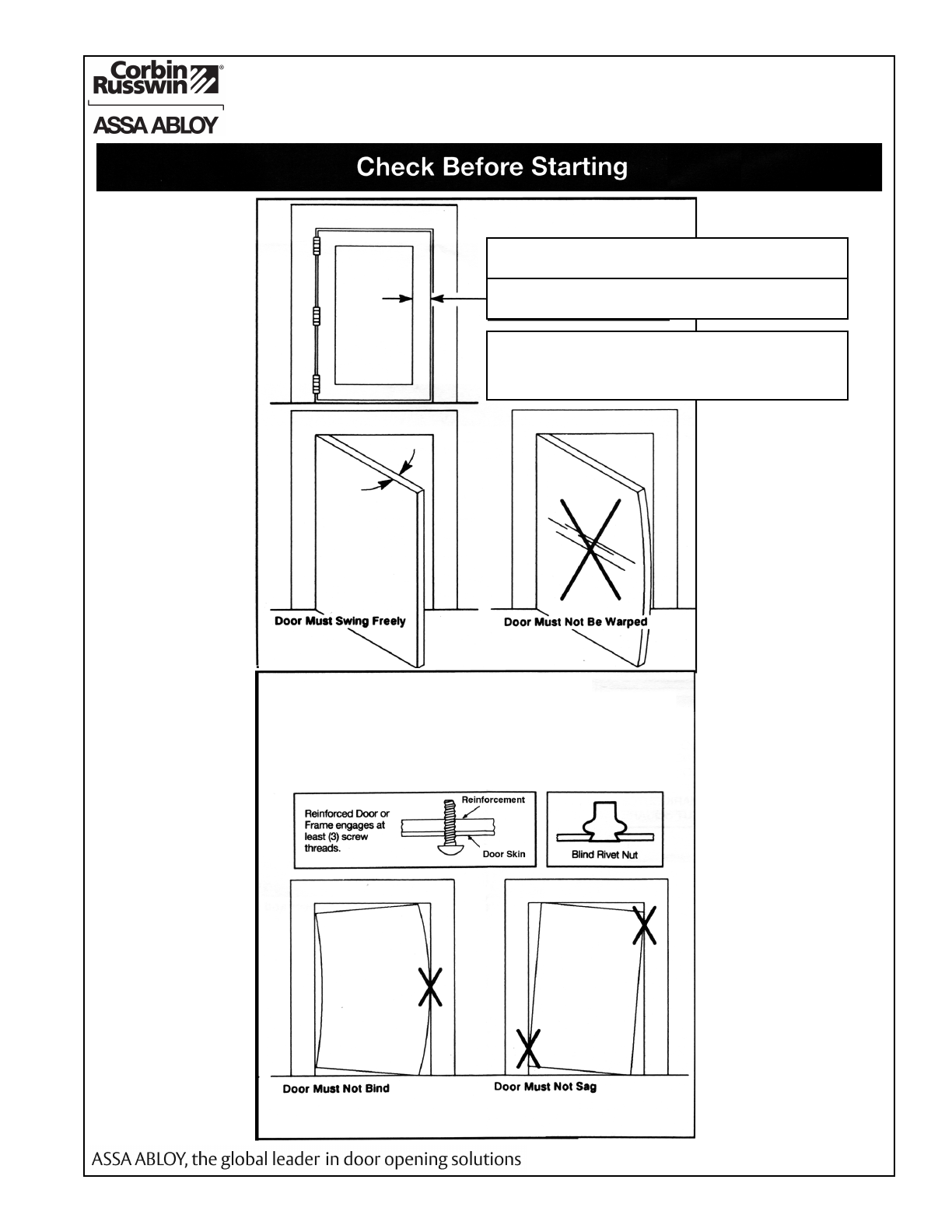

3

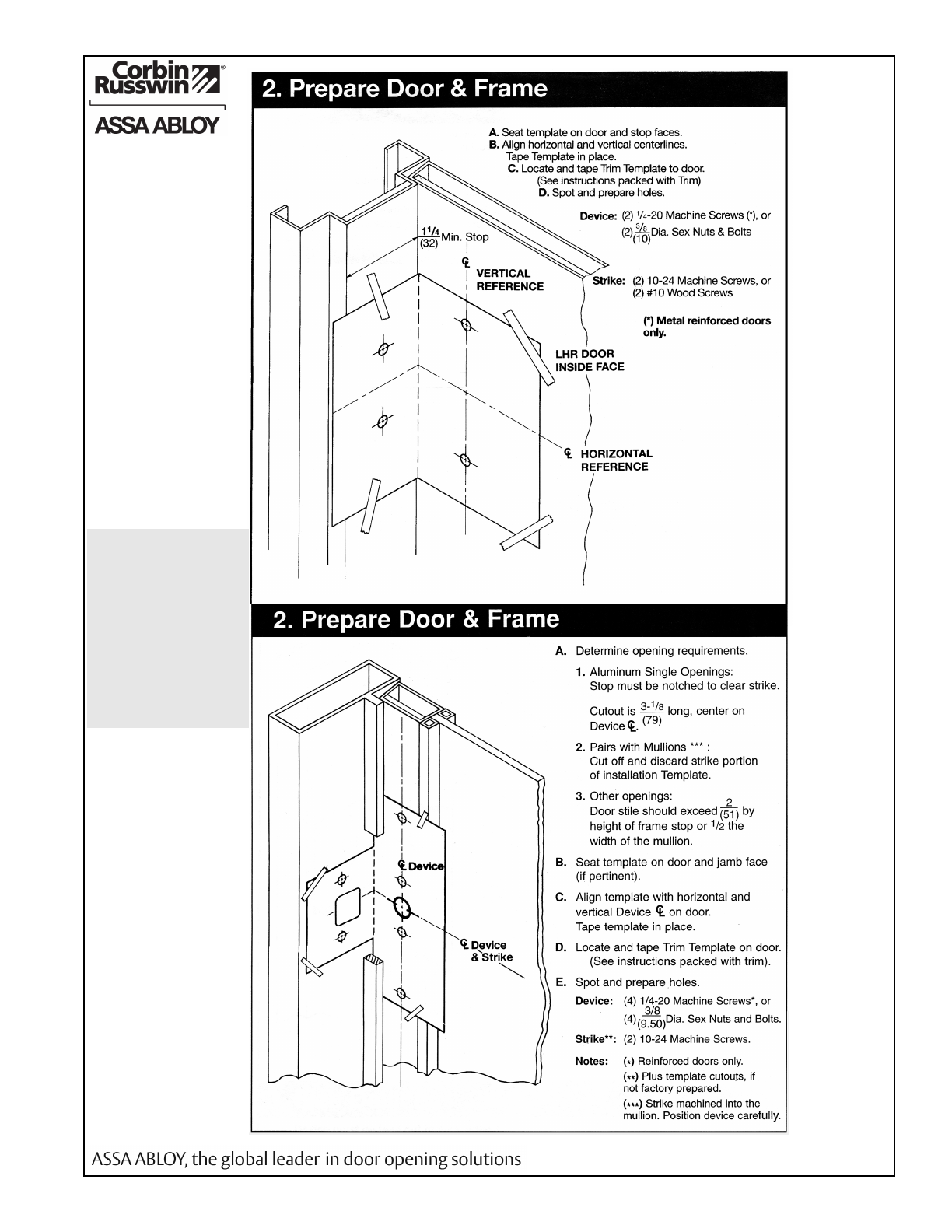

ED4200 & ED4200S
Minimum Door Stile 2” (50mm)
ED4200M, ED4200MA, ED4200SM & ED4200SMA
Minimum Door Stile 3 1/2” (89mm)
Door and Frame must meet structural and
dimensional specifications on exit device
template(s) for door and frame preparation.

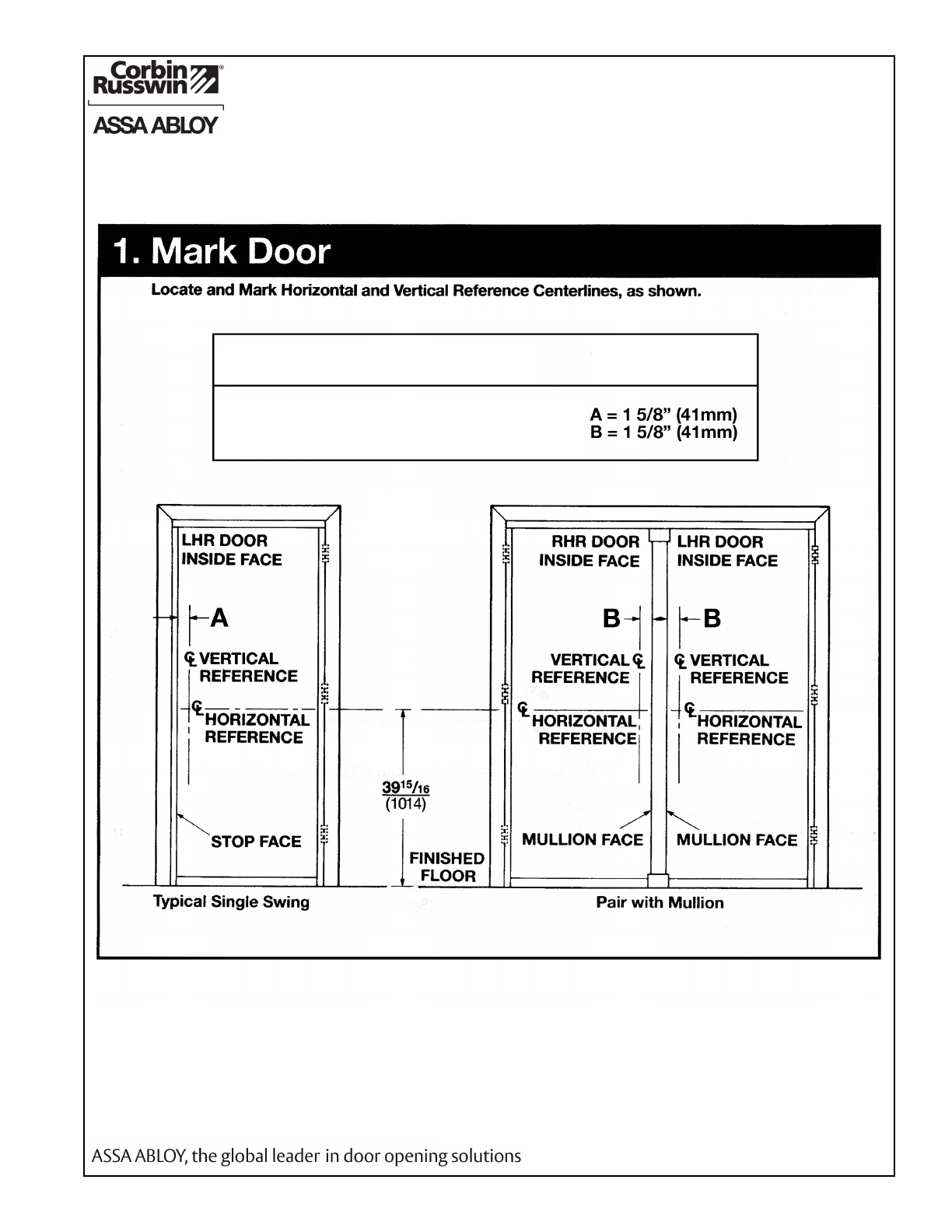

4
A = 1 1/4” (32mm)
B = 3/4” (29mm)
ED4200, ED4200S with 808 Mullions
ED4200M, ED4200MA, ED4200SM, ED4200SMA
with 700 & 900 Mullions with 650F308 strikes

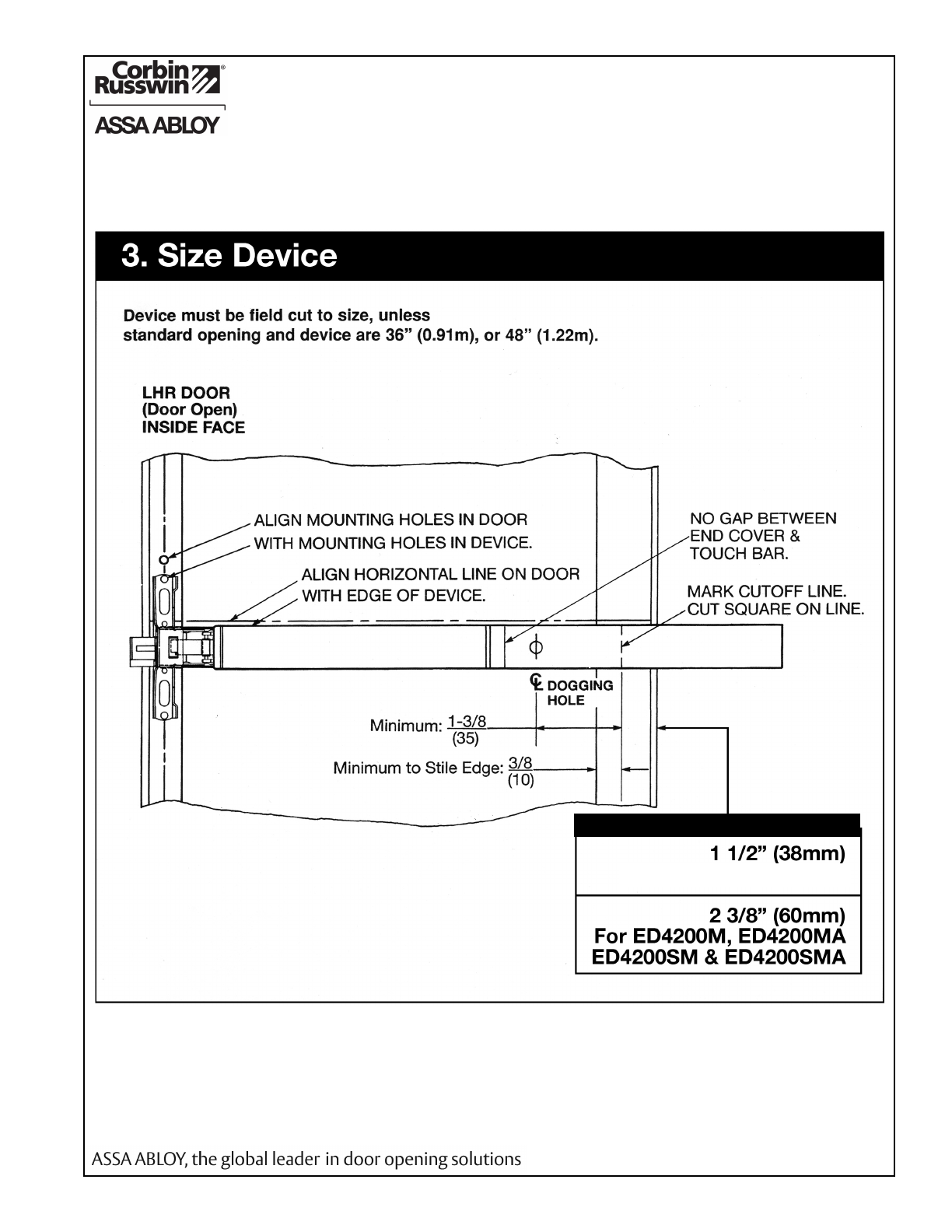

5
ED4200M, ED4200MA
ED4200SM, ED4200SMA
ED4200, ED4200S
Caution:
The Use of Shims
(i.e. Raised Glass)
requires shifting
location of strike
away from the
door. (See Door
Marker Template
for details).

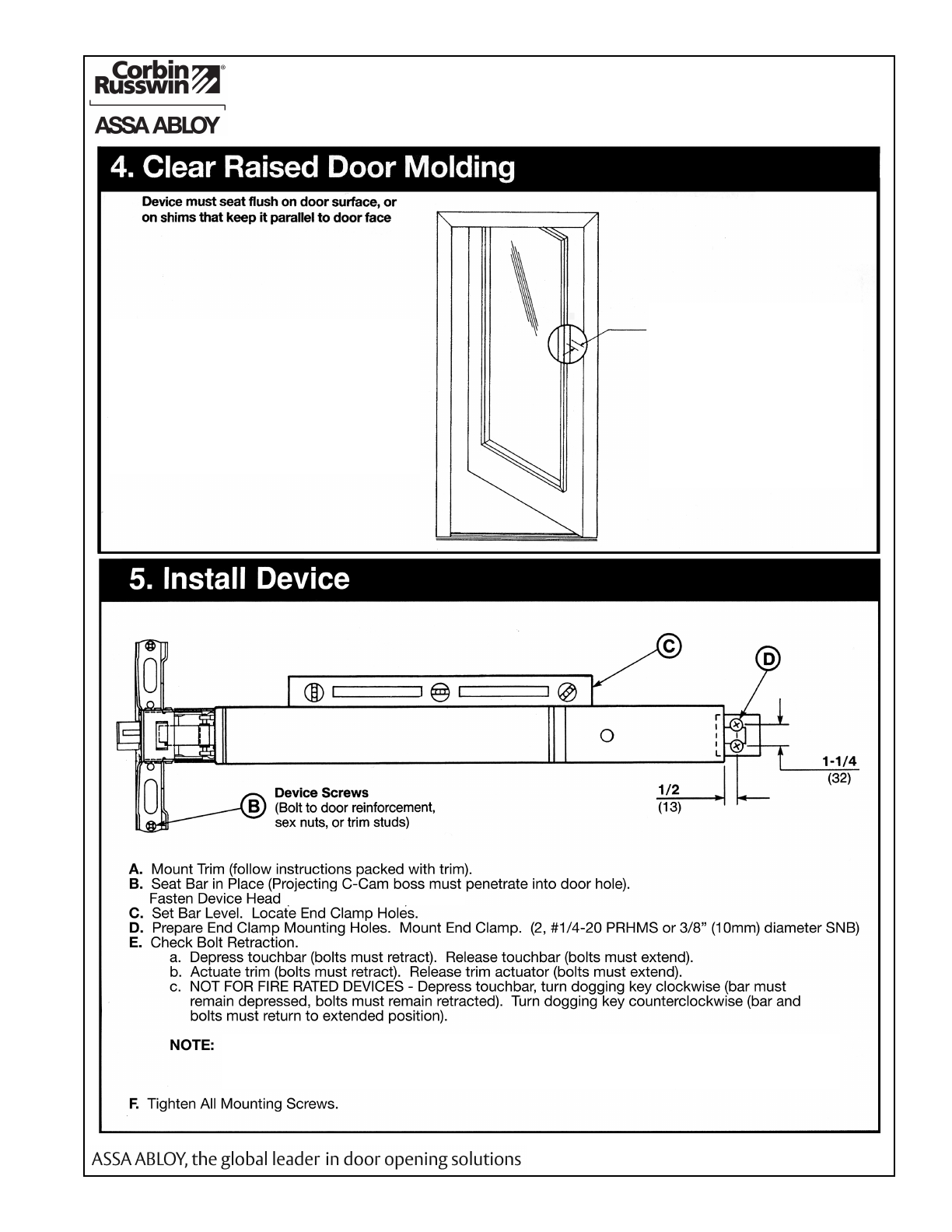

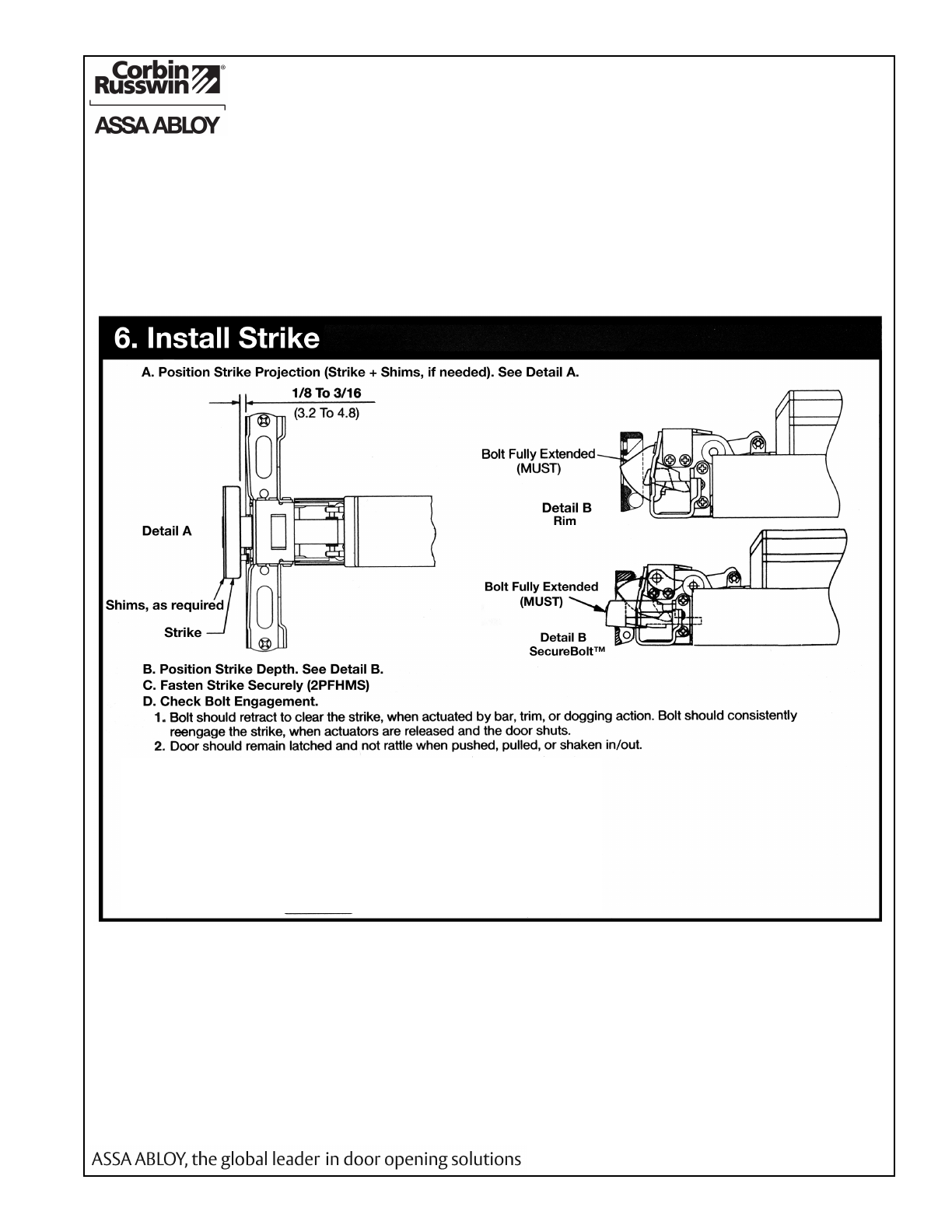

6
For ED4200 & ED4200S
Soffit to Cutoff
7
.
One shim Kit 697F35-8 required
for each 1/4” (6mm) of device lift
needed. Each Shim kit includes 2
1/8” (3mm) thick shims. Longer
device mounting screws needed
when more than (2) shim kits are
used. See Shim Kits Option on
page 2.
When resulting operation is faulty, check first for visible binding or interference. If there is no
apparent reason for the fault, remove item from the door and recheck its operation and door
preparation before assuming it is defective.

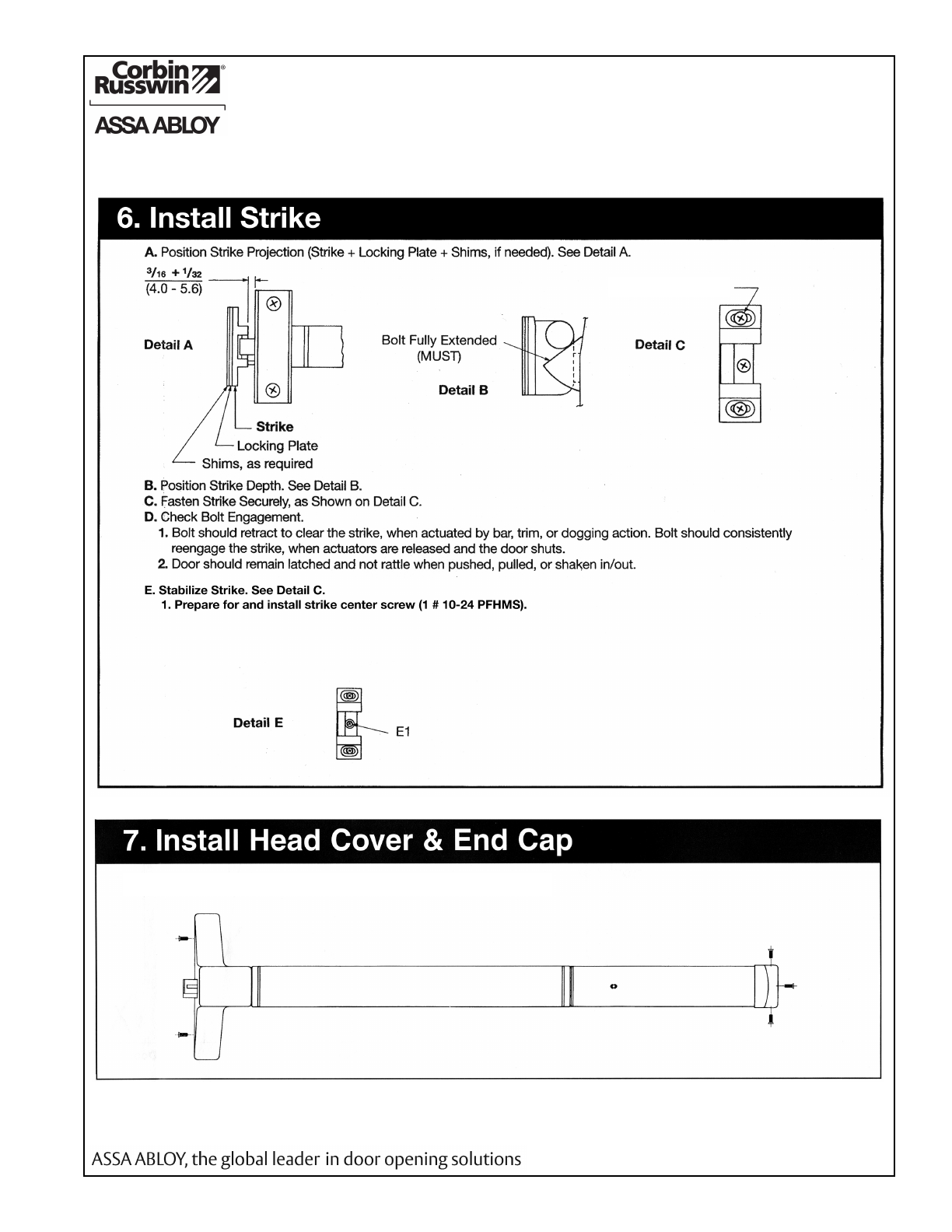

8
ED4200, ED4200S
9
ED4200M, ED4200MA, ED4200SM, ES4200SMA
(3) #10-24 PFHMS
Use 8-32 PFHMS screws (2) for Cover and (3) for End Cap.
10
Copyright © 2008-2009 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the expressed
written permission of Corbin Russwin, Inc. is prohibited
In U.S.: Corbin Russwin, Inc.
225 Episcopal Road
Berlin, CT 06037-4004
www.corbinrusswin.com
Technical Product Support:
Telephone: 888-607-5703
Fax: 800-659-7293
In Canada: ASSA ABLOY
Door Security Solutions Canada
160 Four Valley Drive
Vaughan, ON, L4K 4T9
www.assaabloy.ca
