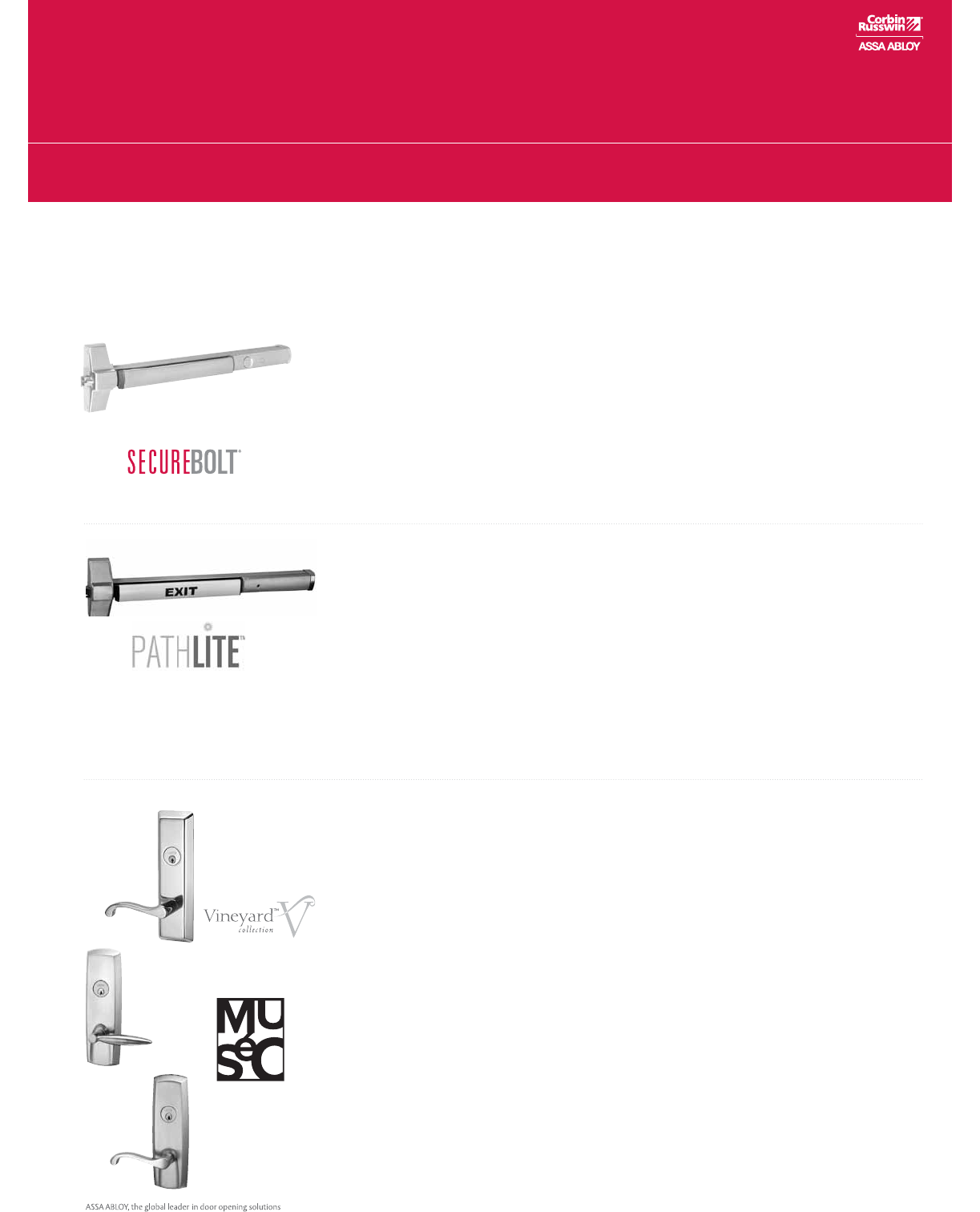

ED5000 Series
Pushpad Exit Devices
Overview
ED5000
ED5000.2
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Applications
Corbin Russwin’s history is rich with architectural hardware designed to meet life
safety and security requirements. That tradition continues with ED5000 Series exit
devices. Designed to allow safe and easy egress, the ED5000 is ideal for frequent use
applications such as schools, factories, hotels, theaters, office, retail complexes and
government buildings.
Quality
All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in
the lab and field. Testing procedures go beyond industry standards; the ED5800
concealed vertical rod exit device was witnessed and certified to 3.25 million
successful cycles, more than 6 times the requirement. Abuse and cycle tests prove
time and again the durability of the entire ED5000 series, which is backed by a 5-year
warranty.
Aesthetics
Over the past 100 years, Corbin Russwin has been well-known for weaving pleasing
aesthetics and inventive designs into architectural door hardware, and today’s wide
stile exit device line is no exception. The ED5000 Series offers smooth lines in the exit
device bar and a full range of trim designs with visual diversity, including the Muséo®
and Vineyard™ Collections.
Vandal Resistance
Today’s door hardware must fulfill life-safety and security needs, two areas in which
ED5000 series exit devices and trim excel. The ED5200S SecureBolt® features a
deadbolt style latchbolt that significantly resists pull from the exterior, thus reducing
door and frame separation, preventing the door from being forced open. 900
series heavy-duty trim deters vandals with a thick 13/16" beveled escutcheon, Free
Wheeling lever (excluding mortise trim), and flush cylinder. High security Pyramid
cylinders offer an additional barrier against picking and drilling. These components
can all be combined for high quality, high security applications.

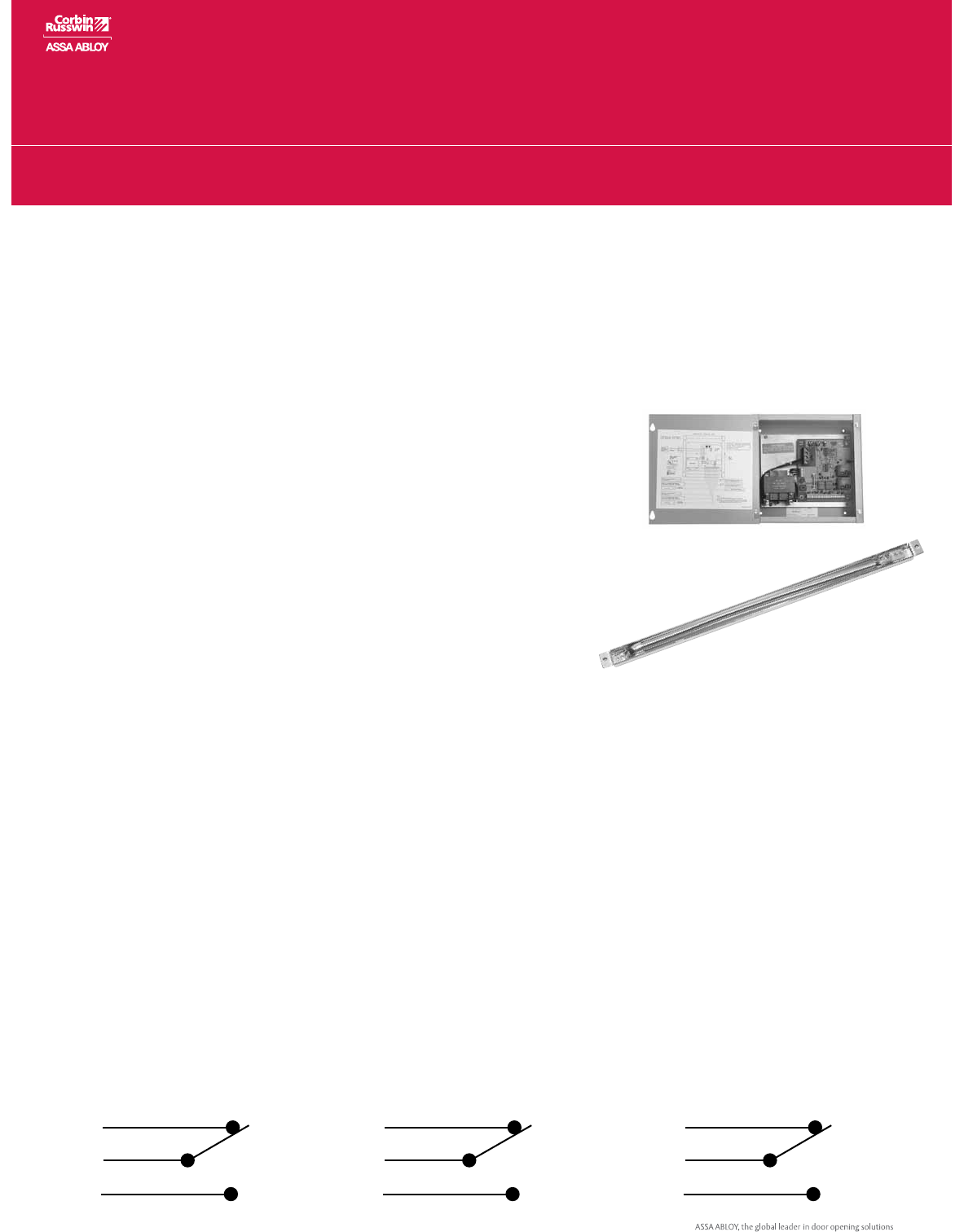

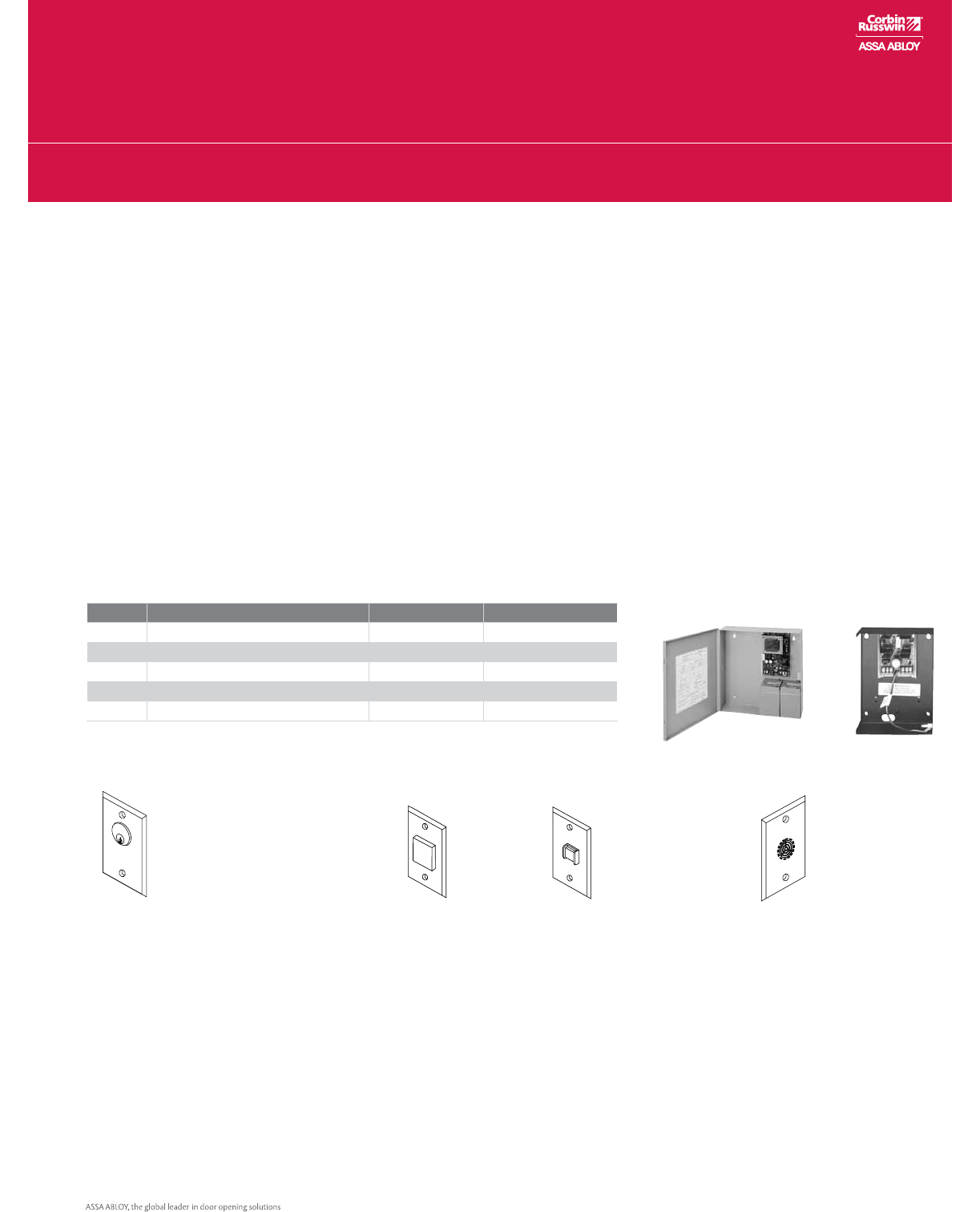

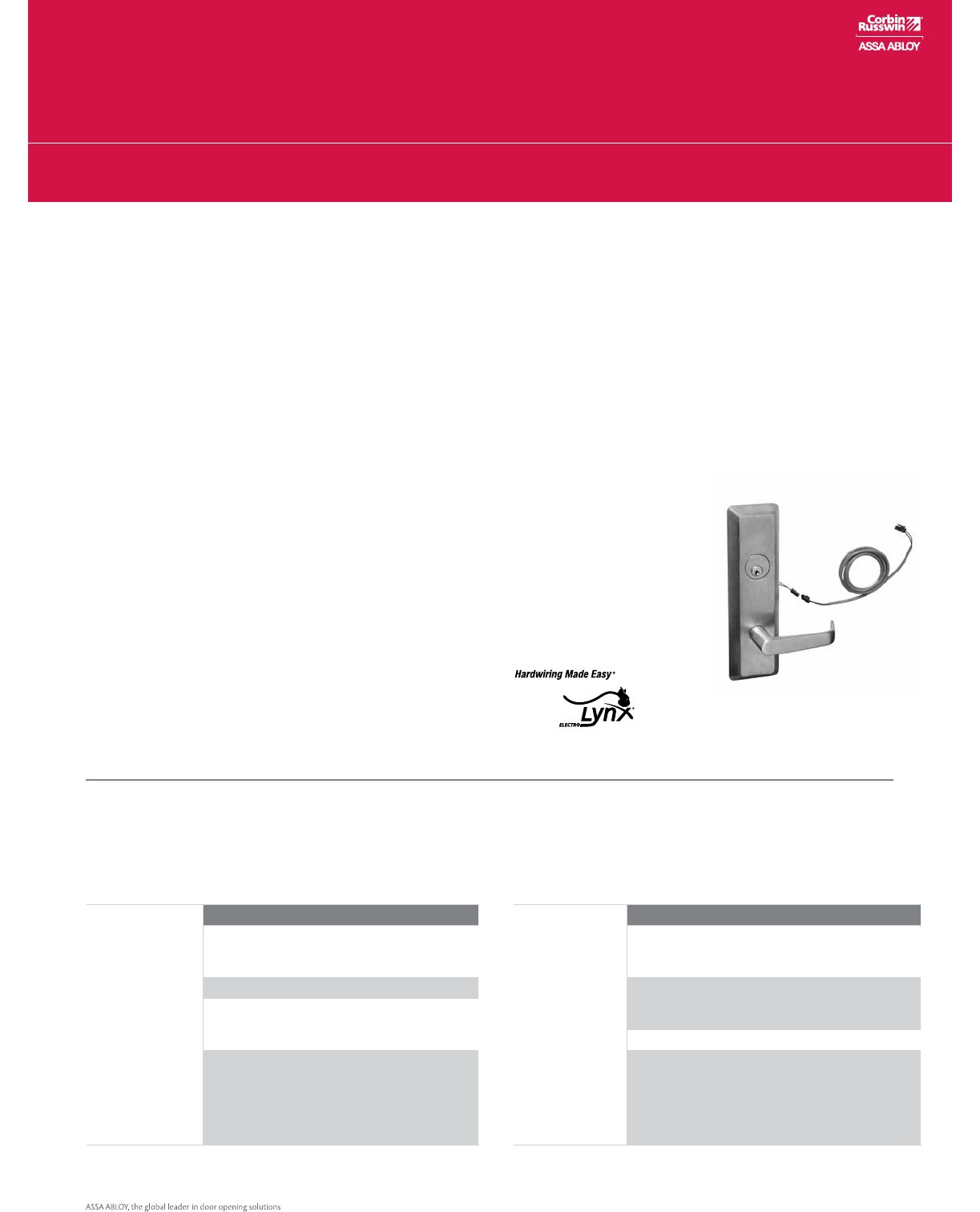

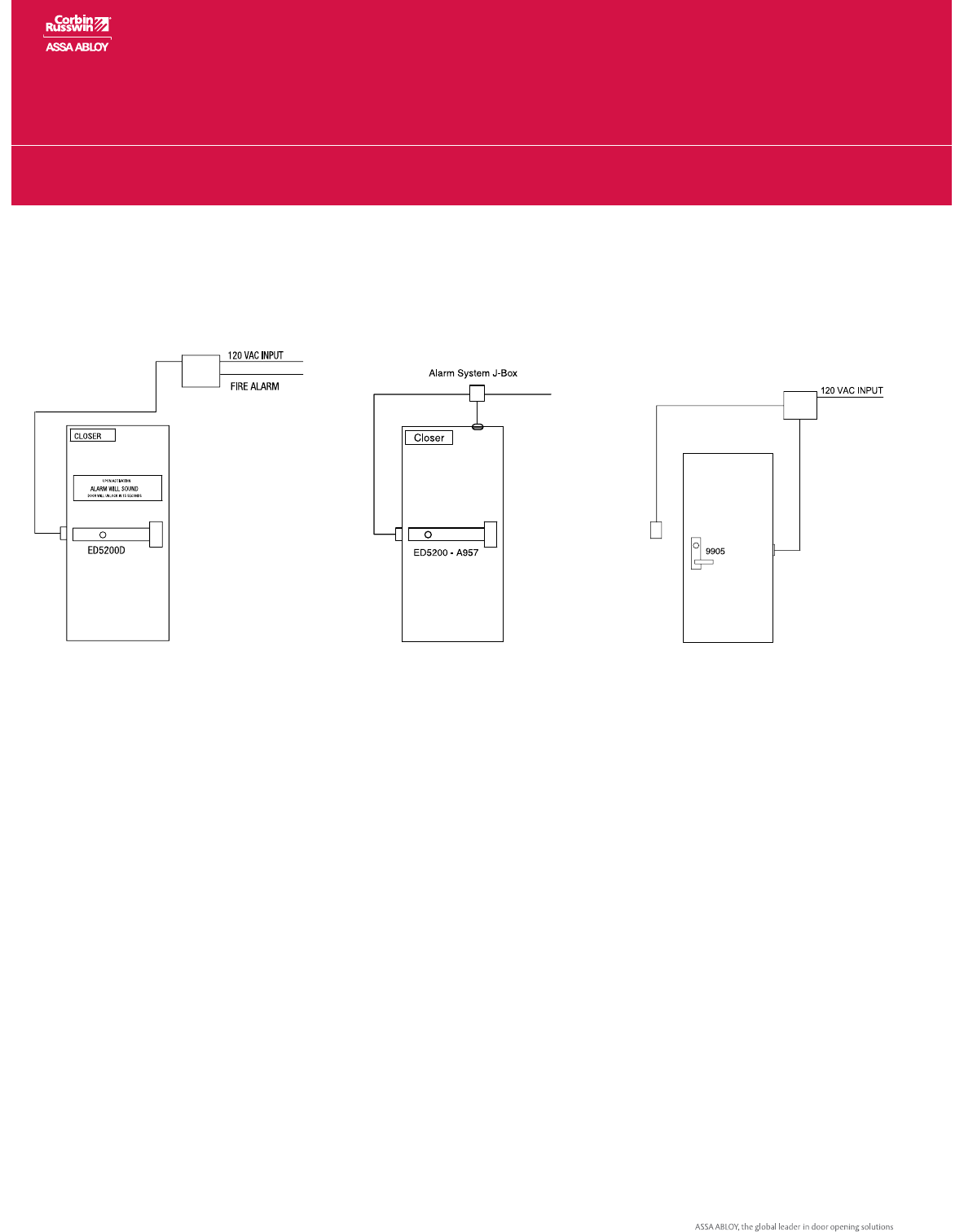

Electronics
If electronic access control is required, or just a simple monitoring switch, the ED5000
series offers a full range of electrified options, including a delayed egress exit device
and electrically controlled trim. All options can be tied into existing security and fire
alarm systems for easy monitoring.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.3
Product Series Features
ED5000
Heavy-Duty Trim
• Free Wheeling levers for vandal resistance (excluding mortise trim)
• Heavy-duty threaded posts provide additional strength
• Beveled sides for increased attack resistance
• Flush cylinder when used with 6-pin applications and mortise trim functions
Muséo® and Vineyard™ Collections
• Available in 605, 606, 611, 612, 613, 613E, 618, 619, 625, 626, 722 finishes
• Allows for design continuum when matched with the ML2000 series mortise lock Muséo and
Vineyard Collection trims
• Heavy-duty vandal-resistant escutcheon increases security
Parabolic Trim with Vineyard™ Lever
• SpecifyM60
SecureBolt®
• Deadbolt-stylelatchdesignprovides
increased security by resisting unauthorized
entrance from credit cards, crowbars, door
rattling, etc.
• Ismoreresistanttovectorforces,which
results in less force against the frame, thus
eliminating door/frame separation
• Providesincreasedstabilityofopenings
with mullions
Delayed Egress Exit Device
• Increasessecurityinmanyapplicationssuch
as retail stores and health care facilities
• FeaturesanLEDindicatorandanuisance
delay
• 15or30-seconddelayavailable
• ULandBHMAlisted
Heavy-Duty Trim
with Muséo® lever
Parabolic Trim with
Vineyard™ lever
Specify M60
Photoluminescent Touchpad Cover
The PathLite™ patent pending technology
offers a number of benefits:
• Requiresnowiringormaintenance
• Rechargeswithexposuretoambientlight
• Unaffectedbyheatorcold
• Non-toxic,willnotruborfade
• Vandalresistant
• Fireresistantandnon-radioactive
• Greencontrastingword“EXIT”centeredon
touchbar in 1-1/4" high lettering
• Costeffective;especiallysuitedforexisting
buildings
PathLite™ photoluminescent exit devices meet
NewYorkCity’snewlyadoptedstandardsfor
requirement of photoluminescent signage
and stairwell markings in all office buildings in
excess of 75 feet in height.
As Corbin Russwin continues to offer the latest technology and architectural hardware, an additional option is also presented to
architects, distributors, and end-users. The power of choice. With a wide variety of devices, trims, lever designs, and electrified
hardware, a locking system can be designed for any building and any application. Below are some highlights of the ED5000 Series.
These are but a few of the options that can be combined to meet the aesthetic and security requirements of today.
SecureBolt® Delayed
Egress Exit Device
Heavy-Duty
Trim with
Vineyard lever
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15

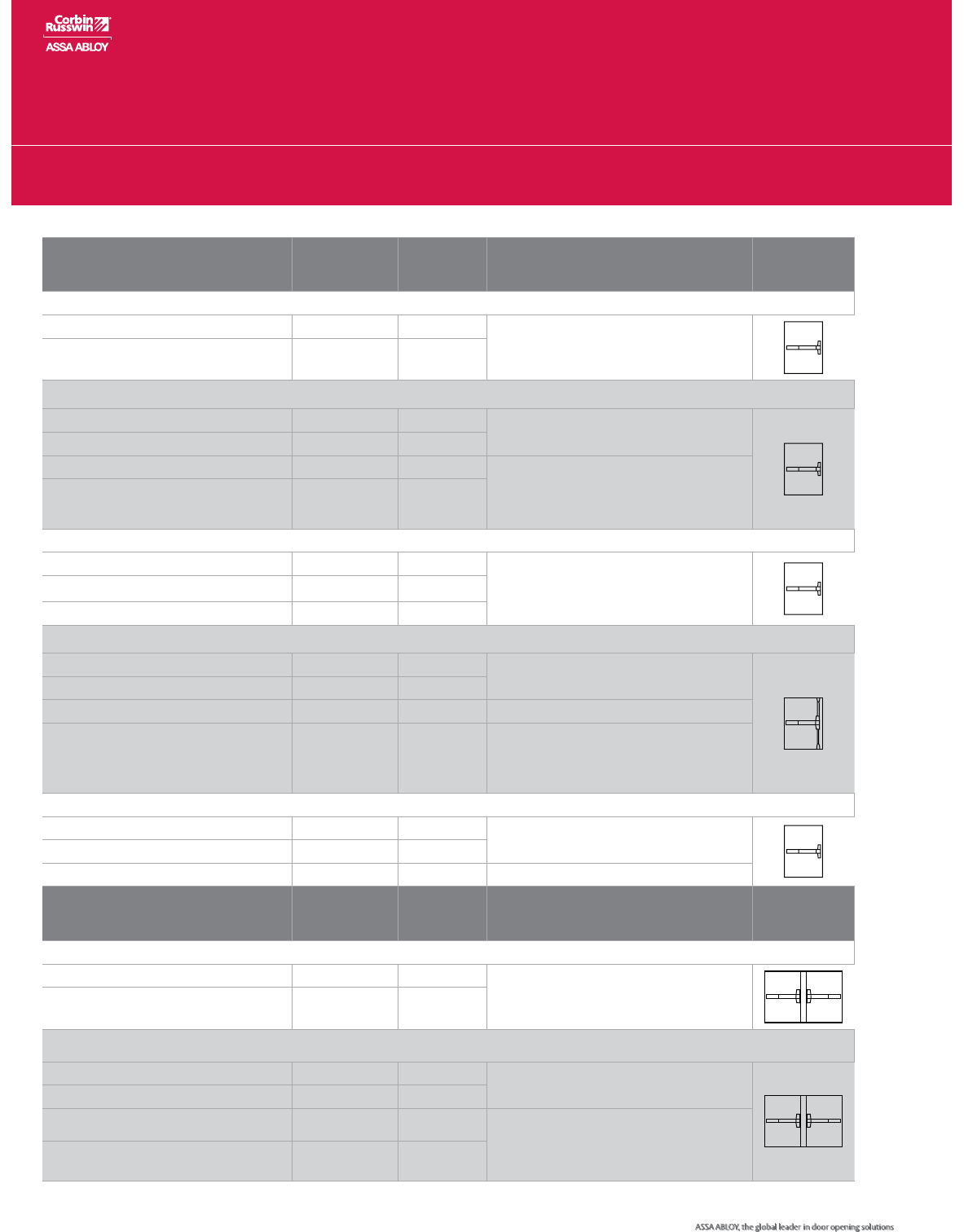

Applications and Listings
ED5000
ED5000.4
*ULdoesnotsetadoorheightlimitationonpanicapplications.
Single Door UL Listing
Maximum
Opening
(W x H)
Application
Rim
ED5200 Panic 4' x *
Surface applied; single-point latching.
ED5200A 3 Hr. 4' x 8'
SecureBolt®
ED5200S Panic 4' x * Surface applied; single-point latching.
ED5200SA 3 Hr. 4' x 8'
ED5200S x M107 Panic 4' x 8' Surface applied; single-point latching.
Usedascomponentsinswingingdoor
windstorm-rated assemblies (refer to local
codes).
ED5200SA x M107 3 Hr. 4' x 8'
Mortise
ED5600 Panic 4' x *
Mortised in door; single-point latching.
ED5600A 1-1/2 Hr. 4' x 9'
ED5600A 3 Hr. 4' x 8'
Surface Vertical Rod
ED5400 Panic 4' x 8' Surface applied; two-point latching.
ED5470 Panic 4' x 10'
ED5470 x M55 Panic 4' x 10' Surface applied; one-point latching.
ED5470 x M107 Panic 4' x 8'
Surface applied; two-point latching.
Usedascomponentsinswingingdoor
windstorm-rated assemblies (refer to local
codes).
Concealed Vertical Rod
ED5800 Panic 4' x 8' Rods concealed in door; two-point
latching.
ED5860 Panic 4' x 10'
ED5860 x M55 Panic 4' x 10' Rod concealed in door; one point latching.

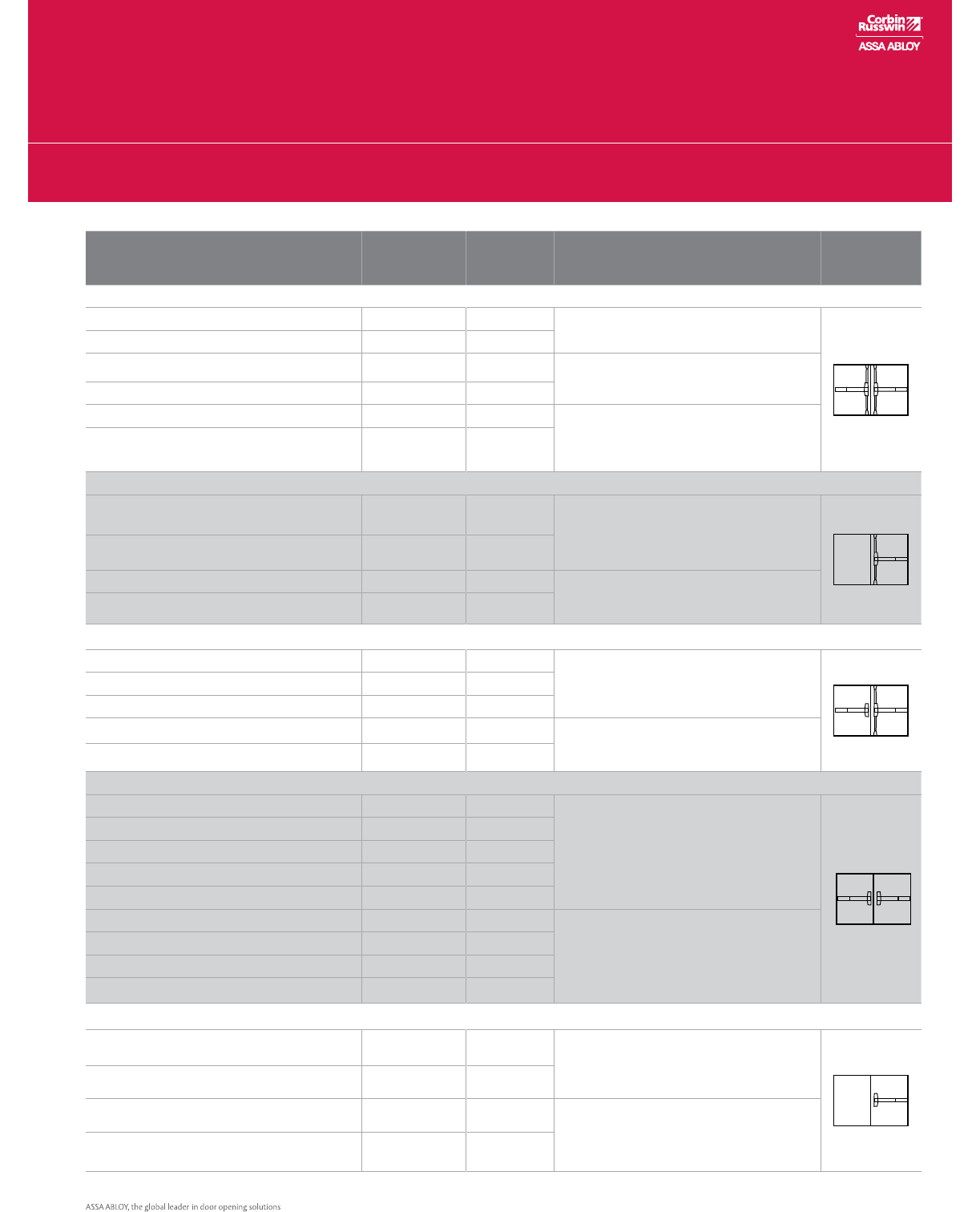

Pair of Doors with
Removable Mullion UL Listing
Maximum
Opening
(W x H)
Application
Rim x Rim
ED5200 x ED5200 x 900 Series Panic 8' x 10'
Two independent active doors with
removable mullion.
ED5200A x ED5200A x 900 Series 3 Hr. 8' x 8'
SecureBolt® x SecureBolt®
ED5200S x ED5200S x 900 Series Panic 8' x 10' Two independent active doors with
removable mullion.
ED5200SA x ED5200SA x 900 Series 3 Hr. 8' x 8'
ED5200S x ED5200S x M107 Panic 8' x 8' Two independent active doors with
removablemullion.Usedascomponentsin
swinging door windstorm-rated assemblies
(refer to local codes).
ED5200SA x ED5200SA x M107 3 Hr. 8' x 8'
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.5
Applications and Listings
ED5000
*ULdoesnotsetadoorheightlimitationonpanicapplications.
Pairs of Doors UL Listing
Maximum
Opening
(W x H)
Application
Surface Vertical Rod
ED5400 x ED5400 Panic 8' x 8' Two independent doors with two-point
latching, swinging in the same direction.
ED5400A x ED5400A 3 Hr. 8' x 8'
ED5470 x ED5470 Panic 8' x 10' Two independent doors with one or two-
point latching, swinging in the same direction.
ED5470B x ED5470B 1-1/2 Hr. 8' x 10'
ED5470 x ED5470 x M107 Panic 8' x 8' Two independent doors with two-point
latching,swinginginoppositedirections.Used
as components in swinging door windstorm-
rated assemblies (refer to local codes).
ED5470B x ED5470B x M107 1-1/2 Hr. 8' x 8'
Surface Vertical Rod (Double Egress)
ED5400 x ED5400 Panic 8' x 8' Two independent doors with two-point
latching, swinging in opposite directions.
Overlapping astragal required for 3-hour
openings.
ED5400A x ED5400A 3 Hr. 8' x 8'
ED5470 x ED5470 Panic 8' x 10' Two independent doors with one or
two-point latching, swinging in opposite
directions. Overlapping astragal not required.
ED5470B x ED5470B 1-1/2 Hr. 8' x 10'
Surface Vertical Rod x Mortise
ED5400 x ED5600 Panic 8' x 8' Overlapping astragal required for 3-hour
openings. Coordinator required with standard
ANSIstrike.
ED5400A x ED5600A 3 Hr. 8' x 8'
ED5400A x ED5600A x Open Back Strike 1-1/2 Hr. 8' x 8'
ED5470 x ED5600 Panic 8' x 10' Overlapping astragal required for fire-rated
openings. Coordinator required with standard
ANSIstrike.
ED5470B x ED5600A 1-1/2 Hr. 8' x 9'
Concealed Vertical Rod
ED5800 x ED5600 Panic 8' x 8'
Two independent metal doors with two-point
latching, swinging in the same direction.
ED5800 x ED5800 Panic 8' x 8'
ED5800A x ED5600A 3 Hr. 8' x 8'
ED5800A x ED5800A 3 Hr. 8' x 8'
ED5800A x ED5600A x Open Back Strike 1-1/2 Hr. 8' x 8'
ED5860 x ED5600 Panic 8' x 10'
Two independent metal or wood doors with
one or two-point latching, swinging in the
same direction.
ED5860 x ED5860 Panic 8' x 10'
ED5860B x ED5600A 1-1/2 Hr. 8' x 10'
ED5860B x ED5860B 1-1/2 Hr. 8' x 10'
Concealed Vertical Rod (Double Egress)
ED5800 x ED5800 Panic 8' x 8' Two independent metal doors with two-point
latching, swinging in opposite directions.
Overlapping astragal required for 3-hour
openings.
ED5800A x ED5800A 3 Hr. 8' x 8'
ED5860 x ED5860 Panic 8' x 10' Two independent metal or wood doors
with one or two-point latching, swinging in
opposite directions. Overlapping astragal not
required.
ED5860B x ED5860B 1-1/2 Hr. 8' x 10'
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15

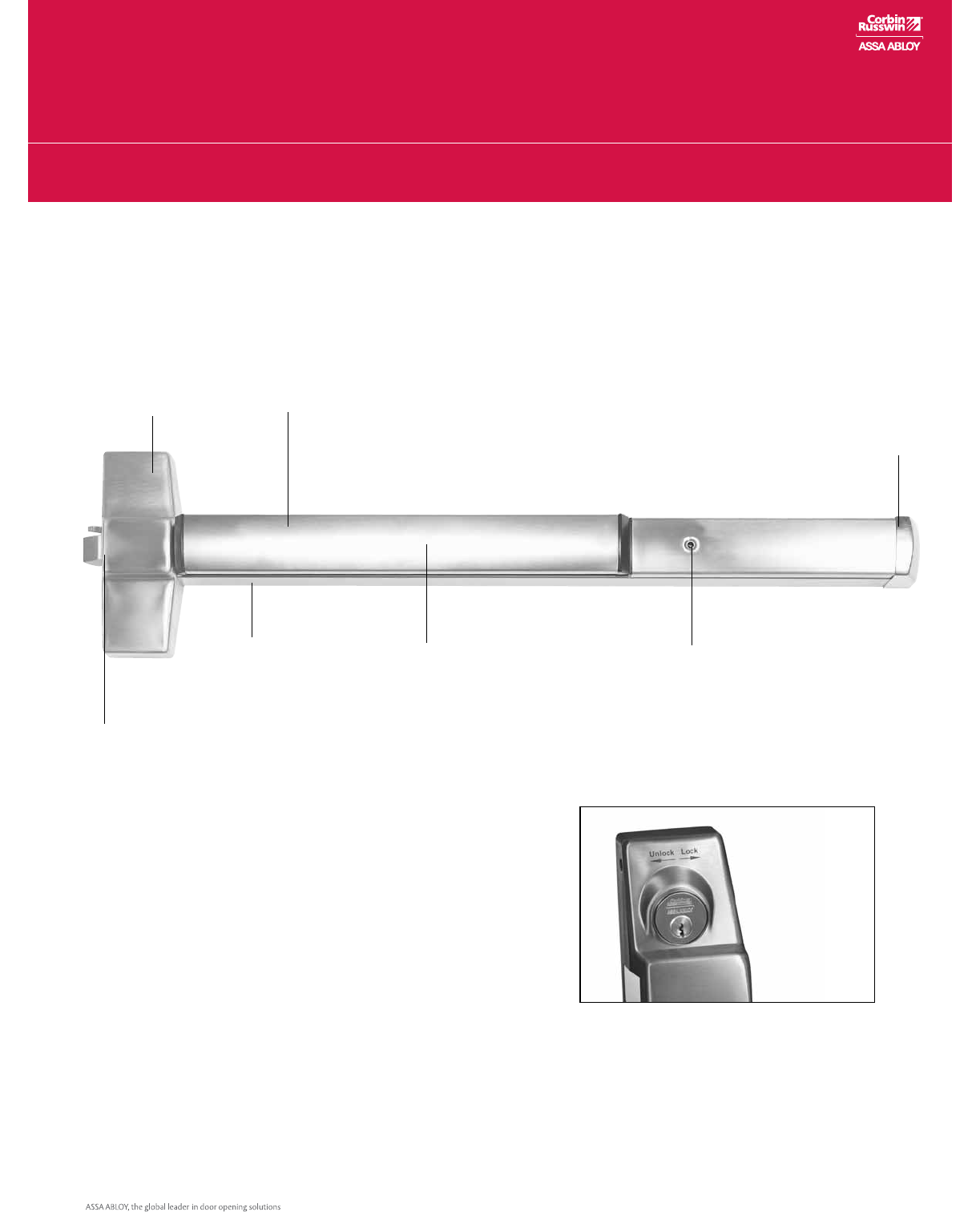

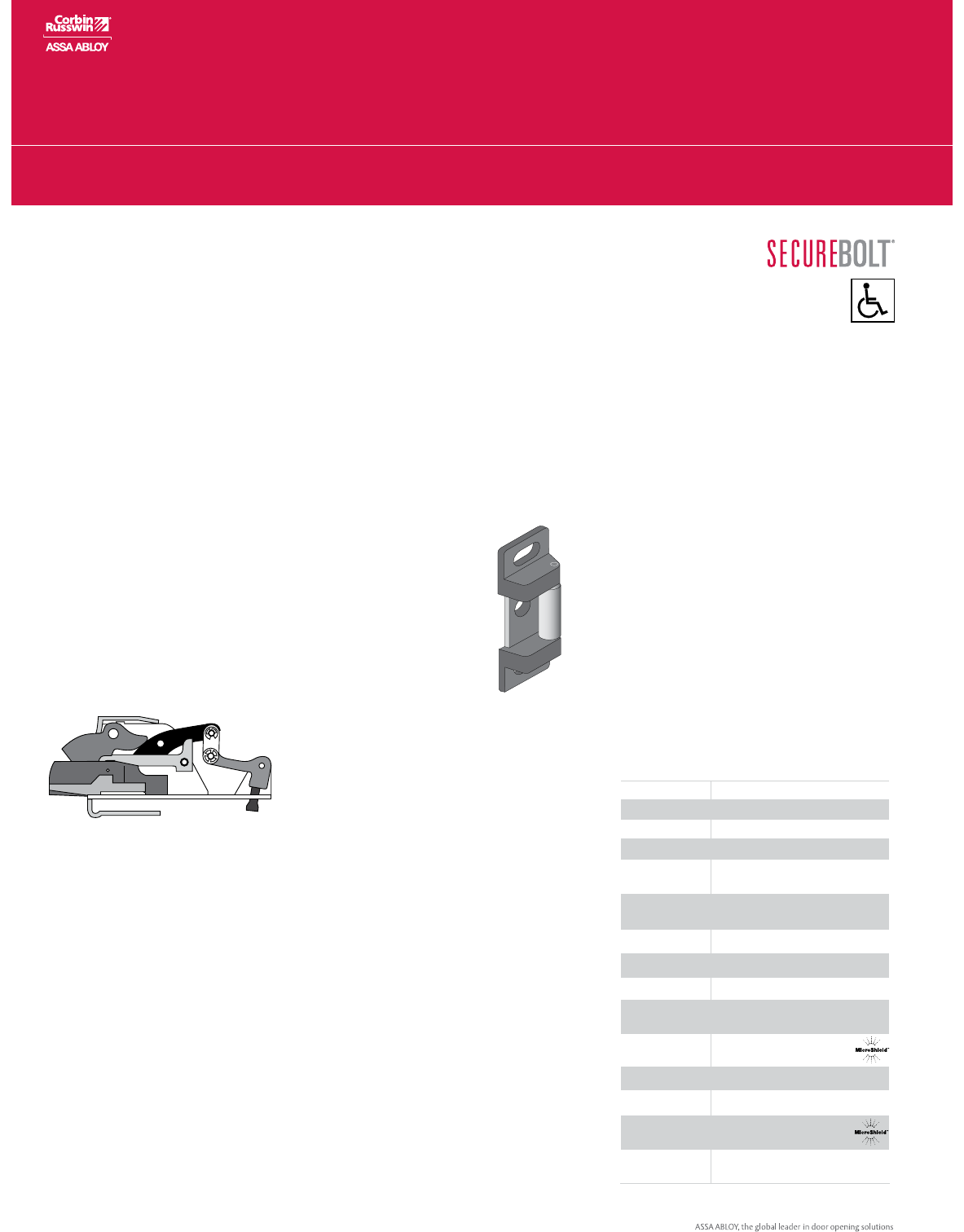

SecureBolt® Features
ED5000
ED5000.6
Fasteners
Standard on panic devices: machine screws and
wood door fasteners.
Standard on fire-rated devices: sex nuts and
bolts.
Optional on devices: sex nuts and bolts for
use on wood, composite or unreinforced
metal doors; specify M54.
Optional wood screws for use on approved
fire-rated solid wood or wood core doors.
Specify M64.
Strike
Surface mounted 3/8
"
(10mm) diameter roller
strike, complete with
positive locking plate
and shims, assuring low
friction relocking for a
long, trouble-free life.

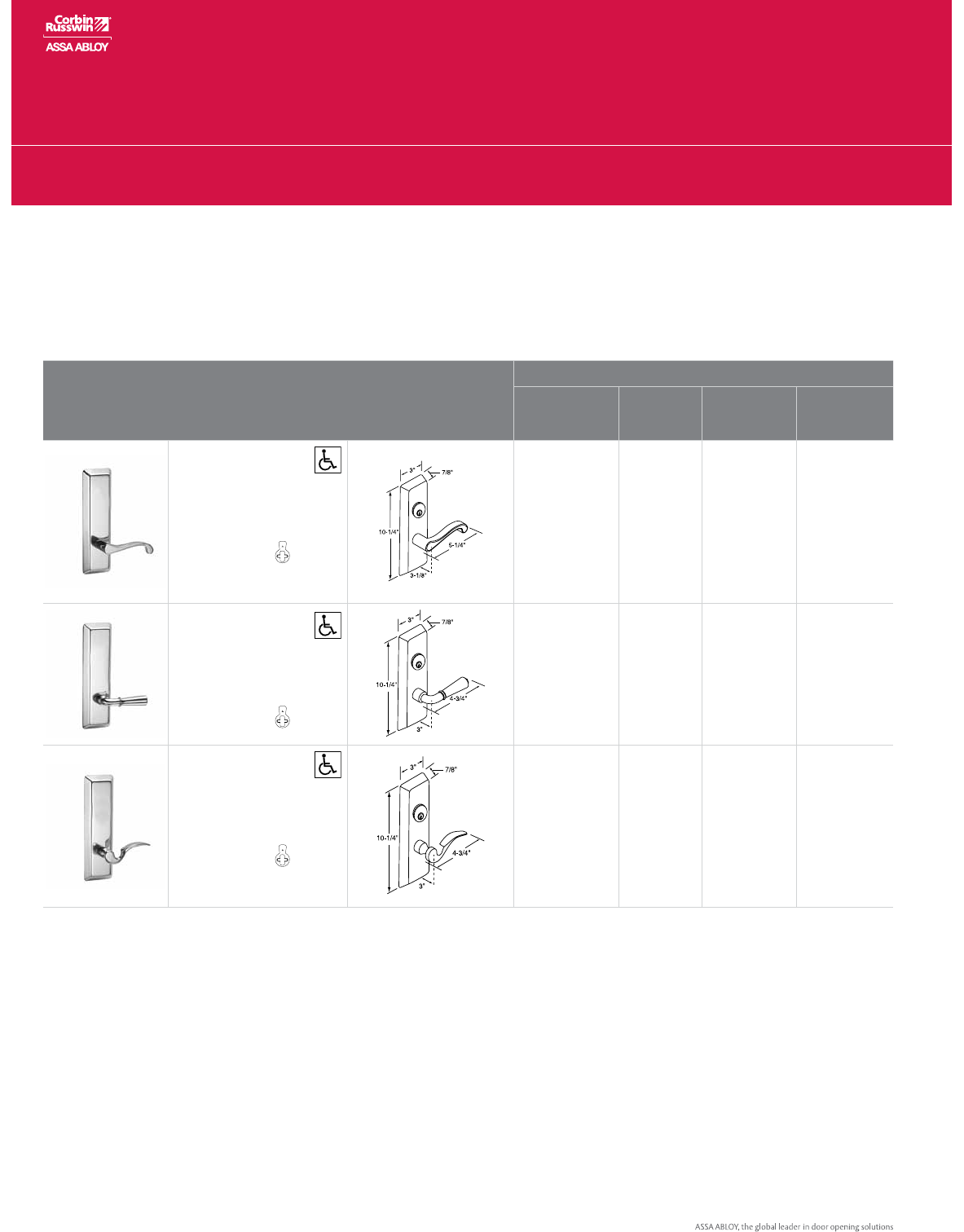

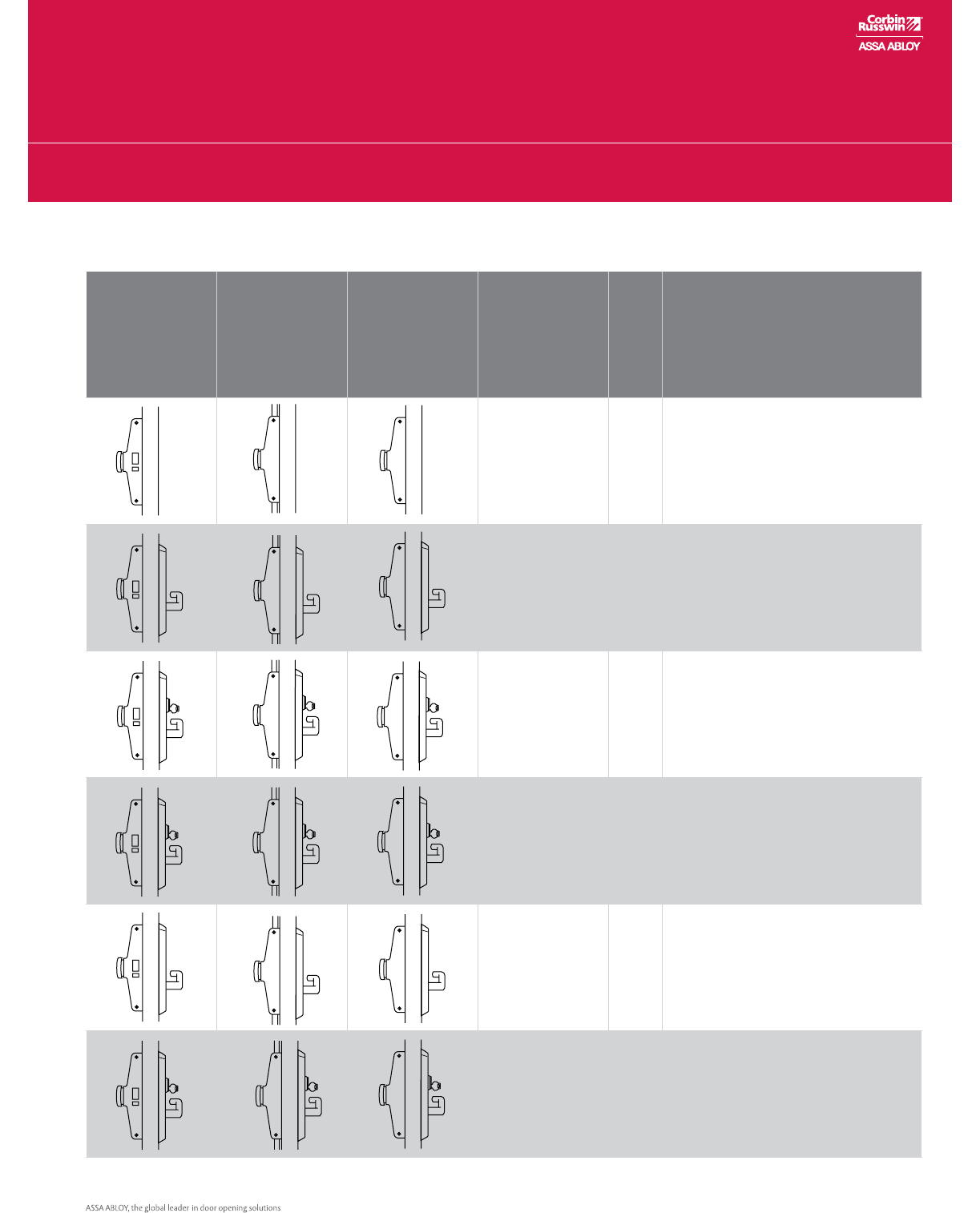

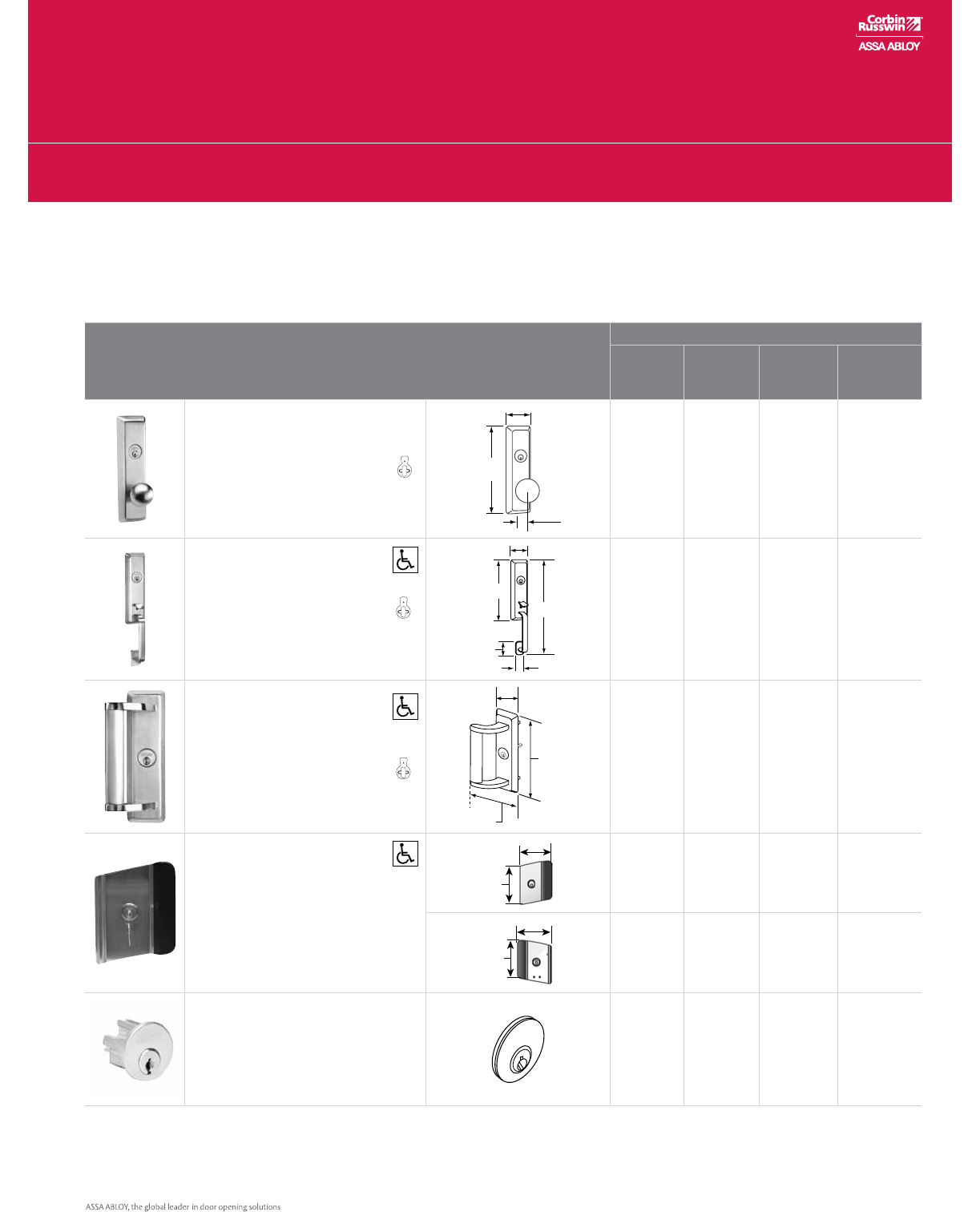

Functions and Trims
Through-bolted
lever, knob, pull and
thumbpiece trims available with wide range
of functions; see Trims and Functions, pages
20-25.

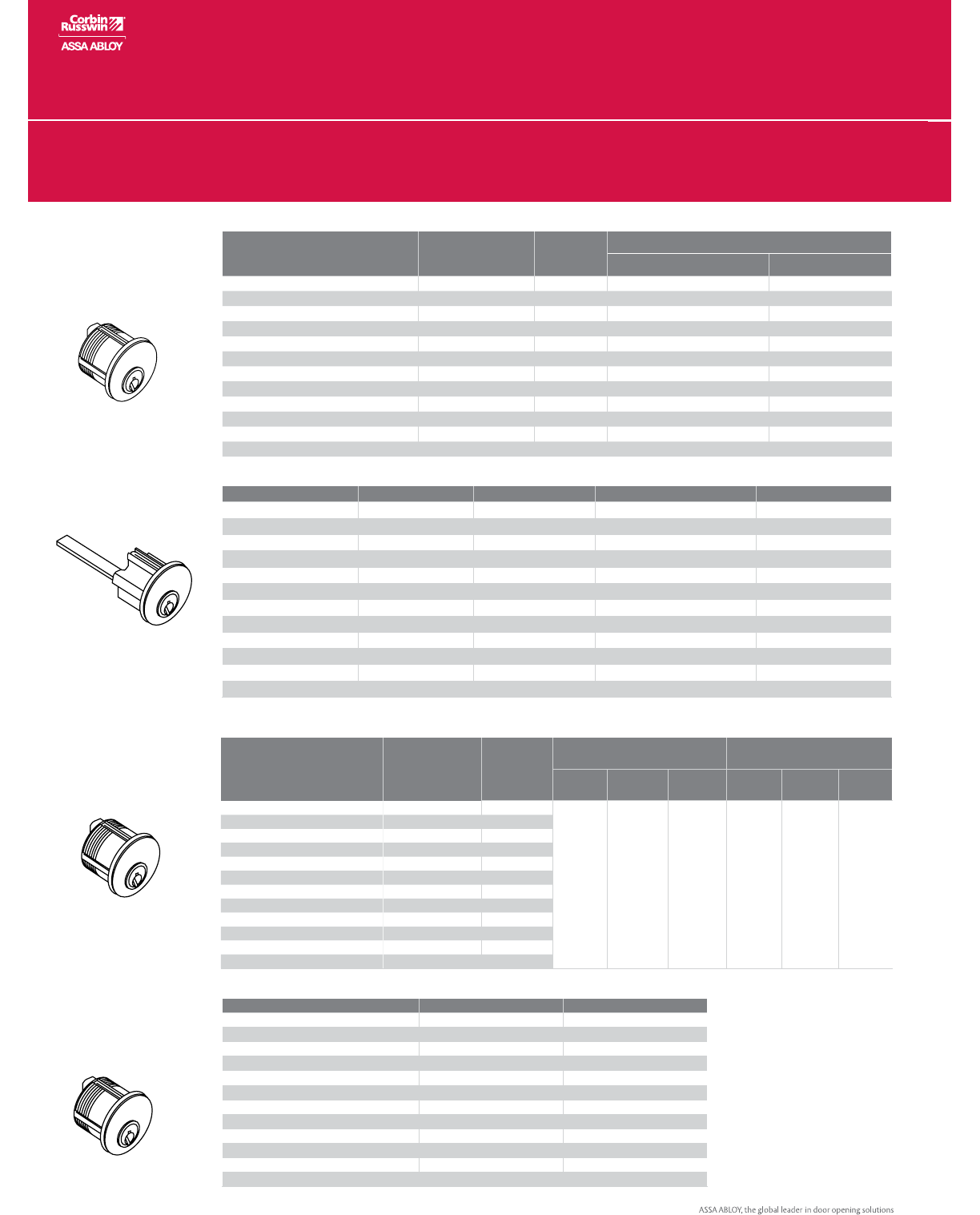

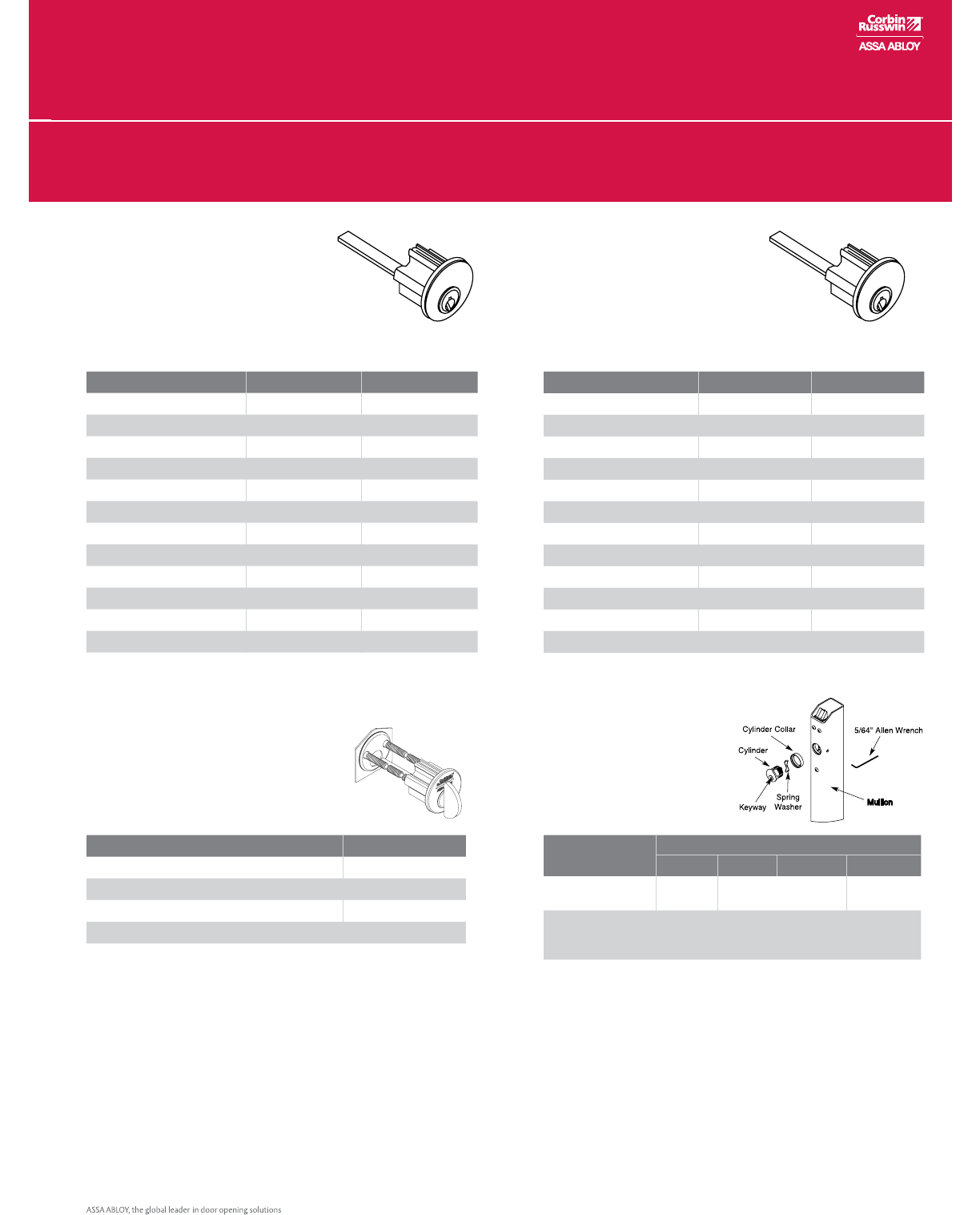

Cylinders
Cylinder not included unless specified. See
Quick Codes, page 54.

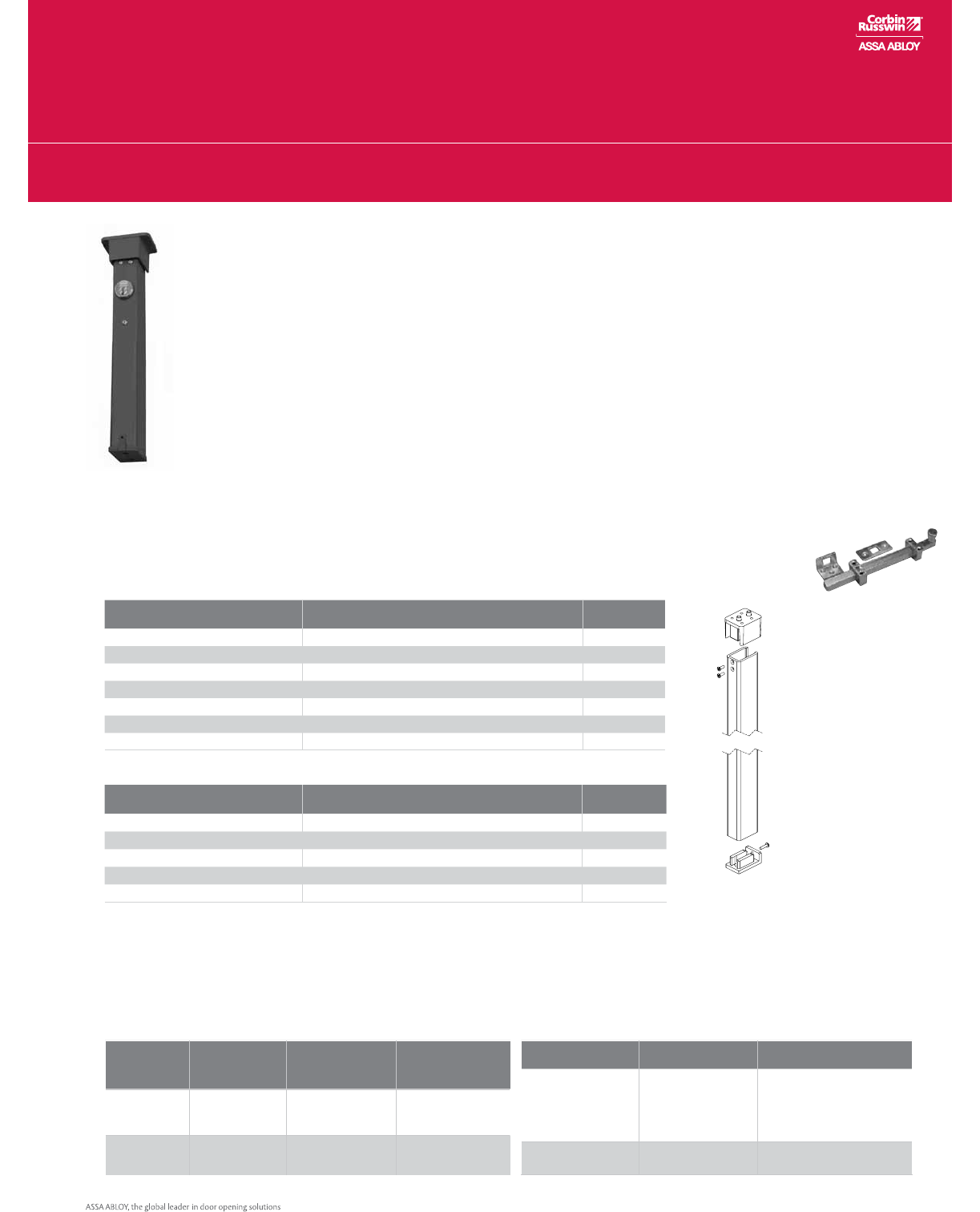

Removable Mullion
See Mullions, page 47.
Shim Kit
Optional for mounting device over raised vision
light molding; specify M58.
Applications and Listings
See page 4.
Warranty
Five-year limited.
Certification/Compliance
ANSI
Meets A156.3, Type 28, Grade 1.
Meets A117.1 Accessibility Code.
UL /cUL
All devices listed for safety as panic hardware;
devicescomplywithUL305standardsforpanic
hardware. Three-hour fire-rated devices listed
as fire exit hardware for A label and lesser class
4'x8'singleor8'x8'doubledoors;ULsymbol
on active case cover indicates listing.
Features
Handing
Standard device is non-handed.
Double Cylinder Device is handed.
Lever trim is handed.

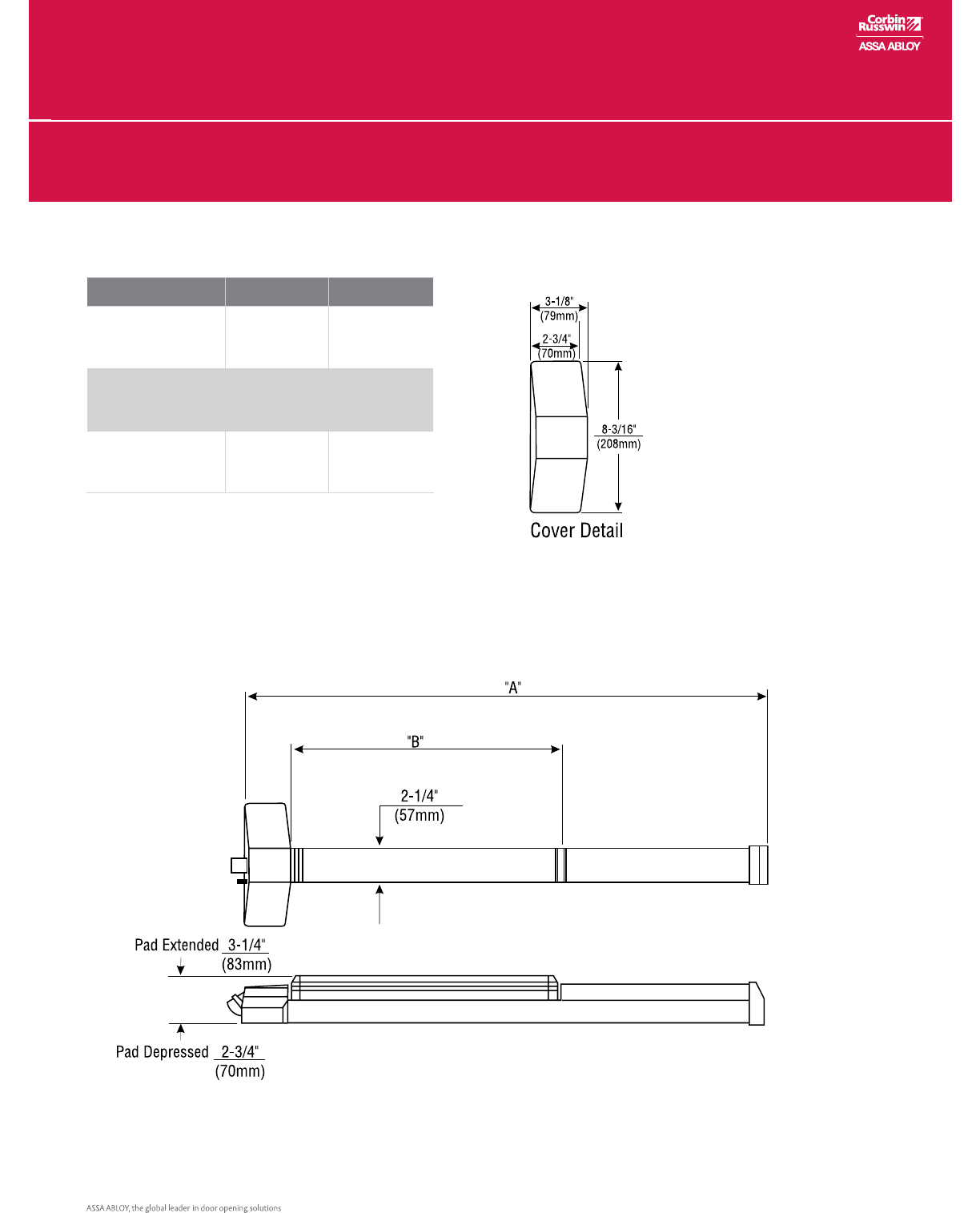

Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36"
(762mm-914mm) door.
Optional: 24" (610mm) bar fits 24" (610mm)
door; specify W024.
Optional: 48" (1219mm) bar fits 36"-48"
(914mm-1219mm) door; specify W048.
Door Thickness
1-3/4" (44mm) standard.
Optional: 2" (51mm); specify D200.
Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/2" (114mm).
Latchbolt
Full 3/4" (19mm) projection, 1" (25mm) wide,
positive deadlocking by auxiliary bolt.
Materials
Latchbolt:Nickelsteel.Slide-actiondeadbolt
with positive deadlocking by auxiliary bolt. Two-
piece deadbolt mechanism utilizing a roll back
lever which eliminates any contact (friction)
with the strike during relocking.
Device:
Heavy duty cold forged steel chassis;
heavy gauge steel mechanisms, electroplated
for corrosion resistance; finished parts are
brass, bronze or stainless steel; stainless steel
springs; nylon bearings.
Projection
3-1/4" (83mm) active, 2-3/4" (70mm) dogged.
Dogging
Standard on panic-rated devices; single-point
1/4 turn hex key dogging.
Optional: less dogging, specify M51.
Optional: cylinder dogging; specify M52.

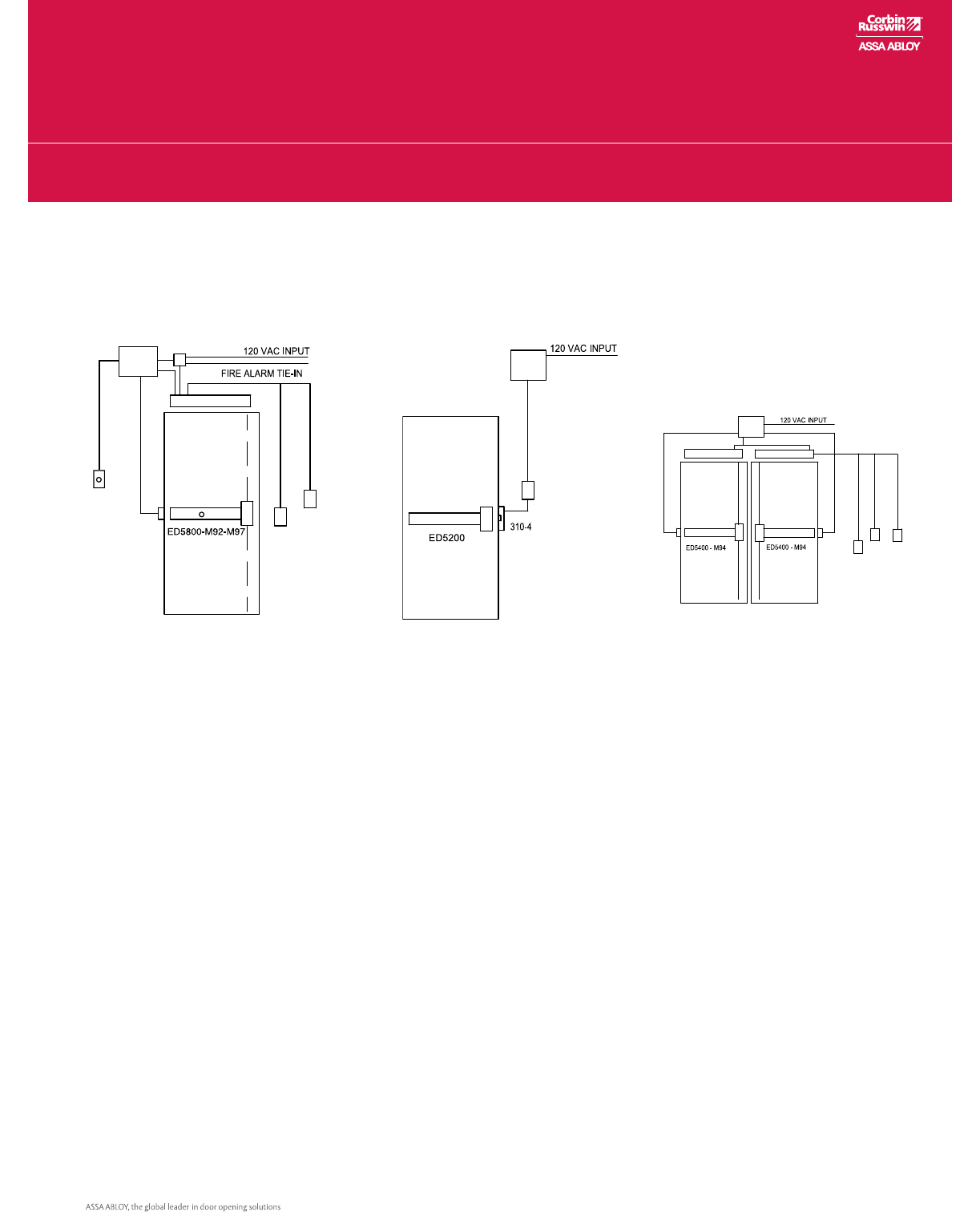

Optional: electric dogging; specify M97.
Mechanical dogging not available on fire-
rated devices.
Cut Away Side View
Any retrofit or other field modification to a
fire-rated opening can potentially impact the
fire rating of the opening, and Corbin Russwin,
Inc. makes no representations or warranties
concerning what such impact may be in any
specific situation. When retrofitting any portion
of an existing fire-rated opening, or specifying
and installing a new fire-rated opening, please
consult with a code specialist or local code
official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and
ratings.
California State Reference Code
This product has been approved by the
California State Fire Marshal pursuant to
section 13144.1 of the California Health and
Safety Code.
NFPA
AllexitdevicescomplywithNFPA101Life
Safety Code. All fire-rated devices comply with
NFPA80FireDoorsandWindows.
ADA
Exit devices, lever trims and pulls comply with
Americans with Disabilities Act.
ED5200S Panic-Listed SecureBolt® Exit Device
ED5200SA 3-Hour Fire-Listed SecureBolt® Exit Device
ED5202S Panic-Listed Listed SecureBolt® Double Cylinder Exit Device
ED5202SA 3-Hour Fire-Listed SecureBolt® Double Cylinder Exit Device
Roller Strike
Finishes
BHMA 605 Bright Brass
BHMA 606 Satin Brass
BHMA 611 Bright Bronze
BHMA 612 Satin Bronze
BHMA 613 Oxidized Bronze, oil rubbed,
available lacquered
613E Dark Oxidized Satin Bronze
Equivalent
BHMA 618 BrightNickelPlated
BHMA 619 SatinNickelPlated
BHMA 625 Bright Chromium Plated
BHMA 626*
(Trim only) Satin Chromium Plated
626C Satin Chromium Plated
with MicroShield®
BHMA 629 Bright Stainless Steel
BHMA 630 Satin Stainless Steel
630C Satin Stainless Steel
with MicroShield®
BHMA 722 Black oxidized bronze,oil
rubbed
*Contact factory for devices required in
BHMA 626
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.7
SecureBolt® Features
ED5000
ED5200S and ED5200SA
SecureBolt® Exit Devices
3/4" (19mm) projection x 1"
wide deadbolt- style latchbolt
with positive deadlocking by
auxiliary bolt
Architecturally finished brass,
bronze or stainless steel
Low profile; no pinch points,
closed on all sides
Heavy-duty chassis
Wrought brass or
bronze rear cover
Single point, 1/4 turn hex key
dogging
(ED5200S Series Panic Devices)
In terms of an exit device, vector forces mean that pressure
applied to the door results in a force against the stop and
the frame, resulting in door/frame separation. The standard
pullman latchbolt applies 280 pounds of force against the
frame from a 400- pound pull on the door.
The SecureBolt
®
exit device only applies 63 pounds of force
against the frame from a 400-pound pull on the door. Less
force means the door and frame do not separate, providing a
higher level of security, as the door cannot be pulled open.
ED5202S(A)
SecureBolt® Double
Cylinder Exit Devices
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Rim Features
ED5000
ED5000.8

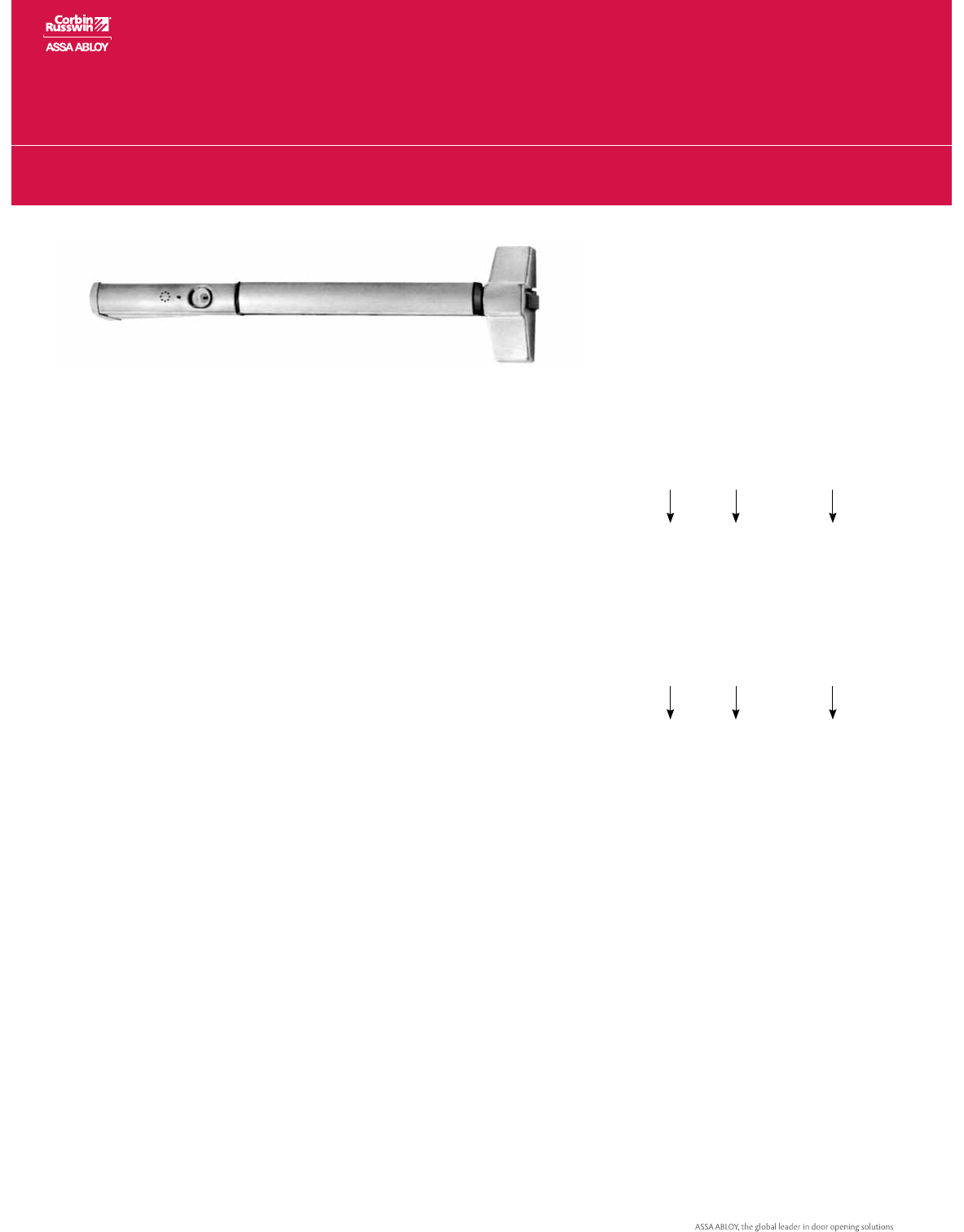

ED5200 Panic-Listed Rim Exit Device
ED5200A 3-Hour Fire-Listed Rim Exit Device
ED5202 Panic-Listed Listed Rim Double Cylinder Exit Device
ED5202A 3-Hour Fire-Listed Rim Double Cylinder Exit Device
Features
Handing
Standard device is non-handed.
Double Cylinder Device is Handed.
Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36"
(762mm-914mm) door.
Optional: 24" (610mm) bar fits 24" (610mm)
door; specify W024.
Optional: 48" (1219mm) bar fits 36"-48"
(914mm-1219mm) door; specify W048.
Door Thickness
1-3/4" (44mm) standard.
Optional: 2" (51mm); specify D200.
Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/2" (114mm).
Latchbolt
3/4" (19mm) throw, stainless steel pullman-
type with stainless steel deadlocking latch.
Materials
Heavy-duty cold-forged steel chassis; heavy-
gauge steel mechanisms, electroplated
for corrosion resistance; finished parts are
brass, bronze or stainless steel; stainless steel
springs; nylon bearings.
Projection
3-1/4" (83mm) active, 2-3/4" (70mm) dogged.
Dogging
Standard on panic devices; single-point 1/4
turn hex key dogging.
Optional: less dogging, specify M51.
Optional: cylinder dogging; specify M52.
Optional: electric dogging; specify M97.
Mechanical dogging not available on fire-
rated devices.
Fasteners
Standard on panic devices: machine screws
and wood door fasteners. Standard on fire-
rated devices: sex nuts and bolts. Optional
on panic devices: sex nuts and bolts for use
on wood, composite, or unreinforced metal
doors; specify M54. Optional wood screws for
use on approved fire-rated solid wood or wood
core doors. Specify M64.

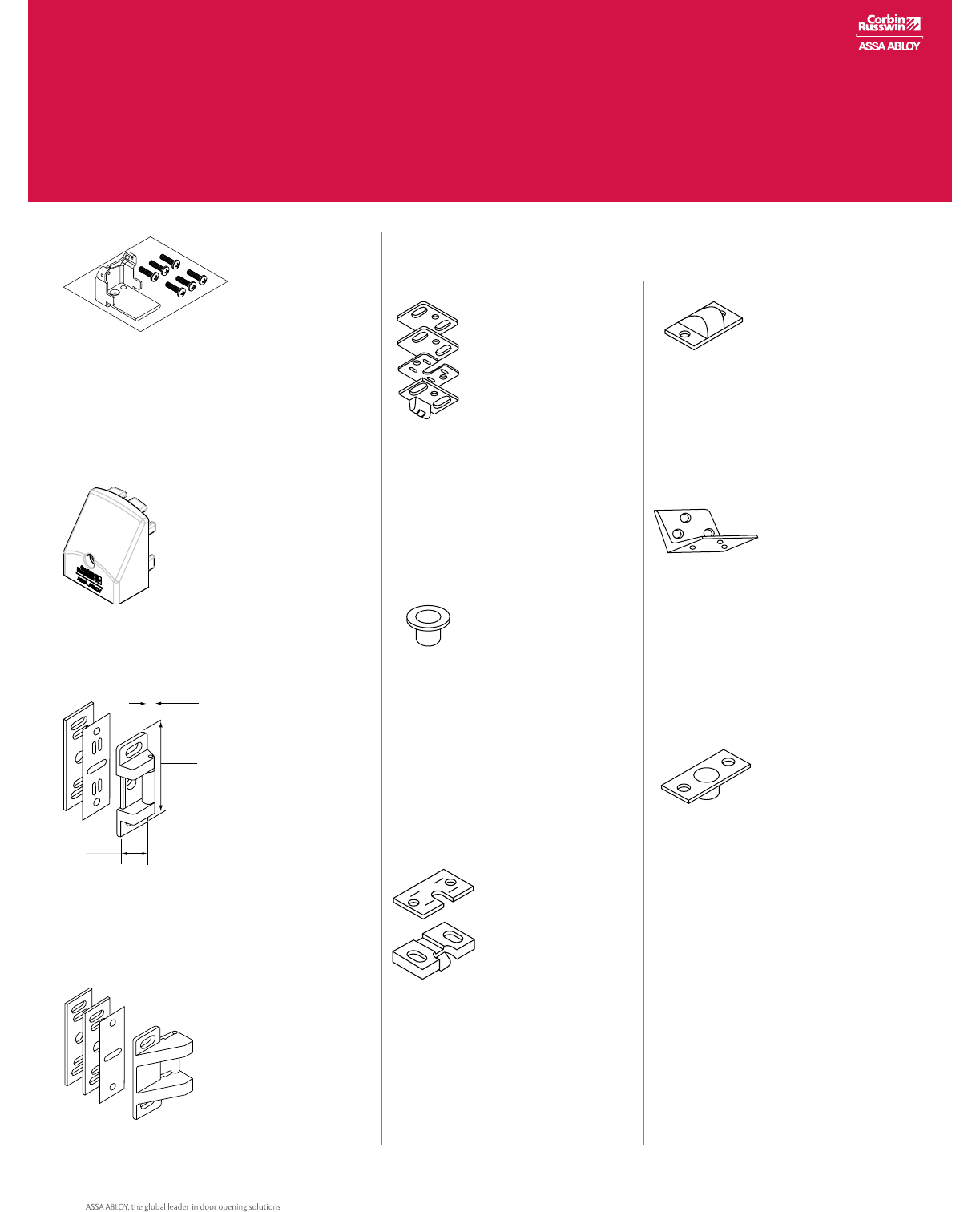

Strike
Surface-mounted 3/8
"
(10mm) diameter roller
strike, complete with positive locking plate and
shims, assuring low friction relocking for a long,
trouble-free life.

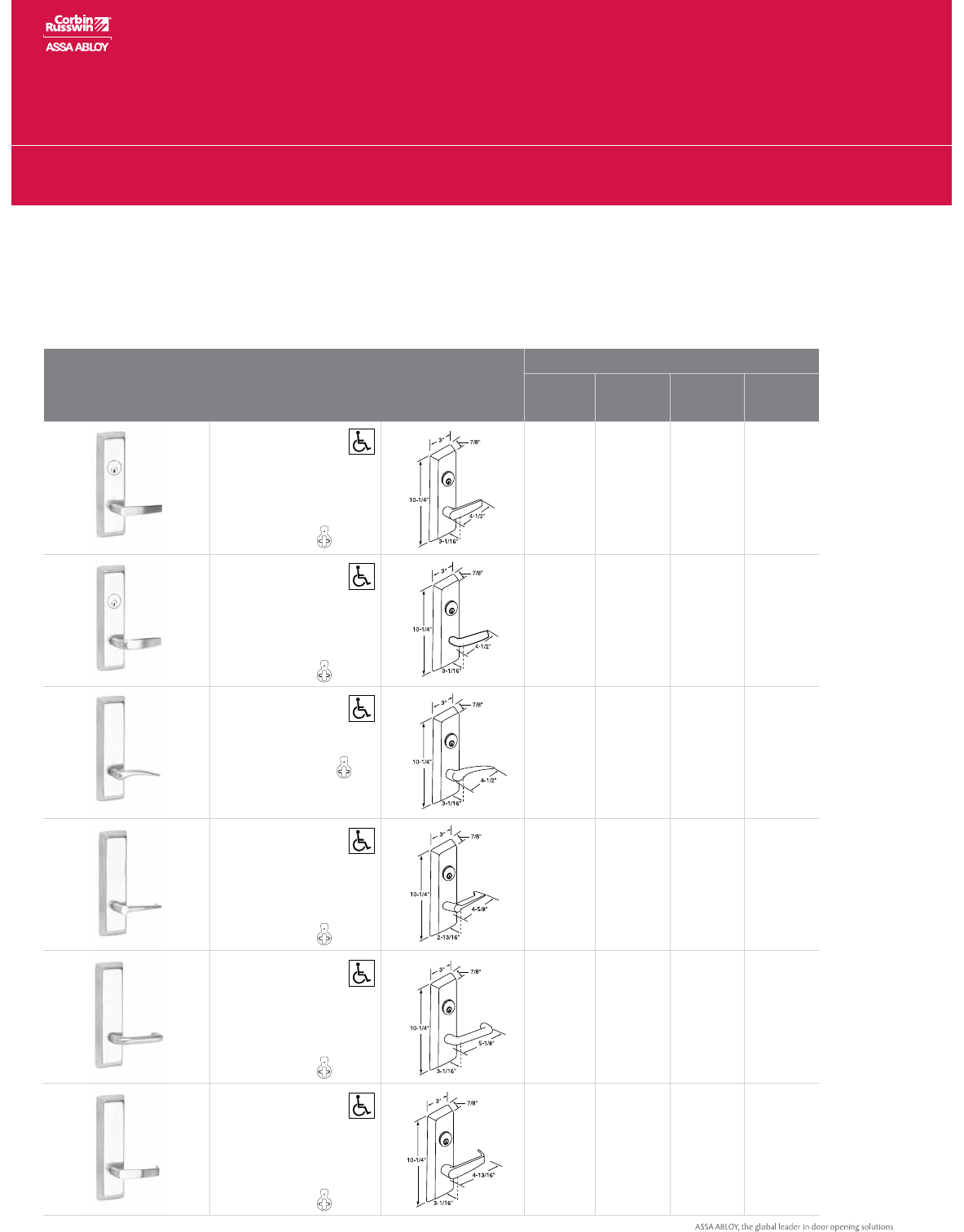

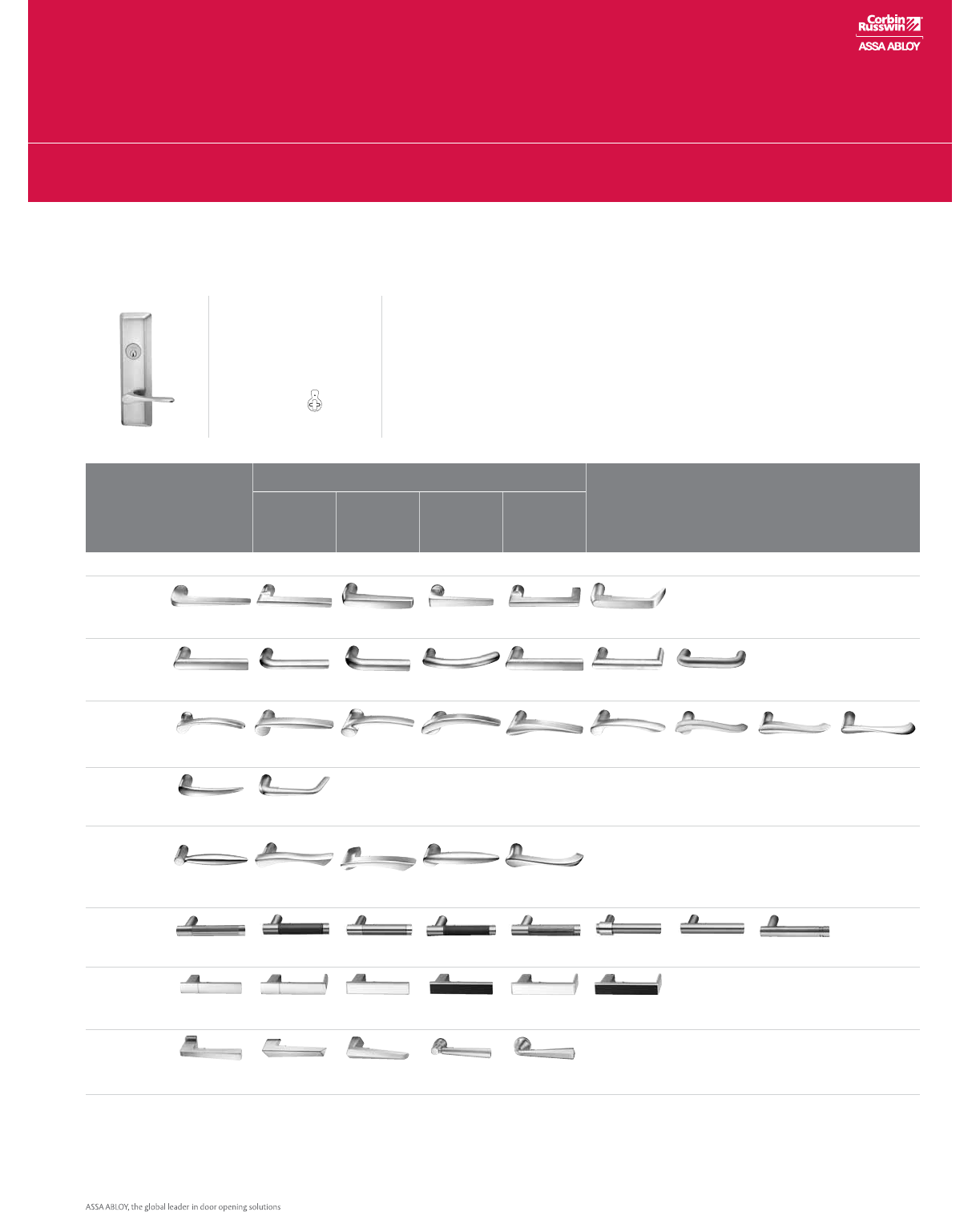

Functions and Trims

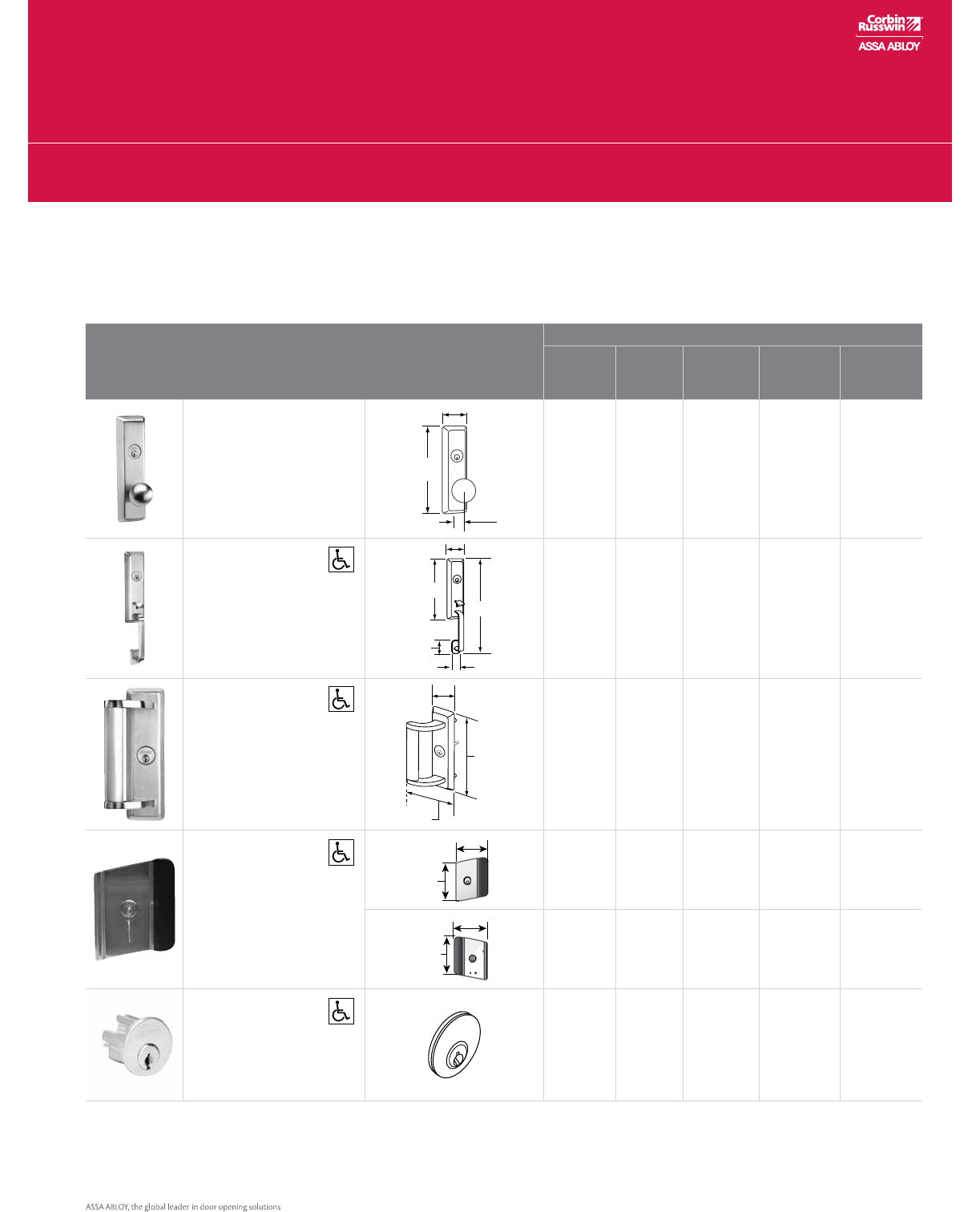

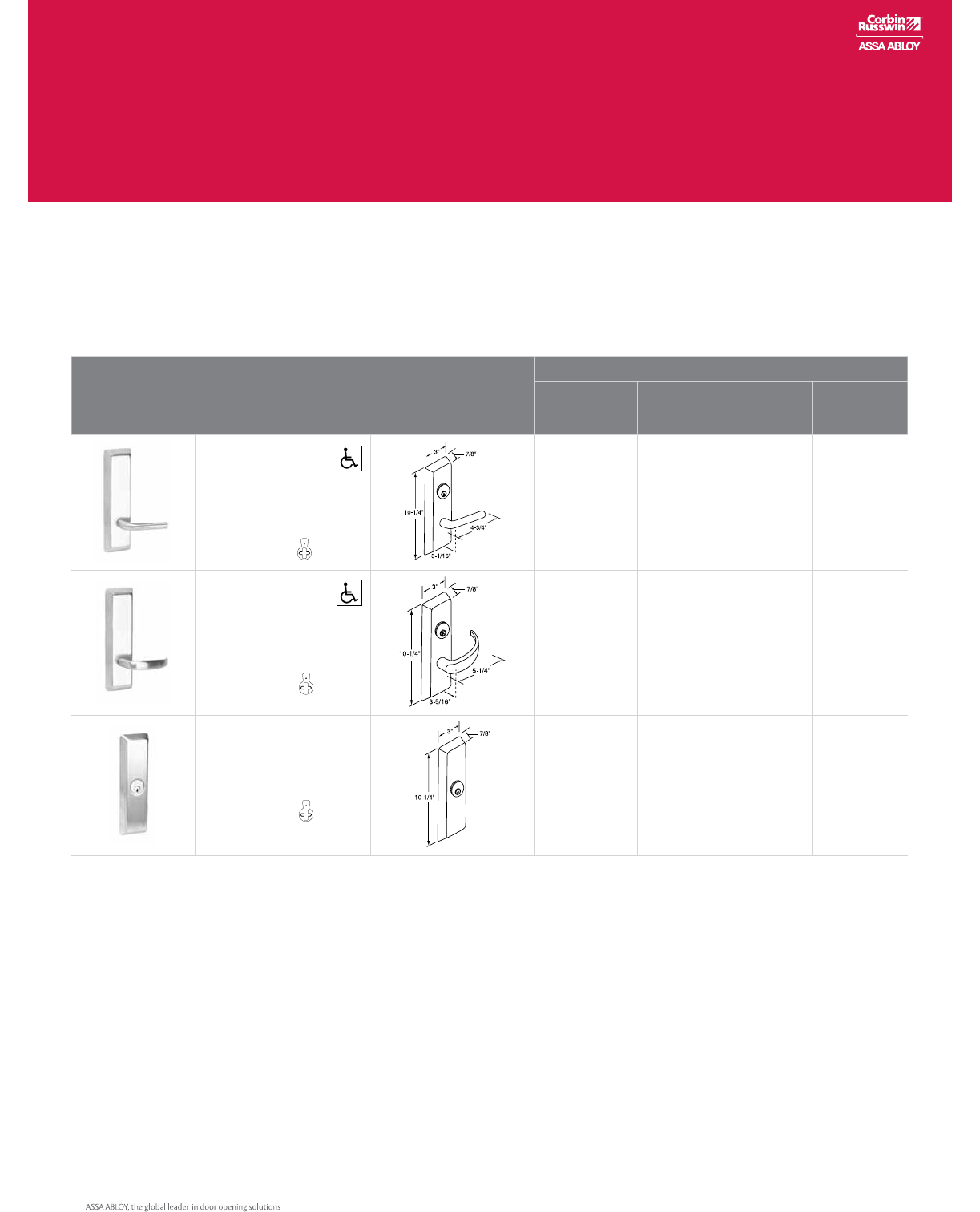

Through-bolted lever, knob, pull and
thumbpiece trims available with wide range
of functions; see Trims and Functions, pages
20-25.
Cylinders
Cylinder not included unless specified. See
Quick Codes, page 54.
Removable Mullion
See Mullions, page 47.
Shim Kit
Optional for mounting device over raised vision
light molding; specify M58.
Applications and Listings
See page 4.
Warranty
Five-year limited.
Certification/Compliance
ANSI
Meets A156.3, Type 1, Grade 1.
Meets A117.1 Accessibility Code.
UL /cUL
All devices listed for safety as panic hardware;
devicescomplywithUL305standardsforpanic
hardware. Three-hour fire-rated devices listed
as fire exit hardware for A label and lesser class
4'x8'singleor8'x8'doubledoors;ULsymbol
on active case cover indicates listing.
Any retrofit or other field modification to a fire
rated opening can potentially impact the fire
rating of the opening, and Corbin Russwin,
Inc. makes no representations or warranties
concerning what such impact may be in any
specific situation. When retrofitting any portion
of an existing fire rated opening, or specifying
and installing a new fire-rated opening, please
consult with a code specialist or local code
official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and
ratings.
California State Reference Code
This product has been approved by the
California State Fire Marshal pursuant to
section 13144.1 of the California Health and
Safety Code.
NFPA
AllexitdevicescomplywithNFPA101Life
Safety Code. All fire-rated devices comply
withNFPA80FireDoorsandWindows.
ADA
Exit devices, lever trims and pulls comply
with Americans with Disabilities Act.
Finishes
BHMA 605 Bright Brass
BHMA 606 Satin Brass
BHMA 611 Bright Bronze
BHMA 612 Satin Bronze
BHMA 613 Oxidized Bronze, oil rubbed,
available lacquered
613E Dark Oxidized Satin Bronze
Equivalent
BHMA 618 BrightNickelPlated
BHMA 619 SatinNickelPlated
BHMA 625 Bright Chromium Plated
BHMA 626*
(Trim only) Satin Chromium Plated
626C Satin Chromium Plated
with MicroShield®
BHMA 629 Bright Stainless Steel
BHMA 630 Satin Stainless Steel
630C Satin Stainless Steel
with MicroShield®
BHMA 722 Black oxidized bronze,oil
rubbed
*Contact factory for devices required in
BHMA 626
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.9
Rim Features
ED5000

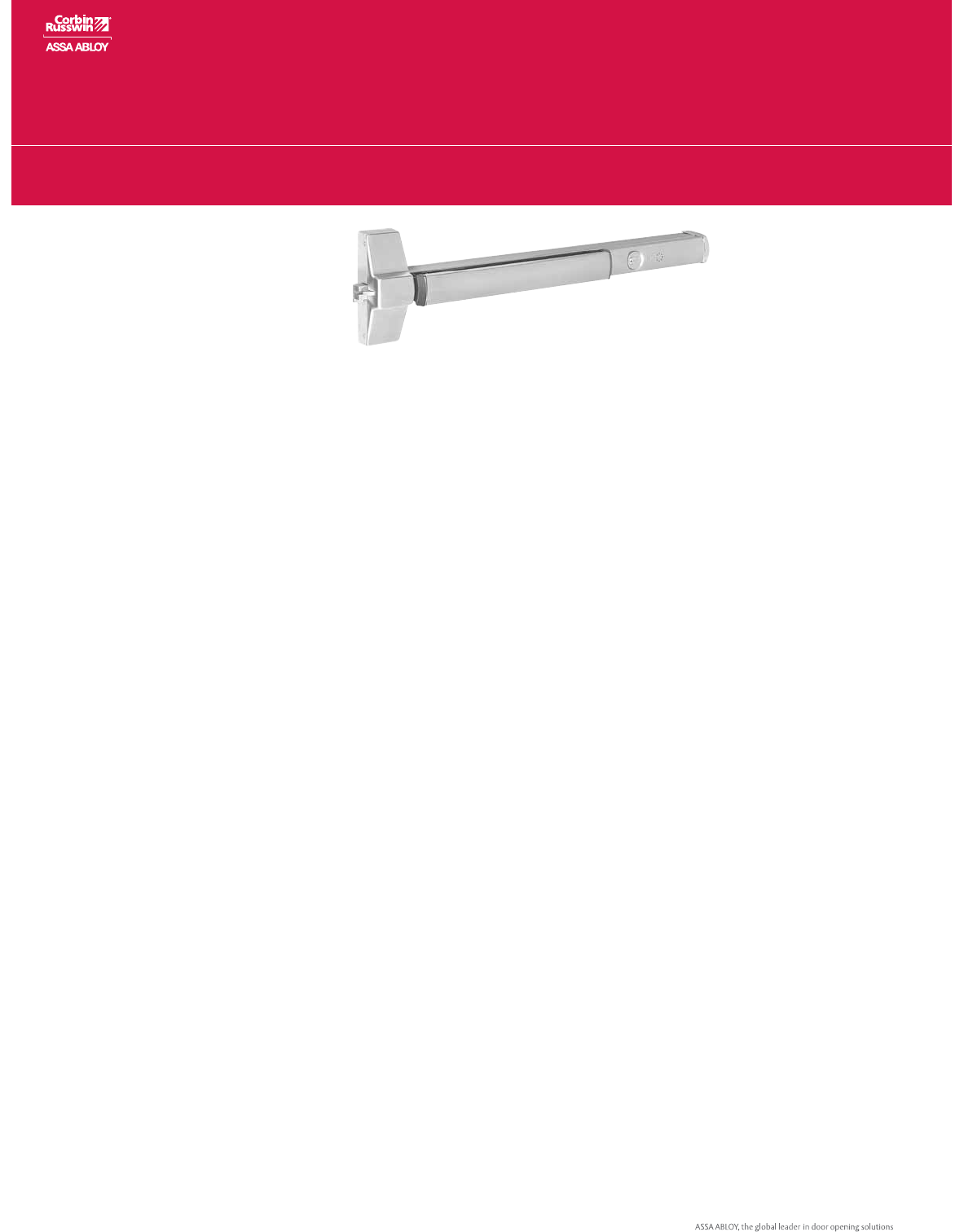

ED5200 and ED5200A
Rim Exit Devices
3/4" (19mm) throw stainless
steel pullman-type latchbolt
with stainless steel auxiliary
deadlocking latch standard
Architecturally finished brass,
bronze or stainless steel
Low profile; no pinch points —
closed on all sides
Heavy-duty chassis
Wrought brass or
bronze rear cover
Single point, 1/4 turn hex key
dogging
(ED5200 Series Panic Devices)
ED5202(A) Rim
Double Cylinder
Exit Devices
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15

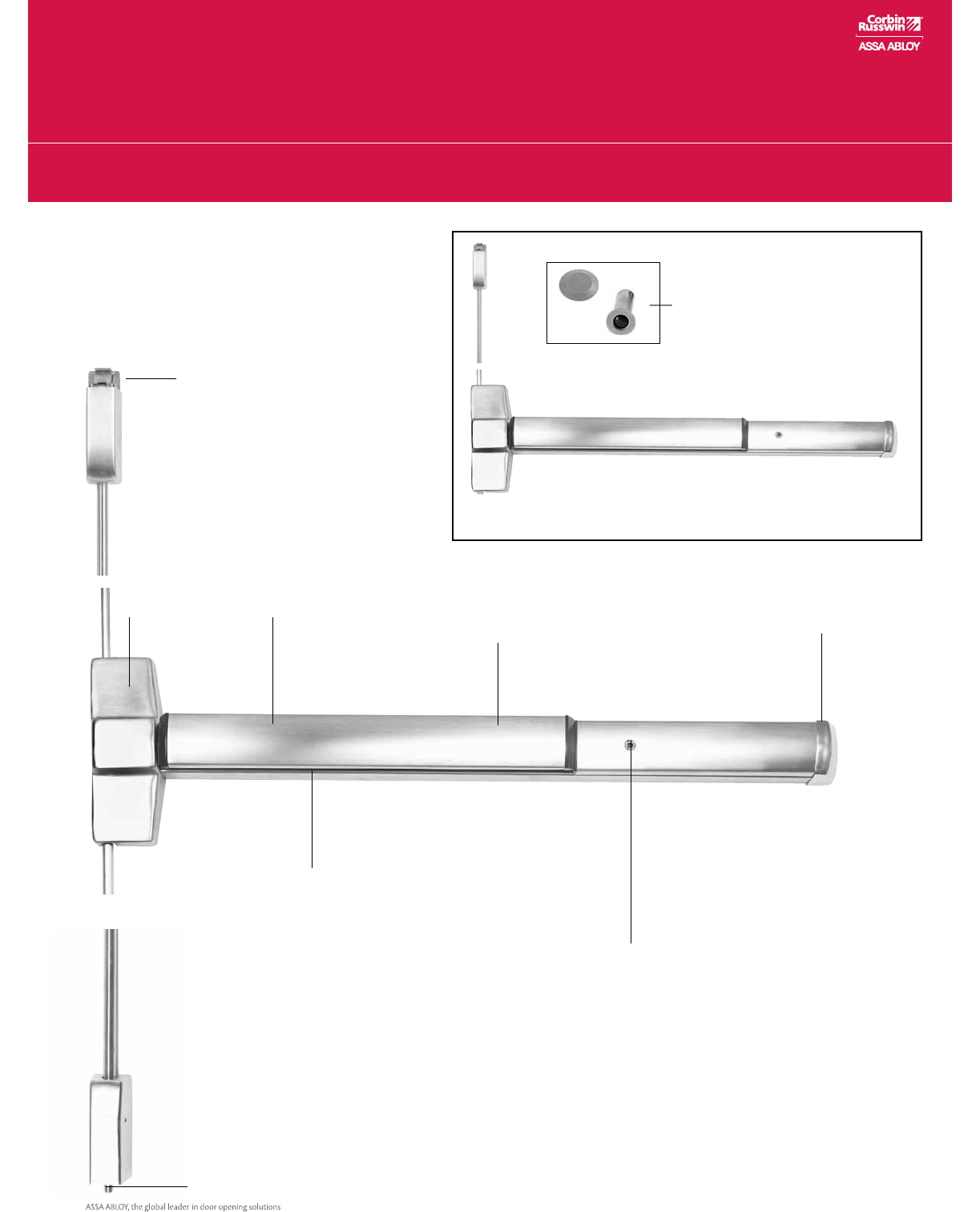

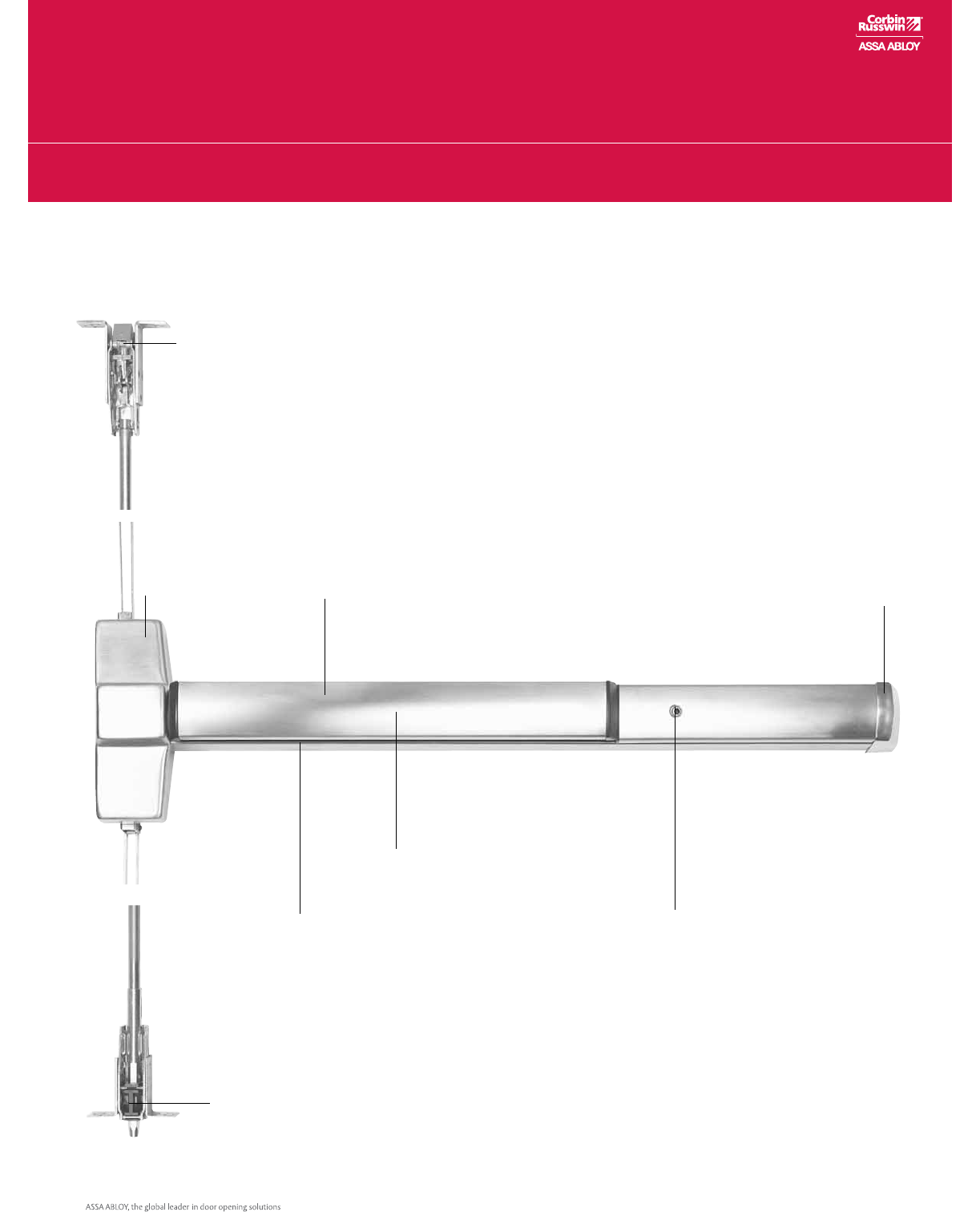

Surface Vertical Rod Features
ED5000
ED5000.10
ED5400 Panic-Listed Surface Vertical Rod Exit Device
ED5400A 3-Hour Fire-Listed Surface Vertical Rod Exit Device
Features
Handing
Device is handed but easily field reversible.
Lever trim is handed.
Bar Length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36"
(762mm-914mm) door.
Optional: 24" (610mm) bar fits 24" (610mm)
door; specify W024.
Optional: 48" (1219mm) bar fits 36"-48"
(914mm-1219mm) door; specify W048.
Door Thickness
1-3/4" (44mm) standard.
Optional: 2" (51mm); specify D200.
Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/2" (114mm).
Door Height
Standard top rod for 7' door.
All rods easily field cut to size.
Optional door heights up to 8’ available; see
Quick Codes, page 54.
Fordoorheightsabove8’0”referto
ED5470(B).
Latchbolt
Top: 3/4" (19mm) throw, stainless steel
pullman-type with automatic deadlatching.
Bottom: 5/8" (16mm) throw deadbolt, held
retracted during door swing.
Vertical Rods
1/2" O.D. tubular brass, bronze or stainless
steel with rod guides.
Materials
Heavy-duty cold-forged steel chassis; heavy-
gauge steel mechanisms, electroplated
for corrosion resistance; finished parts are
brass, bronze or stainless steel; stainless steel
springs; nylon bearings.
Projection
3-1/4" (83mm) active, 2-3/4" (70mm) dogged.
Dogging
Standard on panic devices; single-point 1/4
turn hex key dogging. Optional: less dogging,
specify M51. Optional: cylinder dogging,
specify M52. Optional: electric dogging;
specify M97. Mechanical dogging not
available on fire-rated devices.
Fasteners
Standard on panic devices: machine screws
and wood door fasteners.
Standard on fire-rated devices: sex nuts and
bolts.
Optional on panic devices: sex nuts and bolts
for use on wood, composite, or unreinforced
metal doors; specify M54.
Optional wood screws for use on approved
fire-rated solid wood or wood core doors.
Specify M64.
Strike
Top: adjustable roller strike with positive locking
plate and shims.
Bottom: flush mounted.

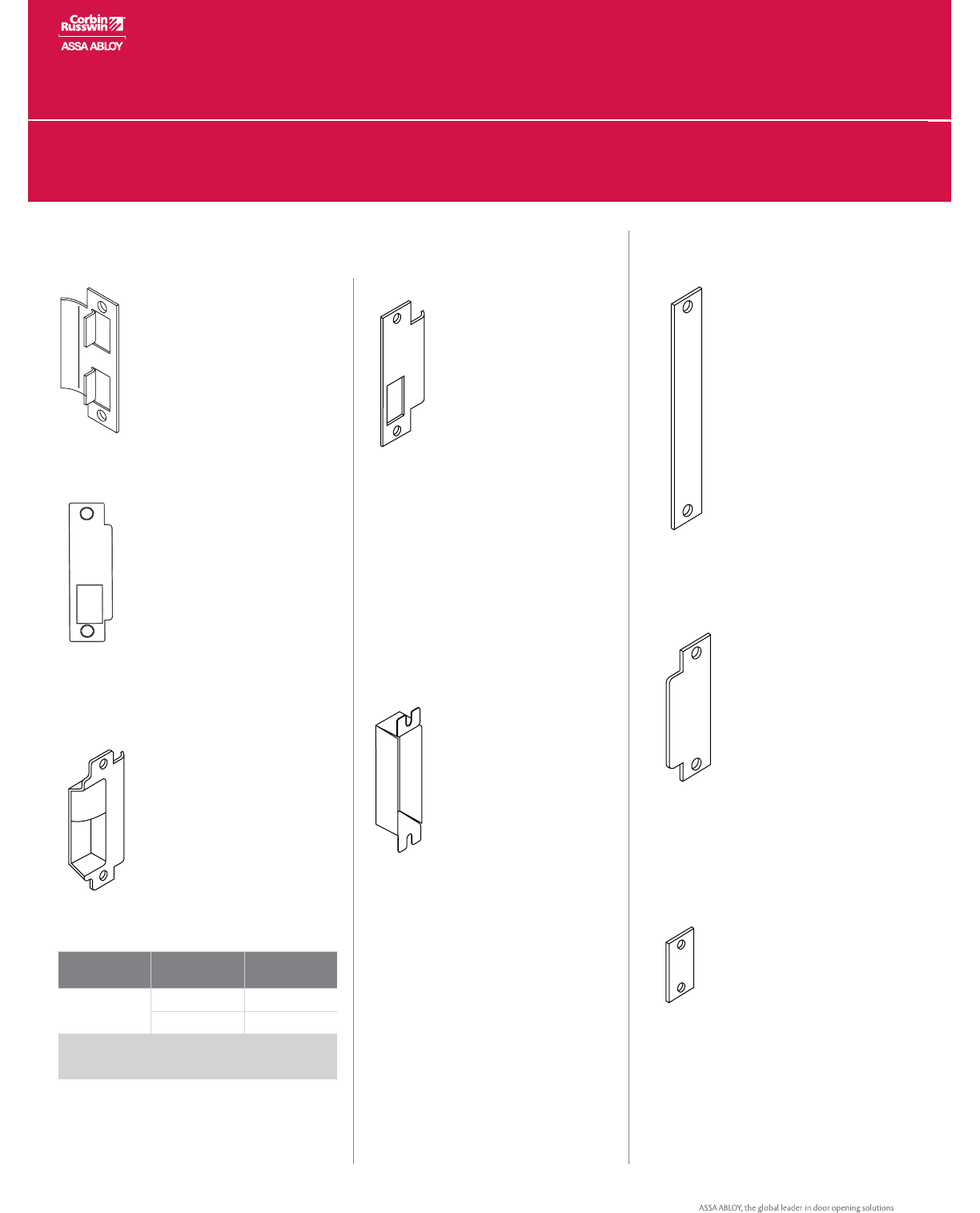

Optional strikes available; see Options and
Accessories, page 50.
Functions and Trims
Through-bolted lever, knob pull and
thumbpiece trims available with wide range
of functions; see Trims and Functions, pages
20-25.
Cylinders
Cylinder not included unless specified. See
Quick Codes, page 54.
Shim Kit
Optional for mounting device over raised vision
light molding; specify M58.
Applications and Listings
See page 4.
Warranty
Five-year limited.
Certification/Compliance
ANSI
Meets A156.3, Type 2, Grade 1.
UL /cUL
All devices listed for safety as panic hardware;
devicescomplywithUL305standardsforpanic
hardware. Three-hour fire-rated devices listed
as fire exit hardware for A label and lesser class
8’x8’doubledoors;ULsymbolonactivecase
cover indicates listing.
Any retrofit or other field modification to a
fire- rated opening can potentially impact the
fire rating of the opening, and Corbin Russwin,
Inc. makes no representations or warranties
concerning what such impact may be in any
specific situation. When retrofitting any portion
of an existing fire rated opening, or specifying
and installing a new fire-rated opening, please
consult with a code specialist or local code
official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and
ratings.
California State Reference Code
This product has been approved by the
California State Fire Marshal pursuant to section
13144.1 of the California Health and Safety
Code.
NFPA
AllexitdevicescomplywithNFPA101Life
Safety Code. All fire-rated devices comply with
NFPA80FireDoorsandWindows.
ADA
Lever trims and pulls comply with Americans
with Disabilities Act.
Finishes
BHMA 605 Bright Brass
BHMA 606 Satin Brass
BHMA 611 Bright Bronze
BHMA 612 Satin Bronze
BHMA 613 Oxidized Bronze, oil rubbed,
available lacquered
613E Dark Oxidized Satin Bronze
Equivalent
BHMA 618 BrightNickelPlated
BHMA 619 SatinNickelPlated
BHMA 625 Bright Chromium Plated
BHMA 626*
(Trim only) Satin Chromium Plated
626C Satin Chromium Plated
with MicroShield®
BHMA 629 Bright Stainless Steel
BHMA 630 Satin Stainless Steel
630C Satin Stainless Steel
with MicroShield®
BHMA 722 Black oxidized bronze,oil
rubbed
*Contact factory for devices required in
BHMA 626
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.11
Surface Vertical Rod Features
ED5000
Wrought brass or
bronze rear cover
Single point 1/4 turn hex key
dogging
(ED5400 Series Panic Devices)
Low profile; no pinch
points – closed on all
sides
5/8" (16mm) throw
bottom deadbolt
Heavy-duty chassis
Architecturally finished brass,
bronze or stainless steel
3/4" (19mm) throw deadlocking
stainless steel latchbolt
ED5400 and ED5400A Surface
Vertical Rod Exit Device
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Surface Vertical Rod Features
ED5000
ED5000.12
Features
Handing
Device is handed but easily field reversible.
Lever trim is handed.
Bar length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36"
(762mm-914mm) door.
Optional: 24" (610mm) bar fits 24" (610mm)
door; specify W024.
Optional: 48" (1219mm) bar fits 36"- 48"
(914mm-1219mm) door; specify W048.
Door Thickness
1-3/4" (44mm) standard.
Optional: 2" (51mm); specify D200.
Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/2" (14mm).
Door Height
Standard top rod for 7' door.
All top rods easily field cut to size.
Optional door heights up to 10’ available; see
Quick Codes, page 54.
Latchbolt
Top: 3/4" (19mm) throw, stainless steel,
pullman-type with automatic deadlatching.
Bottom: 5/8" (16mm) throw deadbolt, held
retracted during door swing.
Vertical Rods
1/2" O.D. tubular brass, bronze or stainless
steel with rod guides.
Less Bottom Rod
Optional on ED5470 & ED5470B devices
only; specify M55.
Heat Activated Door Bolt (Popper)
Standard on all fire-rated devices with M55
option (less bottom rod).
Materials
Heavy-duty cold-forged steel chassis; heavy-
gauge steel mechanisms, electroplated
for corrosion resistance; finished parts are
brass, bronze or stainless steel; stainless steel
springs; nylon bearings.
Projection
3-1/4" (83mm) active, 2-3/4" (70mm)
dogged.
Dogging
Standard on panic devices; single-point 1/4
turn hex key dogging. Optional: less dogging,
specify M51. Optional: cylinder dogging,
specify M52. Optional: electric dogging;
specify M97. Mechanical dogging not
available on fire-rated devices.
Fasteners
Standard on panic devices: machine screws
and wood door fasteners. Standard on fire-
rated devices: sex nuts and bolts. Optional
on panic devices: sex nuts and bolts for use
on wood, composite, or unreinforced metal
doors; specify M54. Optional wood screws
for use on approved fire-rated solid wood or
wood core doors. Specify M64.
Strike
Top: surface mounted interlocking.
Bottom: flush mounted.
Optional strikes available; see Options and
Accessories, page 50.
Functions and Trims
Through-bolted lever, knob, pull and
thumbpiece trims available with wide range
of functions; see Trims and Functions, pages
20-25.
Cylinders
Cylinder not included unless specified. See
Quick Codes, page 54.
Shim Kit
Optional for mounting device over raised
vision light molding; specify M58.
Applications and Listings
See page 4.
Warranty
Five-year limited.
Certification/Compliance
ANSI
Meets A156.3, Type 2, Grade 1.
Meets A117.1 Accessibility Code when
ordered with M55 option only.
UL/cUL
All devices listed for safety as panic hardware;
devicescomplywithUL305standardsfor
panic hardware. 1-1/2 hour fire-rated devices
listed as fire exit hardware for B label and lesser
class8’x10’doubledoors;ULsymbolon
active case cover indicates listings.
Any retrofit or other field modification to a fire
rated opening can potentially impact the fire
rating of the opening, and Corbin Russwin,
Inc. makes no representations or warranties
concerning what such impact may be in any
specific situation. When retrofitting any portion
of an existing fire rated opening, or specifying
and installing a new fire-rated opening, please
consult with a code specialist or local code
official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and
ratings.
California State Reference Code
This product has been approved by the
California State Fire Marshal pursuant to section
13144.1 of the California Health and Safety
Code.
NFPA
AllexitdevicescomplywithNFPA101Life
Safety Code.
Allfire-rateddevicescomplywithNFPA80
Fire Doors and Windows.
ADA
Exit devices with M55 option, lever trims and pulls
comply with Americans with Disabilities Act.
ED5470 Panic-Listed Surface Vertical Rod Exit Device
ED5470B 1-1/2 Hour Fire-Listed Surface Vertical Rod Exit Device
Finishes
BHMA 605 Bright Brass
BHMA 606 Satin Brass
BHMA 611 Bright Bronze
BHMA 612 Satin Bronze
BHMA 613 Oxidized Bronze, oil rubbed,
available lacquered
613E Dark Oxidized Satin Bronze
Equivalent
BHMA 618 BrightNickelPlated
BHMA 619 SatinNickelPlated
BHMA 625 Bright Chromium Plated
BHMA 626*
(Trim only) Satin Chromium Plated
626C Satin Chromium Plated
with MicroShield®
BHMA 629 Bright Stainless Steel
BHMA 630 Satin Stainless Steel
630C Satin Stainless Steel
with MicroShield®
BHMA 722 Black oxidized bronze,oil
rubbed
*Contact factory for devices required in
BHMA 626
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.13
Surface Vertical Rod Features
ED5000
ED5470 and ED5470B
Surface Vertical Rod
Exit Devices
Wrought brass or
bronze rear cover
Single point 1/4 turn hex key dogging
(ED5470 Series Panic Devices)
Low profile; no pinch
points – closed on all
sides
5/8" (16mm) throw
deadbolt
Heavy-duty chassis
Architecturally finished brass,
bronze or stainless steel
3/4" (19mm) throw deadlocking
stainless steel latchbolt
ED5470B
M55 (Less Bottom Rod)
Heat-activated door bolt
(Popper) – Usedwhenbottom
rod is omitted from fire exit
devices (M55).
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Concealed Vertical Rod Features
ED5000
ED5800 Panic-Listed Concealed Vertical Rod Exit Device
ED5800A 3-Hour Fire-Listed Concealed Vertical Rod Exit Device
FOR USE WITH METAL DOORS ONLY
Features
Handing
Device is handed but easily field reversible.
Lever trim is handed.
Bar length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36"
(762mm-914mm) door.
Optional: 24" (610mm) bar fits 24" (610mm)
door; specify W024.
Optional: 48" (1219mm) bar fits 36"-48"
(914mm-1219mm) door; specify W048.
Door Thickness
1-3/4" (44mm) standard.
Optional: 2" (51mm); specify D200.
Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/2" (114mm).
Door Height
Standard: top rod for 8' door.
Telescoping rod assembly to accommodate
various door heights. For door heights above
8’0”,refertoED5860(B).
Latchbolt
Top: 3/4" (19mm) throw, stainless steel
pullman-type with automatic deadlatching.
Bottom: 5/8" (16mm) throw deadbolt, held
retracted during door swing.
Vertical Rods
1/2" O.D. tubing, electroplated for corrosion
resistance.
Materials
Heavy-duty cold-forged steel chassis; heavy-
gauge steel mechanisms, electroplated
for corrosion resistance; finished parts are
brass, bronze or stainless steel; stainless steel
springs; nylon bearings.
Projection
3-1/4" (83mm) active, 2-3/4" (70mm)
dogged.
Dogging
Standard on panic devices; single-point 1/4
turn hex key dogging. Optional: less dogging,
specify M51. Optional: cylinder dogging,
specify M52. Optional: electric dogging;
specify M97. Mechanical dogging not
available on fire-rated devices.
Fasteners
Standard on panic devices: machine screws.
Standard on fire-rated devices: sex nuts and
bolts.
Optional on panic devices: sex nuts and bolts
for use on unreinforced metal doors; specify
M54.
Strike
Top: roller type.
Bottom: flush mounted.
Optional strikes available; see Options and
Accessories, page 50.
Functions and Trims
Through-bolted lever, knob, pull and
thumbpiece trims available with wide range
of functions; see Trims and Functions, pages
20-25.
Cylinders
Cylinder not included unless specified. See
Quick Codes, page 54.
Shim Kit
Optional for mounting device over raised
vision light molding; specify M58.
Applications and Listings
For use on metal doors only. See page 4.
Warranty
Five-year limited.
Certification/Compliance
ANSI
Meets A156.3, Type 8, Grade 1.
Meets A117.1 Accessibility Code.
UL/cUL
All devices listed for safety as panic hardware;
devicescomplywithUL305standardsforpanic
hardware. Three-hour fire-rated devices listed
as fire exit hardware for A label and lesser class
8'x8'doubledoors;ULsymbolonactivecase
cover indicates listing.
Any retrofit or other field modification to a fire
rated opening can potentially impact the fire
rating of the opening, and Corbin Russwin,
Inc. makes no representations or warranties
concerning what such impact may be in any
specific situation. When retrofitting any portion
of an existing fire rated opening, or specifying
and installing a new fire-rated opening, please
consult with a code specialist or local code
official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and
ratings.
California State Reference Code
This product has been approved by the
California State Fire Marshal pursuant to section
13144.1 of the California Health and Safety
Code.
NFPA
AllexitdevicescomplywithNFPA101Life
Safety Code.
Allfire-rateddevicescomplywithNFPA80
Fire Doors and Windows.
ADA
Exit devices, lever trims and pulls comply with
Americans with Disabilities Act.
ED5000.14
Finishes
BHMA 605 Bright Brass
BHMA 606 Satin Brass
BHMA 611 Bright Bronze
BHMA 612 Satin Bronze
BHMA 613 Oxidized Bronze, oil rubbed,
available lacquered
613E Dark Oxidized Satin Bronze
Equivalent
BHMA 618 BrightNickelPlated
BHMA 619 SatinNickelPlated
BHMA 625 Bright Chromium Plated
BHMA 626*
(Trim only) Satin Chromium Plated
626C Satin Chromium Plated
with MicroShield®
BHMA 629 Bright Stainless Steel
BHMA 630 Satin Stainless Steel
630C Satin Stainless Steel
with MicroShield®
BHMA 722 Black oxidized bronze,oil
rubbed
*Contact factory for devices required in
BHMA 626
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
Wrought brass or
bronze rear cover
Single point 1/4 turn hex key dogging
(ED5800 Series Panic Devices)
Low profile; no pinch points –
closed on all sides
5/8" (16mm) throw
bottom deadbolt
Heavy-duty chassis
Architecturally finished brass,
bronze or stainless steel
3/4" (19mm) throw deadlocking
stainless steel latchbolt
ED5000.15
Concealed Vertical Rod Features
ED5000
ED5800 and ED5800A Concealed Vertical Rod Exit Devices
FOR USE WITH METAL DOORS ONLY
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Concealed Vertical Rod Features
ED5000
ED5000.16
ED5860 Panic-Listed Concealed Vertical Rod Exit Device
ED5860B 1-1/2 Hour Fire-Listed Concealed Vertical Rod Exit Device
FOR USE WITH METAL OR WOOD DOORS
Features
Handing
Device is handed but is easily field reversible.
Lever trim is handed.
Bar length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36"
(762mm-914mm) door.
Optional: 24" (610mm) bar fits 24" (610mm)
door; specify W024.
Optional: 48" (1219mm) bar fits 36"-48"
(914mm-1219mm) door; specify W048.
Door Thickness
1-3/4" (14mm) standard.
Optional: 2" (51mm); specify D200.
Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/2" (114mm).
Door Height
Standard: top rod for 8' door.
Telescoping rod assembly to accommodate
various door heights.
Optional door heights up to 10' available; see
Quick Codes, page 54.
Latchbolt
Top: 3/4" (19mm) throw, stainless steel,
pullman-type with automatic deadlatching.
Bottom: 5/8" (16mm) throw deadbolt, held
retracted during door swing.
Vertical Rods
1/2" O.D. tubing, electroplated for corrosion
resistance.
Less Bottom Rod
Optional on ED5860 and ED5860B devices
only; specify M55.
Heat-Activated Door Bolt (Popper)
Standard with all fire-rated devices with M55
option (less bottom rod).
Materials
Heavy-duty cold-forged steel chassis; heavy-
gauge steel mechanisms, electroplated
for corrosion resistance; finished parts are
brass, bronze or stainless steel; stainless steel
springs; nylon bearings.
Projection
3-1/4" (83mm) active, 2-3/4" (70mm)
dogged.
Dogging
Standard on panic devices; single-point 1/4
turn hex key dogging.
Optional: less dogging, specify M51.
Optional: cylinder dogging, specify M52.
Optional: electric dogging; specify M97.
Mechanical dogging not available on fire-
rated devices.
Fasteners
Standard on panic devices: machine screws
and wood door fasteners.
Standard on fire-rated devices: sex nuts and
bolts.
Optional on panic devices: sex nuts and bolts
for use on wood, composite, or unreinforced
metal doors; specify M54.
Optional wood screws for use on approved
fire-rated solid wood or wood core doors.
Specify M64.
Strike
Top: mortise. Bottom: flush mounted.
Optional strikes available; see Options and
Accessories, page 50.
Functions and Trims
Through-bolted lever, knob, pull and
thumbpiece trims available with wide
range of functions; see Trims and
Functions, pages 20-25.
Cylinders
Cylinder not included unless specified. See
Quick Codes, page 54.
Shim Kit
Optional for mounting device over raised
vision light molding; specify M58.
Applications and Listings
For use with metal or wood doors. See page 4.
Warranty
Five-year limited.
Certification/Compliance
ANSI
Meets A156.3, Type 7 and 8, Grade 1.
Meets A117.1 Accessibility Code.
UL/cUL
All devices listed for safety as panic hardware;
devicescomplywithUL305standardsfor
panic hardware. 1-1/2 hour fire-rated devices
listed as fire exit hardware for B label and lesser
class8'x10'doubledoors;ULsymbolon
active case cover indicates listings.
Any retrofit or other field modification to a fire
rated opening can potentially impact the fire
rating of the opening, and Corbin Russwin,
Inc. makes no representations or warranties
concerning what such impact may be in any
specific situation. When retrofitting any portion
of an existing fire rated opening, or specifying
and installing a new fire-rated opening, please
consult with a code specialist or local code
official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and
ratings.
California State Reference Code
This product has been approved by the
California State Fire Marshal pursuant to section
13144.1 of the California Health and Safety
Code.
NFPA
AllexitdevicescomplywithNFPA101Life
Safety Code.
Allfire-rateddevicescomplywithNFPA80
Fire Doors and Windows.
ADA
Exit devices, lever trims and pulls comply with
Americans with Disabilities Act.
Finishes
BHMA 605 Bright Brass
BHMA 606 Satin Brass
BHMA 611 Bright Bronze
BHMA 612 Satin Bronze
BHMA 613 Oxidized Bronze, oil rubbed,
available lacquered
613E Dark Oxidized Satin Bronze
Equivalent
BHMA 618 BrightNickelPlated
BHMA 619 SatinNickelPlated
BHMA 625 Bright Chromium Plated
BHMA 626*
(Trim only) Satin Chromium Plated
626C Satin Chromium Plated
with MicroShield®
BHMA 629 Bright Stainless Steel
BHMA 630 Satin Stainless Steel
630C Satin Stainless Steel
with MicroShield®
BHMA 722 Black oxidized bronze,oil
rubbed
*Contact factory for devices required in
BHMA 626
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.17
Concealed Vertical Rod Features
ED5000
ED5860 and ED5860B
Concealed Vertical
Rod Exit Devices
FOR USE WITH METAL OR
WOOD DOORS
Wrought brass or
bronze rear cover
Single point 1/4 turn
hex key dogging
(ED5860 Series Panic Devices)
Low profile; no pinch points –
closed on all sides
5/8" (16mm) throw
deadbolt
Heavy-duty chassis
Architecturally finished brass,
bronze or stainless steel
3/4" (19mm) throw deadlocking
stainless steel latchbolt
ED5860B
M55 (Less Bottom Rod)
Heat-activated door bolt
(Popper) –Usedwhenbottom
rod is omitted from fire exit
devices (M55).
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15

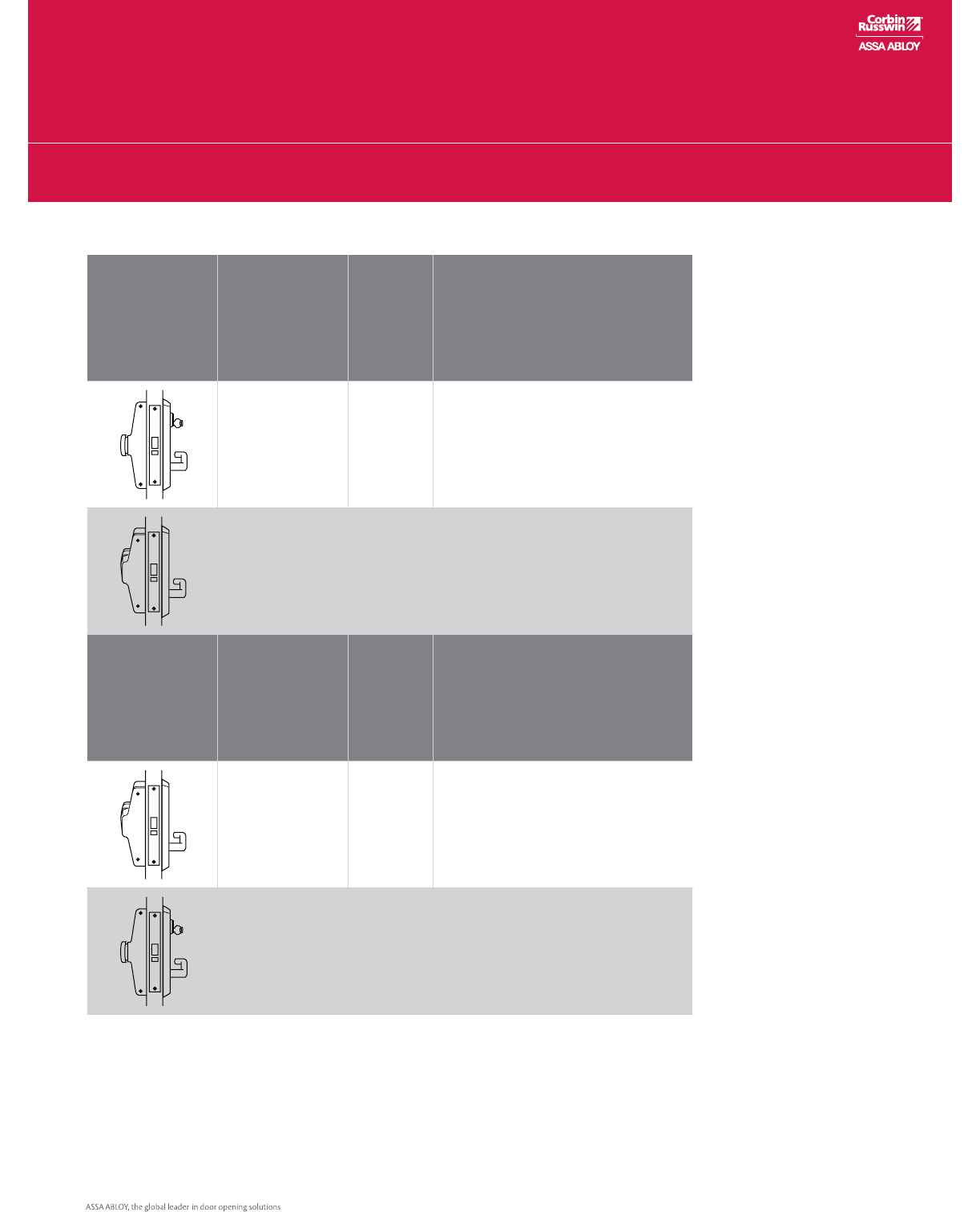

Functions
ED5000
ED5000.18
*Classroom function trims can be converted to Storeroom function by a simple field adjustment.
Pull and Thumbpiece Trim
Rim/
SecureBolt®
ED5200(A)
ED5200S(A)
Inside Outside
Surface
Vertical Rod
ED5400(A)
ED5470(B)
Inside Outside
Concealed
Vertical Rod
ED5800(A)
ED5860(B)
Inside Outside
Type ANSI
No.
Function Description
Exit Only 01 Exit only; no trim.
Dummy 02 Entrance by trim when actuating
bar is dogged down.
Nightlatch 03 Entrance by trim when latchbolt is
retracted by key.
Classroom* 05 Entrance by thumbpiece. Key locks
or unlocks thumbpiece.
Passage 15
Entrance by trim when latch
is retracted by thumbpiece.
Thumbpiece is always active, no
cylinder.
Storeroom
(Thumbpiece
Active)
06
Entrance by thumbpiece only when
released by key. Key removable only
when locked.
ED5000.19
Overview
ED5000
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.19
Functions
ED5000
*Classroom function trims can be converted to Storeroom function by a simple field adjustment.
Lever and Knob Trim
Rim/
SecureBolt®
ED5200(A)
ED5200S(A)
Inside Outside
Surface
Vertical Rod
ED5400(A)
ED5470(B)
Inside Outside
Concealed
Vertical Rod
ED5800(A)
ED5860(B)
Inside Outside
Type ANSI
No.
Function Description
Exit Only 01 Exit only; no trim.
Dummy 02 Entrance by trim when actuating
bar is dogged down.
Nightlatch 03 Entrance by trim when latchbolt is
retracted by key.
Classroom* 08 Entrance by knob or lever. Key locks
or unlocks knob or lever.
Passage 14
Entrance by trim when latchbolt is
retracted by knob or lever. Knob or
lever always active, no cylinder.
Storeroom
(Grip Active) 09
Entrance by knob or lever only when
released by key. Key removable only
when locked.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Heavy-Duty Trims & Functions
ED5000
ED5000.20
1. Classroom function trims can be converted to Storeroom function by a simple field adjustment.
2. Active lever, knob or thumbpiece trim recommended for use with surface or concealed vertical rod exit devices.
Rim, SecureBolt®, Vertical Rod
Features:
•FreeWheelingvandal-resistantdesign
•Bevelededges
•Through-boltedtoexitdevice
•Flushcylinderwith6-pincylinderapplications
•5-yearlimitedwarranty

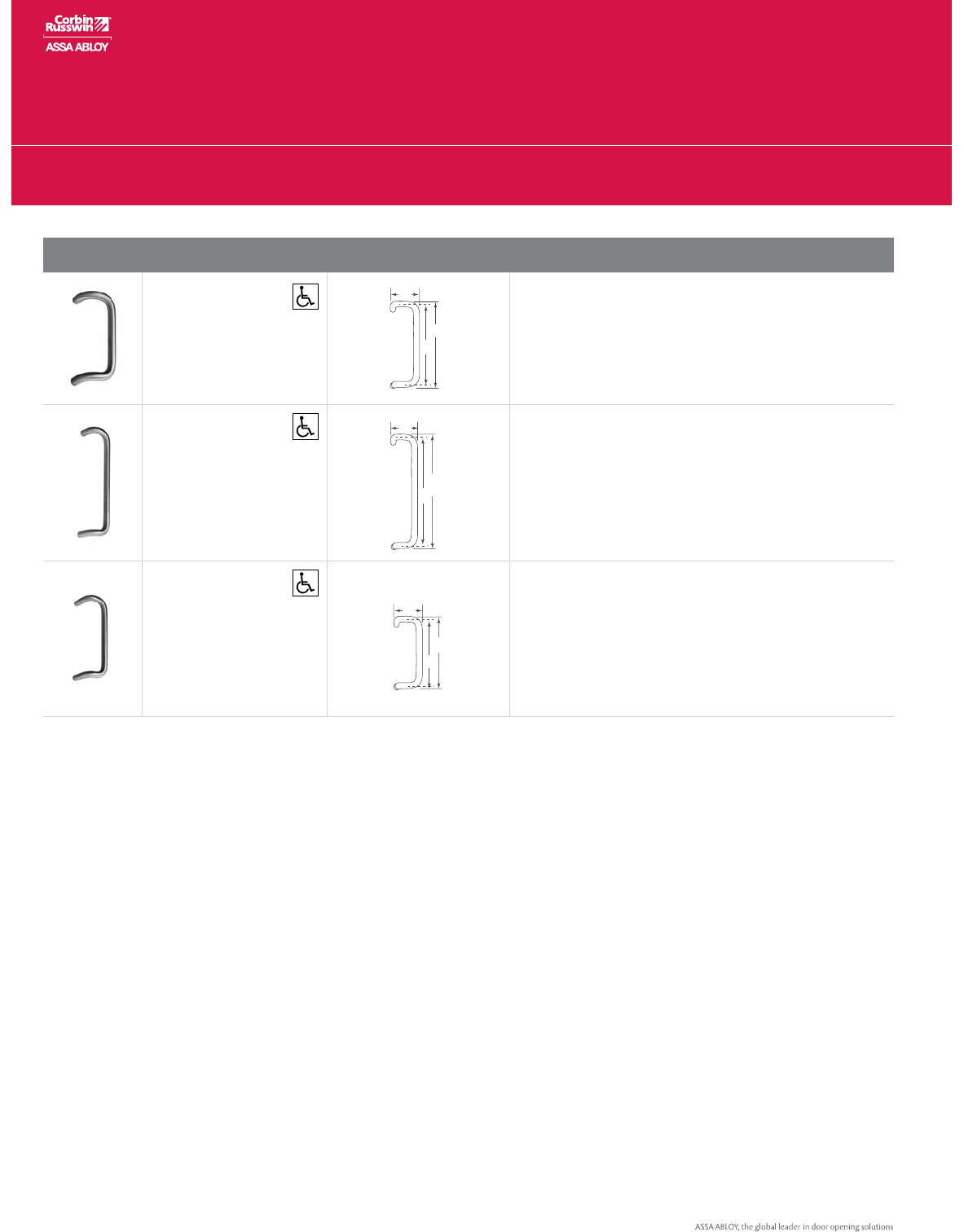

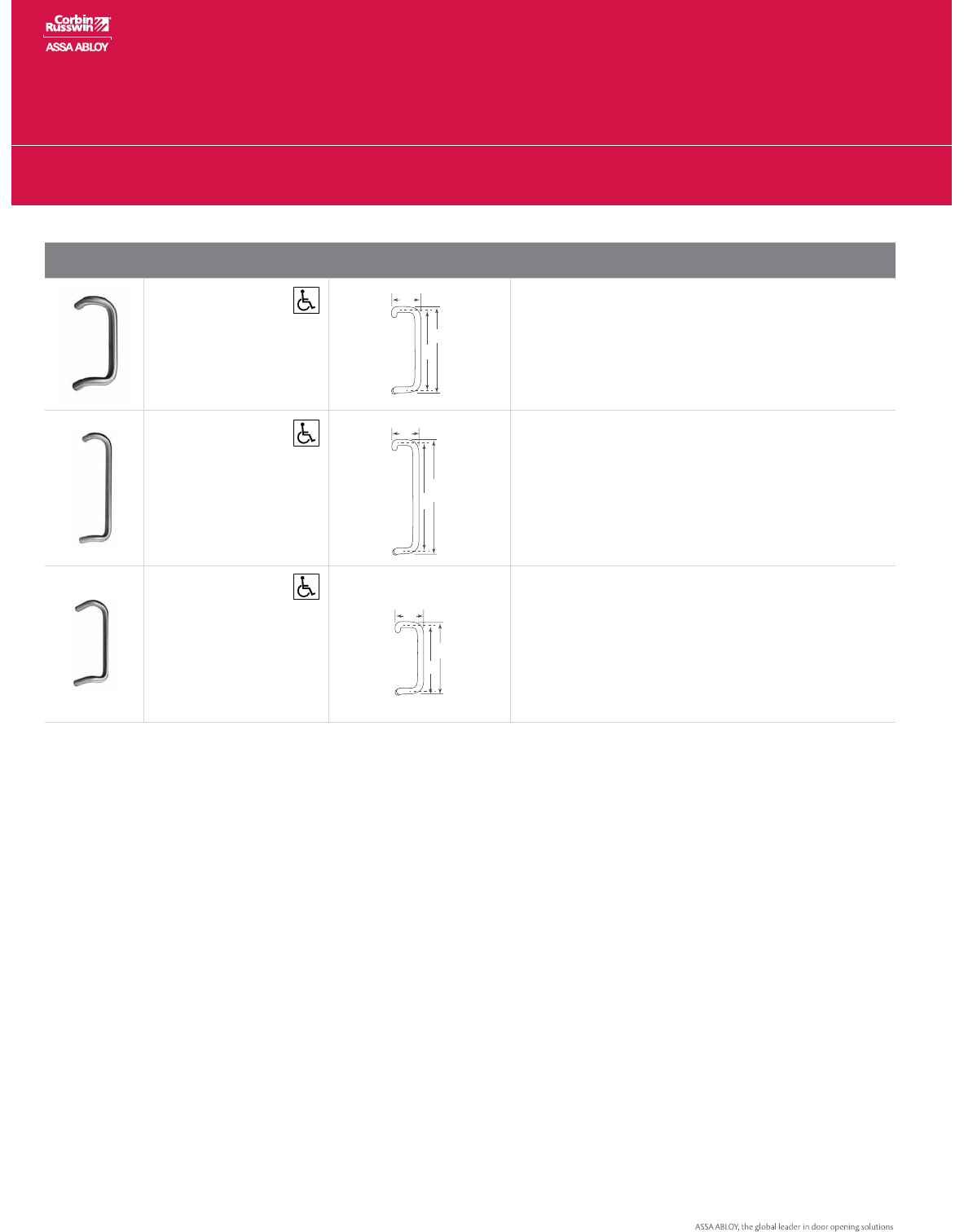

Pull Trim Design
Trim/Function
Passage
ANSI No.
14
Dummy
ANSI No.
02
Classroom
ANSI No.
08
Nightlatch
ANSI No.
03
Storeroom
ANSI No.
09

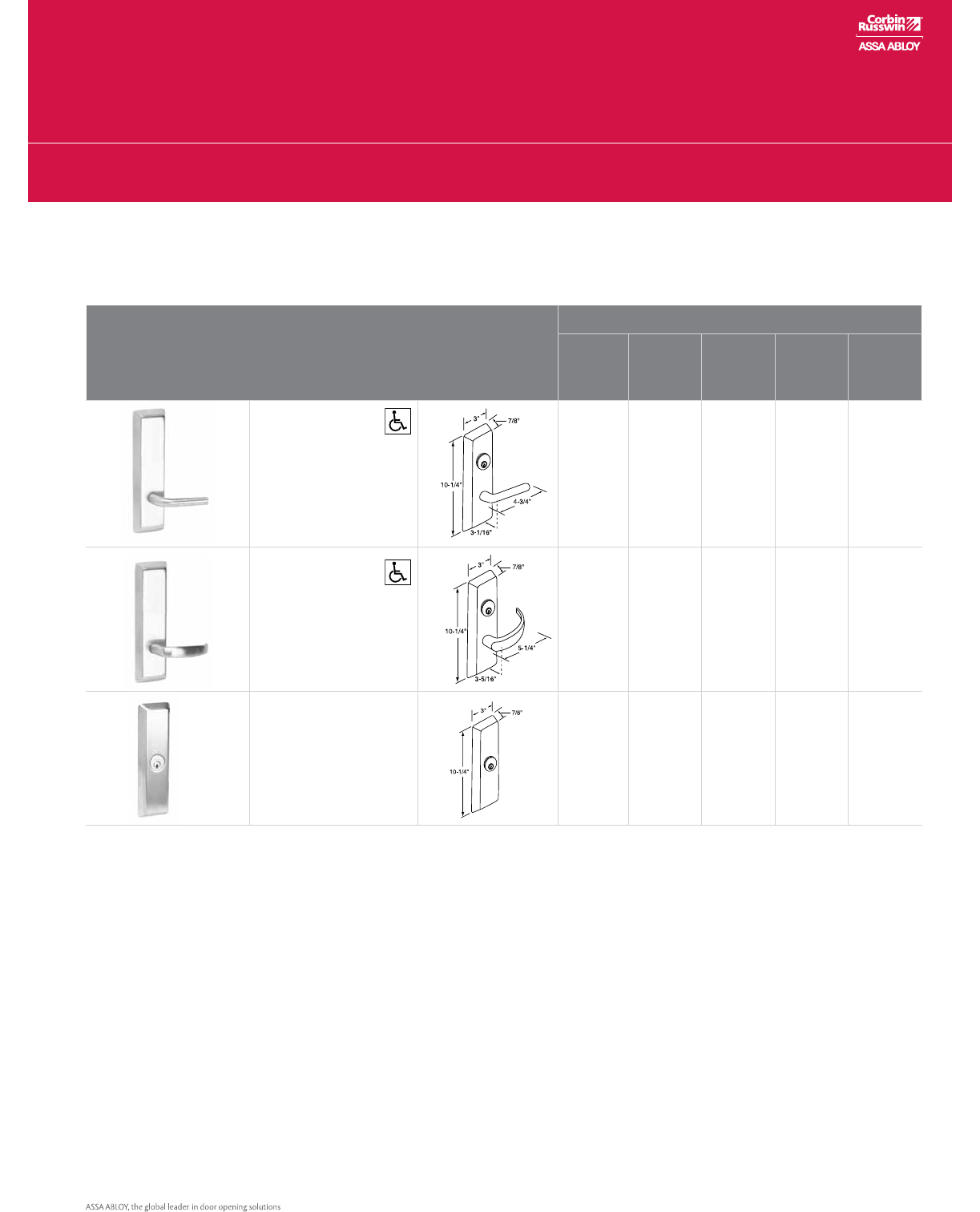

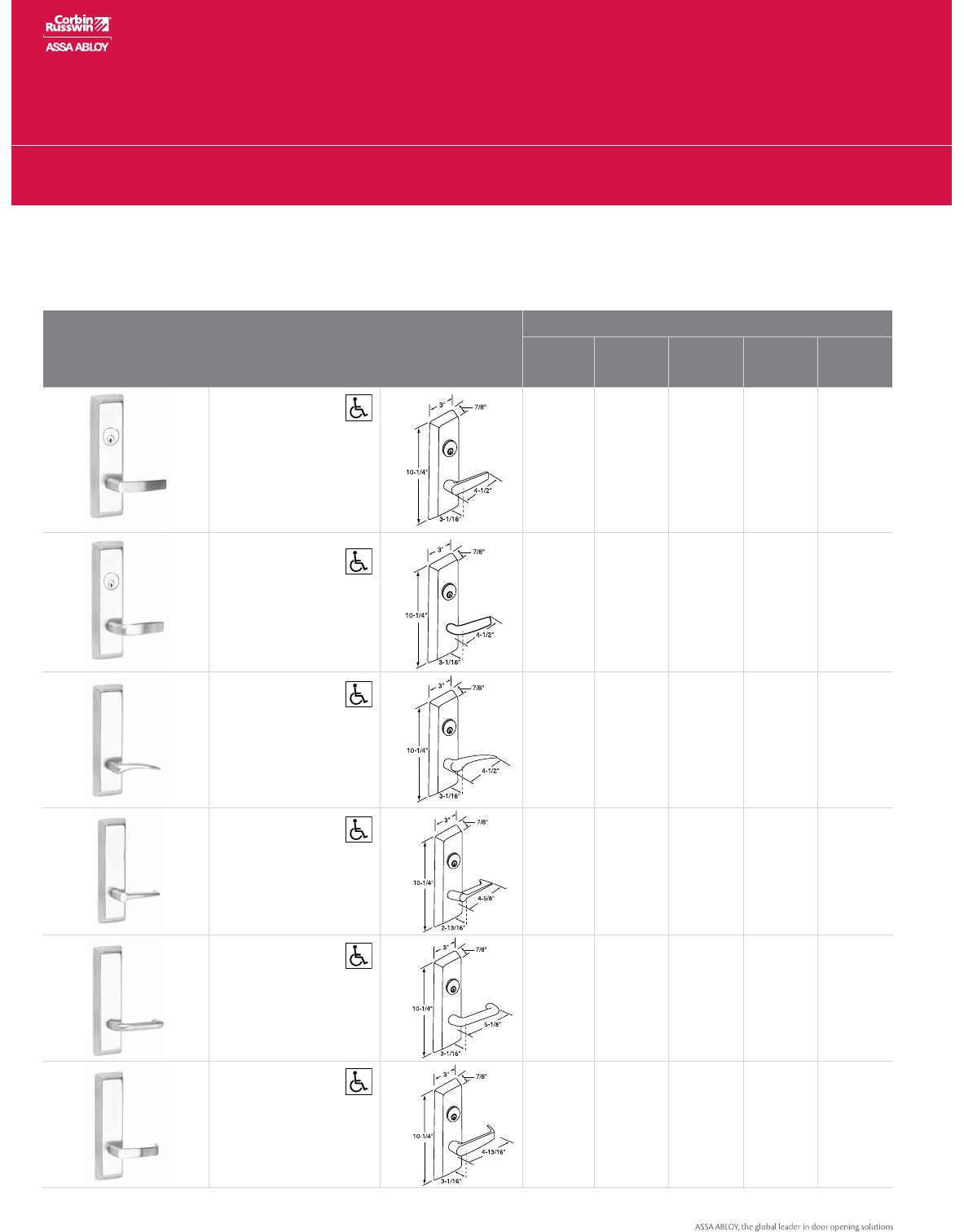

Armstrong
A9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
A910 A950 A9551A9572A9591
Citation
C9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
C910 C950 C9551C9572C9591
Dirke
D9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
Handed: Specify RHR
or LHR
D910 D950 D9551D9572D9591
Essex
E9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
E910 E950 E9551E9572E9591
Lustra
L9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
L910 L950 L9551L9572L9591
Newport
N9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
N910 N950 N9551N9572N9591
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.21
Heavy-Duty Trims & Functions
ED5000
Rim, SecureBolt®, Vertical Rod
Features:
•FreeWheelingvandal-resistantdesign
•Bevelededges
•Through-boltedtoexitdevice
•Flushcylinderwith6-pincylinderapplications
•5-yearlimitedwarranty
Pull Trim Design
Trim/Function
Passage
ANSI No.
14
Dummy
ANSI No.
02
Classroom
ANSI No.
08
Nightlatch
ANSI No.
03
Storeroom
ANSI No.
09
Regis
R9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
R910 R950 R9551R9572R9591
Princeton
PR9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
PR910 PR950 PR9551PR9572PR9591
Escutcheon
F9
Escutcheon: Forged
Cylinder: Rim N/A F950 N/A F9572N/A
1. Classroom function trims can be converted to Storeroom function by a simple field adjustment.
2. Active lever, knob or thumbpiece trim recommended for use with surface or concealed vertical rod exit devices.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
UtilityTrimsandFunctions
ED5000
ED5000.22
Rim, SecureBolt®, Vertical Rod
Features:
•FreeWheelingvandal-resistantdesign
•Bevelededges
•Through-boltedtoexitdevice
•Flushcylinderwith6-pincylinderapplications
•5-yearlimitedwarranty
Pull Trim Design
Trim/Function
Passage
ANSI No.
14
Dummy
ANSI No.
02
Classroom
ANSI No.
08
Nightlatch
ANSI No.
03
Storeroom
ANSI No.
09
Frascati
FR9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
Handed: Specify RHR
or LHR
FR910 FR950 FR9551FR9572FR959
Merlot
M9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
M910 M950 M9551M9572M959
Zinfandel
Z9
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
Handed: Specify RHR
or LHR
Z910 Z950 Z9551Z9572Z959
1. Classroom function trims can be converted to Storeroom function by a simple field adjustment.
2. Active lever, knob or thumbpiece trim recommended for use with surface or concealed vertical rod exit devices.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.23
UtilityTrimsandFunctions
ED5000
1. Classroom function trims can be converted to Storeroom function by a simple field adjustment.
2.NotrecommendedforuseonED5400orED5800seriesexitdevices.
3. VTL has a lip that covers door gap and protects the latch.
Rim, SecureBolt®, Vertical Rod
Features:
•FreeWheelingvandal-resistantdesign
•Bevelededges
•Through-boltedtoexitdevice
•Flushcylinderwith6-pincylinderapplications
•5-yearlimitedwarranty
Pull Trim Design
Trim/Function
Passage
ANSI No.
14/15
Dummy
ANSI No.
02
Classroom
ANSI No.
05/08
Nightlatch
ANSI No.
03
Storeroom
ANSI No.
06/09
G900 Trim
Knob: Wrought
Escutcheon: Forged
Cylinder: Rim
3"
3-1/2"
10-1/4" G910 G950 G9551G9572G9591
TH900 Trim
Pull: Extruded
Escutcheon: Forged
Cylinder: Rim
Projection: 2-11/16"
3"
10-1/4"
2-1/2"
1-5/8"
16-1/2" TH910 TH950 TH9551TH9572TH9591
Offset Pull
P9
Pull: Extruded
Escutcheon: Forged
Cylinder: Rim
Handed. Specify RHR
or LHR
3"
10-1/4"
3-3/16"
N/A P950 N/A P9572N/A
VT9 Trim
Plate: Formed
Stainless Steel
Cylinder: Rim
Handed: Specify RHR
or LHR
7.25"
9.26
N/A VT950 N/A VT9572N/A
9.26"
7.94
"
N/A VTL9503N/A VTL9572, 3 N/A
Key Only
K12
Note:Availablewith
cylinder option only.
Ex: K157 x 6P.
N/A N/A N/A K1572N/A
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
UtilityTrimsandFunctions
ED5000
ED5000.24
1. Available in 605, 606, 612, 613, 626, 629 and 630 finishes.
*Available on 1-3/4" thick doors only.
P12 P13 P14 Clearance
2-1/2"
4" 4"
3"
10"
10"
11"
18"
19"
10-3/4"
Offset Pull Trim: P12, P13, P14*
Offset Pull
P12
Clearance: 2-1/2" SpecifyPartNumber,716F50MxFinish1
Offset Pull
P13
Clearance: 2-1/2"
SpecifyPartNumber,716F51MxFinish1
Offset Pull
P14
Clearance: 2-1/2"
SpecifyPartNumber,716F52MxFinish1
P12 P13 P14 Clearance
2-1/2"
4"
4" 3"
10"
10"
11"
18"
19"
10-3/4"
P12 P13 P14 Clearance
2-1/2"
4"
4"
3"
10" 10"
11"
18"
19"
10-3/4"
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.25
UtilityTrimsandFunctions
ED5000
Rim, SecureBolt®, Vertical Rod Features:
•FreeWheelingvandal-resistantdesign
•Bevelededges
•Through-boltedtoexitdevice
•Flushcylinderwith6-pincylinderapplications
•5-yearlimitedwarranty
Lever: Cast
Escutcheon: Forged
Cylinder: Rim
*See pages 58 for how to order the Muséo® Piet Lever Collection.
1. Classroom function trims can be converted to Storeroom function by a simple field adjustment.
2. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
3. 135-138 contain white or back polycarbonate insert
Lever Designs
(Choose from list below)
Functions
How to Order Example:
Trim x Function #
102910
Passage
ANSI No. 14
Function #910
Dummy
ANSI No. 02
Function #950
Classroom
ANSI No. 08
Function #9551
Nightlatch
ANSI No. 03
Function #957
Storeroom
ANSI No. 09
Function #9591
Muséo®
Georgia
101 102 103 104 12421252
Salvador
106 107 108 109 110 12321282
Marc
111 112 113 114 115 116 130213121322
Pablo
117 1262
Jackson
105 119 121 122 1272
Piet*
21G 21L 21M 21S 21W 23M 25M 27M
Joseph3
133 1342135 1362137 1382
Georges
139 140 141 142 143
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Mortise Features
ED5000
ED5000.26
ED5600 Panic-Listed Mortise Exit Device
ED5600A 3-Hour Fire-Listed Mortise Exit Device
ED5602L Panic-Listed Listed Mortise Double Cylinder Exit Device
ED5602AL 3-Hour Fire-Listed Mortise Double Cylinder Exit Device
Features
Handing
Device is non-handed.
Mortise lock body is handed, but field
reversible.
Lever trim may be handed.
Bar length
Easily field cut to size.
Standard: 36" (914mm) bar fits 30"- 36"
(762mm-914mm) door.
Optional: 24" (610mm) bar fits 24" (610mm)
door; specify W024.
Optional: 48" (1219mm) bar fits 36"-48"
(914mm-1219mm) door; specify W048.
Door Thickness
1-3/4" (44mm) standard.
Optional: 2" (51mm); specify D200.
Optional: 2-1/4" (57mm); specify D214.
Stile
Minimum width 4-1/2" (114mm).
Latchbolt
2-piece mechanical, 3/4" (19mm) throw,
stainless steel with auxiliary deadlocking
latch.
Materials
Heavy-duty cold-forged steel chassis; heavy-
gauge steel mechanisms, electroplated
for corrosion resistance; finished parts are
brass, bronze or stainless steel; stainless steel
springs; nylon bearings.
Projection
3-1/4" (83mm) active, 2-3/4" (70mm)
dogged.
Dogging
Standard on panic devices; single-point 1/4
turn hex key dogging.
Optional: less dogging, specify M51.
Optional: cylinder dogging, specify M52.
Optional: electric dogging; specify M97.
Mechanical dogging not available on fire-
rated devices.
Fasteners
Standard on panic devices: machine screws
and wood door fasteners.
Standard on fire-rated devices: sex nuts and
bolts.
Optional on panic devices: sex nuts and bolts
for use on wood, composite, or unreinforced
metal doors; specify M54.
Optional wood screws for use on approved
fire-rated solid wood or wood core doors.
Specify M64.
Strike
Non-handed.ANSIcurvedlipstandard.
4-7/8" x 1-1/4" x 1-1/4" lip to center.
Optional strikes available; see Options and
Accessories, page 50.
Functions and Trims
Through-bolted lever, knob, pull and
thumbpiece trims available with wide range
of functions; see Trims and Functions, pages
30-35.
Cylinders
Cylinder not included unless specified. See
Quick Codes, page 54.
Shim Kit
Optional for mounting device over raised
vision light molding; specify M58.
Applications and Listings
See page 4.
Warranty
Five-year limited.
Certification/Compliance
ANSI
Meets A156.3, Type 3, Grade 1.
Meets A117.1 Accessibility Code.
UL/cUL
All devices listed for safety as panic hardware;
devicescomplywithUL305standardsfor
panic hardware. Three-hour fire-rated devices
listed as fire exit hardware for A label and
lesser class 4' x 8' single or 8' x 8' double
doors;ULsymbolonactivecasecoverindicates
listings.
Any retrofit or other field modification to a fire
rated opening can potentially impact the fire
rating of the opening, and Corbin Russwin,
Inc. makes no representations or warranties
concerning what such impact may be in any
specific situation. When retrofitting any portion
of an existing fire rated opening, or specifying
and installing a new fire-rated opening, please
consult with a code specialist or local code
official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and
ratings.
California State Reference Code
This product has been approved by the
California State Fire Marshal pursuant to section
13144.1 of the California Health and Safety
Code.
NFPA
AllexitdevicescomplywithNFPA101Life
Safety Code.
Allfire-rateddevicescomplywithNFPA80
Fire Doors and Windows.
ADA
Exit devices, lever trims and pulls comply with
Americans with Disabilities Act.
Finishes
BHMA 605 Bright Brass
BHMA 606 Satin Brass
BHMA 611 Bright Bronze
BHMA 612 Satin Bronze
BHMA 613 Oxidized Bronze, oil rubbed,
available lacquered
613E Dark Oxidized Satin Bronze
Equivalent
BHMA 618 BrightNickelPlated
BHMA 619 SatinNickelPlated
BHMA 625 Bright Chromium Plated
BHMA 626*
(Trim only) Satin Chromium Plated
626C Satin Chromium Plated
with MicroShield®
BHMA 629 Bright Stainless Steel
BHMA 630 Satin Stainless Steel
630C Satin Stainless Steel
with MicroShield®
BHMA 722 Black oxidized bronze,oil
rubbed
*Contact factory for devices required in
BHMA 626
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.27
Mortise Features
ED5000
Wrought brass or
bronze rear cover
Single point 1/4 turn
hex key dogging
(ED5600 Series Panic Devices)
Low profile; no pinch points –
closed on all sides
Heavy-duty chassis
Architecturally finished brass,
bronze or stainless steel
ED5600K, ED5657K
ED5600L, ED5602L, ED5657L,
ED5602L, ED5600T, ED5657T
Mortise Panic-Listed Exit Devices
ED5600AK, ED5657AK
ED5600AL, ED5602AL, ED5657AL,
ED5602AL, ED5600AT, ED5657AT
Mortise Fire-Listed Exit Devices
2-piece mechanical 3/4" throw
deadlocking stainless steel latchbolt
How to Order/Specify
Mortise Exit
Trim Type Functions Panic Fire
Knob
Passage ED5600K ED5600AK
Classroom
Nightlatch ED5657K ED5657AK
Dummy
Lever or
Flat Plate
Passage ED5600L ED5600AL
Classroom
Double Cylinder
(Classroom function
Trim only)
ED5602L ED5602AL
Nightlatch ED5657L ED5657AL
Dummy
Thumbpiece
Passage ED5600T ED5600AT
Classroom
Nightlatch ED5657T ED5657AT
Dummy
ED5602L,
ED5602AL
Mortise
Double Cylinder
Exit Devices
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Mortise Functions
ED5000
ED5000.28
Exit Only, Pull and Thumbpiece Trim
Mortise
ED5600L
ED5600AL
Inside Outside
Type ANSI No. Function Description
Exit Only 01 Exit only; no trim.
Mortise
ED5600T
ED5600AT
Inside Outside
Type ANSI No. Function Description
Classroom 05
Entrance by thumbpiece. Key
locks or unlocks thumbpiece.
Specify Thumbpiece - ED5600T or
ED5600AT.
Passage 15
Entrance by trim when latch
is retracted by thumbpiece.
Thumbpiece always active, no
cylinder. Specify Thumbpiece -
ED5600T or ED5600AT.
Mortise
ED5657T
ED5657AT
Inside Outside
Type ANSI No. Function Description
Dummy 02
Entrance by trim when actuating
bar is dogged down. Specify
ED5657T or ED5657AT.
Nightlatch 03
Entrance by trim when latchbolt
is retracted by key. Key removable
only when locked. Specify ED5657T
or ED5657AT.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.29
Mortise Functions
ED5000
Mortise
ED5600L
ED5600AL
ED5600K
ED5600AK
Inside Outside
Type ANSI No. Function Description
Classroom** 08 Entrance by knob or lever. Key locks
or unlocks knob or lever.
Passage* 14
Entrance by trim when latchbolt is
retracted by knob or lever. Knob
or lever always active, no cylinder.
Specify K, AK, L or AL.
Mortise
ED5657L
ED5657AL
ED5657K
ED5657AK
Inside Outside
Type ANSI No. Function Description
Dummy* 02 Entrance by trim when actuating
bar is dogged down.
Nightlatch** 03
Entrance by trim when latchbolt
is retracted by key. Key removable
only when locked. Specify ED5657L,
ED5657AL, ED5657K, ED5657AK.
*Dummy and passage function trims are the same.
**ClassroomandNightlatchfunctiontrimsarethesame.Trimfunctionmustbespecifiedwhenorderedwithanexitto
ensure that the correct lock body is supplied with the device.
Lever and Knob Trim
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Heavy-Duty Mortise Trims & Functions
ED5000
ED5000.30
Features:
•Bevelededges
•Rigidleverwhenlocked
•Flushcylinder
•Through-boltedtoexitdevice
•5-yearlimitedwarranty
Trim Design
Trim/Function
Passage
ANSI No.
14
Dummy
ANSI No.
02
Classroom
ANSI No.
08
Nightlatch
ANSI No.
03
Armstrong
A9M
Lever: Cast
Escutcheon: Forged
Cylinder:1-1/2”
Mortise A02
A9M10 A9M50 A9M55 A9M57
Citation
C9M
Lever: Cast
Escutcheon: Forged
Cylinder:1-1/2”
Mortise A02
C9M10 C9M50 C9M55 C9M57
Dirke
D9M
Lever: Cast
Escutcheon: Forged
Cylinder:1-1/2”
Mortise A02
Handed: Specify RHR or
LHR
D9M10 D9M50 D9M55 D9M57
Essex
E9M
Lever: Cast
Escutcheon: Forged
Cylinder:1-1/2”
Mortise A02
E9M10 E9M50 E9M55 E9M57
Lustra
L9M
Lever: Cast
Escutcheon: Forged
Cylinder:1-1/2”
Mortise A02
L9M10 L9M50 L9M55 L9M57
Newport
N9M
Lever: Cast
Escutcheon: Forged
Cylinder:1-1/2”
Mortise A02
N9M10 N9M50 N9M55 N9M57
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
Trim Design
Trim/Function
Passage
ANSI No.
14
Dummy
ANSI No.
02
Classroom
ANSI No.
08
Nightlatch
ANSI No.
03
Regis
R9M
Lever: Cast
Escutcheon: Forged
Cylinder: 1-1/2"
Mortise A02
R9M10 R9M50 R9M55 R9M57
Princeton
PR9M
Lever: Cast
Escutcheon: Forged
Cylinder: 1-1/2"
Mortise A02
PR9M10 PR9M50 PR9M55 PR9M57
Escutcheon
F9
Escutcheon: Forged
Cylinder: 1-1/2"
Mortise A02
N/A F950 N/A F9M57
ED5000.31
Heavy-Duty Mortise Trims & Functions
ED5000
Features:
•Bevelededges
•Rigidleverwhenlocked
•Flushcylinder
•Through-boltedtoexitdevice
•5-yearlimitedwarranty
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Heavy-Duty Mortise Trims & Functions
ED5000
ED5000.32
Features:
•Bevelededges
•Rigidleverwhenlocked
•Flushcylinder
•Through-boltedtoexitdevice
•5-yearlimitedwarranty
Trim Design
Trim/Function
Passage
ANSI No.
14
Dummy
ANSI No.
02
Classroom
ANSI No.
08
Nightlatch
ANSI No.
03
Frascati
FR9M
Lever: Cast
Escutcheon: Forged
Cylinder: 1-1/2"
Mortise A02
Handed: Specify RHR
or LHR
FR9M10 FR9M50 FR9M55 FR9M57
Merlot
M9M
Lever: Cast
Escutcheon: Forged
Cylinder: 1-1/2"
Mortise A02
M9M10 M9M50 M9M55 M9M57
Zinfandel
Z9M
Lever: Cast
Escutcheon: Forged
Cylinder: 1-1/2"
Mortise A02
Handed: Specify RHR
or LHR
Z9M10 Z9M50 Z9M55 Z9M57
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
Pull Trim Design
Trim/Function
Passage
ANSI No.
14/15
Dummy
ANSI No.
02
Classroom
ANSI No.
05/08
Nightlatch
ANSI No.
03
G9M00 Trim
Knob: Wrought
Escutcheon: Forged
Cylinder: 1-1/2" Mortise A02
3"
3-1/2"
10-1/4" G9M10 G9M50 G9M55 G9M57
TH9M00 Trim
Pull: Extruded
Escutcheon: Forged
Cylinder: 1-1/2" Mortise A02
Projection: 2-11/16"
3"
10-1/4"
2-1/2"
1-5/8"
16-1/2" TH9M10 TH9M50 TH9M55 TH9M57
Offset Pull
P9M
Pull: Extruded
Escutcheon: Forged
Cylinder: 1-1/2" Mortise A02
Handed: Specify RHR or LHR
3"
10-1/4"
3-3/16"
N/A P950 N/A P9M57
(03)
VT9M Trim
Plate: Formed Stainless
Steel
Cylinder: Mortise
Handed: Specify RHR or LHR
7.25"
9.26
N/A VT950 N/A VT9M57
9.26"
7.94
"
N/A VTL9503N/A VTL9M573
Key Only
K1M
Note:Availablewithcylinder
option only.
Ex: K1M57 x 6P.
N/A N/A N/A K1M57
ED5000.33
MortiseUtilityTrims&Functions
ED5000
3. VTL has a lip that covers door gap and protects the latch.
Mortise
Features:
•Vandal-resistantdesign
•Bevelededges
•Through-boltedtoexitdevice
•Flushcylinderwith6-pincylinderapplications
•5-yearlimitedwarranty
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
MortiseUtilityTrims&Functions
ED5000
ED5000.34
P12 P13 P14 Clearance
2-1/2"
4" 4"
3"
10"
10"
11"
18"
19"
10-3/4"
Offset Pull Trim: P12, P13, P14*
Offset Pull
P12
Clearance: 2-1/2" SpecifyPartNumber,716F50MxFinish1
Offset Pull
P13
Clearance: 2-1/2"
SpecifyPartNumber,716F51MxFinish1
Offset Pull
P14
Clearance: 2-1/2"
SpecifyPartNumber,716F52MxFinish1
P12 P13 P14 Clearance
2-1/2"
4"
4" 3"
10"
10"
11"
18"
19"
10-3/4"
4"
18"
19"
1. Available in 605, 606, 612, 613, 626, 629 and 630 finishes.
* Available on 1 3/4" thick doors only.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.35
MortiseUtilityTrims&Functions
ED5000
Mortise Features:
•Bevelededges
•Rigidleverwhenlocked
•Through-boltedtoexitdevice
•Flushcylinder
•5-yearlimitedwarranty
Lever: Cast
Escutcheon: Forged
Cylinder:1-1/2”
Mortise A02
Lever Designs
(Choose from list below)
Function
How to Order Example:
Trim x Function #
102910
Passage
ANSI No. 14
Function
#9M10
Dummy
ANSI No. 02
Function
#9M50
Classroom
ANSI No. 08
Function #08
Nightlatch
ANSI No. 03
Function
#9M57
Muséo®
Georgia
101 102 103 104 12421252
Salvador
106 107 108 109 110 12321282
Marc
111 112 113 114 115 116 130213121322
Pablo
117 1262
Jackson
105 119 121 122 1272
Piet*
21G 21L 21M 21S 21W 23M 25M 27M
Joseph3
133 1342135 1362137 1382
Georges
139 140 141 142 143
*See pages 58 for how to order the Muséo® Piet Lever Collection.
1. Classroom function trims can be converted to Storeroom function by a simple field adjustment.
2. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
3. 135-138 contain white or back polycarbonate insert
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15

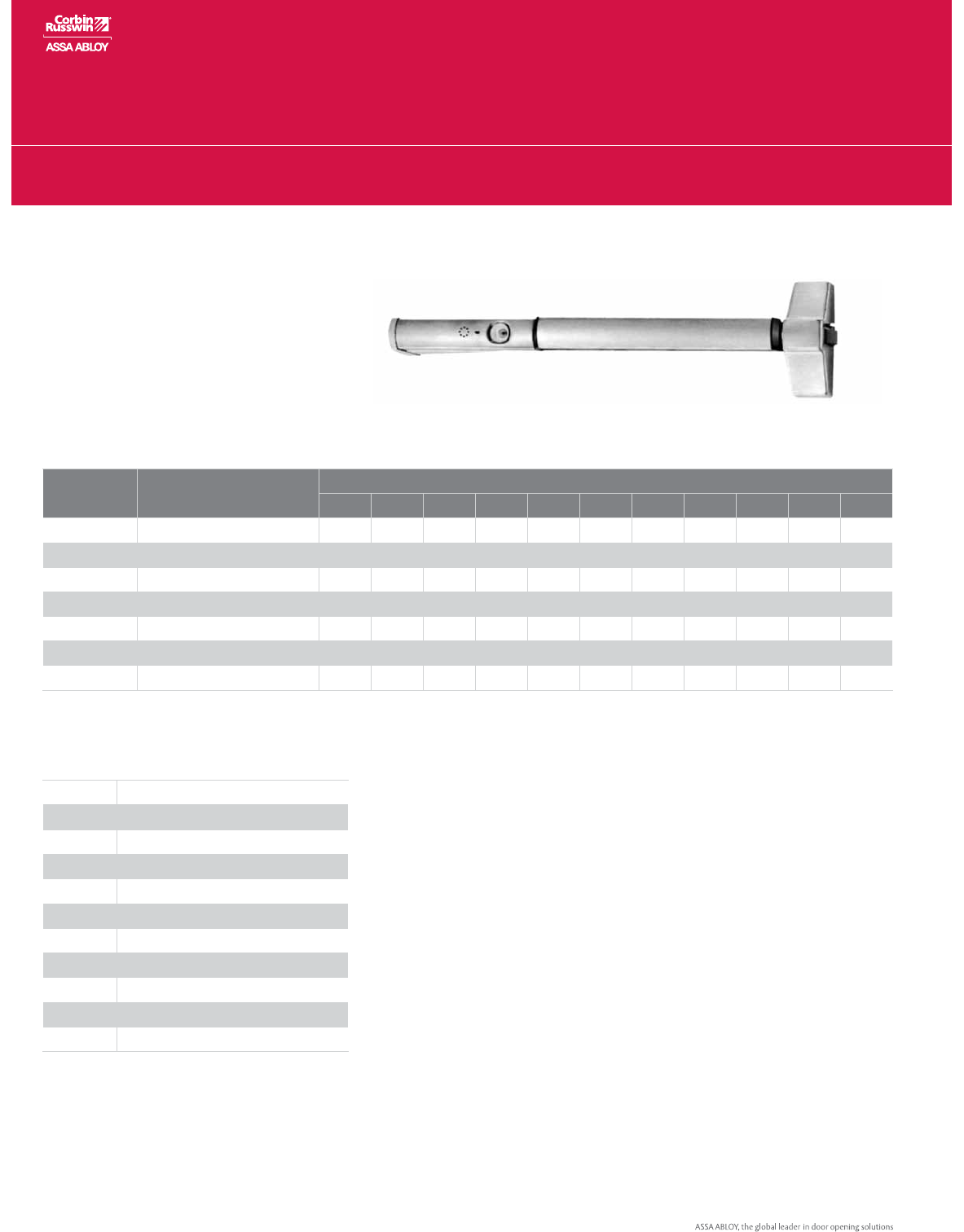

Electrified Exit Devices
ED5000
ED5000.36
List No. Exit Device
Description
Available options
M61 M91 M92 M93 M94 M97 SAF SEC D 9903 9905
ED5200 (A) Rim Exit Device x x x x x x x x x
ED5200S (A) Rim SecureBolt® Device x x x x x x x x x
ED5400 (A) Surface Vertical Rod x x x x x x x x x
ED5470 (B) Surface Vertical Rod x x x x x x x x x
ED5600 (A) Mortise Exit Device x x x x x x x x
ED5800 (A) Concealed Vertical Rod x x x x x x x x x
ED5860 (B) Concealed Vertical Rod x x x x x x x x x
Electrified Hardware Option Descriptions
Note1:Thefollowingoptionscannotbeorderedtogetheronthesame
device:
a) M94 or M97 & D
b) M94 x M97
c) M52 x M97
d) M97 x M107
e) M61 or M92 & D
f) M61 x M92
g) M61x M52
h) M52 & D
i) ED5600 x M91 & M93
j) ED5600 SAF or SEC x M91 or M93
k) Surface vertical rod exit devices with M61 x M91, M92 or M93.
l) M94 or M97 x W024
Note2:WhenorderingasurfaceverticalrodexitdevicewiththeD
option, rod and latch guards (provided by other) must be used.
Note3:M88(NFPA30)M89(BOCA-15)andM90(BOCA-30)are
availableonlyasoptionsforsuffix“D”DelayedEgressExit
Devices.
The Corbin Russwin ED5000 series
electrified exit devices offer a
complete range of options that may
be integrated into the monitoring
security and alarm systems of
most buildings. The continuum of
appearance is maintained, as well
as the security and function of the
ED5000 mechanical exit device.
Electrified Exit Devices
M61 Alarm Option
M91 Bolt Monitor
M92 Touchbar Monitor
M93 Trim Monitor
M94 Latch Retraction
M97 Electric Dogging
SAF Fail Safe Operation
SEC Fail Secure Operation
D* Delayed Egress2
9903 Fail Safe Electrified Trim
9905 Fail Secure Electrified Trim
* Add as suffix to exit device.
Example: ED5200D x 630 x RHR
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.37
Electrified Exit Devices
ED5000

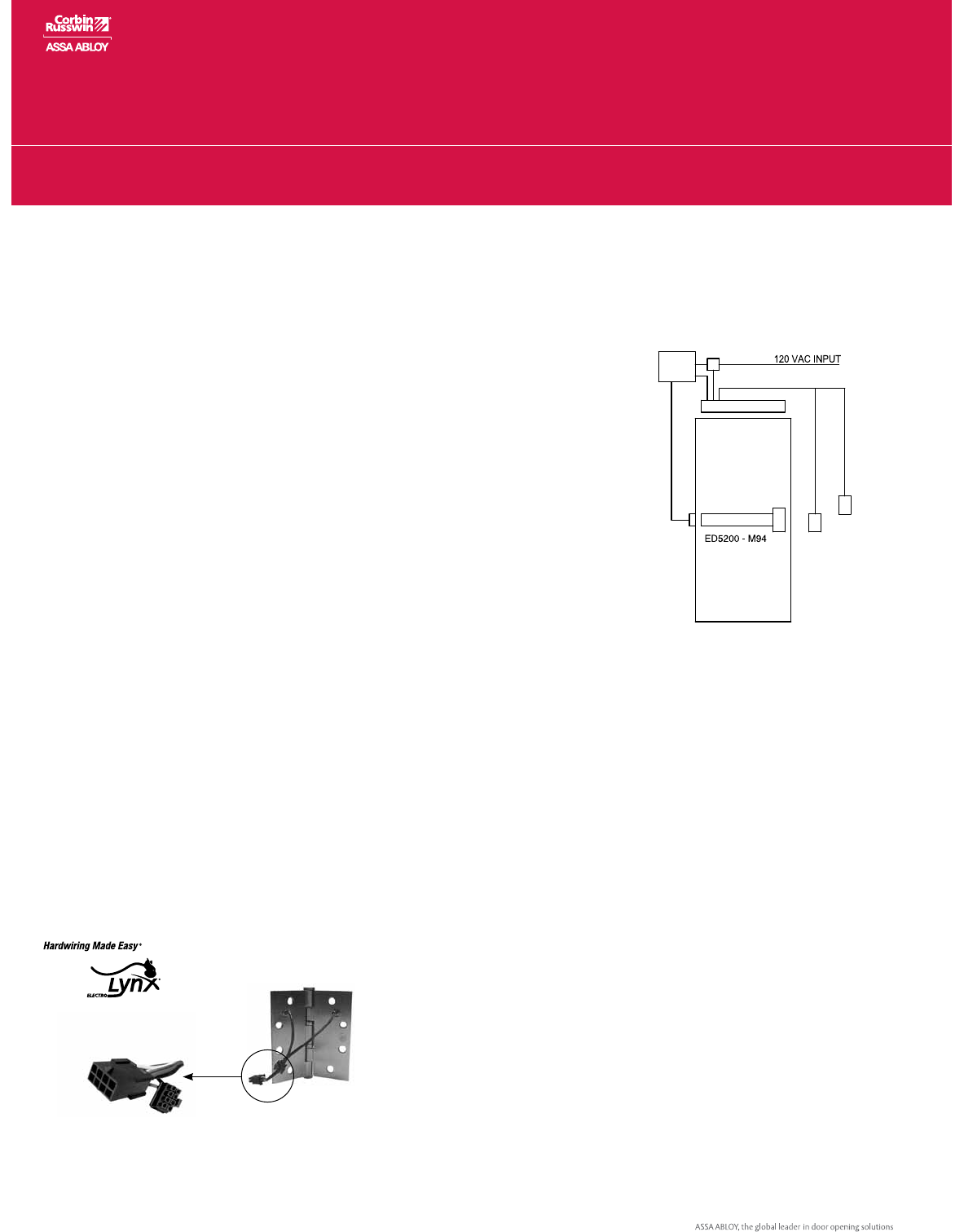

Electric Latch Pullback -
M94
Continuous-duty solenoid retracts
the latch bolt(s) for momentary or
maintained periods of time. Latch
Pullback provides a remote means of
unlocking exit devices.
Application
SecureBolt® Exit Devices
Rim Exit Devices
Surface Vertical Rod Exit Devices
Concealed Vertical Rod Exit Devices
Mortise Exit Devices
Listings
ULlistedforbothPanicandFireExit
Hardware.
Electrical Specifications
Requires 782 Controller (120VAC
input, output sequencer for one or
twodevices).Nosubstitutes;using
other power sources voids warranty.
Requires a 4-wire electrical transfer
pivot or hinge. See page 43 for
controller information.
Solenoid
A dual retraction/holder-type solenoid.
6-9 Amp in rush @ 24VDC to 28VDC
(.25 Amp holding-continuous duty.)
Device bolts remain retracted for
as long as the device is energized.
Removal of power returns the
device to the life safety, self-latching
mechanical mode.
Interface with central or local fire
alarm system, automatic door
operators, access control systems,
security alarm systems, and blow open
door systems.
Note: This feature is not available
with Electric Dogging (M97) or
delayed egress (D) on the same device.
How to Order
Specify Quick Code M94.
Electric Dogging -
M97
This electronic feature will provide
continuous dogging when power is
applied and the push bar is depressed
manually. Interruption or removal of
the power will release the pushbar
and return the exit device back to
normal operation.
Application
SecureBolt® Exit Devices
Rim Exit Devices
Surface Vertical Rod Exit Devices
Concealed Vertical Rod Exit Devices
Mortise Exit Devices
Listings
ULlistedforbothPanicandFireExit
Hardware.
Electrical Specifications
.35 Amps @ 24VDC continuous duty
(2) 36 volt holding magnets holding
force (86 lbf. total)
Note: This feature is not available
with Electric Latch Pullback (M94) or
delayed egress (D) on the same device.
How to Order
Specify Quick Code M97.
Mortise Device Trim
Control
Safe or Secure
Mortise device trim control provides
a remote means of locking and
unlocking the outside lever trim. This
feature is provided by continuous duty
solenoids in the device mortise lock.
Application
Mortise exit devices with lever trim.
Listings
ULlistedforbothPanicandFireExit
Hardware.
Electrical Specifications
24VDC 330 milliamperes
Fail Safe units maintain the door
locked as long as the device is
energized.
Fail Secure units maintain the door
unlocked as long as the device is
energized.
Regulated 24VDC power supply
required.
Note: SAF & SEC options are
only available with ED5600L and
ED5600(A)L version lock body
functions and may not be combined
with either the M91 or M93
monitoring options.
How to Order
SpecifyQuickCode“SAF”forSafeor
“SEC”forSecure.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Electrified Exit Devices
ED5000
ED5000.38
Delayed Egress Exit Device
The delayed egress option provides
additional security and safety in a strong
line of exit hardware. The delayed egress
exit device is an electromechanical
device used to secure interior or exterior
openings.
Operation
The exit door is normally closed and
latched. The Delayed Egress Exit Device
“D”securesthedoorinthelockedmode
with the solid Red LED indicating locked
mode status. Depressing the pushpad
for less than 3 seconds will sound the
nuisance beep without initiating the alarm.
Depressing the pushpad for 3 seconds
or longer will initiate an irreversible local
audible beeping tone and a visual amber
indicator until the device releases. The
person depressing the exit bar is denied
egress for 15 or 30 seconds and security
personnel are alerted. After the delay time
of 15 or 30 seconds the device releases,
the LED changes to Green, and the alarm
changes to a steady tone which continues
to alarm until manually reset by key. The
remote monitoring contact outputs can be
used to alert security personnel.
Note: The 15-second time delay is
standard. 30-second time delay is optional
(may be accepted by local jurisdiction).
Applications
•Foruseonhollowmetal,woodor 
composite interior or exterior doors.
•Availableforrim,SecureBolt®,
surface vertical rod, concealed
vertical rod and mortise panic and
fire-rated exit devices. For surface
vertical rod exit devices, rod and
latch guards (provided by other)
must be used.
•ComplieswithNFPA101“CodeFor
Safety To Life From Buildings And
Structures”byNationalFire 
Protection Association.
•BOCAoptionsavailabletocomply
withNationalBuildingCode 
requirements. BOCA option is not
suitable for installations in
accordancewithNFPA101.
•1-3/4”(45mm)doorthickness 
standard;2”(51mm)and2-1/4” 
(57mm) optional; specify D200 or
D214 when ordering.
•Standard36”devicefits36”doors
only. Device cannot be cut less than
36”.
•OptionW048fitsdoors42”–48”.
Devicescannotbecutlessthan42”.
Listing
•UL/cULListed
– Fire Exit Hardware
(GXHX/GXHX7)
– Controlled Exit Panic Device
(FUKD/FUKD7)
– Special Locking Arrangements
(FWAX/FWAX7)
•BHMA(ANSIA156.3andANSIA156.24)
Directory of Certified Exit Devices
Specifications
Input Voltage: 24VDC (+/- 10%) Regulated
and filtered.
Power Consumption
•StandardDevice:500mA
•DevicewithElectricTrimControl:
1.5 Amp
•MortiseDevicewith“Safe”or 
“Secure”option:1.5Amp
Standard Features
Key Switch Operation:
• Normal:Thesystemisarmedby
applying power to the device (solid
Red LED). Depressing the pushpad
for more than the nuisance delay
time starts the exit delay cycle.
• Bypass:Turningthekeyswitch
clockwise to the bypass position
allows immediate egress without
alarming. The bar functions as a
standard exit device. (Red LED
flashes slow.)
• Reset/Delay:Usedtoresetdevice
after the factory set 15 or optional
30 second delay cycle has timed
out. If the device is armed, turning
the key switch counterclockwise to
the reset mode will release the
device without alarm for egress and
will rearm after 10 seconds. (Red
LED flashes quickly.)
•AlarmStrength:85Db@10’.
Local Visual Status Indicator:
• RED:Theexitdeviceissecureand
the delayed egress circuitry is
energized.
• AMBER:Theegresscyclehas
started, indicated by an irreversible
local audible beeping tone.
• GREEN:Exitdeviceisinalarmand
has released.
Nuisance Delay Time:
Depressing for 3 seconds or less sounds
an audible beep without activating the
irreversible alarm sequence. (Immediate
alarm can be selected by removing a
jumper on the control board.)
Internal Alarm Siren:
When the exit device is armed, depressing
the push pad initiates the internal 85db
alarm siren.
Remote Control Inputs:
•RemoteReset:Acceptsamomentary
contact (keyswitch, pushbutton, etc.) to
reset the unit during alarm or allows
momentary egress (10 seconds) when
the unit is armed.
•RemoteBypass:Acceptsamomentary
contact to put the unit in a maintained
bypass operation. The exit device
functions as a standard device.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.39
Electrified Exit Devices
ED5000
EPTL
Power Transfer
Alarm Outputs:
Two sets of normally open and normally
closed contacts. Contacts change only
during alarm status. One set of contacts
changes when device delay cycle has started
(Alarm). One set of contacts changes when
device has released (Secure).
Door Sign:
Door sign per code included.
How to Order
Specify“D”suffixafterdevice.
Example: ED5200SD
Options
Bolt Position Monitor M91:
SPDT (Single Pole Double Throw) switch
that monitors the position of the latchbolt
or vertical rods. To order, specify M91.
Outside Trim Monitor M93:
Usedwhenoutsidetrimisdesiredto
be used with an external door position
switch (by others) input. This switch
will allow Bypass (disarms device) when
the trim is used for ingress. The device
requires setting after entry by means of
the keyswitch on the device or a remote
switch. To order, specify M93.
Note: If an external DPS is not used,
standard trim will allow entry without
affecting the device in an armed mode.
The device will only be affected when the
touchbar is depressed.
Mortise Electric Trim Control SAF/SEC:
The mortise delayed egress exit device can
be ordered with Fail Safe or Fail Secure
outside trim operation. In a fire condition
the Fail Safe trim will release for entry.
When access control is used the Fail Secure
trim allows entry by means of a remote
card reader, keyswitch, pushbutton, etc. To
order, specify SAF or SEC.
Note: The trim will open the door without
affecting the device in an armed mode if
a door position switch (by others) is not
used.
30-Second Delay M88:
Device released after 30 seconds. The
device will provide visual and audible
indication that the delayed egress cycle has
been activated. After the device has been
released, the siren changes to a steady tone
which continues until reset by keyswitch
or remote inputs on the device. Required
signage must indicate 30 seconds for
release. To order, specify M88.
Note: 30 seconds may be accepted by
local jurisdiction.
BOCA 15-Second Delay M89:
BOCA 30-Second Delay M90:
Uponpressingthetouchpadfor3seconds
or more, the device will sound an audible
beeping tone and release for egress after
a total of 15 or 30 seconds, sounding
the alarm. When the door is re-secured,
the device will automatically rearm after
30 seconds. A door position switch (by
others) is required for this option. Required
signage must indicate 15 or 30 seconds for
release. To order, specify M89 for BOCA 15
seconds or M90 for BOCA 30 seconds.
Note: BOCA option is not suitable for
installationsinaccordancewithNFPA101.
Required Accessories
Power Supply:
A regulated and filtered power supply with
a Fire Alarm interface is required.
1 Amp minimum @ 24VDC per device.
Special options will require more
amperage. Consult factory.
To order, specify:
• BPS-24-1–1Amp@24VDCpower
 supply(controls1“D”device)
• BPS-24-2–1.5Amp@24VDCpower
 supply(controls2“D”sor1“D”with
SAF or SEC options)
Power Transfer:
Allows the power to make the transition
from frame to door without pinching or
removal of insulation. Optional power
transfer: EPTL – concealed transfer for up
to and over 120° swing doors. To order
specifyPartNo.704F28.Consultcatalog
for additional recommended power supplies
and accessories.
Trims
Utilizesheavy-dutyandutilitytrims.SeeTrims
and Functions, pages 20-25 and 30-35.
Cylinders
Utilizesa1-1/8”mortisecylinder;A02
cam. Cylinder not included unless
specified. See Quick Codes, page 54.
Warranty
Exit devices and heavy-duty trim carry
a five-year limited warranty. Electronic
components carry a two-year limited
warranty.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Electrified Exit Devices
ED5000
ED5000.40
Activation
Alarm is armed by turning key clockwise.
Low audible chirp indicates alarm has
been activated. Alarm will sound when the
exit device pushpad is depressed. Factory
preset for standard alarm mode which
automatically resets after 5 minutes.
Continuous Alarm Mode
Alarm sounds continuously when the exit
device pushpad is depressed. Alarm must be
manually reset by keyswitch. (This feature is
selected by a switch on the circuit board.)
Low Battery Warning
Audible chirp. Every 30 seconds.
Warning Decal
“EMERGENCYEXIT-ALARMWILLSOUND”
provided.
Nuisance Alarm
Unitsarefactorypresetforinstantalarm.
Selectable feature for alarm to sound when
exit device touchbar is depressed for more
than 2 seconds. (This feature is selected by a
switch on the circuit board.)
Kit
Available in kit form for field retrofit except
surface vertical rods. Order ED50AK.
Arming Delay/Authorized Egress
A 10-second delay (after arming) permits
egress (by turning key clockwise).
Alarm Shunt
Ingress shunt alarm input for devices with
signal & outside trim monitors (M91 & M93).
Power Requirements
One 9-volt battery (included).
Alarm Strength
90db @ 10 feet.
Arm/Disarm
Requires one 1-1/8" A02 cam mortise
cylinder. Clockwise turn arms the alarm,
counterclockwise turn disarms or silences
the alarm. Low audible chirp indicates alarm
has been activated.
Device Status
A Red LED indicator will illuminate every 30
seconds when the alarm is armed.
Tamper Resistant
Built-in safety monitor sounds alarm when
tampering occurs.
Cylinders
Mortise1-1/8”A02Cam.Cylindernot
included unless specified. See Quick Codes,
page 54.
Door Width
Availablefor36”-48”devicesonly.Not
availablewithdeviceslessthan36”.
48" device can be cut to fit 42"-48" door.
Quick Code
M61
Alarm Kit
ED50AK
ED50AKxW048(48”devices)optional
Hard Wired Option
A hard wired option is available by using a
9VDC output power supply and a remote
power harness. Specify 784 to order the
9VDC output power supply. See page
44 for 784 power supply information.
Specify 709F989 to order the remote
power harness for a 36" device and specify
709F999 to order the remote power
harness for a 48" device.
Exceptions
The ED50AK for the ED5000 series exit
devices cannot be retrofitted in the field to
the ED5400/5470 series surface vertical rod
exit devices.
The alarm option is available for the surface
vertical rod devices by factory order only. To
order, add the quick code suffix M61 to the
device number; for example, ED5470 x M61.
Please note, in accordance with Corbin
Russwin’s standard limited warranty, any
attempt to retrofit the ED50AK to a
surface vertical rod exit device will void the
warranties for these products.
Surface vertical rod exit devices with alarm kit
cannot be ordered with M91, M92 or M93.
How to Order
Ordering example for Exit Device
ED5400 626 M61
Device Finish Quick Code
for Alarm Option
  (CylinderNot
Included)
Ordering Example for Alarm Kit Only
ED50AK 626 W048
Alarm Finish Door
Kit Width
  (CylinderNot
Included)
NOTE:DoggingnotavailablewithM61
option and ED50AK alarm kit.
M61 Exit Alarm
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.41
Electrified Exit Devices
ED5000
ED5000.41
Electrically Controlled
Heavy-Duty Trim
Electrically controlled trim provides electric locking and
unlocking of the 900 Series heavy-duty lever trim. It easily
retrofits into existing applications and is ideal for door
control.
Advantages
•AvailableinFailSafeorFailSecureoperation
•24VAC/VDC
•InternalrectifieracceptsACorDCvoltage
•FreeWheelingleverwhenlocked
•Keyoverride(specifycylinder)
•Plugconnectorwith4'wirelead(Exitdevicecanbeused
as the wire raceway)
Applications
•ED5200(A)Rim
•ED5200S(A)SecureBolt®
•ED5400(A)SurfaceVerticalRod
•ED5470(B)SurfaceVerticalRod
•ED5800(A)CVR
•ED5860(B)CVR
Trim
Utilizesall900seriestrimleverdesignsincludingthe
Muséo® and Vineyard™ Collections
Electrical Specifications
•Solenoid:330mA@24voltscontinuousduty
•SecurityMonitorSwitch(M98):4AMP@250VAC
Door Thickness
1-3/4" (44mm) standard.
Optional: 2" (51mm); specify D200.
Optional: 2-1/4" (57mm); specify D214.
Options
•M98–SecurityMonitor.ASPDTswitchthatmonitors 
the position of the solenoid (lock and unlock status).
•M99–Trimgasketfor
exterior applications.
Cylinder
Cylinder not included unless
specified. See Quick Codes,
page 54.
How to Order
N9903626RHRM98,6P
Electrically Controlled
Heavy-Duty Trim
Fail Secure
The x9905 trim is locked when power is off and
unlocked when power is on.
x = Lever trim design - Standard, Vineyard™ and Muséo®
Functions
Fail Safe
The x9903 trim is locked when power is on and
unlocked when power is off.
x9903
(Fail Safe)
Function Description
• Leverislockedwhenpowerison(Free
Wheeling)
• Poweroffallowsentryfromtrim
• Insidedeviceisalwaysactivefor
egress
• Mechanicalkeyoverride(09
Function – Key allows lever to retract
latch bolt. Key can only be removed
in locked position.)
x9905
(Fail Secure)
Function Description
• Leverislockedwhenpowerisoff(Free
Wheeling)
• Poweronallowsleveractivationfor
entry
• Insidedeviceisalwaysactiveforegress
• Mechanicalkeyoverride(09Function–
Key allows lever to retract latch bolt.
Key can only be removed in locked
position.)
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Electrified Exit Devices
ED5000
ED5000.42
Bolt Position Monitoring - M91
Provides indication of the position of the
latchbolt.Usedwithsecuritysystems
to monitor the latch bolt; also used to
activate automatic door operators upon
latch retraction.
Application
See chart on page 36.
Listings
ULlistedforbothPanicandFireExit
Hardware.
Electrical Specifications
5 Amps @ 28VDC SPDT contacts
Ordering
Specify Quick Code M91.
Touchbar Monitoring - M92
Request to Exit - REX
Provides indication of the pushpad
beingdepressed.Usedasarequestto
exit to shunt alarm systems, release
electromagnetic locks or monitor egress.
Application
See chart on page 36.
Listings
ULlistedforbothPanicandFireExit
Hardware.
Electrical Specifications
4 Amps @ 250 VAC contacts
Ordering
Specify Quick Code M92.
Outside Monitoring or Signaling - M93
Provides indication of the device being
operatedfromtheoutside.Usedasa
request to enter signal switch to shunt
alarms; also used to monitor entry.
Application
See chart on page 36.
Listings
ULlistedforbothPanicandFireExit
Hardware.
Electrical Specifications
5 Amps @ 28VDC SPDT contacts
Ordering
Specify Quick Code M93.
Monitors - M91, M92, M93
Operation
Monitors are used to indicate the authorized and unauthorized use of an opening or to signal and control other opening hardware,
such as magnetic locks. Each monitoring device is equipped with one internal single-pole double-throw (SPDT) switch per monitor.
782 Controller
Operation
Designed to control one or two electric
latch pullback M94 exit devices. Equipped
with two 20-second timers which can
operate the exit devices together or
independently. Requires a momentary
or timed, dry contact input and can be
interfaced with access control systems,
automaticdooroperators,“blowopen”
typescenariosandhasprovisionsforN/C
fire alarm systems.
Features
• 2controlinputs.Acceptsnormally
closed dry contacts for device activation
from a key switch, push button, access
control or fire alarm system.
• 2normallyopencontroloutputsfor
automatic door operators
• 2M94deviceoutputs
• FireAlarmInterfaceinput
• 24VDCoutputforaudibleorLEDS
.25 AMP
Wiring
Upto40feet:16AWGwire
Upto60feet:14AWGwire
Upto100feet:12AWGwire
Electrical Specifications
• 120VAC60Hz750mA(Max)
• 9Ampinrushfor100milliseconds
Listings
UL294
ULClass2Outputs
Note: The 782 is the only power source to
beusedwiththeM94option.Usingany
other power supply will void the warranty
and cause possible damage to the exit
device.
Ordering
782 Controller
EPTL
Concealed power transfer for over 120°
swing doors. Installs in door and frame
edges.Supportswiresupto.25”(6mm)
thick, and works with doors hung with
butt hinges, continuous hinges and pivots.
Toorder,specifyPartNo.704F288.
782 Controller
EPTL
Yellow
Blue
Brown
NC
COM
NO
Tan
Gray
Pink
NC
COM
NO
Orange
White
Green
NC
COM
NO
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.43
Electrified Options & Accessories
ED5000
Exit Controls and Switches
Key Switches
MKA - (1) SPDT Maintained
MK - (1) SPDT Momentary
MKN-(1)SPDTMomentaryNS
MK2 - (1) DPDT Momentary
MKPZ x MKS - (1) SPDT Momentary with
audio Double Gang x Additional Switch
Note:Allkeyswitchescomestandardwith
12/24 VDC bi-color LED.
Specifications
•Keyswitchforoperationusinga 
standard 1-1/8" mortise cylinder (A02
cam) (cylinder not included).
• Contact Rating 5 Amps @ 12-24VDC
• SPDT3-position.
Push Buttons
PB2 - (1) SPDT Momentary
PB2 - (1) DPST Remote Momentary
PB3 - (1) DPST Momentary
PB3A - (1) DPST Maintained (Alt. Action)
PB3EA - (1) DPST Alternate
Specifications
• 3Amps@12-24VDC
Audible/Visual Annunciators
PZ1 - Sonalert 90db @ 2ft. 12-24VDC.
Mounted on one gang stainless steel plate.
Digital Entry
DK-12-DigitalKeypad-4User
DK-26SS-DigitalKeypadNS-59User-SS
Finish
DK-26BK-DigitalKeypadNS-59User-
Black Finish
Power Transfers
TSB B-C - Door Cord
MKA PB3PB2 PZ1
BPS Power Supply
Operation
Power supplies are designed to provide
reliable filtered and regulated power for
long life to a variety of electrified hardware
components. Recommended for the SAF,
SEC, M97, delayed egress exit devices and
electric trim.
Features
•Individualoutputcircuitbreakers
•Regulatedandfilteredfuseprotected
outputs
•LEDsmonitorzonestatus(voltageorno
voltage)
•Slideswitchesconnectordisconnect
 loadfrompower(Notavailableon1
Amp supplies)
•InternalBack-Upbatterychargingcircuit
•Ruggedsteelenclosure
•Firealarminterface
Electrical Specifications
•Inputs:120VAC
•Outputs:12/24VDC@1Amp,2Ampor
4 Amp, Filtered and regulated outputs
Listings
•UL-cULCLASS2
- Signal Appliances
-AccessControlSystemUnits
- Special Locking Arrangements -
Component
•CE
Applications
•D–DelayedEgress
•M97–ElectricDogging
•SAF–FailSafemortisedevicetrim
control
•SEC–FailSecuremortisedevicetrim
control
Note:BatteriesarenotincludedwiththeBPSpower
supply.
784 Power Supply
Features
•Providesalteredandregulated9VDC
remote power
•Requiresracewaythroughthedoor*
•Optional12VDCgelcellbattery.
Provides continuous operation of in
the event of a power failure. To order,
specify 793F089.
Includes:
•Plug-InWallTransformerwith
approximately12' (3.6m) of shielded wire
that provides input power to the power
supply
•Includes12'(3.6m)ofshieldedwirefor
connection between power transfer and
power supply
•Toorderseparately,specify793F039
*Recommended for new opening. Retrofit application
may require surface mounted wire mold and transfer
loop by others.
Model Enclosure Input Output
BPS-24-1 12"(304mm)x9”(229mm)x4”(102mm) 120VAC 1.0 Amp @ 24 VDC
BPS-24-2 14"(356mm)x14”(356mm)x4”(102mm) 120VAC 2.0 Amp @ 24 VDC
BPS-24-4 15"(381mm)x18”(457mm)x6”(152mm) 120VAC 4.0 Amp @ 24 VDC
BPS-12-1 12" (304mm) x 9" (229mm) x 4" (102mm) 120VAC 1.0 amp @ 12 VDC
BPS-12-3 14" (356mm) x 14" (356mm) x 4" (102mm) 120VAC 3.0 amp @ 12 VDC
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Electrified Applications
ED5000
ED5000.44
782
6000
501
501
Latch Pullback - M94 Option
Components
ED5200 x M94 Latch Retraction Exit
Device - Corbin Russwin
782 Controller - Corbin Russwin
6000 Operator - Norton
501 Push Pads - Norton
Power Transfer Hinge
Operation
Operation of Push Pads from either side
of door will activate the 782 Controller
for the Latch Retraction Exit Device.
An internal timer on the 6000 will also
provide length of time door is open
and latch being retracted. Door
operator also acts like standard closer
when opened manually.
Requirements for Electrical and Data Transfer
Toanswerthedemandfor“smart”electronicaccesscontroland
locking solutions that require fast, easy, and cost-effective installation,
ASSA ABLOY Group brands use the ElectroLynx® standardized plug-in
connectors and color-coded wiring system.
With ElectroLynx, doorway components come pre-wired for easy hookup
to the power source. Key to the system is the transfer device hinge that
carries power from the frame to the locking hardware.
Features of ElectroLynx:
• Makesiteasytobringpowertothelockinghardware
• Wireshaveconnectorsthatsnaptogether,likepluggingatelephone
into a jack
To connect an electrified ED5000 series exit device to the electronic
access control system, the following items are required:
• ElectriedED5000seriesexitdevice
• ASSAABLOYDoorGrouppre-wireddoor,orElectroLynx retrofit cable
(order from McKinney)
• Electronictransferdevice(ElectroLynx electronic transfer hinge or
Electrical Power Transfer with standard hinge, from McKinney)
• ElectroLynx cable from the hinge to above the ceiling (order from
McKinney)
Information regarding cable selection, hinge requirements and order
strings can be found in the McKinney Transfer Device Solutions
catalog. Consult 800-810-WIRE (9473) with questions on application
specifications and requirements.
The McKinney QC8 ElectroLynx Hinge is recommended for
the 9903 function, the 9905 function and all options with the
exception of M61 and M93. The McKinney QC12 ElectroLynx Hinge is
recommended for the M61 and M93 options.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.45
Electrified Applications
ED5000
Electric Dogging & Touchbar
Monitoring Switch - M97 & M92
MKA
6000
501
501
BPS
Components
ED5800 x M92 x M97 with Cyl. + Bar
Monitor & Elect. Dogging - Corbin
Russwin
6000 Operator - Norton
501 Push Pads - Norton
Power Transfer Hinge
BPS Power Supply - Corbin Russwin
Key Switch - Corbin Russwin
Operation
Operation of Electric Dogging combined
with the Door Monitor Switch will
enable Push Pads for operation of the
6000. A maintained keyswitch will
control the activation of the electric
dogging which is powered by the Power
supply. A Fire Alarm Tie-In, if required,
will release the dogging and let the
operator work in manual mode when
activated.(NOTE:ElectricDoggingis
not automatic like Latch Retraction.
It requires the bar to be pushed in
manually the first time after
applying power.)
Rim Device with Electric Strike
DK-12
BPS
Components
ED5200 Exit Device - Corbin Russwin
Digital Keypad
310-4 Electric Strike
BPS Power Supply - Corbin Russwin
Operation
Operation of DK-12 Digital Keypad
will allow keyless entry from the non-
protected side of opening. Free exit using
the exit device from the protected side of
the door.
Latch Pullback - M94 Option
with Norton® 6000 Door
Operator
782
6000
6000
501
501
9232
Components
ED5400 x M94 Latch Retraction Exit Device
- Corbin Russwin
782 Controller - Corbin Russwin
6000 Operator - Norton
501 Push Pads - Norton
Power Transfer Hinge
Keyswitch - Corbin Russwin
Operation
Activation and operation of Push
Pads from either side of door will be
controlled by the Maintained Keyswitch.
The Push Pads will in turn activate the
782 Controller for the Latch Retraction
Exit Device. An internal timer on the 6000
will coordinate and prevent the door from
being opened before latch retraction takes
place. Standard timers on the 6000 will
also provide length of time door is open
and latch being retracted. Door operator
also acts like standard closer when opened
manually.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Electrified Applications
ED5000
ED5000.46
Rim Exit Device with Delayed
Egress Option on “Exit Only”
Door
BPS
Components
ED5200D - Delayed Egress Exit Device -
Corbin Russwin
Power Transfer Hinge
BPS Power Supply - Corbin Russwin
Surface Door Closer - Corbin Russwin
Operation
Operation of the ED5200 D Exit Device
will sound an alarm and activate either a
15- or 30-second alarm sequence inside of
the exit device. After this time period, the
device will release the push bar, making
it active, and egress is possible. When
the fire alarm is activated, power to the
exit device will be interrupted, allowing
free egress and mechanical latching.
Authorized alarm bypass and reset is done
through the built-in keyswitch located in
the exit device.
Rim Exit Device -
High-Security Application
M91, M92 and M93 Monitoring
Switch Options With Door
Position Switch
DPS
M91, M92, M93
Components
ED5200-A957NightlatchTrim-Corbin
Russwin
M91 Bolt Monitor Switch
M92 Touchbar Monitor Switch
M93 Trim Monitor Switch
Door Position Switch
Power Transfer Hinge
Surface Door Closer - Corbin Russwin
Operation
Operation of the ED5200 Exit Device with
the M91, M92, M93 and a door position
switch can be used together or individually
to sound an alarm, shunt an alarm, monitor
thedoor’ssecurityorasa“RequesttoExit”
in conjunction with a magnetic lock.
DK-12
Components
9905 Electrified Trim - Corbin Russwin
ED5200 Rim Exit Device - Corbin Russwin
DK-12 Digital Keypad by Corbin Russwin
Electrified Hinge
BPS-24-1 Power Supply - Corbin Russwin
Operation
Operation of the 917 Digital Keypad
will allow keyless entry from the non-
protected side of the opening. When a
valid code is entered into the keypad,
voltage will be applied to the trim,
making the lever active and allowing
ingress. Free exit is allowed by using the
exit device from the protected side of
the door.
Electric Trim
Rim Exit Device with
Electrified Trim
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.47
Mullions and Surface Bolt Kit
ED5000
Mullions
UsedtoinstalltwoRimExitDevicesin
a double door opening. May be quickly
and easily removed when a full double
door opening is temporarily required.
Materials and Finish
Steel mullions, 2" x 3" with malleable
iron top and bottom retainers; furnished
with zinc-plated fasteners for metal
frames and concrete floors. May be
cut, drilled and tapped in the field for
Rim Exit Devices. Mullion and Mullion
retainers are prime coat red paint.
Options
Spacer Block
Recommended for double rabbeted frames where the stop face
width is less than the mounting hole spacing and also for door
frames 5-3/4" (176mm) or less. To order with a mullion, specify
M95.Toorderseparately,specifyPartNo744F328.
Angle Bracket
Recommended for any header configuration with less than 3"
(76mm) of mounting surface. To order with a mullion, specify
M96. To order separately, specify
PartNo744F338.
Mullion Stabilizer Kit
Controls the movement of the mullion. Recommended for
openings over 7’ high, or whenever door movement must
be minimized. To order with mullion, specify M57. To order
separately,specifyPartNo.653F11-1x628(aluminum).
Surface Bolt Kit
Designed for severe windload (Hurricane Code) environments
where surface bolts are required (e.g., on
inactive doors). To order separately, specify
PartNo988CR.
Door Height Description Specify
Quick Code
Upto7'0" Steel Mullion - Panic Rated 907
Upto8'0" Steel Mullion - Panic Rated 908
Upto10'0" (ED5200, ED5200S only) Steel Mullion - Panic Rated 910
Upto7'0" Steel Mullion - 3 Hour Fire Rated 907A
Upto8'0" Steel Mullion - 3 Hour Fire Rated 908A
Upto7'0" Steel Mullion - 3 Hour Fire Rated, Windstorm Certified FE707A1
Upto8'0" Steel Mullion - 3 Hour Fire Rated, Windstorm Certified FE708A1
Door Height Description Specify
Quick Code
Upto7'0" Steel Mullion - 1-1/2 Hour Fire Rated 907BKM2
Upto8'0" Steel Mullion - 1-1/2 Hour Fire Rated 908BKM2
Upto10'0" (ED5200, ED5200S only) Steel Mullion - Panic Rated 910KM2
Upto7'0" Steel Mullion - 3 Hour Fire Rated, Windstorm Certified WS707AKM2
Upto8'0" Steel Mullion - 3 Hour Fire Rated, Windstorm Certified WS708AKM2
Removable Mullions
Key Removable Mullions
Notes:
1. ForusewithULlisteddoorassembliesthatcomplytoFEMA361andFEMA320guidelines.
For the latest listings on compliant door assemblies visit our website at corbinrusswin.com
2. Cylinder and collars not included, specify separately. See page 54.
Mullion
Series
Top Retainer and
Screw Packet
Bottom Retainer
and Screw Packet
907
908
910
907A
908A
713F518 713F528
FE707A
FE708A 713F938 713F998
Mullion
Series
Top Retainer and
Screw Packet
Bottom Retainer
and Screw Packet
Locking
Mechanism Packet
907BKM
908BKM
910KM
713F948 713F988 744F258
WS707AKM
WS708AKM 713F958 713F908 744F208
Parts - Key Removable Mullion
Top Retainer and Screw Packet and Bottom Retainer and
Screw Packet
Parts - Removable Mullion
Top Retainer and Screw Packet and Bottom Retainer and
Screw Packet
How to Order

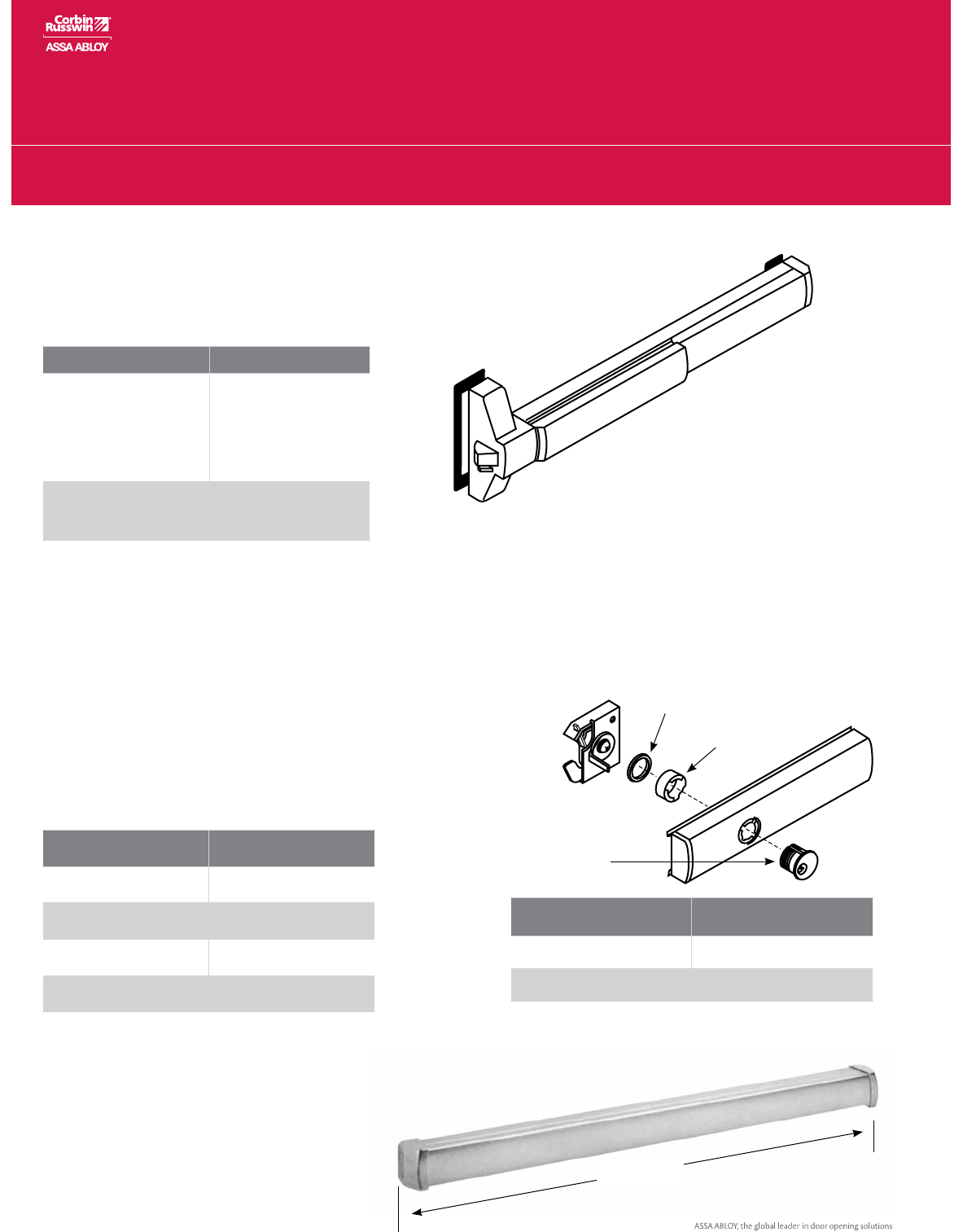

Options & Accessories
ED5000
ED5000.48
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Note:Cylinderdoggingnotavailableforfire-rateddevices.
Cylinder Dogging
To order Cylinder Dogging with exit device, specify M52. Cylinder
not included unless specified. Cylinder dogging not available for
fire-rated devices. See Quick Codes, page 54.
Cylinder Dogging Kit
Designed to convert a panic device from hex key dogging to
cylinder dogging. To order Cylinder Dogging Kit, specify Part
NumberxFinishbelow.Cylindernotincluded.
Surface and Concealed Vertical Rod
Extension Kits
Usedtoextendtheheightofstandardlengthrodssuppliedwith
vertical rod exit devices. Available in 2", 6" and 12" sizes. To order
with exit device, see Quick Codes, page 54. To order separately,
specifyPartNo.xFinish.
ED5000DB Inactive Bar
Non-operatingdummypushpadavailablefordoorsupto48"wide.Maybe
field cut for narrower doors. To order, specify ED5000DB x Finish.
Exit Device Type Shim Kit Part No.
ED5200 (A)
ED5200S(A)
ED5600 (A)
ED5800 (A)
ED5860(B)
697F33-8
ED5400 (A)
ED5470(B) 697F34-8
Shim Kits
Designed for mounting an exit device over raised vision light molding.
Each kit contains two sets of 1/8" thick shims to shim a device 1/8"
(3mm) or 1/4" (6mm). Black finish. To order with exit device, specify
M58.Toorderseparately,specifyPartNo.
Bar Length Cylinder Dogging Kit
Part No.
Standard (W036) 653F12 x Finish
W048 653F14 x Finish
Rod Extension Rod Extension Kit
Part No.
2" (50mm) 655F15 x Finish
6" (152mm) 655F16 x Finish
12" (305mm) 655F17 x Finish
24" (610mm) 684F42 x Finish
46”(117cm)
1000-118-A02
Cylinder
697F862
Cylinder nut
650F959
Cylinder spacer
ED5000.49
Options & Accessories
ED5000
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
11/16"
(18mm)
1-1/4"
(32mm)
3-1/2"
(99mm)
End Cap
Reinforcement**
A solid steel plate,
welded to the end
bracket, evenly
distributes impact
forces over a larger
surface area,
eliminating point loading.
To order with an exit
device, specify
M109. To order separately
specify 705F09 x finish.
Flush End Cap
Durable heavy-duty cast
steel or stainless steel, sits
flush on the
exit device rail and has
a low profile which
eliminates catch points.
To order with a device,
specify M110. To order
separately specify
710F00M x finish.
SecureBolt® and Fire-
Rated Rim Strike and
Rim Strike
ED5200S, ED5200SA and
ED5200A devices. Supplied
with locking plate and two
1/16" (1.6mm) shims. For
doors with 1/2" (13mm)
or 5/8" (16mm) stop.
Adjustable to compensate
for shrinkage and swelling
of door. 3-1/2" x
1-1/4" (89mm x 32mm).
Black finish only. To order
separately specify 650F30-
8 ED5200(A) or 730F77-8
ED5200S(A).
Rim x Vertical Rod Strike
Required for ED5200 and
ED5200S devices when
used on pair of doors with
vertical rod devices. Black
finish only. To order with
device, specify S02.
To order separately, specify
655F71-8.
Top Strike
Standard on ED5400(A)
and ED5800(A) devices.
Supplied with two 1/16"
(1.6mm) shims and
one 1/16" (1.6mm)
locking plate. Adjustable
to compensate for
shrinkage and swelling
of door. 1-9/16" x
15/16" (40mm x 24mm).
Black finish only. To
order separately, specify
650F54-8.
Bottom Strike
Standard on ED5400(A)
and ED5800(A) devices.
1-1/16" (27mm)
diameter x 1/16"
(1.6mm) lip x 11/16"
(17mm) high. Black
finish only.
Both top and bottom
strikes are included in
the vertical rod parts
packet. To order parts
packet, specify 650F57-8.
Top Strike
Standard for ED5470 and
ED5470B devices. Supplied
with one 1/16" (27mm)
shim. Adjustable to
compensate for shrinkage
and swelling of door. 2"
x 1" (51mm x 25mm).
Black finish only. Top strike
is included in SVR parts
packet. To order parts
packet, specify 654F158
(M55) or 697F978. To
order strike separately,
specify 681F70-8.
Surface and Concealed Vertical Rod Strikes
(Screws Included)
Top Strike
Standard for ED5860
and ED5860B devices.
Recessed strike. 2" x
1-5/8" (51mm x 41mm).
Black finish only. Top strike
is included in CVR parts
packet. To order parts
packet, specify 698F058
or 698F048 (M55). To
order separately, specify
681F77-8.
Flush Transom Top
Strike Bracket
Optional for use with
ED5400 and ED5400A
devices.Usedtomount
top strike on openings
with flush transom.
2-1/2" x 1-5/8" (64mm
x 41mm). Black finish
only. To order with exit
device, specify M67. To
order separately, specify
650F87-8.
Bottom Strike for 1/2"
Thresholds
Recommended for use
with vertical rod devices.
Required in fire-rated
openings with 1/2"
(13mm) threshold or for
flush mount. 2-5/8" x
1-1/16" (67mm x 27mm).
Black finish only. To order
with exit device, specify
S09. To order separately,
specify 650F88-8.
**Note: Six 1/4 x 20 screws come standard with either M109 option or 705F09 kit. Only two screws required to fasten end cap assembly to door for retrofit. Other four screws are used
with SecureBolt® Latch Head if ordered as an M109 option with complete device. When the kit is ordered a new end cap is also supplied.
Options & Accessories
ED5000
Mortise Strikes
Mortise Strike
Standard on ED5600 and
ED5600A.Non-handed,
ANSIcurvedlip,4-7/8"x
1-1/4" x 1-1/4" (124mm
x 32mm x 32mm) lip to
center. Black finish. To
order separately, specify
650L657020.
Mortise Strike for Pairs of
Doors with Astragal
Optional for use with
ED5600 and ED5600A
devices where an astragal is
tobeinstalled.Non-handed,
ANSIstraightlip,4-7/8" x
1-1/4" x 7/8" (124mm x
32mm x 22mm) lip to center.
Black finish. To order with
exit device, specify SS078.
To order separately, specify
653L157014.
Open Back Strike
Optional for use with
ED5600 x vertical rod devices
onapairofdoors.Non-
handed, 4-7/8" x 1-1/4"
(124mm x 32mm). Black
finish. To order with exit
device, specify SB134 for
1-3/4" doors, SB214 for
2-1/4" doors. To order
separately,specifyPartNo.
Mortise Strike
Standard on ED5600
and ED5600A devices
on 2" (51mm) (D200)
and 2-1/4" (57mm)
(D214) thick doors.
HandedANSIcurved
lip, 4-7/8" x 1-1/4"
x 1-1/2" (124mm x
32mm x 38mm) lip to
center. Black finish.
To order separately,
specify 656L677024
for LHR doors,
656L687024 for RHR
doors.
ANSI Wrought
Strike Box
Optional for use
with ED5600 and
ED5600A devices. To
order with exit device,
specify M17. To order
separately, specify
120F76-8.
Optional for use on
stock metal doors when
required. To order,
specify 334F99-8 600.
Optional for use on
stock metal doors when
required. To order, specify
236L708018 x Fin.
Optional for use on
stock metal doors when
required. To order,
specify 077F19-8 600.
Filler Plates
Door
Thickness Type Part No.
1-3/4"
(44mm)
Curved lip 653L183016
Straight lip 653L163016
2-1/4"
(57mm)
Curved lip 653L183020
Straight lip 653L163020
ED5000.50
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Facts & Figures
ED5000
ED5000.51
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000 Series
(all variables)
Series “A” “B”
ED5000
ED5000A
32-7/8"
(835mm)
18"
(457mm)
ED5000 x W048
ED5000A x W048
44-7/8"
(1140mm)
24"
(610mm)
ED5000 x W024
ED5000A x W024
20-7/8"
(530mm)
12"
(305mm)
Cylinders
ED5000
*For K157, substitute -200
**K157 uses the 270F15 cylinder ring
900 Series Trim
Rim cylinders
900 Series Mortise
Trim
Mortise cylinders
Description Part Number Cylinder Collar
6-pin 1000-112-A02 NoneRequired
7-pin 1000-112-A02-7 NoneRequired
6-pin, IC 1080-112-A02 NoneRequired
7-pin, IC 1080-112-A02-7 NoneRequired
6-pin, IC, less core 1070-112-A02 NoneRequired
7-pin, IC, less core 1070-112-A02-7 NoneRequired
6-pin, Security 1010-112-A02 NoneRequired
6-pin, Security IC 1090-112-A02 NoneRequired
7-pin, Pyramid High Security 1020-112-A02 NoneRequired
7-pin, Pyramid IC High Security 1030-112-A02 NoneRequired
7-pin, Pyramid Security 1027-112-A02 NoneRequired
7-pin, Pyramid Security IC 1037-112-A02 NoneRequired
Description Part Number Cylinder Collar 57 Function Part Number Cylinder Collar**
6-pin 3000-058 NoneRequired 3000-200N* NoneRequired
7-pin 3000-058-7 422F88 3000-200-7 422F88
6-pin, IC 3080-058 422F88 3080-178 422F88
7-pin, IC 3080-058-7 686F98 3080-178-7 686F98
6-pin, IC, less core 3070-058 422F88 3070-178 422F88
7-pin, IC, less core 3070-058-7 686F98 3070-178-7 686F98
6-pin, Security 3010-058 NoneRequired 3010-200 422F88
6-pin, Security IC 3090-058 422F88 3090-178 422F88
7-pin, Pyramid 3020-058 422F88 3020-200N 422F88
7-pin, Pyramid IC 3030-058 422F88 3030-178 422F88
7-pin, Pyramid Security 3027-058 422F88 3027-200N 422F88
7-pin, Pyramid Security 3037-058 422F88 3037-178 422F88
700 Series KRM* &
Cylinder Dogging
Mortise cylinders
Description Part Number
Cylinder
Dogging
Collars
Key Removable Mullions*
Part Number Cylinder Collar
6-pin 1000-118-A02 N/A 1000-118-A02 NoneRequired
7-pin 1000-114-A02-7 270F15 1000-114-A02-7 NoneRequired
6-pin, IC 1080-114-A02 270F15 1080-114-A02 NoneRequired
7-pin, IC 1080-112-A02-7 654F07 1080-112-A02-7 447F42
6-pin, IC, less core 1070-114-A02 270F07 1070-114-A02 NoneRequired
7-pin, IC, less core 1070-112-A02-7 654F07 1070-112-A02-7 447F42
6-pin, Security 1010-118-A02 N/A 1010-118-A02 NoneRequired
6-pin, Security IC 1090-114-A02 270F15 1090-114-A02 NoneRequired
7-pin, Pyramid Security 1027-114-A02 270F15 1027-114-A02 NoneRequired
7-pin, Pyramid Security IC 1037-114-A02 270F15 1037-114-A02 NoneRequired
7-pin, Pyramid High Security 1020-114-A02 270F15 1020-114-A02 NoneRequired
7-pin, Pyramid IC High Security 1030-114-A02 270F15 1030-114-A02 NoneRequired
*The 700 series key removable mullion was discontinued on January 1, 2010. The cylinders and cylinder rings are listed for reference only.
*Specify Finish
900 Series KRM
Mortise cylinders Description Part Number Quick Code
900 Series Cylinder Collar WS700 Series Cylinder Collar
1-1/8" 1-1/4" or
1-1/4" IC 1-1/2" IC 1-1/8" 1-1/4" or
1-1/4" IC 1-1/2" IC
6-Pin 1000-118-A62 6P
610F01* 447F43* 609F37* 447F42* 610F01* 609F36*
7-Pin 1000-114-A62-7 7P
6-Pin, IC 1080-114-A62 C6
7-Pin, IC 1080-112-A62-7 C7
7-pin, Pyramid High Security 1020-114-A62 PHS
7-pin, Pyramid Security 1027-114-A62 PS
7-pin, Pyramid High Security IC 1030-114-A62 PCHS
7-pin, Pyramid Security IC 1037-114-A62 PCS
Security 1010-118-A62 HS
Security IC 1090-114-A62 CHS
6-pin, IC, less core 1070-114-A62 CL6
7-pin, IC, less core 1070-112-A62-7 CL7
900 Series KRM
Mortise cylinders
ED5000.52
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Cylinders
ED5000
ED5000.53
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
Mullion Series Cylinder Length and Type
1-1/8" 1-1/4" 1-1/4" IC 1-1/2" IC
WS707AKM
WS708AKM 447F42* 610F01* 609F36*
907BKM
908BKM
910KM
610F01* 447F43* 609F37*
Note: Cylinder collar packets contain a collar and spring washer.
*Specify finish when ordering packets.
900 Series
KRM Cylinder
Collar Packet
Description Part Number Cylinder Collar
6-pin 3000-200 270F15
7-pin 3000-200-7 654F07
6-pin, IC 3080-178 654F07
7-pin, IC 3080-178-7 654F08
6-pin, IC, less core 3070-178 654F07
7-pin, IC, less core 3070-178-7 654F08
6-pin, Security 3010-200 654F07
6-pin, Security IC 3090-178 654F07
7-pin, Pyramid 3020-200 654F07
7-pin, Pyramid IC 3030-178 654F07
7-pin, Pyramid Security 3027-200 654F07
7-pin, Pyramid Security 3037-178 654F07
Inside Cylinder For
ED5602 Double Cylinder
Exit Device
Rim cylinders
Description Part Number Cylinder Collar
6-pin 3000-138 270F15
7-pin 3000-138-7 654F07
6-pin, IC 3080-114 654F07
7-pin, IC 3080-114-7 654F08
6-pin, IC, less core 3070-114 654F07
7-pin, IC, less core 3070-114-7 654F08
6-pin, Security 3010-138 654F07
6-pin, Security IC 3090-114 654F07
7-pin, Pyramid 3020-138 654F07
7-pin, Pyramid IC 3030-114 654F07
7-pin, Pyramid Security 3027-138 654F07
7-pin, Pyramid Security 3037-114 654F07
ED5202 Double Cylinder
Exit Device
Rim cylinders
ED5202 Double Cylinder Exit Device
Rim cylinders
ED5602 Double Cylinder Exit Device
Rim cylinders
Description Part Number
Rim Thumbturn - 1-3/8" 3300 -138
Rim Thumbturn - 1-3/8" - Ergonomic 3300-138-M34
Rim Thumbturn - 2" 3300-200
Rim Thumbturn - 2" - Ergonomic 3300-200-M34
Rim Thumbturn
Description Specify
Less cylinder(s) (standard)
Conventional 6-pin 6P
Conventional 7-pin 7P
Security HS
Security interchangeable core (IC) CHS
IC 6-pin C6
IC 6-pin with temporary construction core
(Red) CT6R
IC 6-pin with temporary construction core
(Blue) CT6B
IC 6-pin with temporary construction core
(Green) CT6G
IC 6-pin with temporary construction core CT6
IC 6-Pin with temporary disposable core CT6D
IC 6-pin less core CL6
SFIC 6-pin with less core CLS6
SFIC 6-pin with SFIC disposable temporary
core CT6SD
IC 7-pin (rim only) C7
IC 7-pin with temporary construction core
(Red) CT7R
IC 7-pin with temporary construction core
(Blue) CT7B
IC 7-pin with temporary construction core
(Green) CT7G
IC 7-pin with temporary construction core CT7
IC 7-Pin with temporary disposable core CT7D
IC 7-pin less core (rim only) CL7
SFIC 7-pin with less core CLS7
SFIC 7-pin with SFIC disposable temporary
core3
CT7SD
Pyramid Security fixed core PS
Pyramid Security IC PCS
Pyramid Fixed Core PHS
Pyramid IC PCHS
Pyramid with temporary construction core CTP
Pyramid less core CLP
Blockout function BO
0-bitted with 2 blank keys (standard)
Keyed random KR
Construction master keyed CMK
Quick Codes
ED5000
Cylinder and Keying
Strikes
Description Specify
Rim x vertical rod on pairs of doors S02
Surface and concealed vertical rod
Bottom strike for 1/2" thresholds or flush
mount
S09
MortiseANSIstrikeforpairsofdoorswith
astragal SS078
Open back strike for 1-3/4" doors SB134
Open back strike for 2-1/4" doors SB214
Door Width
Door Width Specify
24" (610mm) W024
36" (914mm) (standard)
48" (1219mm) W048
Door Height
Door Height Specify
ED5400(A) and ED5470(B) devices
7'0" (standard)
7'2" H0702
7'6" H0706
8'0" H0800
ED5800(A) devices
8'0" (standard)
ED5470(B), ED5860(B) devices only
9'0" H0900
10'0" H1000
Description Specify
Visual key control (VKC)
Nokeyingdatastampedonkeyorcylinder VKC0
Keys only VKC1
Cylinders and keys (not for HS or CHS) VKC2
Cylinders only (not for HS or CHS) VKC3
Concealed key control (CKC)
CKC cylinders with VKC keys CKC2
CKC cylinders only CKC3
2 keys per cylinder (standard with cylinder)
Other than 2 keys KY# (e.g., KY6)
Cylinder and Keying (cont)
ED5000.54
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Quick Codes
ED5000
ED5000.55
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
Miscellaneous Options
Description Specify
Torx® head screws M04
ANSIwroughtstrikebox(mortise) M17
Knurling outside and inside (embossed touchbar -
device side)1M20
Knurling outside only (trim side)1M21
Knurling inside only (embossed touchbar -
device side) M22
Abrasive coat outside and inside (trim and device) M23
Abrasive coat inside only (device side) M24
Abrasive coat outside only (trim side) M25
24", 36" and 48" PathLite™ Photoluminescent
Touchbar Cover M49
Less dogging M51
Cylinder dogging M52
Sexnutsandbolts(SNBs) M54
Less bottom vertical rod (ED5470(B)/ED5860(B) Only) M55
NarrowStileCover M56
Mullion stabilizer M57
Shim kit (for vision light) M58
Parabolic escutcheon M60
Wood screws for use on fire-rated solid wood or
wood core doors M64
Flush transom top strike bracket (ED5400 and
ED5400A only) M67
Door frame filler block for double rabetted frames M95
Door frame angle bracket for aluminum frames M96
Windstorm Certified products for ED5200S(A) and
ED5470(B) Only2, 3, 4, 5 M107
High Impact End Clamp M109
Flush End Cap M110
Handing
Hand Specify
Right Hand Reverse RHR
Left Hand Reverse LHR
Description Specify
US3 Bright Brass 605
US4 Satin Brass 606
US9 Bright Bronze 611
US10 Satin Bronze 612
US10B Dark Oxidized Satin Bronze,
oil rubbed 613
10BE Dark Oxidized Satin Bronze Equivalent 613E
US14 BrightNickelPlated 618
US15 SatinNickelPlated 619
US26 Bright Chromium Plated 625
US26D Satin Chromium Plated 626* (Trim only)
Satin Chromium Plated
with MicroShield®626C
US32 Bright Stainless Steel 629
US32D Stain Stainless Steel 630
Stain Stainless Steel
with MicroShield®630C
— Black oxidized bronze,oil rubbed 722
Finish
Notes:
1. NotavailablewithVT9,VTL9,VT9MandVTL9Mtrim.
2. ED5200S(A) x M107 requires through bolts.
3. ED5470(B) maximum opening height is 8'0".
4. Contact Ceco, Curries® or Fleming for detailed frame/door requirements and limitations.
5. Notavailablewithelectricdogging(M97).
Door Thickness
Door Specify
1-3/4" (44mm) (standard)
2" (51mm) D200
2-1/4" (57mm) D214
*Contact factory for devices required in BHMA 626
Electrified Options for Exit Devices Electrified Accessories
Description Specify
Exit Alarm Device (cylinder not included) M61
Bolt Position Monitoring M91
Request to Exit/Touchbar Monitoring or Signaling M92
Outside Trim Monitoring or Signaling M93
Electric Latch Pullback M94
Electric Dogging M97
Mortise Device Lock with Outside Trim Control (Fail
Safe) SAF*
Mortise Device Lock with Outside Trim Control (Fail
Secure) SEC*
Delayed Egress (15 second delay standard) D
30 second delay (may be accepted by local
jurisdiction)(with“D”optiononly) M88
BOCA15-seconddelay(with“D”optiononly) M89
BOCA30-seconddelay(with“D”optiononly) M90
Security Monitor M98^
Trim Gasket M99
*Only available with ED5600L and 5600(A)L
^9903/9905 trims only.
Description Part Number
Controller (Required for Electric Latch
Pullback(M94)) 782
Power supply 1.0 Amp @ 12 VDC output BPS-12-1
Power supply 3.0 Amp @ 12 VDC output BPS-12-3
Power Supply 1 Amp @ 24 VDC Output BPS-24-1
Power Supply 2 Amp @ 24 VDC Output BPS-24-2
Power Supply 4 Amp @ 24 VDC Output BPS-24-4
SPDT Maintained Switch MKA
SPDT Momentary Switch MK
SPDTMomentaryNSSwitch MKN
DPDT Momentary Switch MK2
DPST Maintained (Al. Action) Switch PB3EA
Sonalert 90lbs. @ 2 ft. 12-24VDC mounted on one
gang stainless steel plate PZ1
Alarm Kit (cylinder is not included)* ED50AK
Concealed transfer for over 120° swing doors EPTL
Key Removable Mullions
Description Specify
U p  t o  7 ' 0 "  S t e e l  M u l l i o n  -  1 - 1 / 2  H o u r  F i r e  R a t e d  907BKM1
U p  t o  8 ' 0 "  S t e e l  M u l l i o n  -  1 - 1 / 2  H o u r  F i r e  R a t e d  908BKM1
Upto10'0"(ED5200,ED5200Sonly)SteelMullion
- Panic Rated
910KM1
Upto7'0"SteelMullion-3HourFireRated,
Windstorm Certified
WS707AKM1
Upto8'0"SteelMullion-3HourFireRated,
Windstorm Certified
WS708AKM1
Quick Codes
ED5000
Description Specify
U p  t o  7 ' 0 "  S t e e l  M u l l i o n  -  P a n i c  R a t e d  907
U p  t o  8 ' 0 "  S t e e l  M u l l i o n  -  P a n i c  R a t e d  908
Upto10’0”(ED5200,ED5200Sonly)SteelMullion
- Panic Rated
910
U p  t o  7 ' 0 "  S t e e l  M u l l i o n  -  3  H o u r  F i r e  R a t e d  907A
U p  t o  8 ' 0 "  S t e e l  M u l l i o n  -  3  H o u r  F i r e  R a t e d  908A
Upto7'0"SteelMullion-3HourFireRated,
Windstorm Certified
FE707A1
Upto8'0"SteelMullion-3HourFireRated,
Windstorm Certified
FE708A1
Removable Mullions
Note:
1.ForusewithULlisteddoorassembliesthatcomplytoFEMA361andFEMA320guidelines.
For the latest listings on compliant door assemblies visit our website at corbinrusswin.com
Note:
1. Cylinder and collars not included, specify separately. See page 54.
ED5000.56
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15

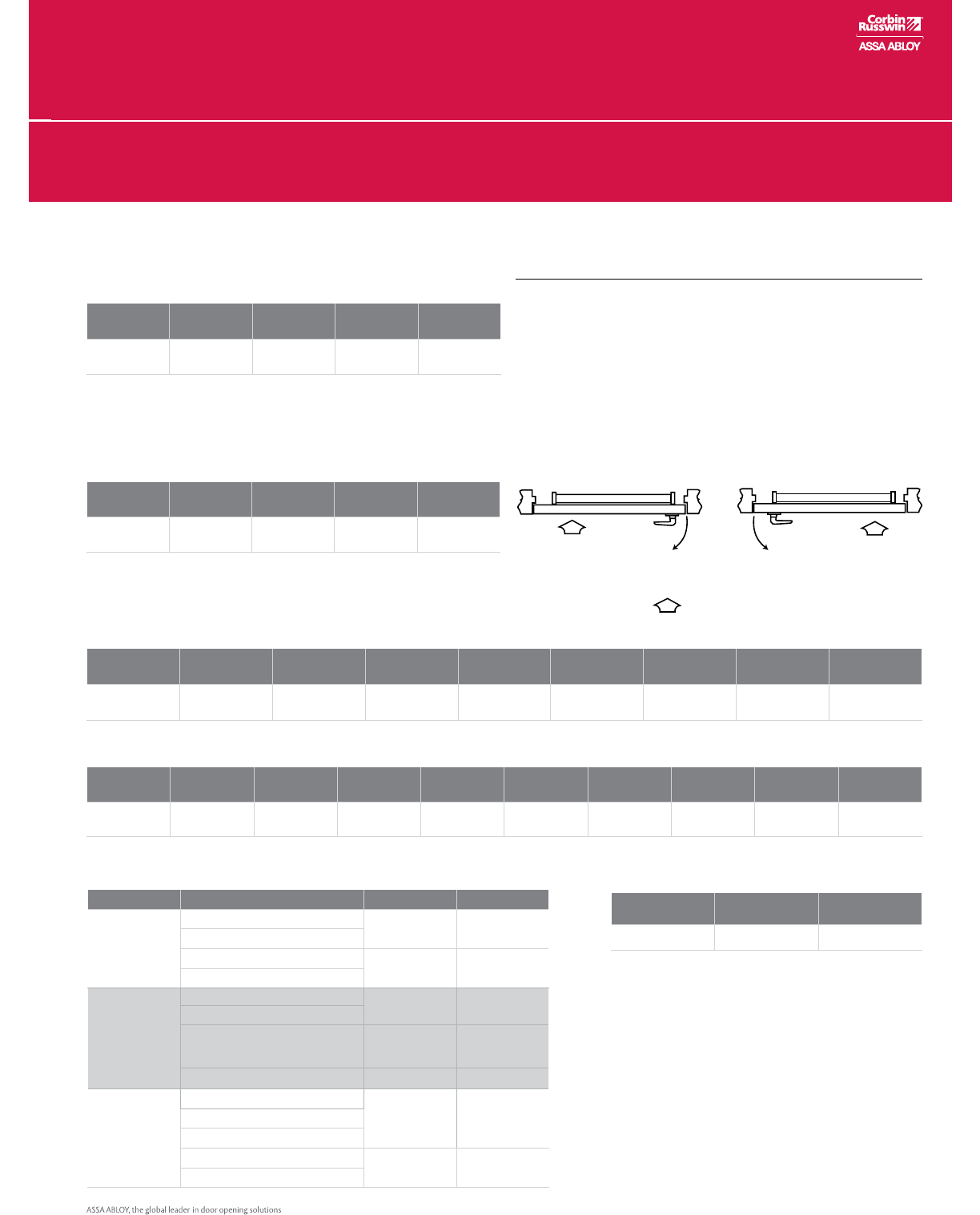

How to Order
ED5000
ED5000.57
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
Quantity Exit Device Trim/
Function Finish Hand Door Thickness Optional Strike Door Width Misc. Options
65 ED5600L N9M55 605 LHR D214 SB214 W048 M51-M54
Exit Device with Trim
Exit Device Only*
Ordering Examples
Functions and Trims
Rim and
Vertical Rod ........... Pg 20
Mortise ...................... Pg 30
Cylinders and Keying .. Pg 55
Door Height ............... Pg 55
Door Width ................ Pg 55
Strike ......................... Pg 55
Finish ......................... Pg 56
Door Thickness ........... Pg 56
Handing ..................... Pg 56
Miscellaneous
Options ...................... Pg 56
Removable Mullion .... Pg 57
Trim Only
Contract/Detailed Order – Surface Vertical Rod Exit Device with Trim
*To order mortise exit device only, see Mortise Exit Only below.
Mortise Exit Only
Quantity Series/
Function Finish Hand Misc.
Options
65 ED5200S 626 RHR M51
Quantity Trim/
Function Finish Hand Door
Thickness
24 N955 625 RHR D214
Quantity Keyset Exit Device Trim/
Function Finish Hand Door Height Door Width Misc. Options Cylinder
Option
36 AA1 ED5470 C955 626 LHR H1000 W048 M52-M54 7P
LHR RHR
Left Hand Reverse Right Hand Reverse
Note: Arrow ( ) indicates secure side of door.
LHR RHR
Left Hand Reverse Right Hand Reverse
Trim Type Functions Panic Fire
Knob
Passage ED5600K ED5600AK
Classroom
Nightlatch ED5657K ED5657AK
Dummy
Lever or Flat
Plate
Passage ED5600L ED5600AL
Classroom
Double Cylinder
(Classroom function lever
Trim only)
ED5602L ED5602AL
Nightlatch ED5657L ED5657AL
Thumbpiece
Dummy
ED5600T ED5600ATPassage
Classroom
Nightlatch ED5657T ED5657AT
Dummy
Removable Mullion
Quantity Mullion Misc. Options
6908A M96
Where to find ordering
information and Quick Codes
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
How to Order the Muséo® Piet Levers
ED5000
ED5000.58
Muséo® Piet Lever Collection Trim and Finish Options
Grooved Insert
21G
Leather Insert
21L
Polished with
Satin Insert
21M
Santoprene™
Insert
21S
Wood Insert
21W
With Raised
Band
23M
Plain
25M
Plain with Two
Grooves
27M
BHMA Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
N/A BH Wood insert
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert
Piet Finish Codes
Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 292929 or 303030
21L Leather Insert 29BK29, 29BN29 or 30BK30, 30BN30
21M Metallic Insert 293029** only
21S Santoprene Insert 29BK29 or 30BK30
21W Wood Insert 29BH29 or 30BH30
23M Raised Band 290029, 300030 or 290030**
25M Plain 290029 or 300030
27M Two Grooves 290029 or 300030
Piet Lever Descriptions & Available Finishes
**Two-tone finish - grip of lever is 630, balance of lever is 629. Escutcheon finish will be 618.
*CodeusedtospecifyPietCollectionnishesonly.Useavailablenisheslisttospecifydesirednishwhenordering.
Ordering Examples
Trim Only
Quantity Exit Device Trim/Function Lever
Finish
Exit Bar
Finish Hand Cylinder
Option
Door
Thickness
Optional
Strike Door Width
2ED5600LN 21W9M10 30BH30 630 LHR 6P D200 SB214 W048
Exit Device with Trim
Quantity Trim/Function Lever Finish Hand
2 21M910 293029 RHR
In this example the escutcheon finish will be supplied in 618.
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
ED5000.59
Helpful Terms
ED5000
Abrasive Coat
Hard granular material applied to
provide a non-slip tactile surface for
the visually impaired.
Active Door
In a pair of doors, the door that is
operable from the trim side.
Astragal
A vertical member applied to one or
both sides of a pair of doors at the
meeting edges. The astragal closes the
gap between the two doors.
Coordinator
A device used on a pair of doors to
ensure that the inactive door closes
before the active door.
Deadlocking Latch
A supplemental latch that
automatically deadlocks the latchbolt
when pressure is applied to it.
Dogging
A mechanism that allows the latchbolt
to remain retracted, permitting the
door to operate as if it were a push-
pull; it cannot be used on fire-rated
exit devices.
Double Egress
A pair of doors of the same hand
that swing in opposite directions,
commonly found in corridors.
Dummy Trim
Trimonly.Usuallyusedontheinactive
door of a pair of doors for design
balance.
Exit Device (Panic Hardware)
A door locking device with a pushpad
or crossbar which, when pressed,
allows instant exit (egress).
Fire Exit Hardware
An exit device listed by an
independent testing laboratory as
meeting panic, fire and hose stream
test standards; used on fire-rated
openings.
Hand
The direction a door swings.
Inactive Door
In a pair of doors, the door that is
inoperable from the trim side.
Latchbolt
A lock component that has a beveled
end and projects into a strike, holding
the door in a closed position.
Mullion
A fixed or removable vertical member
that divides a door opening and
provides a latch surface for a pair of
rim exit devices.
Open Back Strike
For mortise exit devices, used on the
inactive door (usually the vertical rod
door) of a pair of doors that swing
in the same direction. It permits
the inactive door to open or close
independently.
Reversible
Pertains to a product that may be
changed in the field to accommodate
any hand of the door.
Shim Kit
Pieces of metal that permit mounting
of an exit device on a door that has
a surface projecting vision light (glass
bead) molding.
Split Astragal
An astragal that is split through the
middle on a pair of doors, allowing
both doors to operate independently.
Threshold
A strip fastened to the floor beneath a
door. It serves as a stop, prevents heat
loss, and provides a strike location for
latching the bottom rod of a vertical
rod exit device.
Trim
A knob, lever, pull, or thumbpiece
used on the outside of an exit device
door to control access to an area.
Universal Exit Device
An exit device that may be used on
doors of either hand without any
modifications.
Keying and Cylinder Terms
Blockout Cylinder
A cylinder which allows all keys to be
temporarily blocked from operating. It
is set by a blockout key.
Concealed Key Control (CKC)
The marking of standard key symbols
on a cylinder in a location that is not
visible once the cylinder is installed.
Construction Master Keying (CMK)
A cylinder preparation that allows
temporary access by construction
personnel.
Control Key
A key used to remove and install
interchangeable cores.
Cylinder
A lock component containing the
combination that determines which
keys will operate.
Security Cylinder
A cylinder which provides extra
resistance to picking and unauthorized
duplication of keys.
Interchangeable Core (IC)
A cylinder which can be removed and
installed quickly with a control key by
non-skilled personnel when rekeying is
required.
Key Symbol
A letter/number combination in
standard industry format (e.g., 1AA,
AA1, etc.) which indicates exactly how
a key or cylinder fits into a keying
system.
Keyway
The opening in a cylinder plug through
which the key enters.
Master Keying
Preparation of a cylinder to operate
with keys of different levels of access.
Visual Key Control (VKC)
The marking of standard key symbols
on keys and on the visible portion of
the front of a cylinder.
How to Specify
ED5000
ED5000.60
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Suggested Specification for Panic and Fire-Rated Exit Devices
Exit devices shall be ED5000 Series Pushpad Exit Devices as manufactured by Corbin Russwin Architectural Hardware.
The exit device chassis shall be cold forged steel, electroplated for corrosion resistance, and shall be architecturally finished
brass, bronze or stainless steel. The pushpad mechanism shall be constructed of extruded aluminum and shall be scalped with
architecturally finished brass, bronze or stainless steel. The maximum projection shall be 3-1/4" when the pushpad is active and
2-3/4"whenthepushpadisdoggeddown.Nylonbearingsandstainlesssteelspringsshallbeusedforlonglifeanddurability;only
torsion springs are acceptable. Rear and active case covers shall be wrought brass or bronze and shall be plated to match the exit bar.
Plastic or painted covers are not acceptable. Latchbolts shall be steel and shall incorporate a deadlocking latch for increased security.
Devices without deadlocking latches are not acceptable. Mounting screws shall be concealed to deter tampering. Devices shall be
closed on all sides with no pinch points. All exit devices shall be easily field sized to accommodate various door widths.
Panic-listed exit devices shall have single-point, one quarter turn hex key dogging standard. Optional cylinder dogging shall be
available on panic listed devices only. Devices with hex key dogging shall be easily field converted to cylinder dogging. Panic-listed
devices shall be available less dogging.
Trims shall be through-bolted with concealed fasteners. Escutcheon and pull type trims shall be constructed of brass or bronze. All
lever trims shall use cast or forged levers. On trims with cylinders, the mechanism that locks and unlocks the trim shall be housed in
the trim and not in the active case of the exit device. Rim and vertical rod lever trims shall be Free Wheeling with clutch mechanism
allowing lever to rotate 60° when locked to prevent vandalism. Lever trims shall match those on Corbin Russwin Mortise and
Cylindrical Locksets.
Exit devices and trims shall be furnished in BHMA standard architectural finishes.
ExitdevicesshallbelistedbyUnderwritersLaboratories(UL)forsafetyaspanichardware.Fire-rateddevicesshallbelistedforAlabel
and lesser class doors.
Certification:
ANSIA156.3,Grade1
Devices, trims and cylinders shall be from one manufacturer.
Devices and 900 series trim shall carry a five-year limited warranty.
Electronic components shall carry a two-year limited warranty.
How to Specify
ED5000
ED5000.61
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
Suggested Specification for Delayed Egress Exit Devices
Delayed egress exit devices shall be ED4000/ED5000 series (rim, SecureBolt®,mortiseorconcealedverticalrod)withthe“D”suffix,
manufactured by Corbin Russwin Architectural Hardware.
The delayed egress exit device secures the door in the locked mode. Depressing the pushpad for less than three seconds will sound the
device nuisance beep without initiating the alarm. Depressing the pushpad longer than three seconds will initiate an irreversible local
audible beeping tone and allow the device to release for egress after 15 seconds (or 30 seconds may be accepted by local jurisdiction)
and sound the alarm. The alarm will continue until reset by the mechanical key switch located on the device.
Devices shall be 24 volts DC.
The exit device chassis shall be cold forged steel, electroplated for corrosion resistance, and shall be architecturally finished brass,
bronze or stainless steel. The pushpad mechanism shall be constructed of extruded aluminum and shall be scalped with architecturally
finished brass, bronze or stainless steel. The maximum projection shall be 3-1/4" when the push pad is active and 2-3/4" when the
pushpadisdepressed.Nylonbearingsandsteelspringsshallbeusedforlonglifeanddurability.Activecaseandalarmendcover
shall be wrought brass, bronze or stainless steel and shall be plated to match the exit bar. Painted or plastic covers or end caps are
not acceptable. Latch bolts shall be steel and shall incorporate a deadlocking latch for increased security. Devices without deadlocking
latches are not acceptable. Mounting screws shall be concealed to deter tampering. Devices shall be closed on all sides with no pinch
points. Device active cover and end cap attaching screws shall be security Torx® pin.
Trims shall be through-bolted with concealed fasteners. Escutcheon and pull-type trims shall be constructed of brass, bronze or
stainless steel. All lever trims shall use cast or forged levers. On trims with cylinders, the mechanism that locks and unlocks the trim
shall be housed in the trim and not in the active head of the Exit Device. Rim and vertical rod lever trims shall be Free Wheeling with
clutch mechanism allowing lever to rotate 60° when locked to prevent vandalism. Lever trims shall match those on Corbin Russwin
mortise and cylindrical locksets.
DevicesshallbelistedbyUL/cULasControlledExitPanicDevicesorSpecialLockingArrangementandmeetallrequirementsfor
NFPA101.
Certification:
ANSI156.3,Grade1/ANSI156.24
UL/cULFUKD/FUKD7-ControlledPanicDevice
UL/cULFWAX/FWAX7-SpecialLockingArrangements
Exit devices, trims and cylinders must be from one manufacturer.
Exit devices and heavy-duty trims shall have a five-year warranty. Electronics shall have a two-year warranty.
Notes
ED5000
ED5000.62
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45063-8/15
Notes
ED5000
ED5000.63
Copyright © 2000-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45063-8/15
For more information regarding Corbin Russwin Locksets,
Exit Devices, Door Controls and Key Systems, contact your
authorized Corbin Russwin Distributor or Sales Representative.
In U.S.
Corbin Russwin
Architectural Hardware
225 Episcopal Road
Berlin, CT 06037
Phone: 800-543-3658
Fax: 800-447-6714
corbinrusswin.com
In Canada
ASSA ABLOY Door
Security Solutions Canada
160 Four Valley Drive
Vaughan, Ontario
Canada L4K 4T9
Phone: 800-461-3007
Fax: 905-738-2478
www.assaabloy.ca
Corbin Russwin and Design®, SecureBolt® and Muséo®are registered trademarks of Corbin Russwin, Inc., an ASSA ABLOY Group company. PathLite™ and Vineyard™ are
trademarks of Corbin Russwin, Inc., an ASSA ABLOY Group company. Other products’ brand names may be trademarks or registered trademarks of their respective owners
andarementionedforreferencepurposesonly.ThesematerialsareprotectedunderUScopyrightlaws.Allcontentscurrentattimeofpublication.CorbinRusswin,Inc.,
an ASSA ABLOY Group company reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 2000, 2014
Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is
prohibited.
45063-8/15
ElectroLynx®
As part of their promise to provide innovative, fast and effective high security solutions to their customers, certain ASSA ABLOY Group brands
offer ElectroLynx®, a universal quick-connect system that simplifies the electrification of the door opening.
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.
MicroShield®
As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology,
a silver-based antimicrobial coating designed to inhibit the growth of bacteria. MicroShield® is a registered trademark of Yale Security Inc.,
an ASSA ABLOY Group company.

Navigation menu
