Key Systems

Cylinders and Keys

Overview

Key Systems

2

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Applications

Key Systems

Table of Contents

Designing Master Key Systems ...... 3

Key Wizard® ............................ 4

How to Order Cylinders ........... 5

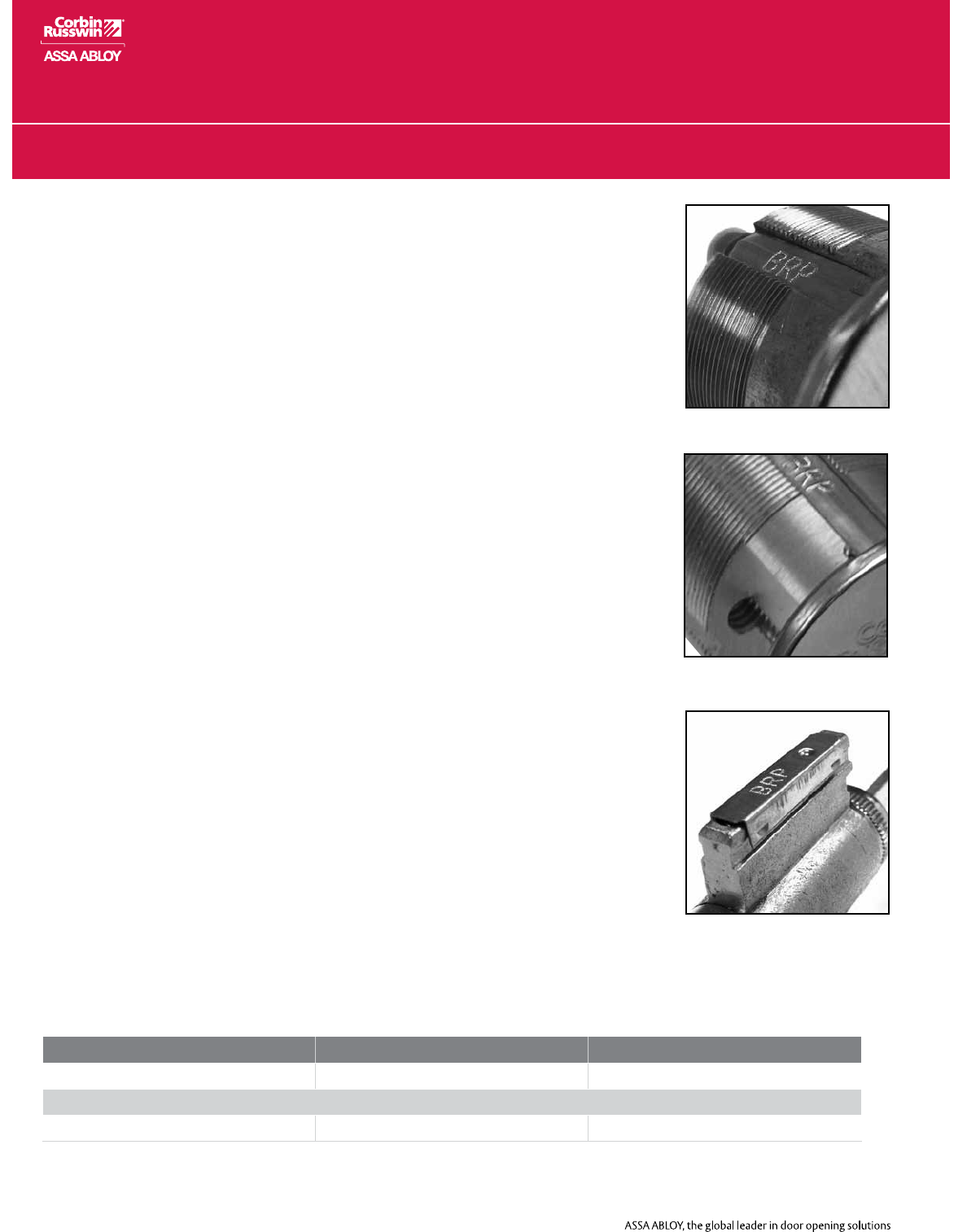

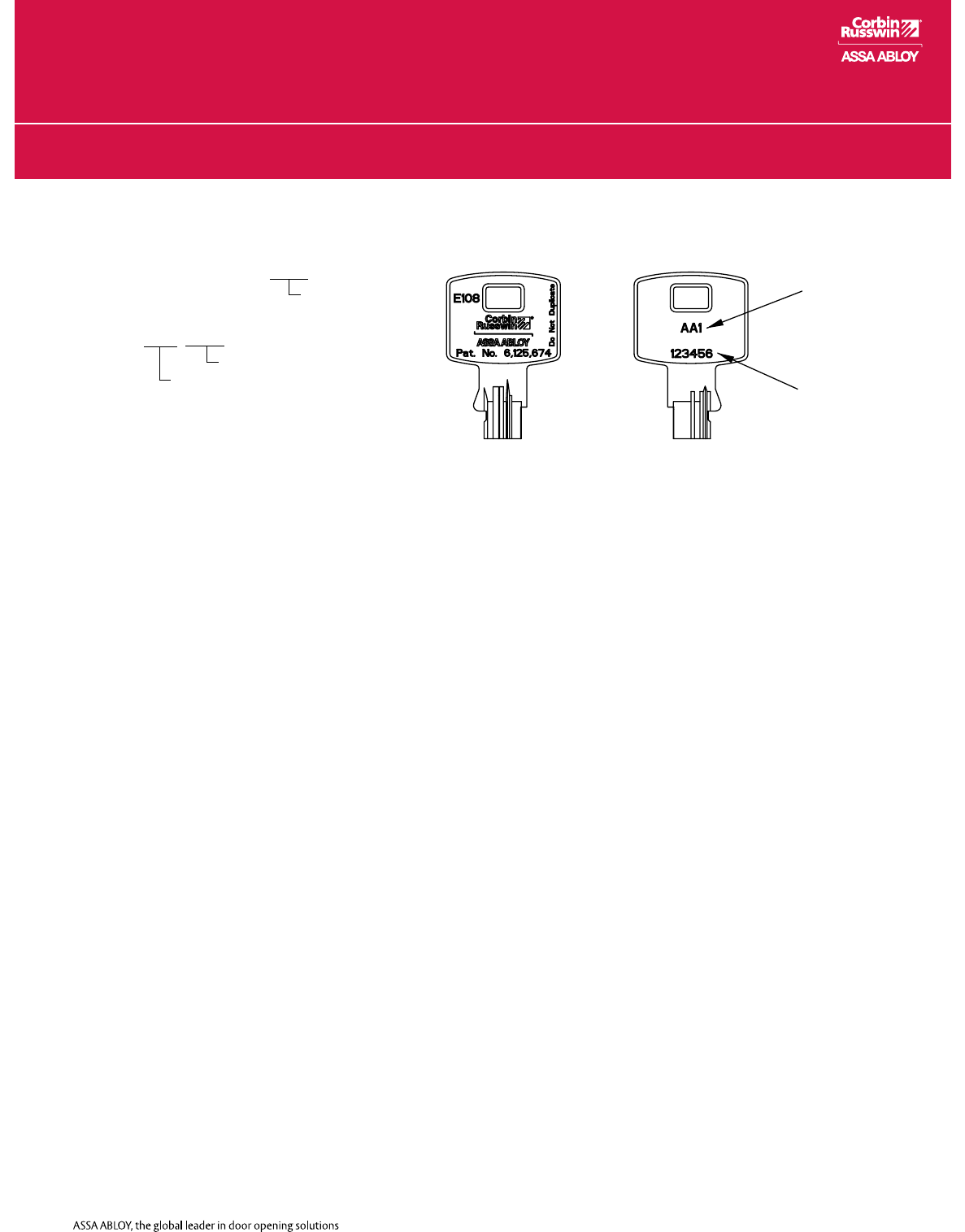

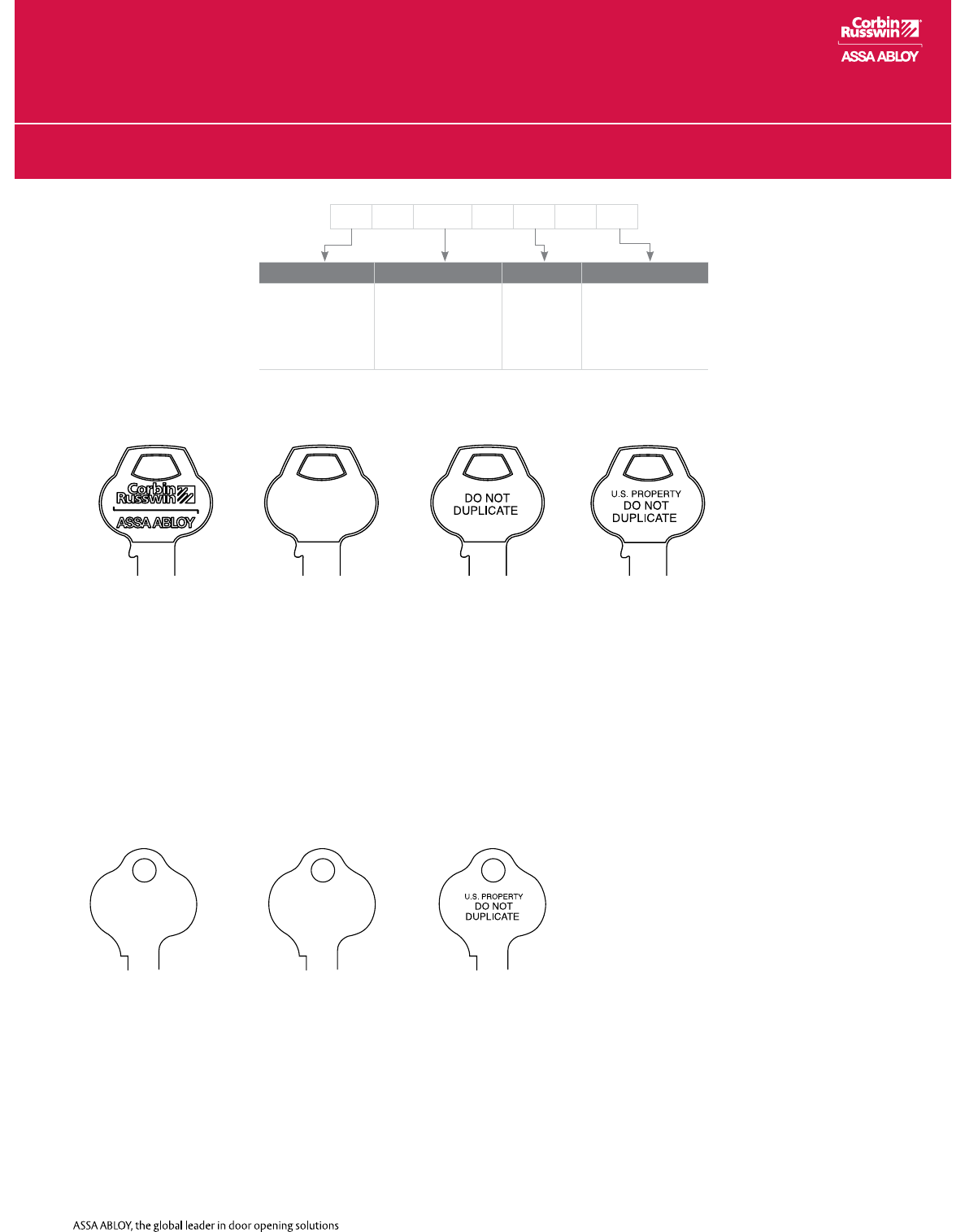

Cylinder and Key Stamping ...... 6

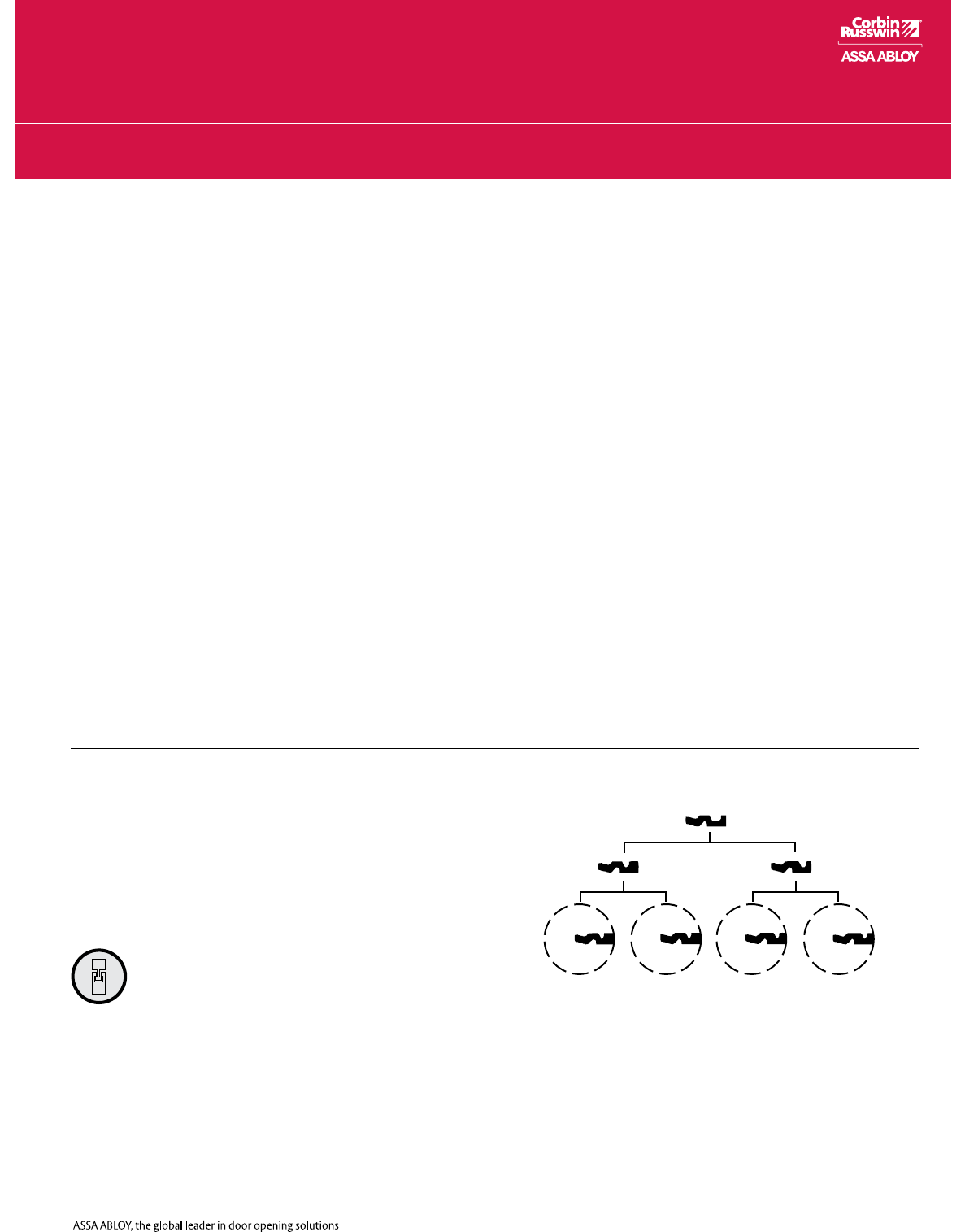

Temporary Access .................... 7

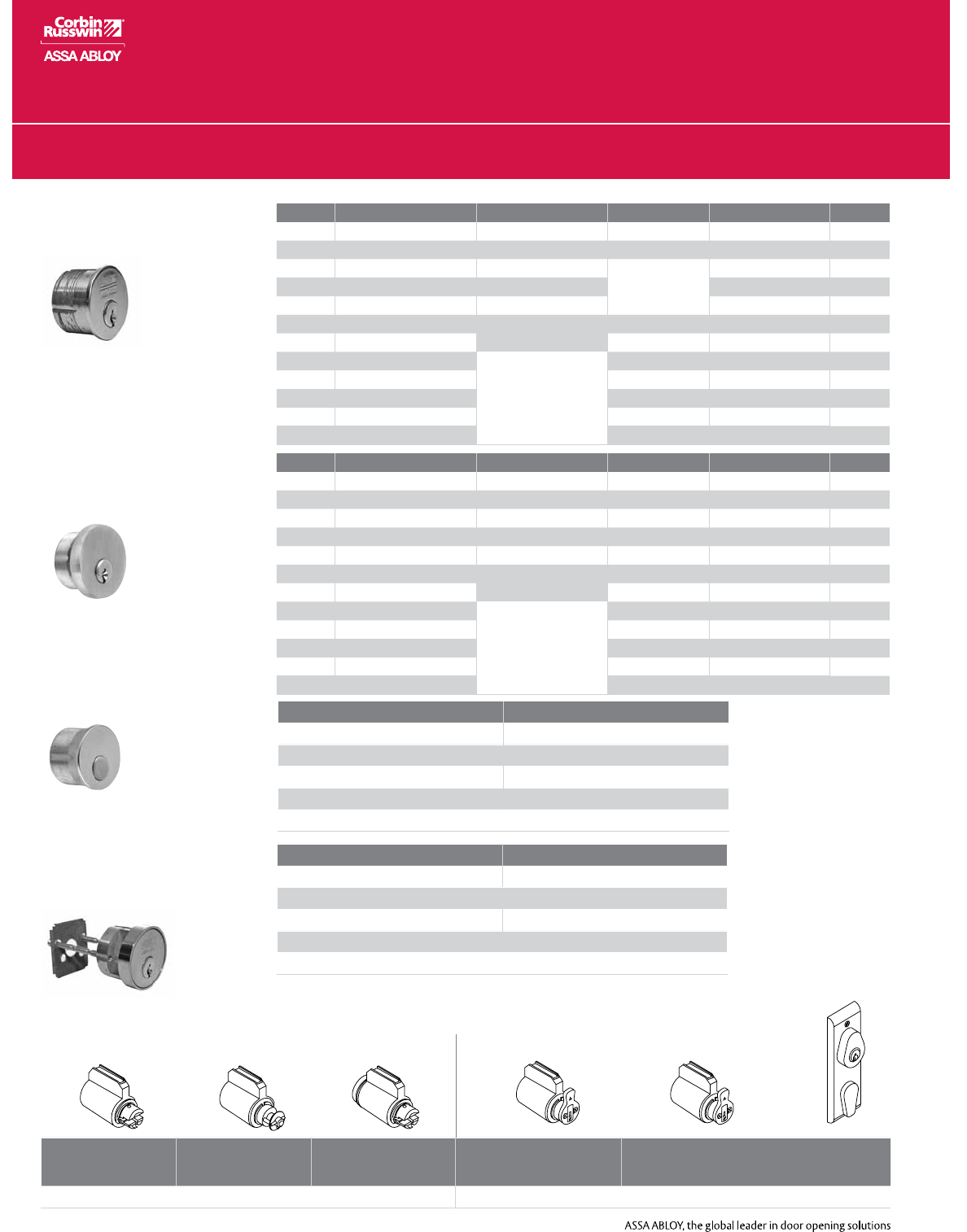

Conventional Cylinders ............ 8

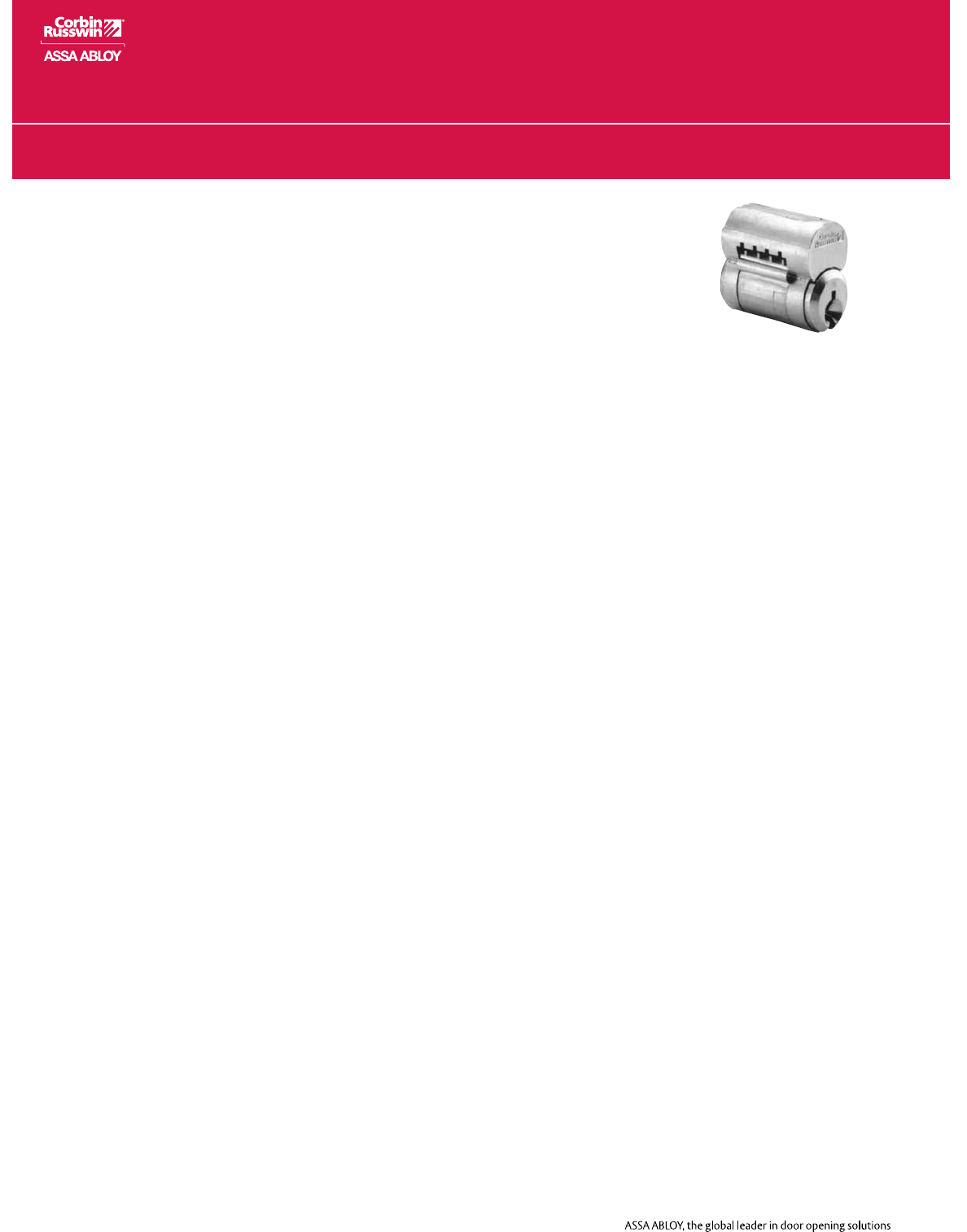

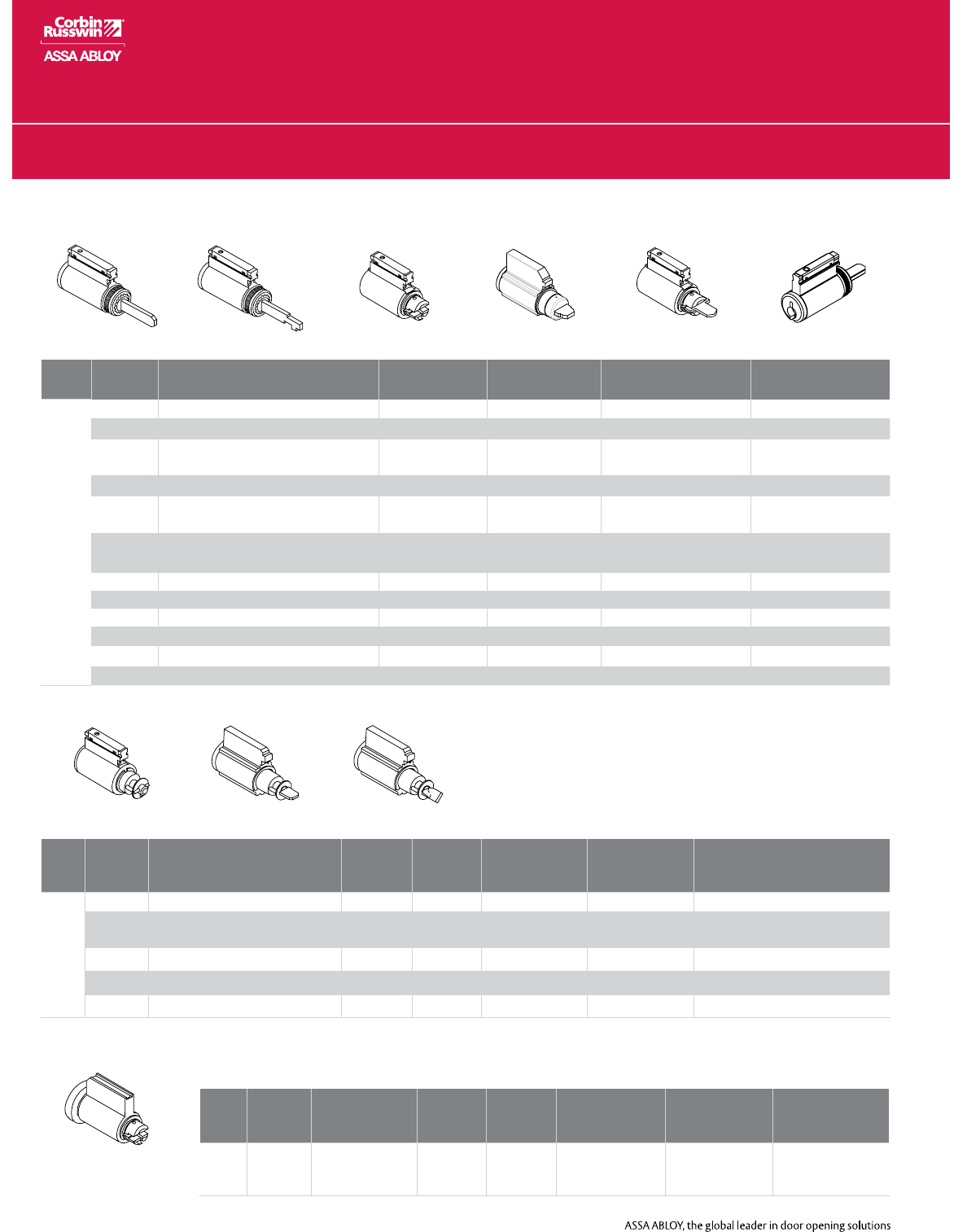

Interchangeable Core ............. 14

Security .................................. 17

Master Ring ........................... 19

Pyramid ................................. 21

Bump Resistant Cylinders ....... 28

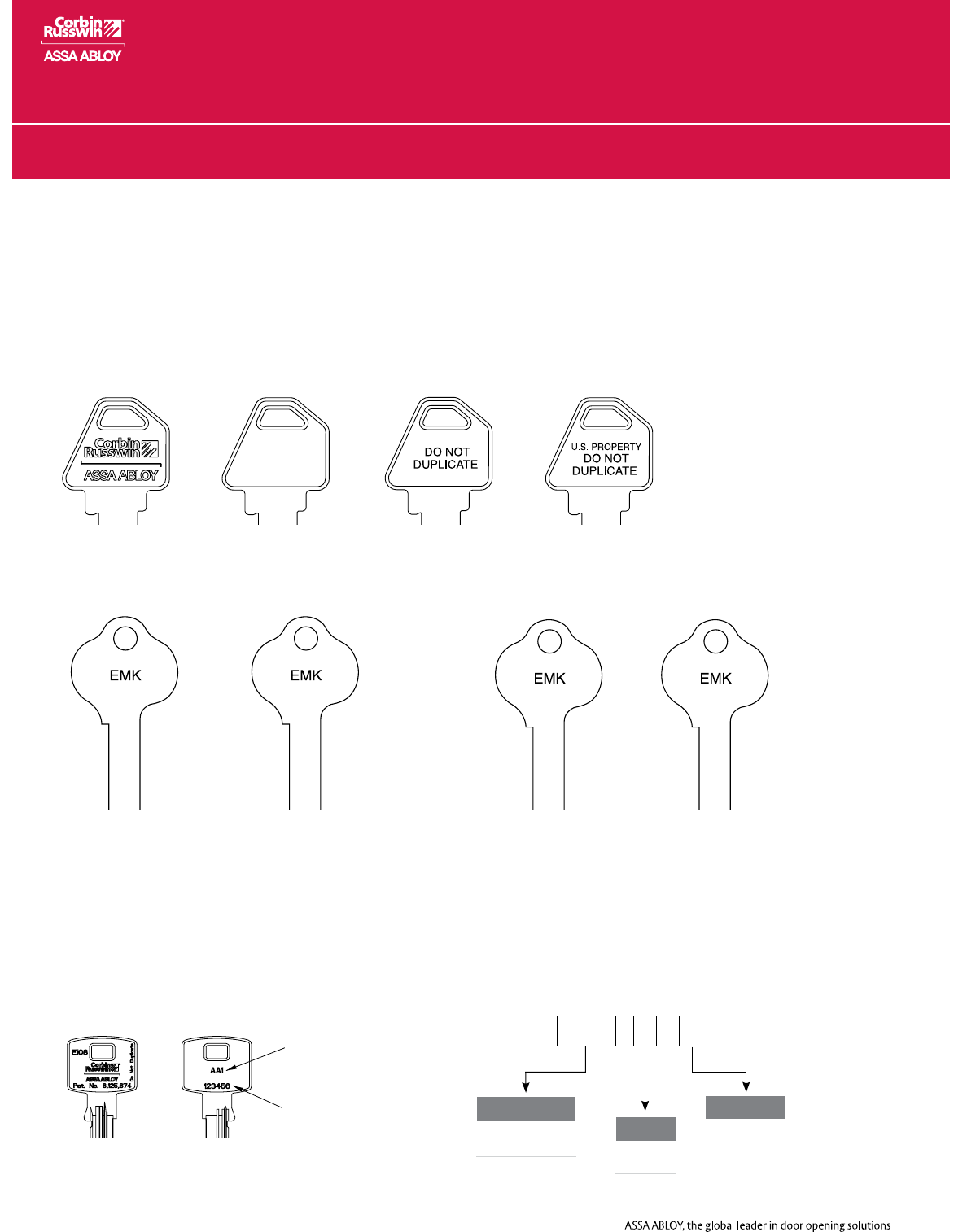

Key Blanks ............................. 29

Keyways ................................ 31

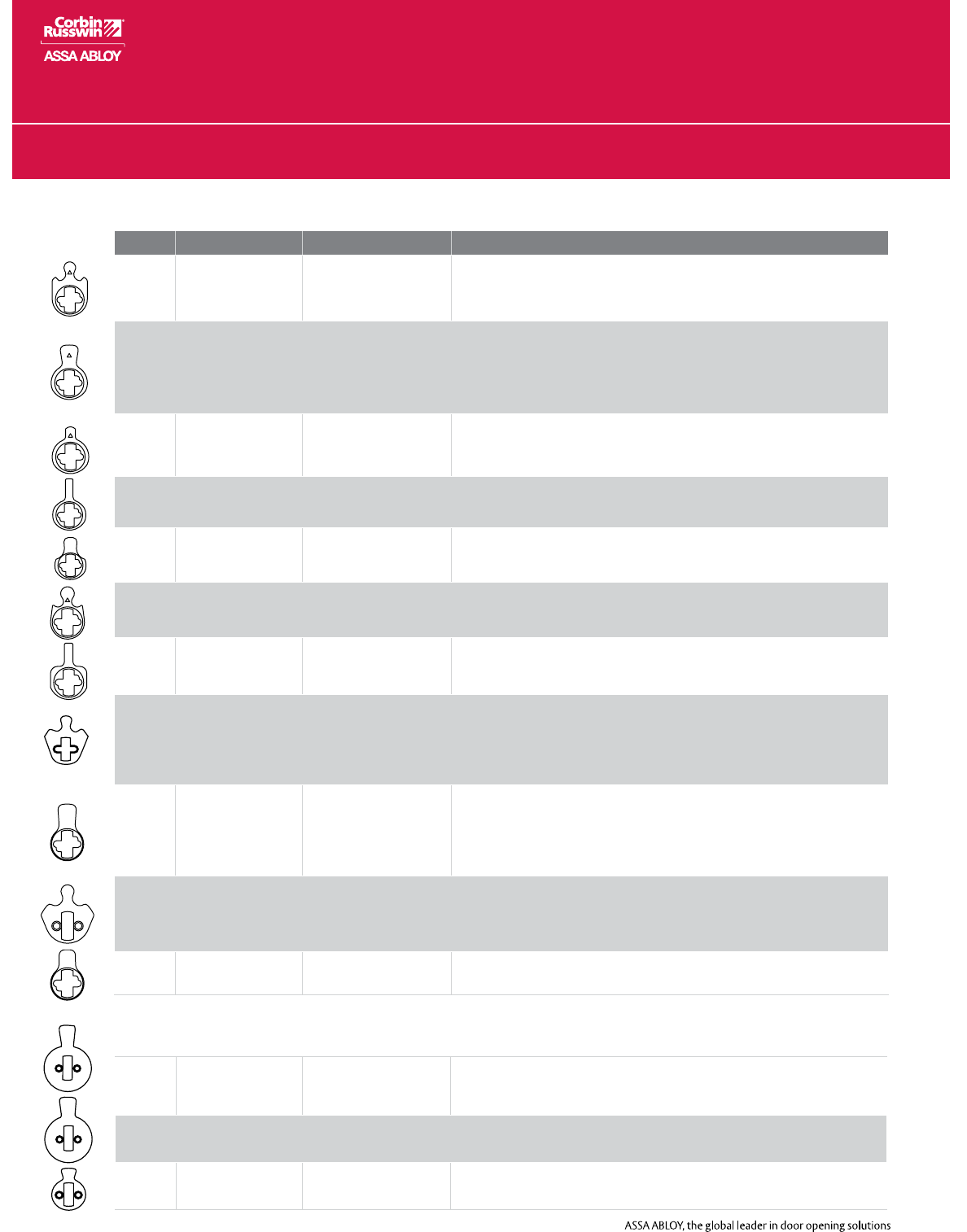

Mortise Cylinder Cams ........... 40

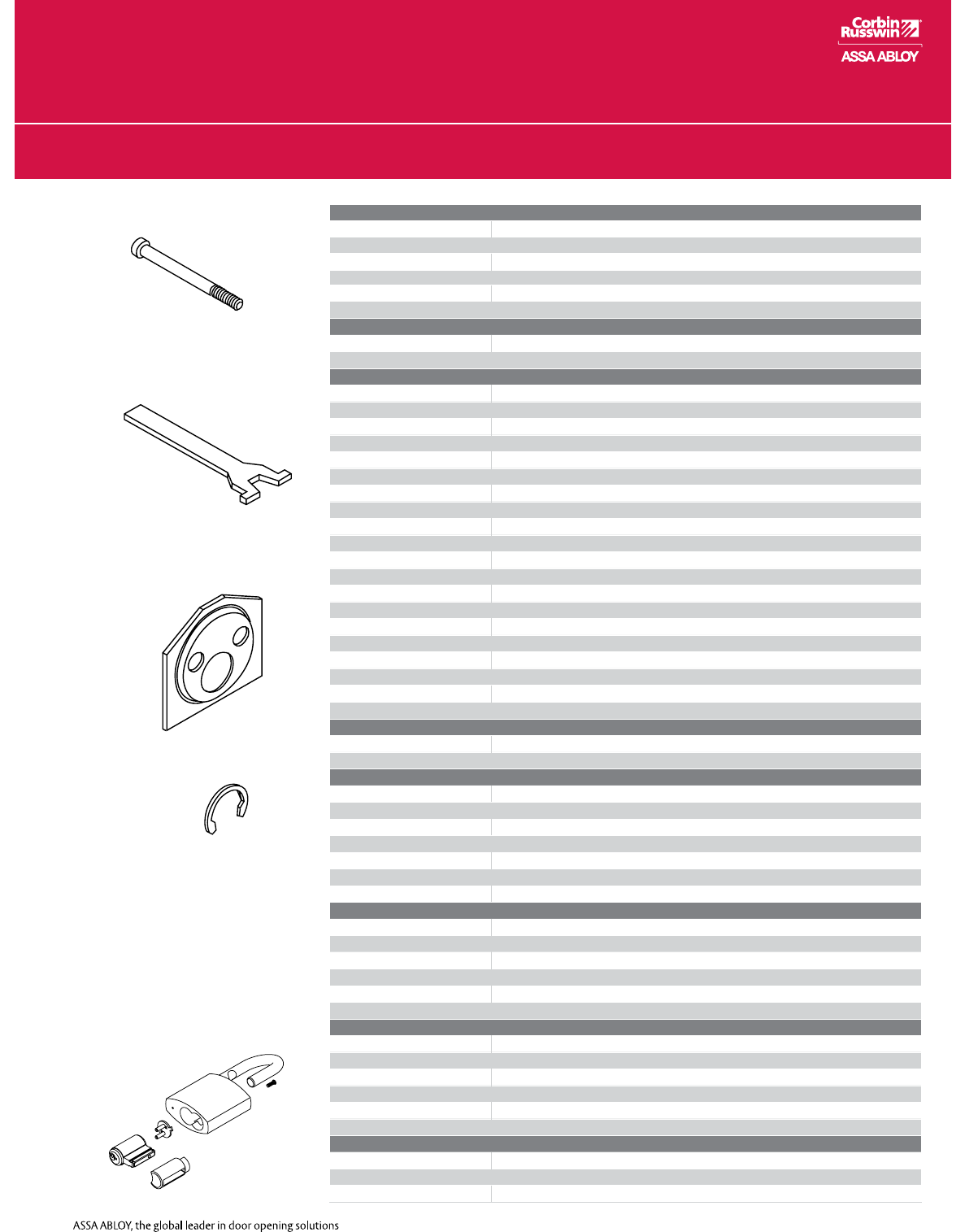

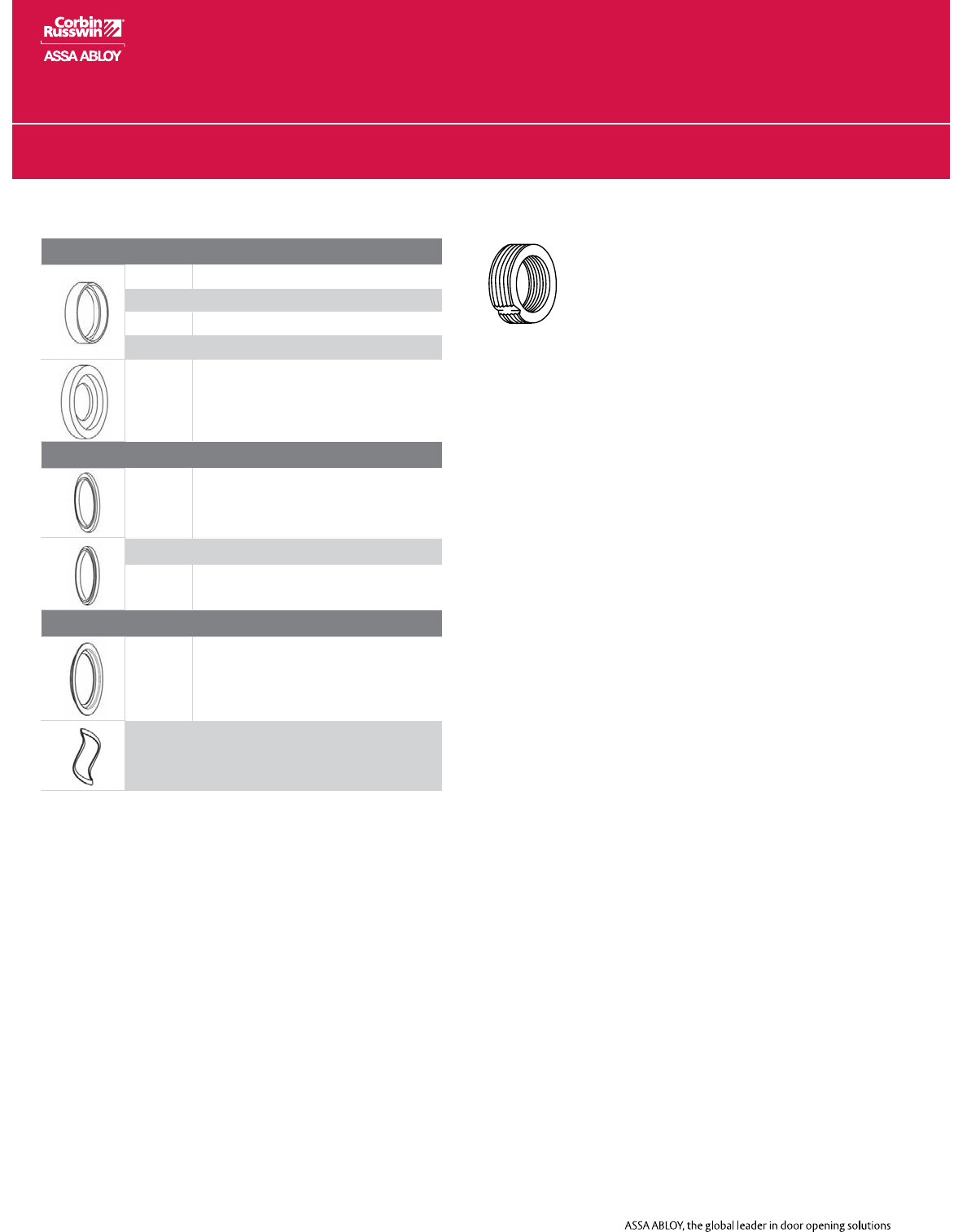

Cylinder Accessories ............... 41

Plug Diameters/Quick Codes .. 44

Service Equipment ................. 46

Policies and Procedures .......... 50

How to Establish Key Systems .. 51

www.corbinrusswin.com

Applications

To provide the desired level of security, even the ﬁnest architectural hardware requires a

properly designed and maintained master key system.

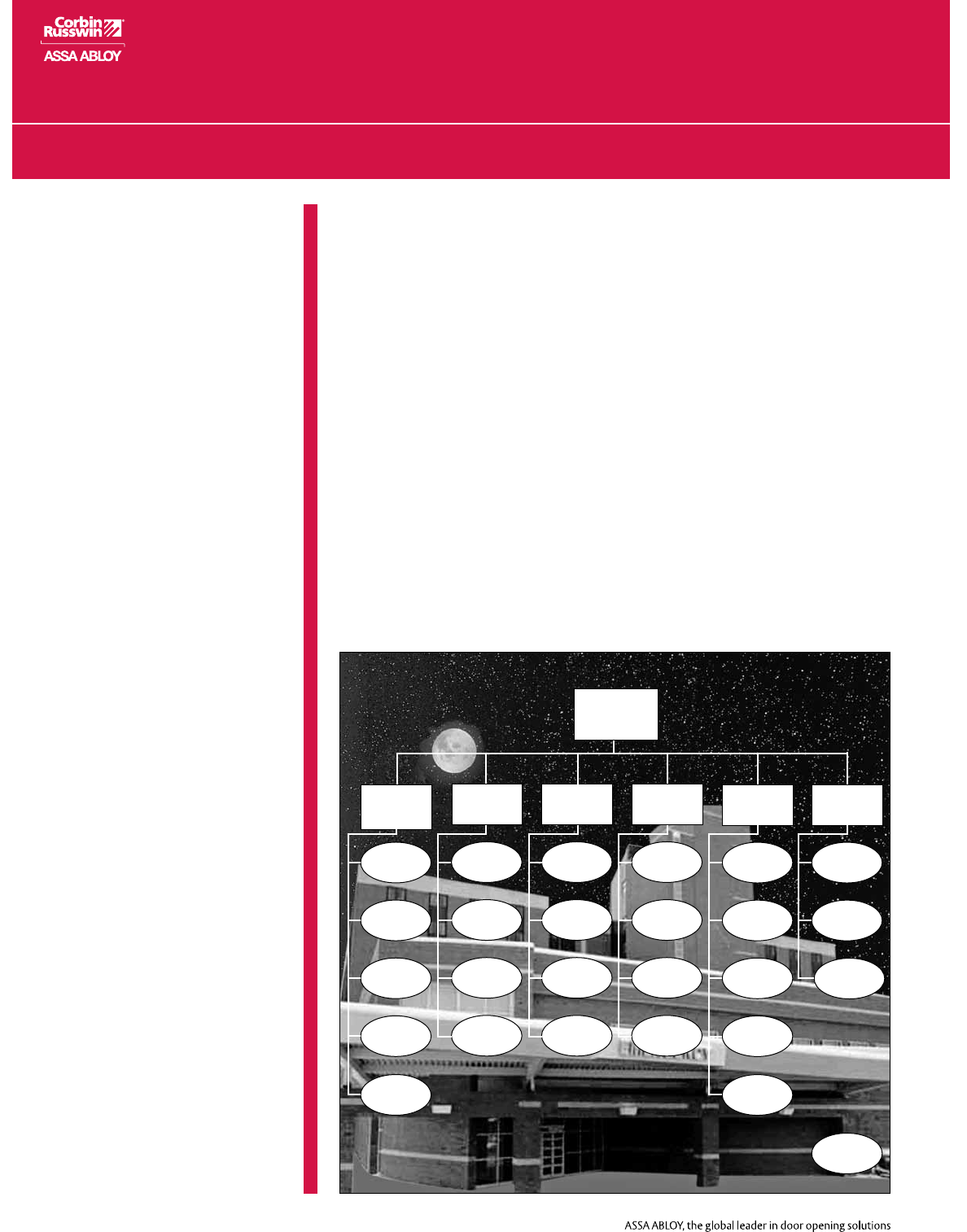

The keying system is the “software” of a building's security. As shown in the schematic

below, it turns each hardware product into an access control device.

The choice of cylinder mechanism must be planned together with the keying system.

The variety of mechanisms available from Corbin Russwin offers the right balance of

security, convenience and expansion capability for every job.

AA

Master

Maintenance

A

Grand Master

AB

Master

Perimeter

AC

Master

Administrator

AD

Master

Doctors’ Ofﬁces

AE

Master

Nursing

AF

Master

Food Service

AA1

Electrical

Closets

AB1

Building

Entrances

AC1

Chief of

Staff

AD1

101

AE1

2nd Floor

AF1

Kitchen

AF2

Cafeteria

AF3

Food Storage

SKD1

Pharmacy

AE2

3rd Floor

AE3

4th Floor

AE4

5th Floor

AE5

6th Floor

AD2

102

AD3

103

AD4

104

AC2

Personnel

AC3

Accounting

AC3

Accounting

AB2

Exit Alarms

AB3

Gates

AB4

Parking

AA2

Phone

Closets

AA3

Heating and

Air Cond.

AA4

Janitor

Supplies

AA5

Janitor closets

Restrooms

3

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Cylinders and Keys

Key Systems

Designing Master Key Systems

3

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Step 1

Determine the type of locking system

• Conventional“open&restrictedkeyways”

- Not contract controlled

• Patentedlockingsystem

- A notice of acceptance will be

required between Corbin Russwin

and Owner

- Factory-based system

- Key blank distribution restrictions are

in place

•Security(secondarylockingmechanisms,

example; Pyramid Security)

•Highsecurity(sameasSecurityplus

UL437 – example; Pyramid High

Security)

•Standaloneaccesscontrollocking

 devices(atdoorwiring,example;

Access 800)

- To facilitate multiple users through

common doors

•Integratedlockingsystems(hardwired

into access control systems)

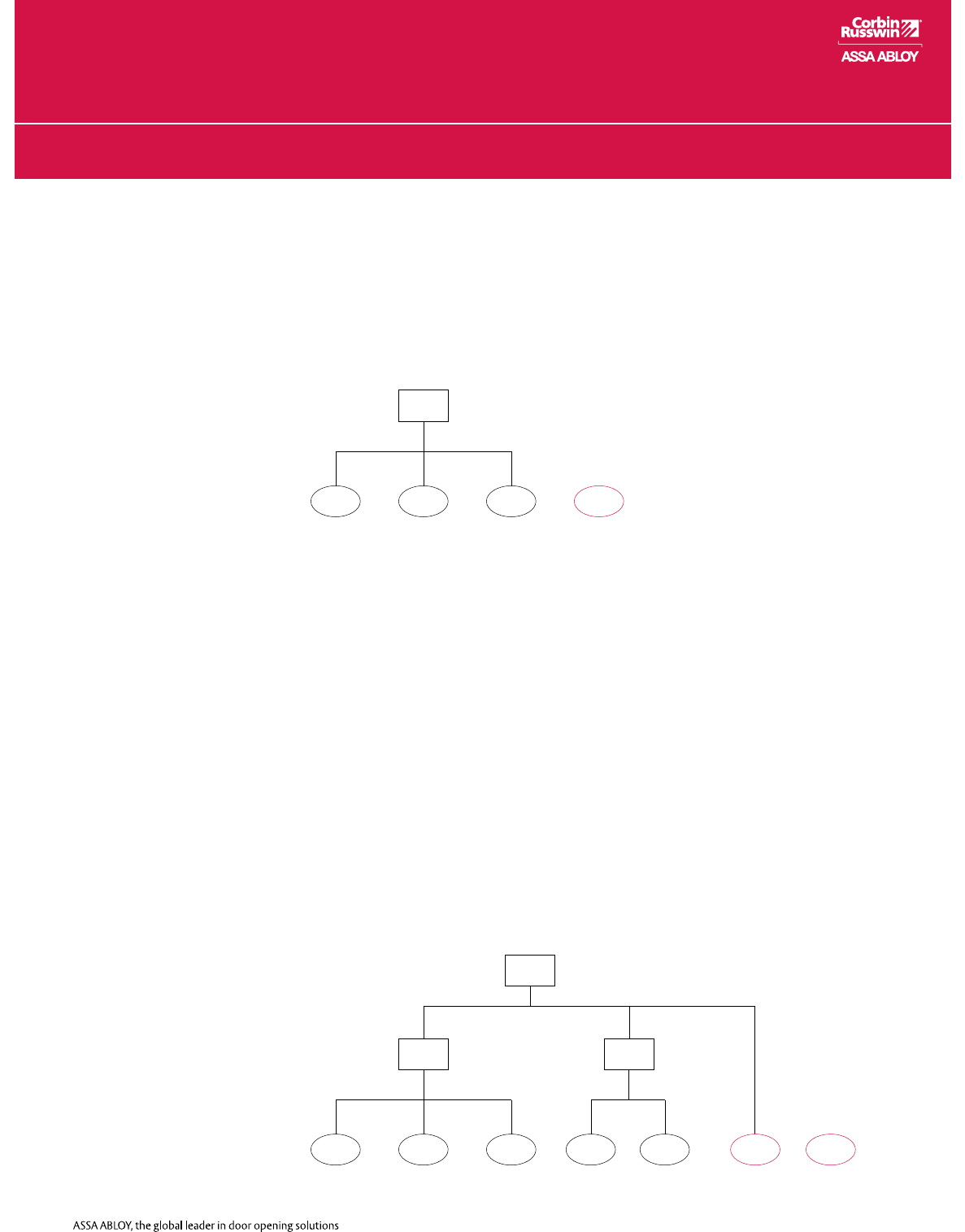

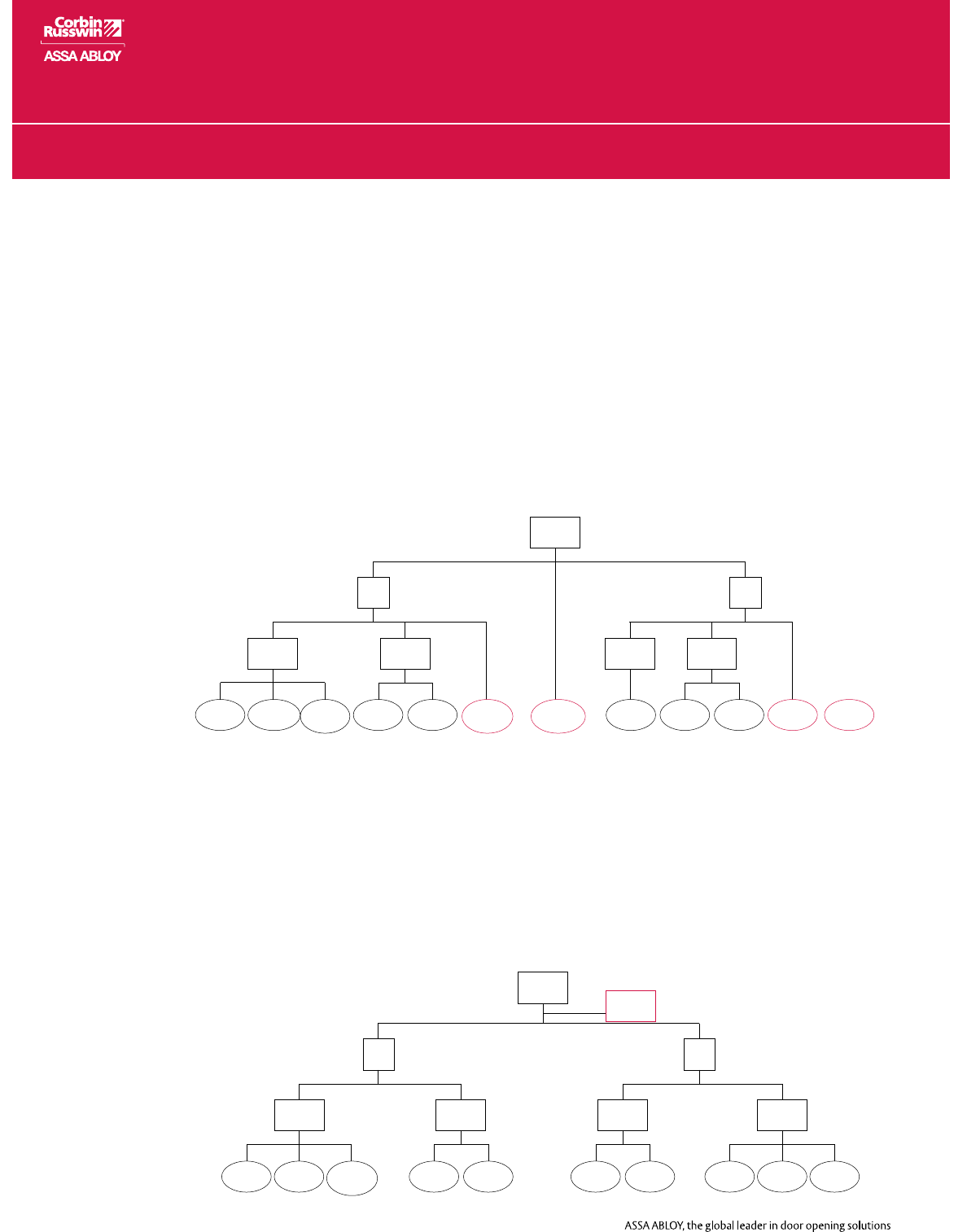

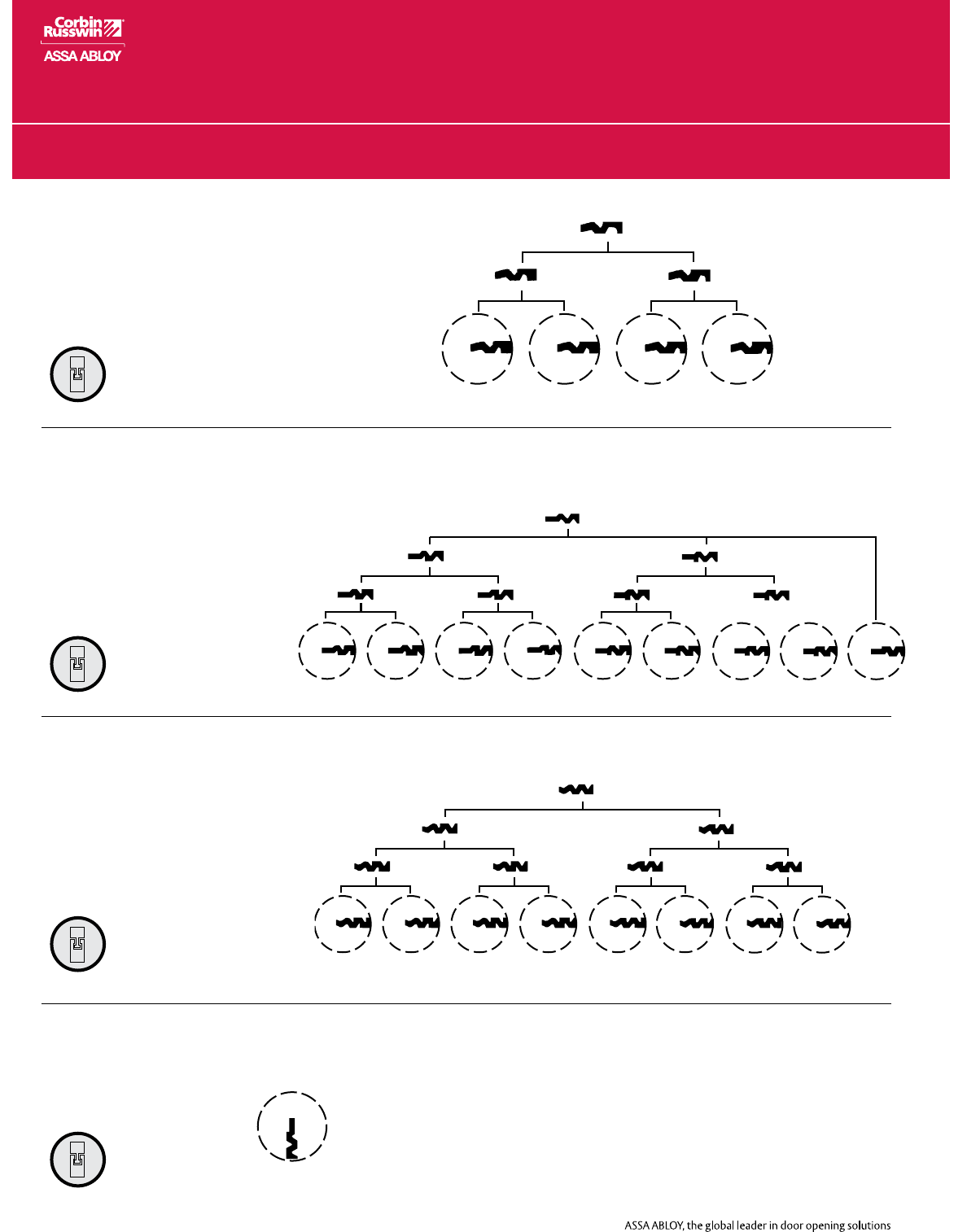

Step 2

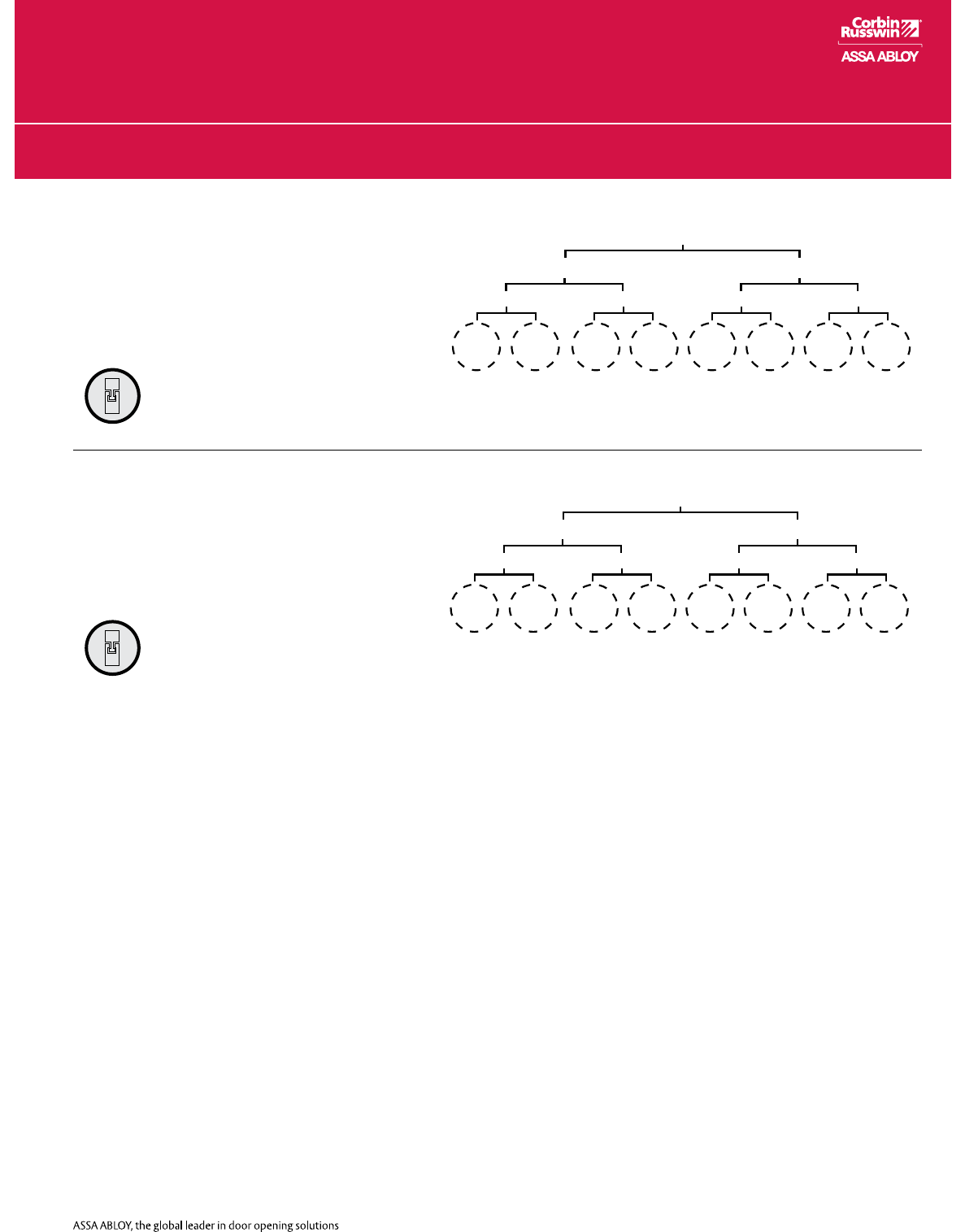

Establish the level of the master key

system. The higher the level the less

secure.

•Leveltwo–“SimpleMasterKeysystem”

- Change key, and master key only

•Levelthree–“GrandMasterKeysystem”

- Change key, master key, and Grand

Master Key

•Levelfour–“GreatGrandMasterKey

system”

- Change key, master key, Grand

Master Key, and Great Grand

Master Key

•Levelshigherthanfourarenot

recommended for security reasons

- With more levels, additional master

pins in each chamber of the cylinder

would be required, and with the

additional master pins the possibility

of unauthorized key interchanges

could occur

*See pages 50-52 on How to Establish Key

Systems.*

Step 3

Establish key hierarchy, key issuing

policies and procedures, and

administrative disciplines.

•Who,ifanyoneisauthorizedtocarry

the top master key?

•Whocarriesmasterkeysandchangekeys?

- Does every employee receive a key?

•Whatdisciplinaryaction(s)isbeingput

in place for violations?

- Fines or Deposits

> Lost keys

> Keys not returned

- Will there be a key receipt required?

> Where will that be kept?

• Whoisthesystemsadministrator?

- Authorized to purchase

- Responsible for Key Control

Administration

•WhoistheKeyControlAdministrator?

 -Maintainkeycontrolsoftware&

all transactions

Step 4

System Layout

•HelpfulHints

- KISS “Keep It Simple System”

> Do not use the term sub-master

    (notunlessit’slevel6andhigher)

•Lowestlevelpossible

•Keytothebuildingsecurityobjectives

NOT to the people

- Determine if the system is to be

designed for Security or Convenience

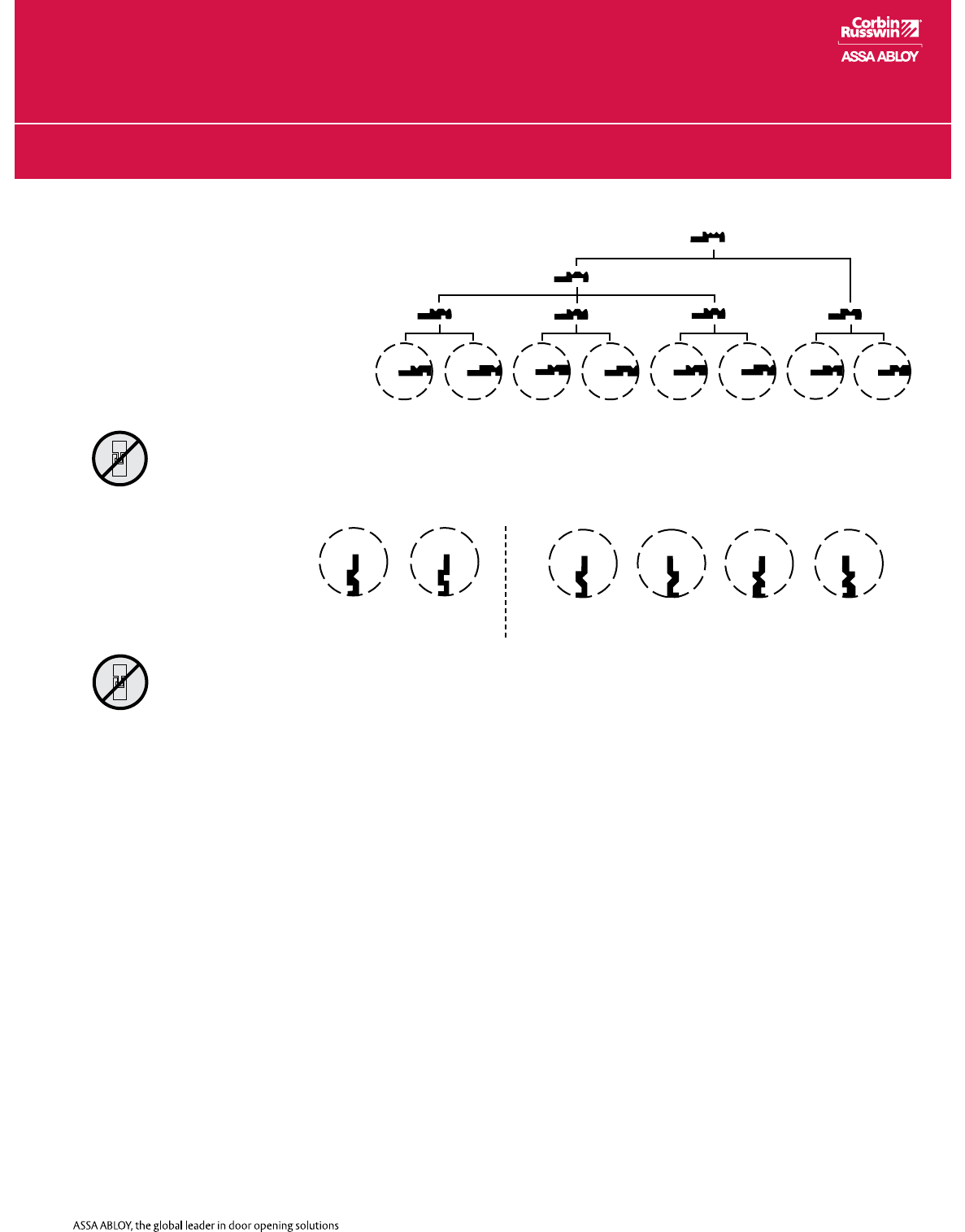

•Nocrosskeying,especiallywithpatented

locking systems and higher

•Keyalikewithinmasterkeygroupsas

much as possible

 -Avoidtop-heavysystems(example;

few change keys used under masters)

•Hastherightfunctionoflocksetbeen

selected?

- Storeroom vs. Classroom vs. Entry

- Single cylinder vs. double cylinder

> If double cylinder, how is the

inside cylinder to be keyed?

•Provideadequatequantityofkeys

- Top Master keys “limit the number of

these to only a few”

- Master keys “also limit the number

these”

- Change keys per key set and/or per

keyed alike sets

- Special operating keys

> Control keys “limit the number

of these”

Separate the internal departments

into sectors, example are:

•Perimeter

- Including all exterior doors, roof

surfaces, gates and fences, and

adjacent buildings.

•Operations

- Sensitive areas crucial to daily

operations, such as plant engineering,

security and mechanical operations.

•Management

- Areas that are vital for daily business

activities, primarily human resources,

administration, executive ofﬁces, IT,

sales, and accounting.

•Services

- Areas that provide employees and

visitors with services, such as

restrooms, medical treatment areas,

housekeeping, food service, retail

  (unlessit'saleasedoutsidesource).

•UniqueApplications

- Door openings requiring access

control hardware where key override

is required, or any other special

application which would be unique.

•Tenants

- Any tenants that are not part of the

building.

Step 5

Servicing & Maintenance

•In-houseoroutsidelocksmith

- Ensure proper training

- Establish key cutting log

- Establish service request procedures

•Serviceequipment

- Key kit

- Code cutter that complies with

  systemsdepths&spacing 

speciﬁcations

 - Locksmithingtools,xtures& 

accessories

•Establishstocklevels&requirementsto

avoid misuse of multi-section key blanks

- Additional cylinders ready for

emergencies

 - Additionalkeyblanks(ofallkeyways)

•Whoorwherearethekeyblanksgoing

to be kept?

•Whoisauthorizedtocutkeys?

- What form of work order will be used

to authorize cutting of keys?

- Who will sign the work order?

 - Whatrecordswillbekept&where?

•Whattypeofreportswillberequired?

- Overdue keys

- Miss-cut keys

> Who receives the reports?

•Onceakeyhasbeencut,what

instructions are given to the recipient?

- Key receipt recommended

•Ensurethatalltransactionsarerecorded

by the Key Control Administrator

•ENFORCEMENTFROMTHESTART!

SUPPORT AND BACK THOSE WHO

ARE RESPONSIBLE FOR MAINTAINING

AND SERVICING THE SYSTEM.

4

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Key Wizard®

Key Systems

Key Management Software

Features:

• Freetechnicalsupportandfreesoftwareupgradesforoneyear

• Customizedquery,reportandsearchcapability

• Comprehensivehardwarelistingsfordoorlocations

• Displayskeyholderphotosandsignaturesforverication

• Clear,easytoreadscreens

• Automaticremindersformaintenance,back-upsandoverdue

keys

• Networkandstandaloneversionsavailable

• Accuratekeysymbolsorting

• Audittrailtrackschangesmadetokeyholders

• Printingofdoornumberlabelstoensurepropercylinder

installation

• Keyauthorizationtracking

• Customizedkeyreceiptsandauthorizationforms

• Trackingofloanedkeysandkeydeposits

• Storesmaintenanceservicehistoryrecords

• Canmanagemultipleendusersandmultiplekeysystemsfor

most manufacturers

• Importingofkeysystems,keyholdersandlocations

• Exportingofkeysystemsandlocations

• Globalkeysearchacrossmultiplemasterkeysystems

• Multi-levelpasswordprotection

• DownloadofkeybittingstoITL9700Codemachine

• PinningCalculators

Computer System Requirements:

•500MHzprocessororgreater

•Windows98,2000,ME,NT,XP,Vistaor7

•64MBRAM

•CDDrive

•Mousepointingdevice

•70MBharddiskspace

Demo Version

Demo versions are available. Demos can be downloaded from the

Corbin Russwin website at http://www.corbinrusswin.com or

www.keywizard.net

How to Order:

All Key Wizard programs are licensed speciﬁcally to each facility

end user. Special online ordering procedures apply. The following

information is required for each system:

End User Facility Name

End User Contact Individual

Mailing Address

Phone Number

Key Wizard Technical Support:

1-800-610-1706

Advantages

A key management software program

is essential for any type of organization.

Keeping track of the key holders in

a master key system is critical for

maintaining key control and ensuring the

security and integrity of the system.

Key Wizard by Corbin Russwin was

designed to provide a user-friendly tool

for facility end users to track detailed

information concerning their keying

system. It offers improvements over

existing key management software by

utilizing clutter-free and easily navigated

screens. This system uses a Microsoft®

Outlook® type of layout.

Key control for a facility is maintained

by adopting a complete system of

policies, procedures, record keeping and

specialized products. A comprehensive

key management software program is one

aspect of a complete key control system.

Key Wizard by Corbin Russwin provides

the facility with accurate information

concerning keys, key holders, hardware

locations, master key systems, overdue

keys and maintenance service schedules,

all of which can be customized.

5

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Numbering Scheme Overview

Key Systems

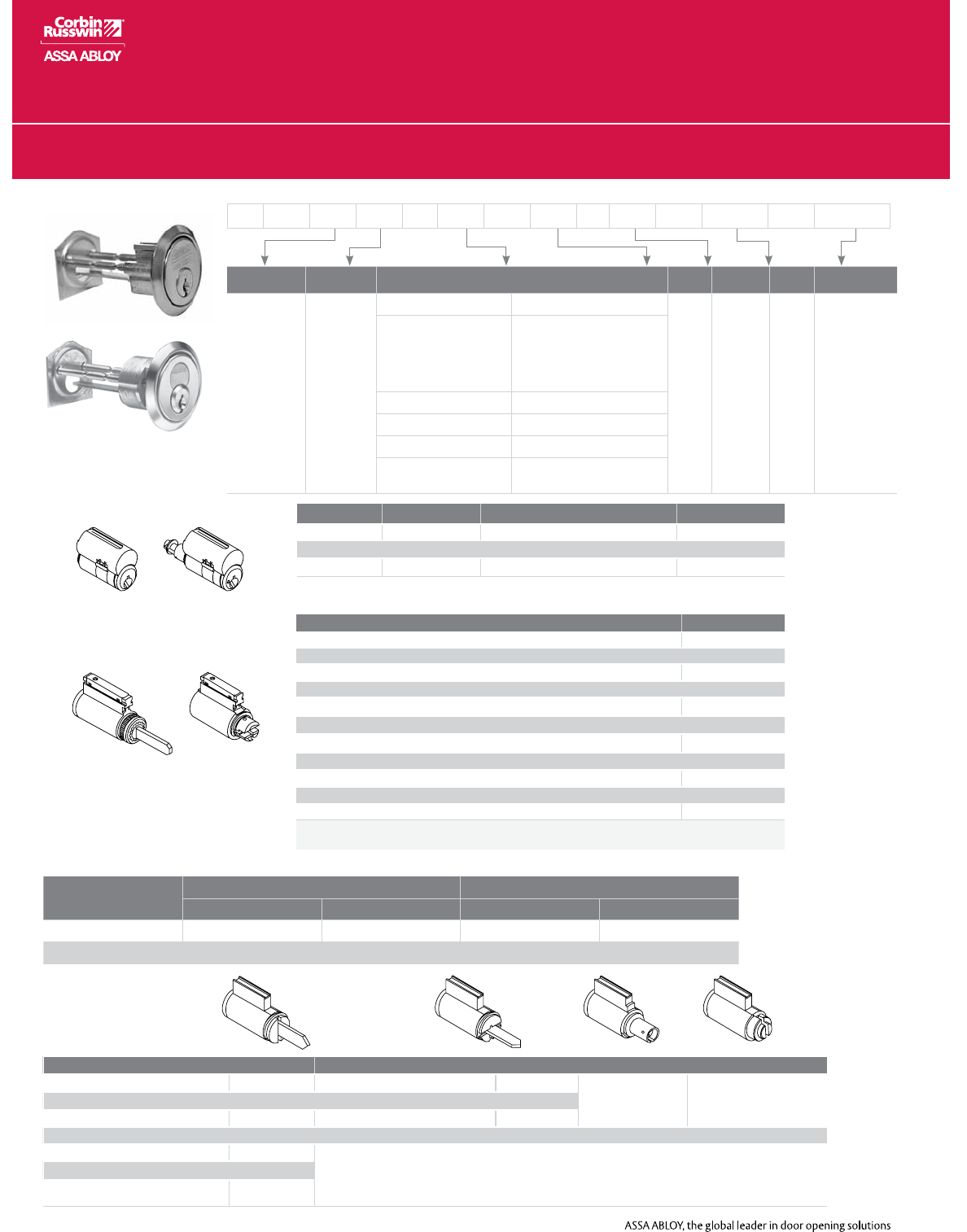

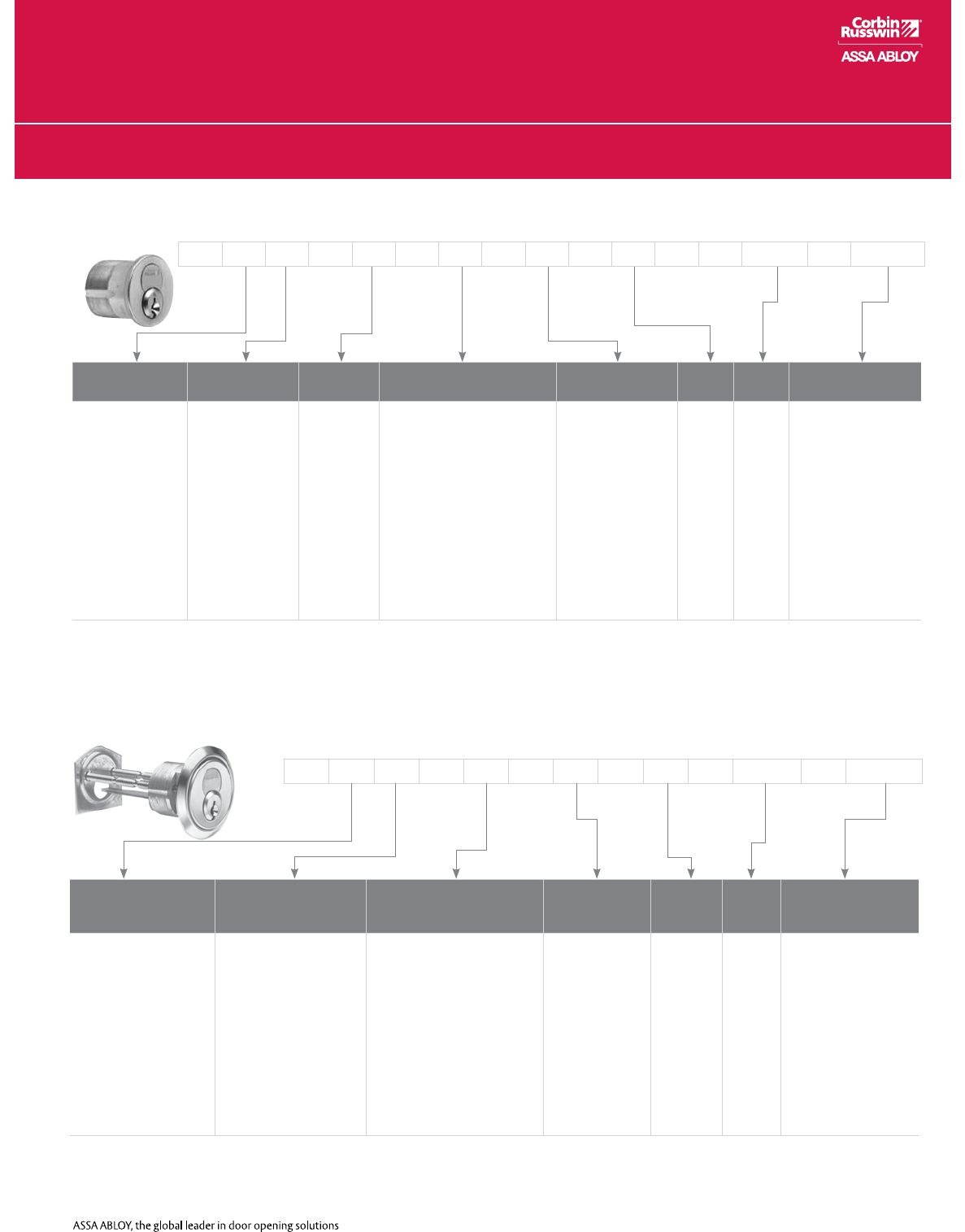

How to Order Cylinders

Finish

Description Specify

Bright Brass 605

Satin Brass 606

Bright Bronze 611

Satin Bronze 612

Dark Oxidized Satin Bronze, Oil Rubbed 613

Dark Oxidized Satin Bronze, Equivalent 613E

Bright Nickel Plated 618

Satin Nickel Plated 619

Flat Black Coated 622

Bright Chromium Plated 625

Satin Chromium Plated 626

Bright Stainless Steel 629

Satin Stainless Steel 630

Black Oxidized Bronze, Oil Rubbed 722

Cylinder Type Mechanism Function Length Cam Pins Keyway

10 Mortise

11 Flex Head Mortise

12 Concealed Shell

Mortise

13 Thumbturn Mortise

14 Dummy Mortise

15 Access 3 Mortise - AP

16 Access 3 Mortise - AS

17 Access 3 Mortise - AHS

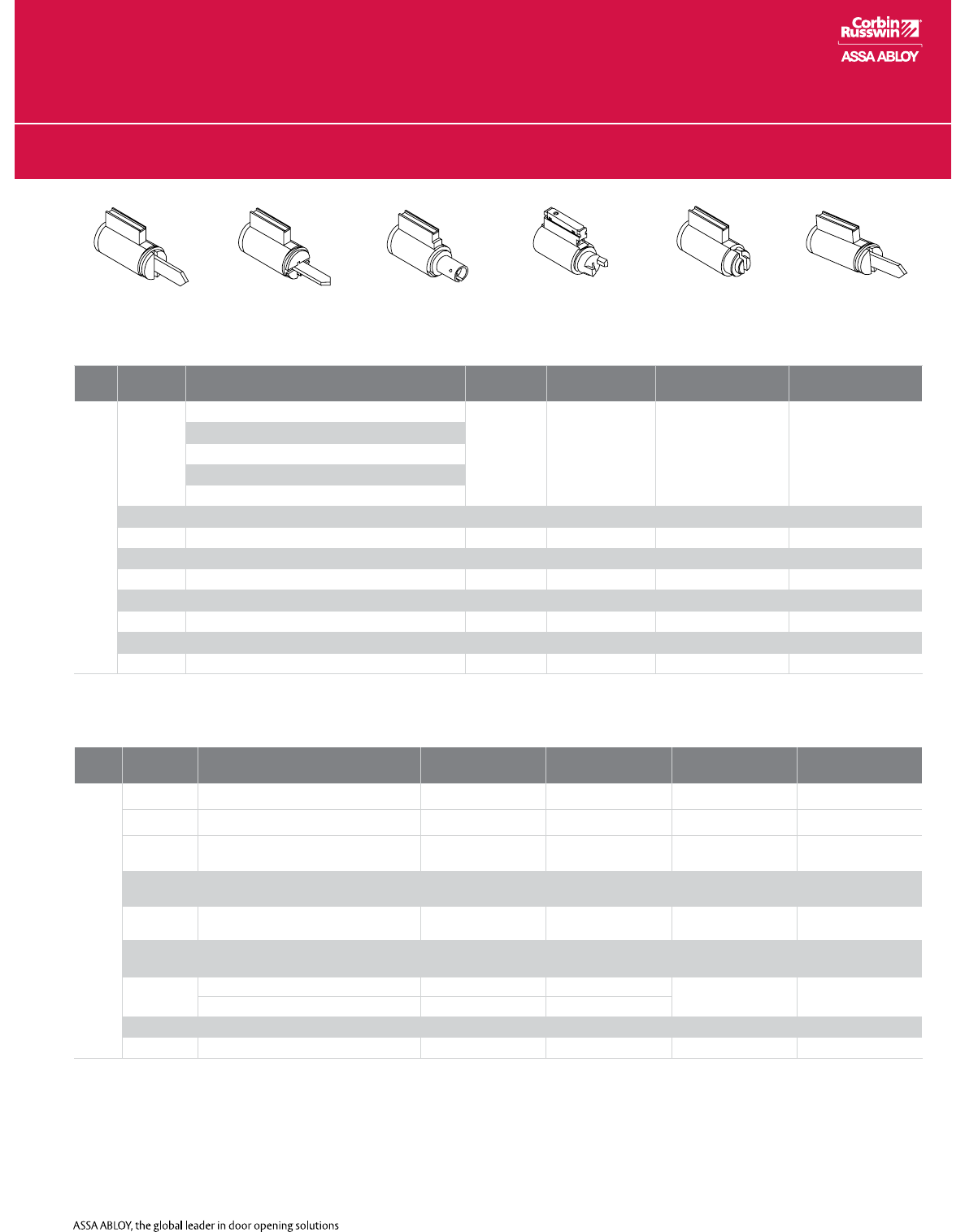

20 Knob/Lever

21 Continental Knob

22 Competitor Knob/Lever

23 Access 3 Competitor

Knob/Lever

24 Competitor Keyways

25 Access 3 KIK/KIL - AP

26 Access 3 KIK/KIL - AS

27 Access 3 KIK/KIL - AHS

28 Access 3 Competitor

KIL - AS

29 Access 3 Competitor

KIL - AHS

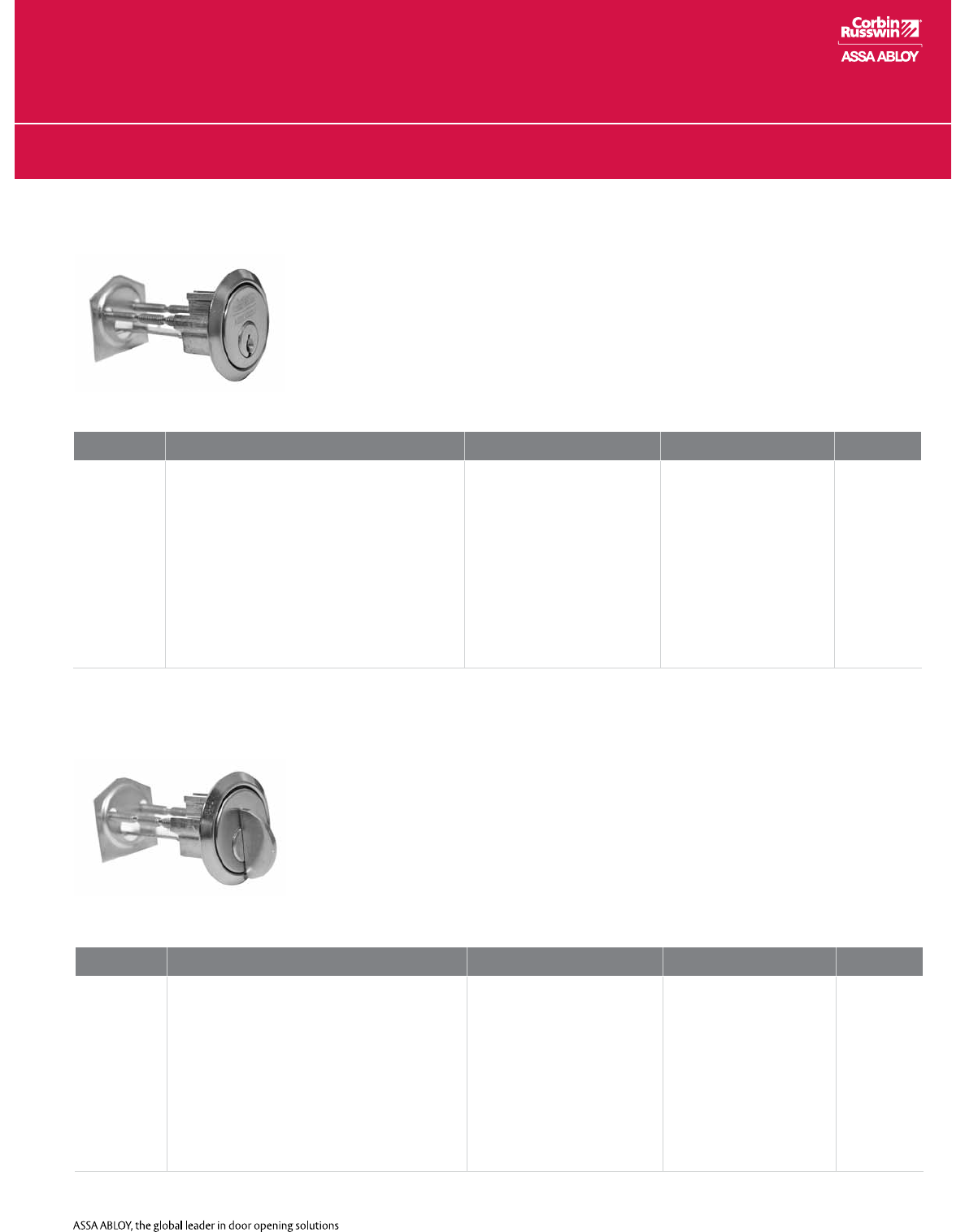

30 Rim

33 Thumbturn Rim

35 Access 3 Rim - AP

36 Access 3 Rim - AS

37 Access 3 Rim - AHS

42 Special Application

44 DL2200, DL3200

45 Access 3 DL2200/

DL3200 - AP

46 Access 3 DL2200/

DL3200 - AS

47 Access 3 DL2200/

DL3200 - AHS

80 IC-CoreOnly(LFIC)

85 Access 3 IC Core - AP

86 Access 3 IC Core - AS

87 Access 3 IC Core - AHS

2300 RFC Padlock

0 Standard

1 Security

2 Pyramid

3 IC Pyramid

 Cylinder(LFIC)

4 SFIC Housing

6 Master Ring

7 LFIC Housing

8 IC Complete

 Cylinder(LFIC)

9 IC Security

 Cylinder(LFIC)

0 Standard

1 Hotel

2 Blockout

3 Classroom

4 Brink CW

5 Brink CCW

6 Obsolete

Crossbar ED6200

7 Pyramid Security

8 UL IC Housing

Access 3

(Mortise Cylinder) Non-IC

100 1"(25mm)

118 1-1/8"(29mm)

114 1-1/4"(32mm)

138 1-3/8"(35mm)

112 1-1/2"(38mm)

134 1-3/4"(44mm)

200 2"(51mm)

214 2-1/4"(57mm)

212 2-1/2"(64mm)

234 2-3/4"(70mm)

300 3"(76mm)

314 3-1/4"(83mm)

312 3-1/2"(89mm)

334 3-3/4"(95mm)

(Mortise Cylinders) IC

114 1-1/4"(32mm)

138 1-3/8"(35mm)

112 1-1/2"(38mm)

134 1-3/4"(44mm)

200 2"(51mm)

214 2-1/4"(57mm)

212 2-1/2"(64mm)

(Rim Tailpiece)

058 5/8"(16mm)

114 1-1/4"(32mm)IC

138 1-3/8"(35mm)

178 1-7/8"(48mm)IC

178V 1-7/8"(48mm)verticalIC

200 2"(51mm)

200V 2"(51mm)vertical

318 3-1/8"(78mm)IC

312 3-1/2"(89mm)

312V 3-1/2"(89mm)vertical

A01 Cloverleaf

A02 Straight

A03 Adams Rite® MS

A04 DL4000 Series

A05 Adams Rite 4070

A06 Schlage® Cloverleaf

A07 DL4100 Series

A61 New MR Cloverleaf-

locks made after 5/93

A62 MR Straight

A63 Large MR Short

A64 Large MR Long

A65 Old MR Cloverleaf -

locks made prior to

5/93

A92 Exit Grip Trim 01, 02

A93 Obsolete Deadlocks:

Corbin® 610 Series and

Russwin® 1403 Series

6 Standard

7

752

852

981

A

DH

N

X

Z

Access 3

Pyramid

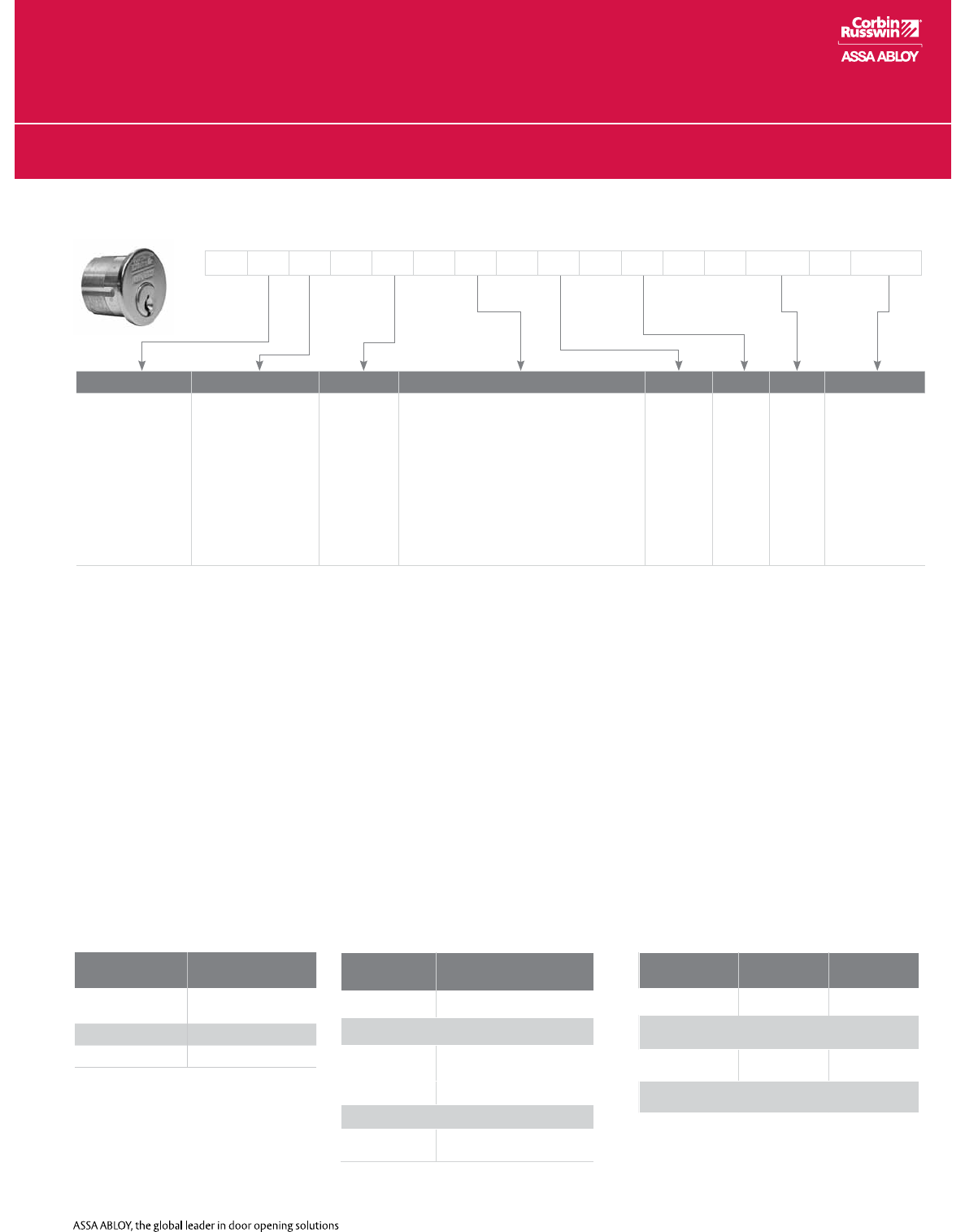

10 0 0 – 118 – A01 – 6 – L4 – Finish x Options*

*For cylinder options, see pages 43-44

6

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

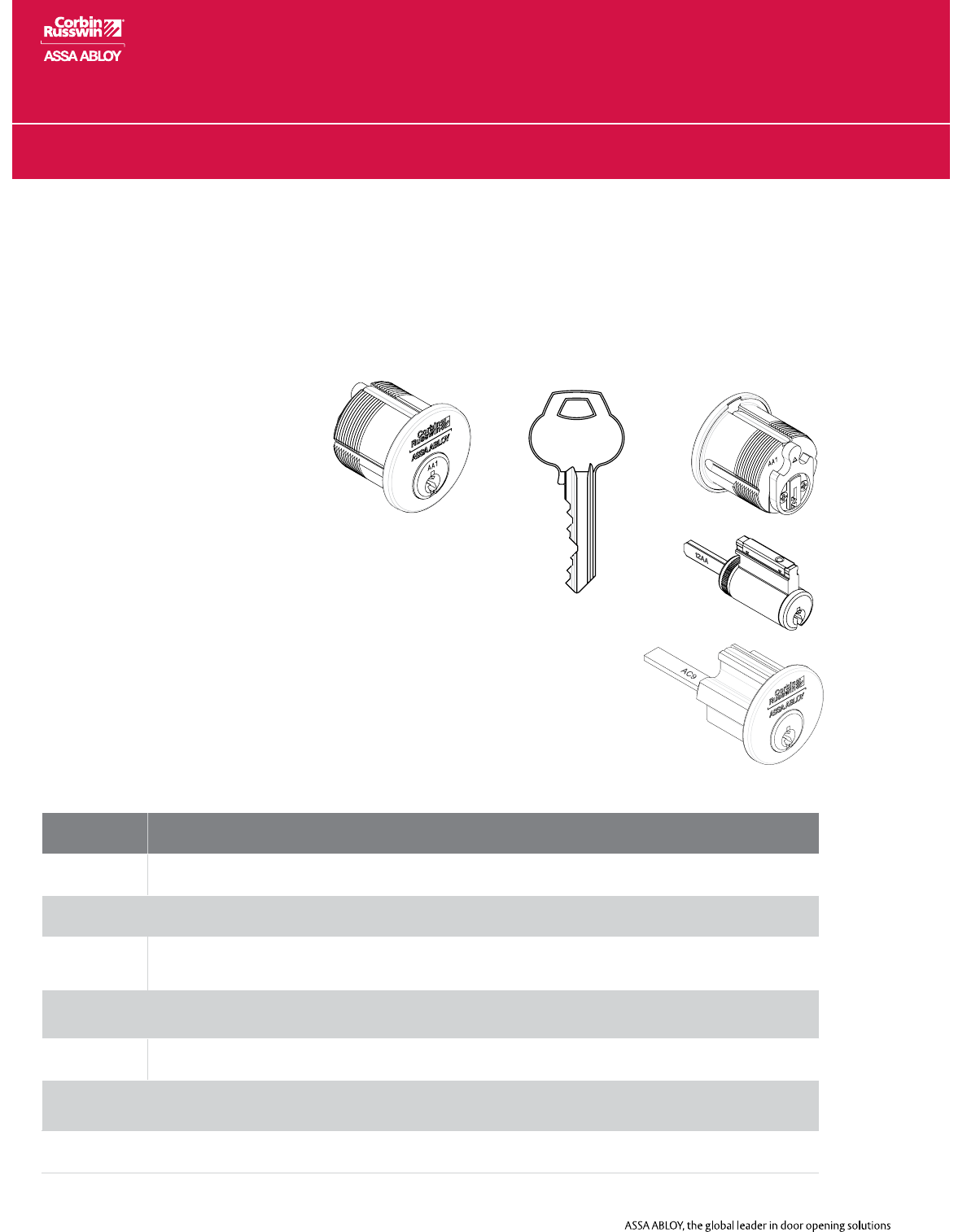

Cylinder and Key Stamping

Key Systems

VKC and CKC

Visual and Concealed Key Control

With these options, keys and/or cylinders

are stamped with their respective keyset

symbol, so lock mix-ups during installation

or key mix-ups afterwards are less likely

to happen – and easier to straighten out

if they do. Lost keys are also easier to

replace. The coded information on the

cylinder tells you how the cylinder is keyed,

thereby eliminating trial and error.

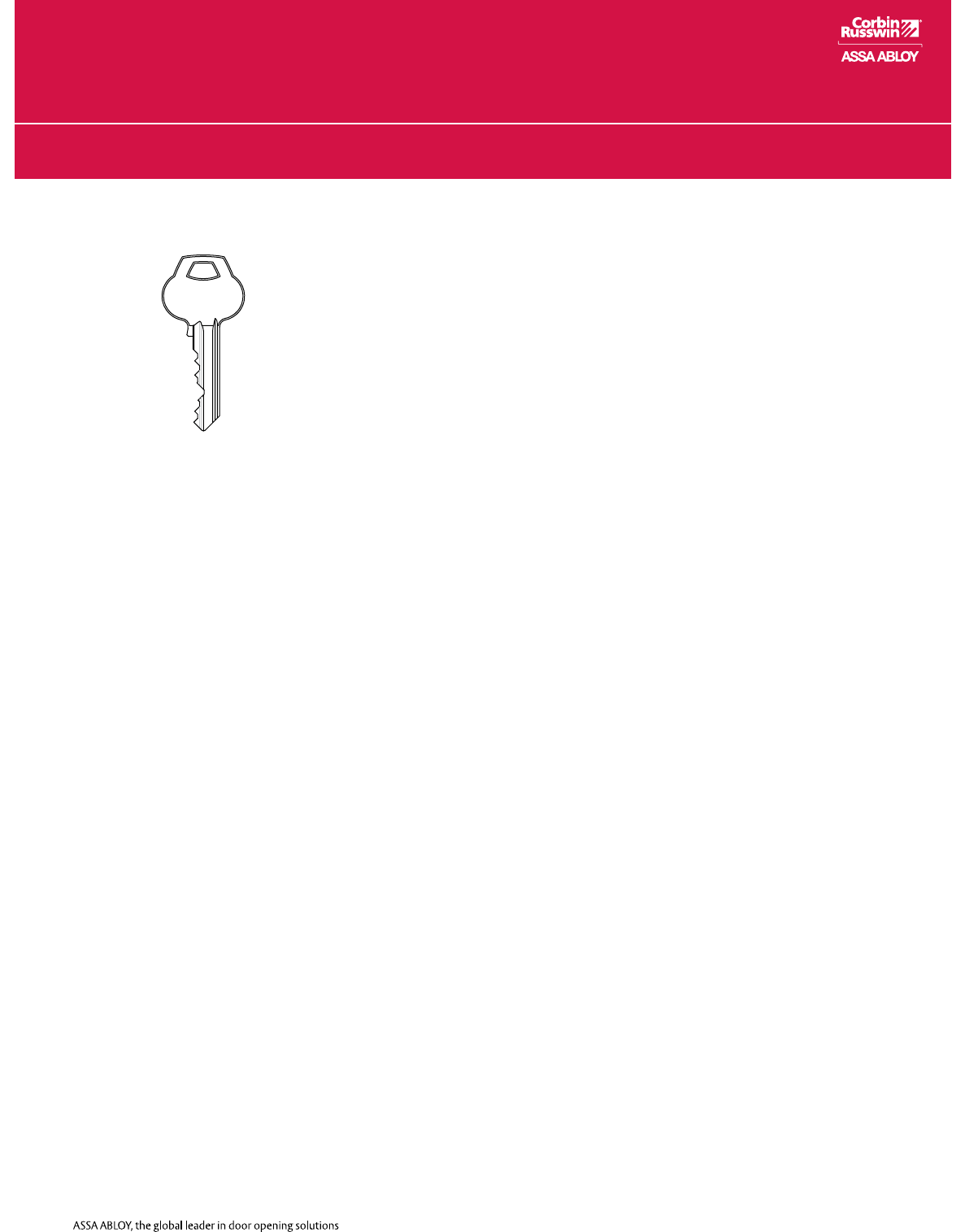

For example, the symbol AA1 shown in

the illustration identiﬁes the lock to be

operated by grand master key A, master

key AA and change key AA1. Upon

written authorization from the building

owner to an authorized Corbin Russwin

Distributor, a bitting list can be furnished

for each job to translate the symbols into

key bittings.

If a key is lost, it can easily be replaced by

referring to the symbol on the cylinder and

the bitting on the bitting list. VKC is not

available on Security or Pyramid cylinders.

Visual Key Control (VKC)

For Greater Convenience

The key symbol is stamped on the plug

face or other visible portion of the front of

thecylinder.(VKCisavailableonallkeys,

but not available on Security, CK4400

Series Lockset or Pyramid cylinders.)

Concealed Key Control (CKC)

For Greater Security

For greater security, specify CKC on the

cylinders. The key symbol is stamped in

a concealed location, such as the rear of

the cylinder. It is not visible to the general

occupants of the building but can be

accessed by authorized personnel upon

removing the cylinder from the lockset.

AA1

The following codes and deﬁnitions have been established for specifying cylinder and key stamping:

Quick Code Deﬁnition

VKC0 Nokeyset,registrynumber,keyway,norbittingstampingonanykeys.Includesmasterkeysandchangekeys.(Keyswillbetagged.)

VKC1 Master keys stamped with their keyset symbol and registry number. Change keys stamped with their keyset symbol and keyway.*

(Standardforhighsecurityandsecuritycylinders.)

VKC2 Master Keys stamped with their keyset symbol and registry number. Change keys stamped with their keyset symbol and keyway.*

Cylindersstampedwiththeirkeysetsymbolonthefaceoftheplug.(Notavailableforhighsecurityorsecuritycylinders.)

VKC3 Master Keys stamped with their registry number. Change keys stamped with their bitting, keyway* and system. Cylinders stamped with

theirkeysetsymbolonthefaceoftheplug.(Notavailableforhighsecurityorsecuritycylinders.

CKC2 Master keys stamped with their keyset symbol and registry number. Change keys stamped with their keyset symbol and keyway.*

Cylinders stamped with their keyset symbol in a concealed location.

CKC3 Master keys stamped with their registry number. Change keys stamped with their bitting, keyway* and system. Cylinders stamped with

theirkeysetsymbolinaconcealedlocation.(Notavailableforhighsecurity,orsecuritycylinders.)

*Keyway will NOT be stamped on the keys for security or high security cylinders, nor restricted or protected keyways unless speciﬁcally requested as per the

purchaseorder.(KB18,KB19,KB28orKB90series)

7

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Construction Keying

Key Systems

Temporary Access

CONSTRUCTION

MASTER

Construction Master Keying

ConstructionMasterKeying(CMK)isaCorbin

Russwin keying option that provides the extra

security needed in the transition from construction

of a building or complex to completion.

The construction master key operates all Corbin

Russwin cylinders while the building is under

construction. Upon completion of the construction

phase, it can be voided without removing the

cylinders from the locks, simply by turning the

change key in each cylinder. Interchangeable

core jobs with construction master keying further

require a construction control key to install and

remove cores during the construction phase.

The permanent master and change keys for the

system are always packed and shipped separately,

and the order must include the names and

addresses of individuals to whom the construction,

permanent master and change keys should be

sent.

This feature is NOT available on Security or

Pyramid cylinders.

SKD Caution

Unless otherwise speciﬁed, SKD sets will be

construction master keyed. When construction

master keying is established for SKD sets, Corbin

Russwin issues a separate SKD CMK key as well as

an SKD CMK Control key if required.

How to Order CMK

To order locksets and/or cylinders with the

construction master key feature, the quick code

CMK should be indicated as an option.

Temporary Construction Cores

Lockable

A more secure method of construction keying

for interchangeable core hardware is the use of

temporary construction cores. Corbin Russwin

recommends this method of construction keying

for IC jobs.

Hardware is furnished with construction cores

that are keyed alike to a combination unrelated

tothepermanentsystem’smasterkey.When

the building is turned over to the owner, the

permanent cores are installed and the temporary

construction cores can be returned to Corbin

Russwin for credit.

The IC temporary construction cores are available

in red, blue and green. The color options

enhance the user's ability to easily control access

to different locations on a construction site, or

identify different locations for speciﬁc keying

applications.

How to Order Lockable

For 6-pin, use quick code CT6

IC6-pinwithRedtemporaryconstructioncore(Red),

CT6R

IC6-pinwithtemporaryconstructioncore(Blue),CT6B

IC6-pinwithtemporaryconstructioncore(Green),CT6G

For 7-pin, use quick code, CT7

IC7-pinwithtemporaryconstructioncore(Red),CT7R

IC7-pinwithtemporaryconstructioncore(Blue),CT7B

IC7-pinwithtemporaryconstructioncore(Green),CT7G

For Pyramid, use quick code CTP.

Note: Orders specifying only CT6 or CT7 without

the color designation will receive the Red IC

temporary construction core by default.

Examples:

ML2051 x LSA x 626 x RH x CT6

1080 x 114 x A01 x 626 x CTP

CL3355 x NZD x 626 x CT6B

1080-114-A01 x 626 x CT6G

Permanent cores must be ordered separately.

Disposable

Corbin Russwin offers two formats of disposable

temporary cores. These cores do not require keys

for their operation and no returns or credits are allowed.

Disposable cores are available for Corbin Russwin

largeformatinterchangeablecore(LFIC)housings

orforsmallformatinterchangeablecore(SFIC)

housings. Please note that Corbin Russwin does

not provide permanently keyed SFIC cores.

How to Order Disposable

LFIC

For 6-pin, use quick code CT6D

For 7-pin, use quick code CT7D

For Pyramid, use quick code CTPD

Examples:

ML2051 x LSA x 626 x RH x CT6D

1080 x 114 x A01 x 626 x CTPD

Permanent cores must be ordered separately.

SFIC - Key-in-lever/knob locksets

For 6- and 7-pin, use quick code CTSD

SFIC - Mortise Locks and Exit Devices-Rim Cylinders

For 6-pin housing, use quick code CLS6

For 7-pin housing, use quick code CLS7

8

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Conventional

Key Systems

Mortise

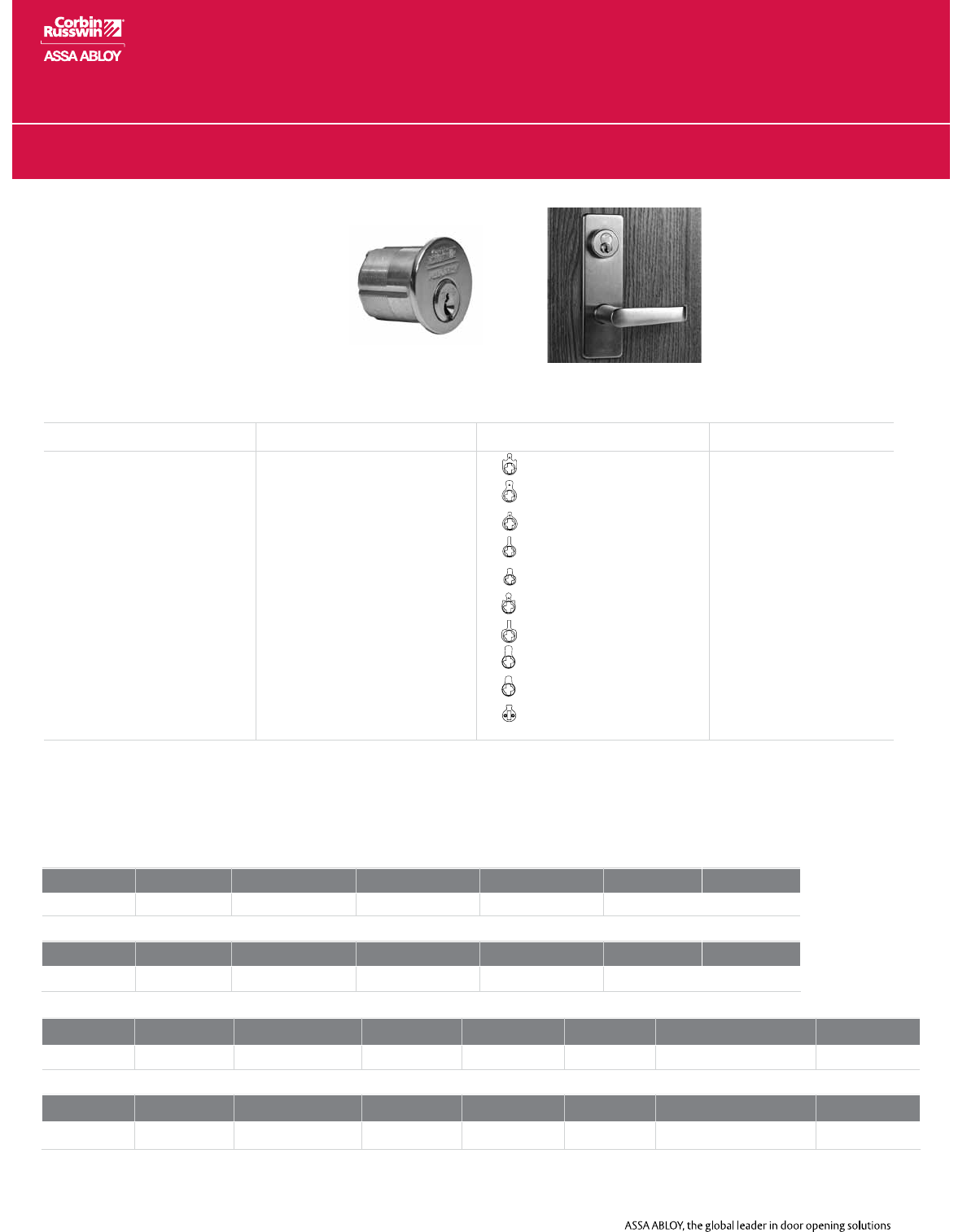

Mortise Cylinders

For use with all mortise locks and

DL3000 Deadlocks. IC: page 15.

Security: page 17. Master Ring: page 20.

Pyramid: page 24.

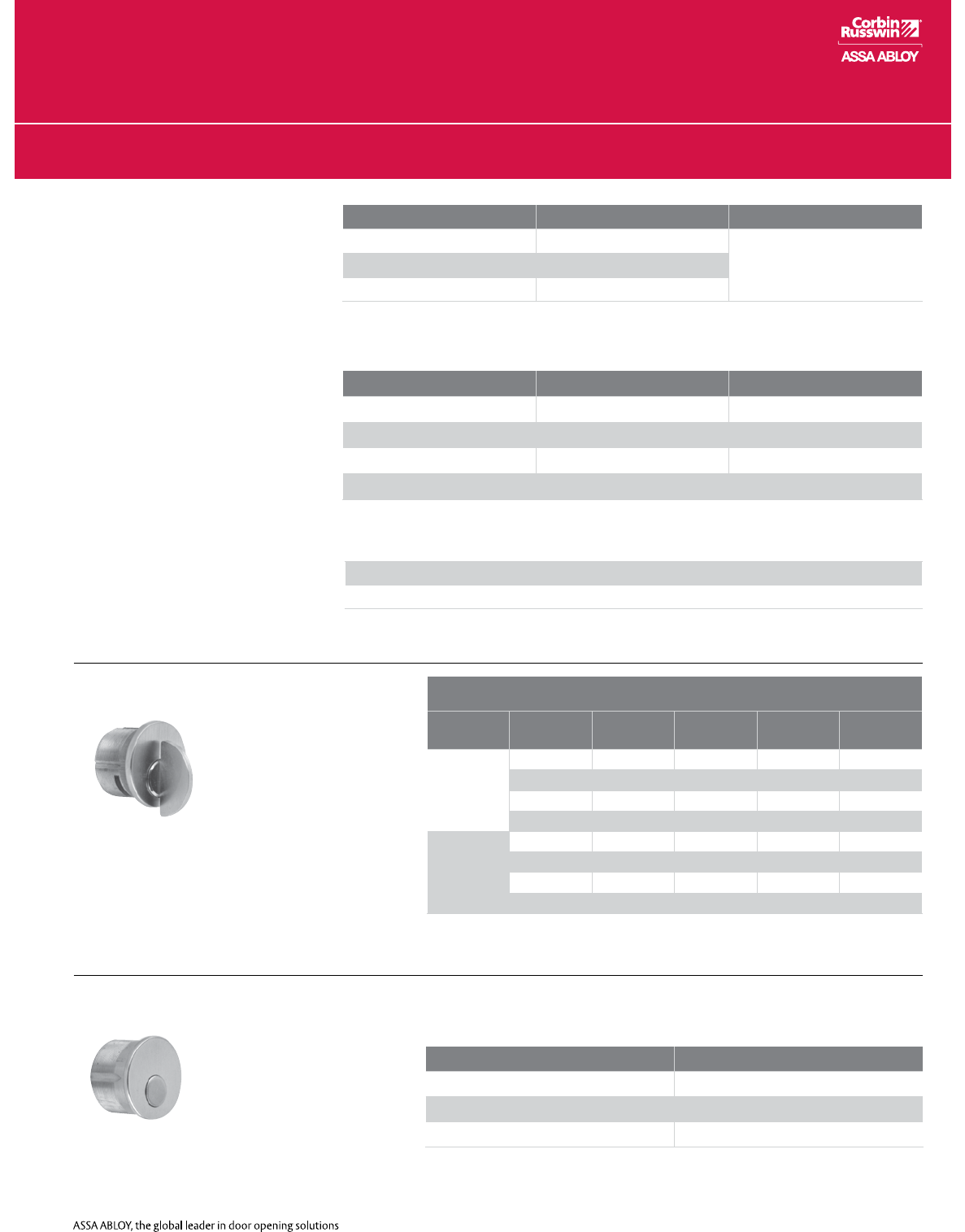

Flexible Head Mortise Cylinders

Use Flexible Head mortise cylinders

only with sectional trim mortise locks.

The head is spring-loaded to adjust for

minor variations in door thickness. See

page 20 for Master Ring

Concealed Shell Mortise Cylinders

Concealed shell cylinders are for

mortise locks using “Plug Only to

Show” escutcheon trim.

Length is measured from behind the cylinder head to the

end of the cam.

For cam illustrations and applications, see page 40.

Length

Type Length Cam Pins Keyway Finish

1000 100 1"

(5pinonly) (seepage40) 5 (1"lengthonly) (seepages

31-39)

605

118 1-1/8"

(standard) A01 Cloverleaf 6 (standard) 606

114 1-1/4" A02 Straight 7 (availablefor 

1-1/4"-3") 611

138 1-3/8" A03 Adams Rite® MS and 612

112 1-1/2" DL3000 Deadlock 613

134 1-3/4" A04 DL4000 Deadlock 622

200 2" A05 Adams Rite 4070 625

214 2-1/4" A06 Schlage® Cloverleaf 626

212 1-1/2" A07 DL4100 629

234 2-3/4" A62 MR Straight / 900 Series

Mullion 630

300 3" A92 ExitGripTrim01&02 722

314 3-1/4" A93 Obsolete deadlocks:

312 3-1/2" Corbin® 610 Series and

Russwin® 1403 Series

334 3-3/4"

Type Length Cam Pins Keyway Finish

1200 1001"(6-pinstd.) (seepage40) 5 (1"lengthonly) (seepages31-39)606

118 1-1/8" A01 Cloverleaf 6 (standard) 626

114 1-1/4" A02 Straight 7(availableonlyfor

1-1/4"- 1-1/2")

138 1-3/8"

112 1-1/2"

Type Length Cam Pins Keyway Finish

1100 1001"(6-pinstd.) (seepage40) 6 (standard) (seepages31-39) 605

118 1-1/8" A01 Cloverleaf 7 (availablefor 

1-1/4"- 1-1/2") 606

114 1-1/4" A02 Straight 611

612

613

618

619

625

626

722

9

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Conventional

Key Systems

Mortise

Classroom function cylinders have a

pin to block cam rotation in the locking

direction. The pin may be installed on

either side of the cam, depending on

the hand of the door.

These cylinders may be used to ﬁll an opening

left when mortise cylinder operation is no

longer desired.

Thumbturn Cylinders

Dummy Cylinders

Not available with D1, D2, L1, L2, 752, 852 or A Class keyways. Order with A91 cam to accept discontinued Russwin®

“G” type long EMK.

Finishes: see Standard, Flexible Head and Concealed Shell Cylinder sections, page 8.

Finishes: 605, 606, 611, 612, 613, 625, 626, 629, 630, 722

Finishes: 605, 606, 611, 612, 613, 622, 625, 626, 629, 630, 722

Finishes: 605, 606, 611, 612, 613, 622, 625, 626, 629, 630

Hotel Function Cylinders

Guest Key and all normal master keys

have limited rotation to retract

latchbolt only. Emergency Master Key

(EMK)anddisplaykeyturn360°to

operate deadbolt as well.

Brink Function Cylinders

The change key turns in only one

direction while the master key turns

in both directions. While it was

developed for the detention market,

the cylinder can provide a creative

solution to other security needs

when used in conventional mortise

locks. 6-pin only. Integration of these

cylinders must be planned from the

inception of a keying system.

Cylinder for Obsolete Exit Device

For inside of obsolete Corbin® 3726

1/2 and 3727 1/2 and Russwin® 736

1/2 and 737 1/2 only. Cam rotation is

limited by steel pins on back of shell.

Type Number Remarks

Standard 1001-114-A01 Cylinders are 6-pin. Display and

Emergency Master Keys are cut

on 7-pin blanks

Flexible Head 1101-118-A01

Concealed Shell 1201-114-A01

Application Number Remarks

Folger Adam® NS400 Series x LEK 1004-118-A02 Clockwise

Folger Adam NS400 Series x LEK 1005-118-A02 Counterclockwise

Brink “CKS” 1004-118-A05 Clockwise

Brink “CKS” 1005-118-A05 Counterclockwise

1006-118-A02(6-pinonly)

Finishes: 605, 606, 611, 612, 613, 622, 625, 626, 629, 630, 722

Sufﬁx cam number to basic cylinder number.

Example: 1300-118-A03

Function Length Basic Number A02

(147F77)

A03

(111F55)

A93

(281F27)

Standard

1" 1300-100- • • N/A

1-1/8" 1300-118- •••

1-1/4" 1300-114- • • N/A

1-3/8" 1300-138- • • N/A

Classroom

1" 1303-100- N/A •N/A

1-1/8" 1303-118- N/A •N/A

1-1/4" 1303-114- N/A •N/A

1-3/8" 1303-138- N/A •N/A

Number Length

1400-118 1-1/8"

1400-114 1-1/4"

1400-138 1-3/8"

10

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Conventional

Key Systems

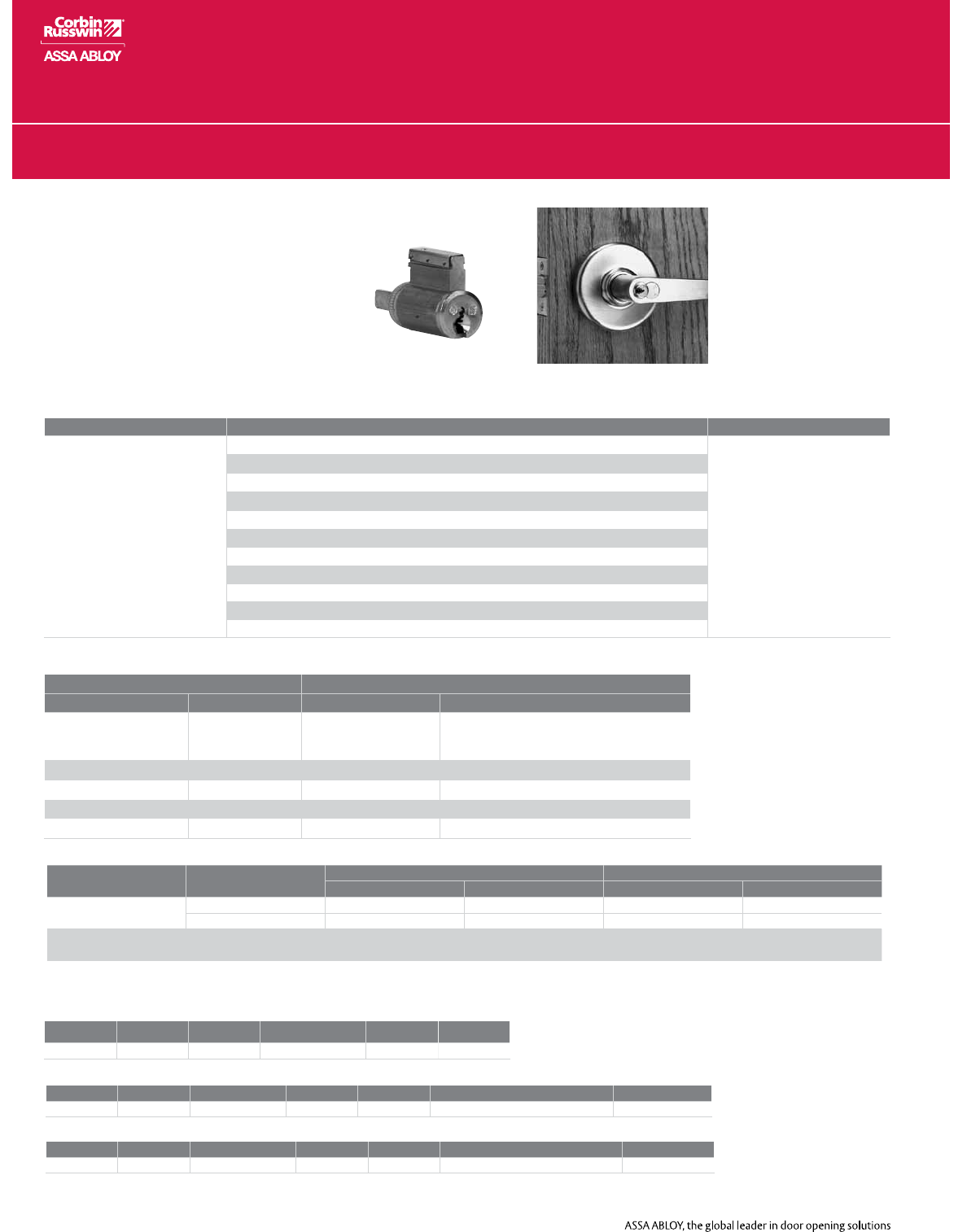

Component(Key-in-Lever/Knob)

Type Tailpiece Series Lever

(Plug diameter)

Knob

(Plug diameter)

Tailpiece Part Number

(Length) 6-Pin

Tailpiece Part Number

(Length) 7-Pin

2000

031 CL3100 Lever Trim (.509") 778F778(.692") 778F768(.536")

031H CK4300 (.509”) 778F778(.692”) NA

033 CL3300,CL3500,CL3800,CL3600(June

2000 and after) Lever Trim - A6/N6/PR6 (.509") 622F308(.950") 682F298(.794")

033H G1055 EDTrim(HorizontalTailpiece) (.509") 622F308(.950") 682F298(.794")

034 CL3400(LocksetSeriesObsolete)

CL3600(PriortoJune2000),A5/N5 (.509") 622F298(1.106") 622F308(.950")

037 CL3700 (.509") 682F298(.794") NA

CK4700 (.509")

038 CL3800(Obsolete1993-1997model) (.509") 596F898(1.056") NA

039 CL3900 (.509") 680F608(1.700") NA

039L CL3900(2",2-1/4"ThickDoors) (.509") 681F068(1.950") NA

044 CK4400 (.509") NA Separately NA

051 B2/G2/G3 ED Trim (.552") 489F028(.890") NA

052 UT5200/CK4200 (.552") (.552") No Tailpiece NA

2000-031, 033, 034 or 037 2000-038 2000-052 2000-044 2000-051

Note #1= For 7-pin version, sufﬁx -7 i.e. 2000-033-7

Component Cylinders

Finishes 606, 626

Type Tailpiece Series

Lever

(Plug

diameter)

Knob

(Plug

diameter)

Tailpiece Part

Number

(Length) 6-Pin

Tailpiece Part

Number

(Length) 7-Pin

Remarks

2001

031 CL3129 (.509") 775F958(.808") 775F968(.652") Use 2001-031-E8 for EMK Blank

034 CL3329/CL3629

CL3429(Lockset Series Obsolete) (.509") 585F338(1.046") 585F358(.890") Use 2001-034-E8 for EMK Blank

044 CK4429(StraightTailpiece) (.509") 564F508(.764") NA Use 2001-044-E4 for EMK Blank

052 CK4229 (.552") (.552") No Tailpiece NA Use 2001-052-E4 for EMK Blank

066 CK4429(TwistedTailpiece) (.509") 574F128(.835") NA Use 2001-066-E4 for EMK Blank

Type Tailpiece Series Lever (Plug

diameter)

Knob (Plug

diameter)

Tailpiece Part

Number

(Length) 6-Pin

Tailpiece Part

Number

(Length) 7-Pin

Remarks

2100 052

Ronde and

Continental Knob

(Obsolete)

(.552") No Tailpiece NA

Finishes 605, 606,

611, 612, 613, 625,

626

2100-052

2001-052 2001-044 2001-066

Note #1= For 7-pin version, sufﬁx -7, i.e. 2000-033-7

Note#2=2003-044usedforCK4455&CK4482priortoAugust1993

2000-031H

11

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Conventional

Key Systems

Component(Key-in-Lever/Knob)

2200-001 2200-002 2200-008 2200-076 2200-054 2200-003

Cylinders for Other Manufacturer’s Products - 6-pin

Type Tailpiece Series Lever (Plug

diameter)

Knob (Plug

diameter)

Tailpiece Part Number

(Length)

Tailpiece

Orientation

2200

001-A21

Alarm Lock DL2500 Series

(.552") (.552") 444F748(.813") Vertical

Arrow® H Series Knobs and Levers

Arrow Q Series Levers

Sargent®10Line(EnlargeLeverHole)

Schlage® D Series Levers

001-A22 Schlage AL and ND Series Levers (.552") 461F108(1.078") Vertical

002-A21 Schlage D Series Knobs (.552") 444F748(.813") Horizontal

002-A22 SchlageASeriesKnobs(PLY,etc.) (.552") 461F108(1.078") Horizontal

002-A23 SchlageASeriesKnobs(ORB,only) (.552") 520F358(1.328") Horizontal

003-A24 Lockwood®HSeriesKnobs(EnlargeKnobHole) (.552") 444F748(.813") Vertical

008 Sargent7,8,9Line(EnlargeKnobHole) (.552") NA

054 Yale®5400,6200KnobsOnly(EnlargeKnobHole) (.552") NA

076 Sargent7600Integralock(EnlargeKnobHole) (.552") NA

Cylinders with Other Manufacturer’s Keyways - 6-pin

Type Tailpiece /

Keyway Series Lever (Plug diameter) Knob (Plug diameter) Tailpiece Part Number Remarks

2400

031-C CL3100 (.509") 778F788(.710") Schlage C Keyway

031-LA CL3100 (.509") 778F788(.710") Schlage LA Keyway

033-C CL3300/CL3600(June2000andafter)

ED8200/ED8400 (.509") 622F328(1.106") Schlage C Keyway

033-LA CL3300/CL3600(June2000 and after)

ED8200/ED8400 (.509") 622F328(1.106") Sargent LA Keyway

034-C CL3400(LocksetSeriesObsolete)

CL3600(PriortoJune2000) (.509") 682F398(0.950") Schlage C Keyway

034-LA CL3400(LocksetSeries Obsolete)

CL3600(PriortoJune2000) (.509") 682F398(0.950") Sargent LA Keyway

037-C CL3700 (.509") 685F098(0.794") Schlage C Keyway

CK4700 (.509")

039-C CL3900 (.509") 616F208(1.700") Schlage C Keyway

039-LA CL3900 (.509") 616F208(1.700") Sargent LA Keyway

12

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Conventional

Key Systems

Component(Key-in-Lever/Knob/DeadBolt)

Type Tailpiece Series Plug

Diameter

Tailpiece Part Number

(Length) Remarks

4200

002-A47 Adams Rite®

4025 Pull (.552") 146F788(0.968") Cylinder Only

003-A47 Adams Rite

4025 Pull (.552") 146F788(0.968") Cylinder and

Housing

Cylinders for Other Manufacturers' Products (.552" Plug Diameter) - 6-pin

4200-003-A47 4200-002-A47

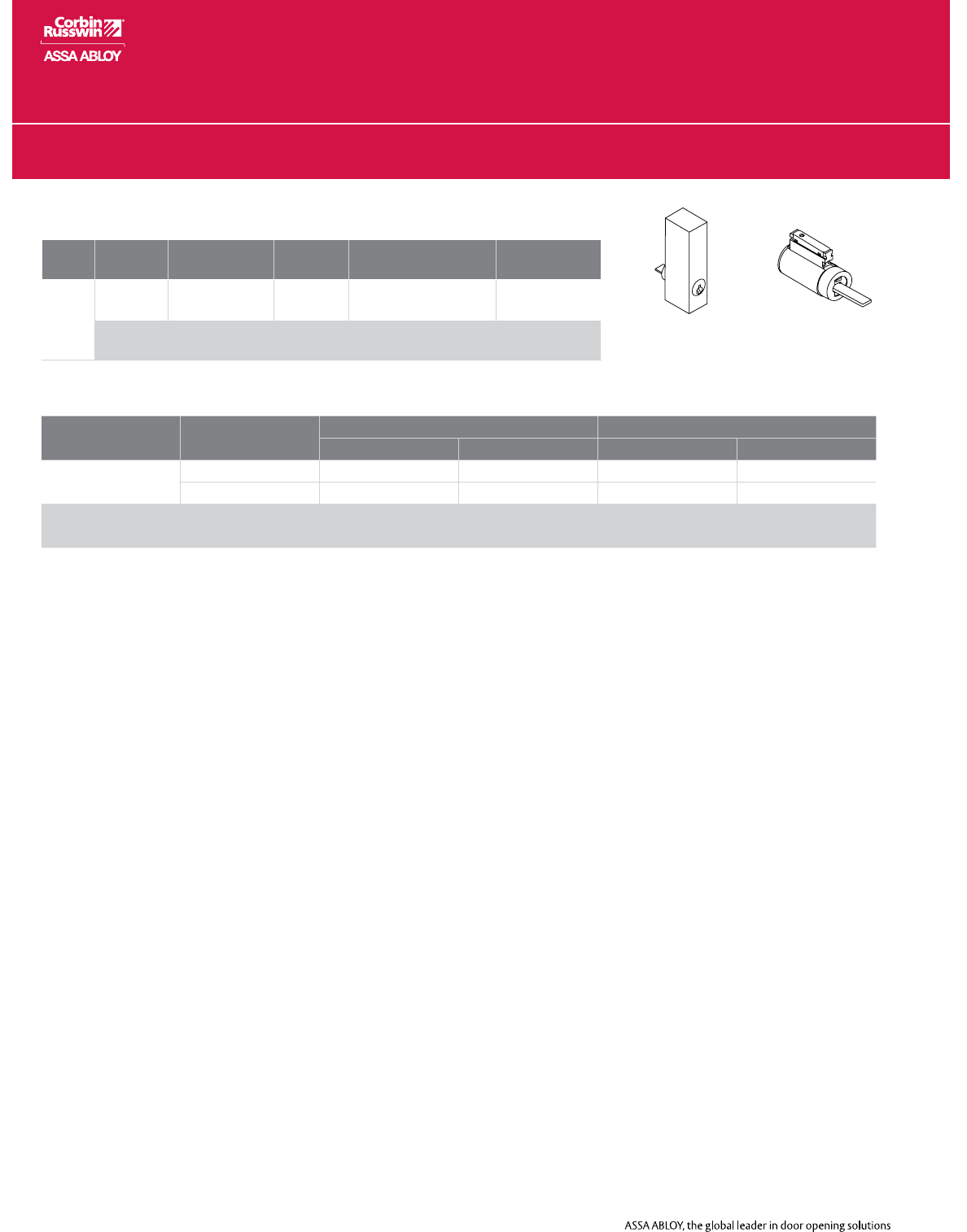

DL2200/DL3200 Deadbolts Cylinder (.509 Plug Diameter)

Cylinder Type Function 1-3/8" or 1-3/4" (Standard) 2" or 2-1/4"

Cylinder Tailpiece Cylinder Tailpiece

6-Pin 11, 13, 17 4400-134-A51 753F768 4400-134-A51 753F768

12 4400-134-A52 753F778 4400-214-A52 753F788

7-Pin 11, 13, 17 4400-134-A51-7 753F768 4400-134-A51-7 753F768

12 4400-134-A52-7 753F778 4400-214-A52-7 753F788

13

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Conventional

Key Systems

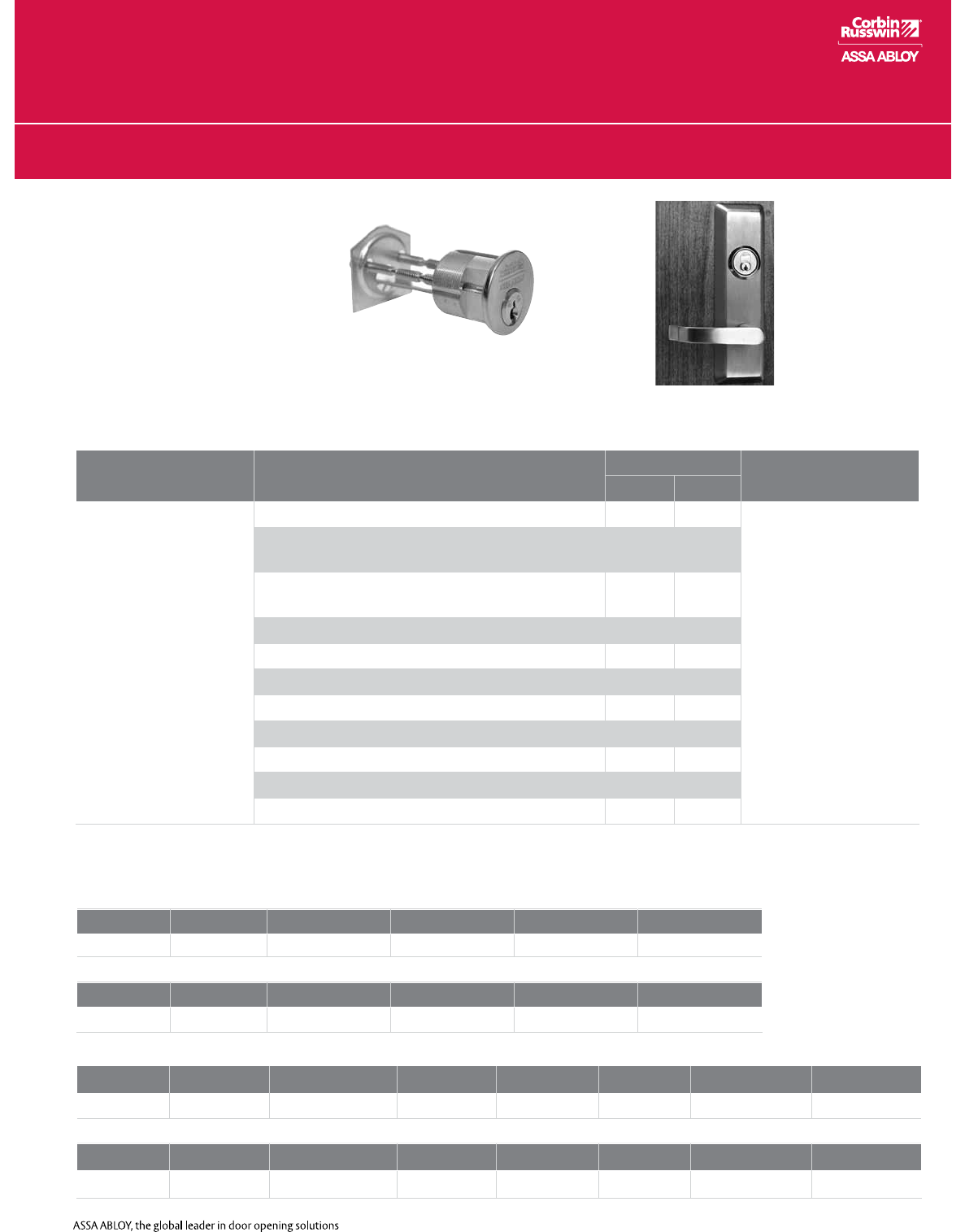

Rim

Rim Cylinders

For use with exit devices and exit device trim.

Type Tailpiece Length Pins Keyway Finish

3000

058 5/8" 955 and 959 Trims

138 1-3/8"M61&M62optionforED8200and

obsolete ED9200 exit device alarms

200 2"(std.door)

200N 2" ED4000/ED5000 Night Latch Function

200V 2" vertical tailpiece

312 3-1/2"(thickdoor)

312V 3-1/2" vertical tailpiece

Tailpiece Orientation

std. = Horizontal

V = Vertical

6(standard)

7 (seepages31-39)

605

606

611

612

613

622

625

626

629

630

722

Type Tailpiece Length Pins Keyway Finish

3300 138 1-3/8"

200 2"(std.door) N/A N/A

605

606

611

612

613

622

625

626

629

630

722

Rim Thumbturn

14

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

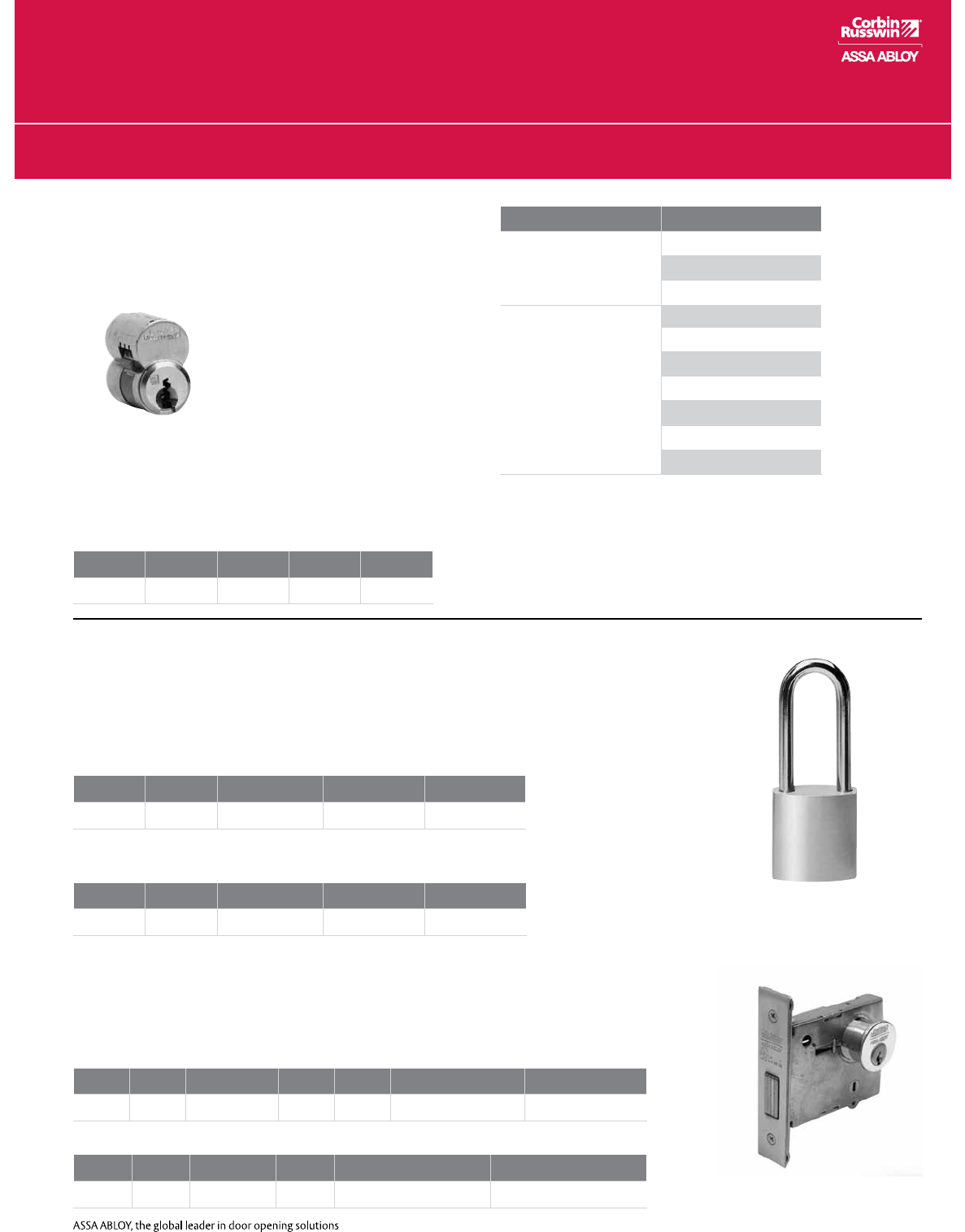

Interchangeable Core

Key Systems

Fast changeover - new security in seconds!

Options:

•7-Pin

•VKC(VisualKeyControl)

•CKC(ConcealedKeyControl)

•ConstructionMasterKeying

•Restricted/ProtectedKeyways

•Pyramid

Interchangeable Core

Advantages

Rekeying can be done by non-technical

personnel without removing hardware

from the door. When used system-

wide, IC provides tremendous rekeying

convenience.

When planned from the inception of a

system, IC cylinders can be integrated with

conventional cylinders.

Applications

IC is recommended for virtually all types of

keying systems, such as ofﬁce buildings,

hotels, schools, hospitals and universities.

When used in exit devices and other

installations which are labor intensive to

rekey, IC saves time and money over the

life of the building.

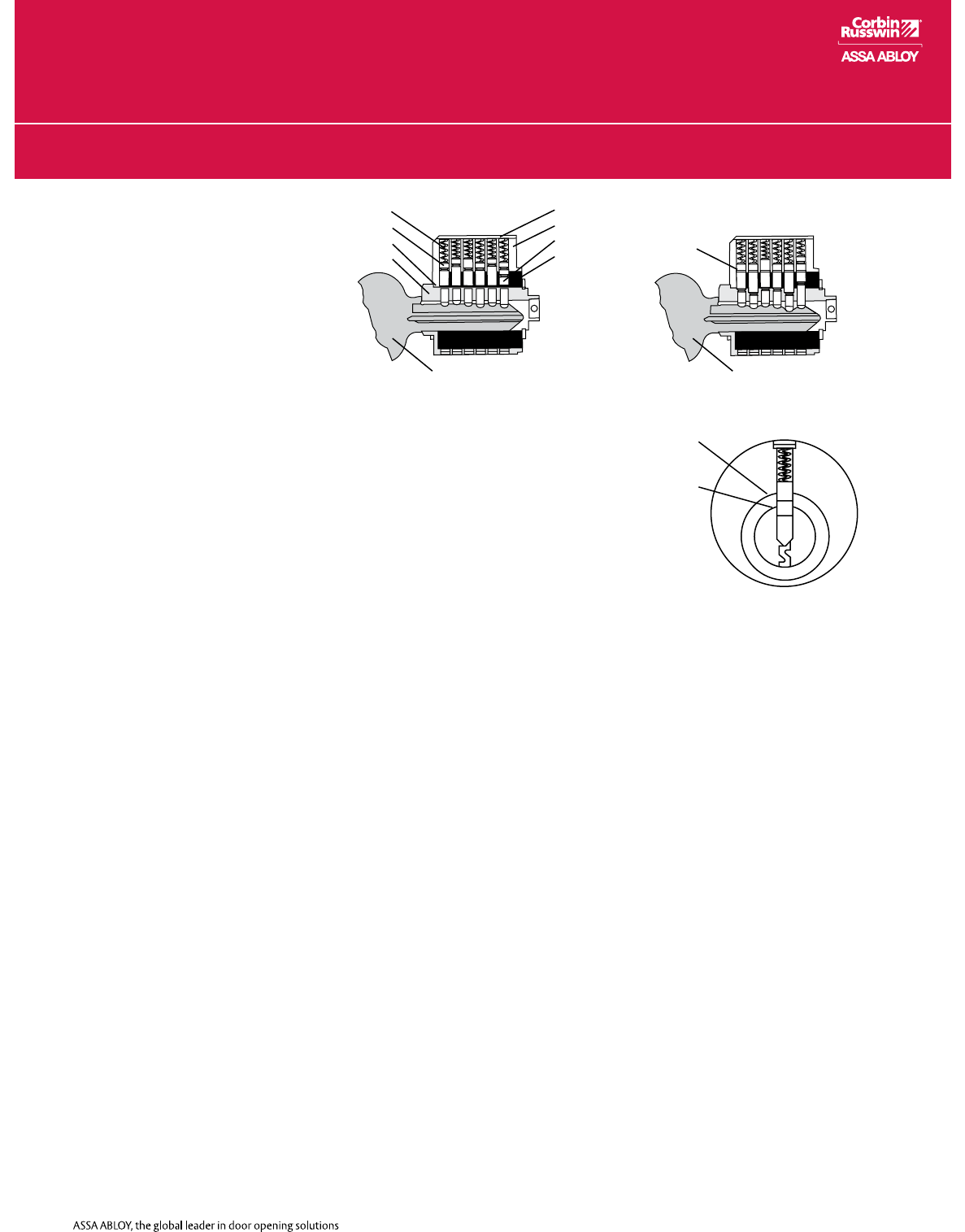

Operations

Alloperatingkeys(change,master,grand

master) operate the lock normally. To

rekey, use the special control key. The

control key operates at a separate shear

line in certain chambers within the core.

Only the control key is required to remove

and install a core.

Cores

6-pin standard; 7-pin, security and Pyramid

optional. Two nickel silver change keys

furnished standard per core. Control keys

only furnished when ordered.

Key Control

Corbin Russwin cores are available

with protected and restricted keyways,

patented keyways, security and Pyramid

to deter unauthorized key duplication.

No orders for patented protected keys,

security or Pyramid keys will be shipped

for a keying system without a letter of

authorization from the end user.

Construction Keying

Corbin Russwin recommends temporary

construction cores for greater security.

Special construction master keying is

also available, when planned from the

inception of the keying system. See page 7

for details.

Core Marking

ConcealedKeyControl(CKC)isavailable

for all Corbin Russwin cores. Visual Key

Control(VKC)isavailableforconventional

cores, but not for security or Pyramid

cores.

Ordering IC Locksets and Exit Devices

For speciﬁc product availability and Quick

Codes for cylinder options, see “How to

Order” in each catalog section.

15

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Interchangeable Core

Key Systems

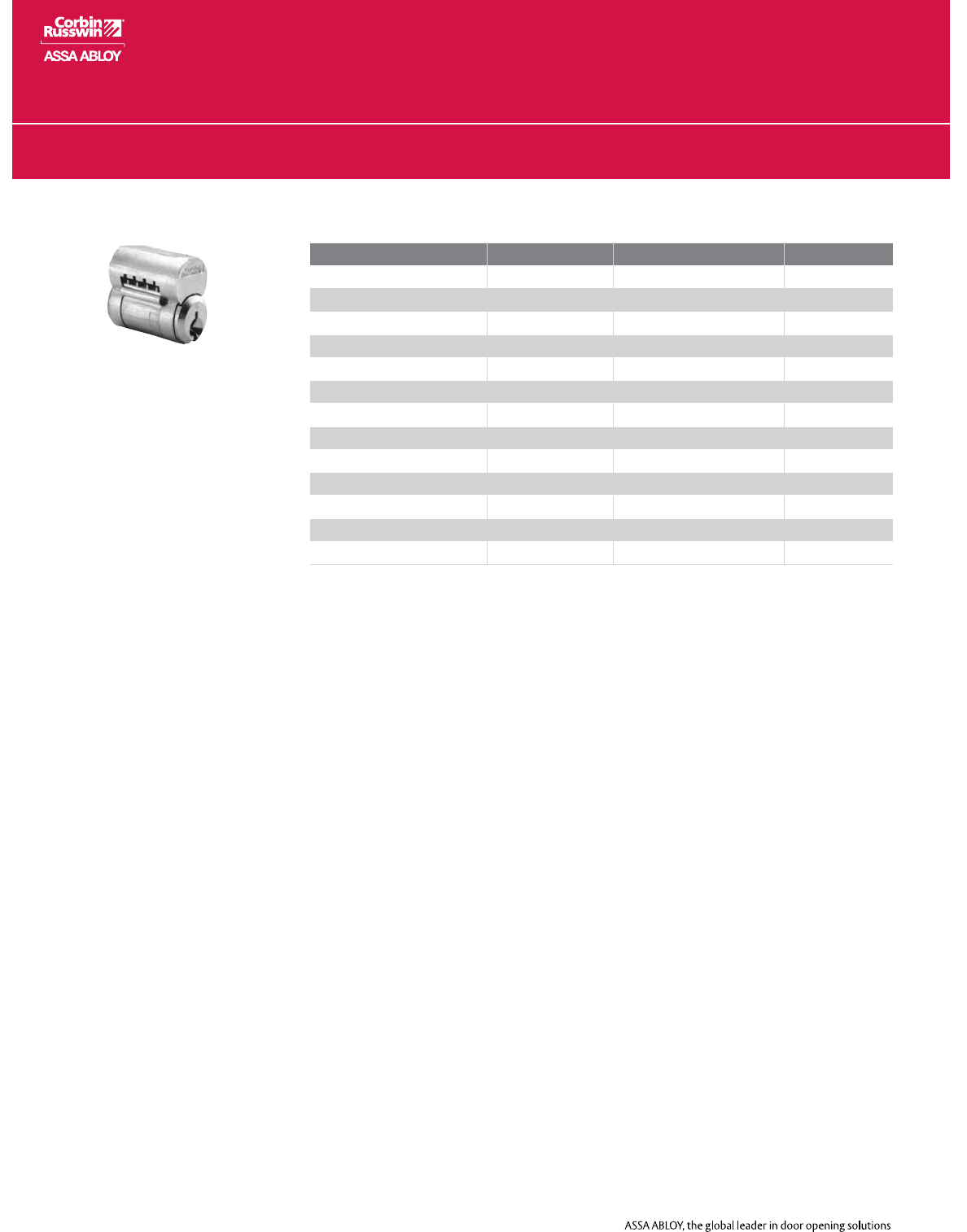

How to Order

Interchangeable Core Mortise

Interchangeable

Core Rim

Core Function Length Cam Pins Keyway Finish Temporary

Construction Core

3 Pyramid

4 SFIC Housing

 Only(NoCore)

8 Standard

9 Security

 (6-Pinonly)

7 LFIC Housing

 only(nocore)

0 Standard

1 Uses - E1sufﬁx

for EMK blank

Hotel 1-3/8"

with A01 cam

only.

7 Pyramid Security

114 1-1/4"

138 1-3/8"

112 1-1/2"

134 1-3/4"

200 2"

214 2-1/4"

212 2-1/2"

(seepage40)

A01 Cloverleaf

A02 Straight

A03 Adams Rite® MS and

DL3000 Deadlock

A04

DL4000

A05 Adams Rite 4070

A06

Schlage® Cloverleaf

A07 DL4100

A62 MR Straight / 900 Series

Mullion

A92

ExitGripTrim01&02

A93 Obsolete deadlocks:

Corbin® 610 Series and

Russwin® 1403 Series

6 (standard)

7 (Notavailablefor

1-1/4", 1-3/8"

LFIC and 1-1/4"

SFIC housings)

(see

pages

31-39)

605

606

611

612

613

613E

622

625

626

629

630

722

CT6 6-pin LFIC

CT7 7-pin LFIC

CT6D 6-pin LFIC

Disposable

CT7D 7-pin LFIC

Disposable

CTP Pyramid LFIC

CTPD Pyramid LFIC

Disposable

CT6SD 6-pin SFIC

Disposable

CT7SD 7-pin SFIC

Disposable

10 8 0 – 114 – A01 – 6 – L4 – x Finish x Option

Core Function Tailpiece Length Pins Keyway Finish Temporary

Construction Core

3 Pyramid

4 SFICHousingOnly(No

Core)

8 Standard

9 Security(6-Pinonly)

7 Housingonly(nocore)

0 Standard

7 Pyramid Security

058 5/8"

114 1-1/4"M61&M62

option for ED8200

and obsolete ED9200 exit

device alarms

178 1-7/8"(std.door)

178V 1-7/8" vertical

tailpiece

318 3-1/8"(thickdoor)

Tailpiece Orientation

std Horizontal

V Vertical(NotAvailablefor

114 length)

6 (standard)

7

(seepages

31-39)

605

606

611

612

613

622

625

626

629

630

722

CT6 6-pin LFIC

CT7 7-pin LFIC

CT6D 6-pin LFIC

Disposable

CT7D 7-pin LFIC

Disposable

CTP Pyramid LFIC

CTPD Pyramid LFIC

Disposable

CT6SD 6-pin SFIC

Disposable

CT7SD 7-pin SFIC

Disposable

30 8 0 – 178 – 6 – L4 x Finish x Option

16

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Interchangeable Core

Key Systems

How to Order

Core Only

Description Number Remarks EMK Blank

6-pin for CL3129 8001-031 Hotel indicator pin E8 Sufﬁx

7-pin for CL3129 8001-031-7 Hotel indicator pin E8 Sufﬁx

6-pin standard 8000 Set to hotel mortise EMK N/A

6-pin standard 8000EMK -E1 sufﬁx

Security 8010EMK Set to hotel mortise EMK N/A

Security 8010 -E1 sufﬁx

7-pin 8000-7 Hotel indicator pin N/A

6-pin for CL3329, CL3629 8001-034 Hotel indicator pin -E8 sufﬁx

7-pin for CL3329, CL3629 8001-034-7 Hotel indicator pin -E8 sufﬁx

6-pin for CK4229 8001-042 Hotel indicator pin -E4 sufﬁx

Security for CK4229 8011-042 -E4 sufﬁx

Pyramid High Security 8020 N/A

Pyramid Security 8027 N/A

Specify Keyway

Finishes: 605, 606, 611, 612, 613, 622, 625, 626

Uncombinated cores: Specify “UC”. Not applicable for 8000EMK, 8010EMK

17

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

SecurityCylinders(Inactive-ForExistingSystemsonly)

Key Systems

Mortise

Cylinder

Number Cam

1012-114-A01 Cloverleaf cam

1012-114-A02 Straight cam

1012-114-A03 DL 3000 Series

Adams Rite® MS cam

1012-114-A04 DL4000 Series Deadlock

1012-114-A05 Adams Rite 4070

1012-114-A93 Obsolete 610/1403

Deadlock

Cylinder

Number Change Key Cam

1014-118-A02 Clockwise Straight

1015-118-A02 Counter-

Clockwise Straight

1014-118-A05 Clockwise Brink “CKS”

1015-118-A05 Counter-

Clockwise Brink “CKS”

Folger Adam® NS400 Series x LEK uses

A02 cam version.

Special Function Security Mortise

Standard Function

Security Mortise

Hotel Function Security Mortise

Change key and all normal master keys

have limited rotation to retract latchbolt

only.EmergencyMasterKey(EMK)and

displaykeyturn360°foradditional

operation of deadbolt. EMK and display

key requires 7-pin key blank for standard

cylinders and -E1 sufﬁx blank for IC

cylinders.

Blockout Function Security Mortise

This is an access control feature used in

applications where temporary blockage of

allkeys(master,change,etc.)isrequired.

A simple turn of the Blockout Key to

the11o’clockpositionblocksnormal

operation for as long as necessary. When

normal access is again desired, insert

the Blockout Key and turn it back to

the12o’clockposition.Integrationof

these cylinders must be planned from

the inception of a keying system. Also

availableinrimversion(seepage19).

Brink Function Security Mortise

This function was developed for the

minimum security detention market. The

change key turns only one direction while

the master key turns both directions.

Integration of these cylinders must be

planned from the inception of a keying

system.

Cylinder

Number Description

1011-114-A01* 1-1/4" Cloverleaf cam

only

1091-138-A01 IC version 1-3/8"

1071-138-A01 IC housing only

*1011 cylinder not available with D1, D2, L1 or

L2 keyways

Mechanism Function Length Cam (see page 40) Pins Keyway Finish Uncombinated

1 Standard

9 IC(available)

1-1/4"

1-3/8"

1-1/2"

1-3/4"

2"

2-1/4"

0 Standard

1 Hotel

2 Blockout(NoIC)

4 BrinkCW(NoIC)

5 BrinkCCW(NoIC)

118 1-1/8"

114 1-1/4"

138 1-3/8"

112 1-1/2"

134 1-3/4"

200 2"

214 2-1/4"

212 2-1/2"

234 2-3/4"

A01 Cloverleaf

A02 Straight

A03 Adams Rite® MS and DL3000 Deadlock

A04 DL4000 Deadlock

A05 Adams Rite 4070

A06 Schlage® Cloverleaf

A07 DL4100

A62 MR Straight / 900 Series Mullion

A92 ExitGripTrim01&02

A93 Obsolete deadlocks: Corbin® 610 Series

and Russwin® 1403 Series

6 -pin only (see

pages

31-39)

605

606

611

612

613

613E

622

625

626

629

630

722

UC

10 1 0 – 118 – A01 – 6 – L4 – x Finish x Option

18

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

SecurityCylinders(Inactive-ForExistingSystemsonly)

Key Systems

Other

Description Core Number Remarks EMK Blank

Standard 8010 N/A

For 1091 8010 EMK Set to hotel mortise EMK -E1 sufﬁx

For CK4229 8011-042 Hotel indicator pin -E4 sufﬁx

Specify Keyway. Available uncombinated, except 8010EMK.

Finishes: 605, 606, 611, 612, 613, 622, 625, 626, 690

Lockset Cylinder Number

CL3100 2010-031

CL3300,CL3500,CL3800,CL3600Series(June2000 and after) 2010-033

G1055 exit device knob trims 2010-033H

CL3300,CL3600Series(PriortoJune2000) 2010-034

CL3800Series(obsolete 1993-1997 model) 2010-038

CL3900 Series 2010-039

CL3900 Series(2",2-1/4"ThickDoor) 2010-039L

B2, G2 Exit Device Knob Trim 2010-051

CK4200 and UT5200 Series 2010-052

CK4229 Hotel Function 2011-052

CK4300 Series 2010-031H

Specify Keyway. Available uncombinated.

Use -E4 sufﬁx for EMK blank. Finishes: 606, 626

Vertical Tailpiece Horizontal Tailpiece

Alarm Lock DL2500 Series 2210-001-A21 Schlage D Series Knobs 2210-002-A21 Sargent 7, 8, 9 Line

(enlargeknob hole)

2210-008

Yale® 5400, 6200 Knobs

(enlarge knob hole)

2210-054

Arrow® H SeriesKnobs&Levers 2210-001-A21 Schlage A SeriesKnobs(PLY,etc.) 2210-002-A22

Arrow Q Series Levers 2210-001-A21 SchlageASeriesKnobs(ORB,only) 2210-002-A23

Sargent®10line(Enlargeleverhole) 2210-001-A21 Available Uncombinated. Finishes: 606, 626

Schlage® D Series Levers 2210-001-A21

Schlage AL and ND Series Levers 2210-001-A22

Lockwood H Series Knobs

(enlargeknobhole)

2210-003-A24

Security Cores Only

Key-in-Knob/Key-in-Lever

Other Manufacturers’

Products

Security Rim

Interchangeable Core

Standard

Mechanism Function Tailpiece Length Pins Keyway Finish Uncombinated

1 Standard

9 IC

0 Standard

2 Blockout

(noIC)

For 3010 Only For IC 6-pin

only

(seepages

28-36)

605

606

611

612

613

613E

622

625

626

629

630

UC

138 1-3/8"M61&M62

option for ED8200

and obsolete

ED9200 exit device

alarms

114 1-1/4"M61&M62

option for ED8200 and

obsolete ED9200 exit

device alarms

200 2"(Std.door) 178 1-7/8"(Std.door

200V 2" vertical tailpiece 178V 1-7/8" vertical tailpiece

312 3-1/2"(thickdoor) 318 3-1/8"(thickdoor)

312V 3-1/2" vertical

tailpiece

3 0 1 0 – 200 – 6 – L4 x Finish x Option

DL2200/DL3200 Deadbolts Cylinder

Function 1-3/8" or 1-3/4" (Standard) 2" or 2-1/4"

Cylinder Tailpiece Cylinder Tailpiece

11, 13, 17 4410-134-A51 753F768 4410-134-A51 753F768

12 4410-134-A52 753F778 4410-214-A52 753F788

19

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Master Ring

Key Systems

Features and Beneﬁts

Advantages

6-pin Master Ring keying systems

offer keying capacity similar to 7-pin

conventional cylinder systems.

There is, however, far greater ﬂexibility

for asymmetrical keying systems, because

change key combinations do not require

any direct relationship to those of

master keys. In conventional systems,

combinations not needed under a given

master key cannot be used elsewhere in

the system. In master ring, they can. This

frees thousands of combinations for use

anywhere within a master ring system.

Since the master keys all have their own

shear line, fewer master pins are used,

increasing cylinder security. This security

enhancement reduces the chances of

cylinders being manipulated by stray

keys. It also hinders surreptitious entry by

picking and impressioning.

When planned from the inception of a

keying system, conventional cylinders

may be integrated into speciﬁc parts of a

Master Ring system for areas where the

required hardware does not accommodate

the large Master Ring cylinders.

Applications

Corbin Russwin Master Ring cylinders are

especially recommended for installations

which require large and complicated

keying systems, such as hospitals and

universities.

Field Serviceability

Corbin Russwin Master Ring cylinders are

fully ﬁeld serviceable.

Key Control

Restricted and protected keyways are

available.

Construction Master Keying

When planned from the inception of a

keying system, construction master keying

is available.

Operation

The change key rotates the cylinder plug

only. Master keys operate at the master

ring, which is a sleeve around the plug.

Cylinder Marking

VisualKeyControl(VKC)andConcealed

KeyControl(CKC)areavailableforMaster

Ring cylinders.

Ordering Locksets and Exit Devices

with Master Ring Cylinders

For speciﬁc product availability and Quick

Codes for cylinder options, see “How to

Order” in each catalog section.

• Greater master keying capacity

• Superior keying exibility

• Greater security in each cylinder

Springs

Top Pins

Plug Shear Line

Plug

Change Key Aligns Pins at Plug

Spring Cover

Shell

Build-up Pins

Master Ring

Ring

Shear

Line

Master Key Aligns Pins at Ring

Master Key

Operation

Change Key

Operation

20

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Master Ring

Key Systems

How to Order

Standard Master Ring Mortise

(1-1/2"diameter;.552"diameterplug)

Flexible Head Master Ring Mortise

(1-1/2"diameter;.552"diameterplug)

Dummy Master Ring Mortise

Master Ring Rim

(1-1/2"diameter;.552"diameterplug)

CK4200 & UT5200 Series Lockset

Specifykeyway(.552"diameterplug)

Exit Device Operators

Cylinder Number Length

1460-118 1-1/8"

1460-114 1-1/4"

1460-138 1-3/8"

1460-112 1-1/2"

Finishes: 605, 606, 611, 612, 613, 618, 619, 622, 625, 626, 722

Cylinder Number Description

3060-200 Standard horizontal tailpiece

3060-312 Thick door, horizontal tailpiece

3060-200V Vertical tailpiece

3060-312V Thick door, vertical tailpiece

Finishes: 605, 606, 611, 612, 613, 618, 619, 622, 625, 626, 722

Standard Cylinder

2060-052

With Indicator Pin

for CK4229 Hotel

2061-042

Discount. Ronde &

Continental Knob

2160-052

For ED6800 x B5 or B6

For ED7400 x 03 or 04

4266-001-A02

For ED6800 x 01 or 02

4266-001-A92

Finishes: 606, 626 Finishes: 606, 626

Type Length Cam Pins Keyway Finish

1060 1001"(5-pinonly) (seepage40) 5(1"lengthonly) (seepages31-39) 605

118 1-1/8" A61 Cloverleaf* 6(standard) 606

114 1-1/4" A62 Straight

7(Available

1-3/8" only)

611

138 1-3/8" A63 Large Short 612

112 1-1/2" A64 Large Long 613

134 1-3/4" A65 Cloverleaf

(formerly11A)

613E

200 2" 618

214 2-1/4"

*A61 is for locks made

after 5/93; requires

thumbturn hub

562F41-2

619

212 2-1/2" 622

234 2-3/4" 625

300 3" 626

722

Type Length Cam Pins Keyway Finish

1160 1001"(6-pinonly) (seepage40) 6(standard) (seepages31-39) 605

118 1-1/8" A61 Cloverleaf* 606

114 1-1/4" A62 Straight 611

A63 Large Short 612

A64 Large Long 613

A65 Cloverleaf

(formerly11A)

613E

618

*A61 is for locks made

after 5/93; requires

thumbturn hub

562F41-2

619

622

625

626

722

21

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Pyramid

Key Systems

Applications

Description

Pyramid,CorbinRusswin’spatented

security cylinder, is the most secure locking

system available. Pyramid cylinders are

available in both high security and security

versions. The high security version in

certiﬁed by Underwriters Laboratories to

UL437 standards.

Applications

Especially recommended for installations

requiring superior protection against

picking, drilling and other surreptitious

entry. Ideally suited for Educational and

Healthcare facilities, Industrial and

Commercial buildings.

System Administration & Key Control

Key control will be maintained through

compliancewithCorbinRusswin’s

Security Policy: for a copy contact Key

Systems Administration or visit our web

site at www.corbinrusswin.com.

APyramidowner’sbinderwillbe

forwarded directly to the designated

systems administrator with each new

system. Included in this binder are

catalogs as well as system-speciﬁc,

sequentially coded registration

certiﬁcates. A registration certiﬁcate must

accompany each order that is submitted

to Corbin Russwin.

Product Speciﬁcation

All cylinders shall employ a patented

locking mechanism that requires the use

of a patented key and is furnished with

a minimum of 7 pins. High Security

cylinders shall meet the requirements of

UL437. Interchangeable cores shall meet

the drill resistance and pick resistance of

UL437.

Keys shall be nickel silver and furnished

with a large bow.

Certiﬁcations

BHMA A156.5 Grade-1

E09211A*(Mortise)

E09221A*(Rim)

E09231A*(BoredLockCylinders)

*A(sufx)referstocylindersofpickand

drill resistance.

UL Underwriters Laboratories Inc.

(UL437)BP8976

1020,2020,3020FixedCore(FC)

series only

Finishes

Pyramid cylinders are available in all Corbin

Russwin standard ﬁnishes.

Keying

7 pin with two nickel silver change keys

per cylinder. Pyramid cylinders may be

uncombinated(specifyUC)1, master or

grand master keyed to a speciﬁc facility.

Keys shipped separately for master keyed

cylinders.

System Speciﬁcations

•Pyramidsystemsareindependent 

and cannot be keyed into existing

and/or conventional systems.

•Pyramidcylindersaretobekeyed 

to factory-generated bittings only.

•Crosskeyingisnotavailable.

Key Discard Policy & Warranty

See page 49.

Construction Master Keying

Pyramid cylinders are not available

construction master keyed. Interchangeable

core jobs can be furnished with temporary

construction cores. Temporary construction

cores will be unrelated to the permanent

system’smasterkey.Whenthepermanent

cores are installed, the temporary

construction cores are returned to Corbin

Russwin for credit.

How to Order Example

1. Mortise lock with temporary

construction core

Qty. - ML2051 - LSA - 626 - RHR - CTP

2. Mortise cylinder with temporary

construction core

Qty. - 1080-114-A01-626-CTP

3. Permanent core ordered separately

Qty. - AA1 - 8020 - 626

Pyramid Quick Codes2

PS Pyramid Security Fixed Core

PCS Pyramid Security

Interchangeable Core

PHS Pyramid High Security Fixed Core

PCHS Pyramid High Security

Interchangeable Core

CTP3 Pyramid with Temporary

Construction Core

CLP3 Pyramid Less Core

Features Beneﬁts

• Utilitypatent6,125,674(expiring2018) • Theultimateprotectionagainstunauthorizedkey

duplication

• Availablewithhigh-securityprotection

(UL437)

• UnderwritersLaboratorylistingforresistanceto

 picking&drilling

• 7-pin

• Greatermasterkeyingcapabilities

• Usesexisting6-pininterchangeablecorehousings

• 1-1/4"(32mm)lengthformortisecylinders

• Availablewithstainlesssteelpins • Drillandpickresistant

• Largekeybow • Easyhandling&specialstampingoptions

• Thickerandstrongernickelsilverkeys • Ideallysuitedforhighusage&abusiveapplications

• Userfriendly • Noexpensivededicatedequipmentnecessaryforkey

cutting

1. UC cylinders are supplied, less keys, pins, springs and pin covers.

2. When cylinders are ordered with locks.

3. Pyramid cores to be ordered as a separate line item.

22

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Pyramid

Key Systems

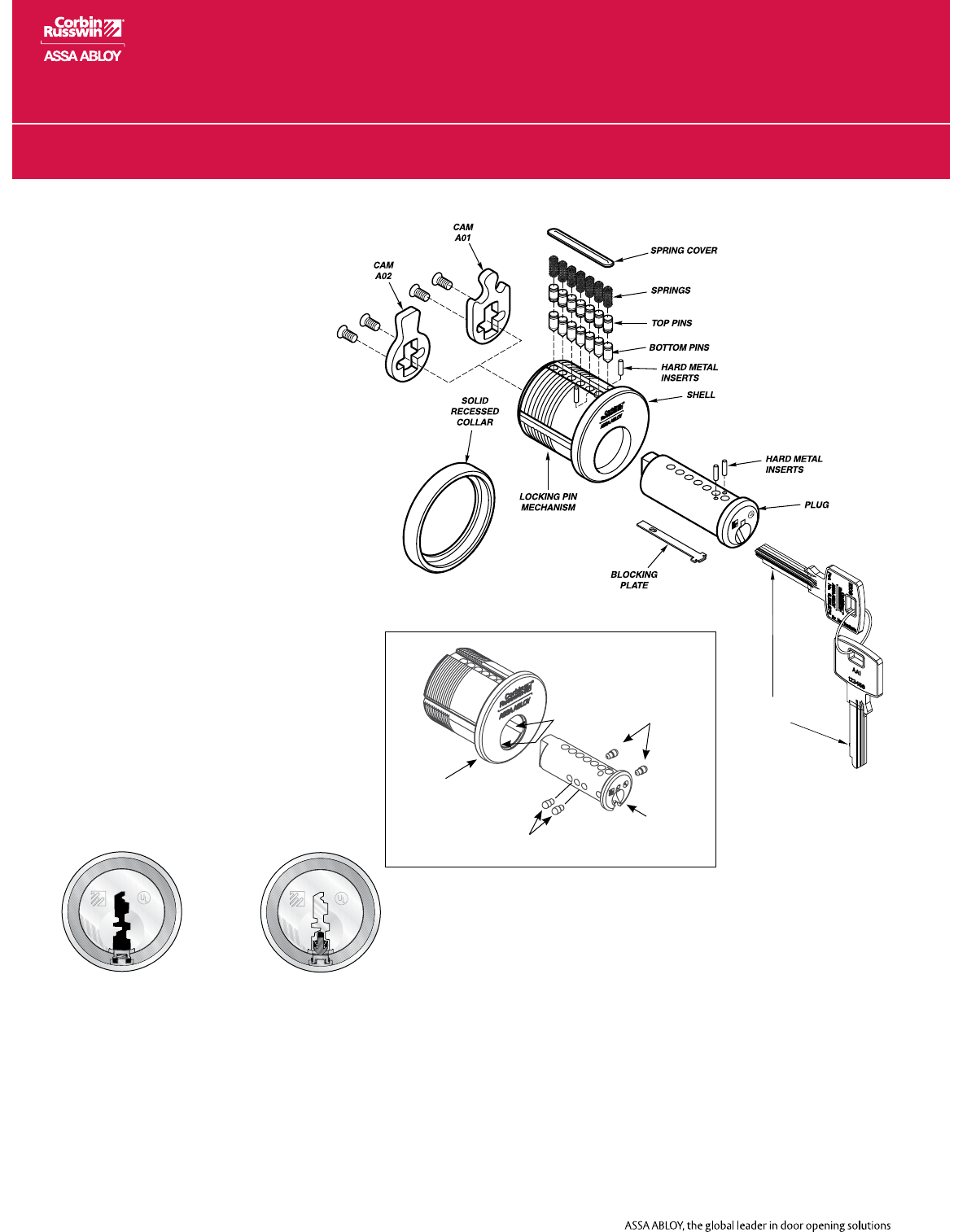

Operation

CONTROL

Performance Features

Shell

•Lockingpinmechanism

•Hardmetalinserts

Key

•Controlpin

Plug

•Blockingplate

•Hardmetalinserts

Pins & Springs

•Hardenedstainlesssteelpick-resistant

bottom pins*

•Hardenedstainlesssteelpick-resistant

top pins*

•Hardenedstainlesssteelpick-resistant

 masterpins(ifrequired)*

•Hardenedstainlesssteelpick-resistant

 build-uppins(ifinterchangeablecore)*

•Springs

Collar

•Solidrecessed(mortise)

* Hardened stainless steel pins used for UL437

High Security versions only.

Pyramid Security version uses nickel silver

bottom pins and brass master, build-up

and top pins.

Operation

Without Key

Locking pin mechanism

engages blocking plate

and prevents the plug

from turning.

With Key

Key’scontrolpin

depresses the locking

pin mechanism and

allows the plug to

turn.

P6 Keyway (with side pins)

SIDE PINS

SHELL

SIDE PINS

PLUG

SPECIALLY

MILLED SIDE

PIN GROOVE

23

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Pyramid

Key Systems

Operation

CONTROL

KEY SET

SYMBOL

SYSTEM

REGISTRY

NUMBER

Keys

•Nickelsilver

•KeyBowType28

•Orderingexample:7PIN-28-XXXX

•OrderingexampleP6Keyway:

 7PIN-28-XXXX-SPCXX

Back Side Stamping & Options

•Keyset(VKC1),standard–unlessotherwiseindicated

•Systemregistrynumberwillbestampedonupper- 

level keys unless otherwise indicated

•Concealedkeycontrol(CKC2)availableoncylinders

• Visualkeycontrol(VKC2andVKC3)notavailableon

cylinders. CKC3 also not available.

Note:RefertoCorbinRusswin’sgeneralcatalogand

price book for complete detailed information.

Keyway Security

Pyramid keyways will be determined by the supervisor of

Key Systems Administration. Assignment will be based

on the overall system requirements and geographic

location to provide maximum protection to the owner.

For security reasons, the keyway proﬁles are not shown.

Keyway

Side Pin Code

Front Side Back Side

24

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Pyramid

Key Systems

Mortise

Mortise Cylinders

Mortise Locks/Deadlocks

For use with all Corbin Russwin ML2000,

ML2000HSandML2200(discontinued)

mortiselocks.DL4000&DL3000Series

Deadlocks.

Mortise Exit Devices

For use with ED7600 and ED6600 devices.

Conventional

Fixed Core

(FC)

Interchangeable Core

(IC)

Note #1 - Not available IC

Note #2 - For obsolete Corbin® 610 and Russwin® 1403 series deadlocks

Note #3 - For ML2000 applications with door thickness exceeding 2-1/2" up to 3" in thickness, use IC cylinders.

Exceptions

Pyramid cylinders are not available for the following: ML2029, ML2029HS, ML2029VR, ED7600 - applications over 2-1/4" thick, ED6600 - applications over 1-3/4" thick.

Mortise Lock with a Pyramid Fixed Core High Security Cylinder

Quantity Keyset Series/Function Trim Finish Hand Pyramid Quick Code Keyway

50 AA1 ML2051 LSA 626 RHR PHS(PSforSecurityversion) P3A1

Mortise Lock with a Pyramid Interchangeable Core High Security Cylinder

Quantity Keyset Series/Function Trim Finish Hand Pyramid Quick Code Keyway

50 AA1 ML2051 LA 626 RHR PCHS(PCSforSecurityversion) P3A1

Finish

605 - Bright Brass

606 - Satin Brass

611 - Bright Bronze

612 - Satin Bronze

613 - Dark Oxidized Satin

Bronze - oil rubbed

613E - Dark Oxidized Satin

Bronze - Equivalent

618 - Bright Nickel Plated

619 - Satin Nickel Plated

622 - Flat Black Coated

625 - Bright Chromium Plated

626 - Satin Chromium Plated

629 - Bright Stainless Steel

630 - Satin Stainless Steel

722 - Black oxidized bronze,

oil rubbed

Length

1020/1027 - Non-IC (Fixed Core)

114-1-1/4"(32mm)

112-1-1/2"(38mm)

*See note #3

1030/1037/1070 IC

114-1-1/4"(32mm)

138-1-3/8"(35mm)

112-1-1/2"(38mm

134-1-3/4"(44mm)

200-2"(51mm)

214-2-1/4"(57mm)

212-2-1/2"(64mm)

Cam

A01 - Cloverleaf

A02 - Straight

A03 - Adams Rite® MS

A04 - DL4000 Series

A05 - Adams Rite® 4070

A06 - Schlage® Cloverleaf

A07 - DL4100

A62 - 900 KRM Straight

A92 - See note #1

A93 - See note #2

Type

1020 - High Security Mortise

1027 - Security Mortise

1030 - High Security IC Mortise complete

1037 - Security IC Mortise complete

1070 - Housing only

How to Order Examples

High Security Mortise Cylinder Ordered Separately

Quantity Keyset Cylinder Length Cam Finish Keyway

50 AA1 1020 114 A01 605 P3A1

Mortise Cylinder with a Pyramid Security Interchangeable Core

Quantity Keyset Cylinder Length Cam Finish Keyway

50 AA1 1037 114 A01 605 P3A1

25

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Pyramid

Key Systems

Rim

Rim Cylinders

For use with exit devices and exit

device trims.

Conventional

Fixed Core

(FC) Interchangeable Core

(IC)

How to Order Examples

High Security Rim Cylinder Ordered Separately

Quantity Keyset Cylinder Length Finish Keyway

50 AA1 3020 200 605 P3A1

Rim Cylinder with a Pyramid Security Interchangeable Core

Quantity Keyset Cylinder Length Finish Keyway

50 AA1 3037 178 605 P3A1

Exit Device with a Pyramid Fixed Core High Security Cylinder

Quantity Keyset Series/Function Trim Finish Hand Pyramid Quick Code Keyway

50 AA1 ED5200 L955 630 RHR PHS(PSforSecurity

version) P3A1

Exit Device with a Pyramid Interchangeable Core High Security Cylinder

Quantity Keyset Series/Function Trim Finish Hand Pyramid Quick Code Keyway

50 AA1 ED5200 L955 630 RHR PCHS(PCSforSecurity

version) P3A1

Type Length

Availability

Finish

FC IC

3020 - High Security

Rim Cylinder

3027 - Security

Rim Cylinder

3030 - High Security IC

Rim Cylinder

3037 - Security IC

Rim Cylinder

3070 - Housing only

058-5/8"(16mm)Tailpiece X X 605 - Bright Brass

606 - Satin Brass

611 - Bright Bronze

612 - Satin Bronze

613 - Dark Oxidized Satin Bronze -

oil rubbed

613E - Dark Oxidized Satin

Bronze - Equivalent

618 - Bright Nickel Plated

619 - Satin Nickel Plated

622 - Flat Black Coated

625 - Bright Chromium Plated

626 - Satin Chromium Plated

629 - Bright Stainless Steel

630 - Satin Stainless Steel

722 - Black oxidized bronze,

oil rubbed

114-1-1/4"(32mm)M61&M62optionforED8200 and ED9200 exit

device alarms X

138-1-3/8"(35mm)M61&M62optionforED8200and Obsolete

ED9200 exit device alarms X

178-1-7/8"(48mm)(Std.Door) X

178V-1-7/8"(48mm)vertical X

200-2"(51mm) X

200N-2"(51mm)ED4000/ED5000NightLatchFunction X

200V-2"(51mm)vertical X

312-3-1/2"(89mm) X

312V-3-1/2"(89mm)vertical X

318-3-1/8"(79mm) X

26

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Pyramid

Key Systems

Component(Key-in-Lever/Knob)

Key-in-Lever / Knob Cylinder

For use with Corbin Russwin CL3100,

CL3300, CL3500, CL3700, and CL3800

lever locks, CK4200 and CK4700 knob

locks and UT5200 unit locks. 2020/2027

series cylinders can also be used on

CL3400, CL3600, CL3800 and CL3900

(discontinued)locks.

Conventional

Fixed Core

(FC)

Interchangeable Core

(IC)

Key-in-Lever/Knob for other Manufacturers’ Products

Cylinder Descriptions

High Security (PHS) Security (PS) Tailpiece Orientation Used for:

2220-001-P21 2227-001-P21 Vertical

Schlage® D Series Levers

Arrow H® Series Knobs and Levers

Sargent® 10line(EnlargeLeverHole)

2220-002-P21 2227-002-P21 Horizontal Schlage® D Series Knobs

2220-001-P22 2227-001-P22 Vertical Schlage® AL and ND Series Levers

2220-002-P22 2227-002-P22 Horizontal Schlage®ASeriesKnobs(Ply,etc.)

2220-002-P23 2227-002-P23 Horizontal Schlage®ASeriesKnobs(ORBonly)

Quantity Keyset Cylinder Lockset Series Finish Keyway

50 AA1 2020 033 626 P3A1

Quantity Keyset Series/Function Trim Finish Pyramid Quick Code Keyway

50 AA1 CL3357 PZD 626 PHS(PSforSecurityversion) P3A1

Quantity Keyset Series/Function Trim Finish Pyramid Quick Code Keyway

50 AA1 CL3357 PZD 626 PCHS(PCSforSecurityversion) P3A1

Type Lockset Series Finish

2020 - High Security

Key-in-Lever/Knob

2027 - Security

Key-in-Lever/Knob

031 - CL3100 Lever

606 - Satin Brass

626 - Satin Chromium Plated

031H - CK4300 Knob

033- CL3300,CL3500,CL3600(June2000andafter)and CL3800 Lever

033H - G10 Exit Device Knob Trim

034- CL3400Lever-CL3600Lever(BeforeJune2000)A5,N5Obsolete ED8000 Trims

037 - CL3700 Lever - CK4700 Knob

038 - CL3800 Lever(Manufactured1993-1997)

039 - CL3900Lever(1-3/8"-1-3/4"door)

039L - CL3900Lever(2"-2-1/4"door)

051 - G3 Exit Device Knob Trim

052 - CK4200 Knob - UT5200 Knob and Lever

DL2200/DL3200 Deadbolts Cylinder

Cylinder Type Function 1-3/8" or 1-3/4" (Standard) 2" or 2-1/4"

Cylinder Tailpiece Cylinder Tailpiece

HighSecurity(PHS) 11, 13, 17 4420-134-A51 753F768 4420-134-A51 753F768

12 4420-134-A52 753F778 4420-214-A52 753F788

Security(PS) 11, 13, 17 4420-134-A51-7 753F768 4420-134-A51-7 753F768

12 4420-134-A52-7 753F778 4420-214-A52-7 753F788

How to Order Examples

High Security Component Cylinder Ordered Separately

Cylindrical Lock with a Pyramid Fixed Core High Security Cylinder

Cylindrical Lock with a Pyramid Interchangeable Core High Security Cylinder

Exceptions

Pyramid cylinders are not available for the following: CL3329, CL3629, CK4229, CK4451, CK4455, CK4457, CK4429, CK4482, DL2100 series, DL3100 series.

27

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Pyramid

Key Systems

Interchangeable Core

* Note: Corbin Russwin 6-pin Interchangeable Core

 housings1070(mortise)&3070(rim)

will accept 8020/8027 cores.

Type Finish

8020- High

Security

IC core*

605

606

611

8027- Security

IC core*

612

613

613E

622

625

626

722

Interchangeable Core

For use with Corbin Russwin's 6-pin

InterchangeableCorehousings&shells.*

Padlocks

Used with Pyramid Interchangeable Cores.

PL5030, PL5130, PL5230, PL5037, PL5137, PL5237

Deadlocks

UsedwithPyramidmortisecylinders.(DL3000andDL4100)

Available in all standard ﬁnishes.

How to Order Examples

Security Interchangeable Core Ordered Separately

Quantity Keyset Cylinder Finish Keyway

50 AA1 8027 605 P3A1

Quantity Keyset Series/Function Shackle Length Keyway

50 AA1 PL5030 258 P3A1

Quantity Keyset Series/Function Shackle Length* Keyway

50 AA1 PL5037 258 P3A1

Quantity Keyset Series/Function Finish Hand Pyramid Quick Code Keyway

50 AA1 DL4113 626 RHR PHS(PSforSecurity

version) P3A1

Quantity Keyset Series/Function Finish Pyramid Quick Code Keyway

50 AA1 DL4113 626 PCHS(PCSforSecurityversion) P3A1

How to Order Examples

Deadlock with a Pyramid Fixed Core High Security Cylinder

Deadlock with a Pyramid Interchangeable Core High Security Cylinder

How to Order Examples

Padlock with a Pyramid High Security(8020) Interchangeable Core Cylinder

*Refer to general catalog for miscellaneous options.

Padlock with a Pyramid Security(8027) Interchangeable Core Cylinder

28

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Bump Resistant Cylinders

Key Systems

Description Part Number Qty

Conventional 628F10-7-171 Vials of 100 pcs.

Pyramid A 628F10 - 7 - 142 Vials of 100 pcs.

Pyramid C 628F10 - 7 - 236 Vials of 100 pcs.

Protect your building from unwanted entry with Corbin Russwin bump-resistant cylinders. Our

bump-resistantcylindersdeterbumpingwithoutcompromisingthecylinder’sstructuralintegrity

and strength. This option is available with Corbin Russwin conventional and Pyramid patented

security and high-security cylinders on our mortise, cylindrical and exit device hardware.

Recently, a lot of information has been circulating about bumping, a technique used to defeat

cylinders. Although this method has been around for a number of years, the internet has

increased public awareness. Bumping is when a “bump key” is inserted into the cylinder and

struck using a mallet or hammer type object. The bump key is speciﬁcally designed to transfer

theenergyfromtheforceoftheblowtocreateaseparationinthecylinder’spinswhich

compromises the lock allowing it to open.

Although BHMA has yet to establish bump-resistance standards, Corbin Russwin Bump Resistant

Cylinders were tested and veriﬁed by an independent testing lab. They conclusively resisted

bumping attack and did not allow entry. Veriﬁcation and testing data is available upon request.

Bump-Resistant Cylinders:

•Specify“BRP”

Retroﬁt:

•ConvertexistingcylinderswithBump-ResistantTopSpoolPins

Features

Bump-resistant cylinders are designed for use with all Corbin Russwin locking hardware:

•Cylindricallocks

•Mortiselocks

•Exitdevices

•Accesscontrollocks

•Unitlocks

•Auxiliarylocks

Factory bitted, a symbol BRP is stamped onto pin cover/slides. Interchangeable core cylinders are

not available with bump-resistant pinning.

BRP pinned rim cylinder

BRP pinned key-in-lever cylinder

BRP pinned mortise cylinder

Bump-Resistant Top Spool Pins

29

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Key Blanks

Key Systems

How to Order

51

Blank both sides.

Recommended for

special die stamps

or large amounts of

stamping, and for

Control and Emergency

Master Keys. Not

available for 752, 852

or A Class keyways.

Example: L4-6PIN-51.

52

Recommended for non-

restricted keys which

need extra space for

special stamping. This

bow also enhances

key control for other

Corbin Russwin keys.

Not available for 752,

852 or A Class keyways.

Example: L4-6PIN-52.

53

For use only on U.S.

Government projects.

Recommended for use

when a large amount

of stamping is required.

Not available for 752,

852 or A Class keyways.

Example: L4-6PIN-53.

10

The standard bow

furnished for all

non-restricted keyways

unless otherwise

speciﬁed. The other side

is blank.

Example: L4-6PIN-10.

11

Blank both sides, for

use when more area is

required for stamping,

such as custom die

stamps. Not for use

with restricted keyways.

Example: L4-6PIN-11.

12

This bow enhances

key control for non-

restricted Corbin

Russwin keyways. Other

side blank. Example:

L4-6PIN-12.

13

For use only on U.S.

Government projects.

Example: L4-6PIN-13.

Protected and

Restricted Keys

10, 50 and 90 bow

shapes are designated

as 19, 59 and 99 for

protected and restricted

keyways. They are

stamped this way on

the thumb side. Other

side blank.

RESTRICTED

DO NOT

DUPLICATE

This stamp is not

available for keys which

are not protected and

or restricted. Protected

keyway keys will be

stamped restricted.

Standard B ows

Large Bows

DO NOT

DUPLICATE

Key Sections Length Bow Shape Bow Marking

(seepages31-40) Indicate

5-, 6-, 7-pin

1 Standard

5 Large

9 Security

0 Coined Logo

1 Plain

2 DND

3 US property DND

9 Restricted DND

L4 – 6-Pin – 1 – 0

30

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Key Blanks

Key Systems

How to Order

90

Standard bow for

security keys. Example:

L4-6PIN-90.

91

Blank both sides for

security keys where

extra stamping is

required. Not for use

with restricted keyways.

Example: L4-6PIN-91.

92

This bow enhances

key control for non-

restricted security keys.

Other side blank.

Example: L4-6PIN-92.

93

For use only on

security keys for U.S.

Government projects.

Example: L4-6PIN-93.

Security Bows (Inactive - for Existing Systems Only)

28

Standard bow furnished for all Pyramid keys.

Pyramid Bow Ordering Example

-E1 Sufﬁx

For interchangeable core

mortise cylinder 1081

(conventional)and1091

(security).Available6-pinonly.

Examples: L4-6PIN-51-E1 or

L4-6PIN-90-E1.

-E8 Sufﬁx

For CL3329 and CL3629

and obsolete CL3429 key-in-

lever locksets, ﬁxed core and

IC. Available 6- and 7-pin.

Example: L4-6PIN-51-E8.

-E4 Sufﬁx

For CK4229 locksets, ﬁxed

core and IC, conventional

and security. Also for CK4429.

Available 5- or 6-pin.

Examples: L4-6PIN-51-E4

or L4-6PIN-90-E4.

-E5 Sufﬁx

For obsolete 1429, 3333EM,

4333EM and 5629 key-in-

knob locksets. Available

5- and 6-pin. Example:

L4-6PIN-51-E5.

DO NOT

DUPLICATE

DO NOT

DUPLICATE

Hotel Security Key Blanks

Standard hotel function mortise cylinders 1001 and 1011 use 7-pin Emergency Key blanks. The 51 bow is suggested e.g., L4-7PIN-51.

All other Corbin Russwin hotel function cylinders require keys with a special undercut tip. The four variations are shown below.

PXXX - 7 - 28

Bow Shape

Key Sections

(seepage 43) Length

7-pin

CONTROL

KEY SET

SYMBOL

SYSTEM

REGISTRY

NUMBER

Front Side Back Side

31

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Keyways

Key Systems

Keyway Types

4 keyway multiplex system.

Available 5-, 6- and 7-pin.

Z Class bitting.

Reverse of D Series.

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

L Series (Corbin Russwin) L41

L12 L34

STOCK

L4L3L2L1

Security

Available

Multiplex/Simplex Keyways

Multiplex keyways can be used together to

expand a keying system. A simplex keyway

is independent, stands alone and cannot

be tied into any other keyway to expand a

keying system.

All/Multi-Section/Single Section Keys

All/Multi-section keys can be used on more

than one cylinder with different sections.

For example: a key cut on the L41 multi-

section keyblank will pass cylinder in the

L1, L2, L3 and L4 keyways. Single section

keys can be used with cylinders of the

same section. For example: a key cut on

the L4 single section keyblank will only

pass a cylinder in the L4 keyway.

Active Keyways

Keyways which are available for new

Corbin Russwin keying systems are

considered active. In the case of new

master key systems, the factory reserves

the right to select the keyway from a range

of standard keyways, based on usage in a

particular geographical area.

Inactive Keyways

Many older Corbin Russwin keyways are

designated inactive. No new systems

shall be established on these keyways.

However, they continue to be available to

support existing keying systems.

Restricted Keyways

For security reasons, these keyway proﬁles

are not shown.

Protected Keyways

Key Systems Administration reserves

the ﬁnal decision as to which protected

keyway family will be selected. A notice

of acceptance showing the facilities

name, address and contact information is

required before orders can be processed

For security reasons, these keyway proﬁles

are not shown.

Pyramid Keyways

Pyramid keyways are only available

for Pyramid cylinders and separate

speciﬁcations are used from conventional

Corbin Russwin keying systems. New

systems for Pyramid require a Notice of

Acceptance document to be on ﬁle with

Key Systems Administration. All orders

for Pyramid must have a system speciﬁc

Registration Certiﬁcate attached and all

products must ship directly to the end

user unless a quantity - speciﬁc Letter of

Authorization accompanies the purchase

order. For security reasons, these keyway

proﬁles are not shown.

Bitting Classes

Corbin Russwin has several sets of

dimensionalstandardsforbitting(cutting)

keys. If the wrong speciﬁcations are used

when making keys on code machines

in the ﬁeld, they will not operate in

conjunction with factory supplied cylinders

and keys. The bitting class is given for each

group of keyways. All bitting specs are

available in the Corbin Russwin cylinder

manual.

32

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Keyways

Key Systems

Z and DH Class Keyways

4 keyway multiplex system.

Available 5-, 6- and 7-pin.

DH Class bitting.

Reverse of L Series.

All-Section Key

Multi-Section Key

Cylinder Keyway and Single

Section Key

D Series (Russwin®)

9 keyway

multiplex system.

Available 5-, 6-

and 7-pin.

Z Class bitting.

59 Series (Corbin®)

8 keyway

multiplex system.

Available 5-, 6-

and 7-pin.

DH Class bitting.

H Series (Russwin)

Simplex Keyway.

Z Class bitting.

Reverse of 60.

70 Series (Corbin)

D41

D12 D34

D4D3D2D1

Security

Available

Security

Available

Security

Available

Security

Available

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

59AD

59AB

59A 59B 59C 59D

6059D259D159C259C159B259B159A259A1

59CD

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

H81

H41

H12 H34 H56 H78

H8H7H6H5H4H3H2H1

70

H85

33

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Keyways

Key Systems

Restricted

Keyway proﬁles not shown

for security reasons.

8 keyway multiplex system.

Available 5-, 6- and 7-pin.

Z Class bitting.

Keyway proﬁles not shown

for security reasons.

8 keyway multiplex system.

Available 5-, 6- and 7-pin.

DH Class bitting.

HO Series (Restricted)

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

62 Series (Restricted)

Security

Available

Security

Available

62B262A262A1 62B1 62C262C1 62D262D1

62AD

62AB

62A 62B 62C 62D

62CD

HO4HO2HO1 HO3 HO6HO5 HO8HO7

HO81

HO41

HO12 HO34 HO56 HO78

HO85

93B293A293A1 93B1 93C293C1 93D293D1

93AD

93AB

93A 93B 93C 93D

93CD

39B239A239A1 39B1 39C239C1 39D239D1

39AD

39AB

39A 39B 39C 39D

39CD

F4F2F1 F3

F41

F12 F34

J4J2J1 J3

J41

J12 J34

62B262A262A1 62B1 62C262C1 62D262D1

62AD

62AB

62A 62B 62C 62D

62CD

HO4HO2HO1 HO3 HO6HO5 HO8HO7

HO81

HO41

HO12 HO34 HO56 HO78

HO85

93B293A293A1 93B1 93C293C1 93D293D1

93AD

93AB

93A 93B 93C 93D

93CD

39B239A239A1 39B1 39C239C1 39D239D1

39AD

39AB

39A 39B 39C 39D

39CD

F4F2F1 F3

F41

F12 F34

J4J2J1 J3

J41

J12 J34

34

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

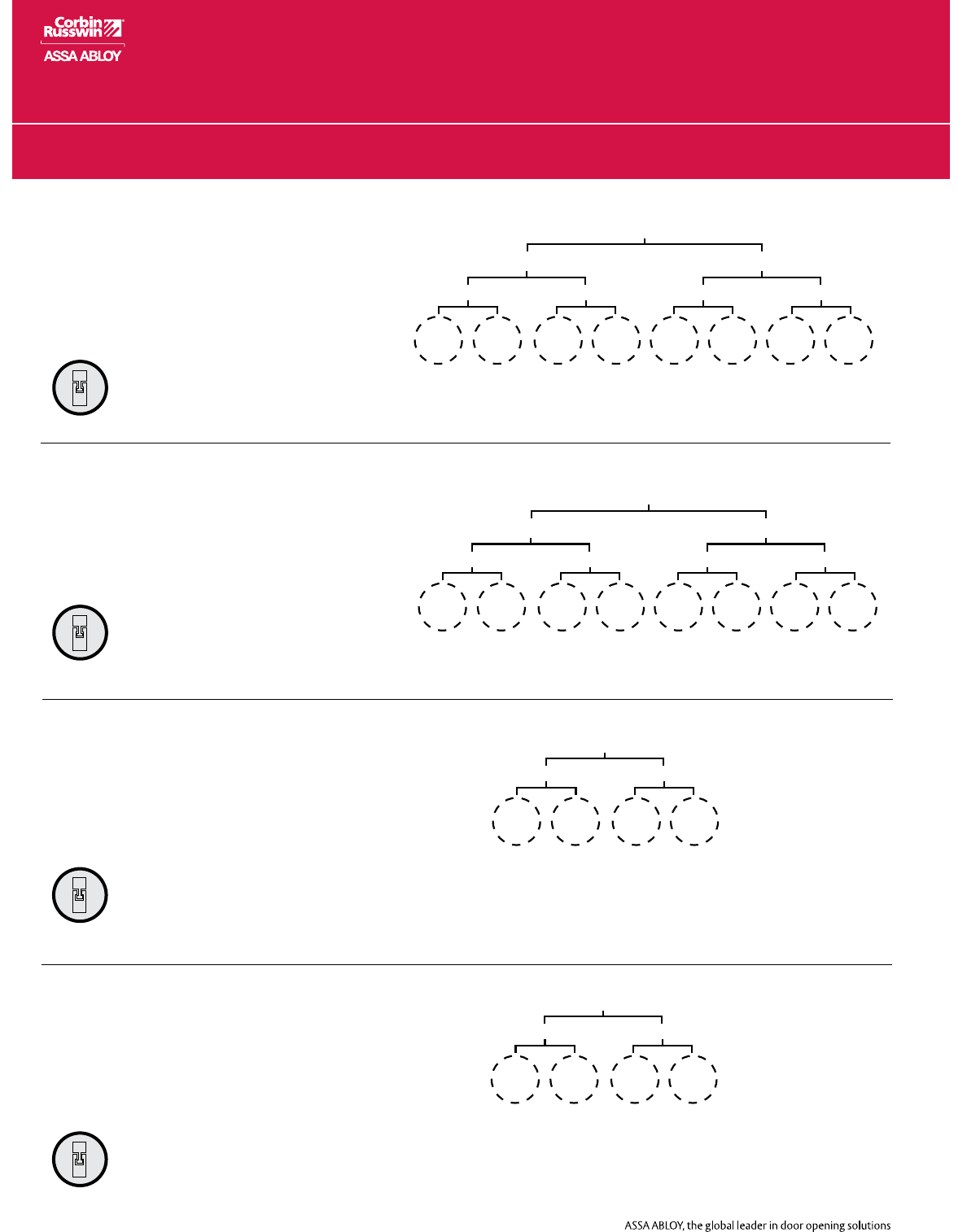

Keyways

Key Systems

Keyway proﬁles not shown

for security reasons.

4 keyway multiplex system.

Available 5-, 6- and 7-pin.

Z Class bitting

Keyway proﬁles not shown

for security reasons.

4 keyway multiplex system.

Available 5-, 6- and 7-pin.

Z Class bitting.

J Series (Protected)

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

F Series (Protected)

Security

Available

Security

Available

62B262A262A1 62B1 62C262C1 62D262D1

62AD

62AB

62A 62B 62C 62D

62CD

HO4HO2HO1 HO3 HO6HO5 HO8HO7

HO81

HO41

HO12 HO34 HO56 HO78

HO85

93B293A293A1 93B1 93C293C1 93D293D1

93AD

93AB

93A 93B 93C 93D

93CD

39B239A239A1 39B1 39C239C1 39D239D1

39AD

39AB

39A 39B 39C 39D

39CD

F4F2F1 F3

F41

F12 F34

J4J2J1 J3

J41

J12 J34

62B262A262A1 62B1 62C262C1 62D262D1

62AD

62AB

62A 62B 62C 62D

62CD

HO4HO2HO1 HO3 HO6HO5 HO8HO7

HO81

HO41

HO12 HO34 HO56 HO78

HO85

93B293A293A1 93B1 93C293C1 93D293D1

93AD

93AB

93A 93B 93C 93D

93CD

39B239A239A1 39B1 39C239C1 39D239D1

39AD

39AB

39A 39B 39C 39D

39CD

F4F2F1 F3

F41

F12 F34

J4J2J1 J3

J41

J12 J34

Keyway proﬁles not shown

for security reasons.

8 keyway multiplex system.

Available 5-, 6- and 7-pin.

Z Class bitting.

93 Series (Protected)

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

Keyway proﬁles not shown

for security reasons.

8 keyway multiplex system.

Available 5-, 6- and 7-pin.

Z Class bitting.

39 Series (Protected)

Security

Available

Security

Available

62B262A262A1 62B1 62C262C1 62D262D1

62AD

62AB

62A 62B 62C 62D

62CD

HO4HO2HO1 HO3 HO6HO5 HO8HO7

HO81

HO41

HO12 HO34 HO56 HO78

HO85

93B293A293A1 93B1 93C293C1 93D293D1

93AD

93AB

93A 93B 93C 93D

93CD

39B239A239A1 39B1 39C239C1 39D239D1

39AD

39AB

39A 39B 39C 39D

39CD

F4F2F1 F3

F41

F12 F34

J4J2J1 J3

J41

J12 J34

62B262A262A1 62B1 62C262C1 62D262D1

62AD

62AB

62A 62B 62C 62D

62CD

HO4HO2HO1 HO3 HO6HO5 HO8HO7

HO81

HO41

HO12 HO34 HO56 HO78

HO85

93B293A293A1 93B1 93C293C1 93D293D1

93AD

93AB

93A 93B 93C 93D

93CD

39B239A239A1 39B1 39C239C1 39D239D1

39AD

39AB

39A 39B 39C 39D

39CD

F4F2F1 F3

F41

F12 F34

J4J2J1 J3

J41

J12 J34

35

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Keyways

Key Systems

Corbin®XClass

57 Series

8 keyway multiplex system.

Available 5-, 6-, and 7-pin.

XClassbitting.

Reverses

57A1 27B2

57A2 27B1

57B1 27A2

57B2 27A1

Simplex Keyways

6 independent keyways.

Available 5-, 6- and 7-pin.

XClassbitting.

All-Section Key

Multi-Section Key

Cyl. Keyway and

Single Section Key

57AD

57ABC

57D57C

57B

57A

57A1 57A2 57B1 57B2

97 99 AR BR BL

57C1 57C2 57D1 57D2

AL

Security

Not Available

Security

Not Available

36

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

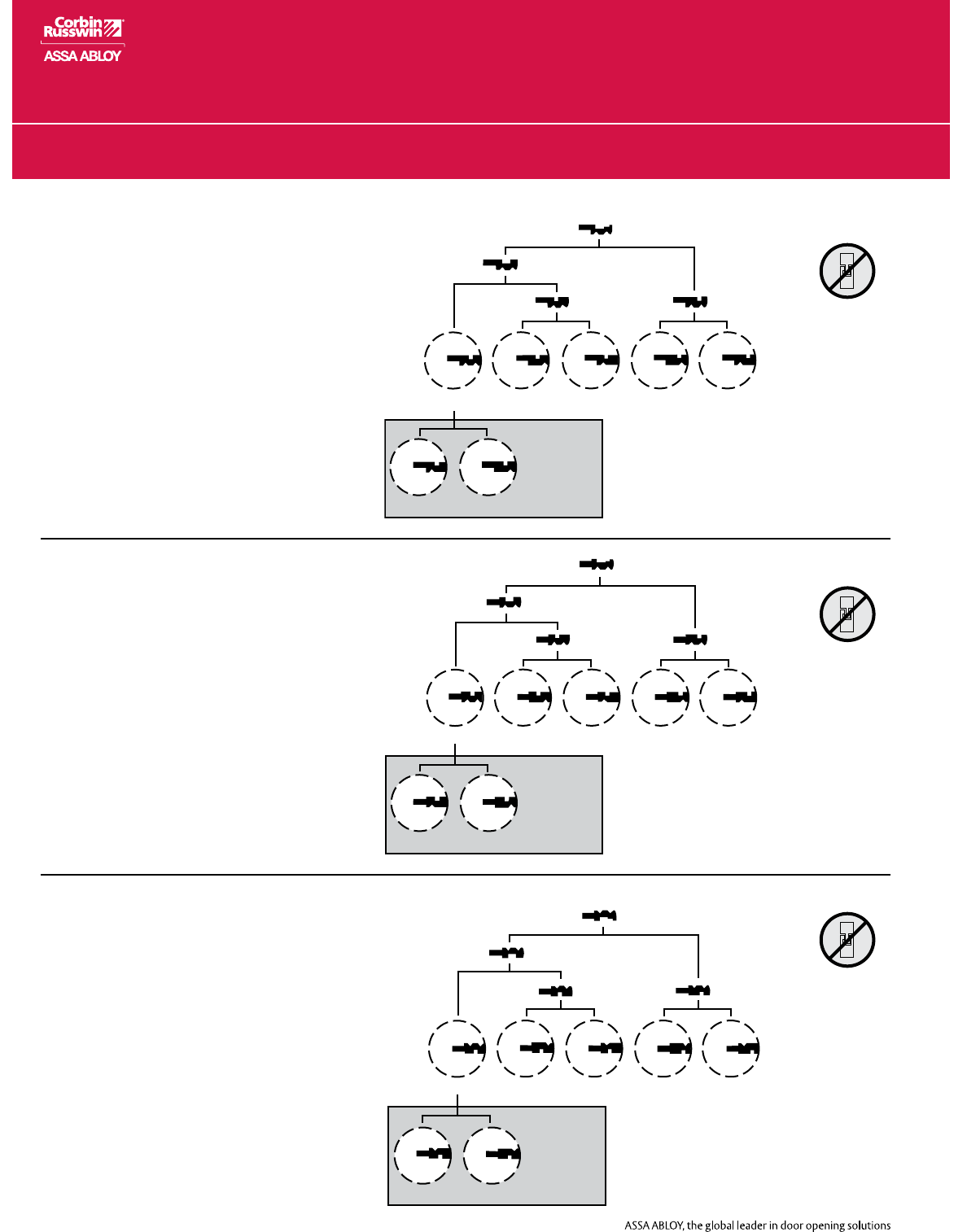

Keyways

Key Systems

Corbin®XClass

27 Series

7keywaystotal(5active).

Available 5-, 6- and 7-pin.

XClassbitting.

Reverses

27A1 57B2

27A2 57B1

27B1 57A2

27B2 57A1

67 Series

7keywaystotal(5active).

Available 5-, 6- and 7-pin.

XClassbitting.

Reverse of 77 Series.

77 Series

7keywaystotal(5active).

Available 5-, 6- and 7-pin.

XClassbitting.

Reverse of 67 Series.

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

Cylinder Keyway

and Single Section

Key

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

Cylinder Keyway

and Single Section

Key

27AB

027

27A 27B

27

28 29

Inactive.

Not used

for new

systems.

68 69

Inactive.

Not used

for new

systems.

27A1 27A2 27B1 27B2

67AB

067

67A 67B

67 67A1 67A2 67B1 67B2

78 79

Inactive.

Not used

for new

systems.

77AB

077

77A 77B

77 77A1 77A2 77B1 77B2

Security

Not Available

Security

Not Available

Security

Not Available

37

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Keyways

Key Systems

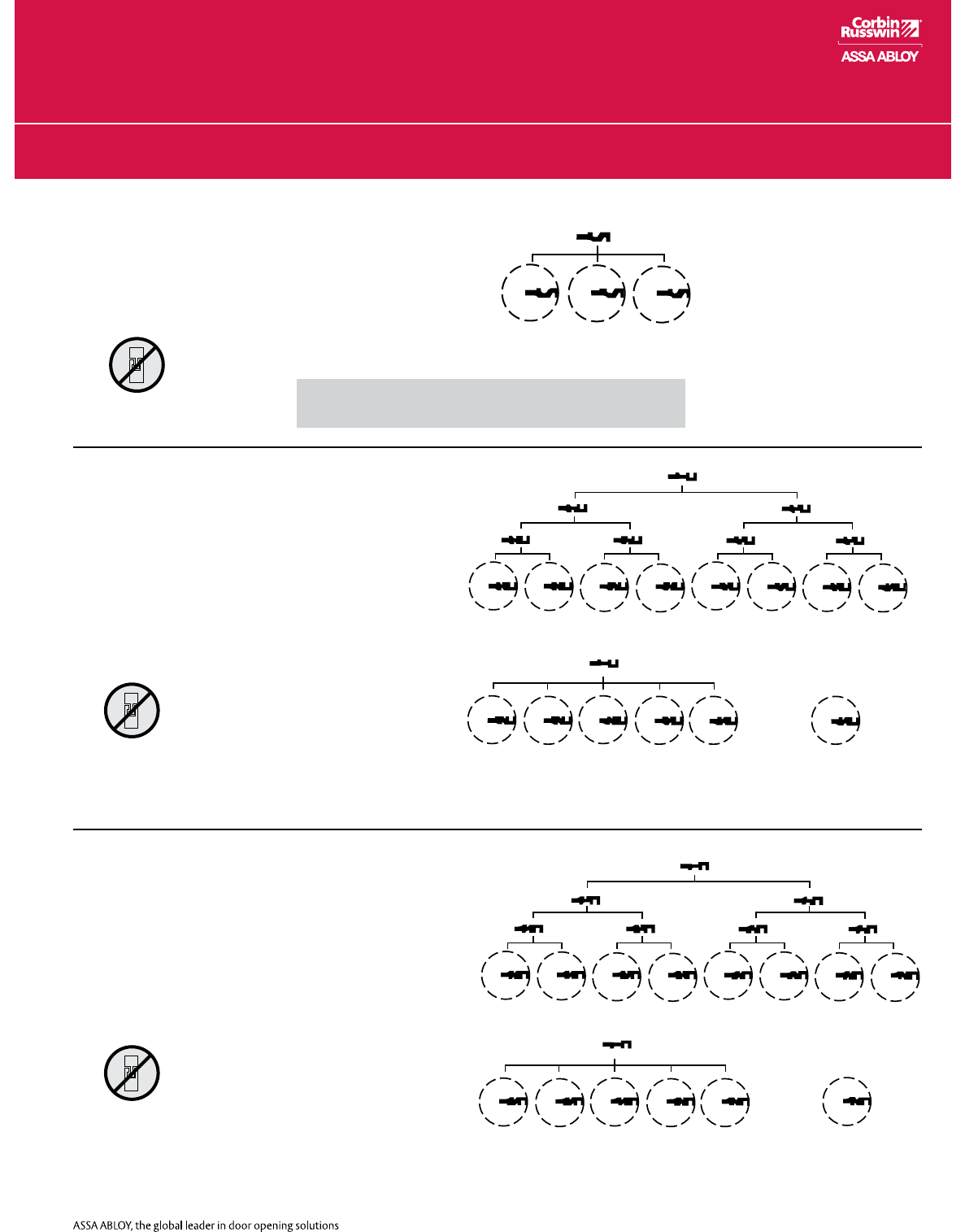

Russwin® Inactive

981 Series

3 keyway multiplex system.

Available 5-, 6- and 7-pin.

981 Class bitting.

N Series (Obverse)

14 keyways total: N1- N14.

Available 5-, 6- and 7-pin.

N Class bitting.

Former Designations

6-pin: 1N-14N

5- and 7-pin: 1K-14K

N Series (Reverse)

14 keyways total: N15- N28.

Available 5-, 6- and 7-pin.

N Class bitting.

Former Designations

6-pin: 15N-28N

5- and 7-pin: 15K-28K

Former 6-pin Designations 961 962 963

Former 7-pin Designations 971 972 973

All-Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Cylinder Keyway and

Single Section Key

9812

981

N1x13M

N1-3-9-12M

N1x13M

N1-12M N3-9M N7-10M N2-8M

N2-7-8-10M

982 983

N1 N12 N3 N9 N7

N4 N5* N6 N11* N13* N14

N10 N2 N8

*NOTE: Do not use these pairs in the same keying system with

each other: N1 with N13; N3 with N5; N7 with N11

Simplex Keyway

not entered by

N1x13M.

N15x27M

N15-17-23-26M

N15x27M

N15-26M N17-23M N21-24M N16-22M

N16-21-22-24M

N15 N26 N17 N23 N21

N18 N19* N20 N25* N27* N28

N24 N16 N22

*NOTE: Do not use these pairs in the same keying system with each other:

N15 with N27; N17 with N19; N21 with N25

Simplex Keyway

not entered by

N15x27M.

Security

Not Available

Security

Not Available

Security

Not Available

38

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Keyways

Key Systems

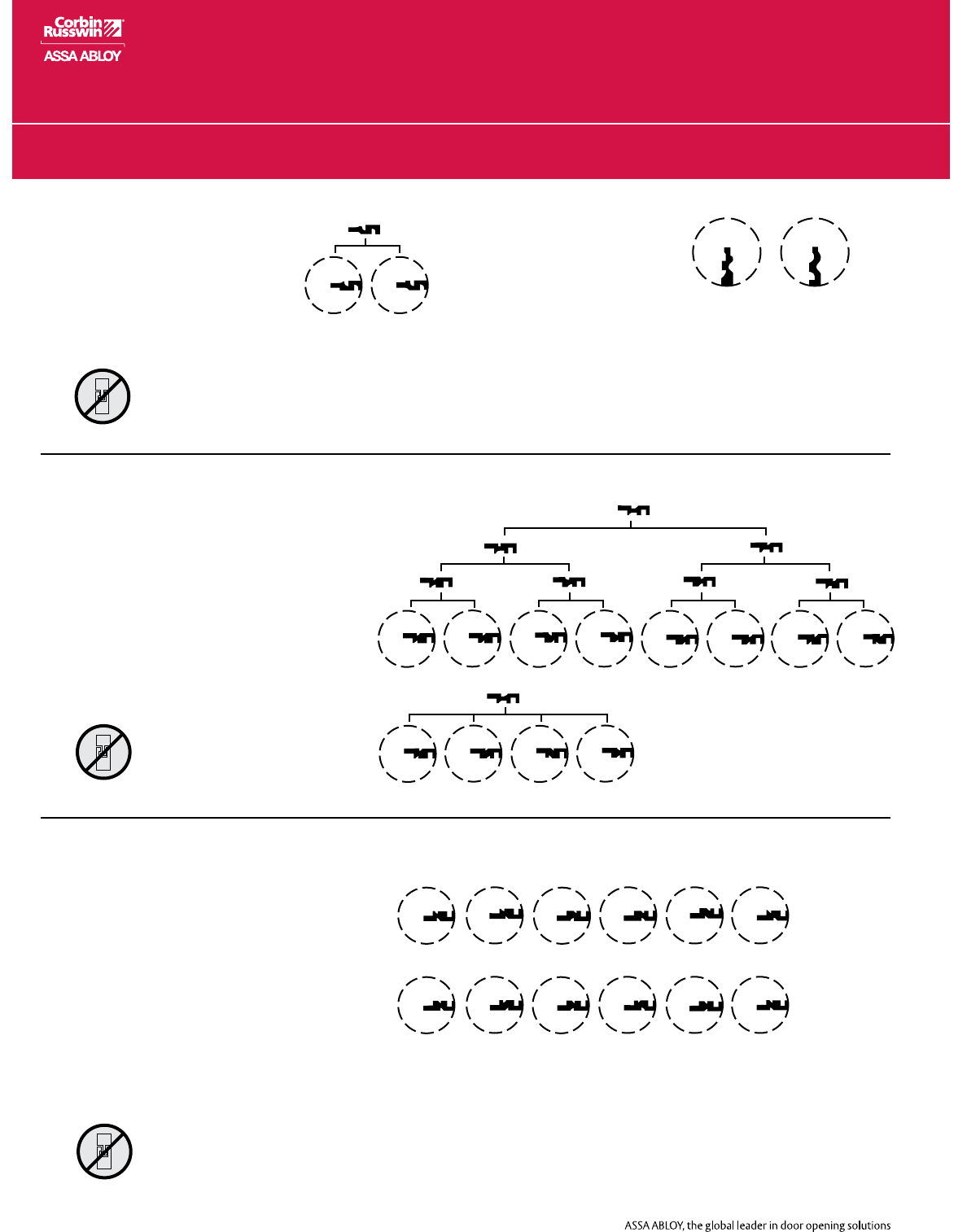

Russwin® Inactive

852 Series

2 keyway multiplex system.

5-pin standard, 6-pin special.

Available with 10 Series

bows only.

No hotel function cylinders.

A Series (Obverse)

12 keyways: A1-A12.

5-pin standard, 6-pin special.

Available with 10 Series

bows only.

A Class bitting.

No hotel function cylinders.

Former Designations

5-pin: 1A-12A

6-pin: 1Z-12Z

A Series (Revers e)

12 keyways: A13-A24.

5-pin standard, 6-pin special.

Available with 10 Series

bows only.

A Class bitting.

No hotel function

cylinders.

Former Designations

5-pin: 13A-24A

6-pin: 13Z-24Z

Simplex Keyways

5-pin only

752 uses 752 Class bitting

G uses 852 Class bitting

Available with 10 Series bows only.

No hotel function cylinders.

* NOTE: Do not use these

pairs in the same keying

system with each other: A1

with A2; A4 with A5.

* NOTE: Do not use these pairs in the same

keying system with each other: A13 with A14;

A16 with A17.

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Cylinder Keyway and

Single Section Key

Cylinder Keyway and

Single Section Key

2852

A1x12M

A1-3-9-12M A4-6-7-10M

252 852

752

A1 A12 A3 A9

A2* A5* A8 A11

A13 A14* A15 A16 A17* A18

A19 A20 A21 A22 A23 A24

A4 A7 A6 A10

A1-12M A3-9M

A1x12M

A4-7M A6-10M

G

Security

Not Available

Security

Not Available

Security

Not Available

39

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Keyways

Key Systems

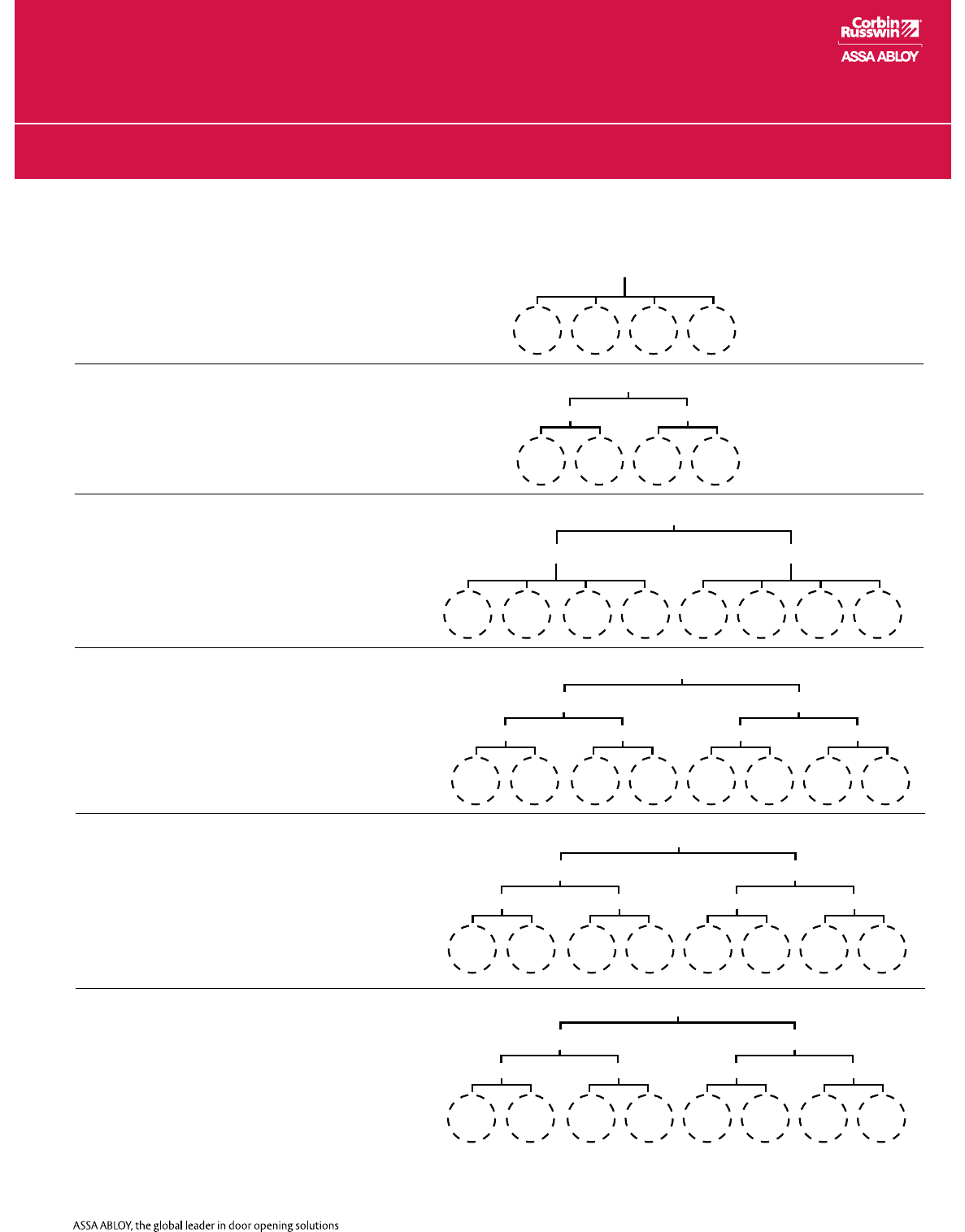

Pyramid

Keyway proﬁles not shown

for security reasons.

4 keyway multiplex

Keyway proﬁles not shown

for security reasons.

4 keyway multiplex

P3AB Series

Keyway proﬁles not shown

for security reasons.

8 keyway multiplex

P4EF Series

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

Keyway proﬁles not shown

for security reasons.

8 keyway multiplex

P4AD Series

Multi-Section Key

Cylinder Keyway and

Single Section Key

P3C Series

P3C2P3C1 P3C4P3C3

P3C

P4E4P4E2P4E1 P4E3 P4F2P4F1 P4F4P4F3

P4EF

P4E P4F

P3A2P3A1 P3B2P3B1

P3A P3B

P3AB

P4B2P4A2P4A1 P4B1 P4C2P4C1 P4D2P4D1

P4AD

P4AB

P4A P4B P4C P4D

P4CD

P3C2P3C1 P3C4P3C3

P3C

P4E4P4E2P4E1 P4E3 P4F2P4F1 P4F4P4F3

P4EF

P4E P4F

P3A2P3A1 P3B2P3B1

P3A P3B

P3AB

P4B2P4A2P4A1 P4B1 P4C2P4C1 P4D2P4D1

P4AD

P4AB

P4A P4B P4C P4D

P4CD

P3C2P3C1 P3C4P3C3

P3C

P4E4P4E2P4E1 P4E3 P4F2P4F1 P4F4P4F3

P4EF

P4E P4F

P3A2P3A1 P3B2P3B1

P3A P3B

P3AB

P4B2P4A2P4A1 P4B1 P4C2P4C1 P4D2P4D1

P4AD

P4AB

P4A P4B P4C P4D

P4CD

P3C2P3C1 P3C4P3C3

P3C

P4E4P4E2P4E1 P4E3 P4F2P4F1 P4F4P4F3

P4EF

P4E P4F

P3A2P3A1 P3B2P3B1

P3A P3B

P3AB

P4B2P4A2P4A1 P4B1 P4C2P4C1 P4D2P4D1

P4AD

P4AB

P4A P4B P4C P4D

P4CD

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

Keyway proﬁles not shown

for security reasons.

8 keyway multiplex

P5AD Series

All-Section Key

Multi-Section Key

Cylinder Keyway and

Single Section Key

Keyway proﬁles not shown

for security reasons.

8 keyway multiplex

P6AD Series

*Note: Each P6 keyway will have its own unique side pin code locations to be assigned by Key Systems Administration. The side pin code is not available

with the other Pyramid keyway families.

P5B2P5A2P5A1 P5B1 P5C2P5C1 P5D2P5D1

P5AD

P5AB

P5A P5B P5C P5D

P5CD

P6B2P6A2P6A1 P6B1 P6C2P6C1 P6D2P6D1

P6AD

P6AB

P6A P6B P6C P6D

P6CD

P5B2P5A2P5A1 P5B1 P5C2P5C1 P5D2P5D1

P5AD

P5AB

P5A P5B P5C P5D

P5CD

P6B2P6A2P6A1 P6B1 P6C2P6C1 P6D2P6D1

P6AD

P6AB

P6A P6B P6C P6D

P6CD

Pyramid (Patented)

40

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Mortise Cylinder Cams

Key Systems

Lockset Applications

Cams for current products or models

Cams for obsolete Corbin Russwin products or models

Type Part Number Model/Description

A01 Reg. 756F50

IC

Corbin Russwin

Arrow®,

Marks 5000, PDQ

Steel case mortise locks except classroom and institutional privacy functions. Deadbolt

functions of green cast iron case mortise locks. NOT for master ring mortise cylinders.

All mortise functions using Cloverleaf cam.

A02 Reg. 756F51

IC

Corbin Russwin

Baldwin

R. R. Brink

Marks

Steelcasemortiselockclassroom(55),insideofvestibule(42)andinstitutionalprivacy

(69)functions.Mostexitdevicetrims.NOTformasterringmortisecylinders.

All mortise locks.

All except CKS.

7000, 9000 and most brands of older black cast iron locks.

A03 Reg. 756F52

IC

Corbin Russwin

Adams Rite®

Lori

DL3000 Series Cylindrical Deadlocks only.

1800 Series, 4015 Deadlocks; 4500 and 4700 Series Latch Locks.

4500, 4600 Series Deadlocks.

A04 Reg. 756F53

IC Corbin Russwin DL4000 Series Mortise Deadlocks only.

A05 Reg. 756F54

IC

Adams Rite

R. R. Brink 4070 Series Deadlocks.

“CKS” Control Key Switch.

A06 Reg. 756F55

IC Schlage®L9000Series(Cloverleafonly).

A07 Reg. 756F56

IC Corbin Russwin DL4100 Series Deadbolts

A61 Reg. 562F40 Corbin Russwin

Mortise Series deadbolt function master ring locks manufactured since June 10, 1993

(silvercase).Adaptearlier(goldcase)modeltousethiscambyinstallingthumbturnhub

562F41-2.

A62 Reg. 756F58

IC

Corbin Russwin

DORMA

MortiseSeriesMasterRingclassroom(55)functionandinsideofvestibule(42)function

mortise locksets.

900SeriesMullion,WS700SeriesMullion(BothKRM)

Mortise Locks

A65 Reg. 025F72 Corbin Russwin

Mortise Series: required for master ring deadbolt functions manufactured before

June 10, 1993(goldcase)andforoutsideofcurrentvestibule(42)function.Optional

forcurrentnon-deadboltfunctionsexceptclassroom(55)andinsideofvestibule(42)

function.

A92 Reg. 756F62

IC Corbin Russwin Concealed vertical rod exit device outside grip handle operators 01 and 02.

A63 121F01 Corbin Russwin Black cast iron case master ring mortise locks, except models with 1" throw deadbolt.

A64 135F19 Corbin Russwin Black cast iron case master ring mortise locks with 1" throw deadbolt.

A93 Reg. 281F27

IC 362F43 Corbin Russwin 610 and 1403 Series Cylindrical Deadlocks.

41

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

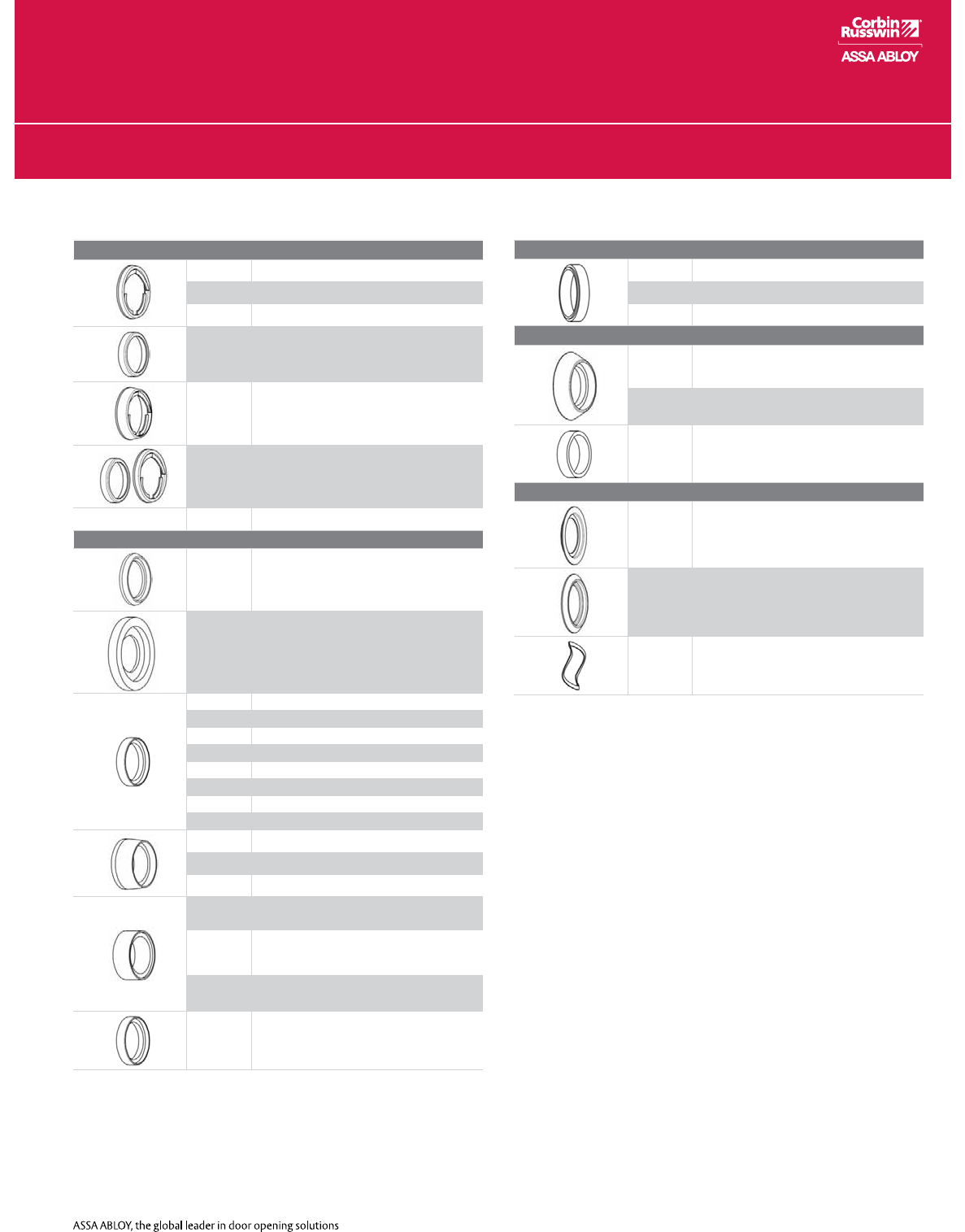

Cylinder Accessories

Key Systems

Collars and Master Ring Adapter

* Number includes wave washer in packet

+ Refer to corresponding parts and service manuals for correct cylinder collar applications and selection guide

Standard Collars +

Spring

253F97 .150"(5/32")

249F43 .096"(3/32")

549F51 .156"(5/32")-Ringonly

549F52 .219"(7/32")-RingOnly

605F43 .350"(11/32")

428F66 Packet: 549F52 + 253F97

429F43 Packet: 549F51 + 249F43

Solid, Recessed for Cylinder Head

700F53 .090"(3/32")VRtrim,double

cylinder 1-1/4"

261F54 .094"(3/32")x2-1/4"O.D.forED6000with

T5, T6, T9, T9M, T10, T10M, T11M trim

270F15 .156"(5/32");totalprojection9/32"

598F89* .156"(5/32");totalprojection9/32"

447F41* .031"(1/32");totalprojection1/4"

447F42* .172"(11/64");totalprojection25/64"

610FO1* .221"(7/32");totalprojection7/16"

610F02* .289"(9/32");totalprojection1/2"

654F07 .350"(11/32");totalprojection15/32"

447F43* .375"(3/8");totalprojection19/32"

609F36* .500"(1/2");totalprojection23/32"

609F37* .650"(21/32");totalprojection7/8"

609F38* .850"(27/32");totalprojection1-1/16"

134F05 .510"(1/2")forED6800xB5orG6andall

ED7400, ED7800 with 1-1/8" cylinder

267F97

.635"(5/8")forED6800xO1orO2with

1-1/8" and ED6800 x B5 or G6 and all

ED7400, ED7800 with 1-1/4" cylinder

399F48 .750"(3/4")forED6800xO1orO2with

1-1/4" cylinder

654F08 .550"(9/16");totalprojection11/16"

Spacers for Flexible Head Cylinders

370F29 .125"(1/8")

370F31 .250"(1/4")

252F82 .315"(5/16")

Other Solid Collars

416F39* .172"(11/64")securitycollar;total

projection 13/32"

686F98* .172"(11/64")securitycollar;totalprojection

13/32"(3wavewashers)

303F25 .312"(5/16")for1-1/8"cylinderon

aluminum door

Miscellaneous

255F53 Rim cylinder, ﬂush mount

422F88 Rim cylinder, surface mount

197F34 Wave washer

42

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Cylinder Accessories

Key Systems

Collars and Master Ring Adapter

Master Ring Collars +Master Ring Adapter

For installing standard diameter mortise cylinder

in master ring lockset.

Specify 522F93-2.

Order cam separately. See page 40.

Solid, Recessed for Cylinder Head

447F44* .031"(1/32");totalprojection1/4"

447F45* .172"(11/64");totalprojection25/64"

447F46* .375"(3/8");totalprojection19/32"

699F81* .505"(1/2");totalprojection23/32"

261F55 .094"(3/32")X2-1/4"O.D.forED6000withT5,

T6, T9, T9M, T10, T10M, T11M trim

Spacers for Flexible Head Cylinders

366F70 .090"(3/32")tapered

370F33 .094"(3/32")

370F35 .281"(9/32")

Miscellaneous

255F54 Rim cylinder, ﬂush mount

197F35 Wave washer

* Number includes wave washer in packet

+ Refer to corresponding parts and service manuals for correct cylinder

collar applications and selection guide

43

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Cylinder Accessories

Key Systems

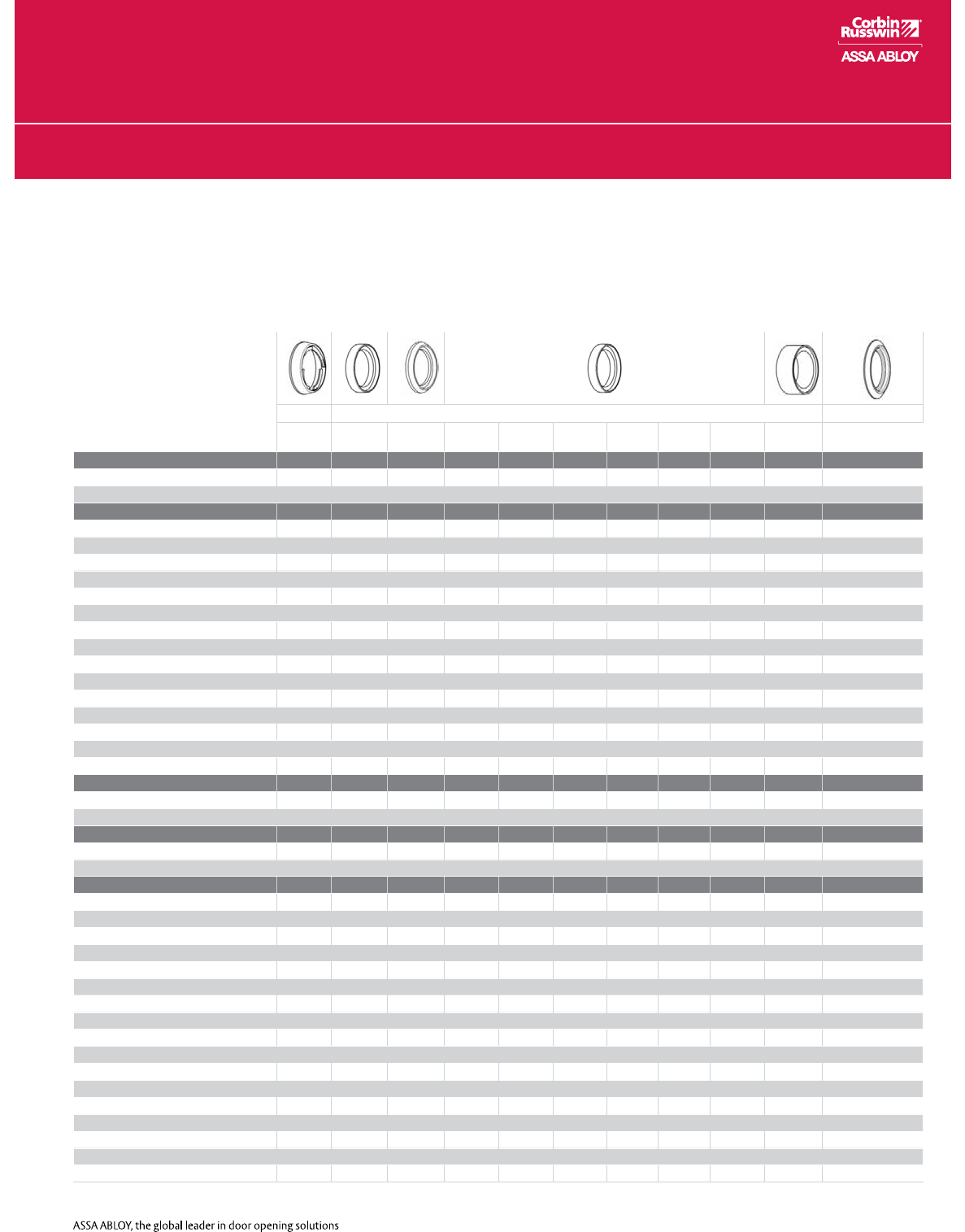

Pyramid Collars

Collars

•1-3/4"(44mm)thickdoor.Forother

door thicknesses and trim

considerations, contact Corbin Russwin

Technical Product Support.

•MortiseCylinders–1-1/4"(32mm)length

Spring Solid Surface Mount

605F43

(.350)

447F41

(.030)

700F53

(.090)

270F15

(.156)

598F89

(.156)

447F42

(.172)

610F02

(.289)

447F43

(.375)

654F07

(.350)

267F97

(.635)

422F88

(.000)

Mortise Cylinder

HighSecuritySeparately(1020,1030) XX

SecuritySeparately(1027,1037) X

Mortise Lock

Single Cylinder

Sectional X

N Escutcheon X

P Escutcheon X

M Escutcheon X

L&REscutcheon X

TEscutcheon(nocollarrequired)

Double Cylinder

Sectional X

N Escutcheon X

P Escutcheon X

M Escutcheon X

L&REscutcheon X

T Escutcheon X

V Escutcheon X

Auxiliary Locks

DL4011, 4013, 4017 X

DL4012 X

Rim Cylinder

HighSecuritySeparately(3020,3030) X

SecuritySeparately(3027,3037) X

Exit Devices

ED4000-5000 Series

700 Trim, F2, F3, T13, P9 X

K1 X

700M Trim, F2M, F3M, T13M X

900 Trim X

Cylinder Dogging X

ED6000 Series

N3, G4, T3 X

N4M, G5M X

T7M, T9M X

ED7000 Series

P4, P6, P7 X

C4, 03, 05 X

T11 X

ED8000 Series

KO X

F1,P1,P2(nocollarrequired)

44

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Plug Diameters/Quick Codes

Key Systems

Cylinder Options

Description Quick Code

IC 6-pin with temporary construction core CT6

IC6-pinwithtemporaryconstructioncore(Red)

IC6-pinwithtemporaryconstructioncore(Blue)

IC 6-pin with temporary constructioncore(Green)

CT6R

CT6B

CT6G

IC 6-pin with disposable temporary core CT6D

IC 6-pin with SFIC disposable temporary core1(Mortise) CT6SD1

IC 6-pin with small format temporary disposable core CTSD

IC 7-pin with temporary construction core CT7

IC7-pinwithtemporaryconstructioncore(Red)

IC7-pinwithtemporaryconstructioncore(Blue)

IC 7-pin with temporaryconstructioncore(Green)

CT7R

CT7B

CT7G

IC 7-pin with disposable temporary core CT7D

IC 7-pin with SFIC disposable temporary core1(Mortise) CT7SD1

Pyramid with temporary construction core CTP

Pyramid with disposable temporary core CTPD

SFIC6-pinwithlesscore(rimandmortise) CLS6

SFIC7-pinwithlesscore(rimandmortise) CLS7

Bump-resistant cylinders BRP

Collar Options - Mortise and Rim Cylinders Only

Description Quick Code

Collarpacket(549F52+253F97) 428F66

Rim collar, ﬂush mount 255F53

Rimcollar,ushmount(masterring) 255F54

Rim collar,surfacemount(standardforrimcylinders) 422F88

Solid collar - .030 447F41

Solidcollar-.031(masterring) 447F44

Solidcollar-.090(VRtrimonly) 700F53

Solid collar - .094 261F54

Solidcollar-.094(masterring) 261F55

Solid collar - .156 270F15

Solid collar - .156 598F89

Solidcollar-.172(taperedsecuritycollar) 416F39

Solid collar - .172 447F42

Solidcollar-.172(masterring-standardforMR118cylinders) 447F45

Solid collar - .221 610F01

Solid collar - .289 610F02

Solid collar - .312 303F25

Solid collar - .350 654F07

Solid collar - .375 447F43

Solidcollar-.375(masterring) 447F46

Solid collar - .500 609F36

Solid collar - .510 134F05

Solid collar - .550 654F08

Solid collar - .635 267F97

Solid collar - .650 609F37

Solid collar - .749 399F47

Solid collar - .850 609F38

Spacer for ﬂexible head cylinders - .125 370F29

Spacer for ﬂexible head cylinders - .250 370F31

Spacer for ﬂexible head cylinders - .315 252F82

Spacer for ﬂexible head master ring cylinders - .094 370F33

Spacer for ﬂexible head master ring cylinders - .281 370F35

Spacerforexibleheadmasterringcylinders(tapered)-.090 366F70

Springcollar-.150(standardfor118cylinders) 253F97

Spring collar - .219 549F52

Springcollar-.350(standardfor114cylinders) 605F43

Keying Options

Description Quick Code

0-bittedwith2blankkeys(exceptHS,CHS) (standard)

Keyed random KR

Keyed alike KA

Keyedtospecicbitting(specifybitting) KS

Uncombinated UC

Construction master keyed CMK

Key Quantity Options

2 change keys per cylinder2 (standard)2

Other than 2 change keys per cylinder

(i.e.customerrequests6changekeyspercylinder)

KY#

(i.e.,KY6)

No change keys KY0

Masterkeys(ifrequired)3Specify Qty.

Controlkeys(ifrequired)3Specify Qty.

CMKkeys(ifrequired)3Specify Qty.

CMKcontrolkeys(ifrequired)3Specify Qty.

SKDcontrolkeys(ifrequired)3Specify Qty.

Specialpurposekeys,i.e.,ENG(ifrequired)3Specify Qty.

1Corbin Russwin does not furnish permanent SFIC cores

2Keys shipped separately for security and Pyramid master keyed cylinders

3Order as cut keys

*Discontinued

Corbin Russwin Cylinder Plug Diameters

When combinating Corbin Russwin cylinders, the diameter of the plug determines the set of bottom pin and build-up pin lengths

to use. The plug diameter is either .509" or .552". All Pyramid cylinders have a plug diameter of .496" and have their own pin kit.

Current Corbin Russwin cylinder plug diameters are listed below by product series. Before 1983, however, all Corbin®XClasscylinders

used .509" diameter plugs.

CL3200 Series* Security Bolt .509" 1400/4300Series(obsolete) Cylindrical .552"

CL3100, CL3300 CL3500, CL3800 Series Cylindrical .509" Pyramid Series All .496"

CL3400&CL3600Series* Cylindrical .509"

CL3700 Series* Cylindrical .509" Mortise Cylinders .552"

CL3900 Series* Cylindrical .509" Rim Cylinders .552"

CK4200* CL3500, CL3800 Series Cylindrical .552" Interchangeable Cores .509"

CK4300&CK4400Series Cylindrical .509" Padlocks .509"

CK4700 Series Cylindrical .509" Competitors’Key-in-Lever/Knob .552"

UT5200 Series Unit Lock .552" Security, all cylinders .552"

DL2200 Series Deadlock .509" Exit Devices, except IC .552"

DL3000 Series Deadlock .552" A6/N6/PR6 trim and obsolete .509"

DL3200 Series Deadlock .509" NS/AS trim .509"

45

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Quick Codes/How to Order

Key Systems

Stamping Options*

Description Quick Code

Keys stamped with bitting number (standard)

No keyset or bitting stamping on keys VKC0

Keysonlystampedwithkeyset(standardforHS,CHS,

PS, PHS, PCS, PCHS) VKC1

Keys stamped with keyset, cylinders stamped with

keyset on face of plug - not available for HS, CHS, PS,

PHS, PCS, PCHS

VKC2

Keys stamped with bitting, cylinders stamped with

keyset on face of plug - not available for HS, CHS, PS,

PHS, PCS, PCHS

VKC3

Keys stamped with keyset, cylinders stamped with

keyset in concealed location CKC2

Keys stamped with bitting, cylinders stamped with

keyset in concealed location- not available for HS, CHS,

PS, PHS, PCS, PCHS

CKC3

LessTradeMark(NoCorbinRusswinlogooncylinders) LTM

KeyBow Options

Description Quick Code

Corbin Russwin logo (standard)

Plain both sides KB11

Do Not Duplicate KB12

US Property Do Not Duplicate KB13

ProtectedDoNotDuplicate(onlyforprotectedkeyways) KB19

RestrictedDoNotDuplicate(onlyforrestrictedkeyways) KB19

Pyramid(onlyforPyramidkeys) KB28

Large bow, plain both sides KB51

Large bow, Do Not Duplicate KB52

Large bow, US Property Do Not Duplicate KB53

Large bow, protected Do Not Duplicate

(onlyforprotectedkeyways) KB19

Large bow, Restricted Do Not Duplicate

(onlyforrestrictedkeyways) KB59

SecuritybowCorbinRusswinlogo(onlyforsecuritykeys) KB90

Securitybowplainbothsides(onlyforsecuritykeys) KB91

Securitybow,DoNotDuplicate(onlyforsecuritykeys) KB92

Security bow, US Property Do Not Duplicate

(onlyforsecuritykeys) KB93

Security bow, protected Do Not Duplicate

(onlyforsecuritykeys,protectedkeyways) KB99

Security bow, Restricted Do Not Duplicate

(onlyforsecurity,restrictedkeyways) KB99

*see page 6 for detailed descriptions

Keyset Cylinder Length Cam Pins Keyway Finish

AA1 1000 118 A01 7 L4 626

Keyset Cylinder Length Pins Keyway Finish

AA1 3000 058 7 L4 626

Keyset Cylinder Lockset Series Pins Keyway Finish

AA1 2000 033 7 L4 626

Keyset Cylinder Pins Keyway Finish

AA1 8000 7 L4 626

How to Order Cylinders

Mortise Separately

Rim Separately

Key-in-Lever/Knob Separately

IC Cores Separately

46

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

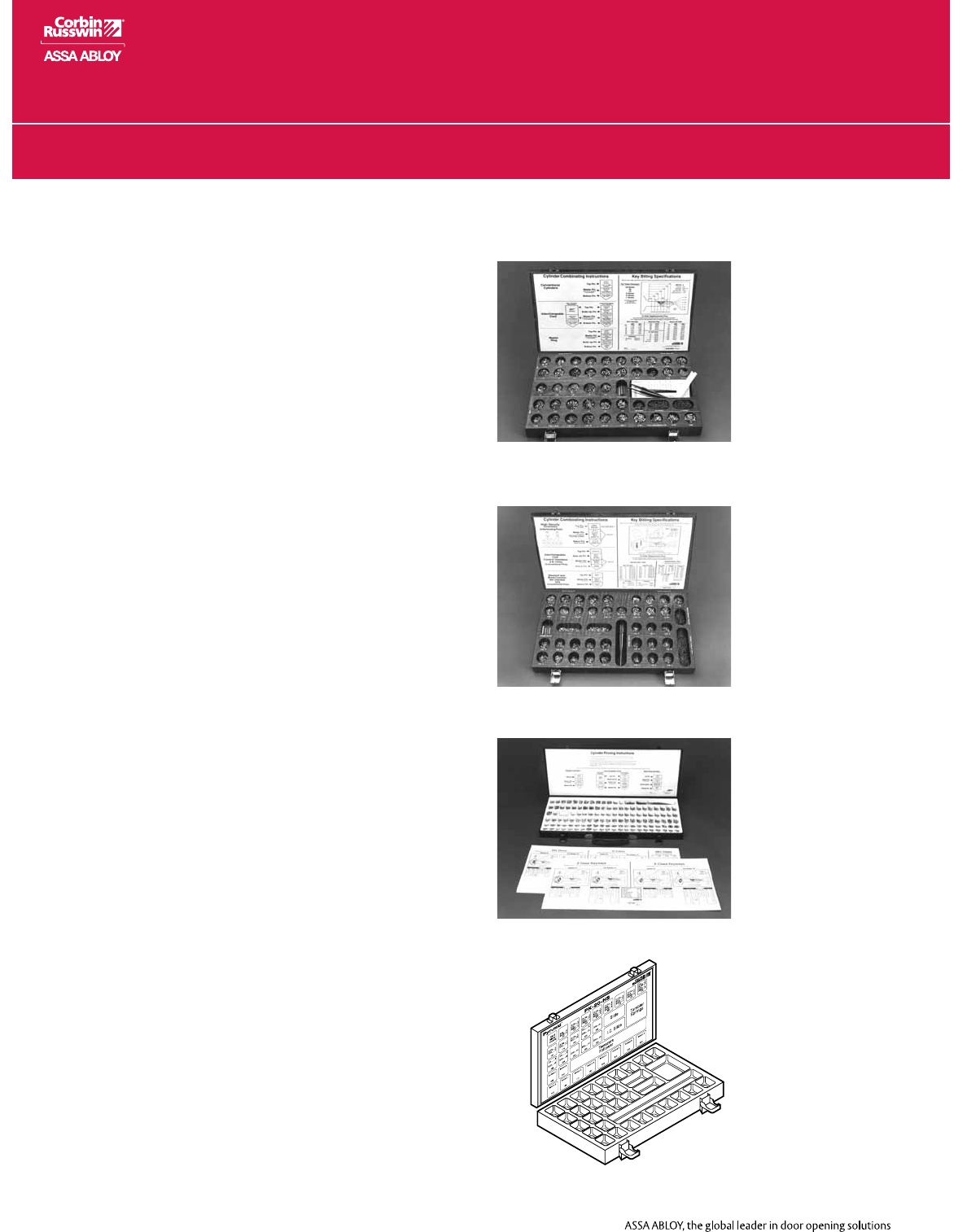

Service Equipment

Key Systems

Pin Kits

PK-70-ZDH

PK-70-X

PK-70-N

PK-70-HS

PK-1070

PK-20-HS

Single System Pin Kits

For the end user with one Corbin Russwin System 70 keying

system to maintain. Each kit has all pins necessary to combinate

interchangeable core and master ring cylinders, as well as

conventionalcylinders(both.509"and.552"plugdiameters).

Furnished in a handsomely ﬁnished hardwood case with

combinating instructions on the inside of the lid. Includes key

gauge, tweezers and both diameter plug followers.

PK-70-ZDH

Forpinningalltypesofcylinders(exceptsecurity)withZClass

keyways: 59, D, H and L Series, plus 60, 70 and restricted/

protectedkeywaysusingSystem70depths(1-6).

PK-70-X

ForpinningalltypesofcylinderswithXClasskeyways:27,57,

67 and 77 Series, plus AR, BR, BL, 97 and 99 using System 70

depths(1-6).

PK-70-N

For pinning all types of cylinders with N Class keyways: N1-N28

usingSystem70depths(1-6).

Security Pin Kit

PK-70-HS

For security cylinders, including interchangeable core, Brink

and blockout function. Furnished in a handsomely ﬁnished

hardwood case with combinating instructions on the inside of

the lid. Includes tweezers.

Deluxe Pin Kit

PK-1070

Ideal for locksmiths and distributor service personnel who must

service a variety of Corbin Russwin keying systems. Also for end

users with Pre-System 70 keying systems.

Contains all pins required to combinate standard, IC and master

ring cylinders. Accommodates System 70 and non-System

70 for both plug diameters and all key classes. Furnished in a

reinforced steel case with combinating instructions on the inside

of the lid. A separate, removable, two-sided chart contains pin

lengths for all modern key classes. Includes tweezers and both

diameter plug followers.

PK-20-HS

Each pin kit has all the pins necessary to combinate standard

and interchangeable core Pyramid High Security cylinders.

Includes tweezers, plug follower, key gauge and combinating

instructions.

PK-20-PS

Each pin kit has all the pins necessary to combinate standard

and interchangeable core Pyramid Security Cylinders.

Includes tweezers, plug follower, key gauge and combinating

instructions.

Pyramid Sample Display Case

S-20-DC

Contains sample Master Keyed Cylinders and information

materials.

47

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

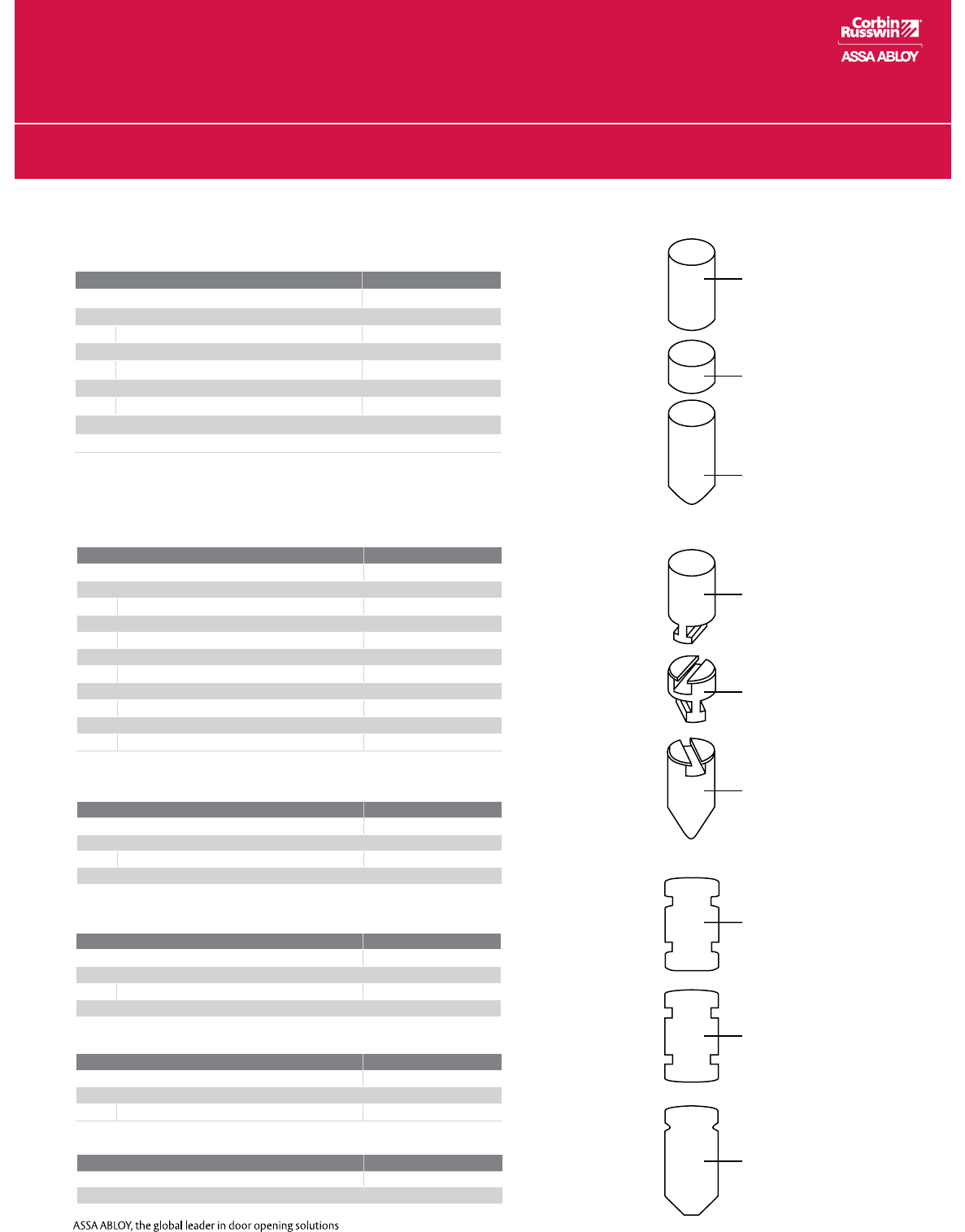

Service Equipment

Key Systems

Replacement Pin for Kits

Description Number

Specifyquantityofvials(100pins/vial):

BottomPins(LSeries) 553F48-4 + length

Master/Top/Build-up Pins 553F49-2 + length

(MSeries)

SpoolTopPins(JSeries) 553F50-2 + length

Specifyquantityofvials(1500balls/vial):

Construction Balls 546F97-8

•Pinsarepackagedinasecure,spill-proofplasticvialwithhingedtop.

•12vialspermastercarton.

Description Number

Specifyquantityofvials(100pins/vial):

BottomPins(NickelSilver) 695F244 + length

Master/Build-up Pins/Top 695F252 + length

(Brass)

Description Number

Specifyquantityofvials(100pins/vial):

BottomPins(StainlessSteel) 695F247 + length

Master/Build-up Pins/Top 695F257 + length

(StainlessSteel)

Description Number

Specifyquantityofvials(20pins/vial):

P6 Side Pin 630F494

TOP PIN

MASTER PIN

BOTTOM PIN

TOP PIN

MASTER PIN

BOTTOM PIN

TOP PIN (M)

(J) Spool Pin

MASTER PIN (M)

BOTTOM PIN (L)

For a complete listing of all Cylinder Components, refer to Cylinder/Owner’s Manuals.

How to Order Conventional Pins

Sufﬁx 3-digit length in thousandths of an inch to base number.

Example: .160" bottom pin is 553F484-160.

How to Order Security Pins

Replace the “x” in the part number with the pin's skew number.

Bottom pins use skews L(1)andR(2).

Master pins use skews L(1),R(2)andS(3).

Example: #2 master pin with S skew is 407T334-097.

How to Order Pyramid Security Pins

Sufﬁx 3-digit length in thousandths of an inch to base number.

How to Order Pyramid High Security Pins

Sufﬁx 3-digit length in thousandths of an inch to base number.

How to Order Pyramid Bump Resistant Pins

How to Order Pyramid P6 Side Pins

Description Number

Specifyquantityofpins(mustbemultipleof20):

Bottom Pin, #2 407T4x4-242

Bottom Pin, #3 407T4x4-270

Bottom Pin, #4 407T4x4-298

Bottom Pin, #5 407T4x4-326

Bottom Pin, #6 407T4x4-354

Master Pin, #2 407T3x4-097

Master Pin, #3 407T3x4-125

Master Pin, #4 407T3x4-153

TopPin#1(long) 407T43-4193

TopPin#2(short) 407T43-4158

Description Number

Specifyquantityofvials(100pins/vial):

Size A 628F107142

Size C 628F107236

48

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

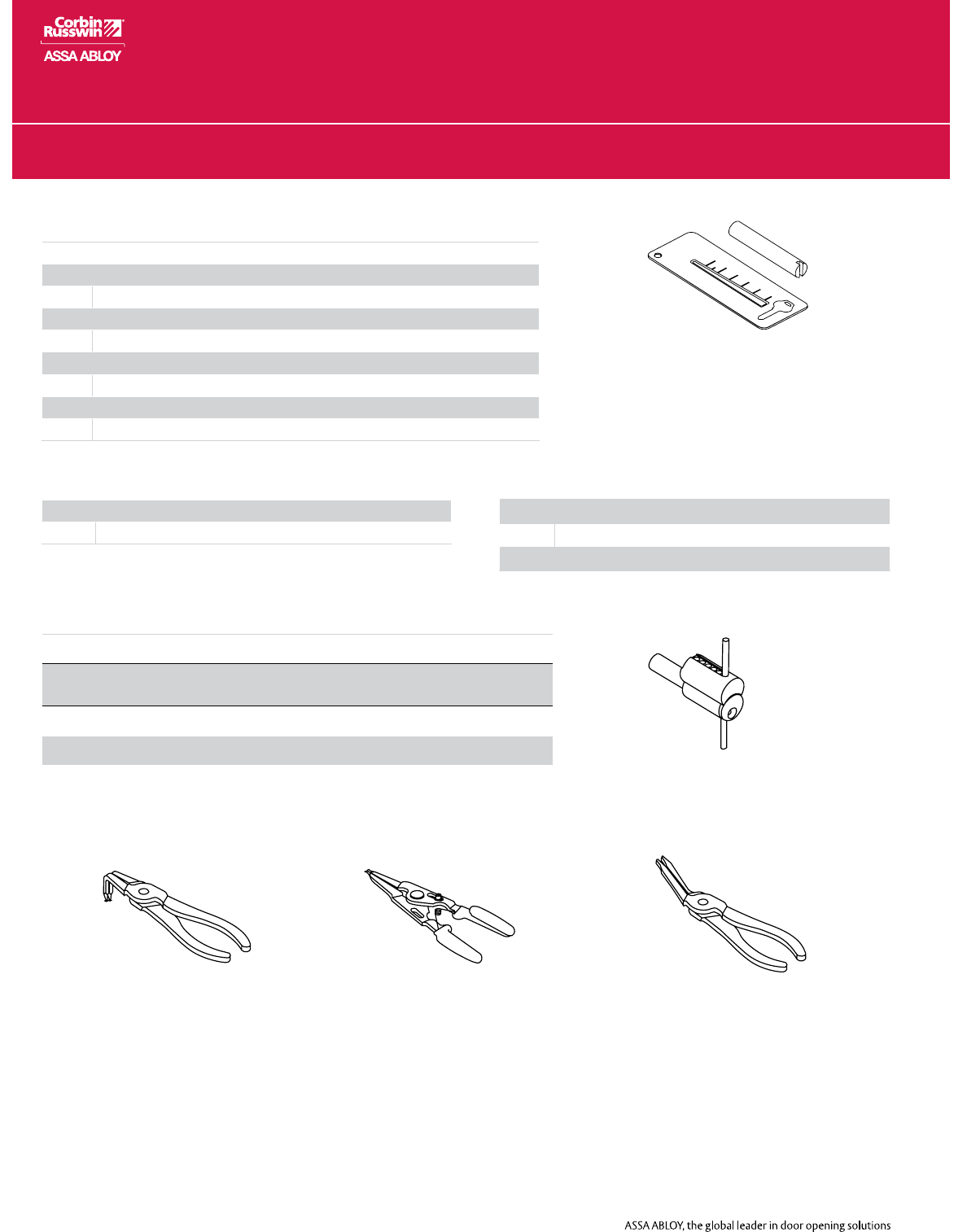

Service Equipment

Key Systems

Replacement Pin for Kits

No. CT-25

When rekeying or exchanging cylinders

in CK4200 and UT5200 Series knobs,

this tool is used to remove the large knob

shank retaining ring to gain access to the

cylinder.

No. CT-26

When rekeying CK4200 and UT5200

Series cylinders, this tool is used to remove

the plug retainer.

No. CT-27

When rekeying or exchanging cylinders

in UT5200 Series Unit Lock lever handles,

this tool removes and installs the cylinder

retaining ring.

CT-80

Cylinder Tool Kit No. CT-93

KitNo.CT-93containsthefollowingitems(alsoavailable separately):

CT-4 Follower for 509" diameter plugs

CT-11 Key gauge for Corbin®XandZClassSystem70 and pre-System 70

CT-19 Tweezers

CT-21 Key gauge for Russwin® N Class System 70 and pre-System 70

CT-22 Key gauge for Russwin DH Class System 70 and pre-System 70

CT-23 Key gauge for Russwin 981 and 852 Classes

CT-26 WaldesTru-Arcpliers(see below for full description)

CT-54 Follower for .552" diameter plugs

Pyramid Tools

CT-20 Pyramidplugfollower(.495"diameter)

CT-20K Key Gauge for Pyramid

Other Tools

CT-5 Pin Chamber Reamer

CT-7 Pin Chamber Burring Tool

CT-10 Loading tool for CK4400 Series and IC cylinder shells

Cylinder Installation Wrench No. CT-80

CT-80 is for interchangeable core mortise cylinders. It is used to:

•InstallandremoveCorbinRusswininterchangeablecoremortise

cylinder housing without marring cylinder scalp ﬁnish.

•Testcamoperationbeforefasteningthemortisecylinderset screw.

•Alignthepinsofthethrowmemberbeforeinstalling the core.

Waldes Tru-Arc Pliers

49

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

Service Equipment

Key Systems

Other Cylinder Parts

Screws

438F41 -8 Cam screw, mortise cylinder and RFC padlocks

438F42-8 Cam screw, IC mortise cylinder

488F08-8 Mortisecylindersetscrewpacket(1screw),standardcylindersize

488F10-8 Mortisecylindersetscrewpacket(1screw),masterring

021F68-8 Rim cylinder mounting screw, 2-9/32" long for 1-3/8" - 2-1/2" doors

021F71-8 Rim cylinder mounting screw, 3-1/8" long for 2-3/4" - 3-1/2" doors

Disposable Core 10 Packs

627F00-9 Corbin Russwin LFIC

707F21-9 Corbin Russwin SFIC

Tailpieces

655F00-8 5/8" horizontal for rim cylinder 3000-058

655F01-8 5/8" horizontal for IC rim cylinder 3080-058

582F29-8 1-1/4" horizontal for IC rim cylinder 3080-114

490F55-8 1-3/8" horizontal for rim cylinder 3000-138

253F85-8 1-7/8" horizontal for IC rim cylinder 3080-178

483F09-8 1-7/8" vertical for IC rim cylinder 3080-178V

253F76-8 2" horizontal for rim cylinder 3000-200

413F48-8 2" vertical for rim cylinder 3000-200V

284F13-8 3-1/8" horizontal for IC rim cylinder 3080-318

253F77-8 3-1/2" horizontal for rim cylinder 3000-312

413F49-8 3-1/2" vertical for rim cylinder 3000-312V

778F778 For2000-031&2000-031Hcylinders

778F768 For2000-031-7&2000-031H-7cylinders

622F30-8 For2000-033&2000-034-7cylinders

622F29-8 For 2000-034-6 cylinder

682F29-8 For2000-037&2000-033-7cylinders

596F89-8 For 2000-038 cylinder

489F02-8 For 2000-051 cylinder

680F60-8 For 2000-039 cylinder

681F60-8 For 2000-039L cylinder

Rim Cylinder Back Plates

253F75-8 For standard and Pyramid rim cylinders

135F10-8 For master ring rim cylinders

Retainers

173F79-8 .020" thick for 2001 -051 cylinder

368F91-8 .030"thickforrim,2200,2210&3000Seriescylinders

488F92-8 .032" thick for CK4200 and 1400/4300 Series locks

333F99-7 For CK4400 Series Locks, 4300 Series Cylinders, 8000 cores and Pyramid

655F41-5 For 3080 IC rim cylinder

680F64-5 Threadedcapfor2000-033,034,037,039,Security&PyramidKILcylinders

585F31-2 Cap pin for above

Springs (Ordered in multiples of 100)

585F32-7 For2000-033,034,037,039,Security&PyramidKILcappin)

172F21-7 ICConventional&Security

603F20-7 FixedCoreConventional&Security

026F75-7 Hotel Mortise blocking pin

697F50-7 All Pyramid Cylinders

314F98-7 For 2001-034 indicator

Spring Covers

217F42-2 5-pinbrass(Rim/Mortise/IC)

217F44-2 6-pinbrass(Rim/Mortise/IC/PyramidIC)

314F88-7 6-pinstainless(2000SeriesKnob/Lever)

217F43-2 7-pinbrass(Rim/Mortise/IC/PyramidRim&Mortise)

585F39-7 7-pinstainless(2000SeriesLever/PyramidKIL/KIK)

411F092 PyramidKIL/KIKforothermanufacturersproducts(2200Series)

Padlock Parts

362F15-3 ThrowmemberforIC&RFCpadlocks(A)

793F592(606nish) CylindersleeveforRFCpadlocks(B)

438F41-8 MountingscrewforRFCpadlocks(C)

50

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Policies and Procedures

Key Systems

Procedures

Corbin Russwin keying systems utilize the

Standard Key Coding System illustrated

on the following pages. To ensure prompt

and accurate processing, purchase orders

should be written using these key symbols

to describe each master keyed item.

In addition to the key symbol, Corbin

Russwin requires the following information

on the keying system for ALL orders:

•EndUser(job)Name

•City,State,ZipCode

•Specialkeybowsorkeystamping

•VKC/CKCrequirements(seepage6)

New Systems or New Branches of

Existing Systems

Indicate system expansion in terms of

estimated numbers of key combinations,

not doors. All of this information is

essential at the inception of a keying

system in order for Corbin Russwin to

ensureaccommodationoftheenduser’s

present and future needs. Advise as

follows:

•Howmanylevelsofkeying?

•Planforaconstructionmasterkey?

•Anyselectivemasterkeys,suchasENG?

•Howmanychangesforeachmaster?

•Howmanymastersforeachgrand

master? If mixing Corbin Russwin

cylinder types, indicate clearly where

each type of cylinder will be used within

the expansion parameters:

•Whichmastersorgrandshave

security cylinders under them?

•Whichhaveinterchangeablecores?

•Whichhavemasterring?

•Whichhaveconventionalcylinders?

Existing System Add-Ons

For prompt processing, orders must

include a positive identiﬁcation for the

keying system in addition to the job name,

city, state and zip code. Any ONE of the

following is positive ID:

•Registrynumberstampedonanyexisting

factory master key

•Previousfactoryordernumbertogether

with the year of that order

Letters of Authorization

No letter is needed when the items are to

be drop shipped directly to the end user.

In all other cases, to preserve the security

oftheenduser’skeyingsystem,Corbin

Russwin requires a letter of authorization

ontheenduser’sletterheadtoobtainthe

following:

•Bittinglists

•Securityblanksandcutkeys

•Masterlevelcutkeys

•Protectedkeyblanks,cylindersandplugs

•Pyramidkeyblanks,cylinders,andplugs

The letter of authorization can be brief

but should include a speciﬁc description of

what is being authorized for release, and a

positive key system identiﬁcation.

XYZ Corporation

1 Main St.

Anytown, USA 00001

(203) 555-5555

(CurrentDate)

Corbin Russwin Architectural Hardware

Key Systems Dept.

We authorize Acme Distributors to obtain a

copy of the bitting list for our keying system

GGMX5555.Wealsoauthorizethemtoorder

the quantities of master keys on our attached

purchase order 1234AB.

Sincerely,

Gordon Morris

Security Director

Sample

Facility Registration

Facility Name

Address #1

Address #2

City State Zip

Authorized Representative

Print

Distributor PO#

System Registry + Zip Code

+ Certiﬁcate Number

Pyramid Key Discard Policy

U.S. Utility Patent number 6,125,674

protects Pyramid keys from unauthorized

duplication until the year 2018.

It is essential that cut keys and key blank

distribution policies and procedures be

maintained and enforced for all Pyramid

products.

Authorized Pyramid Distributors

Pyramid is a system-based product. An

authorized distributor can stock Pyramid

upon speciﬁc written authorization from

the primary systems administrator of the

facility. Authorized distributors have the

ability to receive product, key product,

cut keys and distribute the product to the

facility.

Authorized Pyramid distributors who

carry inventory for a speciﬁc system must

provide valid receipts and disbursements

of all Pyramid products, speciﬁcally key

blanks/cut keys. All Pyramid key blanks

to be maintained in the possession of an

authorized Pyramid distributor must be

accounted for. Any defective, incorrectly

cut or damaged Pyramid key blanks

mustberetainedinthedistributor’s

possession to be reviewed and collected

by a representative of ASSA ABLOY Door

Security Solutions.

Pyramid Primary System

Administrators

Any defective, incorrectly cut or damaged

Pyramid key blank must be destroyed.

Pyramid Key Warranty

Pyramid key blanks are covered by a

5-year warranty as outlined in the current

list price book.

Pyramid Registration Certiﬁcates

For each Pyramid system established

thedesignatedowner’srepresentative

willreceiveaPyramidOwner’sbinder

containing registration certiﬁcates speciﬁc

to their system. Registration

certiﬁcates will contain the facility

registration number along with the

facility name and location and must be

signed by an authorized representative

for the facility. Each order submitted for

Pyramid product must be accompanied

by a registration certiﬁcate. Additional

certiﬁcates will be obtainable through

Key Systems Administration.

51

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

How to Establish Key Systems

Key Systems

2- and 3-Level Systems

To Specify a Simple Master Key System

(2 Levels of Keying)

The master key symbol consists of TWO

letters, such as AA. The change key

numbers are added to the master key

letters. The numbers come FIRST: 1AA,

2AA, 3AA, etc.

When locks are required which are not

operated by the master key or other

change keys in the system, they are

referred to as “single keyed” and given

symbols SKD1, SKD2, etc. When all

higher levels of master keys are to be

disallowed,sufx(NMK) to the symbol of

the key which is to operate. This means

“notmasterkeyed.”Cylinder1AA(NMK)

is operated by 1AA only. The AA master is

blocked from operation.

Master Key

Change Keys

Grand Master Key

Master Key

Change Keys

To Specify a Grand Master Key System

(3 Levels of Keying)

The grand master is assigned any ONE

letter, such as A. The master keys under

this grand are assigned TWO letters, the

ﬁrst of which must be the same as the

grand: AA, AB, AC, etc. are all masters

under grand A. Masters BA, BB, BC, etc.,

are all under grand B. Caution: Do not use

the letters I, O or Q because of possible

confusion with the numerals 1 and 0,

respectively. Also do not use the letter

X due to confusion with cross keying.

Change key numbers come after the

letters.

For master keys beyond AZ, insert a

numeral between the letters to designate

which pass through the alphabet they

represent. A2A through A2Z represents

the second pass of masters under grand

A. A3A through A3Z would be the third.

Change keys under these masters have the

numbers sufﬁxed in the usual way: A2A1,

A2A50, etc.

If the cylinder is to be operated by its

change key and nothing lower than the

single lettered GMK, the change number

is added to the GMK symbol. This is

illustrated by the example A1 in the

schematic shown.

When locks are required which are not

operated by ANY master keys or other

change keys in the system, they are

referred to as “single keyed” and given

symbols SKD1, SKD2, etc.

When all higher levels of master keys are

tobedisallowed,sufx(NMK) to the

symbol of the key which is to operate. This

means “not master keyed” and can be

applied to any level in the system. Cylinder

AA1(NMK) is operated by AA1 only. The

AA master and A grand are blocked from

operation. Cylinder AA(NMK) would be

operated by the AA master only. Grand A

does not operate.

AA

2AA 3AA SKD1

1AA

AA

AA2 AA3AA1

AB

AB2 A1 SKD1

AB1

A

52

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

How to Establish Key Systems

Key Systems

4-Level Systems

To Specify a Great Grand Master Key

System (4 Levels of Keying)

The great grand master key is assigned

the symbol GGM. The rest of the symbols

are the same as those in 3-level systems:

The GMKs are assigned single letters, e.g.,

A, B, C, D, etc. Caution: Never use X for

a grand master key due to the confusion

which will result with cross keying symbols

presented on page 52.

Masters under each GMK are assigned two

letters, the ﬁrst of which is the same as its

respective grand master key. Change key

numbers come after the letters. Changes

underthegrand(A1, B1, etc.) and masters

beyond AZ are handled exactly as in the

3-level system already described.

Changes directly under a grand are also

handled as illustrated in the 3-level system.

For changes directly under the GGM

with no intermediate level masters, the

change number is added directly to GGM

as shown by the example GGM1 in the

schematic.

When locks are required which are not

operated by ANY master keys or other

change keys in the system, they are

referred to as “single keyed” and given

symbols SKD1, SKD2, etc.

When all higher levels of master keys are

tobedisallowed,sufx(NMK) to the

symbol of the key which is to operate. This

means “not master keyed” and can be

applied to any level in the system. Cylinder

AA1(NMK) is operated by AA1 only.

The AA master, A grand and GGM are

all blocked from operation. Cylinder AA

(NMK) is operated by the AA master only.

Grand A and the GGM do not operate.

Cylinder A(NMK) would be operated by

the A grand only, without the GGM.

Selective Master Keys

It is often useful in large keying systems

to issue a high level master key to

maintenance personnel which allows

access across all master and grand master

key boundaries of a keying system. A

selective master key is usually very close

to the system's top master key, both

physically and through its realm of access.

Nevertheless, it must be blocked from

operating in many areas.

The most common names and symbols for

selective master keys are:

ENG Engineer’skey

ATT Attendant’skey

JAN Janitor’skey

HKP Housekeeper’skey

GRD Guard’skey

MAIN Maintenance

To designate that a lock be operated by

a selective master key, sufﬁx the symbol

in parentheses to the standard symbol.

Example: AA1(ENG). This must be added

every time the selective key is to operate

and left off whenever the selective key is

NOT to operate. For instance, you may

lay out a system in which key AA1 is to

operate two different ofﬁces. Inside one

of them is an electrical cabinet which must

be accessible to maintenance personnel

carrying the ENG

key. That lock must be speciﬁed as AA1

(ENG) while the lock for the other ofﬁce

must be speciﬁed as AA1. Change keys

directly under the selective key, such as

ENG1, are operated by all higher level

keys, such as GGM.

I.ike cross keying, a selective master key

is a convenience feature which decreases

the security of the cylinders it operates and

limits the expansion and ﬂexibility of the

overall keying system.

AA

AA2 AA3

AA1 AB2 B1

A1 SKD1

A B

AB

GGM

GGM1

AB1 BB2

BBBA

BB1BA1

AA

AA2 AA3

AA1

BB

BB2 BB3BB1AB2

A B

AB

GGM

ENG

AB1 BA2

BA

BA1

Great Grand Master

Key

Grand Master Key

Master Key

Change Keys

53

Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45078-9/15

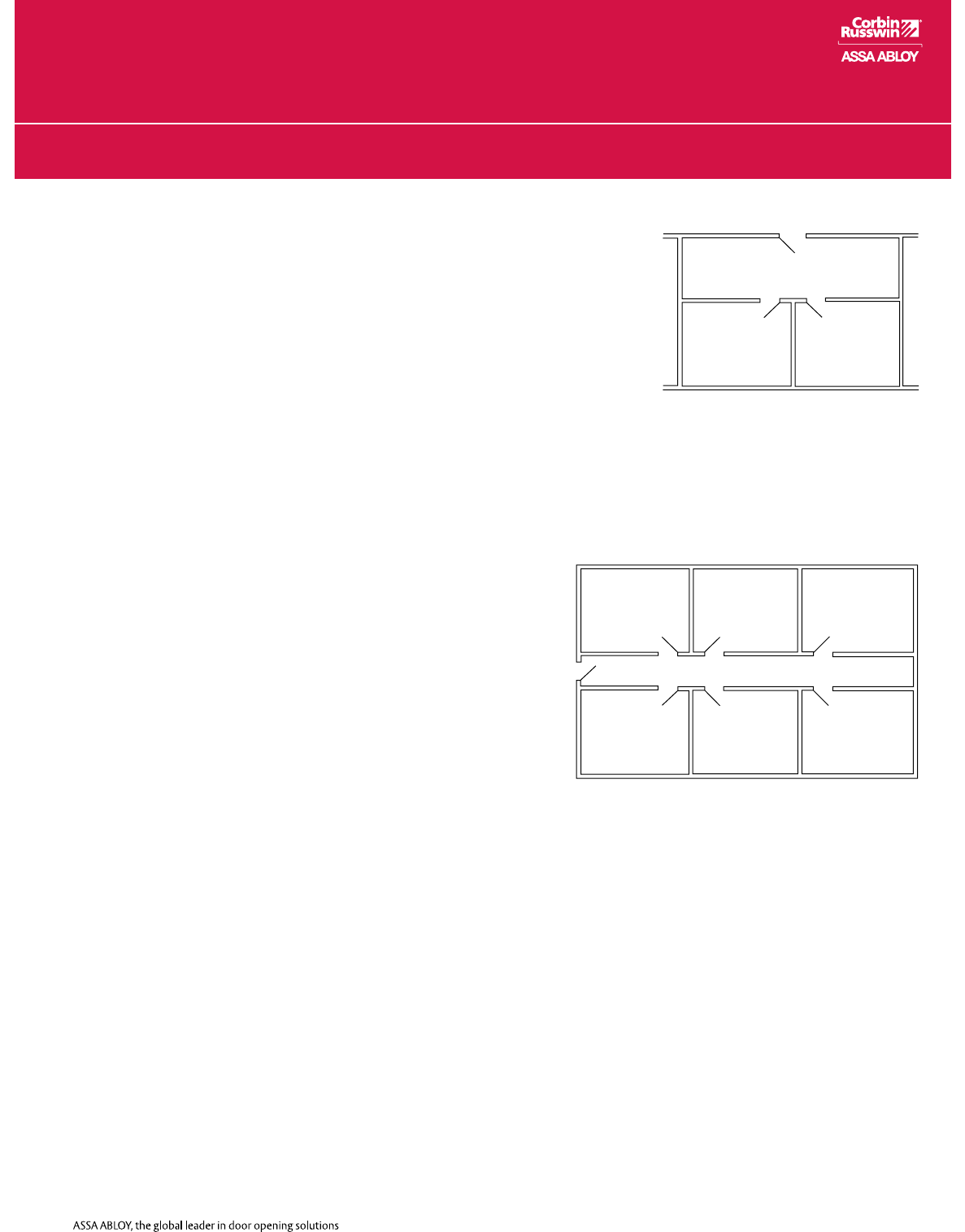

How to Establish Key Systems

Key Systems

Convenience May Reduce Cylinder

Security and Hinder System Expansion

Whenever two or more different keys such

as AA1 and AA2 are both required to

operate the same cylinder, the cylinder's

security is reduced. This is called cross

keying. When the cross keying occurs

under all the same higher level keys, such

as AA1 and AA2, it is known as controlled

cross keying. When it combines keys under

different higher level keys, such as AA1

and AB1, it is known as uncontrolled cross

keying.

In addition to reducing the security of

the cylinder, cross keying usually imposes

limits on the ﬂexibility and expansion of

the overall keying system. This is especially

true of uncontrolled cross keying. For

these reasons, it is strongly recommended

to allow personnel to carry more than one

key. Cross keying should be discouraged

whenever possible. However, when

cross keying is required, it is speciﬁed as

follows, and should be summarized at the

beginning of each order.

Case #1

Cylinder requires its own change key.

The illustration depicts part of a small

medical building where two doctors share

a common receptionist. The receptionist

gets the AA3 key. Each doctor carries a

key which operates only one ofﬁce, but

is also cross keyed into the entrance from

the corridor.

Determine the symbol of the change key

(example:AA3).ThenprextheletterX

(example:XAA3). Then list all keys which

are to operate in an “operated by . . .”

phrase. Example: “XAA3 operated by

AA1, AA2, AA and A”. Note that X is a

cylinder speciﬁcation only. The keys for

cylinder XAA3 are designated AA3.

Case #2

Cylinder does NOT require

its own change key. This

illustration depicts a section

of a ﬂoor in a dormitory.

Each student's bedroom key

operates the hall door lock.

There is no need to construct

a key which operates only

the hall door.

In this case, place an X at

both the beginning and end

of the symbol and a number

between them. Example:

X1X, X2X, etc. Again, always

include the “operated by . . .” phrase

with a complete listing of key symbols to

operate.

AA1

XAA3

Receptionist

AA2

AA2AA1 AA3

AA5AA4

X1X

AA6

Office 1Office 2

XAA3 operated by AA1, AA2, AA and A.

X1X operated by AA1 through AA6, AA and A.

For more information regarding Corbin Russwin Locksets,

Exit Devices, Door Controls and Key Systems, contact your

authorized Corbin Russwin Distributor or Sales Representative.

In U.S.

Corbin Russwin

Architectural Hardware

225 Episcopal Road

Berlin, CT 06037

Phone: 800-543-3658

Fax: 800-447-6714

www.corbinrusswin.com

In Canada

ASSA ABLOY Door

Security Solutions Canada

160 Four Valley Drive

Vaughan, Ontario

Canada L4K 4T9

Phone: 800-461-3007

Fax: 905-738-2478

www.assaabloy.ca

CorbinRusswinandDesign®isaregisteredtrademarkofCorbinRusswin,Inc.,anASSAABLOYGroupcompany.Otherproducts’brandnamesmaybetrademarksor

registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are protected under US copyright laws. All contents current at

time of publication. Corbin Russwin, Inc., an ASSA ABLOY Group company reserves the right to change availability of any item in this catalog, its design, construction, and/or

permission of Corbin Russwin, Inc. is prohibited. 45078-9/15

Corbin Russwin Key Systems Aadss1004918

Navigation menu

Versions of this User Manual:

Views

Navigation
