Coretronic M64ET DLP Projector with 2.4G transceiver User Manual OwnersManual
Coretronic Corp. DLP Projector with 2.4G transceiver OwnersManual
Users Manual
Owner's Manual
Dell™ 5100MP Projector
Model XXX
www.dell.com | support.dell.com
Model XXX
www.dell.com | support.dell.com
Dell™ 5100MP Projector
Owner’s Manual
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use
of your projector.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of
data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal
injury, or death.
____________________
Information in this document is subject to change without notice.
© 2005 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly
forbidden.
Trademarks used in this text: Dell , the DELL logo, Dimension, OptiPlex, Dell Precision, Lati-
tude, Inspiron, DellNet, PowerApp, PowerEdge, PowerConnect, and PowerVault are trade-
marks of Dell Inc.; DLP and Texas Instruments are trademarks of Texas Instruments
Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation;
Macintosh is a registered trademark of Apple Computer, Inc.
Other trademarks and trade names may be used in this document to refer to either the entities
claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in
trademarks and trade names other than its own.
Restrictions and Disclaimers
The information contained in this document, including all instructions, cautions, and regulatory
approvals and certifications, is based upon statements provided to Dell by the manufacturer and
has not been independently verified or tested by Dell. Dell disclaims all liability in connection
with any deficiencies in such information.
All statements or claims regarding the properties, capabilities, speeds, or qualifications of the
part referenced in this document are made by the manufacturer and not by Dell. Dell specifi-
cally disclaims any knowledge of the accuracy, completeness, or substantiation for any such
statements.
____________________
June 2005 Rev. A00
Contents 3
Contents
1Your Dell Projector
About Your Projector . . . . . . . . . . . . . . . 8
2Connecting Your Projector
Connecting to a Computer . . . . . . . . . . . . . . 10
Connecting a Computer with an M1 to
D-sub/USB Cable . . . . . . . . . . . . . . . . 10
Connecting a Computer with a D-sub to
D-sub Cable . . . . . . . . . . . . . . . . . . . 11
Connecting to a DVD Player . . . . . . . . . . . 12
Connecting a DVD Player with an M1 to
HDTV Cable . . . . . . . . . . . . . . . . . . . 12
Connecting a DVD Player with a D-sub to
YPbPr Cable . . . . . . . . . . . . . . . . . . . 12
Connecting a DVD Player with a RCA to RCA Cable 13
Connecting a DVD Player with an S-video Cable . . 13
Connecting a DVD Player with a Composite Cable . 14
Connecting a DVD Player with a BNC to VGA cable 14
Professional Installation Options: Installation
for Driving Automatic Screen . . . . . . . . . . . 15
Installation for wired RS232 remote control:
Connection with PC . . . . . . . . . . . . . . . 16
Connection with Commercial RS232 Control Box: . 17
4Contents
3Using Your Projector
Turning Your Projector On . . . . . . . . . . . . . . 19
Turning Your Projector Off . . . . . . . . . . . . . . 19
Adjusting the Projected Image . . . . . . . . . . . . 20
Raising the Projector Height . . . . . . . . . . . 20
Lowering the Projector Height . . . . . . . . . . 20
Adjusting the Projector Zoom and Focus . . . . . . . 21
Adjusting Projection Image Size . . . . . . . . . . . 22
Using the Control Panel . . . . . . . . . . . . . . . 23
Using the Remote Control . . . . . . . . . . . . . . 25
Using the On-Screen Display . . . . . . . . . . . . 28
Image Settings . . . . . . . . . . . . . . . . . 28

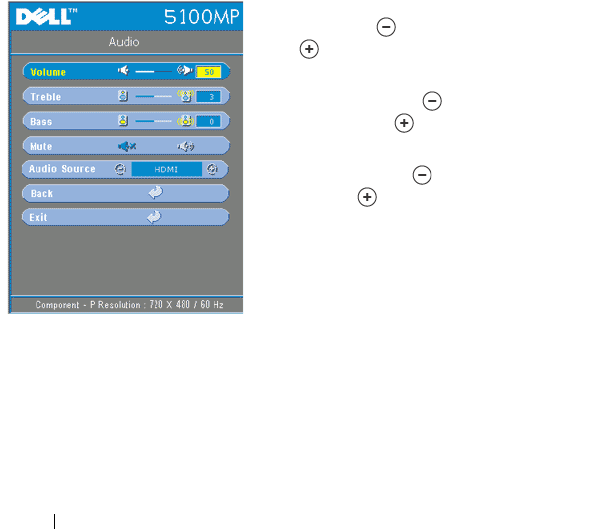

Audio Menu . . . . . . . . . . . . . . . . . . 30

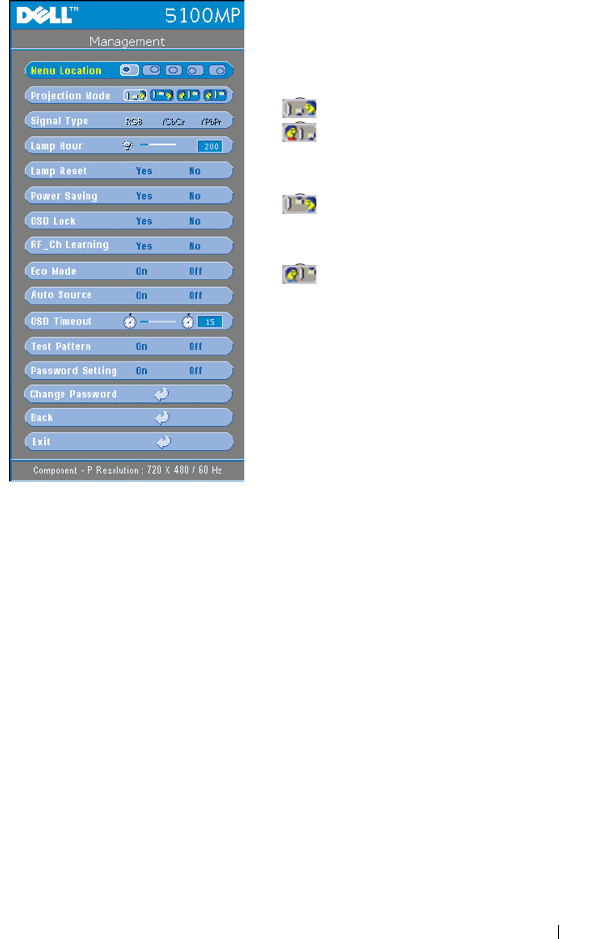

Management Menu . . . . . . . . . . . . . . . 31

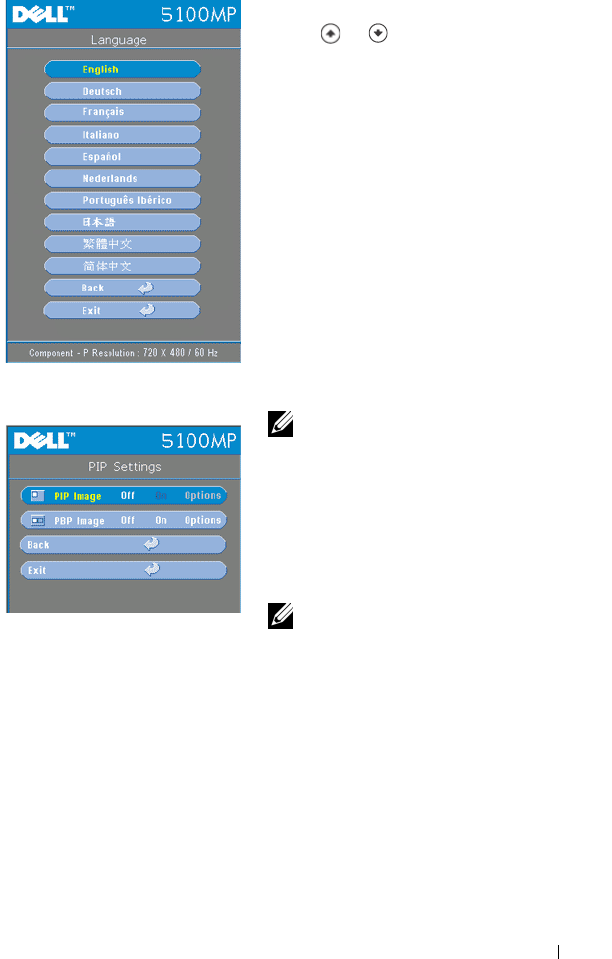

Language Menu . . . . . . . . . . . . . . . . 33
PIP Setting Menu . . . . . . . . . . . . . . . . 33
Network Settings Menu . . . . . . . . . . . . . 34
Factory Reset Menu . . . . . . . . . . . . . . 35
Computer Source Menu . . . . . . . . . . . . . 35
Video Source Menu . . . . . . . . . . . . . . . 35

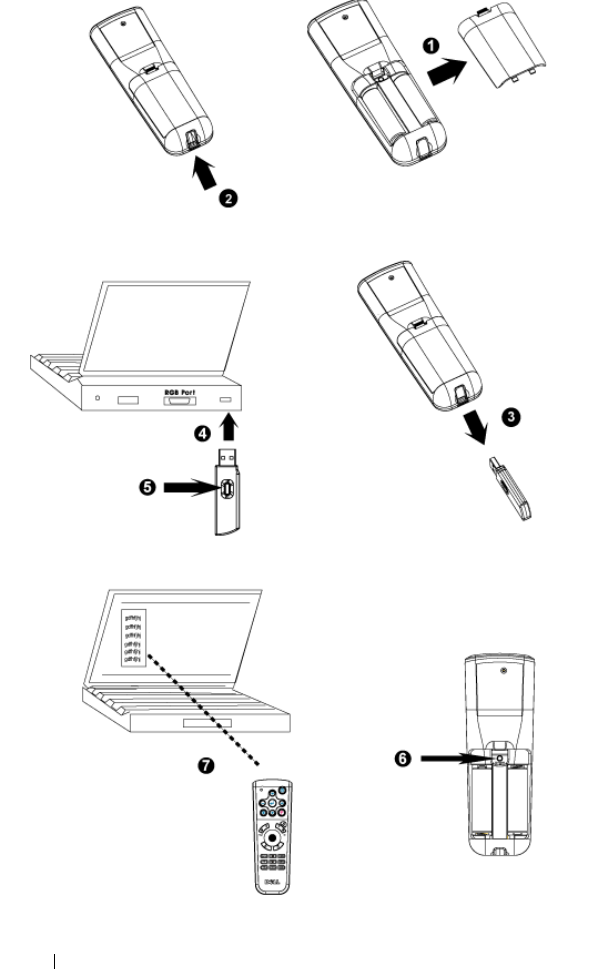

RF Learning Connections . . . . . . . . . . . . 36

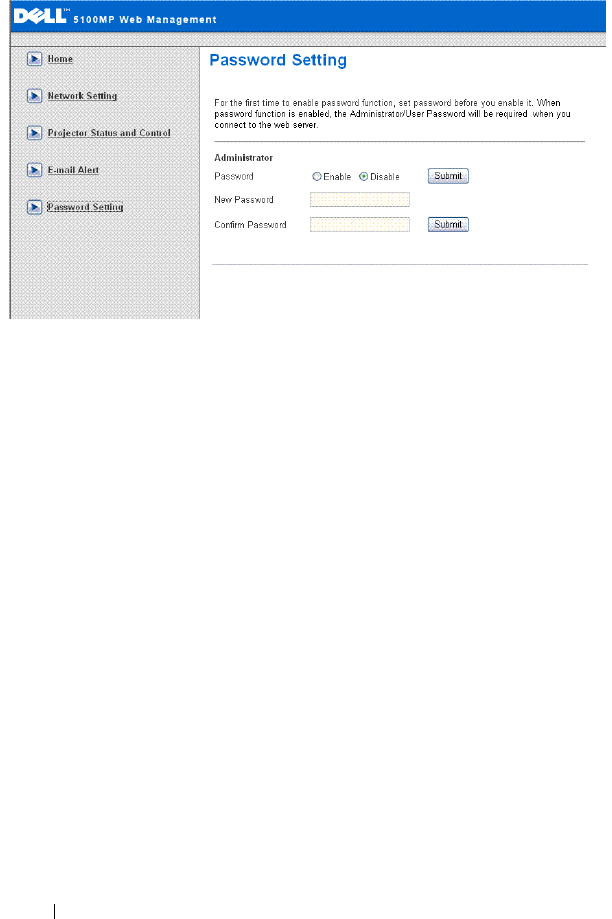

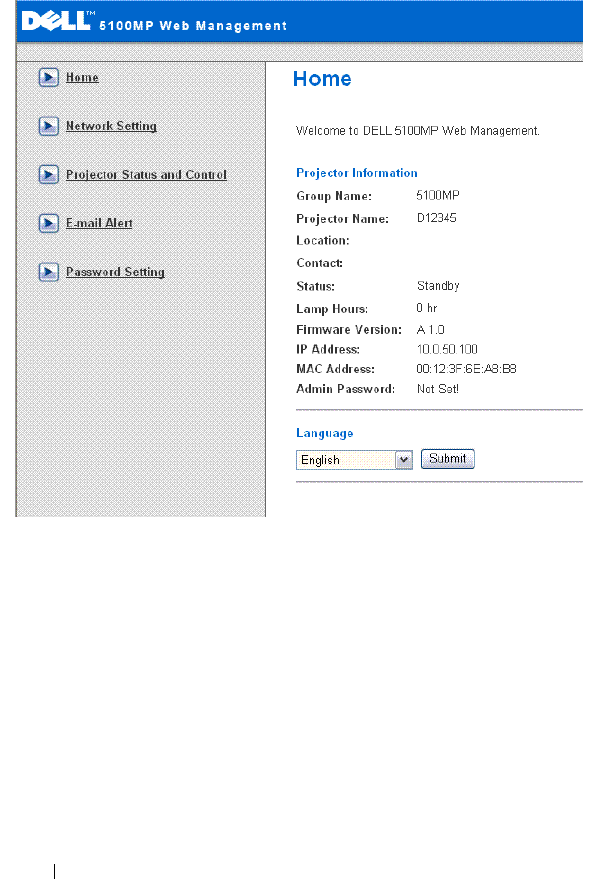

To manage the projector from Web Management . 39
4Troubleshooting Your Projector
Self-diagnostic for Video . . . . . . . . . . . . . . 48

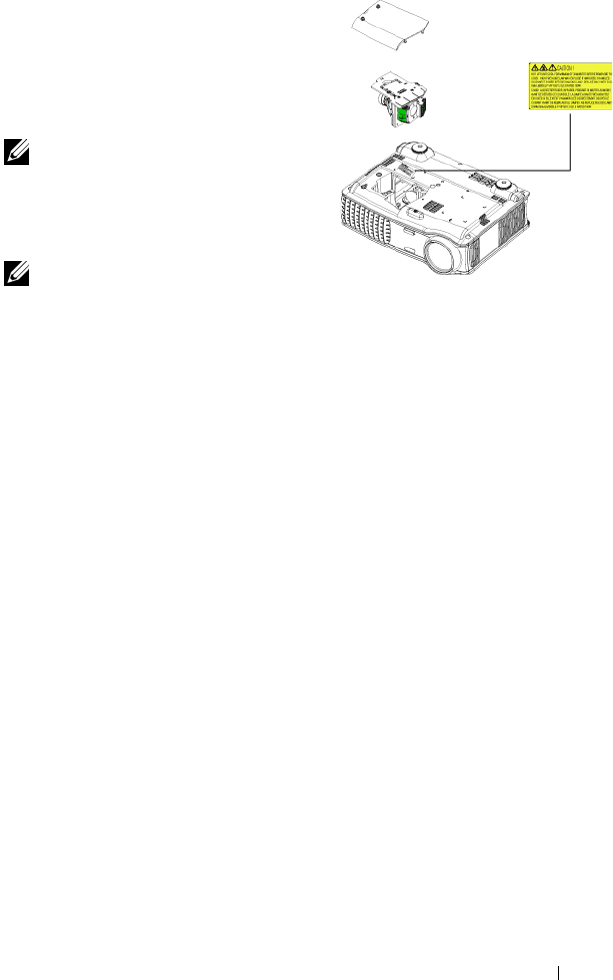

Changing the Lamp . . . . . . . . . . . . . . . . . 48
6Contents
Your Dell Projector 7
1
Your Dell Projector
Your projector comes with all the items shown below. Ensure that you have all the
items, and contact Dell if anything is missing.
Package Contents
1.8m power cord (3.0m in Americas) 1.8m M1 to D-sub/USB cable
2.0m S-video cable 1.8m Composite Video cable
1.8m RCA to Audio cable 1.8m mini pin to mini pin cable
1.8m M1-A to HDTV cable Remote control
www.dell.com | support.dell.com
8Your Dell Projector

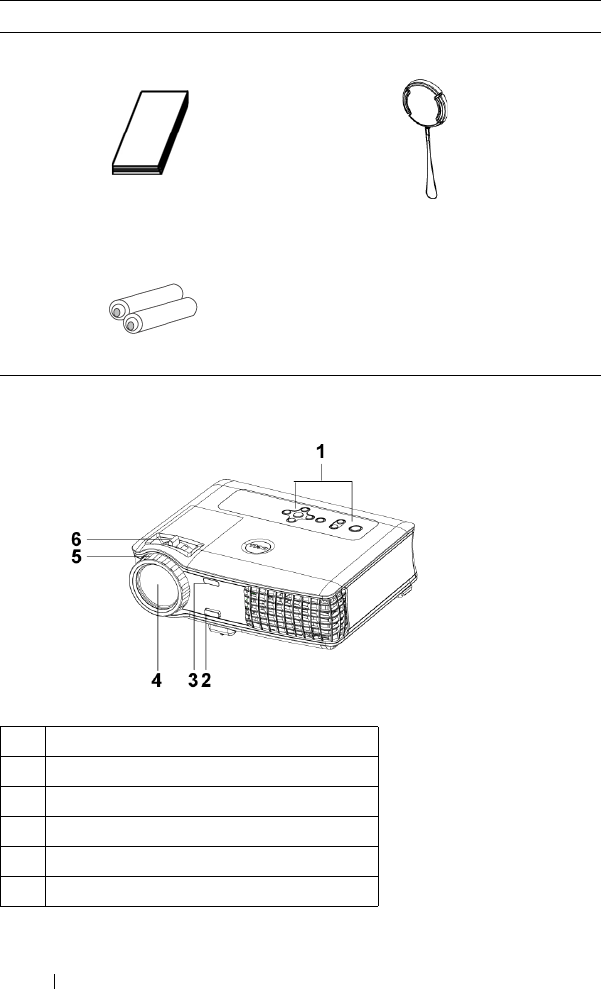

About Your Projector
Documentation Lens cap
Batteries (2)
1Control panel
2Elevator button
3Remote control receiver
4Lens
5Focus ring
6Zoom tab
Package Contents
(continued)
Connecting Your Projector 9
2
Connecting Your Projector
1RJ45 network connector
2HDMI connector
3VGA input connector
4M1 signal in connector
5Video input connector
6S-video input connector
7VGA output connector
8RS232 connector
9IR receiver
10 Kensington lock hole
11 Power cord connector
12 12 Volt DC relay output
13 Audio output connector
14 Audio input connector
15 Component video input connector
16 BNC connector
www.dell.com | support.dell.com
12 Connecting Your Projector
Connecting to a DVD Player
Connecting a DVD Player with an M1 to HDTV Cable
Connecting a DVD Player with a D-sub to YPbPr Cable
NOTE: The D-sub to YPbPr cable is not provided by Dell. Consult a professional
installer for the cable.
1Power cord
2M1 to HDTV cable
1Power cable
2 D-sub to YPbPr cable
Connecting Your Projector 13
Connecting a DVD Player with a RCA to RCA Cable
NOTE: The RCA to RCA cable is not provided by Dell. Consult a professional
installer for the cable.
Connecting a DVD Player with an S-video Cable
1Power cable
2 RCA to RCA component cable
1Power cable
2 S-video cable
www.dell.com | support.dell.com
14 Connecting Your Projector
Connecting a DVD Player with a Composite Cable
Connecting a DVD Player with a BNC to VGA cable
NOTE: The BNC to VGA cable is not provided by Dell. Consult a professional
installer for the cable.
1Power cable
2 Composite video cable
1Power cable
2BNC to VGA cable
Connecting Your Projector 15
Professional Installation Options: Installation for Driving Automatic
Screen
1Power cable
212V DC power cord
3 Automatic screen
www.dell.com | support.dell.com
16 Connecting Your Projector
Installation for wired RS232 remote control: Connection with PC
NOTE: The RS232 cable is not provided by Dell. Consult a professional installer
for the cable.
1Power cable
2 RS232 cable
Connecting Your Projector 17
Connection with Commercial RS232 Control Box:
NOTE: The RS232 cable is not provided by Dell. Consult a professional installer
for the cable.
1Power cable
2 RS232 cable
3 Commercial RS232 control box
www.dell.com | support.dell.com
18 Connecting Your Projector
Using Your Projector 19
3
Using Your Projector
Turning Your Projector On
NOTE: Turn on the projector before you turn on the source. The power button
light blinks blue until pressed.
1
Remove the lens cap.
2
Connect the power cord and appropriate signal cables. For information about
connecting the projector, see
page 9.
3
Press the power button (see
page 23" to locate the power button). The Dell logo
displays for 30 seconds.
4
Turn on your source (computer, DVD player, etc.). The projector automatically
detects your source
.
If the "Searching for signal..." message appears on the screen, ensure
that the appropriate cable(s) are securely connected.
If you have multiple sources connected to the projector, press the Source button
on the remote control or control panel to select the desired source.
Turning Your Projector Off
NOTICE: Do not unplug the projector before properly shutting down as
explained in the following procedure.
1
Press the power button.
2
Press the power button again. The cooling fans continue to operate for 90 seconds
and then go to standby mode.
3
Disconnect the power cord from the electrical outlet.
NOTE: If you press the power button while the projector is running, the "Power
Off the Lamp?" message appears on the screen. To clear the message, press any
button on the control panel or ignore the message; the message disappears after 5
seconds.
www.dell.com | support.dell.com
20 Using Your Projector
Adjusting the Projected Image
Raising the Projector Height
1
Press the elevator button.
2
Raise the projector to the desired display angle, and then release the button to
lock the elevator foot into position.
3
Use the tilt adjustment wheel to fine-tune the display angle.
Lowering the Projector Height
1
Press the elevator button.
2
Lower the projector, and then release the button to lock the elevator foot into
position.
1Elevator button
2Elevator foot
3Tilt adjustment wheel
Using Your Projector 21
Adjusting the Projector Zoom and Focus
CAUTION: To avoid damaging the projector, ensure that the zoom lens and
elevator foot are fully retracted before moving the projector or placing the
projector in its carrying case.
1
Rotate the zoom tab to zoom in and out.
2
Rotate the focus ring until the image is clear. The projector focuses at distances
from 4.9 ft to 39.4ft (1.5 m to 12 m).
1Zoom tab
2Focus ring
www.dell.com | support.dell.com
22 Using Your Projector
Adjusting Projection Image Size
Using Your Projector 23
Using the Control Panel
Screen
(Diagonal)
Max. 36.9"
(93.8cm)
83.7"
(212.5cm)
135.3"
(343.8cm)
189.5"
(481.3cm)
241.1"
(612.5cm)
295.3"
(750.0cm)
Min. 30.8"
(78.1cm)
69.7"
(177.1cm)
112.8"
(286.5cm)
157.9"
(401.0cm)
201.0"
(510.4cm)
246.1"
(625.0cm)
Screen
Size
Max.
(WxH)
29.5" X 22.1" 66.9" X 50.2" 108.3" X 81.2" 151.6" X 113.7" 192.9" X 144.7" 236.2" X 177.2"
(75.0cm X
56.3cm)
(170.0cm X
127.5cm)
(275.0cm X
206.3cm)
(385.0cm X
288.8cm)
(490.0cm X
367.5cm)
(600.0cm X
450.0cm)
Min.
(WxH)
24.6" X 18.5" 55.8" X 41.8" 90.2" X 67.7" 126.3" X 94.7" 160.8" X 120.6" 196.9" X 147.6"
(62.5cm X
46.9cm)
(141.7cm X
106.3cm)
(229.2cm X
171.9cm)
(320.8cm X
240.6cm)
(408.3cm X
306.3cm)
(500.0cm X
375.0cm)
Distance 4.9' (1.5m) 11.2' (3.4m) 18.0' (5.5m) 25.3' (7.7m) 32.2' (9.8m) 39.4' (12.0m)
* This graph is for user reference only.
1Power Turn the projector on and off. For more
information, see page 19 and page 19.
2Volume Control Press to control the volume, then press or
buttons to decrease or increase the volume.
3Menu Press to activate the OSD. Use the directional
keys and Menu button to navigate through the
OSD.
www.dell.com | support.dell.com
24 Using Your Projector
4Source Press to toggle through S-video, Composite
Video, M1-D, D-sub, BNC, Component, HDMI,
SCART and M1 sources when multiple sources
are connected to the projector.
5Keystone adjustment Press to adjust image distortion caused by tilting
the projector. (±20 degrees)
6Enter Press to confirm the selection item.
7Auto adjust Press to synchronize the projector to the input
source.
Auto adjust does not operate if the on-screen
display (OSD) is displayed.
8LCD status display LCD display is for real time projector status.
9TEMP warning light
• If the TEMP light is solid orange, the projector
has overheated. The display automatically shuts
down. Turn the display on again after the
projector cools down. If the problem persists,
contact Dell.
• If the TEMP light is blinking orange, a projector
fan has failed and the projector automatically
shuts down. If the problem persists, contact
Dell.
10 LAMP warning light If the LAMP light is solid orange, replace the
lamp.
11 and buttons Press to adjust the OSD setting.
12 Keystone adjustment Press to adjust image distortion caused by tilting
the projector. (±20 degrees)
13Up and Down Press to select the OSD items.
14 Brightness and contrast
control
Press to control brightness and contrast, press
or to adjust brightness or contrast, then press
and buttons to adjust the value.
Using Your Projector 25
Using the Remote Control
1Power Turn the projector on and off. For more
information, see page 19 and page 19.
2Press to adjust the OSD setting.
3 Laser Aim the remote control at the screen, press and
hold the laser button to activate the laser light.
4Volume Press to increase the volume.
5Mute Press to mute or un-mute the projector speaker.
6Volume Press to decrease the volume.
7Right click Mouse right click.
www.dell.com | support.dell.com
26 Using Your Projector
8Video mode The Dell 5100MP Micro-projector has preset
configurations that are optimized for displaying
data (PC Graphics) or video (movies, games,
etc.). Press Video Mode button to toggle between
PC mode, Movie mode, Game Mode, sRGB, or
User mode (for user to setup and save preferred
settings). Pressing the Video Mode button once
will show the current display mode. Pressing the
Video Mode button again will switch between
modes.
9Auto Adjust Press to synchronize the projector to the input
source. Auto Adjust does not operate if the OSD
(On-Screen Display) is displayed.
10 Blank screen Press to hide the image, press again to resume
display of the image.
11 Auto keystone Press to enable the auto correction for image
distortion due to tilting the projector.
12 LED light LED indicator.
13 Up button Press to select OSD items.
14 Enter button Press to confirm the selection.
15 Press to adjust the OSD setting.
16 Menu Press to activate the OSD.
17 Down button Press to select OSD items.
18 Page Press to move to previous page.
19 Page Press to move to next page.
20 PC/Mouse control The PC/Mouse control can be used to control
mouse movement. The mouse function is
enabled using the M1 cable to connect your
computer and the projector.
21 Left click Mouse left click
22 Source Press to switch between Analog RGB, Digital
RGB, Composite, Component-i, S-video, and
Analog YPbPr sources.
23 Keystone correction Press to correct the image distortion.
24 PIP Press the PIP button to turn on/off the PIP
screen.
Using Your Projector 27
25 PIP Swap Press the PIP Swap button to swap between the
foreground and background.
1Laser Warning The remote control is equipped with a Class II
laser that emits laser radiation. To reduce the risk
of injury, do not look directly into the laser light,
and do not point the laser light into anyone's
eyes.
2Program button Initiate the Learning Mode on the remote for
switching the RF transmission channel by
pressing Prgm button.
www.dell.com | support.dell.com
28 Using Your Projector
Using the On-Screen Display
The projector has a multi-language On-Screen Display (OSD) that can be
displayed with or without an input source present.
In the Main Menu, press or to navigate through the tabs. Press Enter
button on the control panel or the remote control to select a submenu.
In the submenu, press or to make a selection. When an item is selected, the
color changes to dark gray. Use or on the control panel or the remote
control to make adjustments to a setting.
To back to the previous OSD, go to Back tab and press Enter button on the control
panel or the remote control.
To exit the OSD, go to Exit tab and press Enter button on the control panel or the
remote control.
Image Settings
3Wireless USB mouse
dongle
The wireless USB device for controlling PC or
Notebook mouse through the remote control.
4Remote cover The back cover of the remote control.
5Battery chamber The chamber of the battery.
Using Your Projector 29
BRIGHTNESS—Use
and to
adjust the
brightness of the image.
CONTRAST—Use
and
to control the
degree of difference between the brightest
and darkest parts of the picture. Adjusting
the contrast changes the amount of black
and white in the image.
COLOR TEMP.—Adjust the color temperature.
The higher the temperature, the screen
appears more blue; the lower the
temperature, the screen appears more red.
User mode activates the values in the "color
setting" menu.
USER COLOR—This mode allows manual
adjustment of red, green, and blue color
settings. Modifying these values will
automatically change the color temperature
to "user". Press the User Color, then go into the Color Setting Menu.
V. KEYSTONE—Adjust image distortion caused by tilting the projector.
H. KEYSTONE—Adjust image distortion caused by horizontal shifting of the
projector orientation.
AUTO KEYSTONE—Select On to enable the auto correction for vertical image
distortion due to tilting the projector. Select Off to disable the auto correction.
SEMI-AUTO KEYSTONE—Select On and press Enter to activate the Semi-Auto
keystone correction for image distortion. A specific image pattern will be present
on the screen once it's been activated and then complete the settings by following
below instructions.
• Adjust the projected image display to appropriate location on the screen.
• Use up, down, left or right button to choose one corner and press
Enter
key to
enter keystone correction mode.
• Use up, down, left or right button to move the angle and press
Enter
to confirm.
ZOOM—Press to digitally magnify an image to 10 times on the projection
screen and press to reduce the zoomed image.
ASPECT RATIO—Select an aspect ratio to adjust how the image appears.
•
1:1
— The input source displays without scaling.
Use 1:1 aspect ratio if you are using one of the following:
– VGA cable and the computer has a resolution less than SXGA+ (1400 x 1050)
www.dell.com | support.dell.com
30 Using Your Projector
– Component cable (576p/480i/480p)
–S-Video cable
– Composite cable
•
16:9
— The input source scales to fit the width of the screen.
•
4:3
— The input source scales to fit the screen
Use 16:9 or 4:3 if you are using one of the following:
– Computer resolution greater than SXGA+
– Component cable (1080i or 720p)
VIDEO MODE—Select a mode to optimize the display image based on how the
projector is being used: Movie, Game, PC, sRGB (provides more accurate color
representation), and User (set your preferred settings). If you adjust the settings
for White Intensity or Degamma, the projector automatically switches to User.
WHITE INTENSITY—Setting 0 to maximize the color reproduction and 10 to
maximize the brightness.
DEGAMMA—Adjust between 1 and 4 to change the color performance of the display.
The default setting is 3.
Audio Menu
VOLUME—Press
to decrease the volume
and to increase the volume.
TREBLE—Control the higher frequencies of your
audio source.
Press to decrease the
treble and
p
ress to increase the treble
BASS—Control the lower frequencies of your
audio source. Press
to decrease the bass
and
press
to increase the bass.
MUTE—Allow to mute the volume.
AUDIO SOURCE—Select HDMI to have the
HDMI output source, and select Audio to have
the audio output source.
Using Your Projector 31
Management Menu
MENU LOCATION—Select the location of the
OSD on the screen.
PROJECTION MODE—Select how the image
appears:
• Front Projection-Desktop (the default).
• Rear Projection-Desktop-- The projector
reverses the image so you can project from
behind a translucent screen.
• Front Projection-Ceiling Mount-- The
projector turns the image upside down for
ceiling-mounted projection.
• Rear Projection-Ceiling Mount-- The
projector reverses and turns the image upside
down. You can project from behind a
translucent screen with a ceiling-mounted
projection.
SIGNAL TYPE—Show signal type RGB, YCbCr,
YPbPr.
LAMP HOUR—Display the operating hours
since the lamp timer reset.
LAMP RESET—After you install a new lamp,
select Yes to reset the lamp timer.
POWER SAVING—Select Yes to set the power saving delay period. The delay period is
the amount of time you want the projector to wait without signal input. After that
set time, the projector enters power saving mode and turns off the lamp. The
projector turns back on when it detects an input signal or you press the power
button. After two hours, the projector turns off and you need to press the power
button to turn the projector on.
AUTO SOURCE—
Select
On
(the default) to autodetect the available input
signals. When the projector is on and you press
SOURCE
, it automatically
finds the next available input signal. Select
Off
to lock the current input
signal. When
Off
is selected and you press
SOURCE
, you select which
input signal you want to use.
www.dell.com | support.dell.com
32 Using Your Projector
OSD LOCK—
Select
Yes
to enable
OSD Lock
for hiding the OSD menu. (Or
pressing the Menu button on control for 15 seconds), and select
No
to
disable the
OSD Lock
for hiding the OSD menu. (Or pressing the Menu
button on control for 15 seconds again).
RF_CH LEARNING—
Refer to page 36.
ECO MODE—Select On to use the projector at a lower power level (250 Watts),
which may provide longer lamp life, quieter operating and dimmer luminance
output on the screen. Select Off to operate at normal power level (300 Watts).
AUTO SOURCE—Select On (the default) to autodetect the available input signals.
When the projector is on and you press SOURCE, it automatically finds the next
available input signal. Select Off to lock the current input signal. When Off is
selected and you press SOURCE, you select which input signal you want to use.
OSD TIMEOUT—Adjust the time delay of the OSD Timeout. The Default setting is
30 seconds.
TEST PATTERN—Select On to come up the built-in Test Pattern for self-testing on
focus and resolution
PASSWORD SETTING—Select On to
set one password for individual.
Select Off to disable the password
function.
CHANGE PASSWORD—Press to change the password to your preference..
Using Your Projector 33
Language Menu
Press or to select the preferred
language for the OSD.
PIP Setting Menu
NOTE 1: PIP Image is enabled only
when both the following types of signals
are connected to the projector.
Type 1: S-Video, Composite Video, M1-D,
and
Type 2: D-sub, BNC, Component, HDMI,
SCART, M1 signals.
NOTE 2: When swapping the
foreground and background displays, the smallest screen size of foreground
display will vary depending on different combinations of signal sources for
PIP.
www.dell.com | support.dell.com
34 Using Your Projector
PIP IMAGE —
Select
On
to enter
Options
to
select following settings. Select
Off
to
disable the picture-in-picture display
function.
PIP SOURCE —Use PIP Source to step through
the display source one by one for the
foreground display. The possible PIP source is
available in the OSD selection depending on
the current primary input source. The possible
combination of the sources refer to page 54.
PIP SIZE —Adjust the image size of the foreground display.
PIP X POSITION —Horizontally adjust the image position of the PIP display.
PIP Y POSITION —Vertically adjust the image position of the PIP display.
PBP IMAGE —Select On to enable the picture-by-picture display. Select Off to
disable the picture-by-picture function.
Network Settings Menu
DHCP —Select On to assign an IP address to
the projector from a DHCP server
automatically. Select Off to assign an IP
address manually.
IP ADDRESS—Press Enter to set up an IP
address. Press left or right button to select the
number position, up or down button to change
the number.
SUBNET MASK—Press Enter to set up an subnet
mask number. Press left or right button to
select the number position, up or down button
to change the number.
GATEWAY—Select to set the default gateway of
the network connected to the projector. Press
left or right button to select the number
position, up or down button to change the number.
DNS—Type in the IP address of DNS server on the network connected to the
projector. 12 numeric characters are used.
APPLY CHANGE—Press to confirm the settings.
RESET NETWORK SETTING—Press to the default setting.
Using Your Projector 35
Factory Reset Menu
FACTORY RESET—Select Yes to reset the
projector to its factory default settings. Reset
items include both computer image and video
image settings
Computer Source Menu
NOTE: This menu is only available connected to a computer.
FREQUENCY—Change the display data clock
frequency to match the frequency of your
computer graphics card. If you see a vertical
flickering bar, use Frequency control to
minimize the bars. This is a coarse adjustment.
TRACKING—Synchronize the phase of the
display signal with the graphic card. If you
experience an unstable or flickering image, use
the Tracking to correct it. This is a fine
adjustment.
NOTE: Adjust the Frequency first and then the Tracking.
HOR. POSITION—Press
to adjust the horizontal position of the image to the
left and to adjust the horizontal position of the image to the right.
VER. POSITION—Press
to adjust the vertical position of the image down and
to adjust the vertical position of the image up.
Video Source Menu
NOTE: This menu is only available with S-video, Video (composite) signal
connected.
www.dell.com | support.dell.com
36 Using Your Projector
SATURATION—Adjust a video source from black
and white to fully saturated color. Press to
decrease the amount of color in the image and
to increase the amount of color in the
image.
SHARPNESS—Press
to decrease the
sharpness and to increase the sharpness.
TINT—Press
to increase the amount of
green in the image and to increase the
amount of red in the image.
RF Learning Connections
Auto Learning to Change RF Channel Between Remote Controller and Projector
• Power on the projector.
• Press the "Menu" button on control panel, then enter to
"
Management
-->
RF_Ch Learning
" menu.
• Select
Yes
with the control buttons to
enter the
Learning Standby
mode. The
projector will switch to standby mode
for
RF Learning
and display the
RF
Learning
menu.
• Open the battery cover on the remote
control and press the
Prgm
button to
initiate the
RF Learning
process for the
remote control and projector.
Back to Factory Default for the RF Channel
• Select
Yes
on
RF Learning Setting
menu and then enter the
RF Reset to
Default
menu. Select
Reset to Default
Channel
, the projector will back to the
factory default channel.
•Press the
Prgm
button on the remote
control for 5 seconds to reset the
transmitter to the factory default
channel.
Using Your Projector 37
• The successful reset back to the default channel on both ends can be
confirmed when the remote control transmitter controls the projector.
Auto Learning to Change RF Channel Between Remote Controller and USB
Wireless Dongle
Step 1 Open the cover of the remote control.
Step 2 Push the dongle.
Step 3 Take out the dongle from the remote control.
Step 4 Plug the dongle in the USB port on your desktop or notebook
computer, the dongle will show red .
Step 5 Press the LED button on the dongle and it will flash "red" for
13 seconds.
Step 6 Press the Prgm button in the rear of the remote control, within
13 seconds to initate the RF Learning process.
• If the processes are successful, the dongle LED will
remain "red" and stop flashing.
• Checking the mouse function are enable by using the
remote control, if it has done, the dongle LED will show
a "green" signal.
Step 7 Using the remote control to manage your desktop or notebook
computer.
www.dell.com | support.dell.com
38 Using Your Projector
Using Your Projector 39
To manage the projector from Web Management
Configuring the Network Setting
If the projector is connected to a network, you can access the projector using
a web browser by configuring the network setting (TCP/IP). When using the
network function, the IP address should be unique. There are two ways for
configuring the network setting.
1
Using the IP Address function on
Network Setting
menu; See OSD
section page 34, or,
2
Use the AP software to set up network setting for the projector.
Accessing the Web Management
Use Internet Explorer 5.0 and above or Netscape Navigator 7.0 and above
and enter the IP address. You can now access
Web Management
and manage
the projector from a remote location.
www.dell.com | support.dell.com
40 Using Your Projector
Managing Properties
Home
Displays Group name, Projector name, Location, Contact, Lamp hours,
Firmware version, IP address, MAC address and Admin password
information.
Using Your Projector 41
Network Setting
See OSD section on page 34.
• Set up the Group Name, Projector Name, Location and Contact
information in this tab, press
Submit
to confirm the settings.
• Choose
DHCP
to assign an IP address to the projector from a
DHCP
server automatically, or
Manual
to assign an IP address
manually.
www.dell.com | support.dell.com
42 Using Your Projector
Projector Status and Control
The function is same as On Screen Display.
Manage the projector status and image control and audio control using
Projector Status and Control.
Using Your Projector 43
E-mail Alert
Setting the e-mail address, owner and subject in this tab, select the
Alert
Condition
, once the alert condition coming up, the
E-mail Alert
will inform
the preseted administer automatically.
www.dell.com | support.dell.com
44 Using Your Projector
Password Setting
Use Password Setting to set up an administrator password to access the
Web
Management
. When enabling password for the first time, set the password
before enabling it. When the password function is enabled, the
administrator password will be required for accessing the
Web Management
.
Troubleshooting Your Projector 45
4
Troubleshooting Your Projector
If you experience problems with your projector, see the following troubleshooting
tips. If the problem persists, contact Dell.
Problem Possible Solution
No image appears on the
screen
• Ensure that the lens cap is removed and the
projector turned on.
• Ensure the external graphics port is enabled.
If you are using a Dell portable computer,
press . For other computers, see your
documentation.
• Ensure that all the cables are securely
connected. See "Connecting Your Projector"
on page 9."
• Ensure that the pins of the connectors are
not bent or broken.
• Ensure that the lamp is securely installed
(see "Changing the Lamp" on page 48").
• Run Self-diagnostic test. See "Self-diagnostic
for Video" on page 48. Ensure that the colors
of the test pattern are correct.
www.dell.com | support.dell.com
46 Troubleshooting Your Projector
Partial, scrolling, or
incorrectly displayed image
•Press the
Resync
button on the remote
control or the control panel.
•
If you are using a Dell portable computer, set
the resolution of the computer to XGA
(1024 x 768):
a
Right-lick the unused portion of your
Windows desktop, click
Properties
and
then select
Settings
tab.
b
Verify the setting is 1024 x 768 pixels for
the external monitor port.
c
Press .
If you experience difficulty in changing
resolutions or your monitor freezes, restart all
the equipment and the projector.
If you are not using a Dell portable computer,
see your documentation.
The screen does not display
your presentation
If you are using a portable computer, press
.
Image is unstable or flickering Adjust the tracking in the OSD Computer
Source tab.
Image has vertical flickering
bar
Adjust the frequency in the OSD Computer
Source tab.
Image color is not correct
• If your graphic card output signal is sync on
Green, and you would like to display VGA at
60Hz signal, please go into OSD select
Management, select Signal Type and then
select
RGB
.
• Run the Self-diagnostic test (see "
Self-
diagnostic for video
") for preliminary
diagnostic on image color problem. Ensure
that the colors of the test pattern are correct.
Image is out of focus 1
Adjust the focus ring on the projector lens.
2
Ensure that the projection screen is within
the required distance from the projector
(4.9ft [1.5m] to 39.4ft [12m]).
Problem
(continued)
Possible Solution
(continued)
Troubleshooting Your Projector 47
The image is stretched when
displaying a 16:9 DVD
The projector automatically detects a 16:9
DVD and adjusts the aspect ratio to full
screen with a 4:3 (letter-box) default setting.
If the image is still stretched, adjust the aspect
ratio as follows:
• If you are playing a 16:9 DVD, select 4:3
aspect ratio type on your DVD player (if
capable).
• If you cannot select 4:3 aspect ratio type on
your DVD player, select 4:3 aspect ratio in
the
Image Settings
menu in the OSD.
Image is reversed Select Management from the OSD and adjust
the projection mode.
Lamp is burned out or makes
a popping sound
When the lamp reaches its end of life, it may
burn out and may make a loud popping sound.
If this occurs, the projector does not turn back
on, and displays Lamp Defective in the LCD
display until the lamp is replaced. To replace
the lamp, see "Changing the Lamp" on
page 48.
LAMP light is solid orange If LAMP light is solid orange, replace the
lamp.
Interlock failed If the LAMP light is blinking orange, the lamp
cover is not closed properly. Close the lamp
cover properly. If the problem persists, contact
Dell.
TEMP light is solid orange The projector has overheated. The display
automatically shuts down. Turn the display on
again after the projector cools down. If the
problem persists, contact Dell.
TEMP light is blinking
orange
A projector fan has failed and the projector
will automatically shut down. If the problem
persists, contact Dell.
The remote control is not
operating smoothly or in very
limited range
The battery may be low. Check if the laser
beam transmitted from the remote is too dim.
If so, replace with 2 new AA batteries.
Problem
(continued)
Possible Solution
(continued)
www.dell.com | support.dell.com
48 Troubleshooting Your Projector
Self-diagnostic for Video
Dell 5100MP Projector provides self-diagnostic test of the projector video display
(for Video, S-video, Component-i). Use this advanced feature for preliminary self-
diagnostic on your projector when encountering a display problem for video.
1
After turning on the projector, press "+" and "-" buttons on the control panel
simultaneously for 3 seconds and release the buttons when screen goes blank.
2
Press "+" and "-" buttons again to exit the diagnostic mode.
3
While in Self-diagnostic mode, the screen will run a seven-color-cycle test as
following:
Red--> Green--> Blue--> White--> Watchet Blue--> Dark Green--> Yellow.
Ensure that the colors of the test pattern are correct. Contact Dell if the colors are
not displayed correctly.
Changing the Lamp
Replace the lamp when you see "Lamp is approaching the end of its useful life in
full power operation. Replacement suggested! www.dell.com/lamps" appears on
the screen. If this problem persists after replacing the lamp, contact Dell.
CAUTION: The lamp becomes very hot when in use. Do not attempt to replace
the lamp until the projector has been allowed to cool down for at least 30
minutes.
CAUTION: Do not touch the bulb or the lamp glass at any time. The bulb may
explode due to improper handling, including the touching of the bulb or the
lamp glass.
1
Turn off the projector and disconnect the power cord.
2
Let the projector cool for at least 30 minutes.
3
Loosen the 2 screws that secure the lamp cover, and remove the cover.
4
Loosen the 2 screws that secure the lamp.
Troubleshooting Your Projector 49
5
Pull up the lamp by its metal handle.
6
Reverse steps 1 through 5 to install the
new lamp.
7
Reset the lamp by usage time selecting
the left
Lamp Reset
icon in the OSD
Management
tab.
NOTE: Dell may require that lamps
replaced under warranty be returned to
Dell. Otherwise, contact your local
waste disposal agency for the address
of the nearest deposit site.
NOTE: The lamp contains mercury.
Disposal of this material may be
regulated due to environmental considerations. For disposal or recycling
information, please contact your local authorities or the Electronic Industries
Alliance: www.eiae.org.
www.dell.com | support.dell.com
50 Troubleshooting Your Projector
Specifications 51
5
Specifications
5
Light Valve Single-chip 0.95" SXGA+ DLP™
LVDS (low-voltage differential
signaling) technology
Brightness 3000 ANSI Lumens (Max.)
Contrast Ratio 2000:1 Typical (Full On/Full Off)
Uniformity 80% Typical (Japan Standard - JBMA)
Lamp 300-watt user-replaceable 1700-hour
lamp (up to 2200 hours in eco mode)
Number of Pixels 1400 x 1050 (SXGA+)
Displayable Color 16.7M colors
Color Wheel Speed 100~127.5Hz(2X)
Projection Lens F/2.6~2.87, f=39.1~46.92mm with
1.2x manual zoom lens
Projection Screen Size 30.8-295.3 inches (diagonal)
Projection Distance 4.9~39.4 ft (1.5m~12m)
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M, PAL-
N, SECAM, and HDTV (1080i, 720p,
576i/p, 480i/p) compatibility
Composite video, Component video
and S-video capability
H. Frequency 15 kHz- 100 kHz (Analog)
30 kHz- 64 kHz (Digital)
V. Frequency 43 Hz- 120 Hz (Analog)
43 Hz- 85 Hz (Digital)
Power Supply Universal 90-240V AC 50-60Hz with
PFC input
www.dell.com | support.dell.com
52 Specifications
Power Consumption 400 watts typical, 335 watts in eco
mode
Audio 2 speakers, 3 watts RMS
Noise Level 37dB(A) Full-on mode, 34dB(A) Eco-
mode
Weight 8.2 lbs (3.73 kgs)
Dimensions (W x H x D) External 13 x 10.3 x 4.5 ± 0.04 inches
(329.8 x 261.4 x 115.2 ± 1mm)
Environmental Operating temperature: 5oC - 35oC
(41oF- 95oF)
Humidity: 80% maximum
Storage temperature: -20oC to 60oC
(-4oF to 140oF)
Humidity: 80% maximum
Regulatory FCC, CE, VCCI, UL, cUL, TüV- GS,
ICES-003, MIC, C-Tick, GOST,
PCBC, CCC, PSB, EZU, NOM, S-
TuV/A rgenti n a
Networking Protocol 10/100 Base-T
TCP/IP
ICMP
ARP
SNMP V1.0
SMTP
DHCP
HTTP
I/O Connectors Power: AC power input socket
Computer input: one M1-DA for
analog/digital/component, HDTV
input signals, one 15-pin D-sub for
analog input/ component, HDTV input
signals, one BNC R/G/B/H/V for analog
RGB input signals.
Computer output: one 15-pin D-sub
Specifications 53
RS232 Pin Assignment
RS232 Protocol
• Communication Settings
• Control command Syntax (From PC to Projector)
[H][AC][SoP][CRC][ID][SoM][COMMAND]
•Example: power on the projector
Enter the following code: 0xBE 0xEF 0x10 0x05 0x00 0xC7 0xBF 0x11 0x11 0x01 0x00
0x02
•Control Commands List
Go to support.dell.com to view the latest RS232 code.
Video input: 3 RCA connectors for
component video/ HDTV input, one
mini-DIN 4-pin S-video input, one
RCA jack for composite video input
Audio input: one phone jack (diameter
3.5mm)
DC jack 12 volt @ 200mA output,
relay control for automatic projection
screen control
One RJ45 connector for networking
One HDMI input
One mini-DIN RS232 for wired remote
projector control from PC
Connection settings Val ue
Baud Rate: 19200
Data Bits: 8
Parity None
Stop Bits 1
www.dell.com | support.dell.com
54 Specifications
PIP combination sources
NOTE: If two sources combination overpass the bandwidth of the scaler, the
projector will show the black image.
Source M1
RGB
M1
Component
VGA
Computer
VGA
Component
BNC
RGB
BNC
Component
RCA
Component
HDMI SCART
S-Video PIP PIP PIP PIP PIP PIP PIP PIP PIP
Composite PIP PIP PIP PIP PIP PIP PIP PIP PIP
M1 Digital X X PIP PIP PIP PIP PIP PIP PIP
Specifications 55
Compatibility Modes
Mode Resolution (ANALOG) (DIGITAL)
V. Frequency
(Hz)
H. Frequency
(KHz)
V. Frequency
(Hz)
H. Frequency
(KHz)
VGA 640X350 70 31.5 70 31.5
VGA 640X350 85 37.9 85 37.9
VGA 640X400 85 37.9 85 37.9
VGA 640X480 60 31.5 60 31.5
VGA 640X480 72 37.9 72 37.9
VGA 640X480 75 37.5 75 37.5
VGA 640X480 85 43.3 85 43.3
VGA 720X400 70 31.5 70 31.5
VGA 720X400 85 37.9 85 37.9
SVGA 800X600 56 35.2 56 35.2
SVGA 800X600 60 37.9 60 37.9
SVGA 800X600 72 48.1 72 48.1
SVGA 800X600 75 46.9 75 46.9
SVGA 800X600 85 53.7 85 53.7
XGA 1024X768 43.4 35.5 - -
XGA 1024X768 60 48.4 60 48.4
XGA 1024X768 70 56.5 70 56.5
XGA 1024X768 75 60 75 60
XGA 1024X768 85 68.7 - -
SXGA 1280X1024 60 63.98 60 63.98
SXGA 1280X1024 75 79.98 - -
SXGA 1280x1024 85 91.1 --
*SXGA+ 1400x1050 60 63.98 --
*UXGA 1600x1200 60 75 - -
MAC LC13* 640X480 66.66 34.98 - -
MAC II 13* 640X480 66.68 35 - -
MAC 16* 832X624 74.55 49.725 - -
MAC 19* 1024X768 75 60.24 - -
*MAC 1152X870 75.06 68.68 - -
MAC G4 640X480 60 31.35 - -
www.dell.com | support.dell.com
56 Specifications
NOTE: UXGA is not supported in the DVI (M1-to-DVI).
MAC G4 640X480 120 68.03 - -
MAC G4 640X480 120 97.09 - -
IMAC DV 640X480 117 60 - -
IMAC DV 800X600 95 60 --
IMAC DV 1024X768 75 60 --
IMAC DV 1152X870 75 68.49 --
IMAC DV 1280X960 75 75 --
IMAC DV 1280X1024 85 91.1 --
* Compressed computer image.
Contacting Dell 57
Contacting Dell
To contact Dell electronically, you can access the following websites:
• www.dell.com
•
support.dell.com
(technical support)
•
premiersupport.dell.com
(technical support for educational,
government, healthcare, and medium/large business customers,
including Premier, Platinum, and Gold customers)
For specific web addresses for your country, find the appropriate country
section in the table below.
NOTE: Toll-free numbers are for use within the country for which they are listed.
NOTE: In certain countries, technical support specific to Dell Inspiron™ XPS
computers is available at a separate telephone number listed for participating
countries. If you do not see a telephone number listed that is specific for Inspiron XPS
computers, you may contact Dell through the technical support number listed and
your call will be routed appropriately.
When you need to contact Dell, use the electronic addresses, telephone
numbers, and codes provided in the following table. If you need assistance in
determining which codes to use, contact a local or an international operator.
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Anguilla General Support
toll-free: 800-335-0031
Antigua and
Barbuda
General Support
1-800-805-5924
www.dell.com | support.dell.com
58 Contacting Dell
Argentina
(Buenos Aires)
International
Access Code: 00
Country Code: 54
City Code: 11
Website: www.dell.com.ar
E-mail:
us_latin_services@dell.com
E-mail for desktop and portable
computers:
la-techsupport@dell.com
E-mail for servers and EMC
®
storage products:
la_enterprise@dell.com
Customer Care
toll-free: 0-800-444-0730
Tech Support
toll-free: 0-800-444-0733
Tech Support Services
toll-free: 0-800-444-0724
Sales
0-810-444-3355
Aruba General Support
toll-free: 800-1578
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 59
Australia
(Sydney)
International
Access Code:
0011
Country Code: 61
City Code: 2
E-mail (Australia):
au_tech_support@dell.com
E-mail (New Zealand):
nz_tech_support@dell.com
Home and Small Business
1-300-655-533
Government and Business
toll-free: 1-800-633-559
Preferred Accounts Division
(PAD)
toll-free: 1-800-060-889
Customer Care
toll-free: 1-800-819-339
Technical Support (portables and
desktops)
toll-free: 1-300-655-533
Technical Support (servers and
workstations)
toll-free: 1-800-733-314
Corporate Sales
toll-free: 1-800-808-385
Tran sac t ion Sale s
toll-free: 1-800-808-312
Fax
toll-free: 1-800-818-341
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
60 Contacting Dell
Austria (Vienna)
International
Access Code: 900
Country Code: 43
City Code: 1
Website: support.euro.dell.com
E-mail:
tech_support_central_europe@de
ll.com
Home/Small Business Sales
0820 240 530 00
Home/Small Business Fax
0820 240 530 49
Home/Small Business Customer
Care
0820 240 530 14
Preferred Accounts/Corporate
Customer Care
0820 240 530 16
Home/Small Business Technical
Support
0820 240 530 14
Preferred Accounts/Corporate
Technical Support
0660 8779
Switchboard
0820 240 530 00
Bahamas General Support
toll-free: 1-866-278-6818
Barbados General Support
1-800-534-3066
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 61
Belgium
(Brussels)
International
Access Code: 00
Country Code: 32
City Code: 2
Website: support.euro.dell.com
E-mail for French-speaking
Customers:
support.euro.dell.com/be/fr/email
dell/
Technical Support for Inspiron
XPS computers only
02 481 92 96
Technical Support for all other
Dell computers
02 481 92 88
Technical Support Fax
02 481 92 95
Customer Care
0271315.65
Corporate Sales
02 481 91 00
Fax
02 481 92 99
Switchboard
02 481 91 00
Bermuda General Support
1-800-342-0671
Bolivia General Support
toll-free: 800-10-0238
Brazil
International
Access Code: 00
Country Code: 55
City Code: 51
Website: www.dell.com/br
Customer Support, Technical
Support
0800 90 3355
Technical Support Fax
51 481 5470
Customer Care Fax
51 481 5480
Sales
0800 90 3390
British Virgin
Islands
General Support
toll-free: 1-866-278-6820
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
62 Contacting Dell
Brunei
Country Code:
673
Customer Technical Support
(Penang, Malaysia)
604 633 4966
Customer Service (Penang,
Malaysia)
604 633 4949
Transaction Sales (Penang,
Malaysia)
604 633 4955
Canada (North
York, Ontario)
International
Access Code: 011
Online Order Status:
www.dell.ca/ostatus
AutoTech (automated technical
support)
toll-free: 1-800-247-9362
Customer Care (Home
Sales/Small Business)
toll-free: 1-800-847-4096
Customer Care (med./large
business, government)
toll-free: 1-800-326-9463
Technical Support (Home
Sales/Small Business)
toll-free: 1-800-847-4096
Technical Support (med./large
bus., government)
toll-free: 1-800-387-5757
Technical Support (printers,
projectors, televisions, handhelds,
digital jukebox, and wireless)
1-877-335-5767
Sales (Home Sales/Small Business)
toll-free: 1-800-387-5752
Sales (med./large bus.,
government)
toll-free: 1-800-387-5755
Spare Parts Sales & Extended
Service Sales
1 866 440 3355
Cayman Islands General Support
1-800-805-7541
Chile (Santiago)
Country Code: 56
City Code: 2
Sales, Customer Support, and
Technical Support
toll-free: 1230-020-4823
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 63
China (Xiamen)
Country Code: 86
City Code: 592
Technical Support website:
support.dell.com.cn
Technical Support E-mail:
cn_support@dell.com
Customer Care E-mail:
customer_cn@dell.com
Technical Support Fax
592 818 1350
Technical Support (Dell™
Dimension™ and Inspiron)
toll-free: 800 858 2969
Technical Support (OptiPlex™,
Latitude™, and Dell Precision™)
toll-free: 800 858 0950
Technical Support (servers and
storage)
toll-free: 800 858 0960
Technical Support (projectors,
PDAs, switches, routers, and so
on)
toll-free: 800 858 2920
Technical Support (printers)
toll-free: 800 858 2311
Customer Care
toll-free: 800 858 2060
Customer Care Fax
592 818 1308
Home and Small Business
toll-free: 800 858 2222
Preferred Accounts Division
toll-free: 800 858 2557
Large Corporate Accounts GCP
toll-free: 800 858 2055
Large Corporate Accounts Key
Accounts
toll-free: 800 858 2628
Large Corporate Accounts North
toll-free: 800 858 2999
Large Corporate Accounts North
Government and Education
toll-free: 800 858 2955
Large Corporate Accounts East
toll-free: 800 858 2020
Large Corporate Accounts East
Government and Education
toll-free: 800 858 2669
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
64 Contacting Dell
Large Corporate Accounts Queue
Team
toll-free: 800 858 2572
Large Corporate Accounts South
toll-free: 800 858 2355
Large Corporate Accounts West
toll-free: 800 858 2811
Large Corporate Accounts Spare
Parts
toll-free: 800 858 2621
Colombia General Support
980-9-15-3978
Costa Rica General Support
0800-012-0435
Czech Republic
(Prague)
International
Access Code: 00
Country Code:
420
Website: support.euro.dell.com
E-mail: czech_dell@dell.com
Technical Support
22537 2727
Customer Care
22537 2707
Fax
22537 2714
Tech Fax
22537 2728
Switchboard
22537 2711
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 65
Denmark
(Copenhagen)
International
Access Code: 00
Country Code: 45
Website: support.euro.dell.com
E-mail:
support.euro.dell.com/dk/da/emai
ldell/
Technical Support for Inspiron
XPS computers only
7010 0074
Technical Support for all other
Dell computers
7023 0182
Customer Care (Relational)
7023 0184
Home/Small Business Customer
Care
3287 5505
Switchboard (Relational)
3287 1200
Switchboard Fax (Relational)
3287 1201
Switchboard (Home/Small
Business)
3287 5000
Switchboard Fax (Home/Small
Business)
3287 5001
Dominica General Support
toll-free: 1-866-278-6821
Dominican
Republic
General Support
1-800-148-0530
Ecuador General Support
toll-free: 999-119
El Salvador General Support
01-899-753-0777
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
66 Contacting Dell
Finland
(Helsinki)
International
Access Code: 990
Country Code:
358
City Code: 9
Website: support.euro.dell.com
E-mail:
support.euro.dell.com/fi/fi/emaild
ell/
Technical Support
09 253 313 60
Customer Care
09 253 313 38
Fax
09 253 313 99
Switchboard
09 253 313 00
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 67
France (Paris)
(Montpellier)
International
Access Code: 00
Country Code: 33
City Codes: (1)
(4)
Website: support.euro.dell.com
E-mail:
support.euro.dell.com/fr/fr/emaild
ell/
Home and Small Business
Technical Support for Inspiron
XPS computers only
0825 387 129
Technical Support for all other
Dell computers
0825 387 270
Customer Care
0825 823 833
Switchboard
0825 004 700
Switchboard (calls from outside of
France)
04 99 75 40 00
Sales
0825 004 700
Fax
0825 004 701
Fax (calls from outside of France)
04 99 75 40 01
Corporate
Technical Support
0825 004 719
Customer Care
0825 338 339
Switchboard
01 55 94 71 00
Sales
01 55 94 71 00
Fax
01 55 94 71 01
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
68 Contacting Dell
Germany
(Langen)
International
Access Code: 00
Country Code: 49
City Code: 6103
Website: support.euro.dell.com
E-mail:
tech_support_central_europe@de
ll.com
Technical Support for Inspiron
XPS computers only
06103 766-7222
Technical Support for all other
Dell computers
06103 766-7200
Home/Small Business Customer
Care
0180-5-224400
Global Segment Customer Care
06103 766-9570
Preferred Accounts Customer
Care
06103 766-9420
Large Accounts Customer Care
06103 766-9560
Public Accounts Customer Care
06103 766-9555
Switchboard
06103 766-7000
Greece
International
Access Code: 00
Country Code: 30
Website: support.euro.dell.com
E-mail:
support.euro.dell.com/gr/en/email
dell/
Technical Support
00800-44 14 95 18
Gold Service Technical Support
00800-44 14 00 83
Switchboard
2108129810
Gold Service Switchboard
2108129811
Sales
2108129800
Fax
2108129812
Grenada General Support
toll-free: 1-866-540-3355
Guatemala General Support
1-800-999-0136
Guyana General Support
toll-free: 1-877-270-4609
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 69
Hong Kong
International
Access Code: 001
Country Code:
852
Website: support.ap.dell.com
Technical Support E-mail:
apsupport@dell.com
Technical Support (Dimension
and Inspiron)
2969 3188
Technical Support (OptiPlex,
Latitude, and Dell Precision)
2969 3191
Technical Support (PowerApp™,
PowerEdge™, PowerConnect™,
and PowerVault™)
2969 3196
Customer Care
3416 0910
Large Corporate Accounts
3416 0907
Global Customer Programs
3416 0908
Medium Business Division
3416 0912
Home and Small Business
Division
2969 3105
India Technical Support
1600 33 8045
Sales (Large Corporate Accounts)
1600 33 8044
Sales (Home and Small Business)
1600 33 8046
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
70 Contacting Dell
Ireland
(Cherrywood)
International
Access Code: 16
Country Code:
353
City Code: 1
Website: support.euro.dell.com
E-mail:
dell_direct_support@dell.com
Technical Support for Inspiron
XPS computers only
1850 200 722
Technical Support for all other
Dell computers
1850 543 543
U.K. Technical Support (dial
within U.K. only)
0870 908 0800
Home User Customer Care
01 204 4014
Small Business Customer Care
01 204 4014
U.K. Customer Care (dial within
U.K. only)
0870 906 0010
Corporate Customer Care
1850 200 982
Corporate Customer Care (dial
within U.K. only)
0870 907 4499
Ireland Sales
01 204 4444
U.K. Sales (dial within U.K. only)
0870 907 4000
Fax/Sales Fax
01 204 0103
Switchboard
01 204 4444
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 71
Italy (Milan)
International
Access Code: 00
Country Code: 39
City Code: 02
Website: support.euro.dell.com
E-mail:
support.euro.dell.com/it/it/emaild
ell/
Home and Small Business
Technical Support
02 577 826 90
Customer Care
02 696 821 14
Fax
02 696 821 13
Switchboard
02 696 821 12
Corporate
Technical Support
02 577 826 90
Customer Care
02 577 825 55
Fax
02 575 035 30
Switchboard
02 577 821
Jamaica General Support (dial from within
Jamaica only)
1-800-682-3639
Japan (Kawasaki)
International
Access Code: 001
Country Code: 81
City Code: 44
Website: support.jp.dell.com
Technical Support (servers)
toll-free: 0120-198-498
Technical Support outside of
Japan (servers)
81-44-556-4162
Technical Support (Dimension
and Inspiron)
toll-free: 0120-198-226
Technical Support outside of
Japan (Dimension and Inspiron)
81-44-520-1435
Technical Support (Dell Precision,
OptiPlex, and Latitude)
toll-free:0120-198-433
Technical Support outside of
Japan (Dell Precision, OptiPlex,
and Latitude)
81-44-556-3894
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
72 Contacting Dell
Technical Support (PDAs,
projectors, printers, routers)
toll-free: 0120-981-690
Technical Support outside of
Japan (PDAs, projectors, printers,
routers)
81-44-556-3468
Faxbox Service
044-556-3490
24-Hour Automated Order Service
044-556-3801
Customer Care
044-556-4240
Business Sales Division (up to 400
employees)
044-556-1465
Preferred Accounts Division Sales
(over 400 employees)
044-556-3433
Large Corporate Accounts Sales
(over 3500 employees)
044-556-3430
Public Sales (government
agencies, educational institutions,
and medical institutions)
044-556-1469
Global Segment Japan
044-556-3469
Individual User
044-556-1760
Switchboard
044-556-4300
Korea (Seoul)
International
Access Code: 001
Country Code: 82
City Code: 2
Technical Support
toll-free: 080-200-3800
Sales
toll-free: 080-200-3600
Customer Service (Penang,
Malaysia)
604 633 4949
Fax
2194-6202
Switchboard
2194-6000
Technical Support (Electronics
and Accessories)
toll-free: 080-200-3801
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 73
Latin America Customer Technical Support
(Austin, Texas, U.S.A.)
512 728-4093
Customer Service (Austin, Texas,
U.S.A.)
512 728-3619
Fax (Technical Support and
Customer Service) (Austin, Texas,
U.S.A.)
512 728-3883
Sales (Austin, Texas, U.S.A.)
512 728-4397
SalesFax (Austin, Texas, U.S.A.)
512 728-4600
or 512 728-3772
Luxembourg
International
Access Code: 00
Country Code:
352
Website: support.euro.dell.com
E-mail: tech_be@dell.com
Technical Support (Brussels,
Belgium)
3420808075
Home/Small Business Sales
(Brussels, Belgium)
toll-free: 080016884
Corporate Sales (Brussels,
Belgium)
02 481 91 00
Customer Care (Brussels,
Belgium)
02 481 91 19
Fax (Brussels, Belgium)
02 481 92 99
Switchboard (Brussels, Belgium)
02 481 91 00
Macao
Country Code:
853
Technical Support
toll-free: 0800 105
Customer Service (Xiamen,
China)
34 160 910
Transaction Sales (Xiamen,
China)
29 693 115
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
74 Contacting Dell
Malaysia
(Penang)
International
Access Code: 00
Country Code: 60
City Code: 4
Website: support.ap.dell.com
Technical Support (Dell Precision,
OptiPlex, and Latitude)
toll-free: 1 800 88 0193
Technical Support (Dimension,
Inspiron, and Electronics and
Accessories)
toll-free: 1 800 88 1306
Technical Support (PowerApp,
PowerEdge, PowerConnect, and
PowerVault)
toll-free: 1800 88 1386
Customer Service (Penang,
Malaysia)
04 633 4949
Tran sac t ion Sale s
toll-free: 1 800 888 202
Corporate Sales
toll-free: 1 800 888 213
Mexico
International
Access Code: 00
Country Code: 52
Customer Technical Support
001-877-384-8979
or 001-877-269-3383
Sales
50-81-8800
or 01-800-888-3355
Customer Service
001-877-384-8979
or 001-877-269-3383
Main
50-81-8800
or 01-800-888-3355
Montserrat General Support
toll-free: 1-866-278-6822
Netherlands
Antilles
General Support
001-800-882-1519
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 75
Netherlands
(Amsterdam)
International
Access Code: 00
Country Code: 31
City Code: 20
Website: support.euro.dell.com
Technical Support for Inspiron
XPS computers only
020 674 45 94
Technical Support for all other
Dell computers
020 674 45 00
Technical Support Fax
020 674 47 66
Home/Small Business Customer
Care
020 674 42 00
Relational Customer Care
020 674 4325
Home/Small Business Sales
020 674 55 00
Relational Sales
020 674 50 00
Home/Small Business Sales Fax
020 674 47 75
Relational Sales Fax
020 674 47 50
Switchboard
020 674 50 00
Switchboard Fax
020 674 47 50
New Zealand
International
Access Code: 00
Country Code: 64
E-mail (New Zealand):
nz_tech_support@dell.com
E-mail (Australia):
au_tech_support@dell.com
Technical Support (for desktop
and portable computers)
toll-free:
0800 446 255
Technical Support (for servers and
workstations)
toll-free: 0800 443 563
Home and Small Business
0800 446 255
Government and Business
0800 444 617
Sales
0800 441 567
Fax
0800 441 566
Nicaragua General Support
001-800-220-1006
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
76 Contacting Dell
Norway (Lysaker)
International
Access Code: 00
Country Code: 47
Website: support.euro.dell.com
E-mail:
support.euro.dell.com/no/no/emai
ldell/
Technical Support
671 16882
Relational Customer Care
671 17575
Home/Small Business Customer
Care
23162298
Switchboard
671 16800
Fax Switchboard
671 16865
Panama General Support
001-800-507-0962
Peru General Support
0800-50-669
Poland (Warsaw)
International
Access Code: 011
Country Code: 48
City Code: 22
Website: support.euro.dell.com
E-mail:
pl_support_tech@dell.com
Customer Service Phone
57 95 700
Customer Care
57 95 999
Sales
57 95 999
Customer Service Fax
57 95 806
Reception Desk Fax
57 95 998
Switchboard
57 95 999
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 77
Portugal
International
Access Code: 00
Country Code:
351
Website: support.euro.dell.com
E-mail:
support.euro.dell.com/pt/en/emai
ldell/
Technical Support
707200149
Customer Care
800 300 413
Sales
800 300 410 or
800 300 411 or
800 300 412 or
21 422 07 10
Fax
21 424 01 12
Puerto Rico General Support
1-800-805-7545
St. Kitts and
Nevis
General Support
toll-free: 1-877-441-4731
St. Lucia General Support
1-800-882-1521
St. Vincent and
the Grenadines
General Support
toll-free: 1-877-270-4609
Singapore
(Singapore)
International
Access Code: 005
Country Code: 65
Website: support.ap.dell.com
Technical Support (Dimension,
Inspiron, and Electronics and
Accessories)
toll-free: 1800 394 7430
Technical Support (OptiPlex,
Latitude, and Dell Precision)
toll-free: 1800 394 7488
Technical Support (PowerApp,
PowerEdge, PowerConnect, and
PowerVault)
toll-free: 1800 394 7478
Customer Service (Penang,
Malaysia)
604 633 4949
Tran sac t ion Sale s
toll-free: 1 800 394 7412
Corporate Sales
toll-free: 1 800 394 7419
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
78 Contacting Dell
Slovakia (Prague)
International
Access Code: 00
Country Code:
421
Website: support.euro.dell.com
E-mail: czech_dell@dell.com
Technical Support
02 5441 5727
Customer Care
420 22537 2707
Fax
02 5441 8328
Tech Fax
02 5441 8328
Switchboard (Sales)
02 5441 7585
South Africa
(Johannesburg)
International
Access Code:
09/091
Country Code: 27
City Code: 11
Website: support.euro.dell.com
E-mail:
dell_za_support@dell.com
Gold Queue
011 709 7713
Technical Support
011 709 7710
Customer Care
011 709 7707
Sales
011 709 7700
Fax
011 706 0495
Switchboard
011 709 7700
Southeast Asian
and Pacific
Countries
Customer Technical Support,
Customer Service, and Sales
(Penang, Malaysia)
604 633 4810
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 79
Spain (Madrid)
International
Access Code: 00
Country Code: 34
City Code: 91
Website: support.euro.dell.com
E-mail:
support.euro.dell.com/es/es/email
dell/
Home and Small Business
Technical Support
902 100 130
Customer Care
902 118 540
Sales
902 118 541
Switchboard
902 118 541
Fax
902 118 539
Corporate
Technical Support
902 100 130
Customer Care
902 115 236
Switchboard
91 722 92 00
Fax
91 722 95 83
Sweden
(Upplands Vasby)
International
Access Code: 00
Country Code: 46
City Code: 8
Website: support.euro.dell.com
E-mail:
support.euro.dell.com/se/sv/email
dell/
Technical Support
08 590 05 199
Relational Customer Care
08 590 05 642
Home/Small Business Customer
Care
08 587 70 527
Employee Purchase Program
(EPP) Support
20 140 14 44
Technical Support Fax
08 590 05 594
Sales
08 590 05 185
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
80 Contacting Dell
Switzerland
(Geneva)
International
Access Code: 00
Country Code: 41
City Code: 22
Website: support.euro.dell.com
E-mail:
Tech_support_central_Europe@d
ell.com
E-mail for French-speaking HSB
and Corporate Customers:
support.euro.dell.com/ch/fr/email
dell/
Technical Support (Home and
Small Business)
0844 811 411
Technical Support (Corporate)
0844 822 844
Customer Care (Home and Small
Business)
0848 802 202
Customer Care (Corporate)
0848 821 721
Fax
022 799 01 90
Switchboard
022 799 01 01
Taiw an
International
Access Code: 002
Country Code:
886
Website: support.ap.dell.com
E-mail: ap_support@dell.com
Technical Support (OptiPlex,
Latitude, Inspiron, Dimension,
and Electronics and Accessories)
toll-free: 00801 86 1011
Technical Support (PowerApp,
PowerEdge, PowerConnect, and
PowerVault)
toll-free: 00801 60 1256
Tran sac t ion Sale s
toll-free: 00801 65 1228
Corporate Sales
toll-free: 00801 651 227
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 81
Thailand
International
Access Code: 001
Country Code: 66
Website: support.ap.dell.com
Technical Support (OptiPlex,
Latitude, and Dell Precision)
toll-free: 1800 0060 07
Technical Support (PowerApp,
PowerEdge, PowerConnect, and
PowerVault)
toll-free: 1800 0600 09
Customer Service (Penang,
Malaysia)
604 633 4949
Corporate Sales
toll-free: 1800 006 009
Tran sac t ion Sale s
toll-free: 1800 006 006
Trinidad/Tobago General Support
1-800-805-8035
Turks and Caicos
Islands
General Support
toll-free: 1-866-540-3355
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
82 Contacting Dell
U.K. (Bracknell)
International
Access Code: 00
Country Code: 44
City Code: 1344
Website: support.euro.dell.com
Customer Care website:
support.euro.dell.com/uk/en/ECare/Form/Home.asp
E-mail:
dell_direct_support@dell.com
Technical Support
(Corporate/Preferred
Accounts/PAD [1000+
employees])
0870 908 0500
Technical Support (direct and
general)
0870 908 0800
Global Accounts Customer Care
01344 373 186
Home and Small Business
Customer Care
0870 906 0010
Corporate Customer Care
01344 373 185
Preferred Accounts (500–5000
employees) Customer Care
0870 906 0010
Central Government Customer
Care
01344 373 193
Local Government & Education
Customer Care
01344 373 199
Health Customer Care
01344 373 194
Home and Small Business Sales
0870 907 4000
Corporate/Public Sector Sales
01344 860 456
Home and Small Business Fax
0870 907 4006
Uruguay General Support
toll-free: 000-413-598-
2521
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Contacting Dell 83
U.S.A. (Austin,
Texas)
International
Access Code: 011
Country Code: 1
Automated Order-Status Service
toll-free: 1-800-433-9014
AutoTech (portable and desktop
computers)
toll-free: 1-800-247-9362
Consumer (Home and Home Office)
Technical Support
toll-free: 1-800-624-9896
Customer Service
toll-free: 1-800-624-9897
DellNet™ Service and Support
toll-free: 1-877-Dellnet
(1-877-335-5638)
Employee Purchase Program
(EPP) Customers
toll-free: 1-800-695-8133
Financial Services website:
www.dellfinancialservices.com
Financial Services (lease/loans)
toll-free: 1-877-577-3355
Financial Services (Dell Preferred
Accounts [DPA])
toll-free: 1-800-283-2210
Business
Customer Service and Technical
Support
toll-free: 1-800-822-8965
Employee Purchase Program
(EPP) Customers
toll-free: 1-800-695-8133
Printers and Projectors Technical
Support
toll-free: 1-877-459-7298
Public (government, education, and healthcare)
Customer Service and Technical
Support
toll-free: 1-800-456-3355
Employee Purchase Program
(EPP) Customers
toll-free: 1-800-234-1490
Dell Sales
toll-free: 1-800-289-3355
or toll-free: 1-800-879-
3355
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
www.dell.com | support.dell.com
84 Contacting Dell
U.S. Virgin
Islands
General Support
1-877-673-3355
Venezuela General Support
8001-3605
Country (City)
International
Access Code
Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-Free Numbers
Appendix: Regulatory Notices 85
Appendix: Regulatory Notices
FCC Notices (U.S. Only)
Most Dell computer systems are classified by the Federal Communications Commission
(FCC) as Class B digital devices. To determine which classification applies to your computer
system, examine all FCC registration labels located on the bottom, side, or back panel of
your computer, on card-mounting brackets, and on the cards themselves. If any one of the
labels carries a Class A rating, your entire system is considered to be a Class A digital device.
If all labels carry an FCC Class B rating as distinguished by either an FCC ID number or the
FCC logo, ( ), your system is considered to be a Class B digital device.
Once you have determined your system’s FCC classification, read the appropriate FCC
notice. Note that FCC regulations provide that changes or modifications not expressly
approved by Dell could void your authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may
cause undesired operation.
Class A
This equipment has been tested and found to comply with the limits for a Class A digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the manufacturer’s instruction manual, may cause
harmful interference with radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case you will be required to
correct the interference at your own expense.
Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the manufacturer’s instruction manual, may cause interference with radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, you are
encouraged to try to correct the interference by one or more of the following measures:
www.dell.com | support.dell.com
86 Appendix: Regulatory Notices
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
FCC Identification Information
The following information is provided on the device or devices covered in this document in
compliance with FCC regulations:
• Product name: DLP Projector
• Model number: 5100MP/DELL
• Company name:
Dell Inc.
One Dell Way
Round Rock, Texas 78682 USA
512-338-4400
NOM Information (Mexico Only)
The following information is provided on the device(s) described in this document in
compliance with the requirements of the official Mexican standards (NOM):
Exporter: Dell Inc.
One Dell Way
Round Rock, TX 78682
Importer: Dell Computer de México, S.A. de C.V.
Paseo de la Reforma 2620 - 11° Piso
Col. Lomas Altas
11950 México, D.F.
Ship to: Dell Computer de México, S.A. de C.V.
al Cuidado de Kuehne & Nagel de México S. de R.L.
Avenida Soles No. 55
Col. Peñon de los Baños
15520 México, D.F.
Model Supply Voltage Frequency Current Consumption
5100MP AC 100-240 V 50-60 Hz 2.3 A
Glossary 87
Glossary
ANSI Lumens— A standard for measuring light output, used for comparing
projectors.
Aspect Ratio—The most popular aspect ratio is 4:3 (4 by 3). Early television and
computer video formats are in a 4:3 aspect ratio, which means that the width of
the image is 4/3 times the height.
Backlit (Backlight)—Refers to a remote control, or a projector control panel, that
has buttons and controls that are illuminated.
Bandwidth— The number of cycles per second (Hertz) expressing the difference
between the lower and upper limiting frequencies of a frequency band; also, the
width of a band of frequencies.
Brightness— The amount of light emitting from a display or projection display or
projection device. The brightness of projector is measured by ANSI lumens.
Color Temperature— A method of measuring the whiteness of a light source.
Metal halide lamps have a higher temperature compared to halogen or
incandescent lights.
Component Video—A method of delivering quality video in a format that
contains all the components of the original image. These components are referred
to as luma and chroma and are defined as Y'Pb'Pr' for analog component and
Y'Cb'Cr' for digital component. Component video is available on DVD players and
projectors.
Composite Video — The combined picture signal, including vertical and
horizontal blanking and synchronizing signals.
Compression— A function that deletes resolution lines from the image to fit in
the display area.
Compressed SVGA— To project an 800x600 image to a VGA projector, the
original 800x600 signal must be compressed down. The data displays all the
information with only two thirds of the pixels (307,000 vs 480,000). The resulting
image is SVGA page size but sacrifices some of the image quality. If you are using
an SVGA computers, connecting VGA to a VGA projector. provide better results.
Compressed SXGA— Found on XGA projectors, compressed SXGA handling
allows these projectors to handle up to 1280x1024 SXGA resolution.
Compressed XGA— Found on SVGA projectors, compressed XGA handling
allows these projectors to handle 1024x768 XGA resolution.
www.dell.com | support.dell.com
88 Glossary
Contrast Ratio— Range of light and dark values in a picture, or the ratio between
their maximum and minimum values. There are two methods used by the
projection industry to measure the ratio:
1
Full On/Off
— measures the ratio of the light output of an all white image (full
on) and the light output of an all black (full off) image.
2
ANSI
— measures a pattern of 16 alternating black and white rectangles. The
average light output from the white rectangles is divided by the average light
output of the black rectangles to determine the
ANSI
contrast ratio.
Full On/Off contrast is always a larger number than ANSI contrast for the same
projector.
dB— decibel—A unit used to express relative difference in power or intensity,
usually between two acoustic or electric signals, equal to ten times the common
logarithm of the ratio of the two levels.
Diagonal Screen— A method of measuring the size of a screen or a projected
image. It measures from one corner to the opposite corner. A 9FT high, 12FT
wide, screen has a diagonal of 15FT. This document assumes that the diagonal
dimensions are for the traditional 4:3 ratio of a computer image as per the example
above.
DLP— Digital Light Processing—Reflective display technology developed by
Texas Instruments, using small manipulated mirrors. Light passes through a color
filter is sent to the DLP mirrors which arrange the RGB colors into a picture
projected onto screen, also known as DMD.
DMD— digital Micro- Mirror Device— Each DMD consists of thousands of
tilting, microscopic aluminum alloy mirrors mounted on a hidden yoke.
DVI— Digital Visual Interface— Defines the digital interface between digital
devices such as projectors and personal computers. For devices that support DVI, a
digital to digital connection can be made that eliminates the conversion to analog
and thereby delivers an unblemished image.
Focal Length— The distance from the surface of a lens to its focal point.
Frequency— It is the rate of repetition in cycles per seconds of electrical signals.
Measured in Hz.
Hz — Frequency of an alternating signal. See Frequency.
Keystone Correction— Device that will correct an image of the distortion
(usually a wide-top narrow-bottom effect) of a projected image caused by
improper projector to screen angle.
Laser Pointer— A small pen or cigar sized pointer that contains a small battery
powered laser, which can project a small, red (typically), high intensity beam of
light that is immediately very visible on the screen.
Glossary 89
Maximum Distance— The distance from a screen the projector can be to cast an
image that is useable (bright enough) in a fully darkened room.
Maximum Image Size— The largest image a projector can throw in a darkened
room. This is usually limited by focal range of the optics.
Metal Halide Lamp— The type of lamp used in many medium and all high end
portable projectors. These lamps typically have a "half-life" of 1000-2000 hours.
That is they slowly lose intensity (brightness) as they are used, and at the "half-life"
point, they are half as bright as when new. These lamps output a very "hot"
temperature light, similar to mercury vapor lamps used in streetlights.. Their
whites are "extremely" white (with slight bluish cast.) and make Halogen lamp's
whites look very yellowish by comparison.
Minimum Distance— The closest position that a projector can focus an image
onto a screen.
NTSC— The United States broadcast standard for video and broadcasting.
PAL— A European and international broadcast standard for video and
broadcasting. Higher resolution than NTSC.
Power Zoom— A zoom lens with the zoom in and out controlled by a motor,
usually adjusted from the projector's control panel and also the remote control.
Reverse Image— Feature that allows you to flip the image horizontally. When
used in a normal forward projection environment text, graphics, etc, are
backwards. Reverse image is used for rear projection.
RGB— Red, Green, Blue— typically used to describe a monitor that requires
separate signals for each of the three colors.
S-Video—A video transmission standard that uses a 4-pin mini-DIN connector to
send video information on two signal wires called luminance (brightness, Y) and
chrominance (color, C). S-Video is also referred to as Y/C.
SECAM— A French and international broadcast standard for video and
broadcasting. Higher resolution than NTSC.
SVGA— Super Video Graphics Array— 800 x 600 pixels count.
SXGA— Super Ultra Graphics Array,—1280 x 1024 pixels count.
UXGA— Ultra Extended Graphics Array—1600 x 1200 pixels count.
VGA— Video Graphics Array—640 x 480 pixels count.
XGA— Extra Video Graphics Array— 1024 x 768 pixels count.
www.dell.com | support.dell.com
90 Glossary
Zoom Lens— Lens with a variable focal length that allows operator to move the
view in or out making the image smaller or larger.
Zoom Lens Ratio— Is the ratio between the smallest and largest image a lens can
projector from a fixed distance. For example, a 1.4:1 zoom lens ratio means that a
10 foot image without zoom would be a 14 foot image with full zoom.
Index 91
Index
A
Adjusting the Projected Image 20
Adjusting the Projector Height
20
lower the projector
Elevator button 20
Elevator foot 20
Tilt adjustment wheel 20
Lowering the Projector Height
20
Adjusting the Projector Zoom and
Focus 21
Focus ring 21
Zoom tab 21
C
Changing the Lamp 48
Connecting the Projector
12V DC power cord 15
Automatic screen 15
BNC to VGA cable 14
Commercial RS232 control
box 17
Composite video cable 14
Connecting a Computer with
a D-sub to D-sub Ca-
ble 11
Connecting a Computer with
an M1 to D-sub/USB
Cable 10
Connecting a DVD Player
with a D-sub to YPb-
Pr Cable 12
Connecting a DVD Player
with an M1 to HDTV
Cable 12
Connecting to a DVD Player
12
Connection with Commercial
RS232 Control Box
17
Connection with PC 16
D-sub to D-sub cable 11
D-sub to YPbPr cable 12
Installation for Driving Auto-
matic Screen 15
M1 to HDTV cable 12
M1A to D-sub/USB cable 10
Power cable 12, 13, 14,
15, 16, 17
Power cord 10, 11, 12
RCA to RCA component cable
13
RS232 cable 16, 17
To Computer 10
Connection Ports
12 Volt DC relay output 9
Audio input connector 9
Audio output connector 9
BNC connector 9
Component video input con-
nector 9
HDMI connector 9
92 Index
IR receiver 9
Kensington lock hole 9
M1 signal in connector 9
Power cord connector 9
RJ45 network connector 9
RS232 connector 9
S-video input connector 9
VGA input connector 9
Video input connector 9
Control Panel 23
D
Dell
contacting 57
M
Main Unit 8
Control panel 8
Elevator button 8
Focus ring 8
Lens 8
Remote control receiver 8
Zoom tab 8
O
On-Screen Display
Audio Menu 30
Computer Source Menu 35
Factory Reset Menu 35
Image Settings Menu 28
Language Menu 33
Management Menu 31
Network Settings Menu 34
PIP Setting Menu 33
Video Source Menu 35
P
Powering On/Off the Projector
Powering Off the Projector
19
Powering On the Projector 19
R
Remote Control 25
S
Specifications
Audio 52
Brightness 51
Color Wheel Speed 51
Compatibility Modes 55
Contrast Ratio 51
Dimensions 52
Displayable Color 51
Environmental 52
H. Frequency 51
I/O Connectors 52
Lamp 51
Light Valve 51
Networking Protocol 52
Noise Level 52
Number of Pixels 51
PIP combination sources 54
Power Consumption 52
Power Supply 51
Projection Distance 51
Projection Lens 51
Projection Screen Size 51
Regulatory 52
RS232 Protocol 53
Uniformity 51
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your
body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Coretronic Corporation declared that 5100MP is limited in CH1~78 from
2402 to 2479 MHz by specified firmware controlled in USA.
