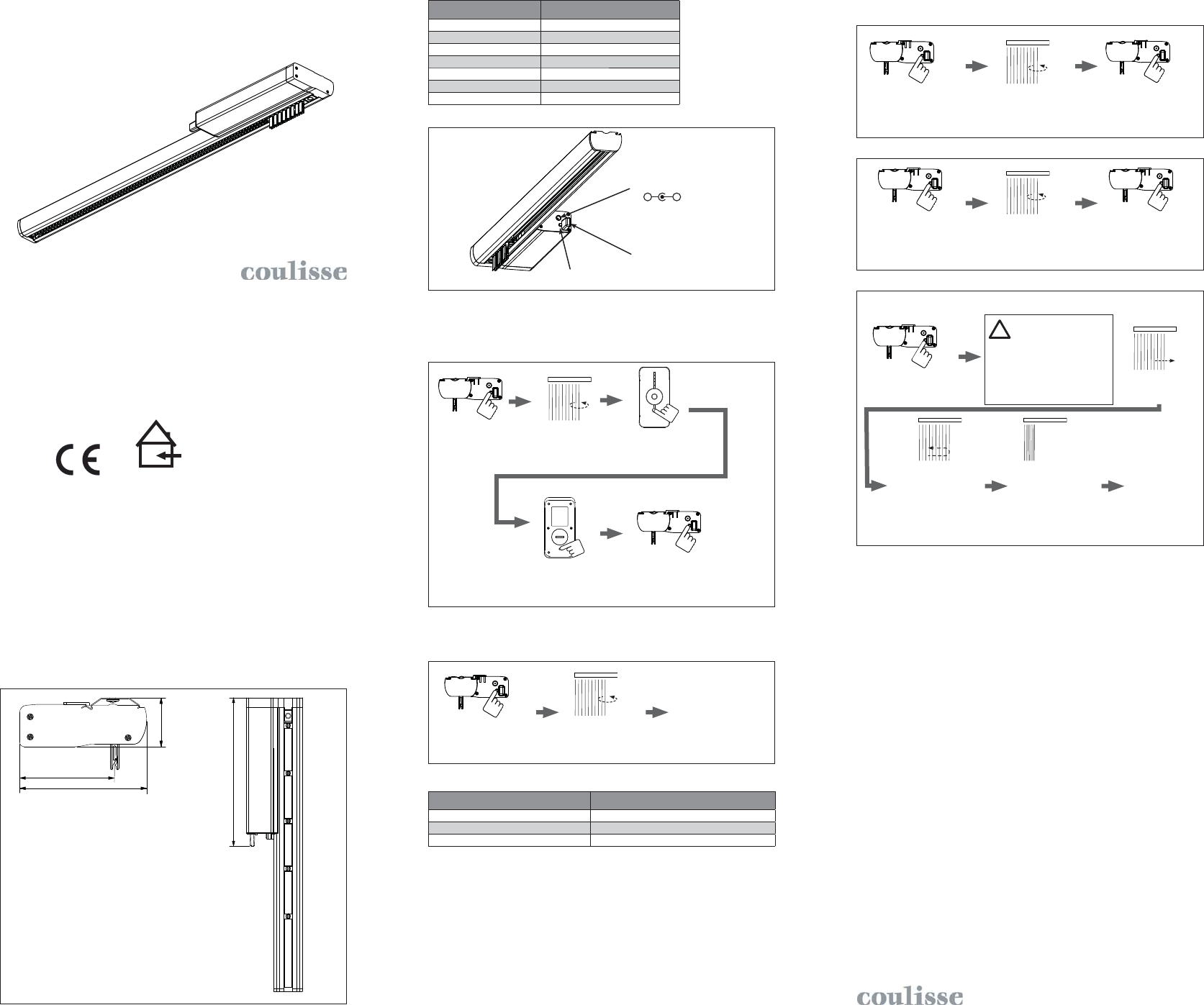

Coulisse ABC03 Motor for drive a vertical blind by RF remote control User Manual
Coulisse B.V. Motor for drive a vertical blind by RF remote control
Coulisse >
User Manual
-
+
Coulisse B.V., Vonderweg 48, 7468 DC Enter, The Netherlands
ABC-03-U_R0_
!
!
indoor use only
233,5
88,3
34
66,0
Online Resources
For the latest information and updated manuals go to www.coulisse.nl.
Obtaining Warranty Service
First follow the advice in this booklet and then go to your local dealer.
If the product appears to be damaged or does not function properly, go to your local dealer
for instructions on how to obtain warranty service.
User Manual
Absolute Control
Vertical Motor ABC-03
WARNING: Important safety instructions. Follow all instructions,
since incorrect installation can lead to severe injury.
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
WARNING:
1. General information
The ABC-03 is a complete kit to motorize Vertical Absolute systems. The motorunit is always
situated on the left side of the system. The motorunit is operated with a Coulisse remote
control only.
The software in the motorunit is selfl earning and detects its endpoints automatically.
The motorunit contains a motor with a gearbox. An electronic actuator switches between
sliding and rotating the slats. Sliding and rotating is possible at every position.
The blinds are automatically rotated in a secure position before sliding.
1.1 General dimensions
ABC-03
Powersupply 12-24V DC - 3A
Rated power 36W
Nom. translating speed 1,5mtr/min
Max. rotating torque 680 mNm
Max. pulling force 3,6 Kg
Max. channels to pair 32 channels
Operating temperature 5 - 60°C
1.2 Performances
1.3 Connectors and buttons
- Pair to a channel/remote
(also possible by using ‘SingleSelect’, see manual Remote control*)
2. Programming and operating
2.1 Programming
Set in Program mode:
Shortly press
program button
Program mode:
Blind is
stepping...
Choose channel
by pressing
the ChannelSelect button
Pair/unpair by pressing
the program button
on the backside of the
remote
Exit Program mode:
Shortly press
program button
2.2 Operating
- Manual Control
- Control by remote
Press program button
for more than 2 sec.
Blind rotates as long
as button is pressed
(max. 15 sec.)
Exit or press program
button another time for
more than 2 sec. and
blind moves in
opposite direction
Additional blind settings: Available
Switch rotation direction Yes
Favorite position Yes
BatteryMode Yes
We refer to the manual of the Coulisse Remote control to set the additional blind settings.
2.3 Additional blind settings
Disclaimer:
© Copyright Coulisse
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, by any means,
electronic, mechanical, photocopying, recording, digital or otherwise without the written permission of the publisher.
Although this manual has been composed with the most care, Coulisse B.V. does not accept any responsibility for damage due
to mistakes and/or faults in this manual.
Coulisse B.V. reserves the right to revise the manual and to revise and/or changes its content at any time, without obligation to notify
any person or entity of such revisions or changes.
The most recent version replaces older versions of this manual. The most recent version is available at ww.coulisse.nl or contact
your Coulisse contact person.
We invite you to send remarks and comments about this manual to Coulisse at manuals@coulisse.nl.
2.4 Reset & initialisation
- Reset to factory defaults
New motors can be initialized directly without resetting
Hold program button
for 10 sec. untill blind
stops stepping
Program mode:
Blind is
stepping...
Set in Program mode:
Shortly press
program button
- Reset to factory defaults & Erase all paired remotes
Hold program button for
15 sec. untill blind stops
stepping and steps once
Program mode:
Blind is
stepping...
Set in Program mode:
Shortly press
program button
- Initialisation (only possible after reset)
1. Connect the motorunit with the 12-24V DC - 3A powersupply
2. Detect endpositions:
Shortly press program
button
It is important that the run-
nertrain fi rst moves outwards.
If not, press program button
to stop and press it again to
change the direction.
Blind is now
ready for normal
use.
Blind moves slowly
Wait while blind is
detecting the end-
points...
(this process will
take a while and may
make some noise)
When blind is ready
the runnertrain must
be in. Check if all run-
ners are aligned. If
not, repeat step 1 & 2
completely.
5. Service & Support
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
WARNING:
4. Safety & Cleaning
4.1 Safety
4.2 Cleaning
Follow these general rules when cleaning the outside of the device and its components:
- Make sure the device is unplugged.
- Use a damp, soft, lint-free cloth. Avoid getting moisture in openings.
- Don’t use aerosol sprays, solvents, alcohol, or abrasives.
Do not make repairs yourself. Do not attempt to open the device
or disassemble it. You run the risk of electric shock and voiding
the limited warranty. No user-serviceable parts are inside.
WARNING:
- Do not let children play with the blind and/or remote control.
- Only use powersupplies or batteries that comply with the specifi cations on the motor.
- In case of malfunction, unplug the device or remove the batteries and contact your dealer.
- Take care that the blind can move freely and is not blocked by objects.
- Take care that the powersupply cable is out of reach for children.
- Do not paint the device.
- Keep the device dry.
3. Tips & Troubleshooting
Please check www.coulisse.nl for the latest tips and troubleshooting guide
(See manual Remotecontrol)
1 sec 10 sec
1 sec 15 sec
1 sec
> 2 sec
1 sec.
1 sec.
Program button
Antenna
12-24V DC - 3A input
GB1
12.9.2011
FCC Manual
Regulatory information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC ID: ZY4ABC03
1 FCC Information to User
This product does not contain any user serviceable components and is to be used with approved
antennas only. Any product changes or modifications will invalidate all applicable regulatory certi-
fications and approvals.
2 FCC Guidelines for Human Exposure
Warning:
In order to comply with RF exposure limits, the user is advised to maintain a distance of at least
20 cm from the antenna structure of this device while it is in use.
3 FCC Electronic Emission Notices
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause unde-
sired operation.
4 FCC Radio Frequency Interference statement
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
Operation of this equipment in a residential area may cause harmful interference, in which case
the user
will be required to correct the interference at his own expense.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help
