CoupDEN CP370 Personal Computer User Manual Part 3

CoupDEN Co.,Ltd. Personal Computer Users Manual Part 3

Contents

Users Manual Part 3

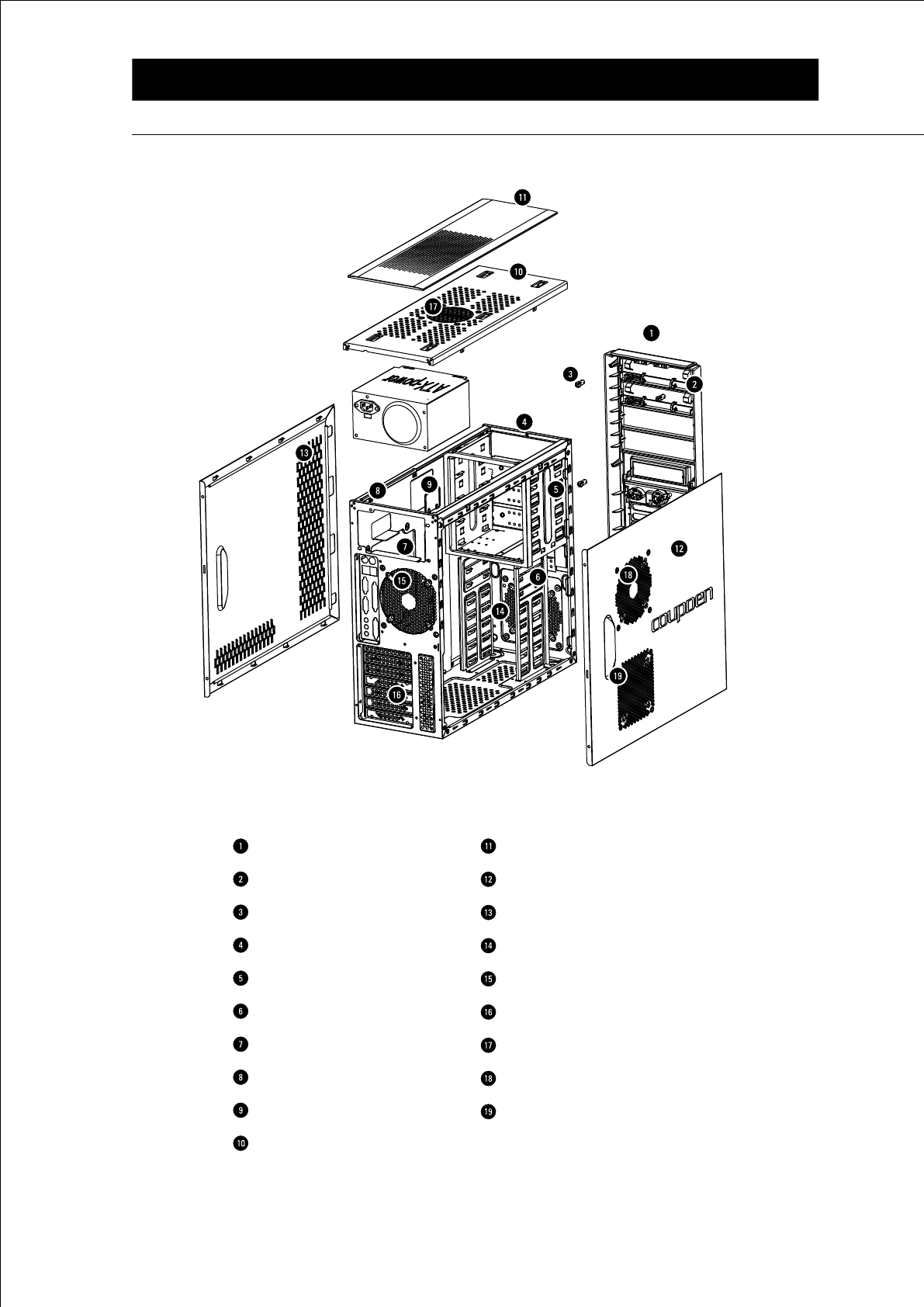

Assembly
Front panel
CD-door
Front panel holder
DAF Chassis
5.25
3.5
UMZ
UJF
PSU lines holder
Top chassis expension module
Top cover (plastic)
Side panel (L)
Side panel (R)
140mm cooling fan (air from outside to inside)
120mm cooling fan (air from inside to outside)
80mm cooling fan (air from inside to outside)
120mm cooling fan (air from inside to outside)
120mm cooling fan (air from outside to inside) - CPU
120mm cooling fan (air from outside to inside) - Graphic Card
CPU
Intel® Pentium D830 3.0GHz
System memory
512MB or above
Hard Disk Drive
160GB or above (Serial ATA type)
CD-ROM Drive
- CD-ROM : Sony CDU5221 (52x reading, E-IDE type)
- CD-RW/DVD Drive : Toshiba Samsung Storage
TS-H492 (52x32x52 CD-RW, 16x DVD-ROM Combo.
Serial connector
- On-Board (9pin male, 1ea)
Parallel connector
- On-Board (25pin female, 1ea)
Keyboard connector
- On-Board (6pin PS/2 type, 1ea)
Mouse connector
- On-Board (6pin PS/2 type 1ea)
Sound connector
- Line-In, Line-Out, Mic-In, RS Out, CS Out, SPDIF
Out-Optical and Coaxial Audio port
Front-End connector
- On-Sub Board in front bezel (Mic jack, Earphone
jack and USB connector 2ea
- 1394 connector, 1ea (option for buyer)
USB connector
- On-Board (4ea), Front-End (2ea)
VGA Card
- GeForce 6600 128MB for dual display(Analog+DVI-I) and TV out
Expansion slot
- PCI-16x slot 1ea, PCI-1x slot 2ea and PCI slot 3ea
Case spec.
- Dimension : 180mm(W) x 410mm(H) x 450mm(D)
- Bay : 1) 3.5 inch x 7ea(hidden 6 bays included)
2) 5.25 inch x 4ea
- Weight : 5.5Kg (net), 6.5Kg(gross) with packing parts
Cooling Solution
- 120mm x 2ea for CP303 (fixed 1500rpm)
- 120mm x 2ea for CP350, 370 (from 900~1600rpm) with
Fan controller and 120mm Fan (fixed 1500rpm)
Cable
-Power cable : 1.8m
Power Supply Unit (Seventeam BLP-300BLP)
- 300W Maximum
- AC Input Voltage : 115~230VAC,
- AC Input Frequency : 50 ~ 60Hz
Environmental conditions
- Operating Temperature : 5°C~35°C ,
Storage Temperature : -20°C~ 55°C
- Operating Humidity :30% ~80%(RH) ,
Storage Humidity : 30% ~80%(RH)
System Specification
01_ 11_
12_
13_
14_
15_
16_
17_
18_
02_
03_
04_
05_
06_
07_
08_
09_
10_
FCC Com
p
liance Statement
Caution : Any changes or modifications in construction of this device, which are not
expressly approved by the party responsible for compliance, could void the user’s authority
to operate the equipment.
Note : This equipment has been tested and found to comply with limits for Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates,
uses and can radiated radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference
by one or more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
