.SP6503 20 Gallon 4/8/03 9:29 AM P_l
Save This Manual
For Future Reference
owner's
manual
MODEL NO.
113.17762(]
Serial
Number
Model and serial
numbers may be
found on the handle.
You should record
both model and serial
numbers in a safe
)lace for future use,
FOR YOUR
SAFETY
READ ALL
INSTRUCTIONS
CAREFULLY
CRRFTSMRN®
20 GALLON
WET/DRY VAC
•assembly
•operating
•repair parts
J
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Part No, SP6503 Printed in U,S.A,
.SP6503 20 Gallon 4/8/03 9:29 AM P_2

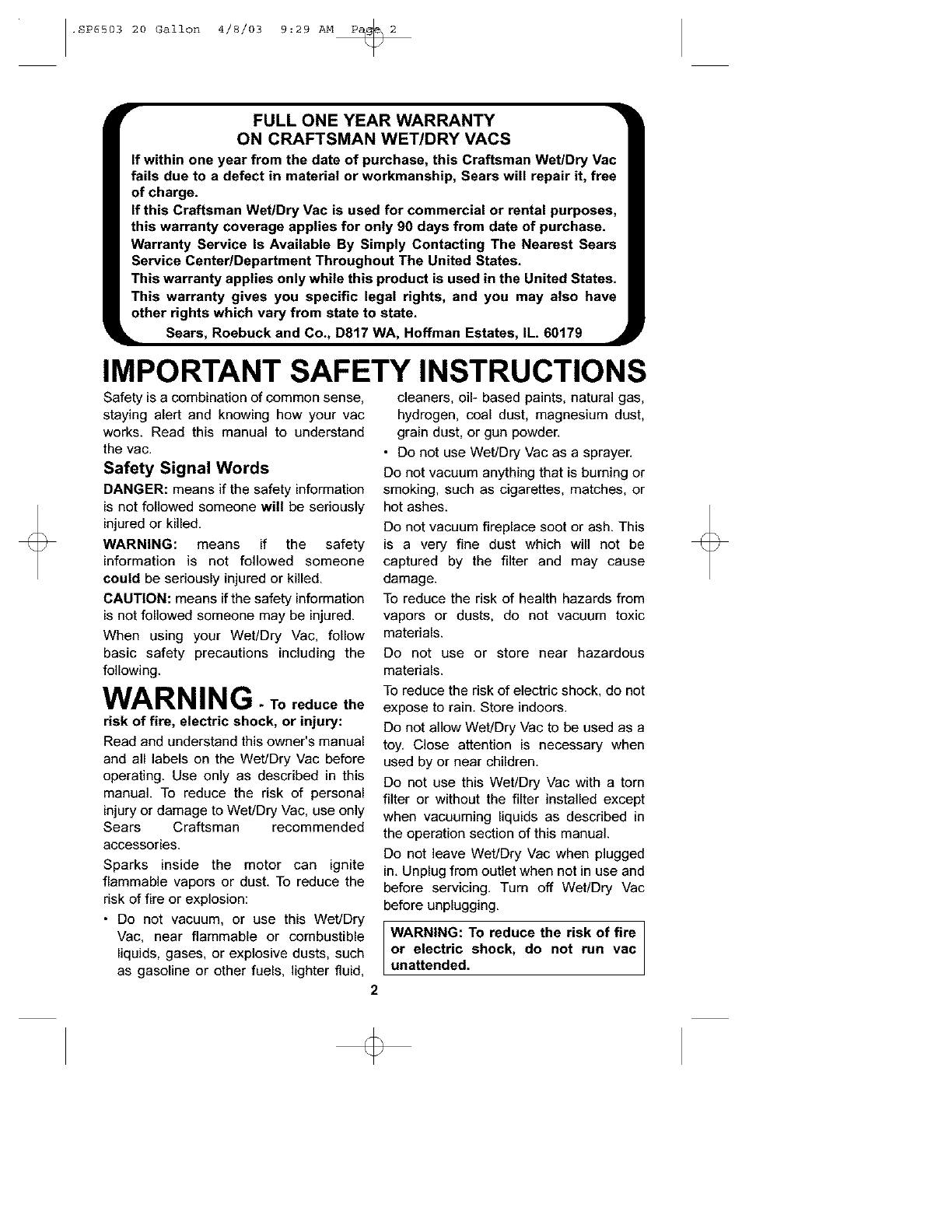

FULL ONE YEAR WARRANTY
ON CRAFTSMAN WET/DRY VACS
If within one year from the date of purchase, this Craftsman Wet/Dry Vac
fails due to a defect in material or workmanship, Sears will repair it, free
of charge.
If this Craftsman Wet/Dry Vac is used for commercial or rental purposes,
this warranty coverage applies for only 90 days from date of purchase.
Warranty Service Is Available By Simply Contacting The Nearest Sears
Service Center/Department Throughout The United States.
This warranty applies only while this product is used in the United States.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Roebuck and Co., D817 WA, , IL. 60179
IMPORTANT SAFETY INSTRUCTIONS
Safety is a combination of common sense,
staying alert and knowing how your vac
works. Read this manual to understand
the vac.
Safety Signal Words
DANGER: means if the safety information
is not followed someone will be seriously
injured or killed.
WARNING: means if the safety
information is not followed someone
could be seriously injured or killed.
CAUTION: means if the safety information
is not followed someone may be injured.
When using your Wet/Dry Vac, follow
basic safety precautions including the
following.
WARNING. Toreduce the
risk of fire, electric shock, or injury:
Read and understand this owner's manual
and all labels on the Wet/Dry Vac before
operating. Use only as described in this
manual. To reduce the risk of personal
injury or damage to Wet/Dry Vac, use only
Sears Craftsman recommended
accessories.
Sparks inside the motor can ignite
flammable vapors or dust. To reduce the
risk of fire or explosion:
•Do not vacuum, or use this Wet/Dry
Vac, near flammable or combustible
liquids, gases, or explosive dusts, such
as gasoline or other fuels, lighter fluid,
cleaners, oil- based paints, natural gas,
hydrogen, coal dust, magnesium dust,
grain dust, or gun powder.
• Do not use Wet/Dry Vac as a sprayer.
Do not vacuum anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
Do not vacuum fireplace soot or ash. This
is a very fine dust which will not be
captured by the filter and may cause
damage.
To reduce the risk of health hazards from
vapors or dusts, do not vacuum toxic
materials.
Do not use or store near hazardous
materials.
To reduce the risk of electric shock, do not
expose to rain. Store indoors.
Do not allow Wet/Dry Vac to be used as a
toy. Close attention is necessary when
used by or near children.
Do not use this Wet/Dry Vac with a torn
filter or without the filter installed except
when vacuuming liquids as described in
the operation section of this manual.
Do not leave Wet/Dry Vac when plugged
in. Unplug from outlet when not in use and
before servicing. Turn off Wet/Dry Vac
before unplugging.
WARNING:To_duce the risk offire
or electric shock, do not run vac
una_ended.
2
.SP6503 20 Gallon 4/8/03 9:29 AM P_3

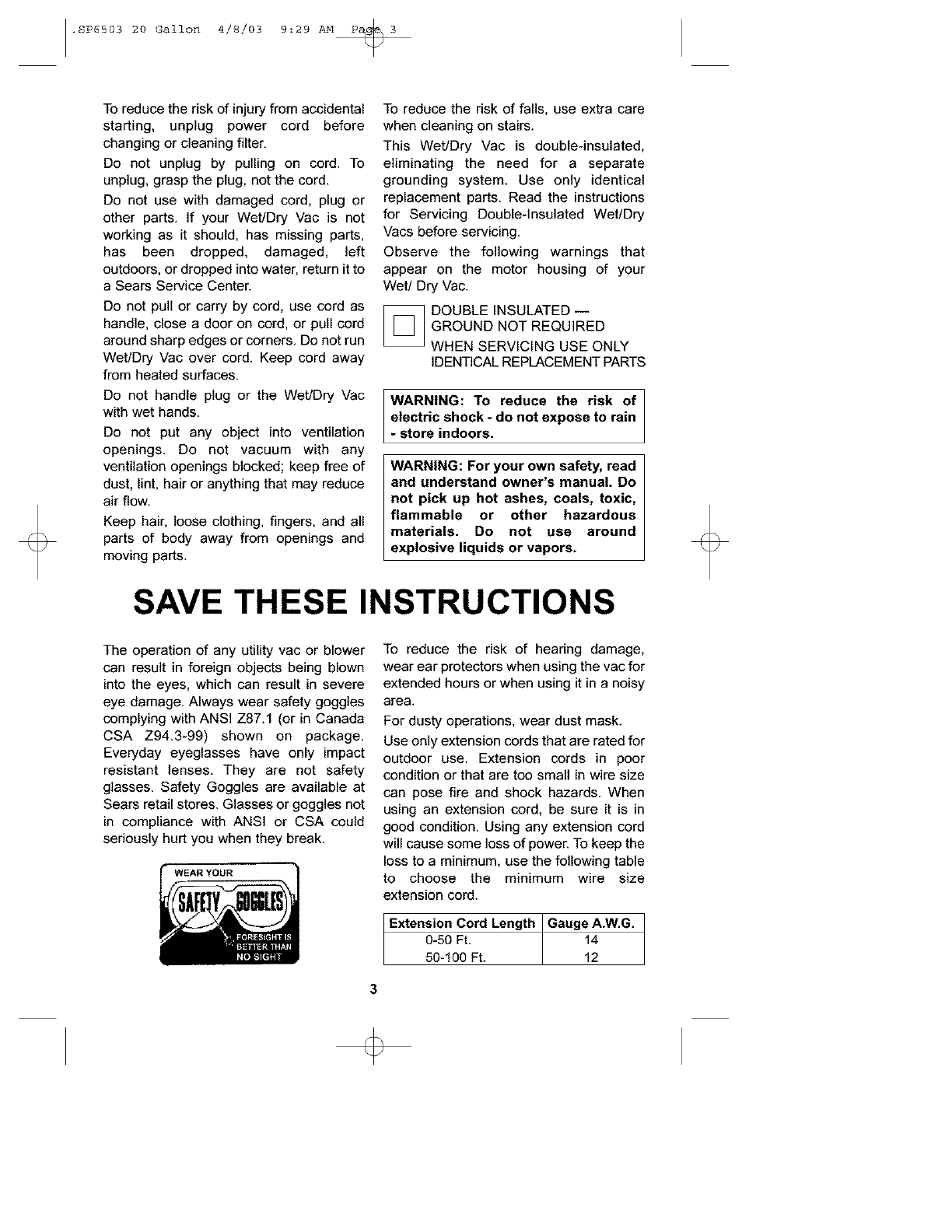

To reduce the risk of injury from accidental
starting, unplug power cord before
changing or cleaning filter.
Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
Do not use with damaged cord, plug or
other parts. If your Wet/Dry Vac is not
working as it should, has missing parts,
has been dropped, damaged, left
outdoors, or dropped into water, return it to
a Sears Service Center.
Do not pull or carry by cord, use cord as
handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run
Wet/Dry Vac over cord. Keep cord away
from heated surfaces.
Do not handle plug or the Wet/Dry Vac
with wet hands.
Do not put any object into ventilation
openings. Do not vacuum with any
ventilation openings blocked; keep free of
dust, lint, hair or anything that may reduce
air flow.
Keep hair, loose clothing, fingers, and all
parts of body away from openings and
moving parts.
To reduce the risk of falls, use extra care
when cleaning on stairs.
This Wet/Dry Vac is double-insulated,
eliminating the need for a separate
grounding system. Use only identical
replacement parts. Read the instructions
for Servicing Double-insulated Wet/Dry
Vacs before servicing.
Observe the following warnings that
appear on the motor housing of your
Wet/Dry Vac.
DOUBLE INSULATED --
GROUND NOT REQUIRED
WHEN SERVICING USE ONLY
IDENTICAL REPLACEMENT PARTS
WARNING: To reduce the risk of
electric shock *do not expose to rain
- store indoors.
WARNING: For your own safety, read
and understand owner's manual. Do
not pick up hot ashes, coals, toxic,
flammable or other hazardous
materials. Do not use around
explosive liquids or vapors.
SAVE THESE INSTRUCTIONS
The operation of any utility vac or blower
can result in foreign objects being blown
into the eyes, which can result in severe
eye damage. Always wear safety goggles
complying with ANSI Z87.1 (or in Canada
CSA Z94.3-99) shown on package.
Everyday eyeglasses have only impact
resistant lenses. They are not safety
glasses. Safety Goggles are available at
Sears retail stores. Glasses or goggles not
in compliance with ANSI or CSA could
seriously hurt you when they break.
WEARYOUR
To reduce the risk of hearing damage,
wear ear protectors when using the vac for
extended hours or when using it in a noisy
area.
For dusty operations, wear dust mask.
Use only extension cords that are rated for
outdoor use. Extension cords in poor
condition or that are too small in wire size
can pose fire and shock hazards. When
using an extension cord, be sure it is in
good condition. Using any extension cord
will cause some loss of power. To keep the
loss to a minimum, use the following table
to choose the minimum wire size
extension cord.
Extension Cord Length _Gauge A.W.G.
0-50 Ft. | 14
50-100 Ft. | 12
.SP6503 20 Gallon 4/8/03 9:29 AM P_4
Introduction
This Wet/Dry Vac is intended for house-
hold use only,
IMPORTANT NOTE
Please Read Carefully
Static Shocks Are Common - In dry
areas or when the relative humidity of the
air is low, To reduce the frequency of static
shocks in your home the best remedy is to
add moisture to the air with a console
humidifier.
Owner's Manual Contents
Item Page
Warranty Information .............. 2
Safety Instructions ................ 2
Introduction ..................... 4
Unpacking and Checking
Carton Contents ............... 4
Assembly ....................... 5
Operation ....................... 8
Maintenance ................... 10
Repair Parts .................... 12
Unpacking and Checking Carton Contents
Remove entire contents of carton. Check
each item against the Carton Contents _G
List, Notify your Sears Store immediately if _ H
any parts are damaged or missing,
Carton Contents List
Key Description ............ Qty.
A Vac Assembly ............. 1
B Pos-I-Lock Hose Assembly ., ,1
C Utility Nozzle .............. 1
D Wet Nozzle ............... 1
E Car Nozzle ............... 1
F Crevice Tool .............. 1
G* Filter Nut ................. 1
H* Filter Plate ................ 1
J* Filter (Red Stripe) .......... 1
K* Filter Cage ............... 1
L* Float .................... 1
M Extension Wands ........... 2
N Caster Foot For Storage ..... 4
P Caster ................... 4
Q Diffuser .................. 1
R Disposable Filter Bag ........ 1
S Owners Manual ............ 1
*These items may come preassembled,
If they are not present in the carton check
the vac power head to see if they are
preassembled.
4
.SP6503 20 Gallon 4/8/03 9:29 AM P_5

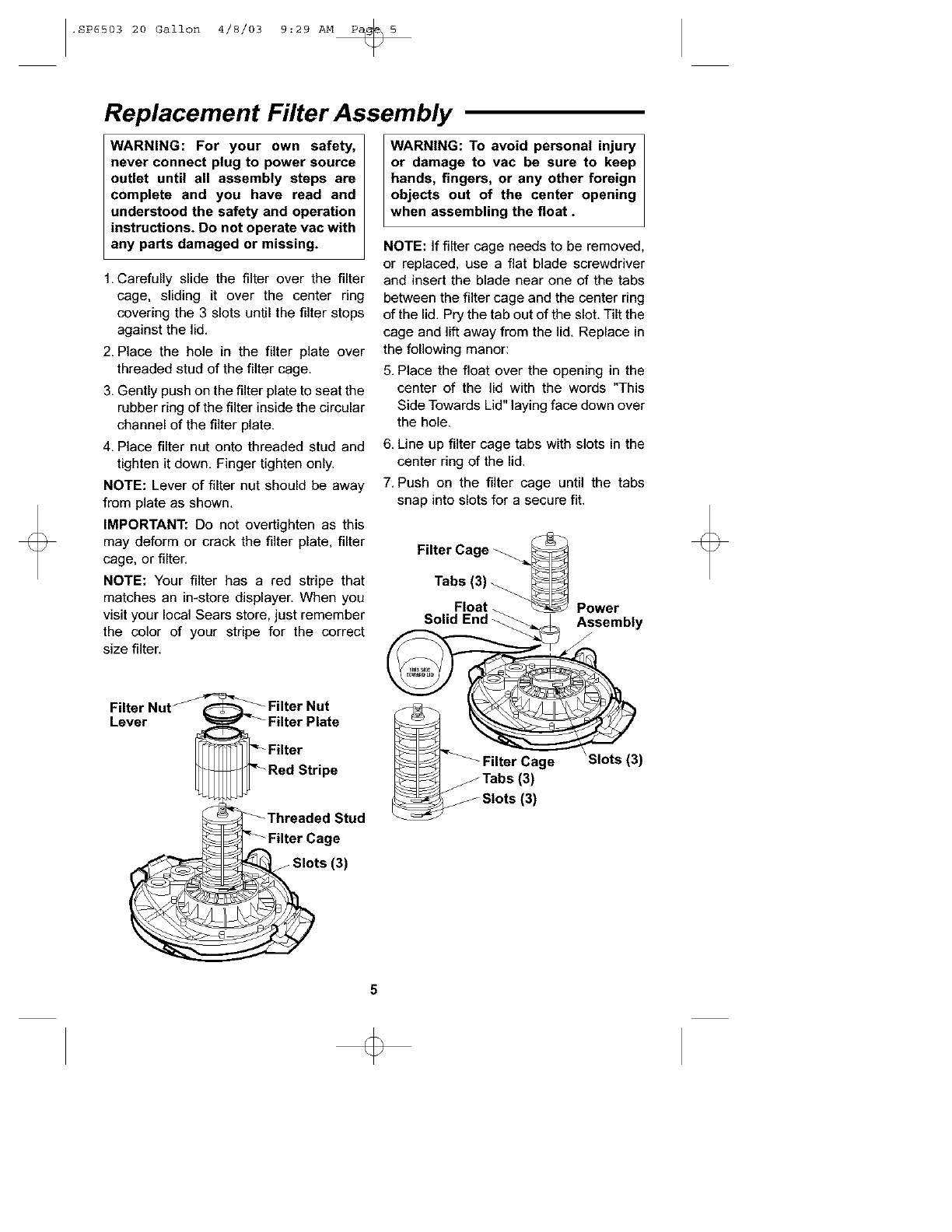

Replacement Filter Assembly
WARNING: For your own safety,
never connect plug to power source
outlet until all assembly steps are
complete and you have read and
understood the safety and operation
instructions. Do not operate vac with
any parts damaged or missing.
1.Carefully slide the filter over the filter
cage, sliding it over the center ring
covering the 3 slots until the filter stops
against the lid.
2. Place the hole in the filter plate over
threaded stud of the filter cage.
3. Gently push on the filter plate to seat the
rubber ring of the filter inside the circular
channel of the filter plate.
4. Place filter nut onto threaded stud and
tighten it down. Finger tighten only.
NOTE: Lever of filter nut should be away
from plate as shown.
IMPORTANT: Do not overtighten as this
may deform or crack the filter plate, filter
cage, or filter.
NOTE: Your filter has a red stripe that
matches an in-store displayer. When you
visit your local Sears store, just remember
the color of your stripe for the correct
size filter.
WARNING: To avoid personal injury
or damage to vac be sure to keep
hands, fingers, or any other foreign
objects out of the center opening
when assembling the float.
NOTE: If filter cage needs to be removed,
or replaced, use a flat blade screwdriver
and insert the blade near one of the tabs
between the filter cage and the center ring
of the lid. Pry the tab out of the slot. Tilt the
cage and lift away from the lid. Replace in
the following manor:
5. Place the float over the opening in the
center of the lid with the words "This
Side Towards Lid" laying face down over
the hole.
6. Line up filter cage tabs with slots in the
center ring of the lid.
7. Push on the filter cage until the tabs
snap into slots for a secure fit.
Filter Cage _._
Solid Power
Assembly
f
Filter Nut_ _Filter Nut
Lever ""_ Filter Plate
Filter
Red Stripe
_Threaded Stud
_:ilter Cage
ots (3)
jTabs (3)
j Slots (3)
Slots (3)
5
.SP6503 20 Gallon 4/8/03 9:29 AM P_6

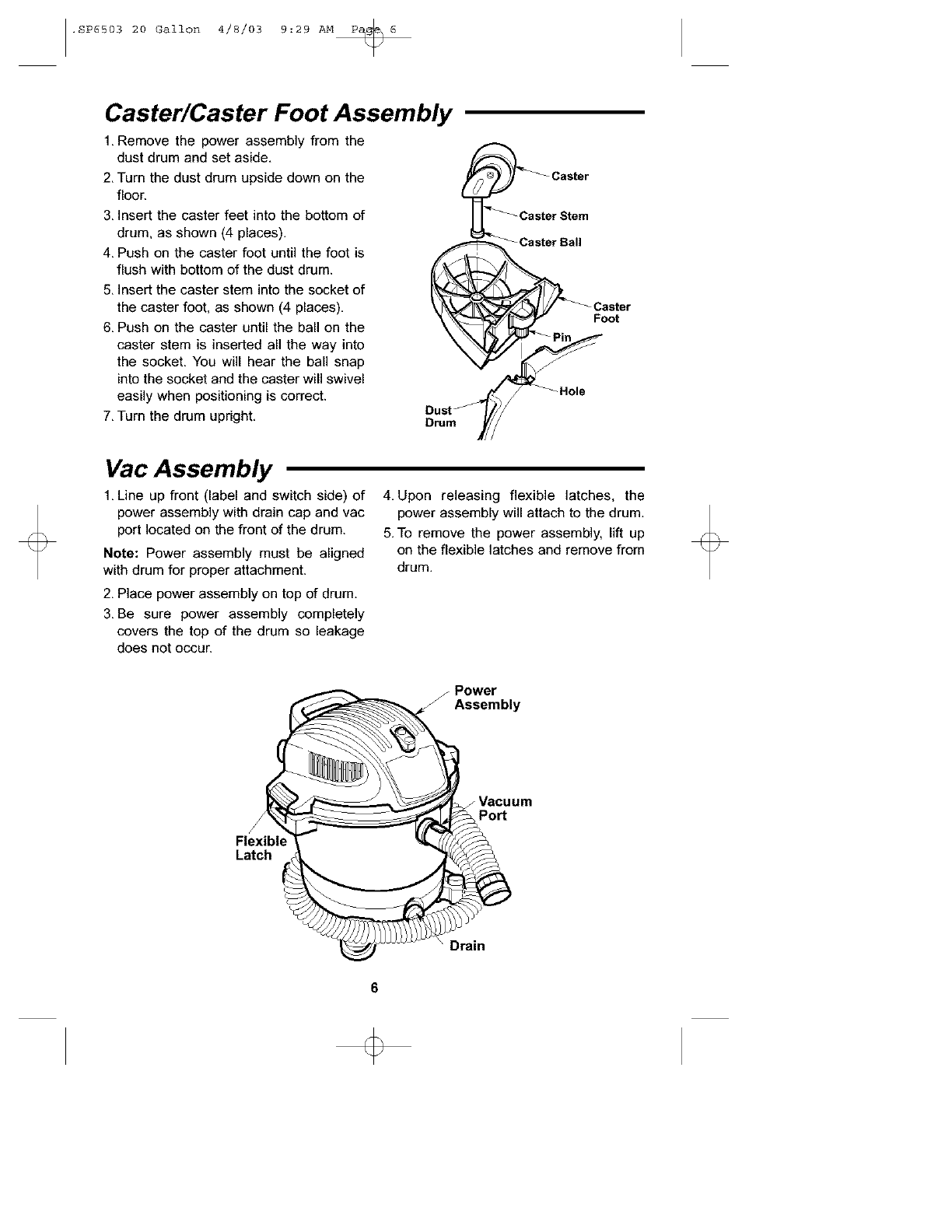

Caster/Caster Foot Assembly
1. Remove the power assembly from the
dust drum and set aside.
2. Turn the dust drum upside down on the
floor.
3. Insert the caster feet into the bottom of
drum, as shown (4 places).
4. Push on the caster foot until the foot is
flush with bottom of the dust drum.
5. Insert the caster stem into the socket of
the caster foot, as shown (4 places).
6. Push on the caster until the ball on the
caster stem is inserted all the way into
the socket. You will hear the ball snap
into the socket and the caster will swivel
easily when positioning is correct.
7. Turn the drum upright. Drum
r Ball
Foot
Vac Assembly
1, Line up front (label and switch side) of
power assembly with drain cap and vac
port located on the front of the drum.
Note: Power assembly must be aligned
with drum for proper attachment.
4. Upon releasing flexible latches, the
power assembly will attach to the drum.
5. To remove the power assembly, lift up
on the flexible latches and remove from
drum.
2. Place power assembly on top of drum.
3. Be sure power assembly completely
covers the top of the drum so leakage
does not occun
Power
Assembly
Flexible
Latch
_Vacuum
Po_
Drain
6
.SP6503 20 Gallon 4/8/03 9:29 AM P_7

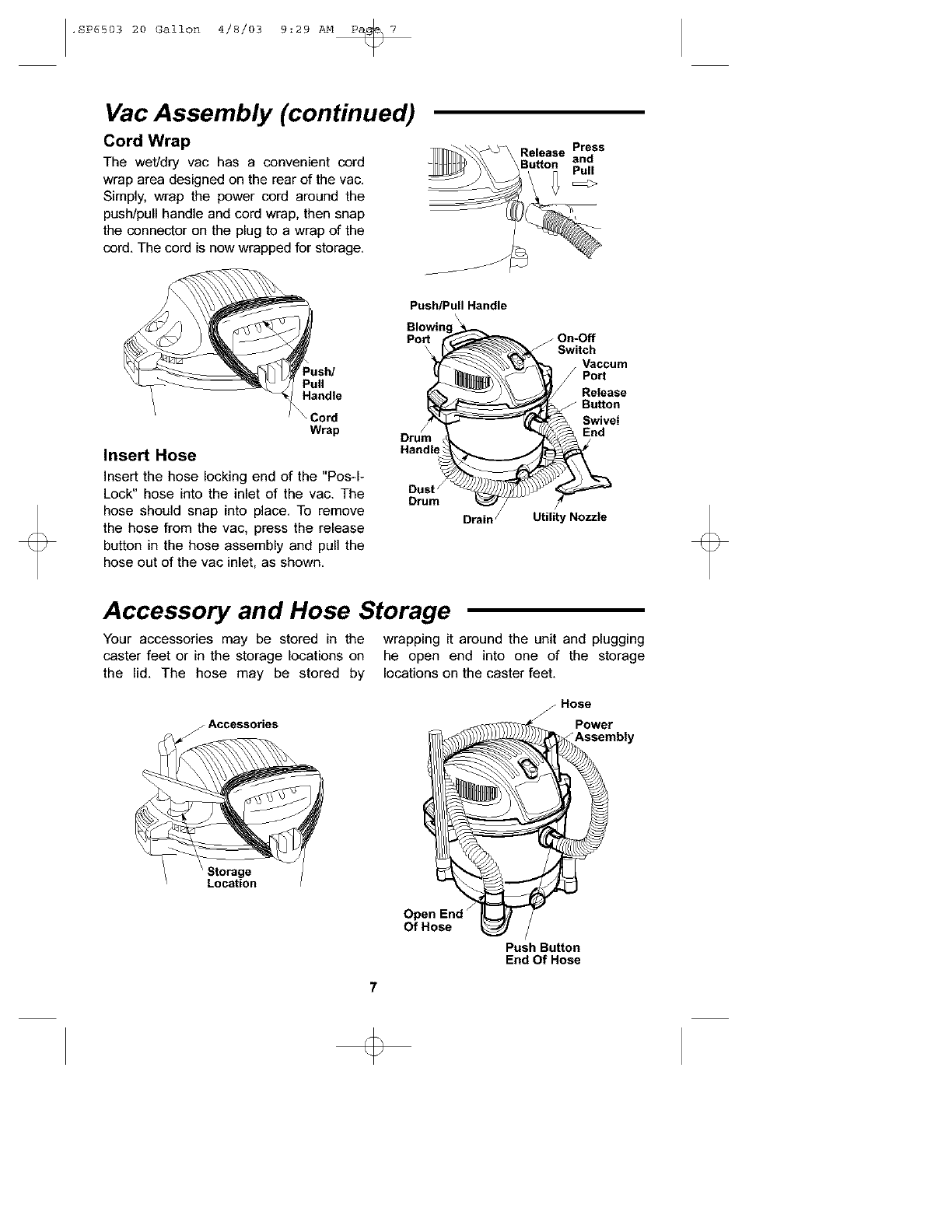

Vac Assembly (continued)
Cord Wrap
The wet/dry vac has a convenient cord
wrap area designed on the rear of the vac,
Simply, wrap the power cord around the
push/pun handle and cord wrap, then snap
the connector on the plug to a wrap of the
cord, The cord is now wrapped for storage,
Push/PullHandle
\
Po[t\
Pull
Handle
\Cord
Wrap /
Drum
Insert Hose Handle
Insert the hose locking end of the "Pos-I-
Lock" hose into the inlet of the vac. The Drum
hose should snap into place, To remove Drain/
the hose from the vac, press the release
button in the hose assembly and pull the
hose out of the vac inlet, as shown,
Release P_ess
On-Off
Switch
Vaccum
/Port
Release
Button
Swivel
End
Utility Nozzle
Accessory and Hose Storage
Your accessories may be stored in the wrapping it around the unit and plugging
caster feet or in the storage locations on he open end into one of the storage
the lid, The hose may be stored by locations on the caster feet,
Location
Open End
Of Hose
/Hose
Power
Assembly
Push Button
End Of Hose

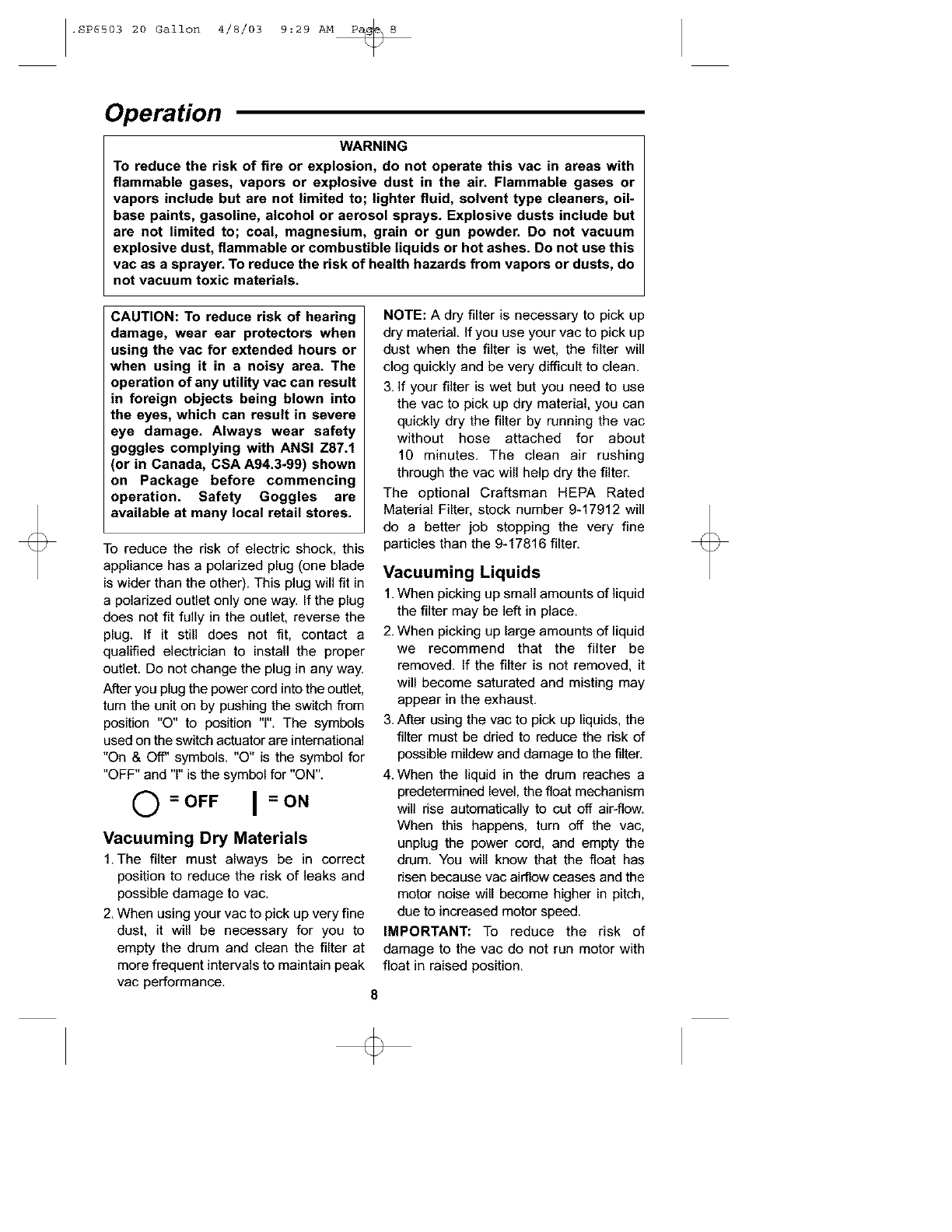

.SP6503 20 Gallon 4/8/03 9:29 AM P_8
Operation
WARNING
To reduce the risk of fire or explosion, do not operate this vac in areas with
flammable gases, vapors or explosive dust in the air. Flammable gases or
vapors include but are not limited to; lighter fluid, solvent type cleaners, oil-
base paints, gasoline, alcohol or aerosol sprays. Explosive dusts include but
are not limited to; coal, magnesium, grain or gun powder. Do not vacuum
explosive dust, flammable or combustible liquids or hot ashes. Do not use this
vac as a sprayer. To reduce the risk of health hazards from vapors or dusts, do
not vacuum toxic materials.
CAUTION: To reduce risk of hearing
damage, wear ear protectors when
using the vac for extended hours or
when using it in a noisy area. The
operation of any utility vac can result
in foreign objects being blown into
the eyes, which can result in severe
eye damage. Always wear safety
goggles complying with ANSI Z87.1
(or in Canada, CSA A94.3-99) shown
on Package before commencing
operation. Safety Goggles are
available at many local retail stores.
To reduce the risk of electric shock, this
appliance has a polarized plug (one blade
is wider than the other). This plug will fit in
a polarized outlet only one way. if the plug
does not fit fully in the outlet, reverse the
plug. if it still does not fit, contact a
qualified electrician to install the proper
outlet. Do not change the plug in any way.
After you plug the power cord into the outlet,
turn the unit on by pushing the switch from
position "0" to position 'T'. The symbols
used on the switch actuator are international
"On & Off" symbols. "0" is the symbol for
"OFF" and 'T' is the symbol for "ON".
0I=ON
Vacuuming Dry Materials
1.The filter must always be in correct
position to reduce the risk of leaks and
possible damage to vac.
2. When using your vac to pick up very fine
dust, it will be necessary for you to
empty the drum and clean the filter at
more frequent intervals to maintain peak
vac performance.
NOTE: A dry filter is necessary to pick up
dry material, if you use your vac to pick up
dust when the filter is wet, the filter will
clog quickly and be very difficult to clean.
3. If your filter is wet but you need to use
the vac to pick up dry material, you can
quickly dry the filter by running the vac
without hose attached for about
10 minutes. The clean air rushing
through the vac will help dry the filter.
The optional Craftsman HEPA Rated
Material Filter, stock number 9-17912 will
do a better job stopping the very fine
particles than the 9-17816 filter.
Vacuuming Liquids
1. When picking up small amounts of liquid
the filter may be left in place.
2. When picking up large amounts of liquid
we recommend that the filter be
removed. If the filter is not removed, it
will become saturated and misting may
appear in the exhaust.
3. After using the vac to pick up liquids, the
filter must be dried to reduce the risk of
possible mildew and damage to the filter.
4. When the liquid in the drum reaches a
predetermined level, the float mechanism
will rise automatically to cut off air-flow.
When this happens, turn off the vac,
unplug the power cord, and empty the
drum. You will know that the float has
risen because vac airflow ceases and the
motor noise will become higher in pitch,
due to increased motor speed,
IMPORTANT: To reduce the risk of
damage to the vac do not run motor with
float in raised position,
8

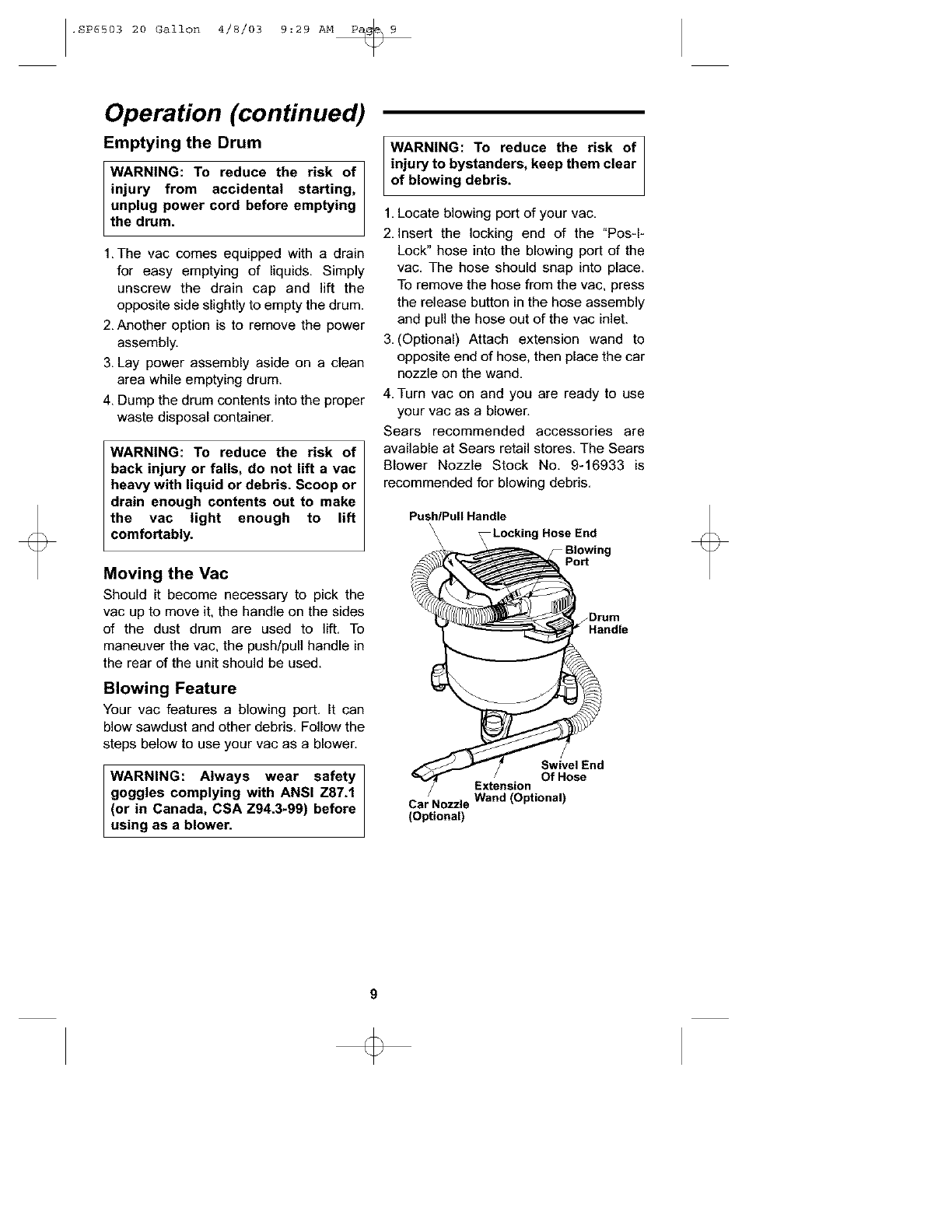

.SP6503 20 Gallon 4/8/03 9:29 AM P_9
Operation (continued)
Emptying the Drum
WARNING: To reduce the risk of
injury from accidental starting,
unplug power cord before emptying
the drum.
1.The vac comes equipped with a drain
for easy emptying of liquids. Simply
unscrew the drain cap and lift the
opposite side slightly to empty the drum.
2. Another option is to remove the power
assembly.
3. Lay power assembly aside on a clean
area while emptying drum.
4. Dump the drum contents into the proper
waste disposal container.
WARNING: To reduce the risk of
back injury or falls, do not lift a vac
heavy with liquid or debris. Scoop or
drain enough contents out to make
the vac light enough to lift
comfortably.
Moving the Vac
Should it become necessary to pick the
vac up to move it, the handle on the sides
of the dust drum are used to lift. To
maneuver the vac, the push/pull handle in
the rear of the unit should be used.
Blowing Feature
Your vac features a blowing port, It can
blow sawdust and other debris, Follow the
steps below to use your vac as a blower,
WARNING: Always wear safety
goggles complying with ANSI Z87.1
(or in Canada, CSA Z94.3_99) before
us ng as a b ower.
WARNING: To reduce the risk of
injury to bystanders, keep them clear
of blowing debris.
1. Locate blowing port of your vac.
2. Insert the locking end of the "Pos-I-
Lock" hose into the blowing port of the
vac. The hose should snap into place.
To remove the hose from the vac, press
the release button in the hose assembly
and pull the hose out of the vac inlet.
3. (Optional) Attach extension wand to
opposite end of hose, then place the car
nozzle on the wand.
4. Turn vac on and you are ready to use
your vac as ablower.
Sears recommended accessories are
available at Sears retail stores. The Sears
Blower Nozzle Stock No. 9-16933 is
recommended for blowing debris.
Push/Pull Handle
\
Car Nozzle Wand (Optional)
(Optional)
9

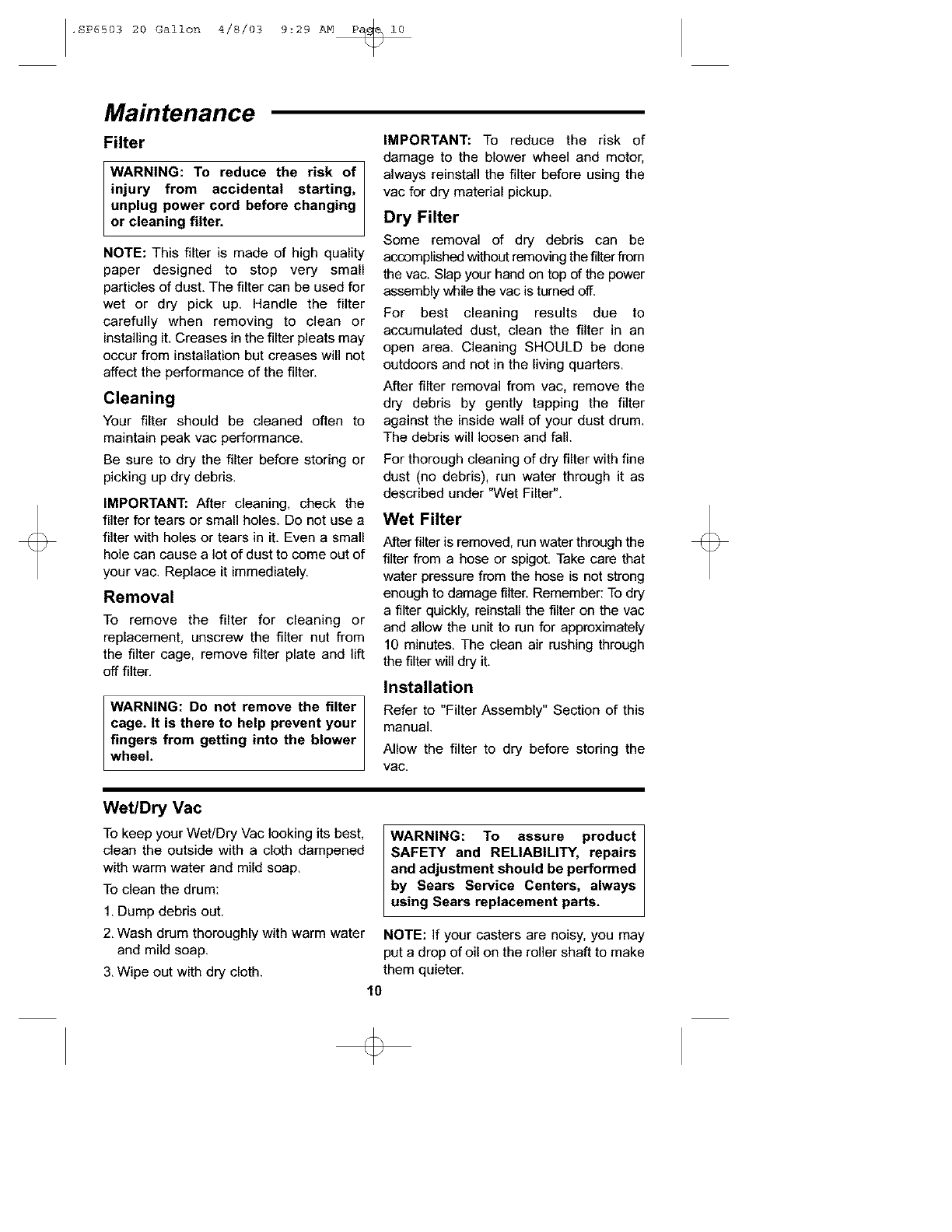

.SP6503 20 Gallon 4/8/03 9:29 AM P_ i0
Maintenance
Filter
WARNING: To reduce the risk of
injury from accidental starting,
unplug power cord before changing
or cleaning filter.
NOTE: This filter is made of high quality
paper designed to stop very small
particles of dust. The filter can be used for
wet or dry pick up. Handle the filter
carefully when removing to clean or
installing it. Creases in the filter pleats may
occur from installation but creases will not
affect the performance of the filter.
Cleaning
Your filter should be cleaned often to
maintain peak vac performance.
Be sure to dry the filter before storing or
picking up dry debris.
IMPORTANT: After cleaning, check the
filter for tears or small holes. Do not use a
filter with holes or tears in it. Even asmall
hole can cause a lot of dust to come out of
your vac. Replace it immediately.
Removal
To remove the filter for cleaning or
replacement, unscrew the filter nut from
the filter cage, remove filter plate and lift
off filter.
WARNING: Do not remove the filter
cage. It is there to help prevent your
fingers from getting into the blower
whee.
Wet/Dry Vac
IMPORTANT: To reduce the risk of
damage to the blower wheel and motor,
always reinstall the filter before using the
vac for dry material pickup.
Dry Filter
Some removal of dry debris can be
accomplishedwithout removing the filterfrom
the vac. Slap your hand on top of the power
assembly while the vac is turned off.
For best cleaning results due to
accumulated dust, clean the filter in an
open area. Cleaning SHOULD be done
outdoors and not in the living quarters.
After filter removal from vac, remove the
dry debris by gently tapping the filter
against the inside wall of your dust drum.
The debris will loosen and fall.
For thorough cleaning of dry filter with fine
dust (no debris), run water through it as
described under "Wet Filter".
Wet Filter
After filter is removed, run water through the
filter from a hose or spigot. Take care that
water pressure from the hose is not strong
enough to damage filter. Remember: To dry
a filter quickly, reinstall the filter on the vac
and allow the unit to run for approximately
10 minutes. The clean air rushing through
the filter will dry it.
Installation
Refer to "Filter Assembly" Section of this
manual.
Allow the filter to dry before storing the
vac,
To keep your Wet/Dry Vac looking its best,
clean the outside with a cloth dampened
with warm water and mild soap.
To clean the drum:
1. Dump debris out.
WARNING: To assure product
SAFETY and RELIABILITY, repairs
and adjustment should be performed
by Sears Service Centers, always
using Sears replacement parts.
2. Wash drum thoroughly with warm water NOTE: if your casters are noisy, you may
and mild soap. put adrop of oil on the roller shaft to make
3. Wipe out with dry cloth, them quieter.
10
.SP6503 20 Gallon 4/8/03 9:29 AM P_ ii

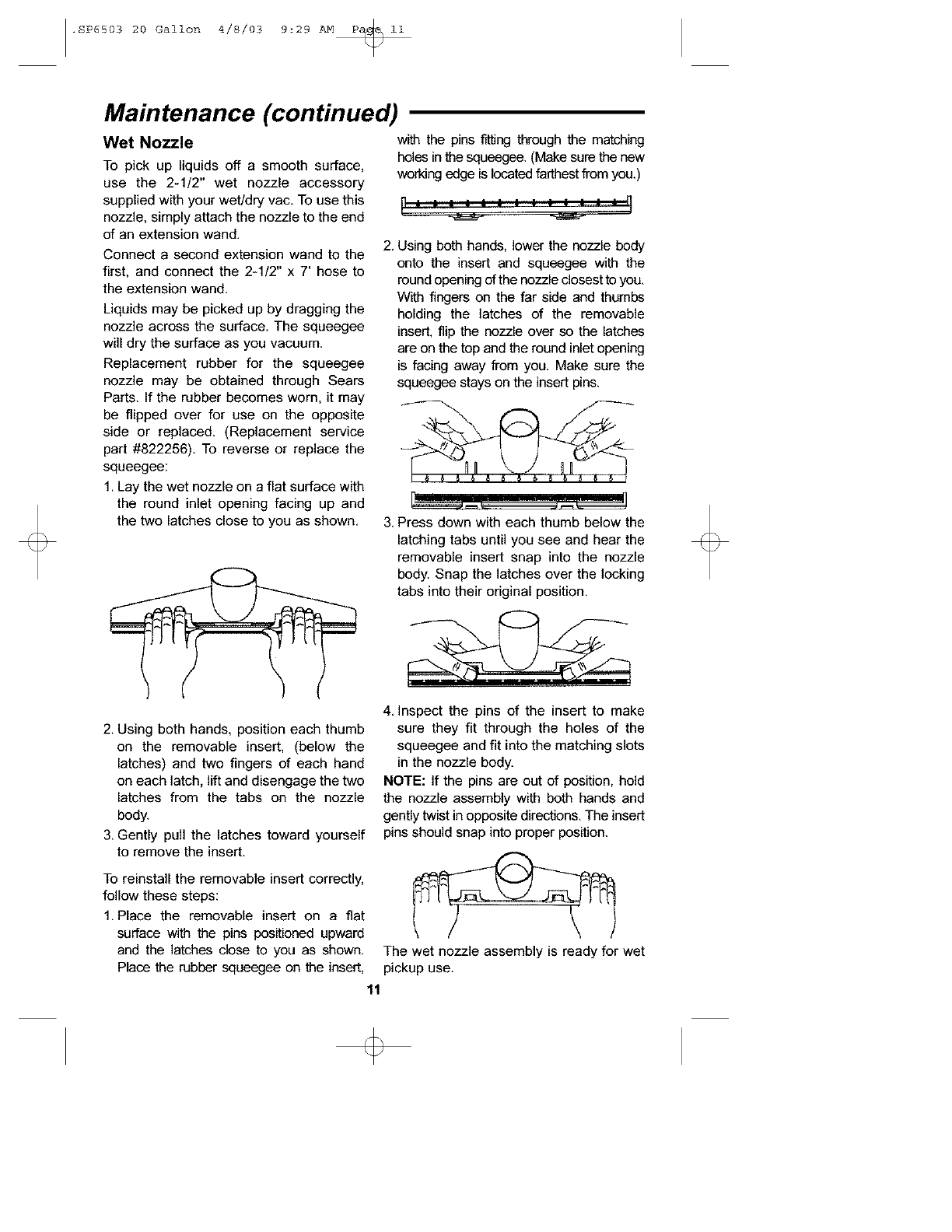

Maintenance (continued)
Wet Nozzle with the pins fitting through the matching
To pick up liquids off a smooth surface,
use the 2-1/2" wet nozzle accessory
supplied with your wet/dry vac. To use this
nozzle, simply attach the nozzle to the end
of an extension wand.
Connect a second extension wand to the
first, and connect the 2-1/2" x 7' hose to
the extension wand.
Liquids may be picked up by dragging the
nozzle across the surface. The squeegee
will dry the surface as you vacuum.
Replacement rubber for the squeegee
nozzle may be obtained through Sears
Parts. If the rubber becomes worn, it may
be flipped over for use on the opposite
side or replaced. (Replacement service
part #822256). To reverse or replace the
squeegee:
1. Lay the wet nozzle on a flat surface with
the round inlet opening facing up and
the two latches close to you as shown.
holes in the squeegee. (Make sure the new
working edge is located farthest from you.)
2. Using both hands, lower the nozzle body
onto the insert and squeegee with the
round opening of the nozzle closest to you.
With fingers on the far side and thumbs
holding the latches of the removable
insert, flip the nozzle over so the latches
are on the top and the round inlet opening
is facing away from you. Make sure the
squeegee stays on the insert pins.
3. Press down with each thumb below the
latching tabs until you see and hear the
removable insert snap into the nozzle
body. Snap the latches over the locking
tabs into their original position.
2, Using both hands, position each thumb
on the removable insert, (below the
latches) and two fingers of each hand
on each latch, lift and disengage the two
latches from the tabs on the nozzle
body.
3, Gently pull the latches toward yourself
to remove the insert.
To reinstall the removable insert correctly,
follow these steps:
1. Place the removable insert on a flat
surface with the pins positioned upward
and the latches close to you as shown.
Place the rubber squeegee on the insert,
4. Inspect the pins of the insert to make
sure they fit through the holes of the
squeegee and fit into the matching slots
in the nozzle body.
NOTE: If the pins are out of position, hold
the nozzle assembly with both hands and
gently twist in opposite directions. The insert
pins should snap into proper position.
The wet nozzle assembly is ready for wet
pickup use.
11

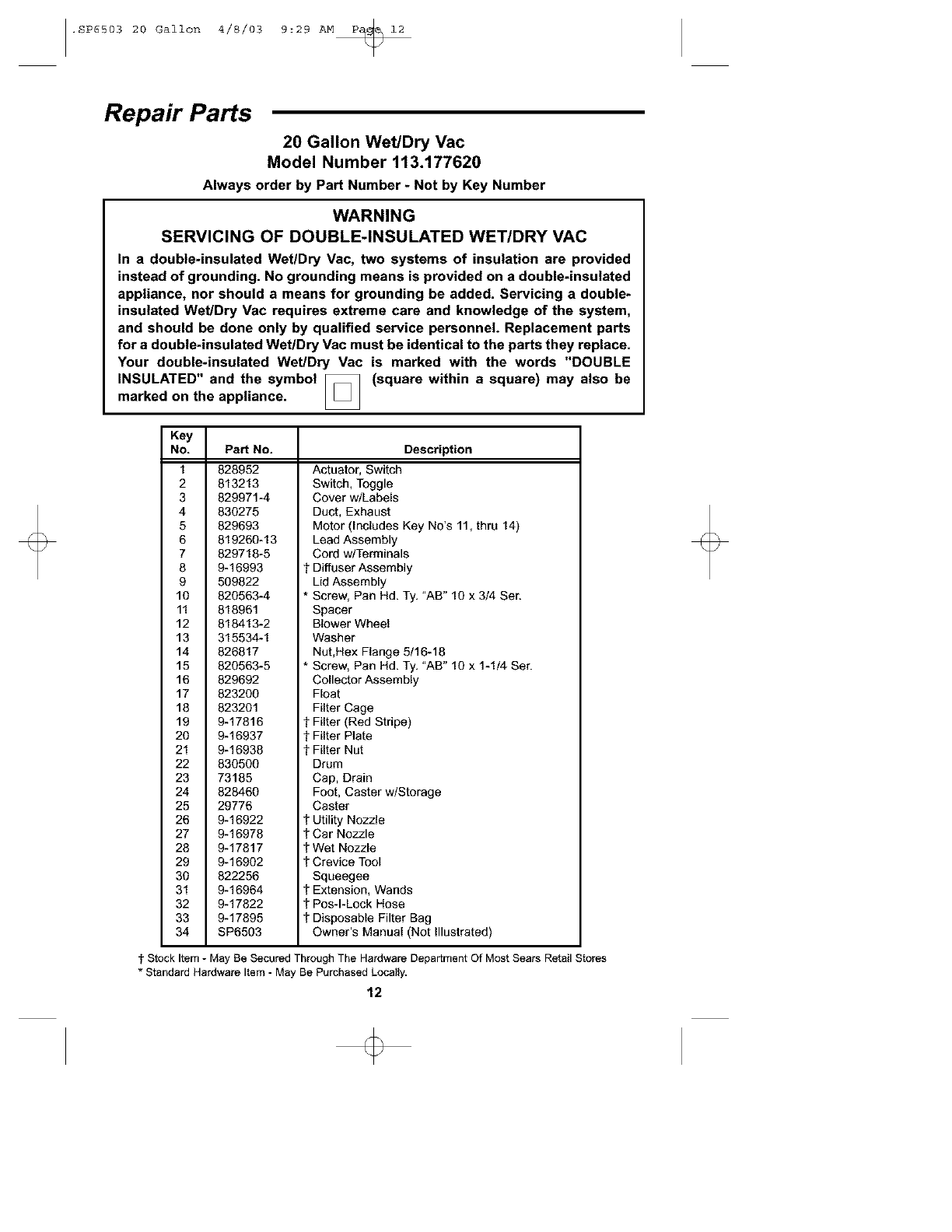

.SP6503 20 Gallon 4/8/03 9:29 AM P_ 12
Repair Parts
20 Gallon Wet/Dry Vac
Model Number 113.177620
Always order by Part Number -Not by Key Number
WARNING
SERVICING OF DOUBLE-INSULATED WET/DRY VAC
In a double-insulated Wet/Dry Vac, two systems of insulation are provided
instead of grounding. No grounding means is provided on a double-insulated
appliance, nor should a means for grounding be added. Servicing a double-
insulated Wet/Dry Vac requires extreme care and knowledge of the system,
and should be done only by qualified service personnel. Replacement parts
for a double-insulated Wet/Dry Vac must be identical to the parts they replace.
Your double*insulated Wet/Dry Vac is marked with the words "DOUBLE
INSULATED" and the symbol _(square within a square) may also be
marked on the appliance.
Key
No. Pa_ No.
1 828952
2 813213
3 829971-4
4 830275
5 829693
6 819280-13
7 829718-5
8 9-16993
9 509822
10 820563-4
11 818961
12 818413-2
13 315534-1
14 826817
15 820563-5
18 829692
17 823200
18 823201
19 9-17816
20 9-16937
21 9-16938
22 830500
23 73185
24 828460
25 29776
28 9-16922
27 9-16978
28 9-17817
29 9-16902
30 822256
31 9-16964
32 9-17822
33 9-17895
34 SP8503
Description
Actuator, Switch
Switch, Toggle
Cover w/Labels
Duct, Exhaust
Motor (Includes Key No's 11, thru 14)
Lead Assembly
Cord w/Terminals
%Diffuser Assembly
Lid Assembly
* Screw, Pan Hd. Ty. "AB" 10 x 3/4 Ser.
Spacer
Blower Wheel
Washer
Nut, Hex Flange 5/16-18
* Screw, Pan Hd. Ty. "AB" 10 x 1-1/4 Ser.
Collector Assembly
Float
Filter Cage
%Filter (Red Stripe)
%Filter Plate
%Filter Nut
Drum
Cap, Drain
Foot, Caster w/Storage
Caster
%Utility Nozzle
%Car Nozzle
%Wet Nozzle
1 Crevice Tool
Squeegee
%Extension, Wands
%Pos-I-Lock Hose
%Disposable Filter Bag
Owner's Manual (Not illustrated)
%Stock Item- May Be Secured Through The Hardware Department Of Most Sears Retail Stores
*Standard Hardware Item - May Be Purchased Locally.
12
,SP6503 20 Gallon 4/8/03 9:29 AM P_ 13
Repair Parts
20 Gallon Wet/Dry Vac
Model Number 113.177620
22 \
_9
4
J5
21
t0\
28
25,_ 32\
30\
13
.SP6503 20 Gallon 4/8/03 9:29 AM P_ 14
Notes
14
.SP6503 20 Gallon 4/8/03 9:29 AM
15
.SP6503 20 Gallon 4/8/03 9:29 AM P_ 16

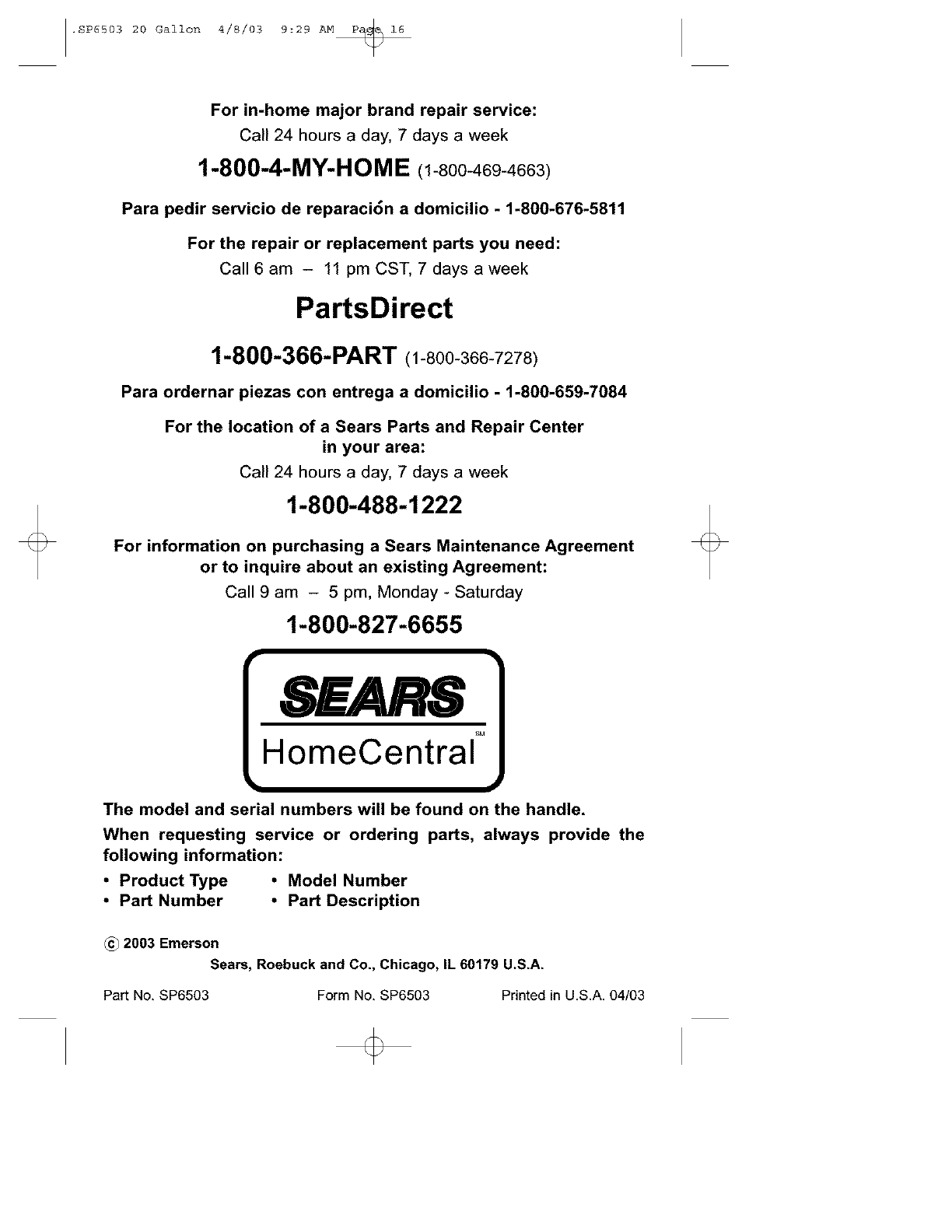

For in-home major brand repair service:
Call 24 hours a day, 7 days a week
1-800-4-MY-HOME (1-800-469-4663)
Para pedir servicio de reparaci6n adomicUio -%800-676-5811
For the repair or replacement parts you need:
Call 6 am - 11 pm CST, 7 days a week
PartsDirect
1-800-366-PART (1-800-366-7278)
Para ordernar piezas con entrega adomicUio -1-800-659-7084
For the location of aSears Parts and Repair Center
in your area:
Call 24 hours a day, 7 days a week
1-800-488-1222
For information on purchasing a Sears Maintenance Agreement
or to inquire about an existing Agreement:
Call 9 am - 5 pm, Monday - Saturday
r
1-800-827-6655
SM
HomeCentral
The model and serial numbers will be found on the handle.
When requesting service or ordering parts, always provide the
following information:
• Product Type • Model Number
• Part Number • Part Description
2003 Emerson
Sears, Roebuck and Co., Chicago, IL 60179 U.S.A.
Part No, SP6503 Form No, SP6503 Printed in U,S.A, 04/03

Navigation menu
