SaveThis ManuaJ "_\

For Future Reference

MODEL NO.

113.213100

DRILL PRESS WiTH

MAXIMUM DEVELOPED

1/3 HP MOTOR

Serial

Number

Modet and serial number

may be found 01 the let1`

side of the head,

You should record both

model and serial number in

a safe place for future use.

FOR YOUR

SAFETY:

READ ALL

INSTRUCTIONS

S_ ARS /£RRFTSMRll®

MOTORIZED

8-INCH

BENCH MODEL DRILL

• assembly

•operating

•repairpads

L... CAREFULLY ..//

SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60! 79 U.S.A.

Part No, SP5493 Printed in r--h._.,,._._._,

FULL ONE YEAR WARRANTY ON CRAFTSMAN DRILL PRESS

if within one year from the date of purchase, this Craftsman Dritl Press falls due to a defect in

material or workmanship, Sears will repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SERV-

ICE CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary

from state to state.

SEARS, ROEBUCK AND CO., D/817 WA Hoffman Estates, IL 60195

GENERAL SAFETY INSTRUCTmONS FOR POWER TOOLS

1. KNOW YOUR POWER TOOL

Read and understand the owner's manual and

labels affixed to the tool. Learn its application and

limitations as well as the specific potential hazards

peculiar to this tool.

2. GROUND ALL TOOLS

This tool is equipped with an approved 3-conductor

cord and a 3-prong grounding type plug to fit the

proper grounding type receptacle. The green con-

ductor in the cord is the grounding wire. Never

connect the green wire to a live terminal.

3. KEEP GUARDS IN PLACE

In working order, and in proper adjustment and

alignment.

4. REMOVE ADJUSTING KEYS AND WRENCHES

Form a habit of checking to see that keys and

adjusting wrenches are removed from tool before

turning it on.

5. KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents.Floor

must not be slippery due to wax or sawdust.

6. AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet locationsor

expose them to rain. Keep work area well lighted.

Provide adequate surrounding work space.

7. KEEP CHILDREN AWAY

All visitors should be kept a safe distance from

work area.

8. MAKE WORKSHOP CHILD-PROOF

With padlocks, master switches, by removing star-

ter keys, or storing tools where children can't get

them.

9. DON'T FORCE TOOL

It will do the job better and safer at the rate for

which it was designed.

10. USE RIGHTTOOL

Don't force tools or attachment to do ajob it was

not designed for.

11. WEAR PROPER APPAREL

Do not wear loose clothing, gloves, neckties, or

jewelry (rings, wrist watches) to get caught in mov-

ing parts. NONSLIP footwear is recommended.

Wear protective hair covering to contain long hair.

Roll long sleeves above the elbow.

12. USE SAFETY GOGGLES (HEAD PROTECTION)

Wear safety goggles (must comply with ANSI

Z87.1) at all times. Everyday eyeglasses are not

safety glasses. They only have impact resistant

lenses. Also, use face or dust mask if cutting oper-

ation is dusty, and ear protectors (plugs or muffs)

during extended periods of operation.

13. SECURE WORK

Use clamps or a vise to hold work when practical.

It frees both hands to operate tool.

14. DON'T OVERREACH

Keep proper footing and balance at all times.

15. MAINTAIN TOOLS WiTH CARE

Keep tools sharp and clean for best and safest

performance. Follow instructions for lubricating and

changing accessories.

16. DISCONNECT TOOLS

Before servicing; when changing accessories such

as blades, bits, cutters, etc.

17. AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before plug-

ging in.

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended ac-

cessories. Follow the instructions that accompany

the accessories. The use of improper accessories

may cause hazards.

19. NEVER STAND ON TOOL OR ITS STAND

Serious injury could occur if the tool is tipped or if

the cutting toot is accidentally contacted. Do not

store materials above or near the tool such that it

is necessary to stand on the too! or its stand to

reach them.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other part

that is damaged should be carefully checked to

ensure that it will operate properly and perform its

intended function. Check for alignment of moving

parts, binding or moving parts, breakage of parts,

mounting, and any other conditions that may affect

itsoperation. A guard or other part that is damaged

should be properly repaired or replaced.

21, DIRECTION OF FEED

Feed work into a blade or cutter against the direc-

tion of rotation of the blade or cutter only.

22. NEVER LEAVETOOL RUNNING UNATTENDED

Turn power off. Don't leave tool until it comes to a

complete stop.

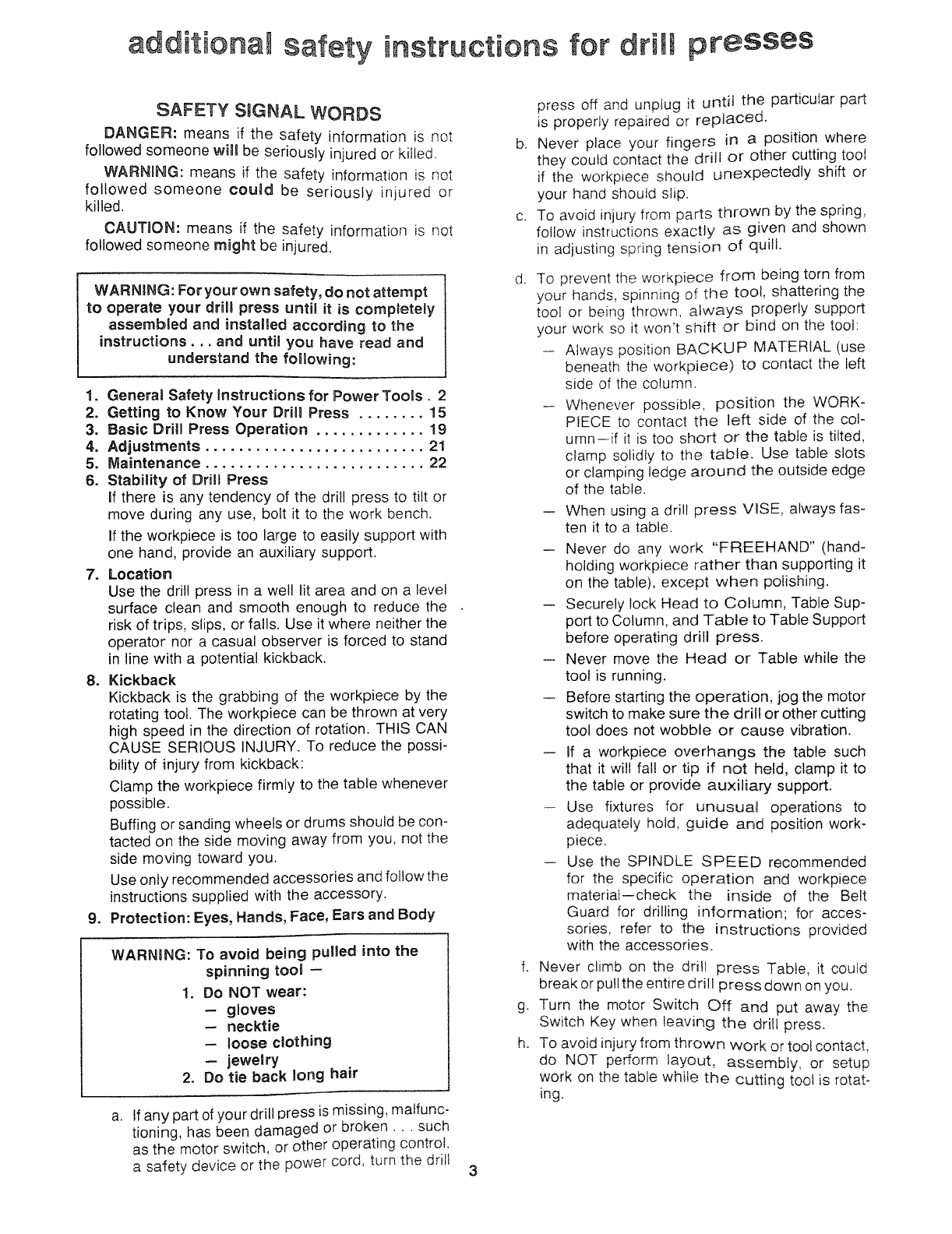

additiona safety instructions for drJ! presses

SAFETY SIGNAL WORDS

DANGER: means if the safety information is not

followed someone will be seriously injured or killed.

WARNaNG: means if the safety information is not

followed someone could be seriously injured or

killed.

CAUTION: means if the safety information is not

followed someone might be injured.

WARNING: For your own safety, do not attempt

to operate your drill press untiJ it is completely

assembled and instalSed according to the

instructions.., and until you have read and

understand the following:

1. General Safety Instructions for Power Tools. 2

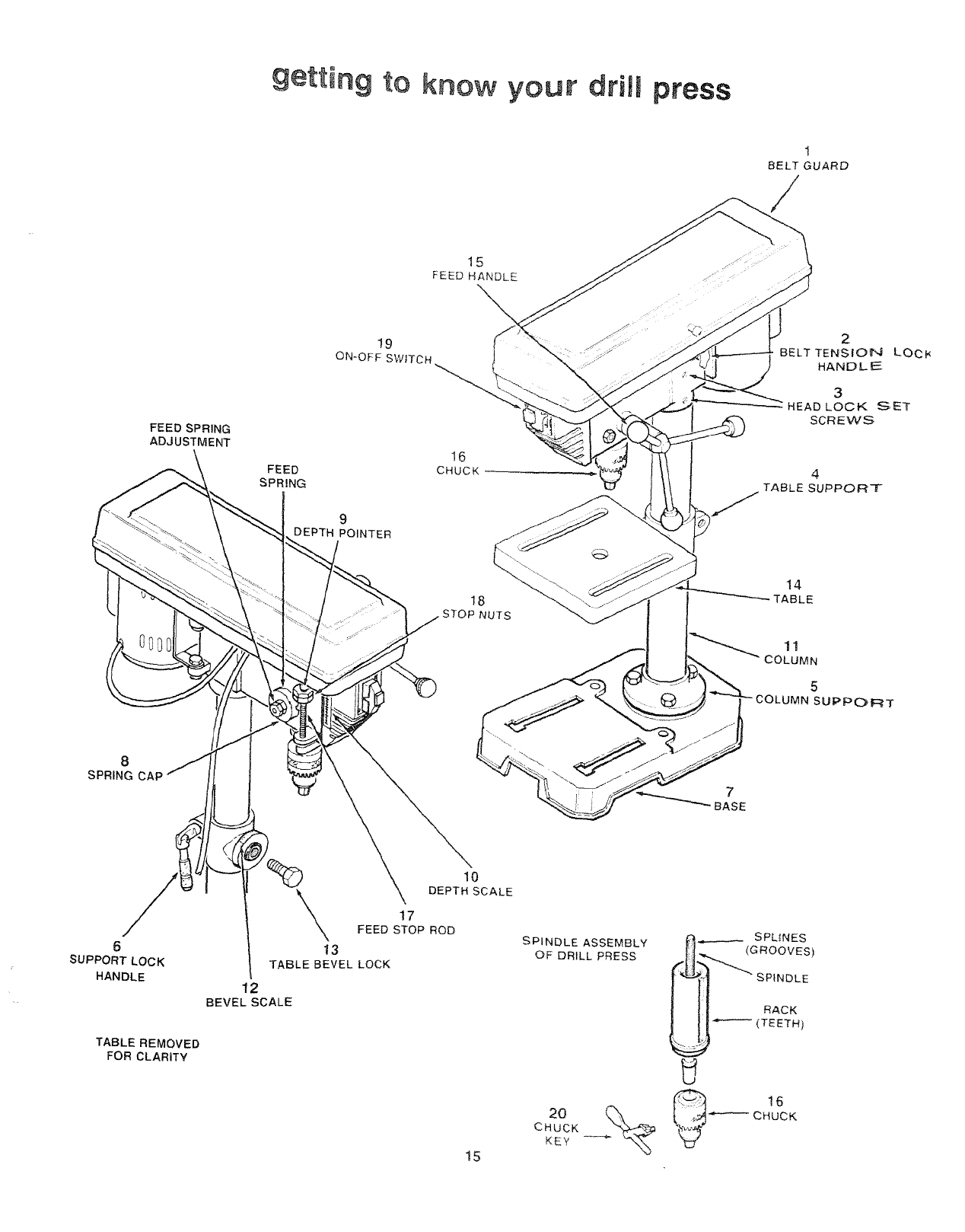

2. Getting to Know Your Drill Press ........ 15

3. Basic Drill Press Operation ............. 19

4. Adjustments .......................... 21

5. Maintenance .......................... 22

5. Stability of Drill Press

If there is any tendency of the drill press to tilt or

move during any use, bolt it to the work bench.

If the workpiece is too large to easily support with

one hand, provide an auxiliary support,

7. Location

Use the drill press in a well lit area and on a level

surface clean and smooth enough to reduce the

risk of trips, slips, or falls. Use it where neither the

operator nor a casual observer is forced to stand

in line with a potential kickback.

8. Kickback

Kickback is the grabbing of the workpiece by the

rotating toot. The workpiece can be thrown at very

high speed in the direction of rotation. THIS CAN

CAUSE SERIOUS INJURY. To reduce the possi-

bility of injury from kickback:

Clamp the workpiece firmly to the table whenever

possible.

Buffing or sanding wheels or drums should be con-

tacted on the side moving away from you, not the

side moving toward you.

Use only recommended accessories and follow the

instructions supplied with the accessory.

9. Protection: Eyes, Hands, Face, Ears and Body

WARNmNG: To avoid being pulled into the

spinning tooa --

1. Do NOT wear:

-- gloves

-- necktie

-- loose clothing

-- jewelry

2. Do tie back long hair

a. If any part of your drill Dress is missing, malfunc-

tioning, has been damaged or broken.., such

as the motor switch, or other operating control.

a safety device or the power cord, turn the dril! 3

press off and unplug it until the particular part

is properly repaired or replaced.

b. Never place your fingers in a position where

they could contact the drill or other cutting tool

if the workpiece should unexpectedly shift or

your hand should slip.

c. To avoid injury from parts thrown by the spring,

follow instructions exactly as given and shown

in adjusting spring tension of quill.

d. To prevent the workpiece from being torn from

your hands, spinning of the toot, shattering the

tool or being thrown, always properly support

your work so it won't shift or bind on the tool:

-- Always position BACKUP MATERIAL (use

beneath the workpiece) to contact the left

side of the column.

,--, Whenever possible, position the WORK-

PIECE to contact the left side of the col-

umn-if it is too short or the table is tilted,

clamp solidly to the table. Use table slots

or clamping ledge around the outside edge

of the table.

-- When using a drill press WSE, always fas-

ten it to a table.

-- Never do any work "FREEHAND" (hand-

holding workpiece rather than supporting it

on the table), except when polishing.

-- Securely lock Head to Column, Table Sup-

port to Column, and Table to Table Support

before operating drill press.

-- Never move the Head or Table while the

tool is running.

-- Before starting the operation, jog the motor

switch to make sure the drill or other cutting

tool does not wobble or cause vibration.

-- If a workpiece overhangs the table such

that it will fall or tip if not held, clamp it to

the table or provide auxiliary support.

-- Use fixtures for unusual operations to

adequately hold, guide and position work-

piece.

-- Use the SPINDLE SPEED recommended

for the specific operation and workpiece

material--check the inside of the Belt

Guard for drilling information; for acces-

sories, refer to the instructions provided

with the accessories,

f. Never climb on the drill press Table, it could

break or pu!Ithe entire drill press down on you.

g. Turn the motor Switch Off and put away the

Switch Key when leaving the drill press.

h. To avoid injury from thrown work or tool contact,

do NOT perform layout, assembly, or setup

work on the table while the cutting tool is rotat-

ing.

10. Use only accessories designed for this drill

press to avoid serious injury from thrown bro-

ken parts or work pieces.

a. When Cutting Large Diameter Holes:

Clamp the workpiece firmly to the table. Other-

wise the cutter may grab and spin it at high

speed.

Use only one piece, cup-type, hole cutters.

DO NOT use fly cutters or multi-part hole cutters

as they can come apart or become unbalanced

in use.

Keep speed below 1,500 RPM.

b. Drum sanders must NEVER be operated on

this drill press at a speed greater than 1800

RPM.

c. Do not installor use any drill that exceeds 7" in

length or extends 6" below the chuck jaws. They

can suddenly bend outward or break.

d. Do not use wire wheels, router bits, shaper cut-

ters, circle (fly) cutters or rotary planers on this

drill press.

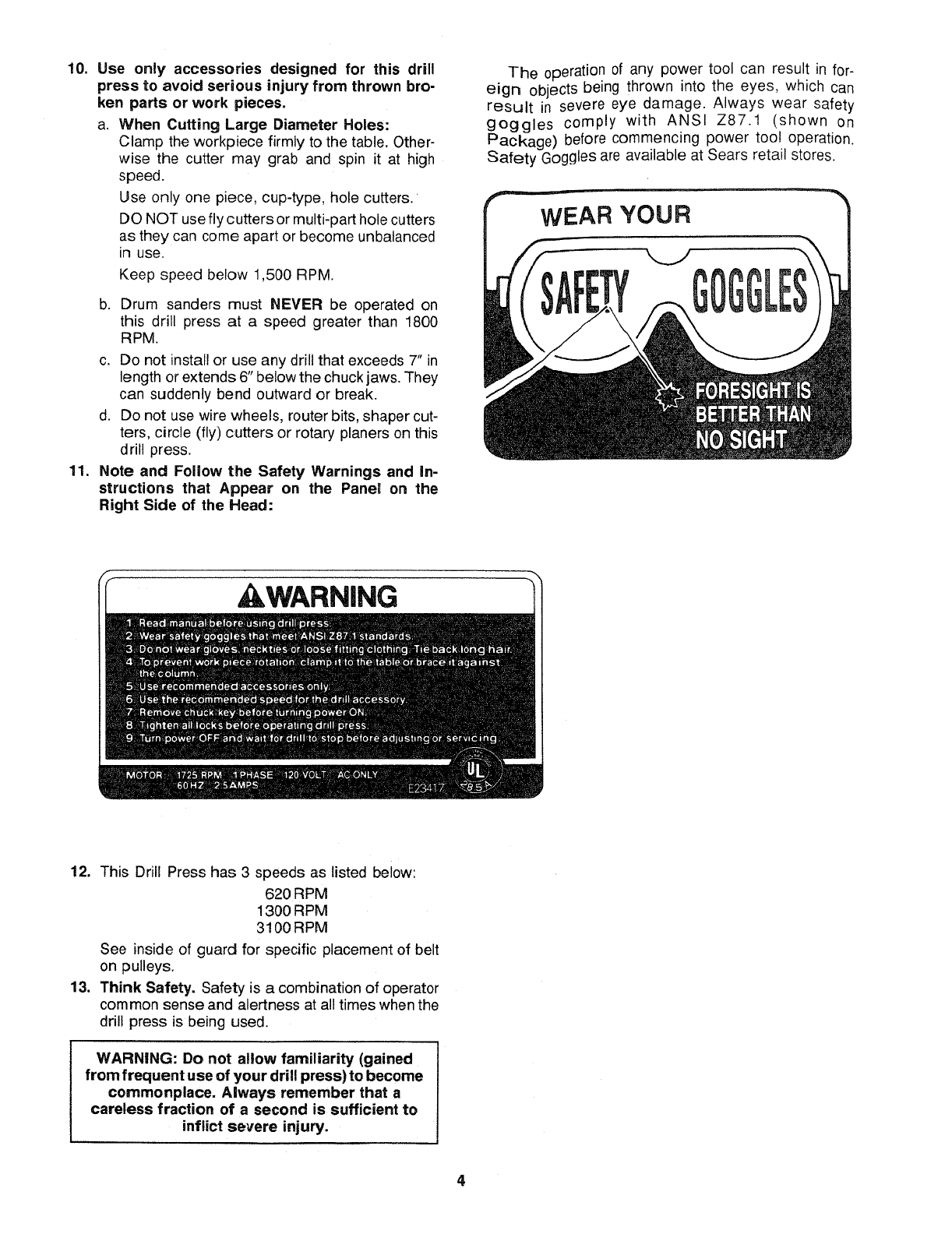

11. Note and Follow the Safety Warnings and in-

structions that Appear on the Panel on the

Right Side of the Head:

The operation of any power tool can result in for-

eign objects being thrown into the eyes, which can

result in severe eye damage. Always wear safety

goggles comply with ANSI Z87.1 (shown on

Package) before commencing power tool operation.

Safety Goggles are available at Sears retail stores.

WARNING

12. This Drill Press has 3 speeds as listed below:

620 RPM

1300 RPM

3100RPM

See inside of guard for specific placement of belt

on pulleys.

13. Think Safety. Safety is acombination of operator

common sense and alertness at all times when the

drill press is being used.

WARNING: Do not allow familiarity (gained

from frequent use of your drill press) to become

commonplace. Always remember that a

careless fraction of a second is sufficient to

inflict severe injury.

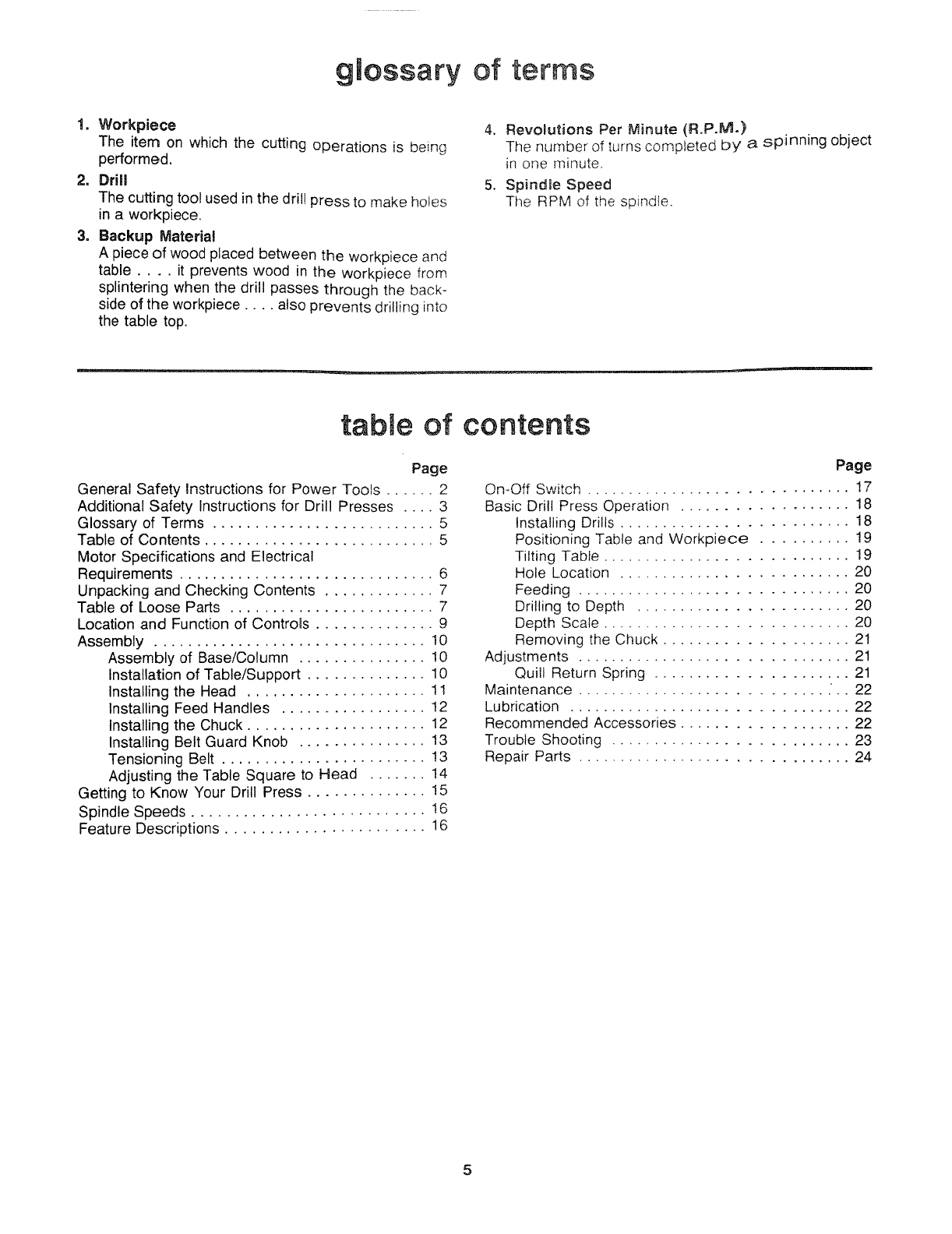

glossary of terms

1. Workpiece

The item on which the cutting operations is being

performed.

2, Drill

The cutting tool used in the drill press to make holes

in a workpiece.

3. Backup Material

A piece of wood placed between the workpiece and

table .... it prevents wood in the workpiece from

splintering when the drill passes through the back-

side of the workpiece .... also prevents drilling into

the table top.

4. Revolutions Per Minute (R.P._I.)

The number of turns completed by a spinning object

in one minute.

5, Spindle Speed

The RPM of the spindle.

table of

Page

General Safety Instructions for Power Tools ...... 2

Additional Safety Instructions for Drill Presses .... 3

Glossary of Terms .......................... 5

Table of Contents ........................... 5

Motor Specifications and Electrical

Requirements .............................. 6

Unpacking and Checking Contents ............. 7

Table of Loose Parts ........................ 7

Location and Function of Controls .............. 9

Assembly ................................ 10

Assembly of Base/Column ............... 10

Installation of Table/Support .............. 10

Installing the Head ..................... 11

Installing Feed Handles ................. 12

Installing the Chuck ..................... 12

Installing Belt Guard Knob ............... 13

Tensioning Belt ......................... 13

Adjusting the Table Square to Head ....... 14

Getting to Know Your Drill Press .............. 15

Spindle Speeds ........................... 16

Feature Descriptions ....................... 16

contents

Page

OnoOff Switch .............................. 17

Basic Drill Press Operation .................. 18

Installing Drills ......................... 18

Positioning Table and Workpiece .......... 19

Tilting Table ........................... 19

Hole Location ......................... 20

Feeding .............................. 20

Drilling to Depth ....................... 20

Depth Scale ............................ 20

Removing the Chuck .................... 21

Adjustments .............................. 21

Quill Return Spring ...................... 21

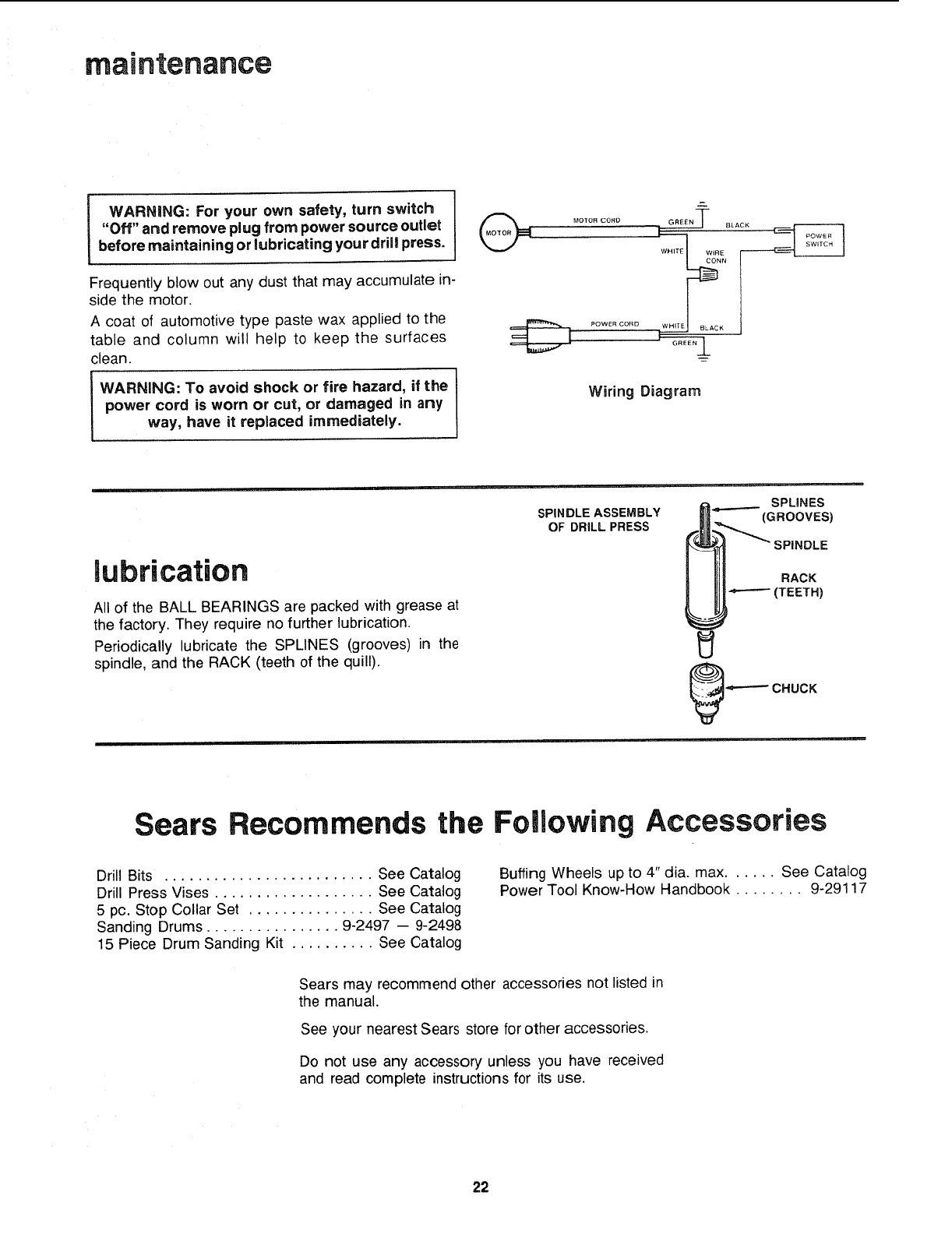

Maintenance .............................. 22

Lubrication ............................... 22

Recommended Accessories .................. 22

Trouble Shooting .......................... 23

Repair Parts ............................... 24

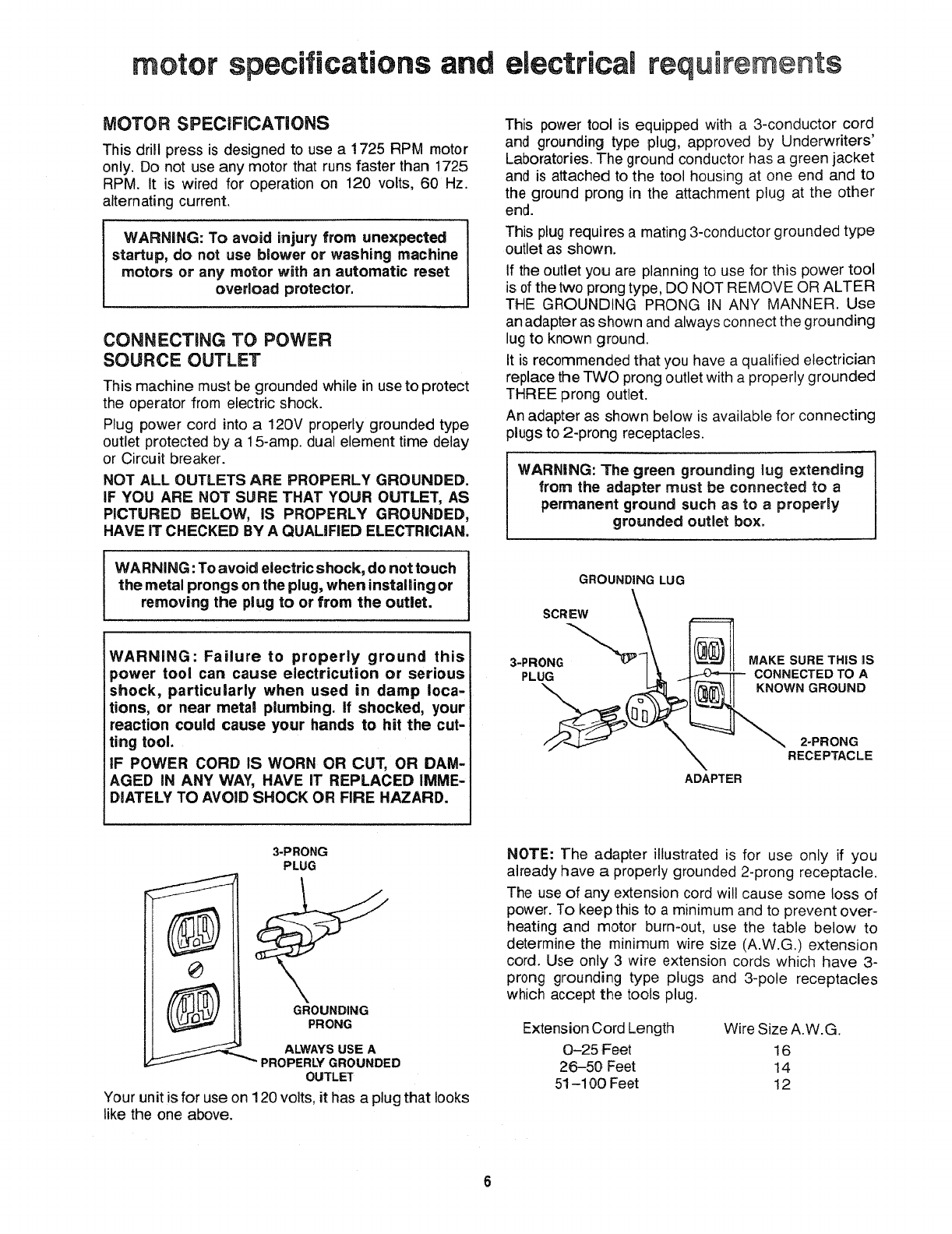

motor specifications and electricam requirements

MOTOR SPECiFiCATiONS

This dri!l press is designed to use a 1725 RPM motor

only. Do not use any motor that runs faster than 1725

RPM. It is wired for operation on 120 volts, 60 Hz.

alternating current.

WARNING: To avoid injury from unexpected

startup, do not use blower or washing machine

motors or any motor with an automatic reset

overload protector.

CONNECTING TO POWER

SOURCE OUTLET

This machine must be grounded while in use to protect

the operator from electric shock.

Plug power cord into a 120V properly grounded type

outlet protected by a 15-amp. dual element time delay

or Circuit breaker.

NOT ALL OUTLETS ARE PROPERLY GROUNDED.

iF YOU ARE NOT SURE THAT YOUR OUTLET, AS

PICTURED BELOW, IS PROPERLY GROUNDED,

HAVE iT CHECKED BY A QUALIFIED ELECTRICIAN.

WARNING: To avoid electric shock, do not touch

the metal prongs on the plug, when installing or

removing the plug to or from the outlet.

WARNING: Failure to properly ground this

power tool can cause eiectricution or serious

shock, particularly when used in damp loca-

tions, or near metal plumbing, if shocked, your

reaction could cause your hands to hit the cut-

ting tool.

IF POWER CORD IS WORN OR CUT, OR DAM-

AGED iN ANY WAY, HAVE IT REPLACED IMME-

DIATELY TO AVOID SHOCK OR FIRE HAZARD.

This power tool is equipped with a 3-conductor cord

and grounding type plug, approved by Underwriters'

Laboratories. The ground conductor has a green jacket

and is attached to the tool housing at one end and to

the ground prong in the attachment plug at the other

end.

This plug requires a mating 3-conductor grounded type

outlet as shown.

If the outlet you are planning to use for this power tool

is of thetwo prong type, DO NOT REMOVE OR ALTER

THE GROUNDING PRONG IN ANY MANNER. Use

an adapter as shown and always connect the grounding

lug to known ground.

It is recommended that you have a qualified electrician

replace the TWO prong outlet with a properly grounded

THREE prong outlet.

An adapter as shown below is available for connecting

plugs to 2-prong receptacles.

WARNING: The green grounding lug extending

from the adapter must be connected to a

permanent ground such as to a properly

grounded outlet box.

GROUNDING LUG

SCREW \

o ou o

ADAPTER

3-PRONG

PLUG

GROUNDING

PRONG

ALWAYS USE A

PROPERLY GROUNDED

OUTLET

Your unit is for use on ! 20 volts, it has a p_ugthat looks

like the one above.

NOTE: The adapter illustrated is for use only if you

already have a properly grounded 2-prong receptacle.

The use of any extension cord will cause some loss of

power. To keep this to a minimum and to prevent over-

heating and motor burn-out, use the table below to

determine the minimum wire size (A.W.G.) extension

cord. Use only 3 wire extension cords which have 3-

prong grounding type plugs and 3-pole receptacles

which accept the tools plug.

Extension Cord Length Wire Size A.W.G.

0-25 :Feet 16

26-50 Feet 14

51-100 Feet ! 2

WARNING: To avoid injury from unexpected

starting or eaectrica! shock, never connect plug

to out_et until aBlassembay is complete and you

read aH instructions.

Model 113.2!3100 Drill Press is shipped complete in

one box.

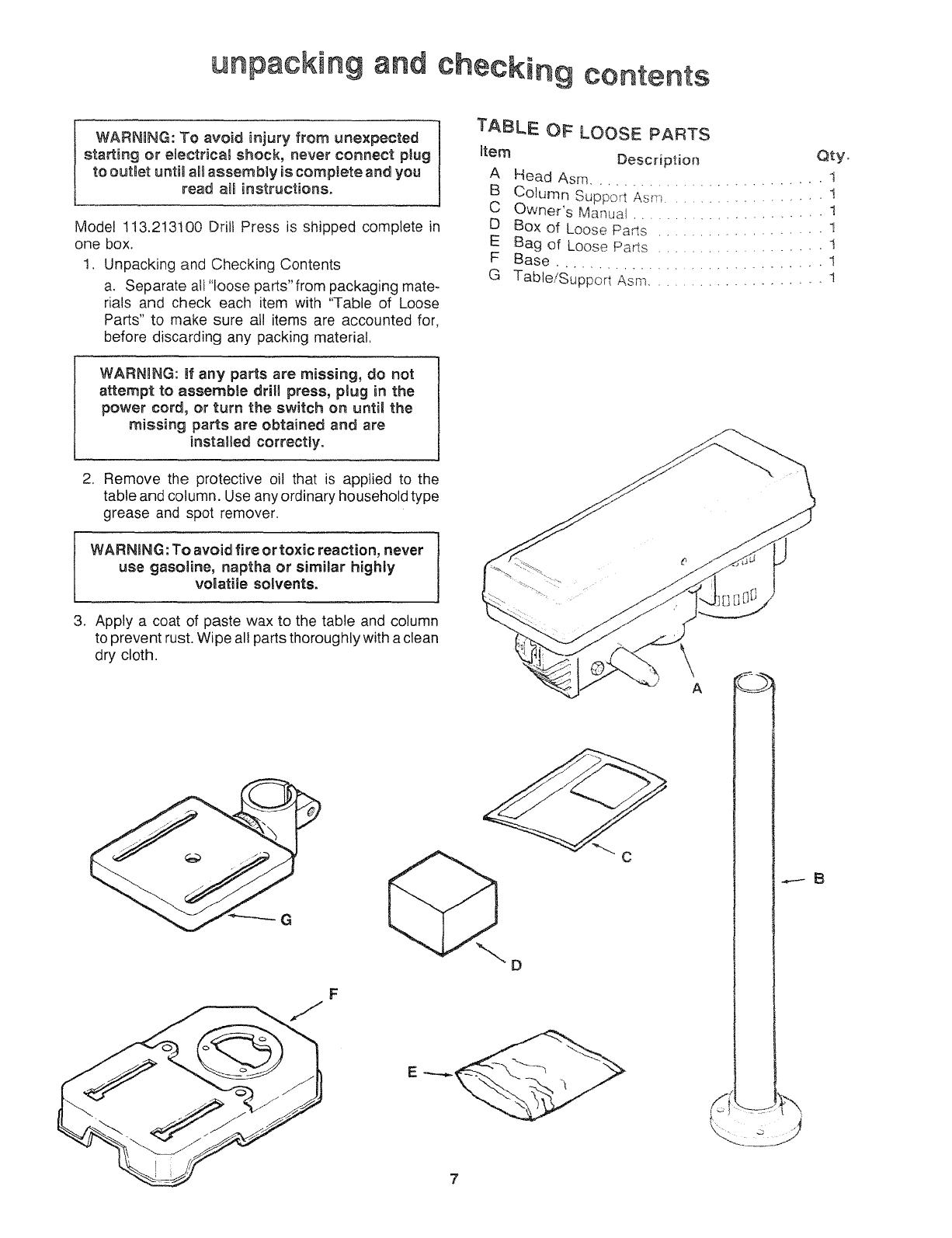

!. Unpacking and Checking Contents

a. Separate all "loose parts" from packaging mate-

rials and check each item with "Table of Loose

Parts" to make sure all items are accounted for,

before discarding any packing material.

TABLE OF LOOSE PARTS

Mtem Description Qty,

A Head Asm ........................... 1

B Column Suppo_,t Asm ................... 1

C Owner's Manual ...................... 1

D Box of Loose Paris .................... 1

E Bag of Loose Parts ................... 1

F Base ................................ 1

G Table/Support Asm .................... 1

WARNUNG: Bfany parts are missing, do not

attempt to assembHe drill press, plug in the

power cord, or turn the switch on until the

missing parts are obtained and are

installed correctly.

2. Remove the protective oil that is applied to the

table and column. Use any ordinary household type

grease and spot remover.

WARNING: To avoid fire or toxic reaction, never

use gasoBine, naptha or similar highly

volatile solvents.

3. Apply a coat of paste wax to the table and column

to prevent rust. Wipe all parts thoroughly with a clean

dry cloth.

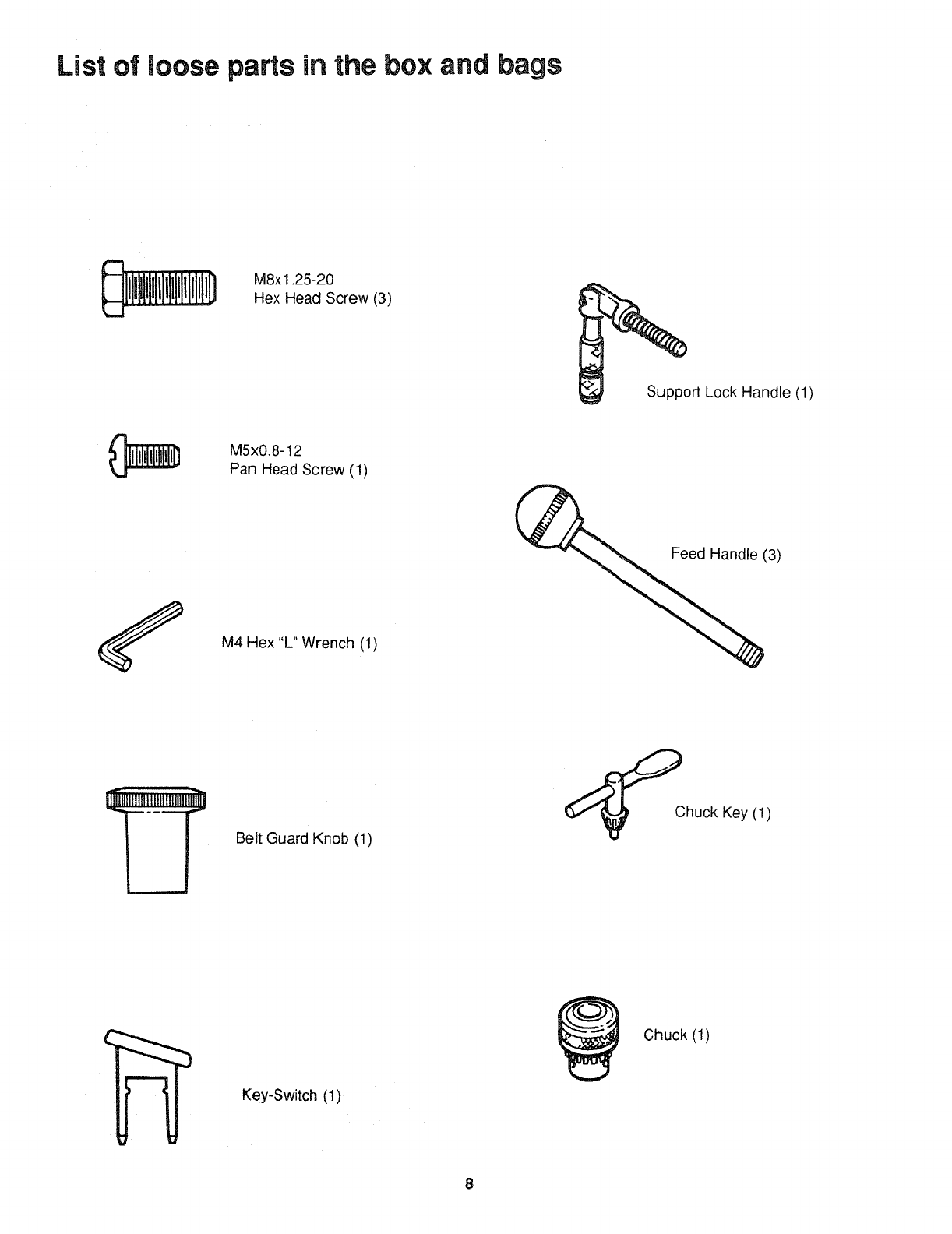

List of loose parts in the box and bags

M8x1.25-20

Hex Head Screw (3)

Support Lock Handle (1)

M5x0.8-12

Pan Head Screw (1)

Feed Handle (3)

M4 Hex "L" Wrench (1)

Belt Guard Knob (1)

_Chuck Key (1)

Key-Switch (1)

Chuck (1)

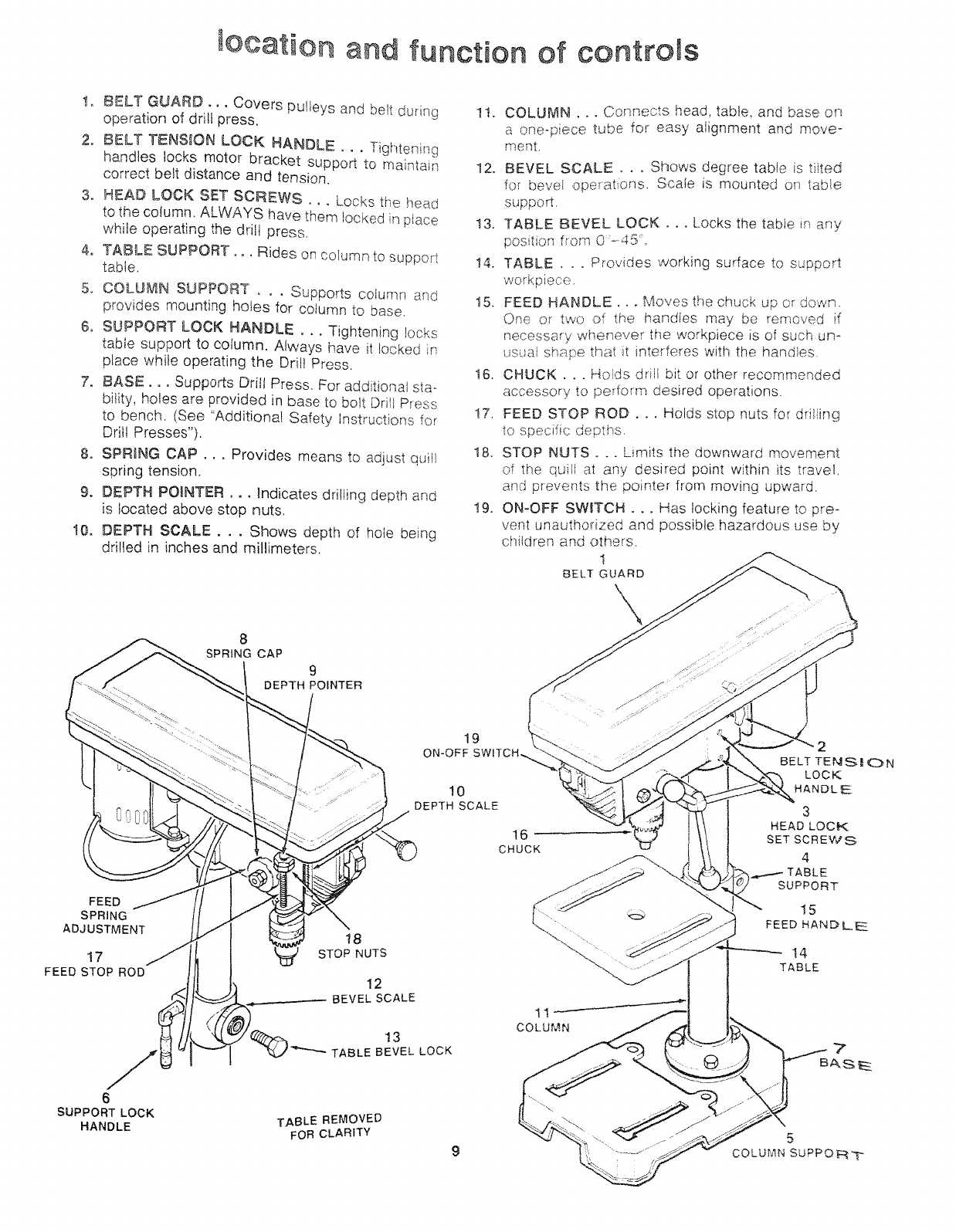

ocation and function of controWs

1, BELT GUARD .°. Covers Pu!teys and be!t during

operation of drill press.

2, BELT TENSION LOCK. HANDLE,.. Tighteni_g

handles locks motor bracket suppo_ to maintain

correct belt distance and tension.

3. HEAD LOCK SET SCREWS, ° oLocks the head

to the column. ALWAYS have them locked in place

while operating the drill press.

TABLE SUPPORT ° o. Rides on column to support

table. '

COLU_V]N SUPPORT o ,. Supports column and

provides mounting holes for column to base

SUPPORT LOCK HANDLE,.. Tightening locks

table support to column. Always have it locked in

place while operating the Drill Press.

7, BASE. o° Supports Dri!l Press, For additional sta-

bi!ity, holes are provided in base to bolt Drill Press

to bench. (See "Additional Safety Instructiorls Ior

Dril! Presses").

8, SPR_NG CAP o,, Provides means to adjust quill

spring tension.

9, DEPTH POINTER... _ndicates drilling depth and

is located above stop nuts,

10. DEPTH SCALE .. , Shows depth of hole being

dri!led in inches and millimeters.

SPRING CAP

DEPTH POINTER

1t. COLUMN ,.. Conp, ects head, table, and base or_

a one-piece tube for easy alignment and move-

me_t.

12. BEVEL SCALE . . . Shows degree table is tiited

for bevel ope_at:ons. Scate is mounted on table

support.

13. TABLE BEVEL LOCK . .o Locks the table in any

position frorn 0 -45",

14, TABLE o .. Provides working surface to support

workpiece.

15. FEED HANDLE... Moves the chuck up or down.

One or two of the handles may be removed if

necessary whenever the workpiece is of such u;q-

LJsual shape that Jt interferes with the handies.

16. CHUCK... Holds drill bit or other recommended

_{ccessory to perform desired operations.

17, FEED STOP ROD... Holds step nuts for ddiiing

to specific depths,

18, STOP NUTS... Limits the downward movement

of the quill at any desired point within its travel,

and prevents the pointer from moving upward,

19. ON-OFF SWITCH... Has locking feature to pre-

vent unauthorized and possible hazardous use by

chiidren and others.

BELT GUARD

FEED

SPRING

ADJUSTMENT

FEED STOP ROD

SUPPORT LOCK

HANDLE

ON-OFF

DEPTH SCALE

16_

CHUCK

STOP NUTS

BEVEL SCALE

TABLE BEVEL LOCK

TABLE REMOVED

FOR CLARITY

BELT TEMS| ON

LOCK:

HANDLE

HEAD LOCK

SET SCRE¼_S

TABLE

SUPPORT

FEED HANDLE

TABLE

COLUMN SUPPO _--_

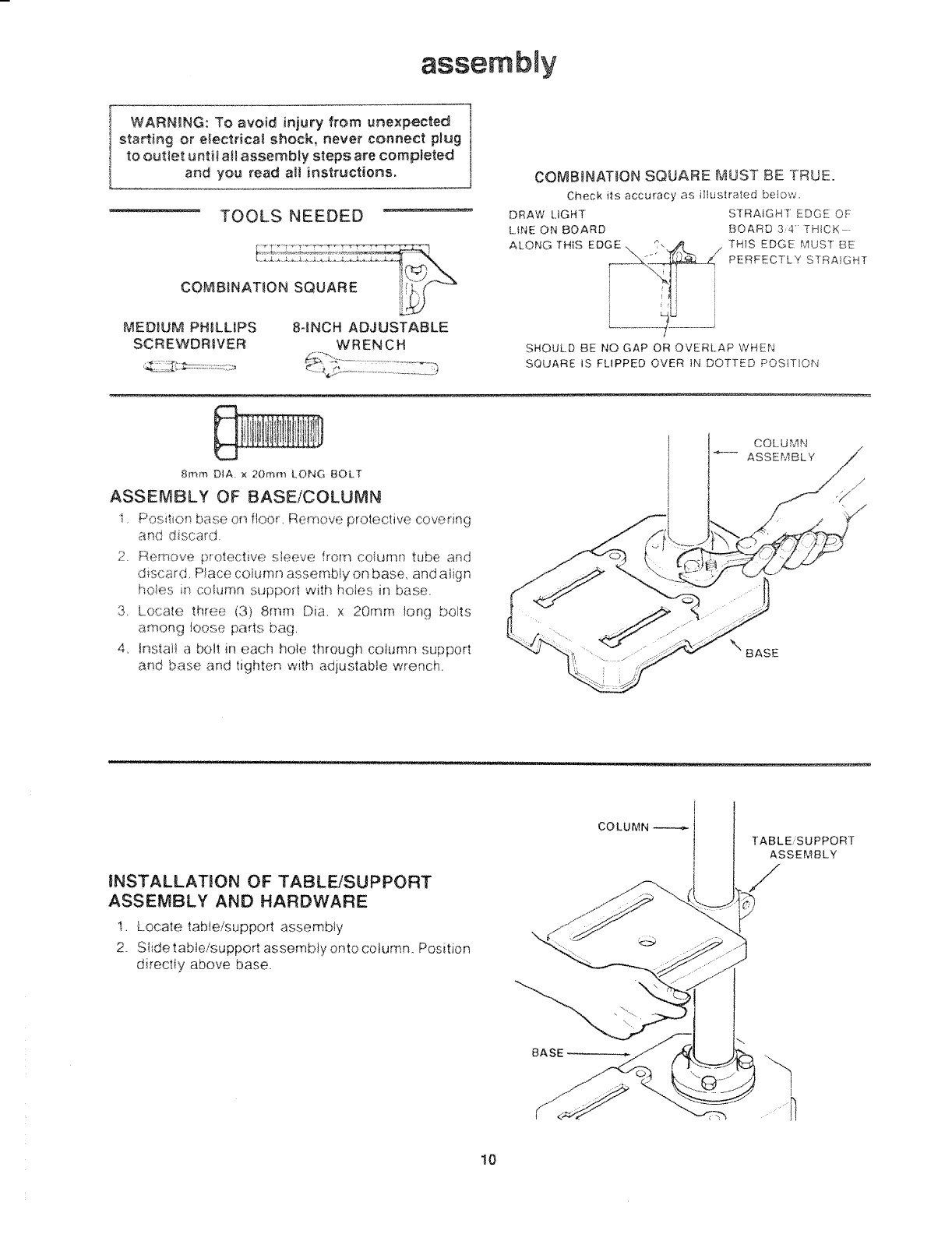

assembly

[

'WARNING: To avoid injury from unexpected

I starting or electrical shock, never connect plug

1 to outlet unti! aH assembly stepsare completed

and you read a!l instructions,

TOOLS NEEDED

COt_B_NATgON SQUARE

MEDIUM PHILLIPS

SCREWDRIVER

84NCH ADJUSTABLE

WRENCH

COMBINATgON SQUARE MUST BE TRUE.

Check ifts accuracy as Uiustrated below.

DRAW LIGHT

L_NE ON BOARD

A LONG THIS EDGE___._,I___/__;_'

SHOULD BE NO GAP OR OVERLAP WHEN

SQUARE iS FLIPPED OVER IN DOTTED POSIT_ON

STRAIGHT EDGE OF

BOARD 3/4' THICK

";'HIS EDGE MUST BE

PERFECTLY STRAIGHT

8ram DIA x 20ram LONG BOLT

ASSEMBLY OF BASE/COLUMN

I, Position base on floor, Remove protective covering

and discard

2, Remove protective sleeve flora coiumn tube and

discard, PIace column assembiy on base, and align

holes in column support with holes in base,

3, Locate three (3) 8ram Dia, x 20ram tong bolts

among loose pa_ts bag.

4, tnsta!l a bott in each hole through column support

and base and tighten with adjustable wrench,

\ BASE

COL..UMN

_'-- ASSEMBLY

INSTALLATION OF TABLE/SUPPORT

ASSEMBLY AND HARDWARE

I. Locate tabte!suppod as,_;mb y

2. Slide table/support assembly onto cotumn. Position

directiy above base.

BASE

COLUMN

TABLE/SUPPORT

ASSEMBLY

Locate support lock handle among !oose parts.

h-_stail support lock i_and/e from ieft side into table

st._pporl, Raise tabie to workin 9 height by siidin 9 it

on the columr_ and then tighten iock har_die by

hand.

TABLf_£

SUPPORT

S UP P O R T ......

LOCK HANDLE

/ 1/7<

COLUMN

TABL_

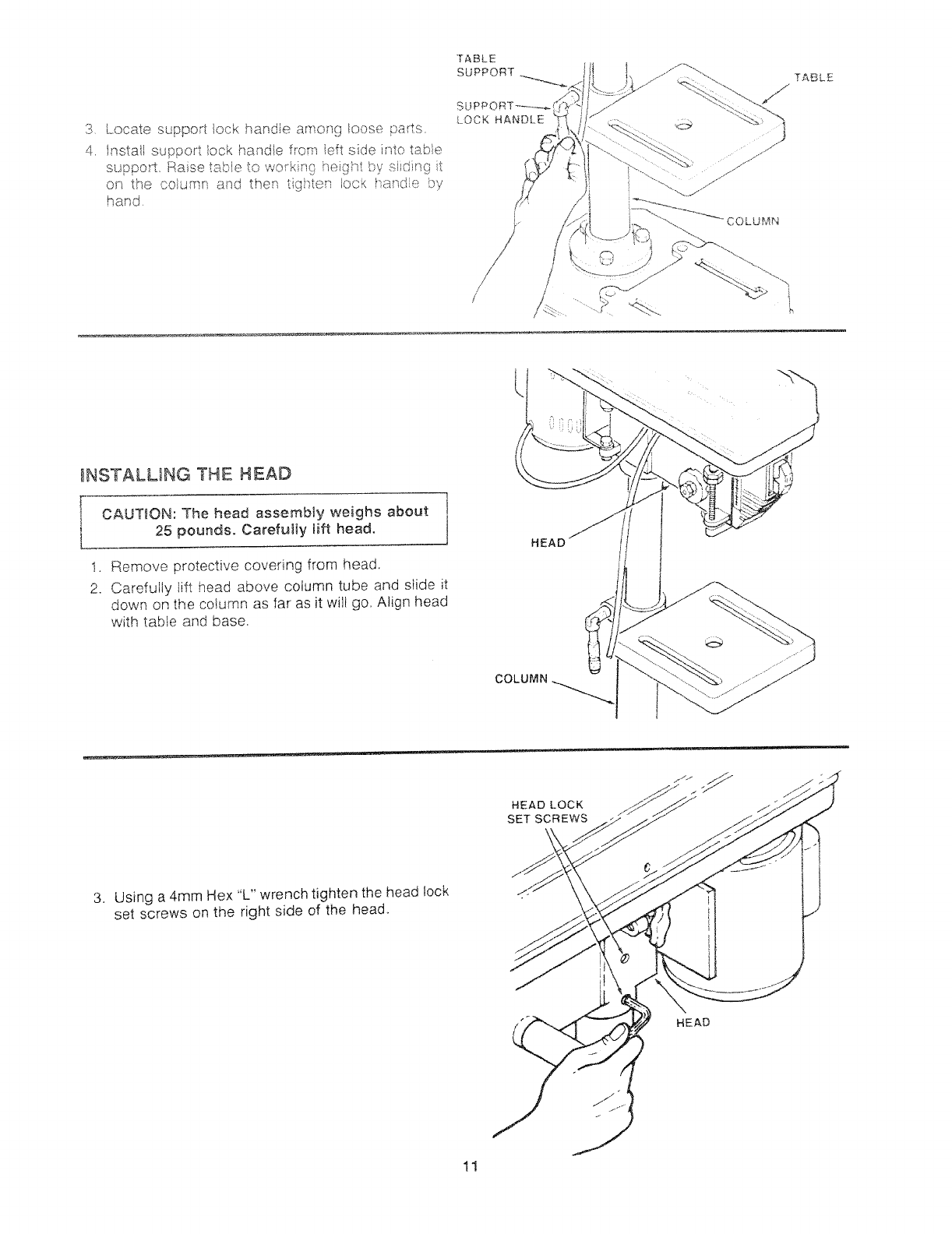

INSTALLING THE HEAD

[CAUTION: The head assembly weighs about _}

25 pounds. Carefully lift head. /

Remove protective covering from head.

Carefully lift head above column tube and slide it

down on the column as far as it will go. Align head

with table and base.

COLUMN

+Using a 4mm Hex '%" wrench tighten the head lock

set screws on the right side of the head,

HEAD LOCK

SET SCREWS

HEAD

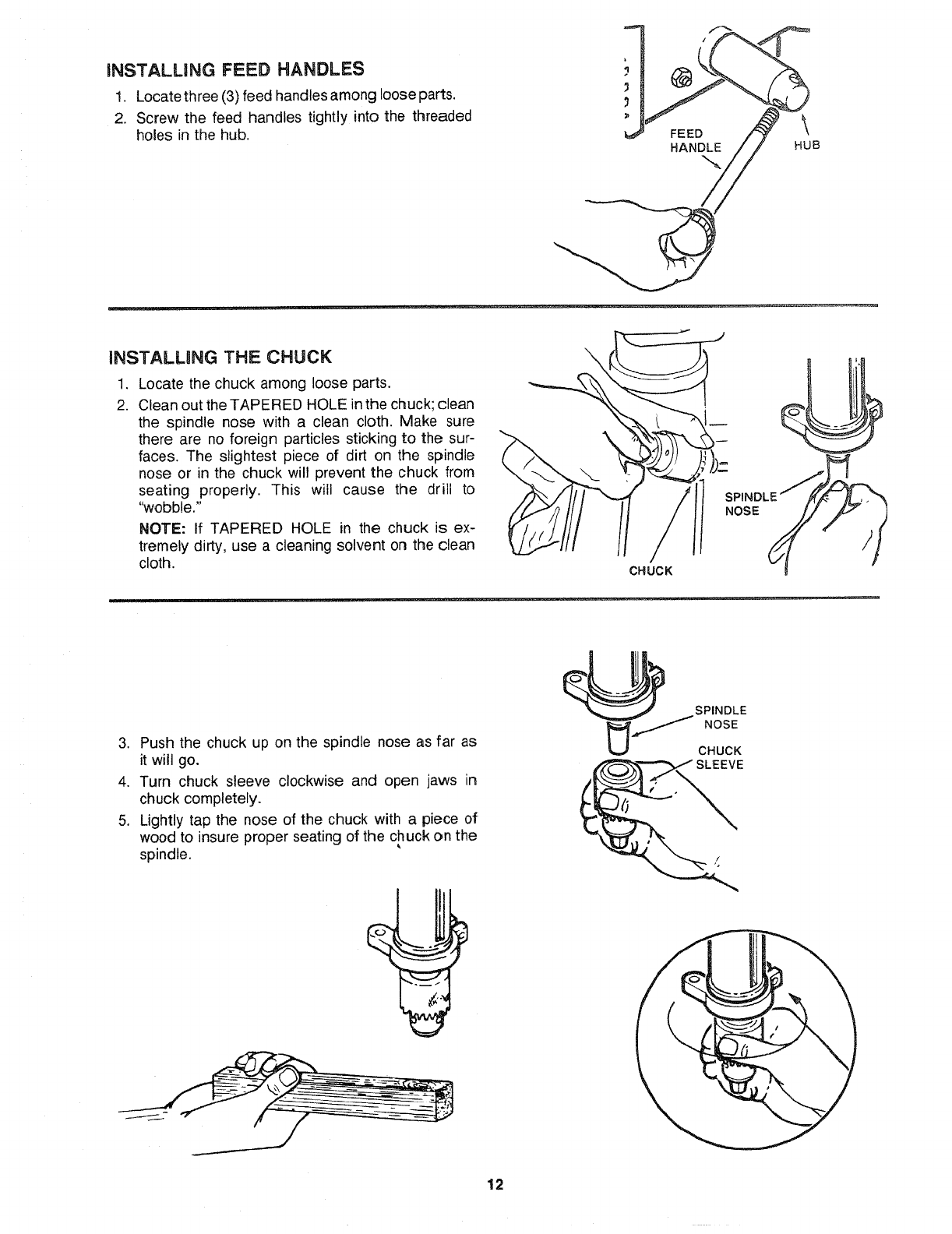

iNSTALLiNG FEED HANDLES

1. Locate three (3) feed handles among loose parts.

2. Screw the feed handles tightly into the threaded

holes in the hub. FEED

HANDLE

HUB

INSTALMNG THE CHUCK

1. Locate the chuck among loose parts.

2. Clean out the TAPERED HOLE in the chuck; clean

the spindle nose with a clean cloth. Make sure

there are no foreign particles sticking to the sur-

faces. The slightest piece of dirt on the spindle

nose or in the chuck will prevent the chuck from

seating properly. This will cause the drill to

"wobble."

NOTE: If TAPERED HOLE in the chuck is ex-

tremely dirty, use a cleaning solvent on the clean

cloth, CHUCK

3. Push the chuck up on the spindle nose as far as

it will go.

4. Turn chuck sleeve clockwise and open jaws in

chuck completely,

5. Lightly tap the nose of the chuck with a piece of

wood to insure proper seating of the chuck on the

spindle.

_SPINDLE

NOSE

CHUCK

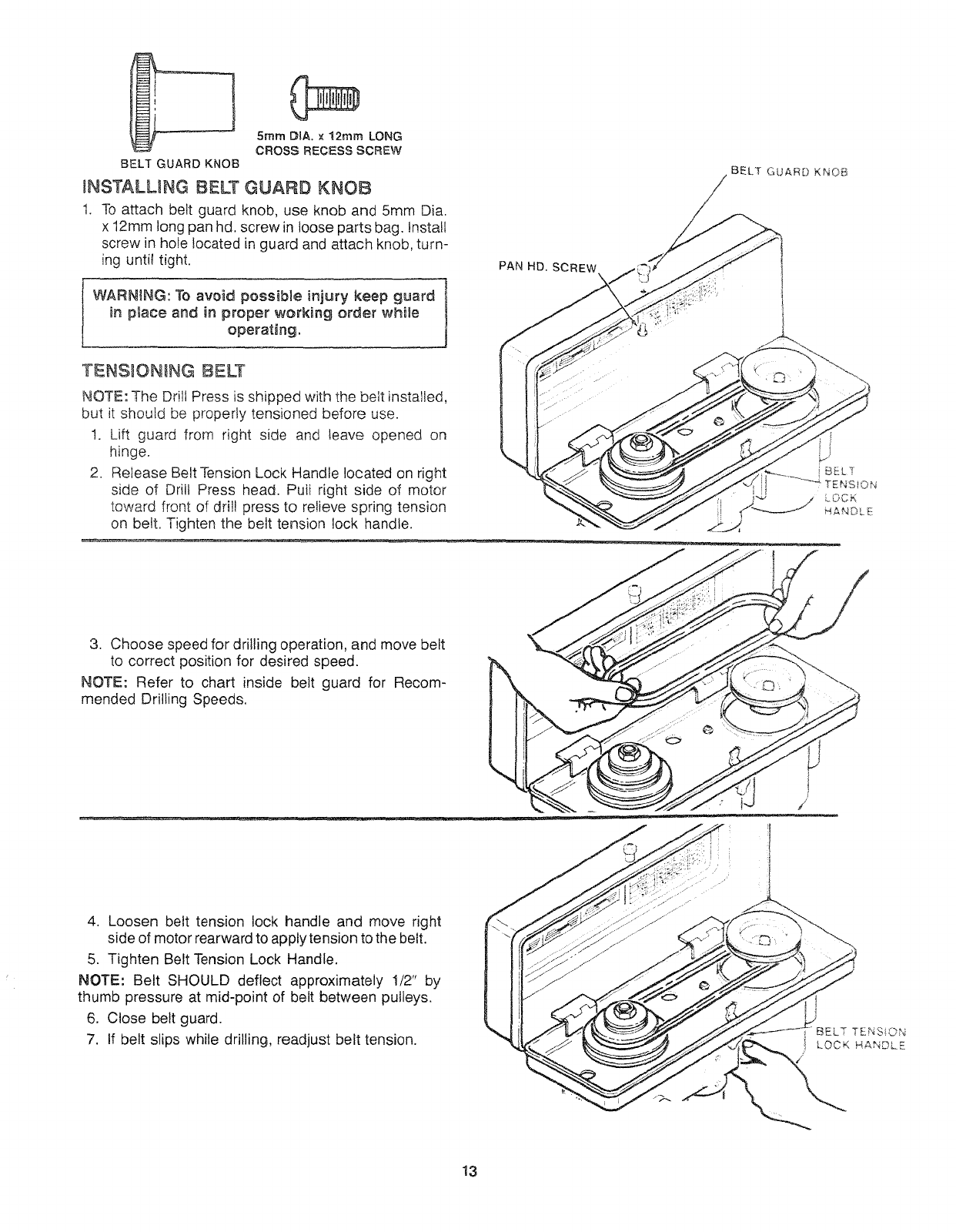

BELT GUARD KNOB

5mm DIA, × 12ram LONG

CROSS RECESS SCREW

INSTALLING BELT GUARD KNOB

1. To attach belt guard knob, use knob and 5mm Dia.

x 12mm long pan hd. screw in loose parts bag. tnstalf

screw in hole located in guard and attach knob, turn-

ing until tight.

WARNING: To avoid possibHe injury keep guard

in place and in proper working order while

operating.

TENS_ONING BELT

NOTE: The Drill Press is shipped with the belt installed,

but it should be properly tensioned before use.

1. Lift guard from right side and leave opened on

hinge.

2. Release Belt Tension Lock Handle located on right

side of Drill Press head. Puit right side of motor

toward front of dHII press to relieve spring tension

on belt. Tighten the belt tension lock handle.

PAN HD. SCREW

3. Choose speed for drilling operation, and move belt

to correct position for desired speed.

NOTE: Refer to chart inside belt guard for Recom-

mended Drilling Speeds.

4. Loosen belt tension lock handle and move right

side of motor rearward to apply tension to the belt.

5. Tighten Belt Tension Lock Handle.

NOTE: Belt SHOULD deflect approximately 1/2" by

thumb pressure at mid-point of belt between pulleys.

6. Close belt guard.

7. If belt slips while drilling, readjust belt tension. i LOCK HANDLE

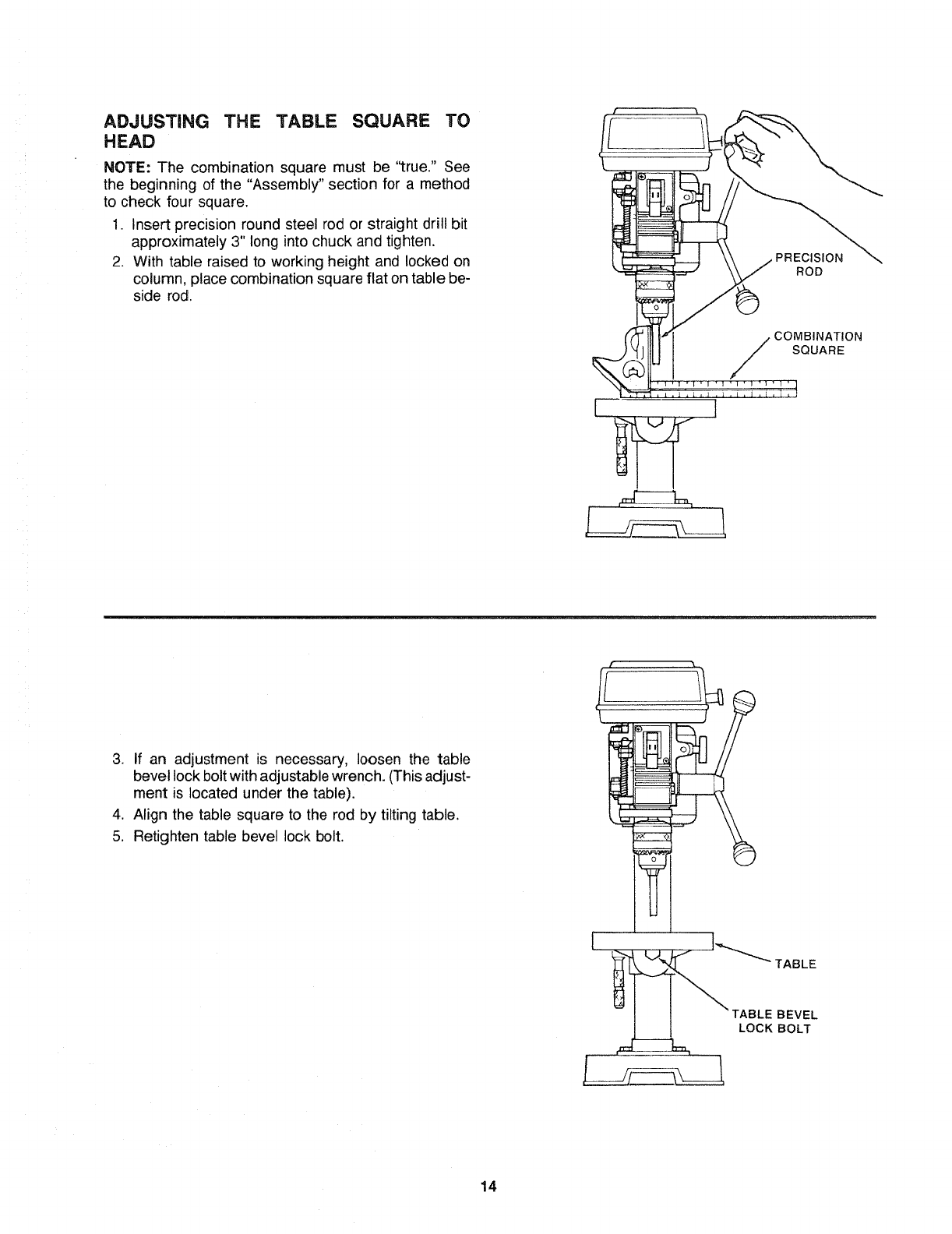

ADJUSTING THE TABLE SQUARE TO

HEAD

NOTE: The combination square must be "true." See

the beginning of the "Assembly" section for a method

to check four square.

1. Insert precision round steel rod or straight drill bit

approximately 3" long into chuck and tighten.

2. With table raised to working height and locked on

column, place combination square flat on table be-

side rod.

ROD

COMBINATION

SQUARE

3. If an adjustment is necessary, loosen the table

bevel lock bolt with adjustable wrench. (This adjust-

ment is located under the table).

4. Align the table square to the rod by tilting table.

5. Retighten table bevel lock bolt.

TABLE

BLE BEVEL

LOCK BOLT

9 tt_ng to know your ddli press

BELT GUARD

FEED HANDLE

FEED SPRING

ADJUSTMENT

SPRING CAP

SUPPORT LOCK

HANDLE

TABLE REMOVED

FOR CLARITY

FEED

SPRING

ON-OFF SWITCH

CHUCK

DEPTH POINTER

.STOP NUTS

"_ 10

DEPTH SCALE

FEED STOP ROD

TABLE BEVEL LOCK

BEVEL SCALE

SPINDLE ASSEMBLY

OF DRILL PRESS

CHUCK

KEY

BELT TENSION LOCI4

HANDLE

HEAD LOOK S, ET

SCREWS

TABLE SUPPORT

TABLE

COLUMN

COLUMN SUPPOF:tT

BASE

_ _..______ SPUNES

CHUCK

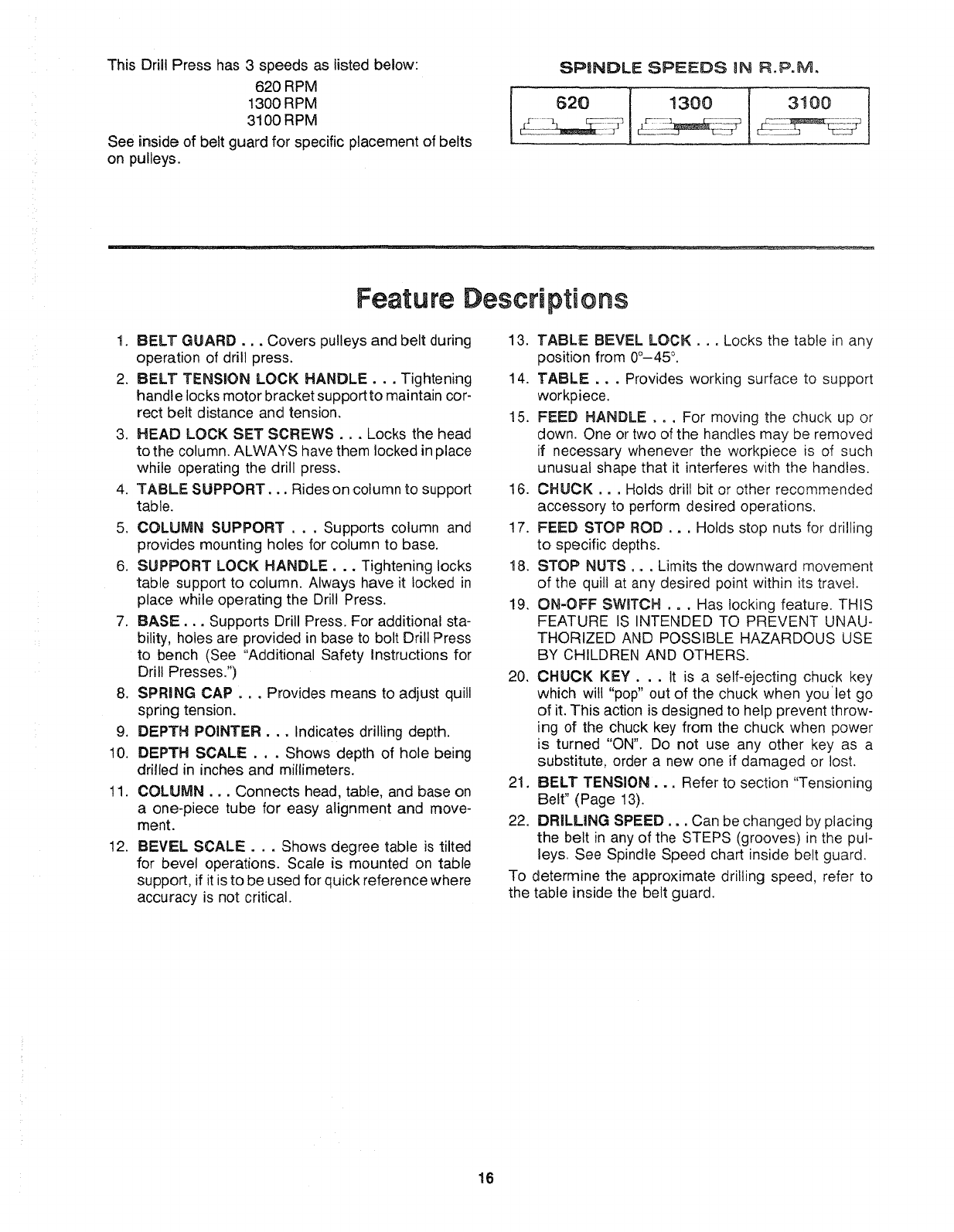

This Drill Press has 3 speeds as listed below:

620 RPM

1300 RPM

3100 RPM

See inside of belt guard for specific placement of belts

on pulleys.

SPINDLE SPEEDS iN R.P.M°

Feature Descriptions

1. BELT GUARD... Covers pulleys and belt during

operation of drill press.

2. BELT TENSION LOCK HANDLE... Tightening

handle locks motor bracket support to maintain cor-

rect belt distance and tension,

3. HEAD LOCK SET SCREWS... Locks the head

to the column. ALWAYS have them locked in place

while operating the drill press,

4. TABLE SUPPORT... Rides on column to support

table.

5. COLUMN SUPPORT ...Supports column and

provides mounting holes for column to base,

6. SUPPORT LOCK HANDLE... Tightening locks

table support to column. Always have it locked in

place while operating the Drill Press.

7. BASE... Supports Drill Press. For additional sta-

bility, holes are provided in base to bolt Drill Press

to bench (See "Additional Safety Instructions for

Drill Presses,")

8. SPRING CAP,.. Provides means to adjust quill

spring tension.

9. DEPTH POINTER... Indicates drilling depth,

10. DEPTH SCALE... Shows depth of hole being

drilled in inches and millimeters.

11. COLUMN... Connects head, table, and base on

a one-piece tube for easy alignment and move-

ment.

12. BEVEL SCALE... Shows degree table is tilted

for bevel operations. Scale is mounted on table

support, if it is to be used for quick reference where

accuracy is not critical.

13. TABLE BEVEL LOCK... Locks the table in any

position from 0o-45 o.

14. TABLE •.. Provides working surface to support

workpiece.

15. FEED HANDLE ... For moving the chuck up or

down. One or two of the handles may be removed

if necessary whenever the workpiece is of such

unusual shape that it interferes with the handles.

16. CHUCK ... Holds drill bit or other recommended

accessory to perform desired operations,

17. FEED STOP ROD,.. Holds stop nuts for drilling

to specific depths.

18, STOP NUTS.,. Limits the downward movement

of the quill at any desired point within its travel.

!9, ON-OFF SWITCH ... Has locking feature. THIS

FEATURE IS INTENDED TO PREVENT UNAU-

THORIZED AND POSSIBLE HAZARDOUS USE

BY CHILDREN AND OTHERS.

20, CHUCK KEY, . . It is a self-ejecting chuck key

which will "pop" out of the chuck when you'let go

of it. This action is designed to help prevent throw-

ing of the chuck key from the chuck when power

is turned "ON". Do not use any other key as a

substitute, order a new one if damaged or lost.

21. BELT TENSION... Refer to section "Tensioning

Belt" (Page 13).

22, DRiLLiNG SPEED.,. Can be changed by placing

the belt in any of the STEPS (grooves) in the pul-

leys. See Spindle Speed chart inside belt guard.

To determine the approximate drilling speed, refer to

the table inside the belt guard.

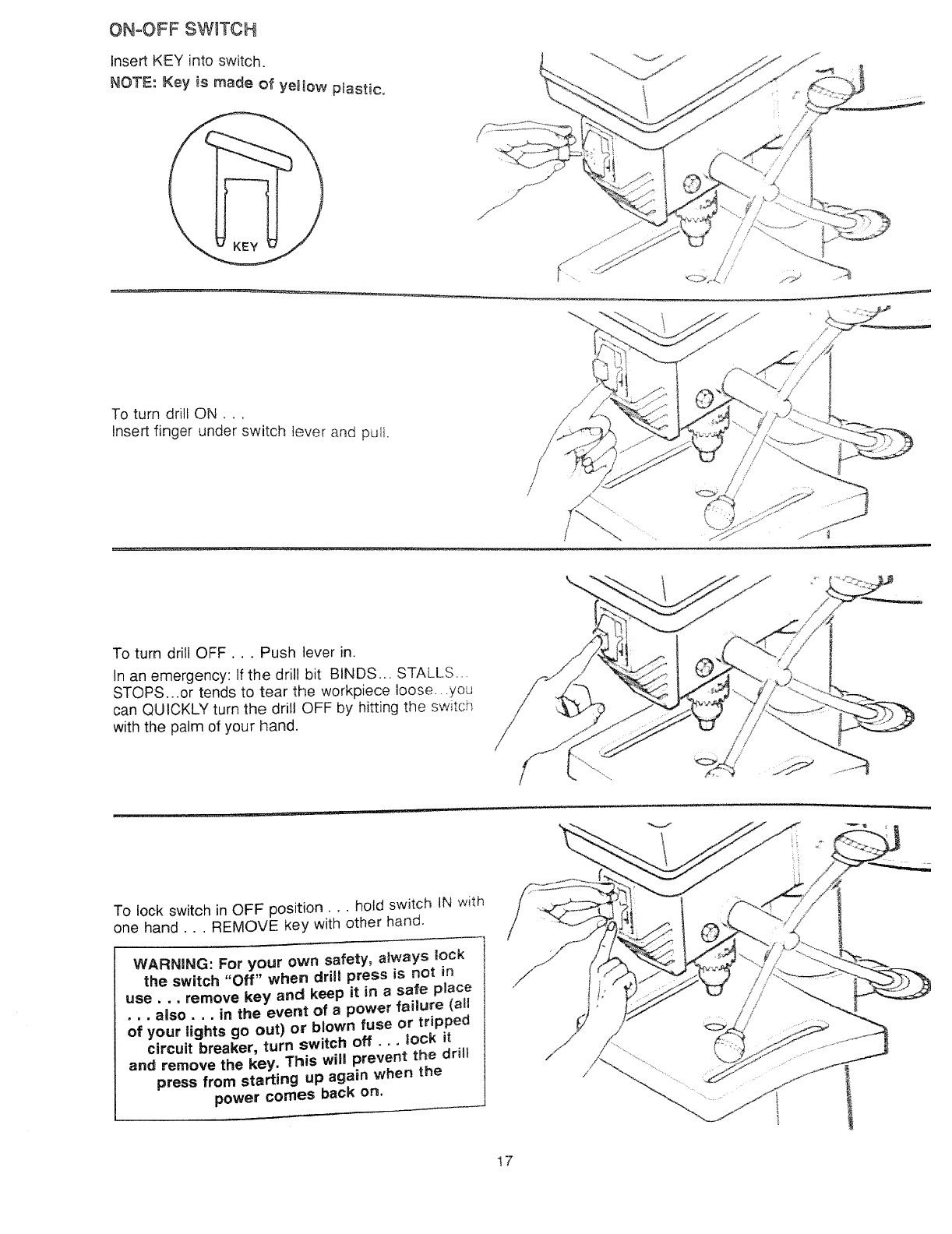

ONoOFF SW_TCH

Insert KEY into switch.

NOTE: Key is made of Yellow plastic.

To turn drill ON,,.

Insert finger under switch lever and puli.

To turn drill OFF... Push lever in.

In an emergency: If the drill bit BINDS.., STALLS...

STOPS...or tends to tear the workpiece loose...you

can QUICKLY turn the drill OFF by hitting the switch

with the palm of your hand.

To lock switch in OFF position,,, hold switch IN with

one hand... REMOVE key with other hand.

WARNING: For your own safety, always lock

the switch "Off" when drill press is not in

use.,, remove key and keep it in a safe place

,••also.., in the event of a power failure (all

of your lights go out) or blown fuse or tripped

circuit breaker, turn switch off.., lock it

and remove the key. This will prevent the drill

press from starting up again when the

power comes back on.

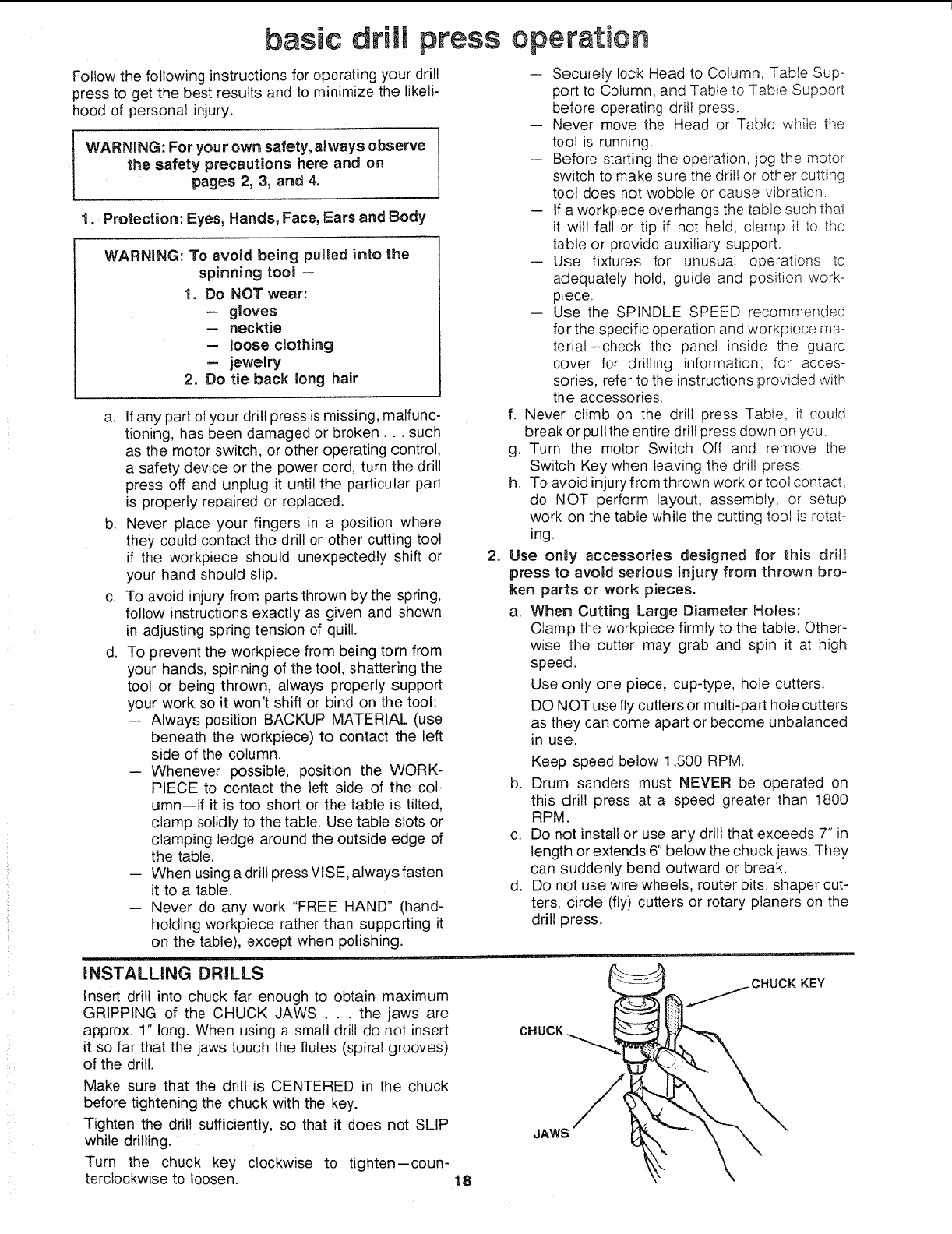

basic drill press

Follow the following instructions for operating your drill

press to get the best results and to minimize the likeUi-

hood of personal injury.

WARNING: For your own safety, aSways observe

the safety precautions here and on

pages 2, 3, and 4,

1. Protection: Eyes, Hands, Face, Ears and Body

WARNING: To avoid being pulled into the

spinning tool --

1. Do NOT wear:

-gloves

-- necktie

- loose clothing

-jewelry

2. Do tie back long hair

Ifany part of your drill press is missing, malfunc-

tioning, has been damaged or broken.., such

as the motor switch, or other operating control,

a safety device or the power cord, turn the drill

press off and unplug it until the particular part

is properly repaired or replaced.

Never place your fingers in a position where

they could contact the drill or other cutting tool

if the workpiece should unexpectedly shift or

your hand should slip.

To avoid injury from, parts thrown by the spring,

follow instructions exactly as given and shown

in adjusting spring tension of quill.

To prevent the workpie,ce from being torn from

your hands, spinning of the tool, shattering the

tool or being thrown, always properly support

your work so it won't shift or bind on the tool:

-- Always position BACKUP MATERIAL (use

beneath the workpiece) to contact the left

side of the column.

-- Whenever possible, position the WORK-

PIECE to contact the left side of the col-

umn-if it is too short or the table is tilted,

clamp solidly to the table. Use table slots or

clamping ledge around the outside edge of

the table.

-- When using a drill press VISE, always fasten

it to a table.

-- Never do any work "FREE HAND" (hand-

holding workpiece rather than supporting it

on the table), except when polishing.

operation

-- Securely tock Head to Column, Table Sup.-

port to Column, and Tabte to Table Support

before operating dril! press.

-- Never move the Head or Table while the

tool is running.

-- Before starting the operation, jog the motor

switch to make sure the drill or other cutting

tool does not wobble or cause vibration.

-- If a workpiece overhangs the table such that

it will fall or tip if not held, clamp it to the

table or provide auxiliary support,

-- Use fixtures for unusual operations to

adequately hold, guide and position work-

piece.

-- Use the SPINDLE SPEED recommended

for the specific operation and workpiece maN.

terial--check the panel inside the guard

cover for drilling information; for acces-

sories, refer to the instructions provided with

the accessories.

f. Never climb on the drill press Tabte, it could

break or pull the entire drill press down on you.

g. Turn the motor Switch Off and remove the

Switch Key when leaving the drill press.

h. To avoid injury from thrown work or tool contact,

do NOT perform layout, assembly, or setup

work on the table while the cutting tool is rotat-

ing.

2. Use onJy accessories designed for this drill

press to avoid serious injury from thrown bro-

ken parts or work pieces.

a. When Cutting Large Diameter Holes:

Clamp the workpiece firmly to the table. Other-

wise the cutter may grab and spin it at high

speed.

Use only one piece, cup-type, hole cutters.

DO NOT use fly cutters or multi-part hole cutters

as they can come apart or become unbalanced

in use.

Keep speed below 1,500 RPM.

b. Drum sanders must NEVER be operated on

this drill press at a speed greater than 1800

RPM.

c. Do not install or use any drili that exceeds 7" in

length or extends 6" below the chuck jaws. They

can suddenly bend outward or break.

d. Do not use wire wheels, router bits, shaper cut-

ters, circle (fly) cutters or rotary planers on the

drill press.

INSTALLING DRILLS

Insert drill into chuck far enough to obtain maximum

GRIPPING of the CHUCK JAWS ...the jaws are

approx. 1" long. When using a small drill do not insert

it so far that the jaws touch the flutes (spiral grooves)

of the drill.

Make sure that the drill is CENTERED in the chuck

before tightening the chuck with the key.

Tighten the drill sufficiently, so that it does not SLIP

while drilling.

Turn the chuck key clockwise to tighten--coun-

terclockwise to loosen. 18

CHUCK

JAWS

CHUCK KEY

POSiTiONiNG TABLE AN{} WORKP_ECE

Lock the table to the coiumn in a position so that the

tip of the drill is just a iittle above the top of the work -

piece,

A_ways place a piece of BACK-UP t_4ATERtAL (wood.

plywood . . .) on the table underneath the wo_kpi_:_ce.

This will prevent "splintering" or making a heavy bur_

on the underside on the workpiece as the drill breaks

through. To keep the backup material from spinning

out of control, it must contact the left side of the coiumn,

as illustrated.

WARNING: To prevent workpiece or the

backup material from being torn from your

hand while driHi_J, position the_'_ against the _eft

side of the eo_um_o _f the workpiece or the

backup materia_ are not tor_g enough to reach

the coBumn, o_amp them to the table° Failure to

do this could result in personal injury_

BACK°U _

MATER_AL

For small pieces that cannot be c_amped to the tabie,

use a dril! press vise (Qptiona! accessory).

WAIRNBNG:The vise must be emamped or bolted

to the table to avoid inju_'y 1'rein spinning

work and vise or tooU breakage,

WORKP_'ECE,

DRILLwsEPRESS

BOLT OR CLAMP

ViSE

TgLTING TABLE

To use the table in a bevel (tilted) position, loosen

the bevel lock with adjustable wrench.

Tilt table to desired angle by reading bevel scale.

Retighten bevel lock.

BEVEL SCALE

BEVEL

LOCK

WARNING: To avoid injury from spinning work

or tool breakage, always clamp workpiece and

backup material securely to table before

operating drill press with the table tilted.

'To return table to original position: loosen the bevel

lock, tilt table back to 0° on bevel scale, and retighten

bevel lock.

HOLE LOCATION

Make an indentation in the workpiece where you want

the hole.., using a CENTER PUNCH or a SHARP

NAIL,

Before turning the switch ON, bring the drill down to

the workpiece lining it up with the hole location.

FEEDING

Pull down on the feed handles with only enough effort

to allow the drill to cut,

Feeding TOO SLOWLY might cause the drill to burn

•.. Feeding TOO RAPgDLY might stop the motor...

cause the belt or drill to SLiP... tear the workpiece

LOOSE or BREAK the drill bit.

When drilling metal it may be necessary to lubricate

the tip of the drill with cutting oil or motor oil to

prevent burning of the drill tip.

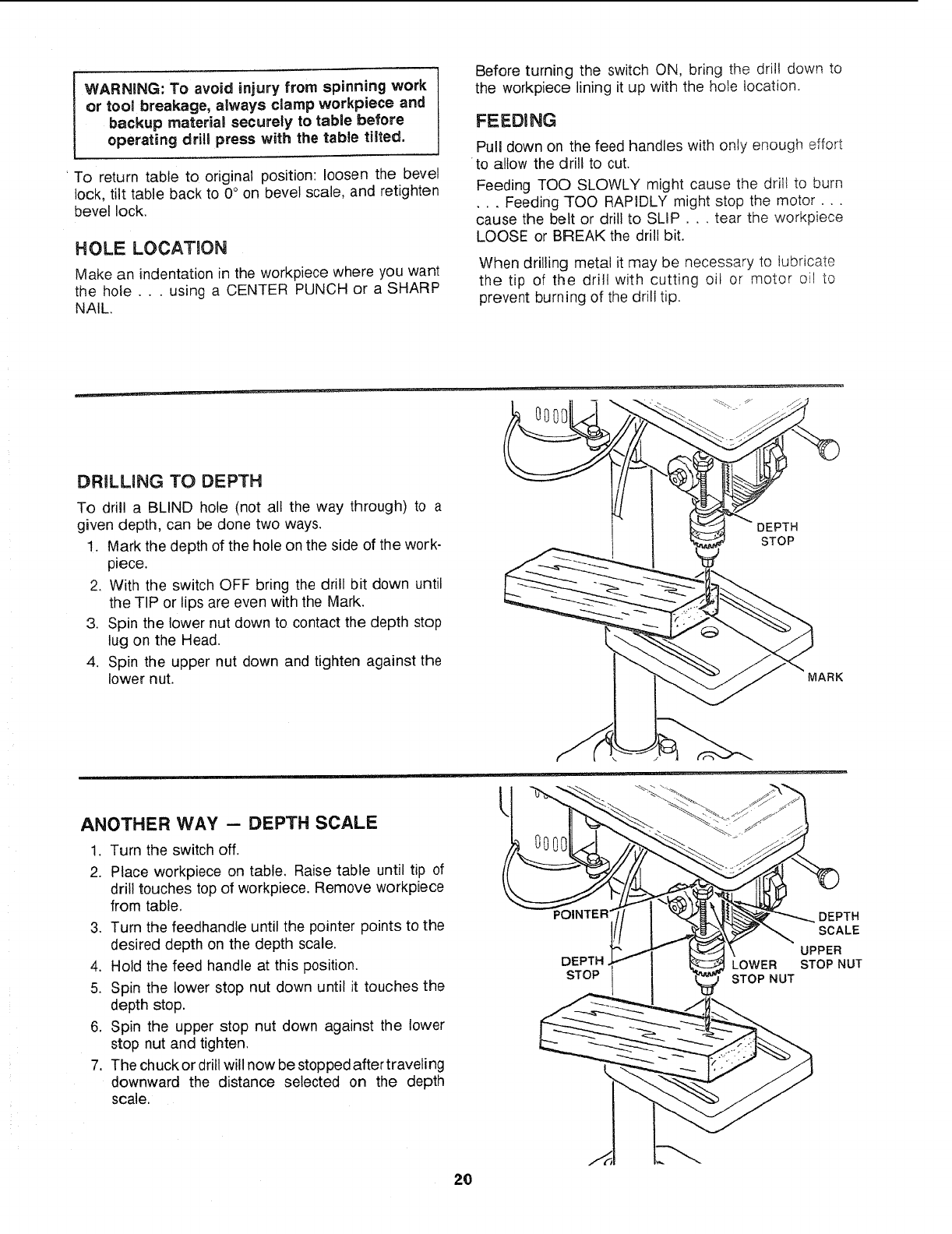

DRtLLUNG TO DEPTH

To drill a BLIND hole (not all the way through) to a

given depth, can be done two ways.

1. Mark the depth of the hole on the side of the work-

piece.

2. With the switch OFF bring the drill bit down until

the TIP or lips are even with the Mark.

3. Spin the lower nut down to contact the depth stop

tug on the Head.

4. Spin the upper nut down and tighten against the

lower nut.

pEPTH

STOP

MARK

ANOTHER WAY -- DEPTH SCALE

1. Turn the switch off.

2. Place workpiece on table. Raise table until tip of

drill touches top of workpiece. Remove workpiece

from table.

3. Turn the feedhandle until the pointer points to the

desired depth on the depth scale.

4. Hold the feed handle at this position.

5. Spin the lower stop nut down until it touches the

depth stop.

6. Spin the upper stop nut down against the tower

stop nut and tighten.

7. The chuck or drill will now be stopped after traveling

downward the distance selected on the depth

scale.

DEPTH LOWER

STOP STOP NUT

DEPTH

SCALE

UPPER

STOP NUT

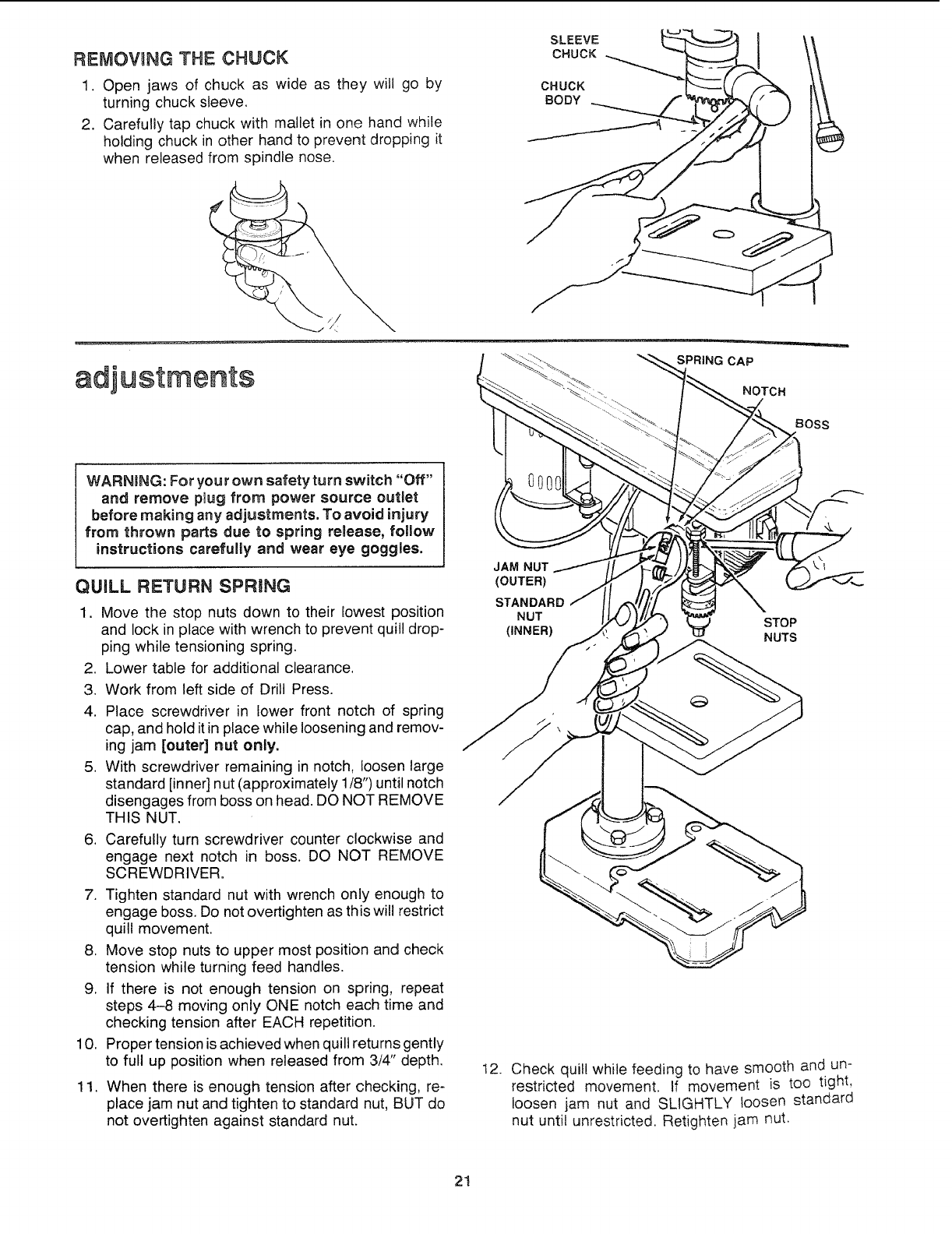

REMOVING THE CHUCK

1. Open jaws of chuck as wide as they will go by

turning chuck sleeve.

2. Carefully tap chuck with mallet in one hand while

holding chuck in other hand to prevent dropping it

when released from spindle nose.

SLEEVE _----_ I \_

CHUCK L_L( F_ I\\

adjustments

WARNING: For your own safety turn switch "Off"

and remove plug from power source outlet

before making any adjustments. To avoid injury

from thrown parts due to spring release, follow

instructions carefully and wear eye goggles.

QUILL RETURN SPR1NG

1. Move the stop nuts down to their lowest position

and lock in place with wrench to prevent quill drop-

ping while tensioning spring.

2. Lower table for additional clearance.

3. Work from left side of Drill Press.

4. Place screwdriver in lower front notch of spring

cap, and hold it in place while loosening and remov-

ing jam [outer] nut only.

5. With screwdriver remaining in notch, loosen large

standard [inner] nut (approximately 1/8") until notch

disengages from boss on head. DO NOT REMOVE

THIS NUT.

6. Carefully turn screwdriver counter clockwise and

engage next notch in boss. DO NOT REMOVE

SCREWDRIVER.

7. Tighten standard nut with wrench only enough to

engage boss. Do not overtighten as this will restrict

quill movement.

8. Move stop nuts to upper most position and check

tension while turning feed handles.

9. If there is not enough tension on spring, repeat

steps 4-8 moving only ONE notch each time and

checking tension after EACH repetition.

10. Proper tension is achieved when quill returns gently

to full up position when released from 3/4" depth.

11. When there is enough tension after checking, re-

place jam nut and tighten to standard nut, BUT do

not overtighten against standard nut.

SPRING CAP

NOTCH

BOSS

JAM NUT

(OUTER)

STANDARD

NUT

(INNER) STOP

NUTS

12. Check quill while feeding to have smooth and un-

restricted movement. If movement is too tight,

loosen jam nut and SLIGHTLY loosen standard

nut until unrestricted. Retighten jam nut.

maintenance

IWARNING: For your own safety, turn switch

"Off" and remove plug from power source outlet

before maintaining or lubricating your drill press.

Frequently blow out any dust that may accumulate in-

side the motor.

A coat of automotive type paste wax applied to the

table and column will help to keep the surfaces

clean.

WARNING: To avoid shock or fire hazard, if the

power cord is worn or cut, or damaged in any

way, have it replaced immediately.

_wGREEN iRE 8LACK, __

CONN

Wiring Diagram

lubrication

All of the BALL BEARINGS are packed with grease at

the factory, They require no further lubrication.

Periodically lubricate the SPLINES (grooves) in the

spindle, and the RACK (teeth of the quill).

SPINDLE ASSEMBLY

OF DRILL PRESS

1_.,,------ SPLINES

H (GROOVES)

Sears Recommends the Following Accessories

Drill Bits ......................... See Catalog

Drill Press Vises ................... See Catalog

5 pc, Stop Collar Set ............... See Catalog

Sanding Drums ................ 9-2497 -- 9-2498

I5 Piece Drum Sanding Kit .......... See Catalog

Buffing Wheels up to 4" dia. max ...... See Catalog

Power Tool Know-How Handbook ........ 9-291 !7

Sears may recommend other accessories not listed in

the manual.

See your nearest Sears store for other accessories.

Do not use any accessory unless you have received

and read complete instructions for its use.

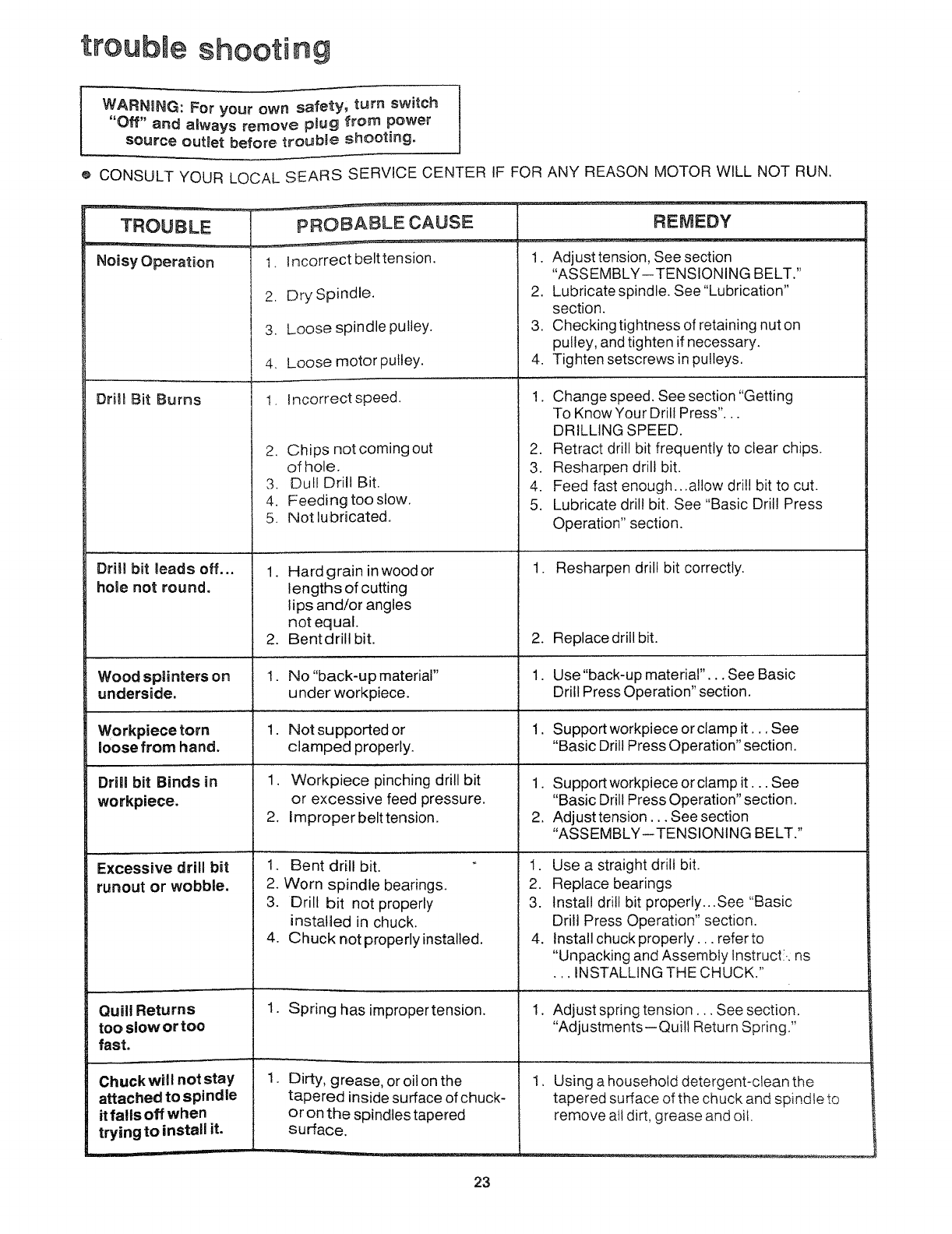

trouble shootir g

WARNING: For your own safety, turn switch

"Off" and always remove plug from power

source out_et before troubSe shooting.

®CONSULT YOUR LOCAL SEARS SERVICE CENTER IF FOR ANY REASON MOTOR WILL NOT RUN.

TROUBLE

Noisy Operation

Drill Bit Burns

Drill bit leads off...

hole not round.

pROBABLE CAUSE

1. Incorrect belttension.

2. Dry Spindle.

3. Loose spindle pulley.

4, Loose motor pulley.

1, Incorrect speed.

2. Chips notcomingout

of hole.

3. Dull Drill Bit.

4. Feeding too slow.

5. Not lubricated.

1. Hard grain in wood or

lengths of cutting

lips and/or angles

not equal.

Bentdrill bit.

REMEDY

1. Adjust tension, See section

"ASSEMBLY--TENSIONING BELT."

2. Lubricate spindle. See "Lubrication"

section.

3. Checking tightness of retaining nut on

pulley, and tighten if necessary.

4. Tighten setscrews in pulleys.

1. Change speed. See section "Getting

To Know Your Drill Press"...

DRILLING SPEED.

2. Retract drill bit frequently to clear chips.

3. Resharpen drill bit.

4. Feed fast enough...allow drill bit to cut.

5. Lubricate drill bit. See "Basic Drill Press

Operation" section.

1. Resharpen drill bit correctly.

2. 2. Replace drill bit.

Wood splinters on 1. No "back-up material" 1. Use"back-up material"... See Basic

underside, under workpiece. Drill Press Operation" section.

Workpiece torn 1. Not supported or 1. Support workpiece or clamp it... See

loose from hand. clamped properly. "Basic Drill Press Operation" section.

1. Workpiece pinching drill bit

or excessive feed pressure.

2. Improper belt tension.

1. Bent drill bit.

2. Worn spindle bearings.

3. Drill bit not properly

installed in chuck.

4. Chuck not properly installed.

1. Spring has impropertension.

1. Dirty, grease, or oil on the

tapered inside surface of chuck-

or on the spindles tapered

surface.

Drill bit Binds in

workpiece.

Excessive drill bit

runout or wobble.

Quill Returns

too slow or too

fast.

Chuck will not stay

attached to spindle

it falls off when

trying to install it.

1. Support workpiece or clamp it... See

"Basic Drill Press Operation" section.

2. Adjusttension... See section

"ASSEMBLY--TENSIONING BELT."

1. Use a straight drill bit.

2. Replace bearings

3. Install drill bit properly...See "Basic

Drill Press Operation" section.

4. Install chuck properly.., refer to

"Unpacking and Assembly Instruct!.: ns

... INSTALLING THE CHUCK/'

1. Adjust spring tension... See section.

"Adjustments--Quill Return Spring."

1. Using a household detergent-clean the

tapered surface of the chuck and spindle to

remove all dirt, grease and oil.

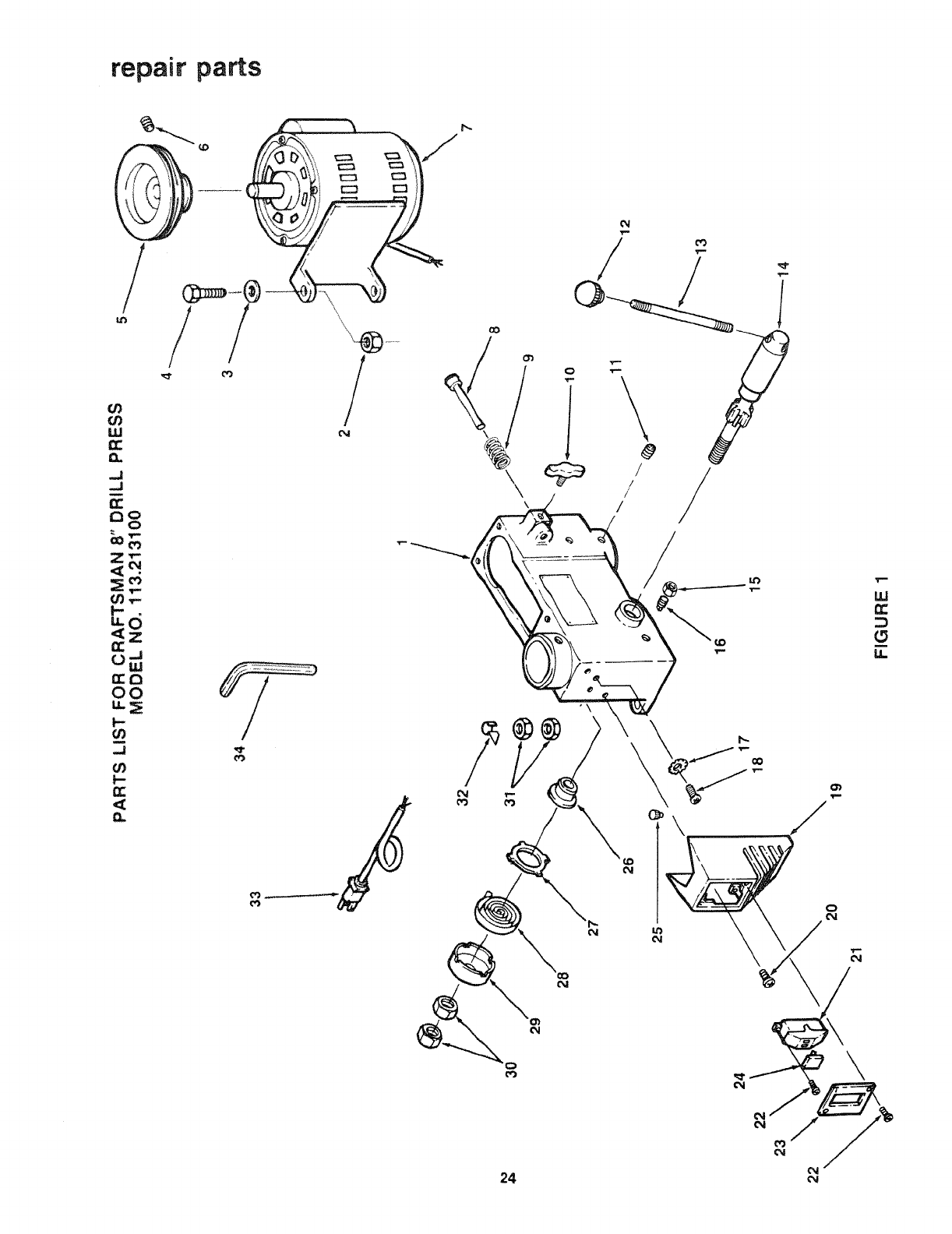

repair parts

Ouj

rrC_

(I.

e')

/// /

w'-

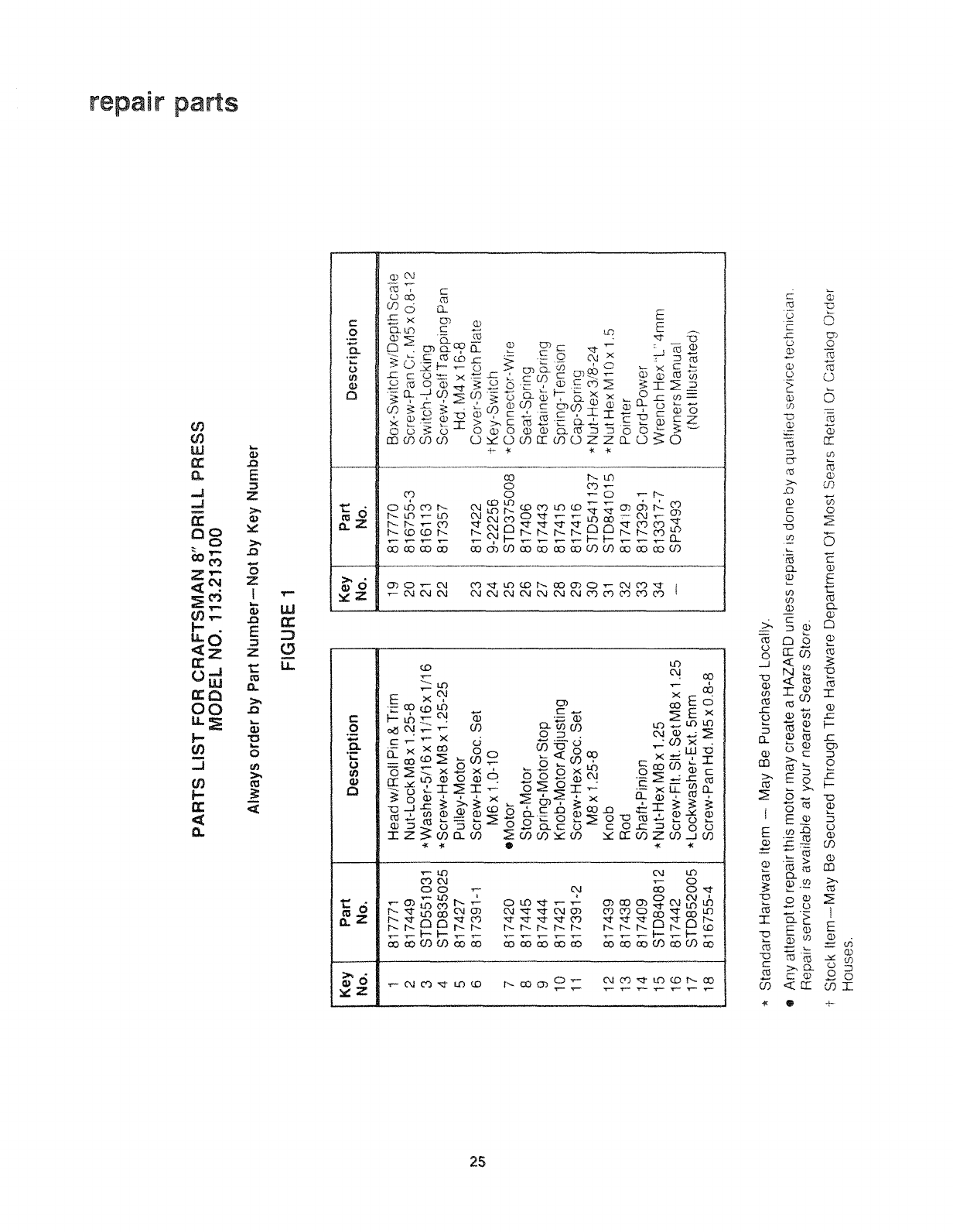

repair parts

E D

z 0

"E LL

k.,

0oc5 o_ E

._x m o E

CL L_ _ _ _'3 ....

b-- _C,

oO oo CO cO

0 _

r,o LO

x ' c_ Ec5

•0Y3 ."

x _ C, _ ,.z l..U,

__ "-09 X__ ,

o×4

__o_ .

___ _ ,T_

-5o ooo. co coo

,--'_ OJ

C_ 0,.I .r-- 0

O0 _ OJ 00 0'_

000009090000 00 e000 0000 C00_0Dr...0 o009o0

_g 8

o ©

,_ ©

r ©

%, 5d _

_o I @I

n_ e_

f E_ B

.m 0

o _0_ CO

o._ >"

_-_ E

co <Dr U) T

repair parts

PARTS LiST FOR CRAFTSMAN 8" DRILL PRESS

MODEL NO. 113.213100

Always order by Part Number--Not by Key Number

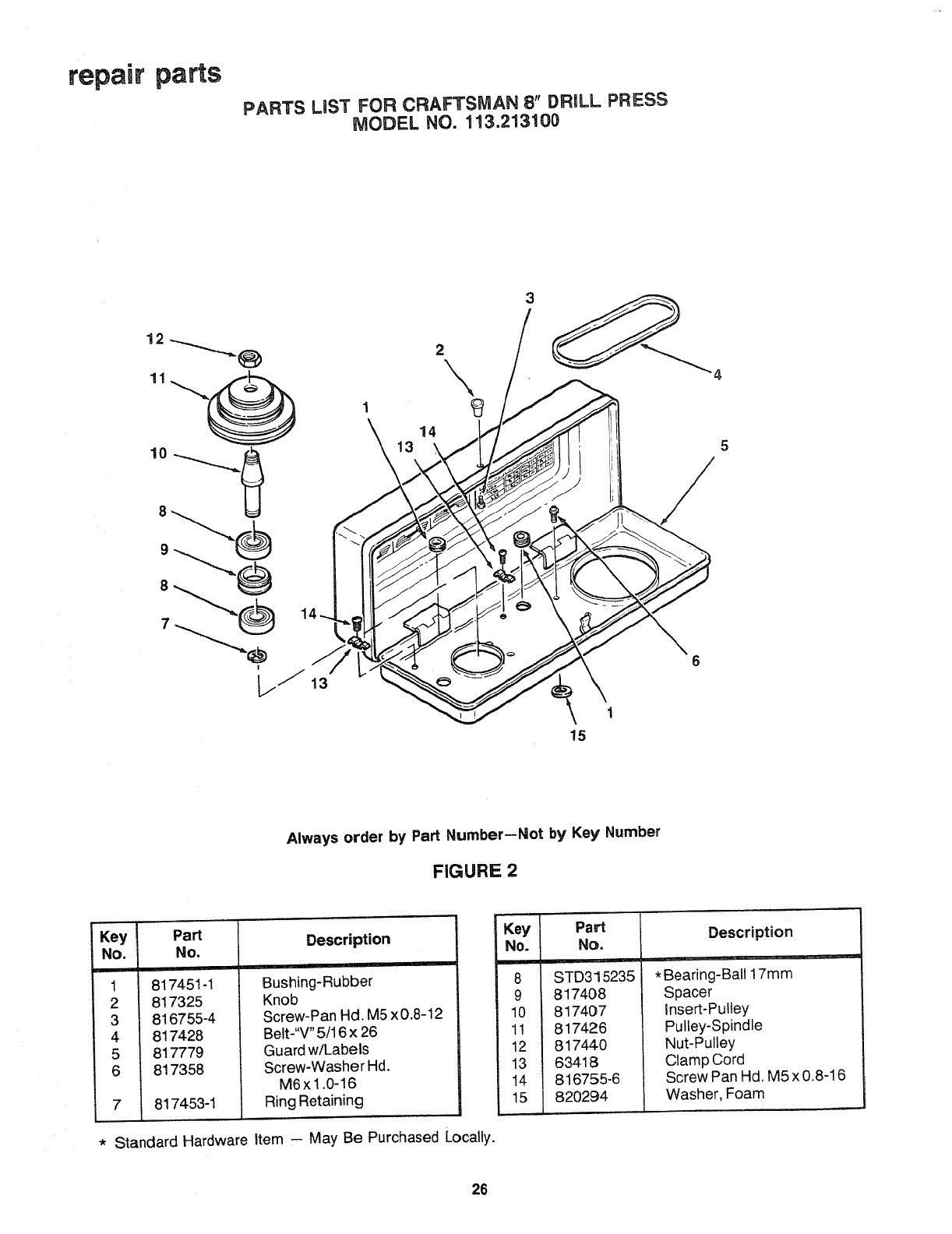

FIGURE 2

Key Part Description

No. No.

1 817451-1

2 817325

3 816755-4

4 817428

5 817779

6 817358

817453-1

Bushing-Rubber

Knob

Screw-Pan Hal.M5 x 0.8-12

Belt-"V" 5/16 x 26

Guard w/Labels

Screw-Washer Hd.

M6x1.0-16

Ring Retaining

*Standard Hardware Item -- May Be Purchased Locally.

Key Part

No. No.

STD315235

817408

817407

817426

817440

63418

816755-6

820294

Description

*Bearing-Ball 17mm

Spacer

Insert-Pulley

Pulley-Spindle

Nut-Pulley

Clamp Cord

Screw Pan Hd, M5 x 0.8-16

Washer, Foam

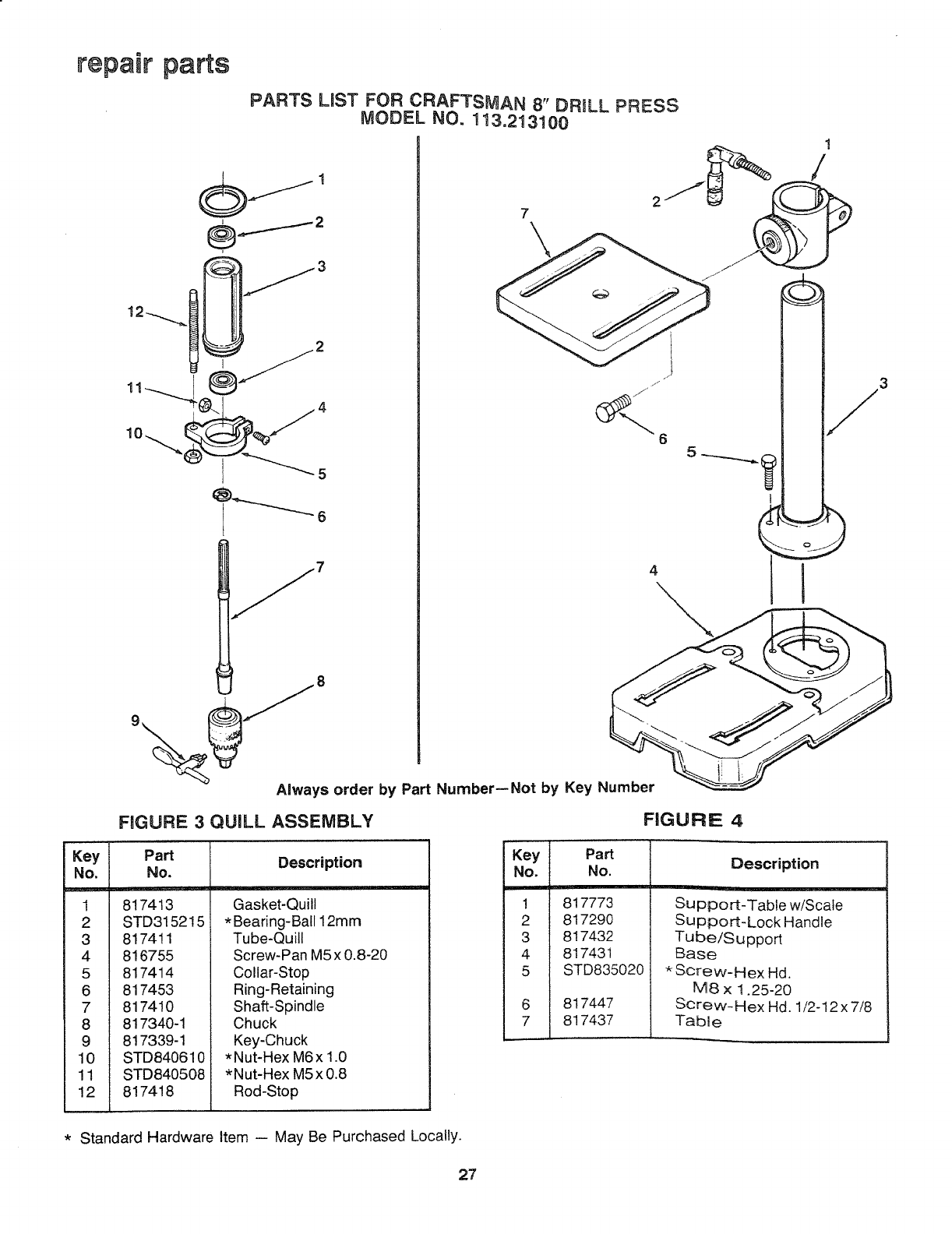

repair parts

PARTS MST FOR CRAFTSMAN 8" DRILL PRESS

MODEL NO. 113.213100

O jt 1

11_"_'_ "_" 4

Always order by Part Number--Not by Key Number

FIGURE 3 QUILL ASSEMBLY

Key Part Description

No, No.

1 817413

2 STD315215

3 817411

4 816755

5 817414

6 817453

7 817410

8 817340-1

9 817339-1

10 STD840610

11 STD840508

!2 817418

FIGURE 4

Key Part

No. No. Description

Gasket-Quill

*Bearing-Ball 12mm

Tube-Quill

Screw-Pan M5 x 0.8-20

Collar-Stop

Ring-Retaining

Shaft-Spindle

Chuck

Key-Chuck

*Nut-Hex M6x 1.0

*Nut-Hex M5 x 0.8

Rod-Stop

817773

817290

817432

817431

STD835020

817447

817437

Support-Table w!Scale

Support-Lock Handle

Tube/Support

Base

* Screw-Hex Hd.

M8 x 1.25-20

Screw-Hex Hd. 1/2-12 x 7/8

Table

*Standard Hardware Item -- May Be Purchased Locally.

MODEL NO.

] ] 3.213100

DRILLPRESSWITH

MAXIMUM DEVELOPED

1/3 HP MOTOR

The model number of your

Drill Press will be found on a

plate attached to the left

side of the head.

When requesting service or

ordering parts, always pro-

vide the following informa-

tion:

•Product Type

•Model Number

•Part Number

•Part Description

MOTORIZED

For the repair or replacement parts you need

Call 7 &m - 7 prn, 7 days a week

t oOOOo3G6oPART

(1-880-305-7278)

For in-home major brand repair service

Call 24 hours a day, 7 days a week

1-800=4-REPA|R

(1-800-473-7247)

For the location of a

Sears Repair Service Center in your area

Call 24 hours a day, 7days a week

1-800-488-1222

For information on purchasing aSears

Maintenance Agreement or to inquire

about an existing Agreement

Call 9 am - 5pro, Monday-Saturday

1-800-827-6655

SWARS

Amenca's Repair Spec_ahsts

J j

SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U,S,A,

Part No SP5493 Form No SP5493-3 Printed in '-'h___,,_''_u10195

Craftsman 113213100 User Manual 8 DRILL PRESS Manuals And Guides L1002141

CRAFTSMAN Drill Press Manual L1002141 CRAFTSMAN Drill Press Owner's Manual, CRAFTSMAN Drill Press installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
