For Future Reference

owner's ,

manual

SP5188

MODELNO.

113.213170

DRILL PRESSWITH

MAXIMUM DEVELOPED

1I/2 HP MOTOR

Serial

Number

Model and sedai number

may be found at the rear of

the head.

You should record both

model and serial number in

a safe place for future use.

i i i

CAUTION:

READ ALL

INSTRUCTIONS

CAREFULLY

CRRFTSMFIN

MOTORIZED

17-1NCH

FLOOR MODEL DRILL PRESS

• assembly

•operating

•repair parts

Sold by SEARS, ROEBUCK AND CO., Chicago, IL 60684 U.S.A.

P_rt No. SP5188

FULL ONE YEAR WARRANTY ON CRAFTSMAN DRILL PRESS

If within one year from the date of purchase, this Craftsman Drill Press fails due to a defect

in material or workmanship, Sears will repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SER-

VICE CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCK AND CO., Dept. 698/731A, Sears Tower, Chicago, IL 60684

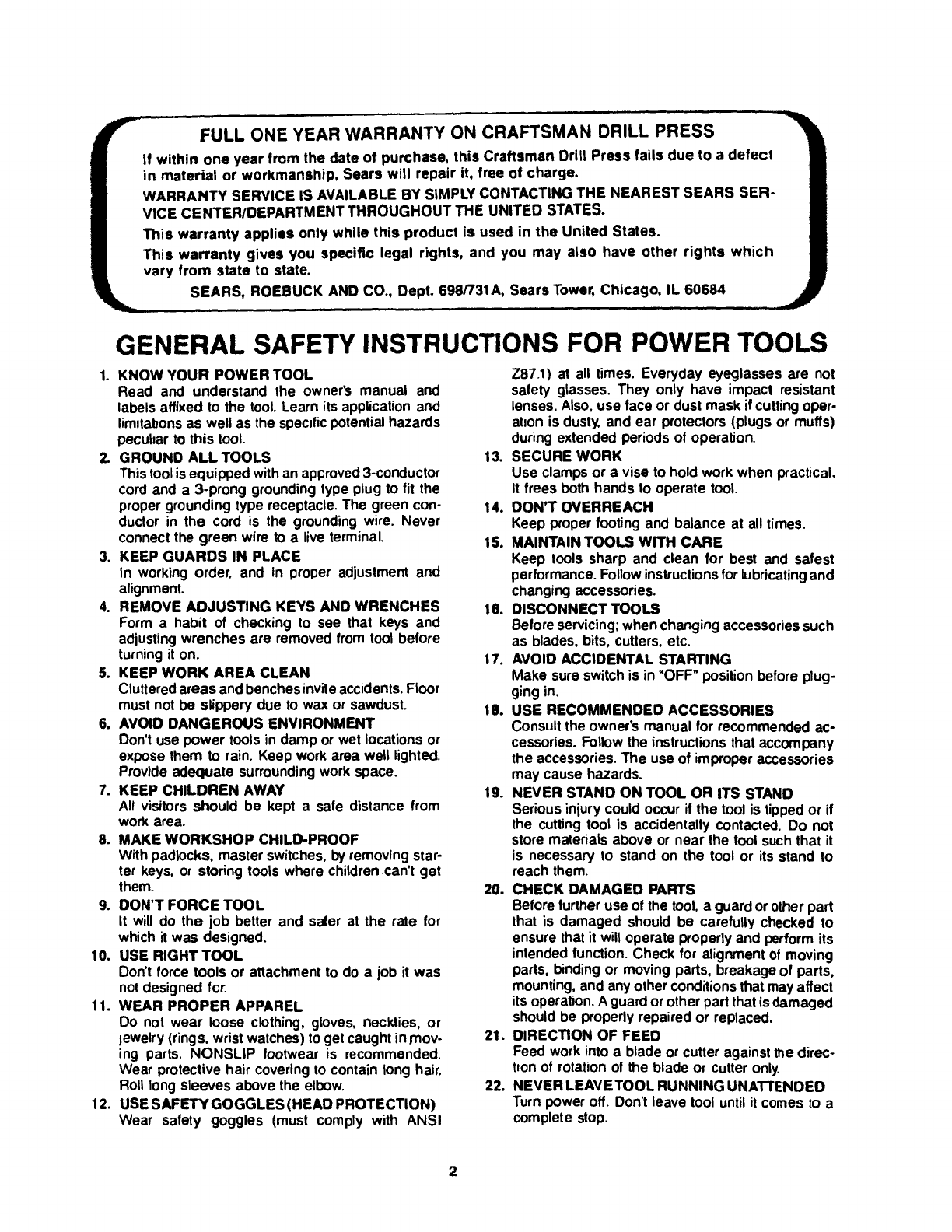

GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS

1. KNOW YOUR POWER TOOL

Read and understand the owner's manual and

labels affixed to the tool.Learn its applicationand

limltabonsas well as the specificpotentialhazards

pecuharto this tool.

2. GROUND ALL TOOLS

This toolisequippedwithan approved3-conductor

cord and a 3-prong groundingtype plugto fit the

proper groundingtype receptacle.The green con-

ductor in the cord is the groundingwire. Never

connectthe green wire to a liveterminal.

3. KEEP GUARDS IN PLACE

in working order, and in proper adjustment and

alignment.

4. REMOVE ADJUSTING KEYS AND WRENCHES

Form a habit of checking to see that keys and

adjustingwrenches are removed fromtool before

turningit on.

5. KEEP WORK AREA CLEAN

Clutteredareas andbenchesinviteaccidents.Floor

must not be slippery due to wax or sawdust.

6, AVOID DANGEROUS ENVIRONMENT

Don'tuse power tools in damp or wet locationsor

exposethem to rain. Keep workarea well lighted.

Provideadequate surroundingwork space.

7. KEEP CHILDREN AWAY

All visitors should be kept a safe distance from

workarea.

8. MAKE WORKSHOP CHILD-PROOF

With padlocks, master switches,by removingstar-

ter keys, or storing tools where children.can'tget

them.

9. DON'T FORCE TOOL

It will do the job better and safer at the rate for

which it was designed.

10. USE RIGHT TOOL

Don't force tools or attachmentto do a job it was

notdesigned for.

11. WEAR PROPER APPAREL

Do not wear loose clothing, gloves, neckties, or

jewelry (rings,wristwatches) to get caughtinrnov-

ing parts. NONSLIP footwear is recommended.

Wear protectivehair coveringto contain longhair.

Roll long sleeves above the elbow.

12. USE SAFETY GOGGLES (HEAD PROTECTION)

Wear safety goggles (must comply with ANSI

Z87.1) at all times. Everyday eyeglasses are not

safety glasses. They only have impact resistant

lenses. Also, use face or dust mask if cutting oper-

at=on is dusty, and ear protectors (plugs or muffs)

during extended periods of operation.

13. SECURE WORK

Use clamps or a vise to hold work when practical.

It frees both hands to operate tool.

14. DON'T OVERREACH

Keep proper footing and balance at all times.

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performance. Follow instructions for lubricating and

changing accessories.

16. DISCONNECT TOOLS

Before servicing; when changing accessories such

as blades, bits, cutters, etc.

17. AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before plug-

ging in.

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended ac-

cessories. Follow the instructions that accompany

the accessories. The use of improper accessories

may cause hazards.

19. NEVER STAND ON TOOL OR ITS STAND

Serious iniury could occur if the tool is tipped or if

the cutting tool is accidentally contacted. Do not

store materials above or near the tool such that it

is necessary to stand on the tool or its stand to

reach them.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other part

that is damaged should be carefully checked to

ensure that it will operate properly and perform its

intended function. Check for alignment of moving

parts, binding or moving parts, breakage of parts,

mounting, and any other conditions that may affect

its operation. A guard or other part that is damaged

should be properly repaired or replaced.

21. DIRECTION OF FEED

Feed work into a blade or cutter against the direc-

t,on of rotation of the blade or cutter only.

22. NEVER LEAVETOOL RUNNING UNATTENDED

Turn power off. Don't leave tool until it comes to a

complete stop.

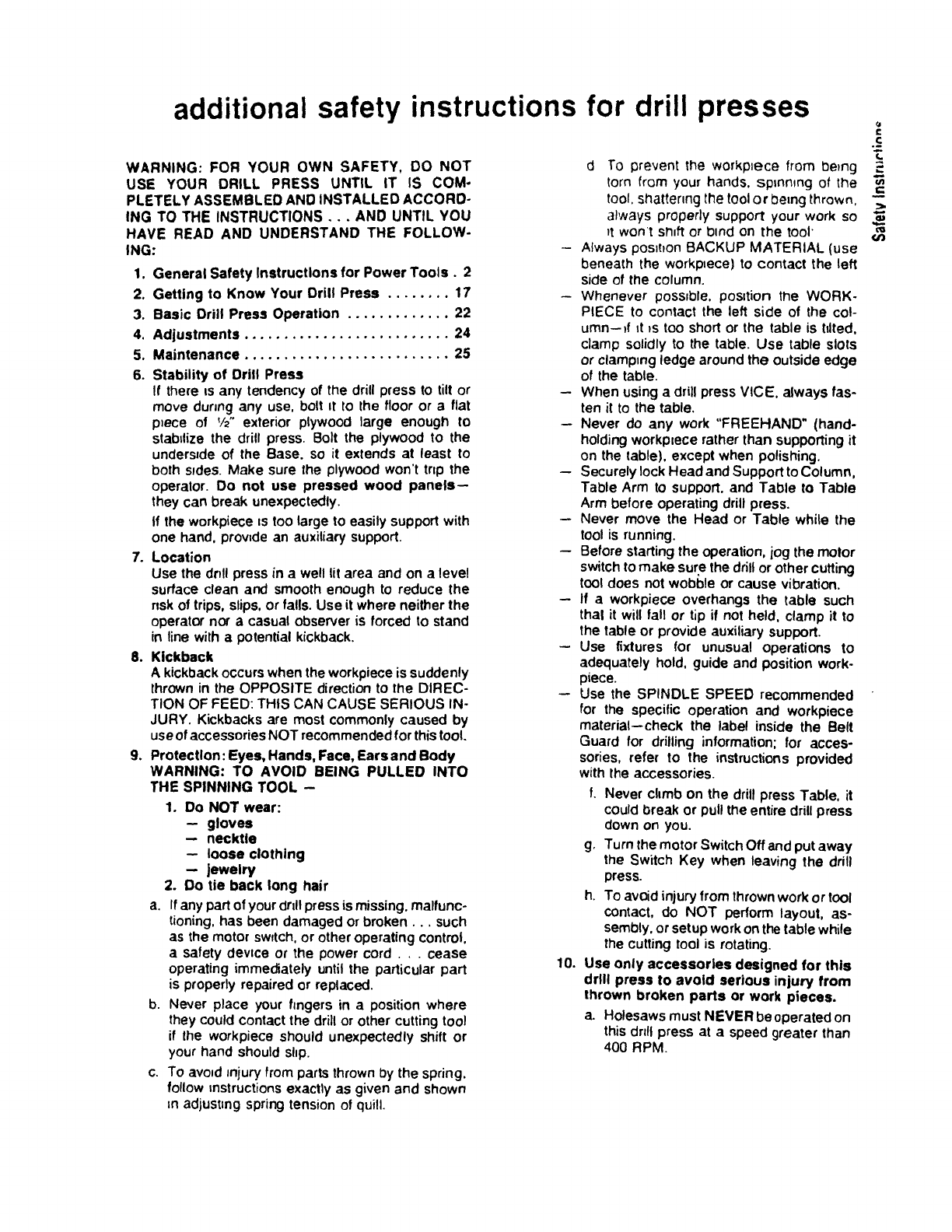

additional safety instructions for drill presses

WARNING: FOR YOUR OWN SAFETY, DO NOT

USE YOUR DRILL PRESS UNTIL IT IS COM-

PLETELY ASSEMBLED AND INSTALLED ACCORD-

ING TO THE INSTRUCTIONS... AND UNTIL YOU

HAVE READ AND UNDERSTAND THE FOLLOW-

ING:

1. General Safety Instructions for Power Tools. 2

2. Getting to Know Your Drill Press ........ 17

3. Basic Drill Press Operation ............. 22

4. Adjustments .......................... 24

5. Maintenance .......................... 25

6. Stability of Drill Press

If there ts any tendency of the drill press to tilt or

move during any use, bolt It to the floor or a flat

piece of V2" exterior plywood large enough to

stabilize the drill press. Bolt the plywood to the

unders=de of the Base. so it extends at least to

both s_des. Make sure the plywood won't trip the

operator. Do not use pressed wood panels--

they can break unexpectedly.

If the workpiece is too large to easily support with

one hand, prov=de an auxiliary support.

7. Location

Use the drill press in a well lit area and on a level

surface clean and smooth enough to reduce the

nsk of trips, slips, or falls. Use it where neither the

operator nor a casual observer is forced to stand

in line with a potential kickback.

8. Kickback

A kickback occurs when the workpiece is suddenly

thrown in the OPPOSITE direction to the DIREC-

TION OF FEED: THIS CAN CAUSE SERIOUS IN-

JURY. Kickbacks are most commonly caused by

use of accessories NOT recommended for this tool.

9. Protection: Eyes, Hands, Face, Earsand Body

WARNING: TO AVOID BEING PULLED INTO

THE SPINNING TOOL --

1. Do NOT wear:

-- gloves

-- necktie

-- loose clothing

-- jewelry

2. Do tie back long hair

a. If any part of your drill press is missing, malfunc-

tioning, has been damaged or broken.., such

as the motor swdch, or other operating control,

a safety device or the power cord.., cease

operating immediately until the particular part

is properly repaired or replaced.

b. Never place your fingers in a position where

they could contact the drill or other cutting tool

if the workpiece should unexpectedly shift or

your hand should slip.

c. To avoid injury from parts thrown by the spring.

follow instructions exactly as given and shown

in adjusting spring tension of quill.

always properly support your work so

_twon't shift or bind on the tool

-Always posJt_on BACKUP MATERIAL (use

beneath the workptece) to contact the left

side of the column.

-- Whenever possfble, position the WORK-

PIECE to contact the left side of the col-

umn--_f tt _s too short or the table is tilted,

clamp solidly to the table. Use table slots

or clamping ledge around the outside edge

of the table.

-- When using adrill press VICE. always fas-

ten it to the table.

-- Never do any work "FREEHAND" (hand-

holding workptece rather than supporting it

on the table), except when polishing.

-- Securely lock Head and Support to Column,

Table Arm to support, and Table to Table

Arm before operating drill press.

-- Never move the Head or Table white the

tool is running.

-- Before starting the operation, jog the motor

switch to make sure the drill or other cutting

tool does not wobble or cause vibration.

-- If aworkpiece overhangs the table such

thai it will fall or tip if not held, clamp it to

the table or provide auxiliary support.

-- Use fixtures for unusual operations to

adequately hold, guide and position work-

piece.

-- Use the SPINDLE SPEED recommended

for the specific operation and workpiece

material--check the label inside the Belt

Guard for drilling information; for acces-

sories, refer to the instructions provided

with the accessories.

f. Never ckmb on the drill press Table, it

could break or pull the entire drill press

down on you.

g, Turn the motor Switch Off and put away

the Switch Key when leaving the drill

press.

h. To avoid injury from thrown work or tool

contact, do NOT perform layout, as-

sembly, or setup work on the table while

the cutting tool is rotating.

10. Use only accessories designed for this

drill press to avoid serious injury from

thrown broken parts or work pieces.

a. Holesaws must NEVER be operated on

this dr_ll press at a speed greater than

400 RPM.

t,.

To prevent the workpJece from being _.

torn from your hands, spinning of the _:

tool, shattering the tool or being thrown, "_

t,/)

b Drum sanders must NEVER be operated on

th=s drill press at a speed greater than 1800

RPM.

c. Do not=nstatlor use any drillthat exceeds 7""_n

lengthorextends6" belowthechuckjaws They

can suddenlybend outward or break

d. Do notuse w=rewheels, routerb=ts,shapercut-

ters,circle (fly)cutters or rotaryplanerson th=s

drill press.

11. Note and Follow the Safety Warnings and In-

structions that Appear on the Panel on the

Right Side of the Head:

t3. Think Safety. Safety _sa combination of operator

common sense and alertness at all times when me

dNII press ,s be0ng used

WARNING: Do not allow familiarity (gained from

frequent use of your drill press) to become com-

monplace. Always remember that a careless frac-

tion of a second is sufficient to inflict severe injury.

The operatJons of any power tool can result in toreign

ObleCts being thrown into the eyes, whnch can result in

severe eye damage Always wear safety goggles com-

ply with ANSI Z87.1 (shown on Package) before com-

mencing power tool operation. Safety Goggles are

available at Sears retanl or catalog stores.

•IDANGER I FOR YOUR OWN SAFETY:

Ull P.ec{M_'_lo_d Odll $114ed--- Eel Ch_l In.do I_ II_f Covet.

_JU _111 ! a_m te supOmt. I_1 tt_le _ _m IN_k_r

m _i_nec_or _ _ _eeL

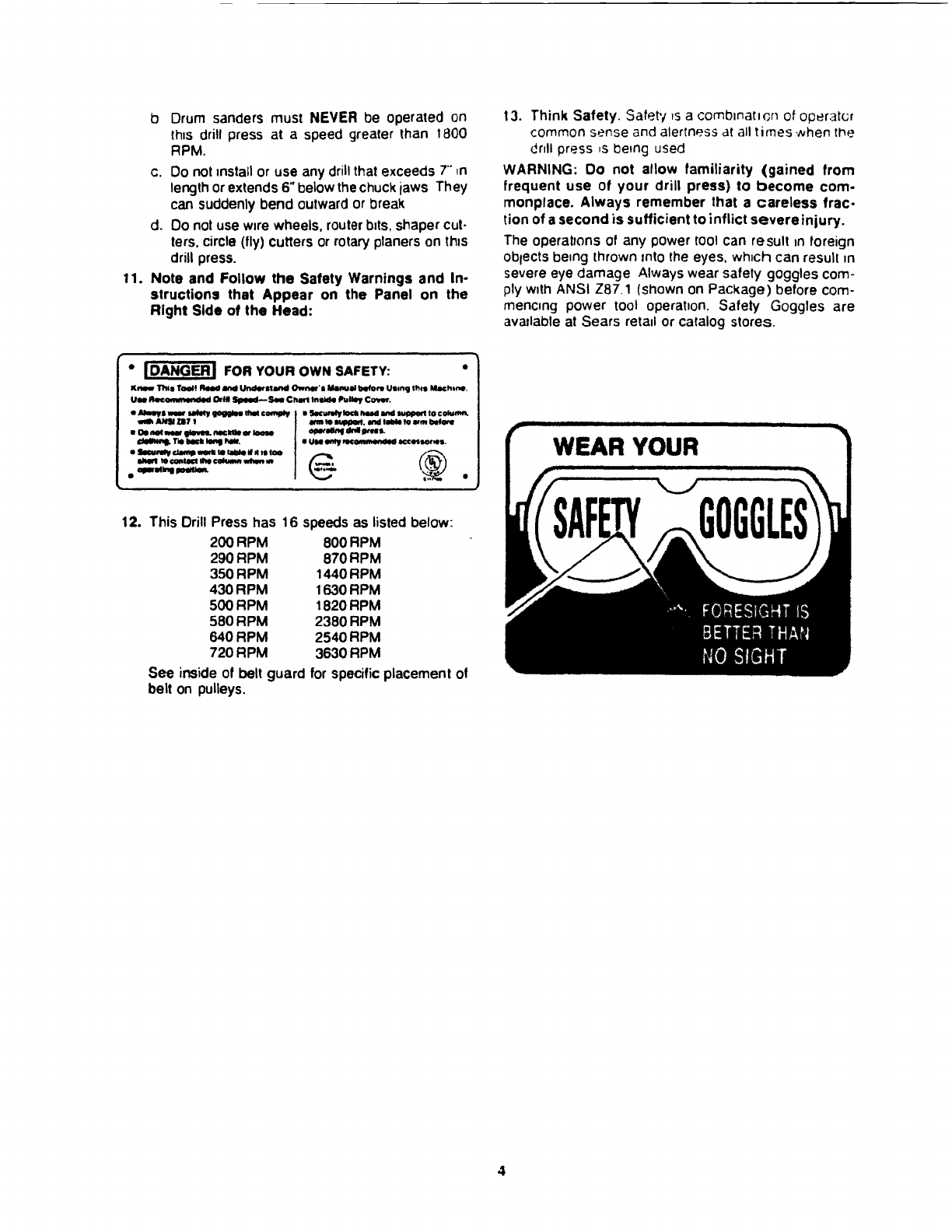

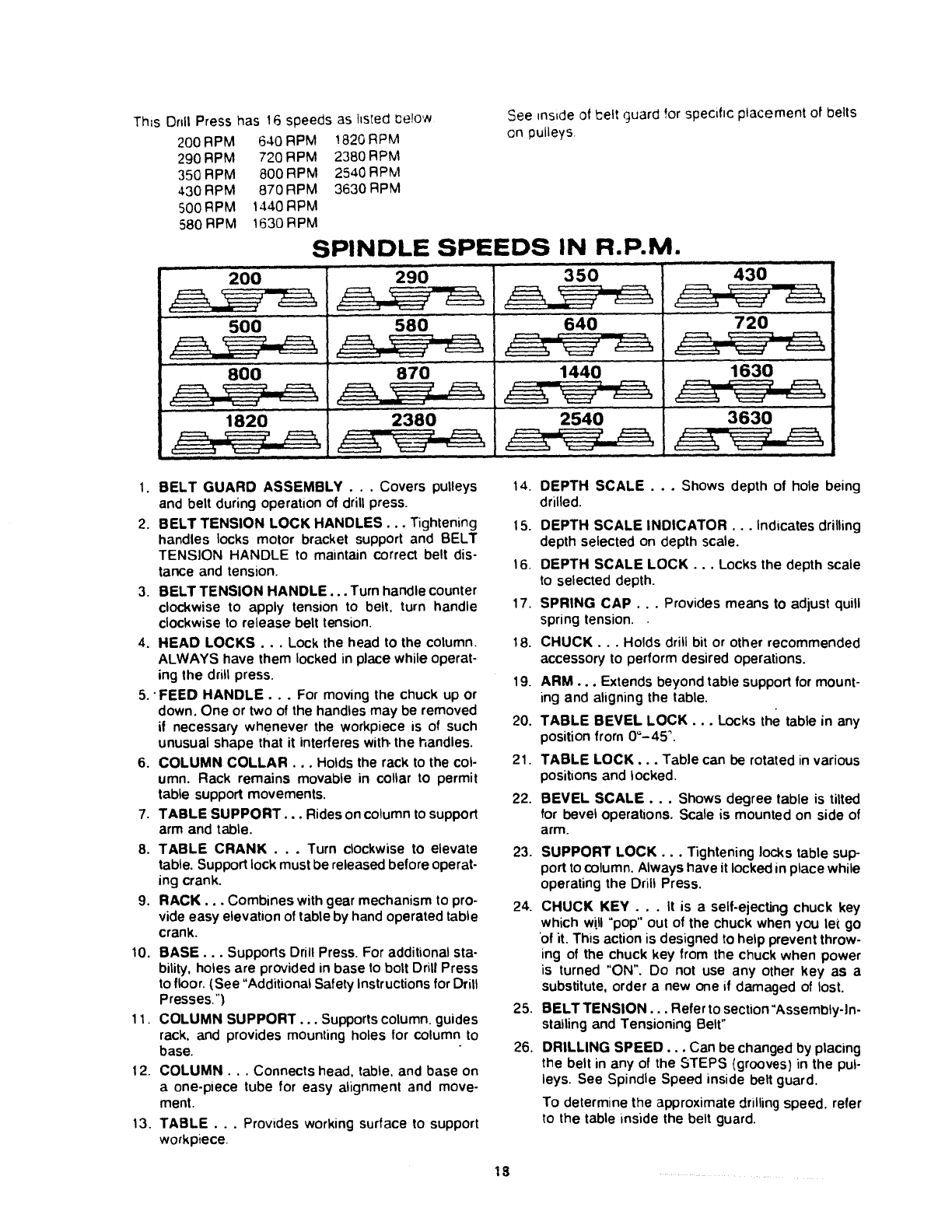

12. This Drill Press has 16 speeds as listed below:

200 RPM 800 RPM

290 RPM 870 RPM

350 RPM 1440 RPM

430 RPM 1630 RPM

500 RPM 1820 RPM

580 RPM 2380 RPM

640 RPM 2540 RPM

720 RPM 3630 RPM

See inside of belt guard for specific placement o!

belt on pulleys.

WEAR YOUR

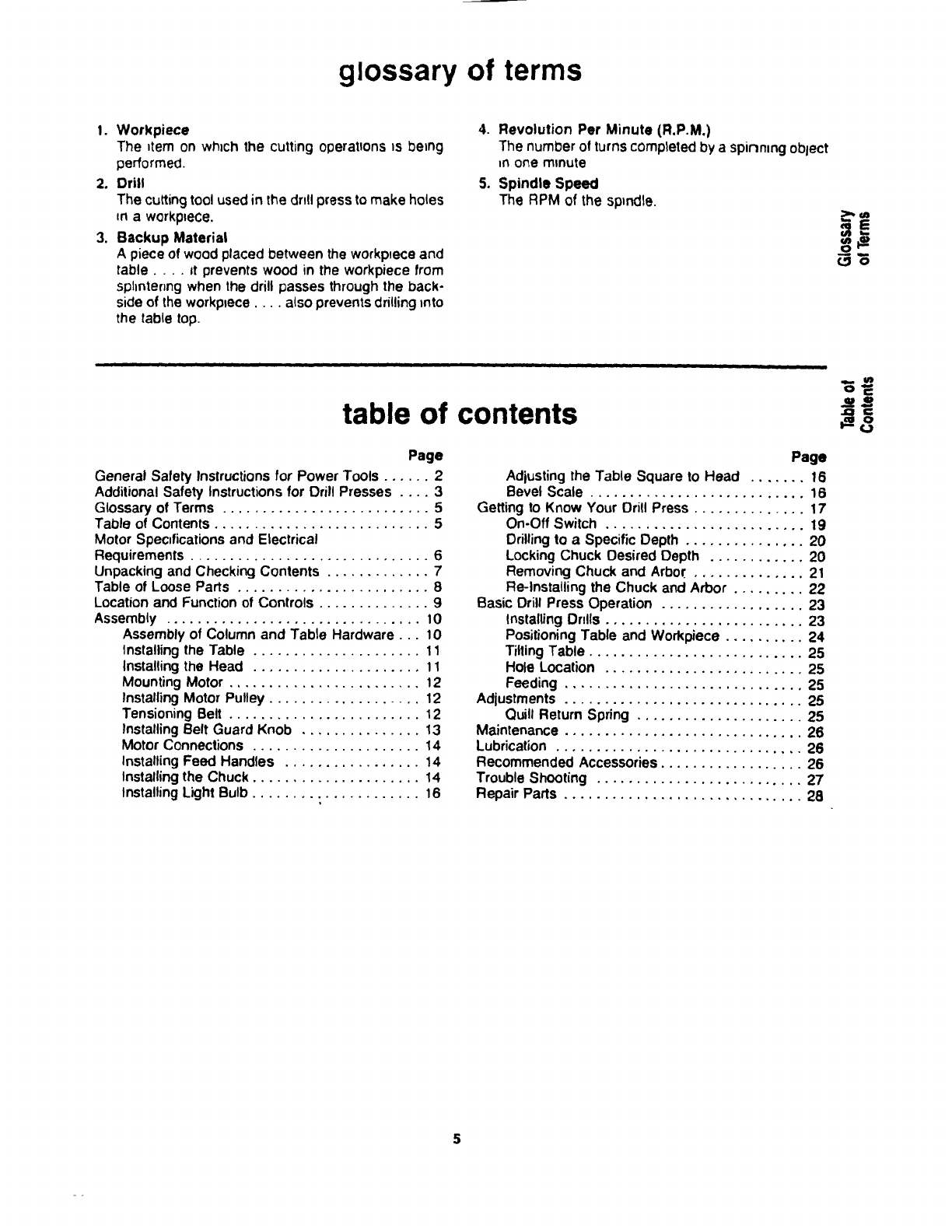

glossary of terms

t. Workpiece

The =ternon wh=chthe cutting operations_s being

performed.

2. Drill

The cuttingtoolused in the drill press to make holes

=na workplece.

3. Backup Material

A pieceof woodplaced between the workp_eceand

table .... stpreventswood in the workpiecefrom

splintering when the drill passesthroughthe back-

sideof the workplece.... also preventsdrillinginto

the table top.

S°

Revolution Per Minute (R.P.M.)

The number of turns completed by a spinning oblect

in one minute

Spindle Speed

The RPM of the spindle.

(.._o

table of contents

Page

General Safety Instructions for Power Tools ...... 2

Additional Safety Instructions for Drill Presses .... 3

Glossary of Terms .......................... 5

Table of Contents ........................... 5

Motor Specifications and Electrical

Requirements .............................. 6

Unpacking and Checking Contents ............. 7

Table of Loose Parts ........................ 8

Location and Function of Controls .............. 9

Assembly ................................ 10

Assembly of Column and Table Hardware... 10

Installing the Table ..................... 11

Installing the Head ..................... 11

Mounting Motor ........................ 12

Installing Motor Pulley ................... 12

Tensioning Belt ........................ 12

Installing Belt Guard Knob ............... 13

Motor Connections ..................... 14

Installing Feed Handles ................. 14

Installing the Chuck ..................... 14

Installing Light Bulb ..................... 16

Page

Adjustingthe Table Square to Head ....... 16

Revel Scale ........................... 18

Getting to Know Your Drill Press .............. 17

On-Off Switch ......................... 19

Drillingto a Specific Depth ............... 20

LockingChuck DesiredDepth ............ 20

RemovingChuck and Arbor .............. 21

Re-Installingthe Chuck and Arbor ......... 22

Basic Drill Press Operation .................. 23

InstallingDnlls ......................... 23

PositioningTable and Workpiece .......... 24

TiltingTable ........................... 25

Hole Location ......................... 25

Feeding .............................. 25

Adjustments .............................. 25

Quill Return Spring ..................... 25

Maintenance .............................. 26

Lubrication ............................... 26

Recommended Accessories.................. 26

TroubleShooting .......................... 27

Repair Parts .............................. 28

t, 8

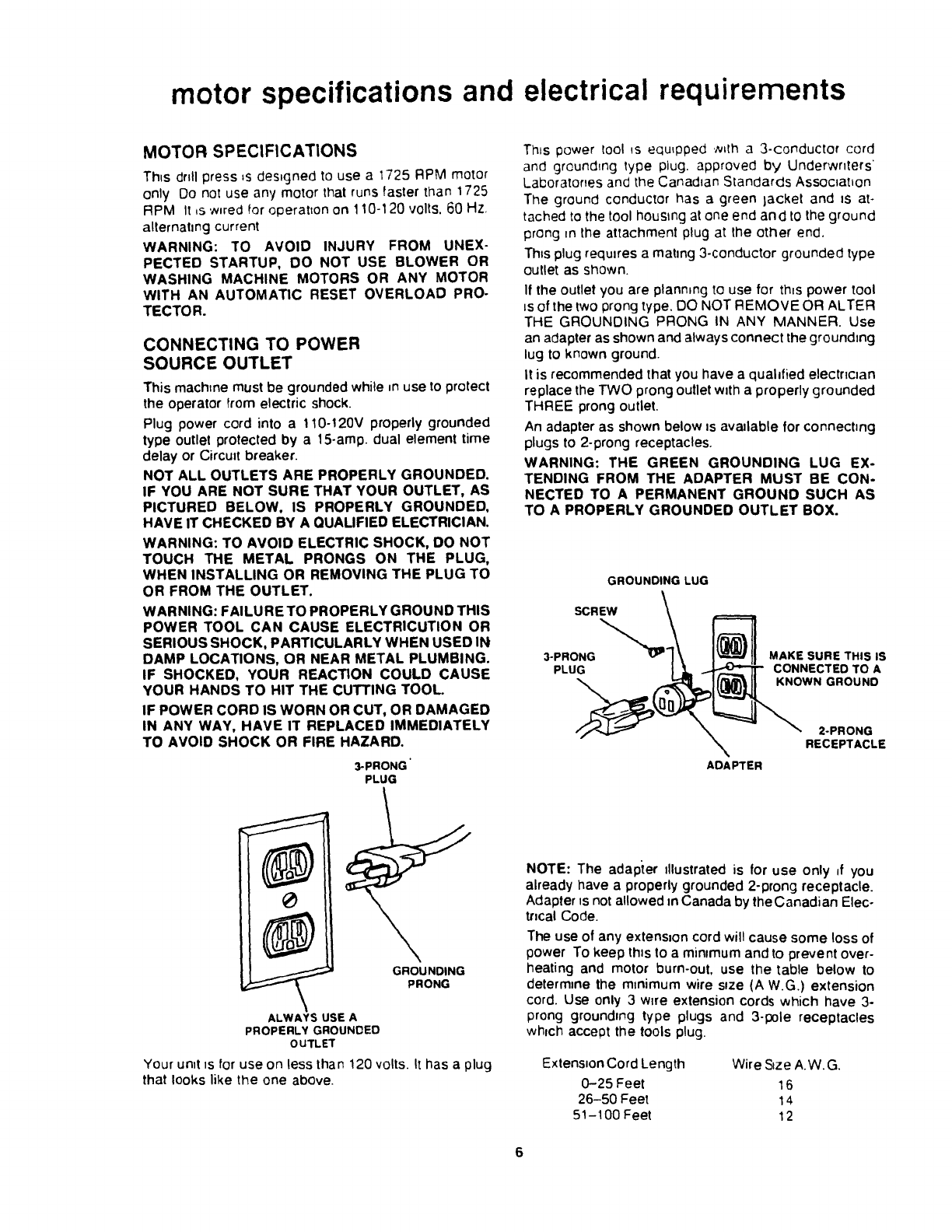

motor specifications and electrical requirements

MOTOR SPECIFICATIONS

Th_s drill press _s designed to use a 1725 RPM motor

only Do not use any motor that runs faster than 1725

RPM It _swired for operation on 110-120 voltS. 60 HZ,

alternating current

WARNING: TO AVOID INJURY FROM UNEX-

PECTED STARTUP, DO NOT USE BLOWER OR

WASHING MACHINE MOTORS OR ANY MOTOR

WITH AN AUTOMATIC RESET OVERLOAD PRO-

TECTOR.

CONNECTING TO POWER

SOURCE OUTLET

This machine must be grounded while _nuse to protect

the operator from electric shock.

Plug power cord into a 110-120V properly grounded

type outlet protected by a 15-amp. dual element time

delay or Circu=t breaker.

NOT ALL OUTLETS ARE PROPERLY GROUNDED.

IF YOU ARE NOT SURE THAT YOUR OUTLET, AS

PICTURED BELOW, IS PROPERLY GROUNDED,

HAVE IT CHECKED BY A OUAMFIED ELECTRICIAN.

WARNING: TO AVOID ELECTRIC SHOCK, DO NOT

TOUCH THE METAL PRONGS ON THE PLUG,

WHEN INSTALLING OR REMOVING THE PLUG TO

OR FROM THE OUTLET.

WARNING: FAILURE TO PROPERLY GROUND THIS

POWER TOOL CAN CAUSE ELECTRICUTION OR

SERIOUS SHOCK, PARTICULARLY WHEN USED IN

DAMP LOCATIONS, OR NEAR METAL PLUMBING.

IF SHOCKED, YOUR REACTION COULD CAUSE

YOUR HANDS TO HIT THE CUTTING TOOL.

IF POWER CORD IS WORN OR CUT, OR DAMAGED

IN ANY WAY, HAVE IT REPLACED IMMEDIATELY

TO AVOID SHOCK OR FIRE HAZARD.

3-PRONG'

PLUG

Thts power tool _s equipped w_lh a 3-conductor cord

and grounding type plug. approved by Underwriters'

Lalooratones and the Canadian Standards Assoclat=on

The ground conductor has a green lOCket and _Sat-

tached to the tOol housing at one end and to the ground

prong =nthe attachment plug at the other end.

This plug requires a mating 3-conductor grounded type

outlet as shown.

If the outlet you are planmng to use for th=s power tool

=sof the two prong type. DO NOT REMOVE OR ALTER

THE GROUNDING PRONG IN ANY MANNER. Use

an adapter as shown and always connect the grounding

lug to known ground.

It is recommended that you have a qualified electrlaan

replace the TWO prong outlet w=th a properly grounded

THREE prong outlet.

An adapter as shown below =savadable for connect=rig

plugs to 2-prong receptacles.

WARNING: THE GREEN GROUNDING LUG EX-

TENDING FROM THE ADAPTER MUST BE CON-

NECTED TO APERMANENT GROUND SUCH AS

TO A PROPERLY GROUNDED OUTLET BOX.

GROUNDING LUG

ADAPTER

GROUNDING

PRONG

ALWAYS USE A

PROPERLY GROUNDED

O UTLET

Your unit =sfor use on less than 120 volts. It has a plug

that looks like the one above.

NOTE: The adapier illustrated is for use only _f you

already have a properly grounded 2-prong receptacle.

Adapter =snot allowed m Canada by theCanadian Elec-

trical Code.

The use of any extension cord will cause some loss of

power To keep this to a minimum and to prevent over-

heating and motor burll-out, use the table below to

determine the minimum wire size (A W.G.) extension

cord. Use only 3 wire extension cords which have 3-

prong groundlr_g type plugs and 3-pole receptacles

which accept the tools plug.

Extens=on Cord Length Wire S=zeA.W.G.

0-25 Feet 16

26-50 Feet 14

51-100 Feet 12

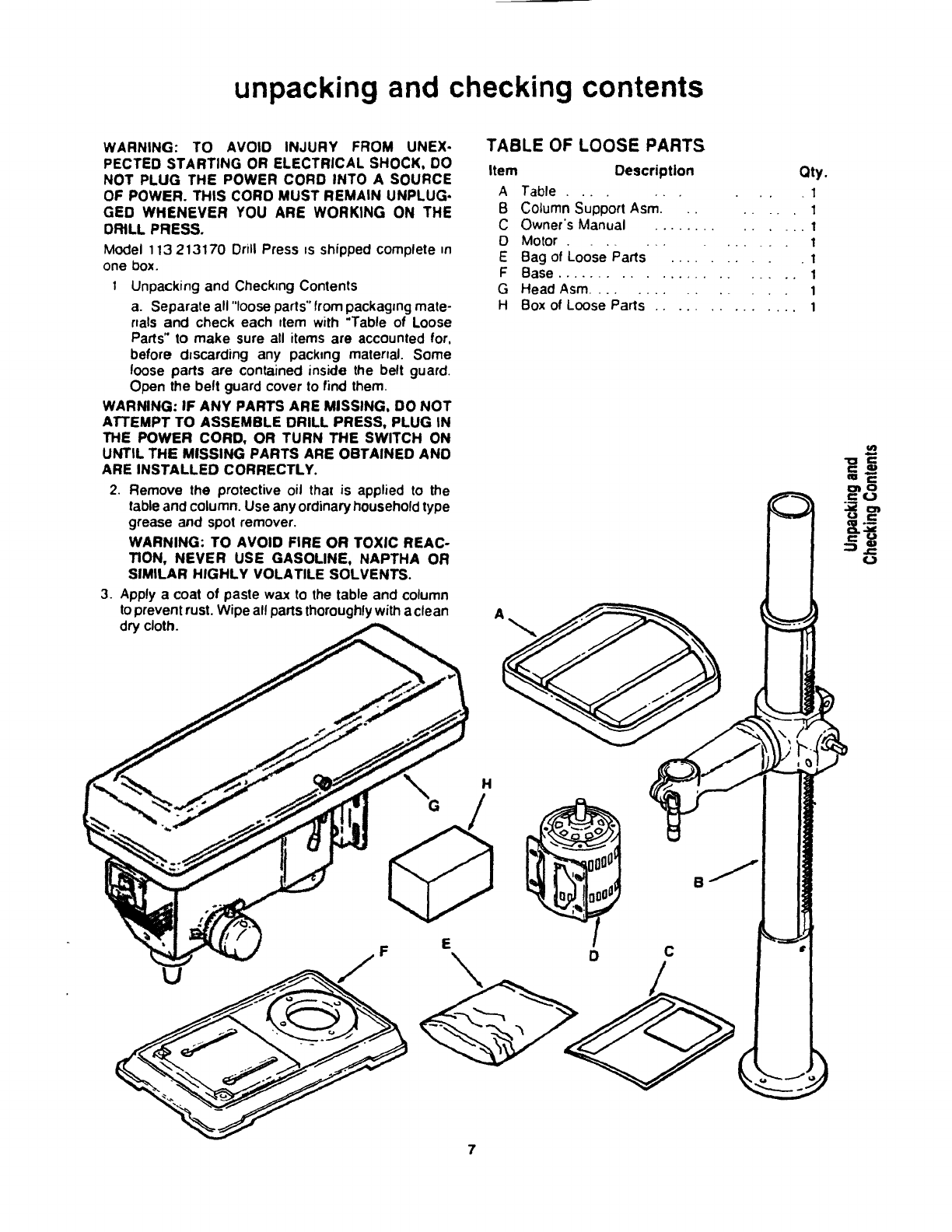

unpacking and checking contents

WARNING: TO AVOID INJURY FROM UNEX-

PECTED STARTING OR ELECTRICAL SHOCK, DO

NOT PLUG THE POWER CORD INTO A SOURCE

OF POWER. THIS CORD MUST REMAIN UNPLUG-

GED WHENEVER YOU ARE WORKING ON THE

DRILL PRESS.

Model 113 213170 Drill Press ,s shipped complete m

one box.

1Unpacking and Check=ng Contents

a. Separate all "loose pads" from packag=ng mate-

rials and check each Item with "Table of Loose

Parts" to make sure all items are accounted for,

before d=scarding any packing material. Some

loose parts are contained inside the belt guard.

Open the belt guard cover to find them.

WARNING: IF ANY PARTS ARE MISSING, DO NOT

ATTEMPT TO ASSEMBLE DRILL PRESS, PLUG IN

THE POWER CORD, OR TURN THE SWITCH ON

UNTIL THE MISSING PARTS ARE OBTAINED AND

ARE INSTALLED CORRECTLY.

2. Remove the protective oil thaE is applied to the

table and column. Use any ordinary household type

grease and spot remover.

WARNING: TO AVOID FIRE OR TOXIC REAC-

TION, NEVER USE GASOLINE, NAPTHA OR

SIMILAR HIGHLY VOLATILE SOLVENTS.

3. Apply a coat of paste wax to the table and column

to prevent rust. Wipe all parts thoroughly with a clean

dry cloth.

TABLE OF LOOSE PARTS

Item Description Qty.

ATable ......... 1

BColumn Support Asm ........ 1

C Owner's Manual .............. I

OMotor .............. I

E Bag of Loose Parts .......... I

F Base ....................... 1

GHead Asm ............... 1

H Box of Loose Parts .............. 1

FEDC

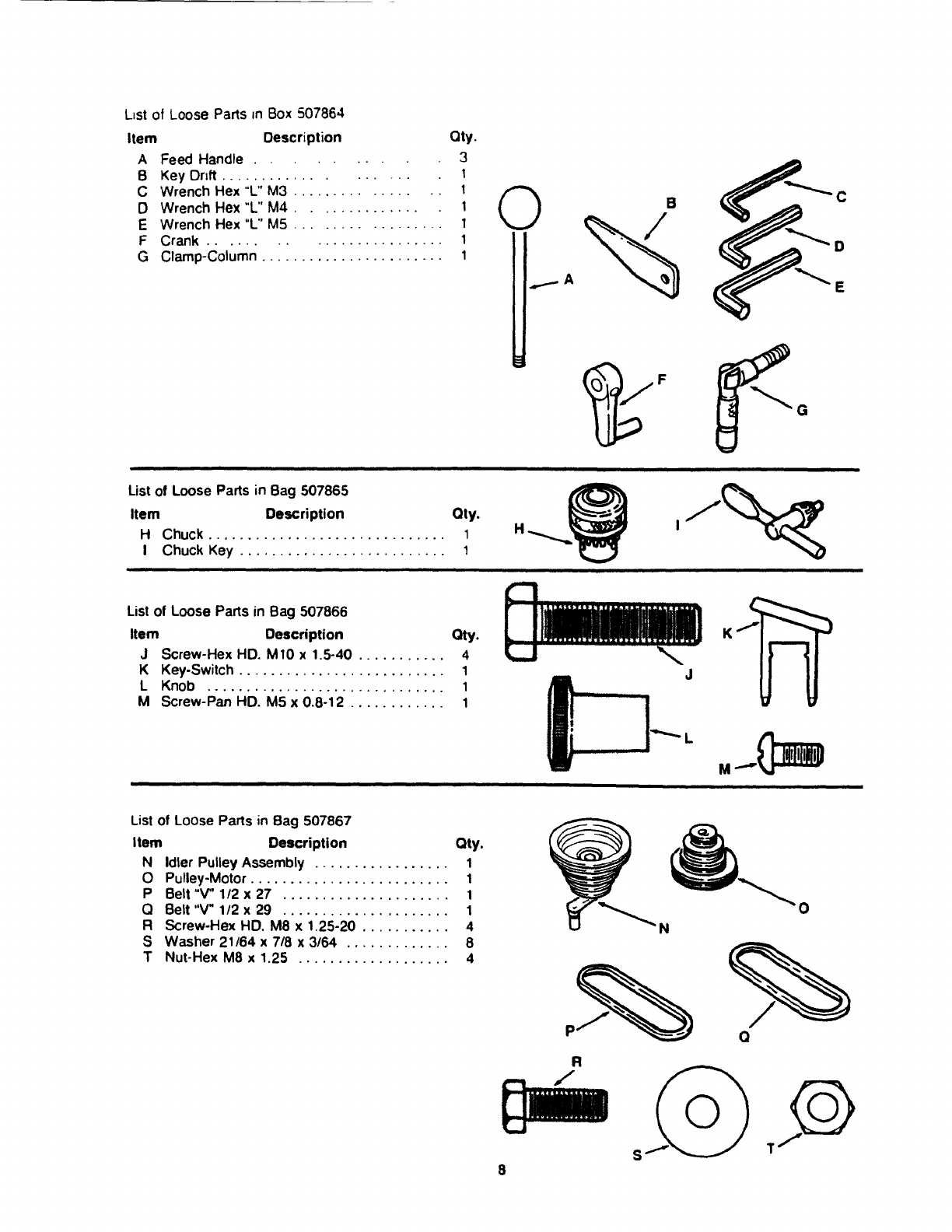

LLStof Loose Parts =nBox 507864

Item Description Qty.

A Feed Handle ........ 3

B Key Drift ................... t

C Wrench Hex "L" M3 ................ t

D Wrench Hex "L" M4 ............... 1

E Wrench Hex"L" M5 ................. 1

F Crank ........................ 1

G Clamp-Column ....................... 1

List of Loose Parts in Bag 507865

Item Description Qty.

H Chuck .............................. 1

I Chuck Key .......................... 1

inlll i i i i

LsoL.sPasa--

Item Description Qty. K

J Screw-Hex HD. M10 x 1.5-40 ........... 4

K Key-Switch .......................... 1

L Knob .............................. 1 L

M Screw-Pan HD. M5 x 0.8-12 ............ 1

M..._

i i

List of Loose Parts in Bag 507867

Item Description Qty.

N Idler Pulley Assembly ................. 1

O Pulley-Motor ......................... 1

P Belt "V" 112 x 27 ..................... 1

Q Belt "V" 112 x 29 ..................... 1

R Screw-Hex HD, M8 x 1.25-20 ........... 4

S Washer 21/64 x 7/8 x 3164 ............. 8

T Nut-Hex M8 x 1.25 ................... 4

>- TD

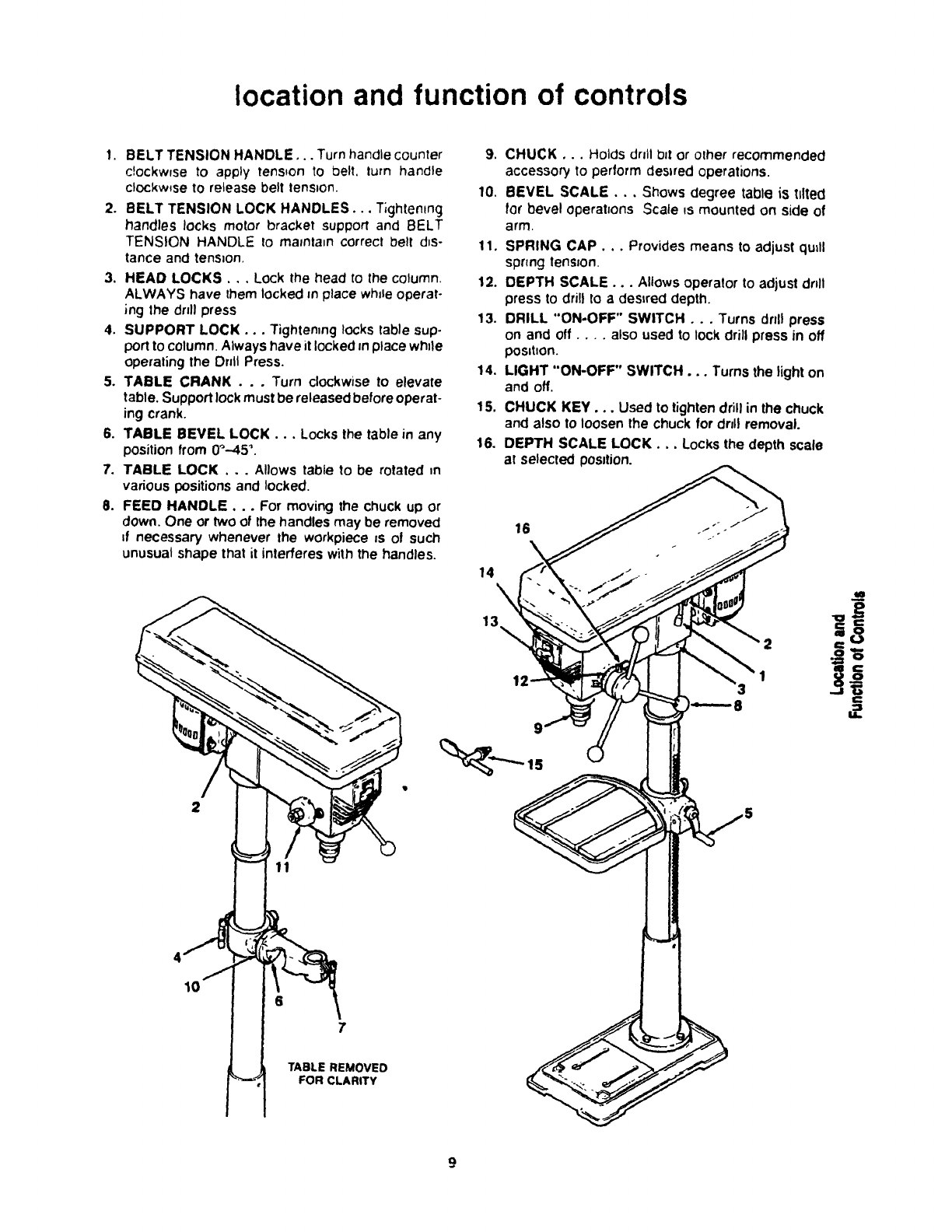

location and function of controls

1. BELT TENSION HANDLE... Turn handle counter

c!ockwfse to apply tens,on to belt. turn handle

clockw,se to release belt tension.

2. BELT TENSION LOCK HANDLES... Tightening

handles locks motor bracket support and BELT

TENSION HANDLE to maintain correct belt d_s-

tance and tens=on.

3. HEAD LOCKS... Lock the head to the column.

ALWAYS have them locked m place wh=leoperat-

ing the drill press

4. SUPPORT LOCK... Tightening locks table sup-

port to column. Always have it locked =nplace while

operating the DrHt Press.

5. TABLE CRANK . . .Turn clockwise to elevate

table. Support lock must be released before operat-

ing crank.

6. TABLE BEVEL LOCK... Locks the table in any

position from 0°.--45_.

7. TABLE LOCK ... Allows table to be rotated an

various positions and locked.

8. FEED HANDLE... For moving the chuck up or

down. One or two of the handles may be removed

=f necessary whenever the workpiece =s of such

unusual shape that it interferes with the handles.

TABLE REMOVED

FOR CLARITY

14.

15.

16.

9. CHUCK... Holds drdl b=tor other recommended

accesso_/to perform desired operations.

10. BEVEL SCALE... Shows degree table is tilted

for bevel operat=ons Scale _s mounted on side of

arm.

11. SPRING CAP... Provides means to adjust quill

sprmg tens=on.

12. DEPTH SCALE... Allows operator to adjust drill

press to drill to a desired depth.

13. DRILL "ON-OFF" SWITCH... Turns drill press

on and off .... also used to lock drill press in off

pos=t=on.

LIGHT "ON-OFF" SWITCH... Turns the light on

and off.

CHUCK KEY... Used to tighten drill in the chuck

and also to loosen the chuck for drill removal.

DEPTH SCALE LOCK... Locks the depth scale

at selected position.

€

..=

assembly

WARNING: FOR YOUR OWN SAFETY, NEVER CON*

NECT PLUG TO POWER SOURCE OUTLET UNTIL

ALL ASSEMBLY STEPS ARE COMPLETED.

TOOLS NEEDED *

I.._.l'"I" I"" ''.... "' ""___

15/16 _BOX END j ..... ,....... ,._.,..(_

WRENCH COMBINATION I"

MEDIUM 8-INCH ADJUSTABLE

SCREWDRIVER WRENCH

i i i i

FRAMING SQUARE MUST BE TRUE.

Check its accuracy as illustrated below.

DRAW LIGHT

LINE ON BOARD

ALONG THIS EDGE _,,

STRAIGHT EDGE OF

BOARD 3/4" THICK--

THIS EDGE MUST BE

PERFECTLY STRAIGHT

SHOULD BE NO GAP OR OVERLAP WHEN

SQUARE IS FLIPPED OVER IN DOTTED POSITION

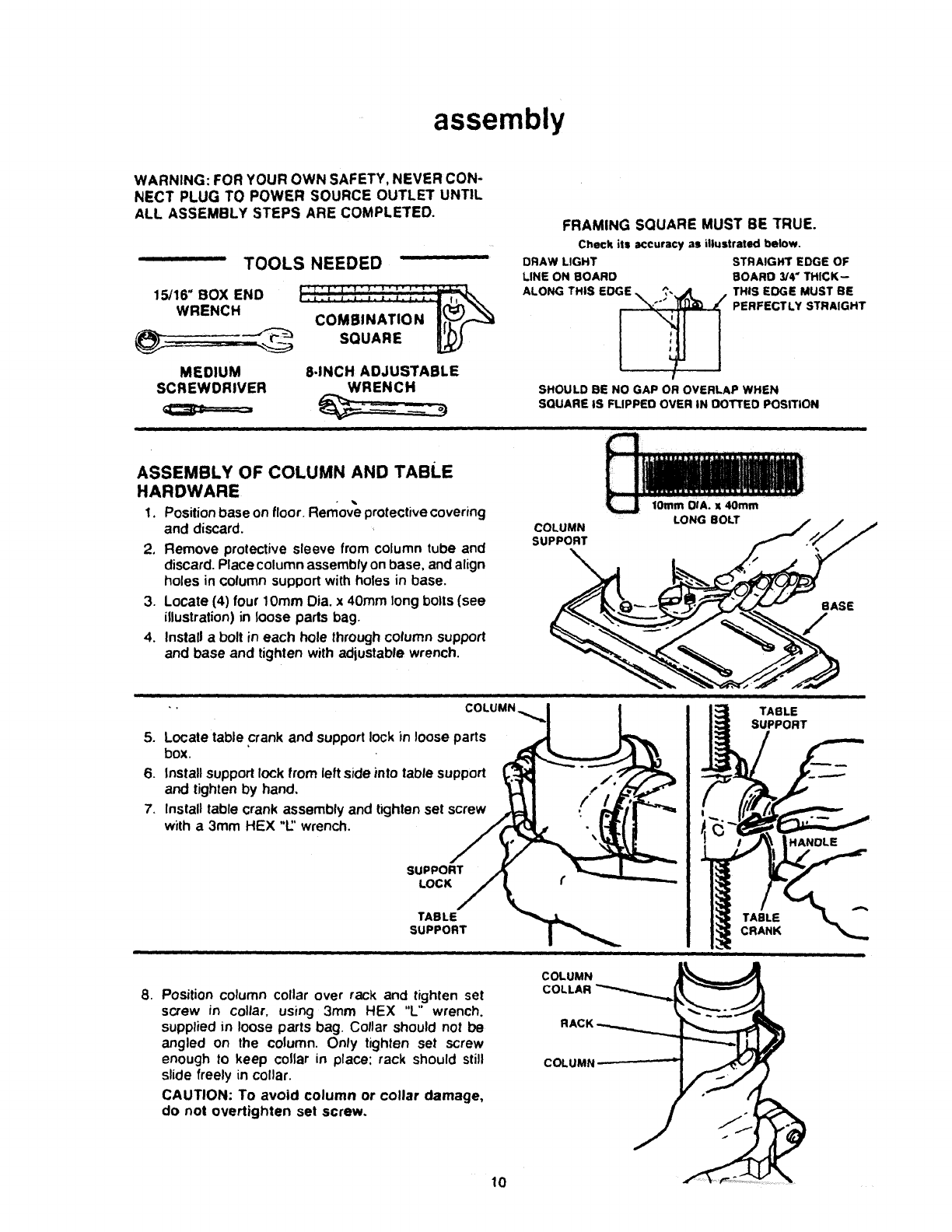

ASSEMBLY OF COLUMN AND TABLE

HARDWARE

1. Position base on floor. Remove protective covering

and discard.

2, Remove protective sleeve from column tube and

discard. Place column assembty on base, and align

holes in column support with holes in base.

3. Locate (4) four 10ram Dia. x 40ram long bolts (see

illustration) in loose parts bag.

4. Install abolt in each hole through column support

and base and tighten with adiustable wrench.

COLUMN

SUPPORT

10ram OIA. x40mm

LONG BOLT

BASE

Locate table crank and supportlockin loose parts

box.

Install support lock from left side into table support

and tighten by hand,

Install table crank assembly and tighten set screw

with a 3mm HEX "V' wrench.

SUPPORT

LOCK

TABLE

SUPPORT

Position column collar over rack and tighten set

screw in collar, using 3mm HEX "L" wrench,

supplied in loose parts bag. Collar should not be

angled on the column. Only tighten set screw

enough to keep collar in place; rack should still

slide freely in collar.

CAUTION: To avoid column or collar damage,

do not overtighten set screw,

COLUMN

COLLAR

COLUMN

TABLE

SUPPORT

TABLE

CRANK

HANDLE

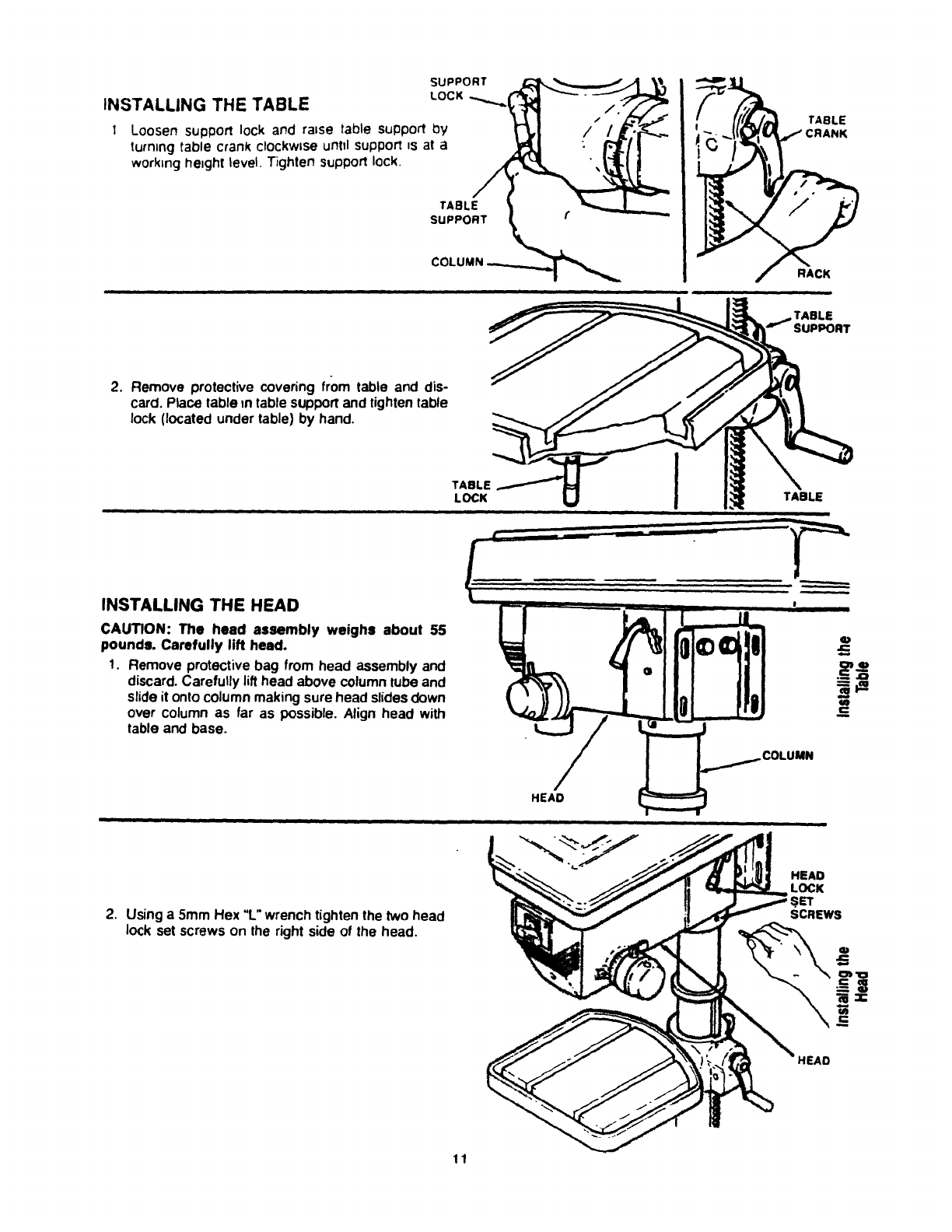

INSTALLING THE TABLE

!Loosen support lock and ra=se table support 10y

tumRngtable crank clockwise unbl support =s at a

working height level. Tighten support lock.

TABLE

SUPPORT f

TABLE

RACK

TABLE

SUPPORT

,Remove protective covering from table and dis-

card. Place table in table support and tighten table

lock (located under table) by hand.

TABLE

LOCK

ii !TABLE

INSTALLING THE HEAD

CAUTION: The head assembly weighs about 55

pounds. Carefully lift head.

1. Remove protective bag from head assembly and

discard. Carefully lift head above column tube and

slide it onto column making sure head slides down

over column as far as possible. Align head with

table and base.

HEAD

COLUMN

HEAD

LOCK

2. Usinga 5mm Hex "L"wrenchtightenthe two head

lockset screws on the rightside of the head.

SCREWS

_'r

__=

1. Locate four (4) 8mm,t, DJa x 20ram long hex head _f,f . : ._S_//UOTOR---

bolts, eight (8)flat _vashers, and four (4) hex nuts /" _, z_.,,_'//

among,oose a.s. ...->./ s'

2. Install hex head bolts through motor bracket on ./ ._/ ._/____ HI_X

head. -_ .!._.y ..___-_o_.._'_...'_| NUT

3. Place motor in position so motor base slotsline up --_" _'] ___fJ /

with motor bracket slots. Install flat washers and __r t,.__ I",l,,"_-J}_-',_'_nnll_1 I

hex nuts as illustrated. (Do not tighten) _I I_[_i_ Uuv""--,__1_ -

4. Motorshaftshouldbeascloseaspossibletocenter :_J'/ '_ I I

of round opening in belt guard. _J I

_" _ FLAT .

Ilmm DIA. ,, 2DramLONGBOLT HEXNUT "_ FLATWASHER ,

IMOTOR

PULLEY

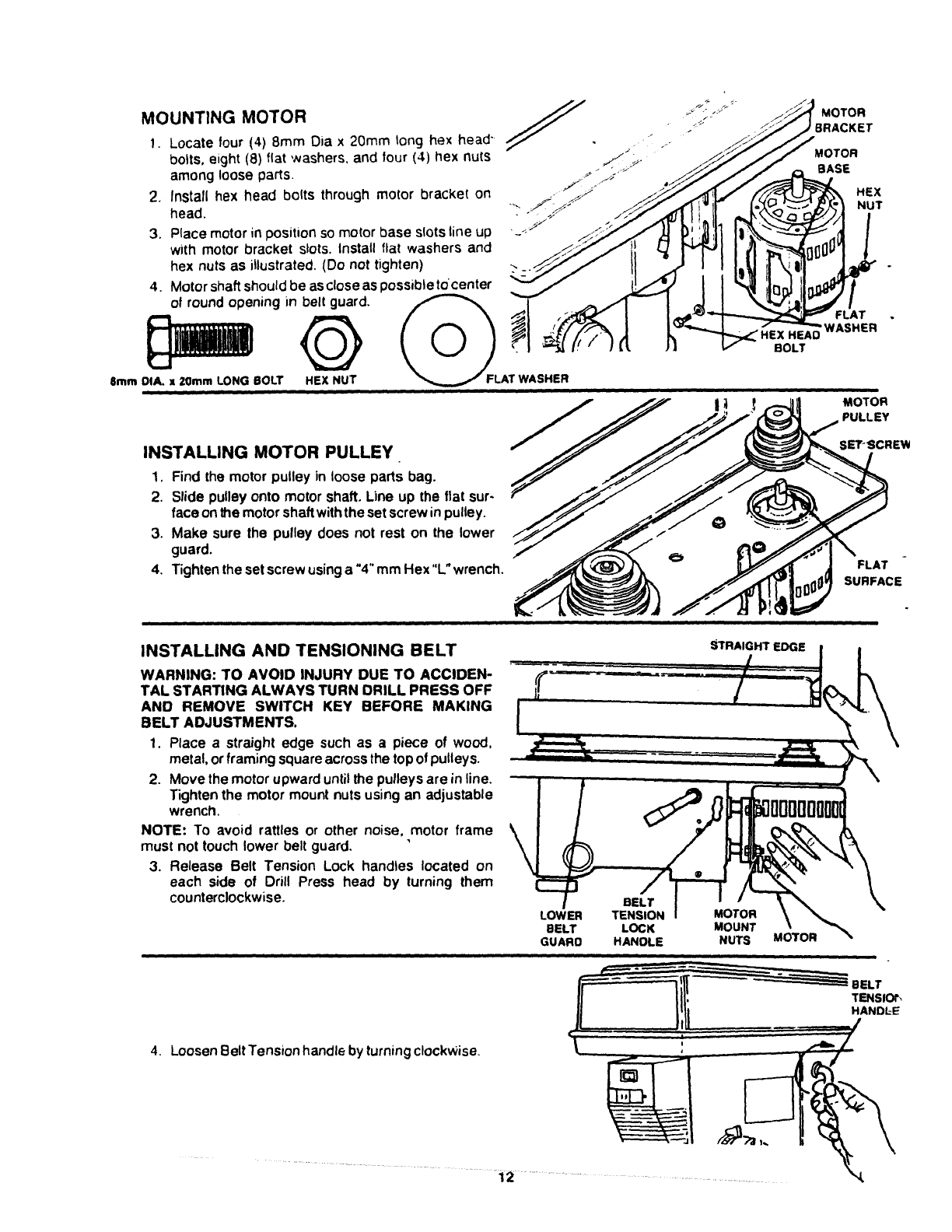

INSTALLING MOTOR PULLEY

1. Find the motor pulley in loose parts bag.

2. Slide pulley onto motor shaft. Line up the flat sur-

face on the motor shaft with the set screw in pulley.

3. Make sure the pulley does not rest on the lower

guard.

4. Tighten the set screw using a "4" mm Hex"L"wrench. FLAT

SURFACE

INSTALLING AND TENSIONING BELT

WARNING: TO AVOID INJURY DUE TO ACCIDEN-

TAL STARTING ALWAYS TURN DRILL PRESS OFF

AND REMOVE SWITCH KEY BEFORE MAKING

BELT ADJUSTMENTS.

1. Place a straight edge such as a piece of wood,

metal, or framing square across the top of pulleys.

2. Move the motor upward until the pulleys are in line.

Tighten the motor mount nuts using an adjustable

wrench.

NOTE: To avoid rattles or other noise, motor frame

must not touch lower belt guard.

3. Release Belt Tension Lock handles located on

each side of Drill Press head by turning them

counterclockwise.

STRAIGHT EDGE

BELT

LOWER TENSION MOTOR

BELT LOCK MOUNT

GUARD HANDLE NUTS MOTOR

BELT

TENSIOr_

HANDEE

4. Loosen Belt Tension handle by turning clockwise.

5Locate center pulley assembly tn !oose parts bag

and place inproper hole

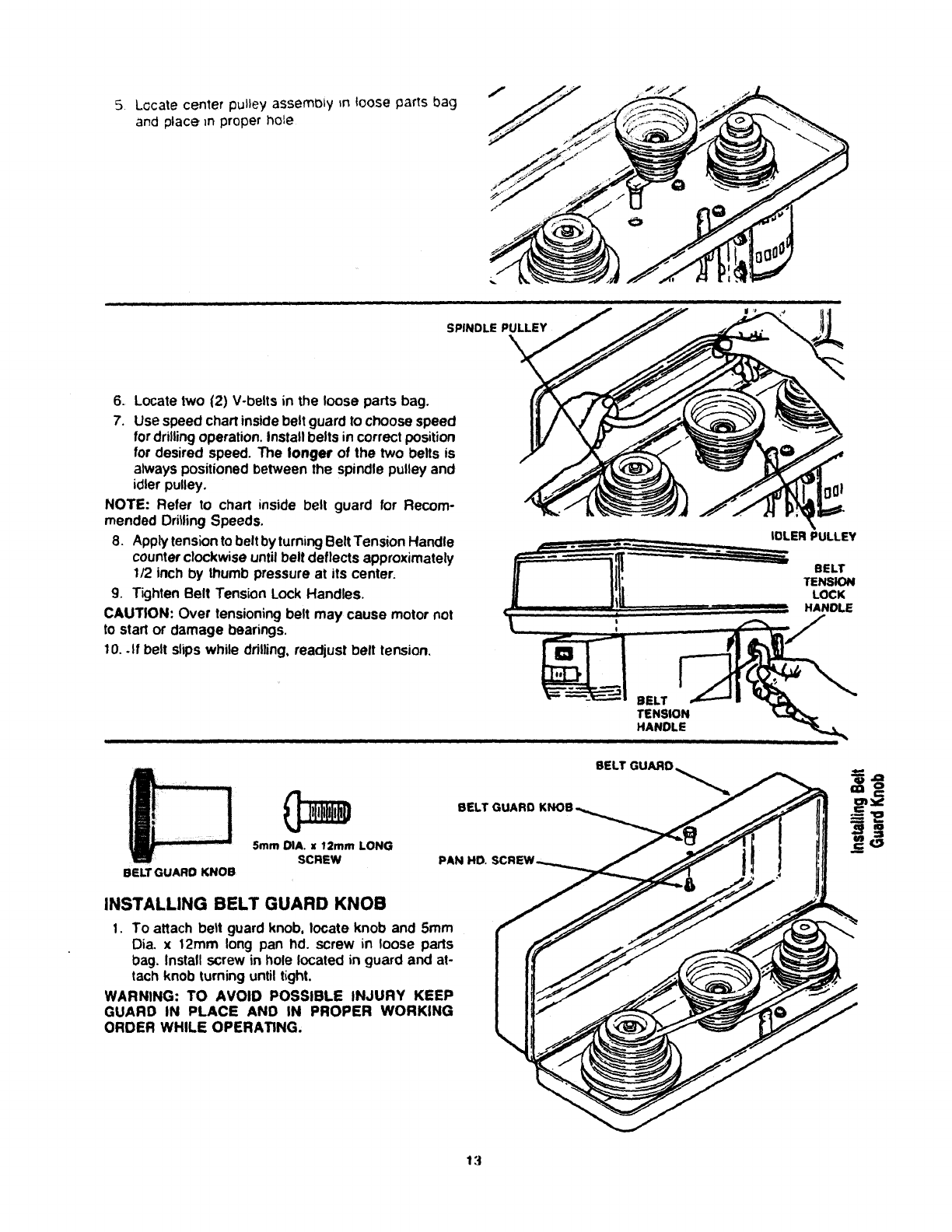

SPINDLE PULLEY

6. Locate two (2) V-belts in the loose parts bag.

7. Use speed chart inside belt guard to Choose speed

for drilling operation. Install belts in correct position

for desired speed. The longer of the two belts is

always positioned between the spindle pulley and

idler pulley,

NOTE: Refer to chart inside belt guard for Recom-

mended Drilling Speeds.

8. Apply tension to belt by turning Belt Tension Handle

counter clockwise until belt deflects approximately

1/2 inch by thumb pressure at its center.

9. Tighten Belt Tension Lock Handles.

CAUTION: Over tensioning belt may cause motor not

to start or damage bearings.

10..If belt slips while drilling, readjust belt tension,

IDLER PULLEY

BELT

TENSION

LOCK

HANDLE

TENSION

HANDLE

BELT GUARD KNOB

Smm DIA. x 12ram LONG

SCREW

BELT GUARD

PAN HD.

INSTALLING BELT GUARD KNOB

1. To attach belt guard knob, locate knob and 5mm

Dia. x12mm long pan hd. screw in loose pads

bag, Install screw in hole located in guard and at-

tach knob turning until tight.

WARNING: TO AVOID POSSIBLE INJURY KEEP

GUARD IN PLACE AND IN PROPER WORKING

ORDER WHILE OPERATING.

BELT GUARD,

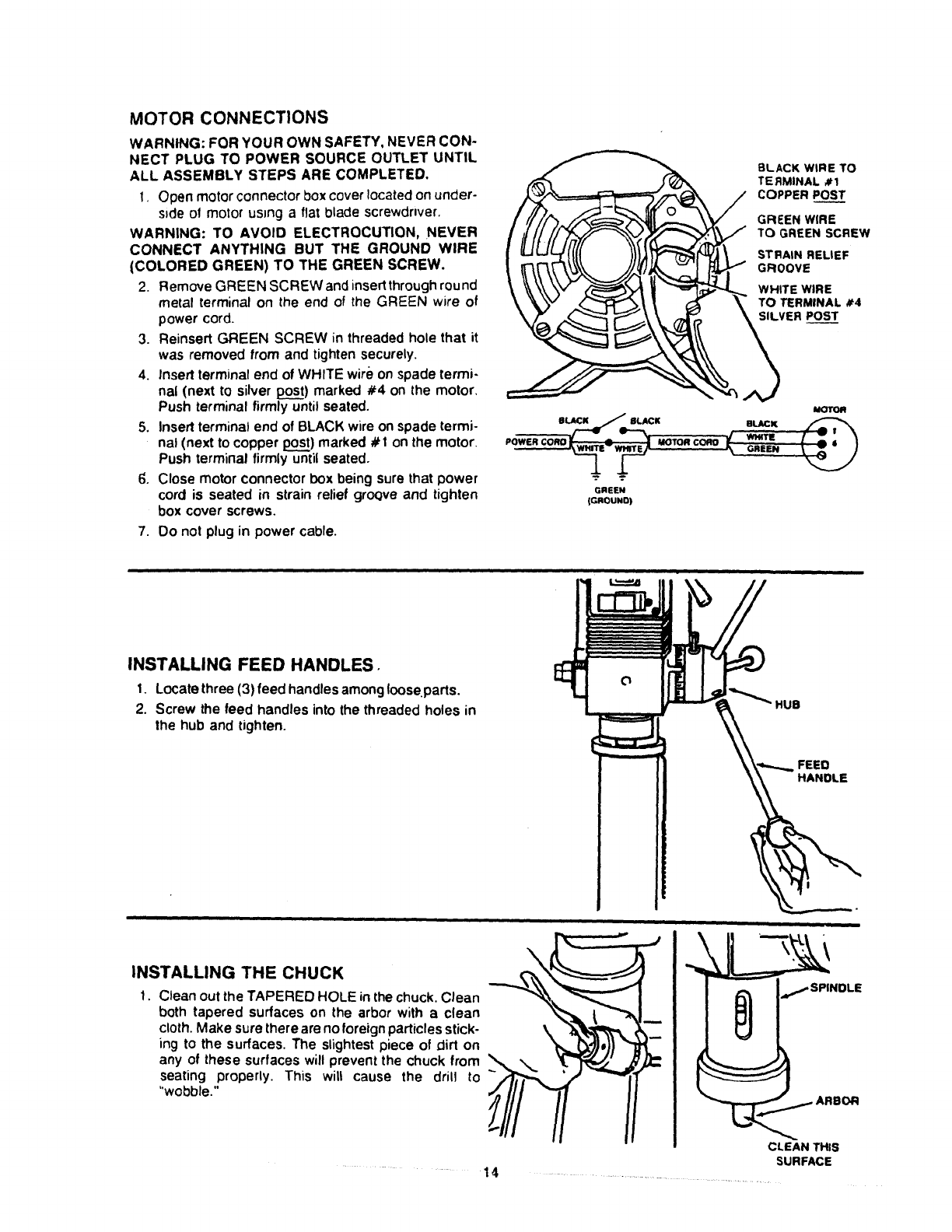

MOTOR CONNECTIONS

WARNING: FOR YOUR OWN SAFETY, NEVER CON-

NECT PLUG TO POWER SOURCE OUTLET UNTIL

ALL ASSEMBLY STEPS ARE COMPLETED,

t. Open motor connector box cover located on under-

side of motor using a flat blade screwdriver.

WARNING: TO AVOID ELECTROCUTION, NEVER

CONNECT ANYTHING BUT THE GROUND WIRE

{COLORED GREEN) TO THE GREEN SCREW.

2. Remove GREEN SCREWand insertthrough round

metal terminal on the end of the GREEN wire of

power cord.

3. Reinsert GREEN SCREW in threaded hole that it

was removed from and tighten securely.

4. Insert terminal end of WHITE wire on spade termi-

nal (next to silver post) marked #4 on the motor,

Push terminal firmly until seated.

5. Insert terminal end of BLACK wire on spade termi-

nal (next to copper post) marked #1 on the motor.

Push terminal firmly until seated,

6, Close motor connector box being sure that power

cord is seated in strain relief groove and tighten

box cover screws.

7. Do not plug in power cable.

BLACK WIRE TO

TERMINAL #1

COPPER POST

GREEN WIRE

TO GREEN SCREW

STRAIN RELIEF

GROOVE

WHITE WIRE

TO TERMINAL #4

SILVER POST

laO_0R

GREEN

IGROUNO)

INSTALLING FEED HANDLES.

1. Locate three (3) feed handles among loose.parts.

2. Screw the feed handles into the threaded holes in

the hub and tighten.

HUB

FEED

HANOLE

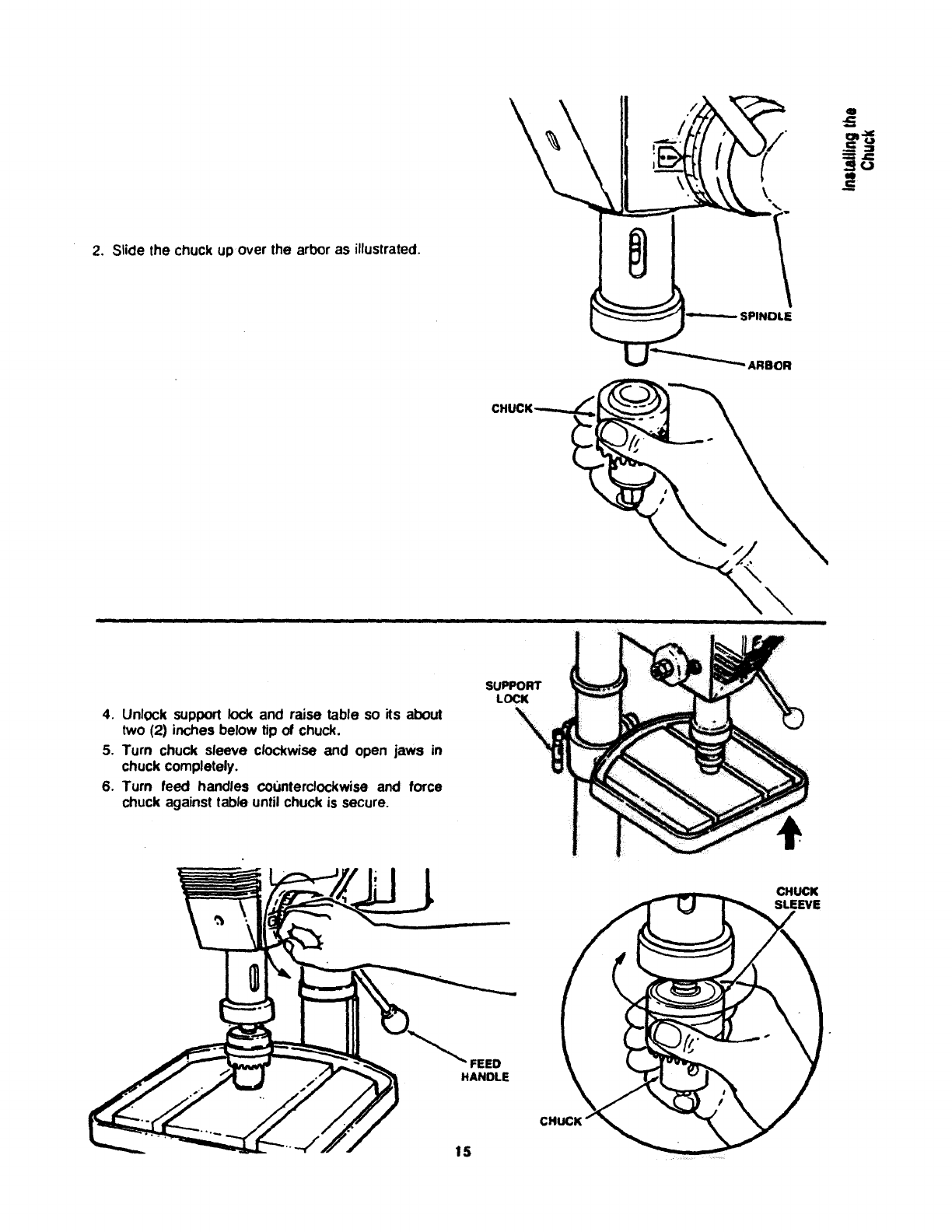

INSTALLING THE CHUCK

1. Clean out the TAPERED HOLE in the chuck. Clean

both tapered surfaces on the arbor with a clean

cloth. Make sure there are no foreign particles stick-

ing to the surfaces. The slightest piece of dirt on

any of these surfaces will prevent the chuck from

seating properly. This will cause the drill to

"wobble."

NOLE

_j ARBOR

CLEAN THIS

SURFACE

2. Slide the chuck up over the arbor as illustrated.

"="---- SPINOLE

ARBOR

i i

4. Unlock support lock and raise table so its about

two (2) inches below tipof chuck.

5. Turn chuck sleeve clockwise and open jaws in

chuckcompletely.

6. Turn feed handles cotanterclockwiseand force

chuck against table untilchuck is secure;

SUPPORT

LOCK

CHUCK

SLEEVE

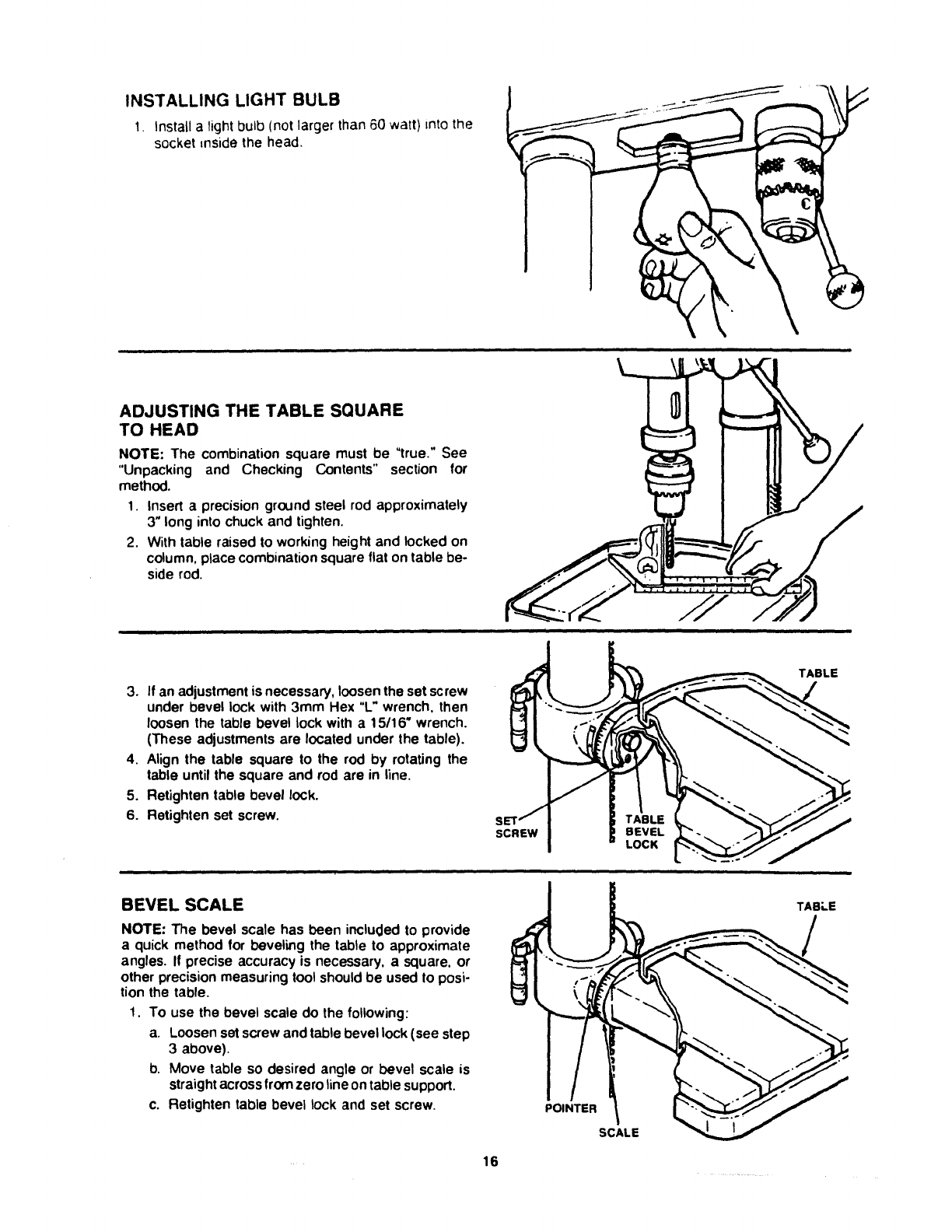

INSTALLING LIGHT BULB

1. Install a light bulb (not larger than 60 watt) into the

socket inside the head.

ADJUSTING THE TABLE SQUARE

TO HEAD

NOTE: The combination square must be "true." See

"Unpacking and Checking Contents" section for

method.

1. Insert a precision ground steel rod approximately

3" long into chuck and tighten.

2. With table raised to working height and locked on

column, place combination square flat on table be-

side rod.

3. If an adjustment is necessary, loosen the set screw

under bevel lock with 3ram Hex "L" wrench, then

loosen the table bevel lock with a 15116" wrench.

(These adjustments are located under the table).

4. Align the table square to the rod by rotating the

table until the square and rod are in line.

5. Retighten table bevel lock.

6. Retighten set screw.

SCREW BEVEL

LOCK

BEVEL SCALE

NOTE: The bevel scale has been included to provide

a quick method for beveling the table to approximate

angles. If precise accuracy is necessary, a square, or

other precision measuring tool should be used to posi-

tion the table.

1, To use the bevel scale do the following:

a. Loosensetscrewand tablebevel lock(see step

3 above).

b. Move table so desired angle or bevel scale is

straightacrossfrom zerolineontablesupport.

c. Retighten table bevel lock and set screw. POINTER

SCALE

TABLE

getting to know your drill press

FEED SPRING

ADJUSTMENT FEED

SPRING

CAP

SWITCH

BELT GUARD 4" .m

==,._,

BELT TENSION

LOCK HANDLE

SUPPORT LOCK

CHUCK

ARM

BEVEL LOCK

(UNDER TABLE)

DEPTH

SCALE LOCK

BEVEL SCALE lS

21 DEPTH

TABLE LOCK INDICATOR

QUILL AND SPINDLE ASSEMBLY

INSIDE OF DRILL PRESS

SPLINES J_'_ SPINDLE

(GROOVES)

RACK .......___GE KEY

(TEETH)

24 _._........_ ARBOR

CHUCK KEY H

DEPTH SCALE

TABLE

COLUMN

BELT TENS_N

LOCK HANDLE

BELT TENSION

HANDLE

HEAD LOCK

FEED HANDLE

COLUMN COLLAR

TABLE SUPPORT

TABLE CRANK

RACK

BASE

This Drill Press has 16 speeds as hsted Cerow

200RPM 640RPM 1820RPM

290RPM 720RPM 2380RPM

350RPM 800RPM 2540RPM

430RPM 870RPM 3630RPM

500RPM 1440RPM

580RPM 1630RPM

See _nside of belt guard for specific placement of ioelts

on pulleys

SPINDLE SPEEDS IN R.P.M.

, , , ,, , ,,,, i

200

500

8O0

290

1820

580

870

2380

350

640

1440

430

720'

1630

3630

1. BELT GUARD ASSEMBLY .. . Covers pulleys

and belt during operation of drill press.

2. BELT TENSION LOCK HANDLES... Tightening

handles locks motor bracket support and BELT

TENSION HANDLE to maintain correct belt dis-

lance and tension.

3. BELT TENSION HANDLE... Turn handle counter

clockwise to apply tension to belt, turn handle

clockwise to release belt tension.

4. HEAD LOCKS... Lock the head to the column.

ALWAYS have them locked in place while operat-

ing the drill press.

5. "FEED HANDLE... For moving the chuck up or

down, One or two of the handles may be removed

if necessary whenever the workpiece is of such

unusual shape that it interferes with. the handles.

6. COLUMN COLLAR... Holds the rack to the col-

umn. Rack remains movable in collar to permit

table support movements,

7. TABLE SUPPORT... Rides on column to support

arm and table.

8. TABLE CRANK ...Turn clockwise to elevate

table. Support lock must be released before operat-

ing crank.

9. RACK... Combines with gear mechanism to pro-

vide easy elevation of table by hand operated table

crank.

10. BASE... Supports Drill Press. For additional sta-

bility, holes are provided in base to bolt Drill Press

to floor. (.See "Additional Safety Instructions for Drill

Presses,")

11, COLUMN SUPPORT... Supports column, guides

rack. and provides mounting holes for column to

base.

12. COLUMN... Connects head. table, and base on

a one-piece tube for easy alignment and move-

ment.

13. TABLE... Provides working surface to support

workpiece

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

DEPTH SCALE... Shows depth of hole being

drilled.

DEPTH SCALE INDICATOR... Indicates drilling

depth selected on depth scale.

DEPTH SCALE LOCK... Locks the depth scale

to selected depth.

SPRING CAP... Provides means to adjust quill

spring tension.

CHUCK... Holds drill bit or other recommended

accessory to perform desired operations.

ARM... Extends beyond table support for mount-

ing and aligning the table.

TABLE BEVEL LOCK... Locks the table in any

position from 0"-45 _.

TABLE LOCK... Table can be rotated in various

positions and locked.

BEVEL SCALE... Shows degree table is tilted

for bevel operations. Scale is mounted on side of

arm.

SUPPORT LOCK... Tightening locks table sup-

port to column. Always have it locked in place while

operating the Drill Press.

CHUCK KEY... It is a self-ejecting chuck key

which will "pop" out of the chuck when you let go

of it. This action is designed to help prevent throw-

ing of the chuck key from the chuck when power

is turned "ON". Do not use any other key as a

substitute, order a new one if damaged of lost.

BELT TENSION... Refer to section"Assembly-In-

stalling and Tensioning Belt"

DRILLING SPEED... Can be changed by placing

the belt in any of the STEPS (grooves) in the pul-

leys. See Spindle Speed inside belt guard.

To determine the approximate drilling speed, refer

to the table inside the belt guard.

18 .....

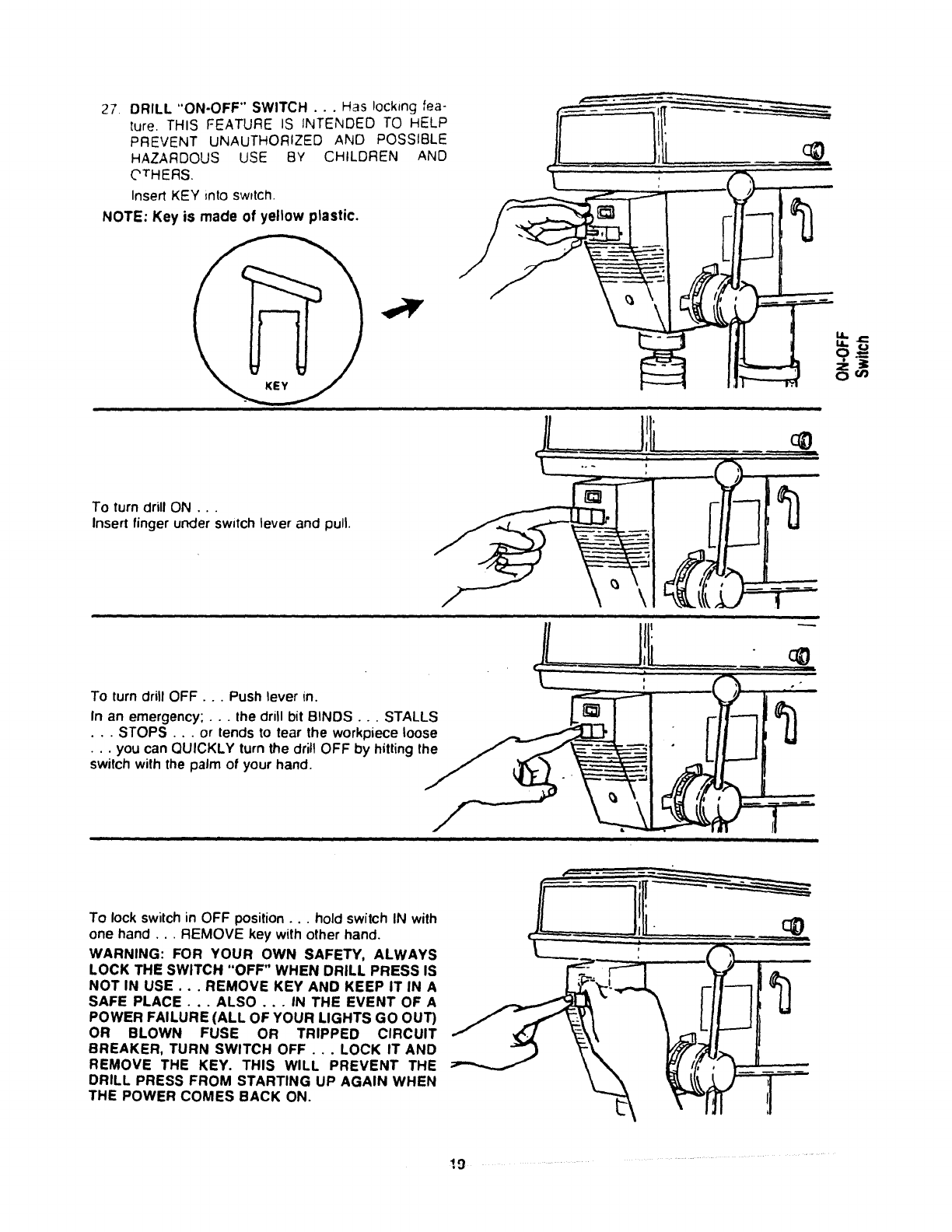

27 DRILL "ON-OFF" SWITCH ... Has locking fea-

ture. THIS FEATURE IS INTENDED TO HELP

PREVENT UNAUTHORIZED AND POSSIBLE

HAZARDOUS USE BY CHILDREN AND

OTHERS,

Insert KEY into swftch.

NOTE: Key is made of yellow plastic.

To turn drill ON ...

Insert finger under switch lever and pull.

z 3=

Dee

To turn drill OFF... Push lever in,

In an emergency;.., the drill bit BINDS... STALLS

•..STOPS ... or tends to tear the workpiece loose

• .. you can QUICKLY turn the drill OFF by hitting the

switch with the palm of your hand.

To lock switch in OFF position.., hold switch IN with

one hand,.. REMOVE key with other hand.

WARNING: FOR YOUR OWN SAFETY, ALWAYS

LOCK THE SWITCH "OFF" WHEN DRILL PRESS IS

NOT IN USE... REMOVE KEY AND KEEP IT IN A

SAFE PLACE... ALSO . . .IN THE EVENT OF A

POWER FAILURE (ALL OF YOUR LIGHTS GO OUT)

OR BLOWN FUSE OR TRIPPED CIRCUIT

BREAKER, TURN SWITCH OFF ... LOCK IT AND

REMOVE THE KEY. THIS WILL PREVENT THE

DRILL PRESS FROM STARTING UP AGAIN WHEN

THE POWER COMES BACK ON.

DRILLING TO A SPECIFIC DEPTH

To drill a BLIND hole (no! all the way lhrough) to a

given depth, proceed as follows.

1. Mark the deplh of lhe hole on the side of lhe work-

piece.

2. Loosen the depth scale lock.

3. With the switch OFF, bring the drill down until the

TiP or lips of the drill are even with the Mark.

4. Turn the depth scale counterclockwise untilit stops

moving.

5. Tighten the depth scale lock.

6. The drill will now be stopped at this depth until the

depth scale is readjusted.

DEPTH

SCALE LOCK

DEPTH

SCALE

MARK

ANOTHER WAY -- DEPTH SCALE

1. With the switch OFF, loosen the depth scale lock.

-2. Turn the depth scale clockwise until the depth scale

indicator points to the desired drilling depth on the

depth scale.

3. Tighten the depth scale lock:

4. The chuck or drill will now be stopped after traveling

downward the distance selected on the depth

scale.

LOCKING CHUCK DESIRED DEPTH

1. With the switch off--loosen the depth scale lock.

2. Turn the feed handles until the chuck is at the

desired depth. Hold feed handles at this position.

DEPTH

SCALE

DEPTH

POINTER

TIP TOUCHES

WORKPIECE

0.....................

3Turn the depth scale clockwise until it stops.

4, Tighten the depth scale lock,

5. The chuck will now be held at this depth when the

feed handles are released,

OEPTH SCALE

LOCK

SCALE

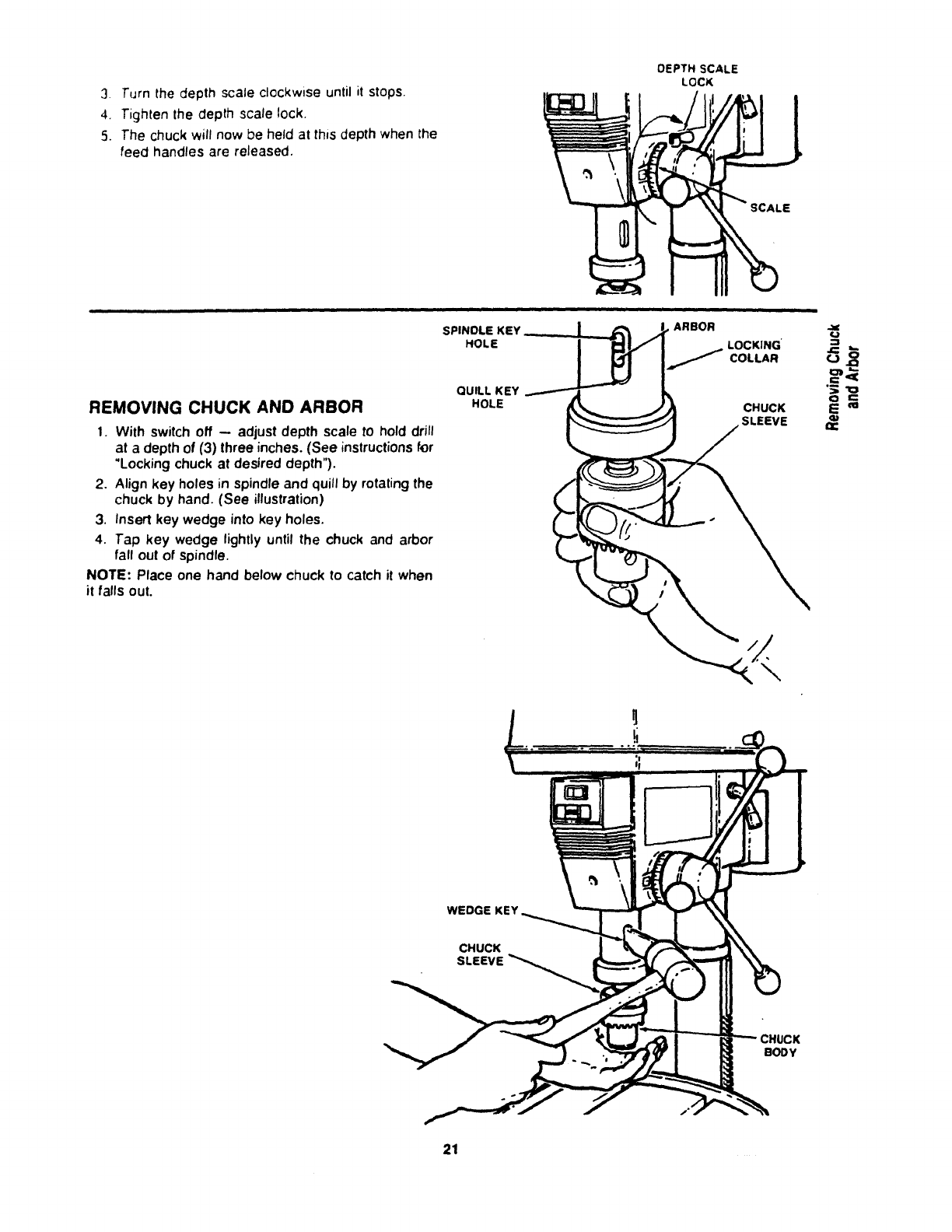

REMOVING CHUCK AND ARBOR

1. With switch off -- adjust depth scale to hold drill

at a depth of (3) three inches. (See instructions for

"Locking chuck at desired depth").

2. Align key holes in spindle and quill by rotating the

chuck by hand. (See illustration)

3. Insert key wedge into key holes.

4. Tap key wedge lightly until the chuck and arbor

fall out of spindle.

NOTE: Place one hand below chuck to catch it when

it falls out.

SPINDLE KEY

HOLE

QUILL KEY

HOLE

1 ii

ARBOR

LOCKING

COLLAR

CHUCK

SLEEVE

"._ "o

O r-

WEDGE KEY

CHUCK

SLEEVE

BODY

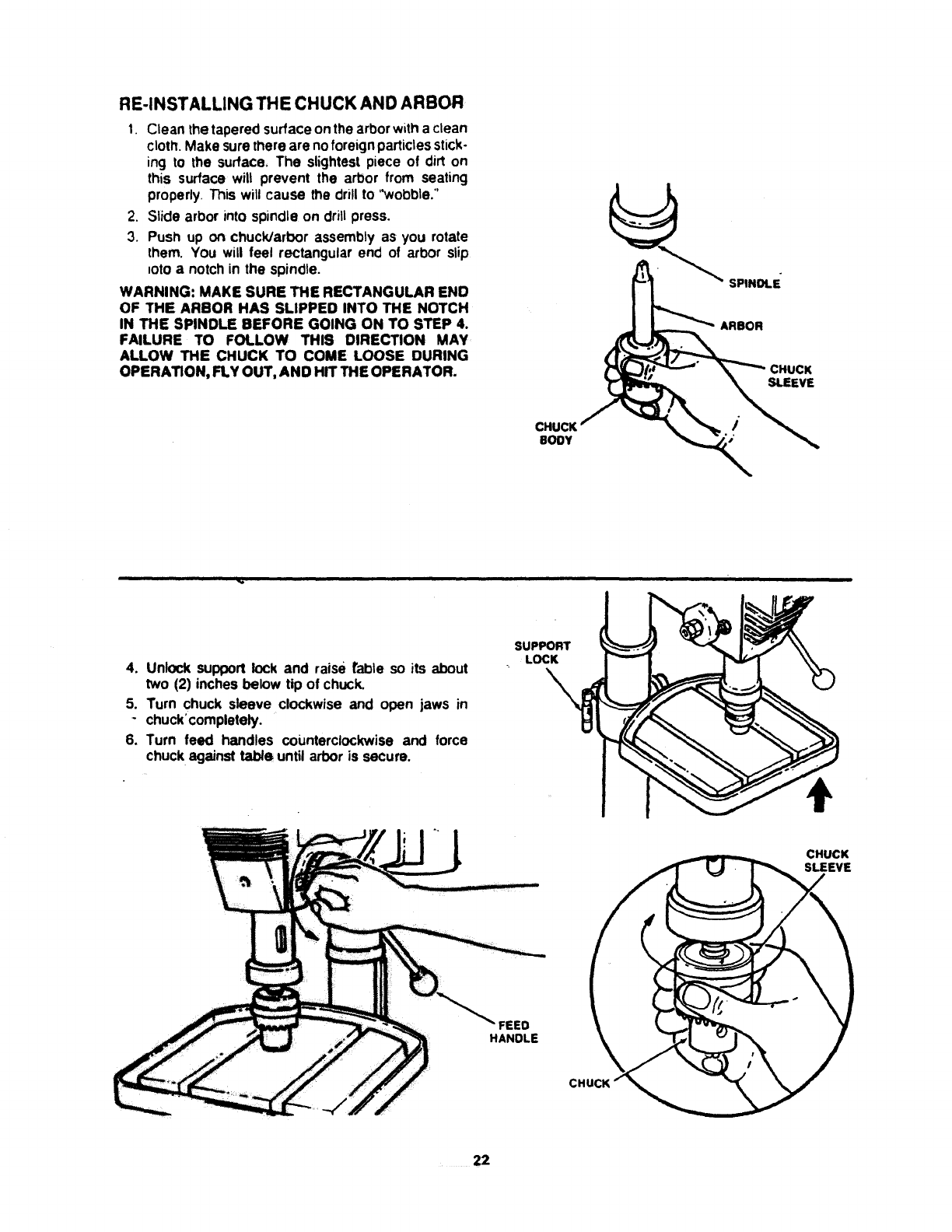

RE-INSTALLING THE CHUCK AND ARBOR

t. Clean thetapered surfaceonthearborwitha clean

cloth.Make surethereare noforeignparticlesstick-

ing to the surface. The slightestpiece of dirt on

this surface will prevent the arbor from seating

properly.This will cause the drillto "wobble."

2. Slide arbor into spindle on drillpress.

3. Push up on chuck/arbor assembly as you rotate

them. You will feel rectangular end of arbor slip

_otoa notch in the spindle.

WARNING: MAKE SURE THE RECTANGULAR END

OF THE ARBOR HAS SLIPPED INTO THE NOTCH

IN THE SPINDLE BEFORE GOING ON TO STEP 4.

FAILURE TO FOLLOW THIS DIRECTION MAY

ALLOW THE CHUCK TO COME LOOSE DURING

OPERATION, FLY OUT, AND HIT THE OPERATOR.

SPINDLE

ARBOR

CHUCK

SLEEVE

CHUCK

eDDY

4. Unlock support lock and raise fable so its about

two (2) inchesbelow tip of chuck.

5. Turn chuck sleeve clockwise and open jaws in

* chuck'completely.

6. Turn feed handles counterclockwise and force

chuckagainst table untilarbor is secure.

SUPPORT

LOCK

FEED

HANDLE

CHUCK

SLEEVE

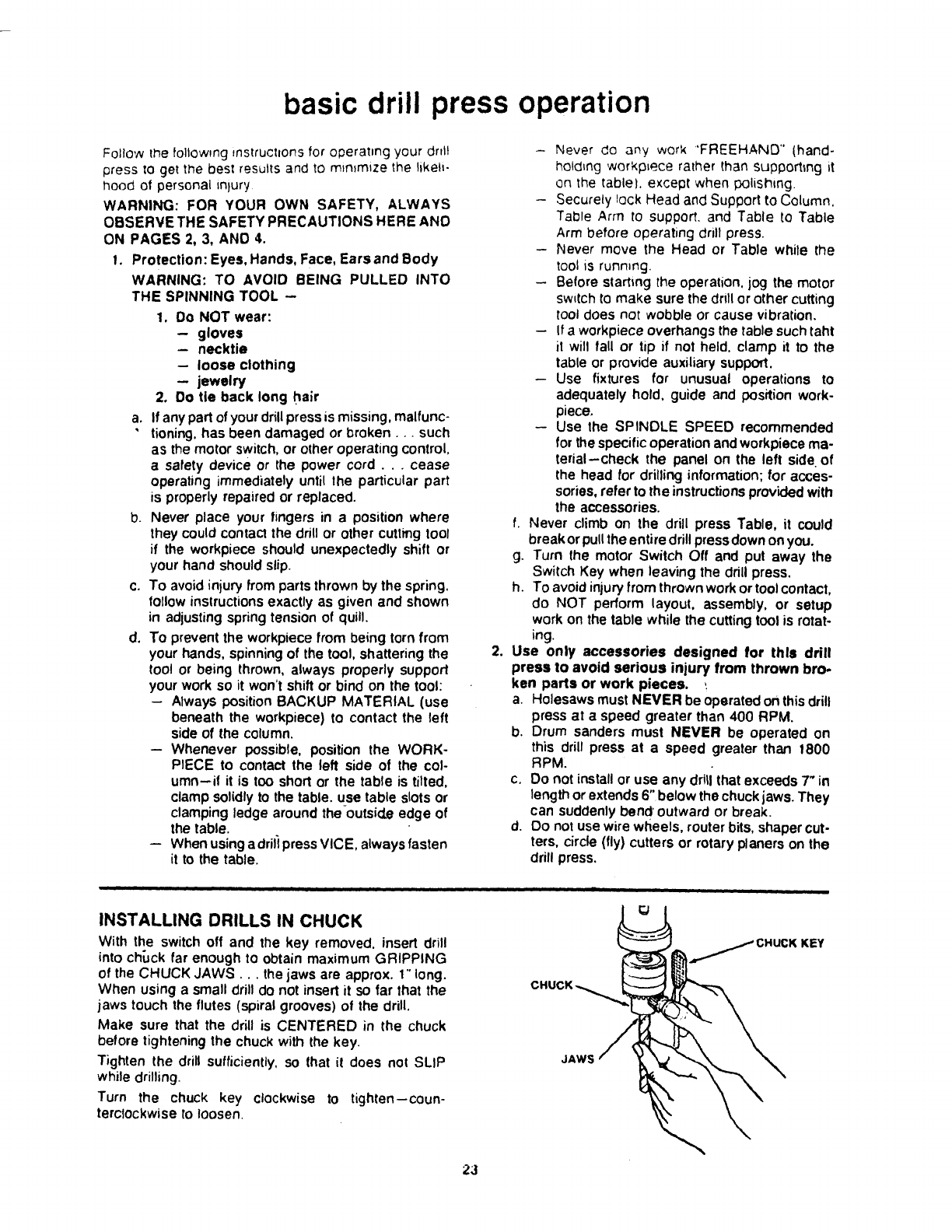

basic drill press operation

Follow the following mstructlons for operating your drdl

press tO get the best results and to m_mmize the likeli-

hood of personal inlury

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE SAFETY PRECAUTIONS HERE AND

ON PAGES 2, 3, AND 4.

f. Protection: Eyes, Hands, Face, Ears and Body

WARNING: TO AVOID BEING PULLED INTO

THE SPINNING TOOL --

1, Do NOT wear:

- gloves

- necktie

- loose clothing

-- jewelry

2, Do tie back long hair

If any part of your drill press is missing, malfunc-

tioning, has been damaged or broken.., such

as the motor switch, or other operating control,

asafety device or the power cord.., cease

operating immediately until the particular part

is properly repaired or replaced.

Never place your fingers in a position where

they could contact the drill or other cutting tool

if the workpiece should unexpectedly shift or

your hand should slip.

To avoid injury from parts thrown by the spring,

follow instructions exactly as given and shown

in adjusting spring tension of quill.

To prevent the workpiece from being torn from

your hands, spinning of the tool, shattering the

tool or being thrown, always properly support

your work so it won't shift or bind on the tool:

-- Always position BACKUP MATERIAL (use

beneath the workpiece) to contact the left

side of the column.

-- Whenever possible, position the WORK-

PIECE to contact the left side of the col-

umn-if it is too short or the table is tilted,

clamp solidly to the table, use table slots or

clamping ledge around the-outside edge of

the table.

-- When using a drill press VICE, always fasten

it to the table.

- Never do any wQrk 'FREEHAND" (hand-

holding wor&piece rather than supportIng it

on the tableL except when polishing.

- Securely lock Head and Support to Column,

Table Arm tO support, and Table to Table

Arm before operating drill press.

- Never move the Head or Table while the

tool is running

-- Before starting the operation, jog the motor

switch to make sure the drill or other cutting

tool does not wobble or cause vibration.

-- If aworkpiece overhangs the table such taht

it wilt fall or tip if not held. clamp it to the

table or provide auxiliary support.

--Use fixtures for unusual operations to

adequately hold, guide and position work-

piece,

-- Use the SPINDLE SPEED recommended

for the specific operation and workpiece ma-

terial-check the panel on the left side of

the head for drilling information; for acces-

sories, refer to the instructions provided with

the accessories.

f. Never climb on the drill press Table, it could

break or pullthe entire drill press down on you.

g. Turn the motor Switch Off and put away the

Switch Key when leaving the drill press.

h. To avoid injury from thrown work or tool contact,

do NOT perform layout, assembly, or setup

work on the table while the cutting tool is rotat-

ing.

Use only accessories designed for this drill

press to avoid serious injury from thrown bro-

ken parts or work pieces. ,

a. Holesaws must NEVER be operated on this drill

press at a speed greater than 400 RPM.

b. Drum sanders must NEVER be operated on

this drill press at a speed greater than 1800

RPM.

c. Do not install or use any drill that exceeds 7" in

length or extends 6" below the chuck jaws. They

can suddenly bend' outward or break.

d. Do not use wire wheels, router bits, shaper cut-

ters, circle (fly) cutters or rotary planers on the

drill press.

INSTALLING DRILLS IN CHUCK

With the switch off and the key removed, insert drill

into chuck far enough to obtain maximum GRIPPING

of the CHUCK JAWS... the jaws are approx. 1" long.

When using a small drill do not insert it so far that the

jaws touch the flutes (spiral grooves) of the drill.

Make sure that the drill is CENTERED in the chuck

before tightening the chuck with the key.

Tighten the drill sufficiently, so that it does not SLIP

while drilling.

Turn the chuck key clockwise to tighten--coun-

terclockwise to loosen.

JAWS

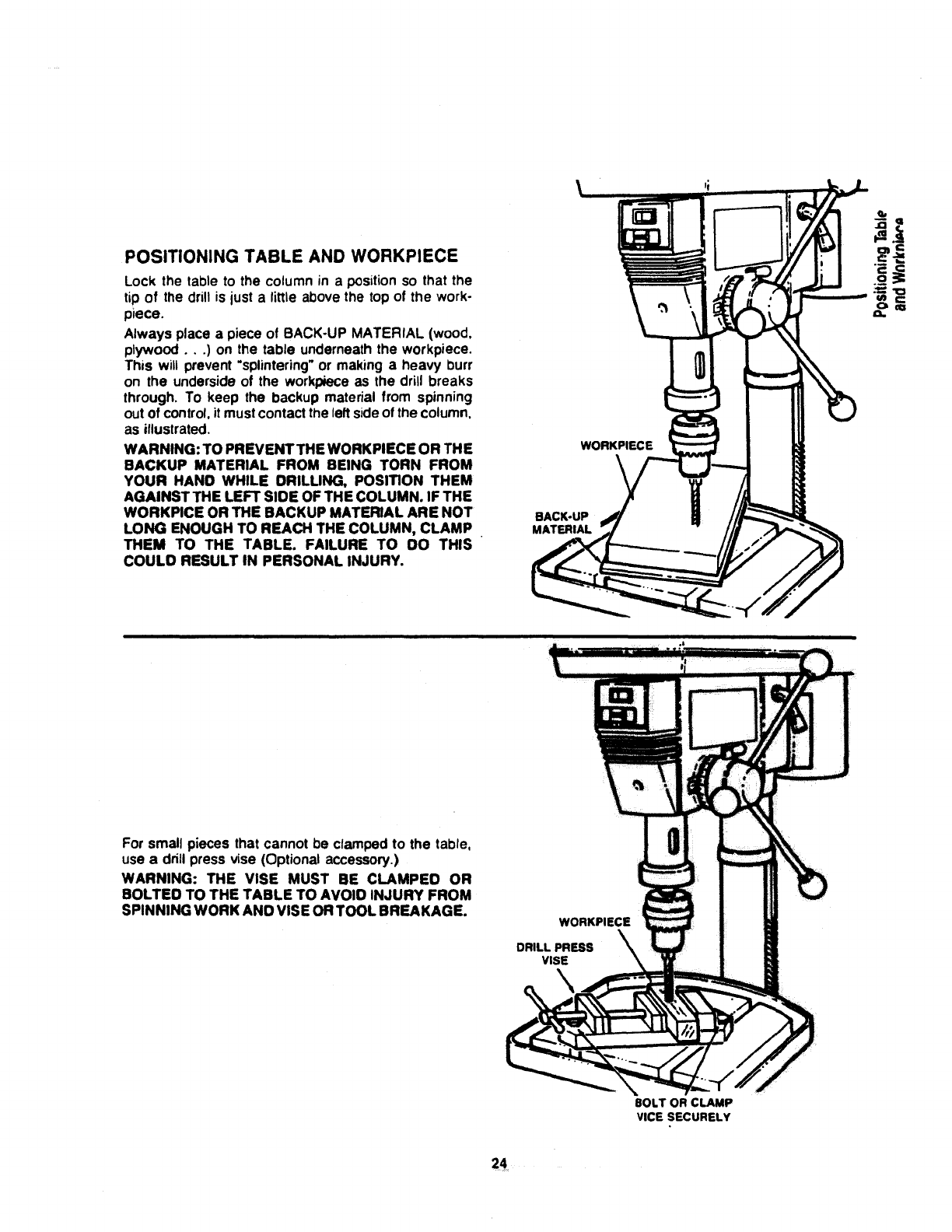

POSITIONING TABLE AND WORKPIECE

Lock the table to the column in a position so that the

tip of the drill is just a little above the top of the work-

piece.

Always place a piece of BACK-UP MATERIAL (wood,

plywood...) on the table underneath the workpiece.

This will prevent "splintering" or making a heavy burr

on the underside of the workpiece as the drill breaks

through. To keep the backup material from spinning

out of control, it must contact the left side of the column.

as illustrated.

WARNING: TO PREVENTTHE WORKPIECE OR THE

BACKUP MATERIAL FROM BEING TORN FROM

YOUR HAND WHILE DRILLING, POSITION THEM

AGAINST THE LEFT SIDE OF THE COLUMN. IF THE

WORKPICE OR THE BACKUP MATERIAL ARE NOT

LONG ENOUGH TO REACH THE COLUMN, CLAMP

THEM TO THE TABLE. FAILURE TO DO THIS

COULD RESULT IN PERSONAL INJURY.

WORKPIECE

BACK-UP

MATERIAL

•_= <=

For small pieces that cannot be clamped to the table,

use a drill press vise (Optional accessory.)

WARNING: THE VISE MUST BE CLAMPED OR

BOLTED TO THE TABLE TO AVOID INJURY FROM

SPINNING WORK AND VISE OR TOOL BREAKAGE. WORKPIECE

DRILL PRESS

VISE

BOLT OR CLAMP

VICE SECURELY

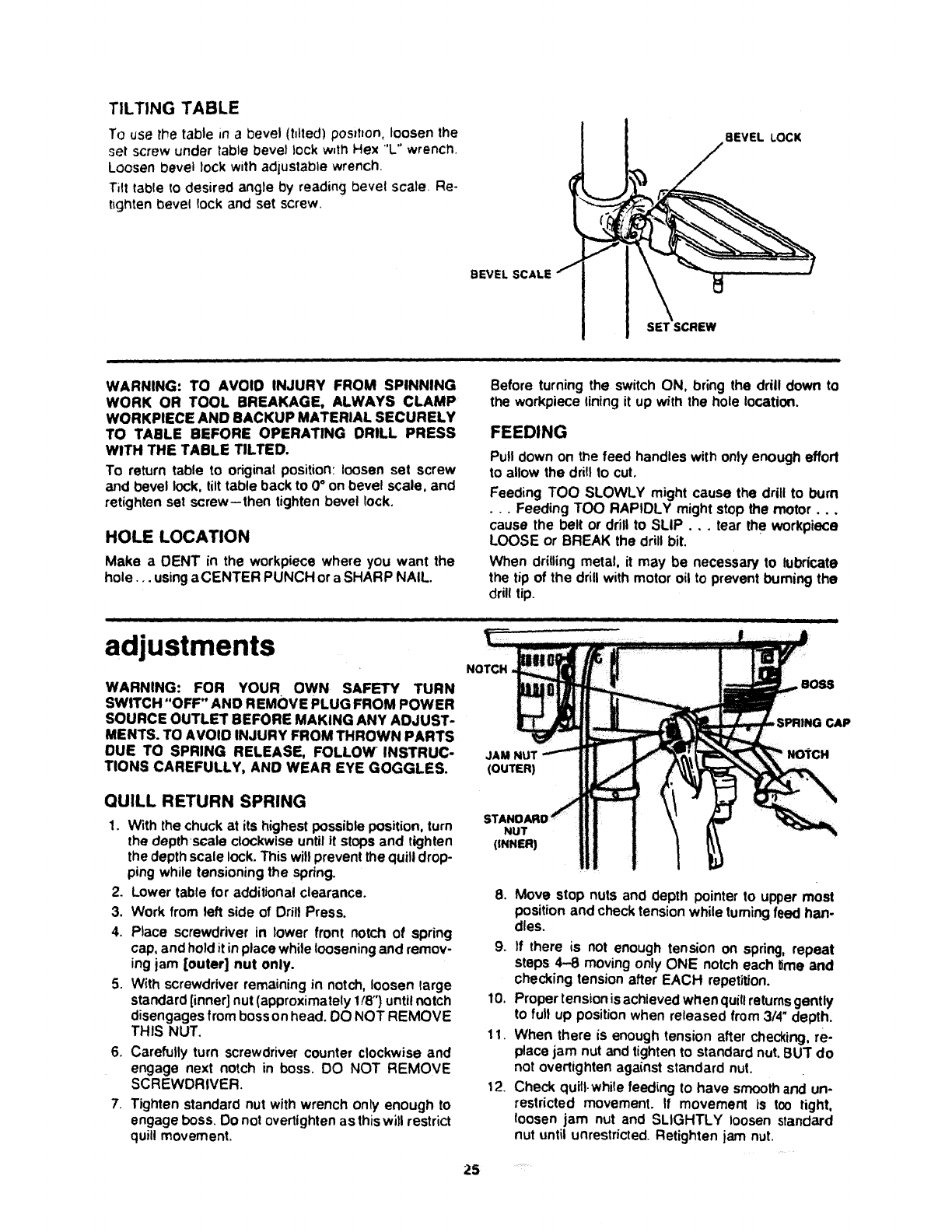

TILTING TABLE

To use the table in abevel (hired) pos_l_on, loosen the

set screw under table bevel lock wath Hex "L" wrench.

Loosen bevel lock with adiustable wrench.

Tilt table to desired angle by reading bevel scale. Re-

tighten bevel lock and set screw.

BEVEL LOCK

BEVEL SCALE

WARNING: TO AVOID INJURY FROM SPINNING

WORK OR TOOL BREAKAGE, ALWAYS CLAMP

WORKPIECE AND BACKUP MATERIAL SECURELY

TO TABLE BEFORE OPERATING DRILL PRESS

WITH THE TABLE TILTED.

To return table to original position: loosen set screw

and bevel lock, tilt table back to 0°on bevel scale, and

retighten set screw--then tighten bevel lock.

HOLE LOCATION

Make a OENT in the workpiece where you want the

hole..• using aCENTER PUNCH or a SHARP NAIL.

Before turning the switch ON, bring the drill down to

the workpiece lining it up with the hole location.

FEEDING

Pull down on the feed handles with only enough effort

to allow the drill to cut,

Feeding TOO SLOWLY might cause the drill to bum

•.. Feeding TOO RAPIDLY might stopthe motor...

cause the belt or drill to SLIP... tear the workpiece

LOOSE or BREAK the drill bit.

When drilling metal, it may be necessary to lubricate

the tip of the drill with motor oil to prevent burning the

drill tip.

adjustments

WARNING: FOR YOUR OWN SAFETY TURN

SWITCH "OFF" AND REMOVE PLUG FROM POWER

SOURCE OUTLET BEFORE MAKING ANY ADJUST-

MENTS. TO AVOIO INJURY FROM THROWN PARTS

DUE TO SPRING RELEASE, FOLLOW INSTRUC-

TIONS CAREFULLY, AND WEAR EYE GOGGLES.

NOTCH

JAM NUT

(OUTER)

BOSS

CAP

QUILL RETURN SPRING

1. With the chuck at its highest possible position, turn

the depthscale clockwise until it stops and tighten

the depth scale lock. This will prevent the quill drop-

ping while tensioning the spring.

2. Lower table for additional clearance•

3. Work from left side of Drill Press.

4. Place screwdriver in lower front notch of spring

cap, and hold it in place while loosening and remov-

ing jam [outer] nut only.

5. With screwdriver remaining in notch, loosen large

standard [inner] nut (approximately 1(8") until notch

disengages from boss on head. DO NOT REMOVE

THIS NUT.

6. Carefully turn screwdriver counter clockwise and

engage next notch in boss. DO NOT REMOVE

SCREWDRIVER.

7. Tighten standard nut with wrench only enough to

engage boss. Do not overtighten as this will restrict

quill movement.

NUT

(INNER)

.Move stop nuts and depth pointer to upper most

position and check tension while turning feed han-

dles.

9. If there is not enough tension on spring, repeat

steps 4-8 moving onlyONE notch each lime and

checkingtensionafter EACH repetition.

10. Propertensionisachievedwhenquill returnsgently

to full up positionwhen released from 3/4"depth.

11. When there is enoughtension after checking,re-

placejam nut andtightento standardnut.BUT do

not overtightenagainststandard nut.

12. Check quill,while feedingto have smoothand un-

restricted movement• If movement is too tight,

loosen jam nut and SLIGHTLY loosen standard

nut until unrestricted.Retighten jam nut.

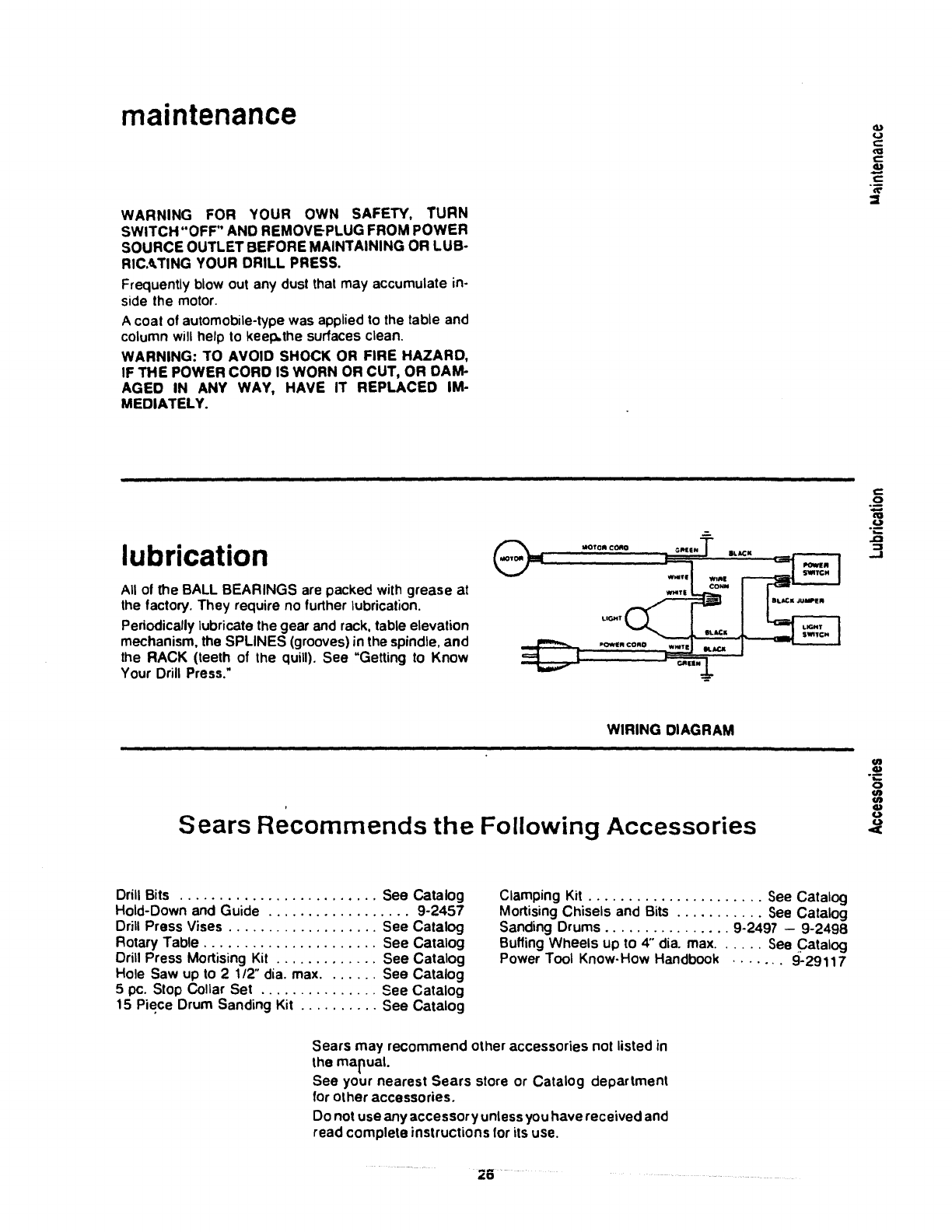

maintenance

WARNING FOR YOUR OWN SAFETY, TURN

SWITCH "OFF" AND REMOVE-PLUG FROM POWER

SOURCE OUTLET BEFORE MAINTAINING OR LUB-

RIC.a,TING YOUR DRILL PRESS.

Frequently blow out any dust that may accumulate in-

side the motor.

A coat of automobile-type was applied to the table and

column will help to keep,the surfaces clean.

WARNING: TO AVOID SHOCK OR FIRE HAZARD,

IF THE POWER CORD IS WORN OR CUT, OR DAM-

AGED IN ANY WAY, HAVE IT REPLACED IM-

MEDIATELY.

lubrication

All of the BALL BEARINGS are packed with grease at

the factory. They require no further lubrication.

Periodically lubricate the gear and rack, table elevation

mechanism, the SPLINES (grooves) in the spindle, and

the RACK (teeth of the quill). See "Getting to Know

Your Drill Press."

._o

,,Q

,-.,I

WIRING DIAGRAM

i i,

Sears Recommends the Following Accessories

4,t

Drill Bits ......................... See Catalog

HoLd-Down and Guide .................. 9-2457

Drill Press Vises ................... See Catalog

Rotary Table ...................... See Catalog

Drill Press Mortising Kit ............. See Catalog

Hole Saw up to 2 1/2" dia. max ....... See Catalog

5pc. Stop Collar Set ............... See Catalog

15 Piece Drum Sanding Kit .......... See Catalog

Clamping Kit ...................... See Catalog

Mortising Chisels and Bits ........... See Catalog

Sanding Drums ................ 9-2497 - 9-2498

Buffing Wheels up to 4" dia. max...... See .Catalog

Power Tool Know-How Handbook ....... 9-29117

Sears may recommend other accessories not listed in

the manual.

See your nearest Sears store or Catalog department

for other accessories.

Do not use any accessory unless you have received and

read complete instructions Ior its use.

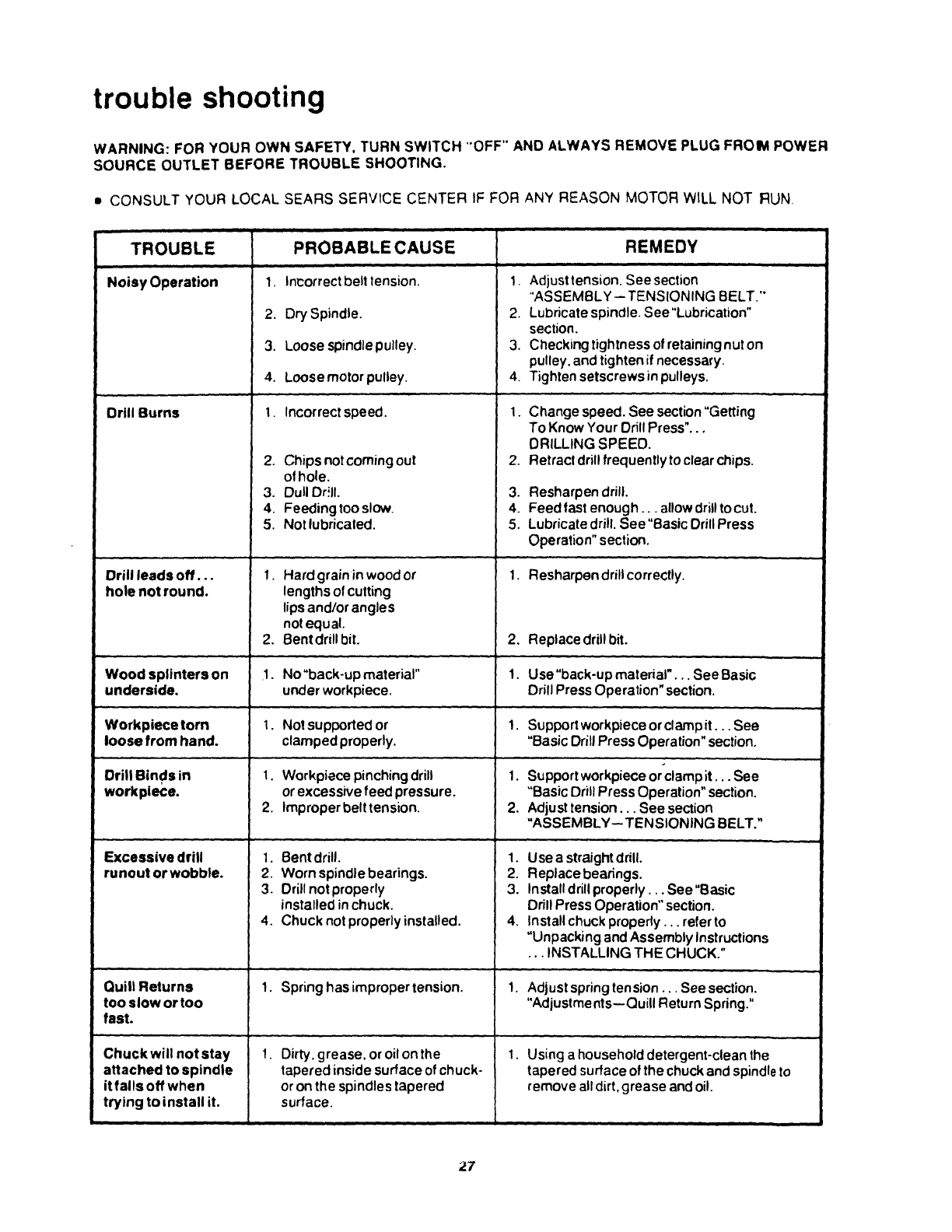

trouble shooting

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH "'OFF" AND ALWAYS REMOVE PLUG FROIM POWER

SOURCE OUTLET BEFORE TROUBLE SHOOTING.

•CONSULT YOUR LOCAL SEARS SERVICE CENTER IF FOR ANY REASON MOTOR WILL NOT RUN.

, ,,., i , i ,i

TROUBLE PROBABLE CAUSE REMEDY

i i i ii

Noisy Operation Incorrect belt tension,

Drill Burns

Drill leads off...

hole not round.

Wood splinters on

underside,

Workpiece torn

loose from hand.

Drill Binds in

workplece.

Excessive drill

runout or wobble.

Quill Returns

too slow or too

fast.

Chuckwill not stay

attached to spindle

it falls off when

trying to install it.

2. Dry Spindle.

3. Loose spindle pulley.

4. Loose motor pulley.

1. Incorrect speed.

2. Chips not coming out

of hole.

3. Dull Dr!ll.

4. Feeding too slow.

5. Not lubricated.

1. Hard grain in wood or

lengths of cutting

lips and/or angles

not equal.

2. 8entdrill bit.

!. No "back-up material"

under workpiece.

1. Not supported or

clamped properly.

1. Workpiece pinching drill

or excessive feed pressure.

2. Improper belt tension.

1. Bent drill.

2. Worn spindle bearings.

3. Drill not properly

installed in chuck.

4. Chuck not properly installed.

1. Spring has improper tension.

1. Dirty, grease, oroilon the

tapered insidesurfaceof chuck-

oronthe spindlestapered

surface.

i i i i i i i, , , i i ,i

1. Adjust tension, See section

"ASSEMBLY--TENSIONING BELT,'"

2. Lubricate spindle, See "Lubrication"

section.

3. Checking tightness of retaining nut on

pulley, and tighten if necessary.

4. Tighten setscrews in pulleys.

1. Change speed. See section "Getting

To Know Your Drill Press"...

DRILLING SPEED.

2. Retracl drill frequently to clear chips.

3. Resharpen drill.

4. Feed fast enough.., allow drill to cut.

5. Lubricate drill. See "Basic Drill Press

Operation" section.

1. Resharpen d rill correctly.

2. Replace drill bit.

1. Use"back-up material".,. SeeBasic

Drill Press Operation" section.

1. Support workpiece or clampit... See

"Basic Drill Press Operation" section.

1. Support workpiece or clamp it... See

"Basic Drill Press Operation" section.

2. Adjust tension... See section

"ASSEMBLY--TENSIONING BELT."

1. Use a straight drill.

2. Replace bearings.

3. Install drill properly.,. See "Basic

Drill Press Operation" section.

4. Install chuck properly.., refer to

"Unpacking and Assembly Instructions

... INSTALLING THE CHUCK."

1. Adjust spring tension... See section.

"Adjustments--Quill Return Spring."

1, Using ahousehold detergent-clean the

tapered surface of the chuck and spindle to

remove alldirt, grease and oil.

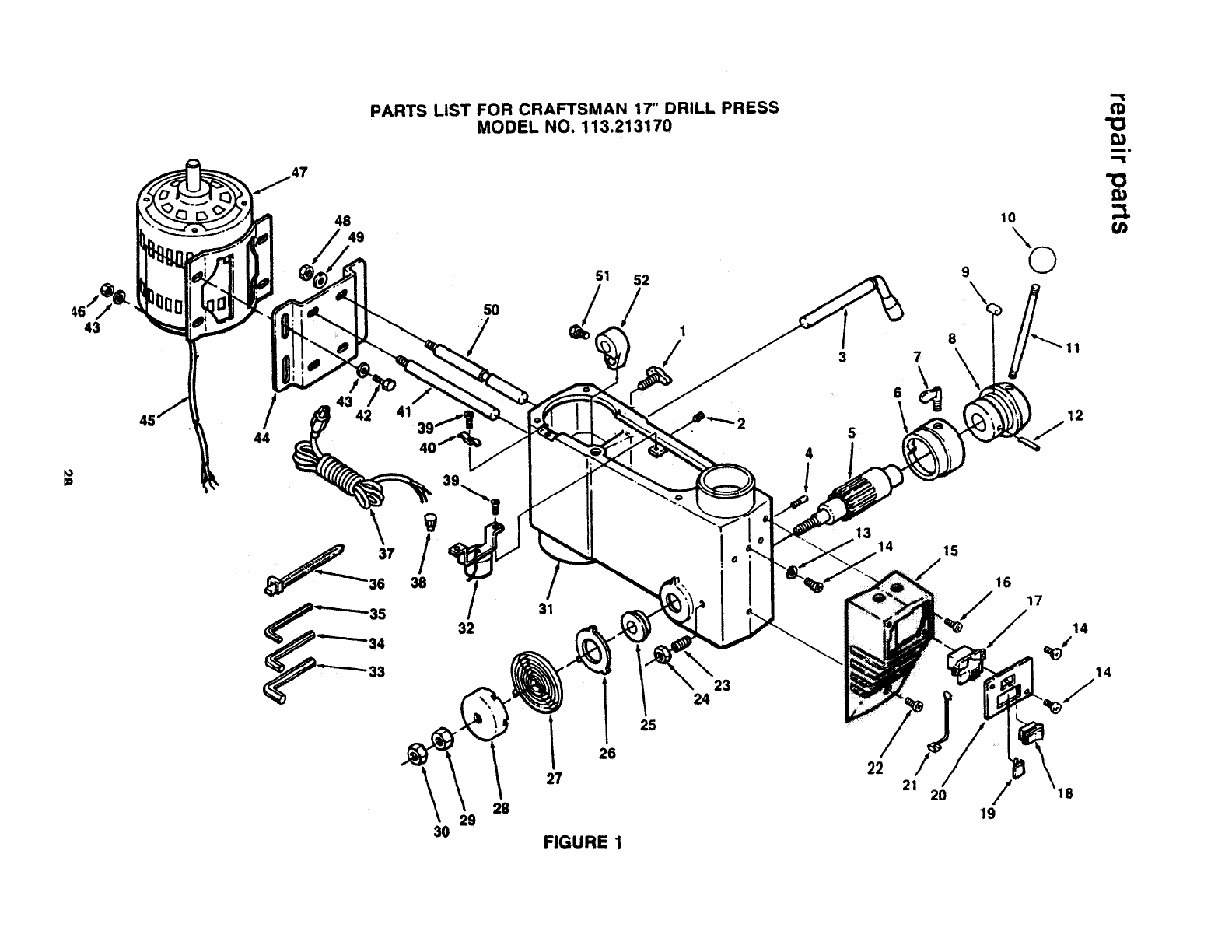

PARTS LIST FOR CRAFTSMAN 17" DRILL PRESS

MODEL NO. 113.213!70

51 52

43 42 41

FIGURE 1

24 23

13 14

22 21

"10

;:3.

Key Part

No. No.

_11 I I

1 81732O

2 817391

3 817316

4 817303

5 817347

6 817774-1

7 817343

8 817346

9 817300

10 817299

11 817344

12 813249-128

13 STD852005

14 816755

15 817369

16 816755-2

17 816113

18 817354

19 815863

20 817352

21 818511

22 816755-6

23 817308

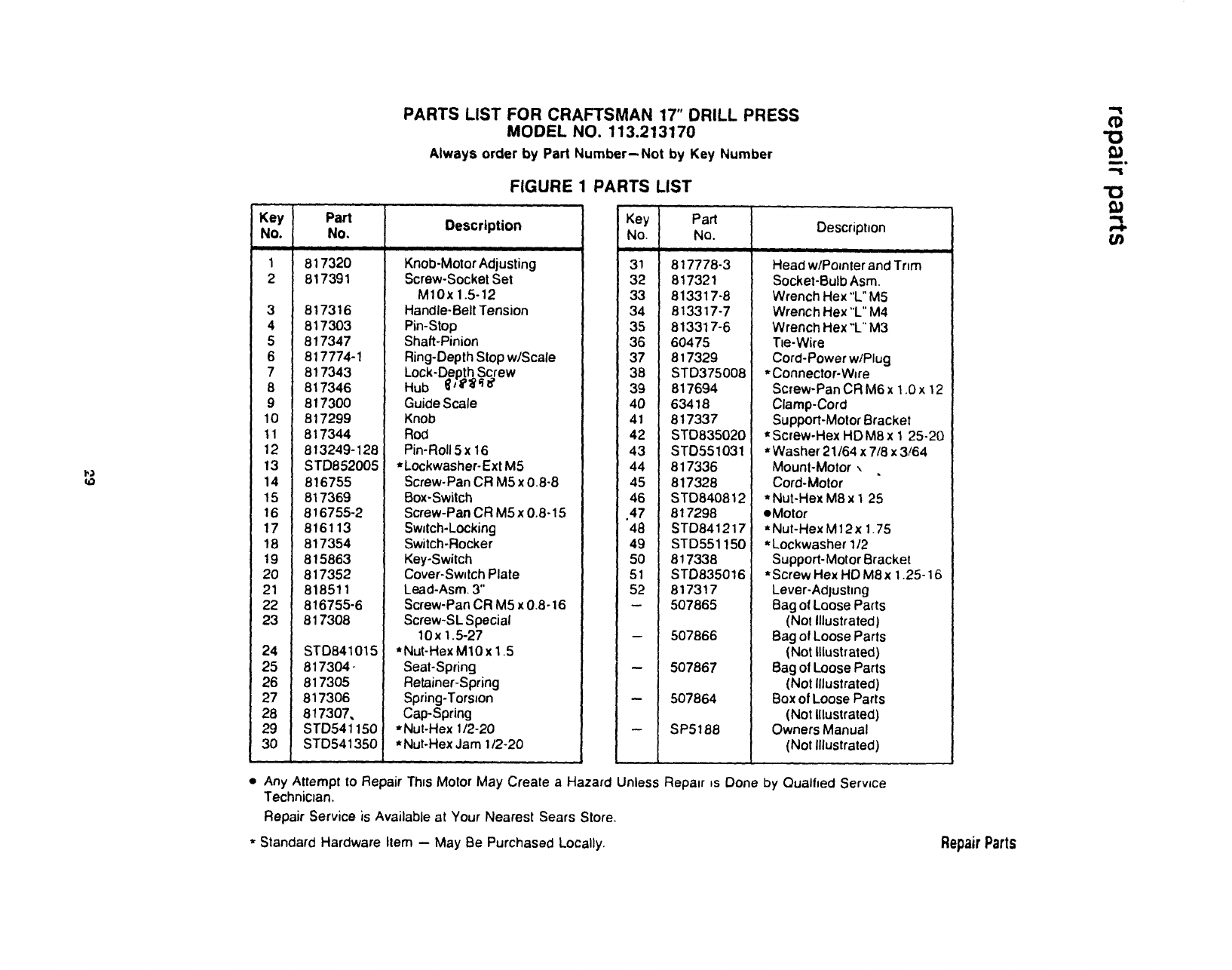

PARTS LIST FOR CRAFTSMAN 17" DRILL PRESS

MODEL NO. 113.213170

Always order by Part Number--Not by Key Number

FIGURE 1 PARTS LIST

24 STD841015

25 817304-

26 817305

27 817306

28 817307,

29 STD541150

30 STD541350

Description

= i i ii i

Knob-Motor Adjusting

Screw-Socket Set

M10x 1.5-12

Handle-Belt Tension

Pin-Stop

Shaft-Pinion

Ring-Depth Stop w/Scale

Lock-Depth Screw

Hub _11i'_ _ 8'

Guide Scale

Knob

Rod

Pin-Roll 5x 16

*Lockwasher-Ext M5

Screw-Pan CR M5 x 0.8-8

Box-Switch

Screw-Pan CR M5 x 0.8-15

Swdch-Locking

Switch-Rocker

Key-Switch

Cover-Sw_tch Plate

Lead-Asm. 3"

Screw-Pan CR M5 x 0.8-16

Screw-SL Special

10x 1.5-27

* Nut-Hex M10 x 1.5

Seat-Spring

Retainer-Spring

Spring-Torsion

Cap-Spring

*Nut-Hex 1/2-20

*Nut-Hex Jam 1/2-20

Key Pad

No. No.

31 817778-3

32 817321

33 813317-8

34 813317-7

35 813317-6

36 60475

37 817329

38 STD375008

39 817694

40 63418

41 817337

42 STD835020

43 STD551031

44 817336

45 817328

46 STD840812

47 817298

48 STD841217

49 STD551150

50 817338

51 STD835016

52 817317

- 507865

507866

507867

507864

SP5188

Description

Head w/PoInter and Tr=m

Socket-Bulb Asm.

Wrench Hex "'L" M5

Wrench Hex "L" M4

Wrench Hex "L" M3

Tie-Wire

Cord-Power w/Plug

* Connector-WIre

Screw-Pan CR M6 x 1.0 x 12

Clamp-Cord

Support-Motor Bracket

*Screw-Hex HD M8 x 1 25-20

,,Washer 21/64 x 7/8 x 3/64

Mount-Motor

Cord-Motor

*Nut-Hex M8 x1 25

eMotor

*Nut-Hex M12x 1.75

* Lockwasher 1/2

Support- Motor Bracket

*Screw Hex HD M8 x 1.25-16

Lever-Adjusttng

Bag of Loose Parts

(Not Illustrated)

Bag of Loose Parts

(Not illustrated)

Bag of Loose Parts

(Not Illustrated)

Box of Loose Parts

(Not illustrated)

Owners Manual

(Not Illustrated)

Any Attempt to Repair This Motor May Create a Hazard Unless Repatr is Done by QualfJed Service

Technician.

Repair Service is Available at Your Nearest Sears Store.

0t}

*Standard Hardware Item -- May Be Purchased Locally, RepairParts

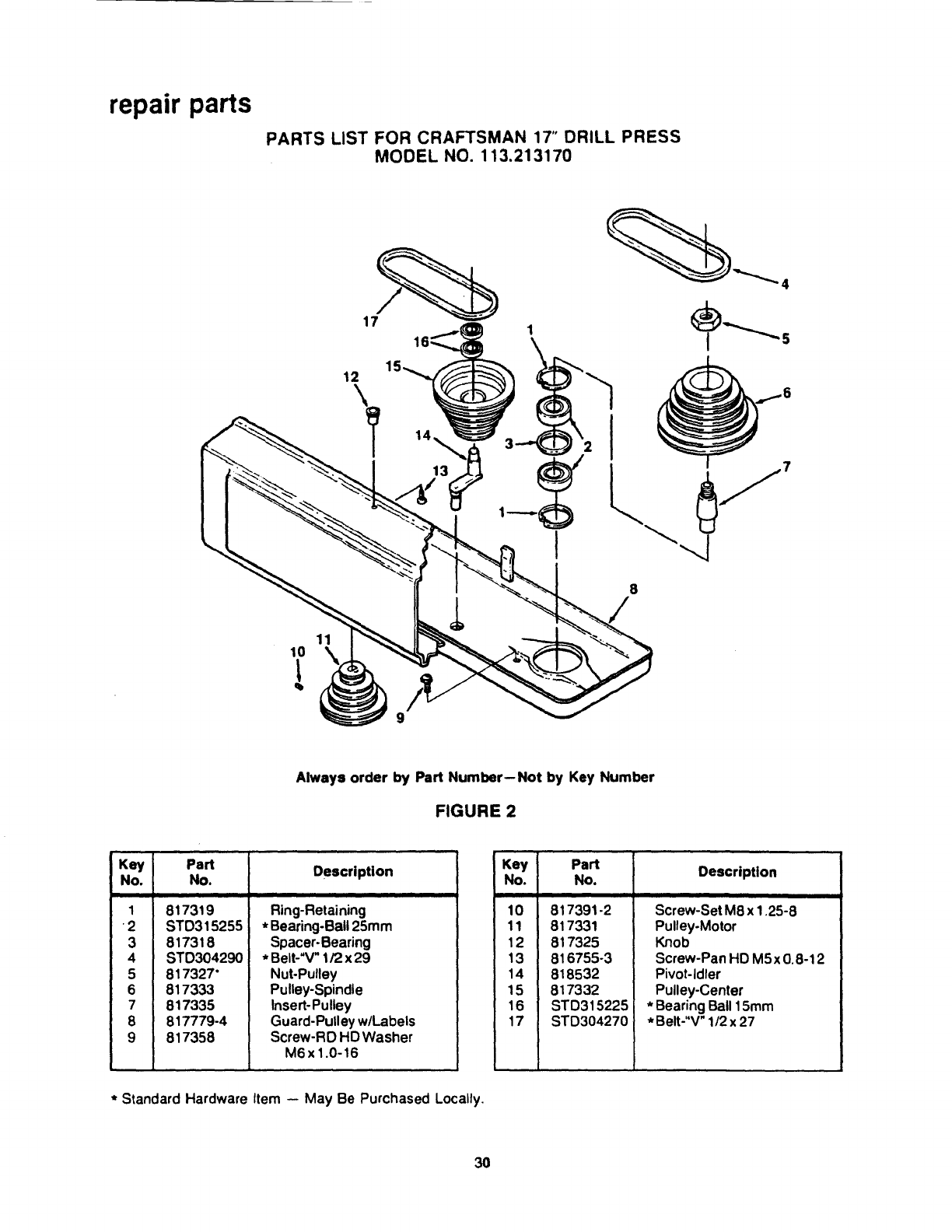

repair parts

PARTS LIST FOR CRAFTSMAN 17" DRILL PRESS

MODEL NO. 113.213170

Always order by Part Number--Not by Key Number

FIGURE 2

Key Part

No. No.

1 817319

2STD315255

_817318

STD304290

_817327"

817333

7817335

8 817779-4

9 817358

Description

iii i

Ring-Retaining

* Bearing-Ball 25mm

Spacer-Bearing

* Belt-"V" 1/2x29

Nut-Pulley

Pulley-Spindle

Insert-Pulley

Guard-Pulley w/Labels

Screw-RD HD Washer

M6x 1.0-16

Key Part Description

No. No.

817391-2

817331

817325

816755-3

818532

817332

STD315225

STD304270

Screw-Set M8 x 1.25-8

Pulley-Motor

Knob

Screw-Pan HD M5x 0.8-12

Pivot-Idler

Pulley-Center

* Bearing Ball 15mm

* Belt-"V" 1/2 x 27

* Standard Hardware item -- May Be Purchased Locally.

repair parts

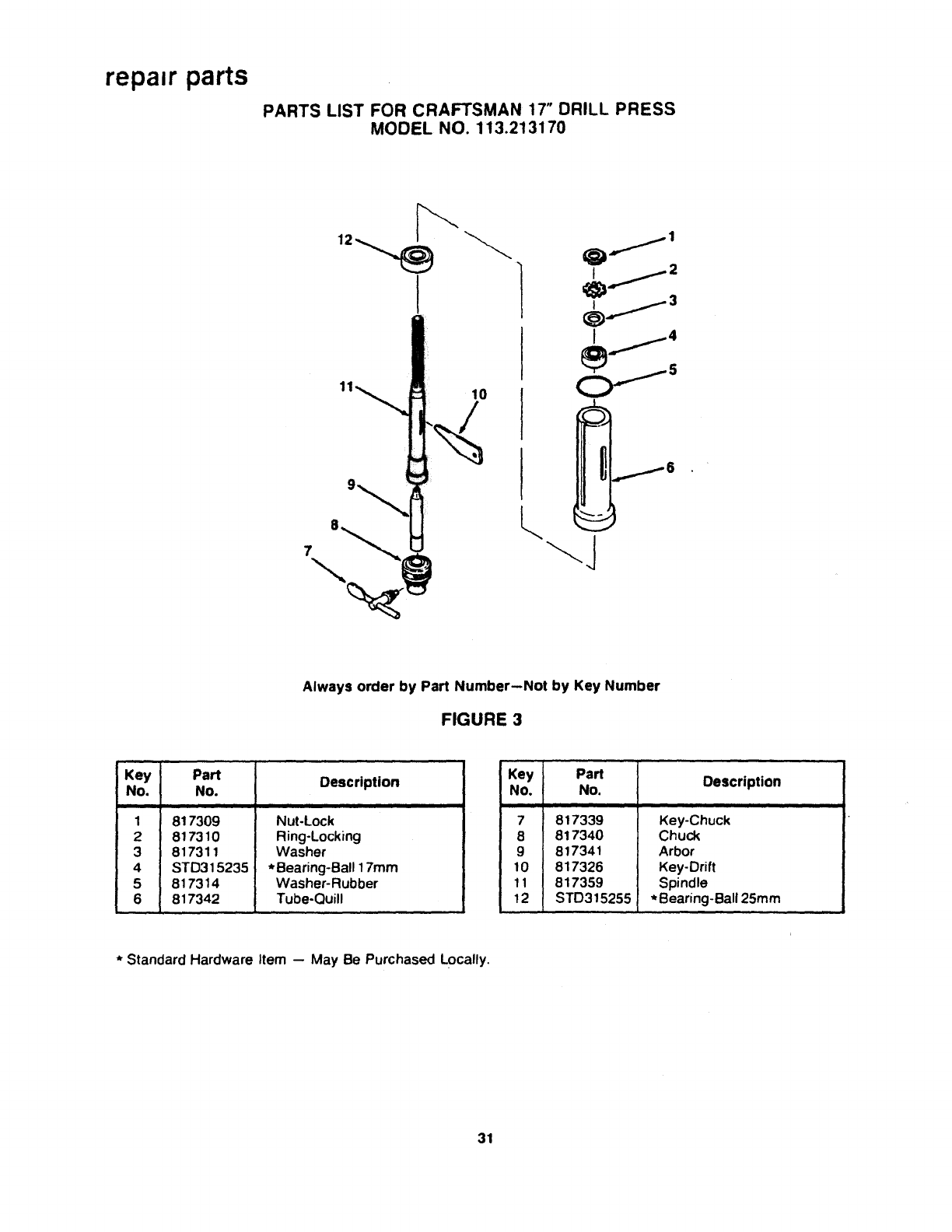

PARTS LIST FOR CRAFTSMAN 17" DRILL PRESS

MODEL NO. 113.213170

OJ 1

10 5

Always order by Part Number--Not by Key Number

FIGURE 3

Key

No.

1 817309

2 817310

3 817311

4 STD315235

5 817314

6 817342

Part Description

No.

i i

Nut-Lock

Ring-Locking

Washer

* Bearing-Ball 17ram

Washer-Rubber

Tube-Quill

Key

NO.

Part

No. Description

i i i ii

817339

817340

817341

817326

817359

STD315255

Key-Chuck

Chuck

Arbor

Key-Drift

Spindle

* Bearing- Ball 25mm

* Standard Hardware item -- May Be Purchased Locally.

repair parts

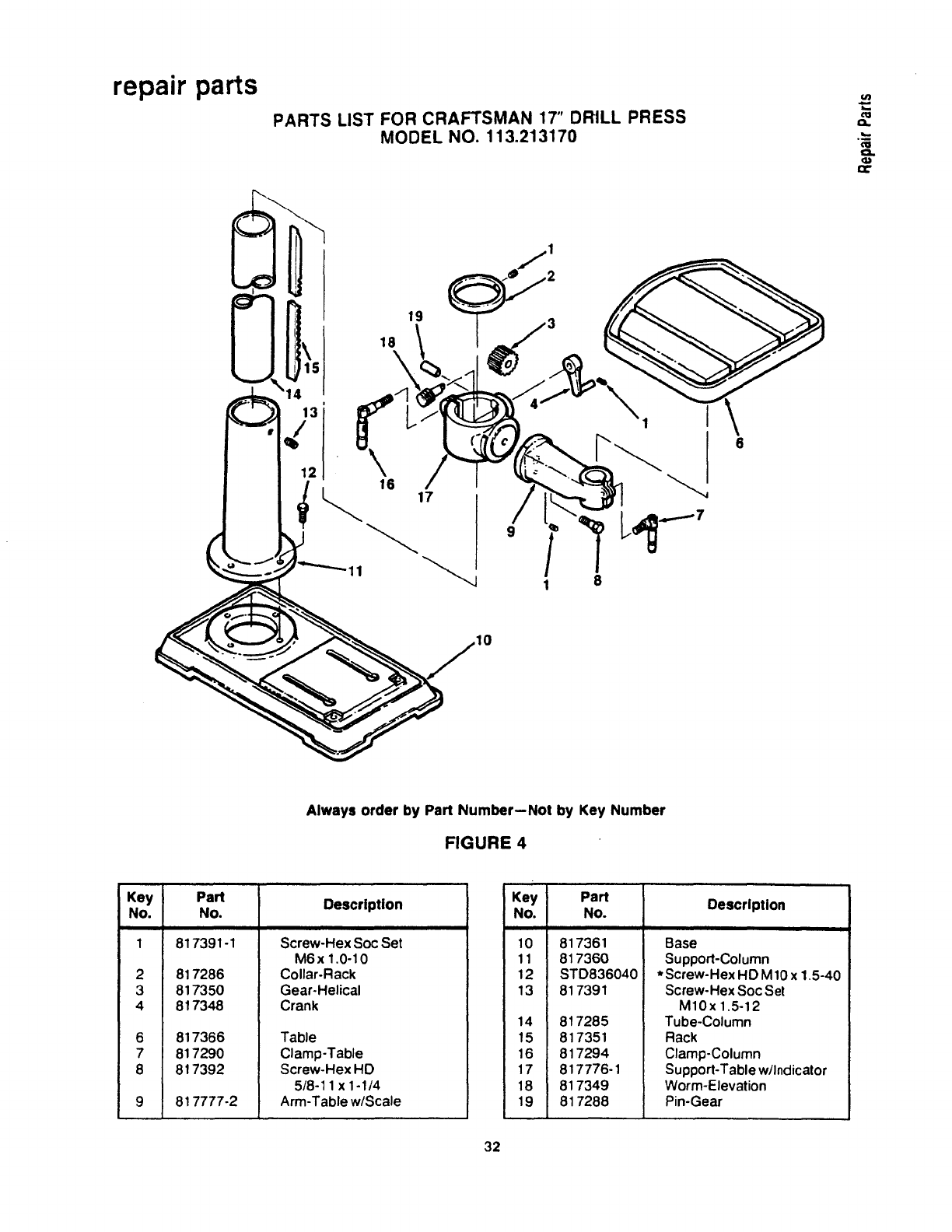

PARTS LIST FOR CRAFTSMAN 17" DRILL PRESS

MODEL NO. 113.213170

18 I i3

t.n

o..

._L

(1)

Always order by Part Number--Not by Key Number

FIGURE 4

Key Part Description

No. No.

1 817391-1

817286

817350

817348

817366

817290

817392

817777-2

iii i

Screw-Hex Soc Set

M6x 1,0-10

Collar.Rack

Gear-Helical

Crank

Table

Clamp-Table

Screw-Hex HD

5/8-11 x 1-1/4

Arm-Table w/Scale

Key Part Description

No. No.

IIII

817361

817360

STD836040

817391

14 817285

15 817351

16 817294

17 817776-1

18 817349

19 817288

Base

Support-Column

* Screw-Hex HD M 10 x 1.5-40

Screw-Hex Soc Set

M10x 1,5-12

Tube-Column

Rack

Clamp-Column

Support-Table w/Indicator

Worm-Elevation

Pin-Gear

NOTES

I I

NOTES

/- f

8EARS

owner's

manual

SERVICE

MODEL NO.

113.213170

DRILL PRESS WITH

MAXIMUM

DEVELOPED

1 I/2 HP MOTOR

HOW TO ORDER

REPAIRPARTS

MOTORIZED

47-1NCH

FLOOR MODEL DRILL PRESS

Now thatyou have purchased your 17-inchDrillPress,should

aneed ever existforrepairpartsorservice,simplycontact

any SearsServiceCenter and most Sears,Roebuck and Co.

stores,Be sureto provide allpertinentfactswhen you call

orvisit.

The model number of your 17-inchDrillPresswillbe found

on a plateattached to the rearof the head.

WHEN ORDERING REPAIRPARTS,ALWAYSGIVE THEFOLLOWING

INFORMATION:

PARTNUMBER PARTDESCRIPTION

MODELNUMBER

113.213170 NAME OF ITEM

MOTORIZED 17-INCH

FLOOR MODEL DRILL PRESS

All parts listed may be ordered from any Sears Service Center

and most Sears stores. If the parts you need are not stocked

locally, your order willbe electronically transmitted to a Sears

Repair Parts DistributionCenter for handling.

Sold by SEARS, ROEBUCK AND CO., Chicago, IL 60684 U.S.A.

Part No. 5P5188 Form No. SP5188-3

Craftsman 113213170 User Manual 17 DRILL PRESS Manuals And Guides 1301300L

Navigation menu

Versions of this User Manual:

Views

Navigation
