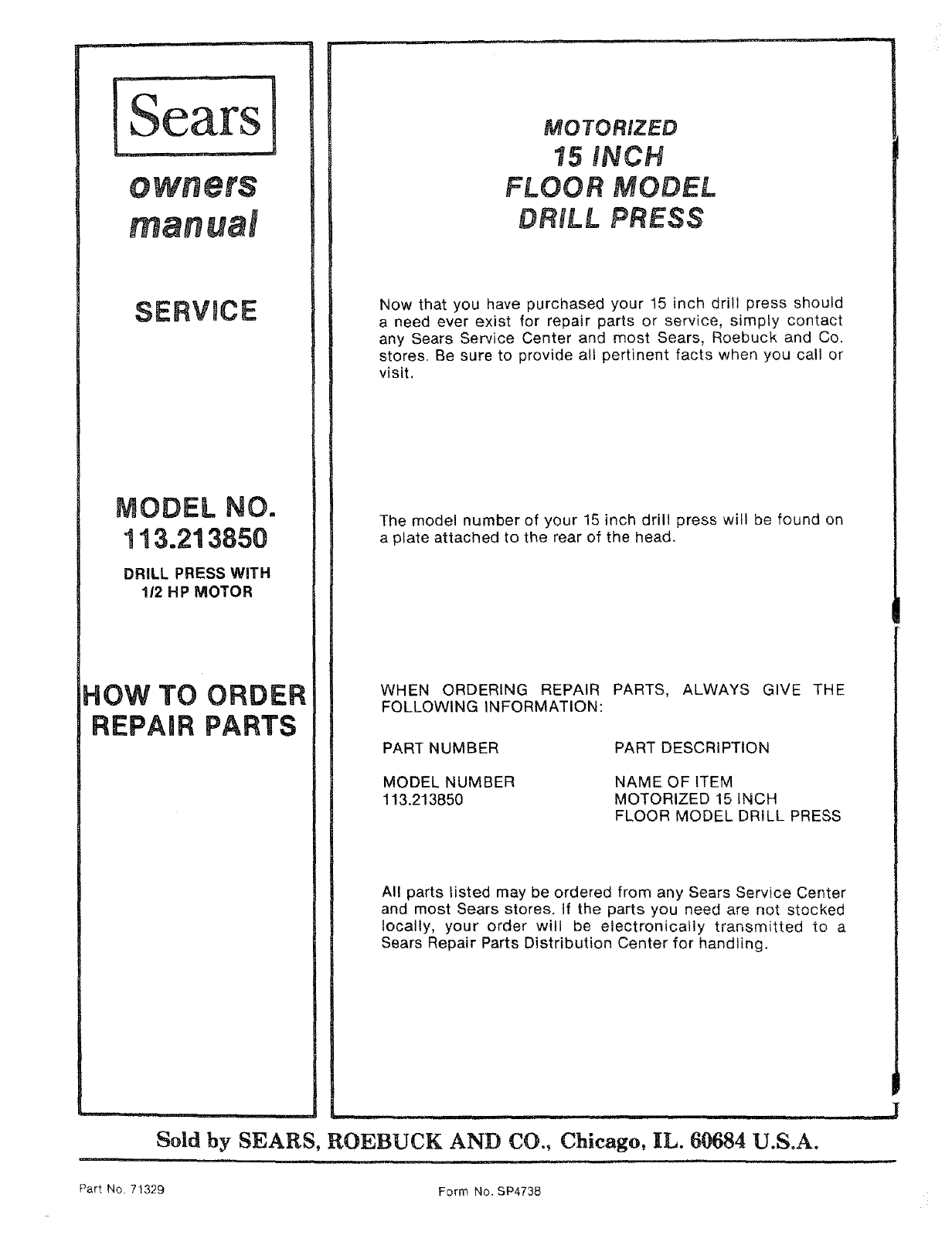

Craftsman 113213850 User Manual 15 INCH DRILL PRESS Manuals And Guides L0803156

CRAFTSMAN Drill Press Manual L0803156 CRAFTSMAN Drill Press Owner's Manual, CRAFTSMAN Drill Press installation guides

User Manual: Craftsman 113213850 113213850 CRAFTSMAN CRAFTSMAN 15 INCH DRILL PRESS - Manuals and Guides View the owners manual for your CRAFTSMAN CRAFTSMAN 15 INCH DRILL PRESS #113213850. Home:Tool Parts:Craftsman Parts:Craftsman CRAFTSMAN 15 INCH DRILL PRESS Manual

Open the PDF directly: View PDF PDF.
Page Count: 24

SAVE THiS MANUAL
FOR FUTURE REFERENCE
MODEL NO.
113.213850
DRILL PRESS WiTH
112 HP MOTOR
Serial
Number
Model and serial
number may be found
at the rear of the head.
You should record both
model and serial number
in a safe place for
future use.
CAUTION:
Read GENERAL
and ADDiTiONAL
SAFETY
iNSTRUCTiONS
carefully
FLOOR
MOTORIZED
15 INCH
MODEL DRILL
•assembly
e operating
=repair parts
Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.
Part No. 71329 Form No. SP4738
PRESS
2/84

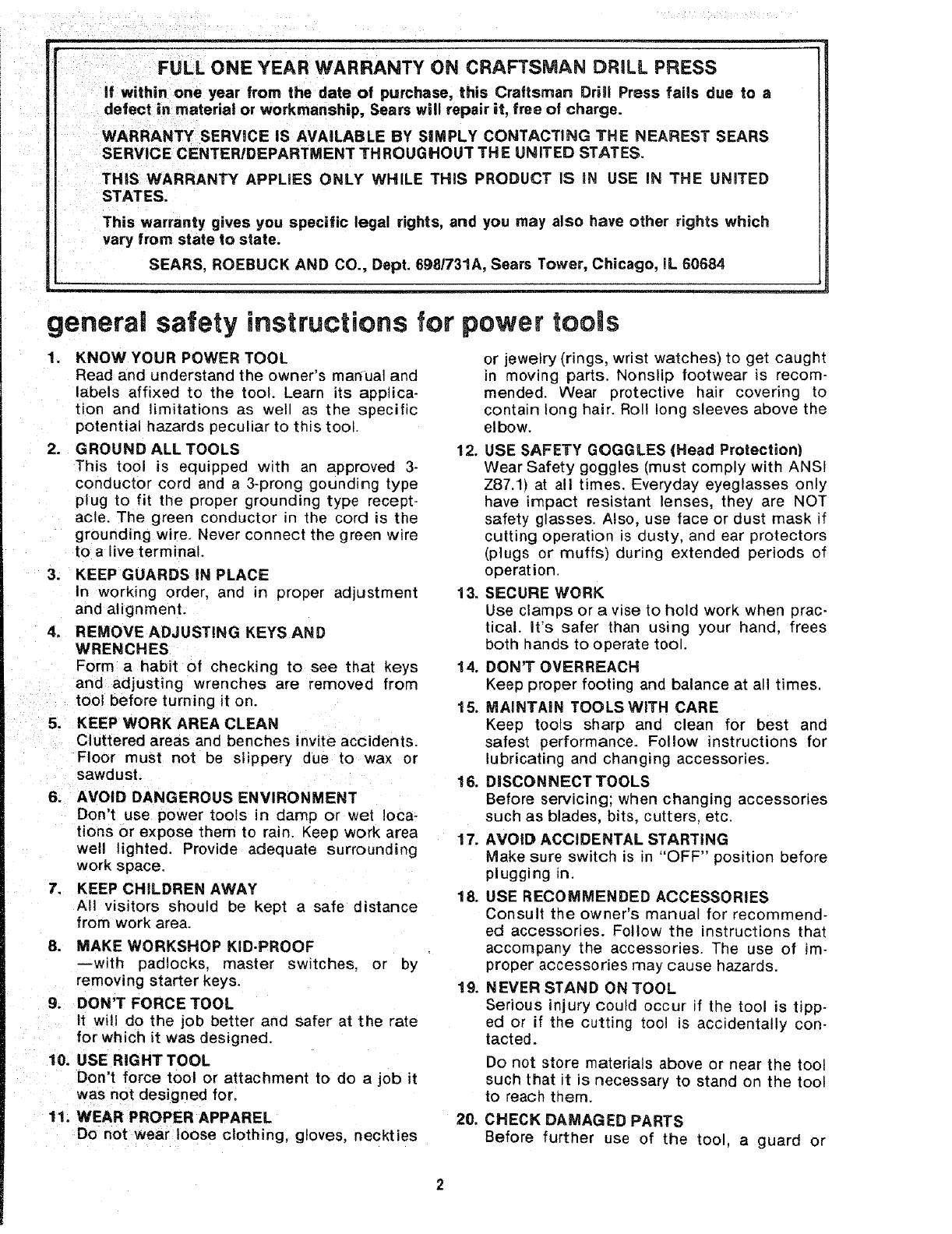

FULL ONE YEAR WARRANTY ON CRAFTSMAN DRILL PRESS
If within one year from the date of purchase, this Craftsman Drill Press fails due to a
defect in material or workmanship, Sears will repair it, free of charge.
WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS
SERVICE CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.
THiS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS iN USE IN THE UNITED
STATES.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCK AND CO., Dept. 698/731A, Sears Tower, Chicago, iL 60684
general safety instructions for power tools
.
2_
KNOW YOUR POWER TOOL
Read and understand the owner's manual and
labels affixed to the tool. Learn its applica-
tion and limitations as well as the specific
potential hazards peculiar to this tool.
GROUND ALL TOOLS
This tool is equipped witl_ an approved 3-
conductor cord and a 3-prong gounding type
plug to fit the proper grounding type recept-
acle. The green conductor in the cord is the
grounding wire. Never connect the green wire
to a live terminal.
3. KEEP GUARDS IN PLACE
In working order, and rl proper adjustment
and alignment.
4. REMOVE ADJUSTING KEYS AND
WRENCHES
Form a habit of checking to see that keys
and adjusting wrenches are removed from
tool before turning it on.
5. KEEP WORK AREA CLEAN
Cluttered areas and benches invite accidents.
Floor must not be slippery due to wax or
sawdust.
6. AVOID DANGEROUS ENVIRONMENT
Don't use power tools in damp or wet loca-
tions or expose them to rain. Keep work area
well lighted. Provide adequate surrounding
work space.
7. KEEP CHILDREN AWAY
All visitors should be kept asafe distance
from work area.
8. MAKE WORKSHOP KID-PROOF
with padlocks, master switches, or by
removing starter keys.
9. DON'T FORCE TOOL
tt will do the job better and safer at the rate
for which it was designed.
10. USE RIGHT TOOL
Don't force tool or attachment to do a job it
was not designed for.
11, WEAR PROPER APPAREL
Do not wear loose clothing, gloves, r_eckties
or jewelry (rings, wrist watches) to get caught
in moving parts. Nonslip footwear is recom-
mended. Wear protective hair covering to
contain long hair. Roll long sleeves above the
elbow.
12. USE SAFETY GOGGLES (Head Protection)
Wear Safety goggles (must comply with ANS!
Z87.1) at all times. Everyday eyeglasses only
have impact resistant lenses, they are NOT
safety glasses. Also, use face or dust mask if
cutting operation is dusty, and ear protectors
(plugs or muffs) during extended periods of
operation.
13. SECURE WORK
Use clamps or avise to hold work when prac-
tical, it's safer than using your hand, frees
both hands to operate t0ol.
14. DON'T OVERREACH
Keep proper footing and balance at all times.
15. MAINTAIN TOOLS WITH CARE
Keep tools sharp and clean for best and
safest performance. Follow instructions for
lubricating and changing accessories.
16. DISCONNECT TOOLS
Before servicing; when changing accessories
such as blades, bits, cutters, etc.
17. AVOID ACCIDENTAL STARTING
Make sure switch is in "OFF" position before
plugging in.
18. USE RECOMMENDED ACCESSORIES
Consult the owner's manual for recommend-
ed accessories. Follow the instructions that
accompany the accessories. The use of im-
proper accessories may cause hazards.
19. NEVER STAND ON TOOL
Serious injury could occur if the tool is tipp-
ed or if the cutting tool is accidentally con-
tacted.
20.
Do not store materials above or near the tool
such that it is necessary to stand on the too!
to reach them.
CHECK DAMAGED PARTS
Before further use of the tool, a guard or
other part that is damaged should be careful-
ly checked to ensure that it will operate pro-
perly and perform its intended function.
Check for alignment of moving parts, binding
of moving parts, breakage of parts, mounting,
and any other conditions that may affect its
operation. A guard or other part that is
damaged should be properly repaired or
replaced.
2t. DIRECTION OF FEED
Feed work into a blade or cutter against the
direction of rotation of the blade or cutter
only.
22. NEVER LEAVE TOOL RUNNING
UNATTEN DED
Turn power off. Don't leave tool until it
comes to a complete stop.

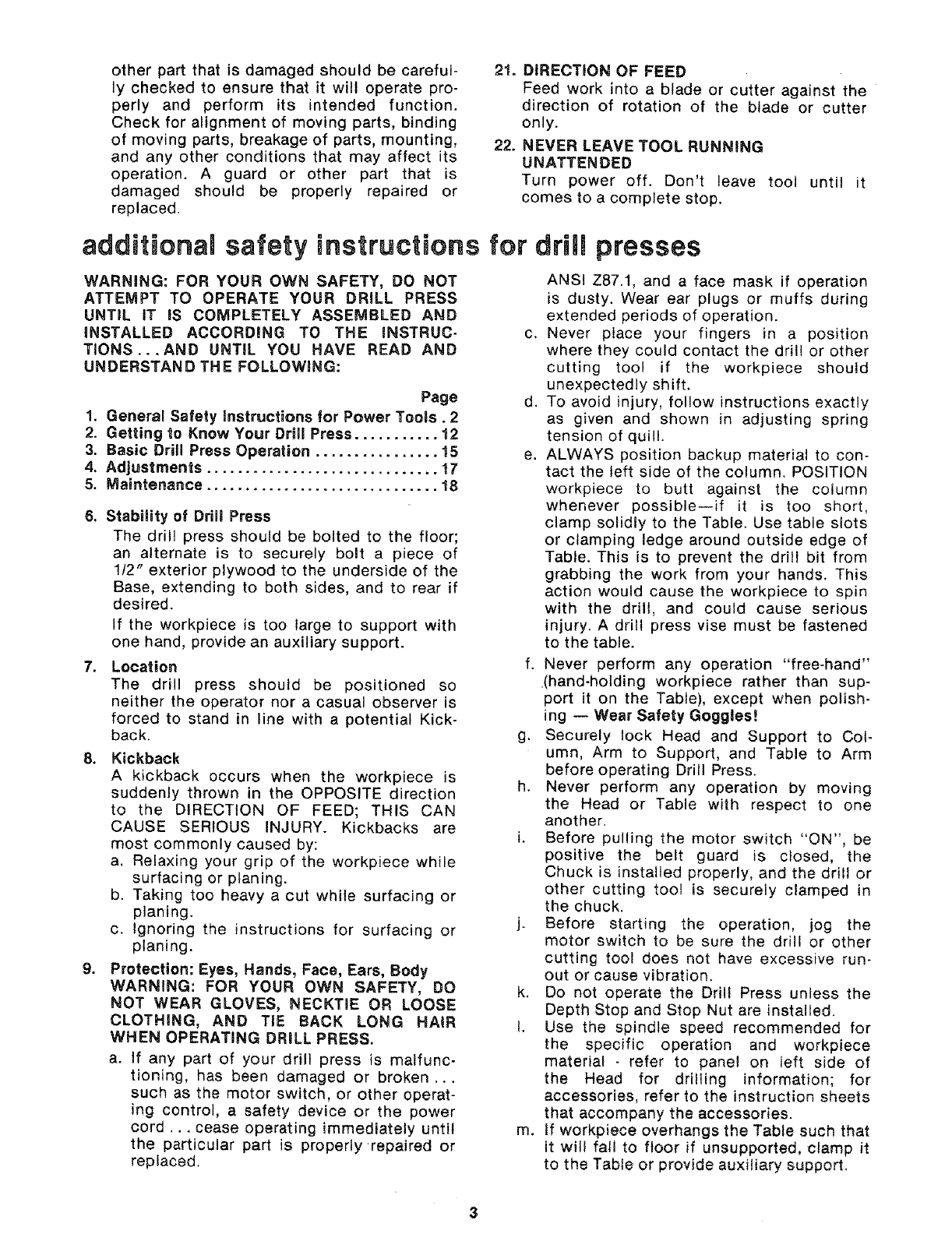

additional safety instructions for drill presses
WARNING: FOR YOUR OWN SAFETY, DO NOT
ATTEMPT TO OPERATE YOUR DRILL PRESS
UNTIL IT !S COMPLETELY ASSEMBLED AND
iNSTALLED ACCORDING TO THE INSTRUC-
TIONS...AND UNTIL YOU HAVE READ AND
UNDERSTAND THE FOLLOWING:
Page
1. General Safety instructions for Power Tools. 2

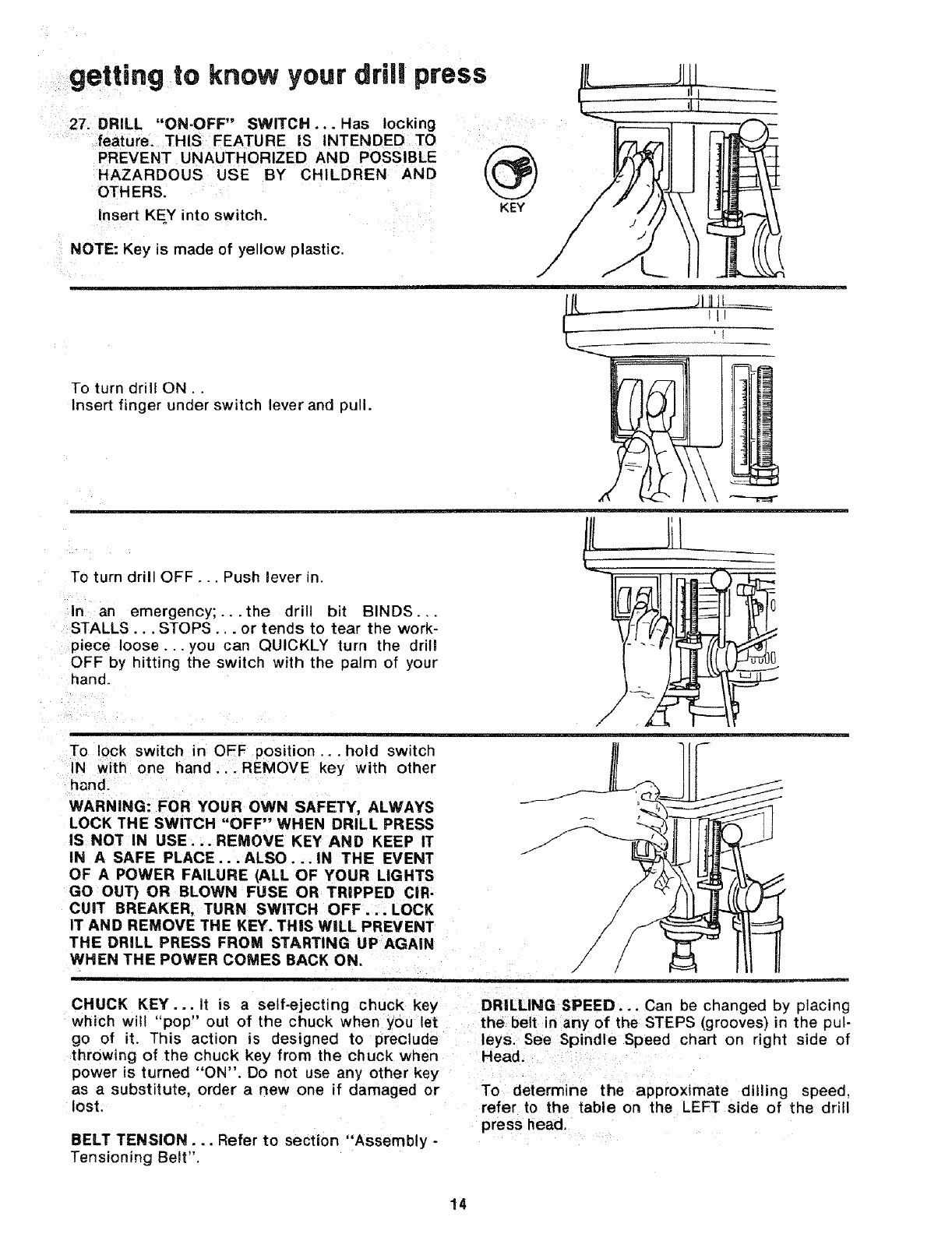

2. Getting to Know Your Dri!l Press ........... 12

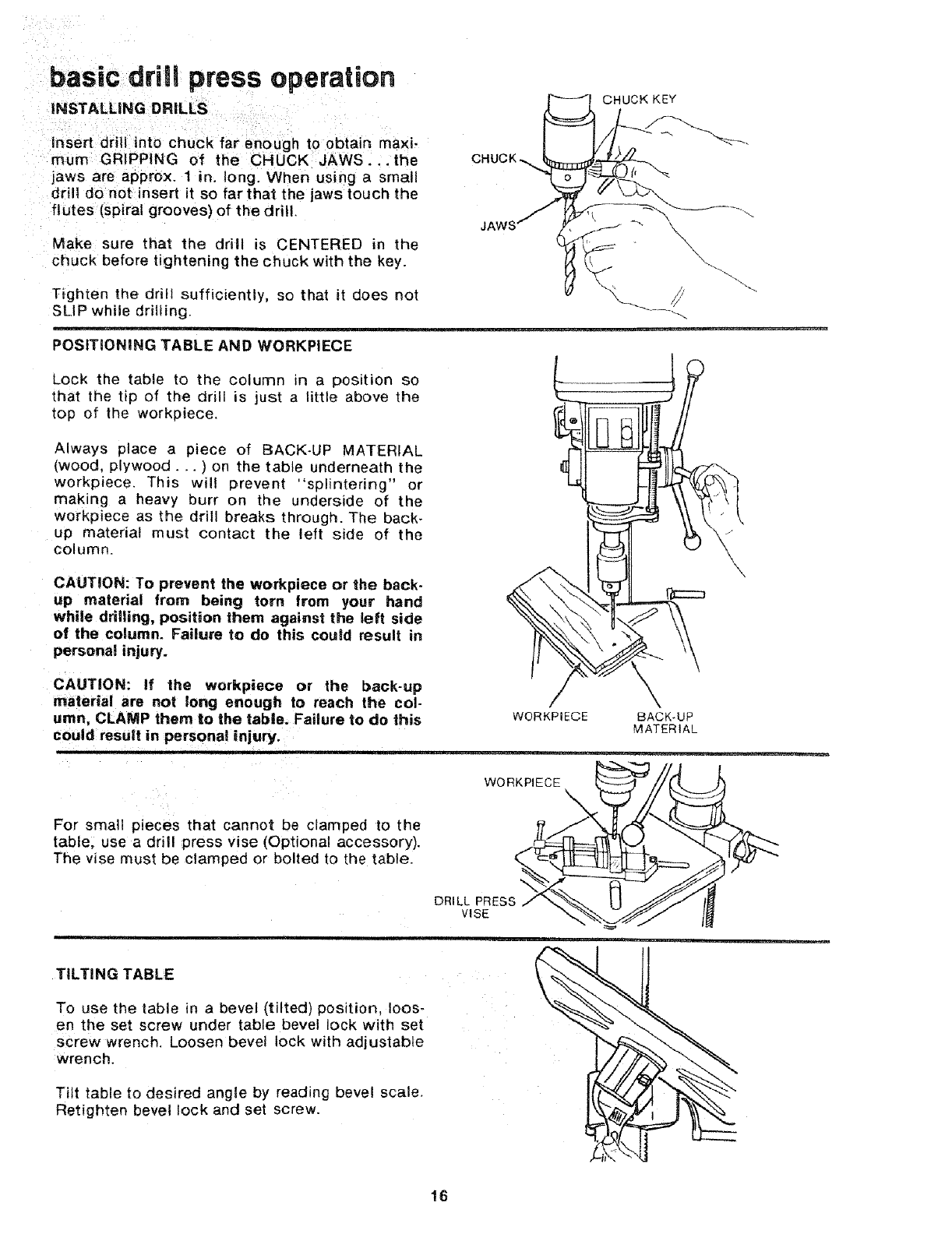

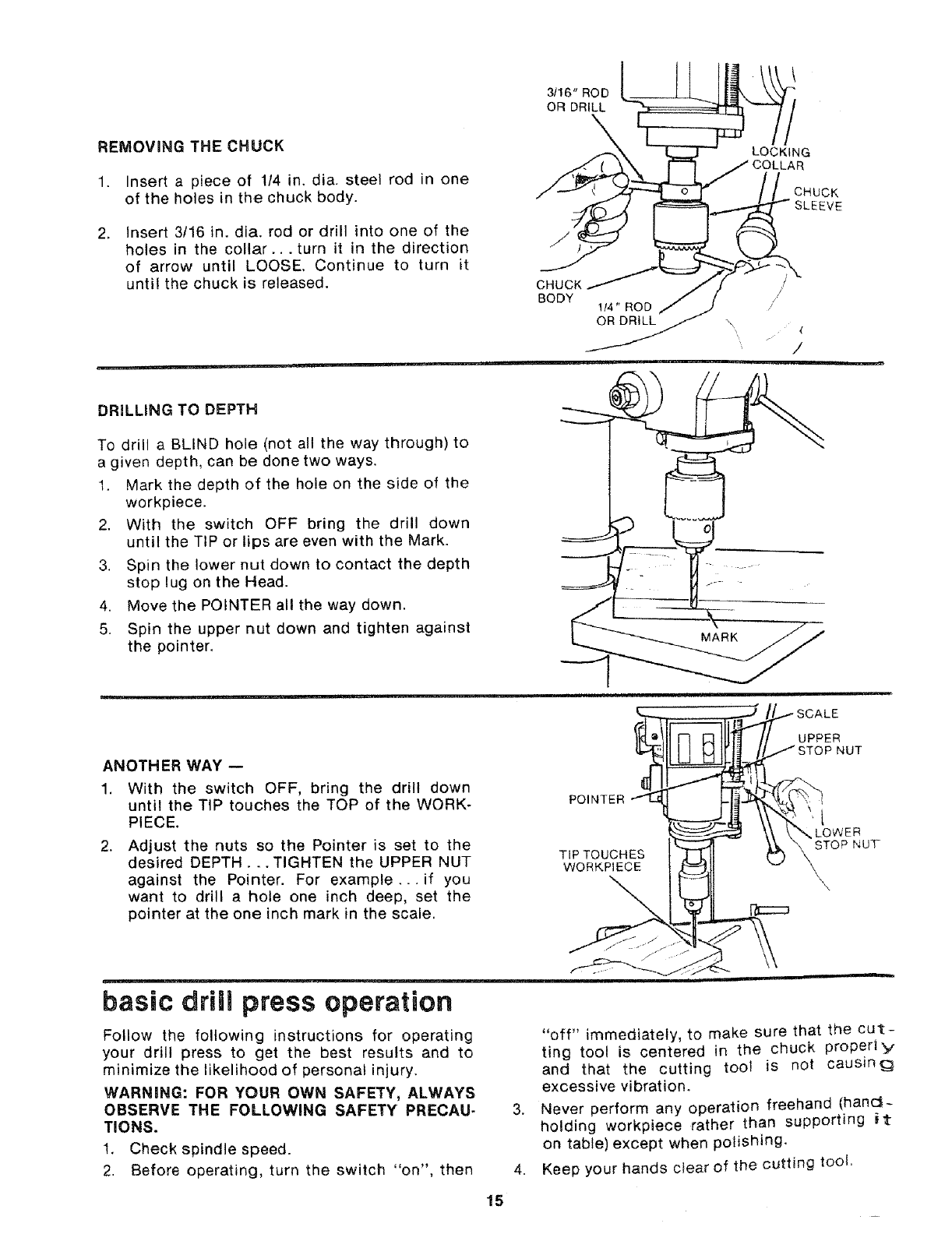

3. Basic Drill Press Operation ................ 15

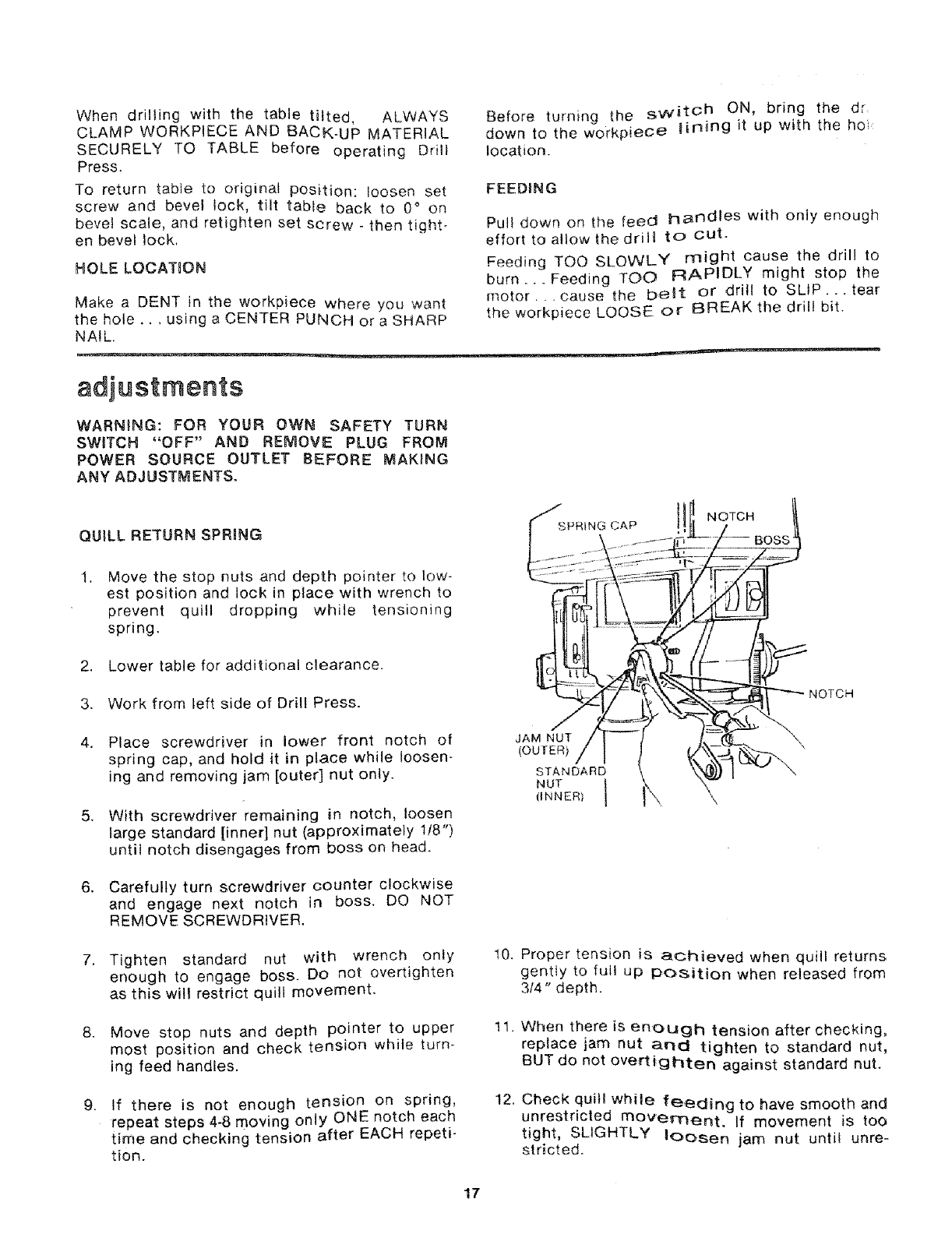

4. Adjustments .............................. t7
5. Maintenance .............................. 18
6. Stability of Dri!l Press
The drill press should be bolted to the floor;
an alternate is to securely bolt a piece of
1t2" exterior plywood to the underside of the
Base, extending to both sides, and to rear if
desired.
If the workpiece is too large to support with
one hand, provide an auxiliary support.
Location
The drill press should be positioned so
neither the operator nor a casual observer is
forced to stand in line with apotential Kick-
back.
,
8. Kickback
A kickback occurs when the workpiece is
suddenly thrown in the OPPOSITE direction
to the DIRECTION OF FEED; THIS CAN
CAUSE SERIOUS INJURY. Kickbacks are
most commonly caused by:
a. Relaxing your grip of the workpiece while
surfacing or planing.
b. Taking too heavy a cut while surfacing or
planing.
c. Ignoring the instructions for surfacing or
planing.
9. Protection: Eyes, Hands, Face, Ears, Body
WARNING: FOR YOUR OWN SAFETY, DO
NOT WEAR GLOVES, NECKT!E OR LOOSE
CLOTHING, AND TiE BACK LONG HAiR
WHEN OPERATING DRILL PRESS.
a. if any part of your drill press is malfunc-
tioning, has been damaged or broken...
such as the motor switch, or other operat-
ing control, a safety device or the power
cord.., cease operating immediately until
the particular part is properly repaired or
replaced.
ANSI Z87.1, and a face mask if operation
is dusty. Wear ear plugs or muffs during
extended periods of operation.
c. Never place your fingers in a position
where they could contact the drill or other
cutting tool if the workpiece should
unexpectedly shift.
d. To avoid injury, follow instructions exactly
as given and shown in adjusting spring
tension of quill.
e. ALWAYS position backup material to con-
tact the left side of the column. POSITION
workpiece to butt against the column
whenever possible--if it is too short,
clamp solidly to the Table. Use table slots
or clamping ledge around outside edge of
Table. This is to prevent the drill bit from
grabbing the work from your hands. This
action would cause the workpiece to spin
with the drill, and could cause serious
injury. A drill press vise must be fastened
to the table.
f. Never perform any operation "free-hand"
.(hand-holding workpiece rather than sup-
port it on the Table), except when polish-
ing -- Wear Safety Goggles!
g. Securely lock Head and Support to Co!-
umn, Arm to Support, and Table to Arm
before operating Drill Press.
h. Never perform any operation by moving
the Head or Table with respect to one
another.
i. Before pulling the motor switch "ON", be
positive the belt guard is closed, the
Chuck is installed properly, and the drill or
other cutting tool is securely clamped in
the chuck.
j. Before starting the operation, jog the
motor switch to be sure the drill or other
cutting toot does not have excessive run-
out or cause vibration.
k. Do not operate the Dril! Press unless the
Depth Stop and Stop Nut are installed.
I. Use the spindle speed recommended for
the specific operation and workpiece
materia! -refer to panel on left side of
the Head for drilling information; for
accessories, refer to the instruction sheets
that accompany the accessories.
m. tf workpiece overhangs the Table such that
it will fall to floor if unsupported, clamp it
to the Table or provide auxiliary support,
additional safety instructions for dril! presses

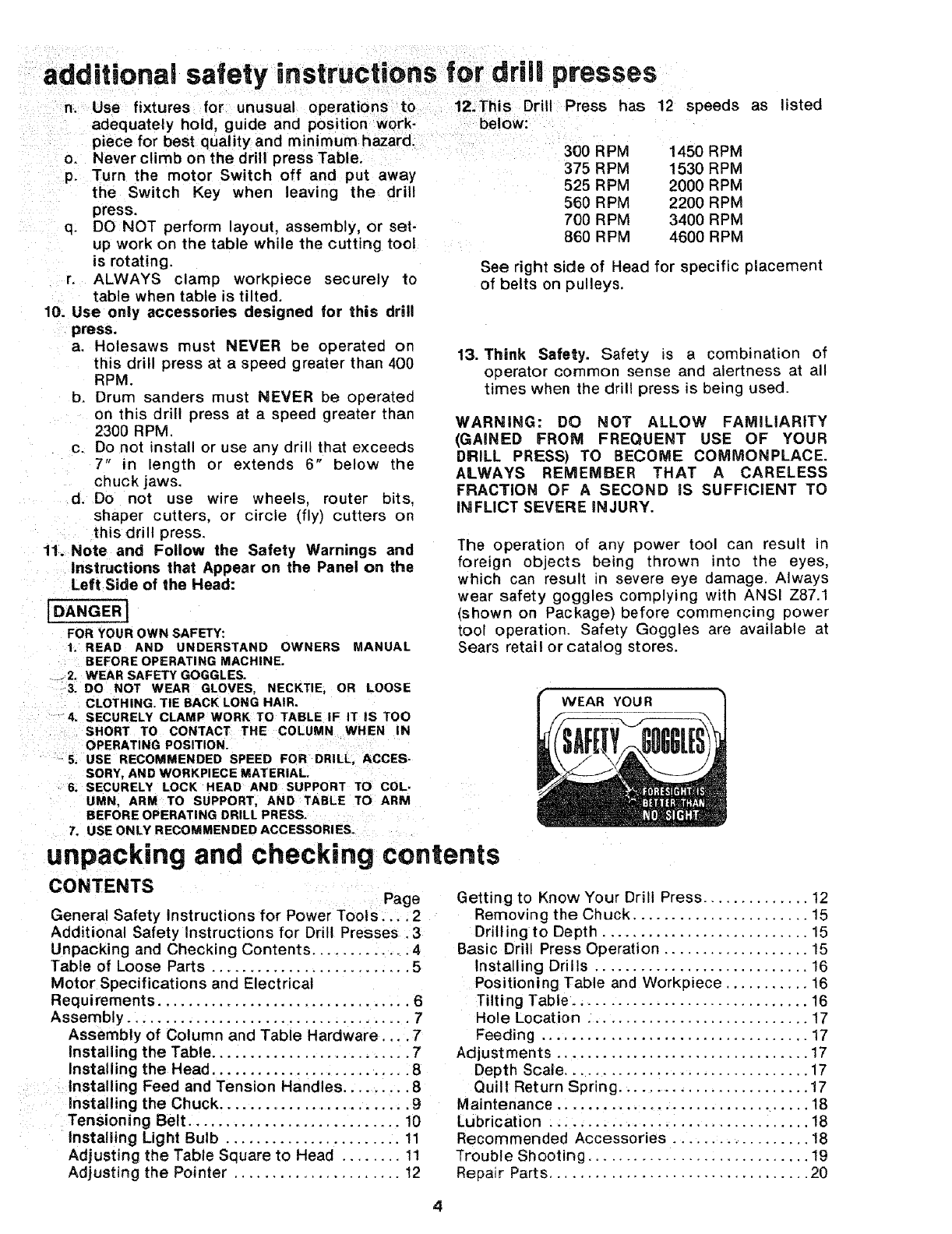

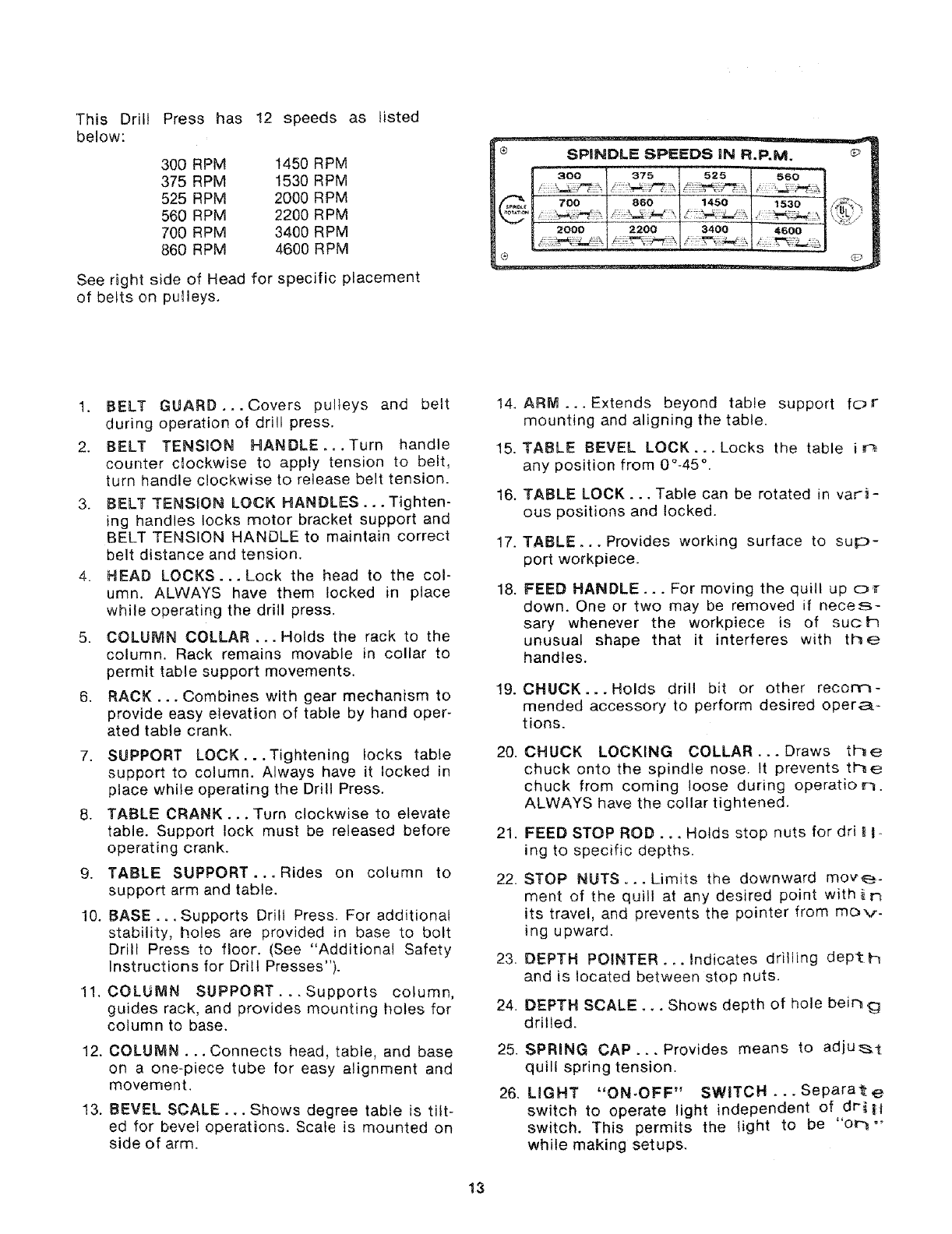

n. Use fixtures for unusual operations to 12.This Drill Press has 12 speeds as listed
adequately hold, guide and position work- below:
piece for best quality and minimum hazard.
o. Never climb on the drill press Table.
p. Turn the motor Switch off and put away
the Switch Key when leaving the drill
press.
q. DO NOT perform layout, assembly, or set.
up work on the table while the cutting tool
is rotating.
r. ALWAYS clamp workpiece securely to
table when table is tilted.
10. Use only accessories designed for this drill
press.
a. Holesaws must NEVER be operated on
this drill press at a speed greater than 400
RPM.
b. Drum sanders must NEVER be operated
on this drill press at a speed greater than
2300 RPM.
c. Do not install or use any drill that exceeds
7" in length or extends 6" below the
chuck jaws.
d. Do not use wire wheels, router bits,
shaper cutters, or circle (fly) cutters on
this drill press.
11. Note and Follow the Safety Warnings and
Instructions that Appear on the Panel on the
Left Side of the Head:
[DANGER 1
FOR YOUR OWN SAFETY:
1. READ AND UNDERSTAND OWNERS MANUAL
BEFORE OPERATING MACHINE.
_2. WEAR SAFETY GOGGLES.
3. DO NOT WEAR GLOVES, NECKTIE, OR LOOSE
CLOTHING, TIE BACK LONG HAIR.
4. SECURELY CLAMP WORK TO TABLE IF IT IS TOO
SHORT TO CONTACT THE COLUMN WHEN IN
OPERATING POSITION.
5. USE RECOMMENDED SPEED FOR DRILL, ACCES-
SORY, AND WORKPIECE MATERIAL.
6. SECURELY LOCK HEAD AND SUPPORT TO COL,
UMN, ARM TO SUPPORT, AND TABLE TO ARM
BEFORE OPERATING DRILL PRESS.
7. USE ONLY RECOMMENDED ACCESSORIES.

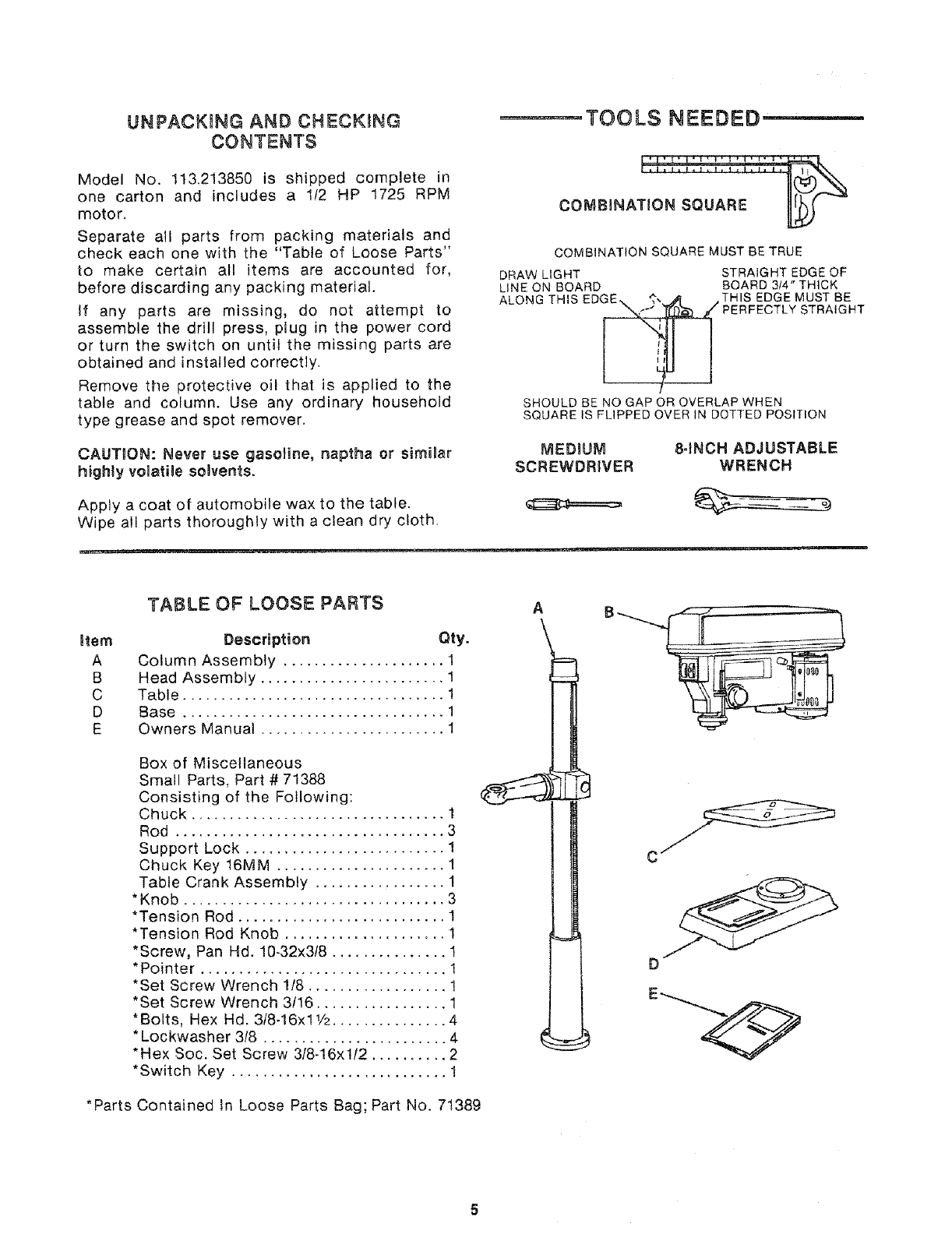

unpacking and checking contents
CONTENTS Page
General Safety instructions for Power Tools .... 2
Additional Safety Instructions for Drill Presses .3
Unpacking and Checking Contents ............. 4
Table of Loose Parts .......................... 5

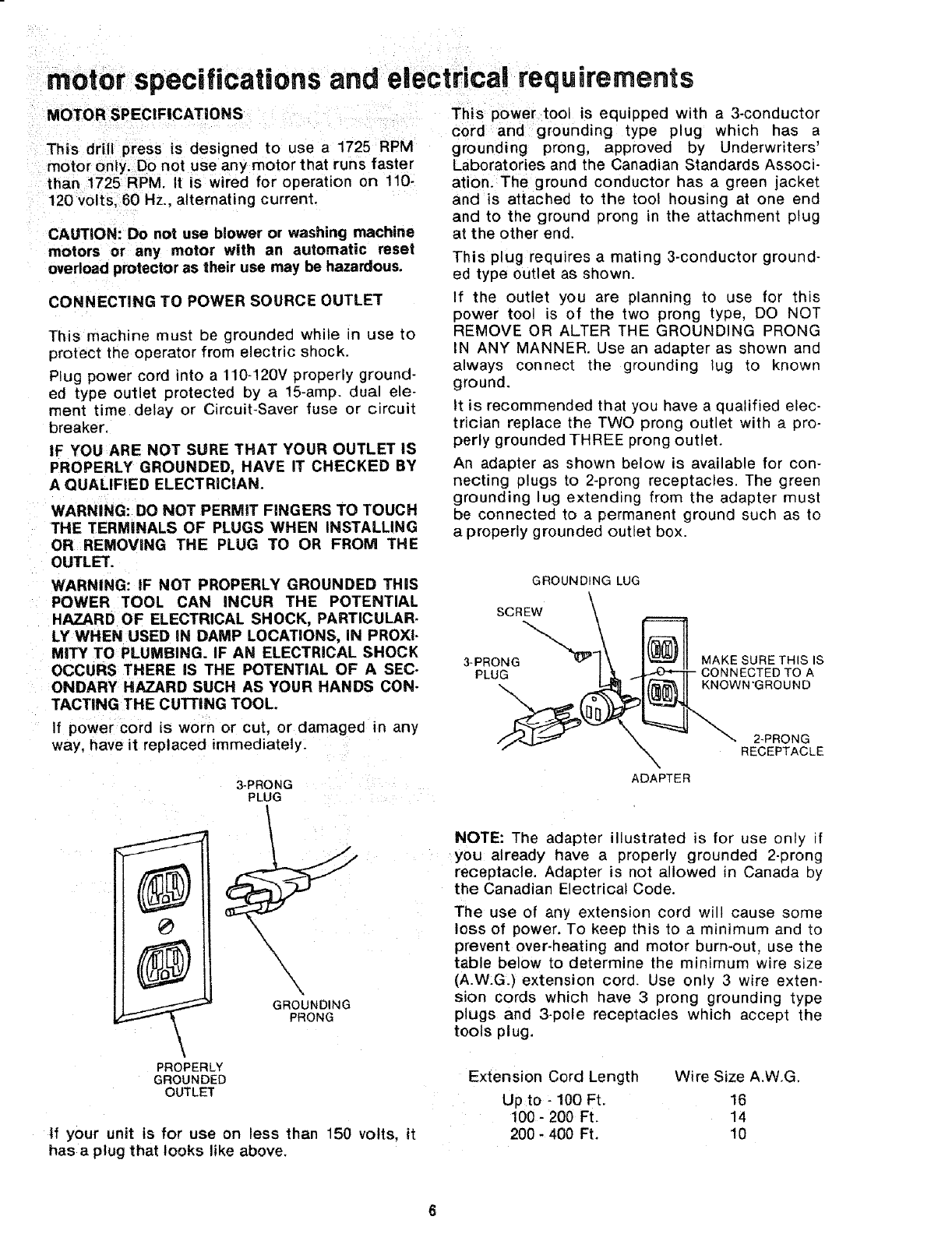

Motor Specifications and Electrical
Requirements ................................. 6
Assembly ..................................... 7
Assembly of Column and Table Hardware... 7
Installing the Table .......................... 7

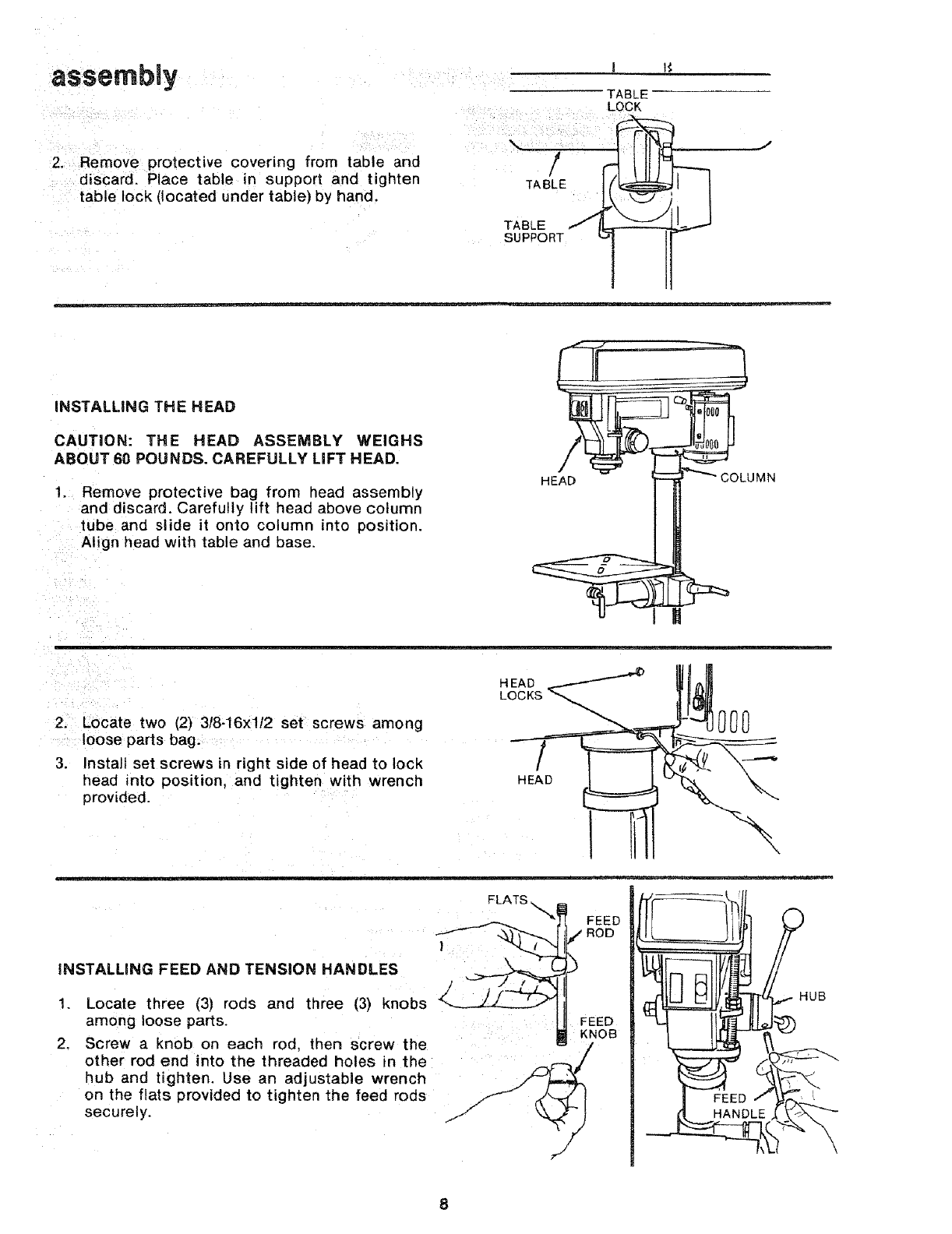

Installing the Head .......................... 8
Installing Feed and Tension Handles ......... 8

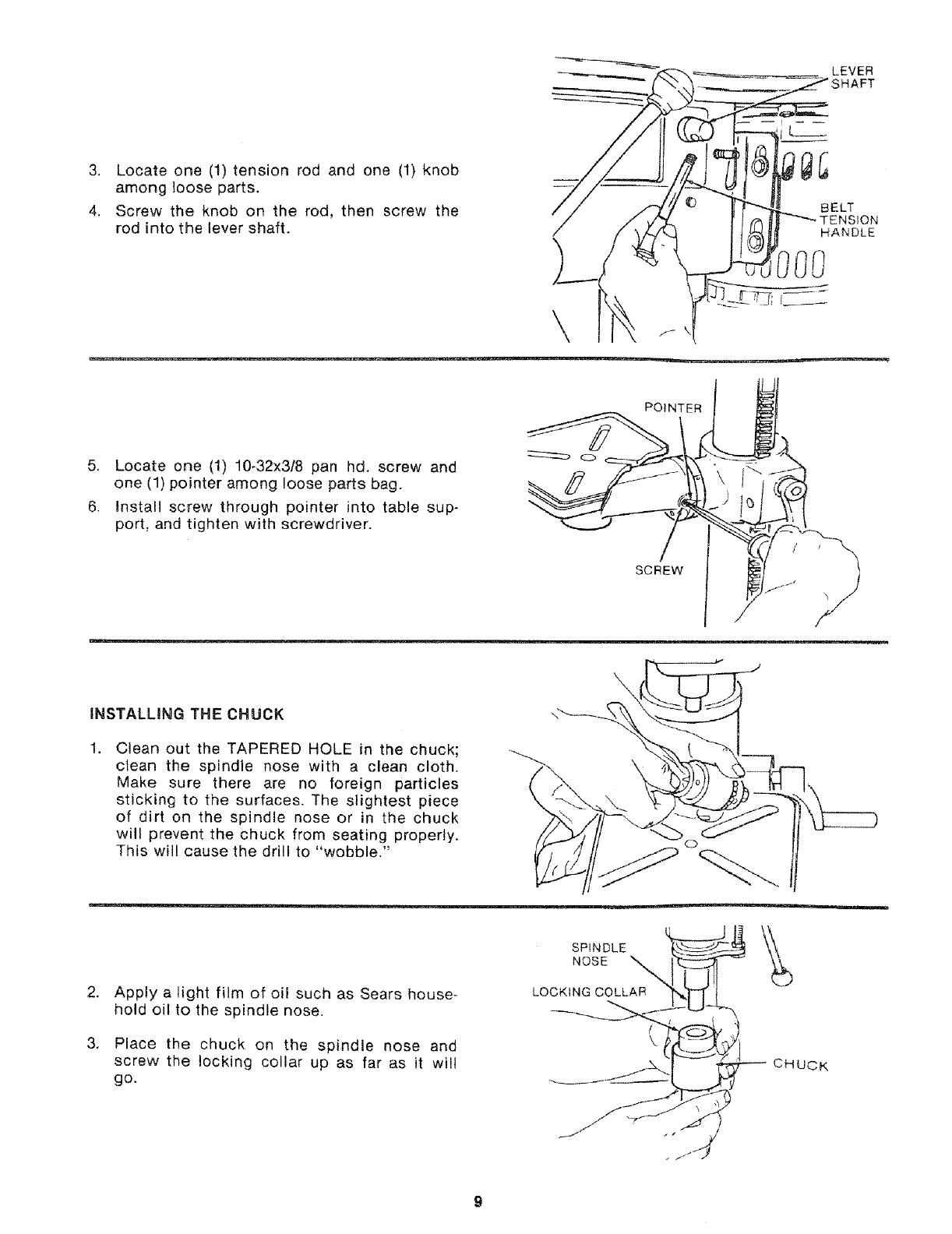

installing the Chuck ......................... g

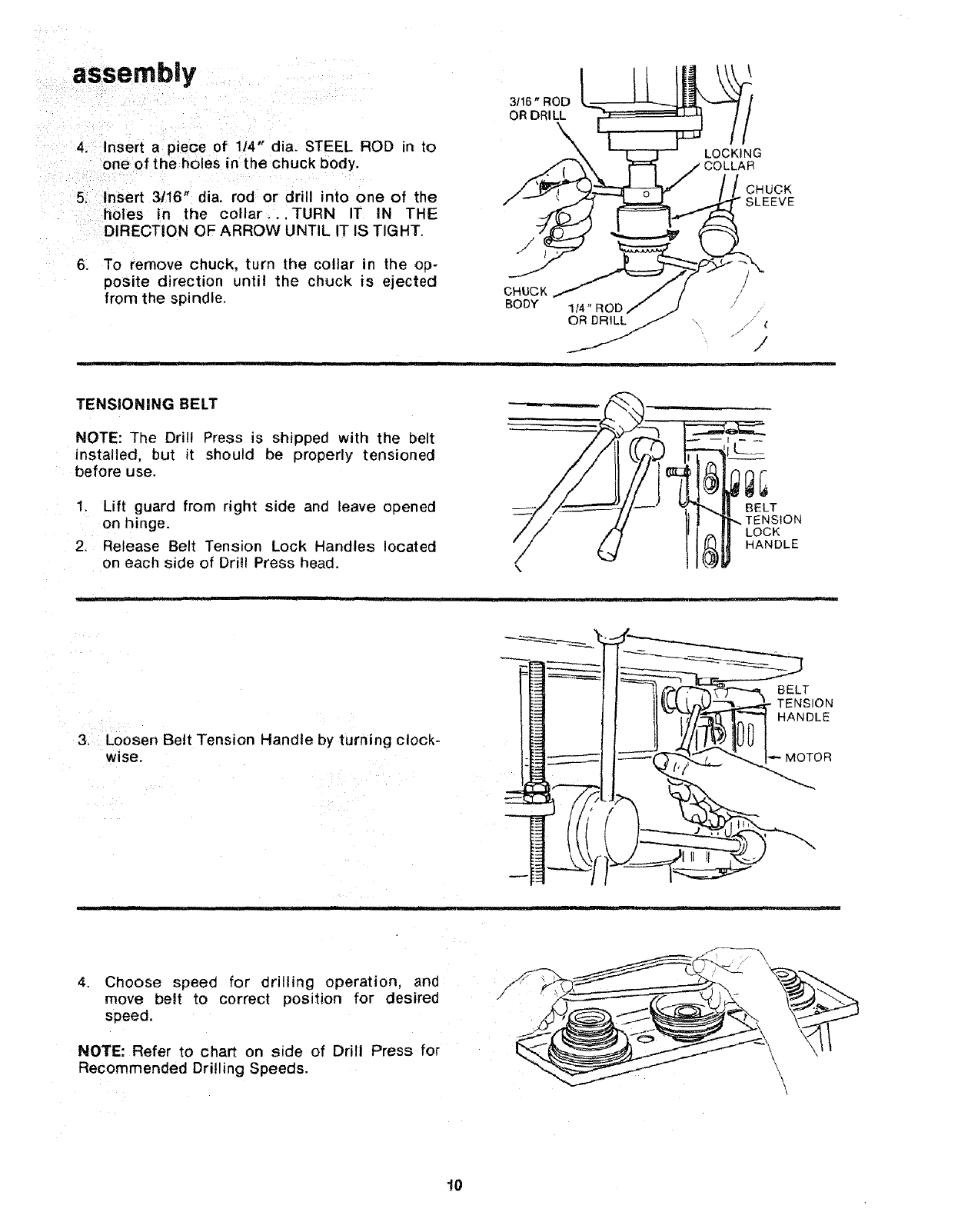

Tensioning Belt ............................ 10

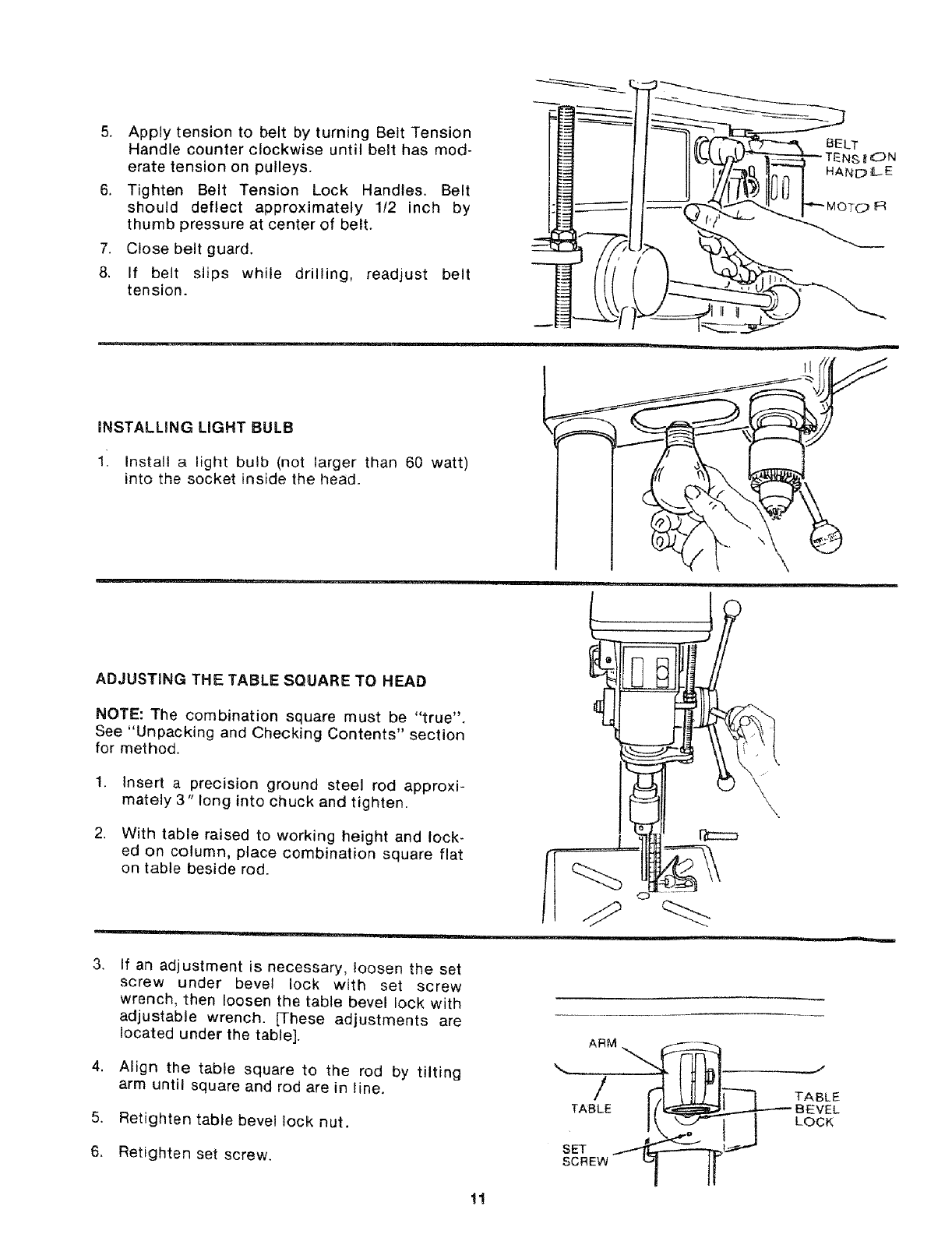

Installing Light Bulb ....................... 11
Adjusting the Table Square to Head ........ 11
Adjusting the Pointer ...................... 12
300 RPM 1450 RPM
375 RPM 1530 RPM
525 RPM 2000 RPM
560 RPM 2200 RPM
700 RPM 3400 RPM
860 RPM 4600 RPM
See right side of Head for specific placement
of belts on pulleys.
13. Think Safety. Safety is ecombination of
operator common sense and alertness at all
times when the drill press is being used.
WARNING: DO NOT ALLOW FAMILIARITY
(GAINED FROM FREQUENT USE OF YOUR
DRILL PRESS) TO BECOME COMMONPLACE.
ALWAYS REMEMBER THAT A CARELESS
FRACTION OF A SECOND IS SUFFICIENT TO
INFLICT SEVERE INJURY.
The operation of any power tool can result in
foreign objects being thrown into the eyes,
which can result n severe eye damage. Always
wear safety goggles corn;)lying with ANSI Z87.1
(shown on Package) before commencing power
tool operation. Safety Goggles are available at
Sears retail or catalog stores.
WEAR YOUR
Getting to Know Your Drill Press .............. 12
Removing the Chuck ....................... 15
Drilling to Depth ........................... 15
Basic Drill Press Operation ................... 15
Installing Drills ............................ 16
Positioning Table and Workpiece ........... 16
Tilting Table ............................... 16
Hole Location ............................. 17
Feeding ................................... 17
Adjustments ................................. 17
Depth Scale ................................ 17
Quill Return Spring ......................... 17

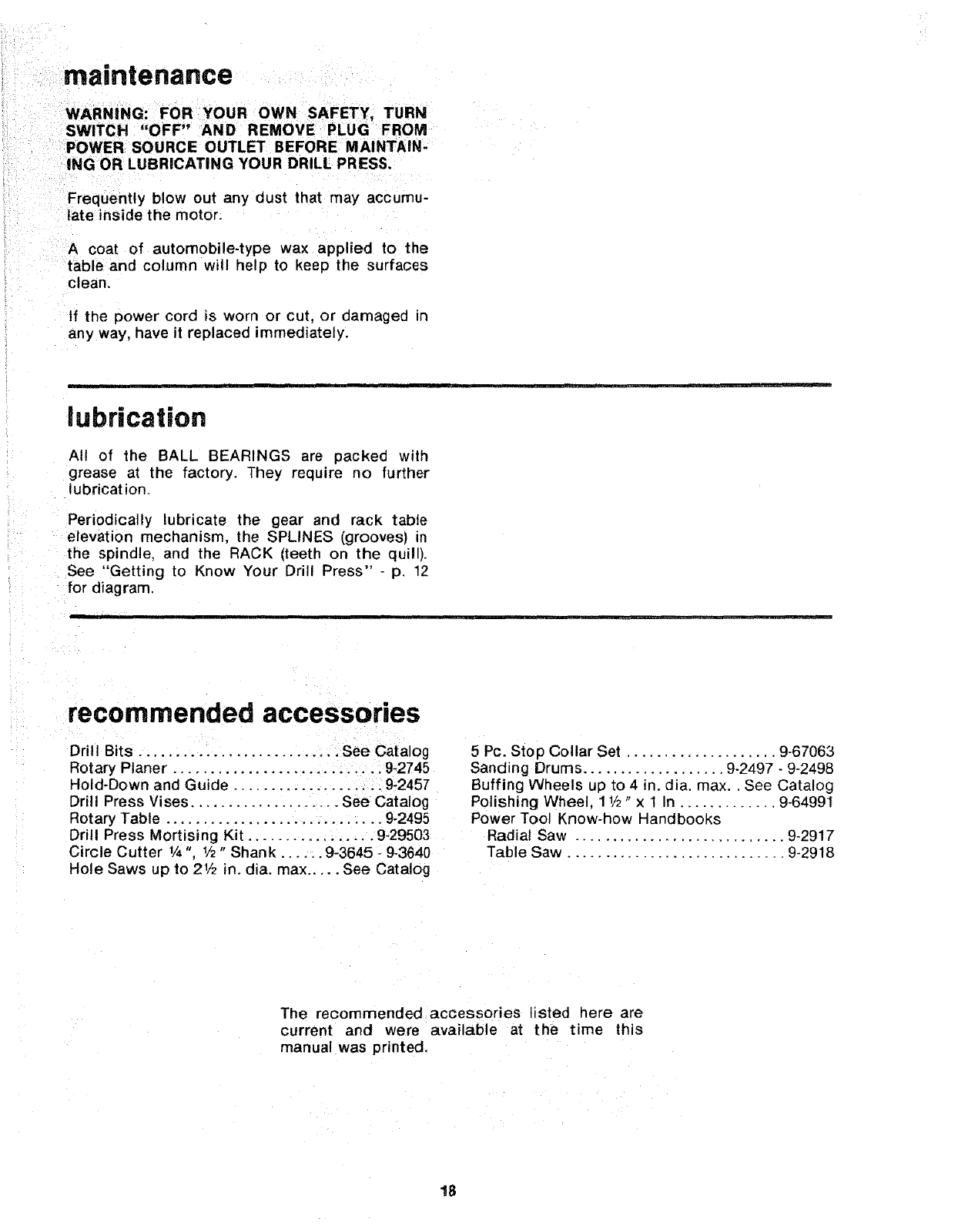

Maintenance ................................. 18
Lubrication .................................. 18
Recommended Accessories .................. 18

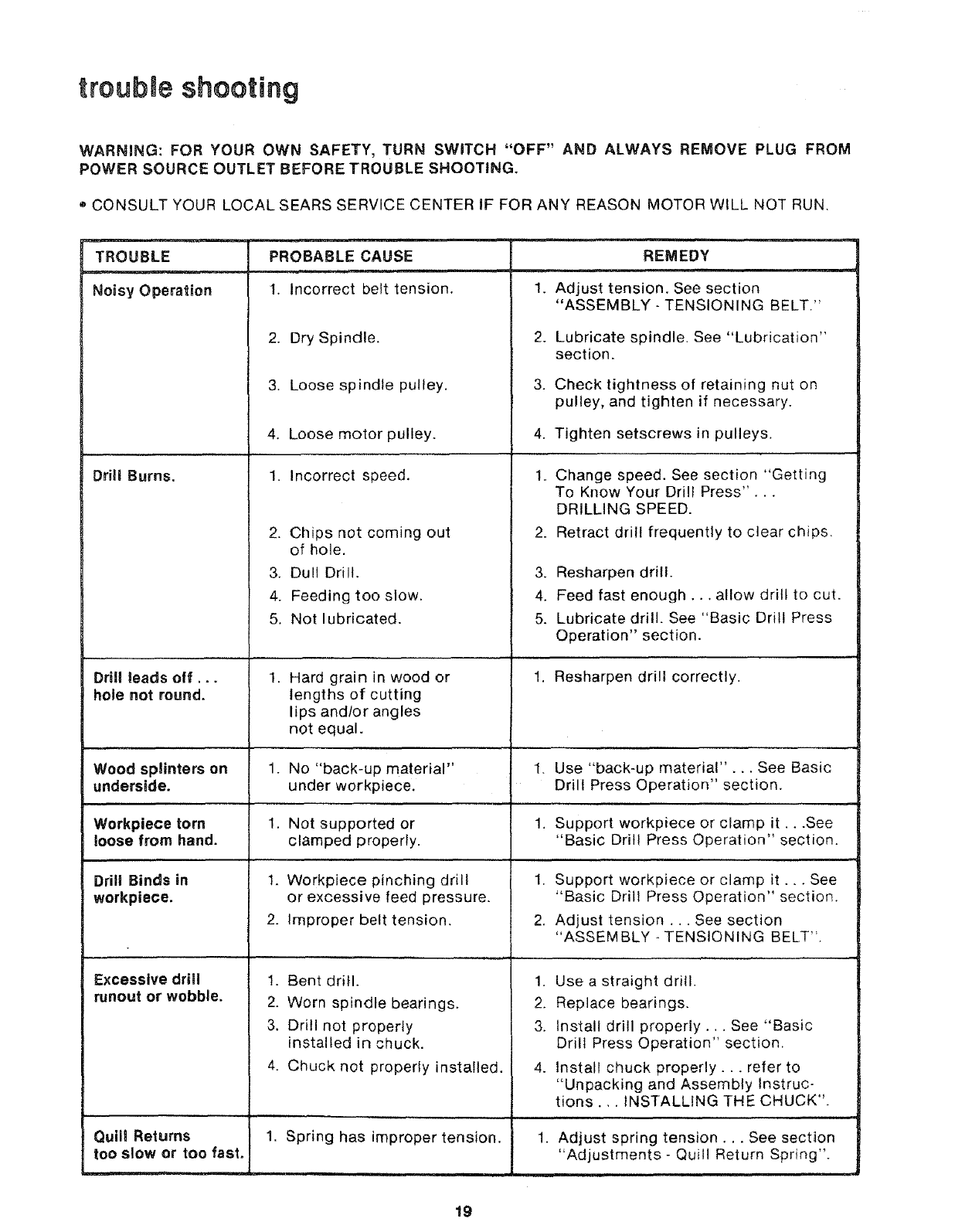

Trouble Shooting ............................. 19

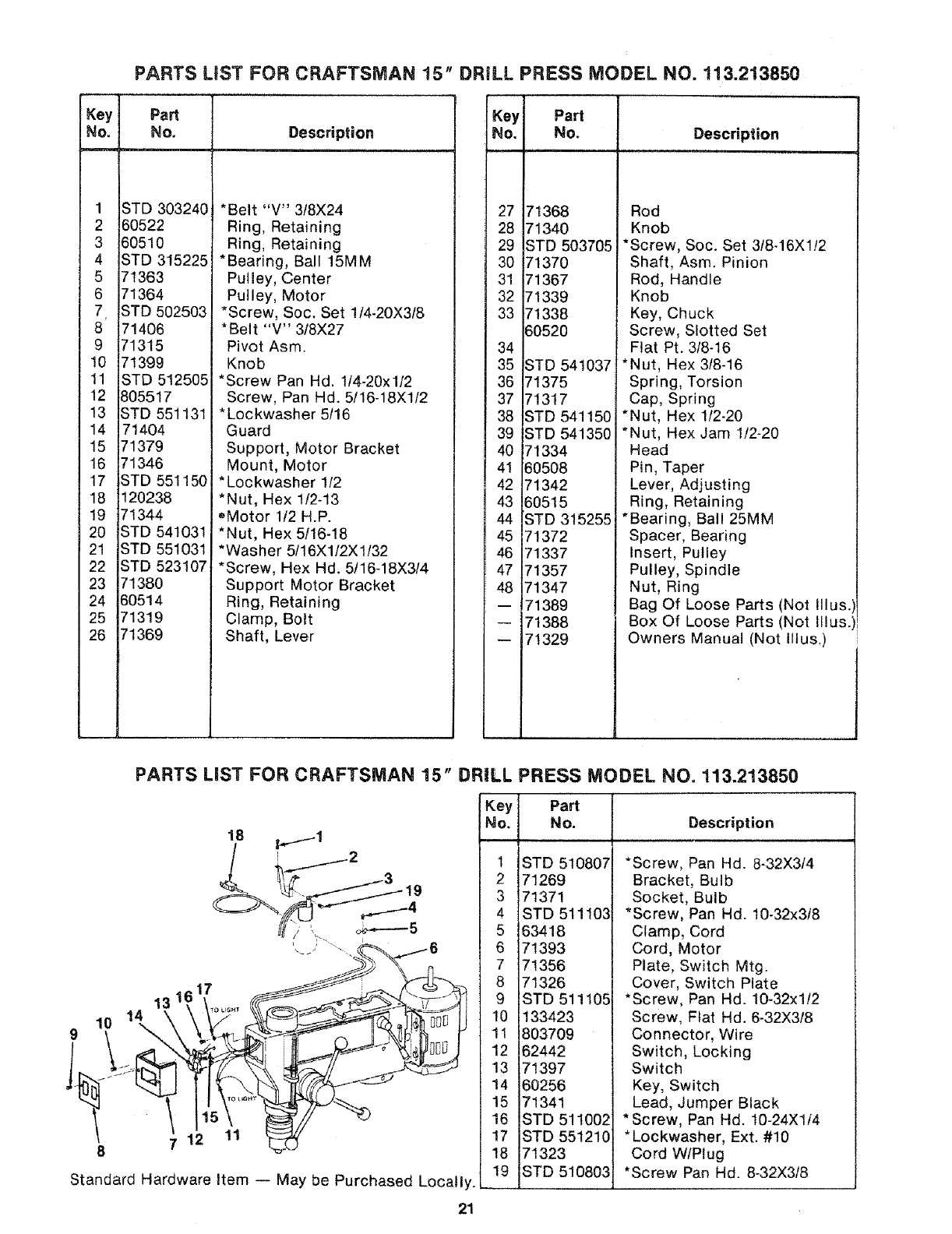

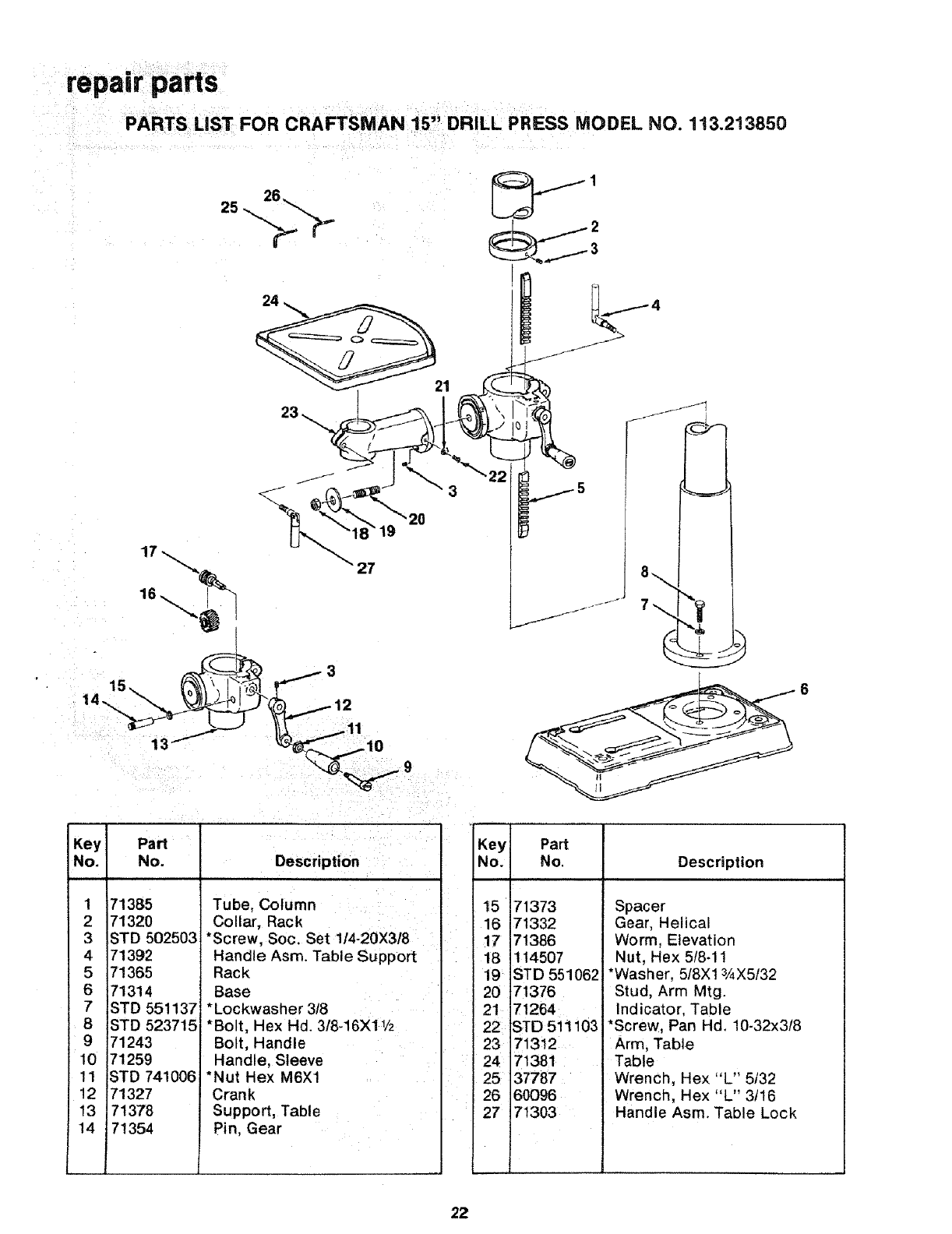

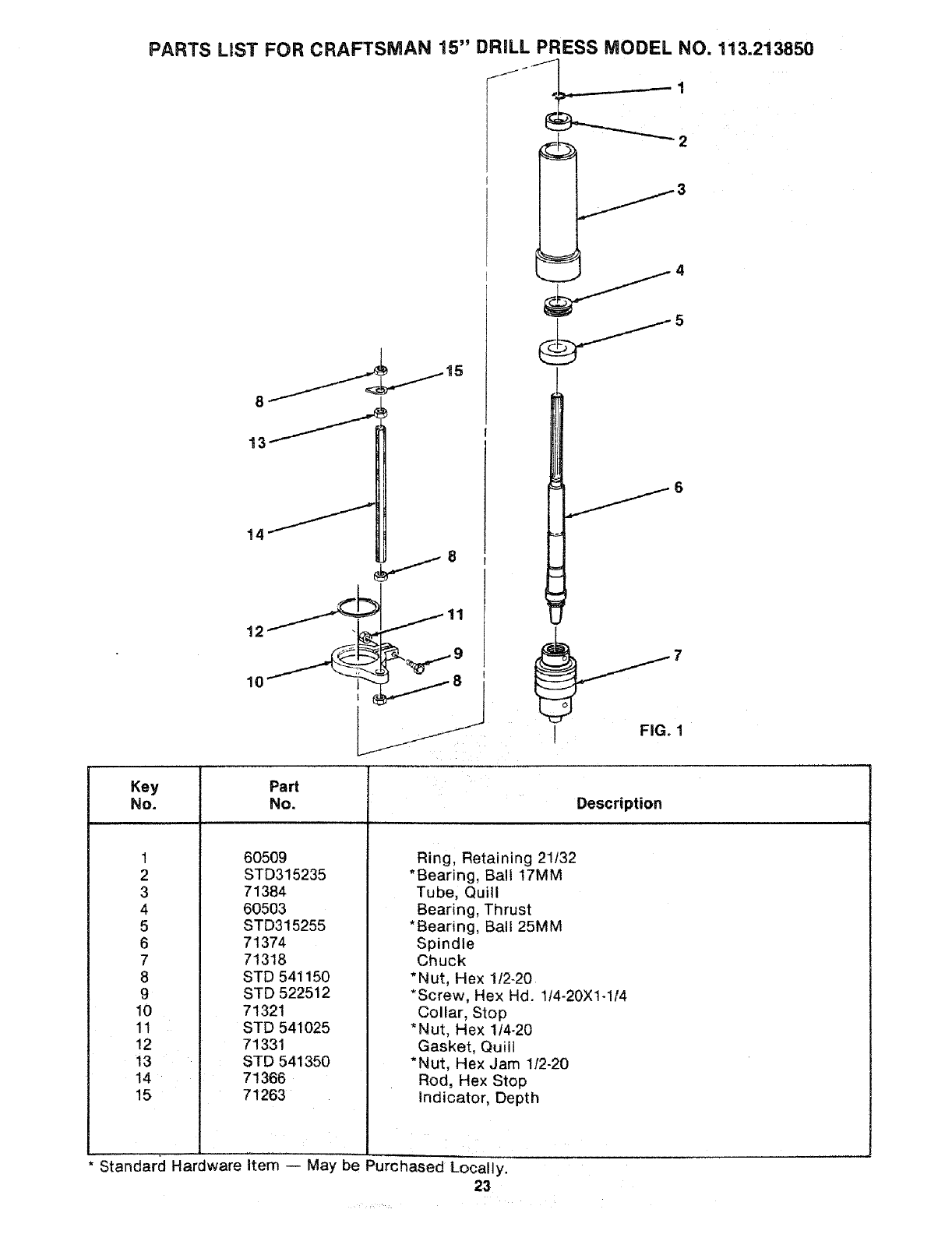

Repair Parts .................................. 20
UNPACKDNG AND CHECKnNG
CONTENTS
Model No. 113.213850 is shipped complete in
one carton and includes a 1!2 HP 1725 RPM
motor.
Separate all parts from packing materials and
check each one with the "Table of Loose Parts"
to make certain all items are accounted for,
before discarding any packing material.
If any parts are missing, do not attempt to
assemble the drill press, plug in the power cord
or turn the switch on until the missing parts are
obtained and installed correctly.
Remove the protective oil that is applied to the
table and column. Use any ordinary household
type grease and spot remover.
CAUTgON: Never use gaso_Nne, naptha or similar
highly vo_atine somvertts.
TOOLS NEEDED
COIVlS_NA_
COMBINATION SQUARE MUST BE TRUE
DRAW LIGHT
LiNE ON BOARD
ALONG THiS EDI_,_.__
STRAIGHT EDGE OF
BOARD 3/4" THICK
THIS EDGE MUST BE
PERFECTLY STRAIGHT
SHOULD BE NO GAP OR OVERLAP WHEN
SQUARE iS FLIPPED OVER IN DOTTED POSITION
MEDIUM
SCREWDRSVER 84NCH ADJUSTABLE
WRENCH
Apply a coat of automobile wax to the table.
Wipe all parts thoroughly with a clean dry cloth.
_$_======_
TABLE OF LOOSE PARTS
_em Description Qty.
A Column Assembly ..................... 1
B Head Assembly ........................ 1
C Table .................................. 1
D Base .................................. 1
E Owners Manual ........................ 1
Box of Miscellaneous
Small Parts, Part # 71388
Consisting of the Following:
Chuck ................................. 1
Rod ................................... 3
Support Lock .......................... 1
Chuck Key 16MM ...................... 1
Table Crank Assembly ................. 1
*Knob .................................. 3
*Tension Rod ........................... 1
*Tension Rod Knob ..................... 1
*Screw, Pan Hd. 10-32x3t8 ............... 1
*Pointer ................................ 1
*Set Screw Wrench !18 .................. 1
*Set Screw Wrench 3/16 ................. !
*Bolts, Hex Hd. 3/8-16x11/2 ............... 4
* Lockwasher 3!8 ........................ 4
*Hex Soc. Set Screw 3!8-16xl12 .......... 2
*Switch Key ............................ 1
*Parts Contained In Loose Parts Bag; Part No. 71389
A\
motor specifications and electrical requirements
MOTOR SPECIFICATIONS
This drill press is designed to use a 1725 RPM
motor only. Do not use any motor that runs faster
than 1725 RPM. It is wired for operation on 110-
120 volts, 60 Hz., alternating current.
CAUTION: Do not use blower or washing machine
motors or any motor with an automatic reset
ovedoad protector as their use may be hazardous.
CON NECTING TO POWER SOURCE OUTLET
This machine must De grounded while n use to
protect the operator from electric shock.
Plug power cord into a 110-120V properly ground-
ed type outlet protected by a 15-amp. dual ele-
ment time delay or Circuit-Saver fuse or circuit
breaker.
IF YOU ARE NOT SURE THAT YOUR OUTLET IS
PROPERLY GROUNDED, HAVE IT CHECKED BY
A QUALIFIED ELECTRICIAN.
WARNING: DO NOT PERMIT FINGERS TO TOUCH
THE TERMINALS OF PLUGS WHEN INSTALLING
OR REMOVING THE PLUG TO OR FROM THE
OUTLET.
WARNING: IF NOT PROPERLY GROUNDED THiS
POWER TOOL CAN iNCUR THE POTENTIAL
HAZARD OF ELECTRICAL SHOCK, PARTICULAR.
LY WHEN USED iN DAMP LOCATIONS, iN PROXI-
MITY TO PLUMBING. IF AN ELECTRICAL SHOCK
OCCURS THERE IS THE POTENTIAL OF A SEC-
ONDARY HAZARD SUCH AS YOUR HANDS CON.
TACTING THE CUTTING TOOL.
If power cord is worn or cut, or damaged in any
way, have it replaced immediately.
PROPERLY
GROUNDED
OUTLET
3-PRONG
PLUG
GROUNDING
PRONG
tf your unit is for use on less than 150 volts, it
has a plug that looks like above.
This power tool is equipped with a 3-conductor
cord and grounding type plug which has a
grounding prong, approved by Underwriters'
Laboratories and the Canadian Standards Associ-
ation. The ground conductor has a green jacket
and is attached to the tool housing at one end
and to the ground prong in the attachment plug
at the other end.
This plug requires a mating 3-conductor ground-
ed type outlet as shown.
If the outlet you are planning to use for this
power tool is of the two prong type, DO NOT
REMOVE OR ALTER THE GROUNDING PRONG
Ik ANY MANNER. Use an adapter as shown and
always connect the grounding tug to known
ground.
It is recommended that you have a qualified elec-
trician replace the TWO prong outlet with a pro-
perly grounded THREE prong outlet.
An adapter as shown below is available for con-
necting plugs to 2-prong receptacles. The green
grounding lug extending from the adapter must
be connected to a permanent ground such as to
a properly grounded outlet box.
GROUNDING LUG
SCR_\
3-PRONG S,_ _ MAKE SURE THIS IS
ADAPTER
NOTE: The adapter illustrated is for use only if
you already have a properly grounded 2-prong
receptacle. Adapter is not allowed in Canada by
the Canadian Electrical Code.
The use of any extension cord will cause some
loss of power. To keep this to aminimum and to
prevent over-heating and motor burn-out, use the
table below to determine the minimum wire size
(A.W:G.) extension cord. Use only 3 wire exten-
sion cords which have 3 prong grounding type
plugs and 3-pole receptacles which accept the
tools plug.
Extension Cord Length Wire Size A.W.G.
Upto - 100 Ft. 16
100 - 200 Ft. 14
200 - 400 Ft. 10

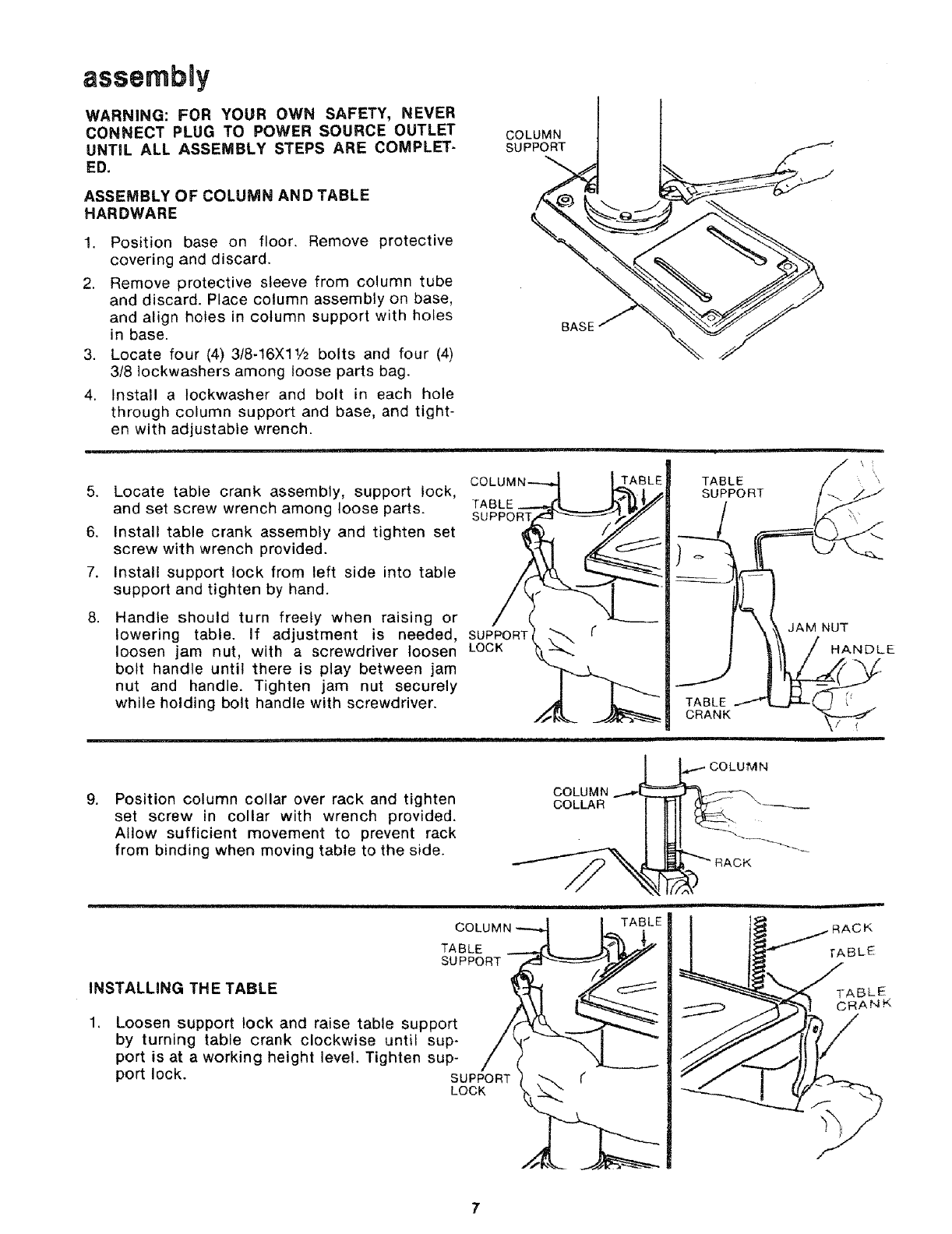

assemb0y
WARNING: FOR YOUR OWN SAFETY, NEVER
CONNECT PLUG TO POWER SOURCE OUTLET
UNTIL ALL ASSEMBLY STEPS ARE COMPLET-
ED.
ASSEMBLY OF COLUMN AND TABLE
HARDWARE
1. Position base on floor. Remove protective
covering and discard.
2. Remove protective sleeve from column tube
and discard. Place column assembly on base,
and align holes in column support with holes
in base.
3. Locate four (4) 318-16Xll/2 bolts and four (4)
3/8 Iockwashers among loose parts bag.
4. Install a Iockwasher and bolt in each hole
through column support and base, and tight-
en with adjustable wrench.
COLUMN I
SUPPORT J
5. Locate table crank assembly, support lock,
and set screw wrench among loose parts.
6. Install table crank assembly and tighten set
screw with wrench provided.
7. Install support lock from left side into table
support and tighten by hand.
.Handle should turn freely when raising or
lowering table. If adjustment is needed,
loosen jam nut, with a screwdriver loosen
bolt handle until there is play between jam
nut and handle. Tighten jam nut securely
while holding bolt handle with screwdriver.
TABLE
SUPP
SUPPORT
LOCK
TABLE /
SUPPORT /_
I HANDLE
TABLE -..-.-.,-_L._-_ ',' .
C RAN K _/"_'7_f
,Position column collar over rack and tighten
set screw in collar with wrench provided.
Allow sufficient movement to prevent rack
from binding when moving table to the side.
._ COLUMN
COLUMN _'-_
COLLAR I IT]I (4_Tf "--_
K
INSTALLONG THE TABLE
CO
TABLE
SUPPORT
Loosen support lock and raise table support
by turning table crank clockwise until sup-
port is at a working height level. Tighten sup-
port lock. SUPPORT
LOCK
TABLE
TABLE
CRANK
assembly
i i _ii_!i_iii_i___i:ii
2. Remove protective covering from table and
discard. Place table in support and tighten
table lock (located under table) by hand.
II5
TABLE
SUPPORT "J1
,J
INSTALLING THE HEAD
CAUTION: THE HEAD ASSEMBLY WEIGHS
ABOUT 60 POUNDS. CAREFULLY LiFT HEAD.
1, Remove protective bag from head assembly
and discard. Carefully lift head above column
tube and slide it onto column into position,
Align head with table and base.
HEAD
2. Locate two (2) 318-16x112 set screws among
loose parts bag.
3. Install set screws in right side of head to lock
head into position, and tighten with wrench
provided.
H EAD
LOCKS
HEAD
000
FLATS _. -%
INSTALUNG FEED AND TENSION HANDLES _ _
1. Locate three (3) rods and three (3) knobs
among loose parts.
2. Screw a knob on each rod, then screw the
other rod end into the threaded holes in the
hub and tighten. Use an adjustable wrench
on the flats provided to tighten the feed rods
securely. /
/
/
FEED
,_ ROD
FEED
KNOB
HUB
LEVER
_HAFT
3. Locate one (t) tension rod and one (1) knob
among loose parts.
4. Screw the knob on the rod, then screw the
rod into the lever shaft.
BELT
ENSION
HANDLE
00
\
POINTER
5. Locate one (1) 10-32x3/8 pan hd. screw and
one (1) pointer among loose parts bag.
6. Install screw through pointer into table sup-
port, and tighten with screwdriver.
SCREW
//
,,/J
/
INSTALLING THE CHUCK
Clean out the TAPERED HOLE in the chuck;
clean the spindle nose with a clean cloth.
Make sure there are no foreign particles
sticking to the surfaces. The slightest piece
of dirt on the spindle nose or in the chuck
will prevent the chuck from seating properly.
This will cause the drill to "wobble."
/\
O
2. Apply a light film of oil such as Sears house-
hold oil to the spindle nose.
3. Place the chuck on the spindle nose and
screw the locking collar up as far as it wilt
go.
LOCKING COLLAR "_
-" jJ
9
assembly
4.
°
.
Insert a piece of 114" dia. STEEL ROD in to
one of the holes in the chuck body.
Insert 3/]6" dia. rod or drill into one of the
holes in the collar...TURN IT IN THE
DIRECTION OF ARROW UNTIL IT IS TIGHT.
To remove chuck, turn the collar in the op-
posite direction until the chuck is ejected
from the spindle.
3/16" ROD
OR DRILL
\
/
CHUCK
BODY 114" ROD
OR DRILL
LOCKING
;OLLAR
CHUCK
SLEEVE
/
/
TENSIONING BELT
NOTE: The Drill Press is shipped with the belt
installed, but it should be properly tensioned
before use.
1. Lift guard from right side and leave opened
on hinge.
2, Release Belt Tension Lock Handles located
on each side of Drill Press head.
BELT
TENSION
LOCK
HANDLE
3Loosen Belt Tension Handle by turning clock-
wise.
BELT
TENSION
HANDLE
4. Choose speed for drilling operation, and
move belt to correct position for desired
speed.
NOTE: Refer to chart on side of Drill Press for
Recommended Drilling Speeds. \\\
10
5. Apply tension to belt by turning Belt Tension
Handle counter clockwise until belt has mod-
erate tension on pulleys.
6. Tighten Belt Tension Lock Handles. Belt
should deflect approximately 1/2 inch by
thumb pressure at center of belt.
7. Close belt guard.
8. If belt slips while drilling, readjust belt
tension.
INSTALLING LIGHT BULB
1. Install a Hght bulb (not larger than 60 watt)
into the socket inside the head. %
\
ADJUSTING THE TABLE SQUARE TO HEAD
NOTE: The combination square must be "true".
See "Unpacking and Checking Contents" section
for method.
t. insert a precision ground steel rod approxi-
mately 3" long into chuck and tighten.
2. With table raised to working height and lock-
ed on column, place combination square flat
on table beside rod.
,
,
,
6.
If an adjustment is necessary, loosen the set
screw under bevel lock with set screw
wrench, then loosen the table bevel lock with
adjustable wrench. [These adjustments are
located under the table].
Align the table square to the rod by tilting
arm until square and rod are in line.
Retighten table bevel lock nut.
Retighten set screw.
11
ARM
TABLE I/_I _ BEVEL
I I k""C_ I LOCK
ot
assembly TABL SCALE
ADJUSTING POINTER
1. With the table squared to the head, the table
bevel pointer should be adjusted.
2. Loosen screw in pointer with screwdriver.
and move pointer to "0" position on scale.
Retighten screw.
getting to know your drill press
/
SCREW
POINTER
/
FEED SPRING
ADJUSTMENT
31 FEED
BELT TENSION SPRING
LOCK HANDLE
7
SUPPORT
24
27 DEPTH SCALE
DRILL "ON-OFF"
SWITCH
26
LIGHT "ON-OFF"
SWITCH
22
21
FEED STOP
20
CHUCK LOCKING
COLLAR
25 19
SPRING
CaR 18
FEED HANDLE
15
TABLE BEVEL
17
TABLE
16
]-ABLE LOCK
!
23 BELT GUARD
DEPTH POINTER /
2
BELT TENSION
HANDLE
3
TENSION
LOCK HANDLE
4
HEAD LOCK
5
COLUMN COLLAR
6
RACK
14
ARM/
13
BEVEL SCALE
8
TABLE CRANK
\9
TABLE SUPPORT
12
C(
QUILL AND SPINDLE ASSEMBLY
INSIDE OF DRILL PRESS
SPLINES
(GROOVES)
SPINDLE
11
COLUMN
RACK
_EETH)
10
/BASE
12
This Drill Press has 12 speeds as listed
below:
300RPM 1450RPM
375RPM 1530RPM
525RPM 2000RPM
560RPM 2200RPM
700RPM 3400RPM
860RPM 4600RPM
Seeright side of Headfor specificplacement
of beltson pulleys.
®SPINDLE SPEEDS iN R.P.M. ¢_
3OO
,,,._, 700
o ,
2000
¢
375
860
2200
525 560
1450 1530
3400 4600
1. BELT GUARD ...Covers pulleys and belt
during operation of drill press.
2. BELT TENSION HANDLEoo.Turn handle
counter c_ockwise to apply tension to belt,
turn handle clockwise to release belt tension.
3. BELT TENSION LOCK HANDLES... Tighten-
ing handles locks motor bracket support and
BELT TENSION HANDLE to maintain correct
belt distance and tension.
4. HEAD LOCKS.., Lock the head to the col-
umn. ALWAYS have them locked in place
while operating the drill press.
5. COLUMN COLLAR... Holds the rack to the
column. Rack remains movable in collar to
permit table support movements.
6. RACK... Combines with gear mechanism to
provide easy elevation of table by hand oper-
ated table crank.
7. SUPPORT LOCK...Tightening locks table
support to column. Always have it locked in
place white operating the Drill Press.
8. TABLE CRANK... Turn clockwise to elevate
table. Support lock must be released before
operating crank.
9. TABLE SUPPORT... Rides on column to
support arm and table.
10. BASE .o.Supports Drill Press. For additional
stability, holes are provided in base to bolt
Drill Press to floor. (See "Additional Safety
Instructions for Drill Presses").
11. COLUMN SUPPORT,..Supports column,
guides rack, and provides mounting holes for
column to base.
12. COLUMN ... Connects head, table, and base
on a one-piece tube for easy alignment and
movement.
13. BEVEL SCALE ... Shows degree table is tilt-
ed for bevel operations. Scale is mounted on
side of arm.
14.
15.
16.
17.
18.
19.
20.
ARM ...Extends beyond table support for
mounting and aligning the table.
TABLE BEVEL LOCK... Locks the table i_
any position from 0°-45 °.
TABLE LOCK... Table can be rotated in var'_-
ous positions and locked.
TABLE... Provides working surface to sup-
port workpiece.
FEED HANDLE... For moving the quill up o_
down. One or two may be removed if neces-
sary whenever the workpiece is of suoh
unusual shape that it interferes with the
handles.
CHUCK.,, Holds drill bit or other recor'n-
mended accessory to perform desired opera-
tions,
CHUCK LOCKING COLLAR... Draws the
chuck onto the spindle nose. It prevents the
chuck from coming loose during operatiorl.
ALWAYS have the collar tightened.
21. FEED STOP ROD... Holds stop nuts for dri t l*
ing to specific depths.
22. STOP NUTS... Limits the downward move-
ment of the quill at any desired point with _n
its travel, and prevents the pointer from mov-
ing upward.
23. DEPTH POINTER.,. Indicates drilling depth
and is located between stop nuts.
24. DEPTH SCALE,,. Shows depth of hole beir_ _
drilled,
25. SPRING CAP.,, Provides means to adju,_t
quill spring tension.
26, LIGHT "ON.OFF" SWITCH...Separate
switch to operate light independent of dr_it
switch. This permits the light to be "or_,,
while making setups,
13
getting to know your drill press
27, DRILL "ON.OFF" SWITCH... Has locking
THIS FEATURE IS INTENDED TO
PREVENT UNAUTHORIZED AND POSSIBLE
HAZARDOUS USE BY CHILDREN AND
KEY
insert KEY into switch.
NOTE: Key is made of yellow plastic.
'i
To turn drill ON..
Insert finger under switch lever and pull.
To turn drill OFF.. Push lever m.
In an emergency;..,the drill bit BINDS...
STALLS... STOPS... or tends to tear the work-
piece loose.., you can QUICKLY turn the drill
OFF by hitting the switch with the palm of your
hand. J
To lock switch in OFF position.., hold switch
IN with one hand... REMOVE key with other
hand.
WARNING: FOR YOUR OWN SAFETY, ALWAYS
LOCK THE SWITCH "OFF" WHEN DRILL PRESS
IS NOT IN USE... REMOVE KEY AND KEEP IT jfJ
IN A SAFE PLACE... ALSO.,. IN THE EVENT
OF A POWER FAILURE (ALL OF YOUR LIGHTS
GO OUT) OR BLOWN FUSE OR TRIPPED CIR-
CUIT BREAKER, TURN SWITCH OFF... LOCK
IT AND REMOVE THE KEY. THiS WILL PREVENT
THE DRILL PRESS FROM STARTING UP AGAIN
WHEN THE POWER COMES BACK ON.
CHUCK KEY... It is a self-ejecting chuck key DRILLING SPEED... Can be changed by placing
which wil! "pop" out of the chuck when you let the belt in any of the STEPS (grooves) in the pul-
go of it. This action is designed to preclude leys. See Spindle Speed chart on right side of
throwing of the chuck key from the chuck when Head.
power is turned "ON". Do not use any other key
as a substitute, order anew one if damaged or To determine the approximate dilling speed,
lost. refer to the table on the LEFT side of the drill
press head.
BELT TENSION... Refer to section "Assembly -
Tensioning Belt"_
14
REMOVINGTHECHUCK
1. Insert a piece of 1/4 in. dia. steel rod in one
of the holes in the chuck body.
2. Insert 3/16 in. dia. rod or drill into one of the
holes in the collar.., turn it in the direction
of arrow until LOOSE. Continue to turn it
until the chuck is released.
3116" ROD
OR DRILL
CHUCK //
BODY 114" ROD /
OR DRILL \
LOCKING
CHUCK
SLEEVE
/
DRILLING TO DEPTH
To drill a BLIND hole (not all the way through) to
a given depth, can be done two ways.
1. Mark the depth of the hole on the side of the
workpiece.
2. With the switch OFF bring the drill down
until the TIP or lips are even with the Mark.
3, Spin the lower nut down to contact the depth
stop lug on the Head.
4. Move the POINTER all the way down.
5. Spin the upper nut down and tighten against
the pointer.
ANOTHER WAY --
1. With the switch OFF, bring the drill down
until the TIP touches the TOP of the WORK-
PIECE.
2. Adjust the nuts so the Pointer is set to the
desired DEPTH... TIGHTEN the UPPER NUT
against the Pointer. For example.., if you
want to drill a hole one inch deep, set the
pointer at the one inch mark in the scale,
POINTER
TIPTOUCHES
WORKPIECE
;ALE
UPPER
LOWER
STOP NUT
basic drill press operation
Follow the following instructions for operating
your drill press to get the best results and to
minimize the likelihood of personal injury.
WARNING: FOR YOUR OWN SAFETY, ALWAYS
OBSERVE THE FOLLOWING SAFETY PRECAU-
TIONS.
1. Check spindle speed.
2. Before operating, turn the switch "on", then
,
.
"off" immediately, to make sure that the cut-
ting tool is centered in the chuck propeMy
and that the cutting tool is not causincj
excessive vibration.
Never perform any operation freehand (hand-
holding workpiece rather than supporting it
on table) except when polishing.
Keep your hands clear of the cutting tool.
15
basic drill press operation
INSTALLING DRILLS CHUCK KEY
Insert drill into chuck far enough to obtain maxi-
mum GRIPPING o{ the CHUCK JAWS...the
jaws are approx. 1 in. long. When using a small
drill do not insert it so far that the jaws touch the
flutes (spiral grooves) of the drill.
make sure that the drill is CENTERED in the
chuck before tightening the chuck with the key.
Tighten the drill sufficiently, so that it does not
SLiP while drilling.
POSITIONING TABLE AND WORKPIECE
Lock the table to the column in a position so
that the tip of the drill is just a little above the
top of the workpiece.
Always place a piece of BACK-UP MATERIAL
(wood, plywood... ) on the table underneath the
workpiece. This will prevent "splintering" or
making a heavy burr on the underside of the
workpiece as the drill breaks through. The back-
up material must contact the left side of the
column.
CAUTION: To prevent the workpiece or the back.
up material from being torn from your hand
while drilling, position them against the left side
of the column. Failure to do this could result in
personal injury.
CAUTION: If the workpiece or the back-up
material are not long enough to reach the col- /
umn, CLAMP them to the table, Failure to do this
could result !n personal injury.,
i i i iii n, nl ii I
For small pieces that cannot be clamped to the
tabte, use a drill press vise (Optional accessory).
The vise must be clamped or bolted to the table.
TILTING TABLE
To use the table in a bevel (tilted) position, loos-
en the set screw under table bevel lock with set
screw wrench. Loosen bevel lock with adjustable
wrench.
Titt table to desired angle by reading bevel scale.
Retighten bevel lock and set screw.
WORKPIECE BACK*UP
MATERIAL
WORKP,ECE
16
When drilling with the table tilted, ALWAYS
CLAMP WORKPIECE AND BACK-UP MATERIAL
SECURELY TO TABLE before operating Drill
Press.
To return table to original position: !oosen set
screw and bevel lock, tilt table back to 0°on
bevel scale, and retighten set screw - then tight-
en bevel lock.
HOLE LOCATION
Make a DENT in the workpiece where you want
the hole.., using a CENTER PUNCH or a SHARP
NAIL.
Before turning the switch ON, bring the dr
down to the workpiece lining it up with the ho
location.
FEEDING
Putt down on the feed handles with only enough
effort to allow the drill to cut.
Feeding TOO SLOWLY might cause the drill to
burn... Feeding TOO _APIDLY might stop the
motor.., cause the belt or drill to SLIP... tear
the workpiece LOOSE or BREAK the drill bit.
adjustments
WARNING: FOR YOUR OWN SAFETY TURN
SWITCH "OFF" AND REMOVE PLUG FROM
POWER SOURCE OUTLET BEFORE MAKING
ANY ADJUSTMENTS.
QUILL RETURN SPR_NG
NOTCH
BOSS
,Move the stop nuts and depth pointer to low-
est position and lock in place with wrench to
prevent quill dropping while tensioning
spring.
2. Lower table for additional clearance.
3. Work from left side of Drill Press. NOTCH
4.
.
.
Place screwdriver in lower front notch of
spring cap, and hold it in place while loosen-
ing and removing jam [outer] nut only.
With screwdriver remaining in notch, loosen
large standard [inner] nut (approximately 118")
until notch disengages from boss on head.
Carefully turn screwdriver counter clockwise
and engage next notch in boss. DO NOT
REMOVE SCREWDRIVER.
JAM NUT
(OUT'ER)
STANDARD
NUT
(INNER)
7. Tighten standard nut with wrench only
enough to engage boss. Do not overtighten
as this will restrict quill movement.
8. Move stop nuts and depth pointer to upper
most position and check tension while turn-
ing feed handles.
g. If there is not enough tension on spring,
repeat steps 4-8 moving only ONE notch each
time and checking tension after EACH repeti-
tion.
10.
11.
Proper tension is achieved when quill returns
gently to full up POSition when released from
3/4" depth.
When there is enough tension after checking,
replace jam nut and tighten to standard nut,
BUT do not overtighten against standard nut.
12. Check quill while feeding to have smooth and
unrestricted movement. If movement is too
tight, SLIGHTLY loosen jam nut until unre-
stricted.
17
maintenance
WARNING:, FOR YOUR OWN SAFETY, TURN
SWITCH OFF AND REMOVE PLUG FROM
POWER SOURCE OUTLET BEFORE MAINTAIN-
ING OR LUBRICATING YOUR DRILL PRESS.
Frequently blow out any dust that may accumu-
late inside the motor.
A coat of automobile-type wax applied to the
table and column will help to keep the surfaces
clean.
If the power cord _s worn or cut, or damaged in
any way, have it replaced immediately.
lubrication
All of the BALL BEARINGS are packed with
grease at the factory. They require no further
lubricat ion.
Periodically lubricate the gear and rack table
elevation mechanism, the SPLINES (grooves} in
the spindle, and the RACK (teeth on the quill).
See "Getting to Know Your Drill Press" - p. 12
for diagram.
recommended accessories
Drill Bits ........................... See Catalog
Rotary Planer ............................ 9-2745
Hold-Down and Guide .................... 9-2457
E)rill Press Vises .................... See Catalog
Rotary Table ............................. 9-2495
Drill Press Mortising Kit ................. 9-29503
Circle Cutter 1/4-, 1/2-Shank ...... 9-3645 - 9-3640
Hole Saws up to 21/2 in. dia. max ..... See Catalog
5 Pc. Stop Collar Set ................... 9-67063
Sanding Drums ................... 9-2497 - 9-2498
Buffing Wheels up to 4 in. dia. max.. See Catalog
Polishing Wheel. 11/2" x 1 In ............. 9-64991
Power Tool Know-how Handbooks
Radial Saw ............................ 9-2917
Table Saw ............................. 9-2918
The recommended accessories listed here are
current and were available at the time this
manual was printed.
18
trouble shooting
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH "OFF" AND ALWAYS REMOVE PLUG FROM
POWER SOURCE OUTLET BEFORE TROUBLE SHOOTING.
®CONSULT YOUR LOCAL SEARS SERVICE CENTER IF FOR ANY REASON MOTOR WILL NOT RUN.
TROUBLE PROBABLE CAUSE
1. Incorrect belt tension.
Noisy Operation
Drill Burns.
Drill leads off ...
hole not round.
Wood splinters on
underside.
Workpiece torn
loose from hand.
Drill Binds in
workpiece.
Excessive drill
runout or wobble.
Quill Returns
too slow or too fast.
2. Dry Spindle.
3. Loose spindle pulley.
4. Loose motor pulley.
1. Incorrect speed.
2. Chips not coming out
of hole.
3. Dull Drill.
4. Feeding too slow.
5. Not lubricated.
1, Hard grain in wood or
lengths of cutting
lips and/or angles
not equal.
1. No "back-up material"
under workpiece.
1. Not supported or
clamped properly.
1. Workpiece pinching drill
or excessive feed pressure.
2. Improper belt tension.
1. Bent drill.
2. Worn spindle bearings.
3. Drill not properly
installed in chuck.
4. Chuck not properly installed.
1. Spring has improper tension.
REMEDY
1. Adjust tension. See section
"ASSEMBLY -TENSIONING BELT."
2. Lubricate spindle. See "Lubrication"
section.
3. Check tightness of retaining nut on
pulley, and tighten if necessary.
4. Tighten setscrews in pulleys.
t. Change speed. See section "Getting
To Know Your Drill Press"...
DRILLING SPEED.
2_ Retract drill frequently to clear chips.
3. Resharpen drill.
4. Feed fast enough.., allow drill to cut.
5. Lubricate drill. See "Basic Drill Press
Operation" section.
1. Resharpen drill correctly.
1. Use "back-up material"... See Basic
Drill Press Operation" section.
1. Support workpiece or clamp it...See
"Basic Drill Press Operation" section.
1. Support workpiece or clamp it... See
"Basic Drill Press Operation" section.
2. Adjust tension.,. See section
"ASSEM BLY - TENSIONING BELT".
1. Use a straight drill.
2. Replace bearings.
3. Install drill properly... See "Basic
Drill Press Operation" section.
4. Install chuck properly.., refer to
"Unpacking and Assembly Instruc-
tions... INSTALLING THE CHUCK".
1. Adjust spring tension... See section
"Adjustments - Quill Return Spring".
19
39 38
/
/
I15
3T 34
•Any attempt to repair this motor may create a HAZARD unless repatr is done by a
qualified service technician. Repair service is available at your nearest Sea.rs Store,
20
20
21
Key
No.
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
PARTS LIST FOR CRAFTSMAN 15" DRILL PRESS MODEL NO. 113.213850
Part
No.
STD 303240
60522
60510
STD 315225
71363
71364
STD 502503
71406
71315
71399
STD 512505
_05517
STD 551131
71404
71379
71346
STD 551150
!120238
71344
STD 541031
STD 551031
STD 523107
71380
60514
71319
71369
Description
*Belt "V" 3t8X24
Ring, Retaining
Ring, Retaining
*Bearing, Ball 15MM
Pulley, Center
Pulley, Motor
*Screw, Soc. Set 1t4-20X3/8
*Belt "V" 3/8X27
Pivot Asm.
Knob
*Screw Pan Hd. 114-20x112
Screw, Pan Hd. 5/16-18Xl12
*Lockwasher 5/16
Guard
Support, Motor Bracket
Mount, Motor
* Lockwasher 1/2
*Nut, Hex 1t2-13
®Motor 1/2 H.P.
*Nut, Hex 5116-18
*Washer 5116X1/2X1132
*Screw, Hex Hd. 5/16-18X3/4
Support Motor Bracket
Ring, Retaining
Clamp, Bolt
Shaft, Lever
Key
No. Part
No.
27 71368
28 71340
29 STD 503705
30 71370
31 71367
32 71339
33 71338
60520
34
35 STD 541O37
36 71375
37 71317
38 STD 541150
39 STD 541350
40 71334
41 60508
42 7! 342
43 60515
44 STD 315255
45 71372
46 71337
47 71357
48 71347
-- 71389
-- 71388
-- 71329
Description
Rod
Knob
*Screw, Soc. Set 3!8-16Xl!2
Shaft, Asm. Pinion
Rod, Handle
Knob
Key, Chuck
Screw, Slotted Set
Flat Pt. 318-16
*Nut, Hex 3t8-16
Spring, Torsion
Cap, Spring
*Nut, Hex 1/2-20
*Nut, Hex Jam 1/2-20
Head
Pin, Taper
Lever, Adjusting
Ring, Retaining
*Bearing, Ball 25MM
Spacer, Bearing
Insert, Pulley
Pulley, Spindle
Nut, Ring
Bag Of Loose Parts (Not illus.
Box Of Loose Parts (Not Illus.
Owners Manual (Not Ilius.)
PARTS LIST FOR CRAFTSMAN 15" DRILL PRESS MODEL NO. 113.213850
I31!
87
19
Standard Hardware item -- May be Purchased Locally.
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Part
No.
STD 510807
71269
71371
STD 511103
63418
71393
71356
71326
STD 511105
133423
803709
62442
71397
60256
71341
STD 511002
STD 551210
71323
STD 510803
Description
*Screw, Pan Hd. 8-32X3t4
Bracket, Bulb
Socket, Bulb
*Screw, Pan Hd. 10-32x318
Clamp, Cord
Cord, Motor
Plate, Switch Mtg.
Cover, Switch Plate
*Screw, Pan Hd. 10-32xl/2
Screw, Flat Hd. 6-32X3/8
Connector, Wire
Switch, Locking
Switch
Key, Switch
Lead, Jumper Black
* Screw, Pan Hd. 10-24Xlt4
*Lockwasher, Ext. #10
Cord W/Plug
*Screw Pan Hd. 8-32X318
21
repairpa ts
PARTS LIST FOR .....
CRAFTSMAN 15 DRILL PRESS MODEL NO. 113.213850
15
23
Key Part
No, No. Description
171385
2 71320
3 STD 502503
471392
571365
671314
7STD 551137
8STD 523715
9 71243
10 71259
11 STD 741006
12 71327
13 71378
14 71354
Tube, Column
Collar, Rack
*Screw, Soc. Set 114-20X318
Handle Asm. Table Support
Rack
Base
* Lockwasher 3/8
*Bolt, Hex Hd. 3/8-16X11/2
Bolt, Handle
Handle, Sleeve
*Nut Hex M6X1
Crank
Support, Table
Pin, Gear
Key
No.
15
16
17
18
19
20
21
22
23
24
25
26
27
Part
No. Description
71373
71332
71386
114507
STD 551062
71376
71264
STD 511103
71312
71381
37787
60096
71303
Spacer
Gear, Helical
Worm, Elevation
Nut, Hex 5t8-11
*Washer, 5/8X13/4X5132
Stud, Arm Mtg.
Indicator, Table
*Screw, Pan Hd. 10-32x3/8
Arm, Table
Table
Wrench, He× "L" 5/32
Wrench, Hex "L" 3t16
Handle Asm. Table Lock
22
PARTS LiST FOR CRAFTSMAN 15" DRILL PRESS MODEL NO, 113.213850
!
13
Key
No.
1
2
3
4
5
6
7
8
9
10
1t
12
13
14
15
FiG. 1
Part
No.
60509
STD315235
71384
60503
STD315255
71374
71318
STD 541150
STD 522512
71321
STD 541025
71331
STD 541350
71366
71263
Description
Ring, Retaining 21132
*Bearing, Ball 17MM
Tube, Quill
Bearing, Thrust
*Bearing, Ball 25MM
Spindle
Chuck
*Nut, Hex 1/2-20
*Screw, Hex Hd. 1t4-20X1-114
Collar, Stop
*Nut, Hex 1/4-20
Gasket, Quill
*Nut, Hex Jam I/2-20
Rod, Hex Stop
Indicator, Depth
Standarcl Hardware item May be Purchased Locally.
23
iiii.,.i.._
Sears
owners
manuel
SERVnCE
DRILL PRESS WITH
112 HP MOTOR
HOW TO ORDER
REPAIR PARTS
MOTORIZED
15 INCH
FLOOR MODEL
DRILL PRESS
Now that you have purchased your 15 inch drill press should
a need ever exist for repair parts or service, simply contact
any Sears Service Center and most Sears, Roebuck and Co.
stores. Be sure to provide all pertinent facts when you call or
visit.
The model number of your 15 inch drill press will be found on
a plate attached to the rear of the head.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
PART NUMBER
MODEL NUMBER
113.213850
PART DESCRIPTION
NAME OF iTEM
MOTORIZED 15 INCH
FLOOR MODEL DRILL PRESS
All parts listed may be ordered from any Sears Service Center
and most Sears stores. If the parts you need are not stocked
locally, your order will be electronically transmitted to a
Sears Repair Parts Distribution Center for handling.
Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.
_J
Part No. 71329 Form No. SP4738

Navigation menu
