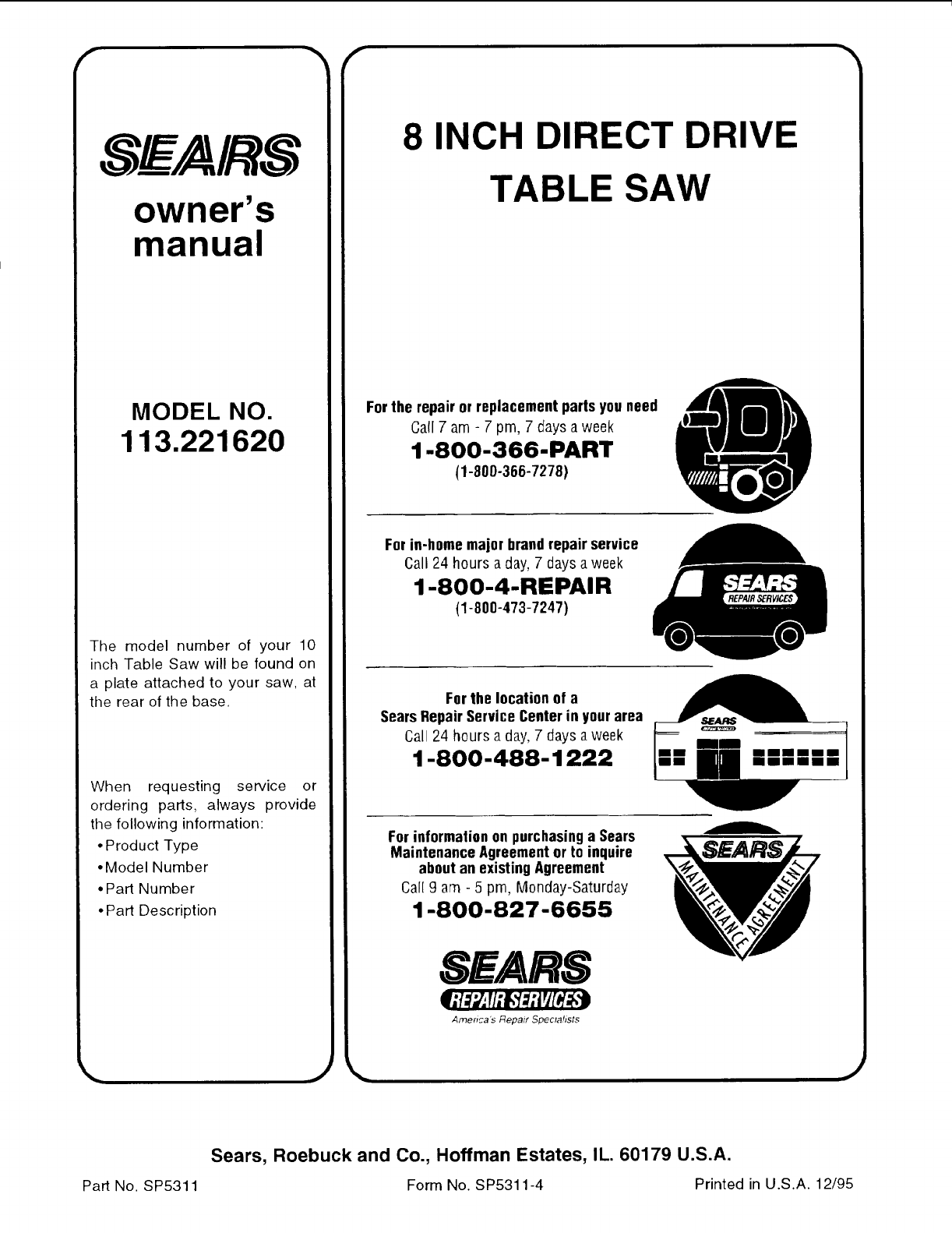

,__AIRS

owners

manual

MODEL NO.

113.221620

Serial

Number

Model and serial numLxzrs

may be found at the

left-hand side of the base.

You should record both

model and serial number

in a safe place for future

Use,

FOR YOUR

SAFETY

READ ALL

INSTRUCTIONS

CAREFULLY

_'__AIRS/CRRFTSMRN

8 INCH DIRECT DRIVE

TABLE SA W

•assembly

•operating

•repair parts

Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.

Part No. SP5311 Printed in U.S.A.

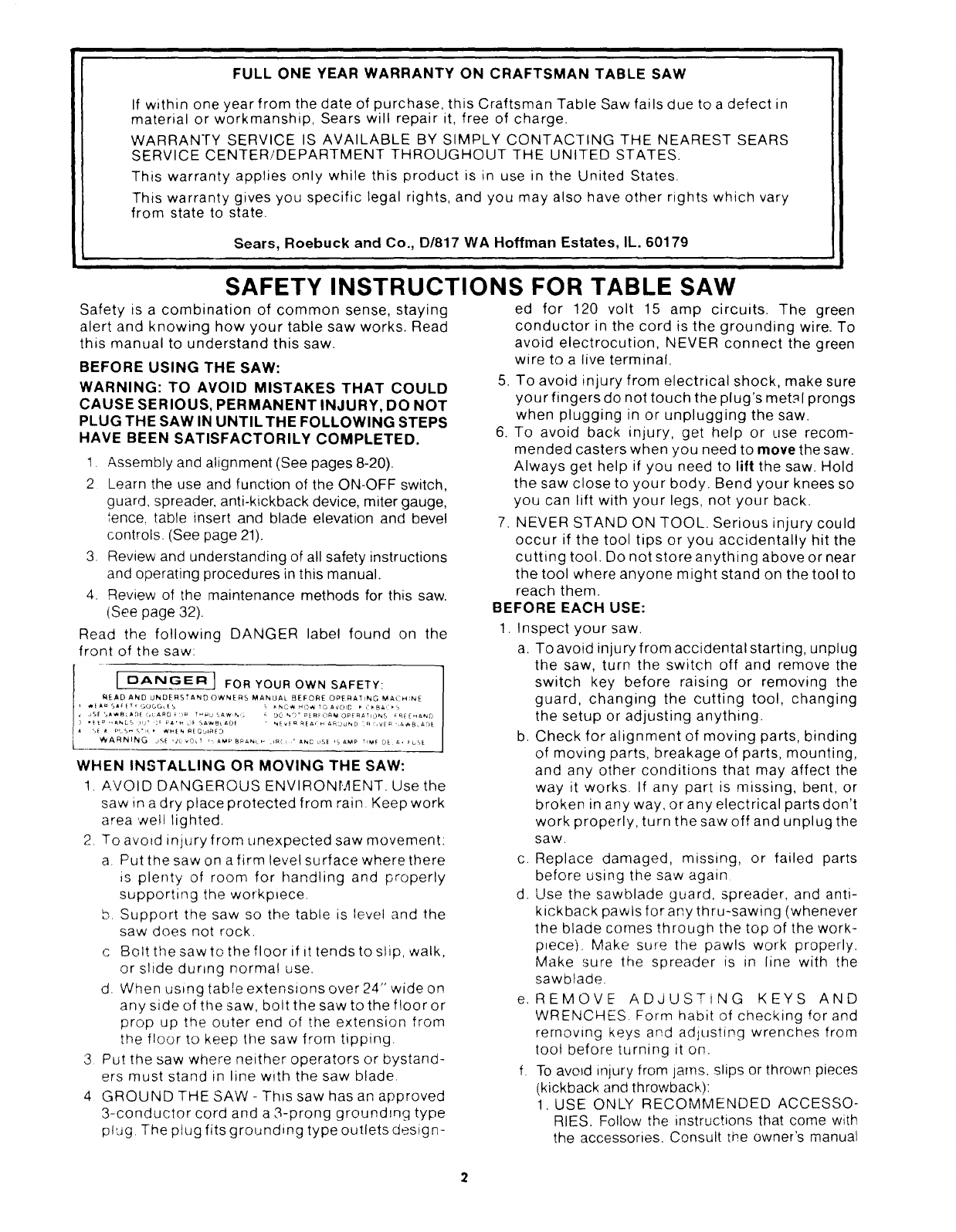

FULL ONE YEAR WARRANTY ON CRAFTSMAN TABLE SAW

If within one year from the date of purchase, this Craftsman Table Saw fails due to a defect in

material or workmanship, Sears wil! repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS

SERVICE CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

This warranty applies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary

from state to state.

Sears, Roebuck and Co., D/817 WA Hoffman Estates, IL. 60179

SAFETY INSTRUCTIONS FOR TABLE SAW

Safety is a combination of common sense, staying

alert and knowing how your table saw works. Read

this manual to understand this saw.

BEFORE USING THE SAW:

WARNING: TO AVOID MISTAKES THAT COULD

CAUSE SERIOUS, PERMANENT INJURY, DO NOT

PLUG THE SAW IN UNTIL THE FOLLOWING STEPS

HAVE BEEN SATISFACTORILY COMPLETED.

1. Assembly and alignment (See pages 8-20).

2 Learn the use and function of the ON-OFF switch,

guard, spreader, anti-kickback device, miter gauge,

fence, table insert and blade elevation and bevel

controls. (See page 21).

3. Review and understanding of all safety instructions

and operating procedures in this manual.

4. Review of the maintenance methods for this saw.

(See page 32).

Read the following DANGER label found on the

front of the saw:

Ii [ DANGER ] FORYOUROWN SAFETY:

_tEAD AND UNDERSTAND OWNERS MANUAL BEFORE OPERATING MALJHIN[

JS[ %A_SLAD[ _,_ AAD _ )_ T_4L, SAW_, 2 _ roc, _(]," PERF_IA_I OPFRATIONS _q_[H#,NC,

_tP"_DS _'J' ;_ PA'_'F SAWB_AO_ ' NEvEeREA, H m£OUND ;a_,VER',&_B_Ar)E

WHEN INSTALLING OR MOVING THE SAW:

1. AVOID DANGEROUS ENVIRONMENT. Use the

saw in adry place protected from rain Keep work

area well righted.

2. To avoid injury from unexpected saw movement:

a. Put the saw on a firm level surface where there

is plenty of room for handling and properly

supporting the workp_ece.

b. Support the saw so the table is level and the

saw does not rock.

c Bolt the saw to the floor if it tends to siip, walk,

or slide during normal use.

d. When us=ngtabre extensions over 24" wide on

any side of the saw, bolt the saw to the floor or

prop up the outer end of the extension from

the floor to keep the saw from tipping.

3 Put the saw where neither operators or bystand-

ers must stand in line with the saw blade.

4 GROUND THE SAW- This saw has an approved

3-conductor cord and a 3-prong grounding type

pt,Jg. The plug fits grounding type outlets design-

ed for 120 volt 15 amp circuits. The green

conductor in the cord is the grounding wire. To

avoid electrocution, NEVER connect the green

wire to a live terminal.

5. To avoid injury from electrical shock, make sure

your fingers do not touch the plug's met31 prongs

when plugging in or unplugging the saw.

6. To avoid back injury, get help or use recom-

mended casters when you need to move the saw.

Always get help if you need to lift the saw. Hold

the saw close to your body. Bend your knees so

you can lift with your legs, not your back.

7. NEVER STAND ON TOOL. Serious injury could

occur if the tool tips or you accidentally hit the

cutting tool. Do not store anything above or near

the tool where anyone might stand on the tool to

reach them.

BEFORE EACH USE:

1. Inspect your saw.

a. To avoid injury from accidental starting, unplug

the saw, turn the switch off and remove the

switch key before raising or removing the

guard, changing the cutting tool, changing

the setup or adjusting anything.

b. Check for alignment of moving parts, binding

of moving parts, breakage of parts, mounting,

and any other conditions that may affect the

way it works. If any part is missing, bent, or

broken in any way, or any electrical parts don't

work properly, turn the saw off and unplug the

saw.

c. Replace damaged, missing, or failed parts

before using the saw again

d. Use the sawblade guard, spreader, and anti-

kickback pawls for any thru-sawing (whenever

the blade comes through the top of the work-

p,ece). Make sure the pawls work properly.

Make sure the spreader is in line with the

sawblade.

e. REM©VE ADJUSTING KEYS AND

WRENCHES. Form habit of checking for and

removing keys and adiusting wrenches from

toot before turning it on.

f. To avoid injury from jams. slips or thrown pieces

(kickback and throwback):

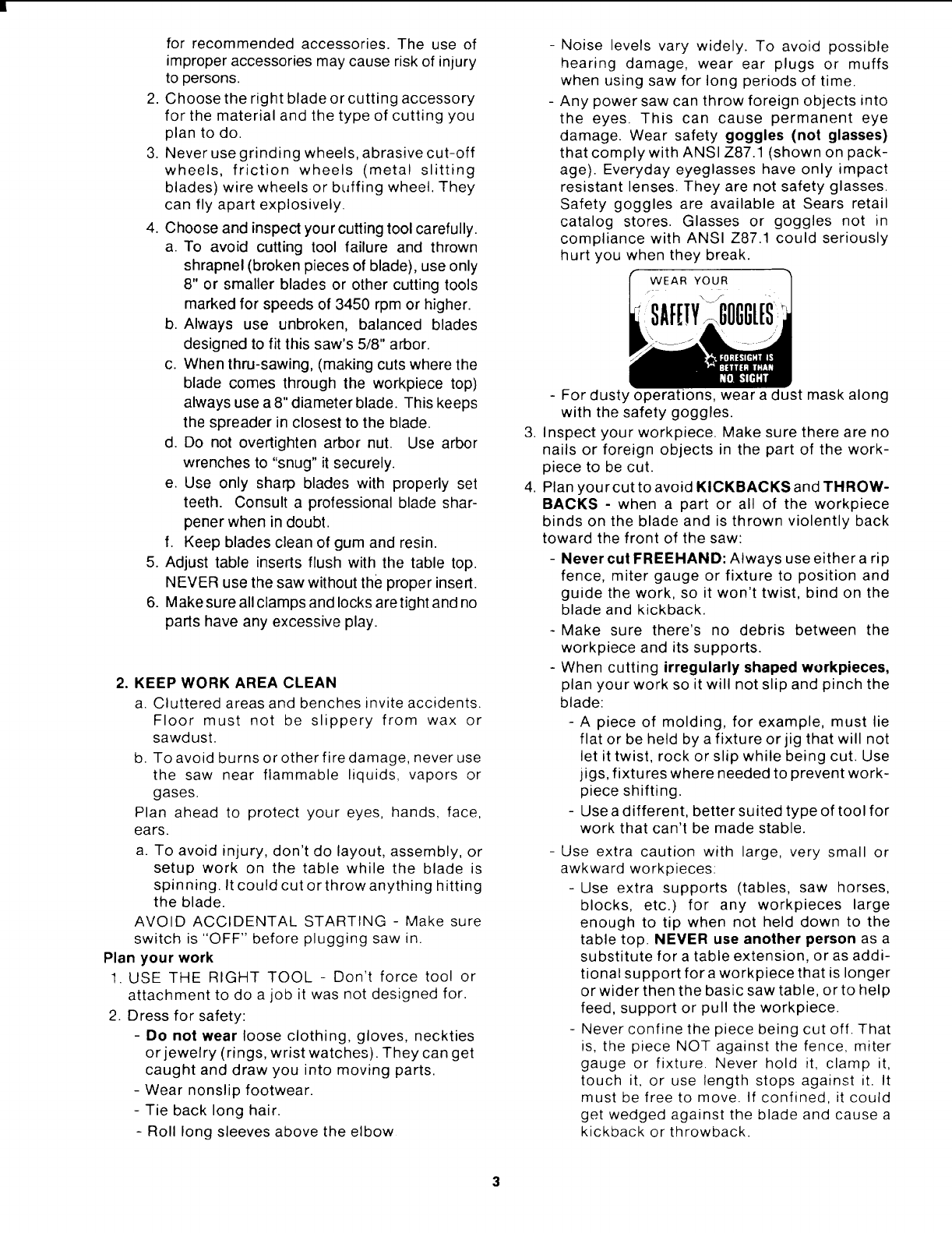

1. USE ONLY RECOMMENDED ACCESSO-

RIES. Follow the instructions that come with

the accessories. Consult the owner's manual

for recommended accessories. The use of

improper accessories may cause risk of injury

to persons.

2. Choose the right blade or cutting accessory

for the material and the type of cutting you

plan to do.

3. Never use grinding wheels, abrasive cut-off

wheels, friction wheels (metal slitting

blades) wire wheels or buffing wheel. They

can fly apart explosively.

4. Choose and inspect your cutting tool carefully.

a. To avoid cutting tool failure and thrown

shrapnel (broken pieces of blade), use only

8" or smaller blades or other cutting tools

marked for speeds of 3450 rpm or higher.

b. Always use unbroken, balanced blades

designed to fit this saw's 5/8" arbor.

c. When thru-sawing, (making cuts where the

blade comes through the workpiece top)

always use a 8" diameter blade. This keeps

the spreader in closest to the blade.

d. Do not overtighten arbor nut. Use arbor

wrenches to "snug" it securely.

e. Use only sharp blades with properly set

teeth. Consult a professional blade shar-

pener when in doubt.

f. Keep blades clean of gum and resin.

5. Adjust table inserts flush with the table top.

NEVER use the saw without the proper insert.

6. Make sure all clamps and locks are tight and no

parts have any excessive play.

2. KEEP WORK AREA CLEAN

a. Cluttered areas and benches invite accidents.

Floor must not be slippery from wax or

sawdust.

b. To avoid burns or other fire damage, never use

the saw near flammable liquids, vapors or

gases.

Plan ahead to protect your eyes, hands, face,

ears.

a. To avoid injury, don't do layout, assembly, or

setup work on the table while the blade is

spinning. It could cut or throw anything hitting

the blade.

AVOID ACCIDENTAL STARTING - Make sure

switch is "OFF" before plugging saw in.

Plan your work

1. USE THE RIGHT TOOL - Don't force tool or

attachment to do a job it was not designed for.

2. Dress for safety:

- Do not wear loose clothing, gloves, neckties

or jewelry (rings, wrist watches). They can get

caught and draw you into moving parts.

- Wear nonslip footwear.

- Tie back long hair.

- Roll long sleeves above the elbow

Noise levels vary widely. To avoid possible

hearing damage, wear ear plugs or muffs

when using saw for long periods of time.

Any power saw can throw foreign objects into

the eyes. This can cause permanent eye

damage. Wear safety goggles (not glasses)

that comply with ANSI Z87.1 (shown on pack-

age). Everyday eyeglasses have only impact

resistant lenses. They are not safety glasses.

Safety goggles are available at Sears retail

catalog stores. Glasses or goggles not in

compliance with ANSI Z87.1 could seriously

hurt you when they break.

WEAR YOUR

- For dusty operations, wear a dust mask along

with the safety goggles.

3. Inspect your workpiece. Make sure there are no

nails or foreign objects in the part of the work-

piece to be cut.

4. Plan yourcut to avoid KICKBACKS and THROW-

BACKS - when a part or all of the workpiece

binds on the blade and is thrown violently back

toward the front of the saw:

- Never cut FREEHAND: Always use either a rip

fence, miter gauge or fixture to position and

guide the work, so it won't twist, bind on the

blade and kickback.

-Make sure there's no debris between the

workpiece and its supports.

- When cutting irregularly shaped workpieces,

plan your work so it will not slip and pinch the

blade:

- A piece of molding, for example, must lie

flat or be held by a fixture or jig that will not

let it twist, rock or slip while being cut. Use

jigs, fixtures where needed to prevent work-

piece shifting.

- Use a different, better suited type of tool for

work that can't be made stable.

- Use extra caution with large, very small or

awkward workpieces:

-Use extra supports (tables, saw horses,

blocks, etc.) for any workpieces large

enough to tip when not held down to the

table top. NEVER use another person as a

substitute for a table extension, or as addi-

tional support for a workpiece that is longer

or wider then the basic saw table, or to help

feed, support or pull the workpiece.

- Never confine the piece being cut off. That

is, the piece NOT against the fence, miter

gauge or fixture. Never hold it, clamp it,

touch it, or use length stops against it. It

must be free to move. If confined, it could

get wedged against the blade and cause a

kickback or throwback.

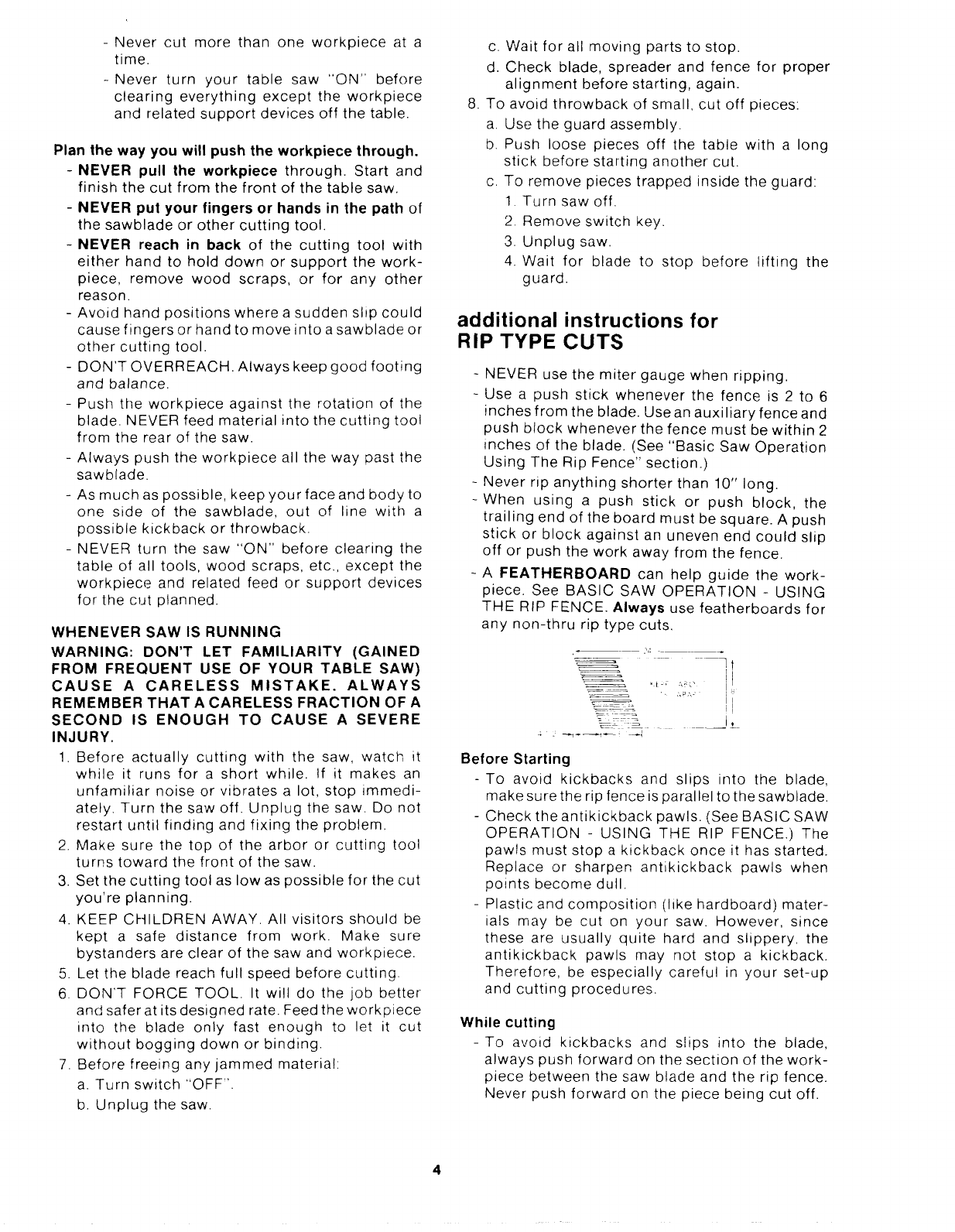

- Nevercut morethan one workpieceat a

time.

-Never turn your table saw "ON" before

clearingeverythingexceptthe workpiece

andrelatedsupportdevicesoffthetable,

Plan the way you will push the workpiece through.

-NEVER pull the workpiece through. Start and

finish the cut from the front of the table saw.

-NEVER put your fingers or hands in the path of

the sawblade or other cutting tool.

- NEVER reach in back of the cutting tool with

either hand to hold down or support the work-

piece, remove wood scraps, or for any other

reason.

- Avoid hand positions where a sudden slip could

cause fingers or hand to move into asawblade or

other cutting tool.

- DON'T OVERREACH. Always keep good footing

and balance.

- Push the workpiece against the rotation of the

blade. NEVER feed material into the cutting tool

from the rear of the saw.

- Always push the workpiece all the way past the

sawb/ade.

- As much as possible, keep your face and body to

one side of the sawblade, out of line with a

possible kickback or throwback.

- NEVER turn the saw "ON" before clearing the

table of all tools, wood scraps, etc., except the

workpiece and related feed or support devices

for the cut planned.

WHENEVER SAW IS RUNNING

WARNING: DON'T LET FAMILIARITY (GAINED

FROM FREQUENT USE OF YOUR TABLE SAW)

CAUSE A CARELESS MISTAKE. ALWAYS

REMEMBER THAT A CARELESS FRACTION OF A

SECOND IS ENOUGH TO CAUSE A SEVERE

INJURY.

1. Before actually cutting with the saw, watch it

while it runs for a short while. If it makes an

unfamiliar noise or vibrates a lot, stop immedi-

ately. Turn the saw off. Unplug the saw. Do not

restart until finding and fixing the problem.

2. Make sure the top of the arbor or cutting tool

turns toward the front of the saw.

3. Set the cutting tool as low as possible for the cut

you're planning.

4. KEEP CHILDREN AWAY. All visitors should be

kept a safe distance from work. Make sure

bystanders are clear of the saw and workpiece.

5. Let the blade reach full speed before cutting.

6. DON'T FORCE TOOL. It will do the job better

and safer at its designed rate. Feed the workpiece

into the blade only fast enough to let it cut

without bogging down or binding.

7. Before freeing any jammed material:

a. Turn switch "OFF".

b. Unplug the saw.

c. Wait for all moving parts to stop.

d. Check blade, spreader and fence for proper

alignment before starting, again.

8. To avoid throwback of small, cut off pieces:

a. Use the guard assembly.

b. Push loose pieces off the table with a long

stick before starting another cut.

c. To remove pieces trapped inside the guard:

1. Turn saw off.

2. Remove switch key.

3. Unplug saw.

4. Wait for blade to stop before lifting the

guard.

additional instructions for

RIP TYPE CUTS

NEVER use the miter gauge when ripping.

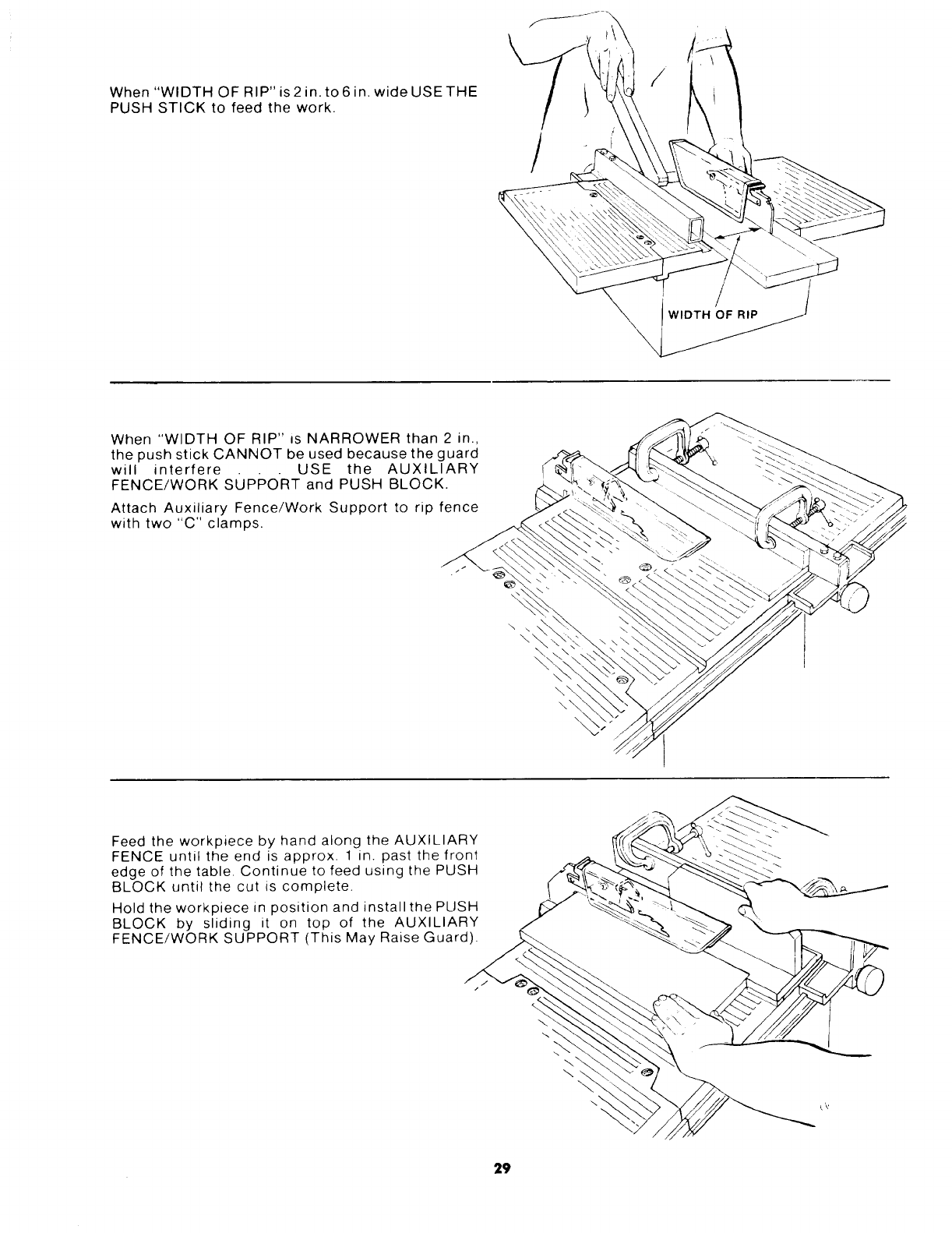

Use a push stick whenever the fence is 2 to 6

inches from the blade. Use an auxiliary fence and

push block whenever the fence must be within 2

inches of the blade. (See "Basic Saw Operation

Using The Rip Fence" section.)

Never rip anything shorter than 10" long.

When using a push stick or push block, the

trailing end of the board must be square. A push

stick or block against an uneven end could slip

off or push the work away from the fence.

AFEATHERBOARD can help guide the work-

piece. See BASIC SAW OPERATION - USING

THE RIP FENCE. Always use featherboards for

any non-thru rip type cuts.

,_ 2 'I

I I

Before Starling

-To avoid kickbacks and slips into the blade,

make sure the rip fence is parallel to the sawblade.

- Check theantikickback pawls. (See BASlCSAW

OPERATION - USING THE RIP FENCE.) The

pawls must stop a kickback once it has started.

Replace or sharpen antikickback pawls when

points become dull.

- Plastic and composition (like hardboard) mater-

ials may be cut on your saw. However, since

these are usually quite hard and slippery, the

antikickback pawls may not stop a kickback.

Therefore, be especially careful in your set-up

and cutting procedures.

While cutting

-To avoid kickbacks and slips into the blade,

always push forward on the section of the work-

piece between the saw blade and the rip fence.

Never push forward on the piece being cut off.

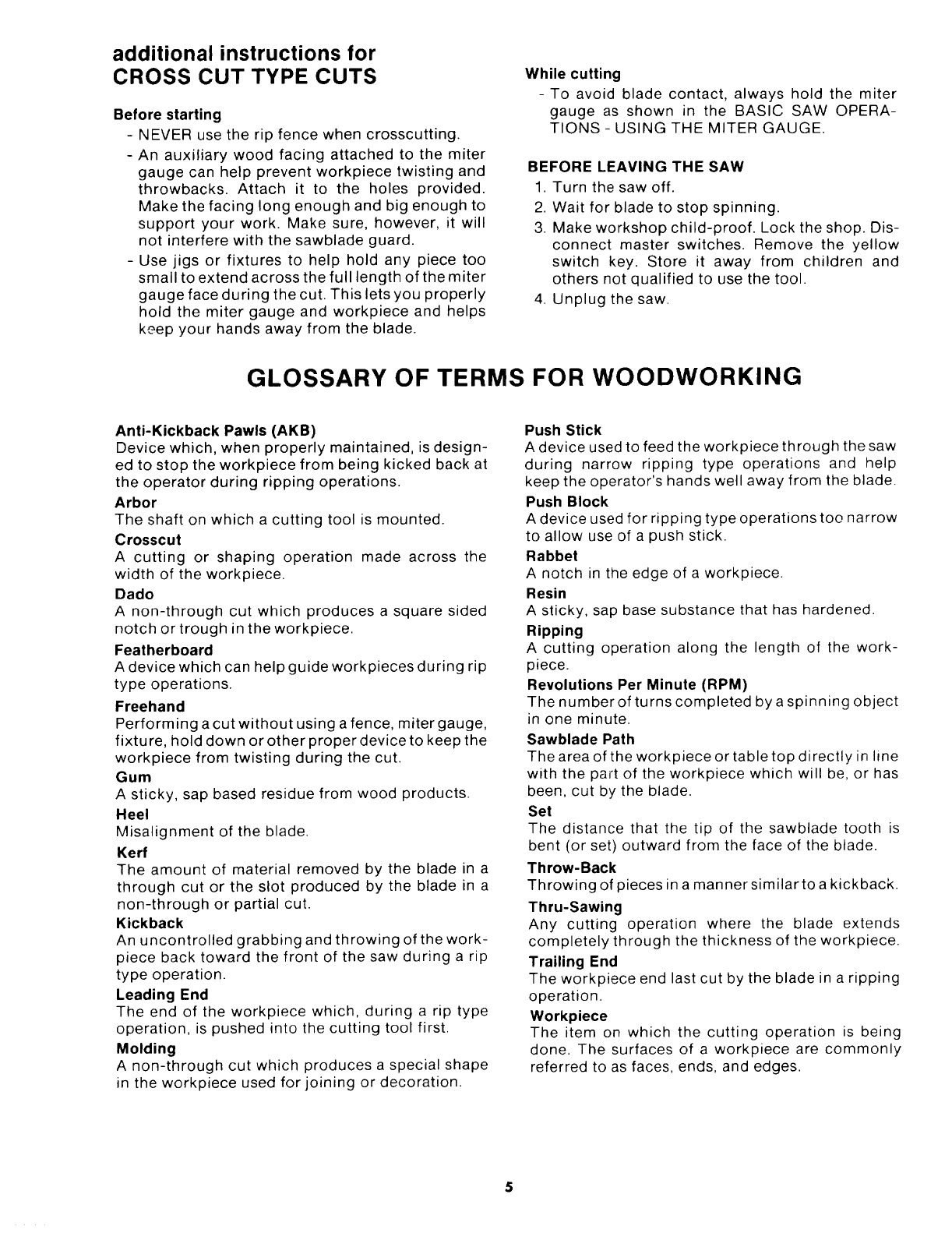

additional instructions for

CROSS CUT TYPE CUTS

Before starting

- NEVER use the rip fence when crosscutting.

- An auxiliary wood facing attached to the miter

gauge can help prevent workpiece twisting and

throwbacks. Attach it to the holes provided.

Make the facing long enough and big enough to

support your work. Make sure, however, it will

not interfere with the sawblade guard.

- Use jigs or fixtures to help hold any piece too

small to extend across the full length of the miter

gauge face during the cut. This lets you properly

hold the miter gauge and workpiece and helps

keep your hands away from the blade.

While cutting

-To avoid blade contact, always hold the miter

gauge as shown in the BASIC SAW OPERA-

TIONS - USING THE MITER GAUGE.

BEFORE LEAVING THE SAW

1. Turn the saw off.

2. Wait for blade to stop spinning.

3. Make workshop child-proof. Lock the shop. Dis-

connect master switches. Remove the yellow

switch key. Store it away from children and

others not qualified to use the tool.

4. Unplug the saw.

GLOSSARY OF TERMS FOR WOODWORKING

Anti-Kickback Pawls (AKB)

Device which, when properly maintained, is design-

ed to stop the workpiece from being kicked back at

the operator during ripping operations.

Arbor

The shaft on which a cutting tool is mounted.

Crosscut

A cutting or shaping operation made across the

width of the workpiece.

Dado

A non-through cut which produces a square sided

notch or trough in the workpiece.

Featherboard

A device which can help guide workpieces during rip

type operations.

Freehand

Performing a cut without using a fence, miter gauge,

fixture, hold down or other proper device to keep the

workpiece from twisting during the cut.

Gum

A sticky, sap based residue from wood products.

Heel

Misalignment of the blade.

Kerf

The amount of material removed by the blade in a

through cut or the slot produced by the blade in a

non-through or partial cut.

Kickback

An uncontrolled grabbing and throwing of the work-

piece back toward the front of the saw during a rip

type operation.

Leading End

The end of the workpiece which, during a rip type

operation, is pushed into the cutting tool first.

Molding

A non-through cut which produces a special shape

in the workpiece used for joining or decoration.

Push Stick

A device used to feed the workpiece through the saw

during narrow ripping type operations and help

keep the operator's hands well away from the blade.

Push Block

A device used for ripping type operations too narrow

to allow use of a push stick.

Rabbet

A notch in the edge of a workpiece.

Resin

A sticky, sap base substance that has hardened.

Ripping

A cutting operation along the length of the work-

piece.

Revolutions Per Minute (RPM)

The numberofturnscompleted by a spinning object

in one minute.

Sawblade Path

The area of the workpiece or table top directly in line

with the part of the workpiece which will be, or has

been, cut by the blade.

Set

The distance that the tip of the sawblade tooth is

bent (or set) outward from the face of the blade.

Throw-Back

Throwing of pieces in a manner similar to a kickback.

Thru-Sawing

Any cutting operation where the blade extends

completely through the thickness of the workpiece.

Trailing End

The workpiece end last cut by the blade in a ripping

operation.

Workpiece

The item on which the cutting operation is being

done. The surfaces of a workpiece are commonly

referred to as faces, ends, and edges.

MOTOR SPECIFICATIONS AND ELECTRICAL REQUIREMENTS

The AC motor used in this saw is a non-reversible type,

with the following specifications:

Amperes .............................. 7.8

Hertz ................................. 60

Phase .............................. Single

RPM ................................ 3450

Rotation (viewed from

Sawblade end) ............ Counterclockwise

CAUTION

THE STARTING RELAY IN THIS SWITCH HOUSING

IS A GRAVITY SENSITIVE TYPE. TO AVOID DAMAG-

ING YOUR MOTOR, NEVER TURN THE POWER ON

UNLESS THE SAW IS UPRIGHT IN SAWING

POSITION.

CONNECTING TO POWER SOURCE OUTLET

This saw must be grounded while in use to protect the

operator from electrical shock.

If power cord is worn or cut, or damaged in any way, have

it replaced immediately.

Your saw is wired for 120 volts and it has a plug that looks

like the one shown below.

tool housing at one end and to the ground prong in the

attachment plug at the other end.

This plug requires a mating 3-conductor grounded type

outlet as shown.

If the outlet you are planning to use for this saw is of the

two prong type DO NOT REMOVE OR ALTER THE

GROUNDING PRONG IN ANY MANNER. Use an

adapter as shown and always connect the grounding

lug to a known ground.

It is recommended that you have a qualified electrician

replace the TWO prong outlet with a properly grounded

THREE prong outlet.

A temporary adapter as shown below is available for

connecting plugs to 2-prong receptacles. The green

grounding lug extending from the adapter must be con-

nected to a permanent ground such as to a properly

grounded outlet box.

A temporary adapter as illustrated is available for con-

necting plugs to 2-prong receptacles. The temporary

adapter should be used only until a properly grounded

outlet can be installed by a qualified electrician.

3-PRONG PLUG

GROUNDING PRONG

PROPERLY GROUNDED

3-PRONG OUTLET

Plug power cord of fully assembled saw into 120V prop-

erly grounded type outlet protected by a 15-amp. time

delay or Circuit-Saver fuse or circuit breaker.

NOT ALL OUTLETS ARE PROPERLY GROUNDED. IF

YOU ARE NOT SURE THAT YOUR OUTLET, AS PIC-

TURED BELOW, IS PROPERLY GROUNDED, HAVE

IT CHECKED BY A QUALIFIED ELECTRICIAN.

WARNING: TO AVOID ELECTRIC SHOCK, DO NOT

TOUCH THE METAL PRONGS ON THE PLUG, WHEN

INSTALLING OR REMOVING THE PLUG TO OR

FROM THE OUTLET.

WARNING: FAILURE TO PROPERLY GROUND THIS

POWER TOOL CAN CAUSE ELECTROCUTION OR

SERIOUS SHOCK, PARTICULARLY WHEN USED IN

DAMP LOCATIONS, OR NEAR METAL PLUMBING.

IF SHOCKED, YOUR REACTION COULD CAUSE

YOUR HANDS TO HIT THE CUTTING TOOL.

IF POWER CORD IS WORN OR CUT, OR DAMAGED

IN ANY WAY, HAVE IT REPLACED IMMEDIATELY

TO AVOID SHOCK OR FIRE HAZARD.

This saw is equipped with a 3-conductor cord and

grounding type plug approved by Underwriters' Labora-

tories and the Canadian Standards Association. The

ground conductor has a green lug and is attached to the

3-PRONG

PLUG

GROUNDING LUG

MAKE SURE THIS IS

_- CONNECTED TO A

KNOWN GROUND

ADAPTER

2-PRONG

RECEPTACLE

WARNING: THE GREEN GROUNDING LUG EXTEND-

ING FROM THE ADAPTER MUST BE CONNECTED

TO A PERMANENT GROUND SUCH AS TO A PROP-

ERLY GROUNDED OUTLET BOX. NOT ALL OUTLET

BOXES ARE PROPERLY GROUNDED.

If you are not sure that your outlet box is properly

grounded, have it checked by a qualified electrician.

NOTE: The adapter illustrated is for use only if you

already have a properly grounded 2-prong receptacle.

NOTE: Make sure the proper extension cord is used

and is in good condition.

The use of any extension cord will cause some loss of

power. To keep this to a minimum and to prevent

overheating and motor burn-out, use the table below

to determine the minimum wire size (A.W.G.) exten-

sion cord. Use only 3 wire extension cords which have

3 prong grounding type plugs and 3-pole receptacles

which will accept the too!'s plug.

Extension Cord Wire Size (A.W.G.)

Length 120V

0-25 Ft. 18

26-100 Ft. 16

The motor must rotate Counterclockwise when viewed

from the shaft end.

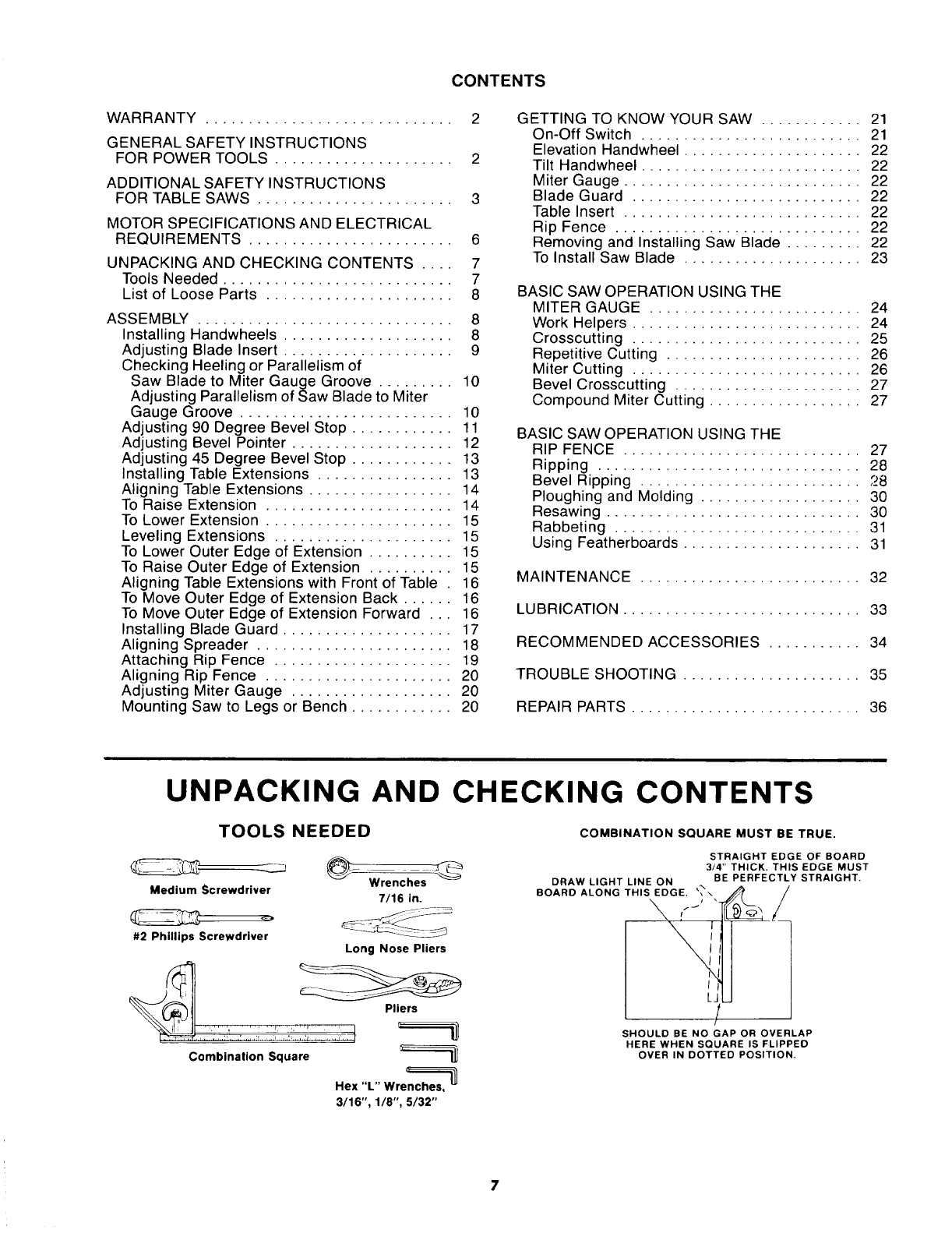

CONTENTS

WARRANTY ............................. 2

GENERAL SAFETY INSTRUCTIONS

FOR POWER TOOLS ..................... 2

ADDITIONAL SAFETY INSTRUCTIONS

FOR TABLE SAWS ....................... 3

MOTOR SPECIFICATIONS AND ELECTRICAL

REQUIREMENTS ........................ 6

UNPACKING AND CHECKING CONTENTS .... 7

Tools Needed ........................... 7

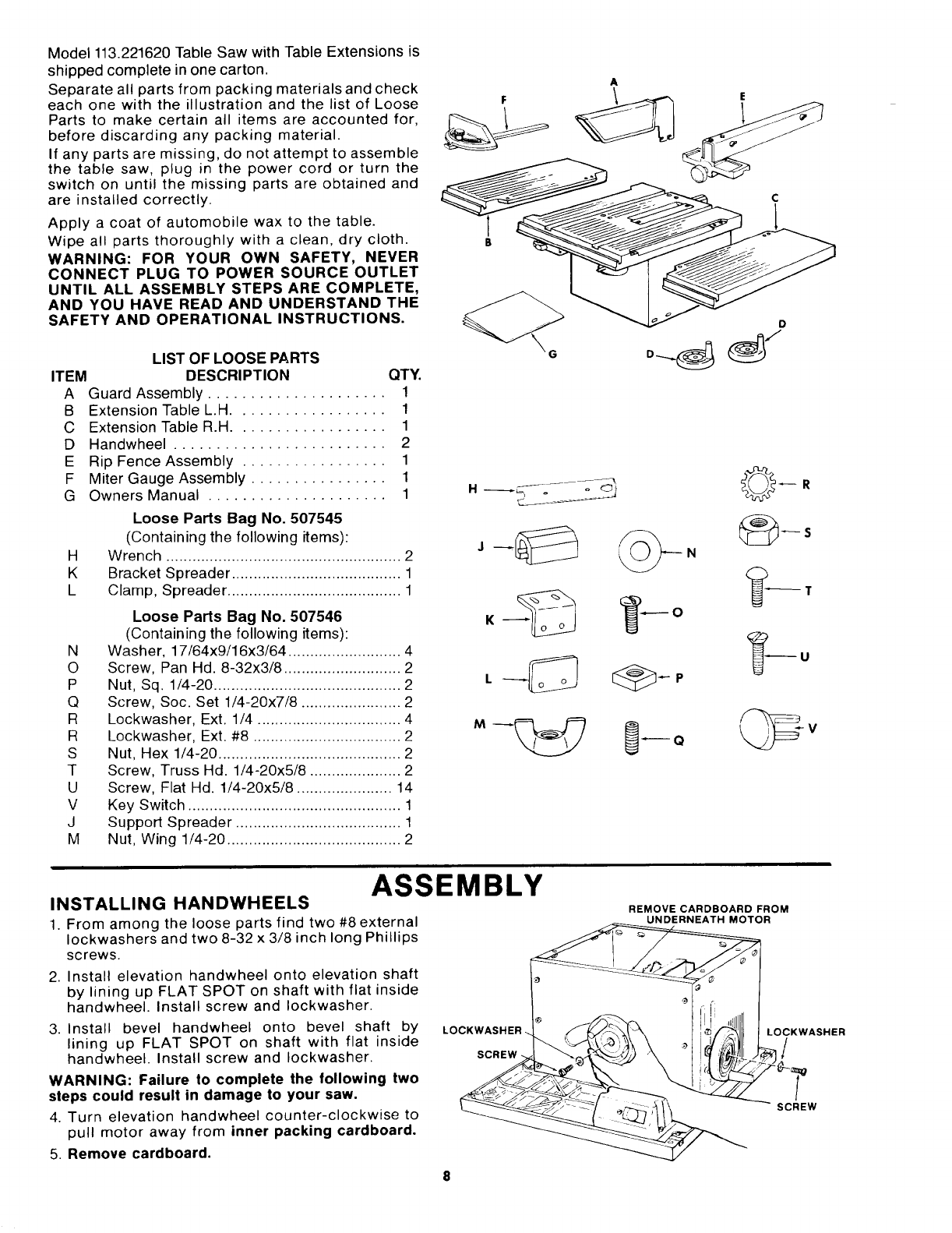

List of Loose Parts ...................... 8

ASSEMBLY .............................. 8

Installing Handwheels .................... 8

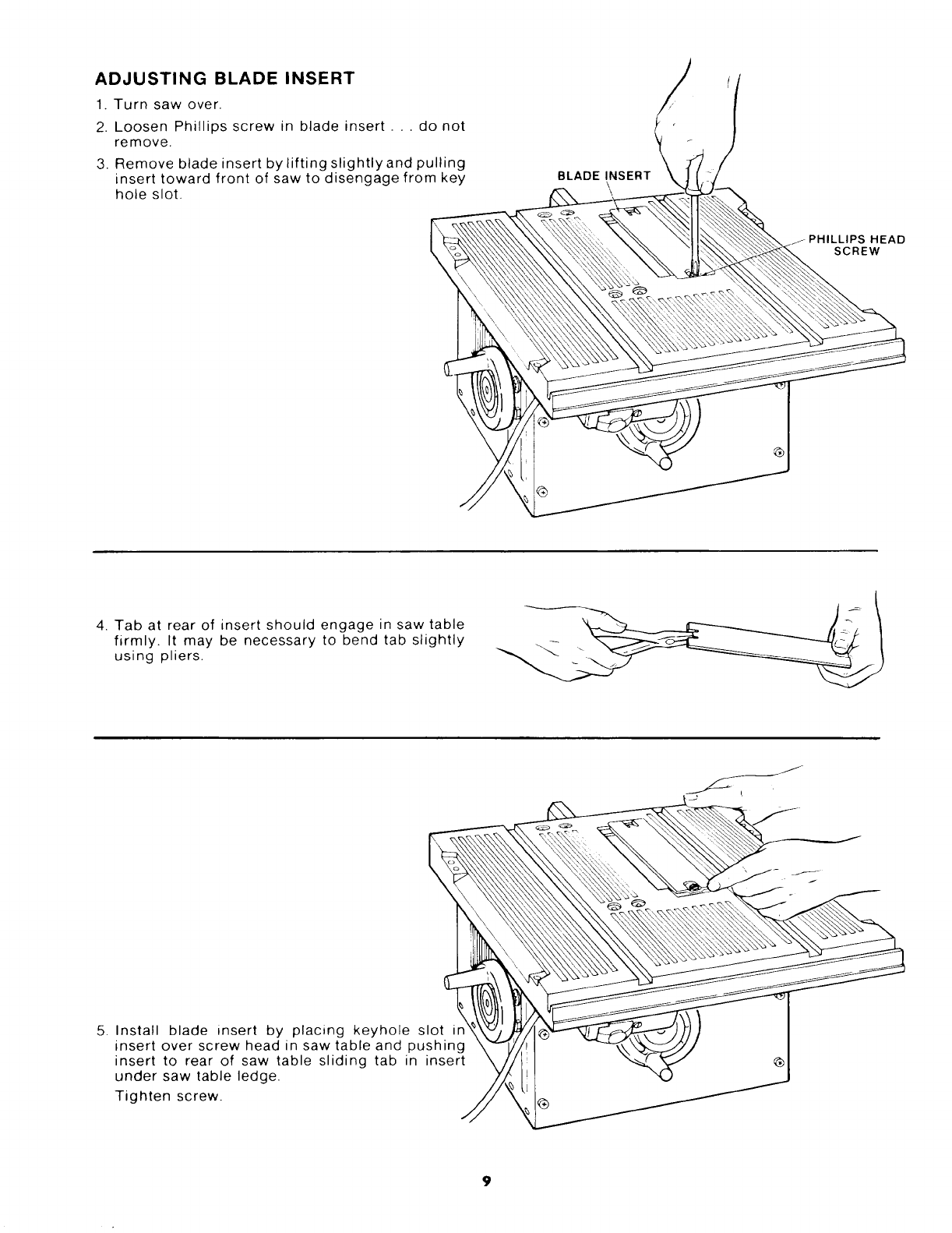

Adjusting Blade Insert .................... 9

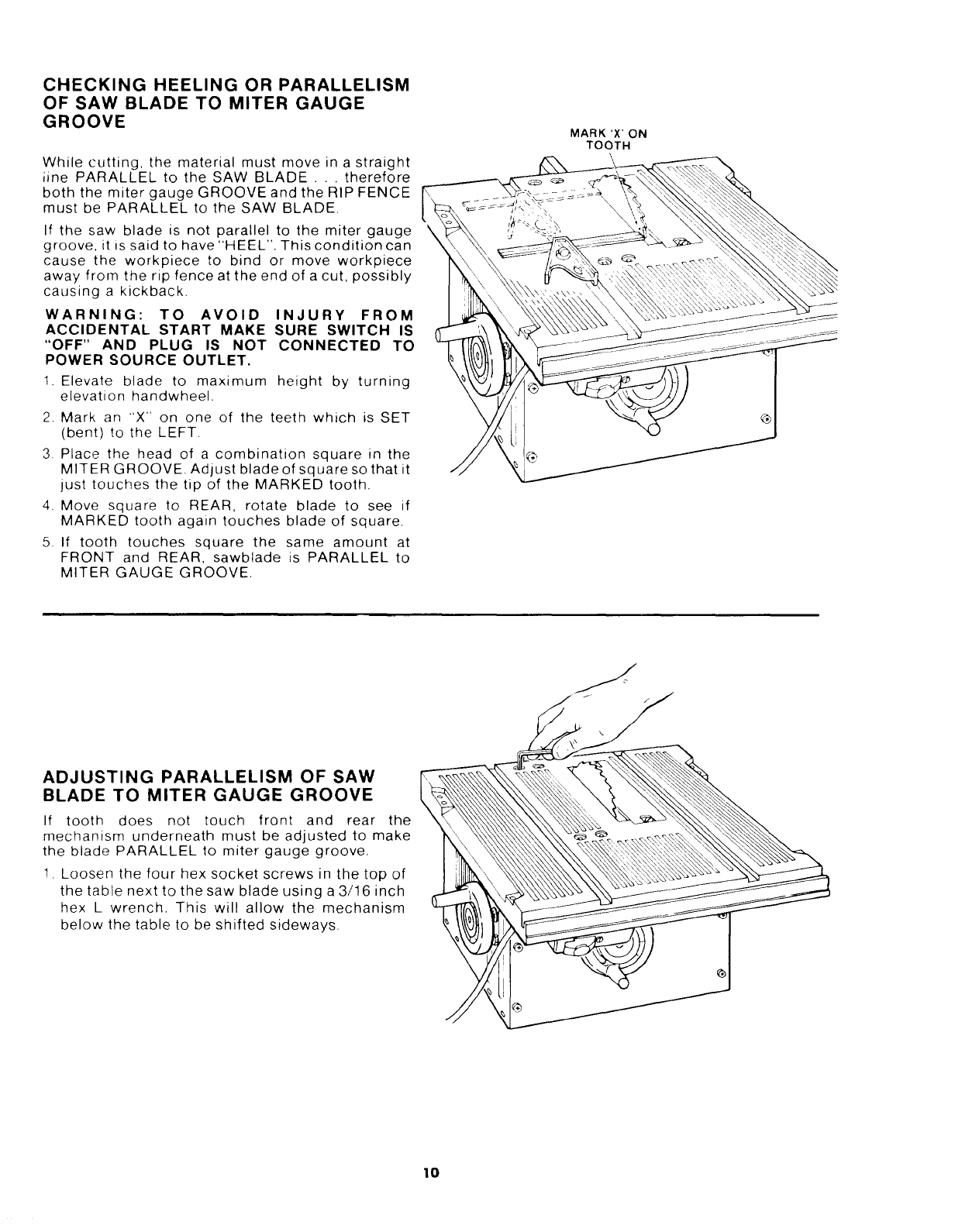

Checking Heeling or Parallelism of

Saw Blade to Miter Gauge Groove ......... 10

Adjusting Parallelism of Saw Blade to Miter

Gauge Groove ......................... 10

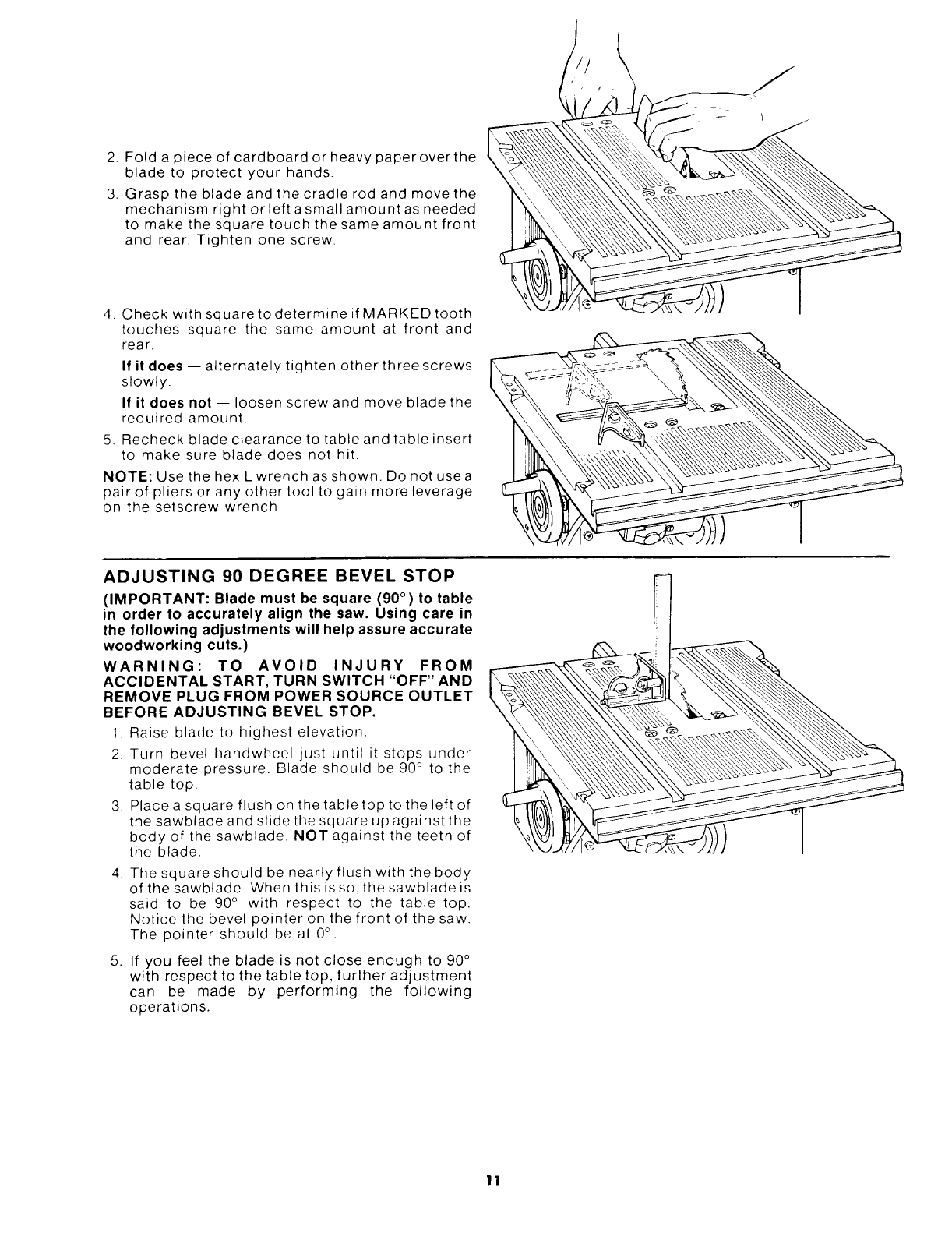

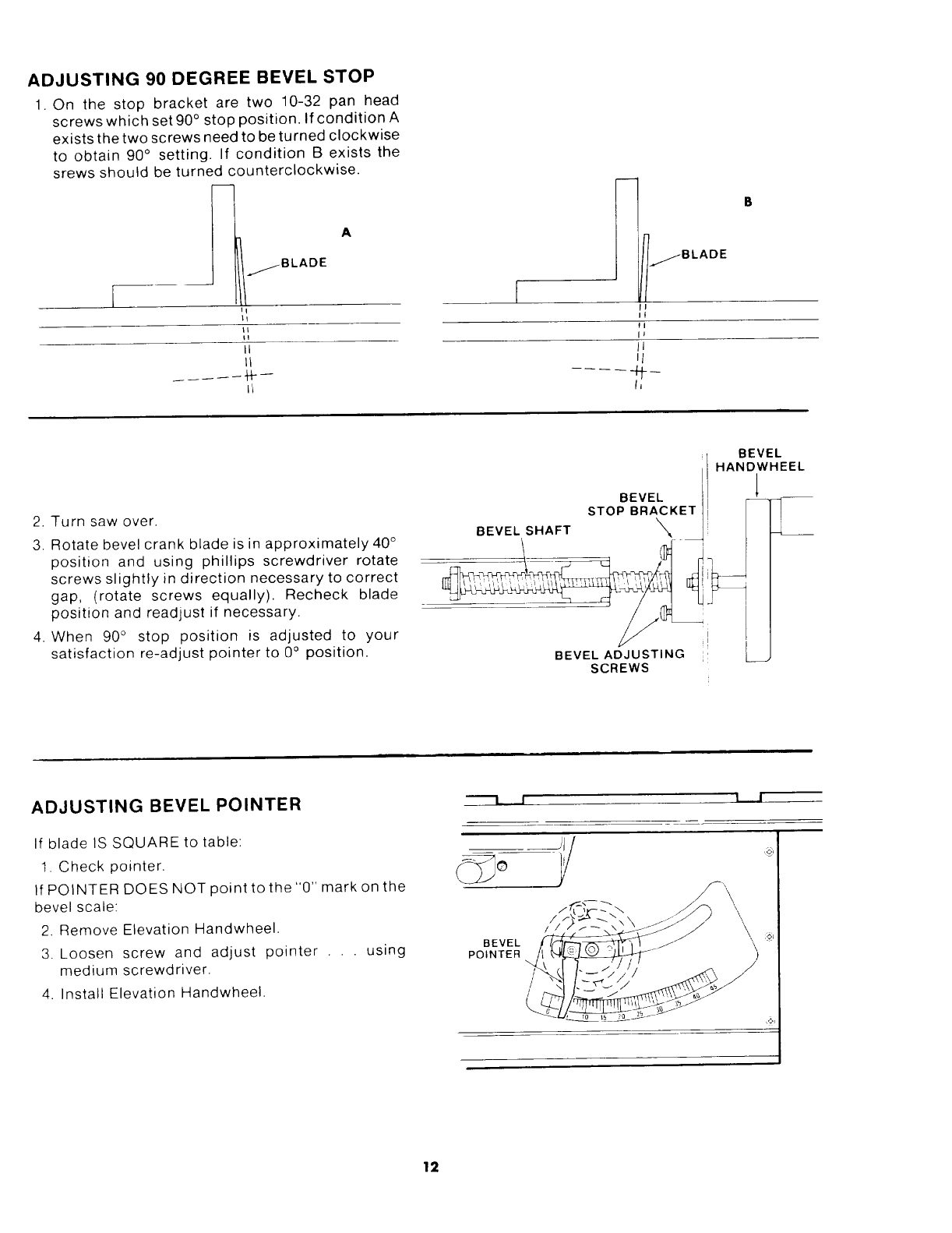

Adjusting 90 Degree Bevel Stop ............ 11

Adjusting Bevel Pointer ................... 12

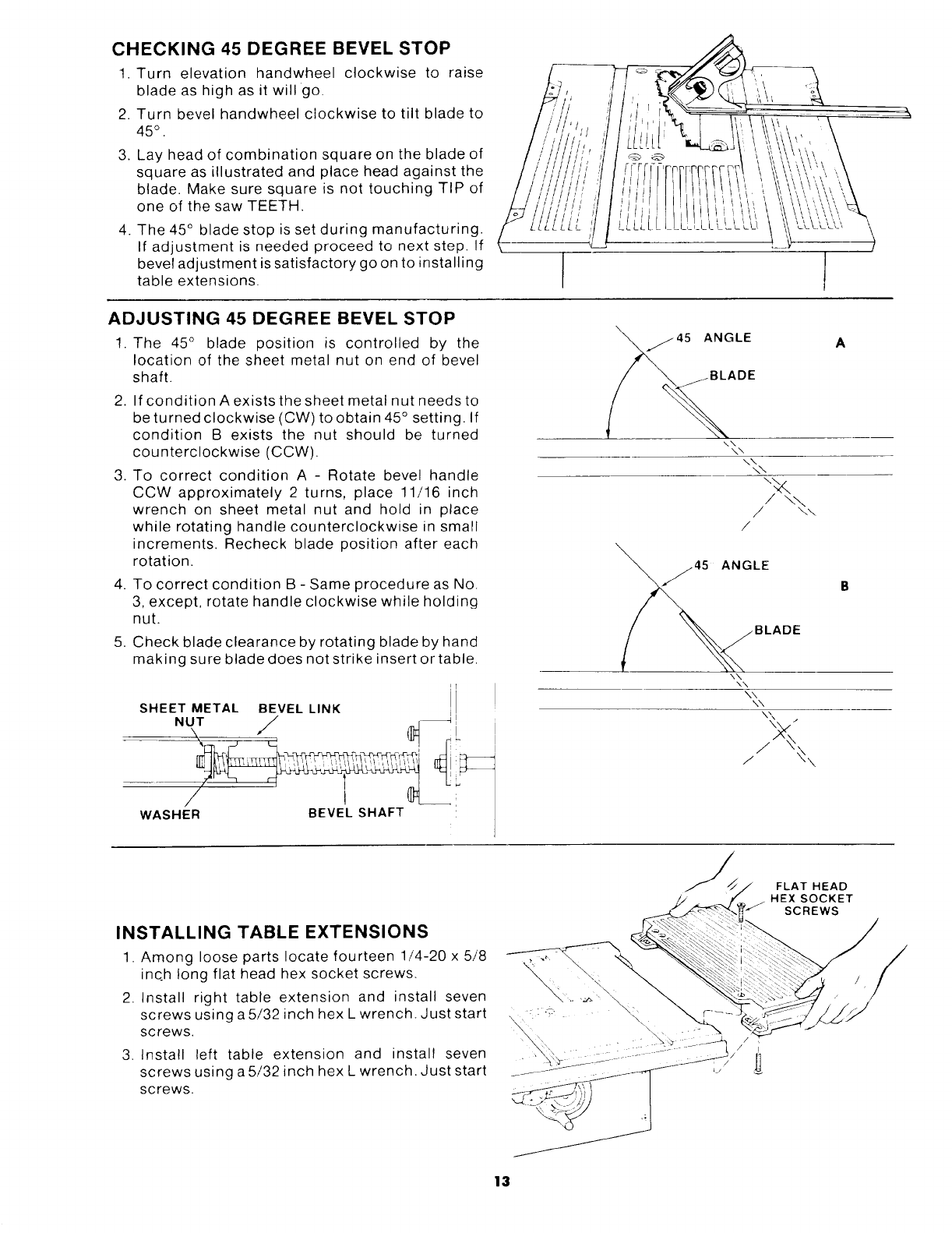

Adjusting 45 Degree Bevel Stop ............ 13

Installing Table Extensions ................ 13

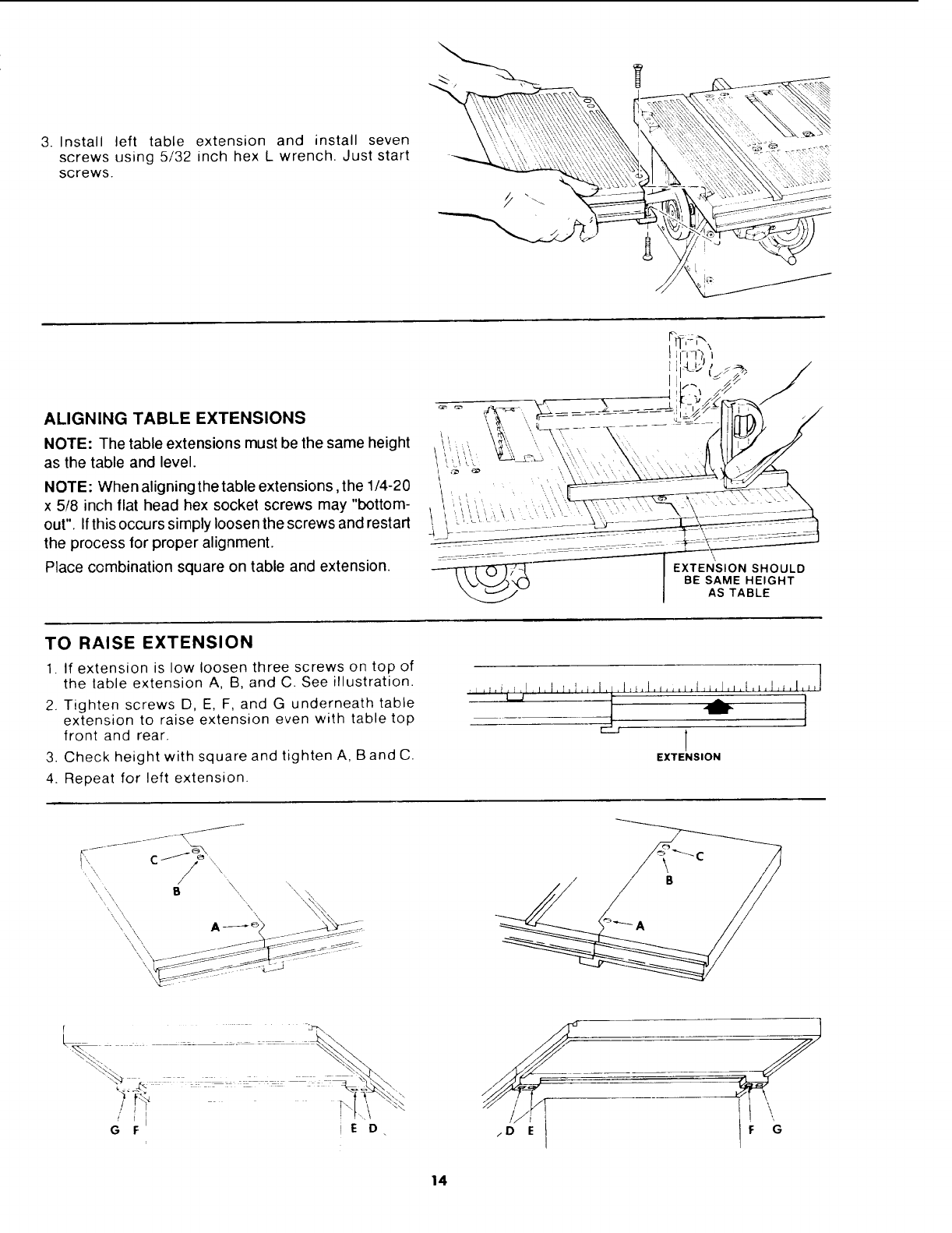

Aligning Table Extensions ................. 14

To Raise Extension ...................... 14

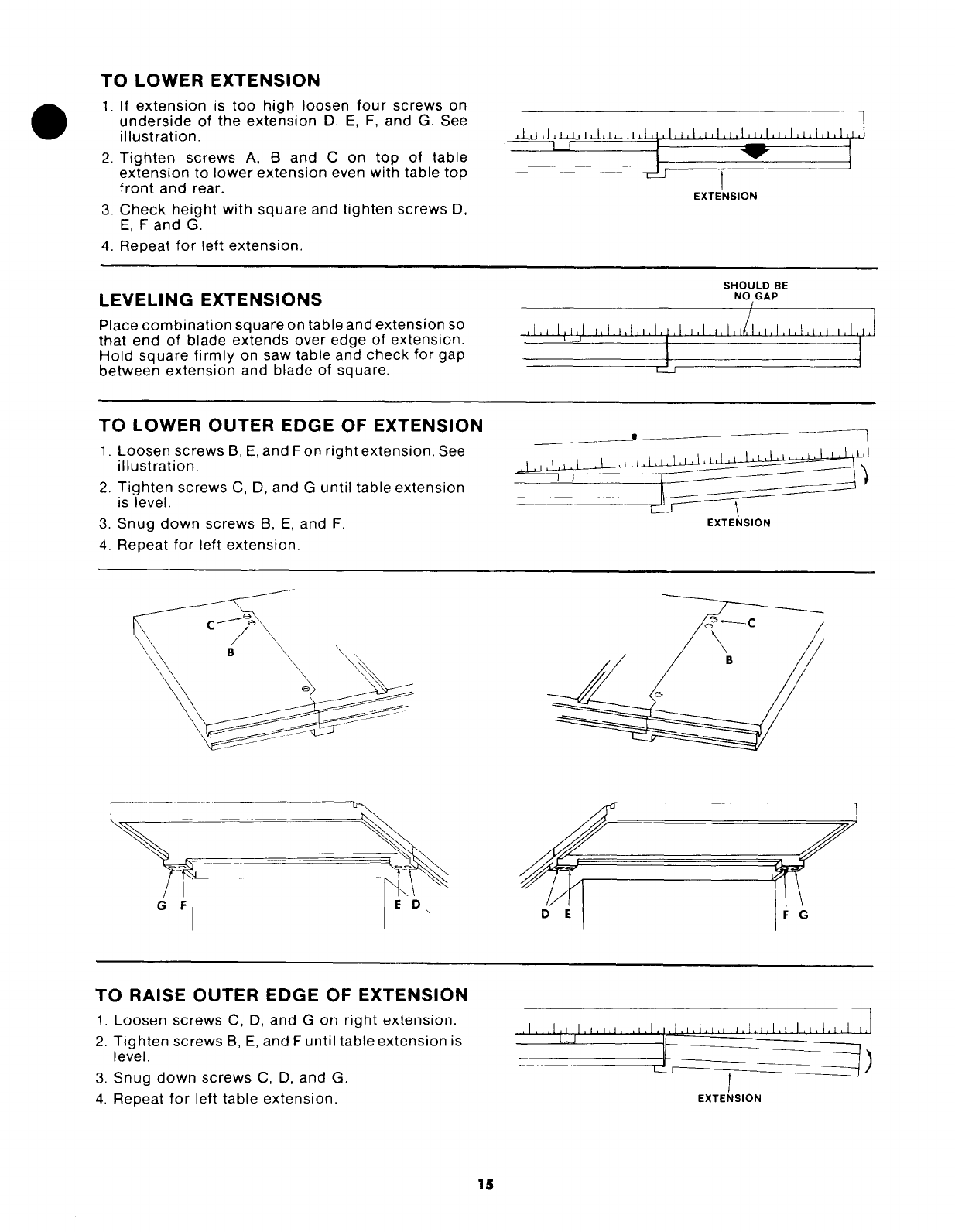

To Lower Extension ...................... 15

Leveling Extensions ..................... 15

To Lower Outer Edge of Extension .......... 15

To Raise Outer Edge of Extension .......... 15

Aligning Table Extensions with Front of Table . 16

To Move Outer Edge of Extension Back ...... 16

To Move Outer Edge of Extension Forward ... 16

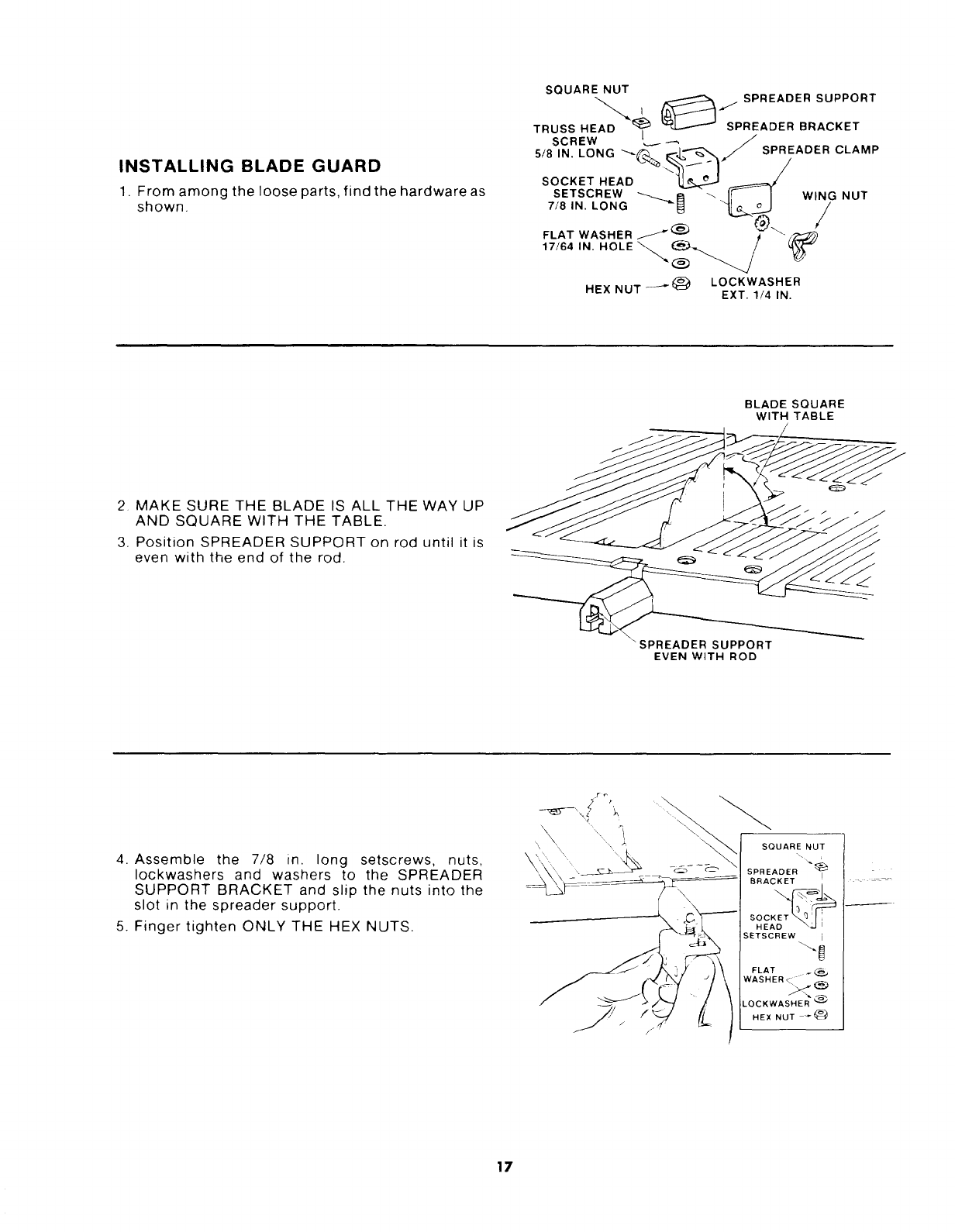

Installing Blade Guard .................... 17

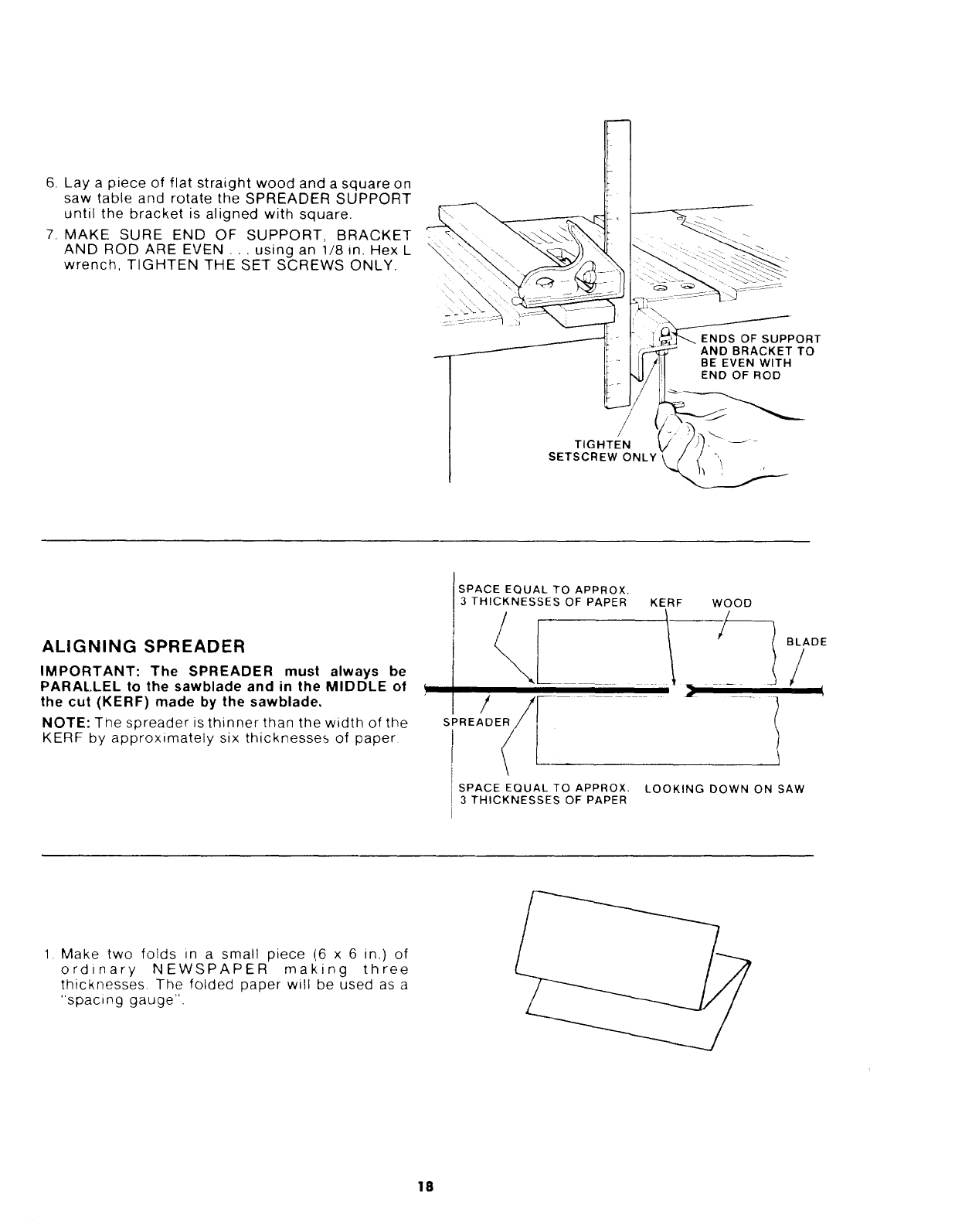

Aligning Spreader ....................... 18

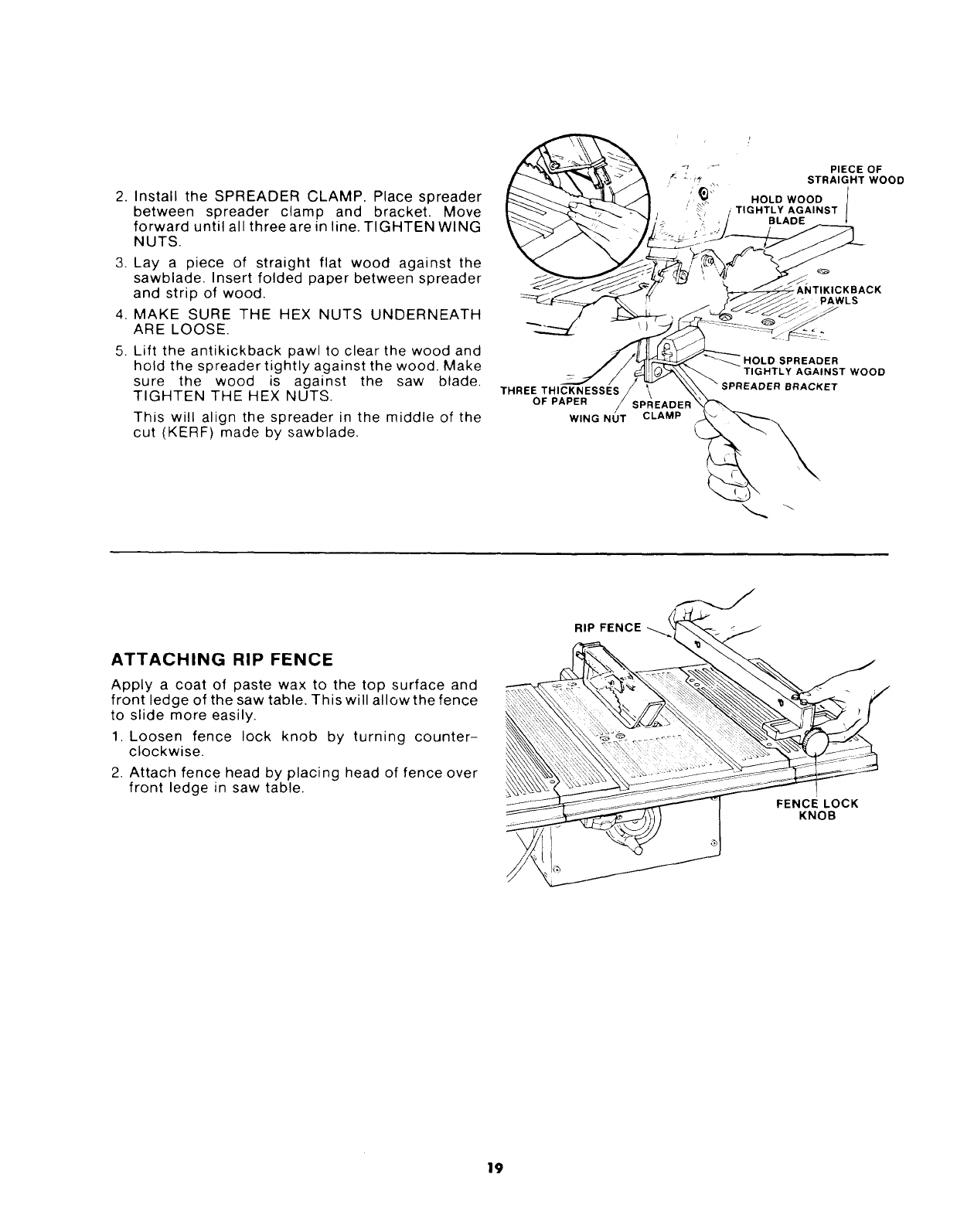

Attaching Rip Fence ..................... 19

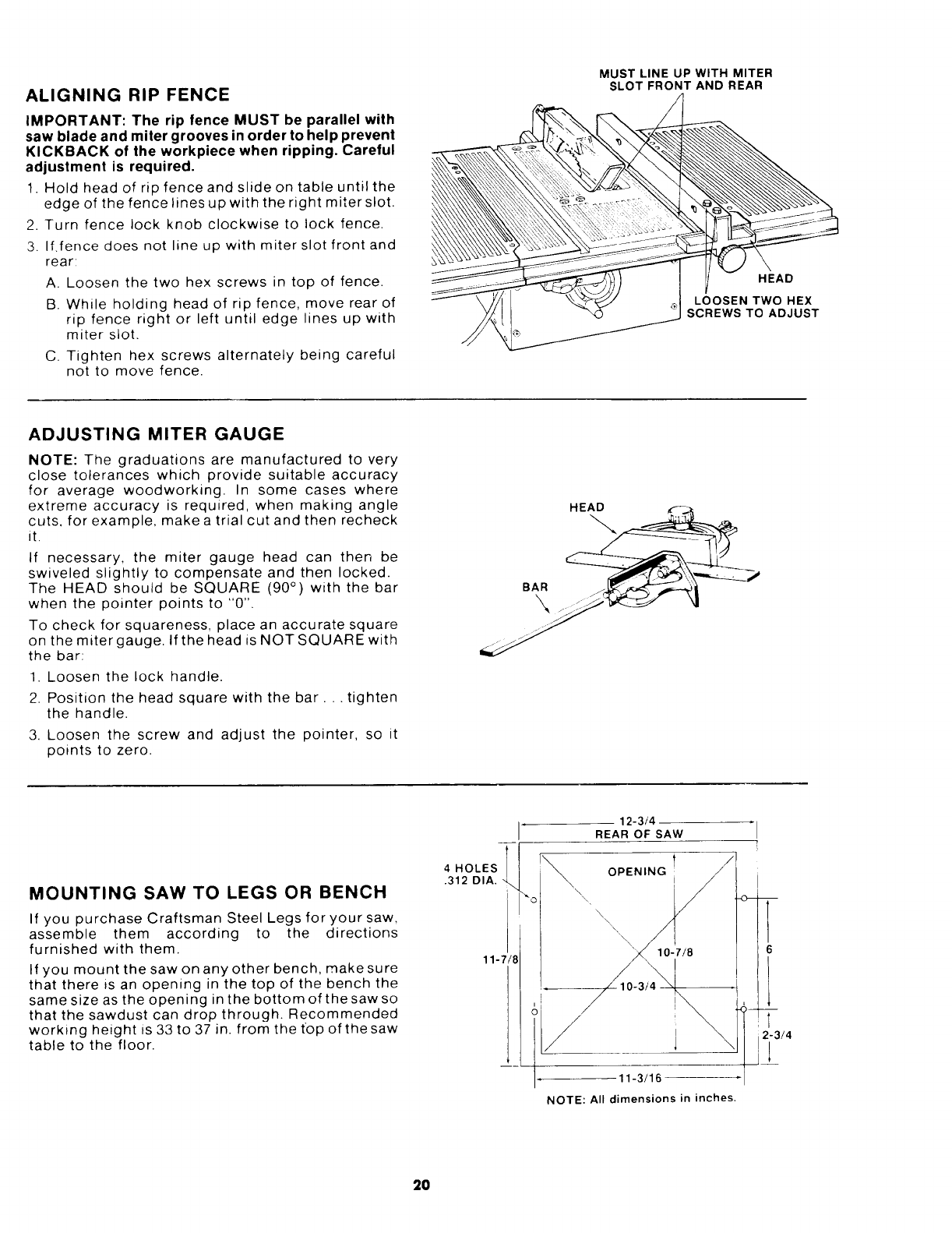

Aligning Rip Fence ...................... 20

Adjusting Miter Gauge ................... 20

Mounting Saw to Legs or Bench ............ 20

GETTING TO KNOW YOUR SAW ............ 21

On-Off Switch .......................... 21

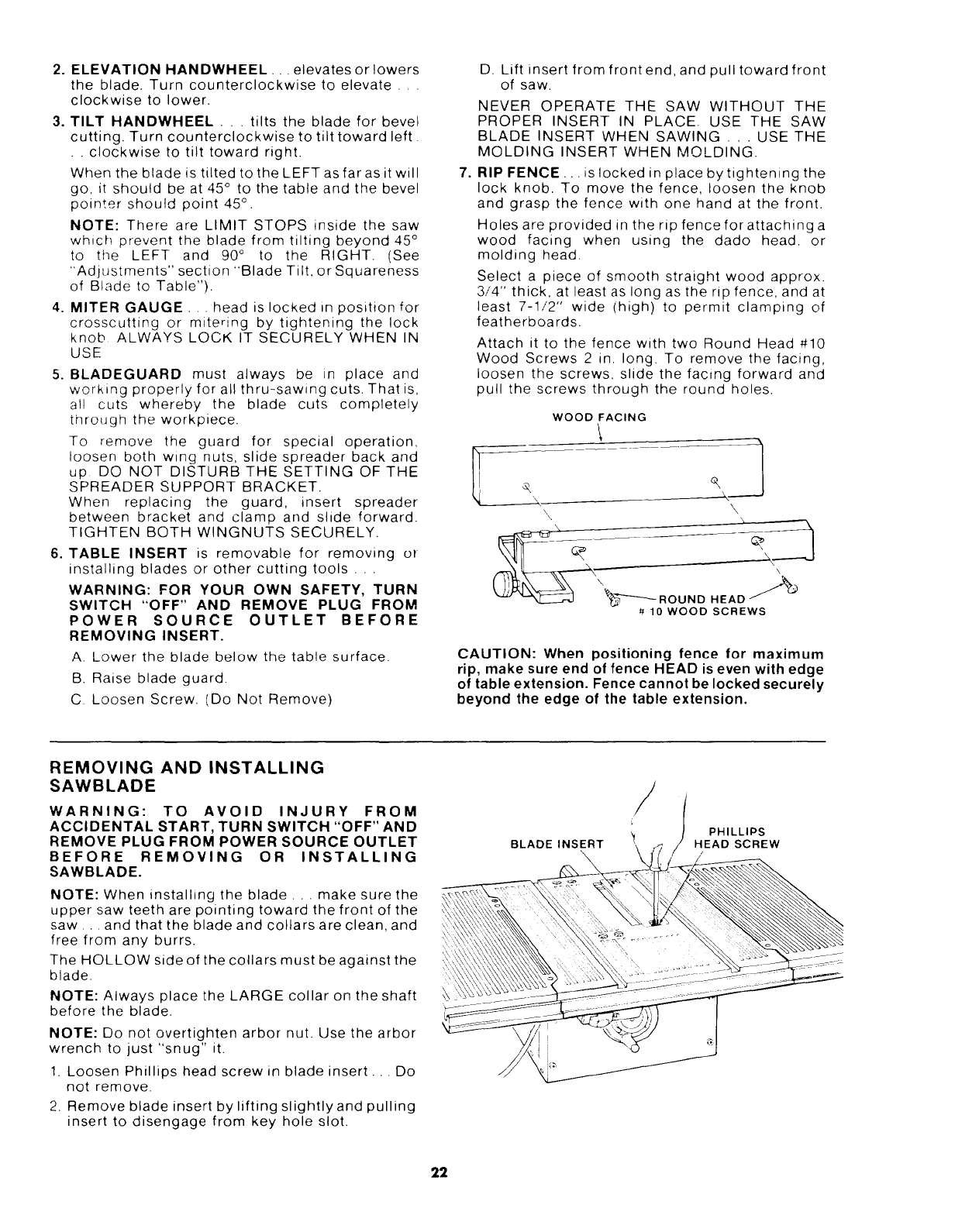

Elevation Handwheel ..................... 22

Tilt Handwheel .......................... 22

Miter Gauge ............................ 22

Blade Guard ........................... 22

Table Insert ............................ 22

Rip Fence ............................. 22

Removing and Installing Saw Blade ......... 22

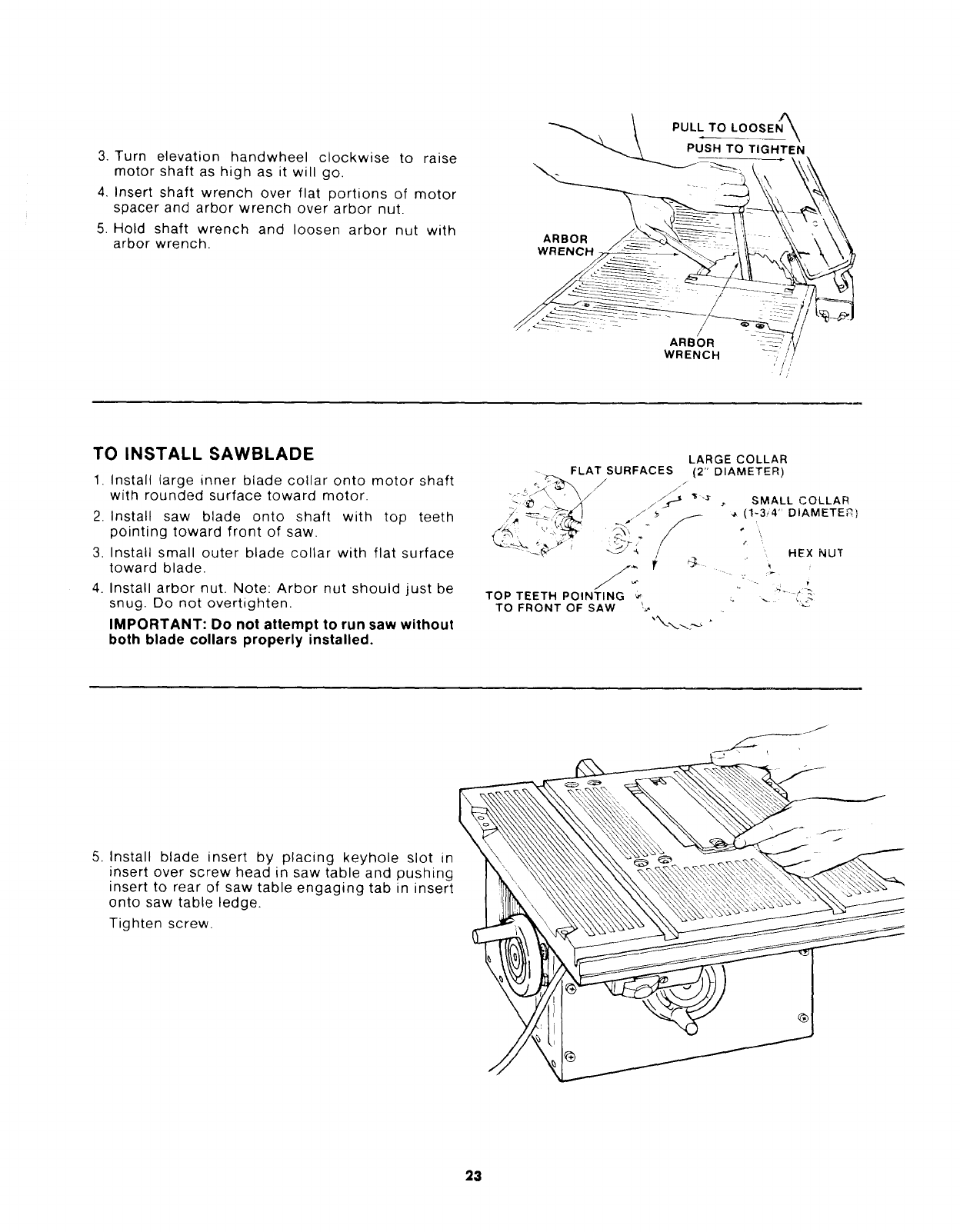

To Install Saw Blade ..................... 23

BASIC SAW OPERATION USING THE

MITER GAUGE ......................... 24

Work Helpers ........................... 24

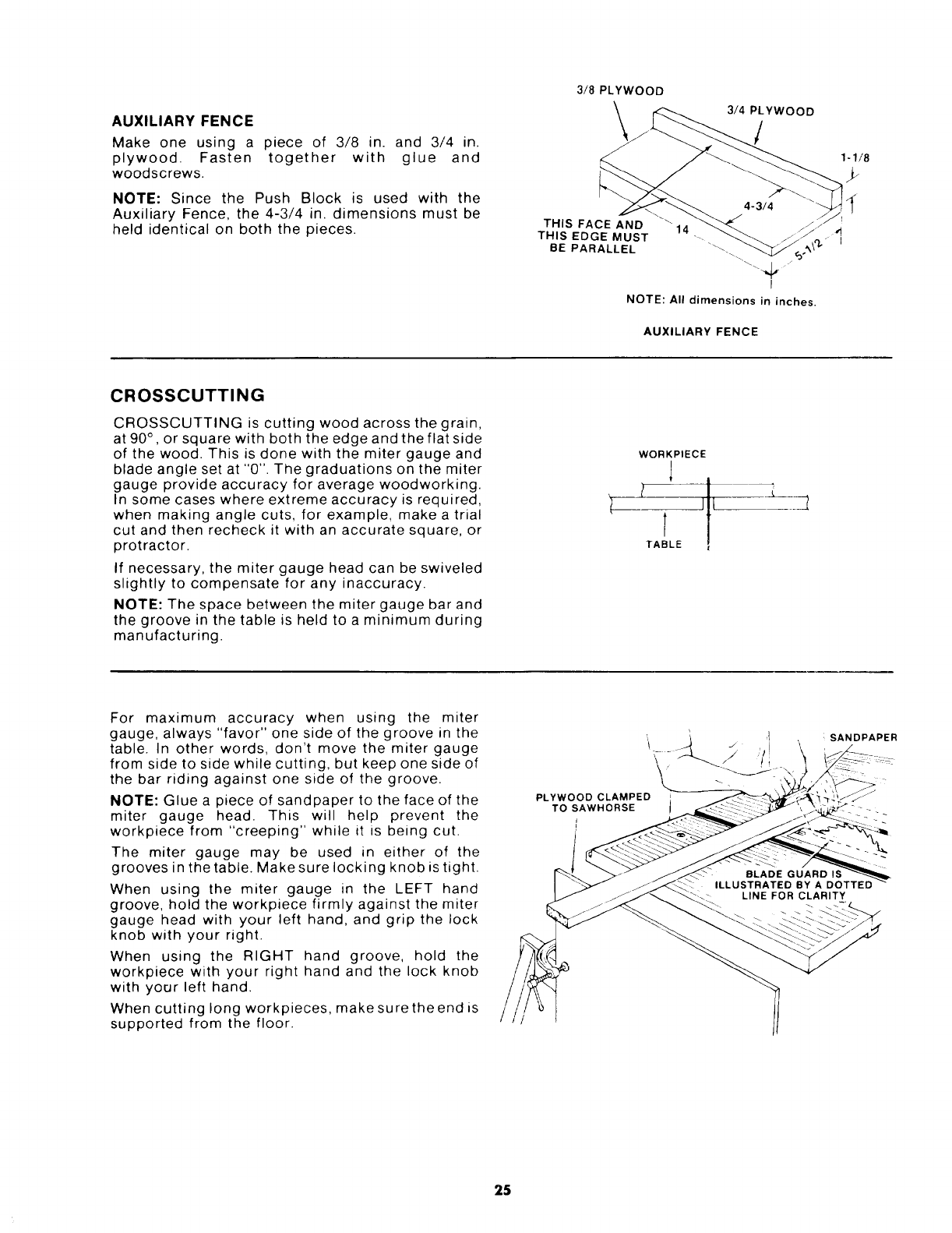

Crosscutting ........................... 25

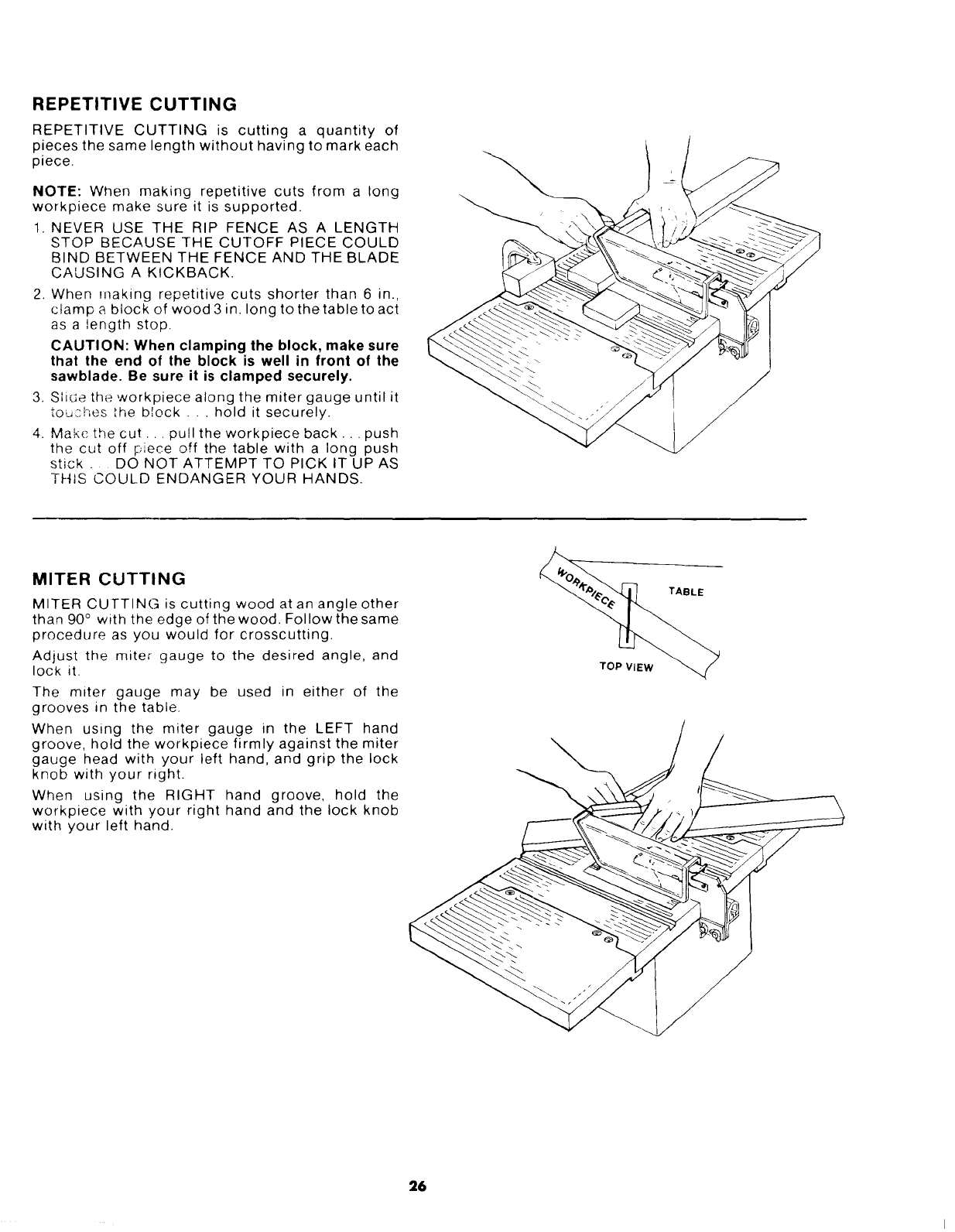

Repetitive Cutting ....................... 26

Miter Cutting ........................... 26

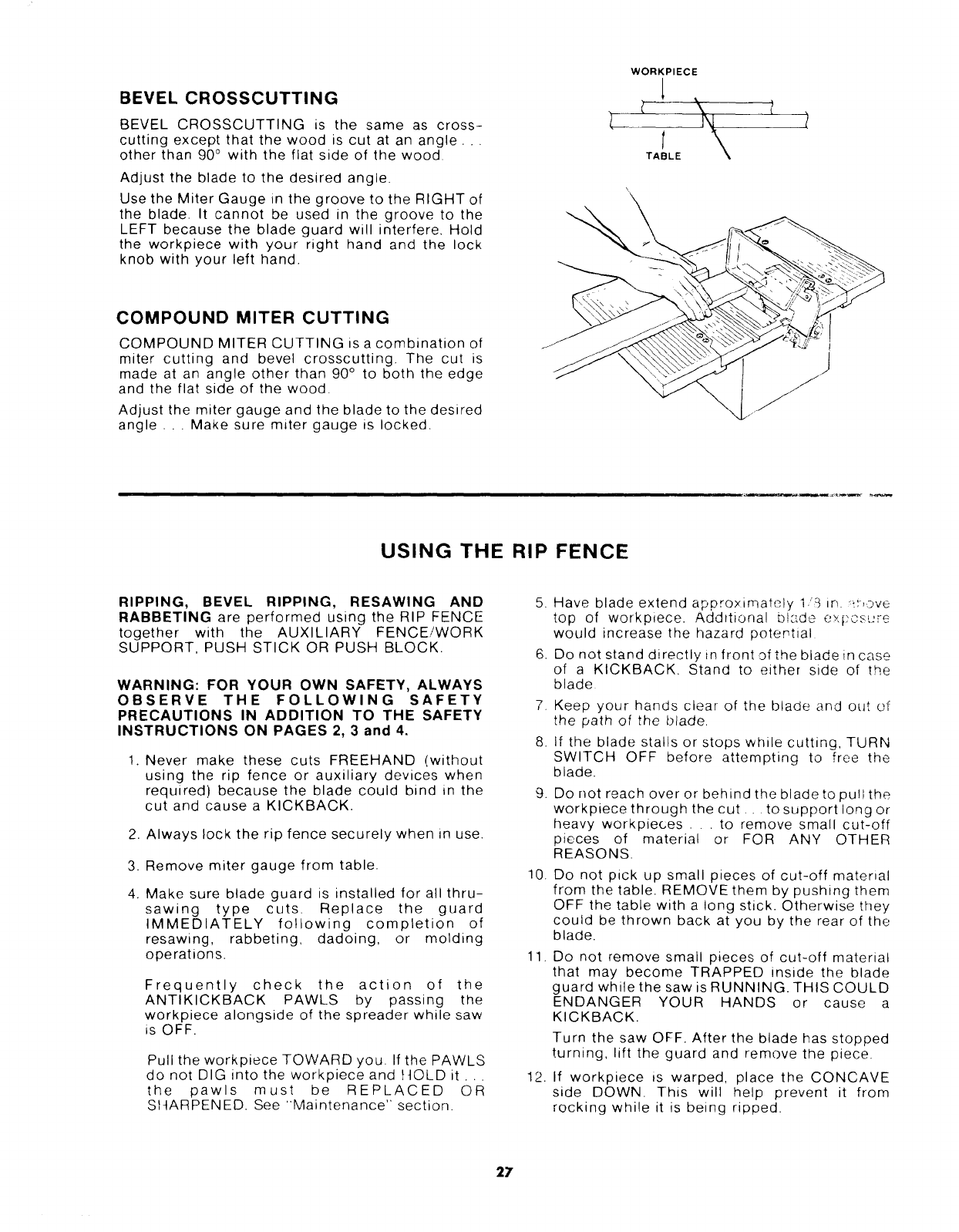

Bevel Crosscutting ...................... 27

Compound Miter Cutting .................. 27

BASIC SAW OPERATION USING THE

RIP FENCE ............................ 27

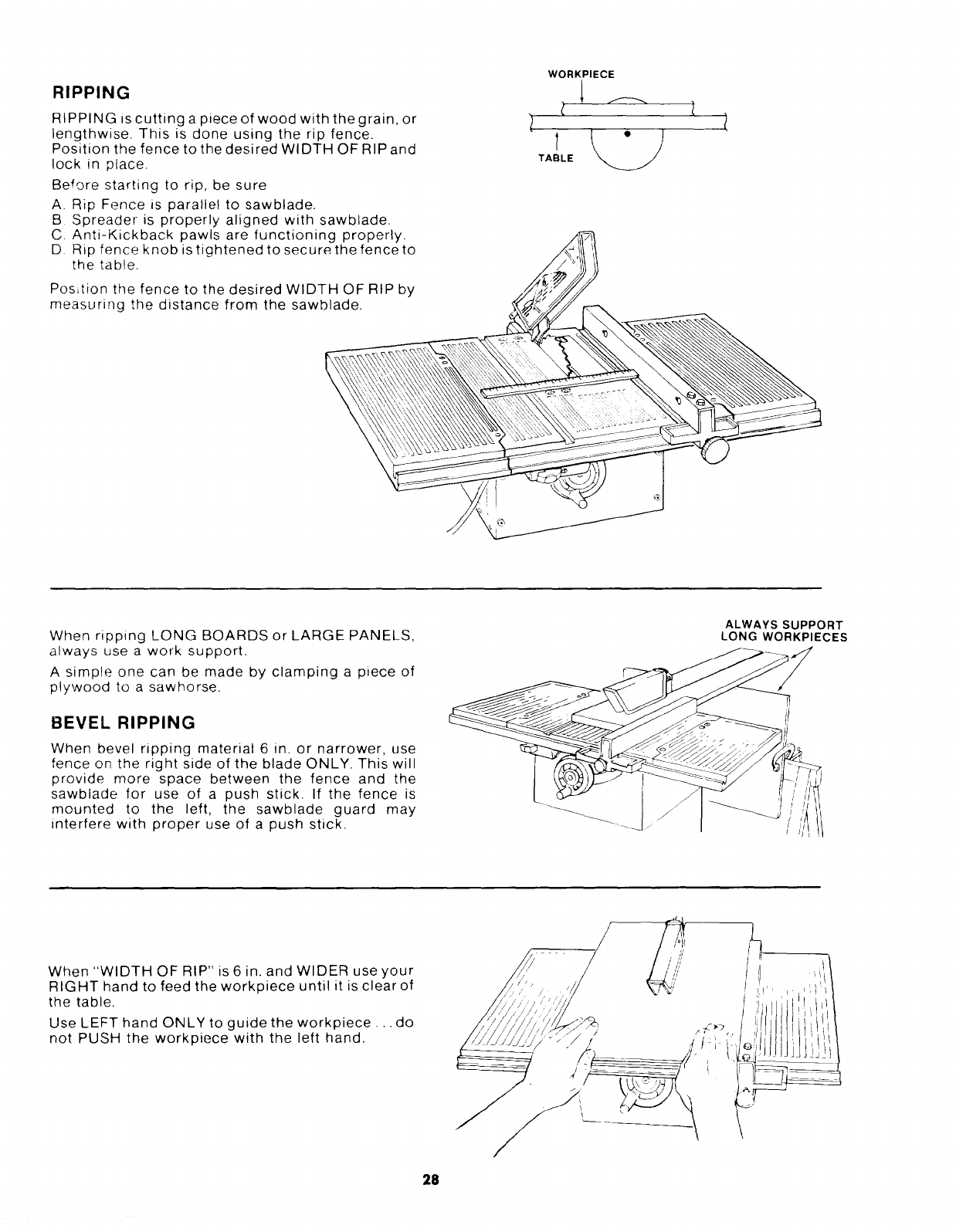

Ripping ............................... 28

Bevel Ripping .......................... 28

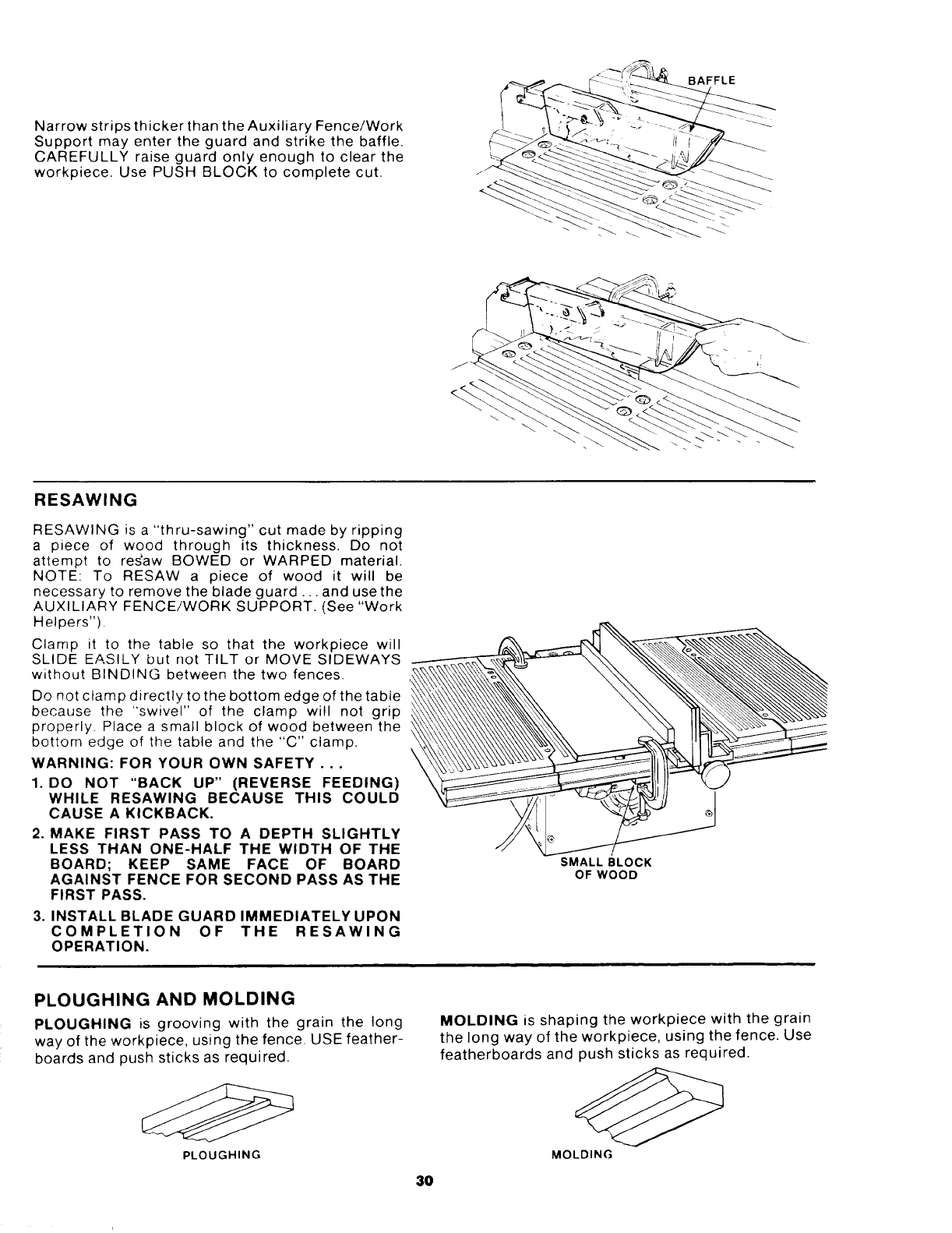

Ploughing and Molding ................... 30

Resawing .............................. 30

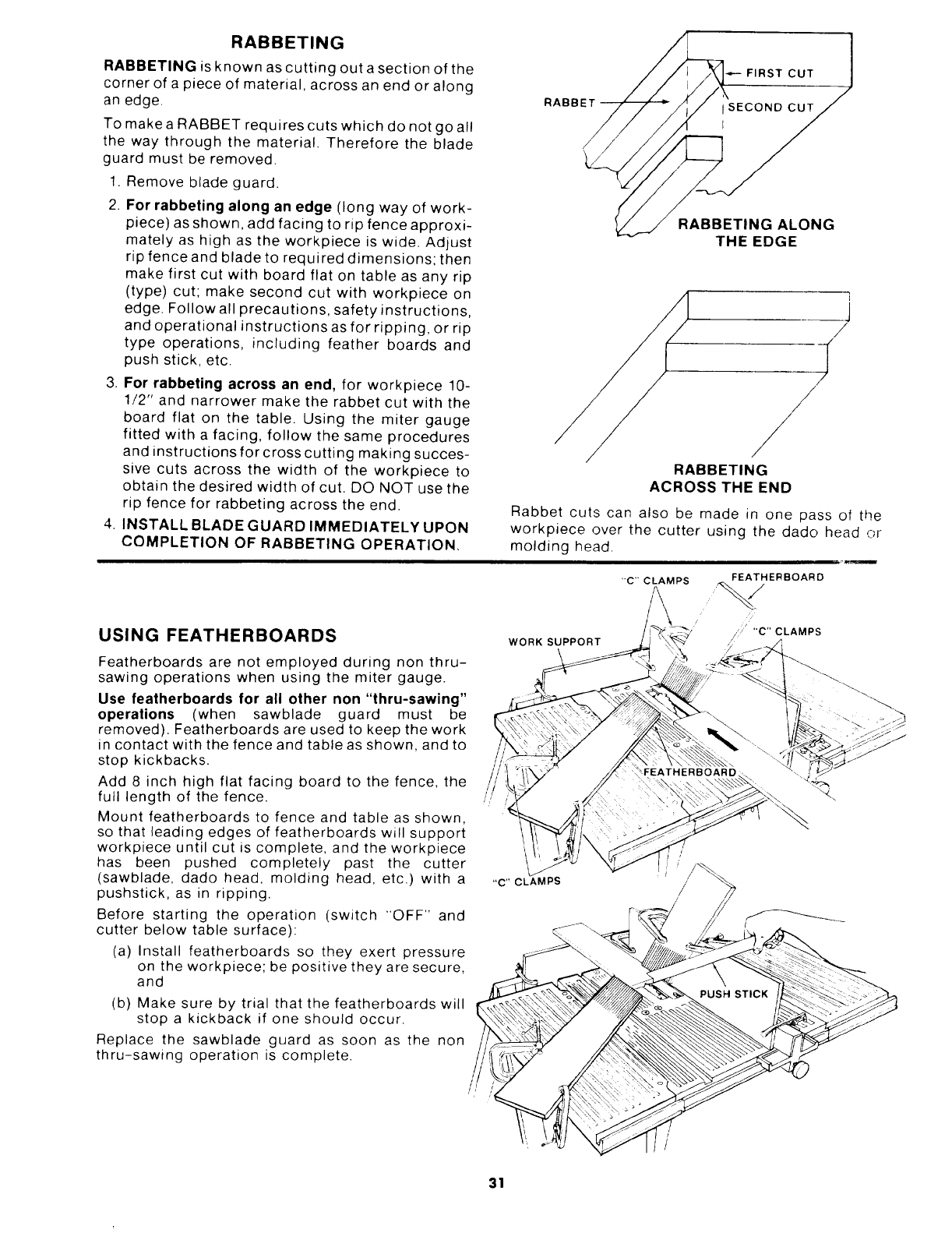

Rabbeting ............................. 31

Using Featherboards ..................... 31

MAINTENANCE .......................... 32

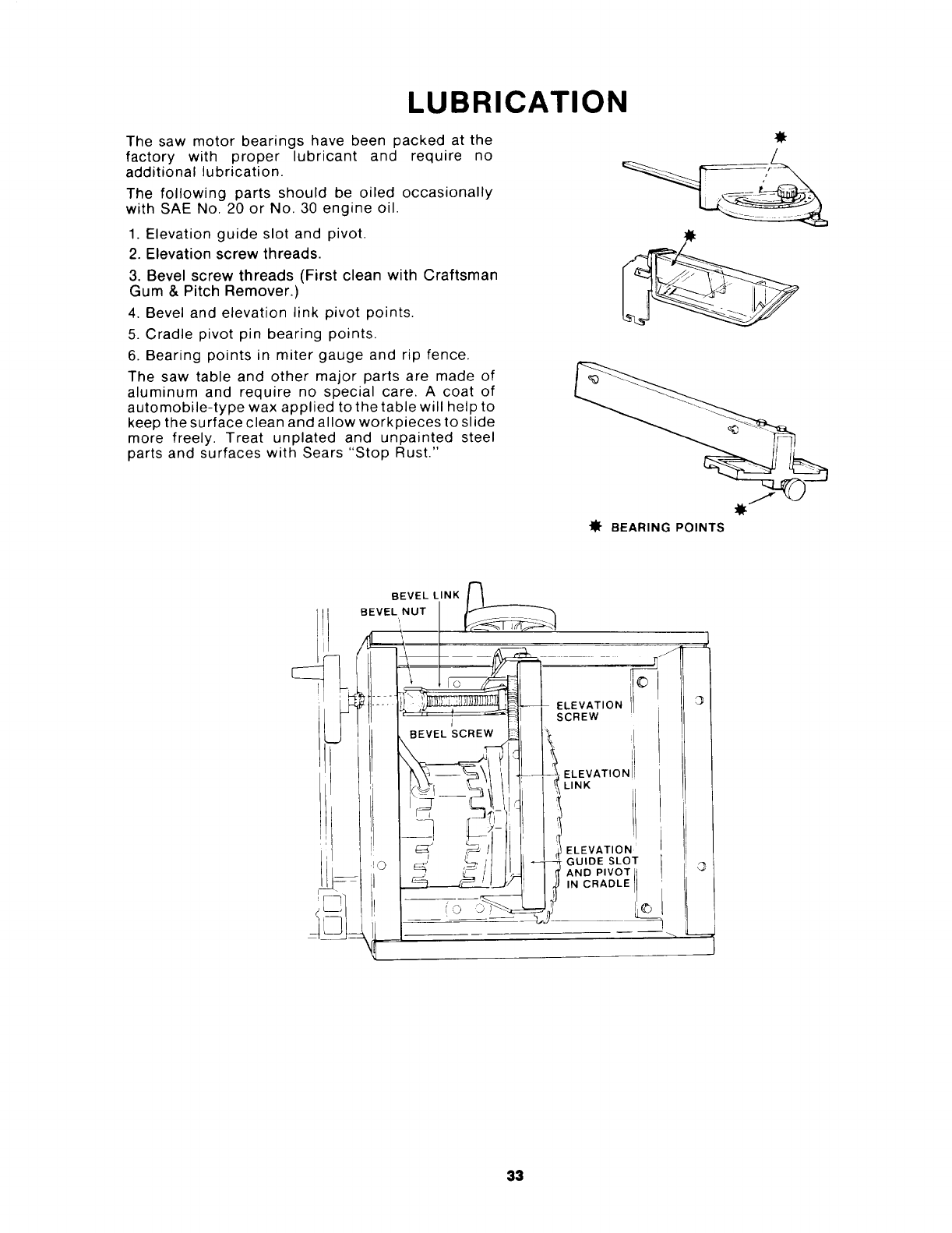

LUBRICATION ............................ 33

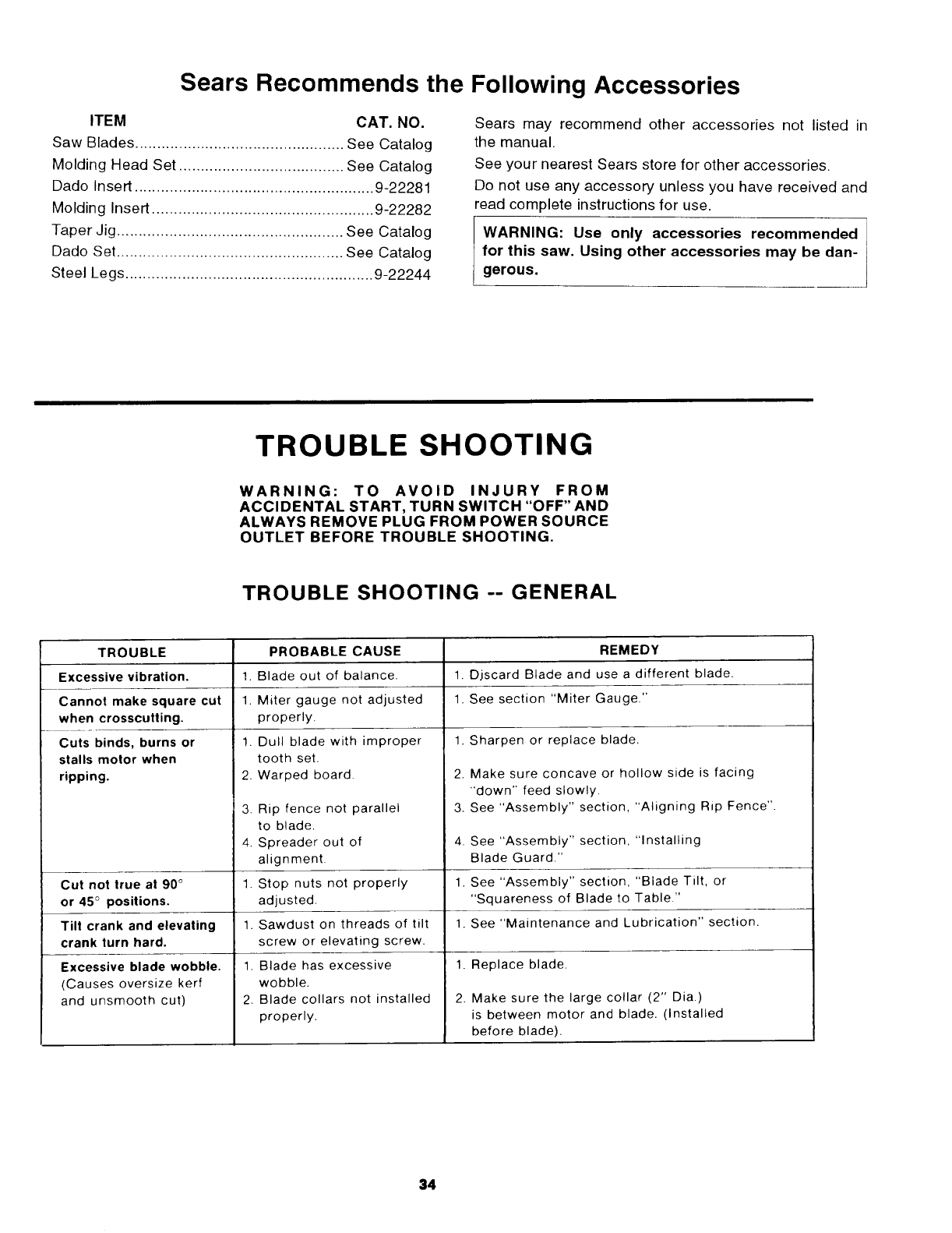

RECOMMENDED ACCESSORIES ........... 34

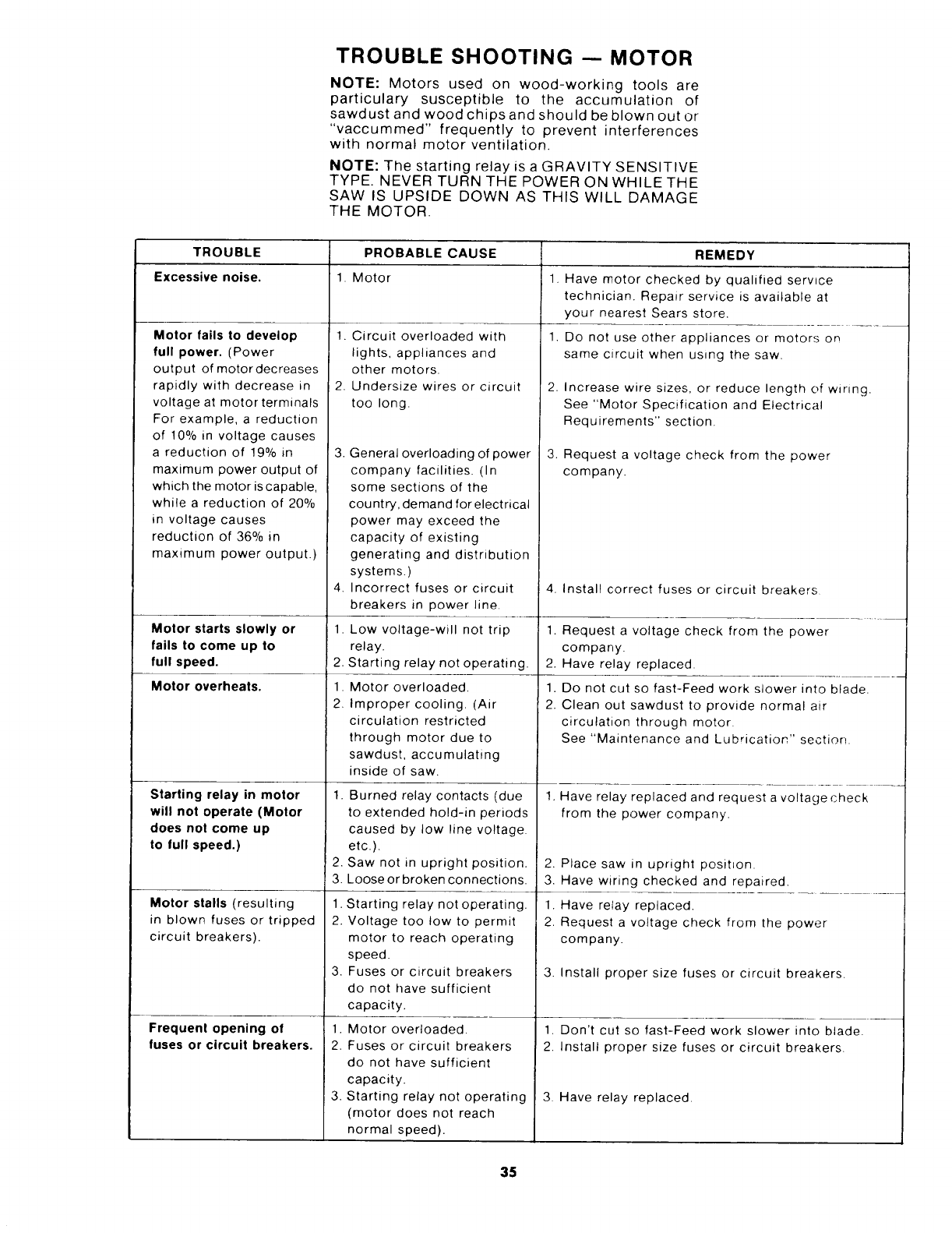

TROUBLE SHOOTING ..................... 35

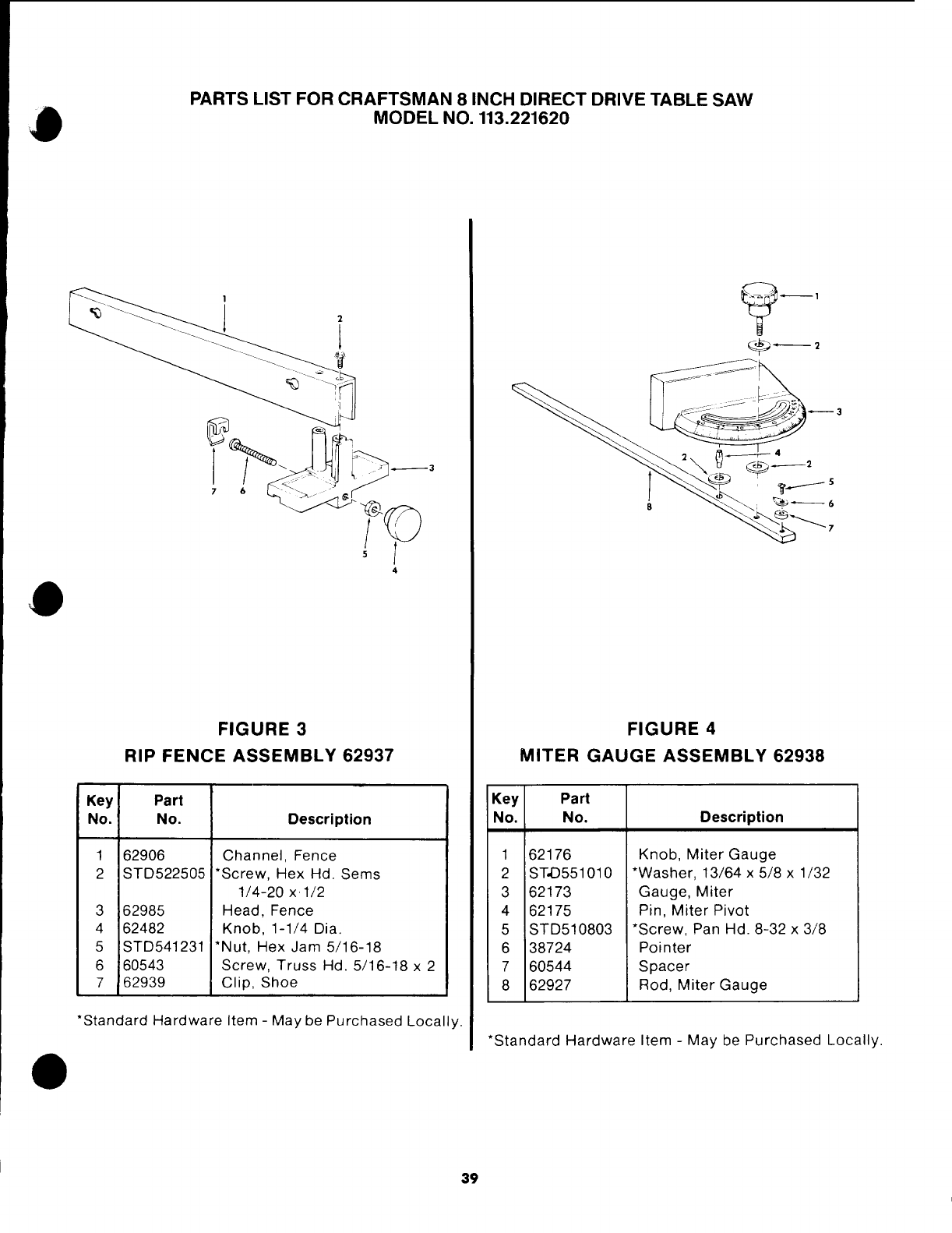

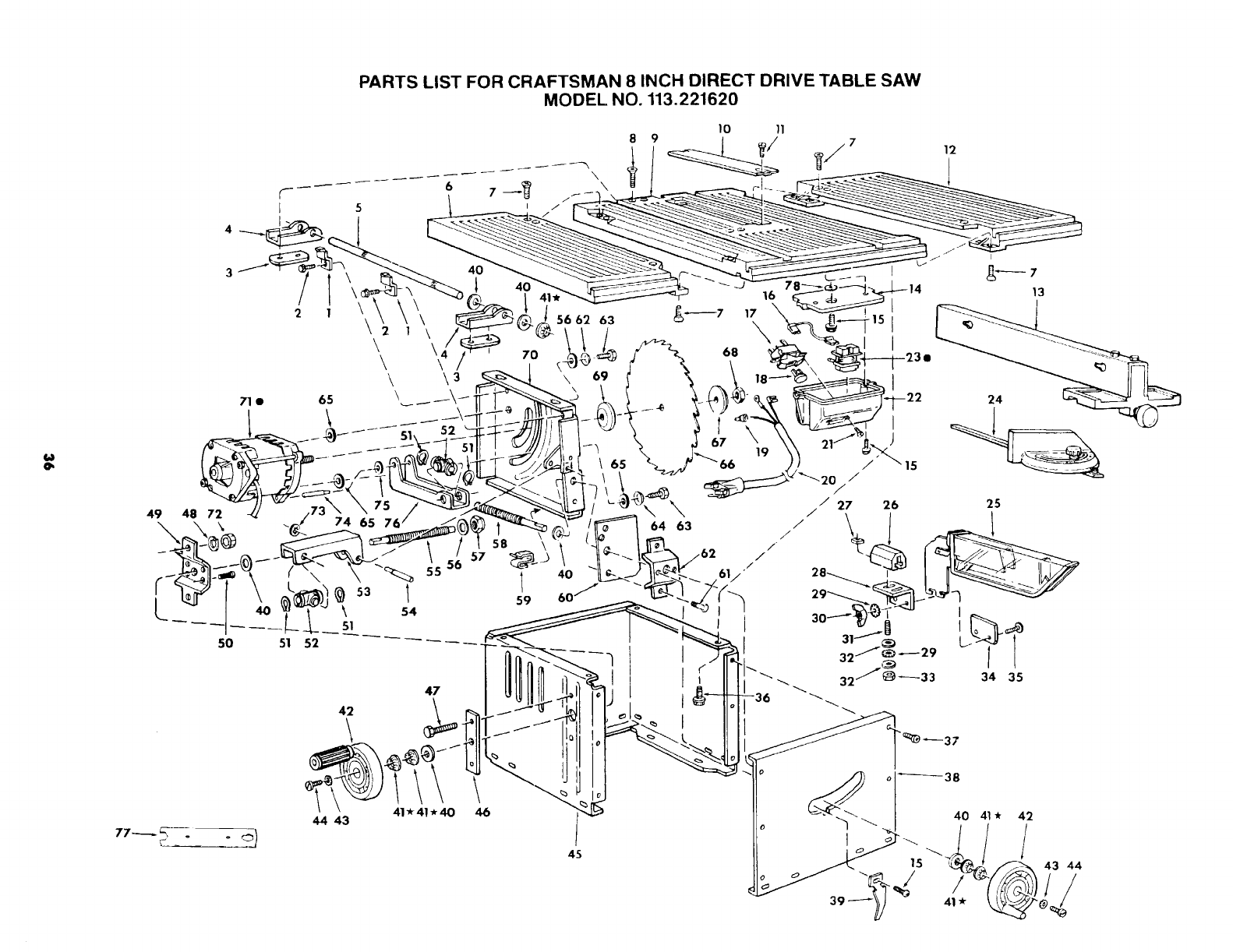

REPAIR PARTS ........................... 36

UNPACKING AND CHECKING CONTENTS

TOOLS NEEDED

-'-J _-- W renc-hes- _-_

Medium Screwdriver 7/16 in.

#2 Phillips Screwdriver

Long Nose Pliers

Combination Square

Hex "L" Wrench_es,

3/16", 1/8", 5/32"

COMBINATION SQUARE MUST BE TRUE.

BOARD ALONG

STRAIGHT EDGE OF BOARD

3/4" THICK. THIS EDGE MUST

DRAW LIGHT LINE ON BE PERFECTLY STRAIGHT.

THIS EDGE, '_''T_

\ I Ll /-

\i,11

SHOULD BE NO GAP OR OVERLAP

HERE WHEN SQUARE IS FLIPPED

OVER IN DOTTED POSITION,

Model 113.221620 Table Saw with Table Extensions is

shipped complete in one carton.

Separate all parts from packing materials and check

each one with the illustration and the list of Loose

Parts to make certain all items are accounted for,

before discarding any packing material.

If any parts are missing, do not attempt to assemble

the table saw, plug in the power cord or turn the

switch on until the missing parts are obtained and

are installed correctly.

Apply a coat of automobile wax to the table.

Wipe all parts thoroughly with a clean, dry cloth.

WARNING: FOR YOUR OWN SAFETY, NEVER

CONNECT PLUG TO POWER SOURCE OUTLET

UNTIL ALL ASSEMBLY STEPS ARE COMPLETE,

AND YOU HAVE READ AND UNDERSTAND THE

SAFETY AND OPERATIONAL INSTRUCTIONS.

ITEM

LIST OF LOOSE PARTS

DESCRIPTION QTY.

Guard Assembly ..................... 1

Extension Table L.H .................. 1

Extension Table R.H .................. 1

Handwheel ......................... 2

Rip Fence Assembly ................. 1

Miter Gauge Assembly ................ 1

Owners Manual ..................... 1

Loose Parts Bag No. 507545

(Containing the following items):

Wrench ...................................................... 2

Bracket Spreader ....................................... 1

Clamp, Spreader ........................................ 1

Loose Parts Bag No. 507546

(Containing the following items):

Washer, 17/64x9/16x3/64 .......................... 4

Screw, Pan Hd. 8-32x3/8 ........................... 2

Nut, Sq. 1/4-20 ........................................... 2

Screw, Soc. Set 1/4-20x7/8 ....................... 2

Lockwasher, Ext. 1/4 ................................. 4

Lockwasher, Ext. #8 .................................. 2

Nut, Hex 1/4-20 .......................................... 2

Screw, Truss Hd. 1/4-20x5/8 ..................... 2

Screw, Flat Hd. 1/4-20x5/8 ...................... 14

Key Switch ................................................. 1

Support Spreader ...................................... 1

Nut, Wing 1/4-20 ........................................ 2

o___@

ASSEMBLY

INSTALLING HANDWHEELS

1. From among the loose parts find two #8 external

Iockwashers and two 8-32 x 3/8 inch long Phillips

screws.

2. Install elevation handwheel onto elevation shaft

by lining up FLAT SPOT on shaft with flat inside

handwheel. Install screw and Iockwasher.

3. Install bevel handwheel onto bevel shaft by

lining up FLAT SPOT on shaft with flat inside

handwheel. Install screw and Iockwasher. SCREW

WARNING: Failure to complete the following two

steps could result in damage to your saw.

4. Turn elevation handwheel counter-clockwise to

pull motor away from inner packing cardboard.

5. Remove cardboard.

REMOVE CARDBOARD FROM

UNDERNEATH MOTOR

LOCKWASHER

SCREW

ADJUSTING BLADE INSERT

1. Turn saw over.

2. Loosen Phillips screw in blade insert.., do not

remove.

3. Remove blade insert by lifting slightly and pulling

insert toward front of saw to disengage from key

hole slot.

BLADE INSERT

PHILLIPS HEAD

SCREW

4. Tab at rear of insert should engage in saw table

firmly. It may be necessary to bend tab slightly

using pliers.

5. Install blade insert by placing keyhole slot in

insert over screw head in saw table and pushing

insert to rear of saw table sliding tab in insert

under saw table ledge.

Tighten screw.

CHECKING HEELING OR PARALLELISM

OF SAW BLADE TO MITER GAUGE

GROOVE

While cutting, the material must move in a straight

line PARALLEL to the SAW BLADE . . . therefore

both the miter gauge GROOVE and the RIP FENCE

must be PARALLEL to the SAW BLADE.

If the saw blade is not parallel to the miter gauge

groove, it is said to have "HEEL". This condition can

cause the workpiece to bind or move workpiece

away from the rip fence at the end of a cut, possibly

causing a kickback.

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START MAKE SURE SWITCH IS

"OFF" AND PLUG IS NOT CONNECTED TO

POWER SOURCE OUTLET.

1. Elevate blade to maximum height by turning

elevation handwheel.

2. Mark an "X" on one of the teeth which is SET

(bent) to the LEFT.

3. Place the head of a combination square in the

MITER GROOVE. Adjust blade of square so that it

just touches the tip of the MARKED tooth.

4. Move square to REAR, rotate blade to see if

MARKED tooth again touches blade of square.

5. If tooth touches square the same amount at

FRONT and REAR, sawblade is PARALLEL to

MITER GAUGE GROOVE.

MARK 'X' ON

TOOTH

ADJUSTING PARALLELISM OF SAW

BLADE TO MITER GAUGE GROOVE

If tooth does not touch front and rear the

mechanism underneath must be adjusted to make

the blade PARALLEL to miter gauge groove.

1. Loosen the four hex socket screws in the top of

the table next to the saw blade using a 3/16 inch

hex L wrench. This will allow the mechanism

below the table to be shifted sideways.

2.Foldapieceof cardboardorheavypaperoverthe

bladeto protectyour hands.

3. Graspthe bladeandthecradlerodandmovethe

mechanismrightorleftasmallamountasneeded

to makethesquaretouchthesameamountfront

and rear.Tightenonescrew.

4. Checkwithsquaretodetermineif MARKEDtooth

touchessquarethe sameamountat front and

rear.

If it does-- alternatelytightenotherthreescrews

slowly.

If it doesnot-- loosenscrewandmovebladethe

requiredamount.

5. Recheckbladeclearanceto tableandtableinsert

to makesurebladedoesnothit.

NOTE:UsethehexLwrenchasshown.Donotusea

pairof pliersoranyothertoolto gainmoreleverage

onthe setscrewwrench.

ADJUSTING 90 DEGREE BEVEL STOP

(IMPORTANT: Blade must be square (90 °) to table

in order to accurately align the saw. Using care in

the following adjustments will help assure accurate

woodworking cuts.)

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START, TURN SWITCH "OFF" AND

REMOVE PLUG FROM POWER SOURCE OUTLET

BEFORE ADJUSTING BEVEL STOP.

1. Raise blade to highest elevation.

2. Turn bevel handwheel just until it stops under

moderate pressure. Blade should be 90 ° to the

table top.

3. Place a square flush on the table top to the left of

the sawblade and slide the square up against the

body of the sawblade. NOT against the teeth of

the blade.

4. The square should be nearly flush with the body

of the sawblade. When this isso, the sawblade is

said to be 90° with respect to the table top.

Notice the bevel pointer on the front of the saw.

The pointer should be at 0°.

5. If you feel the blade is not close enough to 90 °

with respect to the table top, further adjustment

can be made by performing the following

operations.

ADJUSTING 90 DEGREE BEVEL STOP

1. On the stop bracket are two 10-32 pan head

screws which set 90 ° stop position. If condition A

exists the two screws need to be turned clockwise

to obtain 90 ° setting. If condition B exists the

srews should be turned counterclockwise.

IBLADE

/BLADE

2. Turn saw over.

3. Rotate bevel crank blade is in approximately 40 °

position and using phillips screwdriver rotate

screws slightly in direction necessary to correct

gap, (rotate screws equally). Recheck blade

position and readjust if necessary.

4. When 90 ° stop position is adjusted to your

satisfaction re-adjust pointer to 0° position.

BEVEL

STOP BRACKET I

BEVELSHAFT X J

BEVEL ADJUSTING

SCREWS

BEVEL

HANDWHEEL

ADJUSTING BEVEL POINTER

If blade IS SQUARE to table:

1. Check pointer.

If POINTER DOES NOT point to the"0" mark on the

bevel scale:

2. Remove Elevation Handwheel.

3. Loosen screw and adjust pointer . . . using

medium screwdriver.

4. Install Elevation Handwheel.

"----I

BEVEL

POINTER

CHECKING 45 DEGREE BEVEL STOP

!. Turn elevation handwheel clockwise to raise

blade as high as it will go.

2. Turn bevel handwheel clockwise to tilt blade to

45 ° '

3. Lay head of combination square on the blade of

square as illustrated and place head against the

blade• Make sure square is not touching TIP of

one of the saw TEETH.

4. The 45 ° blade stop is set during manufacturing•

If adjustment is needed proceed to next step. If

bevel adjustment is satisfactory go on to installing

table extensions• r

ADJUSTING 45 DEGREE BEVEL STOP

1. The 45 ° blade position is controlled by the

location of the sheet metal nut on end of bevel

shaft•

2. If condition A exists the sheet metal nut needs to

be turned clockwise (CW) to obtain 45 ° setting• If

condition B exists the nut should be turned

counterclockwise (CCW).

3. To correct condition A - Rotate bevel handle

CCW approximately 2 turns, place 11/16 inch

wrench on sheet metal nut and hold in place

while rotating handle counterclockwise in small

increments. Recheck blade position after each

rotation.

4. To correct condition B- Same procedure as No.

3, except, rotate handle clockwise while holding

nut.

5. Check blade clearance by rotating blade by hand

making sure blade does not strike insert or table•

SHEET METAL BEVEL LINK i

NUT _/ _ [_

WASHER BEVEL SHAFT

\45 ANGLE

|LADE

\\ \',,.,

\\ \\

/\\

45 ANGLE

\xx\

\\\

INSTALLING TABLE EXTENSIONS

1. Among loose parts locate fourteen 1/4-20 x 5/8

inch long flat head hex socket screws.

2. Install right table extension and install seven

screws using a5/32 inch hex Lwrench. Just start

screws.

3. Install left table extension and install seven

screws using a5/32inch hex Lwrench. Just start

screws.

FLAT HEAD

HEX SOCKET

SCREWS

3. Install left table extensionand install seven

screwsusing5/32inch hexL wrench•Juststart

screws.

ALIGNING TABLE EXTENSIONS

NOTE: The table extensions must be the same height

as the table and level.

NOTE: When aligning the table extensions, the 1/4-20

x 5/8 inch flat head hex socket screws may "bottom-

out". If this occurs simply loosen the screws and restart

the process for proper alignment.

Place combination square on table and extension.

_ EXTEN_SION SHOULD

BE SAME HEIGHT

AS TABLE

TO RAISE EXTENSION

1• If extension is low loosen three screws on top of

the table extension A, B, and C. See illustration•

2• Tighten screws D, E, F, and G underneath table

extension to raise extension even with table top

front and rear.

3. Check height with square and tighten A, Band C.

4. Repeat for left extension.

,i_j,;t__3!,,,l r i _ i i 1,_,1 _ ;i,I 'I,_ 1,_,]

EXTENSION

\•

G F !E,,D E

TO LOWER EXTENSION

If extension is too high loosen four screws on

underside of the extension D, E, F, and G. See

illustration.

Tighten screws A, B and C on top of table

extension to lower extension even with table top

front and rear.

3. Check height with square and tighten screws D,

E, F and G.

4. Repeat for left extension.

,1 ,L,l,l,l,_,l,l,l,l,[,I,l,i,l,l,l,l,l,l,l,l,l,l,l,l,l,I,]

--L_r 1

EXTENSION

LEVELING EXTENSIONS

Place combination square on table and extension so

that end of blade extends over edge of extension.

Hold square firmly on saw table and check for gap

between extension and blade of square.

SHOULD BE

NO GAP

,i,_,i,l,l,l,i,L,l,,,I,L,l,J,i,l,i,J_,J,i,l,f,_,l,l,l,i,

TO LOWER OUTER EDGE OF EXTENSION

1. Loosen screws B, E, and Fon right extension. See

illustration.

2. Tighten screws C, D, and G until table extension

is level.

3. Snug down screws B, E, and F.

4. Repeat for left extension.

EXTENSION

\\\\

£ D\

TO RAISE OUTER EDGE OF EXTENSION

!. Loosen screws C, D, and Gon right extension.

2. Tighten screws B, E, and F until table extension is

level.

3. Snug down screws C, D, and G.

4. Repeat for left table extension. 1

EXTENSION

ALIGNING TABLE EXTENSIONS WITH

FRONT OF TABLE

1. Place blade of combination square on front of

table and table extension.

2. Extension should line up with table.

,;I !SHOULD BE

;iij NO GAP

J" /

TO MOVE OUTER EDGE OF

EXTENSION BACK

1. Loosen screws C and F in right extension, See

illustration.

2, Tighten screws B and G until extension is lined

up.

3. Snug down screws C and F,

4. Recheck level and flatness to table.

5. Check left extension.

6. Adjust left extension in same manner.

]

'l'['l'l'_ 'i'l'!'r,!,r,l,f,l,l,lrr,l,l,!,l,l,l,j,_,l, !,

J --_JJ--

, '",, /\"

• • S"'x . •\

GFFG

TO MOVE OUTER EDGE OF

EXTENSION FORWARD

1. Loosen screws B and G in right extension.

2. Tighten screws C and F until extension is lined

up.

3. Snug down screws B and G.

4. Recheck level and flatness to table. Check left

extension.

4. Recheck level and flatness to table•

5. Check left extension.

6. Adjust left extension in same manner.

iL......

rf:r'_'1'i'!'l'i'i'l'l_ I '

"i I'l'_'i_Pi'i'lr_'l'l'['_'l'_'J

INSTALLING BLADE GUARD

1. From among the loose parts, find the hardware as

shown.

SQUARE NUT

-_ (_/ SPREADERSUPPORTs..

TRUSS HEAD _ _ SPREADER BRACKET

SCREW _ _

5/8 IN. LONG "-_--_ _._-_-----__ _// SPREADER CLAMP

SOCKET HEAD _-°- _V///

SETSCREW _fa _ It- I WING NUT

7/8 IN. LONG --8 ""['_-_ "1_

HEX NUT t-_ LOCKWASHER

EXT. 1/4 IN.

BLADE SQUARE

WITH TABLE

2 MAKE SURE THE BLADE IS ALL THE WAY UP

AND SQUARE WITH THE TABLE.

3. Position SPREADER SUPPORT on rod until it is

even with the end of the rod.

\SPREADER SUPPORT

EVEN WITH ROD

4. Assemble the 7/8 in. long setscrews, nuts,

Iockwashers and washers to the SPREADER

SUPPORT BRACKET and slip the nuts into the

slot in the spreader support.

5. Finger tighten ONLY THE HEX NUTS.

\',\ ; _ SQUARE NUT

•-____ L SETSCREW i

,- /,.oc,,w,s.ER

6. Laya pieceof flatstraightwoodandasquareon

sawtableandrotatethe SPREADERSUPPORT

until the bracketis alignedwithsquare.

7. MAKESUREENDOF SUPPORT,BRACKET

ANDRODAREEVEN... usingan1/8in, HexL

wrench,TIGHTENTHESETSCREWSONLY.

TIGHTEN

SETSCREW ONLY

ENDS OF SUPPORT

AND BRACKET TO

BE EVEN WITH

END OF ROD

ALIGNING SPREADER

IMPORTANT: The SPREADER must always be

PARALLEL to the sawblade and in the MIDDLE of

the cut (KERF) made by the sawblade,

NOTE: T_qe spreader is thinner than the width of the

KERF by approximately six thicknesses of paper

!lllll

!SPACE EQUAL TO APPROX.

3 THICKNESSES OF PAPER

SPREADER

KERF WOOD

SPACE EQUAL TO APPROX. LOOKING DOWN ON SAW

3 THICKNESSES OF PAPER

BLADE

1. Make two folds in a small piece (6 x 6 in.) of

ordinary NEWSPAPER making three

thicknesses. The folded paper will be used as a

"spacing gauge".

2. Installthe SPREADERCLAMP.Placespreader

betweenspreaderclamp and bracket. Move

forwarduntilallthreeareinline.TIGHTENWING

NUTS.

3. Lay a pieceof straightflat wood againstthe

sawblade.Insertfoldedpaperbetweenspreader

andstripof wood.

4. MAKE SURETHE HEXNUTSUNDERNEATH

ARELOOSE•

5. Lift theantikickbackpawlto clearthewoodand

holdthespreadertightlyagainstthewood.Make

sure the wood is against the saw blade.

TIGHTENTHEHEXNUTS.

Thiswill alignthe spreaderin themiddleof the

cut (KERF)madeby sawblade.

THREE THICKNESSES

OF PAPER SPREADER

WING NOT CLAMP

PIECE OF

STRAIGHT WOOD

HOLD WOOD t

TIGHTLY AGAINST

BLADE

ANTIKICKBACK

PAWLS

HOLD SPREADER

TIGHTLY AGAINST WOOD

SPREADER BRACKET

ATTACHING RIP FENCE

Apply a coat of paste wax to the top surface and

front ledge of the saw table. This will allow the fence

to slide more easily•

1. Loosen fence lock knob by turning counter-

clockwise.

2, Attach fence head by placing head of fence over

front ledge in saw table.

RIP FENCE

FENCE LOCK

KNOB

ALIGNING RIP FENCE

IMPORTANT: The rip fence MUST be parallel with

saw blade and miter grooves in order to help prevent

KICKBACK of the workpiece when ripping. Careful

adjustment is required.

1. Hold head of rip fence and slide on table until the

edge of the fence lines up with the right miter slot.

2. Turn fence lock knob clockwise to lock fence.

3. If fence does not line up with miter slot front and

rear:

A. Loosen the two hex screws in top of fence.

B. While holding head of rip fence, move rear of

rip fence right or left until edge lines up with

miter slot.

C. Tighten hex screws alternately being careful

not to move fence.

MUST LINE UP WITH MITER

SLOT FRONT AND REAR

HEAD

LOOSEN TWO HEX

SCREWS TO ADJUST

ADJUSTING MITER GAUGE

NOTE: The graduations are manufactured to very

close tolerances which provide suitable accuracy

for average woodworking. In some cases where

extreme accuracy is required, when making angle

cuts, for example, make a trial cut and then recheck

it.

tf necessary, the miter gauge head can then be

swiveled slightly to compensate and then locked.

The HEAD should be SQUARE (90 ° ) with the bar

when the pointer points to "0".

To check for squareness, place an accurate square

on the miter gauge. If the head is NOT SQUARE with

the bar:

1. Loosen the lock handle.

2. Position the head square with the bar.., tighten

the handle.

3. Loosen the screw and adjust the pointer, so it

points to zero.

BAR

MOUNTING SAW TO LEGS OR BENCH

If you purchase Craftsman Steel Legs for your saw,

assemble them according to the directions

furnished with them.

If you mount the saw on any other bench, make sure

that there is an opening in the top of the bench the

same size as the opening in the bottom of the saw so

that the sawdust can drop through. Recommended

working height is 33 to 37 in. from the top of the saw

table to the floor.

4HOLES _

.312 DIA. :

11-7/8

12-3/4

REAR OF SAW

OPENING !

\ I

\, 10-7/8

,//7 z- 10-3

11-3/16

NOTE: All dimensions in inches.

[

GETTING TO KNOW YOUR SAW

5 BLADE GUARD

SPREADER 6TABLE INSERT

8 SAWBLADE\ % l/7 R,PFENCE

4MITER \ ...... \\\\

MITER GUAGE EXTENSION

LOCK KN

2 ELEVATIONHANDWHEEL

POWER CORD 1ON-OFF SWITCH

1. ON-OFF SWITCH

CAUTION: Before turning switch on, make sure

the blade guard is correctly installed and

operating properly.

The On-Off Switch has a locking feature. THIS

FEATURE IS INTENDED TO HELP PREVENT

UNAUTHORIZED AND POSSIBLE HAZARDOUS

USE BY CHILDREN AND OTHERS.

A. Insert Key into switch.

B. TO turn saw ON... stand to either side of the

blade never in line with it... insert finger under

switch lever and pull END of lever out.

After turning switch ON, always allow the

blade to come up to full speed before cutting.

Do not cycle the motor switch on and off

rapidly, as this may cause the sawblade to

loosen. In the event this should ever occur,

allow the sawblade to come to a complete stop

and retighten the arbor nut normally, not

excessively. Never leave the saw while the

power is "ON".

C. TO turn saw OFF . . . PUSH lever in. Never

leave the saw until the cutting tool has come to

a complete stop.

D. To lock switch in OFF position.., hold switch

IN with one hand... REMOVE key with other

hand.

WARNING: FOR YOUR OWN SAFETY,

LOWER BLADE OR OTHER CUTTING TOOL

BELOW TABLE SURFACE. (IF BLADE IS

TILTED, RETURN IT TO VERTICAL (90 °)

POSITION). ALWAYS LOCK THE SWITCH

INSERT KEY

TURN OFF REMOVE KEY

"OFF". WHEN SAW IS NOT IN USE...

REMOVE KEY AND KEEP IT IN A SAFE

PLACE . . .ALSO .. . IN THE EVENT OF A

POWER FAILURE (ALL OF YOUR LIGHTS

GO OUT) TURN SWITCH OFF . . . LOCK IT

AND REMOVE THE KEY. THIS WILL

PREVENT THE SAW FROM STARTING UP

AGAIN WHEN THE POWER COMES BACK

ON.

2. ELEVATIONHANDWHEEL...elevates or lowers

the blade. Turn counterclockwise to elevate •..

clockwise to lower•

3. TILT HANDWHEEL . . . tilts the blade for bevel

cutting• Turn counterclockwise to tilt toward left.

• . clockwise to tilt toward right•

When the blade is tilted to the LEFT as far as it will

go, it should be at 45° to the table and the bevel

pointer should point 45 ° .

NOTE: There are LIMIT STOPS inside the saw

which prevent the blade from tilting beyond 45 °

to the LEFT and 90 ° to the RIGHT. (See

"Adjustments" section "Blade Tilt, or Squareness

of Blade to Table").

4. MITER GAUGE... head is locked in position for

crosscutting or mitedng by tightening the lock

knob ALWAYS LOCK IT SECURELY WHEN IN

USE

5. BLADEGUARD must always be in place and

working properly for all thru-sawing cuts. That is,

alt cuts whereby the blade cuts completely

through the workpiece.

To remove the guard for special operation,

loosen both wing nuts, slide spreader back and

up DO NOT DISTURB THE SETTING OF THE

SPREADER SUPPORT BRACKET.

When replacing the guard, insert spreader

between bracket and clamp and slide forward.

TIGHTEN BOTH WINGNUTS SECURELY.

6. TABLE INSERT is removable for removing or

installing blades or other cutting tools . . .

WARNING: FOR YOUR OWN SAFETY, TURN

SWITCH "OFF" AND REMOVE PLUG FROM

POWER SOURCE OUTLET BEFORE

REMOVING INSERT.

A. Lower the blade below the table surface.

B. Raise blade guard.

C. Loosen Screw. (Do Not Remove)

D. Lift insert from front end, and pull toward front

of saw.

NEVER OPERATE THE SAW WITHOUT THE

PROPER INSERT IN PLACE. USE THE SAW

BLADE INSERT WHEN SAWING . . . USE THE

MOLDING INSERT WHEN MOLDING.

RIP FENCE... is locked in place by tightening the

lock knob. To move the fence, loosen the knob

and grasp the fence with one hand at the front.

Holes are provided in the rip fence for attaching a

wood facing when using the dado head. or

molding head.

Select a piece of smooth straight wood approx.

3/4" thick, at least as long as the rip fence, and at

least 7-1/2" wide (high) to permit clamping of

featherboards.

Attach it to the fence with two Round Head #10

Wood Screws 2 in. long. To remove the facing,

loosen the screws, slide the facing forward and

pull the screws through the round holes.

WOOD FACING

"\ \

\, _._

'----ROUNOHEAD

10 WOOD SCREWS

CAUTION: When positioning fence for maximum

rip, make sure end of fence HEAD is even with edge

of table extension. Fence cannot be locked securely

beyond the edge of the table extension.

REMOVING AND INSTALLING

SAWBLADE

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START, TURN SWITCH "OFF" AND

REMOVE PLUG FROM POWER SOURCE OUTLET

BEFORE REMOVING OR INSTALLING

SAWBLADE.

NOTE: When installing the blade.., make sure the

upper saw teeth are pointing toward the front of the

saw.., and that the blade and collars are clean, and

free from any burrs.

The HOLLOW side of the collars must be against the

blade.

NOTE: Always place the LARGE collar on the shaft

before the blade.

NOTE: Do not overtighten arbor nut. Use the arbor

wrench to just "snug" it.

1. Loosen Phillips head screw in blade insert... Do

not remove.

2. Remove blade insert by lifting slightly and pulling

insert to disengage from key hole slot.

PHILLIPS

BLADE INSERT HEAD SCREW

3. Turn elevation handwheel clockwise to raise

motor shaft as high as it will go.

4. Insert shaft wrench over flat portions of motor

spacer and arbor wrench over arbor nut.

5. Hold shaft wrench and loosen arbor nut with

arbor wrench.

PULL TOLOOSEN/_

PUSH TO TIGHTEN

ARBOR

WRENCH

/' / //!

TO INSTALL SAWBLADE

1, Install large inner blade collar onto motor shaft

with rounded surface toward motor.

2. Install saw blade onto shaft with top teeth

pointing toward front of saw.

3. Install small outer blade collar with flat surface

toward blade.

4. Install arbor nut. Note: Arbor nut should just be

snug. Do not overtighten.

IMPORTANT: Do not attempt to run saw without

both blade collars properly installed.

LARGE COLLAR

FLAT SURFACES (2" DIAMETER)

//-

jl_.J_ '_ 4- * SMALL COLLAR

/_ _ (1-3_4" DIAMETER}

'HEX NU'f

j: ....

TOPTEETH POINTING _ _, <*'_-_:_

TO FRONT OF SAW t..

5. Install blade insert by placing keyhole slot in

insert over screw head in saw table and pushing

insert to rear of saw table engaging tab in insert

onto saw table ledge.

Tighten screw.

BASIC SAW OPERATION

USING THE MITER GAUGE

CROSSCUTTING, MITER CUTTING, BEVEL

CUTTING, COMPOUND MITER CUTTING and

when RABBETING across the end of a narrow

workpiece, the MITER GAUGE is used.

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS IN ADDITION TO THE SAFETY

INSTRUCTIONS ON PAGES 2, 3, and 4.

1. Never make these cuts freehand (without using

the miter gauge or other auxiliary devices)

because the blade could bind in the cut and

cause a KICKBACK or cause your fingers or

hand to slip into the blade.

2. Always lock the miter gauge securely when in

use.

3. Remove rip fence from table.

4. Make sure blade guard is installed for all "thru-

sawing" operations (when sawblade cuts

entirely thru the thickness of the workpiece.)

Replace guard IMMEDIATELY after completion

of dadoing, molding or rabbeting cuts.

5. Have blade extend approximately 1/8 in. above

top of workpiece. Additional blade exposure

would increase the hazard potential.

6. Do not stand directly in front of the blade in case

of a THROWBACK (Small cut-off piece caught

by the back of the blade and thrown toward the

operator). Stand to either side of the blade.

Keep your hands clear of the blade and out of

the path of the blade.

If blade stalls or stops while cutting, TURN

SWITCH OFF before attempting to free the

blade.

9. Do not reach over or behind the blade to pull the

workpiecethrough the cut...tosupportlong or

heavy workpieces.., to remove cut-off pieces of

material or FOR ANY OTHER REASON.

10. Do not pick up small pieces of cut-off material

from the table. REMOVE them by pushing them

OFF the table with a tong stick. Otherwise they

could be thrown back at you by the rear of the

blade.

11. Do not remove small pieces of cut-off material

that may become TRAPPED inside the blade

guard while the saw in RUNNING. THIS COULD

ENDANGER YOUR HANDS or cause a

KICKBACK.

12.

Turn the saw OFF. After the blade has stopped

turning, lift the guard and remove the piece.

If workpiece is warped, place the CONCAVE

side DOWN. This will prevent it from rocking

while it is being cut.

WORK HELPERS

Before cutting any wood on your saw, study all of

the "Basic Saw Operations".

Notice that in order to make some of the cuts, it is

necessary to use certain devices "Work Helpers"

like the Push Stick, the Push Block and the Auxiliary

Fence, which you can make yourself.

After you have made a few practice cuts, make up

these "helpers" before starting any projects. Make

the "Push Stick" first. To rip the piece for the push

stick, start out with a wide board, say 11-1/2in.wide

and set the rip fence 9-3/4 in. from the blade.

PUSH STICK AND PUSH BLOCK

Make the Push Stick using a piece of 1 x 2.

Make the Push Block using a piece of 3/8 in. and 3/4

in. plywood.

The small piece of wood 3/8 in. x 3/8 in. x 2-1/2 in.

should be GLUED to the plywood... DO NOT USE

NAILS. This is to prevent dulling the sawblade in the

event you mistakingly cut into the push block.

Position the handle in the center of the plywood and

fasten together with glue and woodscrews.

3/4

J'_'_ 1-5/8

" *_" ,_/ NOTCH

15 __- _

NOTE: All dimensions in inches

SLIGHTLY LESS THAN

THICKNESS OF WORKPIECE

UP TO 3/8"

_I t--1/2

PUSH STICK

THESE EDGES MUST

BE PARALLEL -.... 3/4 PLYWOOD

NOTE: All dimensions in inches 3/8 PLYWOOD

AUXILIARYFENCE

Make one using a piece of 3/8 in. and 3/4 in.

plywood. Fasten together with glue and

woodscrews.

NOTE: Since the Push Block is used with the

Auxiliary Fence, the 4-3/4 in. dimensions must be

held identical on both the pieces.

3/8 PLYWOOD

3/4 PLYWOOD

THIS FACE AND _" 14 ,d'

THIS EDGE MUST "t. I

BE PARALLEL "_.

NOTE: All dimensions in inches.

AUXILIARY FENCE

1-1/8

CROSSCUTTING

CROSSCUTTING is cutting wood across the grain,

at 90 °, or square with both the edge and the flat side

of the wood. This is done with the miter gauge and

blade angle set at"0". The graduations on the miter

gauge provide accuracy for average woodworking.

In some cases where extreme accuracy is required,

when making angle cuts, for example, make a trial

cut and then recheck it with an accurate square, or

protractor.

If necessary, the miter gauge head can be swiveled

slightly to compensate for any inaccuracy.

NOTE: The space between the miter gauge bar and

the groove in the table is held to a minimum during

manufacturing.

WORKPIECE

i I Jtt _-----

TABLE

For maximum accuracy when using the miter

gauge, always "favor" one side of the groove in the

table. In other words, don't move the miter gauge

from side to side while cutting, but keep one side of

the bar riding against one side of the groove.

NOTE: Glue a piece of sandpaper to the face of the

miter gauge head. This will help prevent the

workpiece from "creeping" while it is being cut.

The miter gauge may be used in either of the

grooves in the table. Make sure locking knob is tight.

When using the miter gauge in the LEFT hand

groove, hold the workpiece firmly against the miter

gauge head with your left hand, and grip the lock

knob with your right.

When using the RIGHT hand groove, hold the

workpiece with your right hand and the lock knob

with your left hand.

When cutting long workpieces, make suretheend is

supported from the floor.

PLYWOOD CLAMPED i

TO SAWHORSE

SANDPAPER

LINE FOR CLARITY

REPETITIVE CUTTING

REPETITIVE CUTTING is cutting a quantity of

pieces the same length without having to mark each

piece.

NOTE: When making repetitive cuts from a long

workpiece make sure it is supported.

1. NEVER USE THE RIP FENCE AS A LENGTH

STOP BECAUSE THE CUTOFF PIECE COULD

BIND BETWEEN THE FENCE AND THE BLADE

CAUSING A KICKBACK.

2. When wnaking repetitive cuts shorter than 6 in.,

clamp a block of wood 3 in. long to the table to act

as a !ength stop.

CAUTION: When clamping the block, make sure

that the end of the block is well in front of the

sawblade. Be sure it is clamped securely.

3. Slic_e the workpiece along the miter gauge until it

touches [he block . . . hold it securely.

4. Make the cut.., pull the workpiece back.., push

the cut off piece off the table with a long push

stick . DO NOT ATTEMPT TO PICK IT UP AS

THIS COULD ENDANGER YOUR HANDS.

MITER CUTTING

MITER CUTTING is cutting wood at an angle other

than 90 ° with the edge of the wood. Follow the same

procedure as you would for crosscutting.

Adjust the miter gauge to the desired angle, and

lock it.

The miter gauge may be used in either of the

grooves in the table.

When using the miter gauge in the LEFT hand

groove, hold the workpiece firmly against the miter

gauge head with your left hand, and grip the lock

knob with your right.

When using the RIGHT hand groove, hold the

workpiece with your right hand and the lock knob

with your left hand.

TOP VIEW

TABLE

BEVEL CROSSCUTTING

BEVEL CROSSCUTTING is the same as cross-

cutting except that the wood is cut at an angle...

other than 90 ° with the fiat side of the wood.

Adjust the blade to the desired angle.

Use the Miter Gauge in the groove to the RIGHT of

the blade. It cannot be used in the groove to the

LEFT because the blade guard will interfere. Hold

the workpiece with your right hand and the lock

knob with your left hand.

WORKPIECE

COMPOUND MITER CUTTING

COMPOUND MITER CUTTING is a combination of

miter cutting and bevel crosscutting. The cut is

made at an angle other than 90 ° to both the edge

and the flat side of the wood.

Adjust the miter gauge and the blade to the desired

angle ... Make sure miter gauge is locked.

! jJ

USING THE RIP FENCE

RIPPING, BEVEL RIPPING, RESAWING AND

RABBETING are performed using the RIP FENCE

together with the AUXILIARY FENCE!WORK

SUPPORT, PUSH STICK OR PUSH BLOCK.

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS IN ADDITION TO THE SAFETY

INSTRUCTIONS ON PAGES 2, 3 and 4.

1. Never make these cuts FREEHAND (without

using the rip fence or auxiliary devices when

required) because the blade could bind in the

cut and cause a KICKBACK.

2. Always lock the rip fence securely when in use.

3. Remove miter gauge from table.

4. Make sure blade guard is installed for all thru-

sawing type cuts. Replace the guard

IMMEDIATELY following completion of

resawing, rabbeting, dadoing, or molding

operations.

Frequently check the action of the

ANTIKICKBACK PAWLS by passing the

workpiece alongside of the spreader while saw

is OFF.

Pull the workpiece TOWARD you. If the PAWLS

do not DIG into the workpiece and _tOLDit...

the pawls must be REPLACED OR

SI4ARPENED. See "Maintenance" section.

5. Have blade extend approximately i"_ in. _r,ove

top of workpiece. Addttiona! b!_de exf:csc;re

would increase the hazard poter_tial

6. Do not stand directly in front ofthe blade in case

of a KICKBACK. Stand to either side of the

blade

7. Keep your hands clear of the blade and out of

the path of the blade.

8. If the blade stalls or stops while cutting, TURN

SWITCH OFF before attempting to free the

blade.

10.

11.

12.

Do not reach over or behind the blade to pull the

workpiece through the cut.., to support long or

heavy workpieces . . to remove small cut-off

pieces of material or FOR ANY OTHER

REASONS.

Do not pick up smal pieces of cut-off material

from the table. REMOVE them by pushing them

OFF the table with a long stick. Otherwise they

could be thrown back at you by the rear of the

blade.

Do not remove small pieces of cut-off material

that may become TRAPPED inside the blade

guard while the saw is RUNNING. THIS COULD

ENDANGER YOUR HANDS or cause a

KICKBACK.

Turn the saw OFF. After the blade has stopped

turning, lift the guard and remove the piece.

If workpiece is warped, place the CONCAVE

side DOWN. This will help prevent it from

rocking while it is being ripped.

RIPPING

RIPPING is cutting a piece of wood with the grain, or

lengthwise. This is done using the rip fence.

Position the fence to the desired WIDTH OF RIP and

lock in place.

Before starting to rip, be sure

A. Rip Fence is parallel to sawblade.

B Spreader is properly aligned with sawblade.

C. Anti-Kickback pawls are functioning properly.

D. Rip fence knob is tightened to secure the fence to

the tabte.

Position the fence to the desired WIDTH OF RIP by

measuring the distance from the sawblade.

WORKPIECE

TABLE

When ripping LONG BOARDS or LARGE PANELS,

always use a work support.

A simple one can be made by clamping a piece of

plywood to a sawhorse.

BEVEL RIPPING

When bevel ripping material 6 in. or narrower, use

fence on the right side of the blade ONLY. This will

provide more space between the fence and the

sawblade for use of a push stick. If the fence is

mounted to the left, the sawblade guard may

interfere with proper use of a push stick.

ALWAYS SUPPORT

LONG WORKPIECES

When "WIDTH OF RIP" is 6 in. and WIDER use your

RIGHT hand to feed the workpiece until it is clear of

the table.

Use LEFT hand ONLY to guide the workpiece.., do

not PUSH the workpiece with the left hand.

When "WIDTH OF RIP" is2 in. to6 in. wide USE THE

PUSH STICK to feed the work.

i WIDTH OF RIP ._

When "WIDTH OF RIP" is NARROWER than 2 in.,

the push stick CANNOT be used because the guard

will interfere USE the AUXILIARY

FENCE/WORK suPPORT and PUSH BLOCK.

Attach Auxiliary Fence/Work Support to rip fence

with two "C" clamps.

Feed the workpiece by hand along the AUXILIARY

FENCE until the end is approx. 1 in. past the front

edge of the table Continue to feed using the PUSH

BLOCK until the cut is complete.

Hold the workpiece in position and install the PUSH

BLOCK by sliding it on top of the AUXILIARY

FENCE/WORK SUPPORT (This May Raise Guard).

NarrowstripsthickerthantheAuxiliaryFence/Work

Supportmayentertheguardandstrikethebaffle.

CAREFULLYraiseguardonlyenoughto clearthe

workpiece.UsePUSHBLOCKto completecut.

BAFFLE

RESAWING

RESAWING is a "thru-sawing" cut made by ripping

a piece of wood through its thickness. Do not

attempt to res'aw BOWED or WARPED material.

NOTE: To RESAW a piece of wood it will be

necessary to remove the blade guard ... and usethe

AUXILIARY FENCE/WORK SUPPORT. (See "Work

Helpers").

Clamp it to the table so that the workpiece will

SLIDE EASILY but not TILT or MOVE SIDEWAYS

without BINDING between the two fences.

Do not clamp directly to the bottom edge of thetable

because the "swivel" of the clamp will not grip

properly. Place a small block of wood between the

bottom edge of the table and the "C" clamp.

WARNING: FOR YOUR OWN SAFETY ...

1. DO NOT "BACK UP" (REVERSE FEEDING)

WHILE RESAWlNG BECAUSE THIS COULD

CAUSE A KICKBACK.

2. MAKE FIRST PASS TO A DEPTH SLIGHTLY

LESS THAN ONE-HALF THE WIDTH OF THE

BOARD; KEEP SAME FACE OF BOARD

AGAINST FENCE FOR SECOND PASS AS THE

FIRST PASS.

3. INSTALL BLADE GUARD IMMEDIATELY UPON

COMPLETION OF THE RESAWING

OPERATION.

SMALL BLOCK

OF WOOD

PLOUGHING AND MOLDING

PLOUGHING is grooving with the grain the long

way of the workpiece, using the fence. USE feather-

boards and push sticks as required.

PLOUGHING

MOLDING is shaping the workpiece with the grain

the long way of the workpiece, using the fence. Use

featherboards and push sticks as required.

MOLDING

RABBETING

RABBETING is known as cutting out a section of the

corner of a piece of material, across an end or along

an edge.

To makea RABBET requirescutswhich do not go all

the way through the material. Therefore the blade

guard must be removed.

1. Remove blade guard.

2. For rabbeting along an edge (long way of work-

piece) as shown, add facing to rip fence approxi-

mately as high as the workpiece is wide. Adjust

rip fence and blade to required dimensions; then

make first cut with board flat on table as any rip

(type) cut; make second cut with workpiece on

edge. Follow all precautions, safety instructions,

and operational instructions as for ripping, or rip

type operations, including feather boards and

push stick, etc.

3. For rabbeting across an end, for workpiece 10-

1/2" and narrower make the rabbet cut with the

board flat on the table. Using the miter gauge

fitted with a facing, follow the same procedures

and instructions for cross cutting making succes-

sive cuts across the width of the workpiece to

obtain the desired width of cut. DO NOT use the

RABBET

FIRST CUT /

ISECOND CUT

RABBETING ALONG

THE EDGE

RABBETING

ACROSS THE END

rip fence for rabbeting across the end.

4. INSTALL BLADE GUARD IMMEDIATELY UPON

COMPLETION OF RABBETING OPERATION,

USING FEATHERBOARDS

Featherboards are not employed during non thru-

sawing operations when using the miter gauge.

Use featherboards for all other non "thru-sawing"

operations (when sawblade guard must be

removed). Featherboards are used to keep the work

in contact with the fence and table as shown, and to

stop kickbacks.

Add 8 inch high flat facing board to the fence, the

full length of the fence.

Mount featherboards to fence and table as shown,

so that leading edges of featherboards will support

workpiece until cut is complete, and the workpiece

has been pushed completely past the cutter

(sawblade, dado head, molding head, etc.) with a

pushstick, as in ripping.

Before starting the operation (switch "OFF" and

cutter below table surface):

(a) Install featherboards so they exert pressure

on the workpiece; be positive they are secure,

and

(b) Make sure by trial that the featherboards will

stop a kickback if one should occur.

Replace the sawblade guard as soon as the non

thru-sawing operation is complete.

Rabbet cuts can also be made in one pass of the

workpiece over the cutter using the dado head or

molding head.

WORK SUPPORT

"C" CLAMPS FEATHERBOARD

"C" CLAMPS

FEATHERBOARD

i ,/

MAINTENANCE

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START, TURN SWITCH "OFF" AND

REMOVE PLUG FROM POWER SOURCE OUTLET

BEFORE MAINTAINING OR LUBRICATING YOUR

SAW.

Do not allow sawdust to accumulate inside the saw.

Frequently blow out any dust that may accumulate

,nside the saw cabinet and the motor.

Freq_,ent!y clean your cutting tools with Craftsman

Gum and Pitch Remover.

A coat of automobile-type v,._x applied to the table

wlii help to keep the surface clean and allow

wor,.p=eces to slide more freely. Treat unplated and

unpainted steel parts and surfaces with Sears "Stop

Rust'

If the power cord is worn or cut, or damaged in any

way. have it replaced immediately..

Make sure the teeth of the ANTIKICKBACK pawls

are always sharp. To sharpen:

1. Identify the dull tooth or teeth. Remove blade guard.

Assembly from saw.

2. Remove 10-32 x 11/4pan head screw from guard link

to seperate guard link and guard from blade

spreader.

3. Rotate pawl toward rear of spreader so that teeth are

above top of spreader.

4. Hold spreader with left hand and place pawl over

corner or workbench.

5. Sharpen the dull tooth using a few light strokes of a

fine-cut file.

6. Reassemble guard when finished sharpening

pawls.

LUBRICATION

The saw motor bearings have been packed at the

factory with proper lubricant and require no

additional lubrication.

The following parts should be oiled occasionally

with SAE No. 20 or No. 30 engine oil.

1. Elevation guide slot and pivot.

2. Elevation screw threads.

3. Bevel screw threads (First clean with Craftsman

Gum & Pitch Remover.)

4. Bevel and elevation link pivot points.

5. Cradle pivot pin bearing points.

6. Bearing points in miter gauge and rip fence.

The saw table and other major parts are made of

aluminum and require no special care. A coat of

automobile-type wax applied to the table will help to

keep the surface clean and allow workpieces to slide

more freely. Treat unplated and unpainted steel

parts and surfaces with Sears "Stop Rust."

]

"}iFBEARING POINTS

BEVEL LINK F_

BEVEL NUT ;.""_-'-----'_

ILli ELEV"''ON

II cr_ _" _ il Jl II "_GUIDE SLOT

ILI k_J I_ _ iI I I_F_I |AND PIVOTLi I

Ill I_ _' L-Y I / IN CRADLE ii

Sears Recommends the Following Accessories

ITEM CAT. NO.

Saw Blades ................................................ See Catalog

Molding Head Set ...................................... See Catalog

Dado Insert ....................................................... 9-22281

Molding Insert ................................................... 9-22282

Taper Jig .................................................... See Catalog

Dado Set .................................................... See Catalog

Steel Legs ......................................................... 9-22244

Sears may recommend other accessories not listed in

the manual.

See your nearest Sears store for other accessories.

Do not use any accessory unless you have received and

read complete instructions for use.

WARNING: Use only accessories recommended

for this saw. Using other accessories may be dan-

gerous.

TROUBLE SHOOTING

WARNING: TO AVOID INJURY FROM

ACCIDENTAL START, TURN SWITCH "OFF" AND

ALWAYS REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE TROUBLE SHOOTING.

TROUBLE SHOOTING -- GENERAL

TROUBLE

Excessive vibration.

Cannot make square cut

when crosscutting.

Cuts binds, burns or

stalls motor when

ripping.

Cut not true at 90 °

or 45 °positions.

Tilt crank and elevating

crank turn hard.

Excessive blade wobble.

(Causes oversize kerf

and unsmooth cut)

Sharpen or replace blade.1.

PROBABLE CAUSE

Blade out of balance.

Miter gauge not adjusted

properly.

Dull blade with improper

tooth set.

Warped board.

3. Rip fence not parallel

to blade.

4. Spreader out of

alignment.

1. Stop nuts not properly

adjusted,

1. Sawdust on threads of tilt

screw or elevating screw.

1. Blade has excessive

wobble.

2. Blade collars not installed

properly.

REMEDY

Discard Blade and use a different blade.

See section "Miter Gauge."

Make sure concave or hollow side is facing

"down" feed slowly.

See "Assembly" section, "Aligning Rip Fence".

See "Assembly" section, "Installing

Blade Guard."

1. See "Assembly" section, "Blade Tilt, or

"Squareness of Blade to Table."

1. See "Maintenance and Lubrication" section.

1. Replace blade.

2. Make sure the large collar (2" Dia.)

is between motor and blade. (Installed

before blade).

TROUBLE SHOOTING -- MOTOR

NOTE: Motors used on wood-working tools are

particulary susceptible to the accumulation of

sawdust and wood chips and should be blown out or

"vaccummed" frequently to prevent interferences

with normal motor ventilation.

NOTE: The starting relay is a GRAVITY SENSITIVE

TYPE. NEVER TURN THE POWER ON WHILE THE

SAW IS UPSIDE DOWN AS THIS WILL DAMAGE

THE MOTOR.

TROUBLE

Excessive noise.

Motor fails to develop

full power. (Power

output of motordecreases

rapidly with decrease in

voltage at motor terminals

For example, a reduction

of 10% in voltage causes

a reduction of 19% in

maximum power output of

which the motor is capable,

while a reduction of 20%

in voltage causes

reduction of 36% in

maximum power output.)

Motor starts slowly or

fails to come up to

full speed.

Motor overheats.

Starting relay in motor

will not operate (Motor

does not come up

to full speed.)

Motor stalls (resulting

in blown fuses or tripped

circuit breakers).

Frequent opening of

fuses or circuit breakers.

PROBABLE CAUSE

1. Motor

1. Circuit overloaded with

lights, appliances and

other motors.

2. Undersize wires or circuit

too long.

3. General overloading of power

company facilities. (In

some sections of the

country, demand for electrical

power may exceed the

capacity of existing

generating and distribution

systems.)

4. Incorrect fuses or circuit

breakers in power line

1. Low voltage-will not trip

relay.

2. Starting relay not operating.

1. Motor overloaded.

2. Improper cooling. (Air

circulation restricted

through motor due to

sawdust, accumulating

inside of saw.

1. Burned relay contacts (due

to extended hold-in periods

caused by low line voltage.

etc.),

2. Saw not in upright position.

3. Loose or broken connections.

1. Starting relay not operating.

2. Voltage too tow to permit

motor to reach operating

speed.

3. Fuses or circuit breakers

do not have sufficient

capacity.

1. Motor overloaded.

2. Fuses or circuit breakers

do not have sufficient

capacity.

3. Starting relay not operating

(motor does not reach

normal speed).

REMEDY

1. Have motor checked by qualified serwce

technician. Repair service is available at

your nearest Sears store.

1. Do not use other appliances or motors on

same circuit when using the saw.

2. Increase wire sizes, or reduce length of wiring.

See "Motor Specification and Electrical

Requirements" section.

3. Request a voltage check from the power

company.

4. Install correct fuses or circuit breakers

1. Request a voltage check from the power

company.

2. Have relay replaced.

Do not cut so fast-Feed work slower into blade.

Clean out sawdust to provide normal air

circulation through motor.

See "Maintenance and Lubrication" section.

1. Have relay replaced and request a voltage check

from the power company.

2. Place saw in upright posihon.

3. Have wiring checked and repaired,

1. Have relay replaced.

2. Request a voltage check from the power

company.

3. Install proper size fuses or circuit breakers.

1. Don't cut so fast-Feed work slower into blade.

2. Install proper size fuses or circuit breakers.

3. Have relay replaced.

t f "_-" I _ fl_

4O 40

z1 \

\ i_.- --__'_I 52

\ \

s3 54

\51

$1 5'l

44 43

4,1',k,

1 _,o/

_..--..--7 ;7

/27 26

32 __^ 3_ o

PARTS LIST FOR CRAFTSMAN 8 INCH DIRECT DRIVE TABLE SAW

MODEL NO. 113.221620

FIGURE 2

Key Part

No. No. Description

62905

STD60!103

62436

62625

816075

62908

805297-9

805297-1

62931

62915

STD600805

62909

62937

62924

STD601105

62936

62442

60256

803709

167085

ISTD510603

62913

62925

62938

508179

62642

STD541025

62809

STD551225

STD541625

60074

STD551012

STD541025

62643

60314

9420417

STD611005

816072

816073

STD551037

Bracket, Cradle

*Screw, Hex Washer Hd.

Type "T" 10-32 x 3/8

Nut

Hanger

Rod, Cradle

Extension, Table L.H.

Screw, Socket Flat Hd.

1/4-20 x 5/8

Screw, Flat Hal.

5/16-18 x 1-1/4

Table

Insert, Table

*Screw, Pan Hd. 8-32 x 1/2

Extension, Table R.H.

Fence Assy., Rip (See Fig. 3)

Plate, Switch

*Screw, Pan Hd. Cross

Recess Type "T" 10-32 x 1/2

Lead Assembly

Switch, Locking

Key, Locking

Connector, Wire

Cord with Plug

*Screw, Pan Rec.

Type "T" 6-32 x 3/8

Housing, Switch

eRelay

Gauge Assembly, Miter

{See Fig. 4)

Guard Assembly (See Fig. 2) )

Support, Spreader

*Nut, Square 1/4-20

Bracket, Spreader

*Lockwasher, External 1/4-20

*Nut, Wing 1/4-20

Screw, Socket Set

1/4-20 x 7/8

*Washer, 17/64 x 9/16 x 3/64

*Nut, Hex 1/4-20

Clamp, Spreader

Screw, Truss Hd. 1/4-20 x 5/8

Screw, Washer Type "T"

1/4-20 x 5/8

*Screw, Pan Rec. Type "AB"

No. 10 x 1/2

Panel, Front

Indicator. Bevel

*Washer, .380 x 47/64 x 1/16

*Standard Hardware Item - May be purchased

locally.

fStock Item - May be secured through the Hardware

Department of most Sears Retail Stores and

Catalog Order House.

*If this part is removed, discard and replace with a

new Push Nut.

Key

No.

Part

No.

60240

62912

STD551208

STD510803

62901

814638

STD522506

STD551125

816071

806762-7

60540

62919

62917

62923

816O76

9414920

60388

814663

65093

62900

6O548

62989

60541

60546

60545

9-32666

60547

6362

62498

62992

62856

STD541025

60539

62922

STD551025

1814770

13540

iSTD551210

507545

507546

SP53! 1

Description

oRelay must accompany motor when motor

*Nut, Push 3/8

Handwheel, 3-5/8

*Lockwasher, No. 8

*Screw, Pan 8-32 x 3/8

Base

Plate, Thrust

*Screw, Hex 1/4-20 x 5/8

*Lockwasher, 1/4

Bracket Lead Screw

Screw, Pan Hd. Type "T"

10-32 x 1-1/8

Ring, Retaining 11/!6

Nut, Elevation

Link

Pin, Guide

Shaft, Tilt

Washer, 17/64 x 5/8 x 1/ii4

Nut, Self-Threading

Shaft, Elevation

Clip, Wire

Baffle

Screw, Hex Washer Type _r"

1/4-20 x 3/8

Bracket, Lead Screw

Screw, Hex Locking

!/4--20 x 3/4

Washer, Spring

Washer, Nylon

-i'Blade, 8"

Collar, Outer

Nut, Saw Arbor

Collar, Inner

Cradle

oMotor

*Nut, Hex 1/4-20

Ring, Retaining 1/4

Pin, Guide

*Washer, 17/64 x 1/2 × 1/32 I

Link t

Wrench

*Lockwasher Ext. #10 =

Bag of Loose Parts

(Not Illustrated)

Bag of Loose Parts

(Not Illustrated)

Owners Manual

(Not Illustrated)

returned for service. Any attempt to repair this

motor may create a hazard unless repair is done by

a qualified service technician. Repair service is

available at your nearest Sears Store.

REPAIR PARTS

PARTS LIST FOR CRAFTSMAN 8 INCH DIRECT DRIVE TABLE SAW

MODEL NO. 113,221620

J/f

i12

/11 ,/

5 6

GUARD ASSEMBLY 508179

ALWAYS ORDER BY PART NUMBER--NOT BY KEY NUMBER

Key Part

No. No.

436593

818822

STD541411

818833

818820

STD582025

802955-7

62561

818831

455734

62559

62519

62921

Description

Screw, Pan Hd. 10-32 x 11/4

Link, Guard

Nut, Lock 10-32

Guard

*Ring, Retaining 1/4

_Ring, Retaining 1/4

Pawl

Blade, Spreader

Pin, Roll 1/8 x 3/4

Spacer, Link

Spring, Pawl

*Standard Hardwareltem--May Be Purchased

Locally

-A-If this part is removed, discard and replace with

a new ring, retaining.

PARTS LIST FOR CRAFTSMAN 8 INCH DIRECT DRIVE TABLE SAW

MODEL NO. 113.221620

FIGURE 3

RIP FENCE ASSEMBLY 62937

Key

No.

Part

No.

62906

STD522505

62985

62482

STD541231

60543

62939

Description

Channel, Fence

*Screw, Hex Hd. Sems

1/4-20 x. 1/2

Head, Fence

Knob, 1-1/4 Dia.

*Nut, Hex Jam 5/16-18

Screw, Truss Hd. 5/16-18 x 2

Clip, Shoe

*Standard Hardware Item - May be Purchased Locally.

FIGURE 4

MITER GAUGE ASSEMBLY 62938

Key Part

No. No. Description

1 62176

2 ST,D551010

3 62173

4 62175

5 STD510803

6 38724

7 60544

8 62927

Knob, Miter Gauge

*Washer, 13/64 x 5/8 x 1/32

Gauge, Miter

Pin, Miter Pivot

*Screw, Pan Hd. 8-32 x 3/8

Pointer

Spacer

Rod, Miter Gauge

*Standard Hardware Item - May be Purchased Locally.

SEARS

owner's

manual

MODEL NO.

113.221620

The model number of your 10

inch Table Saw will be found on

a plate attached to your saw, at

the rear of the base.

When requesting service or

ordering parts, always provide

the following information:

• Product Type

• Model Number

• Part Number

• Part Description

8 INCH DIRECT DRIVE

TABLE SAW

For the repair or replacement parts you need

Call 7am - 7pm, 7days a week

1-800-366-PART

(1-800-366-7278)

For in-homemajor brandrepair service

Call 24 hours a day, 7days a week

1-800-4-REPAIR

(1-800-473-7247)

Forthe location of a

Sears RepairService Center in your area

Call 24 hours a day,7 days a week

1-800-488-1222

For information on purchasinga Sears

Maintenance Agreementor to inquire

about an existingAgreement

Cal( 9 am - 5 prn, Monday-Saturday

1-800-827-6655

SEARS

IW;/:/;l,r/;i,']:;trl[H_'JI

America's Repair SpeclafJsts

k,, j_.

Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.

Part No. SP5311 Form No. SP5311-4 Printed in U.S.A. 12/95

Craftsman 113221620 User Manual TABLE SAW Manuals And Guides L0906498

CRAFTSMAN Saw Table Manual L0906498 CRAFTSMAN Saw Table Owner's Manual, CRAFTSMAN Saw Table installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
