MODEL NO.
113.225900
BELT AND DISC
SANDER ONLY
MODEL NO.
113.225930
BE LT AND DISC
SANDER!WITH
LEGS AND MOTOR
Serial
Number
Model and serial
number may be found
at the right-hand side
of the base.
You should record both
model and serial number
in a safe place for
future use.
CAUTION:
Read GENERAL and
ADDITIONAl. SAFETY
INSTRUCTIONS
carefully
C nFTSMR
BEL T AND DISC SANDER
®assembly
.operating
erepair parts
Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.
Part No. 68067 Printed in U,S.A,
FULL ONE YEAR WARRANTY ON CRAFTSMAN BELT AND DISC SANDER
This warranty gives you specific legal! rights, and you may also have other rights which vary from state to
state:,
SEARS. ROEBUCK AND CO.. Dept. 698/731A. Sears Tower, Chicago, I L 60684
general safety instructions for power
1, KNOW YOUR POWER TOOL
Read and understand the owner's manual and labels
affixed to the toot, Learn its application and limitations as
well as the specific potential hazards peculiar to this tool.
mask if cutting operation is dusty, and ear protectors
(plugs or muffs} during extended periods of operation.
13. SECURE WORK
2. GROUND ALL TOOLS
This toot is equipped with an approved 3-conductor
€o_d arid a3-prong grounding type plug to fit the proper
grounding type receptacle. Th =. green conductor in the
cord is the grounding wire, Never connect the green wire
to a live terminal.
3, KEEP GUARDS IN PLACE
- in working order, and in proper adjustment and align-
ment.
4, REMOVE ADJUSTING KEYS AND WRENCHES
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
5. KEEP WORK AREA CLEAN
Ciuttered areas and benches inwte accidents. Floor
must not be slippery due to wax or sawdust.
6: AVOID DANGEROUS ENVIRONMENT
Use clamps or avMse to hold work when practical. It's
safer than using your hand, frees both hands to operate
tool.
14. DON'T OVERREACH
Keep proper footing and balance at all times.
15. MAINTAIN TOOLS WITH CARE
Keep tools sharp and clean for best and safest perform_
ance. Follow instructions for lubricating and changing
accessories.
16. DISCONNECT TOOLS
before servicing; when changing accessories such as
blades, bits, cutters, etc.
17. AVOl DACCIDENTAL STARTING
Make sure Switch is tn "OFF" posntlon before plugging
n
.
n r ..................18 USE
Don't use power tools in :damp orwet tocatio ::::::::::::::::::::::::::::: RECOMMENDED ACCESSORIES
;_ose them to rain. Keep work area well lighted. P:t6:_i_le .... Consult the owner's manual for recommended accessories.
adequate surroundingw0rk space,, .....
KEEP CHILDREN AWAY
All visitors should be kept a safe distance from worl(:area:
8. MAKE WORKSHOP KID-PROOF
with padlocks, master swmtches, or by removing starter
keys.
9. DON'T FORCE TOOL
I1 wdl do the job better and safer at the rate for which
_t was desngned
10. USE RIGHT TOOL
Don't force too! or attachment to _o a ?oh _t was not
designed for
11. WEAR PROPER APPAREL
Do not wear loose clothing, gloves, neckties or jewelry
{rings, wristwatches) to get caught _n moving pa_'ts
NONSLIP footwear is recommended. Wear protective
hall covering to contain long hair. Roll long sleeves
above the elbow.
Follow the instructions that accompany the accessories.
The use of improper accessorues may cause hazards.
i:::::iii:i::!9:iNEVER STAND ON TOOL
.: Serious injury could occur if the tool is tipped or if the
cutting tool is accidentally contacted.
Do not store materials above or near the tool such that
it _s necessary to stand on the tool to reach them,
20. CHECK DAMAGED PARTS
Before further use of the tool. a guard or other part that
=s damaged should be carefully checked to ensure that it
will operate properly and perform its intended function
Check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other con,
dtt=ons that may affect its operation. A guard or other
_)art that is damaged should be properly repaired or
replaced
21. DIRECTION OF FEED
Feed work into ablade or cutter against the d_rect_on of
rotation of the blade or cutter only.
12, USE SAFETY GOGGLES (Head Protection)
Wear safety goggles (must comply with ANSI Z87.t) at all
times. Everyday: eyeglasses only have impact resistant
lenses, they are NOT safety glasses. Also, use face or dust
22. NEVER LEAVE TOOL RUNNING
UNATTENDED
Tu=n power off. Don't leave tool until it comes to a
corn _lete stop

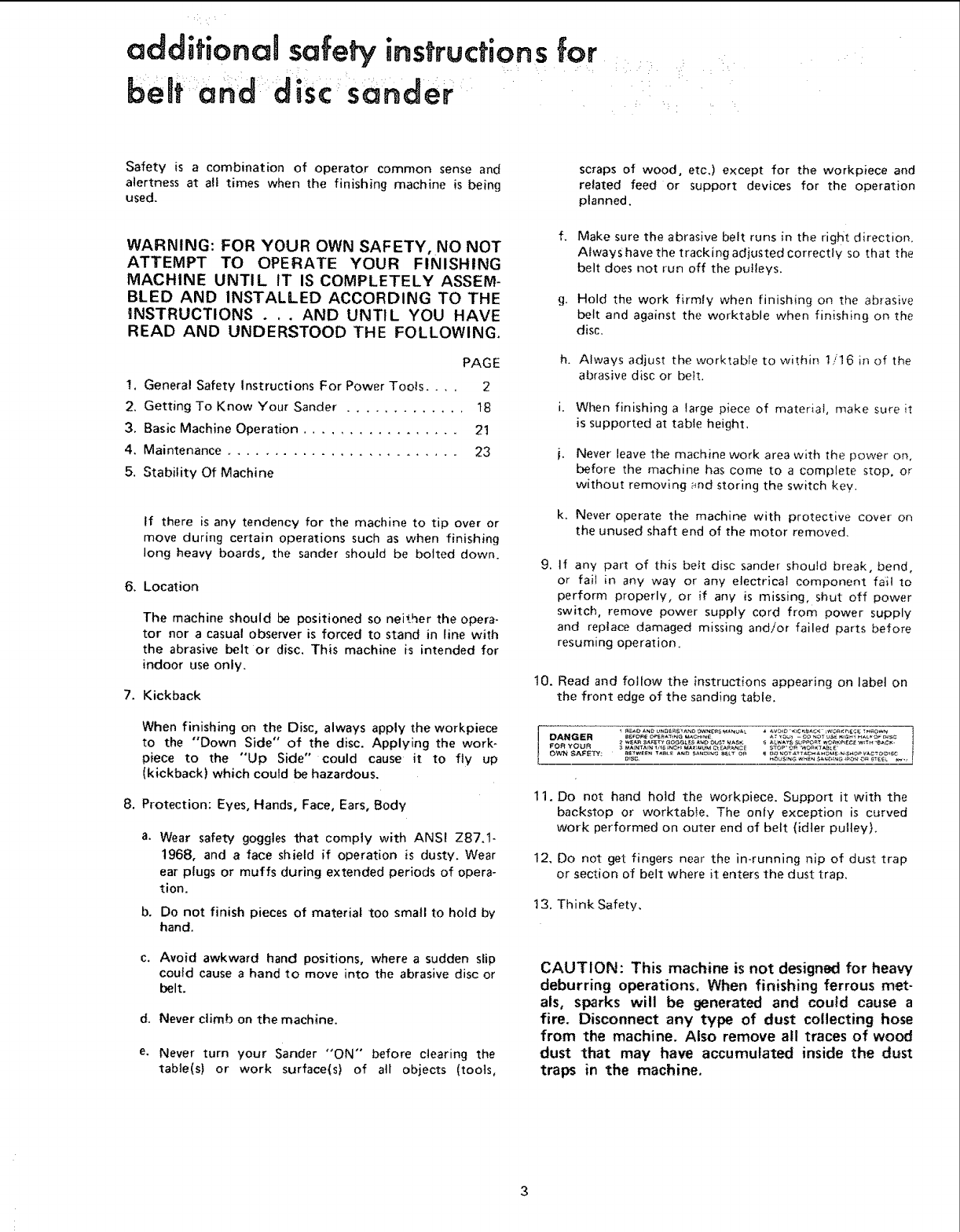

Safety is a combination of operator common sense and
alertness at all times when the finishing machine is being
used.
WARNING: FOR YOUR OWN SAFETY, NO NOT
ATTEMPT TO OPERATE YOUR FINISHING
MACHINE UNTIL IT IS COMPLETELY ASSEM-
BLED AND INSTALLED ACCORDING TO THE
iNSTRUCTIONS . .. AND UNTIL YOU HAVE
READ AND UNDERSTOOD THE FOLLOWING.
PAGE
t. General Safety Instructions For Power Tools .... 2
2. Getting To Know Your Sander ............. 18
3. Basic Machine Operation ................. 21
4. Maintenance ......................... 23
5. Stability Of Machine
tf there is any tendency for the machine to tip over or
move during certain operations such as when finishing
long heavy boards, the sander should be bolted down.
6. Location
The machine should be positioned so neither the opera-
tor nor acasual observer is forced to stand in line with
the abrasive belt or disc. This machine i:s intended for
indoor use only.
7. Kickback
When finishing on the Disc, always apply the workpiece
to the "Down Side" of the disc. Applying the work-
piece to the "Up Side" could cause it to fly up
(kickback) which could be hazardous.
8. Protection: Eyes, Hands, Face, Ears, Body
a. Wear safety goggles that comply with ANSI Z87.1-
1968, and a face shield if operation is dusty. Wear
ear plugs or muffs during extended periods of opera-
tion.
b. Do not finish pieces of material too small to hold by
hand.
c. Avoid awkward hand positions, where a sudden slip
could cause a hand to move into the abrasive disc or
belt.
d, Never climb on the machine.
e, Never turn your Sander "'ON" before clearing the
table(s) or work surface(s) of all objects (tools,
scraps of wood, etc.) except for the workpiece and
related feed or support devices for the operation
planned.
g,
h.
Make sure the abrasive belt runs in the right direction°
Atwayshave the tracking adjusted correctly so that the
belt does not run off the pulleys.
Hold the work firmly when finishing on the abrasive
belt and against the worktable when finishing on the
disc.
Always adjust the worktable to withh_ !/16 i_ of the
abrasive disc or belt.
k.
When finishing a large piece of material, make sure it
is supported at table height,
Never leave the machine work area with the power on,
before the machine has come to a complete stop, or
without removing and storing the switch key.
Never operate the machine with protective cover on
the unused shaft end of the motor removed.
9, If any part of this bett disc sander should break, bend,
or fail in any way or any electrical component fail to
perform properly, or if any is missing, shut off power
switch, remove power supply cord from power supply
and replace damaged missing and/or failed parts before
resuming operation.
10. Read and follow the instructions appearing on label on
the front edge of the sanding table,
1
11, Do not hand hotd the workpiece. Support it with the
backstop or worktab}e. The only exception is curved
work performed on outer end of belt (idler pultey),
12, Do not get fingers near the in-running nip of dust trap
or section of belt where it enters the dust trap,
13. Think Safety,
CAUTION: This machine is not designed for heavy
deburring operations. When finishing ferrous met-
als, sparks will be generated and could cause a
fire. Disconnect any type of dust collecting hose
from the machine. Also remove all traces of wood
dust that may have accumulated inside the dust
traps in the machine.

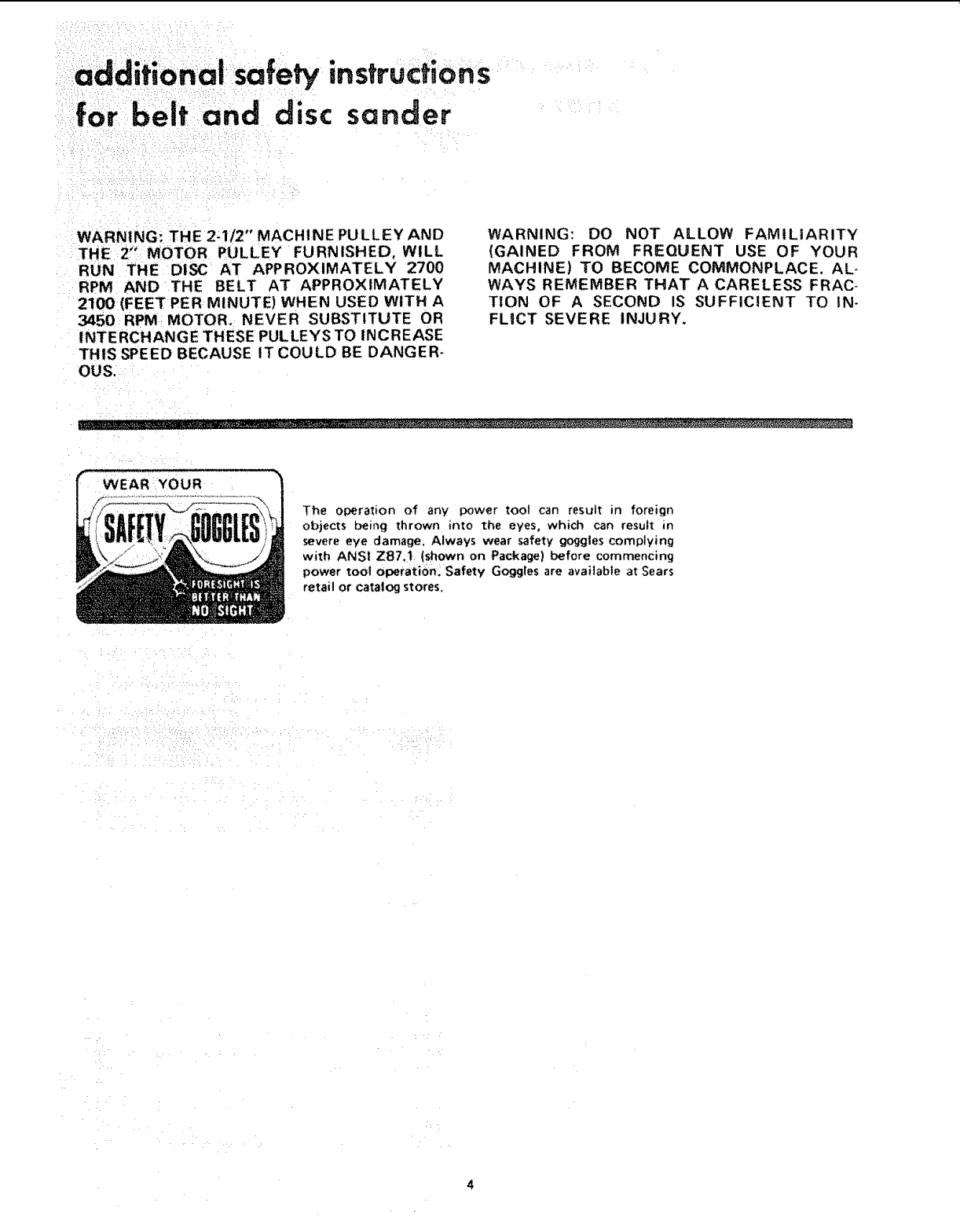

additional safety instructions
for belt and disc sander
WARNING: THE 2:1/2" MACHINE PULLEY AND
THE 2" MOTOR PULLEY FURNISHED, WILL
RUN THE DISC AT APPROXIMATELY 2700
RPM AND THE BELT AT APPROXIMATELY
2100 (FEET PER MINUTE) WHEN USED WITH A
3450 RPM MOTOR. NEVER SUBSTITUTE OR
INTERCHANGE THESE PULLEYS TO INCREASE
THIS SPEED BECAUSE IT COULD BE DANGER-
OUS.
WARNING: DO NOT ALLOW FAMILIARITY
(GAINED FROM FREQUENT USE OF YOUR
MACHINE) TO BECOME COMMONPLACE, AL-
WAYS REMEMBER THAT ACARELESS FRAC-
TION OF A SECOND IS SUFFICIENT TO IN-
FLICT SEVERE INJURY.
i........................... ................. '
WEAR YOUR
The operation of any power too! can result in foreign
objects being thrown into the eyes, which can result in
severe eye damage, Always wear safety goggles complying
with ANSI ZB7.1 (shown on Package) before commencing
power tool operation: Safety Goggles are available at Sears
retail or catalog stores.
H :•

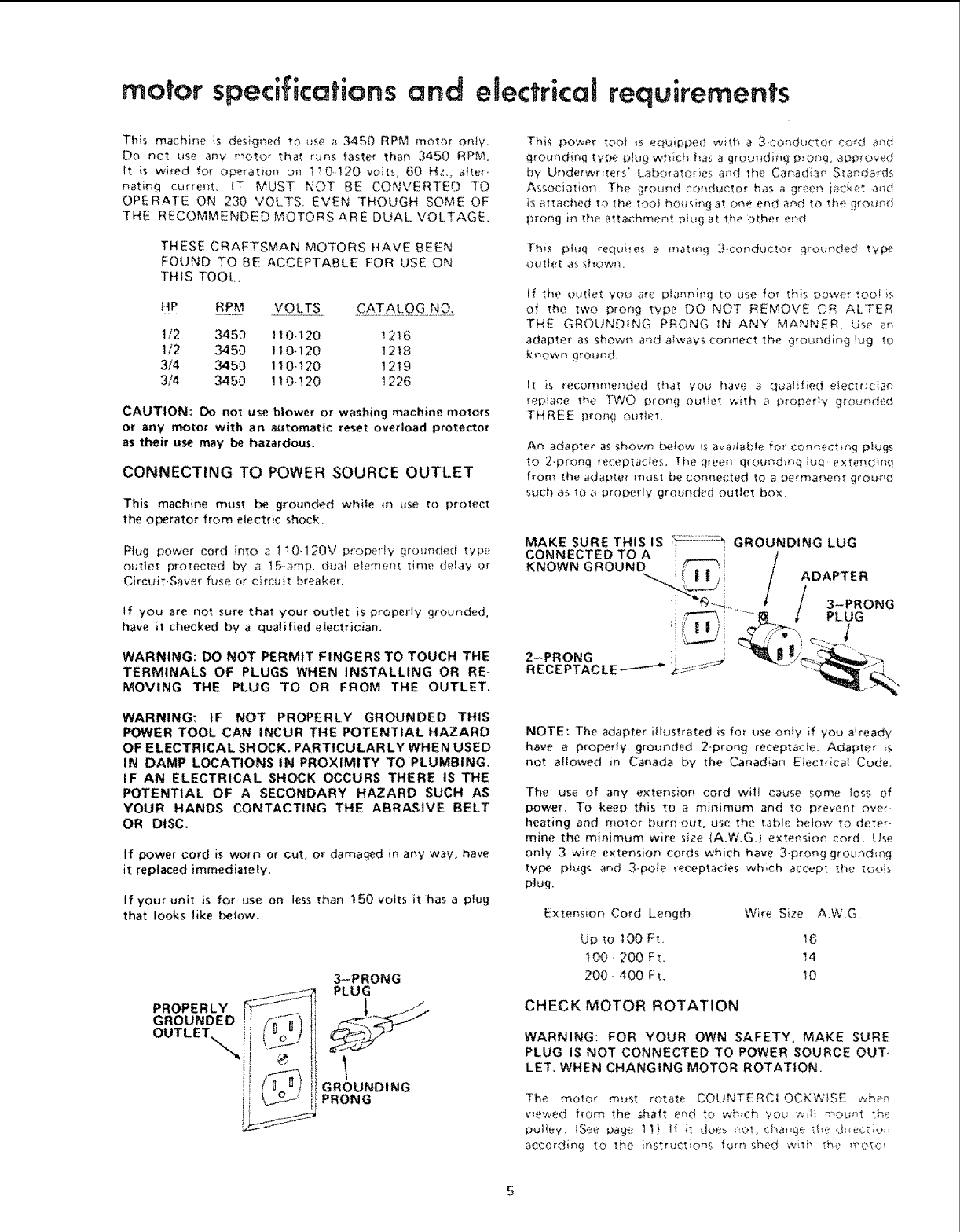

motor specifications and eledricat requirements
This machine ;s designed to use a 34,50 RPM motor only.
Do not use any motor that runs faster than 3450 RPM.
It {s wired for operation on 110420 volts, 60 Hz, aite__
nating current, iT MUST NOT BE CONVERTED TO
OPERATE ON 230 VOLTS_ EVEN THOUGH SOME OF
THE RECOMMENDED MOTORS ARE DUAL VOLTAGE.
THESE CRAFTSMAN MOTORS HAVE BEEN
FOUND TO BE ACCEPTABLE FOR USE ON
THIS TOOL,
t/2 3450 110. t20 1216
t/2 3450 110-120 1218
3/4 3450 1!0-120 1219
3/4 3450 11O,120 1226
CAUTION: Do not use blower or washing machine motors
or any motor with an automatic reset overload protector
as their use may be hazardous,
CONNECTING TO POWER SOURCE OUTLET
This machine must be grounded while in use to protect
the operator from electric shock.
Plug power cord into a 110.120V properiy grounded type
out_et protected by a 15_amp. dual element time delay or
Circuit.Saver fuse or circuit breaker,
If you are not sure that your outlet is properly grounded,
have it checked by a qualified electrician,
WARNING: DO NOT PERMIT FINGERS TO TOUCH THE
TERMINALS OF PLUGS WHEN INSTALLING OR RE-
MOVING THE PLUG TO OR FROM THE OUTLET.
WARNING: IF NOT PROPERLY GROUNDED THIS
POWER TOOL CAN INCUR THE POTENTIAL HAZARD
OF ELECTRICAL SHOCK. PARTICULARLY WHEN USED
IN DAMP LOCATIONS IN PROXIMITY TO PLUMBING.
IF AN ELECTRICAL SHOCK OCCURS THERE IS THE
POTENTIAL OF A SECONDARY HAZARD SUCH AS
YOUR HANDS CONTACTING THE ABRASIVE BELT
OR DISC.
tf power cord is worn or cut, or damaged inany wav, have
it replaced immediately.
If your unit is for use on less than 150 volts it has a plug
that looks like below.
3-PRONG
PLUG
GROUNDING
PRONG
This power tool i_ eqLJipped with a 3.conductor cold and
groundmg tV_; _))Ug which has a grounding prong, _pp_oved
by Underwriters' Labora!or}es arid the Canadian Standards
As'¢ociation. The ground conductor has a green ie..¢ket and
is attached to the toot housing at on_ end af_d to the ground
prong in the attachmer_t plt,g at the Other end.
This plug requires a mating 3-conducto. _ grounded type
outlast as shown.
If the outtet yot_ are planning to use for this power tooi is
the two prong tYi:_ DO NOT REMOVE OR ALTER
THE GROUNDING PRONG IN ANY MANNER. Use an
adapter as shown and always connect the grounding )ug tO
known gro_and,
It is recommended tha! you have a qualified eiectrician
replace the TWO prong outlet with a proper!*,, grounded
THREE prong OUtlet,
An adapter as shown tx.qow is available for cOnr'ecting plugs
to 2-prong receptacie, s. The green gr'oundmg_t_g extending
from the adapter must be connected to a permanent ground
slach a,_ to a proL,_erly grounded outlet box.
NOTE: The adapter illustrated is for use on}y }f you already
have a properly grounded 2-prong receptacie. Adapter is
not allowed in Canada by the Canadian Efectricat Code.
The use of any extension cord wili cause son_ loss of
power. To keep this to a minimum and to prevent over-
heating and motor burn-out, use the table below to deter-
mine the minimum wire size (A.W.G.) extension cord, Use
only 3 wire extenSiOn cords which have 3.prong grounding
type plugs and 3-poie receptacles which accept the _oo}s
plug.
Extension Co_d Length Wire Size A.W.G,
Up to t00 Ft. t6
I00,200 Ft, 14
200- 400 Ft. !0

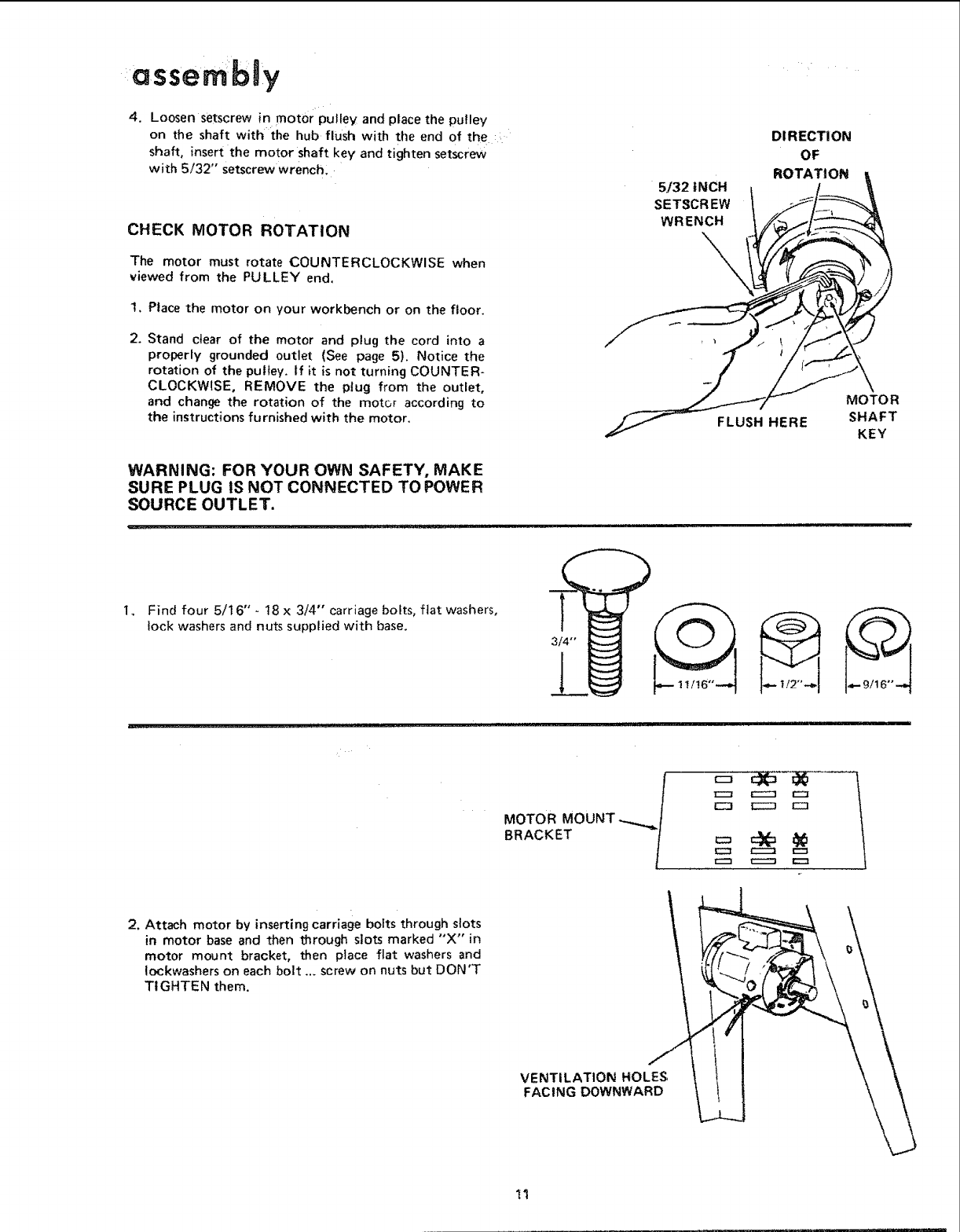

CHECK MOTOR ROTATION
WARNING: FOR YOUR OWN SAFETY, MAKE SURE
PLUG IS NOT CONNECTED TO POWER SOURCE OUT-
LET. WHEN CHANGING MOTOR ROTATION.
The motor must rotate COUNTERCLOCKWISE when
viewed from the shaft end to which you w_{{ n'_Ount th_
pulley, [See page tt) H it does not, change the d:_ec-_io_
according to the instructions furnished with the ,q_Ot_:_r
5
CONTENTS
Installing Belt Dust Trap .... . .. .............. 16
: : Imtalling:Backst0 p , y:=:..:..;... ...... ... ...... 17

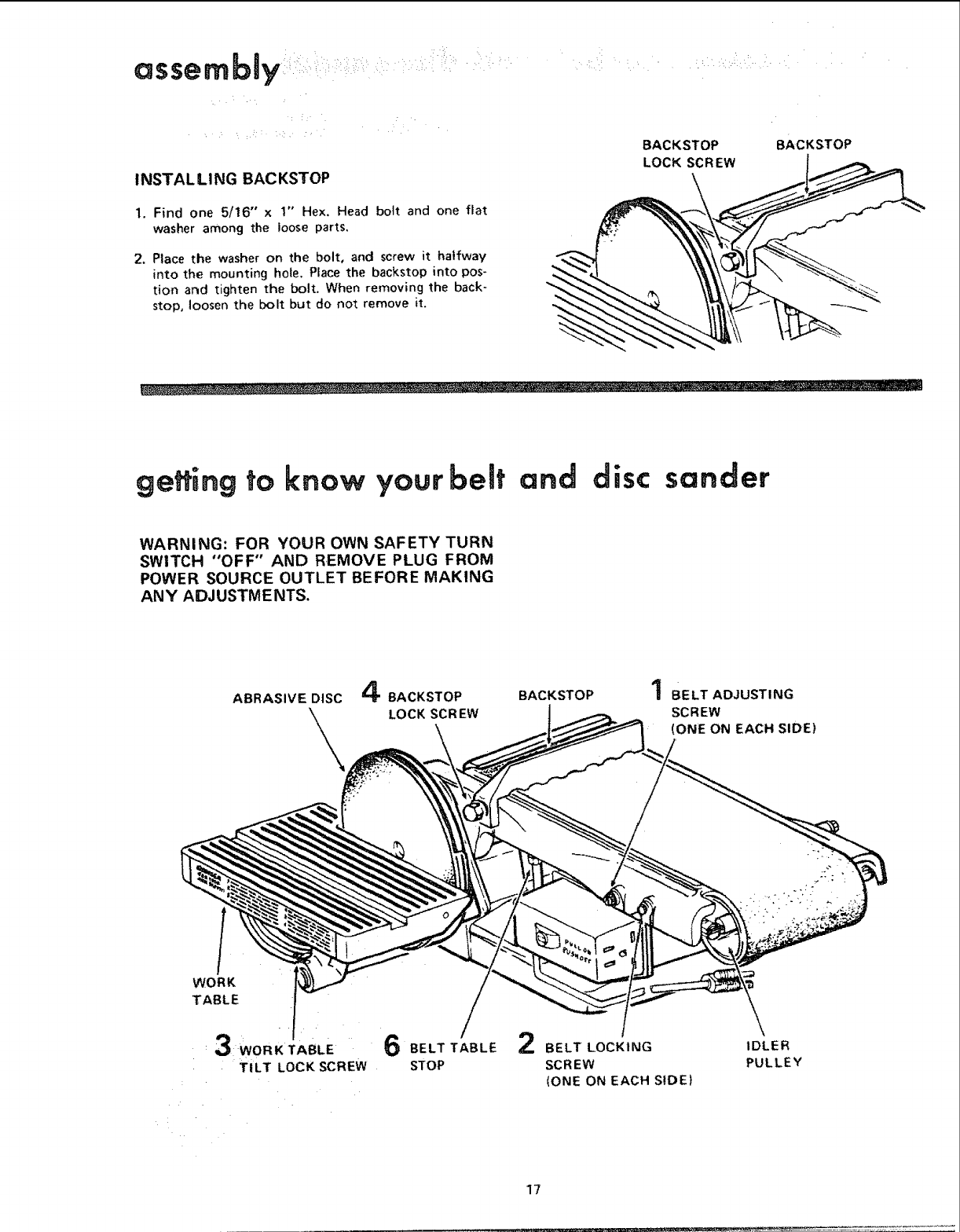

GETTINGTO KNOW YOUR SANDER . : .... :..... 17

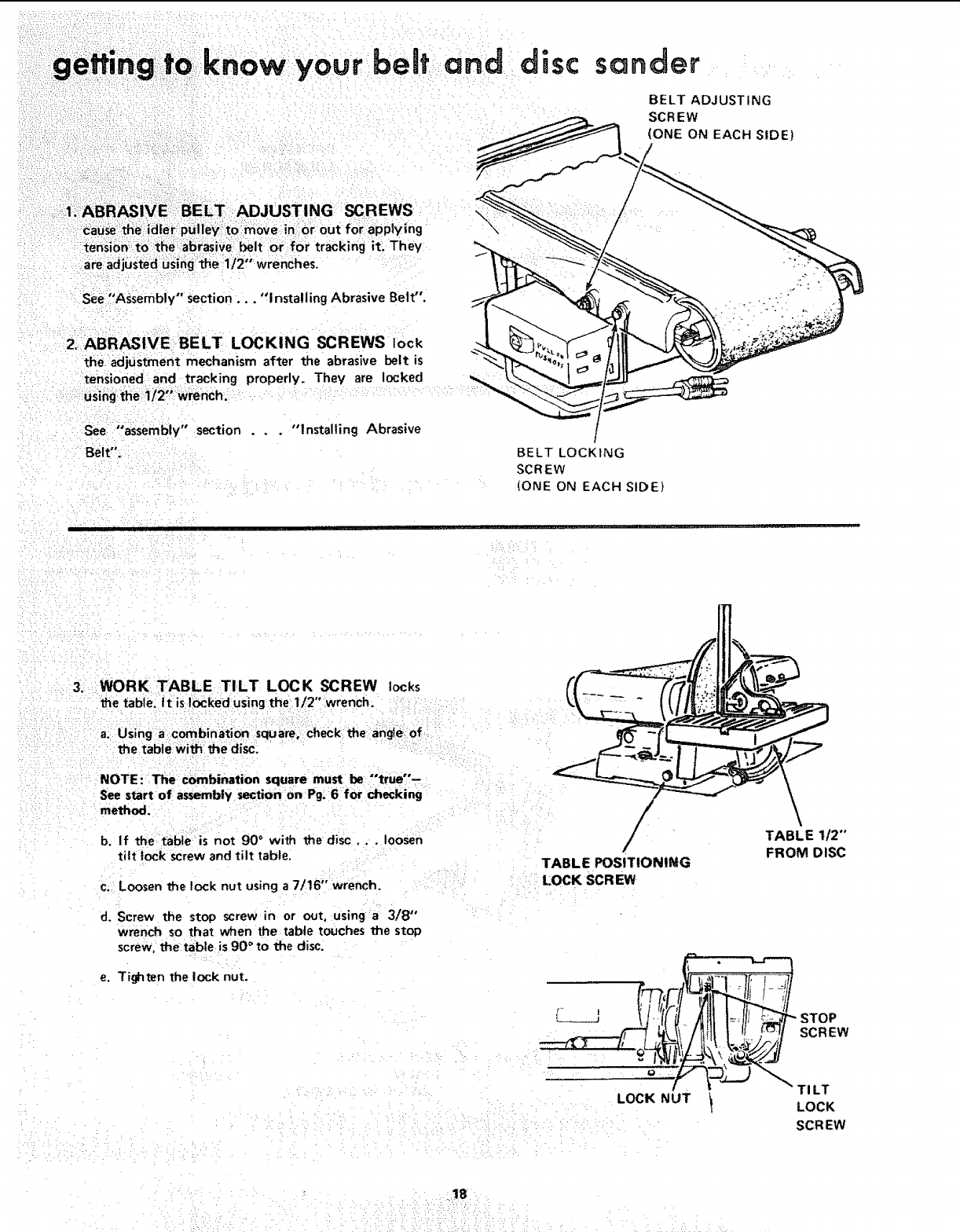

Belt Adjusting Screws ....................... 18
Belt Locking:Screws ......................... 18
WorkTable Tile LOck Screw .................. 18
Backstop Lock Screw ........................ 19

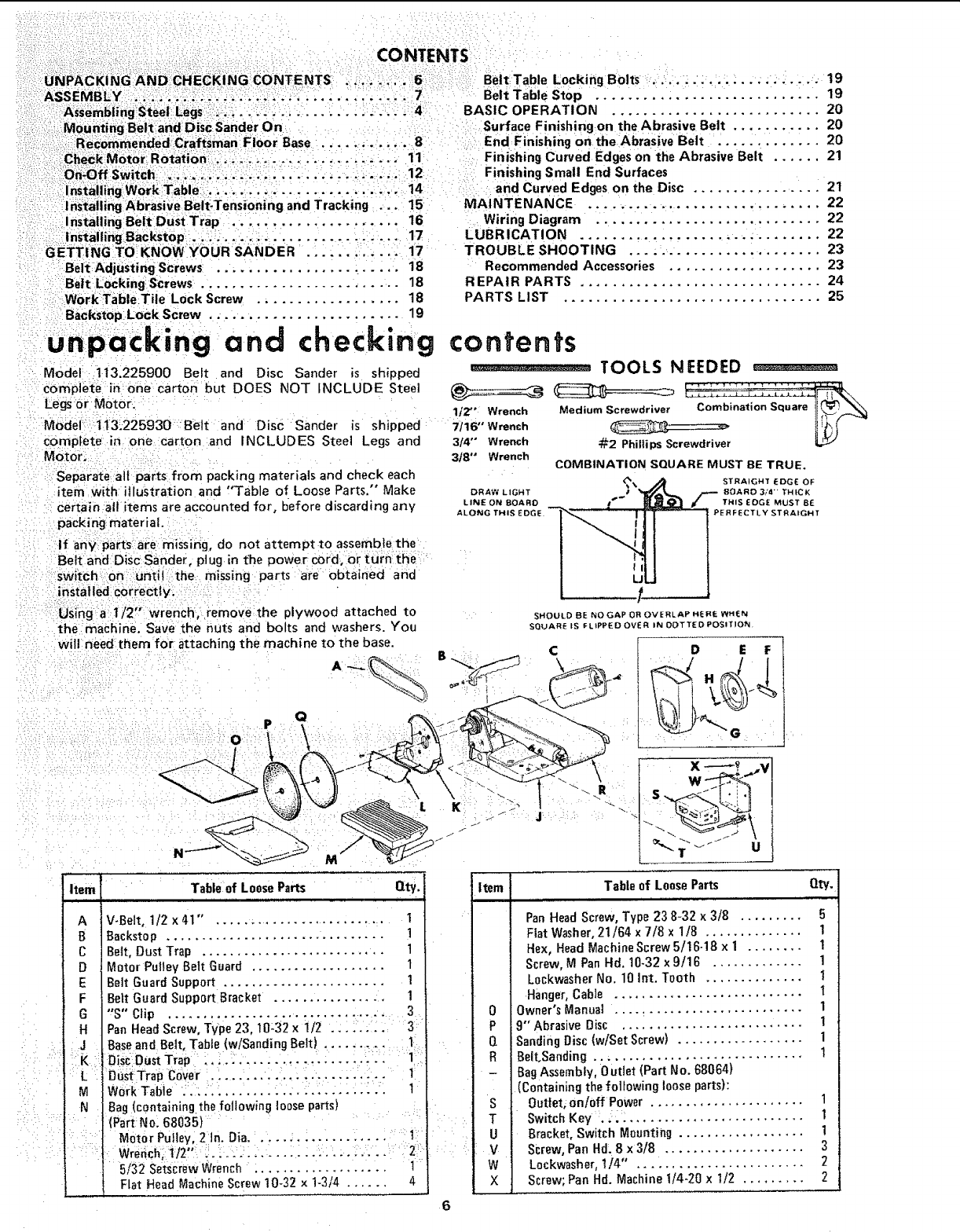

unpacking and checking
Model 113.225900 Belt and Disc Sander is shipped
complete inone carton but DOES NOT INCLUDE Steel
Legs or M0tor.
Model: t13i225930 Belt and Disc Sander is shipped
complete in one carton and INCLUDES Steel Legs and
Motor,
Separate aif parts from packing materials and check each
item With illustration and 'q'able of Loose Parts," Make
certain all items are accounted for, before discarding any
pack ing material.
If any parts are missing, do not attempt to assemble the
Belt and Disc Sander, plug in t'he power cord, or turn: the
switch on until the missing parts are obtained and
installed correctly.
using at/2, wrench, remove the plywood attached to
the machine, Save the nuts and bolts and washers. You
BeltTable Lockifiq Bolts ...................... 19
Belt Table Stop ............................ 19
BASIC OPERATION .......................... 20
Surface Finishing on the Abrasive Belt ........... 20
End Finishing on the Abrasive Belt . ............ 20

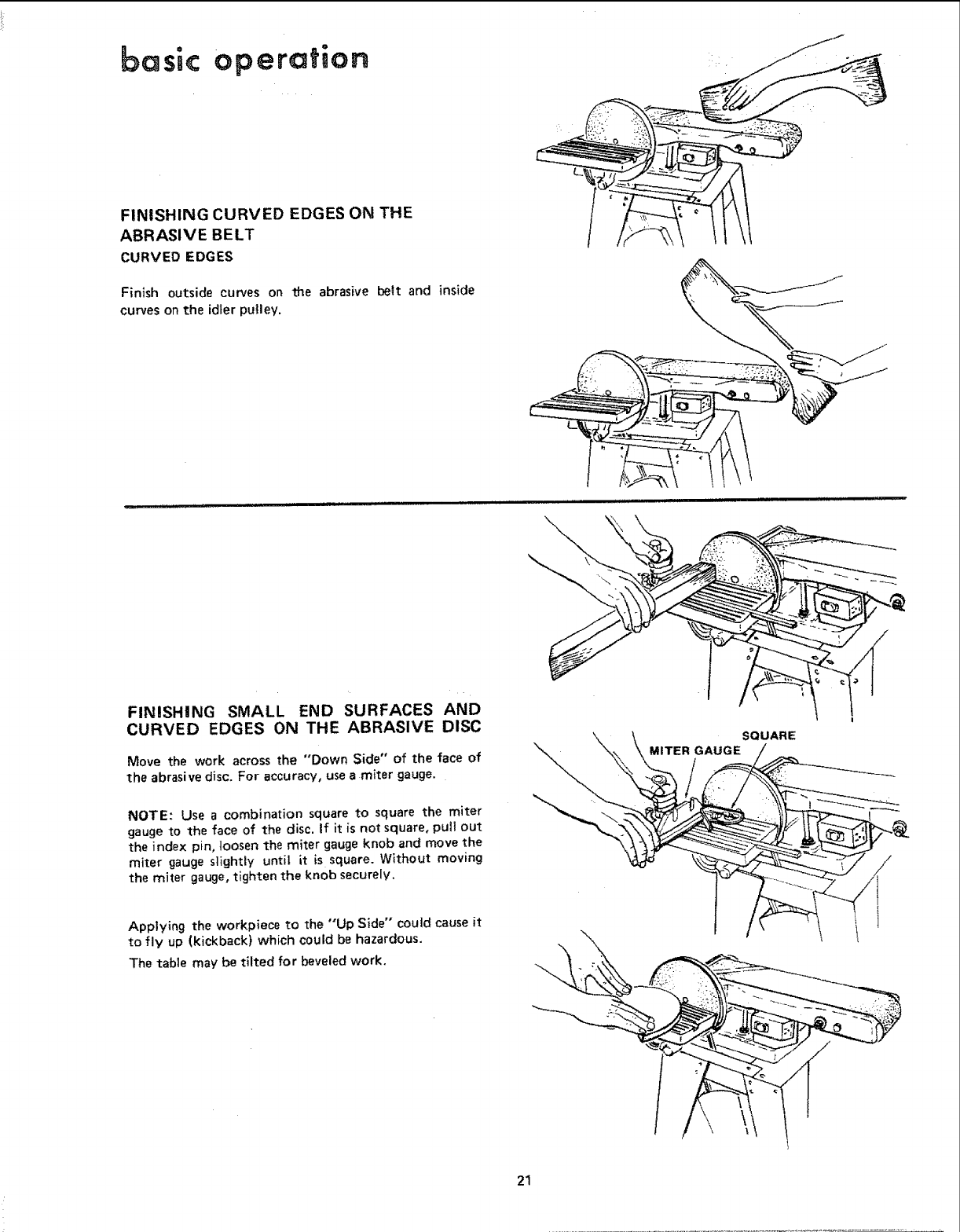

Finishing Curved Edges on the Abrasive Belt ...... 21
Finishing Small End Surfaces
and Curved Edges on the Disc ................ 21
MAINTENANCE ............................. 22
Wiring Diagram ............................ 22
LUBRICATION ............................... 22

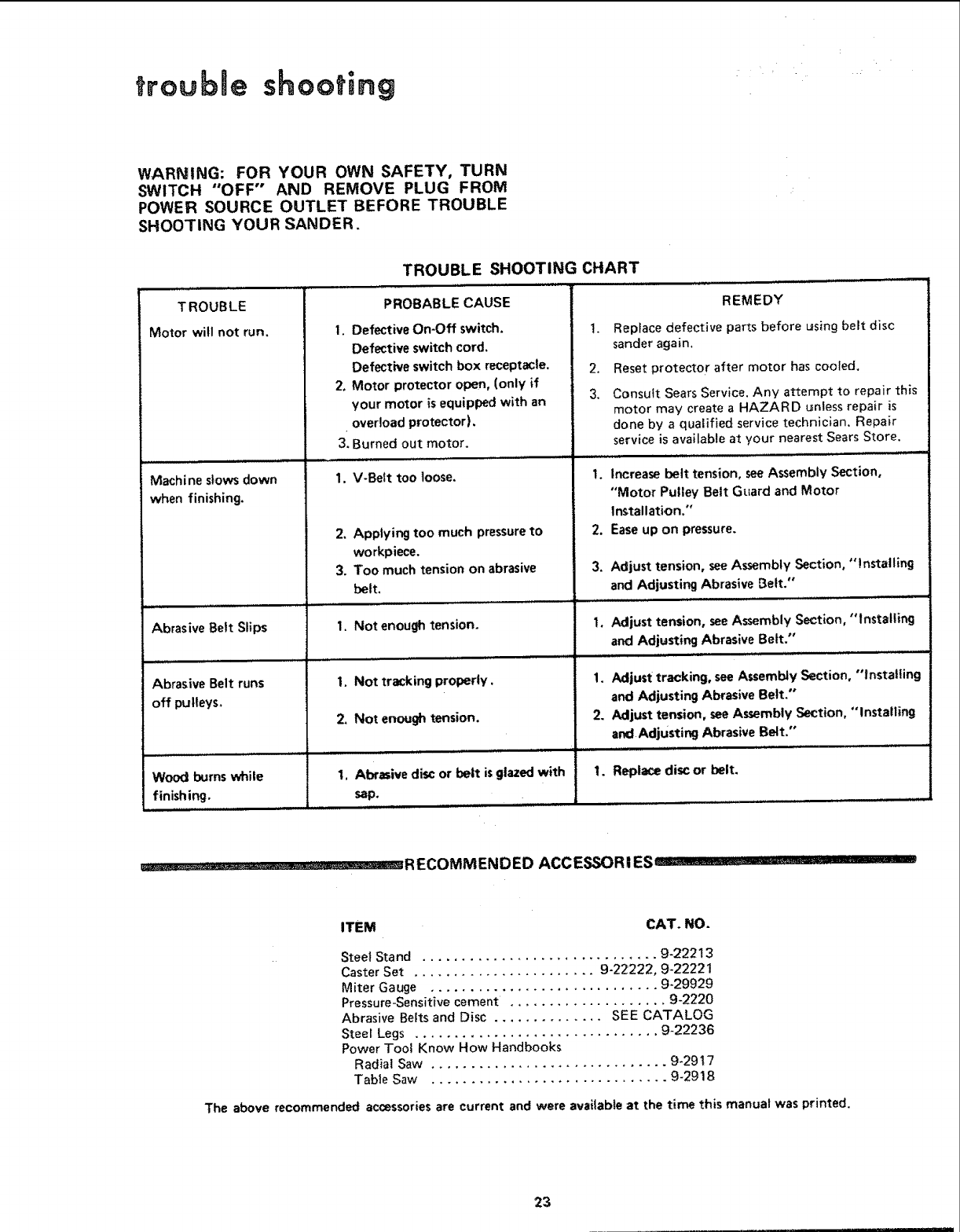

TROUBLE SHOOTING ........................ 23
Recommended Accessories ................... 23
REPAIR PARTS .............................. 24
PARTS LIST ................................ 25
contents
1/2" Wrench
7116" Wrench
3/4" Wrench
318" Wrench
DRAW LIGHT
LINE ON BOARD
ALONG THIS EDG
TOOLS NEEDED _ ....
_/_2 Phillips Screwdriver
COMBINATION SQUARE MUST BE TRUE.
% STRAIGHT EDGE OF
ROARD 3/4 '_ THICK
I'_ THIS EOGE MUST 8E
PERFECTLY STRAIGHT
will need them for attaching the machine to the base. C
A-_ B ,,,_,,_ \_
_-:t 2 "-..
Item Table of Loose Parts Qty.
V-Belt, 1/2 x 41" ,......................... 1
Backstop ............................... 1
Beff, Dust Trap .......................... 1
Motor Putley Belt Guard ................... t
Belt Guard Support ....................... 1
Bert Guard Support Bracket ................ 1
"S" Clip ............................... .3
D E F
6
Pan Head Screw, Type 23, t0:32 x 1/2 .: : :.;:.: :3
Base and Belt, Table (w/Sanding Belt). ..... :....... :11:
OisCOustTrap: :'::-::-'-i-:,: :-- .... :':::::
:DuSt Trap C0:ve:r . : .... ... .... ; :. .... :..... I:
Bag (c0ntainingthe following loose parts) :
(Part No: 68035)
MotOr Pulley, 2In. Dia. _.... :.... .... : ..... i1
5/32 Se_crewWrench :.................. 1
Flat Head Machine Screw 10-32 x 1-3/4 ...... 4
Item Table of Loose Parts Qty.
ii ,i, i
Pan Head Screw, Type 23 8-32 x 3/8 ......... 5
Fiat Washer, 21/64 x 7/8 x 1/8 .............. 1
Hex, Head Machine Screw 5/16-18 x I ........ 1
Screw, M Pan Hd. 10-32x9/16 ............. 1
L0ckwasher No. 10 Int. Tooth .............. 1
Hanger, Cable ........................... t
0Owner's Manual ........................... 1
1
P 9" Abrasive Disc ..........................
Q Sanding Disc (w/Set Screw) .................. 1
R Belt,Sanding .............................. 1
-Bag Assembly, 0 utlet (Part No. 68064}
(containing the following loose parts):
S Outlet, on/0ff Power ...................... 1
T Switch Key . .. .......................... 1
U Bracket, Switch Mounting .................. !
V Screw, Pan Hd, 8 x 3/8 .................... 3
W Lockwasher, 1/4" 2
X Screw; Pan Hd. Machine 1/4-20 x 1/2 ......... 2
assembly ;........
The following parts are included with Model 1t3.225930
ONLY. . :
Item
No. O.ty.
* LoosePartsBagPart-#68062 Containing FollowingItems:
* A Nut, Hex Head 1/2-t3 .................. 8
* A Nut Hex 1/4-20 ....................... 32
* B ScrewTrussHd. 1/4-20 xF/8 ............ 32
* C L0ckwasher,1/4 External ............... 32
*DFoot, Leveling ........................ 4
E Motor ............................... 1
F Leg ................................. 4
G Channel,Support ...................... 2
HStiffener, Side ........................ 2
J Stiffener, End ........................ , 2
KSupport, Motor ....................... 1
HARDWARE FOR MOUNTING TOOL & MOTOR
*LScrew, Hex Hd. 5/16-18 x 21/2 .......... 2
* C Lockwasher Ext. 5/16 ................... 6
*A Nut, HexS/tG-18 ...................... 6
* M Washer11/321D ...................... 6
* N B01t,Carriage5/16-18 x3/4 ............. 4
AB C D
H
G
©
M
ASSEMBLING STEEL LEGS
(MODEL 113.225930 ONLY)
1,
.
3.
4_
5.
Assemble the two (2) End Stiffeners and the two (2)
Side Stiffeners using four (4) 1/4-20 Truss head
screws. The End Stiffeners are placed on top of each
Side Stiffener as shown, insert screws through the
9/32 inch diameter holes and finger tighten 1/4-20
nuts.
Attach the four (4) legs to the side and End Stiffener
using 1/4-20 screws, IockwasherS and nuts as shown.
Remove the four (4) Truss head screws which were
assembled in Paragraph No. One. Place the two (2)
Support Channels as shown, in position, align holes in
supports with holes in the Stiffeners, replace
!ockwashers and nuts. Tighten all nuts using 7/16"
wren ch.
Assemble the motor support to steel legs with 1/4-20
screws and nuts. Motor support can be mounted to
either end of stand. Tighten nuts,
Install leveling feet as shown. To level Leg Set, loosen
nut on inside of leg and turn nut on outside to raise
or lower feet. Adjust all four levelers, if necessary,
and then tighten nuts on inside of leg.
NOTE: These levelers are not intended for height
adjustment.
7
END STIFFENER
1
SCREW
HEX NUT
l_,.,. LOCKWASHER
END
SIDE STIFFENER i
i
o
CHANNEL
SUPPORT
LEG
MOTOR
SUPPORT _
SCREW
\
bly
_2

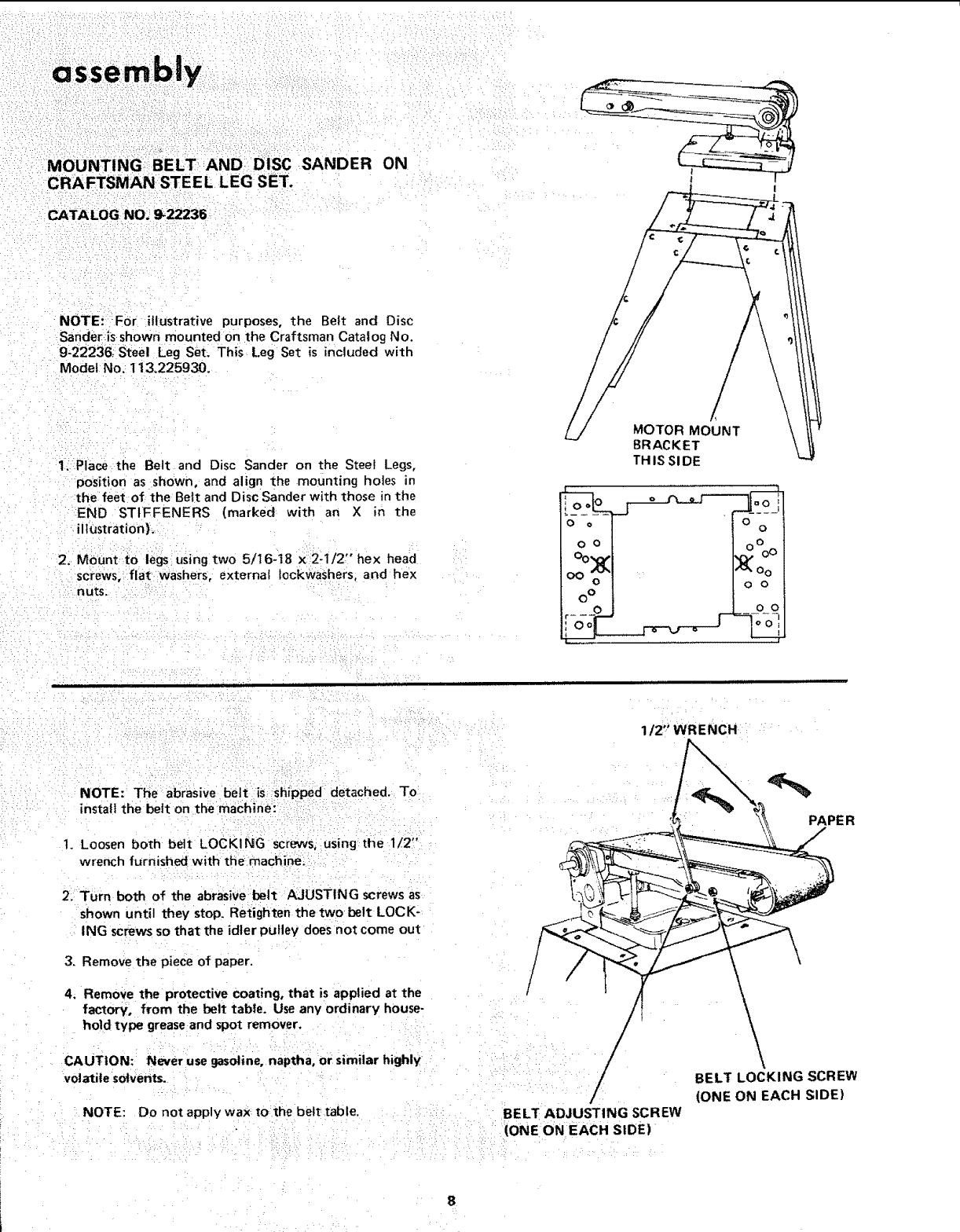

MOUNTING BELT AND DiSC SANDER ON
CRAFTSMAN STEEL LEG SET.
CATALOG NO,_ _22236-
NOTE!: =FOr illustrative purposes, the Belt and Disc
Sander=isshown mounted on the Craftsman Catalog No.
9-22236; Steel Leg set. This Leg Set is included with
Model No. 113.225930.
1_ Place the Belt and Disc Sander on the Steel Legs,
position as shown, and align the mounting holes in
the feet of the Belt and Disc Sander with those in the
END STIFFENERS (marked with an X in the
ilhJstration}.
2, MOunt to legs using two 5/I6-t8 x 2-1/2" hex head
screws, flat washerS, external fockwaShers, and hex
nuts.
/
MOTOR MOUNT
BRACKET
TH IS SI DE
1/2" WRENCH

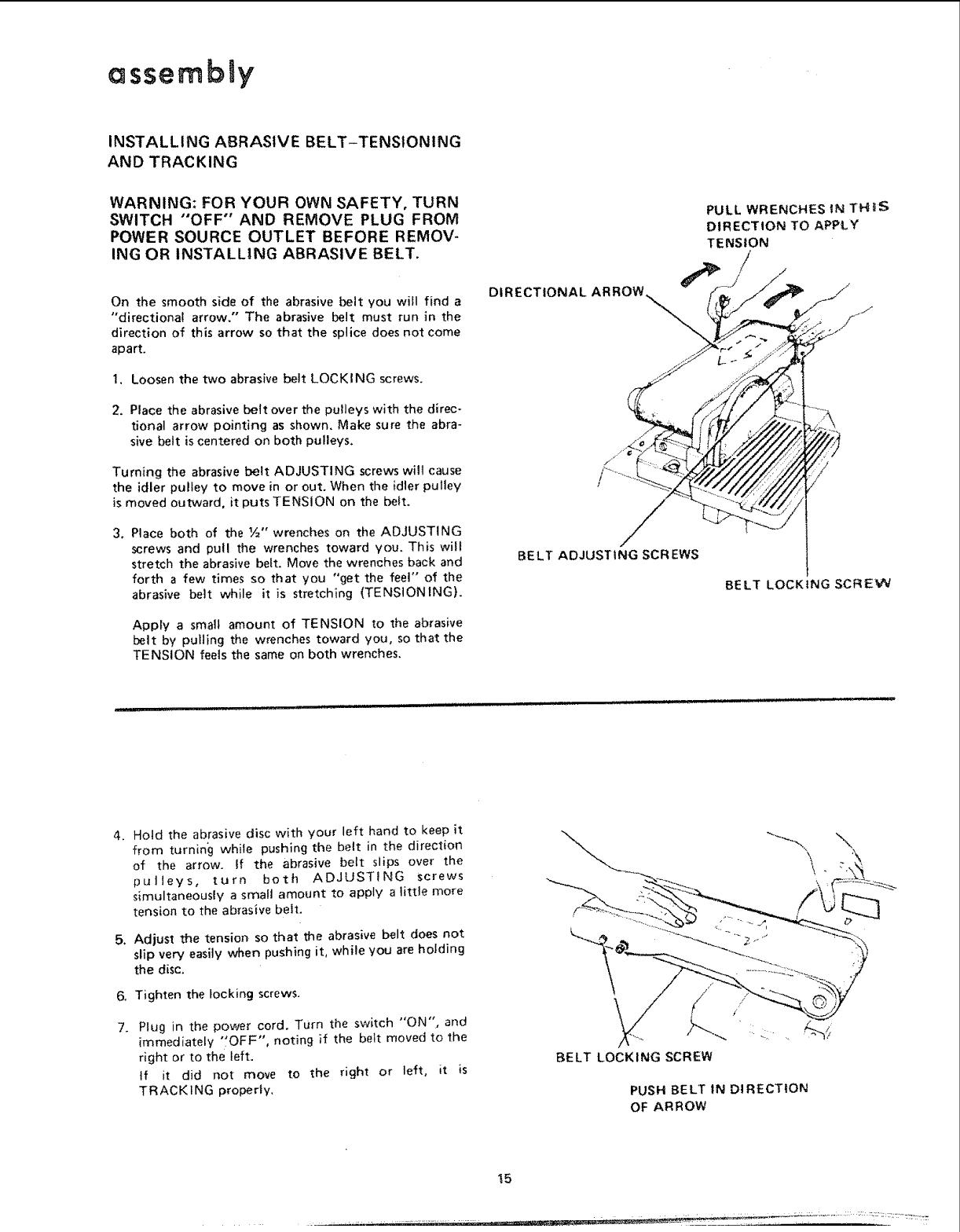

NOTE: The abrasive belt is shipped detached. To
install the belt on the machine:
t. Loosen both belt LOCKING screws, using the 1/2"
wrench furnished with tt_e machine;
2. Turn both of the abrasive belt AJUSTING screws as
shown until they stop. Retighten the two belt LOCK-
ING screws so that the idler pulley does not come out
3. Remove the piece of paper.
4. Remove the protective coating, that is applied at the
factory, from the belt tabte. Use any ordinary house-
hold type grease and spot remover.
CAUTION: Never use gasoline, naptha, or similar highly
volatile solvents.
NOTE: Do not apply wax tothe belt table.
/
BELT ADJUSTI NG SCREW
(ONE ON EACH SIDE)
PAPE R
BELT LOCKING SCREW
(ONE ON EACH SIDE)
assembly

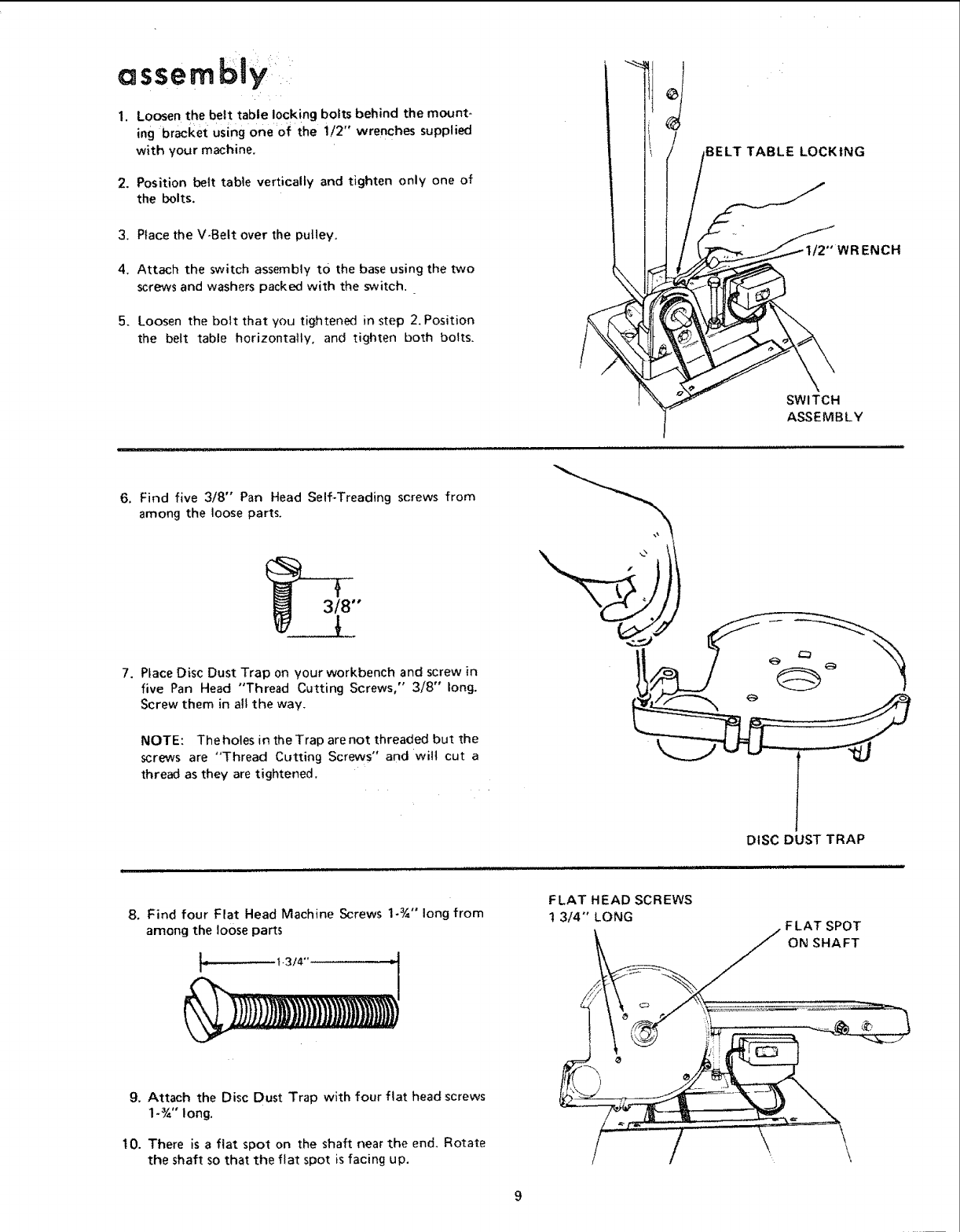

I. Loosen the belt table locking bolts behind the mount-
ing bracket using one of the i12" wrenches supplied
with your machine,
2, Position belt table vertically and tighten only one of
the bolts.
3. Place the V-Bett over the pulley,
4. Attach the switch assembly tO the base using the two
screws and washers packed with the switch.
5. Loosen the bolt that you tightened in step 2. Position
the belt table horizontally, and tighten both bolts.
JBELT TABLE LOCKING
!NCH
SWITCH
ASSEMBLY
6. Find five 3/8" Pan Head Self-Treading screws from
among the loose parts,
3/8"
7. Place Disc Dust Trap on your workbench and screw in
five Pan Head "Thread Cutting Screws," 3/8" long.
Screw them in all the way,
NOTE: The holes in the Trap are not threaded but the
screws are "Thread Cutting Screws" and wilt cut a
thread as they are tightened.
DISC DUST TRAP
B. Find four Flat Head Machine Screws 1-¾" long from
among the loose parts
! _ t.3/4'
FLAT HEAD SCREWS
t 3/4" LONG FLAT SPOT
ON SHAFT
9, Attach the Disc Dust Trap with four flat head screws
1-¾" long.
10. There is a flat spot on the shaft near the end, Rotate
the shaft so that the flat spot is facing up.

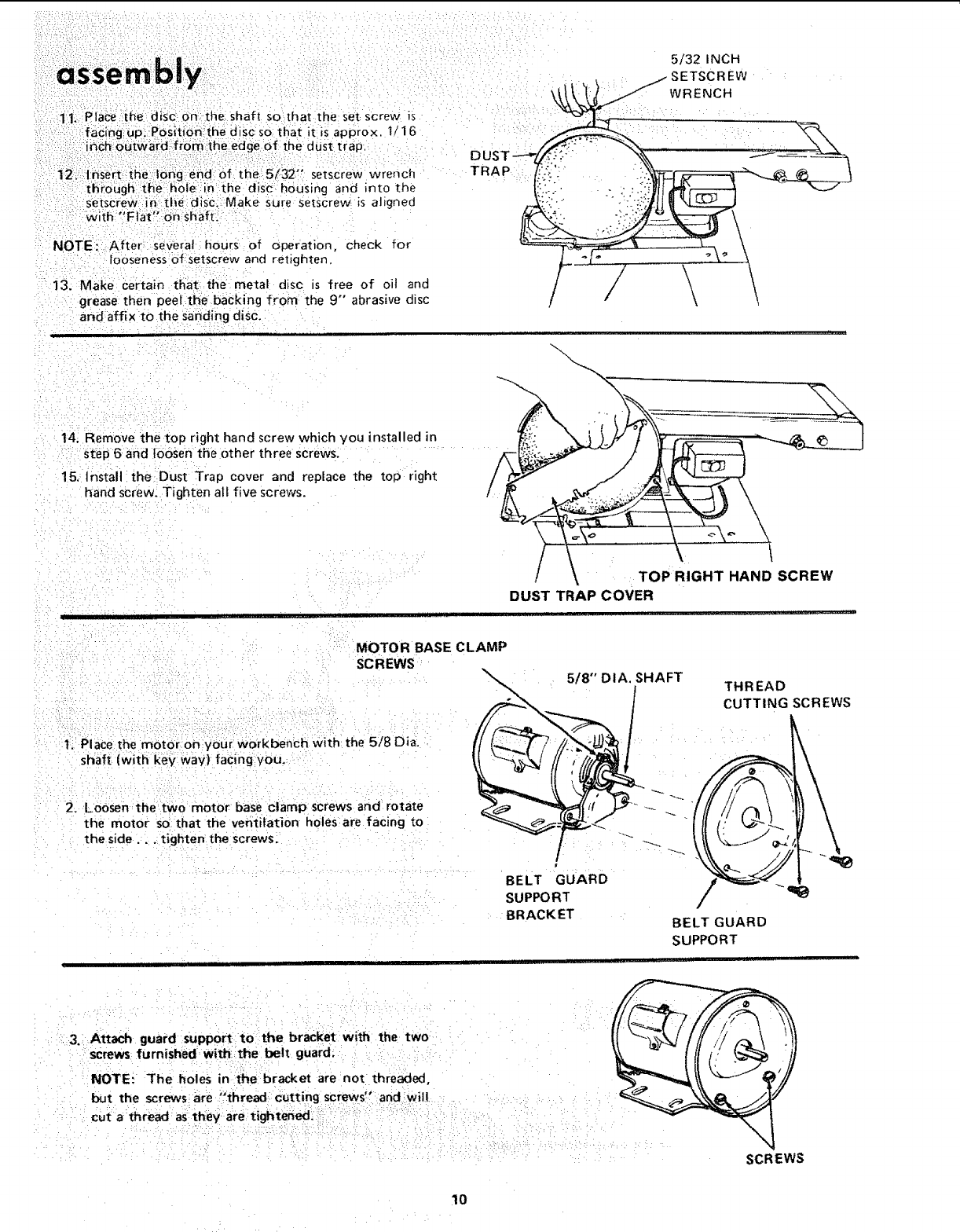

1I: Pia_ :tthel dis:€ on:the shaft so that the set screw is
facing Up, PbSition::the disc: so that it is approx I/1 6
:: i_chOutwa[d; f_6m:_(heedge of the dust trap.
,etscrewwrench
tli_oUgh tlSe h01e in the disc housing and into the
s_etscrew :in =tl_e: disc: Make sure Setscrew is aligned
• t_ tw f
w=th Flat on sha t,
NOTE::i:After several hoUr_ of Operation, check for
looseness of setscrew and retighten.
13. Make certain that the metal disc is free of oil and
grease then peel the backing from the 9" abrasive disc
and:affix to the sanding disc.
DU
TRAP
t
5/32 INCH
SETSCREW
WRENCH
\\
14_ Remove the top right hand screw which you installed in
step 6and loosen the other three screws.
15, install the Dust Trap cover and replace the top right
hand screw. Tighten all five screws.
\TOP RIGHT HAND SCREW
DUST TRAP COVER
MOTOR BASE CLAMP
SCREWS
1. Place the motor on your workbench with the 5/8 D ia.
shaft (wit h key wav)facing you,:
5/8"' DIA. SHAFT
THREAD
CUTTING SCREWS
:: i ¸H- i "/• •i :••
2. Loosen :the two motor base clamp screws and rotate
the motor so that the ventilation holes are facing to
the side.., tighten the screws.
I
BELT GUARD
SU PPO RT
BRACKET
3. Attach guai'd Support to the bracket with the two
screws furnished with the belt guard;
NOTE: The holes in the bracket are not threaded,
but the screws:are °'thread cutting screws" and will
Cut a_thread ag:thev-are tighted_:. :
BELT GUARD
SUPPORT
i ii
SCREWS
10
assembJy
4. Loosen setscrew in motor pufley and place the pulley
on the shaft with the hub flush with the end of the:
shaft, insert the motor shaft key and tighten setscrew
with 5/32" setscrew wrench.
CHECK MOTOR ROTATION
The motor must rotate COUNTERCLOCKWISE when
viewed from the PULLEY end.
1. Place the motor on your workbench or on the floor.
2. Stand ctear of the motor and plug the cord into a
properly grounded outlet (See page 5). Notice the
rotation of the pulley. If it is not turning COUNTER-
CLOCKWISE, REMOVE the plug from the outlet,
and change the rotation of the motor according to
the instructions furnished with the motor.
WARNING: FOR YOUR OWN SAFETY, MAKE
SURE PLUG IS NOT CONNECTED TO POWER
SOURCE OUTLET.
5/32 INCH
SETSCREW
WRENCH
DIRECTION
OF
ROTATION
\
FLUSH HERE
MOTOR
SHAFT
KEY
1. Find four 5/16" - 18 x 3/4" carriage bolts, fiat washers,
lock washers and nuts supplied with base.
3/4"
f
/
MOTOR MOUNT -._.,_/
BRACKET
D _:D r_l
[4--9/t6"'-_
i
2. Attach motor by inserting carriage bolts through slots
in motor base and then through slots marked "X" in
motor mount bracket, then place flat washers and
Iockwashers on each bolt ... screw on nuts but DON'T
TIGHTEN them.
VENTILATION HOLES
FACING DOWNWARD
tl
o sombly
the round opening.

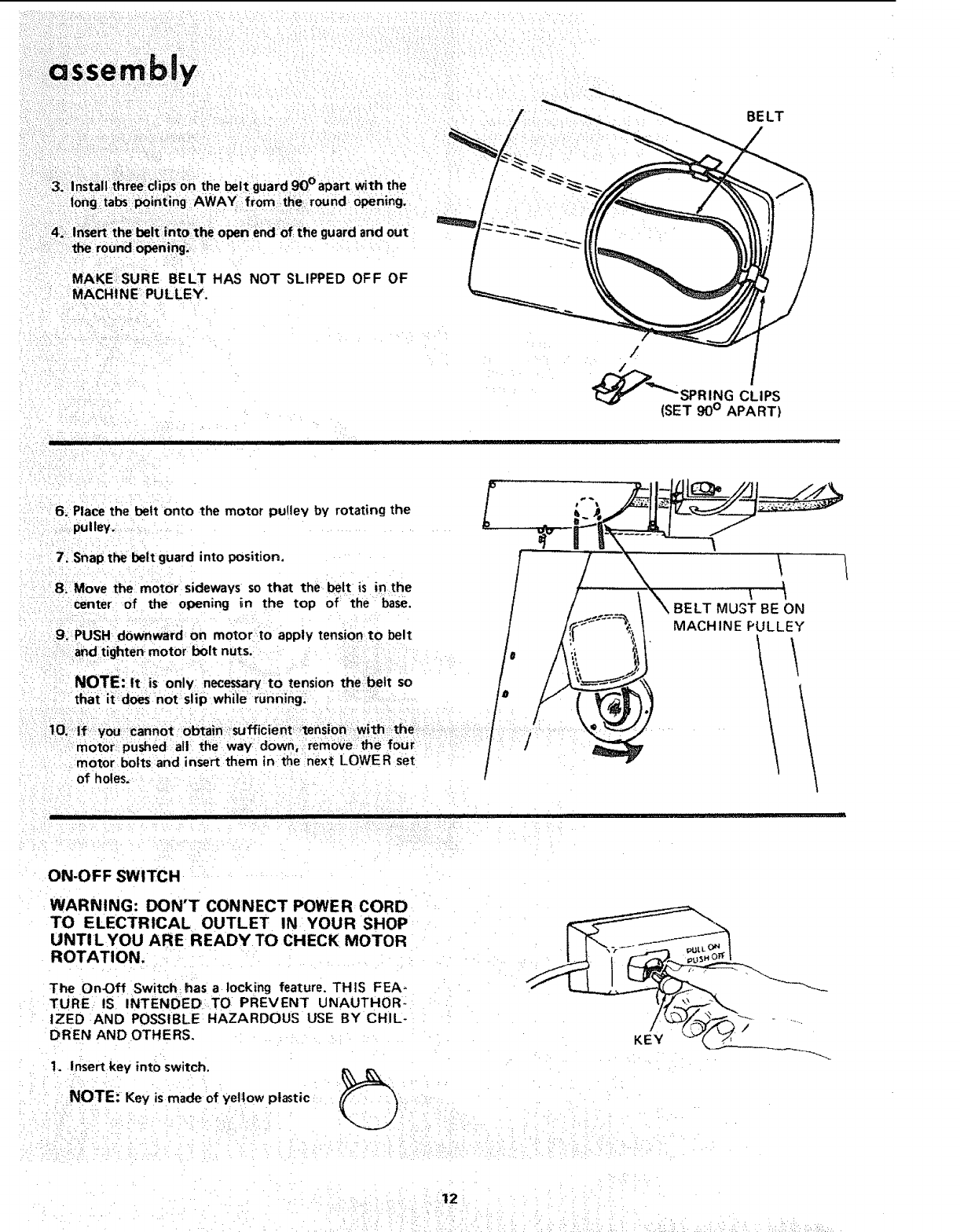

MAKE:SURE BELT HAS NOT SLIPPED OFF OF
MACHINE PULLEY.
BELT
/
CLIPS
(SET 90° APART)
6. Place the bett onto the motor pulley by rotating the
pulley.
7. Snap the belt guard into position.
8_ Move the motor sideways so that the belt is in the
center of the opening in the top of the base.
9, PUSH downward on motor to apply tension to belt
= .... and itighten-motor bolt nuts.
NOTE: It is only; necessary to tension the belt so
that itdoes not slip while running,
lO_i, lf,_::you cannot, Obtain rl,sufficient,_tensiOn with,the
motor pushed all the way down, remO_ie the four
motor bolts and insert them in the next LOWER set
of holes.
\
BELT MU3T BE ON
MACH INE PULLEY
ON-OFF SWITCH
WARNING: DON'T CONNECT POWER CORD
TO ELECTRICAL OUTLET IN YOUR SHOP
UNTIL YOU ARE READY TO CHECK MOTOR
ROTATION.
The On_)ff Switch has alocking feature. THIS FEA-
TURE IS INTENDED TO PREVENT UNAUTHOR-
IZED AND POSSIBLE HAZARDOUS USE BY CHIL-
DREN AND OTHERS.
t. Insert key into switch.
NOTE: Key is made of yellow plastic
12
assembly

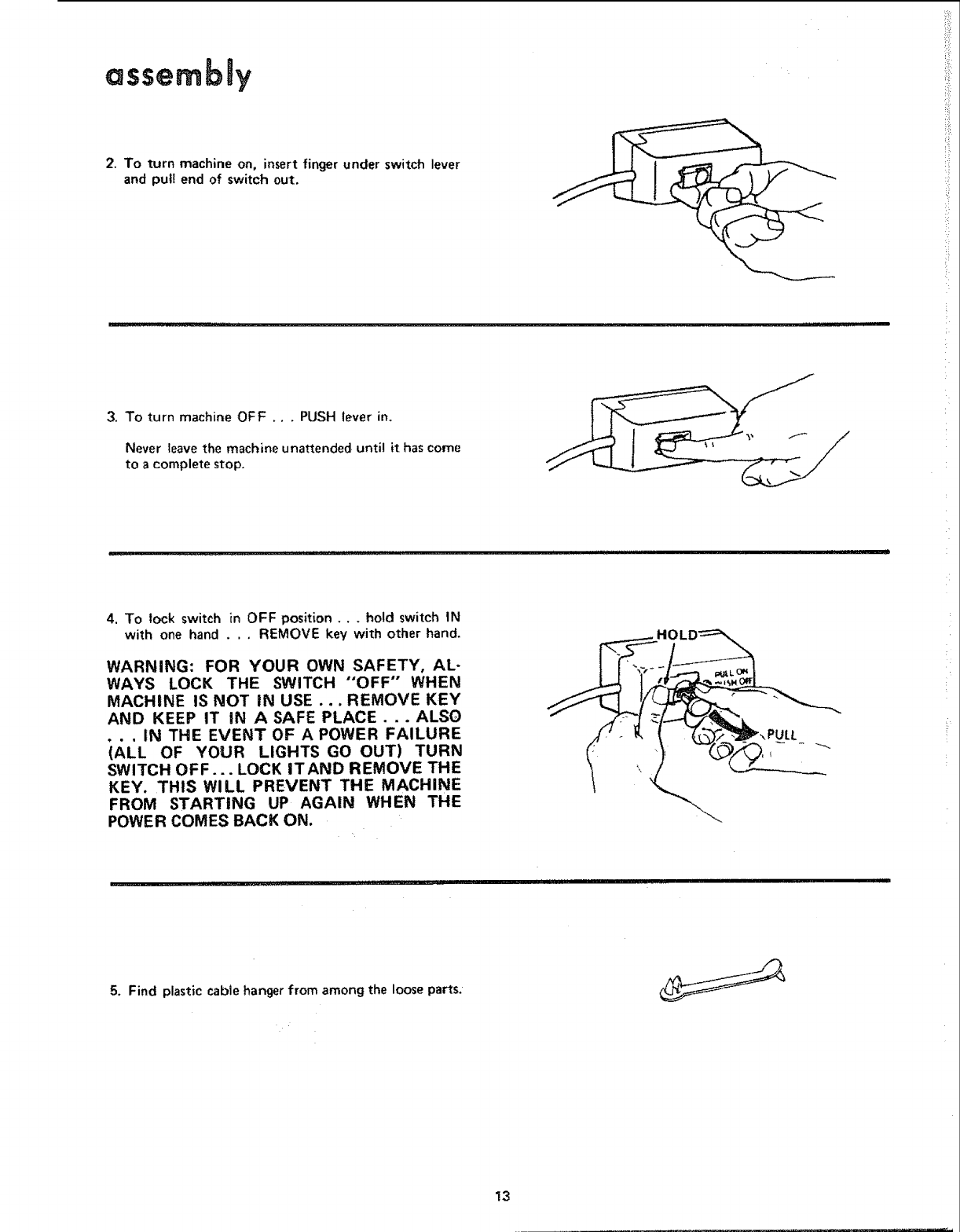

2. To turn machine on, insert finger under switch lever
and pull end of switch out.
3. To turn machine OFF ... PUSH lever in.
Never leave the machine unattended until it has come
to a complete stop.
4. To lock switch in OFF position.., hold switch IN
with one hand . . .REMOVE key with other hand.
WARNING: FOR YOUR OWN SAFETY, AL-
WAYS LOCK THE SWITCH "OFF" WHEN
MACHINE IS NOT IN USE ... REMOVE KEY
AND KEEP IT IN A SAFE PLACE... ALSO
. . . IN THE EVENT OF A POWER FAILURE
(ALL OF YOUR LIGHTS GO OUT) TURN
SWITCH OFF.-. LOCK ITAND REMOVE THE
KEY. THIS WILL PREVENT THE MACHINE
FROM STARTING UP AGAIN WHEN THE
POWER COMES BACK ON.
5. Find plastic cable hanger from among the loose parts.
13
6, Route the motor cord behind the motor mount,
across the top, of the base and plug it into the
receptacle in the side of the switch box.
7. Bring the power cord alongside the motor cord ...
wrap the plastic cable hanger around the cords and
attach the hanger to the top of the base by pushing
it into a _" diameter hole.
CABLE MOTOR
_HANGER j CORD

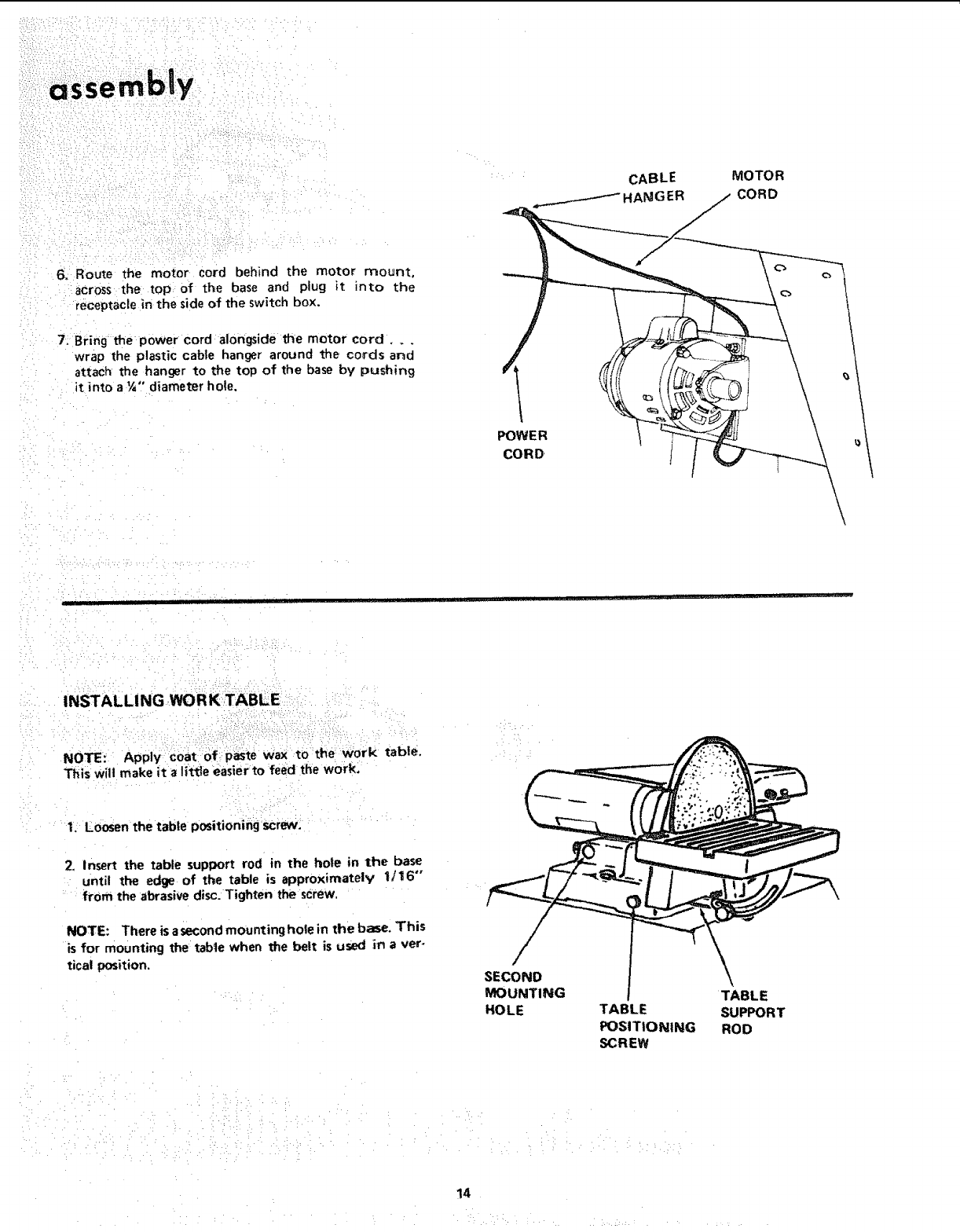

INSTALLING WORKTABLE
NOTE: Apply coat of paste wax tothe work table,
This will make it a little easier to feed the work,
1. Loosen the table positioning screw.
2, Insert the table support rod in the hole in the base
until the edge of the table is approximately |/16"
from the abrasive disc. Tighten the screw.
NOTE: There is asecond mounting hole in the base. This
is for mounting the:table when the belt isused :in a ver-
tical position.
: ;:, _ ,: : ::: i_
SECOND
MOUNTING
HOLE TABLE
TABLE SUPPORT
POSITIONING ROD
SCREW
14
assembly
INSTALLING ABRASIVE BELT-TENSIONING
AND TRACKING
WARNING: FOR YOUR OWN SAFETY, TURN
SWITCH "OFF" AND REMOVE PLUG FROM
POWER SOURCE OUTLET BEFORE REMOV-
ING OR INSTALLING ABRASIVE BELT.
On the smooth side of the abrasive belt you will find a
"directional arrow." The abrasive belt must run in the
direction of this arrow so that the splice does not come
apart.
1, Loosen the two abrasive belt LOCKING screws.
2. Place the abrasive bett over the pulleys with the direc-
tional arrow pointing as shown. Make sure the abra-
sive belt is centered on both pulleys.
Turning the abrasive belt ADJUSTING screws will cause
the idler pulley to move in or out. When the idler pulley
is moved outward, it puts TENSION on the belt.
3. Place both of the 1/=-wrenches on the ADJUSTING
screws and pul! the wrenches toward you. This will
stretch the abrasive belt. Move the wrenches back and
forth a few times so that you "get the feel" of the
abrasive belt while it is stretching (TENSIONING).
Apply asmall amount of TENSION to the abrasive
belt by pulling the wrenches toward you, so that the
TENSION feels the same on both wrenches.
DIRECTIONAL ARROW
PULL WRENCHES IN THIS
DIRECTION TO APPLY'
TENSION
BELT ADJUSTING SCREWS
BELT LOCKING SCREW
ii iJJl iJ
4. Hold the abrasive disc with your left hand to keep it
from turnin'g while pushing the belt in the direction
of the arrow. If the abrasive belt slips over the
pulleys, turn both ADJUSTING screws
simultaneously a small amount to apply alittle more
tension to the abrasive belt.
5. Adjust the tension so that the abrasive belt does not
slip very easily when pushing it, while you are holding
the disc,
6. Tighten the locking screws.
7. Plug in the power cord. Turn the switch "'ON", and
immediately "'OFF", noting if the bett moved to the
right or to the left.
If it did not move to the right or left, it is
TRACKING properly, PUSH BELT tN DIRECTION
OF ARROW
15
....=]. ....... ....c.=_-_._ .............
as,sembly
MOVES TO THE
a::: Loosen the LOCKING SCREW on the RIGHT.
hi:i: Place Wrench on the ADJUSTING SCREW on the
c;: :Push abrasive belt so it is moving while pulling the
: wrench towa:td you!:: This wiil move the abrasive
be|t to the {eft. PUSHING the wrench will move
the belt to the right,
d. The abrasive belt is tracking properly when it is
centered on the DRIVE pulley.
IMPORTANT: If you have difficulty tracking the
abrasive belt, apply more tension.

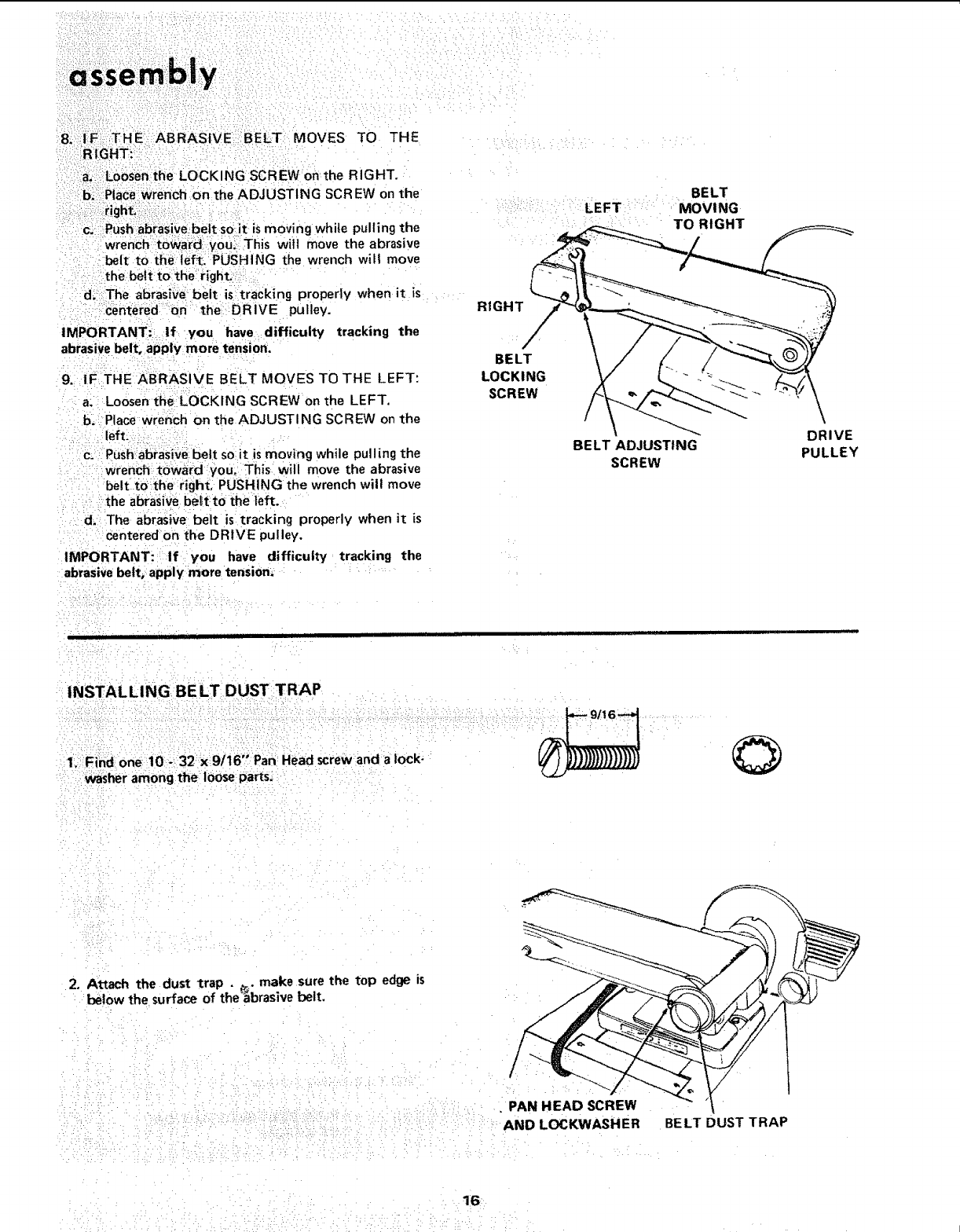

9. IF THE ABRASIVE BELT MOVES TO THE LEFT:
a. Loosen the LOCKING SCREW on the LEFT.
b. Place wrench on the ADJUSTING SCREW on the
left.
c. : Push:'abrasiW belt so it is moving while pulling the
wrench toward you, This will move the abrasive
belt tO:the :tight, PUSHING the wrench will move
the abrasive beit to the left.
d. The abrasive belt is tracking properly when it is
Centered on the DRIVE pulley.
IMPORTANT: If you have difficulty tracking the
abrasive belt, apply more tension_
RIGHT
BELT
LOCKING
SCREW
LEFT BELT
MOVING
TO RIGHT
BELT ADJUSTING
SCREW
DRIVE
PULLEY
INSTALLING BE LT DUST TRAP
1. Find one 10- 32 x 9/16" Pan Head screw and a lock-
washer among the loose parts. ©
2. Attach the dust trap . _. make sure the top edge is
below the surface of the abrasive belt,
PAN HEAD SCREW
AND LOCKWASHER BELT DUST TRAP
16
aS$e rn _ _y
INSTALLING BACKSTOP
1. Find one 5/16" x 1" Hex. Head bott and one flat
washer among the loose parts.
2. Place the washer on the bolt, and screw it halfway
into the mounting hole, Place the backstop into pos-
tion and tighten the bolt. When removing the back-
stop, loosen the bolt but do not remove it.
BACKSTOP BACKSTOP
LOCK SCREW
, i i i,i ,i........ , uuJ_LJ_, ,ipp ..............
getting to know yourbeJt and disc sander
WARNING: FOR YOUR OWN SAFETY TURN
SWITCH "OFF" AND REMOVE PLUG FROM
POWER SOURCE OUTLET BEFORE MAKING
ANY ADJUSTMENTS,
ABRASIVE DISC 4BACKSTOP
LOCK SCREW
BACKSTOP BELT ADJUSTING
SCREW
(ONE ON EACH SIDE)
WORK
TABLE
'3WO.KTABLE
TILT LOCK SCREW
BELT TABLE
STOP
BELT LOCKING IDLER
SCREW PULLEY
(ONE ON EACH SIDE)
17
know your beret
I_ AB _/E::BELT :ADJUSTING SCREWS
:catJse :dier pUiiey:i to:m0ve in::0r:out for appiylng
ter_sion:to theab_asive heft or for tracking it: They
are adjusted using the 112" wrenches,
see _'Assembly" section... "1 nsta!ling Abrasive Belt".
2. ABRASIVE BELT LOCKING SCREWS lock
the adjustment mechanism after the abrasive belt is
tensioned an,d tracking properly. They are locked
USihg the i/2': :wrench.
See "assembly" section . .."Installing Abrasive
Belt".
\
s n er
BELT ADJUSTING
SCREW
(ONE ON EACH SIDE)
/
BELT LOCKING
SCREW
(ONE ON EACH SIDE)
i i ijjl i ] i _,
.: 3, ¸WORK TABLE TILT LOCK SCREW locks
l_e table. It is locked using the 1/2" wrench.
a; Using a combination square, check the angle.of
the table witch the disc:
NOTE: The combination square must be "'true"--
See start of assembly section on Pg; 6for checking
method.
b. If the table is not 90 °with the disc ... loosen
tilt lock screw and tilt table,
c, Loosen the lock nut using a 7/16" wrench.
d. Screw the stop screw in or out, using a 318"
wrench so that when the table touches the stop
screw, the table is 90 °to the disc,
e. Tighten the lock nut.
TABLE POSITIONING
LOCK SCR EW
TABLE 1/2"
FROM DISC
LOCK NUT
STOP
SCREW
TI LT
ILOCK
SCR EW
gettincj 1toknow your belt and disc sander
f. Loosen the table positioning lock screw,,, posi-
tion the tab]e approximately 1/16"' away from
the abrasive disc.
g. Tilt the table dov_nward but don't tighten the lock
screw, and position it as close to the disc as pos-
sible. Using the head of a combination square,
check the angle of the table with the disc.
h. If the table is not 45 ° with the disc:
i. Raise the table and loosen the lock nut using a
7116" wrench.
j. Screw the stop screw in or out, using a 3/8"
wrench so that when the table touches it, it is 45 °
with the disc.
k, Tighten the lock nut.
LOCK NUT
STOP SCREW
-- .J_,,____ l!ll ,____11 , _LI! , llJ 1'11' , I,I'iii ., "n_'l I' 11111 _£U
4. BACKSTOP LOCK SCREW locks the backstop in
place, it is locked using the 1/2" wrench,
BACKSTOP
LOCK SCREW
\\
BACKSTOP
, ,, i,i,iiii,i,,i,,. , iIi iiiii,i,i
5. BELT TABLE LOCKING BOLTS
belt table in position.
To adjust to vertical position:
... lock the
a. Remove the backstop,
b. Loosen the two belt table locking boffs using the
1/2" wrench supplied with your machine.
c. Position belt table vertically and tighten the two
bolts.
6. ABRASIVE BELT TABLE STOP can be adj-
usted so that the abrasive belt table is level with
the floor when in a horizontal position,
a. Loosen the lock nut using a 314" wrench.
b. Place alevel on the abrasive belt table and using a
3/4"" wrench, screw the stop bolt in or out until
the table is level.
BE LT TABLE
LOCKING BOLT
lg
LOCK NUT
STOP BOLT
FLA'r SUR

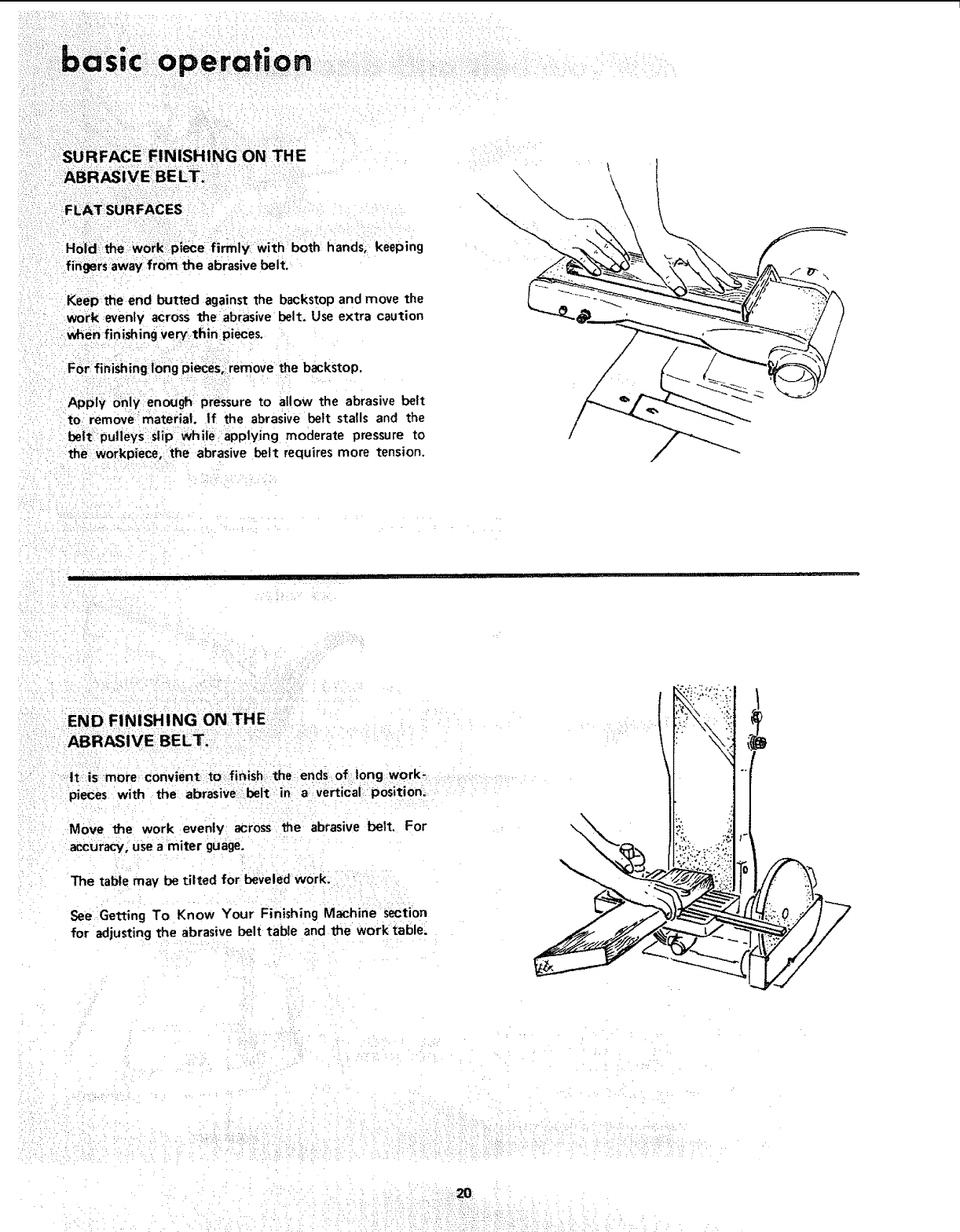

Hoi=d::the:woi_k piece firm|y: with:both hands, keeping
firtgersaway from the abrasivebelt.
Keep the end butted against the backstop and move the
work evenly across the abrasive belt. Use extra caution
when finishing Very=thln pieces.
For fihishing long pieces, remove the backstop.
Apply only enough pressure to allow the abrasive belt
to remove material If the abrasive belt stalls and the
belt pulleyS slip white=applying moderate pressure to
the wo_kpiece, the abrasive belt requires more tension.
\\\\
END FINISHING ON: THE
tt ismore convient to finish the ends of long work-
pieces with the: abrasive: belt in a vertical positiom
Move the work evenly across _e abrasive belt. For
accuracy, use a miter guage.
The table may be tilted for beveled w0rk.
See Getting To Know Your Finishing Machine Section
for adjusting the abrasive belt table and the work table.
: 20
basic operation
FINISHING CURVED EDGES ON THE
ABRASIVE BELT
CURVED EDGES
Finish outside curves on the abrasive belt and inside
curves on the idler pulley.
FINiSHiNG SMALL END SURFACES AND
CURVED EDGES ON THE ABRASIVE DISC
Move the work across the "Down Side" of the face of
the abrasive disc. For accuracy, usea miter gauge.
NOTE: Use a combination square to square the miter
gauge to the face of the disc. If it is not square, pull out
the index pin, loosen the miter gauge knob and move the
miter gauge s]ightly until it is square. Without moving
the miter gauge,tighten the knob securely.
SQUARE
MITER GAUGE
Applying the workpiece to the "Up Side" could cause it
to fly up (kickback) which could be hazardous.
The table may be tilted for beveled work.
2t

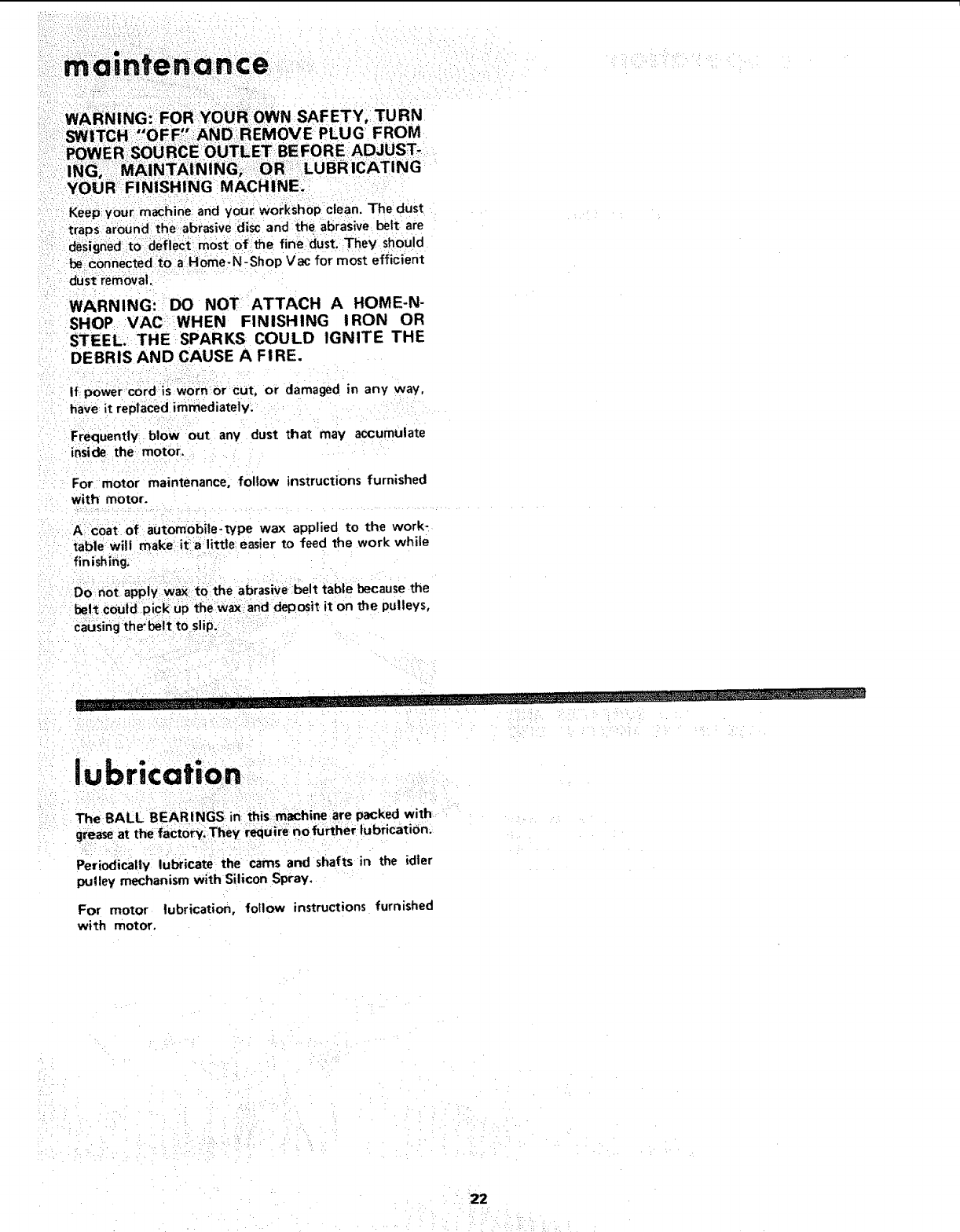

wAR_iNG:_ FORiYOUR OWN SAFETY,: TURN
:::SWITCH _OFF,'IANDREMOVE: PLUG FROM
POWER SOURCE OUTLET BE FORE ADJUST-
s: ING,: :MAINTAINING; ;OR' :LUBRICATING
YOUR: FI NISHING MACH INE:_
Keep:your machine and your Workshop clean. The dust
traps around the abrasive disc and the abrasive belt are
designed t0 deflect most Of the fine dust. They should
connected to a Home-N-Shop Vac for most efficient
dust removal:
WARNING: DO NOT ATTACH A HOME-N-
SHOP VAC WHEN FINISHING IRON OR
STEEL. THE_SPARKS COULD IGNITE THE
DEBRIS AND CAUSE A FIRE.
if powercord iS W0rn or:cut, or damaged in any way,
have it replaced immediately.
Frequently blow out any dust that may accumulate
inside the motor.
For motor maintenance, follow instructions furnished
with motor.
Acoat of automobile-type wax applied to the work-
table will make it a littte easier to feed the work while
finishing.
Donor apply wax tothe abrasive belt table becausethe
belt could pick=up the wax:and deposit it on t_e pulleys,
causingthe'belt to slip.
lubrication
The BALL BEARINGS in this machine are packed with
grease at the factory_ They require: nofurther lubricatiOn.
Periodically lubricate the cams and shafts in the idler
pulley mechanism with Silicon Spray.
For motor lubrication, follow instructions furnished
with motor.
i _ /:, :/_ _ _,
_ 122
i ¸ :::: _: ;H
:i• i; ; :_, ;:: ::: ;
trouble shooting
WARNING: FOR YOUR OWN SAFETY, TURN
SWITCH "OFF" AND REMOVE PLUG FROM
POWER SOURCE OUTLET BEFORE TROUBLE
SHOOTING YOUR SANDER.
TROUBLE
Motor will not run.
i,i i
Machine slowsdown
when finishing,
ii ,....
Abrasive Belt Slips
Abrasive Belt runs
off pulleys.
Wood burnswhile
finishing.
TROUBLE SHOOTING CHART
PROBABLE CAUSE
1. Defective On-Off switch.
Defective switch cord.
Defective switch box receptacle.
2, Motor protector open, (only if
your motor is equipped with an
overload protector).
3. Burned out motor.
.u,,,,,,,,,,,_ ,
1. V-Belt too loose.
2. Applying too much pressureto
workpiece.
3. Too much tension on abrasive
belt,
,, ,,,,,,,,,,J ,Ji,J
1. Not enough tension.
1. Not tracking properly.
2. Not enough tension.
"j.
2.
3,
1, Abrasivedisc or belt isglazed with
sap.
REMEDY
Repface defective parts before using belt disc
sander again.
Reset protector after motor has cooled,
Consult Sears Service. Any attempt to repair this
motor may create a HAZARD unless repair is
done by a qualified service technician. Repair
service is available at your nearest Sears Store.
,,, ,,,. i,l,,i , ,,,, ,,,,,i ,L,i i
!. Increase belt tension, seeAssembly Section,
"Motor Pulley Belt Guard and Motor
Installation."
2. Ease up on pressure.
3, Adjust tension, seeAssembly Section, "Installing
and Adjusting Abrasive Belt."
,,1,,,..................
1. Adjust tension, seeAssembly Section, "Installing
and Adjusting Abrasive Belt."
1. Adjust tracking, see Assembly Section, "Installing
and Adjusting Abrasive Belt."
2. Adjust tension, seeAssembly Section, "installing
and Adjusting Abrasive Belt."
1. Repi_e disc or belt,
...... ;-m-=_==_RECOMMENDED ACCESSORIES ...... '--
ITEM CAT. HO.
Steel Stand .............................. 9-22213
Caster Set ....................... 9-22222, 9-22221
Miter Gauge ............................. 9-29929
Pressure-Sensitive cement .................... 9-2220
Abrasive Belts and Disc .............. SEE CATALOG
Steef Legs ............................... 9-22236
Power Tool Know How Handbooks
Radial Saw .............................. 9-2917
Table Saw .............................. 9-2918
The above recommended accessories are current and were avai{able at the time this manual was printed.
23
123 4
63 62
61 60
FIGURE 1
65 64
/
/
59
20:
23
12 15_
\44
I39 38 37 67
F,}
O1

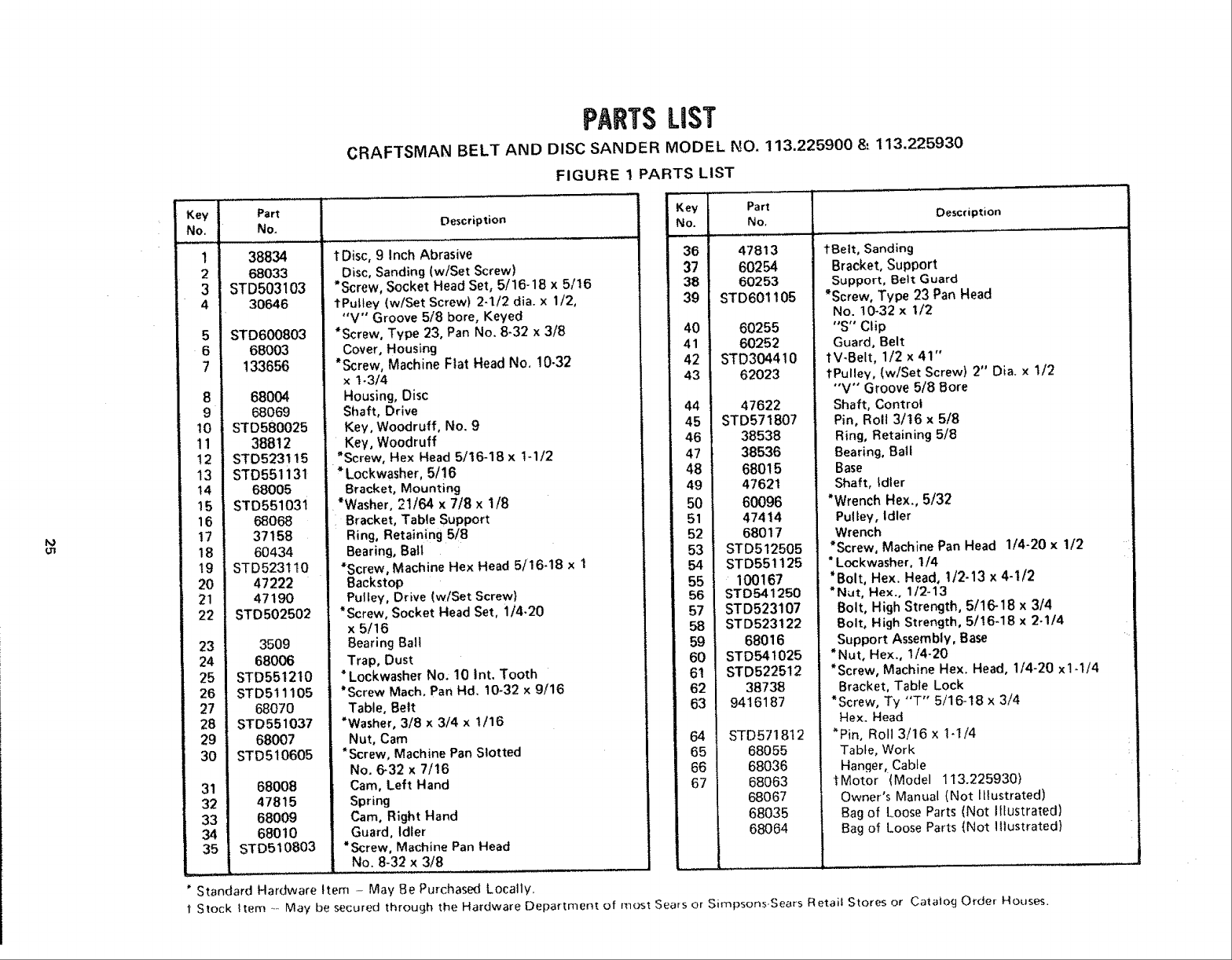

PARTSLiST
CRAFTSMAN BELT AND DISC SANDER MODEL NO. 113.225900 8,. 113.225930
FIGURE ! PARTS LIST
Key Part
No, INo.
1 38834
2 68033
3STD503103
4 30646
5
6
7
8
9
10
1!
t2
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
STD600803
68003
133656
68004
68069
STD580025
38812
STD523115
STD551131
68005
STD55103i
68068
37158
60434
STD523t10
47222
47190
STD502502
3509
68006
STD551210
STD511105
68070
STD551037
68007
STD510605
68008
47815
68009
68010
STD510803
I
Description
tDisc, 9 Inch Abrasive
Disc, Sanding (wtSet Screw)
*Screw, Socket Head Set, 5/16-18 x51t6
tPutley (w/Set Screw) 2-1/2 dia. x 1/2,
"V" Groove 5/8 bore, Keyed
*Screw, Type 23, Pan No. 8-32 x 3/8
Cover, Housing
"Screw, Machine Flat Head No, 10-32
x t-3/4
Housing, Disc
Shaft, Drive
Key, Woodruff, No. 9
Key, Woodruff
"Screw, Hex Head 5/16-18 x t-1/2
* Lockwasher, 5/16
Bracket, Mounting
*Washer, 21/64 x7/8 x t/8
iBracket, Table Support
Ring, Retaining 5/8
Bearing, Ball
*Screw, Machine Hex Head 5/16-18 x 1
Backstop
Pulley, Drive (w/Set Screw}
"Screw, Socket Head Set, 1/4-20
x 5/16
Bearing Bali
Trap, Dust
*Lockwasher No. 10 Int. Tooth
*Screw Math. Pan Hd, 10-32 x 9/16
Table, Belt
*Washer, 3/8 x 3/4 x t/16
Nut, Cam
*Screw, Machine Pan Slotted
No. 6-32 x7/!6
Cam, Left Hand
Spring
Cam, Right Hand
Guard, Idler
*Screw, Machine Pan Head
No. 8-32 x 3/8
Standard Hardware Item - May Be Purchased Locally,
Key
No.
36
37
38
39
4O
41
42
43
44
45
46
47
48
49
5O
51
52
55
56
67
58
59
60
6t
62
63
64
65
66
67
Part
No,
47813
60254
60253
STD601105
60255
60252
STD304410
62023
47622
STD571807
38538
38536
68015
47621
60096
47414
68017
STD512505
STD551125
100167
STD541250
STD523107
STD523122
68016
STD541025
STD522512
38738
9416187
STD5718t2
68055
68036
68063
68067
68035
68064
Description
t Belt, Sanding
Bracket, Support
Support, Belt Guard
"Screw, Type 23 Pan Head
No. 10-32 x 1/2
"S" Clip
Guard, Belt
lV-Beit, 1/2 x 4!"
tPulley, (w/Set Screw) 2" Oia. x 1/2
"V'" Groove 5/8 Bore
Shaft, Contro!
Pin, Roll 3/16 x 5/8
Ring, Retaining 5/8
Bearing, Ball
Base
Shaft, Idler
"Wrench Hex., 5/32
Pulley, Idler
Wrench
*Screw, Machine Pan Head I/4-20 x1/2
*Lockwashero 1/4
*Bolt, Hex. Head, 1/2-13 x 4-1/2
*Nut, Hexo, 1/2-13
Bolt, High Strength, 5/16-18 x 3/4
Bolt, High Strength, 5/16_18 x 2-1/4
Support Assembly, Base
*Nut, Hex., 1/4-20
*Screw, Machine Hex. Head, 1/4-20 x!-1/4
Bracket, Table Lock
*Screw, Ty "T" 5/16-18 x 3/4
Hex. Head
*Pin, Roll 3/16 x 1-I/4
Table, Work
Hanger_ Cable
IMotor (Model 113.225930)
Owner's Manual (Not lllustrated)
Bag of Loose Parts (Not Illustrated)
Bag of Loose Parts {Not Illustrated)
1Stock item -- May be secured through the Hardware Department of most Sears or SimpsonsSears Retait Stores or Catatog Order Houses
epalr parts
CRAFTSMAN=BELT AND DISC SANDER MODEL NO; 113.225900 & 113.225930
4
78

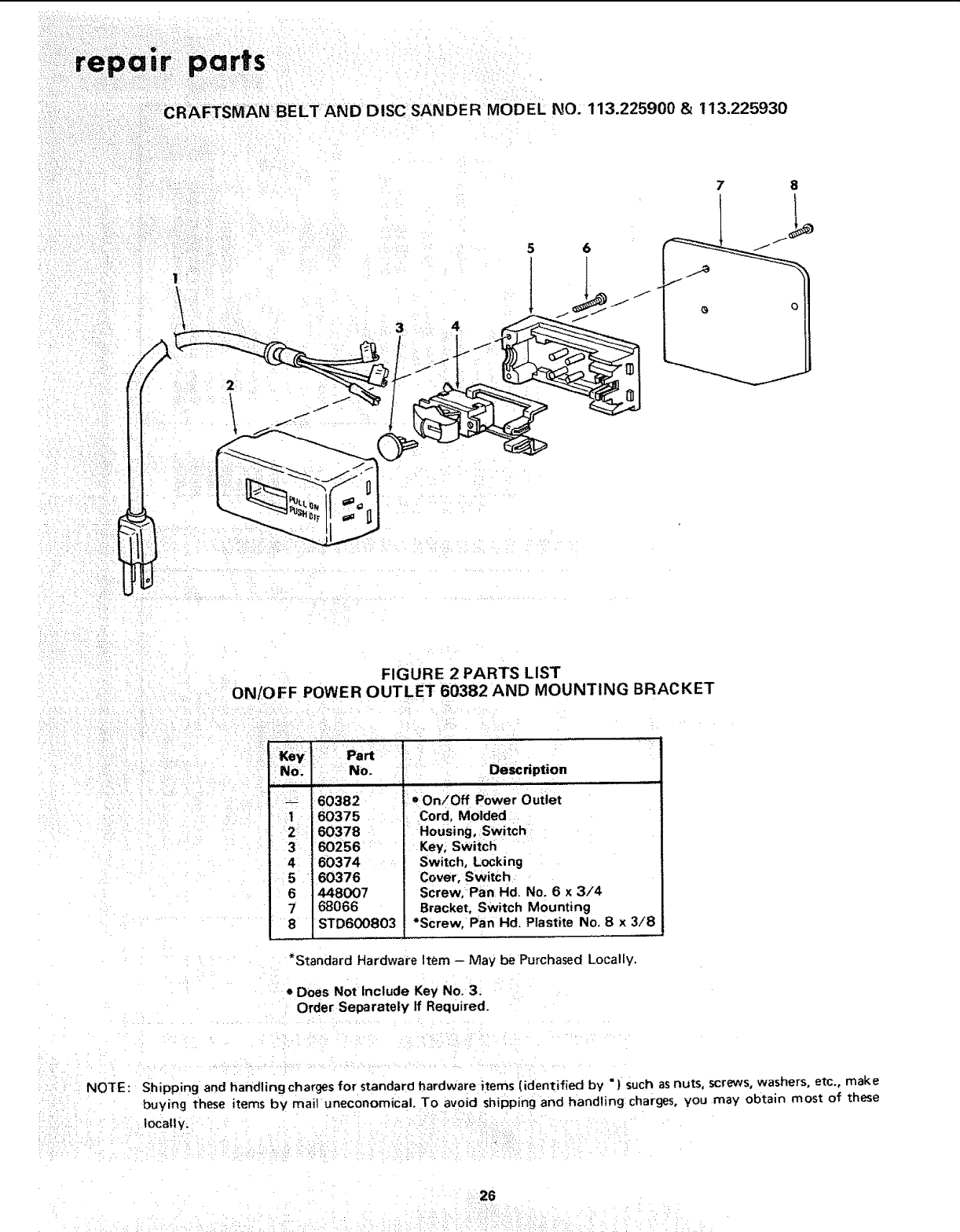

FIGURE 2 PARTS LIST
ON/OFF POWER OUTLET 60382 AND MOUNTING BRACKET
INo.
z_ ! -
_t 60375
2 60378
3 60256
4 60374
5 60376
6 448007
7 68066
8 STD600803
Cord, Molded
Housing, Switch
Key, Switch
Switch, Locking
Cover; Switch
Screw, Pan Hd. No. 6 x 3/4
Bracket, Switch Mounting
*Screw, Pan Hd. Plastite No. 8x 3/8
*Standard Hardware Item - May be Purchased Locally.
oDoes Not Include Key No. 3.
Order Separately If Required.
NOTE: Shipping and handling charges for standard hardware items [identified by ") such as nuts. screws, washers, etc., make
buying these items by mail uneconomical. To avoid shipping and handling charges, you may obtain most of these
locally.
. i i: \ ;
26
CRAFTSMAN BELT AND DISC SANDER MODEL NO. 113.225900 & 113.225930
5
1
/
2
4 3
FIGURE 3 PARTS LIST
SUPPLIED WITH MODEL 113.225930 ONLY
Key Part
No. No. Description
irrrll iii i 11111, 1111111
1 62614
2 60314
3 STD541025
4STD551225
568060
6 68059
7 62615
868061
9 STD541050
10 803835
- 68062
Leg
t Screw,TrussHd. t/4-20 x 5/8
t'Nut, Hex 1/4-20
t* Lockwasher,I/4 External
Channel,Support
Stiffener,Side
Stiffener, End
Support,Motor
t'Nut, Hex 1/2-13
1"Foot, Leveling
? Bagof LooseParts(Not illustrated)
Key Part
No, No. Description
-,,, .i, i.,.NI,
HARDWARE FOR MOUNTING TOOL & MOTOR
w
STD523125
STD551t31
STD541231
STD551031
STD532507
t'Screw, Hex Hd. 5/16-78 x 2-1/2
?*Lockwasher,External5/!6
t'Nut, HexJam5/!6 x 18
t'Washer, 11/32 x 11/!6 x 1/16
t'Bolt, Carriage5/16-18 x 3/4
tTheseitemsall containedin Loose PartsBag.PartNo. 68062. *Standard HardwareItem -May be PurchasedLocally.
27
Sears
SERVICE
MODEL NO.
113.225900
BELT AND DISC
SANDER ONLY
MODEL NO.
113.225930
BELT AND DISC
SANDER/WITH
LEGS AND MOTOR
HOW TO ORDER
REPAIR PARTS
BE/.. T AND DISC SANDER
Now that you have purchased your Belt & Disc Sander should a
need ever exist for repair parts or service, simply contact any
Sears Service Center and most Sears, Roebuck and Co. stores.
Be sure to provide all pertinent facts when you call or visit.
The model number of your Belt and Disc Sander will be found
on a plate attached to your sander at the,_right-hand side of the
base.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
PART NUMBER PART DESCRIPTION
MODEL NUMBER
113.225900 OR
113.225930
NAME OF ITEM
Belt And Disc Sander
All parts listed may be ordered from any Sears Service Center
and most Sears stores. If the parts you need are not stocked
Ioca!_y, your order will be electronically transmitted to a Sears
Repair Parts Distribution Center for handling.
Sold by SEARS, ROEBUCK AND CO', Chicago, IL. 60684 U.S.A.
Part No. 68067 Form No. SP4574-3
)
Printed in U.S.A. 12/82

Navigation menu
