Craftsman 113226830 User Manual 10 INCH TABLE SAW Manuals And Guides 1007418L

User Manual: Craftsman 113226830 113226830 CRAFTSMAN 10-INCH TABLE SAW - Manuals and Guides View the owners manual for your CRAFTSMAN 10-INCH TABLE SAW #113226830. Home:Tool Parts:Craftsman Parts:Craftsman 10-INCH TABLE SAW Manual

Open the PDF directly: View PDF .
Page Count: 56

Save This Manual

For Future Reference

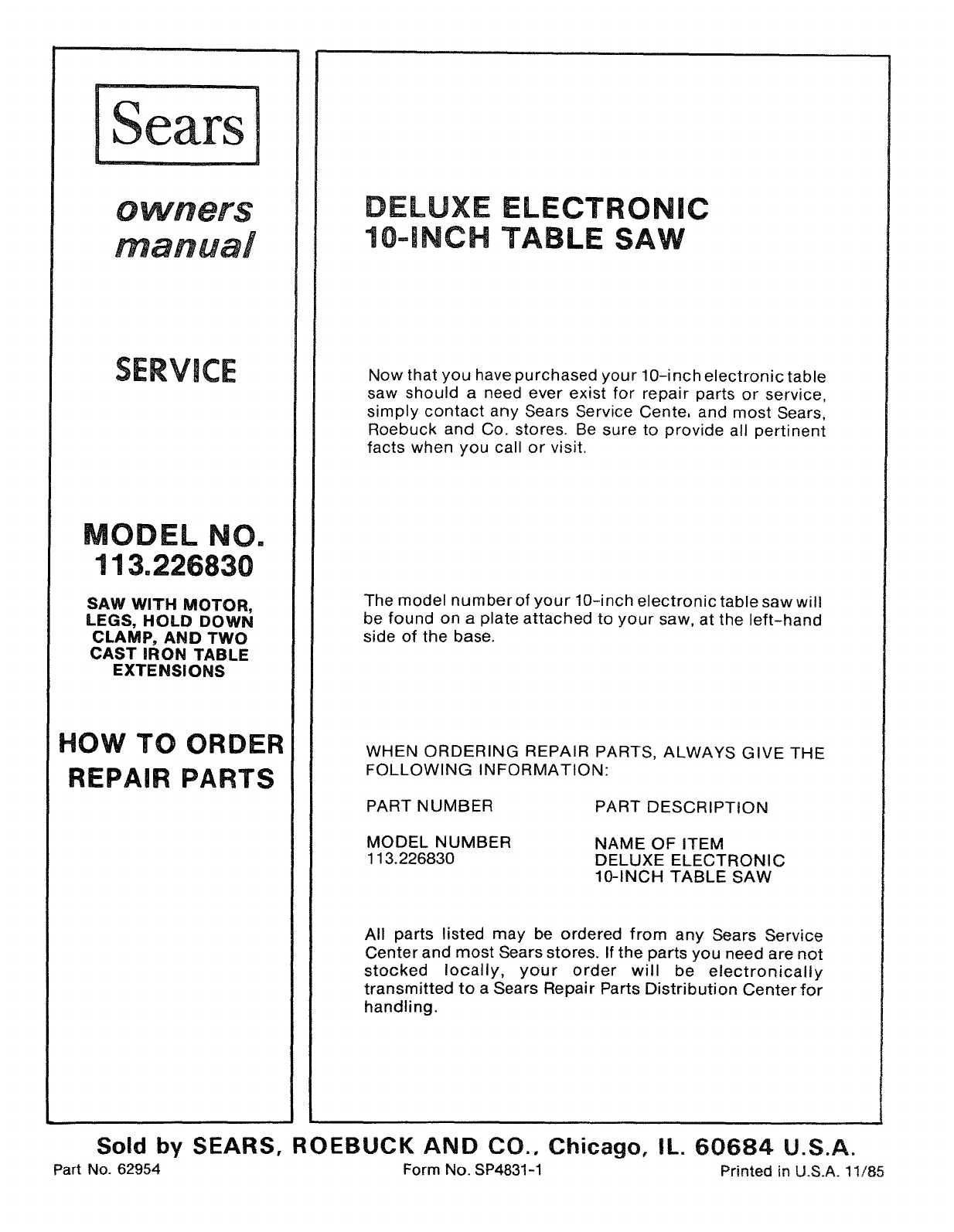

owners

manual

MODEL NO.

113.226830

SAW WITH MOTOR,

LEGS, HOLD DOWN

CLAMP AND TWO

CAST IRON TABLE

EXTENSIONS

Serial

Number

Model and serial

numbers may be found

at the left-hand side

of the base.

You should record both

model and serial number

in a safe place for future

use.

CAUTION:

READ ALL

INSTRUCTIONS

CAREFULLY

_CRflFTSMRN I

mmmmmlm

DELUXE ELECTRONIC

IO-INCH TABLE SA W

,, assembly

•operating

•repair parts

Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.

Part No. 62954 Printed in U,S,A.

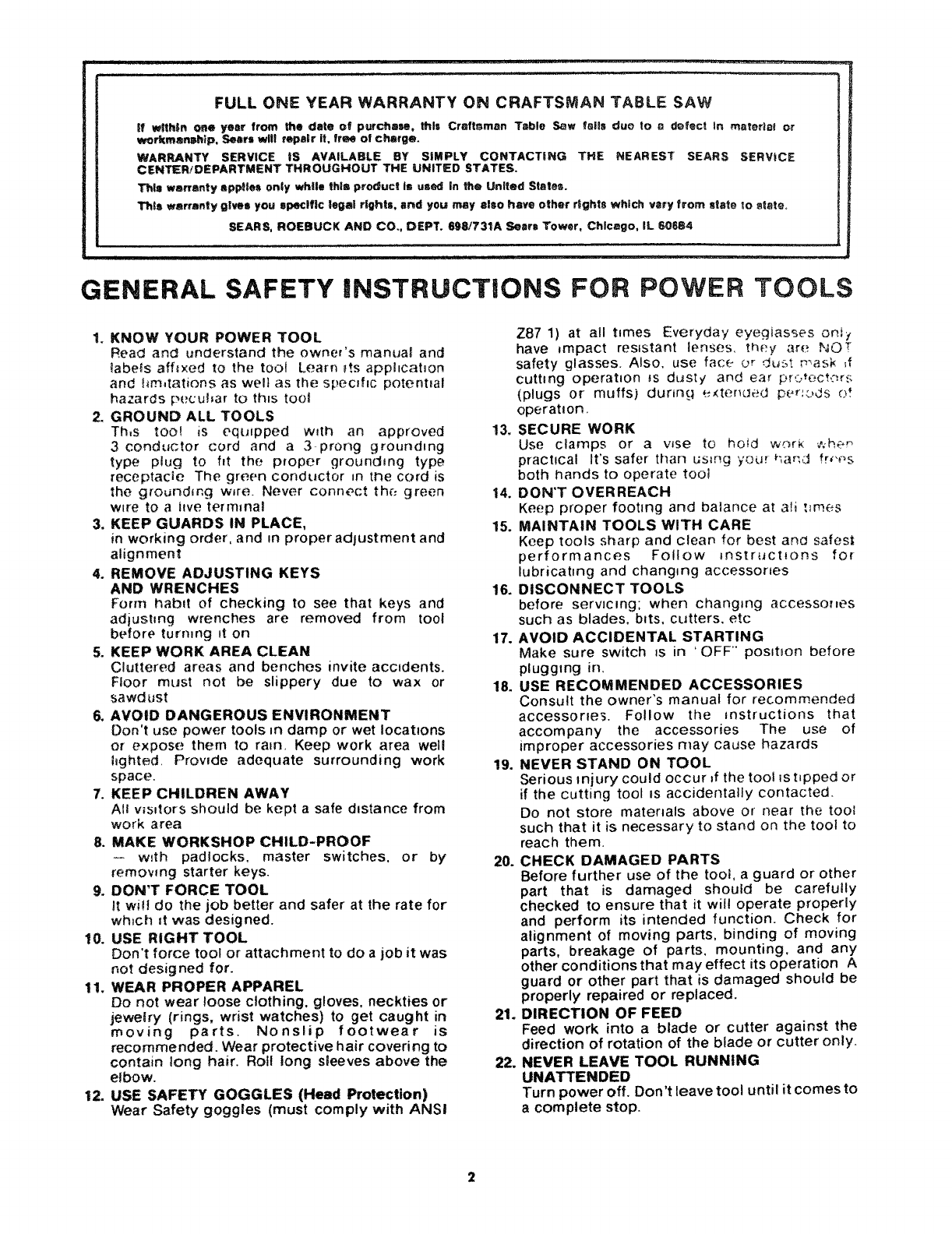

FULL ONE YEAR WARRANTY ON CRAFTSMAN TABLE SAW

|f wlthSn One year from the data ot purchase, thlu Craftt_man Table Saw falls duo to a defect in material or

workmanship, Seers wll! repair It, frwe of charge.

WARRANTY SERVICE iS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SERVICE

CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

Thl_ warranty app_|ea only while this product Is used In the United States.

This warranty gives you specific legal rights, and you may also have other r_ghts which vary from state 1o 81ete_

SEARS, ROEBUCK AND CO., DEPT. 698/731A Sears Tower, Chicago, IL 60684

ir i ,. r

GENERAL SAFETY iNSTRUCTIONS FOR POWER TOOLS

1. KNOW YOUR POWER TOOL

Read and understand the owner's manua_ and

_abe,_s affixed to the tool Learn its apphcation

and bin,rations as well as the specific potenha!

hazards pecuhar to thus toot

2. GROUND ALL TOOLS

Th,s too+ is equipped w_th an approved

3 cond-+ctor cord and a 3-prong grounding

type ph+g to fit the proper grounding type

receptacle The green conductor Jn the cord is

the ground+ng w+re. Never connect the green

wtre to ahve terminal

3, KEEP GUARDS IN PLACE,

in working order, and ,n proper adjustment and

alignment

4. REMOVE ADJUSTING KEYS

AND WRENCHES

Form habit of checking to see that keys and

adjusting wrenches are removed from toot

before turning mton

5. KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents.

Floor must not be slippery due to wax or

sawdust

6, AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet locations

or expose them to ra=n, Keep work area well

hghted_ Prowde adequate surrounding work

space.

7. KEEP CHILDREN AWAY

All wsltors should be kept a safe d_stance from

work area

8. MAKE WORKSHOP CHILD-PROOF

-- w_th padlocks, master switches, or by

removing starter keys.

9. DON'T FORCE TOOL

It wifl do the job better and safer at the rate for

which _t was designed.

10. USE RIGHT TOOL

Don't force tool or attachment to do a job it was

not designed for.

11. WEAR PROPER APPAREL

Do not wear toose clothing, gloves, neckties or

jewetry (rings, wrist watches) to get caught in

moving parts. Nonslip footwear is

recommended. Wear protective hair covering to

contain long hair. Rot! long sleeves above the

elbow.

12. USE SAFETY GOGGLES (Head Protection)

Wear Safety goggles (must comply with ANSi

Z87 1) at all t_mes Everyday eyegiasses oniy

have impact resistant lenses, thf:y are NOT

safety glasses. Also. use face or dust mask ,f

cuthng operahon _s dusty and ear protectors

(plugs or muffs) during e,(tended per:ods .0,_

operation.

13. SECURE WORK

Use clamps or a wse to hold work €.*her_

practical It's safer than using your _an,.t fr_'t,s

both hands to operate tool

14. DON'T OVERREACH

Keep [)roper footing and batance at ali tm_es

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performances Follow _nstruct_ons for

lubricahng and changing accessories

16. DISCONNECT TOOLS

before serwcmg; when changing accessories

such as blades, bits, cutters, etc

17. AVOID ACCIDENTAL STARTING

Make sure switch is in 'OFF" poslhon before

plugging in,

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended

accessories. Follow the instructions that

accompany the accessories The use of

improper accessories may cause hazards

19. NEVER STAND ON TOOL

Serious injury could occur Jf the tool !s tRpped or

if the cutting tool is accidentally contacted.

Do not store materials above or near the tool

such that it is necessary to stand on the tool to

reach them.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other

part that is damaged should be carefully

checked to ensure that it will operate properly

and perform its intended function. Check for

alignment of moving parts, binding of moving

parts, breakage of parts, mounting, and any

other conditions that may effect its operation A

guard or other part that is damaged should be

properly repaired or replaced.

21. DIRECTION OF FEED

Feed work into a blade or cutter against the

direction of rotation of the blade or cutter only.

22. NEVER LEAVE TOOL RUNNING

UNATTENDED

Turn power off. Don't leave tool until it comes to

acomplete stop.

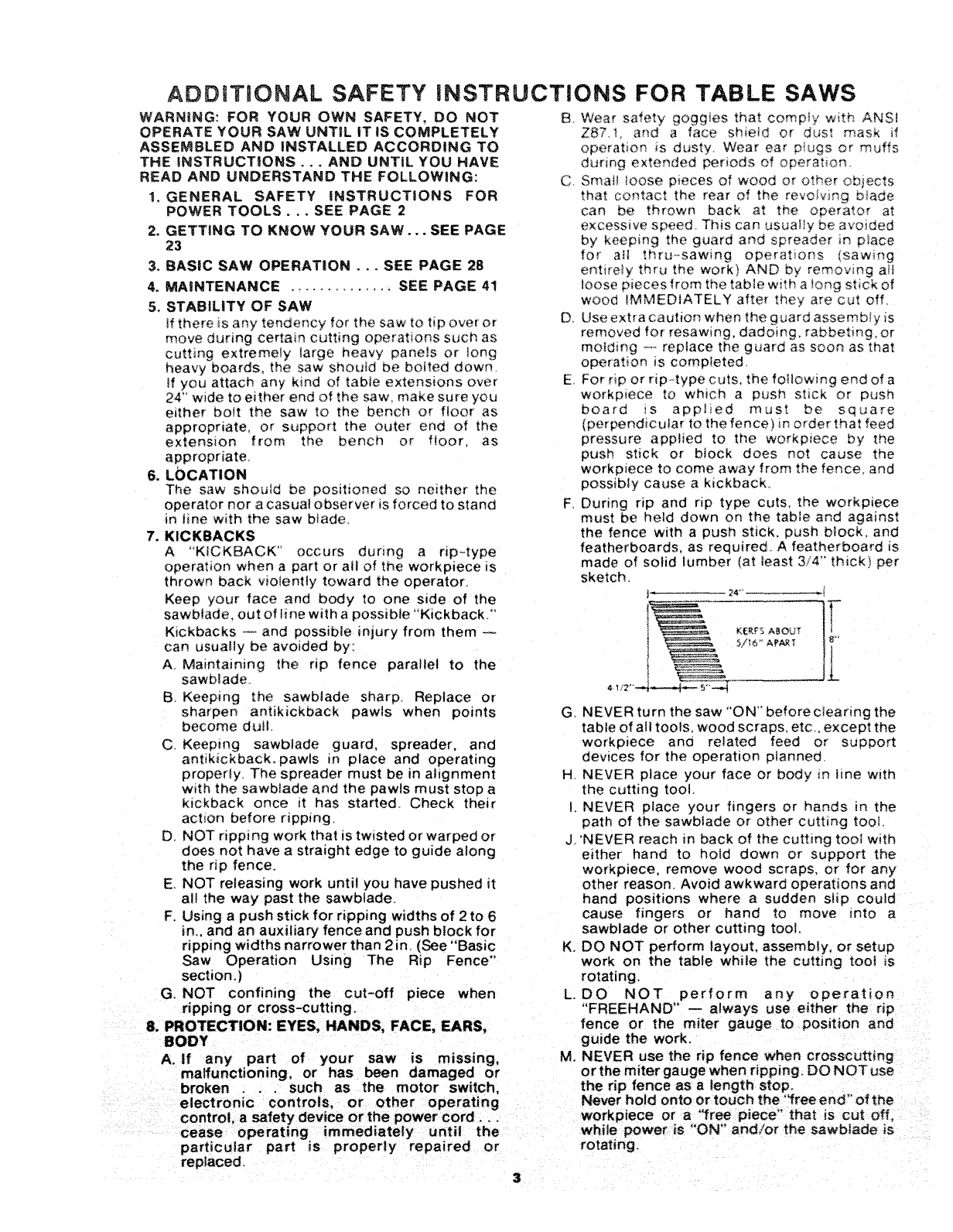

ADDITIONAL SAFETY iNSTRUCTiONS FOR TABLE SAWS

WARNING: FOR YOUR OWN SAFETY, DO NOT

OPERATE YOUR SAW UNTIL IT iS COMPLETELY

ASSEMBLED AND iNSTALLED ACCORDING TO

THE iNSTRUCTiONS... AND UNTIL YOU HAVE

READ AND UNDERSTAND THE FOLLOWING:

1. GENERAL SAFETY iNSTRUCTiONS FOR

POWER TOOLS... SEE PAGE 2

2. GETTING TO KNOW YOUR SAW... SEE PAGE

3. BASIC SAW OPERATION ... SEE PAGE 28

4. MAINTENANCE .............. SEE PAGE 41

5. STABILITY OF SAW

tf there _s any tendency for the saw _o t_p over or

move aunng certain cutting operations SUCh as

cutting extremely large heavy pane_s or tong

heavy boards, the saw shou{d De bolted down

tf you attach any kind of table extensions over

24" wide to either end of the saw make sure you

either bo_t the saw to the bench or floor as

appropriate, or suppor! the outer end of the

extension from the Denon or floor as

a ppropnate°

6. LOCATION

The saw should be positioned so neither the

operator nor a casual observer is forced to stand

m line with the saw bJade

7. KICKBACKS

A "KICKBACK' occurs during a rip-type

operation when a part or all of the workpiece is

thrown back v_olentty toward the operator,

Keep your face and body to one side of the

sawblade, out of ti ne with a possible "Ktckback °"

Kickbacks --- and possible injury from them --

can usually be avoided by;

A. Mmntaming the np fence parallel to the

sawblade,

B Keeping the sawbJade sharp, Replace or

sharpen antikickback pawls when points

become duH

C Keeping sawblade guard, spreader, and

antik_ckbackopawls in place and operating

properJy The spreader must be in alignment

w_th the sawblade and the pawls must stop a

kickback once ft has started Check their

action before r_pp_ng

D, NOT ripping work that is twisted or warped or

does not have a strmght edge to guide along

the rip fence,

E NOT releasing work until you have pushed it

al! the way past the sawblade

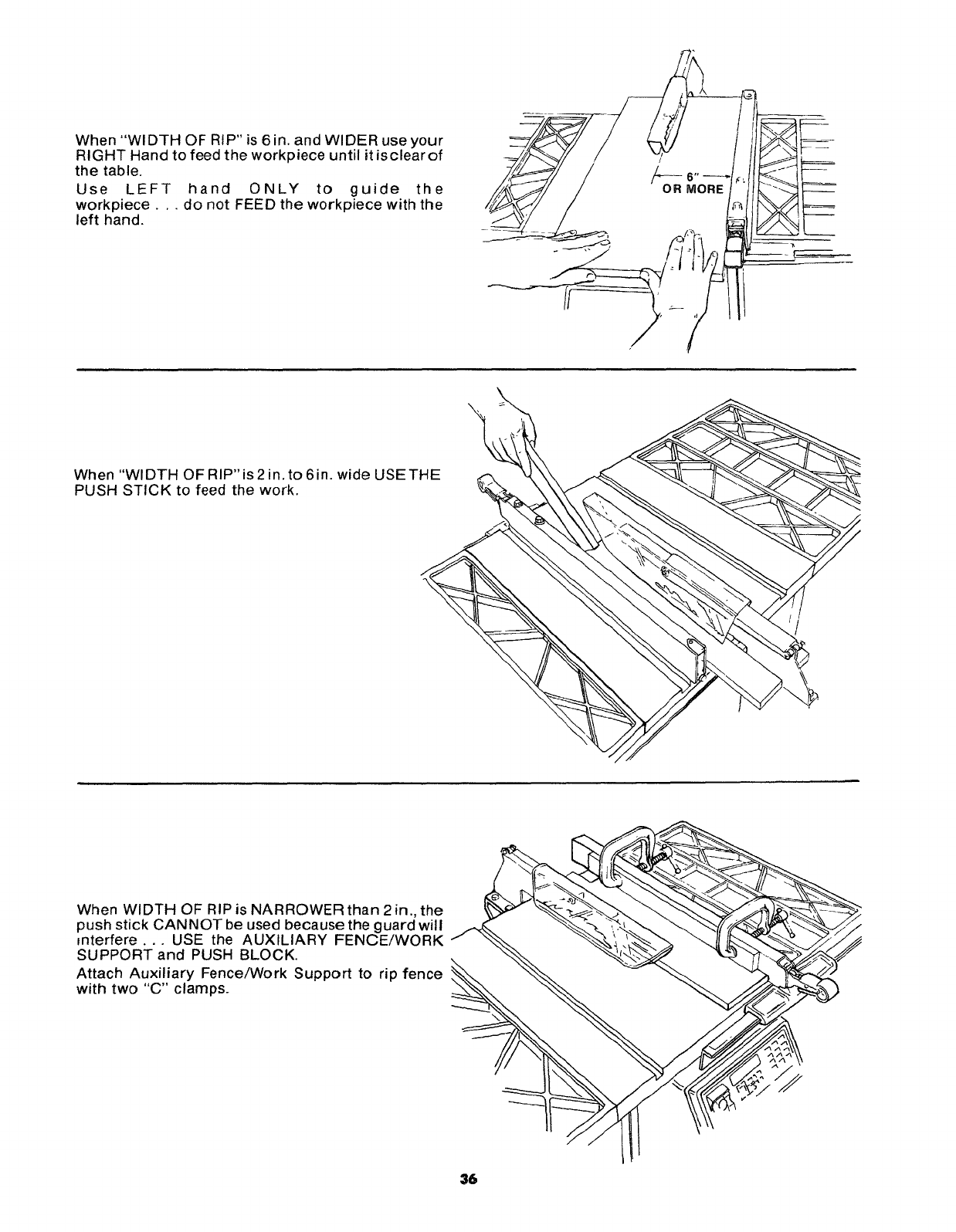

F, Using a push stick for ripping widths of 2 to 6

in., and an auxiliary fence and push block for

ripping widths narrower than 2 in, (See "Basic

Saw Operatton Using The Rip Fence"

section. )

G NOT confining the cut-off piece when

ripping or cross-cutting.

8. PROTECTION: EYES, HANDS, FACE, EARS,

BODY

A. if any part of your saw is missing,

malfunctioning, or has been damaged or

broken =..such as the motor switch,

electronic controls, or other operating

particular part is properly repaired or

replaced, 3

B Wear safety goggtes that comp}y with ANSI

Z87,1, and a face shietd or dust mask if

operation is dusty, Wear ear p{ugs or muffs

during extended periods of operatior__

C, Small _oose pieces of wood or other objects

that contact the rear of the revolving biade

can be thrown back at the operator at

excessive s_)eed This can usually oe avoided

by keeping the guard and spreader m D_ace

for aH tnru_',sawmg operabons _sawing

ent_re_y thru the work) AND oy remowng ali

1oose p_eces from the tab!e w_th aiong stick of

wood _MMEDtATELY after they are cu_ off

D, Use extra caution when the guard assembw _s

removed for resawmg, dadoing, rabbeting, or

molding -----replace the guard as soon as that

operation is completed

E For r_p or rip-type cuts. the following end of a

workp_ece to which a push st_ck or push

board _s applied must be square

(perpendicular to the fence } in order that feed

pressure applied to the workp_ece by the

push shck or block does not cause the

workp_ece to come away from the fence and

possibly cause a kickback.

F During np and rip type cuts. the workpiece

must be held down on the table and against

the fence with a push stick, push block, and

featherboards as required Afeatherboard is

made of solid lumber (at teast 3/4"" thick) per

sketch,

-24"",

_/_6' APART

G NEVER turn the saw "ON" beforecieanng the

table of all tools= wood scraps_ etc.. except the

workpiece and related feed or support

devices for the operation 131anned

H NEVER place your face or body _n line with

the cutting tool.

I. NEVER place your fingers or hands in the

Path of the sawblade or other cutting tooI

J'NEVER reach in back of the cutting tool with

either hand to hold down or support the

workpiece, remove wood scraps, or for any

other reason. Avoid awkward operations and

hand positions where a sudden slip could

cause fingers or hand to move into a

sawblade or other cutting tool,

K, DO NOT perform layout, assembly, or setup

WOrk on the table while the cutting tool _s

rotating.

L, DO NOT perform any operation

"FREEHAND" -- always use e_ther the rip

fence or the miter gauge to position and

guide the work.

M. NEVER use the rip fence when crosscutting

orthe miter gauge when ripping. DO NOT use

the rip fence as a length stop.

Never hold onto or touch the "free end" of the

workpiece or a "free piece" that is cut off.

while power is "ON" and/or the sawb|ade _s

rotating.

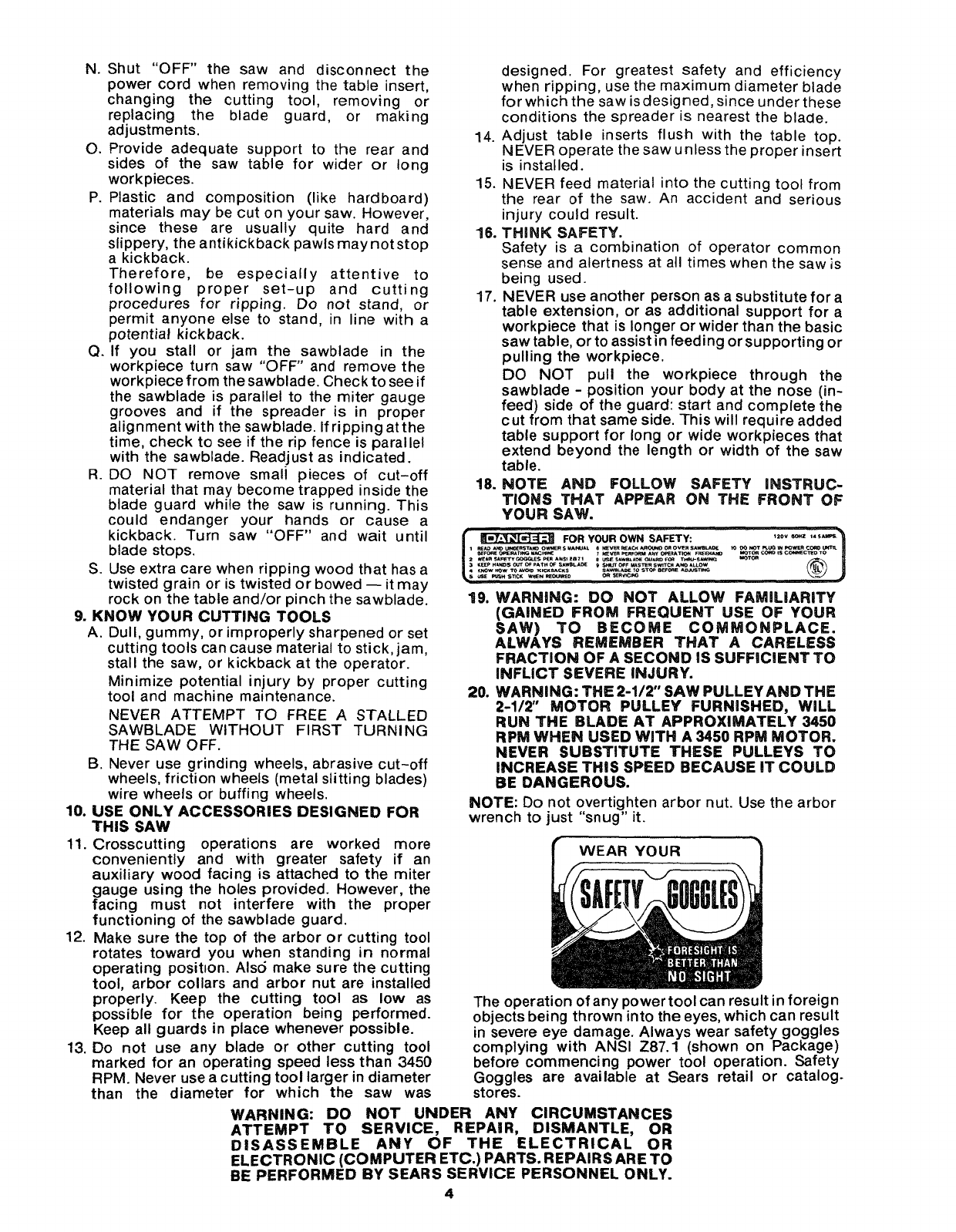

N. Shut "OFF" the saw and disconnect the

power cord when removing the table insert,

changing the cutting tool, removing or

replacing the blade guard, or making

adjustments.

O. Provide adequate support to the rear and

sides of the saw table for wider or long

workpieces.

P. Plastic and composition (like hardboard)

materials may be cut on your saw. However,

since these are usually quite hard and

slippery, the antikickback pawls may not stop

a kickback.

Therefore, be especially attentive to

following proper set-up and cutting

procedures for ripping. Do not stand, or

permit anyone else to stand, in line with a

potential kickback.

Q. If you stall or jam the sawblade in the

workpiece turn saw "OFF" and remove the

workpiece from the sawblade. Check to see if

the sawblade is parallel to the miter gauge

grooves and if the spreader is in proper

alignment with the sawblade, if ripping at the

time, check to see if the rip fence is parallel

with the sawblade. Readjust as indicated.

R. DO NOT remove small pieces of cut-off

material that may become trapped inside the

blade guard while the saw is running. This

could endanger your hands or cause a

kickback. Turn saw "OFF" and wait until

blade stops.

S. Use extra care when ripping wood that has a

twisted grain or is twisted or bowed -- it may

rock on the table and/or pinch the sawblade.

9. KNOW YOUR CUTTING TOOLS

A. Dull, gummy, or improperly sharpened or set

cutting tools can cause material to stick, jam,

stall the saw, or kickback at the operator.

Minimize potential injury by proper cutting

tool and machine maintenance.

NEVER ATTEMPT TO FREE A STALLED

SAWBLADE WITHOUT FIRST TURNING

THE SAW OFF.

B. Never use grinding wheels, abrasive cut-off

wheels, friction wheels (metal slitting blades)

wire wheels or buffing wheels.

10. USE ONLY ACCESSORIES DESIGNED FOR

THIS SAW

11. Crosscutting operations are worked more

conveniently and with greater safety if an

auxiliary wood facing is attached to the miter

gauge using the holes provided. However, the

facing must not interfere with the proper

functioning of the sawblade guard.

12. Make sure the top of the arbor or cutting tool

rotates toward you when standing in normal

operating position. Also make sure the cutting

tool, arbor collars and arbor nut are installed

properly. Keep the cutting tool as low as

possible for the operation being performed.

Keep all guards in place whenever possible.

13. Do not use any blade or other cutting tool

marked for an operating speed less than 3450

RPM. Never use a cutting tool larger in diameter

than the diameter for which the saw was

designed. For greatest safety and efficiency

when ripping, use the maximum diameter blade

for which the saw is designed, since under these

conditions the spreader is nearest the blade.

14. Adjust table inserts flush with the table top.

NEVER operate the saw unless the proper insert

is installed.

15. NEVER feed material into the cutting tool from

the rear of the saw. An accident and serious

injury could result.

16. THINK SAFETY.

Safety is a combination of operator common

sense and alertness at all times when the saw is

being used.

17. NEVER use another person as a substitute for a

table extension, or as additional support for a

workpiece that is longer or wider than the basic

saw table, or to assist in feeding or supporting or

pulling the workpiece.

DO NOT pull the workpiece through the

sawblade -position your body at the nose (in-

feed) side of the guard: start and complete the

cut from that same side. This will require added

table support for long or wide workpieces that

extend beyond the length or width of the saw

table.

18. NOTE AND FOLLOW SAFETY INSTRUC-

TIONS THAT APPEAR ON THE FRONT OF

YOUR SAW.

liB'_ FOR YOUR OWN SAFETY: ,=ov 6o.z ,.5,,_= /

1 AS_.OA_U_ST*.mOVe_RSUANU*k e_V_R_*CK_RO_,_O_OV_RSXWaL^_ IOOO.OT_UO_POWEACOnOU_,-_._ /

_FC_E O_EAA_ UAC_ , _WR _ORM A_VO_RATI_ _ez4_ UOTORCOWO,Sco_a_c_o TO

z W_*RSA_'_VC.OC._ES_,ANSI_a71 e U_ES=We_*_QU*RO_Oe Tr_-S*_K; UOTOn

K_OW"OWTO *VO_ KrC_aAe_S SAW=-ABEToSTOPeErO_ _JUSTI_G

USE _M STICK W_N .EcxJ._o o_ ss_v_

19. WARNING: DO NOT ALLOW FAMILIARITY

(GAINED FROM FREQUENT USE OF YOUR

SAW) TO BECOME COMMONPLACE.

ALWAYS REMEMBER THAT A CARELESS

FRACTION OF A SECOND IS SUFFICIENT TO

INFLICT SEVERE INJURY.

20. WARNING: THE 2-1/2" SAW PULLEYAND THE

2-1/2" MOTOR PULLEY FURNISHED, WILL

RUN THE BLADE AT APPROXIMATELY 3450

RPM WHEN USED WITH A 3450 RPM MOTOR.

NEVER SUBSTITUTE THESE PULLEYS TO

INCREASE THIS SPEED BECAUSE IT COULD

BE DANGEROUS.

NOTE: Do not overtighten arbor nut. Use the arbor

wrench to just "snug" it.

WEAR YOUR

The operation of any power tool can result in foreign

objects being thrown into the eyes, which can result

in severe eye damage. Always wear safety goggles

complying with ANSI Z87.1 (shown on Package)

before commencing power tool operation. Safety

Goggles are available at Sears retail or catalog.

stores.

WARNING: DO NOT UNDER ANY CIRCUMSTANCES

ATTEMPT TO SERVICE, REPAIR, DISMANTLE, OR

DISASSEMBLE ANY OF THE ELECTRICAL OR

ELECTRONIC (COMPUTER ETC.) PARTS. REPAIRS ARE TO

BE PERFORMED BY SEARS SERVICE PERSONNEL ONLY.

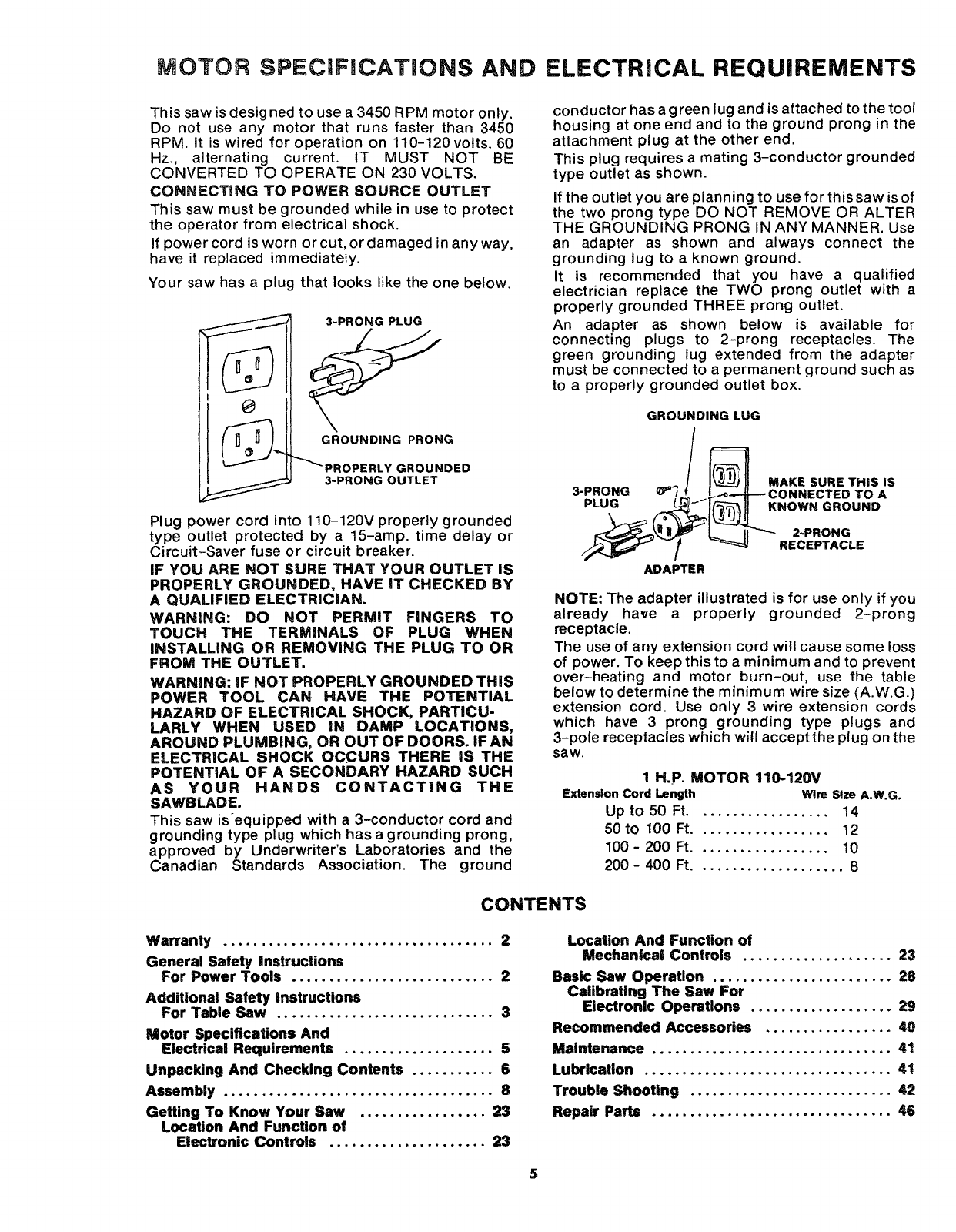

MOTOR SPECiFICATiONS AND ELECTRICAL REQUIREMENTS

This saw is designed to use a 3450 RPM motor only.

Do not use any motor that runs faster than 3450

RPM. It is wired for operation on 110-120 volts, 60

Hz., alternating current. IT MUST NOT BE

CONVERTED TO OPERATE ON 230 VOLTS.

CONNECTING TO POWER SOURCE OUTLET

This saw must be grounded while in use to protect

the operator from electrical shock.

If power cord is worn or cut, or damaged in any way,

have it replaced immediately.

Your saw has a plug that looks like the one below.

3-PRONG PLUG

GROUNDING PRONG

GROUNDED

3-PRONG OUTLET

Plug power cord into 110-120V properly grounded

type outlet protected by a 15-amp. time delay or

Circuit-Saver fuse or circuit breaker.

IF YOU ARE NOT SURE THAT YOUR OUTLET IS

PROPERLY GROUNDED, HAVE IT CHECKED BY

A QUALiFiED ELECTRICIAN.

WARNING: DO NOT PERMIT FINGERS TO

TOUCH THE TERMINALS OF PLUG WHEN

INSTALLING OR REMOVING THE PLUG TO OR

FROM THE OUTLET.

WARNING: IF NOT PROPERLY GROUNDED THIS

POWER TOOL CAN HAVE THE POTENTIAL

HAZARD OF ELECTRICAL SHOCK, PARTICU-

LARLY WHEN USED IN DAMP LOCATIONS,

AROUND PLUMBING, OR OUT OF DOORS. IFAN

ELECTRICAL SHOCK OCCURS THERE IS THE

POTENTIAL OF A SECONDARY HAZARD SUCH

AS YOUR HANDS CONTACTING THE

SAWBLADE.

This saw isequipped with a 3-conductor cord and

grounding type plug which has a grounding prong,

approved by Underwriter's Laboratories and the

Canadian Standards Association. The ground

conductor has a green lug and is attached to the tool

housing at one end and to the ground prong in the

attachment plug at the other end.

This plug requires a mating 3-conductor grounded

type outlet as shown.

If the outlet you are planning to use for this saw is of

the two prong type DO NOT REMOVE OR ALTER

THE GROUNDING PRONG IN ANY MANNER. Use

an adapter as shown and always connect the

grounding lug to a known ground.

It is recommended that you have a qualified

electrician replace the TWO prong outlet with a

properly grounded THREE prong outlet.

An adapter as shown below is available for

connecting plugs to 2-prong receptacles. The

green grounding lug extended from the adapter

must be connected to a permanent ground such as

to a properly grounded outlet box.

GROUNDING LUG

MAKE SURE THIS IS

3-PRONG CONNECTED TO A

PLUG KNOWN GROUND

2-PRONG

RECEPTACLE

ADAPTER

NOTE: The adapter illustrated is for use only if you

already have a properly grounded 2-prong

receptacle.

The use of any extension cord will cause some loss

of power. To keep this to a minimum and to prevent

over-heating and motor burn-out, use the table

below to determine the minimum wire size (A.W.G.)

extension cord. Use only 3 wire extension cords

which have 3 prong grounding type plugs and

3-pole receptacles which will accept the plug on the

saw.

1 H.P. MOTOR 110-120V

Extension Cord Length Wire Size A.W.G,

Up to 50 Ft.................. 14

50 to 100 Ft.................. 12

100 - 200 Ft.................. 10

200 - 400 Ft.................... 8

CONTENTS

Warranty .................................... 2

General Safety instructions

For Power Tools ........................... 2

Additional Safety Instructions

For Table Saw ............................. 3

Motor Specifications And

Electrical Requirements .................... 5

Unpacking And Checking Contents ........... 6

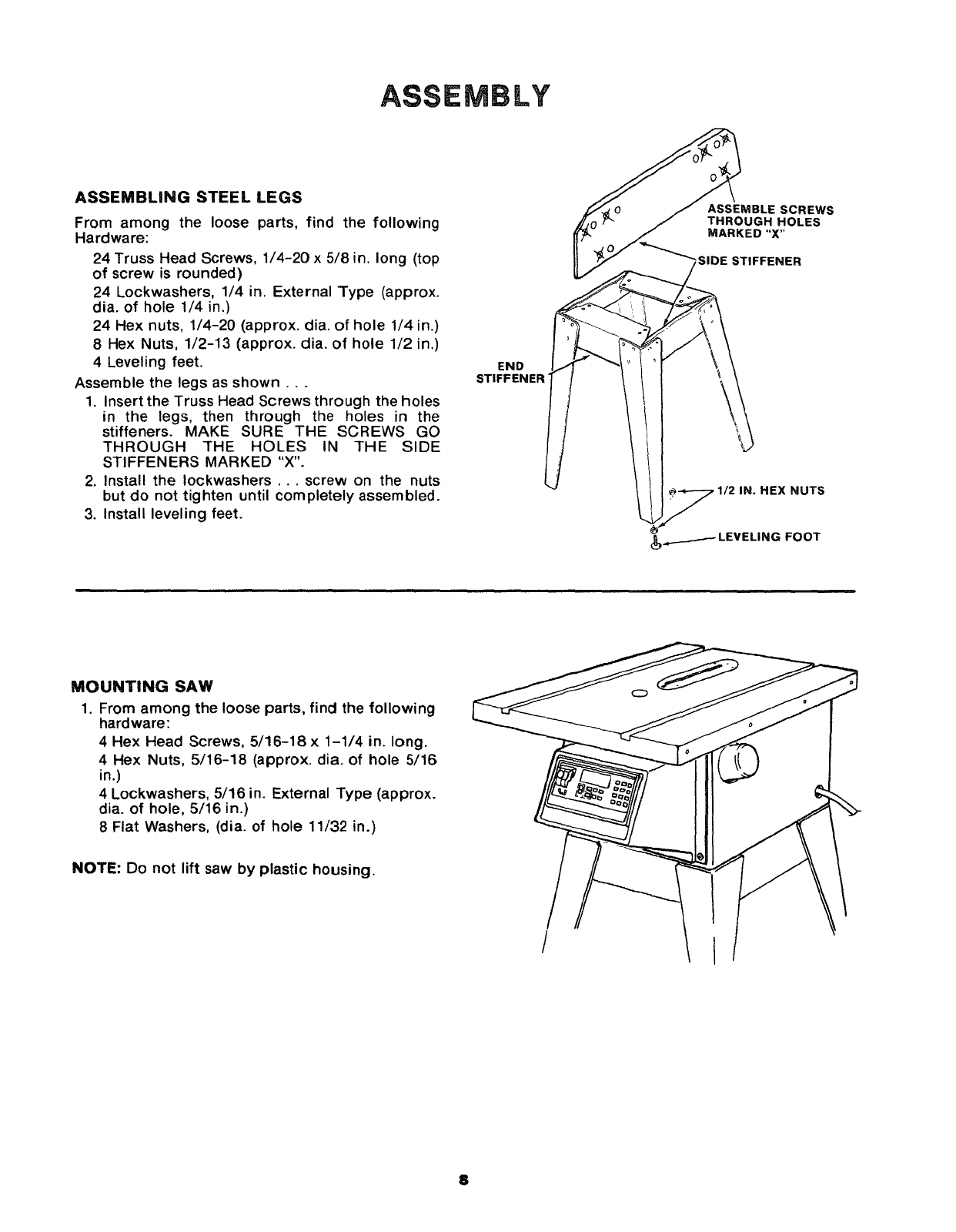

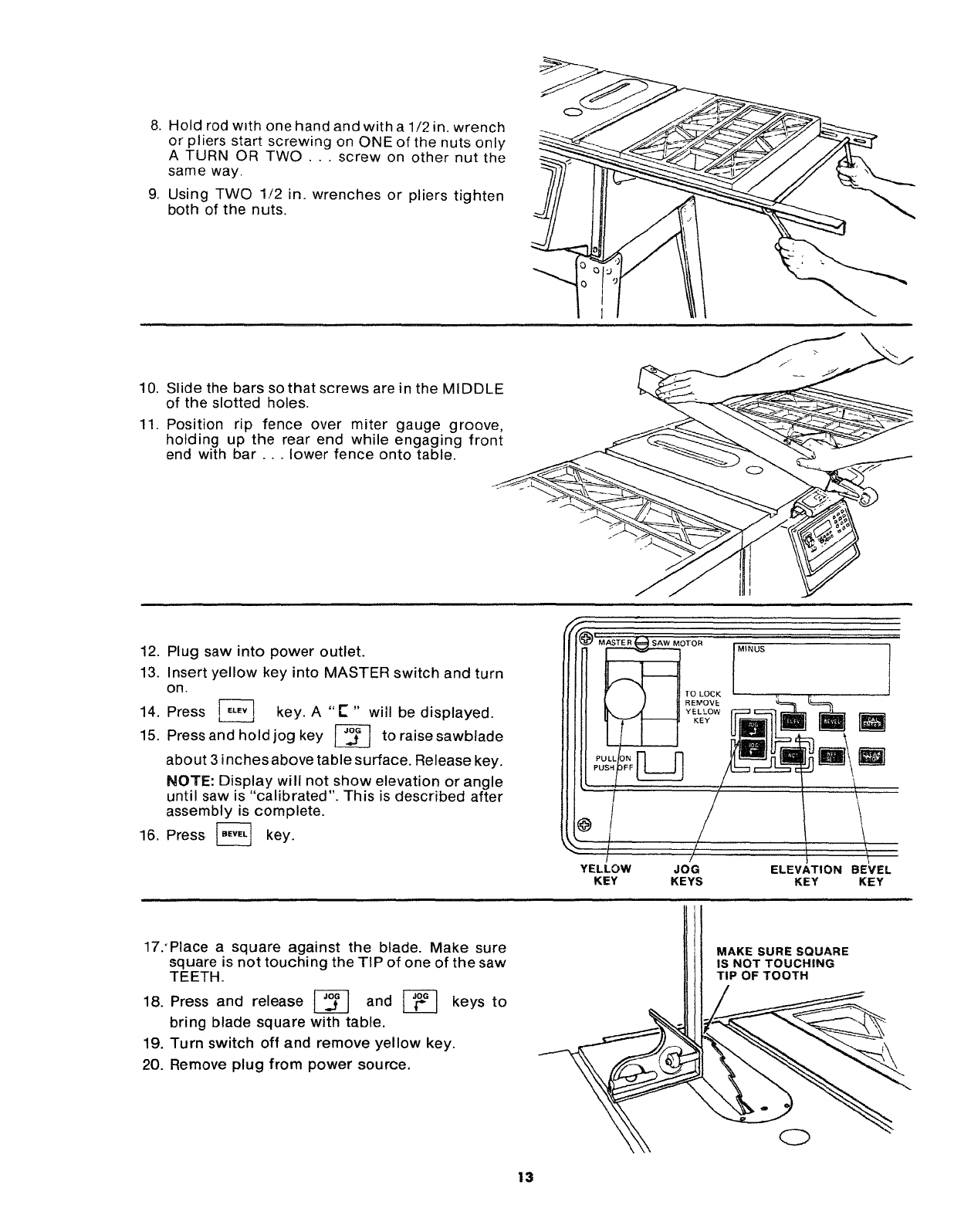

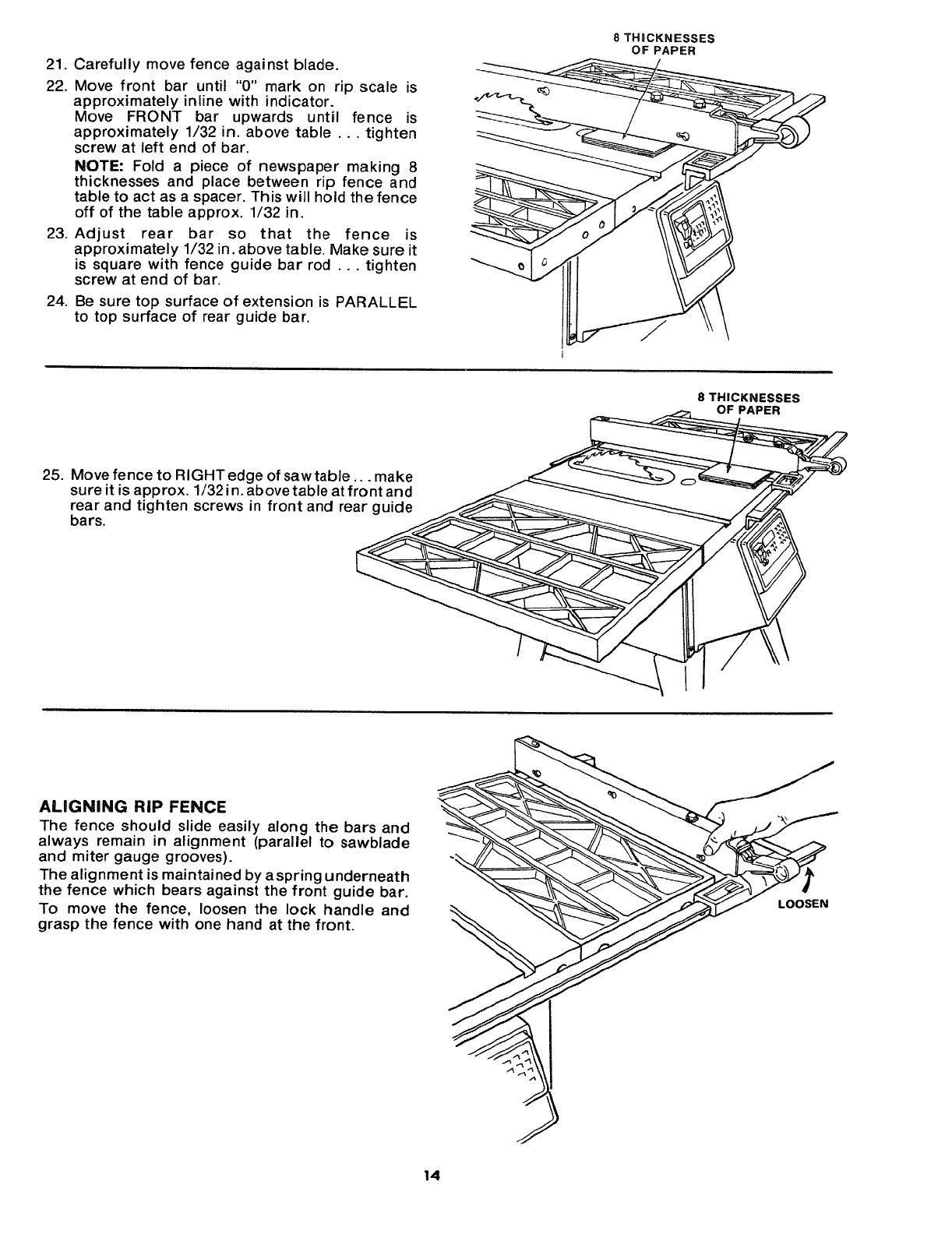

Assembly .................................... 8

Getting To Know Your Saw ................. 23

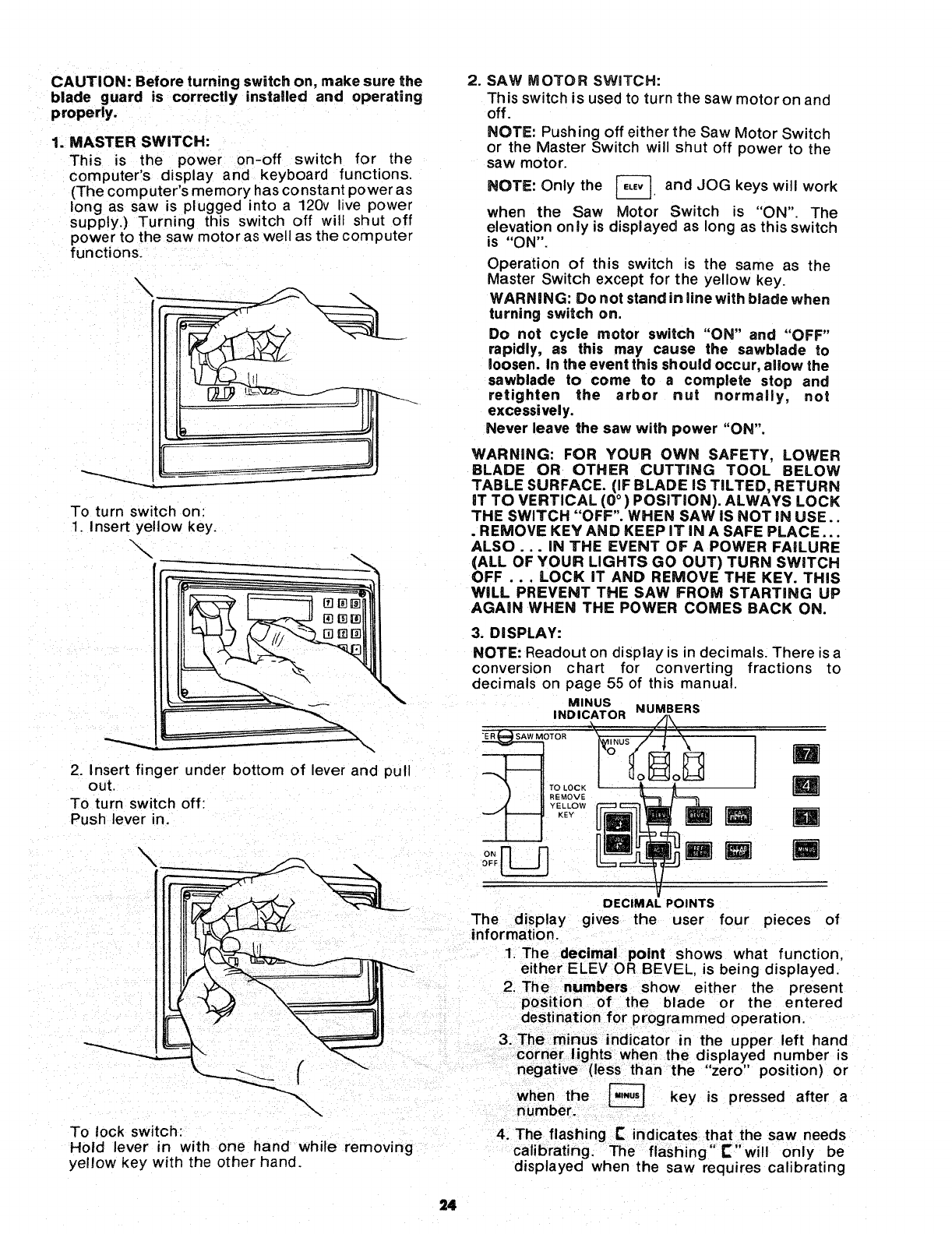

Location And Function of

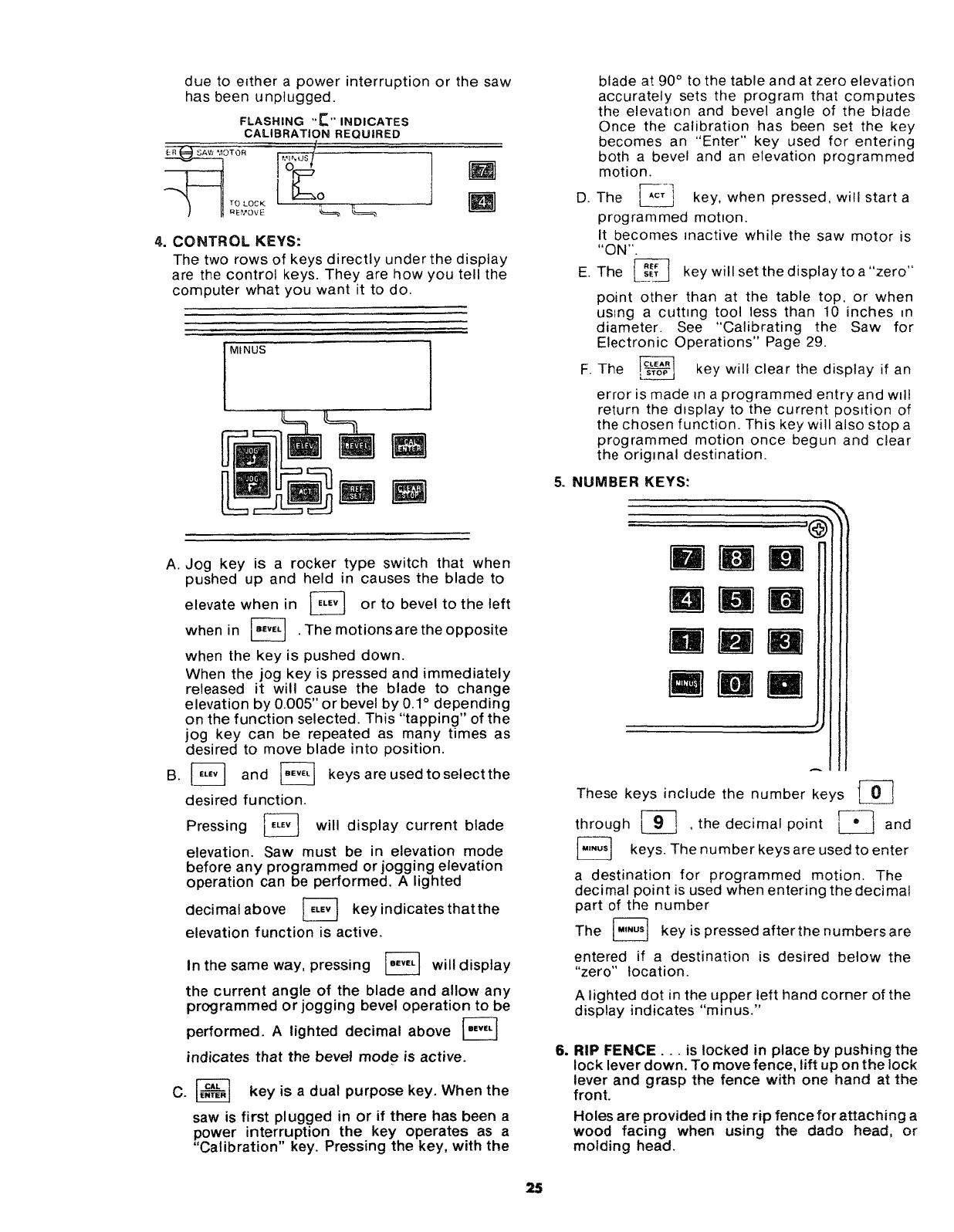

Electronic Controls ..................... 23

Location And Function of

Mechanical Controls .................... 23

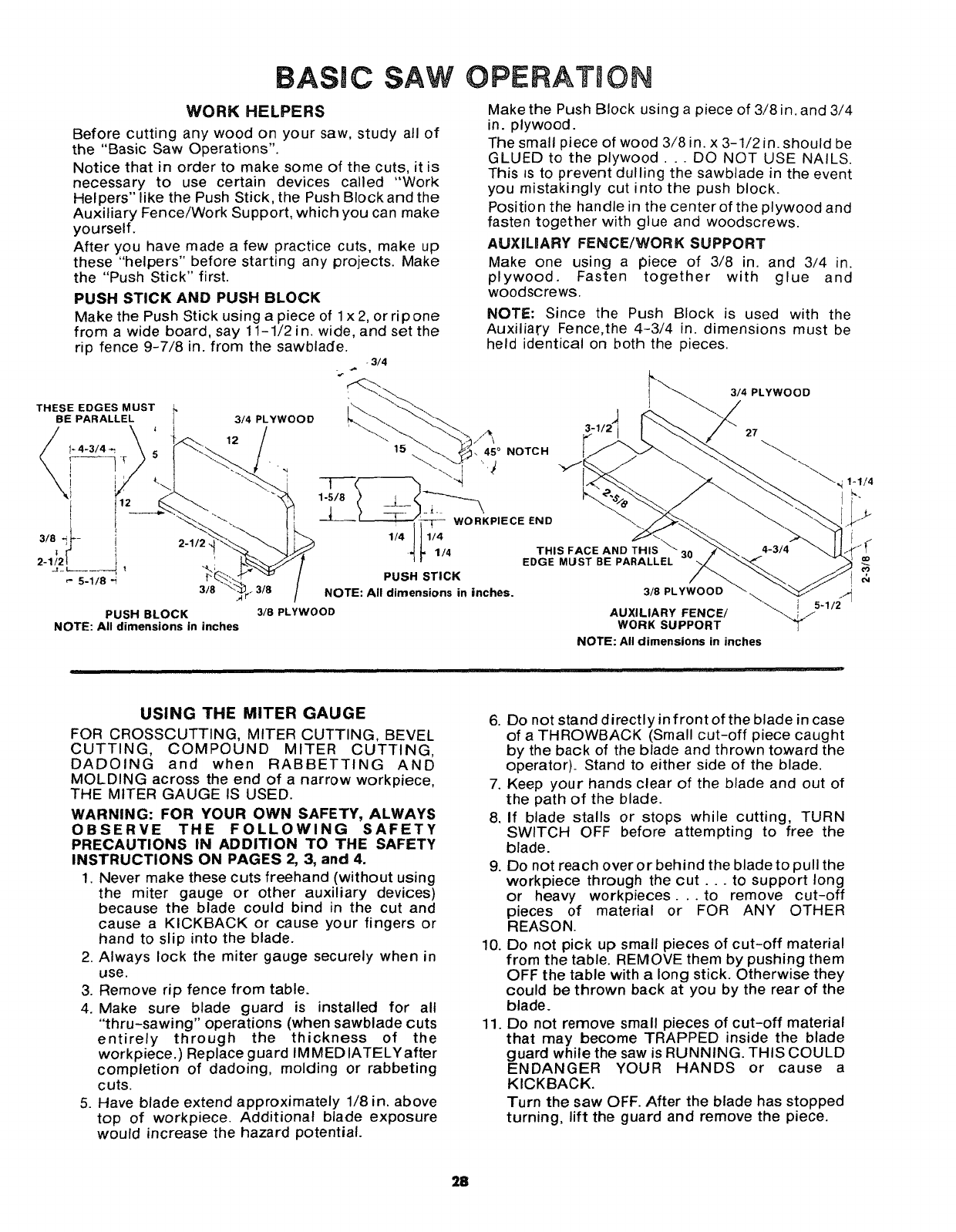

Basic Saw Operation ........................ 28

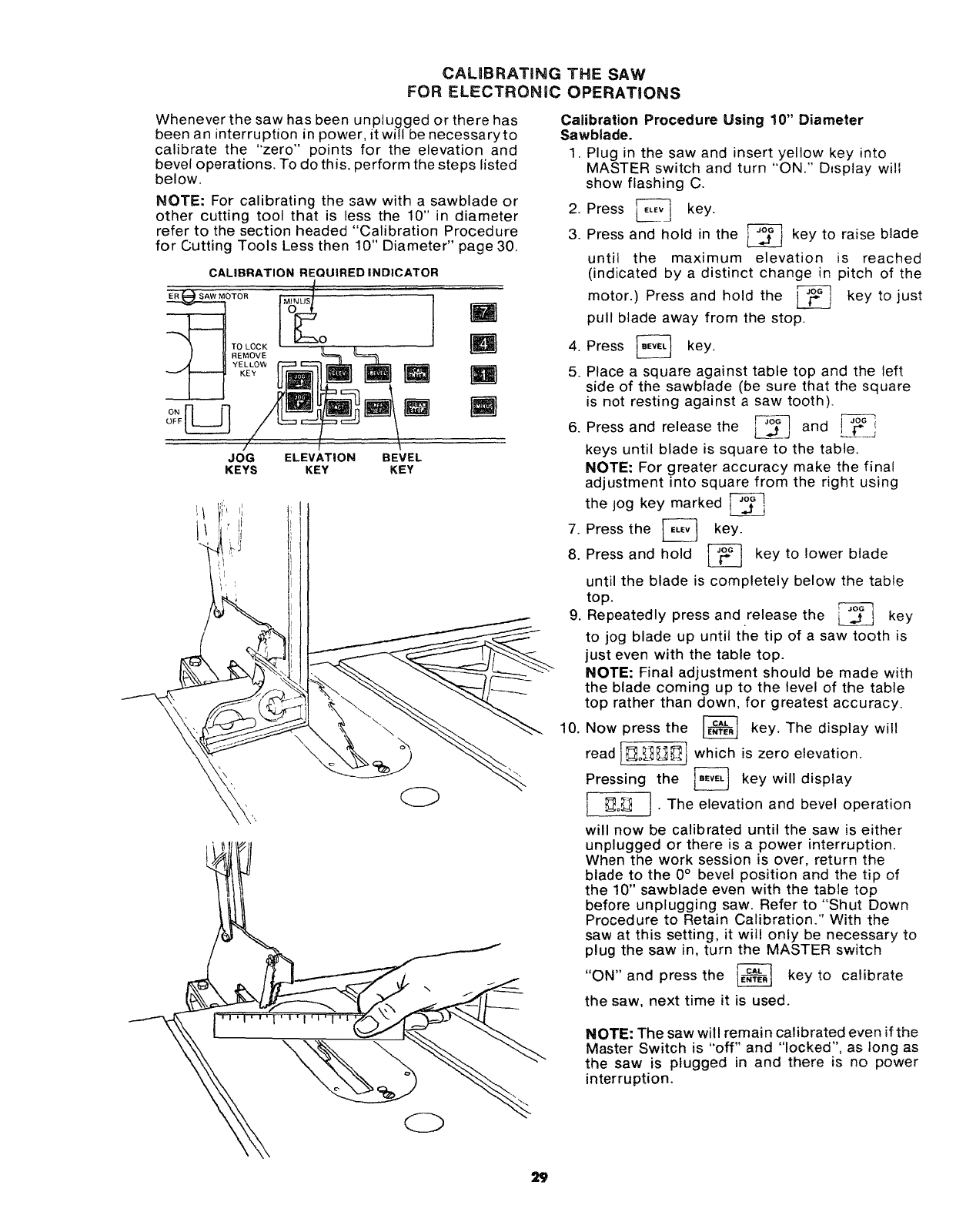

Calibrating The Saw For

Electronic Operations ................... 29

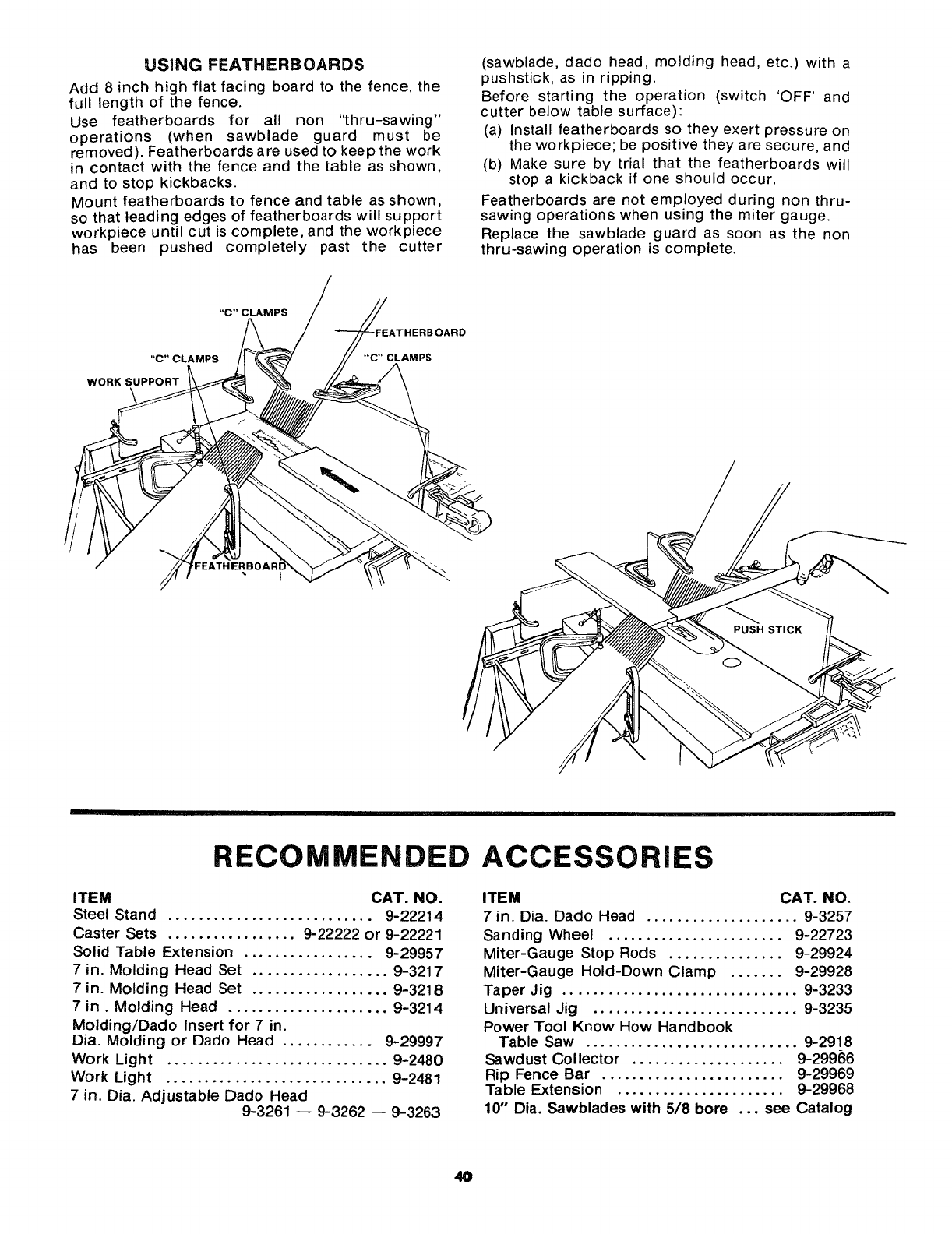

Recommended Accessories ................. 40

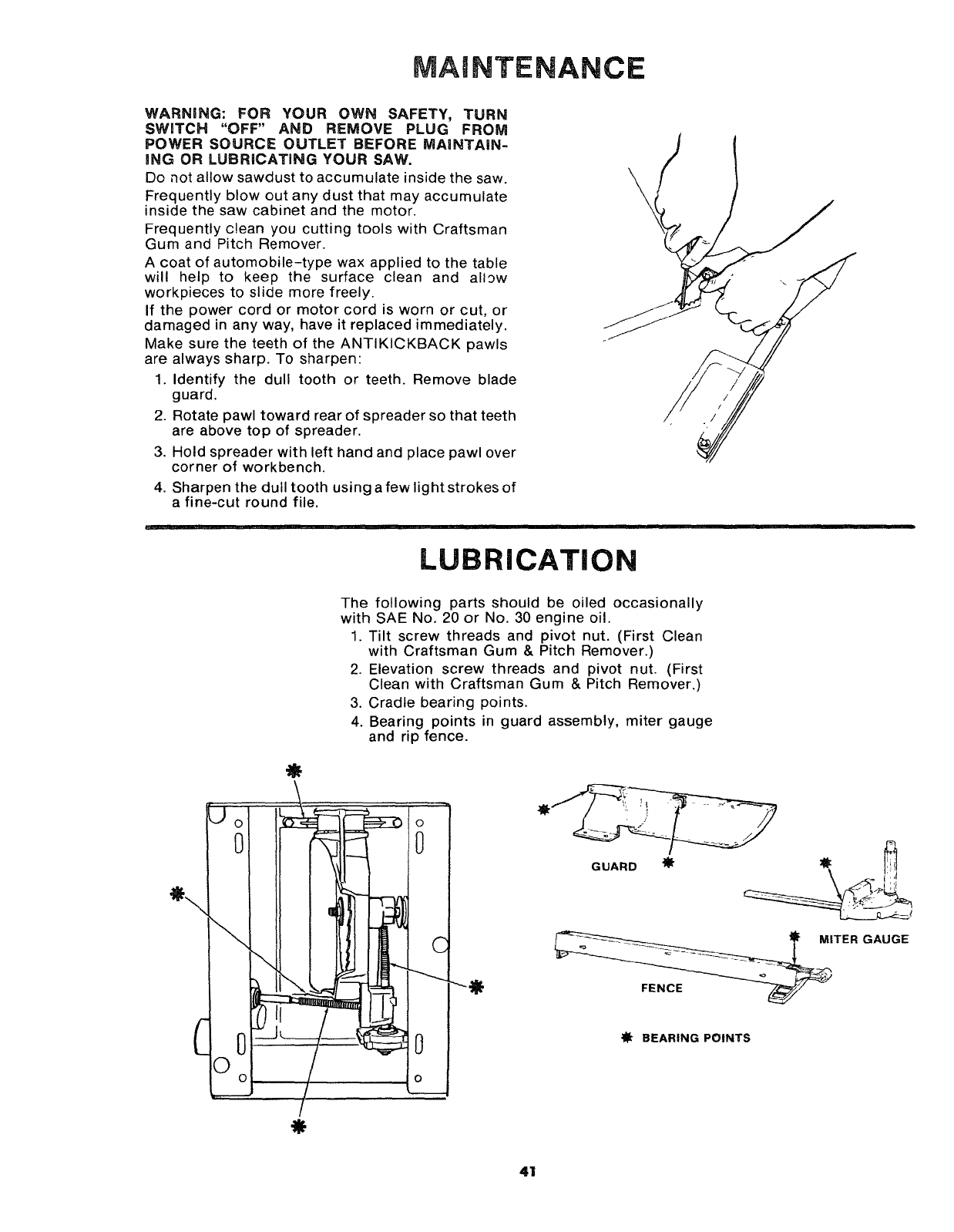

Maintenance ................................ 41

Lubrication ................................. 41

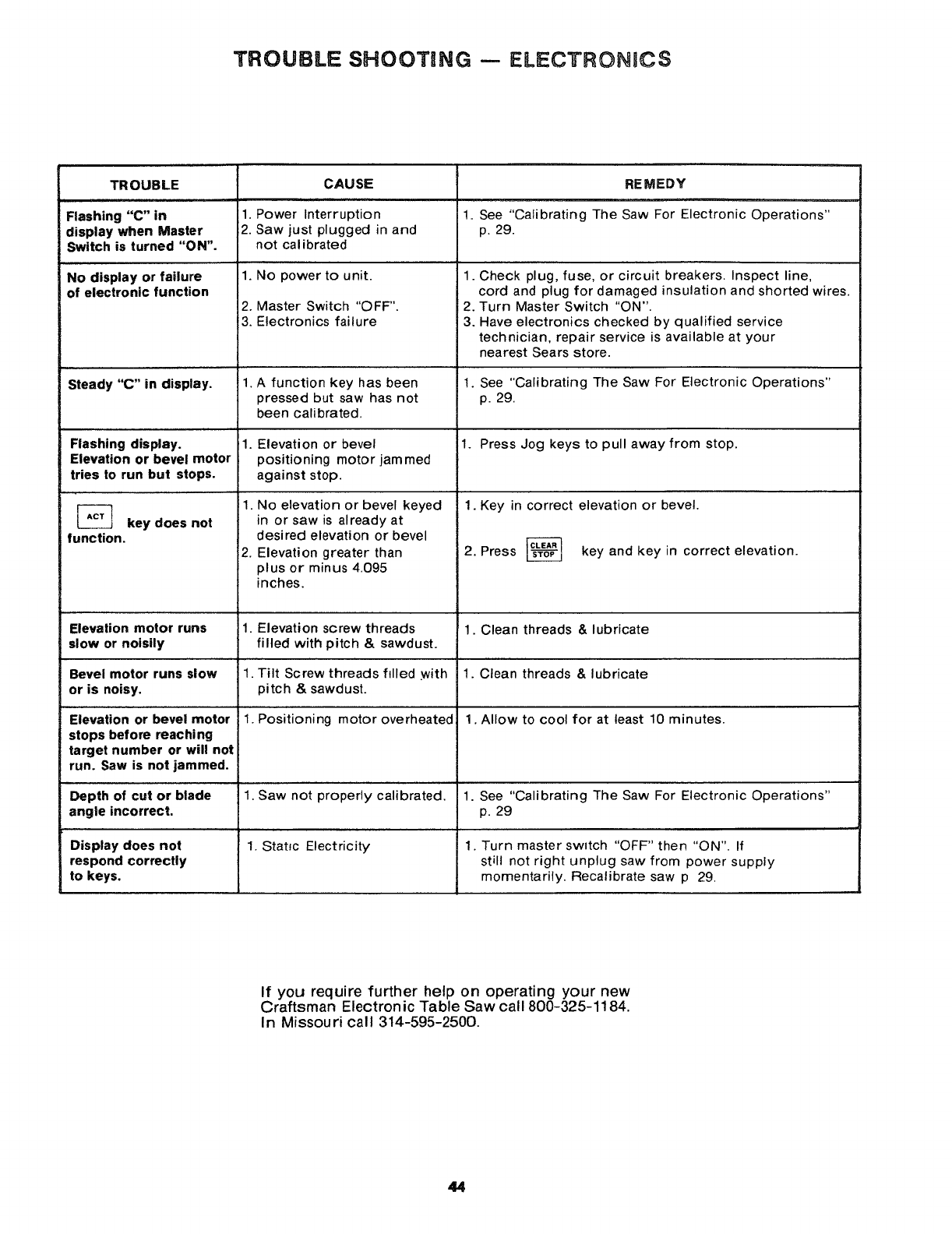

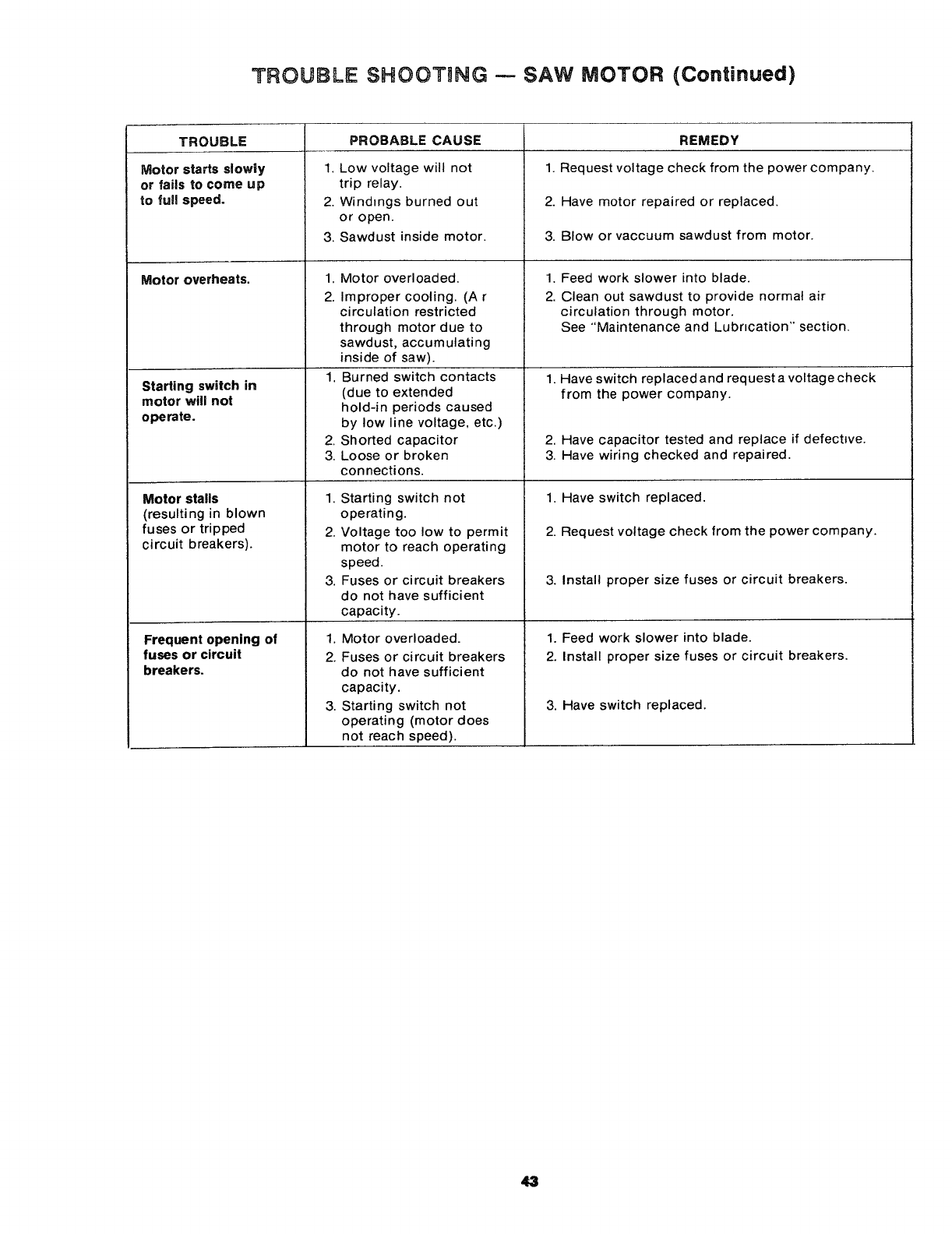

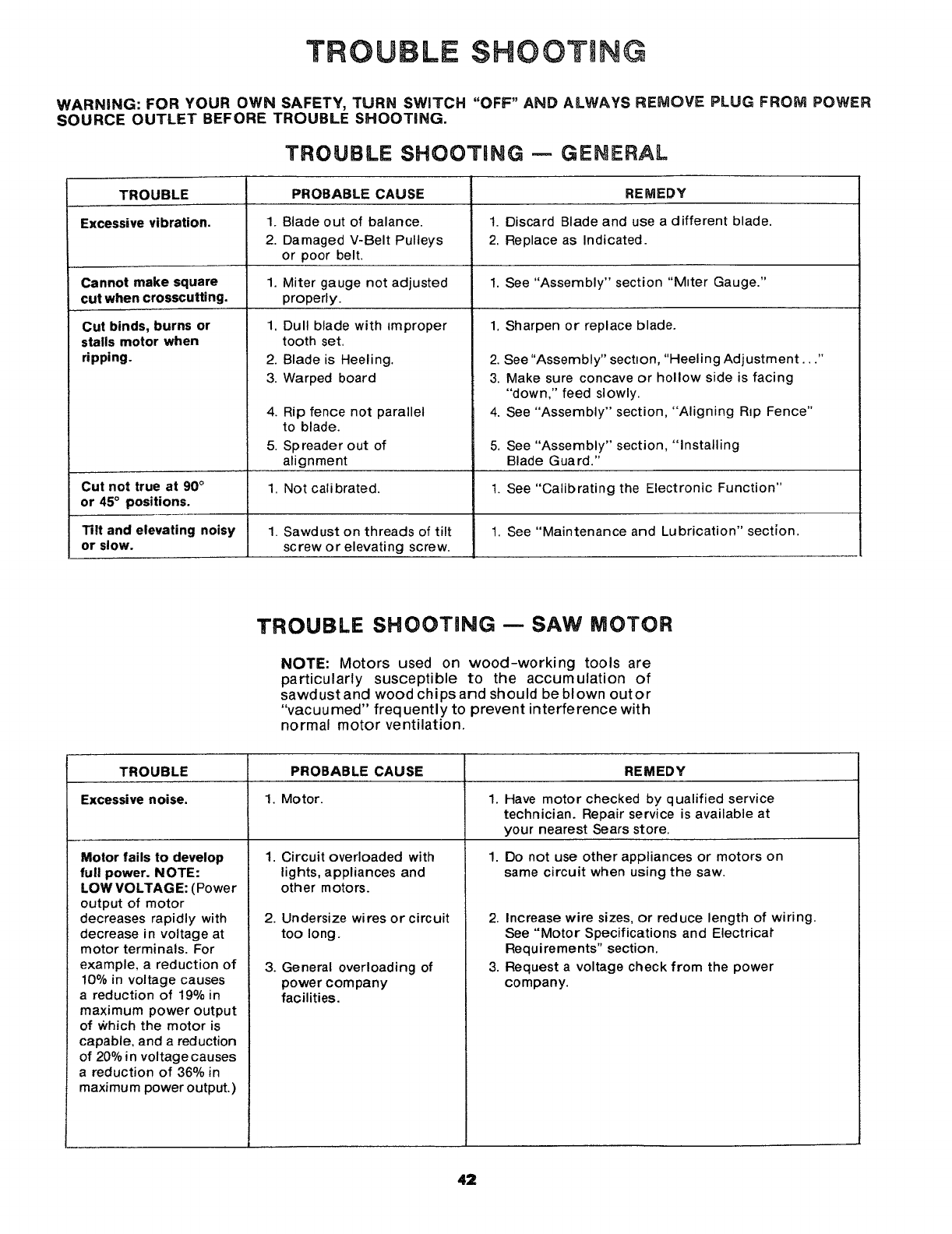

Trouble Shooting ........................... 42

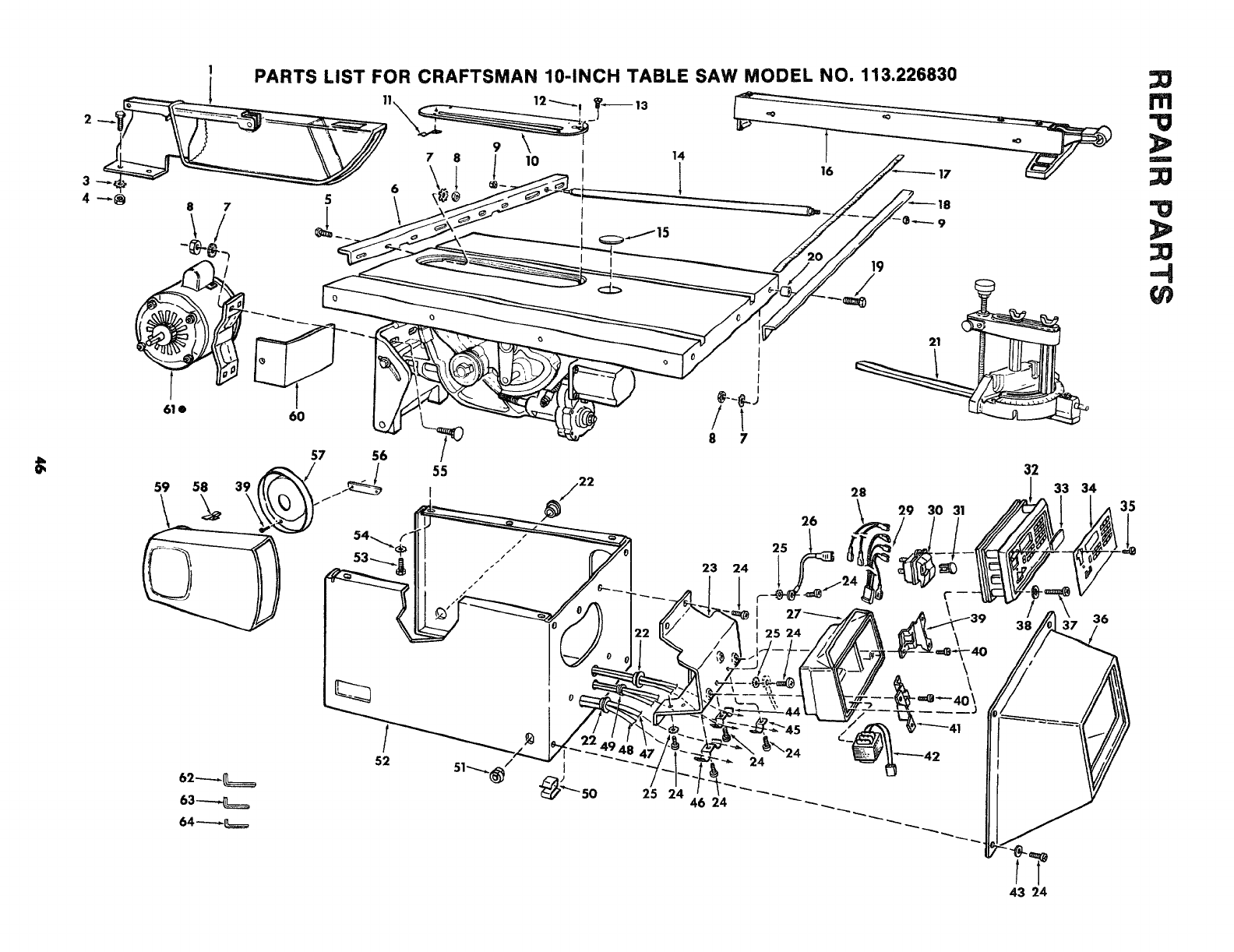

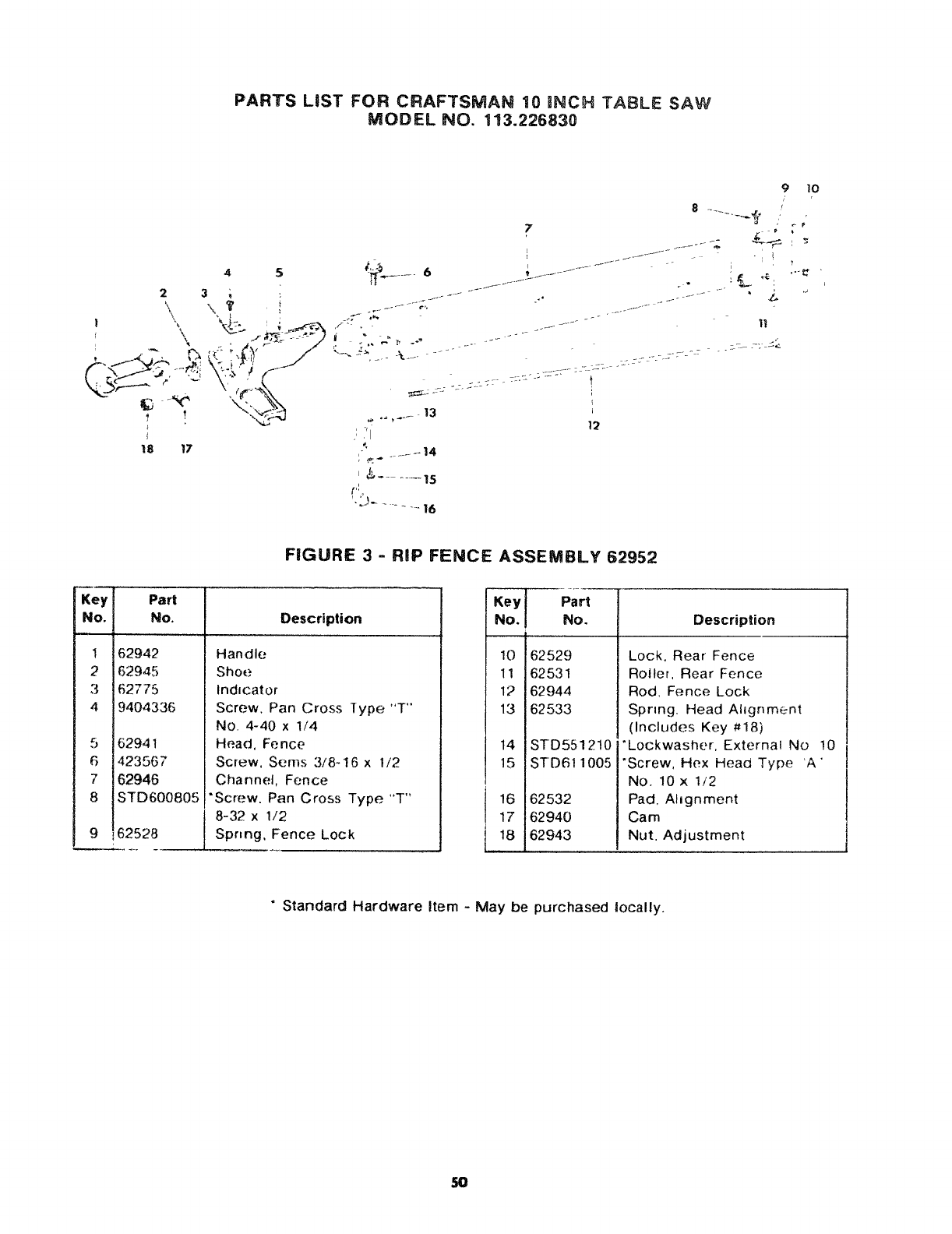

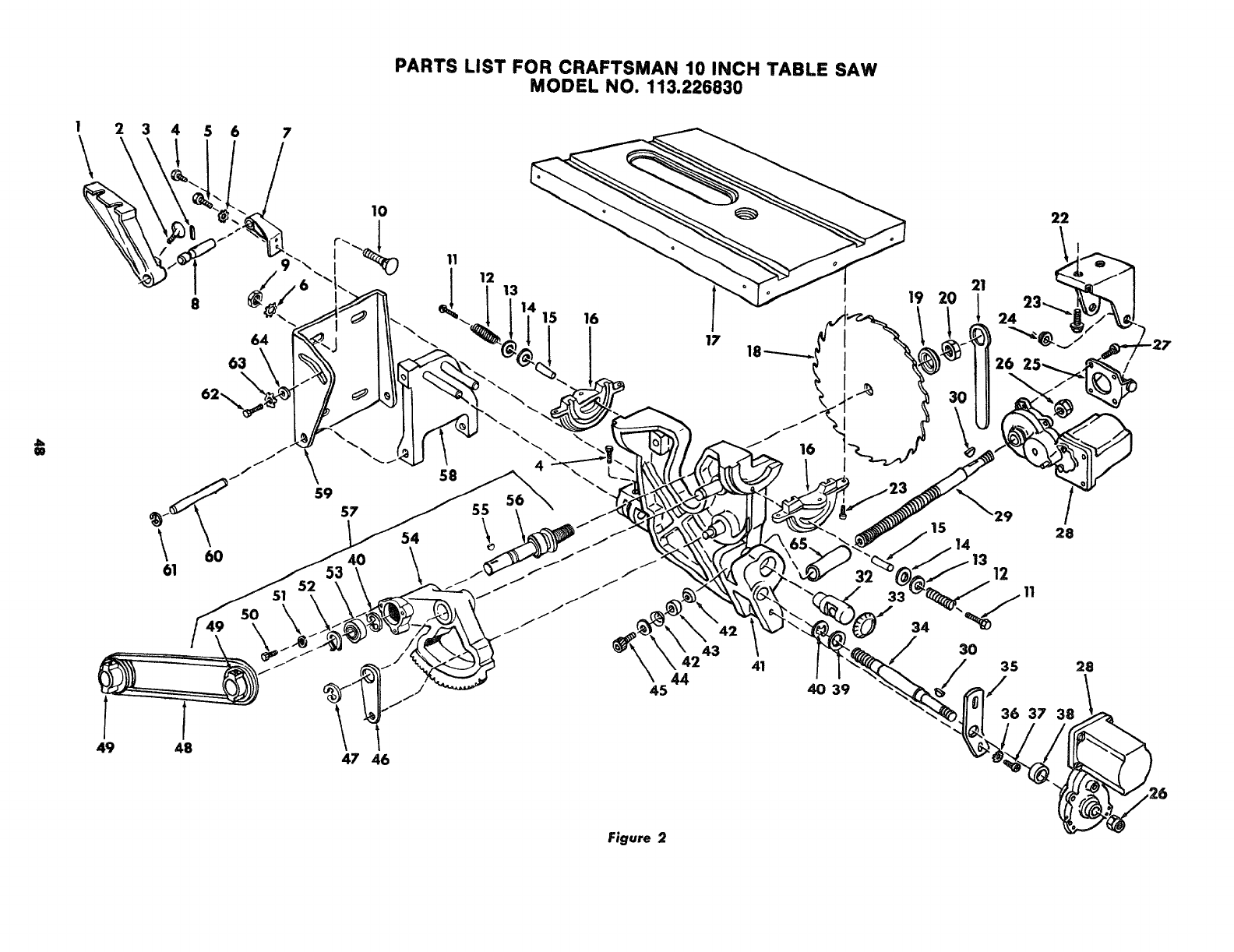

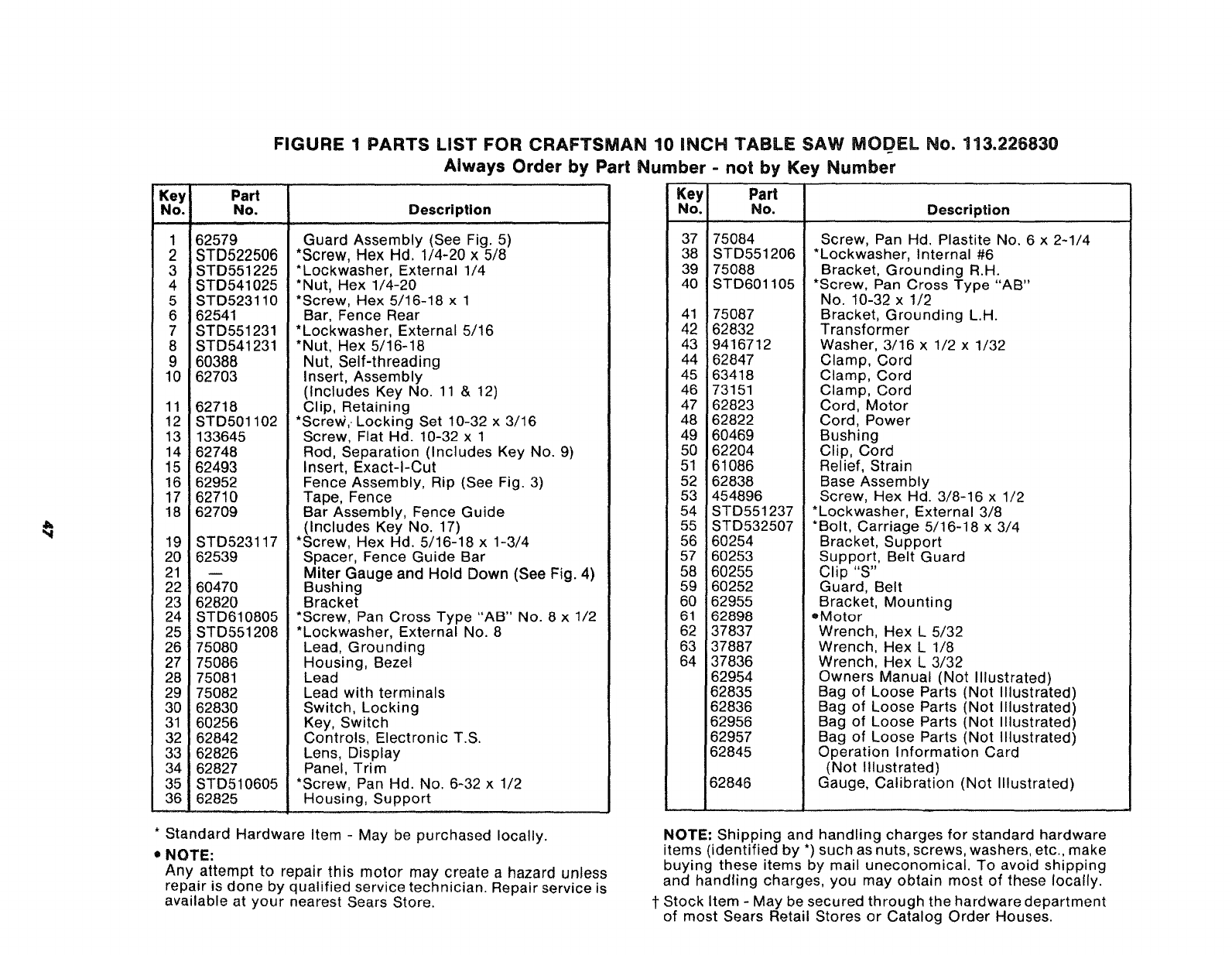

Repair Parts ................................ 46

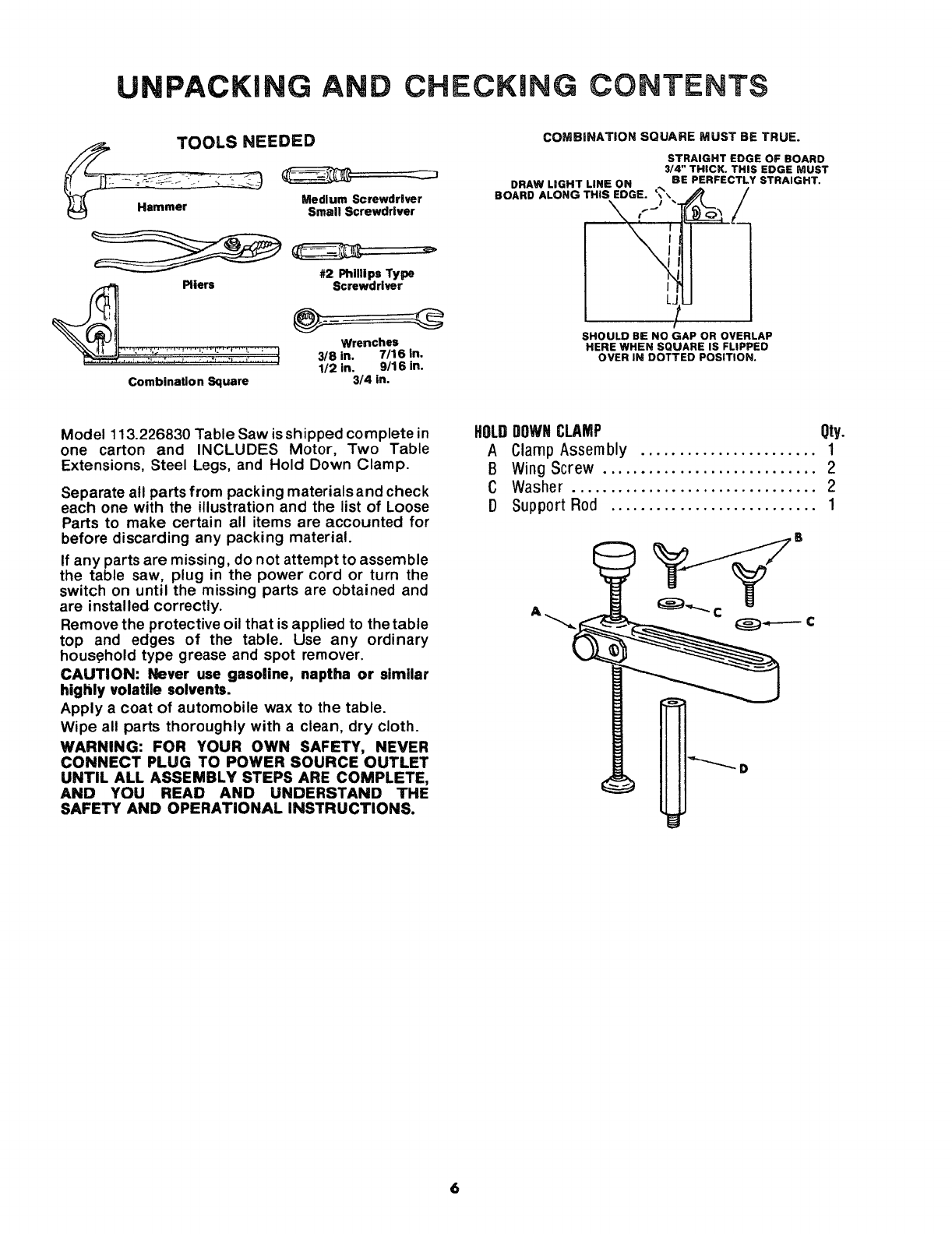

UNPACKING AND CHECKmNG CONTENTS

TOOLS NEEDED

#2 Phillips Type

Pliers _'- Screwdriver

Wrenches

....i./.. ......... ,,...,., ........ I 3/8 in. 7/16 in.

• 1/2 in. 9/16 in.

Combination Square 3/4 in,

COMBINATION SQUARE MUST BE TRUE.

STRAIGHT EDGE OF BOARD

3/4" THICK. THIS EDGE MUST

DRAW LIGHT LINE ON BE PERFECTLY STRAIGHT.

BOARD ALONG THIS EDGE. sT\

SHOULD BE NO GAP OR OVERLAP

HERE WHEN SQUARE IS FLIPPED

OVER IN DOTTED POSITION.

Model 113.226830 Table Saw is shipped complete in

one carton and INCLUDES Motor, Two Table

Extensions, Steel Legs, and Hold Down Clamp.

Separate all parts from packing materials and check

each one with the illustration and the list of Loose

Parts to make certain all items are accounted for

before discarding any packing material.

If any parts are missing, do not attempt to assemble

the table saw, plug in the power cord or turn the

switch on until the missing parts are obtained and

are installed correctly.

Remove the protective oil that is applied to the table

top and edges of the table. Use any ordinary

household type grease and spot remover.

CAUTION: Never use gasoline, naptha or similar

highly volatile solvents.

Apply a coat of automobile wax to the table.

Wipe all parts thoroughly with a clean, dry cloth.

WARNING: FOR YOUR OWN SAFETY, NEVER

CONNECT PLUG TO POWER SOURCE OUTLET

UNTIL ALL ASSEMBLY STEPS ARE COMPLETE,

AND YOU READ AND UNDERSTAND THE

SAFETY AND OPERATIONAL INSTRUCTIONS.

HOLDDOWNCLAMP Qty.

AClamp Assembly ....................... 1

B Wing Screw ............................ 2

CWasher ................................ 2

DSupport Rod ........................... 1

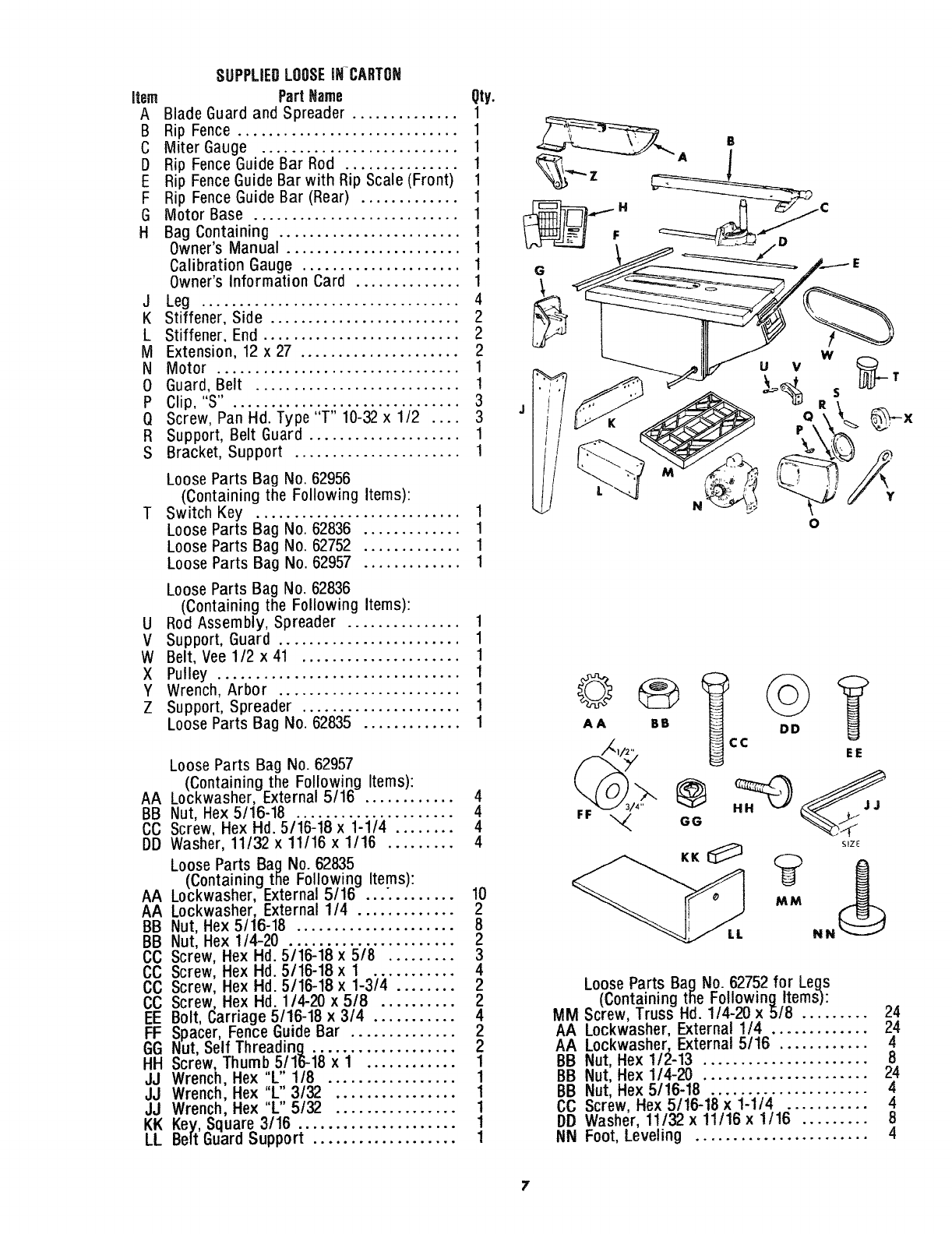

SUPPLIEDLOOSEiH-CARTOH

Item Part Hame Qty.

A Blade Guard and Spreader .............. 1

B Rip Fence ............................. 1

C Miter Gauge .......................... 1

D Rip Fence Guide Bar Rod ............... 1

E Rip Fence Guide Bar with Rip Scale (Front) 1

F Rip Fence Guide Bar (Rear) ............. 1

G Motor Base ........................... 1

H Bag Containing ........................ 1

Owner's Manual ....................... 1

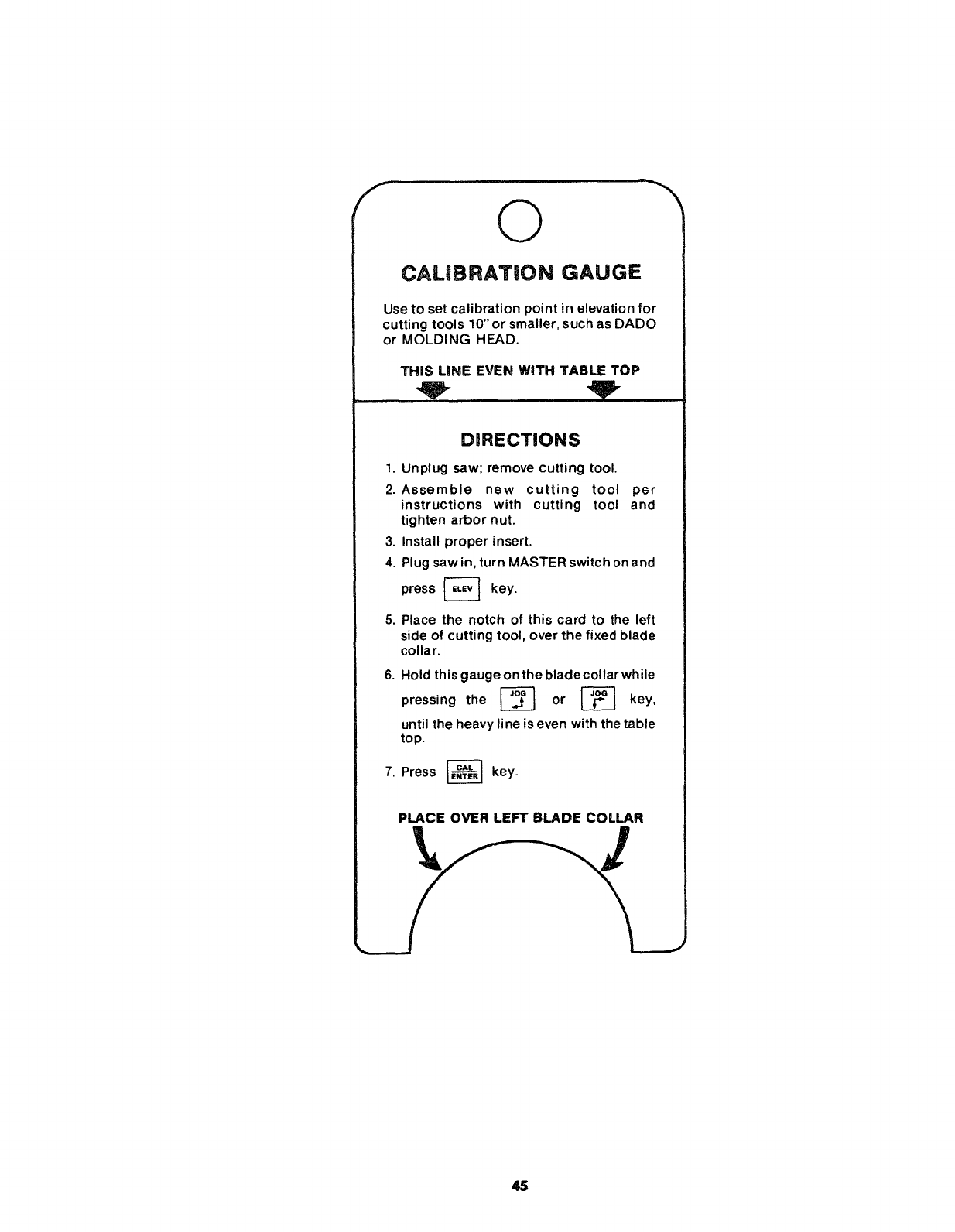

Calibration Gauge ..................... 1

Owner's Information Card .............. 1

J Leg .................................. 4

K Stiffener, Side ......................... 2

L Stiffener, End .......................... 2

M Extension, 12 x 27 ..................... 2

N Motor ................................ 1

0 Guard, Belt ........................... 1

P Clip,"S". ............................. 3

Q Screw, Pan Hd. Type "T" 10-32 x 1/2 .... 3

R Support, Belt Guard .................... 1

S Bracket, Support ...................... 1

Loose Parts Bag No. 62956

(Containing the Following Items):

Switch Key ........................... 1

Loose Parts Bag No. 62836 ............. 1

Loose Parts Bag No. 62752 ............. 1

Loose Parts Bag No. 62957 ............. 1

Loose Parts Bag No. 62836

(Containing the Following Items):

U Rod Assembly, Spreader ............... 1

V Support, Guard ........................ 1

W Belt, Vee 1/2 x 41 ..................... 1

X Pulley ................................ 1

Y Wrench, Arbor ........................ 1

Z Support, Spreader ..................... 1

Loose Parts Bag No. 62835 ............. 1

Loose Parts Bag No. 62957

(Containing the Following Items):

AA Lockwasher, External 5/16 ............ 4

BB Nut, Hex 5/16-18 ..................... 4

CC Screw, Hex Hd. 5/16-18 x 1-1/4 ........ 4

DD Washer, 11/32 x 11/16 x 1/16 ......... 4

Loose Parts Bag No. 62835

(Containing the Following Items):

AA Lockwasher, External 5/16 " 10

AA Lockwasher, External 1/4 ............. 2

BB Nut, Hex 5/16-18 ..................... 8

BB Nut, Hex 1/4-20 ...................... 2

CC Screw, Hex Hd. 5/16-18 x 5/8 ......... 3

CC Screw, Hex Hd. 5/16-18 x 1 ........... 4

CO Screw, Hex Hd. 5/16-18 x 1-3/4 ........ 2

CC Screw, Hex Hd. 1/4-20 x 5/8 .......... 2

EE Bolt, Carriage 5/16-18 x 3/4 ........... 4

FF Spacer, Fence Guide Bar .............. 2

GG Nut, Self Threading ................... 2

HH Screw, Thumb 5/16-18 x 1 ............ 1

"L"

JJ Wrench, Hex "L" 1/8 ................. 1

JJ Wrench, Hex 3/32 ................ 1

JJ Wrench, Hex "L" 5/32 ................ 1

KK Key, Square 3/16 ..................... 1

LL Belt Guard Support ................... 1

u v

AA BB

FF _

CC EE

SIZE

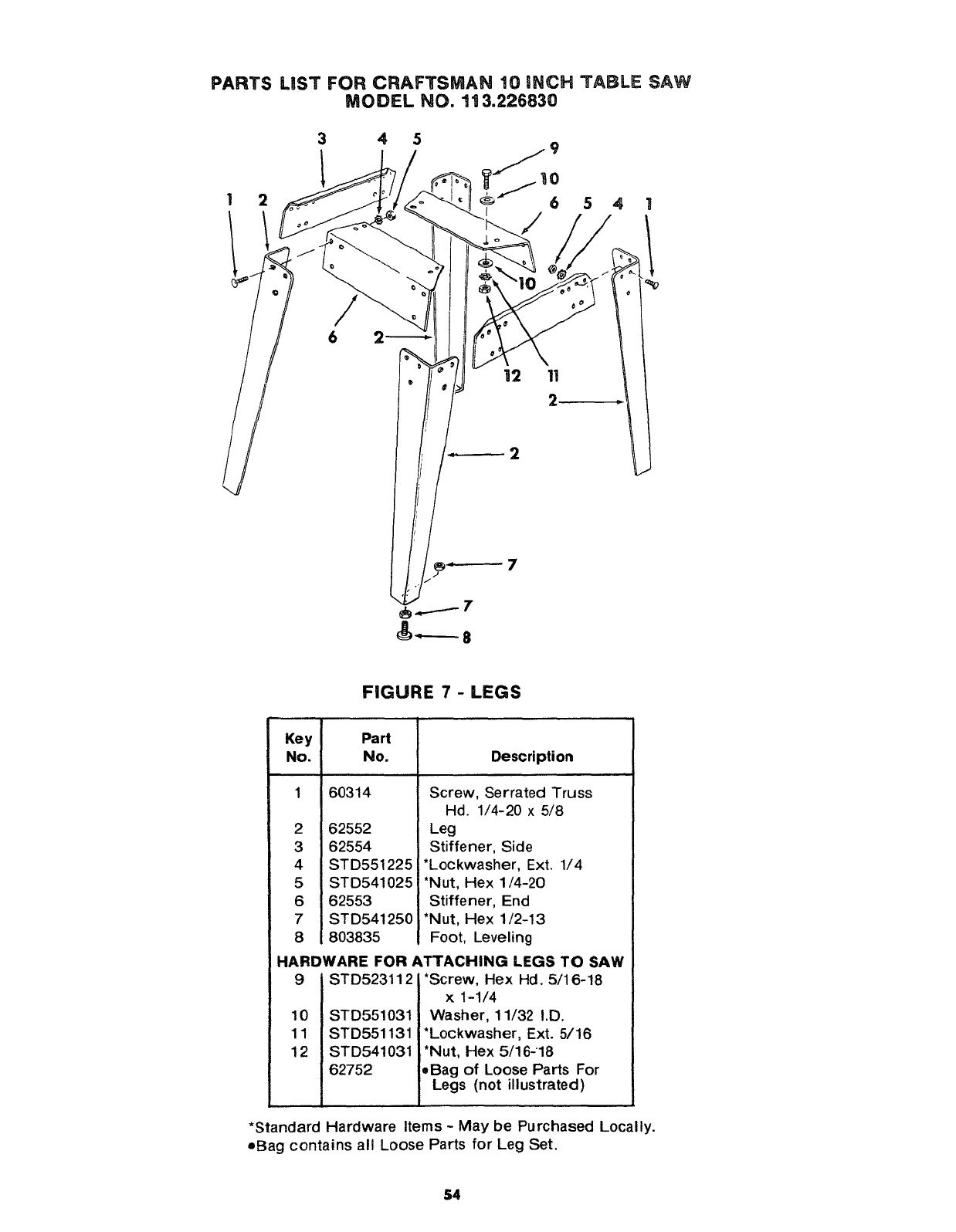

Loose Parts Bag No. 62752 for Legs

(Containing the Following Items):

MM Screw, Truss Hd. 1!4-20 x 5/8 ......... 24

AA Lockwasher, External 1/4 ............. 24

AA Lockwasher, External 5/16 ............ 4

BB Nut, Hex 1/2-13 ...................... 8

BB Nut, Hex 1/4-20 ...................... 24

BB Nut, Hex 5/16-18 ..................... 4

CC Screw, Hex 5116-18 x 1-1/4 ........... 4

DD Washer, 11/32 x 11/16 x 11t6 ......... 8

NN Foot, Leveling ....................... 4

ASSEMBLY

ASSEMBLING STEEL LEGS

From among the loose parts, find the following

Hardware:

24 Truss Head Screws, 1/4-20 x 5/8 in. long (top

of screw is rounded)

24 Lockwashers, 1/4 in. External Type (approx.

dia. of hole 1/4 in.)

24 Hex nuts, 1/4-20 (approx. dia. of hole 1/4 in.)

8 Hex Nuts, 1/2-13 (approx. dia. of hole 1/2 in.)

4 Leveling feet.

Assemble the legs as shown...

1. Insert the Truss Head Screws through the holes

in the legs, then through the holes in the

stiffeners. MAKE SURE THE SCREWS GO

THROUGH THE HOLES IN THE SIDE

STIFFENERS MARKED "X".

2. Install the Iockwashers ... screw on the nuts

but do not tighten until completely assembled.

3. Install leveling feet.

END

STIFFENER '

ASSEMBLE SCREWS

THROUGH HOLES

MARKED "X"

SIDE STIFFENER

IN. HEX NUTS

_)F LEVELING FOOT

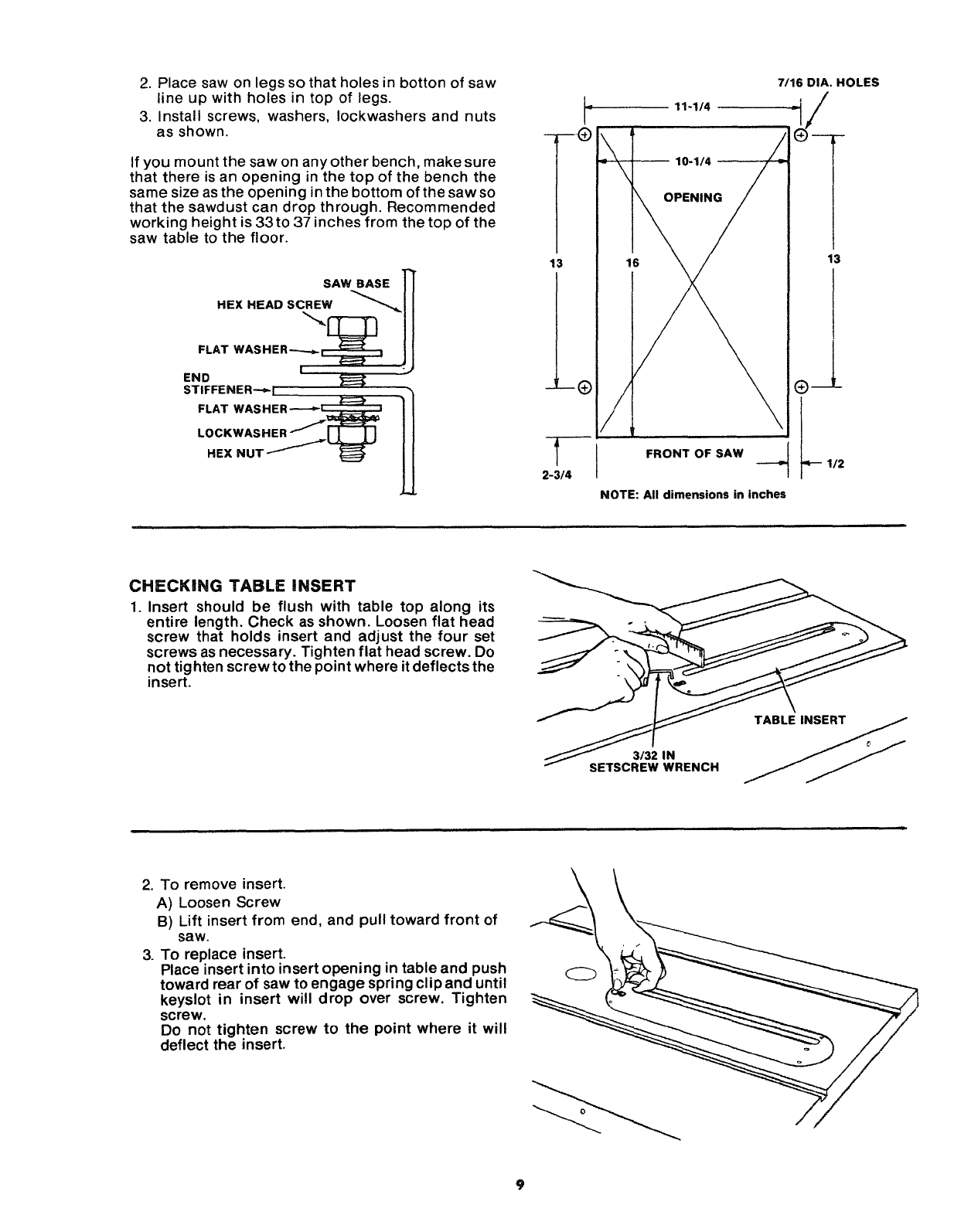

MOUNTING SAW

1. From among the loose parts, find the following

hardware:

4 Hex Head Screws, 5/16-18 x 1-1/4 in. long.

4 Hex Nuts, 5/16-18 (approx. dia. of hole 5/16

in.)

4 Lockwashers, 5/16 in. External Type (approx.

dia. of hole, 5/16 in.)

8 Flat Washers, (dia. of hole 11/32 in.)

NOTE: Do not lift saw by plastic housing.

2. Placesawonlegssothatholesinbottonofsaw

line up withholesin top of legs.

3. Installscrews,washers,Iockwashersandnuts

asshown.

Ifyoumountthesawonanyotherbench,makesure

that thereisanopeninginthetopof thebenchthe

samesizeastheopeninginthebottomofthesawso

thatthesawdustcandropthrough.Recommended

workingheightis33to37inchesfromthetopof the

sawtabletothe floor.

SAW eASE _[

FLAT WASHER -----_

I"J

END

STIFFENER- _1

FLATWASHER----", _, ]l

2-3/4

7/16 DIA. HOLES

16 13

IFRONT OF SAW _

NOTE: All dimensions in inches

1/2

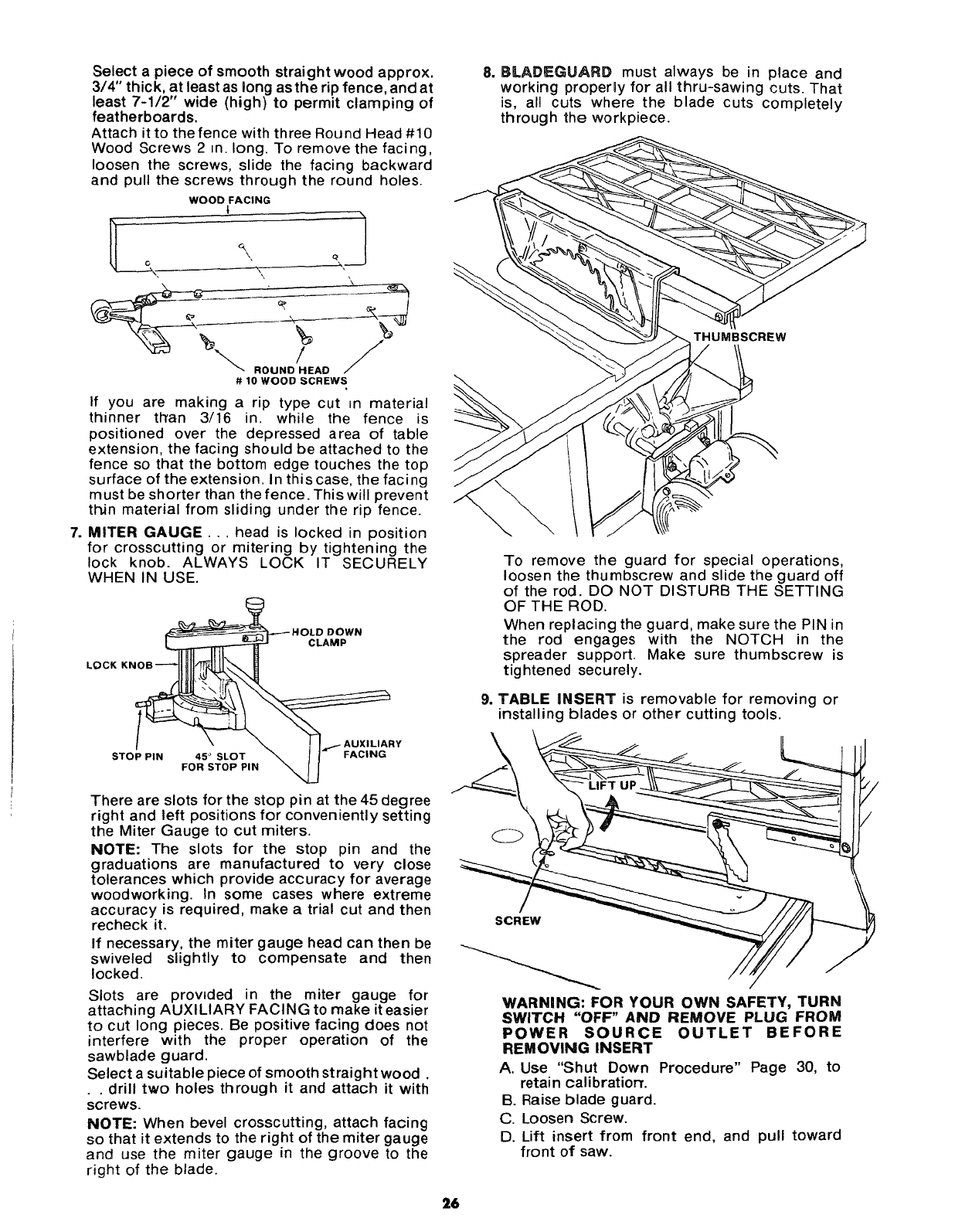

CHECKING TABLE INSERT

1. Insert should be flush with table top along its

entire length. Check as shown. Loosen flat head

screw that holds insert and adjust the four set

screws as necessary. Tighten flat head screw. Do

not tighten screw to the point where it deflects the

insert.

F_ 3/32 IN

"_ SETSCREW WRENCH

2. To remove insert.

A) Loosen Screw

B) Lift insert from end, and pull toward front of

saw.

3. TO replace insert.

Place insert into insert opening in table and push

toward rear of saw to engage spring clip and until

keyslot in insert will drop over screw. Tighten

screw.

Do not tighten screw to the point where it will

deflect the insert.

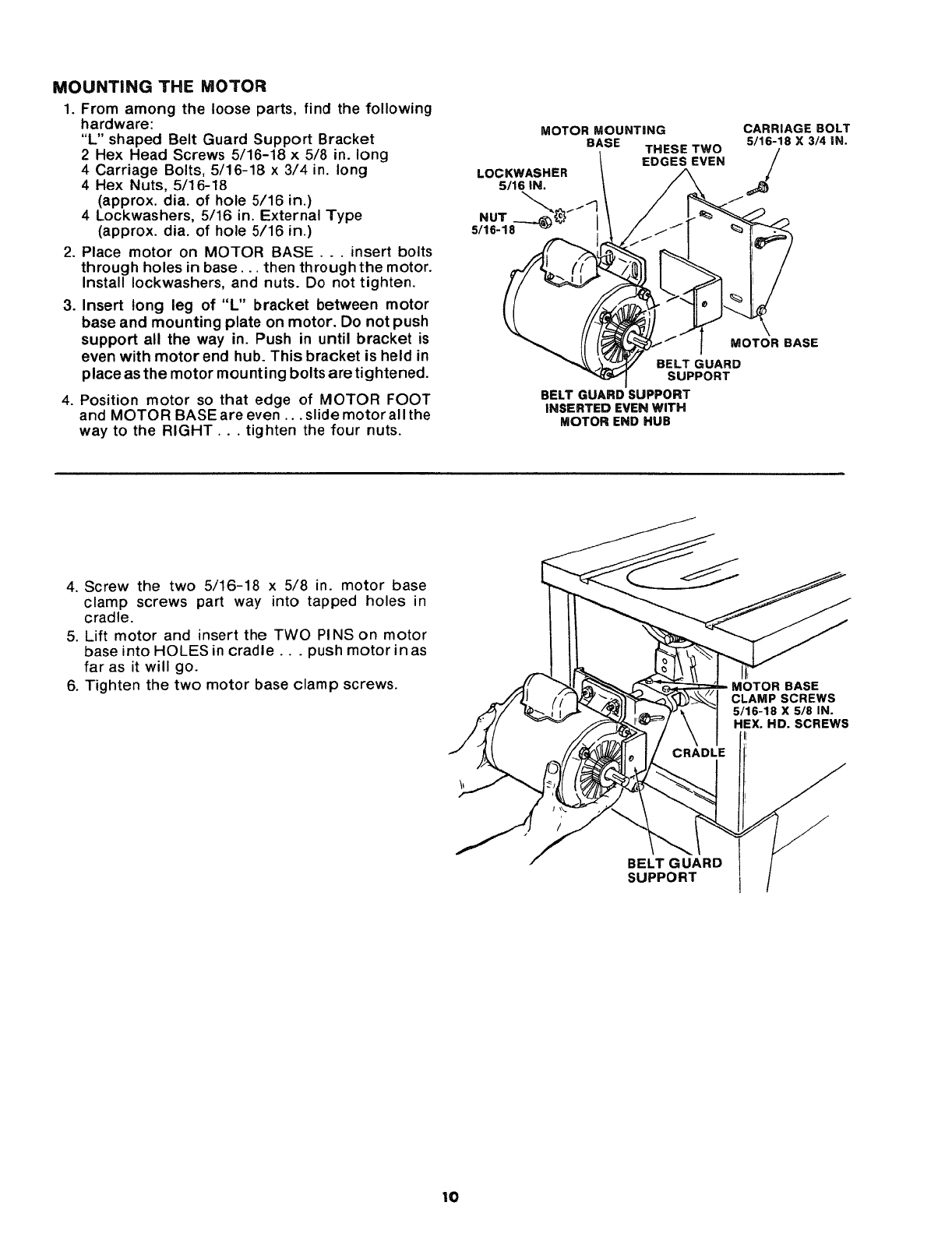

MOUNTING THE MOTOR

1. From among the loose parts, find the following

hardware:

"L" shaped Belt Guard Support Bracket

2 Hex Head Screws 5/16-18 × 5/8 in. long

4 Carriage Bolts, 5/16-18 x 3/4 in. long

4 Hex Nuts, 5/16-18

(approx. dia. of hole 5/16 in.)

4 Lockwashers, 5/16 in. External Type

(approx. dia. of hole 5/16 in.)

2. Place motor on MOTOR BASE... insert bolts

through holes in base.., then through the motor.

Install Iockwashers, and nuts. Do not tighten.

3. Insert long leg of "L" bracket between motor

base and mounting plate on motor. Do not push

support all the way in. Push in until bracket is

even with motor end hub. This bracket is held in

place as the motor mounting bolts are tightened.

4. Position motor so that edge of MOTOR FOOT

and MOTOR BASE are even ... slide motor all the

way to the RIGHT... tighten the four nuts.

MOTOR MOUNTING

BASE THESE TWO

EDGES EVEN

LOCKWASHER

5/16 IN.

NUT __......_ _/

5/16-18

CARRIAGE BOLT

5/16-18 X 3/4 IN.

MOTOR BASE

BELT GUARD

SUPPORT

BELT GUARD SUPPORT

INSERTED EVEN WITH

MOTOR END HUB

4. Screw the two 5/16-18 x 5/8 in. motor base

clamp screws part way into tapped holes in

cradle.

5. Lift motor and insert the TWO PINS on motor

base into HOLES in cradle.., push motor in as

far as it will go.

6. Tighten the two motor base clamp screws.

BELT GUARD

SUPPORT

MOTOR BASE

CLAMP SCREWS

5/16-18 X 5/8 IN.

HEX. HD. SCREWS

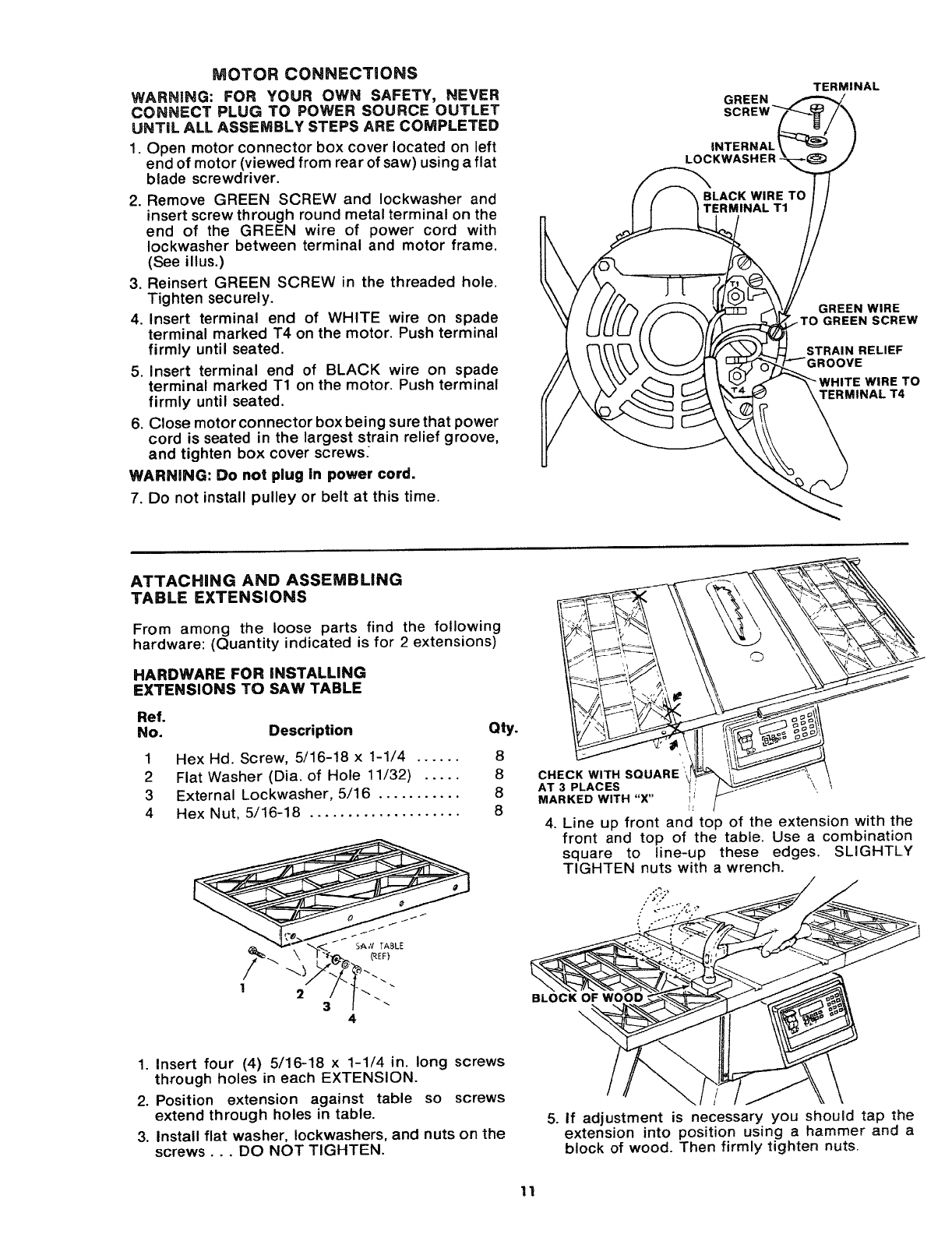

MOTOR CONNECTIONS

WARNING: FOR YOUR OWN SAFETY, NEVER

CONNECT PLUG TO POWER SOURCE OUTLET

UNTIL ALL ASSEMBLY STEPS ARE COMPLETED

1. Open motor connector box cover located on left

end of motor (viewed from rear of saw) using a flat

blade screwdriver.

2. Remove GREEN SCREW and Iockwasher and

insert screw through round metal terminal on the

end of the GREEN wire of power cord with

Iockwasher between terminal and motor frame.

(See illus.)

3. Reinsert GREEN SCREW in the threaded hole.

Tighten securely.

4. Insert terminal end of WHITE wire on spade

terminal marked T4 on the motor. Push terminal

firmly until seated.

5. insert terminal end of BLACK wire on spade

terminal marked T1 on the motor. Push terminal

firmly until seated.

6. Close motor connector box being sure that power

cord is seated in the largest strain relief groove,

and tighten box cover screws

WARNING: Do not plug in power cord.

7. Do not install pulley or belt at this time.

GREEN WIRE

_TO GREEN SCREW

STRAIN RELIEF

)OVE

"WHITE WIRE TO

TERMINAL T4

ATTACHING AND ASSEMBLING

TABLE EXTENSIONS

From among the loose parts find the following

hardware: (Quantity indicated is for 2 extensions)

HARDWARE FOR INSTALLING

EXTENSIONS TO SAW TABLE

Ref.

No. Description

1 Hex Hd. Screw, 5/16-18 x 1-1/4 ......

2 Flat Washer (Dia. of Hole 11/32) .....

3 External Lockwasher, 5/16 ...........

4 Hex Nut, 5/16-18 ....................

Qty.

1. Insert four (4) 5/16-18 x 1-1/4 in. long screws

through holes in each EXTENSION.

2. Position extension against table so screws

extend through holes in table.

3. Install flat washer, Iockwashers, and nuts on the

screws... DO NOT TIGHTEN.

, __-_ __.-_'.__)_\

Ij F"

AT 3 PLACES

MARKED WITH "X"

4. Line up front and top of the extension with the

front and top of the table. Use a combination

square to line-up these edges. SLIGHTLY

TIGHTEN nuts with a wrench.

BLOCK OF WOOD

5. if adjustment is necessary you should tap the

extension into position using a hammer and a

block of wood. Then firmly tighten nuts.

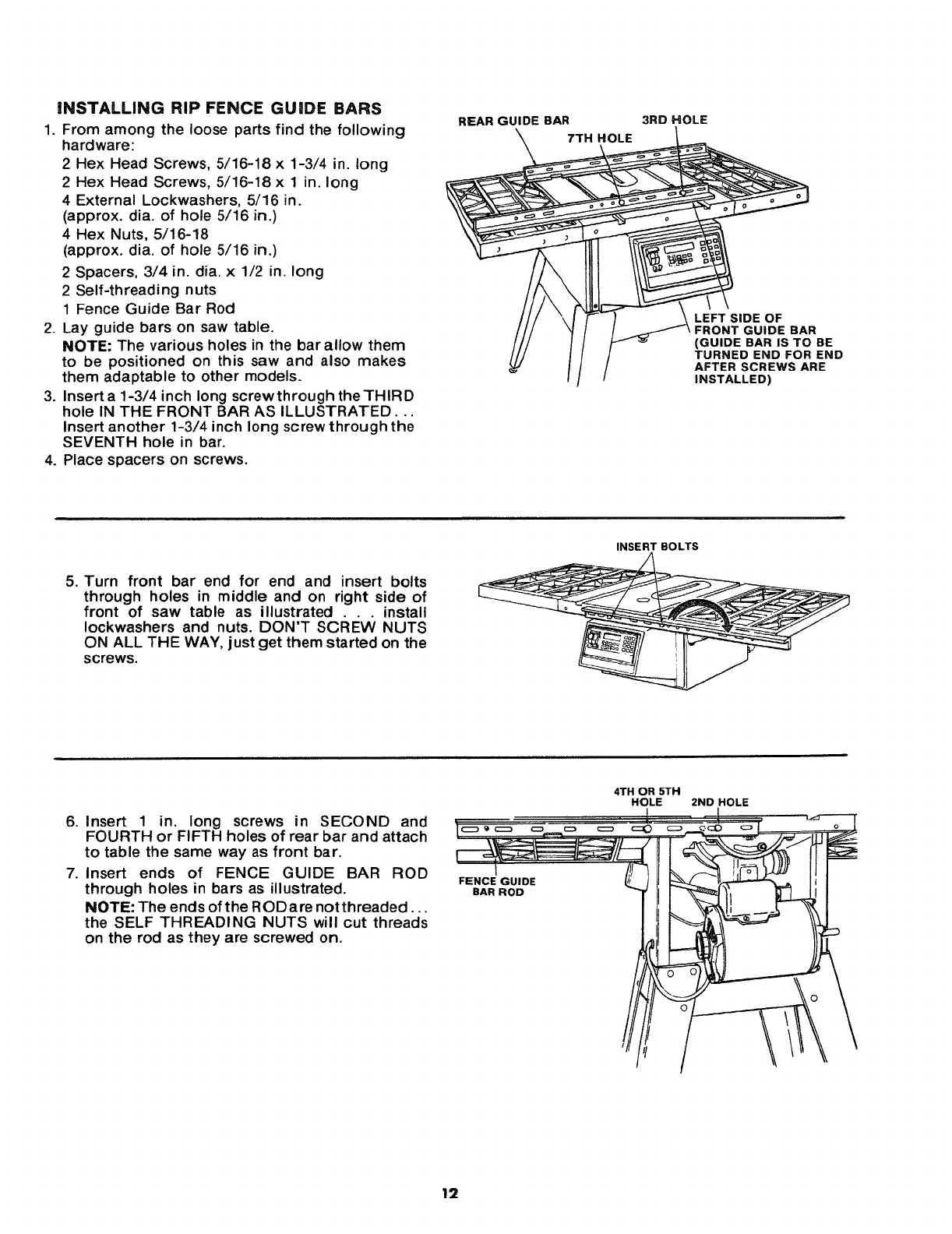

iNSTALLING RIP FENCEGUIDE BARS

1. Fromamongtheloosepartsfind thefollowing

hardware:

2 HexHeadScrews,5/16-18x 1-3/4in. long

2 HexHeadScrews,5/16-18x 1 in.long

4 ExternalLockwashers,5/16in.

(approx.dia.of hole5/16in.)

4 HexNuts,5/16-18

(approx.dia.of hole5/16in.)

2Spacers,3/4in. dia.x 1/2in.long

2 Self-threadingnuts

1 FenceGuideBarRod

2. Layguidebarson sawtable.

NOTE:Thevariousholesin thebarallowthem

to be positionedon this sawand also makes

them adaptable to other models.

3. Insert a 1-3/4 inch long screwthroughtheTHIRD

hole IN THE FRONT BAR AS ILLUSTRATED...

insert another 1-3/4 inch long screw through the

SEVENTH hole in bar.

4. Place spacers on screws.

REAR GUIDE BAR

7TH HOLE

3RD HOLE

LEFT SIDE OF

FRONT GUIDE BAR

(GUIDE BAR IS TO BE

TURNED END FOR END

AFTER SCREWS ARE

INSTALLED)

5. Turn front bar end for end and insert bolts

through holes in middle and on right side of

front of saw table as illustrated install

Iockwashers and nuts. DON'T SCI_I:;W NUTS

ON ALL THE WAY, just get them started on the

screws.

INSERT BOLTS

6. Insert 1in. long screws in SECOND and

FOURTH or FIFTH holes of rear bar and attach

to table the same way as front bar.

7. Insert ends of FENCE GUIDE BAR ROD

through holes in bars as illustrated.

NOTE: The ends of the RODare not threaded...

the SELF THREADING NUTS will cut threads

on the rod as they are screwed on.

FENCE GUIDE

BAR ROD

4TH OR 5TH

HOLE 2ND HOLE

8. Holdrodwithonehandandwitha1/2in.wrench

orpliersstartscrewingonONEof thenutsonly

A TURNOR TWO, . . screwonothernut the

sameway.

9. Using TWO 1/2 in. wrenches or pliers tighten

both of the nuts.

10. Slide the bars so that screws are in the MIDDLE

of the slotted holes.

11. Position rip fence over miter gauge groove,

holding up the rear end while engaging front

end with bar.., lower fence onto table.

12. Plug saw into power outlet.

13. Insert yellow key into MASTER switch and turn

on.

14. Press _ key. A "E " will be displayed.

15. Press and hold jog key _ to raise sawblade

about 3 inches above table surface. Release key.

NOTE: Display will not show elevation or angle

until saw is "calibrated". This is described after

assembly is complete.

16. Press _ key.

IMASTER_SAW MOTOR

l_To LOCK

REMOV_

YELLOW

KEY

IIIII PULL)NR n

YELLOW JOG

KEY KEYS

MINUS

ELEVATION BEd/EL

KEY KEY

17:Place a square against the blade. Make sure

square is not touching the TIP of one of the saw

TEETH.

Press and release _ and

18. keys to

bring blade square with table.

19. Turn switch off and remove yellow key.

20. Remove plug from power source.

MAKE SURE SQUARE

IS NOT TOUCHING

TiP OF TOOTH

21. Carefully move fence against blade.

22. Move front bar until "0" mark on rip scale is

approximately inline with indicator.

Move FRONT bar upwards until fence is

approximately 1/32 in. above table.., tighten

screw at left end of bar.

NOTE: Fold a piece of newspaper making 8

thicknesses and place between rip fence and

table to act as a spacer. This will hold the fence

off of the table approx. 1/32 in.

23. Adjust rear bar so that the fence is

approximately 1/32 in. above table. IVlake sure it

is square with fence guide bar rod ... tighten

screw at end of bar.

24. Be sure top surface of extension is PARALLEL

to top surface of rear guide bar.

8 THICKNESSES

OF PAPER

8 THICKNESSES

OF PAPER

25. Move fence to RIGHT edge of saw table.., make

sure it is approx. 1/32 i n. above table at front and

rear and tighten screws in front and rear guide

bars.

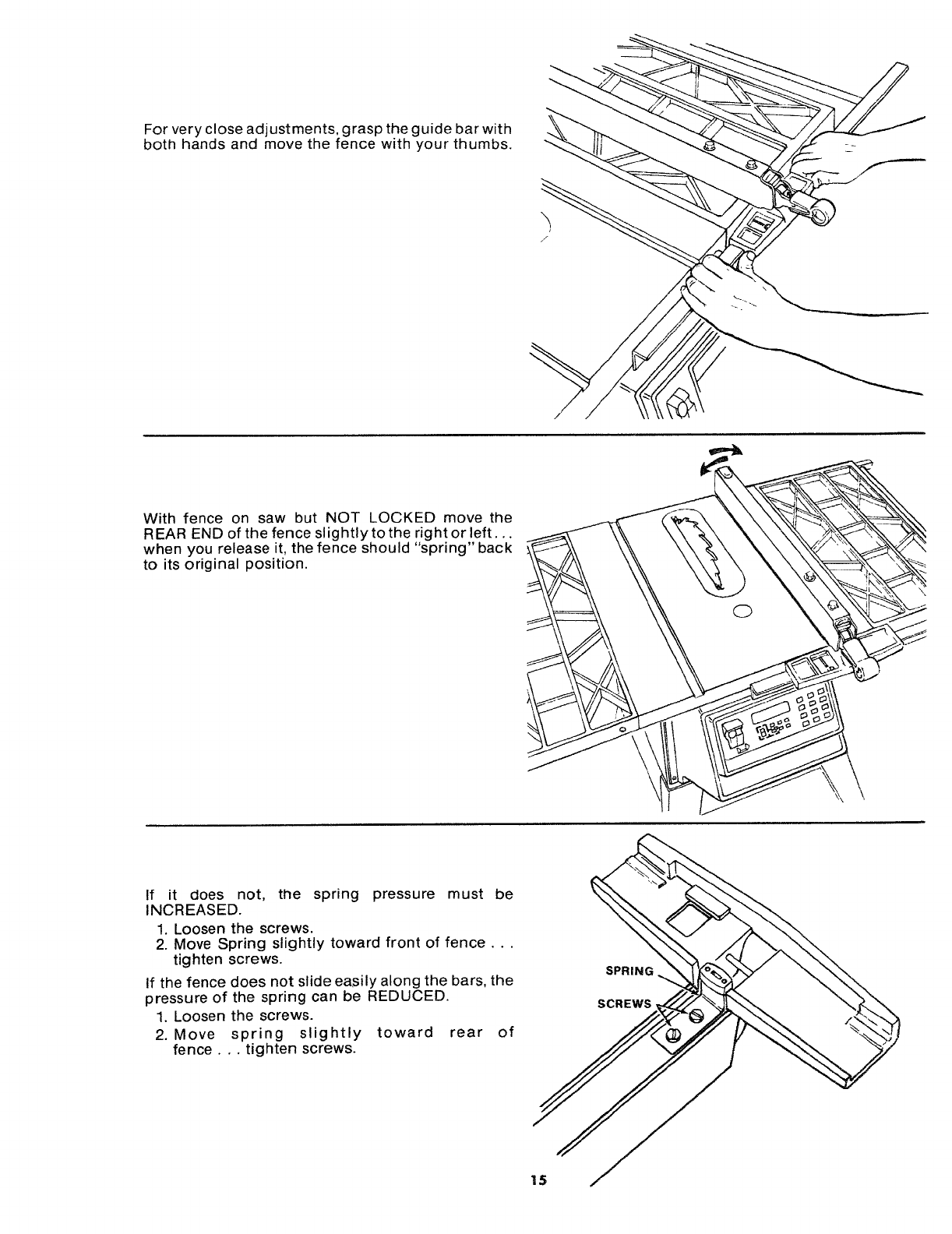

ALIGNING RIP FENCE

The fence should slide easily along the bars and

always remain in alignment (parallel to sawblade

and miter gauge grooves).

The alignment is maintained by aspring underneath

the fence which bears against the front guide bar.

To move the fence, loosen the lock handle and

grasp the fence with one hand at the front.

__ LOOSEN

For very close adjustments, grasp the guide bar with

botl_ hands and move the fence with your thumbs.

With fence on saw but NOT LOCKED move the

REAR END of the fence slightly to the right or left...

when you release it, the fence should "spring" back

to its original position.

If it does not, the spring pressure must be

INCREASED.

1. Loosen the screws.

2. Move Spring slightly toward front of fence...

tighten screws.

If the fence does not slide easily along the bars, the

pressure of the spring can be REDUCED.

1. Loosen the screws.

2. Move spring slightly toward rear of

fence.., tighten screws.

SPRING

SCREWS

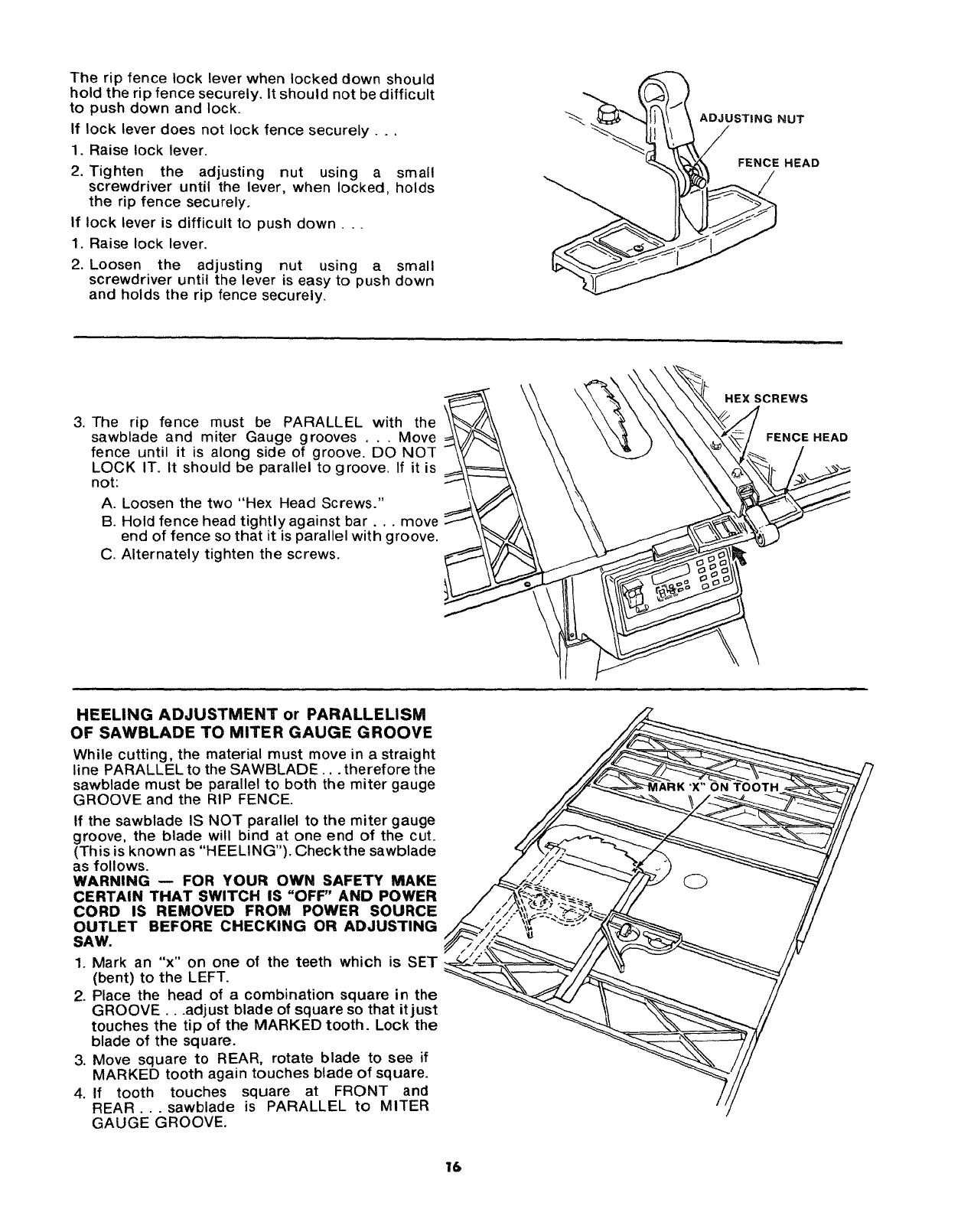

The rip fence lock lever when locked down should

hold the rip fence securely. It should not be difficult

to push down and lock.

If lock lever does not lock fence securely...

1. Raise lock lever.

2. Tighten the adjusting nut using a small

screwdriver until the lever, when locked, holds

the rip fence securely.

If lock lever is difficult to push down...

1. Raise lock lever.

2. Loosen the adjusting nut using a small

screwdriver until the lever is easy to push down

and holds the rip fence securely.

"___ ADJUSTING NUT

FENCE HEAD

3. The rip fence must be PARALLEL with the

sawblade and miter Gauge grooves ...Move

fence until it is along side of groove. DO NOT

LOCK IT. It should be parallel to groove. If it is

not:

A. Loosen the two "He× Head Screws."

B. Hold fence head tightly against bar.., move

end of fence so that it is parallel with groove.

C. Alternately tighten the screws.

HEX SCREWS

FENCE HEAD

HEELING ADJUSTMENT or PARALLELISM

OF SAWBLADE TO MITER GAUGE GROOVE

While cutting, the material must move in a straight

line PARALLEL to the SAWBLADE... therefore the

sawblade must be parallel to both the miter gauge

GROOVE and the RIP FENCE.

If the sawblade IS NOT parallel to the miter gauge

groove, the blade will bind at one end of the cut.

(This is known as "HEELING"). Check the sawblade

as follows.

WARNING -- FOR YOUR OWN SAFETY MAKE

CERTAIN THAT SWITCH IS "OFF" AND POWER

CORD IS REMOVED FROM POWER SOURCE

OUTLET BEFORE CHECKING OR ADJUSTING

SAW.

1. Mark an "x" on one of the teeth which is SET

(bent) to the LEFT.

2. Place the head of a combination square in the

GROOVE...adjust blade of square so that it just

touches the tip of the MARKED tooth. Lock the

blade of the square.

3. Move square to REAR, rotate blade to see if

MARKED tooth again touches blade of square.

4. If tooth touches square at FRONT and

REAR...sawblade is PARALLEL to MITER

GAUGE GROOVE.

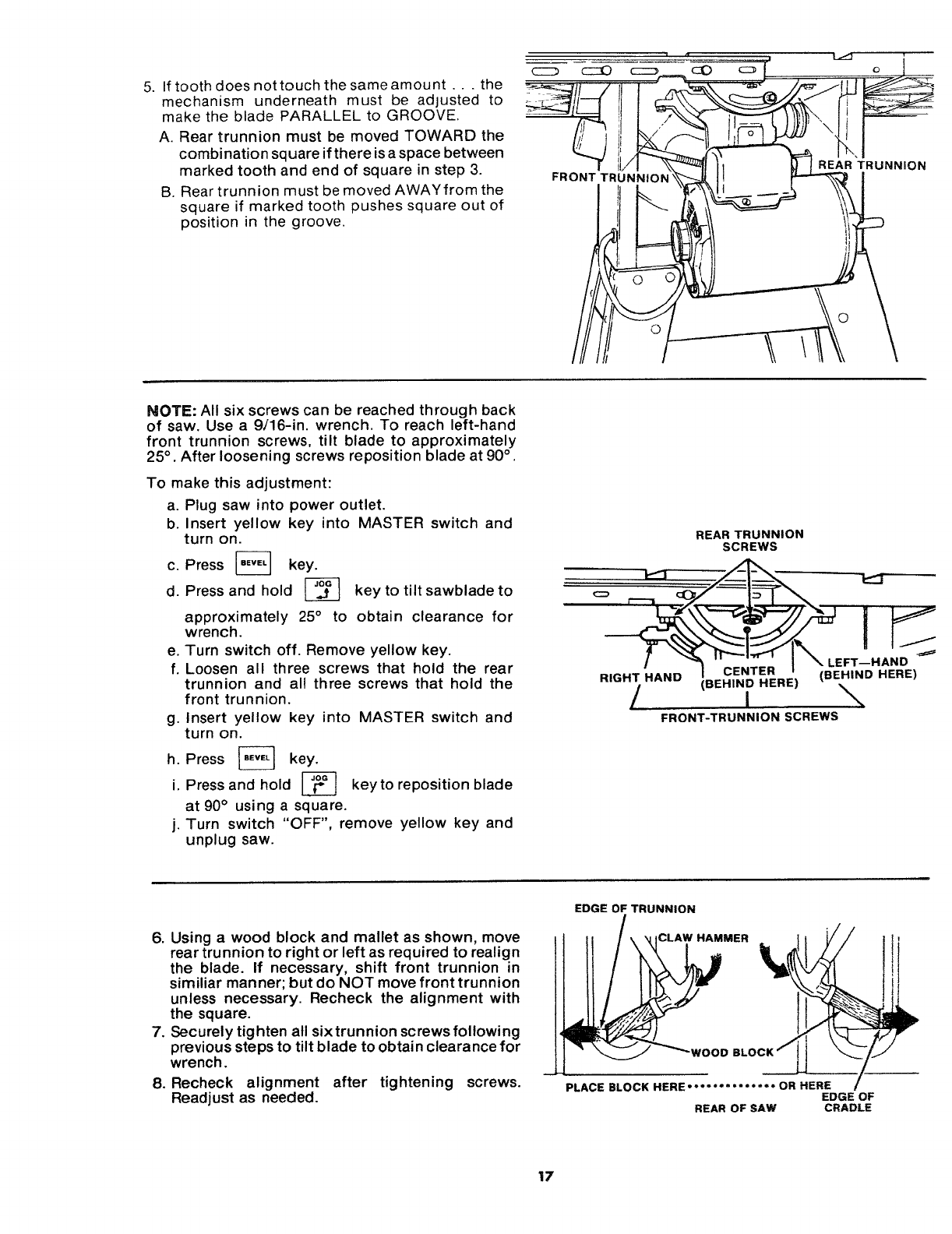

5. Iftoothdoesnottouchthesameamount,., the

mechanismunderneathmust be adjustedto

makethebladePARALLELto GROOVE,

A.ReartrunnionmustbemovedTOWARDthe

combinationsquareifthereisaspacebetween

markedtoothandendof squarein step3.

B.ReartrunnionmustbemovedAWAYfromthe

squareif markedtoothpushessquareout of

positionin thegroove.

FRONT TRUNNION

REAR TRUNNION

NOTE: All six screws can be reached through back

of saw. Use a9/16-in. wrench. To reach left-hand

front trunnion screws, tilt blade to approximately

25° . After loosening screws reposition blade at 90° .

To make this adjustment:

a. Plug saw into power outlet.

b. Insert yellow key into MASTER switch and

turn on.

c. Press [-_ key.

d. Press and hold _ key to tilt sawblade to

approximately 25°to obtain clearance for

wrench.

e. Turn switch off. Remove yellow key.

f. Loosen all three screws that hold the rear

trunnion and all three screws that hold the

front trunnion.

g. Insert yellow key into MASTER switch and

turn on.

h. Press _ key.

i. Press and hold _ keyto reposition blade

at 90°using a square.

j. Turn switch "OFF", remove yellow key and

unplug saw.

REAR TRUNNION

SCREWS

FT HA

RIGHT "HAND I CENTER

(BEHIND HERE) (BEHIND HERE)

m ",,

FRONT-TRUNNION SCREWS

6. Using a wood block and mallet as shown, move

rear trunnion to right or left as required to realign

the blade. If necessary, shift front trunnion in

similiar manner; but do NOT move front trunnion

unless necessary. Recheck the alignment with

the square.

7. Securely tighten all sixtrunnion screws following

previous steps to tilt blade to obtain clearance for

wrench.

8. Recheck alignment after tightening screws.

Readjust as needed.

EDGE OF TRUNNION

CLAW HAMMER

PLACE BLOCK HERE .............. OR HERE

EDGE OF

REAR OF SAW CRADLE

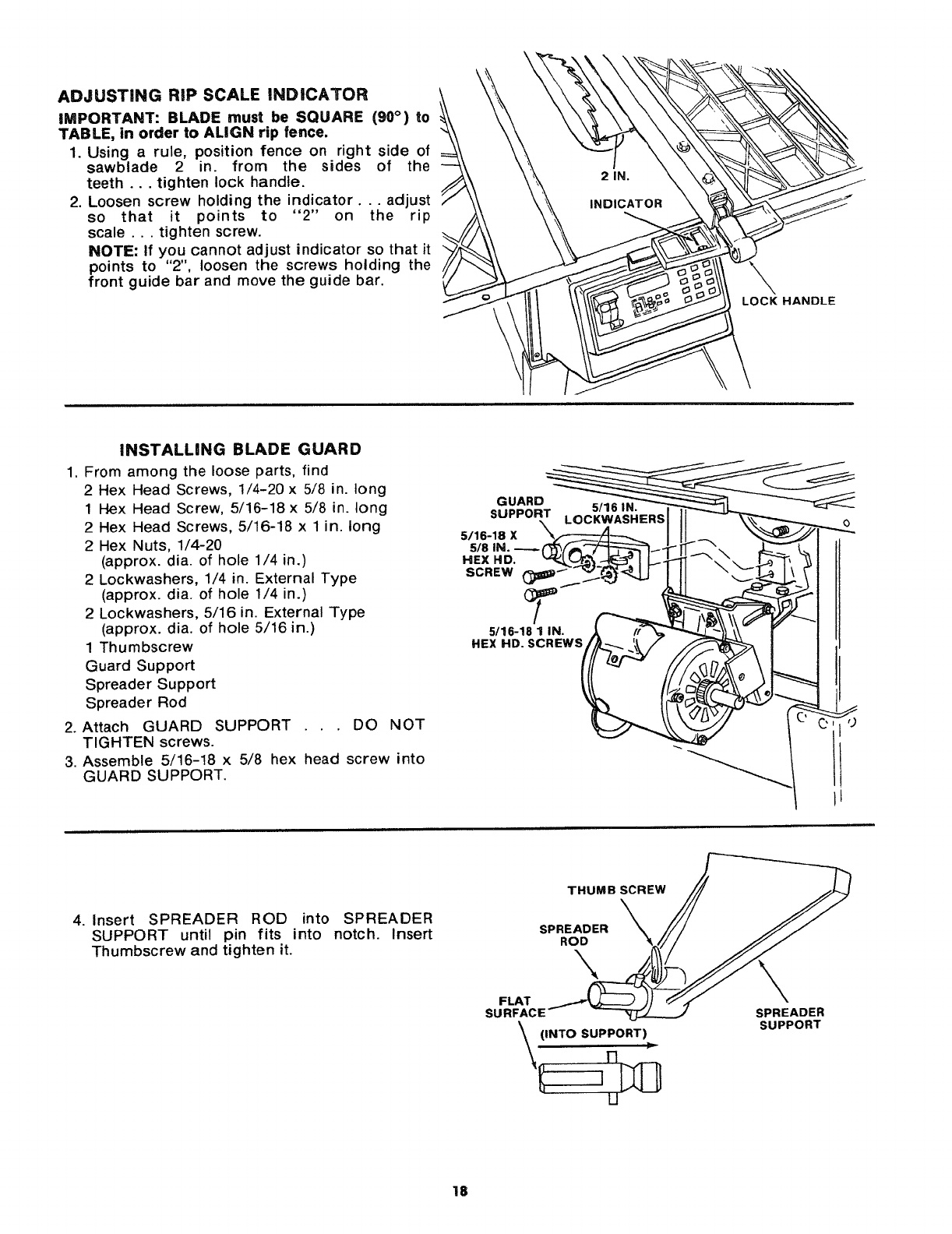

ADJUSTING RIP SCALE INDICATOR

IMPORTANT: BLADE must be SQUARE (90° ) to

TABLE, in order to ALIGN rip fence.

1. Using a rule, position fence on right side of

sawblade 2 in. from the sides of the

teeth.., tighten lock handle.

2. Loosen screw holding the indicator.., adjust

so that it points to "2" on the rip

scale.., tighten screw.

NOTE: If you cannot adjust indicator so that it

points to "2", loosen the screws holding the

front guide bar and move the guide bar.

LOCK HANDLE

iNSTALLiNG BLADE GUARD

1. From among the loose parts, find

2 Hex Head Screws, 1/4-20 x 5/8 in. tong

1 Hex Head Screw, 5/16-18 x 5/8 in. long

2 Hex Head Screws, 5/16-18 x 1 in. long

2 Hex Nuts, 1/4-20

(approx. dia. of hole 1/4 in.)

2 Lockwashers, 1/4 in. External Type

(approx. dia. of hole 1/4 in.)

2 Lockwashers, 5/16 in. External Type

(approx. dia. of hole 5/16 in.)

1 Thumbscrew

Guard Support

Spreader Support

Spreader Rod

2. Attach GUARD SUPPORT DO NOT

TIGHTEN screws.

3. Assemble 5/16-18 x 5/8 hex head screw into

GUARD SUPPORT.

GUARD

SUPPORT

5/16-18 X

5/8 IN.

HEX HD.

SCREW

5/16-18 1IN.

HEX HD. SCREWS

5/16 IN.

4. Insert SPREADER ROD into SPREADER

SUPPORT until pin fits into notch. Insert

Thumbscrew and tighten it.

THUMB SCREW

SPREADER

ROD

FLAT

SURFACE

_(INTO SUPPORT)

SPREADER

SUPPORT

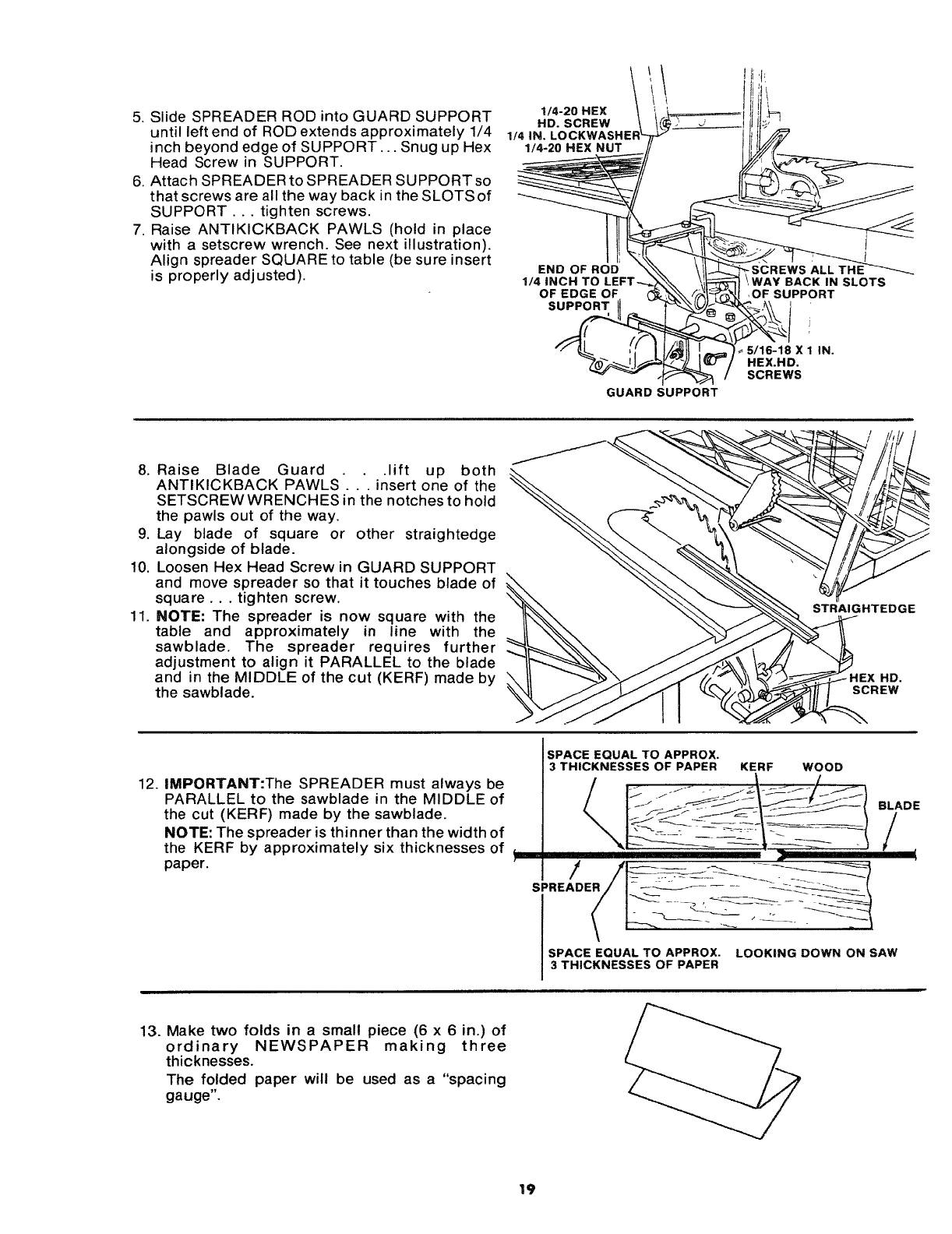

5. Slide SPREADER ROD into GUARD SUPPORT

until left end of ROD extends approximately 1/4

inch beyond edge of SUPPORT... Snug up Hex

Head Screw in SUPPORT.

6. Attach SPREADERto SPREADER SUPPORTso

that screws are all the way back in the SLOTS of

SUPPORT... tighten screws,

7. Raise ANTIKICKBACK PAWLS (hold in place

with a setscrew wrench. See next illustration).

Align spreader SQUARE to table (be sure insert

is properly adjusted).

!/4-20 HEX \ ! r_ l! _-_

HO.SCREW \ N; '

1/4 IN. LOCKWASHERLT_ III//_=_

1/4-20 HEX NUT // I _,_"

END OF ROD X\\ \ll_'_-; SCREWS ALL THE

TO \,WAYBACK,NSLOTS

OF EDGE OF (_ ,<_,._ f,_l"_"_l ,OF SUPPORT

SUPPORT I! r__,.__ _\ ] '

GUARD SUPPORT

8. Raise Blade Guard . .lift up both

ANTIKICKBACK PAWLS . . insert one of the

SETSCREW WRENCHES in the notches to hold

the pawls out of the way.

9. Lay blade of square or other straightedge

alongside of blade.

10. Loosen Hex Head Screw in GUARD SUPPORT

and move spreader so that it touches blade of

square.., tighten screw.

11. NOTE: The spreader is now square with the

table and approximately in line with the

sawblade. The spreader requires further

adjustment to align it PARALLEL to the blade

and in the MIDDLE of the cut (KERF) made by

the sawblade.

STRAIGHTEDGE

HD.

SCREW

12. IMPORTANT:The SPREADER must always be

PARALLEL to the sawblade in the MIDDLE of

the cut (KERF) made by the sawblade.

NOTE: The spreader is thinner than the width of

the KERF by approximately six thicknesses of !

paper.

SPACE EQUAL TO APPROX.

3THICKNESSES OF PAPER KERF WOOD

BLADE

13. Make two folds in asmall piece (6 x 6 in.) of

ordinary NEWSPAPER making three

thicknesses.

The folded paper will be used as a "spacing

gauge".

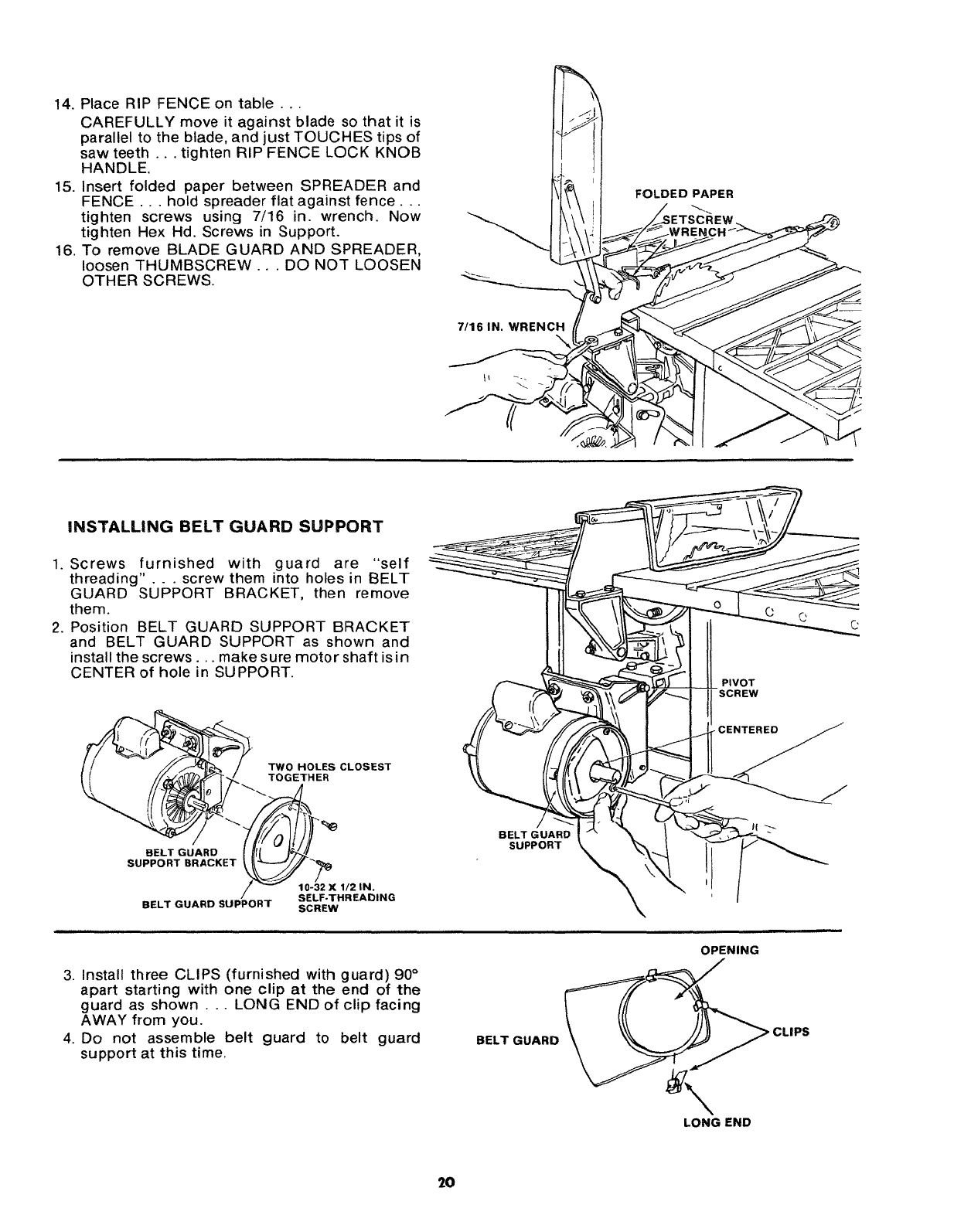

14.PlaceRIPFENCEon table...

CAREFULLYmoveit againstbladesothatit is

parallelto theblade,andjust TOUCHEStipsof

sawteeth.., tightenRIPFENCELOCKKNOB

HANDLE.

15.Insertfolded paperbetweenSPREADERand

FENCE... holdspreaderflat againstfence...

tighten screws using 7/16 in. wrench. Now

tightenHexHd.Screwsin Support.

16.To removeBLADEGUARDANDSPREADER,

loosenTHUMBSCREW... DONOTLOOSEN

OTHERSCREWS.

7/16 IN. WRENCH

FOLDED PAPER

INSTALLING BELT GUARD SUPPORT

1. Screws furnished with guard are "self

threading" . . .screw them into holes in BELT

GUARD SUPPORT BRACKET, then remove

them.

2. Position BELT GUARD SUPPORT BRACKET

and BELT GUARD SUPPORT as shown and

install the screws.., make sure motor shaft is in

CENTER of hole in SUPPORT.

_' TWO HOLES CLOSEST

....TOGETHER

BELT GUARD SUPPORT SCREW

BELT GUARD

SUPPORT

PIVOT

SCREW

3. Install three CLIPS (furnished with guard) 90 °

apart starting with one clip at the end of the

guard as shown . .. LONG END of clip facing

AWAY from you.

4. Do not assemble belt guard to belt guard

support at this time.

BELT GUARD

OPENING

CLIPS

LONG END

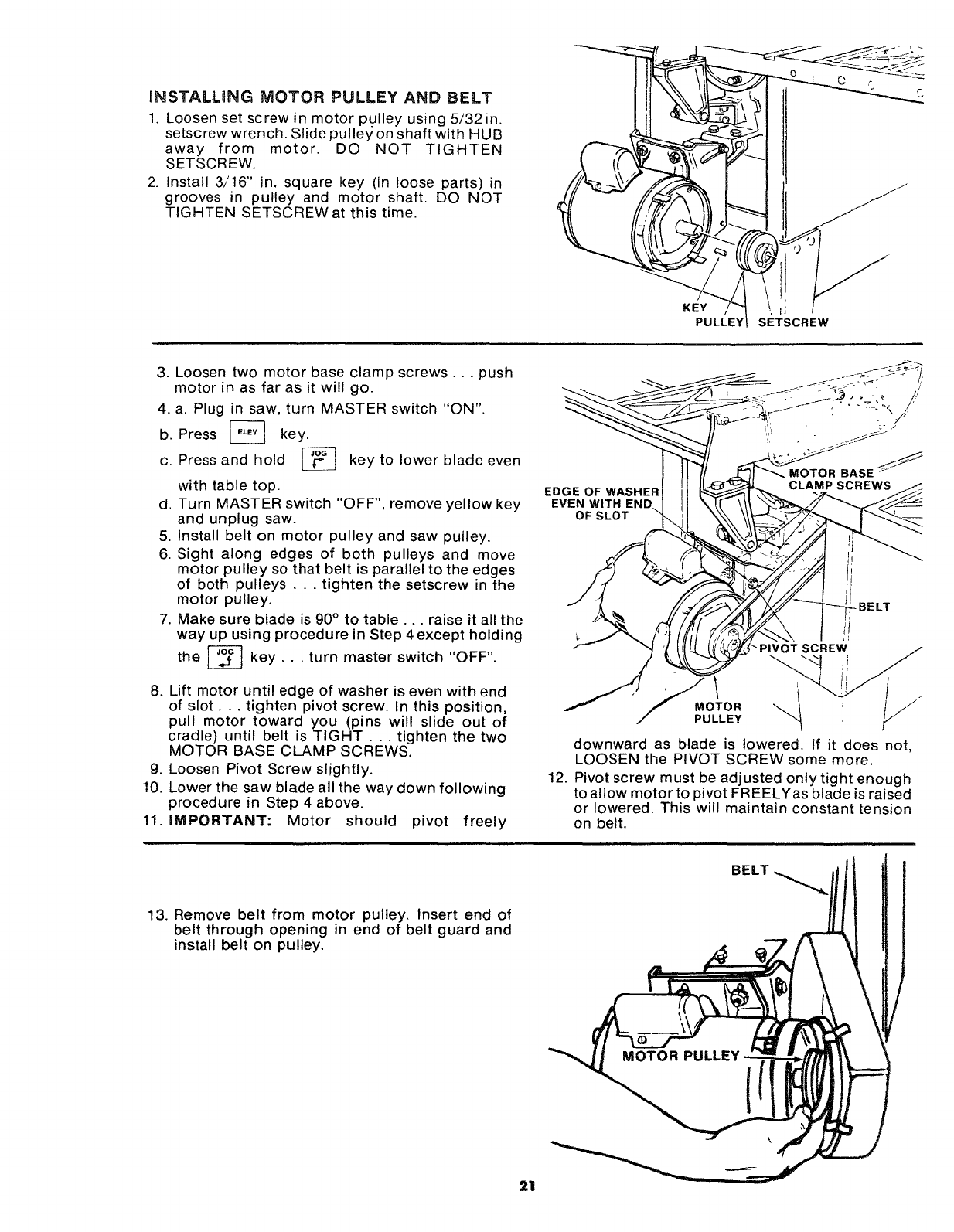

iNSTALLING MOTOR PULLEY AND BELT

1. Loosen set screw in motor pulley using 5/32 in.

setscrew wrench. Slide pulley on shaft with HUB

away from motor. DO NOT TIGHTEN

SETSCREW.

2. Install 3/16" in. square key (in loose parts) in

grooves in pulley and motor shaft. DO NOT

TIGHTEN SETSCREW at this time.

PULLEY SETSCREW

3. Loosen two motor base clamp screws.., push

motor in as far as it will go.

4. a. Plug in saw, turn MASTER switch "ON".

b. Press _ key.

c. Press and hold _L_ key to lower blade even

with table top.

d. Turn MASTER switch "OFF", remove yellow key

and unplug saw.

5. Install belt on motor pulley and saw pulley.

6. Sight along edges of both pulleys and move

motor pulley so that belt is parallel to the edges

of both pulleys . . . tighten the setscrew in the

motor pulley.

7. Make sure blade is 90 ° to table.., raise it all the

way up using procedure in Step 4 except holding

the IJ°_l key.., turn master switch "OFF".

8. Lift motor until edge of washer is even with end

of slot.., tighten pivot screw. In this position,

pull motor toward you (pins will slide out of

cradle) until belt is TIGHT... tighten the two

MOTOR BASE CLAMP SCREWS.

9. Loosen Pivot Screw slightly.

10. Lower the saw blade all the way down following

procedure in Step 4 above.

11. iMPORTANT: Motor should pivot freely

EDGE OF WASHER

EVEN WITH END\

OF SLOT

MOTOR BASE Y

-BELT

"-q i H

downward as blade is lowered, tf it does not,

LOOSEN the PIVOT SCREW some more.

12. Pivot screw must be adjusted only tight enough

to allow motor to pivot FREELYas blade is raised

or lowered. This will maintain constant tension

on belt.

13. Remove belt from motor pulley. Insert end of

belt through opening in end of belt guard and

install belt on pulley.

BELT

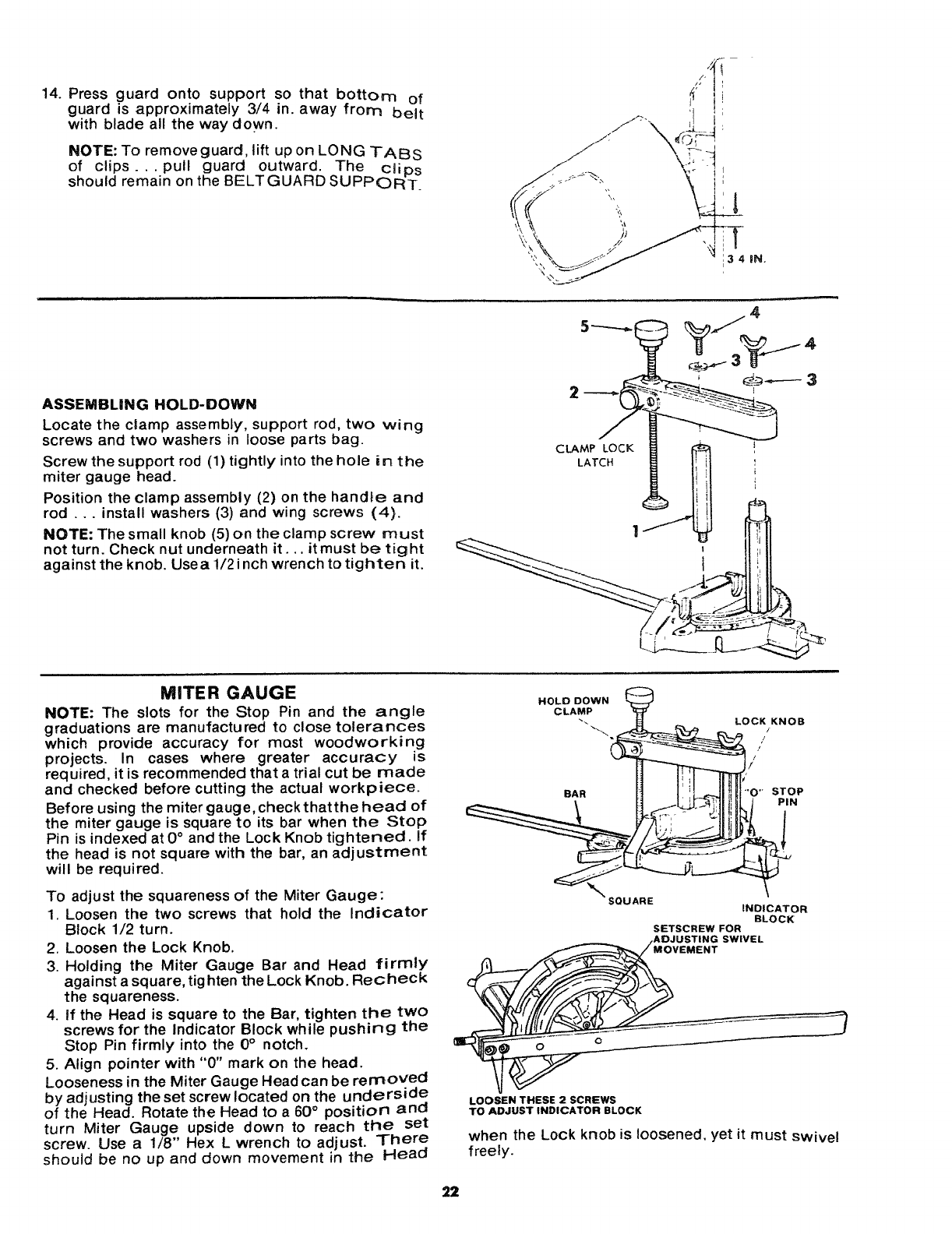

14. Press guard onto support so that bottom of

guard is approximately 3/4 in. away from belt

with blade all the way down.

NOTE: To remove guard, lift up on LONG TABS

of clips.., pull guard outward. The ciips

should remain on the BELTGUARD SUPPORT,

/S/_ --

:341N.

ASSEMBLING HOLD-DOWN

Locate the clamp assembly, support rod, two wing

screws and two washers in loose parts bag.

Screw the support rod (1) tightly into the hole in the

miter gauge head.

Position the clamp assembly (2) on the handle and

rod ... install washers (3) and wing screws (4).

NOTE: The small knob (5) on the clamp screw must

not turn. Check nut underneath it... itmust be tight

against the knob. Use a 1/2 inch wrench to tighten it.

MITER GAUGE

NOTE: The slots for the Stop Pin and the angle

graduations are manufactured to close tolerances

which provide accuracy for most woodworking

projects. In cases where greater accuracy is

required, it is recommended that a trial cut be made

and checked before cutting the actual workpiece.

Before using the miter gauge, checkthatthe head of

the miter gauge is square to its bar when the Stop

Pin is indexed at 0 ° and the Lock Knob tightened, if

the head is not square with the bar, an adjustment

will be required.

To adjust the squareness of the Miter Gauge:

1. Loosen the two screws that hold the Indicator

Block 1/2 turn.

2. Loosen the Lock Knob.

3. Holding the Miter Gauge Bar and Head firmly

against a square, tighten the Lock Knob. Recheck

the squareness.

4. if the Head is square to the Bar, tighten the two

screws for the Indicator Block while pushing the

Stop Pin firmly into the 0° notch.

5. Align pointer with "0" mark on the head.

Looseness in the Miter Gauge Head can be removed

by adjusting the set screw located on the underside

of the Head. Rotate the Head to a 60°position and

turn Miter Gauge upside down to reach the set

screw. Use a 1/8" Hex L wrench to adjust. There

should be no up and down movement in the Head

HOLD DOWN

CLAMP

BAR STOP

" SQUARE

INDICATOR

BLOCK

SETSCREW FOR

.sw,vEL

LOOSEN THESE 2 SCREWS

TO ADJUST INDICATOR BLOCK

when the Lock knob is loosened, yet it must swivel

freely.

GETTING TO KNOW YOUR SAW

LOCATION AND FUNCTION OF ELECTRONIC CONTROLS

mll

4. CONTROL KEYS

5. NUMBER KEYS

LOCATION AND FUNCTION OF MECHANICAL CONTROLS

10. SAWBLADIF

11, EXACT-I-CUT

7. MITER GAUGE/

HOLD DOWN

CLAMP

9, TABLE

iNSERT

MITER GAUGE

LOCK Hi

8. BLADE GUARD

ANTIKICKBACK PAWLS

6. RIP FENCE

HOLES FOR

:HING

WOODEN FACING

RiP FENCE

LOCK HAN

ELECTRONIC CONTROLS

CAUTION:Beforeturningswitchon,makesurethe

blade guard is correctly installed and operating

properly.

1, MASTER SWITCH:

This is the power on-off switch for the

computer's display and keyboard functions.

(The computer's memory has constant power as

long as saw is plugged into a 120v live power

supply.) Turning this switch off will shut off

power to the saw motor as well as the computer

functions.

To turn switch on:

1. Insert yellow key.

2. Insert finger under bottom of lever and pull

out.

To turn switch off:

Push lever in.

2. SAW MOTOR SWITCH:

This switch is used to turn the saw motor on and

off.

NOTE: Pushing off either the Saw Motor Switch

or the Master Switch will shut off power to the

saw motor.

NOTE: Only the _-]. and JOG keys will work

when the Saw Motor Switch is "ON". The

elevation only is displayed as long as this switch

is "ON".

Operation of this switch is the same as the

Master Switch except for the yellow key.

WARNING: Do not stand in line with blade when

turning switch on.

Do not cycle motor switch "ON" and "OFF"

rapidly, as this may cause the sawblade to

loosen. In the event this should occur, al!ow the

sawblade to come to acomplete stop and

retighten the arbor nut normally, not

excessivel y.

Never leave the saw with power "ON".

WARNING: FOR YOUR OWN SAFETY, LOWER

BLADE OR OTHER CUTTING TOOL BELOW

TABLE SURFACE. (iF BLADE IS TILTED, RETURN

iT TO VERTICAL (O°) POSITION). ALWAYS LOCK

THE SWITCH "'OFF". WHEN SAW IS NOT IN USE..

•REMOVE KEY AND KEEP IT IN A SAFE PLACE...

ALSO... IN THE EVENT OF A POWER FAILURE

(ALL OF YOUR LIGHTS GO OUT) TURN SWITCH

OFF ... LOCK IT AND REMOVE THE KEY. THiS

WILL PREVENT THE SAW FROM STARTING UP

AGAIN WHEN THE POWER COMES BACK ON.

3. DISPLAY:

NOTE: Readout on display is in decimals. There is a

conversion chart for converting fractions to

decimals on page 55 of this manual.

MINUS

INDICATOR NUMBERS

II TO LOCK I_

DECIMAL POINTS

The display gives the user four pieces of

information.

1. The decimal point shows what function,

either ELEV OR BEVEL is being displayed.

2. The numbers show either the present

position of the blade or the entered

destination for programmed operation.

3.The minus indicator in the upper left hand

corner lights when the displayed number is

negative (less than the "zero" position) or

key is pressed after a

To lock switch: 4. The flashing !_"indicates that the saw needs

Hold lever in with one hand while remowng calibrating. The flashing'E will only be

yellow key with the other hand. displayed when the saw requires calibrating

due to e_ther a power interruption or the saw

has been unplugged.

FLASHING "E" INDICATES

CALIBRATION REQUIRED

TO LOCK

4. CONTROL KEYS:

The two rows of keys directly under the display

are the control keys. They are how you tell the

computer what you want it to do.

MINUS

A. Jog key is a rocker type switch that when

pushed up and held in causes the blade to

elevate when in L_L____Jor to bevel to the left

when in _ .The motionsaretheopposite

when the key is pushed down.

When the jog key is pressed and immediately

released it will cause the blade to change

elevation by 0.005" or bevel by 0.1 ° depending

on the function selected. This "tapping" of the

jog key can be repeated as many times as

desired to move blade into position.

B. [_ and _-_ keys are used to select the

desired function.

Pressing _ will display current blade

elevation. Saw must be in elevation mode

before any programmed or jogging elevation

operation can be performed. A lighted

decimatabove _ keyindicatesthatthe

elevation function is active.

F-----q

In the same way, pressing _ will display

the current angle of the blade and allow any

programmed or jogging bevel operation to be

performed. A lighted decimal above

indicates that the bevel mode is active.

C. _ key is a dual purpose key. When the

saw is first plugged in or if there has been a

power interruption the key operates as a

"Calibration" key. Pressing the key, with the

blade at 90 ° to the table and at zero elevation

accurately sets the program that computes

the elevatmon and bevel angle of the blade

Once the calibration has been set the key

becomes an "Enter" key used for entering

both a bevel and an elevation programmed

motion.

The _ key, when pressed, will start a

programmed moben.

It becomes reactive while the saw motor is

"ON".

The _ key will set the display to a "zero"

point other than at the table top, or when

using a cutting tool less than 10 inches tn

diameter. See "Calibrating the Saw for

Electronic Operations" Page 29.

The _ key will clear the display if an

error is made m a programmed entry and will

return the display to the current posmtion of

the chosen function. This key will also stop a

programmed motion once begun and clear

the original destination.

5. NUMBER KEYS:

DNm-q

These keys include the number keys

through _ , the decimal point _ and

keys. The number keys are used to enter

a destination for programmed motion. The

decimal point is used when entering the decimal

part of the number

The [__ key is pressed afterthe numbersare

entered if a destination is desired below the

"zero" location.

A lighted dot in the upper left hand corner of the

display indicates "minus."

RIP FENCE... is locked in place by pushing the

lock lever down. To move fence, lift up on the lock

lever and grasp the fence with one hand at the

front.

Holes are provided in the rip fence for attaching a

wood facing when using the dado head, or

molding head.

Select a piece of smooth straight wood approx.

3/4" thick, at least as long as the rip fence, and at

least 7-1/2" wide (high) to permit clamping of

featherboards,

Attach it to the fence with three Round Head #10

Wood Screws 2=n.long. To remove the facing,

loosen the screws, slide the facing backward

and pull the screws through the round holes.

WOOD FACING

ROUND HEAD

# 10 WOOD SCREWS

If you are making a rip type cut _n material

thinner tl-ran 3/16 in. while the fence is

positioned over the depressed area of table

extension, the facing should be attached to the

fence so that the bottom edge touches the top

surface of the extension. In this case, the facing

must be shorter than the fence. This will prevent

thin material from sliding under the rip fence.

7. MITER GAUGE... head is locked in position

for crosscutting or mitering by tightening the

lock knob. ALWAYS LOCK IT SECURELY

WHEN IN USE.

_HOLD DOWN

LOCK K _CLAMP

STO 1 \PPIN 45 _SLOT "_ I J- FAC|NGR\I L_tAUXILIA Y

FOR STOP PIN

There are slots for the stop pin at the 45 degree

right and left positions for conveniently setting

the Miter Gauge to cut miters.

NOTE: The slots for the stop pin and the

graduations are manufactured to very close

tolerances which provide accuracy for average

woodworking. In some cases where extreme

accuracy is required, make a trial cut and then

recheck it.

If necessary, the miter gauge head can then be

swiveled slightly to compensate and then

locked.

Slots are provided in the miter gauge for

attaching AUXILIARY FACING to make it easier

to cut long pieces. Be positive facing does not

interfere with the proper operation of the

sawblade guard.

Select a suitable piece of smooth straight wood.

. . drill two holes through it and attach it with

screws.

NOTE: When bevel crosscutting, attach facing

so that it extends to the right of the miter gauge

and use the miter gauge in the groove to the

right of the blade.

8. BLADEGUARD must always be in place and

working properly for all thru-sawing cuts. That

is, all cuts where the blade cuts completely

through the workpiece.

THUMBSCREW

To remove the guard for special operations,

loosen the thumbscrew and slide the guard off

of the rod. DO NOT DISTURB THE SETTING

OF THE ROD.

When replacing the guard, make sure the PIN in

the rod engages with the NOTCH in the

spreader support. Make sure thumbscrew is

tightened securely.

9. TABLE INSERT is removable for removing or

installing blades or other cutting tools.

SCREW

WARNING: FOR YOUR OWN SAFETY, TURN

SWITCH "OFF" AND REMOVE PLUG FROM

POWER SOURCE OUTLET BEFORE

REMOVING INSERT

A. Use "Shut Down Procedure" Page 30, to

retain calibratiorr.

B. Raise blade guard.

C. Loosen Screw.

D. Lift insert from front end, and pull toward

front of saw.

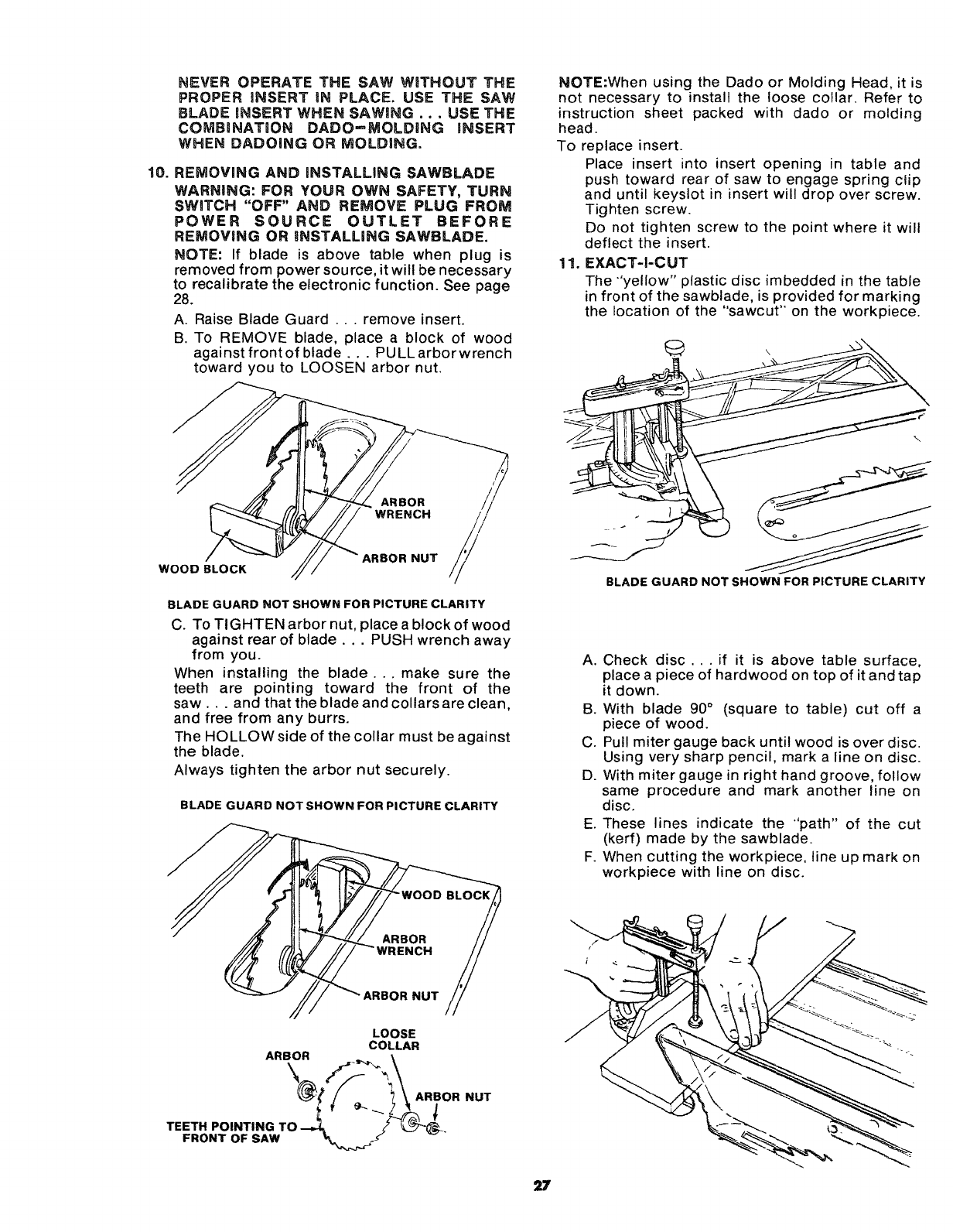

NEVER OPERATE THE SAW WITHOUT THE

PROPER INSERT iN PLACE. USE THE SAW

BLADE iNSERT WHEN SAWING . . . USE THE

COMBINATION DADO_MOLDING INSERT

WHEN DADOING OR MOLDING.

10. REMOVING AND iNSTALLING SAWBLADE

WARNING: FOR YOUR OWN SAFETY, TURN

SWITCH "OFF" AND REMOVE PLUG FROi_

POWER SOURCE OUTLET BEFORE

REMOVING OR _NSTALLBNG SAWBLADE.

NOTE: If blade is above table when plug is

removed from power source, it will be necessary

to recalibrate the electronic function. See page

28.

A. Raise Blade Guard ... remove insert.

B. To REMOVE blade, place a block of wood

against frontof blade... PULL arborwrench

toward you to LOOSEN arbor nut.

WOOD BLOCK OR NUT

BLADE GUARD NOT SHOWN FOR PICTURE CLARITY

C. To TIGHTEN arbor nut, place a block of wood

against rear of blade... PUSH wrench away

from you.

When installing the blade.., make sure the

teeth are pointing toward the front of the

saw.., and that the blade and collars are clean,

and free from any burrs.

The HOLLOW side of the collar must be against

the blade.

Always tighten the arbor nut securely.

BLADE GUARD NOT SHOWN FOR PICTURE CLARITY

OR NUT

LOOSE

COLLAR

ARBOR __.,. \

TEET.PO,.T,.GTO

FRONT OF SAW %_ .

NUT

NOTE:When using the Dado or Molding Head, it is

not necessary to install the loose collar. Refer to

instruction sheet packed with dado or molding

head.

To replace insert.

Place insert into insert opening in table and

push toward rear of saw to engage spring clip

and until keyslot in insert will drop over screw.

Tighten screw.

Do not tighten screw to the point where it will

deflect the insert.

11. EXACT-I-CUT

The "'yellow" plastic disc imbedded in the table

in front of the sawblade, is provided for marking

the location of the "sawcut" on the workpiece.

BLADE GUARD NOT SHOWN FOR PICTURE CLARITY

A. Check disc ... if it is above table surface,

place a piece of hardwood on top of it and tap

it down.

B. With blade 90 °(square to table) cut off a

piece of wood.

C. Pull miter gauge back until wood is over disc.

Using very sharp pencil, mark a line on disc.

D. With miter gauge in right hand groove, follow

same procedure and mark another line on

disc.

E. These lines indicate the "'path" of the cut

(kerf) made by the sawblade.

F. When cutting the workpiece, line up mark on

workpiece with line on disc.

BASIC SAW OPERATaON

WORK HELPERS

Before cutting any wood on your saw, study all of

the "Basic Saw Operations".

Notice that in order to make some of the cuts, it is

necessary to use certain devices called "Work

Helpers" like the Push Stick, the Push Block and the

Auxiliary Fence/Work Support, which you can make

yourself.

After you have made a few practice cuts, make up

these "helpers" before starting any projects. Make

the "Push Stick" first.

PUSH STICK AND PUSH BLOCK

Make the Push Stick using a piece of lx2, orripone

from a wide board, say 11-1/2 in. wide, and set the

rip fence 9-7/8 in. from the sawblade.

-3/4

THESE EDGES MUST _.

BE PARALLEL ]3/4 PLYWOOD

12 /_

2-1/2

3/8

PUSH BLOCK

NOTE: All dimensions in inches

Make the Push Block using a piece of 3/8 in. and 3/4

in. plywood.

The small piece of wood 3/8 in. x 3-1/2in. should be

GLUED to the plywood... DO NOT USE NAILS.

This is to prevent dulling the sawblade in the event

you mistakingly cut into the push block.

Position the handle in the center of the plywood and

fasten together with glue and woodscrews.

AUXILIARY FENCE/WORK SUPPORT

Make one using a piece of 3/8 in. and 3/4 in.

plywood. Fasten together with glue and

woodscrews.

NOTE: Since the Push Block is used with the

Auxiliary Fence,the 4-3/4 in. dimensions must be

held identical on both the pieces.

I//'_

15 1, 45 ° NOTCH

1-5/8 _wo.Kp, CEE.D \.

1/4/ ],,4 \

-_ _1/4 THIS FACE AND THIS 30

EDGE MUST BE PARALLEL

PUSH STICK

NOTE: All dimensions in inches. 3/8 PLYWOOD

3/8 PLYWOOD

3/4 PLYWOOD

\. .i12"_

AUXILIARY FENCE/ _5

WORK SUPPORT

NOTE: All dimensions in inches

USING THE MITER GAUGE

FOR CROSSCUTTING, MITER CUTTING, BEVEL

CUTTING, COMPOUND MITER CUTTING,

DADOING and when RABBETTING AND

MOLDING across the end of a narrow workpiece,

THE MITER GAUGE IS USED.

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS IN ADDITION TO THE SAFETY

INSTRUCTIONS ON PAGES 2, 3, and 4.

1. Never make these cuts freehand (without using

the miter gauge or other auxiliary devices)

because the blade could bind in the cut and

cause a KICKBACK or cause your fingers or

hand to slip into the blade.

2. Always lock the miter gauge securely when in

use.

3. Remove rip fence from table.

4. Make sure blade guard is installed for all

"thru-sawing" operations (when sawblade cuts

entirely through the thickness of the

workpiece.) Replace guard IMMEDIATELYafter

completion of dadoing, molding or rabbeting

cuts.

5. Have blade extend approximately 1/8 in. above

top of workpiece. Additional blade exposure

would increase the hazard potential.

6. Do not stand directly in front of the blade in case

of a THROWBACK (Small cut-off piece caught

by the back of the blade and thrown toward the

operator). Stand to either side of the blade.

7. Keep your hands clear of the blade and out of

the path of the blade.

8. If blade stalls or stops while cutting, TURN

SWITCH OFF before attempting to free the

blade.

9. Do not reach over or behind the blade to pull the

workpiece through the cut.., to support long

or heavy workpieces...to remove cut-off

pieces of material or FOR ANY OTHER

REASON.

10. Do not pick up small pieces of cut-off material

from the table. REMOVE them by pushing them

OFF the table with a long stick. Otherwise they

could be thrown back at you by the rear of the

blade.

11. Do not remove small pieces of cut-off material

that may become TRAPPED inside the blade

guard while the saw is RUNNING. THIS COULD

ENDANGER YOUR HANDS or cause a

KICKBACK.

Turn the saw OFF. After the blade has stopped

turning, lift the guard and remove the piece.

CALiBRATiNG THE SAW

FORELECTRONIC OPERATIONS

Whenever the saw has been unplugged or there has

been an interruption in power, it will be necessaryto

calibrate the "zero" points for the elevation and

bevel operations. To do this, perform the steps listed

below.

NOTE: For calibrating the saw with a sawblade or

other cutting tool that is less the 10" in diameter

refer to the section headed "Calibration Procedure

for Cutting Tools Less then 10" Diameter" page 30.

CALIBRATION REQUIRED INDICATOR

JOG ELEVATION BEVEL

KEYS KEY KEY

[]

Calibration Procedure Using 10" Diameter

Sawblade.

1. Plug in the saw and insert yellow key into

MASTER switch and turn "ON." D_sptay will

show flashing C.

2. Press _ key.

3. Press and hold in the _ key to raise blade

until the maximum elevation is reached

(indicated by a distinct change in pitch of the

motor.) Press and hold the _ key to just

pull blade away from the stop.

4. Press key.

5. Place a square against table top and the left

side of the sawblade (be sure that the square

is not resting against a saw tooth).

6. Press and release the jF_ and

keys until blade is square to the table.

NOTE: For greater accuracy make the final

adjustment into square from the right using

the jog key marked

7. Press the [-_ key.

8. Press and hold _ key to lower blade

until the blade is completely below the table

top.

9. Repeatedly press and release the _ key

to jog blade up until tl_e tip of a saw tooth is

just even with the table top.

NOTE: Final adjustment should be made with

the blade coming up to the level of the table

top rather than down, for greatest accuracy.

10. Now press the _ key. The display will

read/_o_I which is zero elevation.

L _

Pressing the _ key will display

I The elevation and bevel operation

will now be calibrated until the saw is either

unplugged or there is a power interruption.

When the work session is over, return the

blade to the 0 ° bevel position and the tip of

the 10" sawblade even with the table top

before unplugging saw. Refer to "Shut Down

Procedure to Retain Calibration." With the

saw at this setting, it will only be necessary to

plug the saw in, turn the MASTER switch

"ON" and press the _ key to calibrate

the saw, next time it is used.

NOTE: The saw will remain calibrated even if the

Master Switch is "off" and "locked", as long as

the saw is plugged in and there is no power

interruption.

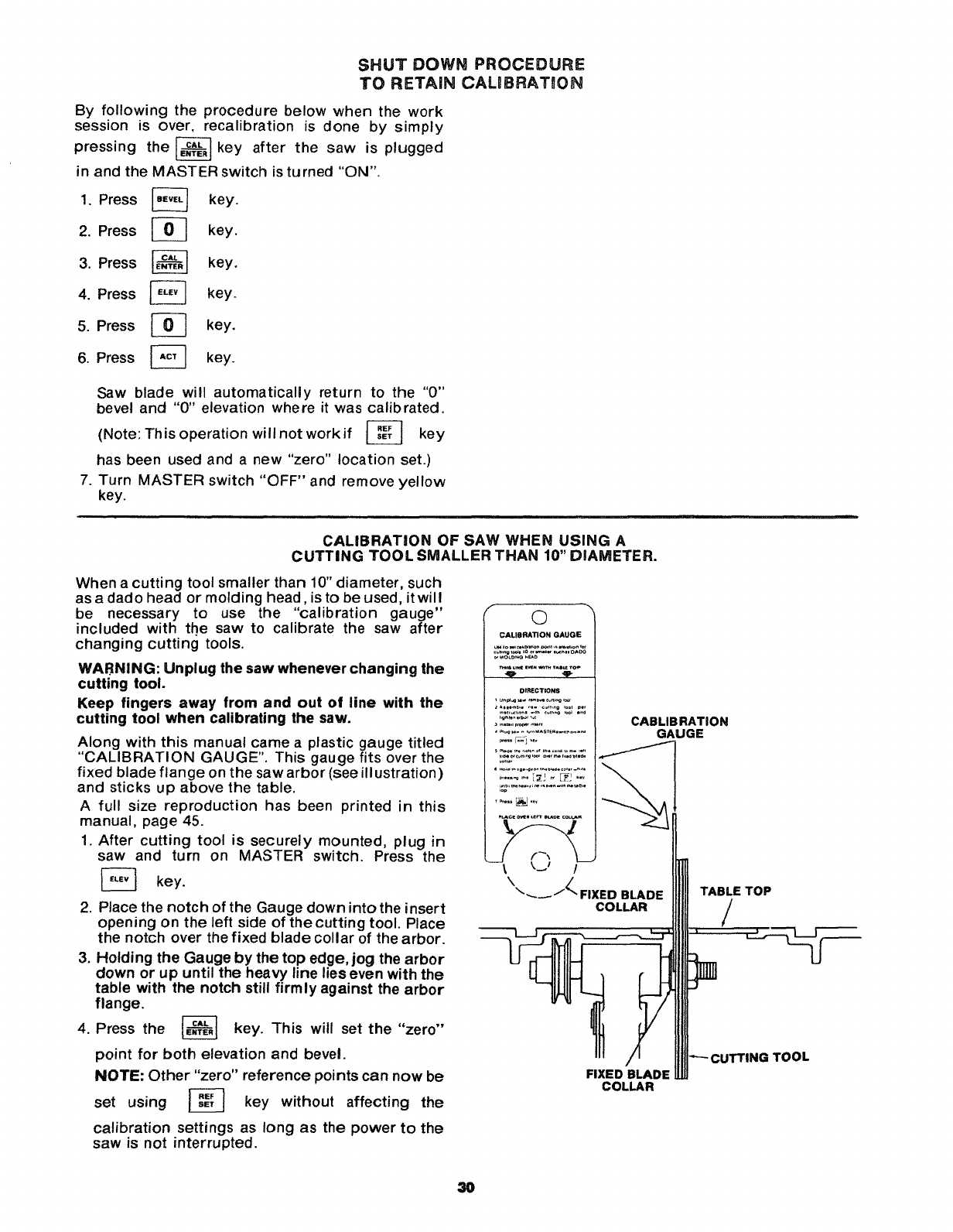

SHUT DOWN PROCEDURE

TO RETAIN CALmBRATION

By following the procedure below when the work

session is over, recalibration is done by simply

pressing the _ key after the saw is plugged

in and the MASTER switch is turned "ON".

1. Press _ key.

2. Press [O] key.

3. Press _ key.

4. Press _ key.

5. Press _ key.

6. Press _ key.

Saw blade will automatically return to the "0"

bevel and "0" elevation where it was calibrated.

(Note:Thisoperationwillnotworkif _ key

has been used and a new "zero" location set.)

7. Turn MASTER switch "OFF" and remove yellow

key.

CALIBRATION OF SAW WHEN USING A

CUTTING TOOL SMALLER THAN 10" DIAMETER.

When a cutting tool smaller than 10" diameter, such

as a dado head or molding head, is to be used, it will

be necessary to use the "calibration gauge"

included with the saw to calibrate the saw after

changing cutting tools.

WARNING: Unplug the saw whenever changing the

cutting tool.

Keep fingers away from and out of line with the

cutting tool when calibrating the saw.

Along with this manual came a plastic gauge titled

"CALIBRATION GAUGE". This gauge fits over the

fixed blade flange on the saw arbor (see illustration)

and sticks up above the table.

A full size reproduction has been printed in this

manual, page 45.

1. After cutting tool is securely mounted, plug in

saw and turn on MASTER switch. Press the

[_ key.

2. Place the notch of the Gauge down into the insert

opening on the left side of the cutting tool. Place

the notch over the fixed blade collar of the arbor.

3. Holding the Gauge by the top edge, jog the arbor

down or up until the heavy line lies even with the

table with the notch still firmly against the arbor

flange.

4. Press the _ key. This will set the "zero"

point for both elevation and bevel.

NOTE: Other "zero" reference points can now be

set using _ key without affecting the

calibration settings as long as the power to the

saw is not interrupted.

CABLIBRATION

GAUGE

TABLE TOP

FIXED BLADE

COLLAR

NG TOOL

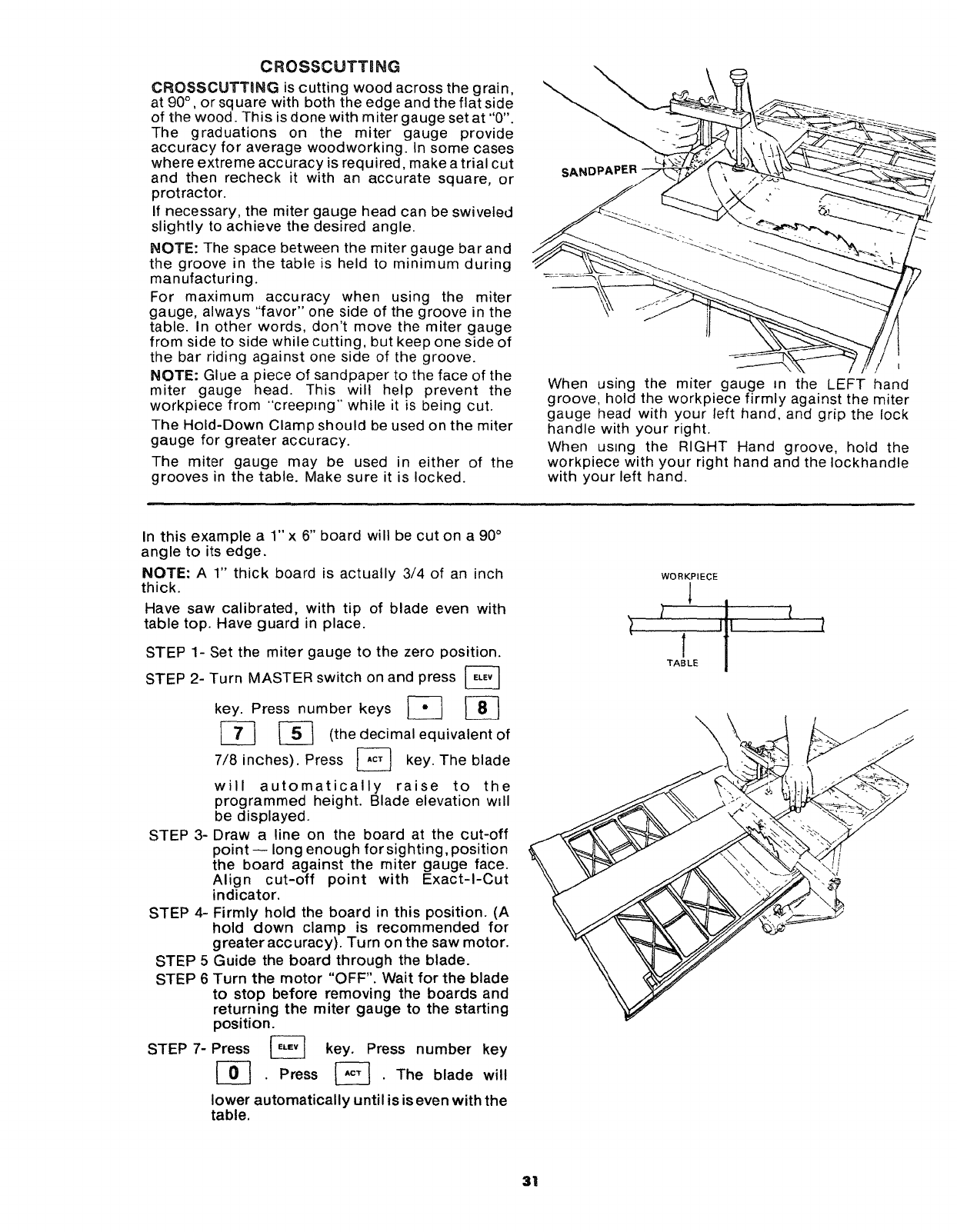

CROSSCUTTING

CROSSCUTTmNG is cutting wood across the grain,

at 90 ° ,or square with both the edge and the flat side

of the wood. This is done with miter gauge set at "0".

The graduations on the miter gauge provide

accuracy for average woodworking. In some cases

where extreme accuracy is required, make a trial cut

and then recheck it with an accurate square, or

protractor.

If necessary, the miter gauge head can be swiveled

slightly to achieve the desired angle.

NOTE: The space between the miter gauge bar and

the groove in the table is held to minimum during

manufacturing.

For maximum accuracy when using the miter

gauge, always "favor" one side of the groove in the

table. In other words, don't move the miter gauge

from side to side while cutting, but keep one side of

the bar riding against one side of the groove.

NOTE: Glue a piece of sandpaper to the face of the

miter gauge head. This will help prevent the

workpiece from "creeping" while it is being cut.

The Hold-Down Clamp should be used on the miter

gauge for greater accuracy.

The miter gauge may be used in either of the

grooves in the table. Make sure it is locked.

SANDPAPER

When using the miter gauge in the LEFT hand

groove, hold the workpiece firmly against the miter

gauge head with your left hand, and grip the lock

handle with your right.

When using the RIGHT Hand groove, hold the

workpiece with your right hand and the Iockhandle

with your left hand.

In this example a 1" × 6" board will be cut on a 90°

angle to its edge.

NOTE: A 1" thick board is actually 3/4 of an inch

thick.

Have saw calibrated, with tip of blade even with

table top. Have guard in place.

STEP 1- Set the miter gauge to the zero position.

STEP 2- Turn MASTER switch on and press [_

key. Press number keys [_ _]

_ (the decimal equivalent of

inches). Press _ key. The blade

7/8

will automatically raise to the

programmed height. Blade elevation will

be displayed.

STEP 3- Draw a line on the board at the cut-off

point -- long enough for sighting, position

the board against the miter gauge face.

Align cut-off point with Exact-I-Cut

indicator.

STEP 4- Firmly hold the board in this position. (A

hold down clamp is recommended for

greater accuracy). Turn on the saw motor.

STEP 5 Guide the board through the blade.

STEP 6 Turn the motor "OFF". Wait for the blade

to stop before removing the boards and

returning the miter gauge to the starting

position.

STEP 7- Press _ key. Press number key

lower automatically until is is even with the

table.

WORKPIECE

/ ! ltl l

TABLE

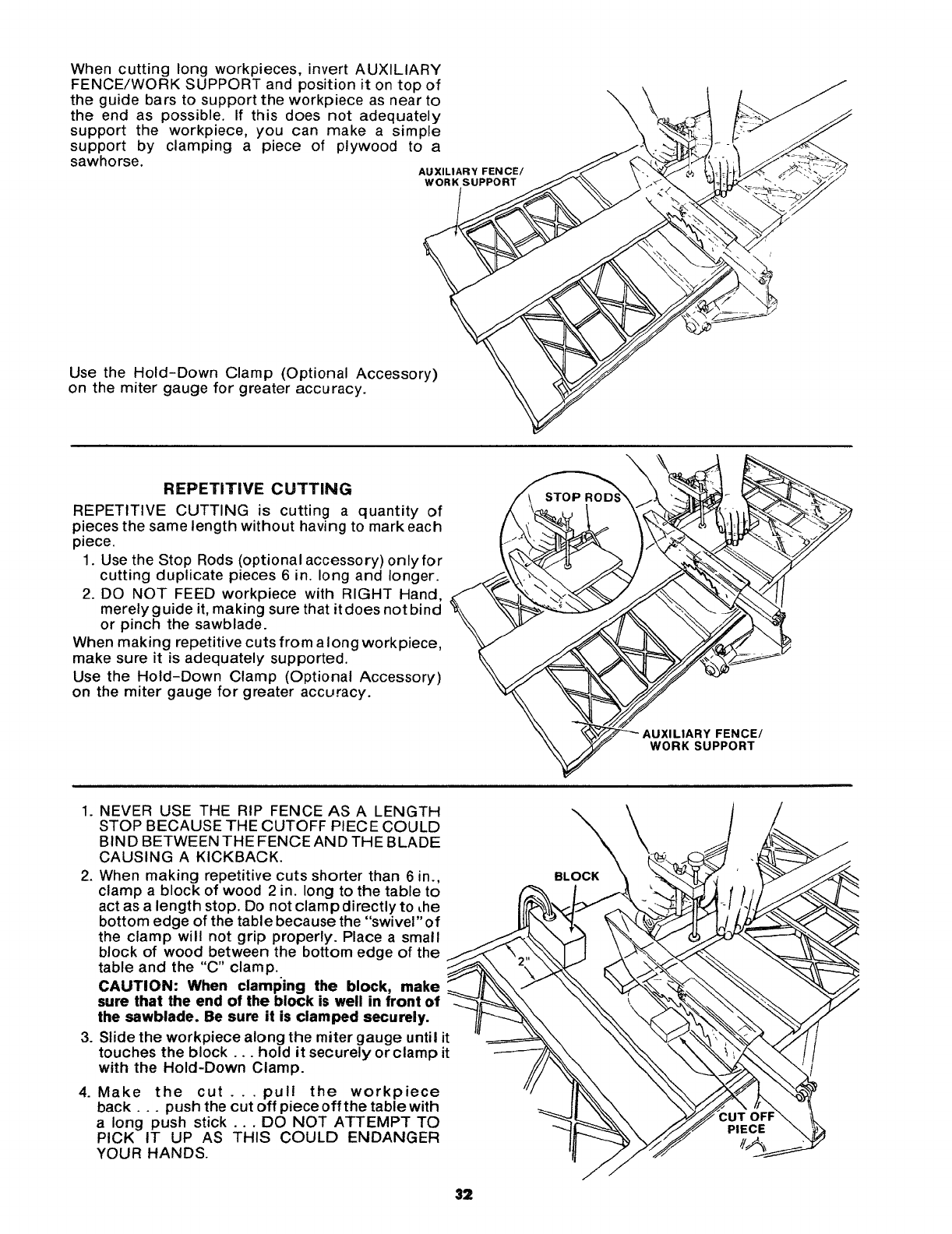

When cutting long workpieces, invert AUXILIARY

FENCE/WORK SUPPORT and position it on top of

the guide bars to support the workpiece as near to

the end as possible. If this does not adequately

support the workpiece, you can make a simple

support by clamping a piece of plywood to a

sawhorse. AUXILIARY FENCE/

WORK SUPPORT

Use the Hold-Down Clamp (Optional Accessory)

on the miter gauge for greater accuracy.

REPETITIVE CUTTING

REPETITIVE CUTTING is cutting a quantity of

pieces the same length without having to mark each

piece.

1. Use the Stop Rods (optional accessory) onlyfor

cutting duplicate pieces 6 in. long and longer.

2. DO NOT FEED workpiece with RIGHT Hand,

merely guide it, making sure that it does not bind

or pinch the sawblade.

When making repetitive cuts from along workpiece,

make sure it is adequately supported.

Use the Hold-Down Clamp (Optional Accessory)

on the miter gauge for greater accuracy.

z \

1. NEVER USE THE RIP FENCE AS A LENGTH

STOP BECAUSE THE CUTOFF PIECE COULD

BIND BETWEEN THE FENCE AND THE BLADE

CAUSING A KICKBACK.

2. When making repetitive cuts shorter than 6 in.,

clamp a block of wood 2 in. long to the table to

act as a length stop. Do not clamp directly to ,he

bottom edge of the table because the "swivel" of

the clamp will not grip properly. Place a small

block of wood between the bottom edge of the

table and the "C" clamp.

CAUTION: When clami_ing the block, make

sure that the end of the block is well in front of

the sawblade. Be sure it is clamped securely.

3. Slide the workpiece along the miter gauge until it

touches the block.., hold it securely or clamp it

with the Hold-Down Clamp.

4. Make the cut . . . pull the workpiece

back.., push the cut off piece off the table with

a long push stick ... DO NOT ATTEMPT TO

PiCK IT UP AS THIS COULD ENDANGER

YOUR HANDS.

BLOCK

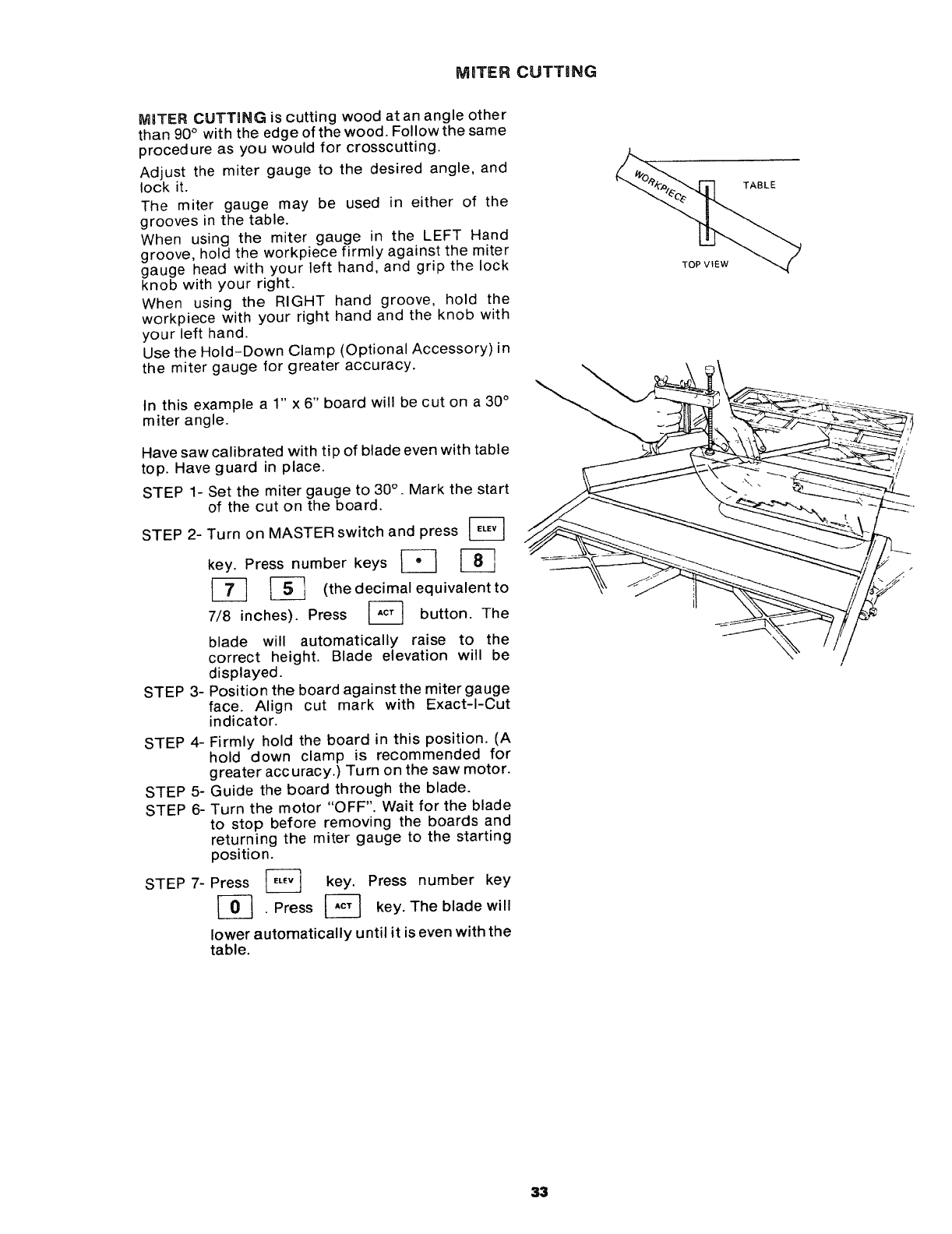

MITER CUTTING

MITER CUTTmNG is cutting wood at an angle other

than 90 ° with the edge of the wood. Followthe same

procedure as you would for crosscutting.

Adjust the miter gauge to the desired angle, and

lock it.

The miter gauge may be used in either of the

grooves in the table.

When using the miter gauge in the LEFT Hand

groove, hold the workpiece firmly against the miter

gauge head with your left hand, and grip the lock

knob with your right.

When using the RIGHT hand groove, hold the

workpiece with your right hand and the knob with

your left hand.

Use the Hold-Down Clamp (Optional Accessory) in

the miter gauge for greater accuracy.

In this example a 1" x 6" board will be cut on a 30°

miter angle.

Have saw calibrated with tip of blade even with table

top. Have guard in place.

STEP 1-

STEP 2-

Set the miter gauge to 30 ° . Mark the start

of the cut on the board.

Turn on MASTER switch and press

key. Press number keys _

_] _ (the decimal equivalent to

7/8 inches). Press [-_ button. The

STEP 3-

STEP 4-

STEP 5-

STEP 6-

STEP 7-

blade will automatically raise to the

correct height. Blade elevation will be

displayed.

Position the board against the miter gauge

face. Align cut mark with Exact-I-Cut

indicator.

Firmly hold the board in this position. (A

hold down clamp is recommended for

greater accuracy.) Turn on the saw motor.

Guide the board through the blade.

Turn the motor "OFF". Wait for the blade

to stop before removing the boards and

returning the miter gauge to the starting

position.

Press _ key. Press number key

L_l .Press _key. The blade will

lower automatically until it is even with the

table.

TOP VIEW

TABLE

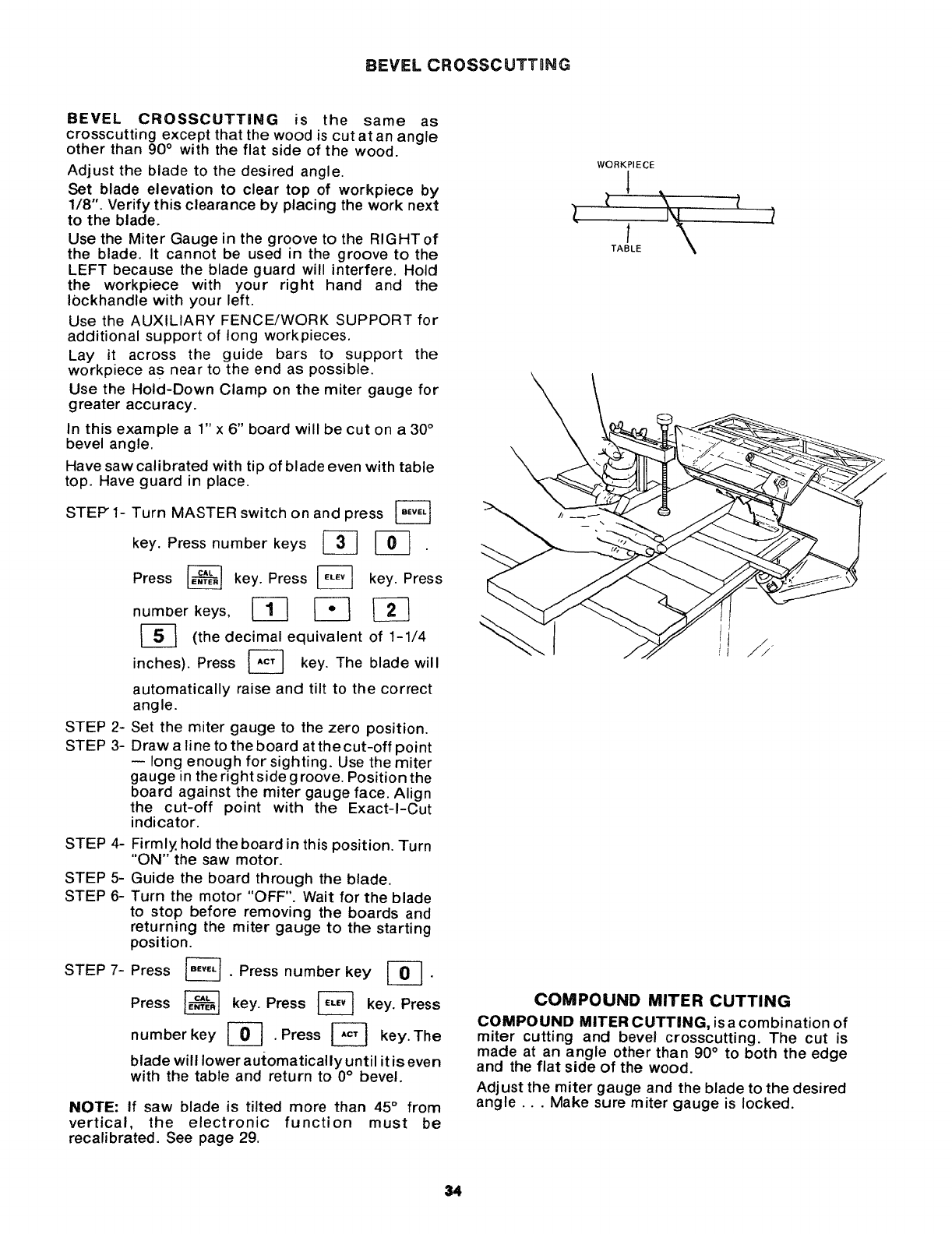

BEVEL CROSSCUTTDNG

BEVEL CROSSCUTTING is the same as

crosscutting except that the wood is cut at an angle

other than 90° with the flat side of the wood.

Adjust the blade to the desired angle.

Set blade elevation to clear top of workpiece by

1/8". Verify this clearance by placing the work next

to the blade.

Use the Miter Gauge in the groove to the RIGHTof

the blade. It cannot be used in the groove to the

LEFT because the blade guard will interfere. Hold

the workpiece with your right hand and the

Iockhandle with your left.

Use the AUXILIARY FENCE/WORK SUPPORT for

additional support of long workpieces.

Lay it across the guide bars to support the

workpiece as near to the end as possible.

Use the Hold-Down Clamp on the miter gauge for

greater accuracy.

In this example a 1" x 6" board will be cut on a 30°

bevel angle.

Have saw calibrated with tip of blade even with table

top. Have guard in place.

STEP" 1- Turn MASTER switch on and press

key. Press number keys [_ _--_

Press _ key. Press _-_ key. Press

numDerkeys, IT] [_ _

[_ (the decimal equivalent of 1-1/4

inches). Press _ key. The blade will

STEP 2-

STEP 3-

automatically raise and tilt to the correct

angle.

Set the miter gauge to the zero position.

Draw a line to the board at thecut-off point

-- long enough for sighting. Use the miter

gauge in the right side groove. Position the

board against the miter gauge face. Align

the cut-off point with the Exact-I-Cut

indicator.

STEP4-

STEP 5-

STEP 6-

STEP 7-

Firmly hold the board in this position. Turn

"ON" the saw motor.

Guide the board through the blade.

Turn the motor "OFF". Wait for the blade

to stop before removing the boards and

returning the miter gauge to the starting

position.

.Press number key _ .

Press

Press _ key. Press I-_ key. Press

number key _ .Press [_ key.The

blade will lower automatically until it is even

with the table and return to 0°bevel.

NOTE: If saw blade is tilted more than 45°from

vertical, the electronic function must be

recalibrated. See page 29.

WORKPIECE

TABLE

COMPOUND MITER CUTTING

COMPOUND MITER CUTTING, is a combination of

miter cutting and bevel crosscutting. The cut is

made at an angle other than 90° to both the edge

and the flat side of the wood.

Adjust the miter gauge and the blade to the desired

angle... Make sure miter gauge is locked.

=14

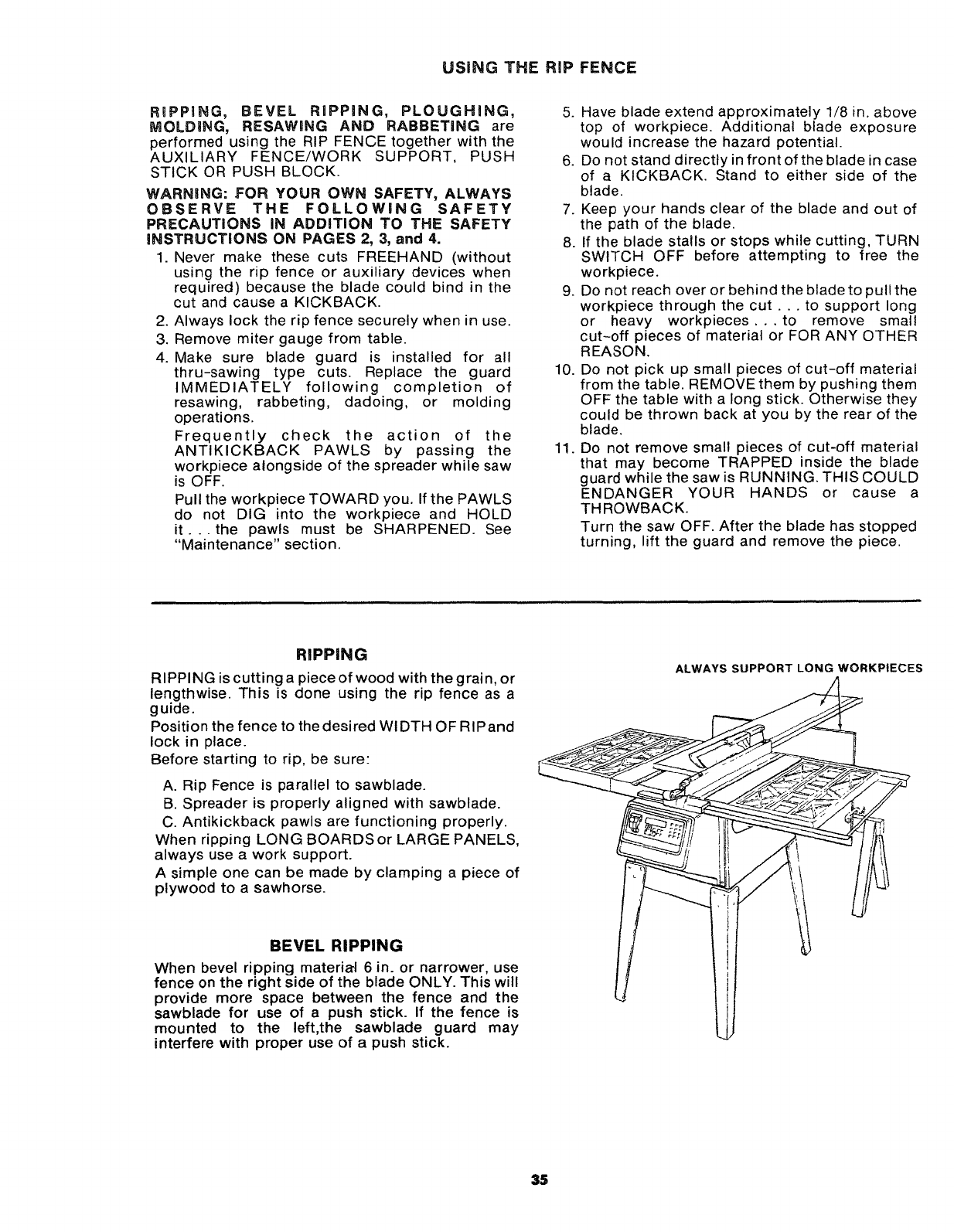

USING THE RmP FENCE

RiPPiNG, BEVEL RiPPiNG, PLOUGHING,

MOLDING, RESAWING AND RABBETING are

performed using the RIP FENCE together with the

AUXILIARY FENCE/WORK SUPPORT, PUSH

STICK OR PUSH BLOCK.

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE FOLLOWING SAFETY

PRECAUTIONS IN ADDITION TO THE SAFETY

iNSTRUCTiONS ON PAGES 2, 3, and 4.

1. Never make these cuts FREEHAND (without

using the rip fence or auxiliary devices when

required) because the blade could bind in the

cut and cause a KICKBACK.

2. Always lock the rip fence securely when in use.

3. Remove miter gauge from table.

4. Make sure blade guard is installed for all

thru-sawing type cuts. Replace the guard

IMMEDIATELY following completion of

resawing, rabbeting, dadoing, or molding

operations.

Frequently check the action of the

ANTIKICKBACK PAWLS by passing the

workpiece alongside of the spreader while saw

is OFF.

Pull the workpiece TOWARD you. If the PAWLS

do not DIG into the workpiece and HOLD

it... the pawls must be SHARPENED. See

"Maintenance" section.

5. Have blade extend approximately 1/8 in. above

top of workpiece. Additional blade exposure

would increase the hazard potential.

6. Do not stand directly in front of the blade in case

of a KICKBACK. Stand to either side of the

blade.

7. Keep your hands clear of the blade and out of

the path of the blade.

8. If the blade stalls or stops while cutting, TURN

SWITCH OFF before attempting to free the

workpiece.

9, Do not reach over or behind the bladeto pull the

workpiece through the cut.., to support long

or heavy workpieces.., to remove small

cut-off pieces of material or FOR ANY OTHER

REASON,

10. Do not pick up small pieces of cut-off material

from the table. REMOVEthem by pushing them

OFF the table with a long stick. Otherwise they

could be thrown back at you by the rear of the

blade.

11. Do not remove small pieces of cut-off material

that may become TRAPPED inside the blade

guard while the saw is RUNNING, THIS COULD

ENDANGER YOUR HANDS or cause a

THROWBACK.

Turn the saw OFF. After the blade has stopped

turning, lift the guard and remove the piece.

RIPPING

RIPPING is cutting a piece of wood with the grain, or

lengthwise. This is done using the rip fence as a

guide.

Position the fence to the desired WIDTH OF RIPand

lock in place.

Before starting to rip, be sure:

A. Rip Fence is parallel to sawblade.

B. Spreader is properly aligned with sawblade.

C. Antikickback pawls are functioning properly.

When ripping LONG BOARDSor LARGE PANELS,

always use a work support.

A simple one can be made by clamping a piece of

plywood to a sawhorse.

ALWAYS SUPPORT LONG WORKPIECES

BEVEL RIPPING

When bevel ripping material 6 in. or narrower, use

fence on the right side of the blade ONLY. This will

provide more space between the fence and the

sawblade for use of a push stick. If the fence is

mounted to the left,the sawblade guard may

interfere with proper use of a push stick.

When "WIDTH OF RIP" is 6in. and WIDER use your

RIGHT Hand to feed the workpiece until it isclear of

the table.

Use LEFT hand ONLY to guide the

workpiece.., do not FEED the workpiece with the

left hand.

When "WIDTH OF RIP" is 2 in. to 6 in. wide USE THE

PUSH STICK to feed the work.

When WIDTH OF RIP is NARROWER than 2 in., the

push stick CANNOT be used because the guard will

interfere... USE the AUXILIARY FENCE/WORK

SUPPORT and PUSH BLOCK.

Attach Auxiliary Fence/Work Support to rip fence

with two "C" clamps.

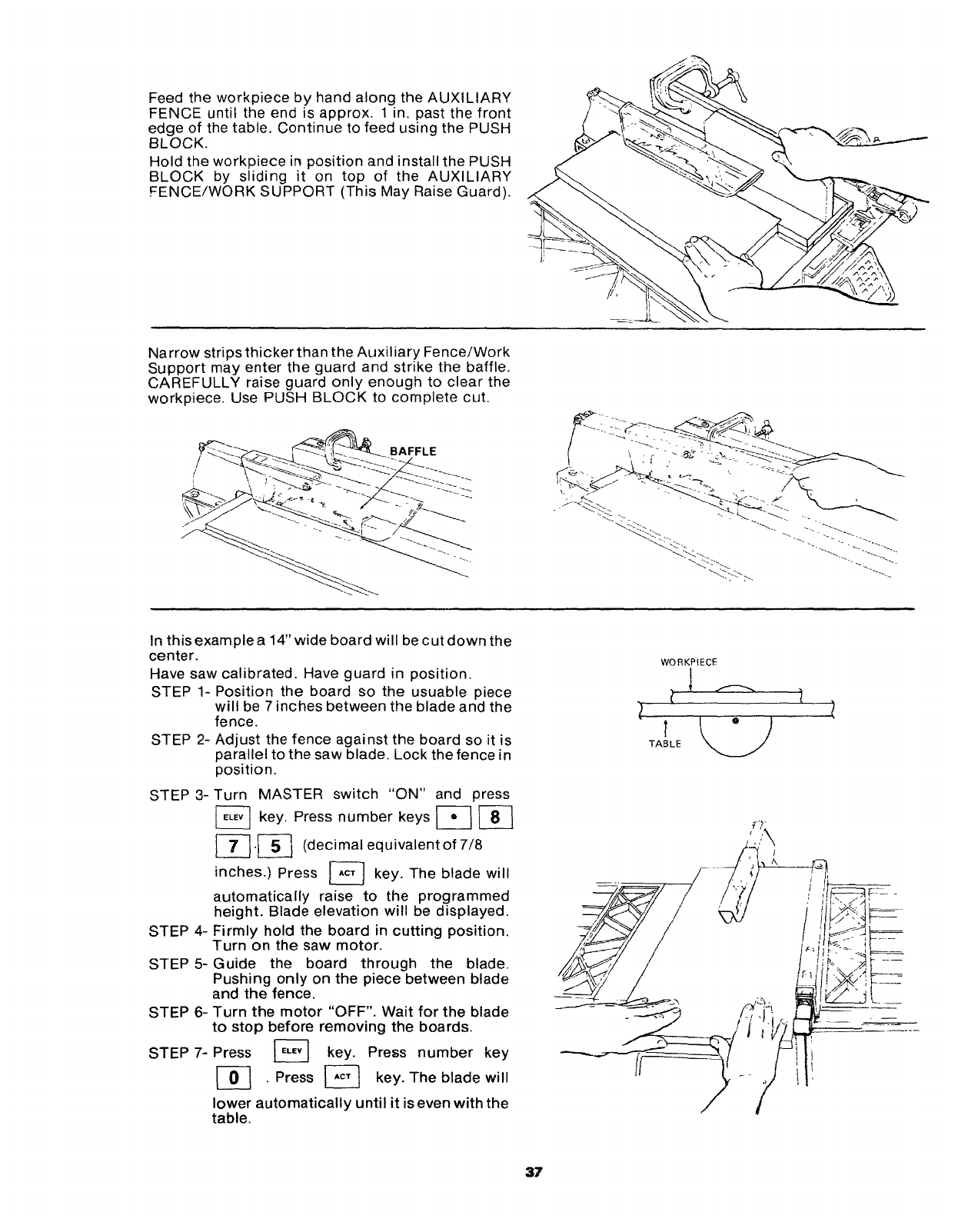

FeedtheworkpiecebyhandalongtheAUXILIARY

FENCEuntiltheendisapprox.1in. pastthefront

edgeof thetable.ContinuetofeedusingthePUSH

BLOCK.

HoldtheworkpieceinpositionandinstallthePUSH

BLOCKby sliding it on top of the AUXILIARY

FENCE/WORKSUPPORT(ThisMayRaiseGuard).

NarrowstripsthickerthantheAuxiliaryFence/Work

Supportmayentertheguardandstrikethebaffle.

CAREFULLYraiseguardonlyenoughto clearthe

workpiece.UsePUSHBLOCKto completecut.

Inthisexamplea14"wideboardwillbecutdownthe

center.

Havesawcalibrated.Haveguardin position.

STEP1-Positionthe boardso the usuablepiece

will be7inchesbetweenthebladeandthe

fence.

STEP2-Adjustthefenceagainsttheboardso it is

paralleltothesawblade.Lockthefencein

position.

STEP3-Turn MASTERswitch "ON" and press

key.Pressnumberkeys[_1 [_

[_,_ (decimal equivalent of 7/8

inches.) Press [_ key. The blade will

automatically raise to the programmed

height. Blade elevation will be displayed.

STEP 4- Firmly hold the board in cutting position.

Turn on the saw motor.

STEP 5-Guide the board through the blade.

Pushing only on the piece between blade

and the fence.

STEP 6- Turn the motor "OFF". Wait for the blade

to stop before removing the boards.

STEP 7- Press _ key. Press number key

.Press __t key. The blade will

lower automatically until it is even with the

table.

WORKPIECE

I"_"--'_ ,, !

'WTABLE

! , U ........

_ -:j F.,7 ,--=---

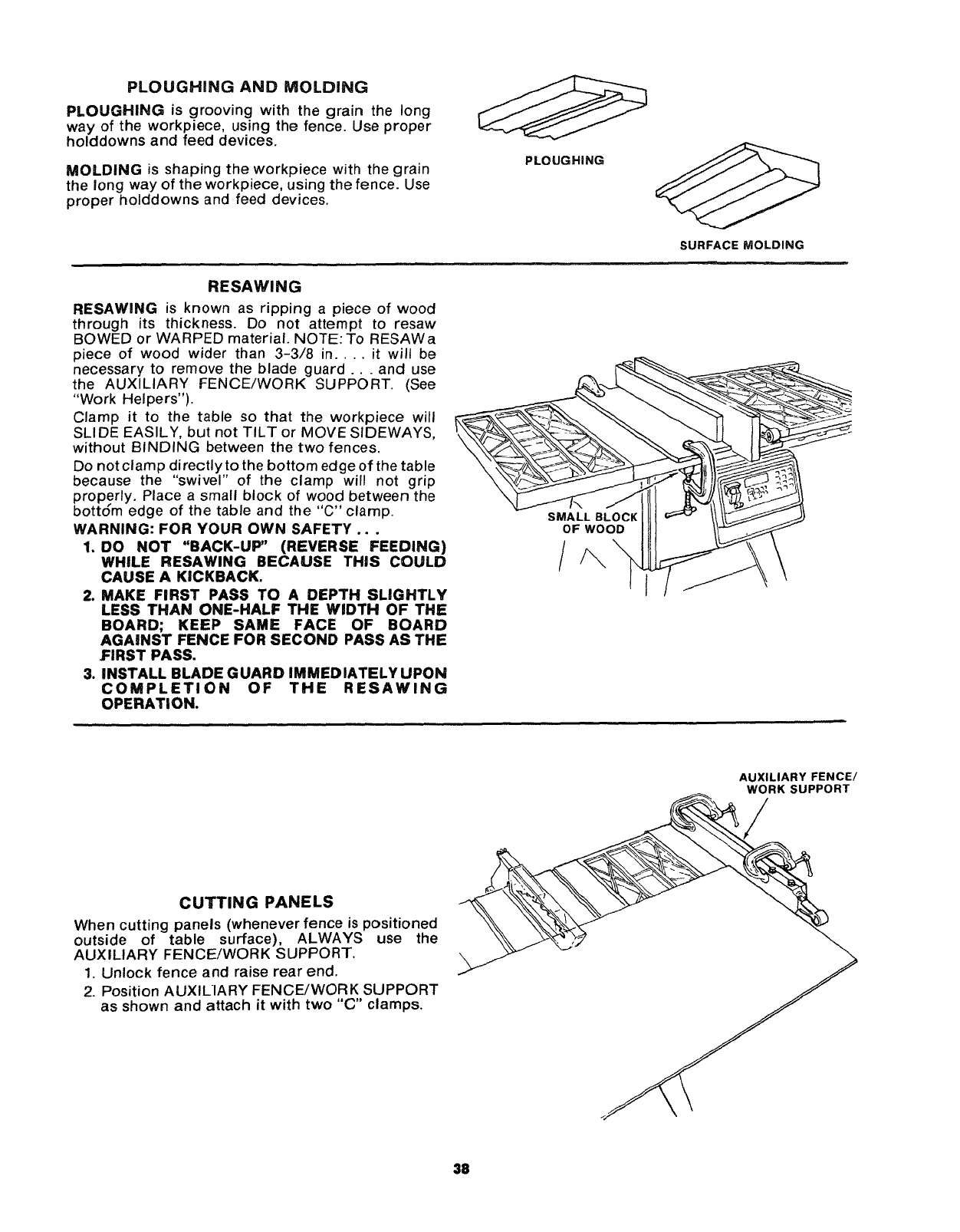

PLOUGHING AND MOLDING

PLOUGHING is grooving with the grain the long

way of the workpiece, using the fence. Use proper

holddowns and feed devices.

MOLDING is shaping the workpiece with the grain

the long way of the workpiece, using the fence. Use

proper holddowns and feed devices.

PLOUGHING

SURFACE MOLDING

RESAWING

RESAWING is known as ripping a piece of wood

through its thickness. Do not attempt to resaw

BOWED or WARPED material. NOTE: To RESAWa

piece of wood wider than 3-3/8 in .... it will be

necessary to remove the blade guard ... and use

the AUXILIARY FENCE/WORK SUPPORT. (See

"Work Helpers").

Clamp it to the table so that the workpiece will

SLIDE EASILY, but not TILT or MOVE SIDEWAYS,

without BINDING between the two fences.

Do not clamp directly to the bottom edge of the table

because the "swivel" of the clamp will not grip

properly. Place a small block of wood between the

bottom edge of the table and the "C" clamp.

WARNING: FOR YOUR OWN SAFETY ...

1. DO NOT "BACK-UP" (REVERSE FEEDING)

WHILE RESAWING BECAUSE THIS COULD

CAUSE A KICKBACK.

2. MAKE FIRST PASS TO A DEPTH SLIGHTLY

LESS THAN ONE-HALF THE WIDTH OF THE

BOARD; KEEP SAME FACE OF BOARD

AGAINST FENCE FOR SECOND PASS AS THE

FIRST PASS,

3. INSTALL BLADE GUARD IMMEDIATELY UPON

COMPLETION OF THE RESAWING

OPERATION.

AUXILIARY FENCE/

WORK SUPPORT

CUTTING PANELS

When cutting panels (whenever fence is positioned

outside of table surface), ALWAYS use the

AUXILIARY FENCE/WORK SUPPORT.

1. Unlock fence and raise rear end.

2. Position AUXILIARY FENCE/WORK SUPPORT

as shown and attach it with two "(3" clamps,

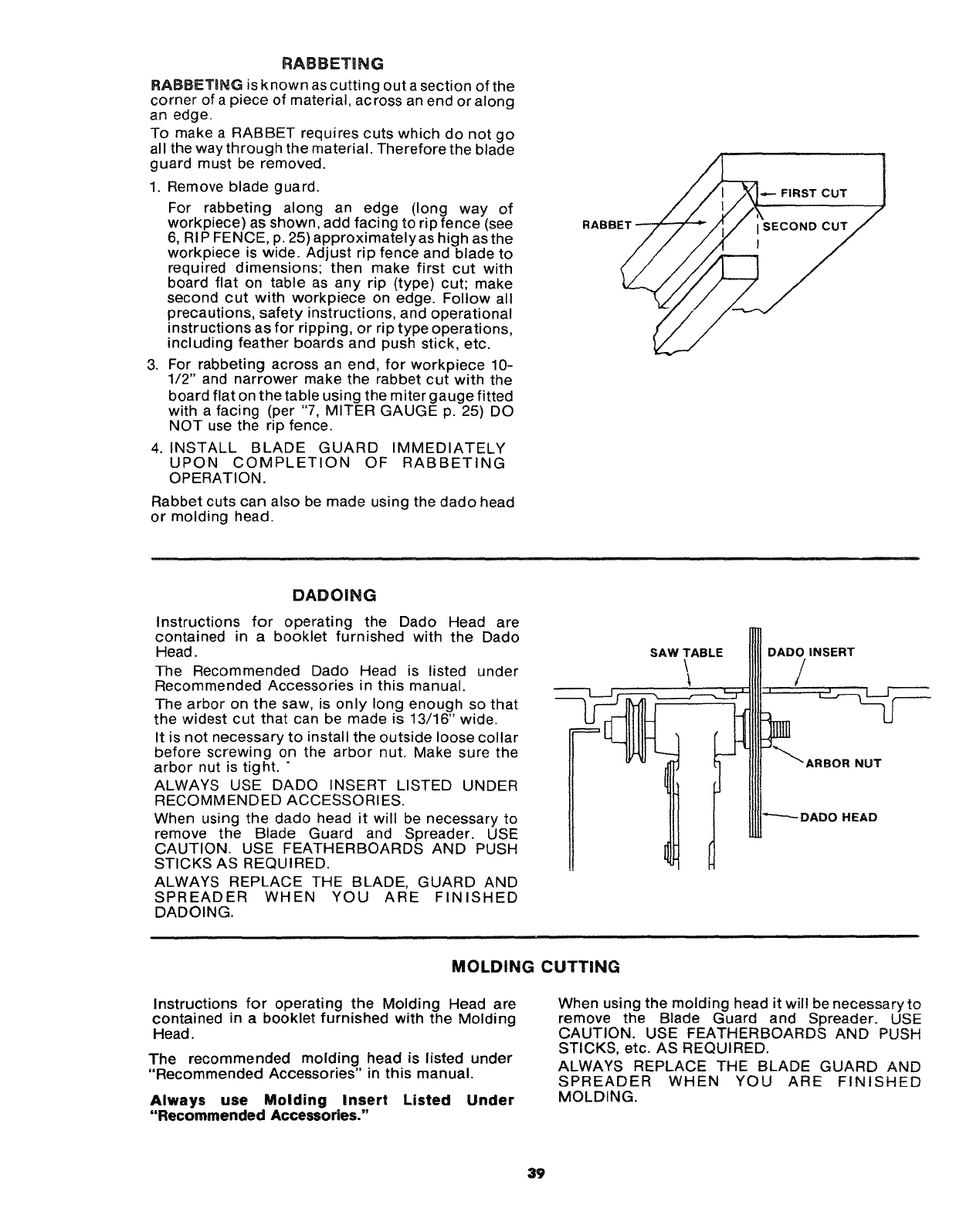

RABBETING

RABBETING is known as cutting out a section of the

corner of a piece of material, across an end or along

an edge.

To make a RABBET requires cuts which do not go

all the way through the material. Therefore the blade

guard must be removed.

1. Remove blade guard.

For rabbeting along an edge (long way of

workpiece) as shown, add facing to rip fence (see

6, RIP FENCE, p. 25)approximatelyas high as the

workpiece is wide. Adjust rip fence and blade to

required dimensions; then make first cut with

board flat on table as any rip (type) cut; make

second cut with workpiece on edge. Follow all

precautions, safety instructions, and operational

instructions as for ripping, or rip type operations,

including feather boards and push stick, etc.

3. For rabbeting across an end, for workpiece 10-

1/2" and narrower make the rabbet cut with the

board flat on the table using the miter gauge fitted

with a facing (per "7, MITER GAUGE p. 25) DO

NOT use the rip fence.

4. INSTALL BLADE GUARD IMMEDIATELY

UPON COMPLETION OF RABBETING

OPERATION.

Rabbet cuts can also be made using the dado head

or molding head.

RABBET

FIRST CUT

DADOING

Instructions for operating the Dado Head are

contained in a booklet furnished with the Dado

Head.

The Recommended Dado Head is listed under

Recommended Accessories in this manual.

The arbor on the saw, is only long enough so that

the widest cut that can be made is 13/16" wide.

It is not necessary to install the outside loose collar

before screwing on the arbor nut. Make sure the

arbor nut is tight. "

ALWAYS USE DADO INSERT LISTED UNDER

RECOMMENDED ACCESSORIES.

When using the dado head it will be necessary to

remove the Blade Guard and Spreader. USE

CAUTION. USE FEATHERBOARDS AND PUSH

STICKS AS REQUIRED.

ALWAYS REPLACE THE BLADE, GUARD AND

SPREADER WHEN YOU ARE FINISHED

DADOING.

SAW TABLE

\DADO iNSERT

NUT

MOLDING CUTTING

Instructions for operating the Molding Head are

contained in a booklet furnished with the Molding

Head.

The recommended molding head is listed under

"Recommended Accessories" in this manual.

Always use Molding Insert Listed Under

"Recommended Accessories."

When using the molding head it wil! be necessaryto

remove the Blade Guard and Spreader. USE

CAUTION. USE FEATHERBOARDS AND PUSH

STICKS, etc. AS REQUIRED.

ALWAYS REPLACE THE BLADE GUARD AND

SPREADER WHEN YOU ARE FINISHED

MOLDING.

USING FEATHERBOARDS

Add 8 inch high flat facing board to the fence, the

full length of the fence.

Use featherboards for all non "thru-sawing"

operations (when sawblade guard must be

removed). Featherboards are used to keep the work

in contact with the fence and the table as shown,

and to stop kickbacks.

Mount featherboards to fence and table as shown,

so that leading edges of featherboards will support

workpiece until cut is complete, and the workpiece

has been pushed completely past the cutter

(sawblade, dado head, molding head, etc.) with a

pushstick, as in ripping.

Before starting the operation (switch 'OFF' and

cutter below table surface):

(a) Install featherboards so they exert pressure on

the workpiece; be positive they are secure, and

(b) Make sure by trial that the featherboards will

stop a kickback if one should occur.

Featherboards are not employed during non thru-

sawing operations when using the miter gauge.

Replace the sawblade guard as soon as the non

thru-sawing operation is complete.

"C" CLAMPS

WORK SUPPORT

"'C" CLAMPS

RECOMMENDED

ITEM CAT. NO.

Steel Stand ........................... 9-22214

Caster Sets ................. 9-22222 or 9-22221

Solid Table Extension ................. 9-29957

7 in, Molding Head Set .................. 9-3217

7 in. Molding Head Set .................. 9-3218

7 in. Molding Head ..................... 9-3214

Molding/Dado Insert for 7 in.

Dia. Molding or Dado Head ............ 9-29997

Work Light ............................. 9-2480

Work Light ............................. 9-2481

7 in. Dia. Adjustable Dado Head

9-3261 -- 9-3262 -- 9-3263

ACCESSORIES

ITEM CAT. NO.

7in. Dia. Dado Head .................... 9-3257

Sanding Wheel ....................... 9-22723

Miter-Gauge Stop Rods ............... 9-29924

Miter-Gauge Hold-Down Clamp ....... 9-29928

Taper Jig ............................... 9-3233

Universal Jig ........................... 9-3235

Power Tool Know How Handbook

Table Saw ............................ 9-2918

Sawdust Collector .................... 9-29966

Rip Fence Bar ........................ 9-29969

Table Extension ...................... 9-29968

10" Dia. Sawblades with 5/8 bore ... see Catalog

MAINTENANCE

WARNnNG: FOR YOUR OWN SAFETY, TURN

SWITCH "OFF" AND REMOVE PLUG FROM

POWER SOURCE OUTLET BEFORE MAINTAIN-

NNG OR LUBRICATING YOUR SAW.

Do not allow sawdust to accumulate inside the saw.

Frequently blow out any dust that may accumulate

inside the saw cabinet and the motor.

Frequently clean you cutting tools with Craftsman

Gum and Pitch Remover.

A coat of automobile-type wax applied to the table

will help to keep the surface clean and allow

workpieces to slide more freely.

If the power cord or motor cord is worn or cut, or

damaged in any way, have it replaced immediately.

Make sure the teeth of the ANTIKICKBACK pawls

are always sharp. To sharpen:

1. Identify the dull tooth or teeth. Remove blade

guard.

2. Rotate pawl toward rear of spreader so that teeth

are above top of spreader.

3. Hold spreader with left hand and place pawl over

corner of workbench.

4. Sharpen the dull tooth using a few light strokes of

a fine-cut round file.

LUBRICATION

©o

The following parts should be oiled occasionally

with SAE No. 20 or No. 30 engine oil.

1. Tilt screw threads and pivot nut. (First Clean

with Craftsman Gum & Pitch Remover.)

2. Elevation screw threads and pivot nut. (First

Clean with Craftsman Gum & Pitch Remover.)

3. Cradle bearing points.

4. Bearing points in guard assembly, miter gauge

and rip fence.

TER GAUGE

BEARING POINTS

TROUBLE SHOOTING

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH "OFF:" AND ALWAYS REMOVE PLUG FROM POWER

SOURCE OUTLET BEFORE TROUBLE SHOOTING.

TROUBLE SHOOTING mGENERAL

TROUBLE

Excessive vibration. 1.

Cannot make square 1.

cut when crosscutting.

Cut binds, burns or 1.

stalls motor when

ripping. 2.

Cut not true at 90°1.

or 45 ° positions.

1.131tand elevating noisy

or slow.

PROBABLE CAUSE

Blade out of balance.

Damaged V-Belt Pulleys

or poor belt.

Miter gauge not adjusted

properly.

Dull blade with 4mproper

tooth set.

Blade is Heeling.

Warped board

Rip fence not parallel

to blade.

Spreader out of

alignment

Not call brated.

Sawdust on threads of tilt

screw or elevating screw.

REMEDY

1. Discard Blade and use a different blade.

2. Replace as Indicated.

1. See "Assembly" section "M=ter Gauge."

1. Sharpen or replace blade.

5. See "Assembly" section, "Installing

Blade Guard."

See "Assembly" section, "Heeling Adjustment..."

Make sure concave or hollow side is facing

"down," feed slowly.

See "Assembly" section, "Aligning Rip Fence"

1. See "Calibrating the Electronic Function"

1. See "Maintenance and Lubrication" section.

TROUBLE SHOOTING -- SAW MOTOR

NOTE: Motors used on wood-working tools are

particularly susceptible to the accumulation of

sawdust and wood chips and should be blown outor

"vacuumed" frequently to prevent interference with

normal motor ventilation.

TROUBLE PROBABLE CAUSE REMEDY

Excessive noise. 1. Motor. 1. Have motor checked by qualified service

technician. Repair service is available at

your nearest Sears store.

1. 1.

Motor fails to develop

full power. NOTE:

LOW VOLTAGE: (Power

output of motor

decreases rapidly with

decrease in voltage at

motor terminals. For

example, a reduction of

10% in voltage causes

a reduction of 19% in

maximum power output

of Which the motor is

capable, and a reduction

of 20% in voltage causes

a reduction of 36% in

maximum power output.)

Circuit overloaded with

lights, appliances and

other motors.

2. Undersize wires or circuit

too long.

3. General overloading of

power company

facilities.

Do not use other appliances or motors on

same circuit when using the saw.

2. Increase wire sizes, or reduce length of wiring.

See "Motor Specifications and Electrical

Requirements" section.

3. Request a voltage check from the power

company.

TROUBLE SHOOTING mSAW MOTOR (Continued)

TROUBLE PROBABLE CAUSE

Motor starts slowly

or fails to come up

to full speed.

Motor overheats.

Starting switch in

motor will not

operate.

Motor stalls

(resulting in blown

fuses or tripped

circuit breakers).

Frequent opening of

fuses or circuit

breakers.

Low voltage will not

trip relay.

Windings burned out

or open.

Sawdust inside motor.

Motor overloaded.

Improper cooling. (A r

circulation restricted

through motor due to

sawdust, accumulating

inside of saw).

Burned switch contacts

(due to extended

hold-in periods caused

by low line voltage, etc.)

Shorted capacitor

Loose or broken

connections.

1. Starting switch not

operating.

2. Voltage too low to permit

motor to reach operating

speed.

3. Fuses or circuit breakers

do not have sufficient

capacity.

1. Motor overloaded.

2. Fuses or circuit breakers

do not have sufficient

capacity.

3. Starting switch not

operating (motor does

not reach speed).

REMEDY

1. Request voltage check from the power company.

2. Have motor repaired or replaced.

3. Blow or vaccuum sawdust from motor.

1. Feed work slower into blade.

2. Clean out sawdust to provide normal air

circulation through motor.

See "Maintenance and Lubrication" section.

1. Have switch replaced and request a voltage check

from the power company.

2. Have capacitor tested and replace if defective.

3. Have wiring checked and repaired.

1. Have switch replaced.

2. Request voltage check from the power company.

3. Install proper size fuses or circuit breakers.

1. Feed work slower into blade.

2. Install proper size fuses or circuit breakers,

3. Have switch replaced.

TROUBLE SHOOTING mELECTRONICS

TROUBLE REMEDY

Flashing "C" in 1. See "Calibrating The Saw For Electronic Operations"

display when Master p. 29.

Switch is turned "ON".

No display or failure

of electronic function

Steady "C" in display.

Flashing display.

Elevation or bevel motor

tries to run but stops.

_-_ key does not

function.

Elevation motor runs

slow or noisily

Bevel motor runs slow

or is noisy,

Elevation or bevel motor

stops before reaching

target number or will not

run. Saw is not jammed.

Depth of cut or blade

angle incorrect.

Display does not

respond correctly

to keys.

CAUSE

1. Power Interruption

2. Saw just plugged in and

not calibrated

1. No power to unit.

2. Master Switch "OFF".

3. Electronics failure

1. A function key has been

pressed but saw has not

been calibrated.

1. Elevation or bevel

positioning motor jammed

against stop.

1. No elevation or bevel keyed

in or saw is already at

desired elevation or bevel

2. Elevation greater than

plus or minus 4.095

inches.

1. Elevation screw threads

filled with pitch &sawdust.

1. Tilt Screw threads filled .with

pitch &sawdust.

1. Positioning motor overheated

1. Saw not properly calibrated.

1. Static Electricity

1. Check plug, fuse, or circuit breakers. Inspect line,

cord and plug for damaged insulation and shorted wires.

2. Turn Master Switch "ON".

3. Have electronics checked by qualified service

technician, repair service is available at your

nearest Sears store.

1. See "Calibrating The Saw For Electronic Operations"

p. 29.

1. Press Jog keys to pull away from stop.

1. Key in correct elevation or bevel.

2. Press _ key and key in correct elevation.

1. Clean threads & lubricate

1. Allow to cool for at least 10 minutes.

1. See "Calibrating The Saw For Electronic Operations"

p. 29

1. Turn master switch "OFF" then "ON". If

still not right unplug saw from power supply

momentarily. Recalibrate saw p 29.

If you require further help on operating your new

Craftsman Electronic Table Saw call 800-325-1184.

In Missouri call 314-595-2500.

f©

CALiBRATiON GAUGE

Use to set calibration point in elevation for

cutting tools 10" or smaller, such as DADO

or MOLDING HEAD.

THIS LINE EVEN WITH TABLE TOP

DIRECTIONS

1. Unplug saw; remove cutting tool.

2. Assemble new cutting tool per

instructions with cutting tool and

tighten arbor nut.

3. Install proper insert.

4. Plug saw in, turn MASTER switch on and

press _key.

Place the notch of this card to the left

side of cutting tool, over the fixed blade

collar.

Hold this gauge on the blade collar while

pressing the _or _ key,

until the heavy line is even with the table

top.

Press _ key.

PLACE OVER LEFT BLADE COLLAR

%, J

/ PARTS LIST FOR CRAFTSMAN 10-INCH TABLE SAW MODEL NO, 113.226830

11 12 _.-._.. 13

7' 8 |i0 I 14

87_ ! _18

61 •

57 56 55

29 30 31

25 24

33 34

25 24 \

43 24

FIGURE 1 PARTS LIST FOR CRAFTSMAN 10 INCH TABLE SAW MODEL No. 113.226830

Always Order by Part Number - not by Key Number

Key Part

No. No. Description

62579

STD522506

STD551225

STD541025

STD523110

62541

STD551231

STD541231

60388

62703

62718

STD501102

133645

62748

62493

62952

62710

62709

STD523117

62539

60470

62820

STD610805

STD551208

75080

75086

75081

75082

62830

60256

62842

62826

62827

STD510605

62825

Guard Assembly (See Fig. 5)

*Screw, Hex Hd. 1/4-20 x 5/8

*Lockwasher, External 1/4

*Nut, Hex 1/4-20

*Screw, Hex 5/16-18 x 1

Bar, Fence Rear

*Lockwasher, External 5/16

*Nut, Hex 5/16-18

Nut, Self-threading

Insert, Assembly

(Includes Key No. !1 & 12)

Clip, Retaining

*Screw,. Locking Set 10-32 x 3/16

Screw, Flat Hd. 10-32 x 1

Rod, Separation (Includes Key No. 9)

Insert, Exact-I-Cut

Fence Assembly, Rip (See Fig. 3)

Tape, Fence

Bar Assembly, Fence Guide

(Includes Key No. 17)

*Screw, Hex Hd. 5/16-18 x 1-3/4

Spacer, Fence Guide Bar

Miter Gauge and Hold Down (See Fig. 4)

Bushing

Bracket

*Screw, Pan Cross Type "AB" No. 8 x 1/2

*Lockwasher, External No. 8

Lead, Grounding

Housing, Bezel

Lead

Lead with terminals

Switch, Locking

Key, Switch

Controls, Electronic T.S.

Lens, Display

Panel, Trim

*Screw, Pan Hd. No. 6-32 x 1/2

Housing, Support

Key Part

No. No. Description

75084

STD551206

75088

STD601105

75087

62832

9416712

62847

63418

73151

62823

62822

6O469

62204

61O86

62838

454896

STD551237

STD532507

;60254

60253

60255

160252

62955

62898

37837

37887

37836

62954

Screw, Pan Hd. Plastite No. 6 x 2-1/4

*Lockwasher, Internal #6

Bracket, Grounding R.H.

*Screw, Pan Cross Type "AB"

No. 10-32 x 1/2

Bracket, Grounding L.H.

Transformer

Washer, 3/16 x 1/2 x 1/32

Clamp, Cord

Cord, Motor

Cord, Power

Bushing

Clip, Cord

Relief, Strain

Base Assembly

Screw, Hex Hal. 3/8-16 x 1/2

*Lockwasher, External 3/8

*Bolt, Carriage 5/16-18 x 3/4

Bracket, Support

Support, Belt Guard

Clip "S"

Guard, Belt

Bracket, Mounting

eMotor

Wrench, Hex L 5/32

Wrench, Hex L 1/8

Wrench, Hex L 3/32

Owners Manual (Not Illustrated)

62835

62836

62956

62957

62845

62846

Bag of Loose Parts (Not Illustrated)

Operation Information Card

(Not Illustrated)

Gauge, Calibration (Not Illustrated)

Standard Hardware Item - May be purchased locally.

NOTE:

Any attempt to repair this motor may create a hazard unless

repair is done by qualified service technician. Repair service is

available at your nearest Sears Store.

NOTE: Shipping and handling charges for standard hardware

items (identified by *) such as nuts, screws, washers, etc., make

buying these items by mail uneconomical. To avoid shipping

and handling charges, you may obtain most of these locally.

! Stock Item - May be secured through the hardware department

of most Sears Retail Stores or Catalog Order Houses.

PARTS LIST FOR CRAFTSMAN 10 INCH TABLE SAW

MODEL NO. 113.226830

1 2 3 4 567

47 46

14 15 16

44 41

4O 39

19 20 21

15 14 13

35 28

36 37 38

Figure 2

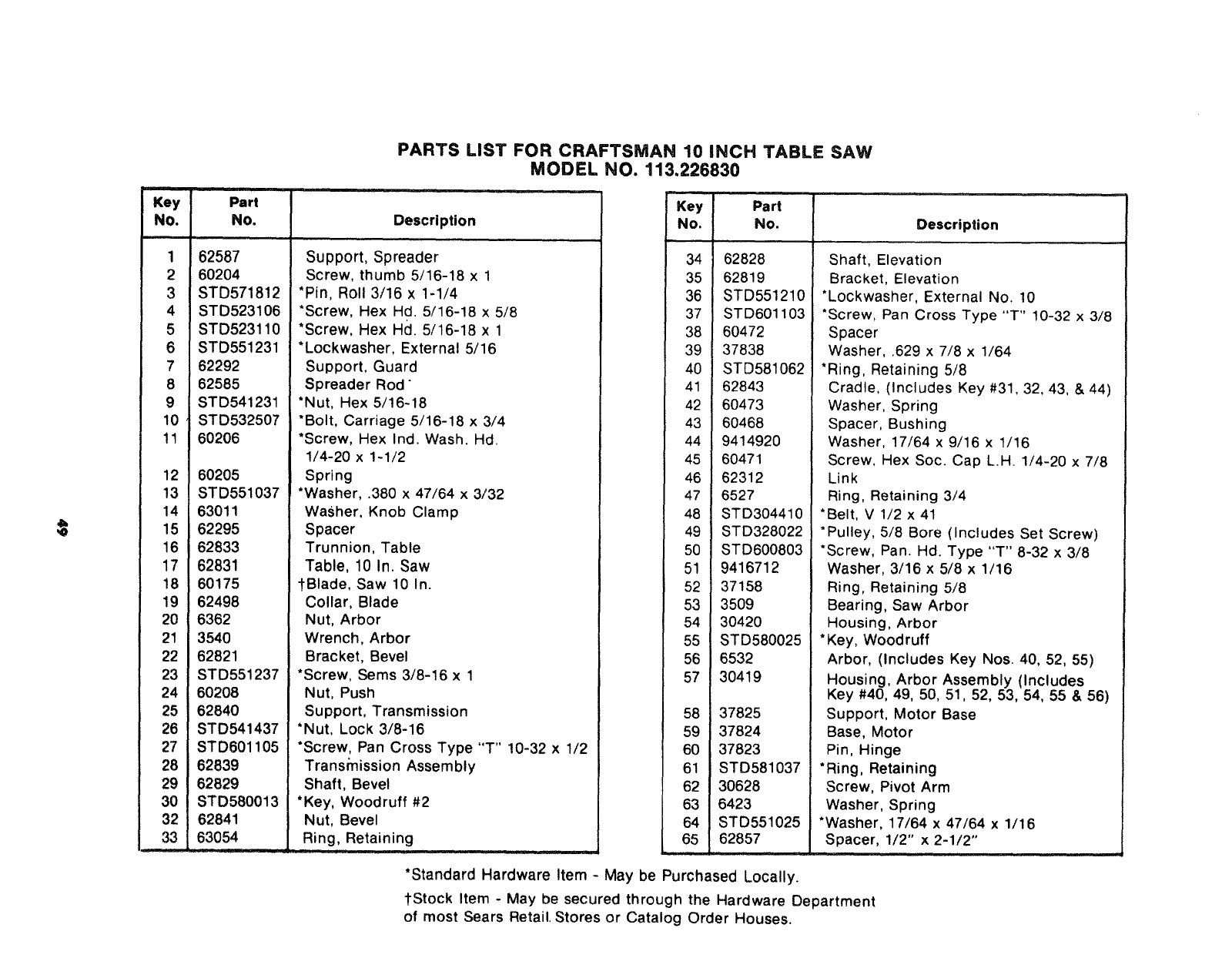

PARTS LIST FOR CRAFTSMAN 10 INCH TABLE SAW

MODEL NO. 113.226830

Key Part

NO. No. Description

62587

60204

STD571812

STD523106

STD523110

STD551231

62292

62585

STD541231

STD532507

60206

60205

STD551037

63011

62295

62833

62831

60175

62498

6362

3540

62821

STD551237

60208

62840

STD541437

STD601105

62839

62829

STD580013

62841

63054

Support, Spreader

Screw, thumb 5/16-18 x 1

*Pin, Roll 3/16 x 1-1/4

*Screw, Hex Hd. 5/16-18 x 5/8

*Screw, Hex Hd. 5/16-18 x 1

*Lockwasher, External 5/16

Support, Guard

Spreader Rod

*Nut, Hex 5/16-18

"Bolt, Carriage 5/16-18 x 3/4

*Screw, Hex Ind. Wash. Hd.

1/4-20 x 1-1/2

Spring

*Washer, .380 x 47/64 x 3/32

Washer, Knob Clamp

Spacer

Trunnion, Table

Table, 10 In. Saw

tBlade, Saw 10 In.

Collar, Blade

Nut, Arbor

Wrench, Arbor

Bracket, Bevel

*Screw, Sems 3/8-16 x 1

Nut, Push

Support, Transmission

*Nut, Lock 3/8-16

*Screw, Pan Cross Type "T" 10-32 x 1/2

Transrnission Assembly

Shaft, Bevel

*Key, Woodruff #2

Nut, Bevel

Ring, Retaining

ml ,.... , _ ,.......

Key Part

No. No. Description

34 62828

35 62819

36 STD551210

37 STD601103

38 60472

39 37838

40 STD581062

41 62843

42 60473

43 60468

44 9414920

45 60471

46 62312

47 6527

48 STD304410

49 STD328022

50 STD600803

51 9416712

52 37158

53 35O9

54 30420

55 STD580025

56 6532

57 30419

58 37825

59 37824

60 37823

61 STD581037

62 30628

63 6423

64 STD551025

65 62857

Shaft, Elevation

Bracket, Elevation

*Lockwasher, External No. 10

*Screw, Pan Cross Type "T" 10-32 x 3/8

Spacer

Washer, .629 x 7/8 x 1/64

*Ring, Retaining 5/8

Cradle, (Includes Key #31, 32, 43, & 44)

Washer, Spring

Spacer, Bushing

Washer, 17/64 x 9/16 x 1/16

Screw, Hex Soc. Cap L.H. 1/4-20 x 7/8

Link

Ring, Retaining 3/4

*Belt, V 1/2 x 41

*Pulley, 5/8 Bore (Includes Set Screw)

*Screw, Pan. Hd. Type "T" 8-32 x 3/8

Washer, 3/16 x 5/8 x 1/16

Ring, Retaining 5/8

Bearing, Saw Arbor

Housing, Arbor

* Key, Woodruff

Arbor, (Includes Key Nos. 40, 52, 55)

Housing, Arbor Assembly (Includes

Key #40, 49, 50, 51, 52, 53, 54, 55 & 56)

Support, Motor Base

Base, Motor

Pin, Hinge

*Ring, Retaining

Screw, Pivot Arm

Washer, Spring

*Washer, 17/64 x 47/64 x 1/16

Spacer, 1/2" x 2-1/2"

*Standard Hardware Item - May be Purchased Locally.

"!Stock Item - May be secured through the Hardware Department

of most Sears Retail. Stores or Catalog Order Houses.

PARTS LIST FOR CRAFTSMAN 10 iNCH TABLE SAW

MODEL NO. 113.226830

9I0

45_6_f ....... _ "

23;............ _...... _,

" "'' ..... 12

18 17 '_

I_- -..... 14

' _ ....... 15

t;,o

Key

No.

FIGURE 3 - RIP FENCE ASSEMBLY 62952

Part

No. Description

62942

62945

62775

9404336

62941

423567

62946

STD600805

62528

Handle

Shoe

Indicator

Screw, Pan Cross Type "T'"

No 4-40 x 114

Head, Fence

Screw, Seres 3/8-16 x 1/2

Channel, Fence

*Screw. Pan Cross Type "T"

8-32 x 1/2

Spring, Fence Lock

Key Part

No. No. Description

i 6

62529

62531

62944

62533

STD551210 (

STD611005

62532

62940

62943

Lock. Rear Fence

Roller, Rear Fence

Rod, Fence Lock

Spring. Head Ahgnment

(Includes Key #18)

°Lockwasher, External No 10

"Screw, Hex Head Type 'A'

No. 10 x 1/2

Pad. Ahgnment

Cam

Nut. Adjustment

" Standard Hardware Item - May be purchased locally.

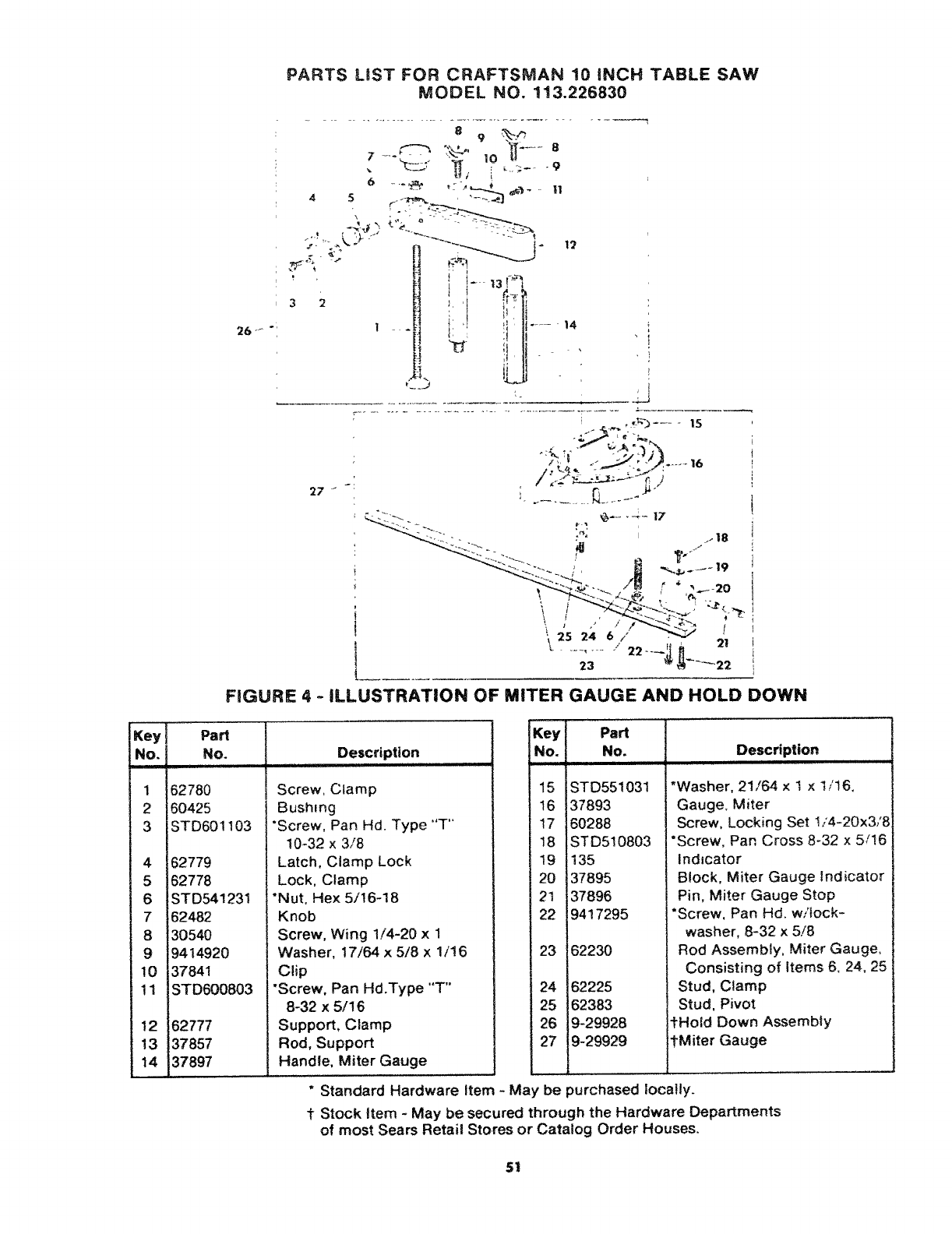

PARTS LiST FOR CRAFTSMAN 10 iNCH TABLE SAW

MODEL NO. 1!3.226830

,.... ;o iT.....8

45 ,_.--_,-_...._..._

13 '

27 _

............................... !........

FIGURE 4 - ILLUSTRATION OF MITER GAUGE AND HOLD DOWN

Key

No.

Part

No.

62780

60425

STD601103

62779

62778

STD541231

62482

30540

9414920

[37841

STD600803

62777

37857

37897

Description

Screw, Glamp

Bush,rig

"Screw, Pan Hd. Type "T"

10-32 x 3/8

Latch, Clamp Lock

Lock, Clamp

*Nut, Hex 5/16-18

Knob

Screw, Wing 1/4-20 x 1

Washer, 17/64 x 5/8 x 1/!6

Clip

"Screw, Pan Hd.-rype "T"

8-32 x 5/16

Support, Clamp

Rod, Support

Handle, Miter Gauge

15 STD551031

16 37893

17 60288

18 STD510803

19 135

20 37895

21 37896

22 9417295

23 62230

24 62225

25 62383

26 9-29928

27 9-29929

Description

"Washer, 21/64 x I x 1/16+

Gauge+ Miter

Screw, Locking Set 1/4-20x3/8

*Screw, PaP, Cross 8-32 x 5/16

Indicator

Block, Miter Gauge Indicator

Pin, Miter Gauge Stop

*Screw, Pan Hd. w/lock-

washer, 8-32 x 5/8

Rod Assembfy, Miter Gauge,

Consisting of Items 6. 24, 25

Stud, Clamp

Stud, Pivot

ilHoid Down Assemb+y

ItMiter Gauge

"Standard Hardware Item -May be purchased locally.

1"Stock item - May be secured through the Hardware Departments

of most Sears Retail Stores or Catalog Order Houses.

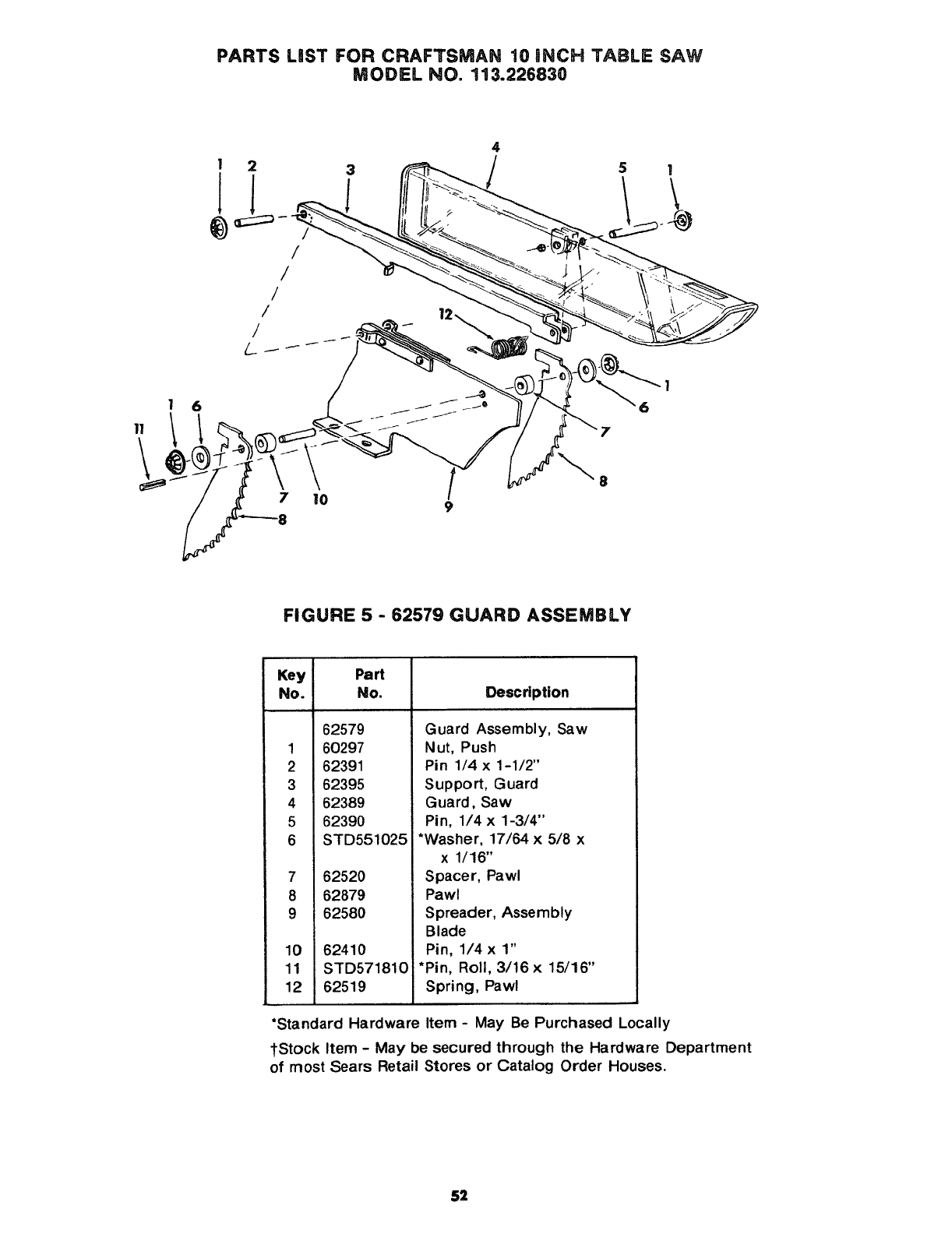

PARTS LIST FOR CRAFTSMAN 10 INCH TABLE SAW

MODEL NO. 113.226830

! 2

/51

FIGURE 5 - 62579 GUARD ASSEMBLY

Key Part

No. No. Description

62579

60297

62391

62395

62389

62390

STD551025

62520

62879

62580

62410

STD571810

62519

Guard Assembly, Saw

Nut, Push

Pin 1/4 x 1-1/2"

Support, Guard

Guard, Saw

Pin, 1/4 x 1-3/4"

*Washer, 17/64 x 5/8 x

x 1/16"

Spacer, Pawl

Pawl

Spreader, Assembly

Blade

Pin, 1/4 x 1"

*Pin, Roll, 3/16 x 15/16"

Spring, Pawl

*Standard Hardware Item -May Be Purchased Locally

tStock Item - May be secured through the Hardware Department

of most Sears Retail Stores or Catalog Order Houses.

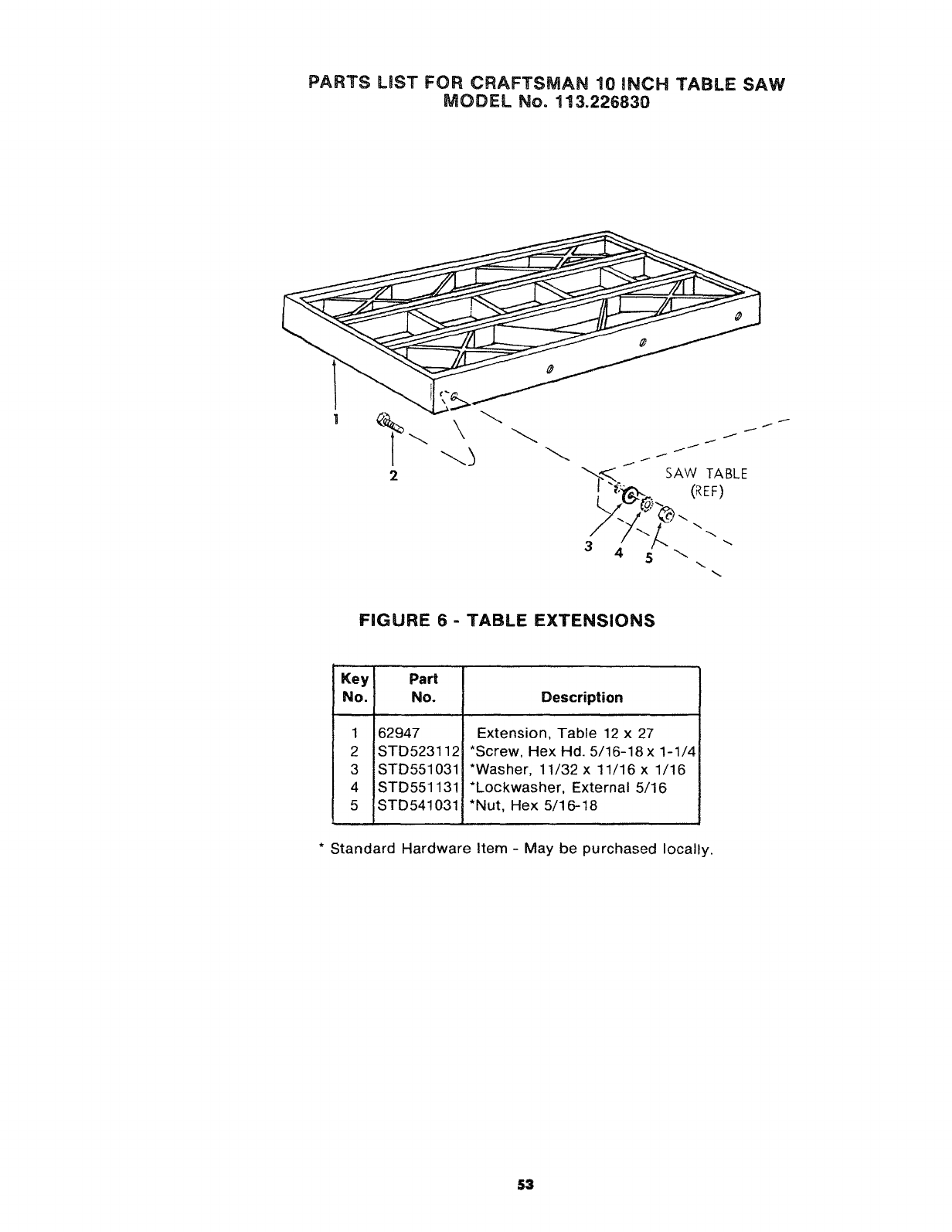

PARTS LBST FOR CRAFTSMAN 10 INCH TABLE SAW

MODEL No. 113.226830

"_,_ .t //SAw TABLE

I "_."'.f_.. (REF)

FIGURE 6 - TABLE EXTENSIONS

Key Part

No. No. Description

62947

STD 523112

STD551031

STD 551131

STD541031

Extension, Table 12 x 27

*Screw, Hex Hd. 5/16-18x 1-1/4

*Washer, 11/32 x 11/16 x 1/16

*Lockwasher, External 5/16

*Nut, Hex 5/16-18

* Standard Hardware Item - May be purchased locally.

PARTS LiST FOR CRAFTSMAN 10 iNCH TABLE SAW

MODEL NO. 113.226830

12 11

2--

FIGURE 7 - LEGS

Key

No.

Part

No.

60314

62552

62554

STD551225

STD541025

62553

STD541250

803835

Description

Screw, Serrated Truss

Hd. 1/4-20 x 5/8

Leg

Stiffener, Side

*Lockwasher, Ext. 1/4

*Nut, Hex 1/4-20

Stiffener, End

*Nut, Hex 1/2-13

Foot, Leveling

HARDWARE

FOR ATTACHING LEGS TO SAW

STD523112 *Screw, Hex Hd. 5/16-18

x 1-1/4

Washer, 11/32 I.D.

*Lockwasher, Ext. 5/16

*Nut, Hex 5/16-18

eBag of Loose Parts For

Legs (not illustrated)

STD551031

STD551131

STD541031

62752

*Standard Hardware Items- May be Purchased Locally.

eBag contains all Loose Parts for Leg Set.

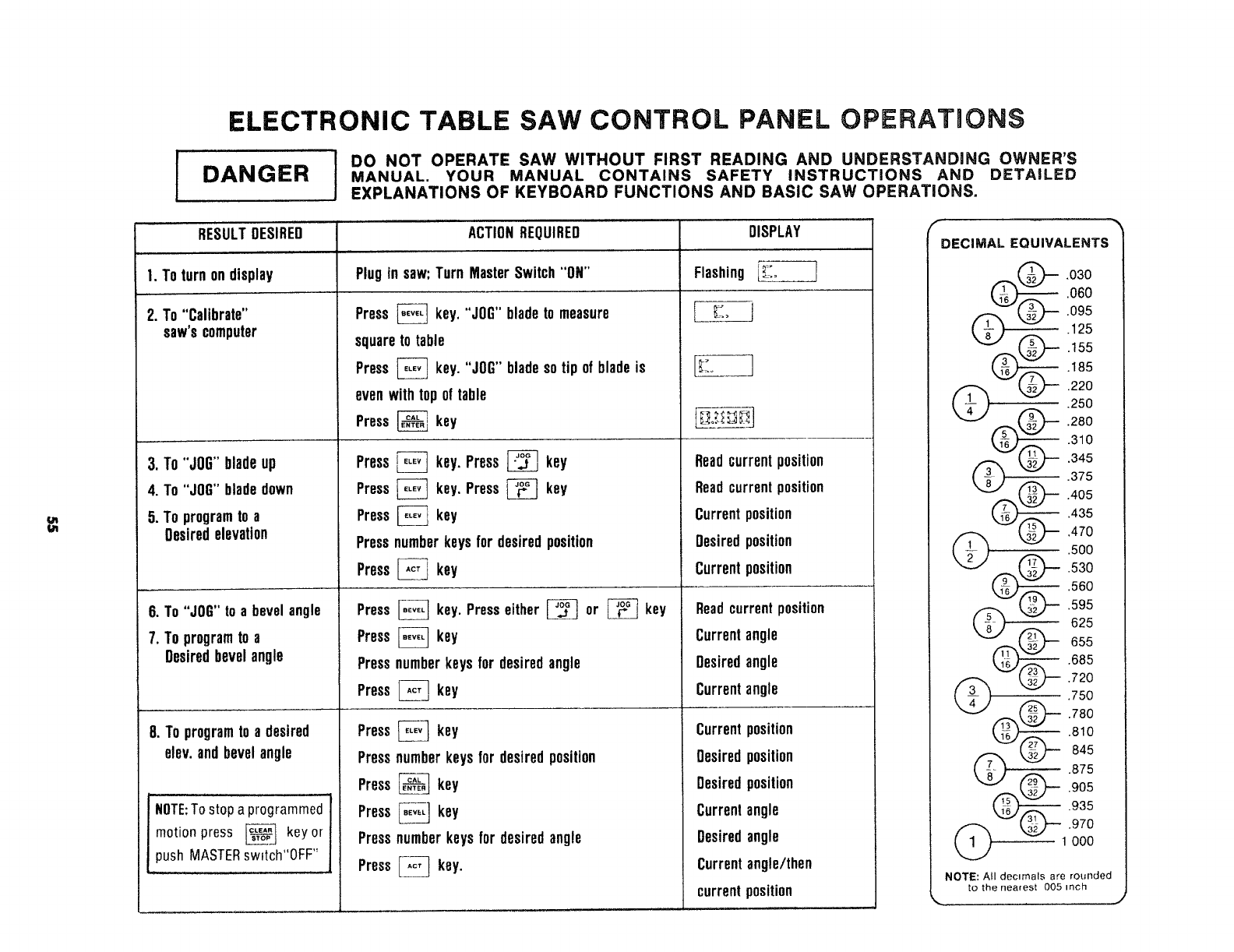

ELECTRONIC TABLE SAW CONTROL PANEL OPERATmONS

I DO NOT OPERATE SAW WITHOUT FIRST READING AND UNDERSTANDING OWNER'S

DANGER J MANUAL. YOUR MANUAL CONTAINS SAFETY INSTRUCTIONS AND DETAILED

EXPLANATIONS OF KEYBOARD FUNCTIONS AND BASIC SAW OPERATIONS.

i,n

RESULTDESIRED

1, Toturn ondisplay

2. To "Calibrate"

saw'scomputer

3. To "JOG" bladeup

4. To"JOG" bladedown

5. To programto a

Desiredelevation

6. To "JOG"to a bevelangle

7. To programto a

Desiredbevelangle

8, Toprogramto a desired

ACTIONREQUIRED

Plug in saw:Turn MasterSwitch"ON"

Press _key. "JOG" bladeto measure

squareto table

Press _key. "JOG" bladeso tip of bladeis

evenwith topof table

Press _key

Press _key. Press _key

Press _ key. Press_key

Press_key

Pressnumberkeysfor desiredposition

Press_key

Press _key. Presseither _---_ or _key

Press _key

Pressnumberkeysfor desiredangle

Press _key

DISPLAY

Flashing _____

Readcurrentposition

Currentposition

Desiredposition

Currentposition

Readcurrentposition

Currentangle

Desiredangle

Currentangle

Currentposition

elev.andbevelangle

NOTE:To stop a programmed

motion press _ key or

push MASTERswdch"OFF'

Press numberkeysfor desiredposition

Press _ key

Press_key

Pressnumberkeysfor desiredangle

Press_:-_ key.

Desiredposition

Currentangle

Desiredangle

Currentangle!then

currentposition

r•

DECIMAL EQUIVALENTS

.030

.060

.o95

_ .345

375

.435

_.470

.500

.530

_.560

_.595

('5 _ 625

_ 655

_.685

_ .720

(3. "_ .750

.zso

.810

845

.935

/.__ VZ._/_ .970

1000

NOTE: All decimals are rounded

to the nearest 005 inch

Sears

SERVICE

MODEL NO.

113.226830

SAW WITH MOTOR,

LEGS, HOLD DOWN

CLAMP, AND TWO

CAST IRON TABLE

EXTENSIONS

HOW TO ORDER

REPAIR PARTS

DELUXE ELECTRONIC

10-iNCH TABLE SAW

Now that you have purchased your 10-inch electronic table

saw should a need ever exist for repair parts or service,

simply contact any Sears Service Cente, and most Sears,

Roebuck and Co. stores. Be sure to provide all pertinent

facts when you call or visit.

The model number of your 10-inch electronic table saw will

be found on a plate attached to your saw, at the left-hand

side of the base.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION-

PART NUMBER PART DESCRIPTION

MODEL NUMBER

113.226830 NAME OF ITEM

DELUXE ELECTRONIC

10-INCH TABLE SAW

All parts listed may be ordered from any Sears Service

Center and most Sears stores. If the parts you need are not

stocked locally, your order will be electronically

transmitted to a Sears Repair Parts Distribution Center for

handling.

Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.

Part No. 62954 Form No. SP4831-1 Printed in U.S.A. 11/85

Craftsman 113226830 User Manual 10 INCH TABLE SAW Manuals And Guides 1007418L

Navigation menu

Versions of this User Manual:

Views

Navigation
