owner's

manual

MODEL NO.

113.228360

WOOD LATHE

it i liiii ,ii lul

Serial

Number

Model and serialnumber

may be found on back of

headstock assembly.

You shouldrecordboth

model and serialnumber in

a safeplace forfutureuse.

FOR YOUR

SAFETY'.

READ ALL

INSTRUCTIONS

CAREFULLY

CRAFTSMAN

12-INCH

WOOD LATHE

• assembly

• operating

• repair parts

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Part No, SP5110 Printed in U.S,A. 5195

FULL ONE YEAR WARRANTY ON CRAFTSMAN WOOD LATHE

If within one year from the date of purchase, this Craftsman Wood Lathe fails due to a defect

in material or workmanship, Sears will repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SERV-

ICE CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal fights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., D/817 WA Hoffman Estates, IL 60179 U.S.A.

10,

11.

12,

illll ,ill i ii ii , i,i i ii i

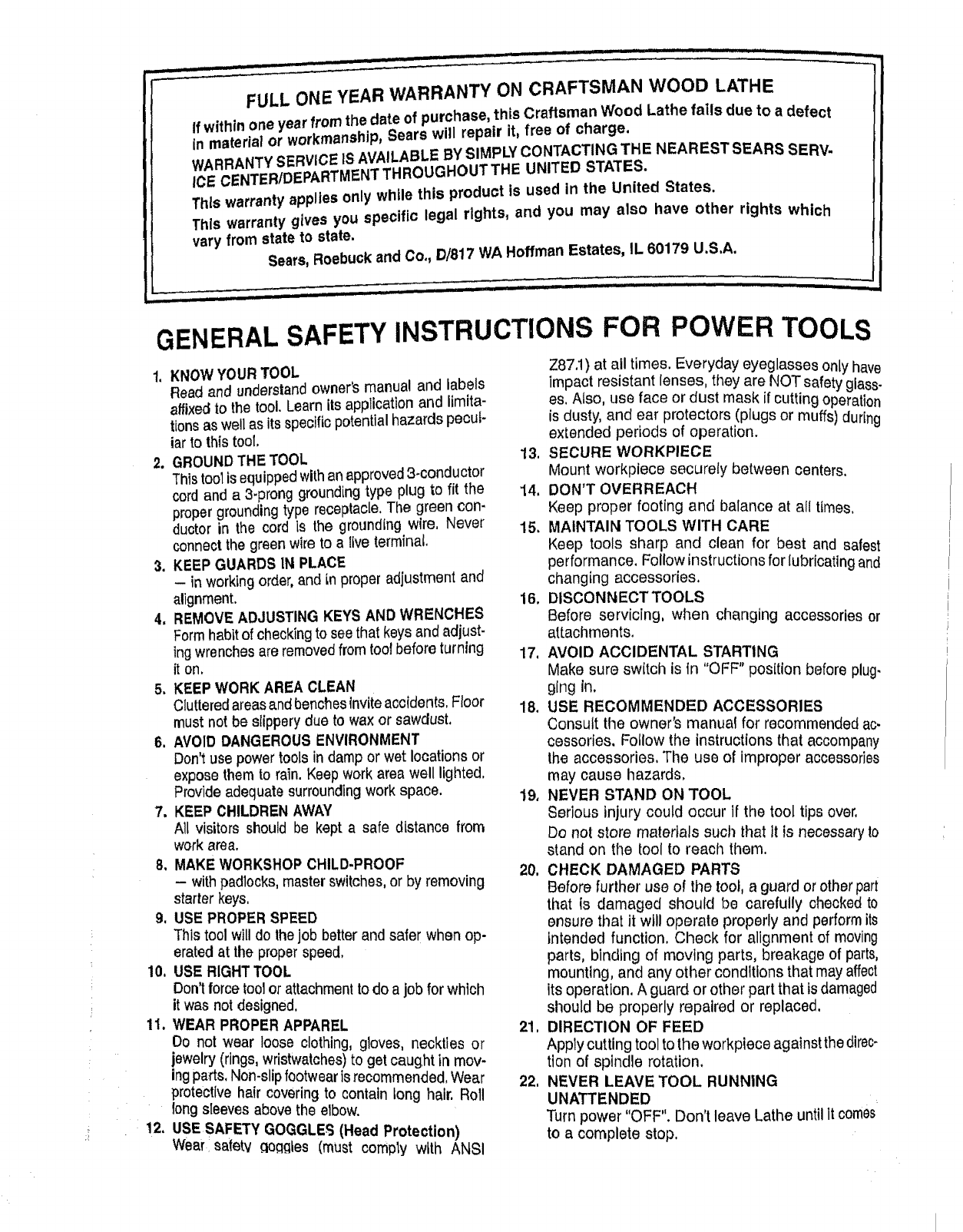

GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS

1, KNOW YOUR TOOL

Read and understandowner'smanual and labels

affixed to the tool. Learn its application and limita-

tions as well as its specific potential hazards pecul-

iar to this tool.

2. GROUND THE TOOL

Thistool is equipped withan approved 3-condu ctor

cord and a 3.prong grounding type plug to fit the

proper grounding type receptac[e. The green con-

ductor in the cord is the grounding wire, Never

connect the green wire to a live terminal.

3. KEEP GUARDS IN PLACE

- in working order, and Lnproper adjustment and

alignment.

4. REMOVE ADJUSTING KEYS AND WRENCHES

Formhabit of checking to see that keys and adjust-

ingwrenches are removed from tool before turning

it on.

5. KEEP WORK AREA CLEAN

Cluttered areas andbenches inviteaccidents, Floor

must not be slippery due to wax or sawdust.

6, AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp orwet locations or

exposethem to rain. Keep work area well lighted,

Provide adequate surrounding work space,

7. KEEP CHILDREN AWAY

NI visitors should be kept a safe distance from

work area,

8, MAKE WORKSHOP CHILD-PROOF

-withpadlocks, master switches, or by removing

starter keys,

9. USE PROPER SPEED

This toolwill do the job betterand safer when op-

eratedat the properspeed,

USE RIGHT TOOL

Don'tforce toolor attachment to do a job for which

it was not designed.

WEAR PROPER APPAREL

Do not wear loose clothing, gloves, neckties or

jewelry (rings, wristwatches) to get caught in mov-

ing parts. Non-slip footwear is recommended, Wear

protective hair coveringto contain long hair. Roll

long sleeves above the elbow.

USE SAFETY GOGGLES (Head Protection)

Wear safety qoqqtes (must comply with ANSI

Z87.1) at all times. Everyday eyeglasses only have

impact resistant lenses, they are NOT safety glass.

es. Also, use face or dust mask if cutting operation

is dusty, and ear protectors (plugs or muffs) during

extended periods of operation.

13, SECURE WORKPIECE

Mount workpiece securely between centers.

14. DON'T OVERREACH

Keep proper footing and balance at all times.

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performance. Follow instructions for lubricating and

changing accessories.

16. DISCONNECT TOOLS

Before servicing, when changing accessories or

attachments.

17, AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" pos[tion before plug.

sing in,

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended ac-

cessorles. Follow the instructions that accompany

the accessories. The use of improper accessories

may cause hazards.

t9, NEVER STAND ON TOOL

Serious injury could occur if the tool tips over.

Do not store materials such that it is necessary to

stand on the tool to reach them.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other part

that is damaged should be carefully checked to

ensure that it will operate properly and perform its

intended function. Check for alignment of moving

parts, binding of moving parts, breakage of parts,

mounting, and any other conditions that may affect

its operation. A guard or other part that is damaged

should be properly repaired or replaced.

21, DIRECTION OF FEED

Apply cutting tool to the workpiece against the direc-

tion of spindle rotation.

22, NEVER LEAVE TOOL RUNNING

UNATTENDED

Turn power "OFF". Don't leave Lathe until It comes

to a complete stop.

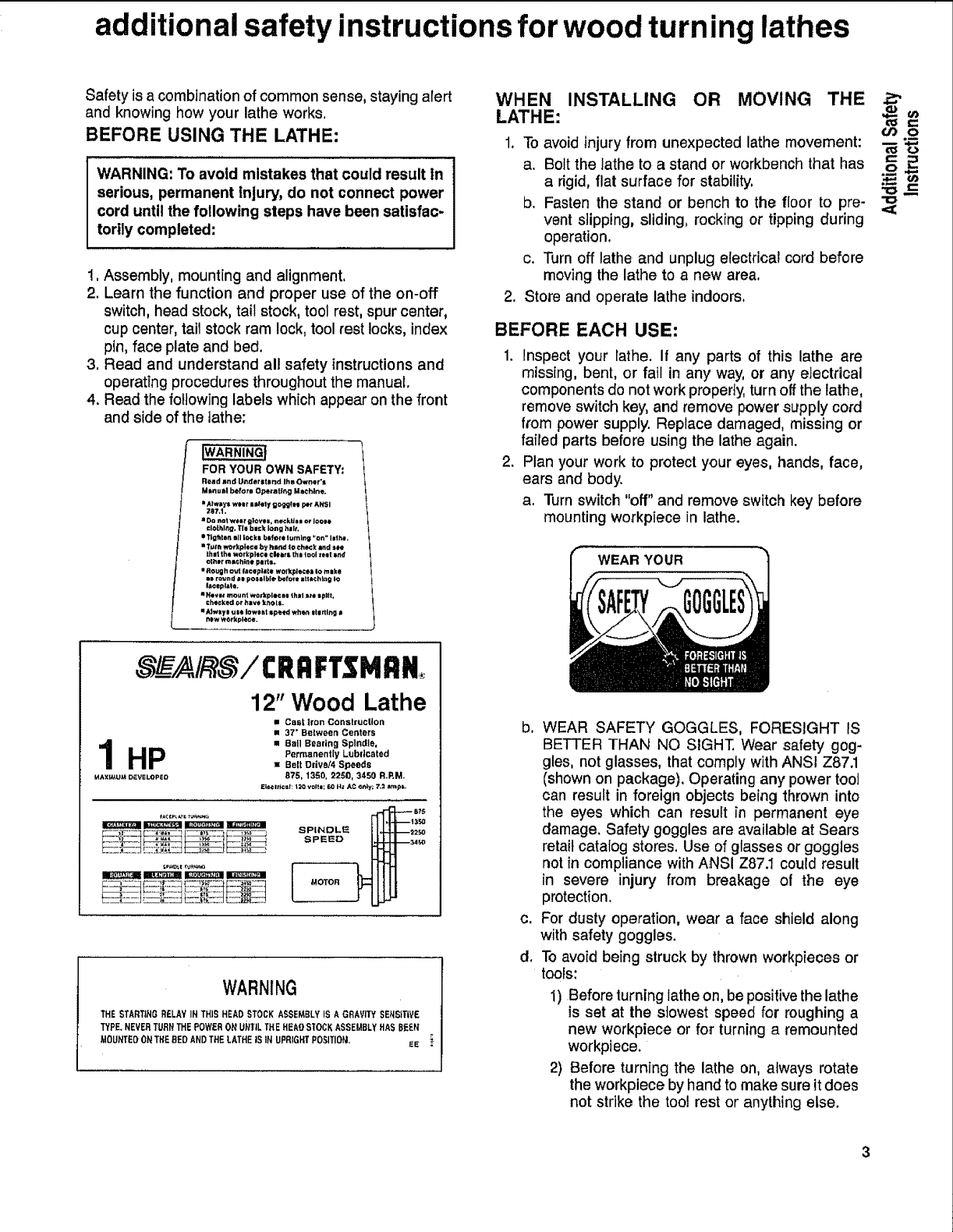

additional safety instructions for wood turning lathes

Safety is a combination of common sense, staying alert

and knowing how your lathe works.

BEFORE USING THE LATHE:

WARNING: To avoid mistakes that could result in

serious, permanent injury, do not connect power

cord until the following steps have been satisfac-

torily completed:

1. Assembly, mounting and alignment.

2. Learn the function and proper use of the on-off

switch, head stock, tail stock, tool rest, spur center,

cup center, tail stock ram lock, tool rest locks, index

pin, face plate and bed.

3. Read and understand all safety instructions and

operating procedures throughout the manual.

4. Read the following labels which appear on the front

and side of the lathe:

FOR YOUR OWN SAFETY:

Read _nd gnderltend Ihe Owner's

Manual before Opetaffng M1¢hlmt.

a AIwByl Welt lalely goeg(H p4"t ANSI

Z87.1.

a Oa nat welt S)OVel, _eckUal or loose

r*lothln_, Tll blC_ long hair,

I TJgttlirt Ill lOCks befell lurnin w "on" lithe.

ITu(h wOr_ple¢:a by ha_l (p cheek arid see

_hl' the workplt¢l t_'llatl thll tool flail and

olhmr msohttte pllrts_

JaOu(Ih ovI laclplill WOlllplocea 2omll_

as ra_nd nposslb|e, I_fore Ill*¢hlng le

laoepllil.

a Hevl( mount w_pl_el ,hal rot, split,

©hocked _r h|ve kl_OtS-

mA)Wltyl ula Iowlst speed whQ_ Itlrtlt)g

ntw wGrkpl_¢e.

/CRRFTSMRN

1HP

MAXIMUM D_VELOPED

12" Wood Lathe

=Cast iron Construction

m37" Between Centers

mBall Bearing Spindle,

Permanently Lubricated

•Belt Drive/4 Speeds

875, 1350, 2250, 3450 R.P.M,

E_¢I_: 120 y_lt I; 60 HZ AC off)y; 7,,2 attiCS,

SPINDL_

SPEED

Omnm_rm _ _t_,_rm_ _*IOTOR

WARNING

THESTARTINGRELAYIN THISHEADSTOCKASSEMBLYIS AGRAVITYSENStTtV[

TYPE,NEVERTURNTHEPOW;ERONUNTJLTHEHEAOSTOCKASSEMBLYHASBEEN

MOUNTEOONTHE ,BEDAND THE LATHE iS IN UPRIGHTPOSITION, EE

WHEN

LATHE:

1. To

INSTALLING OR MOVING THE

avoid injury from unexpected lathe movement:

Bolt the lathe to a stand or workbench that has

a rigid, flat surface for stability.

b. Fasten the stand or bench to the floor to pre-

vent slipping, sliding, rocking or tipping during

operation.

c. Turn off lathe and unplug electrical cord before

moving the lathe to a new area.

Store and operate lathe indoors.

BEFORE EACH USE:

1. Inspect your lathe. If any parts of this lathe are

missing, bent, or fail in any way, or any electrical

components do not work properly, turn off the lathe,

remove switch key, and remove power supply cord

from power supply. Replace damaged, missing or

faired parts before using the lathe again.

2. Plan your work to protect your eyes, hands, face,

ears and body.

a. Turn switch "off" and remove switch key before

mounting workpiece in lathe.

WEAR YOUR

b. WEAR SAFETY GOGGLES, FORESIGHT IS

BETTER THAN NO SIGHT. Wear safety gog-

gles, not glasses, that comply with ANSI Z87.1

(shown on package). Operating any power tool

can result in foreign objects being thrown into

the eyes which can result in permanent eye

damage. Safety goggles are available at Sears

retail catalog stores. Use of glasses or goggles

not in compliance with ANSI Z87.1 could result

in severe injury from breakage of the eye

protection.

c. For dusty operation, wear a face shield along

with safety goggles.

d. To avoid being struck by thrown workpieces or

tools:

1) Before turning lathe on, be positive the lathe

is set at the slowest speed for roughing a

new workpiece or for turning a remounted

workpiece.

2) Before turning the lathe on, always rotate

the workplace by hand to make sure it does

not strike the tool rest or anything else.

O_ o

._o

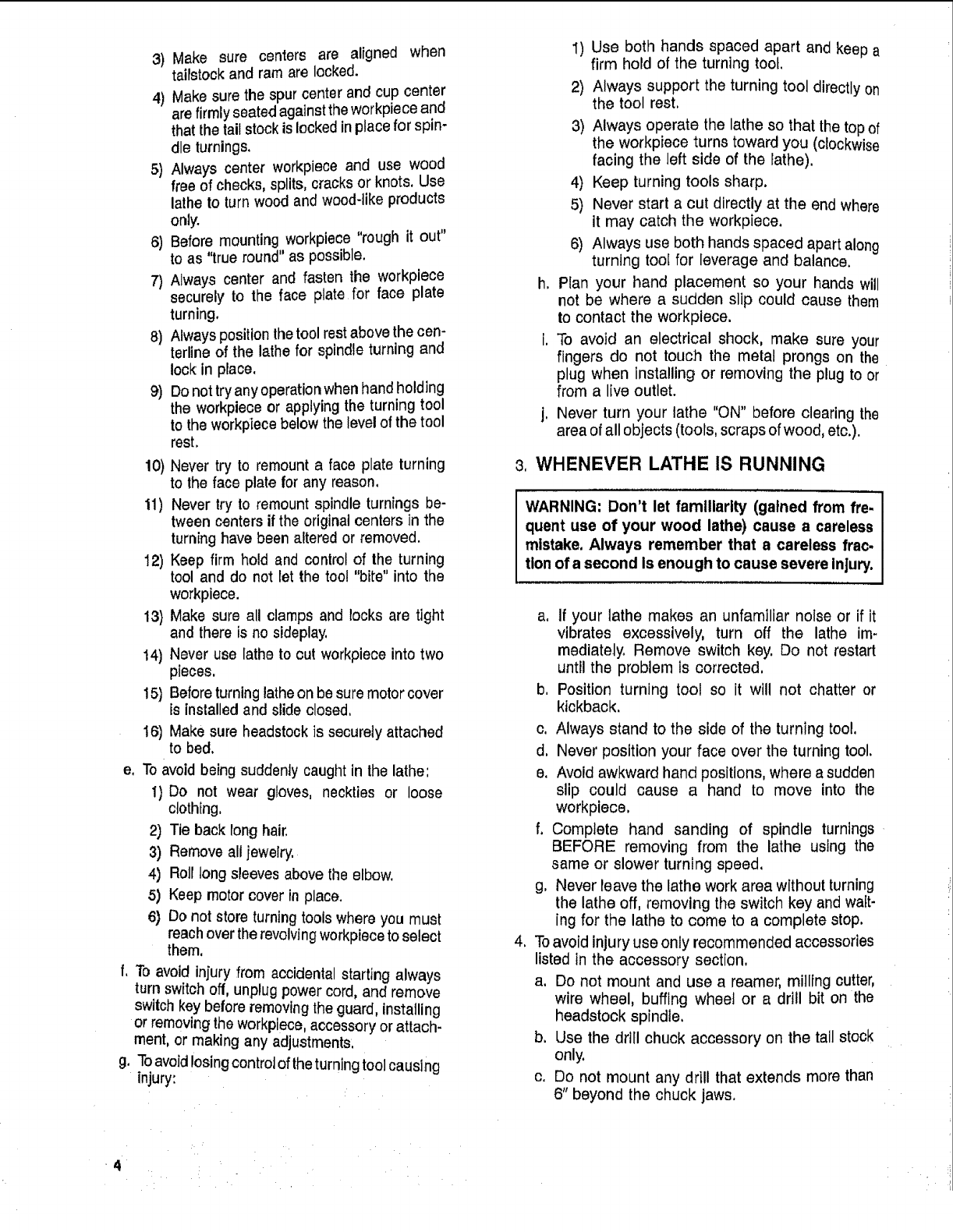

3) Make sure centers are aligned when

tailstock and ram are locked.

4) Make sure the spur center and cup center

are firmly seated against the workpiece and

that the tail stock is locked in place for spin-

dle turnings.

5) Always center workpiece and use wood

free of checks, splits, cracks or knots. Use

lathe to turn wood and wood-like products

only.

6) Before mounting workpiece "rough it out"

to as "true round" as possible.

7) Always center and fasten the workpiece

securely to the face plate for face plate

turning.

8) Always position the tool rest above the cen-

terllne of the lathe for spindle turning and

lock in place.

9) Do not try any operation when hand holding

the workpiece or applying the turning tool

to the workpiece below the level of the tool

rest.

10) Never try to remount a face plate turning

to the face plate for any reason.

11) Never try to remount spindle turnings be-

tween centers if the original centers in the

turning have been altered or removed.

12) Keep firm hold and control of the turning

tool and do not let the tool "bite" into the

workpiece.

13) Make sure all clamps and locks are tight

and there is no sideplay,

14) Never use lathe to cut workpiece into two

pieces.

15) Before turning lathe on be sure motor cover

Esinstalled and slide closed,

16) Make sure headstock is securely attached

to bed.

e. To avoid being suddenly caught in the lathe:

1) Do not wear gloves, neckties or loose

clothing.

2) Tie back long hair.

3) Remove all jewelry.

4) Roll long sleeves above the elbow.

5) Keep motor cover in place.

6) Do not store turning tools where you must

reach over the revolving workpiece to select

them.

f, To avoid iniury from accidental starting always

turn switch off, unplug power cord, and remove

switch key before removing the guard, installing

or removing the workpiece, accessory or attach-

ment, or making any adjustments:

g. Toavoid losing control of the turning tool causing

Injury:

1) Use both hands spaced apart and keep a

firm hold of the turning toot.

2) Always support the turning tool directly on

the tool rest.

3) Always operate the lathe so that the top of

the workpiece turns toward you (clockwise

facing the left side of the lathe).

4) Keep turning tools sharp.

5) Never start a cut directly at the end where

it may catch the workpiece.

6) Always use both hands spaced apart along

turning tool for leverage and balance.

Plan your hand placement so your hands will

not be where a sudden slip could cause them

to contact the workpiece.

To avoid an electrical shock, make sure your

fingers do not touch the metal prongs on the

plug when installing or removing the plug to or

from a live outlet.

Never turn your lathe "ON" before clearing the

area of all objects (tools, scraps of wood, etc.).

3, WHENEVER LATHE IS RUNNING

WARNING: Don't let familiarity (gained from fre-

quent use of your wood lathe) cause a careless

mistake. Always remember that a careless frac.

tion of a second Is enough to cause severe Injury.

a, If your lathe makes an unfamiliar noise or if it

vibrates excessively, turn off the lathe im-

mediately. Remove switch key, Do not restart

until the problem is corrected,

b, Position turning tool so it will not chatter or

kickback,

c, Always stand to the side of the turning tool.

d, Never position your face over the turning tool.

e. Avoid awkward hand positions, where a sudden

slip could cause a hand to move into the

workpiece.

f, Complete hand sanding of spindle turnings

BEFORE removing from the lathe using the

same or slower turning speed,

g, Never leave the lathe work area without turning

the lathe off, removing the switch key and wait-

ing for the lathe to come to a complete stop.

4. To avoid injury use only recommended accessories

listed in the accessory section.

a, Do not mount and use a reamer, milling cutter,

wire wheel, buffing wheel or a drill bit on the

headstock spindle.

b, Use the drill chuck accessory on the tall stock

only.

c. Do not mount any drill that extends more than

6" beyond the chuck jaws.

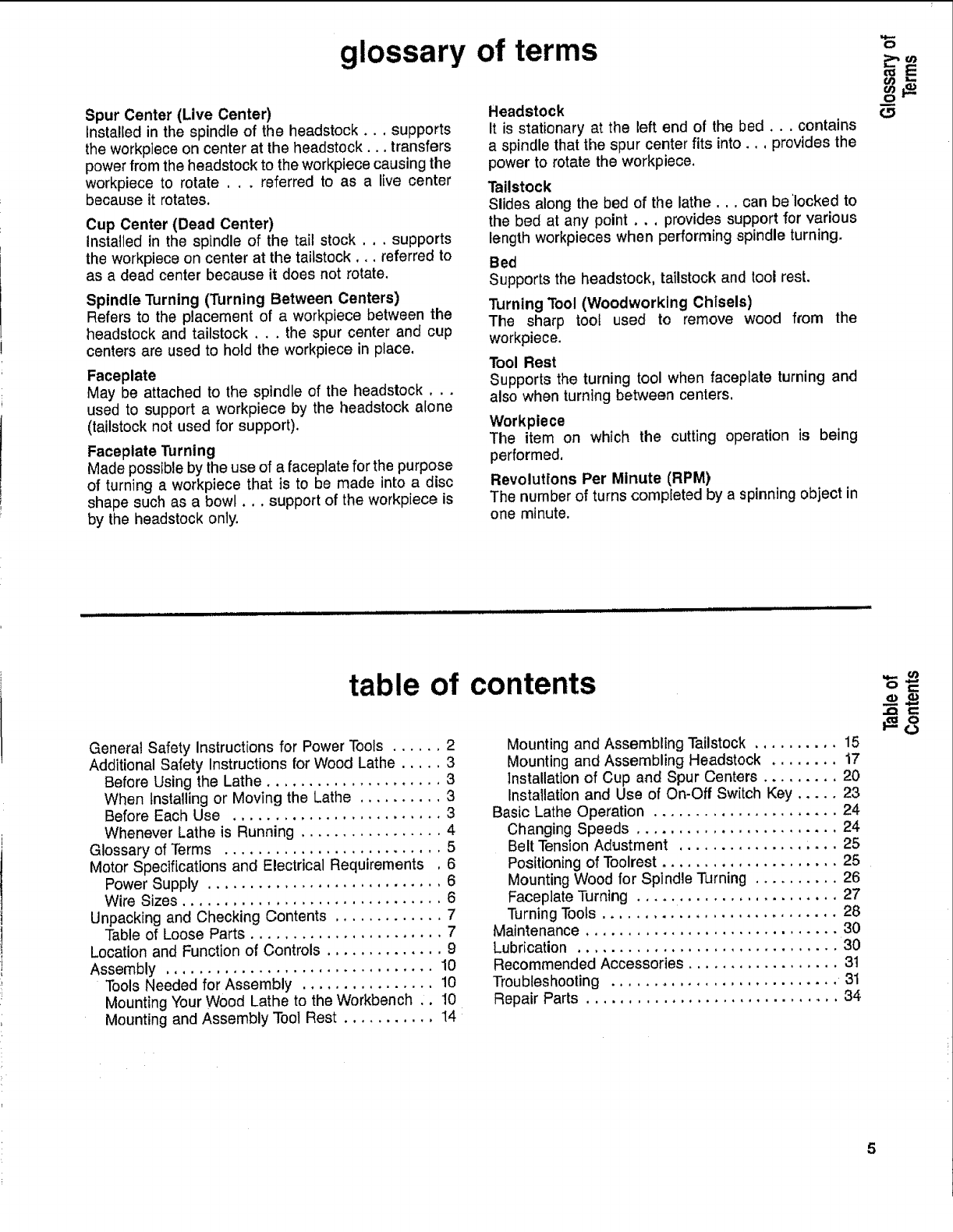

glossary of terms

Spur Center (Live Center)

Installed in the spindle of the headstock.., supports

the workpiece on center at the headstock.., transfers

power from the headstock to the workpiece causing the

workpiece to rotate ., , referred to as a live center

because it rotates.

Cup Center (Dead Center)

Installed in the spindle of the tail stock.,, supports

the workplece on center at the tailstock.., referred to

as a dead center because it does not rotate.

Spindle Turning (Turning Between Centers)

Refers to the placement of a workpiece between the

headstock and tailstock,., the spur center and cup

centers are used to hold the workpiece in place.

Faceplate

May be attached to the spindle of the headstock...

used to support a workpiece by the headstock alone

(tailstock not used for support).

Faceplate Turning

Made possible by the use of a faceplate for the purpose

of turning a workpiece that is to be made into a disc

shape such as a bowl.., support of the workpiece is

by the headstock only.

Headstock

It is stationary at the left end of the bed.., contains

a spindle that the spur center fits into.,, provides the

power to rotate the workpiece.

Tailstock

Slides along the bed of the lathe.., can be'locked to

the bed at any point.., provides support for various

length workpieces when performing spindle turning.

Bed

Supports the headstock, tailstock and tool rest,

Turning Tool (Woodworking Chisels)

The sharp toot used: to remove wood f_om the

workpiece.

Tool Rest

Supports the turning tool when faceplate turning and

also when turning between centers,

Workplece

The item on which the cutting operation is being

performed.

Revolutions Per Minute (RPM)

The number of turns completed by a spinning object in

one minute.

table of contents

General Safety Instructions for Power Tools ...... 2

Additional Safety Instructions for Wood Lathe ..... 3

Before Using the Lathe ..................... 3

When Installing or Moving the Lathe .......... 3

Before Each Use ......................... 3

Whenever Lathe is Running ................. 4

Glossary of Terms .......................... 5

Motor Specifications and Electrical Requirements . 6

Power Supply ............................ 6

Wire Sizes ............................... 6

Unpacking and Checking Contents ............. 7

Table of Loose Parts ....................... 7

Location and Function of Controls .............. 9

Assembly ................................ 10

Tools Needed for Assembly ................ 10

Mounting Your Wood Lathe to the Workbench .. 10

Mounting and Assembly Tool Rest ........... 14

Mounting and Assembling Tailstock .......... 15

Mounting and Assembling Headstock ........ 17

Installation of Cup and Spur Centers ......... 20

Installation and Use of On-Off Switch Key ..... 23

Basic Lathe Operation ...................... 24

Changing Speeds ........................ 24

Belt Tension Adustment ................... 25

Positioning of Toolrest ..................... 25

Mounting Wood for Spindle Turning .......... 26

Faceplate Turning ........................ 27

Turning Tools ......... ................... 28

Maintenance .............................. 30

Lubrication ............................... 30

Recommended Accessories .................. 31

Troubleshooting ........................... 31

Repair Parts ............................... 34

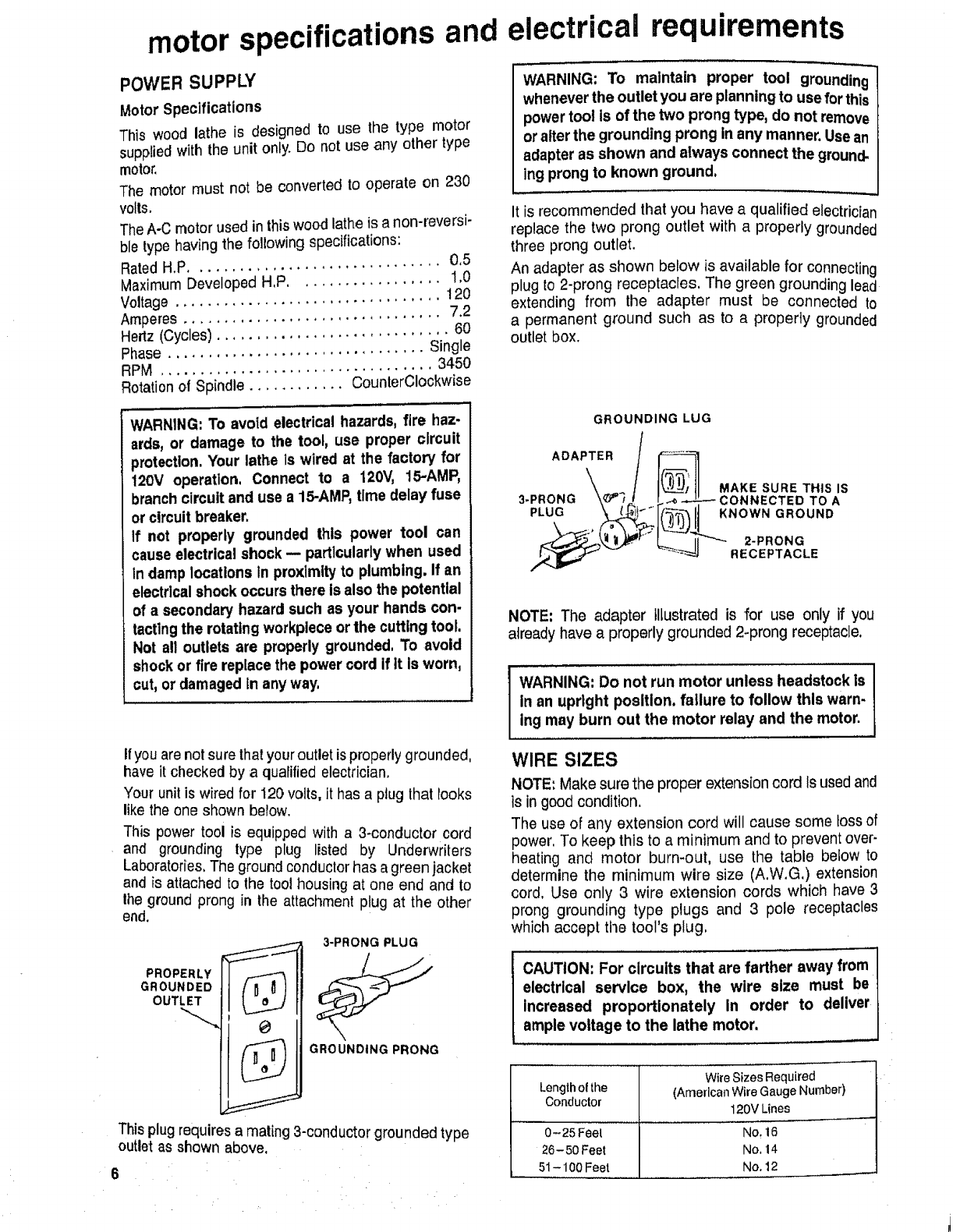

motor specifications and electrical requirements

POWER SUPPLY

Motor Specifications

This wood lathe is designed to use the type motor

supplied withthe unit only. Do not use any other lype

motor.

The motor must not be converted to operate on 230

volts.

TheA-C motorused in thiswood latheis a non-reversi-

ble type having the following specifications:

Rated H.P............................... 0,5

Maximum Developed H,P.................. 1,0

Voltage ................................. 120

Amperes ................................ 7.2

Hertz (Cycles) ............................. 60

Phase ................................ Single

RPM .................................. 3450

Rotation of Spindle ............ CounterClockwise

WARNING: To avoid electrical hazards, fire haz-

ards, or damage to the tool, use proper circuit

protection. Your lathe ls wired at the factory for

120V operation. Connect to a 120V, 1,_AMP,

branch circuit and use a 15-AMP, tlme delay fuse

or circuit breaker.

If not properly grounded this power tool can

cause electrical shock -- particularly when used

In damp locations In proximity to plumbing. If an

electrical shock occurs there is also the potential

of a secondary hazard such as your hands con-

tactlng the rotating workplece or the cutting tool.

Not all outlets are properly grounded. To avoid

shock or fire replace the power cord if tt Is worn,

cut, or damaged In any way.

If you are notsure thatyour outlet isproperlygrounded,

have it checked by a qualified electrician.

Your unit is wired for 120 volts,it has aptug lha! looks

like the one shown below.

This power tool is equipped with a 3-conductor cord

and grounding type plug listed by Underwriters

Laboratories, The ground conduclor has a green jacket

and is atlached to the tool housing at one end and to

lhe ground prong in the attachment plug at the other

end,

3-PRONG PLUG

PROPERLY

GROUNDED

OUTLET

-.....

GROUNDING PRONG

Thisplug requires a mating 3-conductor grounded type

outlet as shown above.

WARNING: To maintain proper tool grounding

whenever the outlet you are planning to use forthis

power tool is of the two prong type, do not remove

or alter the grounding prong in any manner. Use an

adapter as shown and always connect the ground.

ing prong to known ground.

It is recommended that you have a qualified electrician

replace the two prong outlet with a properly grounded

three prong outlet.

An adapter as shown below is available for connecting

plug to 2-prong receptacles, The green grounding lead

extending from the adapter must be connected to

apermanent g_'ound such as to a properly grounded

outlet box.

GROUNDING LUG

_tI_f/tl MAKE SURE THIS IS

3-PRONG CONNECTEOTOA

PLUO KNOWNGROUND

NOTE; The adapter Illustrated is for use only if you

already have a properly grounded 2-prong receptacle,

WARNING: Do not run motor unless headstock ls

in an upright position, failure to follow this warn-

ing may burn out the motor relay and the motor.

WIRE SIZES

NOTE: Make sure the proper extension cord Is used and

is in good condition,

The use of any extension cord will cause some loss of

power, To keep this to a minimum and to prevent over-

heating and motor burn-out, use the table below to

determine the minimum wire size (A.W.G,) extension

cord, Use only 3 wire extension cords which have 3

prong grounding type plugs and 3pole receptacles

which accept the tool's plug,

CAUTION: For circuits that are farther away from I

electrical service box, the wire size must be 1

Increased proportionately In order to deliver I

ample voltage to the lathe motor. I

Wire Sizes Required

Length o! the (American Wire Gauge Number)

Conductor 120V Lines

0-25 Feel No, 16

2.6-50 Feel No, 14

51 - 100 Feet No. 12

unpacking and checking contents

WARNING: To avoid injury from unexpected start-

Ing or electrical shock, do not plug the power

cord into a source of power. This cord must

remain unplugged whenever you are working on

the lathe.

Model 113.228360 Wood Lathe is shipped complete in

one box.

1, Unpacking and Checking Contents

a, Separate all "loose parts" from packaging mate-

rials and check each item with "Table of Loose

Parts" to make sure all items are accounted for,

before discarding any packing material.

WARNING: If any parts are missing, do not

attempt to assemble wood lathe, plug in the

power cord, or turn the switch on until the miss-

ing parts are obtained and are Installed correctly.

TABLE OF LOOSE PARTS

ITEM DESCRIPTION

QTY.

Bed Machined ...................... 2

Tool Rest 12 In ...................... 1

Holder Tool Rest .................... 1

Slide .............................. 1

Tail Stock .......................... 1

Spindle Tail Stock ................... 1

Handwheel ......................... 1

Owner's Manual ..................... 1

Bag of Loose Parts .................. 1

HeadstocktMotor Asm ................ 1

Center Spur ........................ 1

Center Cup ........................ 1

Belt Poly "V" 14 In .................... 1

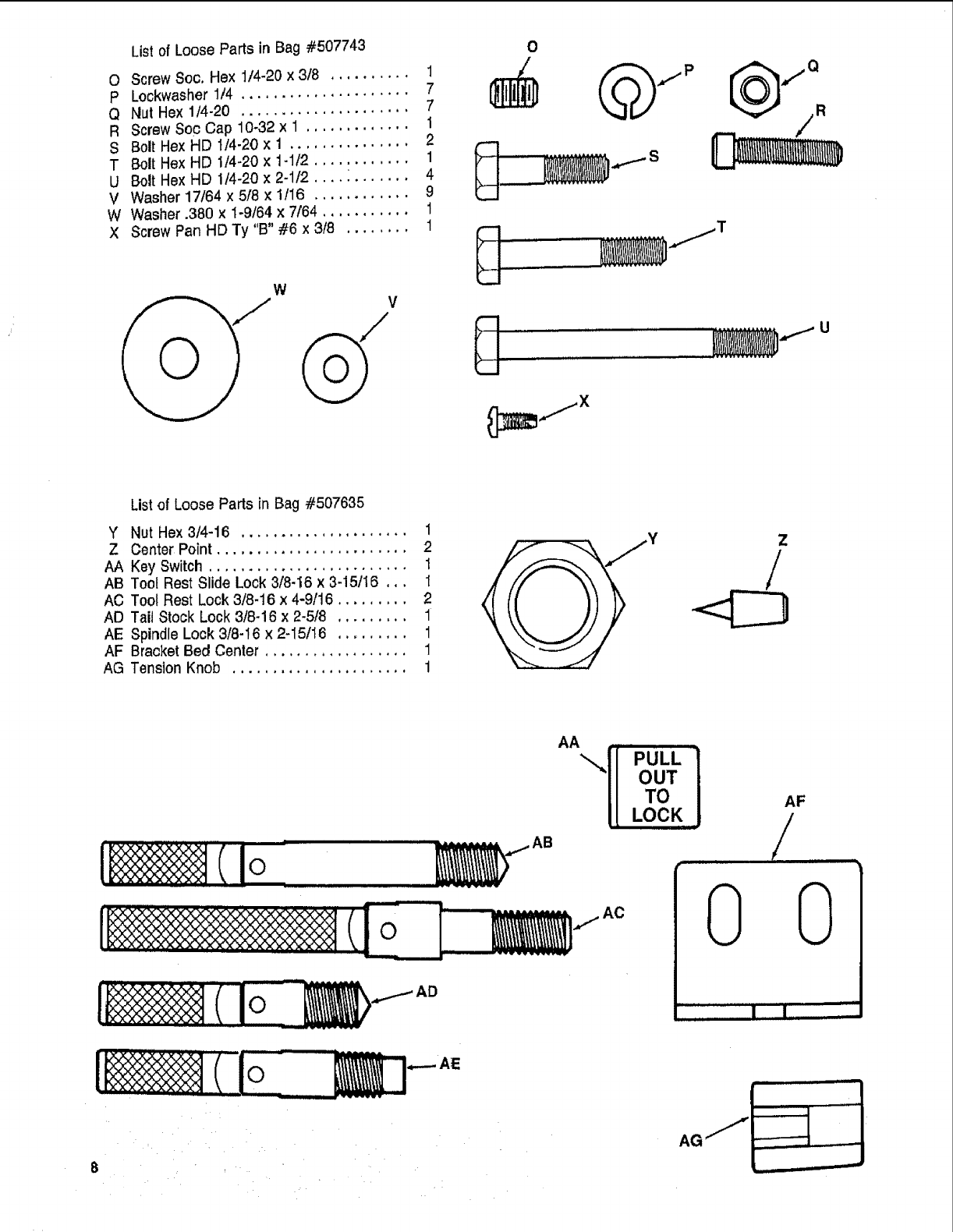

List of Loose Parts in Bag #507743

O Screw Soc. Hex 1/4-20 x 3/8 .......... 1

p Leckwasher 1/4 ..................... 7

Q Nut Hex 1/4-20 ..................... 7

R Screw Soc Cap 10o32 x 1 ............. 1

S Bolt Hex HD 1/4-20 x 1 ............... 2

T Bolt Hex HD 114-20x 1-1/2 .... : ....... 1

U Bolt Hex HD 1/4-20 x 2-1/2 ............ 4

V Washer 17/64 x 5/'8 x 1/I6 ............ 9

W Washer .380 x 1-9164x 7/64 ........... 1

X Screw Pan HD Ty "B" #6 x 3/8 ........ 1

_f u

List of Loose Parts in Bag #507635

Y Nut Hex 3/4-16 ..................... 1

Z Center Point ........................ 2

AA Key Switch ......................... 1 /

AB Toot Rest Slide Lock 3/8-16 x 3-15/16 ,.. I

AC Tool Rest Lock 3/8-16 x 4-9/16 ......... 2

AD Tait Stock Lock 3/8-16 x 2-5/6 ......... 1

AE Spindle Lock 3/8-16 x 2-15/16 ......... 1

AF Bracket Bed Center .................. 1

AG Tension Knob ...................... 1

<EC3

AA ,,.,!I PULL

IIou_

i_IIo ......_iii_,o

I,WlL ,Imlll • -_vvw.v

r o _._AC

!_( 10-1_,_>f'°

0 0

! Ii

l ilo

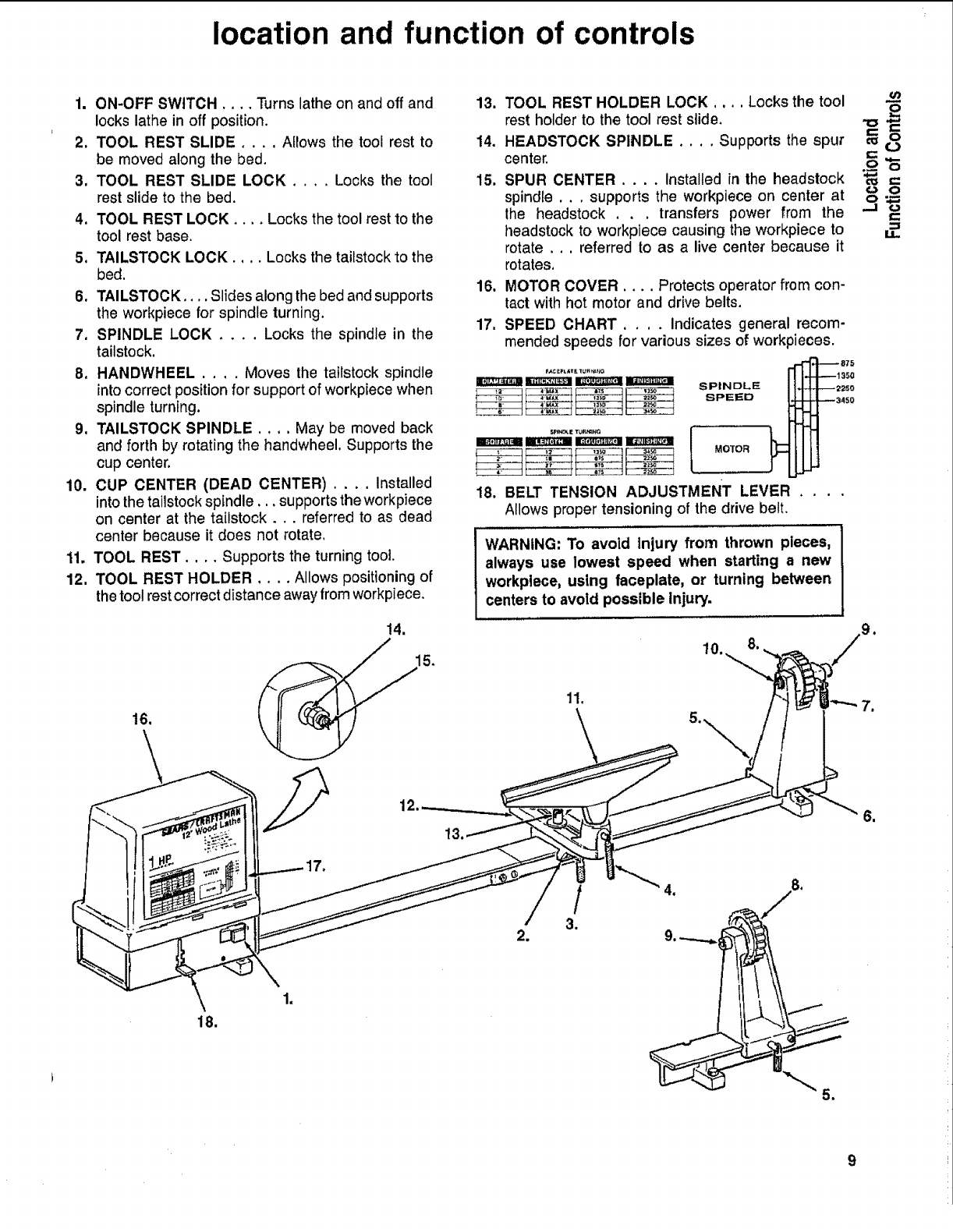

location and function of controls

1. ON-OFF SWITCH .... Turns lathe on and off and

locks lathe in off position.

2. TOOL REST SLIDE .... Allows the tool rest to

be moved along the bed.

3. TOOL REST SLIDE LOCK .... Locks the tool

rest slide to the bed.

4, TOOL REST LOCK .... Locks the tool rest to the

tool rest base.

5. TAILSTOCK LOCK .... Locks the taitstock to the

bed.

6. TAILSTOCK .... Slides along the bed and supports

the workpiece for spindle turning.

7. SPINDLE LOCK .... Locks the spindle in the

tailstock.

8. HANDWHEEL .... Moves the tailstock spindle

into correct position for support of workpiece when

spindle turning.

9. TAILSTOCK SPINDLE .... May be moved back

and forth by rotating the handwheel, Supports the

cup center.

10, CUP CENTER (DEAD CENTER) .... Installed

into the tailstockspindle,., supports the workpiece

on center at the tailstock.., referred to as dead

center because it does not rotate.

11. TOOL REST .... Supports the turning tool.

12. TOOL REST HOLDER .... Allows positioning of

the tool rest correct distance away from workpiece.

13. TOOL REST HOLDER LOCK .... Locks the tool _o

rest holder to the tool rest slide. ,z_ -,_

14. HEADSTOCK SPINDLE Supports the spur _ o

center. '-

._o"_

15. SPUR CENTER .... Installed in the headstock "_ ,-

spindle.., supports the workpiece on center at _ -_

lhe headstock . . , transfers power from the -J

headstock to workpiece causing the workpiece to ,,-'

rotate.., referred to as a live center because it

rotates.

16, MOTOR COVER .... Protects operator from con-

tact with hot motor and drive belts.

17, SPEED CHART .... Indicates general recom-

mended speeds for various sizes of workpieces.

SF_N_E T_

--875

F*_£ EPt _T £ TUR P_JJO _1 _5.l 1

_ __ SPINDLE --+2++o

SPEED --_4so

IMOTOR

18. BELT TENSION ADJUSTMENT LEVER ....

Allows proper tensioning of the drive belt.

WARNING: To avoid Injury from thrown pieces,

always use lowest speed when starting a new

workpiece, using faceplate, or turning between

centers to avoid possible Injury.

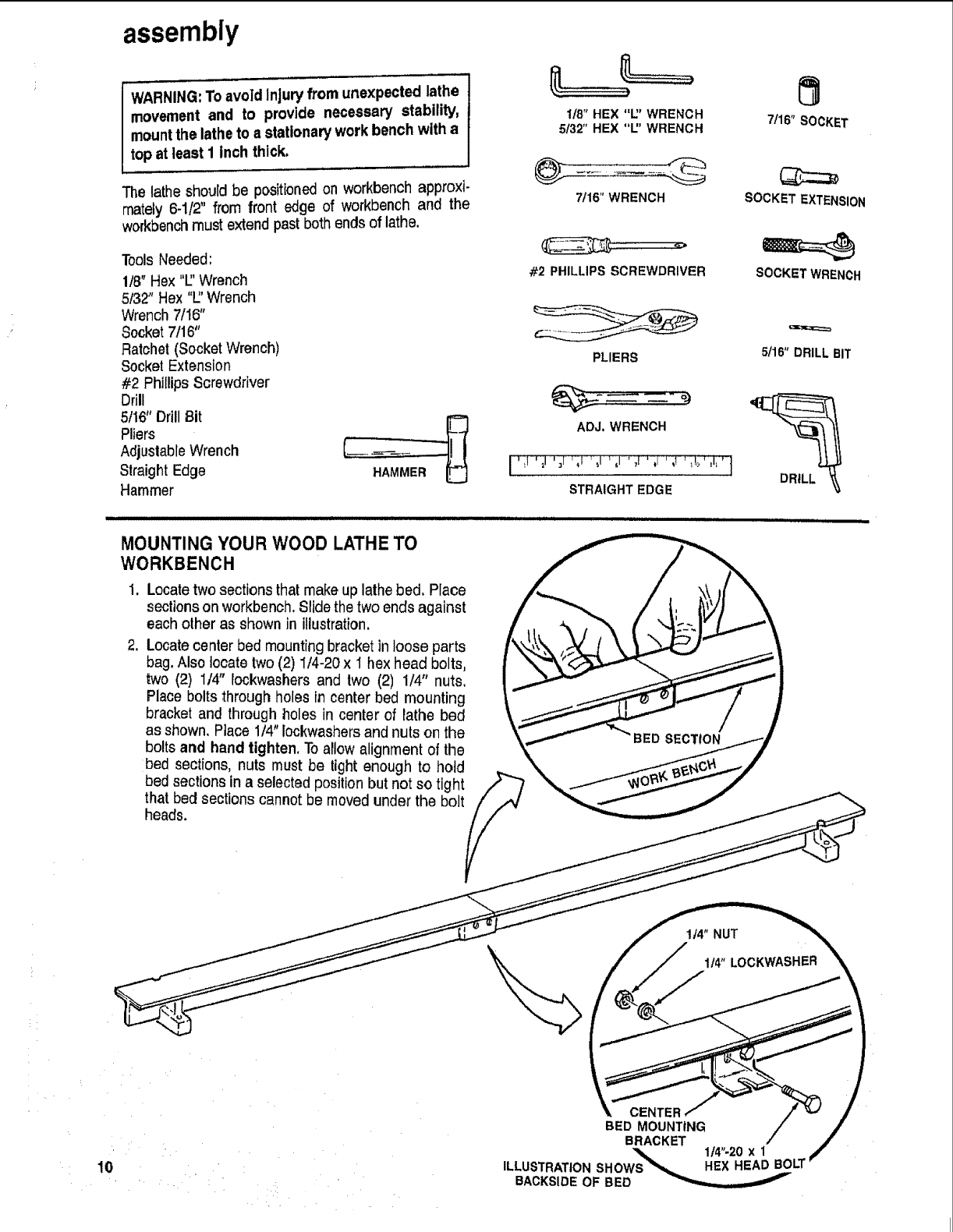

assembly

,,. J ,,,,

WARNING:To avoid Injury from unexpected lathe

movement and to provide necessary stability,

mountthe lathe to a stationary work bench with a

top at least i Inch thick.

The lathe should be positioned on workbench approxi-

mately 6-1/2" from front edge of workbench and the

workbench must extend past both ends of lathe.

Tools Needed:

1/8"Hex "E'Wrench

5/32" Hex "U'Wrench

Wrench 7/16"

Socket 7/16"

Ratchet (Socket Wrench)

Socket Extension

#2 Phillips Screwdriver

Drill

5116"Drill Bit

Pliers

Adjustable Wrench

Straight Edge

Hammer

118"HEX%? WRENCH

5f32" HEX "It' WRENCH

7t16"WRENCH

#2 PHILLIPS SCREWDRIVER

PLIERS

ADJ. WRENCH

j ',I ',= 'iF ';i 'i_ ' ,I ',l' ,i ' ,__,p_'Tti_,]

STRAIGHT EDGE

7t16" SOCKET

SOCKETEXTENSION

SOCKET WRENCH

5t16"DRILLBIT

MOUNTINGYOUR WOOD LATHE TO

WORKBENCH

,Locate two sections that make up lathe bed. Place

sections on workbench.Slide thetwo ends against

each other as shown in illustration.

2. Locate center bed mounting bracket inloose parts

bag. Also locate two (2) 1/4-20 x I hex head bolts,

two (2) 1/4" lockwashers and two (2) 1/4" nuts.

Place bolts through holes in center bed mounting

bracket and throughholes in center of lathe bed

as shown. Place 1/4"Iockwashers and nuts on the

bolts and hand tighten. To allow alignment of the

bed sections, nuts must be light enough to hold

bed sections in a selected position but not so tight _ A

that bed sections cannot be moved under the bolt /_ _ -_.,_

heads. //

BED MOUNTING /J

BRACKET /,/

'" "=_. 1/4"-20x 1 jr"

10 .ILLUSTRATION SHOWS'_ HEXHEAD BOLT-

- . .... 'BACKSIDEOF BED _1

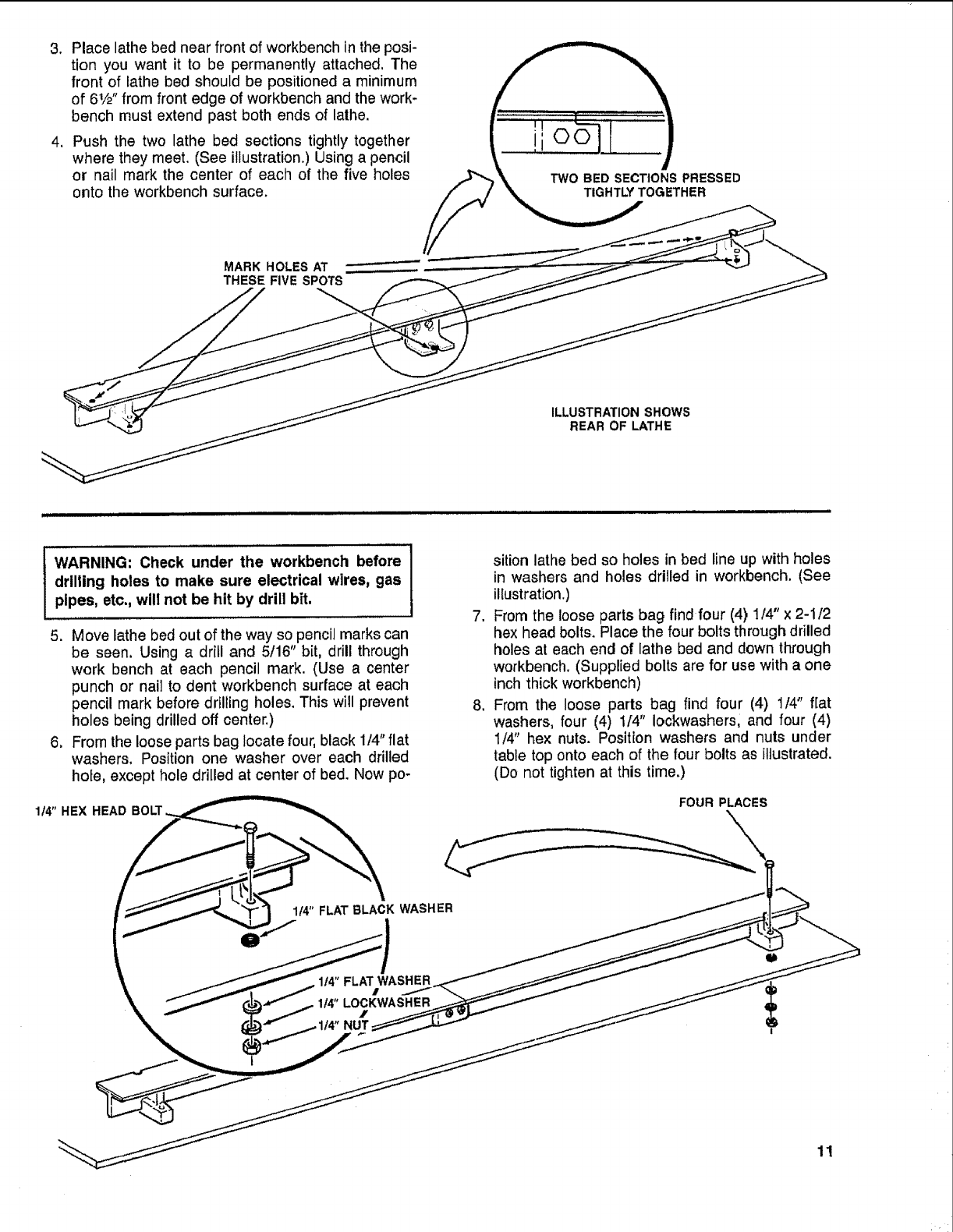

Place lathe bed near front of workbench in the posi-

tion you want it to be permanently attached. The

front of lathe bed should be positioned a minimum

of 61/2" from front edge of workbench and the work-

bench must extend past both ends of lathe.

PtJsh the two lathe bed sections tightly together

where they meet. (See illustration.) Using a pencil

or nail mark the center of each of the five holes

onto the workbench surface. TWO BED SECTIONS PRESSED

TIGHTLY TOGETHER

MARK HOLES AT --

THESE FIVE SPOTS

ILLUSTRATION SHOWS

REAR OF LATHE

iii i ii i ,i

WARNING: Check under the workbench before

drilling holes to make sure electrical wires, gas

pipes, etc., will not be hit by drill bit.

5. Move lathe bed out of the way so pencil marks can

be seen. Using a ddll and 5/16" bit, drill through

work bench at each pencil mark. (Use a center

punch or nai3to dent workbench surface at each

pencil mark before drilling holes. This will prevent

holes being drilled off center.)

6. From the loose parts bag locate four, black 114"flat

washers. Position one washer over each drilled

hole, except hole drilled at center of bed. Now po-

1t4" HEX HEAD

sition lathe bed so holes in bed line up with holes

in washers and holes drilled in workbench. (See

illustration.)

From the loose parts bag find four (4) t/4" x 2-1/2

hex head bolts. Place the four bolts through drilled

holes at each end of lathe bed and down through

workbench, (Supplied bolts are for use with a one

inch thick workbench)

From the loose parts bag find four (4) 114" fiat

washers, four (4) 1/4'° Iockwashers, and four (4)

1/4" hex nuts. Position washers and nuts under

table top onto each of the four bolts as illustrated.

(Do not tighten at this time.)

FOUR PLACES

1/4" FLAT BLACK WASHER

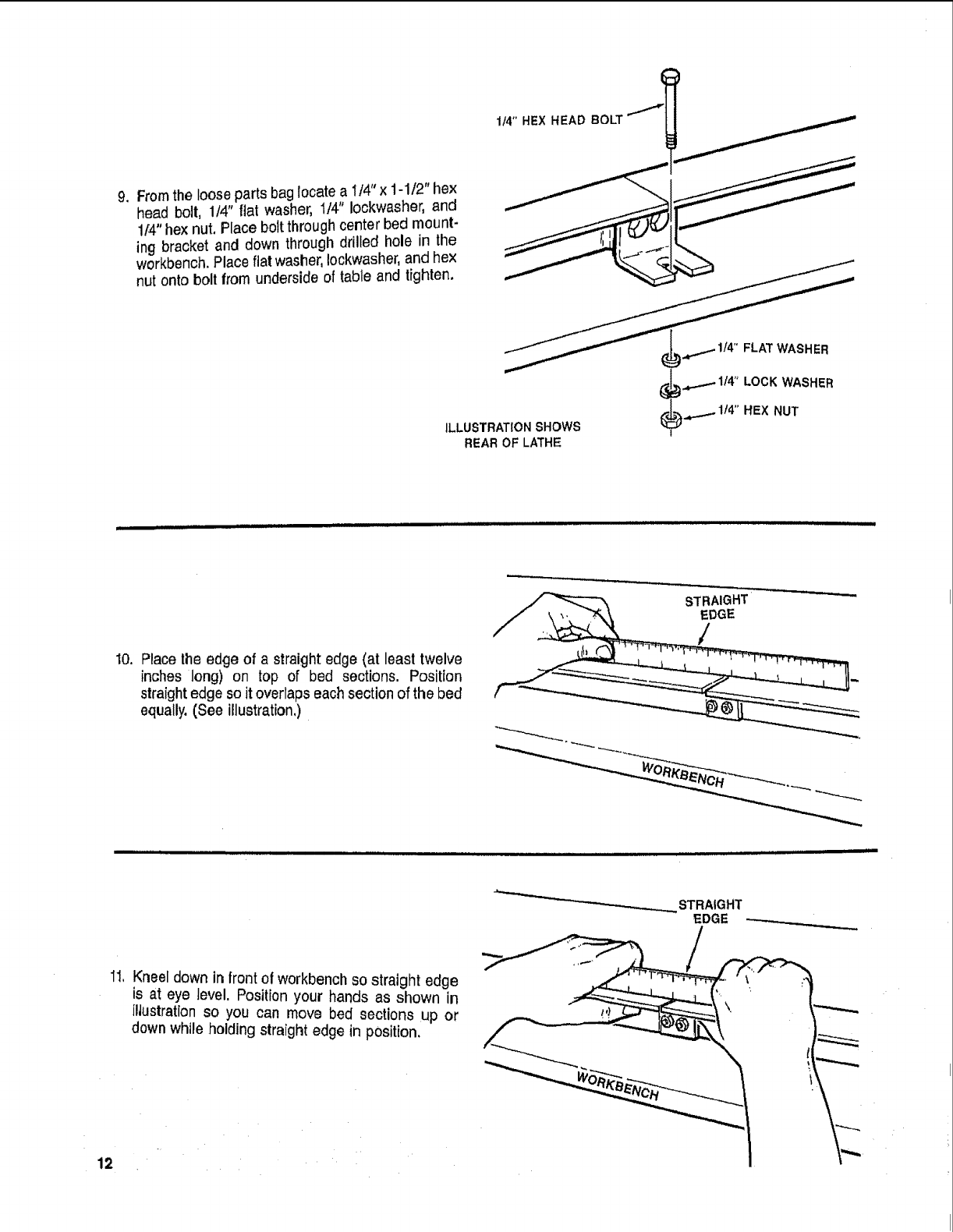

9. Fromtheloosepartsbaglocatea114"x1-1/2"hex

headbolt,1/4"fiatwasher,1/4"Iockwasher,and

114"hexnut,Placeboltthroughcenterbedmount-

ingbracketanddownthroughdrilledholeinthe

workbench.Placefiatwasher,Iockwasher, and hex

nut onto bolt from underside of table and tighten.

ILLUSTRATION SHOWS

REAR OF LATHE

LOCK WASHER

HEX NUT

10. Place the edge of a straight edge (at least twelve

inches long) on top of bed sections. Position

straight edge so it overlaps eac_ section of the bed

equally. (See illustration,)

STRAIGHT

EDGE

ill=ill ii ii ill i| illll i i

STRAIGHT

EDGE ----.-_.._..__...__..

I1, Kneel down in front of workbench so straight edge

is at eye level. Position your hands as shown in

ilJustrationso you can move bed sections up or

down while holding straight edge in position.

STRAIGHT

EDGE

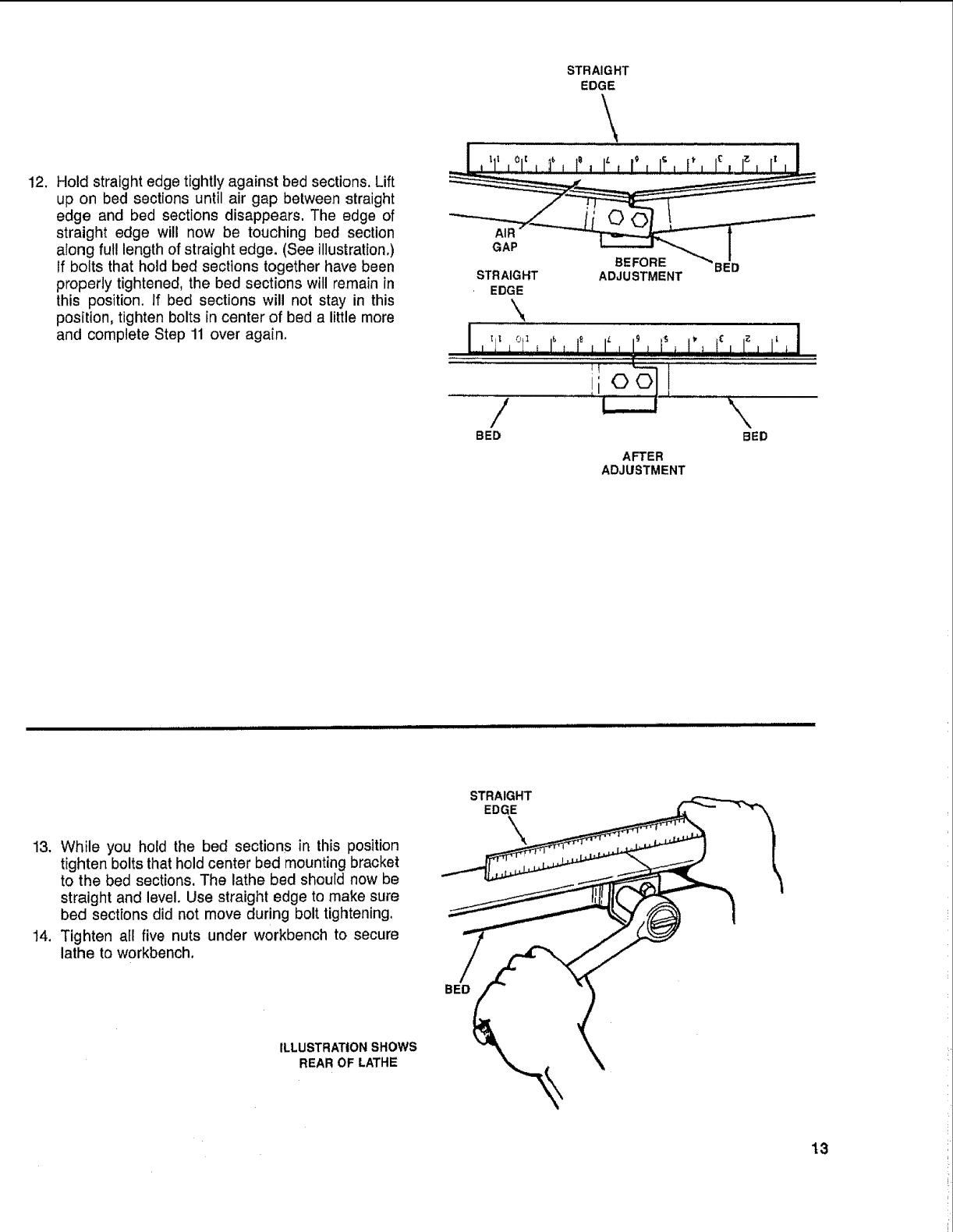

12. Hold straight edge tightly against bed sections. Lift

up on bed sections until air gap between straight

edge and bed sections disappears. The edge of

straight edge will now be touching bed section

along full length of straight edge. (See illustration.)

If bolts that hold bed sections together have been

properly tightened, the bed sections will remain in

this position. If bed sections will not stay in this

position, tighten bolts in center of bed a little more

and complete Step 11 over again.

STRAIGHT ADJUSTMENT

EDGE

BED

f_, l', 1!, ]

BED

AFTER

ADJUSTMENT

13. While you hold the bed sections in this position

tighten bolts that hold center bed mounting bracket

to the bed sections, The lathe bed should now be

straight and level. Use straight edge to make sure

bed sectfons did not move during bolt tightening.

14. Tighten all five nuts under workbench to secure

lathe to workbench,

BED

STRAIGHT

EDGE

ILLUSTRATION SHOWS

REAR OF LATHE

_,. ,, -_ i, HI, H ,iHl,,

TOOL REST SLIDE LOCK TOOL REST SLIDE

MOUNTING AND ASSEMBLING

TOOL REST ASSEMBLY

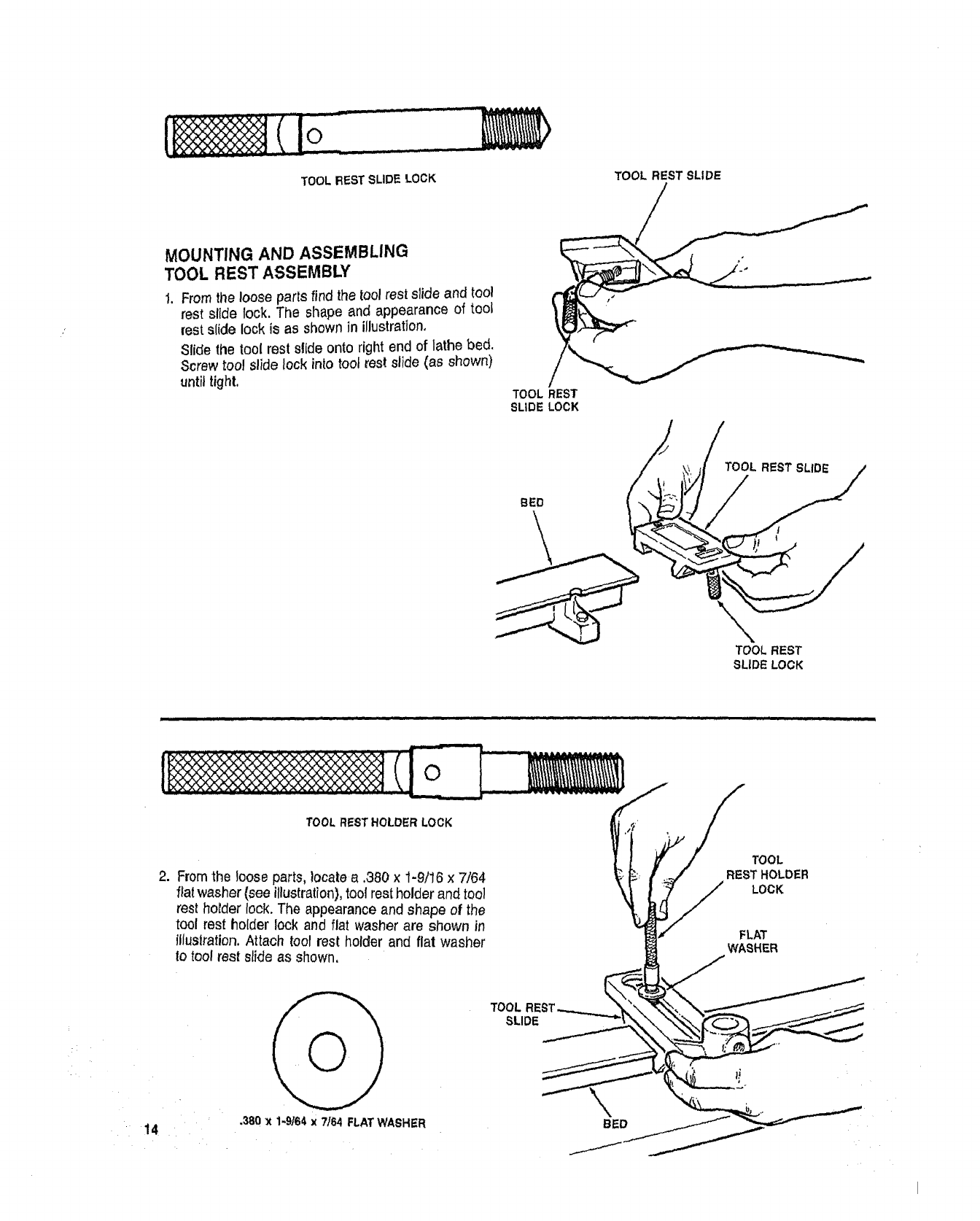

1. From the loose parts find the tool rest slide and tool

rest slide lock. The shape and appearance of toot

rest slide lock is as shown in illustration,

Slide the tool rest slide onto right end of lathe bed.

Screw tool slide lock into tool rest slide (as shown)

untiltight. TOOL REST

SLIDE LOCK

BED

TOOL REST

SLIDE LOCK

2. Fromthe loose parts, locate a .380 x 1-9/16 x 7/64

flat washer{see illustration), toolrest holder and tool

rest holder lock. The appearance and shape of the

tool rest holder lock and flat washer are shown in

illustration. Attach tool rest holder and flat washer

to tool rest slide as shown,

TOOL

REST HOLDER

LOCK

FLAT

WASHER

•14 ,380 X 1-9/64 X 7/64 FLAT WASHER

TOOL

SLIDE

\BED

• fl •

TOOL REST LOCK

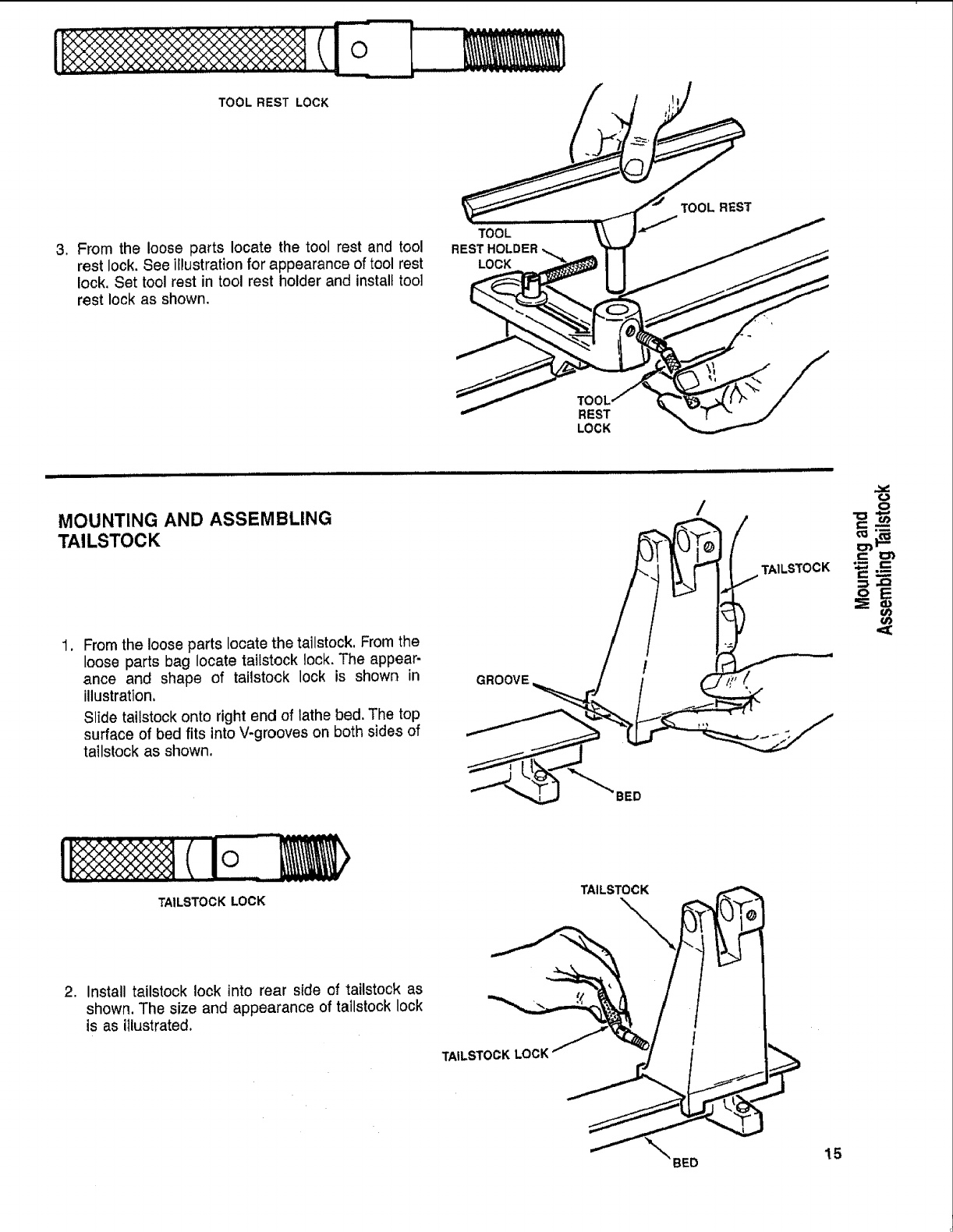

,From the loose parts locate the tool rest and tool

rest lock. See illustration for appearance of tool rest

lock. Set tool rest in tool rest holder and install tool

rest lock as shown.

TOOL

LOCK

TOOL BEST

REST

LOCK

MOUNTING AND ASSEMBLING

TAILSTOCK

,From the loose parts locate the tailstock, From the

loose parts bag locate tailstock lock. The appear-

ance and shape of tailstock lock is shown in

illustration,

Slide taiistock onto right end of lathe bed. The top

surface of bed fits into V-grooves on both sides of

tailstock as shown.

GROOVE

ii ill

TA1LSTOCK

"o-'_

o.}F -_

.............................................. • I.... .--=.

TA1LSTOCKLOCK TAILSTOCK

--.\

,Install tailstock lock into rear side of tailstock as

shown. The size and appearance of tailstock lock

is as illustrated.

TAILSTOCK LOCK

HANDWHEEL

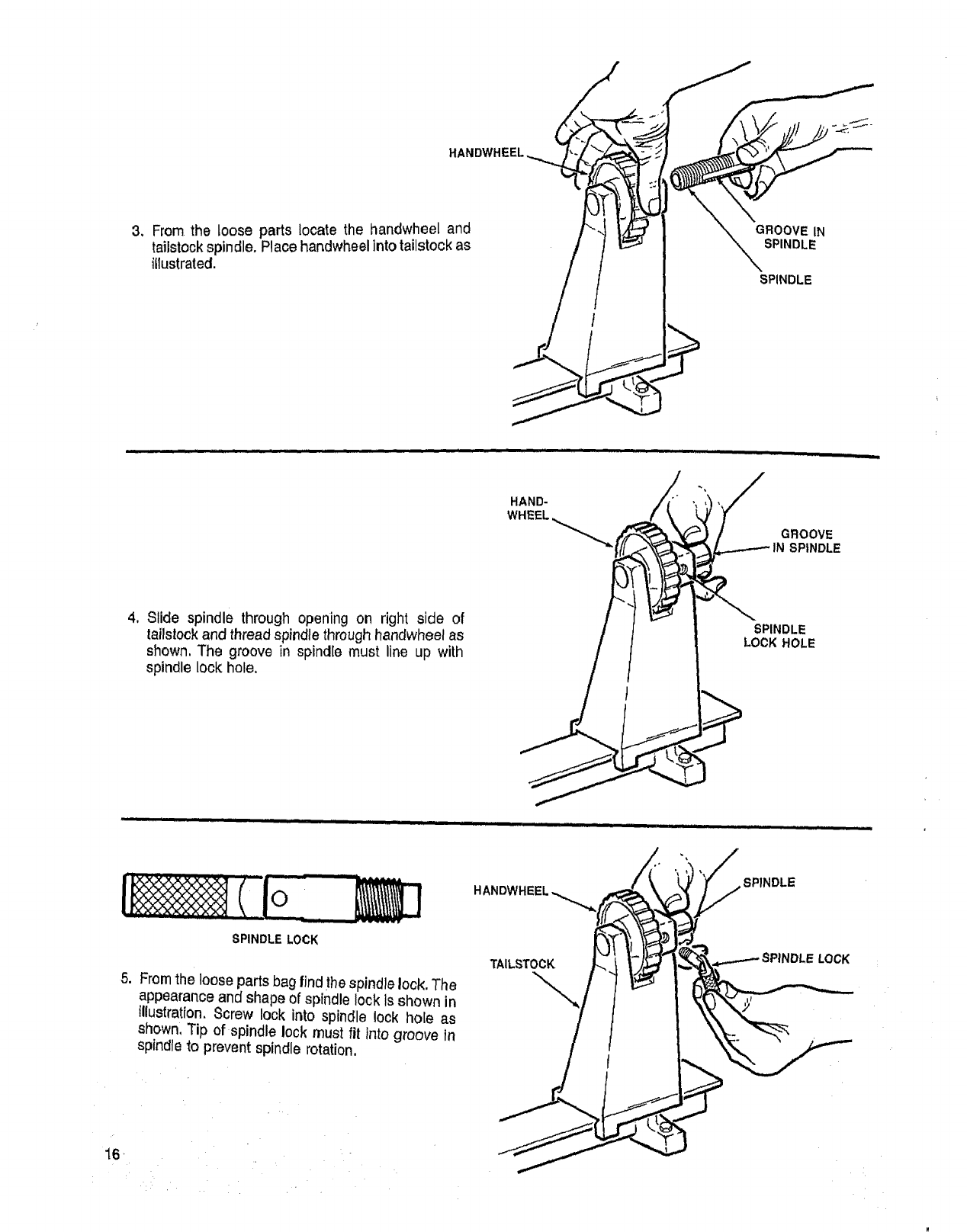

3, From the loose parts locate the handwheel and

tailstock spindle. Place handwheel into tailstock as

illustrated.

GROOVE IN

SPINDLE

GROOVE

IN SPINDLE

4, Slide spindle through opening on right side of

tailstockand thread spindle through handwheel as

shown. The groove in spindle must line up with

spindle lock hole.

SPINDLE

LOCK HOLE

SPINDLE LOCK

5. From the loose parts bag find the spindle lock. The

appearance and shape of spindle lock isshown in

illustration. Screw lock into spinc_lelock hole as

shown, Tip of spindle lock must fit into groove in

spindle to prevent spindle rotation.

HANDWHEEL,.,,

TAILSTOCK

SPINDLE

LOCK

16,

HANDWHEEL

10/32" SOCKET HEAD SCREW

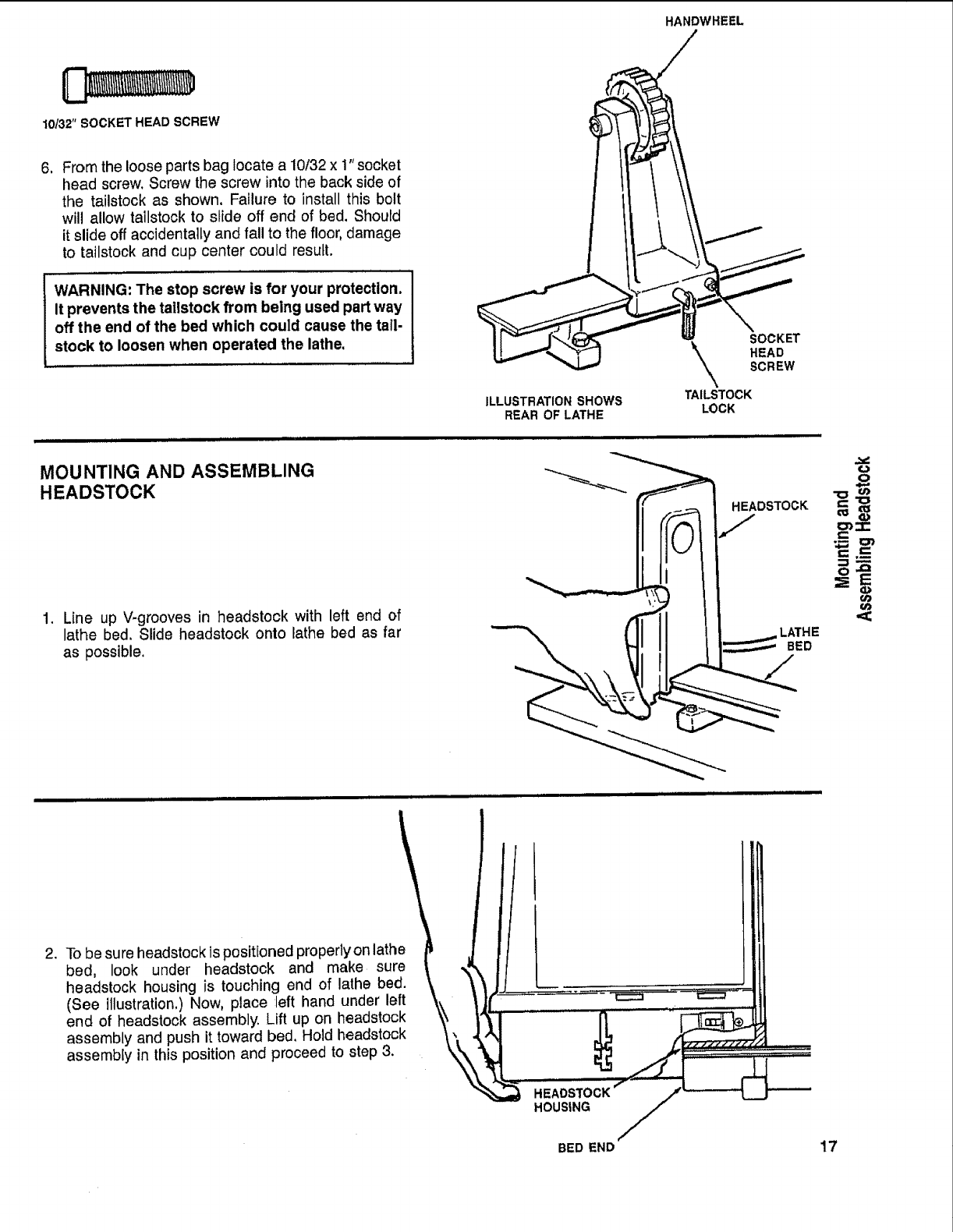

6, From the loose parts bag locate a 10/32 x 1" socket

head screw, Screw the screw into the back side of

the tailstock as shown, Failure to install this bolt

will allow tailstock to slide off end of bed. Should

it slide off accidentally and fall to the floor, damage

to tailstock and cup center could result.

WARNING: The stop screw is for your protection.

It prevents the talistock from being used part way

off the end of the bed which could cause the tail-

stock to loosen when operated the lathe,

ILLUSTRATION SHOWS

REAR OF LATHE

SOCKET

HEAD

SCREW

TAILSTOCK

LOCK

MOUNTING AND ASSEMBLING

HEADSTOCK

1. Line up V-grooves in headstock with left end of

lathe bed. Slide headstock onto lathe bed as far

as possible,

"_'_"__ E TOC

Ii _ _ yos K

--, lll

Ill I lllll I"U I I,,, Ill II I I, HI I

€:_-r

2. To be sure headstock is positioned properlyon lathe

bed, look under headstock and make sure

headstock housing is touching end of lathe bed.

(See illustration,) Now, place left hand under left

end of headstock assembly, Lift up on headstock

assembly and push it toward bed, Hold headstock

assembly in this position and proceed to step 3.

HEADSTOCK f_

HOUSING

BED END 17

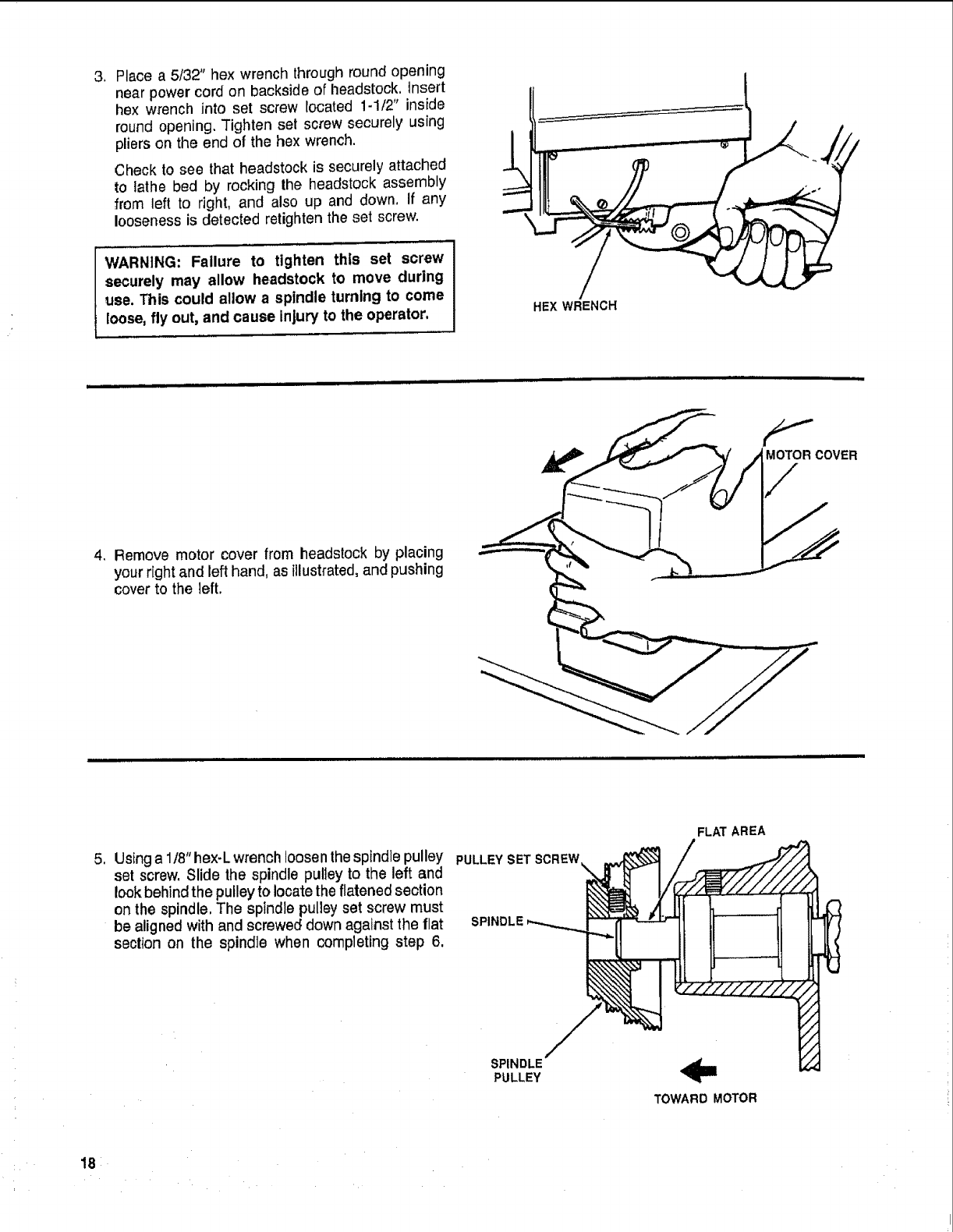

3, Place a 5/32 °' hex wrench through round opening

near power cord on backside of headstock. Insert

hex wrench into set screw located 1-1/2" inside

round opening. Tighten set screw securely using

pliers on the end of the hex wrench.

Check to see that headstock is securely attached

to lathe bed by rocking the headstock assembly

from left to right, and also up and down. If any

looseness is detected retighten the set screw.

WARNING: Failure to tighten this set screw

securely may allow headstock to move during

use. This could allow a spindle turning to come

loose, fly out, and cause injury to the operator,

HEX WRENCH

MOTOR COVER

4, Remove motor cover from headstock by placing

yeur right and left hand, as illustrated,and pushing

cover to the left.

5, Usinga 1/8"hex-L wrench loosen the spindle pulley

set screw, Slide the spindle pufley to the left and

lookbehind the pulleyto locate the flatened section

on the spindle. The spindle pulley set screw must

be aligned with and screwed down against the flat

section on the spindle when completing step 6,

PULLEY

SPINDLE

FLAT AREA

SPINDLE

PULLEY

TOWARD MOTOR

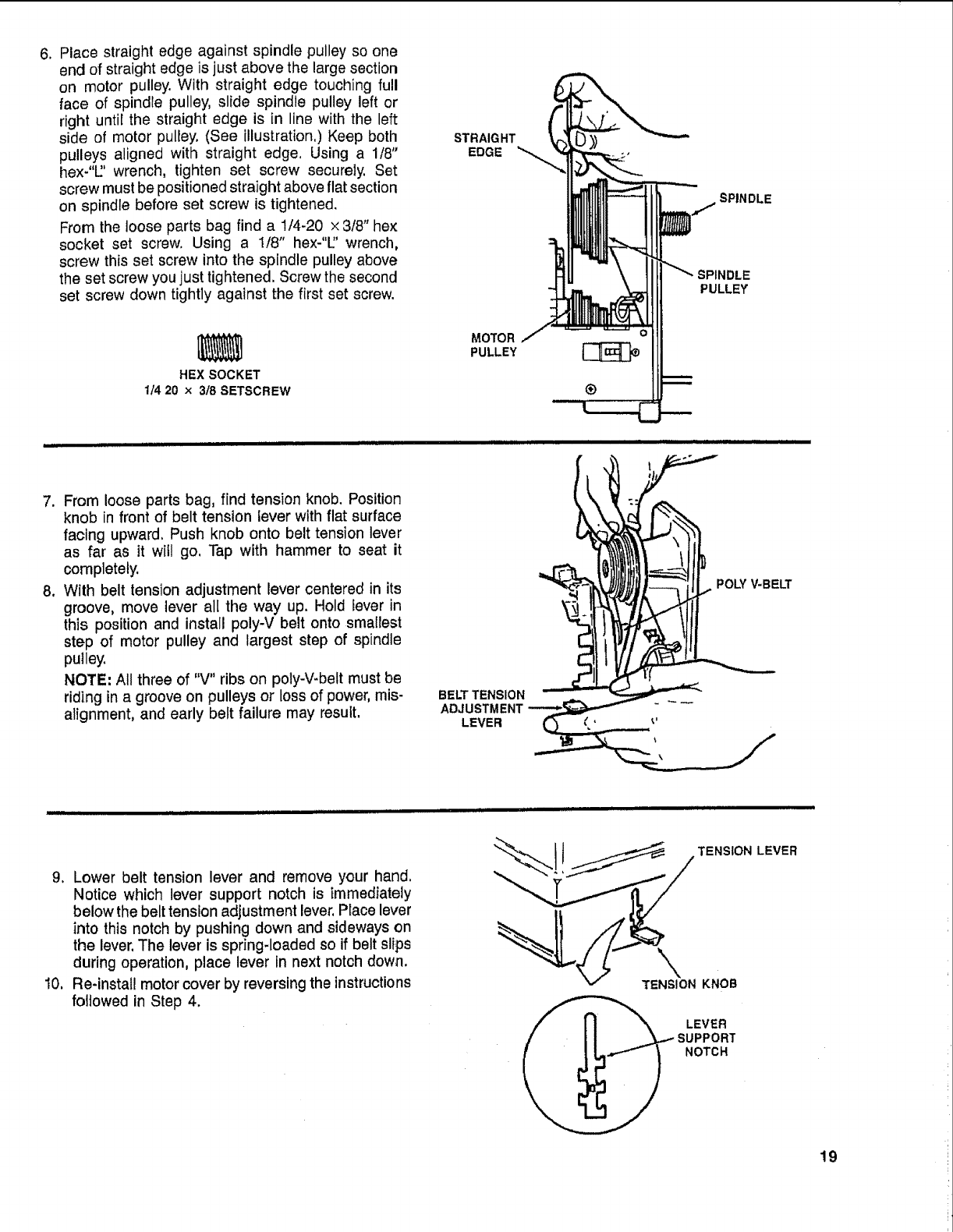

6. Placestraightedgeagainstspindlepulleysoone

endofstraightedgeisjustabovethelargesection

on motorpulley.Withstraightedgetouchingfull

faceof spindlepulley,slidespindlepulleyleftor

rightuntilthestraightedgeis in linewiththeleft

sideof motorpulley,(Seeillustration,)Keepboth

pulleysalignedwithstraightedge,Usinga 118"

hex-"l"wrench,tightenset screwsecurely.Set

screwmustbepositionedstraightaboveflatsection

onspindlebeforesetscrewistightened.

Fromtheloosepartsbagfinda 1/4-20x 3/8"he×

socketset screw.Usinga 1/8" hex-"U'wrench,

screwthissetscrewintothespindlepulleyabove

thesetscrewyoujusttightened.Screwthesecond

setscrewdowntightlyagainstthefirstsetscrew.

STRAIG HT

EDGE

SPINDLE

PULLEY

HEX SOCKET

1/4 20 x318 SETSCREW

MOTOR

PULLEY

Lii ii,1111 i i i iii i iiiiiiiiiiiiiiiiiiiilU

7. From loose parts bag, find tension knob. Position

knob in front of belt tension lever with flat surface

facing upward. Push knob onto belt tension lever

as far as it will go. Tap with hammer to seat it

completely.

8. With belt tension adjustment lever centered in its

groove, move lever all the way up. Hold lever in

this position and install poly-V belt onto smallest

step of motor pulley and largest step of spindle

pulley.

NOTE: All three of "V" ribs on poly-V-bett must be

riding in a groove on pulleys or loss of power, mis-

alignment, and early belt failure may result.

BELT TENSION

ADJUSTMENT

LEVER

POLY V-BELT

9. Lower belt tension lever and remove your hand.

Notice which lever support notch is immediately

below the belt tension adjustment lever. Place lever

into this notch by pushing down and sideways on

the lever. The lever is spring-loaded so if belt slips

during operation, place lever in next notch down.

10. Re-install motor cover by reversing the instructions

foltowed in Step 4.

iJllll IIBII I

TENSION LEVER

TENSION KNOB

SUPPORT

NOTCH

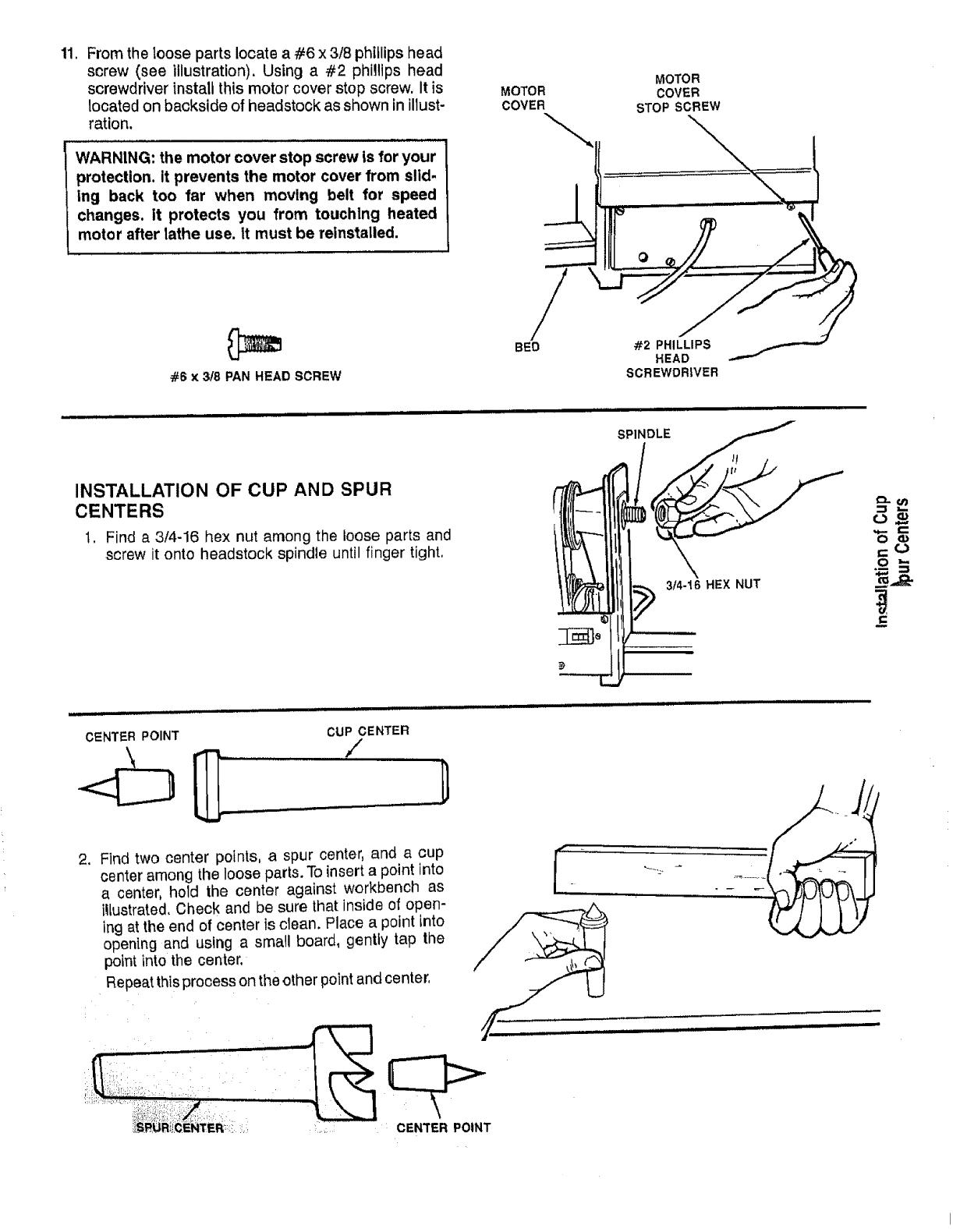

11.Fromtheloosepartslocatea#6 x3/8phillipshead

screw(seeillustration).Usinga #2 phillips head

screwdriver install this motor cover stop screw, it is

located on backside of headstock as shown in illust-

ration.

WARNING: the motor cover stop screw is for your

protection, it prevents the motor cover from slid-

ing back too far when moving belt for speed

changes, it protects you from touching heated

motor after lathe use. it must be reinstalled.

MOTOR

COVER

MOTOR

COVER

STOP SCREW

#6 x 318 PAN HEAD SCREW

BED #2 PHILLIPS

HEAD .-""

SCREWDRIVER

u i ii i .| ii,,m i i i i iiii i i iii

INSTALLATION OF CUP AND SPUR

CENTERS

1, Finda3/4-16 hex nutamong the loose parts and

screw it ontoheadstock spindle until finger tight,

SPINDLE

i i

3/4-16 HEX NUT

tD-O_

--I =..

ill i

CENTER POINT

ill

CUP CENTER

2. Find two center points, a spur center, and a cup

center among the loose parts. To insert a point into

a center, hold the center agatnst workbench as

i_Lustrated.Check and be sure that inside of open-

ing at the end of center is clean. Place a point into

opening and using a small board, gently tap the

point into the center.

Repeat this process on the other pointand center.

i i ii ii . illl i,iil,lll

ii •

;i i,!; R,CENTERi:i'! _ :i_Li_,: CENTER POINT

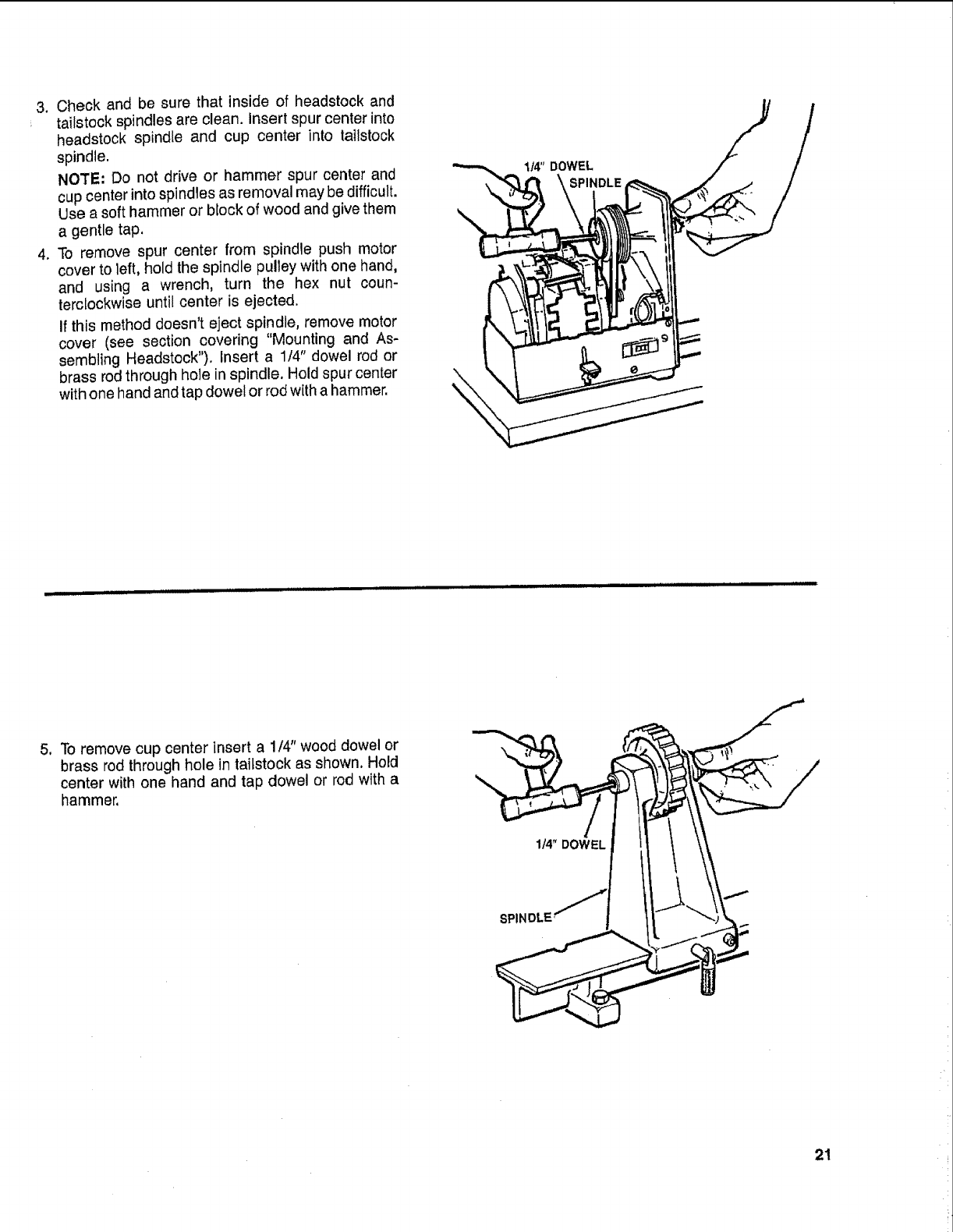

3. Check and be sure that inside of headstock and

tailstock spindles are clean. Insert spur center into

headstock spindle and cup center into taitstock

spindle.

NOTE" Do not drive or hammer spur center and

oup center into spindles as removal may be difficult.

Use a soft hammer or block of wood and give them

a gentle tap.

4. To remove spur center from spindle push motor

cover to left, hold the spindle pulley with one hand,

and using a wrench, turn the hex nut coun-

terclockwise until center is ejected.

If this method doesn't eject spindle, remove motor

cover (see section covering "Mounting and As-

sembling Headstock"). Insert a 1/4" dowel rod or

brass rod through hole in spindle. Hold spur center

with one hand and tap dowel or rod with a hammer.

1/4" DOWEL

5, To remove cup center insert a 1/4" wood dowel or

brass rod through hole in taitstock as shown. Hold

center with one hand and tap dowel or rod with a

hammer.

WARNING: Before using the iathe, test to make

sure headstock ls properly secured to lathe bed.

Failure to properly secure headstock to lathe bed

may al]ow headstock to move during use. This

could allow a spindle turning to come loose, fly

out, and cause injury to operator.

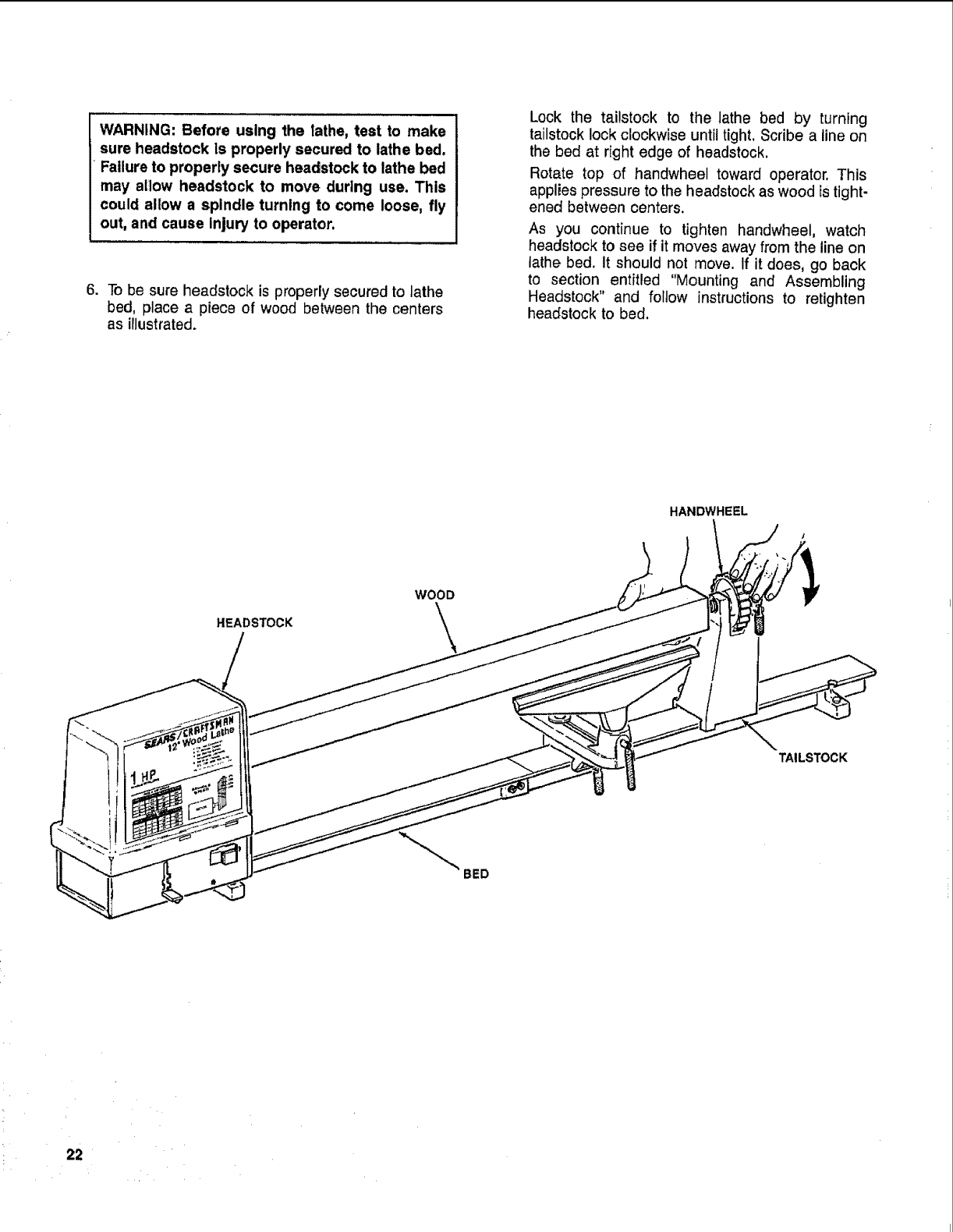

6. To be sure headstock is properly secured to lathe

bed, place a piece of wood between the centers

as irlustrated.

Lock the tailstock to the lathe bed by turning

tailstock lock clockwise until tight. Scribe a line on

the bed at right edge of headstock.

Rotate top of handwheel toward operator. This

applies pressure to the headstock as wood Estight-

ened between centers.

As you continue to tighten handwheel, watch

headstock to see if it moves away from the line on

lathe bed. It should not move. If it does, go back

to section entitled "Mounting and Assembling

Headstock" and follow instructions to retighten

headstock to bed.

HANDWHEEL

HEADSTOCK

WOOD

TAILSTOCK

BED

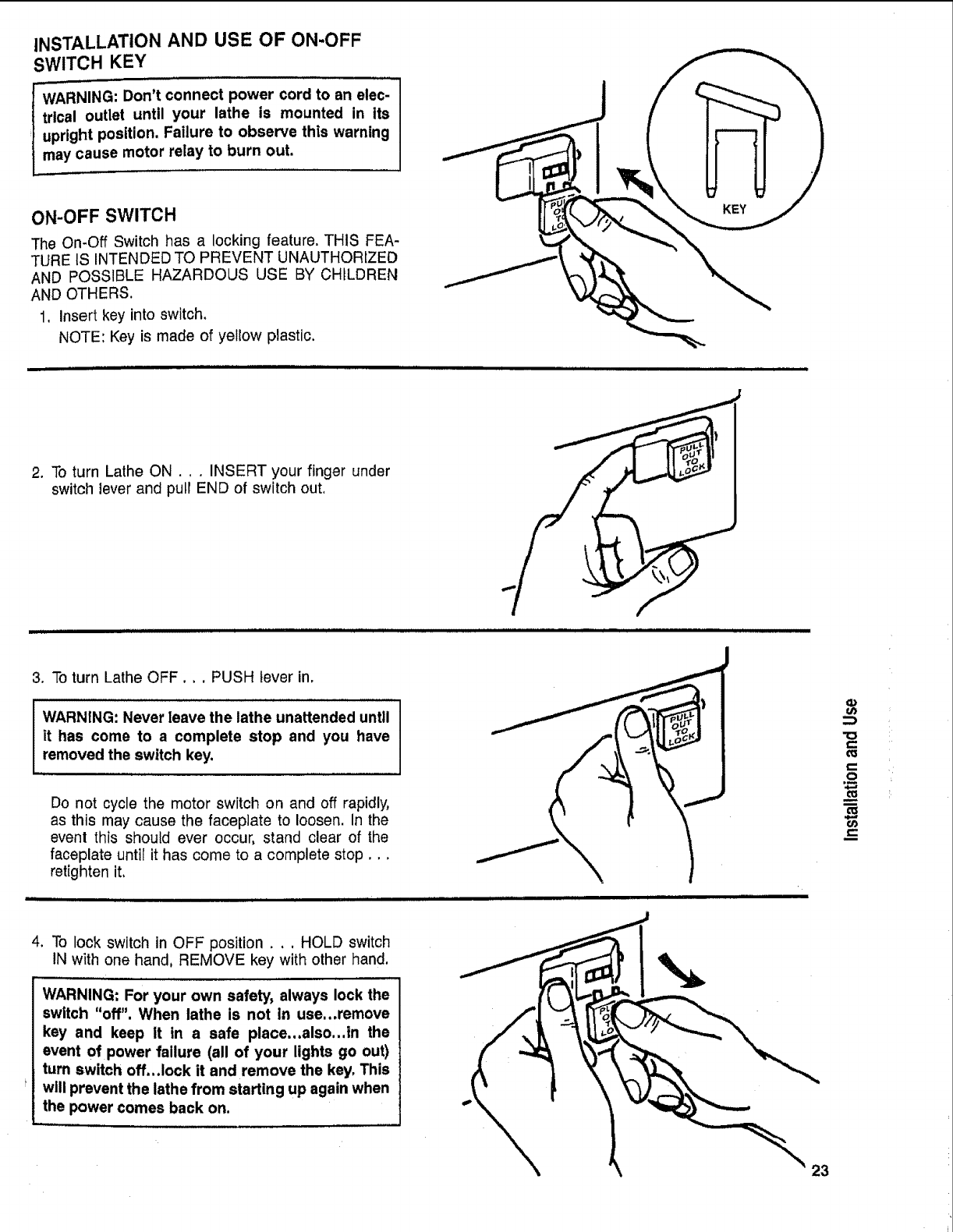

INSTALLATION AND USE OF ON-OFF

SWITCH KEY

WARNING: Don't connect power cord to an elec-

trical outlet until your lathe is mounted in its

upright position. Failure to observe this warning

may cause motor relay to burn out.

ON-OFF SWITCH

The On-Off Switch has a locking feature. THIS FEA-

TURE tS INTENDED TO PREVENT UNAUTHORIZED

AND POSSIBLE HAZARDOUS USE BY CHILDREN

AND OTHERS.

1, Insert key into switch.

NOTE: Key is made of yellow plastic.

2. To turn Lathe ON., ,INSERT your finger under

switch lever and pull END of switch out.

3, To turn Lathe OFF,,, PUSH lever in,

WARNING: Never leave the lathe unattended until

it has come to a complete stop and you have

removed the switch key.

Do not cycle the motor switch on and off rapidly,

as this may cause the facepiate to loosen. In the

event this should ever occur, stand clear of the

faceplate until it has come to a complete stop,,.

retighten it,

ull iii ii iiii n ira| I I u i

_.=

4. To lock switch in OFF position... HOLD switch

IN with one hand, REMOVE key with other hand.

,, ,,,,,

WARNING: For your own safety, always lock the

switch "off". When lathe is not in use...remove

key and keep it in a safe place...also...in the

event of power failure (all of your lights go out)

turn switch off...Iock it and remove the key. This

will prevent the lathe from starting up again when

the power comes back on.

basic lathe operation

WARNING: To avoid Injury from unexpected start-

ing, for your own safety, turn switch "off" and

remove plug from power source outlet before

making any adjustments or setups.

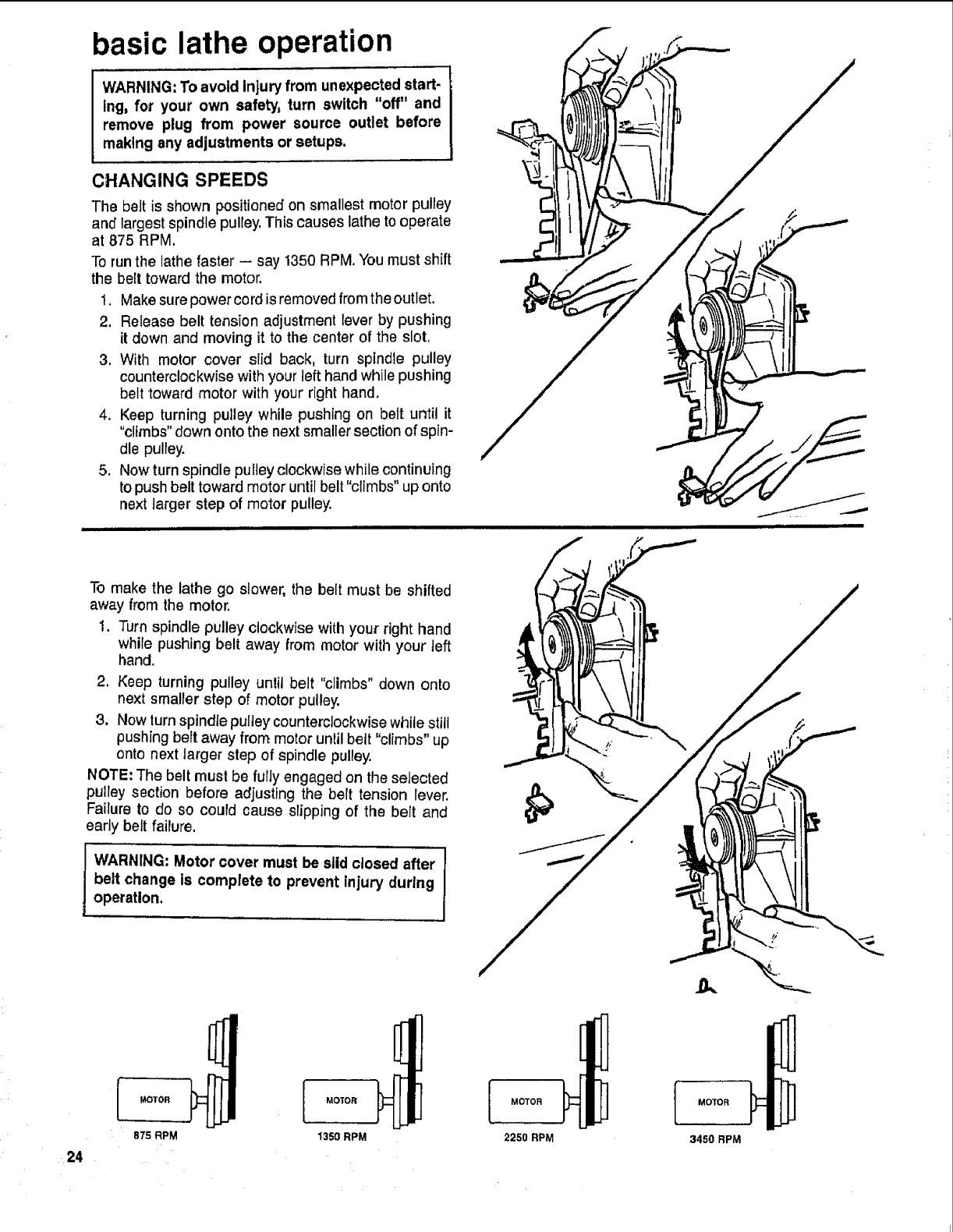

CHANGING SPEEDS

The belt is shown positioned on smallest motor pulley

and largest spindle pulley. This causes lathe to operate

at 875 RPM.

To run the lathe faster -- say 1350 RPM. You must shift

the belt toward the motor.

1, Make sure power cord is removed from the outlet.

2. Release belt tension adjustment lever by pushing

it down and moving it to the center of the slot,

3, With motor cover slid back, turn spindle pulley

counterclockwise with your left hand while pushing

belt toward motor with your right hand.

4. Keep turning pulley while pushing on belt until it

"climbs" down onto the next smaller section of spin-

dle pulley.

5. Now turn spindle puiley clockwise while continuing

to push belt toward motor until belt "climbs" up onto

next larger step of motor pulley.

To make the lathe go slower, the belt must be shifted

away from the motor.

1. Turn spindle pulley clockwise withyour right hand

while pushing belt away from motor with your left

hand.

2, Keep turning pulley untit belt "climbs" down onto

next smaller step of motor pulley.

8. Now turn spindle pulley counterclockwise while stitl

pushing belt away from motor until belt "climbs" up

onto next larger step of spindle pulley.

NOTE; The belt must be fully engaged on the selected

pulley section before adjusting the bert tension lever.

Failure to do so could cause slipping of the belt and

early belt failure.

WARNING: Motor cover must be slid closed after

belt change is complete to prevent injury during

operation,

MOTOR MOTOR

875 RPM t350 RPM

MOTOR

2250 RPM

IMOTOR

3450 RPM

BELT TENSION ADJUSTMENT

1. Place belt tension adjustment lever in middle of

long slot, BELT TENSION

ADJUSTMENT LEVER"

SLOT

2. Notice which lever support notch is immediately

below belt tension adjustment lever. Place lever in

this notch by pushing down and sideways on the

lever,

The lever is spring loaded so if belt slips during

operation, place lever in next lower notch.

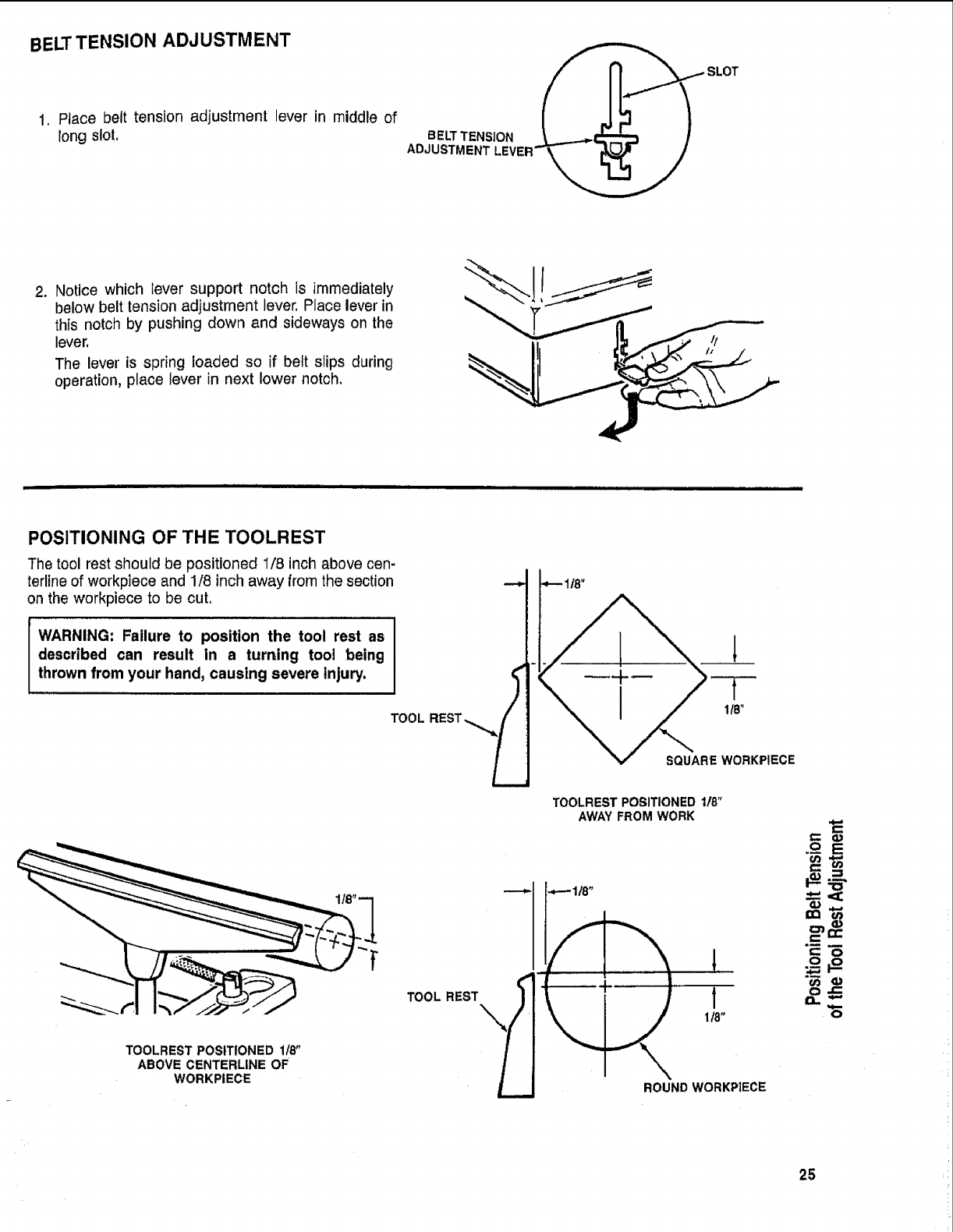

POSITIONING OF THE TOOLREST

The tool rest should be positioned I/'8 inch above cen-

terline of workpiece and 1/8 inch away from the section

on the workpiece to be cut.

WARNING: Failure to position the tool rest as

described can result in a turning tool being

thrown from your hand, causing severe injury.

TOOL 1t8"

SQUARE WORKPIECE

TOOLREST POSITIONED 1/8"

ABOVE CENTERLINE OF

WORKPIECE

TOOLREST POSITIONED 118"

AWAY FROM WORK

.o--1/8"

ROUND WORKP]ECE

e- 0.)

o F:

p, u'j

---_,¢c

<:D ,._

.o_

Or"

basic lathe operations

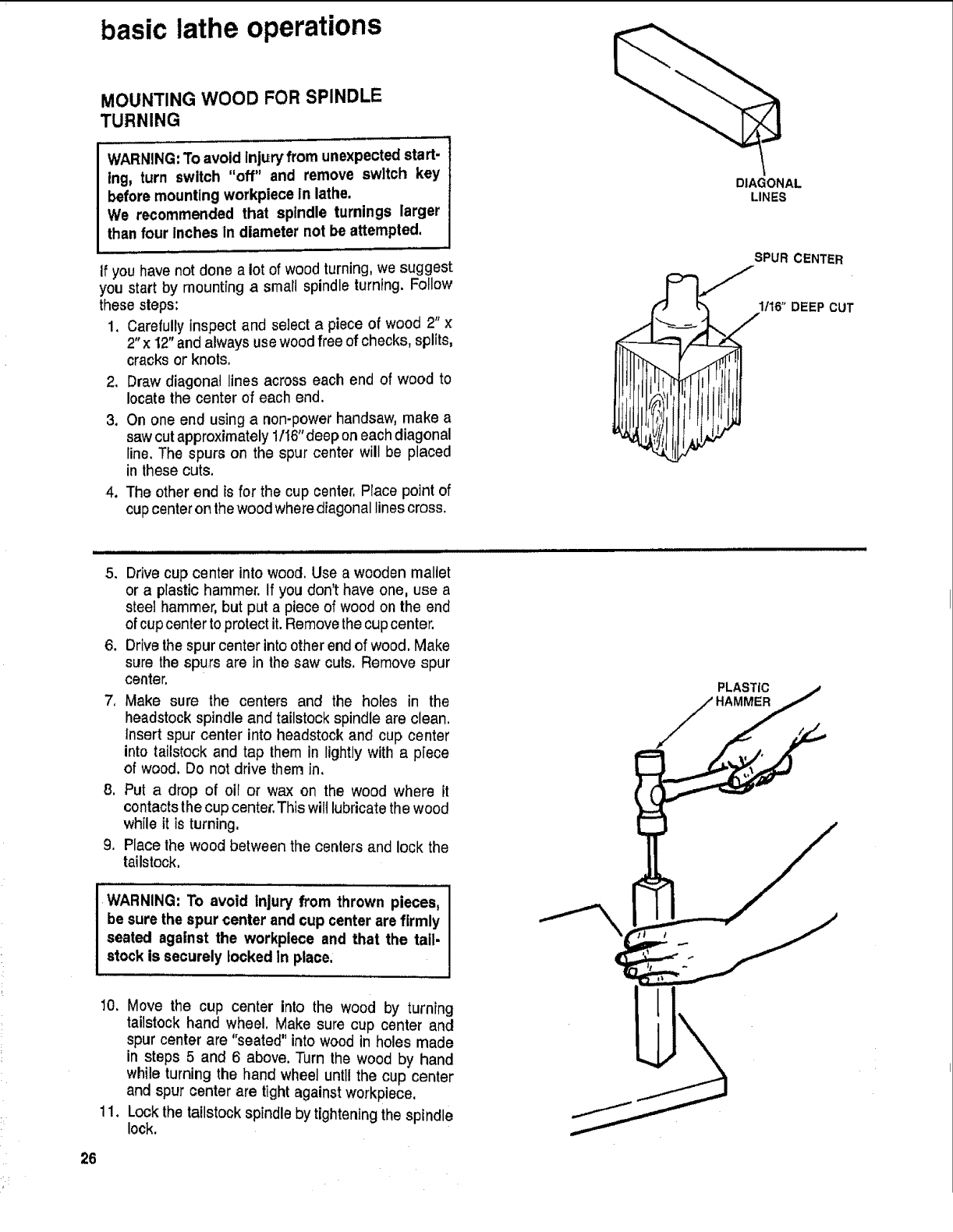

MOUNTING WOOD FOR SPINDLE

TURNING

WARNING:To avoid Injury from unexpected start-

Ing, turn switch "off" and remove switch key

before mounting workpieoe in lathe.

We recommended that spindle turnings larger

than four Inches in diameter not be attempted.

If you have not done a lot of wood turning, we suggest

you start by mounting a small spindle turning. Follow

these steps:

1, Carefully inspect and select a piece of wood 2" x

2" x 12"and always use wood free of checks, splits,

cracks or knots.

2. Draw diagonal lines across each end of wood to

locate the center of each end.

3. On one end using a non-power handsaw, make a

saw cut approximately 1/16"deep on each diagonal

line. The spurs on the spur center will be placed

in these cuts,

4. The other end is for the cup center,Place point of

cup center on the wood wherediagonal lines cross.

5. Drive cup center into wood. Use a wooden mallet

or a plastic hammer. If you don't have one, use a

steel hammer, but put a piece of wood on the end

of cup center to protect it. Remove the cup center.

6. Drive the spur center into other end of wood, Make

sure the sPurs are in the saw cuts, Remove spur

center,

7, Make sure the centers and the holes in the

headstock spindle and tailstockspindle are clean,

Insert spur center into headstock and cup center

into tailstock and tap them in lightly with a piece

of wood. Do not drive them in,

8. Put a drop of oil or wax on the wood where it

contactsthe cup center. This wilt lubricate the wood

while it is turning.

9. Place lhe wood between the centers and lock the

tailstock,

WARNING: To avoid Injury from thrown pieces,

be sure the spur center and cup center are firmly

seated against the workplece and that the tail-

stock is securely LockedIn place,

10. Move the cup center inlo the wood by turning

tailstock hand wheel, Make sure cup center and

spur center are "seated" into wood in holes made

in steps 5 and 6 above, Turn the wood by hand

while turning the hand wheel until the cup center

and spur center are tight against workpiece,

11, Lock the tailstock spindle by tightening the splndle

lock.

DIAGONAL

LINES

SPUR CENTER

t16" DEEP CUT

PLASTIC

HAMMER

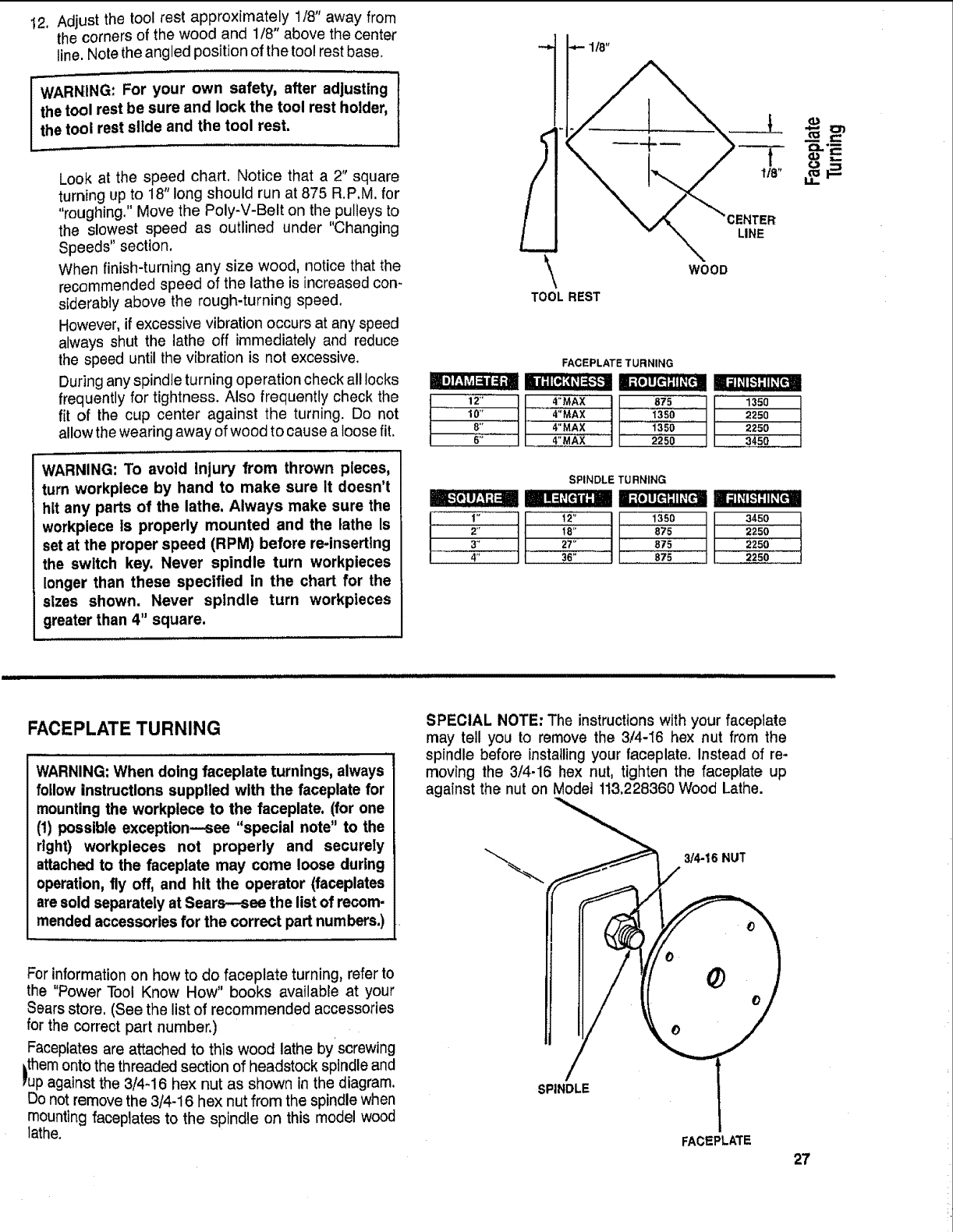

12. Adjust the tool rest approximately 1/8" away from

the corners of the wood and 1/8" above the center

line. Note the angled position of the tool rest base.

WARNING: For your own safety, after adjusting

• tool rest be sure and lock the tool rest holder,

e tool rest slide and the tool rest.

Look at the speed chart. Notice that a 2" square

turning up to 18" long should run at 875 R.P.M. for

"roughing." Move the Poly-V-Belt on the pulleys to

the slowest speed as outlined under "Changing

Speeds" section.

When finish-turning any size wood, notice that the

recommended speed of the lathe is increased con-

siderably above the rough-turning speed.

However, if excessive vibration occurs at any speed

always shut the lathe off immediately and reduce

the speed until the vibration is not excessive.

During any spindle turning operation check all locks

frequently for tightness. Also frequently check the

fit of the cup center against the turning. Do not

allow the wearing away of wood to cause a loose fit.

WARNING: To avoid injury from thrown pieces,

turn workplece by hand to make sure it doesn't

hit any parts of the lathe. Always make sure the

workpiece is properly mounted and the lathe Is

set at the proper speed (RPM) before re-inserting

the switch key. Never spindle turn workpieces

longer than these specified in the chart for the

sizes shown. Never spindle turn workpieces

greater than 4" square.

TOOL REST

WOOD

LINE

==-'2

d._ =._

FACEPLATE TURNING

eII=i[_];,I_I::(,-_,.tli={olll_l/l_[l'll

1z, ] =_ _4"MAX 875 1350 /

I0 1 ,"MAX 1350 2250

5" 1 4"MAX 1350 2250

0" 1 4"MAX ..... 2'250 3450

SPINDLE TU RNING

1" l t2" 1350 3450

2" 118" 875 2250

3" 27" 875 2250

4" J 36" 875 2250 i

FACEPLATE TURNING

WARNING: When doing faceplate turnings, always

follow instructions supplied with the faceplate for

mounting the workpiece to the faceplate. (for one

(1) possible exception--see "special note" to the

right) workpieces not properly and securely

attached to the faceplate may come loose during

operation, fly off, and hit the operator (fsceplates

are sold separately at SearHee the list of recom-

mended accessories for the correct part numbers.)

SPECIAL NOTE: The instructions with your faceplate

may tell you to remove the 3/4-16 hex nut from the

spindle before installing your faoeplate. Instead of re-

moving the 3/4-16 hex nut, tighten the faceplate up

against the nut on Modet 113.228360 Wood Lathe.

3/4-16 NUT

For information on how to do faceplate turning, refer to

the "Power Tool Know How" books available at your

Sears store, (See the list of recommended accessories

for the correct part number.)

Faceplates are attached to this wood lathe byscrewing

them onto the threaded section of headstock spindle and

up against the 3/4-16 hex nut as shown in the diagram,

Do not remove the 3/4-16 hex nut from the spindle when

mounting faceplates to the spindle on this model wood

lathe.

SPINDLE

FACEPLATE

GOUGE

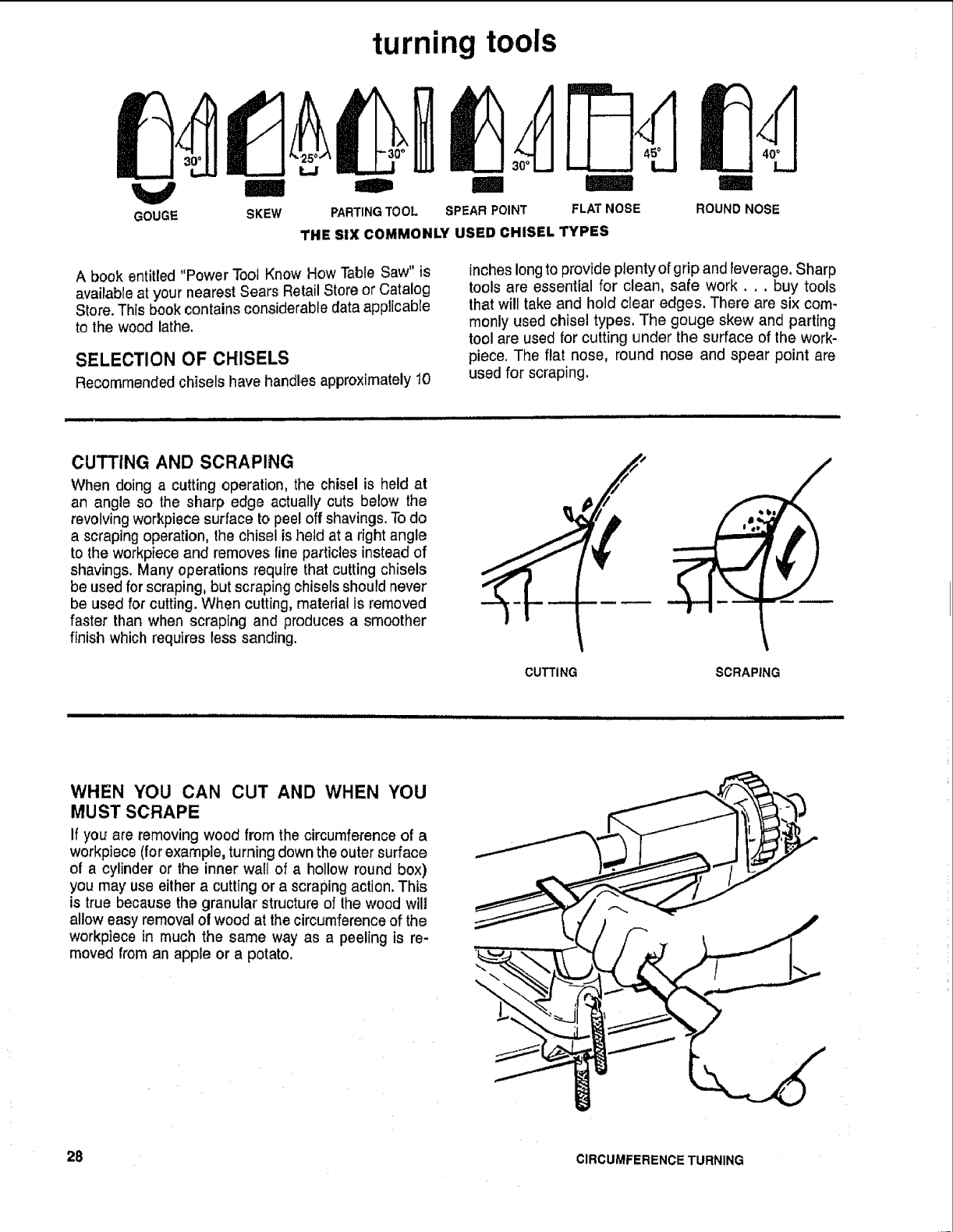

turning tools

!Im

SKEW PARTINGTOOL SPEAR POINT FLAT NOSE

THE SiX COMMONLY USED CHISEL TYPES

ROUND NOSE

A book entitled "Power Tool Know How Table Saw" is

available at your nearest Sears Retail Store or Catalog

Store. This book containsconsiderable data applicable

to the wood lathe.

SELECTION OF CHISELS

Recommended chisels have handles approximately 10

inches long to provide plenty of grip and leverage. Sharp

tools are essential for clean, safe work.., buy tools

that will take and hold clear edges. There are six com.

monly used chisel types. The gouge skew and parting

tool are used for cutting under the surface of lhe work-

piece. The flat nose, round nose and spear point are

used for scraping.

CUTTING AND SCRAPING

When doing a cutting operation, the chisel is held at

an angle so the sharp edge actually cuts below the

revolving workpiece surface to peel off shavings. To do

a scraping operation, the chisel is held at a right angle

to the workpiece and removes fine particles instead of

shavings. Many operations require that cutting chisels

be used for scraping, but scraping chisels should never

be used for cutting. When cutting, materiat is removed

faster than when scraping and produces a smoother

finish which requires less sanding.

CUTTING SCRAPING

WHEN YOU CAN CUT AND WHEN YOU

MUST SCRAPE

If yoL_are removing wood from the circumference of a

workpiece (for example, turning down the outer surface

of a cylinder or the inner wall of a hollow round box)

you may use either a cutting or a scraping action. This

is true because the granular structure of the wood will

allow easy removal of wood at the circumference of the

workpiece in much the same way as a peeling is re-

moved from an apple or a potato,

28 CIRCUMFERENCETURNING

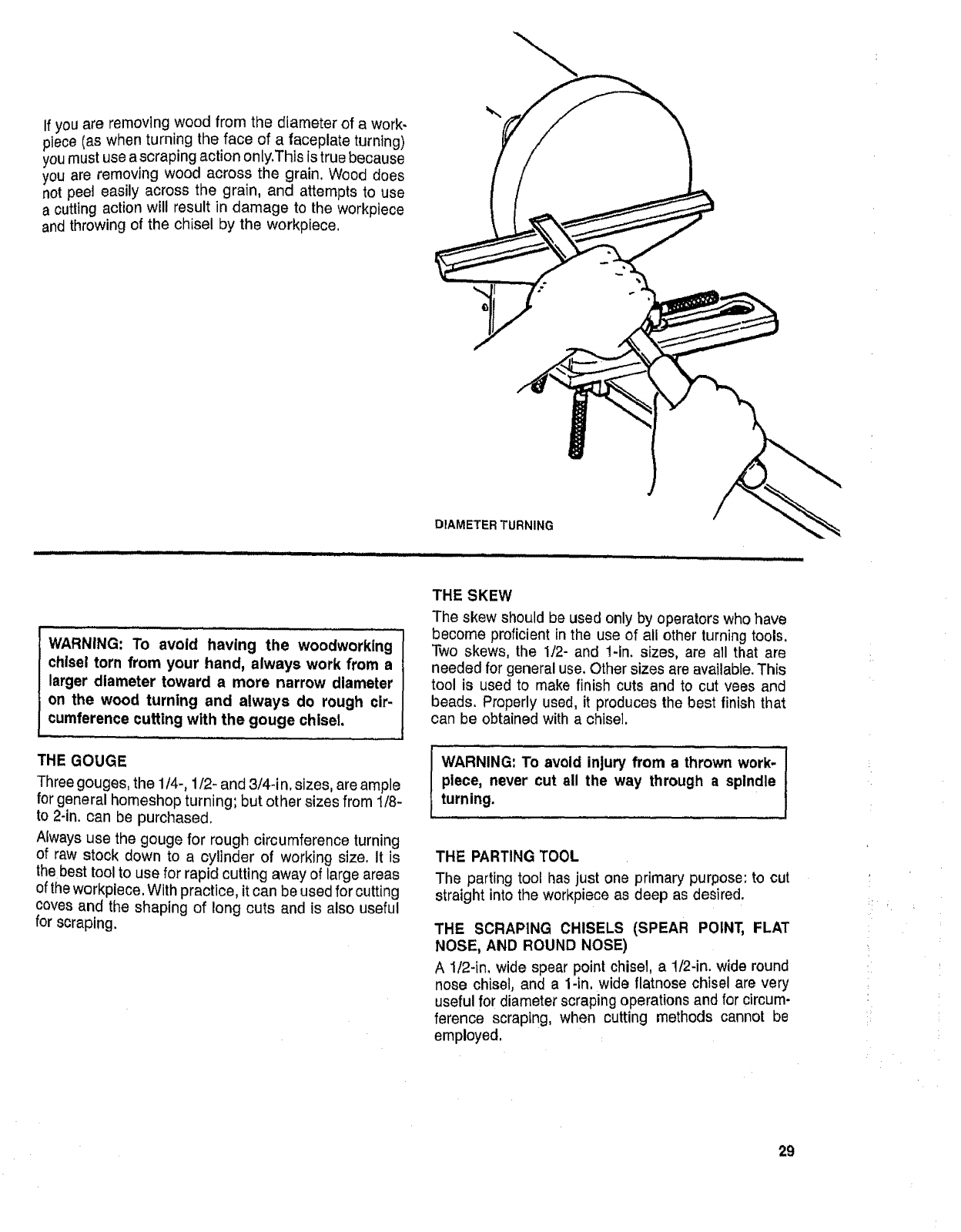

If you are removing wood from the diameter of a work-

piece (as when turning the face of a faceplate turning)

you must use ascraping action only.This is true because

you are removing wood across the grain. Wood does

not peel easily across the grain, and attempts to use

a cutting action will result in damage to the workpiece

and throwing of the chisel by the workpiece,

DIAMETER TURNING

iii i ,11,ii

WARNING: To avoid having the woodworking

chisel torn from your hand, always work from a

larger diameter toward a more narrow diameter

on the wood turning and always do rough cir-

cumference cuffing with the gouge chisel.

THE GOUGE

Threegouges, the 1/4-, 1/2- and 3/4-in, sizes, are ample

for general homeshop turning; but other sizes from 1/8-

to 2-in. can be purchased.

Always use the gouge for rough circumference turning

of raw stock down to a cylinder of working size. It is

the best tool to use for rapid cutting away of large areas

of the workpiece. With practice, it can be used for cutting

coves and the shaping of long cuts and is also useful

for scraping.

THE SKEW

The skew should be used only by operators who have

become proficient in the use of all other turning tools,

Two skews, the 112- and 1-in. sizes, are all that are

needed for general use, Other sizes are available. This

tool is used to make finish cuts and to cut vees and

beads. Properly used, it produces the best finish that

can be obtained with a chisel.

WARNING: To avoid injury from athrown work-

piece, never cut all the way through a spindle

turning.

THE PARTING TOOL

The parting tool has just one primary purpose: to cut

straight into the workpiece as deep as desired.

THE SCRAPING CHISELS (SPEAR POINT, FLAT

NOSE, AND ROUND NOSE)

A1/2-in, wide spear point chisel, a 1/2-in. wide round

nose chisel, and a 1-in, wide flatnose chisel are very

useful for diameter scraping operations and for circum-

ference scraping, when cutting methods cannot be

employed,

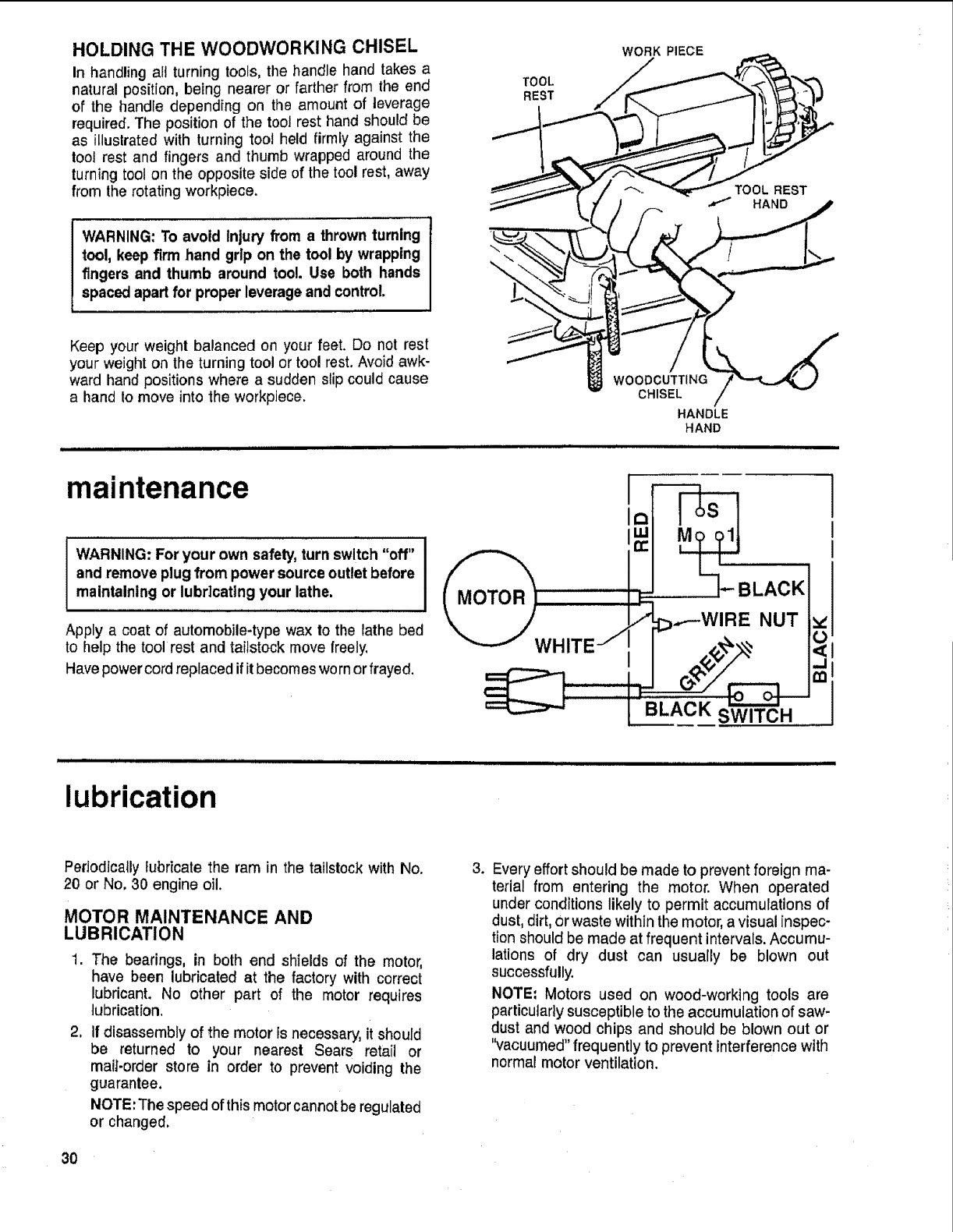

HOLDING THE WOODWORKING CHISEL

In handling alt turning tools, the handle hand takes a

natural position, being nearer or farther from the end

of the handle depending on the amount of leverage

required. The position of the tool rest hand should be

as illuslrated with turning tool held firmly against the

tool rest and fingers and thumb wrapped around the

turning tool on the opposite side of the tool rest, away

from the rotating workpiece.

TOOL

REST

WORK PIECE

TOOL REST

WARNING: To avoid Injury from a thrown turning

tool, keep firm hand grip on the tool by wrapping

fingers and thumb around tool. Use both hands

spaced apart for proper leverage and control.

Keep your weight balanced on your feet. Do not rest

your weight on the turning tool or tool rest. Avoid awk-

ward hand positions where a sudden slip could cause

a hand Io move into the workpiece.

WOODCUTTING

CHISEL

HANDLE

HAND

maintenance

WARNING: For your own safety, turn switch "off"

and remove plug from power source outlet before

maintaining or lubr]catlng your lathe.

Apply a coat of automobile-type wax to the lathe bed

to help the tool rest and tailstock move freely.

Have power cord replaced if it becomes wornor frayed.

I_..--WlR E NUT

HITE-'I II I ._._,_.h_

[BLACK S_ITC-L_H

lubrication

Periodically lubricate the ram in the tailstock with No.

20 or No. 30 engine oil.

MOTOR MAINTENANCE AND

LUBRICATION

1. The bearings, in both end shields of the motor,

have been lubricated at the factory with correct

lubricant. No other part of the motor requires

lubrication.

2, If disassembly of the motor is necessary, it should

be returned to your nearest Sears retail or

mail-order store in order to prevent voiding the

guarantee,

NOTE: The speed of this motor cannot be regulated

or changed,

3_ Every effort should be made to prevent foreign ma-

terial from entering the motor. When operated

under conditions likely to permit accumulations of

dust, dirt, or waste within the motor, a visual inspec-

tion should be made at frequent intervals. Accumu-

lations of dry dust can usually be blown out

successfully.

NOTE: Motors used on wood-working tools are

particularly susceptible to the accumulation of saw-

dust and wood chips and should be blown out or

"vacuumed" frequently to prevent interference with

normal motor ventilation.

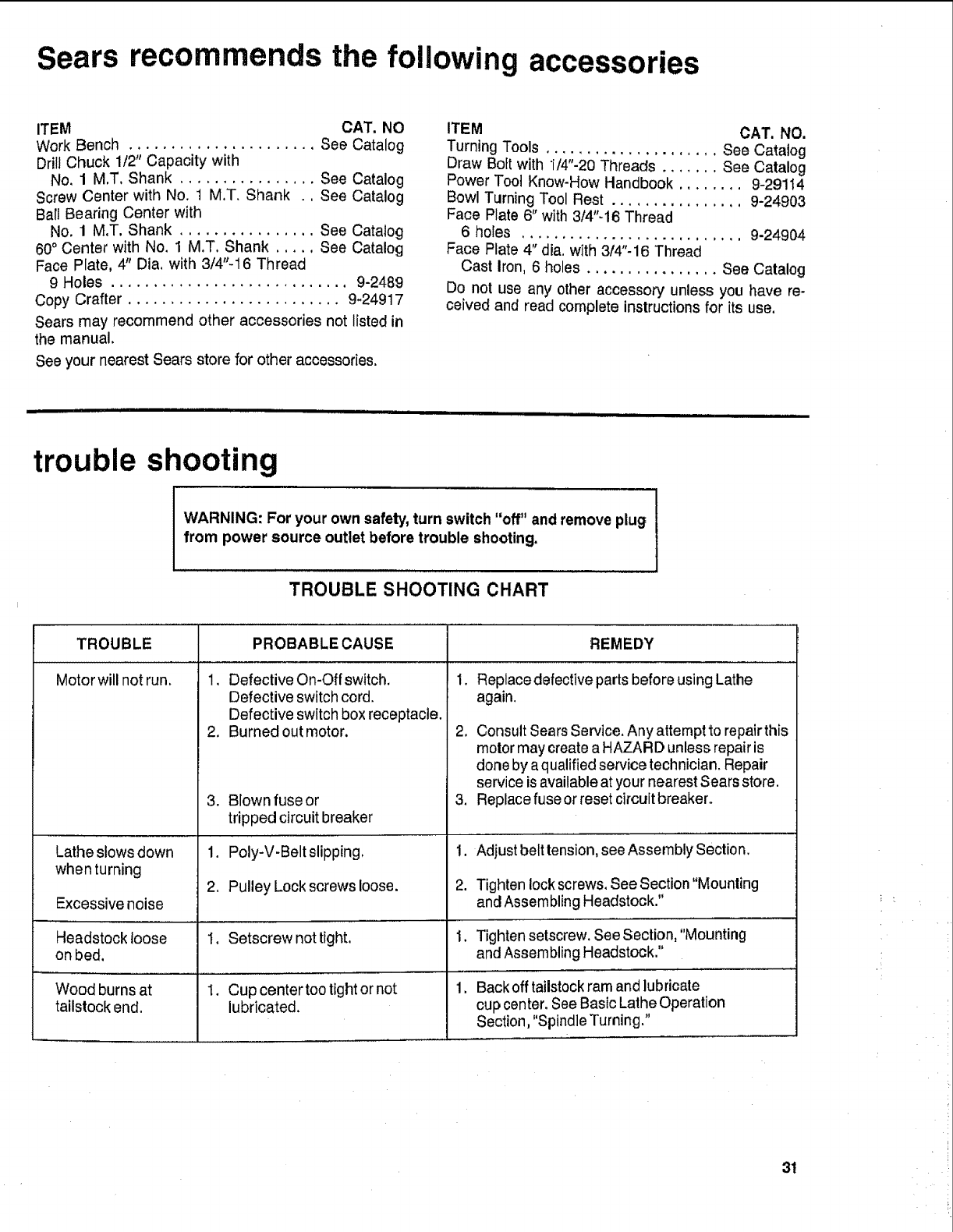

Sears recommends the following accessories

ITEM CAT. NO

Work Bench ...................... See Catalog

Drill Chuck 1/2" Capacity with

No, 1 M,T, Shank ................ See Catalog

Screw Center with No. 1 M.T. Shank ., See Catalog

Batl Bearing Center with

No. 1 M,T, Shank ................ See Catalog

60oCenter with No. 1 M,T, Shank ..... See Catalog

Face Plate, 4" Diao with 3/4"-16 Thread

9 Holes ............................ 9-2489

Copy Crafter ......................... 9-24917

Sears may recommend other accessories not listed in

the manual.

See your nearest Sears store for other accessories.

ITEM CAT. NO.

Turning Tools ..................... See Catalog

Draw Bolt with I/4"-20 Threads ....... See Catalog

Power Tool Know-How Handbook ........ 9-29114

Bowl Turning Tool Rest ................ 9-24903

Face Plate 6" with 3/4"-16 Thread

6 holes ........................... 9-24904

Face Plate 4" dia. with 3/4"-16 Thread

Cast Iron, 6 holes ................ See Catalog

Do not use any other accessory unless you have re-

ceived and read complete instructions for its use,

trouble shooting

WARNING: For your own safety, turn switch "off" and remove plug

from power source outlet before trouble shooting.

TROUBLE SHOOTING CHART

TROUBLE PROBABLE CAUSE REMEDY

Motor will not run. 1. 1.

Lathe slows down

when turning

Excessive noise

Headstock loose

on bed,

Wood burns at

tailstock end.

Defective On-Off switch.

Defective switch cord.

Defective switch box receptacle.

Burned out motor.

Blown fuse or

tripped circuitbreaker

Poly-V-Belt slipping,

Pulley Lock screws loose.

Setscrew not tight.

Cup center too tight or not

lubricated.

Replace defective parts before usingLathe

again.

2. Consult Sears Service. Any attemptto repairthis

motor may create a HAZARD unless repair is

done by aqualified service technician. Repair

service is available at your nearest Sears store.

3. Replace fuse or reset circuit breaker.

1. Adjust belt tension, see Assembly Section.

2. Tighten lock screws. See Section "Mounling

and Assembling Headstock."

1, Tighten setscrew, See Section, "Mounting

and Assembling Headstock."

1. Back off tailstock ram and lubricate

cup center. See Basic Lathe Operation

Section, "Spindle Turning."

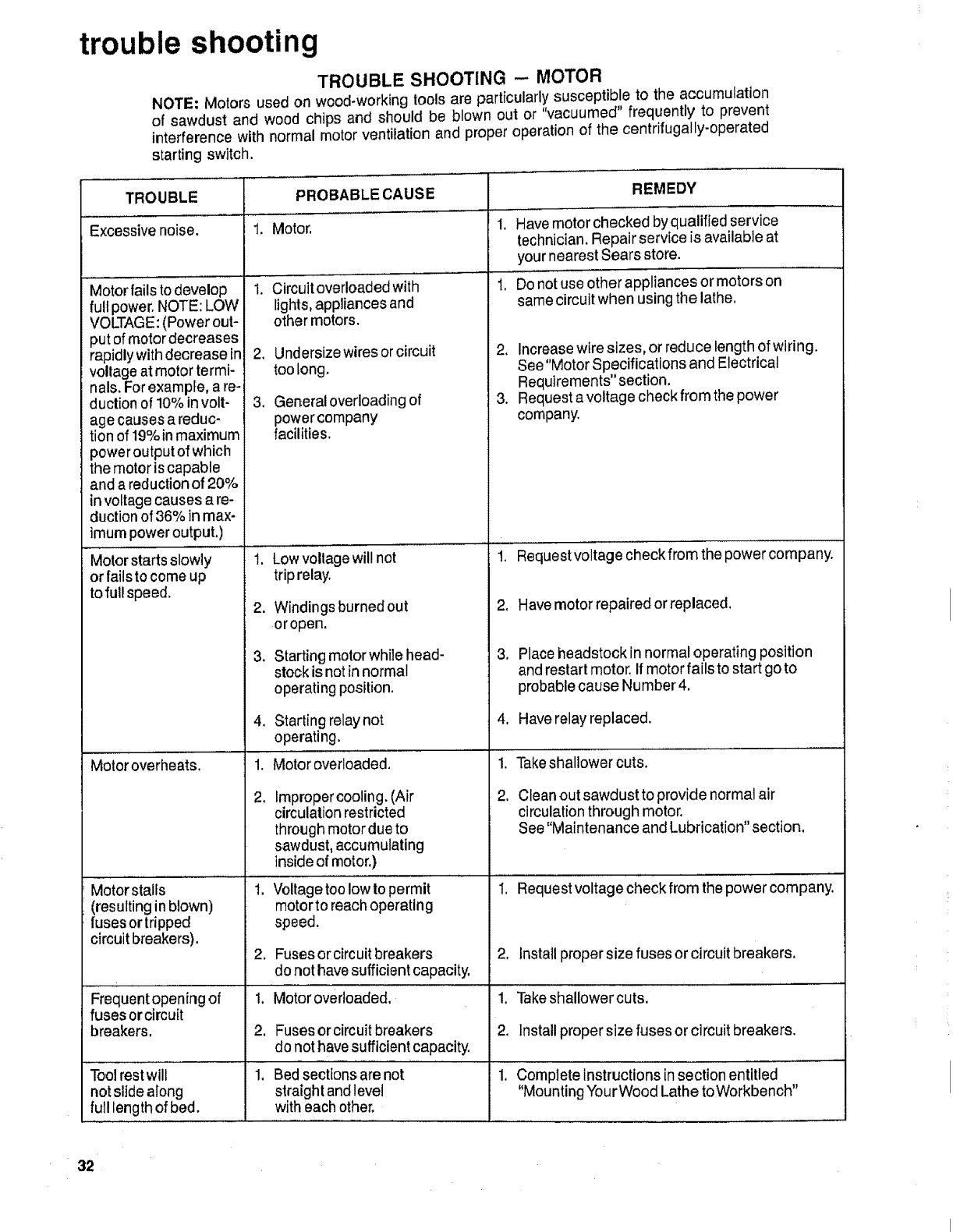

trouble shooting

TROUBLE SHOOTING -- MOTOR

NOTE: Motors used on wood-working tools are particularly susceptible to the accumulation

of sawdust and wood chips and should be blown out or "vacuumed" frequently to prevent

interference with normal motor ventilation and proper operation of the centrifugally-operated

starting switch.

TROUBLE PROBABLE CAUSE

Excessive noise. 1. Motor,

Motor fails to develoP ........1. Circuit overloaded witt7 ....

full power. NOTE: LOW lights, appliances and

VOLTAGE: (Power out-

put of motor decreases

rapidly with decrease in

voltage at motor termi-

nals. For example, a re-

duction of 10% in volt-

age causes a reduc-

tion of 19% inmaximum

poweroutputof which

the motor is capable

and a reduction of 20%

in voltage causes a re-

duction of 36% in max-

imum power output,)

Motor starts slowly

or fails to come up

to full speed.

Motor overheats.

Motor stalls

(resulting in blown)

fusesor tripped

circuit breakers).

Frequent ;penirigof

fuses or circuit

breakers.

Tool rest will

not slide along

fu]l length of bed.

other motors.

2. Undersize wires orcircuit

too long.

3. General overloading of

power company

facilities,

1. Low voliage will not

trip relay,

2. Windings burned out

oropen.

3, Starting motorwhile head-

stock is not in normal

operating position.

4. Starting relay not

operating,

1. Motor overloaded.

2. Impropercooling. (Air

circulation restricted

through motor due to

sawdust, accumulating

inside of motor.)

1. Voltage too low to permit

motor to reach operating

speed.

2, Fusesorcircuit breakers

do riot have sufficient capacity,

1, Motor overloaded,

2, Fusesorcircuit breakers

do nothave sufficient capacity.

1, Bed sections are not

straight and level

with each other.

REMEDY

1. Have motor checked by qualified service

technician. Repair service is available at

your nearest Sears store.

1, Do not use other appliances or motors on

same circuit when using the lathe.

2. Increase wire sizes, or reduce length of wiring.

See "Motor Specifications and Electrical

Requirements" section.

3. Request a voltage check from the power

company.

1, Request voltage check from the power company.

2. Have motor repaired or replaced.

Place headstock in normal operating position

and restart motor. If motor fails to start go to

probable cause Number 4.

Have relay replaced.

TakeShallower cuts l................

Clean out sawdust to provide normal air

circulation through motor.

See Maintenance and Lubrication" section,

']",' Request voltage check from the power company.

2, Install proper size fuses or circuit breakers,

1. Takeshallowercuts.

2. Installproper size fuses or circuit breakers.

1. Complete instructions in section entitled

"Mounting YourWood Lathe to Workbench"

NOTES

\\\\/

\\\\

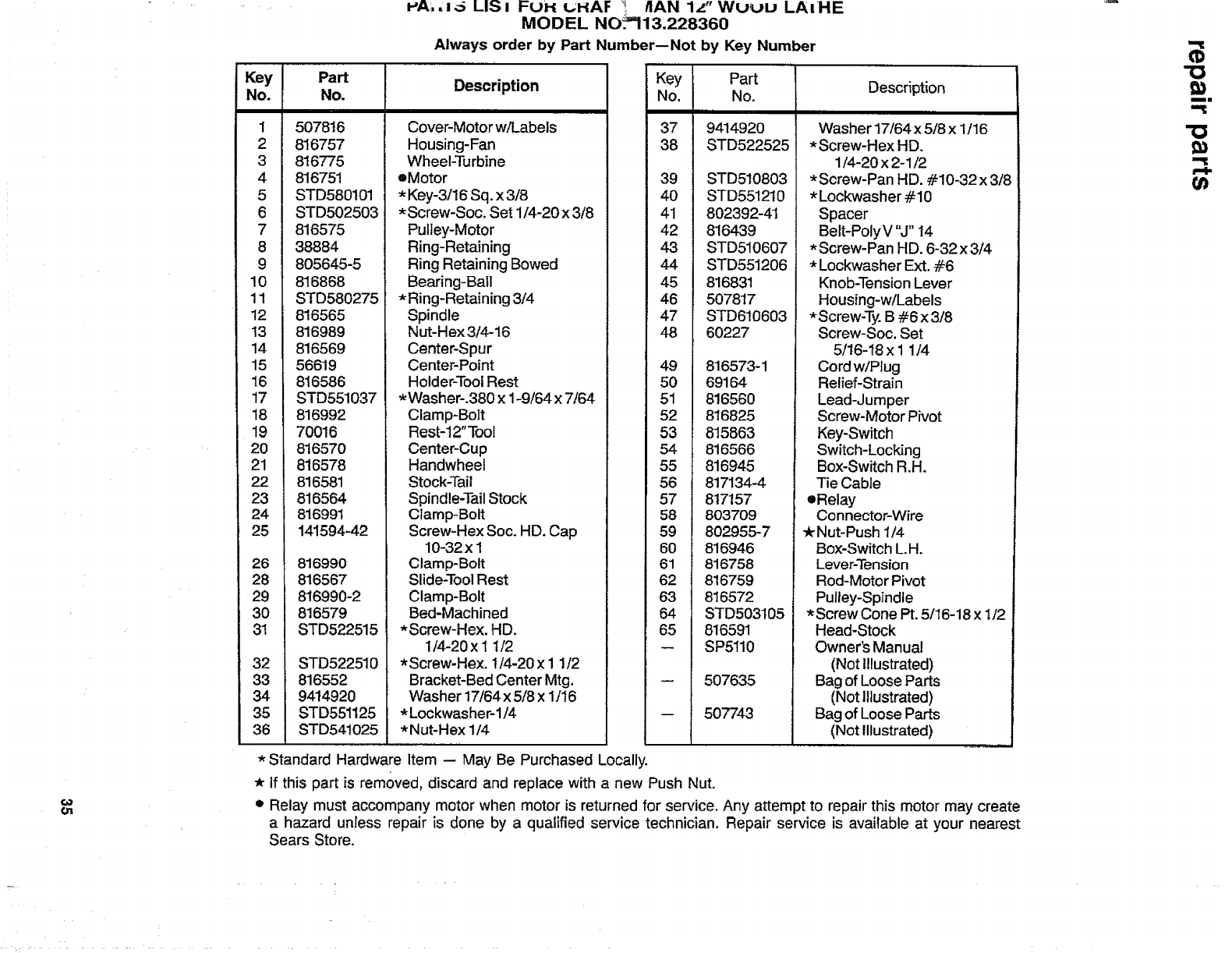

Key

No.

_A,_J,5 LlSl FUH _HAF _ /tAN lz"Wuuu LAIHE

MODEL NO_13.228360

Always order by Part Number--Not by Key Number

Part

No.

507816

816757

816775

816751

STD580101

STD502503

816575

38884

805645-5

816868

STD580275

816565

816989

816569

56619

816586

STD551037

816992

70016

816570

816578

816581

816564

816991

141594-42

816990

816567

816990-2

816579

STD522515

STD522510

816552

9414920

STD551125

STD541025

Description

Cover-Motor w/Labels

Housing-Fan

Wheel-Turbine

oMotor

*Key-3/16 Sq. x 3/8

*Screw-Soc. Set 1/4-20 x 3/8

Pulley-Motor

Ring-Retaining

Ring Retaining Bowed

Bearing-Bail

*Ring-Retaining 3/4

Spindle

Nut-Hex 3/4-16

Center-Spur

Center-Point

Holder-Toot Rest

*Washer-.380 x1-9/64 x 7/64

Clamp-Bolt

Rest-12"Toof

Center-Cup

Handwheel

Stock-Tail

Spindle-Tail Stock

Clamp-Bolt

Screw-Hex Soc. HD. Cap

10-32x 1

Clamp-Bolt

Slide-Tool Rest

Clamp-Bolt

Bed-Machined

*Screw-Hex. HD.

1/4-20 x 1 1/2

*Screw-Hex. 1/4-20 x 1 1/2

Bracket-Bed Center Mtg.

Washer 17/64x 5/8 x 1/16

*Lockwasher-1i4

*Nut-Hex 1/4

Key Pa_

No. No.

37 941492O

38 STD522525

39 STD510803

40 STD551210

41 802392-41

42 816439

43 STD510607

44 STD551206

45 816831

46 507817

47 STD610603

48 60227

49 816573-1

50 69164

51 816560

52 816825

53 815863

54 816566

55 816945

56 817134-4

57 817157

58 803709

59 802955-7

60 816946

61 816758

62 816759

63 816572

64 STD503105

65 816591

-- SP5110

507635

507743

Description

Washer 17/64 x 5/8 x 1/16

*Screw-Hex HD.

1/4-20x 2-1/2

*Screw-Pan HD. #10-32 x 3/8

*Lockwasher #10

Spacer

Belt-PolyV"J" 14

* Screw-Pan HD. 6-32 x 3/4

*Lockwasher Ext. #6

Knob-Tension Lever

Housing-w/Labels

*Screw-Ty. B #6 x 3/8

Screw-Soc. Set

5/t6-18 x 1 1/4

Cord w!Plug

Relief-Strain

Lead-Jumper

Screw-Motor Pivot

Key-Switch

Switch-Locking

Box-Switch R.H.

Tie Cable

eRelay

Connector-Wire

*Nut-Push 1/4

Box-Switch L.H.

Lever-Tension

Rod-Motor Pivot

Pulley-Spindle

*Screw Cone Pt. 5/16-18 x t/2

Head-Stock

Owner's Manual

(Not Illustrated)

Bag of Loose Parts

(Not Illustrated)

Bag of Loose Parts

(Not Illustrated)

*Standard Hardware Item -- May Be Purchased Locally.

*if this part is removed, discard and replace with a new Push Nut.

e Relay must accompany motor when motor is returned for service. Any attempt to repair this motor may create

a hazard unless repair is done by a qualified service technician. Repair service is available at your nearest

Sears Store.

"I}

_A/RS

owner's

manual

SERVICE

MODEL NO.

113.228360

WOOD LATHE

HOW TO ORDER

REPAIRPARTS

IF YOU NEED REPAIR

SERVICE OR PARTS:

For Repair Service, Cal!

this Toll Free Number:

1-800-4-REPAIR

(1.800-473-7247)

For Replacement Parts

Information and Ordering,

Call this Toll Free Number:

1-800-FON-PART

(1-800-366-7278)

12-1NCH

WOOD LATHE

Now that you have purchased your 12-inch Wood Lathe

should a need ever exist for repair pads or service, simply

contact any Sears Service Center and most Sears, Roebuck

and Co. stores. Be sure to provide al! pertinent facts when

you call or visit.

The model number of your 12-Inch Wood Lathe wilt be found

on aplate on the backside of the headstock.

WHEN ORDERING REPAIRPARTS,ALWAYS GiVE THEFOLLOWING

INFORMATION:

PARTNUMBER

MODEL NUMBER

113.228360

PARTDESCRIPTION

NAME OF ITEM

12-INCH WOOD LATHE

All parts listed may be ordered from any Sears Service Center

and most Sears stores. If the parts you need are not stocked

locally, your order will be electronically transmitted to a

Sears Repair Parts Distribution Center for handling.

j J

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A,

Part No, SP5110 Form No, SP5110-4 Printed in U,S,A, 5/95

Craftsman 113228360 User Manual 12 INCH WOOD LATHE Manuals And Guides L1001071

CRAFTSMAN Lathe Manual L1001071 CRAFTSMAN Lathe Owner's Manual, CRAFTSMAN Lathe installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
