owners
manual
MODEL NO.
113.24201
CAUTION:
Read SAFETY
iNSTRUCTIONS
carefully
CRRFr$1dgH
12-INCHBANDSAW/
SANDER
assembly
operating
repair parts
SEARS, ROEBUCK AND CO., Chicago, IL 60684 U.S.A. and SIMPSONS-SEARS LIMITED, Toronl
Part No. 69079 Printed In U,S.A.
general safety instructions for power roars
1, KNOW YOUR POWER TOOL
Read the owner's manual carefully. Learn =_s
application and limitations as well as the specific
potential hazards peculiar to this tool.
2. GROUND ALL TOOLS
This tool is equipped with an approved 3-conductor
cord and a 3-prong groundh=g type plug to fit the
proper grounding type receptacle. The green conductor
in the cord is the grounding wire. Never connect the
green wire to a live terminal.
3. KEEP GUARDS IN PLACE
and in working order.
4. REMOVE ADJUSTING KEYS
AND WRENCHES
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
5. KEEP WORK AREA CLEAN
Cluttered areas and benches invite accidents. Floor
must not be slippery due to wax or sawdust.
6. AVOID DANGEROUS ENVIRONMENT
Don't use power tools in damp or wet locations. Keep
work area well lit. Provide adequate surrounding work
space.
7. KEEP CHILDREN AWAY
All visitors should be kept a safe distance from work
area.
8. MAKE WORKSHOP KID-PROOF
12. USE SAFETY GOGGLES
Safety goggles must comply with ANS Z87.1-1968.
Also use face or dust mask if cutting operation is
dusty.
13. SECURE WORK
Use clar_Ds or a vise to hold work when practical. It's
safer than using your hand, frees both hands to operate
tool.
14. DON'T OVERREACH
Keep proper footing and balance at all times.
15. MAINTAIN TOOLS WiTH CARE
Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and
changing accessories.
16. DISCONNECT TOOLS
before servicing; when changing accessor=es such as
blades, bits, cutters, etc.
17. AVOID ACCIDENTAL STARTING
Make sure switch is in "OFF" position before plugging
in.
18. USE RECOMMENDED ACCESSORIES
Consult the owner's manual for recommended
accessories. Follow the instructions that accompany
the accessories. The use of improper accessories may
cause hazards.
19. NEVER STAND ON TOOL
Serious =njury could occur if the tool istippedor if the
cutting tool is accidentally contacted.
with padlocks, master switches, or by removing
starter keys.
9. DON'T FORCE TOOL
It will do the iob better and safer at the rate for which
it was designed.
10. USE RIGHT TOOL
Don't force tool or attachment to do ajob it was not
designed for.
11. WEAR PROPER APPAREL
No loose clothing, gloves, neckties or jewelry to get
caught in moving parts, Rubber-soled footwear is
recommended for best footing.
20.
Do not store materials above or near the tool such that
it is necessary to stand on the tool to reach them.
CHECK DAMAGED PARTS
Before further use of the tool, a guard or other part that
is damaged should be carefully checked to ensure that it
will operate properly and perform its intended function
- check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any
other conditions that may affect its operation. A guard
or other part that is damaged should be properly
repaired or replaced.
THIS SAFETY SEAL OF THE
POWER TOOL INSTITUTE ASSURES YOU ...
I, Th=r the manufacturer's power tools, including fhe parllcular tool
associated with the Seal. are produced in acc0rdanc_ with applicable
Standards For Safer 3, of Underwriters" Laboratorles and American
National Standards (ANSI_.
2That compliance with appilcable safety standards is assured by in-
dependent inspection and testing conducted by Underwriters' L=bara-
taries _UL).
3. That every moiarlzed too{ is inspected under power.
4. That ever), tool has with it adequate instructions and a llzt of safety
rules fc_r the protection of the user.
5, That the tool manufacturer _s a member of the Power Tool Institute and
;s asponsor of the Insfitute's Consumer Safety Education Program.

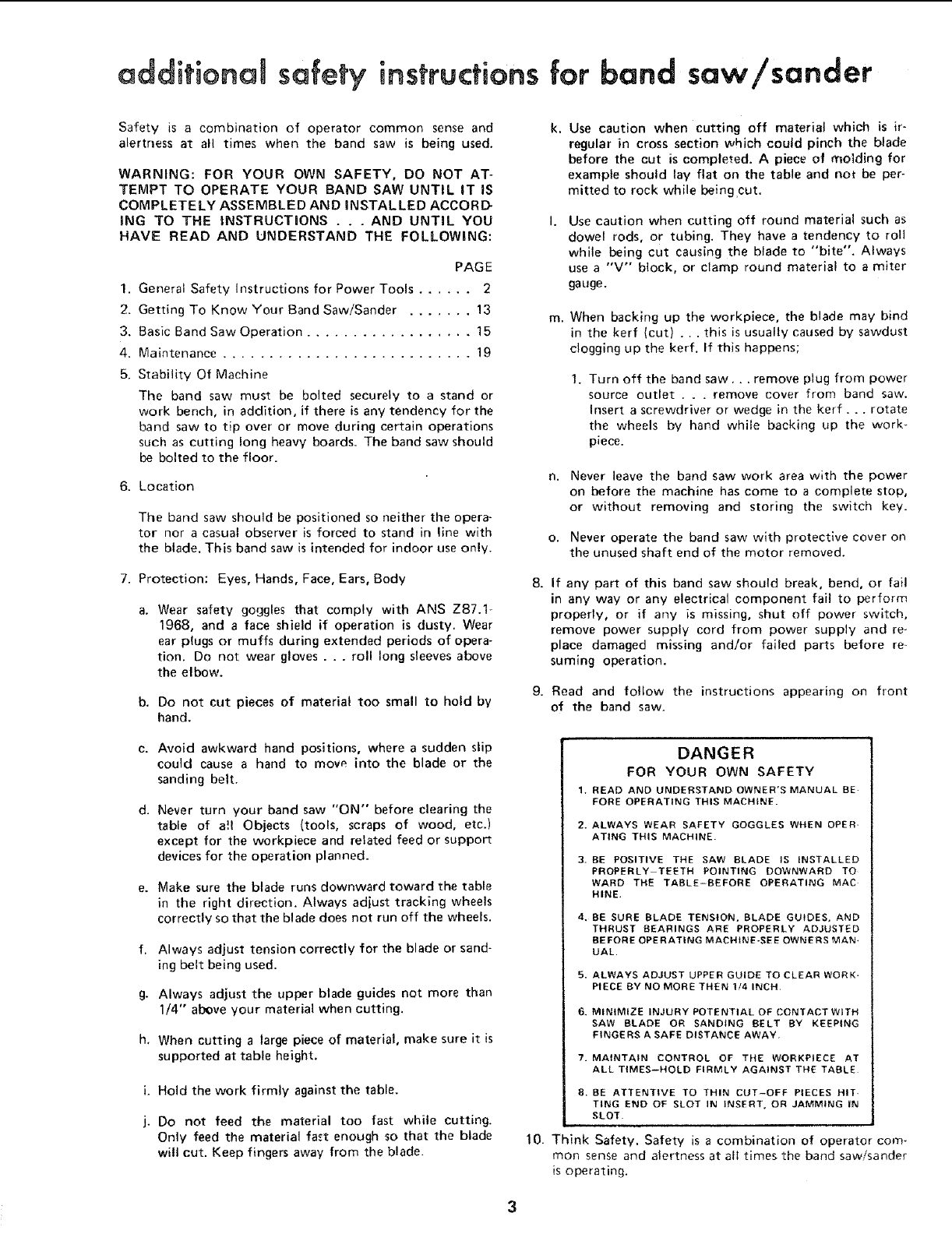

Safety is a combination of operator common sense and
alertness at all times when the band saw is being used.
WARNING: FOR YOUR OWN SAFETY, DO NOT AT-
TEMPT TO OPERATE YOUR BAND SAW UNTIL IT IS
COMPLETELY ASSEMBLED AND INSTALLED ACCORD
ING TO THE INSTRUOTaONS . . .AND UNTIL YOU
HAVE READ AND UNDERSTAND THE FOLLOWBNG:
PAGE
1. General Safety Instructions for Power Tools ...... 2

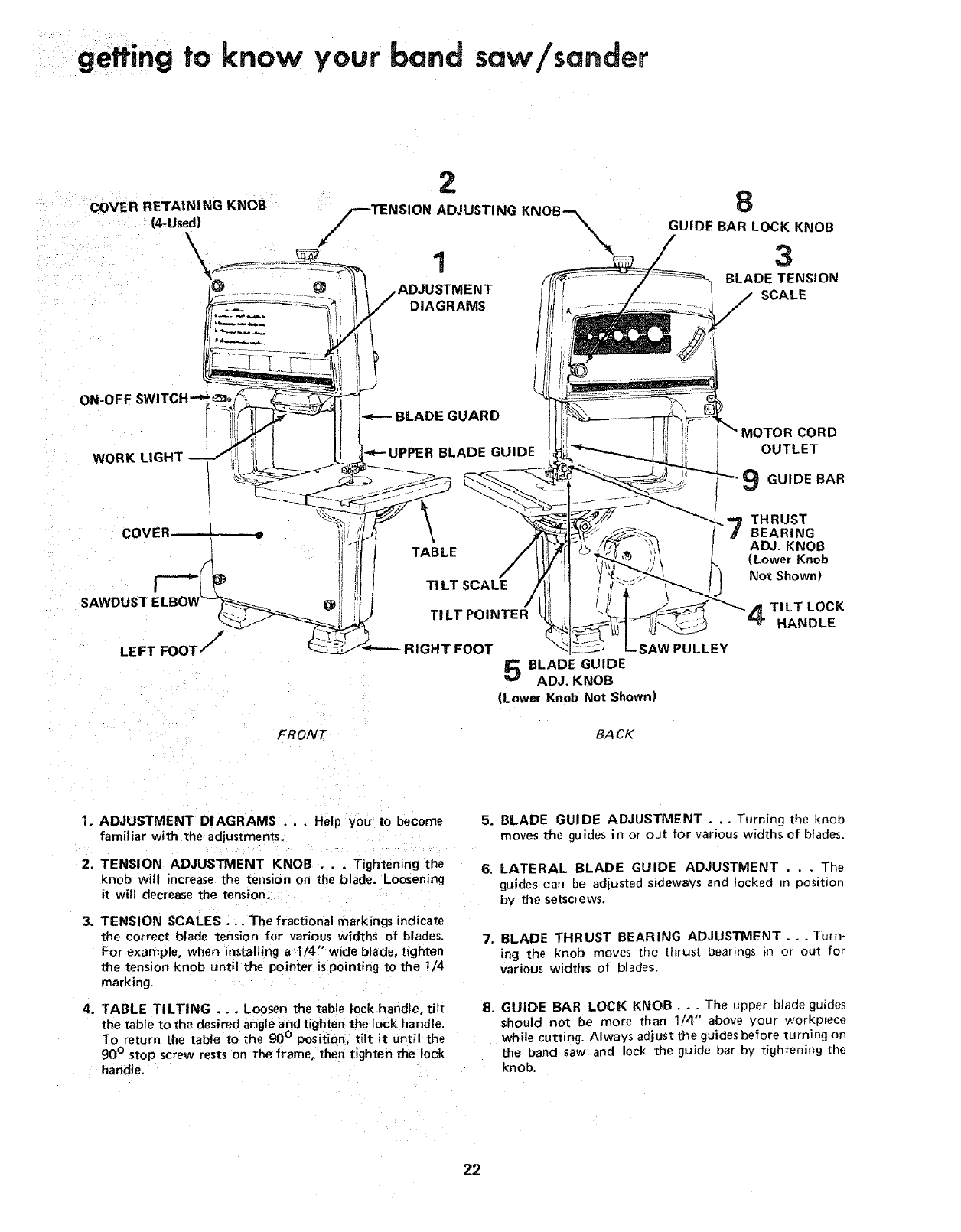

2. Getting To Know Your Band Saw/Sander ....... 13
3. Basic Band Saw Operation .................. 15
4. Maintenance ........................... 19
5. Stability Of Machine
The band saw must be bolted securely to a stand or
work bench, in addition, if there is any tendency for the
band saw to tip over or move during certain operations
such as cutting long heavy boards. The band saw should
be bolted to the floor.
6. Location
The band saw should be positioned so neither the opera-
tor nor a casual observer is forced to stand in line with
the blade. This band saw is intended for indoor use only.
7. Protection: Eyes, Hands, Face, Ears, Body
a. Wear safety goggles that comply with ANS Z87.1-
1968, and a face shield if operation is dusty. Wear
ear plugs or muffs during extended periods of opera-
tion. Do not wear gloves . . . roll long sleeves above
the elbow.
b. Do not cut pieces of material too small to hold by
hand.
d.
Avoid awkward hand positions, where a sudden slip
could cause a hand to mow into the blade or the
sanding belt.
Never turn your band saw "ON" before clearing the
table of a!l Objects (tools, scraps of wood, etc.)
except for the workpiece and related feed or support
devices for the operation planned.
e. Make sure the blade runs downward toward the table
in the right direction. Always adjust tracking wheels
correctly so that the blade does not run off the wheels.
f. Always adjust tension correctly for the blade or sand-
ing belt being used.
g. Always adjust the upper blade guides not more than
1/4" above your material when cutting.
h. When cutting alarge piece of material, make sure it is
supported at table height.
i, Hold the work firmly against the table.
j. Do not feed the material too fast while cutting.
Only feed the material fa_t enough so that the blade
will cut. Keep fingers away from the blade.
k, Use caution when cutting off material which is ir-
regular in cross section which could pinch the blade
before the cut is completed. A piece of molding for
example should lay flat on the table and no_ be per-
mitted to rock while being cut.
Use caution when cutting off round material such as
dowel rods, or tubing. They have a tendency to roll
while being cut causing the blade to "bite". Always
use a "V" block, or clamp round material to a miter
gauge.
m. When backing up the workpiece, the blade may bind
in the kerf (cut) .. . this is usually caused by sawdust
clogging up the kerf. If this happens;
I. Turn off the band saw, . . remove plug from power
source outlet . . .remove cover from band saw.
Insert a screwdriver or wedge in the kerf.., rotate
the wheels by hand while backing up the work-
piece.
n. Never leave the band saw work area with the power
on before the machine has come to a complete stop,
or without removing and storing the switch key.
o. Never operate the band saw with protective cover on
the unused shaft end of the motor removed.
8. If any part of this band saw should break, bend, or fail
in any way or any electrical component fail to perform
properly, or if any is missing, shut off power switch,
remove power supply cord from power supply and re-
place damaged missing and/or failed parts before re-
suming operation.
9. Read and follow the instructions appearing on front
of the band saw.
DANGER
FOR YOUR OWN SAFETY
1. READ AND UNDERSTAND OWNER'S MANUAL BE-
FORE OPERATING THIS MACHINE.
2. ALWAYS WEAR SAFETY GOGGLES WHEN OPER-
ATING THIS MACHINE.
3. BE POSITIVE THE SAW BLADE IS INSTALLED
PROPERLY TEETH POINTING DOWNWARD TO
WARD THE TABLE-BEFORE OPERATING MAC
HINE
4. BE SURE BLADE TENSION. BLADE GUIDES, AND
THRUST BEARINGS ARE PROPERLY ADJUSTED
BEFORE OPERATING MACHINE-SEE OWNERS MAN.
UAL.
5. ALWAYS ADJUST UPPER GUIDE TO CLEAR WORK-
PIECE BY NO MORE THEN 1/4 INCH.
6. MINIMIZE INJURY POTENTIAL OF CONTACTWITH
SAW BLADE OR SANDING BELT BY KEEPING
FINGERS A SAFE DISTANCE AWAY
7. MAINTAIN CONTROL OF THE WORKPIECE AT
ALL TIMES--HOLD FIRMLY AGAINST THE TABLE
8. BE ATTENTIVE TO THIN CUT-OFF PIECES HIT
TING END OF SLOT IN INSERT. OR JAMMING IN
SLOT.
10. Think Safety. Safety is a combination of operator com-
mon sense and alertness at all times the band saw/sander
is operating.

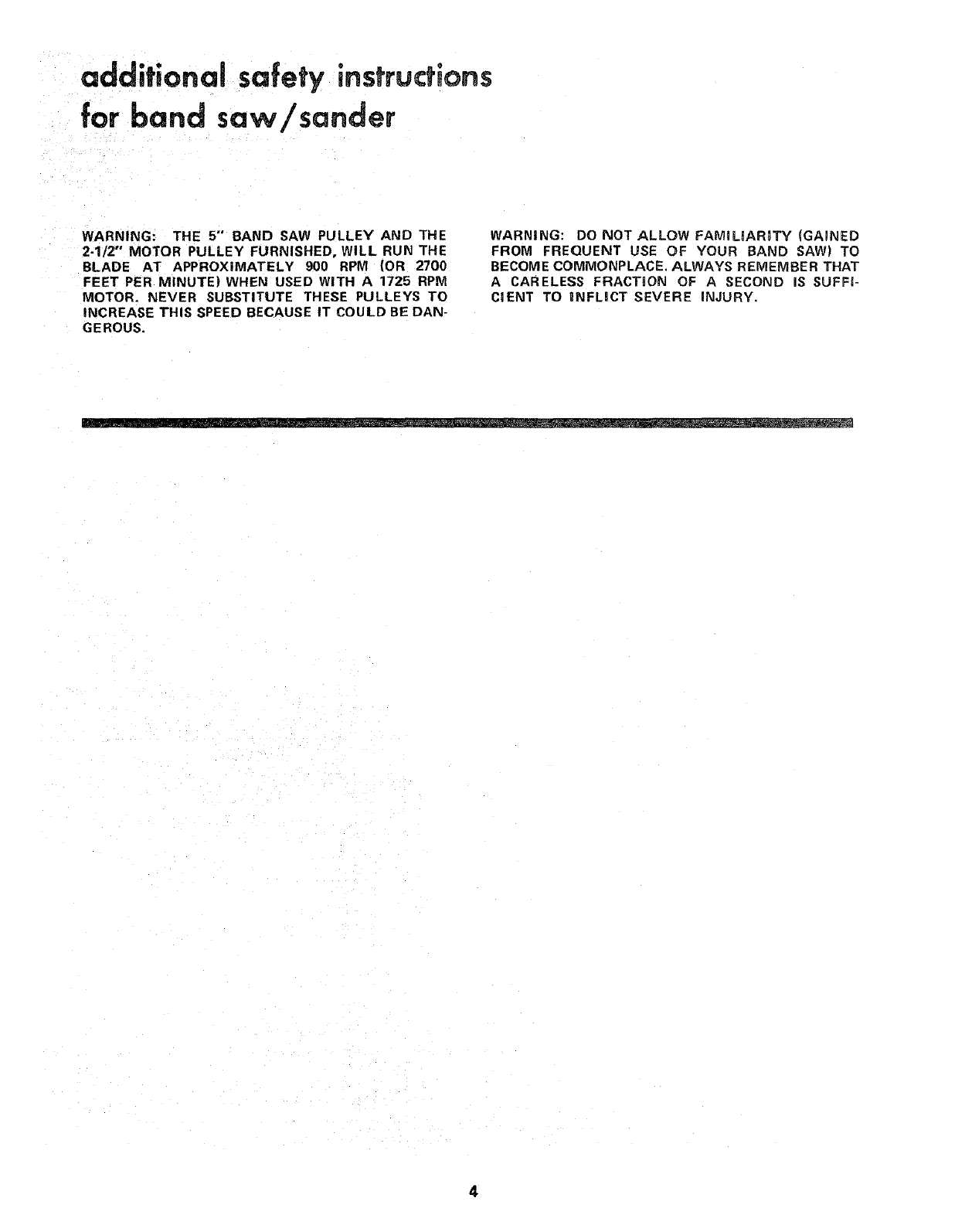

additiona! safety instructions
for band saw/sander
WARNING: THE 5" BAND SAW PULLEY AND THE
2-1/2" MOTOR PULLEY FURNISHED, WILL RUN THE
BLADE AT APPROXIMATELY 900 RPM (OR 2700
FEET PER MINUTEI WHEN USED WITH A1725 RP_
MOTOR. NEVER SUBSTITUTE THESE PULLEYS TO
INCREASE THIS SPEED BECAUSE IT COULD BE DAN-
GEROUS.
WARNING: DO NOT ALLOW FAMILIARITY (GAINED
FROM FREQUENT USE OF YOUR BAND SAW) TO
BECOME COMMONPLACE. ALWAYS REMEMBER THAT
A CARELESS FRACTaON OF A SECOND IS SUFFI-
CIENT TO iNFLICT SEVERE iNJURY.
4

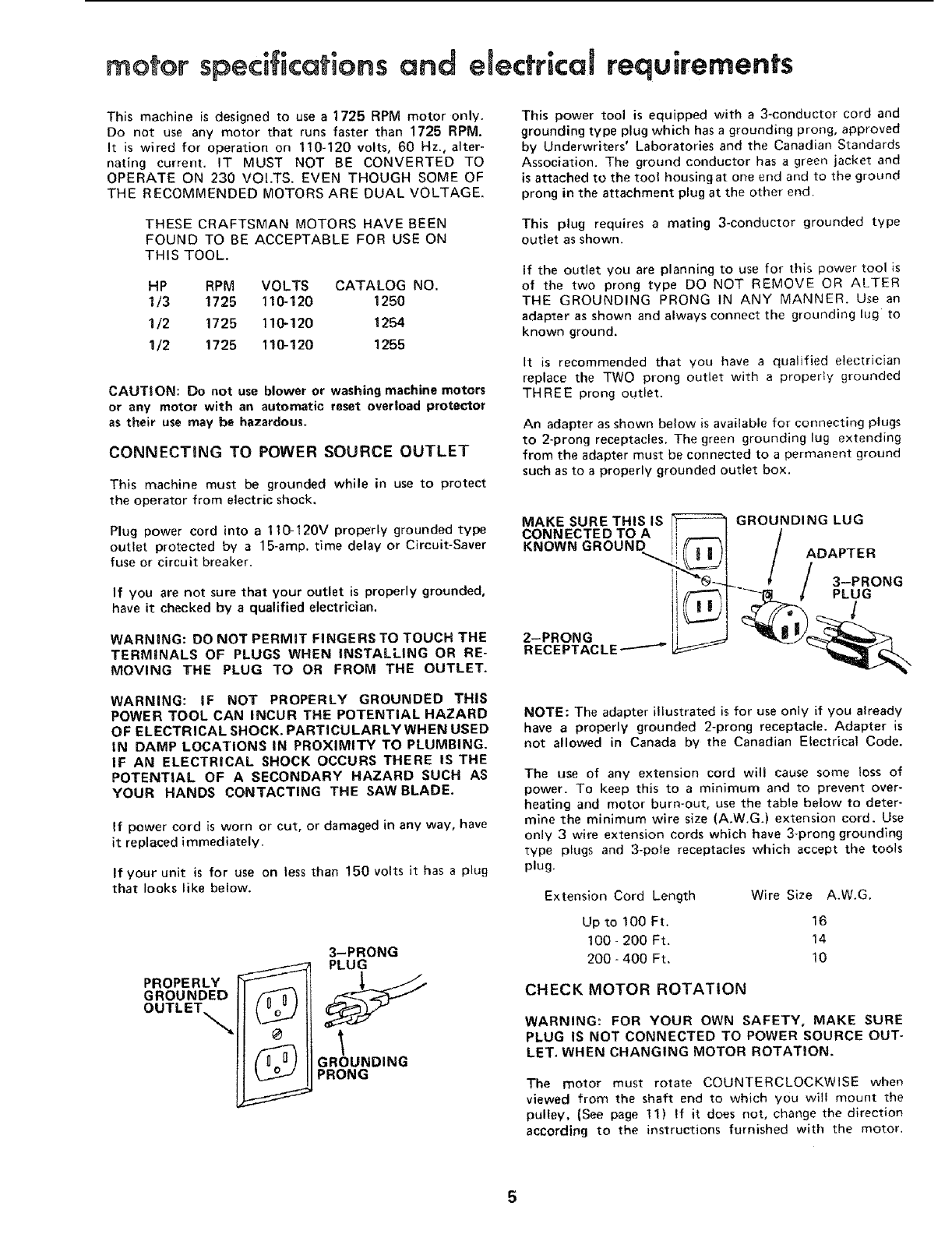

This machine is designed to use a 1725 RPM motor only.
Do not use any motor that runs faster than 1725 RPM.
It is wired for operation on 110-120 volts, 60 Hz., alter-
nating current. IT MUST NOT BE CONVERTED TO
OPERATE ON 230 VOI.TS. EVEN THOUGH SOME OF
THE RECOMMENDED MOTORS ARE DUAL VOLTAGE.
THESE CRAFTSMAN MOTORS HAVE BEEN
FOUND TO BE ACCEPTABLE FOR USE ON
THIS TOOL.
HP RPM VOLTS CATALOG NO.
1/3 1725 110-120 1250
1/2 1725 110-120 1254
1/2 1725 110-120 1255
CAUTION: Do not use blower or washing machine motors
or any motor with an automatic reset overload protector
as their use may be hazardous.
CONNECTING TO POWER SOURCE OUTLET
This machine must be grounded while in use to protect
the operator from electric shock,
Plug power cord into a 110-120V properly grounded type
outlet protected by a 15-amp. time delay or Circuit-Saver
fuse or circuit breaker.
If you are not sure that your outlet is properly grounded,
have it checked by a qualified electrician.
WARNING: DO NOT PERMIT FINGERS TO TOUCH THE
TERMINALS OF PLUGS WHEN INSTALLING OR RE-
MOVING THE PLUG TO OR FROM THE OUTLET.
WARNING: IF NOT PROPERLY GROUNDED THIS
POWER TOOL CAN INCUR THE POTENTIAL HAZARD
OF ELECTRICAL SHOCK. PARTICULARLY WHEN USED
IN DAMP LOCATIONS IN PROXIMITY TO PLUMBING.
IF AN ELECTRICAL SHOCK OCCURS THERE IS THE
POTENTIAL OF A SECONDARY HAZARD SUCH AS
YOUR HANDS CONTACTING THE SAW BLADE.
If power cord is worn or cut, or damaged in any way, have
it replaced immediately.
If your unit is for use on less than 150 volts it has a plug
that looks like below.
PROPERLY
GROUNDED
OUTLET_,_
/fl UI
/n ul
3--PRONG
PLUG
<
GROUNDING
PRONG
This power tool is equipped with a 3-conductor cord and
grounding type plug which has a grounding prong, approved
by Underwriters' Laboratories and the Canadian Standards
Association. The ground conductor has a green jacket and
is attached to the tool housing at one end and to the ground
prong in the attachment plug at the other end.
This plug requires amating 3-conductor grounded type
outlet as shown.
If the outlet you are planning to use for this power tool is
of the two prong type DO NOT REMOVE OR ALTER
THE GROUNDING PRONG IN ANY MANNER. Use an
adapter as shown and always connect the grounding lug to
known ground.
It is recommended that you have a qualified electrician
replace the TWO prong outlet with a properly grounded
THREE prong outlet.
An adapter as shown below is available for connecting plugs
to 2-prong receptacles. The green grounding lug extending
from the adapter must be connected to a permanent ground
such as to a properly grounded outlet box.
NOTE: The adapter illustrated is for use only if you already
have a properly grounded 2-prong receptacle. Adapter is
not allowed in Canada by the Canadian Electrical Code.
The use of any extension cord will cause some toss of
power. To keep this to a minimum and to prevent over-
heating and motor burn-out, use the table below to deter-
mine the minimum wire size (A.W,G.) extension cord. Use
only 3 wire extension cords which have 3-prong grounding
type plugs and 3-pate receptacles which accept the tools
plug.
Extension Cord Length Wire Size A.W.G.
Up to 100 Ft. 16
100-200 Ft. 14
200-400 Ft, 10
CHECK MOTOR ROTATION
WARNING: FOR YOUR OWN SAFETY, MAKE SURE
PLUG IS NOT CONNECTED TO POWER SOURCE OUT-
LET. WHEN CHANGING MOTOR ROTATION.
The motor must rotate COUNTERCLOCKWISE when
viewed from the shaft end to which you will mount the
pulley. (See page 11) If it does not, change the direction
according to the instructions furnished with the motor.

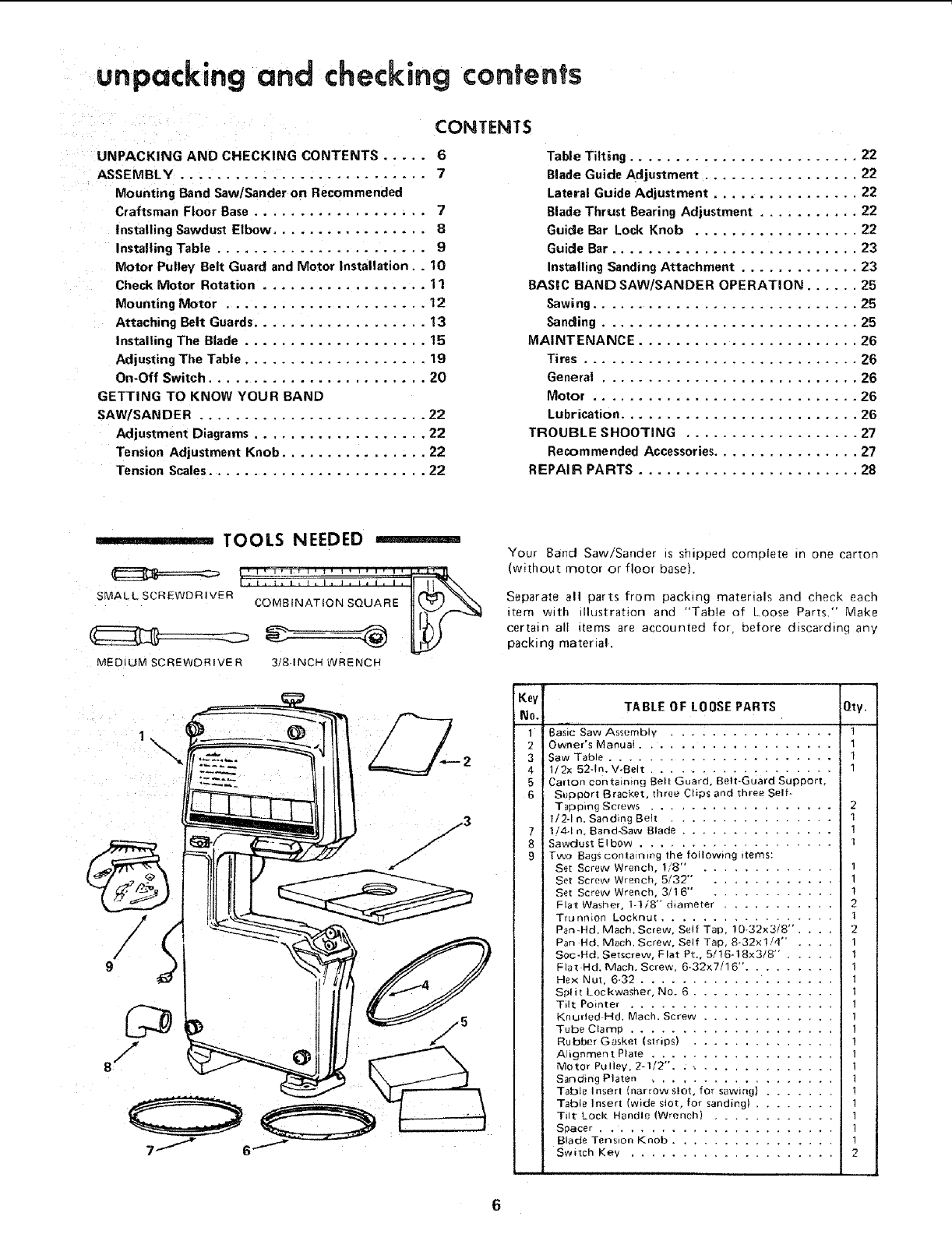

unpacking and checking contents
CONTENTS
UNPACKING AND CHECKING CONTENTS ..... 6
ASSEMBLY ........................... 7
Mounting Band Saw/Sander on Recommended
Craftsman Floor Base ................... 7
Installing Sawdust Elbow ................. 8
Installing Table ....................... 9
Motor Pulley Belt Guard and Motor Installation.. 10
Check Motor Rotation .................. 11
Mounting Motor ...................... 12
Attaching Belt Guards ................... 13
Installing The Blade .................... 15
Adjusting The Table .................... 19

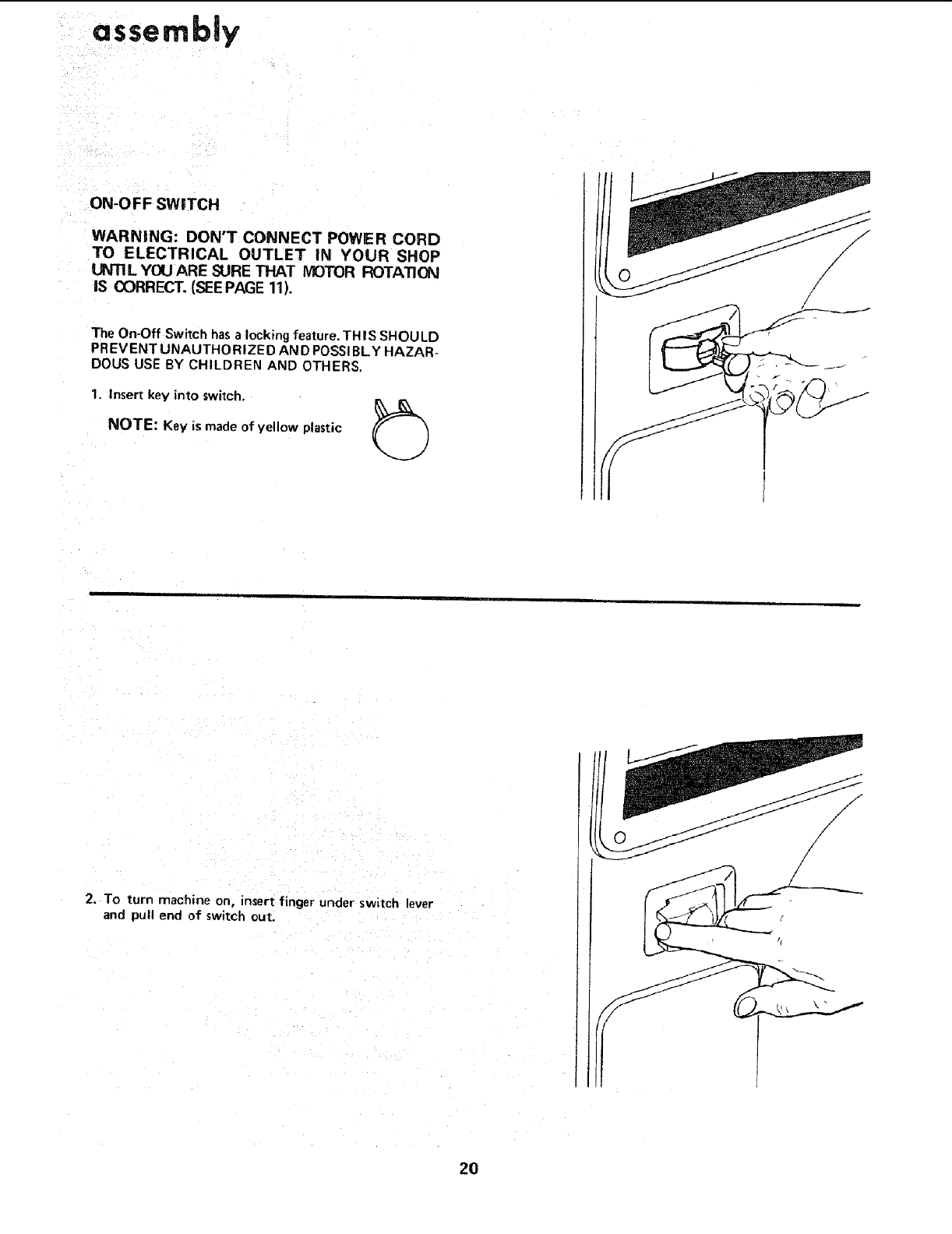

On-Off Switch ........................ 20
GETTING TO KNOW YOUR BAND
SAW/SANDER ......................... 22
Adjustment Diagrams ................... 22
Tension Adjustment Knob ................ 22
Tension Scales ........................ 22
Table Tilting ......................... 22
Blade Guide Adjustment ................. 22
Lateral Guide Adjustment ................ 22
Blade Thrust Bearing Adjustment ........... 22
Guide Bar Lock Knob .................. 22

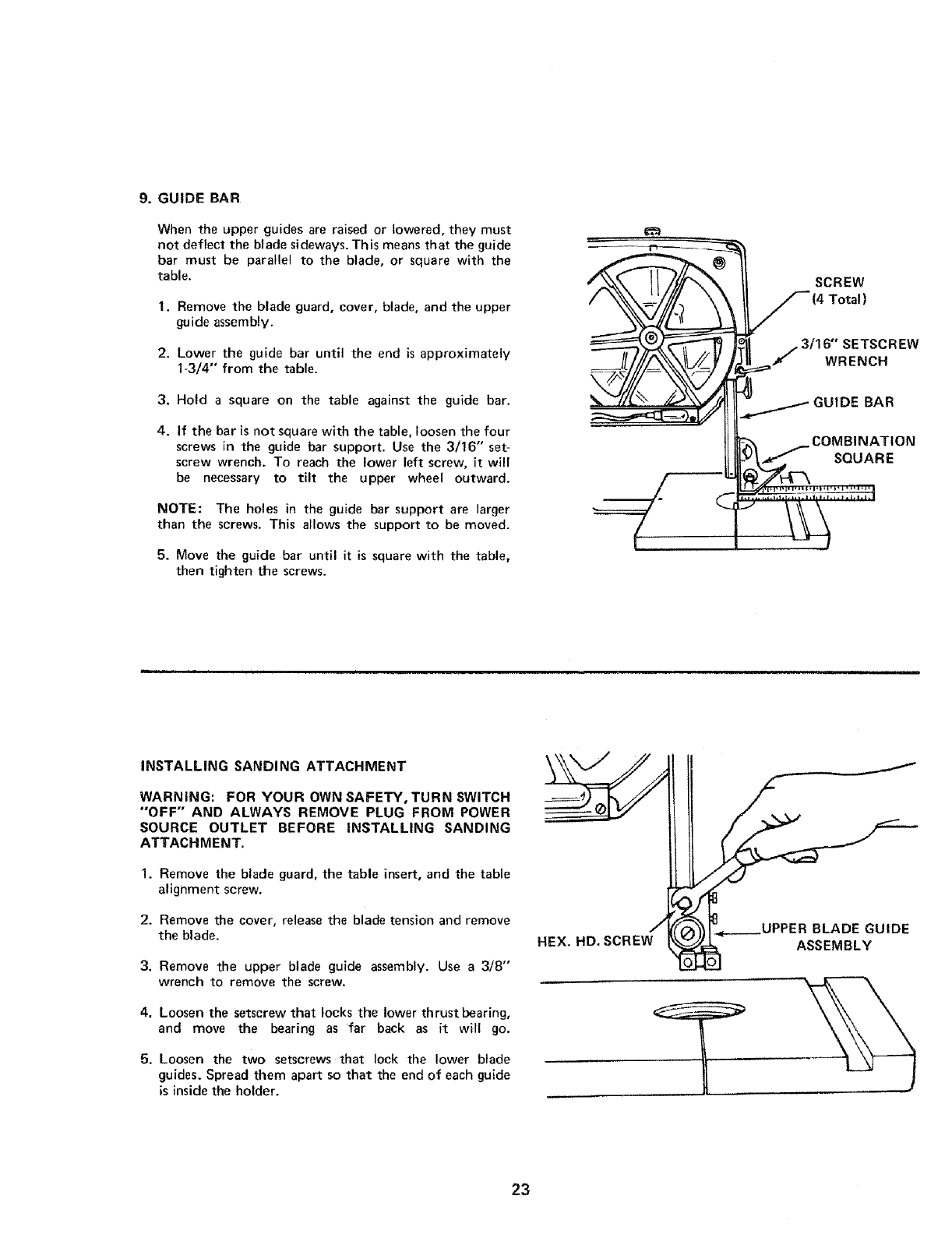

Guide Bar ........................... 23

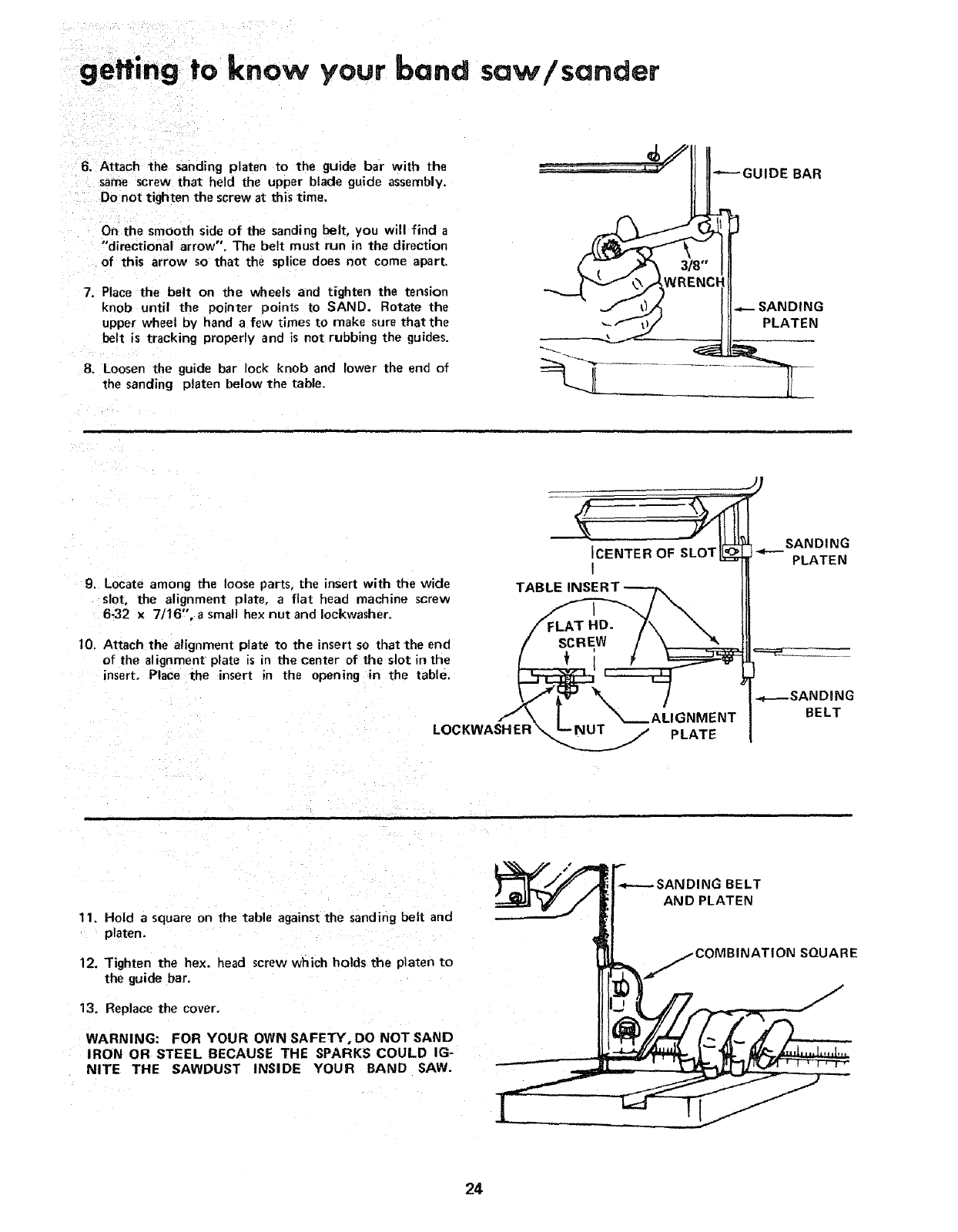

Installing Sanding Attachment ............. 23
BASIC BAND SAW/SANDER OPERATION ...... 25
Sawing ............................. 25
Sanding ............................ 25
MAINTENANCE ........................ 26
Tires .............................. 26
General ........................... 26
Motor ............................. 26
Lubrication .......................... 26
TROUBLE SHOOTING ................... 27
Recommended Accessories................ 27

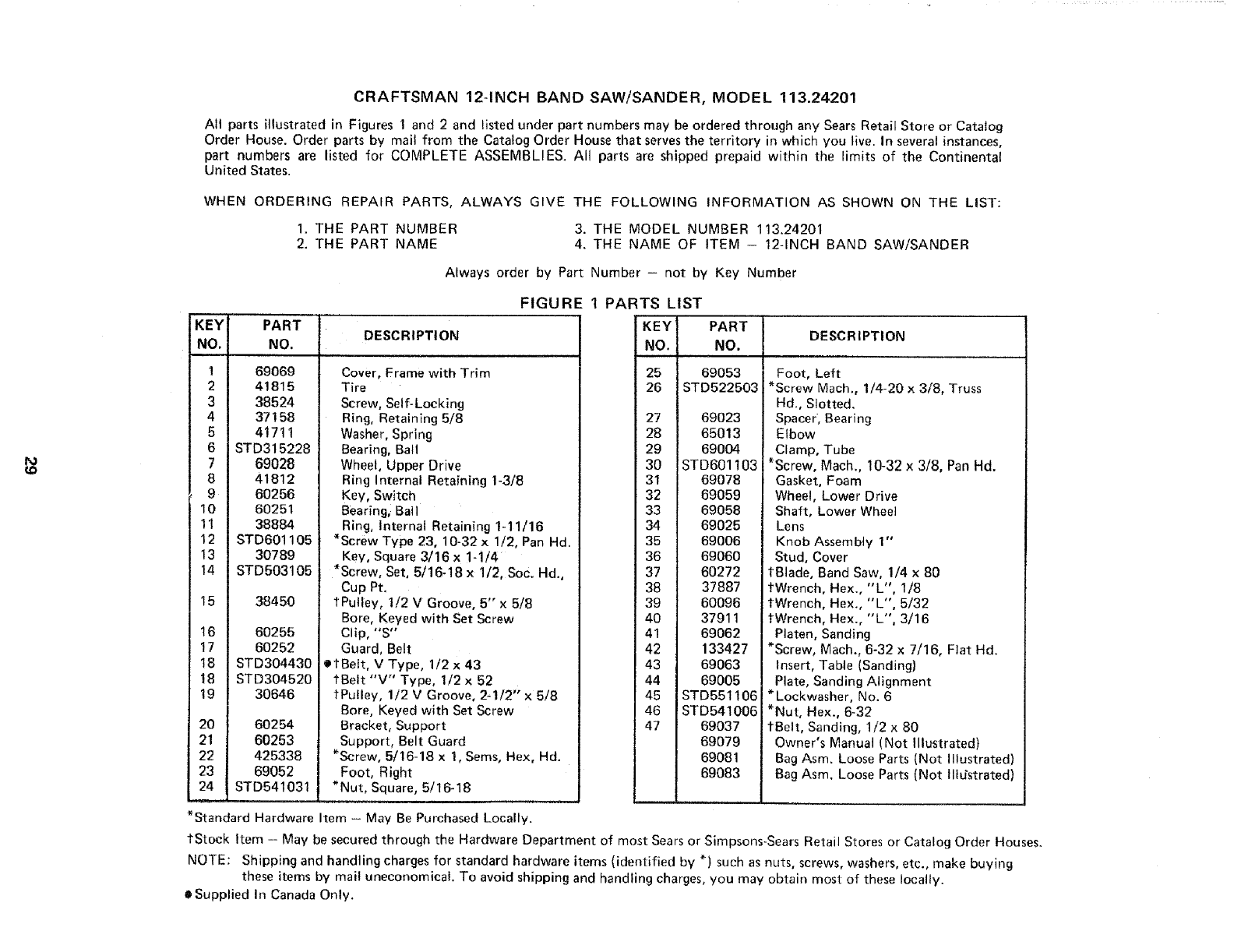

REPAIR PARTS ........................ 28
-TOOLS NEEDED -- --
MEDIUM SCREWDRIVER 3!8-tNCH WRENCH
1\I
7
8/
Your Band Saw/Sander s shipped comolete m one carton
(w_thout rno[or or floor basel
Separate all oarts from packing materials and check each
i[ern w_th Ilustratlon and "Table of Loose Parts." Make
certain all items are accounted for before discarding any
paekinq material.
Key TABLE OF LOOSE PARTS Qty.
N0.
1Bas_e Saw Assembly ................ 1
2 Owner's Manual. 1
3 Saw Table ...................... ,1
4 1/2x 52-1n, V-Belt .................. , 1
5 Carton containing Belt Guard, Belt-Guard Support,
6 Support Bracket, three Clips and three Self-
Tapping Screws ................... 2
1
8
9
I/2-I n. Sanding Belt I
I/4-I n. Band-Saw Blade ............... I
Sawdust E I bow 1
Two Bags containing the following ttems:
Set Screw Wrench, 1/8" . ............ 1
Set Bcrew Wrench, 5/32" ............ 1
Set Screw Wrench, 3/16" . ........... t
Flat Washer, 1 I/8" diameter ........... 2
Trunmon Locknut ................. I
Pan-Hd. Mach, Screw, Self Tap, 10-32x3i8", .. . 2
Pan Rd. aaeh, Screw, Self Tap, B-32x1/4" . . .. 1
Soc-Hd. Setscrew, Flat Pt,, 5/16-t8x3/8" . .... 1
Flat Hd. Mach_ Screw, 6-32x7/16". ........ 1
Hex Nut, 6-32 .................... 1
Spht Lockwasher, No. 6 .............. 1
Tilt Pointer ..................... 1
Knurled Hd. Mach. Screw .............. 1
Tube Clamp ..................... I
Rubber Gasket (str,ps) .............. I
A ignmen tPlate ................... I
Motor Pulley, 2-I/2". ............... I
Sanding Platen .................. I
Table Inaetl {nartowalot, for sawing) ....... 1
Table Insert (w_de slot, for sanding) ........ 1
Tilt Lock Handle (Wrench) 1
Spacer 1
Blade Tenspon Knob ................ !
Switch Key .................... 2
assemb!y

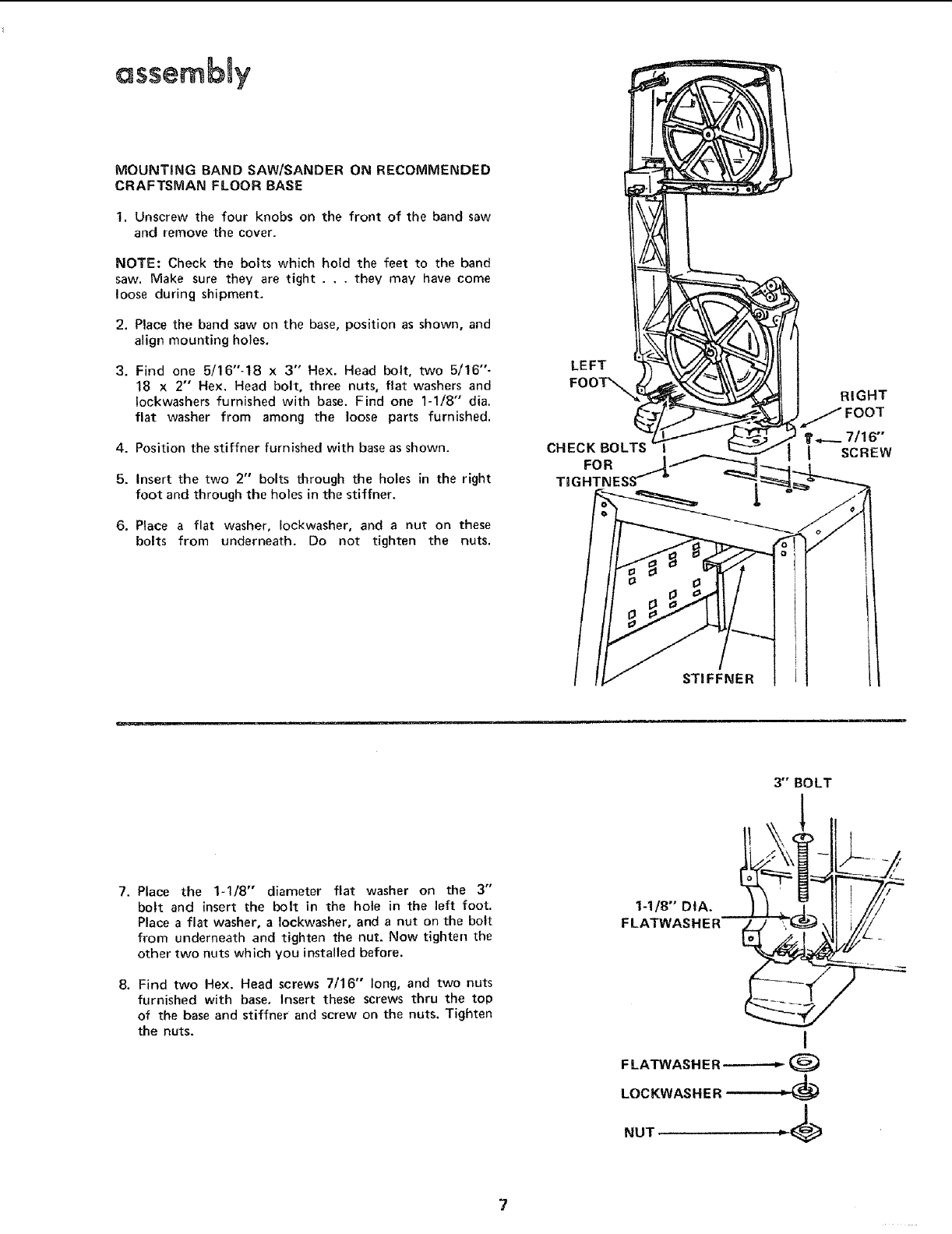

MOUNTING BAND SAW/SANDER ON RECOMMENDED
CRAFTSMAN FLOOR BASE
1. Unscrew the four knobs on the front of the band saw
and remove the cover.
NOTE: Check the bolts which hold the feet to the band
saw. Make sure they are tight . , . they may have come
loose during shipment.
2. Place the band saw on the base, position as shown, and
align mounting holes.
3. Find one 5/16"-18 x 3" Hex. Head bolt, two 5/16"-
18 x 2" Hex. Head bolt, three nuts, flat washers and
Iockwashers furnished with base. Find one 1-1/8'" dia.
flat washer from among the loose parts furnished.
4. Position the stiffner furnished with base as shown.
5. Insert the two 2" bolts through the holes in the right
foot and through the holes in the stiffner.
6. Place a flat washer, Iockwasher, and a nut on these
bolts from underneath. Do not tighten the nuts.
LEFT
FOOT_
CHECK BOLTS
FOR
STIFFNER
7. Place the 1-1/8" diameter flat washer on the 3"
bolt and insert the bolt in the hole in the left foot.
Place a flat washer, a Iockwasher, and a nut on the bolt
from underneath and tighten the nut. Now tighten the
other two nuts which you installed before.
8. Find two Hex. Head screws 7/16" long, and two nuts
furnished with base, Insert these screws thru the top
of the base and stiffner and screw on the nuts. Tighten
the nuts.
3" BOLT
I
FLATWASH ER -.-------_ @
LOCKWASHER
NUT b
7
assembly

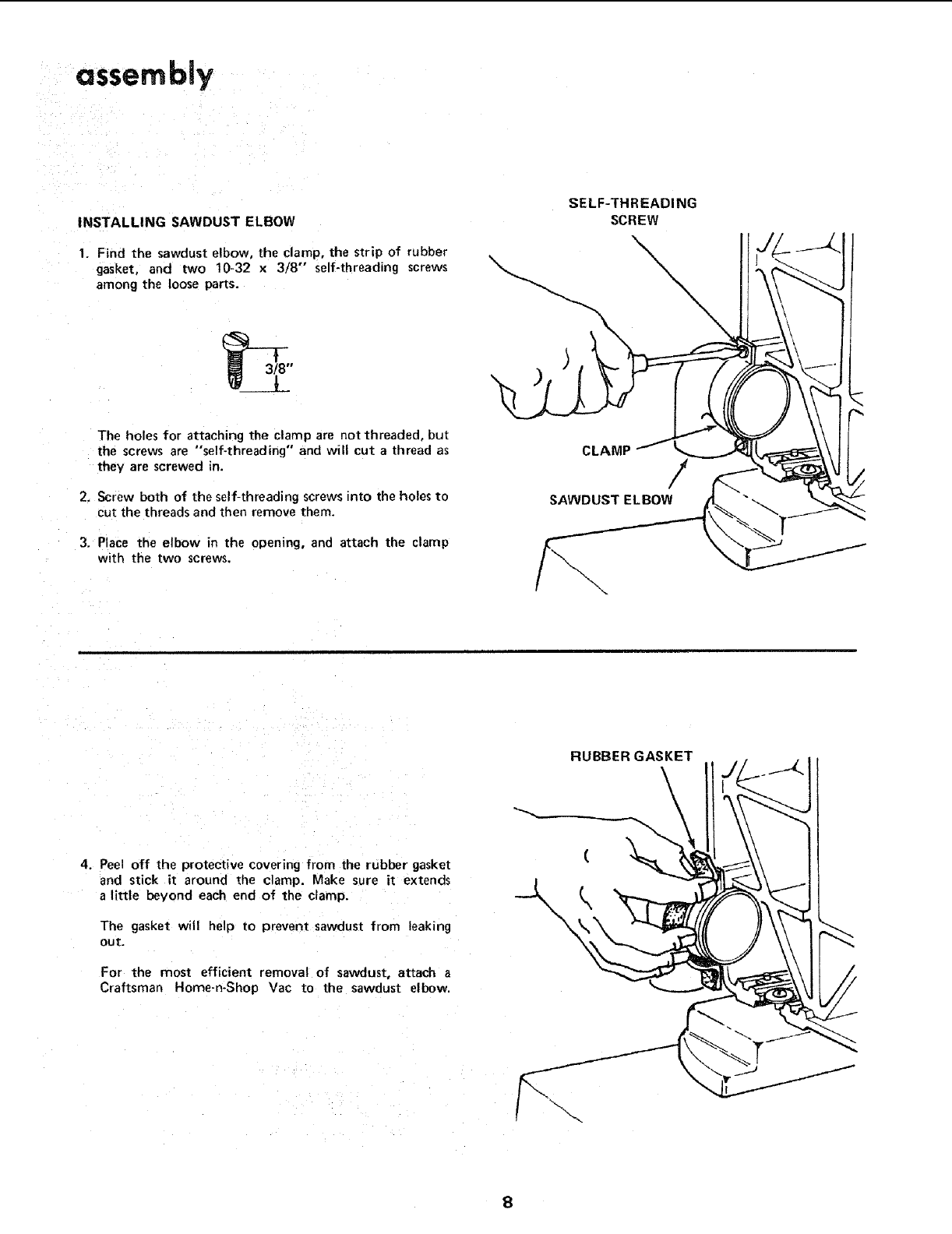

INSTALLING SAWDUST ELBOW
1. Find the sawdust elbow, the clamp, the strip of rubber
gasket, and two 10-32 x 3/8" self-threading screws
among the loose parts.
SELF-THREADING
SCREW
The holes for attaching the clamp are not threaded, but
the screws are "self-threading" and will cut a thread as
they are screwed in.
2. Screw both of the self-threading screws into the holes to
cut the threads and then remove them.
3. Place the elbow in the opening, and attach the clamp
with the two screws.
CLAMP /
SAWDUST ELBOW
RUBBER GASKET
4. Peel off the protective covering from the rubber gasket
and stick it around the clamp. Make sure it extends
alittle beyond each end of the clamp.
The gasket will help to prevent sawdust from leaking
out.
For the most efficient removal of sawdust, attach a
Craftsman Home-n-Shop Vac to the sawdust elbow.
\
\
8
TABLE TRUNNION
INSTALLING TABLE
Remove the protective oil that is applied to the table.
Use any ordinary household type grease and spot remover.
CAUTION: Never use gasoline, naptha or similar highly
volatile solvents.
Apply a coat of automobile wax to the table.
\\
NION PiN
TABLE LOCK BOLT
1. Place the table on the band saw so that the two trunnion
pins and the table lock bolt go through the slot in the
trunnion.
2. Find the 1-I/8" dia. flat washer, a sleeve 11/16" long,
the trunnion lock nut and the table lock handle from
among the loose parts,
3, Hold the head of the table lock bolt inside the band saw
with your left hand and put the 1-1/8" dia. flat washer,
the sleeve, and the handle on the bolt.
4. Screw the nut on the bolt and tighten it with the handle
while the table is in a horizontal position.
_NUT
lllJ,;/
TABLE LOCK BOLT TABLE LOCK HANDLE
assemb|y

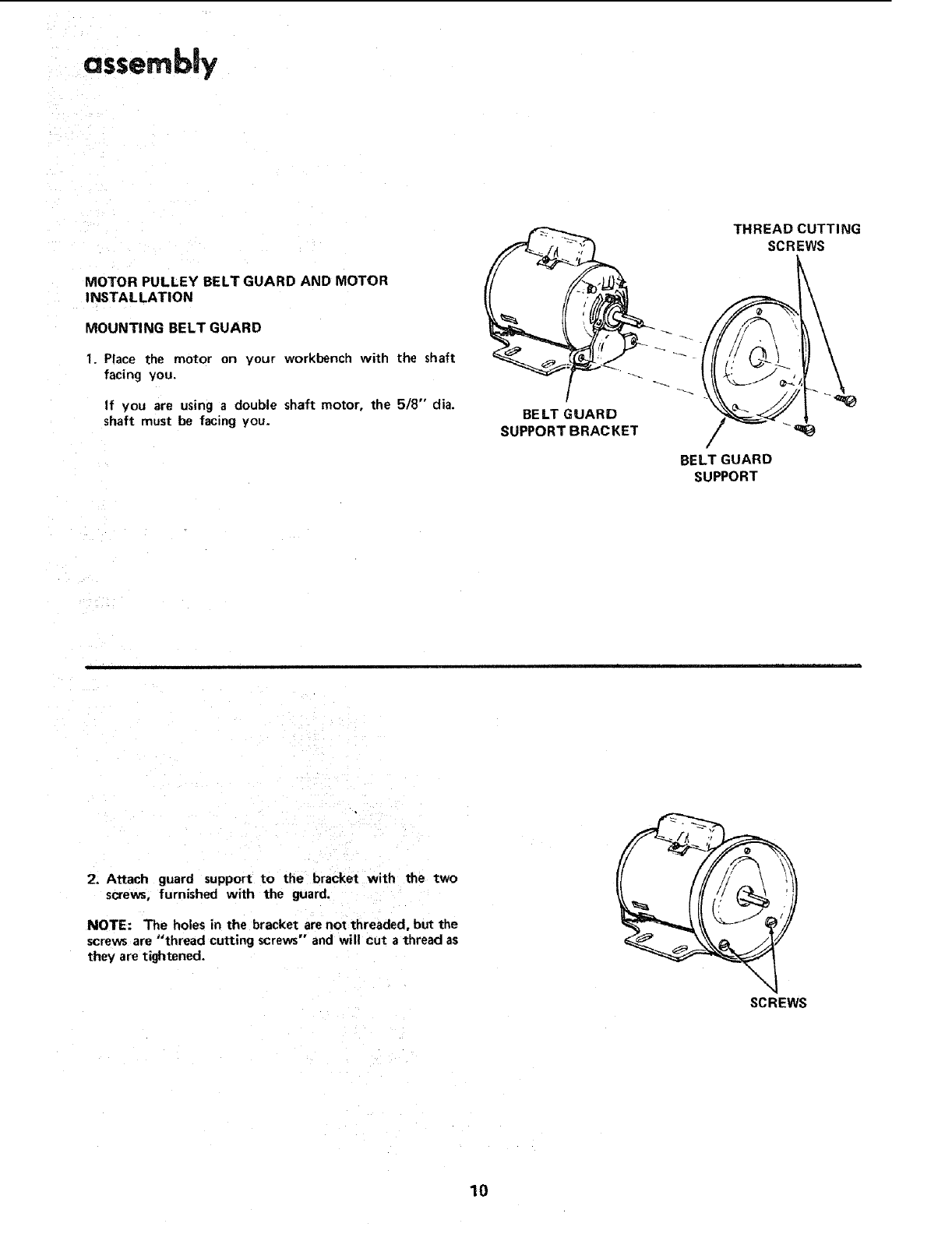

MOTOR PULLEY BELT GUARD AND MOTOR
INSTA L LAT! ON
MOUNTING BELT GUARD
1. Place the motor on your workbench with the shaft
facing you.
If you are using a double shaft motor, the 5/8" dia.
shaft must be facing you. BELT GUARD
SU PPORT BRACKET
THREAD CUTTING
SCREWS
BELT GUARD
SUPPORT
2. Attach guard support to the bracket with the two
screws, furnished with the guard.
NOTE: The holes in the bracket arenot threaded, but the
screws are "thread cutting screws" and will cut a thread as
they are tightened.
SCREWS
10

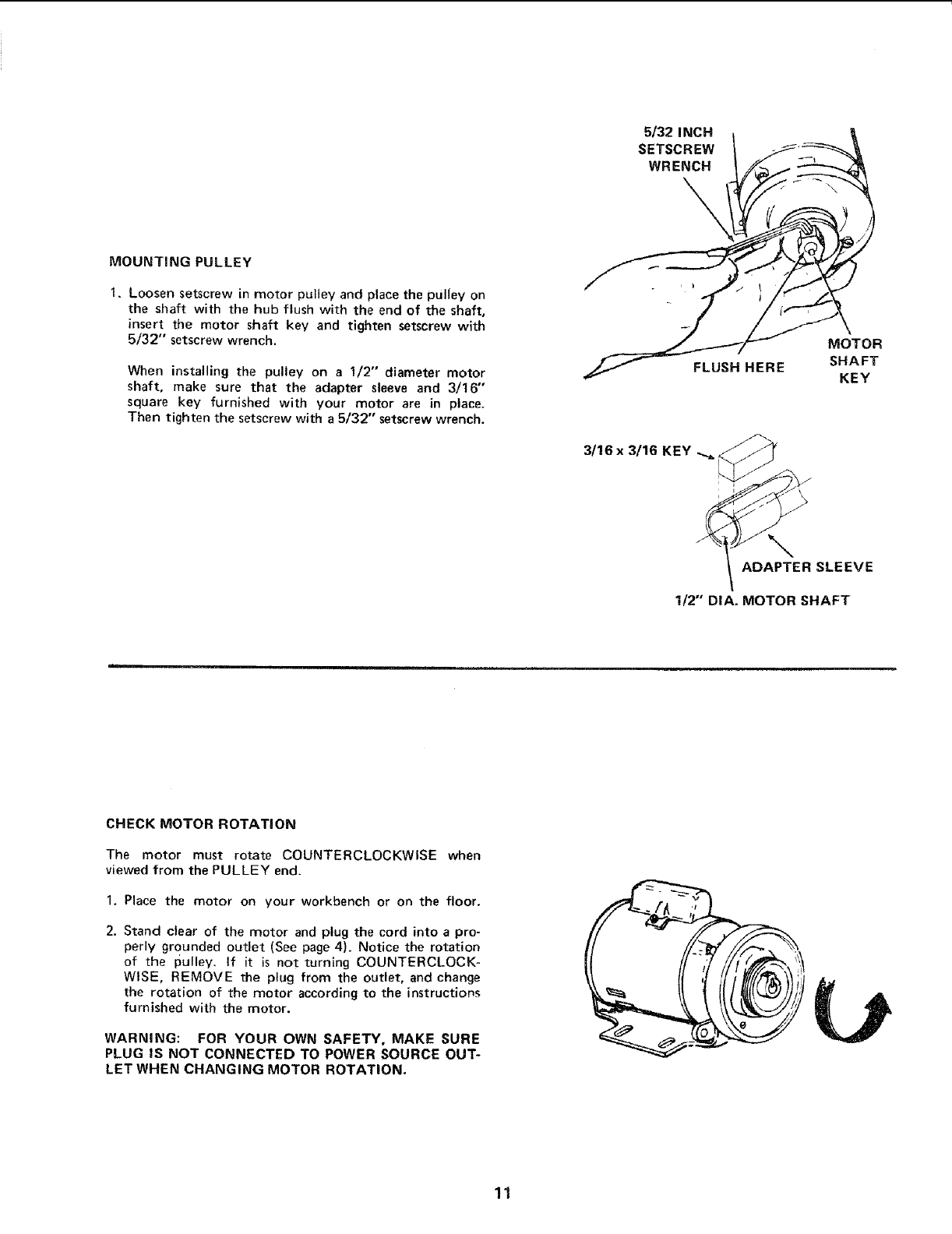

MOUNTING PULLEY
I. Loosen setscrew in motor pulley and place the pulley on
the shaft with the hub flush with the end of the shaft,
insert the motor shaft key and tighten setscrew with
5/32" setscrew wrench.
When installing the pulley on a 1/2" diameter motor
shaft, make sure that the adapter sleeve and 3/16"
square key furnished with your motor are in place.
Then tighten the setscrew with a 5/32" setscrew wrench.
s/32 iNCH I _ /
SETSCREW
WRENC.
_J___'_"_ MOTOR
_- FLUSH HERE SHAFT
KEY
3/16x 3/16 KEY ....,.
L
\
ADAPTER SLEEVE
112" DIAo MOTOR SHAFT
CHECK MOTOR ROTATION
The motor must rotate COUNTERCLOCKWISE when
viewed from the PULLEY end.
I. Place the motor on your workbench or on the floor.
2. Stand clear of the motor and plug the cord into a pro-
perly grounded outlet (See page 4). Notice the rotation
of the pulley. If it is not turning COUNTERCLOCK-
WISE, REMOVE the plug from the outlet, and change
the rotation of the motor according to the instructions
furnished with the motor.
WARNING: FOR YOUR OWN SAFETY, MAKE SURE
PLUG IS NOT CONNECTED TO POWER SOURCE OUT-
LET WHEN CHANGING MOTOR ROTATION.
11
assembly

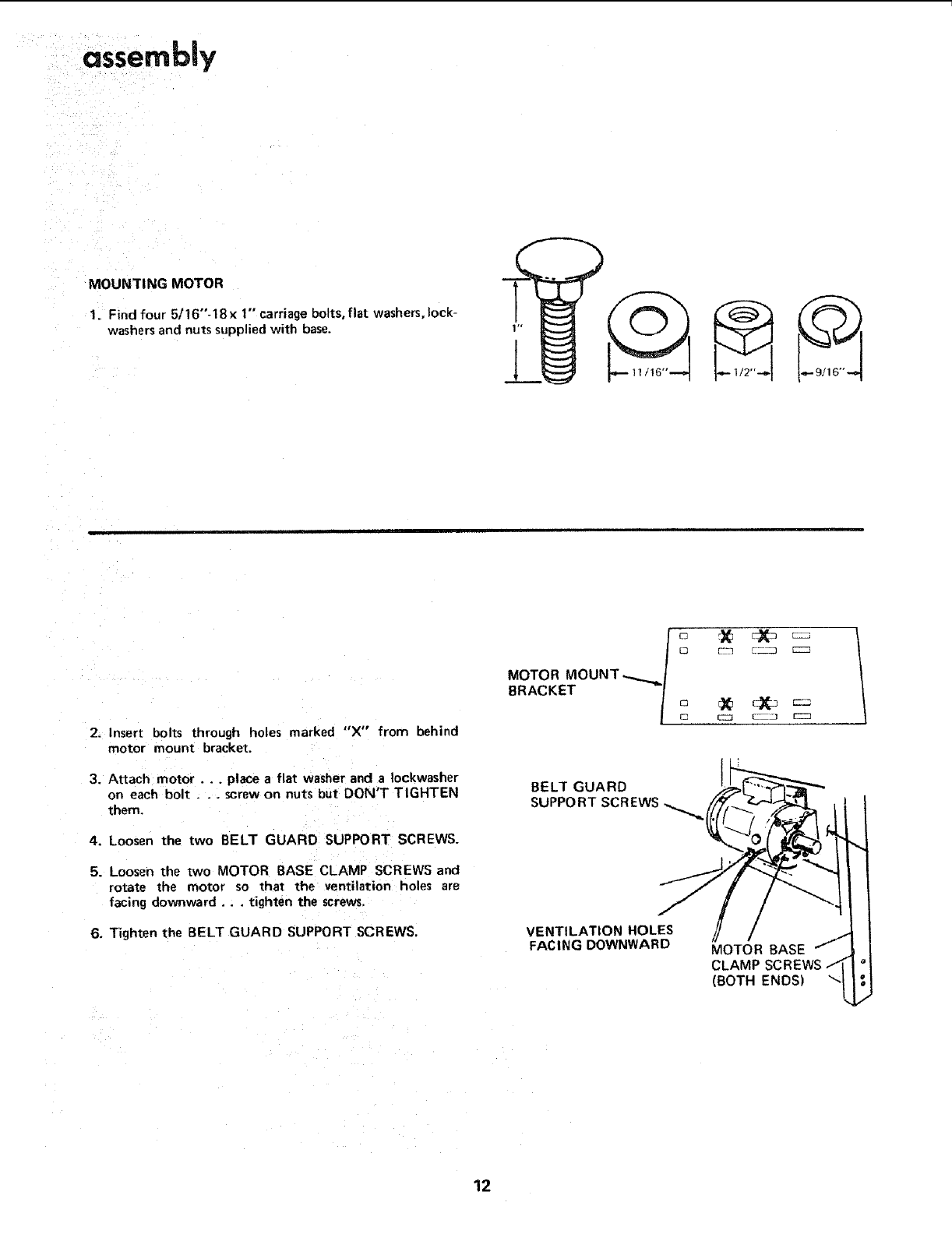

MOUNTING MOTOR
1. Find four 5/16"-18x 1" carriage bolts, flat washers,lock-
washersand nuts supplied with base.
2, Insert bolts through holes marked "X" from behind
motor mount bracket.
3. Attach motor.., place a flat washer and a Iockwasher
on each holt . . . screw on nuts but DON'T TIGHTEN
them.
4. Loosen the two BELT GUARD SUPPORT SCREWS.
5. Loosen the two MOTOR BASE CLAMP SCREWS and
rotate the motor so that the ventilation holes are
facing downward ... tighten the screws.
6. Tighten the BELT GUARD SUPPORT SCREWS.
MOTOR MOUNT
BRACKET -[ : c:_ L--J_ _-_c:_
BELT GUARD
SUPPORT SCREWS _,_
VENTILATION HOLES
FACING DOWNWARD MOTOR BASE
CLAMP SC
(BOTH ENDS)
12

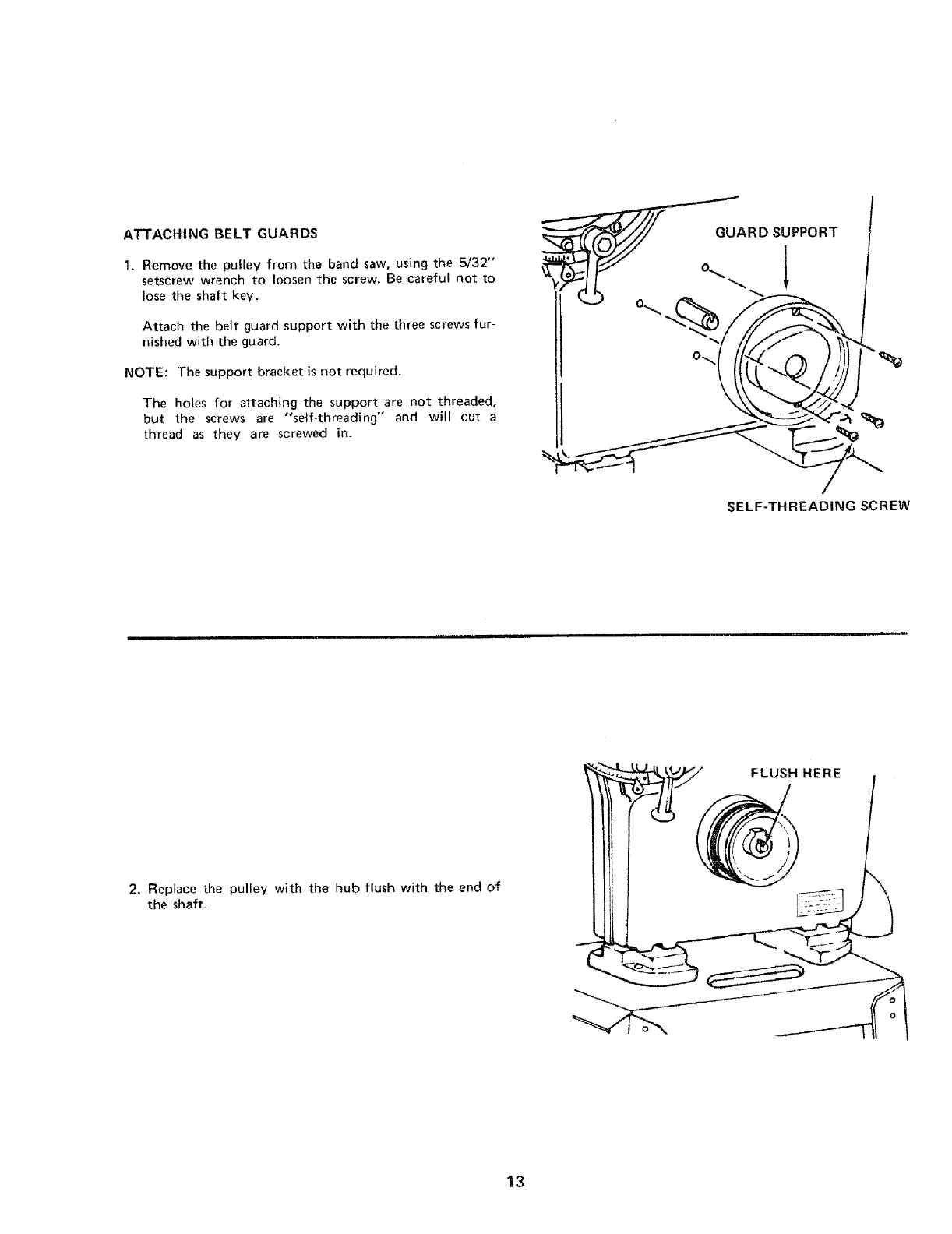

ATTACHING BELT GUARDS
1. Remove the pulley from the band saw, using the 5/32"
setscrew wrench to loosen the screw. Be careful not to
lose the shaft key.
Attach the belt guard support with the three screws fur-
nished with the guard.
NOTE: The support bracket is not required.
The holes for attaching the support are not threaded,
but the screws are "self-threading" and will cut a
thread as they are screwed in.
SELF-THREADING SCREW
2. Replace the pulley with the hub flush with the end of
the shaft.
FLUSH HERE
/
13
assembty
LONG TAB
POINTED THIS WAY
\

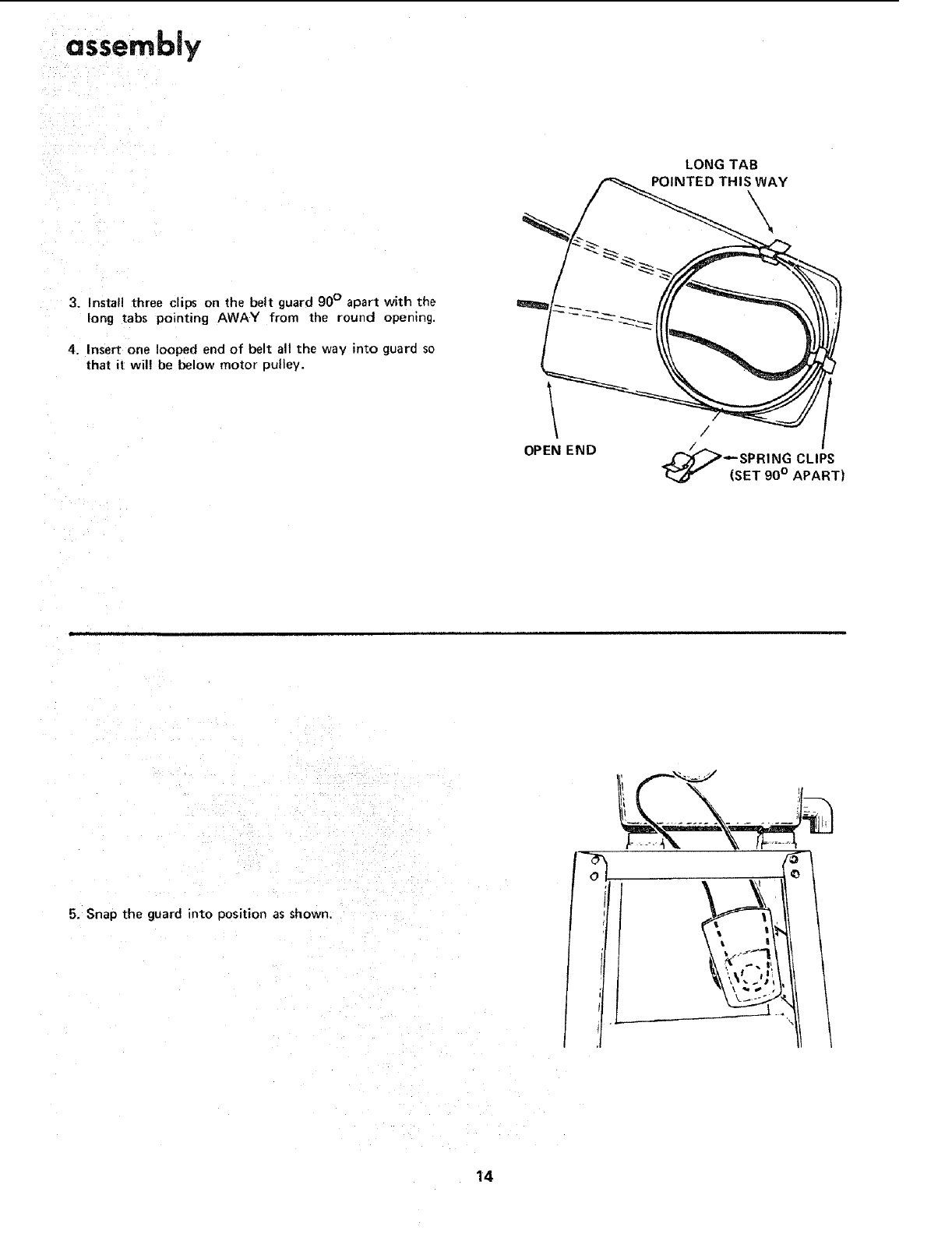

3. Install three clips on the belt guard 90 ° apart with the
long tabs pointing AWAY from the round opening.
4. Insert one looped end of belt all the way into guard so
that it will be below motor pulley.
OPEN END
/
/
_'_--SPRING CLIPS
_"_ (SET 90 ° APART)
5. Snap the guard into position as shown,
14

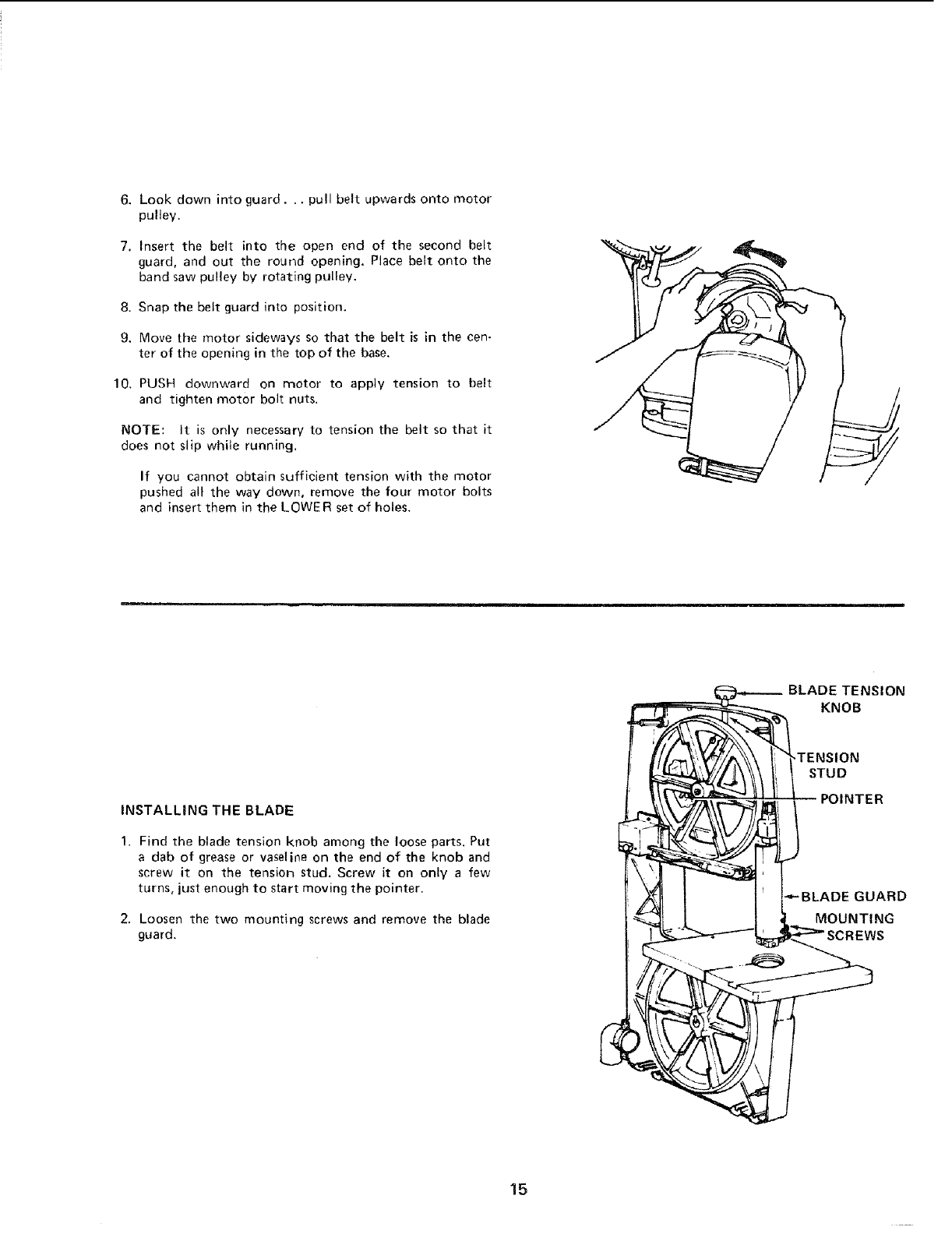

6. Look down into guard.., pull belt upwards onto motor
pulley.
7. Insert the belt into the open end of the second belt
guard, and out the round opening, Place belt onto the
band saw pulley by rotating pulley.
8. Snap the belt guard into position,
9. Move the motor sideways so that the belt is in the cen-
ter of the opening in the top of the base.
10, PUSH downward on motor to apply tension to belt
and tighten motor bolt nuts.
NOTE: It is only necessary to tension the belt so that it
does not slip while running.
If you cannot obtain sufficient tension with the motor
pushed all the way down, remove the four motor bolts
and insert them in the LOWE R set of holes.
BLADE TENSION
KNOB
iNSTALLING THE BLADE
1. Find the blade tension knob among the loose parts. Put
a dab of grease or vaseline on the end of the knob and
screw it on the tension stud. Screw it on only afew
turns, just enough to start moving the pointer.
2. Loosen the two mounting screws and remove the blade
guard.
.TENSION
STUD
POINTER
-,-BLADE GUARD
MOUNTING
15
assembly

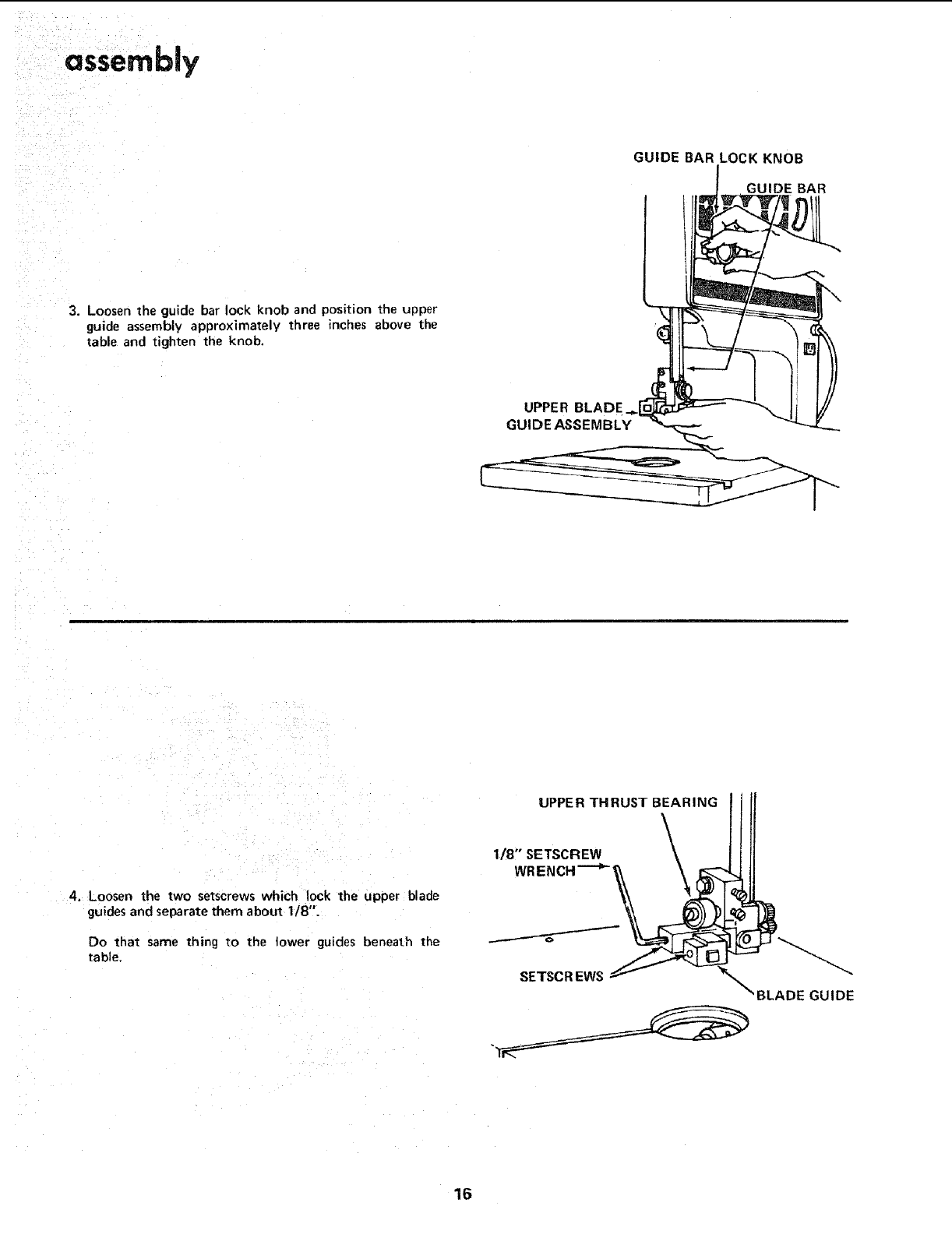

3. Loosen the guide bar lock knob and position the upper
guide assembly approximately three inches above the
table and tighten the knob,
GUIDE BAR LOCK KNOB
GUIDE BAR
UPPER BLADE ..__ !
4. Loosen the two setscrews which lock the upper blade
guidesand separate them about 1/8".
Do that same thing to the lower guides beneath the
table,
UPPER THRUST BEARING
1/8" SETSCREW
WR ENCH''_ !
SETSCR EWS
BLADE GUIDE
16
UPPER THRUST BEARING

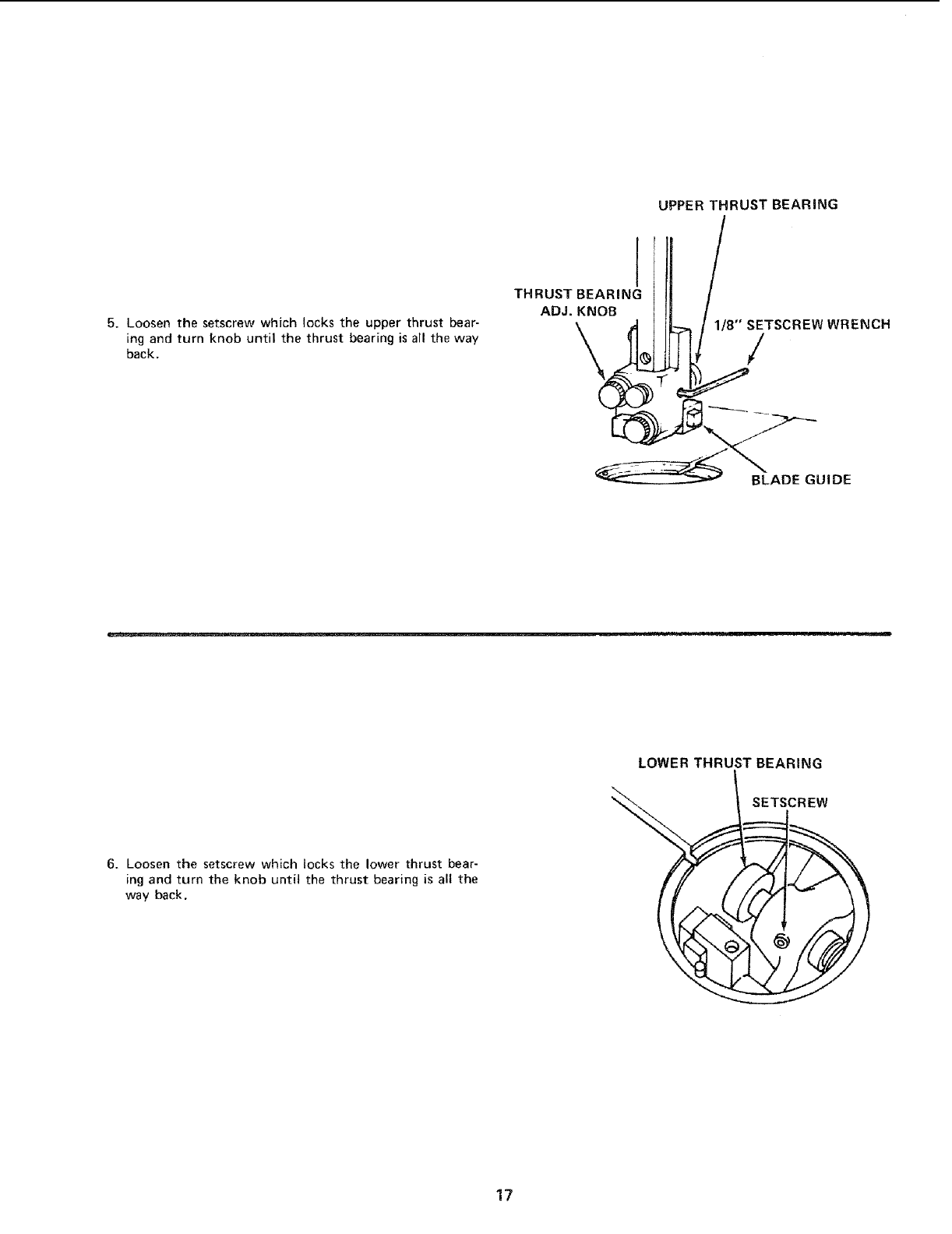

5. Loosen the setscrew which locks the upper thrust bear-
ing and turn knob until the thrust bearing is all the way
back.
THRUST BEARING
ADJ. KNOB
1/8" SETSCREW WRENCH
/
BLADE GUIDE
6. Loosen the setscrew which locks the lower thrust bear-
ing and turn the knob until the thrust bearing is all the
way back.
LOWER THRUST BEARING
SETSCREW
)
17
assembly
7. Carefully uncoil the blade, holding it at arms length.
8. Place the blade over the wheels with the teeth pointing
downwards. Make sure the blade is between the blade
guides and is in the center of the rubber tires.
9. Screw down the tension knob until the pointer points
to 1/4. This will put sufficient tension on the blade
which is 114" wide.
10. Turn the upper wheel by hand a few times and notice
if the blade remains in the approx, center of the tire on
the top wheel.
If the blade moves away from the center of the wheel
while you are turning it. the blade is not TRACKING
properly.
The top wheel shaft is hinged which allows the wheel
to be tilted so that the blade can be TRACKED. By
turning the tracking adjustment screw, the wheel will
be tilted.
If the blade moves toward the front of the band saw:
a. Turn the tracking adjustment screw clockwise about
1/4 of a turn, as though you were tightening it.
If the blade moves toward the back of the band saw:
a. Turn the tracking adjustment screw counterclock-
wise about 1/4 of a turn as though you were loosen-
mg it.
Turn the screw just enough to cause the blade to run in
the approximate center of the tire,
TRACKING
ADJUSTMENT
SCREW
BLADE
CENTERED
ON TIRES
OF BOTH
WHEELS
The thrust bearings support the blade from the rear and
will rotate when the blade is pushed against them while
you are cutting. As soon as you stop cutting, the bear-
ings should step rotating.
11. Turn the thrust bearing adjustment knob so that the
thrust bearing moves toward the blade and almost
touches it.
12. Turn the upper wheel by hand so that the blade moves
downward, move the bearing until it barely touches the
blade and starts to rotate. Now move the bearing back
slightly, until it stops rotating. Tighten the thrust
bearing setscrew.
13, Adjust the lower thrust bearing the same way.
THRUST BEARIN(
r
THRUST BEARING
ADJ. KNOB
18
14. Loosen the setscrew which locks the blade guide holder.
15. Turn the blade guide adjustment knob, so that the guides
move toward the blade. Move them until the "ledge" is
about 1/32" from the deepest part of the blade teeth.
This deep part is called a "gullet". Tighten the setscrew.
16. Adjust the lower guides the same way.
GL
APPROX.
1/32"' BLADE GUIDE
KNOB
SETSCREW
BLADE GUIDE HOLDER
17. Press the two guides evenly against the sides of the blade,
but don't pinch the blade. Release the guides and rotate
the upper wheel a little bit, moving the blade downward.
Make sure one guide is not farther away from the blade
than the other. Tighten both setscrews_
18. Adjust the lower guides the same way.
19, Rotate the upper wheel a few times by hand, and check
the guides and thrust bearings. Make readjustments if
necessary.
20. Replace the blade guard on the upper guides.
21. Locate the table insert with the narrow slot and place it
in the opening in the table.
22. Replace the cover.
Y liII*'-"-- SAW BLADE
_UPPER BLADE GUIDE
_'_TABLE ALIGNMENT
SCREW
ADJUSTING THE TABLE
1. Locate among the loose parts a 5/16"-18" x 3/8"
socket head flat point setscrew and a knurled head
screw. The knurled head screw keeps the table in align-
ment. Screw it into the tapped hole underneath the
front edge of the table.
2. The socket head screw acts as a 90 ° stop. Screw it
partially into the tapped hole in the top of the table
on the left side. Use the 5/32" setscrew wrench.
3. Raise the blade guides all the way up.
4. Loosen the table lock slightly and push down on the
left side of the table until it touches the frame of the
band saw.
5. Screw in the stop screw and notice that as it touches the
frame, the table will start to tilt.
6. Place a square on the table against the blade and con-
tinue to screw in the stop screw until the table is square
with the blade. Tighten the table lock.
7. Find the pointer and a pan head screw 8-32 x I/4 inches
long and attach the pointer. Set at 0 degrees and tighten
the screw.
COMBiNATiON SQUARE
19
DE
5/32"' SETSCREW WRENCH
assembly
ON-OFF SW|TCH
WARNING: DON'T CONNECT POWER CORD
TO ELECTRICAL OUTLET IN YOUR SHOP
UNTIL YOU ARE SURE THAT MOTOR ROTATION
IS CORRECT. (SEEPAGE 11).
The On-Off Switch has a locking feature.TH|S SHOULD
PREVENT UNAUTHORIZED AN DPOSSIBLY HAZAR-
DOUS USE BY CHILDREN AND OTHERS.
1. Insert key into switch.
NOTE: Key is made of yellow plastic ©
2. To turn machine on, insert finger under switch lever
and pull end of switch out.
2O

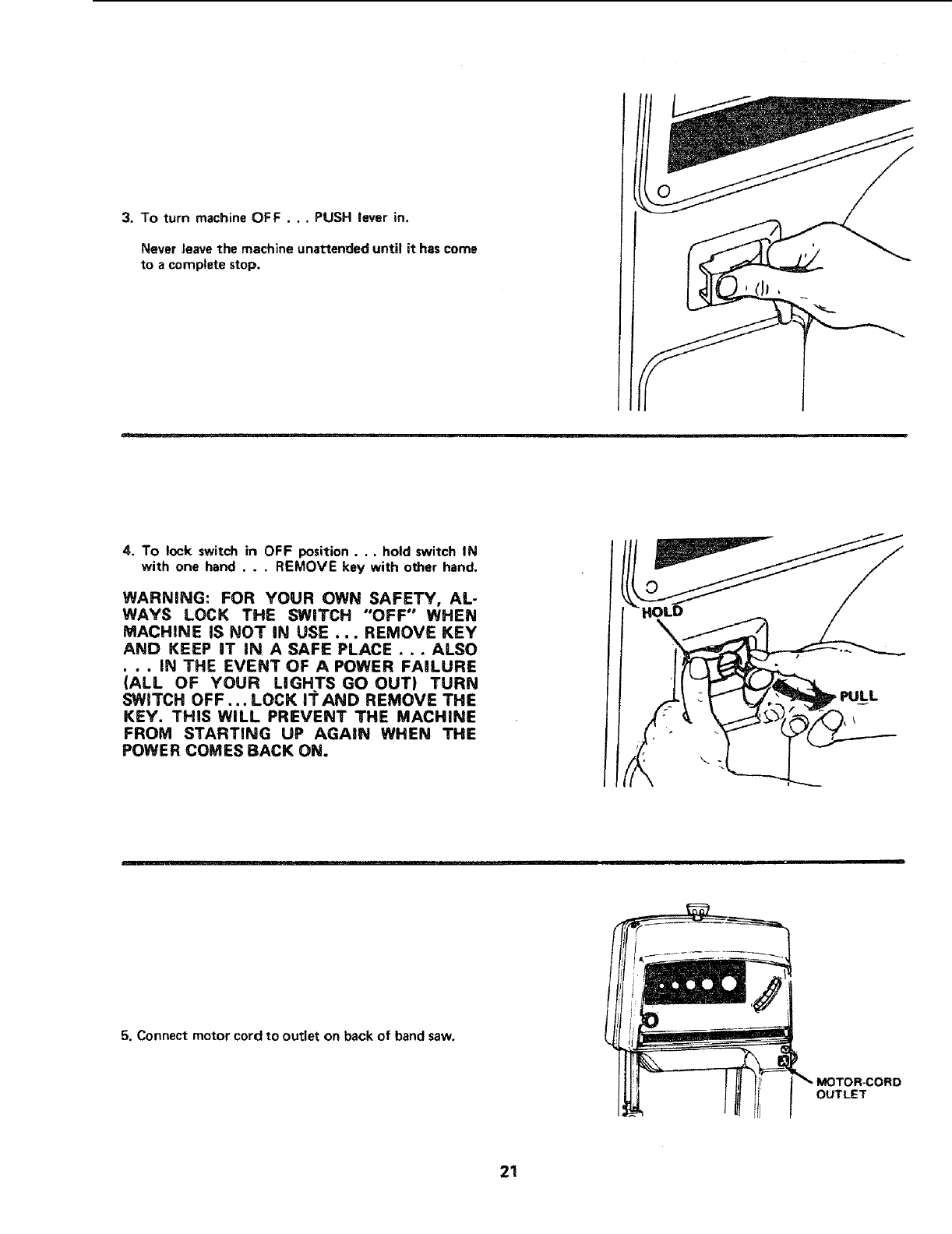

3. To turn machine OFF . .. PUSH lever in.
Never leave the machine unattended until it has come
to a complete stop.
4. To lock switch in OFF position . .. hold switch IN
with one hand . .. REMOVE key with other hand.
WARNING: FOR YOUR OWN SAFETY, AL-
WAYS LOCK THE SWITCH "OFF" WHEN
MACHINE iS NOT IN USE ... REMOVE KEY
AND KEEP IT IN A SAFE PLACE . . .ALSO
• . . IN THE EVENT OF A POWER FAILURE
(ALL OF YOUR LIGHTS GO OUT) TURN
SWITCH OFF... LOCK II"AND REMOVE THE
KEY. THIS WiLL PREVENT THE MACHINE
FROM STARTING UP AGAIN WHEN THE
POWER COMES BACK ON.
5. Connect motor cord to outlet on back of band saw.
)RD
OUTLET
21
getting to know your band saw/sander
COVER RETAiNiNG KNOB
(4-Used)
ON-OFF SWITCH "_
2
/---TENSION ADJUSTING KNOB-_
1
FRONT
ADJUSTMENT
DIAGRAMS
8
GUIDE BAR LOCK KNOB
3
BLADE TENSION
SCALE
BLADE GUARD
MOTOR CORD
OUTLET
! 9 GUIDE BAR
7THRUST
BEARING
ADJ. KNOB
(Lower Knob
Not Shown)
TILT LOCK
HANDLE
SAW PULLEY
BLADE GUIDE
ADJ. KNOB
(Lower Knob Not Shown)
BA CK
1. ADJUSTMENT DIAGRAMS . . . Helo you to become
familiar with the adjustments.
2. TENSION ADJUSTMENT KNOB ...Tightening the
knob will increase the tension on the blade. Loosening
it will decrease the tension.
3. TENSION SCALES... The fractional markings indicate
the correct blade tension for various widths of blades.
For example, when installing a 1/4" wide blade, tighten
the tension knob until the pointer is pointing to the 1/4
marking.
4. TABLE TILTING . .. Loosen the table lock handle, tilt
the table to the desired angle and tighten the lock handle.
To return the table to the 90 ° position, tilt it until the
90°stop screw rests on the frame, then tighten the lock
handle.
5=
6.
7,
8°
BLADE GUIDE ADJUSTMENT . .. Turning the knob
moves the guides in ol out for various widths of blades.
LATERAL BLADE GUIDE ADJUSTMENT . . . The
guides can be adjusted sideways and locked in position
by the setscrews.
BLADE THRUST BEARING ADJUSTMENT... Turn*
ing the knob moves the thrust bearings in or out for
various widths of blades.
GUIDE BAR LOCK KNOB. -.The upper blade guides
should not be more than 1/4" above your workpiece
while cutting. Always adjust the guides before turning on
the band saw and lock the guide bar by tightening the
knob.
22
9. GUIDE BAR
When the upper guides are raised or lowered, they must
not deflect the blade sideways. This means that the guide
bar must be parallel to the blade, or square with the
table.
1. Remove the blade guard, cover, blade, and the upper
guide assembly.
2. Lower the guide bar until the end is approximately
1-3/4" from the table.
3. Hold a square on the table against the guide bar.
4. If the bar is not square with the table, loosen the four
screws in the guide bar support. Use the 3/16" set-
screw wrench. To reach the lower left screw, it will
be necessary to tilt the upper wheel outward.
NOTE: The holes in the guide bar support are larger
than the screws. This allows the support to be moved.
5. Move the guide bar until it is square with the table,
then tighten the screws.
/_"_"_--__ SCREW
_IIlIIA\ L//_Y/ / WRENCH
iNSTALLING SANDING ATTACHMENT
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND ALWAYS REMOVE PLUG FROM POWER
SOURCE OUTLET BEFORE INSTALLING SANDING
ATTACHMENT.
1. Remove the blade guard, the table insert, and the table
alignment screw.
2. Remove the cover, release the blade tension and remove
the blade.
3. Remove the upper blade guide assembly. Use a 3/8"
wrench to remove the screw.
4. Loosen the setscrew that locks the lower thrust bearing,
and move the bearing as far back as it will go.
5. Loosen the two setscrews that lock the lower blade
guides, Spread them apart so that the end of each guide
is inside the holder.
HEX. HD. SCREW
ASSEMBLY
23
getting to know your band saw/sander
6. Attach the sanding platen to the guide bar with the
same screw that held the upper blade guide assembly.
Do not tighten the screw at this time.
On the smooth side of the sanding belt, you will find a
"directional arrow". The belt n_ust run in the direction
of this arrow so that the splice does not come apart.
7. Place the belt on the wheels and tighten the tension
knob until the pointer points to SAND. Rotate the
upper wheel by hand a few times to make sure that the
belt is tracking properly and is not rubbing the guides.
8. Loosen the guide bar lock knob and lower the end of
the sanding platen below the table.
PLATEN
9. Locate among the loose parts, the insert with the wide
slot, the alignment plate, a flat head machine screw
6-32 x 7/16", a small hex nut and Iockwasher.
-'k
SANDING
CENTER OF S PLATEN
TABLE IN
10. Attach the alignment plate to the insert so that the end
of the alignment plate is in the center of the slot in the
insert, Place the insert in the opening in the table.
LOCKWASH ER ALIGNMENT
\,/_ PLAT E
11. Hold asquare on the table against the sanding belt and
platen.
12. Tighten the hex. head screw which holds the platen to
the guide bar.
13. Replace the cover.
WARNING: FOR YOUR OWN SAFETY. DO NOT SAND
IRON OR STEEL BECAUSE THE SPARKS COULD IG-
NITE THE SAWDUST INSIDE YOUR BAND SAW.
-,_----SANDING BELT
AND PLATEN
)MBINATION SQUARE
24
basic band sac/sander operation
BASIC BAND SAW/SANDER OPERATION
A band saw is basically a "curve cutting" machine. It differs
from a saw in two respects. It is capable of cutting thicker
material and it cuts faster. Unlike a saw, it is not capable
of doing inside cutting.
Your Craftsman Band Saw/Sander is not only capable of
the usual band saw operations, but it can be converted into
a sander as well. You can finish wood, certain compositions
and plastics and non-ferrous metals.
SAWING
1. Adjust the upper guides not more than 1/4" above your
workpiece.
2. Use both hands while feeding the work into the blade.
Hold the workpiece firmly against the table. Use gentle
pressure, and do not force the work, but allow the blade
to cut.
3. The smallest diameter that can be cut out is determined
by the width of the blade. For example, a 1/4" wide
blade will cut a minimum diameter of approximately
1-I/2".
SANDING
The sanding belt cuts very rapidly. Practice with some
scraps of wood first before you attempt to sand your
actual workpiece.
1. Press the workpiece gently against the sanding belt,
and keep moving it until the edge is smooth.
25

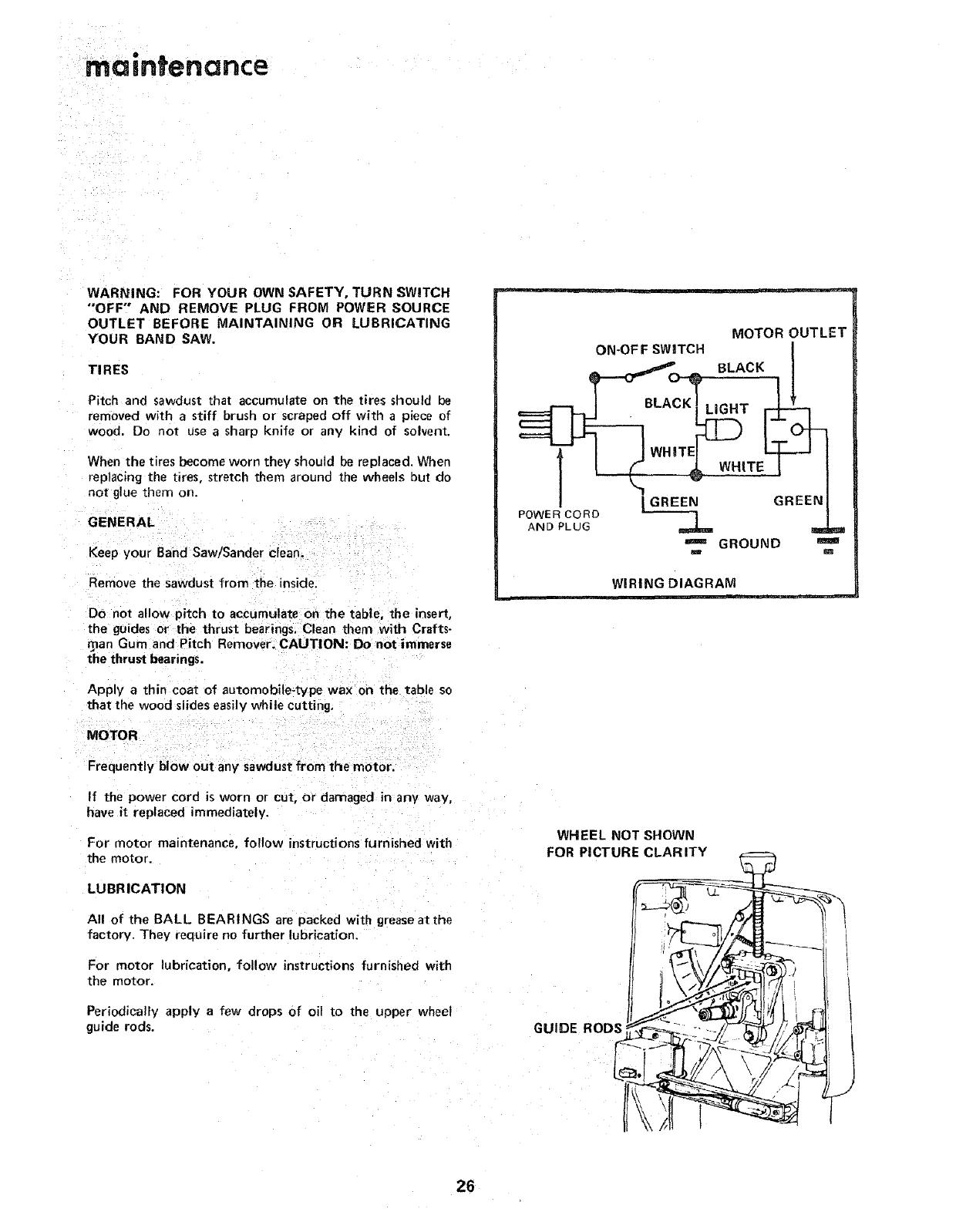

maintenance
WARNING: FOR YOUR OWN SAFETY, TURN :SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE MAINTAINING OR LUBRICATING
YOUR BAND SAW.
TIRES
Pitch and sawdust that accumulate on the tires should be
removed with astiff brush or scraped off with a piece of
wood. De not use a sharp knife or any kind of solvent.
When the tires become worn they should be replaced. When
replacing the tires, stretch them around the wheels but do
not glue them on.
GENERAL
Keep your Band Saw/Sander clean.
Remove the sawdust from the inside,
Do not allow pitch to accumulate on the table, the insert,
the guides or the thrust bearings, Clean them with Crafts-
Tan Gum and Pitch Remover. CAUTION: Do not immerse
the thrust bearings.
Apply a thin coat of automobile-type wax on the table so
that the wood slides easily while cutting,
MOTOR
Frequently blow out any sawdust from the motor.
If the power cord is worn or cut, or damaged in any way,
have it replaced immediately.
For motor maintenance, follow instructions furnished with
the motor.
LUBRICATION
All of the BALL BEARINGS are packed with grease at the
factory. They require no further lubrication.
For motor lubrication, follow instructions furnished with
the motor.
Periodically apply a few drops Of oil to the upper wheel
guide rods.
MOTOR OUTLET
ON-OF F SWITCH [
I
[ |GREEN GREEN]
GROUND
m m
WIRING DIAGRAM
WHEEL NOT SHOWN
FOR PICTURE CLARITY
GUIDE RODS
26
trouble shooting
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE TROUBLE SHOOTING YOUR BAND
SAW/SANDER,
TROUBLE
Motor will not run.
PROBABLE CAUSE
1.
2.
Defective On-Off switch.
Defective switch cord.
Defective switch box receptacle,
Motor protector open,
(only if your motor is
equipped with an
overload protector).
Other cause.
REMEDY
1. Replace defective parts before using
Band Saw/Sander again.
2. Consult Sears Service. Any attempt to repair
this motor may create a HAZARD unless
repair is done by a qualified service technician,
Repair service is available at your nearest Sears
Store.
Blade does not run in the 1. Not tracking properly. 1. Adjust tracking, see Assembly Section,
approximate center of the "Installing the Blade."
upper wheel.
Blade does not,run in the 1. Lower wheel not positioned 1, Reposition the wheel, see Assembly
approximate center of the correctly on shaft. Section, "Installing the Blade."
lower wheel,
Band Saw slows down when
cutting,
Blades breaking.
1. Belt too loose.
2. Motor pivots in motor base.
3. Cutting too small a radius.
4. Dull blade.
1. Too much tension,
2. Kink in blade caused by cutting
too small a radius or turning the
material too fast when cutting.
1, Adjust belt tension, see Assembly Section,
"Attaching Belt Guards.'"
2. Tighten motor base clamp screws. See
Assembly Section, "Motor Installation".
3. Stop feeding, and back up the material
slightly, until the band saw speeds up.
4. Replace blade.
1. Adjust tension. See Getting To Know
Your Band Saw/Sander, "3 Tension
Scales."
2. Use correct cutting technique. See Basic
Band Saw/Sander Operation Section.
RECOMMENDED ACCESSORIES
item Cat. No.
Floor Base .................... 9-22213
Miter Gauge ................... 9-29929
Hold-Down Clamp For Miter Gauge .... 9-29928
Stop-Rods For Miter Gauge ......... 9-29924
Rip Fence ..................... 9-23432
Blades and Sanding Belts ........... See Catalog
The above recommended accessories are current and were
available at the time this manual was printed.
27
oo
CRAFTSMAN 12-INCH BAND SAW/SANDER, MODEL 113.24201 8
ia
2
4
14
\'
SEE FIGURE 2
FOR
EXPLODED
VIEW
10
3fi
40
\39
38
t_
cD
CRAFTSMAN 12-INCH BAND SAW/SANDER, MODEL 113.24201
All parts illustrated in Figures 1 and 2 and listed under part numbers may be ordered through any Sears Retail Store or Catalog
Order House. Order parts by mail from the Catalog Order House that serves the territory in which you live. In several instances,
part numbers are listed for COMPLETE ASSEMBLIES. All parts are shipped prepaid within the limits of the Continental
United States.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION AS SHOWN ON THE LIST:
1. THE PART NUMBER
2. THE PART NAME 3. THE MODEL NUMBER 113.24201
4. THE NAME OF ITEM - 12-INCH BAND SAW/SANDER
Always order by Part Number -not by Key Number
KEY PART I DESCRIPTION
NO. NO.
1 69069
2 41815
3 38524
4 37158
5 41711
6 STD315228
7 69028
8 41812
9 60256
10 60251
11 38884
12 STD601105
13 30789
!4 STD503105
15 38450
16 60265
17 6O252
18 STD304430
18 STD304520
19 30646
20 60254
21 60253
22 425338
23 69052
24 STD541031
Cover, Frame with Trim
Tire
Screw, Self-Locking
Ring, Retaining 5/8
Washer, Spring
Bearing, Ball
Wheel, Upper Drive
Ring Internal Retaining 1-3/8
Key, Switch
Bearing, Ball
Ring, Internal Retaining 1-11/16
*Screw Type 23, 10-32 x 1/2, Pan Hd.
Key, Square 3/16 x 1-1/4
*Screw, Set, 5/16-18 x 1/2, Soc. Hd.,
Cup Pt.
tPutley, 1/2 V Groove, 5" x 5/8
Bore, Keyed with Set Screw
Clip, "S"
Guard, Belt
otBett, V Type, 1/2 x 43
fBelt "V" Type, 1/2 x 52
tPutley, 1/2 V Groove, 2-1/2" x 5/8
Bore, Keyed with Set Screw
Bracket, Support
Support, Belt Guard
*Screw, 5116-18 x I, Sems, Hex, Hd.
Foot, Right
*Nut, Square, 5/16-18
*Standard Hardware Item -May Be Purchased Locally.
FIGURE 1 PARTS LIST
KEY PART
NO. NO.
25 69053
26 STD522503
27 69023
28 65013
29 69004
30 STD601103
31 69078
32 69059
33 69058
34 69025
35 69006
36 69060
37 60272
38 37887
39 60096
40 37911
41 69062
42 133427
43 69063
44 69005
45 STD551t06
46 STD54t006
47 69037
69079
69081
69083
DESCRIPTION
Foot, Left
*Screw Mach., 1/4-20 x 3/8, Truss
Hd., Slotted.
Spacer, Bearing
Elbow
Clamp, Tube
*Screw, Mach., 10-32 x 3/8, Pan Hd.
Gasket, Foam
Wheel, Lower Drive
Shaft, Lower Wheel
Lens
Knob Assembly I"
Stud, Cover
tBlade, Band Saw, 1/4 xB0
tWrench, Hex., "L", 1/8
1Wrench, Hex., "L", 5/32
tWrenchr Hex., "L", 3/16
Platen, Sanding
*Screw, Mach., 6-32 x 7/16, Flat Hd.
Insert, Table (Sanding)
Plate, Sanding Alignment
*Lockwasher, No. 6
*Nut, Hex., 6-32
tBelt, Sanding, 1/2 x 80
Owner's Manual (Not Illustrated)
Bag Asm. Loose Parts (Not Illustrated)
Bag Asm. Loose Parts (Not tlt6strated)
tStock Item - May be secured through the Hardware Department of most Sears or Simpsons-Sears Retail Stores or Catalog Order Houses.
NOTE: Shipping and handling charges for standard hardware items (identified by *) such as nuts, screws, washers, etc., make buying
these items by mail uneconomical. To avoid shipping and handling charges, you may obtain most of these locally.
•Supplied In Canada Only.
CRAFTSMAN 12-tNCH BAND SAW/SANDER. MODEL 113.24201
B
"0
Q
a_
Q
21
8
I
20 19 14
FIGURE 2
CRAFTSMAN 12-INCH BAND SAW/SANDER, MODEL 113.24201
PART
NO.
69017
STD551050
STD5510t2
69073
9423400
69031
69033
STD502502
69042
69046
69047
69O48
69049
69021
STD 541037
69077
69072
STD551037
STD600802
38724
69070
453068
69029
38876
69068
41426
69022
69019
69018
273229
69016
STD600602
69066
STD533725
69057
38794
69074
STD571203
69065
69024
60190
DESCRIPTION
FIGURE 2 PARTS LIST
Pin, Pointer Pivot
Washer, Plain, 1/2 x 1-1/4 × 1/8,
Washer, Plain, 17/64 x 1/2 x 1/16
Scale, Tension
"Screw, Type 23, 1/4-20 x 3/8 Pan Hd.
Knob Assy., Tension Adjustment
Knob Assy., 1-1/2"
*Screw, Set, J/4-20 x t/4 Soe. Hd., FL Pt.
Sleeve, Thrust Bearing
Screw, Thrust Adjustment
Washer, 1/4 x !-13/32 x 1/t0
Knob, Lower Guide
Screw, Guide Adjustment
Pin, Trunnion
Nut, Hex. 3/8-16
Spacer
Wrench
Washer, Plain, 3/8 x1-!/8 x 7/64
"Screw, Type 23, 8-32 x 1/4, Pan Hd.
Pointer, Tilt
Frame Ass,/., W/Trim (Incl, Key Nos. 14 & 40)
*screw, 5/16-18 x3/4, Scms. Hex. Hd.
Bumper, Upper Wheel
Pin Roll 1/4 x 3/4
Guide Assy., Fulcrum (includes Kmi No. 241
Bracket, Upper '¢2,1eel Support
Rod, Upper Wheel Guide
Spring, Wheel Tension
Spring, Pointer
Screw. Tapping, 1/4-20 x 1/2, Hex Washer Hd.
Pointer
*screw, Type 23, 6-32 x 1/4, Pan Hd.
Scale Tilt
Bolt, Carriage, 3/8-16 x 2-1/2
Trunnion
Screw, Knurled
Table
Pin, Rol! 1/8 x 5/16
Insert Table
Pin, Lower Guide Support
Screw, Self-Locking, 5/16-18 x 3/8
*Standard Hardware Item - May Be Purchased Locally.
tStock Item .- May t_ secured through the Hardware Department of most
Order Houses.
oSupplied in Canada only.
KEY
NO.
42
43
44
45
46
47
48
49
5O
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
69
70
71
72
73
74
75
76
77
78
79
80
PART
NO.
69039
69045
STD551031
38825
STD502505
STD522505
STD315505
69038
STD522507
STD551t25
69041
STD601103
69044
69043
69035
216278
69036
69034
69012
37393
STD551225
STD522512
STD372252
69014
STD551208
STD510802
69066
STD600803
69009
60287
447845
69010
60257
69082
69027
71046
69026
37875
DESCRIPTION
Guide, 8tade
Guide, Lower Blade
Washer, Plain, 5/16 × 9/16x !/t6
Ring, Retaining, 5/16
Screw, S_t, 1/4-20 x 3/4, Soc_ Hd,, Ft Pt.
_Screw, Mach. 1/420 x t/2, Pan Hd,
Bearing, BaH
Guide, Upper Blade
"Screw, Mach., !/4-20 x 7/8, Hex. Hal.
* Lockwasher, 1/4
Support, Upper Blade
*Screw, Type 23, 1032 x 5/16, Pan Hd.
Guard
Knob Upper Guide
Bar, Guide
*Screw, Cap, 1/4.20 x t/2, Socket, Hd.
Support, Guide Ba;
Spring, Guide Bar
Spacer
Nut, Speed
*Lockwasher, External Tooth 1/4
*Screw, Mach., t/420 x 1-1/4, Pan Hd.
*Bulb, Light 115/125V, 26 Watt, DbL
contact, Bayonet Base, Appliance
Socket, Light
Lockwashe[ No. 8
S_:_ew Mach., Pan Hd. 8-32 x 1/4
• Guard, Wire
•Screw, Type 23, Pan Hd. No. 8-,32 x 3/8"
Relief, Strain
•Screw, Nylon. 6-32 x 3/8. Pan Hd.
•Screw, Type T, 1/4.20 x 1/2, Pan Hd.
Box Assy,, Switch
Switch, Lcyck mg
Gasket, Switch Box
Outlet Assembly
• Connector, Wire, t4-18
Cord Assembly
Reiief, Strain
Sears o! Simpsons Sears Retail Stores or Catalog
Sears
owners
manual
MODEL NO.
113.24201
SER VICE
is at
YOUR
SERVICE
wherever YOU
live or move
in the U.S.A.
How to ORDER Repair Parts
The Model Number will be found on a plate attached to your
saw, at the left-hand side of the base. Always mention the
Model Number when requesting service or repair parts for your
CRAFTSMAN 124NCH BAND SAW/SANDER.
All parts listed herein may be ordered through SEARS,
ROEBUCK AND CO. or StMPSONS-SEARS LIMITED. When
ordering parts by mail, selling prices will be furnished on re-
quest or parts will be shipped at prevailing prices and you will
be billed accordingly.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION AS SHOWN IN THIS LmST.
1. The PART NUMBER
3. The MODEL NUMBER
113,24201
2. The PART DESCRIPTION
4. The NAME OF ITEM --
CRAFTSMAN 12-INCH
BAND SAW/SANDER
Your Sears merchandise takes on added value when you dis-
cover that Sears has over 2,000 Service Units throughout the
country. Each is staffed by Sears-trained, professional tech-
nicians using Sears approved parts and methods.
SEARS, ROEBUCK AND CO., Chicago, IL 60684 U.S.A. and SIMPSONS-SEARS LIMITED, Toronto
Part No. 69079 Form No. SP4016 1 Printed i_ U.S.A.!l/73
