Craftsman 11329580 User Manual 10 INCH MOTORIZED SAW Manuals And Guides L0904331
CRAFTSMAN Saw Table Manual L0904331 CRAFTSMAN Saw Table Owner's Manual, CRAFTSMAN Saw Table installation guides
User Manual: Craftsman 11329580 11329580 CRAFTSMAN CRAFTSMAN 10 INCH MOTORIZED SAW - Manuals and Guides View the owners manual for your CRAFTSMAN CRAFTSMAN 10 INCH MOTORIZED SAW #11329580. Home:Tool Parts:Craftsman Parts:Craftsman CRAFTSMAN 10 INCH MOTORIZED SAW Manual
Open the PDF directly: View PDF
.
Page Count: 40
]Sears]
owners
manual
MODEL NO.
113.29580
SAW ONLY
113.295820
SAW WITH LEGS AND
TWO TABLE EXTENSIONS
Serial
Number
Model and serial
number may be found
at the right-hand side
of the base.
You should record both
model and serial number
in a safe place for
future use.
CAUTION:
Read GENERAL
and ADDITIONAL
SAFETY
INSTRUCTIONS
carefully
CRAFTSMAN°
IO-INCH MOTORIZED
TABLE SAW
•assembly
•operating
•repair parts
Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.
Part No, 62657 Printedin U.S.A.
FULLONEYEARWARRANTYONCRAFTSMANTABLESAWS
If within one year from the date of purchase, this Craftsman Table Saw fails due to a defect in material or
workmanship, Sears will repair it, free of charge.
Warranty service is available by simply contacting the nearest Sears store or Service Center throughout the
United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state. SEARS, ROEBUCK AND CO.
BSC 41-3
SEARS TOWER
CHICAGO, IL 60684
-e • _ B r
general safety =nstruct=ons to power tools
1. KNOW YOUR POWER TOOL • 13. SECURE WORK
Read the owner's manual carefullY. Learn its Use clamps or a vise to hold work when practical. It's
application and limitations as well: as the specific safer than using your hand, frees both hands to operate
potential hazards peculiar to this tool. tool.
2. GROUND ALL TOOLS
This tool is equipped with an approved 3-conductor
cord and a 3-prong grounding type plug to fit the
proper grounding type receptacle. The green conductor
nthe cord is the grounding wire. Never connect the
green w=re to a live terminal.
3. KEEP GUARDS IN PLACE
n working order, and nproper adjustment and
alignment.
4. REMOVE ADJUSTING KEYS
AND WRENCHES
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
5. KEEP WORK AREA CLEAN
Cluttered areas and benches invite accidents. Floor
must not be slippery due to wax or sawdust.
6. AVOID DANGEROUS ENVIRONMENT
Don't use power tools in damp or wet locations or
14. DON'T OVERREACH
Keep proper footing and balance at all times.
15. MAINTAIN TOOLS WITH CARE
Keep tools sharp and clean for best and safest
performance. Follow instructions for lubricating and
changing accessories.
16. DISCONNECT TOOLS
before servicing; when changing accessories such as
blades, bits, cutters, etc.
17. AVOID ACCIDENTAL STARTING
Make sure switch is in "OFF" position before plugging
In.
18. USE RECOMMENDED ACCESSORIES
Consult the owner's manual for recommended
accessories. Follow the instructions that accompany
the accessories. The use of improper accessories may
cause hazards.
expose them to rain. Keep work area well lighted.
Provide adequate surrounding work space. 19. NEVER STAND ON TOOL
7. KEEP CHILDREN AWAY Serious injury could occur if the tool is tipped or if the
All visitors should be. kept a safe distance from work cutting tool is accidentally contacted.
area. Do not store materials above or near the tool such that
8. MAKE WORKSHOP KID-PROOF it is necessary to stand on the tool to reach them.
-- with padlocks, master switches, or by removing
starter keys.
9. DON'T FORCE TOOL
tt will do the job better and safer at the rate for which
it was designed.
10. USE RIGHT TOOL
Don't force tool or attachment to do a job it was not
designed for.
11, WEAR PROPER APPAREL
Do not wear loose clothing, gloves, neckties or jewelry
(rings, wrist watches) to get caught in moving parts.
Nonslip footwear is recommended. Wear protective 21.
hair covering to contain long hair. Roll long sleeves
above the elbow.
12. USE SAFETY GOGGLES (Head Protection)
Wear Safety goggles (must comply with ANS Z87.1) at
all times. Also, use face or dust mask if cutting
operation is dusty, and ear protectors (plugs or muffs)
during extended periods of operation.
20. CHECK DAMAGED PARTS
Before further use of the tool, a guard or other part that
is damaged should be carefully checked to ensure that t
wiJI operate properly and perform its intended function.
Check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other
conditions that may .affect its operation. A guard or
other part that is damaged should be properly repaired
or replaced.
DIRECTION OF FEED
Feed work into a blade or cutter against the direction
of rotation of the blade or cutter only.
22. NEVER LEAVE TOOL RUNNING
UNATTENDED
Turn power off. Don't leave tool until it comes to a
complete stop.

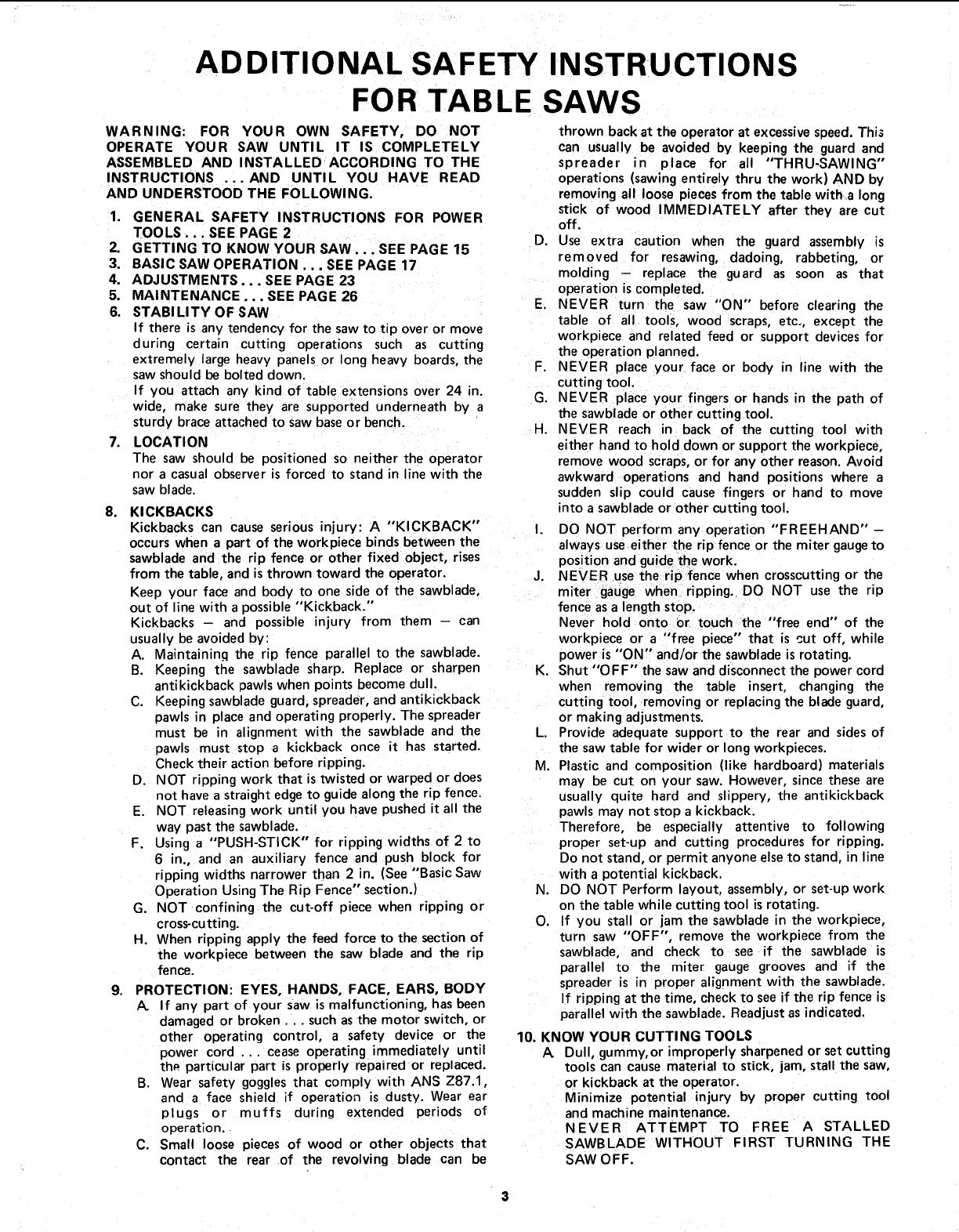

ADDITIONAL SAFETY INSTRUCTIONS
FOR TABLE SAWS
WARNING: FOR YOUR OWN SAFETY, DO NOT
OPERATE YOUR SAW UNTIL IT IS COMPLETELY
ASSEMBLED AND INSTALLED ACCORDING TO THE
INSTRUCTIONS ...AND UNTIL YOU HAVE READ
AND UNDERSTOOD THE FOLLOWING.
1. GENERAL SAFETY INSTRUCTIONS FOR POWER
TOOLS ... SEE PAGE 2
2, GETTING TO KNOW YOUR SAW... SEE PAGE 15
3. BASIC SAW OPERATION... SEE PAGE 17
4. ADJUSTMENTS... SEE PAGE 23
5, MAINTENANCE ,.. SEE PAGE 26
6. STABILITY OF SAW
If there is any tendency for the saw to tip over or move
during certain cutting operations such as cutting
extremely large heavy panels or long heavy boards, the
saw should be bolted down.
If you attach any kind of table extensions over 24 in.
wide, make sure they are supported underneath by a
sturdy brace attached to saw base or bench.
7. LOCATION
The saw should be positioned so neither the operator
nor a casual observer is forced to stand in line with the
saw blade.
8. KICKBACKS
Kickbacks can cause serious injury: A "KICKBACK"
occurs when a part of the workpiece binds between the
sawblade and the rip fence or other fixed object, rises
from the table, and is thrown toward the operator.
Keep your face and body to one side of the sawblade,
out of line with a possible "Kickback."
Kickbacks - and possible injury from them -- can
usually be avoided by:
A. Maintaining the rip fence parallel to the sawblade.
B. Keeping the sawblade sharp. Replace or sharpen
antikickback pawls when points become dull.
C. Keeping sawblade guard, spreader, and antikickback
pawls in place and operating properly. The spreader
must be in alignment with the sawblade and the
pawls must stop a kickback once it has started.
Check their action before ripping.
D. NOT ripping work that is twisted or warped or does
not have a straight edge to guide along the rip fence.
E. NOT releasing work until you have pushed it all the
way past the sawblade.
F. Using a "PUSH-STICK" for ripping widths of 2 to
6 in., and an auxiliary fence and push block for
ripping widths narrower than 2 in. (See "Basic Saw
Operation UsingThe Rip Fence" section.)
G. NOT confining the cut-off piece when ripping or
cross-cutting.
H. When ripping apply the feed force to the section of
the workpiece between the saw blade and the rip
fence.
g. PROTECTION: EYES, HANDS, FACE, EARS, BODY
A. If any part of your saw is malfunctioning, has been
damaged or broken.., such as the motor switch, or
other ol3erating control, a safety device or the
power cord ... cease operating immediately until
thp. particular part is properly repaired or replaced.
B. Wear safety goggles that comply with ANS Z87.1,
and a face shield if operation is dusty. Wear ear
plugs or muffs during extended periods of
operation.
C. Small loose pieces of wood or other objects that
contact the rear of the revolving blade can be
thrown back at the operator at excessive speed. This
can usually be avoided by keeping the guard and
spreader in place for all "THRU-SAWING"
operations (sawing entirely thru the work) AND by
removing all loose pieces from the table with a long
stick of wood IMMEDIATELY after they are cut
off.
D. Use extra caution when the guard assembly is
removed for resawing, dadoing, rabbeting, or
molding - replace the guard as soon as that
operation is completed.
E. NEVER turn the saw "ON" before clearing the
table of all tools, wood scraps, etc,, except the
workpiece and related feed or support devices for
the operation planned.
F. NEVER place your face or body in line with the
cutting tool.
G. NEVER place your fingers or hands in the path of
the sawblade or other cutting tool.
H. NEVER reach in back of the cutting tool with
either hand to hold down or support the workpiece,
remove wood scraps, or for any other reason. Avoid
awkward operations and hand positions where a
sudden slip could cause fingers or hand to move
into a sawblade or other cutting tool.
I. DO NOT perform any operation "FREEHAND" -
always use either the rip fence or the miter gaugeto
position and guide the work.
J. NEVER use the rip fence when crosscutting or the
miter gauge when ripping. DO NOT use the rip
fence asa length stop.
Never hold onto or touch the "free end" of the
workpiece or a"free piece" that is cut off, while
power is "ON" and/or the sawblade is rotating.
K. Shut "OFF" the saw and disconnect the power cord
when removing the table insert, changing the
cutting tool, removing or replacing the blade guard,
or making adjustments.
L. Provide adequate support to the rear and sides of
the saw table for wider or long workpieces.
M. Plastic and composition (like hardboard) materials
may be cut on your saw. However, since these are
usual y quite hard and slippery, the antikickback
pawls may not stop a kickback.
Therefore, be especially attentive to following
proper set-up and cutting procedures for ripping.
Do not stand, or permit anyone else to stand, in line
with a potential kickback.
N. DO NOT Perform layout, assembly, or set-up work
on the table while cutting tool isrotating.
O. If you stall or jam the sawblade in the workpiece,
turn saw "OFF", remove the workpiece from the
sawblade, and check to see if the sawblade is
parallel to the miter gauge grooves and if the
spreader is in proper alignment with the sawblade.
If ripping at the time, check to see if the rip fence is
parallel with the sawblade. Readjust as indicated.
10. KNOW YOUR CUTTING TOOLS
ADull, gummy, or improperly sharpened or set cutting
tools can cause material to stick, jam, stall the saw,
or kickback at the operator.
Minimize potential injury by proper cutting tool
and machine maintenance.
NEVER ATTEMPT TO FREE A STALLED
SAWBLADE WITHOUT FIRST TURNING THE
SAW OFF.
3

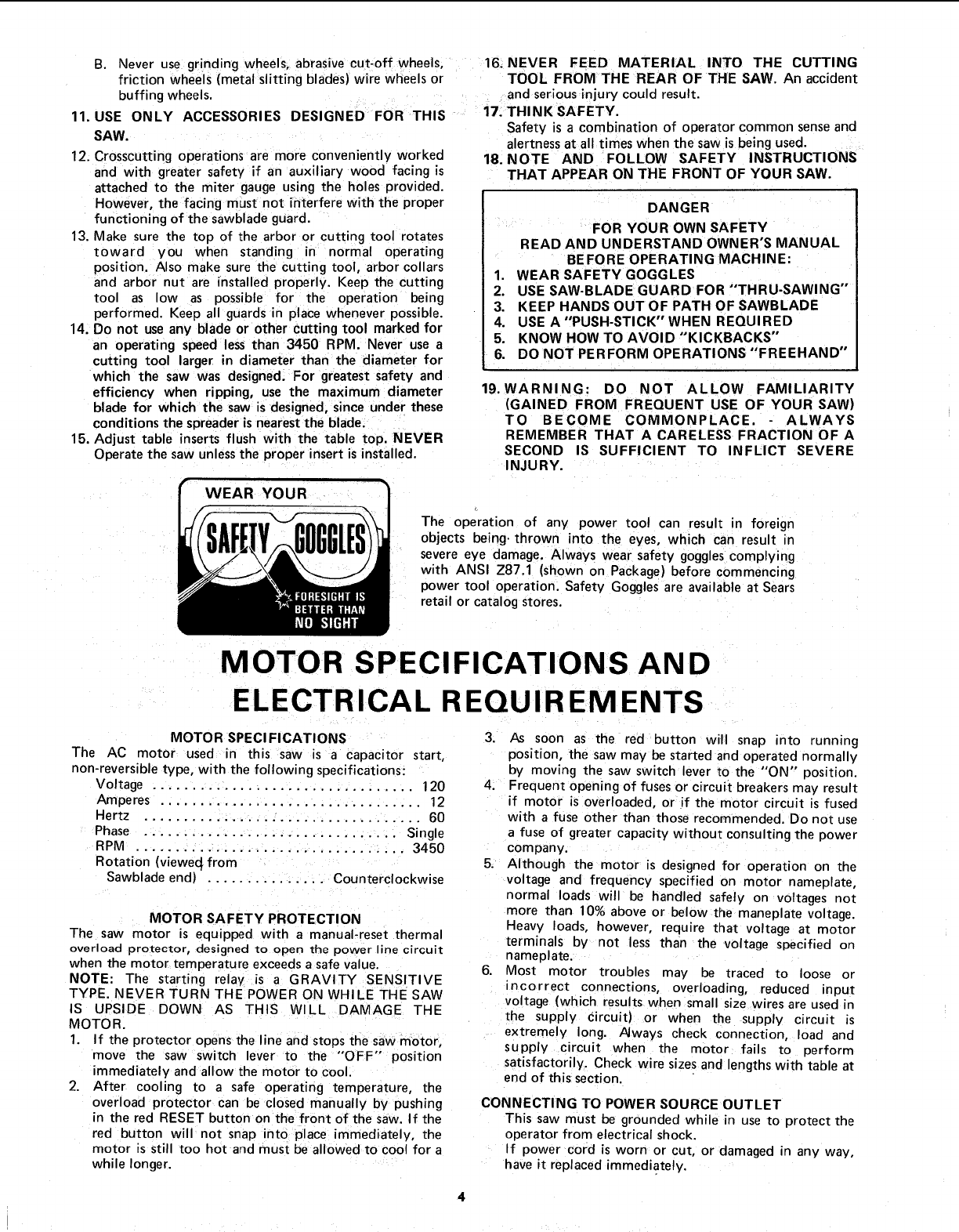

B. Never use grinding wheels, abrasive cut-off wheels,
friction wheels (metal slitting blades) wire wheels or
buffing wheels.
11. USE ONLY ACCESSORIES DESIGNED FOR THIS
SAW.
12. Crosscutting operations are more conveniently worked
and with greater safety if an auxiliary wood facing is
attached to the miter gauge using the holes provided.
However, the facing must not interfere with the proper
functioning of the sawblade guard.
13. Make sure the top of the arbor or cutting tool rotates
toward you when standing in normal operating
position. Also make sure the cutting tool, arbor collars
and arbor nut are installed properly. Keep the cutting
tool as low as possible for the operation being
performed. Keep all guards in place whenever possible.
14. Do not use any blade or other Cutting tool marked for
an operating speed less than 3450 RPM. Never use a
cutting tool larger in diameter than the diameter for
which the saw was designed. For greatest safety and
efficiency when ripping, use the maximum diameter
blade for which the saw is designed, since under these
conditions the spreader is nearest the blade.
15. Adjust table inserts flush with the table top. NEVER
Operate the saw unlessthe proper insert is installed.
WEAR YOUR
16. NEVER FEED MATERIAL INTO THE CUTTING
TOOL FROM THE REAR OF THE SAW. An accident
and serious injury could result.
17. THINK SAFETY.
Safety is a combination of operator common sense and
alertnessat all times when the saw is being used.
18. NOTE AND FOLLOW SAFETY INSTRUCTIONS
THAT APPEAR ON THE FRONT OF YOUR SAW.
DANGER
FOR YOUR OWN SAFETY
READ AND UNDERSTAND OWNER'S MANUAL
BEFORE OPERATING MACHINE:
1. WEAR SAFETY GOGGLES
2. USE SAW-BLADE GUARD FOR "THRU-SAWING"
3. KEEP HANDS OUT OF PATH OF SAWBLADE
4. USE A"PUSH-STICK" WHEN REQUIRED
5. KNOW HOW TO AVOID "KICKBACKS"
6. DO NOT PERFORM OPERATIONS "FREEHAND"
19. WARNING: DO NOT ALLOW FAMILIARITY
(GAINED FROM FREQUENT USE OF YOUR SAW)
TO BECOME COMMONPLACE. ALWAYS
REMEMBER THAT A CARELESS FRACTION OF A
SECOND IS SUFFICIENT TO INFLICT SEVERE
INJURY.
The operation of any power tool can result in foreign
objects being, thrown into the eyes, which can result 'n
severe eye damage. Always wear safety goggles complying
with ANSI Z87.1 (shown on Package) before commencing
power tool operation. Safety Goggles are available at Sears
retail or catalog stores.
MOTOR SPECIFICATIONS AND
ELECTRICAL REQUIREMENTS
MOTOR SPECI FICATIONS
The AC motor used in this saw is a capacitor start,
non-reversible type, with the following specifications:
Voltage ................................. 120
Amperes ................................. 12
Hertz ................................... 60
Phase ................................ Single
RPM .................................. 3450
Rotation (viewec_from
Sawblade end) ............... Counterclockwise
MOTOR SAFETY PROTECTION
The saw motor _s equipped with a manual-reset thermal
overload protector, designed to oDen the power line circuit
when the motor temperature exceeds a safe value.
NOTE: The starting relay is a GRAVITY SENSITIVE
TYPE. NEVER TURN THE POWER ON WHILE THE SAW
IS UPSIDE DOWN AS THIS WILL DAMAGE THE
MOTOR.
1. If the protector opens the line and stops the saw motor,
move the saw switch lever to the "OFF" position
immediately and allow the motor to cool.
2. After cooling to a safe operating temperature, the
overload protector can be closed manually by pushing
in the red RESET button on the front of the saw. If the
red button will not snap _nto place immediately, the
motor is still too hot and must be allowed to cool for a
while longer.
3. As soon as the red button will snap into running
position, the saw may be started and operated normally
by moving the saw switch lever to the "'ON" position.
4. Frequent opening of fuses or circu=t breakers may result
if motor is overloaded, or if the motor circuit is fused
with a fuse other than those recommended. Do not use
a fuse of greater capacity without consulting the power
company.
5. Althougn the motor is designed for operation on the
voltage and frequency specified on motor nameplate,
normal loads will be handled safely on voltages not
more than 10% above or below the maneplate voltage.
Heavy loads, however, require that voltage at motor
terminals by not less than the voltage specified on
nameplate.
6. Most motor troubles may be traced to loose or
incorrect connections, overloading, reduced input
voltage (which results when small size wires are used in
the supply Circuit) or when the supply circuit is
extremely long. /_ways check connection, load and
supply circuit when the motor fails to perform
satisfactorily. Check wire sizes and lengths with table at
end of this section.
CONNECTING TO POWER SOURCE OUTLET
This saw must be grounded whi e in use to protect the
operator from electrical shock.
If power cord is worn or cut, or damaged in any way,
have it replaced immediately.
If yoursawisfor useonlessthan150voltsit hasaplug
thatlookslikebelow.
3-PRONG PLUG
e
_ GROUNDING PRONG
PROPERLY GROUNDED
3-PRONG OUTLET
Plug power cord into 110-120V properly grounded type
outlet protected by a 15-amp. time delay or Circuit-Saver
fuse or circuit breaker.
IF YOU ARE NOT SURE THAT YOUR OUTLET IS
PROPERLY GROUNDED, HAVE IT CHECKED BY A
QUALIFIED ELECTRICIAN.
WARNING: DO NOT PERMIT FINGERS TO TOUCH
THE TERMINALS OF PLUG WHEN INSTALLING OR
REMOVING THE PLUG TO OR FROM THE OUTLET,
WARNING: IF NOT PROPERLY GROUNDED THIS
POWER TOOL CAN INCUR THE POTENTIAL HAZARD
OF ELECTRICAL SHOCK, PARTICULARLY WHEN
USED IN DAMP LOCATIONS; IN PROXIMITY TO
PLUMBING, OR OUT OF DOORS. IF AN ELECTRICAL
SHOCK OCCURS THERE IS THE POTENTIAL OF A
SECONDARY HAZARD SUCH AS YOUR HANDS
CONTACTING THE SAWBLADE.
This saw is equipped with a 3-conductor cord and
grounding type plug which has a grounding prong, approved
by Underwriters' Laboratories and the Canadian Standards
Association. The ground conductor has a green lug and is
attached to the tool housing at one end and to the ground
prong in the attachment plug at the other end.
This plug requires a mating 3-conductor grounded type
outlet as shown.
If the outlet you are planning to usefor this saw is of the
two prong type DO NOT REMOVE OR ALTER THE
GROUNDING PRONG IN ANY MANNER. Use an adapter
as shown and always connect the grounding lug to aknown
ground.
It is recommended that you have aqualified electrician
replace the TWO prong outlet with a properly grounded
THREE prong outlet.
An adapter asshown below is available for connecting plugs
to 2-prong receptacles. The green grounding lug extending
from the adapter must be connected to a permanent ground
such asto a properly grounded outlet box.
GROUNDING LUG
ADAPTER /_
MAKE SURE THIS IS
3-PRONG / .=-.---- CONNECTED TO A
PLUG KNOWNGROUND
RECEPTACLE
NOTE: The adapter illustrated is for use only i'f you already
have aproperly grounded 2-prong receptacle. Adapter is
not allowed in Canada by the Canadian Electrical Code.
The use of any extension cord will cause some loss of
power. To keep this to aminimum and to prevent
over-heating and motor burn-out, use the table below to
determine the minimum wire size (A.W.G.) extension cord.
Use only 3 wire extension cords which have 3 prong
grounding type plugs and 3-pole receptacles which will
accept the plug on the saw.
Extension Cord Length Wire Size A.W.G.
Upto 100 Ft ...................... 12
100 -200 Ft....................... 10
200 - 400 Ft ........................ 8

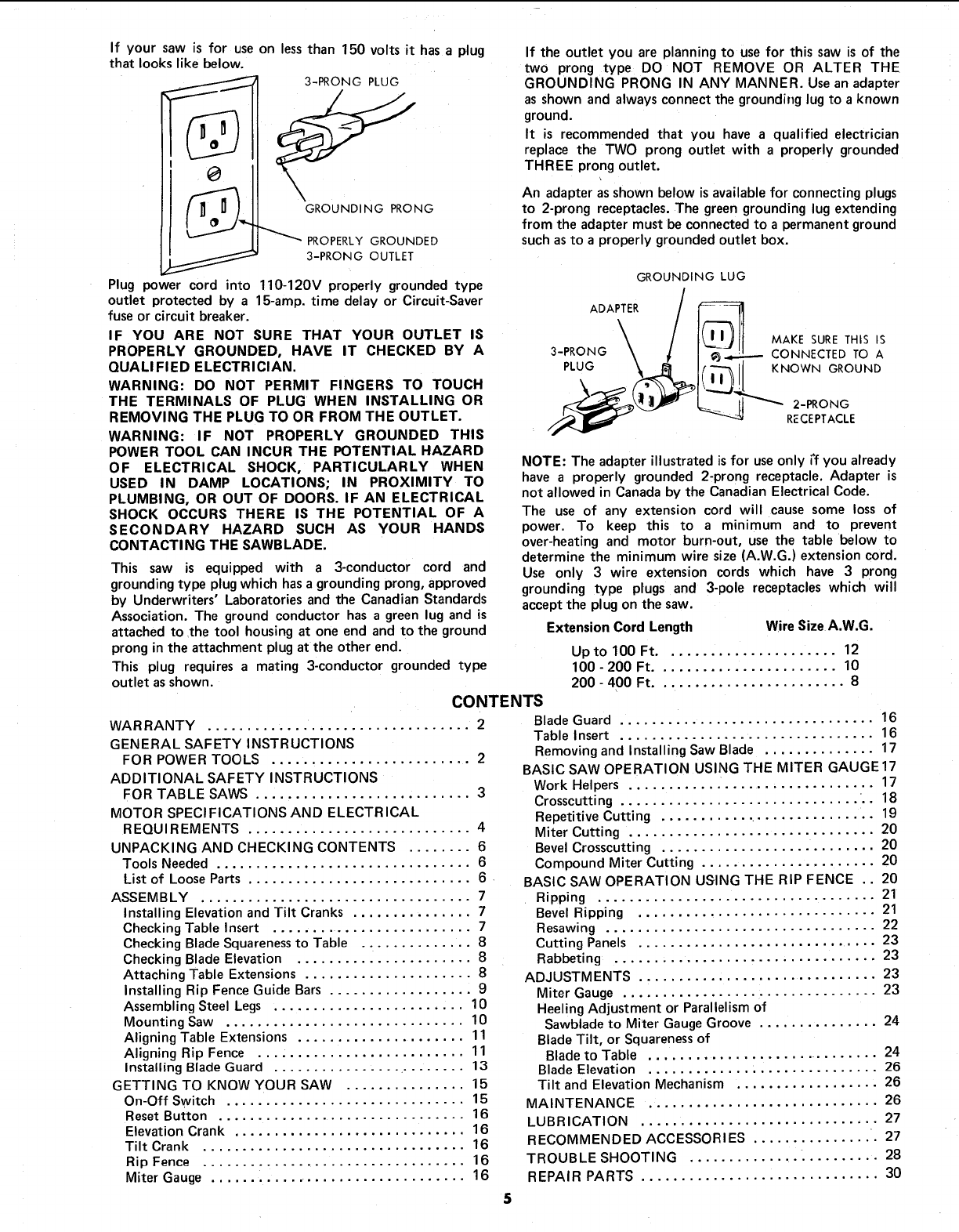

CONTENTS
WARRANTY ................................. 2
GENERAL SAFETY INSTRUCTIONS
FOR POWER TOOLS ......................... 2
ADDITIONAL SAFETY INSTRUCTIONS
FOR TABLE SAWS ........................... 3
MOTOR SPECIFICATIONS AND ELECTRICAL
REQUIREMENTS ............................ 4
UNPACKING AND CHECKING CONTENTS ........ 6
Tools Needed ................................ 6
List of Loose Parts ............................ 6
ASSEMBLY .................................. 7
Installing Elevation and Tilt Cranks ............... 7
Checking Table Insert ......................... 7
Checking Blade Squareness to Table .............. 8
Checking Blade Elevation ...................... 8
Attaching Table Extensions ..................... 8
Installing Rip Fence Guide Bars .................. 9
Assembling Steel Legs ........................ 10
Mounting Saw .............................. 10
Aligning Table Extensions ..................... 11
Aligning Rip Fence .......................... 11
Installing Blade Guard ........................ 13
GETTING TO KNOW YOUR SAW ............... 15
On-Off Switch .............................. 15
Reset Button ............................... 16
Elevation Crank ............................. 16
Tilt Crank ................................. 16
Rip Fence ................................. 16
Miter Gauge ............ .................... 16
Blade Guard ................................ 16
Table Insert ................................ 16
Removing and Installing Saw Blade .............. 17
BASIC SAW OPERATION USING THE MITER GAUGE 17
Work Helpers ............................... 17
Crosscutting ................................ 18
Repetitive Cutting ............................ 19
Miter Cutting ............................... 20
Bevel Crosscutting ........................... 20
Compound Miter Cutting ...................... 20
BASIC SAW OPERATION USING THE RIP FENCE .. 20
Ripping ................................... 21
Bevel Ripping .............................. 21
Resawing .................................. 22
Cutting Panels .............................. 23
Rabbeting ................................. 23
ADJUSTMENTS .............................. 23
Miter Gauge ................................ 23
Heeling Adjustment or Parallelism of
Sawblade to Miter Gauge Groove ............... 24
Blade Tilt, or Squareness of
Blade to Table .............................. 24
Blade Elevation ............................. 26
Tilt and Elevation Mechanism .................. 26
MAINTENANCE ............................. 26
LUBRICATION .............................. 27
RECOM MEN DED ACCESSOR IES ................ 27
TROUBLE SHOOTING ........................ 28
REPAIR PARTS .............................. 30

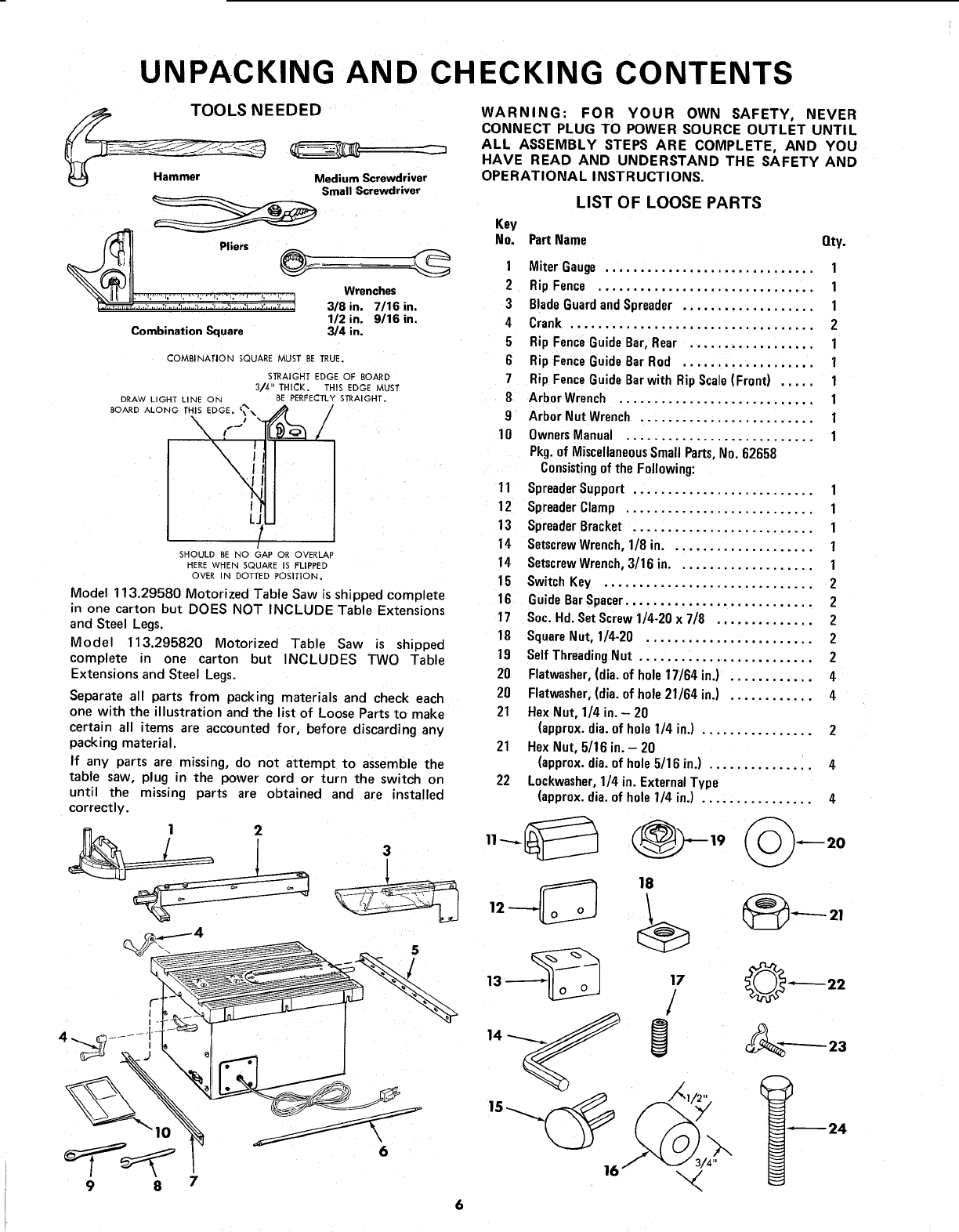

UNPACKING AND CHECKING CONTENTS
z_ TOOLS NEEDED
(_ Hammer Medium Screwdriver
Small Screwdriver
Combination Square
Wrenches
3/8 in. 7/16 in.
1/2 in. 9/16 in.
3/4 in.
COMBINATION SQUARE MUST BE TRUE.
STRAIGHT EDGE OF BOARD
3/4" THICK. THIS EDGE MUST
DRAW LIGHT LINE ON
BOARD ALONG THIS EDGE. _\
\\ :J I
I
L.
/
SHOULD BE NO GAP OR OVERLAP
HERE WHEN SQUARE IS FLIPPED
OVER IN DOTTED POSITION.
BE PERFECTLY STRAIGHT.
Model 113.29580 Motorized Table Saw is shipped complete
in one carton but DOES NOT INCLUDE Table Extensions
and Steel Legs.
Model 113.295820 Motorized Table Saw is shipped
complete n one carton but INCLUDES TWO Table
Extensions and Steel Legs.
Separate all parts from packing materials and check each
one with the illustration and the list of Loose Parts to make
certain all items are accounted for, before discarding any
packing material.
If any parts are missing, do not attempt to assemble the
table saw, plug in the power cord or turn the switch on
until the missing parts are obtained and are installed
correctly.
9 8
6
WARNING: FOR YOUR OWN SAFETY, NEVER
CONNECT PLUG TO POWER SOURCE OUTLET UNTIL
ALL ASSEMBLY STEPS ARE COMPLETE, AND YOU
HAVE READ AND UNDERSTAND THE SAFETY AND
OPERATIONAL INSTRUCTIONS.
LIST OF LOOSE PARTS
Key
No. Part Name Qty.
1 Miter Gauge .............................. 1
2 Rip Fence ............................... 1
3 BladeGuardandSpreader ................... 1
4Crank ................................... 2
5 Rip FenceGuideBar, Rear .................. I
6 Rip FenceGuideBar Rod ................... 1
7Rip FenceGuideBarwith RipScale(Front) ..... 1
8 Arbor Wrench ............................ 1
9 Arbor Nut Wrench ......................... 1
10 OwnersManual ........................... 1
Pkg.of MiscellaneousSmallParts,No. 62658
Consistingof the Following:
11 SpreaderSupport .......................... 1
12 SpreaderClamp ........................... 1
13 SpreaderBracket .......................... 1
14 SetscrewWrench,1/8 in..................... 1
14 SetscrewWrench,3/16 in.................... 1
15 Switch Key .............................. 2
16 GuideBarSpacer........................... 2
17 Soc. Hd. SetScrew1/4-20 x7/8 .............. 2
18 Square Nut, 1/4-20 ........................ 2
19 Self ThreadingNut .......................... 2
20 Flatwasher,(dia.of hole 17/64 in.) ............ 4
20 Flatwasher,(dia.of hole21/64 in.) ............ 4
21 Hex Nut, 1/4 in.- 20
(approx.dia. of hole 1/4 in.) ................ 2
21 Hex Nut, 5/16in.- 20
(approx.dia. of hole5/16 in.) ............... 4
22 Lockwasher,1/4 in. ExternalType
(approx.dia. of hole 1/4 in.) ................ 4
!2 Lockwasher,5/16 in. ExternalType
(approx.dia.of hole5/16 in.) ............... 4
23 WingScrew,1/4 in.-20x 1/2 in. long ........... 2
24 Hex Hd.Screw, 5/16- 18 x 1-1/2 in. long ....... 2
24 Hex Hd.Screw,5/16 - 18 x1in. long .......... 2
The following parts are included with Model 113.295820
(NOT SUPPLI ED IN CANADA)
Key
No. Part Name Qty.
1 Leg ..................................... 4
2 SideStiffener ............................. 2
3 EndStiffener ............................. 2
4 TableExtension ........................... 2
Pkg.of MiscellaneousSmall Parts,No. 62659
Consistingof the Following:
5 Hex HeadScrew5/16 in.-18 x 1-1/4 in. long .. 6
6Lockwasher,1/4 in. ExternalType
(approx.dia.of hole 1/4 in.) ............. 24
6Lockwasher,5/16 in. ExternalType
(approx.dia.of hole 5/16 in.) ............ 6
7 Hex Nut, 1/4 in.-20
(approx.dia. of hole 1/4 in.) ............. 24
7Hex Nut, 5/16 in.-18
(approx.dia. of hole 5/16 in.) ............ 6
7 HexNut, 1/2 in.-13
(approx.dia. of hole 1/2 in.) ............. 8
5
1
T
4
8
9
10
FlatWasher(dia. of hole, 11/32 in.) ......... 6
TrussHeadScrew, 1/4 in.-20 x 5/8 in. long
(top of screwisrounded) ................ 24
Leveling Foot .......................... 4

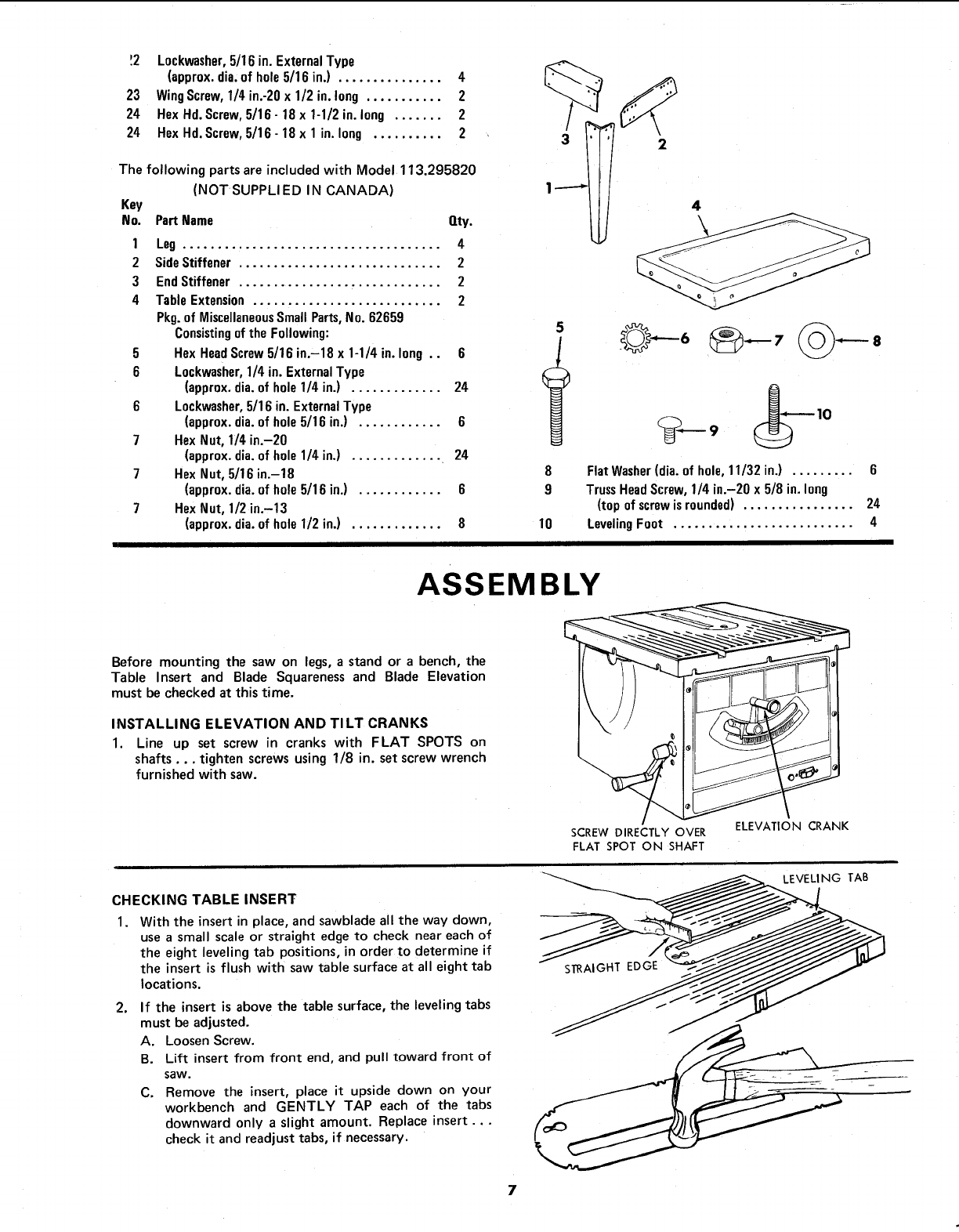

ASSEMBLY
Before mounting the saw on legs, a stand or abench, the
Table Insert and Blade Squareness and Blade Elevation
must be checked at this time.
INSTALLING ELEVATION AND TI LT CRANKS
1. Line up set screw in cranks with FLAT SPOTS on
shafts.., tighten screws using 1/8 in. set screw wrench
furnished with saw.
SCREW DIRECTLY OVER
FLAT SPOT ON SHAFT
ELEVATION CRANK
CHECKING TABLE INSERT
1. With the insert in place, and sawblade all the way down,
usea small scale or straight edge to check near each of
the eight leveling tab positions, in order to determine if
the insert is flush with saw table surface at all eight tab
locations.
2. If the insert is above the table surface, the leveling tabs
must be adjusted.
A. Loosen Screw.
B. Lift insert from front end, and pull toward front of
saw.
C. Remove the insert, place it upside down on your
workbench and GENTLY TAP each of the tabs
downward only a slight amount. Replace insert ...
check it and readjust tabs, if necessary.
NG TAB

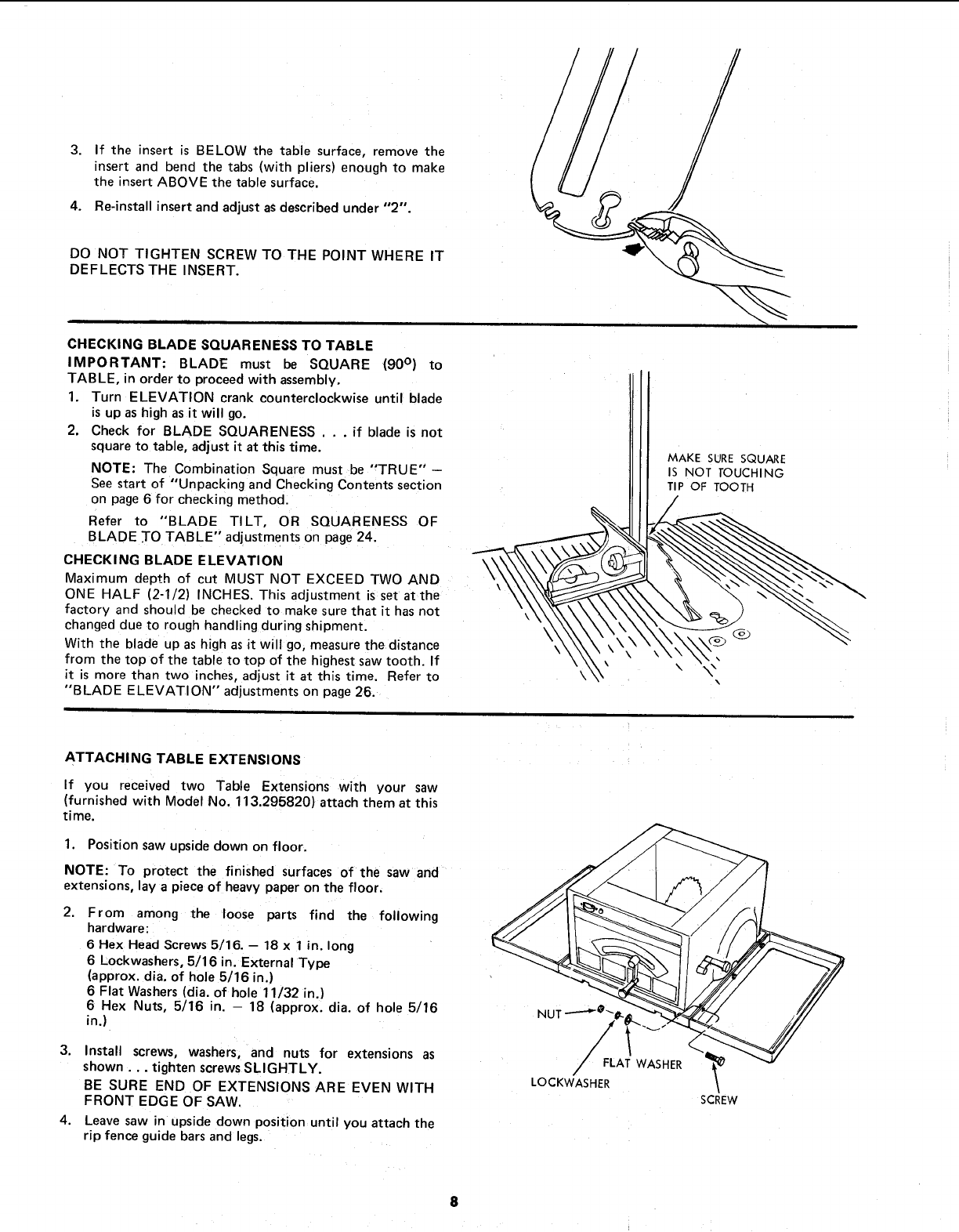

3. If the insert is BELOW the table surface, remove the
insert and bend the tabs (with pliers) enough to make
the insert ABOVE the table surface.
4. Re-install insert and adjust as described under "2".
DO NOT TIGHTEN SCREW TO THE POINT WHERE IT
DEFLECTS THE INSERT.
CHECKING BLADE SQUARENESS TO TABLE
IMPORTANT: BLADE must be SQUARE (90 °)to
TABLE, in order to proceed with assembly.
1. Turn ELEVATION crank counterclockwise until blade
is up as high as it will go.
2. Check for BLADE SQUARENESS . . . if blade is not
square to table, adjust it at this time.
NOTE: The Combination Square must be "TRUE"-
See start of "Unpacking and Checking Contents section
on page 6 for checking method.
Refer to "BLADE TILT, OR SQUARENESS OF
BLADE TO TABLE" adjustments on page 24.
CHECKING BLADE ELEVATION
Maximum depth of cut MUST NOT EXCEED TWO AND
ONE HALF (2-1/2) INCHES. This adjustment is set at the
factory and should be checked to make sure that it has not
changed due to rough handling during shipment.
With the blade up as high as it will go, measure the distance
from the top of the table to top of the highest saw tooth. If
it is more than two inches, adjust it at this time. Refer to
"BLADE ELEVATION" adjustments on page 26.
\
I MAKE SURE SQUARE
IS NOT TOUCHING
F TOOTH
\ "_ \
N\
ATTACHI NG TABLE EXTEN SIONS
If you received two Table Extensions with your saw
(furnished with Model No. 113.295820) attach them at this
time.
1. Position saw upside down on floor.
NOTE: To protect the finished surfaces of the saw and
extensions, lay a piece of heavy paper on the floor.
2.
3.
4.
From among the loose parts find the following
hardware:
6Hex Head Screws 5/16.- 18 x 1 in. long
6 Lockwashers, 5/16 in. External Type
(approx. dia. of hole 5/16 in.)
6 Flat Washers (dia. of hole 11/32 in.)
6 Hex Nuts, 5/16 in. 18 (approx. dia. of hole 5/16
in.)
Install screws, washers, and nuts for extensions as
shown.., tighten screws SLIGHTLY.
BE SURE END OF EXTENSIONS ARE EVEN WITH
FRONT EDGE OF SAW.
Leave saw in upside down position until you attach the
rip fence guide bars and legs.
FLAT WASHER
/
LOCKWASHER
SCREW
8

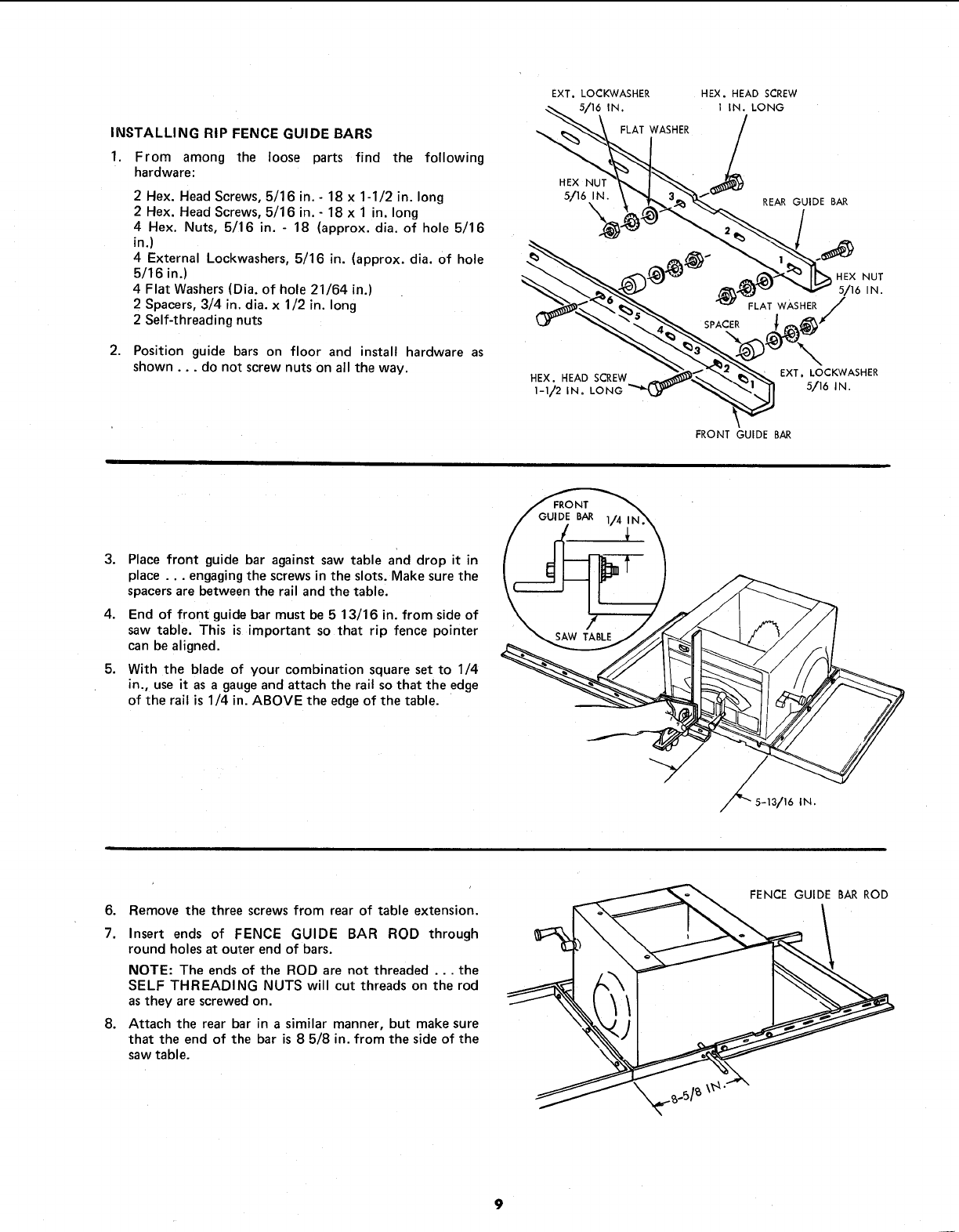

INSTALLING RIP FENCE GUIDE BARS
1. From among the loose parts find the following
hardwa re:
2Hex. Head Screws, 5/16 in.- 18 x 1-1/2 in. long
2 Hex. Head Screws, 5/16 in.- 18 x 1 in. long
4 Hex. Nuts, 5/16 in. - 18 (approx. dia. of hole 5/16
in.)
4 External Lockwashers, 5/16 in. (approx. dia. of hole
5/16 in.)
4 Flat Washers (Dia. of hole 21/64 in.)
2 Spacers, 3/4 in. dia. x 1/2 in. long
2 Self-threading nuts
2. Position guide bars on floor and install hardware as
shown.., do not screw nuts on all the way.
EXT. LOCKWASHER
5/16 tN
FLAT WASHER
HEX NUT
5/16 iN.
\
HEX, HEAD SCREW
1-_,/2 IN= LONG
HEX. HEAD SCREW
1 IN. LONG
/
REAR GUIDE BAR
SPACER
FLAT WASHER
HEX NUT
5/16 IN.
/
EXT, LOCKWASHER
5/16 IN.
FRONT GUIDE BAR
/
3. Place front guide bar against saw table and drop it in
place ... engaging the screws in the slots. Make sure the
spacersare between the rail and the table.
4. End of front guide bar must be 5 13/16 in. from side of
saw table. This is important so that rip fence pointer \
can be aligned.
5. With the blade of your combination square set to 1/4
in., use it as a gauge and attach the rail so that the edge
of the rail is 1/4 in. ABOVE the edgeof the table.
SAW TABLE
/
/
/
,,//_ 5-13/16 IN.
6. Remove the three screws from rear of table extension.
7. Insert ends of FENCE GUIDE BAR ROD through
round holes at outer end of bars.
NOTE: The ends of the ROD are not threaded ... the
SELF THREADING NUTS will cut threads on the rod
as they are screwed on.
8. Attach the rear bar in a similar manner, but make sure
that the end of the bar is 8 5/8 in. from the side of the
saw table.
FENCE GUIDE BAR ROD
9

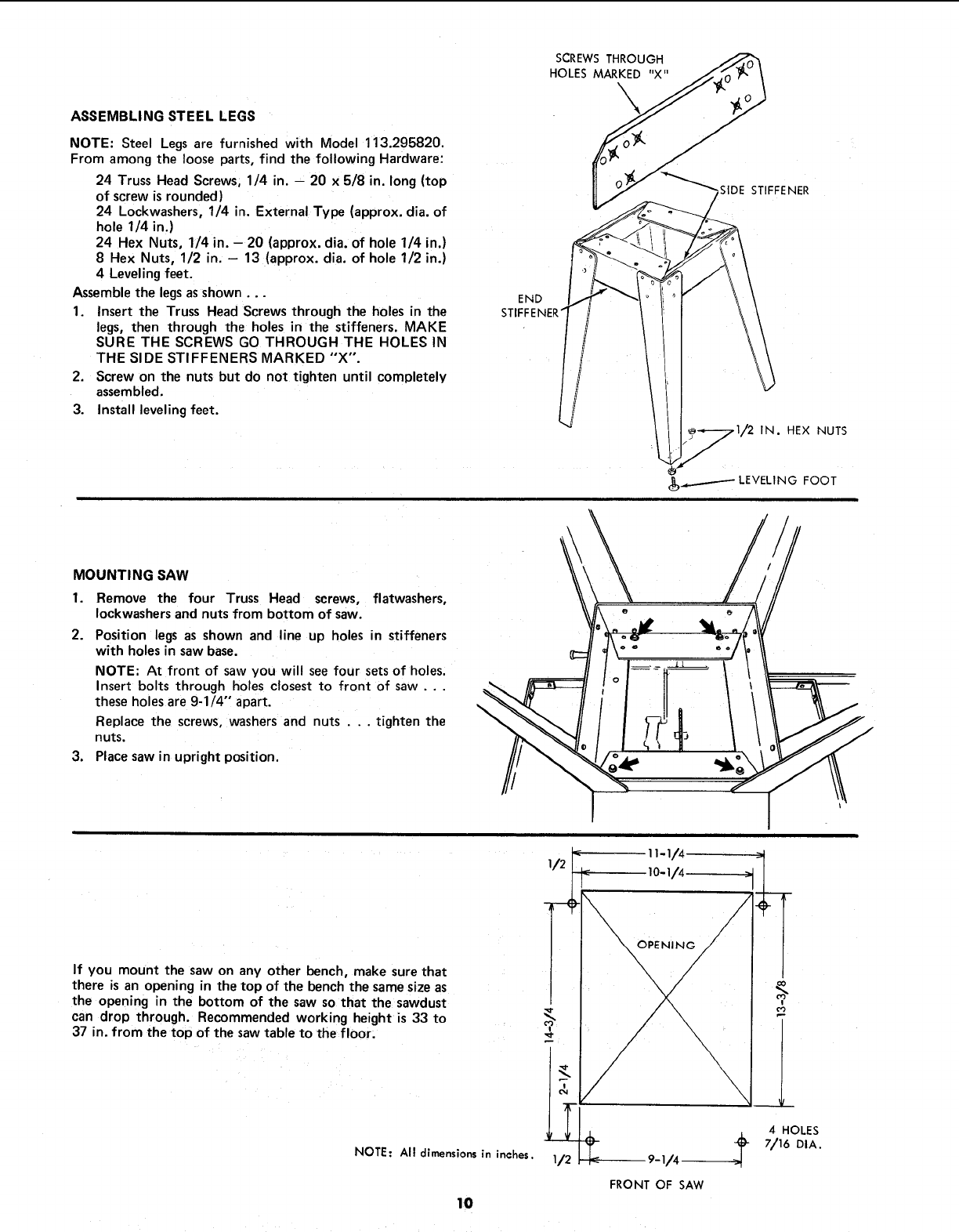

ASSEMBLINGSTEELLEGS
NOTE: Steel Legs are furnished with Model 113.295820.
From among the loose parts, find the following Hardware: ......
24 Truss Head Screws; 1/4 in. - 20 x 5/8 in. long (top
of screw is rounded)
24 Lockwashers, 1/4 in. External Type (approx. dia. of
hole 1/4 in.)
24 Hex Nuts, 1/4 in. - 20 (approx. dia. of hole 1/4 in.)
8 Hex Nuts, 1/2 in. - 13 (approx. dia. of hole 1/2 in.)
4 Leveling feet.
Assemble the legsasshown...
1. Insert the Truss Head Screws through the holes in the
legs, then through the holes in the stiffeners. MAKE
SURE THE SCREWS GO THROUGH THE HOLES IN
THE SIDE STIFFENERS MARKED "X".
2. Screw on the nuts but do not tighten until completely
assembled.
3. Install leveling feet.
END
STIFFENER"
SCREWSTHROUGH
HOLESMARKED "X"
\
SIDE STIFFENER
IN. HEX NUTS
MOUNTING SAW
1. Remove the four Truss Head screws, flatwashers,
Iockwashers and nuts from bottom of saw.
2. Position legs as shown and line up holes in stiffeners
with holes in saw base.
NOTE: At front of saw you will see four sets of holes,
Insert bolts through holes closest to front of saw . . .
these holes are 9-1/4" apart.
Replace the screws, washers and nuts . . . tighten the
nuts.
3. Place saw in upright position.
\
If you mount the saw on any other bench, make sure that
there is an opening in the top of the bench the same size as
the opening in the bottom of the saw so that the sawdust
can drop through. Recommended working height is 33 to
37 in. from the top of the saw table to the floor.
NOTE: All dimensions in inches.
10
1/2 1/4
FRONT OF SAW
4HOLES
7/16 DIA.

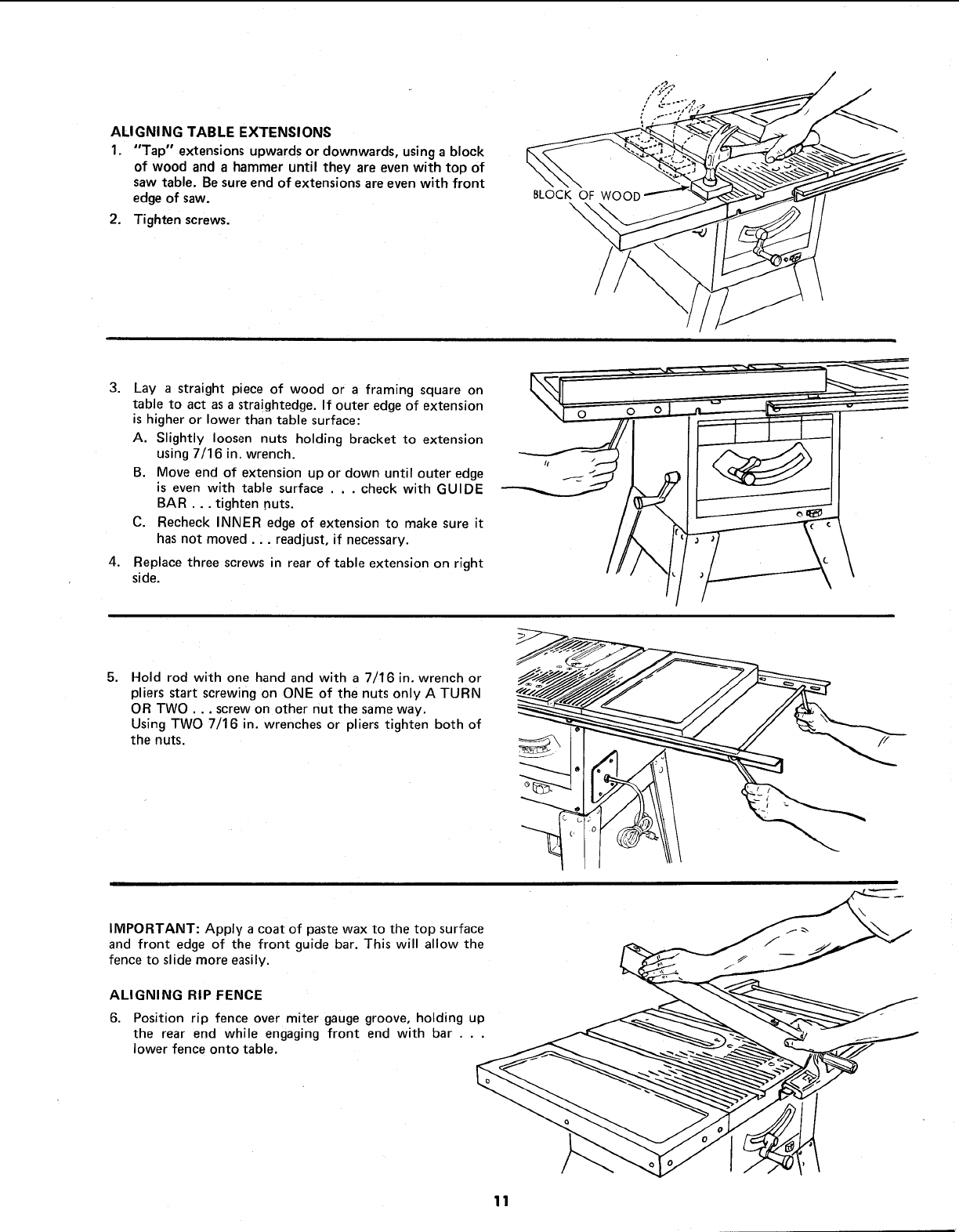

ALIGNING TABLE EXTENSIONS
1. "Tap" extensions upwards or downwards, using a block
of wood and a hammer until they are even with top of
saw table. Be sure end of extensions are even with front
edge of saw.
2. Tighten screws.
BLOCK OF WOOD
\
3.
4.
Lay a straight piece of wood or aframing square on
table to act as a stra!ghtedge. If outer edge of extension
is higher or lower than table surface:
A. Slightly loosen nuts holding bracket to extension
using 7/16 in. wrench.
B. Move end of extension up or down until outer edge
is even with table surface . , . check with GUIDE
BAR... tighten nuts.
C. Recheck INNER edge of extension to make sure it
has not moved ... readjust, if necessary.
Replace three screws in rear of table extension on right
side.
5. Hold rod with one hand and with a 7/16 in. wrench or
pliers start screwing on ONE of the nuts only A TURN
OR TWO.., screw on other nut the same way.
Using TWO 7/16 in. wrenches or pliers tighten both of
the nuts.
IMPORTANT: Apply a coat of paste wax to the top surface
and front edge of the front guide bar. This will allow the
fence to slide more easily.
ALIGNING RIP FENCE
6. Position rip fence over miter gauge groove, holding up
the rear end while engaging front end with bar ...
lower fence onto table.
11

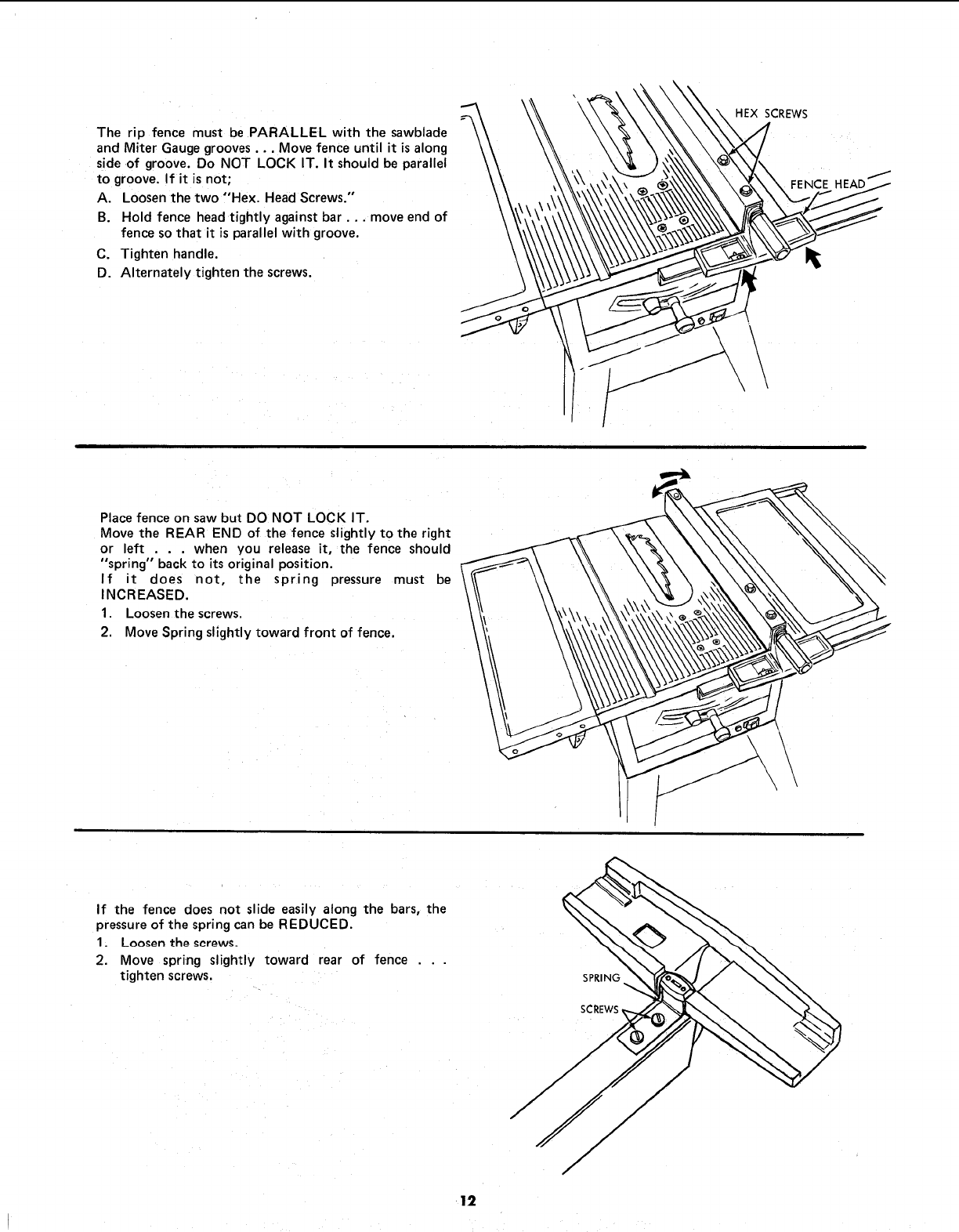

The rip fence must be PARALLEL with the sawblade
and Miter Gauge grooves... Move fence until it is along
side of groove. Do NOT LOCK IT. It should be parallel
to groove. If it is not;
A. Loosen the two "'Hex. Head Screws.'"
B. Hold fence head tightly against bar.., move end of
fence so that it is parallel with groove.
C, Tighten handle,
D. Alternately tighten the screws.
HEX SCREWS
FENCE HEAD
Place fence on saw but DO NOT LOCK IT.
Move the REAR END of the fence slightly to the right
or left .. . when you release it, the fence should
"spring" back to its original position.
If it does not, the spring pressure must be
INCREASED.
1. Loosen the screws.
2. Move Spring slightly toward front of fence.
If the fence does not slide easily along the bars, the
pressure of the spring can be REDUCED.
1. Loosen the cerew_.
2. Move spring slightly toward rear of fence . ..
tighten screws. SPRING
SCREWS
12

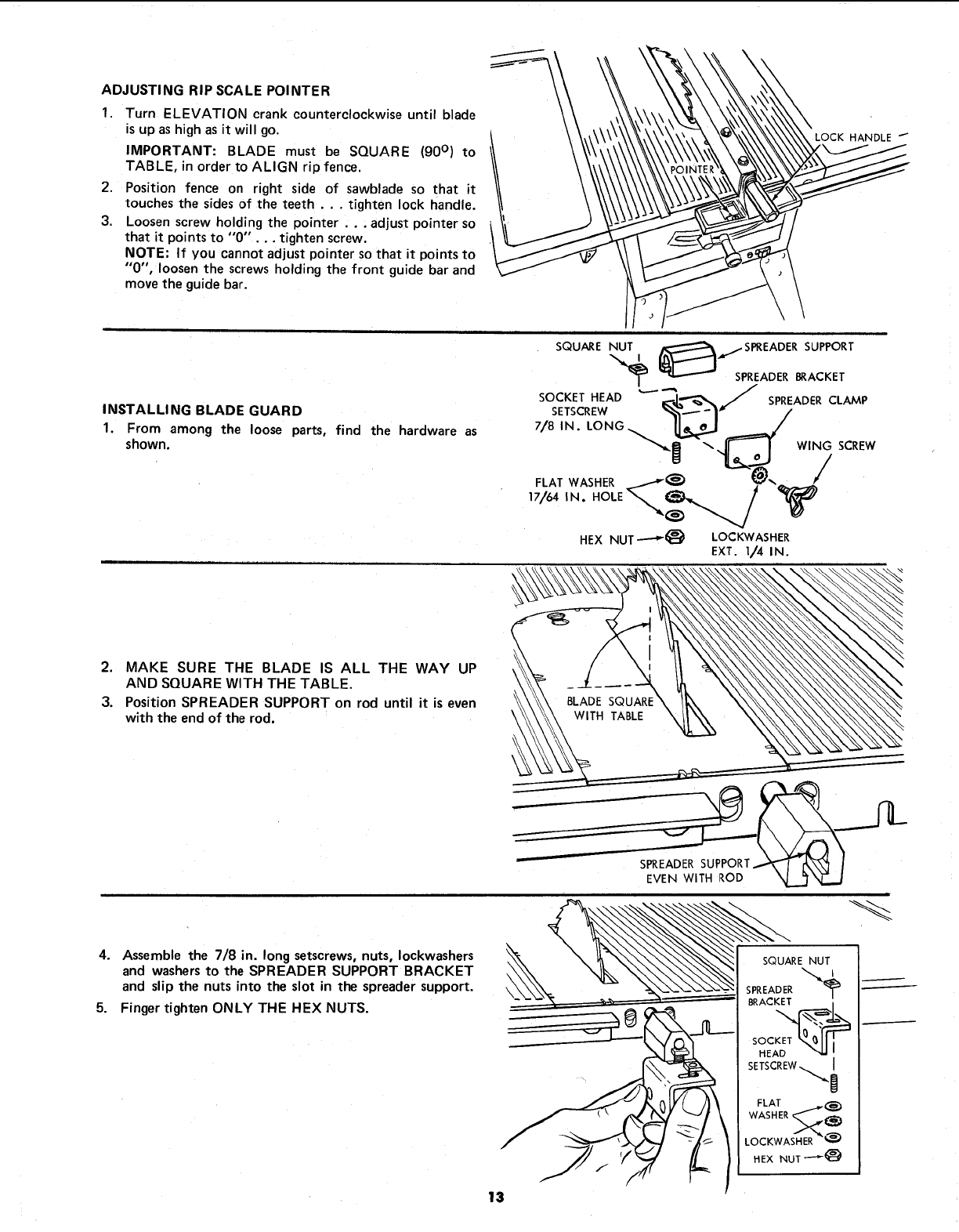

ADJUSTING RIP SCALE POINTER
1. Turn ELEVATION crank counterclockwise until blade
is up as high as it will go.
IMPORTANT: BLADE must be SQUARE (90 ° ) to
TABLE, in order to ALIGN rip fence.
2. Position fence on right side of sawblade so that it
touches the sides of the teeth . .. tighten lock handle.
3. Loosen screw holding the pointer . . . adjust pointer so
that it points to "0"... tighten screw.
NOTE: If you cannot adjust pointer so that it points to
"0", loosen the screws holding the front guide bar and
move the guide bar.
LOCK HANDLE ""
INSTALLING BLADE GUARD
1. From among the loose parts, find the hardware as
shown.
SQUARE NUT i_:_:::::=_ _SPREADER SUPPORT
"_ SPREADER BRACKET
soc E HEAD SPREADEROAMP
SETSCREW _1_1------ - | _" /
7/8 IN. LONG_ _
"_lg _.1I I WING SCREW
/
FLAT WASHER j.,- I_) @-_ t /
17/64 IN. HOLE_,,,__
HEX NUT ---"_ LOCKWASHER
EXT. 1/4 IN.
2. MAKE SURE THE BLADE IS ALL THE WAY UP
AND SQUARE WITH THE TABLE.
3. Position SPREADER SUPPORT on rod until it is even
with the end of the rod.
4. Assemble the 7/8 in. long setscrews, nuts, Iockwashers
and washers to the SPREADER SUPPORT BRACKET
and slip the nuts into the slot in the spreader support.
5. Finger tighten ONLY THE HEX NUTS.
SQUARE NUT
SPREADER"'+
SETSCREW I
FLAT i_)
WASHER @_
LOCKWASHER
HEX NUT _
I
I
I
6. Lay a piece of flat straight wood and asquare on saw
table and rotate the SPREADER SUPPORT until the
bracket is aligned with square.
7. MAKE SURE END OF SUPPORT, BRACKET AND
ROD ARE EVEN . .. using an 1/8 in. setscrew wrench,
TIGHTEN THE SET SCREWS ONLY.
ENDS OF SUPPORT
AND BRACKET TO
BE EVEN WITH
END OF ROD
SETSCREW ONLY
IMPORTANT: The SPREADER must always be
PARALLEL to the sawblade and in the MIDDLE of the cut
(KERF) made by the sawblade.
NOTE: The spreader is thinner than the width of the KERF
by approximately six thicknesses of paper.
SPACE EQUAL TO APPROX
3 THICKNESSES OF PAPER
\
(/
SPACE EQUAL TO APPROX.
3THICKNESSES OF PAPER
KERF WOOD
BLADE
/
1
LOOKING DOWN ON SAW

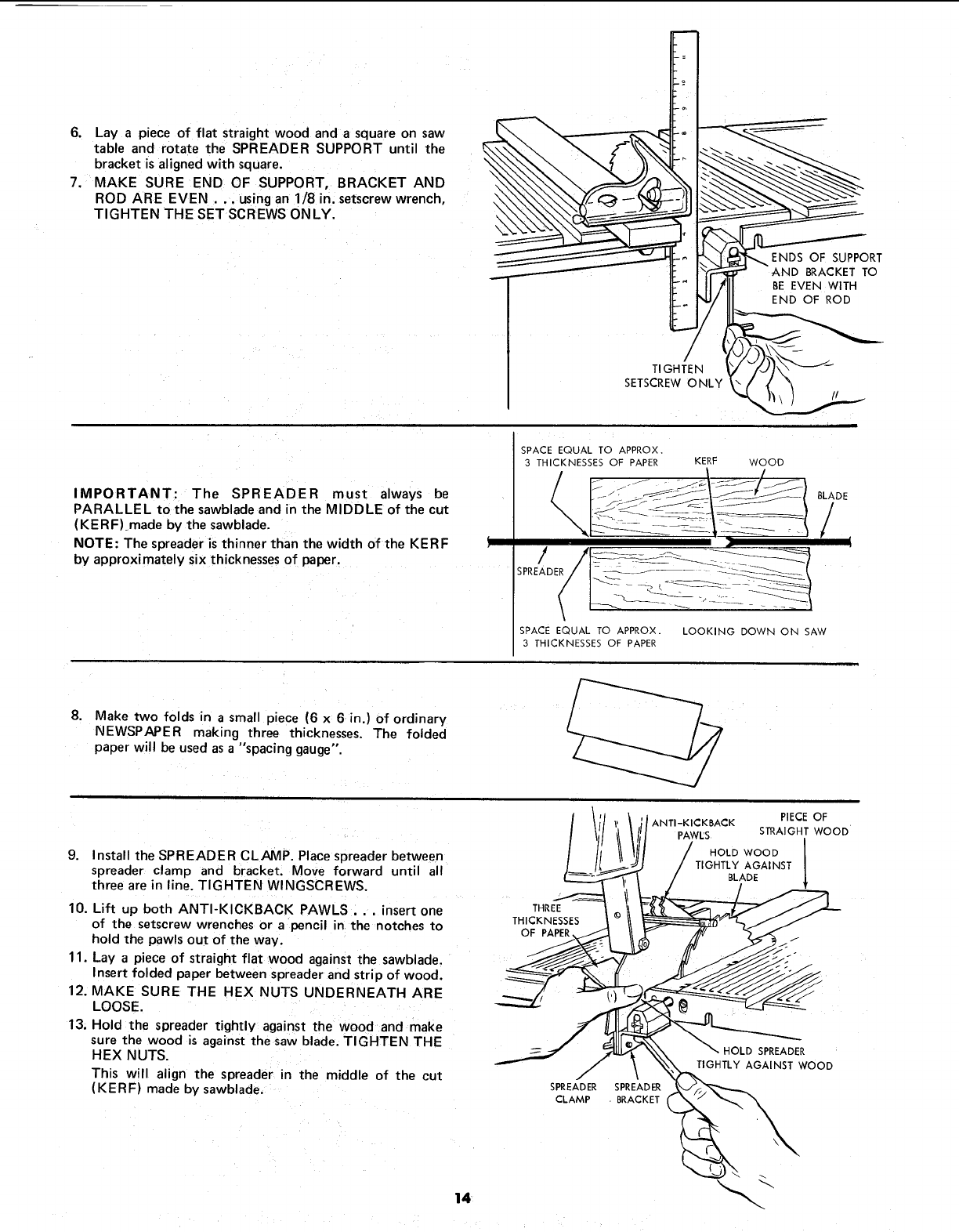

8. Make two folds in a small piece (6 x 6 in.) of ordinary
NEWSPAPER making three thicknesses. The folded
paper will be used as a "spacing gauge".
9. Install the SPREADER CLAMP. Place spreader between
spreader clamp and bracket. Move forward until all
three are in fine. TIGHTEN WlNGSCREWS.
10. Lift up both ANTI-KICKBACK PAWLS . . . insert one
of the setscrew wrenches or a pencil in the notches to
hold the pawls out of the way.
11. Lay a piece of straight flat wood against the sawblade.
Insert folded paper between spreader and strip of wood.
12. MAKE SURE THE HEX NUTS UNDERNEATH ARE
LOOSE.
13. Hold the spreader tightly against the wood and make
sure the wood is against the saw blade. TIGHTEN THE
HEX NUTS.
This will align the spreader in the middle of the cut
(KERF) made by sawblade.

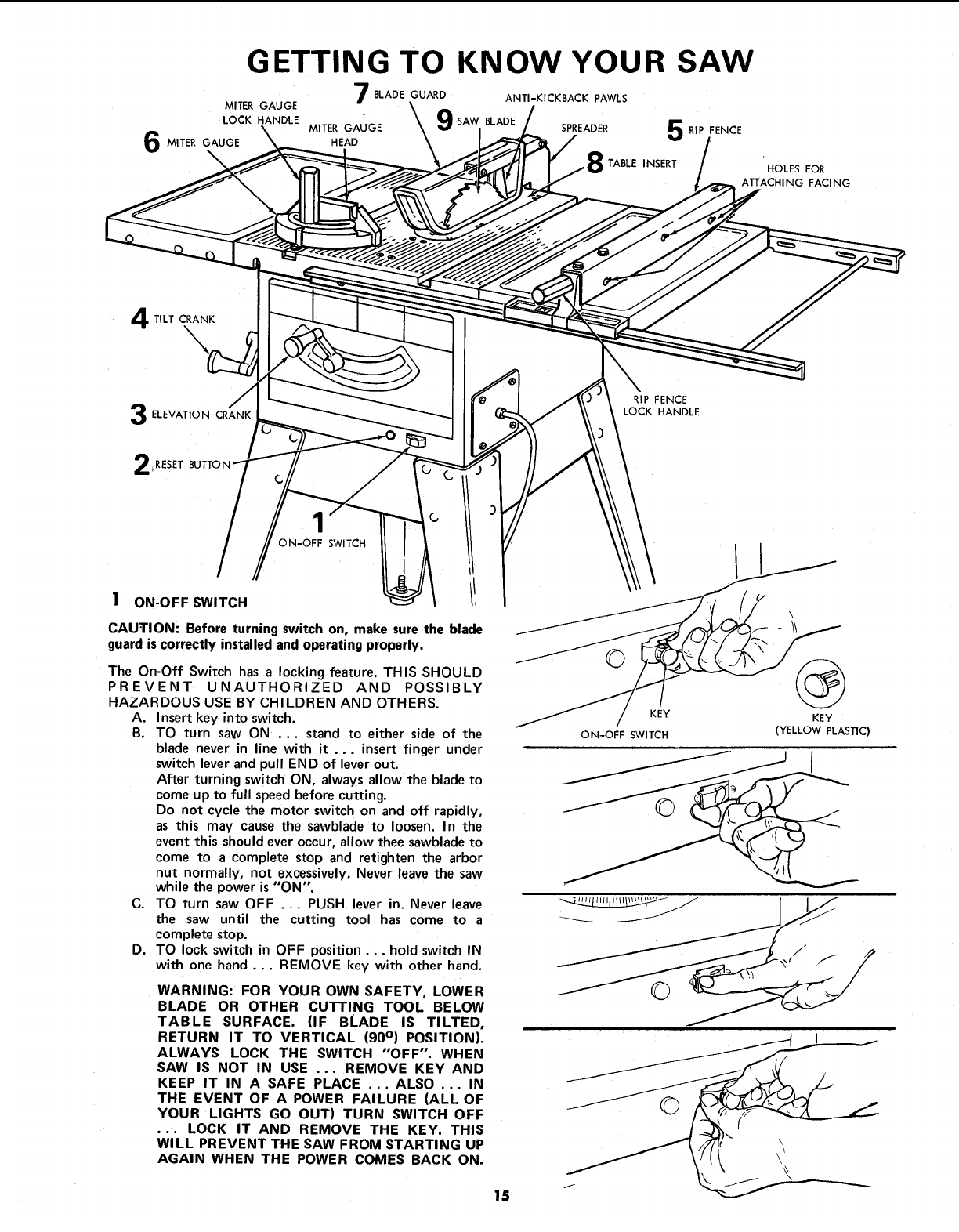

14
GETTING TO
MITER GAUGE
LOCK HANDLE
MITER GAUGE
\
BLADE GUARD
MITER GAUGE
HEAD
KNOW YOUR
ANTI-KICKBACK PAWLS
SAW BLADE SPREADER
TABLE INSERT
SAW
RIP FENCE
HOLES FOR
ATTACHING FACING
TILT CRANK
\\
ELEVATION CRANK
RIP FENCE
LOCK HANDLE
RESET
ON-OFF SWITCH
1 ON-OFF SWITCH
CAUTION: Before turning switch on, make sure the blade
guard is correctly installed and operating properly.
The On-Off Switch has a locking feature. THIS SHOULD
PREVENT UNAUTHORIZED AND POSSIBLY
HAZARDOUS USE BY CHILDREN AND OTHERS.
A. Insert key into switch.
B. TO turn saw ON ... stand to either side of the
blade never in line with it ... insert finger under
switch lever and pull END of lever out.
After turning switch ON, always allow the blade to
come up to full speed before cutting.
Do not cycle the motor switch on and off rapidly,
as this may cause the sawblade to loosen. In the
event this should ever occur, allow thee sawblade to
come to a complete stop and retighten the arbor
nut normally, not excessively. Never leave the saw
while the power is "'ON".
C. TO turn saw OFF ... PUSH lever in. Never leave
the saw until the cutting tool has come to a
complete stop.
D. TO lock switch in OFF position.., hold switch IN
with one hand ... REMOVE key with other hand.
WARNING: FOR YOUR OWN SAFETY, LOWER
BLADE OR OTHER CUTTING TOOL BELOW
TABLE SURFACE. (IF BLADE IS TILTED,
RETURN IT TO VERTICAL (90 ° ) POSITION).
ALWAYS LOCK THE SWITCH "OFF". WHEN
SAW IS NOT IN USE ... REMOVE KEY AND
KEEP IT IN A SAFE PLACE ... ALSO ... IN
THE EVENT OF A POWER FAILURE (ALL OF
YOUR LIGHTS GO OUT) TURN SWITCH OFF
... LOCK IT AND REMOVE THE KEY. THIS
WILL PREVENT THE SAW FROM STARTING UP
AGAIN WHEN THE POWER COMES BACK ON.
@
KEY KEY
ON-OFF SWITCH (YELLOW PLASTIC)
\
\
\
15
2
3
4
5
RESET BUTTON ... See "Motor Specifications and
Electrical Requirements" section, "Motor Safety
Protection."
ELEVATION CRANK... elevates or lowers the blade.
Turn counterclockwise to elevate ... clockwise to
lower.
NOTE; WHEN THE BLADE IS TILTED TO 45 ° , IT
CANNOT BE LOWERED ALL THE WAY BELOW
THE TABLE. IT WILL PROJECT APPROX. 1/2 IN.
TILT CRANK ... tilts the blade for bevel cutting.
Turn clockwise to tilt toward left.., counterclockwise
to tilt toward right.
When the blade is tilted to the LEFT as far as it will go,
it should be at 45 ° to the table and the bevel pointer
should point 45 °.
NOTE: There are LIMIT STOPS inside the saw which
prevent the blade from tilting beyond 45 ° to the LEFT
and 90° to the RIGHT. (See "Adjustments" section
"Blade Tilt, or Squarenessof Blade to Table").
RIP FENCE ... is locked in place by tightening the
lock handle. To move the fence, loosen the handle and
graspthe fence with one hand at the front.
Holes are provided in the rip fence for attaching a wood
facing when usingthe dado head, or molding head.
Select a piece of smooth straight wood approx. 3/4 in.
thick and the same size as the rip fence.
Attach it to the fence with three Round Head #10
Wood Screws 2 in. long. To remove the facing, loosen
the screws, slide the facing forward and pull the screws
through the round holes.
NOTE: When bevel crosscutting, attach facing so that it
extends to the right of the miter gauge and use the miter
gauge in the groove to the right of the blade.

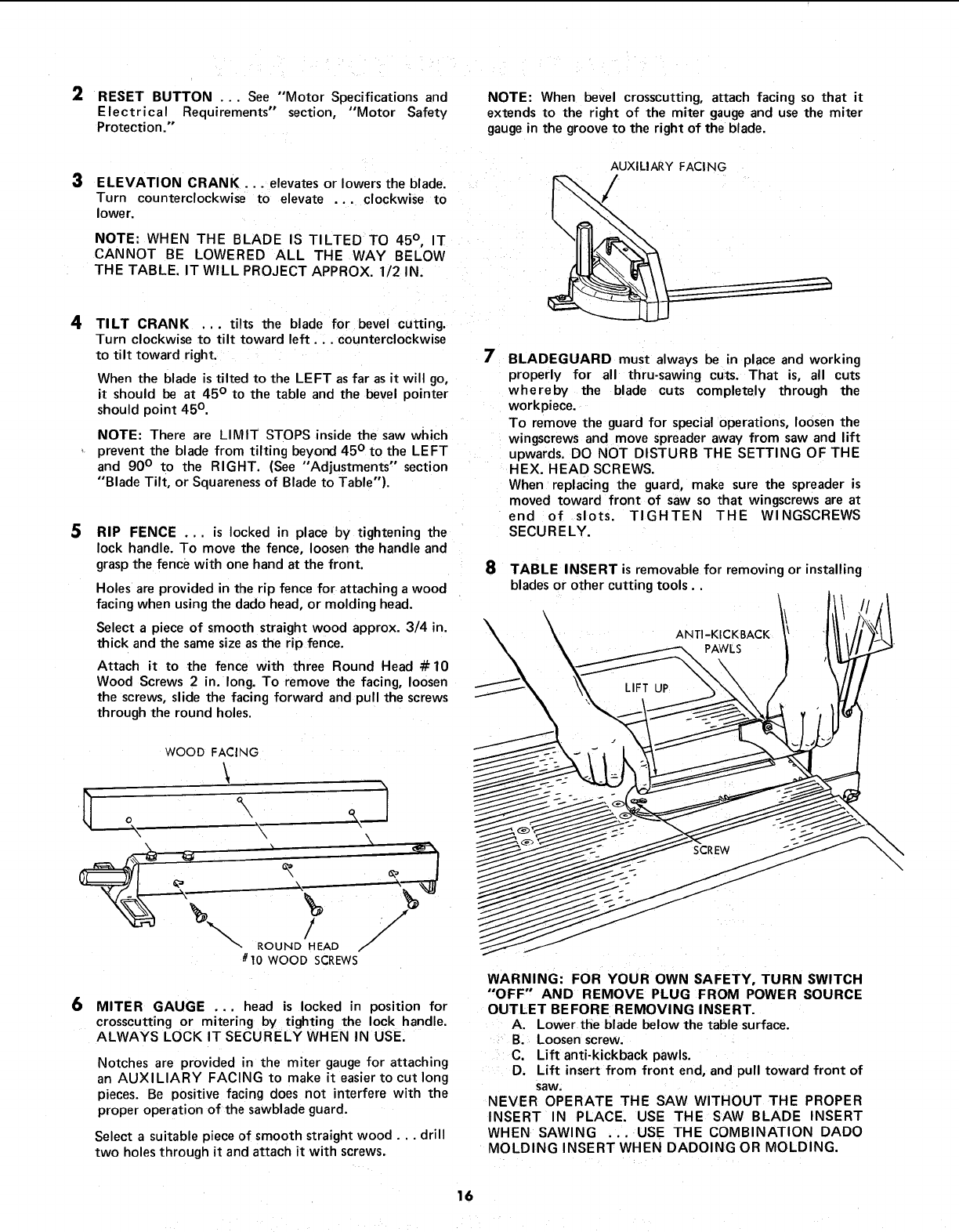

7
AUXILIARY FACING
BLADEGUARD must always be in place and working
properly for all thru-sawing cuts, That is, all cuts
whereby the blade cuts completely through the
workpiece.
To remove the guard for special operations, loosen the
wingscrews and move spreader away from saw and lift
upwards. DO NOT DISTURB THE SETTING OF THE
HEX. HEAD SCREWS.
When replacing the guard, make sure the spreader is
moved toward front of saw so that wingscrews are at
end of slots. TIGHTEN THE WINGSCREWS
SECURELY.
8 TABLE INSERT is removable for removing or installing
blades or other cutting tools..
ANTI-KICKBACKPAWLS l
WOOD FACING
\
g .
/J"
_'- ROUND HEAD /
#10 WOOD SCREWS
6MITER GAUGE ... head is locked in position for
crosscutting or mitering by tighting the lock handle.
ALWAYS LOCK IT SECURELY WHEN IN USE.
Notches are provided in the miter gauge for attaching
an AUXILIARY FACING to make it easier to cut long
pieces. Be positive facing does not interfere with the
proper operation of the sawblade guard.
Select a suitable piece of smooth straight wood.., drill
two holes through it and attach it with screws.
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE REMOVING INSERT.
A. Lower the blade below the table surface.
B. Loosen screw.
C. Lift anti-kickback pawls.
D. Lift insert from front end, and pull toward front of
saw.
NEVER OPERATE THE SAW WITHOUT THE PROPER
INSERT IN PLACE. USE THE SAW BLADE INSERT
WHEN SAWING ... USE THE COMBINATION DADO
MOLDING INSERT WHEN DADOING OR MOLDING.
16

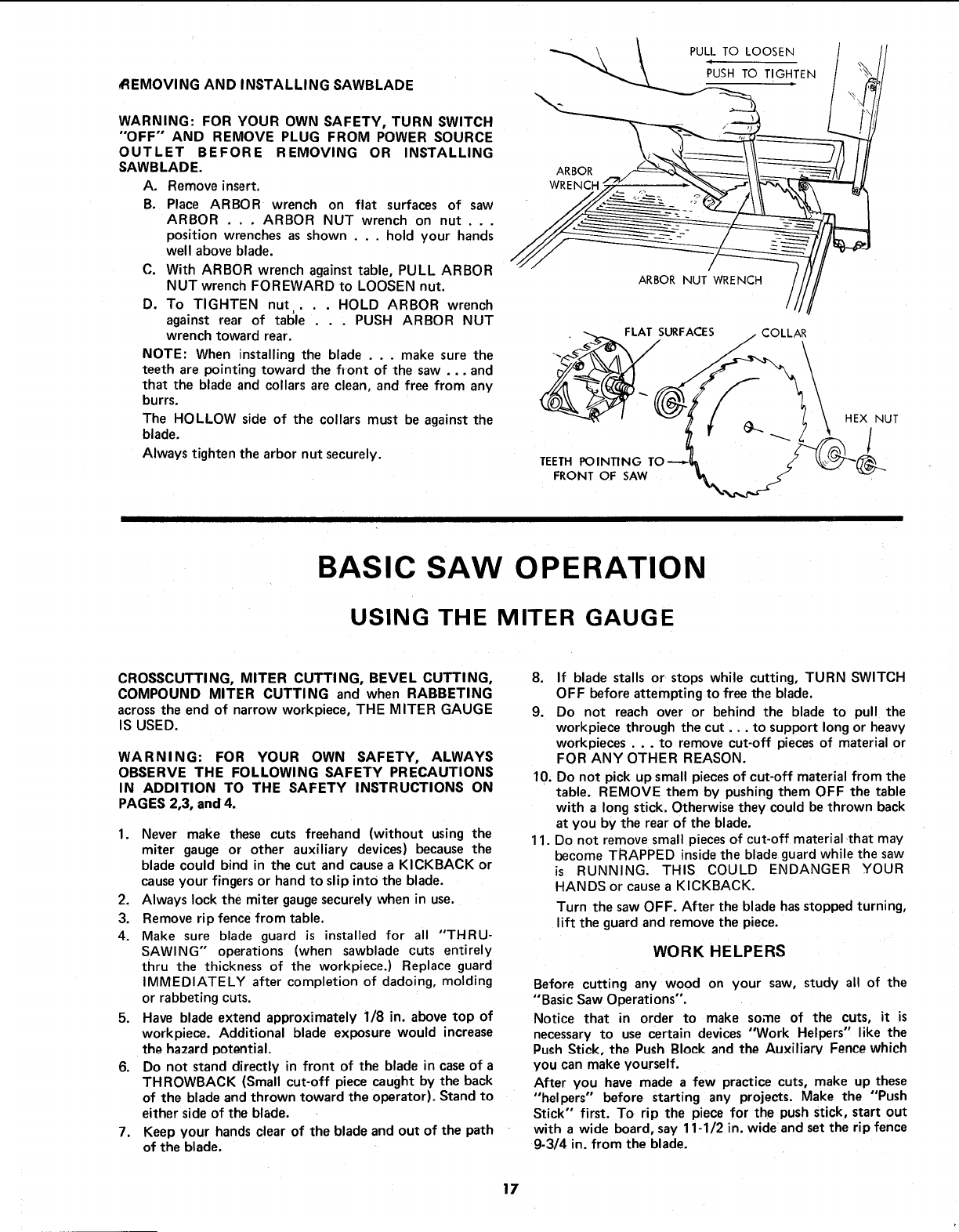

4qEMOVING AND INSTALLING SAWBLADE
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE REMOVING OR INSTALLING
SAWBLADE.
A. Remove insert.
B. Place ARBOR wrench on flat surfaces of saw
ARBOR ...ARBOR NUT wrench on nut . . .
position wrenches as shown . . . hold your hands
well above blade.
C. With ARBOR wrench against table, PULL ARBOR
NUT wrench FOREWARD to LOOSEN nut.
D. To TIGHTEN nut . . . HOLD ARBOR wrench
against rear of talkie . . . PUSH ARBOR NUT
wrench toward rear.
NOTE: When installing the blade . . . make sure the
teeth are pointing toward the flont of the saw ... and
that the blade and collars are clean, and free from any
burrs.
The HOLLOW side of the collars must be against the
blade.
Always tighten the arbor nut securely.
II I
To /",,,-,,/
ARBOR NUT WRENCH /////
FLAT SURFACES /COLLAR
BASIC SAW OPERATION
USING THE MITER GAUGE
CROSSCUTTING, MITER CUTTING, BEVEL CUTTING,
COMPOUND MITER CUTTING and when RABBETING
acrossthe end of narrow workpiece, THE MITER GAUGE
IS USED.
WARNING: FOR YOUR OWN SAFETY, ALWAYS
OBSERVE THE FOLLOWING SAFETY PRECAUTIONS
IN ADDITION TO THE SAFETY INSTRUCTIONS ON
PAGES 2,3, and 4.
1. Never make these cuts freehand (without using the
miter gauge or other auxiliary devices) because the
blade could bind in the cut and cause a KICKBACK or
cause your fingers or hand to slip into the blade.
2. Always lock the miter gauge securely when in use.
3. Remove rip fence from table.
4. Make sure blade guard is installed for all "THRU-
SAWING" operations (when sawblade cuts entirely
thru the thickness of the workpiece.) Replace guard
IMMEDIATELY after completion of dadoing, molding
or rabbeting cuts.
5. Have blade extend approximately 1/8 in. above top of
workpiece. Additional blade exposure would increase
the hazard potential.
6. Do not stand directly in front of the blade in caseof a
THROWBACK (Small cut-off piece caught by the back
of the blade and thrown toward the operator). Stand to
either side of the blade.
7. Keep your hands clear of the blade and out of the path
of the blade.
8. If blade stalls or stops while cutting, TURN SWITCH
OFF before attempting to free the blade.
9. Do not reach over or behind the blade to pull the
workpiece through the cut.., to support long or heavy
workpieces.., to remove cut-off pieces of material or
FOR ANY OTHER REASON.
10. Do not pick up small piecesof cut-off material from the
table. REMOVE them by pushing them OFF the table
with a long stick. Otherwise they could be thrown back
at you by the rear of the blade.
11. Do not remove small pieces of cut-off material-that may
become TRAPPED inside the blade guard while the saw
is RUNNING. THIS COULD ENDANGER YOUR
HANDS or cause a KICKBACK.
Turn the saw OFF. After the blade has stopped turning,
lift the guard and remove the piece.
WORK HELPERS
Before cutting any wood on your saw, study all of the
"Basic Saw Operations".
Notice that in order to make some of the cuts, it is
necessary to use certain devices "Work Helpers" like the
PuChStick, the Push Block and the Auxiliary Fence which
you can make yourself.
After you have made a few practice cuts, make up these
"helpers" before starting any projects. Make the "Push
Stick" first. To rip the piece for the push stick, start out
with a wide board, say 11-1/2 in. wide and set the rip fence
9-3/4 in. from the blade.
17

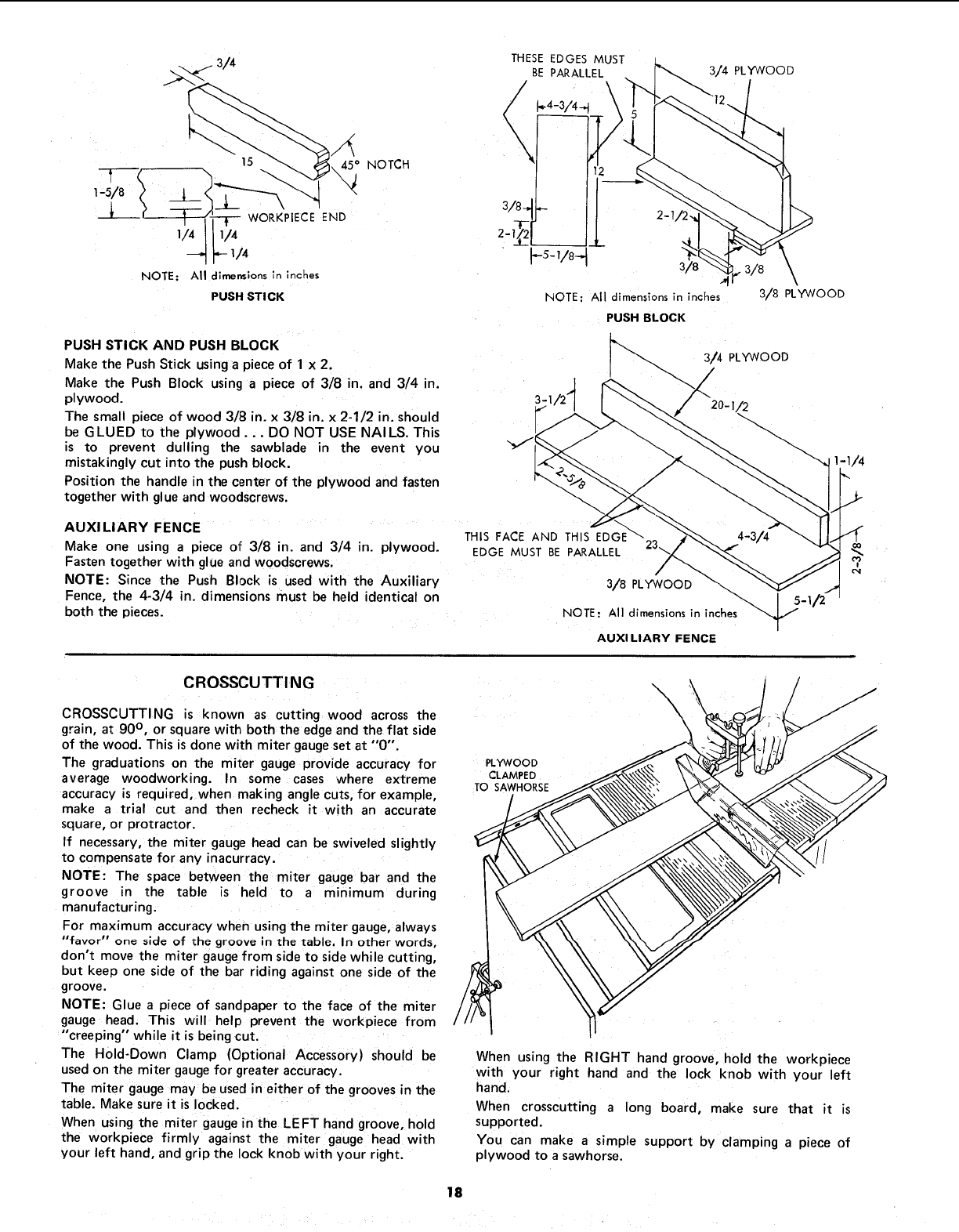

15 45°NOTCH
1-5_8 1 "_[___L.T_T WORKPIECE END
,/411,/4
--'t 1/4
NOTE: All dimensions 'n inches
PUSH STI CK
PUSH STICK AND PUSH BLOCK
Make the Push Stick using a piece of 1 x 2.
Make the Push Block using a piece of 3/8 in. and 3/4 in.
plywood.
The small piece of wood 3/8 in. x 3/8 in. x 2-1/2 in. should
be GLUED to the plywood... DO NOT USE NAILS. This
is to prevent dulling the sawblade in the event you
mistakingly cut into the push block.
Position the handle in the center of the plywood and fasten
together with glue and woodscrews.
AUXl LIARY FENCE
Make one using a piece of 3/8 in. and 3/4 in. plywood.
Fasten together with glue and woodscrews.
NOTE: Since the Push Block is used with the Auxiliary
Fence, the 4-3/4 in. dimensions must be held identical on
both the pieces.
THESE EDGES MUST
BE PARALLEL
/\
h.4_3/4_ I
\
3//8
NOTE: _,11dimensions in inches
PUSH BLOCK
\\
3//8 PLYWOOD
3/4 PLYWOOD
/
3-1/2_ _"_20- ]/2
1-1/4
THIS FACE AND THIS EDGE
EDGE MUST BE PARALLEL
3/8 PLYWOOD
NOTE : AI dimensions 'n inches
AUXI LIARY FENCE
CROSSCUTTI NG
CROSSCUTTING is known as cutting wood across the
grain, at 90°, or square with both the edge and the flat side
of the wood. This is done with miter gauge set at "'0".
The graduations on the miter gauge provide accuracy for
average woodworking. In some cases where extreme
accuracy is required, when making angle cuts, for example,
make a trial cut and then recheck it with an accurate
square, or protractor.
If necessary, the miter gauge head can be swiveled slightly
to compensate for any inacurracy,
NOTE: The space between the miter gauge bar and the
groove in the table is held to a minimum during
manufacturing.
For maximum accuracy when using the miter gauge, always
alfavor_ one _ide of the groove in the table, In other words,
don't move the miter gauge from side to side while cutting,
but keep one side of the bar riding against one side of the
groove.
NOTE: Glue a piece of sandpaper to the face of the miter
gauge head. This will help prevent the workpiece from
"creeping" while it is being cut.
The Hold-Down Clamp (Optional Accessory) should be
used on the miter gauge for greater accuracy.
The miter gauge may be used in either of the grooves in the
table. Make sure it is locked.
When using the miter gauge in the LEFT hand groove, hold
the workpiece firmly against the miter gauge head with
your left hand, and grip the lock knob with your right.
\\\
PLYWOOD
CLAMPED
TO SAWHORSE
When using the RIGHT hand groove, hold the workpiece
with your right hand and the lock knob with your left
hand.
When crosscutting a long board, make sure that it is
supported.
You can make a simple support by clamping a piece of
plywood to asawhorse.
18

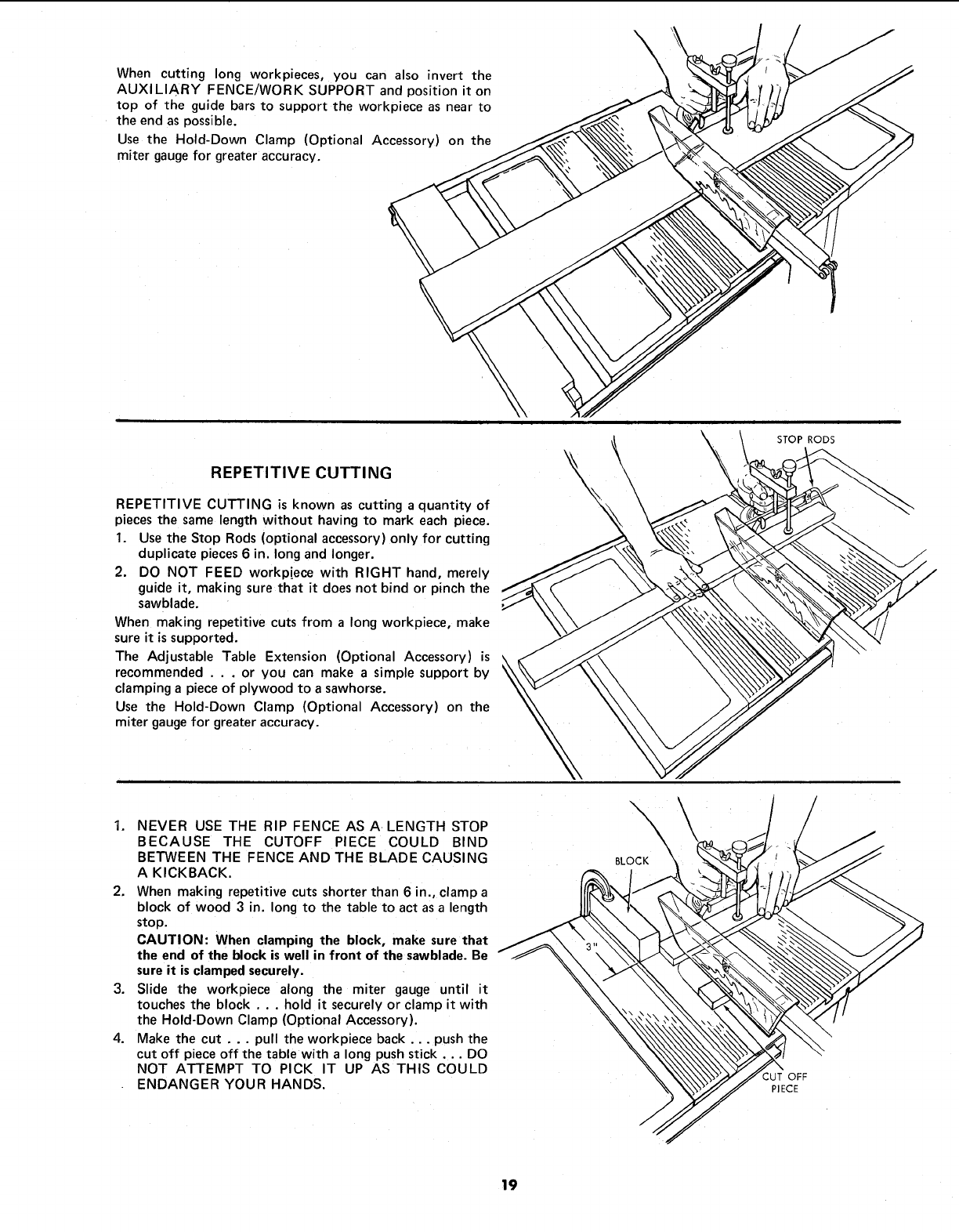

When cutting long workpieces, you can also invert the
AUXILIARY FENCE/WORK SUPPORT and position it on
top of the guide bars to support the workpiece as near to
the end as possible.
Use the Hold-Down Clamp (Optional Accessory) on the
miter gauge for greater accuracy.
REPETITIVE CUTTING
REPETITIVE CUTTING is known as cutting a quantity of
pieces the same length without having to mark each piece.
1. Use the Stop Rods (optional accessory) only for cutting
duplicate pieces 6 in. long and longer.
2. DO NOT FEED workpiece with RIGHT hand, merely
guide it, making sure that it does not bind or pinch the
sawblade.
When making repetitive cuts from a long workpiece, make
sure it is supported.
The Adjustable Table Extension (Optional Accessory) is
recommended . . .or you can make a simple support by
clamping a piece of plywood to a sawhorse.
Use the Hold-Down Clamp (Optional Accessory) on the
miter gauge for greater accuracy.
\
\ \
i
STOP RODS
1. NEVER USE THE RIP FENCE AS A LENGTH STOP
BECAUSE THE CUTOFF PIECE COULD BIND
BETWEEN THE FENCE AND THE BLADE CAUSING
A KICKBACK.
2. When making repetitive cuts shorter than 6 in., clamp a
block of wood 3 in. long to the table to act as a length
stop.
CAUTION: When clamping the block, make sure that
the end of the block is well in front of the sawblade. Be
sure it is clamped securely.
3. Slide the workpiece along the miter gauge until it
touches the block . . . hold it securely or clamp it with
the Hold-Down Clamp (Optional Accessory).
4. Make the cut . ., pull the workpiece back.,, push the
cut off piece off the table with a long push stick... DO
NOT ATTEMPT TO PICK IT UP AS THIS COULD
ENDANGER YOUR HANDS.
3LOC __ "_. i
19

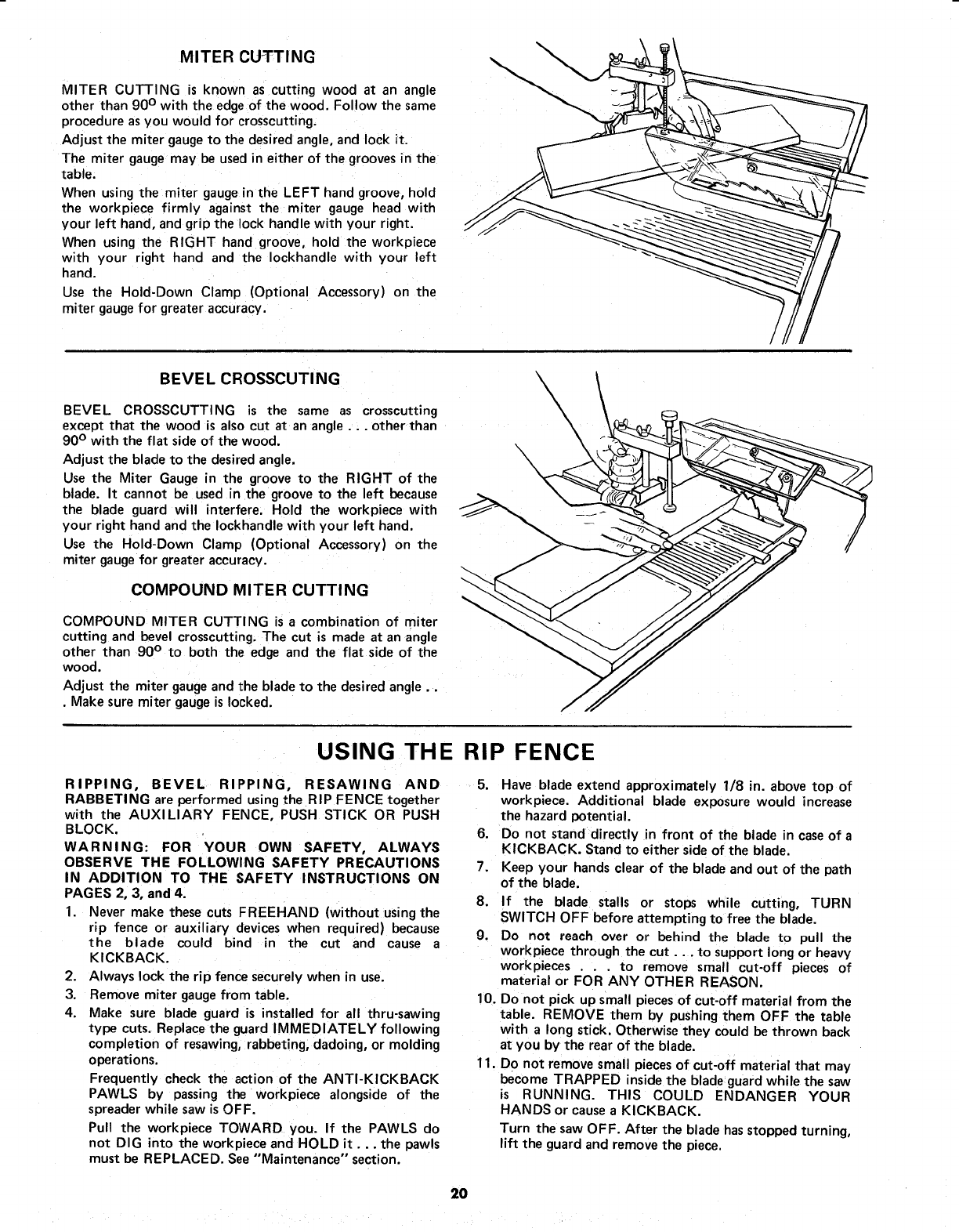

MITER CUTTING \
MITER CUTTING is known as cutting wood at an angle
other than 90° with the edge of the wood. Follow the same
procedure asyou would for crosscutting.
Adjust the miter gauge to the desired angle, and lock it.
The miter gauge may be usedin either of the grooves in the
table.
When using the miter gauge in the LEFT hand groove, hold
the workpiece firmly against the miter gauge head with
your left hand, and grip the lock handle with your right.
When using the RIGHT hand groove, hold the workpiece
with your right hand and the Iockhandle with your left
hand.
Use the Hold-Down Clamp (Optional Accessory) on the
miter gauge for greater accuracy.
BEVEL CROSSCUTING
BEVEL CROSSCUTTING is the same as crosscutting
except that the wood is also cut at an angle.., other than
90° with the flat side of the wood.
Adjust the blade to the desired angle.
Use the Miter Gauge in the groove to the RIGHT of the
blade. It cannot be used in the groove to the left because
the blade guard will interfere. Hold the workpiece with
your right hand and the Iockhandle with your left hand.
Use the Hold-Down Clamp (Optional Accessory) on the
miter gaugefor greater accuracy.
COMPOUND MITER CUTTING
COMPOUND MITER CUTTING is a combination of miter
cutting and bevel crosscutting. The cut is made at an angle
other than 90° to both the edge and the flat side of the
wood.
Adjust the miter gauge and the blade to the desired angle..
• Make sure miter gauge is locked.
USING THE RIP FENCE
RIPPING, BEVEL RIPPING, RESAWING AND
RABBETING are performed usingthe RIP FENCE together
with the AUXILIARY FENCE, PUSH STICK OR PUSH
BLOCK.
WARNING: FOR YOUR OWN SAFETY, ALWAYS
OBSERVE THE FOLLOWING SAFETY PRECAUTIONS
IN ADDITION TO THE SAFETY INSTRUCTIONS ON
PAGES 2, 3, and 4.
1. Never make these cuts FREEHAND (without using the
rip fence or auxiliary devices when required) because
the blade could bind in the cut and cause a
KICKBACK.
2. Always lock the rip fence securely when in use.
3. Remove miter gauge from table.
4. Make sure blade guard is installed for all thru-sawing
type cuts. Replace the guard IMMEDIATELY following
completion of resawing, rabbeting, dadoing, or molding
operations.
Frequently check the action of the ANTI-KICKBACK
PAWLS by passing the workpiece alongside of the
spreader while saw is OFF.
Pull the workpiece TOWARD you. If the PAWLS do
not DIG into the workpiece and HOLD it... the pawls
must be REPLACED. See "Maintenance" section.
5. Have blade extend approximately 1/8 in. above top of
workpiece. Additional blade exposure would increase
the hazard potential.
6. Do not stand directly in front of the blade in caseof a
KICKBACK. Stand to either side of the blade.
7. Keep your hands clear of the blade and out of the path
of the blade.
8. If the blade stalls or stops while cutting, TURN
SWITCH OFF before attempting to free the blade.
0. Do not reach over or behind the blade to pull the
workpiece through the cut.., to support long or heavy
workpieces . . . to remove small cut-off pieces of
material or FOR ANY OTHER REASON.
10. Do not pick up small pieces of cut-off material from the
table. REMOVE them by pushing them OFF the table
with a long stick. Otherwise they could be thrown back
at you by the rear of the blade.
11. Do not remove small piecesof cut-off material that may
become TRAPPED inside the blade guard while the saw
is RUNNING. THIS COULD ENDANGER YOUR
HANDS or cause a KICKBACK.
Turn the saw OFF. After the blade hasstopped turning,
lift the guard and remove the piece.
2O

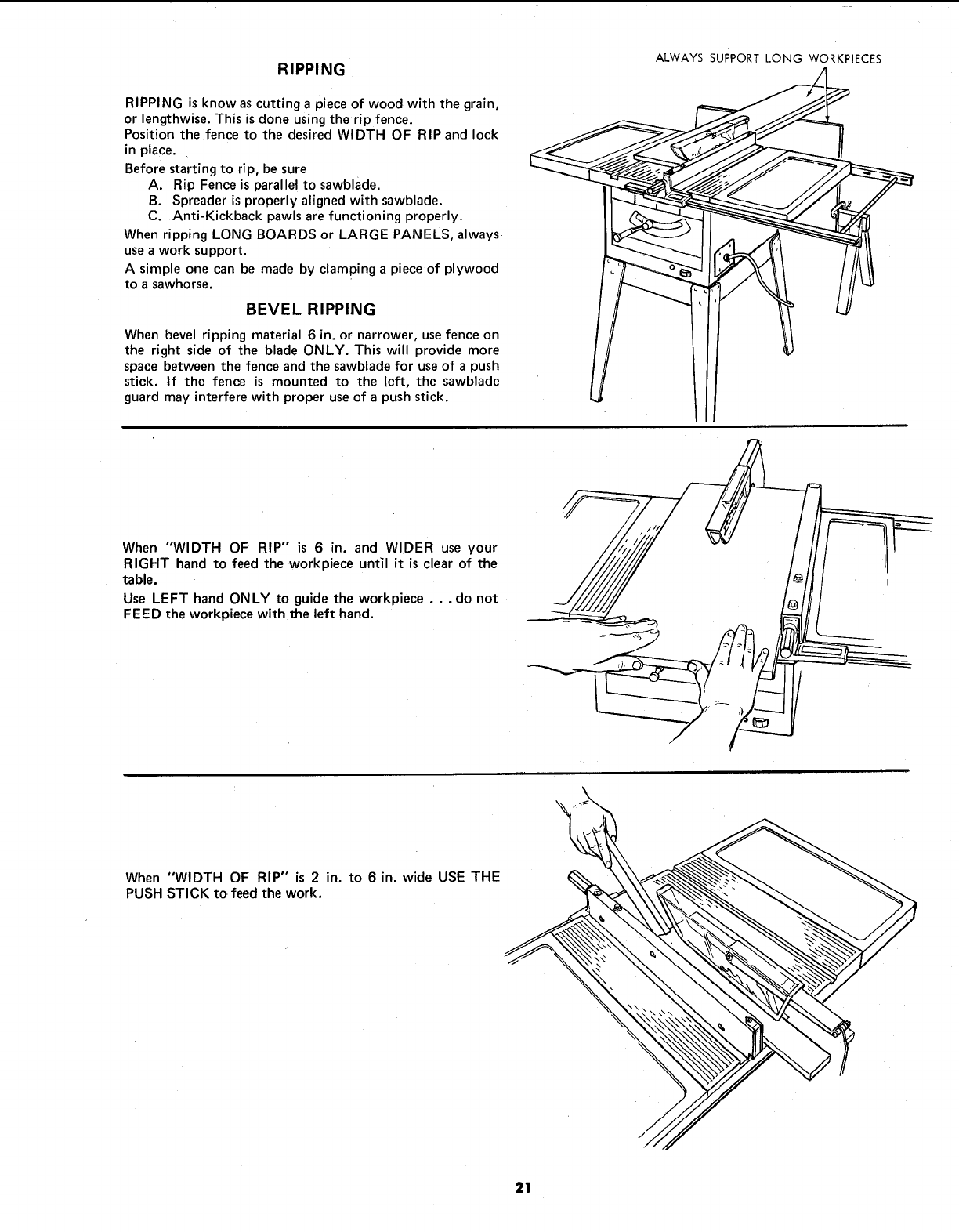

RIPPING
RIPPING is know as cutting a piece of wood with the grain,
or lengthwise. This is done using the rip fence.
Position the fence to the desired WIDTH OF RIP and lock
in place.
Before starting to rip, be sure
A. Rip Fence is parallel to sawblade.
B. Spreader is properly aligned with sawblade.
C, Anti-Kickback pawls are functioning properly.
When ripping LONG BOARDS or LARGE PANELS, always
use a work support.
A simple one can be made by clamping a piece of plywood
to a sawhorse.
BEVEL RIPPING
When bevel ripping material 6 in. or narrower, use fence on
the right side of the blade ONLY. This will provide more
space between the fence and the sawblade for use of a push
stick. If the fence is mounted to the left, the sawblade
guard may interfere with proper use of a push stick.
ALWAYS SUPPORT LONG WORKPIECES
When "WIDTH OF RIP" is 6 in. and WIDER use your
RIGHT hand to feed the workpiece until it is clear of the
table.
Use LEFT hand ONLY to guide the workpiece.., do not
FEED the workpiece with the left hand.
When "'WIDTH OF
PUSH STICK to feed the work.
RIP" is 2 in. to 6 in. wide USE THE
21

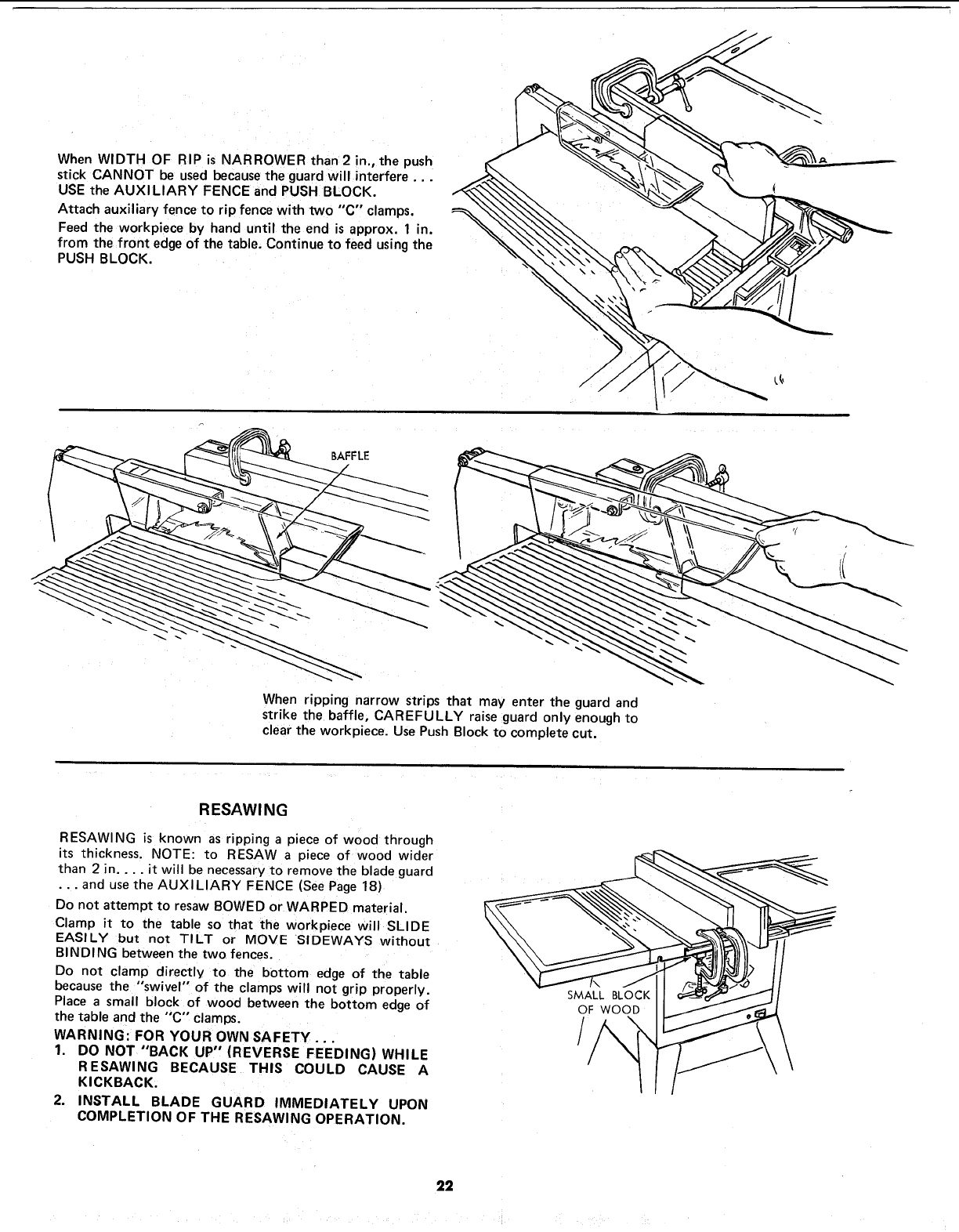

When WIDTH OF RIP is NARROWER than2 in., the push
stick CANNOT be used becausethe guard will interfere...
USE the AUXILIARY FENCE and PUSH BLOCK.
Attach auxiliary fence to rip fence with two "C" clamps.
Feed the workpiece by hand until the end is approx. 1in.
from the front edge of the table, Continue to feed using the
PUSH BLOCK.
BAFFLE
When ripping narrow strips that may enter the guard and
strike the baffle, CAREFULLY raise guard only enough to
clear the workpiece. Use Push Block to complete cut.
RESAWING
RESAWING is known as ripping a I_iece of wood through
tts thickness. NOTE: to RESAW a piece of wood wider
than 2 in .... it will be necessary to remove the blade guard
•.. and use the AUXILIARY FENCE (See Page 18)
Do not attempt to resaw BOWED or WARPED material.
Clamp it to the table so that the workpiece will SLIDE
EASILY but not TILT or MOVE SIDEWAYS without
BINDING between the two fences•
Do not clamp directly to the bottom edge of the table
because the "swivel" of the clamps will not grip properly.
Place a small block of wood between the bottom edge of
the table and the "C" clamps.
WARNING: FOR YOUR OWN SAFETY...
1. DO NOT "BACK UP" (REVERSE FEEDING) WHILE
RESAWlNG BECAUSE THIS COULD CAUSE A
KICKBACK.
2. INSTALL BLADE GUARD IMMEDIATELY UPON
COMPLETION OF THE RESAWlNG OPERATION.
SMALL BLOCK
OF WOOD
22

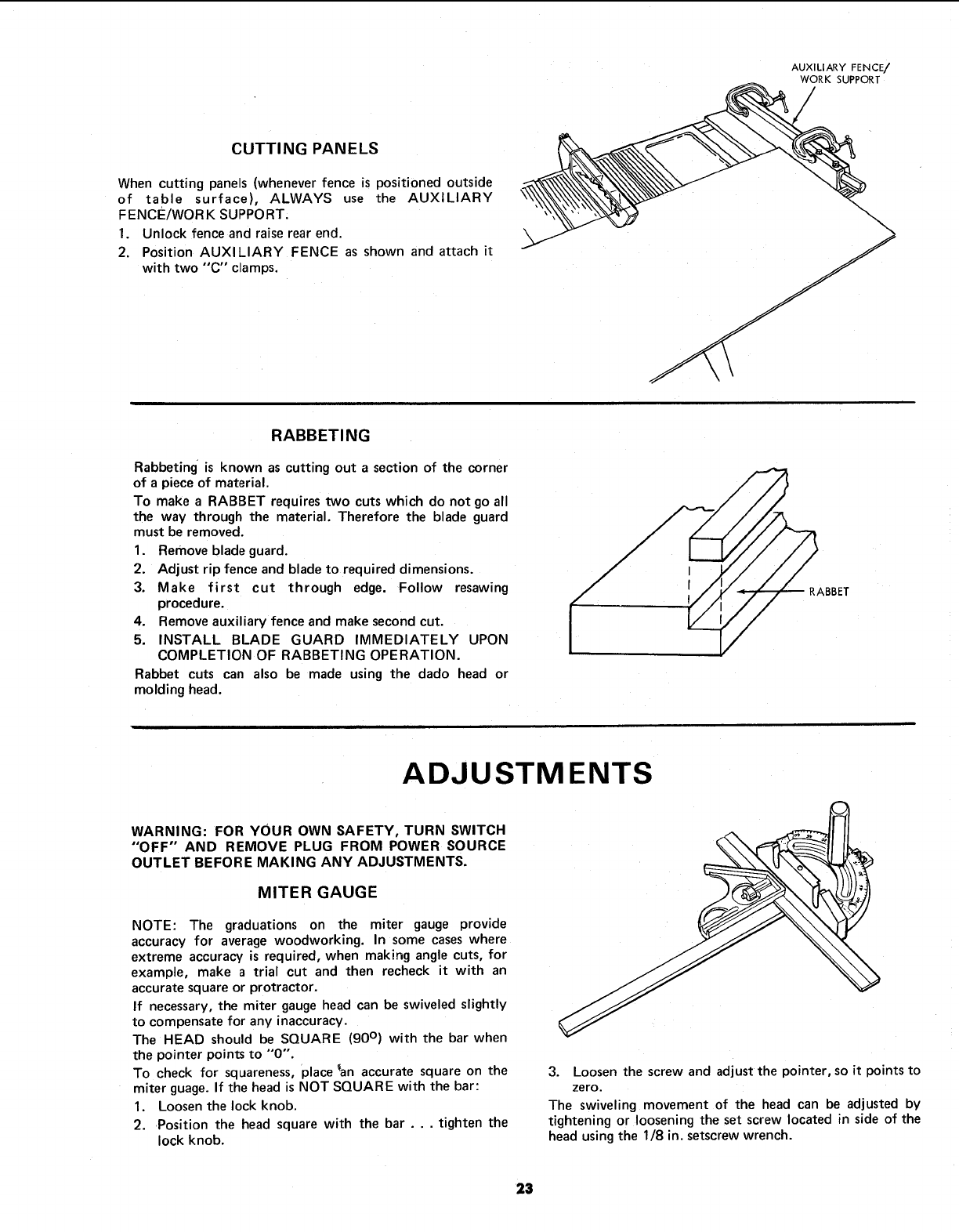

AUXILIARY FENCE/
WORK SUPPORT
/
CUTTING PANELS
When cutting panels (whenever fence is positioned outside
of table surface), ALWAYS use the AUXILIARY
F ENCE/WOR K SUPPORT.
1. Unlock fence and raise rear end.
2. Position AUXILIARY FENCE as shown and attach it
with two "C" clamps.
\\
RABBETING
Rabbeting is known as cutting out a section of the corner
of a piece of material.
To make a RABBET requires two cuts which do not go all
the way through the material. Therefore the blade guard
must be removed.
1. Remove blade guard.
2. Adjust rip fence and blade to required dimensions.
3. Make first cut through edge. Follow resawing
procedure.
4. Remove auxiliary fence and make second cut.
5. INSTALL BLADE GUARD IMMEDIATELY UPON
COMPLETION OF RABBETING OPERATION.
Rabbet cuts can also be made using the dado head or
molding head.
RABBET
ADJUSTMENTS
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE MAKING ANY ADJUSTMENTS.
MITER GAUGE
NOTE: The graduations on the miter gauge provide
accuracy for average woodworking. In some cases where
extreme accuracy is required, when making angle cuts, for
example, make a trial cut and then recheck it with an
accurate square or protractor.
If necessary, the miter gauge head can be swiveled slightly
to corn pensate for any inaccuracy.
The HEAD should be SQUARE (90 ° ) with the bar when
the pointer points to "'0".
To check for squareness, place tan accurate square on the
miter guage. If the head is NOT SQUARE with the bar:
1. Loosen the lock knob.
2. Position the head square with the bar . . . tighten the
lock knob.
3. Loosen the screw and adjust the pointer, so it points to
zero.
The swiveling movement of the head can be adjusted by
tightening or loosening the set screw located in side of the
head using the 1/8 in. setscrew wrench.
23

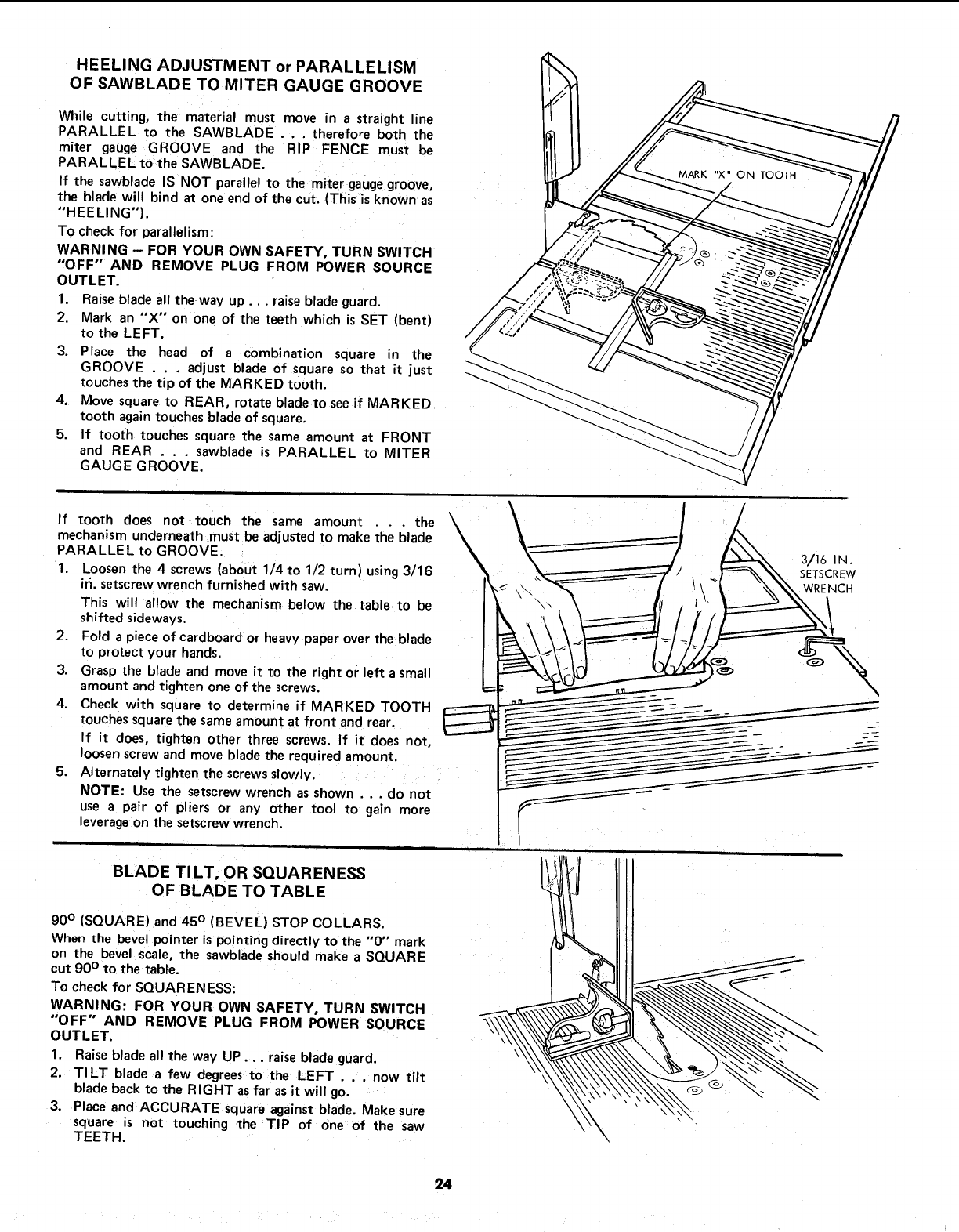

HEELING ADJUSTMENT or PARALLELISM
OF SAWBLADE TO MITER GAUGE GROOVE
While cutting, the material must move in astraight line
PARALLEL to the SAWBLADE . . .therefore both the
miter gauge GROOVE and the RIP FENCE must be
PARALLEL tothe SAWBLADE.
If the sawblade IS NOT parallel to the miter gauge groove,
the blade will bind at one end of the cut. (This is known as
"HEELING").
To check for parallelism:
WARNING - FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET.
1.
2.
Raise blade all theway up... raise blade guard.
Mark an "X" on one of the teeth which is SET (bent)
to the LEFT.
3. Place the head of a combination square in the
GROOVE . . . adjust blade of square so that it just
touches the tip of the MARKED tooth.
4. Move square to REAR, rotate blade to see if MARKED
tooth again touches blade of square.
5. If tooth touches square the same amount at FRONT
and REAR ... sawblade is PARALLEL to MITER
GAUGE GROOVE.
If tooth does not touch the same amount . .. the
mechanism underneath must be adjusted to make the blade
PARALLEL to GROOVE.
1. Loosen the 4 screws (about 1/4 to 1/2 turn) using 3/16
in. setscrew wrench furnished with saw.
This will allow the mechanism below the table to be
shifted sideways.
2. Fold a piece of cardboard or heavy paper over the blade
to protect your hands.
3. Grasp the blade and move it to the right or left a small
amount and tighten one of the screws.
4. Check with square to determine if MARKED TOOTH
touches square the same amount at front and rear.
If it does, tighten other three screws. If it does not,
loosen screw and move blade the required amount,
5. Alternately tighten the screws slowly.
NOTE: Use the setscrew wrench as shown . .. do not
use a pair of pliers or any other tool to gain more
leverage on the setscrew wrench.
BLADE TILT, OR SQUARENESS
OF BLADE TO TABLE
90° (SQUARE) and 45° (BEVEL) STOP COLLARS.
When the bevel pointer is pointing directly to the "'0"" mark
on the bevel scale, the sawblade should make a SQUARE
cut 90° to the table.
To check for SQUARENESS:
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET.
1. Raise blade all the way UP... raise blade guard.
2. TILT blade afew degrees to the LEFT . . .now tilt
blade back to the RIGHT as far as it will go.
3. Place and ACCURATE square against blade. Make sure
square is not touching the TIP of one of the saw
TEETH.
24

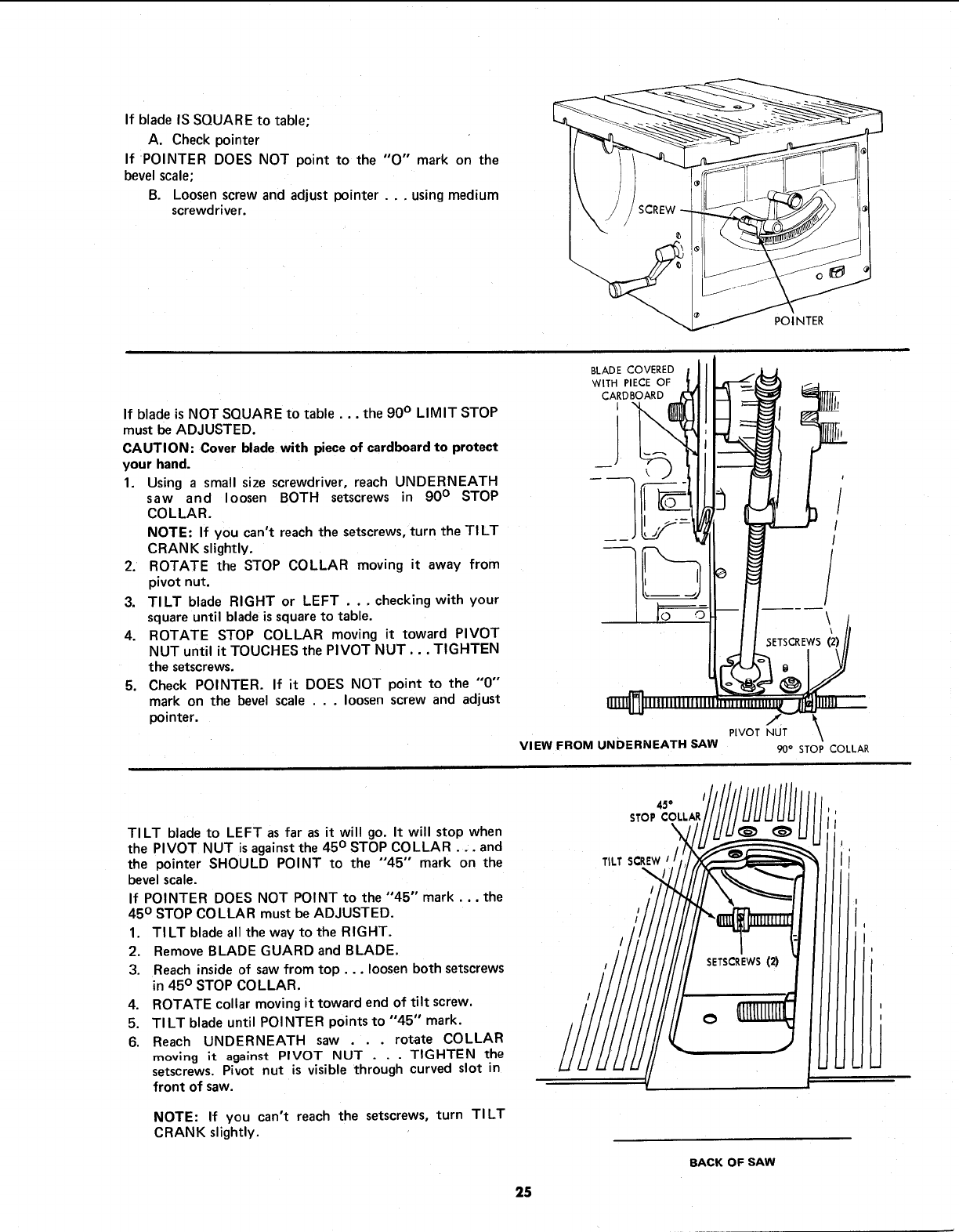

If bladeIS SQUARE to table;
A. Check pointer
If POINTER DOES NOT point to the "O" mark on the
bevel scale;
B. Loosen screw and adjust pointer.., using medium
screwdriver.
If blade is NOT SQUARE to table.., the 90° LIMIT STOP
must be ADJUSTED.
CAUTION: Cover blade with piece of cardboard to protect
your hand.
1. Using a small size screwdriver, reach UNDERNEATH
saw and loosen BOTH setscrews in 90 ° STOP
COLLAR.
NOTE: If you can't reach the setscrews,turn the TILT
CRANK slightly.
2. ROTATE the STOP COLLAR moving it away from
pivot nut.
3. TILT blade RIGHT or LEFT . . ,checking with your
square until blade is square to table.
4. ROTATE STOP COLLAR moving it toward PIVOT
NUT until it TOUCHES the PIVOT NUT... TIGHTEN
the setscrews.
5. Check POINTER. If it DOES NOT point to the "0"
mark on the bevel scale . .. loosen screw and adjust
pointer.
BLADE COVERED
WITH PIECE OF
CARDBOARD
VIEW FROM UNDERNEATH SAW
/
I
I
/
SETSCREWS (2)
PIVOT NUT \
90° STOP COLLAR
TILT blade to LEFT as far as it will go. It will stop when
the PIVOT NUT is against the 45 ° STOP COLLAR ... and
the pointer SHOULD POINT to the "45" mark on the
bevel scale.
If POINTER DOES NOT POINT to the "45" mark.., the
45 ° STOP COLLAR must be ADJUSTED.
1. TILT blade all the way to the RIGHT.
2. Remove BLADE GUARD and BLADE.
3. Reach inside of saw from top.., loosen both setscrews
in 45° STOP COLLAR.
4. ROTATE collar moving it toward end of tilt screw.
5. TILT blade until POINTER points to "45" mark.
6. Reach UNDERNEATH saw . . rotate COLLAR
moving it against PIVOT NUT . . . TIGHTEN the
setscrews. Pivot nut is visible through curved slot in
front of saw.
NOTE: If you can't reach the setscrews, turn TILT
CRANK slightly.
STOP4_OLLAR
TILTSCREW
BACK OF SAW
25
STOP COLLAR

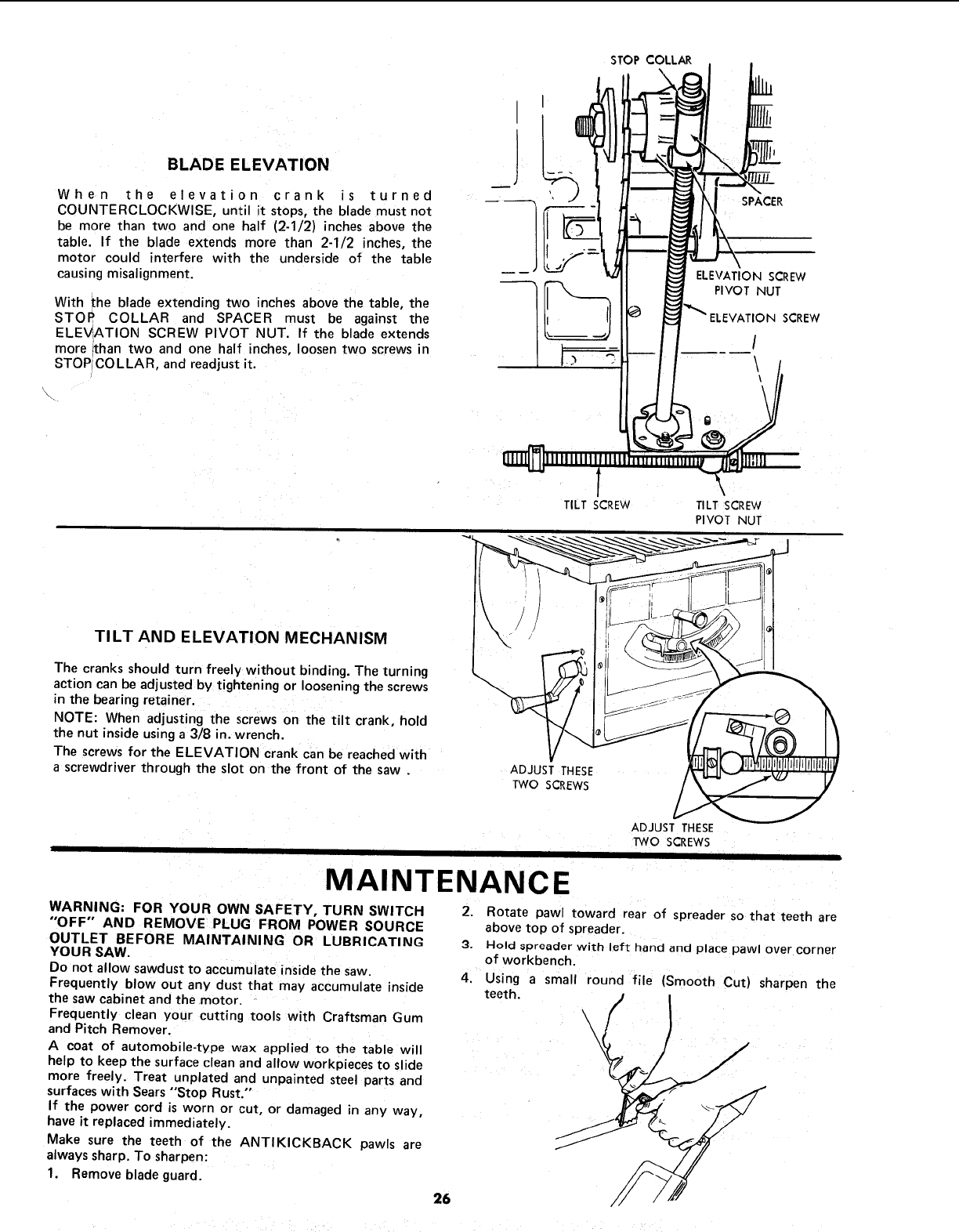

BLADE ELEVATION
When the elevation crank is turned
COUNTERCLOCKWISE, until it stops, the blade must not
be more than two and one half (2-1/2) inches above the
table. If the blade extends more than 2-1/2 inches, the
motor could interfere with the underside of the table
causing misalignment.
With the blade extending two inches above the table, the
STOP COLLAR and SPACER must be against the
ELEV',ATION SCREW PIVOT NUT. If the blade extends
more than two and one half inches, loosen two screws in
STOP COLLAR, and readjust it.
SPACER
ELEVATION SCREW
PIVOT NUT
ELEVATION SCREW
TILT SCREW
\
TILT SCREW
PIVOT NUT
TILT AND ELEVATION MECHANISM
The cranks should turn freely without binding. The turning
action can be adjusted by tightening or loosening the screws
in the bearing retainer.
NOTE: When adjusting the screws on the tilt crank, hold
the nut inside using a 3/8 in. wrench.
The screws for the ELEVATION crank can be reached with
a screwdriver through the slot on the front of the saw . ADJUST THESE
TWO SCREWS
ADJUST THESE
TWO SCREWS
MAINTENANCE
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH
"OFF" AND REMOVE PLUG FROM POWER SOURCE
OUTLET BEFORE MAINTAINING OR LUBRICATING
YOUR SAW.
Do not allow sawdust to accumulate inside the saw.
Frequently blow out any dust that may accumulate inside
the saw cabinet and the motor.
Frequently clean your cutting tools with Craftsman Gum
and Pitch Remover.
Acoat of automobile-type wax applied to the table will
help to keel_ the surface clean and allow workpieces to slide
more freely. Treat unplated and unpainted steel parts and
surfaceswith Sears "Stop Rust."
If the power cord is worn or cut, or damaged in any way,
have it replaced immediately.
Make sure the teeth of the ANTIKICKBACK pawls are
always sharp. To sharpen:
1. Remove blade guard.
2. Rotate pawl toward rear of spreader so that teeth are
above top of spreader.
3. Hold spreader with left hand and place pawl over corner
of workbench.
4. Using a small round file (Smooth Cut) sharpen the
teeth. ', )
26

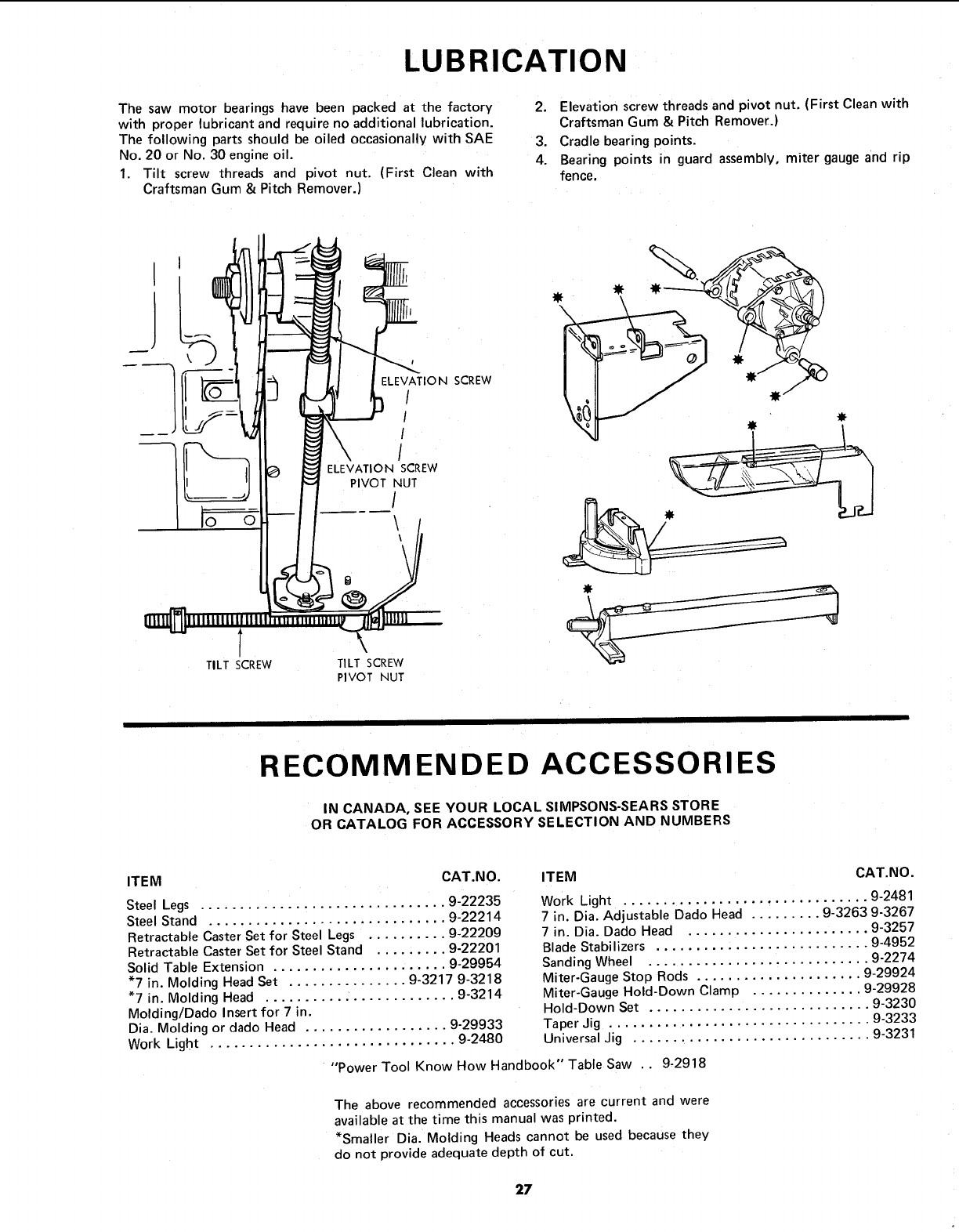

LUBRICATION
The saw motor bearings have been packed at the factory
with proper lubricant and require no additional lubrication•
The following parts should be oiled occasionally with SAE
No. 20 or No. 30 engine oil.
1. Tilt screw threads and pivot nut. (First Clean with
Craftsman Gum & Pitch Remover.)
2. Elevation screw threads and pivot nut. (First Clean with
Craftsman Gum & Pitch Remover.)
3. Cradle bearing points.
4. Bearing points in guard assembly, miter gauge and rip
fence.
ELEVATION SCREW
I
I
I
\ /
ELEVATION SCREW
PIVOT NUT
/
/
TILT SCREW
\
TILT SCREW
PIVOT NUT
RECOMMENDED ACCESSORIES
IN CANADA, SEE YOUR LOCAL SIMPSONS-SEARS STORE
OR CATALOG FOR ACCESSORY SELECTION AND NUMBERS
ITEM CAT.NO.
9-22235
Steel Legs ...............................
Steel Stand .............................. 9-22214
Retractable Caster Set for Steel Legs .......... 9-22200
Retractable Caster Set for Steel Stand ......... 9-22201
Solid Table Extension ...................... 9-29954
*7 in. Molding Head Set ............... 9-3217 9-3218
*7 in. Molding Head .......... . ............. 9-3214
Molding/Dado Insert for 7 in.
Dia. Molding or dado Head .................. 9-29933
9-2480
Work Light ...............................
ITEM CAT. NO•
• 9-2481
Work Light ..............................
7 in. Dia. Adjustable Dado Head ......... 9-3263 9-3267
7 in. Dia. Dado Head ....................... 9-3257
.9-4952
Blade Stabilizers ..........................
Sanding Wheel ............................ 9-2274
Miter-Gauge Stop Rods ..................... 9-29924
Miter-Gauge Hold-Down Clamp .............. 9-29928
9-3230
Hold-Down Set ............................
Taper Jig ................................. 9-3233
9-3231
Universal Jig ..............................
"Power Tool Know How Handbook" Table Saw .. 9-2918
The above recommended accessories are current and were
available at the time this manual was printed.
*Smaller Dia. Molding Heads cannot be used because they
do not provide adequate depth of cut.
27

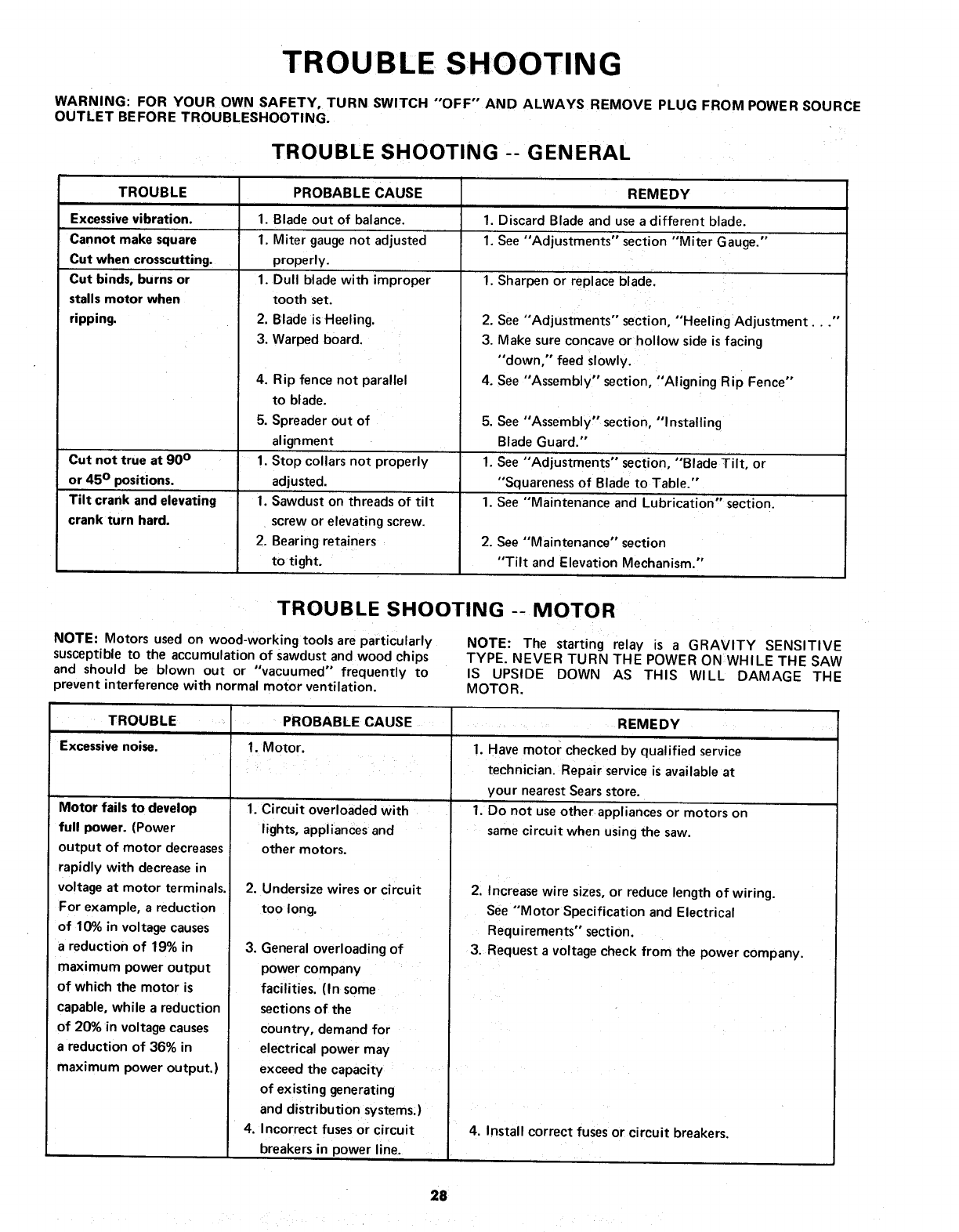

TROUBLE SHOOTING
WARNING: FOR YOUR OWN SAFETY, TURN SWITCH "OFF" AND ALWAYS REMOVE PLUG FROM POWER SOURCE
OUTLET BE FOR E TROUBLESHOOTING.
TROUBLE SHOOTING -- GENERAL
TROUBLE PROBABLE CAUSE REMEDY
Excessivevibration. Discard Blade and use a different blade.
Cannot make square See "Adjustments" section "Miter Gauge."
Cut when crosscutting.
Cut binds, burns or Sharpen or replace blade.
stalls motor when
ripping.
Cut not true at 90 °
or 45 ° positions.
Tilt crank and elevating
crank turn hard.
1.
1.
2.
3.
4.
5.
1.
1.
2.
Blade out of balance.
Miter gauge not adjusted
properly.
Dull blade with improper
tooth set.
Blade is Heeling.
Warped board.
Rip fence not parallel
to blade.
Spreader out of
alignment
Stop collars not properly
adjusted.
Sawdust on threads of tilt
screw or elevating screw.
Bearing retainers
to tight.
1.
1.
1.
2.
3.
4.
5.
1.
1.
2.
See "Adjustments" section, "Heeling Adjustment..."
Make sure concave or hollow side is facing
"down," feed slowly.
See "Assembly" section, "Aligning Rip Fence"
See "Assembly" section, "Installing
Blade Guard."
See "Adjustments" section, "Blade Tilt, or
"Squareness of Blade to Table."
See "Maintenance and Lubrication" section.
See "Maintenance" section
"Tilt and Elevation Mechanism."
TROUBLE SHOOTING -- MOTOR
NOTE: Motors used on wood-working tools are particularly
susceptible to the accumulation of sawdust and wood chips
and should be blown out or "vacuumed" frequently to
)revent interference with normal motor ventilation.
NOTE: The starting relay is a GRAVITY SENSITIVE
TYPE. NEVER TURN THE POWER ON WHILE THE SAW
IS UPSIDE DOWN AS THIS WILL DAMAGE THE
MOTOR.
TROUBLE
Excessive noise.
PROBABLE CAUSE
1. Motor.
Motor fails to develop
full power. (Power
output of motor decreases
rapidly with decrease in
voltage at motor terminals.
For example, a reduction
of 10% in voltage causes
a reduction of 19% in
maximum power output
of which the motor is
capable, while a reduction
of 20% in voltage causes
a reduction of 36% in
maximum power output.)
1. Circuit overloaded with
lights, appliances and
other motors.
2. Undersize wires or circuit
too long.
3. General overloading of
power company
facilities. (In some
sections of the
country, demand for
electrical power may
exceed the capacity
of existing generating
and distribution systems.)
4. Incorrect fuses or circuit
breakers in power line.
REMEDY
!. Have motor checked by qualified service
technician. Repair service is available at
your nearest Sears store.
1. Do not use other appliances or motors on
same circuit when using the saw.
2. Increase wire sizes, or reduce length of wiring.
See "Motor Specification and Electrical
Requirements" section,
3. Request a voltage check from the power company.
4. Install correct fusesor circuit breakers.
28

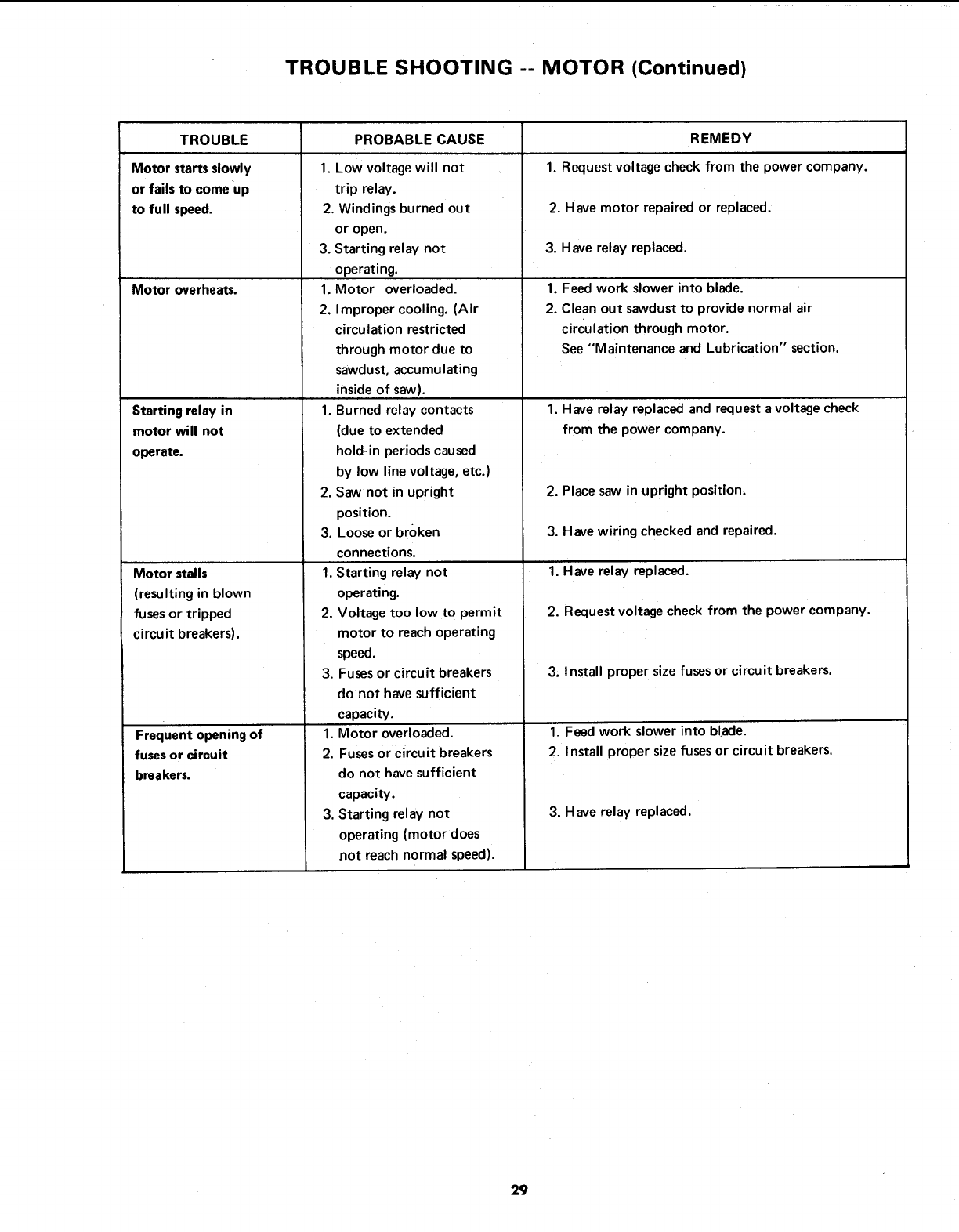

TROUBLE SHOOTING -- MOTOR (Continued)
TROUBLE PROBABLE CAUSE
Motor starts slowly
or fails to come up
to full speed.
Motor overheats.
Starting relay in
motor will not
operate.
Motor stalls
(resulting in blown
fuses or tripped
circu it breakers).
Frequent opening of
fuses or circuit
breakers.
1. Low voltage will not
trip relay.
2. Windings burned out
or open.
3. Starting relay not
operating.
1. Motor overloaded.
2. Improper cooling. (Air
circulation restricted
through motor due to
sawdust, accumulating
inside of saw).
1. Burned relay contacts
(due to extended
hold-in periods caused
by low line voltage, etc.)
2. Saw not in upright
position.
3. Loose or broken
connections.
1. Starting relay not
operating.
2. Voltage too low to permit
motor to reach operating
speed.
3. Fusesor circuit breakers
do not have sufficient
capacity.
1. Motor overloaded.
2. Fuses or circuit breakers
do not have sufficient
capacity.
3. Starting relay not
operating (motor does
not reach normal speed).
REMEDY
1. Request voltage check from the power company.
2. Have motor repaired or replaced.
3. Have relay replaced.
1. Feed work slower into blade.
2. Clean out sawdust to provide normal air
circulation through motor.
See "Maintenance and Lubrication" section.
1. Have relay replaced and request a voltage check
from the power company.
2. Place saw in upright position.
3. Have wiring checked and repaired.
1. Have relay replaced.
2. Request voltage check from the power company.
3. Install proper size fusesor circuit breakers.
1. Feed work slower into blade.
2. Install proper size fusesor circuit breakers.
3. Have relay replaced.
29

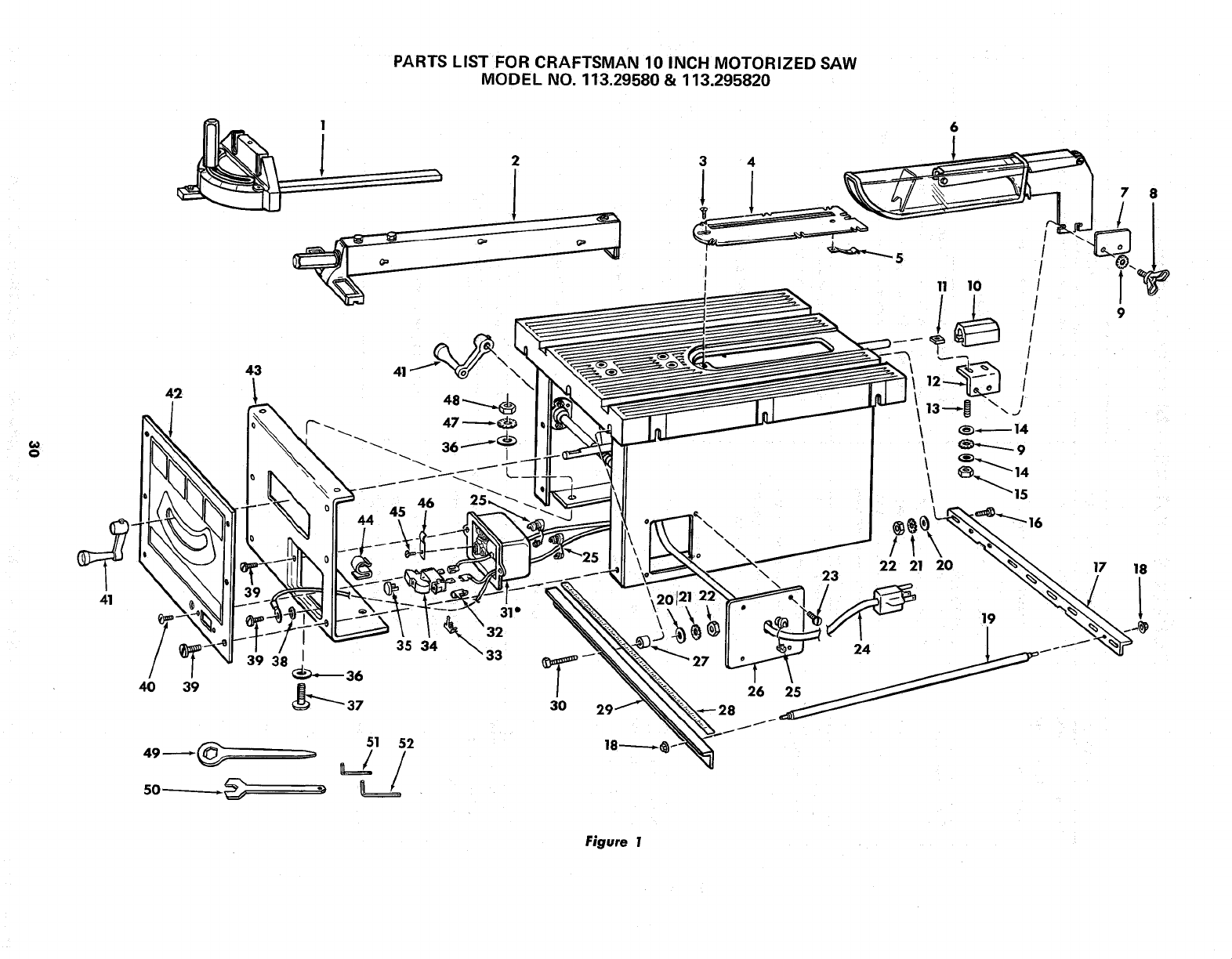

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW
MODEL NO. 113.29580 & 113.295820
O
41
42
2
4O 39
43 41 \\
46
35 34
51 52
31"
33
Figure 1

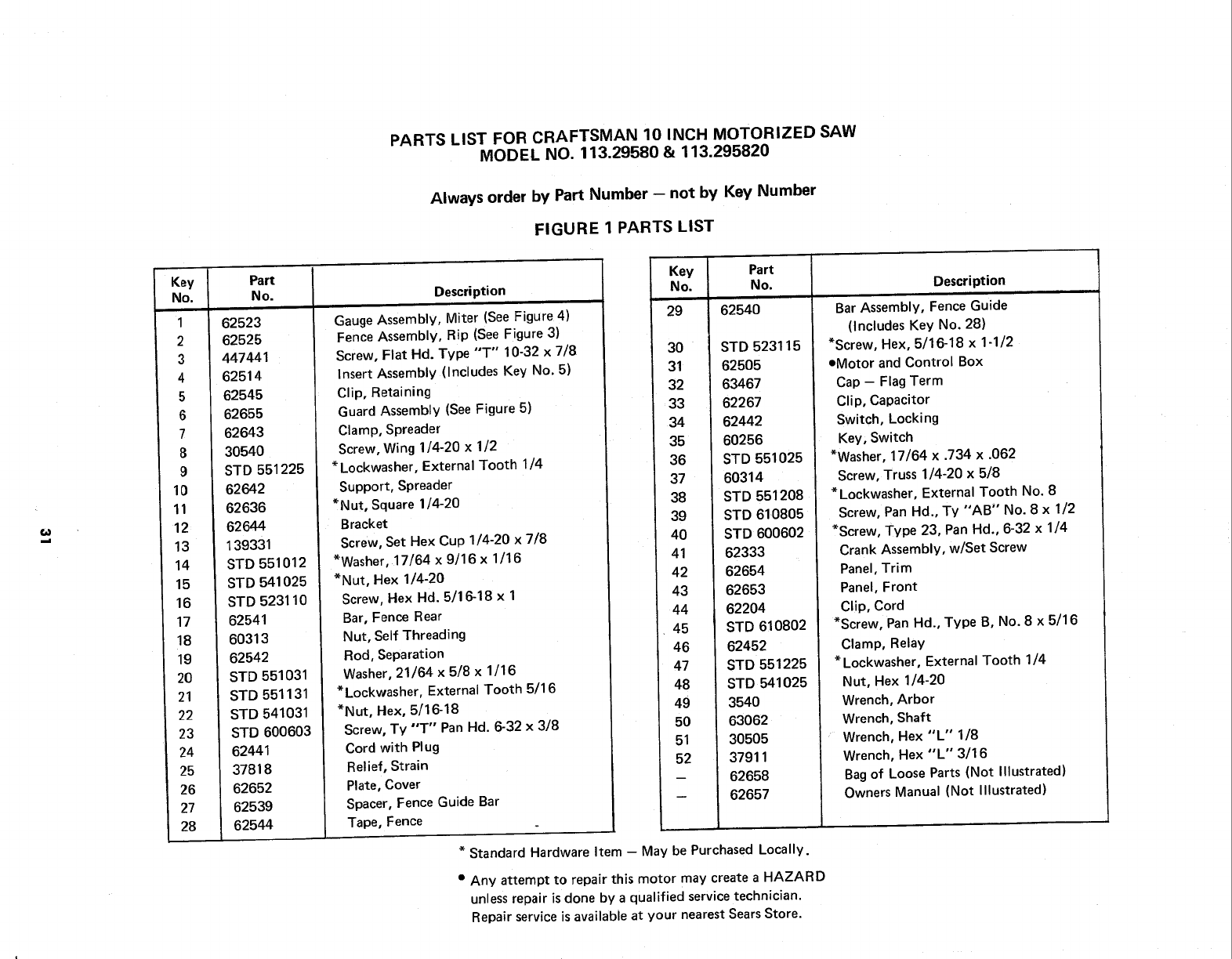

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW
MODEL NO. 113.29580 & 113.295820
Always order by Part Number -- not by Key Number
FIGURE 1 PARTS LIST
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
Part
No. Description
62523
62525
447441
62514
62545
62655
62643
30540
STD 551225
62642
62636
62644
139331
STD 551012
STD 541025
STD 523110
62541
60313
62542
STD 551031
STD 551131
STD 541031
Gauge Assembly, Miter (See Figure 4)
Fence Assembly, Rip (See Figure 3)
Screw, Flat Hd. Type "T" 10-32 x 7/8
Insert Assembly (Includes Key No. 5)
Clip, Retaining
Guard Assembly (See Figure 5)
Clamp, Spreader
Screw, Wing 1/4-20 x 1/2
* Lockwasher, External Tooth 1/4
Support, Spreader
*Nut, Square 1/4-20
Bracket
Screw, Set Hex Cup 1/4-20 x 7/8
*Washer, 17/64 x 9/16x 1/16
*Nut, Hex 1/4-20
Screw, Hex Hd. 5/16-18 x 1
Bar, Fence Rear
Nut, Self Threading
Rod, Separation
Washer, 21/64 x 5/8 x 1/16
*Lockwasher, External Tooth 5/16
*Nut, Hex, 5/16-18
STD 600603
62441
37818
62652
62539
62544
Screw, Ty "'T" Pan Hd. _32 x 3/8
Cord with Plug
Relief, Strain
Plate, Cover
Spacer, Fence Guide Bar
Tape, Fence
Key Part
No. No.
29 62540
30 STD 523115
31 62505
32 63467
33 62267
34 62442
35 60256
36 STD 551025
37 60314
38 STD 551208
39 STD 610805
40 STD 600602
41 62333
42 62654
43 62653
44 62204
45 STD 610802
46 62452
47 STD 551225
48 STD 541025
49 3540
50 63062
51 3O505
52 37911
- 62658
- 62657
Description
.i
Bar Assembly, Fence Guide
(Includes Key No, 28)
*Screw, Hex, 5/16-18 x 1-1/2
eMotor and Control Box
Cap - Flag Term
Clip, Capacitor
Switch, Locking
Key, Switch
*Washer, 17/64 x .734 x .062
Screw, Truss 1/4-20 x 5/8
*Lockwasher, External Tooth No. 8
Screw, Pan Hd., Ty "'AB*' No. 8 x I/2
*Screw, Type 23, Pan Hal., 6-32 x 1/4
Crank Assembly, w/Set Screw
Panel, Trim
Panel, Front
Clip, Cord
*Screw, Pan Hd., Type B, No. 8 x 5/16
Clamp, Relay
* Lockwasher, External Tooth 1/4
Nut, Hex 1/4-20
Wrench, Arbor
Wrench, Shaft
Wrench, Hex "L" 1/8
Wrench, Hex "'L" 3/16
Bag of Loose Parts (Not illustrated)
Owners Manual (Not Illustrated)
* Standard Hardware Item -- May be Purchased Locally.
• Any attempt to repair this motor may create aHAZARD
unless repair is done by a qualified service technician.
Repair service is available at your nearest Sears Store.

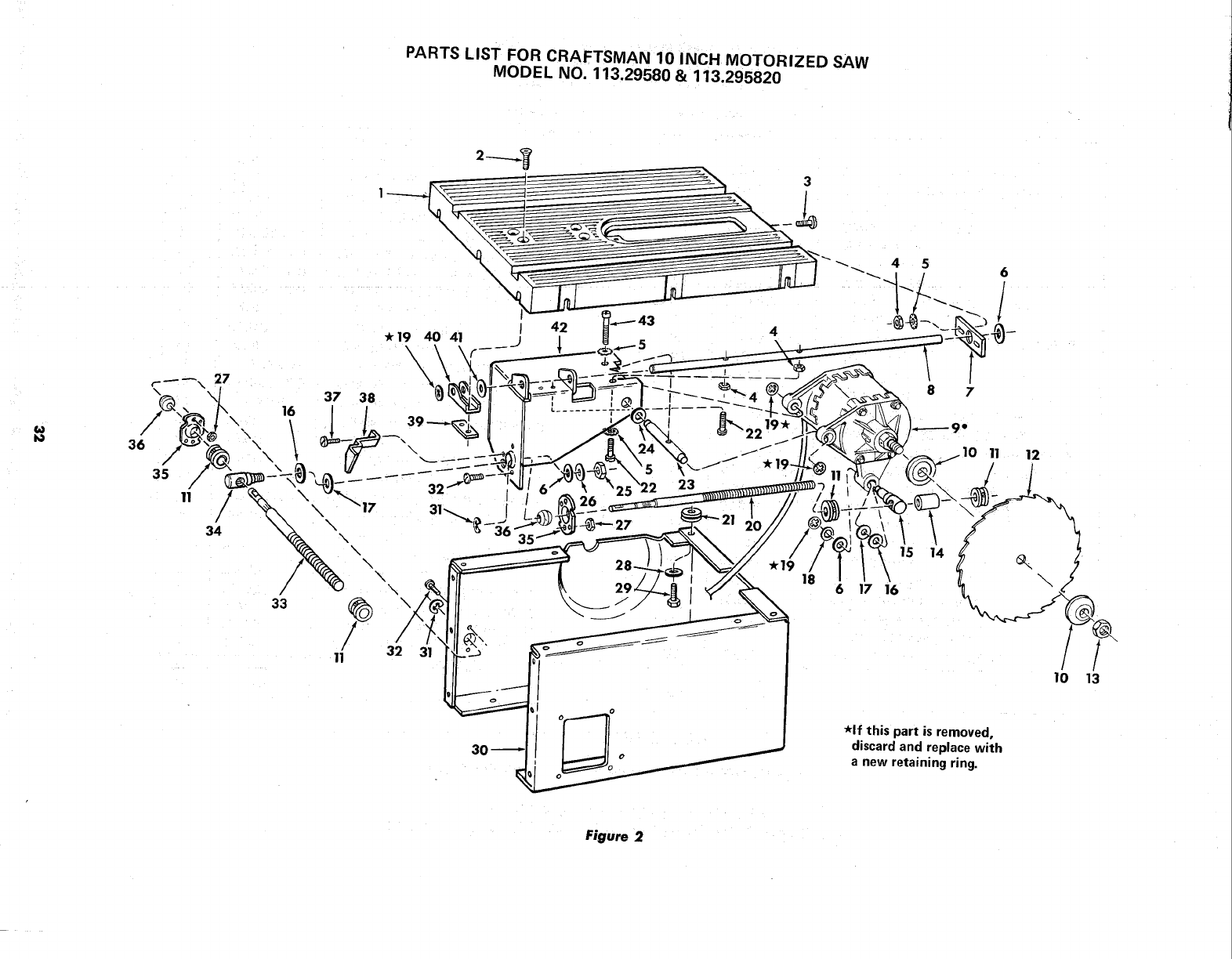

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW
MODEL NO. 113.29580 & 113.295820
3
30
L........ T-°
87
15
/
18 \,
6 17 16
14
6
/
1
11 12
10 13
*If this part is removed,
discard and replace with
a new retaining ring.
Figure 2

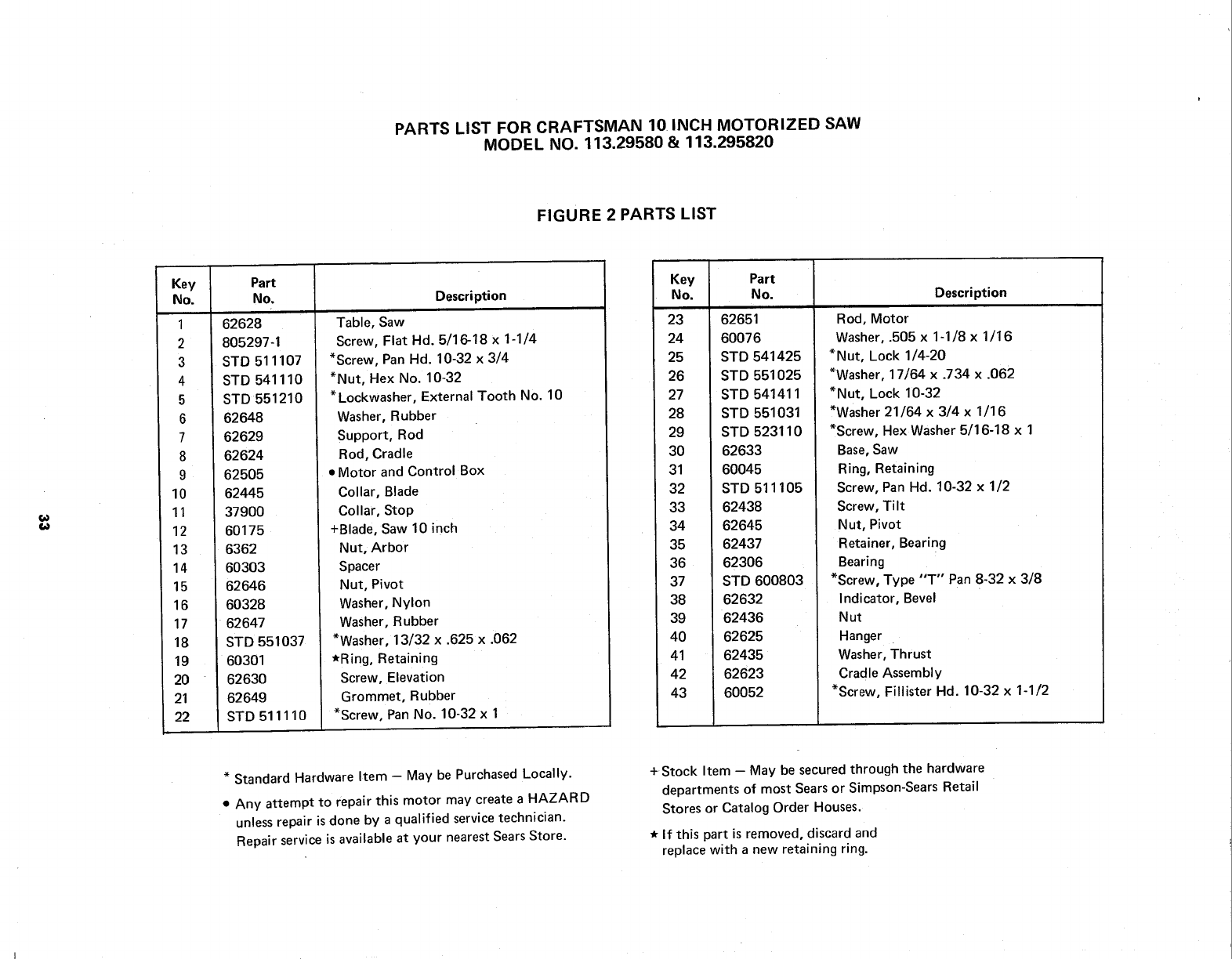

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW
MODEL NO. 113.29580 & 113.295820
FIGURE 2 PARTS LIST
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
i.
i
Part
No.
62628
805297-1
STD 511107
STD 541110
STD 551210
62648
62629
62624
62505
62445
37900
60175
6362
60303
62646
60328
62647
STD 551037
60301
62630
62649
STD 511110
Description
Table, Saw
Screw, Flat Hd. 5/16-18 ×1-1/4
*Screw, Pan Hd. 10-32 x 3/4
*Nut, Hex No. 10-32
*Lockwasher, External Tooth No. 10
Washer, Rubber
Support, Rod
Rod, Cradle
= Motor and Control Box
Collar, Blade
Collar, Stop
+Blade, Saw 10 inch
Nut, Arbor
Spacer
Nut, Pivot
Washer, Nylon
Washer, Rubber
*Washer, 13/32 x .625 x .062
*Ring, Retaining
Screw, Elevation
Grommet, Rubber
*Screw, Pan No. 10-32 x 1
Key Part
No. No.
23 62651
24 60076
25 STD 541425
26 STD 551025
27 STD 541411
28 STD 551031
29 STD 523110
30 62633
31 60045
32 STD 511105
33 62438
34 62645
35 62437
36 62306
37 STD 600803
38 62632
39 62436
40 62625
41 62435
42 62623
43 60052
Description
Rod, Motor
Washer, .505 x 1-1/8 x 1/16
*Nut, Lock 1/4-20
*Washer, 17/64 x .734 x .062
*Nut, Lock 10-32
*Washer 21/64 x 3/4 x 1/16
*Screw, Hex Washer 5/16-18 x 1
Base,Saw
Ring, Retaining
Screw, Pan Hd. 10-32 x1/2
Screw, Tilt
Nut, Pivot
Retainer, Bearing
Bearing
*Screw, Type "T" Pan 8-32 x 3/8
Indicator, Bevel
Nut
Hanger
Washer, Thrust
Cradle Assembly
*Screw, Fillister Hd. 10-32 x 1-1/2
* Standard Hardware Item - May be Purchased Locally.
• Any attempt to repair this motor may create aHAZARD
unless repair is done by a qualified service technician.
Repair service is available at your nearest Sears Store.
+ Stock Item - May be secured through the hardware
departments of most Sears or Simpson-Sears Retail
Stores or Catalog Order Houses.
*If this part is removed, discard and
replace with a new retaining ring.

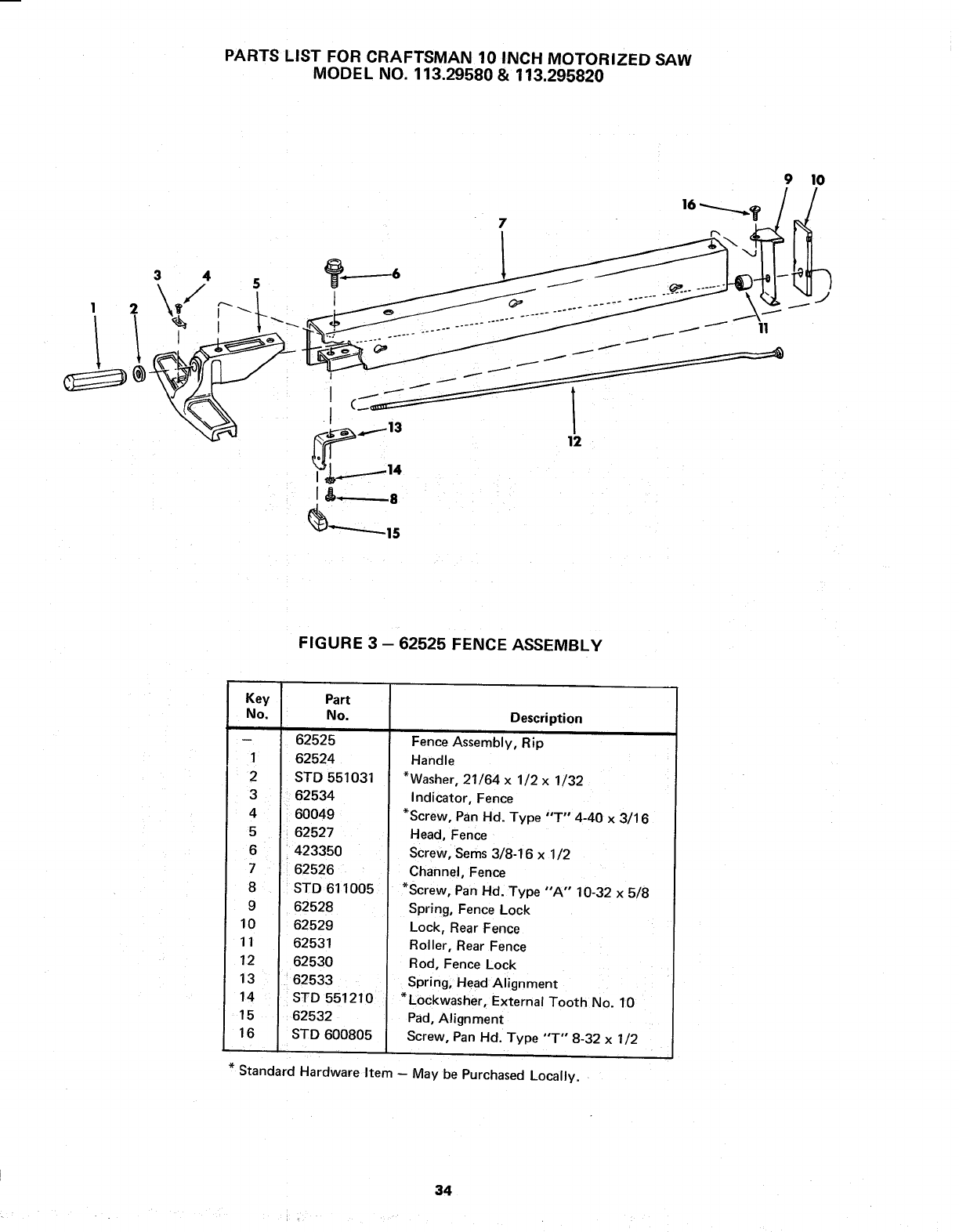

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW
MODEL NO. 113.29580 & 113.295820
1
3
2
4
I
I
9 I0
FIGURE 3 - 62525 FENCE ASSEMBLY
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Part
No.
62525
62524
STD 551031
62534
60049
62527
423350
62526
STD 611005
62528
62529
52531
62530
62533
STD 551210
62532
STD 600805
Description
Fence Assembly, Rip
Handle
*Washer, 21/64 x 1/2 x 1/32
Indicator, Fence
*Screw, Pan Hd. Type "T" 4-40 x 3/16
Head, Fence
Screw, Sems 3/8-16 x 1/2
Channel, Fence
*Screw, Pan Hd. Type "A" 10-32 x 5/8
Spring, Fence Lock
Lock, Rear Fence
Roller, Rear Fence
Rod, Fence Lock
Spring, Head Alignment
*Lockwasher, External Tooth No. 10
Pad, Alignment
Screw, Pan Hd. Type "'T" 8-32 x 1/2
*Standard Hardware Item -- May be Purchased Locally.
34

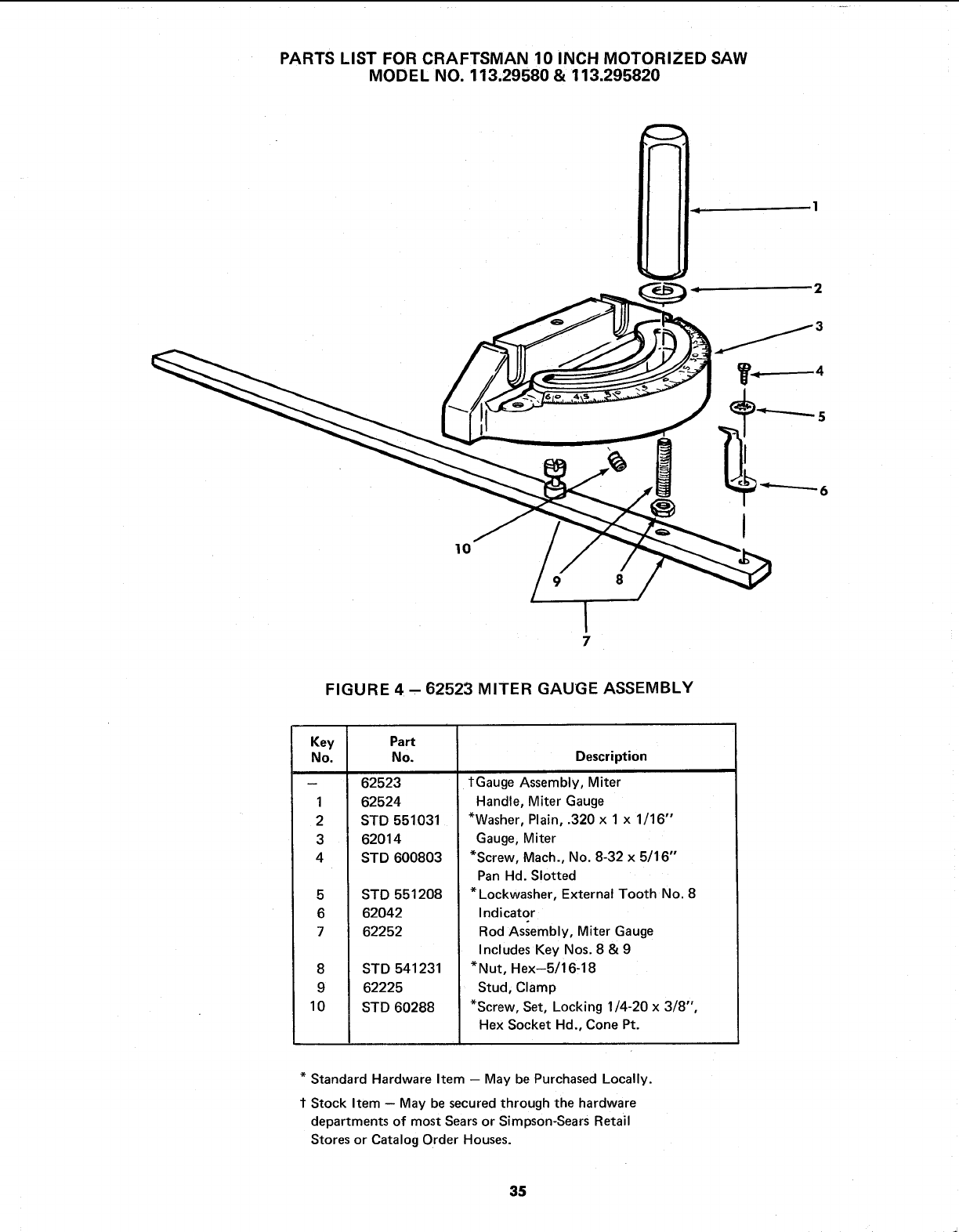

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW
MODEL NO. 113.29580 & 113.295820
4
2
10 !
FIGURE 4 - 62523 MITER GAUGE ASSEMBLY
Key Part
No. No.
- 62523
162524
2 STD 551031
362014
4 STD 600803
5
6
7
STD 551208
62042
62252
8 STD 541231
962225
10 STD 60288
Description
tGauge Assembly, Miter
Handle, Miter Gauge
*Washer, Plain, .320 x 1 x 1/16"
Gauge, Miter
*Screw, Mach., No. 8-32 x 5/16"
Pan Hd. Slotted
*Lockwasher, External Tooth No. 8
Indicator
Rod Assembly, Miter Gauge
Includes Key Nos. 8 & 9
*Nut, Hex--5/16-18
Stud, Clamp
*Screw, Set, Locking 1/4-20 x 3/8",
Hex Socket Hd., Cone Pt.
*Standard Hardware Item -- May be Purchased Locally.
tStock Item - May be secured through the hardware
departments of most Sears or Simpson-Sears Retail
Stores or Catalog Order Houses.
35

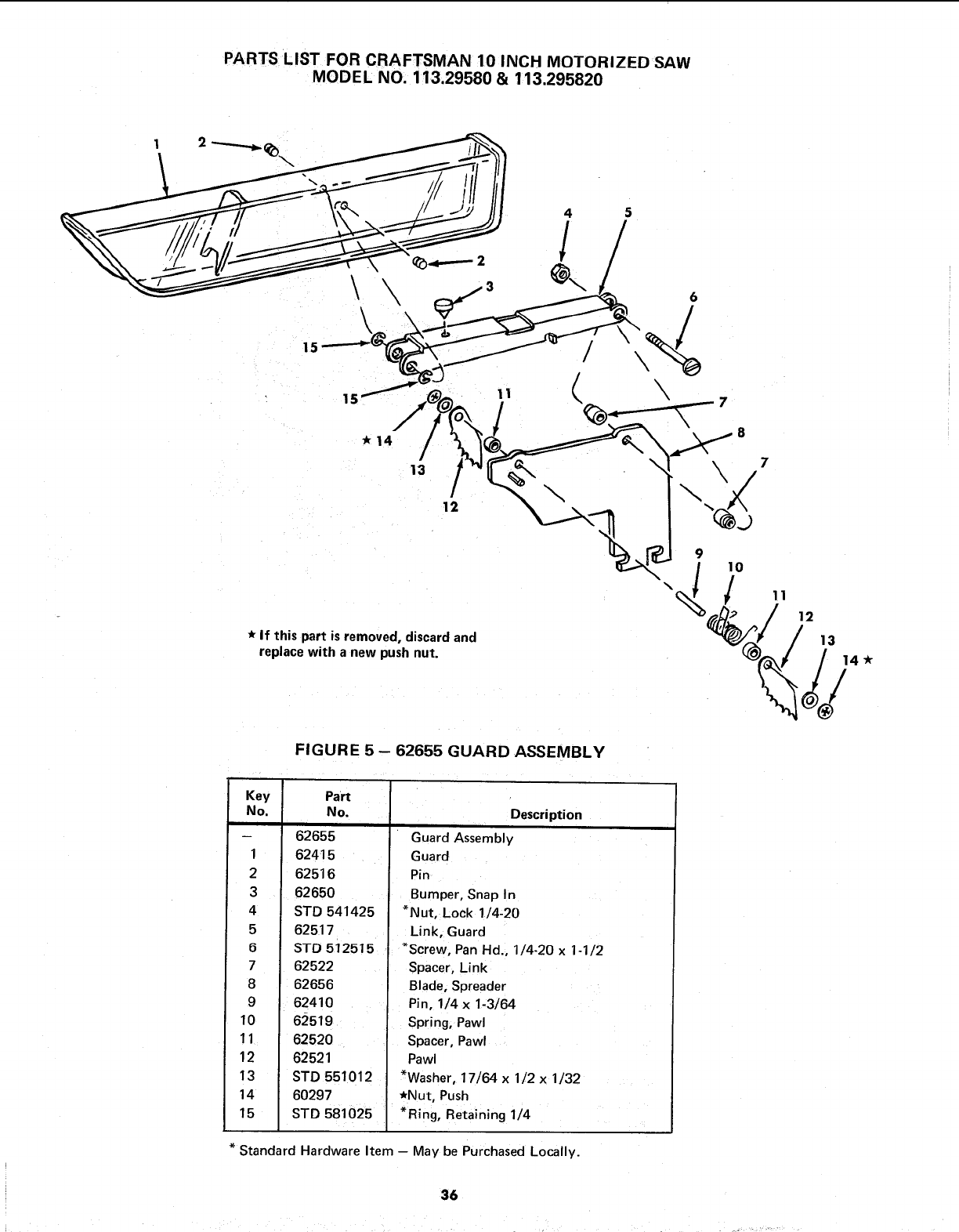

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW
MODEL NO. 113.29580 & 113.295820
4 5
13
12
8
* If this part is removed, discard and
replace with a new push nut.
9
3 14"
FI GUR E 5- 62655 GUARD ASSEMBLY
Key Part
No. No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
62655
62415
62516
62650
STD 541425
62517
5TD 512515
62522
62656
62410
65519
62520
62521
STD 551012
60297
STD 581025
Description
Guard Assembly
Guard
Pin
Bumper, Snap In
*Nut, Lock 1/4-20
Link, Guard
*Screw, Pan Hd., 1/4-20 xI-1/2
Spacer, Link
Blade, Spreader
Pin, 1/4 x1-3/64
Spring, Pawl
Spacer, Pawl
Pawl
*Washer, 17/64 x1/2 x1/32
*Nut, Push
*Ring, Retaining 1/4
* Standard Hardware Item -- May be Purchased Locally.
36

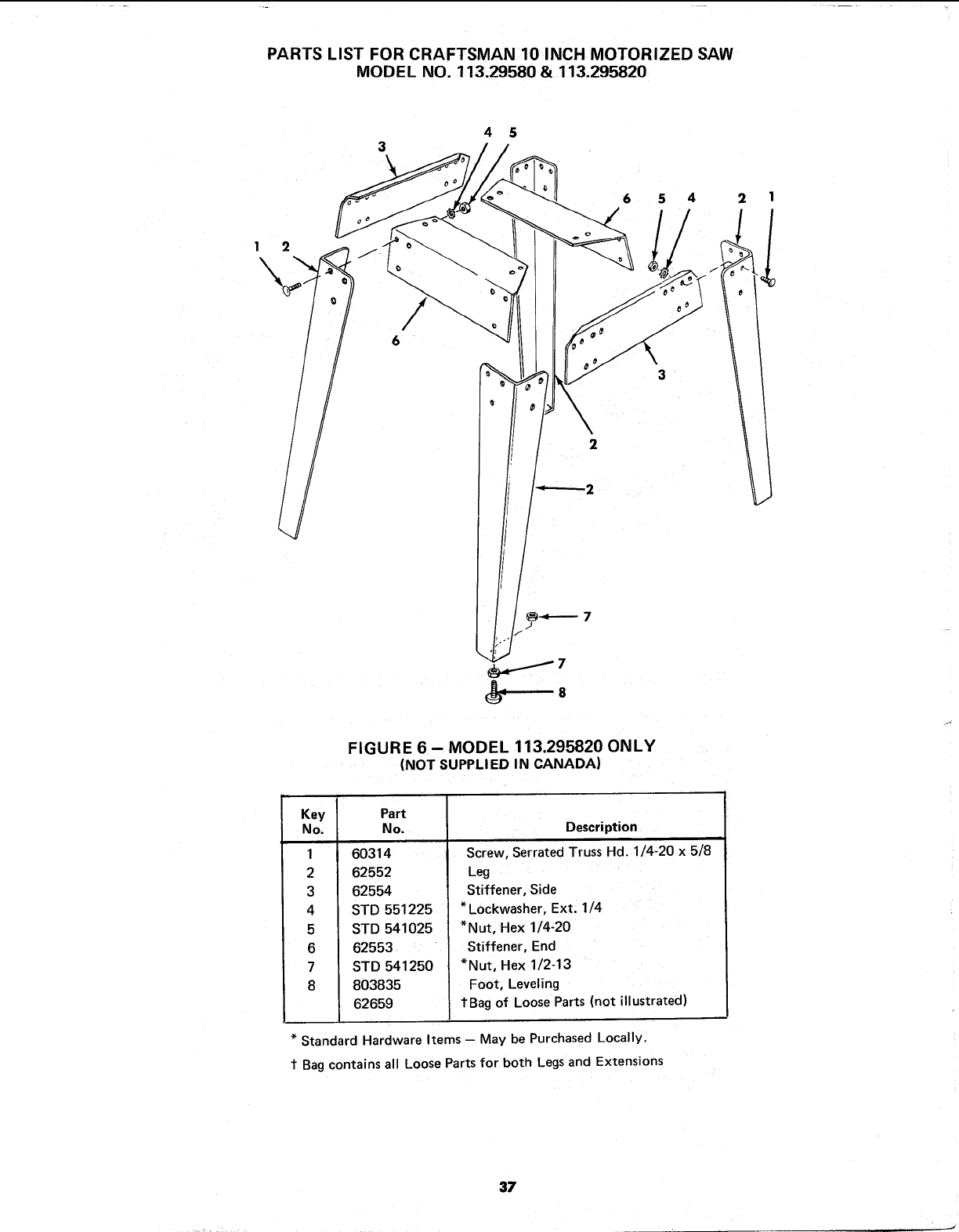

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW
MODEL NO. 113.29580 & 113.295820
2
34 5
FIGURE 6- MODEL 113.295820 ONLY
(NOT SUPPLI ED IN CANADA)
Key Part
No. No.
160314
2 62552
3 62554
4 STD 551225
5 STD 541025
6 62553
7 STD 541250
8 803835
62659
Description
Screw, Serrated Truss Hd. 1/4-20 x 5/8
Leg
Stiffener, Side
*Lockwasher, Ext. 1/4
*Nut, Hex 1/4-20
Stiffener, End
*Nut, Hex 1/2-13
Foot, Leveling
tBag of Loose Parts (not illustrated)
* Standard Hardware Items -- May be Purchased Locally.
t Bag contains all Loose Parts for both Legs and Extensions
37

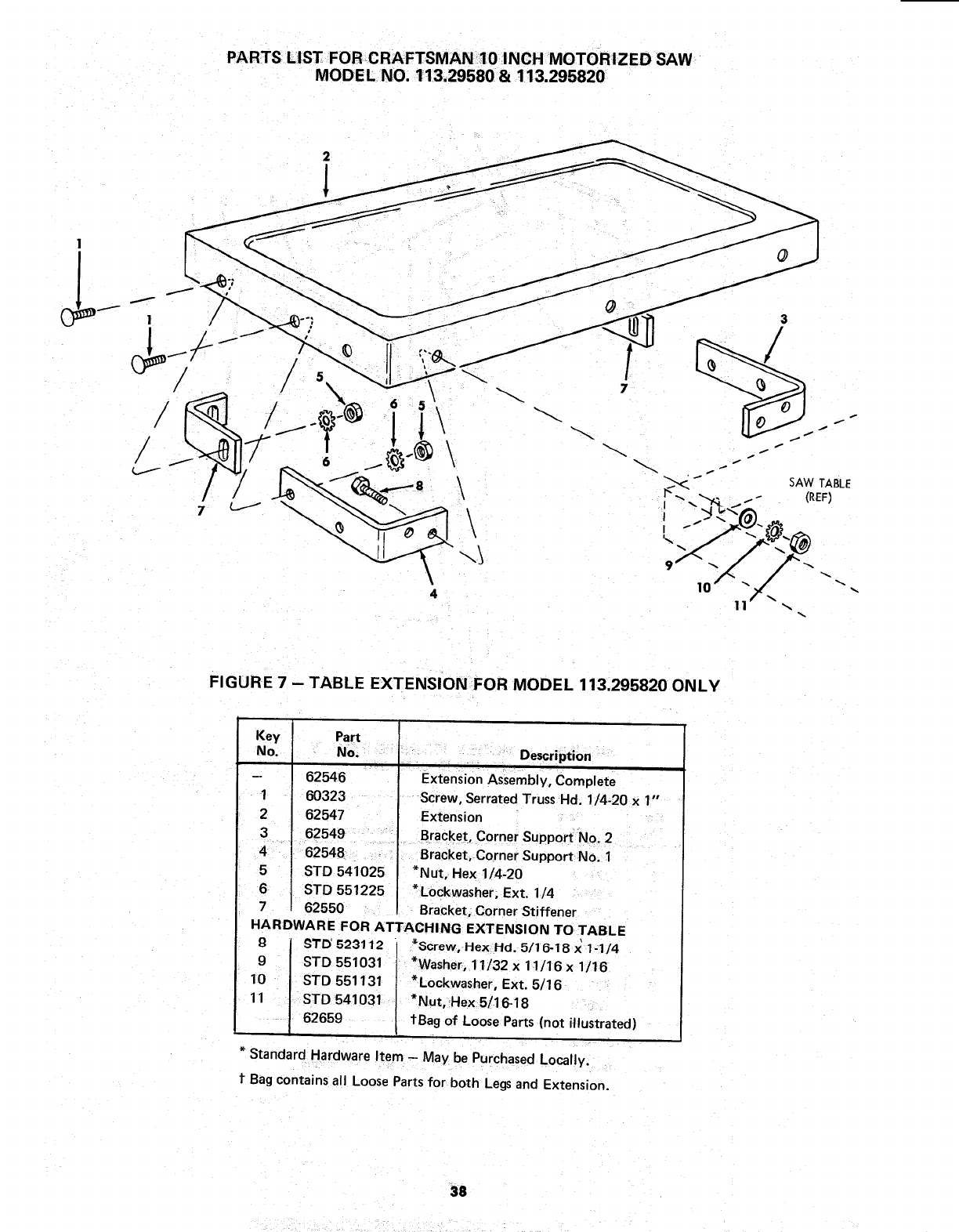

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW
MODEL NO. 113.29580 & 113.295820
2
l
1
f
!
4
FIGURE 7 -- TABLE EXTENSION FOR MODEL 113.295820 ONLY
Key
No.
1
2
3
60323 Screw, Serrated TrussHd. 1/4-20 x 1"
62547 Extension
Bracket, Corner Support No. 2
462548 - ; Bracket, Corner Support No. 1
5STD 541025 *Nut, Hex 1/4-20
6 STD 551225 * Lockwasher, Ext. 1/4
7 62550 Bracket, Corner Stiffener
HARDWARE FOR ATTACHING EXTENSION TO TABLE
g_TD' 523112 _5crew, Hex Hal. 5/16-18 x 1-1/4
9 STD 551031 *Washer, 11/32 x11/16 x1/16
10 STD 551131 *Lockwasher, Ext. 5/16
11 STD 541031 *Nut, Hex 5/16-18
62659 fBag of Loose Parts (not illustrated)
• Standard Hardware Item -May be Purchased Locally.
tBag contains all Loose Parts for both Legs and Extension.
38
NOTES
39
Sears
owners
manual
SERVICE
MODEL NO.
113.29580
SAW ONLY
113.295820
SAW WITH LEGS AND
TWO TABLE EXTENSIONS
HOW TO ORDER
REPAIR PARTS
10 INCH MOTORIZED TABLE SAW
Now that you have purchased your 10 inch motorized table saw
should a need ever exist for repair parts or service, simply
contact any Sears Service Center and most Sears, Roebuck and
Co. stores. Be sure to provide all pertinent facts when you call
or visit.
The model number of your 10 inch motorized table saw will be
found on a plate attached to your saw, at the right-hand side of
the base.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
PART NUMBER
MODEL NUMBER
113.29580 or
113.295820
PART DESCRIPTION
NAME OF ITEM
10-INCH MOTORIZED TABLE SAW
All parts listed may be ordered from any Sears Service Center
and most Sears stores. If the parts you need are not stocked
locally, your order will be electronically transmitted to a Sears
Repair Parts Distribution Center for handling.
Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.
Part No. 62657 Form No. SP4193-2 Printedin U.S.A. 12/77
