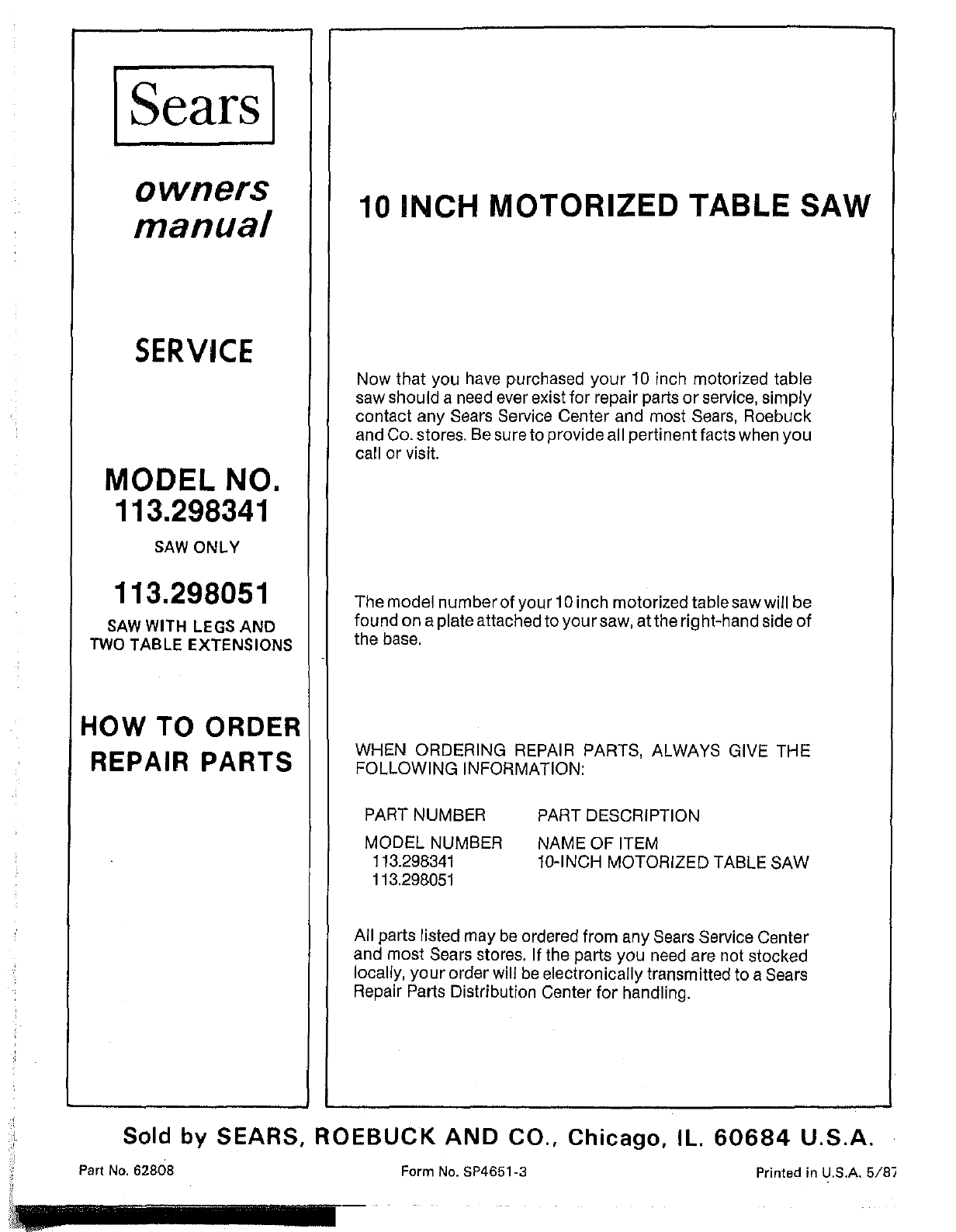

[Sears I

owners

manual

MODEL NO.

113.298341

SAW ONLY

113.298051

SAW WITH LEGS AND

TWO TABLE EXTENSIONS

Serial

Number

Model and serial

number may be found

at the right-hand side

of the base.

You should record both

model and serial number

in a safe place for

future use.

CAUTION:

Read GENERAL

and ADDITIONAL

SAFETY

INSTRUCTIONS

carefully

CRRFTSMRNo

10-INCH MOTORIZED

TABLE SAW

•assembly

•operating

•repair parts

Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.

Part No. 62808 Printed in U,S.A.

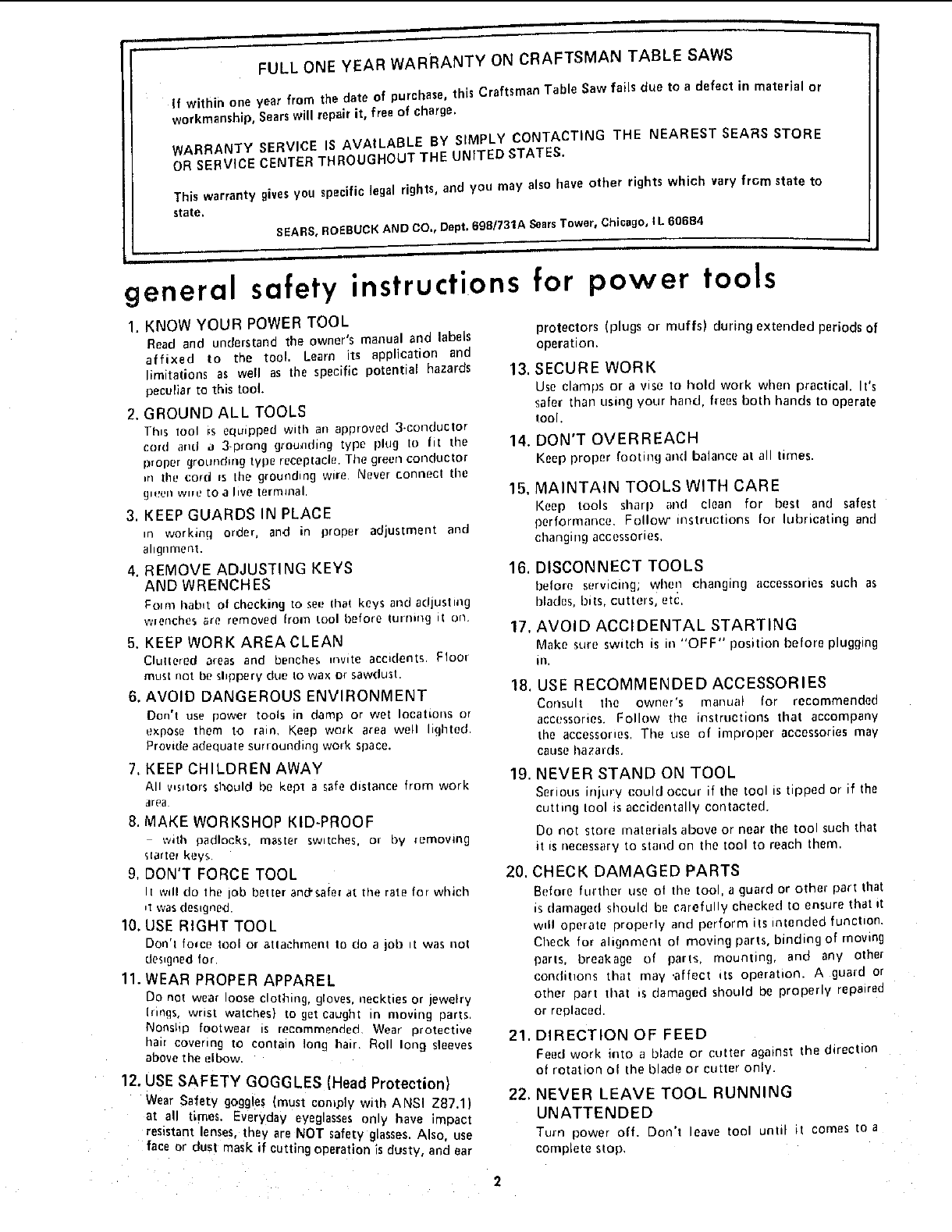

FULL ONE YEAR wARRANTY ON CRAFTSMAN TABLE SAWS

If within one year from the date of purchase, this Craftsman Table Saw fails due to a defect in material or

workmanship, Sears will repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS STORE

OR SERVICE CENTER THROUGHOUT THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rights which vary frGm state to

state.

SEARS, ROEBUCK AND CO., Dept. 698/731A SearsTower, Chicago, IL 60684

general safety instructions for power tools

1. KNOW YOUR POWER TOOL

Read and understand the owner's manual and labels

affixed to the tool. Learn its application and

limitations as well as the specific potential hazards

peculiar to this tool

2. GROUND ALL TOOLS

Th_s tool ss equipped with an approved 3-conductor

co_d and a 3.prong grou_lding type plug to fit the

proper groundir_g type receptacle. The green conductor

m lhe cord is the grounding wire. Never connect tile

gn!en w.e to a live terminal.

3. KEEP GUARDS IN PLACE

_n working order, and in proper adjustment and

ahgnmer_t.

4. REMOVE ADJUSTING KEYS

AND WRENCHES

Foln_ habit of checking to see Ihat keys and adjusting

wrenches ere removed from tool before turning it o[3.

5. KEEP WORK AREA CLEAN

Clullered areas and benches ,w_te accidents. Floor

must not be shppery due Io wax or sawdust.

6. AVOID DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet IocatLons or

expose them to rain. Keep work area well lighted.

Provide adequate surrounding work space.

7. KEEP CHILDREN AWAY

AVlSltors should 3e Kep! asafe dlstance from WOrK

dre;]

8. MAKE WORKSHOP KID-PROOF

w_th _adlocks. master switcnes, or uv remowng

_ldr Tel Keys

9. DON'T FORCE TOOL

[Will do the DO better and'safer at tne rate for which

was designee

10. USE RIGHT TOOL

Don't fo_ce tool or atlaahf3ent to DO alou( was not

oes_gne_ for

11. WEAR PROPER APPAREL

Do not wear loose clothing, g=oves, necKues or jewelry

Irmqs, wr_st watcnes] to get caught n moving Darts

Nonslio footwear is recommenaeo Wear _rotecttve

nmr covering to conlam long ha=r Roll long sleeves

above the elbow.

12. USE SAFETY GOGGLES (Head Protection)

Wear Safety goggles(must comply wJth ANSi Z87.'_

at al t_mes. Everyday eyeglasses omy have mpact

resistant lenses, mev are NOT safety glasses.Also. use

face or dust mask if cutting ooeration is dusty, and ear

protectors (plugs or muffs) during extended periods of

operation.

13. SECURE WORK

Use clamps or avise to hold work when practical. It's

safer than using your hand. frees both hands to operate

tool.

14. DON'T OVERREACH

Keel) proper footing and balance at all times.

15, MAINTAIN TOOLS WITH CARE

Keep tools sharl) and clean for best and safest

performance, Follow' instructions for lubricating and

changing accessories,

16.

17.

DISCONNECT TOOLS

before servicing; when changing accessories such as

blades, bits, cutters, etc,

AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before plugging

in,

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended

accessories. Follow the instructions that accompany

the accesso_n_s,The use of improper accessories may

cause Itazards,

19. NEVER STAND ON TOOL

Serious njury could occur if the tool is tipped or if the

cutting toot Jsaccidentally contacted.

Do not store mater=als above or near the tool such that

_ s necessary to stand on the tool to reach them.

20 CHECK DAMAGED PARTS

Before furdle_ use of the tool, a guard or other part that

_s oamageu should be carefully checked to ensure that it

will c 3erale properly and perform its intended function.

Cbeck for ahgnment of moving parts, binding of moving

earls, breakage of parts, mounting, and any other

con(bt_ons that may ,affect its operation. A guard or

omer 3art that is damaged should be properly repaired

or radiated

21. DIRECTION OF FEED

Feed WOrK into a blade or cutter against the direction

of rotation o[ the blade or cutter only.

22. NEVER LEAVE TOOL RUNNING

UNATTENDED

Turn power off. Don't leave tool until it comes to a

complete stop,

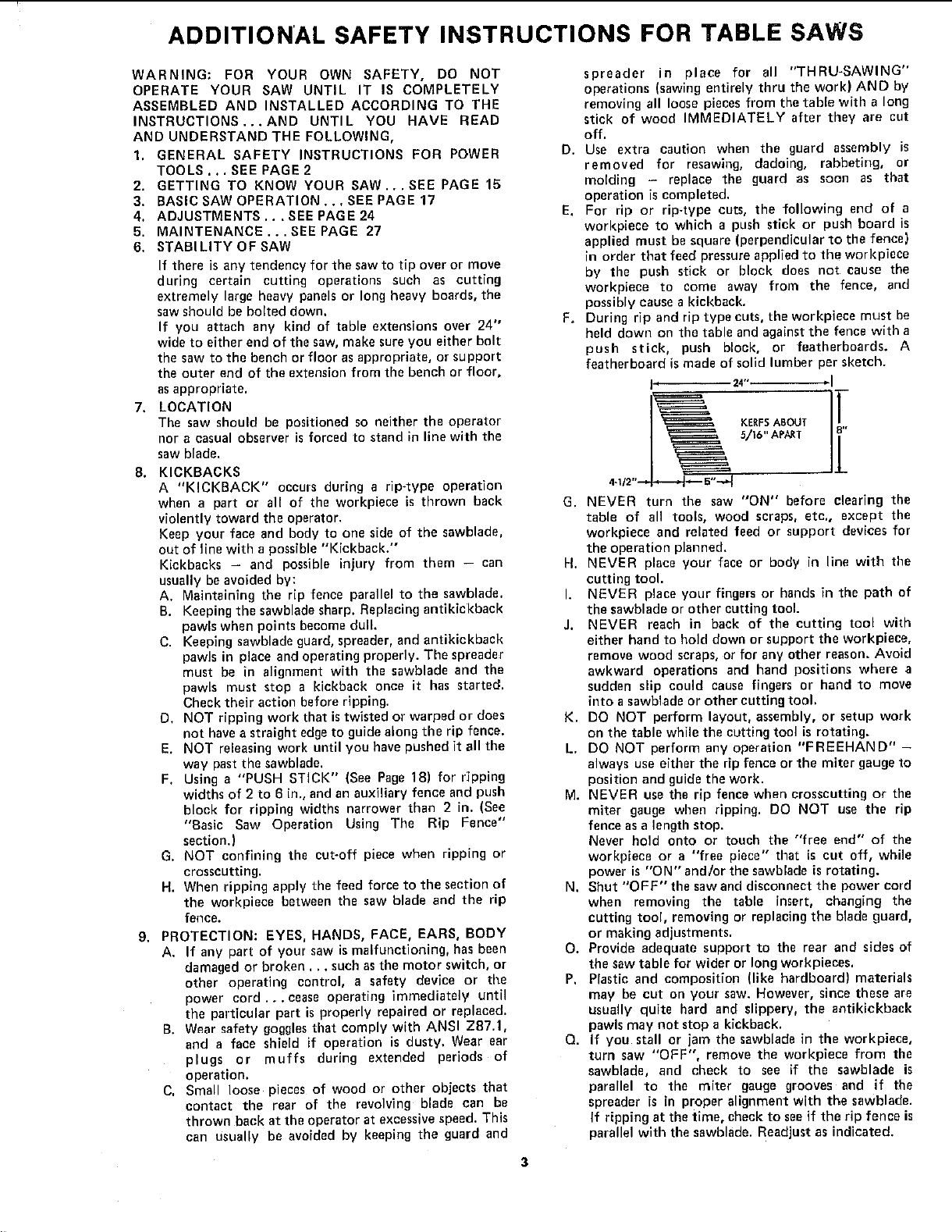

ADDITIONAL SAFETY INSTRUCTIONS FOR TABLE SAWS

WARNING: FOB YOUR OWN SAFETY, DO NOT

OPERATE YOUR SAW UNTIL IT IS COMPLETELY

ASSEMBLED AND INSTALLED ACCORDING TO THE

INSTRUCTIONS...AND UNTIL YOU HAVE READ

AND UNDERSTAND THE FOLLOWING,

1. GENERAL SAFETY INSTRUCTIONS FOR POWER

TOOLS.,. SEE PAGE 2

2. GETTING TO KNOW YOUR SAW.,. SEE PAGE 15

3. BASIC SAW OPERATION.., SEE PAGE 17

4. ADJUSTMENTS... SEE PAGE 24

5. MAINTENANCE...SEE PAGE 27

6. STABILITY OF SAW

If there is any tendency for the saw to tip over or move

during certain cutting operations such as cutting

extremely large heavy panels or long heavy boards, the

saw should be bolted down.

If you attach any kind of table extensions over 24"

wide to either end of the saw, make sure you either bolt

the saw to the bench or floor as appropriate, or support

the outer end of the extension from the bench or floor,

asappropriate.

7. LOCATION

The saw should be positioned so neither the operator

nor a casual observer is forced to stand in line with the

saw blade.

8. KICKBACKS

A "KICKBACK" occurs during a rip-type operation

when a part or all of the workpiece is thrown back

violently toward the operator.

Keep your face and body to one side of the sawblade,

out of line with a possible "Kickback.'"

Kickbacks - and possible injury from them -- can

usually be avoided by:

A. Maintaining the rip fence parallel to the sawblade.

B. Keeping the sawblade sharp. Replacing antikickback

pawls when points become dull.

C. Keeping sawblade guard, spreader, and antikickback

pawls in place and operating properly. The spreader

must be in alignment with the sawblade and the

pawls must stop a kickback once it has started.

Check their action before ripping.

D. NOT ripping work that is twisted or warped or does

not have a straight edge to guide along the rip fence.

E. NOT releasing work until you have pushed it all the

way past the sawblade.

F. Using a "PUSH STICK" {See Page 18) for ripping

widths of 2 to 6 in., and an auxiliary fence and push

block for ripping widths narrower than 2 in. (See

"Basic Saw Operation Using The Rip Fence"

section.)

G. NOT confining the cut-off piece when ripping or

crosscutting.

H. When ripping apply the feed force to the section of

the workpiece between the saw blade and the rip

fence.

9, PROTECTION: EYES, HANDS, FADE, EARS, BODY

A. If any part of your saw is malfunctioning, has been

damaged or broken.., such as the motor switch, or

other operating control, a safety device or the

power cord.,, cease operating immediately until

the particular part is properly repaired or replaced.

B. WRar safety goggles that comply with ANSI Z87.1,

and a face shield if operation is dusty. Wear ear

plugs or muffs during extended periods of

operation.

C. Small loose pieces of wood or other objects that

contact the rear of the revolving blade can be

thrown back at the operator at excessive speed. This

can usually be avoided by keeping the guard and

spreader in place for all "THRU-SAWING"

operations (sawing entirely thru the work) AND by

removing all loose pieces from the table with a long

stick of wood IMMEDIATELY after they are cut

off.

Use extra caution when the guard assembly is

removed for resawing, dadoing, rabbeting, or

molding - replace the guard as soon as that

operation is completed.

For rip or rip-type cuts, the following end of a

workp[ece to which a push stick or push board is

applied must be square (perpendicular to the fence)

in order that feed pressure applied to the workpieee

by the push stick or block does not cause the

workpiece to come away from the fence, and

possibly cause a kickback.

During rip and rip type cuts, the workpiece must be

beld down on the table and against the fence with a

pusb stick, push block, or featherboards. A

featherboard is made of solid lumber per sketch.

I-* 24"- ÷1

KERFSABOUT I

5/_6 "APART

G. NEVER turn the saw "ON" before clearing the

table of all tools, wood scraps, etc., except the

workpiece and related feed or support devices for

the operation planned.

H. NEVER place your face or body in line with the

cutting tool.

I. NEVER place your fingers or hands in the path of

the sawblade or other cutting tool.

J. NEVER reach in back of the cutting tool with

either hand to hold down or support the workpiece,

remove wood scraps, or for any other reason. Avoid

awkward operations and hand positions where a

sudden slip could cause fingers or hand to move

into a sawblade or other cutting tool.

K. DO NOT perform layout, assembly, or setup work

on the table while the cutting tool is rotating.

L. DO NOT perform any operation "FREEHAND" -

always use either the rip fence or the miter gauge to

position and guide the work.

M. NEVER use the rip fence when crosscutting or the

miter gauge when ripping. DO NOT use the rip

fence as a length stop.

Never hold onto or touch the "free end" of the

workpiece or a "free piece" that ls cut off, while

power is "ON" and/or the sawblade is rotating.

N. Shut "OFF" the saw and disconnect the power cord

when removing the table insert, changing the

cutting tool, removing or replacing the blade guard,

or making adjustments.

O. Provide adequate support to the rear and sides of

the saw table for wider or long workpieces.

P, Plastic and composition (like hardboard) materials

may be cut on your saw. However, since these are

usually quite hard and slippery, the antikickbaek

pawls may not stop a kickback.

Q. If you stall or jam the sawblade in the workpiece,

turn saw "OFF", remove the workpiece from the

sawblade, and check to see if the sawblade is

parallel to the miter gauge grooves and if the

spreader is in proper alignment with the sawblade.

If ripping at the time, check to seeif the rip fence is

parallel with the sawblade. Readjust as indicated.

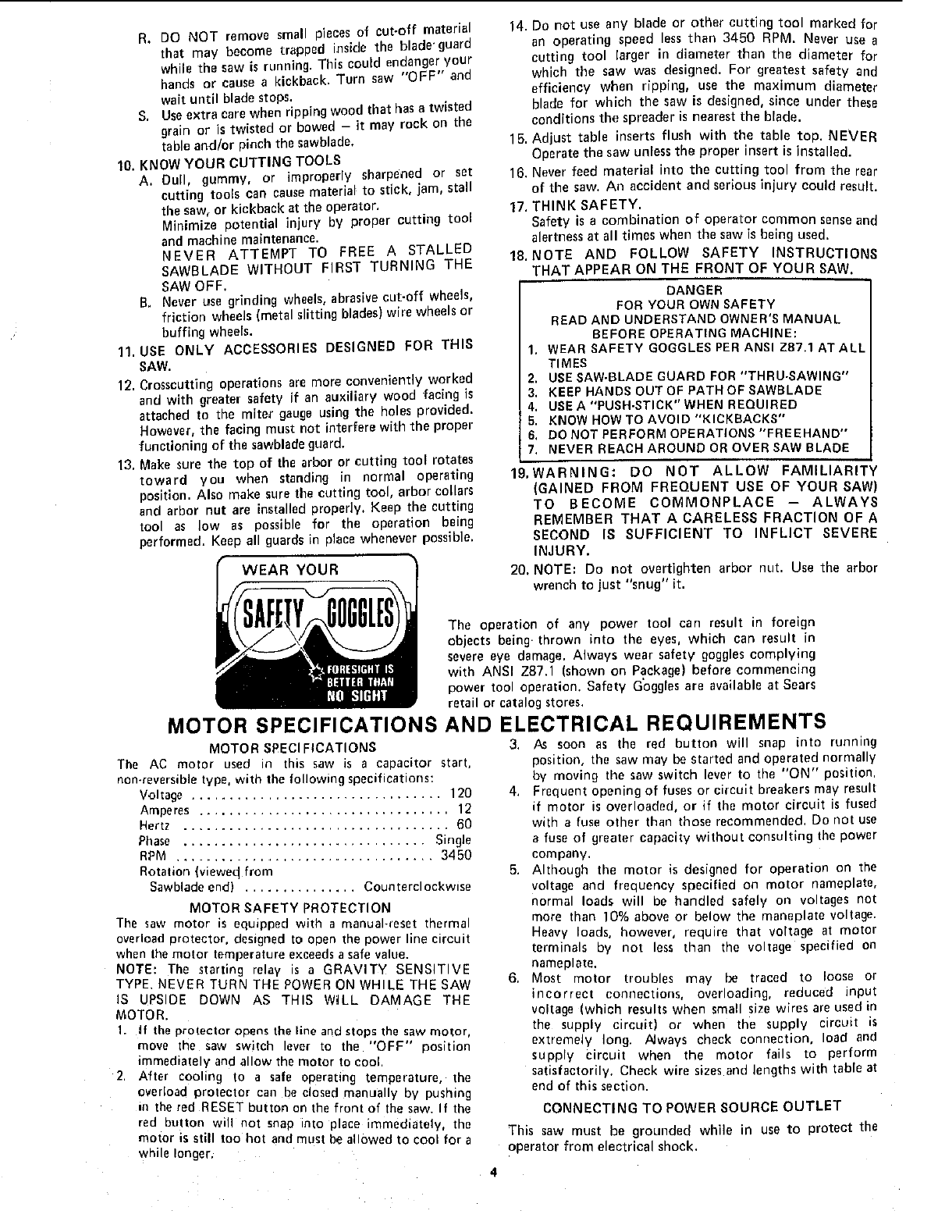

R. DONOTremovesmallpiecesof cut-offmaterial

thatmaybecometrappedinsidetheblade"guard

whilethesawisrunning.Thiscouldendangeryour

hands or cause a kickback. Turn saw "OFF" and

wait until blade stops.

S. Useextra care when ripping wood that has a twisted

grain or is twisted or bowed - it may rock on the

table and/or pinch the sawblade.

10. KNOW YOUR CUTTING TOOLS

A. Dull, gummy, or improperly sharpened or set

cutting tools can cause materia_ to stick, jam, stall

the saw, or kickback at the operator.

Minimize potential injury by proper cutting tool

and machine maintenance.

NEVER ATTEMPT TO FREE A STALLED

SAWBLADE WITHOUT FIRST TURNING THE

SAW OFF.

B, Never use grinding wheels, abrasive cut-off wheels,

friction wheels (metal slitting blades) wire wheels or

buffing wheels.

11. USE ONLY ACCESSORIES DESIGNED FOR THIS

SAW,

12. Crosscuttingoperations are more conveniently worked

and with greater safety if an auxiliary wood facing is

attached to the miter gauge using the holes provided.

However, the facing must not interfere with the proper

functioning of the sawblade guard.

13. Make sure the top of the arbor or cutting tool rotates

toward you when standing in normal operating

position. Also make sure the cutting tool, arbor collars

and arbor nut are installed properly. Keep the cutting

tool as low as possible for the operation being

performed. Keep all guards in place whenever possible.

WEAR YOUR

14. Do not use any blade or other cutting tool marked for

an operating speed less than 3450 RPM. Never use a

cutting tool larger in diameter than the diameter for

which the saw was designed. For greatest safety and

efficiency when ripping, use the maximum diameter

blade for which the saw is designed, since under these

conditions the spreader is nearest the blade.

15. Adjust table inserts flush with the table top. NEVER

Operate the saw unless the proper insert is installed.

16. Never feed material into the cutting tool from the rear

of the saw. An accident and serious injury could result.

I7. THINK SAFETY.

Safety is a combination of operator common sense and

alertness at all times when the saw is being used.

18. NOTE AND FOLLOW SAFETY INSTRUCTIONS

THAT APPEAR ON THE FRONT OF YOUR SAW.

DANGER

FOR YOUR OWN SAFETY

READ AND UNDERSTAND OWNER'S MANUAL

BEFORE OPERATING MACHINE:

1. WEAR SAFETY GOGGLES PER ANSI Z87.1 ATALl

TIMES

2. USE SAW-BLADE GUARD FOR "THRU-SAWlNG"

3. KEEP HANDS OUT OF PATH OF SAWBLADE

4. USE A "PUSH-STICK" WHEN REQUIRED

5. KNOW HOW TO AVOID "KICKBACKS"

6. DO NOT PERFORM OPERATIONS "FREEHAND"

7. NEVER REACH AROUND OR OVER SAW BLADE

19. WARNING: DO NOT ALLOW FAMILIARITY

(GAINED FROM FREQUENT USE OF YOUR SAW)

TO BECOME COMMONPLACE -- ALWAYS

REMEMBER THAT A CARELESS FRACTION OF A

SECOND IS SUFFICIENT TO INFLICT SEVERE

INJURY.

20, NOTE; Do not overtighten arbor nut. Use the arbor

wrench to just "snug" it.

The operation of any power tool can result in foreign

objects being thrown into the eyes, which can result in

severe eye damage. Always wear safety gogglescomplying

with ANSI Z87.1 (shown on Package) before commencing

power tool operation. Safety Goggles are available at Sears

retail or catalog stores.

MOTOR SPECIFICATIONS AND ELECTRICAL REQUIREMENTS

MOTORSPECIFICATIONS 3. /ks soon as the red button will snap into running

The AC motor used in this saw is acapacitor start, position, the saw may be started and operated normally

non-reversible type. with the following specifications:

Voltage ................................. 120

Amperes ................................. 12

Hertz ................................... 60

Phase ................................ Single

RFM .................................. 3450

Rotation {viewe_ from

Sawblade end) ............... Counterclockwise

MOTOR SAFETY PROTECTION

The saw motor is equipped with a manual-reset thermal

overload protector, designed to open the power line circuit

when the motor temperature exceeds a safe value.

NOTE'. The starting relay is a GRAVITY SENSITIVE

TYPE. NEVER TURN THE POWER ON WHILE THE SAW

IS UPSIDE DOWN AS THIS WiLL DAMAGE THE

MOTOR

1. If the protector coons the line and stops the saw motor,

move the saw switch _ever [o me "OFF" oosition

immediate y and allow the motor to cool

2. After cooling to ] safe operating temperature, the

overload protector can De closed manually oy pusniog

_n the red RESET button on the front of the saw. If the

red 3utto_ wdl not snap into place _mmedlately. the

motor _s stil too hot and must be allowed to cool for a

while longer.

by moving the saw switch lever to the "ON" position,

4. Frequent opening of fuses or circuit breakers may result

if motor is overloaded, or if the motor circuit is fused

with a fuse other than those recommended, Do not use

a fuse of greater capacity without consulting the power

company,

5. Although the motor is designed for operation on the

voltage and frequency specified on motor nameplate,

normal loads will be handled safely on voltages not

more than 10% above or below the maneplate voltage.

Heavy loads, however, require that voltage at motor

terminals by not less than the voltage specified on

nameplate.

6, Most motor troubles may be traced to loose or

incorrect connections, overloading, reduced input

voltage (which results when small size wires are used in

the supply circuit) or when the supply circuit is

extremely long. Always check connection, load and

supply circuit when the motor fails to perform

satisfactorily. Check wire sizes and lengths with table at

end of this section.

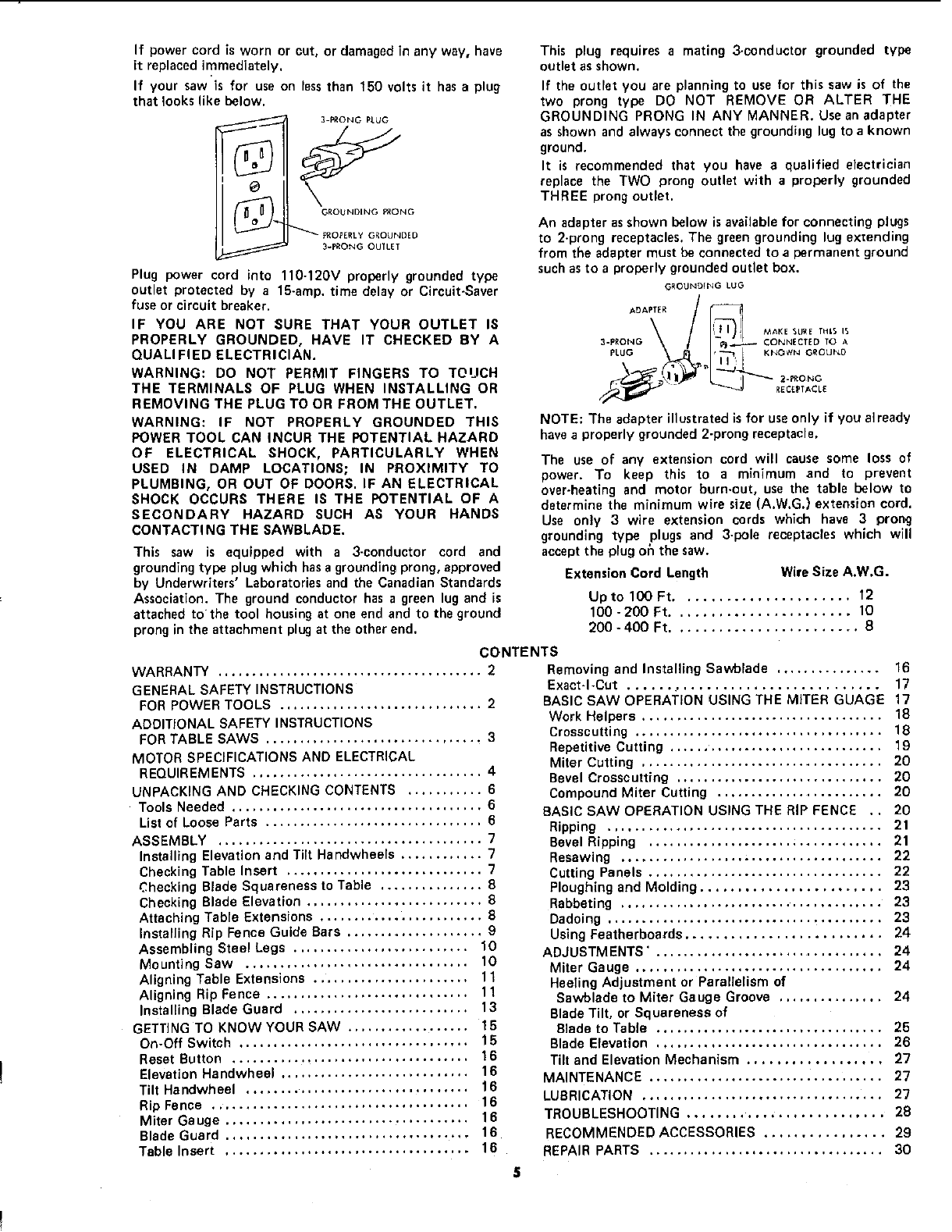

CONNECTING TO POWER SOURCE OUTLET

This saw must be grounded while in use to protect the

operator from electrical shock.

If power cord is worn or cut, or damaged in any way, have

it replaced immediately.

If your saw is for use on lessthan 150 volts it has aplug

that looks like below.

3-P_ONG PLUG

GROUNDING PRONG

GROUNDED

3-FRONG OUTLET

Plug power cord into 110-120V properly grounded type

outlet protected by a 15-amp. time delay or Circuit*Saver

fuse or circuit breaker.

IF YOU ARE NOT SURE THAT YOUR OUTLET IS

PROPERLY GROUNDED, HAVE IT CHECKED BY A

QUALIFIED ELECTRICIAN.

WARNING: DO NOT PERMIT FINGERS TO TOUCH

THE TERMINALS OF PLUG WHEN INSTALLING OR

REMOVING THE PLUG TO OR FROM THE OUTLET.

WARNING: IF NOT PROPERLY GROUNDED THIS

POWER TOOL CAN INCUR THE POTENTIAL HAZARD

OF ELECTRICAL SHOCK, PARTICULARLY WHEN

USED IN DAMP LOCATIONS; IN PROXIMITY TO

PLUMBING, OR OUT OF DOORS. IF AN ELECTRICAL

SHOCK OCCURS THERE IS THE POTENTIAL OF A

SECONDARY HAZARD SUCH AS YOUR HANDS

CONTACTING THE SAWBLADE.

This saw is equipped with a 3-conductor cord and

grounding type plug which hasa grounding prong, approved

by Underwriters' Laboratories and the Canadian Standards

Association. The ground conductor has a green lug and is

attached tothe tool housing at one end and to the ground

prong in the attachment plugat the other end,

This plug requires a mating 3.conductor grounded type

outlet as shown.

If the outlet you are planning to use for this saw is of the

two prong type DO NOT REMOVE OR ALTER THE

GROUNDING PRONG IN ANY MANNER. Use an adapter

as shown and always connect the grounding lug to a known

ground.

It is recommended that you have a qualified electrician

replace the TWO prong outlet with a properly grounded

THREE prong outlet.

An adapter asshown below is available for connecting plugs

to 2.prong receptacles. The green grounding lug extending

from the adapter must be connected to a permanent ground

such as to aproperly grounded outlet box.

GRIDUNblN C LUG

NOTE: The adapter illustrated is for use only if you already

have aproperly grounded 2-prong receptacle,

The use of any extension cord will cause some loss of

power. To keep this to a minimum and to prevent

over-heating and motor burn-out, use the table below to

determine the minimum wire size (A.W.G.) extension cord.

Use only 3 wire extension cords which have 3 prong

grounding type plugs and 3-pole receptacles which will

accept the plug o_ the saw.

Extension Cord Length Wire Size A.W.G.

Upto 10OFt ...................... 12

100-200 Ft ....................... 10

200-400 Ft ........................ 8

CONTENTS

WARRANTY ....................................... 2

GENERAL SAFETY INSTRUCTIONS

FOR POWER TOOLS .............................. 2

ADDITIONAL SAFETY INSTRUCTIONS

FOR TABLE SAWS ................................ 3

MOTOR SPECIFICATIONS AND ELECTRICAL

REQUIREMENTS .................................. 4

UNPACKING AND CHECKING CONTENTS ........... 6

Tools Needed ..................................... 6

List of Loose Parts ................................ 6

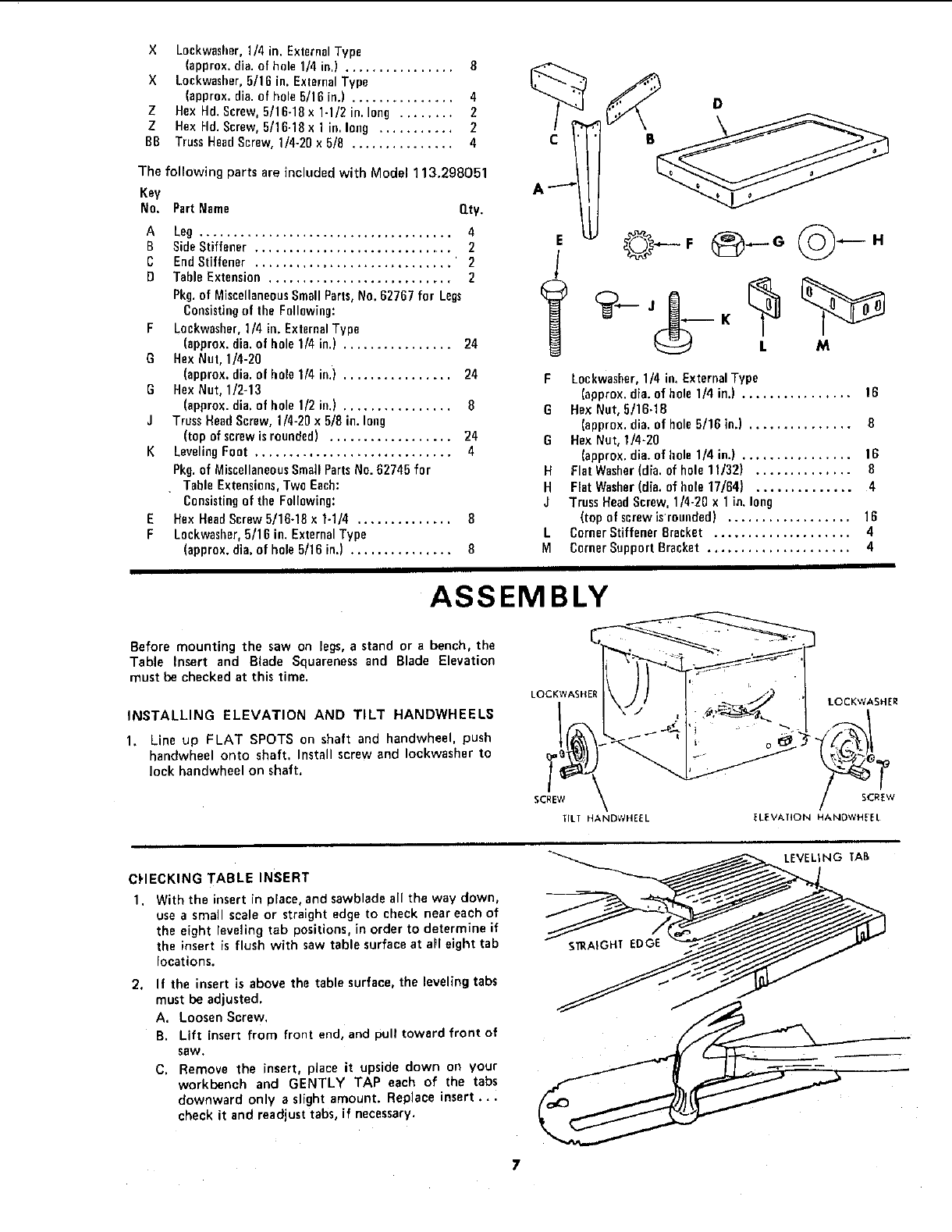

ASSEMBLY ....................................... 7

Installing Elevation and Tilt Handwheels ............ 7

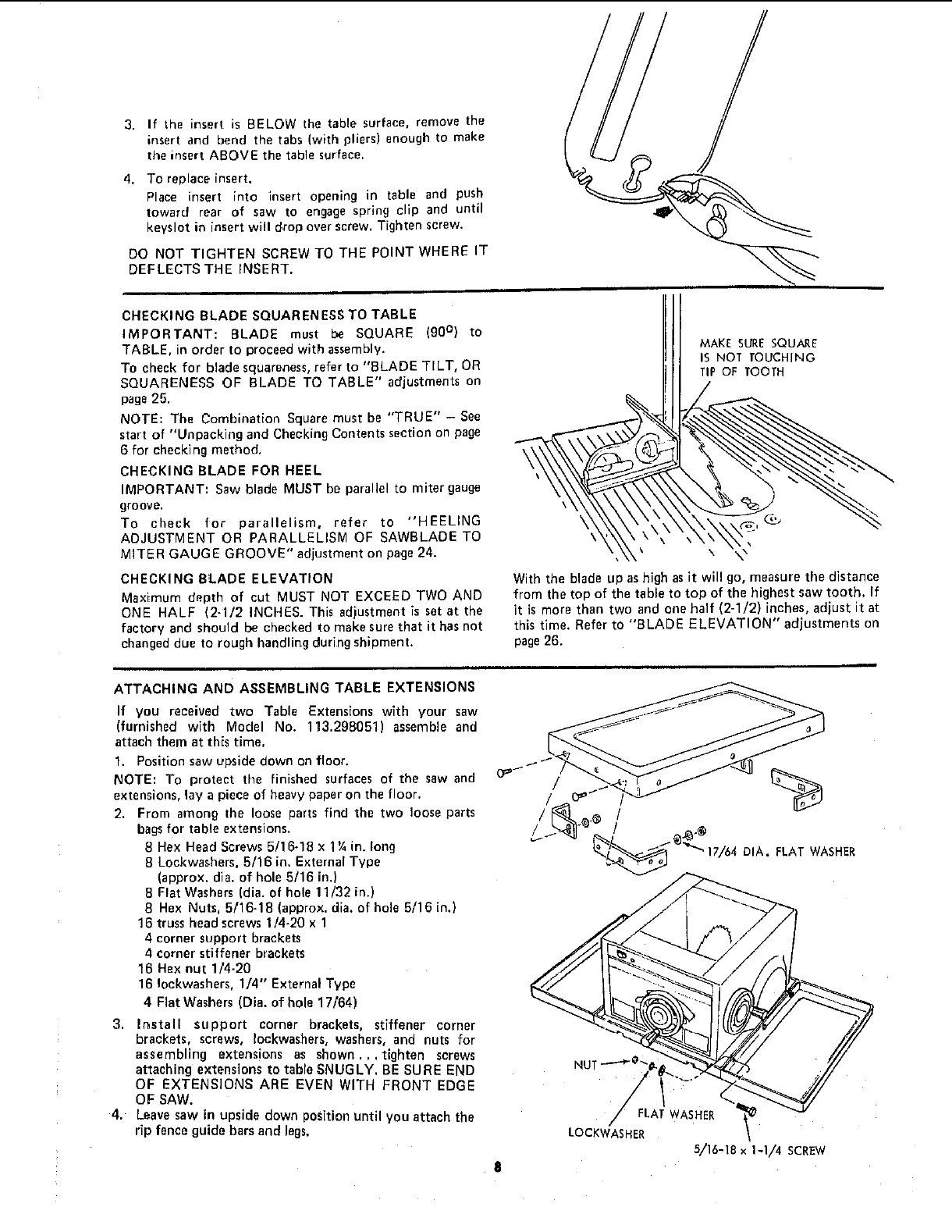

Checking Table Insert ............................. 7

Checking Blade Squareness to Table ............... 8

Checking Blade Elevation .......................... 8

Attaching Table Extensions ........................ 8

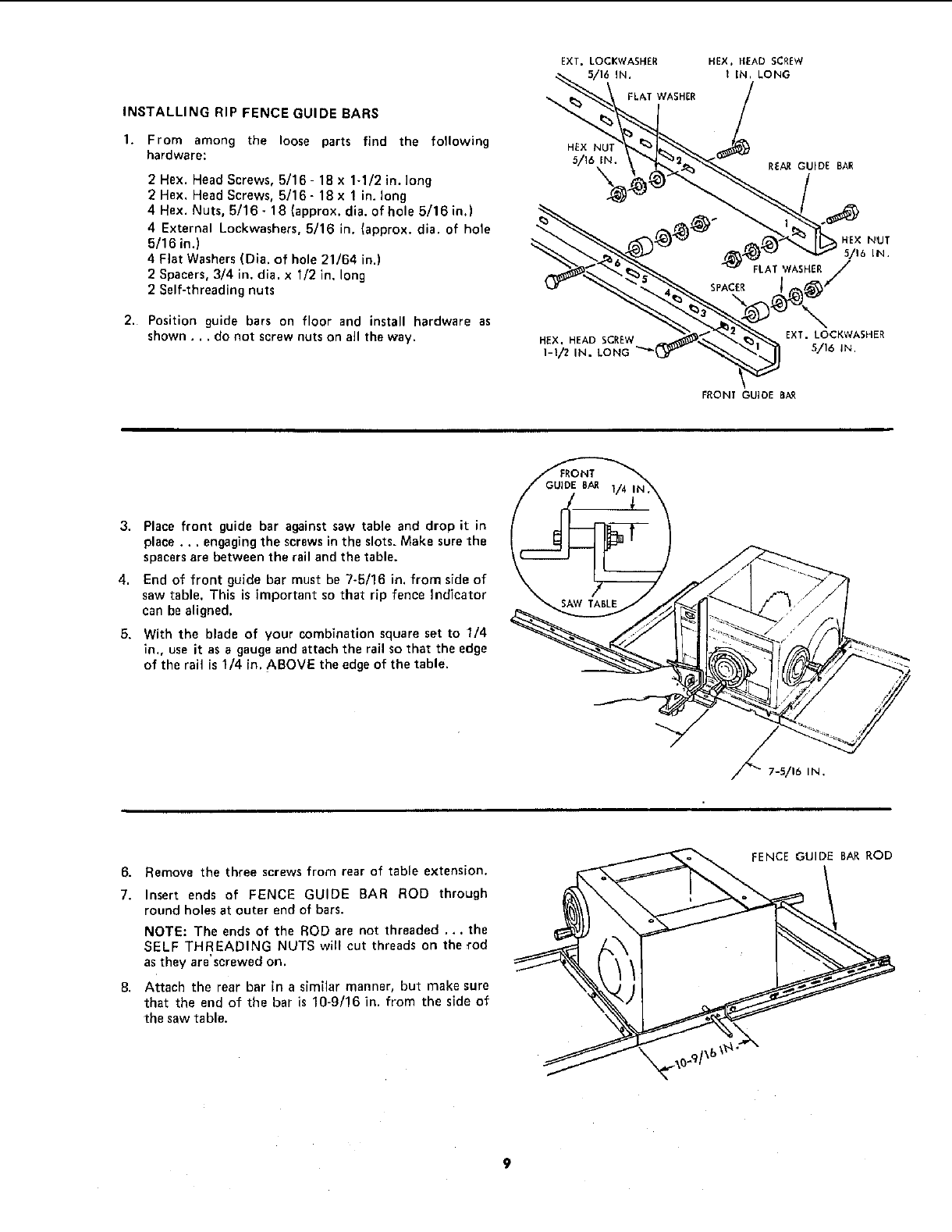

Instarling Rip Fence Guide Bars .................... 9

Assembling Steel Legs .......................... 10

Mounting Saw ................................. 10

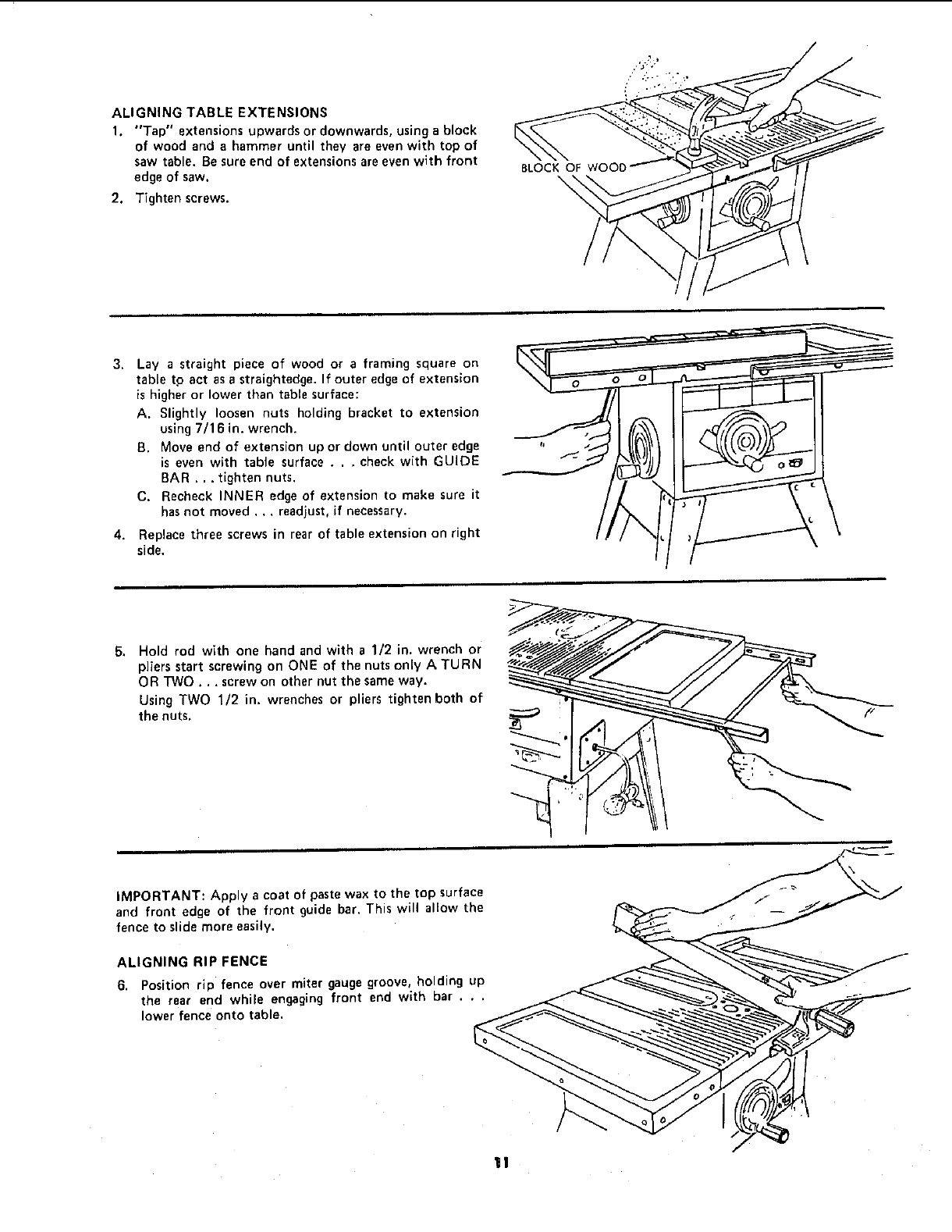

Aligning Table Extensions ....................... 11

Aligning Rip Fence .............................. 11

Installing Blade Guard .......................... 13

GETTING TO KNOW YOUR SAW .................. 15

On-Off Switch .................................. 15

Reset Button ........... ,....................... 16

Elevation Handwheel ............................ 16

Tilt Hendwheel ................................. 16

Rip Fence ...................................... 16

Miter Gauge .................................... 16

Blade Guard .................................... 16

Table Insert .................................... 16

Removing and Instalfing Sawblade ............... 16

Exact-l-Cut ...... ,......................... 17

BASIC SAW OPERATION USING THE MITER GUAGE 17

Work Helpers ................................... 18

Crosscutting .................................... 18

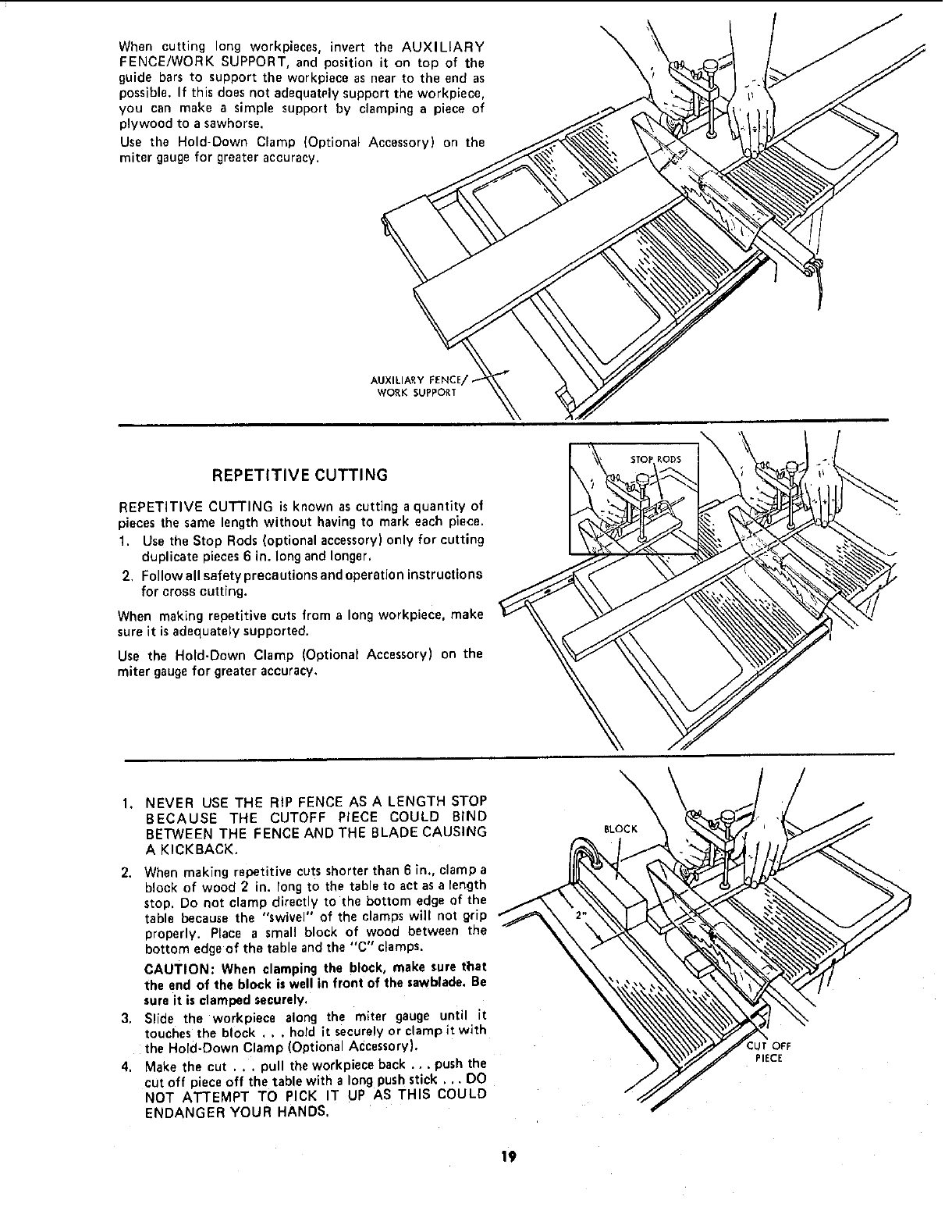

Repetitive Cutting ............................... 19

Miter Cutting ................................... 20

Bevel Crosscutting .............................. 20

Compound Miter Cutting ........................ 20

BASIC SAW OPERATION USING THE RIP FENCE .. 20

Ripping ........................................ 21

Bevel Ripping .................................. 21

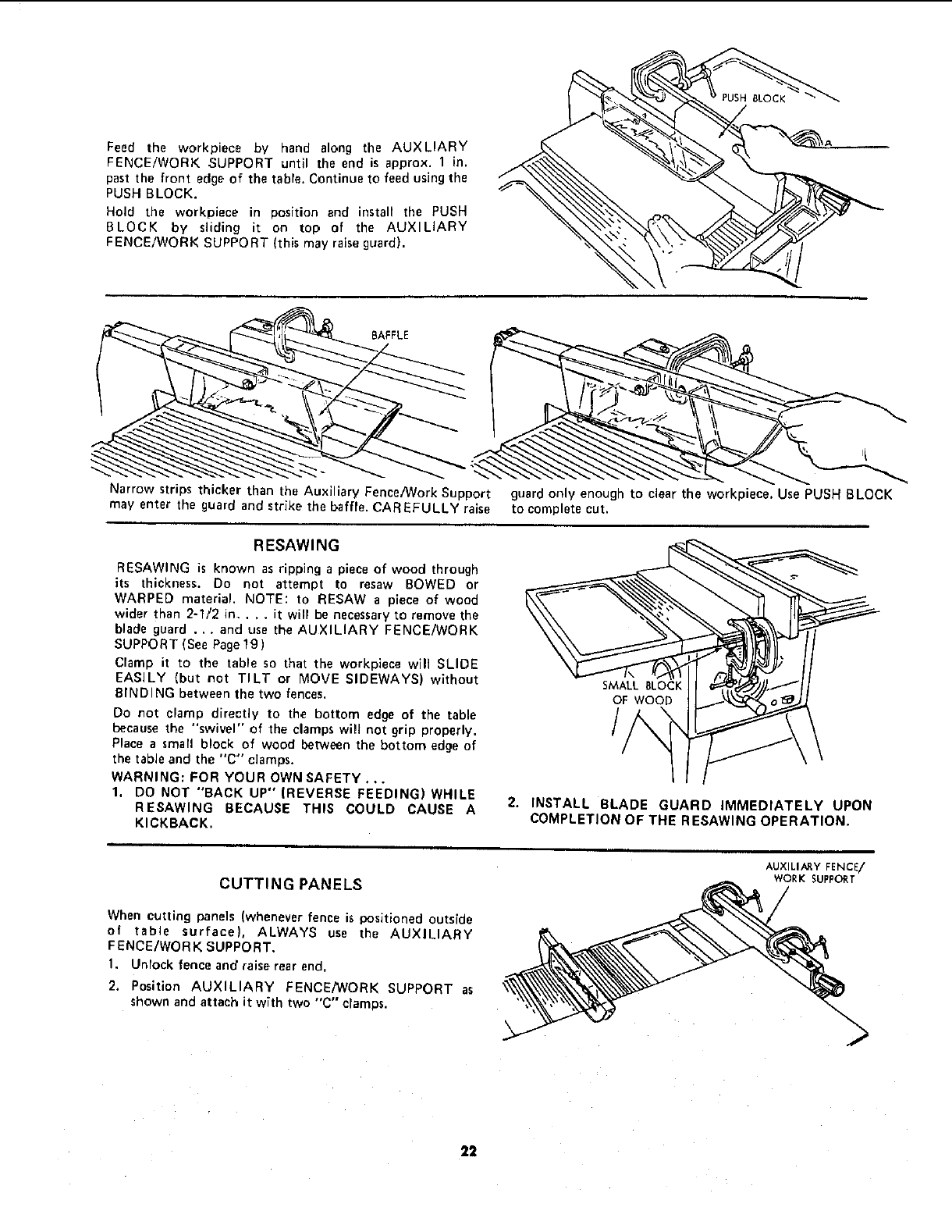

Resawing ...................................... 22

Cutting Panels .................................. 22

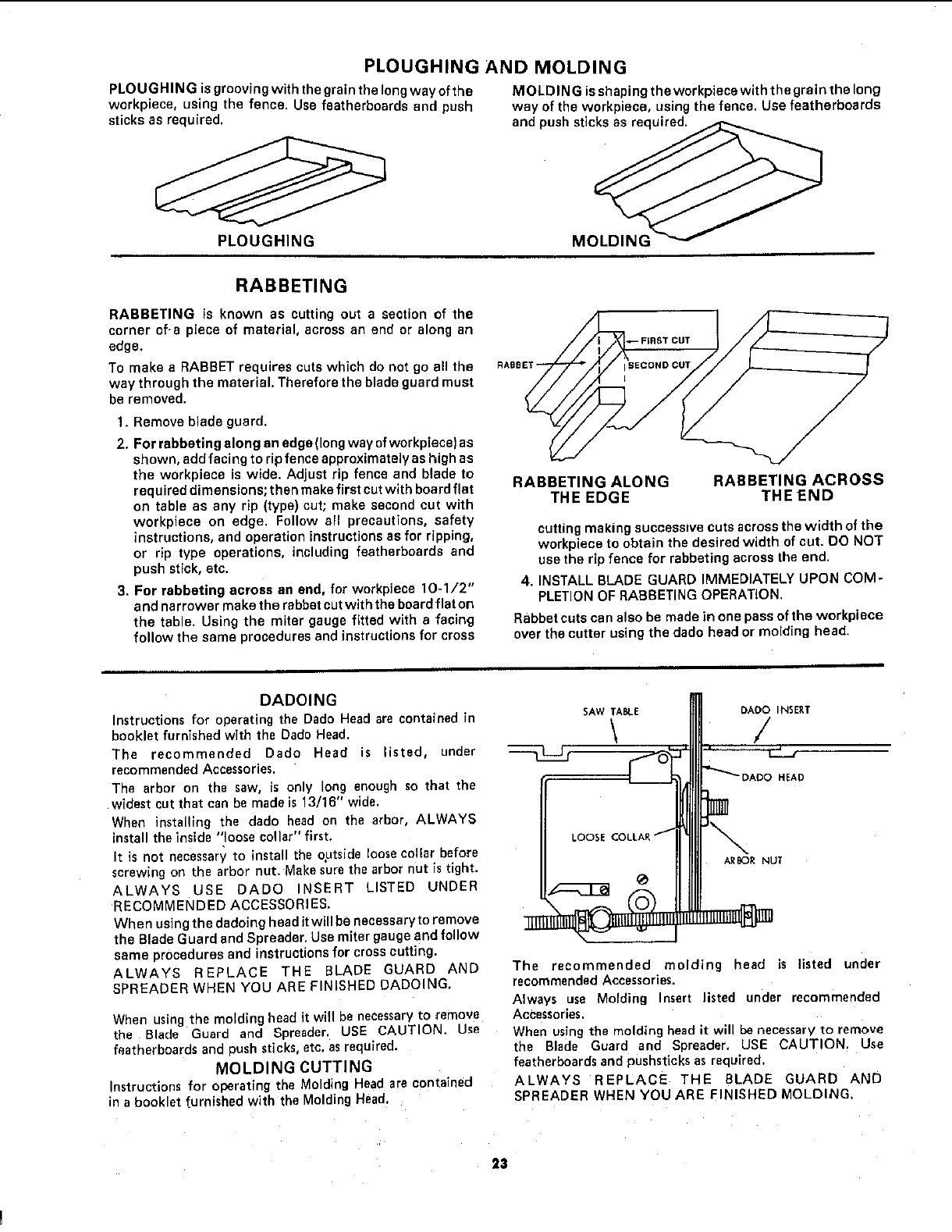

Ploughing and Molding ........................ 23

Rabbeting ...................................... 23

Dadoing ........................................ 23

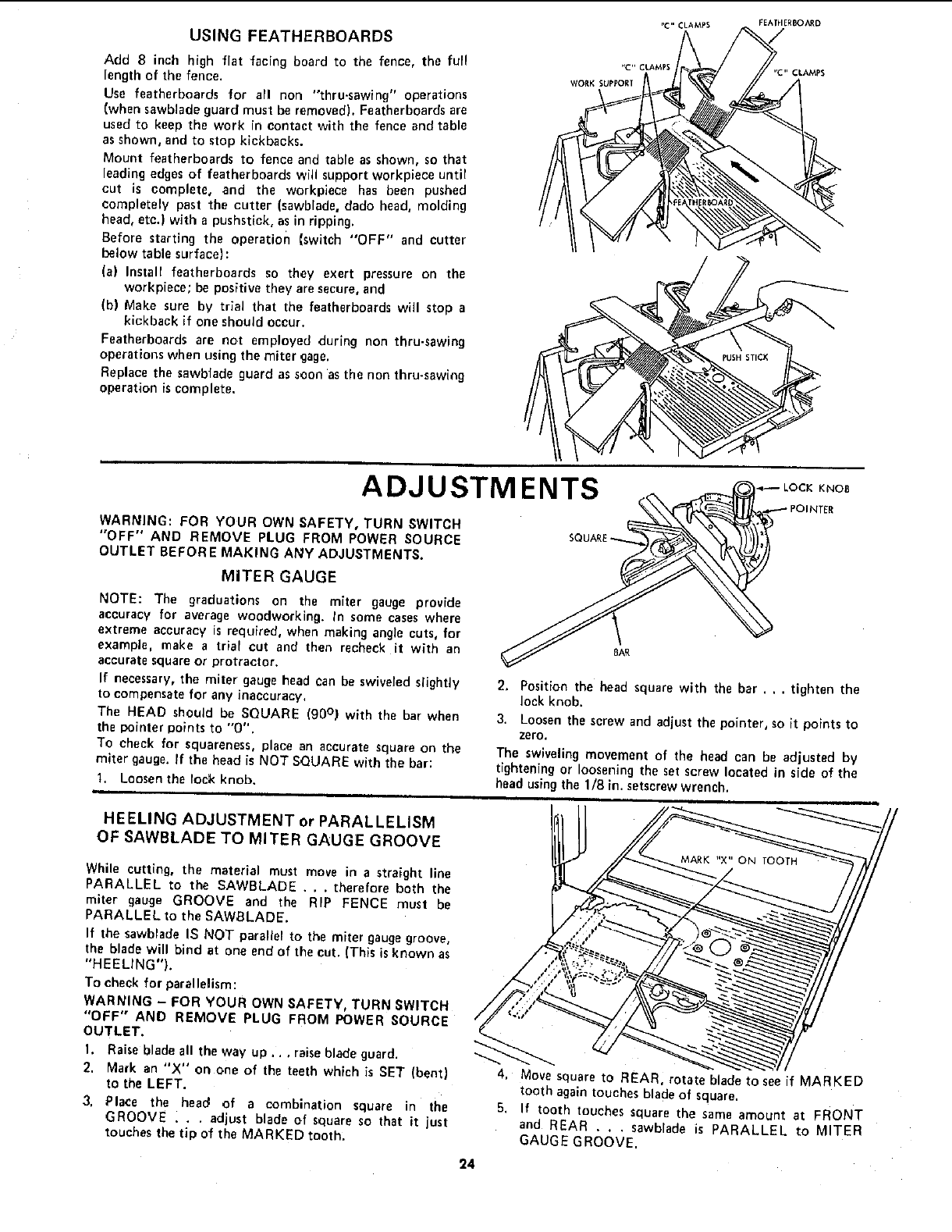

Using Featherboards .......................... 24

ADJUSTMENTS'. ................................. 24

Miter Gauge .................................... 24

Heeling Adjustment or Parallelism of

Sawblede to Miter Gauge Groove ............... 24

Blade Tilt, or Squareness of

Blade to Table ................................. 25

Blade Elevation ................................. 26

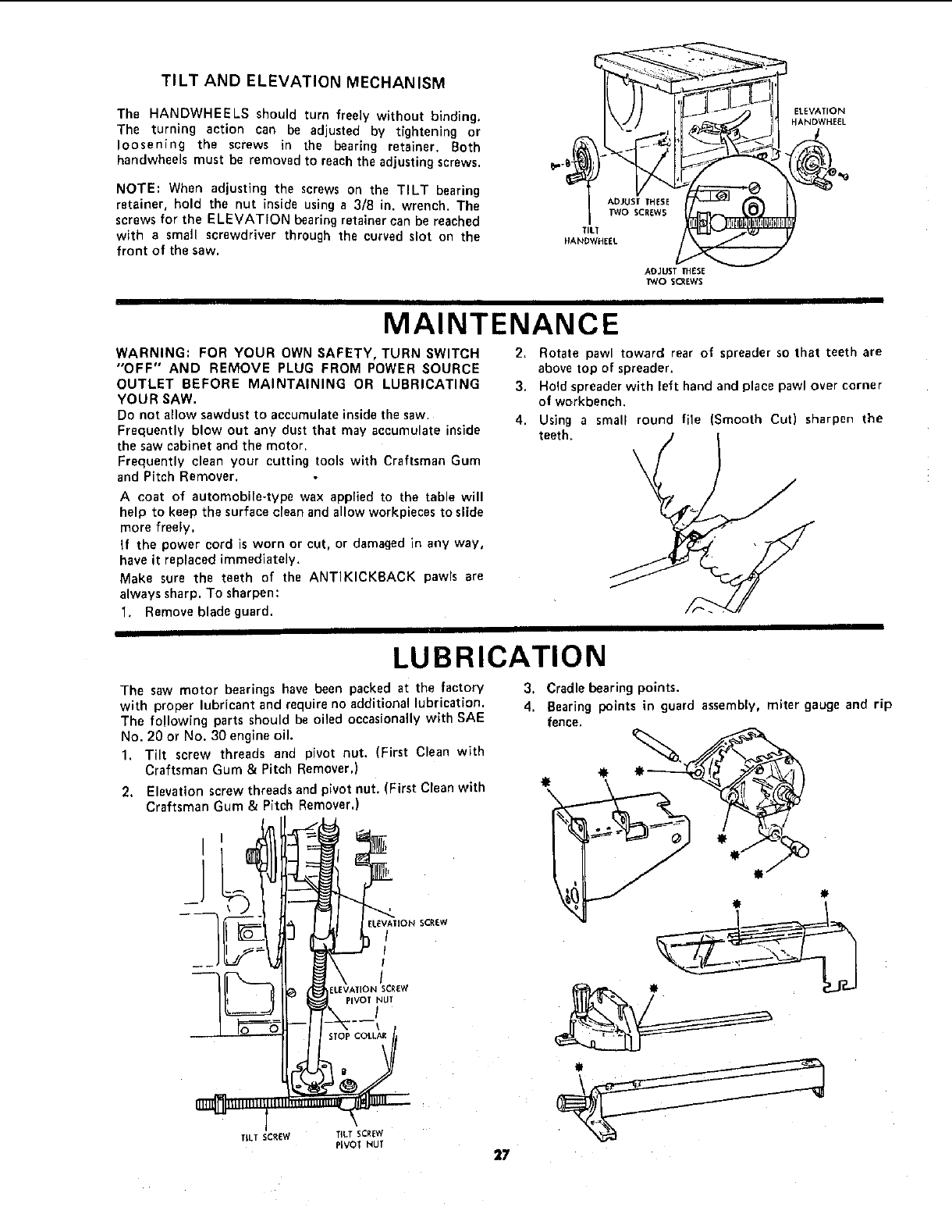

Tilt and Elevation Mechanism .................. 27

MAINTENANCE .................................. 27

LUBRICATION ................................... 27

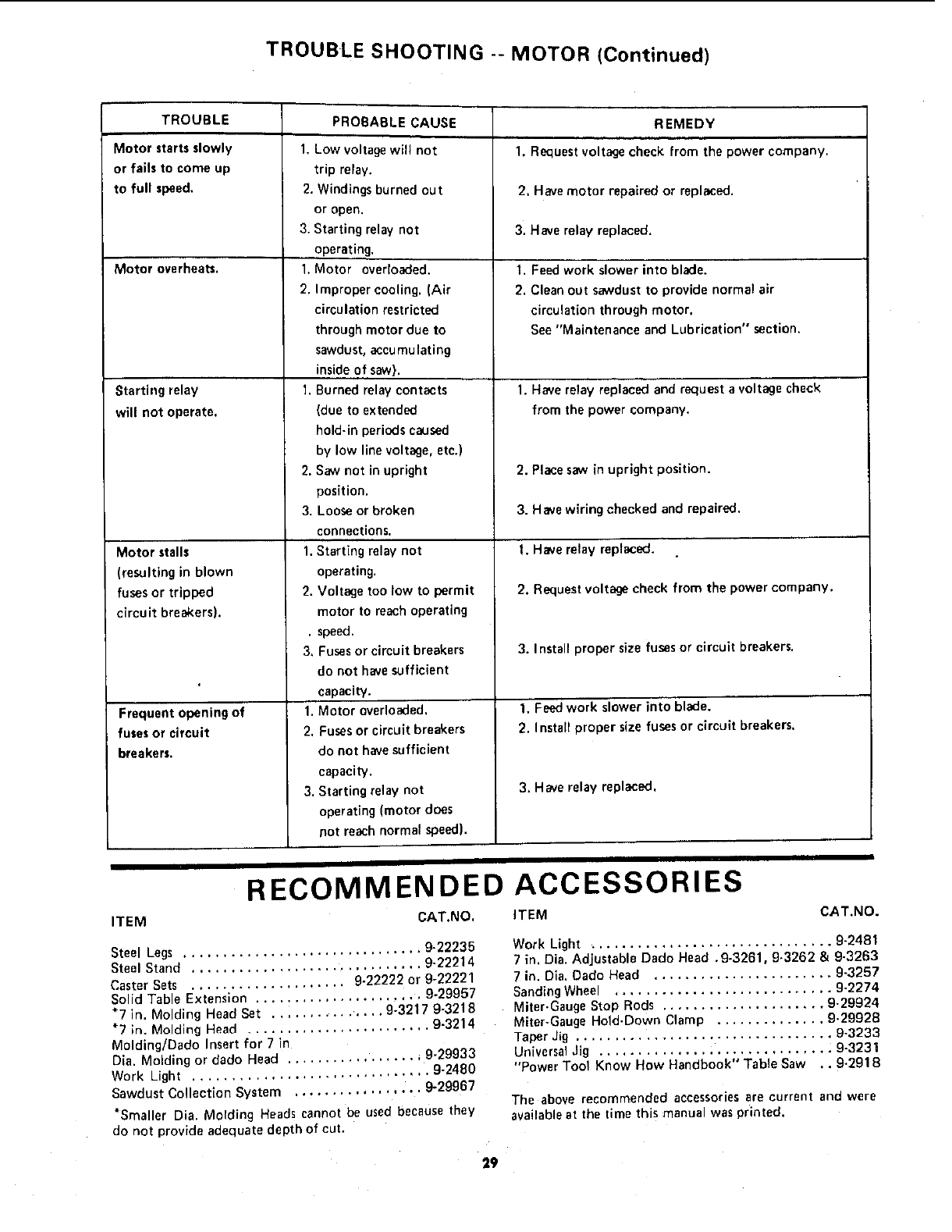

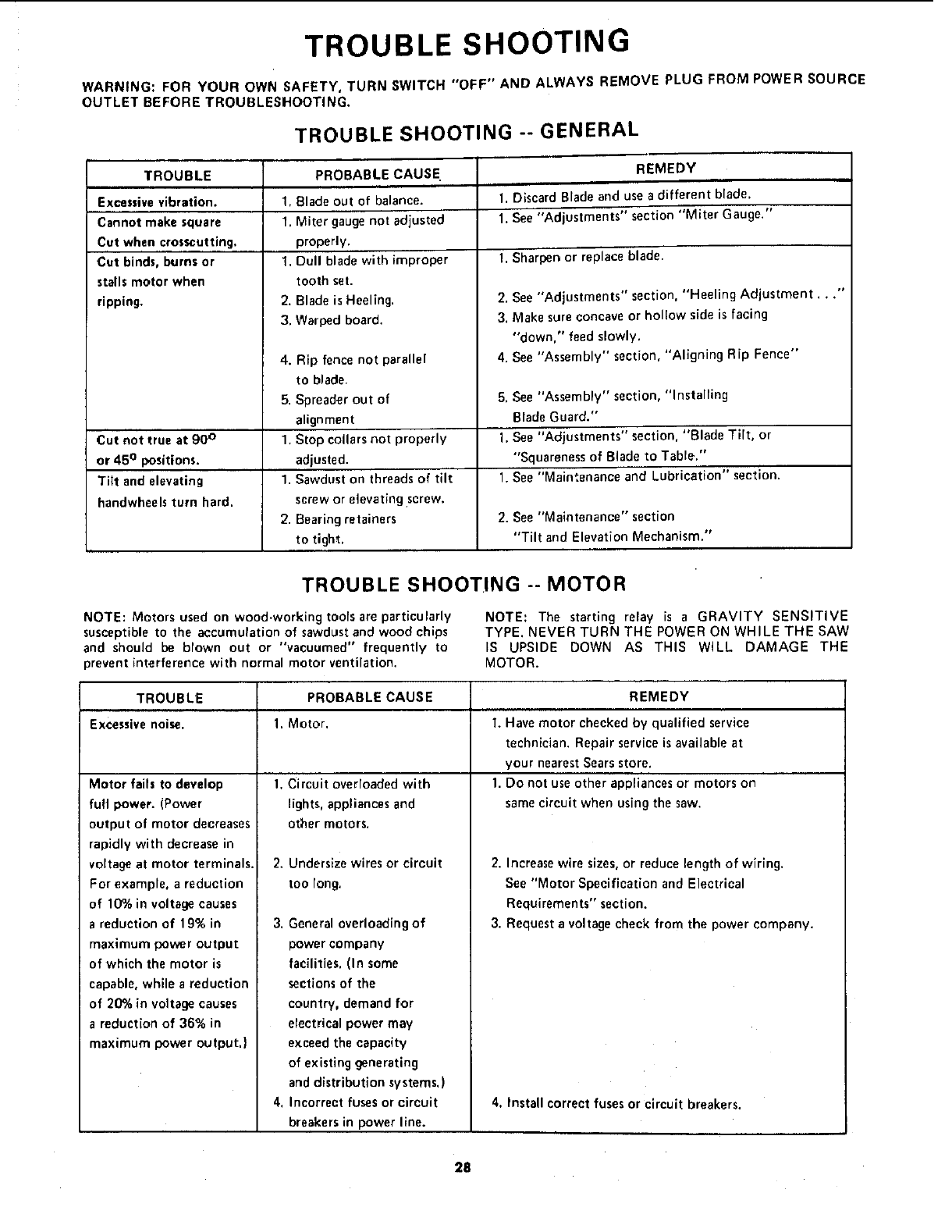

TROUBLESHOOTING .......................... 28

RECOMMENDED ACCESSORIES ................ 29

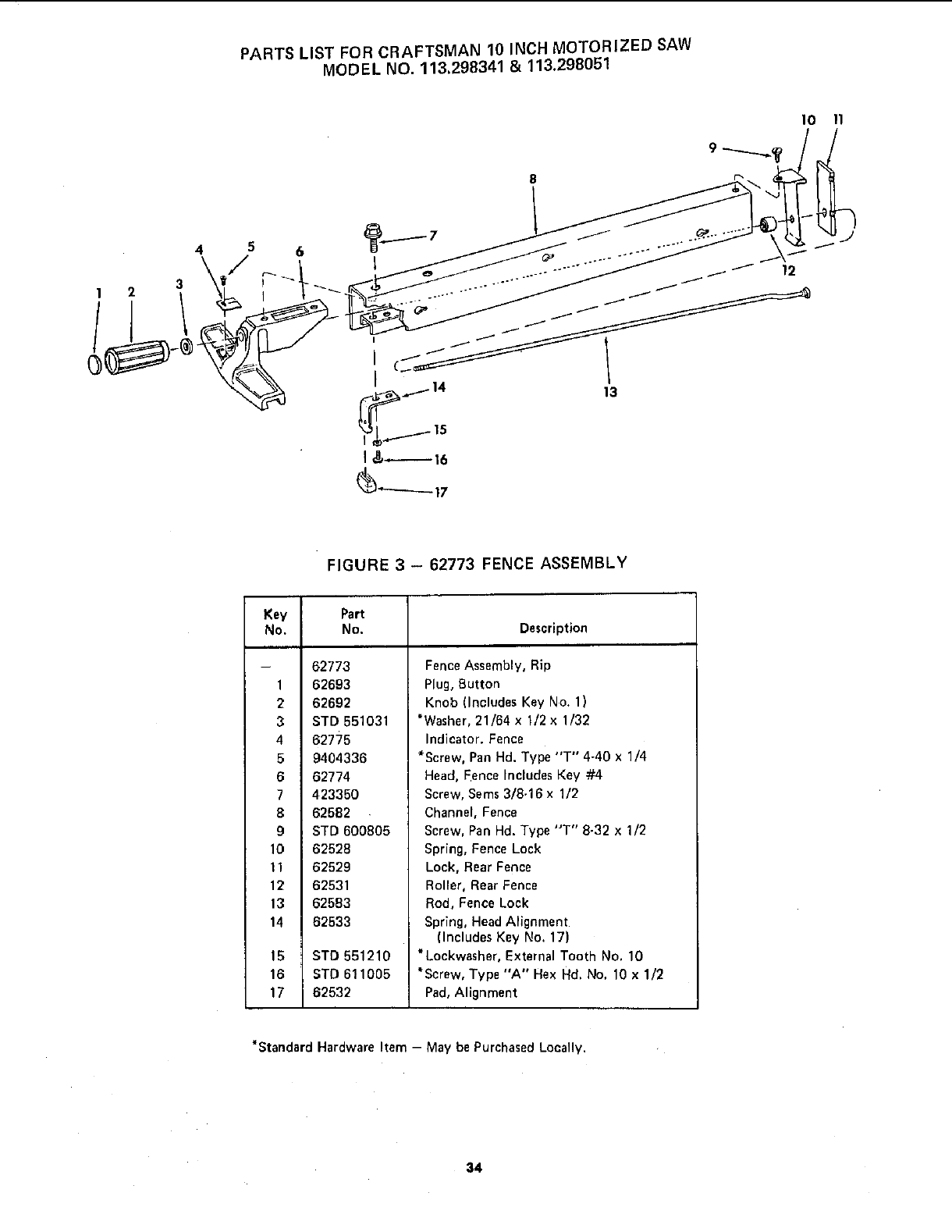

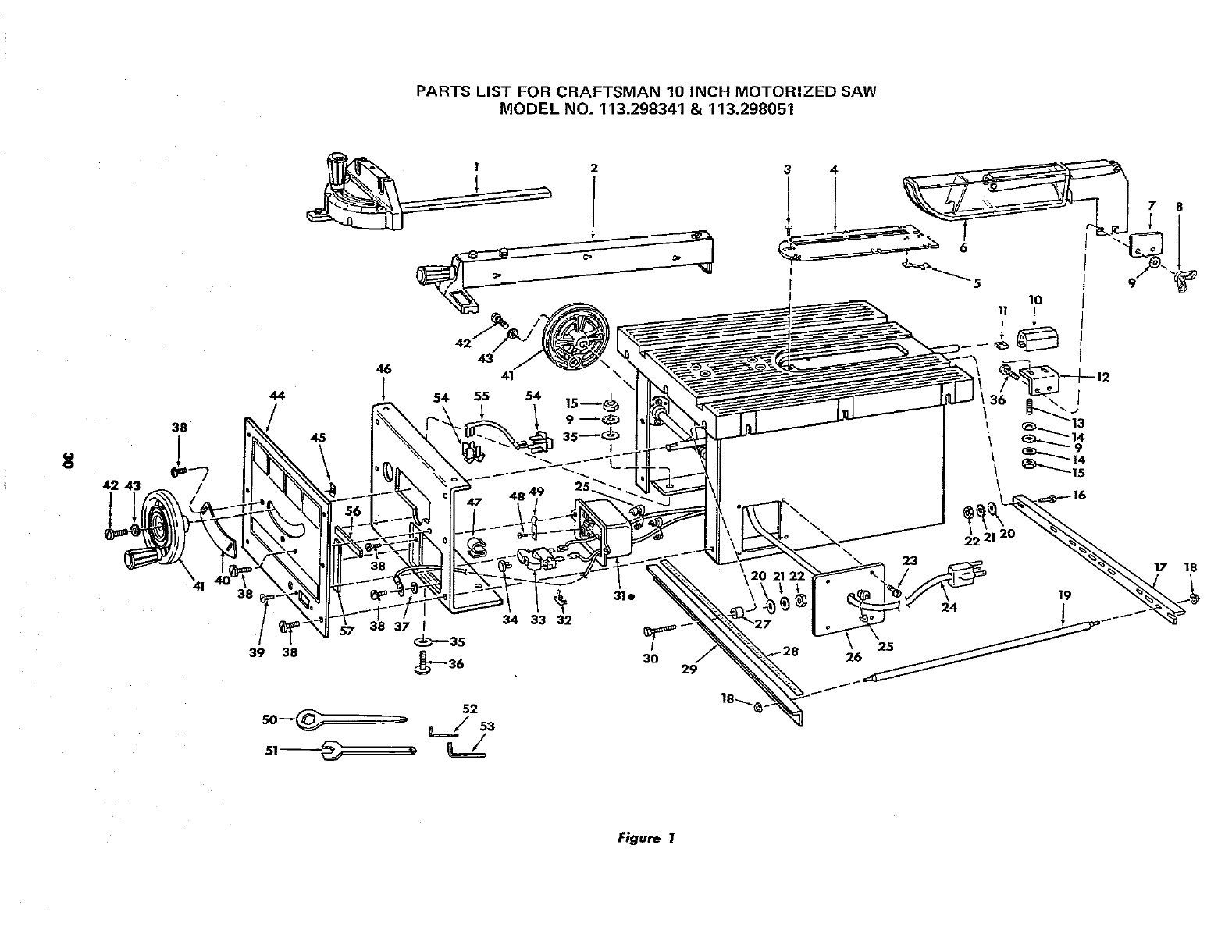

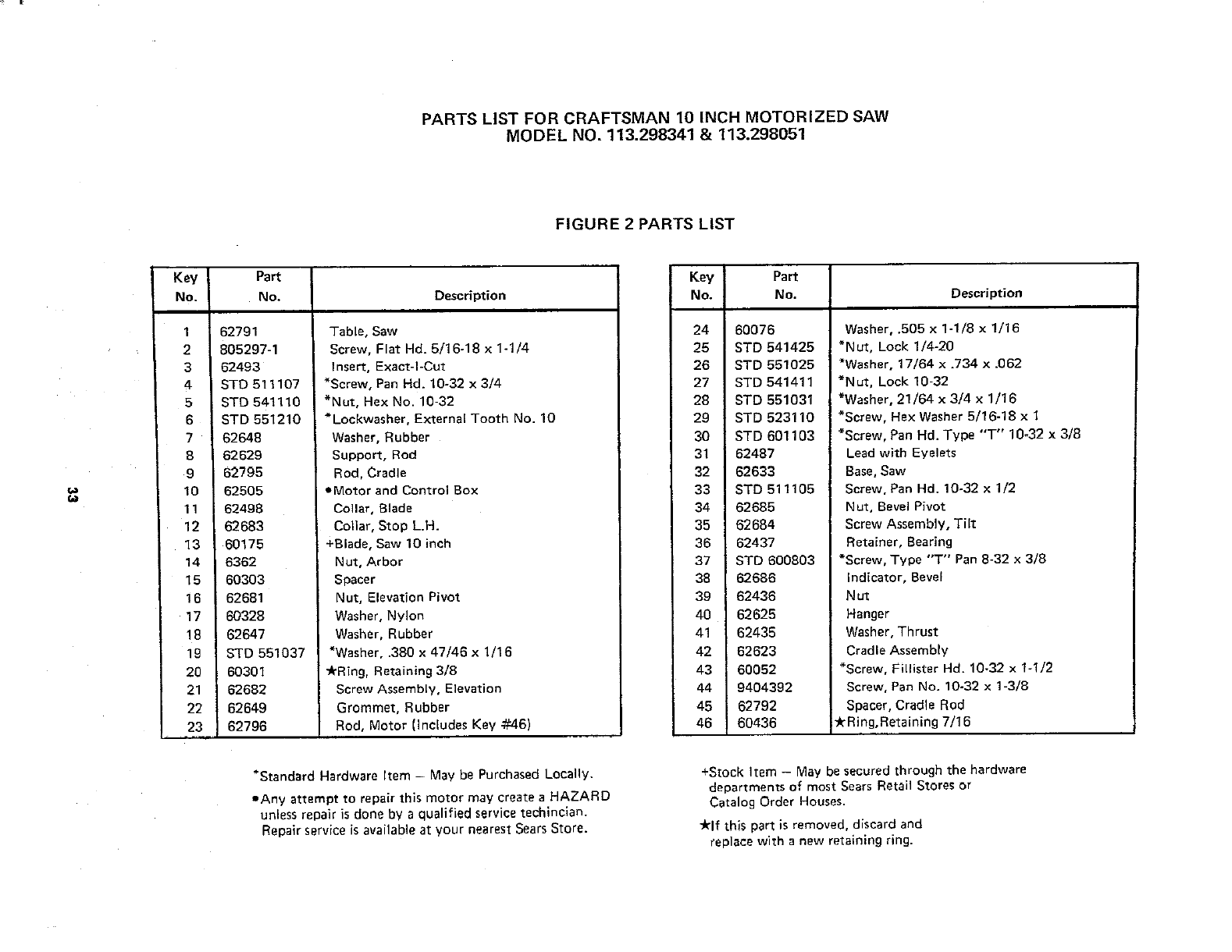

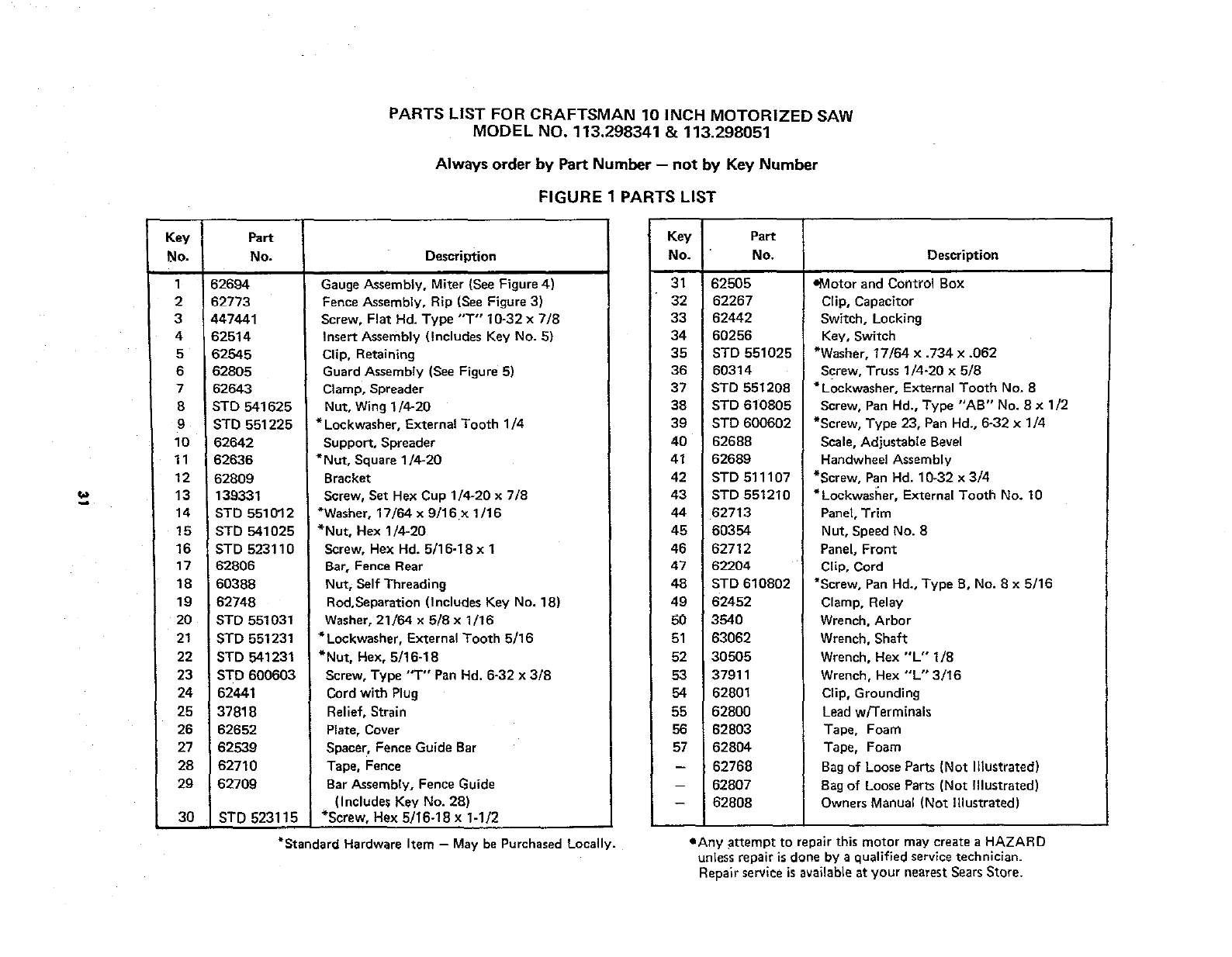

REPAIR PARTS .................................. 30

UNPACKING AND CHECKING CONTENTS

NEED_

Hamrnel Medium Screwdriver

Small Screwdriver

i;ili_ liers

CombinationSquare

#2 Philip Screwdriver

Wrenches

....• ,- i I 318in. 7116in.

1/2 in. 9ftfi in.

314in.

COMBINATION SQUARE MUST BE TRUE.

StrAIGHT EDGE OF 8OARO

3/4 THICK. THIS EDGE _UST

D_AW LIGHt LIN[ ON BE _ERFECIL¥ ST_AfGHT*

BOA_D ALONG THIS EDGE. "_\

SHOULD BE NO GAP _R OVERLAP

_[R[ ,",HEN _QUAR£ IS FLIPPED

OVER IN DOTTED POSI$1ON,

Model 113.298341 Motorized Table Saw is shipped

complete in one carton but DOES NOT INCLUDE Table

Extensions and Steel Legs.

Model 113,298051 Motorized Table Saw is shipped

complete in one carton but INCLUDES TWO Table

Extensionsand Steel Legs.

Separate all parts from packing materials and check each

one with the illustration and the list of Loose Partsto make

certain all items are accounted for, before discarding any

packing material.

If any parts are missing, do not a_tempt to assemble the

table saw. plug in the power card or torn the switch on

until the missing parts are obtained and ere installed

correctly. B

_ I;'/ J.... ___ 1 C

j H G

WARNING: FOR YOUR OWN SAFETY, NEVER

CONNECT PLUG TO POWER SOURCE OUTLET UNTIL

ALL ASSEMBLY STEPS ARE COMPLETE, AND YOU

HAVE READ AND UNDERSTAND THE SAFETY AND

OPERATIONAL INSTRUCTIONS.

LIST OF LOOSE PARTS

Key

No. PartName Oty.

A Miter Gauge .............................. 1

B Rip Fence ............................... 1

CBladeGuardandSpreader ................... 1

D Haedwheel ............................... 2

ERipFenceGuide Bar, Rear .................. 1

F Rip FenceGuide BarRod ................... 1

G Rip FenceGuide Barwith Rip Scale(Front) ..... 1

HArbor Wrench ............................ 1

JArbor Nut Wrench ......................... 1

KOwnersManual ........................... 1

Bagof MisceJlaneousSmallParts No. 62807

Consistingof the following:

L SpreaderSupport .......................... 1

MSpreaderClamp ........................... 1

N SpreaderBracket .......................... 1

P SetscrewWrench,1/8 in.................... .. 1

P SetscrewWrench,3/16 in.................... 1

Q Switch Key .............................. 1

S See.Hd. Set Screw 1/4-20 x 7/8 .............. 2

T SquareNut, 1/4-20 ........................ 2

X Loekwasher#'10 ExternalType

(approx.dia. of hole3/1B in.) ............... 2

X Leckwasher,1/4 in. ExternalType

(approx,dia. of hole1/4 in.) ................ 2

Y WingNut 1/4-20 .......................... 2

AA Screw, PanHd. 10-32 x 3/4 .................. 2

BB TrussHeadScrew, 1/4-20 x5/8 long ........... 2

Pkg.of MiscellaneousSmallPartsNo. 62768

Consistingof the Following:

R GuideBarSpacer .......................... 2

USelfThreadingNut ......................... 2

V Flatwasher,(dia.of hole17/64in.) ............ 4

V Flatwasher,(dia. of hole21/64 in.) ............ 4

V Flatwasher,17/64 x 5/8 x 1/16 ............... 8

W Hex Nut, 1/4-20

(Approx. die.of hole 1/4 in.) ............... 6

W Hex Nut, 5/16-18

(approx. dia. of hole5/16 in.) ............... 4

XLookwaEher,1/4 in. ExternalType

(approx. dia. of hole 1/4 in.) ................ 8

XLookwasher,5/16 in. ExternalType

(approx. dia.of hole 5/16 in.) ............... 4

Z Hex Hd. Screw,5/16-18 x 1-1/2 in. long ........ 2

Z HaxHd. Screw,5/16.18xlin, long ........... 2

BB TrussHeadScrew, 1/4-20 x 5/8 ............... 4

The following parts are included with Model 113.298051

Key

No. PartName 0.ty.

A Leg ..................................... 4

B SideStiffener .............................. 2

C End Stiffener ............................. '2

DTable Extension ........................... 2

Pkg.of MiscellaneousSmallParts,No. 62767for Legs

Consistingof the Following:

F Lnckwasher,1/4 in. ExternalType

(approx.dia.of hole 1/4 in.) ................ 24

G Hex Nut, 1/4-20

(approx.dia. of hole 1/4 in.) ................ 24

G Hex Nut, 1/2-13

(approx.dia.of hole 1/2 in.) ................ 8

JTrussHeadScrew, 1/4-20 x 5/8 in.long

(top of screwis rounded) .................. 24

K Leveling Foot ............................. 4

Pkg.of MiscellaneousSmallPartsNo. 62745 for

Table ExtenEions,Two Each:

Consistingof the Following'.

EHex HeadScrew5f16-18 x 1-1/4 .............. 8

FLockwaEher,5/1B in. ExternalType

(approx.dia.of hole 5/16 in.) ............... 8

Lockwaeher,1/4 in, External Type

(approx.dia. of hole 1/4 in.) ................ 1B

Hex Nut, 5/16-18

(approx.dia. of hole5/16 in.) ............... 8

Hex Nut, 1/4-20

(approx.dia. of hole1/4 in.) ................ 1B

FlatWasher(dia. of hole 11/32) .............. 8

FlatWasher(dia. of hole 17/64) .............. 4

TrussHeadScrew, 1/4-20 x1in. long

(top of screwis rounded) .................. 1B

CornerStiffener Bracket .................... 4

CornerSupport Bracket ..................... 4

ASSEMBLY

Before mounting the saw on legs,a stand or a bench, the

Table Insert and Blade Squareness and Blade Elevation

must be checked at this time.

INSTALLING ELEVATION AND TILT HANDWHEELS

1. Line up FLAT SPOTS on shaft and handwheel, push

handwheel onto shaft. Install screw and Iockwasher to

lock hendwheel on shaft,

LOCKWASHER LOCKWASHER

SCREW SCREW

EILT HANDWHEEL EL[VATION HAKIDWHEEL

CHECKING TABLE INSERT

1. With the insert in place, and sawblade all the way down,

usea small scale or straight edge to check near each of

the eight leveling tab positions,in order to determine if

the insert is flush with saw table surface at aPIeight tab

locations.

2. If the insert is above the table surface, the leveling tabs

must be adjusted.

A. Loosen Screw.

B. Lift insert from front end, and pull toward front of

saw.

C. Remove the insert, place it upside down on your

workbench and GENTLY TAP each of the tabs

downward only a slight amount. Replace insert...

check it and readjust tabs, if necessary.

__; LEVELING TAB

3. If the insert is BELOW the table surface, remove the

insert and bend the tabs (with pliers) enough to make

the insert ABOVE the table surface.

4. To replace insert.

Place insert into insert opening in table and push

toward rear of saw to engage spring clip and until

keyslot in insert will drop over screw. Tighten screw.

DO NOT TIGHTEN SCREW TO THE POINT WHERE IT

DEFLECTS THE INSERT.

CHECKING BLADE SQUARENESS TO TABLE

IMPORTANT: BLADE must be SQUARE (90° )to

TABLE, in order to proceed with assembly.

To check for blade squareness, refer to "BLADE TELT, OR

SQUARENESS OF BLADE TO TABLE" adjustments on

page 25.

NOTE: The Combination Square must be "TRUE" -See

start of "Unpacking and Checking Contents section on page

6 for checking method.

CHECKING BLADE FOR HEEL

IMPORTANT: Saw blade MUST be parallel to miter gauge

groove.

To check for parallelism, refer to "HEELING

ADJUSTMENT OR PARALLELISM OF BAWBLADE TO

MITER GAUGE GROOVE" adjustment on page24.

CHECKING BLADE ELEVATION

Maximum depth of cut MUST NOT EXCEED TWO AND

ONE HALF (2-1/2 INCHES. This adiustment is set at the

factory and should be checked to make sure that it has not

changeddue to rough handling during shipment.

MAKE SURE SQUARE

IS NOT TOUCHING

TIP OF TOOTH

With the blade up ashigh asit will go, measure the distance

from the top of the table to top of the highest saw tooth. If

it is more than two and one half (2-1/2) inches, adjust it at

this time. Refer to "BLADE ELEVATION" adjustments on

page26.

ATTACHING AND ASSEMBLING TABLE EXTENSIONS

If you received two Table Extensions with your saw

(furnished with Model No. 113.296051)assemble and

attach them at this time.

1. Position saw upside down on floor.

NOTE'. To protect the finished surfaces of the saw and

extensions, lay e piece of heavy paper on the floor.

2, From among the loose parts find the two loose parts

bagsfor table extensions.

BHex Head Screws 5/16-18 x 1¼ in. long

8Lockwashers, 5/16 in. External Type

(approx. dia. of hole 5/16 in.)

8Flat Washers (dia. of hole 11/32 in.)

8Hex Nuts, 5116-18 (approx. dia. of hole 5/16 in.)

16 truss head screws 1/4-20 x1

4corner support brackets

4 corner stiffener brackets

16 Hex nut 1/4-20

16 !ockwashers, 1/4" External Type

4 Flat Washers (Dia. of hole 17/64)

3. Install support corner brackets, stiffener corner

brackets, screws, Ioekwashers, washers, and nuts for

assembling extensions as shown...tighten screws

attaching extensions to tabre SNUGLY. BE SURE END

OF EXTENSIONS ARE EVEN WITH FRONT EDGE

OF SAW.

4. Leave saw in upside down position until you attach the

rip fence guide bars and legs,

/_e_ /

17/64 DIA. FLAT WASHER

f FLAT WASHER

LOCKWASHER

5/16-18 x 1-1/4 SCREW

INSTALLING RIP FENCE GUIDE BARS

1, From among the loose parts find the following

hardware:

2 Hex. Head Screws, 5/16 - 18 x 1-1/2 in. long

2 Hex. Head Screws, 5/16 - 18 x 1 in. long

4 Hex. Nuts, 5/16 - 18 (approx. dia. of hole 5/16 in.)

4 External Lockwashers, 5/16 in. (approx. dia. of hole

5/16 in.)

4Flat Washers (Dia. of hole 21/64 in.)

2 Spacers, 3/4 in. dia. x 1/2 in. long

2 Self-threading nuts

2. Position guide bars on floor and install hardware as

shown.., do not screw nuts on all the way.

EXT. LOCI<WASHER HEX, HEAD SCREW

5/16 IN, I IN, LONG

_FLAT WASHER

HEX NUT

5/16 IN. REAR GUIDE BAR

FRONT GUIDE aAR

3. Place front guide bar against saw table and drop it in

place ... engaging the screws in the slots. Make surethe

spacersare between the rail and the table.

4. End of front guide bar must be 7-5/16 in. from side of

saw table. This is important so that rip fence Indicator

can be aligned.

5. With the blade of your combination square set to 1/4

in., use it as a gauge and attach the rail so that the edge

of the rail is 1/4 in. ABOVE the edge of the table.

/_ 7-5/16 IN,

6. Remove the three screws from rear of table extension,

7. Insert ends of FENCE GUIDE BAR ROD through

round holes at outer end ef bars.

NOTE: The ends of the ROD are not threaded ... the

SELF THREADING NUTS will cut threads on the rod

as they are'screwed on.

8. Attach the rear bar in a similar manner, but make sure

that the end of the bar is 10-9/16 in. from the side of

the saw table.

FENCE GUIDE BAP,ROD

ASSEMBLING STEEL LEGS

NOTE'. Steel Legs are furnished with Model 113.298050.

From among the loose parts, find the following Hardware'.

24 Truss Head Screws, 1/4 -- 2Q x 5/8 in. long (top of

screw is rounded)

24 Lockwashers, 1/4 in. External Type (approx. dia. of

hole 1/4 in.)

24 Hex Nuts, 1/4 - 20 (approx. dia. of hole 1/4 in.)

8Hex Nuts. 1/2 -13 (approx. dia. of hole 1/2 in.)

4 Leveling feet.

Assemble the legsas shown ...

1. Insert the Truss Head Screws through the holes in the

legs, then through the holes in the stiffeners. MAKE

SURE THE SCREWS GO THROUGH THE HOLES IN

THE SIDE STIFFENERS MARKED "X".

2. Install Iockwashers and screw on the nuts but do not

tighten until completely assembled.

3. Install leveling feet.

END

STIFFENER "_

SCREWS THROUGH

HOLESMARKED"X"

SIDE STIFFENER

HEX NUTS

_,_.-----_- LEVELING FOOT

MOUNTI NG SAW

1. From the loose parts find the four 1/4-20 x5/8 in.

Truss Head Screws, 17/64 x 5/8 x 1/16 Flat Washers,

1t4 in. Lockwashers and 1/4-20 Hex Nuts.

2. Positior_ legs as shown and line up holes in stiffeners

with holes _nsaw base,

NOTE: At front of saw you will see four holes, insert

bolts through holes as shown.

Attach legs using the screws, washers, Iockwashers

and nuts.., tighten the nuts.

3. Place saw it] upright position.

FRONT

REAR

If you mount the saw on anv other bench, make sure that

there is an opening in the top of the bench the same size as

the opening in the bottom of the saw so that the sawdust

can drop through. Recommended working height is 33 to

37 in. from the top of the saw table to the floor.

I •

FRONTOF SAW

4HOLES

7/16 [_IA.

ALIGNING TABLE EXTENSIONS

1. "Tap" extensions upwards or downwards, using a block

of wood and a hammer until they are even with top of

saw table. Be sure end of extensionsare even with front

edge of saw.

2. Tighten screws.

BLOCK OF WOOC

3. Lay a straight piece of wood or a framing square on

table tp act asa straightedge. If outer edge of extension

is higher or lower than table surface:

A. Slightly loosen nuts holding bracket to extension

using 7/16 in. wrench.

B. Move end of extension up or down until outer edge

is even with table surface ...check with GUIDE

BAR ... tighten nuts.

C. Recheck INNER edge of extension to make sure it

hasnot moved.., readjust, if necessary.

4. Replace three screws in rear of table extension on right

side.

5_ Hold rod with one hand and with a1/2 in. wrench or

pliers start screwing on ONE of the nuts only ATURN

OR TWO... screw on other nut the same way.

Using TWO 1/2 in. wrenches or pliers tighten both of

the nuts. F

IMPORTANT: Apply acoat of paste wax to the top surface

and front edge of the front guide bar. This will allow the

fence to slide more easily.

ALIGNING RIP FENCE

6. Position rip fence over miter gauge groove, holding up

the rear end while engaging front end with bar . ..

lower fence onto table.

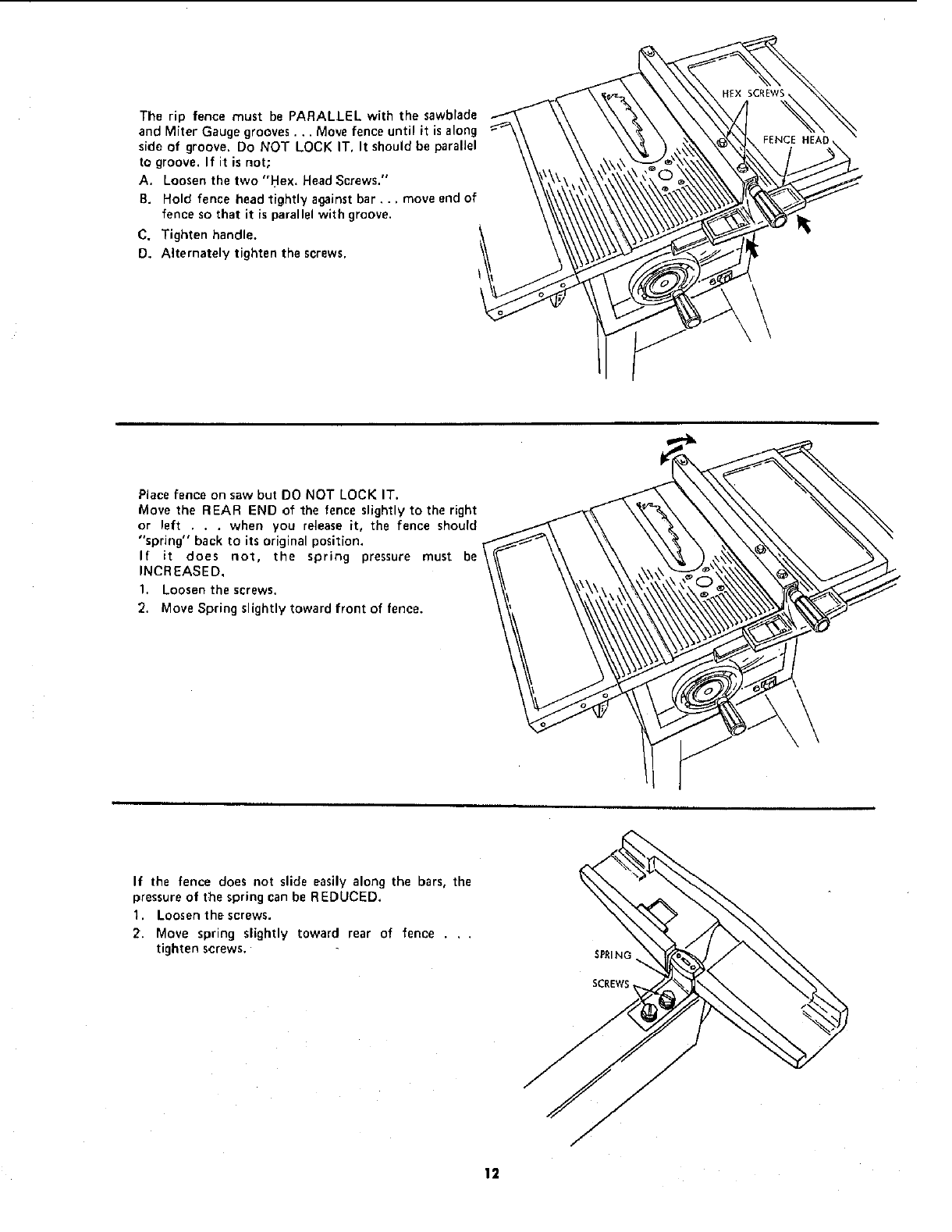

The rip fence must be PARALLEL with the sawblade

and Miter Gauge grooves. ,. Move fence until it is along

side of groove. Do NOT LOCK IT. It should be parallel

to groove. If it is not;

A. Loosen the two "Hex. Head Screws."

B. Hold fence head tightly against bar.., move end of

fence so that it is parallel with groove.

C. Tighten handle.

D. A_ternately tighten the screws.

HEX SCREWS_

Place fence on saw but DO NOT LOCK IT.

Move the REAR END of the fence slightly to the right

or left . . . when you release it, the fence should

"spring" beck to its original position.

If it does not, the spring pressure must be

INCREASED,

1. Loosen the screws.

2. Move Spring slightly toward front of fence.

If the fence does not slide easily along the bars, the

pressure of the spring can be REDUCED,

1. Loosen the screws.

2. Move spring slightly toward rear of fence . , .

tighten screws. SPRING

ADJUSTING RIP SCALE INDICATOR

1. Turn ELEVATION handwheel clockwise until blade is

up as high as it will go.

IMPORTANT'. BLADE must be SQUARE (90 o) to

TABLE, in order to ALIGN rip fence.

2. Using aruler, position fence on right side of sawblade

2" from the sides of the teeth.., tighten lock knob.

3. Loosen screw holding the indlcator.., adjust indicator

so that it points to "2"... tighten screw.

NOTE: If you cannot adjust indicator so that it points

to "2", loosen the screws holding the front guide bar

and move the guide bar.

LOCK KNOB

INSTALLING BLADE GUARD

1. From among the loose parts, find the hardware as

shown.

SPREADER BRACKET

TRUSSHEAD _'-',

SCREW -----,,-_ _'_,_"'_,_" SPREADER CLAMP

SOCKETHEAD _1 _lf I WING NUT

SETSCREW /

7/8iN. LONG <m @-. /

FLAT WASHER__ _

17/64 IN. HOLE

HEX NUT"-"_ _ LOCKWASHER

EXT. I/4 IN.

2. MAKE SURE THE BLADE IS ALL THE WAY UP

AND SQUARE WITH THE TABLE.

3. Position SPREADER SUPPORT on rod until it is even

with the end of the rod.

BLADE SQUARE

WITH TABLE

4. Assemble the 7/8 in. long setscrews,nuts, Iockwashers

and washers to the SPREADER SUPPORT BRACKET

and slip the nuts into the slot in the spreader support,

5. Finger tighten ONLY THE HEX NUTS.

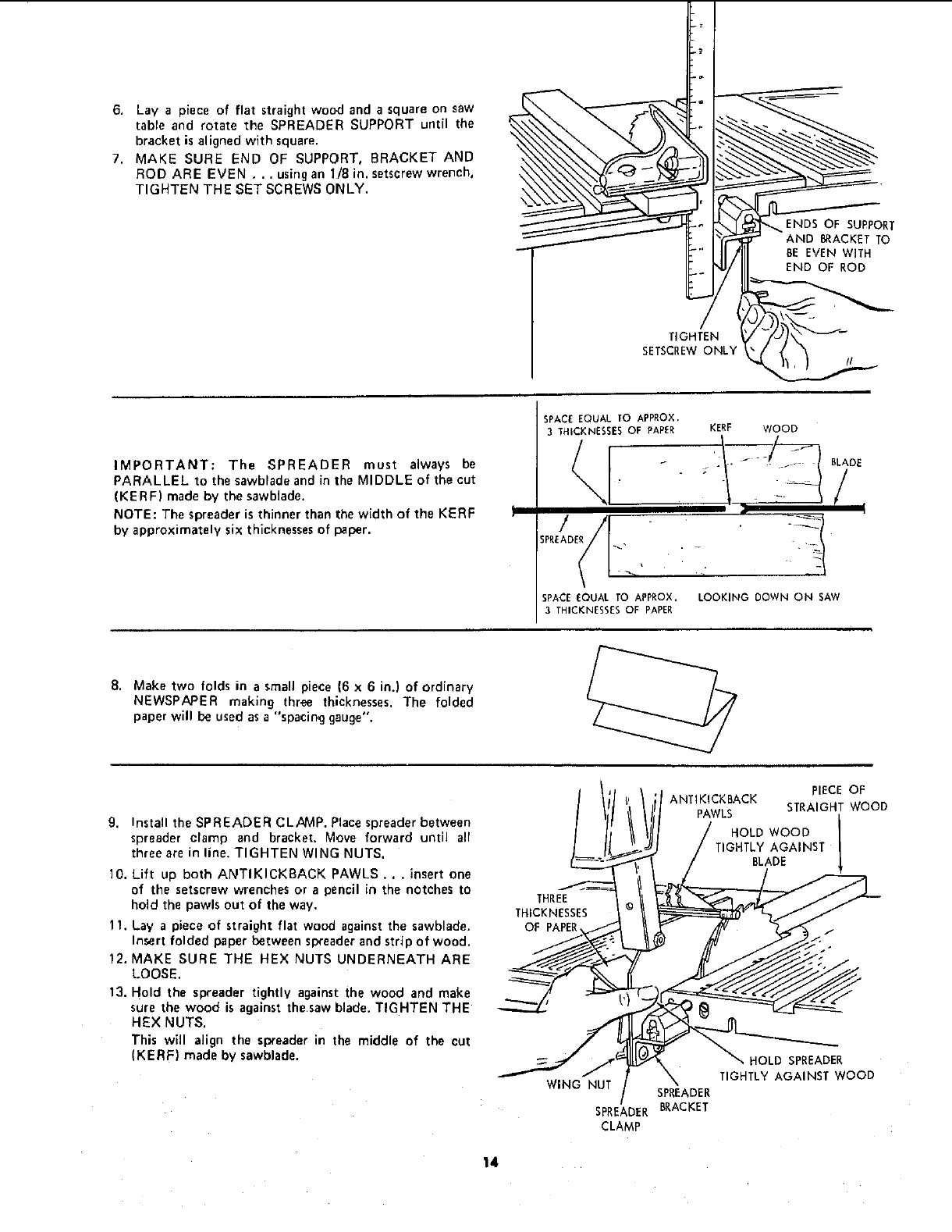

6. Lay a piece of flat straight wood and a square on saw

table and rotate the SPREADER SUPPORT until the

bracket is aligned with square.

7. MAKE SURE END OF SUPPORT, BRACKET AND

ROD ARE EVEN ... usingan I18 in. setscrewwrench,

TIGHTEN THE SET SCREWS ONLY.

TIGHTEN

SETSCREWONLY

ENDS OF SUPPORT

AND BRACKET TO

RE EVEN WITH

END OF ROD

IMPORTANT: The SPREADER must always be

PARALLEL to the sawblade and in the MIDDLE of the cut

(KERF) made by the sawblade.

NOTE: The spreader is thinner than the width of the KERF

by approximately six thicknesses of paper.

SPACE EQUAL TO APPROX,

3 THICKNESSES OF PAPER KERF WOOD

BLADE

SPACE EQUAL TO APPROX. LOOKING DOWN ON SAW

3 THICKNESSES OF PAPER

8. Make two folds in a small piece (6 x 6 in.) of ordinary

NEWSPAPER making three thicknesses. The folded

paper will be used as a "spacing gauge".

g. Install the SPREADER CLAMP. Place spreader between

spreader clamp and bracket. Move forward until all

three are in line, TIGHTEN WING NUTS.

10. Lift up both ANTIKICKBACK PAWLS... insert one

of the setscrew wrenches or a pencil in the notches to

hold the pawls out of the way.

11. Lay a piece of straight flat wood againstthe sawblade.

Insert folded paper between spreaderand strip of wood.

12. MAKE SURE THE HEX NUTS UNDERNEATH ARE

LOOSE.

13. Hold the spreader tightly against the wood and make

sure the wood is against the saw blade. TIGHTEN THE

HEX NUTS.

This will align the spreader in the middle of the cut

(KERF) made by sawblade.

THREE

THICKNESSES

OF PAPER

PIECE OF

ANTIKICKBACK

PAWLS STRAIGHT WOOD

HOLD WOOD 1

IGHTLY AGAINST

BLADE

WING NUT SPREADER

SPREADER BRACKET

CLAMP

HOLD SPREADER

TIGHTLY AGAINST WOOD

GETTING TO KNOW YOUR

MITER GAUGR 7 BLADE GUARD ANTIK[CKBACK

PAWLS

LOCK KNOB

MfIER GAUGE 9SAW aLADE SPREADER

6MITER GAUGE HEAD

I TABLE INSERT

SAW

HOLES FOR

ATTACHING

FAGLNG

4TILT HANDWHEEL

3 ELEVATION HANDW}

ON-OFF SWITCH !

] ON-OFF SWITCH 11

CAUTION: Before turning switch on, make sure the blade

guard is correctly installed and operating properly.

The On-Off Switch has alocking feature. THIS SHOULD

PREVENT UNAUTHORIZED AND POSSIBLY

HAZARDOUS USE BY CHILDREN AND OTHERS.

A. Insert key into switch.

B. TO turn saw ON .,. stand to either side of the

blade never in line with it ... insert finger under

switch lever and pull END of lever out.

After turning switch ON, always allow the blade to

come up to full speed before cutting.

Do not cycle the motor switch on and off rapidly,

as this may cause the sawblade to loosen, in the

event this should ever occur, allow the sawblade to

come to acomplete stop end retighten the arbor

nut normally, not excessively. Never leave the saw

while the power is "ON".

C. TO turn saw OFF ... PUSH bver in. Never leave

the saw until the cutting tool has come to a

complete stop.

D. TO lock switch in OFF position.., hold switch IN

with one hand... REMOVE key with other hand.

WARNING: FOR YOUR OWN SAFETY, LOWER

BLADE OR OTHER CUTTING TOOL BELOW

TABLE SURFACE. (IF BLADE IS TILTED,

RETURN IT TO VERTICAL (90° )POSITION).

ALWAYS LOCK THE SWITCH "OFF". WHEN

SAW IS NOT IN USE .., REMOVE KEY AND

KEEP IT IN A SAFE PLACE ... ALSO ... IN

THE EVENT OF A POWER FAILURE (ALL OF

YOUR LIGHTS GO OUT) TURN SWITCH OFF

... LOCK IT AND REMOVE THE KEY. THIS

WILL PREVENT THE SAW FROM STARTING UP

AGAIN WHEN THE POWER COMES BACK ON.

KEY KEY

ON-OFF SWSTCH (YELLOW PLASTIC)

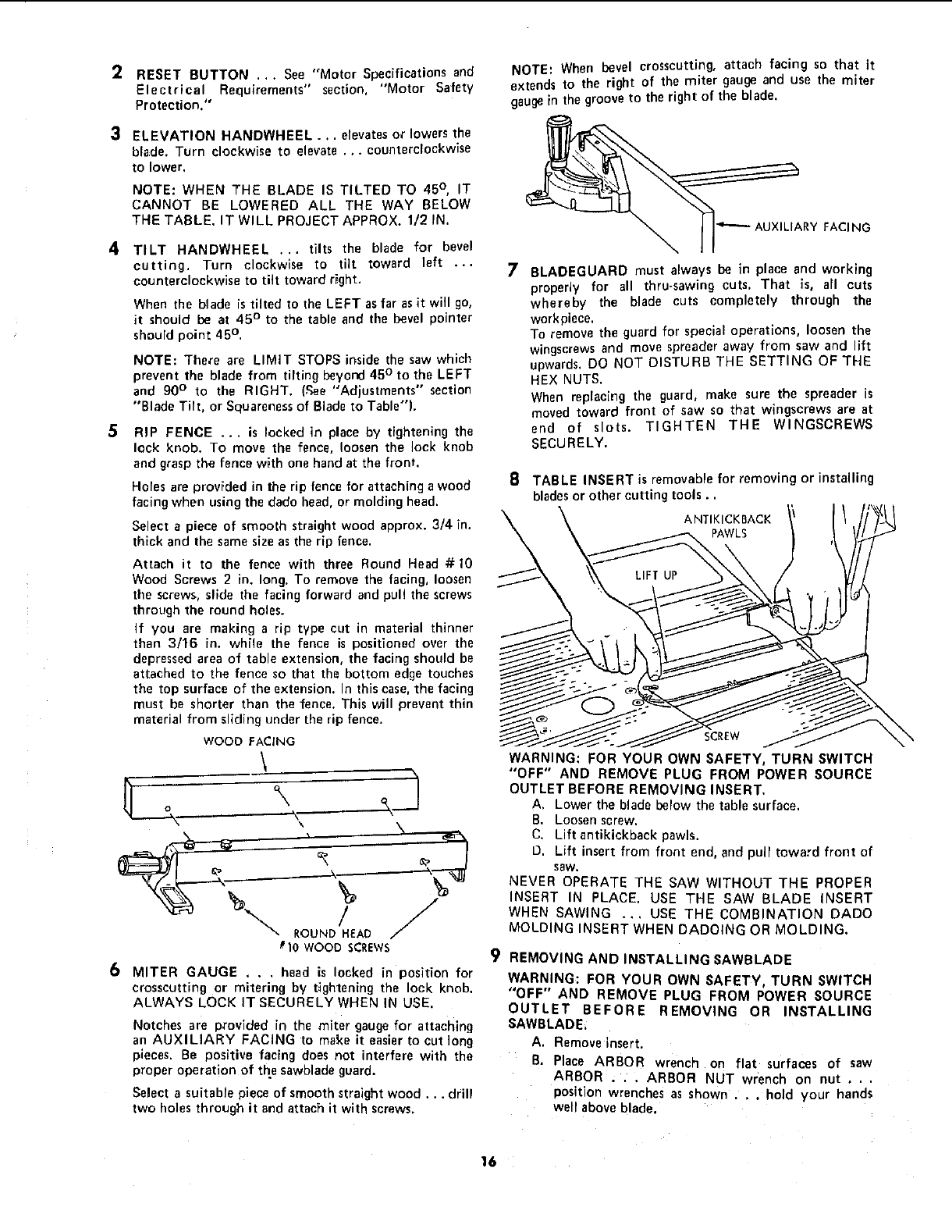

'_ RESET BUTTON ... See "Motor Specifications and

Electrical Requirements" section, "Motor Safety

Protection."

3 ELEVATION HANDWHEEL... elevatesor lowers the

blade. Turn clockwise to elevate ... counterclockwise

to lower.

NOTE: WHEN THE BLADE IS TILTED TO 45° , IT

CANNOT BE LOWERED ALL THE WAY BELOW

THE TABLE. IT WILL PROJECT APPROX. 1/2 IN.

4 TILT HANDWHEEL ... tilts the blade for bevel

cutting. Turn clockwise to tilt toward left ...

counterclockwise to tilt toward right.

When the blade is tilted to the LEFT as far asit will go,

it should be at 45 ° to the table and the bevel pointer

should point 45°,

NOTE: Tbe_e are LIMIT STOPS inside the saw which

prevent the blade from tilting beyond45° to the LEFT

and 90° to the RIGHT. (._ee "Adjustments" section

"Blade Tilt, or Squarenessof Blade to Table").

5RIP FENCE ... is locked in place by tfghtening the

lock knob. To move the fence, loosen the lock knob

and grasp the fence with one hand at the front.

Holes are provided in the rip fence for attaching awood

facing when usingthe dido head, or molding head.

Select apiece of smooth straight wood approx. 3/4 in.

thick and the same size asthe rip fence.

Attach it to the fence with three Round Head # 10

Wood Screws 2 in. long. To remove the facing, loosen

the screws, slide the facing forward and pull the screws

through the round holes.

If you are making a rip type cut in material thinner

than 3/16 in. while the fence is positioned over the

depressedarea of table extension, the facing should be

attached to the fence so that the bottom edge touches

the top surface of the extension. In this case,the facing

must be shorter than the fence. This will prevent thin

material from sliding under the rip fence.

WOOD FACING

_________-----_--

ROUND HEAD J

_'1oWOOD SCREWS

6MITER GAUGE . . . head is locked in position for

crosscutting or mitering by tightening the lock knob.

ALWAYS LOCK IT SECURELY WHEN IN USE.

Notches are provided in the miter gauge for attaching

an AUXILIARY FACING to make it easier to cut ]ong

pieces. Be positive facing does not interfere with the

proper operation of the sawbladaguard.

Select asuitable piece of smooth straight wood.., drill

two holes through it and attach it with screws,

NOTE: When bevel crosscutting, attach facing so that it

extends to the right of the miter gauge and use the miter

gaugein the groove to the right of the blade.

RY FACING

7BLAOEGUARD must always be in place and working

properly for all thru-sawing cuts. That is, all cuts

whereby the blade cuts completely through the

workplace.

To remove the guard for special operations, loosen the

wingscrewsand move spreader away from saw and lift

upwards. DO NOT DISTURB THE SETTING OF THE

HEX NUTS.

When replacing the guard, make sure the spreader is

moved toward front of saw so that wingscrews are at

end of slots. TIGHTEN THE WlNGSCREWS

SECURELY.

8TABLE INSERT is removable for removing or installing

bladesor other cutting tools..

ANTIKICKBACK /

PAWLS

SCREW

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE REMOVING INSERT.

A. Lower the blade below the table surface.

B. Loosenscrew.

C. Lift antikickback pawls.

D. Lift insert from front end, and pull toward front of

saw,

NEVER OPERATE THE SAW WITHOUT THE PROPER

INSERT IN PLACE. USE THE SAW BLADE INSERT

WHEN SAWING ... USE THE COMBINATION DADO

MOLDING INSERT WHEN DADOING OR MOLDING.

9REMOVING AND INSTALLING SAWBLADE

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE REMOVING OR INSTALLING

SAWBLADE:

A. Remove insert.

B, Place ARBOR wrench on flat surfaces of saw

ARBOR ; . , ARBOR NUT wrench on nut ...

position wrenches as shown . .. hold your hands

well above blade.

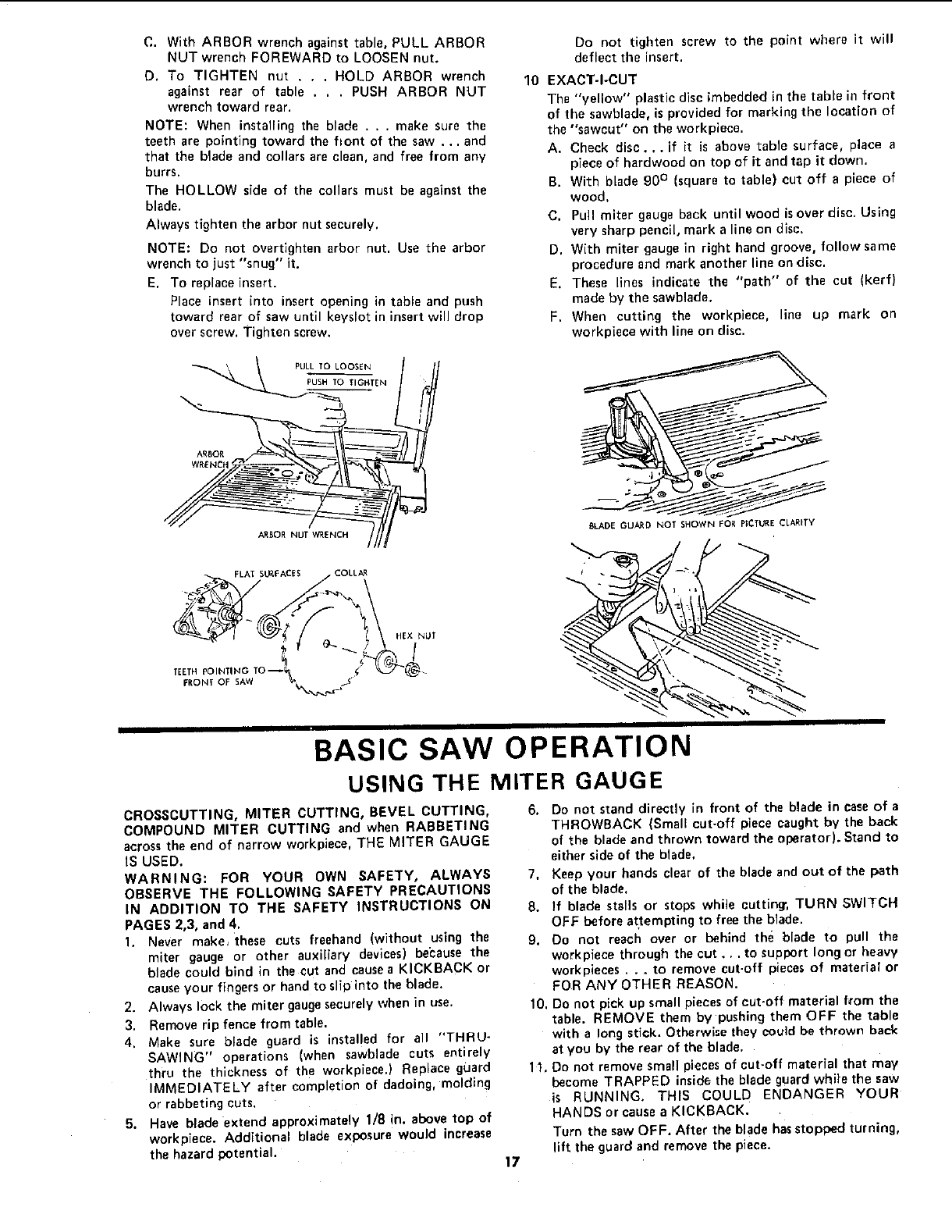

C. With ARBOR wrench against table, PULL ARBOR

NUT wrench FOREWARD to LOOSEN nut.

D. To TIGHTEN nut . .. HOLD ARBOR wrench

against rear of table . . . PUSH ARBOR NUT

wrench toward rear.

NOTE: When installlng the blade .. . make sure the

teeth are pointing toward the fiont of the saw ... and

that the blade and collars are clean, and free from any

burrs.

The HOLLOW side of the collars must

blade,

Always tighten the arbor nut securely.

NOTE: Do not overtighten arbor nut.

wrench to just "snug" it.

E. To replace insert.

Place insert into insert opening in

toward rear of saw until keyslot in

over screw. Tighten screw.

be against the

Use the arbor

table and push

insert will drop

PULLro LOOSE_

__ARBOR PUSH TO_TIGHIr EN

TEETH POnqTING TO_

FRONT OF SAW _. _._

HEX NUT

Do not tighten screw to the point where it will

deflect the insert.

EXACT-I-CUT

The "yellow" plastic disc _mbedded in the tabte in front

of the sawblade, is provided for marking the location of

the "sawcut" on the workpiece.

A. Check disc, o. if it is above table surface, place a

piece of hardwood on top of it and tap it down.

B, With blade 90 ° (square to table} cut off a piece of

wood.

C. Pull miter gauge back until wood isover disc, Using

very sharp pencil, mark a line on disc.

D. With miter gauge in right hand groove, followsame

procedure and mark another line on disc.

E. These lines indicate the "path" of the cut (kerr)

made by the sawblade.

F. When cutting the workpiece, line up mark on

workplace with line on disc.

BLADE GUARD NOT SHOWN FOR PICTURE CLARITY

BASIC SAW OPERATION

USING THE MITER GAUGE

CROSSCUTTING, MITER CUTTING, BEVEL CUTTING,

COMPOUND MITER CUTTING and when RABBETING

acrossthe end of narrow workpiece, THE MITER GAUGE

IS USED.

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE FOLLOWING SAFETY PRECAUTIONS

IN ADDITION TO THE SAFETY INSTRUCTIONS ON

PAGES 2,3, and 4.

1. Never make, these cuts freehand (without using the

miter gauge or other auxiliary devices) bebause the

blade could bind in the cut and causeaKICKBACK or

causeyour fingers or hand to slip into the blade.

2. Always lock the miter gaugesecurely when in use.

3. Remove rip fence from table.

4. Make sure blade guard is installed for all "THRU-

SAWING" operations (when sawblade cuts entirely

thru the thickness of the workpiece.) Replace guard

IMMEDIATELY after completion of dadoing, molding

or rabbeting cuts.

5. Have blade extend approximately 1/8 in. above top of

workpiece. Additional blade exposure would increase

the hazard potential. 17

6. Do not stand direcUy in front of the blade in case of a

THROWBACK (Small cut-off piece caught by the back

of the blade and thrown toward the operator). Stand to

either side of the blade,

7. Keep your hands clear of the blade and out of the path

of the blade.

8. If blade stalls or stops while cutting', TURN SWITCH

OFF before attempting to free the blade.

9. Oo not reach over or behind the blade to pull the

workpiece through the cut.., to support long or heavy

workpieces . ,.to remove cut-off pieces of material or

FOR ANY OTHER REASON,

10. DOnot pick up small pieces of cut-off material from the

table. REMOVE them by pushing them OFF the table

with along stick. Otherwise they could be thrown back

at you by the rear of the blade.

11, Do not remove small pieces of cut-off material that may

become TRAPPED insid_ the blade guard while the saw

is RUNNING, THIS COULO ENDANGER YOUR

HANDS or cause a KICKBACK.

Turn the saw OFF, After the blade has stopped turning,

llft the guard and remove the piece.

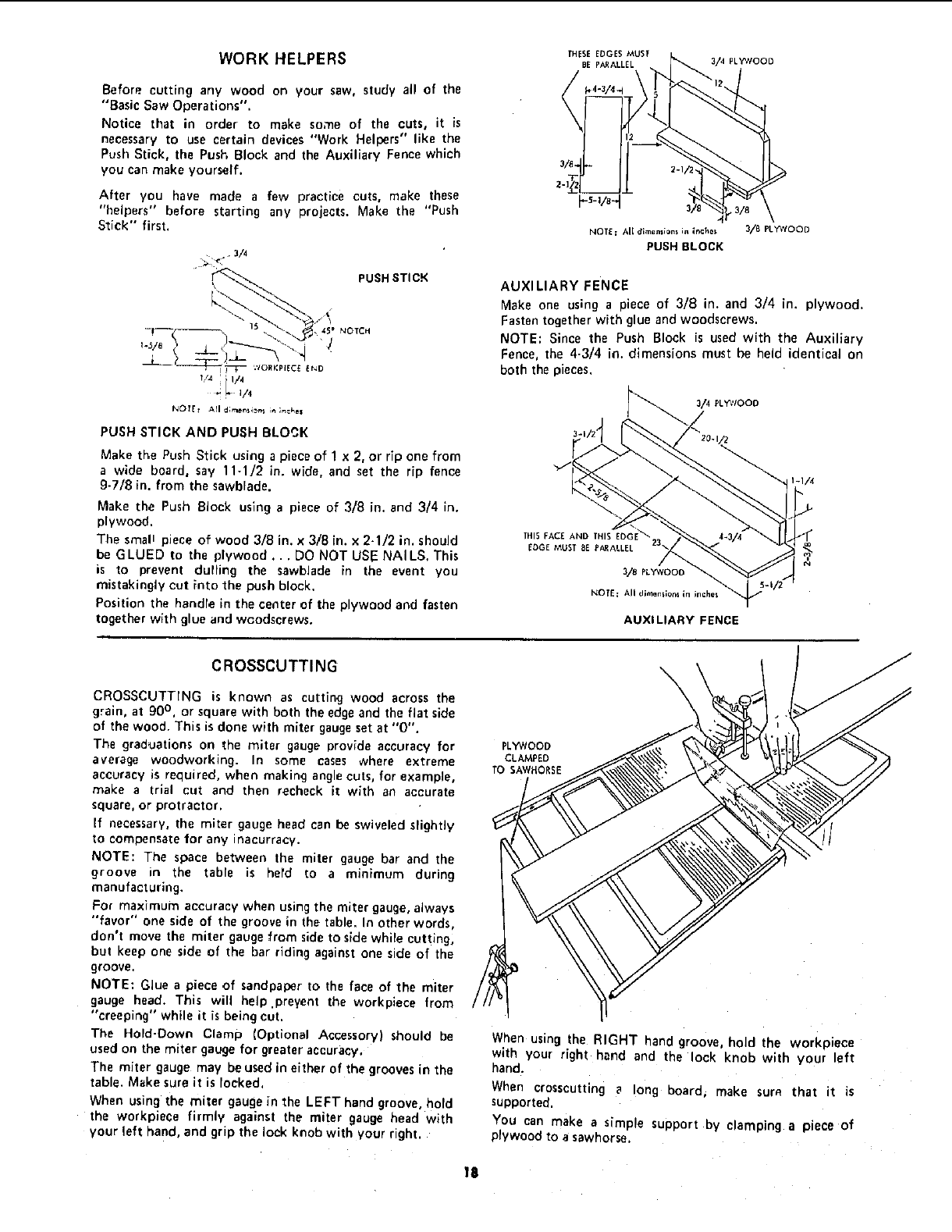

WORK HELPERS

Before cutting any wood on your saw, study all of the

"Basic Saw Operations"•

Notice that in order to make some of the cuts, it is

necessary to use certain devices "Work Helpers" like the

Push Stick, the Push Block and the Auxiliary Fencewhich

you canmake yourself.

After you have made a few practice cuts, make these

"helpers" before starting any projects. Make the "Push

Stick" first.

PUSH STICK

PUSH STICK AND PUSH BLOCK

Make the Push Stick using a piece of 1 x 2, or rip one from

awide board, say 11-1/2 in. wide, and set the rip fence

9-7/8 in. from the sawblade.

Make the Push Block using a piece of 3/8 in. and 3/4 in.

plywood•

The small piece of wood 3/8 in. x 3/8 in. x 2-1/2 in. should

be GLUED to the plywood ... DO NOT USE NAILS, This

is to prevent dulling the sawblade in the event you

mistakingly cut into the push block.

Position the handle in the center of the plywood and fasten

together with glue and wcodserews.

rHESE EDGES MUS] r

BE P/_ALLEL '4 PLYWOOD

NOTE r All dimenllons in inches 3/8 PLYWOOD

PUSH BLOCK

AUXILIARY FENCE

Make one using apiece of 3/8 in. and 3/4 in. plywood•

Fastentogetherwith glue and woodserews.

NOTE', Since the Push Block is used with the Auxiliary

Fence, the 4-3/4 in. dimensions must be held identicaJ on

both the pieces,

1-I14

THI5 FACE AND THIS

EDGE MUST BE PARALLEL

3/8 PL'fVVOOD I s-*/z

NOIEt All dimensions in inches _t"

AUXI LIARY FENCE

CROSSCUTTING

CROSSCUTTING is known as cutting wood across the

grain, at 90 °. or square with both the edge and the flat side

of the wood. This is clone with miter gauge set at "O".

The graduations on the miter gauge provide accuracy for

average woodworking. In some cases where extreme

accuracy is required, when making angle cuts, for example,

make atrial cut and then recheck it with an accurate

square, or protractor,

If necessary, the miter gauge head can be swiveled slightJy

to compensate for any inacurracy.

NOTE: The space between the miter gauge bar and the

groove in the table is held to a minimum during

manufacturing.

For maximum accuracy when using the miter gauge, always

"favor" one side of the groove in the table, In other words,

don't move the miter gauge from side to side while cutting,

but keep one side of the bar riding against one side of the

groove.

NOTE: GJue apiece of sandpaper to the face of the miter

gauge head. This will help.preyent the workplace from

"creeping" while it is being cut.

The Hold-Down Clamp (Optional Accessory) should be

used on the miter gauge for greater accuracy.

The miter gauge may be used in either of the grooves in the

table. Make sure it is locked,

When using the miter gauge in the LEFT hand groove, hold

the workpiece firmly against the miter gauge head with

your left hand, end grip the lock knob with your right•

PLYWOOD

CLAMPED

TO SAWHORSE

When using the RIGHT hand groove, hold the workpmce

with your right hand and the lock knob with your left

hand.

When crosscutting along board, make sum that it is

supported•

You can make asimole support by clamping a piece of

plywood to a sawhorse

When cutting long workpieces, invert the AUXILIARY

FENCE/WORK SUPPORT, and position it on top of the

guide bars to support the workpiece as near to the end as

possible. If this does not adequatPly support the workpiece.

you can make a simple support by clamping a piece of

plywood to a sawhorse.

Use the Hold-Down Clamp {Optional Accessory) on the

miter gauge for greater accuracy.

AUXILIARY FENCI

WORK SUPPORT

REPETITIVE CUTTING

REPETITIVE CUTTING is known as cutting a quantity of

pieces the same length without having to mark each piece.

1. Use the Stop Rods (optional accessory) only for cutting

duplicate pieces 6 in. long and longer.

2. Follow all safety precautions and operation instructions

for cross cutting.

When making repetitive cuts from a long workpiece, make

sure it is adequately supported.

Use the Hold-Down Clamp (Optional Accessory) on the

miter gaugefor greater accuracy,

1. NEVER USE THE RIP FENCE ASA LENGTH STOP

BECAUSE THE CUTOFF PIECE COULD BIND

BETWEEN THE FENCE AND THE BLADE CAUSING

A KICKBACK.

2. When making repetitive cuts shorter than 6 in., clamp a

block of wood 2 in. long to the table to act as a length

stop. Do not clamp directly to the bottom edge of the

table because the "swivel" of the clamps will not grip

properly. Place esmall block of wood between the

bottom edge of the table and the "C" clamps.

CAUTION; When clamping the block, make sure that

the end of the block is well in front of the sawblade. Be

sure it is clamped securely.

3. Slide the workpiece along the mRer gauge until it

touches the block ... hold it securely or clamp it with

the Hold-Down Clamp (Optional Accessory).

4. Make the cut ...pull the workpiece back ... push the

cut off piece off the table with along push stick... DO

NOT ATTEMPT TO PICK IT UP AS THIS COULD

ENDANGER YOUR HANDS.

BLOCK

CUT OFF

PIECE

MITERCUTTING

MITER CUTTING is known as cutting wood at an angle

other than 90° with the edge of the wood. Follow the same

procedureas you would for crosscutting.

Adjust the miter gauge to the desiredangle, and lock it.

The miter gauge may be used in either of the groovesin the

table.

When using the miter gauge in the LEFT hand groove,hold

the workpiece firmly against the miter gauge head with

your left hand, and grip the lock knob with your right.

When using the RIGHT hand groove, hold the workpiece

with your right hand and the lock knob with your left

hand.

Use the Hold-Down Clamp (Optional Accessory) on the

miter gaugefor greater accuracy.

BEVEL CROSSCUTING

BEVEL CROSSCUTTING is the same as crosscutting

except that the wood is also cut at an angle...other than

90 ° with the flat sideof the wood.

Adjust the blade to the desired angle.

Use the Miter Gauge in the groove to the RIGHT of the

blade, It cannot be used in the groove to the left because

the blade guard will interfere. Hold the workpiece with

your right hand and the lock knob with your left hand.

Use the Hold-Down Clamp (Optional Accessory) on the

miter gauge for greater accuracy.

COMPOUND MITER CUTTING

COMPOUND MITER CUTTING is a combination of miter

cutting and bevel crosscutting, The cut is made at an angle

other than 90 ° to both the edge and the flat side of the

wood.

Adjust the miter gauge and the blade to the desired angle .,

• Make sure miter gauge is locked,

USING THE RIP FENCE

RIPPING, BEVEL RIPPING, RESAWlNG AND

RABBETING are performed using the RIP FENCE together

with the AUXILIARY FENCE, PUSH STICK OR PUSH

BLOCK.

WARNING: FOR YOUR OWN SAFETY, ALWAYS

OBSERVE THE FOLLOWING SAFETY PRECAUTIONS

IN ADDITION TO THE SAFETY INSTRUCTIONS ON

PAGES 2, 3, and 4.

1. Never make these cuts FREEHAND (without using the

rip fence or auxiliary devices when required) because

the blade could bind in the cut and cause a

KICKBACK.

2. Always lock the rip fence securely when in use.

3. Remove miter gauge from table.

4. Make sure blade guard is installed for all thru-sawing

type cuts. Replace the guard IMMEDIATELY following

completion of resawing, rabbeting, dadoing, or molding

operations.

Frequently check the action of the ANTIKICKBACK

PAWLS by passing the workpiece alongside of the

spreader while saw is OFF.

Pull the workpiece TOWARD you, If the PAWLS do

not DIG into the workpiece and HOLD it... the pawls

must be SHARPENED. See "Maintenance" section.

5. Have blade extend approximately 1/8 in. above top of

workpiece. Additional blade exposure would increase

the hazard potential.

6. Do not stand directly in front of the blade in case of a

KICKBACK. Stand to either side of the blade.

7. Keep your hands clear of the blade and out of the path

of the blade.

8. If the blade stalls or stops while cutting, TURN

SWITCH OFF before attempting to free the blade.

9. Do not reach over or behind the blade to pull the

workpieee through the cut.., to support long or heavy

workpieces . . . to remove small cut-off pieces of

material or FOR ANY OTHER REASON.

10. Do not pick up small pieces of cut-off material from the

table. REMOVE them by pushing them OFF the table

with a long stick. Otherwise they could be thrown back

at you by the rear of the blade.

11. Do not remove small pieces of cut-off material that may

become TRAPPED inside the blade guard while the saw

is RUNNING, THIS COULD ENDANGER YOUR

HANDS or cause aKICKBACK.

Turn the saw OFF, After the blade hasstopped turning,

lift the guard and remove the piece.

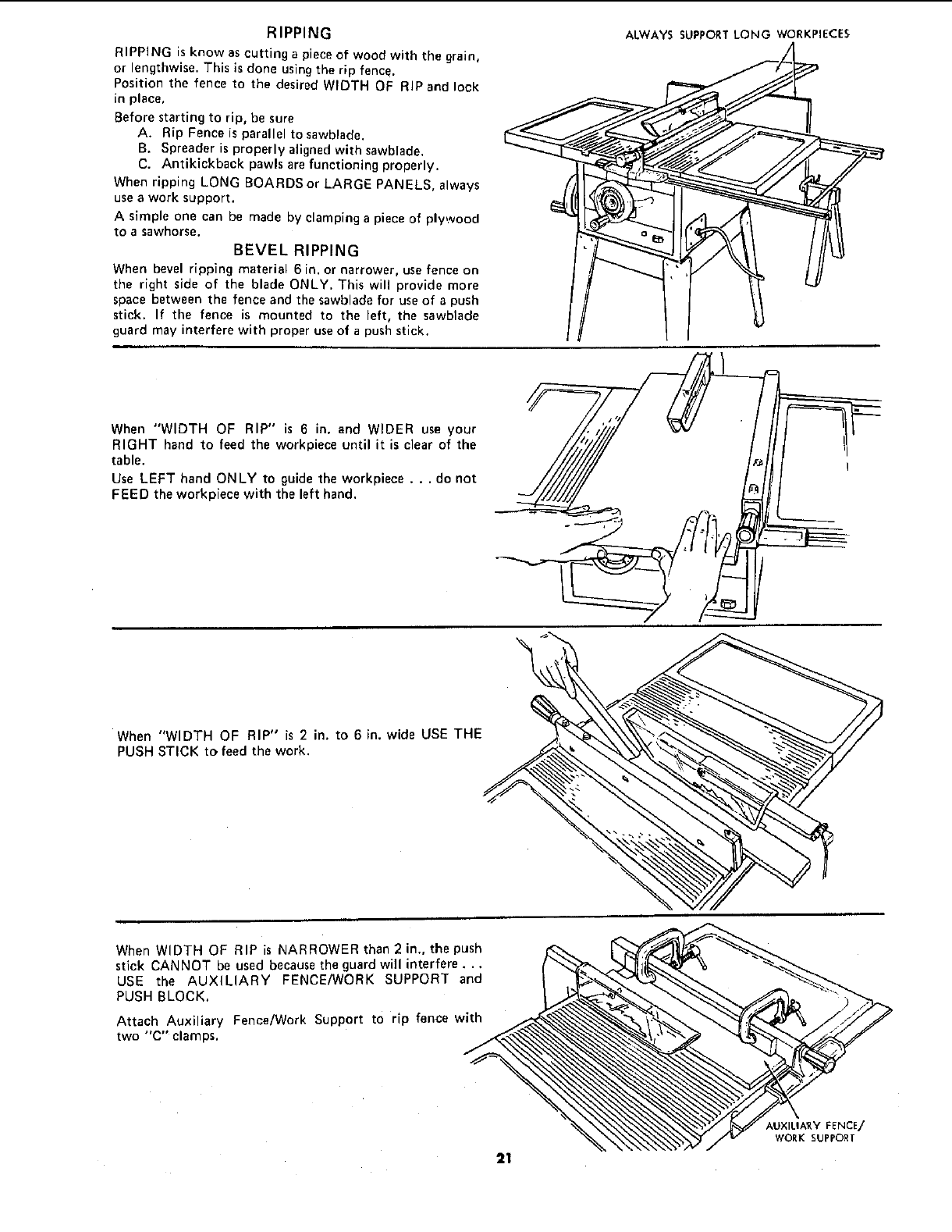

RIPPING

RIPPING is know as cutting apiece of wood with the grain,

or lengthwise. This is clone using the rip fence.

Position the fence to the desired WIDTH OF RIP and lock

in place,

Before starting to rip, be sure

A. Rip Fence is parallel to sawblacle.

B. Spreader is properly aHgnecl with sawblade.

C. Antikickback pawls are functioning properly.

When ripping LONG BOARDSor LARGE PANELS, always

use awork support.

Asimple one can be made by clamping a piece of plywood

to a sawhorse.

BEVEL RIPPING

When bevel ripping material 6 in. or narrower, use fence on

the right side of the blade ONLY. This will provide more

space between the fence and the sawblade for use of apush

stick. If the fence is mounted to the left, the sawblade

guard may interfere with proper use of a push stick.

ALWAYS SUPPORT LONG WORKPIECES

When "WIDTH OF RIP" is 6 in. end WIDER use your

RIGHT hand to feed the workpiece until it is clear of the

table.

Use LEFT hand ONLY to guide the workpiece ... do not

FEED the workpiece with the left hand.

When "WIDTH OF RIP" is 2 in. to 6 in. wide USE THE

PUSH STICK to feed the work.

When WIDTH OF RIP is NARROWER than 2 in., the push

stick CANNOT be used because the guard will interfere...

USE the AUXILIARY FENCE/WORK SUPPORT and

PUSH BLOCK.

Attach Auxiliary Fence/Work Support to rip fence with

two "C" clamps.

AUXILIARY FENCE.,/

WORK SUPPORT

Feed the workpiece by hand along the AUXLIARY

FENCE/WORK SUPPORT until the end is approx. 1in.

past the front edge of the table. Continue to feed using the

PUSH BLOCK.

Hold the workpiece in position and instal_ the PUSH

BLOCK by sliding it on top of the AUXILIARY

FENCE/WORK SUPPORT (this may raise guard).

BAFFLE

Narrow strips thicker than the Auxiliary Fence/Work Support guard only enough to clear the workpiece. Use PUSH BLOCK

may enter the guard and strike the baffle. CAR EFULLY raise to complete cut.

RESAWING

RESAWING is known as ripplng a piece of wood through

its thickness. Do not attempt to resaw BOWED or

WARPED materiel. NOTE: to RESAW a piece of wood

wider than 2-1/2 in .... it will be necessary to remove the

blade guard . . .and use the AUXILIARY FENCE/WORK

SUPPORT (See Page 19 )

Clamp it to the table so that the workpiece will SLIDE

EASILY (but not TILT or MOVE SIDEWAYS) without

BINDING between the two fences.

Do not clamp directly to the bottom edge of the table

because the "swivel" of the clamps will not grip properly.

Place a small block of wood between the bottom edge of

the table and the "C +'clamps.

WARNING: FOR YOUR OWN SAFETY...

1. DO NOT "BACK UP" (REVERSE FEEDING) WHILE

RESAWING BECAUSE THIS COULD CAUSE A

KICKBACK.

2. INSTALL BLADE GUARD IMMEDIATELY UPON

COMPLETION OF THE RESAWING OPERATION.

CUTTING PANELS

AUXILIARY FENCE/

WORK SUPPORT

When cutting panels (whenever fence is positioned outside

of table surface), ALWAYS use the AUXILIARY

FENCE/WOR K SUPPORT,

1. Unlock fence and raise rear end,

2. Position AUXILIARY FENCE/WORK SUPPORT as

shown and attach it with two "C" clamps.

PLOUGHING AND MOLDING

PLOUGHING is grooving with the grain the long way of the MOLDING is shaping theworkpiecawith the grain the long

workpiece, using the fence. Use faatherboards and push way of the workplace, using the fence. Use featherboards

sticks as required, and push sticks as required.

PLOUGHING MOLDING

RABBETING

RABBETING is known as cutting out e section of the

corner of-a piece of material, across an end or along an

edge.

To make aRABBET requires cuts which do not go all the

way through the material. Therefore the blade guard must

be removed.

Remove blade guard.

For rabbeting along an edge (long way of workp|ecel as

shown, add facing to rip fence approximately as high as

the workpiece is wide. Adjust rip fence and blade to

required dimensions; then make first cutwith board flat

on table as any rip (type) cut; make second cut with

workpiece on edge. Follow all precautions, safety

instructions, and operation instructions as for ripping,

or rip type operations, including featherboards end

push stick, etc.

3. For rabbeting across an end, for workpiece 10.1/2"

and narrower make the rabbet cutwith the board flat on

the table. Using the miter gauge fitted with a facing

follow the same procedures and instructions for cross

RABBETING ALONG

THE EDGE RABBETING ACROSS

THE END

cutting making successive cuts across the width of the

workpiece to obtain the desired width of cut. DO NOT

use the rip fence for rabbeting across the end.

4. INSTALL BLADE GUARD IMMEDIATELY UPON COM-

PLETION OF RABBETING OPERATION,

Rabbet cuts can also be made in one pass of the workplace

over the cutter using the dado head or molding head.

DADOING

Instructions for operating the Dado Head are contained in

booklet furnished with the Dado Head.

The recommended Dado Head is listed, under

recommended Accessories.

The arbor on the saw, is only long enough so that the

widest cut that can be made is 13/16" wide.

When installing the dado hesd on the arbor, ALWAYS

install the inside "loose collar" first.

It is not necessary to install the outside loose collar before

screwing on the arbor nut. Make sure the arbor nut is tight.

ALWAYS USE DADO INSERT LISTED UNDER

RECOMMENDED ACCESSORIES.

When using the dadoing head it will be necessaryto remove

the Blade Guard and Spreader, Use miter gauge and follow

same procedures and instructions for cross cutting.

ALWAYS REPLACE THE BLADE GUARD AND

SPREADER WHEN YOU ARE FINISHED DADOING.

When using the moJding head it will be necessary to remove

the Blade Guard and Spreader. USE CAUTION. Use

featherboards and push sticks, etc, as required.

MOLDING CUTTING

Instructions for operating the Molding Head are contained

in abooklet _urnished with the Molding Head.

SAW TABLE

\DAOO INSERT

HEAD

IIIIHI

The recommended molding head is listed under

recommended Accessories.

Always use Molding Insert listed under recommended

Accessories,

When using the molding head it will be necessary t_ remove

the Blade Guard and Spreader, USE CAUTION. Usa

featherboards and pushsticksas required.

ALWAYS REPLACE THE BLADE GUARD AND

SPREADER WHEN YOU ARE FINISHED MOLDING.

USING FEATHERBOARDS

Add 8 inch high flat facing board to the fence, the full

[ength of the fence.

Use featherboards for all non "thru-sawfng" operations

{when sawblade guard must be removed). Featherboards are

used to keep the work in contact with the fence end table

as shown, and to stop kickbacks.

Mount featherboards to fence and table as shown, so that

leading edges of featherboards will support workpiece until

cut is complete, and the workpiece has been pushed

completely past the cutter (sawblede, dado head, molding

head, etc.) with apushstick, asin ripping,

Before starting the operation Iswitch '*OFF" and cutter

below table surface) :

(a) Install featherboards so they exert pressure on the

workpiece; be positive they are secure,and

(b) Make sure by trial that the featherboards wig stop a

kickback if one should occur.

Featherboards are not employed during non thru-sawing

operations when using the miter gage.

Replace the sawblade guard as soon as the non thru-saw[ng

operation is complete.

,,C,, CLAMPS

.C" CLAMPS

',_tORK SUPPORT

FEATHERBOARO

"C" CLAMPS

ADJUSTMENTS

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE MAKING ANY ADJUSTMENTS.

MITER GAUGE

NOTE: The graduations on the miter gauge provide

accuracy for average woodworking. In some cases where

extreme accuracy is required, when making angle cuts, for

example, make a trial cut and then recheck it with an

accuratesquareor protractor.

If necessary,the miter gauge head can be swiveled slightly

to compensate for any inaccuracy,

The HEAD should be SQUARE (90 ° ) with the bar when

the pointer points to "0".

To check for squareness, place an accurate square on the

miter gauge. If the head is NOT SQUARE with the bar:

I. Loosen the lock knob.

LOCK KNOB

BAR

2. Position the head square with the bar.., tighten the

lock knob.

3. Loosen the screw and adjust the pointer, so it points to

zero.

The swiveling movement of the head can be adjusted by

tightening or loosening the set screw located in side of the

head usingthe 1/8 in. setscrewwrench.

HEELING ADJUSTMENT or PARALLELISM

OF SAWBLADE TO MITER GAUGE GROOVE

While cuttlng, the material must move in a straight line

PARALLEL to the SAWBLAOE ...therefore both the

miter gauge GROOVE and the RIP FENCE must be

PARALLEL to the SAW_3LADE.

If the sawblade IS NOT parallel to the miter gauge groove,

the blade will bind at one end of the cut. (This is known as

"HEELING").

To check for parallelism:

WARNING - FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET.

1. Raise blade all the way up.., raise blade guard.

2. Mark an "X" on one of the teeth which is SET (bent)

to the LEFT.

3, Place the head of acombination square in the

GROOVE .,.adjust blade of square so that it iust

touches the tip of the MARKED tooth;

4. Move square to REAR, rotate blade to seeif MARKED

tooth again touches blade of square.

5. If tooth touches square the same amount at FRONT

and REAR . , . sawblade is PARALLEL to MITER

GAUGE GROOVE.

If toothdoesnottouchfrontandrear... themechanism

underneathmust be adjustedto make the blade

PARALLEL to GROOVE.

1. Loosen the 4 screws (about 1/4 to 1/2 turn) using 3/16

in. setscrew wrench furnished with saw. Also loosenthe

2 pan head 10-32 screws (about f/4 to 1/2' turn_

located at rear of the table top as shown. This will allow

the mechanism below the labia to be shifted sideways.

2. Fold apiece of cardboard or heavy paper over the blade

to protect your hands.

3. Grasp the blade and move it to the right or left a small

amount and tighten one of the screws.

4. Check with square to determine if MARKED TOOTH

touches square the same amount at front and rear.

If it does, tighten other three screws. If it does not,

loosen screw and move blade the required amount.

5. Alternately tighten the SCrewsslowly,

NOTE: Use the setscrew wrench as shown . . .do not

_ 3/16 IN.

IWO 10-32 SCREWS

use pair of pliers or any other tool to gain more

leverage on the setscrewwrench.

BLADE TILT, OR SQUARENESS

OF BLADE TO TABLE

90°(SQUARE) and 45 °(BEVEL) STOP COLLARS.

When the bevel pointer is pointing directly to the "'0" mark

on the bevel scale, the sawblade should make a SQUARE

cut 90° to the table.

To cheek for SQUARENESS:

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET.

1, Raiseblade all the way UP... raiseblade guard.

2. TILT blade a few degrees to the LEFT . , . now tilt

blade back to the RIGHT as far as it witt go.

3. Place the square against blade. Make sure square is not

touching the TIP of one of the saw TEETH.

POINT[_ ADJUSTING SCREW

If blade IS SQUARE to table;

A. Check pointer

If POINTER DOES NO=I" point to the "0" mark on the

bevel scale;

B. Remove Elevation Handwheel

C, Loosen screw and adjust pointer,,, using medium

screwdriver.

D. Install Elevation Handwheel

If blade is NOT SQUARE to table.., the 90° LIMIT STOP

must be ADJUSTED.

CAUTION: Cover blade with pieceof cardboard to protect

your hand.

1. Using a small size screwdriver, reach UNDERNEATH

saw and loosen BOTH setscrews in 90° STOP COLLAR.

NOTE: If you can't reach the setscrews, turn the TILT

HANDWHEEL slightly.

2. ROTATE the STOP COLLAR moving it away from

pivot nut.

3. TILT blade RIGHT or LEFT ... checking with your

square until blade is square to table.

4, ROTATE STOP COLLAR moving it toward PIVOT

NUT until it TOUCHES the PIVOT NUT... TIGHTEN

the setscrews,

5. Check POINTER, If it DOES NOT point to the "0"

mark on the bevel scaler

A. Remove Elevation Handwheel

B. Loosen screw and adjust pointer . .. using medium

screwdriver.

C. Install Elevation Handwheel 25

POINTER BEVEL SCALE

BEVEL SCALE ADJUSTING S_EW AOJUSlaNG SCREW

SETSCREWS(2t

P_VOT NUT

_" sroP COLLA_

TILT bPadeto LEFT as far as it will go. It will stop when

the PIVOT NUT is against the 45° STOP COLLAR.

A. Place an ACCURATE square against blade. Make

sore square is not touching the TIP of one of the

saw TEETH.

If blade is 45 ° to table;

A. Check pointer.

If POINTER DOES NOT point to the 45 ° mark on the

scale;

A. Loosen two screws on scale and adjust scale until

POINTER points to 45° mark.

If blade is NOT 45 ° to table.., the 45°STOP COLLAR

and SCALE must be ADJUSTED

1. Remove Elevation Handwheel.

2. Using asmall size screwdriver, reach thru curved

slot in front trim panel and loosen BOTH setscrews

in 45 ° STOP COLLAR.

NOTE: If you can't reach the setscrews, turn the

TILT HANDWHEEL slightly.

3. ROTATE th_ STOP COLLAR moving it IN or OUT

and TILT blade RIGHT or LEFT... +checking with

your square until blade is 45 ° to table.

4. TIGHTEN the setscrews.

NOTE: If you can't reach the setscrews, turn TILT

HANDWHEEL slightly.

5. Loosen two screws on scale and adjust scale until

POINTER points to 45 o mark.

6. Install Elevation Handwheel.

45*

STOP COLLA_

BACK OF SAW

STOP COLLAR

BLADE ELEVATION

When the elevation handwheel is turned CLOCKWISE, until

it stops, the blade must not be more than two and one half

(2+1/2) inches above the table, tf the blade extends more

than 2-1/2 inches, the motor could interfere with the

underside of the table causing misaIignment.

With the blade extending two and one half (2-1/2) inches

above the table, the STOP COLLAR and SPACER must be

against the ELEVATION SCREW PIVOT NUT. If the blade

extends more than two and one half inches, ooser two

screws in STOP COLLAR, and readjust it.

SPACEa

ELEVATION SCREW

PIVOT NUT

STOP CO LI_AR

TILT SCREW TILT SCREW

PIVOT NUT

TILT AND ELEVATION MECHANISM

The HANDWHEELS should turn freely without binding.

The turning action can be adjusted by tightening or

loosening the screws in the bearing retainer. Both

handwbeels must be removed to reachthe adjusting screws.

NOTE; When adjusting the screws on the TILT bearing

retainer, hold the nut inside using a3/8 in. wrench. The

screws for the ELEVATION bearing retainer can be reached

with asmall screwdriver through the curved slot on the

front of the saw.

ADJUST THESE

I_NO SCREWS

TILT

HANDWHEEL

ADJUST THESE

TWO S_EW$

ELEVATION

HANDWHEEL

'*9

MAINTENANCE

WARNING'. FOR YOUR OWN SAFETY, TURN SWITCH

"OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE MAINTAINING OR LUBRICATING

YOUR SAW.

Do not allow sawdust to accumulate inside the saw.

Frequently blow out any dust that may accumulate inside

the saw cabinet and the motor,

Frequently clean your cutting tools with Craftsman Gum

and Pitch Remover.

2. Rotate pawl toward rear of spreader so that teeth are

above top of spreader,

3. Hold spreader with left hand and place pawl over corner

of workbench,

4. Using a small round file (Smooth Cut) sharpen the

teeth.

A coat of automobile-type wax applied to the table will

help to keep the surface ctean and allow workpieces to slide

more freely.

If the power cord is worn or cut, or damaged in any way,

have it replaced immediately.

Make sure the teeth of the ANTIKICKBACK pawls are

always sharp. To sharpen:

1, Remove blade guard,

LUBRICATION

The saw motor bearings have been packed at the factory

with proper lubricant end require no additional lubrication.

The following parts should be oiled occasionally with SAE

No. 20 or No. 30 engine oil.

1. Tilt screw threads and pivot nut, (First Clean with

Craftsman Gum & Pitch Remover.)

2, Elevation screw threads and pivot nut. (First Clean with

Craftsman Gum & Pitch Remover.)

l_ ELEVAnON SCREW

TILT SCREW TiLT SCR_

PIVO1 NUT 27

3. Cradle bearing points.

4. Bearing points in guard assembly, miter gauge and rip

fence.

TROUBLE SHOOTING

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH "OFF" AND ALWAYS REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE TROUBLESHOOTING.

TROUBLE SHOOTING -- GENERAL

TROUBLE

Excessive vibration.

Cannot make square

Cut when crosscutting.

Cut binds, burns or

stalls motor when

ripping.

PROBABLE CAUSE

1. Blade out of balance.

1. Miter gauge not adjusted

properly.

1. Dull blade with improper

tooth set.

2. Blade is Heeling.

3. Warped board.

REMEDY

1. Discard Blade and usea different blade.

1. See "Adjustments" section "Miter Gauge,"

4. Rip fence not parallel

to blade.

5. Spreader out of

alignment

1. Stop collars not properly

adjusted.

1. Sawdust on threads of tilt

screw or elevating screw.

2. Bearingretainers

to tight.

1. Sharpen or replace blade.

2. See "Adjustments" section, "Heeling Adjustment..."

3. Make sure concave or hollow side is facing

"down," feed slowly.

4. See "Assembly" section, "Aligning Rip Fence"

5. See "Assembly" section, "Installing

Blade Guard."

Cut not true at 90° 1. See Adjustments section, "Blade Tilt, or

or 45 ° positions. "Squareness of Blade to Table."

Tilt and elevating 1. See "Main*,enance and Lubrication" section.

handwheelsturn hard. 2. See"Maintenance" section

"Tilt and Elevation Mechanism."

TROUBLE SHOOTING -- MOTOR

NOTE: Motors used on wood-working tools are particularly

susceptibleto the accumulation of sawdustand wood chips

and should be blown out or "vacuumed" frequently to

prevent interference with normal motor ventilation.

NOTE: The starting relay is aGRAVITY SENSITIVE

TYPE. NEVER TURN THE POWER ON WHILE THE SAW

iS UPSIDE DOWN AS THIS WiLL DAMAGE THE

MOTOR.

TROUBLE PROBABLE CAUSE REMEDY

Excessivenoise. 1. Motor.

Motor fails to develop

fu!l power. (Power

output of motor decreases

rapidly with decrease in

voltage at motor terminals.

For example, a reduction

of 10% in voltage causes

areduction of 19% in

maximum power output

of which the motor is

capable, while a reduction

of 20% in voltage causes

a reduction of 36% in

maximum power output.)

1. Circuit overloaded with

lights, appliances and

other motors.

2, Undersize wires or circuit

too long.

3. General overloading of

power company

facilities. (In some

sectionsof the

country, demand for

electrical power may

exceedthe capacity

of existing generating

and distribution systems.)

4, Incorrect fuses or circuit

breakersin power line.

1. Have motor checked by qualified service

technician. Repair service is available at

your nearest Searsstore.

1. Do not useother appliancesor motors on

samecircuit when usingthe saw.

2. Increasewire sizes,or reduce length of wiring.

See "Motor Specification and Electrical

Requirements" section.

3. Requesta voltage check from the power company.

4. Install correct fuses or circuit breakers.

TROUBLE SHOOTING .- MOTOR (Continued)

TROUBLE

Motor starts slowly

or fails to come up

to full speed,

Motor overheats.

Starting relay

will not operate.

Motor stalls

(resuJting in blown

fusesor tripped

circuit breakers).

Frequent opening of

fusesor circuit

breakers.

PROBABLECAUSE

1, Low voltagewill not

trip relay.

2. Windingsburned out

or open,

3. Starting relay not

operating.

1. Motor evertoeded.

2. Improper cooling. (Air

circulation restricted

through motor due to

sawdust, aCcumulating

insideof saw).

1. Burned relay contacts

(due to extended

hold-in periodscaused

by low line voltage, etc.)

2. Saw not in upright

position.

3. Loose or broken

connections.

1, Starting relay not

operating.

2. Voltage too low to permit

motor to reach operating

•speed.

3, Fusesor circuit breakers

do not havesufficient

capacity,

1. Motor overloaded.

2, Fusesor circuit breakers

do not havesufficient

capaeiW.

3. Starting relay not

operating (motor does

not reach normal speed),

REMEDY

1. Requestvoltage check from the power company.

2, Have motor repaired or replaced.

3. Have relay replaced,

1. Feed work slower into blade.

2, Cleanout sawdustto provide normal air

circulation through motor.

See "Maintenance and Lubrication" section.

1, Have relay replaced and request a voltage check

from the power company.

2. Place saw in upright position.

3. Have wiring checked and repaired,

1, Have relay replaced,

2. Request voltage check from the power company•

3. Install proper size fusesor circuit breakers.

1. Feed work slower into blade.

2. Install proper size fuses or circuit breakers,

3. Have relay replaced,

RECOMMENDED ACCESSORIES

ITEM CAT.NO, ITEM CAT.NO.

Steel Legs ............................... 9-22235

Steel Stand .............................. 9-22214

Caster Sets .................... 9-22222 or 9-22221

Solid Table Extension ...................... 9-29957

*7 in. Molding Head Set ............... 9-3217 9-3218

*7 in. Molding Head ........................ 9-3214

Molding/Dado Insert for 7 in

Dia. Molding or dado Head .................. 9-29933

Work Light ............................... 9-2480

Sawdust Collection System ............ ,.... 9-29967

*Smaller Die. Molding Heads cannot be used because they

do not provide adequate depth of cut.

Work Light ............................... 9,2481

7in. Die. Adjustable Dado Head ,9.3261, 9.3262 & 9-3263

7in, Die, Oado Head ....................... 9-3257

Sanding Wheel ............................ 9-2274

Miter-Gauge Stop Rods ..................... 9-29924

Miter-Gauge Hold-Down Clamp .............. 9.29928

Taper Jig ................................. 9.3233

Universal Jig ............................. .9-3231

"Power Tool Know How Handbook" Table Saw .. 9.2918

The above recommended accessories are current and were

available at the time this manual was printed,

PARTSLISTFORCRAFTSMAN10 INCH MOTORIZED SAW

MODEL NO. 113.298341 & 113.298051

44 l54 55

38, 34 3332

38 37

39 38 _36

31 •

30 29

_-28 26

17 18

Figure 1

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW

MODEL NO. 113.298341 & 113.298051

Always order by Part Number -- not by Key Number

FIGURE 1 PARTS LIST

S,}

Key Part

No. No. Description

62694

62773

447441

62514

62545

62805

62643

STD 541625

STD 551225

62642

62636

62809

139331

STD 551012

STD 541025

STD 523110

62806

60388

62748

STD 551031

STD 551231

STD 541231

STD 600603

62441

37818

62652

62539

62710

62709

STD 523115

Gauge Assembly, Miter (See Figure 4)

Fence Assembly, Rip {See Figure 3)

Screw, Flat Hd. Type "'T" 1032 x 7/8

Insert Assembly (includes Key No. 5)

Clip, Retaining

Guard Assembly (See Figure 5)

Clamp, Spreader

Nut, Wing 1/4-20

*Lockwasher, External Tooth 1/4

Support, Spreader

*Nut, Square 1/4-20

Bracket

Screw, Set Hex Cup 1/4-20 x 7/8

*Washer, 17/64 x 9/16x 1/16

*Nut, Hex 1/4-20

Screw, Hax Hd. 5/16-18 x I

Bar, Fence Rear

Nut, Self Threading

Rod,Separation (Includes Key No. 18)

Washer, 21/64 x 5/8x 1/16

* Lockwasher, External Tooth 5/16

*Nut, Hex, 5/16-18

Screw, Type "'T" Pan Hd. 6-32 x 3/8

Cord with Plug

Relief, Strain

Plate, Cover

Spacer, Fence Guide Bar

Tape, Fence

Bar Assembly, Fence Guide

(Includes Key No. 28)

*Screw, Hex 5/16-18 x 1-1/2

*Standard Hardware Item -May be Purchased Locally.

Key Part

No. No. Description

31 62505

32 62267

33 62442

34 60256

35 STD 551025

36 60314

37 STD 551208

38 STD 610805

39 STD 600602

40 62688

41 62689

42 STD 511107

43 STD 551210

44 62713

45 60354

46 62712

47 62204

46 STD 610802

49 62452

50 3540

51 63062

52 30505

53 37911

54 62801

55 62800

56 62803

57 62804

- 62768

- 62807

- 62808

_Vlotor and Control Box

Clip, Capacitor

Switch, Locking

Key, Switch

*Washer, 17/64 x .734 x .062

Screw, Truss 1/4-20 x 5/8

*Lockwasher, External Tooth No. 8

Screw, Pan Hd., Type "AB" No. 8 x 1/2

*Screw, Type 23, Pan Hd., 6-32 x 1/4

Scale, Adjustable Bevel

Handwheel Assembly

*Screw, Pan Hd. 10-32 x 3/4

*Lockwas_ter, External Tooth No. 10

Panet,Trim

Nut, Speed No. 6

Panel, Front

Clip, Cord

*Screw, Pan Hd., Type B, No. 8x 5/16

Clamp, Relay

Wrench, Arbor

Wrench, Shaft

Wrench, Hex "'L" 1/8

Wrench, Hex "'L" 3/16

Clip, Grounding

Lead w/Terminals

Tape, Foam

Bag of Loose Parts (Not Illustrated)

Owners Manual (Not Illuatrated)

•Any attempt to repair this motor may create aHAZARD

unless repair is done by a quallfled service technician.

Repair serV{ee is available at your nearest Sears Store.

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW

MODEL NO. 113.298341 & 113.298051

16 15

19 7 18 17

5 6

9 8

/13

11 14

*If this part is removed,

discard and replace with

a new retaining ring.

Figure 2

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW

MODEL NO. 113.298341 &113.298051

FIGURE 2 PARTS LIST

€*J

Key Part

No. No. Description

62791

805297-1

62493

STD 511107

STD 541110

STD 551210

62648

62629

62795

62505

62496

62683

60175

6362

60303

62681

60328

62647

STD 551037

60301

62682

62649

62796

Table, Saw

Screw, Flat Hd. 5/16-18 x 1-1/4

Insert, Exact-I-Cut

*Screw, Pan Hd. 10-32 x 3/4

*Nut, Hex No. 10-32

*Lockwasher, External Tooth No. 10

Washer, Rubber

Support, Rod

Rod, Cradle

oMotor and Control Box

Collar, Blade

Collar, Stop L.H.

+Blade, Saw 10 inch

Nut, Arbor

Spacer

Nut, Elevation Pivot

Washer, Nylon

Washer, Rubber

*Washer, .380 x 47/46 x 1/t6

YrRing, Retaining 3/8

Screw Assembly, Elevation

Grommet, Rubber

Rod, Motor (includes Key #t46)

Key Part

No. No. Description

24 60076

25 STD 541425

26 STD 551O25

27 STD 541411

28 STD 551031

29 STD 523110

30 STD 601103

31 62487

32 62633

33 STD 511105

34 62685

35 62684

36 62437

37 STD 600803

38 62686

39 62436

40 62625

41 62435

42 62623

43 60052

44 9404392

45 62792

46 6O436

Washer, .505 x 1-1/8 x 1/16

*Nut, Lock 1/4-20

*Washer, 17/64 x .734 x .062

*Nut, Lock 10-32

*Washer, 21/64 x 3/4 x 1/16

*Screw, Hex Washer 5/16-18 x 1

*Screw, Pan Hd. Type "T" 10-32 x 3/8

Lead with Eyelets

Base, Saw

Screw, Pan Hd. 10-32 x 1/2

Nut, Bevel Pivot

Screw Assembly, Tilt

Retainer, Bearing

*Screw, Type "'T'" Pan 8-32 x 3/8

Indicator, Bevel

Nut

Hanger

Washer, Thrust

Cradle Assembly

*Screw, Fillister Hd. 10-32 x 1-1/2

Screw, Pan No. 10-32 x 1-3/8

Spacer, Cradle Rod

_kRing, Retaining 7/16

*Standard Hardware Item - May be Purchased Locally.

oAny attempt to repair this motor may create a HAZARD

unless repair is done by a qualified service techinclan.

Repair service is available at your nearest Sears Store.

+Stock Item -- May be secured through the hardware

departments of most Sears Retail Stores or

Catalog Order Houses.

"klf this part is removed, discard and

replace with a new retaining ring.

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW

MODEL NO. 113.298341 & 113.298051

10 11

FIGURE 3 -62773 FENCE ASSEMBLY

Key Part

No. No.

- 62773

1 62693

2 62692

3STD 551031

4 62775

5 9404336

6 62774

7423350

8 62582

9 ST_ 600805

10 62528

11 62529

12 62531

13 62583

14 62533

15 STD 551210

16 STD 611005

17 62532

Deseription

Fence Assembly, Rip

Plug, Button

Knob (includes Key No. 1)

'Washer, 21/64 x 1/2 x 1/32

Indicator. Fence

*Screw, Pan Hd. Type "T" 4-40 x 1/4

Head, Fence Includes Key #4

Screw, Sems 3/8-16 x 1/2

Channel, Fence

Screw, Pan Hd. Type "T" 8.32 x 1/2

Spring, Fence Lock

Lock, Rear Fence

Roller. Rear Fence

Rod, Fence Lock

Spring, Head Alignment

(Includes Key No. 17)

•Lockwesher, External Tooth No. 10

*Screw, Type "A" Hex Hd. No, 10 x 1/2

Pad, Alignment

*Standard Hardware Item -May be Purchased Locally.

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW

MODEL NO. 113.298341 & 113.298051

\11 9 10

FIGURE 4 - 62694 MITER GAUGE ASSEMBLY

Key

No.

Part

No.

62694

62693

62692

STD 551031

37893

STD 600803

STD 551208

62042

62252

62225

STD541231

62383

60288

Description

Miter GaugeAssembly

Plug, Button

Knob (includes Key No. 1)

*Washer, 21/64 x 1 x 1/16

Gauge, Miter

*Screw, Pan Head Type "T" 8-32 x 5/16

* Lockwasher, External No. 8

Indicator

Rod Asm., Miter Gauge

{_ncludesKey No. 9, 10, 11)

Stud, Clamp

*Nut, Hex Jam 5/16-18

Stud, Pivot

Screw, Locking Set, 1/4-20 x 3/8

*Standard Hardware Item - May be PurchasedLocally.

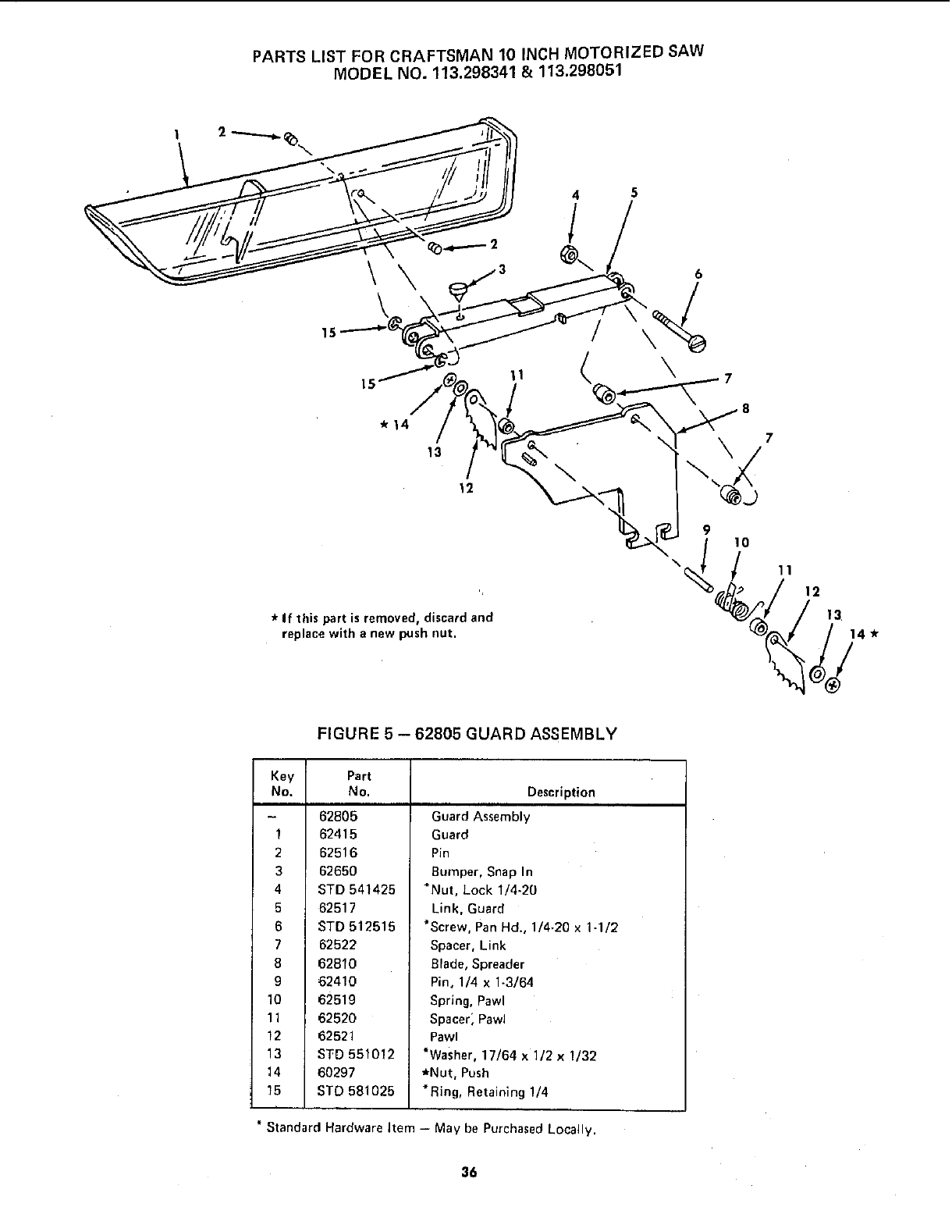

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW

MODEL NO. 113.298341 & 113.298051

"14

* If this part is removed, discard and

replace with a new push nut.

\\ \

FIGURE 5 - 62805 GUARD ASSEMBLY

Key Part

No. No.

62805

62415

62516

62650

STD 641425

62517

STD 512515

62522

62810

62410

62519

62520

62521

STD 551O12

60297

STD 581025

Description

Guard Assembly

Guard

Bumper, Snap In

*Nut, Lock 1/4-20

Link, Guard

*Screw, Pan Hd., 1/4-20 x1-1/2

Spacer, Link

Blade, Spreader

Pin, 1/4 x1-3/64

Spring, Pawl

Spacer_ Pawl

Pawl

*Washer, 17/64 x 1/2 x 1/32

_,Nut, Push

*Ring, Retaining 1/4

* Standard Hardware item - May be Purchased Locally.

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW

MODEL NO. 113.298341 & 113.29805I

54 21

FIGURE 6 - MODEL 113.298051 ONLY

Kay Part

No. No.

60314

62552

62554

STD 551225

STD 541025

62553

STO 541250

803835

62767

Description

Screw, Serrated TrussHd. 1/4-20 x 5/8

Leg

Stiffener, Slde

*Lockwasher, Ext. 1/4

*Nut, Hex 1/4-20

Stiffener, End

*Nut, Hex 1/2-13

Foot, Leveling

tBag of Loose Parts (not illustrated)

* Standard Hardware [terns - May be PurchasedLocally.

tBagcontains all Loose Parts for Legs.

PARTS LIST FOR CRAFTSMAN 10 INCH MOTORIZED SAW

MODEL NO. 113.298341 & 113.298051

SAW TABLE

FIGURE 7- TABLE EXTENSION FOR MODEL 113.298051 ONLY

Key Pert

No, No.

-62589

1 60323

2 62590

3 62549

4 STD541025

5STD551225

6 62550

7STD523112

8STD551031

9STD551131

10 STD541031

11 STD551025

62745

Description

tExtension Assembly, Complete

Screw, Serrated Truss Hd. 1/4-20 x 1"

Extension

Bracket, Corner Support No. 2

"Nut, Hex 1/4-20

*Lockwasher, Ext. 1/4

Bracket, Corner Stiffener

*Scre.w, Hex Hd. 5/16-18 x 1-1/4

*Washer, 11/32 x 11/16 x 1/16

* Lockwasher, Ext. 5/16

*Nut, Hex 5/16-18

*Washer, 17/64 x 3/4 x 1/16

fBag of Loose Parts (not illustrated)

*Standard Hardware Item--May be Purchased Locally.

+Bag contaios all Loose Parts for Extension.

tStock Itern--May be secured through the hardware departments

of most Sears Retail Stores or Catalog Order House.

NOTES

]Sears]

0 wners

manual

SERVICE

MODEL NO.

113.298341

SAW ONLY

113.298051

SAW WITH LEGS AND

13NO TABLE EXTENSIONS

HOW TO ORDER

REPAIR PARTS

10 INCH MOTORIZED TABLE SAW

Now that you have purchased your 10 inch motorized table

saw should a need ever exist for repair parts or service, simply

contact any Sears Service Center and most Sears, Roebuck

and Co. stores. Be sure to provide all pertinent facts when you

call or visit.

The model number of your 10 inch motorized table saw will be

found on a plate attached to your saw, at the right-hand side of

the base.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

PART NUMBER

MODEL NUMBER

113.298341

113.298051

PART DESCRIPTION

NAME OF ITEM

10-INCH MOTORIZED TABLE SAW

All parts listed may be ordered from any Sears Service Center

and most Sears stores. If the parts you need are not stocked

locally, your order will be electronically transmitted to a Sears

Repair Parts Distribution Center for handling.

Sold by SEARS, ROEBUCK AND CO., Chicago, IL. 60684 U.S.A.

Part No. 62808 Form No. SP4651-3 Printed in U.S.A, 5/8;

I'll

Craftsman 113298051 User Manual SEARS 10 INCH MOTORIZED TABLE SAW Manuals And Guides L0807004

CRAFTSMAN Motor Electric Manual L0807004 CRAFTSMAN Motor Electric Owner's Manual, CRAFTSMAN Motor Electric installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
