Operator's Manual

I I IIIJlII

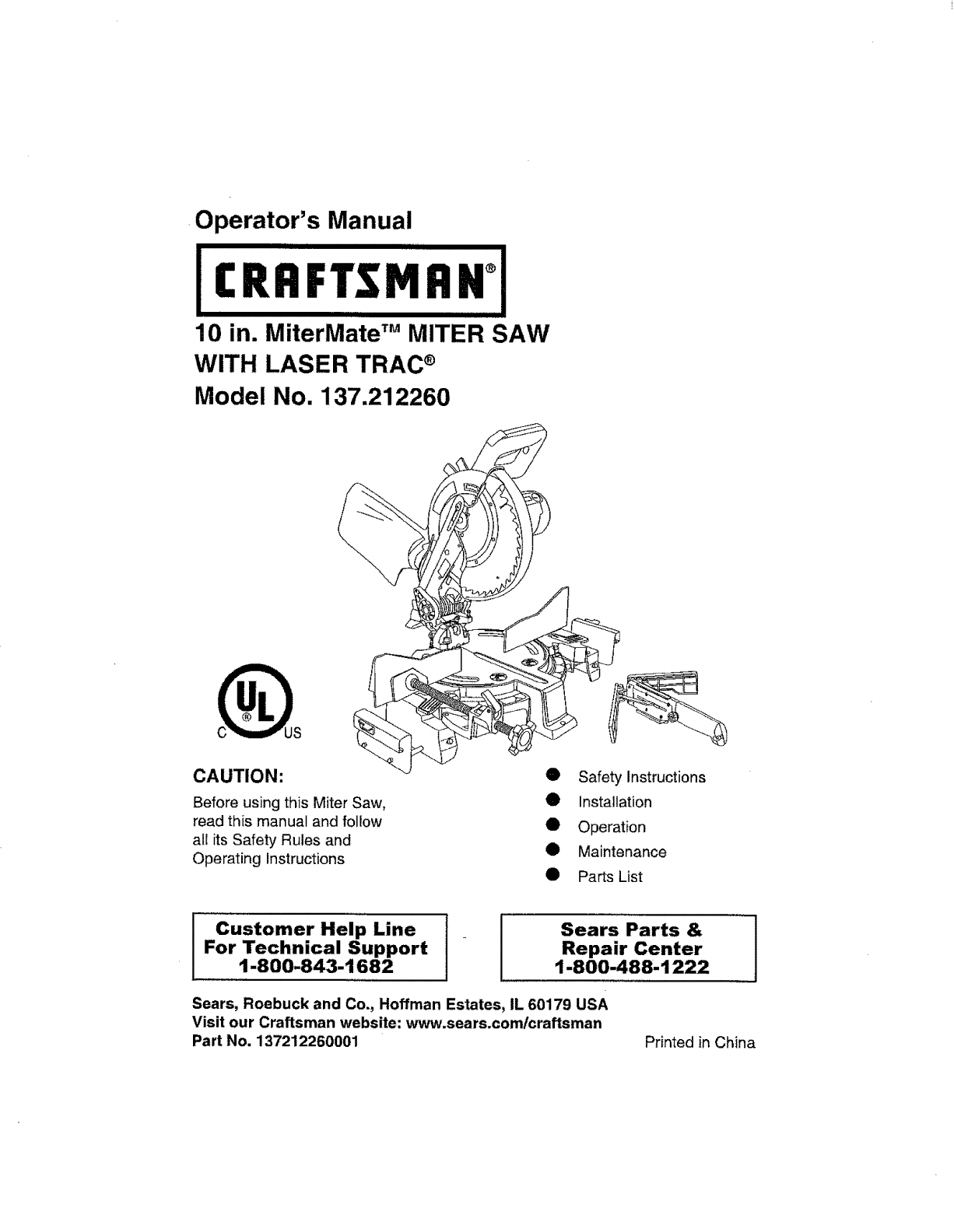

ICRAFr XAWI

10 in. MiterMate TM MITER SAW

WITH LASER TRAC ®

Model No. 137.212260

CAUTION:

Before using this Miter Saw,

read this manual and follow

all its Safety Rules and

Operating Instructions

•Safety Instructions

• Installation

•Operation

Maintenance

•Parts List

Customer Help Line

For Technical Support

1-800-843-1682

Sears Parts &

Repair Center

1-800-488-1222

Sears, Roebuck and Co, Hoffman Estates, IL 60179 USA

Visit our Craftsman website: www.sears.com/craftsman

Part No. 137212260001 Printed in China

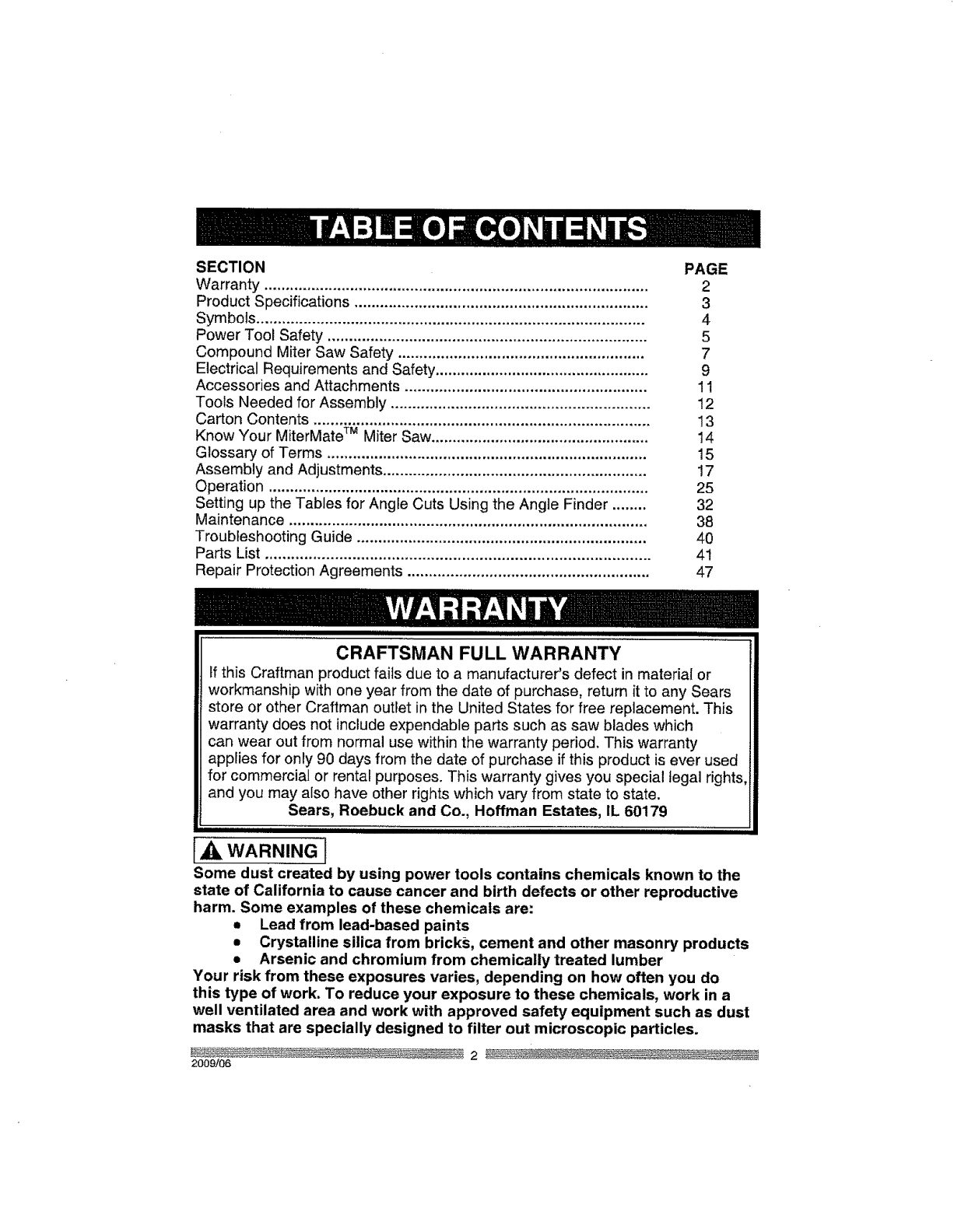

SECTION PAGE

Warranty ......................................................................................... 2

Product Specifications .................................................................... 3

Symbols .......................................................................................... 4

Power Tool Safety .......................................................................... 5

Compound Miter Saw Safety ......................................................... 7

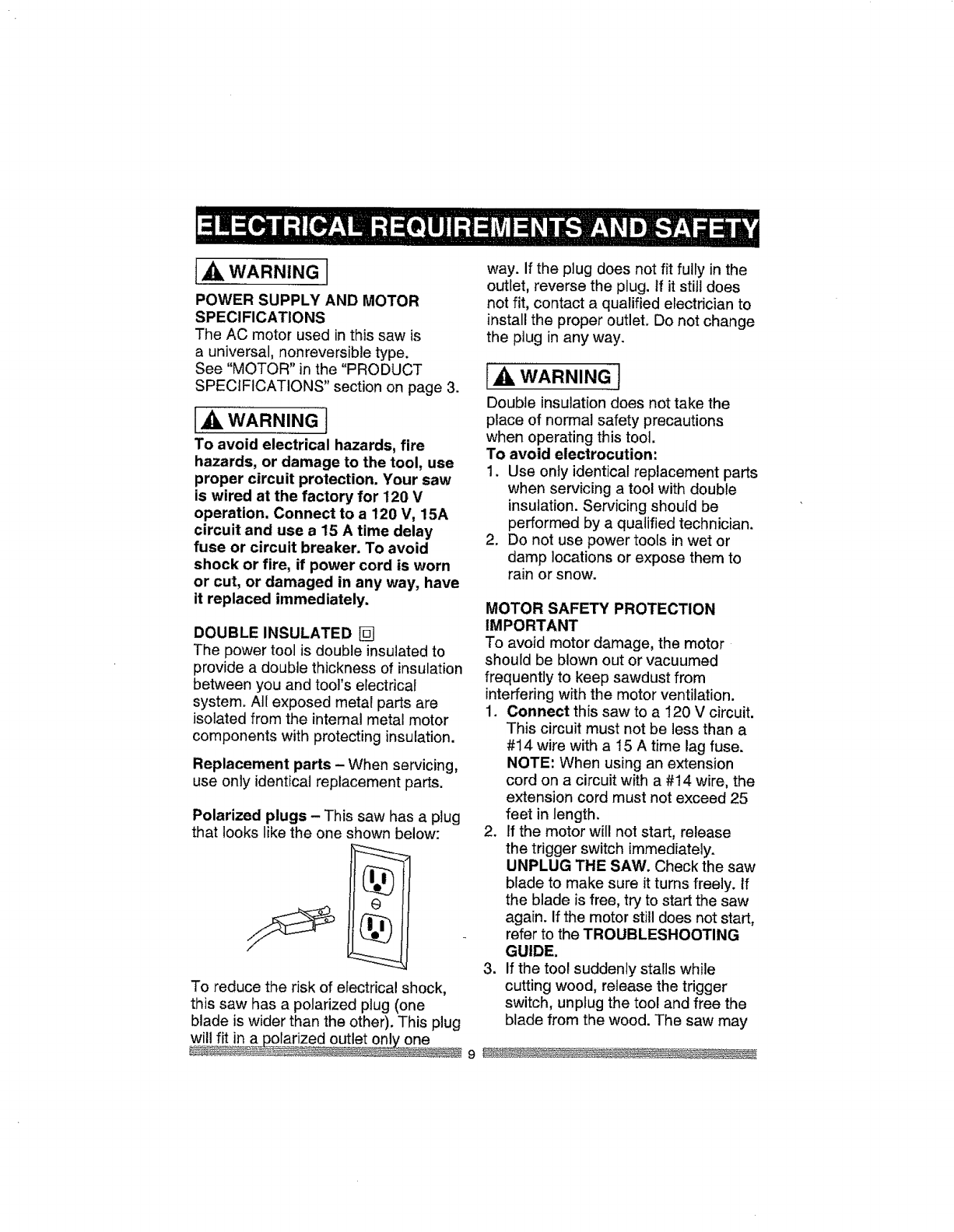

Electrical Requirements and Safety .................................................. 9

Accessories and Attachments ........................................................ 11

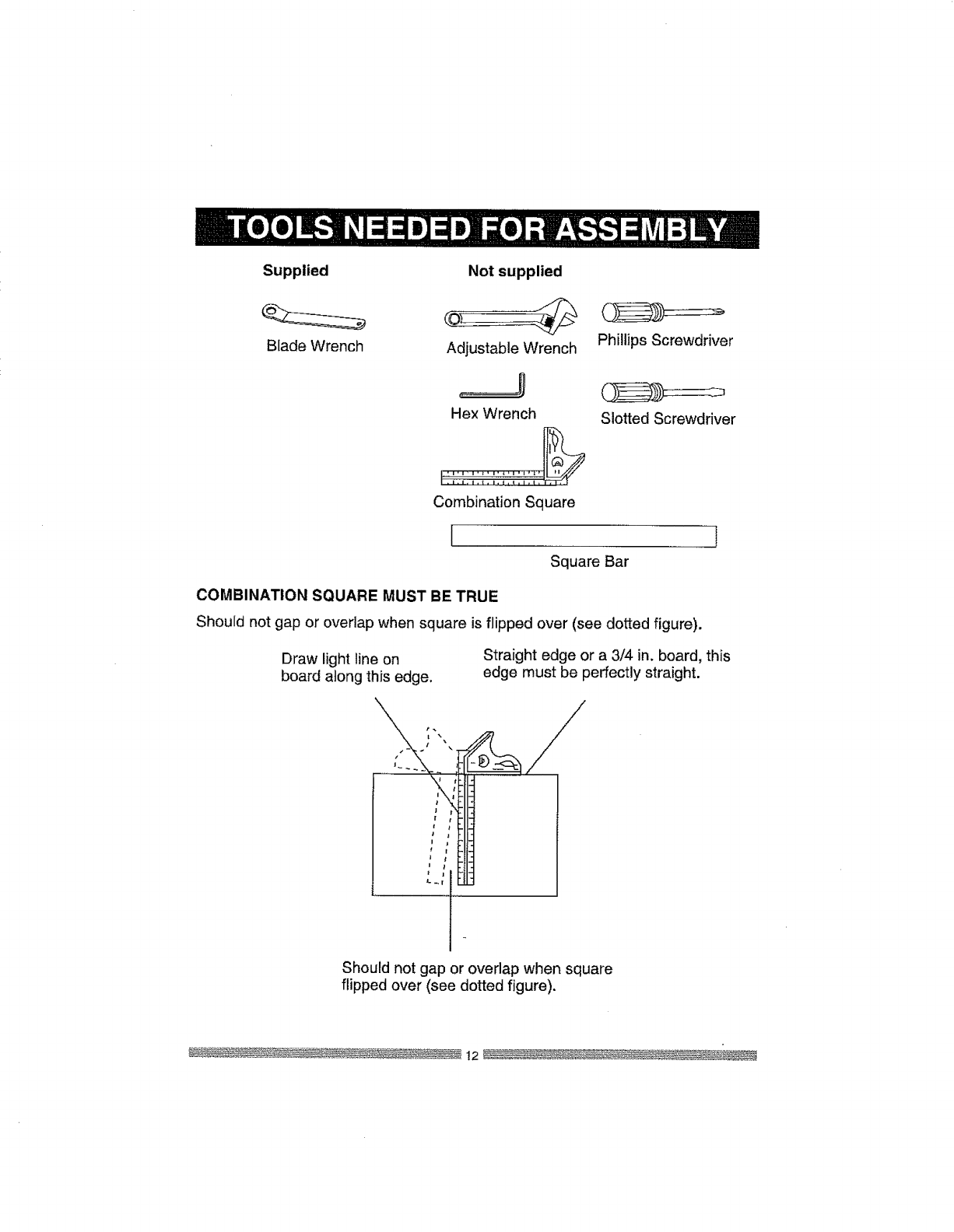

Tools Needed for Assembly ............................................................ i2

Carton Contents .............................................................................. 13

Know Your MiterMate TM Miter Saw ................................................... 14

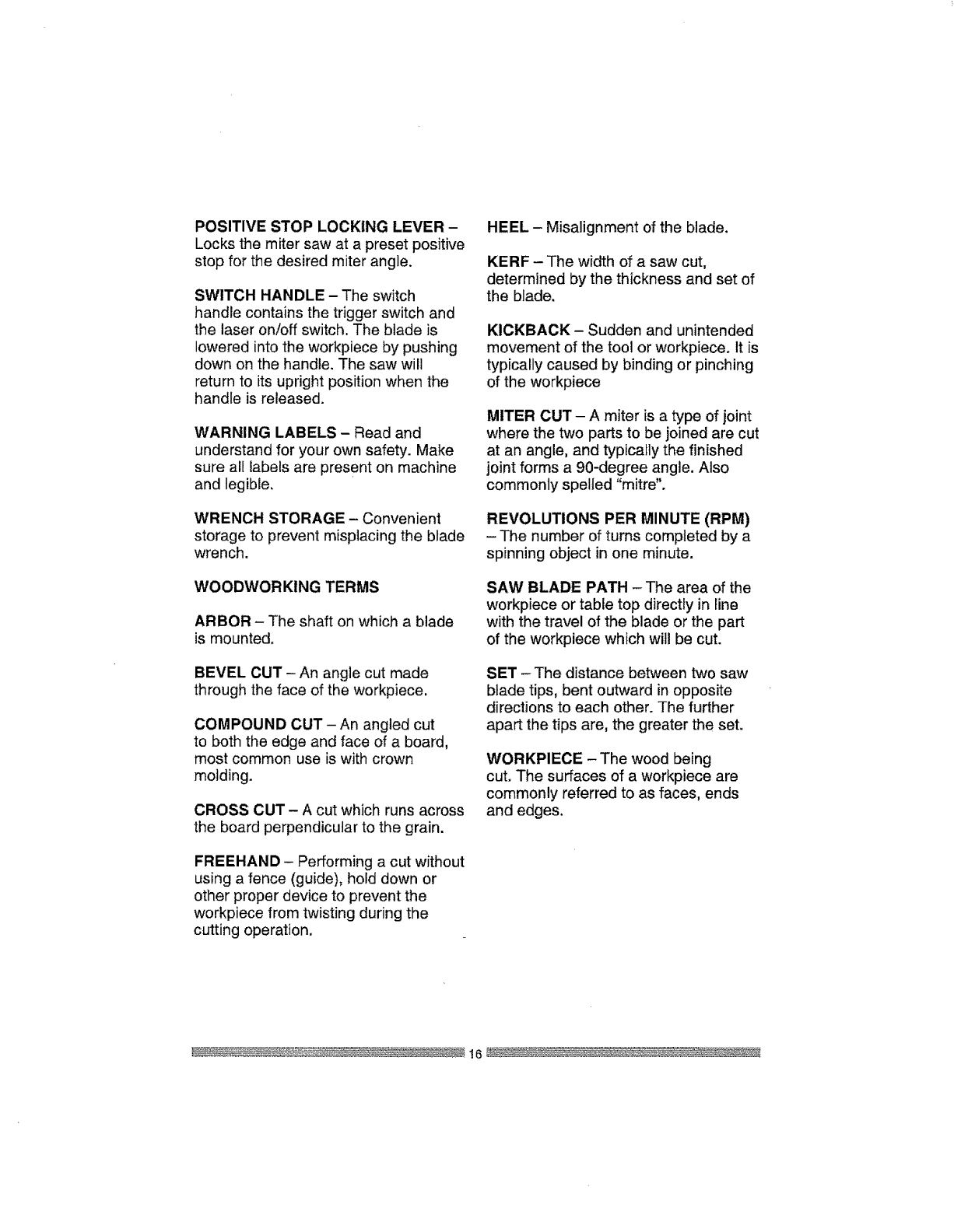

Glossary of Terms .......................................................................... 15

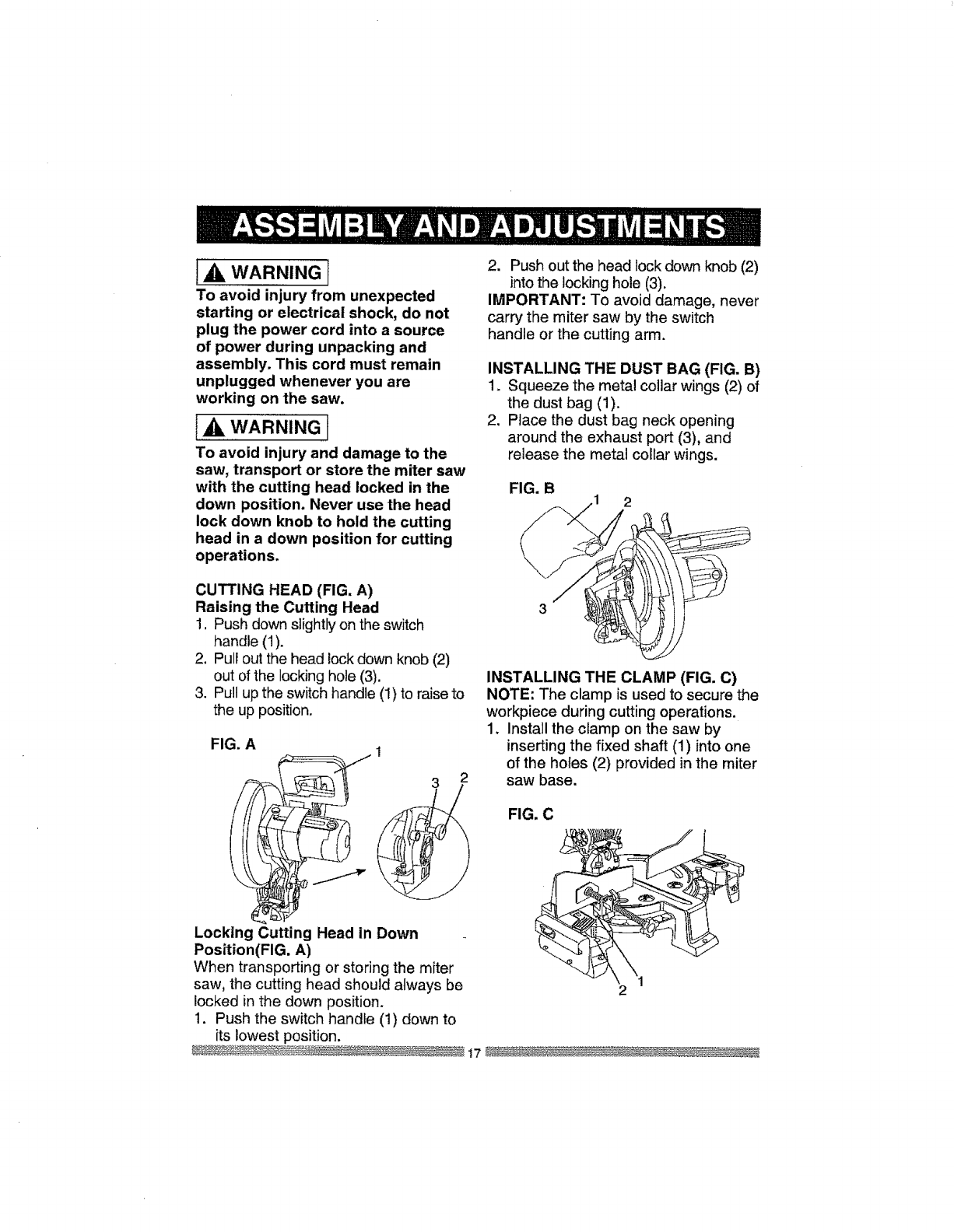

Assembly and Adjustments ............................................................. 17

Operation ........................................................................................ 25

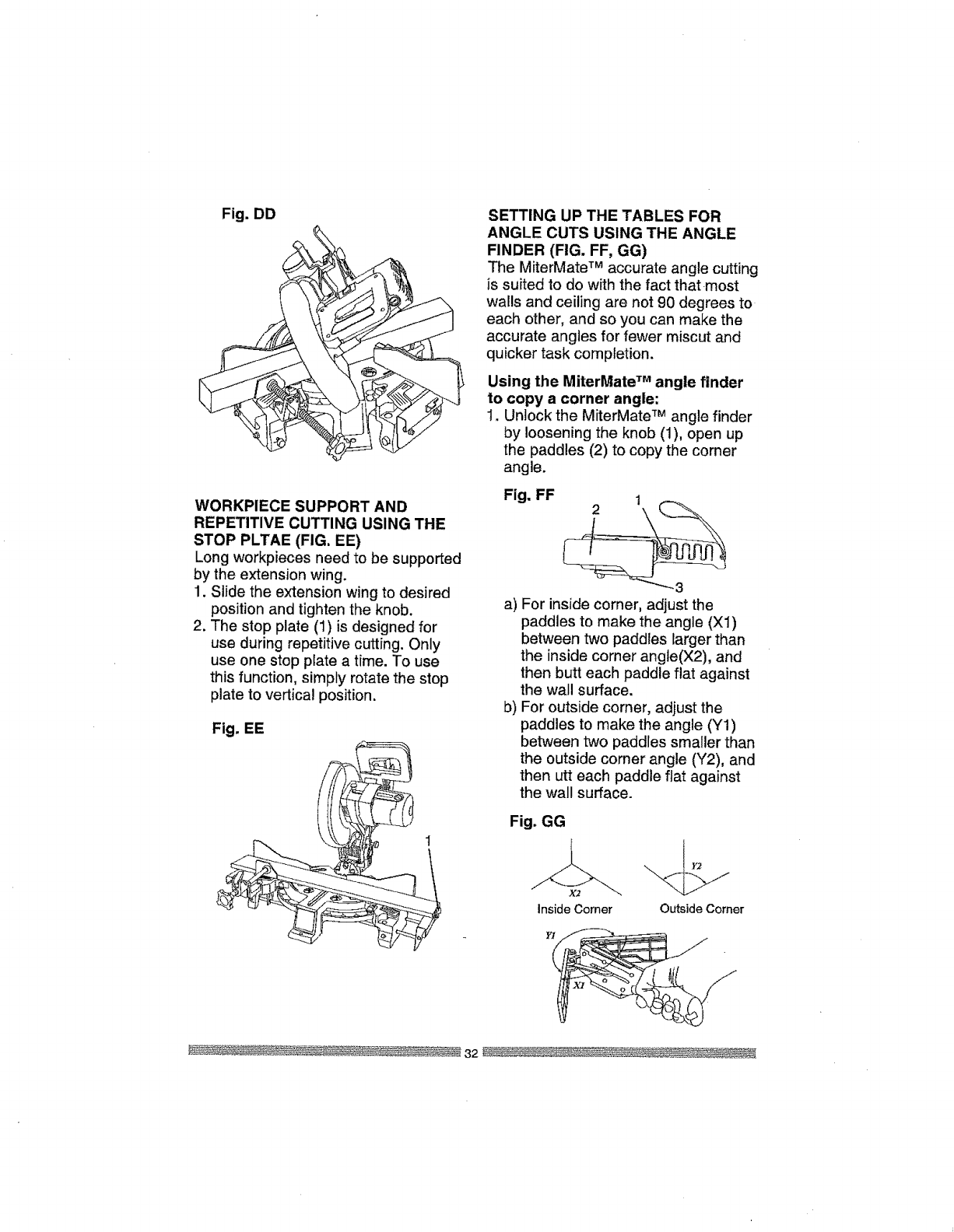

Setting up the Tables for Angle Cuts Using the Angle Finder ........ 32

Maintenance ................................................................................... 38

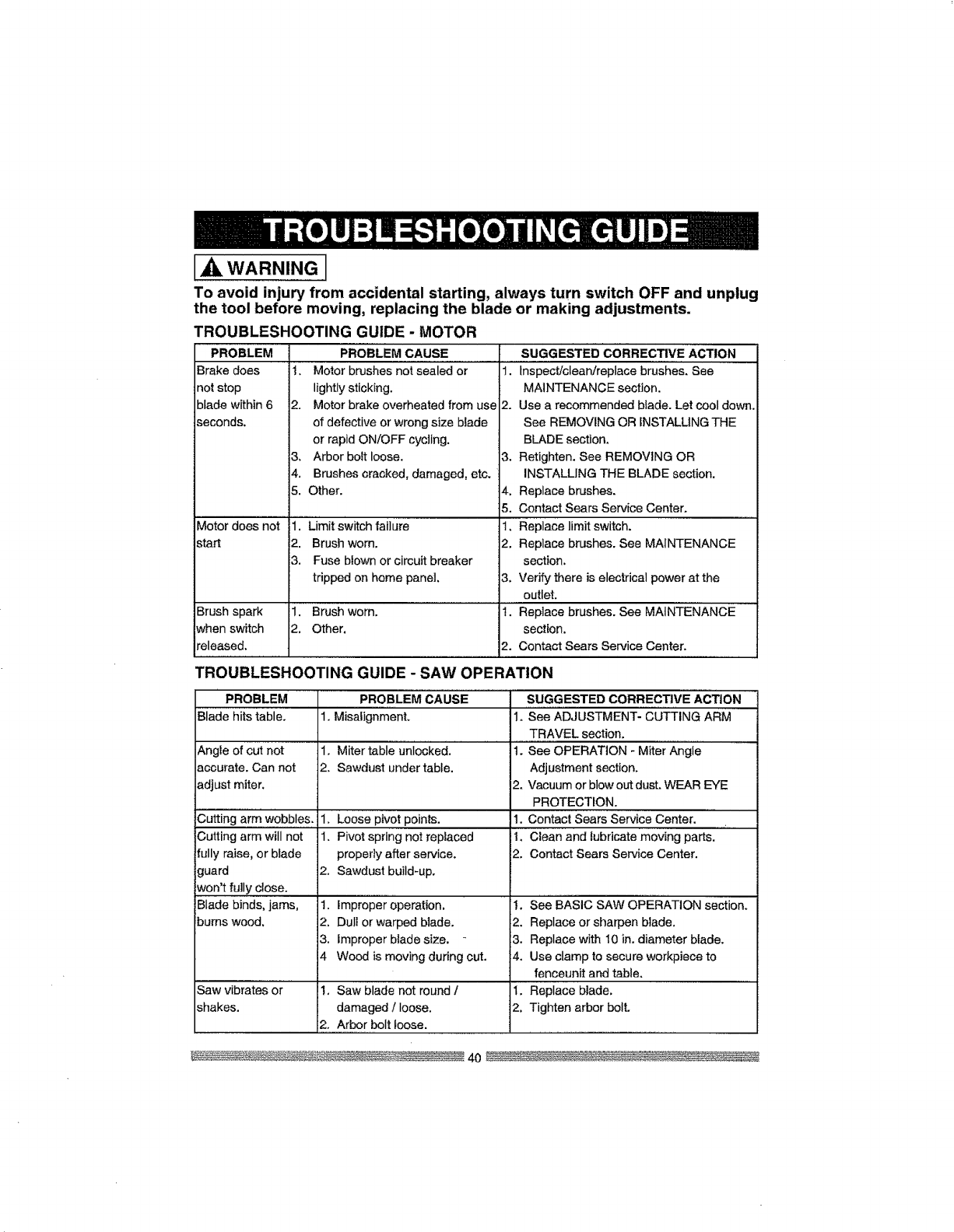

Troubleshooting Guide ................................................................... 40

Parts List ........................................................................................ 4!

Repair Protection Agreements ........................................................ 47

IIIII1! II]1[1111111 IIIIIIII II!11111111111 IIII IIIII II ] ] JIHI

CRAFTSMAN FULL WARRANTY

If this Craftman product fails due to a manufacturer's defect in material or

workmanship with one year from the date of purchase, return it to any Sears

store or other Craftman outlet in the United States for free replacement. This

warranty does not include expendable parts such as saw blades which

can wear out from normal use within the warranty period. This warranty

applies for only 90 days from the date of purchase if this product is ever used

for commercial or rental purposes. This warranty gives you special legal rights,

and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

III1! II IIIIIIIIIIIII II I I I ]IJLI I I I II I I!11111 iiiiiiiiiii i

WARNING]

Some dust created by using power tools contains chemicals known to the

state of California to cause cancer and birth defects or other reproductive

harm. Some examples of these chemicals are:

=Lead from lead-based paints

=Crystalline silica from bricks, cement and other masonry products

•Arsenic and chromium from chemically treated lumber

Your risk from these exposures varies, depending on how often you do

this type of work. To reduce your exposure to these chemicals, work in a

well ventilated area and work with approved safety equipment such as dust

masks that are specially designed to filter out microscopic particles.

2009/06

MOTOR

Power Source .................................................................... 120V, 60Hz, 15A

Speed ................................................................................ 4800RPM (No load)

Brake ................................................................................. Electric

Double Insulated ............................................................... Yes

BLADE SIZE

Diameter ............................................................................ 10 in.

Arbor size ........................................................................... 5/8 in.

ROTATING TABLE:

Diameter ............................................................................. 12-3/4 in.

Miter Detent Stops ............................................................. 0_,22.5°,45° R & L

Bevel Positive Stops .......................................................... 0, 45_ L

CUTTING CAPACITY-"

Crosscut ............................................................................ 2-5/8 in. x 5-9/16 in.

Miter 45° R & L................................................................... 2-5/8 in. x 3-!/2 in.

Bevel 45° L......................................................................... 1-9/16 in. × 5-9/16 in.

45 °Miter and 45° Bevel ..................................................... 1-9/16 in. x 3-1/2 in.

Crown Molding ................................................................... 4-1/4 in.

WARNING t

To avoid electrical hazards, fire hazards or damage to the tool, use proper

circuit protection.

This tool is wired at the factory for t10-120 Volt operation. It must be

connected to a 110-120 Volt t15 Ampere time delay fuse or circuit breaker.

To avoid shock or fire, replace power cord immediately if it is worn, cut or

damaged in any way.

Before using your tool, it is critical that you read and understand these

safety rules. Failure to follow these rules could result in serious injury to

you or damage to the tool.

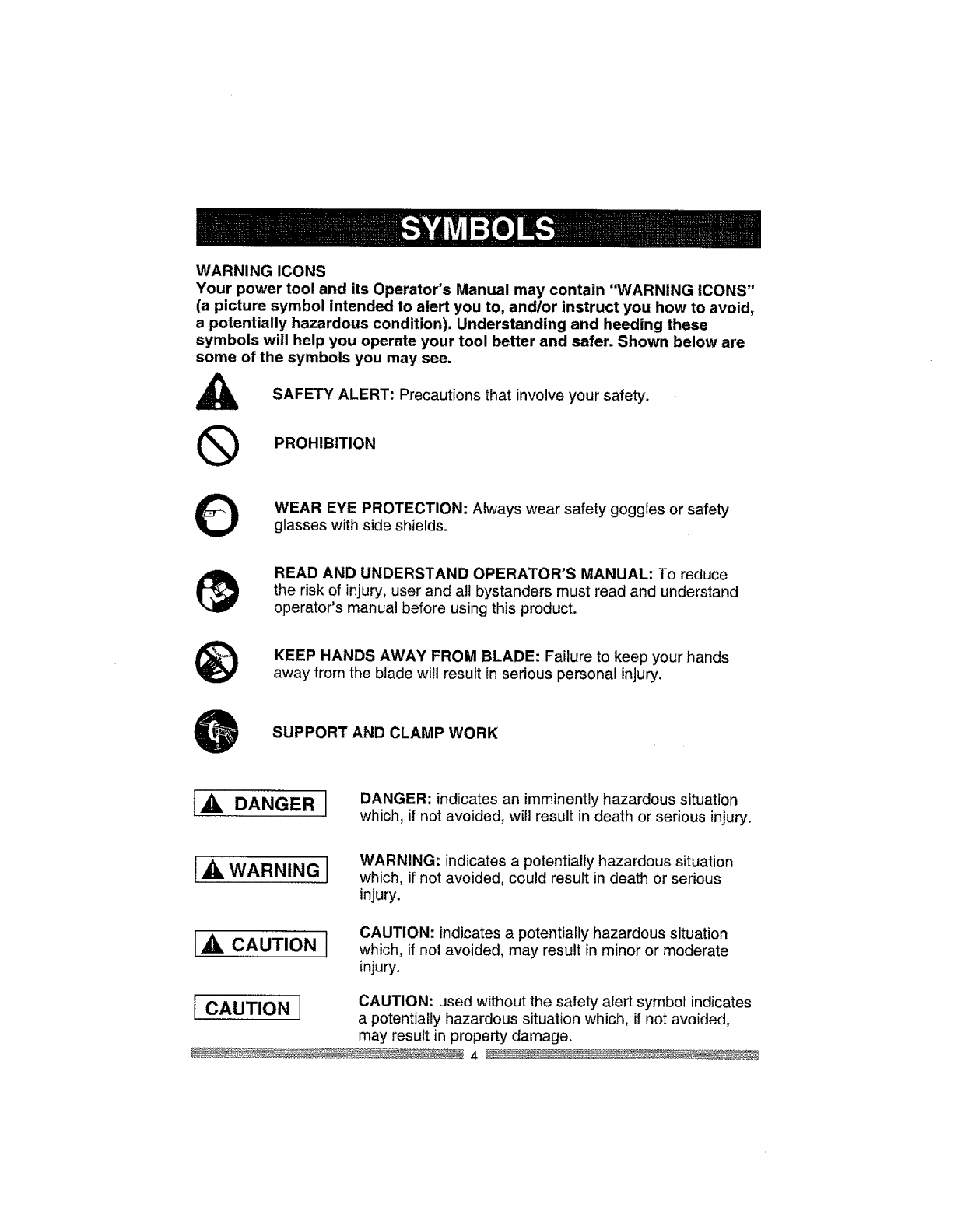

WARNING ICONS

Your power tool and its Operator's Manual may contain "WARNING ICONS"

(a picture symbol intended to alert you to, andlor instruct you how to avoid,

a potentially hazardous condition). Understanding and heeding these

symbols will help you operate your tool better and safer. Shown below are

some of the symbols you may see.

SAFETY ALERT: Precautions that involve your safety.

®PROHIBITION

WEAR EYE PROTECTION: Always wear safety goggles or safety

glasses with side shields.

READ AND UNDERSTAND OPERATOR'S MANUAL: To reduce

the risk of injury, user and all bystanders must read and understand

operator's manual before using this product.

KEEP HANDS AWAY FROM BLADE: Failure to keep your hands

away from the blade will result in serious personal injury.

SUPPORT AND CLAMP WORK

!,A DANGER DANGER: indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

[_ WARNING I

[Ak. CAUTION J

WARNING: indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

injury.

CAUTION: indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

injury.

f I CAUTION: used without the safety alert symbol indicates

CAUTION

L I a potentially hazardous situation which, if not avoided,

may result in property damage.

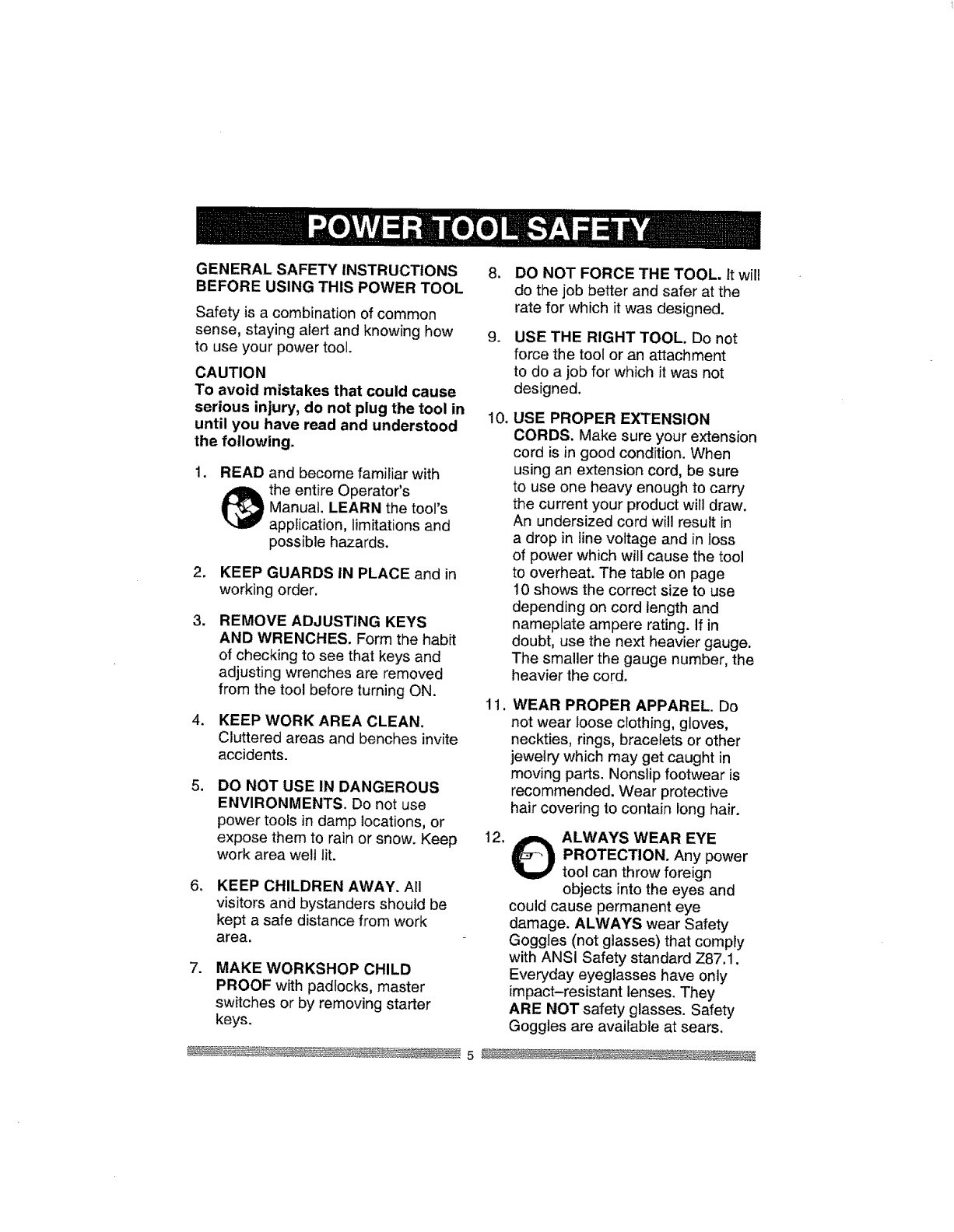

GENERAL SAFETY INSTRUCTIONS

BEFORE USING THIS POWER TOOL

Safety is a combination of common

sense, staying alert and knowing how

to use your power tool.

CAUTION

To avoid mistakes that could cause

serious injury, do not plug the tool in

until you have read and understood

the following.

READ and become familiar with

the entire Operator's

Manual. LEARN the tool's

application, limitations and

possible hazards.

KEEP GUARDS IN PLACE and in

working order.

REMOVE ADJUSTING KEYS

AND WRENCHES. Form the habit

of checking to see that keys and

adjusting wrenches are removed

from the tool before turning ON.

KEEP WORK AREA CLEAN.

Cluttered areas and benches invite

accidents.

.DO NOT USE IN DANGEROUS

ENVIRONMENTS. Do not use

power tools in damp locations, or

expose them to rain or snow. Keep

work area welt lit.

6_ KEEP CHILDREN AWAY. All

visitors and bystanders should be

kept a safe distance from work

area.

7_ MAKE WORKSHOP CHILD

PROOF with padlocks, master

switches or by removing starter

keys.

10.

11.

12.

DO NOT FORCE THE TOOL. It will

do the job better and safer at the

rate for which it was designed.

USE THE RIGHT TOOL. Do not

force the tool or an attachment

to do a job for which it was not

designed.

USE PROPER EXTENSION

CORDS. Make sure your extension

cord is in good condition. When

using an extension cord, be sure

to use one heavy enough to carry

the current your product will draw.

An undersized cord will result in

a drop in line voltage and in toss

of power which will cause the tool

to overheat. The table on page

10 shows the correct size to use

depending on cord length and

nameplate ampere rating. If in

doubt, use the next heavier gauge.

The smaller the gauge number, the

heavier the cord.

WEAR PROPER APPAREL. Do

not wear loose clothing, gloves,

neckties, rings, bracelets or other

jewelry which may get caught in

moving parts. Nonslip footwear is

recommended. Wear protective

hair covering to contain long hair.

Q ALWAYS WEAR EYE

PROTECTION. Any power

tool can throw foreign

objects into the eyes and

could cause permanent eye

damage. ALWAYS wear Safety

Goggles (not glasses) that comply

with ANSI Safety standard Z87.1.

Everyday eyeglasses have only

impact-resistant lenses. They

ARE NOT safety glasses. Safety

Goggles are available at sears.

NOTE: Glasses or goggles not in

compliance with ANSI Z87.1 could

seriously injure you when they

break.

and any other conditions that may

affect its operation. A guard or

other part that is damaged should

be properly repaired or replaced.

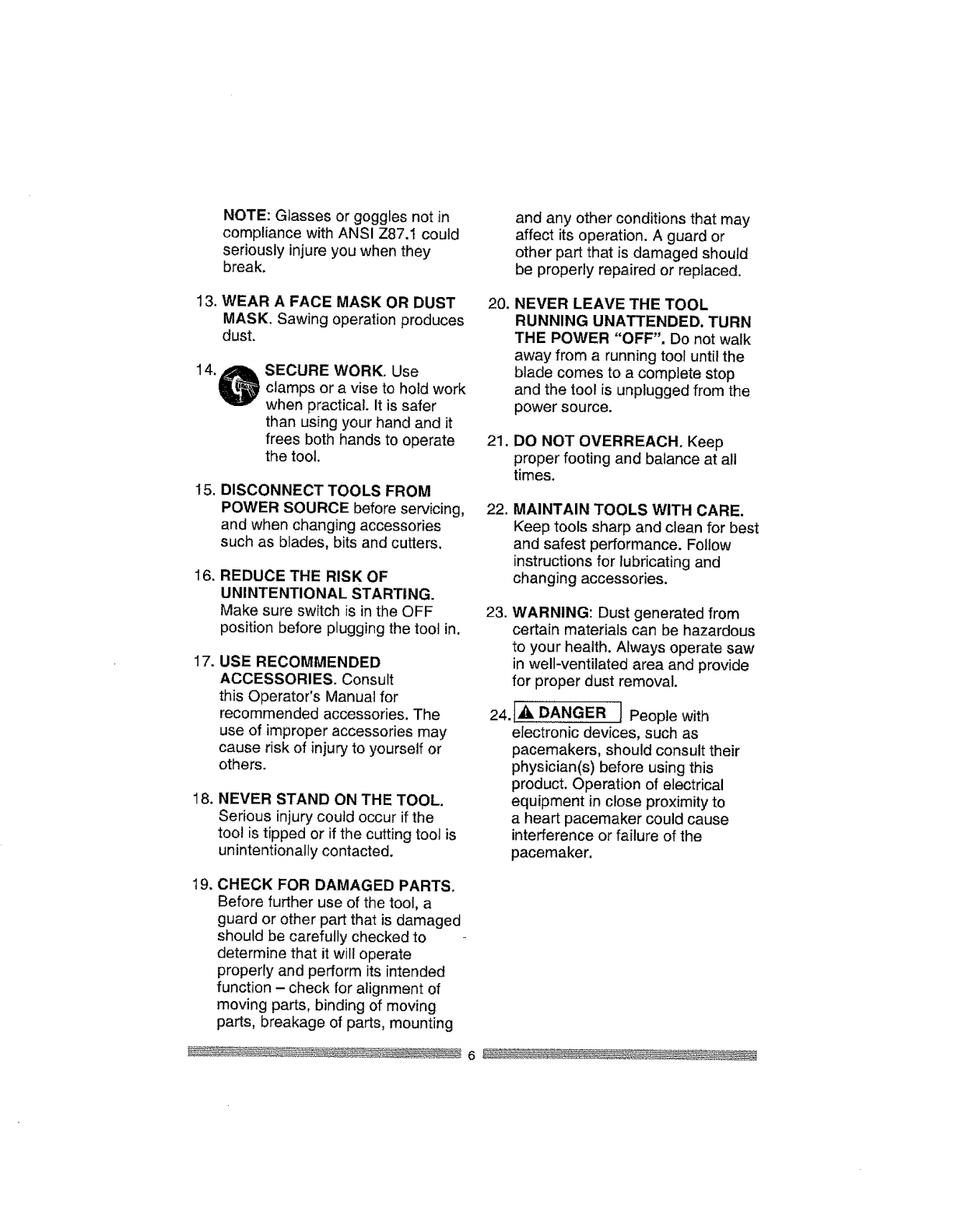

13. WEAR A FACE MASK OR DUST

MASK. Sawing operation produces

dust.

14.,_1_k SECURE WORK. Use

t,9 ctamps or a vise to hold work

when practical. It is safer

than using your hand and it

frees both hands to operate

the tool.

15. DISCONNECT TOOLS FROM

POWER SOURCE before servicing,

and when changing accessories

such as blades, bits and cutters.

16. REDUCE THE RISK OF

UNINTENTIONAL STARTING.

Make sure switch is in the OFF

position before plugging the tool in.

17, USE RECOMMENDED

ACCESSORIES. Consult

this Operator's Manual for

recommended accessories. The

use of improper accessories may

cause risk of injury to yourself or

others.

18. NEVER STAND ON THE TOOL.

Serious injury could occur if the

tool is tipped or if the cutting tool is

unintentionally contacted.

20. NEVER LEAVE THE TOOL

RUNNING UNATTENDED. TURN

THE POWER "OFF". Do not walk

away from a running tool until the

blade comes to acomplete stop

and the tool is unplugged from the

power source.

21. DO NOT OVERREACH. Keep

proper footing and balance at all

times.

22. MAINTAIN TOOLS WITH CARE.

Keep tools sharp and clean for best

and safest performance. Follow

instructions for lubricating and

changing accessories.

23. WARNING: Dust generated from

certain materials can be hazardous

to your health. Always operate saw

in well-ventilated area and provide

for proper dust removal.

24.I_k DANGER J People with

electronic devices, such as

pacemakers, should consult their

physician(s) before using this

product. Operation of electrical

equipment in close proximity to

a heart pacemaker could cause

interference or failure of the

pacemaker.

19. CHECK FOR DAMAGED PARTS.

Before further use of the tool, a

guard or other part that is damaged

should be carefully checked to

determine that it will operate

properly and perform its intended

function - check for alignment of

moving parts, binding of moving

parts, breakage of parts, mounting

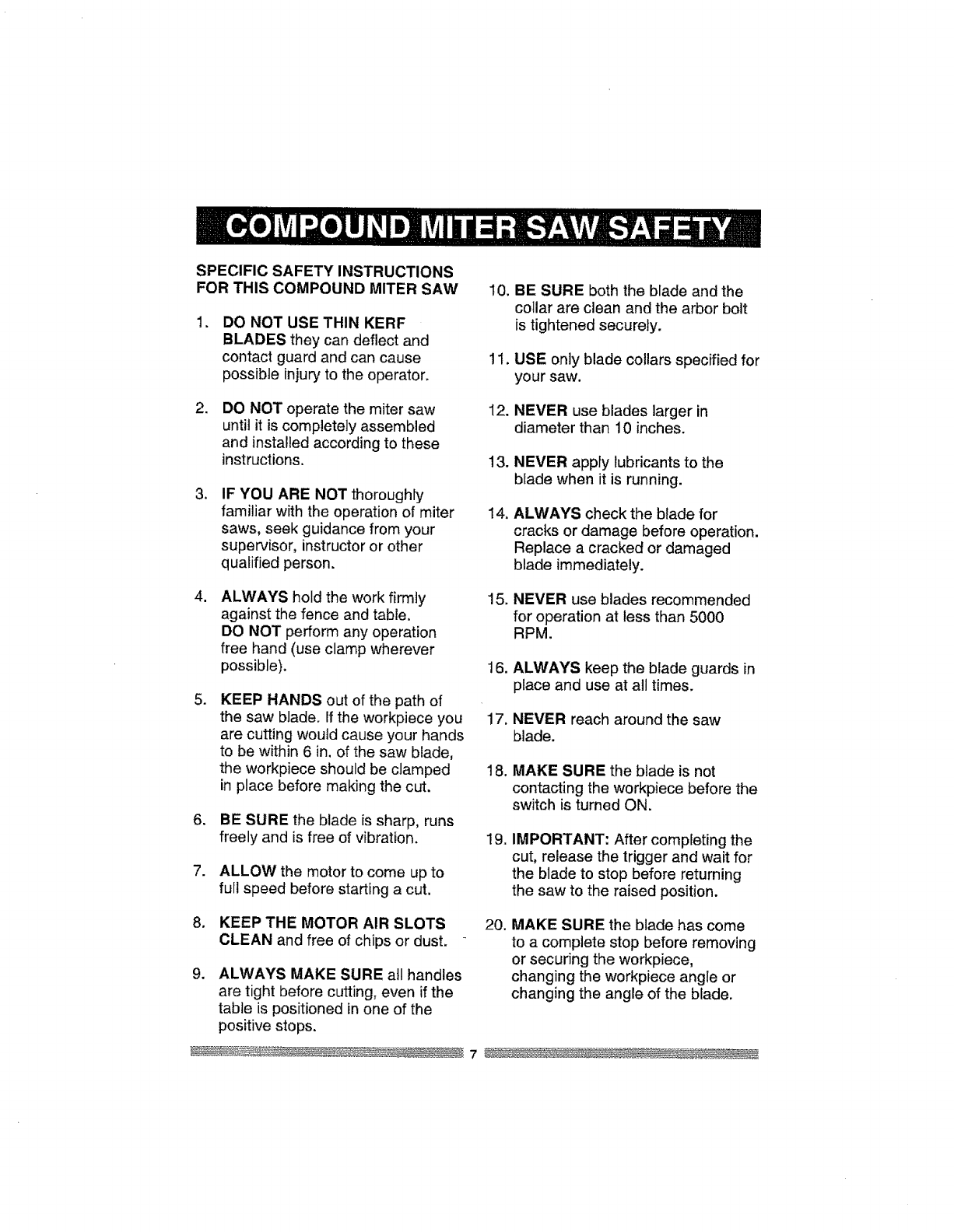

SPECIFIC SAFETY INSTRUCTIONS

FOR THIS COMPOUND MITER SAW

=DO NOT USE THIN KERF

BLADES they can deflect and

contact guard and can cause

possibte injury to the operator.

10.

!1.

BE SURE both the blade and the

collar are clean and the arbor bolt

is tightened securely.

USE only blade collars specified for

your saw.

DO NOT operate the miter saw

until it is completely assembled

and installed according to these

instructions.

IF YOU ARE NOT thoroughly

familiar with the operation of miter

saws, seek guidance from your

supervisor, instructor or other

qualified person.

12.

13.

14,

NEVER use blades larger in

diameter than 10 inches.

NEVER apply lubricants to the

blade when it is running.

ALWAYS check the blade for

cracks or damage before operation.

Replace a cracked or damaged

blade immediately.

ALWAYS hold the work firmly 15.

against the fence and table.

DO NOT perform any operation

free hand (use clamp wherever

possible). 16.

KEEP HANDS out of the path of

the saw blade. If the workpiece you 17.

are cutting would cause your hands

to be within 6 in. of the saw blade,

the workpiece should be clamped 18.

in place before making the cut.

BE SURE the blade is sharp, runs

freely and is free of vibration.

ALLOW the motor to come up to

full speed before starting a cut.

19.

NEVER use blades recommended

for operation at less than 5000

RPM.

ALWAYS keep the blade guards in

place and use at all times.

NEVER reach around the saw

blade.

MAKE SURE the blade is not

contacting the workpiece before the

switch is turned ON.

IMPORTANT: After completing the

cut, release the trigger and wait for

the blade to stop before returning

the saw to the raised position.

KEEP THE MOTOR AIR SLOTS

CLEAN and free of chips or dust.

ALWAYS MAKE SURE atl handles

are tight before cutting, even if the

table is positioned in one of the

positive stops.

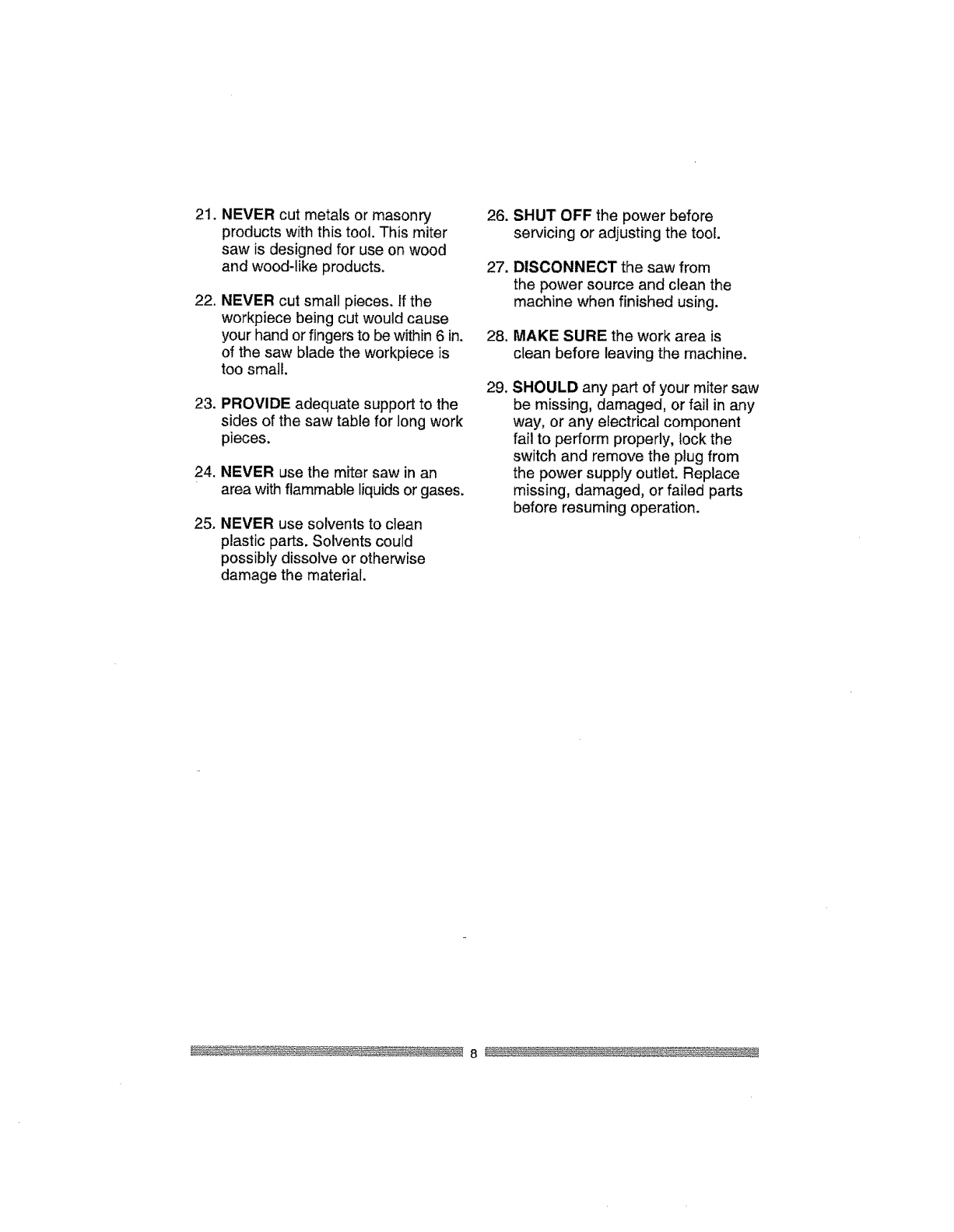

20. MAKE SURE the blade has come

to a complete stop before removing

or securing the workpiece,

changing the workpiece angle or

changing the angle of the blade.

21. NEVER cut metals or masonry

products with this tool. This miter

saw is designed for use on wood

and wood-like products.

22. NEVER cut small pieces, ff the

workpiece being cut would cause

your hand or fingers to be within 6 in.

of the saw blade the workpiece is

too small.

23. PROVIDE adequate support to the

sides of the saw table for long work

pieces.

24. NEVER use the miter saw in an

area with flammable liquids or gases.

25. NEVER use solvents to clean

plastic parts. Solvents could

possibly dissolve or otherwise

damage the material.

26.

27.

28.

29.

SHUT OFF the power before

servicing or adjusting the tool.

DISCONNECT the saw from

the power source and clean the

machine when finished using.

MAKE SURE the work area is

clean before leaving the machine.

SHOULD any part of your miter saw

be missing, damaged, or fail in any

way, or any electrical component

fail to perform properly, lock the

switch and remove the plug from

the power supply outlet. Replace

missing, damaged, or failed parts

before resuming operation.

WARNING I

POWER SUPPLY AND MOTOR

SPECIFICATIONS

The AC motor used in this saw is

a universal, nonreversible type.

See "MOTOR" in the "PRODUCT

SPECIFICATIONS" section on page 3.

I_ WARNING J

To avoid electrical hazards, fire

hazards, or damage to the tool, use

proper circuit protection. Your saw

is wired at the factory for 120 V

operation. Connect to a120 V, 15A

circuit and use a 15 A time delay

fuse or circuit breaker. To avoid

shock or fire, if power cord is worn

or cut, or damaged in any way, have

it replaced immediately.

DOUBLE INSULATED [_

The power tool is double insulated to

provide a double thickness of insulation

between you and too!'s electrical

system. A]I exposed metal parts are

isolated from the internal metal motor

components with protecting insulation.

Replacement parts - When servicing,

use only identical replacement parts.

Polarized plugs -This saw has a plug

that looks like the one shown below:

To reduce the risk of electrical shock,

this saw has a polarized plug (one

blade is wider than the other). This plug

way. If the plug does not fit fully in the

outlet, reverse the plug. if it still does

not fit, contact a qualified electrician to

install the proper outlet. Do not change

the plug in any way.

f,_, WARNING J

Double insulation does not take the

place of normal safety precautions

when operating this tool.

To avoid electrocution:

1. Use only identical replacement parts

when servicing a too! with double

insulation. Servicing should be

performed by a qualified technician.

2. Do not use power tools in wet or

damp locations or expose them to

rain or snow.

MOTOR SAFETY PROTECTION

IMPORTANT

To avoid motor damage, the motor

should be blown out or vacuumed

frequently to keep sawdust from

interfering with the motor ventilation.

1. Connect this saw to a120 V circuit.

This circuit must not be less than a

#14 wire with a 15 A time lag fuse.

NOTE: When using an extension

cord on acircuitwith a #14 wire, the

extension cord must not exceed 25

feet in length.

2. If the motor will not start, release

the trigger switch immediately.

UNPLUG THE SAW. Check the saw

blade to make sure it turns freely. If

the blade is free, try to start the saw

again. If the motor still does not start,

refer to the TROUBLESHOOTING

GUIDE.

3. If the tool suddenly stalls while

cutting wood, release the trigger

switch, unplug the tool and free the

blade from the wood. The saw may

now be started and the cut finished.

4. FUSES may "blow" or circuit

breakers may trip frequently if:

a. MOTOR is overloaded.

Overloading can occur if you

feed too rapidly or make too

many start/stops in a short time.

b. LINE VOLTAGE is more

than 10% above or below the

nameplate voltage rating.

For heavy loads, the voltage

at motor terminals must equal

the voltage specified on the

nameplate.

c. IMPROPER or dull saw blades

are used.

5. Most motor troubles may be traced

to loose or incorrect connections,

overload, low voltage or inadequate

power supply wiring. Always check

the connections, the load and

supply circuit if the motor doesn't

run well. Check minimum gauge for

the length of cord you are using on

the chart below.

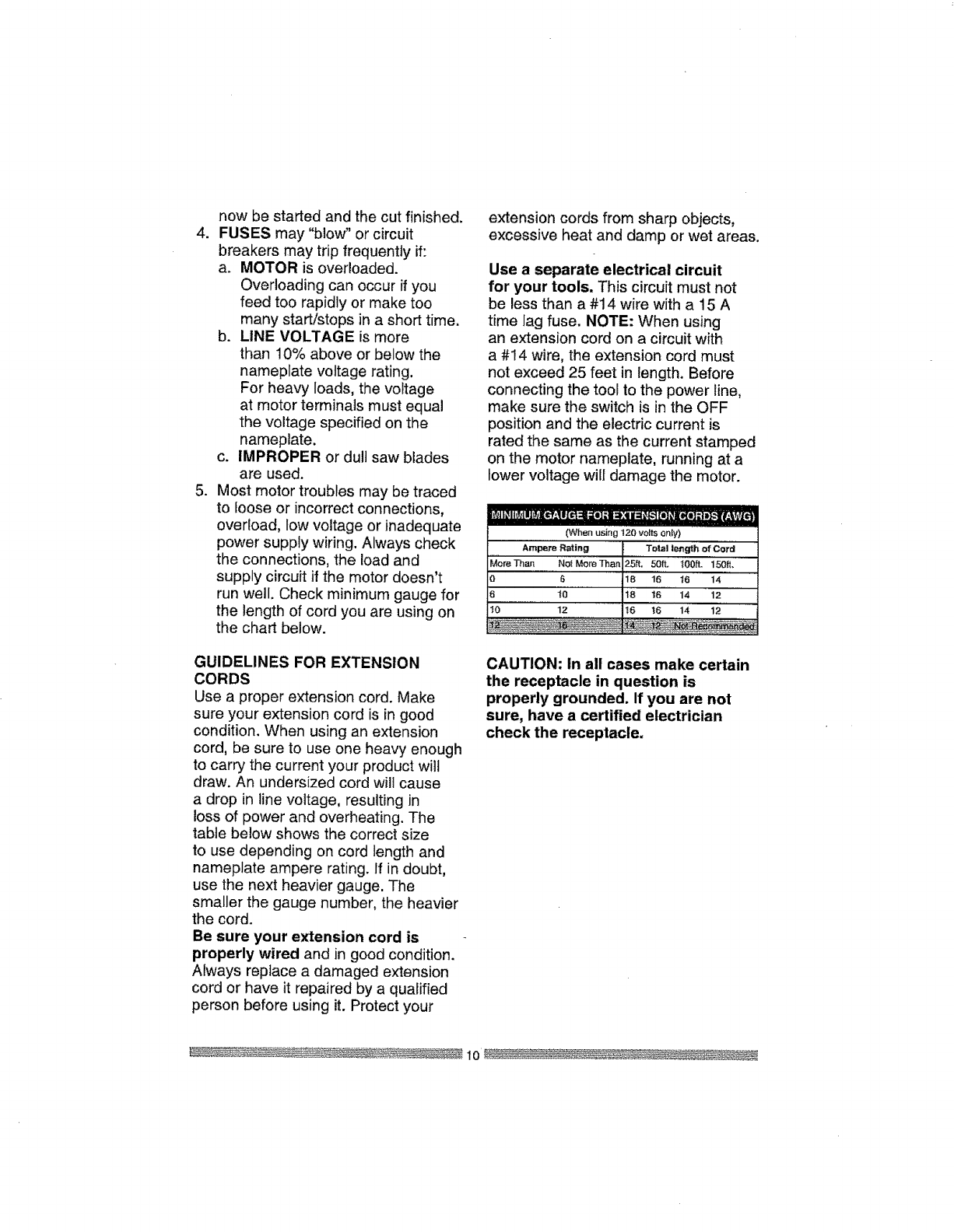

GUIDELINES FOR EXTENSION

CORDS

Use a proper extension cord. Make

sure your extension cord is in good

condition. When using an extension

cord, be sure to use one heavy enough

to carry the current your product wilt

draw. An undersized cord will cause

a drop in line voltage, resulting Jn

loss of power and overheating. The

table below shows the correct size

to use depending on cord length and

nameplate ampere rating. If in doubt,

use the next heavier gauge. The

smaller the gauge number, the heavier

the cord.

Be sure your extension cord is

properly wired and in good condition.

Always replace a damaged extension

cord or have it repaired by a qualified

person before using it. Protect your

extension cords from sharp objects,

excessive heat and damp or wet areas.

Use a separate electrical circuit

for your tools. This circuit must not

be less than a #14 wire with a15 A

time lag fuse. NOTE: When using

an extension cord on a circuit with

a#14 wire, the extension cord must

not exceed 25 feet in length, Before

connecting the tool to the power line,

make sure the switch is in the OFF

position and the electric current is

rated the same as the current stamped

on the motor nameplate, running at a

lower voltage will damage the motor.

Ampere Rating TotallengthofCord

N_ Mo_Then 25ff. 50_. t00_ 150ff,

6 18 16 _6 14

t0 18 16 14 12

12 t6 16 14 12

CAUTION: In all cases make certain

the receptacle in question is

properly grounded. If you are not

sure, have a certified electrician

check the receptacle.

i0 ¸

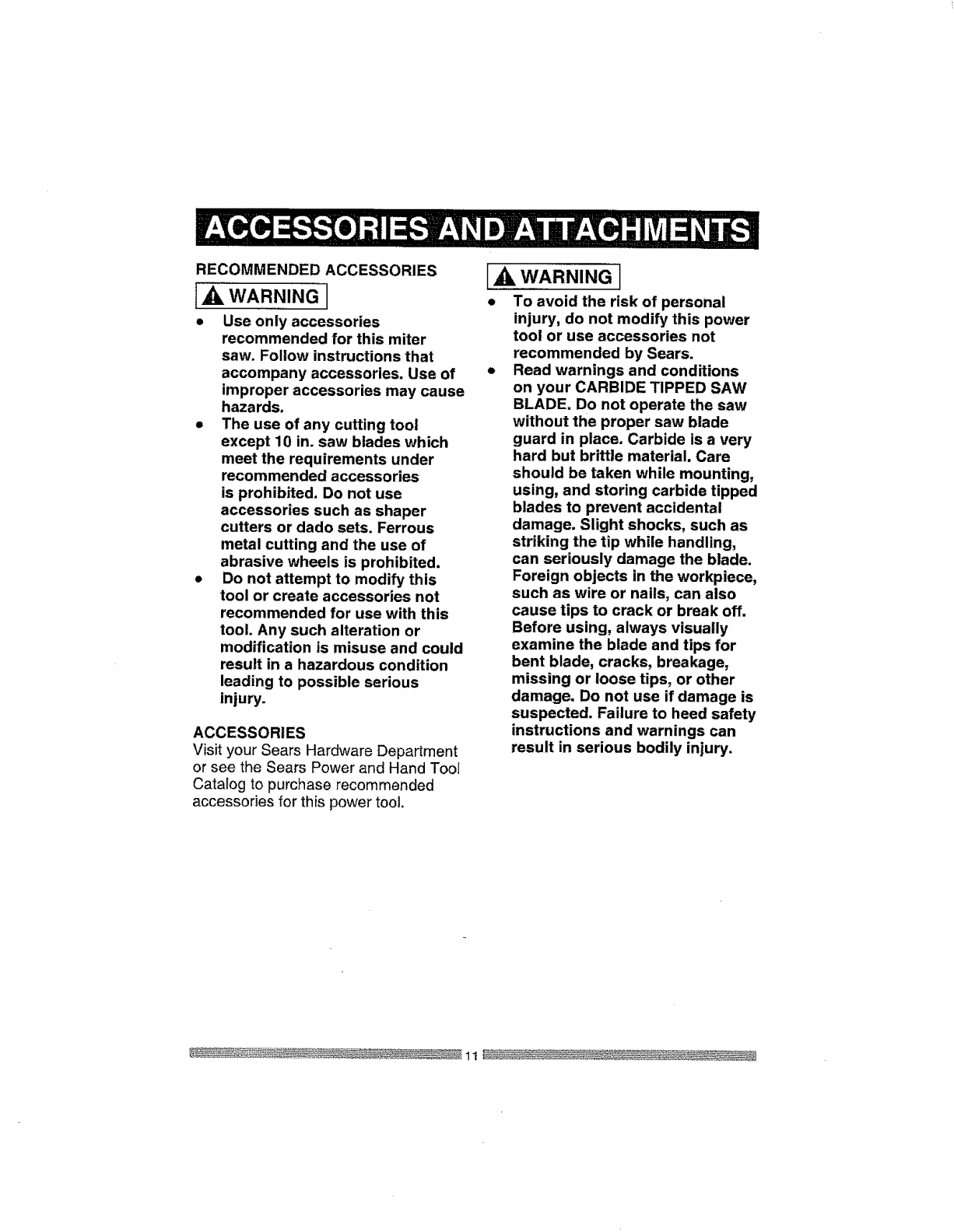

RECOMMENDED ACCESSORIES

WARNINGI

• Use only accessories

recommended for this miter

saw. Follow instructions that

accompany accessories. Use of

improper accessories may cause

hazards.

• The use of any cutting tool

except 10 in. saw blades which

meet the requirements under

recommended accessories

is prohibited. Do not use

accessories such as shaper

cutters or dado sets. Ferrous

metal cutting and the use of

abrasive wheels is prohibited.

•Do not attempt to modify this

tool or create accessories not

recommended for use with this

tool. Any such alteration or

modification is misuse and could

result in a hazardous condition

leading to possible serious

injury.

ACCESSORIES

Visit your Sears Hardware Department

or see the Sears Power and Hand Tool

Catalog to purchase recommended

accessories for this power tool.

[_IL WARNING I

•To avoid the risk of personal

injury, do not modify this power

tool or use accessories not

recommended by Sears.

•Read warnings and conditions

on your CARBIDE TIPPED SAW

BLADE. Do not operate the saw

without the proper saw blade

guard in place. Carbide is a very

hard but brittle material. Care

should be taken while mounting,

using, and storing carbide tipped

blades to prevent accidental

damage. Slight shocks, such as

striking the tip while handling,

can seriously damage the blade.

Foreign objects in the workpiece,

such as wire or nails, can also

cause tips to crack or break off.

Before using, always visually

examine the blade and tips for

bent blade, cracks, breakage,

missing or loose tips, or other

damage. Do not use if damage is

suspected. Failure to heed safety

instructions and warnings can

result in serious bodily injury.

Supplied

Blade Wrench

Not supplied

Adjustable Wrench Phillips Screwdriver

"-,.z./

Hex Wrench

1'................ i!_

I.I+ l,i IiI_I+i_

Slotted Screwdriver

Combination Square

I j

COMBINATION SQUARE MUST BE TRUE

Square Bar

Should not gap or overlap when square is flipped over (see dotted figure).

Draw light line on Straight edge or a 3/4 in. board, this

board along this edge. edge must be perfectly straight.

Shodd not gap or overlap when square

flipped over (see dotted figure).

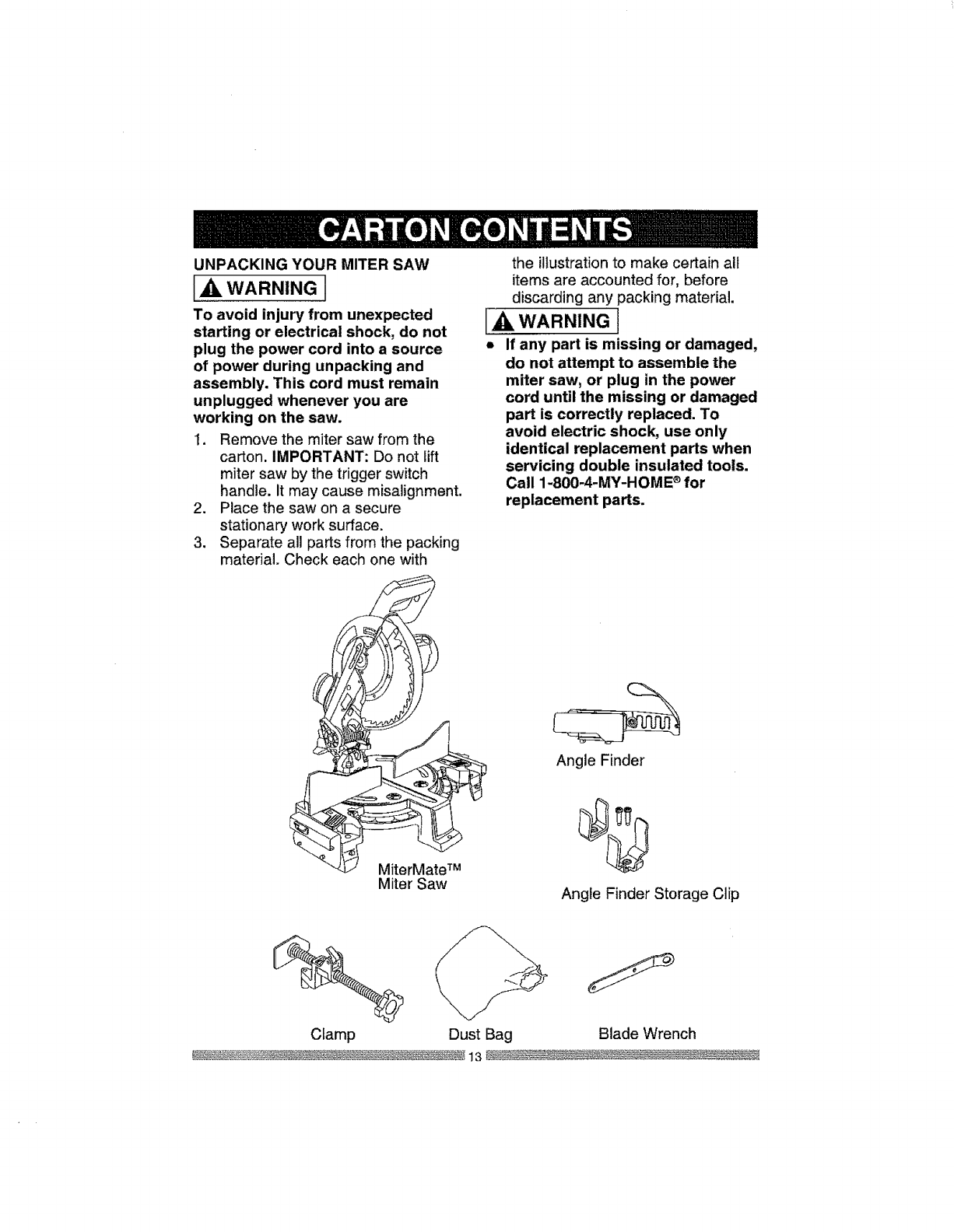

UNPACKING YOUR MITER SAW

[_ WARNING

To avoid injury from unexpected

starting or electrical shock, do not

plug the power cord into a source

of power during unpacking and

assembly. This cord must remain

unplugged whenever you are

working on the saw.

1. Remove the miter saw from the

carton. IMPORTANT: Do not lift

miter saw by the trigger switch

handle. It may cause misalignment.

2. Place the saw on a secure

stationary work surface.

3. Separate all parts from the packing

material. Check each one with

the illustrationto make certain all

items are accounted for, before

discarding any packing material.

WARNING I

=If any part is missing or damaged,

do not attempt to assemble the

miter saw, or plug in the power

cord until the missing or damaged

part is correctly replaced. To

avoid electric shock, use only

identical replacement parts when

servicing double insulated tools.

Call 1-800-4-MY-HOME ®for

replacement parts.

Miter Saw

Angle Finder

Angle Finder Storage Clip

Clamp Dust Bag

Blade Wrench

Angle Finder Storage

Upper Blade Guard

Switch Handle

Dust Bag Blade

Laser Guide

Bevel Lock Handle,

Sliding Fence

Hold Plate Extension Wing

Lock Knob

Stop Plate

Detent

Lower Blade ON/OFF

Guard Switch

Detent

Lock Lock Knob for

Knob Sliding Fence

Lock Lever

for Table Indicator

Head Lock

Down Knob

Lock Lever

Table

Scale 3n

Wing

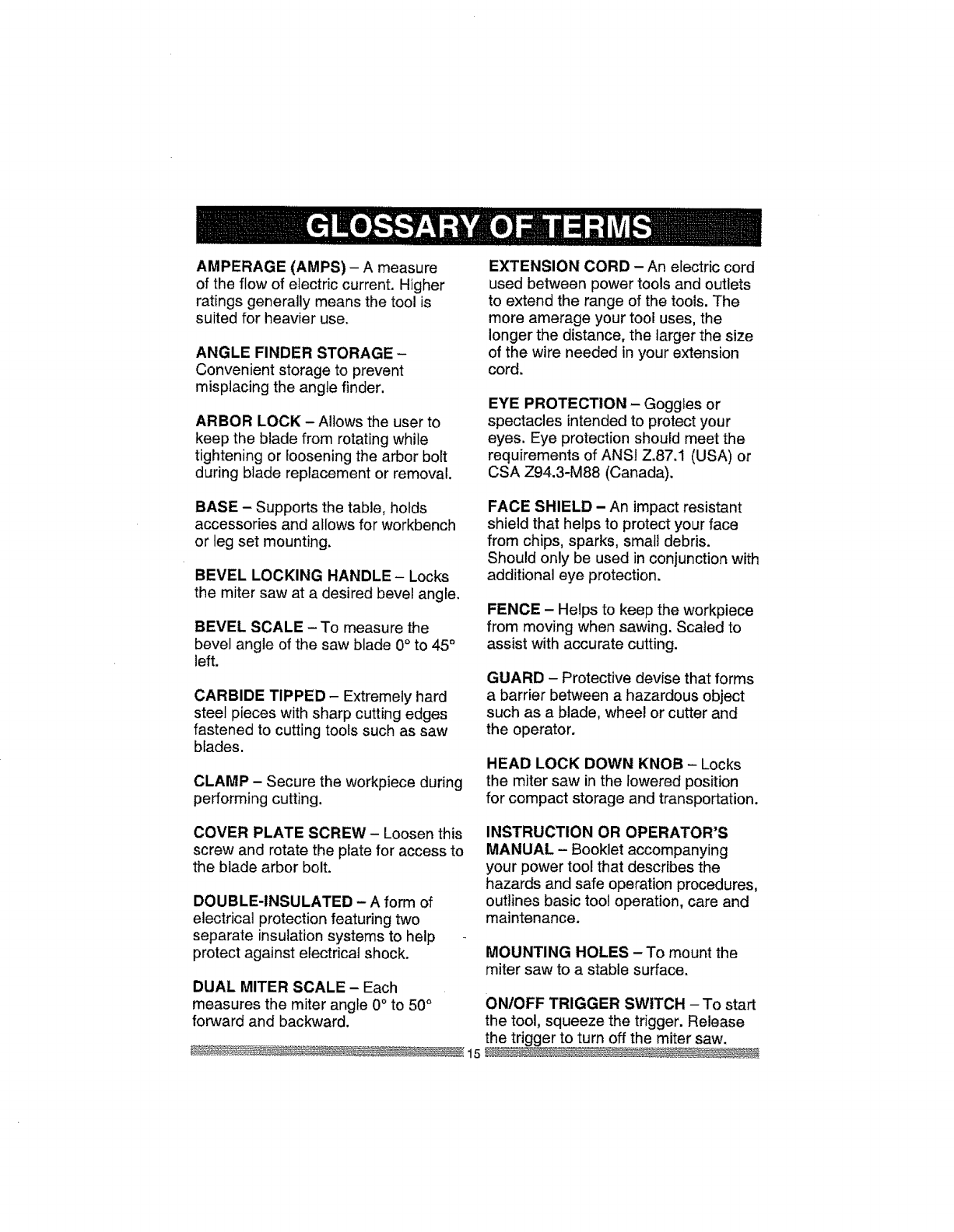

AMPERAGE (AMPS) - A measure

of the flow of electric current. Higher

ratings generally means the tool is

suited for heavier use.

ANGLE FINDER STORAGE -

Convenient storage to prevent

misplacing the angle finder.

ARBOR LOCK - Allows the user to

keep the blade from rotating while

tightening or loosening the arbor bolt

during blade replacement or removal.

EXTENSION CORD - An electric cord

used between power tools and outlets

to extend the range of the tools. The

more amerage your tool uses, the

longer the distance, the larger the size

of the wire needed in your extension

cord.

EYE PROTECTION - Goggles or

spectacles intended to protect your

eyes. Eye protection should meet the

requirements of ANS! Z.87.1 (USA) or

CSA Z94.3-M88 (Canada),

BASE - Supports the table, holds

accessories and allows for workbench

or leg set mounting.

BEVEL LOCKING HANDLE- Locks

the miter saw at a desired bevel angle.

BEVEL SCALE - To measure the

bevel angle of the saw blade 0° to 45°

left.

CARBIDE TIPPED - Extremely hard

steel pieces with sharp cutting edges

fastened to cutting tools such as saw

blades.

CLAMP - Secure the workpiece during

performing cutting.

FACE SHIELD - An impact resistant

shield that helps to protect your face

from chips, sparks, smati debris.

Should only be used in conjunction with

additional eye protection.

FENCE - Helps to keep the workpiece

from moving when sawing. Scaled to

assist with accurate cutting.

GUARD - Protective devise that forms

a barrier between a hazardous object

such as a blade, wheel or cutter and

the operator.

HEAD LOCK DOWN KNOB -Locks

the miter saw in the lowered position

for compact storage and transportation.

COVER PLATE SCREW- Loosen this

screw and rotate the plate for access to

the blade arbor bolt.

DOUBLE-INSULATED - A form of

electrical protection featuring two

separate insulation systems to help

protect against electrical shock.

DUAL MITER SCALE - Each

measures the miter angle 0° to 50°

forward and backward.

INSTRUCTION OR OPERATOR'S

MANUAL - Booklet accompanying

your power tool that describes the

hazards and safe operation procedures,

outlines basic tool operation, care and

maintenance.

MOUNTING HOLES - To mount the

miter saw to a stable surface.

ONIOFF TRIGGER SWITCH - To start

the tool, squeeze the trigger. Release

the trigger to turn off the miter saw.

POSITIVE STOP LOCKING LEVER-

Locks the miter saw at a preset positive

stop for the desired miter angle.

SWITCH HANDLE -The switch

handle contains the trigger switch and

the laser on/off switch. The blade is

lowered into the workpiece by pushing

down on the handle. The saw will

return to its upright position when the

handle is released.

WARNING LABELS - Read and

understand for your own safety. Make

sure all labels are present on machine

and legible.

WRENCH STORAGE - Convenient

storage to prevent misplacing the blade

wrench.

WOODWORKING TERMS

ARBOR - The shaft on which a blade

is mounted.

BEVEL CUT - An angle cut made

through the face of the workpiece.

COMPOUND CUT - An angled cut

to both the edge and face of a board,

most common use is with crown

molding.

CROSS CUT - A cut which runs across

the board perpendicular to the grain.

FREEHAND - Performing a cut without

using a fence (guide), hold down or

other proper device to prevent the

workpiece from twisting during the

cutting operation.

HEEL - Misalignment of the blade.

KERF - The width of a saw cut,

determined by the thickness and set of

the blade.

KICKBACK - Sudden and unintended

movement of the tool or workpiece. It is

typically caused by binding or pinching

of the workpiece

MITER CUT - A miter is a type of joint

where the two parts to be joined are cut

at an angle, and typically the finished

joint forms a 90-degree angle. Also

commonly spelled "mitre".

REVOLUTIONS PER MINUTE (RPM)

-The number of turns completed by a

spinning object in one minute.

SAW BLADE PATH - The area of the

workpiece or table top directly in line

with the travel of the blade or the part

of the workpiece which will be cut.

SET - The distance between two saw

blade tips, bent outward in opposite

directions to each other. The further

apart the tips are, the greater the set.

WORKPIECE - The wood being

cut. The surfaces of a workpiece are

commonly referred to as faces, ends

and edges.

I,_ WARNING I

To avoid injury from unexpected

starting or electrical shock, do not

plug the power cord into asource

of power during unpacking and

assembly. This cord must remain

unplugged whenever you are

working on the saw.

I_,. WARNING}

To avoid injury and damage to the

saw, transport or store the miter saw

with the cutting head locked in the

down position. Never use the head

lock down knob to hold the cutting

head in a down position for cutting

operations.

CUTTING HEAD (FIG. A)

Raising the Cutting Head

1. Push down slightly on the switch

handle (1).

2. Pull out the head lock down knob (2)

out of the locking hole (3).

3. Pull up the switch handle (1) to raise to

the up position,

FIG. A

2. Push outthe head lockdown knob (2)

into the locking hole (3).

IMPORTANT: To avoid damage, never

carry the miter saw by the switch

handle or the cutting arm.

INSTALLING THE DUST BAG (FIG. B)

1. Squeeze the metal collar wings (2) of

the dust bag (1).

2. Place the dust bag neck opening

around the exhaust port (3), and

release the metal coElarwings.

FIG. B 2

INSTALLING THE CLAMP (FIG. C)

NOTE: The clamp is used to secure the

workpiece during cutting operations.

1. Install the clamp on the saw by

inserting the fixed shaft (1) into one

of the ho{es (2) provided in the miter

saw base.

FIG. C

Locking Cutting Head in Down

Position(FIG. A)

When transporting or storing the miter

saw, the cutting head should always be 2 !

locked in the down position,

1. Push the switch handle (1) down to

its lowest position. 17

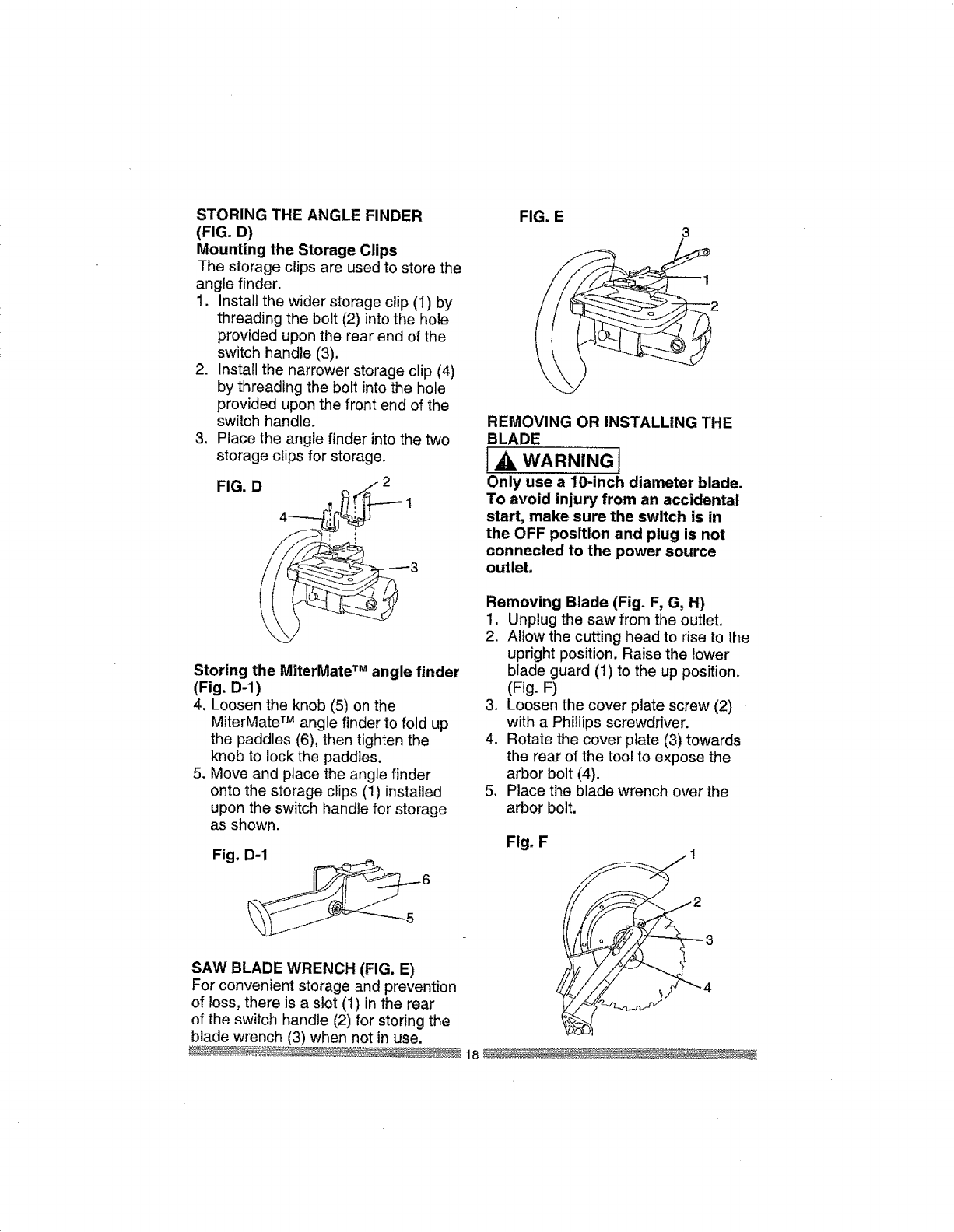

STORING THE ANGLE FINDER

(FIG. D)

Mounting the Storage Clips

The storage clips are used to store the

angle finder.

1. Install the wider storage clip (I) by

threading the bolt (2) into the hole

provided upon the rear end of the

switch handle (3).

2. Install the narrower storage clip (4)

by threading the bolt into the hole

provided upon the front end of the

switch handle.

3. Place the angle finder into the two

storage clips for storage.

FIG. D2

Storing the MiterMate TM angle finder

(Fig. D-l)

4. Loosen the knob (5) on the

MiterMate TM angle finder to fold up

the paddles (6), then tighten the

knob to lock the paddies.

5. Move and place the angle finder

onto the storage clips (1) installed

upon the switch handle for storage

as shown.

Fig. D-1

SAW BLADE WRENCH (FIG. E)

For convenient storage and prevention

of loss, there is a slot (1) in the rear

of the switch handle (2) for storing the

blade wrench (3) when not in use.

FIG. E 3

REMOVING OR INSTALLING THE

BLADE

!,_ WARNING !

Only use a 10-inch diameter blade.

To avoid injury from an accidental

start, make sure the switch is in

the OFF position and plug is not

connected to the power source

outlet.

Removing Blade (Fig. F, G, H)

1. Unplug the saw from the outlet.

2. Allow the cutting head to rise to the

upright position. Raise the lower

blade guard (!) to the up position.

(Fig. F)

3. Loosen the cover plate screw (2)

with a Phillips screwdriver.

4. Rotate the cover plate (3) towards

the rear of the tool to expose the

arbor bolt (4).

5. Place the blade wrench over the

arbor bolt.

Fig. F 1

Locate the arbor lock (5) on the

motor, below the switch handle. (Fig. G)

Press the arbor lock, holding it

in firmly while turning the blade

wrench clockwise. The arbour lock

wil! engage after turning the wrench.

Continue to hold the arbor lock in

to keep it engaged, while turning

the wrench clockwise to loosen the

arbor bolt.

Fig, G

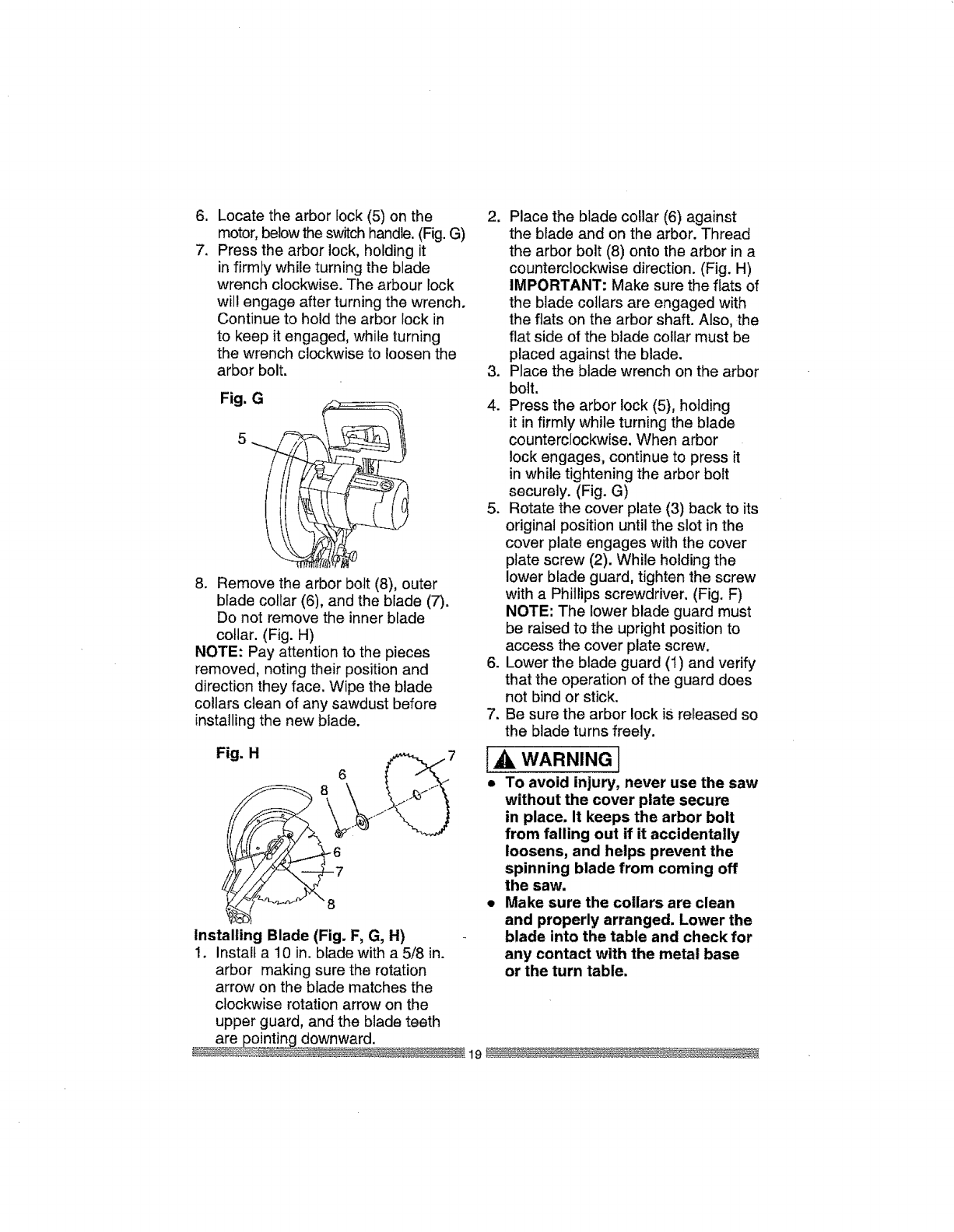

8. Remove the arbor bolt (8), outer

blade collar (6), and the blade (7).

Do not remove the inner blade

collar. (Fig. H)

NOTE: Pay attention to the pieces

removed, noting their position and

direction they face. Wipe the blade

collars clean of any sawdust before

installing the new blade.

Installing Blade (Fig. F, G, H)

1. Install a 10 in. blade with a 5/8 in.

arbor making sure the rotation

arrow on the blade matches the

clockwise rotation arrow on the

upper guard, and the blade teeth

2. Place the blade collar (6) against

the blade and on the arbor. Thread

the arbor bolt (8) onto the arbor in a

countercloclo_ise direction. (Fig. H)

IMPORTANT: Make sure the flats of

the blade collars are engaged with

the flats on the arbor shaft. Also, the

flat side of the blade collar must be

placed against the blade.

3. Place the blade wrench on the arbor

bolt.

4. Press the arbor lock (5), holding

it in firmly while turning the blade

counterclockwise. When arbor

lock engages, continue to press it

in while tightening the arbor bolt

securely. (Fig. G)

5. Rotate the cover plate (3) back to its

original position until the slot in the

cover plate engages with the cover

plate screw (2). While holding the

lower blade guard, tighten the screw

with a Phillips screwdriver. (Fig. F)

NOTE: The lower blade guard must

be raised to the upright position to

access the cover plate screw.

6. Lower the blade guard (1) and verify

that the operation of the guard does

not bind or stick.

7. Be sure the arbor lock is released so

the blade turns freely.

IAk WARNING I

• To avoid injury, never use the saw

without the cover plate secure

in place. It keeps the arbor bolt

from falling out if it accidentally

loosens, and helps prevent the

spinning blade from coming off

the saw.

• Make sure the collars are clean

and properly arranged. Lower the

blade into the table and check for

any contact with the metal base

or the turn table,

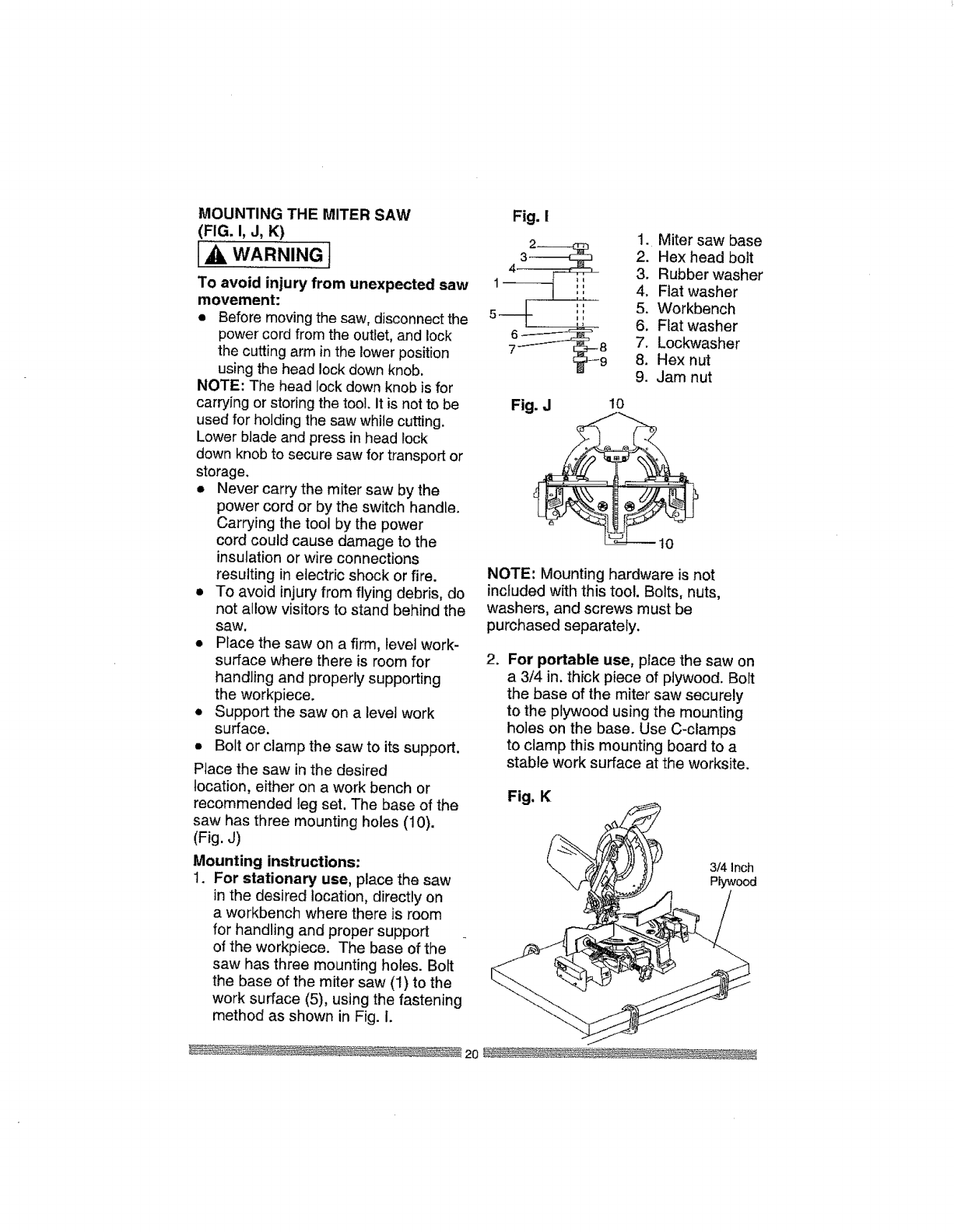

MOUNTINGTHEMITERSAW

(FIG.I,J, K)

wA.N,NG1

To avoid injury from unexpected saw

movement:

•Before moving the saw, disconnect the

power cord from the outlet, and lock

the cutting arm in the lower position

using the head lock down knob.

NOTE: The head lock down knob is for

carrying or storing the tool. It is not to be

used for holding the saw while cutting.

Lower blade and press in head lock

down knob to secure saw for transport or

storage.

•Never carry the miter saw by the

power cord or by the switch handle.

Carrying the tool by the power

cord could cause damage to the

insulation or wire connections

resulting in electric shock or fire.

•To avoid injury from flying debris, do

not allow visitors to stand behind the

SaW,

•Place the saw on a firm, level work-

surface where there is room for

handling and properly supporting

the workpiece.

•Support the saw on a level work

surface.

•Bolt or clamp the saw to its support.

Place the saw in the desired

location, either on a work bench or

recommended leg set, The base of the

saw has three mounting holes (10).

(Fig. J)

Mounting instructions:

1. For stationary use, place the saw

in the desired location, directly on

a workbench where there is room

for handling and proper support

of the workpiece. The base of the

saw has three mounting holes. Bolt

the base of the miter saw (1) to the

work surface (5), using the fastening

method as shown in Fig. I.

Fig. I

1. Miter saw base

2. Hex head bolt

4 3. Rubber washer

1_ 4. Flat washer

5',---L-- ':'_ 5. Workbench

-_6------- " 6. Flat washer

7_ 8 7. Lockwasher

8. Hex nut

9. Jam nut

Fig. J lO

NOTE: Mounting hardware is not

included with this tool. Bolts, nuts,

washers, and screws must be

purchased separately.

2. For portable use, place the saw on

a 3/4 in. thick piece of plywood. Bolt

the base of the miter saw securely

to the plywood using the mounting

holes on the base. Use C-clamps

to clamp this mounting board to a

stable work surface at the worksite.

Fig. K

ADJUSTMENT INSTRUCTIONS

J,A WARNING]

To avoid injury from an accidental

start, make sure the switch is in

the OFF position and the plug is

not connected to the power source

outlet.

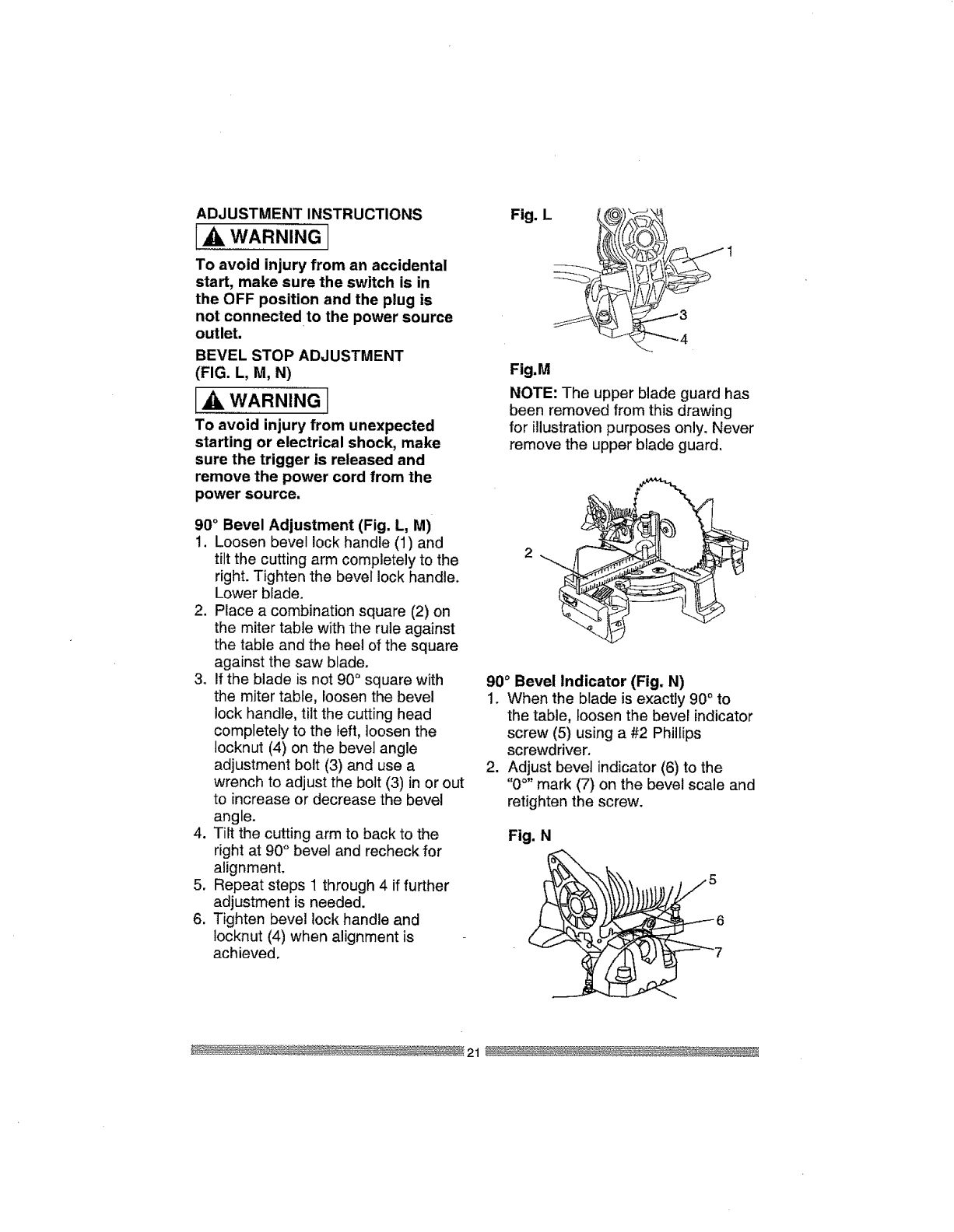

BEVEL STOP ADJUSTMENT

(FIG. L, M, N)

[! WARNING]

To avoid injury from unexpected

starting or electrical shock, make

sure the trigger is released and

remove the power cord from the

power source.

Fig.M

NOTE: The upper blade guard has

been removed from this drawing

for illustration purposes only. Never

remove the upper blade guard.

90° Bevel Adjustment (Fig. L, M)

!. Loosen bevel lock handle (1) and

tilt the cutting arm completely to the 2

right. Tighten the bevel lock handle.

Lower blade.

2. Place a combination square (2) on

the miter table with the rule against

the table and the heel of the square

against the saw blade.

3. If the blade is not 90 ° square with

the miter table, loosen the bevel

lock handle, tilt the cutting head

completely to the left, loosen the

locknut (4) on the bevel angle

adjustment bolt (3) and use a

wrench to adjust the bolt (3) in or out

to increase or decrease the bevel

angle.

4. Tilt the cutting arm to back to the Fig. N

right at 90 ° bevel and recheck for

alignment.

5. Repeat steps 1 through 4 if further

adjustment is needed.

6. Tighten bevel lock handle and

!ocknut (4) when alignment is

achieved.

90 °Bevel Indicator (Fig. N)

1. When the blade is exactly 90° to

the table, loosen the bevel indicator

screw (5) using a #2 Philfips

screwdriver.

2. Adjust bevel indicator (6) to the

"0°" mark (7) on the bevel scale and

retighten the screw.

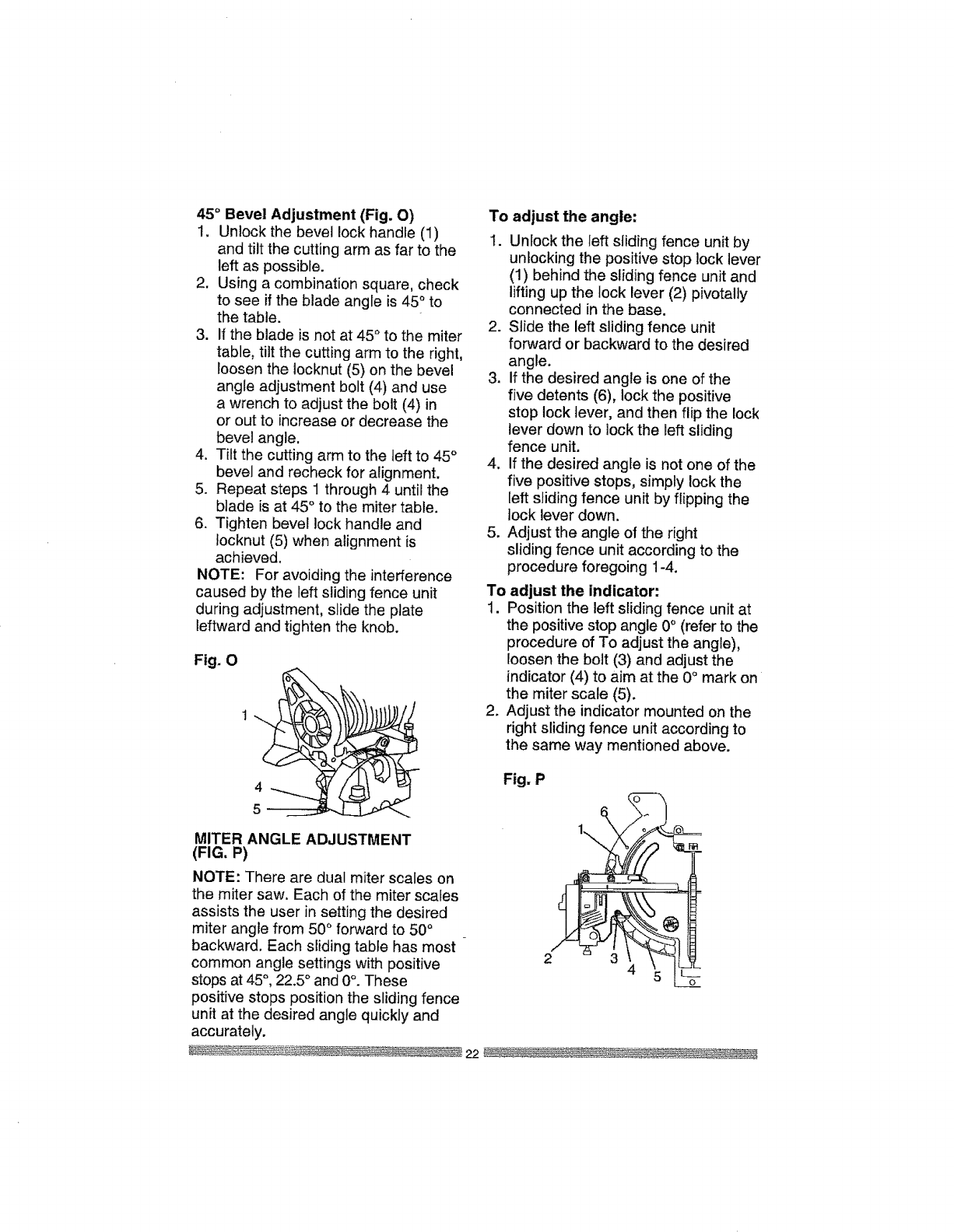

45 ° Bevel Adjustment (Fig. O)

1. Unlock the bevel lock handle (1)

and tilt the cutting arm as far to the

left as possible.

2. Using a combination square, check

to see if the blade angle is 45° to

the table.

3. If the blade is not at 45+to the miter

table, tilt the cutting arm to the right,

loosen the locknut (5) on the bevel

angle adjustment bolt (4) and use

a wrench to adjust the bolt (4) in

or out to increase or decrease the

bevel angle.

4. Tilt the cutting arm to the left to 45°

bevel and recheck for alignment.

5. Repeat steps 1 through 4 until the

blade is at 45° to the miter table.

6. Tighten bevel lock handle and

tocknut (5) when alignment is

achieved.

NOTE: For avoiding the interference

caused by the left sliding fence unit

during adjustment, slide the plate

leftward and tighten the knob.

Fig. O

MITER ANGLE ADJUSTMENT

(FIG. P)

NOTE: There are dual miter scales on

the miter saw. Each of the miter scales

assists the user in setting the desired

miter angle from 50° forward to 50+

backward. Each sliding table has most

common angle settings with positive

stops at 45°, 22+5° and 0°. These

positive stops position the sliding fence

unit at the desired angle quickly and

accurately.

To adjust the angle:

1. Unlock the left sliding fence unit by

unlocking the positive stop lock lever

(1) behind the sliding fence unit and

lifting up the lock lever (2) pivotally

connected in the base.

2. Slide the left sliding fence unit

forward or backward to the desired

angle.

3. If the desired angle is one of the

five detents (6), lock the positive

stop lock lever, and then flip the lock

lever down to lock the left sliding

fence unit.

4. If the desired angle is not one of the

five positive stops, simply lock the

left sliding fence unit by flipping the

lock lever down.

5. Adjust the angle of the right

sliding fence unit according to the

procedure foregoing 1-4.

To adjust the indicator:

1. Position the left sliding fence unit at

the positivestop angle 0° (refer to the

procedure of To adjust the angle),

loosen the bolt (3) and adjust the

indicator (4) to aim at the 0°mark on

the miter scale (5).

2. Adjust the indicator mounted on the

right sliding fence unit according to

the same way mentioned above.

Fig. P

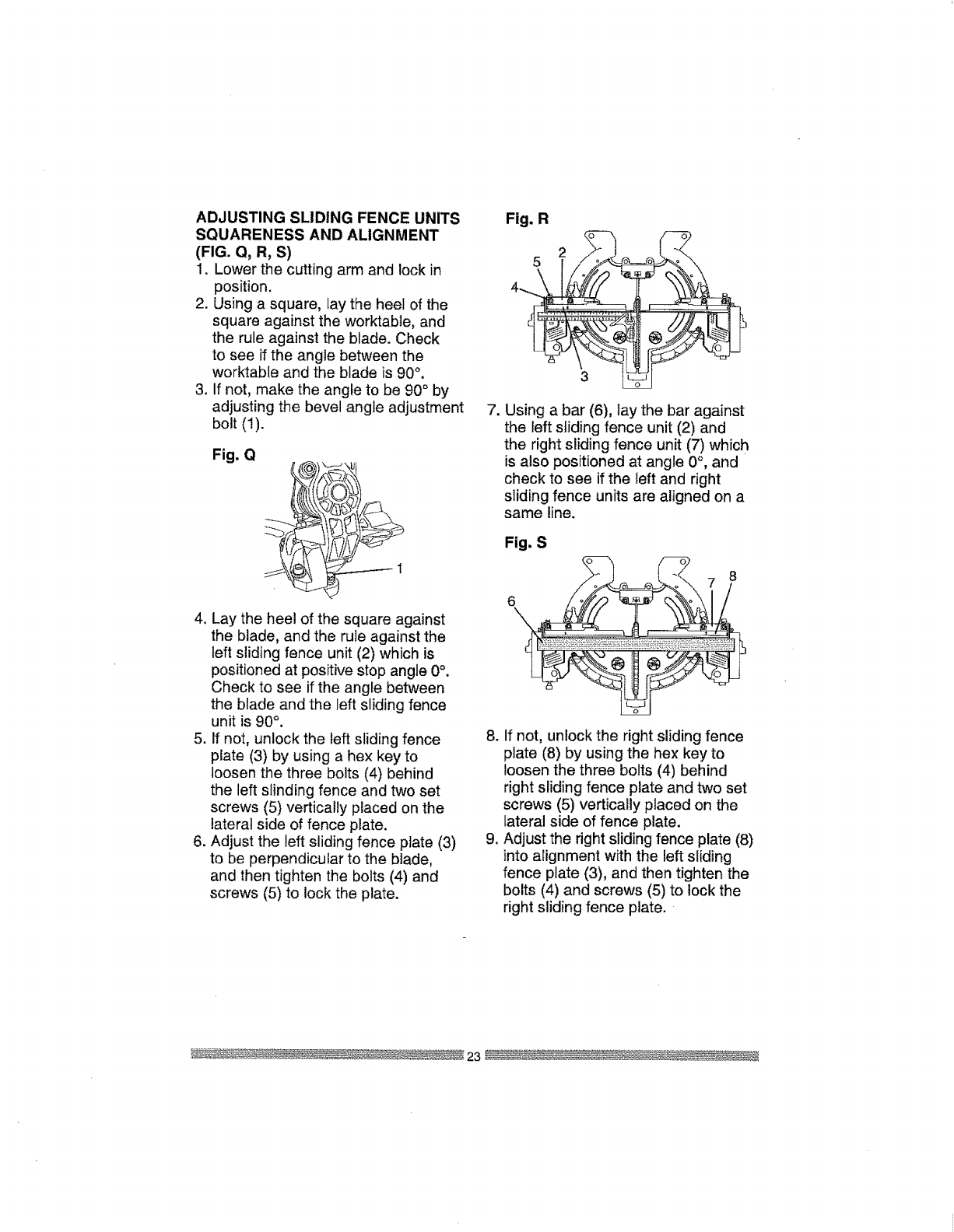

ADJUSTING SLIDING FENCE UNITS

SQUARENESS AND ALIGNMENT

(FIG. Q, R, S)

1. Lower the cutting arm and lock in

position.

2. Using a square, lay the heel of the

square against the worktable, and

the rule against the blade. Check

to see if the angle between the

worktable and the blade is 90°.

3. If not, make the angle to be 90° by

adjusting the bevel angle adjustment

bolt (1).

Fig. Q

4. Lay the heel of the square against

the blade, and the rule against the

left sliding fence unit (2) which is

positioned at positive stop angle 0°.

Check to see if the angle between

the blade and the left sliding fence

unit is 90°.

5. If not, unlock the left sliding fence

plate (3) by using a hex key to

loosen the three bolts (4) behind

the left slinding fence and two set

screws (5) vertically placed on the

lateral side of fence plate.

6. Adjust the left sliding fence plate (3)

to be perpendicular to the blade,

and then tighten the bolts (4) and

screws (5) to lock the plate.

Fig. R

5 2

Using a bar (6), tay the bar against

the left sliding fence unit (2) and

the right sliding fence unit (7) which

is also positioned at angle 0°, and

check to see if the left and right

sliding fence units are aligned on a

same line.

Fig. S

8. If not, unlock the right sliding fence

plate (8) by using the hex key to

loosen the three bolts (4) behind

right sliding fence plate and two set

screws (5) vertically placed on the

lateral side of fence plate.

9. Adjust the right sliding fence plate (8)

into alignment with the left sliding

fence plate (3), and then tighten the

bolts (4) and screws (5) to lock the

right sliding fence plate.

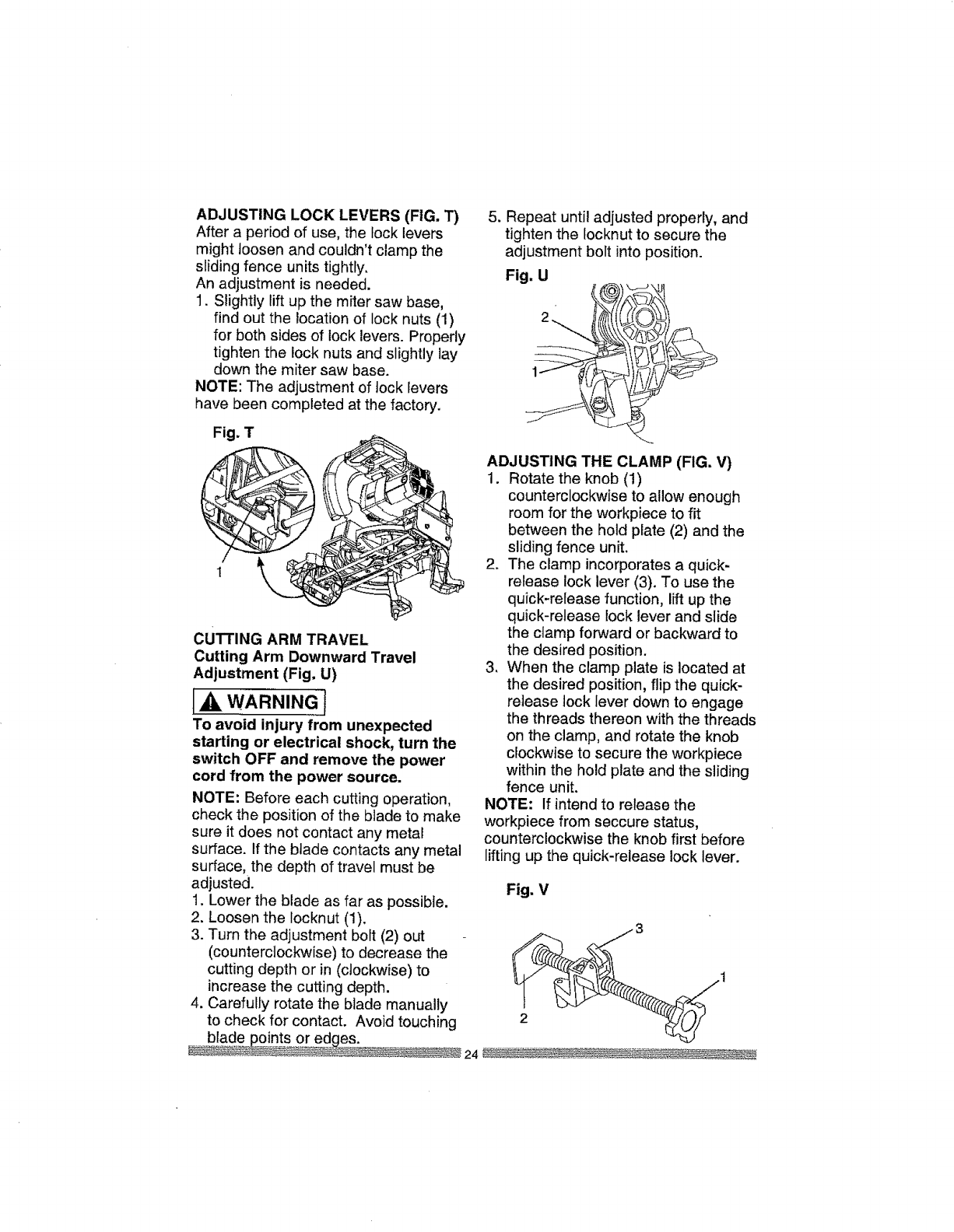

ADJUSTING LOCK LEVERS (FIG. T)

After a period of use, the lock levers

might loosen and couldn't clamp the

sliding fence units tightly.

An adjustment is needed.

1. Slightly lift up the miter saw base,

find out the location of lock nuts (1)

for both sides of lock levers. Properly

tighten the lock nuts and slightly lay

down the miter saw base.

NOTE: The adjustment of lock levers

have been completed at the factory.

Fig. T

CUTTING ARM TRAVEL

Cutting Arm Downward Travel

Adjustment (Fig, U)

[,_ WARNING I

To avoid injury from unexpected

starting or electrical shock, turn the

switch OFF and remove the power

cord from the power source.

NOTE: Before each cutting operation,

check the position of the blade to make

sure it does not contact any metal

surface, if the blade contacts any metal

surface, the depth of travel must be

adjusted.

1. Lower the blade as far as possible.

2. Loosen the locknut (1).

3. Turn the adjustment bolt (2) out

(counterclockwise) to decrease the

cutting depth or in (clockwise) to

increase the cutting depth.

4. Carefully rotate the blade manually

to check for contact. Avoid touching

5. Repeat until adjusted properly, and

tighten the locknut to secure the

adjustment bolt into position.

Fig. U

ADJUSTING THE CLAMP (FIG. V)

1. Rotate the knob (1)

countercioclo_[se to allow enough

room for the workpiece to fit

between the hold prate (2) and the

sliding fence unit.

2. The clamp incorporates a quick-

release lock lever (3}. To use the

quick-release function, lift up the

quick-release lock lever and slide

the clamp forward or backward to

the desired position.

3. When the clamp plate is located at

the desired position, flip the quick-

release lock lever down to engage

the threads thereon with the threads

on the clamp, and rotate the knob

clockwise to secure the workpiece

within the hold plate and the sliding

fence unit.

NOTE: If intend to release the

workpiece from seccure status,

counterclockwise the knob first before

lifting up the quick-release lock lever.

Fig. V

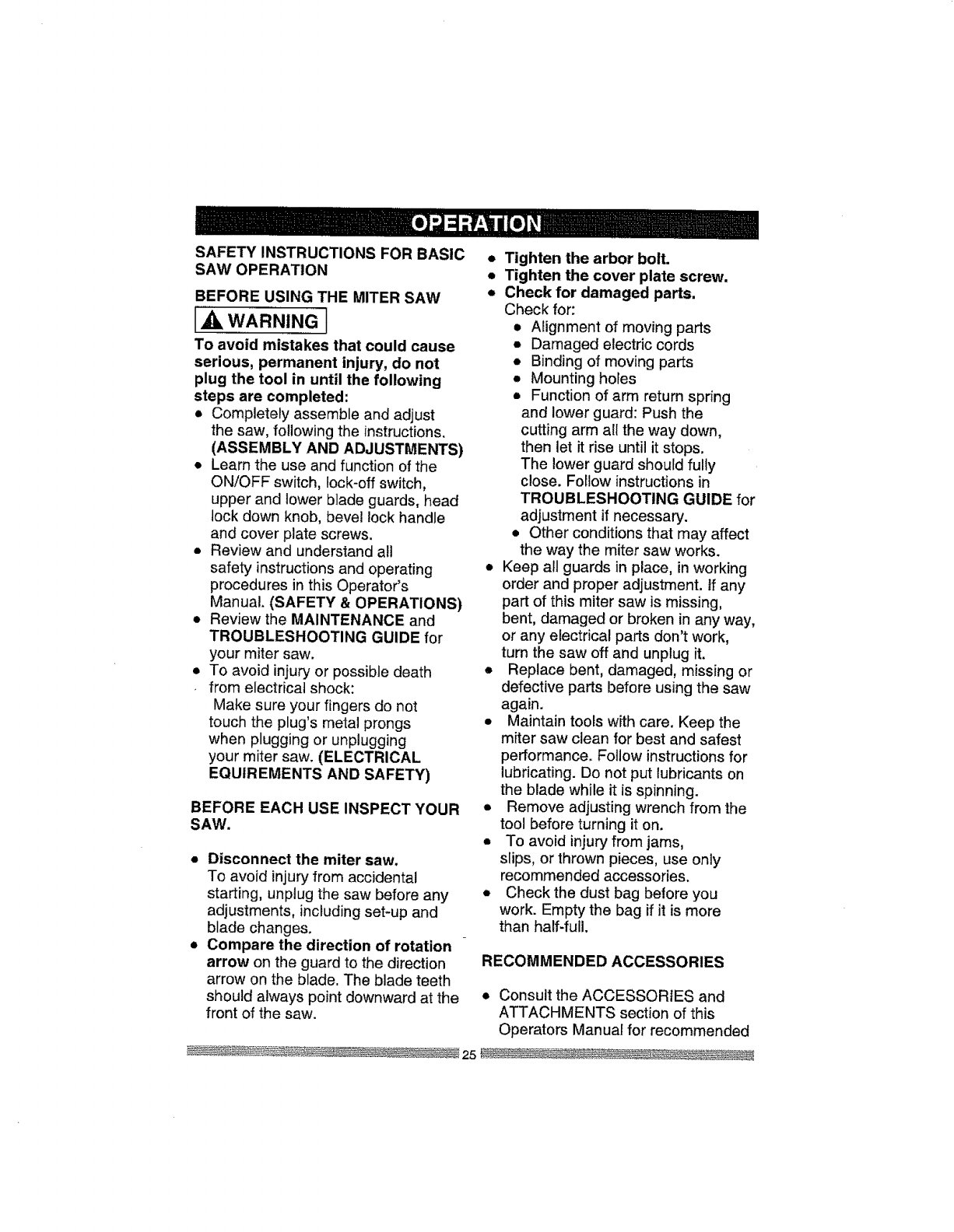

SAFETY INSTRUCTIONS FOR BASIC

SAW OPERATION

BEFORE USING THE MITER SAW

[,_ WARNING 1

To avoid mistakes that could cause

serious, permanent injury, do not

plug the tool in until the following

steps are completed:

• Complete!y assemble and adjust

the saw, following the instructions.

(ASSEMBLY AND ADJUSTMENTS)

• Learn the use and function of the

ON!OFF switch, lock-off switch,

upper and lower blade guards, head

lock down knob, bevel lock handle

and cover plate screws.

= Review and understand al!

safety instructions and operating

procedures in this Operator's

Manual. (SAFETY & OPERATIONS)

• Review the MAINTENANCE and

TROUBLESHOOTING GUIDE for

your miter saw.

• To avoid injury or possible death

from electrical shock:

Make sure your fingers do not

touch the plug's metal prongs

when plugging or unplugging

your miter saw. (ELECTRICAL

EQUIREMENTS AND SAFETY)

BEFORE EACH USE INSPECT YOUR

SAW.

=Disconnect the miter saw.

To avoid injury from accidental

starting, unplug the saw before any

adjustments, including set-up and

blade changes.

• Compare the direction of rotation

arrow on the guard to the direction

arrow on the blade. The blade teeth

should always point downward at the

front of the saw.

•Tighten the arbor bolt.

•Tighten the cover plate screw.

•Check for damaged parts.

Check for:

•Nignment of moving parts

• Damaged electric cords

• Binding of moving parts

Mounting holes

• Function of arm return spring

and lower guard: Push the

cutting arm all the way down,

then let it rise until it stops.

The lower guard should fully

c!ose. Follow instructions in

TROUBLESHOOTING GUIDE for

adjustment if necessary.

•Other conditions that may affect

the way the miter saw works.

• Keep all guards in place, in working

order and proper adjustment. If any

part of this miter saw is missing,

bent, damaged or broken in any way,

or any electrical parts don't work,

turn the saw off and unplug it.

• Replace bent, damaged, missing or

defective parts before using the saw

again.

• Maintain tools with care. Keep the

miter saw clean for best and safest

performance. Follow instructions for

lubricating. Do not put lubricants on

the blade while it is spinning.

• Remove adjusting wrench from the

tool before turning it on.

• To avoid injury from jams,

slips, or thrown pieces, use only

recommended accessories.

• Check the dust bag before you

work. Empty the bag if it is more

than half-full.

RECOMMENDED ACCESSORIES

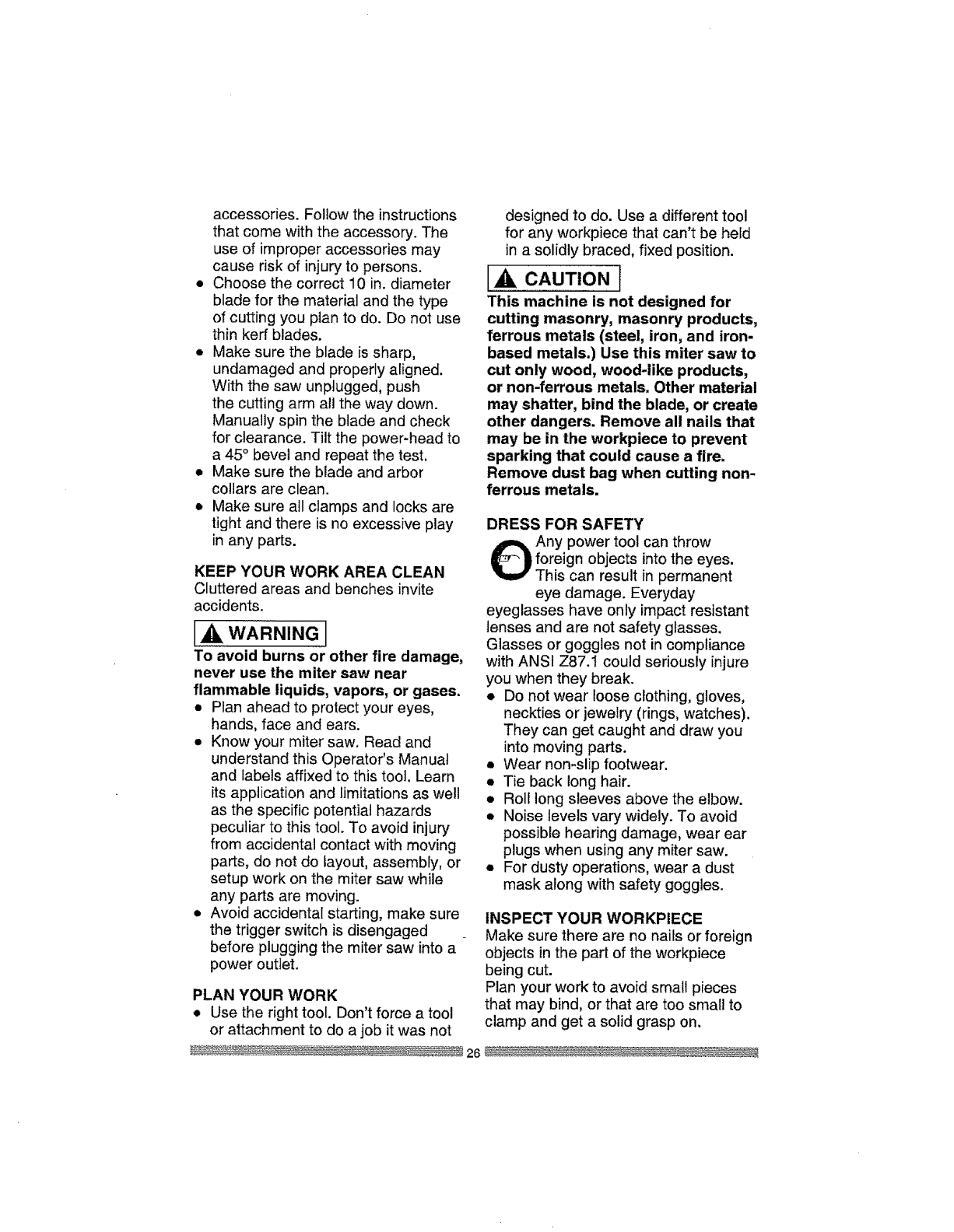

• Consult the ACCESSORIES and

ATTACHMENTS section of this

Operators Manual for recommended

accessories. Follow the instructions

that come with the accessory. The

use of improper accessories may

cause risk of injury to persons.

•Choose the correct 10 in. diameter

blade for the material and the type

of cutting you plan to do. Do not use

thin kerf blades.

• Make sure the blade is sharp,

undamaged and properly aligned.

With the saw unplugged, push

the cutting arm all the way down.

Manually spin the blade and check

for clearance. Tilt the power-head to

a 45 ° bevel and repeat the test.

• Make sure the blade and arbor

collars are clean.

•Make sure all clamps and locks are

tight and there is no excessive play

in any parts.

KEEP YOUR WORK AREA CLEAN

Cluttered areas and benches invite

accidents.

L_ILWARNING J

To avoid burns or other fire damage,

never use the miter saw near

flammable liquids, vapors, or gases.

• Plan ahead to protect your eyes,

hands, face and ears.

• Know your miter saw. Read and

understand this Operator's Manual

and labels affixed to this toot. Learn

its application and limitations as well

as the specific potential hazards

peculiar to this tool. To avoid injury

from accidental contact with moving

parts, do not do layout, assembly, or

setup work on the miter saw while

any parts are moving.

•Avoid accidental starting, make sure

the trigger switch is disengaged

before plugging the miter saw into a

power outlet.

PLAN YOUR WORK

• Use the right tool. Don't force a tool

or attachment to do a job it was not

designed to do. Use a different tool

for any workpiece that can't be held

in a solidly braced, fixed position.

[,A CAUTION 1

This machine is not designed for

cutting masonry, masonry products,

ferrous metals (steel, iron, and iron-

based metals.) Use this miter saw to

cut only wood, wood-like products,

or non-ferrous metals. Other material

may shatter, bind the blade, or create

other dangers. Remove all nails that

may be in the workpiece to prevent

sparking that could cause a fire.

Remove dust bag when cutting non-

ferrous metals.

DRESS FOR SAFETY

Any power tool can throw

foreign objects into the eyes.

This can result in permanent

eye damage. Everyday

eyeglasses have only impact resistant

lenses and are not safety glasses.

Glasses or goggles not in compliance

with ANSI Z87.1 could seriously injure

you when they break.

• Do not wear loose clothing, gloves,

neckties or jewelry (rings, watches).

They can get caught and draw you

into moving parts.

• Wear non-slip footwear.

• Tie back long hair.

• Roll long sleeves above the elbow.

• Noise levels vary widely. To avoid

possible hearing damage, wear ear

plugs when using any miter saw.

• For dusty operations, wear a dust

mask along with safety goggles.

INSPECT YOUR WORKPIECE

Make sure there are no nails or foreign

objects in the part of the workpiece

being cut.

Plan your work to avoid smatl pieces

that may bind, or that are too small to

clamp and get a solid grasp on,

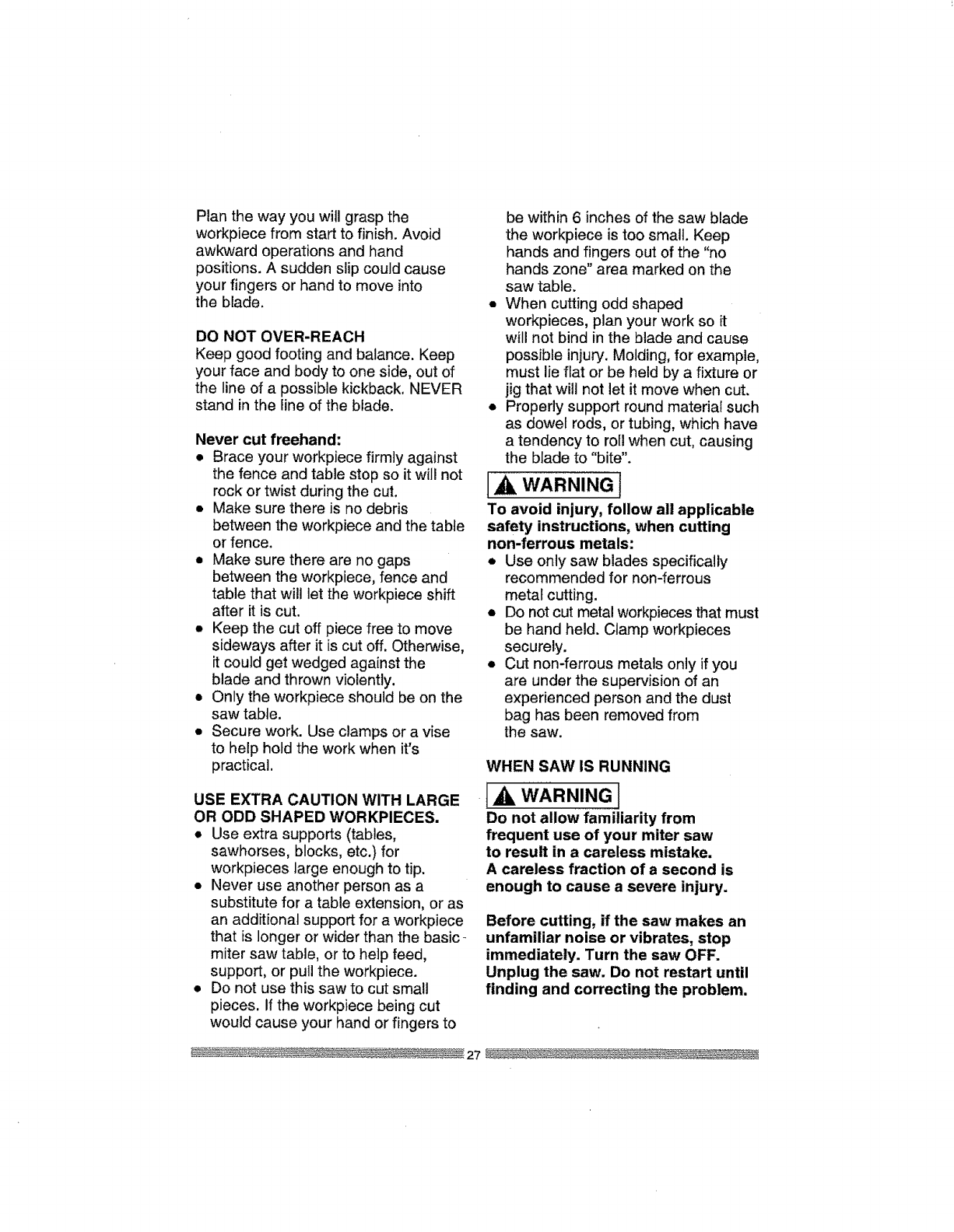

Plan the way you will grasp the

workpiece from start to finish. Avoid

awkward operations and hand

positions. A sudden slip could cause

your fingers or hand to move into

the blade.

DO NOT OVER-REACH

Keep good footing and balance. Keep

your face and body to one side, out of

the line of a possible kickback. NEVER

stand in the line of the blade.

Never cut freehand:

•Brace your workpiece firmly against

the fence and table stop so it will not

rock or twist during the cut.

• Make sure there is no debris

between the workpiece and the table

or fence.

•Make sure there are no gaps

between the workpiece, fence and

table that will let the workpiece shift

after it is cut.

•Keep the cut off piece free to move

sideways after it is cut off. Otherwise,

it could get wedged against the

blade and thrown violently.

•Only the workpiece should be on the

saw table.

•Secure work. Use clamps or a vise

to help hold the work when it's

practical.

USE EXTRA CAUTION WITH LARGE

OR ODD SHAPED WORKPIECES.

• Use extra supports (tables,

sawhorses, blocks, etc.) for

workpieces large enough to tip.

•Never use another person as a

substitute for a table extension, or as

an additional support for a workpiece

that is longer or wider than the basic-

miter saw table, or to help feed,

support, or pull the workpiece.

•Do not use this saw to cut small

pieces. If the workpiece being cut

would cause your hand or fingers to

be within 6 inches of the saw blade

the workpiece is too small. Keep

hands and fingers out of the "no

hands zone" area marked on the

saw table.

•When cutting odd shaped

workpieces, plan your work so it

will not bind in the blade and cause

possible injury. Molding, for example,

must lie flat or be held by a fixture or

jig that will not let it move when cut.

• Properly support round material such

as dowel rods, or tubing, which have

a tendency to roll when cut, causing

the blade to "bite".

[,_ WARNING t

To avoid injury, follow all applicable

safety instructions, when cutting

non-ferrous metals:

• Use only saw blades specifically

recommended for non-ferrous

metal cutting.

• Do not cut metal workpieces that must

be hand held. Clamp workpieces

securely.

• Cut non-ferrous metals only if you

are under the supervision of an

experienced person and the dust

bag has been removed from

the saw.

WHEN SAW IS RUNNING

t_ WARNING J

Do not allow familiarity from

frequent use of your miter saw

to result in a careless mistake.

A careless fraction of a second is

enough to cause a severe injury.

Before cutting, if the saw makes an

unfamiliar noise or vibrates, stop

immediately. Turn the saw OFF.

Unplug the saw. Do not restart until

finding and correcting the problem.

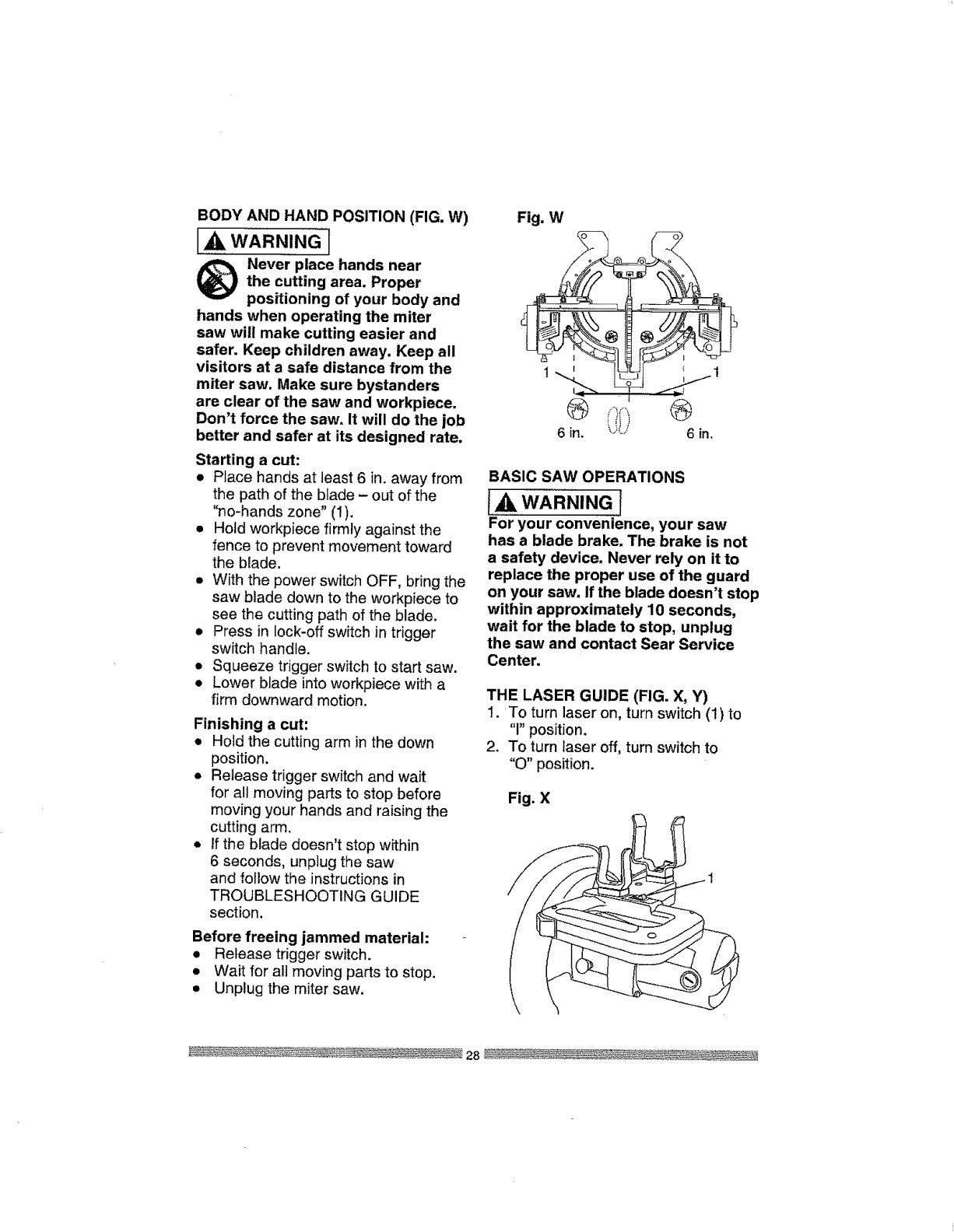

BODY AND HAND POSITION (FIG. W)

I_ WARNING I

Never place hands near

the cutting area. Proper

positioning of your body and

hands when operating the miter

saw will make cutting easier and

safer, Keep children away. Keep all

visitors at a safe distance from the

miter saw. Make sure bystanders

are clear of the saw and workpiece.

Don't force the saw. it will do the job

better and safer at its designed rate.

Starting a cut:

• Place hands at least 6 in. away from

the path of the blade - out of the

"no-hands zone" (1).

• Hold workpiece firmly against the

fence to prevent movement toward

the blade.

• With the power switch OFF, bring the

saw blade down to the workpiece to

see the cutting path of the blade.

• Press in lock-off switch in trigger

switch handle.

• Squeeze trigger switch to start saw.

• Lower blade into workpiece with a

firm downward motion.

Finishing a cut:

• Hold the cutting arm in the down

position.

• Release trigger switch and wait

for all moving parts to stop before

moving your hands and raising the

cutting arm.

• If the blade doesn't stop within

6 seconds, unplug the saw

and follow the instructions in

TROUBLESHOOTING GUIDE

section.

Before freeing jammed material:

• Release trigger switch.

• Wait for all moving parts to stop.

• Unplug the miter saw.

Fig. W

BASIC SAW OPERATIONS

!,A WARNING I

For your convenience, your saw

has a blade brake. The brake is not

a safety device. Never rely on it to

replace the proper use of the guard

on your saw. If the blade doesn't stop

within approximately 10 seconds,

wait for the blade to stop, unplug

the saw and contact Sear Service

Center.

THE LASER GUIDE (FIG. X, Y)

1. To turn laser on, turn switch (1) to

"r' position.

2. To turn laser off, turn switch to

"0" position.

Fig. X

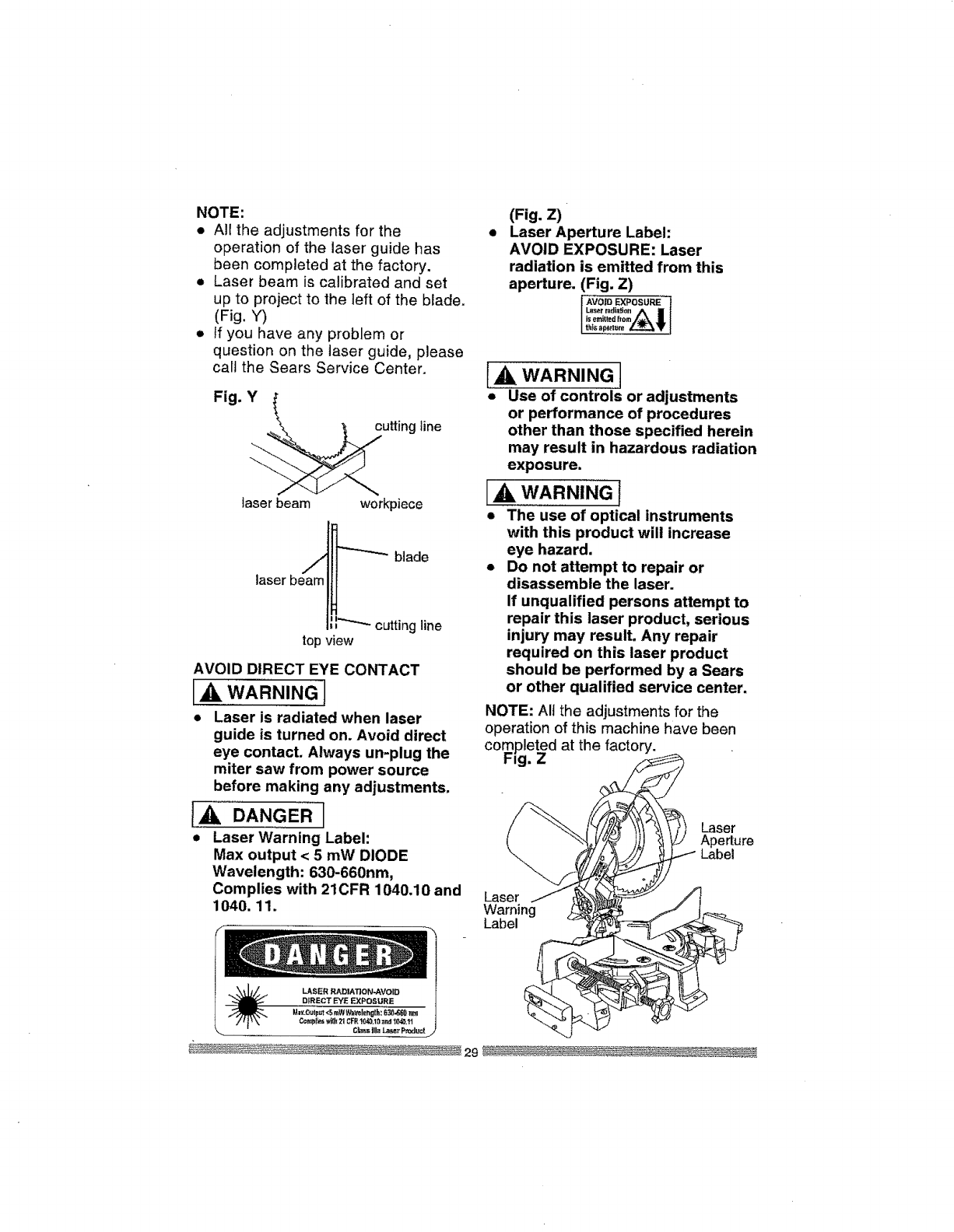

NOTE:

• All the adjustments for the

operation of the laser guide has

been completed at the factory.

• Laser beam is calibrated and set

up to project to the left of the blade,

(Fig. Y)

• tf you have any problem or

question on the laser guide, please

call the Sears Service Center,

Fig. Y(

'_ _ cutting tine

laser beam workpiece

laser beam

top

_--_""" blade

II""-_ cutting line

riew

AVOID DIRECT EYE CONTACT

I_ WARNING 1

+Laser is radiated when laser

guide is turned on, Avoid direct

eye contact, Always un-plug the

miter saw from power source

before making any adjustments,

(Fig. Z)

Laser Aperture Label:

AVOID EXPOSURE: Laser

radiation is emitted from this

aperture. (Fig. Z)

iAVOID EXPOSURE

L.s_rm0ia_a.A 1 }

is emitted from

I,++o+

l_ WARNING]

•Use of controls or adjustments

or performance of procedures

other than those specified herein

may result in hazardous radiation

exposure.

_IL WARNING I

+The use of optical instruments

with this product will increase

eye hazard.

•Do not attempt to repair or

disassemble the laser.

If unqualified persons attempt to

repair this laser product, serious

injury may result. Any repair

required on this laser product

should be performed by a Sears

or other qualified service center.

NOTE: All the adjustments for the

operation of this machine have been

completed at the factory.

Mg. Z

IA DANGER I

•Laser Warning Label:

Max output < 5 mW DIODE

Wavelength: 630-660nm,

Complies with 21CFR 1040,10 and

1040, 11. Laser

Warning

Label

Laser

Ape_ure

Label

....

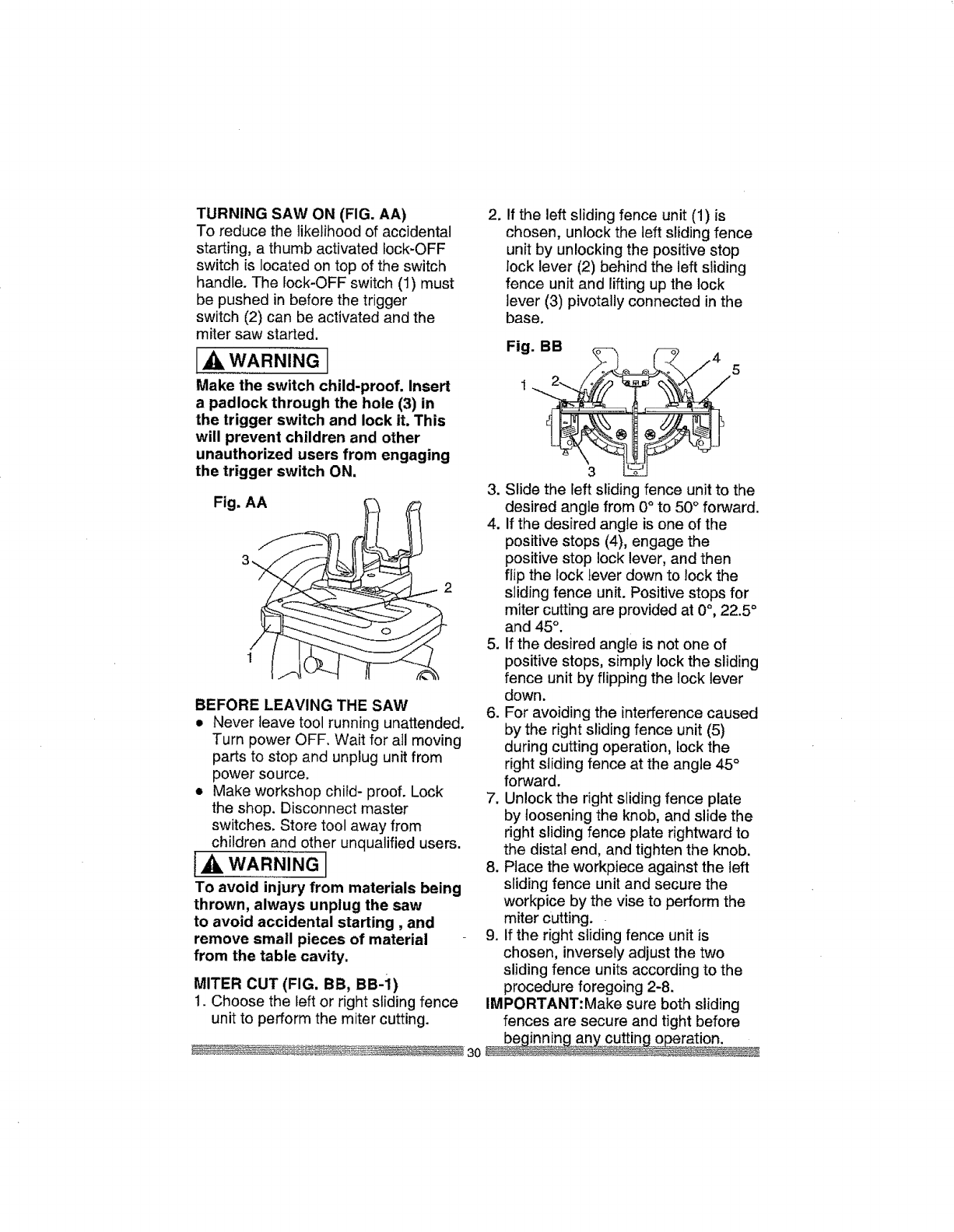

TURNING SAW ON (FIG. AA)

To reduce the likelihood of accidental

starting, a thumb activated lock-OFF

switch is located on top of the switch

handle. The lock-OFF switch (1) must

be pushed in before the trigger

switch (2) can be activated and the

miter saw started.

I,_ WARNING ]

Make the switch child-proof. Insert

a padlock through the hole (3) in

the trigger switch and lock it. This

will prevent children and other

unauthorized users from engaging

the trigger switch ON.

Fig. AA

BEFORE LEAVING THE SAW

• Never leave tool running unattended.

Turn power OFF. Wait for all moving

parts to stop and unplug unit from

power source.

• Make workshop child- proof. Lock

the shop. Disconnect master

switches. Store tool away from

children and other unqualified users.

WARNING I

To avoid injury from materials being

thrown, always unplug the saw

to avoid accidental starting, and

remove small pieces of material

from the table cavity.

MITER CUT (FIG. BB, BB-i)

1. Choose the left or right slidingfence

unit to perform the miter cutting.

,If the left sliding fence unit (1) is

chosen, unlock the left sliding fence

unit by unlocking the positive stop

lock lever (2) behind the left sliding

fence unit and lifting up the lock

lever (3) pivotally connected in the

base.

3. Slide the left sliding fence unit to the

desired angle from 0° to 50 ° forward.

4. If the desired angle is one of the

positive stops (4), engage the

positive stop lock lever, and then

flip the lock lever down to lock the

sliding fence unit. Positive stops for

miter cutting are provided at 0°, 22.5 °

and 45 °.

5. If the desired angle is not one of

positive stops, simply lock the sliding

fence unit by flipping the lock lever

down.

6. For avoiding the interference caused

by the right sliding fence unit (5)

during cutting operation, lock the

right sfiding fence at the angle 45 °

forward.

7. Unlock the right sliding fence plate

by loosening the knob, and slide the

right sliding fence plate rightward to

the distal end, and tighten the knob.

8. Place the workpiece against the left

sliding fence unit and secure the

workpice by the vise to perform the

miter cutting.

9. if the right sliding fence unit is

chosen, inversely adjust the two

sliding fence units according to the

procedure foregoing 2-8.

IMPORTANT:Make sure both sliding

fences are secure and tight before

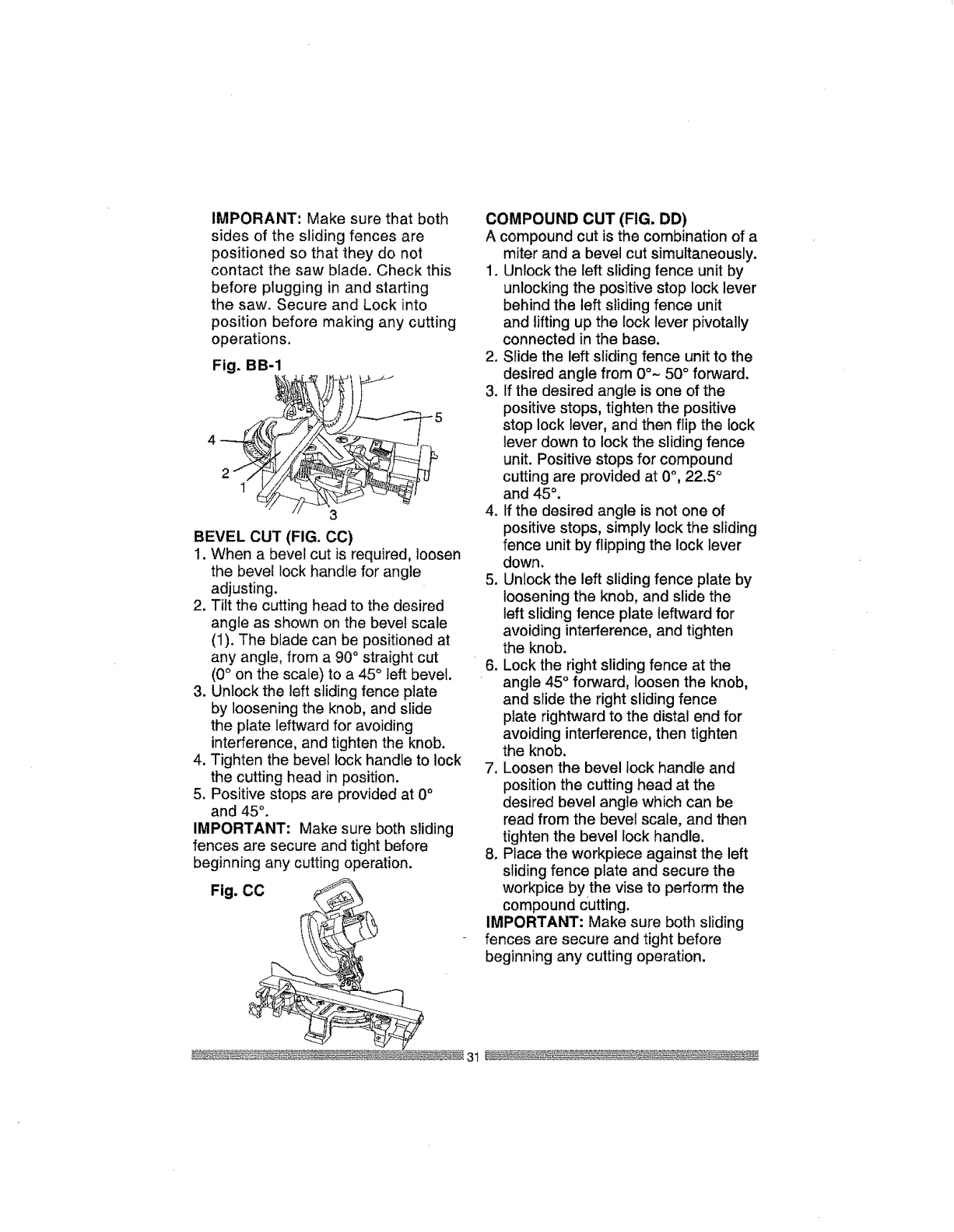

IMPORANT: Make sure that both

sides of the sliding fences are

positioned so that they do not

contact the saw blade. Check this

before plugging in and starting

the saw. Secure and Lock into

position before making any cutting

operations.

Fig. BB-1

BEVEL CUT (FIG. CC)

1. When a bevel cut is required, loosen

the bevel lock handle for angle

adjusting.

2. Tilt the cutting head to the desired

angle as shown on the bevel scale

(1). The blade can be positioned at

any angle, from a 90°straight cut

(0° on the scale) to a 45° Deftbevel.

3. Unlock the left sliding fence plate

by loosening the knob, and slide

the plate leftward for avoiding

interference, and tighten the knob.

4. Tighten the bevel lock handle to lock

the cutting head in position.

5. Positive stops are provided at 0°

and 45%

IMPORTANT: Make sure both sliding

fences are secure and tight before

beginning any cutting operation.

Fig. CO I __

COMPOUND CUT (FIG. DD)

Acompound cut is the combination of a

miter and a bevel cut simultaneously.

1. Unlock the left sliding fence unit by

unlocking the positive stop lock lever

behind the left sliding fence unit

and lifting up the lock lever pivotally

connected tn the base.

2. Slide the left sliding fence unit to the

desired angle from 0°- 50° forward.

3. If the desired angle is one of the

positive stops, tighten the positive

stop lock lever, and then flip the lock

lever down to lock the sliding fence

unit. Positive stops for compound

cutting are provided at 0°, 22.5 °

and 45 °.

4. If the desired angle is not one of

positive stops, simply lock the sliding

fence unit by flipping the lock lever

down.

5. Unlock the left sliding fence plate by

loosening the knob, and slide the

left sliding fence plate leftward for

avoiding interference, and tighten

the knob.

6. Lock the right sliding fence at the

angle 45° forward, loosen the knob,

and slide the right sliding fence

plate rightward to the distal end for

avoiding interference, then tighten

the knob.

7. Loosen the bevel lock handle and

position the cutting head at the

desired bevel angle which can be

read from the bevel scale, and then

tighten the bevel lock handle.

8. Place the workpiece against the left

sliding fence plate and secure the

workpice bythe vise to perform the

compound cutting.

IMPORTANT: Make sure both sliding

fences are secure and tight before

beginning any cutting operation.

Fig. DD

WORKPIECE SUPPORT AND

REPETITIVE CUTTING USING THE

STOP PLTAE (FIG. EE)

Long workpieces need to be supported

by the extension wing.

1. Slide the extension wing to desired

position and tighten the knob.

2. The stop plate (1) is designed for

use during repetitive cutting. Only

use one stop plate a time. To use

this function, simply rotate the stop

plate to vertical position.

Fig. EE

SETTING UP THE TABLES FOR

ANGLE CUTS USING THE ANGLE

FINDER (FIG. FF, GG)

The MiterMate TM accurate angle cutting

is suited to do with the fact that most

walls and ceiling are not 90 degrees to

each other, and so you can make the

accurate angles for fewer miscut and

quicker task completion.

Using the MiterMate TM angle finder

to copy a corner angle:

t. Unlock the MiterMate TM angle finder

by loosening the knob (1), open up

the paddles (2) to copy the corner

angle.

Fig, FF

For inside corner, adjust the

paddles to make the angle (X1)

between two paddles larger than

the inside corner angle(X2), and

then butt each paddle flat against

the wall surface.

For outside comer, adjust the

paddles to make the angle (Y1)

between two paddles smaller than

the outside corner angle (Y2), and

then utt each paddle fiat against

the wall surface.

Fig. GG

Inside Corner Outside Comer

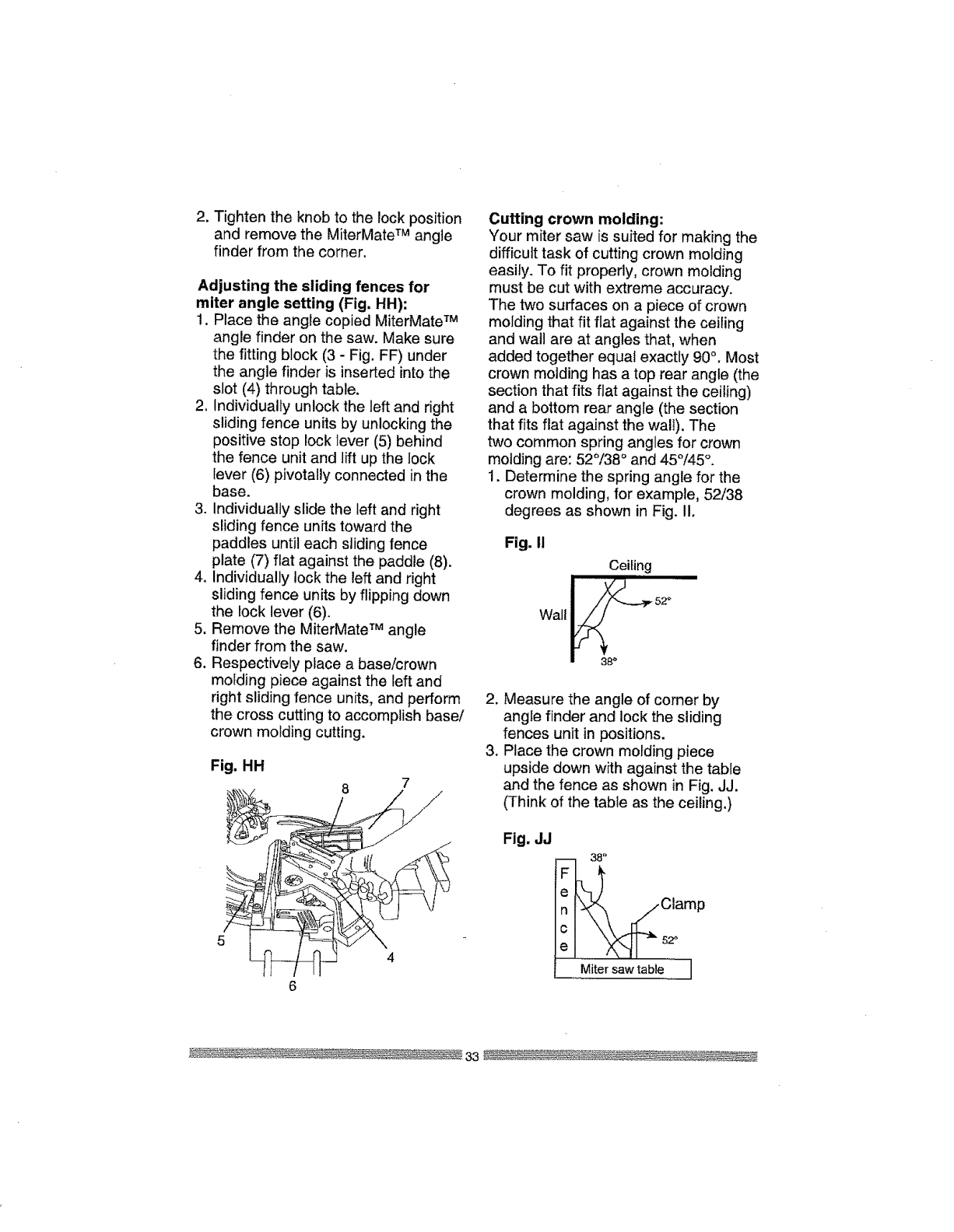

2. Tighten the knob to the lock position

and remove the MiterMate TM angle

finder from the corner,

Adjusting the sliding fences for

miter angle setting (Fig, HH):

1. Place the angle copied MiterMate TM

angle finder on the saw. Make sure

the fitting block (3 - Fig. FF) under

the angle finder is inserted into the

slot (4) through table.

2. Individually unlock the left and right

sliding fence units by unlocking the

positive stop lock lever (5) behind

the fence unit and lift up the lock

lever (6) pivotally connected in the

base.

3. Individually slide the left and right

sliding fence units toward the

paddles until each sliding fence

plate (7) flat against the paddle (8),

4, IndMdually lock the left and right

sliding fence units by flipping down

the Iock lever (6).

5, Remove the MiterMate TM angle

finder from the saw,

6. Respectively p_ace a base/crown

molding piece against the left and

right sliding fence units, and perform

the cross cutting to accomplish base/

crown molding cutting.

Fig. HH 7/

Cutting crown molding:

Your miter saw is suited for making the

difficult task of cutting crown molding

easily. To fit properly, crown molding

must be cut with extreme accuracy.

The two surfaces on a piece of crown

molding that fit flat against the ceiling

and walt are at angles that, when

added together equat exactly 90°, Most

crown molding has a top rear angle (the

section that fits flat against the ceiling)

and a bottom rear angle (the section

that fits flat against the wall). The

two common spring angles for crown

molding are: 52°/38 °and 45°/45 °.

1. Determine the spring angle for the

crown molding, for example, 52/38

degrees as shown in Fig. II.

Fig. I1

Wall

Ceiling

iii

52 _

I38 °

2. Measure the angle of corner by

angle finder and lock the sliding

fences unit in positions,

3. Place the crown molding piece

upside down with against the table

and the fence as shown in Fig. JJ.

(Think of the table as the ceiling.)

Fig. JJ

F-_ 38°

iI__ lamp

s2"

Miter saw table I

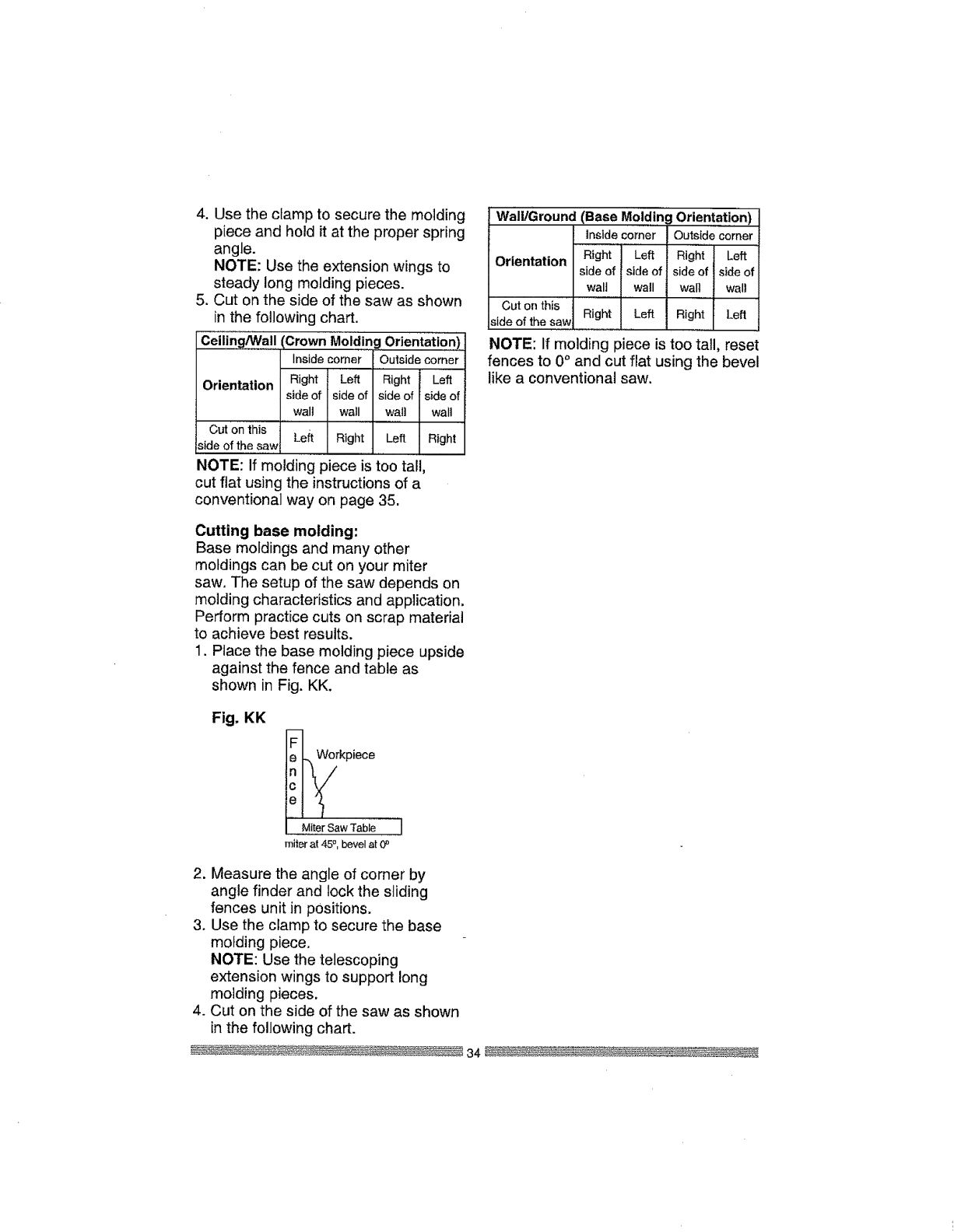

4. Use the clamp to secure the molding

piece and hold it at the proper spring

angle.

NOTE: Use the extension wings to

steady long molding pieces.

5. Cut on the side of the saw as shown

in the following chart.

CeilingP_a!,!,'(Crown Molding,Orientationi

Inside corner Outside corner

Orientation Right Left Right Left

side of side of side of side of

wall wall wall walt

Cut on this Left Right Left Right

side of the saw

NOTE: If molding piece is too tall,

cut flat using the instructionsof a

conventional way on page 35.

Cutting base molding:

Base moldings and many other

moldings can be cut on your miter

saw. The setup of the saw depends on

molding characteristics and application.

Perform practice cuts on scrap material

to achieve best results.

1. Place the base molding piece upside

against the fence and table as

shown in Fig. KK.

Fig, KK

Workpiece

Wall/Ground (Base MoldingOrientation)

Inside corner Outside corner

Orientation Right Left Right Left

side of ! side of side of side of

wall wall walt wall

Cut on this

side of the saw Right Left Right Left

NOTE: If molding piece is too tall, reset

fences to 0° and cut flat using the bevel

like a conventional saw.

Miter Saw Table I

miler at 45°, bevel at 0_

2. Measure the angle of corner by

angle finder and lockthe sliding

fences unit in positions.

3. Use the clamp to secure the base

molding piece.

NOTE: Use the telescoping

extension wings to support long

molding pieces.

4. Cut on the side of the saw as shown

in the following chart.

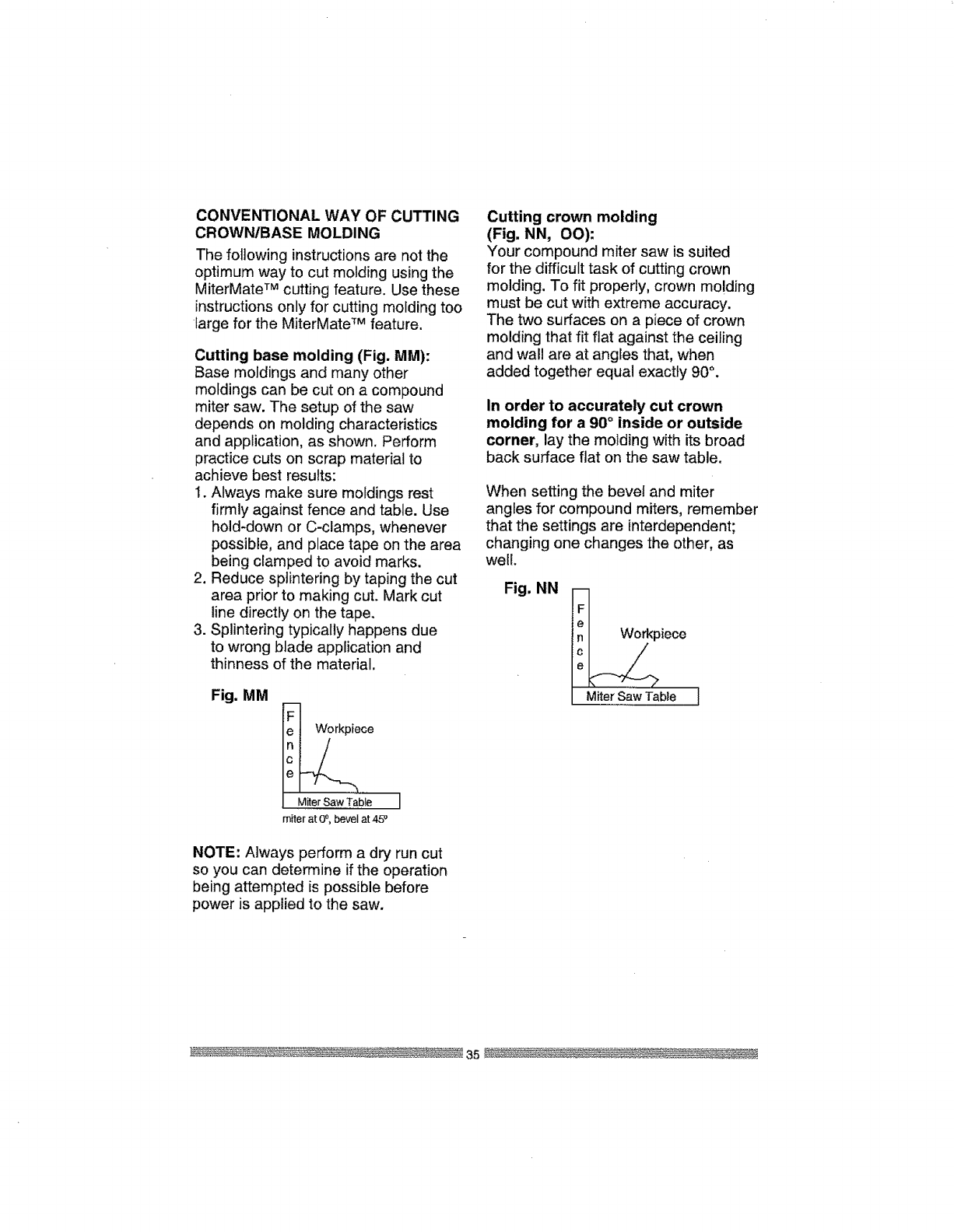

CONVENTIONAL WAY OF CUTTING

CROWNtBASE MOLDING

The following instructions are not the

optimum way to cut molding using the

MiterMate TM cutting feature. Use these

instructions only for cutting molding too

large for the MiterMate TM feature.

Cutting base molding (Fig. MM):

Base moldings and many other

moldings can be cut on a compound

miter saw. The setup of the saw

depends on molding characteristics

and application, as shown. Perform

practice cuts on scrap material to

achieve best results:

1. Always make sure moldings rest

firmly against fence and table. Use

hold-down or C-clamps, whenever

possible, and place tape on the area

being clamped to avoid marks.

2. Reduce splintering by taping the cut

area prior to making cut. Mark cut

line directly on the tape.

3. Splintering typically happens due

to wrong blade application and

thinness of the material.

Fig. MM

miter at 0°, bevel at 450

NOTE: Always perform a dry run cut

so you can determine if the operation

being attempted is possible before

power is applied to the saw.

Cutting crown molding

(Fig, NN, OO):

Your compound miter saw is suited

for the difficult task of cutting crown

molding. To fit property, crown molding

must be cut with extreme accuracy.

The two surfaces on a piece of crown

molding that fit flat against the ceiling

and wall are at angles that, when

added together equal exactly 90°.

In order to accurately cut crown

molding for a90 ° inside or outside

corner, lay the molding with its broad

back surface flat on the saw table.

When setting the bevel and miter

angles for compound miters, remember

that the settings are interdependent;

changing one changes the other, as

well.

Fig. NN

Workpiece

Miter Saw Table

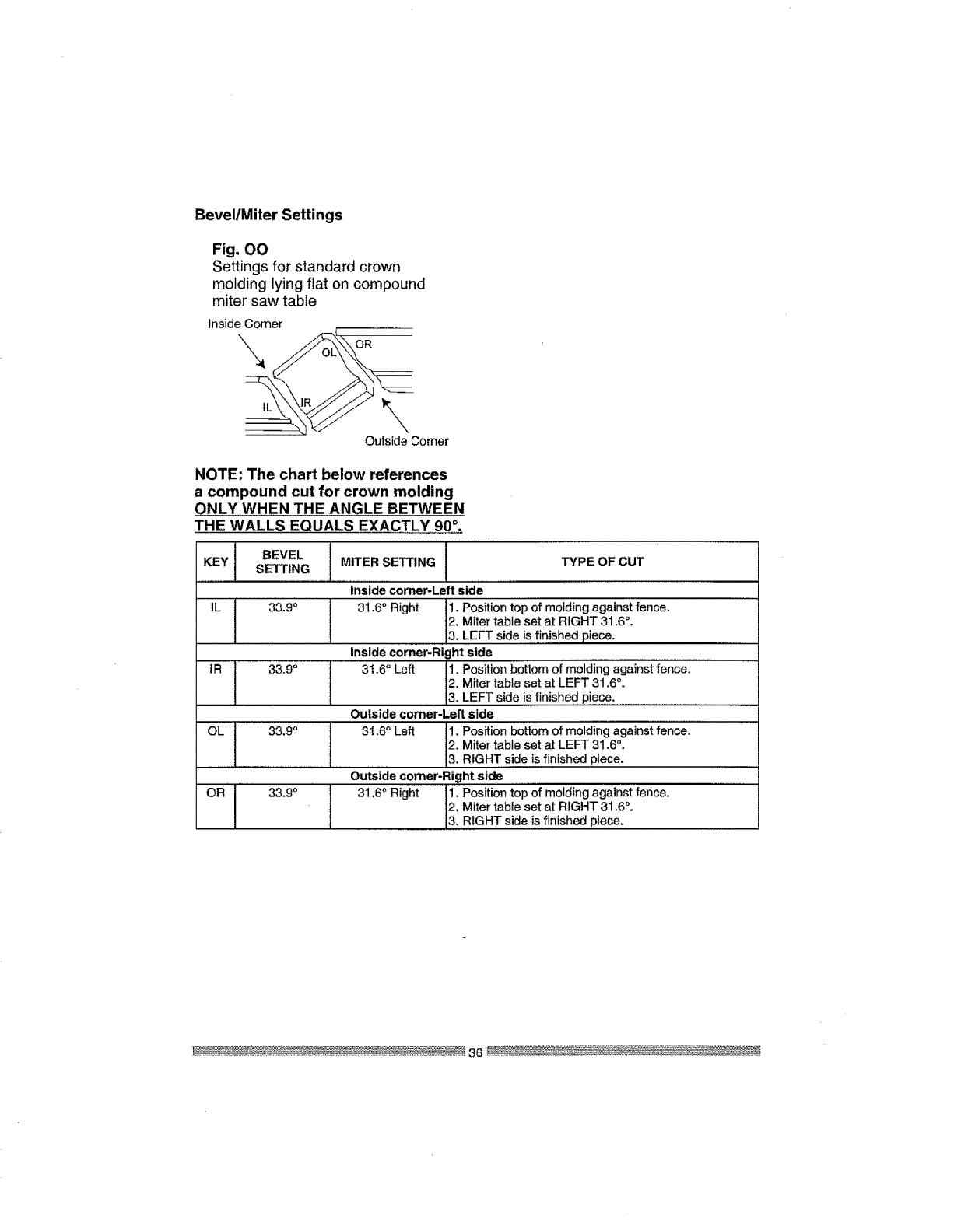

Bevel/Miter Settings

Fig. OO

Settings for standard crown

molding lying flat on compound

miter saw table

Inside Corner

Outside Corner

NOTE: The chart below references

a compound cut for crown molding

ONLY WHEN THE ANGLE BETWEEN

THE WALLS EQUALS EXACTLY 90°.

BEVEL

KEY SETTING

IL 33,9 °

IR 33.9 °

OL 33.9 °

OR 33.9 °

MITER SETTING TYPE OF CUT

Inside corner-Left side

31.6 ° Right t. Position top of molding against fence_

2. Miter table set at RIGHT 31.6 °.

3, LEFT side is f.,!nished piece. ,.......

Inside corner-Right side

3t .6_ Left t. Position bottom of melding against fence.

2. Miter table set at LEFT 31.6 °.

3. LEFT side is finished piece_

Outside comer-Left side

31,6 ° Left t. Position bottom of m0iding against fencel ...........

2. Miter table set at LEFT 31.6 °.

3. RIGHT side is finished piece.

Outside corner-Right side ......... ..............

31.6 ° Right t, Position top of molding against fence.

2. Miter tabfe set at RIGHT 31,6 °.

3. RIGHT side is finished piece.

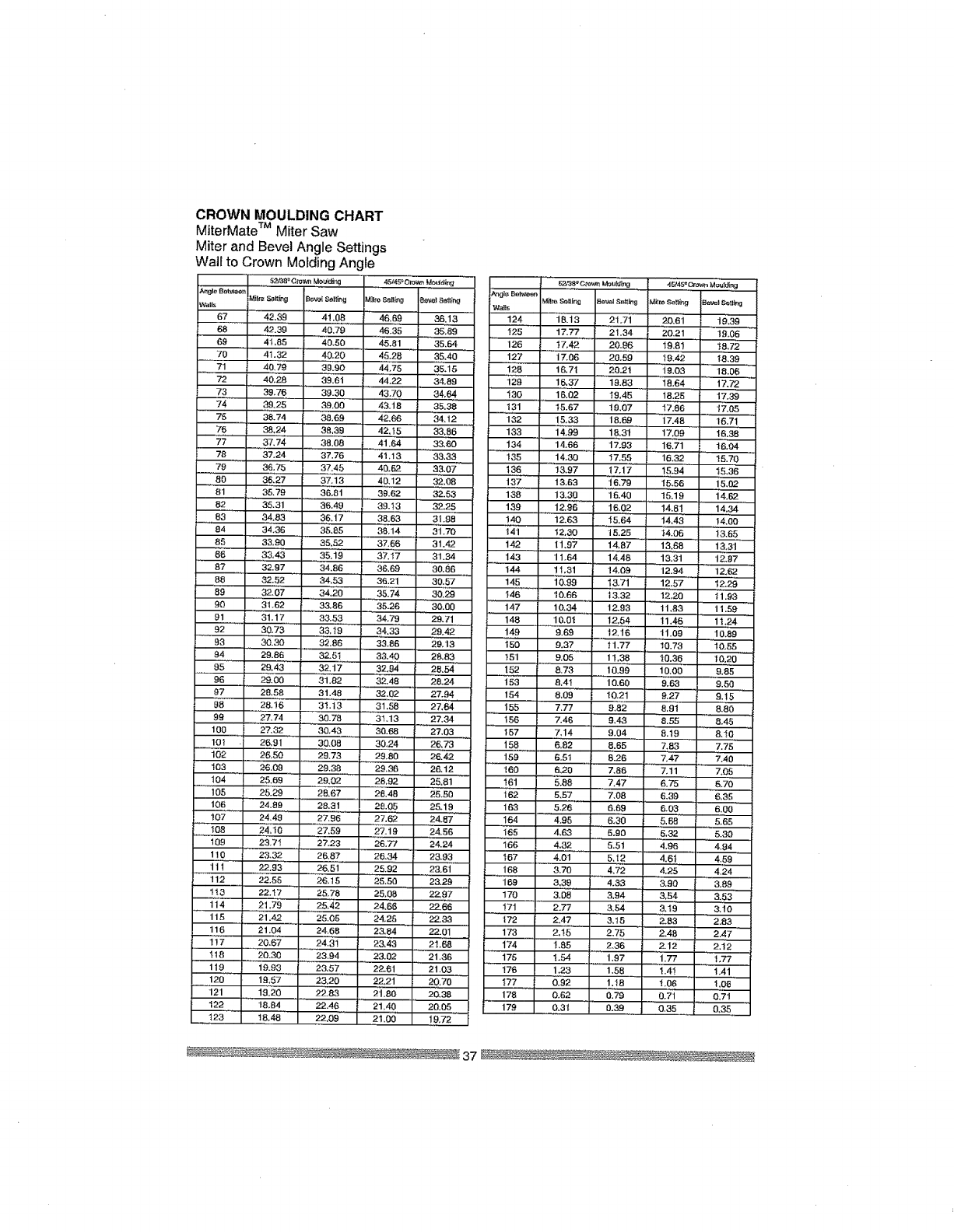

CROWN MOULDING CHART

MiterMate TM Miter Saw

Miter and Bevel Angle Settings

Wail to Crown Molding Angle

,57J38_C_r__di_ ............45;45_01oWn_u]dir*_f

A_81_8_lwael_

Walls

67 42.39 4! .08 4&69 36.13

68 42.39 40.79 46.35 36189

69 41.85 40,50 45.81 36.64

70 41.32 40,20 45.28 35,40

71 40,79 '3&90 44,75 3&15

........72 40,28 '3_).61 44,22 34.89

73, 39,76, 39.30 43,70 34,64

74 39.25 39,00 43,18 35,38

75 38,74 38.69 42.e6 34,12

76 36.24 38.39 42.15 33,86

77 37.74 38.08 41.64 33.60

78 37.24 37.76 4143 33.33

79 36,75 37,45 40,62 33.07

80 36.27 37,13 40,12 32,08

81 35.79 36.81 39.62 32_53

82 35.31 36,49 39.13 32.25

83 34.83 36.17 3&63 3t,98

84 34,36 35.85 36,14 3t.70

85 33,90 35.52 37.68 31.42

6_ 33,4 _._9 _7._7 3_._

87 82.97 34.86 36.69 30.86

88 32.52 3433 36.21 30.57

89 32.07 34.20 35.74 30.29

90 31_62 33.86 35,26 30.00

91 31,17 33.53 34`79 29.71

92 30,73 3& 19 34,33 29,42

93 30.30 32,66 33.86 29,13

94 29.86 32,51 33.40 28,83

95 2&43 32,17 32.94 28,54

96 29,00 31.82 32.48 28.24

97 28.58 31.48 32.02 27.94

98 28.16 31.t3 31.58 27,64

99 27.74 30,78 31.13 27.34

100 27.32 30,43 30.68 27.03

101 26,91 30.08 30,24 26.73

102 2&50 28.73 2930 26.42

103 26,09 29.38 29,36 26.12

t 04 25,69 29,02 28,92 25,81

106 25.29 28.67 28.48 25,50

106, 24.89 ,;2,8,:,3,!, 28.05 25,19 --

107 24.49 27_96 27.62 24,87

108 24.10 27.59 27,19 24.56

109 23,7t 27.23 26.77 24.24

1!0 23,32 ' 26,87 26,34 23.93,,,

111 22,93 26,51 25.92 2&61

112 22.55 26,18 ..........25.50 23.29

113 22,1;7 2.5,78 25,08 22,,07

114 21 39 25,42 24,66 22.66

115 21.42 25.05 24.25 22.33

t 16 21.04 24.6,8 23.84 22.01

1!7 20.67 24.3! 2&43 2I_68

118 20.30 23.94 23.02 21.36

119 .... 19.93 23.57 .... 22.61 21.03

120 19,57 23,20 22.21 20,70

121 19,20 22.83 21,80 20.38

122 1834 22.46 21_40 20.05

123 ! 8,48 22,09 21,00 19,72

52_.a,_Gtew_Meu_n,g.......... 45_45_cro_mM<_ulding

t_g_oBolwe_r_

W_JIs

124 18.t3 21,7i ' 20.61 19',39

!25 17.77 21,34 20.21 19,06

126 17,42 2Q:_6 19._! t8.72

127 t7,06 20,59 1&42 18,39

128 16. 7i 20.21 19.03 18.06

129 16,37 19.83 18.64 17.72

130 .......... 16.02 19,45 ,,!,,8.25 17,39

131 15.67 !9.07 I7.86 !7,05

132 15.33 18,69 17.48 16,71

133 14`99 183t 17,09 16,38

134 14,66 17.93 1&71 16.04

!35 14,30 I7.55 16,32 15.70

136 13.97 17.17 15.94 1;,5,36

137 13.63 16,79 15,56 15.02

138.... 13,30 i&40 _&19 14.62

139 ...... 12.96 16;02 14.81 14.34

140 12.63 I5.64 14.43 14.00

I41 12.30 '15.25 14.06 .................i3.65

142 l 1.97 14. 87 13.68 1331

1;43 1;1.64 14,46 13.31 12,97

144 11,31 14,09 12.94 12,&?,

145 10,99 13,71 12.57 12.29

I46 10,66 t3.32 12,20 ll.93

147 10,34 .......... 12.93 11,83 11.59

148 10,01 12,54 11.46 11,24

149 9.69 t2.16 11.09 10,89

...................:15;0 9,37 11.77 10.73 '10,55 ............

151 9,05 11,_38 I0.36 10.20

152 &73 10.99 10.00 9.85

153 9,41 10,60 9,63 ..............9.50

184 8,09 10.21 9.27 9.t5

155 7,77 9,82 ....819':1 8.80

t56 7.46 9.43 8.55 8,4-5

157 7,14 9.04 8.19 8,I0

158 6.82 8.65 7,83 7.75

159 6.51 8.26 7,47 7.40

1;60 6,20 7.8_ 7,11 7.05

161 5.88 7,47 6.75 6.70

!62 5,57 7,08 6.39 6.35

163 5.26 6,69 6,03 6.00

164 4,95 6,30 5. 68 5, 65

165 4,63 5,90 5.32 5.30

t66 4,32 ..... 5.51 4.96 4.94

t67 ............4.01 5.t2 4.6t 4.59

168 3.70 4.72 4.25 4,24

169 3,39 4.33 3.90 3.89

170 3,08 3,94 3,54 &53

!71 2.77 3.54 3,19 3.10

172 2,47 3.! 5 2.83 2.83

173 2,15' I 2.75 2,48 2.47

174 !,85 2.36 2.12 2.12

175 !.54 1.97 1.77 1,77

!76 1.23 1.58 1.4t 1,41

1;77 032 1.,t8 "{ .06 1,08

178 0.62 ....................0.79 0.71 ..... 0.71

179 03l 0.39 0,35 &35

MAINTENANCE

t_k_ DANGER 1

To avoid injury, never put lubricants

on the blade while it is spinning.

_, WARNING]

•To avoid fire or toxic reaction,

never use gasoline, naphtha

acetone, lacquer thinner or

similar highly volatile solvents to

clean the miter saw.

•To avoid injury from unexpected

starting or electrical shock,

unplug the power cord before

working on the saw.

•For your safety, this saw is

double-insulated. To avoid

electrical shock, fire or injury,

use only parts identical to

those identified in the parts

list. Reassemble exactly as

the original assembly to avoid

electrical shock.

REPLACING CARBON BRUSHES

(FIG. PP)

Replace both carbon brushes when

either has less than 1/4 in. length of

carbon remaining, or if the spring or

wire is damaged or burned. To inspect

or replace brushes, first unplug the

saw. Then remove the black plastic

cap (1) on the side of the motor (2).

Remove the cap cautiously, because

it is springloaded. Then pull out the

brush and replace. Replace for the

other side. To reassemble reverse the

procedure. The ears on the metal end

of the assembly go in the same hole

the carbon part fits into. Tighten the

cap snugly, but do not overtighten.

NOTE: To reinstall the same brushes,

first make sure the brushes go back in

the way they came out. This will avoid

a break-in period that reduces motor

performance and increases wear.

Fig. PP(_2

LOWERING BLADE GUARD

Do not use the saw without the lower

blade guard. The lower blade guard is

attached to the saw for your protection.

Should the lower guard become

damaged, do not use the saw until the

damaged guard has been replaced.

Develop aregular check to make sure

the lower guard is working properly.

Also check before each use that all

bolt!screws are tight.Clean the lower

guard of any dust or buildup with a

damp cloth.

I,_ WARNING t

* When cleaning the lower guard,

unplug the saw from the power

source receptacle to avoid

unexpected startup.

• Do not use solvents on the

guard. They could make the

plastic "cloudy" and brittle.

EMPTYING SAWDUST BAG

Periodically, sawdust will accumulate

under the work table and base. This

could cause difficulty in the movement

of the worktable when setting up

a miter cut. Frequently blow out or

vacuum up the sawdust.

I.A WARNING 1

Wear proper eye protection to keep

debris from entering eyes when

removing sawdust from unit.

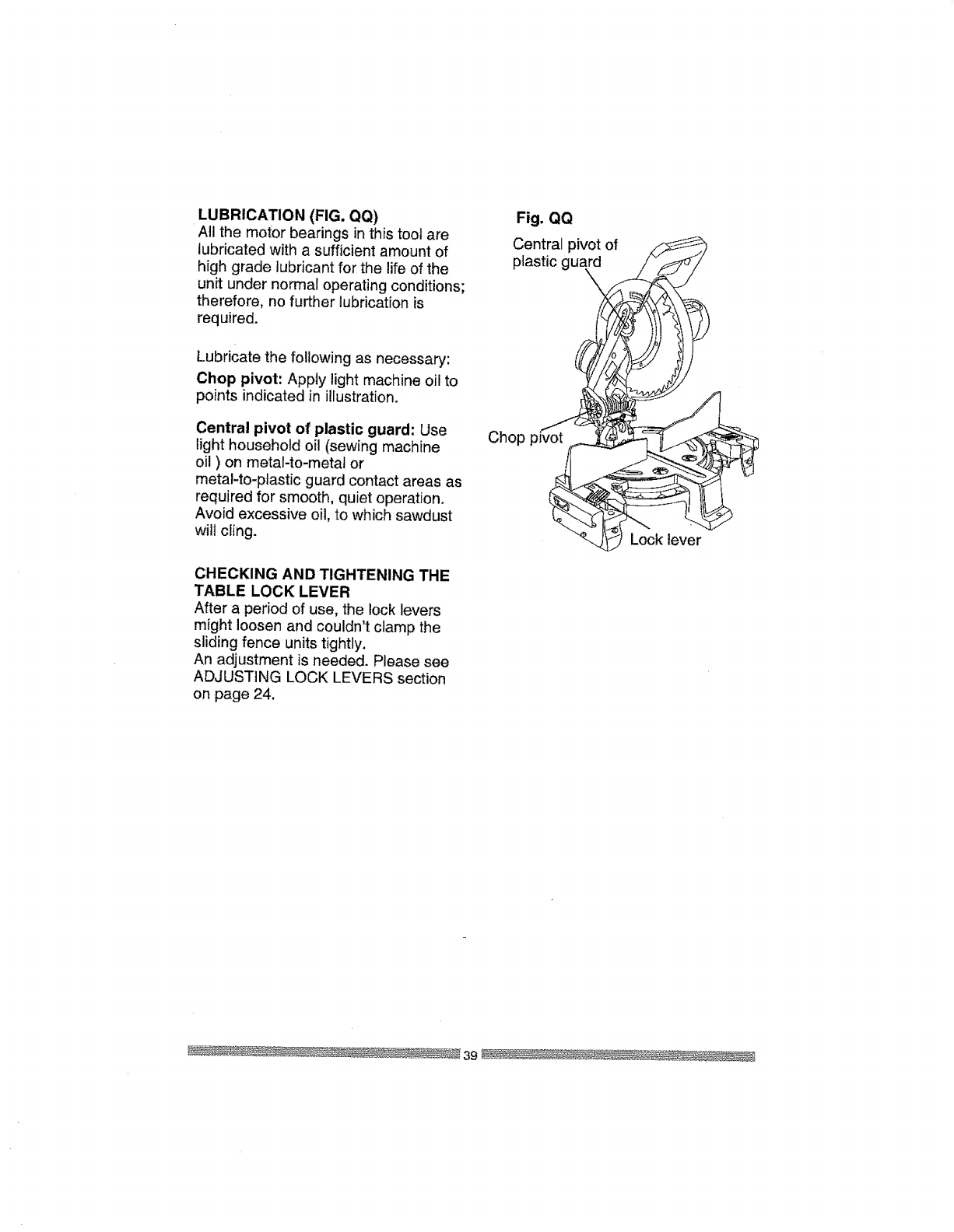

LUBRICATION(FIG.QQ)

All the motor bearings in this tool are

lubricated with a sufficient amount of

high grade lubricant for the life of the

unit under normal operating conditions;

therefore, no further lubrication is

required.

Lubricate the following as necessary:

Chop pivot: Apply light machine oil to

points indicated in illustration.

Central pivot of plastic guard: Use

light household oil (sewing machine

oil ) on metal-to-metal or

metal-to-plastic guard contact areas as

required for smooth, quiet operation.

Avoid excessive oil, to which sawdust

will cling.

CHECKING AND TIGHTENING THE

TABLE LOCK LEVER

After a period of use, the lock levers

might loosen and couldn't clamp the

sliding fence units tightly.

An adjustment is needed. Please see

ADJUSTING LOCK LEVERS section

on page 24.

Fig, QQ

Central pivot of ,_ _)_

Chop pivo'_t

Lock lever

_IL WARNING.

To avoid injury from accidental starting, always turn switch OFF and unplug

the tool before moving, replacing the blade or making adjustments.

TROUBLESHOOTING GUIDE -MOTOR

PROBLEM PROBLEM CAUSE

t. Motor brushes not sealed or

lightly sticking.

2. Motor brake overheated from use

of defective or wrong size blade

or rapid ON/OFF cycling.

3. Arbor bolt loose.

4. Brushes cracked, damaged, etc.

5. Other.

Brake does

notstop

blade wffhin 6

seconds.

Motor does not

start

ii '"Limit switch failure

2. Brush worn.

3. Fuse blown or circuit breaker

tripped on home panel.

SUGGESTED CORRECTIVE ACTION

1. Inspect/clean/replace brushes. See

MAINTENANCE section.

2. Use a recommended blade. Let cool down.

See REMOVING OR INSTALLING THE

BLADE section,

3. Retighten. See REMOVING OR

INSTALLING THE BLADE section.

4. Replace brushes.

5. Contact Sears Service Center.

1, Replace limit switch.

2. Replace brushes. See MAINTENANCE

section.

3. Verify there is electrical power at the

outlet.

1. Replace brushes. See MAINTENANCE

section.

2. Contact Sears Service Center.

Brush spark 1. Brush worn.

when switch 2. Other.

released.

TROUBLESHOOTING GUIDE - SAW OPERATION

PROBLEM PROBLEM €,_IJSI= ..........................SUGGESTED CORRECTIVE Ad'TIoN

Blade hits table. 1. Misalignment_ 1. See ADJUSTMENT- CUTTING ARM

TRAVEL section.

1. Miter table u'ni0cked. .... 1'_See OPERATION- Miter Angle

2. Sawdust under table. Adjustment section.

2. Vacuum or blow out dust. WEAR EYE

PROTECTION.

Loose pivot points. 1. Contact Sears Service Center. ',,,,

Pivot spring not replaced 1. Clean and lubricate moving parts.

properly after service. 2. Contact Sears Service Center.

Sawdust build-up.

Angle of cut not

accurate. Can not

adjust miter.

wobb!es'1,

Cutting arm will not 1.

fully raise, or blade

guard 2.

won't fully close.

Blade binds, jams, 1.

burns wood, 2,

Saw vibrates or !.

shakes.

mpro'; ';'operation.

Dull or warped blade.

Improper blade size.

Wood is moving during cut.

1. See BASIC SAW OPEFIATION section.

2. Replace or sharpen blade.

3. Replace with 10 in. diameter blade.

4. Use clamp to secure workpiece to

fenceunit and table.

I. Replace blade.

2. Tighten arbor bolt.

Saw blade not round /

damaged /loose.

Arbor bolt loose.

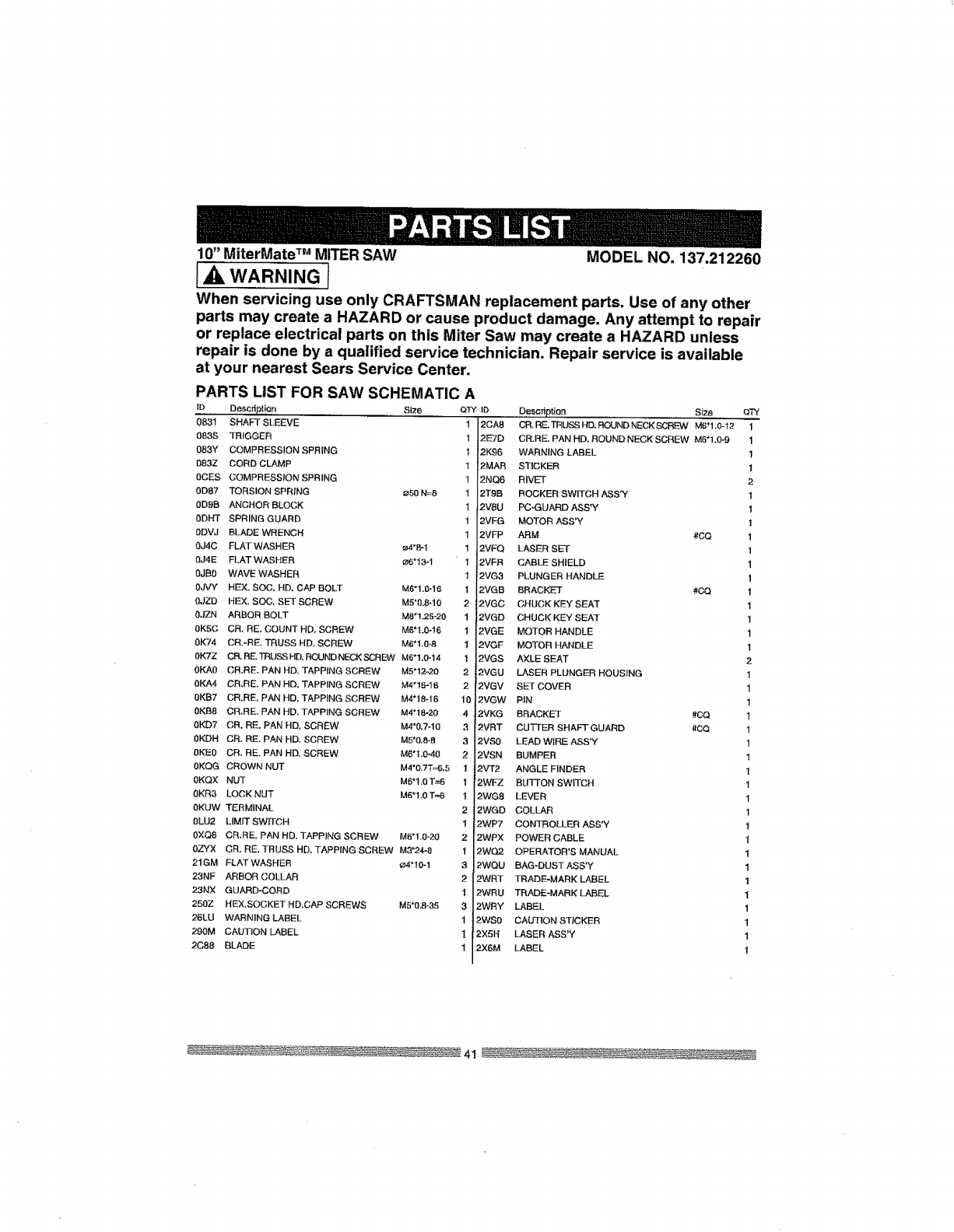

10" MiterMate TM MITER SAW MODEL NO. 137.212260

1_11_WARNING 1

When servicing use only CRAFTSMAN replacement parts. Use of any other

parts may create a HAZARD or cause product damage. Any attempt to repair

or replace electrical parts on this Miter Saw may create a HAZARD unless

repair is done by a qualified service technician. Repair service is available

at your nearest Sears Service Center.

PARTS LIST FOR SAW SCHEMATIC A

Ib DescriptiOn Size

0B31 SHAFT SLEEVE

083S TRIGGER

083Y COMPRESSION SPRING

083Z CORD CLAMP

ODES COMPRESSION SPRING

0D87 TORSION SPRING _50 N=8

0DgB ANCHOR BLOCK

0DHT SPRING GUARD

DDVJ BLADE WRENCH

0J4C FLAT WASHER _4"8-1

0J4E FLAT WASHER _6"I3-1

0JB0 WAVE WASHER

0JW HEX. SOC, HD, CAP BOLT M6"1.0-16

OJZD HEX. SOC, SET SCREW M5'0.8-10

0JZN ARBOR BOLT M8q,25_20

0KSC OR, RE. COUNT HD, SCREW M6"t,0-16

0K74 DR.-RE. TRUSS HD, SCREEN M6"1.0-8

0K7Z CR, RETRUSSHD, ROUNDNECKSCRISW M6"1,0-14

QTY' ID

12CAB

1 2E"TD

1 21{96

1 2MAR

12NQ6

12TgB

1 2VSU

t 2VFG

1 2VFP

1 2VFQ

12VFR

12VG3

t 2VGB

;2 2VGC

1 2VGD

12VGE

t2VGF

t2VGS

2VGU

2VGV

2VGW

2VKG

2VRT

2VS0

2VSN

2VT2

2WFZ

2WG8

2WGD

2WP7

2WPX

1 2WQ2

3 2WQU

2 2WRT

t 2WRU

32WRY

1 2WS0

I2XSH

1 2X6M

0KA0 CR,RE, PAN HD. TAPPING SCREW M5"12-20 2

0KA4 CR,RE. PAN HD. TAPPING SCREW M4"!5-16 2

0KB7 CR.RE. PAN HD. TAPPING SCREW M4"18-16 10

0KB8 CR.RE. PAN HD. TAPPING SCREW M4"18-20 4

0KD7 DR, RE. PAN HD. SCREW M4*&7-10 3

0KDH DR. RE. PAN HD. SCREW MS*ABe8 3

0KE0 CR. RE. PAN HD, SCREW M6°t,0-40 2

0KQG CROWN NUT M4*0,7T=6.5 t

0KQX NUT M6"1.0 T=6 1

0KR3 LOCK NUT M6"1,0 T=6 I

0KUW TERMINAL 2

0LU2 LIMIT SWITCH 1

0XQ8 DR.RE, PAN HD. TAPPING SCREW M6"1.0_20 2

OZ"iX OR, RE. TRUSS HD. TAPPING SCREW M3"244)

21GM FLAT WASHER ¢4"10-1

23NF ARBOR COLLAR

23NX GUARD'CORD

250Z HEX,SOCKET HD,CAP SCREWS M5"0,8o35

26LU WARNING LABEL

29(}M CAUTION LABEL

2C88 BLADE

Description Size OTY

CR, RE,TRUSS HD. ROUND NECK SCREW M6'1.0-12 1

CR.RE. PAN HD. ROUND NECKSCREW M6"1.0-9 1

WARNING LABEL 1

STICKER t

RIVET 2

ROCKER SWITCH ASS'Y 1

PC-GUARD ASS'Y 1

MOTOR ASS'Y t

ARM _GQ 1

LASER SET 1

CABLE SHIELD 1

PLUNGER HANDLE 1

BRACKET :_CQ 1

CHUCK KEY SEAT 1

MoToR HANDLE 1

MOTOR HANDLE 1

AXLE SEAT S

LASER PLUNGER HOUSING 1

SET COVER 1

PIN 1

BRACKET #OQ 1

CUTTER SHAFT GUARD #C,Q 1

LEAD WIRE ASS'Y 1

BUMPER 1

ANGLE FINDER t

BUTTON SWITCH 1

LEVER 1

COLLAR 1

CONTROLLER ASS'Y t

POWER CABLE 1

OPERATOR'S MANUAL 1

BAG-DUST ASS'Y 1

TRADE-MARK LABEL t

LABEL 1

CAUTION STICKER 1

LASER ASS'Y 1

LABEL 1

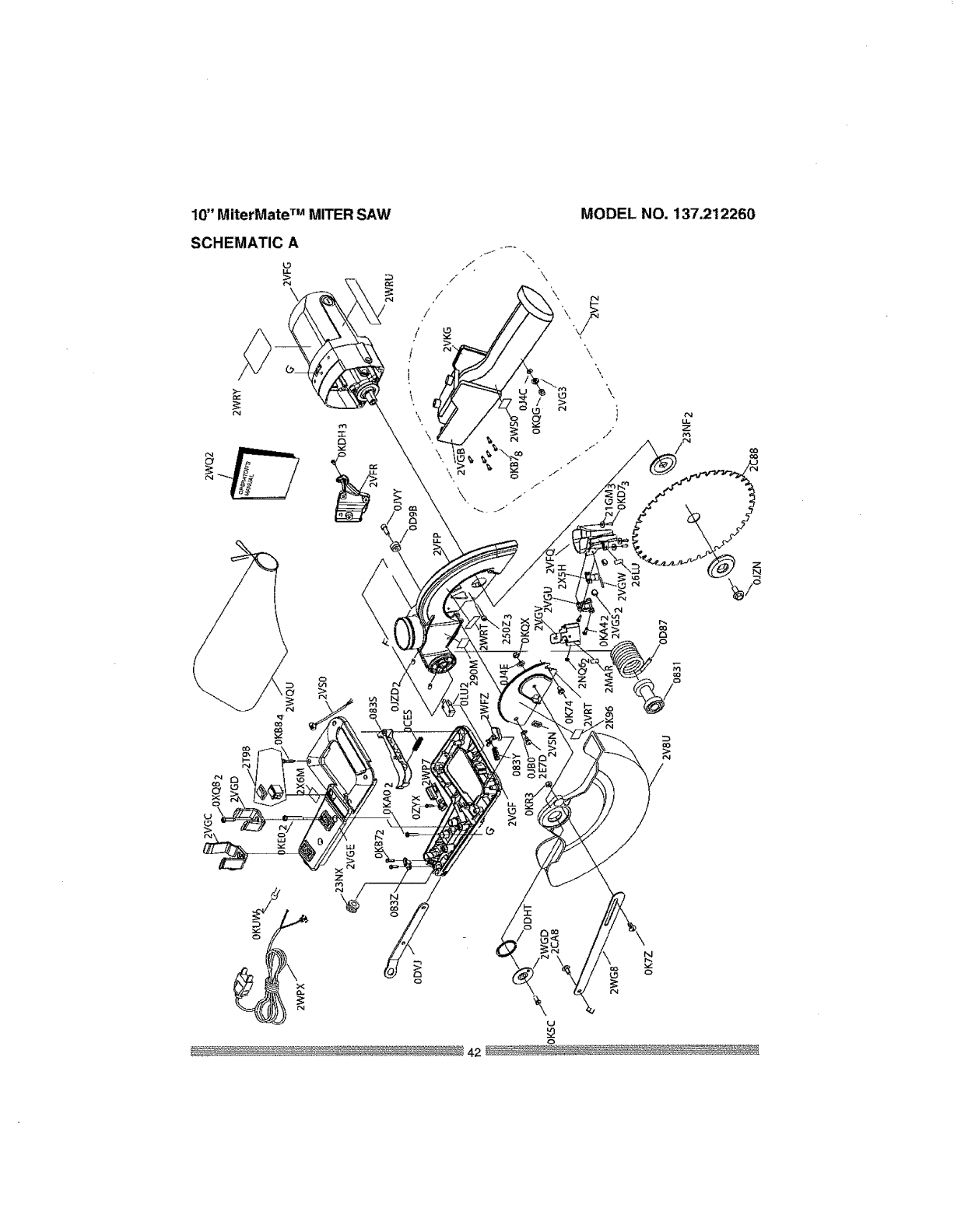

10" MiterMate TM MITER SAW

SCHEMATIC A

MODEL NO. 137.2t2260

10" MiterMate TM MITER SAW MODEL NO. 137.212260

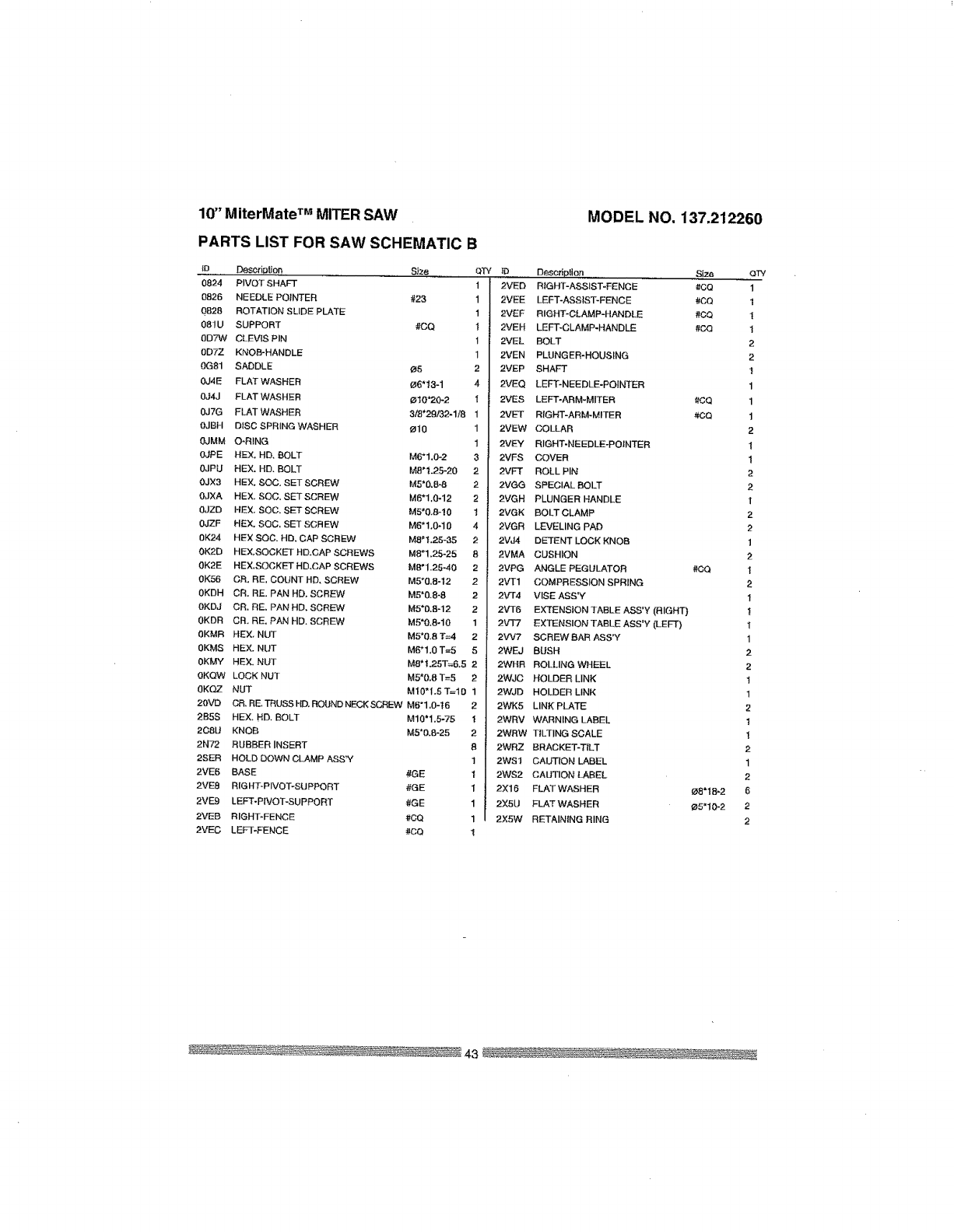

PARTS LIST FOR SAW SCHEMATIC B

tD Description

0824 PIVOT SHAFT

0826 NEEDLE POINTER

0828 ROTATION SLIDE PLATE

081U SUPPORT

0DTW CLEVIS PiN

0DTZ KNOB-HANDLE

0G81 SADDLE

0J4E FLAT WASHER

0J4J FLAT WASHER

0J7G FLAT WASHER

0JBH DISC SPRING WASHER

0JMM O_RING

0JPE HEX, HD, BOLT

0JPU HEX, HD, BOLT

0JX3 HEX. SOC. SET SCREW

0JXA HEX. SOC, SETSCREW

0JZD HEX, SOC. SET SCBI2V',!

0JZF HEX, SOC. SET SCREW

0K24 HEXSOC. HD, CAP SCREW

0K2D HEX, SOCKET RD°CAP SCREWS

0K2E HEX.SOCKETHD,CAP SCREWS

0K56 CR, RE. COUNTHD, SCREW

0KDH CR, RE, PAN HDo SCREW

OKDJ CR. RE, PAN HD, SCREW

0KDR CR. RE, PAN HD. SCREW

0KMR HEX, NUT

0KMS HEX. NUT

0KMY HEY,, NUT

0KOW LOCK NUT

0KQZ NUT

Size QTY ID

#23 1

#CO 1

_5 2

O6"_3-1 4

O10"202 I

3/8'29,,'32-1/8 1

_10 1

M6"1,0-2 3

M8"1.25-20 2

M5'O,B-8 2

M6*1.Q-12 2

M5"0.8-10 1

M6"1.0-10 4

M8"!,25-35 ;2

M8"1.25-25 8

M8"1.25-40 2

M5*0.8-t2 2

M5'0.8-8 2

M5*O,B-12 2

M5"0.8-1(} 1

M5"0.8 T=4 2

M6"1,0 T=5 5

M8" _,25T=6.5 2

M5"0,8 "1-=5 2

M'f0"1.5 T=lO 1

Description Size

2VED RIGHT-ASS|ST-FENCE t_CQ

2VEE LEFT-ASSIST-FENCE #CO

2VEE RIGHT-CLAMP-HANDLE f_CQ

2VEH LEFT-CLAMP-HANDLE #CQ

2VEL BOLT

2VEN PLUNGER-HOUSING

2VEP SHAFT

2VEQ LEFT-NEEDLE-POINTER

2VES LEFT-ARM-M_TER _-'CQ

2VET R_GHT-ARM-MtTER #CQ

2VEW COLLAR

2VEY RIGHT-NEEDLE-POINTER

2YES COVER

2VFT ROLL PIN

2VGG SPECIAL BOLT

2VGH PLUNGER HANDLE

2VGK BOLT CLAMP

2VGB LEVELING PAD

2VJ4 DETENT LOCK KNOB

_VMA CUSHION

2VPG ANGLE PEGULATOR ffCQ

2VT1 COMPRESSION SPRING

2VT4 VISE ASS'Y

2VT6 EXTENSION TABLE ASS'Y (RIGHT)

2VT7 EXTENSION TABLE ASS'Y (LEFT)

2W7 SCREW BAR ASS'V

2WEJ BUSH

2WHR ROLLING WHEEL

2WJC HOLDER LINK

2WJD HOLDER LINK

20VD CR.RE, TRUSS HD. ROUND NECK SCREW MB'1,0-t6 2

2B5S HEX° HD. BOLT M10"1.5-75 't

2C8U KNOB M5"0.8-25 2

2N72 RUBBER INSERT B

2SER HOLD DOWN CLAMP ASS'Y 1

2VE6 BASE #GE '_

2VE8 RIGHT-PIVOT-SUPPORT #GE 1

2VE9 LEFT-PIVOT-SUPPORT #GE 1

2VEB RIGHT-FENCE f_CQ 1

2VEC LEFT-FENCE #CQ 1

2WK5 LINK PLATE

2WRV WARNING LABEL

2WRW TILTING SCALE

2WRZ BRACKET-TiLT

2WS1 CAUTION LABEL

2WS2 CAUTION LABEL

2X16 FLAT WASHER

2X5U FLAT WASHER

2XSW RETAINING B_NG

O8"1B_2

t_5"10-2

QTY

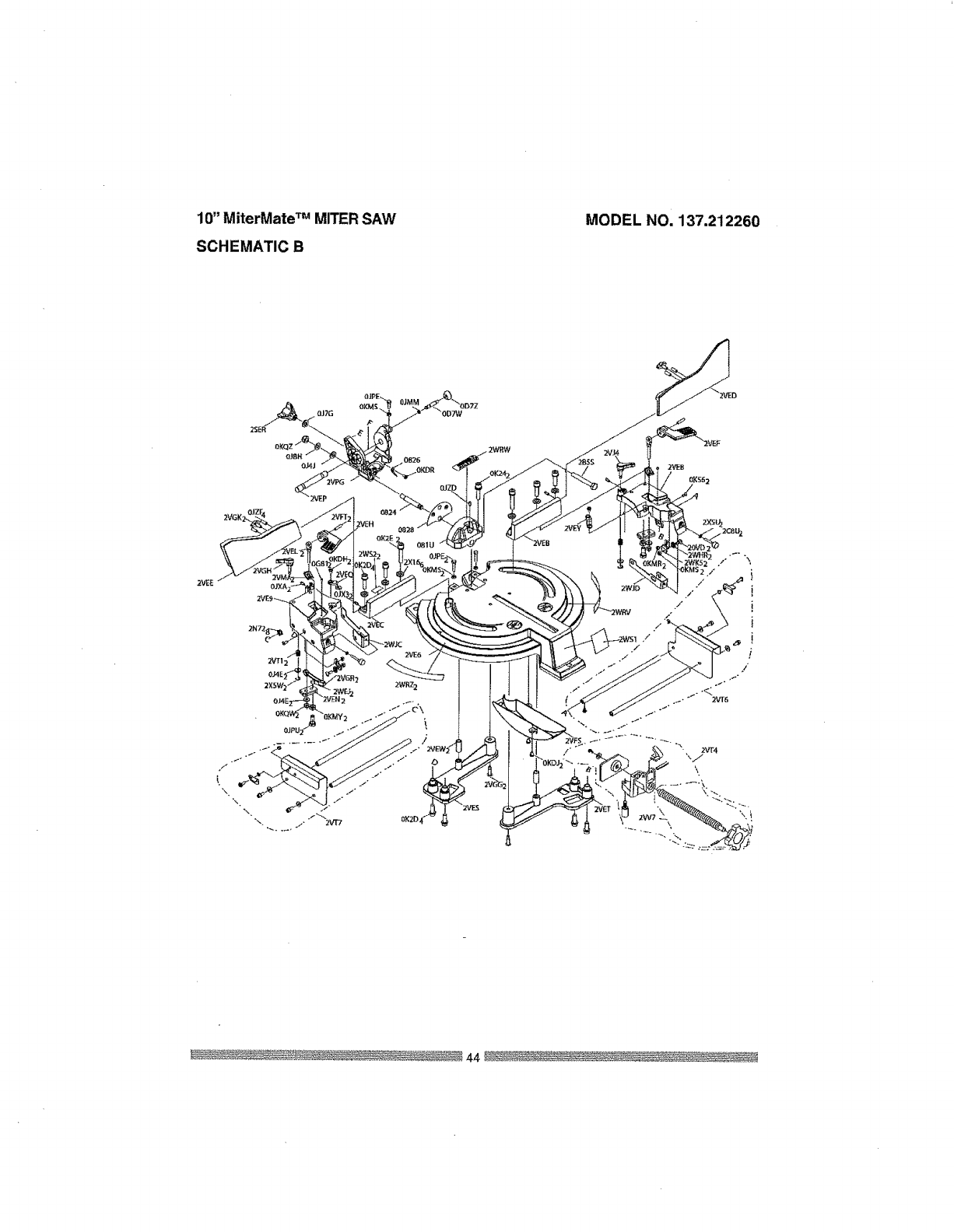

10" MiterMate TM MITER SAW

SCHEMATIC B

MODEL NO. 137.212260

0J4J

OJZD

2WRW

081U

Craftsman 137212260 User Manual MITER SAW Manuals And Guides L1002157

CRAFTSMAN Miter Saw Manual L1002157 CRAFTSMAN Miter Saw Owner's Manual, CRAFTSMAN Miter Saw installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
