Operator's Manual

12 in. SLiDiNG COMPOUND

MITER SAW WiTH LASER TRAC ®

Model No. 137.212390

\\ \

C us

CAUTION:

Before using this Miter Saw,

read this manual and follow

all its Safety Rules and

Operating Instructions

• Safety Instructions

• Installation

• Operation

• Maintenance

• Parts List

Customer Help Line

For Technical Support

1-800-843-1682

Sears Parts &

Repair Center

1-800-488-1222

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

Visit our Craftsman website: www.sears.comlcraftsman

Part No. 137212390001 Printed in China

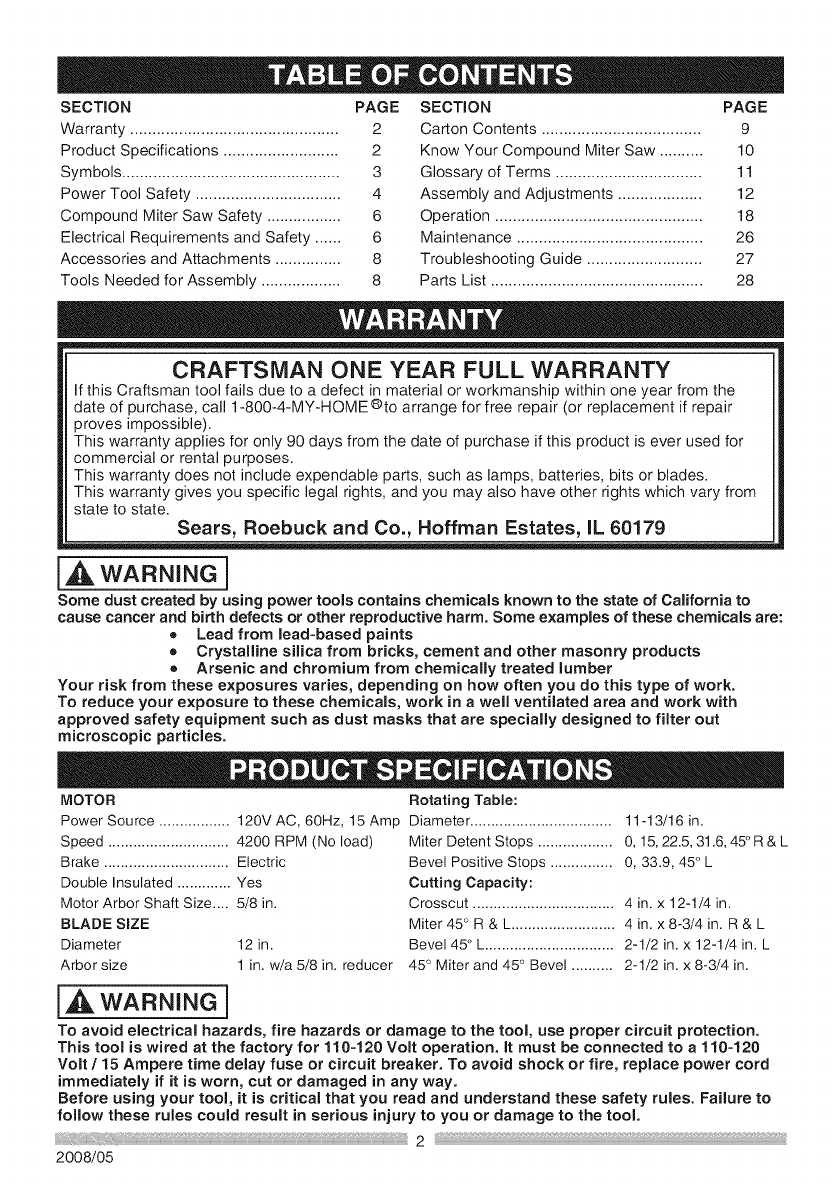

SECTION PAGE

Warranty ............................................... 2

Product Specifications .......................... 2

Symbols ................................................. 3

Power Tool Safety ................................. 4

Compound Miter Saw Safety ................. 6

Electrical Requirements and Safety ...... 6

Accessories and Attachments ............... 8

Tools Needed for Assembly .................. 8

SECTION PAGE

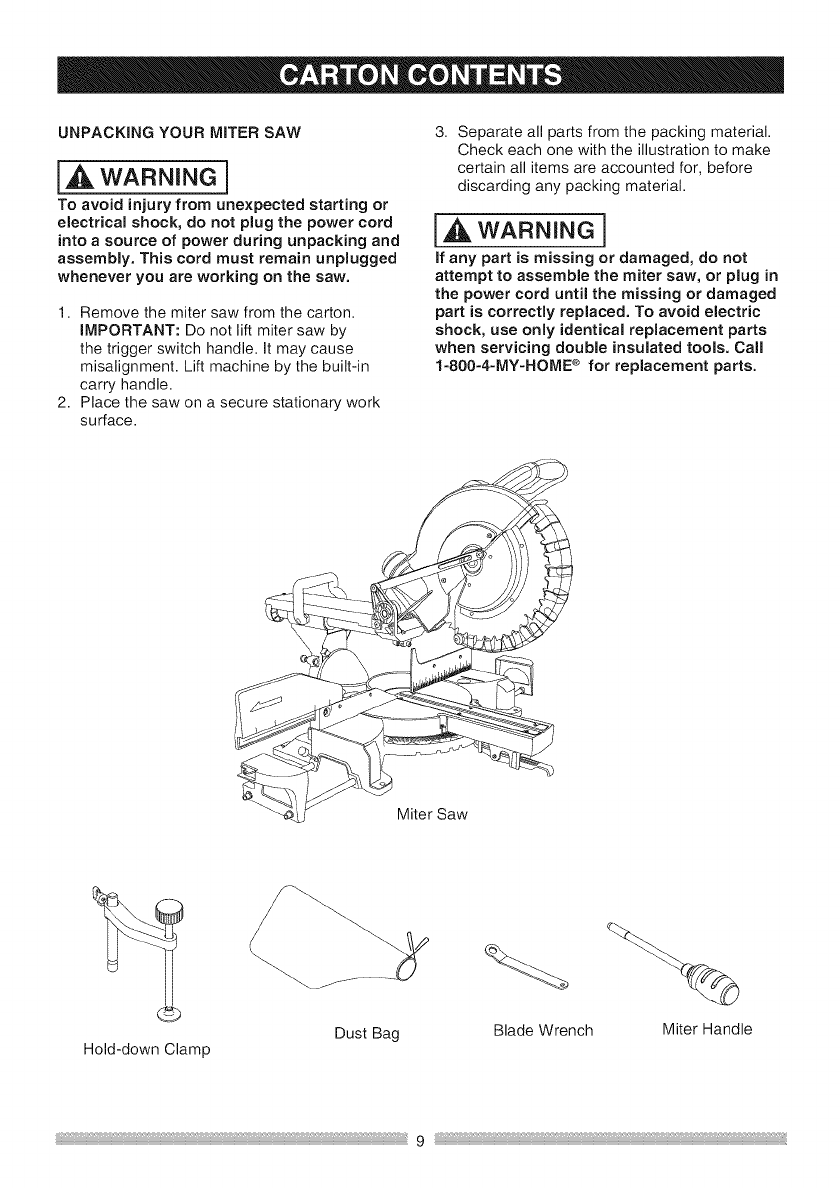

Carton Contents .................................... 9

Know Your Compound Miter Saw .......... 10

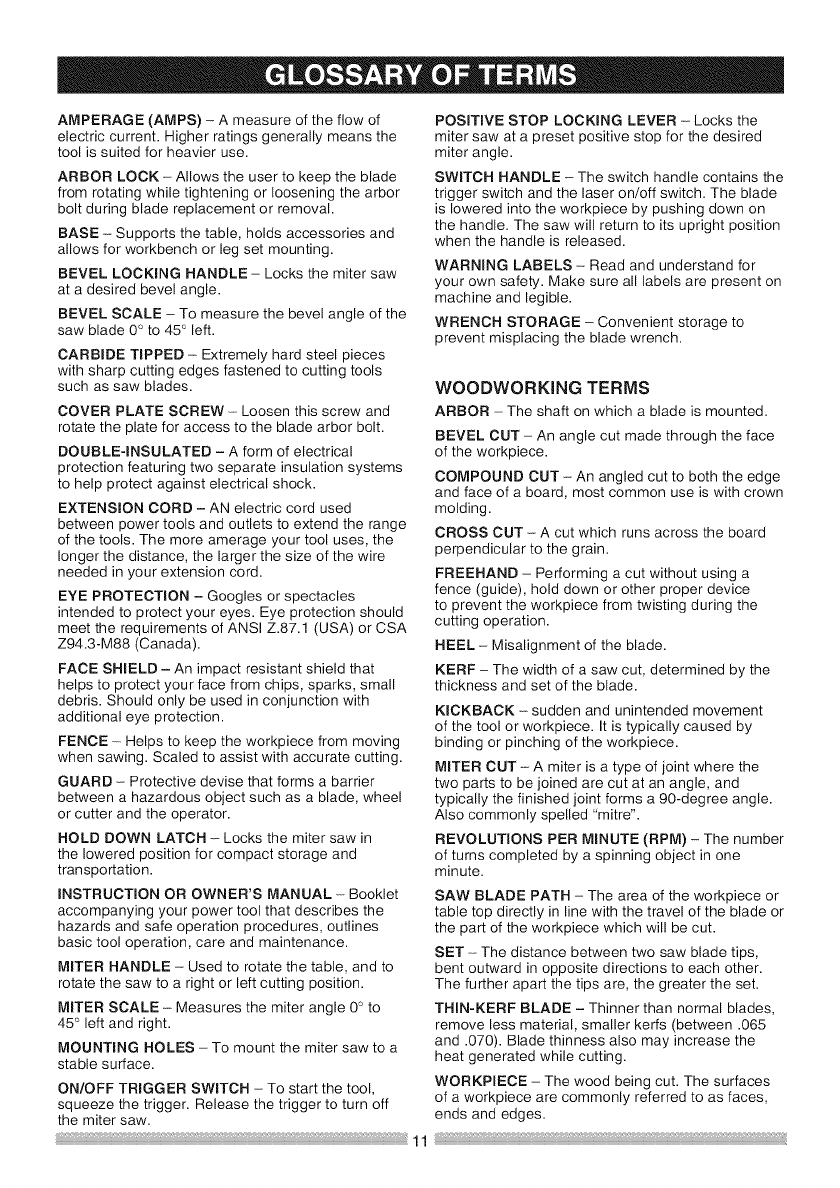

Glossary of Terms ................................. 11

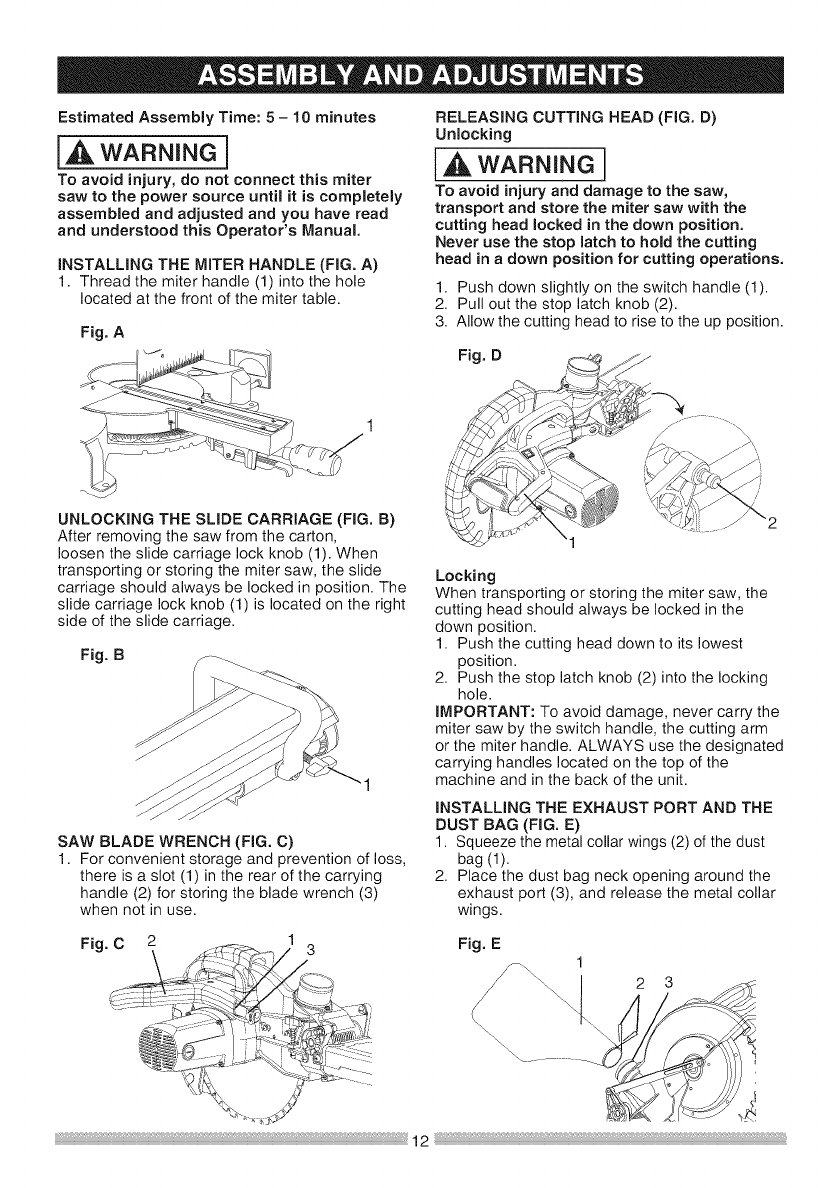

Assembly and Adjustments ................... 12

Operation ............................................... 18

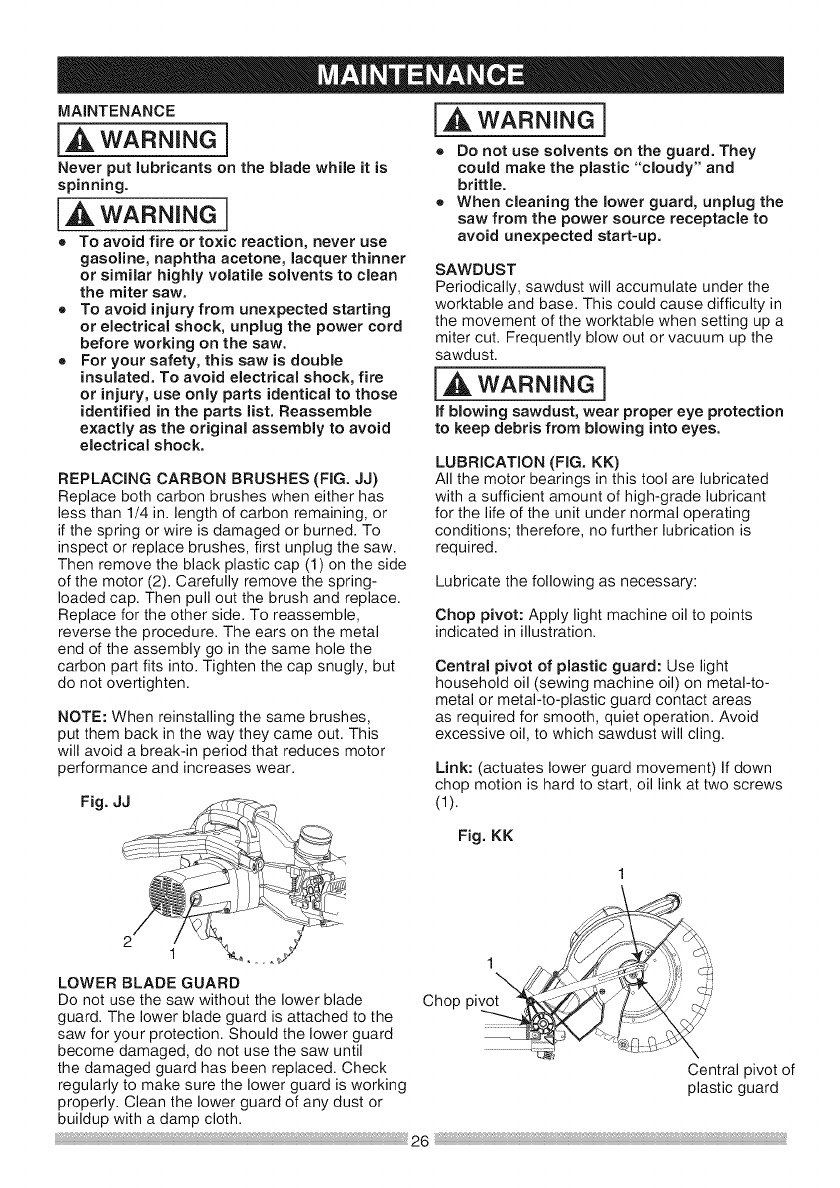

Maintenance .......................................... 26

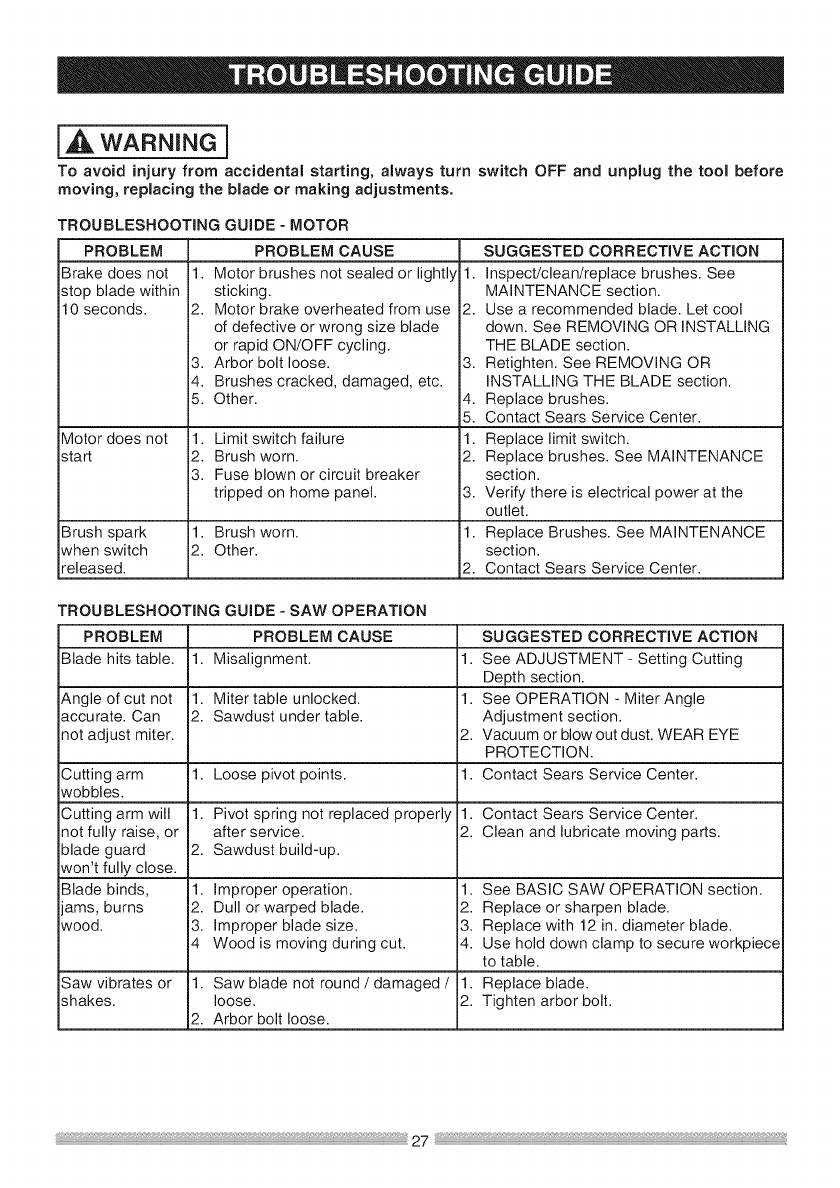

Troubleshooting Guide .......................... 27

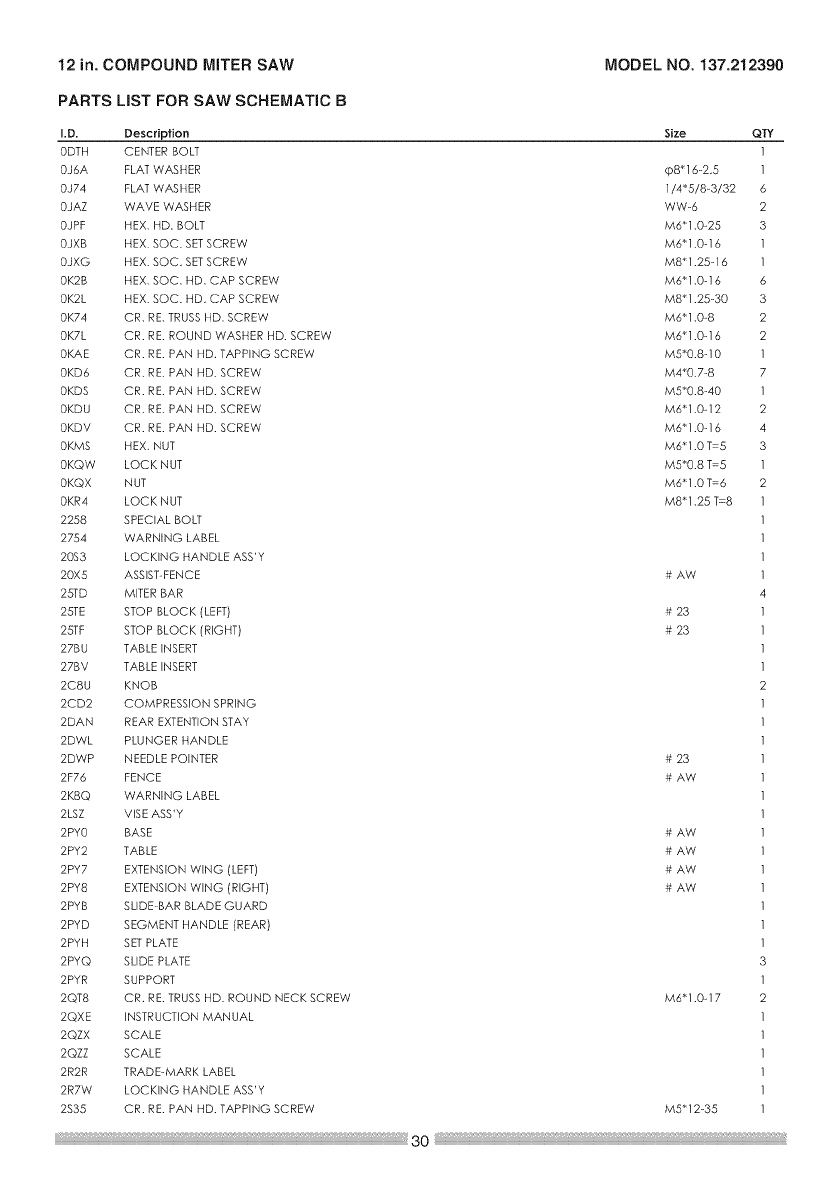

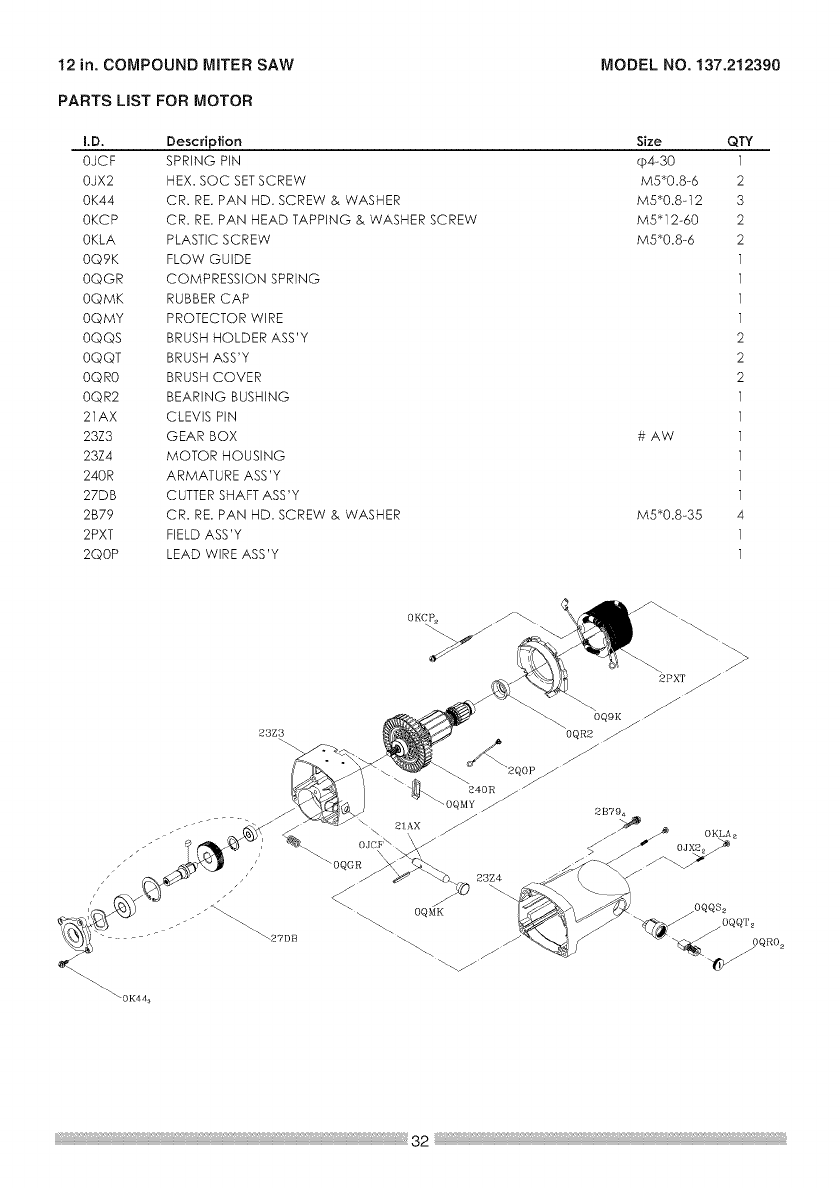

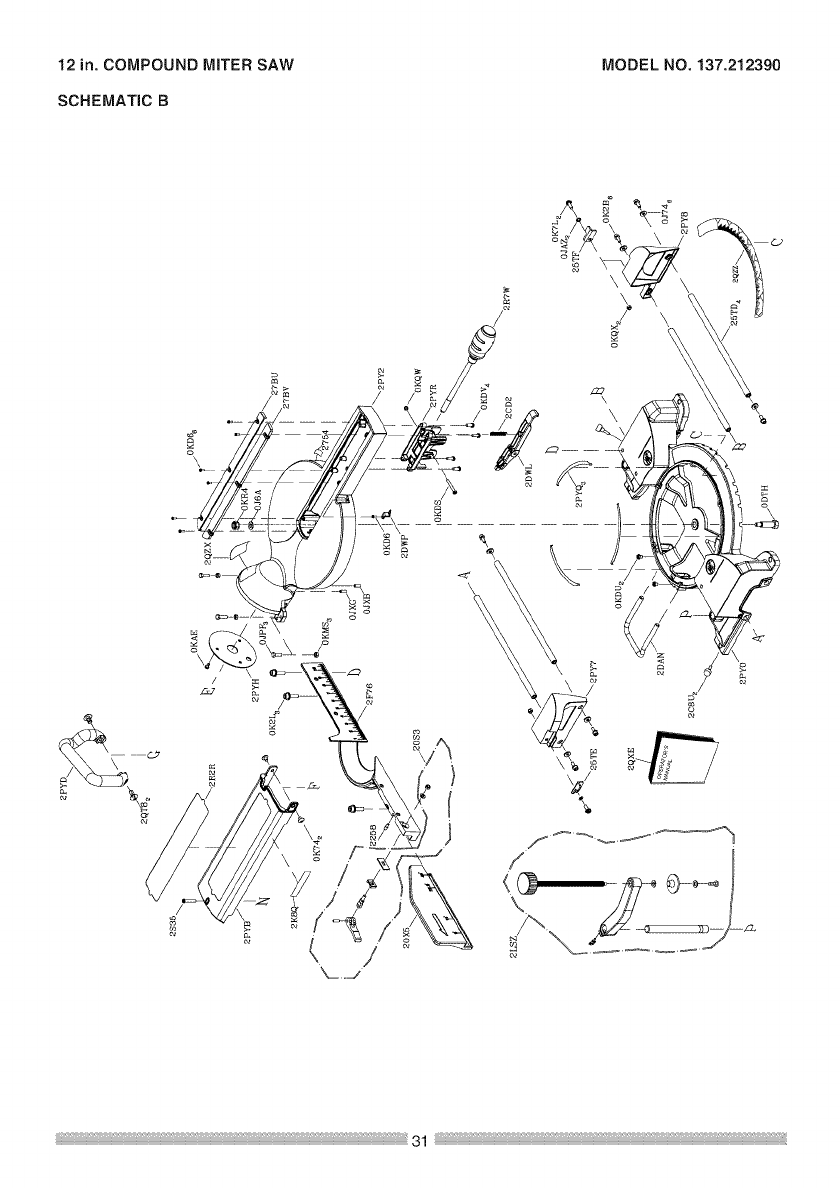

Parts List ................................................ 28

CRAFTSMAN ONE YEAR FULL WARRANTY

If this Craftsman tool fails due to a defect in material or workmanship within one year from the

date of purchase, call 1-800-4-MY-HOME ®to arrange for free repair (or replacement if repair

proves impossible).

This warranty applies for only 90 days from the date of purchase if this product is ever used for

commercial or rental purposes.

This warranty does not include expendable parts, such as lamps, batteries, bits or blades.

This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state. Sears, Roebuck and Co., Hoffman Estates, IL 60179

,A WARNING]

Some dust created by using power tools contains chemicals known to the state of California to

cause cancer and birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints

• Crystalline silica from bricks, cement and other masonry products

• Arsenic and chromium from chemically treated lumber

Your risk from these exposures varies, depending on how often you do this type of work.

To reduce your exposure to these chemicals, work in a well ventilated area and work with

approved safety equipment such as dust masks that are specially designed to filter out

microscopic particles.

MOTOR Rotating Table:

Power Source ................. 120V AC, 60Hz, 15 Amp Diameter .................................. 11-13/16 in.

Speed ............................. 4200 RPM (No load)

Brake .............................. Electric

Double Insulated ............. Yes

Motor Arbor Shaft Size .... 5/8 in.

BLADE SIZE

Diameter 12 in.

Arbor size 1 in. w/a 5/8 in. reducer

Miter Detent Stops .................. 0, 15, 22.5, 31.6, 45 <'R & L

Bevel Positive Stops ............... 0, 33.9, 45 ° L

Cutting Capacity:

Crosscut .................................. 4 in. x 12-1/4 in.

Miter 45 ° R & L......................... 4 in. x 8-3/4 in. R & L

Bevel 45 ° L............................... 2-1/2 in. x 12-1/4 in. L

45 ° Miter and 45 ° Bevel .......... 2-1/2 in. x 8-3/4 in.

[,A WARNING]

To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit protection.

This tool is wired at the factory for 110-120 Volt operation. It must be connected to a 110-120

Volt /15 Ampere time delay fuse or circuit breaker. To avoid shock or fire, replace power cord

immediately if it is worn, cut or damaged in any way.

Before using your tool, it is critical that you read and understand these safety rules. Failure to

follow these rules could result in serious injury to you or damage to the tool.

2008/05

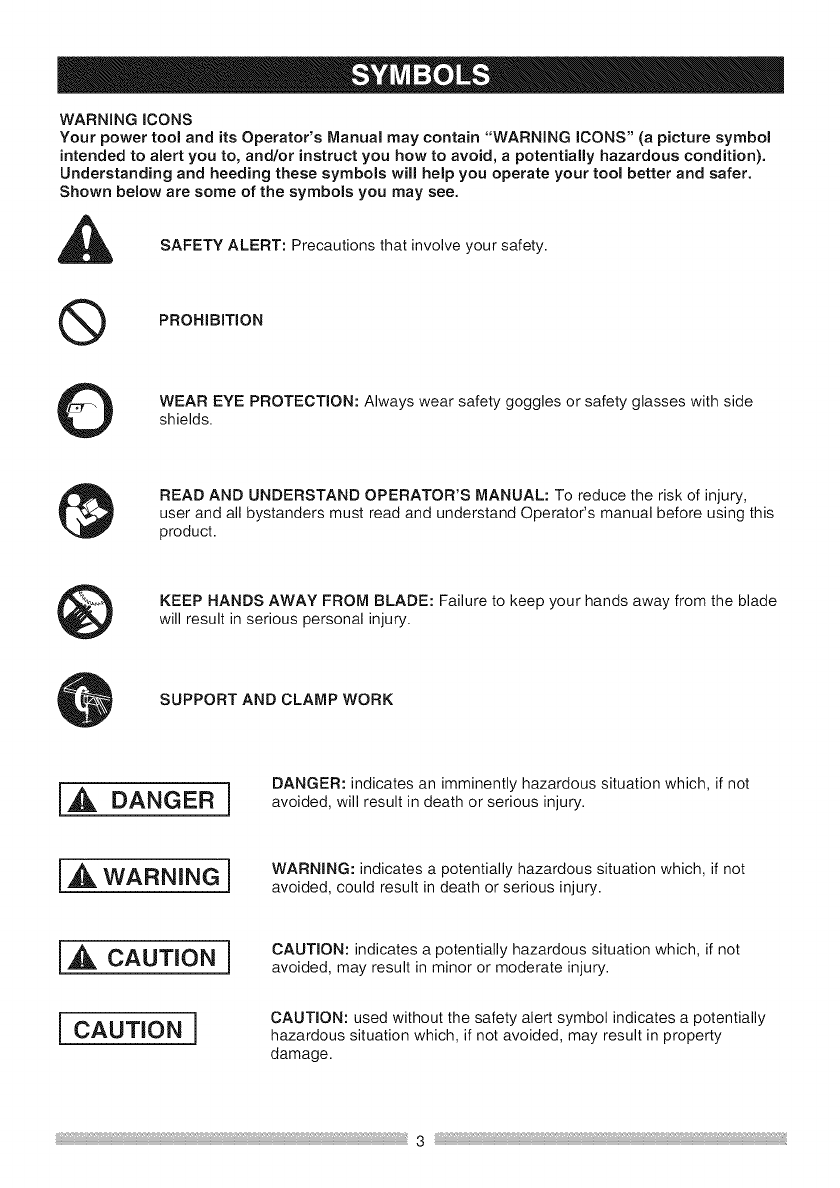

WARNINGICONS

Yourpower tool and its Operator's Manual may contain "WARNING ICONS" (a picture symbol

intended to alert you to, and/or instruct you how to avoid, a potentially hazardous condition).

Understanding and heeding these symbols will help you operate your tool better and safer.

Shown below are some of the symbols you may see.

SAFETY ALERT: Precautions that involve your safety.

®PROHIBITION

0WEAR EYE PROTECTION: Always wear safety goggles or safety glasses with side

shields.

READ AND UNDERSTAND OPERATOR'S MANUAL: To reduce the risk of injury,

user and all bystanders must read and understand Operator's manual before using this

product.

KEEP HANDS AWAY FROM BLADE: Failure to keep your hands away from the blade

will result in serious personal injury.

SUPPORT AND CLAMP WORK

IA DANGERJ

IA WARNINGJ

IA CAUTIONl

ICAUTIONI

DANGER: indicates an imminently hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING: indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION: indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury.

CAUTION: used without the safety alert symbol indicates a potentially

hazardous situation which, if not avoided, may result in property

damage.

GENERALSAFETY iNSTRUCTiONS

BEFORE USING THIS POWER TOOL

Safety is a combination of common sense,

staying alert and knowing how to use your power

tool.

power which will cause the tool to overheat.

The table on page 7 shows the correct

size to use depending on cord length and

nameplate ampere rating. If in doubt, use the

next heavier gauge. The smaller the gauge

number, the heavier the cord.

CAUTION

To avoid mistakes that could cause serious

injury, do not plug the tool in until you have

read and understood the following.

READ and become familiar with the

entire Operator's Manual. LEARN

the tool's application, limitations and

possible hazards.

2. KEEP GUARDS iN PLACE and in working

order.

REMOVE ADJUSTING KEYS AND

WRENCHES. Form the habit of checking to

see that keys and adjusting wrenches are

removed from the tool before turning ON.

4. KEEP WORK AREA CLEAN. Cluttered areas

and benches invite accidents.

DO NOT USE iN DANGEROUS

ENVIRONMENTS. Do not use power tools

in damp locations, or expose them to rain or

snow. Keep work area well lit.

6. KEEP CHILDREN AWAY. All visitors and

bystanders should be kept a safe distance

from work area.

7. MAKE WORKSHOP CHILD PROOF with

padlocks, master switches or by removing

starter keys.

11 .WEAR PROPER APPAREL. Do not wear

loose clothing, gloves, neckties, rings,

bracelets or other jewelry which may get

caught in moving parts. Nonslip footwear is

recommended. Wear protective hair covering

to contain long hair.

12.ALWAYS WEAR EYE PROTECTION. Any

O ower tool can throw foreign

objects into the eyes and could

cause permanent eye damage.

ALWAYS wear Safety Goggles

(not glasses) that comply with ANSI Safety

standard Z87.1. Everyday eyeglasses have

only impact-resistant lenses. They ARE NOT

safety glasses. Safety Goggles are available

at Sears. NOTE: Glasses or goggles not in

compliance with ANSI Z87.1 could seriously

injure you when they break.

13.WEAR A FACE MASK OR DUST MASK.

Sawing operation produces dust.

14. SECURE WORK. Use clamps or a

vise to hold work when practical. It

is safer than using your hand and

it frees both hands to operate the

tool.

15.DISCONNECT TOOLS FROM POWER

SOURCE before servicing, and when

changing accessories such as blades, bits

and cutters.

8. DO NOT FORCE THE TOOL. It will do the job 16.REDUCE THE RISK OF UNINTENTIONAL

better and safer at the rate for which it was STARTING. Make sure switch is in the OFF

designed, position before plugging the tool in.

9. USE THE RIGHT TOOL. Do not force the tool

or an attachment to do a job for which it was

not designed.

10.USE PROPER EXTENSION CORDS. Make

sure your extension cord is in good condition.

When using an extension cord, be sure to use

one heavy enough to carry the current your

product will draw. An undersized cord will

result in a drop in line voltage and in loss of

17.USE RECOMMENDED ACCESSORIES.

Consult this Operator's Manual for

recommended accessories. The use of

improper accessories may cause risk of injury

to yourself or others.

18.NEVER STAND ON THE TOOL. Serious

injury could occur if the tool is tipped or if the

cutting tool is unintentionally contacted.

1&CHECKFORDAMAGEDPARTS.Before

furtheruseofthetool,aguardorotherpart

thatisdamagedshouldbecarefullychecked

todeterminethatitwilloperateproperlyand

performitsintendedfunction- checkfor

alignmentofmovingparts,bindingofmoving

parts,breakageofparts,mountingandany

otherconditionsthatmayaffectitsoperation.

Aguardorotherpartthatisdamagedshould

beproperlyrepairedorreplaced.

20.NEVERLEAVE THE TOOL RUNNING

UNATTENDED. TURN THE POWER "OFF".

Do not walk away from a running tool until

the blade comes to a complete stop and the

tool is unplugged from the power source.

21. DO NOT OVERREACH. Keep proper footing

and balance at all times.

22. MAINTAIN TOOLS WITH CARE. Keep

tools sharp and clean for best and safest

performance. Follow instructions for

lubricating and changing accessories.

23. WARNING: Dust generated from certain

materials can be hazardous to your health.

Always operate saw in well-ventilated area

and provide for proper dust removal.

24. [,& DANGER ] Peoplewithelectronic

devices, such as pacemakers, should consult

their physician(s) before using this product.

Operation of electrical equipment in close

proximity to a heart pacemaker could cause

interference or failure of the pacemaker.

SPECIFIC SAFETY INSTRUCTIONS FOR THIS

COMPOUND MITER SAW

1. DO NOT operate the miter saw until it is

completely assembled and installed according

to these instructions.

2. IF YOU ARE NOT thoroughly familiar with the

operation of miter saws, seek guidance from

your supervisor, instructor or other qualified

person.

3. ALWAYS hold the work firmly against the

fence and table. DO NOT perform any

operation free hand (use clamp wherever

possible).

4. KEEP HANDS out of the path of the saw

blade. If the workpiece you are cutting would

cause your hands to be within 8-3/4 in. of the

saw blade, the workpiece should be clamped

in place before making the cut.

5. BE SURE the blade is sharp, runs freely and

is free of vibration.

6. ALLOW the motor to come up to full speed

before starting a cut.

7. KEEP THE MOTOR AIR SLOTS CLEAN and

free of chips or dust.

8. ALWAYS MAKE SURE all handles are tight

before cutting, even if the table is positioned

in one of the positive stops.

9. BE SURE both the blade and the collar are

clean and the arbor bolt is tightened securely.

10.USE only blade collars specified for your saw.

11 .NEVER use blades larger in diameter than 12

inches.

12.NEVER apply lubricants to the blade when it

is running.

1&ALWAYS check the blade for cracks or

damage before operation. Replace a cracked

or damaged blade immediately.

14.NEVER use blades recommended for

operation at less than 4200 RPM.

1&ALWAYS keep the blade guards in place and

use at all times.

1&NEVER reach around the saw blade.

17.MAKE SURE the blade is not contacting the

workpiece before the switch is turned ON.

1&IMPORTANT: After completing the cut,

release the trigger and wait for the blade to

stop before returning the saw to the raised

position.

1&MAKE SURE the blade has come to a

complete stop before removing or securing

the workpiece, changing the workpiece angle

or changing the angle of the blade.

20. NEVER cut metals or masonry products with

this tool. This miter saw is designed for use

on wood and wood-like products.

21 .NEVER cut small pieces. If the workpiece

being cut would cause your hand or fingers

to be within 8-3/4 in. of the saw blade the

workpiece is too small.

22.PROVIDE adequate support to the sides of

the saw table for long work pieces.

23.NEVER use the miter saw in an area with

flammable liquids or gases.

24.NEVER use solvents to clean plastic parts.

Solvents could possibly dissolve or otherwise

damage the material.

25.SHUT OFF the power before servicing or

adjusting the tool.

26.DISCONNECT the saw from the power

source and clean the machine when finished

using.

27.MAKE SURE the work area is clean before

leaving the machine.

28.SHOULD any part of your miter saw be

missing, damaged, or fail in any way, or any

electrical component fail to perform properly,

lock the switch and remove the plug from

the power supply outlet. Replace missing,

damaged, or failed parts before resuming

operation.

POWER SUPPLY AND MOTOR

SPECIFICATIONS

The AC motor used in this saw is a universal,

nonreversible type. See "MOTOR" in the

"PRODUCT SPECIFICATIONS" section on page

l,& WARNING I

To avoid electrical hazards, fire hazards,

or damage to the tool, use proper circuit

protection. Your saw is wired at the factory

for 120 V operation. Connect to a 120 V, 15

A circuit and use a 15 A time delay fuse or

circuit breaker. To avoid shock or fire, if

power cord is worn or cut, or damaged in any

way, have it replaced immediately.

ELECTRICAL REQUIREMENTS - cont'd

DOUBLE iNSULATED []

The power tool is double insulated to provide a

double thickness of insulation between you and

tool's electrical system. All exposed metal parts are

isolated from the internal metal motor components

with protecting insulation.

Replacement parts -When servicing, use only

identical replacement parts.

Polarized plugs - This saw has a plug that looks

like the one shown below:

To reduce the risk of electrical shock, this saw has

a polarized plug (one blade is wider than the other).

This plug will fit in a polarized outlet only one way.

If the plug does not fit fully in the outlet, reverse

the plug. If it still does not fit, contact a qualified

electrician to install the proper outlet. Do not change

the plug in any way.

i,_ WARNING]

Double insulation does not take the place of normal

safety precautions when operating this tool.

To avoid electrocution:

1. Use only identical replacement parts when

servicing a tool with double insulation. Servicing

should be performed by a qualified technician.

2. Do not use power tools in wet or damp locations

or expose them to rain or snow.

MOTOR SAFETY PROTECTION

iMPORTANT

To avoid motor damage, the motor should be blown

out or vacuumed frequently to keep sawdust from

interfering with the motor ventilation.

1. Connect this saw to a 120 V circuit. This circuit

must not be less than a #12 wire with a 20 A

time lag fuse ora #14 wire with a 15 A time lag

fuse. NOTE: When using an extension cord on a

circuit with a #14 wire, the extension cord must

not exceed 25 feet in length.

2. If the motor will not start, release the trigger

switch immediately. UNPLUG THE SAW.

Check the saw blade to make sure it turns

freely. If the blade is free, try to start the saw

again. If the motor still does not start, refer to the

TROUBLESHOOTING GUIDE.

3. If the tool suddenly stalls while cutting wood,

release the trigger switch, unplug the tool and

free the blade from the wood. The saw may now

be started and the cut finished.

4. FUSES may "blow" or circuit breakers may trip

frequently if:

a. MOTOR is overloaded - overloading can

occur if you feed too rapidly or make too

many start/stops in a short time.

b. LiNE VOLTAGE is more than 10% above

or below the nameplate voltage rating. For

heavy loads, the voltage at motor terminals

must equal the voltage specified on the

nameplate.

c. iMPROPER or dull saw blades are used.

5. Most motor troubles may be traced to loose or

incorrect connections, overload, low voltage or

inadequate power supply wiring. Always check

the connections, the load and supply circuit if the

motor doesn't run well. Check minimum gauge

for the length of cord you are using on the chart

below.

GUiDELiNES FOR EXTENSION CORDS

Use a proper extension cord. Make sure your

extension cord is in good condition. When using an

extension cord, be sure to use one heavy enough

to carry the current your product will draw. An

undersized cord will cause a drop in line voltage,

resulting in loss of power and overheating. The table

below shows the correct size to use depending

on cord length and nameplate ampere rating. If in

doubt, use the next heavier gauge. The smaller the

gauge number, the heavier the cord.

Be sure your extension cord is properly wired

and in good condition. Always replace a damaged

extension cord or have it repaired by a qualified

person before using it. Protect your extension cords

from sharp objects, excessive heat and damp or wet

areas.

Use a separate electrical circuit for your tools.

This circuit must not be less than a #12 wire with a

20 A time lag fuse or a #14 wire with a 15 A time lag

fuse. NOTE: When using an extension cord on a

circuit with a #14 wire, the extension cord must not

exceed 25 feet in length. Before connecting the tool

to the power line, make sure the switch is in the OFF

position and the electric current is rated the same

as the current stamped on the motor nameplate,

running at a lower voltage will damage the motor.

(When using 120 volts only)

Ampere Rating Total length of Cord

I MoreThan Not MoreThan 25ft. 50ft. 100ft. 150ft.

16 181616 14

18 16 14 12

[10 12 [16 !6 14 12

CAUTION: in all cases make certain the

receptacle in question is properly grounded.

If you are not sure, have a certified electrician

check the receptacle.

RECOMMENDED ACCESSORIES

,_ WARNING i

• Use only accessories recommended for

this miter saw. Follow instructions that

accompany accessories. Use of improper

accessories may cause hazards.

• The use of any cutting tool except 12 in.

saw blades which meet the requirements

under recommended accessories is

prohibited. Do not use accessories such

as shaper cutters or dado sets. Ferrous

metal cutting and the use of abrasive

wheels is prohibited.

• Do not attempt to modify this tool or

create accessories not recommended for

use with this tool. Any such alteration or

modification is misuse and could result in

ahazardous condition leading to possible

serious injury.

ACCESSORIES

Visit your Sears Hardware Department or see the

Sears Power and Hand Tool Catalog to purchase

recommended accessories for this power tool.

i_ WARNING 1

To avoid the risk of personal injury, do not

modify this power tool or use accessories not

recommended by Sears.

[,A WARNING]

Read warnings and conditions on your

CARBIDE TIPPED SAW BLADE. Do not

operate the saw without the proper saw

blade guard in place. Carbide is avery hard

but brittle material. Care should be taken

while mounting, using, and storing carbide

tipped blades to prevent accidental damage.

Slight shocks, such as striking the tip while

handling, can seriously damage the blade.

Foreign objects in the workpiece, such as

wire or nails, can also cause tips to crack

or break off. Before using, always visually

examine the blade and tips for bent blade,

cracks, breakage, missing or loose tips,

or other damage. Do not use if damage is

suspected. Failure to heed safety instructions

and warnings can result in serious bodily

injury.

Supplied Not supplied

Blade Wrench Adjustable Wrench

Hex Key

Combination Square

Phillips Screwdriver

Slotted Screwdriver

COMBINATION SQUARE MUST BE TRUE

Should not gap or overlap when square is flipped

over (see dotted figure).

Straight edge or

a 3/4 in. board,

Draw light line on board this edge must be

along this edge. perfectly straight.

Should not gap or overlap when

square flipped over

(see dotted figure).

UNPACKINGYOUR MITER SAW

[_t_ WARNING]

To avoid injury from unexpected starting or

electrical shock, do not plug the power cord

into asource of power during unpacking and

assembly. This cord must remain unplugged

whenever you are working on the saw.

1. Remove the miter saw from the carton.

IMPORTANT: Do not lift miter saw by

the trigger switch handle. It may cause

misalignment. Lift machine by the built-in

carry handle.

2. Place the saw on a secure stationary work

surface.

3. Separate all parts from the packing material.

Check each one with the illustration to make

certain all items are accounted for, before

discarding any packing material.

I_WARNING]

if any part is missing or damaged, do not

attempt to assemble the miter saw, or plug in

the power cord until the missing or damaged

part is correctly replaced. To avoid electric

shock, use only identical replacement parts

when servicing double insulated tools. Call

1-800-4-MY-HOME ® for replacement parts.

Miter Saw

Hold-down Clamp Dust Bag Blade Wrench Miter Handle

Dust SwitchHandle

LowerBladeGuard

BevelDetentPin_

Hold-downClam

Sliding

Guide

insert

LeftTable

Mounting Hole

Base

Positive Stop Locking Lever

Stop Latch Knob

Carrying

Laser ON/OFF Switch

Slide Carriage Lock Knob

ON/OFF Trigger

Switch

Motor

Positive Miter Detents

ht Extension Table

Table

Lock Knob

,p Plate

AMPERAGE (AMPS) - A measure of the flow of

electric current. Higher ratings generally means the

tool is suited for heavier use.

ARBOR LOCK - Allows the user to keep the blade

from rotating while tightening or loosening the arbor

bolt during blade replacement or removal.

BASE - Supports the table, holds accessories and

allows for workbench or leg set mounting.

BEVEL LOCKING HANDLE - Locks the miter saw

at a desired bevel angle.

BEVEL SCALE - To measure the bevel angle of the

saw blade 0 ° to 45 ° left.

CARBIDE TIPPED - Extremely hard steel pieces

with sharp cutting edges fastened to cutting tools

such as saw blades.

COVER PLATE SCREW - Loosen this screw and

rotate the plate for access to the blade arbor bolt.

DOUBLE-INSULATED - A form of electrical

protection featuring two separate insulation systems

to help protect against electrical shock.

EXTENSION CORD - AN electric cord used

between power tools and outlets to extend the range

of the tools. The more amerage your tool uses, the

longer the distance, the larger the size of the wire

needed in your extension cord.

EYE PROTECTION - Googles or spectacles

intended to protect your eyes. Eye protection should

meet the requirements of ANSI Z.87.1 (USA) or CSA

Z94.3-M88 (Canada).

FACE SHIELD - An impact resistant shield that

helps to protect your face from chips, sparks, small

debris. Should only be used in conjunction with

additional eye protection.

FENCE - Helps to keep the workpiece from moving

when sawing. Scaled to assist with accurate cutting.

GUARD - Protective devise that forms a barrier

between a hazardous object such as a blade, wheel

or cutter and the operator.

HOLD DOWN LATCH - Locks the miter saw in

the lowered position for compact storage and

transportation.

INSTRUCTION OR OWNER'S MANUAL - Booklet

accompanying your power tool that describes the

hazards and safe operation procedures, outlines

basic tool operation, care and maintenance.

MITER HANDLE - Used to rotate the table, and to

rotate the saw to a right or left cutting position.

MITER SCALE - Measures the miter angle 0 ° to

45 ° left and right.

MOUNTING HOLES - To mount the miter saw to a

stable surface.

ON/OFF TRIGGER SWITCH - To start the tool,

squeeze the trigger. Release the trigger to turn off

the miter saw.

POSITIVE STOP LOCKING LEVER - Locks the

miter saw at a preset positive stop for the desired

miter angle.

SWITCH HANDLE - The switch handle contains the

trigger switch and the laser on/off switch. The blade

is lowered into the workpiece by pushing down on

the handle. The saw will return to its upright position

when the handle is released.

WARNING LABELS - Read and understand for

your own safety. Make sure all labels are present on

machine and legible.

WRENCH STORAGE - Convenient storage to

prevent misplacing the blade wrench.

WOODWORKING TERMS

ARBOR - The shaft on which a blade is mounted.

BEVEL CUT - An angle cut made through the face

of the workpiece.

COMPOUND CUT - An angled cut to both the edge

and face of a board, most common use is with crown

molding.

CROSS CUT - A cut which runs across the board

perpendicular to the grain.

FREEHAND - Performing a cut without using a

fence (guide), hold down or other proper device

to prevent the workpiece from twisting during the

cutting operation.

HEEL - Misalignment of the blade.

KERF - The width of a saw cut, determined by the

thickness and set of the blade.

KICKBACK - sudden and unintended movement

of the tool or workpiece. It is typically caused by

binding or pinching of the workpiece.

MITER CUT - A miter is a type of joint where the

two parts to be joined are cut at an angle, and

typically the finished joint forms a 90-degree angle.

Also commonly spelled "mitre".

REVOLUTIONS PER MINUTE (RPM) - The number

of turns completed by a spinning object in one

minute.

SAW BLADE PATH - The area of the workpiece or

table top directly in line with the travel of the blade or

the part of the workpiece which will be cut.

SET - The distance between two saw blade tips,

bent outward in opposite directions to each other.

The further apart the tips are, the greater the set.

THIN-KERF BLADE - Thinner than normal blades,

remove less material, smaller kerfs (between .065

and .070). Blade thinness also may increase the

heat generated while cutting.

WORKPIECE - The wood being cut. The surfaces

of a workpiece are commonly referred to as faces,

ends and edges.

Estimated Assembly Time: 5-10 minutes

I,A WARNING]

To avoid injury, do not connect this miter

saw to the power source until it is completely

assembled and adjusted and you have read

and understood this Operator's Manual.

iNSTALLiNG THE MITER HANDLE (FIG. A)

1. Thread the miter handle (1) into the hole

located at the front of the miter table.

Fig. A

UNLOCKING THE SLIDE CARRIAGE (FIG. B)

After removing the saw from the carton,

loosen the slide carriage lock knob (1). When

transporting or storing the miter saw, the slide

carriage should always be locked in position. The

slide carriage lock knob (1) is located on the right

side of the slide carriage.

Fig. B

SAW BLADE WRENCH (FIG. C)

1. For convenient storage and prevention of loss,

there is a slot (1) in the rear of the carrying

handle (2) for storing the blade wrench (3)

when not in use.

RELEASING CUTTING HEAD (FIG. D)

Unlocking

[,_ WARNING

To avoid injury and damage to the saw,

transport and store the miter saw with the

cutting head locked in the down position,

Never use the stop latch to hold the cutting

head in a down position for cutting operations.

1. Push down slightly on the switch handle (1).

2. Pull out the stop latch knob (2).

3. Allow the cutting head to rise to the up position.

Fig.D

Locking

When transporting or storing the miter saw, the

cutting head should always be locked in the

down position.

1. Push the cutting head down to its lowest

position.

2. Push the stop latch knob (2) into the locking

hole.

IMPORTANT: To avoid damage, never carry the

miter saw by the switch handle, the cutting arm

or the miter handle. ALWAYS use the designated

carrying handles located on the top of the

machine and in the back of the unit.

INSTALLING THE EXHAUST PORT AND THE

DUST BAG (FIG. E)

1. Squeeze the metal collar wings (2) of the dust

bag (1).

2. Place the dust bag neck opening around the

exhaust port (3), and release the metal collar

wings.

Fig.E1

Toemptythedustbag,squeezethemetalcollar

andremovefromexhaustport.Openzipperon

undersideofbagandemptyintowastecontainer.

NOTE:Checkfrequentlyandemptybagbeforeit

getsfull.

INSTALLINGTHEHOLD-DOWNCLAMP

(FIG.FandG)

1.Placethehold-downclampassembly(1)in

oneofthemountingholes(2),locatedbehind

thefence.

NOTE:Therearenoscrewstosecureclamp.

Theclampwillsecureitselftothebasewhen

turningtheknob(3)toclamptheworkpiece.

Donotuseyourotherhandtoholdtheclamp

whentightening.Onlyturnknob(3)tosecure

clamptotable.Theclampwilltiltatanangle

andsecureitselfwhentightened.

Fig.F

1. Loosen the miter handle (1). Lift up the

positive stop locking lever (2) and position

the table to left 15 °. Release the positive stop

locking lever and lock the miter handle.

2. The sliding fence (3) must be extended to the

left.

3. To remove, loosen and remove the six screws

(4) on the table inserts (5) with a Phillips

screwdriver and remove the insert.

4. To install, reposition the table insert, install

the six screws and tighten.

5. Check for blade clearance by moving the slide

carriage through the full motion of the blade in

the table slot. 4

Fig.H _ J

1 2

MOUNTING THE MITER SAW (FIG. I, J)

FigoG

REMOVING AND INSTALLING THE TABLE

INSERT (FIG. H)

,& WARNINGt

To avoid injury:

• Always unplug the saw to avoid accidental

starting. Remove all small pieces of material

from the table cavity before performing any

cuts. The table insert may be removed for this

purpose, but always reattach the table insert

prior to performing a cutting operation.

• Do not start the sliding compound miter saw

without checking for interference between the

blade and table insert. Damage could result

to the blade, table insert or turntable if blade

I,_ WARNING]

To avoid injury form unexpected saw

movement:

• Disconnect the power cord from the outlet,

and lock the cutting head in the lower

position using the stop latch.

• Lock the slide carriage in place by

tightening the slide carriage lock knob.

•To avoid back injury, lift the saw by using

the designated carrying handles located

on the top of the machine. When lifting,

bend at your knees, not from your back.

• Never carry the miter saw by the power

cord or by the switch handle. Carrying the

tool by the power cord could cause damage

to the insulation or the wire connections

resulting in electric shock or fire.

•To avoid injury from flying debris, do not

allow visitors to stand near the saw during

any cutting operation.

•Support the saw on a level work surface.

• Bolt or clamp the saw to its support.

Mounting instructions

1. For stationary use, place the saw in the

desired location, directly on a workbench

where there is room for handling and proper

support of the workpiece. The base of the saw

has four mounting holes. Bolt the base of the

miter saw (1) to the work surface (5), using

the fastening method as shown in Fig I.

strike occurs during the cutting operation. 13 ;,

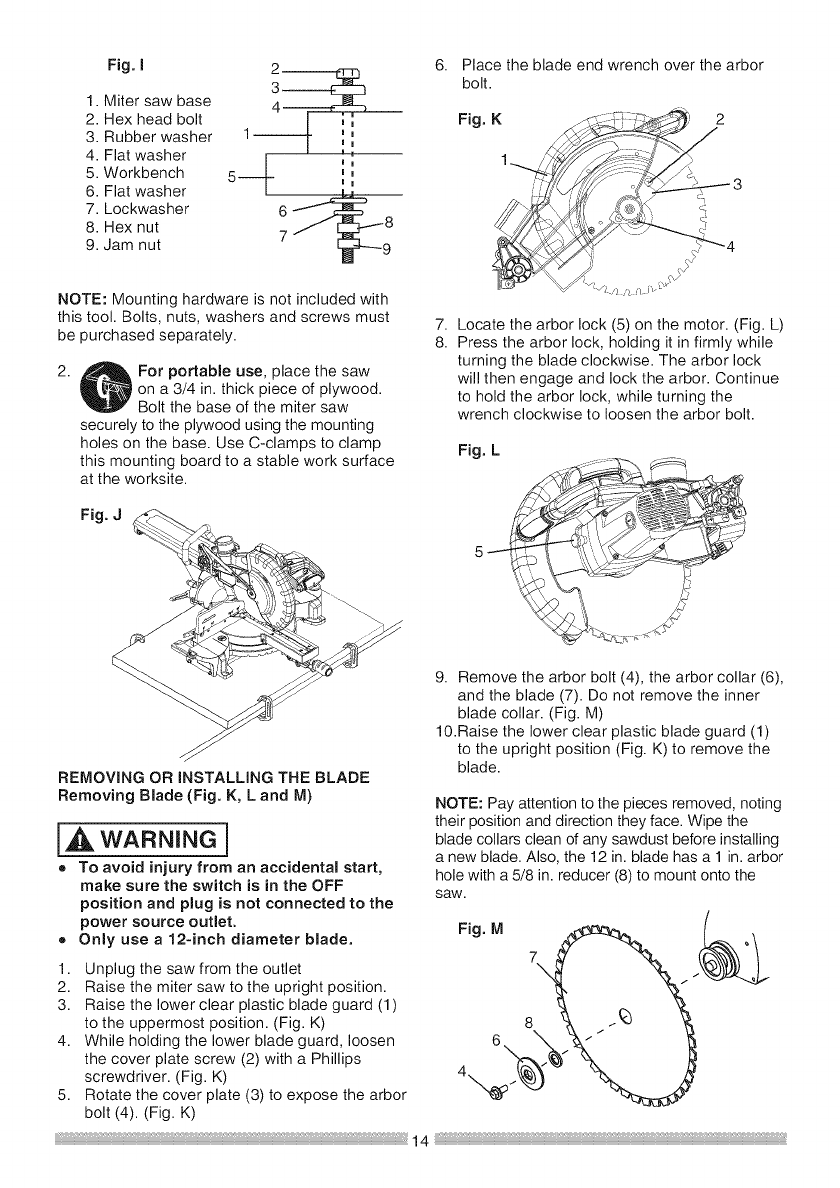

Fig.I

1. Miter saw base

2. Hex head bolt

3. Rubber washer

4. Flat washer

5. Workbench

6. Flat washer

7. Lockwasher

8. Hex nut

9. Jam nut

NOTE: Mounting hardware is not included with

this tool. Bolts, nuts, washers and screws must

be purchased separately.

For portable use, place the saw

)on a 3/4 in. thick piece of plywood.

Bolt the base of the miter saw

securely to the plywood using the mounting

holes on the base. Use C-clamps to clamp

this mounting board to a stable work surface

at the worksite.

Fig. J

6. Place the blade end wrench over the arbor

bolt.

Fig.K

7. Locate the arbor lock (5) on the motor. (Fig. L)

8. Press the arbor lock, holding it in firmly while

turning the blade clockwise. The arbor lock

will then engage and lock the arbor. Continue

to hold the arbor lock, while turning the

wrench clockwise to loosen the arbor bolt.

Fig.L

REMOVING OR INSTALLING THE BLADE

Removing Blade (Fig. K, L and M}

9. Remove the arbor bolt (4), the arbor collar (6),

and the blade (7). Do not remove the inner

blade collar. (Fig. M)

10.Raise the lower clear plastic blade guard (1)

to the upright position (Fig. K) to remove the

blade.

[,_ WARNING]

•To avoid injury from an accidental start,

make sure the switch isin the OFF

position and plug is not connected to the

power source outlet. Fig. M

• Only use a12-inch diameter blade.

1. Unplug the saw from the outlet

2. Raise the miter saw to the upright position.

3. Raise the lower clear plastic blade guard (1)

to the uppermost position. (Fig. K) 8

4. While holding the lower blade guard, loosen 6

the cover plate screw (2) with a Phillips \

screwdriver. (Fig. K) 4

5. Rotate the cover plate (3) to expose the arbor

bolt (4). (Fig. K)

NOTE: Pay attention to the pieces removed, noting

their position and direction they face. Wipe the

blade collars clean of any sawdust before installing

a new blade. Also, the 12 in. blade has a 1 in. arbor

hole with a 5/8 in. reducer (8) to mount onto the

saw.

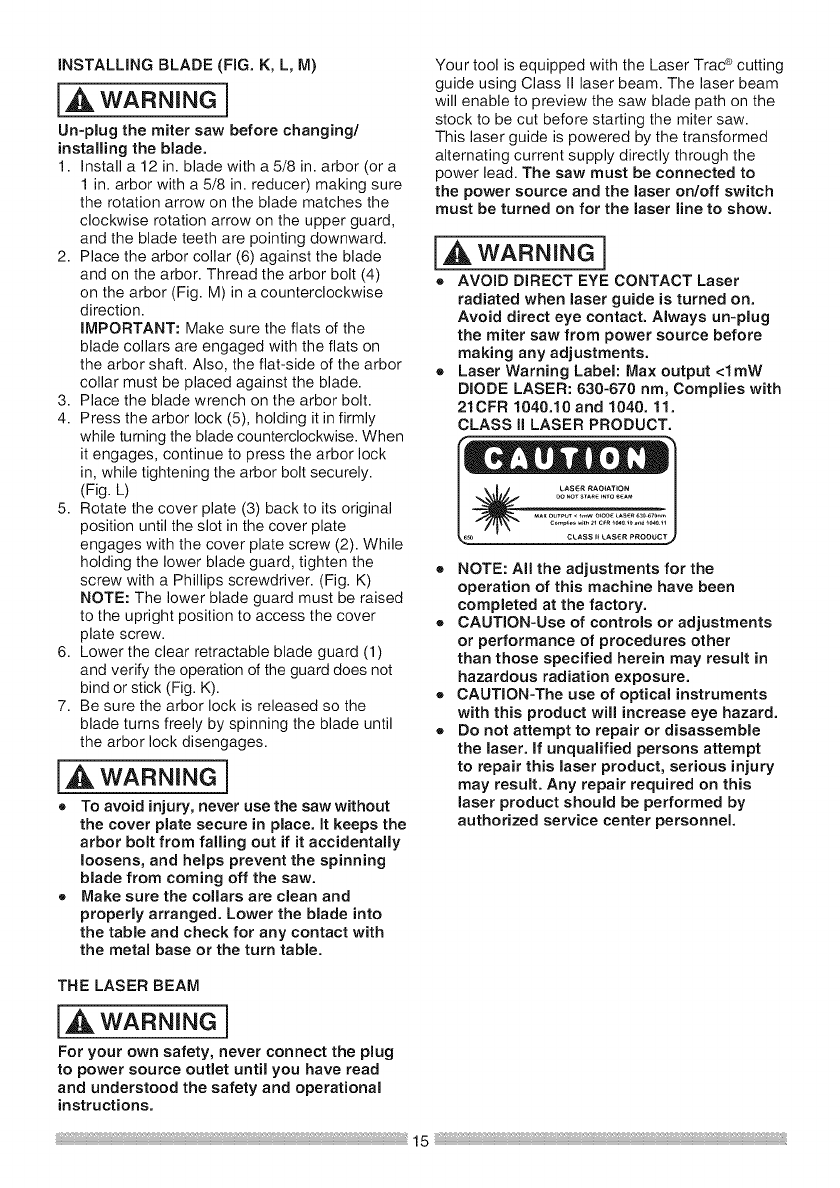

INSTALLINGBLADE(FIG.K, L, M)

i_ WARNING]

Un-plug the miter saw before changing/

installing the blade.

1. install a 12 in. blade with a 5/8 in. arbor (or a

1 in. arbor with a 5/8 in. reducer) making sure

the rotation arrow on the blade matches the

clockwise rotation arrow on the upper guard,

and the blade teeth are pointing downward.

2. Place the arbor collar (6) against the blade

and on the arbor. Thread the arbor bolt (4)

on the arbor (Fig. M) in a counterclockwise

direction.

IMPORTANT: Make sure the flats of the

blade collars are engaged with the flats on

the arbor shaft. Also, the flat-side of the arbor

collar must be placed against the blade.

3. Place the blade wrench on the arbor bolt.

4. Press the arbor lock (5), holding it in firmly

while turning the blade counterclockwise. When

it engages, continue to press the arbor lock

in, while tightening the arbor bolt securely.

(Fig. L)

5. Rotate the cover plate (3) back to its original

position until the slot in the cover plate

engages with the cover plate screw (2). While

holding the lower blade guard, tighten the

screw with a Phillips screwdriver. (Fig. K)

NOTE: The lower blade guard must be raised

to the upright position to access the cover

plate screw.

6. Lower the clear retractable blade guard (1)

and verify the operation of the guard does not

bind or stick (Fig. K).

7. Be sure the arbor lock is released so the

blade turns freely by spinning the blade until

the arbor lock disengages.

l,_ WARNING]

*To avoid injury, never use the saw without

the cover plate secure in place. It keeps the

arbor bolt from falling out if it accidentally

loosens, and helps prevent the spinning

blade from coming off the saw.

oMake sure the collars are clean and

properly arranged. Lower the blade into

the table and check for any contact with

the metal base or the turn table.

Your tool is equipped with the Laser Trac ®cutting

guide using Class II laser beam. The laser beam

will enable to preview the saw blade path on the

stock to be cut before starting the miter saw.

This laser guide is powered by the transformed

alternating current supply directly through the

power lead. The saw must be connected to

the power source and the laser on/off switch

must be turned on for the laser line to show.

l,_k WARNING]

•AVOID DIRECT EYE CONTACT Laser

radiated when laser guide is turned on.

Avoid direct eye contact. Always un-plug

the miter saw from power source before

making any adjustments.

• Laser Warning Label: Max output <1row

DIODE LASER: 630-670 nm, Complies with

21CFR 1040.10 and 1040.11.

CLASS II LASER PRODUCT.

LASER RAO_ATION

0o NOTSTAR_JN_O_AM

_50 CLASS Ii LASER PROOUCT_

• NOTE: All the adjustments for the

operation of this machine have been

completed at the factory.

• CAUTION-Use of controls or adjustments

or performance of procedures other

than those specified herein may result in

hazardous radiation exposure.

• CAUTION-The use of optical instruments

with this product will increase eye hazard.

• Do not attempt to repair or disassemble

the laser. If unqualified persons attempt

to repair this laser product, serious injury

may result. Any repair required on this

laser product should be performed by

authorized service center personnel.

THE LASER BEAM

WARNING i

For your own safety, never connect the plug

to power source outlet until you have read

and understood the safety and operational

instructions.

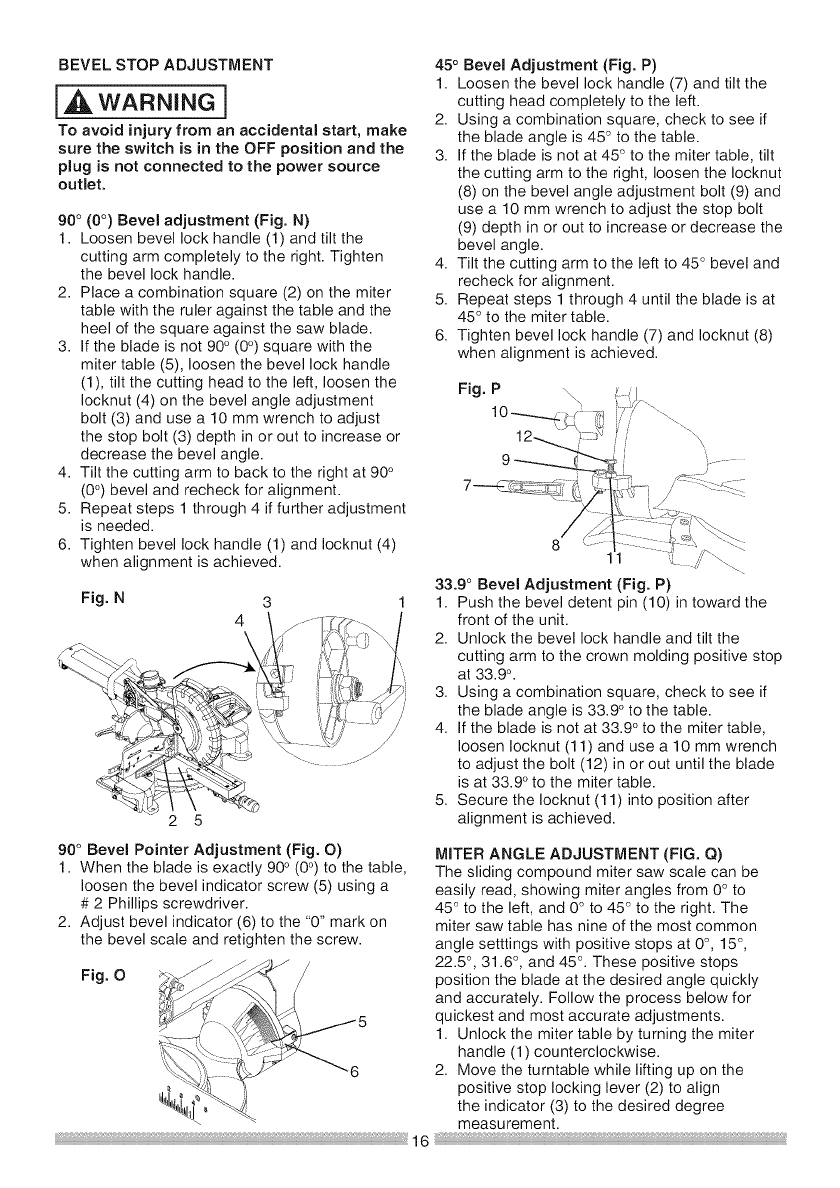

BEVEL STOP ADJUSTMENT

I_ WARNING]

To avoid injury from an accidental start, make

sure the switch is in the OFF position and the

plug is not connected to the power source

outlet.

90 ° (O°) Bevel adjustment (Fig. N)

1. Loosen bevel lock handle (1) and tilt the

cutting arm completely to the right. Tighten

the bevel lock handle.

2. Place a combination square (2) on the miter

table with the ruler against the table and the

heel of the square against the saw blade.

3. If the blade is not 90 ° (0°) square with the

miter table (5), loosen the bevel lock handle

(1), tilt the cutting head to the left, loosen the

Iocknut (4) on the bevel angle adjustment

bolt (3) and use a 10 mm wrench to adjust

the stop bolt (3) depth in or out to increase or

decrease the bevel angle.

4. Tilt the cutting arm to back to the right at 90°

(0°) bevel and recheck for alignment.

5. Repeat steps 1 through 4 if further adjustment

is needed.

6. Tighten bevel lock handle (1) and Iocknut (4)

when alignment is achieved.

Fig. N 3

2 5

45 ° Bevel Adjustment (Fig. P)

1. Loosen the bevel lock handle (7) and tilt the

cutting head completely to the left.

2. Using a combination square, check to see if

the blade angle is 45 ° to the table.

3. If the blade is not at 45 ° to the miter table, tilt

the cutting arm to the right, loosen the Iocknut

(8) on the bevel angle adjustment bolt (9) and

use a 10 mm wrench to adjust the stop bolt

(9) depth in or out to increase or decrease the

bevel angle.

4. Tilt the cutting arm to the left to 45 ° bevel and

recheck for alignment.

5. Repeat steps 1 through 4 until the blade is at

45 ° to the miter table.

6. Tighten bevel lock handle (7) and Iocknut (8)

when alignment is achieved.

Fig.P \

33.9 ° Bevel Adjustment (Fig. P)

1. Push the bevel detent pin (10)in toward the

front of the unit.

2. Unlock the bevel lock handle and tilt the

cutting arm to the crown molding positive stop

at 33.9 ° .

3. Using a combination square, check to see if

the blade angle is 33.9 °to the table.

4. If the blade is not at 33.9 °to the miter table,

loosen Iocknut (11) and use a 10 mm wrench

to adjust the bolt (12) in or out until the blade

is at 33.9 ° to the miter table.

5. Secure the Iocknut (11) into position after

alignment is achieved.

90 ° Bevel Pointer Adjustment (Fig. O)

1. When the blade is exactly 90 ° (0°) to the table,

loosen the bevel indicator screw (5) using a

# 2 Phillips screwdriver.

2. Adjust bevel indicator (6) to the "0" mark on

the bevel scale and retighten the screw.

Fig.O

MITER ANGLE ADJUSTMENT (FIG. Q)

The sliding compound miter saw scale can be

easily read, showing miter angles from 0° to

45 ° to the left, and 0 ° to 45 ° to the right. The

miter saw table has nine of the most common

angle setttings with positive stops at 0°, 15 °,

22.5 °, 31.6 °, and 45 °. These positive stops

position the blade at the desired angle quickly

and accurately. Follow the process below for

quickest and most accurate adjustments.

1. Unlock the miter table by turning the miter

handle (1) counterclockwise.

2. Move the turntable while lifting up on the

positive stop locking lever (2) to align

the indicator (3) to the desired degree

measurement.

3. Ifthedesiredangleisoneoftheninepositive

stops,releasethepositivestoplockinglever,

makingsuretheleversnapsintoposition,and

thensecurebytighteningthemiterhandle.

4. Ifthemiterangledesiredisnotoneofthe

ninepositivestops,simplylockthemitertable

intopositionbyturningthemiterhandleinthe

clockwisedirection.

Fig.Q

SETTINGCUTTINGDEPTH(FIG.S)

Thedepthofcutcanbepresetforevenand

repetitiveshallowcuts.

1.Adjustthecuttingheaddown(SeeCUTTING

HEADsection)untiltheteethofthebladeare

atthedesireddepth.

2.Whileholdingtheupperarminthatposition,

turnthestopknob(1)untilittouchesthestop

plate(2).

3.Recheckthebladedepthbymovingthe

cuttingheadfronttobackthroughthefull

motionofatypicalcutalongthecontrolarm.

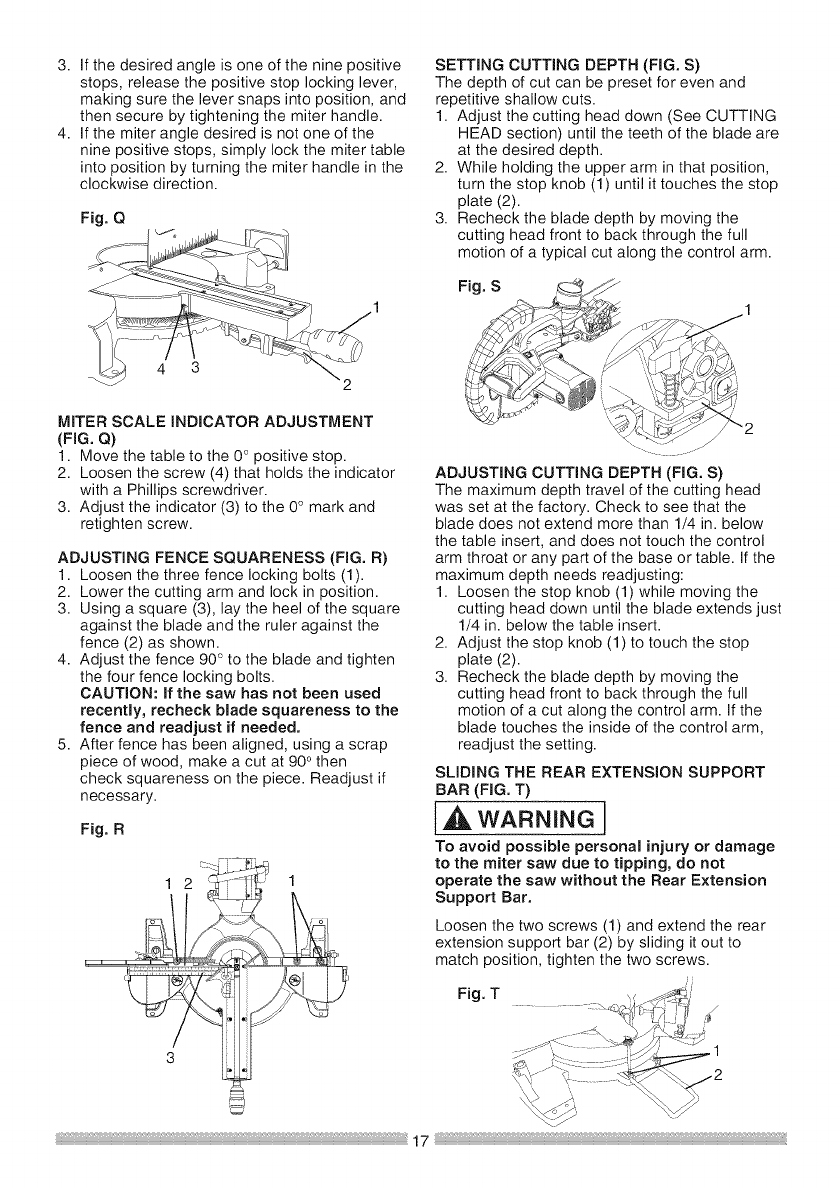

MITERSCALEINDICATORADJUSTMENT

(FIG,Q}

1.Movethetabletothe0°positivestop.

2. Loosenthescrew(4)thatholdstheindicator

withaPhillipsscrewdriver.

3.Adjusttheindicator(3)tothe0°markand

retightenscrew.

ADJUSTINGFENCESQUARENESS(FIG.R)

1.Loosenthethreefencelockingbolts(1).

2. Lowerthecuttingarmandlockinposition.

3. Usingasquare(3),laytheheelofthesquare

againstthebladeandtheruleragainstthe

fence(2)asshown.

4.Adjustthefence90°tothebladeandtighten

thefourfencelockingbolts.

CAUTION:Ifthesawhasnotbeenused

recently,recheckbladesquarenesstothe

fenceand readjust if needed.

5. After fence has been aligned, using a scrap

piece of wood, make a cut at 90 ° then

check squareness on the piece. Readjust if

necessary.

Fig. R

1 2 1

....._t_._s_

ADJUSTING CUTTING DEPTH (FIG. S)

The maximum depth travel of the cutting head

was set at the factory. Check to see that the

blade does not extend more than 1/4 in. below

the table insert, and does not touch the control

arm throat or any part of the base or table. If the

maximum depth needs readjusting:

1. Loosen the stop knob (1) while moving the

cutting head down until the blade extends just

1/4 in. below the table insert.

2. Adjust the stop knob (1) to touch the stop

plate (2).

3. Recheck the blade depth by moving the

cutting head front to back through the full

motion of a cut along the control arm. If the

blade touches the inside of the control arm,

readjust the setting.

SLIDING THE REAR EXTENSION SUPPORT

BAR (FIG. T)

IA,WARNING

To avoid possible personal injury or damage

to the miter saw due to tipping, do not

operate the saw without the Rear Extension

Support Bar.

Loosen the two screws (1) and extend the rear

extension support bar (2) by sliding it out to

match position, tighten the two screws.

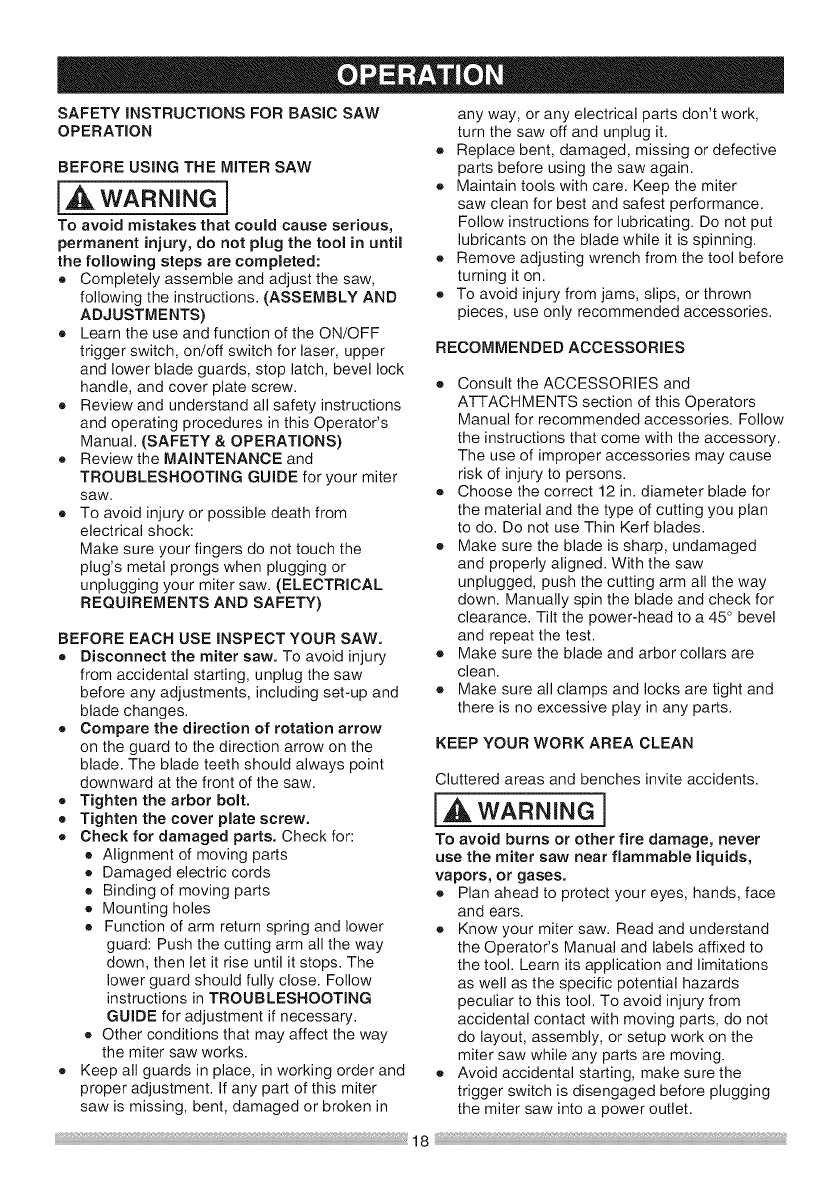

SAFETY iNSTRUCTiONS FOR BASIC SAW

OPERATION

BEFORE USING THE MITER SAW

l,,_ WARNING]

To avoid mistakes that could cause serious,

permanent injury, do not piug the tool in until

the foiiowing steps are completed:

q, Completely assemble and adjust the saw,

following the instructions. (ASSEMBLY AND

ADJUSTMENTS)

q, Learn the use and function of the ON/OFF

trigger switch, on/off switch for laser, upper

and lower blade guards, stop latch, bevel lock

handle, and cover plate screw.

• Review and understand all safety instructions

and operating procedures in this Operator's

Manual. (SAFETY & OPERATIONS)

• Review the MAINTENANCE and

TROUBLESHOOTING GUIDE for your miter

saw.

• To avoid injury or possible death from

electrical shock:

Make sure your fingers do not touch the

plug's metal prongs when plugging or

unplugging your miter saw. (ELECTRICAL

REQUIREMENTS AND SAFETY)

BEFORE EACH USE INSPECT YOUR SAW.

•Disconnect the miter saw. To avoid injury

from accidental starting, unplug the saw

before any adjustments, including set-up and

blade changes.

• Compare the direction of rotation arrow

on the guard to the direction arrow on the

blade. The blade teeth should always point

downward at the front of the saw.

• Tighten the arbor bolt.

• Tighten the cover plate screw.

• Check for damaged parts. Check for:

• Alignment of moving parts

• Damaged electric cords

• Binding of moving parts

• Mounting holes

• Function of arm return spring and lower

guard: Push the cutting arm all the way

down, then let it rise until it stops. The

lower guard should fully close. Follow

instructions in TROUBLESHOOTING

GUIDE for adjustment if necessary.

• Other conditions that may affect the way

the miter saw works.

• Keep all guards in place, in working order and

proper adjustment. If any part of this miter

saw is missing, bent, damaged or broken in

any way, or any electrical parts don't work,

turn the saw off and unplug it.

• Replace bent, damaged, missing or defective

parts before using the saw again.

• Maintain tools with care. Keep the miter

saw clean for best and safest performance.

Follow instructions for lubricating. Do not put

lubricants on the blade while it is spinning.

• Remove adjusting wrench from the tool before

turning it on.

• To avoid injury from jams, slips, or thrown

pieces, use only recommended accessories.

RECOMMENDED ACCESSORIES

• Consult the ACCESSORIES and

ATTACHMENTS section of this Operators

Manual for recommended accessories. Follow

the instructions that come with the accessory.

The use of improper accessories may cause

risk of injury to persons.

• Choose the correct 12 in. diameter blade for

the material and the type of cutting you plan

to do. Do not use Thin Kerf blades.

• Make sure the blade is sharp, undamaged

and properly aligned. With the saw

unplugged, push the cutting arm all the way

down. Manually spin the blade and check for

clearance. Tilt the power-head to a 45 ° bevel

and repeat the test.

• Make sure the blade and arbor collars are

clean.

• Make sure all clamps and locks are tight and

there is no excessive play in any parts.

KEEP YOUR WORK AREA CLEAN

Cluttered areas and benches invite accidents.

l,_ WARNING]

To avoid burns or other fire damage, never

use the miter saw near flammable liquids,

vapors, or gases.

• Plan ahead to protect your eyes, hands, face

and ears.

• Know your miter saw. Read and understand

the Operator's Manual and labels affixed to

the tool. Learn its application and limitations

as well as the specific potential hazards

peculiar to this tool. To avoid injury from

accidental contact with moving parts, do not

do layout, assembly, or setup work on the

miter saw while any parts are moving.

• Avoid accidental starting, make sure the

trigger switch is disengaged before plugging

the miter saw into a power outlet.

PLANYOURWORK

• Usetherighttool.Don'tforceatoolor

attachmenttodoajobitwasnotdesigned

todo.Useadifferenttoolforanyworkpiece

thatcan'tbeheldinasolidlybraced,fixed

position.

CAUTION:This machine is not designed for

cutting masonry, masonry products, ferrous

metals (steel, iron, and iron-based metals.)

Use this miter saw to cut only wood, wood-

like products, or non-ferrous metals. Other

material may shatter, bind the blade, or create

other dangers. Remove all nails that may be

in the workpiece to prevent sparking that

could cause a fire. Remove dust bag when

cutting non-ferrous metals.

DRESS FOR SAFETY

O ny power tool can throw foreign

objects into the eyes. This can result

in permanent eye damage. Everyday

eyeglasses have only impact resistant

lenses and are not safety glasses.

Glasses or goggles not in compliance

with ANSi Z87.1 could seriously injure

you when they break.

• Do not wear loose clothing, gloves, neckties

or jewelry (rings, watches). They can get

caught and draw you into moving parts.

• Wear non-slip footwear.

• Tie back long hair.

• Roll long sleeves above the elbow.

• Noise levels vary widely. To avoid possible

hearing damage, wear ear plugs when using

any miter saw.

• For dusty operations, wear a dust mask along

with safety goggles.

INSPECT YOUR WORKPIECE

Make sure there are no nails or foreign objects in

the part of the workpiece being cut.

Plan your work to avoid small pieces that may

bind, or that are too small to clamp and get a

solid grasp on. Plan the way you will grasp the

workpiece from start to finish. Avoid awkward

operations and hand positions. A sudden slip

could cause your fingers or hand to move into

the blade.

workpiece, fence and table that will let the

workpiece shift after it is cut.

• Keep the cut off piece free to move sideways

after it is cut off. Otherwise, it could get

wedged against the blade and thrown

violently.

• Only the workpiece should be on the saws

table.

• Secure work. Use clamps or a vise to help

hold the work when it's practical.

USE EXTRA CAUTION WiTH LARGE OR ODD

SHAPED WORKPIECES.

• Use extra supports (tables, sawhorses,

blocks, etc.) for workpieces large enough to

tip.

• Never use another person as a substitute for

a table extension, or as an additional support

for a workpiece that is longer or wider than

the basic miter saw table, or to help feed,

support, or pull the workpiece.

• Do not use this saw to cut small pieces, if the

workpiece being cut would cause your hand

or fingers to be within 8-3/4 inches of the saw

blade the workpiece is too small. Keep hands

and fingers out of the "no hands zone" area

marked on the saws table.

• When cutting odd shaped workpieces, plan

your work so it will not bind in the blade and

cause possible injury. Molding, for example,

must lie flat or be held by a fixture or jig that

will not let it move when cut.

• Properly support round material such as

dowel rods, or tubing, which have a tendency

to roll when cut, causing the blade to "bite".

[,_ WARNING ]

To avoid injury, follow all applicable safety

instructions, when cutting non-ferrous

metals:

• Use only saw blades specifically

recommended for non-ferrous metal cutting.

• Do not cut metal workpieces that must be

hand held. Clamp workpieces securely.

• Cut non-ferrous metals only if you are under

the supervision of an experienced person and

the dust bag has been removed from the saw.

DO NOT OVER-REACH

Keep good footing and balance. Keep your face

and body to one side, out of the line of a possible

kickback. NEVER stand in the line of the blade.

Never cut freehand:

• Brace your workpiece firmly against the fence

and table stop so it will not rock or twist during

the cut.

• Make sure there is no debris between the

workpiece and the table or fence.

WHEN SAW IS RUNNING

[,_ WARNING ]

Do not allow familiarity from frequent use of

your miter saw to result in a careless mistake.

A careless fraction of a second is enough to

cause a severe injury.

Before cutting, if the saw makes an unfamiliar

noise or vibrates, stop immediately. Turn the

saw OFF. Unplug the saw. Do not restart until

® Make sure there are no 9a£s between the finding and correcting the problem.

BODY AND HAND POSITION (FIG. U)

[_ WARNING]

Never place hands near the cutting

area. Proper positioning of your

body and hands when operating the

miter saw will make cutting easier

and safer. Keep children away. Keep

all visitors at asafe distance from

the miter saw. Make sure bystanders

are clear of the saw and workpiece.

Don't force the saw. It will do the job

better and safer at its designed rate.

Starting acut:

• Place hands at least 8-3/4 in. away from the

path of the blade - out of the "no-hands zone"

(1). (Fig. U)

• Hold workpiece firmly against the fence to

prevent movement toward the blade.

• With the power switch OFF, bring the saw

blade down to the workpiece to see the

cutting path of the blade.

• Squeeze trigger switch to start saw.

• Lower blade into workpiece with a firm

downward motion.

Finishing a cut:

• Hold the cutting arm in the down position.

• Release trigger switch and wait for all moving

parts to stop before moving your hands and

raising the cutting arm.

• If the blade doesn't stop within 10 seconds,

unplug the saw and follow the instructions in

TROUBLESHOOTING GUIDE section.

Before freeing jammed material:

• Release trigger switch.

• Wait for all moving parts to stop.

• Unplug the miter saw.

Fig. U

c-::\

i J \,.f\,

,//_ ,

It_', ]

4,:5' '

K".y.3 ,L/

8-3/4 in. 8-3/4 in.

(1)

BASIC SAW OPERATIONS

I,A WARNING]

For your convenience, your saw has a blade

brake. The brake is not a safety device. Never

rely on it to replace the proper use of the

guard on your saw. If the blade doesn't stop

within approximately 10 seconds, wait for the

blade to stop, unplug the saw and contact

customer service.

TURNING THE SAW ON (FIG. V)

Depress the trigger switch (1) to turn on the miter

saw started.

NOTE: Make the ON/OFF switch childproof.

Insert a padlock, or chain with padlock, through

the hole (2) in the trigger switch, locking the tool's

switch, preventing children and other unqualified

users from turning the machine on.

The miter saw is equipped with an automatic

blade brake. When the trigger switch is released,

the electric blade brake will stop the blade within

approximately 10 seconds.

Fig. V 1 2

SLIDING FENCE & REMOVE SLIDING FENCE

(FIG. W)

Sliding Fence

l,_. WARNING]

The sliding fence must be extended to the left

when making bevel cuts. The sliding fences

note three bevel angles where the user must

adjust the fences to match the degree of the

bevel cut. Failure to extend the sliding fence

will not allow enough space for the blade to

pass through which could result in serious

injury. At extreme miter or bevel angles the

saw blade may also contact the fence.

Unlock the fence cam locking lever (1) by

pushing it toward the rear of the machine.

Extend the fence (2) by sliding it out to match

the degree of the bevel cut. Lock the fence

cam locking lever by pushing it IN toward

the fence. NOTE: When transporting the

saw, always secure the sliding fence in the

collapsed position (toward the saw blade).

FigoW

2 \

SLiDiNG CARRIAGE SYSTEM (FIG. X)

,& WARNINGI

To reduce the risk of injury, return carriage

to the full rear position after each crosscut

operation.

1. For chop cutting operations on small

workpieces, slide the cutting head assembly

completely toward the rear of the unit and

tighten the carriage lock knob (1).

2. To cut wide boards up to 12-1/4 in., the

carriage lock knob must be loosened to allow

the cutting head to slide freely.

Fig. X

[,_ WARNING

To avoid injury from materials being thrown,

always unplug the saw to avoid accidental

starting, and remove small pieces of material

from the table cavity.

MITER CUT (FIG, Y)

1. When a miter cut is required, unlock the

miter table by turning the miter handle (1)

counterclockwise.

2. While holding the miter handle, lift up on the

positive stop locking lever (2).

3. Rotate the miter table to the right or left with

the miter handle.

4. When the table is in the desired position, as

shown on the miter scale (3), release the

positive stop locking lever and tighten the

miter handle. The table is now locked at the

desired angle. Positive stops are provided at

0 °, 15°, 22.5 °, 31.6 ° and 45 °.

IMPORTANT: Always tighten the miter table

lock handle before performing every cutting

operation.

1 2 3

BEFORE LEAVING THE SAW

• Never leave tool running unattended. Turn

power OFF. Wait for all moving parts to stop.

• Make workshop childproof. Lock the shop.

Disconnect master switches. Store tool away

from children and other unqualified users.

[_ WARNING]

The sliding fence must be extended to the left

when making bevel cuts. The sliding fences

note three bevel angles where the user must

adjust the fences to match the degree of the

bevel cut. Failure to extend the sliding fence

will not allow enough space for the blade to

pass through which could result in serious

injury. At extreme miter or bevel angles the

saw blade may also contact the fence.

COMPOUND CUT (FIG. BB)

A compound cut is the combination of a miter

and a bevel cut simultaneously•

1. Loosen the bevel lock handle (1) and position

the cutting head at the desired bevel position•

Lock the bevel lock handle•

2. Loosen the miter handle (2). Lift up the

positive stop locking lever (3) and position

the table at the desired angle• Release the

positive stop locking lever and lock the miter

handle•

BEVEL CUT (FIG. Z)

1. When a bevel cut is required, loosen the bevel

lock handle (1) by turning it clockwise•

2. Tilt the cutting head to the desired angle, as

shown on the bevel scale (2).

3. The blade can be positioned at any angle,

from a 90 ° straight cut (0 ° on the scale) to a

45 ° left bevel• Tighten the bevel lock handle (1)

to lock the cutting head in position• Positive

stops are provided at 0°, 33.9 ° and 45 °.

Fig. Z

NOTE: The saw comes with a 33.9 ° crown

molding stop.

33,9 ° BEVEL STOP FOR CROWN MOLDING

(FIG. AA)

1. Push the bevel detent stop pin (2) in toward

the front of the machine.

2. Loosen the bevel lock handle (1).

3. Rotate the cutting head until the bevel detent

pin stops the bevel angle at 33.9 ° on the

bevel scale.

4. Tighten the bevel lock handle before making

a cut.

Fig. AA

Fig. BB

SLIDE CUTTING WIDE BOARDS UP TO

12-1/4 in. WIDE (FIG. CC)

[a,wARninG

To avoid injury:

• Never pull the cutting head assembly and

spinning blade toward you during the cut.

The blade may try to climb up on the top of

the workpiece, causing the cutting assembly

and spinning blade to kick back, forcefully•

The cutting head assembly should be drawn

back completely then pushed forward when

sawing•

• Let the blade reach full speed before cutting•

This will help reduce the risk of a thrown

workpiece.

To Slide Cut Wide Boards (Fig. CC)

1. Unlock the carriage lock handle (1) and allow

the cutting head assembly to move freely.

2. Set both the desired bevel angle and/or the

miter angle and lock into position.

3. Use a hold down clamp to secure the

workpiece.

4. Grasp the switch handle (2) and pull the

carriage (3) forward until the center of the saw

blade is over the front of the workpiece (4).

5. Engage the trigger to turn the saw on.

6. When the saw reaches full speed, push the

switch handle down, slowly, cutting through

the leading edge of the workpiece.

7. Slowlymovetheswitchhandletowardthe

fence,completingthecut.

8. Releasethetriggerandallowthebladeto

stopspinningbeforeallowingthecuttinghead

toraise.

Fig.CC

Fig.EE

WORKPIECESUPPORTANDREPETITIVE

CUTTINGUSINGTHESTOPPLATE(FIG.DD)

Longpiecesneedextension table support.

1. Loosen the knob (5) then slide the extension

table to desired position and tighten the knob.

2. The stop plate is designed for use during

repetitive cutting. Only use one stop plate at a

time. Loosen the locking screw (6), rotate the

stop plate (7) to vertical position and retighten

the locking bolt.

Fig.DD

AUXILIARY WOOD FENCE (FIG. FF)

When making multiple or repetitive cuts that

result in cut-off pieces of one inch or less, it is

possible for the saw blade to catch the cut-off

piece and throw it out of the saw or into the blade

guard and housing, possibly causing damage or

injury. To minimize this, an auxiliary wood fence

can be mounted to your saw.

Holes are provided in the saw fence to attach

an auxiliary wood fence. This fence is to be

constructed of straight wood approximately 3/4

in. thick by 2-1/2 in. high by 18 in. long.

Attach the wood fence securely and make a full

depth cut to make a blade slot.

Check for interference between the wood fence

and the lower blade guard. Adjust if necessary.

NOTE: This auxiliary fence is used only with

the saw blade in the 0 ° bevel position (90 ° to

the table). The auxiliary wood fence must be

removed when bevel cutting.

Fig.FF

CUTTING BOWED MATERIAL (FIG. EE)

A bowed workpiece must be positioned against

the fence and secured with a clamping devise

before cutting as shown. Do not position

workpiece incorrectly or try to cut the workpiece

without the support of the fence. This will cause

the blade to bind and could result in personal

injury.

-Blade slot

CUTTING BASE MOLDING (FIG. GG)

Base moldings and many other moldings can

be cut on a compound miter saw. The setup of

the saw depends on molding characteristics and

application, as shown. Perform practice cuts on

scrap material to achieve best results:

1. Always make sure moldings rest firmly against

fence and table. Use hold-down, crown

molding vise or C-clamps, whenever possible,

and place tape on the area being clamped to

avoid marks.

2. Reduce splintering by taping the cut area prior

to making the cut. Mark the cut line directly on

the tape.

3. Splintering typically happens due to an incorrect

blade application and thinness of the material.

Fig. GG

Miter saw table [ [ ! _Miter_aw_table [

miter at 45°, bevel at 0° miter at 0°, bevel at 450

NOTE: Always perform a dry run cut so you can

determine if the operation being attempted is

possible before power is applied to the saw.

CUTTING CROWN MOLDING (FIG. HH, II)

Your compound miter saw is suited for the

difficult task of cutting crown molding. To fit

properly, crown molding must be compound-

mitered with extreme accuracy. The two surfaces

on a piece of crown molding that fit flat against

the ceiling and wall are at angles that, when

added together, equal exactly 90 °.

Most crown molding has a top rear angle (the

section that fits flat against the ceiling) of 52 °

and a bottom rear angle (the section that fits flat

against the wall) of 38 ° .

In order to accurately cut crown molding for a

90° inside or outside corner, lay the molding with

its broad back surface flat on the saw table.

When setting the bevel and miter angles for

compound miters, remember that the settings are

interdependent; changing one changes the other,

as well.

Fig. HH

Miter saw table I

Bevel/Miter Settings

Fig. II

Settings for standard crown molding lying flat

on compound miter saw table

Inside corner

Outside corner

Compound cut crown moldings

NOTE: The chart below references a

compound cut for crown molding ONLY

WHEN THE ANGLE BETWEEN THE WALLS

EQUALS 90 °.

Bevel/Miter Settings

KEY BEVEL I MITER ITYPEOFCUT

SETTING SETTING

Inside corner-Left side

[L 33.9" 31.6 _ Right 1. Position top of molding

against fence.

2, Miter table set at

RiG HT 31,6h

3. LEFT side is finished

piece.

Inside comer-Right side

IR 33.9" 31.6 _ Left 1. Position bottom of

molding against fence.

2. Miter table set at LEFT

31,6 _.

3. LEFT side is finished

piece.

Outside comer-Left side

Oh 33.9" 31.6 _ Left 1. Position bottom of

molding against fence.

2. Miter table set at LEFT

31.6h

3. RIGHT side is finished

piece.

Outside comer-Right side

OR 33.9" 31.6 _ Right 1. Position top of molding

against fence.

2, Miter table set at

RiG HT 31.6h

3. RIGHT side is finished

piece.

CROWN MOLDING CHART

Compound Miter saw

Miter and bevel Angle settings

Wall to Crown Molding Angle

52/38 _Crown Molding 45/45 ' Crown Molding 52/38 _Crown Molding 45/45 ' Crown Molding

Angle Miter Bevel Miter Bevel Angle Miter Bevel Miter Bevel

Between Between Setting Setting Setting Setting

Walls Setting Setting Setting Setting Walls

67 42,93 41.08 46.89 36.13 124 18.13 21.71 20.61 19.39

68 42,39 40.79 46.35 35.89 125 17.77 21.34 20.21 19.06

69 41.85 40.50 45.81 35.64 126 17.42 20.96 19.81 18.72

70 41.32 40.20 45.28 35.40 127 17.06 20.59 19.42 18.39

71 40.79 39.90 44.75 35.15 128 16.71 20.21 19.03 18.06

72 40.28 39.61 44.22 34.89 129 16.37 19.83 18.64 17.72

73 39.76 39.30 43.70 34.64 130 16.02 19.45 18.25 17.39

74 39.25 39.00 43.18 35.38 131 15.67 19.07 17.86 17.05

75 38.74 38.69 42,66 34.12 132 15,33 18.69 17.48 16.71

76 38,24 38.39 42,15 33.86 133 14.99 18.31 17.09 16.38

77 37.74 38,08 41.64 33.60 134 14.66 17.93 16.71 16.04

78 37.24 37.76 41.13 33.33 135 14.30 17.55 16.32 15.70

79 36.75 37.45 40.62 33.07 136 13.97 17.17 15.94 15.36

80 36.27 37.13 40.12 32,80 137 13.63 16.79 15.56 15.02

81 35.79 36.81 39.62 32,53 138 13.30 16.40 15.19 14.62

82 35.31 36.49 39.13 32,25 139 12,96 16.02 14.81 14.34

83 34.83 36.17 38.63 31.98 140 12,63 15.64 14.43 14.00

84 34.36 35.85 38,14 31.70 141 12,30 15.25 14.06 13.65

85 33.90 35.52 37.66 31.42 142 11.97 14.87 13.68 13.31

86 33.43 35.19 37.17 31.34 143 11.64 14.48 13.31 12,97

87 32,97 34.86 36.69 30.86 144 11.31 14.09 12,94 12,62

88 32,52 34.53 36.21 30.57 145 10.99 13.71 12,57 12,29

89 32,07 34.20 35.74 30.29 146 10.66 13.32 12,20 11.93

90 31.62 33,86 35.26 30.00 147 10.34 12,93 11.83 11.59

91 31.17 33.53 34.79 29.71 148 10.01 12,54 11.46 11.24

92 30.73 33.19 34.33 29.42 149 9.69 12,16 11.09 10.89

93 30.30 32,86 33.86 29.13 150 9.37 11.77 10.73 10.55

94 29.86 32,51 33.40 28.83 151 9.05 11.38 10.36 10.20

95 29.43 32,17 32,94 28.54 152 8.73 10.99 10.00 9.85

96 29.00 31.82 32,48 28,24 153 8.41 10.60 9.63 9.50

97 28.58 31.48 32,02 27.94 154 8.09 10.21 9.27 9.15

98 28,16 31.13 31.58 27.64 155 7.77 9.82 8.91 8.80

99 27.74 30.78 31.13 27.34 156 7.46 9.43 8.55 8.45

100 27.32 30.43 30.68 27.03 157 7.14 9.04 8.19 8.10

101 26.91 30.08 30.24 26.73 158 6.82 8.65 7.83 7.75

102 26.50 29.73 29.80 26.42 159 6.51 8.26 7.47 7.40

103 26.09 29.38 29.36 26.12 160 6.20 7.86 7.11 7.05

104 25.69 29.02 28.92 25.81 161 5.88 7.47 6.75 6.70

105 25.29 28.67 28.48 25.50 162 5.57 7.08 6.39 6.35

106 24.89 28,31 28,05 25.19 163 5.26 6.69 6.03 6.00

107 24.49 27.96 27.62 24.87 164 4.95 6.30 5.68 5.65

108 24.10 27.59 27.19 24.56 165 4.63 5.90 5.32 5.30

109 23.71 27.23 26.77 24.24 166 4.32 5.51 4.96 4.94

110 23.32 26.87 26.34 23.93 167 4.01 5.12 4.61 4.59

111 22,93 26.51 25.92 23.61 168 3.70 4.72 4.25 4.24

112 22,55 26.15 25.50 23.29 169 3.39 4.33 3.90 3.89

113 22.17 25.78 25.08 22,97 170 3.08 3.94 3.54 3.53

114 21.79 25.42 24.66 22,66 171 2,77 3.54 3.19 3.10

115 21.42 25.05 24.25 22,33 172 2,47 3.15 2,83 2,83

116 21.04 24.68 23.84 22,01 173 2.15 2,75 2,48 2,47

117 20.67 24.31 23.43 21.68 174 1.85 2,36 2,12 2,12

118 20.30 23.94 23.02 21.36 175 1.54 1.97 1.77 1.77

119 19.93 23.57 22,61 21.03 176 1.23 1.58 1.41 1.41

120 19.57 23.20 22.21 20.70 177 0.92 1.18 1.06 1.06

121 19.20 22,83 21.80 20.38 178 0.62 0.79 0.71 0.71

122 18.84 22,46 21.40 20.05 179 0.31 0.39 0.35 0.35

123 18.48 22,09 21.00 19.72

MAINTENANCE

i_ WARNING i

Never put lubricants on the blade while it is

spinning.

,_ WARNING

•To avoid fire or toxic reaction, never use

gasoline, naphtha acetone, lacquer thinner

or similar highly volatile solvents to clean

the miter saw.

=To avoid injury from unexpected starting

or electrical shock, unplug the power cord

before working on the saw.

=For your safety, this saw is double

insulated. To avoid electrical shock, fire

or injury, use only parts identical to those

identified in the parts list. Reassemble

exactly as the original assembly to avoid

electrical shock.

REPLACING CARBON BRUSHES (FIG. JJ)

Replace both carbon brushes when either has

less than 1/4 in. length of carbon remaining, or

if the spring or wire is damaged or burned. To

inspect or replace brushes, first unplug the saw.

Then remove the black plastic cap (1) on the side

of the motor (2). Carefully remove the spring-

loaded cap. Then pull out the brush and replace.

Replace for the other side. To reassemble,

reverse the procedure. The ears on the metal

end of the assembly go in the same hole the

carbon part fits into. Tighten the cap snugly, but

do not overtighten.

NOTE: When reinstalling the same brushes,

put them back in the way they came out. This

will avoid a break-in period that reduces motor

performance and increases wear.

Fig. JJ

I,A WARNING]

•Do not use solvents on the guard. They

could make the plastic "cloudy" and

brittle,

• When cleaning the lower guard, unplug the

saw from the power source receptacle to

avoid unexpected start-up.

SAWDUST

Periodically, sawdust will accumulate under the

worktable and base. This could cause difficulty in

the movement of the worktable when setting up a

miter cut. Frequently blow out or vacuum up the

sawdust.

l,_ WARNING]

if blowing sawdust, wear proper eye protection

to keep debris from blowing into eyes.

LUBRiCATiON (FIG. KK)

All the motor bearings in this tool are lubricated

with a sufficient amount of high-grade lubricant

for the life of the unit under normal operating

conditions; therefore, no further lubrication is

required.

Lubricate the following as necessary:

Chop pivot: Apply light machine oil to points

indicated in illustration.

Central pivot of plastic guard: Use light

household oil (sewing machine oil) on metal-to-

metal or metal-to-plastic guard contact areas

as required for smooth, quiet operation. Avoid

excessive oil, to which sawdust will cling.

Link: (actuates lower guard movement) If down

chop motion is hard to start, oil link at two screws

(1).

Fig. KK

Chop pivot

LOWER BLADE GUARD

Do not use the saw without the lower blade

guard. The lower blade guard is attached to the

saw for your protection. Should the lower guard

become damaged, do not use the saw until

the damaged guard has been replaced. Check

regularly to make sure the lower guard is working

properly. Clean the lower guard of any dust or

buildup with a damp cloth.

..........................................................................................................................................................................................................................................................................................................................................................................;_ 26

Central pivot of

plastic guard

[_ WARNING]

To avoid injury from accidental starting, always turn switch OFF and unplug the tool before

moving, replacing the blade or making adjustments.

TROUBLESHOOTING GUIDE - MOTOR

PROBLEM

Brake does not

stop blade within

10 seconds.

PROBLEM CAUSE

il. Motor brushes not sealed or lightly

sticking.

i2. Motor brake overheated from use

of defective or wrong size blade

or rapid ON/OFF cycling.

i3. Arbor bolt loose.

i4. Brushes cracked, damaged, etc.

5. Other.

SUGGESTED CORRECTIVE ACTION

1. Inspect/clean/replace brushes. See

MAINTENANCE section.

2. Use a recommended blade. Let cool

down. See REMOVING OR INSTALLING

THE BLADE section.

3. Retighten. See REMOVING OR

INSTALLING THE BLADE section.

4. Replace brushes.

5. Contact Sears Service Center.

1. Replace limit switch.

2. Replace brushes. See MAINTENANCE

section.

3. Verify there is electrical power at the

outlet.

1. Replace Brushes. See MAINTENANCE

section.

2. Contact Sears Service Center.

Motor does not il. Limit switch failure

start i2. Brush worn.

i3. Fuse blown or circuit breaker

tripped on home panel.

Brush spark il. Brush worn.

when switch i2. Other.

released.

TROUBLESHOOTING GUIDE - SAW OPERATION

PROBLEM PROBLEM CAUSE SUGGESTED CORRECTIVE ACTION

Blade hits table. 1. Misalignment. 1. See ADJUSTMENT- Setting Cutting

Depth section.

Angle of cut not 1. Miter table unlocked. 1. See OPERATION - Miter Angle

accurate. Can 2. Sawdust under table. Adjustment section.

not adjust miter. 2. Vacuum or blow out dust. WEAR EYE

PROTECTION.

Cutting arm 1. Loose pivot points. 1. Contact Sears Service Center.

wobbles.

Cutting arm will 1. Pivot spring not replaced properly 1. Contact Sears Service Center.

not fully raise, or after service. 2. Clean and lubricate moving parts.

blade guard 2. Sawdust build-up.

won't fully close.

Blade binds, 1. Improper operation. 1. See BASIC SAW OPERATION section.

ams, burns 2. Dull or warped blade. 2. Replace or sharpen blade.

wood. 3. Improper blade size. 3. Replace with 12 in. diameter blade.

4 Wood is moving during cut. 4. Use hold down clamp to secure workpiece

to table.

Saw vibrates or 1. Saw blade not round /damaged /1. Replace blade.

shakes, loose. 2. Tighten arbor bolt.

2. Arbor bolt loose.

12 in. COMPOUND MITER SAW MODEL NO. 137.212390

I_]L WARNING]

When servicing use only CRAFTSMAN replacement parts. Use of any other parts many create

a HAZARD or cause product damage. Any attempt to repair or replace electrical parts on this

Miter Saw may create a HAZARD unless repair is done by aqualified service technician. Repair

service is available at your nearest Sears Service Center.

PARTS LiST FOR SAW SCHEMATIC A

I.D. DescrJpfion Size

083Z CORD CLAMP

091S COMPRESSION SPRING

0CKS SPRING WIRE

0CQH HOLD DOWN CLAMP ASS'Y

0DHT SPRING GUARD

0DTZ ARBOR COLLAR

0DVJ BLADE WRENCH

0F1H COLLAR

0HAP SLDE-BAR GUIDE CLAMP

0J4E FLAT WASHER

0J7G FLAT WASHER

0JB0 WAVE WASHER

0JE7 C-RING

0JMN O-RING

0JMP O-RING

0JXB HEX. SOC. SETSCREW M6_1.0-16

0JZF HEX. SOC. SETSCREW M6"1.0-10

0JZN ARBOR BOLT M8"1.25-20

0K2V HEX. SOC. HD.CAP SCREW M5_0.8-30

0K5D CR. RE. COUNT HD. SCREW M6"1.0-20

0K6Y CR. RE. TRUSS HD. SCREW M4"0.7-10

0K74 CR. RE. TRUSS HD. SCREW M6"1.0-8

0K7F CR. RE. ROUND WASHER HD. SCREW M5_0.&8

0K7X CR, RE.TRUSSHD. ROUND NECK SCREW M6 .1.0-10

0K7Z CR. RE.TRUSSHD, ROUND NECK SCREW M6 .1.0-14

(p6*13d

3/8"29/32 -1/8

WW-8

QTV

I.D. Descripfion Size

26LU WARNING LABEL

26P7 SHAFT-PIVOT

27AE COLLAR

290M CAUTION LABEL

2BQG BLANKET WASHER

2C1G SHAFT-PIVOT

2C81 LINEAR MOTION BEARING

2CGT SLOTTED SETSCREW

2D92 CONTROLLER ASS'Y

2DX9 SEGMENT HANDLE

2E63 ROCKER SWITCH

2EXC LOCATION PiN

2F39 CLEVIS PiN

2F8Y DUST BAG ASS'Y

2F9N STICKER

2GYC SHAFT SLEEVE

2K96 WARNING LABEL

2MGR POWER CABLE

2MN9 LASER PLUNGER HOUSING

2PWU MOTOR

2PY1 ARM # AW

2PY4 ARM-MITER

2PYE DUST COLLECTOR

2PYG CUTTER SHAFT GUARD # AW

2PYJ SHAFT-PIVOT

0KA9 CR. RE. PAN HD. TAPPING SCREW M3*24d 0

0KB7 CR. RE. PAN HD. TAPPING SCREW M4"18-16

0KBD CR. RE. PAN HD. TAPPING SCREW M4"18-25

0KC6 CR. RE. TRUSS HD. TAPPING SCREW M4*16d 2

0KD6 CR. RE. PAN HD. SCREW M4"0.7-8

0KDK CR. RE. PAN HD. SCREW M5_0.8N6

0KDM CR. RE. PAN HD. SCREW M5_0.8-20

0KDR CR. RE. PAN HD. SCREW M5_0.8N0

0KE0 CR. RE. PAN HD. SCREW M6"1.0-40

1 2PYK

2 2PYL

4 2PYM

1 2PYN

1 2PYP

2 2PYS

1 2Q19

2 2Q1F

2 2Q2U

LEVER

MOTOR HANDLE (UP)

MOTOR HANDLE (DOWN)

CABLE SHIELD

NEEDLE POINTER

PLATE COVER

LEAD WIRE ASSAY

LEAD WIRE ASS'Y

TORSION SPRING

# 23

0KL1 CR. RE.PAN HD. ROUND NECK SCREW M6"1.0-12 1

0KMS HEX. NUT M6*1.0T-5 6

0KR1 LOCK NUT M16_2.0 T-16 1

0KTQ CABLE CLAMP 1

0KUW TERMINAL 2

0LTQ TRIGGER SWITCH 1

0S1S COLLAR 1

0XQ8 CR. RE. PAN HD. TAPPING SCREW M6_1.0-20 2

20LW CR. RE. PAN HD. SCREW & WASHER M5_0.8-16 2

23LN KNOB-HANDLE 1

23NX GUARD-CORD 1

262V ANCHOR PLATE # 06 1

2Q41 PC-GUARD ASS'Y

2QBG CLAMP BOLT

2QU7 PLUNGER HOUSING ASSAY

2QVY SWIVEL SUPPORT ASS'Y

2R2G TRADE-MARK LABEL

2R2M LABEL

2R2N TRADEMARK LABEL

2R2Q CAUTION LABEL

2RAS FLAT WASHER

2RAU COMPRESSION SPRING

2RAV CLAMP BOLT

2RCW BLADE

d)16_38-3

QTY

12 in. COMPOUND MITER SAW

SCHEMATIC A

MODEL NO. 137.212390

12 in. COMPOUND MITER SAW MODEL NO. 137.212390

PARTS LiST FOR SAW SCHEMATIC B

I.D. Description Size

0DTH CENTER BOLT

0J6A FLAT WASHER q)8_16-2.5

0J74 FLAT WASHER 1/4_5/&3/32

0JAZ WAVE WASHER WW-6

0JPF HEX. HD. BOLT M6_1.0-25

0JXB HEX. SOC. SET SCREW M6_1.0-16

0JXG HEX. SOC. SET SCREW M8"1.25-16

0K2B HEX. SOC. HD. CAP SCREW M6"1.0-16

0K2L HEX. SOC. HD. CAP SCREW M8"1.25-30

0K74 CR. RE. TRUSS HD. SCREW M6_1.0-8

0K7L CR. RE. ROUND WASHER HD. SCREW M6_1.0-16

0KAE CR. RE. PAN HD. TAPPLNG SCREW M5_0.8-10

0KD6 CR. RE. PAN HD. SCREW M4"0.7-8

0KDS CR. RE. PAN HD. SCREW M5_0.8-40

0KDU CR. RE. PAN HD. SCREW M6"1.0-12

0KDV CR. RE. PAN HD. SCREW M6"1.0-16

0KMS HEX. NUT M6"1.0 T-5

0KQW LOCK NUT M5_0.8 T-5

0KQX NUT M6"1.0 T-6

0KR4 LOCK NUT M8"1.25 T-8

2258 SPECLAL BOLT

2754 WARNING LABEL

20S3 LOCKLNG HANDLE ASS'Y

20X5 ASSBT-FENCE # AW

25TD MLTER BAR

25TE STOP BLOCK (LEFT) # 23

25TF STOP BLOCK (RLGHT) # 23

27BU TABLE LNSERT

27BV TABLE LNSERT

2C8U KNOB

2CD2 COMPRESDON SPRLNG

2DAN REAR EXTENTLON STAY

2DWL PLUNGER HANDLE

2DWP NEEDLE POLNTER # 23

2F76 FENCE # AW

2K8Q WARNING LABEL

2LSZ VLSEASS'Y

2PY0 BASE # AW

2PY2 TABLE # AW

2PY7 EXTENDON WLNG (LEFT) # AW

2PY8 EXTENDON WLNG (RLGHT) # AW

2PYB SDDE-BAR BLADE GUARD

2PYD SEGMENT HANDLE (REAR)

2PYH SETPLATE

2PYQ SDDE PLATE

2PYR SUPPORT

2QT8 CR. RE. TRUSS HD. ROUND NECK SCREW M6_1.0-17

2QXE LNSTRUCTLON MANUAL

2QZX SCALE

2QZZ SCALE

2R2R TRADE-MARK LABEL

2R7W LOCKLNG HANDLE ASS'Y

2S35 CR. RE. PAN HD. TAPPLNG SCREW M5_12-35

QTY

12 in. COMPOUND MITER SAW

SCHEMATIC B

MODEL NO. 137.212390

/=_ / /°

12 in. COMPOUND MITER SAW MODEL NO. 137.212390

PARTS LiST FOR MOTOR

I.D. Description

0JCF SPRING PiN

0JX2 HEX. SOC SETSCREW

0K44 CR. RE. PAN HD. SCREW & WASHER

0KCP CR. RE. PAN HEAD TAPPING & WASHER SCREW

0KLA PLASTIC SCREW

0Q9K FLOW GUIDE

0QGR COMPRESSION SPRING

0QMK RUBBER CAP

0QMY PROTECTOR WIRE

0QQS BRUSH HOLDER ASS'Y

0QQT BRUSH ASS'Y

0QR0 BRUSH COVER

0OR2 BEARING BUSHING

2lAX CLEVIS PIN

23Z3 GEAR BOX

23Z4 MOTOR HOUSING

240R ARMATURE ASS'Y

27DB CUTTER SHAFT ASS'Y

2B79 CR. RE. PAN HD. SCREW & WASHER

2PXT FIELD ASS'Y

2QOP LEAD WIRE ASS'Y

Size

cp4-30

M5"0.8-6

M5_0.8 - 12

M5 *_12-60

M5*g.8-6

# AW

M5_g.8-35

QTY

OQQSz ,

Your Home

For expert troubleshooting and home solutions advice:

www.managemyhome.com

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca .......................

.......................................................................................................................................................................................OurHome ...............................................................................................................................................................................................................................................................................................

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts &Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

:; www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Pard pedir servicio de reparacion Au Canada pour service en fran£ais:

a domicilio, y pard ordenar piezas: 1 800 LE FOYER M°

1-888-SU-HOGAR® 1-800-533-6937

(1-888-784-6427) www.sears.ca .....

TM S_4

® Registered Trademark /Trademark /Service Mark of Sears Brands, LLC

® Marca Registrada /TM Marca de Fabfica /Marca de Servicio de Sears Brands, LLC

M Mo

cMarque de commerce /Marque depos6e de Sears Brands, LLC (¢ Sears Brands, LLC

Craftsman 137212390 User Manual MITER SAW Manuals And Guides L0901158

CRAFTSMAN Miter Saw Manual L0901158 CRAFTSMAN Miter Saw Owner's Manual, CRAFTSMAN Miter Saw installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
