S_/A/RS

owners

manual

MODELNO.

149.236222

SERIAL

OR CODE

NUMBER:

Model and code number may be

found on the back of the base

You should record both model and

code number and re_.ain in a safe

place for fulure use

CALIFORNIA OWNERS: a unique

serial code number is slamped on

the underside of !he machine

CAUTION:

Read All Instructions

Carefully Before Start.

ing Assembly and Use.

Save This Manual For

Future Reference,

S_FAIRS/CRAFT$IvtRN_

41_-I C

JOINTER-- PLANER

=assembly

, operating

•repair parts

SEARS, ROEBUCK AND CO. DepL 6981731A, Sears Tower, Chicago, IL 60684

Part No 4502.250-00 7f90

FULL ONE.YEAR WARRANTY ON CRRFTSMRN ,JOINTER -- PLANER

If within one year from the date of purchase, this Craftsman Jointer -- Planer fails due to a defect

in material or workmanship, Sears will repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS STORE OR SERVICE

CENTER IN THE UNITED STATES.

This warranty gives you specific legal rights and you may also have other rights which vary from

state to state°

Sears, Roebuck and Co. Dept. 698173tA, Sears Tower, Chicago, IL 60684..

GENERAL SAFETY RULES FOR POWER TOOLS

1. KNOW YOUR POWER TOOL

For your own safety, read the owner's manual carefully

Learn its application and limitations as well as the specific

hazards peculiar to this tool

2GROUNDING INSTRUCTIONS

A All grounded, cord-connected tools:

In the event of a malfunction or breakdown, grounding pro°

vtdes a path of ]east resistance for electric current to reduce

the risk of electric shock This Iool is equipped with an

electric cord having an equipment.grounding conductor and

a grounding plug. The plug must be plugged into a matching

outlet that is properly installed and grounded in accordance

with all local codes and ordinances.

Do not modify the plug provided - if it will not fit the outlet,

have the proper outlet instafled by a qualified electrician

Improper connection of the equipment-grounding conductor

can result in a risk of electric shock The conductor wilh

insulation having an outer surface that is green with or with-

out yeltow stripes is the equipment-grounding conductor If

repair or replacement of the electric cord or plug is necessary,

do not connect the equipment-grounding conducto_ to a live

terminal

Check with a qualified electrician or serviceman if the

grounding instruclions are not complelely understood, or if

in doubt as to whether the too] is properly grounded

The use of any Extension Cord will cause some loss of power

To keep this Io a minimum and to prevent overheating and

motor burn-out, use the table below to determine the MINI..

MUM wire size (A.WG) Extension Cord

Use only 3-wire extension cords that have 3-prong grounding

plugs, and 3-pole receptacles that accept the tool's plug

Extension Cord Length Wire Size, A WG

25 Feet 16

50 Feet 16

100 Feet 14

Extension Cords suitable tor use with your Joinler-Ptaner are

available at your nearest Sears Calalog Order or Retail Store

Repair or replace damaged or worn cord immediately

B Grounded, cord.connected tools intended for use on a

supply circuit having a nominal rating Jess than 150 votts:

This tool is intended for use on a circuit that has an outJet

that looks like the one illustrated in Sketch A in Figure 1. The

too] has a grounding plug that looks like the plug illustrated

in Sketch A in Figure ! A temporary adapter, which looks like

the adapter illustrated in Sketches B and C, may be used to

connect this plug to a 2-pole receptacle as shown in Sketch

Bif aproperly grounded outlet is not available. The temporary

adapter should be used only until a properly grounded outlel

can be tnstatted by a qualified electrician. The green_colored

rigid ear, lug, ete extending from the adapter must be con..

nected to a permanent ground such as a properly grounded

outlet box

Adapter

Figure I -- Wiring Methods

KEEP GUARDS IN PLACE

in working order and in proper adjustment and alignment.

REMOVE ADJUSTING KEYS AND WRENCHES

Form habit of checking to see that keys and adjusting

wrenches are removed from tool before turning on lool

KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents

DON'TUSE IN DANGEROUS ENVIRONMENT

Don't use power tools in damp or wet feeations, or expose

them to ratn_ Keep work area well illuminated

7 KEEP CHILDREN AWAY

All visttors should be kept a safe distance from work area

8. MAKE WORKSHOP KID PROOF

with padlocks, master switches, or by removing starter keys

9. DON'T FORCE TOOL

It will do the job better and be safer at the rate for which it

was designed.

10. USE RIGHT TOOL

Don't force tool or attachment to do a job for which it was nol

designed.

11: WEAR PROPER APPAREL

No loose clothing, gloves, neckties, rings, bracelets, or

jewelry to get caught in rnoving parts. Nonslip footwear Is

recommended Wear protective hair covering to contain long

hair

12. ALWAYS USE SAFETY GLASSES

Also use face or dust mask if cutting operation is dusty

Everyday eyeglasses only have impact resistant lenses They

are NOT safety glasses

!3 SECURE WORK

Use clamps or a vise to hold work when practical It's safer

than using your hand and frees both hands to operate toot

14 DON'T OVERREACH

Keep your proper footing and balance at all times

15 MAINTAIN TOOLS IN TOP CONDITION

Keep tools sharp and clean for best and safest performance

Follow instructions for lubricating and changing accessories

16 DISCONNECT TOOLS FROM POWER SOURCE

before servicing and when changing accessories such as

blades, bits, cutters, or when mounting and re.mounting

motor.

17.. AVOID ACCIDENTAL STARTING

Make sure switch is in *'OFF" position before plugging in

cord

19.

USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended accessories.

Use of improper accessories may be hazardous

NEVER STAND ON TOOL

Serious injury could occur if the tool is tipped or if the cutting

1ool is unintentionally contacted

20 CHECK DAMAGED PARTS

Before further use of the tool, a guard or other part that is

damaged should be carefully checked to ensure that ii will

operate properly and perform its intended function - check

for alignment of moving parts, btnding of moving parts,

breakage of parts, mounting, and any other conditions that

•may affect its-operation A guard or other part that.is damaged

should be properly repaired or replaced.

21.. DIRECTION OF FEED

Feed work into a blade or cutter against the direction of

rotation of the blade or cutter only

22 NEVER LEAVE TOOL RUNNING UNATTENDED TURN

POWER OFF. Don't leave tool until it comes to a complete

stop

23. WEAR EAR PROTECTION

When operating for prolonged period of time, use of ear pro-

tection is recommended

The operation of any power tool can result in foreign objects

being thrown into the eyes, which can result in severe eye

damage. A_ways wear safety goggles complying with ANSI Z87 1

(shown on Package) before commencing power tool operation.

Safety Goggtes are available at Sears retail or catalog stores.

TABLE OF CONTENTS

GENERAL SAFETY RULES FOR POWER TOOLS 2, 3

UNPACKING AND CHECKING CONTENTS 4

SAFETY RULES FOR JOtNTER-PLANER 5

ASSEMBLY .. 5..7

Depth of Cut Hand Knob 5

Chip Deflector 5

Cutter Guard Assembly 5

Fence ._ 6

Fence Extension ....... 6, 7

Checking Cutter Blades 7

INSTALLING THE JOtNTER-PLANER 8

CONTROLS AND ADJUSTMENTS 8, 9

Depth of Cut Hand Knob 8

Check Depth of Cut ........... 9

Fence Adjustment 9

Cutter Guard 9

Guard Stop 9

ONfOFF Switch 9

BASIC JOtNTER-PLANER OPERATION .................. 10-12

Setting the Guard Stop ................................. 10

Feeding the Workplace .......................... 10, 11

Using HolddownfPush Blocks ......................... 11

Beveling, Chamfering ........................ 11, 12

Using a Wet/Dry Vac ................................... 12

MAINTENANCE ..................................... 12, 13

Timing Belt Replacement .................................. 12

Cutter Guard Return Spring .............................. 12

Blade Replacement and Adjustment ..................... 13

General Maintenance ...................................... 13

REPAIR PARTS ..................................... 14, 15

TROUBLE SHOOTING ................................... 16

How to Order Replacement Parts ........................... 16

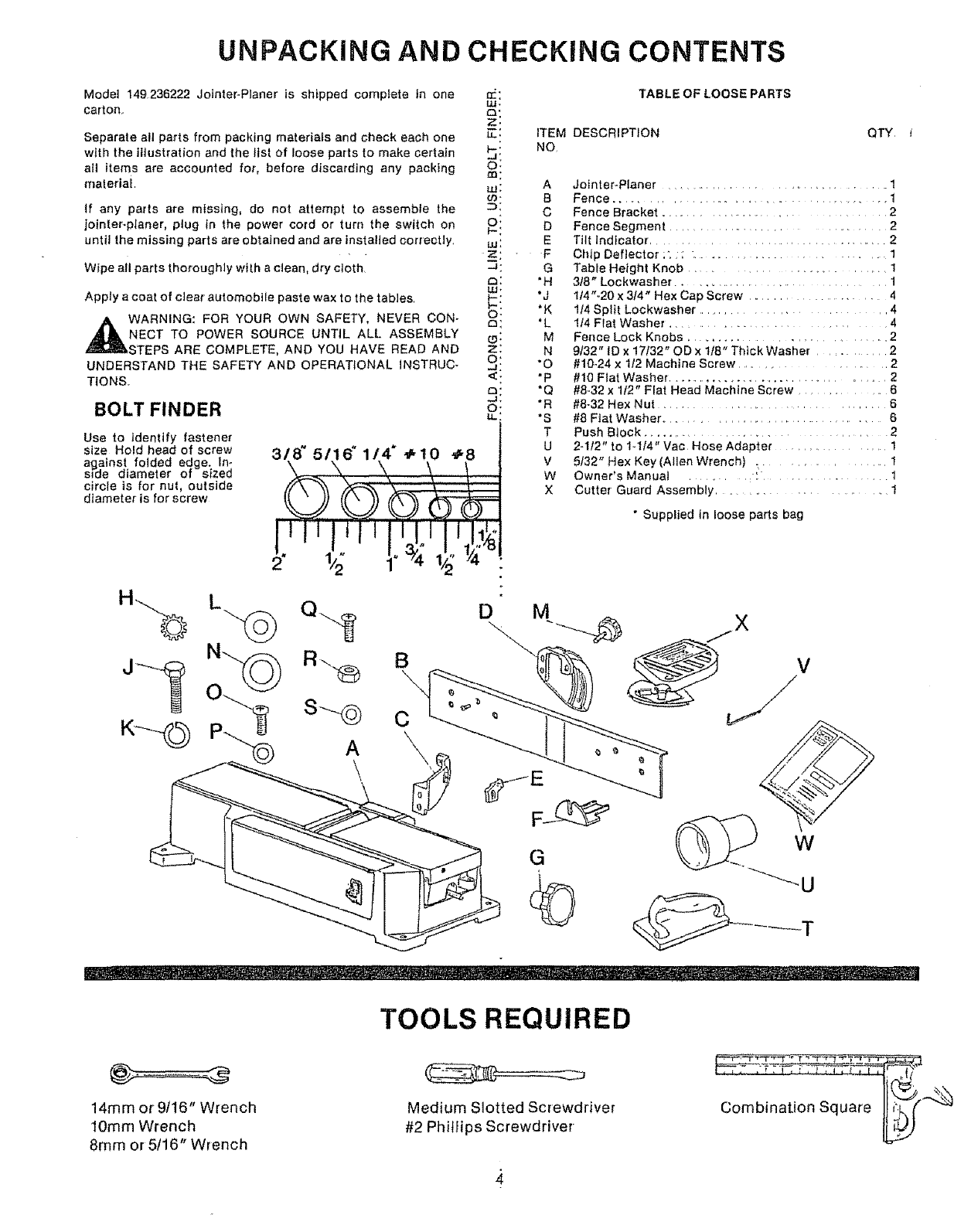

UNPACKING AND CHECKING CONTENTS

Model 149236222 Jolnter-Planer is shipped complete tn one

carton,

Separate all parts from packing materials and check each one

with the illustration and the tist of loose parts to make certatn

all items are accounted for, before discarding any packing

material

If any parts are missing, do not attempt to assemble the

jointer-planer, plug in the power cord or turn the switch on

until the missing parts are obtained and are installed correctly.

Wipe all parts thoroughly with a clean, dry etoth

Apply a coat of cleat automobile paste wax to the tables

WARNING: FOR YOUR OWN SAFETY, NEVER CON-

NECT TO POWER SOURCE UNTIL ALL ASSEMBLY

STEPS ARE COMPLETE, AND YOU HAVE READ AND

UNDERSTAND THE SAFETY AND OPERATIONAL INSTRUC-

TIONS.

BOLT FINDER

Use to identify fastener

size Hold head of screw

against folded edge. tn:

s_de diameter or s_zea

circle is for nut, outside

diameter is for screw

318' 5116" 1/?

lilt

2" 41

÷t0 _8

'J ,J

Ul,

E: ITEM

b: NO,

LU: A

03. B

D: C

O: D

ua: E

z: F

-a: G

o: "H

a: *L

(9: M

Z: N

q! -o

_:. *p

2! "s

Ill ,,

TABLE OF LOOSE PARTS

DESCRIPTION QTY,

Jointer-Planer ................................. 1

Fence .............................................. 1

Fence Bracket ......................................... 2

Fence Segment ............................ 2

Tilt Indicator. ............................ 2

Chip Deflector ;: ,; .................... 1

Table Height Knob ................................... 1

3f8" Lockwasher ..................................... 1

1t4"-20 x 3t4" Hex Cap Screw .......................... 4

1f4 Split Lockwasher ....................... 4

1t4 Fiat Washer .......................... 4

Fence Lock Knobs ............................ 2

9132" ID x 17f32" OD x 1t8" Thick Washer .......... 2

#10..24 x 112 Machine Screw ........................ 2

#10 Flat Washer ...................................... 2

#8-32 x 112" Flat Head Machine Screw ............... 6

#8-32 Hex Nut .............................. 6

#8 Flat Washer ................................ 6

Push Block ............................................ 2

2-112" to 1..1f4" Vac Hose Adapter .................... 1

5t32" Hex Key (Allen Wrench) . ................ 1

Owner's Manual ...................................... 1

Cutter Guard Assembly ...................... 1

•Supplied in loose parts bag

TOOLS REQUIRED

14mm or 9116" Wrench

10mm Wrench

8mm or 5116" Wrench

Medium Slotted Screwdriver

#2 Phillips Screwdriver

,!, ! ,_, _, I, I , _q:_,tt"

Combination Square

SAFETY RULES FOR JOINTER--PLANER

Safety is a combination of operator common senso and alertness at all times when the Jointer--Planer is being

used. Study these rules and general safety rules before operating and retain them for future use.

1, WEAR EYE PROTECTION

2 NEVER MAKE JOINTiNG OR PLANING CUT DEEPER THAN

1t8 iNCH -- PER PASS

3 FEED WORKPIECE AGAINST ROTATION OF CUTTER

4 KEEP FINGERS AWAY FROM REVOLVING CUTTER -- use

fixtures when necessary

5, NEVER PERFORM JOINTING OR PLANING OPERATION

WITH CUTTER HEAD GUARD REMOVED

6 NEVER FORCE CUTTING ACTION Stalttng or partial stalling

of motor can cause major damage. Allow motor to reach full

speed before cutting,

7. NEVER -Attempt to perform an abnormal or lJttte used

operation without study and the use of adequate hold down

/push blocks, jigs, fixtures, stops, etc

8 NEVER- Attempt to cut small pieces.

9 ALWAYS -Use hold downfpush blocks for jointing material

narrower than 3 inches, or planing material thinner than 3

inches

10 ALWAYS., Keep cutter sharp

11 NEVER- Use in an explosive atmosphere Normal sparking of

motor may ignite fumes

12 OUTDOOR EXTENSION CORD USE. When toot is used

outdoors, use only extension cords suitable for use outdoors

Outdoor approved cords are marked with the suffix W-A, for

example- SJTW,-A or SJOW-A

13. ALWAYS use identical replacement parts when servicing

14 This tool is intended for RESIDENTIAL USE ONLY,

WARNING: DO NOT ALLOW FAMILIARITY (GAINED FROM

FREQUENT USE OF YOUR JOfNTER--PLANER) TO BECOME

COMMONPLACE ALWAYS REMEMBER THAT A CARELESS

FRACTION OF A SECOND IS SUFFICIENT TO INFLICT SEVERE

INJURY,

WARNING: DO NOT AT ANY TIME LET BRAKE FLUIDS, GASOLINE, PENETRATING OILS, ETC

WITH PLASTIC PARTS. THEY CONTAIN CHEMICALS THAT CAN DAMAGE

COME tN CONTACT

AND/OR DESTROY PLASTICS.

ASSEMBLY

DEPTH OF CUT HAND KNOB

1Find one 3f8 tockwasher and the depth of cut hand knob from the

parts bag.

2Turn the nut on the height adjustment screw until five full threads

extend beyond the nut.,

3 Place !ockwasher on height adjustment screw and thread hand knob

onto screw

4 Back nut up against hub of hand knob Tighten with 14mm or 9/16

wrench while hotdtng hand knob

DEPTH OF CUT

HAND KNOB

3/8 HEX NUT

CHIP DEFLECTOR

1 Loosen the screw in the center of vacuum port of chip discharge,

2 Install slot of chip deflector between the chip discharge and the fiat

washer and retighten

,_ CAUTION: THE CHIP DEFLECTOR MUST BE IN PLACE FOR SAFE

OPERATION. FAILURE TO INSTALL THE CHIP DEFLECTOR MAY

RESULT iN PERSONAL INJURY

LOOSEN AND

RETIGHTEN

THiS SCREW \

CH1P

DEFLECTOR

CUTTER GUARD ASSEMBLY

1Place the slot on the guard stop assembty over the tab on the front

cover as shown and a]ign the shoulder boff with the threaded hole

7Rotate the cutter guard counterclockwise until the tab is under the

cutter guard and tighten the shoulder bolt Be sure the cutter guard

rotates freely after tightening the shoulder bolt

,_CAUTION: THE CUTTER GUARD MUST BE tN PLACE FOR SAFE

OPERATION, FAILURE TO INSTALL THE CUTTER GUARD CAN

RESULT IN SERIOUS PERSONAL INJURY

SHOULDER BOLT

SLOTS CCW

CUTTERGUARD

FENCE

1.. From among the loose parts find the following:

(1) Fence

(2) Fence Brackets

(2) Fence Segments

(2) Tilt Indicators

(2) Lock Knobs

(4) 114-20 x 3t4" Hex Cap Screws

(4) 1t4 Lock Washei's

(4) 9132 ID x 91t60D x 11t6 Thick Washers

NOTE:USE OF WASHER_ LEES THAN 1/_ THICK LOCK KNO_

MAY RE/;DLT |t_ FENCE Tt(]HTEN_ND PROBLEM_; _132 _DX _Tt3_OD

(2) 9f32 ID x 17132 OD x1/8 Thick Washers ._ j_L._,jA.2_

(6) #8-32 x !12 Flat Head Machine Screws FE

',o (6) #8 Fiat Washers EASE. HCESnAC_ ,,A_2_AX_H_Xw

(2) #10-24 X 112 Pan Head Machine Screws \,._

(2)#10 FEat Washers 1___'_1%_"; °°c"wAsH" __ ......

9132 ID x 1/16 thick washers and 114 lock washers, snug but do not

tighten #t0.z4x_/2 PAN,_0

2. Attach fence segments to fence with #8-32 flat head screws, #8 flat _"_ I _CH=NESCREW

washers and #8-32 hex nuts.

3 PIEce assembled fence on machine with fence brackets inside the

fence segments

4 Position lock knobs with 9/32 tD x t7/32 OD x 118 thick washers thru

slots in fence segments and thread into fence brackets

5 Place squa_'e against face of fence and table surface Bring fence

square to table and tighten lock knobs.

6 THERE MUST BE 1/32" TO 1t16" gap between the lower edge of the

fence and jointer tables (with table set for 0" cut). To adjust, move

fence assembly by loosening the 1t4-20 x 314 hex cap screws attach-

ing the fence brackets to the base Retighten hex cap screws after

adjustment has been made

9,,

Recheck squareness of fence,, _ / TILT INDICATOR SHOULD DE LINED UP WITH

r_ t_ll LU_=_,.--"_,_.}_'_,_ THE FENCE SEGMENT AT THE O'MARK

Install tilt indicators with #t0-24 x 112 pan head machine screw and _- _._ _*'J_l,_ DO NOT OVER

#10 flat washers_ Set 0 ° of indicators to 0 ° of segments and tighten "_-_.. _-_.._ TIGHTEN

thescrew

The fence should now be adjusted and wilt accurately measure angles 2r" .'="_/" -" _'___ '"-

FENCE EXTENSION

To aid in edge jointtng of workpteces 4" and wider, you may extend the

fence height. The extension can be constructed of 1" (314" thick) stock

pine or hardwood..

Use #8 flat head wood screws of sufficient length to securely attach the

extension to the fence Make sure that the head of the screws are below

the surface of the fence so a snot to interfere with the workpiece

For extra stability, additional countersunk holes may be drilled in the

fence for flat head screws.

1/4

#,8 FLATHEAD - '

COUNT_ SCREW_

FENCE-t

A= 11116 Thick x 2" Wide x 10" Long

The 11116 thickness can be obtained by planing the board

on the jointer-plane[

B= t12" to 3/4" Thick x 3-1t2" Wide x 10" Long

This piece may also be made out of plywood.

C= 3t4" Thick x 2-112" Wide x 19-112" Long

The 2-1/2" width may be Increased if desired

CHECKING CUTTER BLADES

_ CAUTfON: MAKE SURE THE SWITCH IS IN THE OFF POSITION

AND CORD IS UNPLUGGED BEFORE PROCEEDING WITH CHECK-

ING GUTTER BLADES

The blades in your dointer-Planer have been adjusted at the factory to

assure proper operation Shipping and handling, however, may cause

misalignment For accurate cutting, the blades must be .003.in. higher

than the outfeed table (thickness of a piece of paper) when positioned at

the highest point.

1 Block the cutter guard open with a scrap piece of wood about 4-112"

long between the fence and cutter guard

BLADE

CUTTER

HEAD

CLAMP

WOOD

Locate the slot in the cutter head shaft through the small hole In the

backside of the machine dt[ectly above the vacuum port. Rotate the

cutter head with a screwdriver until one of the blades is at its highest

position.

Place a straight edge over the outfeed table and the blade The

straight edge must touch evenly on the outfeed table at both ends of

the blade Rotate the cutterhead slowly, and making sure the blade

lightly touches the straight edge. If the straight edge rises or blades

do not touch, follow the "REPLACING CUTTER BLADES" p_'ocedure

in the "MAINTENANCE" section.

CHIP DISCHARGE/VACUUM

BACK SIDE OF

MACHINE

STRAIGHT-

L_0UTFEED TABLE

iNSTALLiNG THE JOINTER==-PLANER

]f the Jointer-Ptaner is to be used in apermanent location, tt

should be fastened securely to a firm supporting surface such

as a workbench_ Holes should be drilled through supporting

surface of the workbench as illustrated Each foot of the Jotnter-

Planer should be bolted securely using 5/!6" diameter machine

botts, 5f16" hex nuts, and look washers, Bolts should be of

sufficient tength to accommodate foot of Jointer-Raner, washer,

hex nuts, and thickness of supporting surface, Tighten all four

bolts securely_ tf the Jointer-P]aner is to be used in a portable

application, it is recommended that it be fastened-tea mounting

board The board should be of sufficient size to avoid tipping of

Jointer-Ptaner while tn use Any good grade of plywood ot chip-

board with a 3/4" minimum thickness is recommended Mount

Jolnter.Planer to board using hole pattern as shown Clamp

board securely to workbench or supporting surface,.

[

!-I

-#---I_ ,..-_ KNOB

SIDE WITH SWITCH/_ .......

Supporting surface where Jolnter-Planer ts mounted should be

examined carefully after mounting to insure that no movement

during use can result, tf any "tipping" or "walking" is noted,

secure workbench or supporting surface before operating

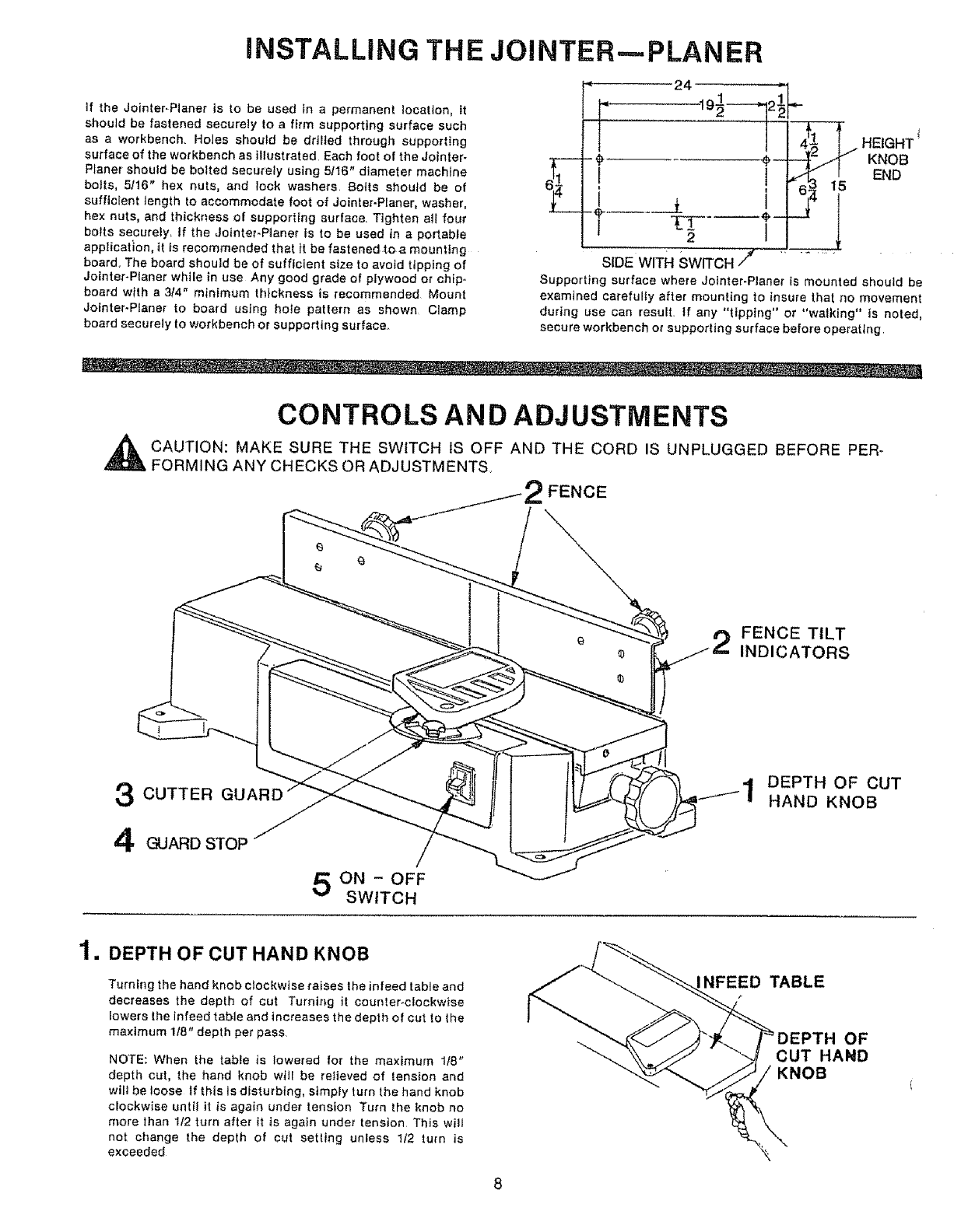

CONTROLS AND ADJUSTMENTS

,_ CAUTION: MAKE SURE THE SWITCH tS OFF AND THE CORD IS UNPLUGGED BEFORE PER-

FORMING ANY CHECKS OR ADJUSTMENTS,

FENCE TILT

INDICATORS

3CUTTER GUARD

4GUARD STOP

ON -OFF

SWITCH

4 DEPTH OF CUT

!HAND KNOB

1. DEPTH OF CUT HAND KNOB

Turning the hand knob clockwise raises the infeed table and

decreases the depth of cut Turning it counter-clockwise

lowers the infeed table and increases the depth of out to the

maximum 118" depth per pass

NOTE: When the table is lowered for the maximum 1t8"

depth cut, the hand knob will be relieved of lension and

will be loose If this is disturbing, simply turn the hand knob

clockwise until tt is again under tension Turn the knob no

more than 112 turn after it is again under tension This will

not change the depth of cut setting unless !I2 turn is

exceeded

NFEED TABLE

H OF

CUT HAND

KNOB

CHECK DEPTH OF CUT

a Place a straight edge on the outfeed table extending over the tnfeed

table.

b. Measure from the surface of the infeed table to the bottom of the

straight edge This will be the depth of cut.

NOTE: This Jointer-Ptaner will make amaximum 118" deep cut. To reduce

THE DANGER of kickback and possible injury, the depth of cut should not

exceed 1f16" when cutting wood wider than 1-1/2"

CAUTtON: MAKE SURE THE SWITCH IS OFF AND THE CORD IS

NPLUGGED BEFORE PERFORMING THIS CHECK

OUTFEED

TABLE

MAX. DEPTH

OF CUT 1/8"

2. FENCE ADJUSTMENT

The fence can be adjusted to cut angIes from 0 ° to 45Q. The fence can

be tilted inboard (toward the cutter head) to maintain greater stability

of a narrow workpiece or 45" outboard (away from cutter head) for

larger angle cutting operations

TO ADJUST: Loosen fence lock knobs and move the fence to desired

position. The angle setting ts marked on both fence segment pteces.

Set the ({3°) arrow of the ciear plastic tilt indicator on the segment

marks for 5 ° Increments. For 1 _ increments, set the fence segment

mark between the 0 ° to 5" marks on the titt indicators For outboard

tilt, add the reading on the tilt indicator to the reading on the segment

For inboard tilt, subtract the flit indicator reading from the reading on

the segment Tighten the lock knobs to maintain the desired setting

453 INBOARD

TILT

iNDiCATOR

3. CUTTER GUARD

The cutter guard provides protection over the cutter head. it must

always be in place and functioning properly

Check the guard to make sure it is functioning properly

aPass a tf4" thick piece of wood over the cutter head between the

guard and fence The guard must return automatically

Open the cutter guard ali the way until it stops and release

it several times it should always t"eturn to its orlg]na_

position

_Ak CAUTION: iF THE CUllER GUARD FALLS TO OPERATE

PROPERLY, THE CUTTER GUARD RETURN SPRING

WILL NEED REPLACING. CONTACT YOUR NEAREST

SEARS STORE OR SERVICE CENTER FOR REPLACE-

MENT SPRING AND INSTRUCTIONS BEFORE USING

THE JOINTER-PLANER.

4. GUARD STOP

The Craftsman JointedPlaner comes equipped with a cutter guard

stop assembly to improve safety and reduce risk of injury. Be sure to

read and understand all instructions in the ASSEMBLY and BASIC

JOINTERIPLANER OPERATION sections before operating this tool

5. ON-OFF SWITCH

The operating positions of the "On-Off" switch are located on the

front of your Jointer-Planer. Push the switch up to turn your Jolnter-

Planer "on" and down to turn your Jolnter--Planel "off". The switch

has a switch key which, when removed, allows the switch to be lock-

ed in the "off" position To activate the locking feature push switch

to "off" posttlon and pull switch key.

WARNING: BE SURE SWITCH iS iN THE "OFF" POS]T1ON

t_lL BEFORE PLUGGING JOINTER-pLANER INTO POWER SOURCE

FAILURE TO DO SO COULD RESULT _N ACCtDENTAL

STARTING CAUSING SERIOUS iNJURY

_SWITCH

SWITCH KEY

BASIC JOINTER=-PLANER OPERATION

For your safety do not exceed a 1t16" deep cut on a planing

operation for work pieces wider than 1..1/2" For work pieces less

than 1-1t2", a 118" cut can be taken at a stow feed rate

This Jo}nter-PJaner is designed with a special cutter head and

internat baffle that blows the sawdust and chips from the rear of

the machine To keep this system operating properly, the motor

speed should be maintained. A feed rate that is too fast will slow

the motor down resulting in a poor cut and poor chfp discharge.

The type of wood, wood grain, and moisture content of the wood

all affect an acceptable feed rate

,_CAUTtON: MAKE SURE ALL SiX BLADE LOCKING

SCREWS ARE TIGHTENED SECURELY BEFORE AT-

TEMPTING TO TURN THE MACHINE'ON" OR ATTEMPT-

ING ANY OPERATION

For your own safety, ALWAYS use hold downtpush blocks when

JOINTING wood that is NARROWER than 3in.. or when

PLANING wood that is THINNER than 3 in.

Do not plane, joint or bevet wood shorter than 12 in Matertai this

short is more difficult to control while being cuL Small pieces of

wood can tip over on the tables or into the cutterhead and can be

kicked back toward you

For best resutts, take light cuts For average planing, jointtng, or

beveling, a cut between 1132 and 1t16 in. deep wil! produce the

best resutts ....

SETTING THE GUARD STOP

CAUTION: MAKE SURE THE SWITCH iS IN THE OFF POSI-

TION AND THE CORD UNPLUGGED BEFORE SETTING THE

GUARD STOP.

The guard stop assembly allows you to limit the cutter guard open-

ing during operation and can be adjusted to prevent the cutter guard

from opening when the JolntedPtaner is not in use.

As a Safety Cover

When the JointerlPlaner is not in use, rotate the guard stop and

knob clockwise until it contacts the cutter guard and lock the knob.

During Operation

1. With the Jointer/Planer switch in the off position and the cord

unplugged place a workpiece of the size to be used on the

infeed table

2 Loosen the guard stop knob and pass the workplece between

the fence and the cutter guard and through the cutter area

until the cutter guard is rotated as far as this workplece wi!l

require

3 Rotate the guard stop and knob clockwise until it contacts the

cutter guard and lock the knob To prevent binding or pinchlng,

some clearance will be required between the guard stop and

the cutter guard..

4 The guard stop is now set to cut workpiece of the same width

as the sample used in the set up..

5 Be sure to use this procedure whenever using the Jointerf

Planer and lock the cutter guard in the fuily closed position

when not in use to prevent Injury to anyone unfamiliar with this

tooi_ Failure to do so may result in serious injury

FEEDING THE WORK PIECE

Hoid the board firmty DOWN on both tables and AGAINST the fence

keep fingers close together

Feed the board at a continuous even rate of speed until the cut is

made along the entire length of the board Any hesitation or stop-

ping could cause a "step" to be cut on the edge of the board which

would cause the board to ride up on the outfeed table resulting in a

"crooked" edge on the board

WI"Frl1HE GRA_ AGA|NST THF_ GRA}N

WORK PIECE _ FEED

ROTATION

Always feed WITH THE GRAIN whenever possible. If the nature of

the work ptece is such that it must be fed AGAINST THE GRAIN,

take very light c[Jts and feed siowiy.

Start with the left hand in the forward position. As the RIGHT hand

passes over the cutterhead, remove the LEFT hand ,.CONTINUE

feeding while placing the LEFT hand behind the RIGHT Continue

feeding in this manner "hand over hand," until the entire length of

the board is cut Pressure should be applied over the cutterhead

and outfeed table

DO NOT FEED TOO FAST A slow steady rate of feed produces a

smooth accurate cut.. Feeding too fast causes a "rippled" cut..

makes it difficult to guide the workpiece accurately and could be

hazardous

HAND-OVER=HAND

,_WARNING: NEVER PLACE THE HEEL OF YOUR HAND AT

THE END OF THE WORK PIECE WHEN FINISHING A CUT.

THIS COULD RESULT tN YOUR HAND COMING IN CONTACT

WITH THE CUTTER CAUSING SERIOUS tNJURY.

At the end of the cut, position your hand on TOP NEAR THE END

of the work piece and continue feeding the work piece until the

cutter guard has returned to its closed position

RIGHT

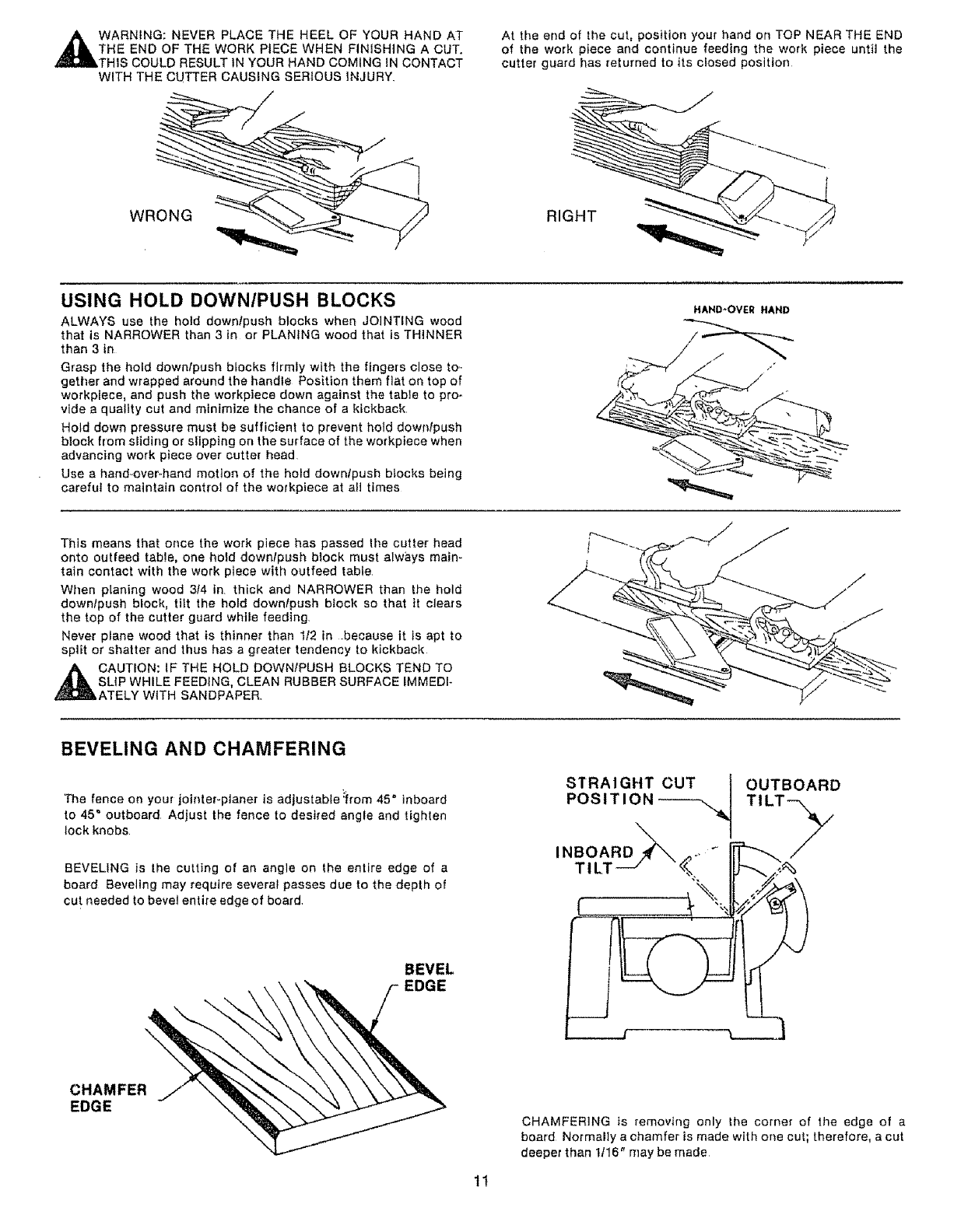

USING HOLD DOWNIPUSH BLOCKS

ALWAYS use the hold down/push blocks when JO_NTING wood

that is NARROWER than 3 in or PLANING wood that is THINNER

than 3 in

Grasp the hold downlpush btocks firmly with the fingers close to..

gether and wrapped around the handle Position them fiat on top of

workpiece, and push the workpiece down against the table to pro-

vide a quality cut and minimize the chance of a kickback.

Hold down pressure must be sufficient to prevent hold down/push

block from sliding or slipping on the surface of the workpiece when

advancing work piece over cutter head

Use a handoover,.hand motion of the hold downlpush blocks being

careful to maintain control of the workpiece at all times

HAND'OVER HAND

This means that once the work piece has passed the cutter head

onto outfeed table, one hold downlpush block must always main °

tain contact with the work piece with outfeed table

When planing wood 3t4 in. thick and NARROWER than the hold

downlpush btock, tilt the hold downlpush block so that it clears

the top of the cutter guard while feeding.

Never plane wood that is thinner than 1/2 in .because it is apt to

split or shatter and thus has a greater tendency to kickback

,_CAUTION: IF THE HOLD DOWNfPUSH BLOCKS TEND TO

SLIP WHILE FEEDING, CLEAN RUBBER SURFACE IMMEDI-

ATELY WITH SANDPAPER.

BEVELING AND CHAMFERING

The fence on your jointer-planer is adjustable_rom 45 ° inboard

to 45 ° outboard Adjust the fence to desired angle and tighten

lock knobs

BEVELING is the cutting of an angle on the entire edge of a

board Beveling may require several passes due to the depth of

cut needed to bevel entire edge of board.

OUTBOARD

BEVEL

EDGE

CHAMFER

EDGE

CHAMFERING is removing only lhe corner of the edge of a

board Normally a chamfer is made with one cut; therefore, a cut

deeper than 1116" may be made

Forbevelingandchamferingoperations, follow the same

procedure as for jointing and planing described on pages 10 and

1t Before performing these operations make sure the surface of

the work piece that contacts the fence is fiat and smooth Main-

tain firm control of the work piece at all times holding it firmly

against fence surface and tabie surfaces,

Use hold downlpush bfocks for wood under 3 in, wide Position

them so you have contro_ of the work piece at ail times and so

they do not contact the guard or the cutter head

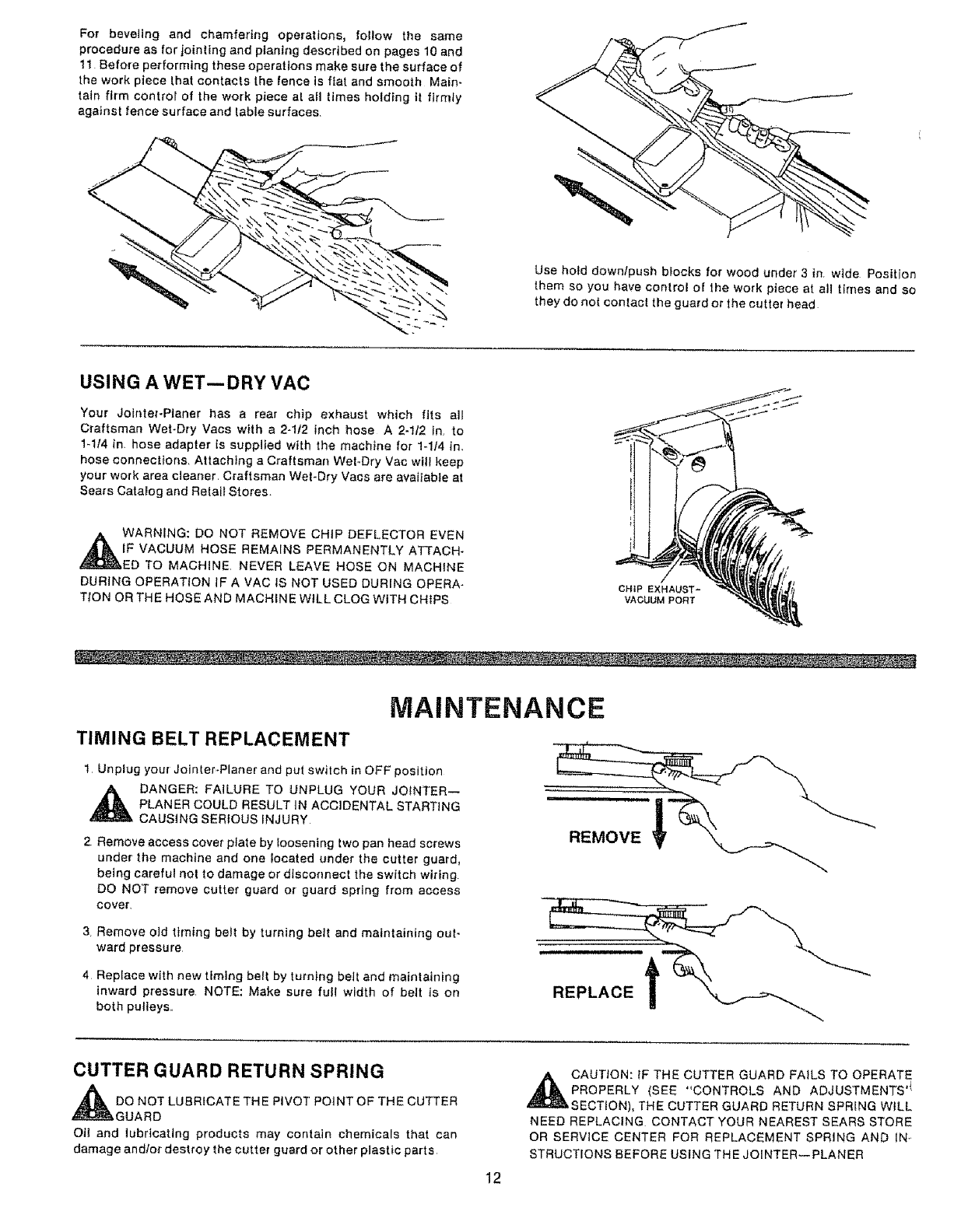

USING A WET--DRY VAC

Your Jointer-Ptaner has a rear chip exhaust which fits all

Craftsman Wet-Dry Vacs with a 2-1/2 inch hose A 2-112 In, to

1-114 in, hose adapter is supplied with the machine for 1-1/4 in,

hose connect}ons, Attaching a Craftsman Wet-Dry Vac will keep

your work area cleaner, Craftsman Wet-Dry Vacs are available at

Sears Catalog and Retail Stores.

WARNING: DO NOT REMOVE CHIP DEFLECTOR EVEN

_F VACUUM HOSE REMAINS PERMANENTLY ATTACH-

ED TO MACHINE, NEVER LEAVE HOSE ON MACHtNE

DURING OPERATION iF A VAC IS NOT USED DURING OPERA-

TtON OR THE HOSE AND MACHINE WiLL CLOG WITH CH_PS CHiP EXHAUST =

VACUUM PORT

MAINTENANCE

TIMING BELT REPLACEMENT

1 UnpJug your Jointer,.Planer and put switch in OFF position

,_ DANGER: FAILURE TO UNPLUG YOUR JO_NTER--

PLANER COULD RESULT IN ACCIDENTAL STARTING

CAUSING SERIOUS iNJURY

2 Remove access covet plate by loosening two pan head screws

under the machine and one located under the cutter guard,

being careful not to damage or disconnect the switch wiring

DO NOT remove cutter guard or guard spring from access

cover,

3Remove old timing belt by turning belt and maintaining out-

ward pressure

4 Replace with new tfmlng belt by turning belt end maintaining

inward pressure NOTE: Make sure full width of bett is on

both pulleys,,

CUTTER GUARD RETURN SPRING

_[! O NOT LUBRICATE THE PIVOT POINT OF THE CUTTER

GUARD

Oil and lubricating products may contain chemicals that can

damage andtor destroy the cutter guard or other plastic parts

CAUTION: fF THE CUTTER GUARD FAILS TO OPERATE

PROPERLY (SEE "CONTROLS AND ADJUSTMENTS '!

SECTION), THE CUTTER GUARD RETURN SPRING WILL

NEED REPLACING CONTACT YOUR NEAREST SEARS STORE

OR SERVICE CENTER FOR REPLACEMENT SPRING AND IN..

STRUCTIONS BEFORE USING THE JOINTER--PLANER

BLADE REPLACEMENT AND ADJUSTMENT

NOTE: To rotate the cutterhead or to hold it steady, use a

screwdriver in the slot in the cutter shaft through the small hole

in the rear of the machf_'le just above the vacuum port.

1. Unplug your Jointer-Ptaner and put switch in off position

DANGER: Failure to unplug your Jointer-Planer could result

in accidental sta_:ting causing serious injury

2 Btock the cutter guard open.

3 Using the 5132" hex key (A_len wrench), remove the three (3)

btade lock screws securing blade and blade clamp.

4. Lift blade and blade clamp from cutter head

BLADE t

CUTTER_

HEAD

CLAMP

WOOD

BLOCK

CUTTER

5. Clean any sawdust from cuttethead and any parts you have

removed

6Place blade clamp against the replacement blade and replace

in cutterhead with the (3) blade lock screws. NOTE: Retighten

bfade lock screws so that the blade is he_d by friction but still

a]lows for blade movement

7. Place a straight edge across the outfeed table and across the

cutterhead opening

8. Rotate the cutterhead unti_ the blade contacts the straight

edge (rotate backwards to prevent damage to the cutting

edge). A properly adjusted blade will lightly tick (touch) the

straight edge

BLADE

CU'_ER HEA_

BLADE _/_BLADE CLAMP

LOCK SCREW

NOTE: Check blade height aI both ends of blade. After the first

one is adjusted, repeat for second blade

9. BLADE TOO HIGH: If the straight edge is lifted by the blade,

tt must be _owered Tap the blade lightly with a scrap piece of

wood to lower it_

10 BLADE TOO LOW: If the blade does not touch the straight

edge, it should be raised Pry the lower edge of the blade with

a screwdriver against the edge of the outfeed table Always

protect the edge of the table with a scrap of wood or piece of

cardboard

11. Tighten blade lock screws.

12. Recheck blade adjustment, making sure blade is still level

with outfeed table

13. Recheck screws to be sure they are secure

,_ DANGER: FAILURE TO TtGHTEN BLADE LOCK

SCREWS COULD RESULT IN SERIOUS INJURY.

CHIP DISCHARGE/VACUUM

BACK SIDE

MACHINE

STRA IGHT-

EDGE

iOUTFEEDTABLE

GENERAL MAINTENANCE

Keep your Jotnter-Planer clean and adjusted property for

maximum performance and longevity of the rnachtne. Do not

allow pitch to accumulate on the tables, fence, cutter guard, or

blades. Clean them frequently with Sears Gum and Pitch

:_emover stock number 4919t.

,_WARNING: DO NOT AT ANY TtME LET BRAKE FLUIDS,

GASOLINE, PENETRATING OILS, ETC. COME'" IN CON-

TACT WITH PLASTIC PARTS THEY CONTAIN CHEM..

tCALS THAT CAN DAMAGE AN DtOR DESTROY PLASTICS.

DO NOT allow anything to obstruct the chip discharge outlet or

disturb the air flow produced by the cutter head

lI the chip discharge of your Jotnter*Planer clogs with chips,

turn the switch OFF and UNPLUG the unit to avoid accidental

starting D_atodge the chips and debris with apencit or small

wood dowel. When resuming operation with the same work piece,

feed at a stower rate to avoid re-clogging Use of aWet-Dry Vac

will virtually eliminate the chances of clogging.

REPAIR PARTS

e,i

e41

,,,.J

ILl

Z!--

..3

=. --

o_.

im o

_S8

'=":'

i*=-

_5 z

z,..n . ,5

t;_ ]"*. e,_

_ o

<..._ _ =_- _=_. >.-...__'_=

.._ o3

6_ _ _'&_'_ oo@8 oo _2_ °°oo 99_8_8

o_NN ,_e?SegeNN

2_.

t*t_

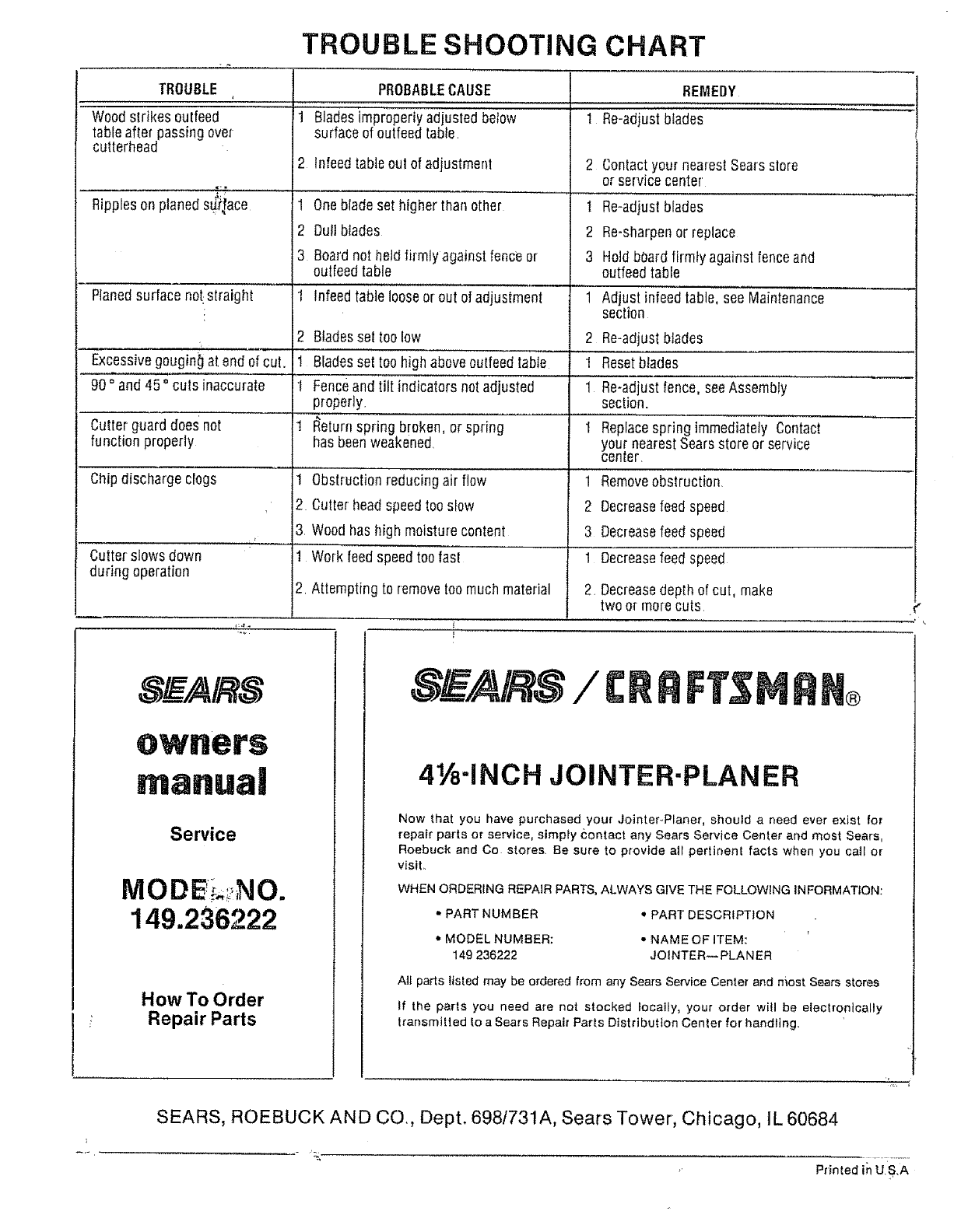

TROUBLE SHOOTING CHART

TROUBLE

Woodstrikes outfeed

table after passingover

cutterhead

Rippleson planedsU."i',face

Planedsurface not:straight

Excessivegougin_ at end of cut.

90 ° and 45° cuts inaccurate

Cutter guard does not !

function properly

Chip discharge clogs

Cutter slows down

during operation

PROBABLECAUSE

Blades impioperly adjusted betow

surface of outfeedtable

2 tnfeedtable oul of adjustment

1 Oneblade set higher than other

2 Dull blades

3 Boardnot heldfirmly against fence or

outfeedtable

1 Infeed fable looseorout of adjustment

2 Bladesset too low

Bladesset toohigh aboveoutfeedtable

Fenceand tilt indicators not adjusted

propefly.

l_,eturnspring b[oken, or spring

has beenweakened

1 Obstruction'reducing air flow

2 Cutter headspeed too stow

3 Woodhas high moisture content

.............................................REMEDY !

! Re-adjustblades

2 Contactyour nearestSearsstore

or service center'

1 Re-adjustblades

2 Re-sharpenor replace

3 Holdboard firmly against fenceand

outfeedtable

1 Adjust infeed'tablei'see'Maintenance .........

section

2 Re-adjustblades

1 Resetblades

1 Re-adjustfence, seeAssembly

section.

I Replacespringimmediatety Contact

your nearestSears storeor service

center.

i Removeobstruction,

2 Decreasefeed speed

3 Decreasefeed speed

1 Work feed speedtoo fasi ..... 1 Decreasefeed speed

2 Attempting to removetoomuch material 2_Decreasedepth of cut, make

twoor morecuts r"

Service

MODEL;'NO.

149.236222

How To Order

Repair Parts

4VB-INCH JOINTER-PLANER

Now that you have purchased your JointeroPlaner, should a need ever exist for

repair parts or service, simply contact any Sears Service Center and most Sears,

Roebuck and Co stores, Be sure to provide all pertinent facts when you call or

visit,

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

*PART NUMBER • PART DESCRIPTION

" MODEL NUMBER:

149 236222

•NAME OF ITEM:

JOINTER--PLANER

Atl parts listed may be ordered from any Sears Service Center and most Sears stores

If the parts you need are not stocked locally, your order will be electronically

transmitted to a Sears Repair Parts Distribution Center for handling

SEARS, ROEBUCK AND CO., Dept. 698/731A, Sears Tower, Chicago, IL 60684

'r P_inted in US,A

Craftsman 149236222 User Manual JOINTER PLANE Manuals And Guides L0708434

CRAFTSMAN Jointer/Planer Manual L0708434 CRAFTSMAN Jointer/Planer Owner's Manual, CRAFTSMAN Jointer/Planer installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
