Page Count: 24

Caution:

ReadandFollow

AllSafetyRules

andInstructions

BeforeOperating

ThisEquipment

5.0 HORSEPOWER

21" POWER PROPELLED

5=SPEED "3=lN=l"

MULCHING ROTARY MOWER

Assembly

Operation

Maintenance

ServiceandAdjustment

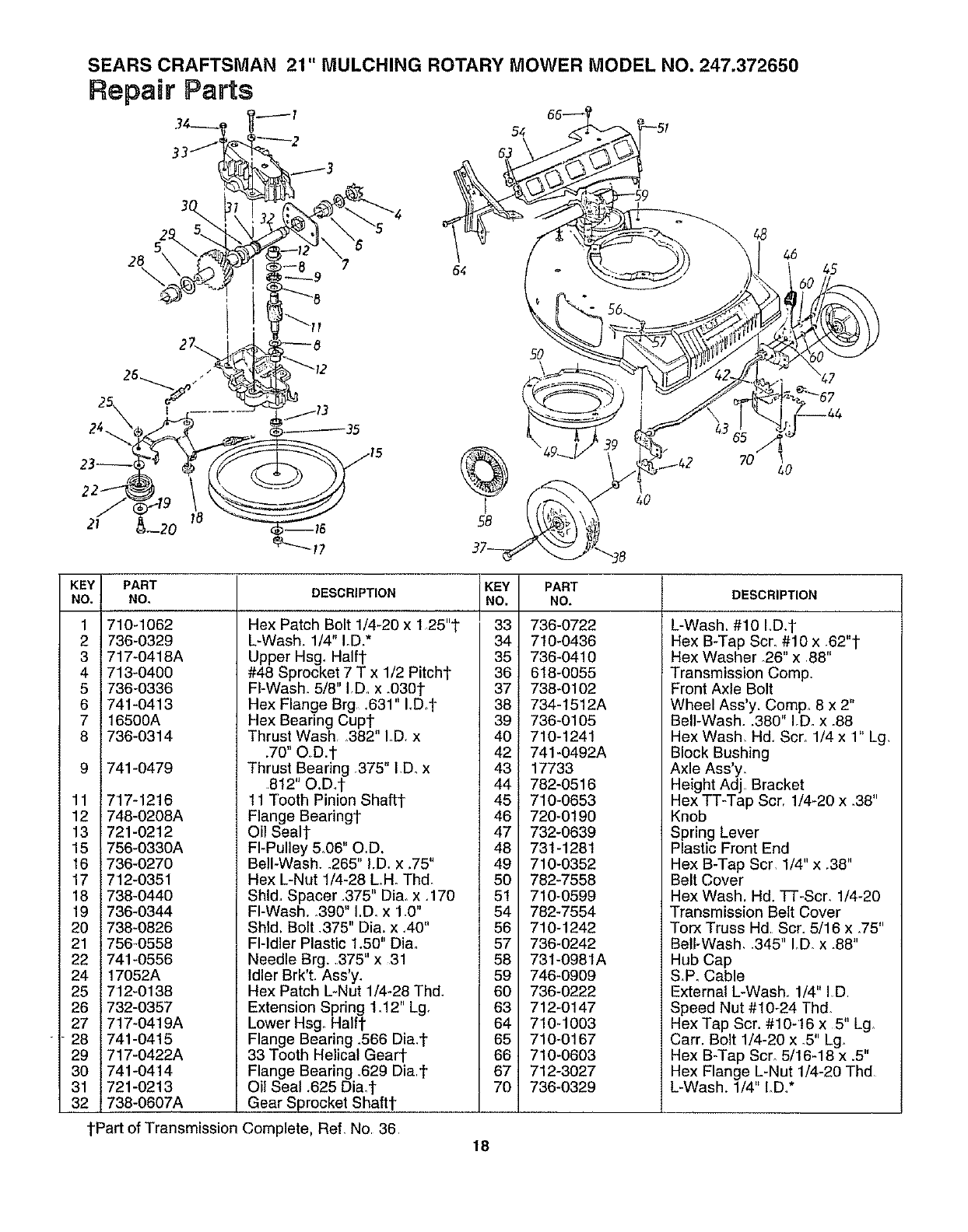

RepairParts

SEARS,ROEBUCKANDCO.,HoffmanEstates,IL 60179 U.S.A.

THISSYMBOLPOINTSOUTIMPORTANTSAFETYINSTRUCTIONSWHICH,IFNOTFOLLOWED,COULDENDANGERTHEPERSONAL

SAFETYAND/ORPROPERTYOFYOURSELFANDOTHERSREADAND FOLLOWALL INSTRUCTIONSIN THIS MANUALBEFORE_

ATTEMPTINGTOOPERATEYOURLAWNMOWER.FAILURETOCOMPLYWITHTHESEINSTRUCTIONSMAYRESULTINPERSONAL

INJURYWHENYOUSEETHISSYMBOL--_ HEEDITSWARNING.

& Your lawn mowerwasbuiltto be operatedaccordingto the rulesforsafe operationin thismanual.As

DANGER: withanytypeof powerequipment,carelessnessorerroronthe part of theoperatorcan resultin serious

injury.If youviolateanyof theserules,youmaycauseseriousinjurytoyourselfor others.

TRAINING

1 ReadtNs owner's guidecarefullyin its entirety beforeattemptingto

assembleor operatethis machineBecompletelyfamiliarwiththecon-

trois andthe properuse of this machinebeforeoperatingit Keepthis

manual{nasafeplacefor futureand regularreferenceandfor ordering

replacementparts

2 Yourrotarymoweris a precisionpieceof powerequipment,nota pby-

thing Therefore,exerciseextremecautionat all times Your unit has

8 Neveroperatethemowerin wet grass Alwaysbe sureofyour footing

A slip and fall cancauseseriouspersonalinjury Keepa firm hold on

the handleandwalk,neverrun Mowontyindaylightor in goodartifi-

ciallight

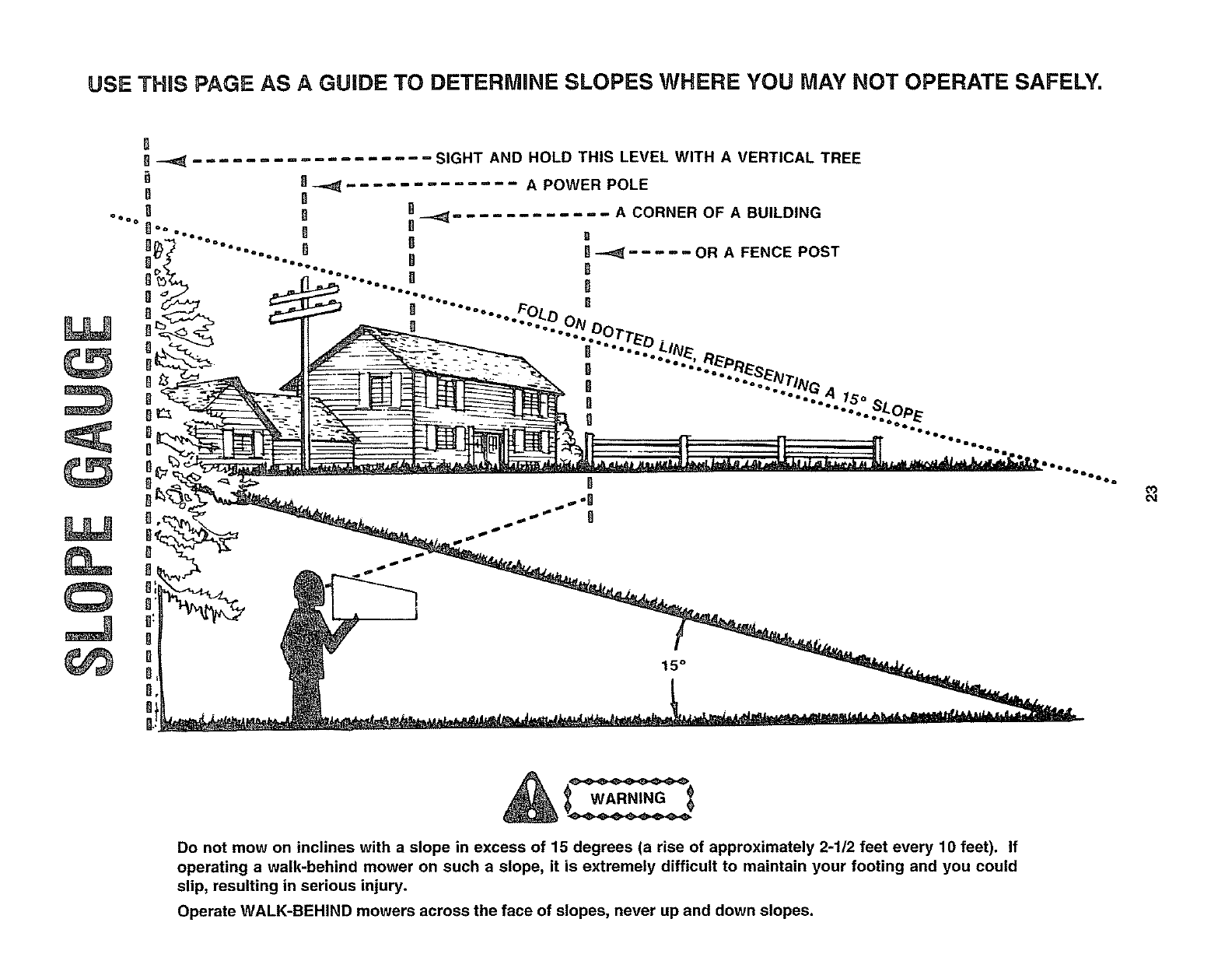

9 Foryour safety,useIheslopegaugeincludedaspartof this manualto

measureslopesbeforeoperatingthis unit ona s_opedor hilly area If

theslopeisgreaterthan15° asshownontheslopegauge,donot oper-

atethisunit onthatareaorseriousinjurycouldresult

Children14yearsold andovershouldonlyoperatemowerunderclose

parentalsupervisionOnlypersonswell acquaintedwith theserolesof

sateoperationshouldbeallowedto useyour mower.

Keeptheareaof operationclearof all persons,particularlysmallchil-

drenandpets Stopenginewhentheyarein thevicinityof your mower

to helppreventbladecontactorthrownobjectinjury Althoughthearea

of operationshouldbecompletelyclearedof foreignobjects,anobject

mayhavebeen overlookedand couldbe accidentallythrown by the

mowerin anydirectionandcauseseriouspersonalinjuryto theopera-

tor or anyothersallowed{nthearea

beendesignedto performonejob:to mowgrass Donot useit for any ........

o herpurpose ._k uwRATlUN . ,

Neveragowchildren under14 years old to operatea powermower _ 1 Do not.changethe enginegovernorsettingsor overspeedtheengine

cxcessweenginespeeosareoangerous

PREPARATION

1 Thoroughly inspectthe areawhere the equipment is to be used

Removen!l stones,sticks,wire, bonesandotherforeignobjectswhich

could bepickedup and thrownby the mowerin any direction and

causeseriouspersonalinjuryto theoperatoror anyothersallowedin

the area Planyour mowing patternto avoid dischargeof material

towardroads,sidewalks,bystandersandthelike.

2 Alwayswearsafetyglassesor eye shieldsduring operationor while

performingan adjustment or repair, to protect eyesfrom foreign

objectsthatmaybethrownfrom themachineinany direction.

3 Wearsturdy, rough-soled workshoes and close-fitting slacksand

shirts Shirts and pantsthat covertire arms and legs andsteel-toed

shoesare recommendedDonot wear loosefitting clothesor jewelry

Theycan becaughtin movingparts Neveroperatea unit in barefeet,

sandals,orsneakers

2 Donotputhandsor feetnearor underrotatingparts Keepclearof the

dischargeopeningat agtimesastherotatingbladecancauseinjury

3 Stopthebladewhencrossinggraveldrives,walksor roads

4 Afterstriking a foreign object,stoptheengine,removethe wire from

the spark plug, and thoroughlyinspectthemowerfor any damage

Repairthedamagebeforerestartingandoperatingthemower

5 If the equipmentshouldstart to vibrateabnormally,stoptheengineand

checkimmed{ateiyfor thecause Vibration{s generallya warningof

trouNe

6 Shuttheengineoffandwait untgthe bIadecomesto a comp{etestop

beforeremovingthegrasscatcherOruncloggingthechuteThecutting

bladecontinuesto rotatefor e few secondsaNertheengineis shutoff

Neverplaceany partof thebodyin theb{adeareauntil you aresure the

bladehasstoppedrotating

7 Beforecleaning,repairingor inspecting,makecertainthe bladeandall

movingparts havestopped,Disconnectthespark plugwire, and keep

thewire awayfromthesparkpIogto preventaccidentalstarting

8 Donot runtheengineindoors

9 Nevercut grassby pullingmowertowardyou Mowacrosstheface of

s_opes,neverup-and-downExerciseextremecautionwhenchanging

directionon slopes Do not mowexcessivelysteepslopes Alwaysbe

sureof your tootingA slipandfa]tcancauseseriouspersonalinjury

10 Neveroperatemowerwithoutproperguards,platesor othersafetypro-

tectivedevicesin place

11 Mufflerandenginebecomehotandcancausea burn Donottouch

Beforeworkingwithgasoline,extinguishall cigarettes,cigars, pipes .#_ MAINTENANCEANDSTORABE

and othersourcesof igngion Checkthe fuel {evelbeforestartingthe,_ I Checkthe blade andenginemounting bolts at frequent intervalsfor

engineGasolineisan extremelyflammablefuel Donotfill thegasoline propertightness Also visuagyinspectbladefor damage(eg bent,

tank indoors, while the engineis running, or until enginehas been cracked) Replacewith bladewhichmeetsodginalequipmentspecifica-

allowedto coolfor at leasttwo minutesafter running Replacegasoline

capsecurely and wipe off any spilled gasoline beforestarting the

engineasitmaycauseafireor explosion

5 Disengagethe self-propegedmechanismor drive clutch on units so

equippedbeforestartingtheengine

6 Thebladecontrolhandleis a safetydevice Neverattemptto bypassits

operationDoingso makesthesafetydeviceinoperativeandmayresult

in personalinjury throughcontact with the rotating blade Theblade

controlhandlemostoperateeasilyin both directionsandautomaticagy

returnto thed{sengagedpositionwhenreleased

7 Neverattemptto makea wheelor cuttingheightadjustmentwhilethe

engineisrunning

tions

2 KeepaHnals, bolts,and screwstight to besure the equipmentis in

safeworkingcondition

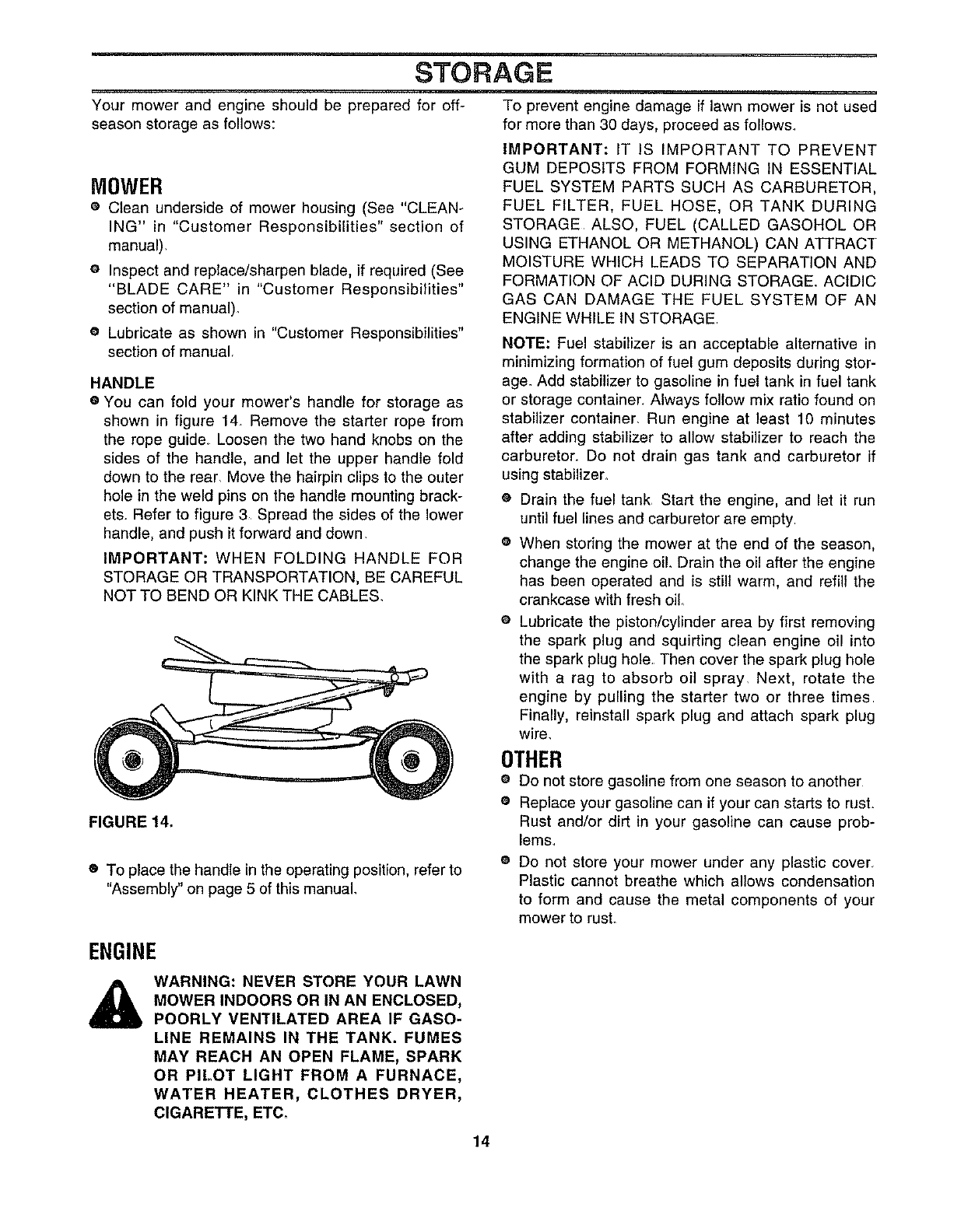

3 Neverstore the mowerwith gasolinein the tank or gas containers

insideof a buildingwherefumes mayreachanopen flame or spark

(eg gas hot water heater)Allowthe engineto cool beforestoring in

anyenclosure

4 To reducefire hazard,keeptheenginefree of grass,leavesandexces-

siveoil

5 Check the grass catcher bag frequently for wear or deterioration

Replacea worn or damagedbag immediatelyForsafety protection,

replaceonlywith newbagmeetingoriginalequipmentspecifications

IMPORTANT:FEDERALREGULATIONSREQUIREOPERATORPRESENCEBLADESTOPCONTROLSTOMINIMIZETHERISKOFBLADECON-

TACTINJURY.YOURLAWNMOWERIS EQUIPPEDWITHSUCHCONTROLS.DONOTATTEMPTTODEFEATTHEFUNCTIONOFTHEOPERA-

TORPRESENCECONTROLUNDERANYCIRCUMSTANCES.

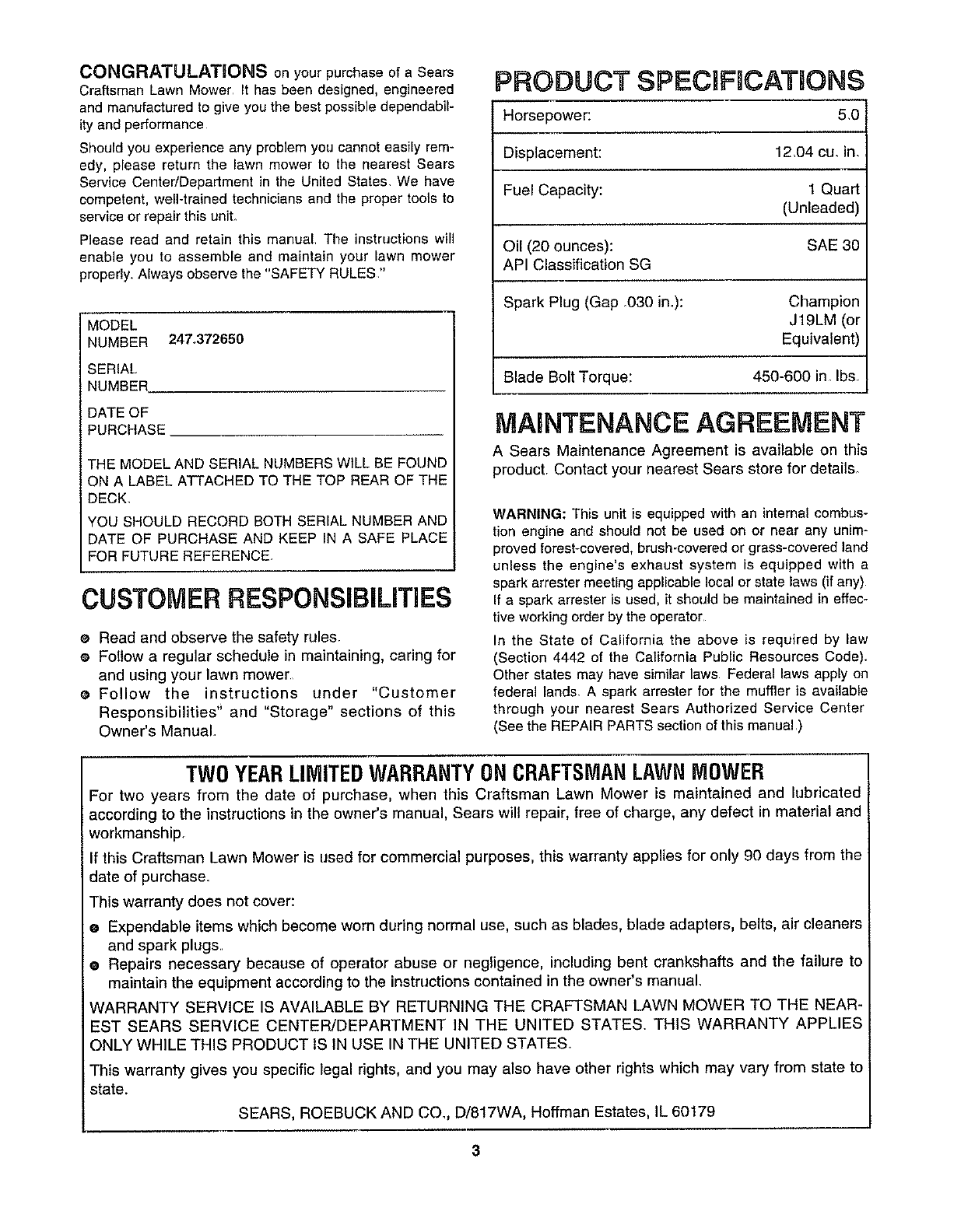

CONGRATULATIONS on your purchase of a Sears

Craftsman Lawn Mower It has been designed, engineered

and manufactured to give you the best possible dependabil-

ity and performance

Should you experience any problem you cannot easily rem-

edy, please return the lawn mower to the nearest Sears

Service Center/Department in the United States. We have

competent, well-trained technicians and the proper tools to

service or repair this uniL

Please read and retain this manual. The instructions will

enable you to assemble and maintain your lawn mower

properly. Always observe the "SAFETY RULES"

MODEL

NUMBER 247°372650

SERIAL

NUMBER

DATE OF

PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE FOUND

ON A LABEL ATTACHED TO THE TOP REAR OF THE

DECK.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE

CUSTOMERRESPONSiBILiTiES

eRead and observe the safety rules.

eFollow a regular schedule in maintaining, caring for

and using your lawn mower

eFollow the instructions under "Customer

Responsibilities" and "Storage" sections of this

Owner's Manual,

PRODUCT SPECIFICATIONS

Horsepower: 5,0

Displacement: 12,04 cu. in.

Fuel Capacity: 1 Quart

(Unleaded)

Oil (20 ounces): SAE 30

API Classification SG

Spark Plug (Gap 030 in.): Champion

J19LM (or

Equivalent)

Blade Bolt Torque: 450-600 in, Ibs

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this

product. Contact your nearest Sears store for details_

WARNING: This unit is equipped with an internal combus-

tion engine and should not be used on or near any unim-

proved forest-covered, brush-covered or grass-covered land

unless the engine's exhaust system is equipped with a

spark arrester meeting applicable local or state laws (if any)

If a spark arrester is used, it should be maintained in effec-

tive working order by the operator

In the State of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws Federal laws apply on

federal lands A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center

(See the REPAIR PARTS section of this manual )

TWOYEARLIMITEDWARRANTYONCRAFTSMANLAWNMOWER

For two years from the date of purchase, when this Craftsman Lawn Mower is maintained and lubricated

according to the instructions in the owner's manual, Sears will repair, free of charge, any defect in material and

workmanship,

If this Craftsman Lawn Mower is used for commercial purposes, this warranty applies for only 90 days from the

date of purchase.

This warranty does not cover:

eExpendable items which become worn during normal use, such as blades, blade adapters, belts, air cleaners

and spark plugs,

eRepairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to

maintain the equipment according to the instructions contained in the owner's manual

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN LAWN MOWER TO THE NEAR-

EST SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES, THIS WARRANTY APPLIES

ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to

state.

SEARS, ROEBUCK AND CO. D/817WA, Hoffman Estates, IL 60179

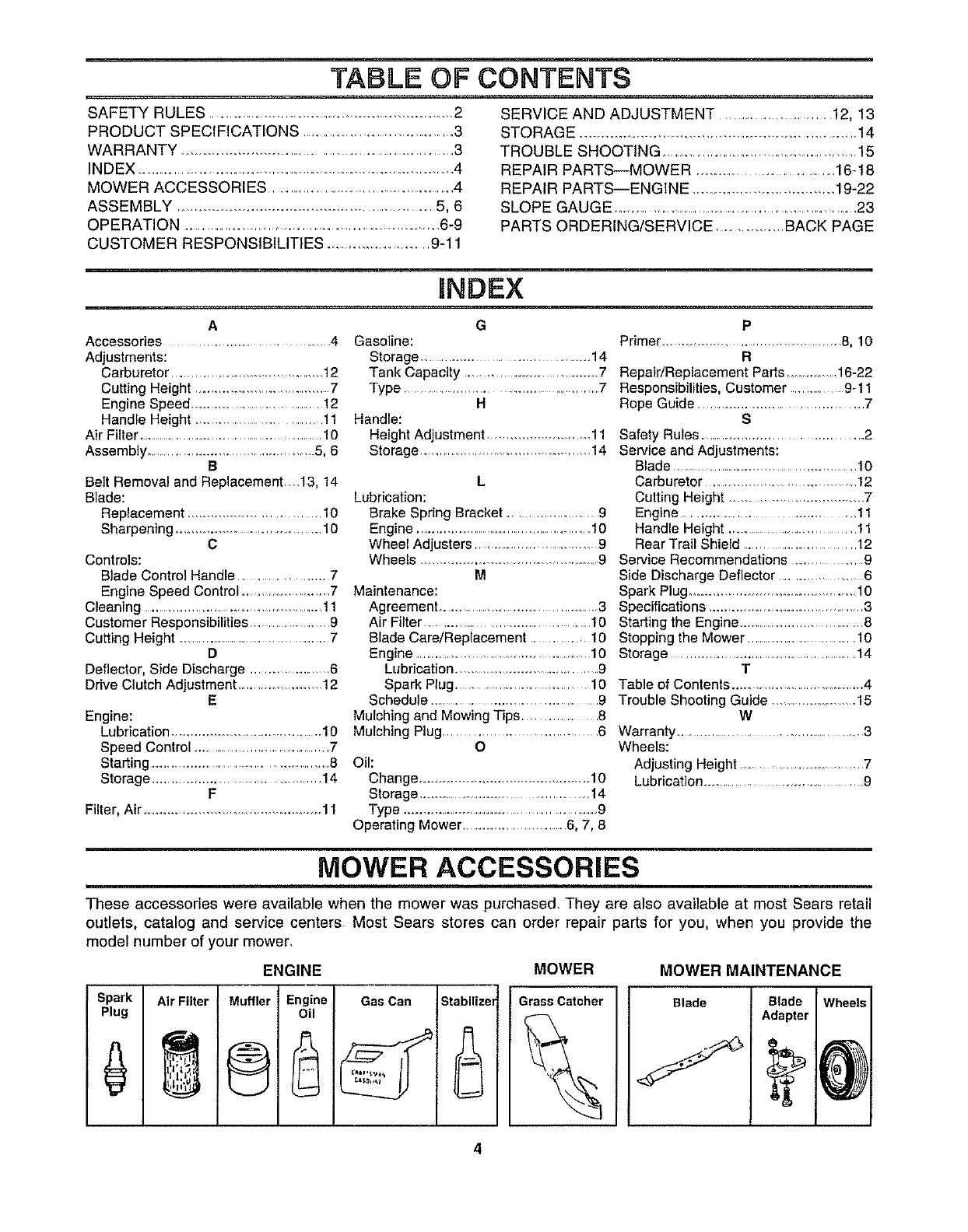

TABLE OF CONTENTS

SAFETY RULES .......................................................... 2

PRODUCT SPECIFICATIONS ......................................3

WARRANTY .................................................................... 3

INDEX ............................................................................... 4

MOWER ACCESSORIES ............................................. 4

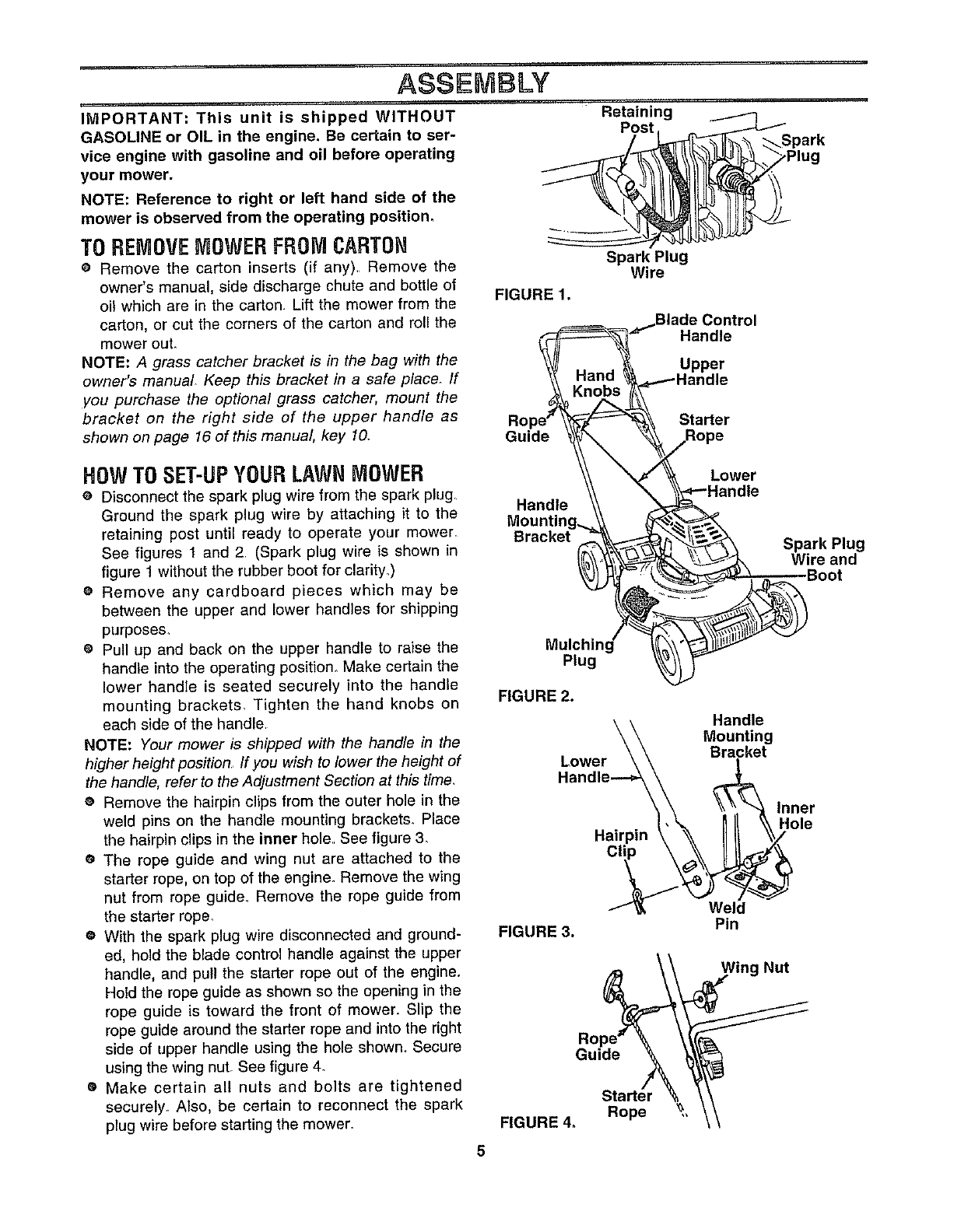

ASSEMBLY .............................................................. 5, 6

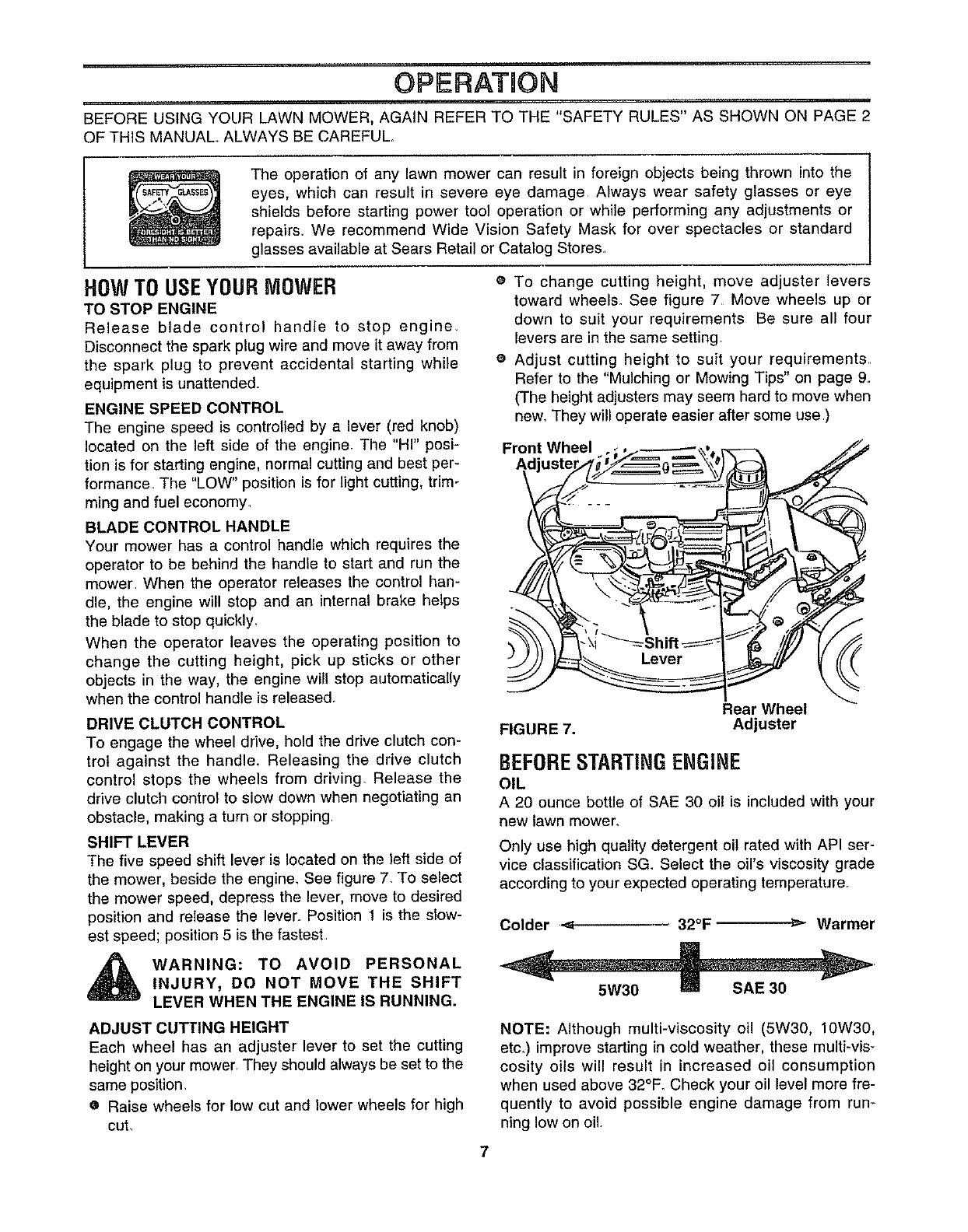

OPERATION ..................................................................6-9

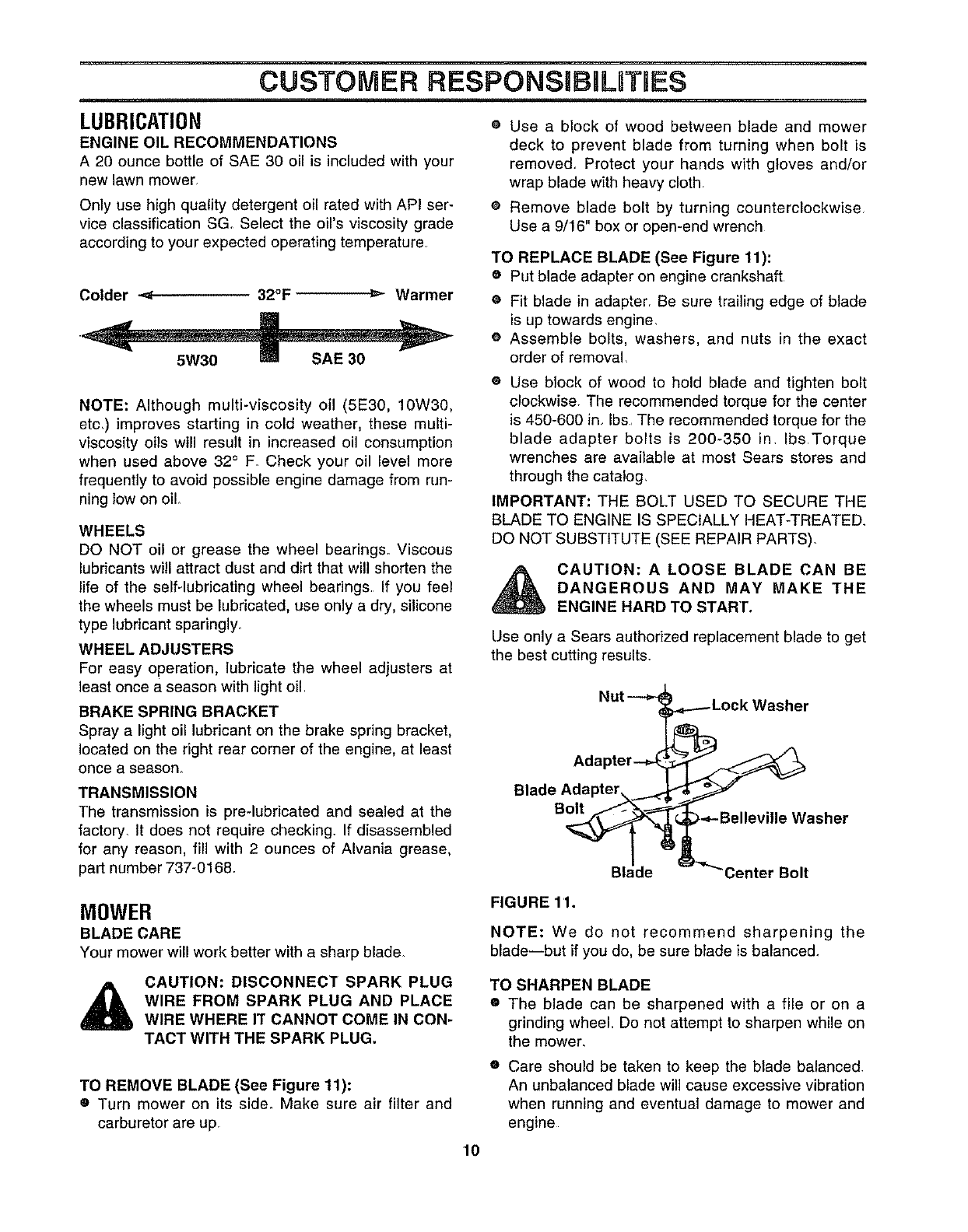

CUSTOMER RESPONSIBILITIES ................................9-11

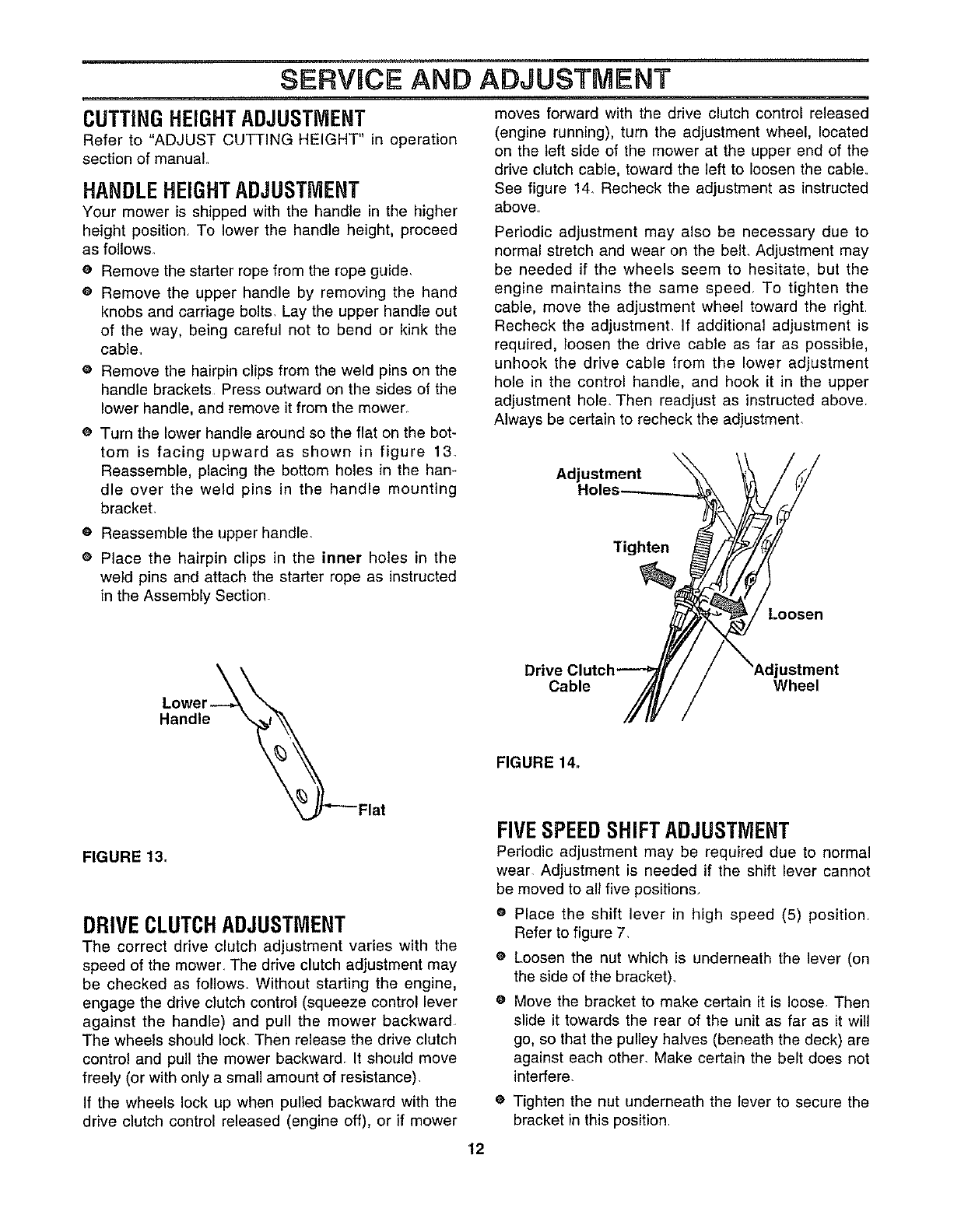

SERVICE AND ADJUSTMENT ............................ 12, 13

STORAG E ................................................................... 14

TROUBLE SHOOTING ......................................................15

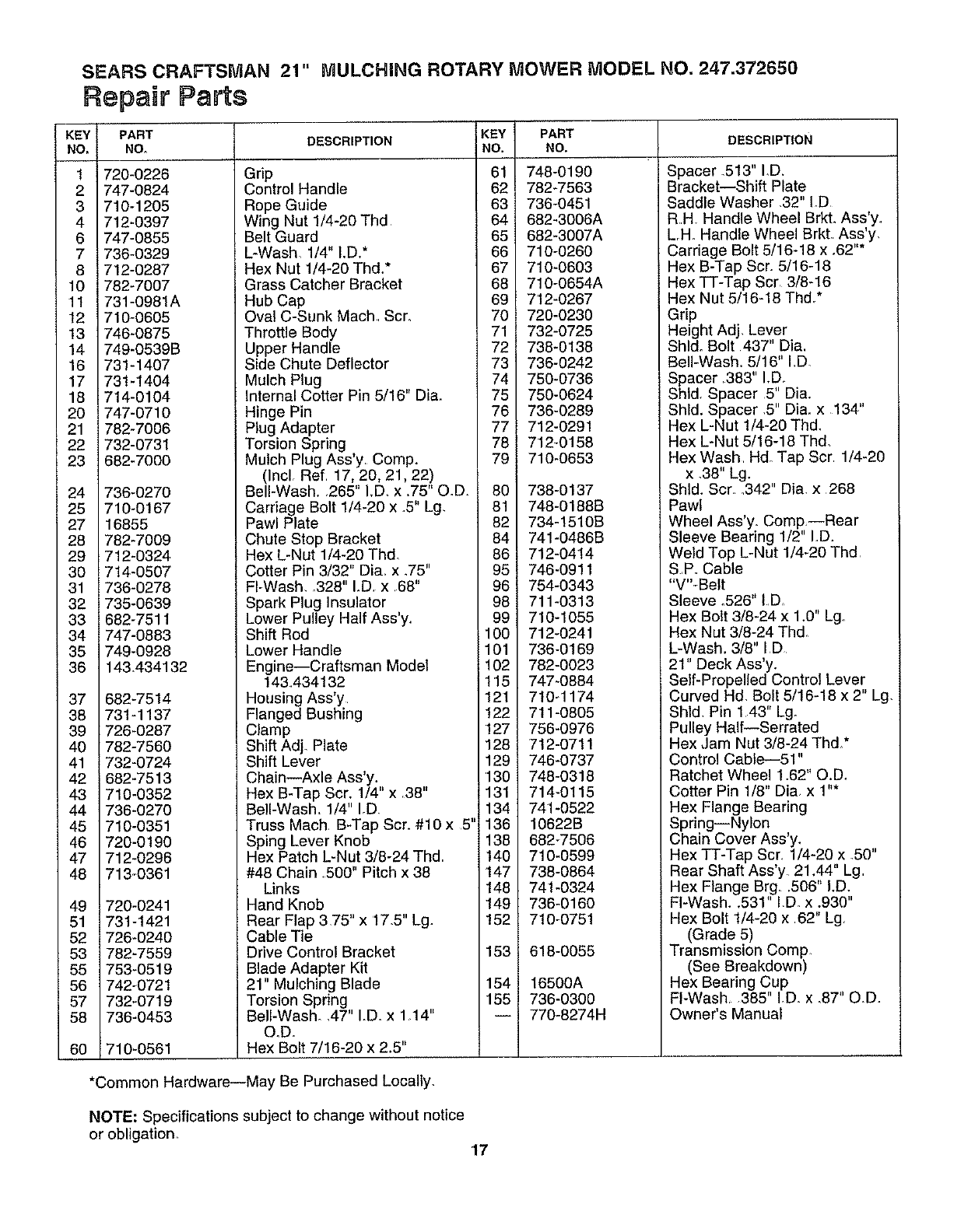

REPAIR PARTS--MOWER ....................................16-t8

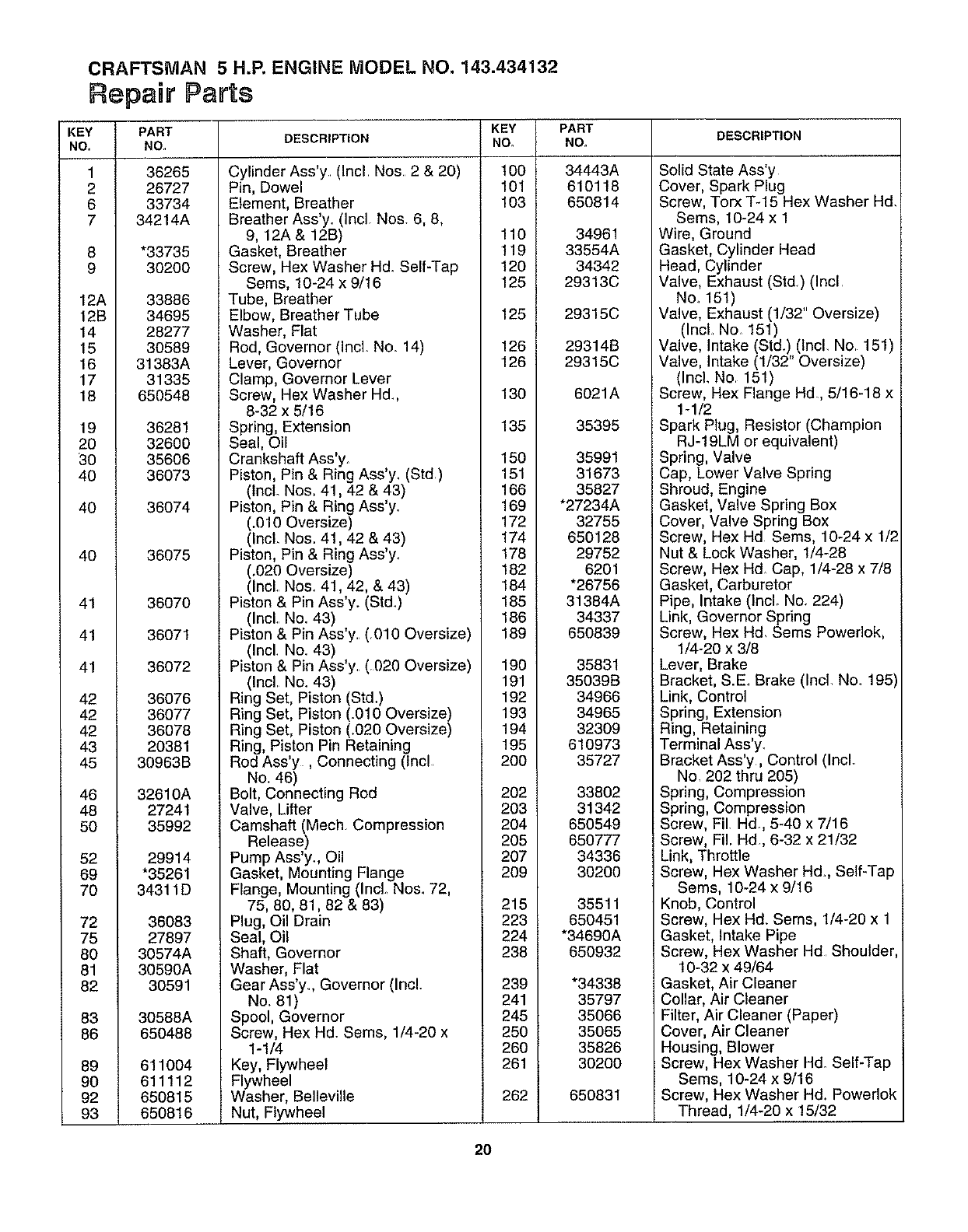

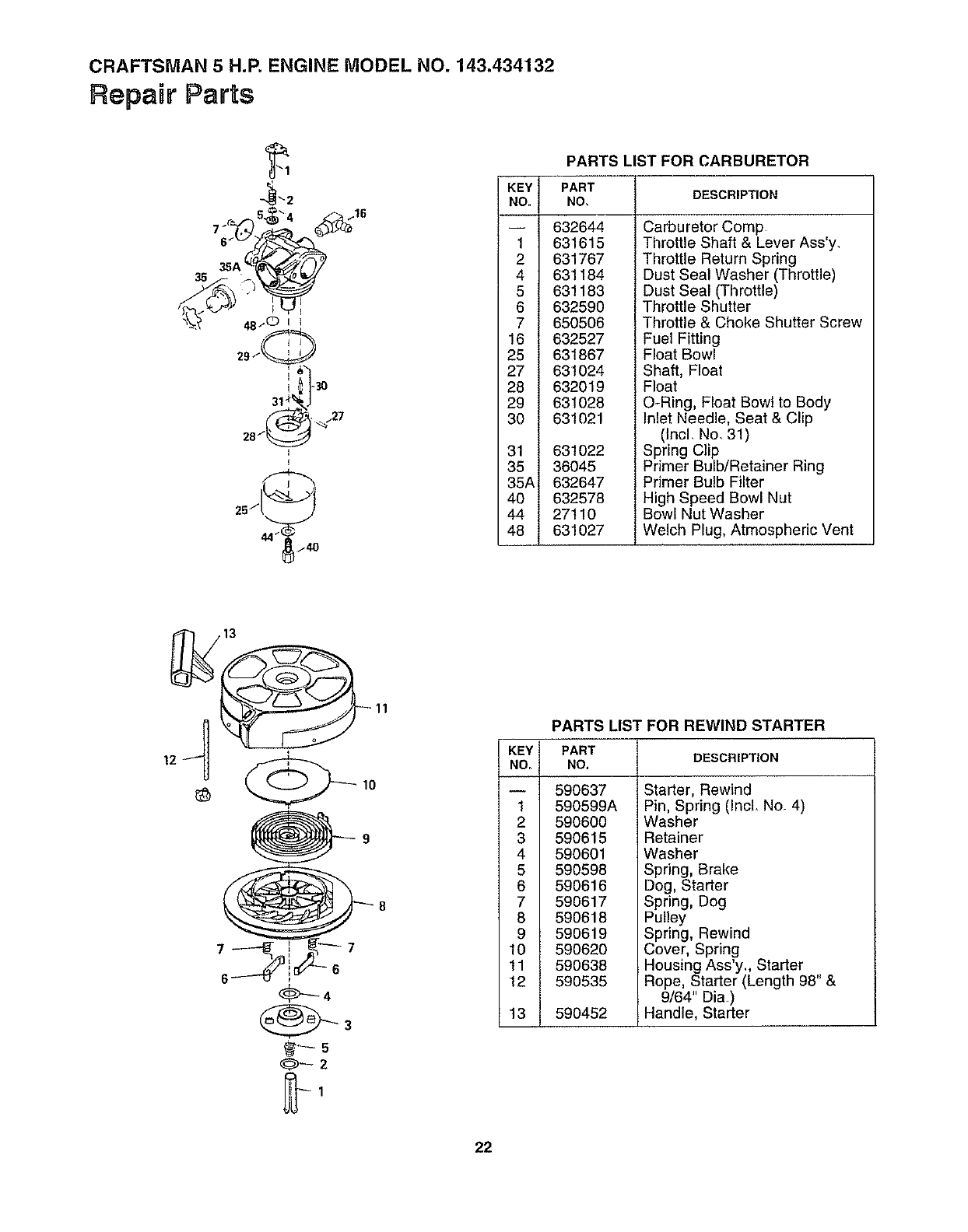

REPAIR PARTSiENGINE .................................. 19-22

SLOPE GAUGE ................................................................23

PARTS ORDERING/SERVICE ................ BACK PAGE

nNDEX

Accessories .......................................... 4

Adjustments:

Carburetor ........................................ 12

Cutting Height .................................... 7

Engine Speed ...................................... 12

Handle Height .................................... 11

Air Filter ............................................................10

Assembly .................................................5, 6

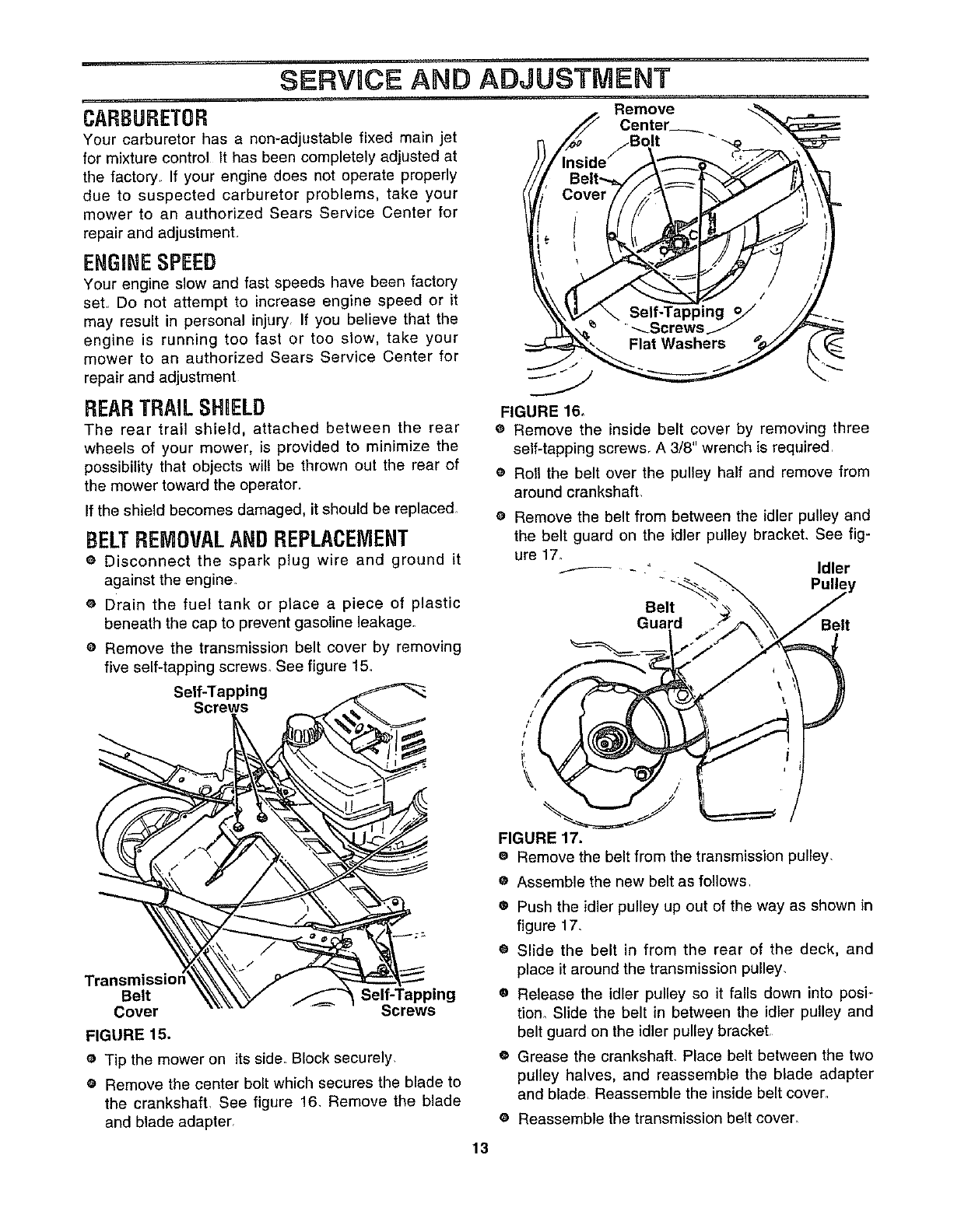

Belt Removal and Replacement....13, 14

Blade:

Replacement .................................. 10

Sharpening ................................. 10

Controls:

Blade Control Handle ...........................7

Engine Speed Control ......................... 7

Cleaning .................................................. 11

Customer Responsibilities .........................9

Cutting Height .............................................7

Deflector, Side Discharge ........................6

Drive Clutch Adjustment ...................... 12

Engine:

Lubrication ........................................... 10

Speed Control .......................................7

Starting ..............................................................8

Storage ......................................................14

Filter, Air ................................................... 11

Gasoline:

Storage ............................................... 14

Tank Capacity .........................................7

Type .................................................... 7

Handle:

Height Adjustment ........................... 11

Storage ............................................. 14

Lubrication:

Brake Spring Bracket ...................... 9

Engine ...........................................................10

Wheel Adjusters ....................................9

Wheels ................................................ 9

Maintenance:

Agreement .......................................................3

Air Filter .................................................10

Blade Care/Replacement ................. 10

Engine ...................................................10

Lubrication ..................................... 9

Spark Plug .................................. 10

Schedule ............................................. 9

Mulching and Mowing Tips ................... 8

Mulching Plug ........................................... 6

Oil:

Change ............................................. 10

Storage ....................................................14

Type ..............................................................g

Operating Mower .....................................6, 7, 8

Primer ................................................. 8, 10

Repair/Replacement Parts ............. 16-22

Responsibilities, Customer ............ 9-11

Rope Guide .......................................................7

Safety Rules ................................................2

Service and Adjustments:

Blade ................................................ 10

Carburetor ......................................... 12

Cutting Height ................................... 7

Engine ............................................ 11

Handle Height ............................. 11

Rear Trail Shield .............................. 12

Service Recommendations ................... 9

Side Discharge Deflector ........................ 6

Spark Plug ............................................... 10

Specifications ........................................... 3

Starting the Engine .......................................8

Stopping the Mower ..................................10

Storage ......................................................14

Table of Contents .................................... 4

Trouble Shooting Guide ....................... 15

Warranty ................................................. 3

Wheels:

Adjusting Height .....................................7

Lubrication ...................................... 9

MOWER ACCESSORIES

These accessories were available when the mower was purchased, They are also available at most Sears retail

outlets, catalog and service centers Most Sears stores can order repair parts for you, when you provide the

model number of your mower,

Spark Air Filter

Plug

ENGINE

_luffler _gine Gas Can Stabilizel

Oil

MOWER MOWER MAINTENANCE

Grass Catcher Blade Blade

Adapter

_hi

ASSEMBLY

Retaining

Post

IMPORTANT: This unit is shipped WITHOUT

GASOLINE or OIL in the engine. Be certain to ser-

vice engine with gasoline and oil before operating

your mower.

NOTE: Reference to right or left hand side of the

mower is observed from the operating position°

TO REMOVEMOWERFROMCARTON

e Remove the carton inserts (if any), Remove the

owner's manual, side discharge chute and bottle of

oil which are in the carton Lift the mower from the

carton, or cut the corners of the carton and roll the

mower out.

NOTE: A grass catcher bracket is in the bag with the

owner's manual Keep this bracket in a safe place. If

you purchase the optional grass catcher, mount the

bracket on the right side of the upper handle as

shown on page 16 of this manual, key 10.

NOWTOSET-UPYOURLAWNMOWER

eDisconnect the spark plug wire from the spark plug

Ground the spark plug wire by attaching it to the

retaining post until ready to operate your mower.

See figures 1 and 2 (Spark plug wire is shown in

figure 1 without the rubber boot for clarity.)

eRemove any cardboard pieces which may be

between the upper and lower handles for shipping

purposes.

e Pull up and back on the upper handle to raise the

handle into the operating position. Make certain the

lower handle is seated securely into the handle

mounting brackets, Tighten the hand knobs on

each side of the handle

NOTE: Your mower is shipped with the handle in the

higher height position If you wish to lower the height of

the handle, refer to the Adjustment Section at this time,

eRemove the hairpin clips from the outer hole in the

weld pins on the handle mounting brackets. Place

the hairpin clips in the inner hole,, See figure 3.

eThe rope guide and wing nut are attached to the

starter rope, on top of the engine. Remove the wing

nut from rope guide. Remove the rope guide from

the starter rope

eWith the spark plug wire disconnected and ground-

ed, hold the blade control handle against the upper

handle, and pull the starter rope out of the engine.

Hold the rope guide as shown so the opening in the

rope guide is toward the front of mower. Slip the

rope guide around the starter rope and into the right

side of upper handle using the hole shown., Secure

using the wing nut. See figure 4.

e Make certain all nuts and bolts are tightened

securely. Also, be certain to reconnect the spark

plug wire before starting the mower.

Spark Plug

Wire

FIGURE '1.

\_ ..... _ Upper

Rope" \_'-_--- '_,_ Starter

_" _' _ Lower

.and,e\\ . J Hand,e

Mounting_ _ _

Bra_t_- h_ Spark Plug

/_---_ _._.-_-X -_,ii re and

Boot

Mulching \\ "_'_ II_

FIGURE 2.

\Handle

Mounting

Bracket

Lower

Hairpin

Inner

Hole

FIGURE 3.

Weld

Wing Nut

Guide

FIGURE 4, Rope _,,

Yourmowerhasbeenshippedasa mulcher.Todis-

chargegrasstotheside,proceedasfol!ows.

e To convert your mower from amulcher to a

side discharge mower, lift the mulching plug See

figure 5. Slide the two hooks on the side discharge

deflector under the hinge pin on the mulching plug

assembly. Lower the mulching plug

Mulching

Plug

Hooks

FIGURE 5o

OPERATION

KNOWYOURLAWNMOWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER.

Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and

adjustments. Save this manual for future reference. Engine

Control Control

Handle

Drive

Cable

Handle

Guide Rear Wheel

uster

Starter Ro

Muffler LEFT SIDE OF MOWER

Oil Fill and D

Front

Wheel Adjuster

Deck

Mulc

Plug _park Plug

FIGURE 6. Wire and Boot

MEETSCPSCBLADESAFETYREQUIREMENTS

Sears Walk-Behind Lawn Mowers conform to the safety standards of the American National Standards Institute,

and the U_S_Consumer Product Safety Commission. The blade turns when the engine is running.

BLADE CONTROL HANDLE--must be held down to

the handle to start and run the engine. Release to

stop the engine.

STARTER ROPE--used for starting the engine

PRIMER...-pumps additional fuel from the carburetor

to the cylinder for use when starting a cold engine.

ENGINE SPEED CONTROL LEVER--permits selec-

tion of fast or slow engine speed.

DRIVE CLUTCH CONTROL--must be held against

the handle to engage the wheel drive. Release the

drive clutch control to stop the wheels from driving.

SHIFT LEVER--is used to select one of five operat-

ing speeds for the mower.

OPERATMON

BEFORE USING YOUR LAWN MOWER, AGAIN REFER TO THE "SAFETY RULES" AS SHOWN ON PAGE 2

OF THIS MANUAL° ALWAYS BE CAREFUL

The operation of any lawn mower can result in foreign objects being thrown into the

eyes, which can result in severe eye damage Always wear safety glasses or eye

shields before starting power tool operation or while performing any adjustments or

repairs. We recommend Wide Vision Safety Mask for over spectacles or standard

glasses available at Sears Retail or Catalog Stores..

HOWTO USEYOURMOWER

TO STOP ENGINE

Release blade control handle to stop engine.

Disconnect the spark plug wire and move it away from

the spark plug to prevent accidental starting while

equipment is unattended.

ENGINE SPEED CONTROL

The engine speed is controlled by a lever (red knob)

located on the left side of the engine_ The "HI" posi-

tion is for starting engine, normal cutting and best per-

formance The "LOW" position is for light cutting, trim-

ming and fuel economy

BLADE CONTROL HANDLE

Your mower has a control handle which requires the

operator to be behind the handle to start and run the

mower When the operator releases the control han-

dle, the engine will stop and an internal brake helps

the blade to stop quickly.

When the operator leaves the operating position to

change the cutting height, pick up sticks or other

objects in the way, the engine will stop automatically

when the control handle is released.

DRIVE CLUTCH CONTROL

To engage the wheel drive, hold the drive clutch con-

trol against the handle. Releasing the drive clutch

control stops the wheels from driving. Release the

drive clutch control to slow down when negotiating an

obstacle, making a turn or stopping

SHIFT LEVER

The five speed shift lever is located on the left side of

the mower, beside the engine. See figure 7. To select

the mower speed, depress the lever, move to desired

position and release the lever. Position 1 is the slow-

est speed; position 5 is the fastest

eTo change cutting height, move adjuster levers

toward wheel& See figure 7. Move wheels up or

down to suit your requirements Be sure all four

levers are in the same setting

eAdjust cutting height to suit your requirements..

Refer to the "Mulching or Mowing Tips" on page 9.

(The height adjusters may seem hard to move when

new. They will operate easier after some use )

Front Wheel

FIGURE 7.

Rear Wheel

Adjuster

BEFORESTARTINGENGINE

OIL

A 20 ounce bottle of SAE 30 oil is included with your

new lawn mower_

Only use high quality detergent oil rated with API ser-

vice classification SG. Select the oil's viscosity grade

according to your expected operating temperature_

Colder ._ 32°F _ _ Warmer

WARNING: TO AVOID PERSONAL

INJURY, DO NOT MOVE THE SHIFT

LEVER WHEN THE ENGINE IS RUNNING. 5W30 m SAE 30

ADJUST CUTTING HEIGHT

Each wheel has an adjuster lever to set the cutting

height on your mower. They should always be set to the

same position.

eRaise wheels for low cut and lower wheels for high

cut

NOTE: Although multi-viscosity oil (5W30, 10W30,

etc,) improve starting in cold weather, these multi-vis -

cosity oils will result in increased oil consumption

when used above 32°E Check your oil level more fre-

quently to avoid possible engine damage from run-

ning low on oil.

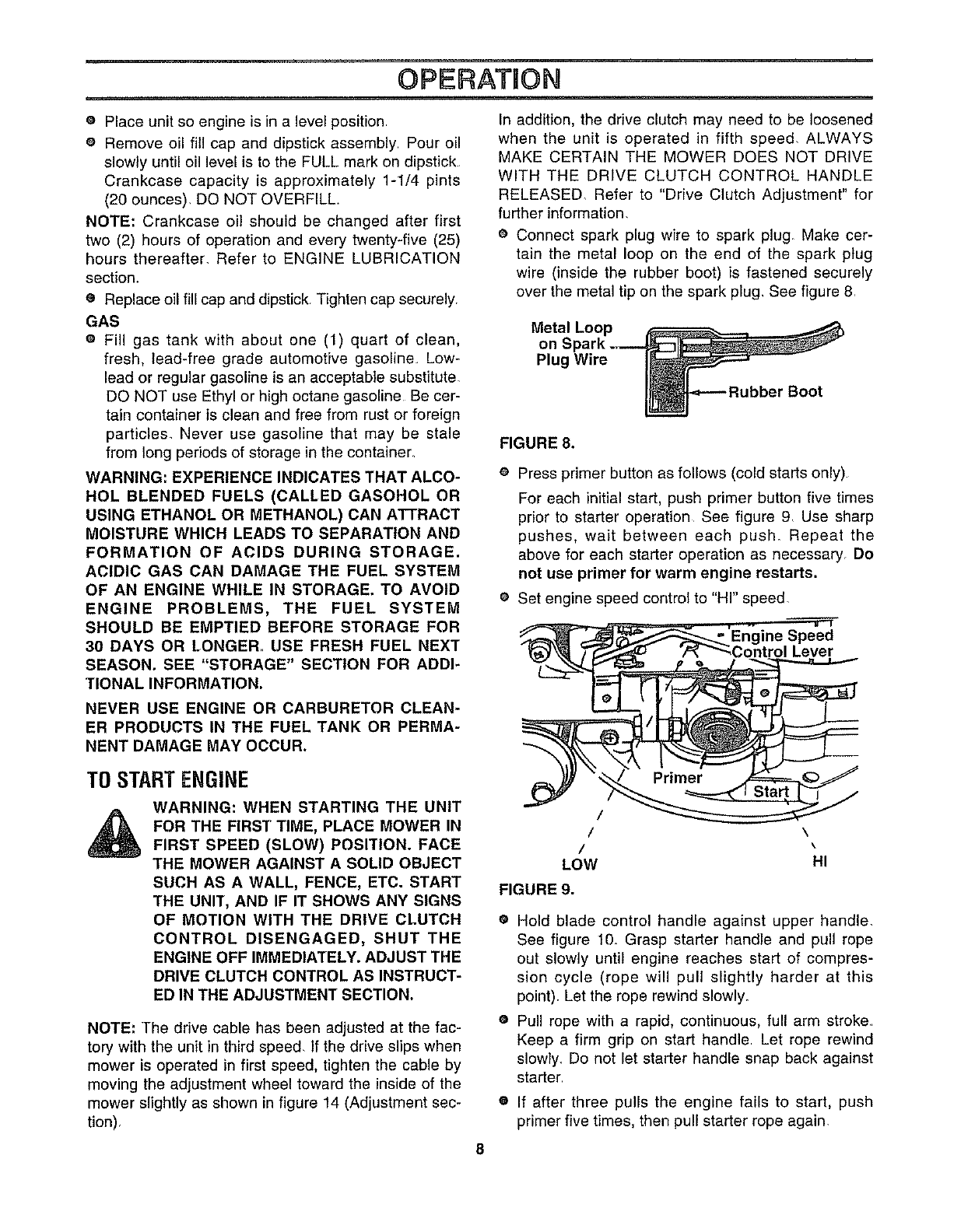

OPERATION

e Place unit so engine is in a level position

e Remove oil fill cap and dipstick assembly Pour oil

slowly until oil level is to the FULL mark on dipstick

Crankcase capacity is approximately 1-1/4 pints

(20 ounces). DO NOT OVERFILL

NOTE: Crankcase oil should be changed after first

two (2) hours of operation and every twenty-five (25)

hours thereafter. Refer to ENGINE LUBRICATION

section.

eReplace oil fill cap and dipstick Tighten cap securely.

GAS

e Fill gas tank with about one (1) quart of clean,

fresh, lead-free grade automotive gasoline_ Low-

lead or regular gasoline is an acceptable substitute.

DO NOT use Ethyl or high octane gasoline Be cer-

tain container is clean and free from rust or foreign

particles Never use gasoline that may be stale

from long periods of storage in the container_

WARNING: EXPERIENCE INDICATES THAT ALCO-

HOL BLENDED FUELS (CALLED GASOHOL OR

USING ETHANOL OR METHANOL) CAN ATTRACT

MOISTURE WHICH LEADS TO SEPARATION AND

FORMATION OF ACIDS DURING STORAGE.

ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM

OF AN ENGINE WHILE IN STORAGE. TO AVOID

ENGINE PROBLEMS, THE FUEL SYSTEM

SHOULD BE EMPTIED BEFORE STORAGE FOR

30 DAYS OR LONGER° USE FRESH FUEL NEXT

SEASON. SEE "STORAGE" SECTION FOR ADDI-

TIONAL INFORMATION.

NEVER USE ENGINE OR CARBURETOR CLEAN-

ER PRODUCTS IN THE FUEL TANK OR PERMA-

NENT DAMAGE MAY OCCUR.

TOSTARTENGINE

WARNING: WHEN STARTING THE UNIT

FOR THE FIRST TIME, PLACE MOWER IN

FIRST SPEED (SLOW) POSITION. FACE

THE MOWER AGAINST A SOLID OBJECT

SUCH AS A WALL, FENCE, ETC. START

THE UNIT, AND IF IT SHOWS ANY SIGNS

OF MOTION WITH THE DRIVE CLUTCH

CONTROL DISENGAGED, SHUT THE

ENGINE OFF IMMEDIATELY. ADJUST THE

DRIVE CLUTCH CONTROL AS INSTRUCT-

ED IN THE ADJUSTMENT SECTION.

NOTE: The drive cable has been adjusted at the fac-

tory with the unit in third speed_ If the drive slips when

mower is operated in first speed, tighten the cable by

moving the adjustment wheel toward the inside of the

mower slightly as shown in figure 14 (Adjustment sec-

tion)+

In addition, the drive clutch may need to be loosened

when the unit is operated in fifth speed, ALWAYS

MAKE CERTAIN THE MOWER DOES NOT DRIVE

WITH THE DRIVE CLUTCH CONTROL HANDLE

RELEASED Refer to "Drive Clutch Adjustment" for

further information.

e Connect spark plug wire to spark plug. Make cer-

tain the metal loop on the end of the spark plug

wire (inside the rubber boot) is fastened securely

over the metal tip on the spark plug, See figure 8

Metal Loop

Plug Wire

r Boot

FIGURE 8.

e Press primer button as follows (cold starts only)

For each initial start, push primer button five times

prior to starter operation See figure 9, Use sharp

pushes, wait between each push. Repeat the

above for each starter operation as necessary. Do

not use primer for warm engine restarts.

eSet engine speed control to "HI" speed,

Engine Speed

LOW HI

FIGURE 9.

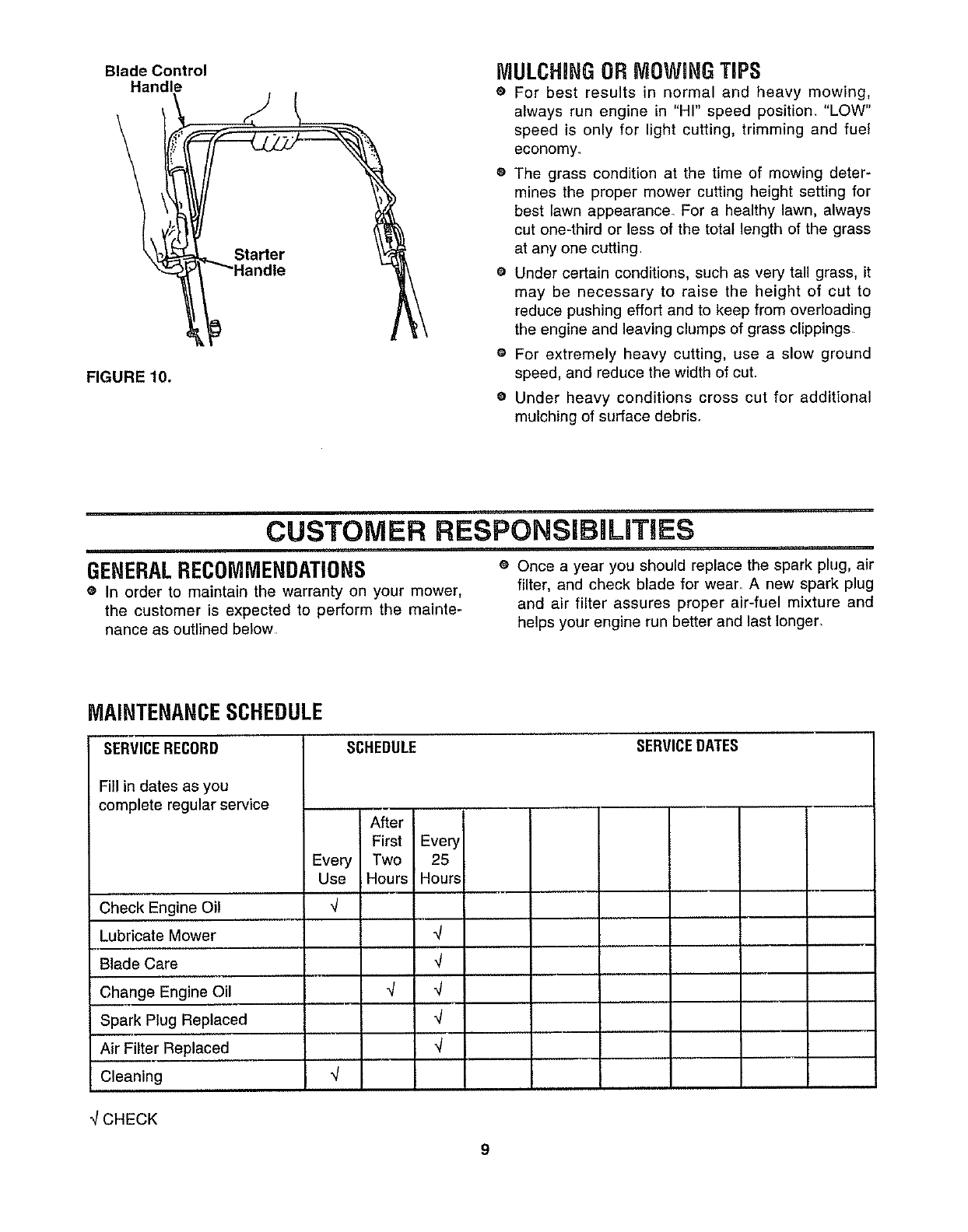

Hold blade control handle against upper handle.

See figure 10+ Grasp starter handle and pull rope

out slowly until engine reaches start of compres-

sion cycle (rope will pull slightly harder at this

point). Let the rope rewind slowly.

Pull rope with a rapid, continuous, full arm stroke

Keep a firm grip on start handle Let rope rewind

slowly. Do not let starter handle snap back against

starter

If after three pulls the engine fails to start, push

primer five times, then pull starter rope again.

Blade Control

Handle

FIGURE 10.

MULCHINGORMOWINGTiPS

eFor best results in normal and heavy mowing,

always run engine in "HI" speed position. "LOW"

speed is only for light cutting, trimming and fuel

economy.

@The grass condition at the time of mewing deter-

mines the proper mower cutting height setting for

best lawn appearance. For a healthy lawn, always

cut one-third or less of the total length of the grass

at any one cutting.

0Under certain conditions, such as very tall grass, it

may be necessary to raise the height of cut to

reduce pushing effort and to keep from overloading

the engine and leaving clumps of grass clippings

eFor extremely heavy cutting, use a slow ground

speed, and reduce the width of cut.

eUnder heavy conditions cross cut for additional

mulching of surface debris.

CUSTOMER RESPONSiBiLiTiES

GENERALRECOMMENDATIONS

•In order to maintain the warranty on your mower,

the customer is expected to perform the mainte-

nance as outlined below

eOnce a year you should replace the spark plug, air

filter, and check blade for wear, A new spark plug

and air filter assures proper air-fuel mixture and

helps your engine run better and last longer,

MAINTENANCESCHEDULE

SERVICERECORD

Fill in dates as you

complete regular service

Check Engine Oil

Lubricate Mower

Blade Care

Change Engine Oil

Spark Plug Replaced

Air Filter Replaced

Cleaning

SCHEDULE

After

First Every

Every Two 25

Use Hours Hours

,/ q

SERVICEDATES

_/CHECK

CUSTOMER RESPONSIB LRT ES

LUBRICATION

ENGINE OIL RECOMMENDATIONS

A 20 ounce bottle of SAE 30 oil is included with your

new lawn mower

Only use high quality detergent oil rated with API ser-

vice classification SG. Select the oil's viscosity grade

according to your expected operating temperature.

Colder -,_ 32°F _=- Warmer

5W30 [] SAE 30

NOTE: Although multi-viscosity oil (5E30, 10W30,

etc.) improves starting in cold weather, these multi-

viscosity oils will result in increased oil consumption

when used above 32 ° F_ Check your oil level more

frequently to avoid possible engine damage from run-

ning low on oil

WHEELS

DO NOT oil or grease the wheel bearings_ Viscous

lubricants will attract dust and dirt that will shorten the

life of the self-lubricating wheel bearings. If you feel

the wheels must be lubricated, use only a dry, silicone

type lubricant sparingly_

WHEEL ADJUSTERS

For easy operation, lubricate the wheel adjusters at

least once a season with light oil.

BRAKE SPRING BRACKET

Spray a light oil lubricant on the brake spring bracket,

located on the right rear corner of the engine, at least

once a season.

TRANSMISSION

The transmission is pre-lubricated and sealed at the

factory. It does not require checking. If disassembled

for any reason, fill with 2 ounces of Alvania grease,

part number 737-0168.

e Use a block of wood between blade and mower

deck to prevent blade from turning when bolt is

removed. Protect your hands with gloves and/or

wrap blade with heavy cloth

Remove blade bolt by turning counterclockwise

Use a 9/16" box or open-end wrench

TO REPLACE BLADE (See Figure 11):

ePut blade adapter on engine crankshaft

eFit blade in adapter. Be sure trailing edge of blade

is up towards engine.

eAssemble bolts, washers, and nuts in the exact

order of removal.

QUse block of wood to hold blade and tighten bolt

clockwise. The recommended torque for the center

is 450-600 in. Ibs. The recommended torque for the

blade adapter bolts is 200-350 in. IbsTorque

wrenches are available at most Sears stores and

through the catalog.

IMPORTANT: THE BOLT USED TO SECURE THE

BLADE TO ENGINE IS SPECIALLY HEAT-TREATED.

DO NOT SUBSTITUTE (SEE REPAIR PARTS).

CAUTION: A LOOSE BLADE CAN BE

DANGEROUS AND MAY MAKE THE

ENGINE HARD TO START,

Use only a Sears authorized replacement blade to get

the best cutting results.

Nut--

Adapter--_

Blade Adapter___.._

.._..-Lock Washer

asher

_<L_Center Bolt

MOWER

BLADE CARE

Your mower will work better with a sharp blade_

FIGURE 11.

NOTE: We do not recommend sharpening the

blade--but if you do, be sure blade is balanced.

CAUTION: DISCONNECT SPARK PLUG

WIRE FROM SPARK PLUG AND PLACE

WIRE WHERE IT CANNOT COME IN CON-

TACT WITH THE SPARK PLUG,

TO SHARPEN BLADE

•The blade can be sharpened with a file or on a

grinding wheel. Do not attempt to sharpen while on

the mower.

TO REMOVE BLADE (See Figure 11):

eTurn mower on its side. Make sure air filter and

carburetor are up.

eCare should be taken to keep the blade balanced.

An unbalanced blade will cause excessive vibration

when running and eventual damage to mower and

engine

CUSTOMER RESPONSIBILITIES

eTo check blade balance, drive a nail into a beam or

wall. Leave about one inch of the straight nail

exposed. Place center hole of blade over the head

of the nail If blade is balanced, it should remain in

a horizontal position. If either end of the blade

moves downward, blade is not balanced. Sharpen

the heavy end until the blade is balanced.

@Clean the inside of the cover and the collar with a

clean cloth to remove any dirt accumulation.

®Insert new filter into cover_

®Put air filter cover and filter into collar aligning the

tab with the slot.

ePush in on cover and turn clockwise to tighten.

Collar

ENGINE

ENGINE LUBRICATION

You must change the oil in the crankcase after the

first two (2) hours of operation and after each 25

hours of use thereafter, CHANGE THE OIL MORE

FREQUENTLY IF USED IN SANDY OR DUSTY

CONDITIONS

TO DRAIN OIL

eDisconnect spark plug wire from spark plug and

place wire where it cannot come in contact with plug

eDrain the gas tank

eRemove the oil fill cap and dipstick. Turn and tip

the unit on its side with the carburetor up, and drain

oil into a suitable container.

eRefill crankcase with oil. Refer to "ENGINE OIL

RECOMMENDATIONS" on previous page.

eReplace oil fill cap and dipstick. Tighten cap

securely.

SPARK PLUG

Change your spark plug each year to make your

engine start easier and run better. Set spark plug gap

at 030 inch.

AIR FILTER

Your engine will not run properly and may be dam-

aged by using a dirty air filter..

Replace the air filter every year, more often if you mow

in very dusty, dirty conditions. Do not wash air filter.

TO CHANGE AIR FILTER (See Figure 12):

®Remove the air filter cover by turning counterclock-

wise to the stop and pull away from collar.

•Remove filter from inside of cover_

Clockwise

To Remove

Air Filter

FIGURE 12.

Tab

_,,j Turn Clockwise

To Tighten

Air Filter Cover

CLEANING

WARNING: DISCONNECT SPARK PLUG

WIRE FROM SPARK PLUG AND PLACE

WIRE WHERE IT CANNOT COME IN CON-

TACT WITH THE SPARK PLUG,

Turn mower on its side with carburetor and air filter

up.

Clean the underside of your mower after each use

by scraping to remove build-up of grass clippings,

leaves, dirt or other matter. If this debris is allowed

to accumulate, it will invite rust and corrosion, and

may prevent proper mulching

Clean your mower and engine often to keep build-

up of grass or debris from accumulating around

engine. A clogged engine runs hotter and shortens

engine life.

NOTE: We DO NOT recommend using a garden hose

to clean mower unless the electrical system, muffler,

air filter and carburetor are covered to keep water out.

Water in engine can result in shortening engine life.

SERVICE AND ADJUSTMENT

CUTTINGHEIGHTADJUSTMENT

Refer to "ADJUST CU'FI'ING HEIGHT" in operation

section of manual

HANDLEHEIGHTADJUSTMENT

Your mower is shipped with the handle in the higher

height position, To lower the handle height, proceed

as follows.

eRemove the starter rope from the rope guide,

eRemove the upper handle by removing the hand

knobs and carriage bolts. Lay the upper handle out

of the way, being careful not to bend or kink the

cable_

eRemove the hairpin clips from the weld pins on the

handle brackets Press outward on the sides of the

lower handle, and remove it from the mower_

e Turn the lower handle around so the flat on the bot-

tom is facing upward as shown in figure 13.

Reassemble, placing the bottom holes in the han-

dle over the weld pins in the handle mounting

bracket.

e Reassemble the upper handle.

e Place the hairpin clips in the inner holes in the

weld pins and attach the starter rope as instructed

in the Assembly Section.

moves forward with the drive clutch control released

(engine running), turn the adjustment wheel, located

on the left side of the mower at the upper end of the

drive clutch cable, toward the left to loosen the cable,

See figure 14. Recheck the adjustment as instructed

above,

Periodic adjustment may also be necessary due to

normal stretch and wear on the bell Adjustment may

be needed if the wheels seem to hesitate, but the

engine maintains the same speed To tighten the

cable, move the adjustment wheel toward the right

Recheck the adjustment. If additional adjustment is

required, loosen the drive cable as far as possible,

unhook the drive cable from the lower adjustment

hole in the control handle, and hook it in the upper

adjustment hole. Then readjust as instructed above

Always be certain to recheck the adjustment

Adjustment

Tighten

Loosen

Lower-_'_

Handle "_1_,

_Flat

FIGURE 13.

DRIVECLUTCHADJUSTMENT

The correct drive clutch adjustment varies with the

speed of the mower, The drive clutch adjustment may

be checked as follows. Without starting the engine,

engage the drive clutch control (squeeze control lever

against the handle) and pull the mower backward

The wheels should lock Then release the drive clutch

control and pull the mower backward_ It should move

freely (or with only a small amount of resistance).

If the wheels lock up when pulted backward with the

drive clutch control released (engine off), or if mower

Drive Ck ustment

Cable Wheel

FIGURE 14.

FIVESPEEDSHIFTADJUSTMENT

Periodic adjustment may be required due to normal

wear. Adjustment is needed if the shift lever cannot

be moved to all five positions,

ePlace the shift lever in high speed (5) position,

Refer to figure 7.

Loosen the nut which is underneath the lever (on

the side of the bracket).

Move the bracket to make certain it is loose. Then

slide it towards the rear of the unit as far as it will

go, so that the pulley halves (beneath the deck) are

against each other. Make certain the belt does not

interfere.

e Tighten the nut underneath the lever to secure the

bracket in this position

SERVICE AND ADJUSTMENT

CARBURETOR

Your carburetor has a non-adjustable fixed main jet

for mixture control It has been completely adjusted at

the factory If your engine does not operate properly

due to suspected carburetor problems, take your

mower to an authorized Sears Service Center for

repair and adjustment

ENGINESPEED

Your engine slow and fast speeds have been factory

set,, Do not attempt to increase engine speed or it

may result in personal injury, If you believe that the

engine is running too fast or too slow, take your

mower to an authorized Sears Service Center for

repair and adjustment

Remove

Center___._

REARTRAILSHIELD

The rear trail shield, attached between the rear

wheels of your mower, is provided to minimize the

possibility that objects wilt be thrown out the rear of

the mower toward the operator.

If the shield becomes damaged, it should be replaced,

BELTREMOVALAND REPLACEMENT

e Disconnect the spark plug wire and ground it

against the engine

e Drain the fuel tank or place a piece of plastic

beneath the cap to prevent gasoline leakage.

e Remove the transmission belt cover by removing

five self-tapping screws, See figure 15.

Self-Tapping

Screws

FIGURE 16,

• Remove the inside belt cover by removing three

self*tapping screws, A 3/8" wrench is required,

e Roll the belt over the pulley half and remove from

around crankshaft.

e Remove the belt from between the idler pulley and

the belt guard on the idler pulley brackeL See fig-

ure 17. - _ Idler

Pull

Belt

Guard Belt

TransBelt Self-Tapping

Cover Screws

FIGURE 15.

eTip the mower on its side. Block securely,

e Remove the center bolt which secures the blade to

the crankshaft, See figure 16, Remove the blade

and blade adapter,

FIGURE 17.

eRemove the belt from the transmission pulley,

e Assemble the new belt as follows

•Push the idler pulley up out of the way as shown in

figure 17.

eSlide the belt in from the rear of the deck, and

place it around the transmission pulley,

• Release the idler pulley so it falls down into posF

tion_ Slide the belt in between the idler pulley and

belt guard on the idler pulley bracket,

eGrease the crankshaft. Place belt between the two

pulley halves, and reassemble the blade adapter

and blade, Reassemble the inside belt cover.

e Reassemble the transmission belt cover.

STORAGE

Your mower and engine should be prepared for off-

season storage as follows:

MOWER

e Clean underside of mower housing (See "CLEAN-

ING" in "Customer Responsibilities" section of

manual).

e Inspect and replace/sharpen blade, if required (See

"BLADE CARE" in "Customer Responsibilities"

section of manual).

e Lubricate as shown in "Customer Responsibilities"

section of manual.

HANDLE

•You can fold your mower's handle for storage as

shown in figure 14. Remove the starter rope from

the rope guide. Loosen the two hand knobs on the

sides of the handle, and let the upper handle fold

down to the rear Move the hairpin clips to the outer

hole in the weld pins on the handle mounting brack-

ets. Refer to figure 3 Spread the sides of the lower

handle, and push it forward and down.

IMPORTANT: WHEN FOLDING HANDLE FOR

STORAGE OR TRANSPORTATION, BE CAREFUL

NOT TO BEND OR KINK THE CABLES.

FIGURE 14.

eTo place the handle in the operating position, refer to

"Assembly" on page 5 of this manual.

To prevent engine damage if lawn mower is not used

for more than 30 days, proceed as follows.

IMPORTANT: IT IS IMPORTANT TO PREVENT

GUM DEPOSITS FROM FORMING IN ESSENTIAL

FUEL SYSTEM PARTS SUCH AS CARBURETOR,

FUEL FILTER, FUEL HOSE, OR TANK DURING

STORAGE ALSO, FUEL (CALLED GASOHOL OR

USING ETHANOL OR METHANOL) CAN ATTRACT

MOISTURE WHICH LEADS TO SEPARATION AND

FORMATION OF ACID DURING STORAGE. ACIDIC

GAS CAN DAMAGE THE FUEL SYSTEM OF AN

ENGINE WHILE IN STORAGE

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank in fuel tank

or storage container. Always follow mix ratio found on

stabilizer container. Run engine at least 10 minutes

after adding stabilizer to allow stabilizer to reach the

carburetor. Do not drain gas tank and carburetor if

using stabilizer.

eDrain the fuel tank Start the engine, and let it run

until fuel lines and carburetor are empty

e When storing the mower at the end of the season,

change the engine oil. Drain the oil after the engine

has been operated and is still warm, and refill the

crankcase with fresh oil

e Lubricate the piston/cylinder area by first removing

the spark plug and squirting clean engine oil into

the spark plug hole. Then cover the spark plug hole

with a rag to absorb oil spray. Next, rotate the

engine by pulling the starter two or three times

Finally, reinstall spark plug and attach spark plug

wire.

OTHER

eDo not store gasoline from one season to another

eReplace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline can cause prob-

lems..

eDo not store your mower under any plastic cover.

Plastic cannot breathe which allows condensation

to form and cause the metal components of your

mower to rust.

ENGINE

&WARNING: NEVER STORE YOUR LAWN

MOWER INDOORS OR IN AN ENCLOSED,

POORLY VENTILATED AREA IF GASO-

LINE REMAINS IN THE TANK. FUMES

MAY REACH AN OPEN FLAME, SPARK

OR PILOT LIGHT FROM A FURNACE,

WATER HEATER, CLOTHES DRYER,

CIGARETTE, ETCo

TROUBLE SHOOTING GUIDE

Corrective ActionTrouble

Engine fails to start

Engine runs erratic

Possible Cause(s)

1, Engage blade control handle,

2, Connect wire to spark plug

3, Move throttle lever to starting position.

Fill tank with clean, fresh gasoline

Clean fuel line.

Clean, adjust gap or replace

Remove spark plug, dry the plug, and

crank engine with plug removed and

throttle in off position Replace spark

plug, connect wire and resume starting

procedure&

Connect and tighten spark plug wire

Clean fuel line; fill tank with clean,

fresh gasoline,

Clear vent

Drain fuel tank Refill with fresh fuel

Clean air cleaner See "Customer

Responsibilities" section of this manual

Engine overheats Fill crankcase with proper oil

Clean lawn mower engine.

Occasional skip Adjust gap to 030'L

(hesitates) at high speed

Idles poorly Reset gap to 030" or replace spark plug

Clean air cleaner See "Customer

Responsibilities" section of this manual.

Excessive vibration Tighten blade and adapter.

Balance blade

Replace blade

Contact your SEARS Service Center

Mower will not

mulch grass

Uneven cut

1. Blade control handle disengaged

2 Spark plug wire disconnected,

3 Throttle control lever not in starting position

4 Fuel tank empty, or stale fuel 4.,

5Blocked fuelline. &

& Faulty spark plug 6.

7 Engine flooded 7,

1. Spark plug wire loose 1

2 Blocked fuel line or stale fuel 2.

3, Vent in gas cap plugged. &

4. Water or dirt in fuel system 4

5, Dirty air cleaner, 5

1. Engine oil level low. 1

2_ Air flow restricted. 2,

Spark plug gap too close.

1, Spark plug fouled, faulty or gap too wide. 1

2, Dirty air cleaner. 2

1 Cutting blade loose or unbalanced, 1

2_ Bent cutting blade. 2,

3_ Bent engine crankshaft 3.

1 Engine speed too low 1_

2 Wet grass, 2

3. Excessively high grass 3

4_ Dull blade. 4,

1 Wheels not positioned correctly. 1.

2o Dull blade 2,

Drive clutch control adjustment needed

1_ Belt has stretched; drive clutch control 1.

adjustment needed,

2. Wet grass. 2

Mower propels with

clutch disengaged

Mower will not propel

Move throttle lever to FAST positiOnr

DO not mow when grass is wet; wait until

later to cut

Mow once at a high cutting height, then

mow again at desired height or make a

narrower cutting swath (1/2 width),

Do not cut off more than 1/3 of the total

length of the grass at any one cutting

Sharpen or replace blade_

Place all four wheels in same

height position

Sharpen or replace blade.

Adjust drive clutch control See "Service

and Adjustment" section of this manual.

Adjust drive clutch control. See "Service

and Adjustment" section of this manual

Do not mow when grass is wet; wait

until later to cut.

Note: For repairs beyond the minor adjustments listed above, contact your nearest SEARS Service Center

SEARS CRAFTSMAN 21" MULCHING ROTARY MOWER MODEL NO. 247.372650

Repair Parts

121

147

65 32

45 42

102

69"

80 \

.86 20

17 56

SEARS CRAFTSMAN 21" MULCHING ROTARY MOWER MODEL NO. 247.372650

Repair Parts

KEY

NO,

PART

NO,

720-0226

747-0824

q0-1205

712-0397

747-0855

736-0329

712-0287

782-7007

731-0981A

710-0605

746-0875

749-0539B

731-1407

731-1404

714-0104

747-0710

782-7006

732-0731

682-7000

736-0270

710-0167

16855

782-7009

_712-0324

_714-0507

736-0278

735-0639

i682-7511

i747-0883

749-0928

143,434132

682-7514

731-1137

726-0287

782-7560

732-0724

682-7513

710-0352

736-0270

710-0351

720-0190

712-0296

713-0361

720-0241

731-1421

726-0240

782-7559

753-0519

742-0721

732-0719

736-0453

710-0561

DESCRIPTION

Grip

Control Handle

Rope Guide

Wing Nut 1/4-20 Thd

Belt Guard

L-Wash, 1/4" I.D.*

Hex Nut 1/4-20 Thd.*

Grass Catcher Bracket

Hub Cap

Oval C-Sunk Mach,, Scr_

Throttle Body

Upper Handle

Side Chute Deflector

Mulch Plug

Internal Cotter Pin 5/16" Dia.

Hinge Pin

Plug Adapter

Torsion Spring

Mulch Plug Ass'y. Comp.

(Incl, Ref 17.20.21,22)

Bell-Wash. _265" I.D_ x .75" O.D.

Carriage Bolt 1/4-20 x 5" Lg

Pawl Plate

Chute Stop Bracket

Hex L-Nut 1/4-20 Thd,

Cotter Pin 3/32" Di& x ,75"

FI-Wash, 328" I.D, x 68"

Spark Plug Insulator

Lower Pulley Half Ass'y,

Shift Rod

Lower Handle

Engine--Craftsman Model

143,434132

Housing Ass'y

Flanged Bushing

Clamp

Shift Adj, Plate

Shift Lever

Chain--Axle Ass'y.

Hex B-Tap Scr. 1/4" x 38"

Bell-Wash, 1/4" I,D

Truss Mach B-Tap Scr. #10 x 5"

Sping Lever Knob

Hex Patch L-Nut 3/8-24 Thd.

#48 Chain ,500" Pitch x 38

Links

Hand Knob

Rear Flap 3 75" x 17,5" Lg.

Cable Tie

Drive Control Bracket

Blade Adapter Kit

21" Mulching Blade

Torsion Spring

Bell-Wash, ,47" I.D. x 1_14"

Hex Bolt 7/16-20 x 2.5"

KEY PART

NO. NO.

61 748-0190

62 782-7563

63 736-0451

64 682-3006A

65 682-3007A

66 710-0260

67 710-0603

68 710-0654A

69 712-0267

70 720-0230

71 732-0725

72 738-0138

73 736-0242

74 750-0736

75 750-0624

76 736-0289

77i 712-0291

78i 712-0158

791 710-0653

80 738-0137

81 748-0188B

82 734-1510B

64 741-0486B

86 712-0414

95 746"0911

96 754-0343

98 711-0313

99 710-1055

100 712-0241

101 736-0169

102 782-0023

115 747-0884

121 710-1174

122 711-0805

127 756-0976

128 712-0711

129 746-0737

130 748-0318

131 714"0115

134 741-0522

136 10622B

138 682-7506

140 710-0599

147 738-0864

148 741-0324

'149 736-0160

152 710-0751

153 618-0055

154 I6500A

155 736-0300

-- 770-8274H

DESCRIPTION

Spacer ,513" ID.

Bracket--Shift Plate

Saddle Washer ,32" ID

RH Handle Wheel BrkL Ass'y,

L,H, Handle Wheel Brkt Ass'y,

Carriage Bolt 5/16-18 x _62"*

Hex B-Tap Scr. 5/16-18

Hex TT-Tap Scr 3/8-16

Hex Nut 5/16-18 Thd,*

Grip

Height Adj, Lever

Shl& Bolt 437" Dia.

Bell-Wash. 5/16" LD

Spacer 383" I.D

Shld Spacer 5" Dia,

Shld. Spacer ,5" Dia., x 134"

Hex L-Nut 1/4-20 Thd,

Hex L-Nut 5/16-18 Thd,

Hex Wash Hd, Tap Scr 1/4-20

x ,38" Lg.

Shld. Scr 342" Dia, x 268

Pawl

Wheel Ass'y. Comp,--Rear

Sleeve Bearing 1/2" ID.

Weld Top L-Nut 1/4-20 Thd

S,P, Cable

"V"-Belt

Sleeve ,526" ID.

Hex Bolt 3/8-24 x 1.0" Lg,

Hex Nut 3/8-24 Thd,

L-Wash. 3/8" I D

21" Deck Ass'y.

Self-Propelled Control Lever

Curved Hd, Bolt 5/16-18 x 2" Lg,

Shld Pin 143" Lg,

Pulley Half--Serrated

Hex Jam Nut 3/8-24 Thd,*

Control Cable---51"

Ratchet Wheel 1.62" O.D,

Cotter Pin 1/8" Dia, x 1"*

Hex Flange Bearing

Spring--Nylon

Chain Cover Ass'y,

Hex TT-Tap Scr, 1/4-20 x ,50"

Rear Shaft Ass'y 21.44" Lg,,

Hex Flange Brg, .506" I.D.

FI-Wash..531" I,D, x .930"

Hex Bolt 1/4-20 x 62" Lg

(Grade 5)

Transmission Comp

(See Breakdown)

Hex Bearing Cup

Fl-Wash 385" I,D. x ,87" O.D.

Owner's Manual

*Common Hardware--May Be Purchased Locally.

NOTE: Specifications subject to change without notice

or obligation '17

SEARS CRAFTSMAN 21" MULCHING ROTARY MOWER MODEL NO. 247.372650

Repair Parts

KEY PART

NO. NO,

1 710-1062

2 736-0329

3 717-0418A

4 713-0400

5 736-0336

6 741-0413

7 I6500A

8 736-0314

9 741-0479

11 717-1216

12 748-0208A

13 721-0212

15 756-0330A

16 736-0270

17 712-0351

18 738-0440

19 736-0344

20 738-0826

21 756-0558

22 741-0556

24 17052A

25 712-0138

26 732-0357

27 717-0419A

-28 741-0415

29 717-0422A

30 741-0414

31 721-0213

32 738-0607A

DESCRIPTION

Hex Patch Bolt 1/4-20 x 125"t

L-Wash, 1/4" I.D.*

Upper Hsg, Half1-

#48 Sprocket 7 T x 1/2 Pitcht

FI-Wash. 5/8" I,D. x .0301-

Hex Flange Brg .631" I.D,t

Hex Bearing Cupt

Thrust Wash, .382" ID x

.70" O,D.t

Thrust Bearing ,375" I,D, x

812" O,D,t

11 Tooth Pinion Shaffl-

Flange Bearingt

Oil Sealt

FI-Pulley 5.06" O,D.

Bell-Wash..265" I.D_ x.75"

Hex L-Nut 1/4-28 LH. Thd.

Shld, Spacer 375" Dia. x. 170

FI-Wash..390" I.D. x 1,0"

Shld. Bolt 375" Dia. x .40"

Fl-ldler Plastic 1.50" Dia.

Needle Brg. 375" x 31

Idler Brk't. Ass'y.

Hex Patch L-Nut 1/4-28 Thd,

Extension Spring 1,12" Lg,

Lower Hsg. Halft

Flange Bearing .566 Dia,t

33 Tooth Helical Geart

Flange Bearing .629 Dia,t

Oil Seal .625 Dia,l*

Gear Sprocket Shaftt

KEY

NO.

PART

NO.

736-0722

710-0436

736-0410

618-0055

738-0102

734-1512A

736-0105

710-1241

741-0492A

17733

782-0516

710-0653

720-0190

732-0639

731-1281

710-0352

782-7558

710-0599

782-7554

710-1242

736-0242

731-0981A

746-0909

736-0222

712-0147

710-1003

710-0167

710-0603

712-3027

736-0329

DESCRIPTION

L-Wash. #10 LD.t

Hex B-Tap Scr, #10 x ,62"t

Hex Washer 26" x 88"

Transmission Comp,

Front Axle Bolt

Wheel Ass'y. Comp. 8 x 2"

Bell-Wash..380" I.D. x .88

Hex Wash, Hd. Scr. 1/4 x 1" Lg,

Block Bushing

Axle Ass'y.

Height Adj Bracket

Hex TT-Tap Scr, 1/4-20 x ,38"

Knob

Spring Lever

Plastic Front End

Hex B-Tap Scr, 1/4" x ,38"

Belt Cover

Hex Wash. Hd. TT-Scr, 1/4-20

Transmission Belt Cover

Torx Truss Hd Scr. 5/16 x ,75"

Bell-Wash, ,345" LD x .88"

Hub Cap

S,P, Cable

External L-Wash. 1/4" I,D

Speed Nut #10-24 Thd.

Hex Tap Scr. #10-16 x 5" Lg.

Carr. Bolt 1/4-20 x .5" Lg,

Hex B-Tap Scr. 5/16-18 x .5"

Hex Flange L-Nut 1/4-20 Thd

L-Wash. 1/4" LD.*

tPart of Transmission Complete, Ref, No 36 18

CRAFTSMAN 5 H.P. ENGINE MODEL NO. 143.434132

Repair Parts o.

I .+

I 1

NODELandSERIALD_.. 1

NUMBERSHERE "_1

135

120 119

125

126

101

_292

_l+-+2s2

306

241

< 245

238

CRAFTSMAN 5 H.R ENGINE MODEL NO. 143.434132

Repair Parts

KEY

NO,,

12A

12B

PART

NO,,

36265

26727

33734

34214A

*33735

30200

33886

34695

28277

30589

31383A

31335

650548

36281

32600

35606

36073

36074

36075

36070

36071

36072

36076

36077

36078

20381

30963B

32610A

27241

35992

29914

*35261

34311D

36083

27897

30574A

30590A

30591

30588A

650488

611004

611112

650815

650816

DESCRIPTION

Cylinder Ass'y (Incl Nos 2 & 20)

Pin, Dowel

Element, Breather

Breather Ass'y. (IncL Nos. 6, 8,

9, 12A & 12B)

Gasket, Breather

Screw, Hex Washer Hal. Self-Tap

Sems, 10-24 x 9/16

Tube, Breather

Elbow, Breather Tube

Washer, Flat

Rod, Governor (IncL No. 14)

Lever, Governor

Clamp, Governor Lever

Screw, Hex Washer Hd.,

8-32 x 5/16

Spring, Extension

Seal, Oil

Crankshaft Ass'y.

Piston, Pin & Ring Ass'y. (Std.)

(IncL Nos. 41,42 & 43)

Piston, Pin & Ring Ass'y.

(.010 Oversize)

(IncL Nos. 41, 42 & 43)

Piston, Pin & Ring Ass'y.

(.020 Oversize)

(IncL Nos. 41,42, & 43)

Piston & Pin Ass'y. (Std.)

(IncL No_43)

Piston & Pin Ass'y. (.010 Oversize)

(Incl. No. 43)

Piston & Pin Ass'y. (020 Oversize)

(Incl. No. 43)

Ring Set, Piston (Std.)

Ring Set, Piston (.010 Oversize)

Ring Set, Piston (.020 Oversize)

Ring, Piston Pin Retaining

Rod Ass'y, Connecting (lncl.

No. 46)

Bolt, Connecting Rod

Valve, Lifter

Camshaft (Mech Compression

Release)

Pump Ass'y., Oil

Gasket, Mounting Flange

Flange, Mounting (IncL Nos. 72,

75, 80, 81,82 & 83)

Plug, Oil Drain

Seal, Oil

Shaft, Governor

Washer, Flat

Gear Ass'y., Governor (IncL

No. 81)

Spool, Governor

Screw, Hex Hd. Sems, 1/4-20 x

1-1/4

Key, Flywheel

Flywheel

Washer, Belleville

Nut, Flywheel

KEY

NO.

100

101

103

110

119

120

125

126

130

135

150

151

166

169

172

174

178

182

184

185

186

189

190

191

192

193

194

195

200

202

203

204

2O5

207

209

215

223

224

238

239

241

245

250

260

261

262

PART

NO,

34443A

610118

650814

34961

33554A

34342

29313C

29315C

29314B

29315C

6021A

35395

35991

31673

35827

"27234A

32755

650128

29752

6201

*26756

31384A

34337

650839

35831

35039B

34966

34965

32309

610973

35727

33802

31342

650549

650777

34336

30200

35511

650451

"34690A

650932

*34338

35797

35066

35065

35826

30200

650831

DESCRIPTION

Solid State Ass'y

Cover, Spark Plug

Screw, Torx T-15 Hex Washer Hd.

Seres, 10-24 x 1

Wire, Ground

Gasket, Cylinder Head

Head, Cylinder

Valve, Exhaust (Std) (Incl

No. 151)

Valve, Exhaust (1/32" Oversize)

(Inct No 151)

Valve, Intake (Std.) (Incl. No. 151)

Valve, Intake (1/32" Oversize)

(Incl. No. 151)

Screw, Hex Flange Hd., 5/16-18 x

1-1/2

Spark Plug, Resistor (Champion

RJ-19LM or equivalent)

Spring, Valve

Cap, Lower Valve Spring

Shroud, Engine

Gasket, Valve Spdng Box

Cover, Valve Spring Box

Screw, Hex Hd Seres, 10-24 x 1/2

Nut & Lock Washer, 1/4-28

Screw, Hex Hd Cap, 1/4-28 x 7/8

Gasket, Carburetor

Pipe, Intake (IncL No. 224)

Link, Governor Spring

Screw, Hex Hd. Sems Powedok,

1/4-20 x 3/8

Lever, Brake

Bracket, S.E. Brake (IncL No_ 195

Link, Control

Spring, Extension

Ring, Retaining

Terminal Ass'y.

Bracket Ass'y, Control (IncL

No. 202 thru 205)

Spring, Compression

Screw, FiL Hd. 5-40 x 7/16

Screw, Fil. Hd., 6-32 x 21/32

Link, Throttle

Screw, Hex Washer Hal, Self-Tap

Sems, 10-24 x 9/16

Knob, Control

Screw, Hex Hd. Sems, 1/4-20 x 1

Gasket, Intake Pipe

Screw, Hex Washer Hd Shoulder

10-32 x 49/64

Gasket, Air Cleaner

Collar, Air Cleaner

Filter, Air Cleaner (Paper)

Cover, Air Cleaner

Housing, Blower

Screw, Hex Washer Hd. Self-Tap

Sems, 10-24 x 9/16

Screw, Hex Washer Hd. Powerlok

Thread, 1/4-20 x 15/32

CRAFTSMAN 5 H.P. ENGINE MODEL NO. 143.434132

Repair Parts

KEY

NO.

263

275

276

277

285

267

290

292

300

301

305

306

PART

NO.

35821

34613

33753

650795

35000

650926

34357

26460

35586

35355

35819A

*34265

KEY PART

DESCRIPTION NO, NO.

Grill, Recoil

Muffler Ass'y. (Incl No 277)

Plate, Lock

Screw, Hex Hd., 1/4-20 x 2-1/4

Hub, Starter

Screw, Hex Washer Hd., 8-32 x

21/64

Line, Fuel

Clamp, Fuel Line

Tank Ass'y (IncL Nos. 292 & 301)

Cap, Fuel

Tube, Oil Fill

Gasket, Fill Tube

307 35499

309 650936

310 35822

313 34080

347 650898

370A 35977

370C 35167

380 632644

390 590637

400 35997

DESCRIPTION

"O"-Ring

Screw, Hex Washer Hd

Shakeproof, 10-32 x 13/32

Dipstick, Oil Fill

Spacer, Flywheel Key

Screw, Hex Washer Hd Shoulder,

10-32 x 27/32

Decal, Instruction

Decal, Throttle

Carburetor (IncL No 184)

Starter, Rewind

Gasket Set (Incl Items Marked *)

RPM Setting:

Low Speed: 2750-3050

High Speed: 3200-3400

*Indicates Parts included in Gasket Set, Ref. No. 400

Optional Spark Arrester Screen for the Muffler--

Order Part No. 391022.

CRAFTSMAN 5 H.P. ENGINE MODEL NO. 143.434132

Repair Parts

PARTS LIST FOR CARBURETOR

KEY PART

NO, NO, DESCRIPTION

-- 632644

1 631615

2 631767

4 631184

5 631183

6 632590

7 650506

16 632527

25 631867

27 631024

28 632019

29 631028

30 631021

31 631022

35 36045

35Ai 632647

40 632578

44 27110

48 631027

Carburetor Comp

Throttle Shaft & Lever Ass'y_

Throttle Return Spring

Dust Seal Washer (Throttle)

Dust Seal (Throttle)

Throttle Shutter

Throttle & Choke Shutter Screw

Fuel Fitting

Float Bowl

Shaft, Float

Float

O-Ring, Float Bowl to Body

Inlet Needle, Seat & Clip

(Incl, No, 3'1)

Spring Clip

Primer Bulb/Retainer Ring

Primer Bulb Filter

High Speed Bowl Nut

Bowl Nut Washer

Welch Plug, Atmospheric Vent

KEY

NO.

PARTS LIST FOR REWIND STARTER

PART

NO.

590637

590599A

590600

590615

590601

590598

590616

590617

590618

590619

590620

590638

590535

590452

DESCRIPTION

Starter, Rewind

Pin, Spring (IncL No, 4)

Washer

Retainer

Washer

Spring, Brake

Dog, Starter

Spring, Dog

Pulley

Spring, Rewind

Cover, Spring

Housing Ass'y,, Starter

Rope, Starter (Length 98" &

9/64" Dia.)

Handle, Starter

USE THiS PAGE AS A GUIDE TO DETERMINE SLOPES WHERE YOU MAY NOT OPERATE SAFELY.

8_ .................. SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE

B8 _ ....... A POWER POLE

B B

__.=_ ....... A CORNER OF A BUILDING

Q n

U H_ ..... OR A FENCE POST

" ...... :?_oo

_°-.......

.6..... _/NE ,,_

- - - n o°°°, Plr_-p_p_

B"...._ 15o ,.,.

°°oe

°=teooeDgeeei

15°

WARNING

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). If

operating a walk-behind mower on such a slope, it is extremely difficult to maintain your footing and you could

slip, resulting in serious injury.

Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.

OWHER'

MAHUAL

MODELH0.

247.372650

TOORDER

REPAIRPARTS

5.0 HORSEPOWER

21" POWER PROPELLED

5=SPEED "3=1N-1"

MULCHING ROTARY MOWER

Each lawn mower has its own model number, Each engine

has its own model number,

The model number for your lawn mower will be found on a

label attached to the lawn mower on the top rear of the

deck.

The model number for the engine will be found on the

blower housing of the engine adjacent to the spark plug,

All parts listed herein may be ordered through Sears,

Roebuck and Co. Service Centers and most Retail Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

* PRODUCT- "21" Mulching Rotary Mower"

* MODEL NUMBER -247.372650

* ENGINE MODEL NUMBER - 143.434132

* PART NUMBER

* PART DESCRIPTION

Your Sears merchandise has added value when you con-

sider that Sears has service units nationwide staffed with

Sears trained technicians_.professional technicians specifi-

cally trained on Sears products, having the parts, tools and

the equipment to insure that we meet our pledge to you...we

service what we sell.

SEARS, ROEBUCK AND CO., Hoffman Estates, IL

770-8274H 1/93

60179 U.S.A.

Printed in U.S.A.

Craftsman 247372650 User Manual 21 MULCHING LAWNMOWER Manuals And Guides L0806738

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0806738 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
