Owner's Manual

iPR 0 FES Sl 0 HAL i

8-1/4 in, 18 VOLT PROFESSIONAL

CORDLESS COMPOUND MITER/TRIM SAW

Model No.

315.212180

Save this manual for

future reference

• I= CAUTION: Read and follow

all Safety Rules and Operating

Instructions before first use of

this product.

Customer Help Line: 1-800-932-3188

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

Visit the Craftsman web page: www.sears.com/craftsman

972000-841

5-01

• Safety

•Features

• Adjustments

• Operation

•Maintenance

•Parts List

®

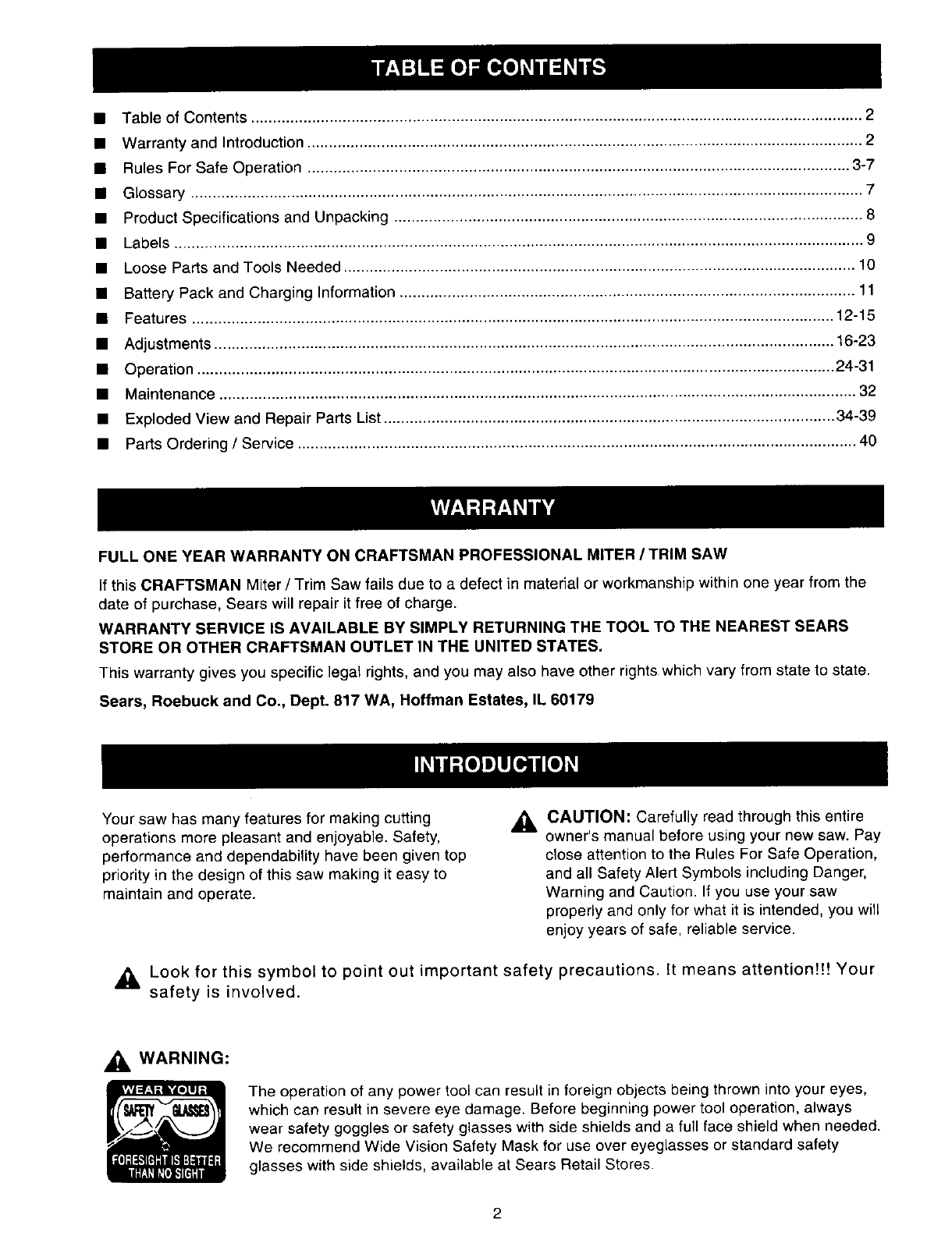

• Table of Contents ............................................................................................................................................. 2

• Warranty and Introduction ................................................................................................................................ 2

• Rules For Safe Operation ............................................................................................................................. 3-7

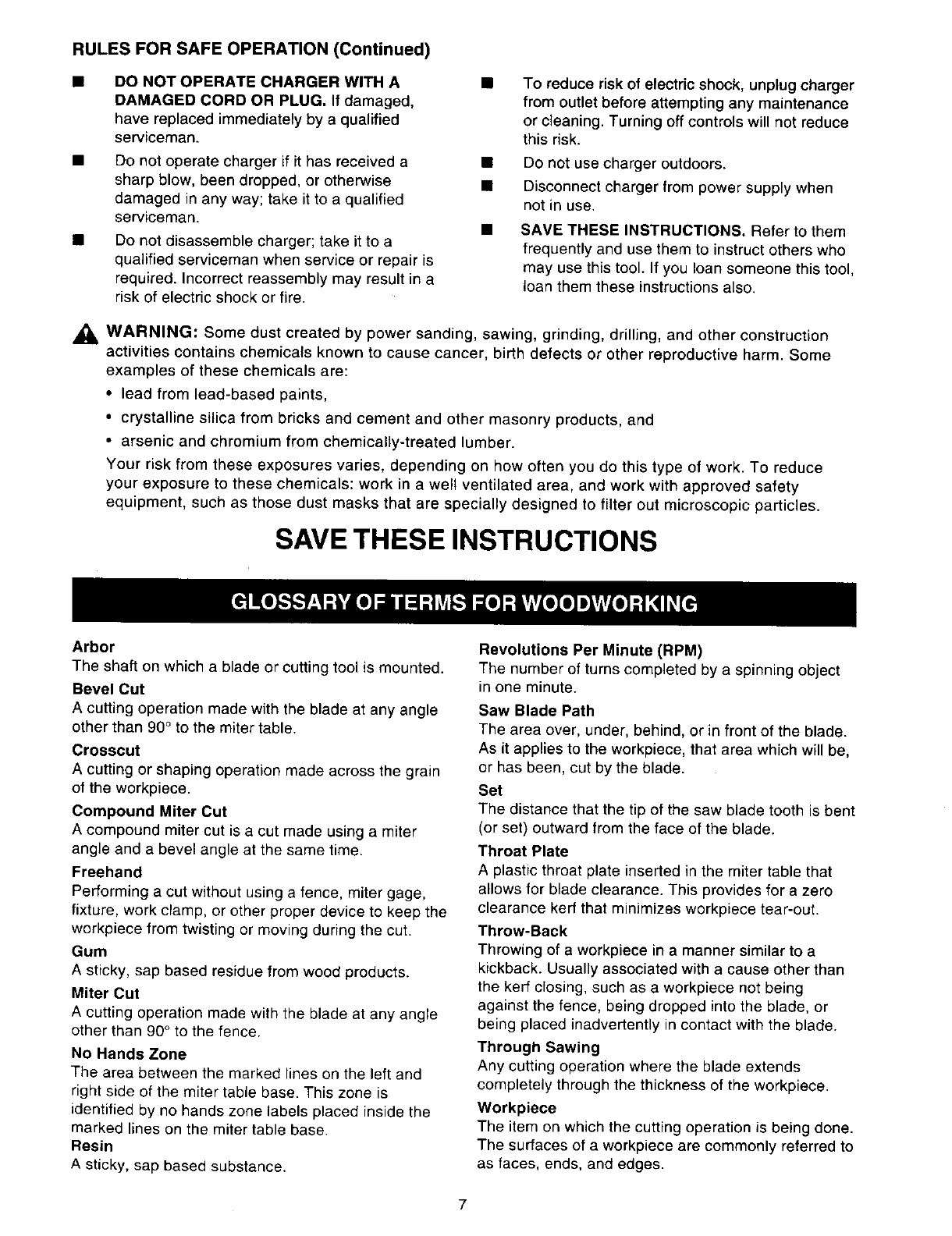

• GLossary ........................................................................................................................................................... 7

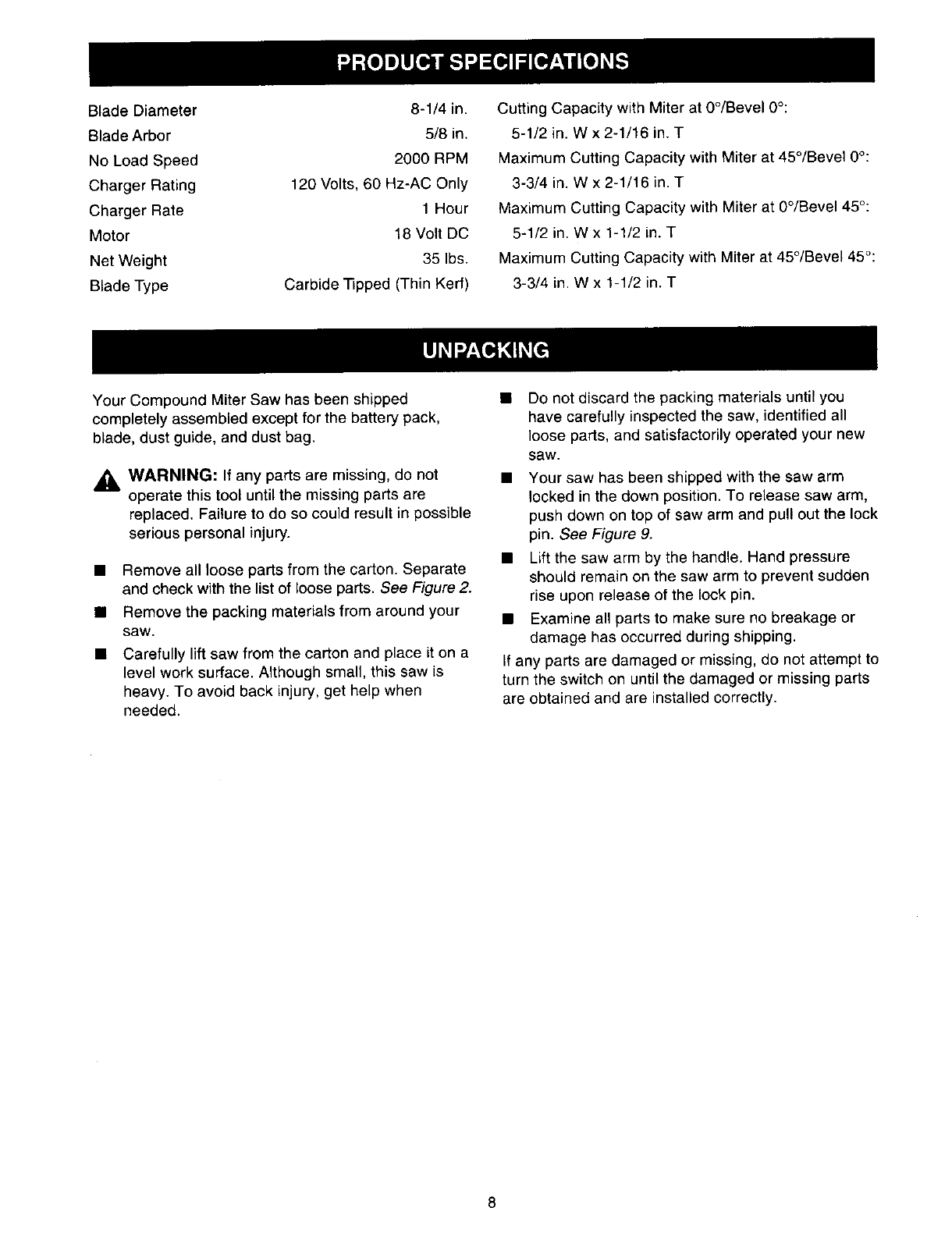

• Product Specifications and Unpacking ............................................................................................................ 8

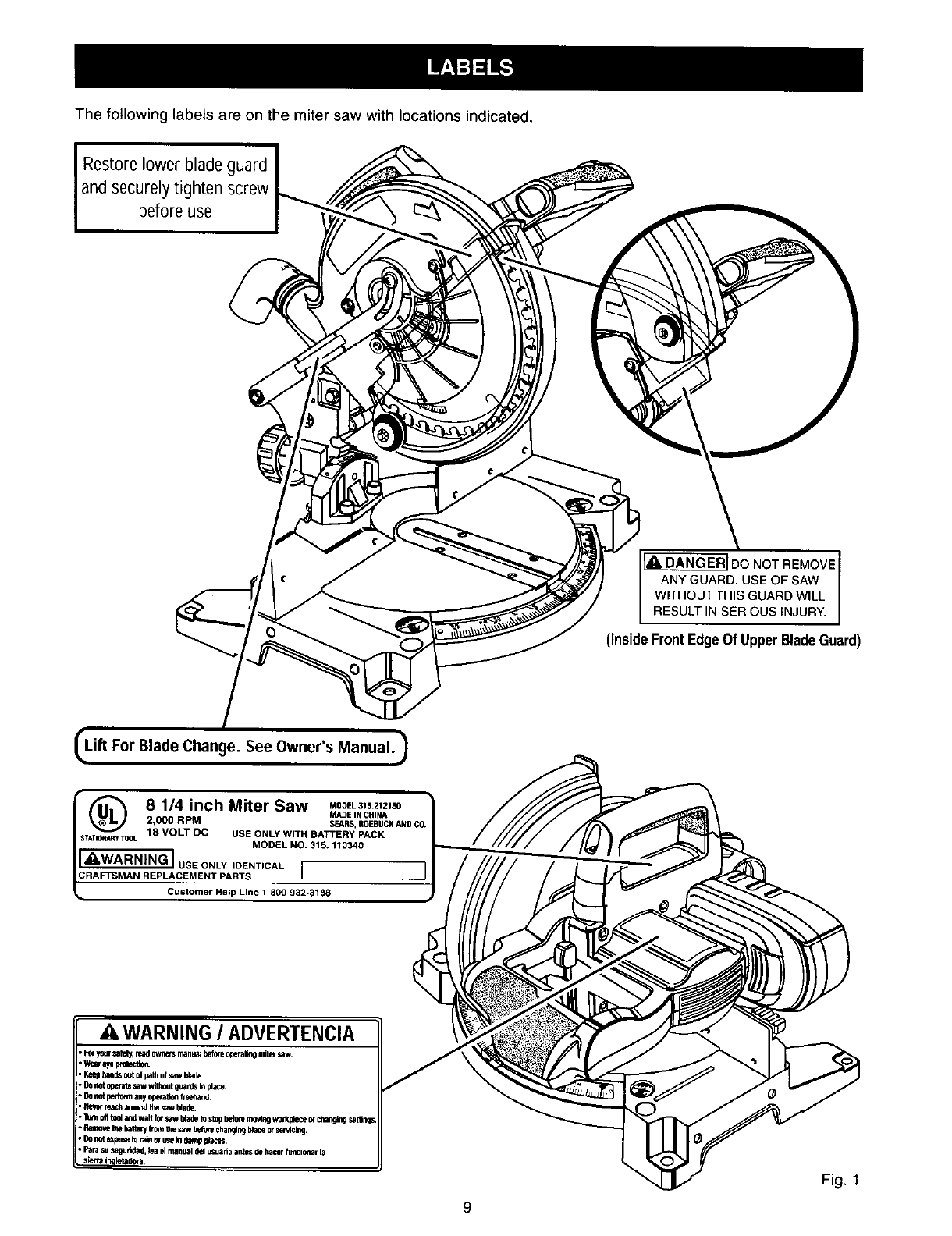

• Labels ............................................................................................................................................................... 9

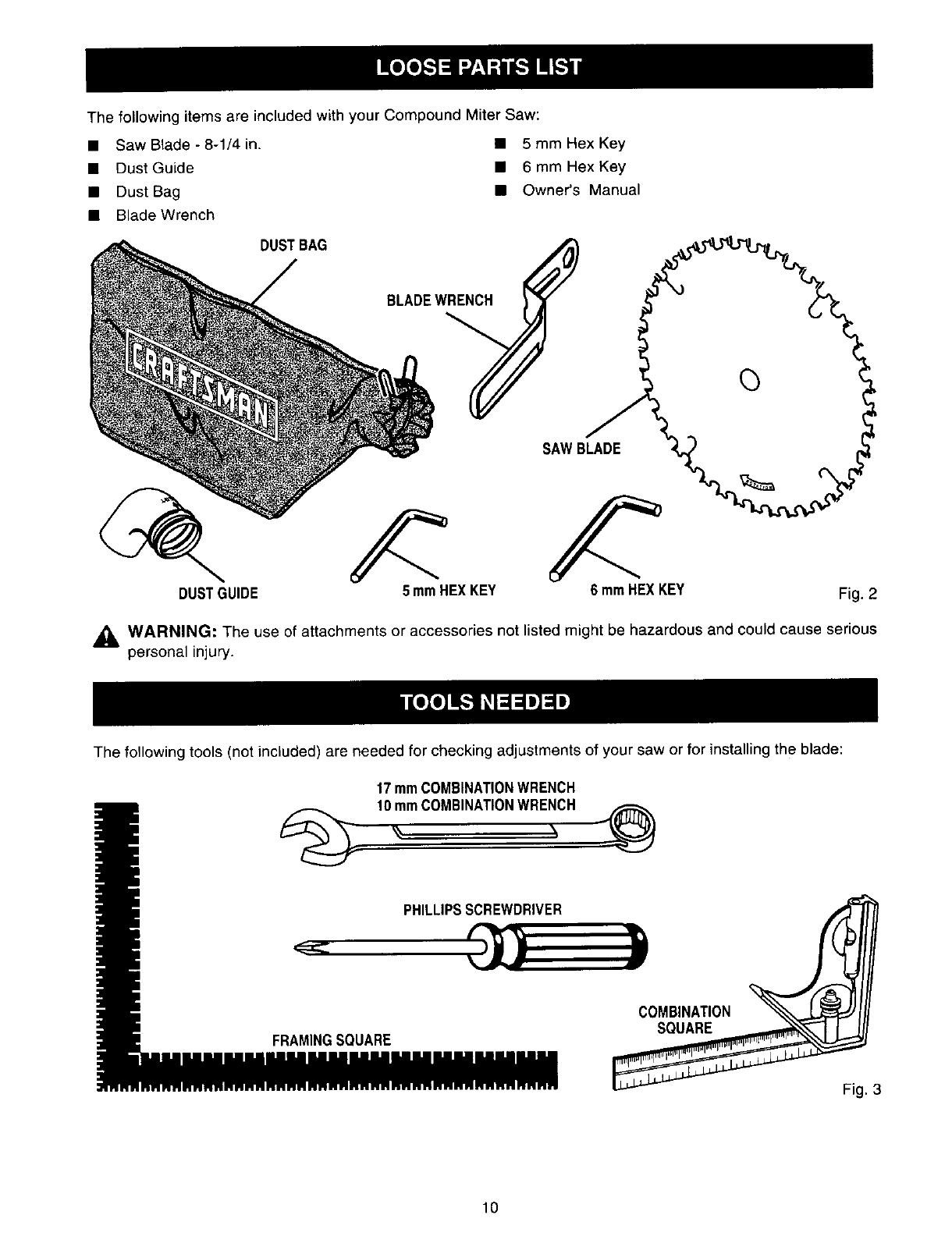

• Loose Parts and Tools Needed ...................................................................................................................... 10

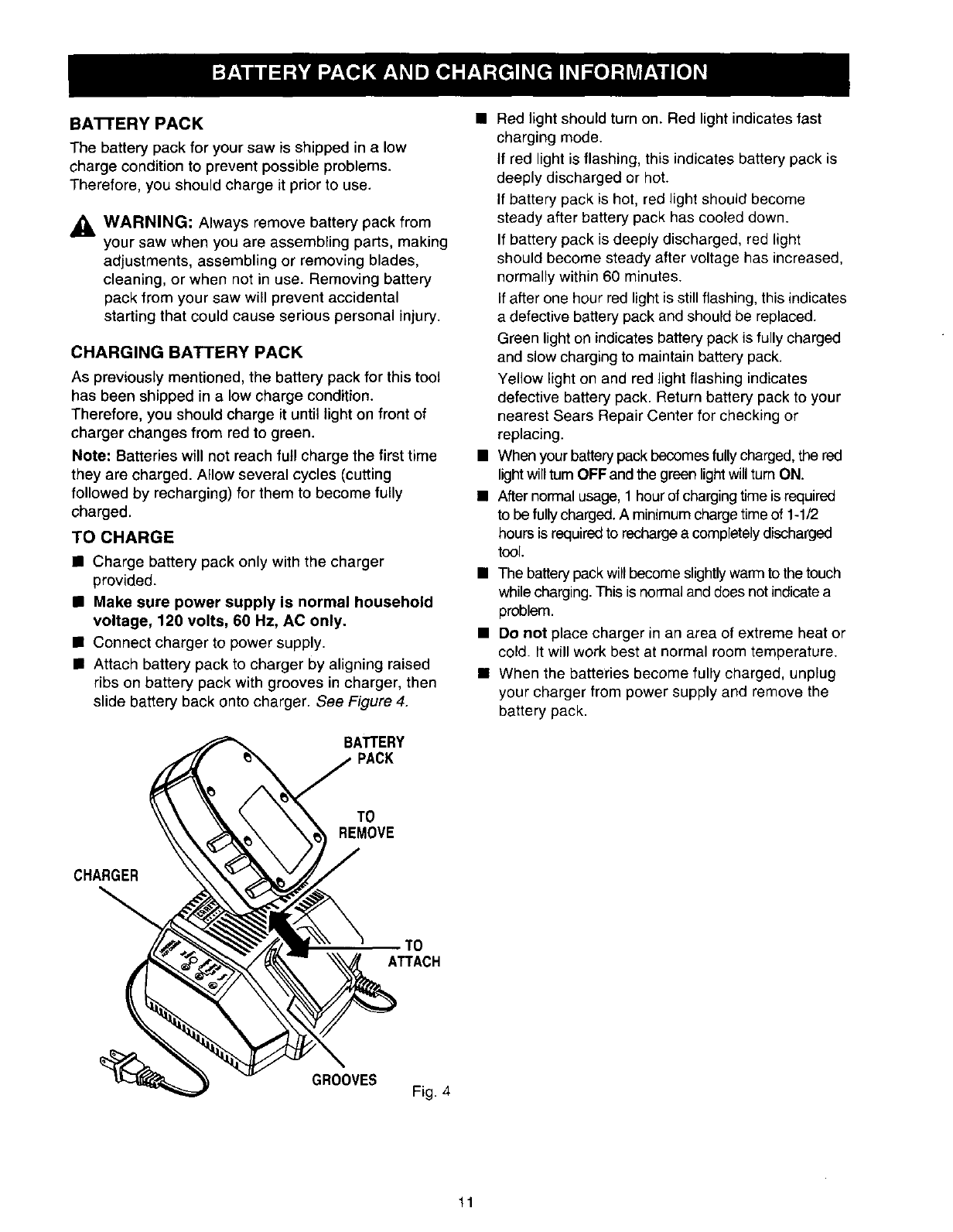

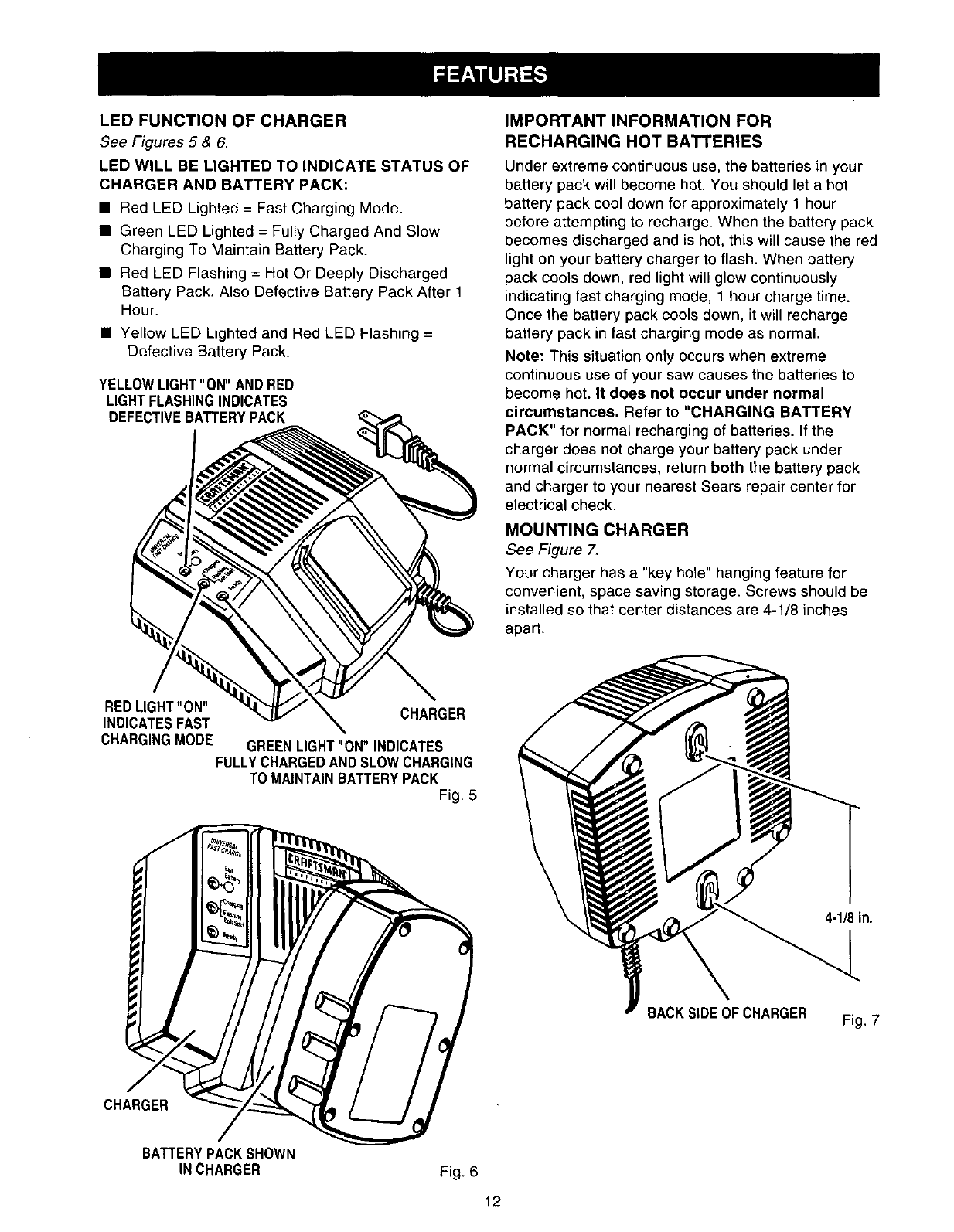

• Battery Pack and Charging Information ......................................................................................................... 11

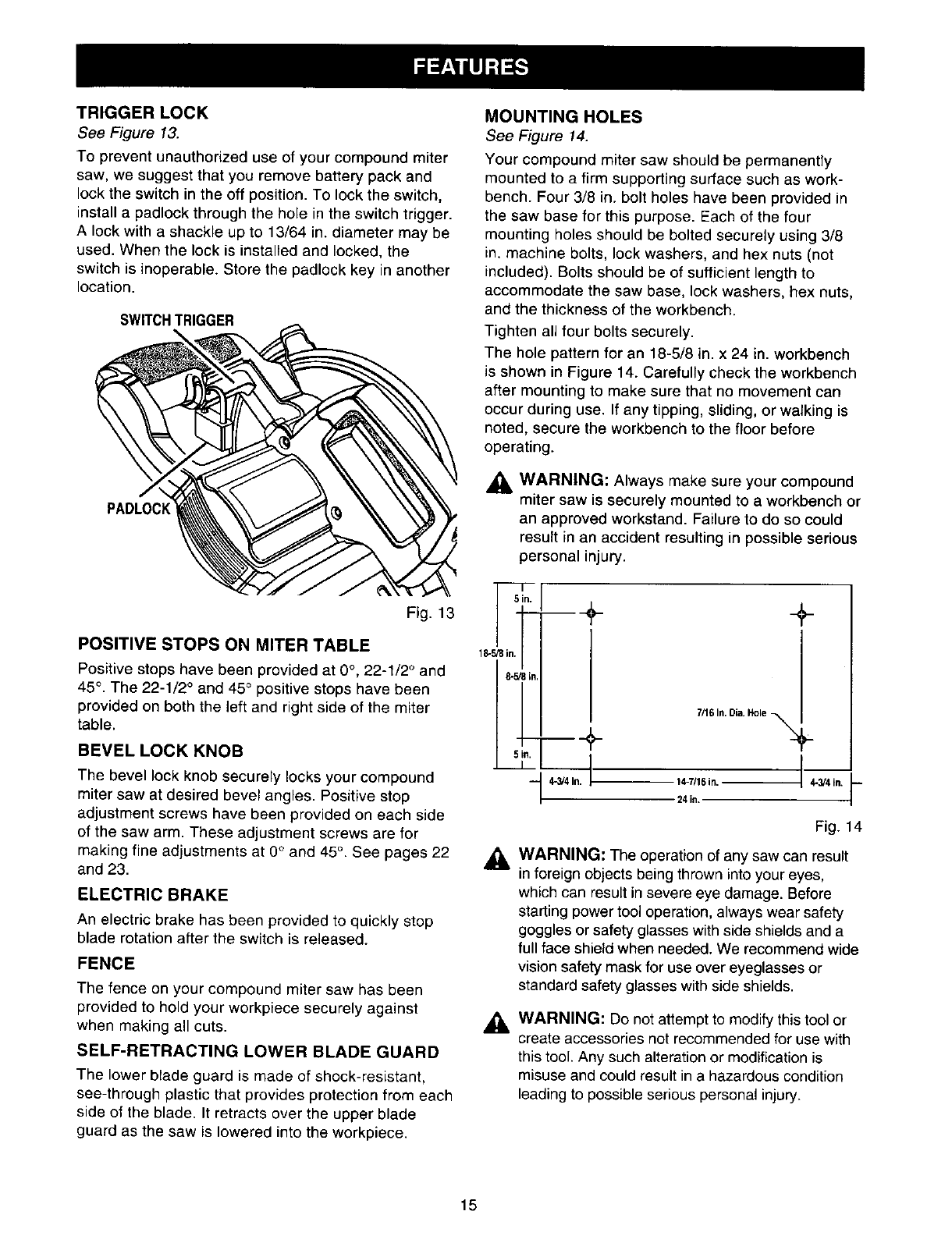

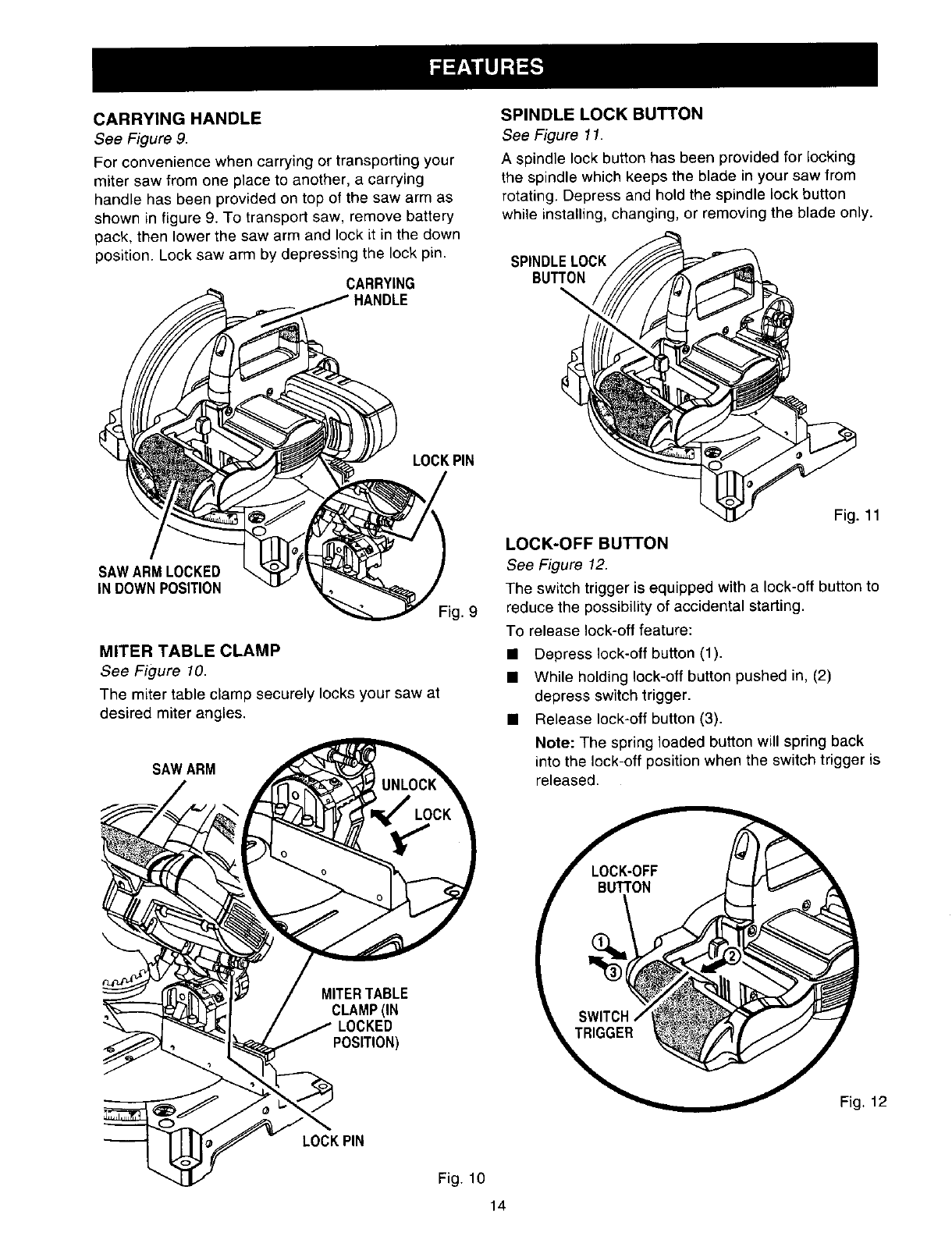

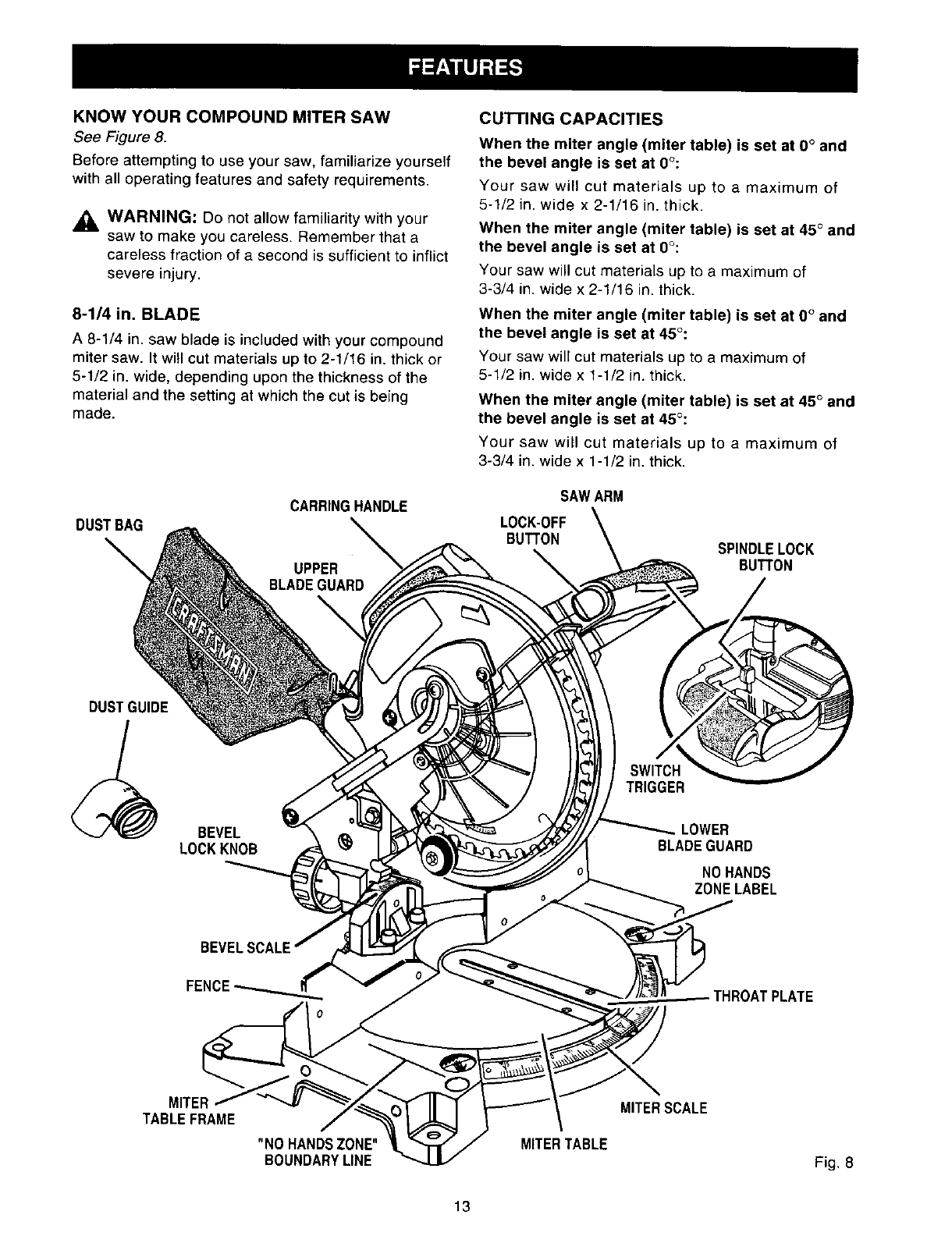

• Features .................................................................................................................................................... 12-15

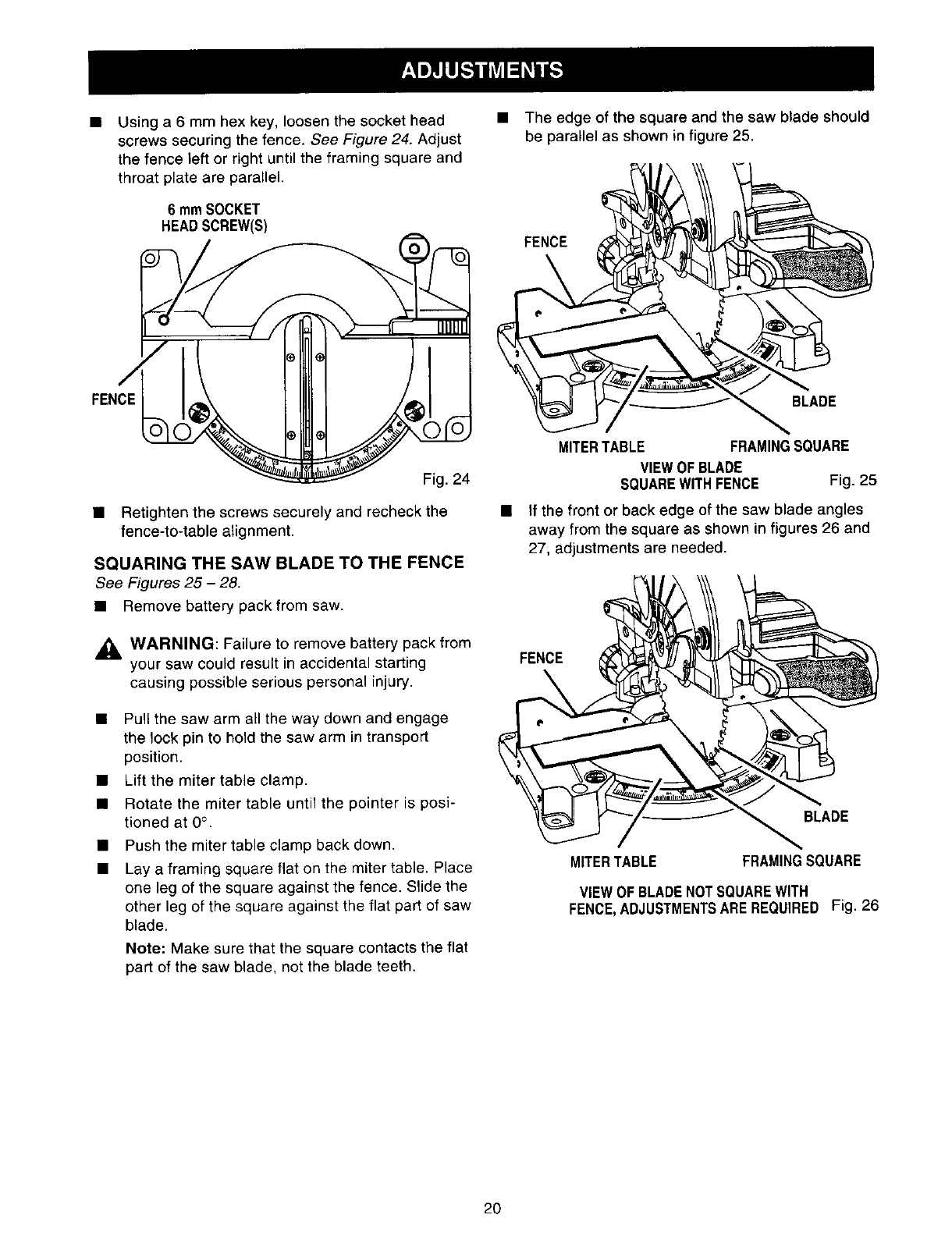

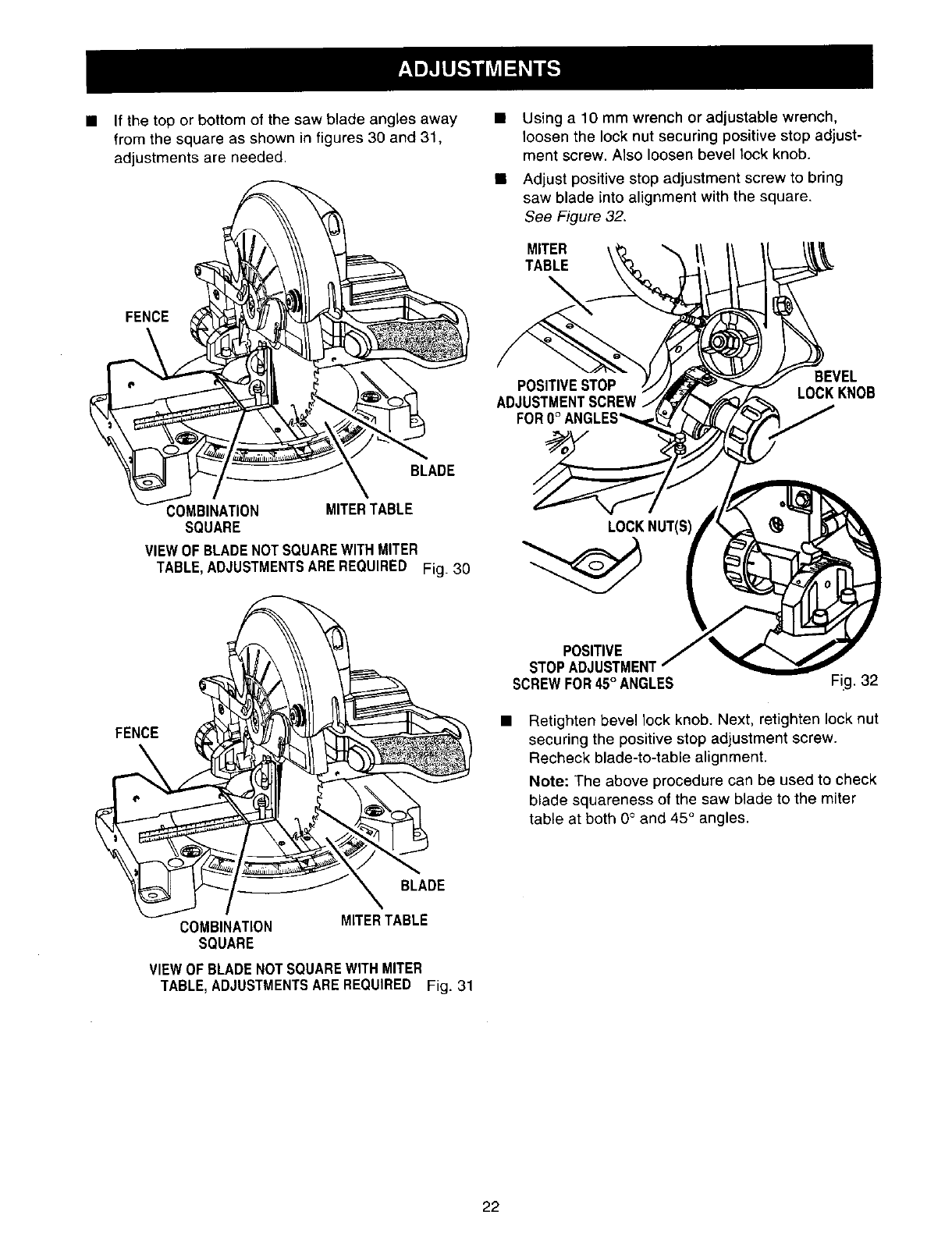

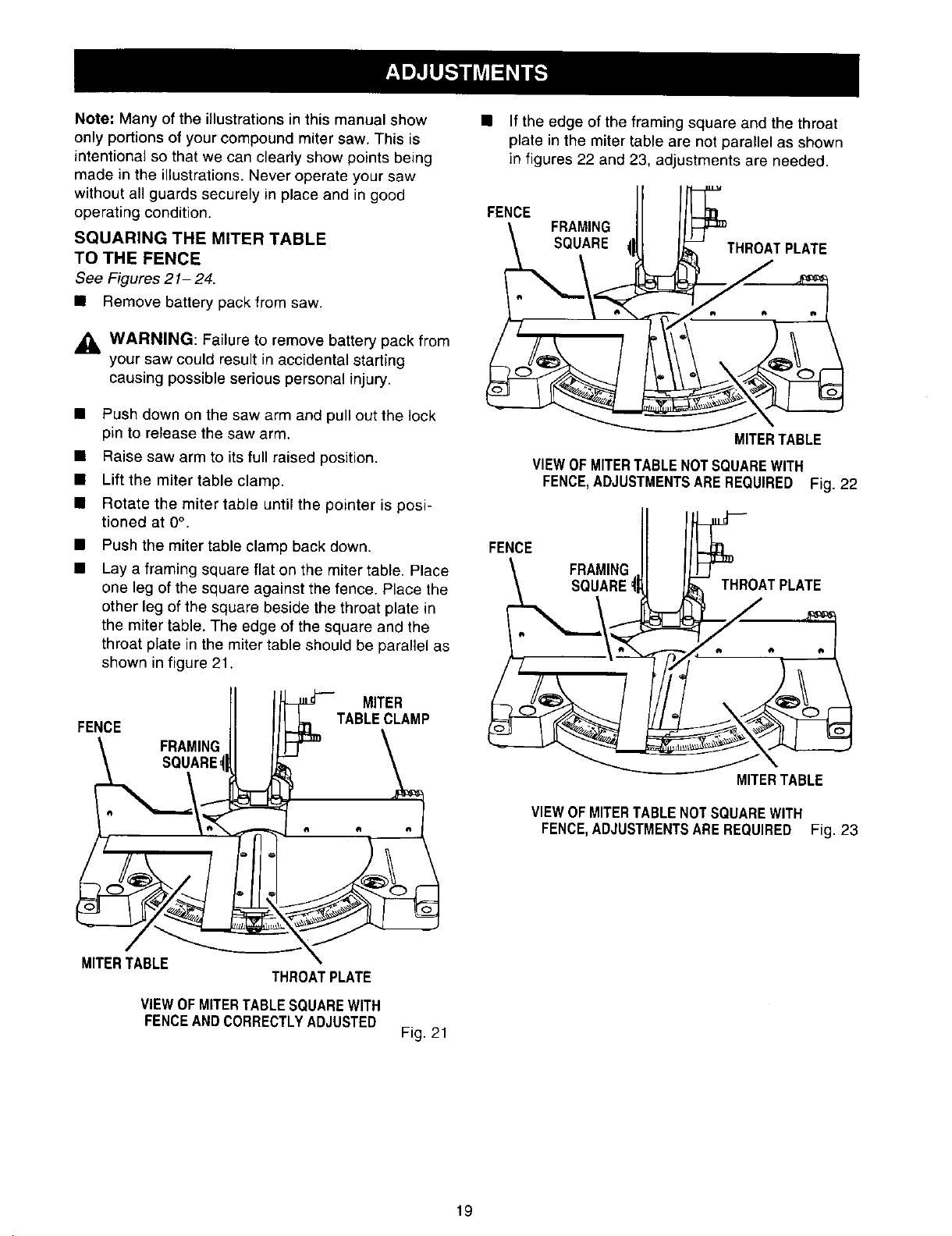

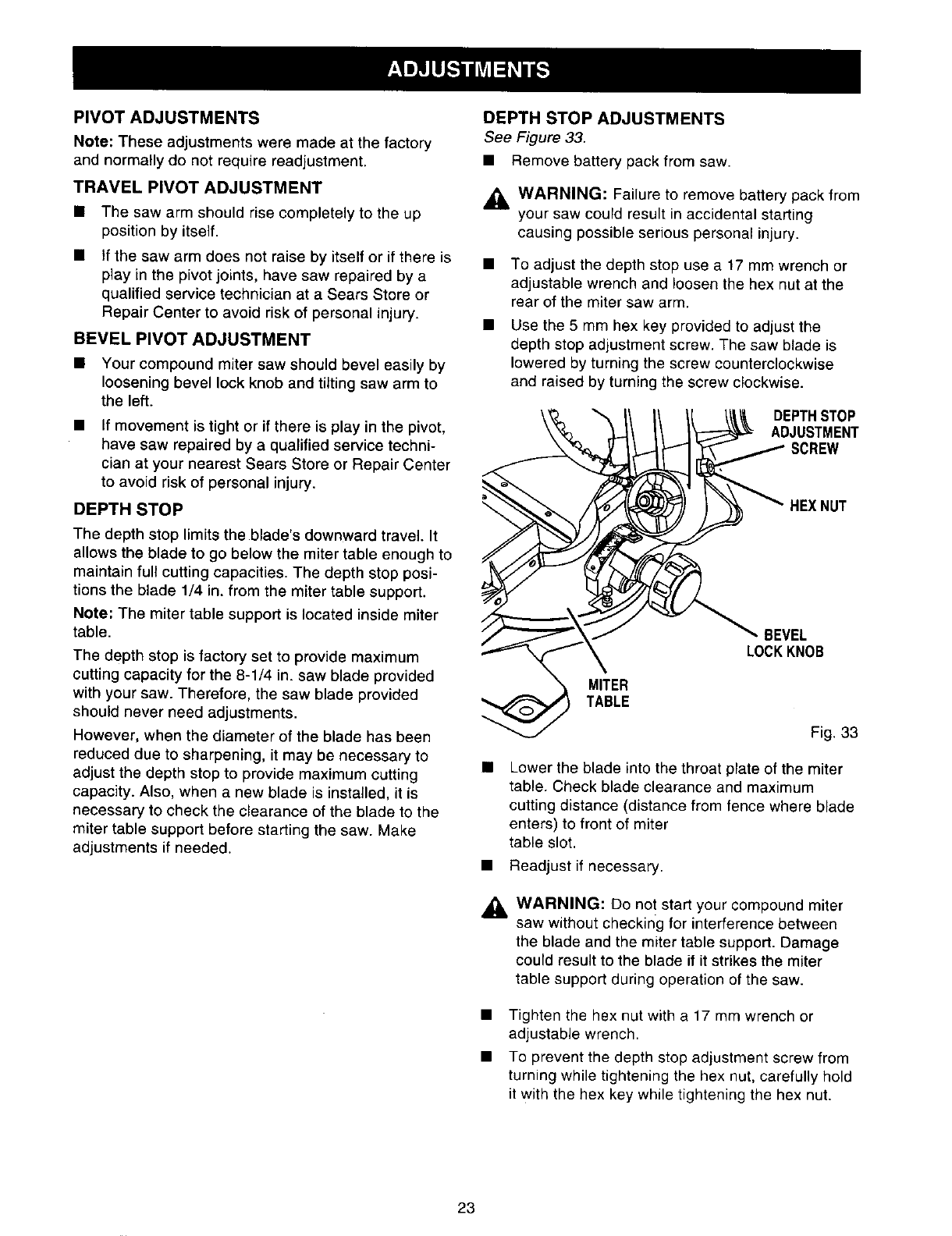

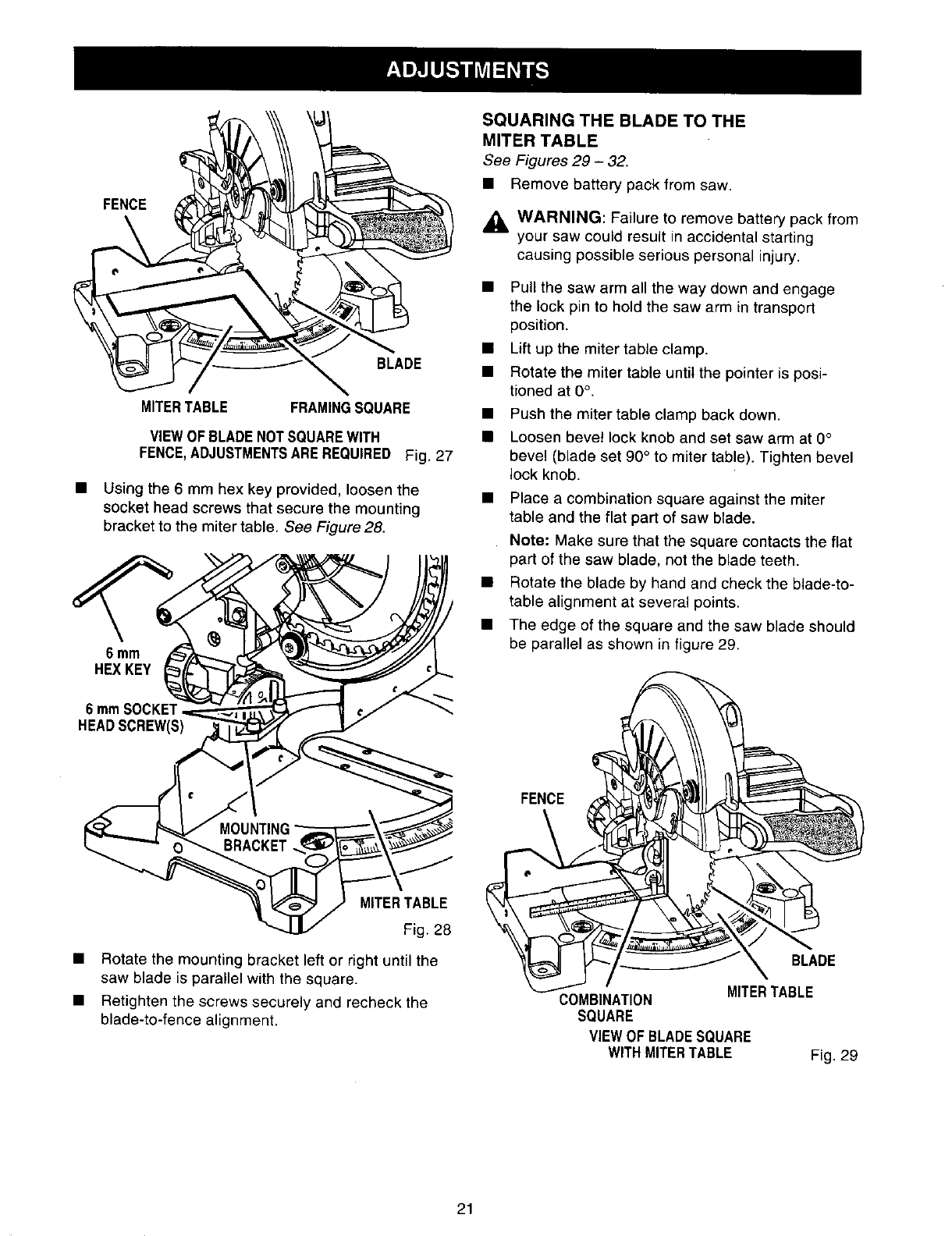

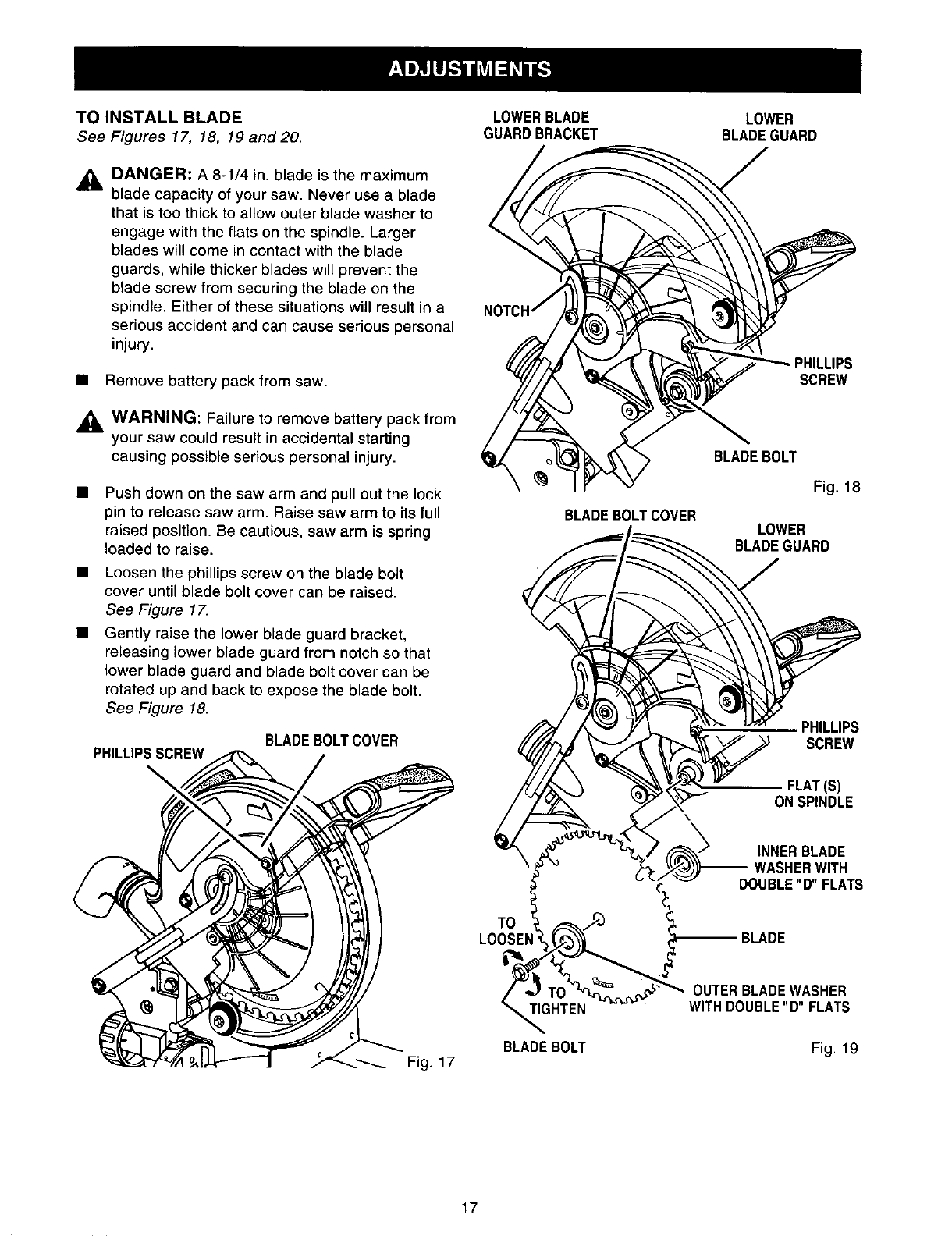

• Adjustments ............................................................................................................................................... 16-23

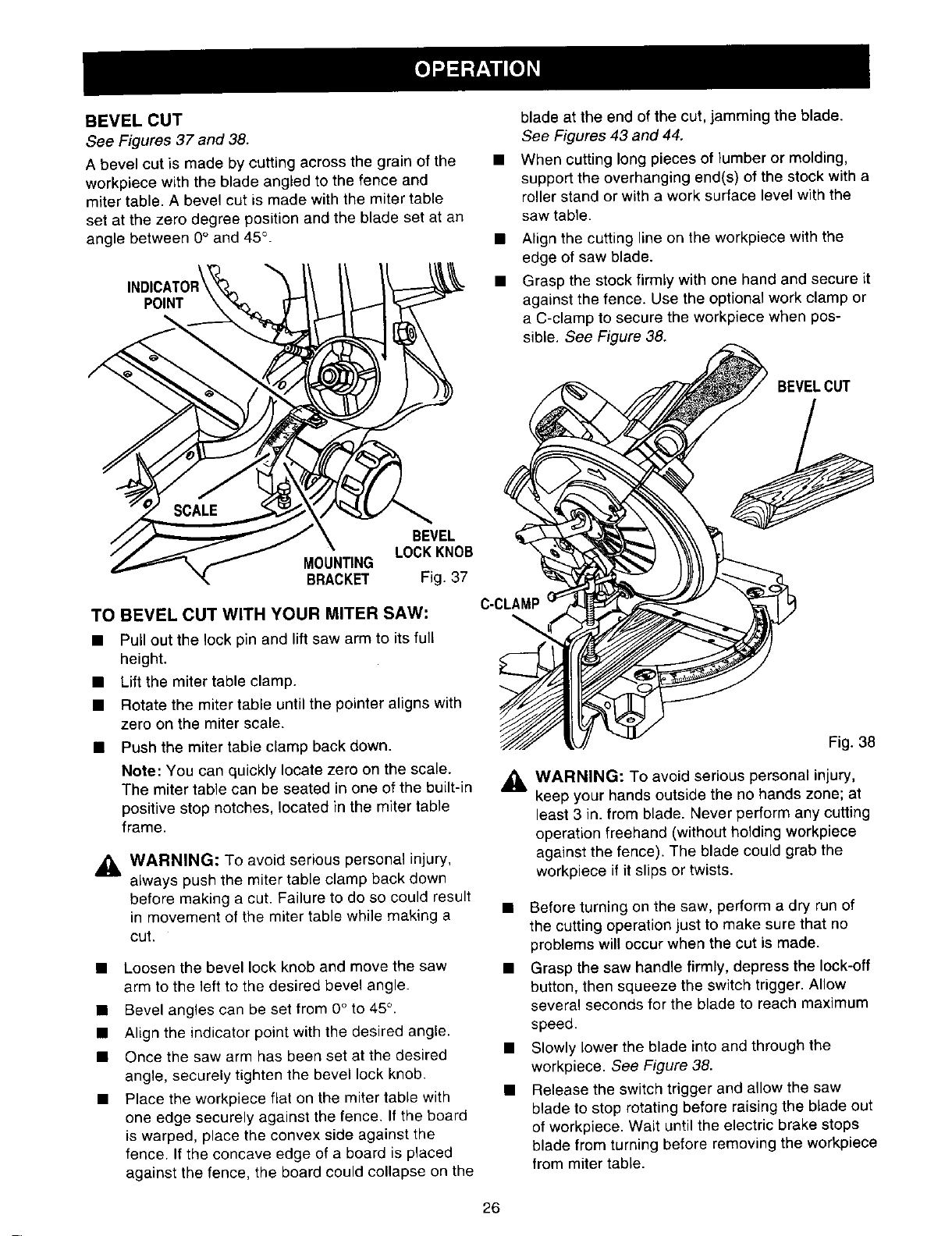

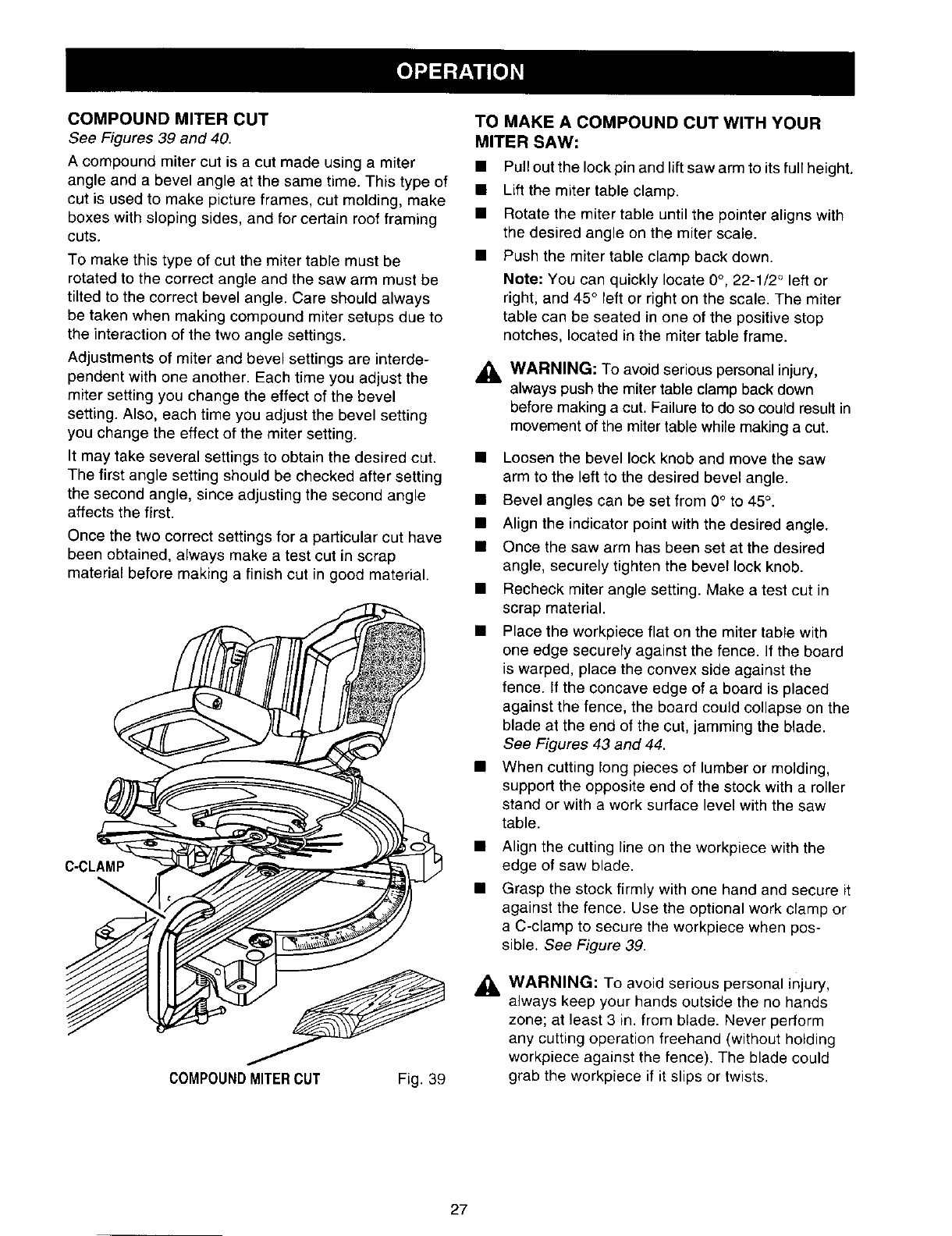

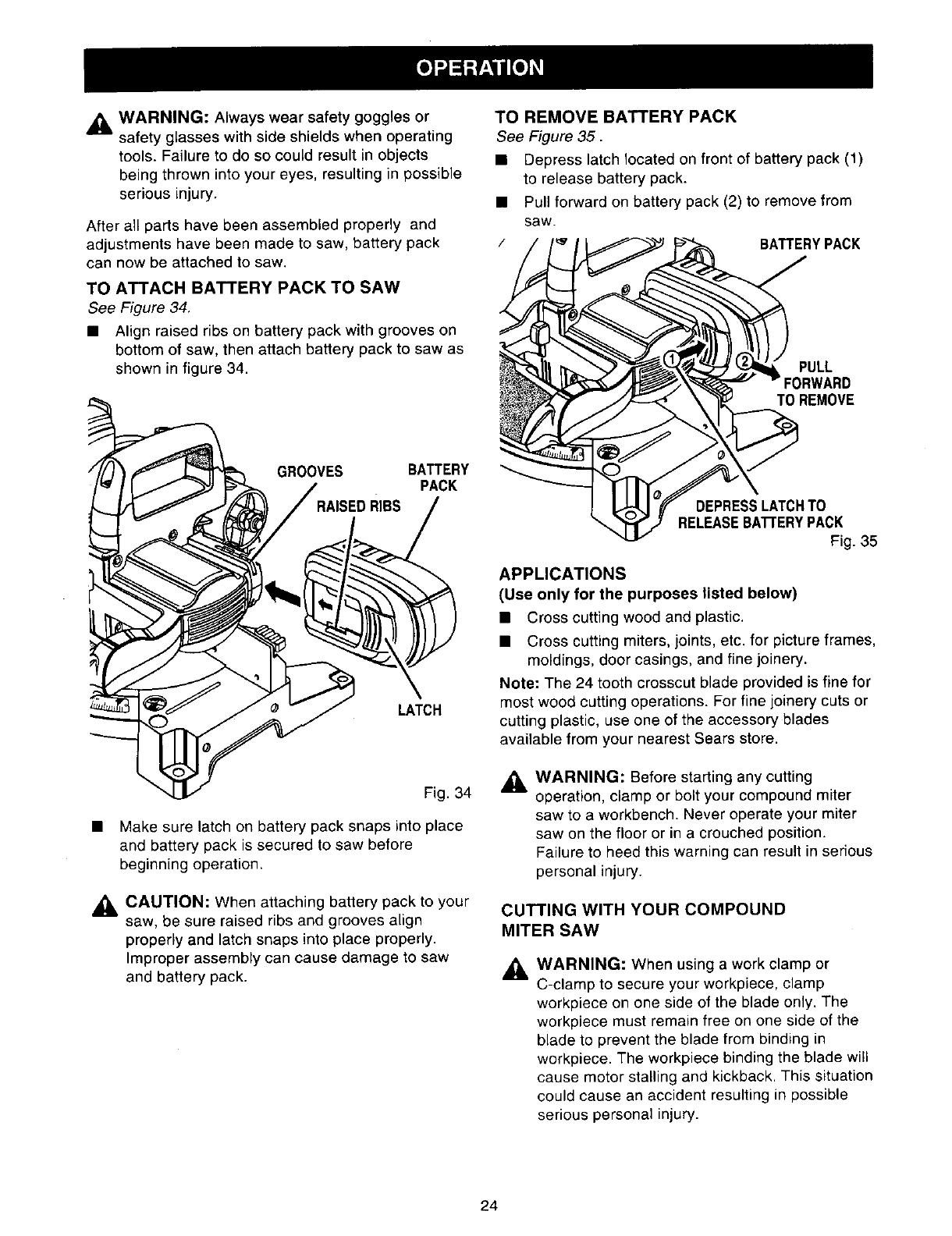

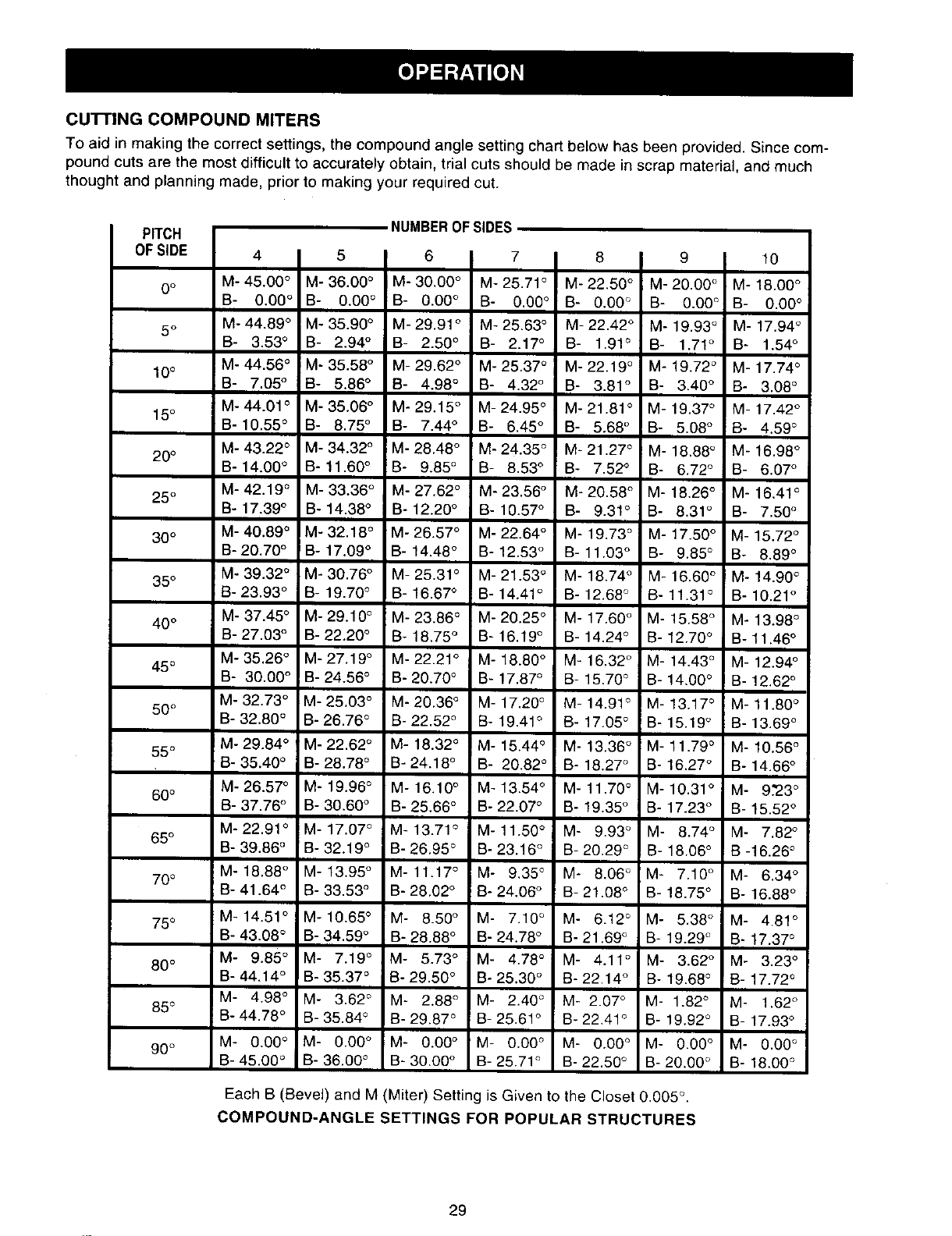

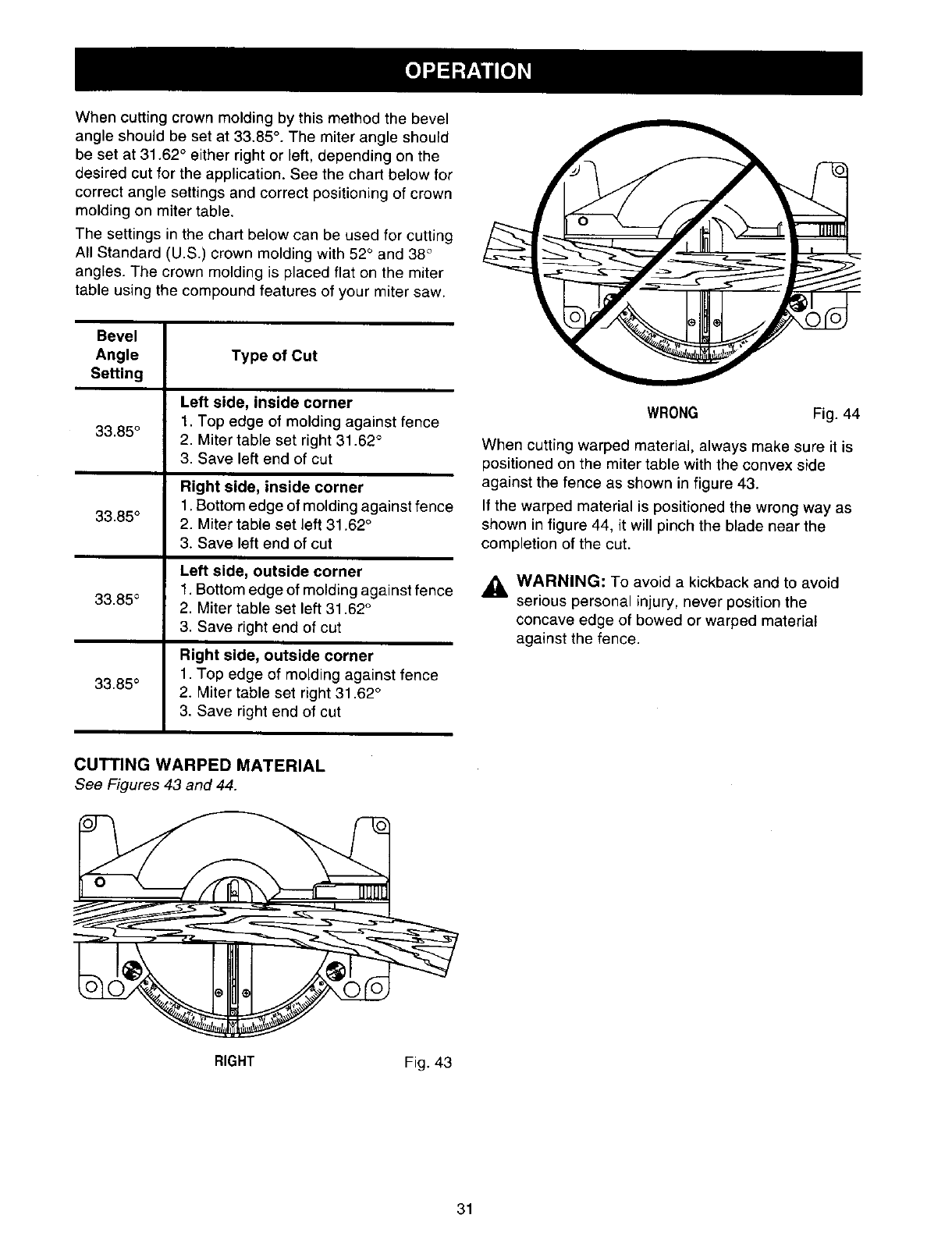

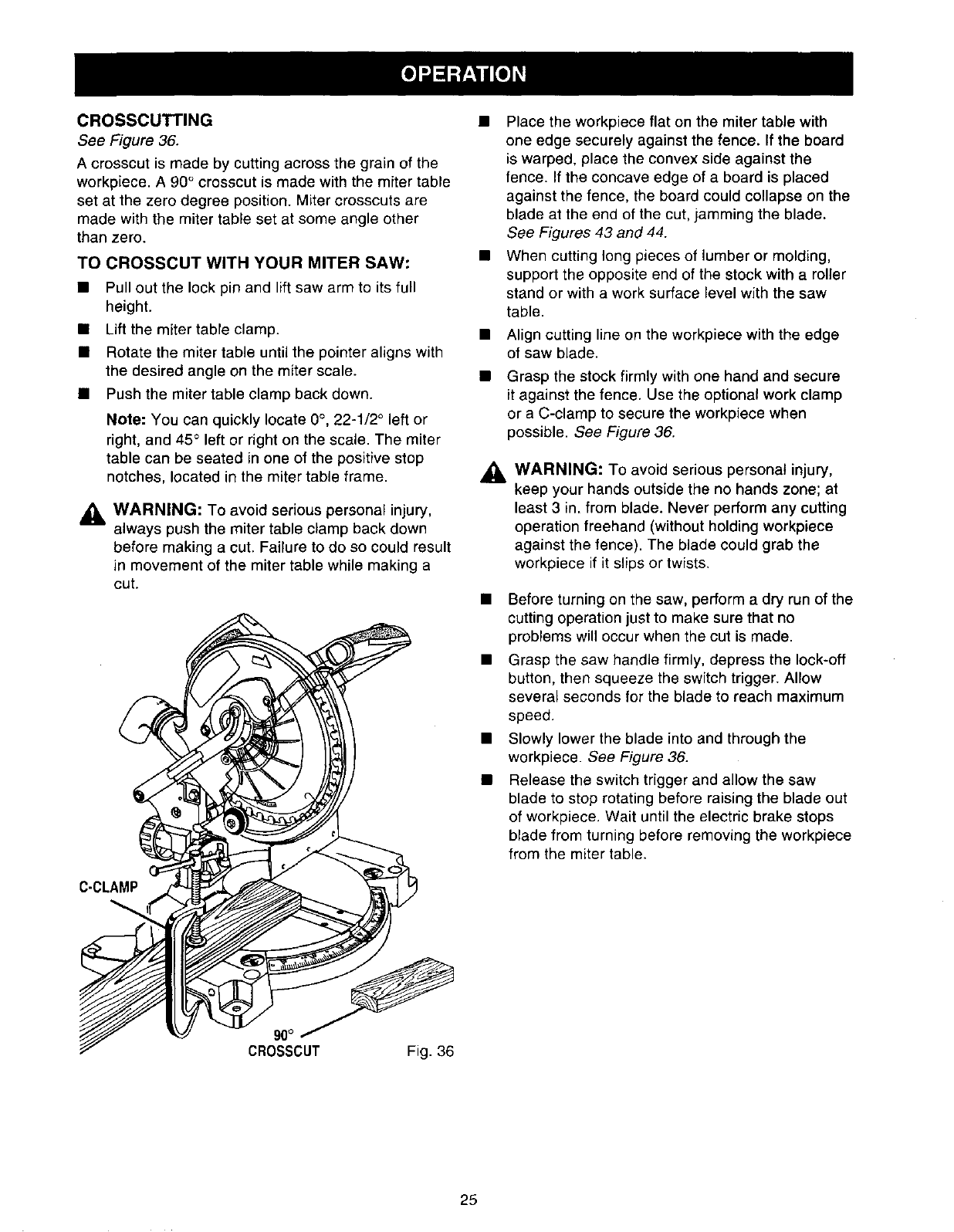

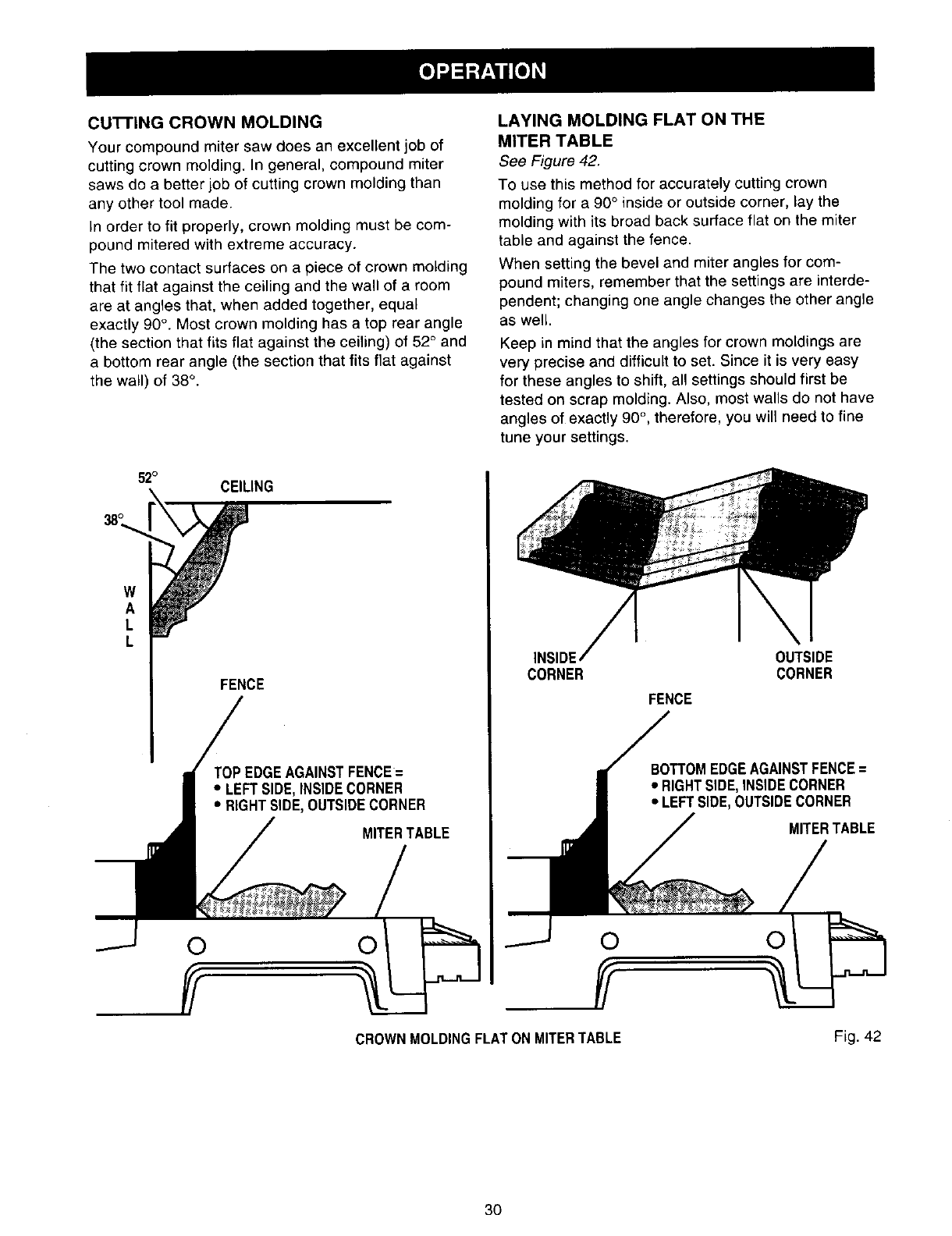

• Operation ................................................................................................................................................... 24-31

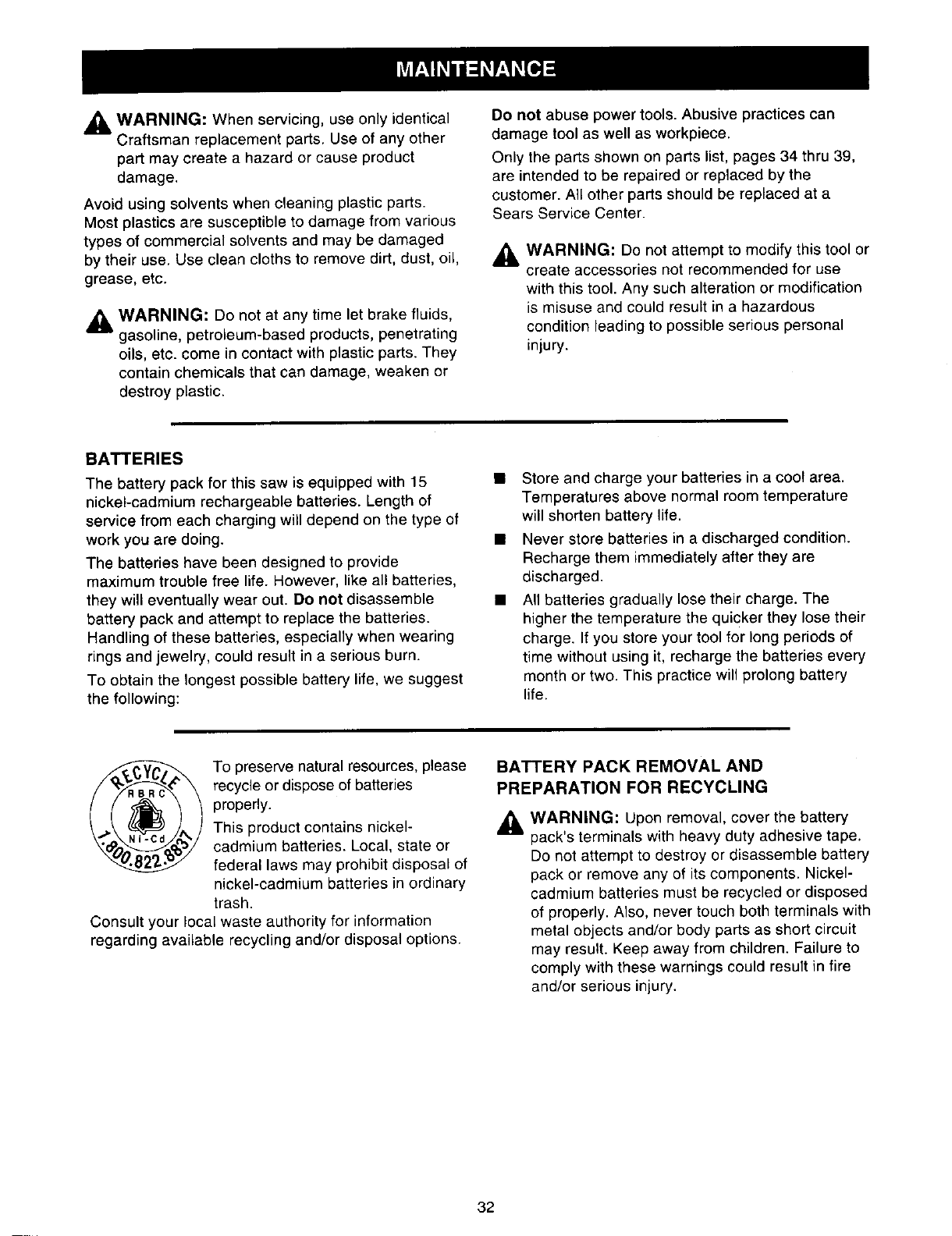

• Maintenance ................................................................................................................................................... 32

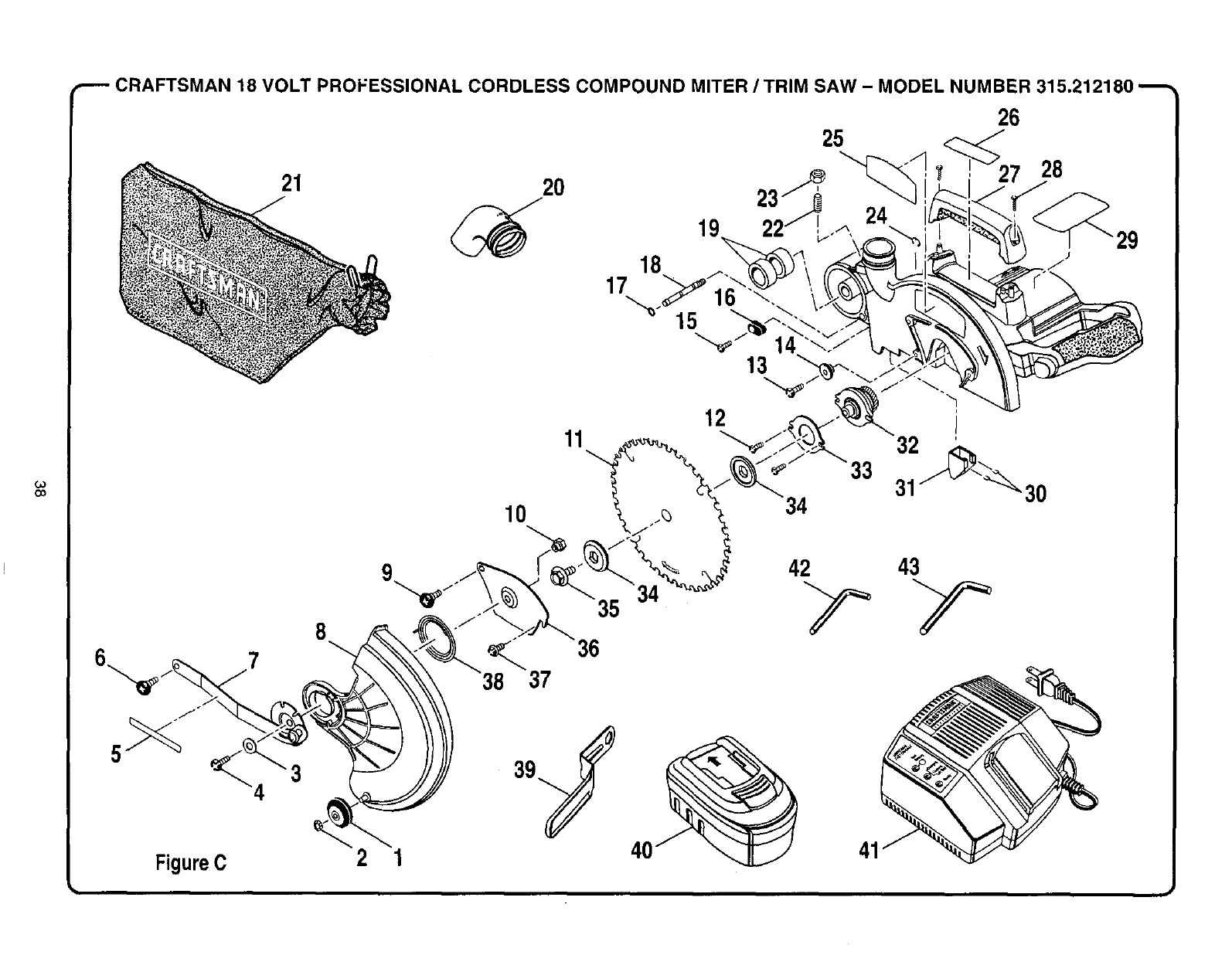

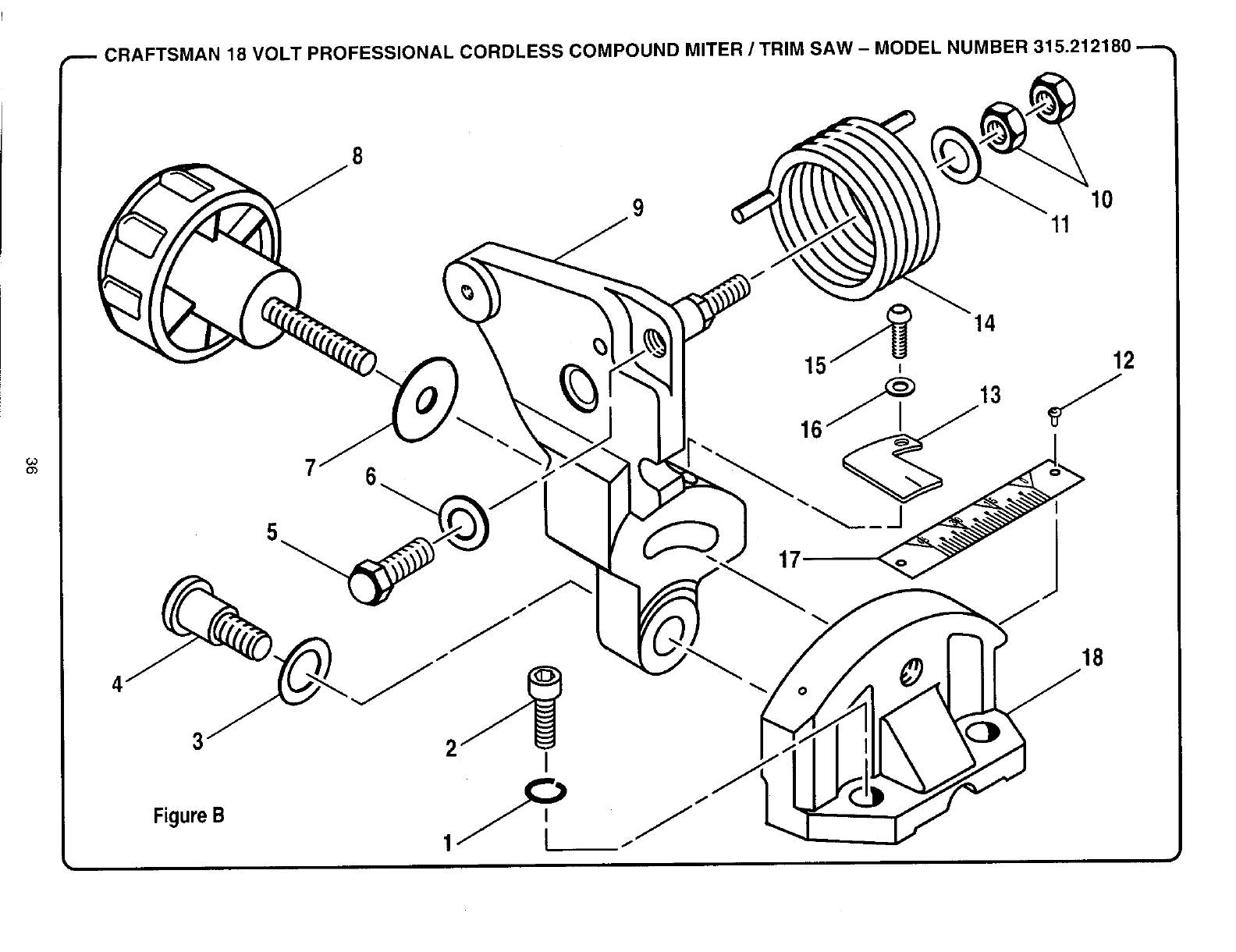

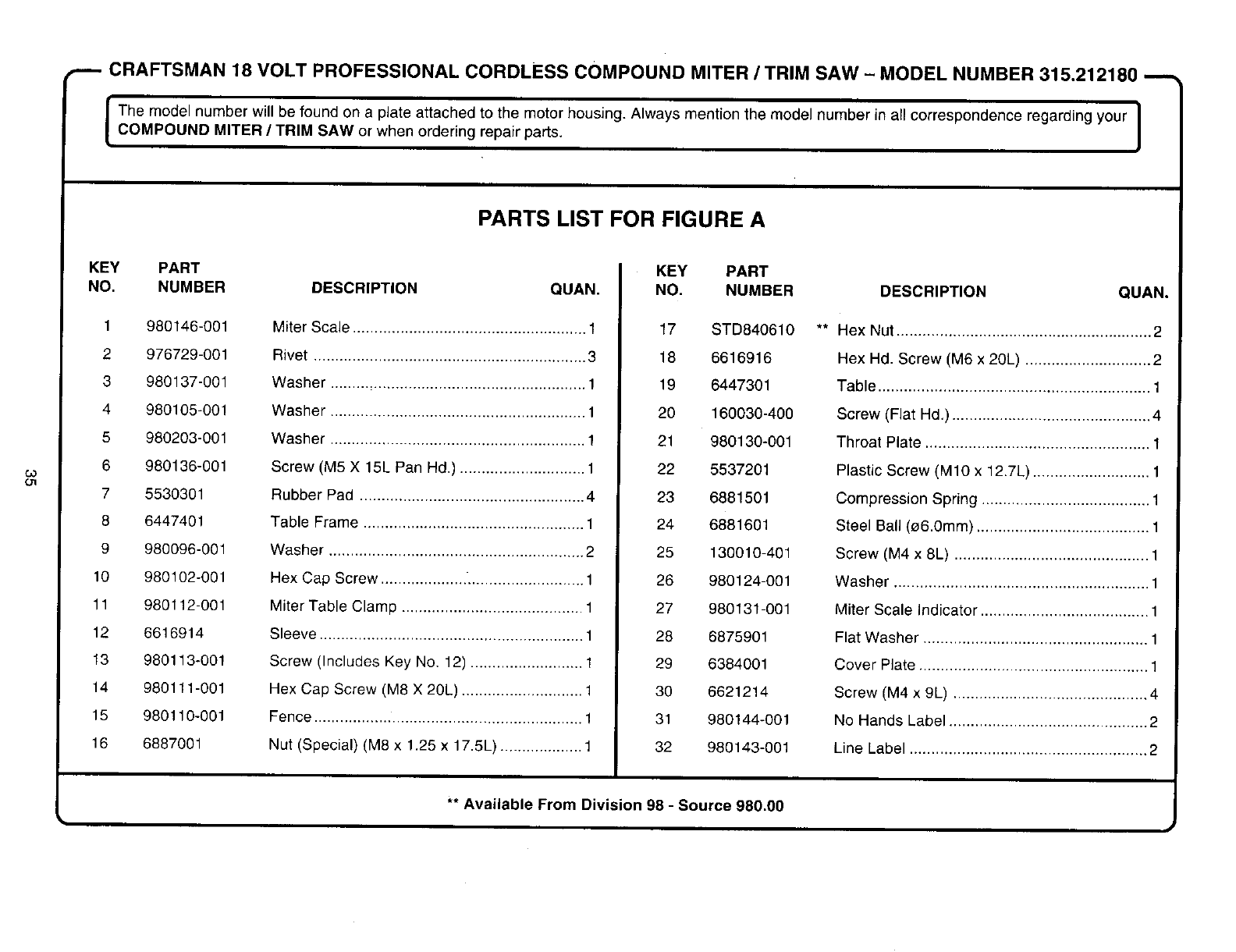

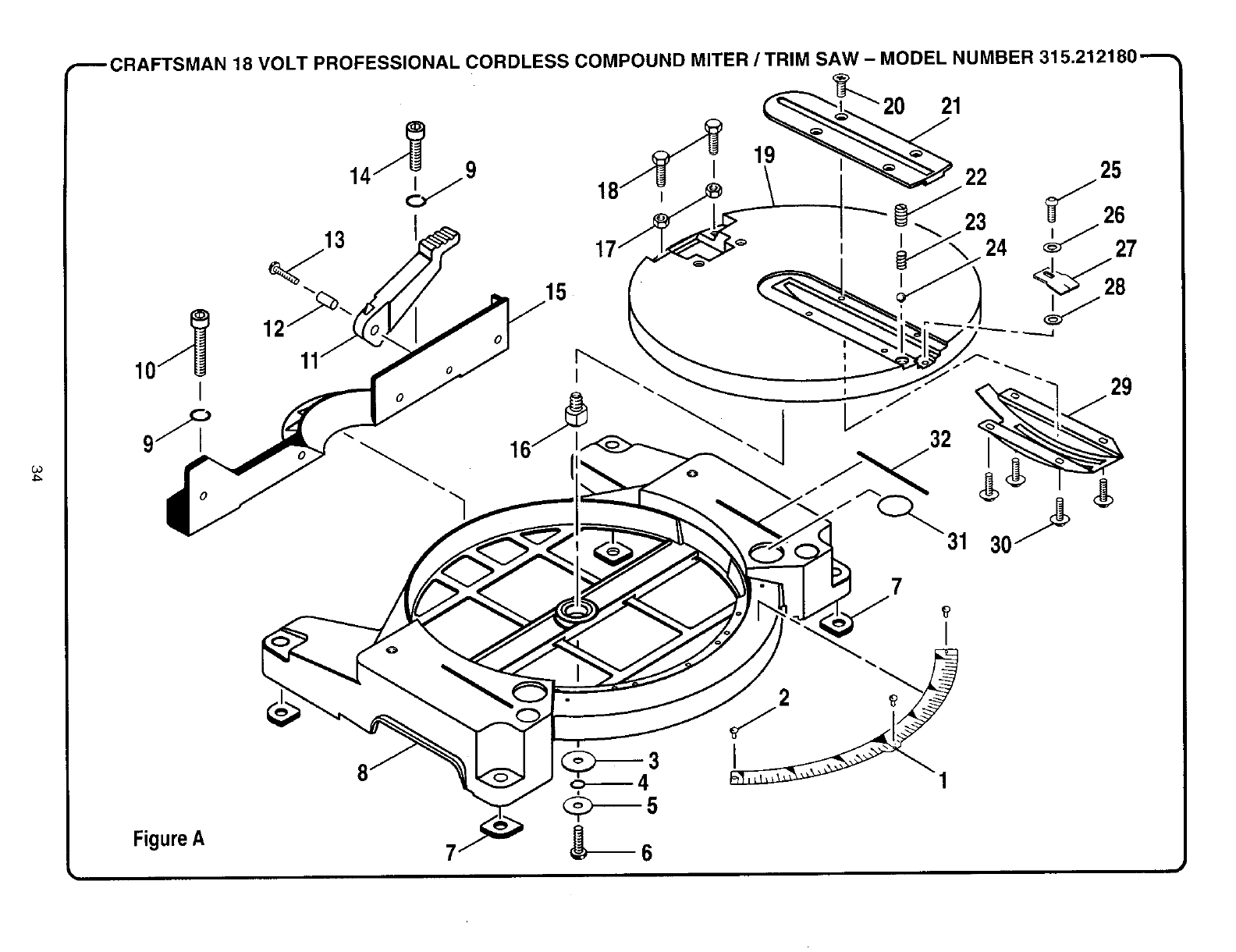

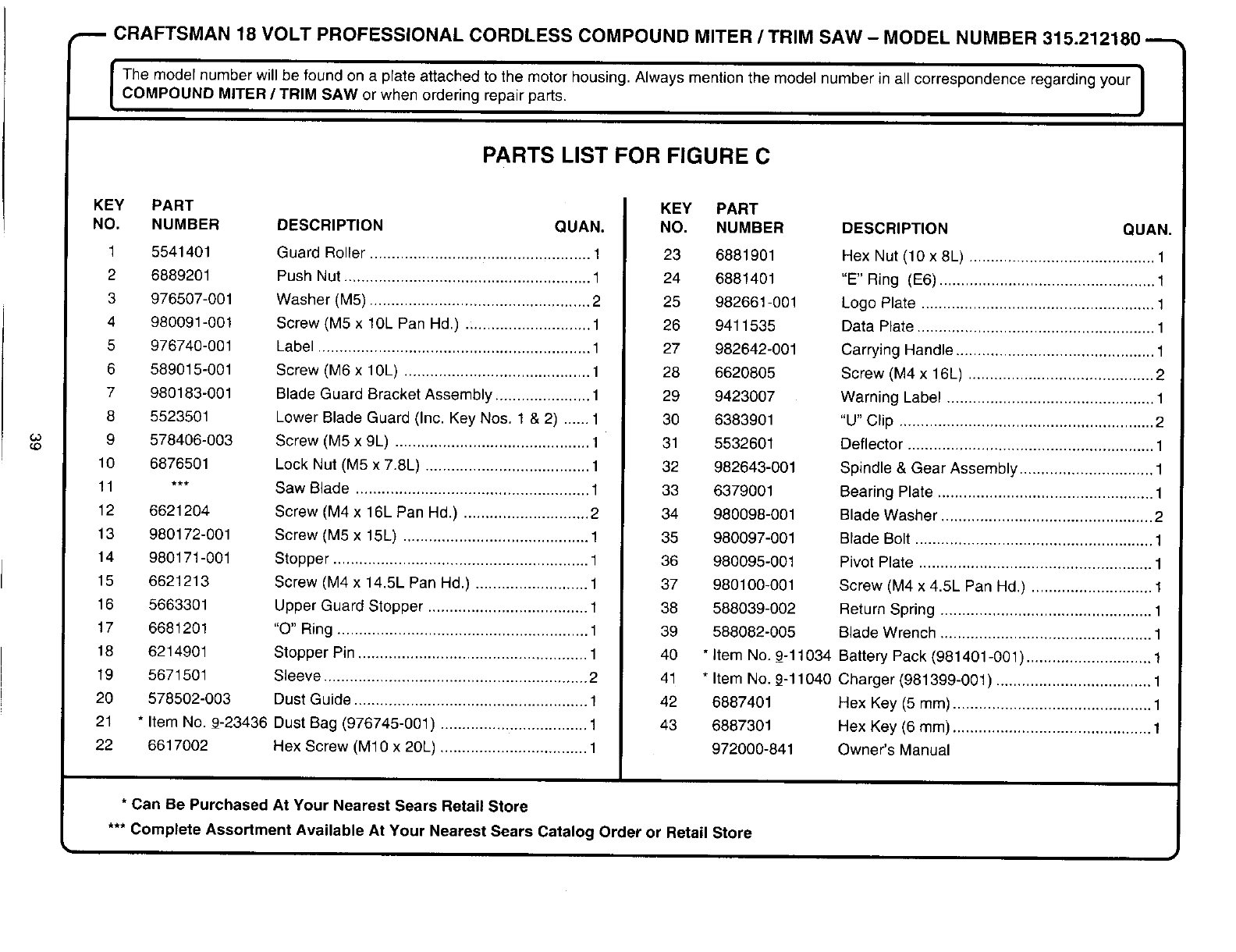

•Exploded View and Repair Parts List ........................................................................................................ 34-39

• Parts Ordering /Service ................................................................................................................................. 40

FULL ONE YEAR WARRANTY ON CRAFTSMAN PROFESSIONAL MITER /TRIM SAW

If this CRAFTSMAN Miter /Trim Saw fails due to a defect in material or workmanship within one year from the

date of purchase, Sears will repair it free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY RETURNING THE TOOL TO THE NEAREST SEARS

STORE OR OTHER CRAFTSMAN OUTLET IN THE UNITED STATES,

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179

Your saw has many features for making cutting

operations more pleasant and enjoyable. Safety,

performance and dependability have been given top

priority in the design of this saw making it easy to

maintain and operate.

CAUTION: Carefully read through this entire

owner's manual before using your new saw. Pay

close attention to the Rules For Safe Operation,

and all Safety Alert Symbols including Danger,

Warning and Caution. If you use your saw

properly and only for what it is intended, you will

enjoy years of safe, reliable service.

_, Look for this symbol to point out important safety precautions. It means attention!!! Your

safety is involved.

_IL WARNING:

The operation of any power tool can result in foreign objects being thrown into your eyes,

which can result in severe eye damage. Before beginning power tool operation, always

wear safety goggles or safety glasses with side shields and a full face shield when needed.

We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety

glasses with side shields, available at Sears Retail Stores.

2

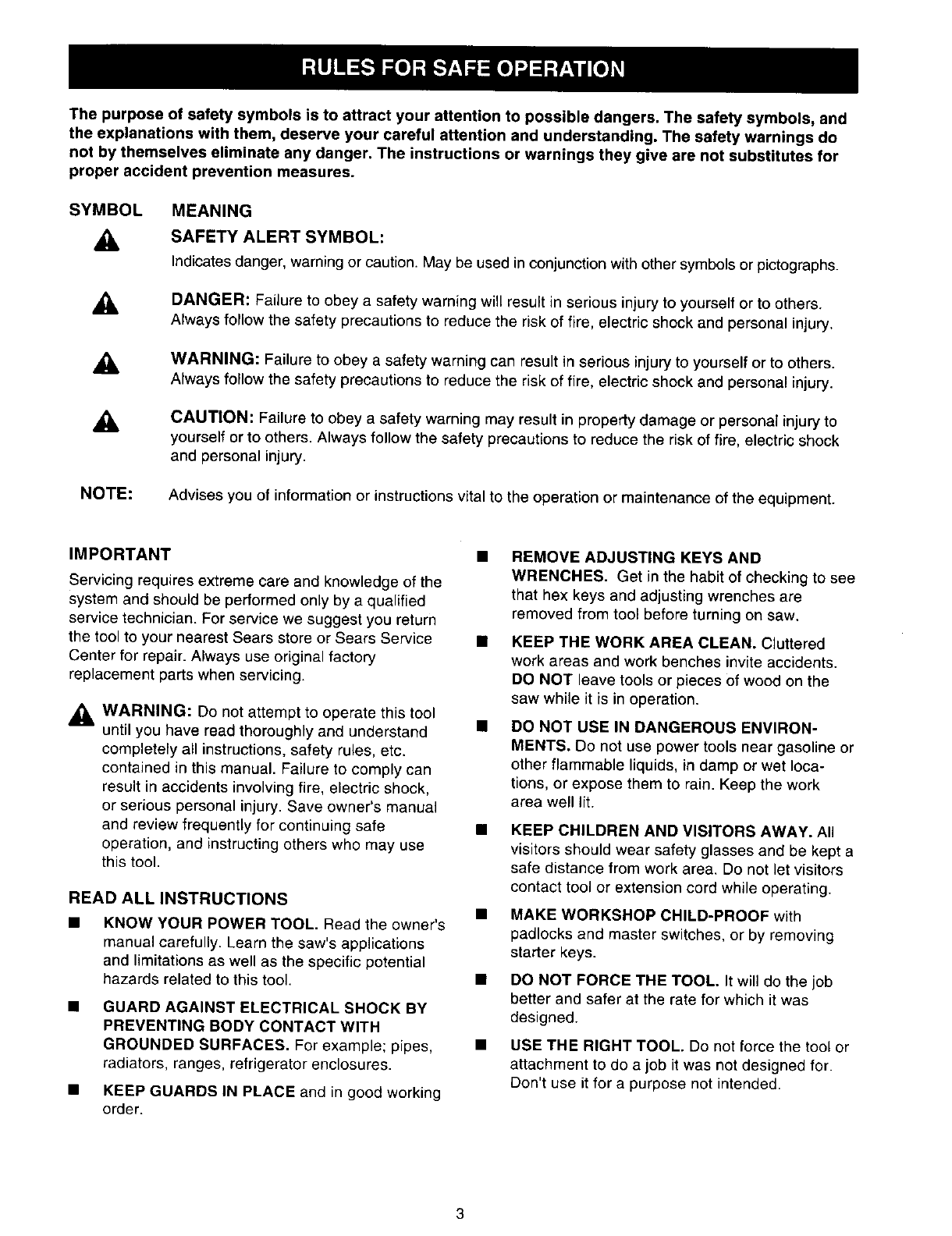

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and

the explanations with them, deserve your careful attention and understanding. The safety warnings do

not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for

proper accident prevention measures.

SYMBOL

A

MEANING

SAFETY ALERT SYMBOL:

Indicates danger, warning or caution. May be used in conjunctionwith other symbols or pictographs.

ADANGER: Failure to obey a safety warning will result in serious injury to yourself or to others.

Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

AWARNING: Failure to obey a safety warning can result in serious injury to yourself or to others.

Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

ACAUTION: Failure to obey a safety warning may result in property damage or personal injury to

yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock

and personal injury.

NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.

IMPORTANT

Servicing requires extreme care and knowledge of the

system and should be performed only by a qualified

service technician. For service we suggest you return

the tool to your nearest Sears store or Sears Service

Center for repair. Always use original factory

replacement parts when servicing.

_L WARNING: Do not attempt to operate this tool

until you have read thoroughly and understand

completely all instructions, safety rules, etc.

contained in this manual. Failure to comply can

result in accidents involving fire, electric shock,

or serious personal injury. Save owner's manual

and review frequently for continuing safe

operation, and instructing others who may use

this tool.

READ ALL INSTRUCTIONS

KNOW YOUR POWER TOOL. Read the owner's

manual carefully. Learn the saw's applications

and limitations as well as the specific potential

hazards related to this tool.

•GUARD AGAINST ELECTRICAL SHOCK BY

PREVENTING BODY CONTACT WITH

GROUNDED SURFACES. For example; pipes,

radiators, ranges, refrigerator enclosures.

• KEEP GUARDS IN PLACE and in good working

order.

•REMOVE ADJUSTING KEYS AND

WRENCHES. Get in the habit of checking to see

that hex keys and adjusting wrenches are

removed from tool before turning on saw.

•KEEP THE WORK AREA CLEAN. Cluttered

work areas and work benches invite accidents.

DO NOT leave tools or pieces of wood on the

saw while it is in operation.

DO NOT USE IN DANGEROUS ENVIRON-

MENTS. Do not use power tools near gasoline or

other flammable liquids, in damp or wet loca-

tions, or expose them to rain. Keep the work

area well lit.

•KEEP CHILDREN AND VISITORS AWAY. All

visitors should wear safety glasses and be kept a

safe distance from work area. Do not let visitors

contact tool or extension cord while operating.

•MAKE WORKSHOP CHILD-PROOF with

padlocks and master switches, or by removing

starter keys.

•DO NOT FORCE THE TOOL. It will do the job

better and safer at the rate for which it was

designed.

USE THE RIGHT TOOL. Do not force the tool or

attachment to do a job it was not designed for.

Don't use it for a purpose not intended.

3

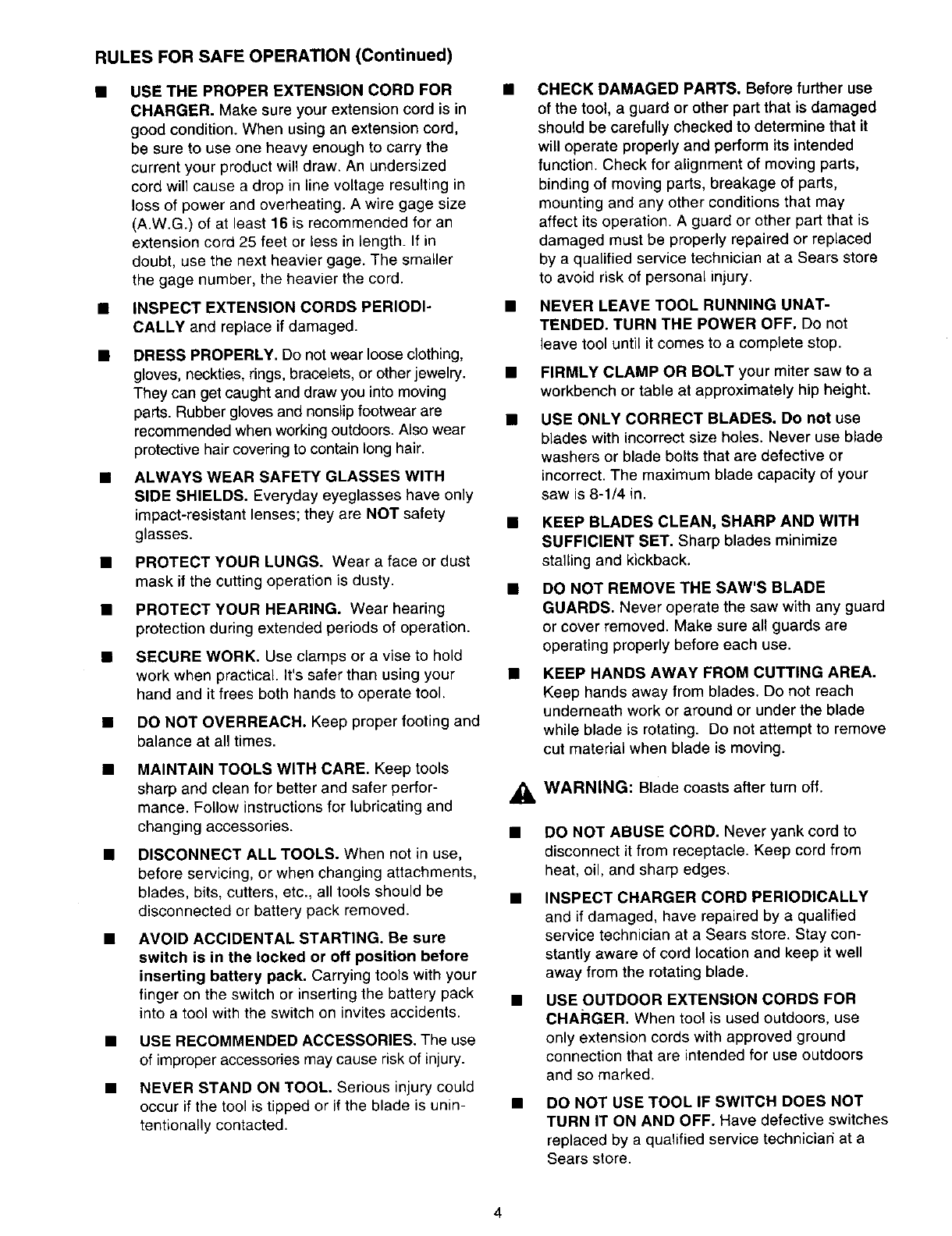

RULES FOR SAFE OPERATION (Continued)

USE THE PROPER EXTENSION CORD FOR

CHARGER. Make sure your extension cord is in

good condition. When using an extension cord,

be sure to use one heavy enough to carry the

current your product will draw. An undersized

cord will cause a drop in line voltage resulting in

loss of power and overheating. Awire gage size

(A.W.G.) of at least 16 is recommended for an

extension cord 25 feet or less in length. If in

doubt, use the next heavier gage. The smaller

the gage number, the heavier the cord.

INSPECT EXTENSION CORDS PERIODI-

CALLY and replace if damaged.

DRESS PROPERLY. Do not wear loose clothing,

gloves, neckties, rings, bracelets, or other jewelry.

They can get caught and draw you into moving

parts. Rubber gloves and nonslip footwear are

recommended when working outdoors. Also wear

protective hair covering to contain long hair.

ALWAYS WEAR SAFETY GLASSES WITH

SIDE SHIELDS. Everyday eyeglasses have only

impact-resistant lenses; they are NOT safety

glasses.

PROTECT YOUR LUNGS. Wear a face or dust

mask if the cutting operation is dusty.

PROTECT YOUR HEARING. Wear hearing

protection during extended periods of operation.

SECURE WORK. Use clamps or a vise to hold

work when practical. It's safer than using your

hand and it frees both hands to operate tool.

DO NOT OVERREACH. Keep proper footing and

balance at all times.

MAINTAIN TOOLS WITH CARE. Keep tools

sharp and clean for better and safer perfor-

mance. Follow instructions for lubricating and

changing accessories.

DISCONNECT ALL TOOLS. When not in use,

before servicing, or when changing attachments,

blades, bits, cutters, etc., all tools should be

disconnected or battery pack removed.

AVOID ACCIDENTAL STARTING. Be sure

switch is in the locked or off position before

inserting battery pack. Carrying tools with your

finger on the switch or inserting the battery pack

into a tool with the switch on invites accidents.

• USE RECOMMENDED ACCESSORIES. The use

of improper accessories may cause risk of injury.

•NEVER STAND ON TOOL. Serious injury could

occur if the tool kstipped or if the blade is unin-

tentionally contacted.

CHECK DAMAGED PARTS. Before further use

of the tool, a guard or other part that is damaged

should be carefully checked to determine that it

will operate properly and perform its intended

function. Check for alignment of moving parts,

binding of moving parts, breakage of parts,

mounting and any other conditions that may

affect its operation. A guard or other part that is

damaged must be properly repaired or replaced

by a qualified service technician at a Sears store

to avoid risk of personal injury.

NEVER LEAVE TOOL RUNNING UNAT-

TENDED. TURN THE POWER OFF. Do not

leave tool until it comes to a complete stop.

FIRMLY CLAMP OR BOLT your miter saw to a

workbench or table at approximately hip height.

USE ONLY CORRECT BLADES. Do not use

blades with incorrect size holes. Never use blade

washers or blade bolts that are defective or

incorrect. The maximum blade capacity of your

saw is 8-1/4 in.

•KEEP BLADES CLEAN, SHARP AND WITH

SUFFICIENT SET. Sharp blades minimize

stalling and kickback.

•DO NOT REMOVE THE SAW'S BLADE

GUARDS. Never operate the saw with any guard

or cover removed. Make sure all guards are

operating properly before each use.

•KEEP HANDS AWAY FROM CUTTING AREA.

Keep hands away from blades. Do not reach

underneath work or around or under the blade

while blade is rotating. Do net attempt to remove

cut material when blade is moving.

AWARNING: Blade coasts after turn off.

DO NOT ABUSE CORD. Never yank cord to

disconnect it from receptacle. Keep cord from

heat, oil, and sharp edges.

INSPECT CHARGER CORD PERIODICALLY

and if damaged, have repaired by a qualified

service technician at a Sears store. Stay con-

stantly aware of cord location and keep it well

away from the rotating blade.

USE OUTDOOR EXTENSION CORDS FOR

CHARGER. When tool is used outdoors, use

only extension cords with approved ground

connection that are intended for use outdoors

and so marked.

DO NOT USE TOOL IF SWITCH DOES NOT

TURN IT ON AND OFF. Have defective switches

replaced by a qualified service technician at a

Sears store.

4

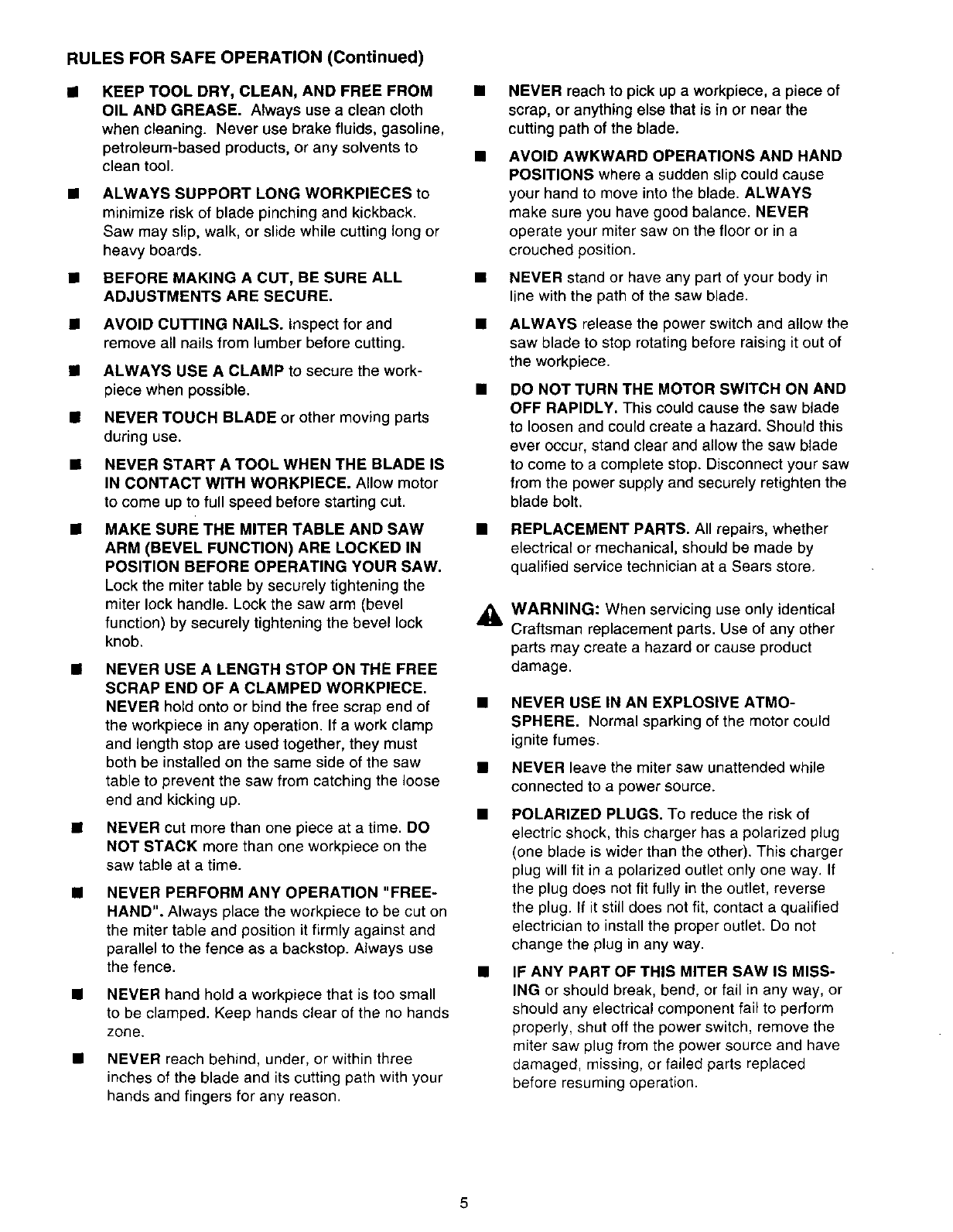

RULES FOR SAFE OPERATION (Continued)

II

KEEP TOOL DRY, CLEAN, AND FREE FRO• •

OIL AND GREASE. Always use a clean cloth

when cleaning. Never use brake fluids, gasoline,

petroleum-based products, or any solvents to •

clean tool.

ALWAYS SUPPORT LONG WORKPIECES to

minimize risk of blade pinching and kickback.

Saw may slip, walk, or slide while cutting long or

heavy boards.

BEFORE MAKING A CUT, BE SURE ALL

ADJUSTMENTS ARE SECURE.

AVOID CUTTING NAILS. Inspect for and

remove all nails from lumber before cutting.

ALWAYS USE A CLAMP to secure the work-

piece when possible.

NEVER TOUCH BLADE or other moving parts

during use.

NEVER START A TOOL WHEN THE BLADE IS

IN CONTACT WITH WORKPIECE. Allow motor

to come up to full speed before starting cut.

MAKE SURE THE MITER TABLE AND SAW •

ARM (BEVEL FUNCTION) ARE LOCKED IN

POSITION BEFORE OPERATING YOUR SAW.

Lock the miter table by securely tightening the

miter lock handle. Lock the saw arm (bevel A

function) by securely tightening the bevel lock

knob.

NEVER USE A LENGTH STOP ON THE FREE

SCRAP END OF A CLAMPED WORKPIECE.

NEVER hold onto or bind the free scrap end of •

the workpiece in any operation. If a work clamp

and length stop are used together, they must

both be installed on the same side of the saw •

table to prevent the saw from catching the loose

end and kicking up.

NEVER cut more than one piece at a time. DO

NOT STACK more than one workpiece on the

saw table at a time.

NEVER PERFORM ANY OPERATION "FREE-

HAND". Always place the workpiece to be cut on

the miter table and position it firmly against and

parallel to the fence as a backstop. Always use

the fence.

NEVER hand hold a workpiece that is too small

to be clamped. Keep hands clear of the no hands

zone.

NEVER reach behind, under, or within three

inches of the blade and its cutting path with your

hands and fingers for any reason.

NEVER reach to pick up a workpiece, a piece of

scrap, or anything else that is in or near the

cutting path of the blade.

AVOID AWKWARD OPERATIONS AND HAND

POSITIONS where a sudden slip could cause

your hand to move into the blade. ALWAYS

make sure you have good balance. NEVER

operate your miter saw on the floor or in a

crouched position.

NEVER stand or have any part of your body in

line with the path of the saw blade.

ALWAYS release the power switch and allow the

saw blade to stop rotating before raising it out of

the workpiece.

DO NOT TURN THE MOTOR SWITCH ON AND

OFF RAPIDLY. This could cause the saw blade

to loosen and could create a hazard. Should this

ever occur, stand clear and allow the saw blade

to come to a complete stop. Disconnect your saw

from the power supply and securely retighten the

blade bolt.

REPLACEMENT PARTS. All repairs, whether

electrical or mechanical, should be made by

qualified service technician at a Sears store.

WARNING: When servicing use only identical

Craftsman replacement parts. Use of any other

parts may create a hazard or cause product

damage.

NEVER USE IN AN EXPLOSIVE ATMO-

SPHERE. Normal sparking of the motor could

ignite fumes.

NEVER leave the miter saw unattended while

connected to a power source.

POLARIZED PLUGS, To reduce the risk of

electric shock, this charger has a polarized plug

(one blade is wider than the other). This charger

plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse

the plug. If it still does not fit, contact a qualified

electrician to install the proper outlet. Do net

change the plug in any way.

IF ANY PART OF THIS MITER SAW IS MISS-

ING or should break, bend, or fail in any way, or

should any electrical component fail to perform

properly, shut off the power switch, remove the

miter saw plug from the power source and have

damaged, missing, or failed parts replaced

before resuming operation.

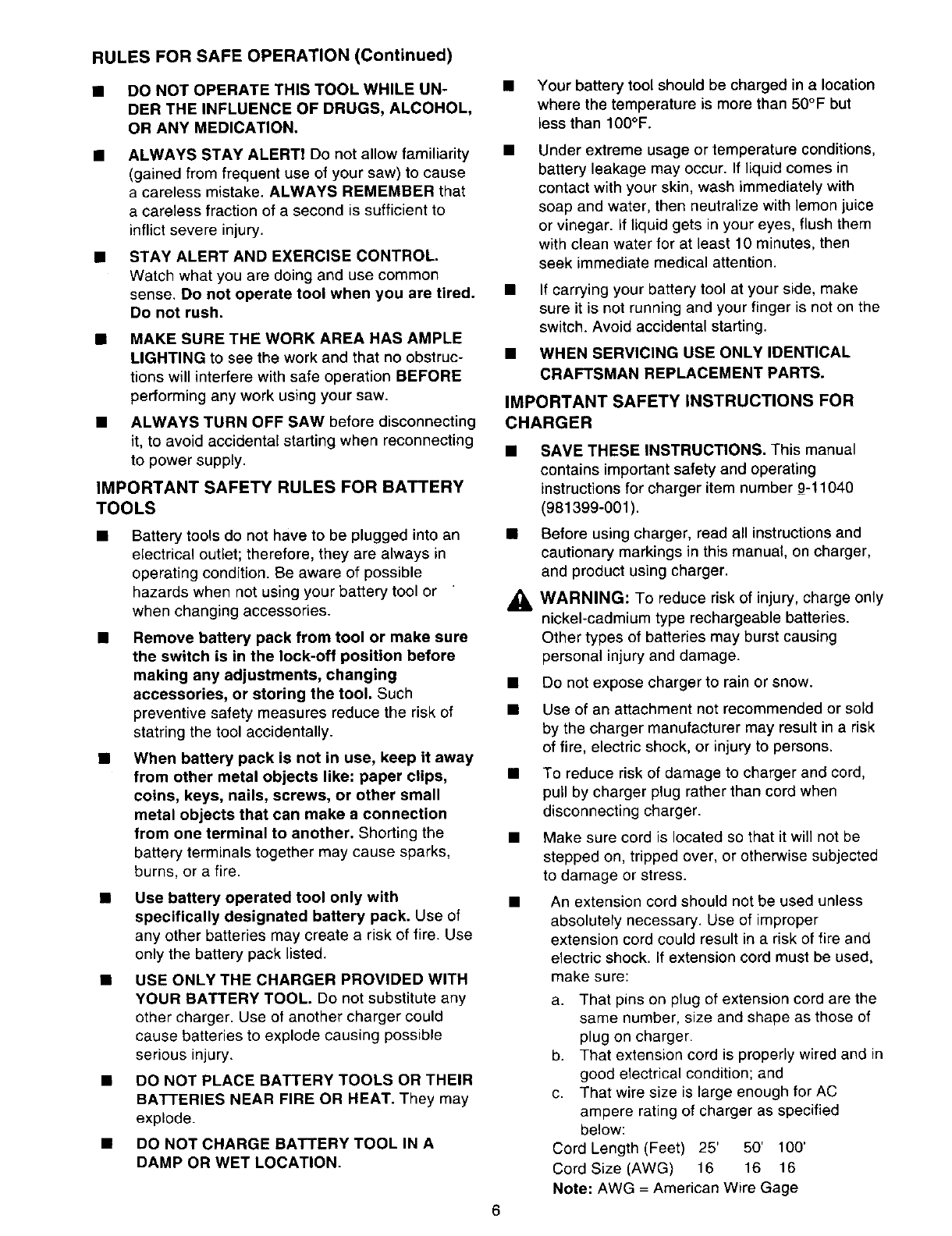

RULES FOR SAFE OPERATION (Continued)

DO NOT OPERATE THIS TOOL WHILE UN-

DER THE INFLUENCE OF DRUGS, ALCOHOL,

OR ANY MEDICATION.

•ALWAYS STAY ALERT! Do not allow familiarity

(gained from frequent use of your saw) to cause

a careless mistake. ALWAYS REMEMBER that

a careless fraction of a second is sufficient to

inflict severe injury.

•STAY ALERT AND EXERCISE CONTROL.

Watch what you are doing and use common

sense. Do not operate tool when you are tired.

Do not rush.

•MAKE SURE THE WORK AREA HAS AMPLE

LIGHTING to see the work and that no obstruc-

tions will interfere with safe operation BEFORE

performing any work using your saw.

•ALWAYS TURN OFF SAW before disconnecting

it, to avoid accidental starting when reconnecting

to power supply.

IMPORTANT SAFETY RULES FOR BATTERY

TOOLS

Battery tools do not have to be plugged into an

electrical outlet; therefore, they are always in

operating condition. Be aware of possible

hazards when not using your battery tool or

when changing accessories.

Remove battery pack from tool or make sure

the switch is in the lock-off position before

making any adjustments, changing

accessories, or storing the tool. Such

preventive safety measures reduce the risk of

statring the tool accidentally.

When battery pack is not in use, keep it away

from other metal objects like: paper clips,

coins, keys, nails, screws, or other small

metal objects that can make a connection

from one terminal to another. Shorting the

battery terminals together may cause sparks,

burns, or a fire.

Use battery operated tool only with

specifically designated battery pack. Use of

any other batteries may create a risk of fire. Use

only the battery pack listed.

USE ONLY THE CHARGER PROVIDED WITH

YOUR BATTERY TOOL. Do not substitute any

other charger. Use of another charger could

cause batteries to explode causing possible

serious injury.

DO NOT PLACE BATTERY TOOLS OR THEIR

BATTERIES NEAR FIRE OR HEAT. They may

explode.

DO NOT CHARGE BATTERY TOOL IN A

DAMP OR WET LOCATION.

6

Your battery tool should be charged in a location

where the temperature is more than 50°F but

less than 100°F.

Under extreme usage or temperature conditions,

battery leakage may occur. If liquid comes in

contact with your skin, wash immediately with

soap and water, then neutralize with lemon juice

or vinegar. If liquid gets in your eyes, flush them

with clean water for at least 10 minutes, then

seek immediate medical attention.

If carrying your battery tool at your side, make

sure it is not running and your finger is not on the

switch. Avoid accidental starting.

WHEN SERVICING USE ONLY IDENTICAL

CRAFTSMAN REPLACEMENT PARTS.

IMPORTANT SAFETY INSTRUCTIONS FOR

CHARGER

•SAVE THESE INSTRUCTIONS. This manual

contains important safety and operating

instructions for charger item number 9-11040

(981399-001).

•Before using charger, read all instructions and

cautionary markings in this manual, on charger,

and product using charger.

_k WARNING: To reduce risk of injury, charge only

nickel-cadmium type rechargeable batteries.

Other types of batteries may burst causing

personal injury and damage.

• Do not expose charger to rain or snow.

•Use of an attachment not recommended or sold

by the charger manufacturer may result in a risk

of fire, electric shock, or injury to persons.

•To reduce risk of damage to charger and cord,

pull by charger plug rather than cord when

disconnecting charger.

•Make sure cord is located so that it will not be

stepped on, tripped over, or otherwise subjected

to damage or stress.

• An extension cord should not be used unless

absolutely necessary. Use of improper

extension cord could result in a risk of fire and

electric shock. If extension cord must be used,

make sure:

a. That pins on plug of extension cord are the

same number, size and shape as those of

plug on charger.

b. That extension cord is properly wired and in

good electrical condition; and

c. That wire size is large enough for AC

ampere rating of charger as specified

below:

Cord Length (Feet) 25' 50' 100'

Cord Size (AWG) 16 16 16

Note: AWG = American Wire Gage

RULES FOR SAFE OPERATION (Continued)

mDO NOT OPERATE CHARGER WITH A

DAMAGED CORD OR PLUG. If damaged,

have replaced immediately by a qualified

serviceman.

Do not operate charger if it has received a

sharp blow, been dropped, or otherwise

damaged in any way; take it to a qualified

serviceman.

Do not disassemble charger; take it to a

qualified serviceman when service or repair is

required. Incorrect reassembly may result in a

risk of electric shock or fire.

To reduce risk of electric shock, unplug charger

from outlet before attempting any maintenance

or cleaning. Turning off controls will not reduce

this risk.

Do not use charger outdoors.

Disconnect charger from power supply when

not in use.

SAVE THESE INSTRUCTIONS. Refer to them

frequently and use them to instruct others who

may use this tool. If you loan someone this tool,

loan them these instructions also.

_IL WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction

activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some

examples of these chemicals are:

• lead from lead-based paints,

•crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce

your exposure to these chemicals: work in a well ventilated area, and work with approved safety

equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SAVE THESE INSTRUCTIONS

Arbor

The shaft on which a blade or cutting tool is mounted.

Bevel Cut

A cutting operation made with the blade at any angle

other than 90 ° to the miter table.

Crosscut

Acutting or shaping operation made across the grain

of the workpiece.

Compound Miter Cut

A compound miter cut is a cut made using a miter

angle and a bevel angle at the same time.

Freehand

Performing a cut without using a fence, miter gage,

fixture, work clamp, or other proper device to keep the

workpiece from twisting or moving during the cut.

Gum

A sticky, sap based residue from wood products.

Miter Cut

A cutting operation made with the blade at any angle

other than 90° to the fence.

No Hands Zone

The area between the marked lines on the left and

right side of the miter table base. This zone is

identified by no hands zone labels placed inside the

marked lines on the miter table base.

Resin

A sticky, sap based substance.

Revolutions Per Minute (RPM)

The number of turns completed by aspinning object

in one minute.

Saw Blade Path

The area over, under, behind, or in front of the blade.

As it applies to the workpiece, that area which will be,

or has been, cut by the blade.

Set

The distance that the tip of the saw blade tooth is bent

(or set) outward from the face of the blade.

Throat Plate

A plastic throat plate inserted in the miter table that

allows for blade clearance. This provides for a zero

clearance kerr that minimizes workpiece tear-out.

Throw-Back

Throwing of a workpiece in a manner similar to a

kickback. Usually associated with a cause other than

the kerf closing, such as a workpiece not being

against the fence, being dropped into the blade, or

being placed inadvertently in contact with the blade.

Through Sawing

Any cutting operation where the blade extends

completely through the thickness of the workpiece.

Workpiece

The item on which the cutting operation is being done.

The surfaces of a workpiece are commonly referred to

as faces, ends, and edges.

Blade Diameter

Blade Arbor

No Load Speed

Charger Rating

Charger Rate

Motor

Net Weight

Blade Type

8-1/4 in.

5/8 in.

2000 RPM

120 Volts, 60 Hz-AC Only

1 Hour

18 Volt DC

35 Ibs.

Carbide Tipped (Thin Kerr)

Cutting Capacity with Miter at 0°/Bevel 0°:

5-1/2 in. W x 2-1/16 in. T

Maximum Cutting Capacity with Miter at 45°/Bevel 0°:

3-3/4 in. W x 2-1/16 in. T

Maximum Cutting Capacity with Miter at 0°/Bevel 45°:

5-1/2 in. W x 1-1/2 in. T

Maximum Cutting Capacity with Miter at 45°/Bevel 45°:

3-3/4 in. Wx 1-1/2 in. T

Your Compound Miter Saw has been shipped

completely assembled except for the battery pack,

blade, dust guide, and dust bag.

_i, WARNING: If any parts are missing, do not

operate this tool until the missing parts are

replaced. Failure to do so could result in possible

serious personal injury.

• Remove all loose parts from the carton. Separate

and check with the list of loose parts. See Figure 2.

• Remove the packing materials from around your

saw.

• Carefully lift saw from the carton and place it on a

level work surface. Although small, this saw is

heavy. To avoid back injury, get help when

needed.

Do not discard the packing materials until you

have carefully inspected the saw, identified all

loose parts, and satisfactorily operated your new

saw.

• Your saw has been shipped with the saw arm

locked in the down position. To release saw arm,

push down on top of saw arm and pull out the lock

pin. See Figure 9.

• Lift the saw arm by the handle. Hand pressure

should remain on the saw arm to prevent sudden

rise upon release of the lock pin.

• Examine all parts to make sure no breakage or

damage has occurred during shipping.

if any parts are damaged or missing, do not attempt to

turn the switch on until the damaged or missing parts

are obtained and are installed correctly.

8

Thefollowinglabelsareonthemitersawwithlocationsindicated.

Restore lower blade guard

and securely tighten screw

before use

E&_ DONOTREMOVE

ANY GUARD. USE OF SAW

WITHOUT THIS GUARD WILL

RESULT IN SERIOUS INJURY.

(Inside FrontEdgeOfUpperBladeGuard)

For Blade Change. See Owner's

(" /'_ 81/4 inch M ter Saw MODEL315.212180

2,000 R PM SEARS,ROEBUCKAND C[

i18 VOLT OC U S E O NLy WITH BATTEMA_E:_H; KI_A

STAt]_JU_yT0eL MODEL NO. 315. 110340

I_USEONLY IDENTICAL ,

_CRAFTSMAN REpI.AuCs_oMEeNrTHP,:_i_ e1_800_9312.318_ I

AWARNING/ADVERTENCIA

Fig. 1

ThefollowingitemsareincludedwithyourCompoundMiterSaw:

• SawBlade- 8-1/4in.

• DustGuide

• DustBag

• BladeWrench

• 5mmHexKey

• 6mmHexKey

• Owner'sManual

DUSTBAG

BLADEWRENCH

SAWBLADE

DUSTGUIDE 5mmHEX KEY 6 turnHEX KEY Fig. 2

WARNING: The use of attachments or accessories not listed might be hazardous and could cause serious

personal injury.

The following tools (not included) are needed for checking adjustments of your saw or for installing the blade:

17 mmCOMBINATIONWRENCH

10 mm COMBINATIONWRENCH @

FRAMINGSQUARE

PHILLIPSSCREWDRIVER

COMBINATION __

Fig. 3

10

BA'I-rERY PACK

The battery pack for your saw is shipped in alow

charge condition to prevent possible problems.

Therefore, you should charge it prior to use.

_I, WARNING: Always remove battery pack from

your saw when you are assembling parts, making

adjustments, assembling or removing blades,

cleaning, or when not in use. Removing battery

pack from your saw will prevent accidental

starting that could cause serious personal injury.

CHARGING BATTERY PACK

As previously mentioned, the battery pack for this tool

has been shipped in a low charge condition.

Therefore, you should charge it until light on front of

charger changes from red to green.

Note: Batteries will not reach futl charge the first time

they are charged. Allow several cycles (cutting

followed by recharging) for them to become fully

charged.

TO CHARGE

• Charge battery pack only with the charger

provided.

•Make sure power supply is normal household

voltage, 120 volts, 60 Hz, AC only.

•Connect charger to power supply.

• Attach battery pack to charger by aligning raised

ribs on battery pack with grooves in charger, then

slide battery back onto charger. See Figure 4.

BATTERY

PACK

• Red light should turn on. Red light indicates fast

charging mode.

If red light is flashing, this indicates battery pack is

deeply discharged or hot.

If battery pack is hot, red light should become

steady after battery pack has cooled down.

If battery pack is deeply discharged, red light

should become steady after voltage has increased,

normally within 60 minutes.

if after one hour red light is still flashing, this indicates

a defective battery pack and should be replaced.

Green light on indicates battery pack is fully charged

and slow charging to maintain battery pack.

Yellow light on and red light flashing indicates

defective battery pack. Return battery pack to your

nearest Sears Repair Center for checking or

replacing.

• When your battery pack becomes fully charged, the red

light will tum OFF and the green light will turn ON.

• After normal usage, 1 hour of charging time is required

to be fully charged. A minimum charge time of 1-1/2

hours is required to recharge a completely discharged

tool.

• The battery pack will become slightly warm to the touch

while charging. This is normal and does not indicate a

problem.

•Do not place charger in an area of extreme heat or

cold. It will work best at normal room temperature.

• When the batteries become fully charged, unplug

your charger from power supply and remove the

battery pack.

TO

REMOVE

CHARGER

TO

ATTACH

GROOVES Fig. 4

11

LED FUNCTION OF CHARGER

See Figures 5 & 6.

LED WILL BE LIGHTED TO INDICATE STATUS OF

CHARGER AND BATTERY PACK:

•Red LED Lighted = Fast Charging Mode.

• Green LED Lighted = Fully Charged And Slow

Charging To Maintain Battery Pack.

• Red LED Flashing = Hot Or Deeply Discharged

Battery Pack. Also Defective Battery Pack After 1

Hour.

• Yellow LED Lighted and Red LED Flashing =

Defective Battery Pack.

YELLOWLIGHT"ON" ANDRED

LIGHTFLASHINGINDICATES

DEFECTIVEBATTERYPACK

IMPORTANT INFORMATION FOR

RECHARGING HOT BATTERIES

Under extreme continuous use, the batteries in your

battery pack will become hot. You should let a hot

battery pack cool down for approximately 1 hour

before attempting to recharge. When the battery pack

becomes discharged and is hot, this will cause the red

light on your battery charger to flash. When battery

pack cools down, red light will glow continuously

indicating fast charging mode, 1 hour charge time.

Once the battery pack cools down, it will recharge

battery pack in fast charging mode as normal.

Note: This situation only occurs when extreme

continuous use of your saw causes the batteries to

become hot. It does not occur under normal

circumstances. Refer to "CHARGING BATTERY

PACK" for normal recharging of batteries. If the

charger does not charge your battery pack under

normal circumstances, return both the battery pack

and charger to your nearest Sears repair center for

electrical check.

MOUNTING CHARGER

See Figure 7.

Your charger has a "key hole" hanging feature for

convenient, space saving storage. Screws should be

installed so that center distances are 4-1/8 inches

apart.

REDLIGHT"ON" CHARGER

INDICATESFAST

CHARGINGMODE GREENLIGHT"ON" INDICATES

FULLYCHARGEDANDSLOWCHARGING

TO MAINTAINBATTERYPACK

Fig. 5

4-1/8in.

BACKSIDEOF CHARGER Fig, 7

CHARGER

BATTERYPACKSHOWN

IN CHARGER Fig. 6

12

KNOW YOUR COMPOUND MITER SAW

See Figure 8.

Before attempting to use your saw, familiarize yourself

with all operating features and safety requirements.

,_ WARNING: Do not allow familiarity with your

saw to make you careless. Remember that a

careless fraction of a second is sufficient to inflict

severe injury.

8-1/4 in. BLADE

A 8-1/4 in. saw blade is included with your compound

miter saw. It will cut materials up to 2-1/16 in. thick or

5-1/2 in. wide, depending upon the thickness of the

material and the setting at which the cut is being

made.

DUSTBAG

\

CARRINGHANDLE

UPPER

CUTTING CAPACITIES

When the miter angle (miter table) is set at 0°and

the bevel angle is set at 0°:

Your saw will cut materials up to a maximum of

5-1/2 in. wide x 2-1/16 in. thick.

When the miter angle (miter table) is set at 45°and

the bevel angle is set at 0°:

Your saw will cut materials up to a maximum of

3-3/4 in. wide x 2-1/16 in. thick.

When the miter angle (miter table) is set at O° and

the bevel angle is set at 45°:

Your saw will cut materials up to amaximum of

5-1/2 in. wide x t-1/2 in. thick.

When the miter angle (miter table) is set at 45 °and

the bevel angle is set at 45°:

Your saw will cut materials up to a maximum of

3-3/4 in. wide x 1-1/2 in. thick.

SAWARM

LOCK-OFF

BUTTON SPINDLELOCK

BUTTON

DUSTGUIDE

BEVEL

LOCK KNOB

LOWER

BLADEGUARD

NOHANDS

ZONELABEL

BEVEL

FENCE_

TABLEFRAME

"NO HANDSZONE"

BOUNDARYLINE

MITERSCALE

MITERTABLE

Fig. 8

13

CARRYING HANDLE

See Figure 9.

For convenience when carrying or transporting your

miter saw from one place to another, a carrying

handle has been provided on top of the saw arm as

shown in figure 9. To transport saw, remove battery

pack, then lower the saw arm end lock it in the down

position. Lock saw arm by depressing the lock pin.

CARRYING

DLE

LOCKPIN

SAWARM LOCKED

INDOWNPOSITION

Fig. 9

MITER TABLE CLAMP

See Figure 10.

The miter table clamp securely locks your saw at

desired miter angles,

SAWARM

SPINDLE LOCK BUTTON

See Figure 11.

A spindle lock button has been provided for locking

the spindle which keeps the blade in your saw from

rotating. Depress and hold the spindle lock button

while installing, changing, or removing the blade only.

SPINDLELOCK

BUTTON

Fig. 11

LOCK-OFF BUTTON

See Figure 12.

The switch trigger is equipped with a lock-off button to

reduce the possibility of accidental starting.

To release lock-off feature:

• Depress lock-off button (1).

• While holding lock-off button pushed in, (2)

depress switch trigger.

• Release lock-off button (3).

Note: The spring loaded button will spring back

into the lock-off position when the switch trigger is

released.

MITERTABLE

CLAMP(IN

LOCKED

POSITION)

LOCKPIN

Fig. 10

14

_g. 12

TRIGGER LOCK

See Figure 13.

To prevent unauthorized use of your compound miter

saw, we suggest that you remove battery pack and

lock the switch in the off position. To lock the switch,

install a padlock through the hole in the switch trigger.

A lock with a shackle up to 13/64 in. diameter may be

used. When the lock is installed and locked, the

switch is inoperable. Store the padlock key in another

location.

SWITCHTRIGGER

PADLOC_

Fig. 13

POSITIVE STOPS ON MITER TABLE

Positive stops have been provided at 0°, 22-1/2 ° and

45 °. The 22-1/2 ° and 45° positive stops have been

provided on both the left and right side of the miter

table.

BEVEL LOCK KNOB

The bevel lock knob securely locks your compound

miter saw at desired bevel angles. Positive stop

adjustment screws have been provided on each side

of the saw arm. These adjustment screws are for

making fine adjustments at 0° and 45°. See pages 22

and 23.

ELECTRIC BRAKE

An electric brake has been provided to quickly stop

blade rotation after the switch is released.

FENCE

The fence on your compound miter saw has been

provided to hold your workpiece securely against

when making all cuts.

SELF-RETRACTING LOWER BLADE GUARD

The lower blade guard is made of shock-resistant,

see-through plastic that provides protection from each

side of the blade. It retracts over the upper blade

guard as the saw is lowered into the workpiece.

MOUNTING HOLES

See Figure 14.

Your compound miter saw should be permanently

mounted to a firm supporting surface such as work-

bench. Four 3/8 in. bolt holes have been provided in

the saw base for this purpose. Each of the four

mounting holes should be bolted securely using 3/8

in. machine bolts, lock washers, and hex nuts (not

included). Bolts should be of sufficient length to

accommodate the saw base, lock washers, hex nuts,

and the thickness of the workbench.

Tighten all four bolts securely.

The hole pattern for an 18-5/8 in. x 24 in. workbench

is shown in Figure 14. Carefully check the workbench

after mounting to make sure that no movement can

occur during use. If any tipping, sliding, or walking is

noted, secure the workbench to the floor before

operating.

WARNING: Always make sure your compound

miter saw is securely mounted to a workbench or

an approved workstand. Failure to do so could

result in an accident resulting in possible serious

personal injury.

+

7/16 in. Dia. Hole -_1

--y-

14-7/16in. I4-3/4in,

24 in.

Fig. 14

_I, WARNING: The operation of any saw can result

in foreign objects being thrown into your eyes,

which can result in severe eye damage. Before

starting power tool operation, always wear safety

goggles or safety glasses with side shields and a

full face shield when needed. We recommend wide

vision safety mask for use over eyeglasses or

standard safety glasses with side shields.

AWARNING: Do not attempt to modify this tool or

create accessories not recommended for use with

this tool. Any such alteration or modification is

misuse and could result in a hazardous condition

leading to possible serious personal injury.

15

_i, WARNING: To prevent accidental starting that

could cause possible serious personal injury,

assemble all parts to your saw before attaching

battery pack. Battery pack should never be

attached to saw when you are assembling parts,

making adjustments, installing or removing

blades, or when not in use.

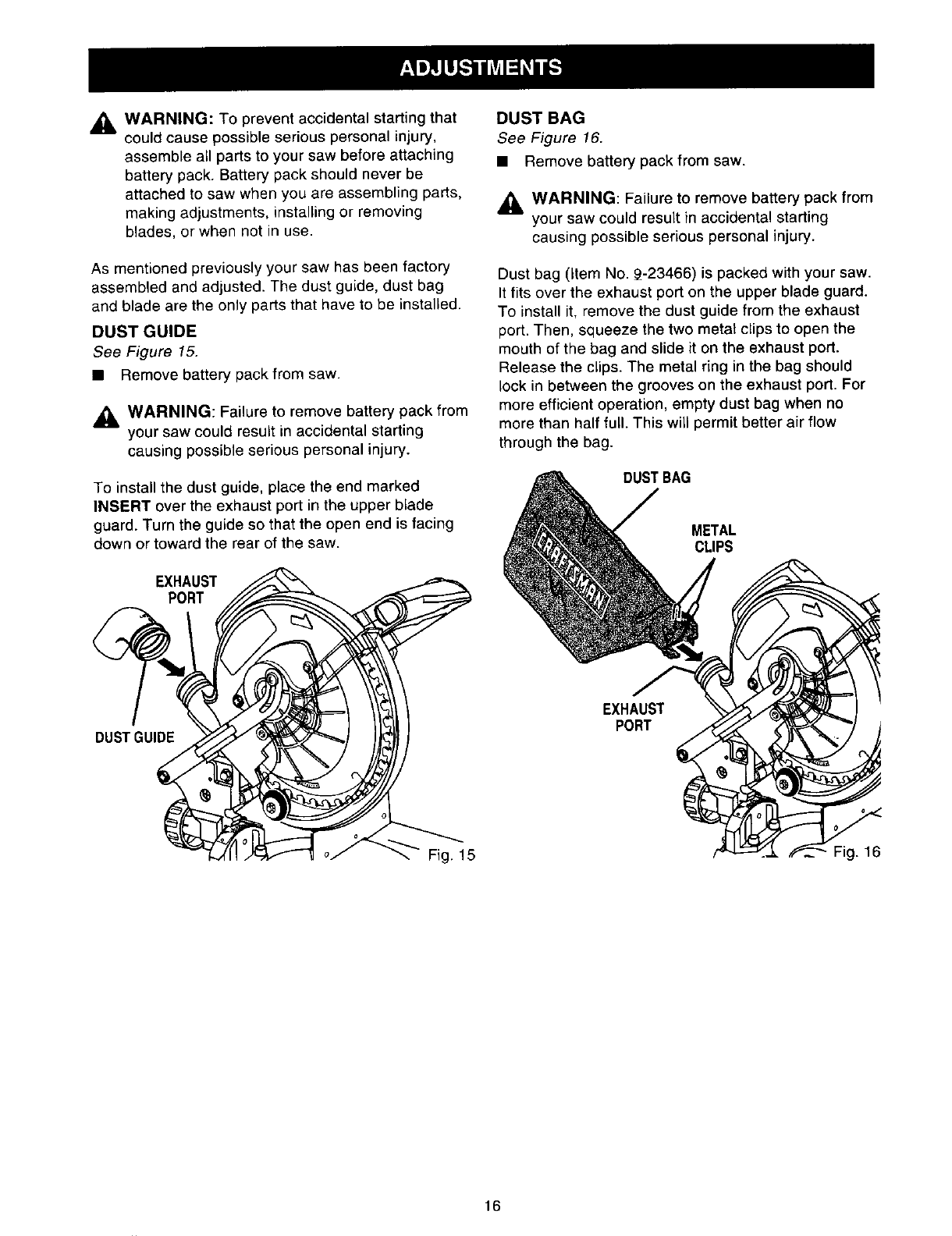

As mentioned previously your saw has been factory

assembled and adjusted. The dust guide, dust bag

and blade are the only parts that have to be installed.

DUST GUIDE

See Figure 15.

• Remove battery pack from saw.

WARNING: Failure to remove battery pack from

your saw could result in accidental starting

causing possible serious personal injury.

To install the dust guide, place the end marked

INSERT over the exhaust port in the upper blade

guard. Turn the guide so that the open end is facing

down or toward the rear of the saw.

EXHAUST

PORT

DUSTGUIDE

Fig. 15

DUST BAG

See Figure 16.

• Remove battery pack from saw.

_1= WARNING: Failure to remove battery pack from

your saw could result in accidental starting

causing possible serious personal injury.

Dust bag (Item No. 9-23466) is packed with your saw.

It fits over the exhaust port on the upper blade guard.

To install it, remove the dust guide from the exhaust

port. Then, squeeze the two metal clips to open the

mouth of the bag and slide it on the exhaust port.

Release the clips. The metal ring in the bag should

lock in between the grooves on the exhaust port. For

more efficient operation, empty dust bag when no

more than half full. This will permit better air flow

through the bag.

DUSTBAG

METAL

CLIPS

EXHAUST

PORT

Fig. 16

16

TO INSTALL BLADE

See Figures 17, 18, 19and20.

_L DANGER: A 8-1/4 in. blade is the maximum

blade capacity of your saw. Never use a blade

that is too thick to allow outer blade washer to

engage with the flats on the spindle. Larger

blades will come in contact with the blade

guards, while thicker blades will prevent the

blade screw from securing the blade on the

spindle. Either of these situations will result in a

serious accident and can cause serious personal

injury.

• Remove battery pack from saw.

,_ WARNING: Failure to remove battery pack from

your saw could result in accidental starting

causing possibte serious personal injury.

Push down on the saw arm and pull out the lock

pin to release saw arm. Raise saw arm to its full

raised position. Be cautious, saw arm is spring

loaded to raise.

Loosen the phillips screw on the blade bolt

cover until blade bolt cover can be raised.

See Figure 17.

Gently raise the lower blade guard bracket,

releasing lower blade guard from notch so that

lower blade guard and blade bolt cover can be

rotated up and back to expose the blade bolt.

See Figure 18.

BLADEBOLTCOVER

PHILLIPSSCREW

\

Fig. 17

LOWERBLADE

GUARDBRACKET

BLADEBOLTCOVER

To I

LOOSEN'

'_GHTEN

BLADEBOLT

LOWER

BLADEGUARD

ILLIPS

SCREW

BLADEBOLT

Fig. 18

LOWER

BLADEGUARD

PHILLIPS

SCREW

FLAT(S)

ON SPINDLE

\

INNERBLADE

DOUBLE"D"FLATS

BLADE

OUTERBLADEWASHER

WITHDOUBLE"D"FLATS

Fig. 19

17

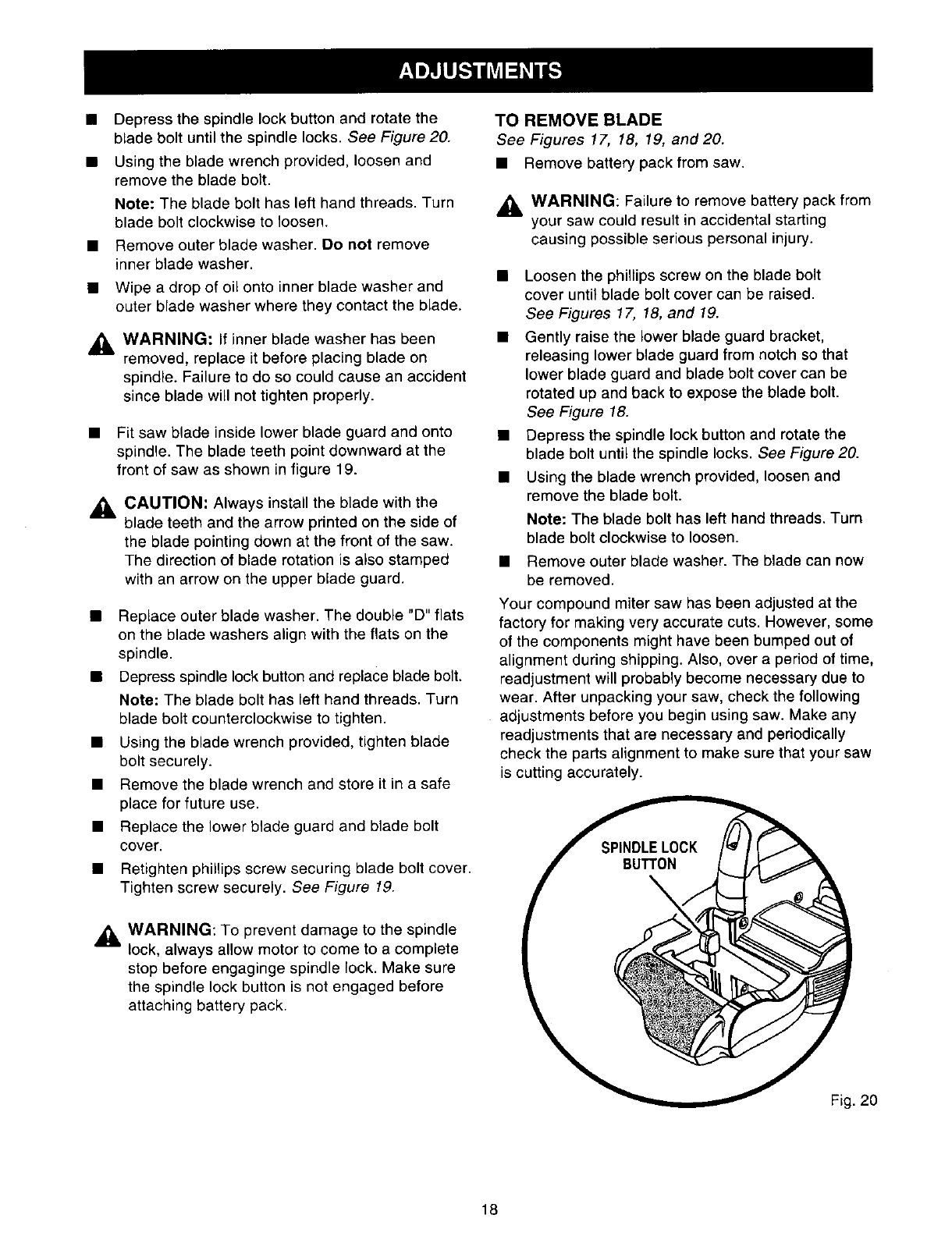

• Depressthespindlelockbuttonandrotatethe

bladeboltuntilthespindlelocks.See Figure 20.

• Using the blade wrench provided, loosen and

remove the blade bolt.

Note: The blade bolt has left hand threads. Turn

blade bolt clockwise to loosen.

• Remove outer blade washer. Do not remove

inner blade washer.

• Wipe a drop of oil onto inner blade washer and

outer blade washer where they contact the blade.

,_ WARNING: If inner blade washer has been

removed, replace it before placing blade on

spindle. Failure to do so could cause an accident

since blade will not tighten properly.

• Fit saw blade inside lower blade guard and onto

spindle. The blade teeth point downward at the

front of saw as shown in figure 19.

,j_ CAUTION: Always install the blade with the

blade teeth and the arrow printed on the side of

the blade pointing down at the front of the saw.

The direction of blade rotation is also stamped

with an arrow on the upper blade guard.

• Replace outer blade washer. The double "D" flats

on the blade washers align with the flats on the

spindle.

• Depress spindle lock button and replace blade bolt.

Note: The blade bolt has left hand threads. Turn

blade bolt counterclockwise to tighten.

• Using the blade wrench provided, tighten blade

bolt securely.

• Remove the blade wrench and store it in a safe

place for future use.

• Replace the lower blade guard and blade bolt

cover.

• Retighten phillips screw securing blade bolt cover.

Tighten screw securely. See Figure 19.

TO REMOVE BLADE

See Figures 17, 18, 19, and20.

• Remove battery pack from saw.

WARNING: Failure to remove battery pack from

your saw could result in accidental starting

causing possible serious personal injury.

• Loosen the phillips screw on the blade bolt

cover until blade bolt cover can be raised.

See Figures 17, 18, and 19.

• Gently raise the lower blade guard bracket,

releasing lower blade guard from notch so that

lower blade guard and blade bolt cover can be

rotated up and back to expose the blade bolt.

See Figure 18.

• Depress the spindle lock button and rotate the

blade bolt until the spindle locks. See Figure 20.

• Using the blade wrench provided, loosen and

remove the blade bolt.

Note: The blade bolt has left hand threads. Turn

blade bolt clockwise to loosen.

• Remove outer blade washer. The blade can now

be removed.

Your compound miter saw has been adjusted at the

factory for making very accurate cuts. However, some

of the components might have been bumped out of

alignment during shipping. Also, over a period of time,

readjustment will probably become necessary due to

wear. After unpacking your saw, check the following

adjustments before you begin using saw. Make any

readjustments that are necessary and periodically

check the parts alignment to make sure that your saw

is cutting accurately.

WARNING: To prevent damage to the spindle

lock, always allow motor to come to a complete

stop before engaginge spindle lock. Make sure

the spindle lock button is not engaged before

attaching battery pack.

18

Note: Many of the illustrations in this manual show

only portions of your compound miter saw. This is

intentional so that we can clearly show points being

made in the illustrations. Never operate your saw

without all guards securely in place and in good

operating condition.

SQUARING THE MITER TABLE

TO THE FENCE

See Figures 21- 24.

• Remove battery pack from saw.

,4_ WARNING: Failure to remove battery pack from

your saw could result in accidental starting

causing possible serious personal injury.

Push down on the saw arm and pull out the lock

pin to release the saw arm.

Raise saw arm to its full raised position.

Lift the miter table clamp.

Rotate the miter table until the pointer is posi-

tioned at 0° .

Push the miter table clamp back down.

Lay a framing square flat on the miter table. Place

one leg of the square against the fence. Place the

other leg of the square beside the throat plate in

the miter table. The edge of the square and the

throat plate in the miter table should be parallel as

shown in figure 21,

FENCE

FRAMING

SQUARE

MITER

TABLECLAMP

• If the edge of the framing square and the throat

plate in the miter table are not parallel as shown

in figures 22 and 23, adjustments are needed,

FENCE FRAMING

SQUARE THROATPLATE

MITERTABLE

VIEWOF MITERTABLENOTSQUAREWITH

FENCE,ADJUSTMENTSAREREQUIRED Fig. 22

FENCE

FRAMING

SQUARE THROATPLATE

MITERTABLE

VIEWOF MITERTABLENOTSQUAREWITH

FENCE,ADJUSTMENTSAREREQUIRED Fig. 23

MITERTABLE THROATPLATE

VIEWOF MITERTABLESQUAREWITH

FENCEANDCORRECTLYADJUSTED Fig. 21

19

Usinga 6mmhexkey,loosen the socket head

screws securing the fence. See Figure 24. Adjust

the fence left or right until the framing square and

throat plate are parallel.

/

FENCE

6 mmSOCKET

HEADSCREW(S)

J 2:

/@ ''

• Retighten the screws securely and recheck the

fence-to-table alignment.

SQUARING THE SAW BLADE TO THE FENCE

See Figures 25 -28.

• Remove battery pack from saw.

_1= WARNING: Failure to remove battery pack from

your saw could result in accidental starting

causing possible serious personal injury.

• Pull the saw arm all the way down and engage

the lock pin to hold the saw arm in transport

position.

• Lift the miter table clamp.

• Rotate the miter table until the pointer is posi-

tioned at 0°.

• Push the miter table clamp back down.

• Lay a framing square flat on the miter table. Place

one leg of the square against the fence. Slide the

other leg of the square against the flat part of saw

blade.

Note: Make sure that the square contacts the flat

part of the saw blade, not the blade teeth.

The edge of the square and the saw blade should

be parallel as shown in figure 25.

FENCE

BLADE

MITERTABLE FRAMINGSQUARE

VIEWOF BLADE

SQUAREWITHFENCE Fig. 25

If the front or back edge of the saw blade angles

away from the square as shown in figures 26 and

27, adjustments are needed.

FENCE

BLADE

MITERTABLE FRAMINGSQUARE

ViEWOF BLADENOTSQUAREWITH

FENCE,ADJUSTMENTSAREREQUIRED Fig, 26

2O

FENCE

BLADE

MITERTABLE FRAMINGSQUARE

VIEWOF BLADENOTSQUAREWITH

FENCE,ADJUSTMENTSAREREQUIRED Fig. 27

Using the 6 mm hex key provided, loosen the

socket head screws that secure the mounting

bracket to the miter table. See Figure 28.

6 mm

HEX KEY

6 mmSOCKET.

HEADSCREW(S)

MITERTABLE

Fig. 28

Rotate the mounting bracket left or right until the

saw blade is parallel with the square.

Retighten the screws securely and recheck the

blade-to-fence alignment.

SQUARING THE BLADE TO THE

MITER TABLE

See Figures 29 -32.

• Remove battery pack from saw.

,_, WARNING: Failure to remove battery pack from

your saw could result in accidental starting

causing possible serious personal injury.

Pull the saw arm all the way down and engage

the lock pin to hold the saw arm in transport

position.

• Lift up the miter table clamp.

• Rotate the miter table until the pointer is posi-

tioned at 0°.

Push the miter table clamp back down.

Loosen bevel lock knob and set saw arm at 0°

bevel (blade set 90° to miter table). Tighten bevel

lock knob.

Place a combination square against the miter

table and the flat part of saw brade.

Note: Make sure that the square contacts the flat

part of the saw blade, not the blade teeth.

• Rotate the blade by hand and check the blade-to-

table alignment at several points.

• The edge of the square and the saw blade should

be parallel as shown in figure 29.

FENCE

BLADE

COMBINATION MITERTABLE

SQUARE

VIEWOF BLADESQUARE

WITHMITERTABLE Fig. 29

21

• Ifthetoporbottomofthesawbladeanglesaway

fromthesquareasshowninfigures30and31,

adjustmentsareneeded.

FENCE

COMBINATION MITERTABLE

SQUARE

VIEWOF BLADENOTSQUAREWITHMITER

TABLE,ADJUSTMENTSARE REQUIRED Fig. 30

Using a 10 mm wrench or adjustable wrench,

loosen the lock nut securing positive stop adjust-

ment screw. Also loosen bevel lock knob.

Adjust positive stop adjustment screw to bring

saw blade into alignment with the square.

See Figure 32.

MITER

TABLE

BEVEL

POSITIVESTOP LOCKKNOB

ADJUSTMENT

FOR0

LOCKNUT(S)

FENCE

POSITIVE

STOPADJUSTMENT

SCREWFOR45° ANGLES Fig. 32

Retighten bevel lock knob. Next, retighten lock nut

securing the positive stop adjustment screw.

Recheck blade-to-table alignment.

Note: The above procedure can be used to check

blade squareness of the saw blade to the miter

table at both 0° and 45 ° angles.

BLADE

COMBINATION MITERTABLE

SQUARE

VIEWOF BLADENOTSQUAREWITHMITER

TABLE,ADJUSTMENTSAREREQUIRED Fig. 31

22

PIVOT ADJUSTMENTS

Note: These adjustments were made at the factory

and normally do not require readjustment.

TRAVEL PIVOT ADJUSTMENT

• The saw arm should rise completely to the up

position by itself.

• If the saw arm does not raise by itself or if there is

play in the pivot joints, have saw repaired by a

qualified service technician at a Sears Store or

Repair Center to avoid risk of personal injury.

BEVEL PIVOT ADJUSTMENT

• Your compound miter saw should bevel easily by

loosening bevel lock knob and tilting saw arm to

the left.

If movement is tight or if there is play in the pivot,

have saw repaired by a qualified service techni-

cian at your nearest Sears Store or Repair Center

to avoid risk of personal injury.

DEPTH STOP

The depth stop limits the blade's downward travel. It

allows the blade to go below the miter table enough to

maintain full cutting capacities. The depth stop posi-

tions the blade 1/4 in. from the miter table support.

Note: The miter table support is located inside miter

table.

The depth stop is factory set to provide maximum

cutting capacity for the 8-1/4 in. saw blade provided

with your saw. Therefore, the saw blade provided

should never need adjustments.

However, when the diameter of the blade has been

reduced due to sharpening, it may be necessary to

adjust the depth stop to provide maximum cutting

capacity. Also, when a new blade is installed, it is

necessary to check the clearance of the blade to the

miter table support before starting the saw. Make

adjustments if needed.

DEPTH STOP ADJUSTMENTS

See Figure 33.

•Remove battery pack from saw.

,_ WARNING: Failure to remove battery pack from

your saw could result in accidental starting

causing possible serious personal injury.

• To adjust the depth stop use a 17 mm wrench or

adjustable wrench and loosen the hex nut at the

rear of the miter saw arm.

• Use the 5 mm hex key provided to adjust the

depth stop adjustment screw. The saw blade is

lowered by turning the screw counterclockwise

and raised by turning the screw clockwise.

\_ "_ I\ I\ /I /_l\t DePtH STOP

l/ ADJustMENt

_,__ ,_ SCREW,

_/" 7_\/ _ BEVEL

;_--_(_"_ _ LOCK KNOB

"_ MITER

_TABLE

_" Fig. 33

• Lower the blade into the throat plate of the miter

table. Check blade clearance and maximum

cutting distance (distance from fence where blade

enters) to front of miter

table slot.

• Readjust if necessary.

AWARNING: Do not start your compound miter

saw without checkinºg for interference between

the blade and the miter table support. Damage

could result to the blade if it strikes the miter

table support during operation of the saw.

• Tighten the hex nut with a 17 mm wrench or

adjustable wrench.

• To prevent the depth stop adjustment screw from

turning while tightening the hex nut, carefully hold

it with the hex key while tightening the hex nut.

23

,_ WARNING: Always wear safety goggles or

safety glasses with side shields when operating

tools. Failure to do so could result in objects

being thrown into your eyes, resulting in possible

serious injury.

After all parts have been assembled properly and

adjustments have been made to saw, battery pack

can now be attached to saw.

TO ATTACH BATTERY PACK TO SAW

See Figure 34.

• Align raised ribs on battery pack with grooves on

bottom of saw, then attach battery pack to saw as

shown in figure 34.

TO REMOVE BATTERY PACK

See Figure 35.

• Depress latch located on front of battery pack (1)

to release battery pack.

• Pull forward on battery pack (2) to remove from

saw.

/BATTERYPACK

PULL

ORWARD

TO REMOVE

GROOVES BATTERY

PACK

RAISEDRIBS

LATCH

Fig. 34

• Make sure latch on battery pack snaps into place

and battery pack is secured to saw before

beginning operation.

CAUTION: When attaching battery pack to your

saw, be sure raised ribs and grooves align

properly and latch snaps into place properly.

Improper assembly can cause damage to saw

and battery pack.

DEPRESSLATCHTO

RELEASEBAI"rERYPACK

Fig. 35

APPLICATIONS

(Use only for the purposes listed below)

• Cross cutting wood and plastic.

• Cross cutting miters, joints, etc. for picture frames,

moldings, door casings, and fine joinery.

Note: The 24 tooth crosscut blade provided is fine for

most wood cutting operations. For fine joinery cuts or

cutting plastic, use one of the accessory blades

available from your nearest Sears store.

_, WARNING: Before starting any cutting

operation, clamp or bolt your compound miter

saw to a workbench. Never operate your miter

saw on the floor or in a crouched position.

Failure to heed this warning can result in serious

personal injury.

CUTTING WITH YOUR COMPOUND

MITER SAW

AWARNING: When using a work clamp or

C-clamp to secure your workpiece, clamp

workpiece on one side of the blade only. The

workpiece must remain free on one side of the

blade to prevent the blade from binding in

workpiece. The workpiece binding the blade will

cause motor stalling and kickback. This situation

could cause an accident resulting in possible

serious personal injury.

24

CROSSCUTTING

See Figure 36.

A crosscut is made by cutting across the grain of the

workpiece. A 90 ° crosscut is made with the miter table

set at the zero degree position. Miter crosscuts are

made with the miter table set at some angle other

than zero.

TO CROSSCUT WITH YOUR MITER SAW:

• Pull out the lock pin and lift saw arm to its full

height.

• Lift the miter table clamp.

• Rotate the miter table until the pointer aligns with

the desired angle on the miter scale.

• Push the miter table clamp back down.

Note: You can quickly locate 0°, 22-1/2 ° left or

right, and 45 ° left or right on the scale. The miter

table can be seated in one of the positive stop

notches, located in the miter table frame.

_Ib WARNING: To avoid serious personal injury,

always push the miter table clamp back down

before making a cut. Failure to do so could result

in movement of the miter table while making a

cut.

C-CLAMP

• Place the workpiece flat on the miter table with

one edge securely against the fence. If the board

is warped, place the convex side against the

fence. If the concave edge of a board is placed

against the fence, the board could collapse on the

blade at the end of the cut, jamming the blade.

See Figures 43 and 44.

• When cutting long pieces of lumber or molding,

support the opposite end of the stock with a roller

stand or with a work surface level with the saw

table.

• Align cutting line on the workpiece with the edge

of saw blade.

• Grasp the stock firmly with one hand and secure

it against the fence. Use the optional work clamp

or a C-clamp to secure the workpiece when

possible. See Figure 36.

AWARNING: To avoid serious personal injury,

keep your hands outside the no hands zone; at

least 3 in. from blade. Never perform any cutting

operation freehand (without holding workpiece

against the fence). The blade could grab the

workpiece if it slips or twists.

• Before turning on the saw, perform a dry run of the

cutting operation just to make sure that no

problems will occur when the cut is made.

• Grasp the saw handle firmly, depress the lock-oft

button, then squeeze the switch trigger. Allow

several seconds for the blade to reach maximum

speed.

• Slowly lower the blade into and through the

workpiece. See Figure 36.

• Release the switch trigger and allow the saw

blade to stop rotating before raising the blade out

of workpiece. Wait until the electric brake stops

blade from turning before removing the workpiece

from the miter table.

90°

CROSSCUT Fig. 36

25

BEVEL CUT

See Figures 37 and 38.

A bevel cut is made by cutting across the grain of the

workpiece with the blade angled to the fence and

miter table. A bevel cut is made with the miter table

set at the zero degree position and the blade set at an

angle between 0° and 45 °.

POINT

blade at the end of the cut, jamming the blade.

See Figures 43 and 44.

• When cutting long pieces of lumber or molding,

support the overhanging end(s) of the stock with a

roller stand or with a work surface level with the

saw table.

• Align the cutting line on the workpiece with the

edge of saw blade.

• Grasp the stock firmly with one hand and secure it

against the fence. Use the optional work clamp or

a C-clamp to secure the workpiece when pos-

sible. See Figure 38.

BEVELCUT

BEVEL

LOCKKNOB

MOUNTING

BRACKET Fig. 37

TO BEVEL CUT WITH YOUR MITER SAW:

• Pull out the lock pin and lift saw arm to its full

height.

•Lift the miter table clamp.

•Rotate the miter table until the pointer aligns with

zero on the miter scale.

•Push the miter table clamp back down.

Note: You can quickly locate zero on the scale.

The miter table can be seated in one of the built-in

positive stop notches, located in the miter table

frame.

AWARNING: To avoid serious personal injury,

always push the miter table clamp back down

before making a cut. Failure to do so could result

in movement of the miter table while making a

cut.

• Loosen the bevel lock knob and move the saw

arm to the left to the desired bevel angle.

• Bevel angles can be set from 0° to 45°.

• Align the indicator point with the desired angle.

• Once the saw arm has been set at the desired

angle, securely tighten the bevel lock knob.

• Place the workpiece flat on the miter table with

one edge securely against the fence. If the board

is warped, place the convex side against the

fence. If the concave edge of a board is placed

against the fence, the board could collapse on the

C-CLAMP

A

26

Fig. 38

WARNING: To avoid serious personal injury,

keep your hands outside the no hands zone; at

least 3 in. from blade. Never perform any cutting

operation freehand (without holding workpiece

against the fence). The blade could grab the

workpiece if it slips or twists.

• Before turning on the saw, perform a dry run of

the cutting operation just to make sure that no

problems will occur when the cut is made.

• Grasp the saw handle firmly, depress the lock-off

button, then squeeze the switch trigger. Allow

several seconds for the blade to reach maximum

speed.

• Slowly lower the blade into and through the

workpiece. See Figure 38.

• Release the switch trigger and allow the saw

blade to stop rotating before raising the blade out

of workpiece. Wait until the electric brake stops

blade from turning before removing the workpiece

from miter table.

COMPOUND MITER CUT

See Figures 39 and 40.

Acompound miter cut is a cut made using a miter

angle and a bevel angle at the same time. This type of

cut is used to make picture frames, cut molding, make

boxes with sloping sides, and for certain roof framing

cuts.

To make this type of cut the miter table must be

rotated to the correct angle and the saw arm must be

tilted to the correct bevel angle. Care should always

be taken when making compound miter setups due to

the interaction of the two angle settings.

Adjustments of miter and bevel settings are interde-

pendent with one another. Each time you adjust the

miter setting you change the effect of the bevel

setting. Also, each time you adjust the bevel setting

you change the effect of the miter setting.

It may take several settings to obtain the desired cut.

The first angle setting should be checked after setting

the second angle, since adjusting the second angle

affects the first.

Once the two correct settings for a particular cut have

been obtained, always make a test cut in scrap

material before making a finish cut in good material.

C-CLAMP

COMPOUNDMITERCUT Fig. 39

TO MAKE A COMPOUND CUT WITH YOUR

MITER SAW:

• Pull out the lock pin and lift saw arm to its full height.

• Lift the miter table clamp.

• Rotate the miter table until the pointer aligns with

the desired angle on the miter scale.

• Push the miter table clamp back down.

Note: You can quickly locate 0°, 22-1/2 ° left or

right, and 45 ° left or right on the scale. The miter

table can be seated in one of the positive stop

notches, located in the miter table frame.

,_ WARNING: To avoid serious personal injury,

always push the miter table clamp back down

before making a cut. Failure to do so could result in

movement of the miter table while making a cut.

• Loosen the bevel lock knob and move the saw

arm to the left to the desired bevel angle.

•Bevel angles can be set from 0° to 45°.

• Align the indicator point with the desired angle.

• Once the saw arm has been set at the desired

angle, securely tighten the bevel lock knob.

Recheck miter angle setting. Make a test cut in

scrap material.

Place the workpiece flat on the miter table with

one edge securely against the fence. If the board

is warped, place the convex side against the

fence. If the concave edge of a board is placed

against the fence, the board could collapse on the

blade at the end of the cut, jamming the blade.

See Figures 43 and 44.

When cutting long pieces of lumber or molding,

support the opposite end of the stock with a roller

stand or with a work surface level with the saw

table.

Align the cutting line on the workpiece with the

edge of saw blade.

Grasp the stock firmly with one hand and secure it

against the fence. Use the optional work clamp or

a C-clamp to secure the workpiece when pos-

sible. See Figure 39.

AWARNING: To avoid serious personal injury,

always keep your hands outside the no hands

zone; at least 3 in. from blade. Never perform

any cutting operation freehand (without holding

workpiece against the fence). The blade could

grab the workpiece if it slips or twists.

27

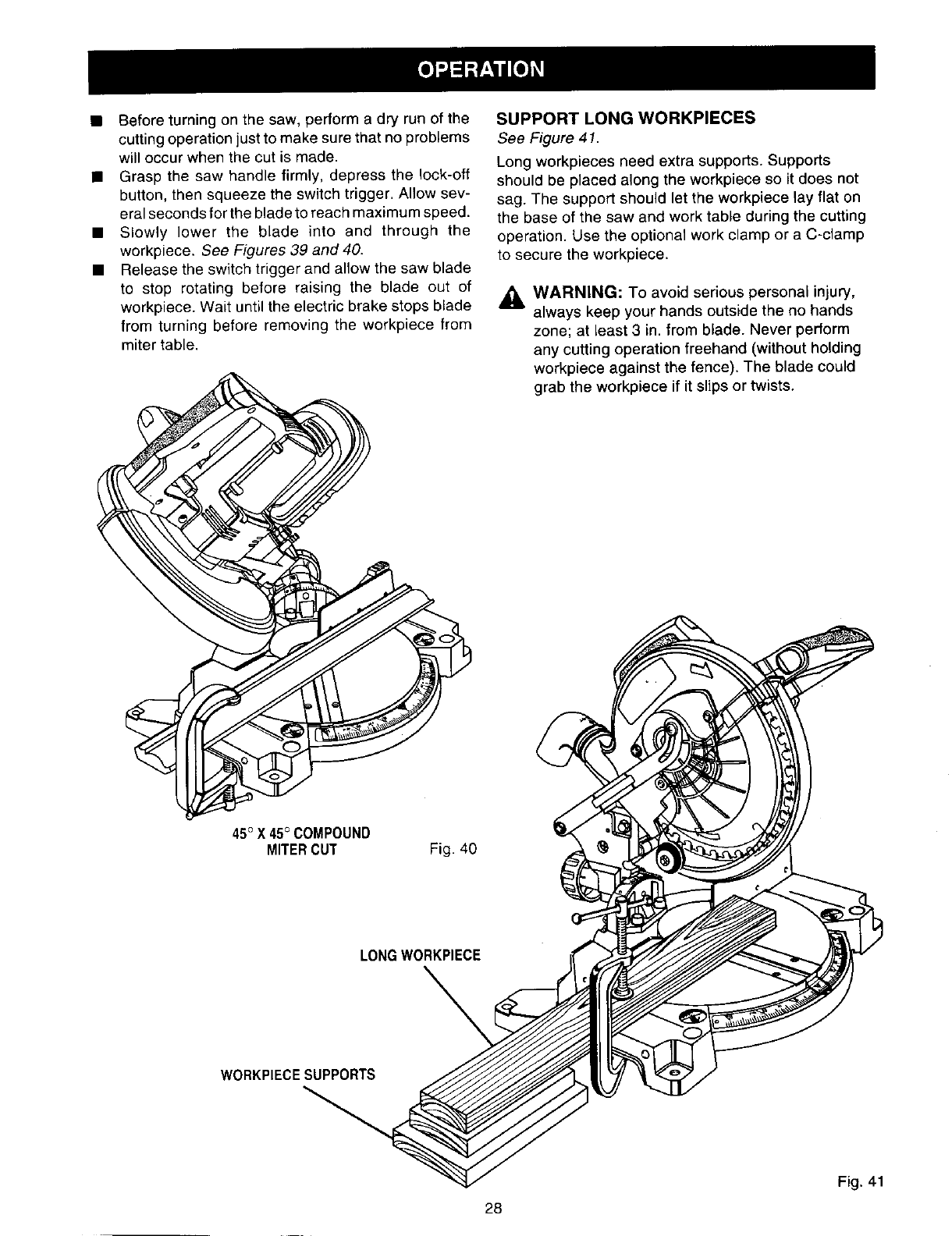

•Before turning on the saw, perform a dry run of the

cutting operation just to make sure that no problems

will occur when the cut is made.

• Grasp the saw handle firmly, depress the lock-off

button, then squeeze the switch trigger. Allow sev-

eral seconds for the blade to reach maximum speed.

• Slowly lower the blade into and through the

workpiece. See Figures 39 and 40.

• Release the switch trigger and allow the saw blade

to stop rotating before raising the blade out of

workpiece. Wait until the electric brake stops blade

from turning before removing the workpiece from

miter table.

SUPPORT LONG WORKPIECES

See Figure 41.

Long workpieces need extra supports. Supports

should be placed along the workpiece so it does not

sag. The support should let the workpiece lay flat on

the base of the saw and work table during the cutting

operation. Use the optional work clamp or a C-clamp

to secure the workpiece.

_l, WARNING: To avoid serious personal injury,

always keep your hands outside the no hands

zone; at least 3 in. from blade. Never perform

any cutting operation freehand (without holding

workpiece against the fence). The blade could

grab the workpiece if it slips or twists.

45°X 45° COMPOUND

MITERCUT Fig. 40

LONGWORKPIECE

WORKPIECESUPPORTS

28

Fig. 41

cu'n'ING COMPOUND MITERS

To aid in making the correct settings, the compound angle setting chart below has been provided. Since com-

pound cuts are the most difficult to accurately obtain, trial cuts should be made in scrap material, and much

thought and planning made, prior to making your required cut.

PITCH NUMBEROF SIDES

OFSIDE 4 5 I6I7 8 9 I 10

0o M-45.00 °M- 36.00 ° M- 30.00 ° M- 25.71 ° M-22.50 ° M- 20.00 ° M- 18.00 °

B- 0.00 ° B- 0.00 ° B- 0.00 ° B- 0.00° B- 0.00 ° B- 0.00 ° B- 0.00 °

5° M-44.89 ° M- 35.90 ° M-29.91° M- 25.63 ° M-22.42 ° M- 19.93 ° M- 17.94 °

B- 3.53 ° B- 2.94 ° B- 2.50 ° B- 2.17 ° B- 1.91 ° B- 1.71° B- 1.54 °

10° M-44.56 ° M-35.58 °M-29.62 ° M-25.37 ° M-22.19 ° M-19.72 ° M-17.74 °

B- 7.05 ° B- 5.86 ° B- 4.98 ° B- 4.32 ° B- 3.81 ° B- 3.40 ° B- 3.08 °

M-44.01° M-35.06 ° M-29.15 ° M-24.95 ° M-21.81° M-19.37 ° M-17.42 °

15o B-10.55 ° B- 8.75 ° B- 7.44 ° B- 6.45 ° B- 5.68 ° B- 5.08 ° B- 4.59 °

20 o M-43-22 ° M-34.32 ° M-28.48 ° M-24.35 ° M-21.27 ° M-18.88 ° M-16.98 °

B-14.00 ° B-11.60 ° B- 9.85 ° B- 8.53 ° B- 7.52 ° B- 6.72 °B- 6.07 °

25 ° M-42.19 ° M- 33.36 °M- 27.62 ° M- 23.56 ° M-20.58 ° M- 18.26 ° M- 16.41 °

B- 17.39 °B- 14.38 ° B- 12.20 ° B- 10.57° B- 9.31 ° B- 8.31 ° B- 7.50 °

30 o M-40.89 ° M-32.18 ° M-26.57 ° M-22.64 ° M-19.73 ° M-17.50 ° M-15.72 °

B-20.70 ° B- 17.09 ° B- 14.48 ° B- 12.53 ° B- 11.03 ° B- 9.85 ° B- 8.89 °

35 o M- 39.32 °M- 30.76 °M- 25.31 ° M- 21.53 ° M- 18.74 ° M- 16.60 ° M- 14.90 °

B- 23.93 °B- 19.70 ° B- 16.67 ° B- 14.41 ° B- 12.68 ° B- 11.31 ° B- 10.21 °

40 o M-37.45 ° M-29.10 ° M-23.86 ° M-20.25 ° M-17.60 ° M-15.58 ° M-13.98 °

B-27.03 ° B-22.20 °B-18.75 ° B-16.19 ° B-14.24 ° B-12.70 ° B-11.46 °

M- 35,26 ° M-27.19 ° M- 22.21 ° M- 18.80 ° M- 16.32 ° M- 14.43 ° M- 12.94 °

45 ° B- 30.00 °B- 24.56 ° B- 20.70 ° B- 17.87 ° B- 15.70 ° B- 14,00 ° B- 12.62 °

M- 32.73 °M- 25.03 ° M- 20.36 ° M- 17.20 ° M- 14.91 ° M- 13.17 ° M- 11.80 °

50 ° B- 32.80 ° B- 26.76 ° B- 22.52 ° B- 19.41 ° B- 17,05 ° B- 15.19 °B- 13.69 °

55 ° M- 29.84 °M- 22.62 ° M- 18.32 ° M- 15.44 ° M- 13.36 ° M- 11.79 ° M- 10.56 °

B- 35.40 ° B- 28.78 ° B- 24.18 ° B- 20.82 ° B- 18.27 ° B- 16.27 ° B- 14.66 °

M- 26.57 ° M- 19.96 ° M- 16.10 °M- 13.54 ° M- 11.70 ° M- 10.31 ° M- 9_23°

60° B- 37.76 ° B- 30.60 ° B- 25.66 ° B- 22.07 ° B- 19.35 ° B- 17.23 ° B- 15.52 °

M-22.91 ° M-17.07 ° M-13.71 ° M-11.50 ° M- 9.93 ° M- 8.74 ° M- 7.82 °

65 ° B-39.86 ° B-32.19 ° B-26.95 ° B-23.16 ° B-20.29 ° B-18.06 ° !B-16.26 °

M-18.88 °M-13.95 ° M-11.17 ° M- 9.35 ° M- 8.06 ° M- 7.10 ° M- 6.34 °

70 ° B- 41.64 ° B- 33.53 ° B- 28.02 ° B- 24.06 ° B- 21.08 ° B- 18.75 ° B- 16.88 °

75o M-14-51 ° M- 6.12 ° M- 5.38 °

B- 43.08 ° B- 21.69 ° B- 19.29 °

80 °M- 9.85 ° M- 4.11 ° M- 3.62 °

B- 44.14 ° B- 22.14 ° B- 19.68 °

M- 4.98 ° M- 2.07 ° M- 1.82 °

85° B- 44.78 ° B- 22.41° B- 19.92 °

90 ° M- 0.00 °

B- 45.00 °

M- 10.65 °

B- 34.59 °

M- 7.19 °

B- 35.37 °

M- 3.62 °

B- 35.84 °

M- 0.00 °

B- 36.00 °

M- 8.50 °

B- 28.88 °

M- 5.73 °

B- 29.50 °

M- 2.88 °

B- 29.87 °

M- 0.00 °

B- 30.00 °

M- 7.10 °

B- 24.78 °

M- 4.78 °

B- 25.30 °

M- 2.40 °

B- 25.61 °

M- 0.00 °

B- 25.71 °

M- 0.00 °

B- 22.50 °

M- 0.00 °

B- 20.00 °

Each B (Bevel) and M (Miter) Setting is Given to the Closet 0.005 °.

COMPOUND-ANGLE SETTINGS FOR POPULAR STRUCTURES

M- 4,81 °

B- 17.37 °

M- 3.23 °

B- 17.72 °

M- 1.62 °

B- 17.93 °

M- 0.00 °

B- 18.00 °

29

cu'n'ING CROWN MOLDING

Your compound miter saw does an excellent job of

cutting crown molding. In general, compound miter

saws do a better job of cutting crown molding than

any other tool made.

In order to fit properly, crown molding must be com-

pound mitered with extreme accuracy.

The two contact surfaces on a piece of crown molding

that fit flat against the ceiling and the wall of a room

are at angles that, when added together, equal

exactly 90°. Most crown molding has a top rear angle

(the section that fits flat against the ceiling) of 52° and

a bottom rear angle (the section that fits fiat against

the wall) of 38° .

LAYING MOLDING FLAT ON THE

MITER TABLE

See Figure 42.

To use this method for accurately cutting crown

molding for a 90 ° inside or outside corner, lay the

molding with its broad back surface flat on the miter

table and against the fence.

When setting the bevel and miter angles for com-

pound miters, remember that the settings are interde-

pendent; changing one angle changes the other angle

as well.

Keep in mind that the angles for crown moldings are

very precise and difficult to set. Since it is very easy

for these angles to shift, all settings should first be

tested on scrap molding. Also, most walls do not have

angles of exactly 90 °, therefore, you will need to fine

tune your settings.

52°

W

A

L

L

CEILING

FENCE

TOPEDGEAGAINSTFENCE=

•LEFTSIDE, INSIDECORNER

• RIGHTSIDE,OUTSIDECORNER

O O

MITERTABLE

INS OUTSIDE

CORNER CORNER

FENCE

BOTTOMEDGEAGAINSTFENCE=

• RIGHTSIDE,INSIDECORNER

• LEFTSIDE,OUTSIDECORNER

MITERTABLE

OO

CROWNMOLDINGFLATON MITERTABLE Fig. 42

3O

Whencuttingcrownmoldingbythismethodthebevel

angleshouldbesetat 33.85°.The miter angle should

be set at 31.62 ° either right or left, depending on the

desired cut for the application. See the chart below for

correct angle settings and correct positioning of crown

molding on miter table.

The settings in the chart below can be used for cutting

All Standard (U.S.) crown molding with 52 ° and 38 °

angles. The crown molding is placed flat on the miter

table using the compound features of your miter saw.

Bevel

Angle Type of Cut

Setting

Left side, inside corner

1. Top edge of molding against fence

33.85 ° 2. Miter table set right 31.62 °

3. Save left end of cut

Right side, inside corner

1. Bottom edge of molding against fence

33"85° 2. Miter table set left 31.62 °

3. Save left end of cut

Left side, outside corner

1. Bottom edge of molding against fence

33"85° 2. Miter table set left 31.62 °

3. Save right end of cut

Right side, outside corner

33.850 1. Top edge of molding against fence

2. Miter table set right 31.62 °

3. Save right end of cut

WRONG Fig. 44

When cutting warped material, always make sure it is

positioned on the miter table with the convex side

against the fence as shown in figure 43.

If the warped material is positioned the wrong way as

shown in figure 44, it will pinch the blade near the

completion of the cut.

_1= WARNING: To avoid a kickback and to avoid

serious personal injury, never position the

concave edge of bowed or warped material

against the fence.

CUTTING WARPED MATERIAL

See Figures 43 and 44.

RIGHT Fig. 43

31

_1=WARNING: When servicing, use only identical

Craftsman replacement parts. Use of any other

part may create a hazard or cause product

damage.

Avoid using solvents when cleaning plastic parts.

Most plastics are susceptible to damage from various

types of commercial solvents and may be damaged

by their use. Use clean cloths to remove dirt, dust, oil,

grease, etc.

_t WARNING: Do not at any time let brake fluids,

gasoline, petroleum-based products, penetrating

oils, etc. come in contact with plastic parts. They

contain chemicals that can damage, weaken or

destroy plastic.

Do not abuse power tools. Abusive practices can

damage tool as well as workpiece.

Only the parts shown on parts list, pages 34 thru 39,

are intended to be repaired or replaced by the

customer. All other parts should be replaced at a

Sears Service Center.

_i WARNING: Do not attempt to modify this tool or

create accessories not recommended for use

with this tool. Any such alteration or modification

is misuse and could result in a hazardous

condition leading to possible serious personal

injury.

BATTERIES

The battery pack for this saw is equipped with 15

nickel-cadmium rechargeable batteries. Length of

service from each charging will depend on the type of

work you are doing.

The batteries have been designed to provide

maximum trouble free life. However, like all batteries,

they will eventually wear out. Do not disassemble

battery pack and attempt to replace the batteries.

Handling of these batteries, especially when wearing

rings and jewelry, could result in a serious burn.

To obtain the longest possible battery life, we suggest

the following:

• Store and charge your batteries in a cool area.

Temperatures above normal room temperature

will shorten battery life.

• Never store batteries in a discharged condition.

Recharge them immediately after they are

discharged.

• All batteries gradually lose their charge. The

higher the temperature the quicker they lose their

charge. If you store your tool for long periods of

time without using it, recharge the batteries every

month or two. This practice will prolong battery

life.

To preserve natural resources, please

recycle or dispose of batteries

properly.

This product contains nickel-

cadmium batteries. Local, state or

federal laws may prohibit disposal of

nickel-cadmium batteries in ordinary

trash.

Consult your local waste authority for information

regarding available recycling and/or disposal options.

BATTERY PACK REMOVAL AND

PREPARATION FOR RECYCLING

AWARNING: Upon removal, cover the battery

pack's terminals with heavy duty adhesive tape.

Do not attempt to destroy or disassemble battery

pack or remove any of its components. Nickel-

cadmium batteries must be recycled or disposed

of properly. Also, never touch both terminals with

metal objects and/or body parts as short circuit

may result. Keep away from children. Failure to

comply with these warnings could result in fire

and/or serious injury.

32

33

b_

_--.CRAFTSMAN 18 VOLT PROFESSIONAL CORDLESS COMPOUND MITER /TRIM SAW - MODEL NUMBER 315.212180_

13

15

I29

" _ _"C_"_31 30_

FigureA

7

I

---- CRAFTSMAN 18 VOLT PROFESSIONAL CORDLESS COMPOUND MITER /TRIM SAW - MODEL NUMBER 315.212180 ---

The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your I

COMPOUND MITER /TRIM SAW or when ordering repair parts. I

PARTS LIST FOR FIGURE A

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 980146-001

2 976729-001

3 980137-001

4 980105-001

5 980203-001

6 980136-001

7 5530301

8 6447401

9 980096-001

10 980102-001

11 980112-001

12 6616914

13 980113-001

14 980111-001

15 980110-001

16 6887001

Miter Scale ...................................................... 1

Rivet ............................................................... 3

Washer ........................................................... 1

Washer ........................................................... 1

Washer ........................................................... 1

Screw (M5 X 15L Pan Hd.) ............................. 1

Rubber Pad .................................................... 4

Table Frame ................................................... 1

Washer ........................................................... 2

Hex Cap Screw ............................................... 1

Miter Table Clamp .......................................... 1

Sleeve ............................................................. 1

Screw (Includes Key No, 12) .......................... 1

Hex Cap Screw (M8 X 20L) ............................ 1

Fence .............................................................. 1

Nut (Special) (M8 x 1.25 x 17.5L) ................... 1

KEY PART

NO. NUMBER DESCRIPTION QUAN.

17 STD840610

18 6616916

19 6447301

20 160030-400

21 980130-001

22 5537201

23 6881501

24 6881601

25 130010-401

26 980124-001

27 980131-001

28 6875901

29 6384001

30 6621214

31 980144-001

32 980143-001

Hex Nut ........................................................... 2

Hex Hd. Screw (M6 x 20L) ............................. 2

Table ............................................................... 1

Screw (Flat Hd.) .............................................. 4

Throat Plate .................................................... 1

Plastic Screw (M10 x 12.7L) ........................... 1

Compression Spring ....................................... 1

Steel Ball (e6.0mm) ........................................ 1

Screw (M4 x 8L) ............................................. 1

Washer ........................................................... 1

Miter Scale indicator ....................................... 1

Flat Washer .................................................... 1

Cover Plate ..................................................... 1

Screw (M4 x 9L) ............................................. 4

No Hands Label .............................................. 2

Line Label ....................................................... 2

** Available From Division 98 - Source 980.00

J

---- CRAFTSMAN 18 VOLT PROFESSIONAL CORDLESS COMPOUND MITER /TRIM SAW - MODEL NUMBER 315.212180 ..---,

8

10

16 13 _.12

\ J

18

FigureB 1_-'_"

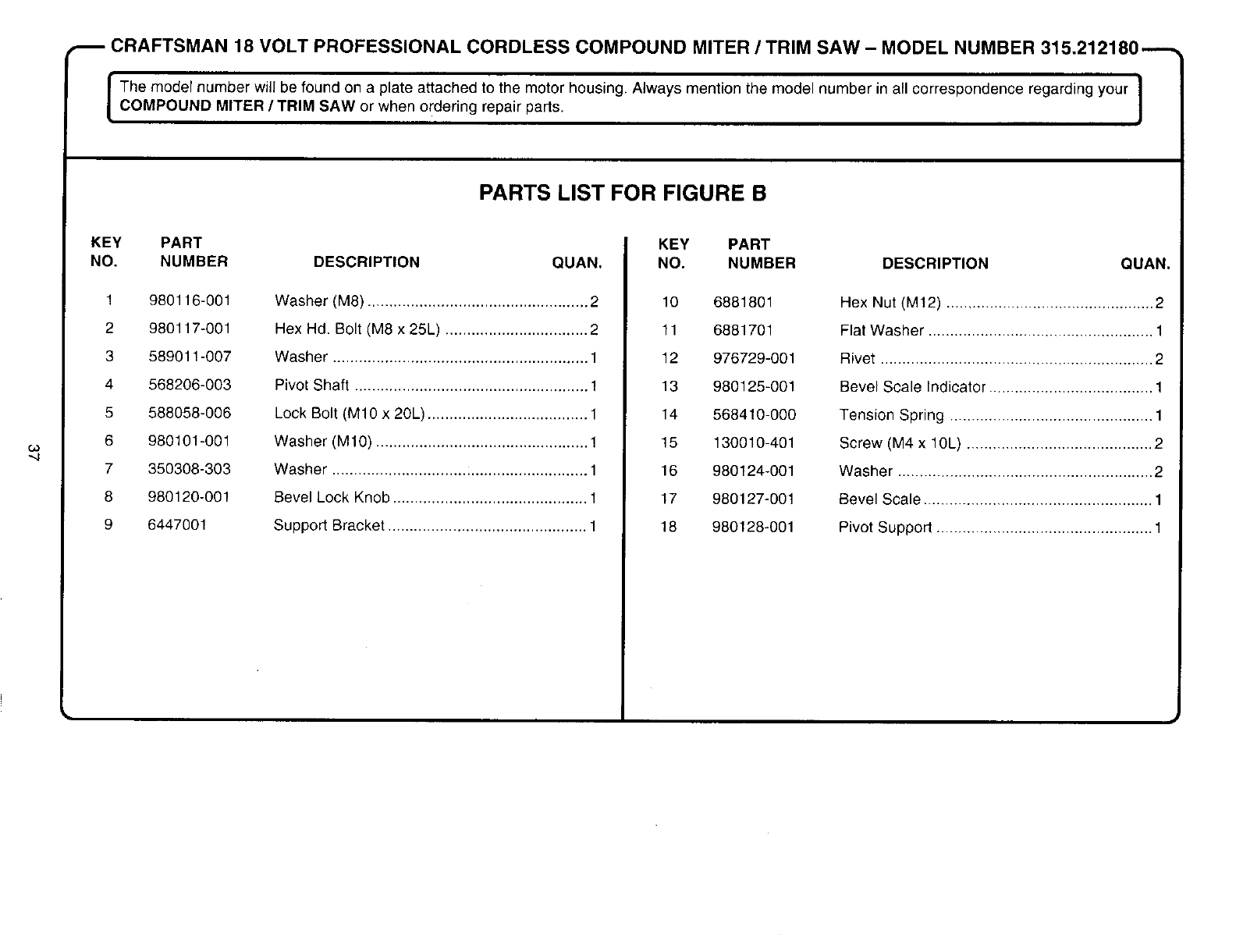

CRAFTSMAN 18 VOLT PROFESSIONAL CORDLESS COMPOUND MITER /TRIM SAW - MODEL NUMBER 315.212180-----

I he model number wild be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your ICOMPOUND MITER /TRIM SAW or when ordering repair pads. J

PARTS LIST FOR FIGURE B

KEY PART

NO. NUMBER DESCRIPTION QUAN.

980116-001

980117-001

589011-007

568206-003

588058-006

980101-001

350308-303

980120-001

6447001

1

2

3

4

5

6

7

8

9

Washer (M8) ................................................... 2

Hex Hd. Bolt (M8 x 25L) ................................. 2

Washer ........................................................... 1

Pivot Shaft ...................................................... 1

Lock Bolt (M10 x 20L) ..................................... 1

Washer (M10) ................................................. 1

Washer ........................................................... 1

Bevel Lock Knob ............................................. 1

Support Bracket .............................................. 1

KEY PART

NO. NUMBER DESCRIPTION QUAN.

10 6881801

11 6881701

12 976729-001

13 980125-001

14 568410-000

15 130010-401

16 980124-001

17 980127-001

18 980128-001

Hex Nut (M12) ................................................ 2

Flat Washer .................................................... 1

Rivet ............................................................... 2

Bevel Scale Indicator ...................................... 1

Tension Spring ............................................... 1

Screw (M4 x 10L) ........................................... 2

Washer ........................................................... 2

Bevel Scale ..................................................... 1

Pivot Support .................................................. 1

O_

co

_-- CRAFTSMAN 18 VOLT PROFESSIONAL CORDLESS COMPOUND MITER /TRIM SAW - MODEL NUMBER 315.212180 "_,

26

25

21 20

19

"%" 15 \ \"

13

24

28

12 /

11 _32

33 31

10 _, ._ 34 "30

7

9._._ 4_ 43

8J" "_

36

/

FigureC

3

2 1 41

-- CRAFTSMAN 18 VOLT PROFESSIONAL CORDLESS COMPOUND MITER /TRIM SAW - MODEL NUMBER 315.212180 ..--.,

I he moder number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your |

COMPOUND MITER /TRIM SAW or when ordering repair parts. I

PARTS LIST FOR FIGURE C

KEY PART

NO. NUMBER

1 5541401

2 6889201

3 976507-001

4 980091-001

5 976740-001

6 589015-001

7 980183-001

8 5523501

9 578406-003

10 6876501

11 ***

12 6621204

13 980172-001

14 980171-001

15 6621213

16 5663301

17 6681201

18 6214901

19 5671501

20 578502-003

21

22

DESCRIPTION QUAN.

Guard Roller ................................................... 1

Push Nut ......................................................... 1

Washer (M5) ................................................... 2

Screw (M5 x 10L Pan Hd.) ............................. 1

Label ............................................................... 1

Screw (M6 x 10L) ........................................... 1

Blade Guard Bracket Assembly ...................... 1

Lower Blade Guard (Inc. Key Nos. 1 & 2) ...... 1

Screw (M5 x 9L) ............................................. 1

Lock Nut (M5 x 7.8L) ...................................... 1

Saw Blade ...................................................... 1

Screw (M4 x 16L Pan Hd.) ............................. 2

Screw (M5 x 15L) ........................................... 1

Stopper ........................................................... 1

Screw (M4 x 14.5L Pan Hd.) .......................... 1

Upper Guard Stopper ..................................... 1

"O" Ring .......................................................... 1

Stopper Pin ..................................................... 1

Sleeve ............................................................. 2

Dust Guide ...................................................... 1

* Item No. 9-23436 Dust Bag (976745-001) .................................. 1

6617002 Hex Screw (M10 x 20L) .................................. 1

KEY PART

NO. NUMBER

23 6881901

24 6881401

25 982661-001

26 9411535

27 982642-001

28 6620805

29 9423007

30 6383901

31 5532601

32 982643-001

33 6379001

34 980098-001

35 980097-001

36 980095-001

37 980100-001

38 588039-002

39 588082-005

40 *item No. 9-11034

41 *Item No.£-11040

42 6887401

43 6887301

972000-841

DESCRIPTION QUAN.

Hex Nut (10 x 8L) ........................................... 1

"E" Ring (E6) .................................................. 1

Logo Plate ...................................................... 1

Data Plate ....................................................... 1

Carrying Handle .............................................. 1

Screw (M4 x 16L) ........................................... 2

Warning Label ................................................ 1

"U" Clip ........................................................... 2

Deflector ......................................................... 1

Spindle &Gear Assembly ............................... 1

Bearing Plate .................................................. 1

Blade Washer ................................................. 2

Blade Bolt ....................................................... 1

Pivot Plate ...................................................... 1

Screw (M4 x 4.5L Pan Hd.) ............................ 1

Return Spring ................................................. 1

Blade Wrench ................................................. 1

Battery Pack (981401-001) ............................. 1

Charger (981399-001 ) .................................... 1

Hex Key (5 mm) .............................................. 1

Hex Key (6 ram) .............................................. 1

Owner's Manual

* Can Be Purchased At Your Nearest Sears Retail Store

*** Complete Assortment Available At Your Nearest Sears Catalog Order or Retail Store

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOME SMAnyt,me, day or n,ght

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums, lawn equipment and electronics

for repair, call for the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anytime, day or n,ght

www,sears.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirect sM!

1-800-366-PART 6 a m. - 11 pm. CST,

(1-800-366-7278) 7 days a week

www.sears.com/partsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7am.-5pm CST, Mon.-Sat

Para pedlr servIcIo de reparaclon a domlcdlo,

y para ordenar p_ezas con entrega a dom_c_ho

1-888-SU-HOGAR s,,,

(1-888-784-6427)

Au Canada pour service en fran£ais:

1-877-LE-FOYER sM

SEARS }

HomeCentral"

(1-877-533-6937)

® Registered Trademark: trM Trademark of Sears Roebuck and CO

© Sears, Roebuck and Co ® Marca Reglstrada /_M Marca de Fabnca de Sears, RoebLLcK and Co
