OPERATOR' MAN

RRFf$1ulI:IN

10 in, TABLE SAW

Model No.

315.218291

AWARNING: To reduce the risk of injury,the

user must read and understand the operator's

manual before using this product.

Customer Help Line: 1-800-932-3188

Product distributed in the United States by Sears Brands Management Corporation

Hoffman Estates, IL 60179

Visit the Craftsman web page: www.sears.com

988000-067

10-5-10 (REV:04) Save this manual for future reference C

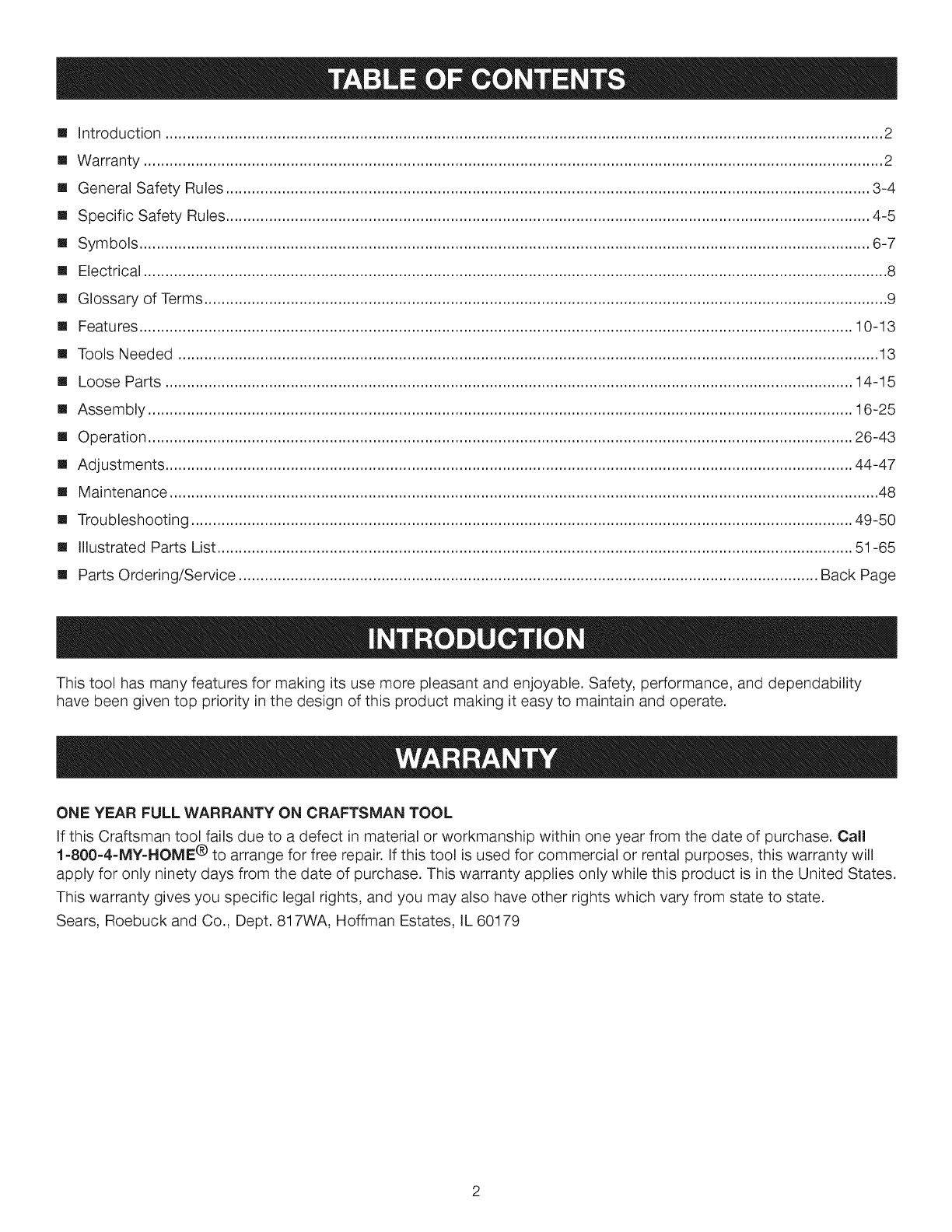

[] Introduction ...................................................................................................................................................................... 2

[] Warranty ........................................................................................................................................................................... 2

[] General Safety Rules ..................................................................................................................................................... 3-4

[] Specific Safety Rules ..................................................................................................................................................... 4-5

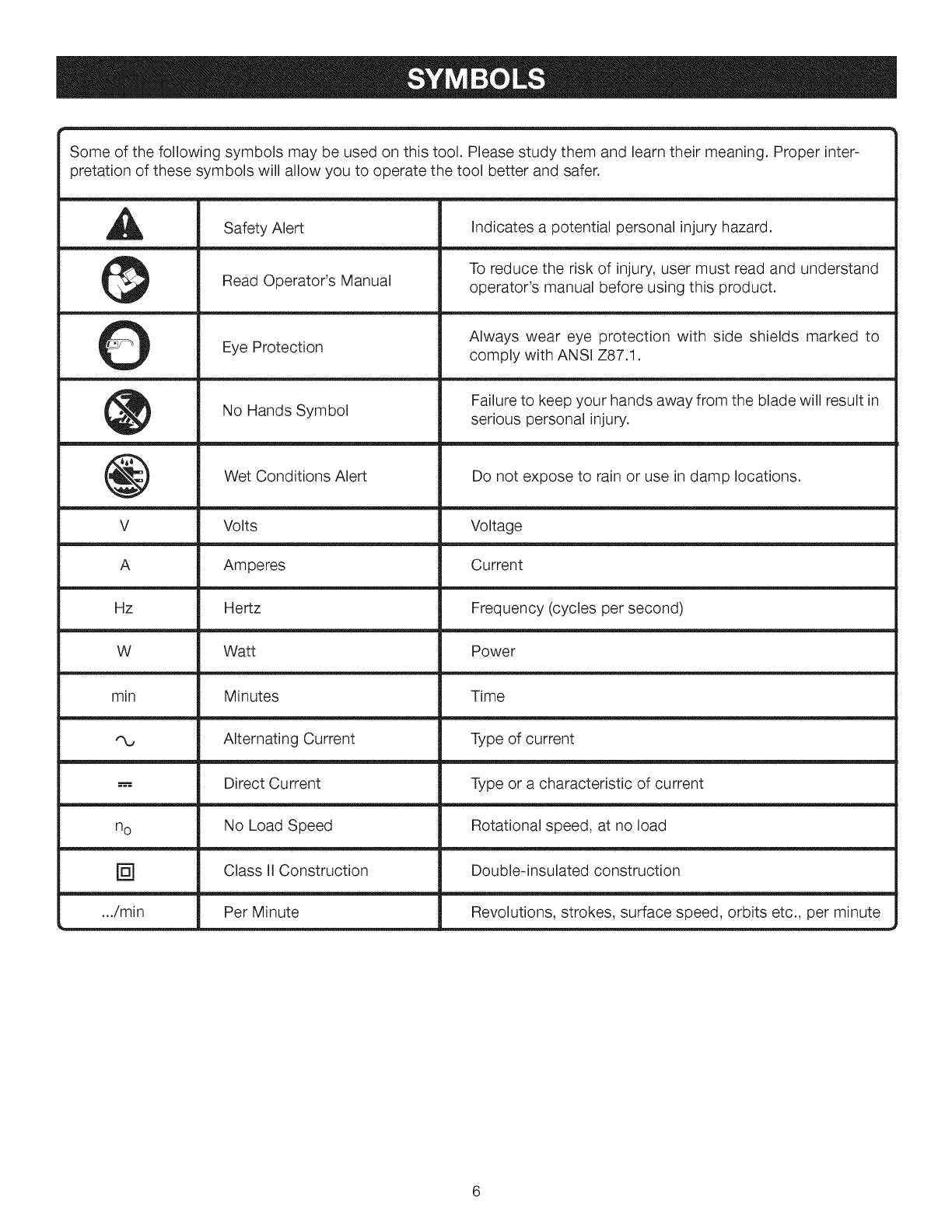

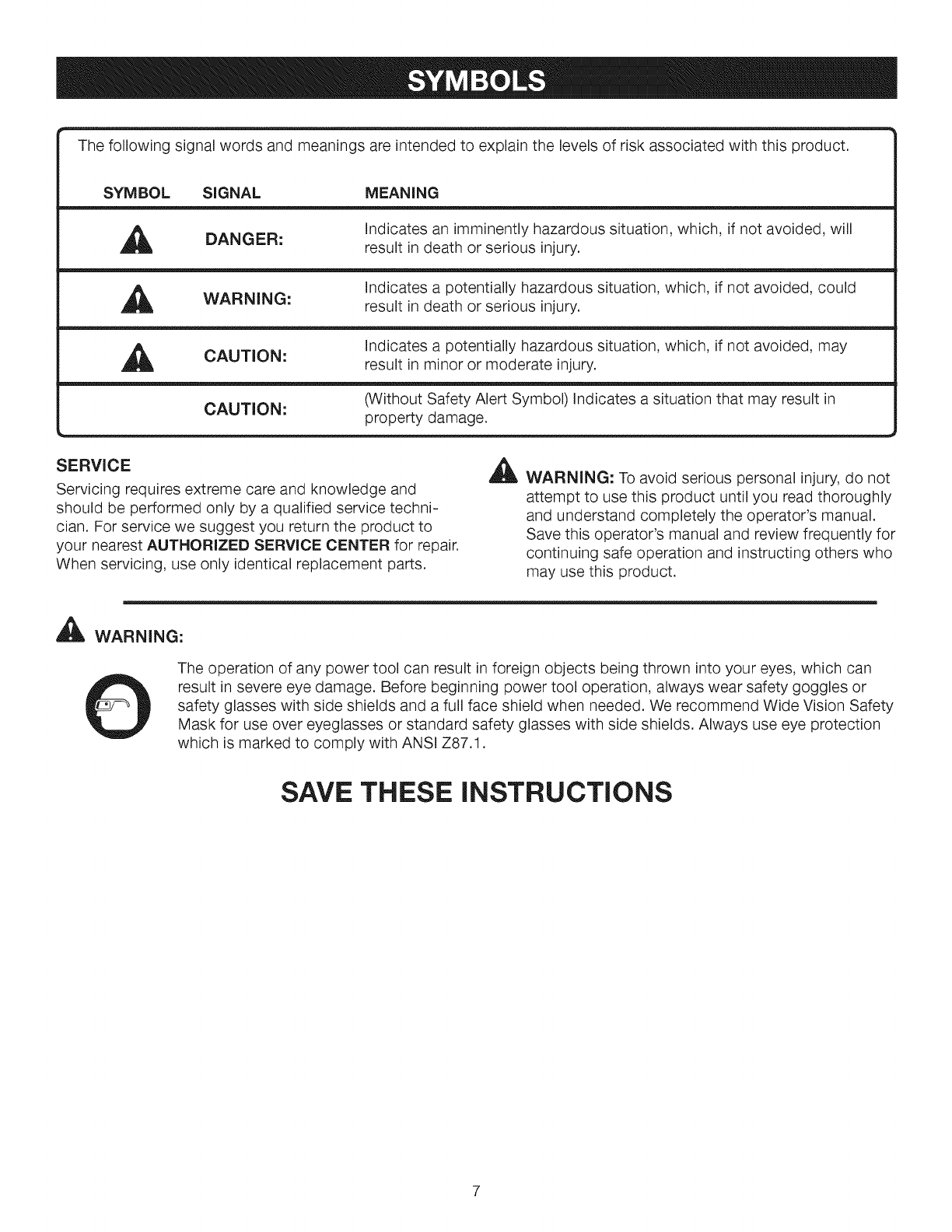

[] Symbols ......................................................................................................................................................................... 6-7

[] Electrical ............................................................................................................................................................................ 8

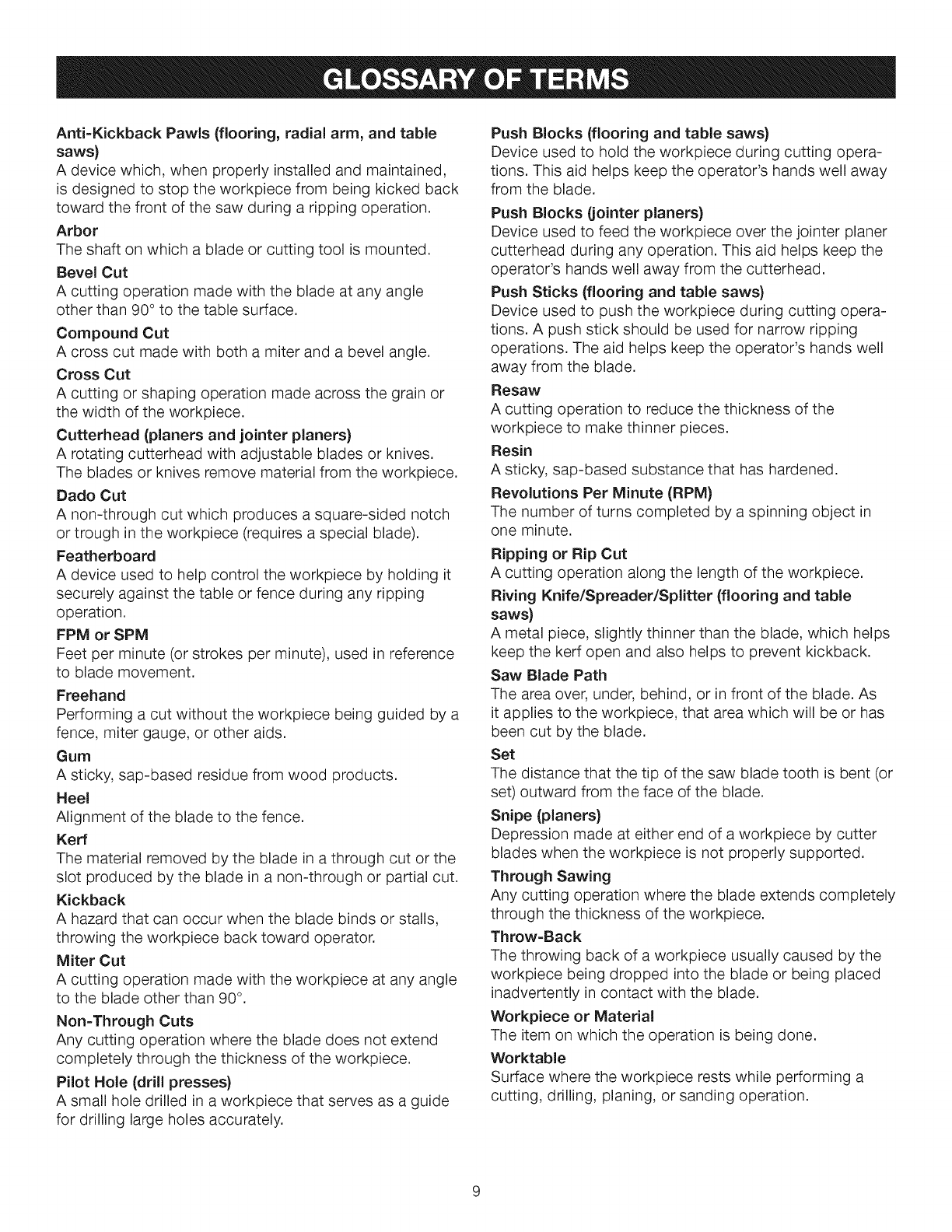

[] Glossary of Terms .............................................................................................................................................................. 9

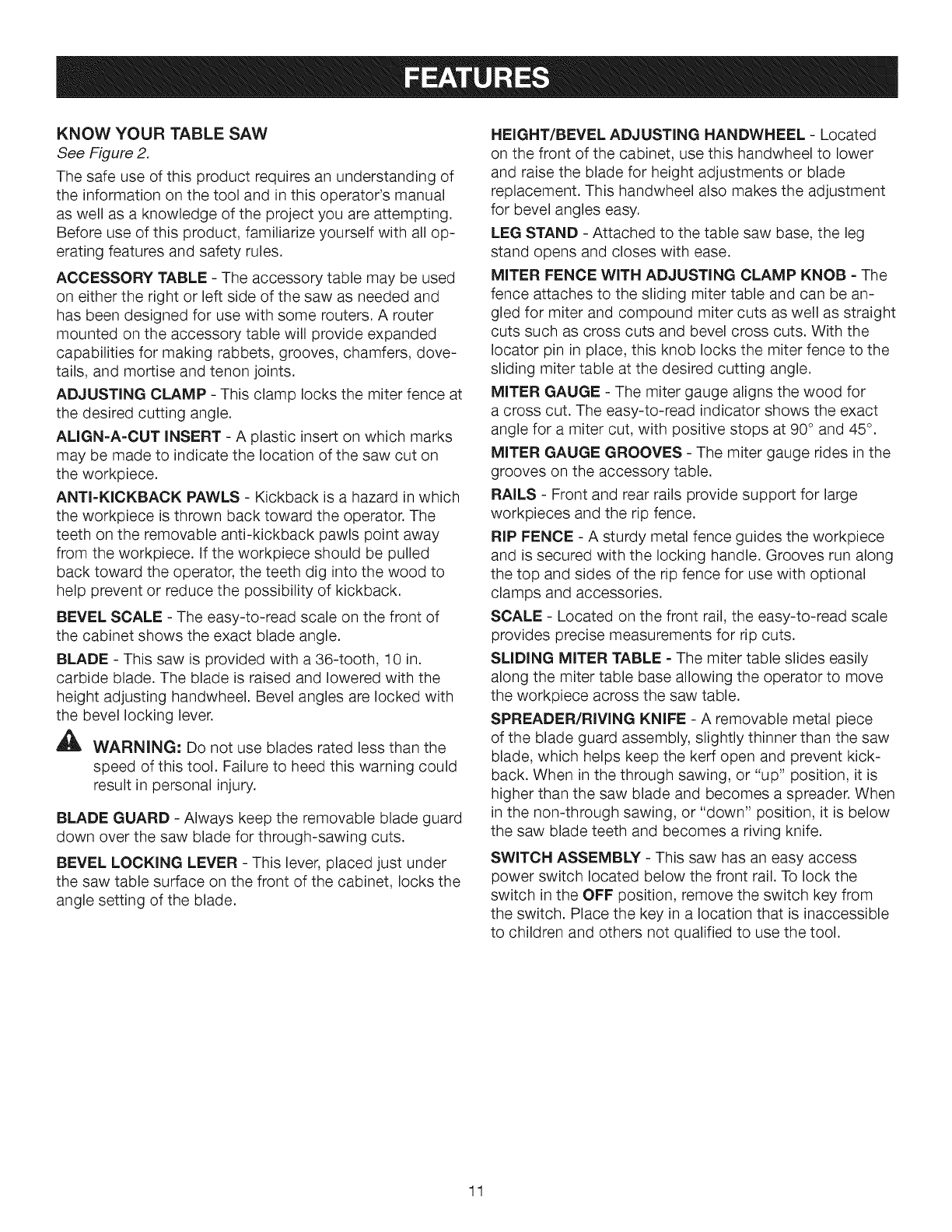

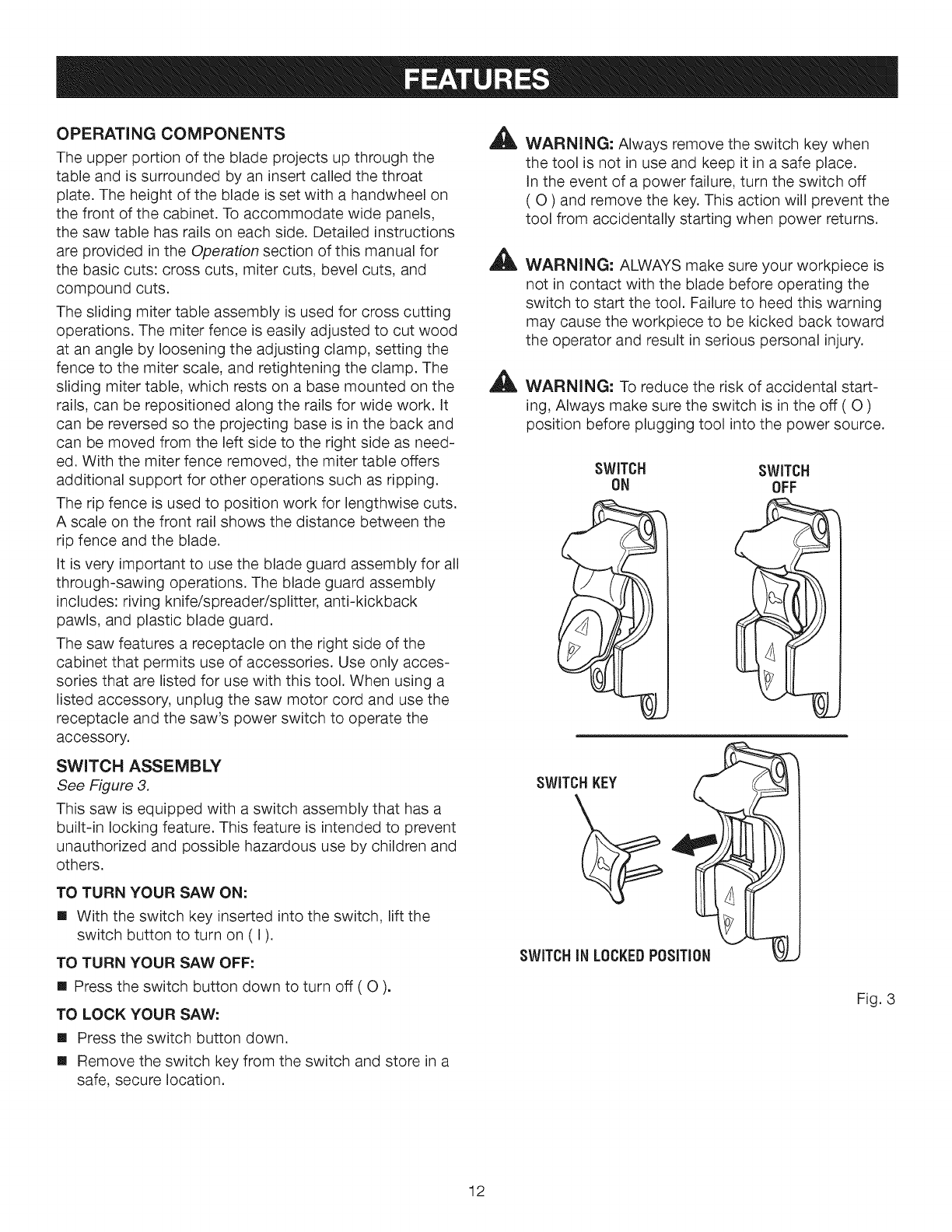

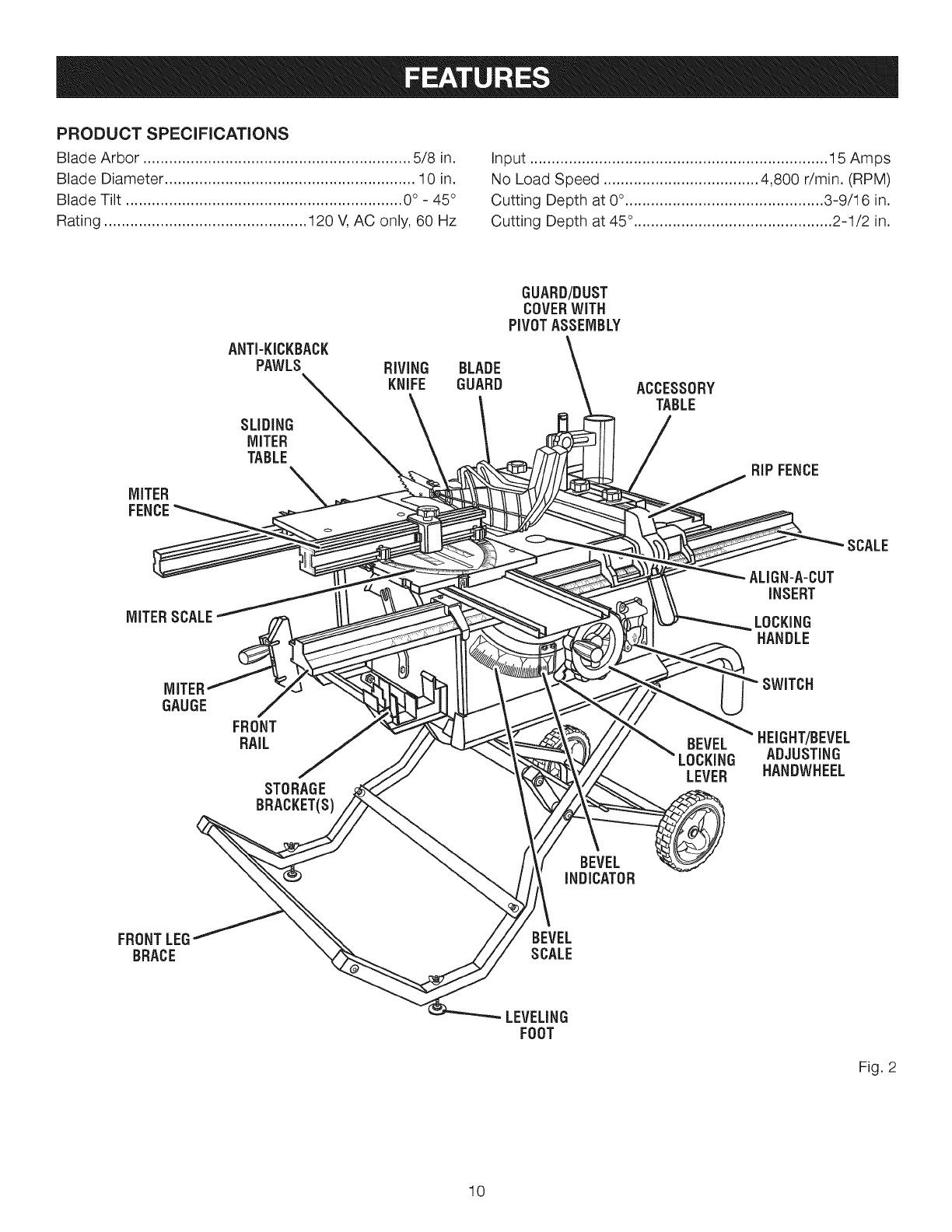

[] Features ..................................................................................................................................................................... 10-13

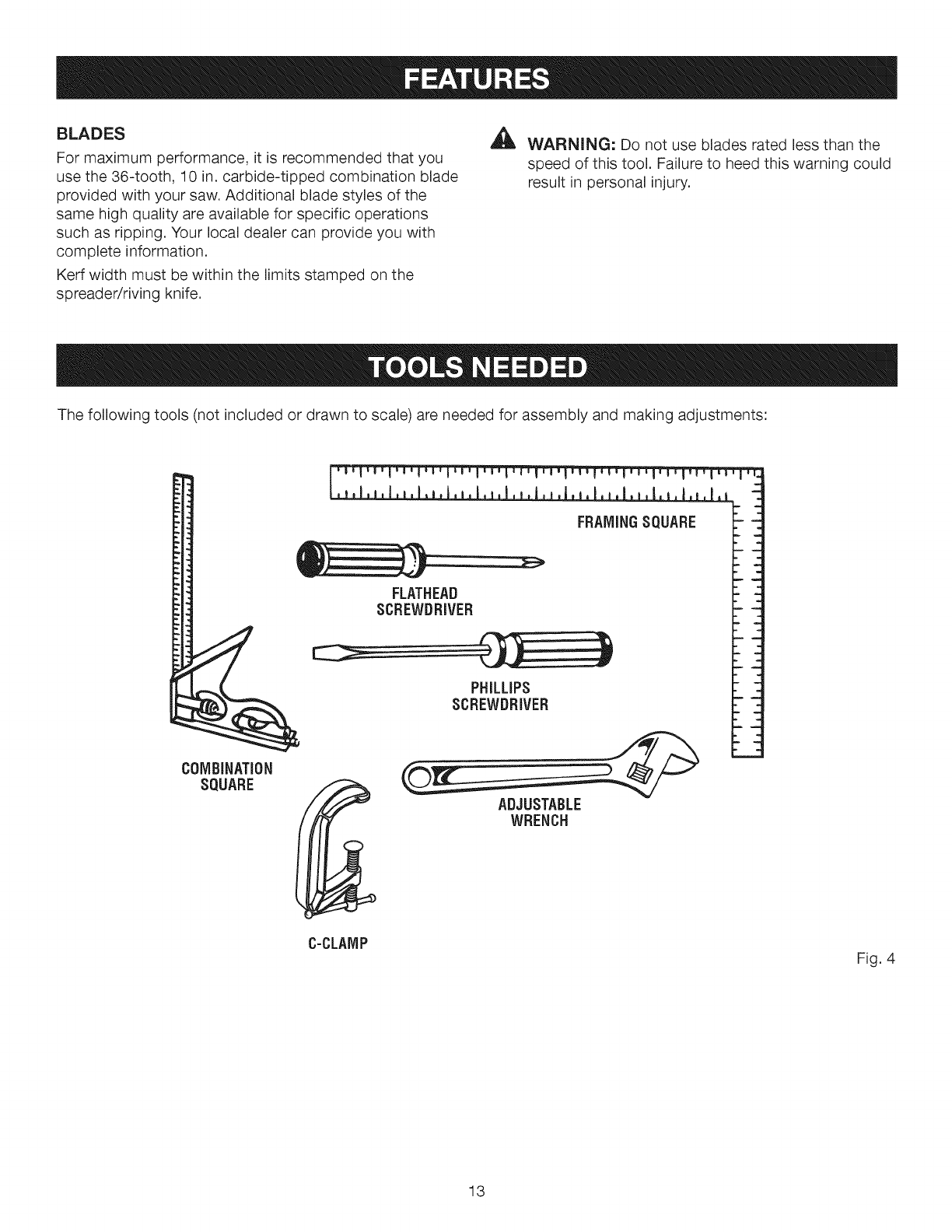

[] Tools Needed .................................................................................................................................................................. 13

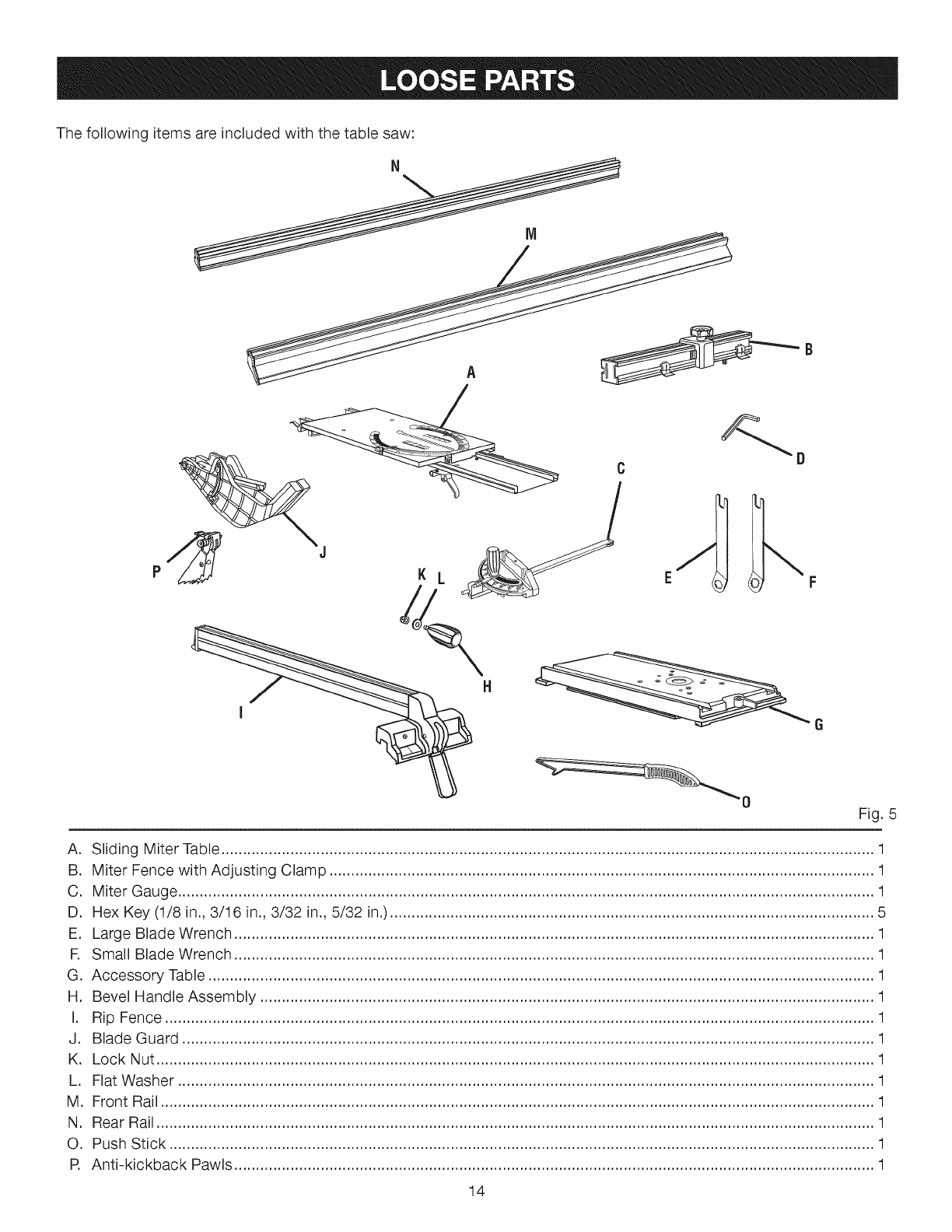

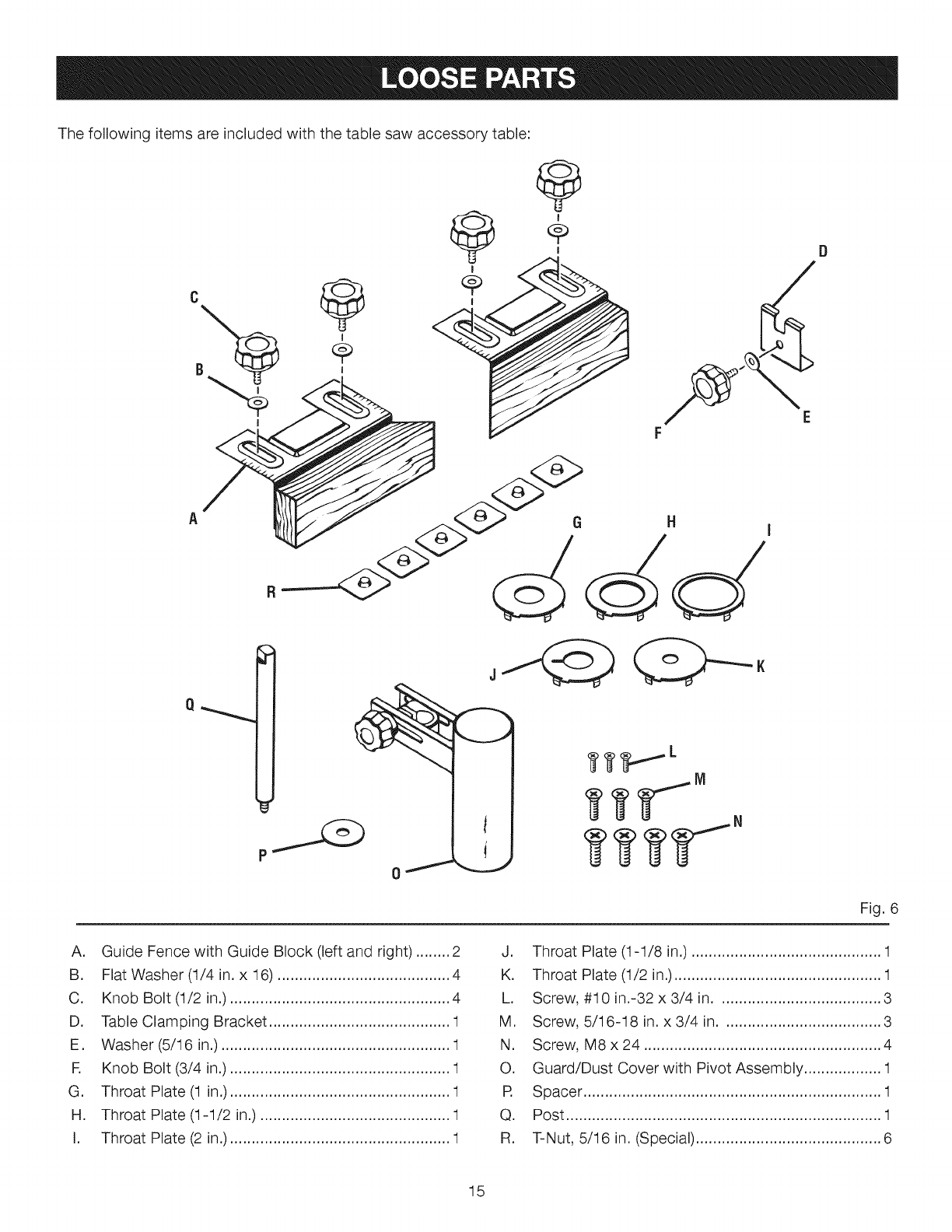

[] Loose Parts ............................................................................................................................................................... 14-15

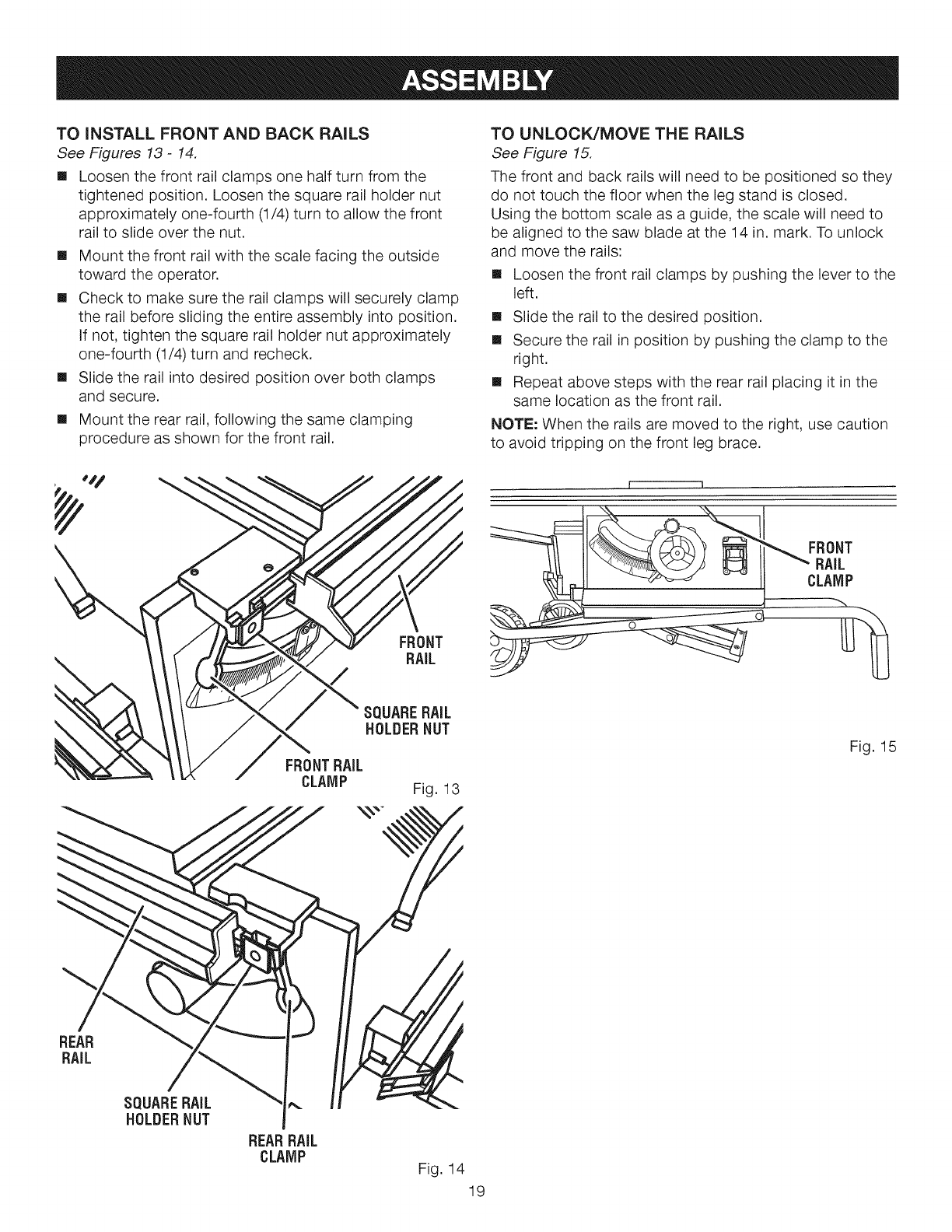

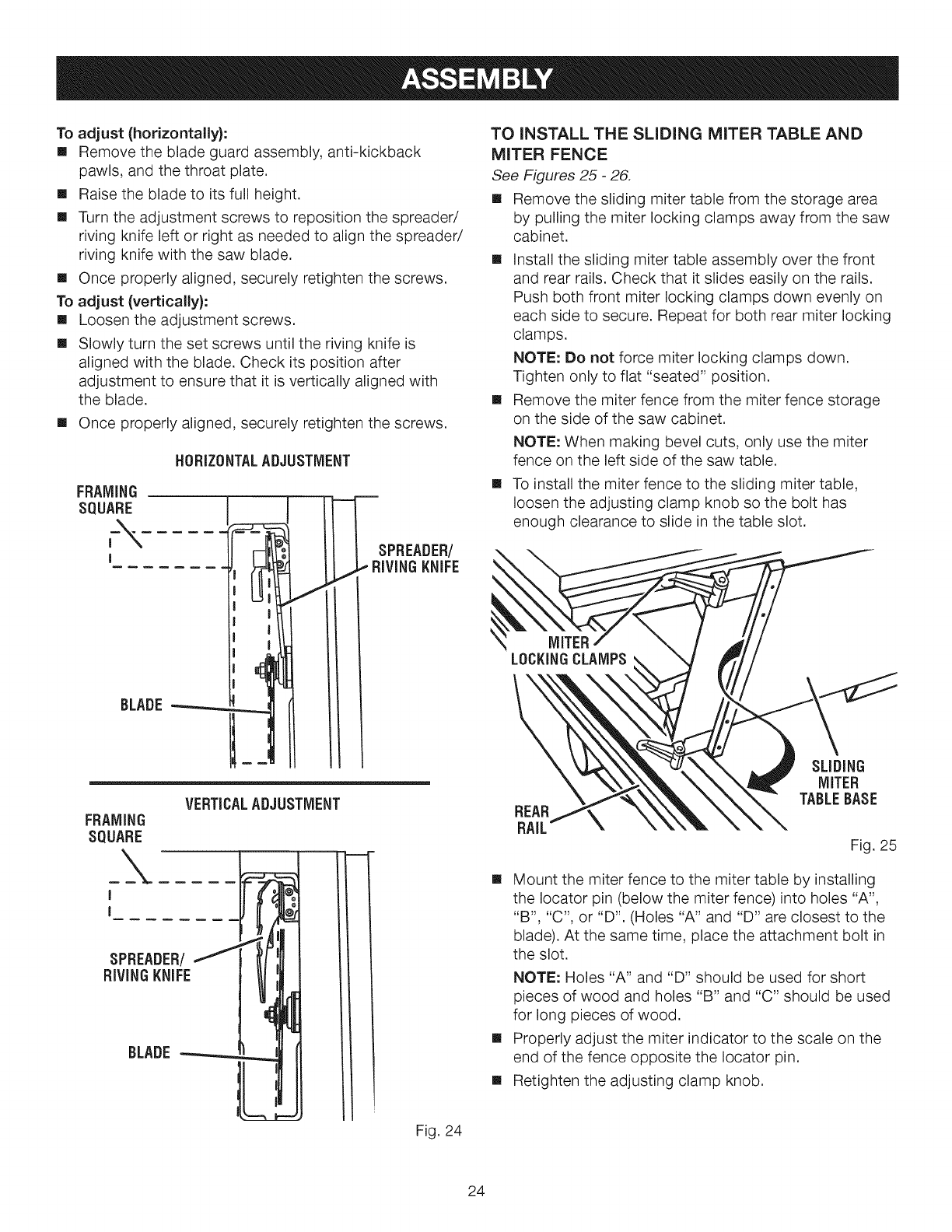

[] Assembly ................................................................................................................................................................... 16-25

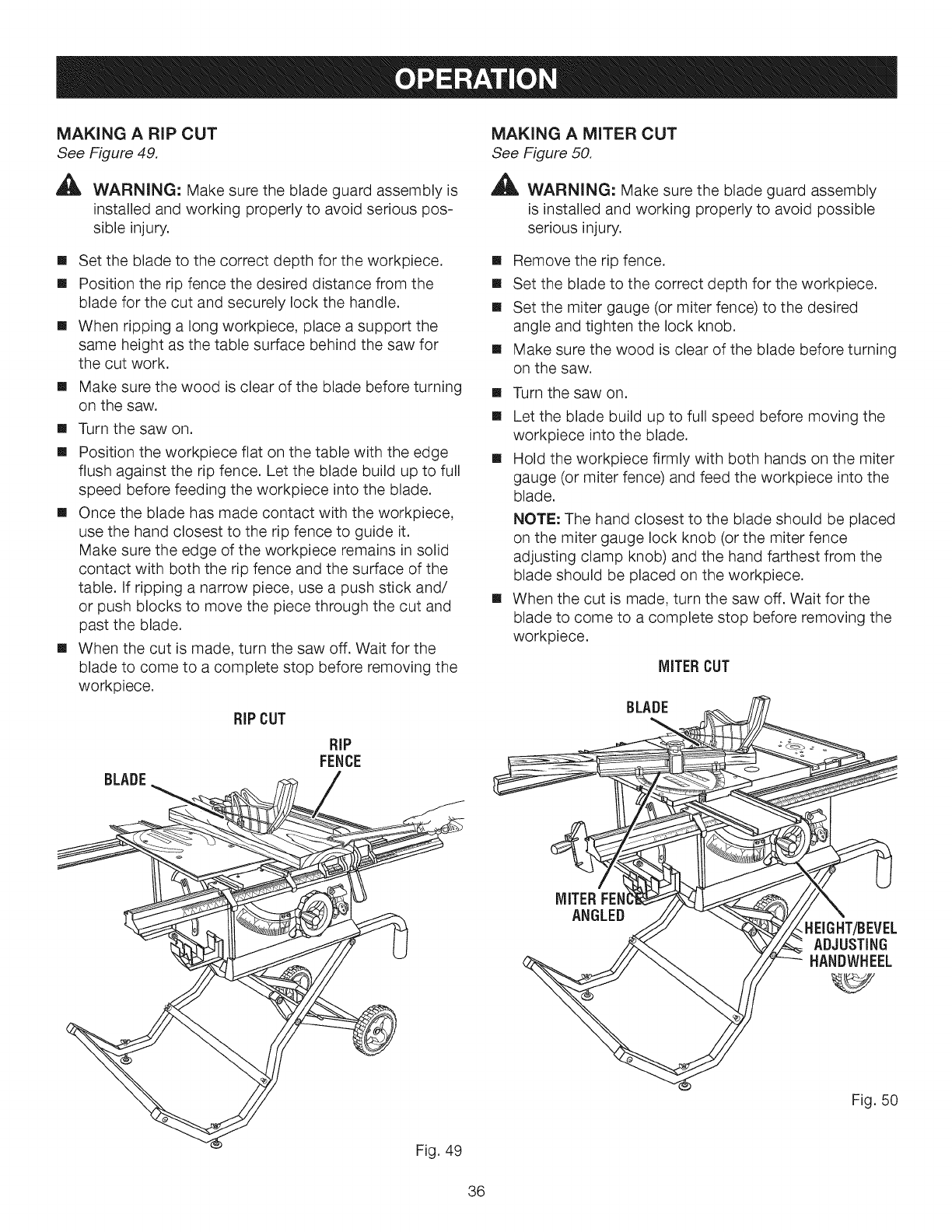

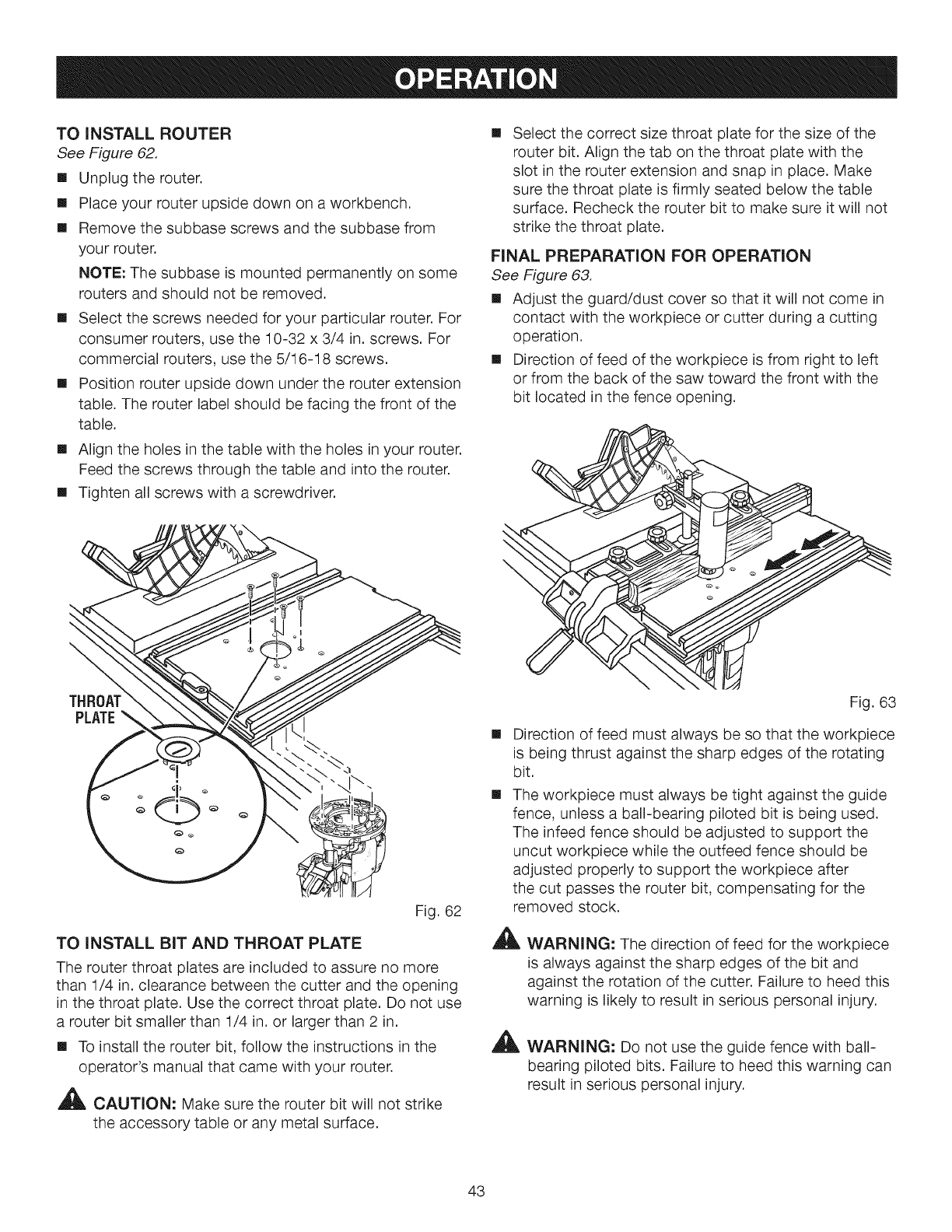

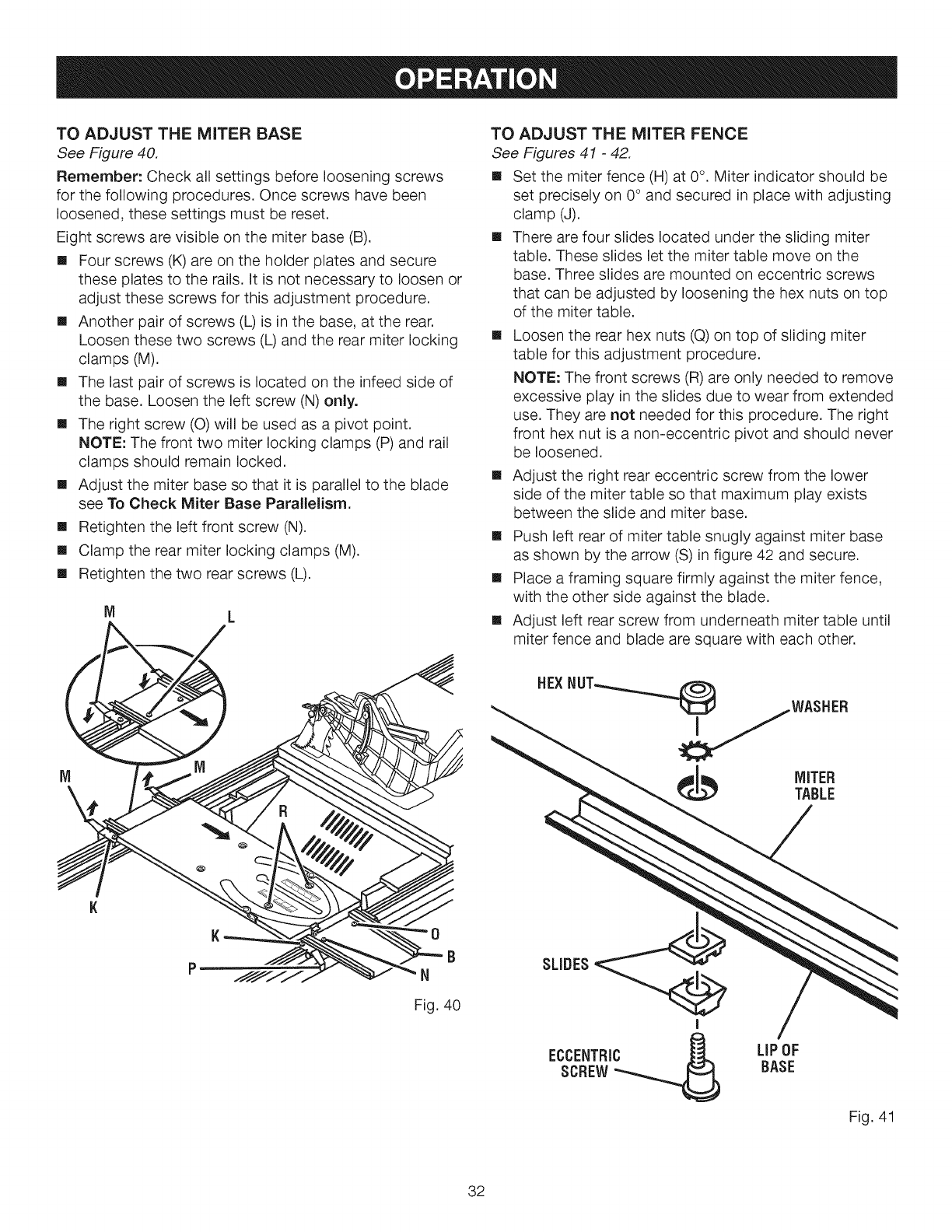

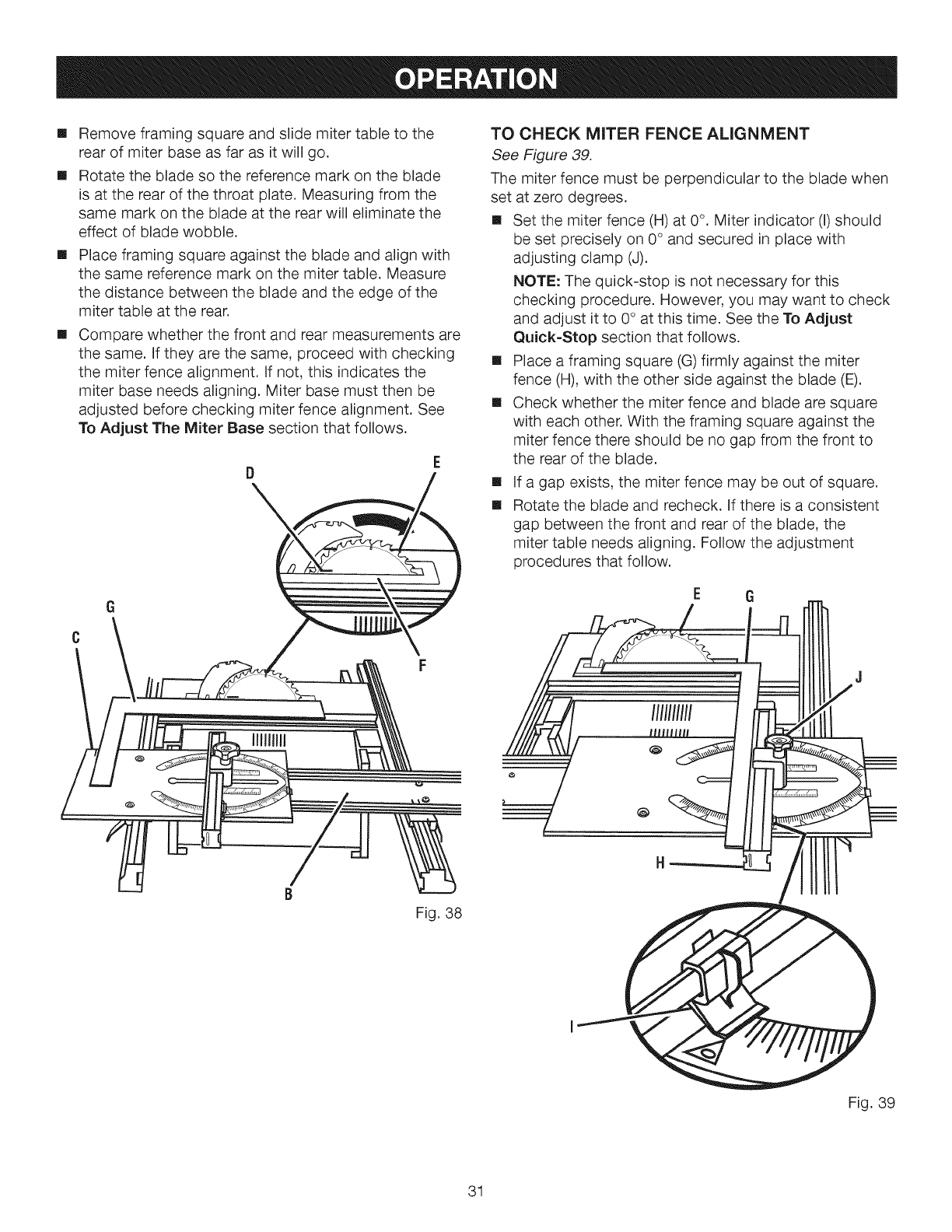

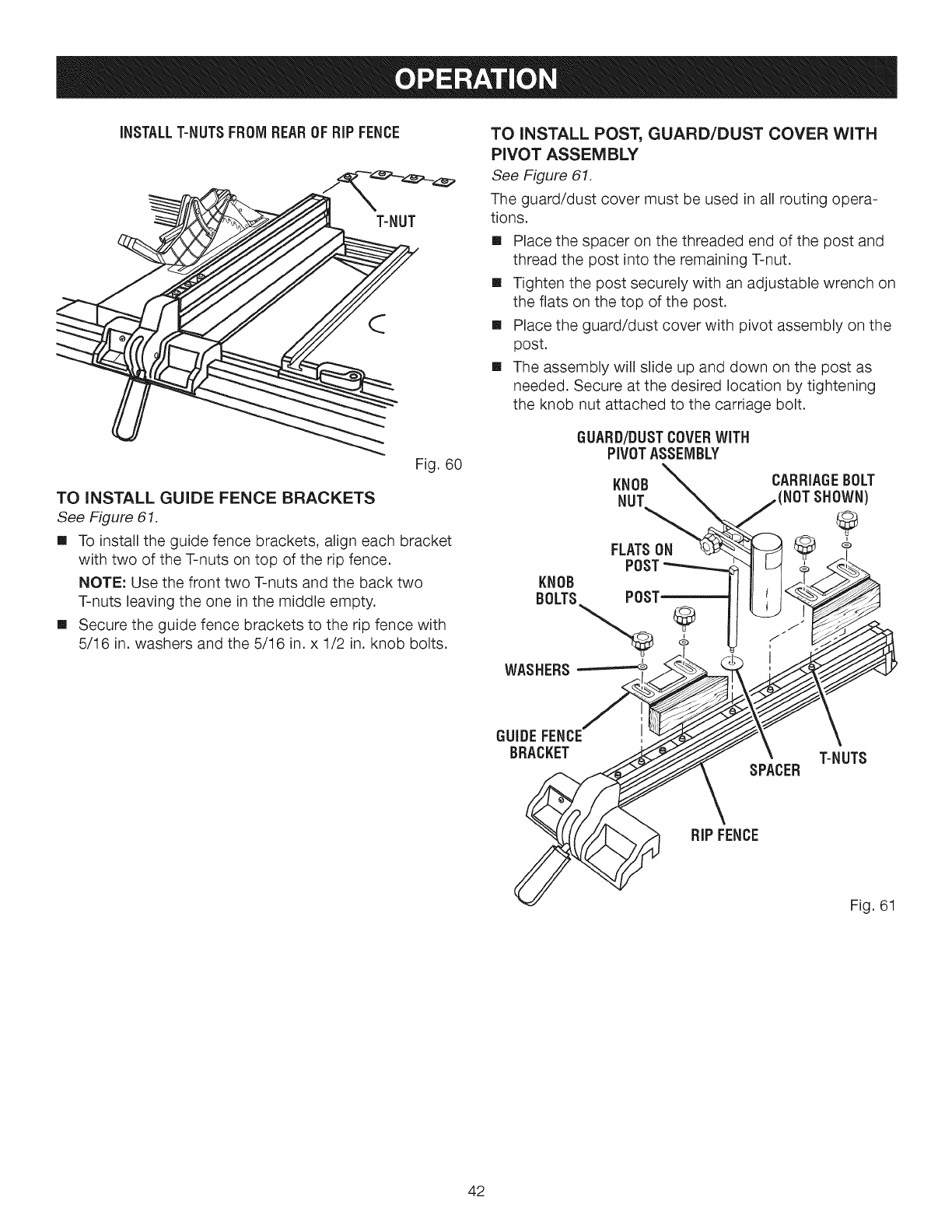

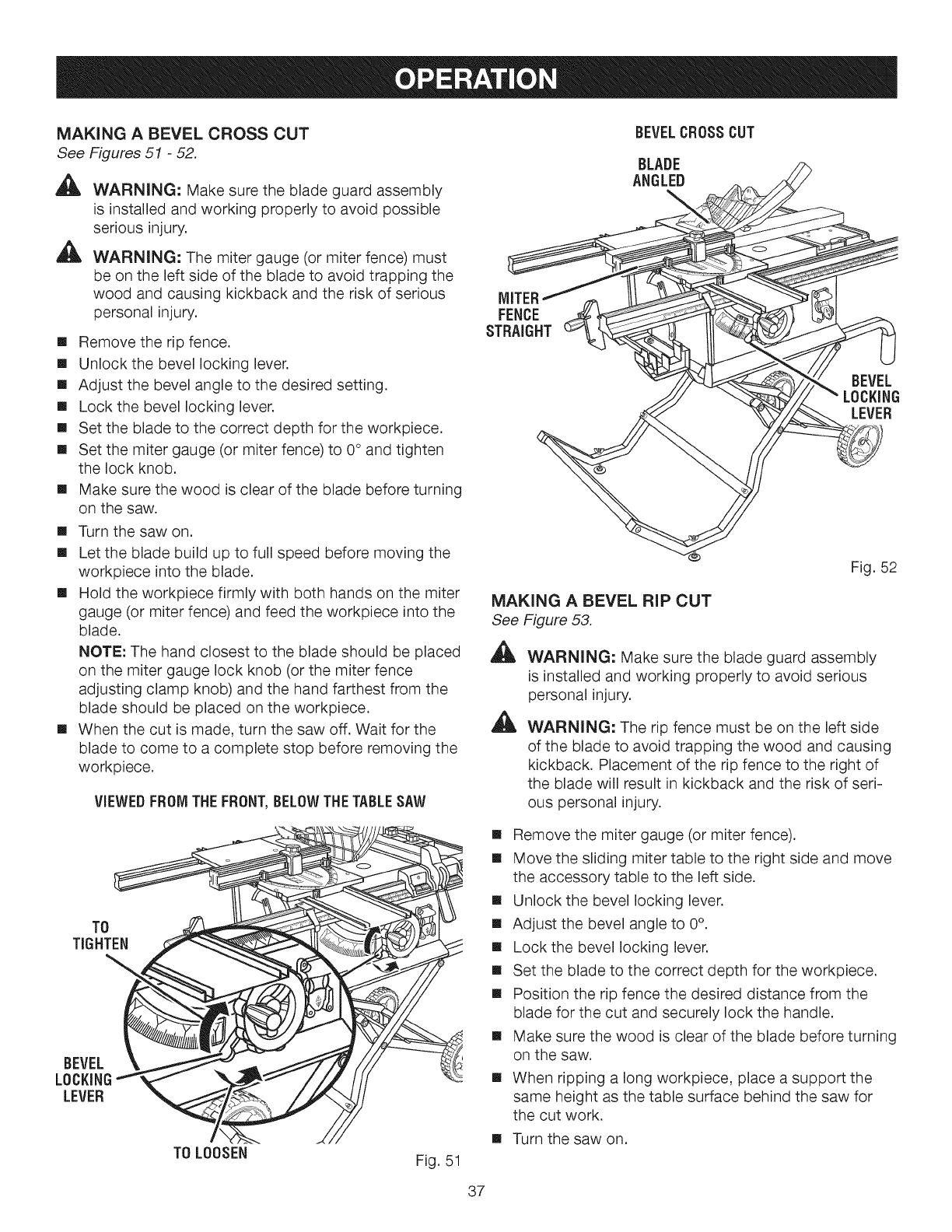

[] Operation ................................................................................................................................................................... 26-43

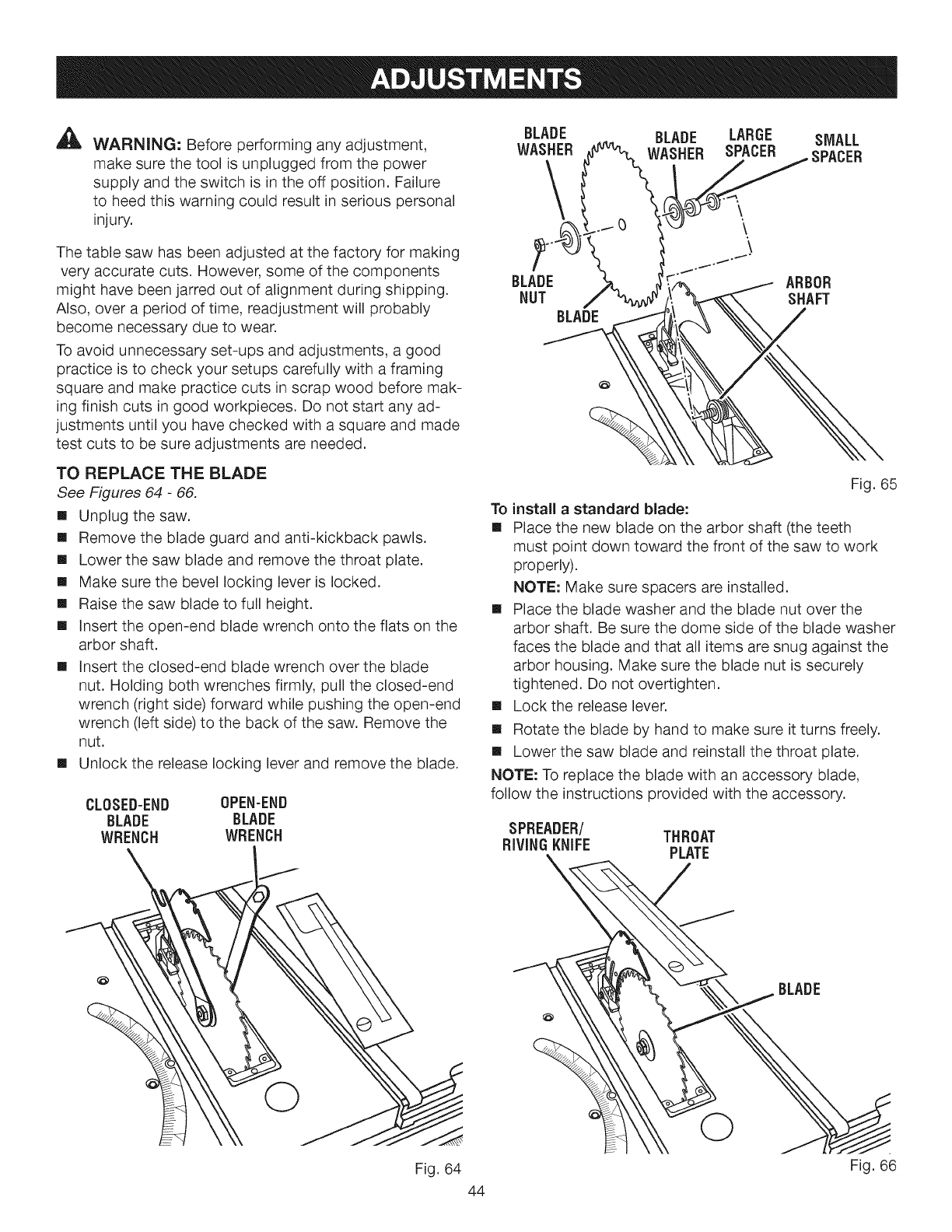

[] Adjustments ............................................................................................................................................................... 44-47

[] Maintenance .................................................................................................................................................................... 48

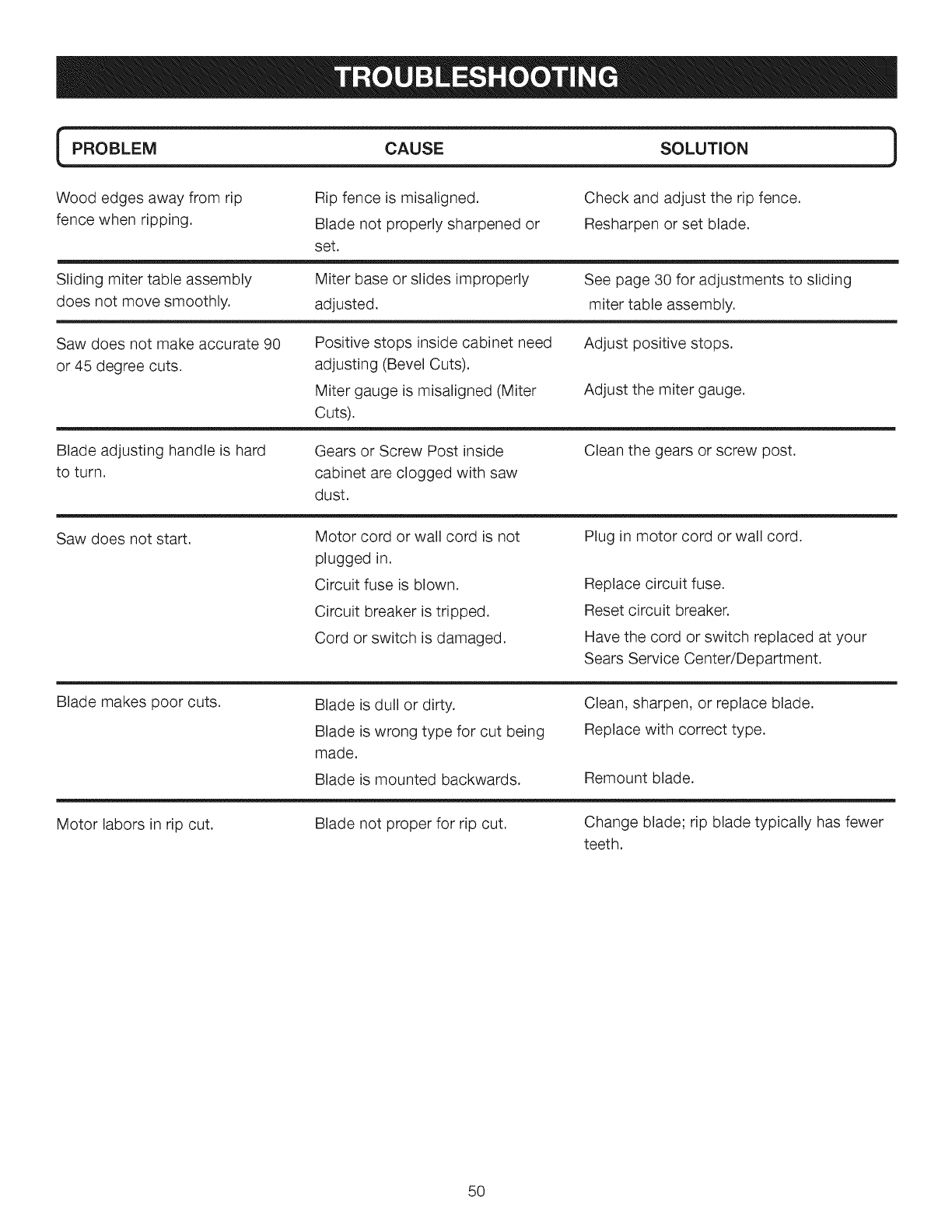

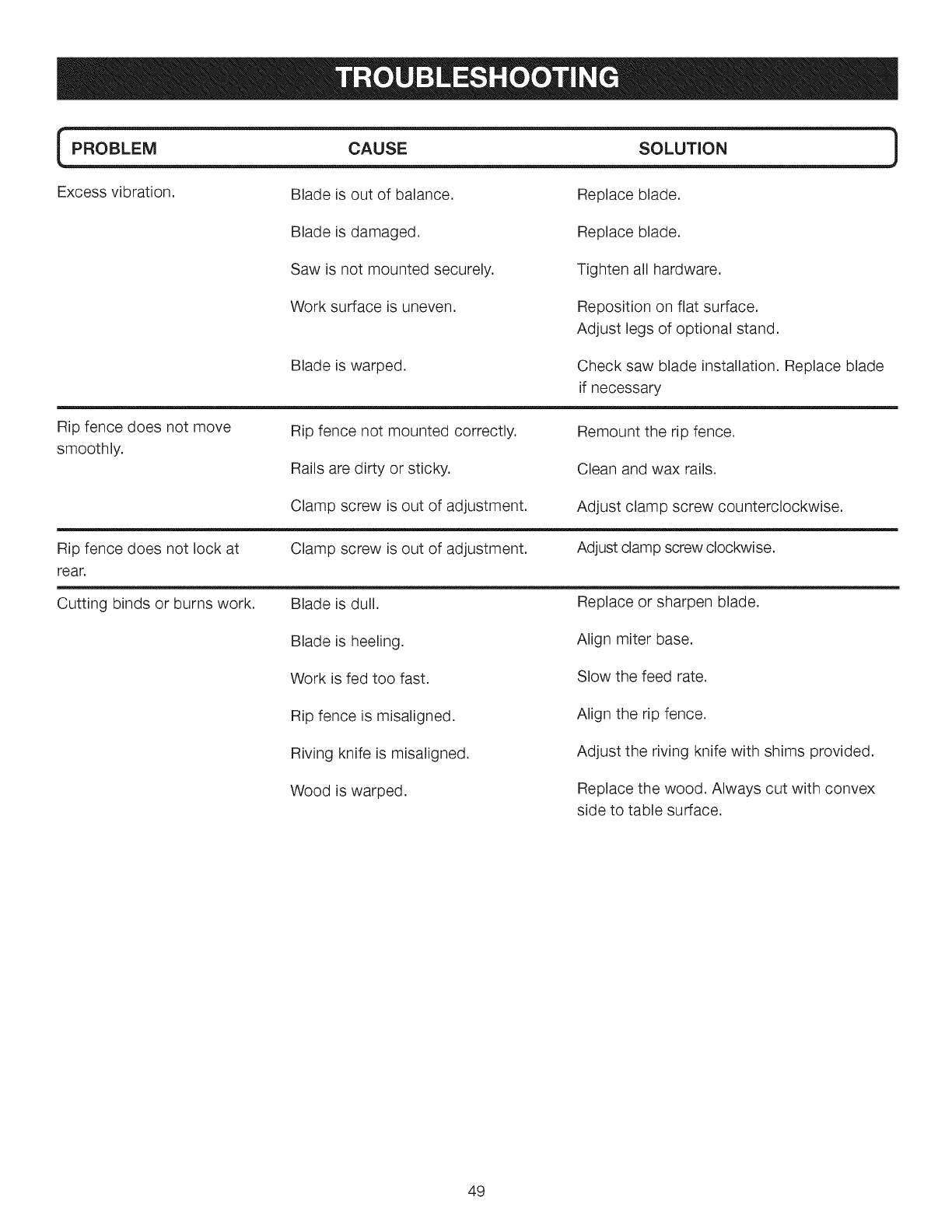

[] Troubleshooting ......................................................................................................................................................... 49-50

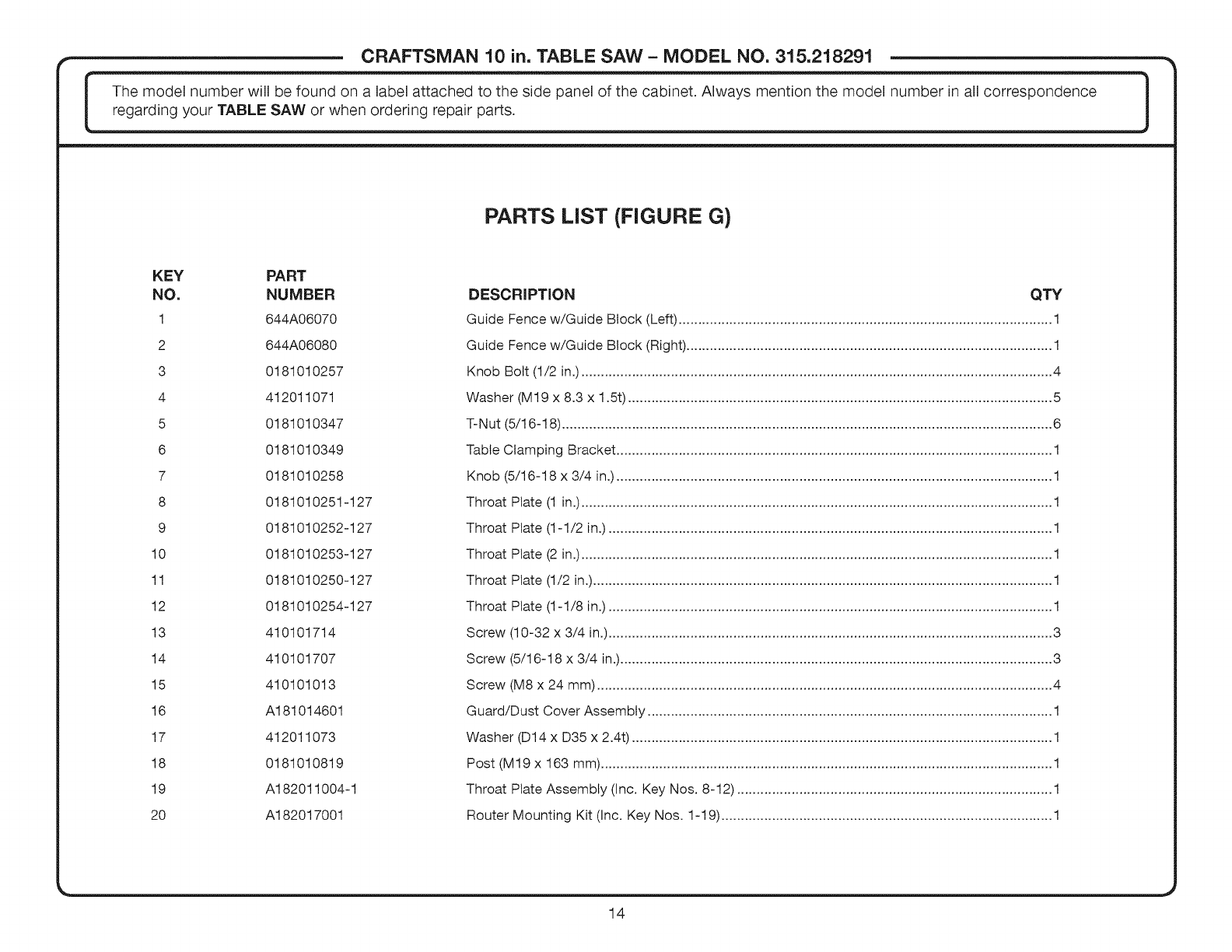

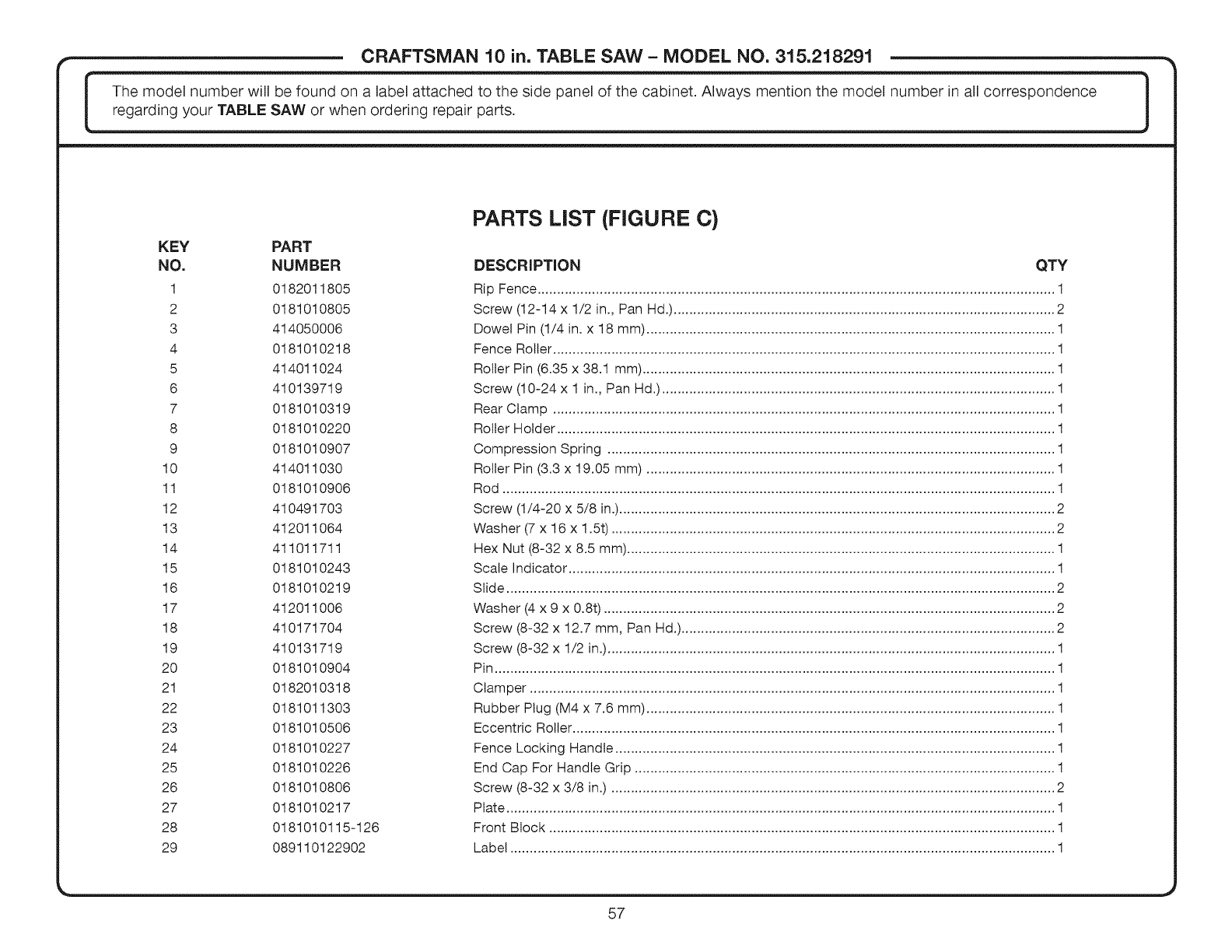

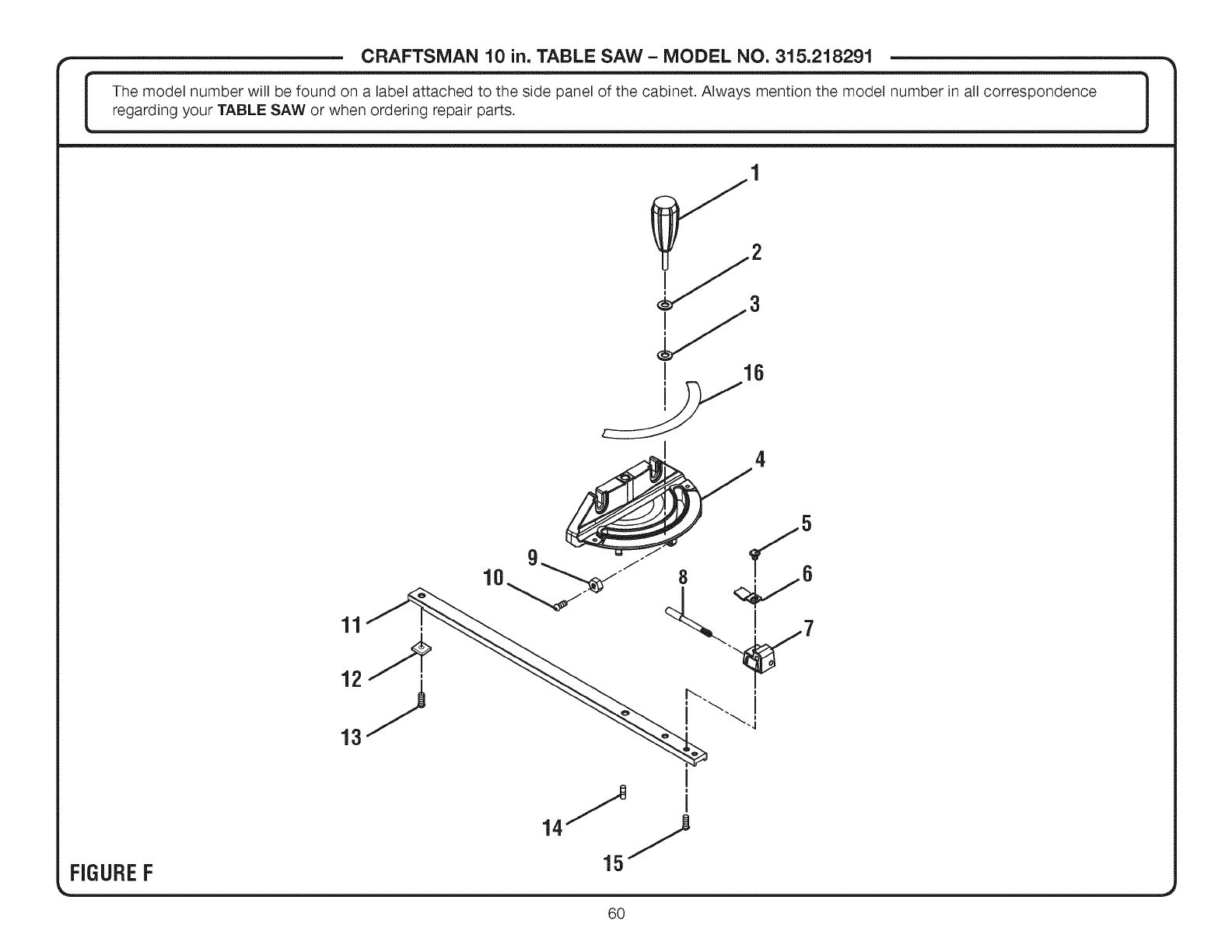

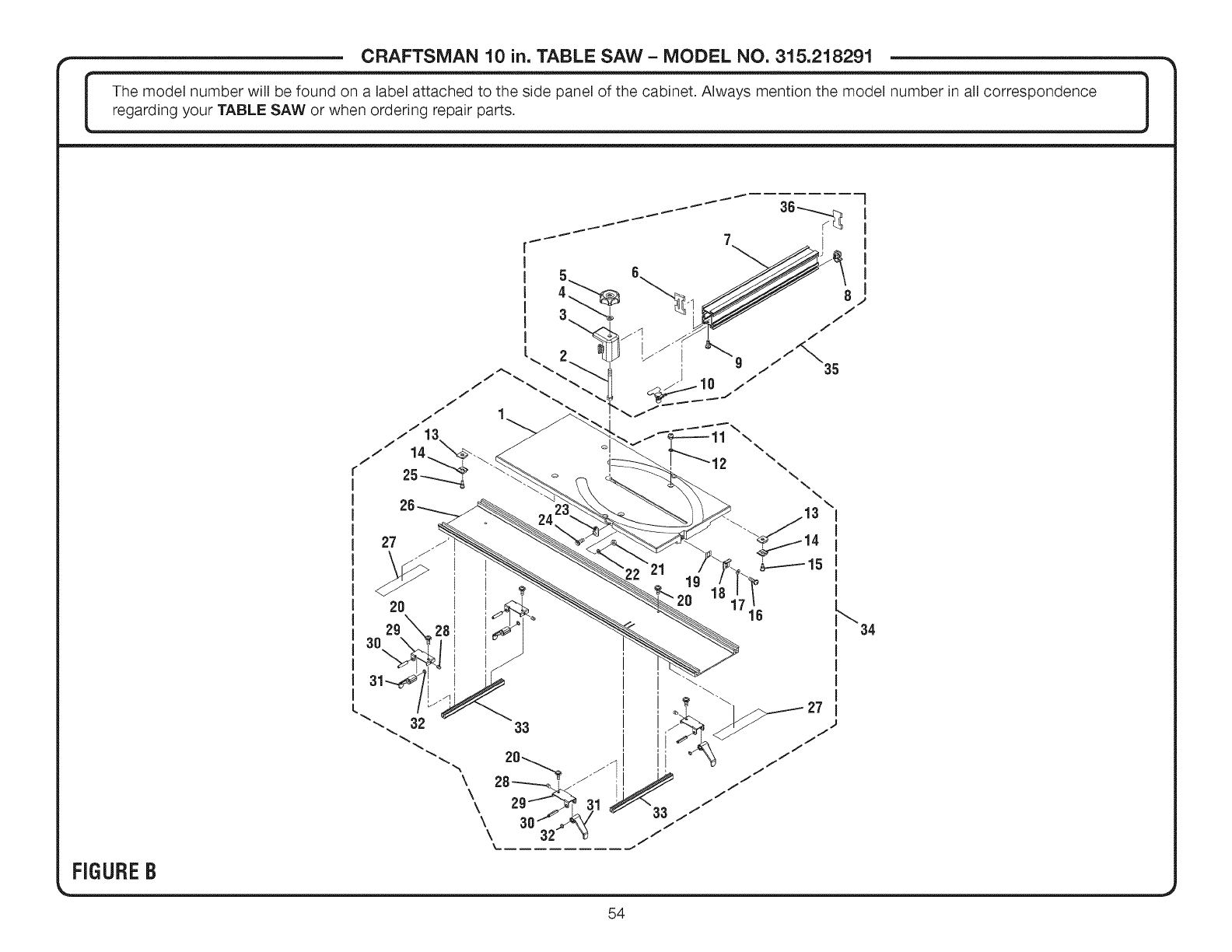

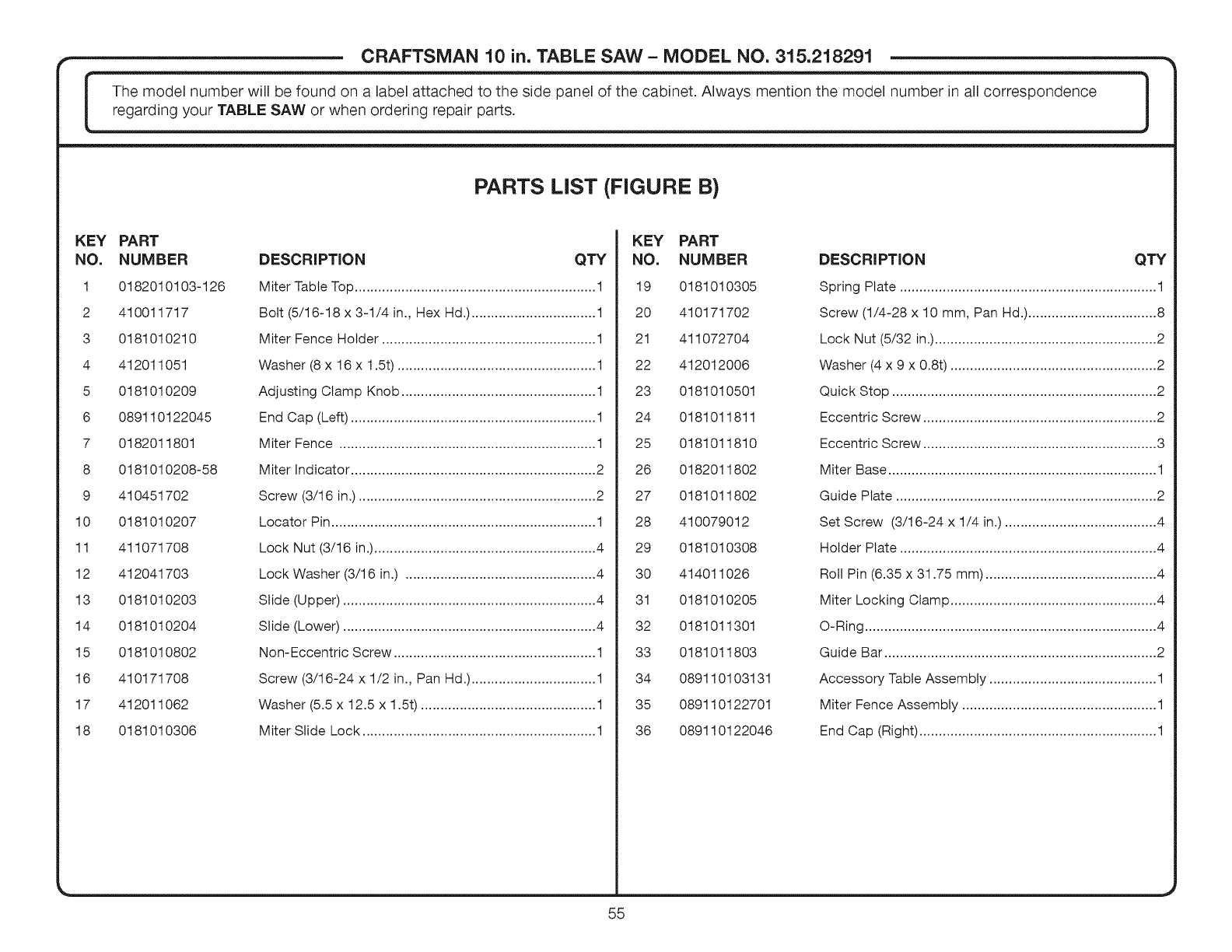

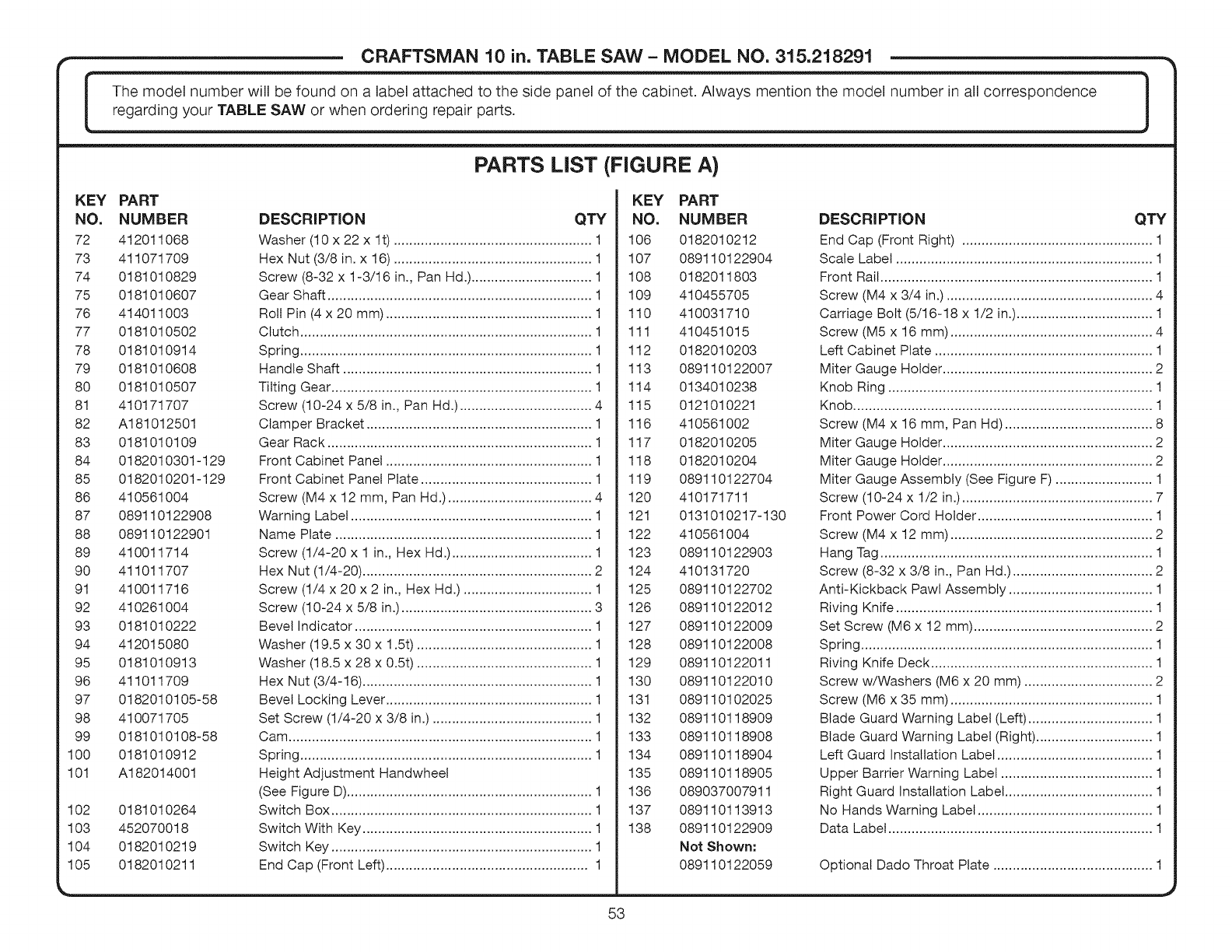

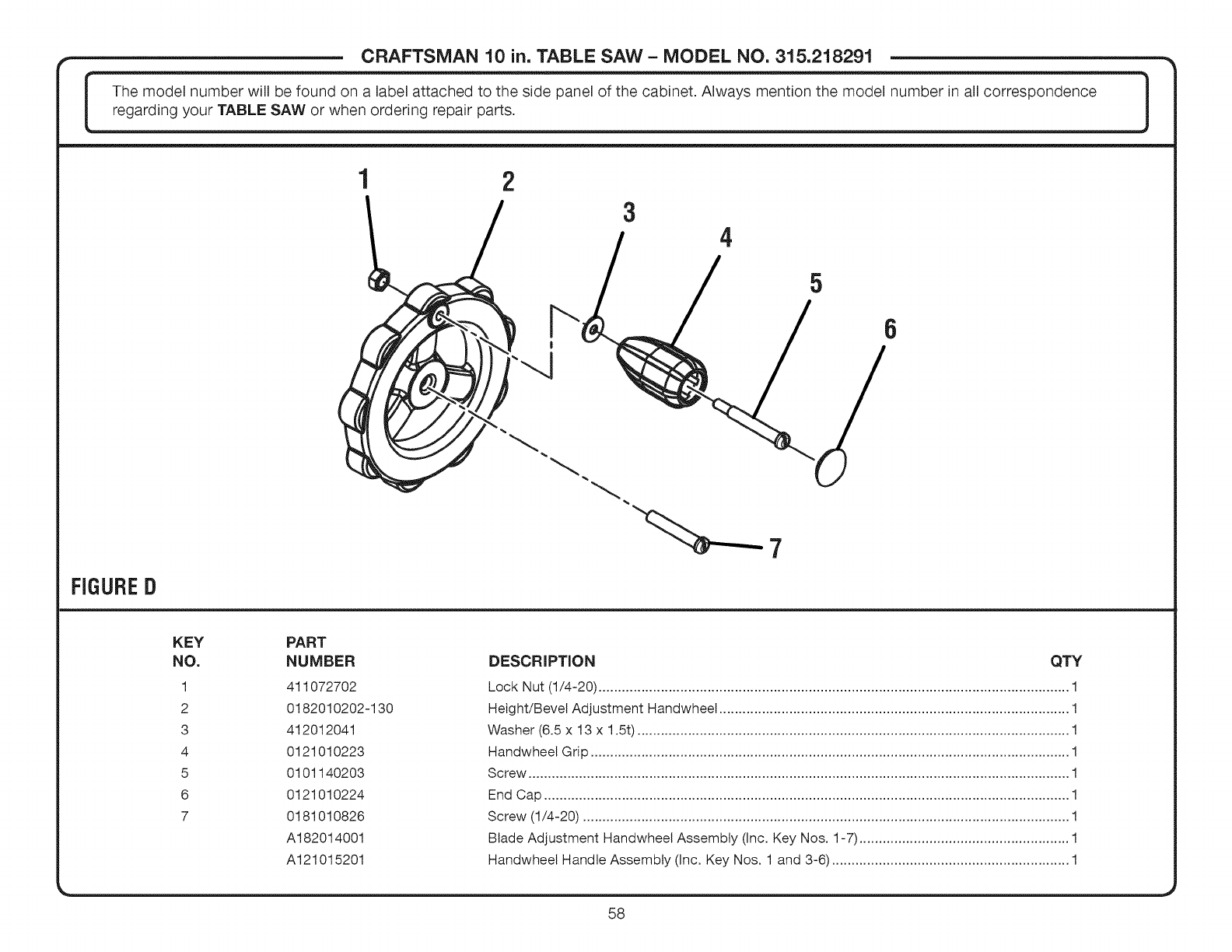

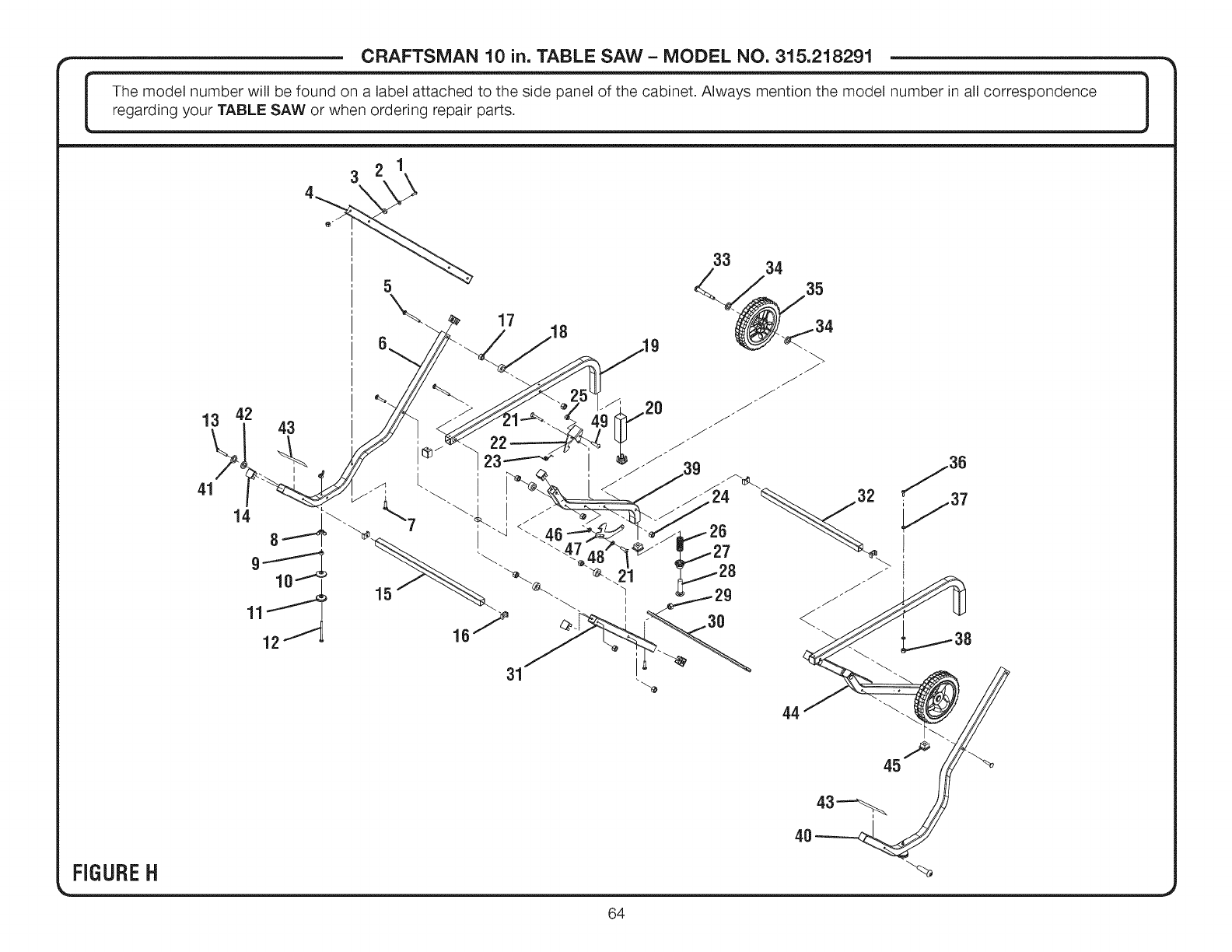

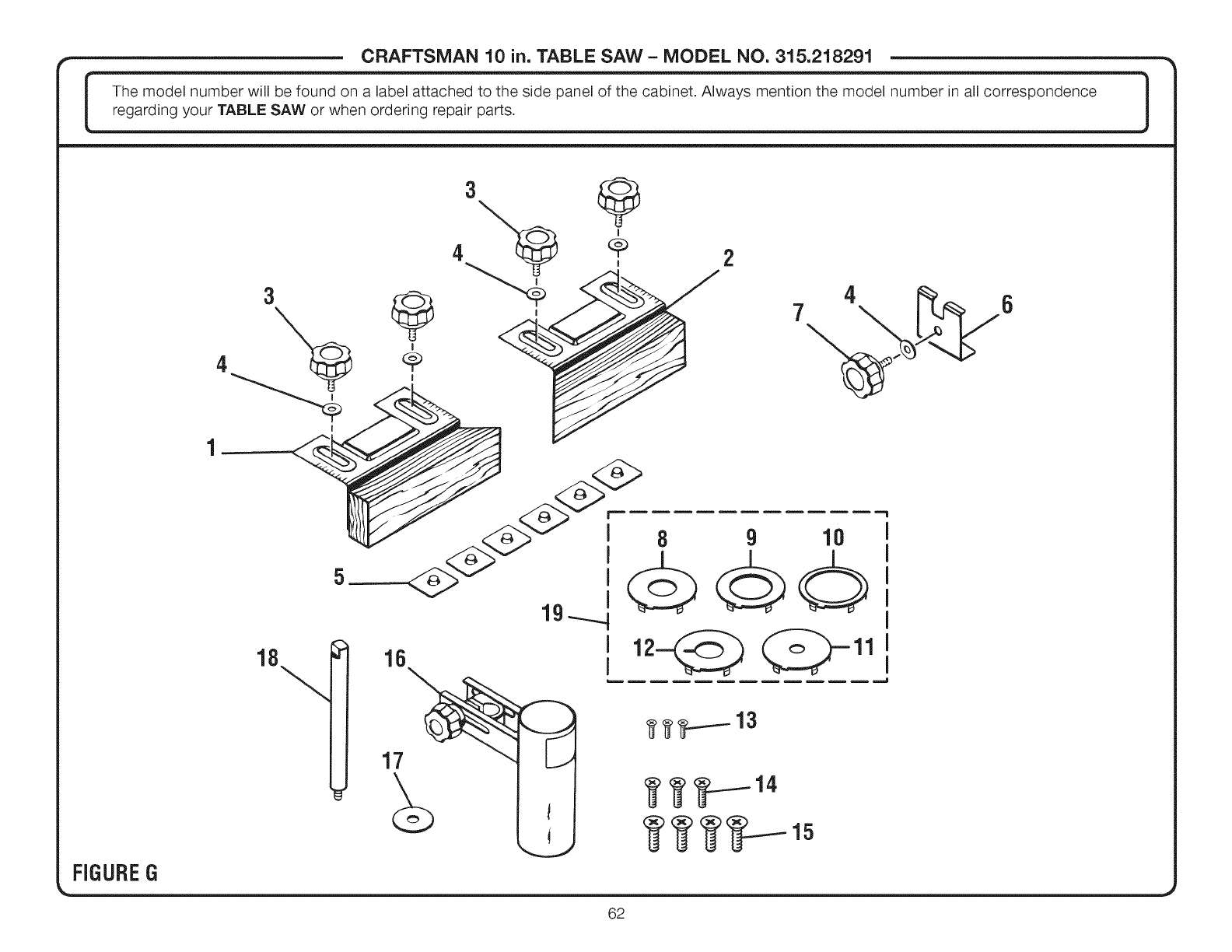

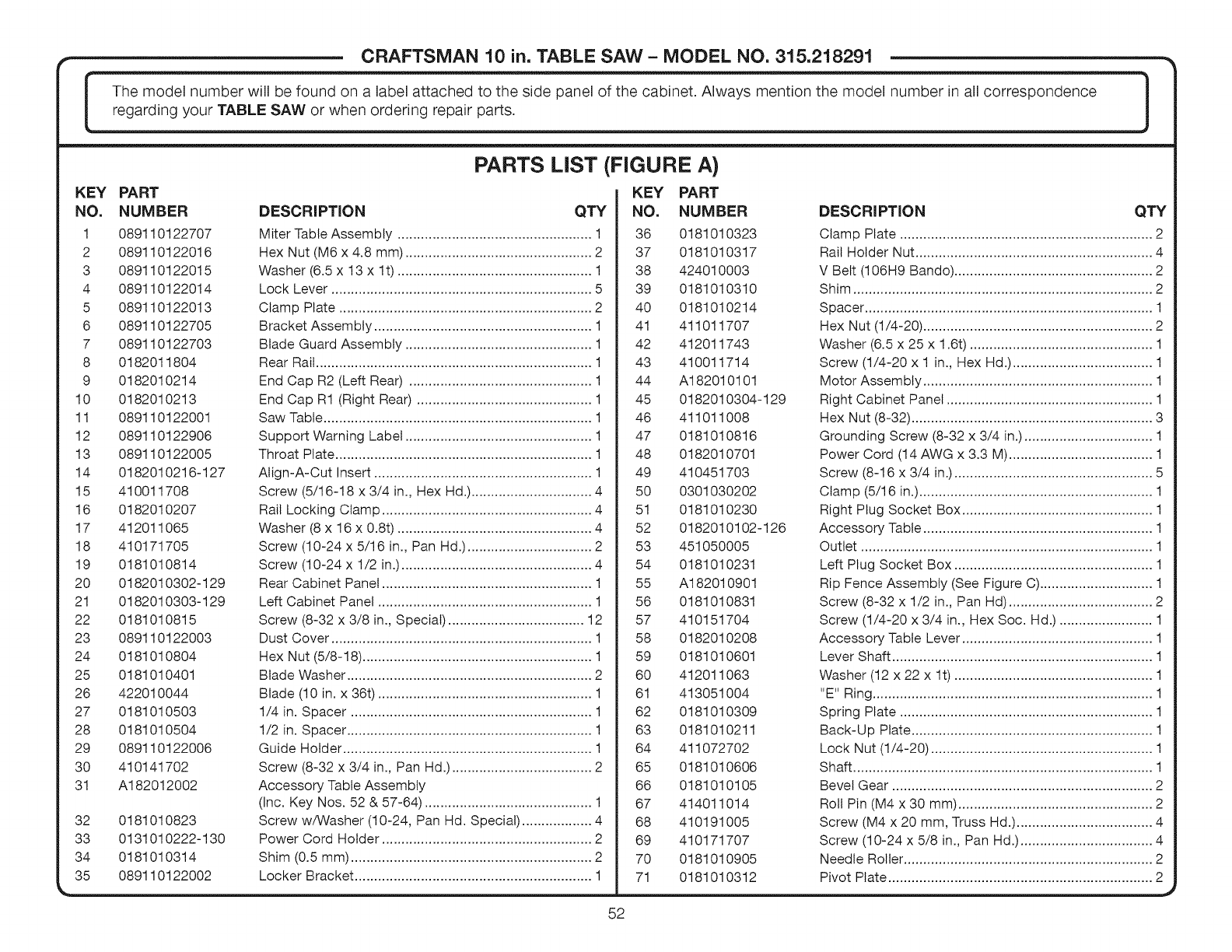

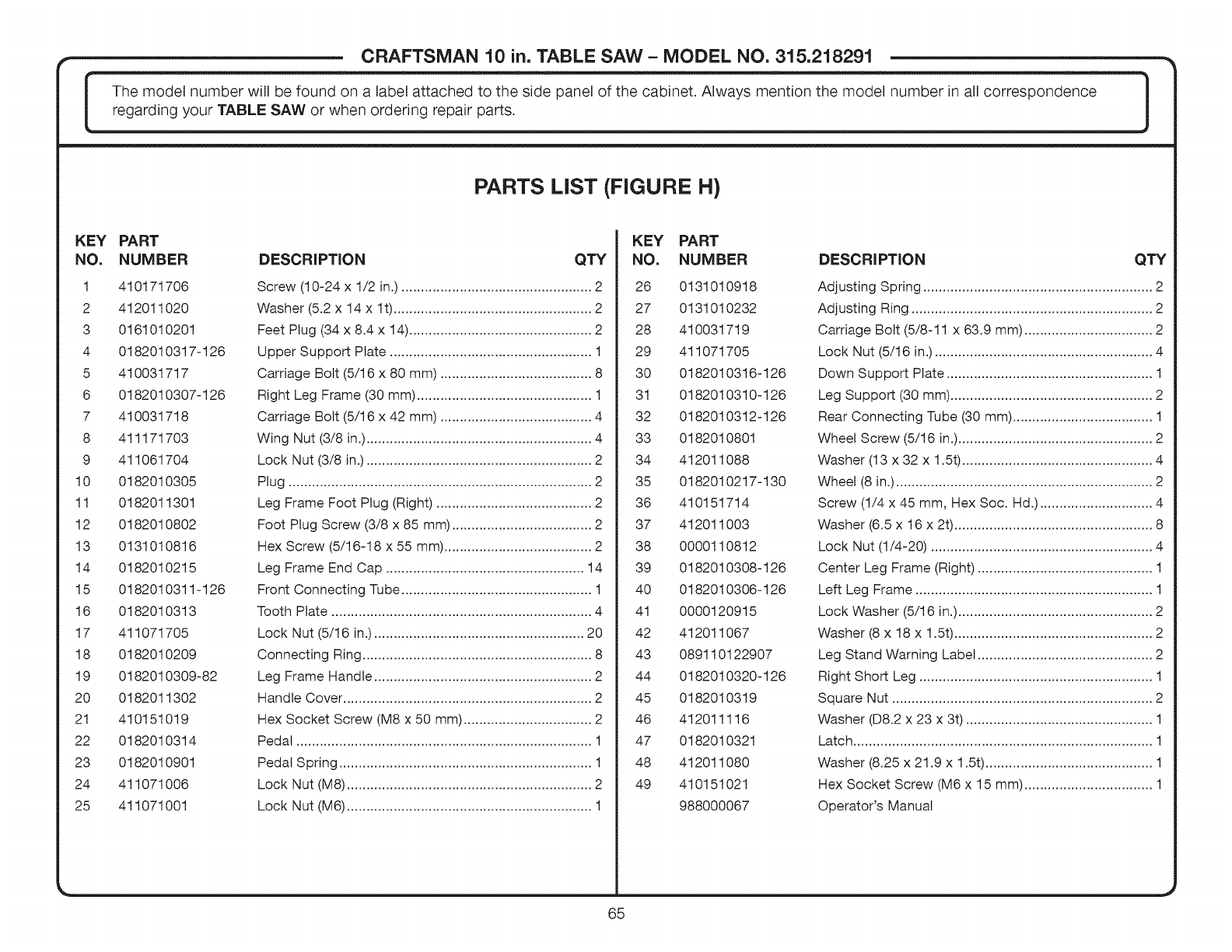

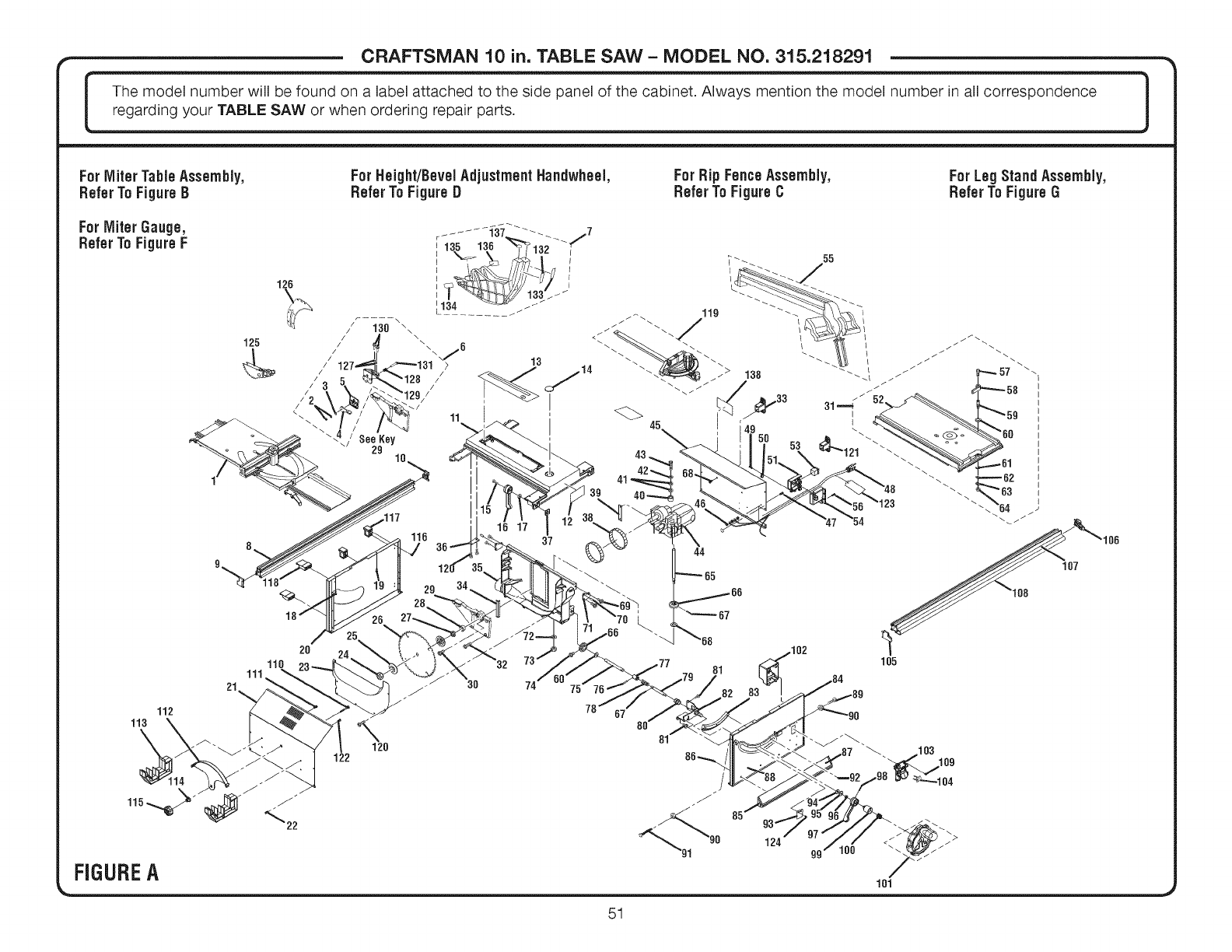

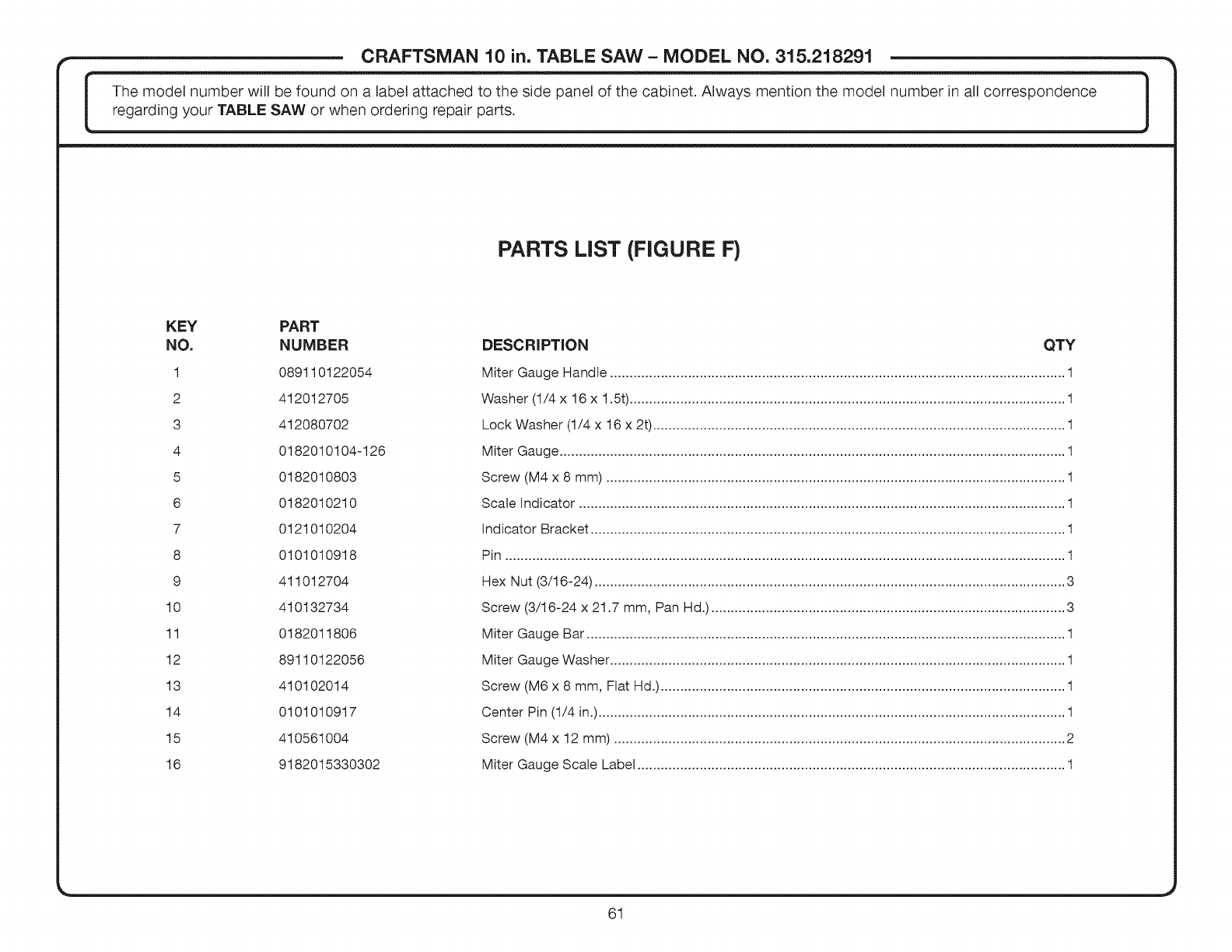

[] Illustrated Parts List ................................................................................................................................................... 51-65

[] Parts Ordering/Service ...................................................................................................................................... Back Page

This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability

have been given top priority in the design of this product making it easy to maintain and operate.

ONE YEAR FULL WARRANTY Oit (::;FIAFTSMA11TOOL

If this Craftsman tool fails due to a defect in material or workmanship within one year from the date of purchase. (::;all

1-800-4-MY-HOME ® to arrange for free repair. If this tool is used for commercial or rental purposes, this warranty will

apply for only ninety days from the date of purchase. This warranty applies only while this product is in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

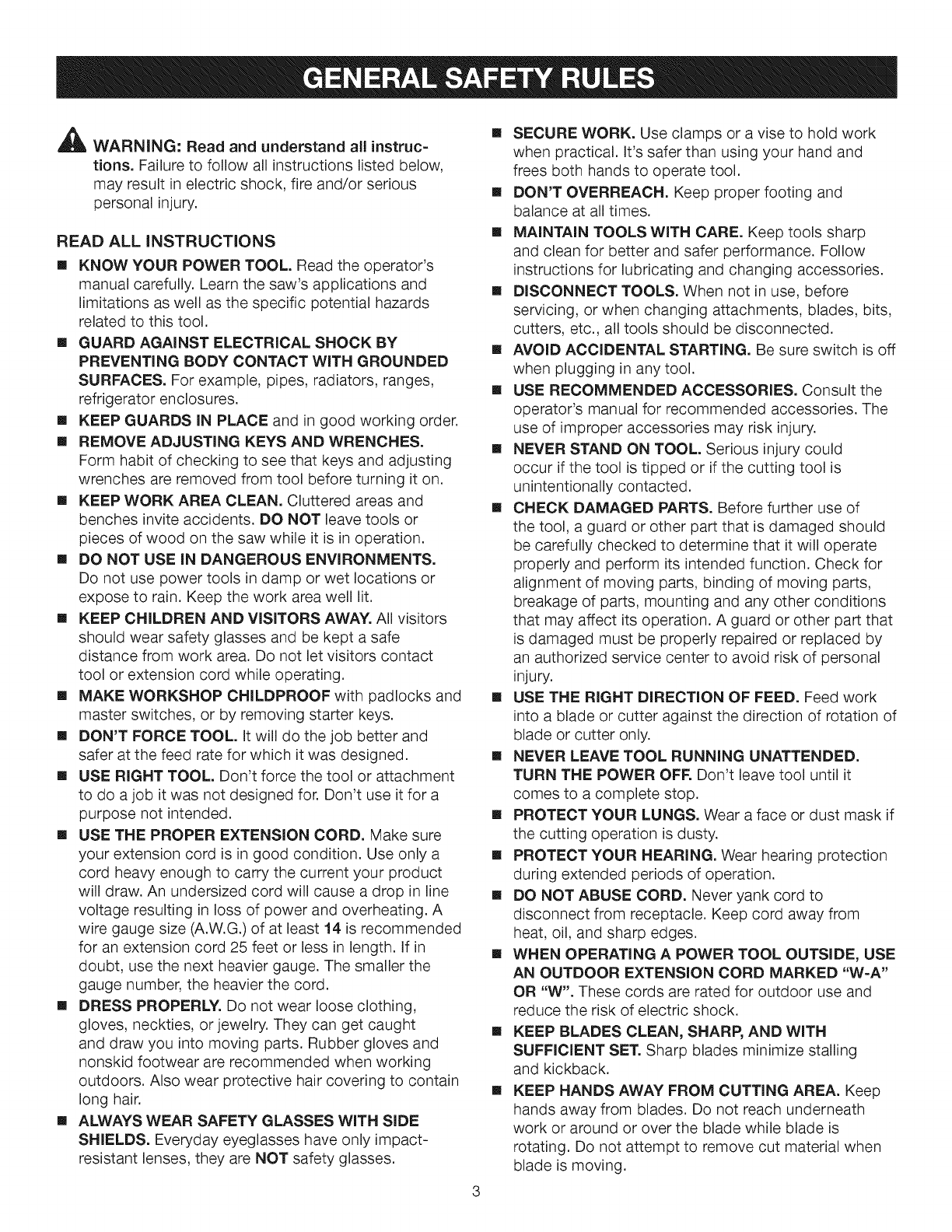

_l_ WARNING: Read and understand all instruc-

tions. Failure to follow all instructions listed below,

may result in electric shock, fire and/or serious

personal injury.

READ ALL INSTRUCTIONS

[] KNOW YOUR POWER TOOL. Read the operator's

manual carefully. Learn the saw's applications and

limitations as well as the specific potential hazards

related to this tool.

[] GUARD AGAINST ELECTRICAL SHOCK BY

PREVENTING BODY CONTACT WITH GROUNDED

SURFACES. For example, pipes, radiators, ranges,

refrigerator enclosures.

[] KEEP GUARDS IN PLACE and in good working order.

[] REMOVE ADJUSTING KEYS AND WRENCHES.

Form habit of checking to see that keys and adjusting

wrenches are removed from tool before turning it on.

[] KEEP WORK AREA CLEAN. Cluttered areas and

benches invite accidents. DO NOT leave tools or

pieces of wood on the saw while it is in operation.

[] DO NOT USE IN DANGEROUS ENVIRONMENTS.

Do not use power tools in damp or wet locations or

expose to rain. Keep the work area well lit.

[] KEEP CHILDREN AND VISITORS AWAY. All visitors

should wear safety glasses and be kept a safe

distance from work area. Do not let visitors contact

tool or extension cord while operating.

[] MAKE WORKSHOP CHILDPROOF with padlocks and

master switches, or by removing starter keys.

[] DON'T FORCE TOOL. It will do the job better and

safer at the feed rate for which it was designed.

[] USE RIGHT TOOL. Don't force the tool or attachment

to do a job it was not designed for. Don't use it for a

purpose not intended.

[] USE THE PROPER EXTENSION CORD. Make sure

your extension cord is in good condition. Use only a

cord heavy enough to carry the current your product

will draw. An undersized cord will cause a drop in line

voltage resulting in loss of power and overheating. A

wire gauge size (A.W.G.) of at least 14 is recommended

for an extension cord 25 feet or less in length. If in

doubt, use the next heavier gauge. The smaller the

gauge number, the heavier the cord.

[] DRESS PROPERLY. Do not wear loose clothing,

gloves, neckties, or jewelry. They can get caught

and draw you into moving parts. Rubber gloves and

nonskid footwear are recommended when working

outdoors. Also wear protective hair covering to contain

long hair.

[] ALWAYS WEAR SAFETY GLASSES WiTH SIDE

SHIELDS. Everyday eyeglasses have only impact-

resistant lenses, they are NOT safety glasses.

[] SECURE WORK. Use clamps or a vise to hold work

when practical. It's safer than using your hand and

frees both hands to operate tool.

[] DON'T OVERREACH. Keep proper footing and

balance at all times.

[] MAINTAIN TOOLS WITH CARE. Keep tools sharp

and clean for better and safer performance. Follow

instructions for lubricating and changing accessories.

[] DISCONNECT TOOLS. When not in use, before

servicing, or when changing attachments, blades, bits,

cutters, etc., all tools should be disconnected.

[] AVOID ACCIDENTAL STARTING. Be sure switch is off

when plugging in any tool.

[] USE RECOMMENDED ACCESSORIES. Consult the

operator's manual for recommended accessories. The

use of improper accessories may risk injury.

[] NEVER STAND ON TOOL. Serious injury could

occur if the tool is tipped or if the cutting tool is

unintentionally contacted.

[] CHECK DAMAGED PARTS. Before further use of

the tool, a guard or other part that is damaged should

be carefully checked to determine that it will operate

properly and perform its intended function. Check for

alignment of moving parts, binding of moving parts,

breakage of parts, mounting and any other conditions

that may affect its operation. A guard or other part that

is damaged must be properly repaired or replaced by

an authorized service center to avoid risk of personal

injury.

[] USE THE RIGHT DIRECTION OF FEED. Feed work

into a blade or cutter against the direction of rotation of

blade or cutter only.

[] NEVER LEAVE TOOL RUNNING UNATTENDED.

TURN THE POWER OFF. Don't leave tool until it

comes to a complete stop.

[] PROTECT YOUR LUNGS. Wear a face or dust mask if

the cutting operation is dusty.

[] PROTECT YOUR HEARING. Wear hearing protection

during extended periods of operation.

[] DO NOT ABUSE CORD. Never yank cord to

disconnect from receptacle. Keep cord away from

heat, oil, and sharp edges.

[] WHEN OPERATING A POWER TOOL OUTSIDE, USE

AN OUTDOOR EXTENSION CORD MARKED "W-A"

OR "W". These cords are rated for outdoor use and

reduce the risk of electric shock.

[] KEEP BLADES CLEAN, SHARP, AND WITH

SUFFICIENT SET. Sharp blades minimize stalling

and kickback.

[] KEEP HANDS AWAY FROM CUTTING AREA. Keep

hands away from blades. Do not reach underneath

work or around or over the blade while blade is

rotating. Do not attempt to remove cut material when

blade is moving.

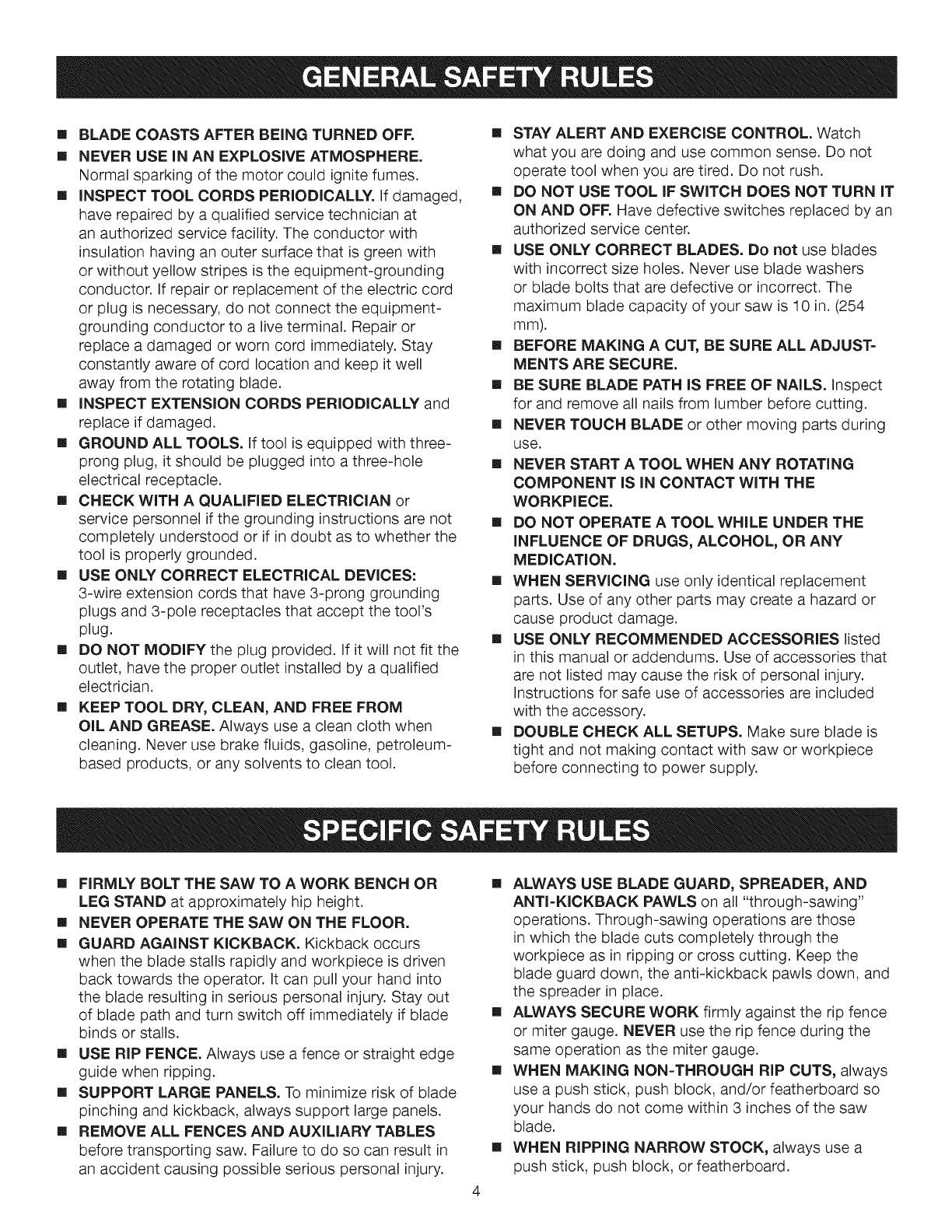

[] BLADE COASTS AFTER BEING TURNED OFF.

[] NEVER USE iN AN EXPLOSIVE ATMOSPHERE.

Normal sparking of the motor could ignite fumes.

[] INSPECT TOOL CORDS PERIODICALLY. If damaged,

have repaired by a qualified service technician at

an authorized service facility. The conductor with

insulation having an outer surface that is green with

or without yellow stripes is the equipment-grounding

conductor. If repair or replacement of the electric cord

or plug is necessary, do not connect the equipment-

grounding conductor to a live terminal. Repair or

replace a damaged or worn cord immediately. Stay

constantly aware of cord location and keep it well

away from the rotating blade.

[] INSPECT EXTENSION CORDS PERIODICALLY and

replace if damaged.

[] GROUND ALL TOOLS. If tool is equipped with three-

prong plug, it should be plugged into a three-hole

electrical receptacle.

[] CHECK WITH A QUALIFIED ELECTRICIAN or

service personnel if the grounding instructions are not

completely understood or if in doubt as to whether the

tool is properly grounded.

[] USE ONLY CORRECT ELECTRICAL DEVICES:

3-wire extension cords that have 3-prong grounding

plugs and 3-pole receptacles that accept the tool's

plug.

[] DO NOT MODIFY the plug provided. If it will not fit the

outlet, have the proper outlet installed by a qualified

electrician.

[] KEEP TOOL DRY, CLEAN, AND FREE FROM

OiL AND GREASE. Always use a clean cloth when

cleaning. Never use brake fluids, gasoline, petroleum-

based products, or any solvents to clean tool.

[] STAY ALERT AND EXERCISE CONTROL. Watch

what you are doing and use common sense. Do not

operate tool when you are tired. Do not rush.

[] DO NOT USE TOOL IF SWITCH DOES NOT TURN IT

ON AND OFF. Have defective switches replaced by an

authorized service center.

[] USE ONLY CORRECT BLADES. Do not use blades

with incorrect size holes. Never use blade washers

or blade bolts that are defective or incorrect. The

maximum blade capacity of your saw is 10 in. (254

mm).

[] BEFORE MAKING A CUT, BE SURE ALL ADJUST-

MENTS ARE SECURE.

[] BE SURE BLADE PATH IS FREE OF NAILS. Inspect

for and remove all nails from lumber before cutting.

[] NEVER TOUCH BLADE or other moving parts during

use.

[] NEVER START A TOOL WHEN ANY ROTATING

COMPONENT IS IN CONTACT WITH THE

WORKPIECE.

[] DO NOT OPERATE A TOOL WHILE UNDER THE

INFLUENCE OF DRUGS, ALCOHOL, OR ANY

MEDICATION.

[] WHEN SERVICING use only identical replacement

parts. Use of any other parts may create a hazard or

cause product damage.

[] USE ONLY RECOMMENDED ACCESSORIES listed

in this manual or addendums. Use of accessories that

are not listed may cause the risk of personal injury.

Instructions for safe use of accessories are included

with the accessory.

[] DOUBLE CHECK ALL SETUPS. Make sure blade is

tight and not making contact with saw or workpiece

before connecting to power supply.

[] FIRMLY BOLT THE SAW TO A WORK BENCH OR

LEG STAND at approximately hip height.

[] NEVER OPERATE THE SAW ON THE FLOOR.

[] GUARD AGAINST KICKBACK. Kickback occurs

when the blade stalls rapidly and workpiece is driven

back towards the operator. It can pull your hand into

the blade resulting in serious personal injury. Stay out

of blade path and turn switch off immediately if blade

binds or stalls.

[] USE RIP FENCE. Always use a fence or straight edge

guide when ripping.

[] SUPPORT LARGE PANELS. To minimize risk of blade

pinching and kickback, always support large panels.

[] REMOVE ALL FENCES AND AUXILIARY TABLES

before transporting saw. Failure to do so can result in

an accident causing possible serious personal injury.

[] ALWAYS USE BLADE GUARD, SPREADER, AND

ANTI-KICKBACK PAWLS on all "through-sawing"

operations. Through-sawing operations are those

in which the blade cuts completely through the

workpiece as in ripping or cross cutting. Keep the

blade guard down, the anti-kickback pawls down, and

the spreader in place.

[] ALWAYS SECURE WORK firmly against the rip fence

or miter gauge. NEVER use the rip fence during the

same operation as the miter gauge.

[] WHEN MAKING NON-THROUGH RiP CUTS, always

use a push stick, push block, and/or featherboard so

your hands do not come within 3 inches of the saw

blade.

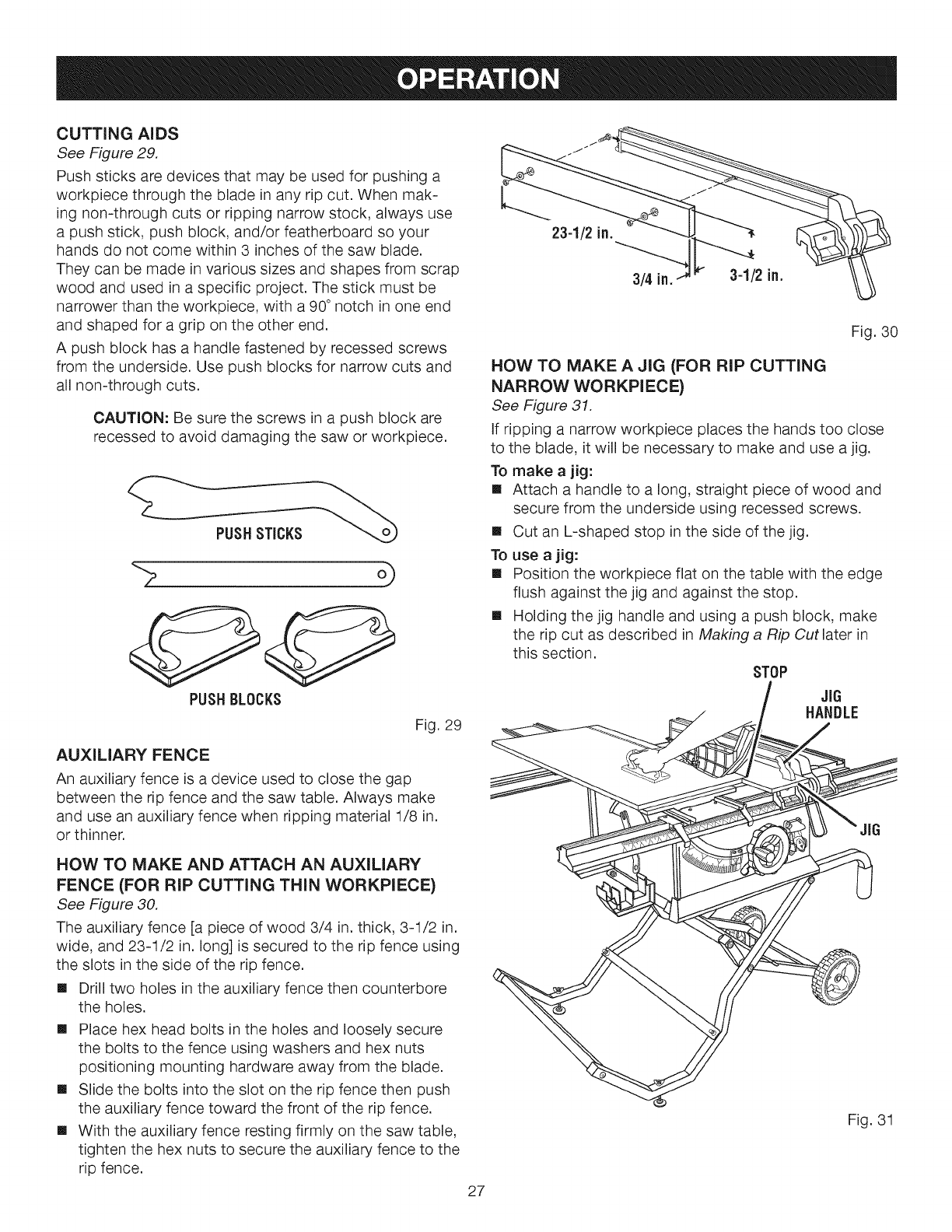

[] WHEN RiPPiNG NARROW STOCK, always use a

push stick, push block, or featherboard.

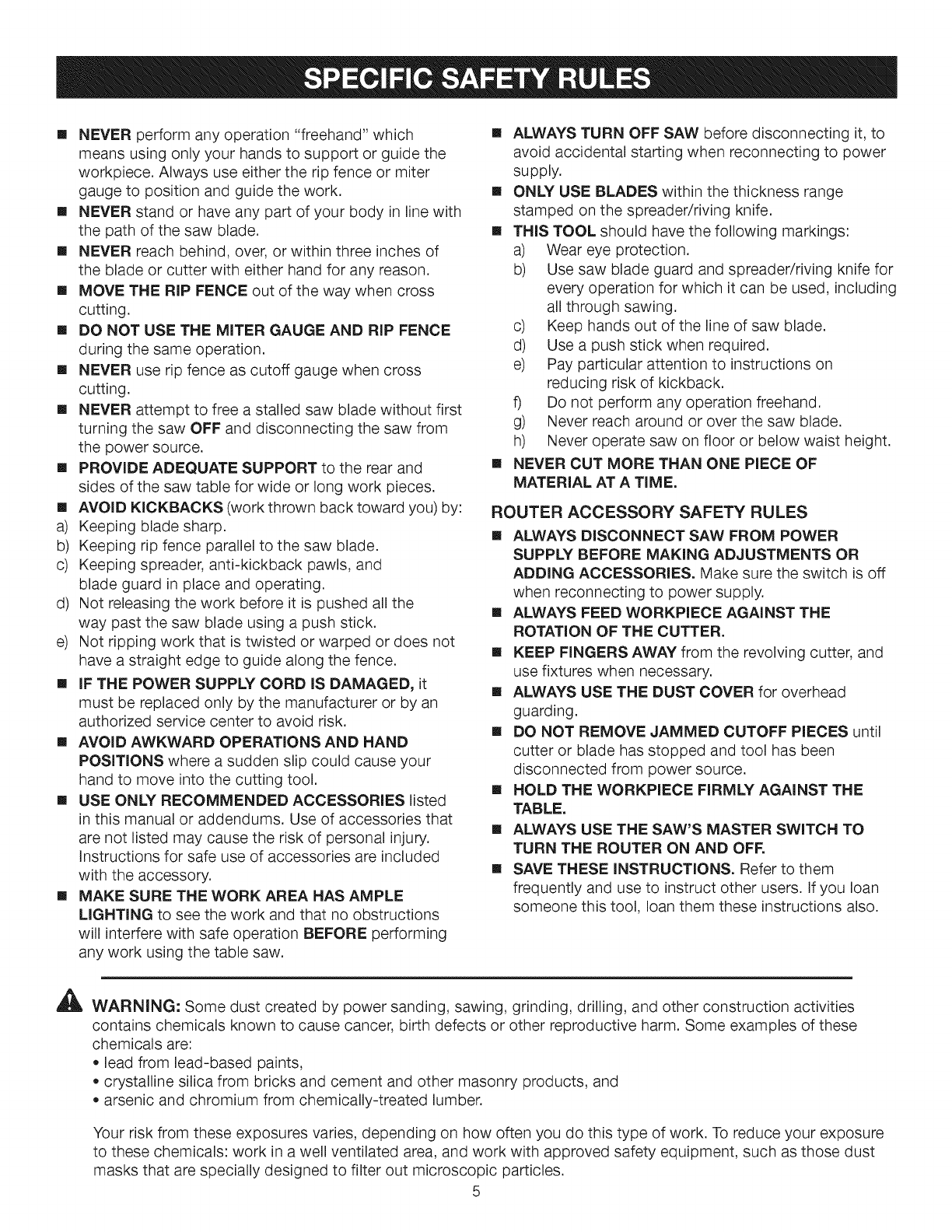

[] NEVERperformanyoperation"freehand"which

meansusingonlyyourhandsto supportorguidethe

workpiece.Alwaysuseeithertheripfenceor miter

gaugeto positionandguidethework.

[] NEVERstandorhaveanypartofyourbodyin line with

the path of the saw blade.

[] NEVER reach behind, over, or within three inches of

the blade or cutter with either hand for any reason.

[] MOVE THE RIP FENCE out of the way when cross

cutting.

[] DO NOT USE THE MITER GAUGE AND RIP FENCE

during the same operation.

[] NEVER use rip fence as cutoff gauge when cross

cutting.

[] NEVER attempt to free a stalled saw blade without first

turning the saw OFF and disconnecting the saw from

the power source.

[] PROVIDE ADEQUATE SUPPORT to the rear and

sides of the saw table for wide or long work pieces.

[] AVOID KICKBACKS (work thrown back toward you) by:

a) Keeping blade sharp.

b) Keeping rip fence parallel to the saw blade.

c) Keeping spreader, anti-kickback pawls, and

blade guard in place and operating.

d) Not releasing the work before it is pushed all the

way past the saw blade using a push stick.

e) Not ripping work that is twisted or warped or does not

have a straight edge to guide along the fence.

[] IF THE POWER SUPPLY CORD iS DAMAGED, it

must be replaced only by the manufacturer or by an

authorized service center to avoid risk.

[] AVOID AWKWARD OPERATIONS AND HAND

POSITIONS where a sudden slip could cause your

hand to move into the cutting tool.

[] USE ONLY RECOMMENDED ACCESSORIES listed

in this manual or addendums. Use of accessories that

are not listed may cause the risk of personal injury.

Instructions for safe use of accessories are included

with the accessory.

[] MAKE SURE THE WORK AREA HAS AMPLE

LIGHTING to see the work and that no obstructions

will interfere with safe operation BEFORE performing

any work using the table saw.

[] ALWAYS TURN OFF SAW before disconnecting it, to

avoid accidental starting when reconnecting to power

supply.

[] ONLY USE BLADES within the thickness range

stamped on the spreader/riving knife.

[] THIS TOOL should have the following markings:

a) Wear eye protection.

b) Use saw blade guard and spreader/riving knife for

every operation for which it can be used, including

all through sawing.

c) Keep hands out of the line of saw blade.

d) Use a push stick when required.

e) Pay particular attention to instructions on

reducing risk of kickback.

f) Do not perform any operation freehand.

g) Never reach around or over the saw blade.

h) Never operate saw on floor or below waist height.

[] NEVER CUT MORE THAN ONE PIECE OF

MATERIAL AT A TIME.

ROUTER ACCESSORY SAFETY RULES

[] ALWAYS DISCONNECT SAW FROM POWER

SUPPLY BEFORE MAKING ADJUSTMENTS OR

ADDING ACCESSORIES. Make sure the switch is off

when reconnecting to power supply.

[] ALWAYS FEED WORKPIECE AGAINST THE

ROTATION OF THE CUTTER.

[] KEEP FINGERS AWAY from the revolving cutter, and

use fixtures when necessary.

[] ALWAYS USE THE DUST COVER for overhead

guarding.

[] DO NOT REMOVE JAMMED CUTOFF PIECES until

cutter or blade has stopped and tool has been

disconnected from power source.

[] HOLD THE WORKPIECE FIRMLY AGAINST THE

TABLE.

[] ALWAYS USE THE SAW'S MASTER SWITCH TO

TURN THE ROUTER ON AND OFF.

[] SAVE THESE iNSTRUCTiONS. Refer to them

frequently and use to instruct other users. If you loan

someone this tool, loan them these instructions also.

_IL WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities

contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these

chemicals are:

• lead from lead-based paints,

crystalline silica from bricks and cement and other masonry products, and

arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure

to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust

masks that are specially designed to filter out microscopic particles.

Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper inter-

pretation of these symbols will allow you to operate the tool better and safer.

min

n o

[]

.../min

Safety Alert

Read Operator's Manual

Eye Protection

No Hands Symbol

Wet Conditions Alert

Volts

Amperes

Hertz

Watt

Minutes

Alternating Current

Direct Current

No Load Speed

Class II Construction

Per Minute

Indicates a potential personal injury hazard.

To reduce the risk of injury, user must read and understand

operator's manual before using this product.

Always wear eye protection with side shields marked to

comply with ANSI Z87.1.

Failure to keep your hands away from the blade will result in

serious personal injury.

Do not expose to rain or use in damp locations.

Voltage

Current

Frequency (cycles per second)

Power

Time

Type of current

Type or a characteristic of current

Rotational speed, at no load

Double-insulated construction

Revolutions, strokes, surface speed, orbits etc., per minute

i ii

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL SIGNAL MEANING

DANGER: Indicates an imminently hazardous situation, which, if not avoided, will

result in death or serious injury.

WARNING: Indicates a potentially hazardous situation, which, if not avoided, could

result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may

result in minor or moderate injury.

CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in

property damage.

SERVICE

Servicing requires extreme care and knowledge and

should be performed only by a qualified service techni-

cian. For service we suggest you return the product to

your nearest AUTHORIZED SERVICE CENTER for repair.

When servicing, use only identical replacement parts.

_ WARNING: To avoid serious personal injury, do not

attempt to use this product until you read thoroughly

and understand completely the operator's manual.

Save this operator's manual and review frequently for

continuing safe operation and instructing others who

may use this product.

,_', WARNING:

The operation of any power tool can result in foreign objects being thrown into your eyes, which can

result in severe eye damage. Before beginning power tool operation, always wear safety goggles or

safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety

Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection

which is marked to comply with ANSI Z87.1.

SAVE THESE INSTRUCTIONS

EXTENSION CORDS

Use only 3-wire extension cords that have 3-prong ground-

ing plugs and 3-pole receptacles that accept the tool's plug.

When using a power tool at a considerable distance from

the power source, use an extension cord heavy enough

to carry the current that the tool will draw. An undersized

extension cord will cause a drop in line voltage, resulting in

a loss of power and causing the motor to overheat. Use the

chart provided below to determine the minimum wire size

required in an extension cord. Only round jacketed cords

listed by Underwriter's Laboratories (UL) should be used.

**Ampere rating (on tool data plate)

0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0

Cord Length Wire Size (A.W.G.)

25' 16 16 16 16 14 14

50' 16 16 16 14 14 12

100' 16 16 14 12 10 --

**Used on 12 gauge -20 amp drcuit.

NOTE: AWG = American Wire Gauge

When working with the tool outdoors, use an extension

cord that is designed for outside use. This is indicated by

the letters "W-A" or "W" on the cord's jacket.

Before using an extension cord, inspect it for loose or

exposed wires and cut or worn insulation.

_IL WARNING: Keep the extension cord clear of the

working area. Position the cord so that it will not get

caught on lumber, tools or other obstructions while

you are working with a power tool. Failure to do so

can result in serious personal injury.

WARNING: Check extension cords before each use.

If damaged replace immediately. Never use tool with

a damaged cord since touching the damaged area

could cause electrical shock resulting in serious injury.

WARNING: The saw's motor cord must only be

plugged into the receptacle provided on the saw which

is controlled by the saw's master switch. Never plug

the motor cord directly into an extension cord as this

will stop the saw's motor from turning OFF.

SAW

RECEPTACLE

MOTOR

CORD

POWER

C0BD

ELECTRICAL CONNECTION

This tool is powered by a precision built electric motor.

It should be connected to a power supply that is 120

volts, 60 Hz, AC only (normal household current). Do

not operate this tool on direct current (DC). A substantial

voltage drop will cause a loss of power and the motor will

overheat. If the saw does not operate when plugged into

an outlet, double check the power supply.

SPEED AND WIRING

The no-load speed of this tool is approximately 4,800 rpm.

This speed is not constant and decreases under a load or

with lower voltage. For voltage, the wiring in a shop is as

important as the motor's horsepower rating. A line intend-

ed only for lights cannot properly carry a power tool motor.

Wire that is heavy enough for a short distance will be too

light for a greater distance. A line that can support one

power tool may not be able to support two or three tools.

GROUNDING INSTRUCTIONS

In the event of a malfunction or breakdown, grounding

provides a path of least resistance for electric current to

reduce the risk of electric shock. This tool is equipped with

an electric cord having an equipment-grounding conduc-

tor and a grounding plug. The plug must be plugged into a

matching outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

Do not modify the plug provided. If it will not fit the outlet,

have the proper outlet installed by a qualified electrician.

Improper connection of the equipment-grounding conduc-

tor can result in a risk of electric shock. The conductor with

insulation having an outer surface that is green with or without

yellow stripes is the equipment-grounding conductor. If repair

or replacement of the electric cord or plug is necessary, do

not connect the equipment-grounding conductor to a live

terminal.

Check with a qualified electrician or service personnel if

the grounding instructions are not completely understood,

or if in doubt as to whether the tool is properly grounded.

Repair or replace a damaged or worn cord immediately.

This tool is intended for use on a circuit that has an outlet

like the one shown in figure 1. It also has a grounding pin

like the one shown.

GROUNDING

PiN 120V GROUNDED OUTLET

Fig. 1

Anti-KickbackPawls (flooring, radial arm, and table

saws)

A device which, when properly installed and maintained,

is designed to stop the workpiece from being kicked back

toward the front of the saw during a ripping operation.

Arbor

The shaft on which a blade or cutting tool is mounted.

Bevel Cut

A cutting operation made with the blade at any angle

other than 90 ° to the table surface.

Compound Cut

A cross cut made with both a miter and a bevel angle.

Cross Cut

A cutting or shaping operation made across the grain or

the width of the workpiece.

Cutterhead (planers and jointer planers)

A rotating cutterhead with adjustable blades or knives.

The blades or knives remove material from the workpiece.

Dado Cut

A non-through cut which produces a square-sided notch

or trough in the workpiece (requires a special blade).

Featherboard

A device used to help control the workpiece by holding it

securely against the table or fence during any ripping

operation.

FPM or SPM

Feet per minute (or strokes per minute), used in reference

to blade movement.

Freehand

Performing a cut without the workpiece being guided by a

fence, miter gauge, or other aids.

Gum

A sticky, sap-based residue from wood products.

Heel

Alignment of the blade to the fence.

Kerr

The material removed by the blade in a through cut or the

slot produced by the blade in a non-through or partial cut.

Kickback

A hazard that can occur when the blade binds or stalls,

throwing the workpiece back toward operator.

Miter Cut

A cutting operation made with the workpiece at any angle

to the blade other than 90 °.

Non-Through Cuts

Any cutting operation where the blade does not extend

completely through the thickness of the workpiece.

Pilot Hole (drill presses)

A small hole drilled in a workpiece that serves as a guide

for drilling large holes accurately.

Push Blocks (flooring and table saws)

Device used to hold the workpiece during cutting opera-

tions. This aid helps keep the operator's hands well away

from the blade.

Push Blocks 0ointer planers)

Device used to feed the workpiece over the jointer planer

cutterhead during any operation. This aid helps keep the

operator's hands well away from the cutterhead.

Push Sticks (flooring and table saws)

Device used to push the workpiece during cutting opera-

tions. A push stick should be used for narrow ripping

operations. The aid helps keep the operator's hands well

away from the blade.

Resaw

A cutting operation to reduce the thickness of the

workpiece to make thinner pieces.

Resin

A sticky, sap-based substance that has hardened.

Revolutions Per Minute (RPM)

The number of turns completed by a spinning object in

one minute.

Ripping or Rip Cut

A cutting operation along the length of the workpiece.

Riving Knife/Spreader/Splitter (flooring and table

saws)

A metal piece, slightly thinner than the blade, which helps

keep the kerf open and also helps to prevent kickback.

Saw Blade Path

The area over, under, behind, or in front of the blade. As

it applies to the workpiece, that area which will be or has

been cut by the blade.

Set

The distance that the tip of the saw blade tooth is bent (or

set) outward from the face of the blade.

Snipe (planers)

Depression made at either end of a workpiece by cutter

blades when the workpiece is not properly supported.

Through Sawing

Any cutting operation where the blade extends completely

through the thickness of the workpiece.

Throw-Back

The throwing back of a workpiece usually caused by the

workpiece being dropped into the blade or being placed

inadvertently in contact with the blade.

Workpiece or Material

The item on which the operation is being done.

Worktable

Surface where the workpiece rests while performing a

cutting, drilling, planing, or sanding operation.

PRODUCTSPECIFICATIONS

BladeArbor..............................................................5/8in.

BladeDiameter..........................................................10in.

BladeTilt................................................................0° - 45°

Rating...............................................120V,AConly,60Hz

Input.....................................................................15Amps

NoLoadSpeed....................................4,800r/min.(RPM)

CuttingDepthat0°..............................................3-9/16in.

CuttingDepthat45°..............................................2-1/2in.

MITERSCALE

ANTI-KICKBACK

PAWLS

SLIDING

MITER

TABLE

RIVING

KNIFE BLADE

GUARD

GUARD/DUST

COVERWITH

PIVOTASSEMBLY

ACCESSORY

TABLE

RiP FENCE

ALIGN-A-CUT

INSERT

LOCKING

HANDLE

SCALE

GAUGE

FRONT

RAiL

STORAGE

BRACKET(S)

BEVEL

LOCKING

LEVER

SWITCH

HEiGHT/BEVEL

ADJUSTING

HANDWHEEL

BEVEL

INDICATOR

FRONT

BRACE

BEVEL

SCALE

LEVELING

FOOT

Fig. 2

KNOWYOURTABLESAW

See Figure 2.

The safe use of this product requires an understanding of

the information on the tool and in this operator's manual

as well as a knowledge of the project you are attempting.

Before use of this product, familiarize yourself with all op-

erating features and safety rules.

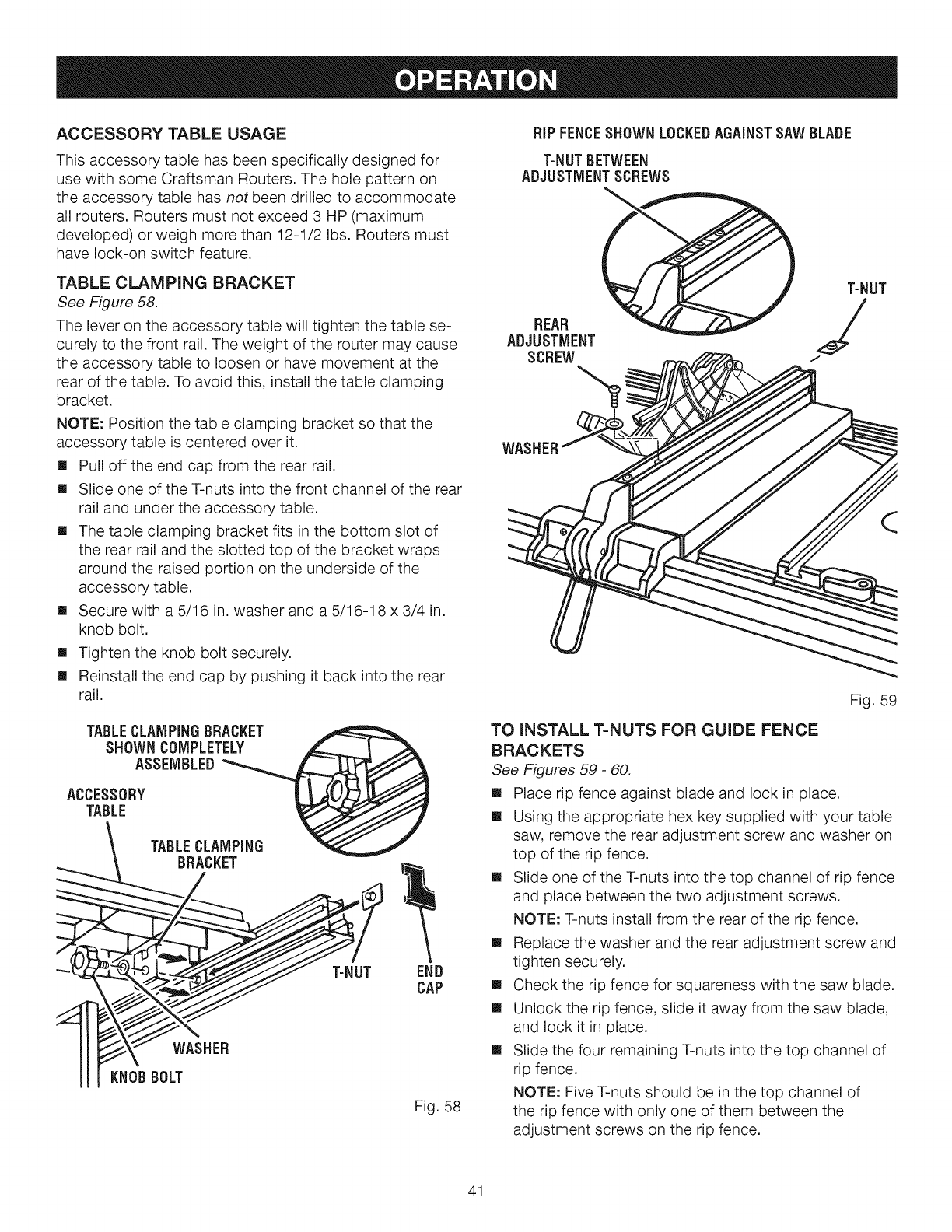

ACCESSORY TABLE - The accessory table may be used

on either the right or left side of the saw as needed and

has been designed for use with some touters. A router

mounted on the accessory table will provide expanded

capabilities for making rabbets, grooves, chamfers, dove-

tails, and mortise and tenon joints.

ADJUSTING CLAMP - This clamp locks the miter fence at

the desired cutting angle.

ALIGN-A-CUT INSERT - A plastic insert on which marks

may be made to indicate the location of the saw cut on

the workpiece.

ANTI-KICKBACK PAWLS - Kickback is a hazard in which

the workpiece is thrown back toward the operator. The

teeth on the removable anti-kickback pawls point away

from the workpiece. If the workpiece should be pulled

back toward the operator, the teeth dig into the wood to

help prevent or reduce the possibility of kickback.

BEVEL SCALE - The easy-to-read scale on the front of

the cabinet shows the exact blade angle.

BLADE - This saw is provided with a 36-tooth, 10 in.

carbide blade. The blade is raised and lowered with the

height adjusting handwheel. Bevel angles are locked with

the bevel locking lever.

WARNING-" Do not use blades rated less than the

speed of this tool. Failure to heed this warning could

result in personal injury.

BLADE GUARD - Always keep the removable blade guard

down over the saw blade for through-sawing cuts.

BEVEL LOCKING LEVER - This lever, placed just under

the saw table surface on the front of the cabinet, locks the

angle setting of the blade.

HEIGHT/BEVEL ADJUSTING HANDWHEEL- Located

on the front of the cabinet, use this handwheel to lower

and raise the blade for height adjustments or blade

replacement. This handwheel also makes the adjustment

for bevel angles easy.

LEG STAND - Attached to the table saw base, the leg

stand opens and closes with ease.

MITER FENCE WITH ADJUSTING CLAMP KNOB - The

fence attaches to the sliding miter table and can be an-

gled for miter and compound miter cuts as well as straight

cuts such as cross cuts and bevel cross cuts. With the

Iocator pin in place, this knob locks the miter fence to the

sliding miter table at the desired cutting angle.

MITER GAUGE - The miter gauge aligns the wood for

a cross cut. The easy-to-read indicator shows the exact

angle for a miter cut, with positive stops at 90° and 45°.

MITER GAUGE GROOVES - The miter gauge rides in the

grooves on the accessory table.

RAILS - Front and rear rails provide support for large

workpieces and the rip fence.

RIP FENCE - A sturdy metal fence guides the workpiece

and is secured with the locking handle. Grooves run along

the top and sides of the rip fence for use with optional

clamps and accessories.

SCALE - Located on the front rail, the easy-to-read scale

provides precise measurements for rip cuts.

SLIDING MITER TABLE - The miter table slides easily

along the miter table base allowing the operator to move

the workpiece across the saw table.

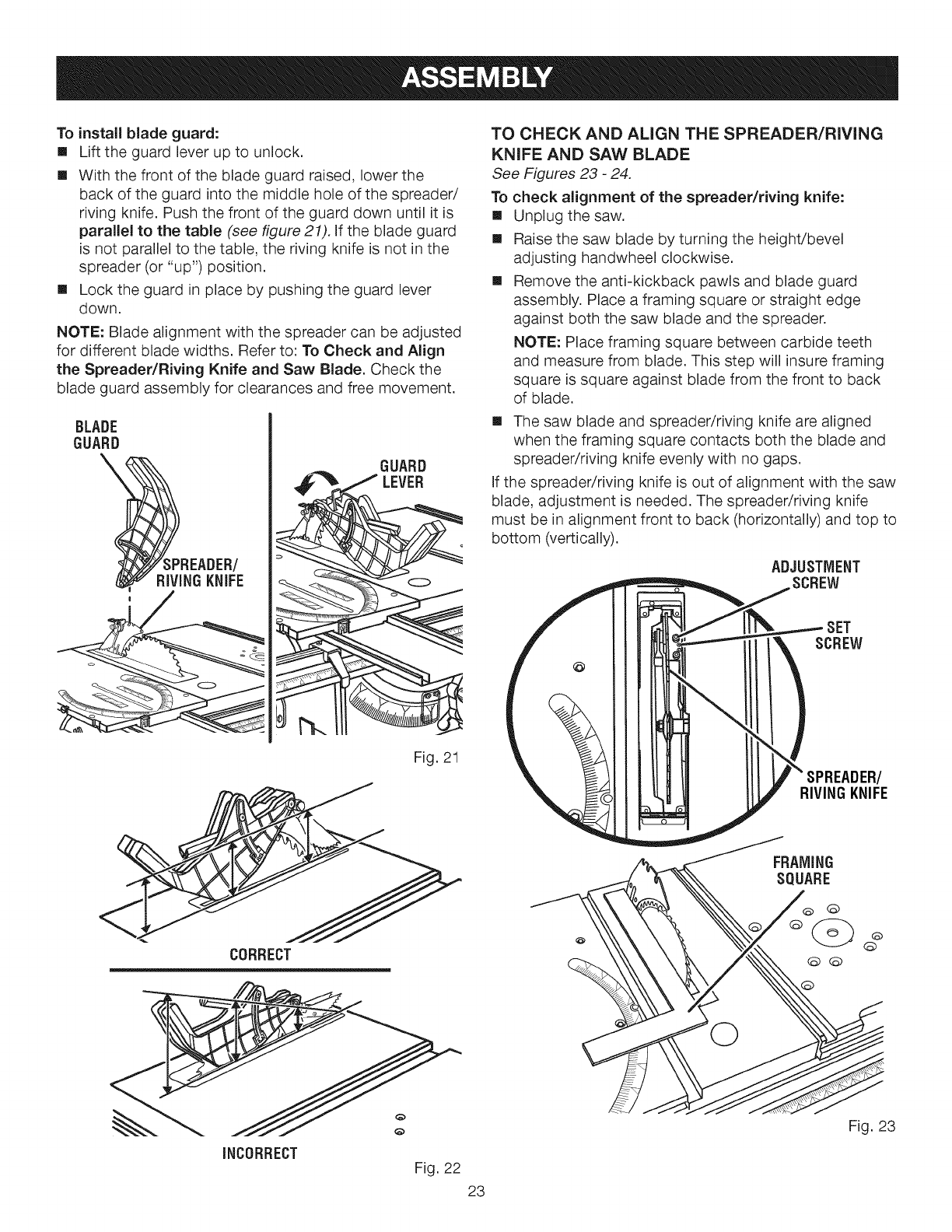

SPREADER/RIVING KNIFE - A removable metal piece

of the blade guard assembly, slightly thinner than the saw

blade, which helps keep the kerf open and prevent kick-

back. When in the through sawing, or "up" position, it is

higher than the saw blade and becomes a spreader. When

in the non-through sawing, or "down" position, it is below

the saw blade teeth and becomes a riving knife.

SWITCH ASSEMBLY - This saw has an easy access

power switch located below the front rail. To lock the

switch in the OFF position, remove the switch key from

the switch. Place the key in a location that is inaccessible

to children and others not qualified to use the tool.

OPERATINGCOMPONENTS

Theupperportionofthebladeprojectsupthroughthe

tableandissurroundedbyaninsertcalledthethroat

plate.Theheightofthebladeissetwithahandwheelon

thefrontofthecabinet.Toaccommodatewidepanels,

thesawtablehasrailsoneachside.Detailedinstructions

areprovidedintheOperation section of this manual for

the basic cuts: cross cuts, miter cuts, bevel cuts, and

compound cuts.

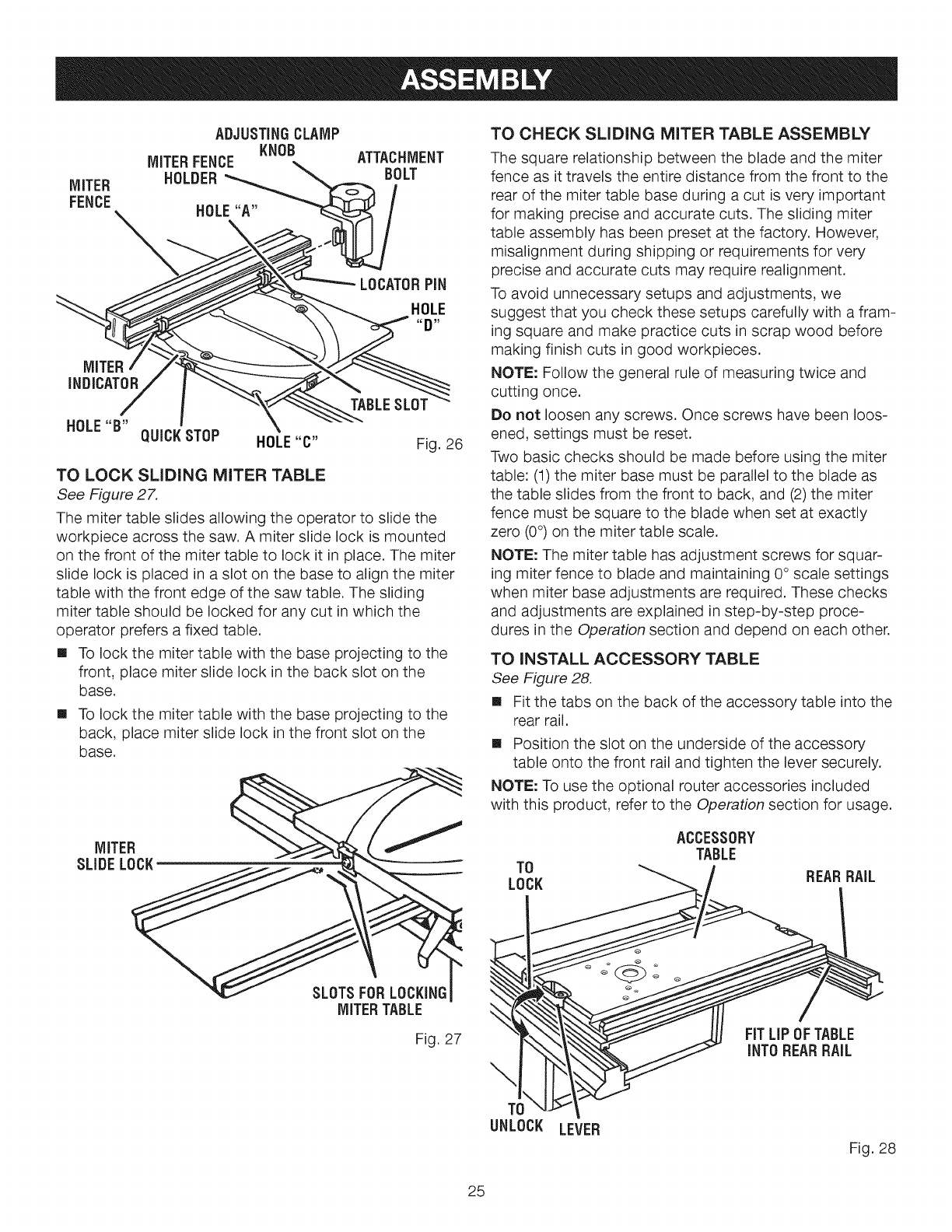

The sliding miter table assembly is used for cross cutting

operations. The miter fence is easily adjusted to cut wood

at an angle by loosening the adjusting clamp, setting the

fence to the miter scale, and retightening the clamp. The

sliding miter table, which rests on a base mounted on the

rails, can be repositioned along the rails for wide work. It

can be reversed so the projecting base is in the back and

can be moved from the left side to the right side as need-

ed. With the miter fence removed, the miter table offers

additional support for other operations such as ripping.

The rip fence is used to position work for lengthwise cuts.

A scale on the front rail shows the distance between the

rip fence and the blade.

It is very important to use the blade guard assembly for all

through-sawing operations. The blade guard assembly

includes: riving knife/spreader/splitter, anti-kickback

pawls, and plastic blade guard.

The saw features a receptacle on the right side of the

cabinet that permits use of accessories. Use only acces-

sories that are listed for use with this tool. When using a

listed accessory, unplug the saw motor cord and use the

receptacle and the saw's power switch to operate the

accessory.

SWITCH ASSEMBLY

See Figure 3,

This saw is equipped with a switch assembly that has a

built-in locking feature. This feature is intended to prevent

unauthorized and possible hazardous use by children and

others.

TO TURN YOUR SAW ON:

[] With the switch key inserted into the switch, lift the

switch button to turn on (I).

TO TURN YOUR SAW OFF:

[] Press the switch button down to turn off ( O ).

TO LOCK YOUR SAW:

[] Press the switch button down.

[] Remove the switch key from the switch and store in a

safe, secure location.

WARNING: Always remove the switch key when

the tool is not in use and keep it in a safe place.

In the event of a power failure, turn the switch off

( O ) and remove the key. This action will prevent the

tool from accidentally starting when power returns.

WARNING: ALWAYS make sure your workpiece is

not in contact with the blade before operating the

switch to start the tool. Failure to heed this warning

may cause the workpiece to be kicked back toward

the operator and result in serious personal injury.

WARNING: To reduce the risk of accidental start-

ing, Always make sure the switch is in the off ( O )

position before plugging tool into the power source.

SWITCH

ON SWITCH

OFF

(

SWITCHKEY

SWITCHIN LOCKEDPOSITION

Fig. 3

BLADES ,_

For maximum performance, it is recommended that you

use the 36-tooth, 10 in. carbide-tipped combination blade

provided with your saw. Additional blade styles of the

same high quality are available for specific operations

such as ripping. Your local dealer can provide you with

complete information.

Kerf width must be within the limits stamped on the

spreader/riving knife.

WARNING: Do not use blades rated less than the

speed of this tool. Failure to heed this warning could

result in personal injury.

The following tools (not included or drawn to scale) are needed for assembly and making adjustments:

COMBiNATiON

SQUARE

_l,l,l,l,i,l,l,l,l,l,l,l,I, i,I,i,I,o

FRAMINGSQUARE

FLATHEAD

SCREWDRIVER

PHILLIPS

SCREWDRIVER

ADJUSTABLE

WRENCH

C-CLAMP Fig. 4

Thefollowingitemsareincludedwiththetablesaw:

Fig.5

A. SlidingMiterTable.......................................................................................................................................................1

B. MiterFencewithAdjustingClamp..............................................................................................................................1

C. MiterGauge.................................................................................................................................................................1

D. HexKey(1/8in.,3/16in.,3/32in.,5/32in.)................................................................................................................5

E. LargeBladeWrench....................................................................................................................................................1

R SmallBladeWrench....................................................................................................................................................1

G. AccessoryTable..........................................................................................................................................................1

H. BevelHandleAssembly..............................................................................................................................................1

I. RipFence....................................................................................................................................................................1

J. BladeGuard................................................................................................................................................................1

K. LockNut......................................................................................................................................................................1

L. FlatWasher.................................................................................................................................................................1

M. FrontRail.....................................................................................................................................................................1

N. RearRail......................................................................................................................................................................1

O. PushStick...................................................................................................................................................................1

R Anti-kickbackPawls....................................................................................................................................................1

Thefollowingitemsareincludedwiththetablesawaccessorytable:

iVI

Fig. 6

A. Guide Fence with Guide Block (left and right) ........ 2

B. Flat Washer (1/4 in. x 16) ........................................ 4

C. Knob Bolt (1/2 in.) ................................................... 4

D. Table Clamping Bracket .......................................... 1

E. Washer (5/16 in.) ..................................................... 1

R Knob Bolt (3/4 in.) ................................................... 1

G. Throat Plate (1 in.) ................................................... 1

H. Throat Plate (1-1/2 in.) ............................................ 1

I. Throat Plate (2 in.) ................................................... 1

J. Throat Plate (1-1/8 in.) ............................................ 1

K. Throat Plate (1/2 in.) ................................................ 1

L. Screw, #10 in.-32 x 3/4 in...................................... 3

M. Screw, 5/16-18 in. x 3/4 in ..................................... 3

N. Screw, M8x24 ....................................................... 4

O. Guard/Dust Cover with Pivot Assembly .................. 1

R Spacer ..................................................................... 1

Q. Post ......................................................................... 1

R. T-Nut, 5/16 in. (Special) ........................................... 6

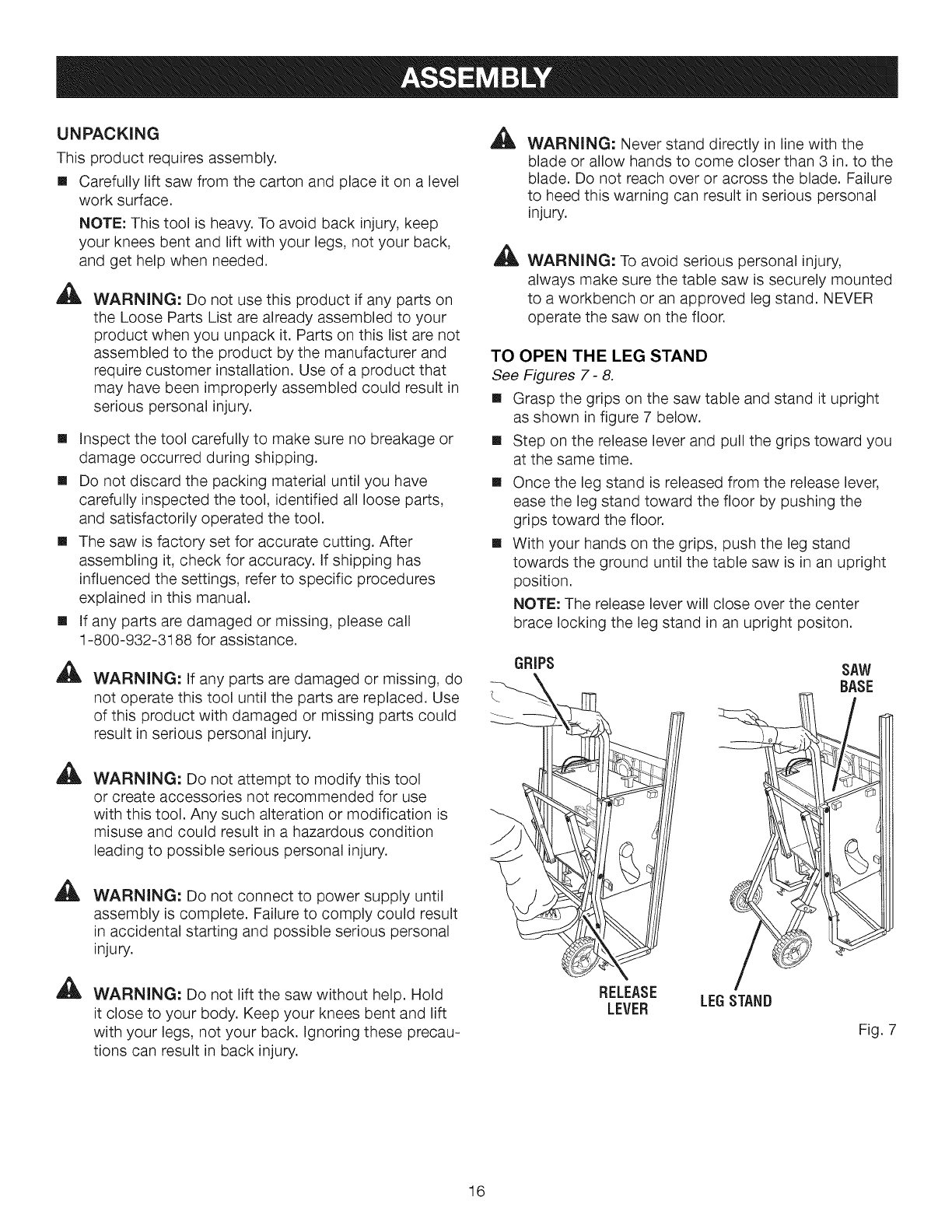

UNPACKING

This product requires assembly.

[] Carefully lift saw from the carton and place it on a level

work surface.

NOTE: This tool is heavy. To avoid back injury, keep

your knees bent and lift with your legs, not your back,

and get help when needed.

AWARNING: Do not use this product if any parts on

the Loose Parts List are already assembled to your

product when you unpack it. Parts on this list are not

assembled to the product by the manufacturer and

require customer installation. Use of a product that

may have been improperly assembled could result in

serious personal injury.

[] Inspect the tool carefully to make sure no breakage or

damage occurred during shipping.

[] Do not discard the packing material until you have

carefully inspected the tool, identified all loose parts,

and satisfactorily operated the tool.

[] The saw is factory set for accurate cutting. After

assembling it, check for accuracy. If shipping has

influenced the settings, refer to specific procedures

explained in this manual.

[] If any parts are damaged or missing, please call

1-800-932-3188 for assistance.

,& WARNING: If any parts are damaged or missing, do

not operate this tool until the parts are replaced. Use

of this product with damaged or missing parts could

result in serious personal injury.

AWARNING: Do not attempt to modify this tool

or create accessories not recommended for use

with this tool. Any such alteration or modification is

misuse and could result in a hazardous condition

leading to possible serious personal injury.

AWARNING: Do not connect to power supply until

assembly is complete. Failure to comply could result

in accidental starting and possible serious personal

injury.

AWARNING: Do not lift the saw without help. Hold

it close to your body. Keep your knees bent and lift

with your legs, not your back. Ignoring these precau-

tions can result in back injury.

WARNING: Never stand directly in line with the

blade or allow hands to come closer than 3 in. to the

blade. Do not reach over or across the blade. Failure

to heed this warning can result in serious _ersonal

injury.

AWARNING: To avoid serious personal injury,

always make sure the table saw is securely mounted

to a workbench or an approved leg stand. NEVER

operate the saw on the floor.

TO OPEN THE LEG STAND

See Figures 7- 8.

[] Grasp the grips on the saw table and stand it upright

as shown in figure 7 below.

[] Step on the release lever and pull the grips toward you

at the same time.

[] Once the leg stand is released from the release lever,

ease the leg stand toward the floor by pushing the

grips toward the floor.

[] With your hands on the grips, push the leg stand

towards the ground until the table saw is in an upright

position.

NOTE: The release lever will close over the center

brace locking the leg stand in an upright positon.

GRIPS SAW

\ BASE

RELEASE

LEVER LEGSTAND

Fig. 7

RELEASE

LEVER

BRACE

Fig. 8

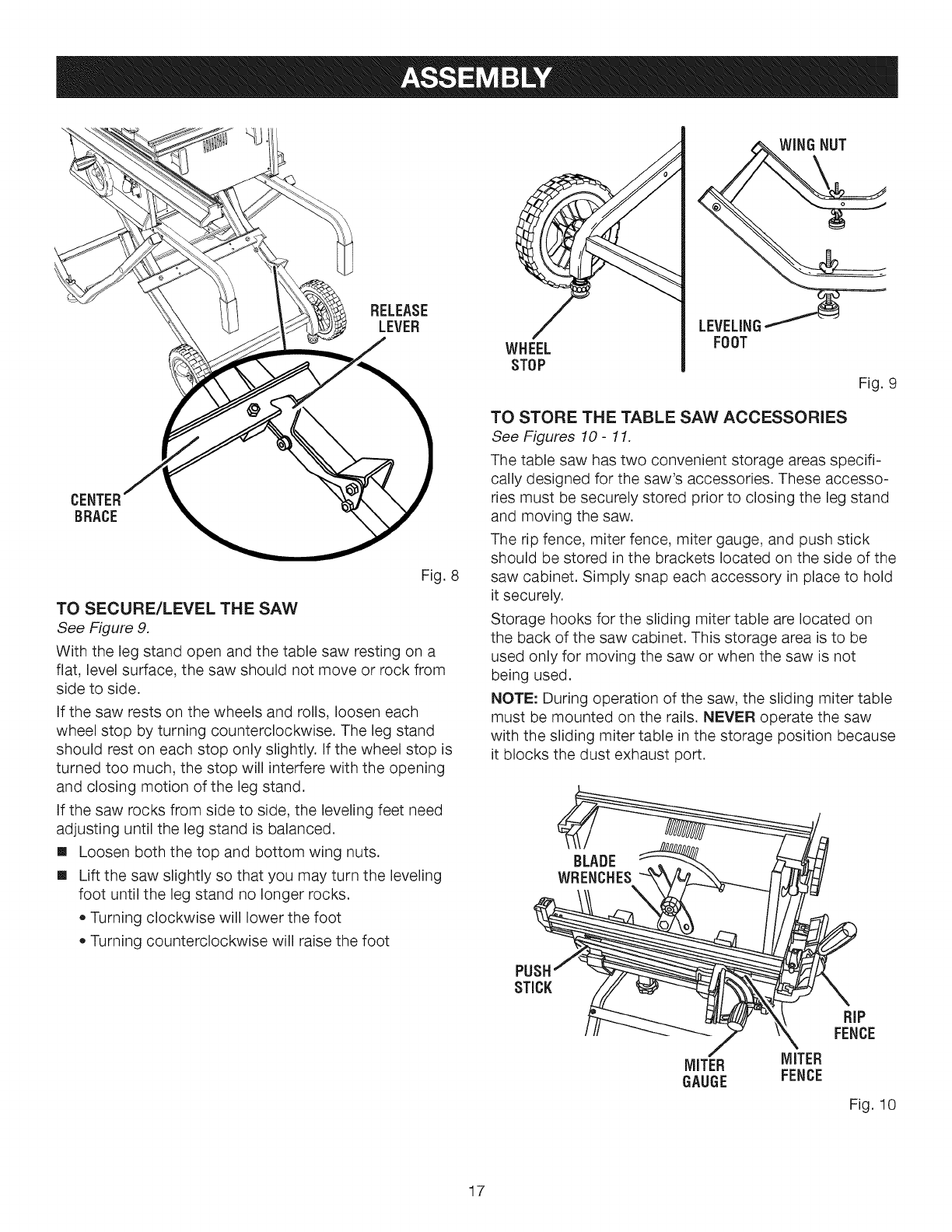

TO SECURE/LEVEL THE SAW

See Figure 9.

With the leg stand open and the table saw resting on a

flat, level surface, the saw should not move or rock from

side to side.

If the saw rests on the wheels and rolls, loosen each

wheel stop by turning counterclockwise. The leg stand

should rest on each stop only slightly. If the wheel stop is

turned too much, the stop will interfere with the opening

and closing motion of the leg stand.

If the saw rocks from side to side, the leveling feet need

adjusting until the leg stand is balanced.

[] Loosen both the top and bottom wing nuts.

[] Lift the saw slightly so that you may turn the leveling

foot until the leg stand no longer rocks.

• Turning clockwise will lower the foot

Turning counterclockwise will raise the foot

WING NUT

WHEEL

STOP

LEVELING

FOOT

Fig. 9

TO STORE THE TABLE SAW ACCESSORIES

See Figures 10- 11.

The table saw has two convenient storage areas specifi-

cally designed for the saw's accessories. These accesso-

ries must be securely stored prior to closing the leg stand

and moving the saw.

The rip fence, miter fence, miter gauge, and push stick

should be stored in the brackets located on the side of the

saw cabinet. Simply snap each accessory in place to hold

it securely.

Storage hooks for the sliding miter table are located on

the back of the saw cabinet. This storage area is to be

used only for moving the saw or when the saw is not

being used.

NOTE: During operation of the saw, the sliding miter table

must be mounted on the rails. NEVER operate the saw

with the sliding miter table in the storage position because

it blocks the dust exhaust port.

PUSHt _::__.__ _/_/_

MITER MITER

GAUGE FENCE

Fig. 10

Standfacingthebackofthetablesaw.Thelongestpartof

themitertablebasemustbestoredto theleft.Tosecure

theslidingmitertable:

[] Resttheslidingmitertableonthebottomright-hand

storagehookandthemiterbaseonthelowerbottom

left-handhook.

[]

Align the bottom miter locking clamp with the bottom

left storage hook. Push the sliding miter table back

toward the cabinet until it is resting against all two

hooks.

Lock the miter locking clamps on the left by pushing

clamps toward the side of the cabinet securing the

miter table in place.

MITER

LOCKING

CLAMP

STORAGE

HOOK

TO iNSTALL BEVEL HANDLE ASSEMBLY

See Figure 12.

[] Lift the end cap off the bevel handle assembly using a

flat blade screwdriver.

[] Hold the hex nut securely and turn the screw

counterclockwise to remove the nut completely.

NOTE: Do not remove the screw from the handle or

the washer from the end of the screw.

[] Place the hex nut into the recessed hole on the back of

the height adjusting handwheel and hold in place.

[] Slide the handle, screw, and washer into the hole on

the height adjusting handwheel.

[] Using a flathead screwdriver, turn the screw clockwise

and tighten in place.

[] Push the end cap back in place on the end of the

handle.

HEIGHT/BEVEL

ADJUSTING

HANDWHEEL

HEX NUT

BEVEL

HANDLE

WASHER

END CAP

>-J

SCREW

Fig. 12

MITER

BASE

STORAGE

HOOK SLiDiNG MITER

TABLE

Fig. 11

TO (NSTALL FRONT AND BACK RA(LS

See Figures 13- 14.

[] Loosen the front rail clamps one half turn from the

tightened position. Loosen the square rail holder nut

approximately one-fourth (1/4) turn to allow the front

rail to slide over the nut.

[] Mount the front rail with the scale facing the outside

toward the operator.

[] Check to make sure the rail clamps will securely clamp

the rail before sliding the entire assembly into position.

If not, tighten the square rail holder nut approximately

one-fourth (1/4) turn and recheck.

[] Slide the rail into desired position over both clamps

and secure.

[] Mount the rear rail, following the same clamping

procedure as shown for the front rail.

TO UNLOCK/MOVE THE RAILS

See Figure 15.

The front and back rails will need to be positioned so they

do not touch the floor when the leg stand is closed.

Using the bottom scale as a guide, the scale will need to

be aligned to the saw blade at the 14 in. mark. To unlock

and move the rails:

[] Loosen the front rail clamps by pushing the lever to the

left.

[] Slide the rail to the desired position.

[] Secure the rail in position by pushing the clamp to the

right.

[] Repeat above steps with the rear rail placing it in the

same location as the front rail.

NOTE: When the rails are moved to the right, use caution

to avoid tripping on the front leg brace.

FRONT

RAIL

i i

SQUARE BAiL

HOLDER NUT

FRONTBAIL

CLAMP Fig. 13

Fig. 15

REAR

RAIL

SQUARE BAiL

HOLDER NUT

BEAR BAIL

CLAMP Fig. 14

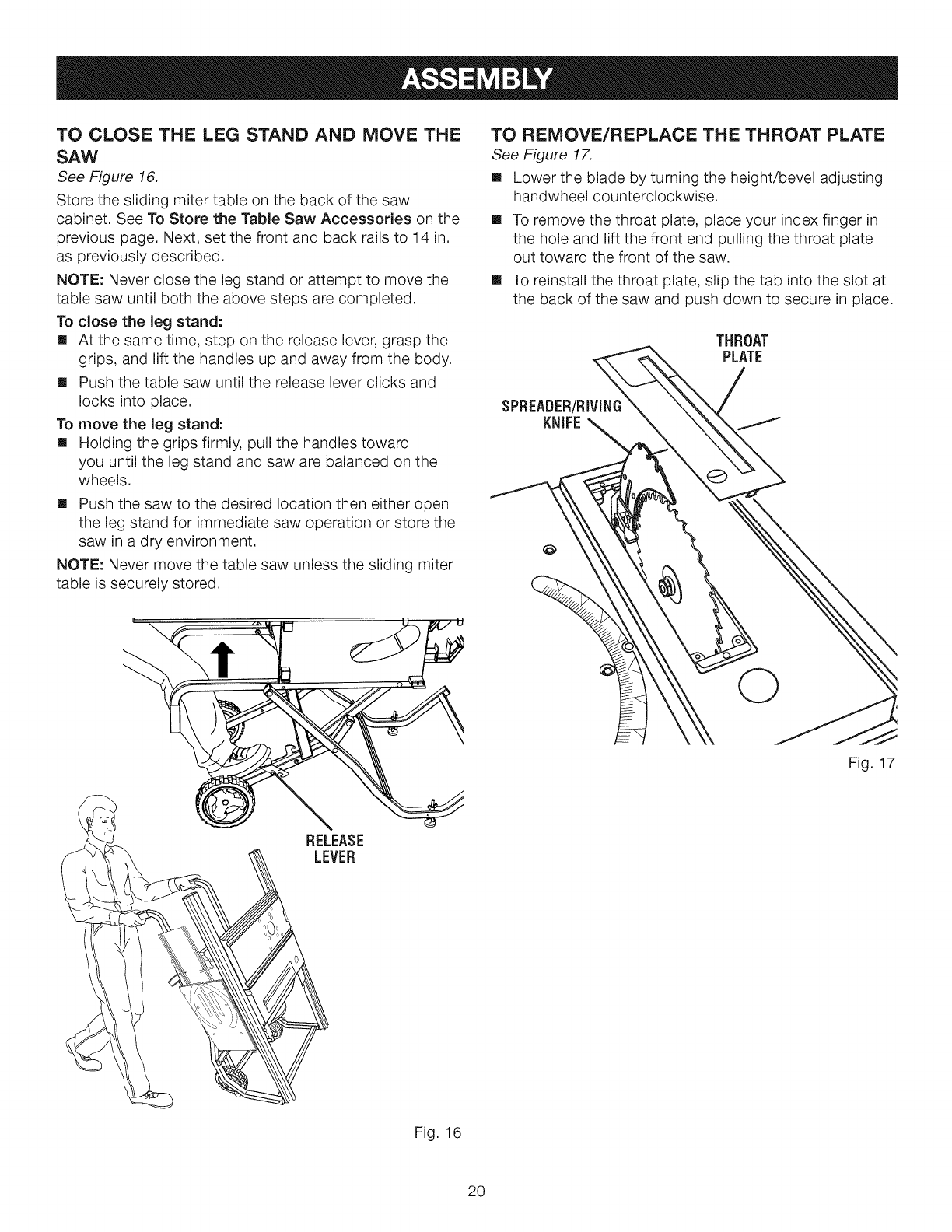

TO CLOSE THE LEG STAND AND MOVE THE

SAW

See Figure 16.

Store the sliding miter table on the back of the saw

cabinet. See To Store the Table Saw Accessories on the

previous page. Next, set the front and back rails to 14 in.

as previously described.

NOTE: Never close the leg stand or attempt to move the

table saw until both the above steps are completed.

To close the leg stand:

[] At the same time, step on the release lever, grasp the

grips, and lift the handles up and away from the body.

[] Push the table saw until the release lever clicks and

locks into place.

To move the leg stand:

[] Holding the grips firmly, pull the handles toward

you until the leg stand and saw are balanced on the

wheels.

[] Push the saw to the desired location then either open

the leg stand for immediate saw operation or store the

saw in a dry environment.

NOTE: Never move the table saw unless the sliding miter

table is securely stored.

TO REMOVE/REPLACE THE THROAT PLATE

See Figure 17.

[] Lower the blade by turning the height/bevel adjusting

handwheel counterclockwise.

[] To remove the throat plate, place your index finger in

the hole and lift the front end pulling the throat plate

out toward the front of the saw.

[] To reinstall the throat plate, slip the tab into the slot at

the back of the saw and push down to secure in place.

THROAT

PLATE

SPREADER/RIVING

KNIFE

Fig. 17

RELEASE

LEVER

Fig. 16

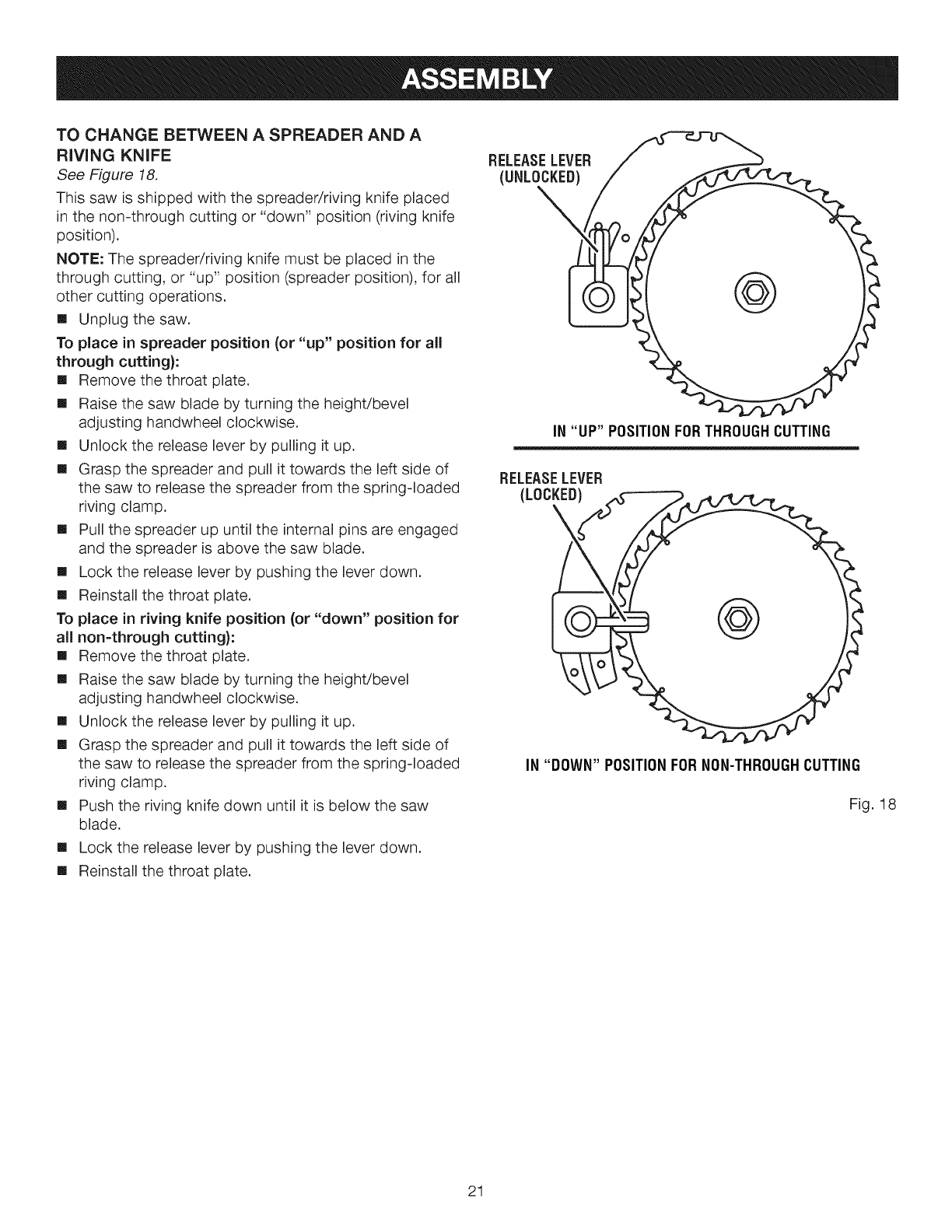

TOCHANGEBETWEENASPREADER AND A

RIV(NG KNIFE

See Figure 18.

This saw is shipped with the spreader/riving knife placed

in the non-through cutting or "down" position (riving knife

position).

NOTE: The spreader/riving knife must be placed in the

through cutting, or "up" position (spreader position), for all

other cutting operations.

[] Unplug the saw.

To place in spreader position (or "up" position for a((

through cutting):

[] Remove the throat plate.

[] Raise the saw blade by turning the height/bevel

adjusting handwheel clockwise.

[] Unlock the release lever by pulling it up.

[] Grasp the spreader and pull it towards the left side of

the saw to release the spreader from the spring-loaded

riving clamp.

[] Pull the spreader up until the internal pins are engaged

and the spreader is above the saw blade.

[] Lock the release lever by pushing the lever down.

[] Reinstall the throat plate.

To place in riving knife position (or "down" position for

a(( non-through cutting):

[] Remove the throat plate.

[] Raise the saw blade by turning the height/bevel

adjusting handwheel clockwise.

[] Unlock the release lever by pulling it up.

[] Grasp the spreader and pull it towards the left side of

the saw to release the spreader from the spring-loaded

riving clamp.

[] Push the riving knife down until it is below the saw

blade.

[] Lock the release lever by pushing the lever down.

[] Reinstall the throat plate.

RELEASELEVER

(UNLOCKED) /A/._F'_"_'_..

IN "UP" POSITIONFORTHROUGHCUTTING

RELEASELEVER

(LOCKED)

IN "DOWN" POSITIONFORNON-THROUGHCUTTING

Fig. 18

TO CHECK SAW BLADE INSTALLATION

See Figure 19.

CAUTION: To work properly, the saw blade teeth

must point down toward the front of the saw. Failure

to do so may cause damage to the saw blade, the

saw, or the workpiece.

[] Unplug the saw.

[] Lower the saw blade and remove the throat plate.

[] Make sure the bevel locking lever is securely pushed to

the left. Raise the saw blade to its full height by turning

the height/bevel adjusting handwheel clockwise.

To loosen the blade:

[] Using the small blade wrench, place the flat open end

on the flats on the arbor shaft.

[] Insert the closed end of the large blade wrench over

the hex nut. Holding both wrenches firmly, pull the

larger wrench forward to the front of the machine.

To tighten the blade:

[] Using the small blade wrench, place the fiat open end

into the flats on the arbor shaft.

[] Insert the closed end of the large blade wrench over

the hex nut. Holding both wrenches firmly, push the

larger wrench to the back of the machine. Make sure

the blade nut is securely tightened. Do not overtighten.

NOTE: Arbor shaft has left hand threads.

Check all clearances for free blade rotation. See To Set

the Scale to the Blade in the Adjustment Section. In cut-

ting operations, the scale will be set to the side of the

blade where the cut will be measured and made.

THROAT

PLATE

SMALL

BLADE

WRENCH

LARGE

BLADE

WRENCH

TO INSTALL THE BLADE GUARD AND ANTI-

KICKBACK PAWLS

See Figures 20 -22.

WARNING: Replace dull or damaged anti-kickback

pawls. Dull or damaged pawls may not stop a kick-

back increasing the risk of serious personal injury.

NOTE: Anti-kickback pawls should only be installed for

through cuts.

[] Unplug the saw.

[] Raise the saw blade by turning the height/bevel

adjusting handwheel clockwise.

[] Place spreader/riving knife in "up" position.

To install anti-kickback pawls:

[] Press and hold the button on the side of the anti-kick-

back pawls.

[] Align the slot in the pawls over the rear hole in the

spreader/riving knife.

[] Push the pawl handle down snapping them into place

and release the button.

NOTE: Pull on the pawl handle to make sure pawls are

securely locked.

PAWL

HANDLE

BUTTON

ANTI-KICKBACK

PAWLS

Fig. 20

Fig. 19

To install blade guard:

[] Lift the guard lever up to unlock.

[] With the front of the blade guard raised, lower the

back of the guard into the middle hole of the spreader/

riving knife. Push the front of the guard down until it is

parallel to the table (see figure 21). If the blade guard

is not parallel to the table, the riving knife is not in the

spreader (or "up") position.

[] Lock the guard in place by pushing the guard lever

down.

NOTE: Blade alignment with the spreader can be adjusted

for different blade widths. Refer to: To Check and Align

the Spreader/Riving Knife and Saw Blade. Check the

blade guard assembly for clearances and free movement.

BLADE

GUARD

READER/

INGKNIFE

GUARD

LEVER

TO CHECK AND ALIGN THE SPREADER/RIVING

KNIFE AND SAW BLADE

See Figures 23 -24.

To check a(ignment of the spreader/riving knife:

[] Unplug the saw.

[] Raise the saw blade by turning the height/bevel

adjusting handwheel clockwise.

[] Remove the anti-kickback pawls and blade guard

assembly. Place a framing square or straight edge

against both the saw blade and the spreader.

NOTE: Place framing square between carbide teeth

and measure from blade. This step will insure framing

square is square against blade from the front to back

of blade.

[] The saw blade and spreader/riving knife are aligned

when the framing square contacts both the blade and

spreader/riving knife evenly with no gaps.

If the spreader/riving knife is out of alignment with the saw

blade, adjustment is needed. The spreader/riving knife

must be in alignment front to back (horizontally) and top to

bottom (vertically).

ADJUSTMENT

SCREW

Fig. 21

SPREADER/

RIVINGKNIFE

CORRECT

INCORRECT Fig. 22

FRAMING

SQUARE

Fig. 23

Toadjust(horizontally):

[] Remove the blade guard assembly, anti-kickback

pawls, and the throat plate.

[] Raise the blade to its full height.

[] Turn the adjustment screws to reposition the spreader/

riving knife left or right as needed to align the spreader/

riving knife with the saw blade.

[] Once properly aligned, securely retighten the screws.

To adjust (vertically):

[] Loosen the adjustment screws.

[] Slowly turn the set screws until the riving knife is

aligned with the blade. Check its position after

adjustment to ensure that it is vertically aligned with

the blade.

[] Once properly aligned, securely retighten the screws.

HORIZONTALADJUSTMENT

FRAMING

SQUARE

BLADE

FRAMING

SQUARE

SPREADER/

RiViNGKNIFE

VERTICALADJUSTMENT

BLADE

Fig. 24

TO INSTALL THE SLIDING MITER TABLE AND

MITER FENCE

See Figures 25 -26.

[] Remove the sliding miter table from the storage area

by pulling the miter locking clamps away from the saw

cabinet.

[] Install the sliding miter table assembly over the front

and rear rails. Check that it slides easily on the rails.

Push both front miter locking clamps down evenly on

each side to secure. Repeat for both rear miter locking

clamps.

NOTE: Do not force miter locking clamps down.

Tighten only to flat "seated" position.

[] Remove the miter fence from the miter fence storage

on the side of the saw cabinet.

NOTE: When making bevel cuts, only use the miter

fence on the left side of the saw table.

[] To install the miter fence to the sliding miter table,

loosen the adjusting clamp knob so the bolt has

enough clearance to slide in the table slot.

LOCKINGCLAMPS

REAR

RAIL

SLiDiNG

MITER

TABLEBASE

Fig. 25

[] Mount the miter fence to the miter table by installing

the Iocator pin (below the miter fence) into holes "A',

"B', "C", or "D". (Holes "A" and "D" are closest to the

blade). At the same time, place the attachment bolt in

the slot.

NOTE: Holes "A" and "D" should be used for short

pieces of wood and holes "B" and "C" should be used

for long pieces of wood.

[] Properly adjust the miter indicator to the scale on the

end of the fence opposite the Iocator pin.

[] Retighten the adjusting clamp knob.

ADJUSTINGCLAMP

MITERFENCE KNOB ATTACHMENT

HOLDER BOLT

HOLE"A"

LOCATORPiN

HOLE

MITER

iNDiCATOR

TABLESLOT

HOLE"B"

QUICKSTOP HOLE"C" Fig. 26

TO LOCK SLIDING MITER TABLE

See Figure 27.

The miter table slides allowing the operator to slide the

workpiece across the saw. A miter slide lock is mounted

on the front of the miter table to lock it in place. The miter

slide lock is placed in a slot on the base to align the miter

table with the front edge of the saw table. The sliding

miter table should be locked for any cut in which the

operator prefers a fixed table.

[] To lock the miter table with the base projecting to the

front, place miter slide lock in the back slot on the

base.

[] To lock the miter table with the base projecting to the

back, place miter slide lock in the front slot on the

base.

MITER

SLIDE LOCK

TO CHECK SLIDING MITER TABLE ASSEMBLY

The square relationship between the blade and the miter

fence as it travels the entire distance from the front to the

rear of the miter table base during a cut is very important

for making precise and accurate cuts. The sliding miter

table assembly has been preset at the factory. However,

misalignment during shipping or requirements for very

precise and accurate cuts may require realignment.

To avoid unnecessary setups and adjustments, we

suggest that you check these setups carefully with a fram-

ing square and make practice cuts in scrap wood before

making finish cuts in good workpieces.

NOTE: Follow the general rule of measuring twice and

cutting once.

Do not loosen any screws. Once screws have been loos-

ened, settings must be reset.

Two basic checks should be made before using the miter

table: (1) the miter base must be parallel to the blade as

the table slides from the front to back, and (2) the miter

fence must be square to the blade when set at exactly

zero (0°) on the miter table scale.

NOTE: The miter table has adjustment screws for squar-

ing miter fence to blade and maintaining 0° scale settings

when miter base adjustments are required. These checks

and adjustments are explained in step-by-step proce-

dures in the Operation section and depend on each other.

TO iNSTALL ACCESSORY TABLE

See Figure 28.

[] Fit the tabs on the back of the accessory table into the

rear rail.

[] Position the slot on the underside of the accessory

table onto the front rail and tighten the lever securely.

NOTE: To use the optional router accessories included

with this product, refer to the Operation section for usage.

ACCESSORY

TABLE

LOCK REARRAIL

SLOTSFORLOCKING

MITERTABLE

Fig. 27

UNLOCK LEVER

FIT LiP OFTABLE

INTO REARRAIL

Fig. 28

AWARNING: Do not allow familiarity with tools to

make you careless. Remember that a careless frac-

tion of a second is sufficient to inflict severe injury.

AWARNING: Always wear eye protection with side

shields marked to comply with ANSI Z87.1. Failure to

do so could result in objects being thrown into your

eyes, resulting in possible serious injury.

AWARNING; Do not use any attachments or acces-

sories not recommended by the manufacturer of

this tool. The use of attachments or accessories not

recommended can result in serious personal injury.

AWARNING; Although many of the illustrations in

this manual are shown with the blade guard removed

for clarity, do not operate the saw without the blade

guard unless specifically instructed to do so.

APPLICATIONS

You may use this tool for the purposes listed below:

[] Straight line cutting operations such as cross cutting,

ripping, mitering, beveling, and compound cutting

[] Dado or molding cuts with optional accessories

[] Cabinet making and woodworking

NOTE; This table saw is designed to cut wood and wood

composition products only.

BASIC OPERATION OF THE TABLE SAW

The 3-prong plug must be plugged into a matching outlet

that is properly installed and grounded according to all

local codes and ordinances. Improper connection of the

equipment can result in electric shock. Do not modify

the plug if it will not fit the outlet. Have the correct outlet

installed by a qualified electrician. Refer to the Electrical

section in this manual.

CAUSES OF KICKBACK

Kickback can occur when the blade stalls or binds, kick-

ing the workpiece back toward you with great force and

speed. If your hands are near the saw blade, they may

be jerked loose from the workpiece and may contact the

blade. Kickback can cause serious injury. Use precautions

to avoid the risks.

Kickback can be caused by any action that pinches the

blade in the wood such as:

[] Making a cut with incorrect blade depth

[] Sawing into knots or nails in the workpiece

[] Twisting the wood while making a cut

[] Failing to support work

[] Forcing a cut

[] Cutting warped or wet lumber

[] Using the wrong blade for the type of cut

[] Not following correct operating procedures

[] Misusing the saw

[] Failing to use the anti-kickback pawls

[] Cutting with a dull, gummed-up, or improperly set

blade

AVOIDING KICKBACK

[] Always use the correct blade depth setting. The top of

the blade teeth should clear the workpiece by 1/8 in. to

1/4 in.

[] Inspect the wood for knots or nails before beginning a

cut. Knock out any loose knots with a hammer. Never

saw into a loose knot or nail.

[] Always use the rip fence when rip cutting. Use the

miter gauge (or miter fence) when cross cutting. This

helps prevent twisting the wood in the cut.

[] Always use clean, sharp, and properly-set blades.

Never make cuts with dull blades.

[] To avoid pinching the blade, support the work properly

before beginning a cut.

[] When making a cut, use steady, even pressure. Never

force cuts.

[] Do not cut wet or warped lumber.

[] Use extra caution when cutting some prefinished or

composition wood products as the anti-kickback

pawls may not always be effective.

[] Always guide your workpiece with both hands or with

push sticks and/or push blocks. Keep your body in a

balanced position to be ready to resist kickback should

it occur. Never stand directly in line with the blade.

[] Use of a featherboard will help hold the workpiece

securely against the saw table or fence.

[] Clean the saw, blade guard, under the throat plate, and

any areas where saw dust or scrap workpieces may

gather.

[] Use the right type of blade for the cut being made.

[] Always use the spreader/riving knife for every

operation where it is allowed. The use of this device

will greatly reduce the risk of kickback.

CUTTINGAIDS

See Figure 29.

Push sticks are devices that may be used for pushing a

workpiece through the blade in any rip cut. When mak-

ing non-through cuts or ripping narrow stock, always use

a push stick, push block, and/or featherboard so your

hands do not come within 3 inches of the saw blade.

They can be made in various sizes and shapes from scrap

wood and used in a specific project. The stick must be

narrower than the workpiece, with a 90° notch in one end

and shaped for a grip on the other end.

A push block has a handle fastened by recessed screws

from the underside. Use push blocks for narrow cuts and

all non-through cuts.

CAUTION: Be sure the screws in a push block are

recessed to avoid damaging the saw or workpiece.

PUSHBLOCKS

Fig. 29

AUXILIARY FENCE

An auxiliary fence is a device used to close the gap

between the rip fence and the saw table. Always make

and use an auxiliary fence when ripping material 1/8 in.

or thinner.

HOW TO MAKE AND ATTACH AN AUXILIARY

FENCE (FOR RIP CUTTING THIN WORKPIECE)

See Figure 30.

The auxiliary fence [a piece of wood 3/4 in. thick, 3-1/2 in.

wide, and 23-1/2 in. long] is secured to the rip fence using

the slots in the side of the rip fence.

[] Drill two holes in the auxiliary fence then counterbore

the holes.

[] Place hex head bolts in the holes and loosely secure

the bolts to the fence using washers and hex nuts

positioning mounting hardware away from the blade.

[] Slide the bolts into the slot on the rip fence then push

the auxiliary fence toward the front of the rip fence.

[] With the auxiliary fence resting firmly on the saw table,

tighten the hex nuts to secure the auxiliary fence to the

rip fence.

Fig. 30

HOW TO MAKE A JIG (FOR RIP CUTTING

NARROW WORKPIECE)

See Figure 31.

If ripping a narrow workpiece places the hands too close

to the blade, it will be necessary to make and use a jig.

To make a jig:

[] Attach a handle to a long, straight piece of wood and

secure from the underside using recessed screws.

[] Cut an L-shaped stop in the side of the jig.

To use ajig:

[] Position the workpiece flat on the table with the edge

flush against the jig and against the stop.

[] Holding the jig handle and using a push block, make

the rip cut as described in Making a Rip Cut later in

this section.

STOP

JiG

HANDLE

Fig. 31

FEATHERBOARD

A featherboard is a device used to help control the

workpiece by holding it securely against the table or

fence. Featherboards are especially useful when ripping

small workpieces and for completing non-through cuts.

The end is angled with a number of short kerfs to give a

friction hold on the workpiece and locked in place on the

table with a C-clamp. Test to ensure it can resist kickback.

HOW TO MAKE A FEATHERBOARD

See Figure 32.

The featherboard is an excellent project for the saw.

Select a solid piece of lumber approximately 3/4 in. thick,

2-1/2 in. wide and 12 in. long. Mark the center of the

width on one end of the stock. Miter the width to 70° (see

Making a Rip Cutfor information on miter cuts).

Prepare the saw for ripping as discussed in Making a Rip

Cut. Set the rip fence to allow approximately a 1/4 in.

"finger" to be cut in the stock. Feed the stock only to the

mark previously made at 6 in. Turn the saw OFF and al-

low the blade to completely stop rotating before removing

the stock. Reset the rip fence and cut spaced rips into the

workpiece to allow approximately 1/4 in. fingers and 1/8

in. spaces between the fingers.

AWARNING: Mount the featherboard in front of the

saw blade. If positioned improperly, kickback can

result from the featherboard pinching the workpiece

and binding the blade in the saw kerf. Failure to heed

this warning can result in serious personal injury.

FEATHERBOARD PUSH

BLOCK

PUSH

STICK

BEVEL

LOCKING

LEVER

Fig. 33

HOW TO MOUNT A FEATHERBOARD

See Figure 33,

Remove the adjusting clamp knob, bolt, and washer from

the miter fence holder. Place the bolt through one of the

holes in the featherboard. Positioning the featherboard will

depend on the placement of the bolt and the position of

the sliding miter table on the rails. Place the washer on the

bolt and attach the adjusting clamp knob loosely. Position

the featherboard with the hex head of the bolt in the miter

table slot but do not tighten. Completely lower the saw

blade. Position the rip fence to the desired adjustment for

the cut to be performed and lock. Place the workpiece

against the fence and over the saw blade area. Adjust

the featherboard to apply resistance to the workpiece

just forward of the blade. Securely tighten the adjusting

clamp knob to secure the featherboard in place. Attach C-

clamps to further secure the featherboard to the edge of

the saw table.

3-5/8 in.

1__

3/4 in.

3/8 iNCH DIAMETER

Y Y Y 1/4in _1/ ,3,,°,°

45°1

1/8 in. i

_, 6 in.

8in.

10 in.

12 in.

18 in.

Fig. 32

TYPESOFCUTS

See Figure 34,

There are six basic cuts: 1) the cross cut, 2) the rip cut,

3) the miter cut, 4) the bevel cross cut, 5) the bevel rip cut,

and 6) the compound (bevel) miter cut. All other cuts are

combinations of these basic six. Operating procedures for

making each kind of cut are given later in this section.

AWARNING: Always make sure the blade guard and

anti-kickback pawls are in place and working prop-

erly when making these cuts to avoid possible injury.

Cross cuts are straight 90° cuts made across the grain of

the workpiece. The wood is fed into the cut at a 90° angle

to the blade, and the blade is vertical.

Rip cuts are made with the grain of the wood. To avoid

kickback while making a rip cut, make sure one side of

the wood rides firmly against the rip fence.

Miter cuts are made with the wood at any angle to the

blade other than 90°. The blade is vertical. Miter cuts

tend to "creep" away from the miter fence during cutting.

This can be controlled by holding the workpiece securely

against the miter fence.

Bevel cuts are made with an angled blade. Bevel cross

cuts are across the wood grain, and bevel rip cuts are with

the grain.

Compound (or bevel) miter cuts are made with an angled

blade on wood that is angled to the blade. Be thoroughly

familiar with making cross cuts, rip cuts, bevel cuts, and

miter cuts before trying a compound miter cut.

CUTTING TIPS

Dado and rabbet cuts are non-through cuts which can

be either rip cuts or cross cuts. Carefully read and un-

derstand all sections of this operator's manual before at-

tempting any operation.

AWARNING: Do not use blades rated less than the

speed of this tool. Failure to heed this warning could

result in personal injury.

[] The kerf (the cut made by the blade in the wood)

will be wider than the blade to avoid overheating or

binding. Make allowance for the kerf when measuring

wood.

[] Make sure the kerr is made on the waste side of the

measuring line.

[] Cut the wood with the finish side up.

[] Knock out any loose knots with a hammer before

making the cut.

[] Always provide proper support for the wood as it

comes out of the saw.

©CROSSCUT

COMPOUND(BEVEL)MITERCUT

Fig. 34

TOCHANGETHE BLADEDEPTH

See Figure 35.

The blade depth should be set so that the outer points of

the blade are higher than the workpiece by approximately

1/8 in. to 1/4 in. but the lowest points (gullets) are below

the top surface.

[] Push the bevel locking lever to the left for elevation

mode.

[] Raise the blade by turning the height/bevel adjusting

hand-wheel clockwise or lower it by turning the handle

counterclockwise.

GULLET

Fig. 35

TO CHANGE THE BLADE ANGLE (BEVEL)

See Figure 36.

[] Push the bevel locking lever to the right for angle

mode.

[] Angle the blade by turning the height/bevel adjusting

handwheel until the bevel indicator shows the correct

angle.

[] Return the bevel locking lever securely to the left to

lock the angle, while holding the height/bevel adjusting

handwheel in place.

,,_, ANGLED

BLADE

CHECKING SLIDING MITER TABLE AND

MAKING ADJUSTMENTS

TO CHECK MITER BASE PARALLELISM

See Figures 37 -38.

[] Unplug the saw.

[] Set saw up as if you were preparing to make a cut.

Tighten rail clamps, miter locking clamps, adjusting

clamp, etc.

[] Slide miter table (A) to the front of miter base (B) as far

as it will go. Place a reference mark (C) near the end of

the miter table as shown in figure 37.

NOTE: Front of miter base is on infeed side of saw.

[] Place a reference mark on one of the blade teeth (D)

and rotate the blade (E) so that the reference mark on

the blade is at the front of the throat plate.

[] Place a framing square (G) against the blade and

align with reference mark on miter table. Measure the

distance between the blade and the edge of miter

table.

NOTE: Place framing square between carbide teeth

and measure from blade. This step will insure framing

square is square against blade from the front to back

of blade.

CLAMP BEVEL

INDICATOR

BEVEL

LOCKINGLEVER

HEIGHT/BEVEL

ADJUSTING

HANDWHEEL

Fig. 37

Fig. 36

[] Removeframingsquareandslidemitertableto the

rearof miterbaseasfarasitwillgo.

[] Rotatethebladesothereferencemarkontheblade

isattherearof thethroatplate.Measuringfromthe

samemarkonthebladeattherearwilleliminatethe

effectof bladewobble.

[] Placeframingsquareagainstthebladeandalignwith

thesamereferencemarkonthemitertable.Measure

thedistancebetweenthebladeandtheedgeofthe

mitertableattherear.

[] Compare whether the front and rear measurements are

the same. If they are the same, proceed with checking

the miter fence alignment. If not, this indicates the

miter base needs aligning. Miter base must then be

adjusted before checking miter fence alignment. See

To Adjust The Miter Base section that follows.

TO CHECK M(TER FENCE AUGNMENT

See Figure 39.

The miter fence must be perpendicular to the blade when

set at zero degrees.

[] Set the miter fence (H) at 0°. Miter indicator (I) should

be set precisely on 0° and secured in place with

adjusting clamp (J).

NOTE: The quick-stop is not necessary for this

checking procedure. However, you may want to check

and adjust it to 0° at this time. See the To Adjust

Quick-Stop section that follows.

[] Place a framing square (G) firmly against the miter

fence (H), with the other side against the blade (E).

[] Check whether the miter fence and blade are square

with each other. With the framing square against the

miter fence there should be no gap from the front to

the rear of the blade.

[]

If a gap exists, the miter fence may be out of square.

Rotate the blade and recheck. (f there is a consistent

gap between the front and rear of the blade, the

miter table needs aligning. Follow the adjustment

procedures that follow.

Fig. 38

Fig. 39

TO ADJUST THE MITER BASE

See Figure 40.

Remember: Check all settings before loosening screws

for the following procedures. Once screws have been

loosened, these settings must be reset.

Eight screws are visible on the miter base (B).

[] Four screws (K) are on the holder plates and secure

these plates to the rails. It is not necessary to loosen or

adjust these screws for this adjustment procedure.

[] Another pair of screws (L) is in the base, at the rear.

Loosen these two screws (L) and the rear miter locking

clamps (M).

[] The last pair of screws is located on the infeed side of

the base. Loosen the left screw (N) only.

[] The right screw (O) will be used as a pivot point.

NOTE: The front two miter locking clamps (P) and rail

clamps should remain locked.

[] Adjust the miter base so that it is parallel to the blade

see To Check Miter Base Parallelism.

[] Retighten the left front screw (N).

[] Clamp the rear miter locking clamps (M).

[] Retighten the two rear screws (L).

TO ADJUST THE MITER FENCE

See Figures 41 -42.

[] Set the miter fence (H) at 0°. Miter indicator should be

set precisely on 0° and secured in place with adjusting

clamp (J).

[] There are four slides located under the sliding miter

table. These slides let the miter table move on the

base. Three slides are mounted on eccentric screws

that can be adjusted by loosening the hex nuts on top

of the miter table.

[] Loosen the rear hex nuts (Q) on top of sliding miter

table for this adjustment procedure.

NOTE: The front screws (R) are only needed to remove

excessive play in the slides due to wear from extended

use. They are not needed for this procedure. The right

front hex nut is a non-eccentric pivot and should never

be loosened.

[] Adjust the right rear eccentric screw from the lower

side of the miter table so that maximum play exists

between the slide and miter base.

[] Push left rear of miter table snugly against miter base

as shown by the arrow (S) in figure 42 and secure.

[] Place a framing square firmly against the miter fence,

with the other side against the blade.

[] Adjust left rear screw from underneath miter table until

miter fence and blade are square with each other.

REX

WASHER

_._ NITER

TABLE

Fig. 4O

SLIDES

ECCENTRIC

SCREW

LIPOF

BASE

Fig. 41

[] Tightenhexnutsecurely.

[] Adjustrightrearscrewfromunderneathmitertableto

removeexcessiveplay.

[] Tightenhexnutsecurely.

[] Recheckyoursetupscarefully.Alsomakesureall

screws,hexnuts,etc.,havebeentightenedsecurely.

[] Ifslidingmitertableassemblyisstillnotsquarewith

theblade,repeattheaboveproceduresasneeded.

[] Makesurethatslidesremainsquareto miterbase

edgeto prevent"cocking"whichwillresultin

excessiveplayinmitertable.

ECCENTRIC

SCREW

QUICK

STOP

Fig. 42

TO ADJUST QUICK STOP

See Figure 43.

The quick stop is preset at the factory to stop the miter

fence at exactly zero degrees. However, when sliding mi-

ter table adjustments are made, these adjustments may

cause the quick stop to need adjusting. Check quick stop

with miter scale set at zero degrees. If adjustments are

needed, proceed with the following steps:

[] Loosen the eccentric screw holding the quick stop.

[] Place the quick stop against the miter fence with miter

scale set at zero degrees.

[] Adjust eccentric screw until it holds quick stop

securely against miter fence.

[] Retighten hex nut, securing eccentric screw and quick

stop.

[] Check your work. If the quick stop is not at zero

degrees, repeat above steps.

Fig. 43

TO USE THE MITER GAUGE

See Figure 44.

The miter gauge provides greater accuracy in angled cuts.

For very close tolerances, test cuts are recommended.

Change the location of the miter gauge groove from the left

side of the saw blade to the right side of the saw blade by

moving the accessory table.

When making a 90° cross cut, you can use either miter gauge

groove. When making a beveled cross cut (the blade tilted

in relation to the table) the miter gauge should be located in

the groove on the right so that the blade is tilted away from

the miter gauge and your hands.

The miter gauge can be turned 60° to the right or left.

[] Loosen the lock knob.

[] With the miter gauge in the miter gauge groove, rotate

the gauge until the desired angle is reached on the

scale.

[] Retighten the lock knob.

LOCK

KNOB

MITER

GAUGE Fig. 44

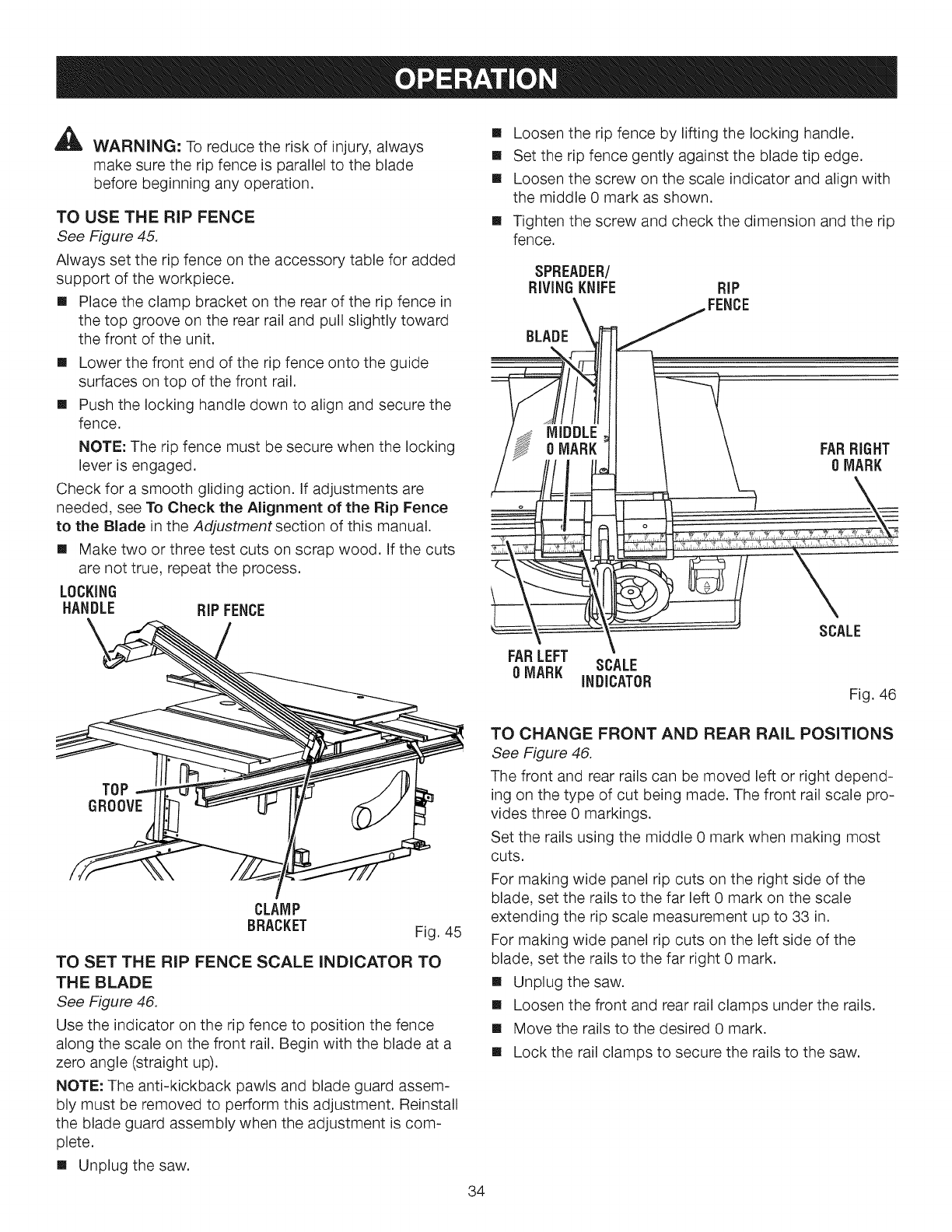

AWARNING: To reduce the risk of injury, always

make sure the rip fence is parallel to the blade

before beginning any operation.

TO USE THE RIP FENCE

See Figure 45.

Always set the rip fence on the accessory table for added

support of the workpiece.

[] Place the clamp bracket on the rear of the rip fence in

the top groove on the rear rail and pull slightly toward

the front of the unit.

[] Lower the front end of the rip fence onto the guide

surfaces on top of the front rail.

[] Push the locking handle down to align and secure the

fence.

NOTE: The rip fence must be secure when the locking

lever is engaged.

Check for a smooth gliding action. If adjustments are

needed, see To Check the Alignment of the Rip Fence

to the Blade in the Adjustment section of this manual.

[] Make two or three test cuts on scrap wood. If the cuts

are not true, repeat the process.

LOCKING

HANDLE RiP FENCE

TOP

GROOVE

CLAMP

BRACKET Fig. 45

TO SET THE RIP FENCE SCALE INDICATOR TO

THE BLADE

See Figure 46.

Use the indicator on the rip fence to position the fence

along the scale on the front rail. Begin with the blade at a

zero angle (straight up).

NOTE: The anti-kickback pawls and blade guard assem-

bly must be removed to perform this adjustment. Reinstall

the blade guard assembly when the adjustment is com-

plete.

[] Unplug the saw.

[] Loosen the rip fence by lifting the locking handle.

[] Set the rip fence gently against the blade tip edge.

[] Loosen the screw on the scale indicator and align with

the middle 0 mark as shown.

[] Tighten the screw and check the dimension and the rip

fence.

SPREADER/

RIVINGKNIFE RiP

FENCE

BLADE

FARLEFT

0MARK SCALE

INDICATOR

SCALE

Fig. 46

TO CHANGE FRONT AND REAR RAIL POSITIONS

See Figure 46.

The front and rear rails can be moved left or right depend-

ing on the type of cut being made. The front rail scale pro-

vides three 0 markings.

Set the rails using the middle 0 mark when making most

CutS.

For making wide panel rip cuts on the right side of the

blade, set the rails to the far left 0 mark on the scale

extending the rip scale measurement up to 33 in.

For making wide panel rip cuts on the left side of the

blade, set the rails to the far right 0 mark.

[] Unplug the saw.

[] Loosen the front and rear rail clamps under the rails.

[] Move the rails to the desired 0 mark.

[] Lock the rail clamps to secure the rails to the saw.

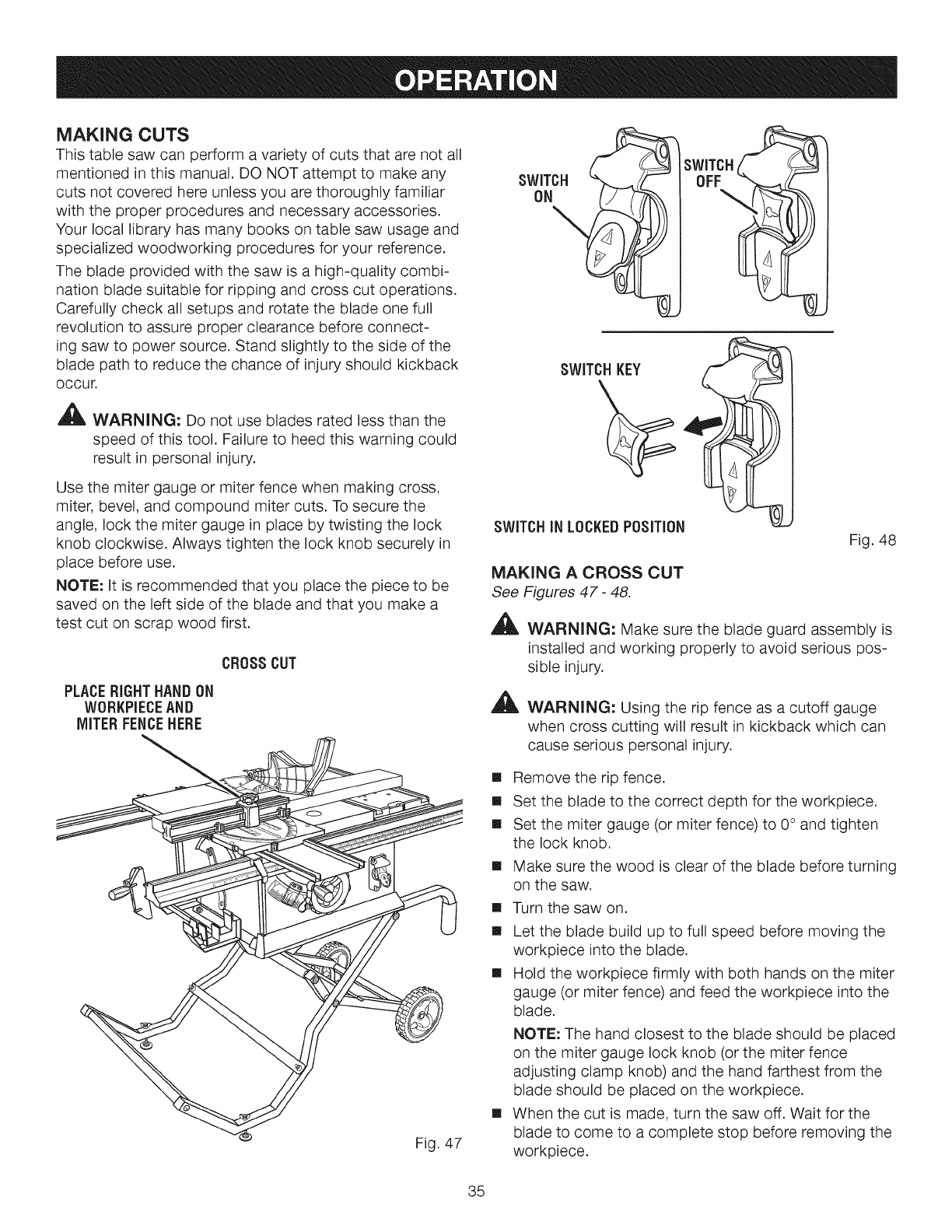

MAKING CUTS

This table saw can perform a variety of cuts that are not all

mentioned in this manual. DO NOT attempt to make any

cuts not covered here unless you are thoroughly familiar

with the proper procedures and necessary accessories.

Your local library has many books on table saw usage and

specialized woodworking procedures for your reference.

The blade provided with the saw is a high-quality combi-

nation blade suitable for ripping and cross cut operations.

Carefully check all setups and rotate the blade one full

revolution to assure proper clearance before connect-

ing saw to power source. Stand slightly to the side of the

blade path to reduce the chance of injury should kickback

Occur.

,_k WARNING: Do not use blades rated less than the

speed of this tool. Failure to heed this warning could

result in personal injury.

Use the miter gauge or miter fence when making cross,

miter, bevel, and compound miter cuts. To secure the

angle, lock the miter gauge in place by twisting the lock

knob clockwise. Always tighten the lock knob securely in

place before use.

NOTE: It is recommended that you place the piece to be

saved on the left side of the blade and that you make a

test cut on scrap wood first.

PLACERIGHTHANDON

WORKPIECEAND

MITERFENCEHERE

CROSSCUT

Fig. 47

SWITCH

oN t

SWITCHKEY

SWITCHIN LOCKEDPOSiTiON

Fig. 48

MAKING A CROSS CUT

See Figures 47- 48.

AWARNING: Make sure the blade guard assembly is

installed and working properly to avoid serious pos-

sible injury.

AWARNING: Using the rip fence as a cutoff gauge

when cross cutting will result in kickback which can

cause serious personal injury.

[] Remove the rip fence.

[] Set the blade to the correct depth for the workpiece.

[] Set the miter gauge (or miter fence) to 0° and tighten

the lock knob.

[] Make sure the wood is clear of the blade before turning

on the saw.

[] Turn the saw on.

[] Let the blade build up to full speed before moving the

workpiece into the blade.

[] Hold the workpiece firmly with both hands on the miter

gauge (or miter fence) and feed the workpiece into the

blade.

NOTE: The hand closest to the blade should be placed

on the miter gauge lock knob (or the miter fence

adjusting clamp knob) and the hand farthest from the

blade should be placed on the workpiece.

[] When the cut is made, turn the saw off. Wait for the

blade to come to a complete stop before removing the

workpiece.

MAKING A RiP CUT

See Figure 49.

AWARNING: Make sure the blade guard assembly is

installed and working properly to avoid serious pos-

sible injury.

[] Set the blade to the correct depth for the workpiece.

[] Position the rip fence the desired distance from the

blade for the cut and securely lock the handle.

[] When ripping a long workpiece, place a support the

same height as the table surface behind the saw for

the cut work.

[] Make sure the wood is clear of the blade before turning

on the saw.

[] Turn the saw on.

[] Position the workpiece flat on the table with the edge

flush against the rip fence. Let the blade build up to full

speed before feeding the workpiece into the blade.

[] Once the blade has made contact with the workpiece,

use the hand closest to the rip fence to guide it.

Make sure the edge of the workpiece remains in solid

contact with both the rip fence and the surface of the

table. If ripping a narrow piece, use a push stick and/

or push blocks to move the piece through the cut and

past the blade.

[] When the cut is made, turn the saw off. Wait for the

blade to come to a complete stop before removing the

workpiece.

RiP CUT

RiP

FENCE

BLADE

MAKING A MITER CUT

See Figure 50.

WARNING: Make sure the blade guard assembly

is installed and working properly to avoid possible

serious injury.

[] Remove the rip fence.

[] Set the blade to the correct depth for the workpiece.

[] Set the miter gauge (or miter fence) to the desired

angle and tighten the lock knob.

[] Make sure the wood is clear of the blade before turning

on the saw.

[] Turn the saw on.

[] Let the blade build up to full speed before moving the

workpiece into the blade.

[] Hold the workpiece firmly with both hands on the miter

gauge (or miter fence) and feed the workpiece into the

blade.

NOTE: The hand closest to the blade should be placed

on the miter gauge lock knob (or the miter fence

adjusting clamp knob) and the hand farthest from the

blade should be placed on the workpiece.

[] When the cut is made, turn the saw off. Wait for the

blade to come to a complete stop before removing the

workpiece.

MITERCUT

BLADE

MITERFEN

ANGLED HEIGHT/BEVEL

ADJUSTING

HANDWHEEL

Fig. 50

Fig. 49

MAKING A BEVEL CROSS CUT

See Figures 51 -52.

WARNING: Make sure the blade guard assembly

is installed and working properly to avoid possible

serious injury.

WARNING: The miter gauge (or miter fence) must

be on the left side of the blade to avoid trapping the

wood and causing kickback and the risk of serious

personal injury.

[] Remove the rip fence.

[] Unlock the bevel locking lever.

[] Adjust the bevel angle to the desired setting.

[] Lock the bevel locking lever.

[] Set the blade to the correct depth for the workpiece.

[] Set the miter gauge (or miter fence) to 0° and tighten

the lock knob.

[] Make sure the wood is clear of the blade before turning

on the saw.

[] Turn the saw on.

[] Let the blade build up to full speed before moving the

workpiece into the blade.

[] Hold the workpiece firmly with both hands on the miter

gauge (or miter fence) and feed the workpiece into the

blade.

NOTE: The hand closest to the blade should be placed

on the miter gauge lock knob (or the miter fence

adjusting clamp knob) and the hand farthest from the

blade should be placed on the workpiece.

[] When the cut is made, turn the saw off. Wait for the

blade to come to a complete stop before removing the

workpiece.

VIEWEDFROMTHEFRONT,BELOWTHETABLESAW

TIGHTEN

BEVEL

LEVER

TO LOOSEN Fig. 51

BEVELCROSSCUT

BLADE

ANGLED

FENCE

STRAIGHT

BEVEL

LOCKING

LEVER

Fig. 52

MAKING A BEVEL RIP CUT

See Figure 53.

AWARNING: Make sure the blade guard assembly

is installed and working properly to avoid serious

personal injury.

WARNING: The rip fence must be on the left side

of the blade to avoid trapping the wood and causing

kickback. Placement of the rip fence to the right of

the blade will result in kickback and the risk of seri-

ous personal injury.

[] Remove the miter gauge (or miter fence).

[] Move the sliding miter table to the right side and move

the accessory table to the left side.

[] Unlock the bevel locking lever.

[] Adjust the bevel angle to 0°.

[] Lock the bevel locking lever.

[] Set the blade to the correct depth for the workpiece.

[] Position the rip fence the desired distance from the

blade for the cut and securely lock the handle.

[] Make sure the wood is clear of the blade before turning

on the saw.

[] When ripping a long workpiece, place a support the

same height as the table surface behind the saw for

the cut work.

[] Turn the saw on.

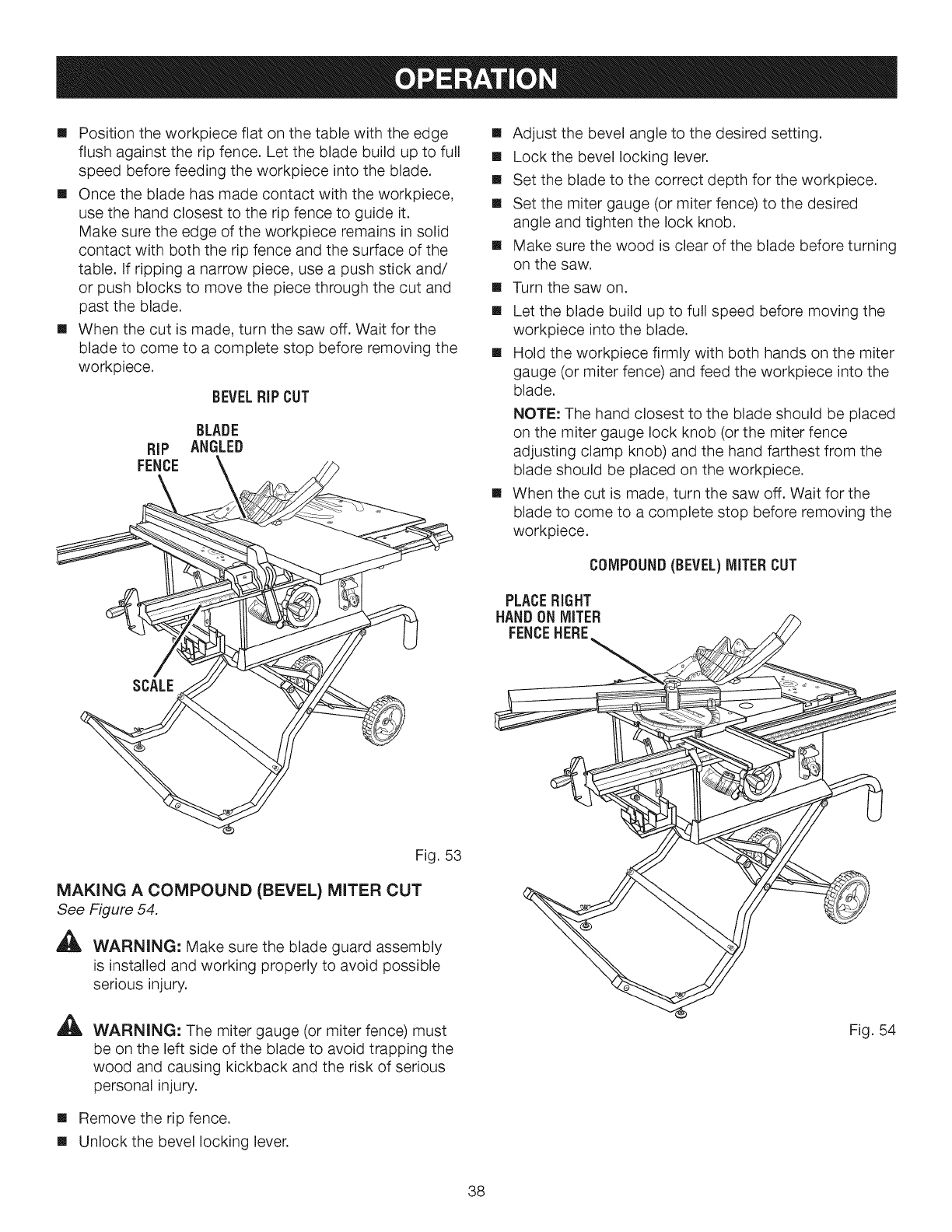

[] Positiontheworkpieceflatonthetablewiththeedge

flushagainsttheripfence.Letthebladebuildupto full

speedbeforefeedingtheworkpieceintotheblade.

[] Oncethebladehasmadecontactwiththeworkpiece,

usethehandclosestto theripfenceto guideit.

Makesuretheedgeoftheworkpieceremainsinsolid

contactwithboththeripfenceandthesurfaceofthe

table.If rippinganarrowpiece,usea pushstickand/

orpushblocksto movethepiecethroughthecutand

pasttheblade.

[] Whenthecutismade,turnthesawoff.Waitforthe

bladeto cometo acompletestopbeforeremovingthe

workpiece.

BEVELRiP CUT

BLADE

RiP ANGLED

FENCE

[] Adjust the bevel angle to the desired setting.

[] Lock the bevel locking lever.

[] Set the blade to the correct depth for the workpiece.

[] Set the miter gauge (or miter fence) to the desired

angle and tighten the lock knob.

[] Make sure the wood is clear of the blade before turning

on the saw.

[] Turn the saw on.

[]

Let the blade build up to full speed before moving the

workpiece into the blade.

Hold the workpiece firmly with both hands on the miter

gauge (or miter fence) and feed the workpiece into the

blade.

NOTE: The hand closest to the blade should be placed

on the miter gauge lock knob (or the miter fence

adjusting clamp knob) and the hand farthest from the

blade should be placed on the workpiece.

When the cut is made, turn the saw off. Wait for the

blade to come to a complete stop before removing the

workpiece.

COMPOUND(BEVEL)MITERCUT

PLACERIGHT

HANDON MITER

FENCEHERE

SCALE

Fig. 53

MAKING A COMPOUND (BEVEL) MITER CUT

See Figure 54.

AWARNING: Make sure the blade guard assembly

is installed and working properly to avoid possible

serious injury.

AWARNING: The miter gauge (or miter fence) must

be on the left side of the blade to avoid trapping the

wood and causing kickback and the risk of serious

personal injury.

[] Remove the rip fence.

[] Unlock the bevel locking lever.

Fig. 54

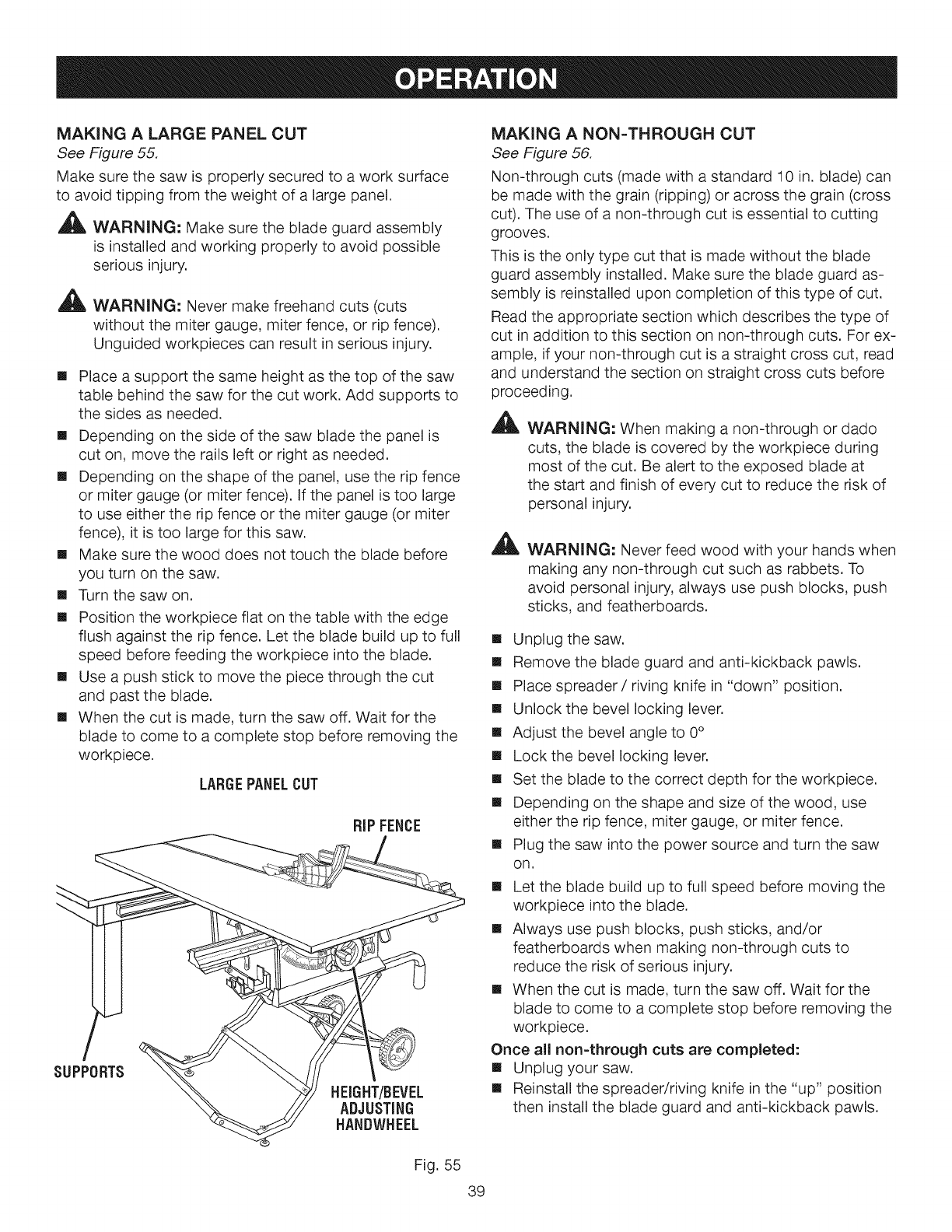

MAKING A LARGE PANEL CUT

See Figure 55.

Make sure the saw is properly secured to a work surface

to avoid tipping from the weight of a large panel.

,_ WARNING: Make sure the blade guard assembly

is installed and working properly to avoid possible

serious injury.

AWARNING: Never make freehand cuts (cuts

without the miter gauge, miter fence, or rip fence).

Unguided workpieces can result in serious injury.

[] Place a support the same height as the top of the saw

table behind the saw for the cut work. Add supports to

the sides as needed.

[] Depending on the side of the saw blade the panel is

cut on, move the rails left or right as needed.

[] Depending on the shape of the panel, use the rip fence

or miter gauge (or miter fence), if the panel is too large

to use either the rip fence or the miter gauge (or miter

fence), it is too large for this saw.

[] Make sure the wood does not touch the blade before

you turn on the saw.

[] Turn the saw on.

[] Position the workpiece flat on the table with the edge

flush against the rip fence. Let the blade build up to full

speed before feeding the workpiece into the blade.

[] Use a push stick to move the piece through the cut

and past the blade.

[] When the cut is made, turn the saw off. Wait for the

blade to come to a complete stop before removing the

workpiece.

LARGEPANELCUT

RIP FENCE

SUPPORTS

HEIGHT/BEVEL

ADJUSTING

HANDWHEEL

MAKING A NON-THROUGH CUT

See Figure 56.

Non-through cuts (made with a standard 10 in. blade) can

be made with the grain (ripping) or across the grain (cross

cut). The use of a non-through cut is essential to cutting

grooves.

This is the only type cut that is made without the blade

guard assembly installed. Make sure the blade guard as-

sembly is reinstalled upon completion of this type of cut.

Read the appropriate section which describes the type of

cut in addition to this section on non-through cuts. For ex-

ample, if your non-through cut is a straight cross cut, read

and understand the section on straight cross cuts before

proceeding.

WARNING: When making a non-through or dado

cuts, the blade is covered by the workpiece during

most of the cut. Be alert to the exposed blade at

the start and finish of every cut to reduce the risk of

personal injury.

,mL WARNING: Never feed wood with your hands when

making any non-through cut such as rabbets. To

avoid personal injury, always use push blocks, push

sticks, and featherboards.

[] Unplug the saw.

[] Remove the blade guard and anti-kickback pawls.

[] Place spreader /riving knife in "down" position.

[] Unlock the bevel locking lever.

[] Adjust the bevel angle to 0°

[] Lock the bevel locking lever.

[] Set the blade to the correct depth for the workpiece.

[] Depending on the shape and size of the wood, use

either the rip fence, miter gauge, or miter fence.

[] Plug the saw into the power source and turn the saw

on.

[] Let the blade build up to full speed before moving the

workpiece into the blade.

[] Always use push blocks, push sticks, and/or

featherboards when making non-through cuts to

reduce the risk of serious injury.

[] When the cut is made, turn the saw off. Wait for the

blade to come to a complete stop before removing the

workpiece.

Once all non-through cuts are completed:

[] Unplug your saw.

[] Reinstall the spreader/riving knife in the "up" position

then install the blade guard and anti-kickback pawls.

Fig. 55

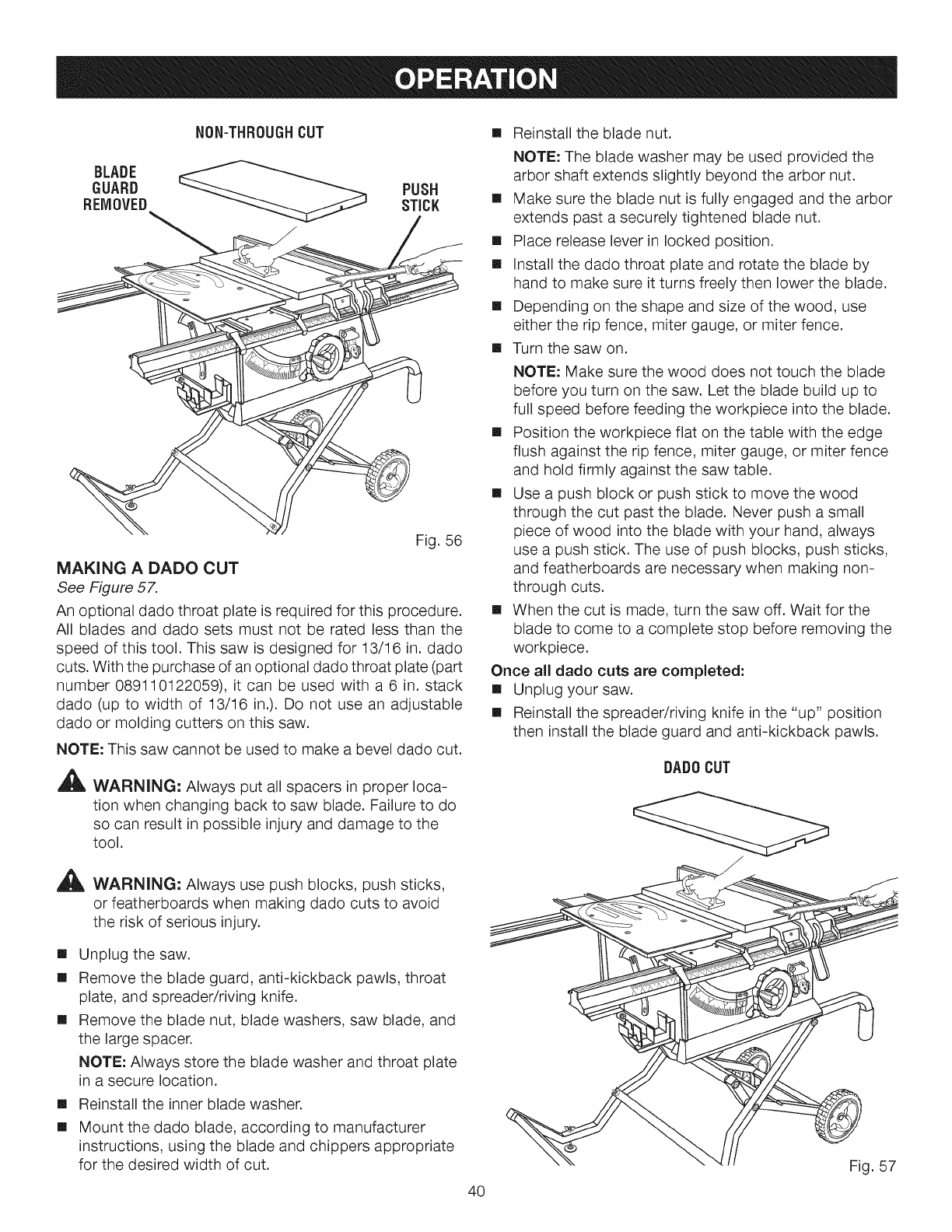

NON-THROUGH CUT

BLADE __

GUARD PUSH

REMOVED STICK

Fig. 56

MAKING ADADO CUT

See Figure 57.

An optional dado throat plate is required for this procedure.

All blades and dado sets must not be rated less than the

speed of this tool. This saw is designed for 13/16 in. dado

cuts. With the purchase of an optional dado throat plate (part

number 089110122059), it can be used with a 6 in. stack

dado (up to width of 13/16 in.). Do not use an adjustable

dado or molding cutters on this saw.

NOTE: This saw cannot be used to make a bevel dado cut.

AWARNING: Always put all spacers in proper loca-

tion when changing back to saw blade. Failure to do

so can result in possible injury and damage to the

tool.

AWARNING: Always use push blocks, push sticks,

or featherboards when making dado cuts to avoid

the risk of serious injury.

[] Unplug the saw.

[] Remove the blade guard, anti-kickback pawls, throat

plate, and spreader/riving knife.

[] Remove the blade nut, blade washers, saw blade, and

the large spacer.

NOTE: Always store the blade washer and throat plate

in a secure location.

[]

Reinstall the inner blade washer.

Mount the dado blade, according to manufacturer

instructions, using the blade and chippers appropriate

for the desired width of cut.

[] Reinstall the blade nut.

NOTE: The blade washer may be used provided the

arbor shaft extends slightly beyond the arbor nut.

[] Make sure the blade nut is fully engaged and the arbor

extends past a securely tightened blade nut.

[] Place release lever in locked position.

[] Install the dado throat plate and rotate the blade by

hand to make sure it turns freely then lower the blade.

[] Depending on the shape and size of the wood, use

either the rip fence, miter gauge, or miter fence.

[] Turn the saw on.

NOTE: Make sure the wood does not touch the blade

before you turn on the saw. Let the blade build up to

full speed before feeding the workpiece into the blade.

[] Position the workpiece flat on the table with the edge

flush against the rip fence, miter gauge, or miter fence

and hold firmly against the saw table.

[] Use a push block or push stick to move the wood

through the cut past the blade. Never push a small

piece of wood into the blade with your hand, always

use a push stick. The use of push blocks, push sticks,

and featherboards are necessary when making non-

through cuts.

[] When the cut is made, turn the saw off. Wait for the

blade to come to a complete stop before removing the

workpiece.

Once all dado cuts are completed:

[] Unplug your saw.

[] Reinstall the spreader/riving knife in the "up" position

then install the blade guard and anti-kickback pawls.

DADOCUT

Fig. 57

ACCESSORY TABLE USAGE

This accessory table has been specifically designed for

use with some Craftsman Routers. The hole pattern on

the accessory table has not been drilled to accommodate

all routers. Routers must not exceed 3 HP (maximum

developed) or weigh more than 12-1/2 Ibs. Routers must

have lock-on switch feature.

TABLE CLAMPING BRACKET

See Figure 58.

The lever on the accessory table will tighten the table se-

curely to the front rail. The weight of the router may cause

the accessory table to loosen or have movement at the

rear of the table. To avoid this, install the table clamping

bracket.

NOTE: Position the table clamping bracket so that the

accessory table is centered over it.

[] Pull off the end cap from the rear rail.

[] Slide one of the T-nuts into the front channel of the rear

rail and under the accessory table.

[] The table clamping bracket fits in the bottom slot of

the rear rail and the slotted top of the bracket wraps

around the raised portion on the underside of the

accessory table.

[] Secure with a 5/16 in. washer and a 5/16-18 x 3/4 in.

knob bolt.

[] Tighten the knob bolt securely.

[] Reinstall the end cap by pushing it back into the rear

rail.

TABLECLAMPINGBRACKET

SHOWNCOMPLETELY

ASSEMBLED

ACCESSORY

TABLE TABLE

CLAMPING

BRACKET

T-NUT END

CAP

WASHER

KNOBB0_

Fig. 58

RiP FENCESHOWNLOCKEDAGAINSTSAWBLADE

T-NUTBETWEEN

ADJUSTMENTSCREWS

REAR

ADJUSTMENT

SCREW

WASHER

Fig. 59

TO INSTALL T-NUTS FOR GUIDE FENCE

BRACKETS

See Figures 59 -60.

[] Place rip fence against blade and lock in place.

[] Using the appropriate hex key supplied with your table

saw, remove the rear adjustment screw and washer on

top of the rip fence.

[] Slide one of the T-nuts into the top channel of rip fence

and place between the two adjustment screws.

NOTE: T-nuts install from the rear of the rip fence.

[] Replace the washer and the rear adjustment screw and

tighten securely.

[] Check the rip fence for squareness with the saw blade.

[] Unlock the rip fence, slide it away from the saw blade,

and lock it in place.

[] Slide the four remaining T-nuts into the top channel of

rip fence.

NOTE: Five T-nuts should be in the top channel of

the rip fence with only one of them between the

adjustment screws on the rip fence.

iNSTALLT-NUTSFROMBEAROF HiP FENCE

T-NUT

Fig. 60

TO INSTALL GUIDE FENCE BRACKETS

See Figure 61.

[] To install the guide fence brackets, align each bracket

with two of the T-nuts on top of the rip fence.

NOTE: Use the front two T-nuts and the back two

T-nuts leaving the one in the middle empty.

[] Secure the guide fence brackets to the rip fence with

5/16 in. washers and the 5/16 in. x 1/2 in. knob bolts.

TO iNSTALL POST, GUARD/DUST COVER WITH

PIVOT ASSEMBLY

See Figure 61.

The guard/dust cover must be used in all routing opera-

tions.

[] Place the spacer on the threaded end of the post and

thread the post into the remaining T-nut.

[] Tighten the post securely with an adjustable wrench on

the flats on the top of the post.

[] Place the guard/dust cover with pivot assembly on the

post.

[] The assembly will slide up and down on the post as

needed. Secure at the desired location by tightening

the knob nut attached to the carriage bolt.

GUARD/DUSTCOVERWITH

PIVOTASSEMBLY

KNOB CARRIAGEBOLT

NUT NOT SHOWN),_

FLATSON ®

KNOB POST_

BOLTS POST----------_ !

WASHERS

GUIDE FENCE

BRACKET T-NUTS

SPACER

RIP FENCE

Fig. 61

TOINSTALLROUTER

See Figure 62,

[] Unplug the router.

[] Place your router upside down on a workbench.

[] Remove the subbase screws and the subbase from

your router.

NOTE: The subbase is mounted permanently on some

routers and should not be removed.

[] Select the screws needed for your particular router. For

consumer routers, use the 10-32 x 3/4 in. screws. For

commercial routers, use the 5/16-18 screws.

[] Position router upside down under the router extension

table. The router label should be facing the front of the

table.

[] Align the holes in the table with the holes in your router.

Feed the screws through the table and into the router.

[] Tighten all screws with a screwdriver.

[] Select the correct size throat plate for the size of the

router bit. Align the tab on the throat plate with the

slot in the router extension and snap in place. Make

sure the throat plate is firmly seated below the table

surface. Recheck the router bit to make sure it will not

strike the throat plate.

FINAL PREPARATION FOR OPERATION

See Figure 63,

[] Adjust the guard/dust cover so that it will not come in

contact with the workpiece or cutter during a cutting

operation.

[] Direction of feed of the workpiece is from right to left

or from the back of the saw toward the front with the

bit located in the fence opening.

THROAT

PLATE

TO INSTALL BIT AND THROAT PLATE

Fig. 62

The router throat plates are included to assure no more

than 1/4 in. clearance between the cutter and the opening

in the throat plate. Use the correct throat plate. Do not use

a router bit smaller than 1/4 in. or larger than 2 in.

[] To install the router bit, follow the instructions in the

operator's manual that came with your router.

_, CAUTION: Make sure the router bit will not strike

the accessory table or any metal surface.

Fig. 63

[]

Direction of feed must always be so that the workpiece

is being thrust against the sharp edges of the rotating

bit.

The workpiece must always be tight against the guide

fence, unless a ball-bearing piloted bit is being used.

The infeed fence should be adjusted to support the

uncut workpiece while the outfeed fence should be

adjusted properly to support the workpiece after

the cut passes the router bit, compensating for the

removed stock.

,A WARNING: The direction of feed for the workpiece

is always against the sharp edges of the bit and

against the rotation of the cutter. Failure to heed this

warning is likely to result in serious personal injury.

AWARNING: Do not use the guide fence with ball-

bearing piloted bits. Failure to heed this warning can

result in serious personal injury.

BLADE BLADE LARGE SMALL

WARNING:Beforeperforminganyadjustment, WASHER WASHERSPACER

makesurethetoolisunpluggedfromthepower \

supplyandtheswitchisintheoffposition.Failure \

to heed this warning could result in serious personal

injury.

The table saw has been adjusted at the factory for making

very accurate cuts. However, some of the components

might have been jarred out of alignment during shipping.

Also, over a period of time, readjustment will probably

become necessary due to wear.

To avoid unnecessary set-ups and adjustments, a good

practice is to check your setups carefully with a framing

square and make practice cuts in scrap wood before mak-

ing finish cuts in good workpieces. Do not start any ad-

justments until you have checked with a square and made

test cuts to be sure adjustments are needed.

TO REPLACE THE BLADE

See Figures 64 -66.

[] Unplug the saw.

[] Remove the blade guard and anti-kickback pawls.

[] Lower the saw blade and remove the throat plate.

[] Make sure the bevel locking lever is locked.

[] Raise the saw blade to full height.

[] Insert the open-end blade wrench onto the flats on the

arbor shaft.

[] Insert the closed-end blade wrench over the blade

nut. Holding both wrenches firmly, pull the closed-end

wrench (right side) forward while pushing the open-end

wrench (left side) to the back of the saw. Remove the

nut.

[] Unlock the release locking lever and remove the blade.

CLOSED-END OPEN-END

BLADE BLADE

WRENCH WRENCH

Fig. 64

BLADE ARBOR

NUT SHAFT

BLADE

Fig. 65

To install a standard blade:

[] Place the new blade on the arbor shaft (the teeth

must point down toward the front of the saw to work

properly).

NOTE: Make sure spacers are installed.

[] Place the blade washer and the blade nut over the

arbor shaft. Be sure the dome side of the blade washer

faces the blade and that all items are snug against the

arbor housing. Make sure the blade nut is securely

tightened. Do not overtighten.

[] Lock the release lever.

[] Rotate the blade by hand to make sure it turns freely.

[] Lower the saw blade and reinstall the throat plate.

NOTE: To replace the blade with an accessory blade,

follow the instructions provided with the accessory.

SPREADER/

RIVINGKNIFE THROAT

PLATE

BLADE

Fig. 66

TO SET THE BEVEL INDICATOR AND BEVEL

STOPS AT 0 °AND 45 ° (SQUARING THE BLADE)

See Figure 67.

The angle settings of the saw have been set at the factory

and, unless damaged in shipping, should not require set-

ting during assembly. After extensive use, they may need

to be checked.

[] Unplug the saw.

[] Raise the blade.

If the blade is not perfectly vertical (0°):

[] Loosen the lock nut on the 0° bolt inside the cabinet,

position the blade, adjust the bolt, then retighten lock

nut. See Figure 67, insert. If the bevel indicator is not

at zero, adjust it with the two screws above the slot,

beside the height/bevel adjusting handwheel.

[] Turn the height/bevel adjusting handwheel until the

bottom of the blade has moved completely to the left

side of the slot. Lock the angle by pushing the bevel

locking lever to the left.

45°

BOLT

BEVEL HEIGHT/BEVEL

LOCKINGLEVER ADJUSTING

HANDWHEEL

SCREWS

0° BOLT

BEVEL

INDICATOR

LOCK

NUT

Fig. 67

[] If the blade is not an exact 45 °, loosen the lock nut

on the 45 ° bolt inside the cabinet, position the blade,

adjust the bolt, then retighten lock nut.

[] Make a test cut.

TO ADJUST THE MITER GAUGE

See Figure 68.

You can set the miter gauge at 0° and plus or minus 45°

with the miter gauge stop pin and adjustable stop screws.

NOTE: The miter gauge provides close accuracy in angled

cuts. For very close tolerances, test cuts are recommend-

ed.

[] Loosen lock knob and pull out on stop pin to rotate

miter gauge base past stop screws.

[] Loosen the lock nut of the 0° stop screw at the stop

pin with a adjustable wrench.

[] Place a 90° square against the miter gauge rod and the

miter gauge base.

[] If the rod is not square, loosen the knob, adjust the

rod, and tighten the knob.

[] Adjust the 0° stop screw until it rests against the stop

pin.

[] Adjust the plus and minus 45° stop screws using a 45°

triangle and the steps above.

LOCK

MITER KNOB

GAUGEBASE

MITER

GAUGEROD

STOP

0° ADJUSTABLE

LOCK

NUT STOPSCREW

45° ADJUSTABLE

STOPSCREW Fig. 68

TO CHECK THE ALIGNMENT OF THE RIP FENCE

TO THE BLADE

See Figure 69.

[] Unplug the saw.

[] Raise the locking handle to permit the rip fence to be

moved.

CLAMP

BLADE

RIP FENCE

SCREWS

TO ADJUST THE BEVEL LOCKING LEVER

See Figure 70.

The bevel locking lever may work loose and require

adjusting. To adjust:

[] Unplug the saw.

[] Push the lever full left to the locked position.

[] Remove the screw on the height/bevel adjusting

handwheel. You will need the 3/16 in. hex key for this

procedure.

[] Remove the height/bevel adjusting handwheel and

cam. Pull out the cam.

[] Remove the set screw on the bevel locking lever.

[] Remove the bevel locking lever from hex nut.

[] Relocate bevel locking lever on the hex nut.

[] Replace set screw and tighten securely.

[] Replace the cam so that the lobe is against the tab.

Make sure the cam is seated in the lever.

[] Reassemble the height/bevel adjusting handwheel to

the shaft and cam. Check whether the lever is now in

the desired position. Tighten screw securely.

HEIGHT/BEVELADJUSTING

HANDWHEEL

SOCKET

HEADSCREW SET

SCREW

LOCKING

HANDLE

Fig. 69

[] Place a framing square beside the blade and move the

rip fence up to the square. Take the dimension on the

rip scale.

[] Move the fence back and turn the framing square 180°

to check the other side.

[] If the two dimensions are not the same, loosen the two

screws on the fence and align it.

[] Retighten the two screws.

[] Make two or three test cuts on scrap wood. If the cuts

are not true, repeat the process.

NOTE: The rip fence must be secure when the locking

handle is engaged. The clamp screw on the rear of the rip

fence is tightened by turning clockwise to increase tight-

ness of the rear of the rip fence.

CAiVl

COMPRESSION

SPRING

HANDWHEEL

ADAPTER

BEVEL

LOCKING

LEVER

HEX

NUT

Fig. 7O

TO AL(GN THE MITER LOCKING CLAMPS

See Figure 71.

The miter locking clamps are preset at the factory but may

require adjusting after extended use or if damage occurs

in shipping.

[] Unplug the saw.

[] Loosen the set screw behind each locking clamp.

[] Loosen the screw on top of each locking clamp.

[] Lift the locking clamp to the up position.

[] Push the clamp forward tight against the front rail to

bring the clamp into alignment.

[] When the clamps are correctly positioned, retighten

the screws and the set screws.

[] Push both front and rear miter locking clamps down to

secure the sliding miter table.

SCREW

SET

SCREW

FRONT

RAIL

LOCKING

CLAMP

Fig. 71

TO ADJUST THE FRONT AND REAR RAIL

CLAMPS

See Figure 72.

The rail clamps are located below the rails and ensure

tight attachment of the rail. Following extended use, the

rail holder nut inside the rails may need adjusting.

[] Unplug the saw.

[] Remove the miter table and accessory table.

[] Remove the front and rear rails by loosening the rail

clamps and sliding the rails off.

[] Rotate each rail clamp to the left until it hits or comes

in contact with the bottom of the saw table.

[] Tighten rail holder nut until it is snug.

[] Loosen rail holder nut one-fourth (1/4) turn.

[] Replace the rails and check the rail clamps.

RAILHOLDER

NUT

RAiL

CLAMP

WASHER

HEX

MOUNTING

BOLT Fig. 72

TO ADJUST THE ACCESSORY TABLE

See Figure 73.

After extended use, the accessory table may work loose

causing the accessory table to be loose on the rails. Fol-

low the steps below, when adjustments are required:

[] Unplug the saw.

[] Remove the hex nut on the lever using a 3/8 in. nut

driver.

[] Remove the backup plate and spring plate. Rotate the

spring plate 180 ° and reinstall on the handle shaft.

[] Reassemble all parts and tighten hex nut securely.

NOTE: The spring plate offers two ends for use before

requiring replacement.

ACCESSORY

TABLE

,_ _ CAP

Q _ SCREW

-. ft "/WASHER

HANDLE -'-'--'-- [ RING

SHAFT _ )'_ SPRING PLATE

BACKUP

PLATE _ _ HEX NUT

Fig. 73

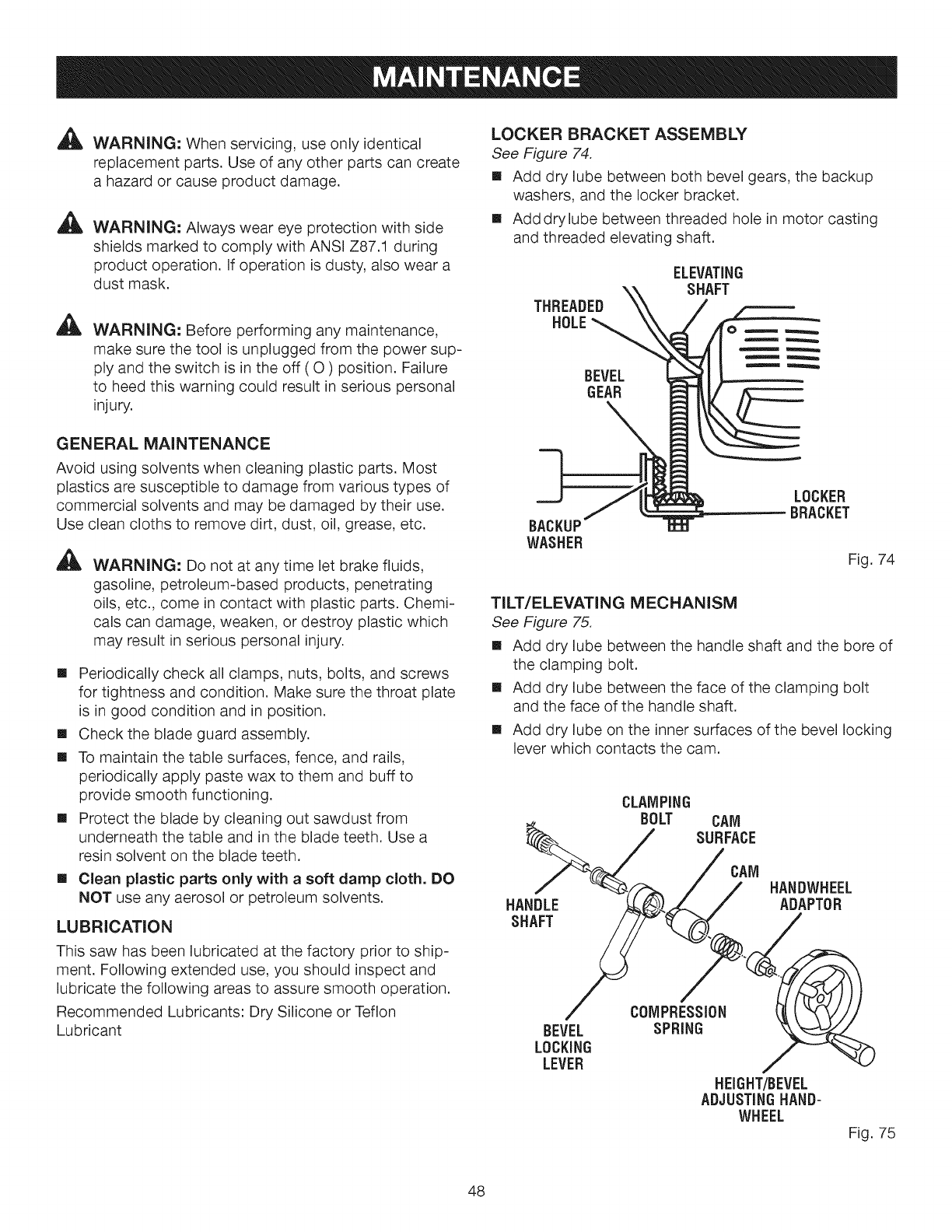

AWARNING: When servicing, use only identical

replacement parts. Use of any other parts can create

a hazard or cause product damage.

AWARNING: Always wear eye protection with side

shields marked to comply with ANSI Z87.1 during

product operation. If operation is dusty, also wear a

dust mask.

AWARNING: Before performing any maintenance,

make sure the tool is unplugged from the power sup-

ply and the switch is in the off ( O ) position. Failure

to heed this warning could result in serious personal

injury.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most

plastics are susceptible to damage from various types of

commercial solvents and may be damaged by their use.

Use clean cloths to remove dirt, dust, oil, grease, etc.

AWARNING: Do not at any time let brake fluids,

gasoline, petroleum-based products, penetrating

oils, etc., come in contact with plastic parts. Chemi-

cals can damage, weaken, or destroy plastic which

may result in serious personal injury.

[] Periodically check all clamps, nuts, bolts, and screws

for tightness and condition. Make sure the throat plate

is in good condition and in position.

[] Check the blade guard assembly.

[] To maintain the table surfaces, fence, and rails,

periodically apply paste wax to them and buff to

provide smooth functioning.

[] Protect the blade by cleaning out sawdust from

underneath the table and in the blade teeth. Use a

resin solvent on the blade teeth.

[] Clean plastic parts only with a soft damp cloth. DO

NOT use any aerosol or petroleum solvents.

LUBRICATION

This saw has been lubricated at the factory prior to ship-

ment. Following extended use, you should inspect and

lubricate the following areas to assure smooth operation.

Recommended Lubricants: Dry Silicone or Teflon

Lubricant

LOCKER BRACKET ASSEMBLY

See Figure 74.

[] Add dry lube between both bevel gears, the backup

washers, and the locker bracket.

[] Add drylube between threaded hole in motor casting

and threaded elevating shaft.

THREADED

HOLE

ELEVATING

SHAFT

BEVEL

GEAR

BACKUP

WASHER

LOCKER

BRACKET

Fig. 74

TILT/ELEVATING MECHANISM

See Figure 75,

[] Add dry lube between the handle shaft and the bore of

the clamping bolt.

[] Add dry lube between the face of the clamping bolt

and the face of the handle shaft.

[] Add dry lube on the inner surfaces of the bevel locking

lever which contacts the cam.

CLAMPING

•BOLT CAM

SURFACE

>j/0.o

/__ //HANDWHEEL

HANDLE _)._ ,,._./ ADAPTOR

BEVEL SPRING '_"_

LOCKING _"7"_

LEVER ,/

HEIGHT/BEVEL

ADJUSTING HAND-

WHEEL

Fig. 75

,PROBLEM CAUSE SOLUTION 1

Excess vibration.

Rip fence does not move

smoothly.

Rip fence does not lock at

rear.

Blade is out of balance.

Blade is damaged.

Saw is not mounted securely.

Work surface is uneven.

Cutting binds or burns work.

Blade is warped.

Rip fence not mounted correctly.

Rails are dirty or sticky.

Clamp screw is out of adjustment.

Replace blade.

Tighten all hardware.

Reposition on flat surface.

Adjust legs of optional stand.

Check saw blade installation. Replace blade

if necessary

Remount the rip fence.

Clean and wax rails.

Adjust clamp screw counterclockwise.

Adjust clamp screw clockwise.

Blade is dull.

Blade is heeling.

Work is fed too fast.

Rip fence is misaligned.

Riving knife is misaligned.

Wood is warped.

Replace or sharpen blade.

Align miter base.

Slow the feed rate.

Align the rip fence.

Adjust the riving knife with shims provided.

Replace the wood. Always cut with convex

side to table surface.

IPROBLEM CAUSE SOLUTION i

Wood edges away from rip Rip fence is misaligned. Check and adjust the rip fence.

fence when ripping. Blade not properly sharpened or Resharpen or set blade.

set.

Sliding miter table assembly Miter base or slides improperly See page 30 for adjustments to sliding

does not move smoothly, adjusted, miter table assembly.

Saw does not make accurate 90

or 45 degree cuts.

Positive stops inside cabinet need

adjusting (Bevel Cuts).

Miter gauge is misaligned (Miter

Cuts).

Adjust positive stops.

Adjust the miter gauge.

Blade adjusting handle is hard

to turn.

Gears or Screw Post inside

cabinet are clogged with saw

dust.

Clean the gears or screw post.

Saw does not start. Motor cord or wall cord is not

plugged in.

Circuit fuse is blown.

Circuit breaker is tripped.

Cord or switch is damaged.

Plug in motor cord or wall cord.

Replace circuit fuse.

Reset circuit breaker.

Have the cord or switch replaced at your

Sears Service Center/Department.

Blade makes poor cuts. Blade is dull or dirty.

Blade is wrong type for cut being

made.

Blade is mounted backwards.

Clean, sharpen, or replace blade.

Replace with correct type.

Remount blade.

Motor labors in rip cut. Blade not proper for rip cut. Change blade; rip blade typically has fewer

teeth.

_, CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

For Miter Table Assembly,

Refer ToFigure BFor Height/BevelAdjustmentRandwheel,

Refer To Figure D For Rip FenceAssembly,

Refer To Figure CFor LegStand Assembly,

Refer To Figure G

ForMiter Gauge,

Refer To Figure F

112

113

115

125

111

18 26

110

78 67

FIGUREA

81 105

107

101

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

KEY PART

NO. NUMBER

1 089110122707

2 089110122016

3 089110122015

4 089110122014

5 089110122013

6 089110122705

7 089110122703

8 0182011804

9 0182010214

10 0182010213

11 089110122001

12 089110122906

13 089110122005

14 0182010216-127

15 410011708

16 0182010207

17 412011065

18 410171705

19 0181010814

20 0182010302-129

21 0182010303-129

22 0181010815

23 089110122003

24 0181010804

25 0181010401

26 422010044

27 0181010503

28 0181010504

29 089110122006

30 410141702

31 A182012002

32 0181010823

33 0131010222-130

34 0181010314

35 089110122002

PARTS LIST (FIGURE A)

KEY PART

DESCRiPTiON QTY

Miter Table Assembly .................................................. 1

Hex Nut (M6 x 4.8 mm) ................................................ 2

Washer (6.5 x 13 x lt) .................................................. 1

Lock Lever ................................................................... 5

Clamp Plate ................................................................. 2

Bracket Assembly ........................................................ 1

Blade Guard Assembly ................................................ 1

Rear Rail....................................................................... 1

End Cap R2 (Left Rear) ............................................... 1

End Cap R1 (Right Rear) ............................................. 1

Saw Table ..................................................................... 1

Support Warning Label ................................................ 1

Throat Plate .................................................................. 1

Align-A-Cut Insert ........................................................ 1

Screw (5/16-18 x 3/4 in., Hex Hd.) ............................... 4

Rail Locking Clamp ...................................................... 4

Washer (8 x 16 x 0.8t) .................................................. 4

Screw (10-24 x 5/16 in., Pan Hd.) ................................ 2

Screw (10-24 x 1/2 in.) ................................................. 4

Rear Cabinet Panel ...................................................... 1

Left Cabinet Panel ....................................................... 1

Screw (8-32 x 3/8 in., Special) ................................... 12

Dust Cover ................................................................... 1

Hex Nut (5/8-18) ........................................................... 1

Blade Washer ............................................................... 2

Blade (10 in. x 36t) ....................................................... 1

1/4 in. Spacer .............................................................. 1

1/2 in. Spacer ............................................................... 1

Guide Holder ................................................................ 1

Screw (8-32 x 3/4 in., Pan Hd.) .................................... 2

Accessory Table Assembly

(Inc. Key Nos. 52 & 57-64) ........................................... 1

Screw w/Washer (10-24, Pan Hd. Special) .................. 4

Power Cord Holder ...................................................... 2

Shim (0.5 mm) .............................................................. 2

Locker Bracket ............................................................. 1

NO. NUMBER

36 0181010323

37 0181010317

38 424010003

39 0181010310

40 0181010214

41 411011707

42 412011743

43 410011714

44 A182010101

45 0182010304-129

46 411011008

47 0181010816

48 0182010701

49 410451703

50 0301030202

51 0181010230

52 0182010102-126

53 451050005

54 0181010231

55 A182010901

56 0181010831

57 410151704

58 0182010208

59 0181010601

60 412011063

61 413051004

62 0181010309

63 0181010211

64 411072702

65 0181010606

66 0181010105

67 414011014

68 410191005

69 410171707

70 0181010905

71 0181010312

DESCRI PTION QTY

Clamp Plate ................................................................. 2

Rail Holder Nut ............................................................. 4

V Belt (106H9 Bando) ................................................... 2

Shim ............................................................................. 2

Spacer .......................................................................... 1

Hex Nut (1/4-20) ........................................................... 2

Washer (6.5 x 25 x 1.6t) ............................................... 1

Screw (1/4-20 x 1 in., Hex Hd.) .................................... 1

Motor Assembly ........................................................... 1

Right Cabinet Panel ..................................................... 1

Hex Nut (8-32) .............................................................. 3

Grounding Screw (8-32 x 3/4 in.) ................................. 1

Power Cord (14 AWG x 3.3 M) ..................................... 1

Screw (8-16 x 3/4 in.) ................................................... 5

Clamp (5/16 in.) ............................................................ 1

Right Plug Socket Box ................................................. 1

Accessory Table ........................................................... 1

Outlet ........................................................................... 1

Left Plug Socket Box ................................................... 1

Rip Fence Assembly (See Figure C)............................. 1

Screw (8-32 x 1/2 in., Pan Hd) ..................................... 2

Screw (1/4-20 x 3/4 in., Hex Soc. Hd.) ........................ 1

Accessory Table Lever ................................................. 1

Lever Shaft ................................................................... 1

Washer (12 x 22 x lt) ................................................... 1

"E" Ring ........................................................................ 1

Spring Plate ................................................................. 1

Back-Up Plate .............................................................. 1

Lock Nut (1/4-20) ......................................................... 1

Shaft ............................................................................. 1

Bevel Gear ................................................................... 2

Roll Pin (M4 x 30 mm) .................................................. 2

Screw (M4 x 20 mm, Truss Hd.) ................................... 4

Screw (10-24 x 5/8 in., Pan Hd.) .................................. 4

Needle Roller ................................................................ 2

Pivot Plate .................................................................... 2

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 _,

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

PARTS LIST (FIGURE A)

KEY PART

NO. NUMBER

72 412011068

73 411071709

74 0181010829

75 0181010607

76 414011003

77 0181010502

78 0181010914

79 0181010608

80 0181010507

81 410171707

82 A181012501

83 0181010109

84 0182010301-129

85 0182010201-129

86 410561004

87 089110122908

88 089110122901

89 410011714

90 411011707

91 410011716

92 410261004

93 0181010222

94 412015080

95 0181010913

96 411011709

97 0182010105-58

98 410071705

99 0181010108-58

100 0181010912

101 A182014001

102 0181010264

103 452070018

104 0182010219

105 0182010211

DESCRIPTION QTY

Washer (10 x 22 x lt) ................................................... 1

Hex Nut (3/8 in. x 16) ................................................... 1

Screw (8-32 x 1-3/16 in., Pan Hd.) ............................... 1

Gear Shaft .................................................................... 1

Roll Pin (4 x 20 ram) ..................................................... 1

Clutch ........................................................................... 1

Spring ........................................................................... 1

Handle Shaft ................................................................ 1

Tilting Gear ................................................................... 1

Screw (10-24 x 5/8 in., Pan Hd.) .................................. 4

Ctamper Bracket .......................................................... 1

Gear Rack .................................................................... 1

Front Cabinet Panel ..................................................... 1

Front Cabinet Panel Plate ............................................ 1

Screw (M4 x 12 ram, Pan Hd.) ..................................... 4

Warning Label .............................................................. 1

Name Plate .................................................................. 1

Screw (1/4-20 x 1 in., Hex Hd.) .................................... 1

Hex Nut (1/4-20) ........................................................... 2

Screw (1/4 x 20 x 2 in., Hex Hd.) ................................. 1

Screw (10-24 x 5/8 in.) ................................................. 3

Bevel indicator ............................................................. 1

Washer (19.5 x 30 x 1.5t) ............................................. 1

Washer (18.5 x 28 x 0.5t) ............................................. 1

Hex Nut (3/4-16) ........................................................... 1

Bevel Locking Lever ..................................................... 1

Set Screw (1/4-20 x 3/8 in.) ......................................... 1

Cam .............................................................................. 1

Spring ........................................................................... 1

Height Adjustment Handwheel

(See Figure D)............................................................... 1

Switch Box ................................................................... 1

Switch With Key ........................................................... 1

Switch Key ................................................................... 1

End Cap (Front Left) .................................................... 1

KEY

NO.

1O6

107

108

1O9

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

PART

NUMBER

0182010212

089110122904

0182011803

410455705

410031710

410451015

0182010203

089110122007

0134010238

0121010221

410561002

0182010205

0182010204

089110122704

410171711

0131010217-130

410561004

089110122903

410131720

089110122702

089110122012

089110122009

089110122008

089110122011

089110122010

089110102025

089110118909

089110118908

089110118904

089110118905

089037007911

089110113913

089110122909

Not Shown:

089110122059

DESCRI PTION QTY

End Cap (Front Right) ................................................. 1

Scale Label .................................................................. 1

Front Rail...................................................................... 1

Screw (M4 x 3/4 in.) ..................................................... 4

Carriage Bolt (5/16-18 x 1/2 in.)................................... 1

Screw (M5 x 16 mm) .................................................... 4

Left Cabinet Plate ........................................................ 1

Miter Gauge Holder ...................................................... 2

Knob Ring .................................................................... 1

Knob ............................................................................. 1

Screw (M4 x 16 mm, Pan Hd) ...................................... 8

Miter Gauge Holder ...................................................... 2

Miter Gauge Assembly (See Figure F) ......................... 1

Screw (10-24 x 1/2 in.) ................................................. 7

Front Power Cord Holder ............................................. 1

Screw (M4 x 12 mm) .................................................... 2

Hang Tag...................................................................... 1

Screw (8-32 x 3/8 in., Pan Hd.) .................................... 2

Anti-Kickback Pawl Assembly ..................................... 1

Riving Knife .................................................................. 1

Set Screw (M6 x 12 mm) .............................................. 2

Spring ........................................................................... 1

Riving Knife Deck ......................................................... 1

Screw w/Washers (M6 x 20 mm) ................................. 2

Screw (M6 x 35 mm) .................................................... 1

Blade Guard Warning Label (Left) ................................ 1

Blade Guard Warning Label (Right) .............................. 1

Left Guard installation Label ........................................ 1

Upper Barrier Warning Label ....................................... 1

Right Guard installation Label ...................................... 1

No Hands Warning Label ............................................. 1

Data Label .................................................................... 1

Optional Dado Throat Plate ......................................... 1

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. }

16 34

FIGUREB

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

PARTS LIST (FIGURE B)

KEY PART

NO. NUMBER

1 0182010103-126

2 410011717

3 0181010210

4 412011051

5 0181010209

6 089110122045

7 0182011801

8 0181010208-58

9 410451702

10 0181010207

11 411071708

12 412041703

13 0181010203

14 0181010204

15 0181010802

16 410171708

17 412011062

18 0181010306

DESCRiPTiON QTY

Miter Table Top .............................................................. 1

Bolt (5/16-18 x 3-1/4 in., Hex Hd.) ................................ 1

Miter Fence Holder ....................................................... 1

Washer (8 x 16 x 1.5t) ................................................... 1

Adjusting Clamp Knob .................................................. 1

End Cap (Left) ............................................................... 1

Miter Fence .................................................................. 1

Miter Indicator ............................................................... 2

Screw (3/16 in.) ............................................................. 2

Locator Pin .................................................................... 1

Lock Nut (3/16 in.)......................................................... 4

Lock Washer (3/16 in.) ................................................. 4

Slide (Upper) ................................................................. 4

Slide (Lower) ................................................................. 4

Non-Eccentric Screw .................................................... 1

Screw (3/16-24 x 1/2 in., Pan Hd.) ................................ 1

Washer (5.5 x 12.5 x 1.5t) ............................................. 1

Miter Slide Lock ............................................................ 1

KEY PART

NO. NUMBER

19 0181010305

20 410171702

21 411072704

22 412012006

23 0181010501

24 0181011811

25 0181011810

26 0182011802

27 0181011802

28 410079012

29 0181010308

30 414011026

31 0181010205

32 0181011301

33 0181011803

34 089110103131

35 089110122701

36 089110122046

DESCRI PTION QTY

Spring Plate .................................................................. 1

Screw (1/4-28 x 10 mm, Pan Hd.)................................. 8

Lock Nut (5/32 in.)......................................................... 2

Washer (4 x 9 x 0.8t) ..................................................... 2

Quick Stop .................................................................... 2

Eccentric Screw ............................................................ 2

Eccentric Screw ............................................................ 3

Miter Base ..................................................................... 1

Guide Plate ................................................................... 2

Set Screw (3/16-24 x 1/4 in.) ....................................... 4

Holder Plate .................................................................. 4

Roll Pin (6.35 x 31.75 mm) ............................................ 4

Miter Locking Clamp ..................................................... 4

O-Ring ........................................................................... 4

Guide Bar ...................................................................... 2

Accessory Table Assembly ........................................... 1

Miter Fence Assembly .................................................. 1

End Cap (Right) ............................................................. 1

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

FIGUREC

,18

24 ?

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 _,

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

KEY PART

NO. NUMBER

1 0182011805

2 0181010805

3 414050006

4 0181010218

5 414011024

6 410139719

7 0181010319

8 0181010220

9 0181010907

10 414011030

11 0181010906

12 410491703

13 412011064

14 411011711

15 0181010243

16 0181010219

17 412011006

18 410171704

19 410131719

20 0181010904

21 0182010318

22 0181011303

23 0181010506

24 0181010227

25 0181010226

26 0181010806

27 0181010217

28 0181010115-126

29 089110122902

PARTS LIST (FIGURE C)

DESCRIPTION QTY

Rip Fence ..................................................................................................................................... 1

Screw (12-14 x 1/2 in., Pan Hd.) .................................................................................................. 2

Dowel Pin (1/4 in. x 18 ram) ......................................................................................................... 1

Fence Roller ................................................................................................................................. 1

Roller Pin (6.35 x 38.1 ram) .......................................................................................................... 1

Screw (10-24 x 1 in., Pan Hd.) ..................................................................................................... 1

Rear Clamp ................................................................................................................................. 1

Roller Holder ................................................................................................................................ 1

Compression Spring ................................................................................................................... 1

Roller Pin (3.3 x 19.05 ram) ......................................................................................................... 1

Rod .............................................................................................................................................. 1

Screw (1/4-20 x 5/8 in.)................................................................................................................ 2

Washer (7 x 16 x 1.5t) .................................................................................................................. 2

Hex Nut (8-32 x 8.5 ram) .............................................................................................................. 1

Scale Indicator ............................................................................................................................. 1

Slide ............................................................................................................................................. 2

Washer (4 x 9 x 0.8t) .................................................................................................................... 2

Screw (8-32 x 12.7 ram, Pan Hd.) ................................................................................................ 2

Screw (8-32 x 1/2 in.)................................................................................................................... 1

Pin ................................................................................................................................................ 1

Clamper ....................................................................................................................................... 1

Rubber Plug (M4 x 7.6 ram) ......................................................................................................... 1

Eccentric Roller ............................................................................................................................ 1

Fence Locking Handle ................................................................................................................. 1

End Cap For Handle Grip ............................................................................................................ 1

Screw (8-32 x 3/8 in.) .................................................................................................................. 2

Plate ............................................................................................................................................. 1

Front Block .................................................................................................................................. 1

Label ............................................................................................................................................ 1

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 _,

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

["" 8

FIGURED

KEY PART

NO. NUMBER

1 411072702

2 0182010202-130

3 412012041

4 0121010223

5 0101140203

6 0121010224

7 0181010826

A182014001

A121015201

DESCRIPTION QTY

Lock Nut (1/4-20) ......................................................................................................................... 1

Height/Bevel Adjustment Handwheel .......................................................................................... 1

Washer (6.5 x 13 x 1.5t) ............................................................................................................... 1

Handwheel Grip ........................................................................................................................... 1

Screw ........................................................................................................................................... 1

End Cap ....................................................................................................................................... 1

Screw (1/4-20) ............................................................................................................................. 1

Blade Adjustment Handwheel Assembly (inc. Key Nos. 1-7) ...................................................... 1

Handwheel Handle Assembly (inc. Key Nos. 1 and 3-6) ............................................................. 1

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

FIGUREE

KEY PART

NO. NUMBER

1 422010044

2 0131010319

3 0131010318

4 0181010915

5 0181010916

6 0181010918

7 0181010917

8 089110122018

9 089110122017

DESCRIPTION QTY

Saw Blade (10 in. x 36t) ............................................................................................................... 1

Large Wrench ............................................................................................................................... 1

Small Wrench ............................................................................................................................... 1

Hex Key (3/32 in.)......................................................................................................................... 1

Hex Key (1/8 in.)........................................................................................................................... 1

Hex Key (3/16 in.)......................................................................................................................... 1

Hex Key (5/32 in.)......................................................................................................................... 1

Hex Key (M5) ............................................................................................................................... 1

Push Stick .................................................................................................................................... 1

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

FIGUREF

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

PARTS LIST (FIGURE F)

KEY PART

NO. NUMBER

1 089110122054

2 412012705

3 412080702

4 0182010104-126

5 0182010803

6 0182010210

7 0121010204

8 0101010918

9 411012704

10 410132734

11 0182011806

12 89110122056

13 410102014

14 0101010917

15 410561004

16 9182015330302

DESCRI PTION QTY

Miter Gauge Handle ..................................................................................................................... 1

Washer (1/4 x 16 x 1.5t)................................................................................................................ 1

Lock Washer (1/4 x 16 x 2t) .......................................................................................................... 1

Miter Gauge .................................................................................................................................. 1

Screw (M4 x 8 mm) ...................................................................................................................... 1

Scale Indicator ............................................................................................................................. 1

Indicator Bracket .......................................................................................................................... 1

Pin ................................................................................................................................................ 1

Hex Nut (3/16-24) ......................................................................................................................... 3

Screw (3/16-24 x 21.7 mm, Pan Hd.) ........................................................................................... 3

Miter Gauge Bar ........................................................................................................................... 1

Miter Gauge Washer ..................................................................................................................... 1

Screw (M6 x 8 mm, Flat Hd.) ........................................................................................................ 1

Center Pin (1/4 in.)........................................................................................................................ 1

Screw (M4 x 12 mm) .................................................................................................................... 2

Miter Gauge Scale Label .............................................................................................................. 1

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. ]

FIGUREG

===J

1__ _.-.--_ 13

7 6

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

PARTS LIST (FIGURE G)

KEY PART

NO. NUMBER

1 644A06070

2 644A06080

3 0181010257

4 412011071

5 0181010347

6 0181010349

7 0181010258

8 0181010251-127

9 0181010252-127

10 0181010253-127

11 0181010250-127

12 0181010254-127

13 410101714

14 410101707

15 410101013

16 A181014601

17 412011073

18 0181010819

19 A182011004-1

20 A182017001

DESCRIPTION QTY

Guide Fence w/Guide Block (Left) ................................................................................................ 1

Guide Fence w/Guide Block (Right) .............................................................................................. 1

Knob Bolt (1/2 in.) ......................................................................................................................... 4

Washer (M19 x 8.3 x 1.5t) ............................................................................................................. 5

T-Nut (5/16-18) .............................................................................................................................. 6

Table Clamping Bracket ................................................................................................................ 1

Knob (5/16-18 x 3/4 in.) ................................................................................................................ 1

Throat Plate (1 in.)......................................................................................................................... 1

Throat Plate (1-1/2 in.) .................................................................................................................. 1

Throat Plate (2 in.)......................................................................................................................... 1

Throat Plate (1/2 in.)...................................................................................................................... 1

Throat Plate (1-1/8 in.) .................................................................................................................. 1

Screw (10-32 x 3/4 in.) .................................................................................................................. 3

Screw (5/16-18 x 3/4 in.)............................................................................................................... 3

Screw (M8 x 24 mm) ..................................................................................................................... 4

Guard/Dust Cover Assembly ........................................................................................................ 1

Washer (D14 x D35 x 2.4t) ............................................................................................................ 1

Post (M19 x 163 mm) .................................................................................................................... 1

Throat Plate Assembly (Inc. Key Nos. 8-12) ................................................................................. 1

Router Mounting Kit (Inc. Key Nos. 1-19) ..................................................................................... 1

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number win be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

321

13 42 43

33 34

535

i J

16./ _.r 3o <\

FIGUREH"%

_. CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.218291 ._

I The model number will be found on a label attached to the side panel of the cabinet. Always mention the model number in all correspondence /

regarding your TABLE SAW or when ordering repair parts. J

PARTS LIST (FIGURE H)

KEY PART

NO. NUMBER

1 410171706

2 412011020

3 0161010201

4 0182010317-126

5 410031717

6 0182010307-126

7 410031718

8 411171703

9 411061704

10 0182010305

11 0182011301

12 0182010802

13 0131010816

14 0182010215

15 0182010311-126

16 0182010313

17 411071705

18 0182010209

19 0182010309-82

20 0182011302

21 410151019

22 0182010314

23 0182010901

24 411071006

25 411071001

DESCRIPTION QTY

Screw (10-24 x 1/2 in.) ................................................. 2

Washer (5.2 x 14 x lt) ................................................... 2

Feet Plug (34 x 8.4 x 14) ............................................... 2

Upper Support Plate .................................................... 1

Carriage Bolt (5/16 x 80 mm) ....................................... 8

Right Leg Frame (30 mm) ............................................. 1

Carriage Bolt (5/16 x 42 mm) ....................................... 4

Wing Nut (3/8 in.).......................................................... 4

Lock Nut (3/8 in.) .......................................................... 2

Plug .............................................................................. 2

Leg Frame Foot Plug (Right) ........................................ 2

Foot Plug Screw (3/8 x 85 mm) .................................... 2

Hex Screw (5/16-18 x 55 mm)...................................... 2

Leg Frame End Cap ................................................... 14

Front Connecting Tube ................................................. 1

Tooth Plate ................................................................... 4

Lock Nut (5/16 in.) ...................................................... 20

Connecting Ring ........................................................... 8

Leg Frame Handle ........................................................ 2

Handle Cover ................................................................ 2

Hex Socket Screw (M8 x 50 mm) ................................. 2

Pedal ............................................................................ 1

Pedal Spring ................................................................. 1

Lock Nut (M8) ............................................................... 2

Lock Nut (M6) ............................................................... 1

KEY PART

NO. NUMBER

26 0131010918

27 0131010232

28 410031719

29 411071705

30 0182010316-126

31 0182010310-126

32 0182010312-126

33 0182010801

34 412011088

35 0182010217-130

36 410151714

37 412011003

38 0000110812

39 0182010308-126

40 0182010306-126

41 0000120915

42 412011067

43 089110122907

44 0182010320-126

45 0182010319

46 412011116

47 0182010321

48 412011080

49 410151021

988000067

DESCRI PTION QTY

Adjusting Spring ........................................................... 2

Adjusting Ring .............................................................. 2

Carriage Bolt (5/8-11 x 63.9 mm) ................................. 2

Lock Nut (5/16 in.) ........................................................ 4

Down Support Plate ..................................................... 1

Leg Support (30 mm) .................................................... 2

Rear Connecting Tube (30 mm) .................................... 1

Wheel Screw (5/16 in.).................................................. 2

Washer (13 x 32 x 1.5t) ................................................. 4

Wheel (8 in.) .................................................................. 2

Screw (1/4 x 45 mm, Hex Soc. Hd.) ............................. 4

Washer (6.5 x 16 x 2t) ................................................... 8

Lock Nut (1/4-20) ......................................................... 4

Center Leg Frame (Right) ............................................. 1

Left Leg Frame ............................................................. 1

Lock Washer (5/16 in.) .................................................. 2

Washer (8 x 18 x 1.5t) ................................................... 2

Leg Stand Warning Label ............................................. 2

Right Short Leg ............................................................ 1

Square Nut ................................................................... 2

Washer (D8.2 x 23 x 3t) ................................................ 1

Latch ............................................................................. 1

Washer (8.25 x 21.9 x 1.5t) ........................................... 1

Hex Socket Screw (M6 x 15 mm) ................................. 1

Operator's Manual

Craftsman 315218291 User Manual TABLE SAW Manuals And Guides 1202249L

Navigation menu

Versions of this User Manual:

Views

Navigation
