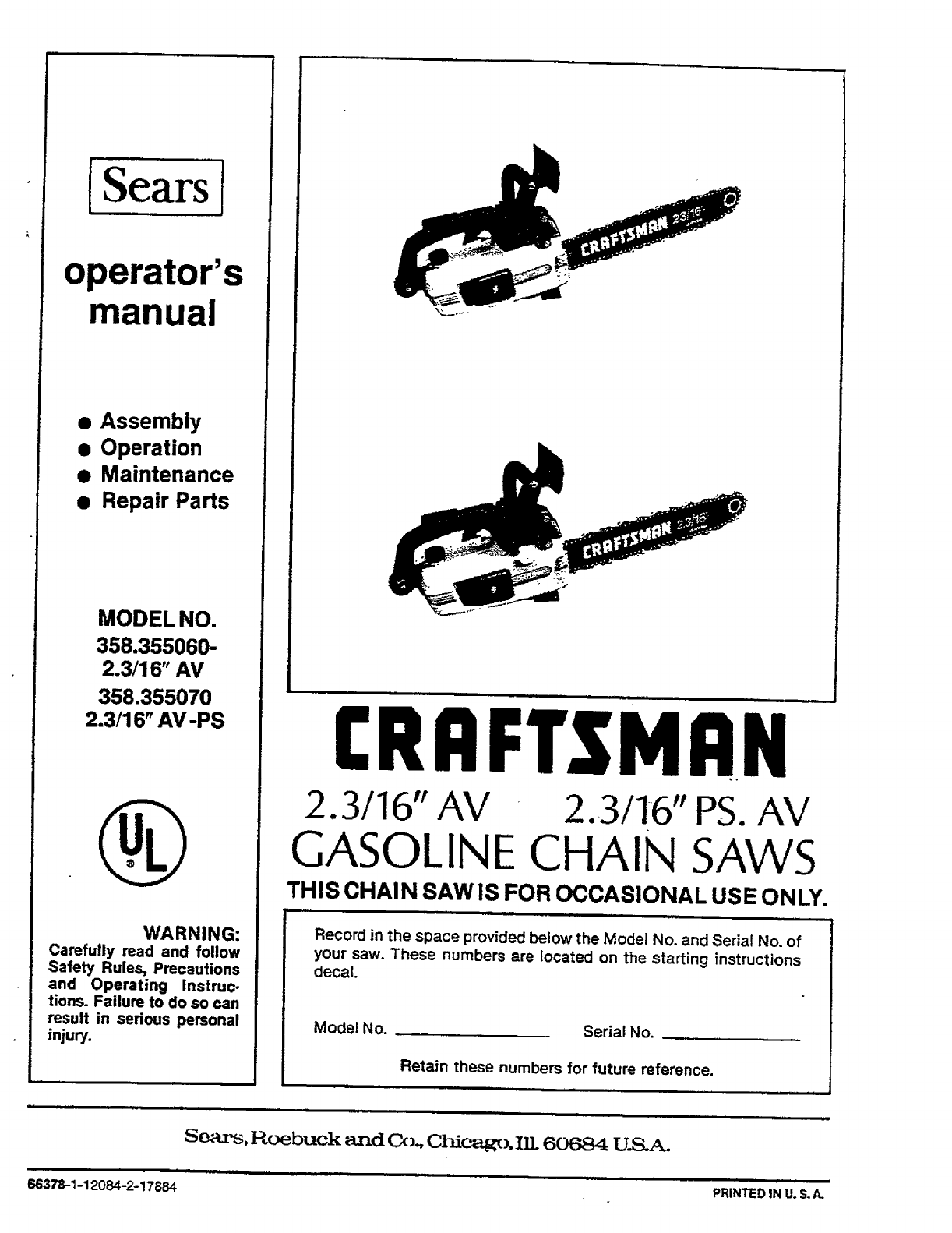

[Sears I

operator's

manual

• Assembly

•Operation

• Maintenance

•Repair Parts

MODELNO.

358.355060-

2.3/16" AV

358.35507O

2.3/16" AV -PS

WARNING:

Carefully mad and follow

Safety Rules, Precautions

and Operating Instru¢,

tions. Failure to do so can

result in serious personal

injury.

-- ......... i ,, , ,..

[RRFTSMRN

2.3/16" AV 2.3/16" PS.AV

GASOLINE CHAIN SAWS

THIS CHAIN SAW IS FOR OCCASIONAL USE ONLY.

i i ii, ,, ,, ,|,11, ,, , i , .. , ,,,

Record in the space provided below the Model No. and Serial No. of

your saw. These numbers are located on the starting instructions

decal.

Model No. Serial No,

Retain these numbers for future reference.

,rl i

Sears, Roebuck and Cx_., Chiea_),Ill. 60684 U.S.A.

66378-1-12084-2-17884 PRINTEDIN U.S. A.

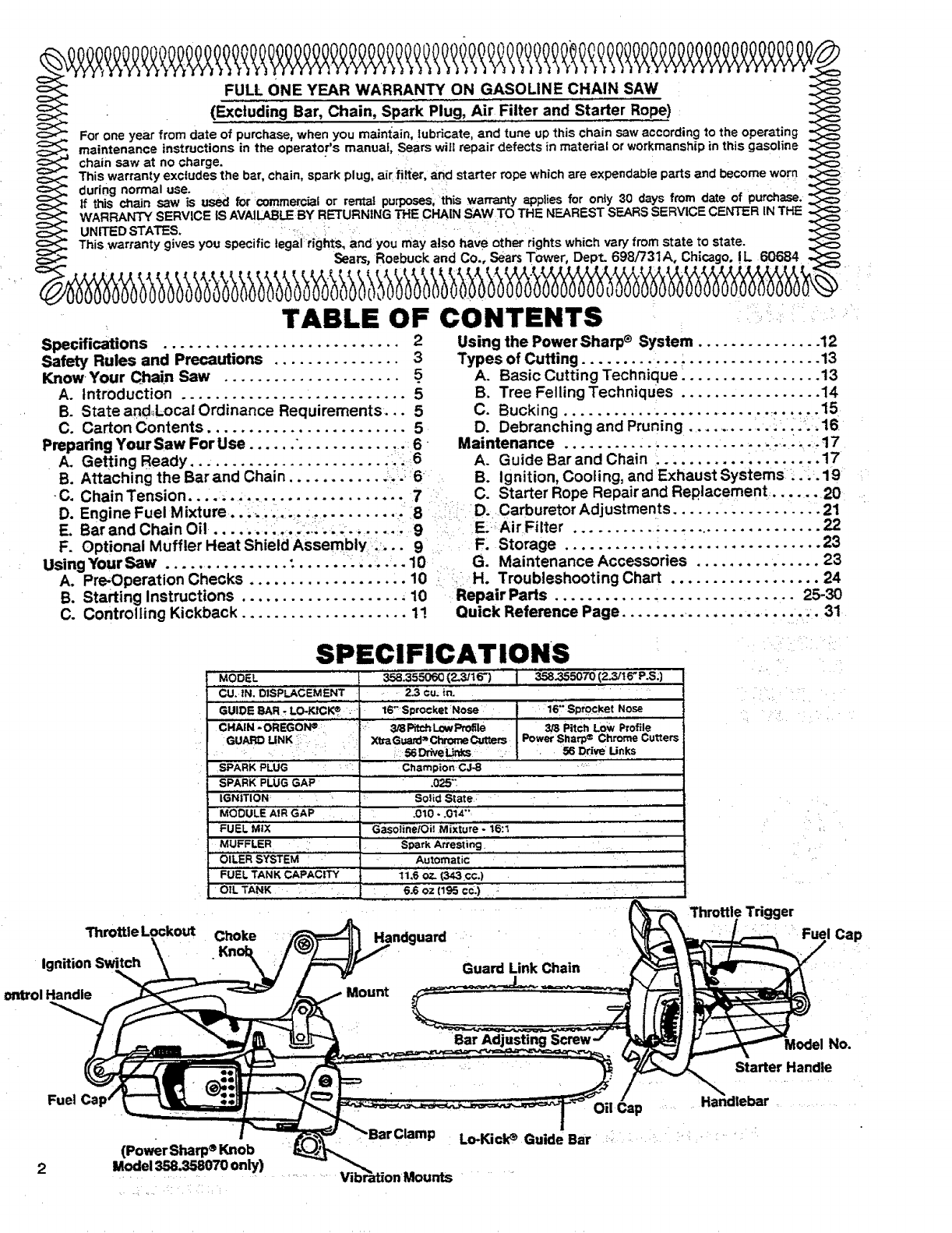

FULL ONE YEAR WARRANTY ON GASOLINE CHAIN SAW

(Excluding Bar, Chain, Spark Plug, Air Filter and Starter Rope)

For one year from date of purchase, when you maintain, Iubricate, and tune up this chain saw according to the operating

maintenance instructions in the operator's manual Sears will repair defects in material or workmanship in this gasoline

chain saw at no charge.

This warranty excludes the bar, chain, spark plug, air fiiter, and starter rope which are expendable parts and become worn

during normal use.

if thiSchainsaw is usedfor'commem_lor rentalpurposes_,this wan'antyappliesfor only30 daysfrom dateof purchase.

WARRANTY SERVICE IS AVA1LABLEBY RETURNING THE CHAIN SAW TOTHENEARESTSEARSSERVICE CENTER INTHE

UNITED STATES. ',_: :: _'•: '

Thiswarrantygivesyouspecificlegal:rightS,and:youmay alsohave otherrightswhichvaryfromstateto state.

Sears,Roebuckand Co., SearsTower,Dept. 698/731A, Chicago,IL 60684

TABLE OF CONTENTS

Specifications ............................ 2

Safety Rules and Precautions ............... 3

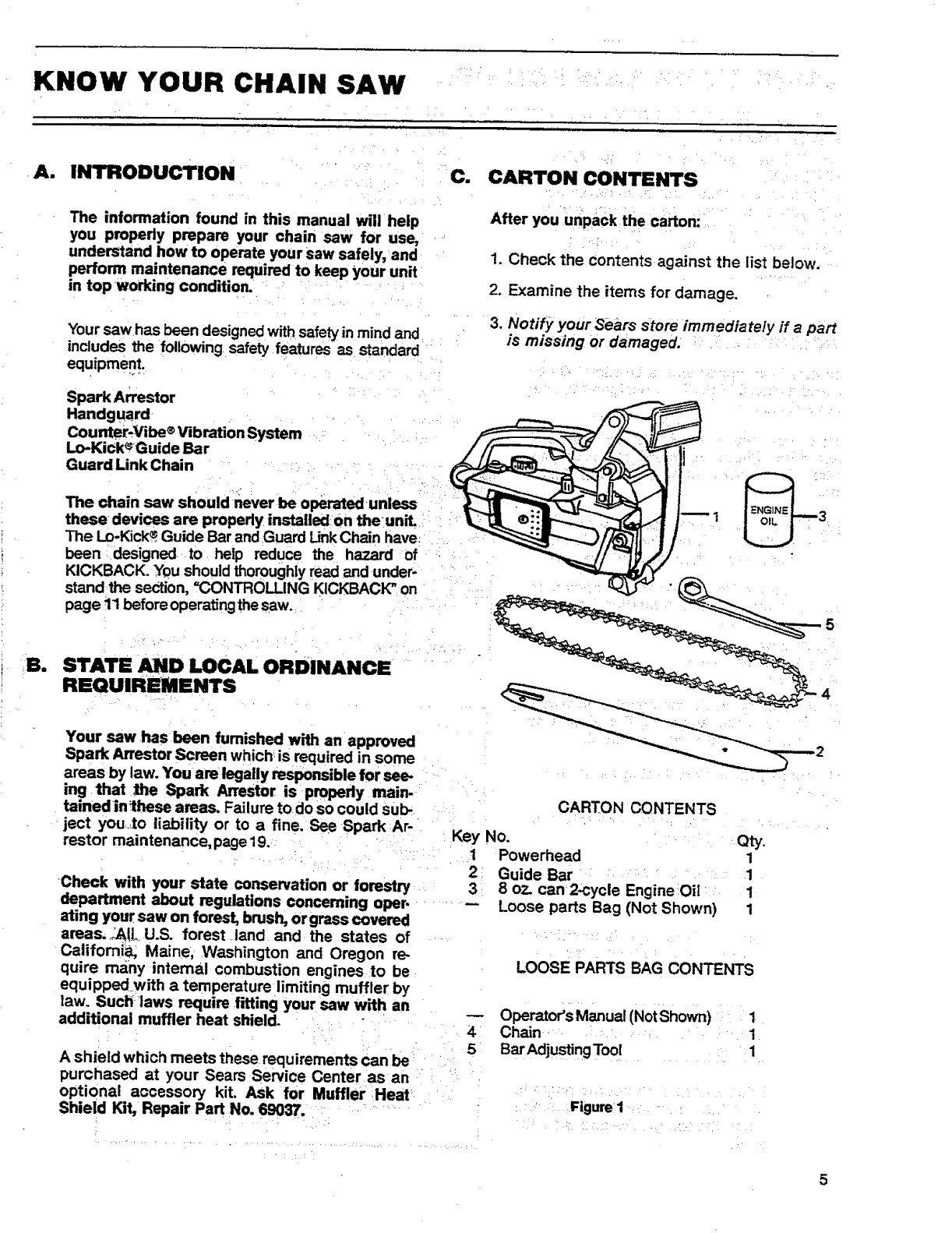

Know Your Chain Saw ..................... 5.

A. Introduction ........................... 5

B. State anti, Local Ordinance Requirements... 5

C. Carton Contents ........................ 5

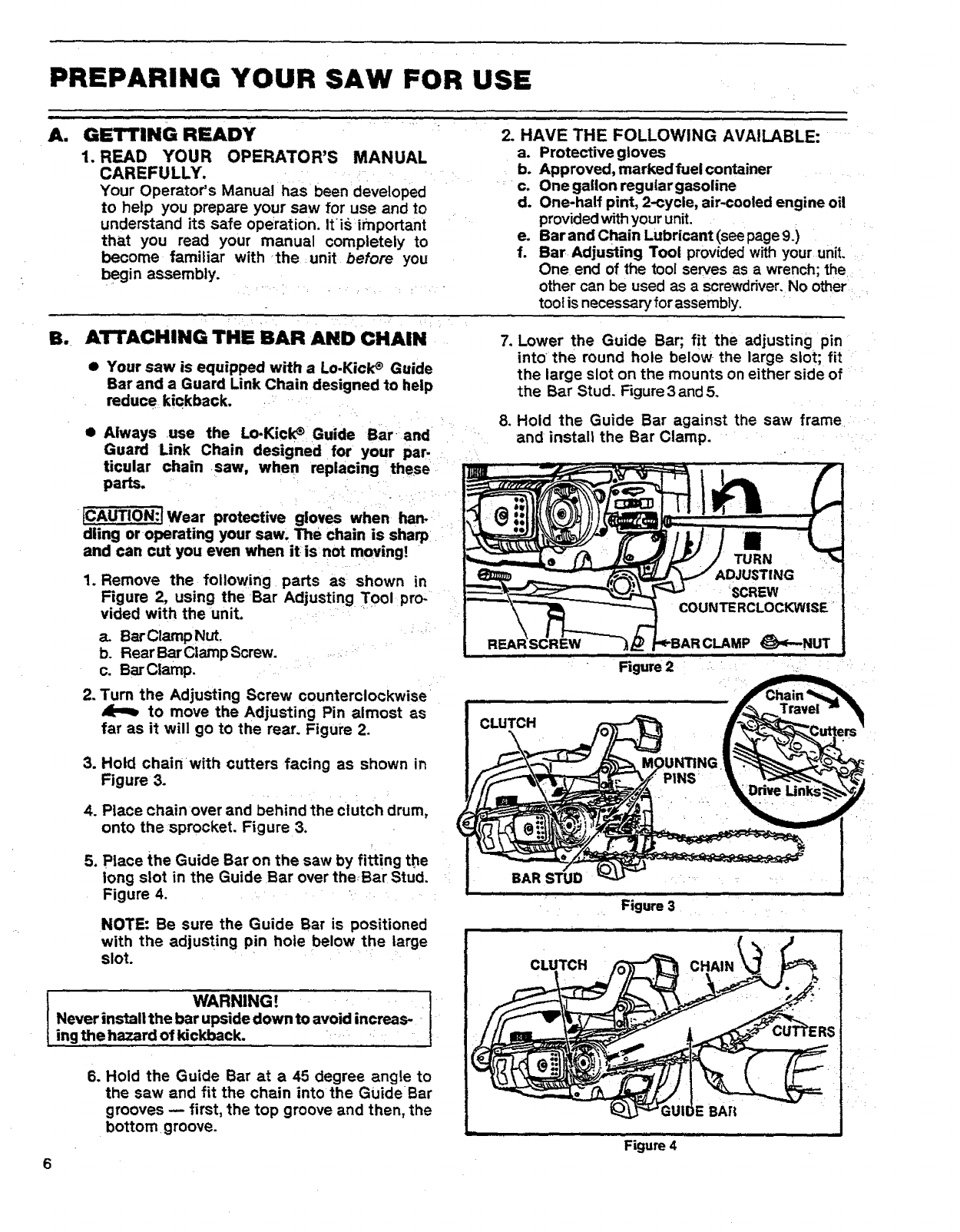

Preparing Your Saw For Use ...... "............. 6

A. Getting Ready .......................... 6

B. Attaching the Barand Chain ............... 6

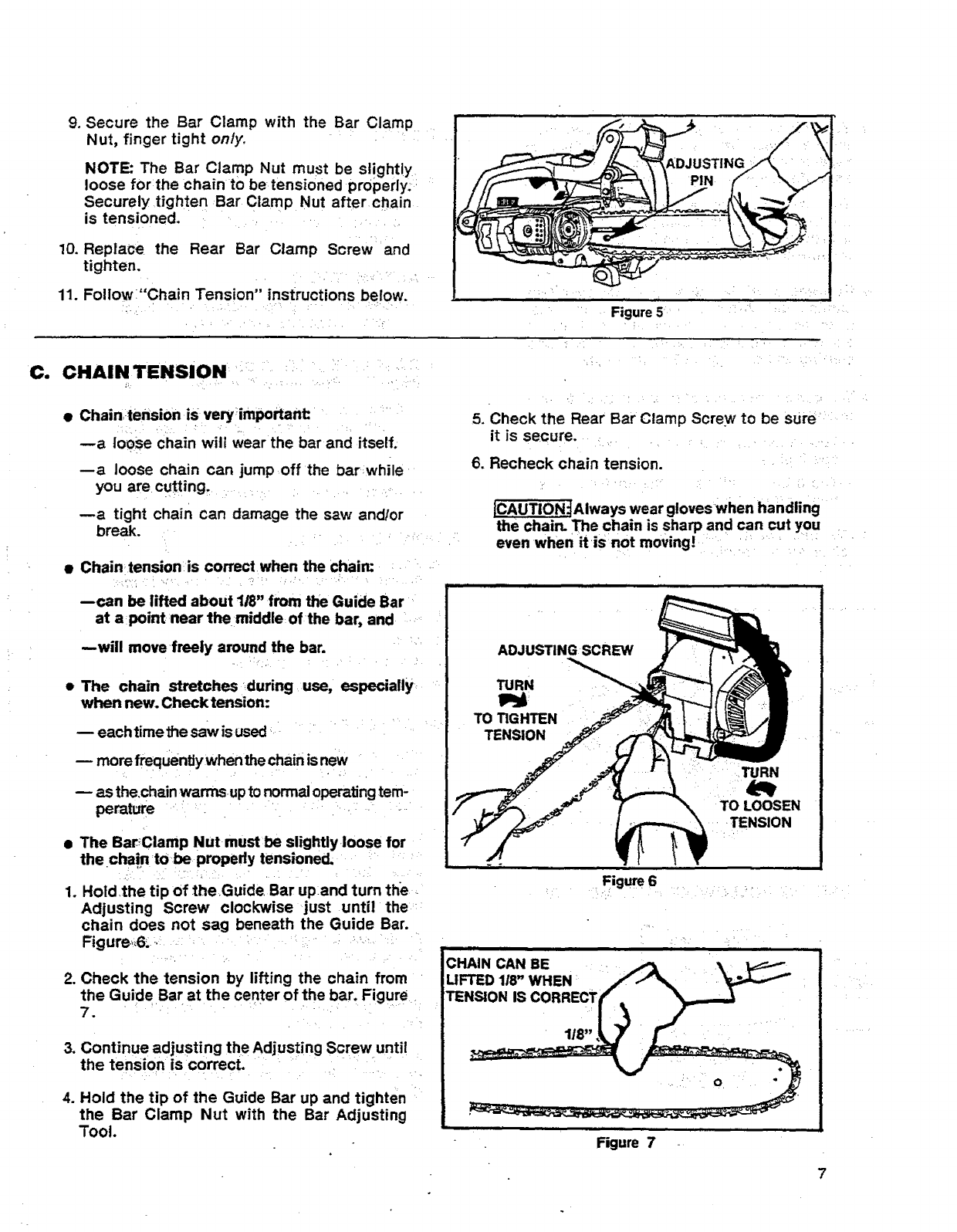

C. Chain Tension .......................... 7

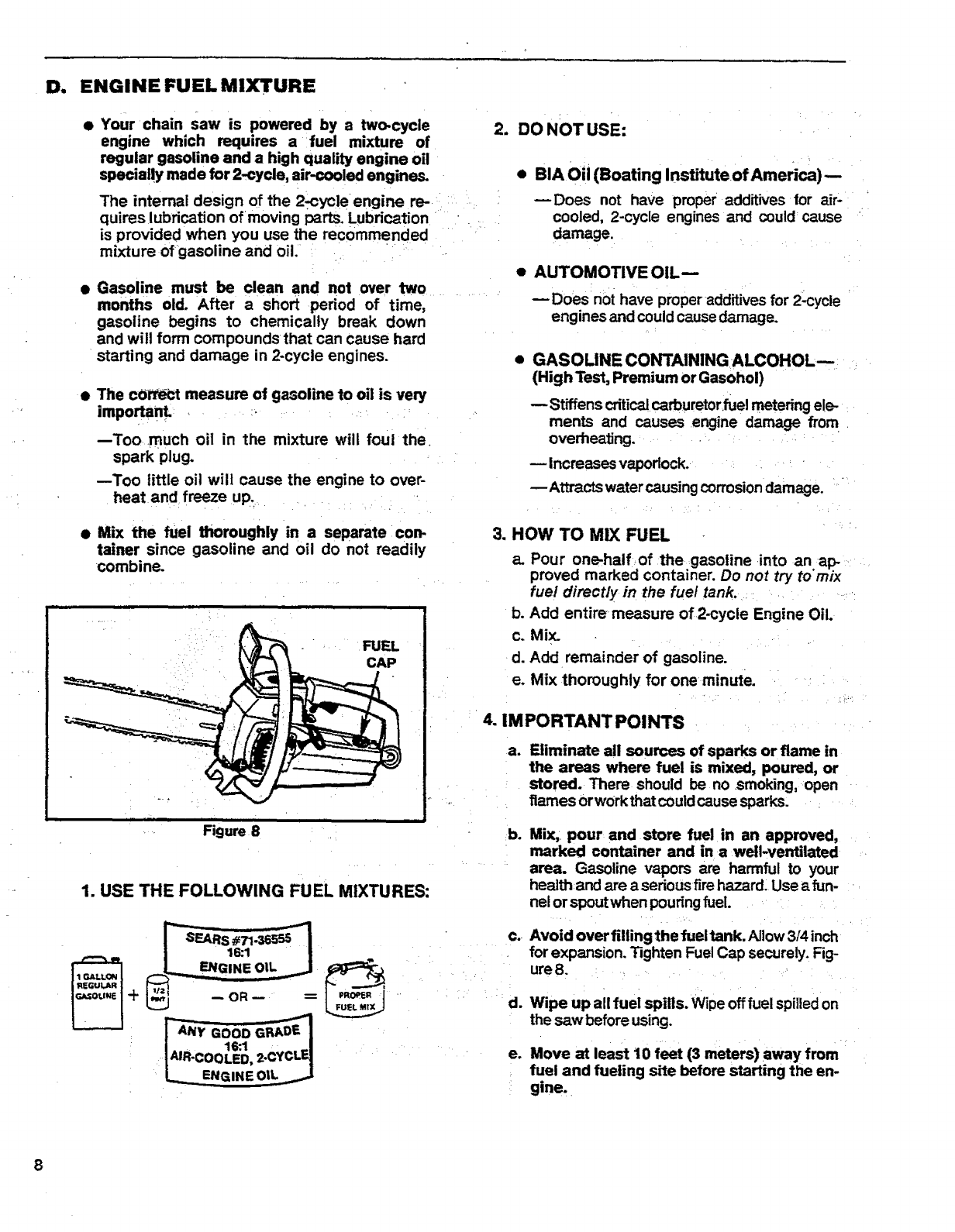

D. Engine Fuel Mixture ..................... 8

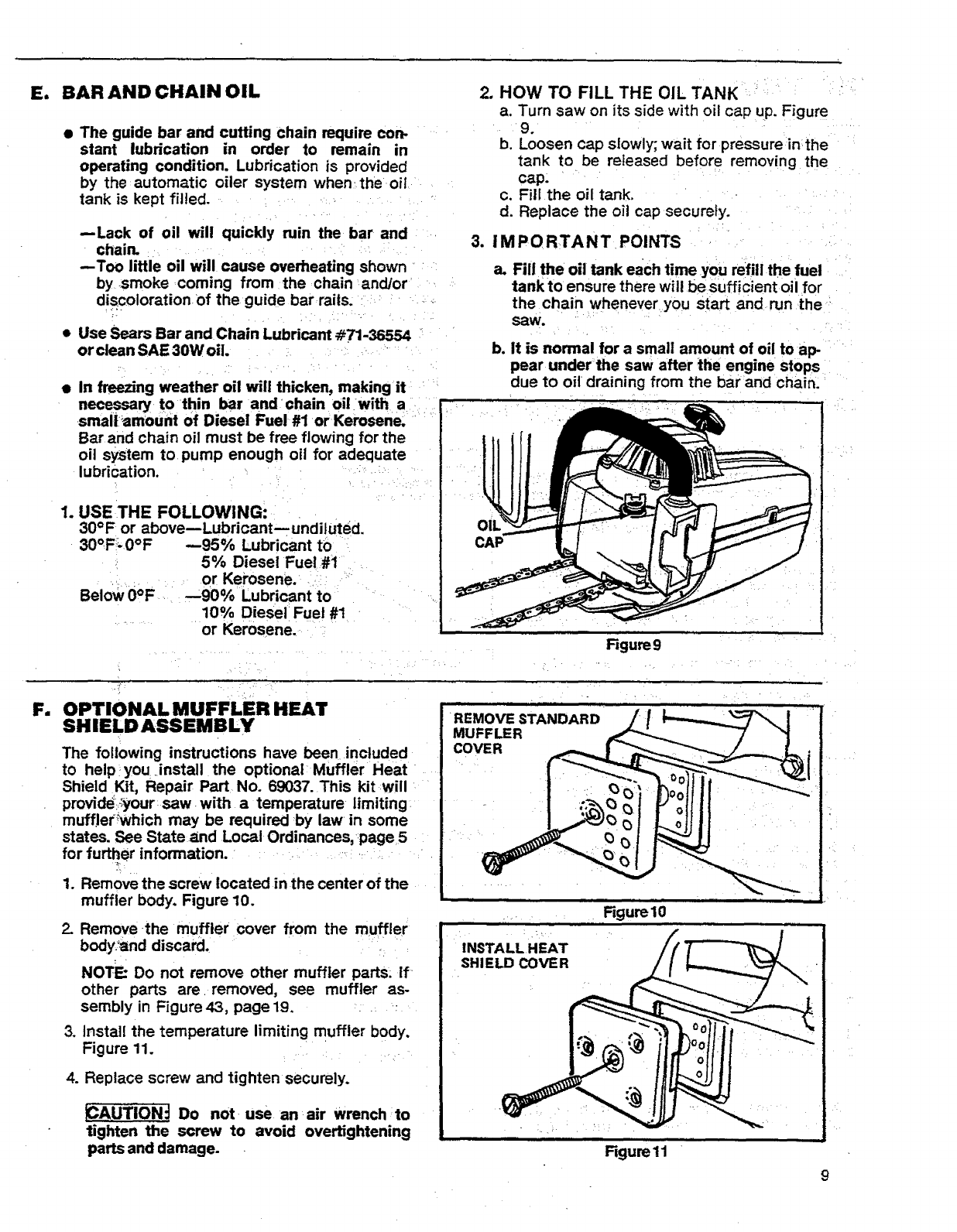

E. Bar and Chain Oil ........................ 9

F. Optional Muffler Heat Shield Assembly ;... 9

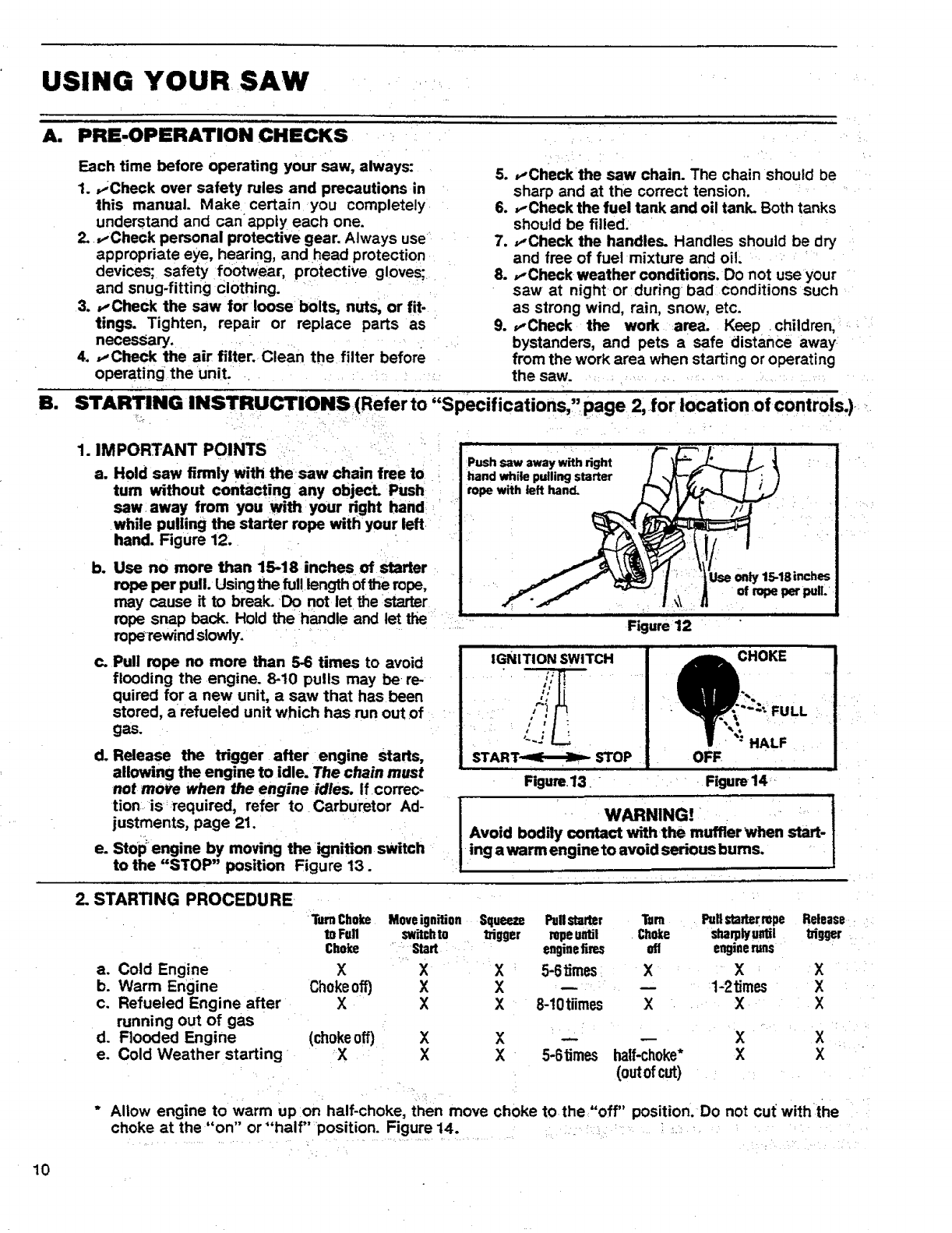

Using Your Saw ............... -............. 10

A. Pre.Operation Checks ................... 10

B. Starting Instructions .................... 10

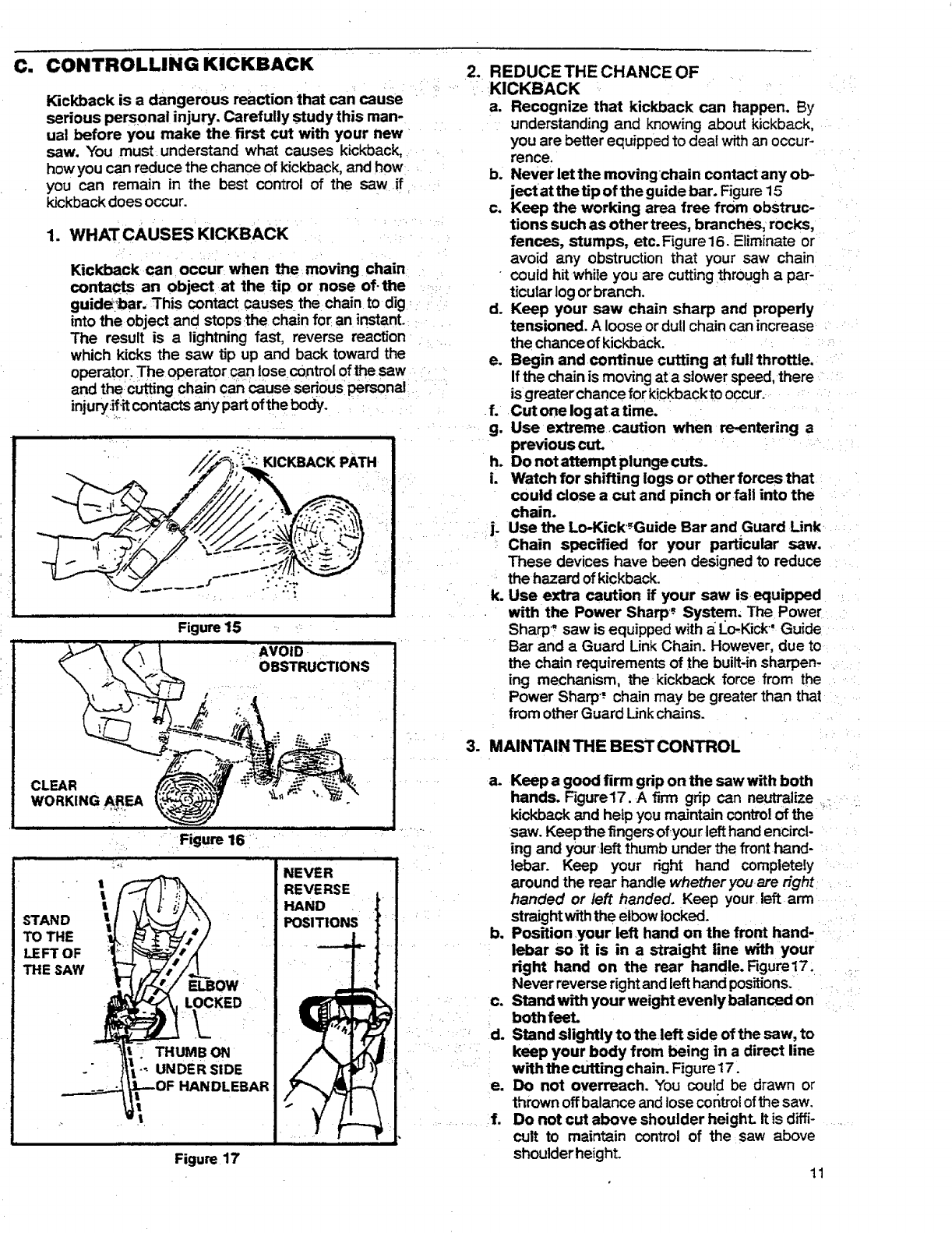

C. Controlling Kickback .................... 11

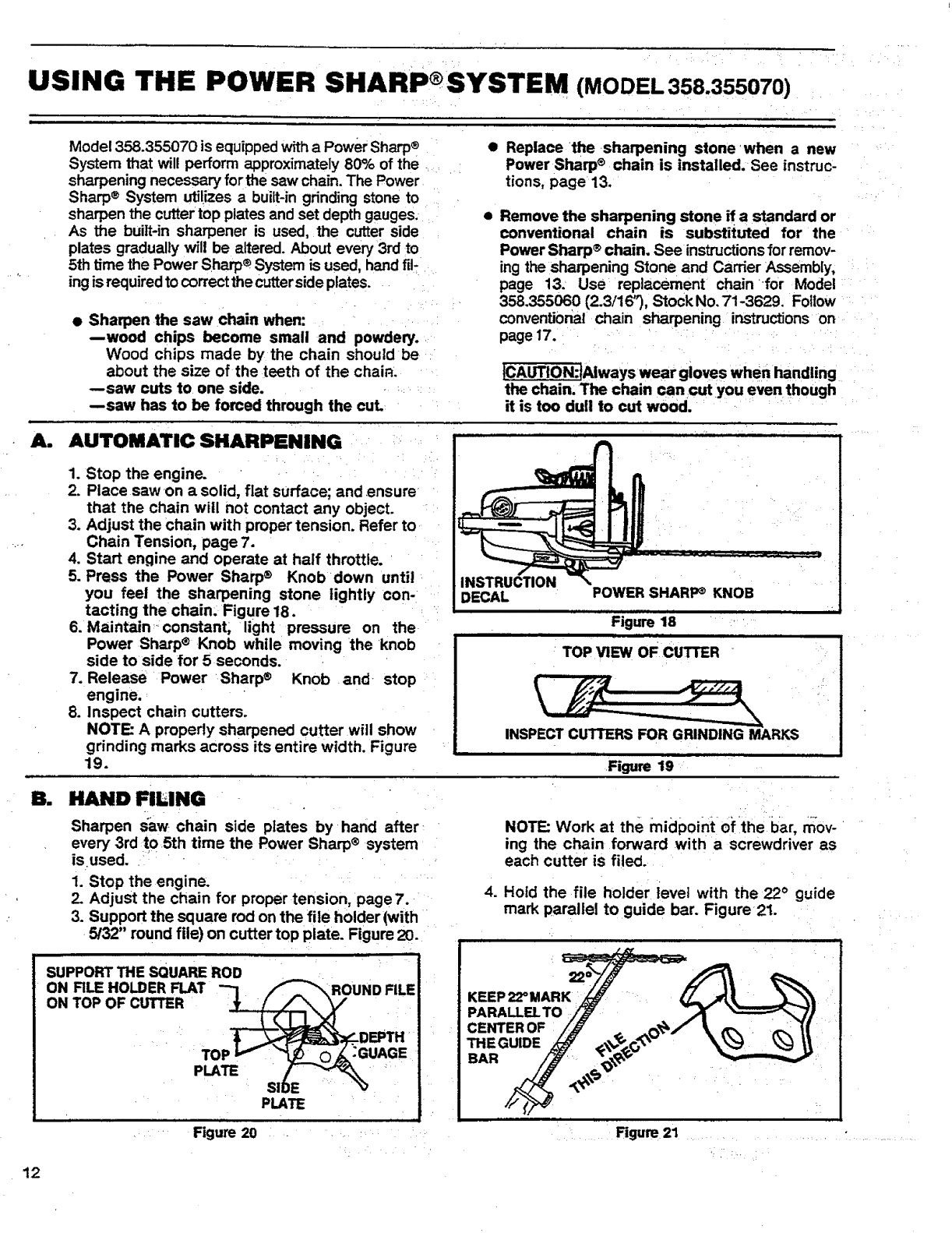

Using the Power Sharp ®System ............... 12

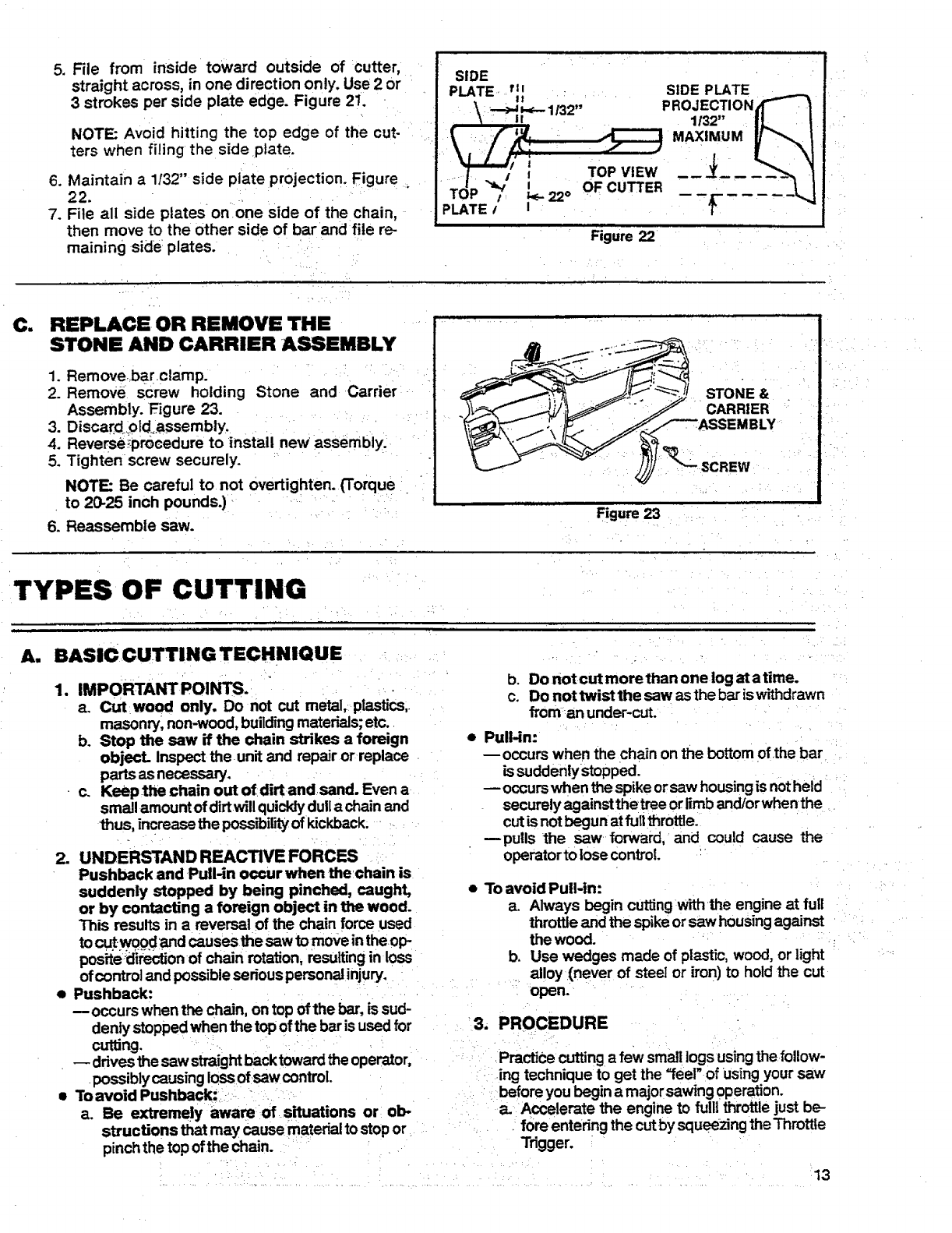

Types of Cutting ............................. 13

A. Basic Cutting Technique ................. 13

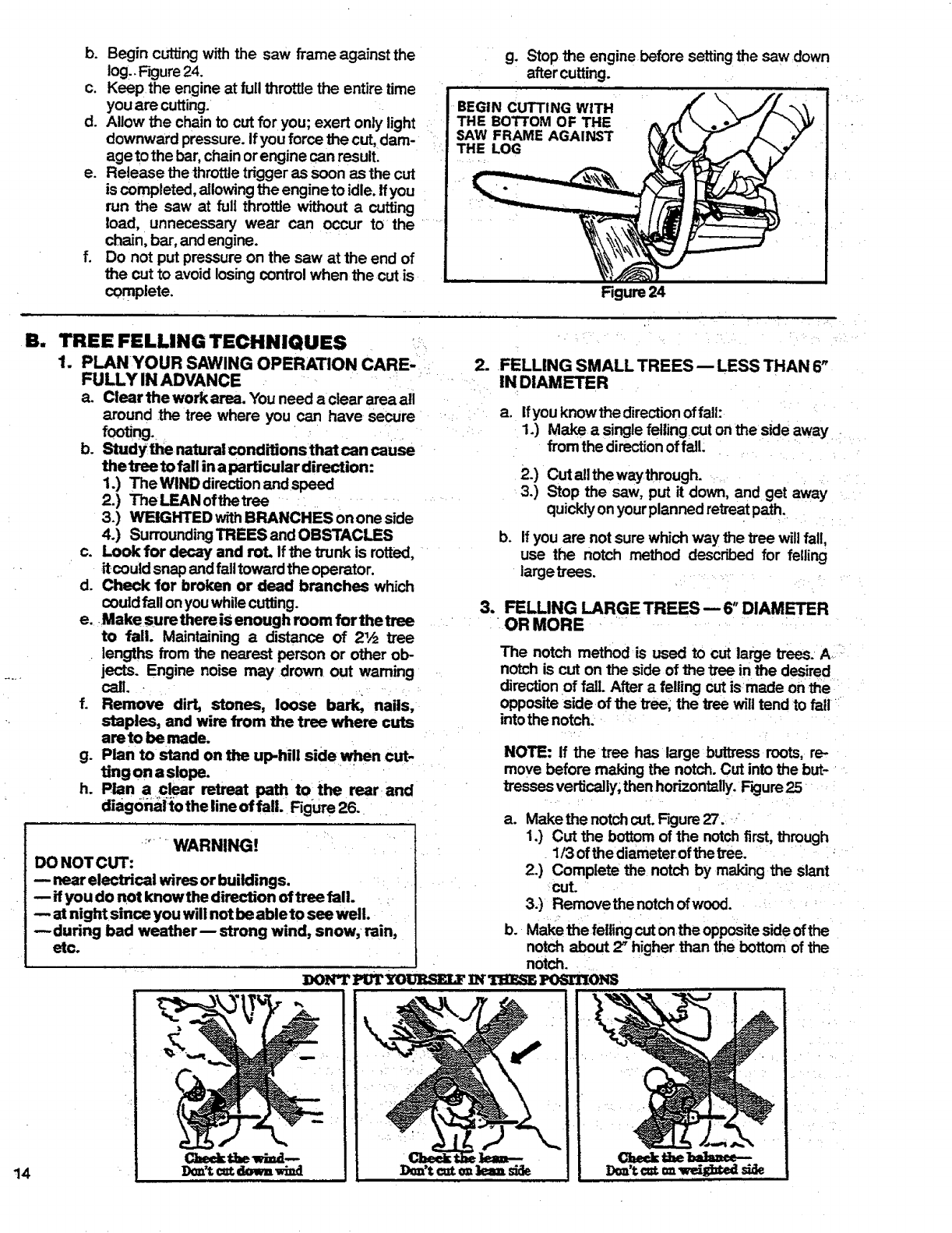

B. Tree Felling Techniques ................. 14

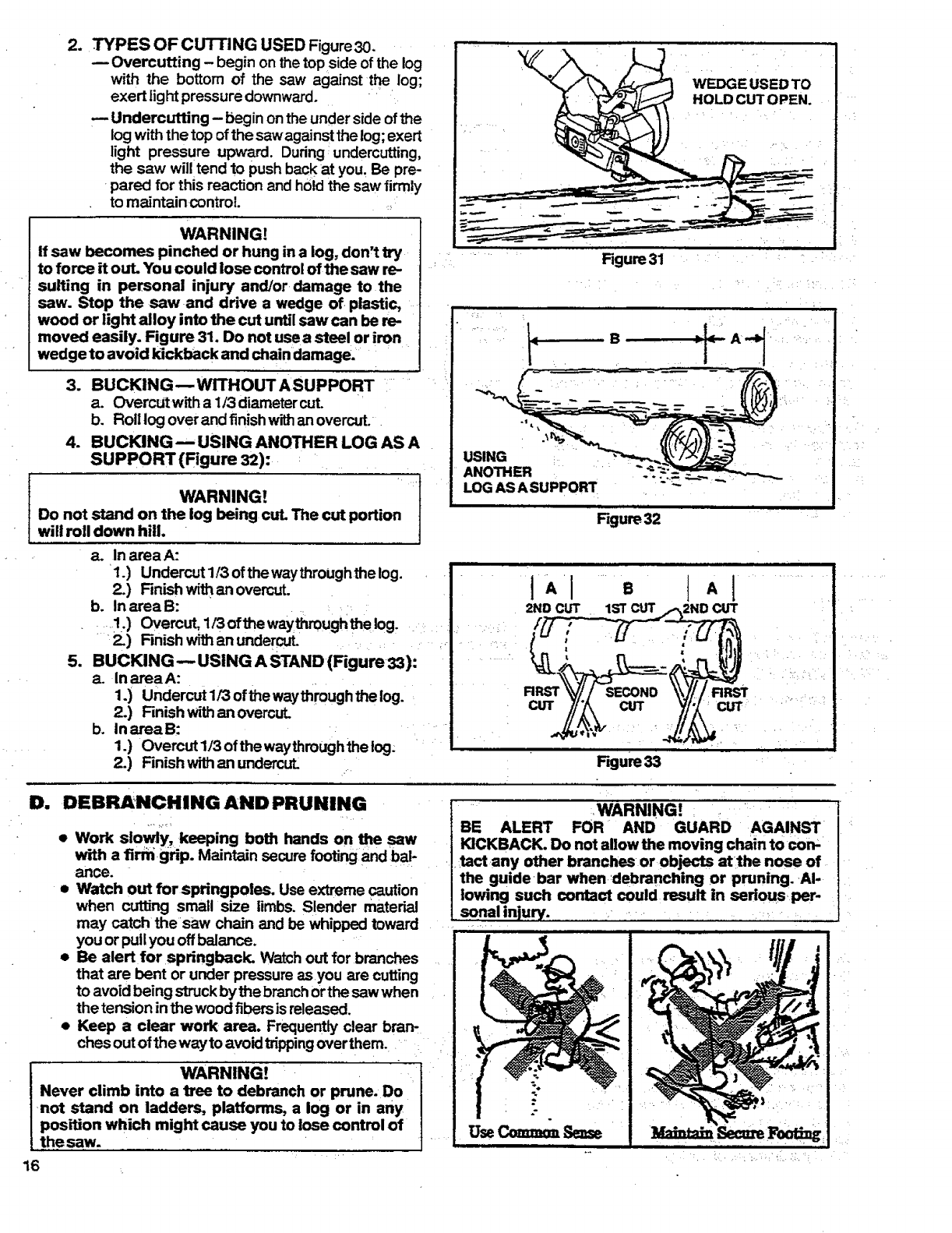

C. Bucking ................................ 15

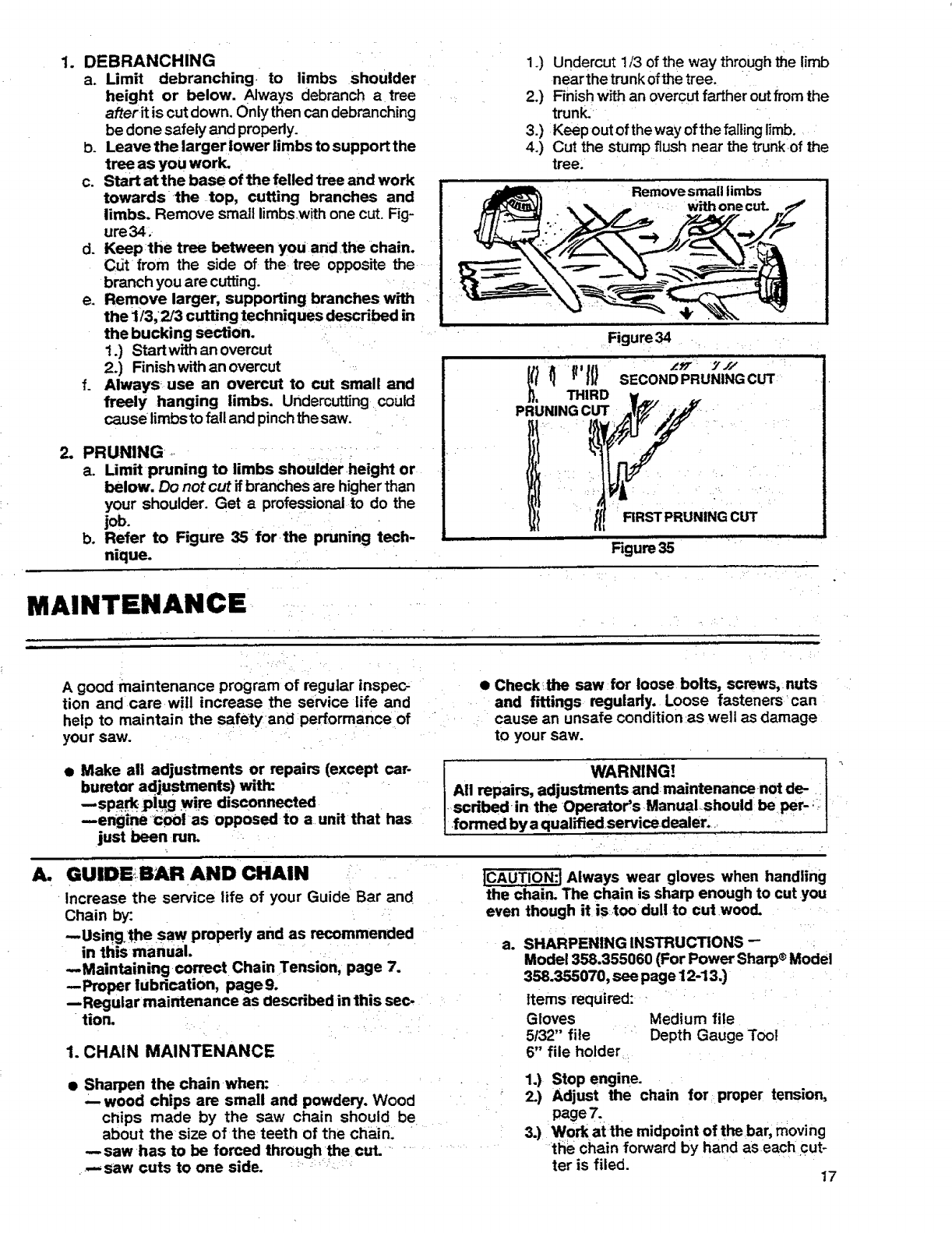

D. Debranching and Pruning ............. _.._16

Maintenance ............................... 17

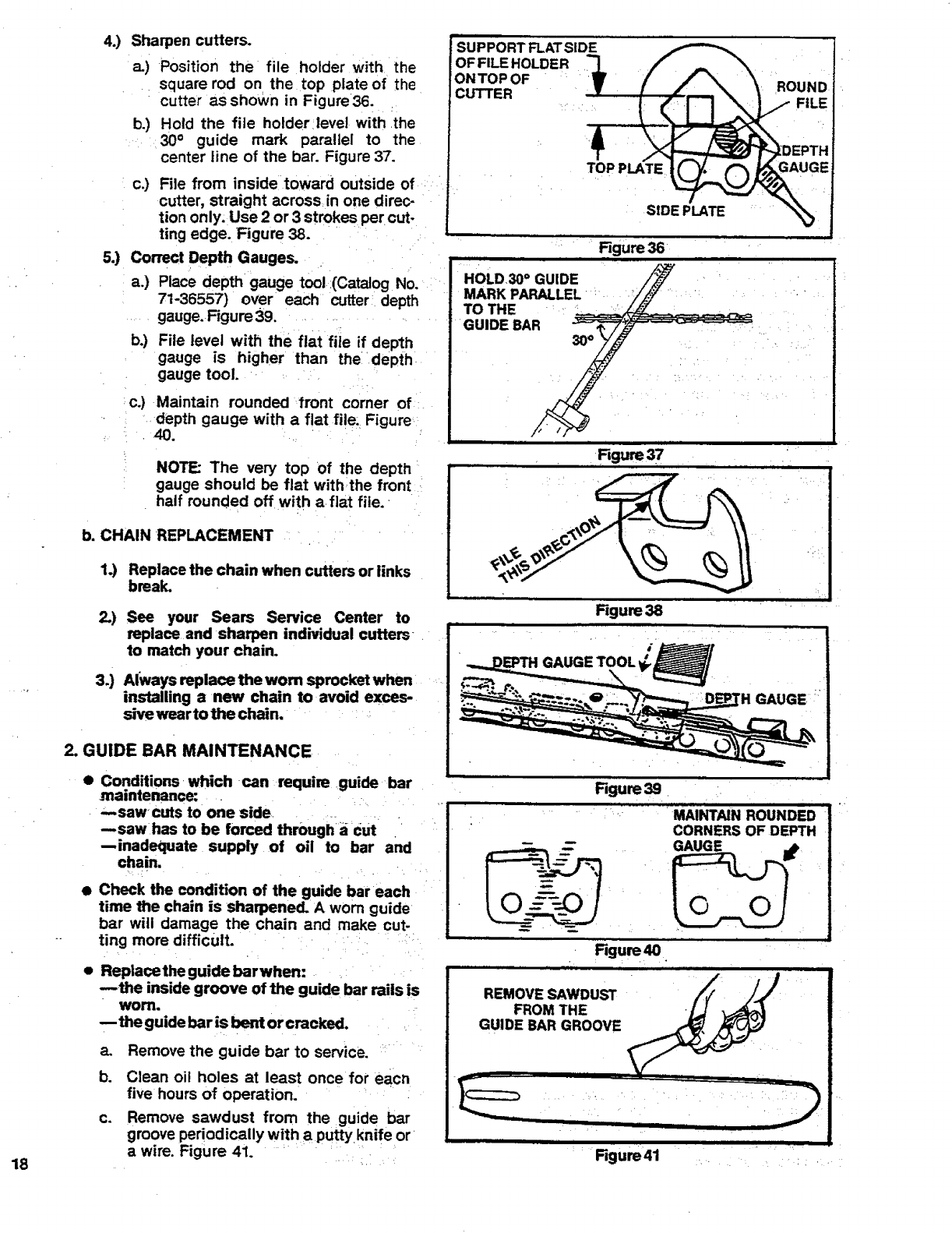

A. Guide Bar and Chain ........... ;........ 17

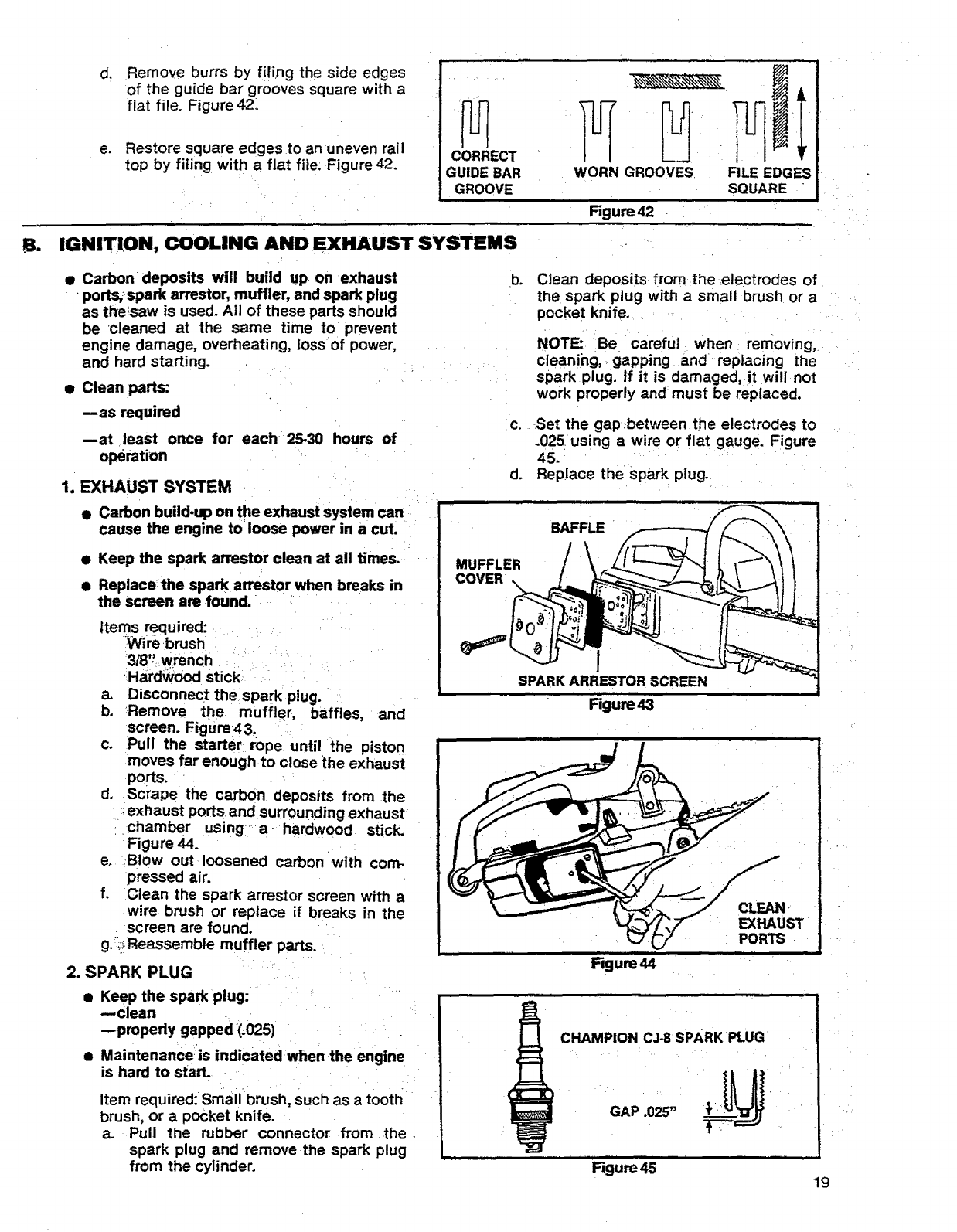

B. Ignition, Cooling, and Exhaust Systems .... 19

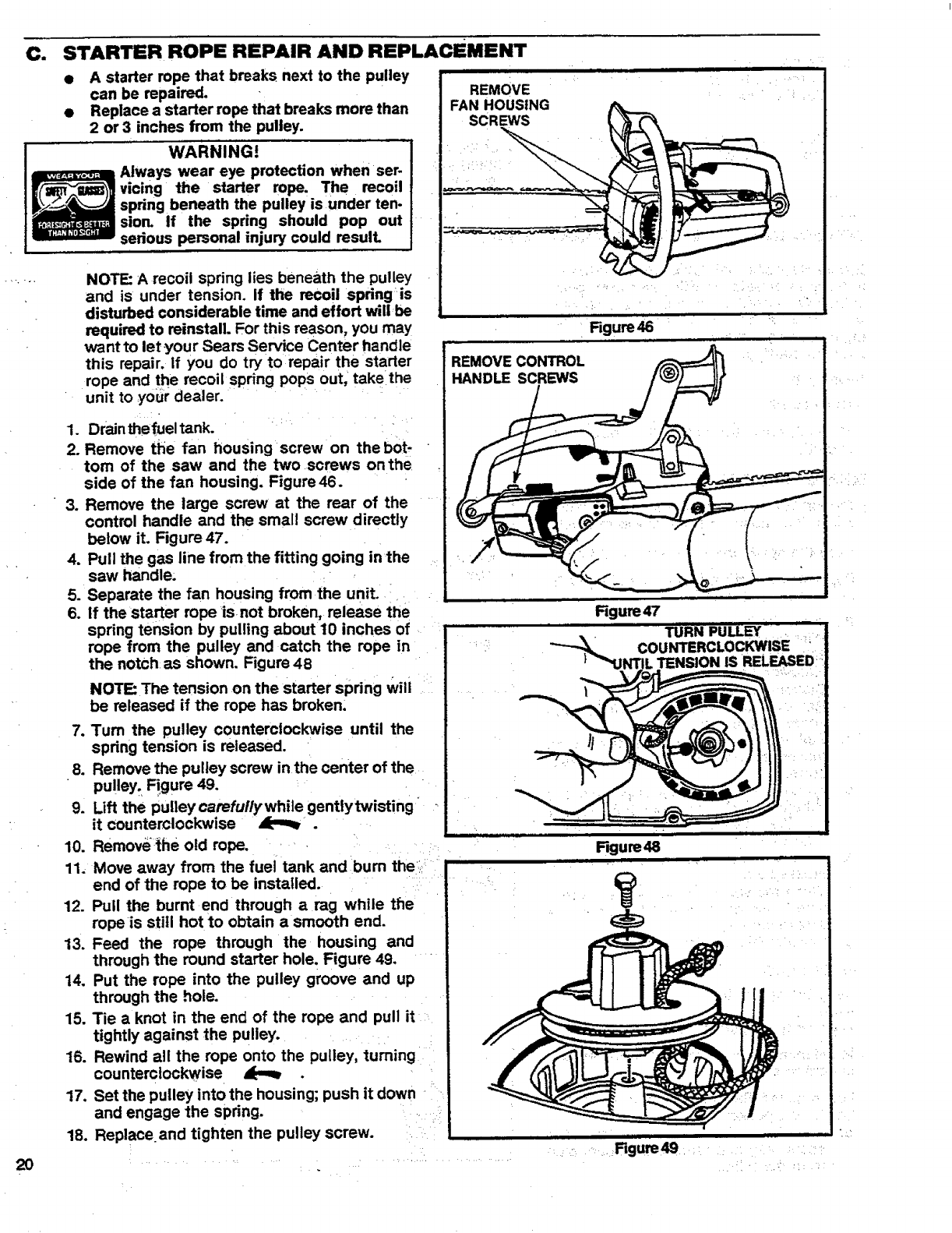

C. Starter Rope Repair and Replacement ....... 20

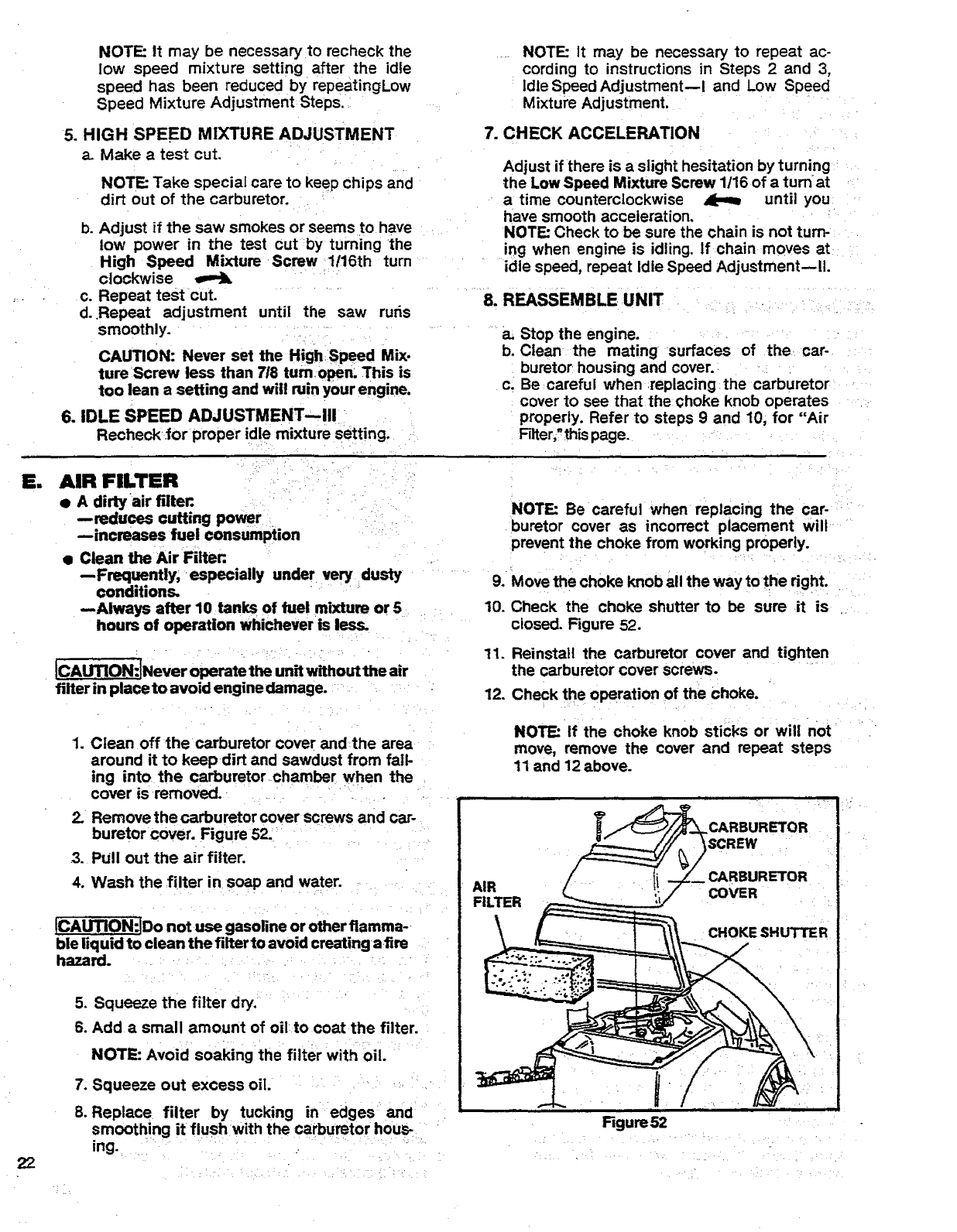

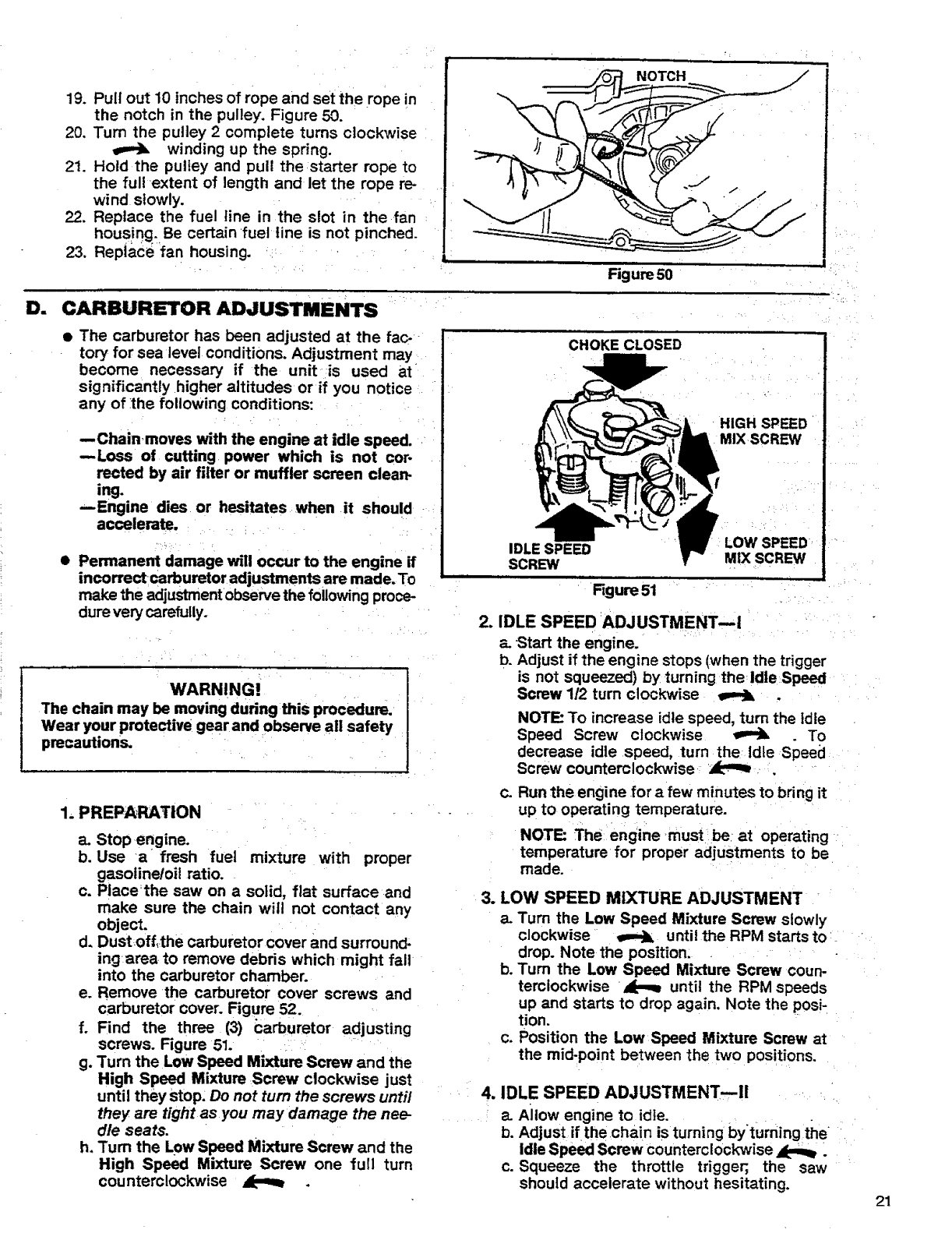

D. Carburetor Adjustments .................. 21

E:: Air Filter ............................... 22

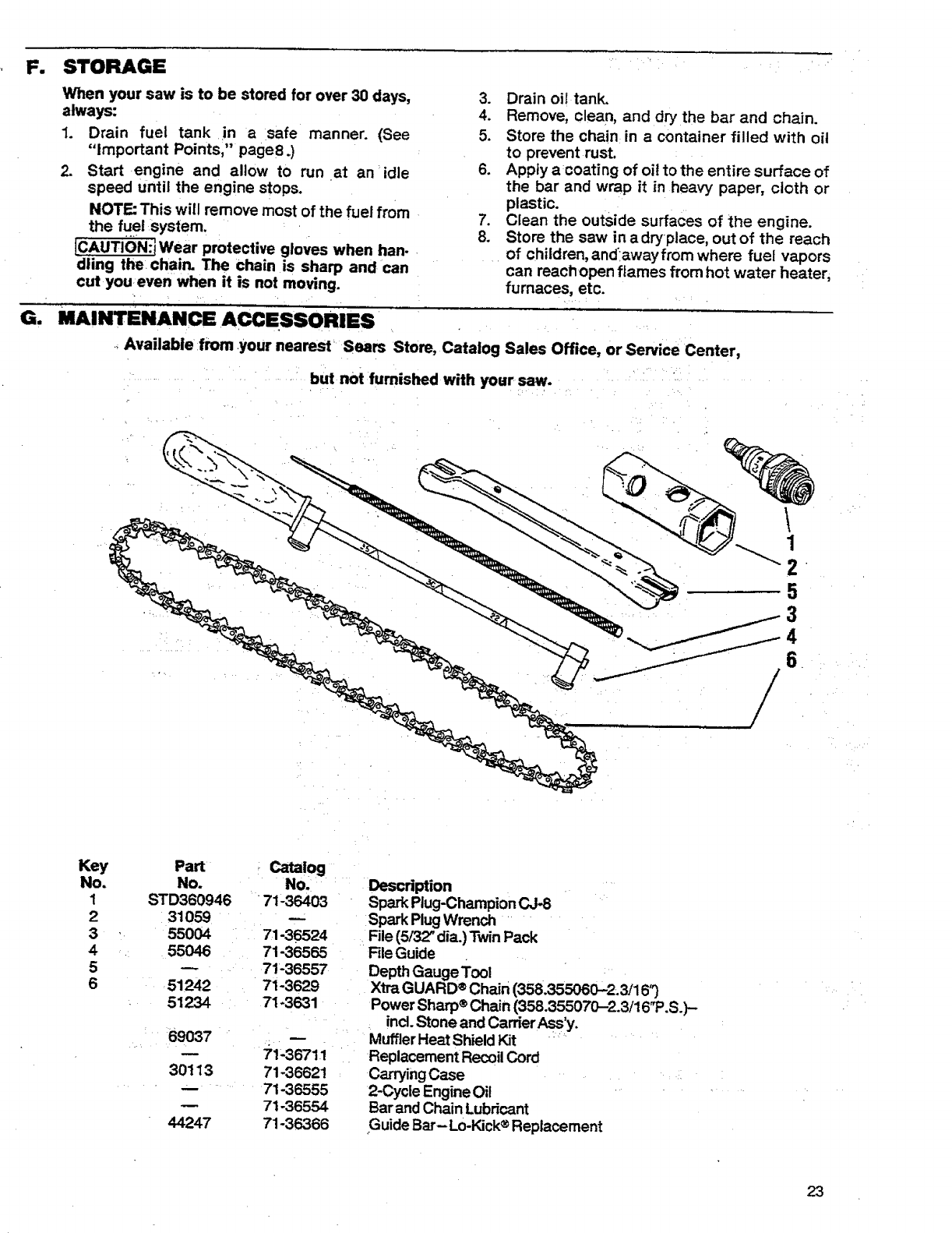

F. Storage ............................... 23

G. Maintenance Accessories ............... 23

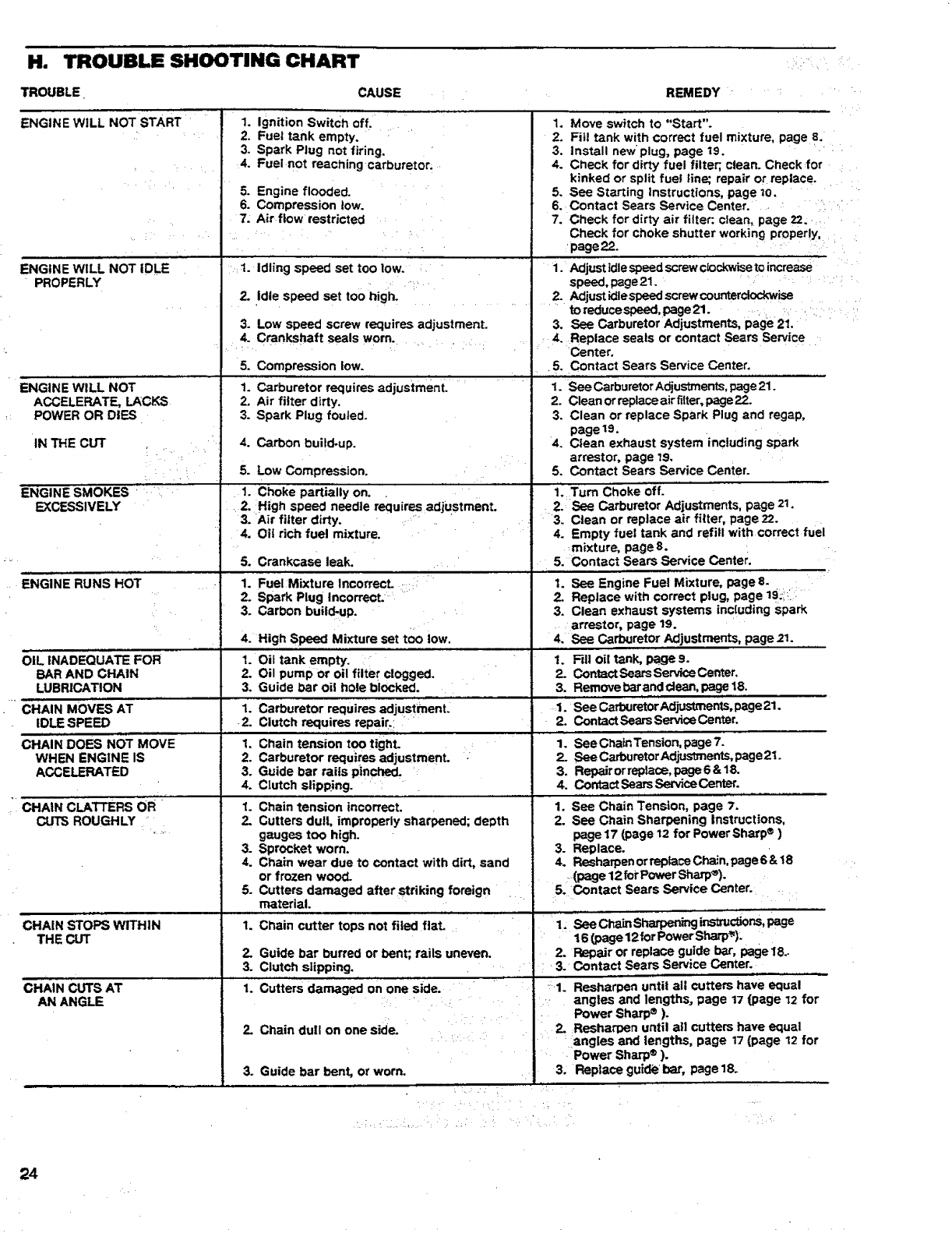

;H. Troubleshooting Chart .................. 24

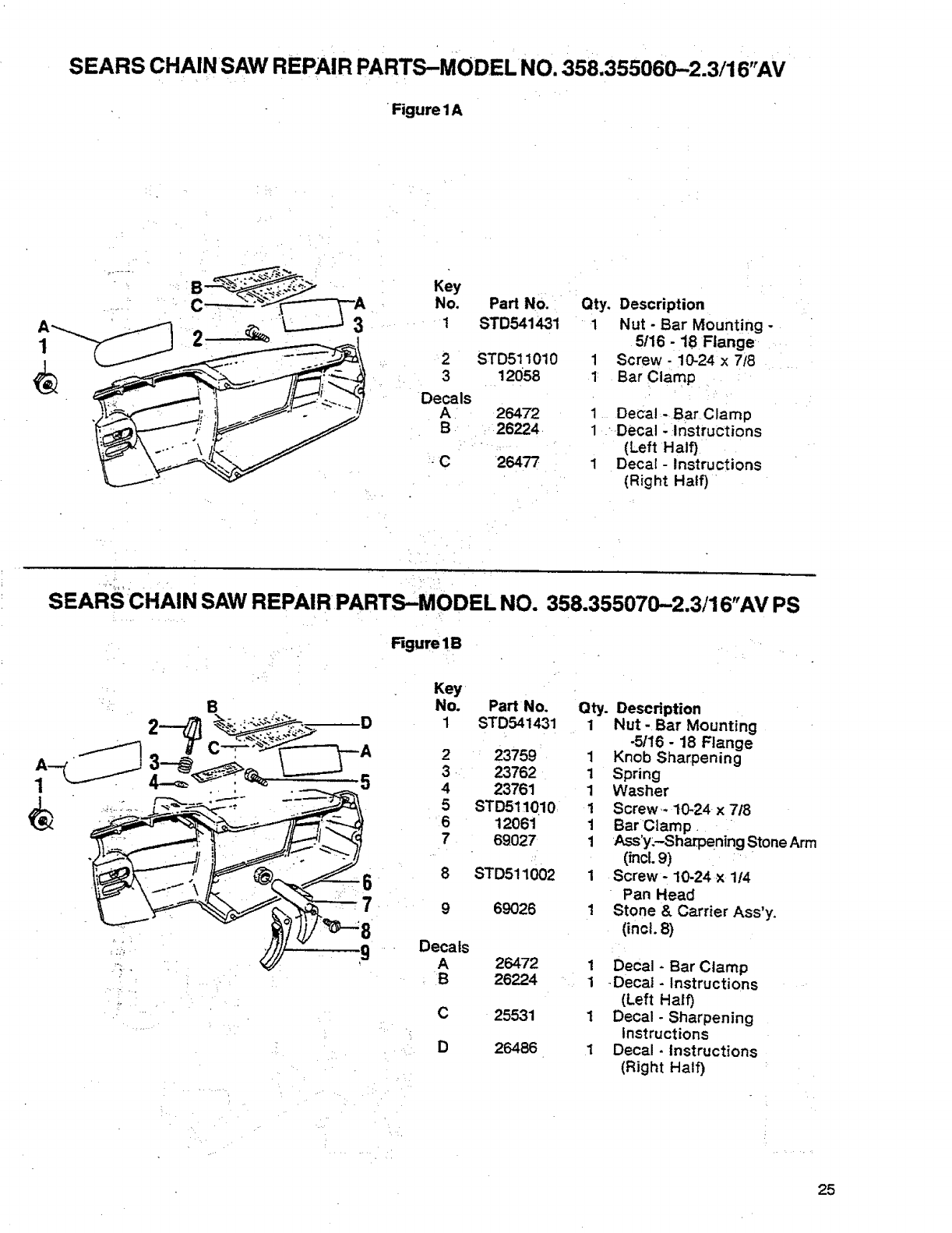

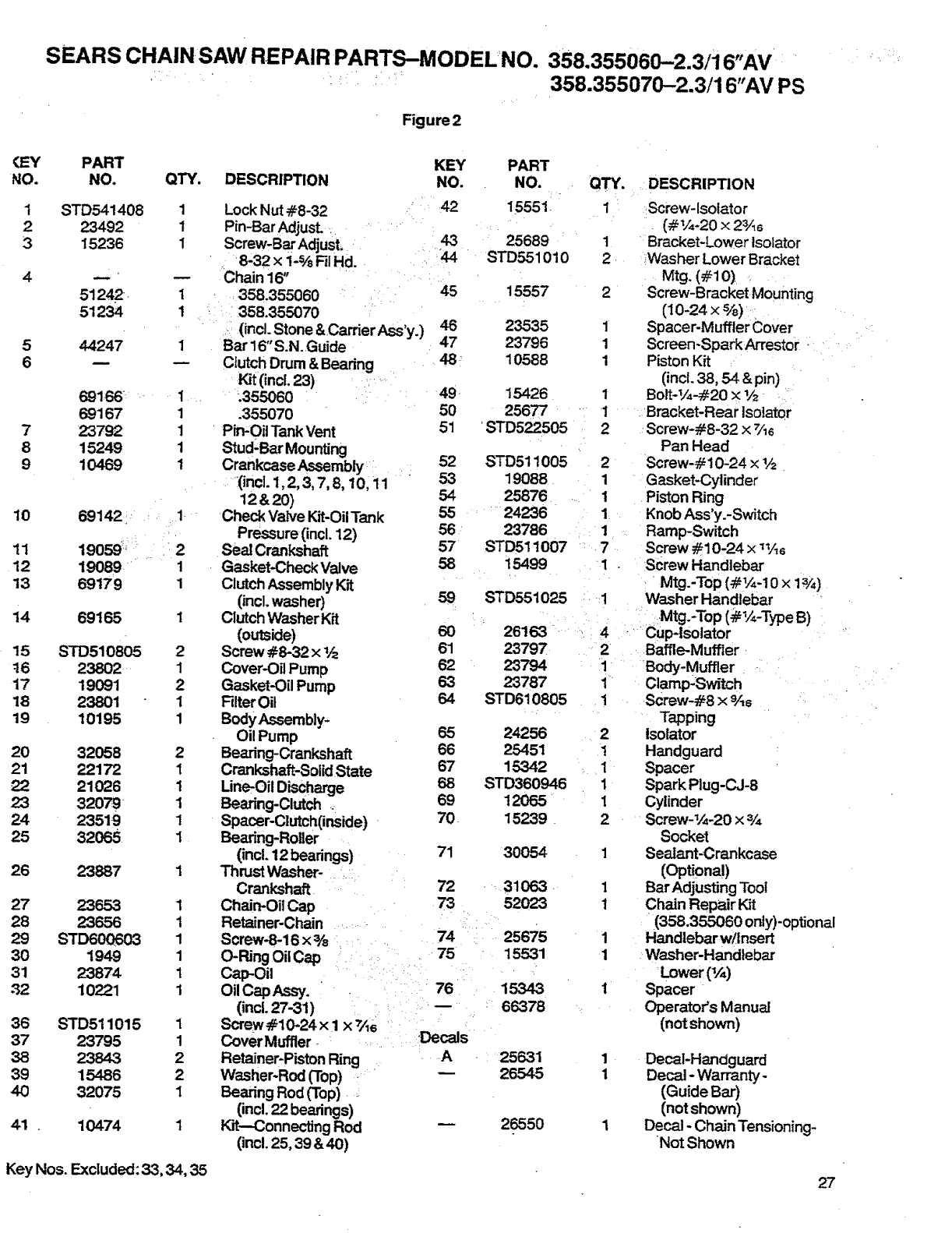

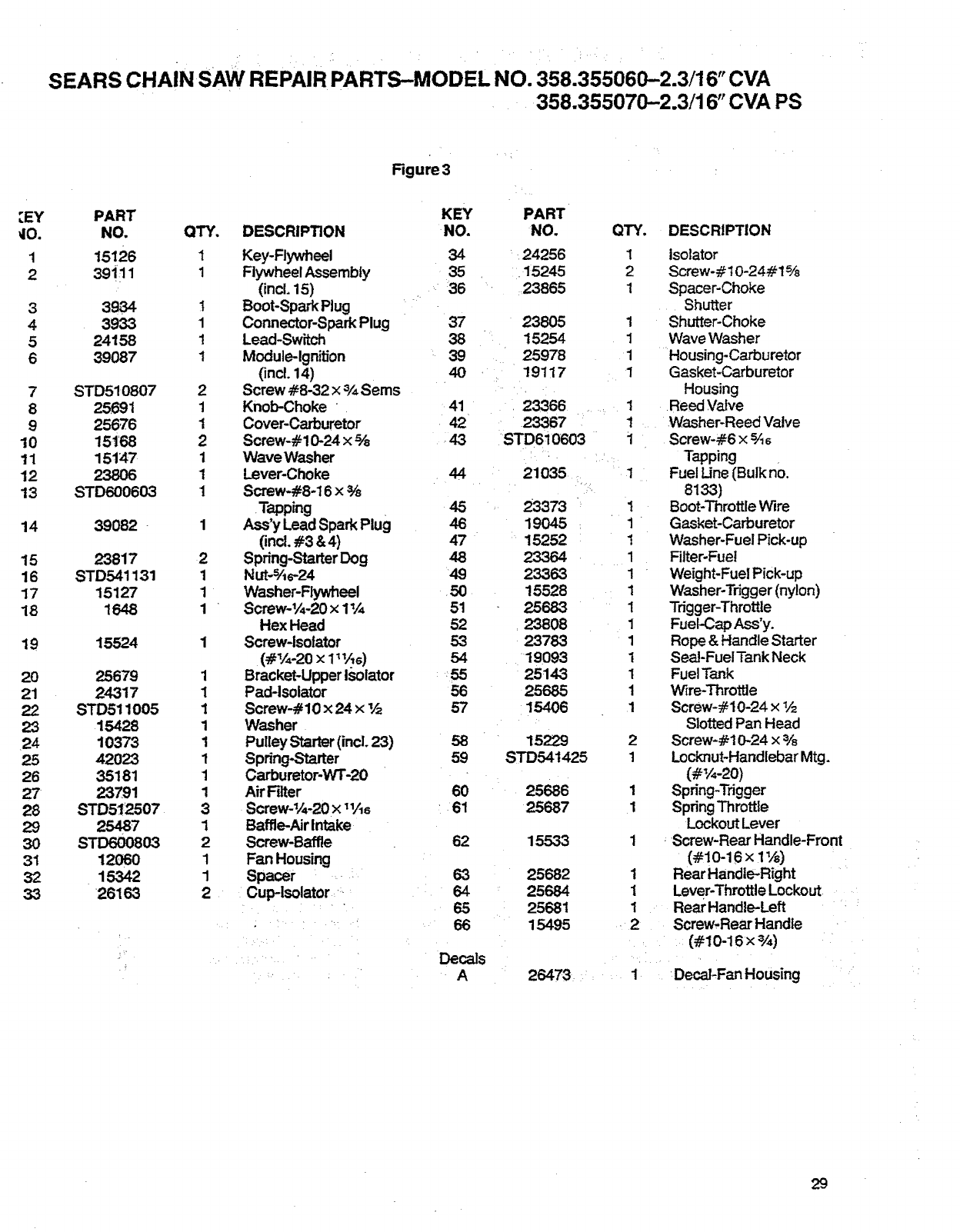

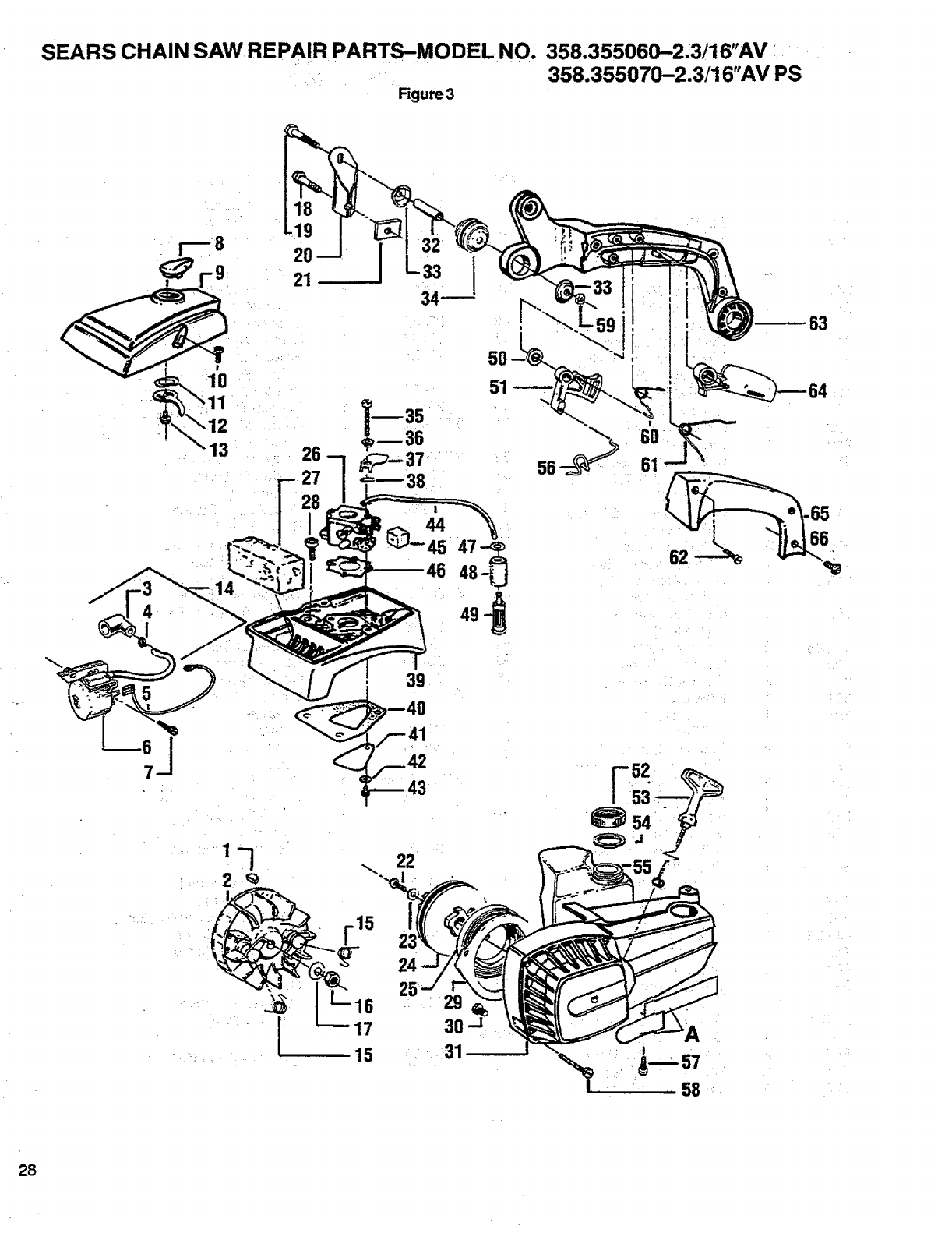

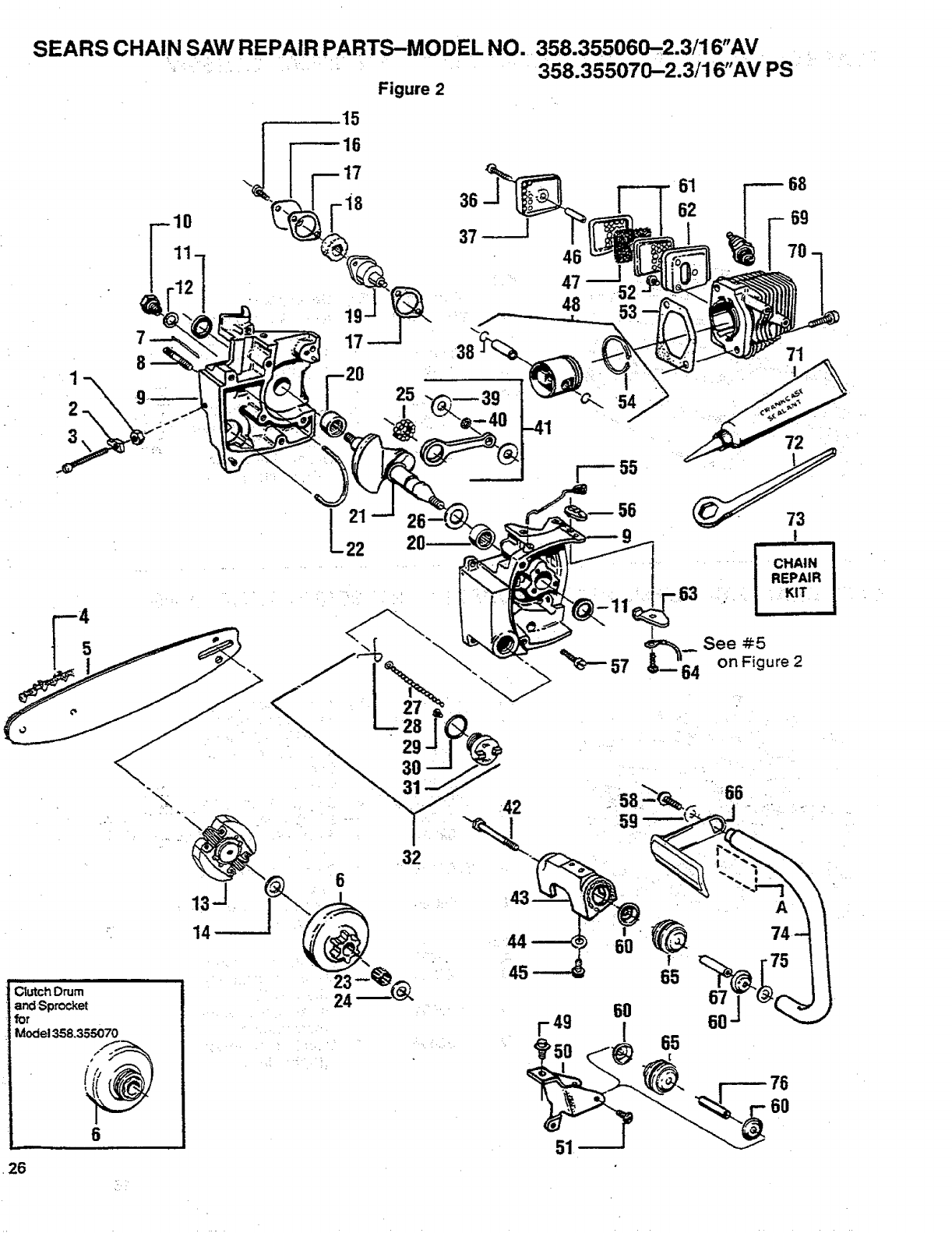

Repair Parts ............................. 25-30

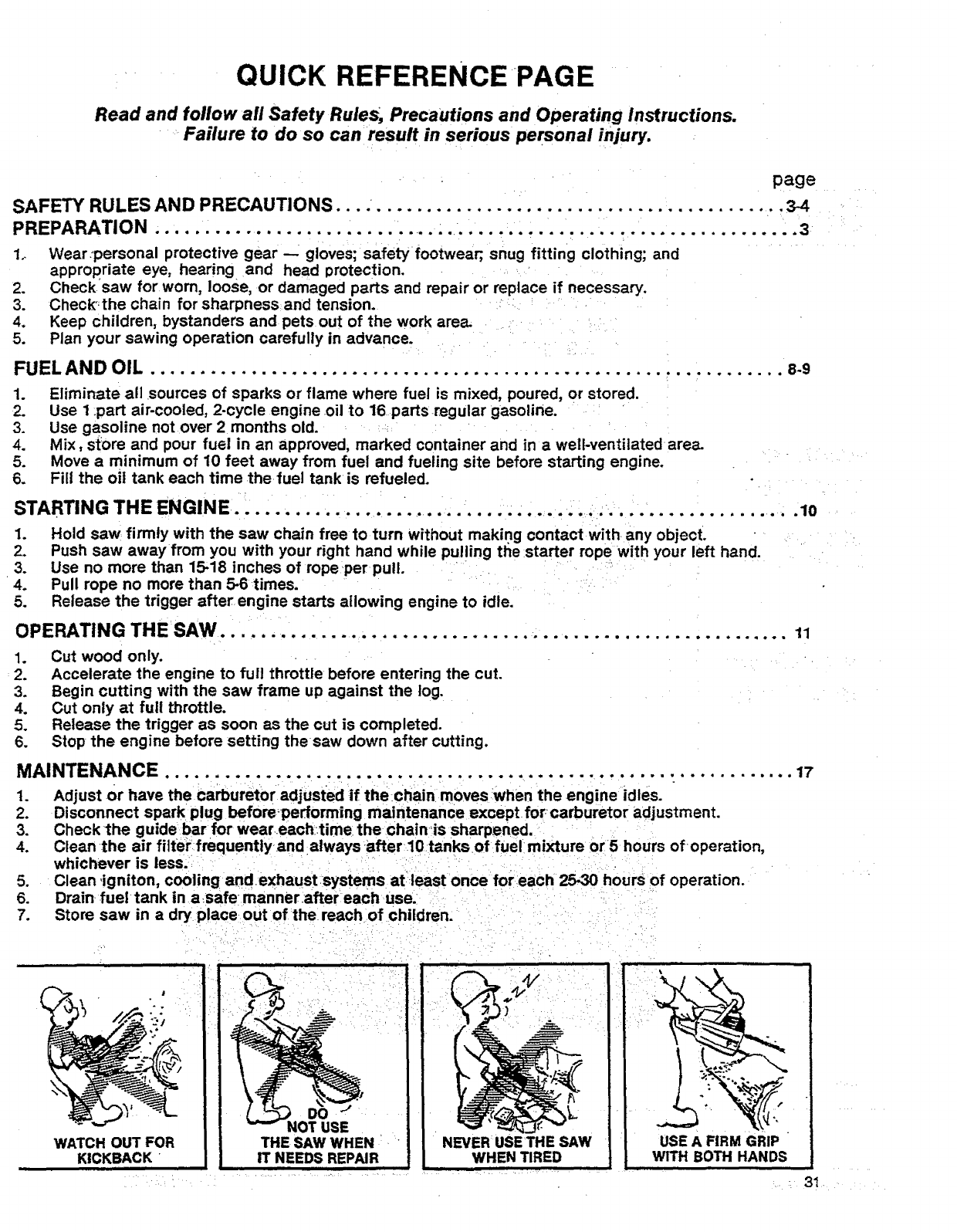

Quick Reference Page ........................ 31

Throttle Lockout

SPECIFICATIONS

MODEL _ ':_.355060(2.3/.1_.6")

CU. tN. DISPLACEMENT 2.3 cu. in.

GUIDE BAR- LO-KICK® 16" Sgrocket Nose

CHAIN -ORI=GON ¢ " " "" "' 3t_PitchLowPro_le '

GUARD LINK : XtmG_rd_ChromeCut_srs

I 56 D_eUnks

SPARK PLUG "" :Champio'n CJ-8

,, , ,,,

SPARK PLUG GAP .025":

IGNITION •Solid State:

MODULE AIR GAP .010 - .014""

FUEL MIX GasolinelOi| Mixture - 16:t

MUFFLER S_rk Arresting. , .

OILER SYSTEM ':' Automatic

FUEL TANK CAPACITY 11.6 OZ. (343 .cc.)

OIL TANK "' 6:6 oz (195 co:)

I. 3ss_SOTO(2_tEP.S:}

le'-sp,ocket

3/8 Pitch LoW P_ofile

Power Sltarp¢ Chrome Cutters

56 Drive Unks

Choke

Throttle Trigger

Fuel Cap

Ignition Switch

ontrol Handle

Fuel Ca

No.

Starter Handle

Oil Cap ...... Handlebar .......

Lo-KickeGuide Bar :: : _ " :_ '

(PowerSharp®Knob :

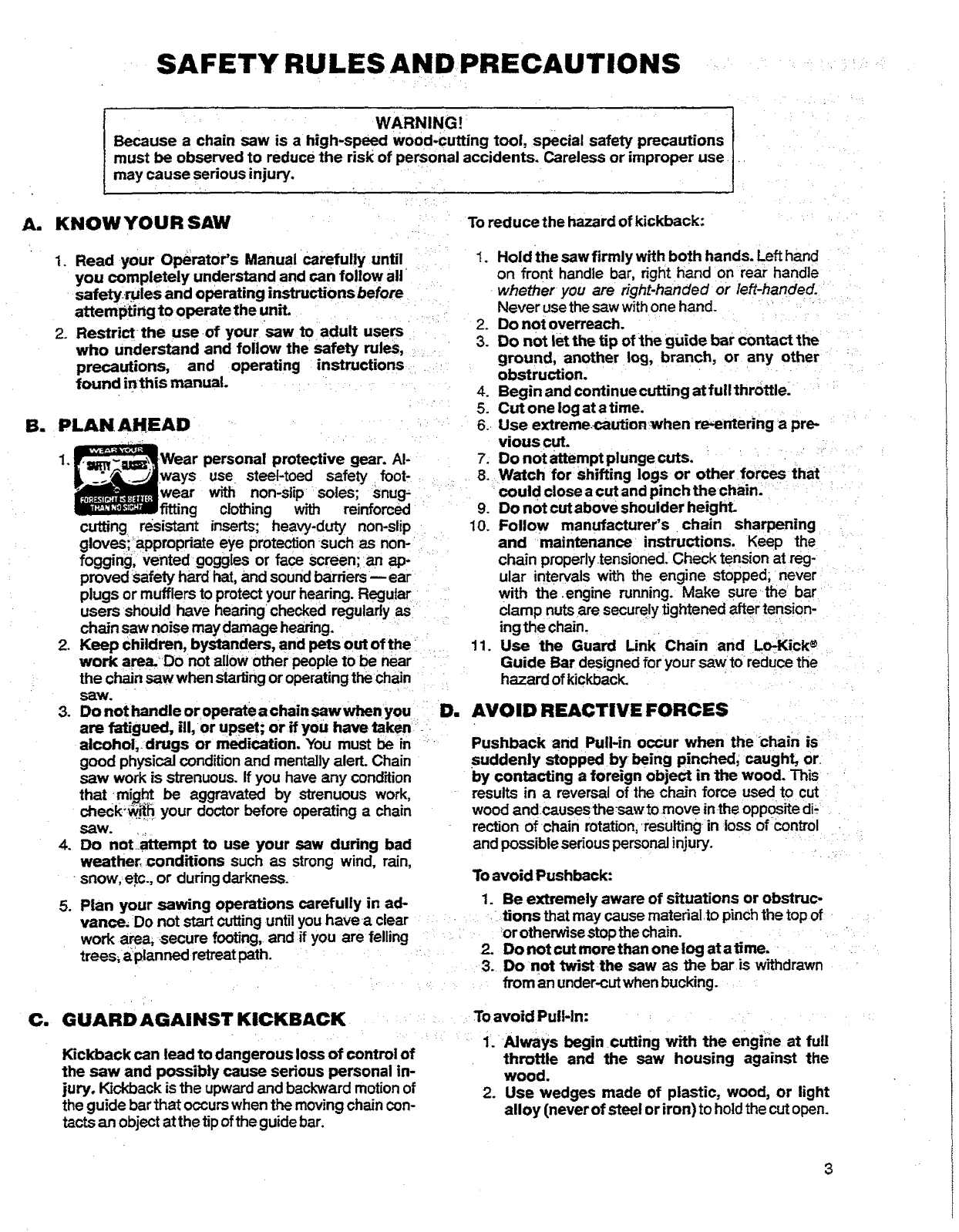

SAFETY RULES AND PRECAUTIONS

WARNING!

Because a chain saw is a high-speed wood-cutting tool, special safety precautions

must be observed to reduce the risk of personal accidents. Careless or improper use

may cause serious injury,

A. KNOWYOUR SAW To reduce the hazard of kickback:

Read your Operator's Manual carefully until

you completely understand and can follow all

safety.rules and operating instructions before

attempting to operatethe unit.

Restrictthe use,of your saw to adult users

who understand and follow the safety rules,

precautions, and operating instructions

found in this manual.

B. PLAN AHEAD

personal protective gear. AI-

use steel-toed safety foot-

wear with non-stip soles; snug;

fitting clothing with reinforced

cutting resistant inserts; heavy-duty non-slip

gloves;appropriate eye protectionsuch as non-

fogging, vented goggles or face screen; an ap-

proved safety hard hat, and sound barriers meat

plugs or mufflers to protect your headng. Regular

users should have hearing checked regularly as

chain saw noise may damage hearing.

Keep children, bystanders, and pets out of the

work area.Do not allow other people to be near

the chain saw when starting or operatingthe chain

SaW.

Do not handle or operate a chain saw when. you D,

are fatigued, ill, or upset; or if you have taken -

alcohol,, drugs or medication. You must be in "

good physical condition and mentally alert. Chain

saw work is strenuous. If you have any condition

that might be aggravated by strenuous work,

checl_-W!_ your doctor before operating achain

saw.

Do notlattempt to use your saw during bad

weather, conditions such as strong wind, rain,

snow,e_., or during darkness.

Plan your sawing operations carefully in ad-

vance; :Do not start cuttinguntil you havea clear

work area; secure footing,, and if you are felling

1. Hold the saw firmly with both hands. Left hand

on front handle bar, right hand on rear handle

whether you are right-handed or/eft-handed.

Never use the saw withone hand.

2. Do not overreach.

3. Do not let the tip of the guide bar contact the

ground, another log, branch, or any other

obstruction.

4. Begin and continuecutting atfuilthrottle.

5. Cut one log at atime.

6. Use extreme-caution when re,entering apre-

viouscut.

7 Do not attempt plunge cuts.

8. Watch for shifting logs or other forces that

could close a cut and pinch the chain.

9. Do not out above shoulder heighL

10. Follow manufacturer's chain sharpening

and maintenance instructions. Keep the

chain properlytensioned. Check tension at reg-

ular intervals with the engine stopped; never

with the,engine running. Make surethe bar

clamp nuts are securely tightened aiter tension-

ing the chain.

11. Use the Guard Link Chain and Lo-Kick ®

Guide Bar designed for your saw to reduce the

hazard of kickback.

AVOID REACTIVE FORCES

Pushback and Pull-in occur when the chain is

suddenly stopped by being pinched; caught, or.

by contacting a foreign object in the wood. This

results in a reversal of the chain force used to cut

wood andcauses the-saw to move inthe opposite di-

rection of chain rotation,'resuiting-in loss of control

and possiblesenous personal injury.

To avoid Pushback:

1. Be extremely aware of situations or obstruc-

.... , tions that may cause material.to pinchthe top of..

, : • orotherwisestopthechain. , : ."

trees_ a_planned retreat path.

C. GUARD AGAINST KICKBACK

3. Do not twist the saw as the baris withdrawn

'.... : from an under-cutwhenbucking. ,

Kickback can lead to dangerous loss of control of

the saw and possibly cause serious personal in-

jury. Kickback is the upwardand backward motion of

the guide bar that occurswhen the movingchain con-

tects an object at the tip ofthe guide bar.

_ .... 2. Do not cut more than one log at a time. ......

:_ • To avoid PulHn:

_ _ 1."Always begin cutting with the engine at full

throttle and the saw housing against the

wood.

2. Use wedges made of plastic, wood, or light

alloy (never of steel or iron) to holdthe cut open.

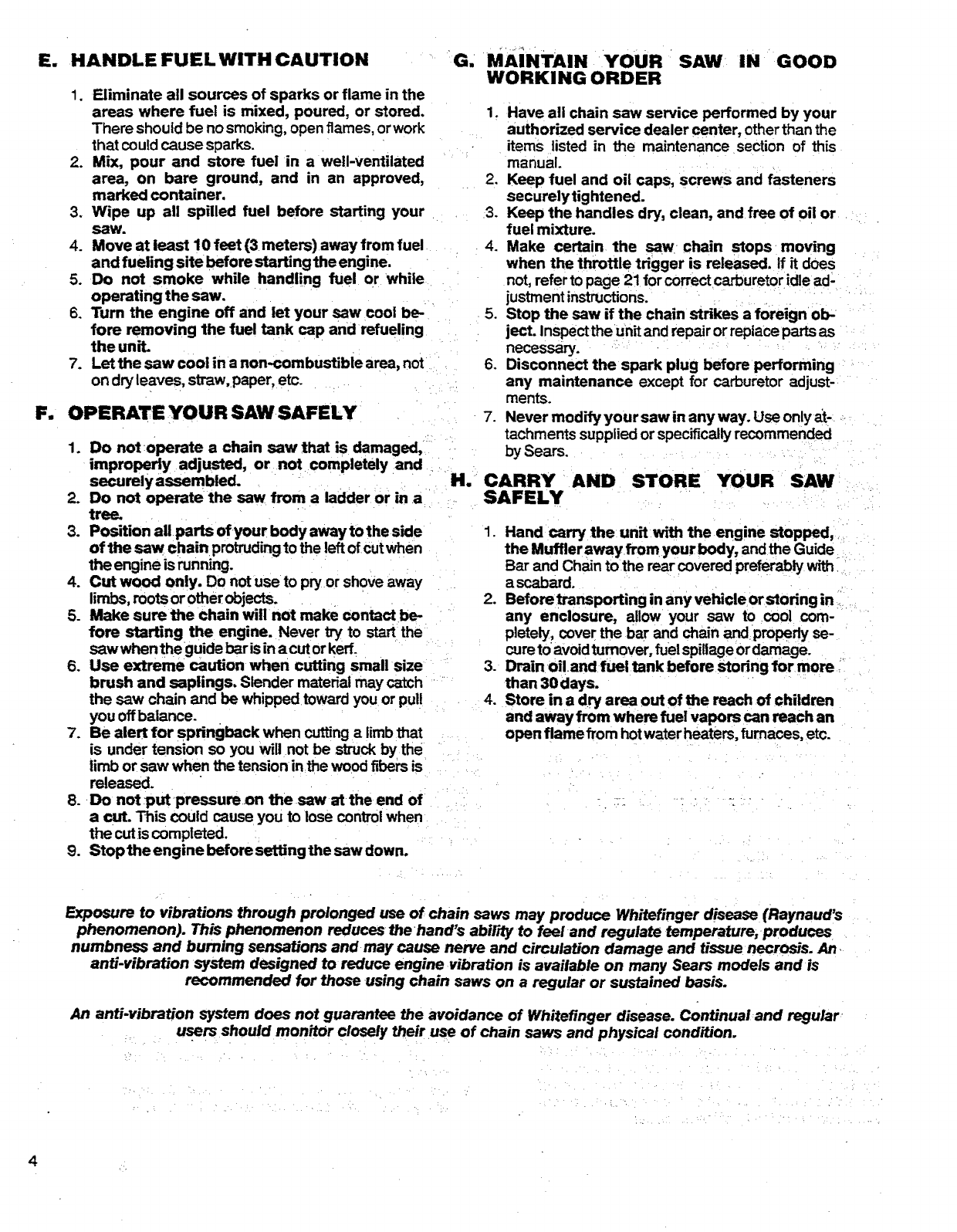

E. HANDLE FUELWITH CAUTION

1. Eliminate all sources of sparks or flame in the

areas where fuel is mixed, poured, or stored.

There should be no smoking, open flames, orwork

that could cause sparks.

2. Mix, pour and store fuel in a well-ventilated

area, on bare ground, and in an approved,

marked container.

3. Wipe up all spilled fuel before starting your

SaW.

4. Move at least 10 feet (3 meters) away from fuel

and fueling site before startingthe engine.

5. Do not smoke while handling fuel or while

operating the saw.

6. Turn the engine off and let your saw cool be-

fore removing the fuel tank cap and refueling

the unit.

7. Let the saw cool in a non-combustible area, not

on dry leaves, straw ,paper, etc.

F. OPERATE YOUR SAW SAFELY

1. Do not operate a chain saw that is damaged,

improperly adjusted, or not completely and

securely assembled.

2. Do not operate the saw from a ladder or in a

tree.

3. Position all parts ofyour body away to the side

of the saw chainr protrudingto the left of cut when

the engine is running.

4. Cut wood only. Do not use to pryor shove away

limbs, roots or other objects.

S_ Make sure the chain will not make contact be-

fore starting the engine. Never try to start the

saw when the guide bar isin acut orkerr.

6. Use extreme caution when cutting small size

brush and saplings. Slender matedai may catch

the saw chain and be whipped toward youor pull

you off balance.

7. Be alert for springback when cuttingalimb that

is under tension so you will not be struck by the

limb or saw when the tension inthe wood fibers is

released.

8. Do not put pressure on the saw at the end of

a cut. This could cause you to lose control when

the cutis completed.

9. Stopthe engine before setUng the saw down.

'G. r MAINTAIN YOUR SAW IN GOOD

WORKING ORDER

1. Have all chain saw service performed by your

authorized service dealer center, other than the

items listed in the maintenance section of this

manual.

2. Keep fuel and oil caps, screws and fasteners

securelytightened.

3. Keep the handles dry, clean, and free of oil or

fuel mixture.

4. Make certain the saw chain stops moving

when the throttle trigger is released, if it does

not, refer to page 21 for correct carburetoridle ad-

justment instructions.

5. Stop the saw if the chain strikes a foreign ob-=

ject. Inspect the unit and repair or reptaceparts as

necessary. "

6. Disconnect the spark plug before performing

any maintenance except for carburetor adjust-

ments.

7. Never modify your saw in any way. Use only at-

tachments supplied or specifically recommended

by Sears.

H. CARRY AND STORE YOUR SAW

SAFELY

1. Hand carry the unit with the engine stopped,

the Muffler away.from your body, andthe Guide

Bar and Chain to the rear covered preferably with

a scabard.

2. Before transporting in any vehicle orstodng in

any enclosure, allow your saw to cool com-

pistely, cover the bar and chain and properly se-

cureto avoid turnover, fuelspillage ordamage.

3. Drain oiland fuel tank before storing for more ._

than 30 days.

4. Store in a dry area out of the reach of children

and away from where fuel vapors can reach an

open flame from hotwater heaters, furnaces, etc.

Exposure to vibrations through prolonged use of chain saws may produce Whitefinger disease (Raynaud's

phenomenon). This phenomenon reduces the hand's ability to feel and regulate temperature, produces

numbness and burning sensations and may cause nerve and circulation damage and tissue necrosis. An

anti-vibration system designed to reduce engine vibration is available on many Sears models and is

recommended for those using chain saws on a regular or sustained basis.

An anti-vibration system does not guarantee the avoidance of Whitefinger disease. Continual and regular

_usersshould monitor closely their use of chain saws and physical condition.

KNOW YOUR CHAIN SAW

A. INTRODUCTION

C. CARTON CONTENTS

The information found in this manual will help

you properly prepare your chain saw for use,

understand how to operate your saw safely, and

perform maintenance required to keep your unit

in top working condition

After you unpack the carton:

1. Check the contents against the list below.

2. Examine the items for damage.

Your saw has been designed with safety in mind and

includes the following safety features as standard

equipment,

Spark Arrestor

Handguard

Counter-Vibe® Vibration System

Lo-KickcGuide Bar

Guard Link Chain

The chain saw should never be operated unless

these devices are properly instailed_on theunit.

The _-Kick_ Guide Bar and Guard Unk Chain have:

been designed to help reduce the hazard of

KICKBACK. You should thoroughly read and under-

3. Notify your Sears store immediately ff apart

is missing or damaged.

stand the section, =CONTRO_ING KICKBACK" on

page 11 before operating the saw.

STATE AND lOCAL ORDINANCE

REQUIREMENTS

Your saw has been furnished with an approved

Spark Arrestor Screen which is required in some

areas by law. You are legally responsible for see-

ing that the Spark Arrestor is propedy main-

tainedin_these areas. Failure todo so could sub,

ject you_to liability or to a fine. See Spark Ar-

restor maintenance, page 19.

Check with your state conservation or forestry

department about regulations concerning oper.

ating your saw on forest, brush, or grass covered

areas,_IL U.S. forest land and the states of

Califomi_ Maine, Washington and Oregon re-

quire many internal combustion engines to be

equippedwith a temperature limiting muffler by

law. Such laws require fitting your saw with an

additional muffler heat shield.

A shield which meets these requirements can be

purchased at your Sears Service Center as an

optional accessory kit. Ask for Muffler Heat

Shield Kit, Repair Part No. 69037.

• 0

CARTON CONTENTS

Key No. Qty.

1 Powerhead 1

2 Guide Bar 1

3 8 oz. can 2-cycle Engine.Oil 1

-- Loose parts Bag (Not Shown) 1

LOOSE PARTS BAG CONTENTS

Operator's Manual (Not Shown) 1

4Chain 1

5 BarAdjusting Tool 1

Figure I

PREPARING YOUR SAW FOR USE

A. GEl"rING READY ......... _ 2. HAVE THE FOLLOWING AVAILABLE:

1, READ YOUR OPERATOR'S a. Protective gloves

b. Approved, markedfuel container

.... c. One gallon regulargasoline

MANUAL

CAREFULLY.

Your Operator's Manual has been developed

to help you prepare your saw for use and to

understand its safe operation. It is important

that you read your manual completely to

become familiar with =the unit before you

begin assembly.

d. One-half pint, 2-cycle, air-cooled engine oil

provided withyour unit.

e. Barand Chain Lubricant (see page 9.)

f. Bar Adjusting Tool provided with your unit.

One end of the tool serves as a wrench; the

other can be used as a screwdriver. No other

too! is necessary for assembly.

B. ATTACHING THE BAR AND CHAIN _

• Your saw is equipped with a Lo.Kick _Guide

Bar and a Guard Link Chain designed to help

reduce kickback. ._

• Always use the Lo-Kick_ Guide Bar, and r_ ,

Guard Link Chain designed for your par. .

ticular chain .saw, when replacing these

parts.

tCAUT!ON:{ Wear protective gloves when harv'

dling or operating your saw; The chain is sharp _

and can cut you even when it isnot moving!

1. Remove the following parts as shown in

Figure 2, using the Bar Adjusting T0olpro-,

vided with the unit. _

a. BarClamp Nut.

b. Rear BarCtamp Screw.

c. Bar Clamp.

2. Turn the Adjusting Screw counterclockwise

to move the Adjusting Pin almost as

far as it will go to the rear. Figure 2.

7, Lower the Guide Bar; fit the adjusting pin

into the round hole below the large slot; fit

the large slot on the mounts on either side of

the Bar Stud. Figure 3 and 5,

8. Hold the Guide Bar against the saw frame

and install the Bar Clamp.

Figure 2

3. Hold chain with cutters facing as shown in

Figure 3.

4.PlacechainoverandbehindtheCtutchdrum,

onto the sprocket. Figure 3.

5. Place the Guide Bar on the saw by fitting the

long slot in the Guide Bar over the Bar Stud.

Figure 4.

NOTE: Be sure the Guide Bar is positioned

with the adjusting pin hole below the large

slot.

BAR STUD

.r!ll ,, i i

.Figure 3

IWARNING! _1

Never install the bar upside down to avoid increas-

ing the hazard of kickback. =.......

6. Hold the Guide Bar at a 45 degree angle to

the saw and fit the chain into the Guide =Bar

grooves -- first, the top groove and then, the

bottom groove.

6Figure 4

10.

11.

9. Secure the Bar Clamp with the Bar Clamp .....

Nut, finger tight only,

NOTE: The Bar Clamp Nut must be slightly

loose for the chain to be tensioned properly::

Securely tighte n Bar Clamp Nut after chain

is tensioned. . :.

Replace. the Rear Bar Clamp Screw and

tighten.

Follow:"Chain Tension" instructions below.

Figure 5

• Chaintension is very important: _

loose chain will wear the bar and itself,

--a loose chain can jump off the barwhile

you are cu:tting. • , .1.

--a tight chain can damage the saw andlor

break.

• Chain tension is correct when the chain: :_

--can be lifted about 1/8" from the Guide Bar

at a point :near the middle of the bar, and ..... '

--will move-freely around the bar.

• The chain stretches during use, especially

when new. Checktension:

-- each time the saw is used, .... _

-- more frequentJywhen the chain is new

as the,chain warms upto normal operating tem-

perature "', .....'_ _._

•The Bar, Clamp Nut must be slightlyloose for

the chain to be propedy tensioned. _

1. Hold the tip of the Guide Bar upand turn the L

Adjusting Screw clockwise just until the

chain does not sag beneath the Guide Bar.

Figure_6._._ _ _ • '__ •_

2. Check the tension by lifting the chain from '

the Guide Bar at the center of the bar. Figure

3. Continue adjusting the Adjusting Screw until

the tension is correct, ...... = _

4. Hold the tip of the Guide Bar up and tighten :

the Bar Clamp Nut with the Bar Adjusting

Tool.

5. Check the Rear Bar Clamp Screw to be sure

it is secure.

6. Recheck chain tension.

JcAUTION__Always wear gloves when handling

the chain. The chain is sharp and can cut you

even when iris not moving!

TURN

TO LOOSEN

TENSION

Figure 6

CHAIN CAN BE

LIFTED 118"WHEN

TENSION

118"

illlllllqlllllllll fl

Figure 7 -

11 ENGINE FUEL MIX"rURE

• Your chain saw is powered by a two-cycle

engine which requires a fuel mixture of

regular gasoline and a high quality engine oil

specially made for 2,cycle, air-cooled engines.

The internal design of the 2_ycleengine re-•

quires lubrication of moving parts. Lubrication

is provided when you use the recommended

mixture of gasoline and oil.

• Gasoline must be clean and not over two

months old. After a short period of time,

gasoline begins to chemically break down

and will form compounds that can cause hard

starting and damage in 2-cycle engines.

The c0_t measure of gasoline to oil is very

importanL

--Too much oil in the mixture will foul the

spark plug.

--Too little oil wilt cause the engine to over-

heat and freeze up_

• Mix the fuel thoroughly in a separate con-

tainer since gas, line and oil do not readily

combine.

FUEL

CAP

Figure 8

1. USE THE FOLLOWING FUEL MIXTURES:

""_RS #,1 ._=ss_""1

ls:1 /

_.__e_G,NEO,L ....J _

-}" __ --OR-- =

._ 16:1 .... I

R-coo o,2.cYcL !

ENGINE OIL_,.,,J

2. DO NOT USE:

• BIA Oil (Boating InstituteofAmeHca)--

--Does not have proper additives for aiP

cooled, 2-cycle engines and could cause

damage.

• AUTOMOTIVE OIL--

-- Does not have proper additives for 2-cycle

engines and could cause damage.

•GASOLINE CONTAINING ALCOHOL--

(High Test, Premium or Gasohol)

Stiffens criticalcarburetorfuel metering ele-

ments and causes engine damage from

overhealJng.

Increases vaporiock.

_Attracts water causingcorrosiondamage.

3. HOW TO MIX FUEL

a. Pour one-half of the gasoline into an ap-

proved marked container. Do not try tomix

fuel directly in the fuel tank.

b. Add entire measure of 2-cycle Engine Oil.

c. Mix.

d. Add remainder of gasoline.

e. Mix thoroughly for one minute.

4. IMPORTANT POINTS

a. Eliminate all sources of sparks or flame in

the areas where fuel is mixed, poured, or

stored. There should be no smoking, open

flames or workthat couldcause sparks.

b° Mix, pour and store fuel in an approved,

marked container and in a well-ventilated

area. Gasoline vapors are harmful to your

health and are a serious firehazard. Use afun-

nel orspout when pouringfuel.

c. Avoid over filling the fuel tank. Allow3/4 inch

for expansion. Tighten Fuel Cap securely. Fig-

ure8.

Wipe up all fuel spills. Wipe off fuel spilledon

the saw before using.

Move at least 10 feet (3 meters) away from

fuel and fueling site before starting the en-

gine.

E, BARAND CHAIN OIL

eThe guide bar and cutting chain require con.

stant lubrication in order to remain in

operating condition. Lubrication is provided

by the automatic oiler system when,the oil

tank is kept filled.

--Lack of oil will quickly ruin the bar and

chain.

--Too little oil will cause overheating shown

by smoke coming from the chain and/or

discoloration Of the guide bar rails.

Use Sears Bar and Chain Lubricant #71-36554

or clean SAE 30W oil.

eIn freezing weather oil wiU thicken, making it

necessary to thin bar and chain oil.with a

smaflamount of Diesel Fuel #1 or Kerosene.

Bar and chain oil must be free flowing for the

oil system to pump enough oil for adequate

lubrication.

lo USE THE FOLLOWING:

30°F or above--Lubricant--undiluted.

30°F!-0°F --95% Lubricant to

5% Diesel Fuel #1

or Kerosene.

Below 0°F --90% Lubricant to

10% DieseiFuet #1

or Kerosene.

2. HOW TO FILL THE OIL TANK

a. Turn saw on its side with oil cap UP. Figure

b. Loosen cap slowly; wait for pressure in the

tank to be released before removing the

cap.

c. Fill the oil tank.

d. Replace the oil cap securely.

3. IMPORTANT POINTS

a. Fill the oil tank each time you refill the fuel

tank to ensure there will be sufficient oil for

the chain whenever you start and run the

saw.

b. It is normal for a small amount of oil to ap-

pear under the saw after the engine stops

due to oil draining from the bar and chain.

CAP

Figure9

Fal OPTIONAL MUFFLER HEAT

SHIELDASSEMBLY

The following instructions have been included

to help you install the optional Muffler Heat

Shield Kit, Repair Part No. 69037. This kit will

provid_;your saw with a temperature limiting

mufflet'_which may be required by law in some

states. See State and Local Ordinances, page5

for furtl_er information.

1. Remove the screw located in the center of the

muffler body. Figure 10.

Remove the muffler cover from the muffler

body/and discard.

NOTE: Do not remove other muffler parts, if

other parts are removed, see muffler as-

sembly in Figure 43, page 19.

install the temperature limiting muffler body.

Figure 11.

4. Replace screw and tighten securely.

_--AUTIO--O-N-_Do not use an air Wrench to

tighten the screw to avoid overtightening

parts and damage. Figure11

USING YOUR SAW

PRE-OPERATION CHECKS _=

Each time before operating your saw, always:

1. ,_Check over safety rules and precautions in

this manual. Make certain you completely

understand and can apply each one.

2. ,,,Check personal protective gear. Always use

appropriate eye, hearing, and head protection

devices; safety footwear, protective gloves;

and snug.fitting clothing.

3. ,,,Check the saw for loose bolts, nuts, or fit-

tings. Tighten, repair or replace parts as

•6.

g°

4. ,,,Check the air filter. Clean the filter before

operating the unit.

STARTING INSTRUCTIONS (Refer to

,_'Check the saw chain. The chain should be

sharp and at the correct tension.

,,-Check the fuel tank and oil tank. Both tanks

should be filled.

,,,Check the handles. Handles should be dry

and free of fuel mixture and oil.

,,-Check weather conditions. Do not use your

saw at night or during bad conditions such

as strong wind, rain, snow, etc.

,,'Check the work area. Keep children,

bystanders, and pets a safe distance away

from the work area when starting or operating

the saw.

"SpecificaUons,,' page 2, for location of controls.)

1. IMPORTANT POINTS

a. Hold saw firmly with thesaw chain free to

turn without contacting any object. Push

saw away from you with your dght hand

while pulling the starter rope with your left

hand. Figure 12.

Use no more than 15-18 inches of starter

rope per pull. Usingthe full length oflhe rope,

may cause it to break. Do not let the starter

rope snap back. Hold the handle and let the

rope rewind slowly.

Pull rope no more than 5-6 times to avoid

flooding the engine. 8-10 pulls may be re-

quired for anew unit, a saw that has been

stored, a refueled unit which has run out of

gas.

Release the trigger after engine starts,

allowing the engine to idle. The chain must

not move when the engine idles. If correc-

tion is required, refer to Carburetor Ad-

justments, page 21.

Stop engine by moving the ignition switch

to the "STOP" position Figure 13.

Use only 15-18 inches

of rope Per Pull.

Figure 12

IF"''

START-_P_I=- STOP | OFF

Figure 13 Figure 14

, ,. J

WARNING!

Avoid bodily contact with the muffler When start-

ing a warm engine to avoid serious bums.

2. STARTING PROCEDURE

a. Cold Engine

b. Warm Engine

c. Refueled Engine after

running out of gas

d. Flooded Engine

e. Cold Weather starting

TurnChoke Moveignition Squeeze Pullstarter Tam Pullstarterrope

toFull switchto trigger ropeuntil Choke sharplyuntil

Choke Start eaginefires off engineruns

XXX5-6times X X

Chokeoff) X X1-2times

X X X 8-!0tiimes X X

Release

trigger

(chokeoff) X X -- -- X X

XX X 5-6times half-choke* X X

(out0fcut)

" Allow engine to warm up on half-choke, then move choke tothe "off" position. Do not cut with the

choke at the "on" or "'half" position. Figure 14.

C. CONTROLLING KICKBACK

Kickback is a dangerous reaction that can cause

serious personal injury. Carefully =udy this man-

ual before you make the first cut with your new

saw. You must understand what causes kickback,

how you can reduce the chance of kickback, and how

you can remain in the best control of the saw if

kickback does occur.

1. WHAT CAUSES KICKBACK

Kickback can occur when the moving chain

contacts an object at the tip or nose of-the

guide'bar. This contact causes the chain to dig

into the object and stops the chain for an instant.

The result is alightning fast, reverse reaction

which kicks the saw tip up and back toward the

operator. The operato r can lose control ofthe saw

and the.cutting chain can cause sedous personal

injurY:if,itcontacts any part ofthe body.

Fig= is

• A / AvoiD'

\o=..uc.,o.

7;,.

WORKING AREA _,_.,r-- ,.__ o_,

Figure 16

STAND

TO THE

LEFT OF

THE SAW ELBOW

LOCKED

THUMB ON

UNDER SIDE

i f

NEVER

REVERSE

HAND

POSITIONS

Figure 17

2. REDUCETHE CHANCE OF

KICKBACK

a. Recognize that kickback can happen. By

understanding and knowing about kickback,

you are better equipped to deal with an occur-

rence,

b. Never let the movingchain contact any ob-

jectat the tip of the guide bar. Figure 15

c. Keep the working area free from obstruc-

tions such as other trees, branches, rocks,

fences, stumps, etc. Figure 16. Eliminate or

avoid any obstruction that your saw chain

-could hit while you are cutting through apar-

ticularlog orbranch.

d. Keep your saw chain sharp and properly

tensioned. A loose ordull chain can increase

the chance of kickback. .,_

e. Begin and continue cutting at fult throttle. "

if the chain is moving ata slower speed, there :•

is greater chance for kickbacktOoccur. '

.f. Cut one log at a time. -

g. Use extreme.caution when re-entering a

previous cut. - "

h. Do notattemptplunge cuts.

i. Watch for shifting logs or other forces that

could close a cut and pinch or fall into the

chain.

j. Use the Lo-Kick_Guide Bar and Guard Link.

Chain specified for your particular saw. '

These devices have been designed to reduce

the hazard of kickback.

k. Use extra caution if your saw is-equipped

with the Power Sharp'-"System. The Power

SharP_ saw is equipped with a_I'D-Kick" Guide

Bar and a Guard Link Chain. However, due to

the chain requirements of the built-in sharpen- .

ing mechanism, the kickback force from the .

Power Sharp-" chain may be greater than that

from other Guard Link chains.

3. MAINTAIN THE BESTCONTROL

a°

Keep a good firm grip on the saw with both

hands. Figure17. A firm grip can neutralize ,_::i _-_

kickback and help you maintain contto!of the

saw. Keepthefingersofyour left hand encircl-

ing and yourleft thumb under the front hand-

lebar. Keep your right hand completely

around the rear handle whether youare right

handed or left handed. Keep your left arm

straight withthe elbow looked....

Position .your left hand on the front hand-

lebar so it is in a straight line with your

right hand on the rear handle. Figure!7:

Never reverse rightand left hand positions.

Stand with your weight evenly balanced on

both feet.

Stand slightly to the left side of the saw, to

keep yourbody from being in a direct line

with the cutting chain. Figure 17

Do not overreach. You could be drawn or

thrown off balance and losecor_trolof the saw.

Do not cut above shoulder heighL It is diffi- ......

cult to maintain control of the saw above

shoulder height. 11

USING THE POWER SHARP®SYSTEM (MODEL358.355070)

Ell

Model 358.355070 is equipped with aPower Sharp ® •

System that will perform approximately 80% of the

sharpening necessary for the saw chain. The Power

Sharp® System utilizes a built-in grinding stone to

sharpen the cutter top plates and set depth gauges. •

As the built-in sharpener is used, the cutter side

plates gradually will be altered. About every 3rd to

5th time the Power Sharp® System is used, hand fit-

ing isrequired to correct thecutterside plates.

• Sharpen the saw chain when:

--wood chips become small and powdery.

Wood chips made by the chain should be

about the size of the teeth of the chain.

--saw cuts to one side.

--saw has to be forced through the cuL

Replace the sharpening stone when a new

Power Sharpe chain is installed. See instruc-

tions, page 13.

Remove the sharpening stone if a standard or

conventional chain is substituted for the

Power Sharp® chain. See instructionsfor remov-

ing the sharpening Stone and Carder Assembly,

page 13. Use replacement chain for Model

358.355060 (2.3/16"), Stock No. 71-3629. Follow

conventional chain sharpening instructions on

page 17.

ICAUTION:]Aiways wear gloves when handling

the chain. The chain can cut you even though

it is too dull to cut wood.

A. AUTOMATIC SHARPENING

1. Stop the engine.

2. Place saw on asolid, flat surface; and ensure

that the chain will not contact any object.

3. Adjust the chain with proper tension. Refer to

Chain Tension, page 7.

4. Start engine and operate at half throttle.

5. Press the Power Sharp® Knob down until

you feel the sharpening stone lightly con-

tacting the chain: Figure 18.

6. Maintain constant; light pressure on the

Power Sharp® Knob while moving the knob

side to side for 5 seconds.

7. Release Power Sharp® Knob and + stop

engine.

8. Inspect chain cutters.

NOTE: A properly sharpened cutter will show

grinding marks across its entire width. Figure

19.

INSTRUCTION

DECAL POWER SHARP _KNOB

Figure 18

TOP VIEW OF CUTTER

INSPECTCUTTERS FOR GRINDING MARKS

FigurelS

HAND FLUNG

Sharpen saw chain side plates by hand after

every 3rd to 5th time the Power Sharp ®system

isused.

1. Stop the engine.

2. Adjust the chain for proper tension, page 7.

3. Support the square rod on the file holder(with

+5/32" round file) on cutter top plate. Figure 20.

NOTE: Work at the midpoint of the bar, mov-

ing the chain forward with ascrewdriver as

each cutter is filed.

4. Hold the file holder level with the 22 ° guide

mark parallel to guide bar. Figure21.

SUPPORT THE SQUARE ROD

ON RUE HOLDER FLAT "1 /_'_ROUND FILE

ON TOP OF CUTTER __/'

-.-_L",..L.)==,_ DEPTH

TOP ___." GUAGE

PLATE

Figure 20

PARALLEL TO

CENTER OF

THEGUIDE

BAR

Figure 21

5. File from inside toward outside of cutter,

straight across, in one direction only. Use 2 or

3 strokes per side plate edge. Figure 21.

NOTE: Avoid hitting the top edge of the cut-

ters when filing the side plate.

Maintain a 1132" side plate projection. Figure

22.

Fite all side plates on one side of the chain,

then move to the other side of bar and file re-

maining side plates.

SIDE

PLATE tz, SIDE PLATE

Figure 22

REPLACE OR REMOVE THE

STONE AND CARRIER ASSEMBLY

1. Removebarclamp.

2. Remove screw holding Stone and Carrier

Assembly. Figure 23.

3. Discard old.assembly.

4. Reverse:_procedure to install new assembly.

5. Tighten screw securely.

NOTE: Be careful to not overtighten. (Torque

to 20-25 inch pounds.)

6. Reassemble saw. Figure 23

STONE &

CARRIER

TYPES OF CUTTING

A. BASIC CUTTING TECHNIQUE

le IMPORTANT POINTS.

a. Cut wood only. Do not cut metal, plastics,

masonry, non-wood, buildingmaterials; etc.

b. Stop the saw if the chain strikes a foreign

object- Inspect theunit and repair or replace

parts as necessary.

c. Keep the chain out of dirt andsand. Even a

small amountof dirtwill quicklydullachain and

thus, increase the possibilityof kickback.

2. UNDERSTAND REACTIVE FORCES

Pushback and Pull-in occur when thechain is

suddenly stopped by being pinched, caught,

or by contacting a foreign object in the wood.

This results in a reversal of the chain force used

to cut wood and causes the saw to move intheLOp-

positeclir_on of chain rotation, resultingin loss

ofcontrol and possible serious personal injury,

• Pushback:

--occurs when the chain, on top ofthe bar, is sud-

denly stoppedwhen the topof the bar isused for

cuffing.

drives the saw straightback toward the operator,

possibly causing lossof sawcontrol

• To avoid Pushback:

a. Be extremely aware of situations or ob-

structions that may cause material to stopor

pinchthe top ofthe chain.

b. Do not cut more than one log atatime.

c. Do not twist the saw asthebariswithdrawn

from an under-cut.

Pull-in:

-- occurs when the chain on the bottom of the bar

is suddenly stopped.

occurs when the spike orsaw housingis notheld

securely against the tree orlimb and/or whenLthe

cut is not begun at fullthrottle.

Bpulls the saw forward, and could cause the

operator to lose control

•To avoid Pull-in:

a. Always begin cutting withthe engine at full

throttle and the spike orsaw housingagainst

the wood.

b. Use wedges made of plastic, wood, or light

alloy (never of steel or iron) to hold the cut

open.

3; PROCEDURE

Practice cutting afew small logs usingthe follow-

ing technique to get the =feel"of using your saw

before you begin a major sawing operation.

a. Accelerate the engine to fulll throttle just be-

fore entering the cut by squeezing the Throttle

Trigger.

b. Begincutting with the saw frame against the

Iog_.Figure 24.

c. Keep the engine at full throttle the entire time

you are cutting.

d. Allow the chain to cut for you; exert only light

downward pressure. If you force the cut, dam-

age to the bar, chain or engine can result.

e. Release the throttletrigger as soon as the cut

is completed, allowingthe engine to idle. Ifyou

run the saw at full throttle without a cutting

load, unnecessary wear can occur to the

chain, bar, and engine.

f. Do not put pressure on the saw at the end of

the cut to avoid losing control when the cutis

complete.

.m , ,, ,,;.....

g. Stop the engine before setting the saw down

after cutting.

i i,i/

I TNE BOTTOM OF A,_ _.'_ /

THE

I SAW FRAME AGAINST { _ _ 7"- #L_

B. TREE FELLING TECHNIQUES 'r_4'

1. PLANYOUR SAWING OPERATION CARE-:

FULLY IN ADVANCE

a. Ctear the workaraa. You need a clear areaali

around .thetree where you can have secure •

footing.

b. Studythe naturaiconditionsthat can cause -

thetree to fall in a particular direction:

1.) The WIND directionand speed

2.) The LEAN ofthetree .............

3.) WBGHTED withBRANCHES on one side

4.) SurroundingTREES and OBSTACLES

c. Look for decay and rot. If the trunk is rotted,

it could snap aridfalltoward the operator.

d. Check for broken or dead branches which

couldfall onyou while cuffing.

e. Make sure there is enough room for the tree

to fall. Maintaining adistance of 21,_ tree

lengths from the nearest person or other ob-

jects. Engine noise may drown out warning

call -

f. Remove dirt, stones, loose bark, nails,

staples, and wire from the tree where cuts

areto be made.

g. Plan to stand on the up-hill side when cut-

ring on a slope.

h. Plan a .c.lcar retreat path to the rear. and

diagonalto the line of fall. Figure 26.

...... WARNING!

DONOTCUT:

-- near electrical wires or buildings.

uif you do not knowthe direction of tree fall.

at night since you will not be ableto see well.

_during bad weather-- strong wind, snow, rain,

etc.

Figure 24

ui: ¸

2..FELLING SMALL TREES-- LESS THAN 6"

........ IN DIAMETER

a. lfyou knowthe directionoffall:

1.) Ma$'.easingle felling:cuton the side away- ....

from the direct{onof fall .... "

2.) Cut allthe waythrough.

3.) Stop the saw, put it down, and get away

quickly onyour planned retreatpath.

If you are not sure which way the tree will fall,

use the notch method described for felling

large trees.

3. FELLING LARGE TREES m6" DIAMETER

•OR MORE

The notch method is used to cut large trees: A

notch is cut on the side of the tree in the desired

direction of fall. After afelling cut ismade on the

opposite side of the tree, the tree will tend to fall

intothe notch.

NOTE: If the tree has large buttress roots, re-

move before making the notch. CUtinto the but-

tresses vertically, then hodzontaily. FKjure25

a. Make the notch cut. Figure27. ,

1.) Cut the bottom of the notch first, through

1/3 ofthe diameter of the tree.

2.) Complete the notch by making the slant

cut.

3.) Removethe notch ofwood.

b. Make the felling cut onthe oppositeside ofthe

notch about 2" higher than the bottom of the

notch.

i)ONTt'iIlrIrOIIRSIBi_ ]NTB]BSIB _ONS

(licit tile lda=l_

Iion't €= &_tl= wl_

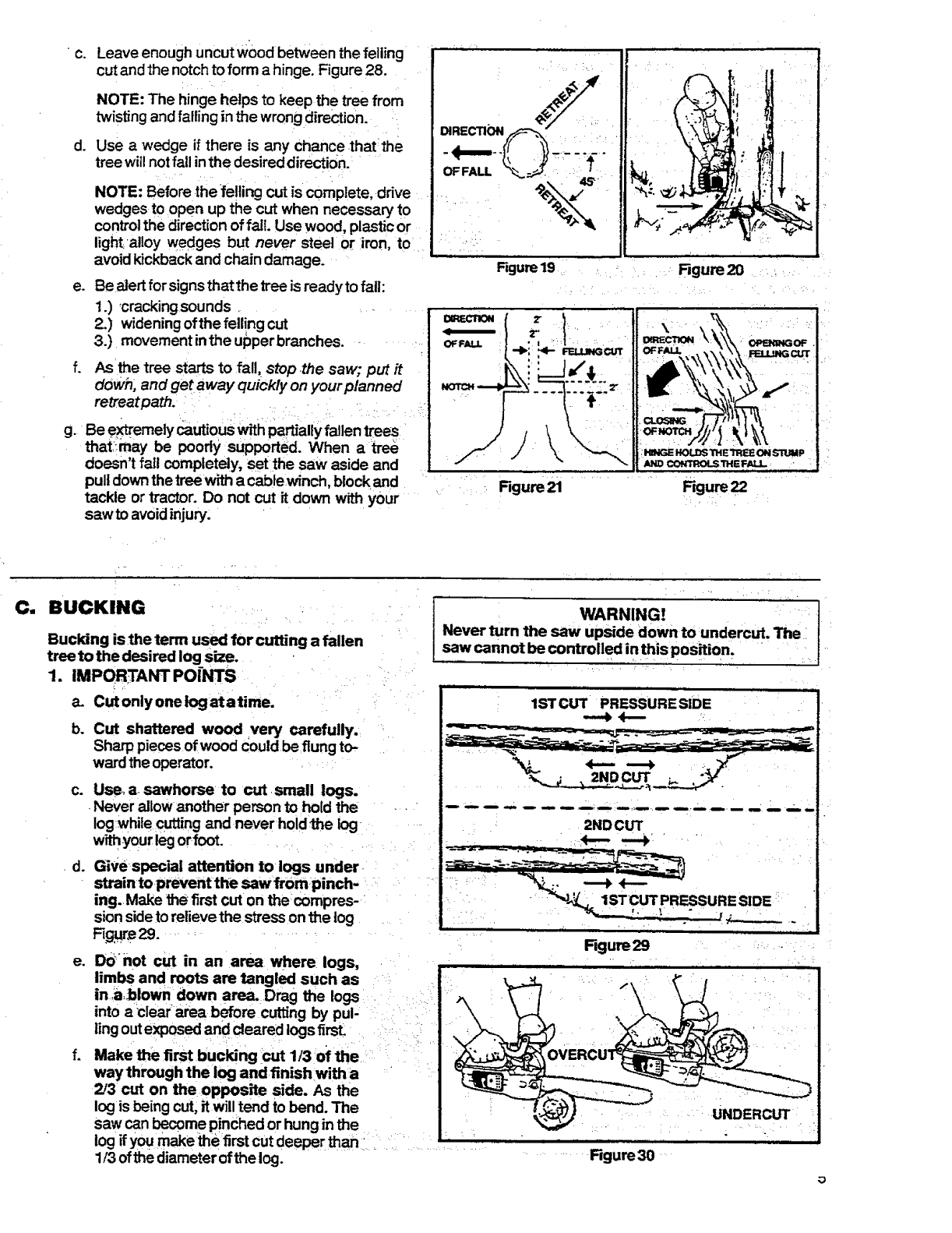

Leave enough uncut wood between the felling .......

cut and the notch to form a hinge. Figure 28.

i •

NOTE: The hinge helps to keep the tree from

twisting and falling in the wrong direction.

Use awedge if there is any chance 1hat;the

tree wiil not fall in the desired direction.

NOTE: Before the felling cut is complete, drive

wedges to open up the cut when necessary to

control the direction of fall. Use wood, plastic or

light;alloy wedges but never steel or iron, to

avoid kickback and chain damage.

e. Be alert for signs that the tree is readyto fail:

1.) 'cracking sounds

2.) widening ofthe felling cut

3.) movementinthe ulSperbranches, ........

f. Asthe tree starts to fall, stop .the saw; put it

dowh, and get away quickly on your ptanned

retreat path. "

g. Be extremely =utiouS with partially fallen trees

that:may be poorly supported. When a tree

doesn't fall completely, set the saw aside and

pull down the tree with a cablewinch, block and

tackle or tractor. Do not cut it down with your ..... :=

saw to avoidinjury;

Rgure22

Co BUCKING •. •

Bucking is the term used for cuffing a fallen

tree to the desired log_size.

1. IMPORTAWI" POINTS •

a. Cut only one log atatime.

b. Cut shattered wood very carefully.

Sharp pieces of wood could be flung to-

wardthe operator. • _;

C°

WARNING!

Never turn the saw upside down to undercut. The

saw cannot be controlled in this position.

,,11

1ST CUT PRESSURES;IDE

---_ 4-_

Use, a. sawhorse to cut. small logs.

•Never allow another person to hold the -.

logwhile cutting and never hoidl_e log- ....

your!egorfoot...... .

Givespecial attention to logs under

strain to prevent the saw frompinch-

ing.Make the first cut on the compres-

sion sideto relieve the stress onthe log

Fig._S 29. ................

DO"not cut in an area: where: logs,

limbs and roots are tangled such as

ina,blown down area. Drag the Iogs l _.

into acleararea before cutting by pul, :_z......

ling outexposed andcleared logsfirst: _,_ i;

Make the first bucking cut 1/3 of the i__ _j : _i

way through the log and finishwith a "

2/3 cut on the opposite side. As the

log is being cut, it will tend to bend. The

saw can become pinched or hung in the

log if youmake thefirst cut deeper than .i. _i_............. "

1/3 of the diameter of the log.

"KP_ --_l

2ND CUT

-_-- ....+

._=__ -.__--

. lST•CUT, . SSU.ES,OE

.... : IV...__..... ~

Figure29

Rgure30

2..TYPES OFCUTTINGUSEDFigure30.

Overcutting- beginonthetopsideofthelog

withthe bottomof thesawagainst the log;

exert light pressure downward. -

Undercutting - begin on the under side of the

log with the top of the saw against the log;exert

light pressure upward. Dudng undercutting,

the saw wil! tend to push back at you, Be pre-

'pared for this reaction and hold the saw firmly

to maintain control....

WARNING!

if saw becomes pinched or hung in a log, don't try

to force it out. You could lose control of the saw re-

sulting in personal injury and/or damage to the

saw. Stop the saw and drive a wedge of. plastic,

wood or light alloy into the cut until saw can be re-

moved easily. Figure 31. Do not use a steel or iron

wedge to avoid idckback and chain damage.

3. BUCKING--wrrHOl_ A SUPPORT

a. OvercUtwith a 1/3 diameter cut.

b. Roll togover and finish withan ovemut:.

4. BUCKING--USING ANOTHER LOG AS A

SUPPORT (Figure 32):

WARNING!

Do not stand on the log being cut. The cut portion

will roll down hill.

a. In areaA:

1.) Undercut 1/3 of the way through the log.

2.) Finish withan overcut.

b. In area B:

Figure31

USING ,,

ANOTHER

LOG AS A SUPPORT

WEDGE USED TO

HOLD CUTOPEN.

Figure32

i.............

2ND CUT lS1" CUT

....!.)

'•2.) Finish withan undercut. .....

5. BUCKING _USING A STAND (Figure 33):

Overcut, 1/3 ofthe waythroughthe log.. : .:_ :

a. In areaA:

1.) Undercut 1/3 ofthewaythmugh the log. ,

2.) Finish with an overcut.

b. In areaB:

1.) Overcutl/3ofthewaythroughthelog; =

2.) Finish with an undercut.

Ri_sqr

CUT CUT CUT

Figure33

D. DEBRANCHING AND PRUNING

• Work sloWl_y, keeping both hands on the saw

with a fi_ grip. Maintain secure footing and ba !-

alice.

• Watch out for springpoles. Use extreme caution

when cuffing small size limbs. Slender material

may catch thesaw chain and be whipped toward

you or puleyou off balance.

• Be alert for springback. Watchout for branches .....

that are bent or under pressure asyou are cuffing

to avoid being struckby the branchorthe saw when

the tension inthe wood fibers is released.

•Keep a clear work area. Frequently clear bran-

ches out of the way to avoid trippingoverthem.

Never climb into a tree to debranch or prune. Do '

•not stand on ladders, platforms, a log or in any

position which might cause you to lose control of

the saw.

16 _

,WARNING!

BE ALERT FOR AND GUARD AGAINST

KICKBACK. Do not allow the moving chain to con-

tact.any other branches or objects atthe nose of

the guidebar when debranching or pruning. Al-

lowing such contact could result in serious per-

sonal iniury. ' .......

1DEBRANCHING

a. Limit debranching to limbs shoulder

height or below. Always debranch a tree

after it is cut down, Only then can debranching

be done safely and pmpedy,

b. Leave the larger lower limbs to supportthe

tree as you work.

c. Start at the base of the felled tree and work

towardsthe top, cuffing branches and

limbs. Remove small limbsw!th one cut. Fig-

ure34.

d. Keepthe tree between you andthe chain.

Cdt from the side of the. tree opposite the

branch you are cutting. :

e. Remove larger, supporting branches with

the i/3,2/3 cutting techniques d_ribed in

the bucking section.

1.) Startwith an overcut

2.) Finish with an overcut

f. Always use an overcut to cut small and

freely hanging limbs. Undercutting could

cause limbs to fall and pinchthe saw.

2. PRUNING .. : ;: ....

a. Limit pruning to limbs shoulder,height or

below. Do not cut if branches are higher than

your shoulder. Get aprofessional to do the

job.

b. Refer to Figure 35 forthe pruning tech-

nique.

1.) Undercut 1/3 of the way through the limb

near the trunk of the tree.

2.) Finish with an overcut farther Out from the

trunk.

3.) :Keep out of the way ofthe falling limb.

4.) Cut the stump flush near the trunk of the

tree:

Removesmail limbs

.... with one cut.

•Figure34 •

SECONDPRUNING CUT

THIRD

PRUNINGCUT

RRST PRUNING CUT

MAINTENANCE .........

A good maintenance program of regular inspec=

tion and care will increase the service life and

help to maintain the safetyand performance of

your saw. _- ..

• Make all adjustments or repairs (except car-

buretor adjustments) with:

--spa,rk:pl, ug wire disconnected

--engine COol 'as opposed to a unit that has

just been run. .

• Check 1he saw for loose bolts, screws, nuts

and fittings regularly. Loose fasteners can

cause an unsafe condition as well as damage

to your saw.

tWARNING!

All repairs, adjustments and maintenance .not de-

. scribedin the Operato_s.ManuaLshould be per-:;

.formed by a qualifiedservicedealer.

GUIDBBAR AND CHAIN /

Increase the service life of your Guide Bar and

Chain by:.

--Using:the saw properly and as recommended

in this manual.

--Maintaining correct Chain Tension, page 7.

--Proper lubrication, page9.

--Regular maintenance as described in this sec-

tion. ;..... _ _'

1. CHAIN MAINTENANCE

LCAUTION:J Always wear gloves when handling

the chain. The chain is sharp enough to cut you

even though it is too dull to cut wood.

a. SHARPENING INSTRUCTIONS --

Model 358.355060 (For Power Sharp®Model

358.355070, see page 12-13.)

Items required:

Gloves Medium file

5!32" file Depth Gauge Tool

6" file holder

•Sharpen the chain when: ......

---wood chips are small and powdery. Wood

chips made by the saw chain should be

about the size of the teeth of the chain. _

wsaw has to be forced through the cut. ......

•.-,saw cuts to one side. __: _

•1.) Stop engine.

'2_) Adjust the chain for proper tension,

• page 7.

3.) Work atthe midpoint of thebar, moving

the chain forward by hand as each cut-

ter is filed. 17

b.)

4.) Sharpen cutters.

a.) Position the file holder with the

square rod on the top plate of the

cutter asshown in Figure36.

Hold the fite holder level with the

30° guide mark parallel to the

center line of the bar. Figure 37.

c.) File from inside toward outside of

cutter, straight across in one direc-

tion only. Use 2 or 3 strokes per cut-

ting edge. Figure 38.

5.) Correct Depth Gauges.

a.) Place depth gauge tool (Catalog No.

71-36557) over each cutter depth

gauge. Figure 39.

b.) File level with the flat file if depth

gauge is higher than the depth

gauge tool.

c.) Maintain rounded front corner of

-depth gauge with a flat file: Figure

40.

NOTE: The very top of the depth

gauge should be flat withthe front -

half rounded off with a, flat rite.

b. CHAIN REPLACEMENT

1.) Replace the chain when cutters or links

break.

2.)

3.)

See your Sears Service Center to

replace and sharpen individual cutters

to match your chain.

Always replace the worn sprocket when

installing a new chain to avoid exces-

sive weartothe chain.

2. GUIDE BAR MAINTENANCE

• Conditions which can require guide bar

maintenance:

_saw cuts to one side

--saw has to be forced through a Cut

--inadequate supply of oil to bar and

chain.

•Cheek the condition of the guide bar each

time the chain is sharpened. A worn guide

bar will damage the chain and make cut-

ting more difficult. '_, _:_

• Replacethe guide barwhen:

Mthe inside groove of the guide bar rails is

worn°

.the guide bar is bent orcracked.

Remove the guide bar to service.

Clean oil holes at least once for

five hours of operation.

Remove sawdust from the guide bar

groove periodically with a putty knife or _

a wire. Figure 41. _..... _: _ :

eac.

SUPPORT FLATSIDE

OF FILE HOLDER

ON TOP OF

CUTTER

HOLD30 °GUIDE

MARK PARALLEL

TO THE

GUIDE BAR 30°

Figure 36

Figure 37

Rgure38

Figure 39

MAINTAINROUNDED

CORNERSOF DEPTH

Figure40

REMOVE SAWDUST

FROM THE

GUIDE BAR GROOVE

_ IIIIII]1 I,

_ ,

: • [1[ I i I

11 ] I I I r

:Figu 41 .......

i m •

Remove burrs by filing the side edges

of the guide bar grooves square with a i

flat file. Figure42_

Restore square edges to an uneven rail

top by filing with a flat file: Figure 42. CORRECT

GUIDE BAR

GROOVE WORN GROOVES FILE EDGES

SQUARE

Figure 42

B. IGNITION, COOLING AND EXHAUST SYSTEMS

• Carbon deposits will build up on exhaust

• -ports;spark arrestor, muffler, and spark plug

as the_saw is used. All of these parts should

be •cleaned at the same time to prevent

engine damage, overheating, loss of power,

and hard starting.

• Clean parts:

--as required

--at least once for each 25.30 hours of

operation

1. EXHAUST SYSTEM

• Carbon build-up on the exhaust system can

cause the engine toloose power in a cuL

• Keep the spark arrestor clean at all times.

• Replace the spark arrestor when breaks in

the screen are founcL

Items required:

Wire brush

3/8'_+wrench

HardW0od stick

a. Disconnect the spark plug.

b. Remove the muffler, baffles, and

screen. Figure43.

c. Pull the starter rope until the piston

moves far enough to close the exhaust

ports.

d. Scrape the carbon deposits from the

+;exhaust ports and surrounding exhaust

+chamber using ahardwood stick.

Figure 44.

e. Blow out loosened carbon with corer

pressed air.

f. Clean the spark arrestor screen with a

•wire brush or replace if breaks in the

screen are found.

g:+.?Reassemble muffler parts.

2. SPARK PLUG

• Keep the spark plug:

--clean

--pmpedy gapped (+025)

•Maintenance is indicated when the engine

is hard to start.

Item required: Small brush, such as atooth

brush, or a pocket knife.

a. Pull the rubber connector from the.

spark plug and remove the spark plug

from the cylinder.

b. Clean deposits from the electrodes of

the spark plug with a small brush or a

pocket knife.

NOTE: Be careful when removing,

cleanihg, gapping and replacing the

spark plug. tf it is damaged, it will not

work properly and must be replaced.

c. Set the gap:between the electrodes to

.025 using a wire or flat gauge. Figure

45.

d. Replace the spark plug.

SPARK ARRESTOR SCREEN

Figure43

Figure 44

CLEAN

EXHAUST

PORTS

CHAMPION CJ-8 SPARK PLUG

GAP .025" _"

Rgure4s 19

C. STARTER ROPE REPAIR AND REPLACEMENT

• A starter rope that breaks next to the pulley

can be repaired.

• Replace a starter rope that breaks more than

2 or 3 inches from the pulley.

WARNING!

Always wear eye protection when ser.

vicing the starter rope. The recoil

spring beneath the pulley is under ten.

sion. If the spring should pop out

serious personal injury could resulL

NOTE: A recoil spring lies beneath the pulley

and is under tension, if the recoil spring =is

disturbed considerable time and effort will be

required to reinstall. For this reason, you may

want to let your Sears Service Center handle

this repair, if you do try to repair the starter

rope and the recoil spring pops out, take the

unit to your dealer.

1. Drain the fueltank.

2. Remove the fan housing screw on the bot-

tom of the saw and the two screws on the

side of the fan housing. Figure 46.

3. Remove the large screw at the rear of the

control handle and the small screw directly

below it. Figure 47.

4. Pull the gas line from the fitting going in the

saw handle;

5. Separate the fan housing from the unit.

6. If the starter rope is not broken, release the

spring tension by pulling about 10 inches of

rope from the pulley and catch the rope in

the notch as shown. Figure 48

NOTE: The tension on the starter spring Will

be released if the rope has broken.

7. Turn the pulley counterclockwise until the

spring tension is released.

8. Remove the pulley screw in the center of the

pulley_ Figure 49.

9. Lift the pulleycarefullywhite gentlytwisting •

it counterclockwise _.

10. Remove_he old rope.

11, Move away from the fuel tank and bum the i_::•

end of the rope to be installed.

12. Pull the burnt end through arag while the

rope is still hot to obtain a smooth end.

13. Feed the rope through the housing and

through the round starter hole. Figure 49. •

14. Put the rope into the pulley groove and up

through the hole.

15. Tie aknot in the end of the rope and pull it

tightly against the pulley.

16. Rewind all the rope onto the pulley, turning

counterclockwise

17. Set the pulley into the housing; push it down _

and engage the spdng.

18. Replaceand tighten the pulley screw.

REMOVE CONTROL

HANDLE

Rgure46

Figure 47

TURN PULLEY

COUNTERCLOCKWISE '

NTIL TENSION IS RELEASED

i i ii ii iiiiiii

....Figure49 _ • _ .... .....

19.Pullout 10inchesof ropeand set the rope in

the notch in the pulley. Figure 50.

20. Turn the pulley 2 complete turns clockwise

winding up the spring.

21. Hold the pulley and pull the starter rope to

the full extent of length and let the rope re-

wind slowly.

22. Replace the fuel line in the slot in the fan

hous!ng. Be certain fuel line is not pinched.

23. Replace fan housing. L¸

NOTCH

Figure 50

D. CARBURETOR ADJUSTMENTS

• The carburetor has been adjusted at the fac-

tory for sea level conditions. Adjustment may

become necessary if the unit is used at

significantly higher altitudes or if you notice

any of .the following conditions:

--Chainmoves with the engine at idle speed.

.--Loss of cutting power which is not cor.

retted by air filter or muffler screen clean-

ing.

--Engine dies or hesitates when it should

accelerate.

•Permanent damage will occur to the engine if

incorrect carburetor adjustments are made. To

make the adjustment observe the following proce-

dure very carefully,

WARNINGI I

The chain may be moving during this procedure.

Wear your protective gear and observe all safety

precautions. •

1. PREPARATION

a, Stop,engine,

b. Use a fresh fuel mixture with proper

gasoline/oil ratio.

c. Place:the saw on a solid, flat surface and

make sure the chain will not contact any

object.

d. Dustoff,the carburetor cover and surround,

ingarea to remove debris which might fall

into the carburetor chamber.

e. Remove the carburetor cover screws and

carburetor cover. Figure 52.

f, Find the three (3) carburetor adjusting

screws. Figure 51, _

g. Turn the Low Speed Mixture Screw and the

High Speed Mixture Screw clockwise just

until they stop; Do not turn the screws until

they are tight as you may damage the nee-

dle seats.

h, Turn the Low Speed Mixture Screw and the

High Speed Mixture Screw one full turn

counterclockwise

CHOKE CLOSED

HIGH SPEED

MIX SCREW

IDLE SPEED LOW SPEED

SCREW MiX SCREW

Figure 51

2. IDLE SPEED ADJUSTMENT--I

a. -Start the engine.

b. Adjust if the engine stops (when the trigger

is not squeezed) by turning the Idle Speed

Screw 1/2 turn clockwise

NOTE: To increase idle speed, turn the Idle

Speed Screw clockwise _.To

decrease idle speed, turn the Idle Speed_

Screw counterclockwise _-,=i • •

Run the engine for a few minutes to bring it

up to operating temperature.

NOTE: The engine must be at operating

temperature for proper adjustments to be

made.

3. LOW SPEED MIXTURE ADJUSTMENT

a. Turn the Low Speed Mixture Screw slowly

clockwise _until the RPM starts to _

drop. Note the position:

b. Turn the Low Speed Mixture Screw coun-

terclockwise 4[-,,= until the RPM speeds

up and starts to drop again. Note the posi-

tion.

c. Position the Low Speed Mixture Screw at

the mid-point between the two positions.

4. IDLE SPEED ADJUSTMENT--ll ,_

...... : a. Ailow engine to idte.

b. Adjust if the chain is turning by'turning the ;

idle Speed Screw Counterclockwise _

c. Squeeze the throttle trigger;, the saw

should accelerate without hesitating. 21

NOTE: It may be necessary to recheck the

low speed mixture setting after the idle

speed has been reduced by repeatingLow

Speed Mixture Adjustment Steps.

5. HIGH SPEED MIXTURE ADJUSTMENT

a. Make a test cut.

NOTE: Take special care to keep chips and

dirt out of the carburetor.

b. Adjust if the saw smokes or seems to have

low power in the test cut by turning the

High Speed Mixture Screw 1t16th turn

clockwise

c. Repeat test cut.

d.Repeat adjustment until the saw ruffs

smoothly.

CAUTION: Never set the H!ghSpeed Mix-

ture Screw less than 718tumopen. This is

too lean a setting and will rain your engine.

6. IDLE SPEED ADJUSTMENT--Ill

Recheck for proper idle mixture setting.

E. AIR FILTER

• A dirty air filter.

--reduces cuffing power

--increases fuel consumption

• Clean the Air Filter:.

--Frequently, especially under very dusty

conditions.

--Always after 10 tanks of fuel mixture or 5

hours of operation whichever is less.

:.... .• •L" .... : •

_Never operate the unit without the air

filter in place to avoid engine damage.

.Clean off the carburetor cover and the area

around it to keep dirt and sawdust from fall-

ing into the carburetor chamber when the

cover is removed.

2: Remove the carburetor cover screws and car-

buretor cover. Figure 52.

3. Pull out the air filter.

4. Wash the filter in soap and water.

lCAUTION:IDo not use gasoline or other flamma-

ble liquid to clean the filter to avoid creating a_re

hazard.

5. Squeeze the filter dry.

6. Add asmall amount of oilto coat the filter.

NOTE: Avoid soaking the filter with oil.

7. Squeeze out excess oil.

8. Replace filter by tucking in edges and

smoothing it flush with the carburetor hous-

ing.

NOTE: It may be necessary to repeat ac-

cording to instructions in Steps 2 and 3,

Idle SpeedAdjustmentwl and Low Speed

Mixture Adjustment.

7. CHECK ACCELERATION

Adjust if there is aslight hesitation by turning

the Low Speed Mixture Screw 1/16 of a tumat

a time counterclockwise _until you

have smooth acceleration.

NOTE: Check to be sure the chain is not turn-

ing when engine is idling. If chain moves at

idle speed, repeat Idle Speed Adjustment--II.

8. REASSEMBLE UNIT

a. Stop the engine.

b. Clean the mating surfaces of the car-

buretor housing and cover.

c. Be careful when replacing the carburetor

cover to see that the choke knob operates

properly. Refer to steps 9 and 10, for "Air

Filter,.this page.

NOTE: Be careful when replacing the car-

buretor cover as incorrect placement will

prevent the choke from working properly.

9. Move the choke knob all the way to the right.

10. Check the choke shutter to be sure it is

closed. Figure 52.

11. Reinstall the carburetor cover and tighten

the carburetor cover screws.

12. Check the operation of the choke.

NOTE: If the choke knob sticks or will not ....

move, remove the cover and repeat steps

11 and 12 above.

AIR

FILTER

CARBURETOR

SCREW

CARBURETOR

COVER

Figure52

F. STORAGE

When your saw is to be stored for over 30 days,

always:

1. Drain fuel tank in asafe manner. (See

"Important Points," page8 .)

2. Start engine and allow to run at an idle

speed until the engine stops.

NOTE: This will remove most of the fuel from

the fuel system.

ICAUTION:j Wear protective gloves when han-

dling the chainL The chain is sharp and can

cut you even when it is not moving.

3. Drain oil tank.

4. Remove, clean, and dry the bar and chain.

5. Store the chain in a container filled with oil

to prevent rust.

6. Apply a coating of oil to the entire surface of

the bar and wrap it in heavy paper, cloth or

plastic.

7. Clean the outside surfaces of the engine.

8. Store the saw in adryplace, out of the reach

of children, and:awayfrom where fuel vapors

can reach open flames from hot water heater,

furnaces, etc.

MAINTENANCE ACCESSORIES

Available from your nearest Sears Store, Catalog Sales Office, or Service Center,

but not furnished with your saw.

Key

No.

Part

No.

STD360946

31059

55004

55O46

51242

51234

69037

30113

44247

Catalog

No.

71-36403

71-36524

71-36565

71-36557

71-3629

71-3631

71-36621

71-36555

71-36554

71-36366

Descdption

Spark Plug-Champion CJ-8

Spark Plug Wrench

File (5/32" alia.)Twin Pack

FileGuide

Depth Gauge Tool

xtra GUARD ®Chain (358.355060--2.3/16"}

Power Sharp®Chain (358.355070-2.3/16"P.S.)-

incl.Stone and Carder Ass'y.

MufflerHeat Shield Kit

Replacement Recoil Cord

Carrying Case

2-Cycle Engine Oil

Bar and Chain Lubricant

Guide Bar- Lo-Kick®Replacement

H. TROUBLE SHOOTING CHART

TROUBLE CAUSE REMEDY +

ENGINE WILL NOT START

ENGINE WILL NOT IDLE

" PROPERLY

ENGINE WILL NOT

ACCELERATE, LACKS

POWER OR DIES

tN THE CUT

ENGINE SMOKES

EXCESSIVELY

ENGINE RUNS HOT

OIL INADEQUATE FOR

BAR AND CHAIN

LUBRICATION

CHAIN MOVES AT

IDLE SPEED

CHAIN DOES NOT MOVE

WHEN ENGINE IS

ACCELERATED

: CHAINCLATTERSOR +

CUTS ROUGHLY '

CHAIN STOPS WITHIN

THE CUT

CHAIN CUTS AT

AN ANGLE

1. Ignition Switch off.

2. Fuel tank empty.

3. Spark Plug not firing.

4. Fuel not reaching carburetor;

5. Engine flooded.

6. Compression low.

7: Air ftow restricted

1. Idling speed set too low.

+:+: • +

2. idle speed set too high.

3. Low speed screw requires adjustment.

4. Crankshaft seals worn ......

+, ..... • • :

5. Compression low.

1. Carburetor requires adjustment.

2. Air filter dirty.

3. Spark Plug fouted.

4. Carbon build.up.

5. Low Compression.

1. Choke partially on.

..2. :High speed needle requires adjustment.

3. Air filter dirty. :,.

4. Oit rich fuel mixture,

5. Crankcase leak .....

1. Fuel Mixture lncorrecL ....

2. Spark Plug lncorreCL

3. Carbon build-up.

4. High Speed Mixture set too low.

1. Oil tank empty. +

2. Oil pump or oil filter clogged.

3. Guide bar oil hole blocked.

1. Carburetor requires adjustment:

+2. Clutch requires repair_ I +

1. Move switch to "Start".

2. Fill tank with correct fuel mixture, page S-+

3. InStall newplug, page lS.

4. Check for dirty fuel filter;, clean. Check :for .

kinked or split fuel line; repair or replace. .

5. See Starting Instructions, page 10.

6. Contact Sears Service Center. ,+ :: .' '

7. Check for dirty air filten clean, page 22; ....

Check for choke shutter working prope!!y, :

:page 22. ...... +

1. Adjust idlespeed screw clockwise to increase

speed, page21. ':

2. Adjust idlespeedscrewcounterclo_wise

to reduce speed, page 21. .:

3. See Carburstor Adjustments, page 21.

4. Replace seats or contact Sears Service

Center.

•5. Contact Sears Service Center.

1. See Carburetor Adjustments, page 21.

2. Clean or replace air fitter,page 22.

3. Clean or replace Spark Plug and regap,

page is,

4. Clean exhaust system including spark

arrestor, page 19,

5. Contact Sears Service Center.

1. Turn Choke off.

2-, See Carburetor Adjustments, page 21,

3. Clean or replace air filter, page 22.

4. Empty fuel tank and refill with correct fuel

mixture, pageS, +-

5. Contact Sears Service Center.

1. See Engine Fuel Mixture, PageS- ..........

2- Replace with correct plug, page 19;i!._

3. Clean exhaust systems including spark

arrestor, page 19.

4. See CarburetorAdjustments, page 21.

1. Fill oil tank, pa,ge 9.

2. Contact SearsServiceCenter,

3. Removebarandclean,page 18.

1. See CarburetorAdjustments,page21.

2. ContactSearsServiceCenter.

Chain tension too tight. 1.

Carburetor requires adjustment. ' 2.

Guide bar tails pinched, '3.

Clutch slipping. 4.

Chain tension incorrect. 1.

Cutters dull, improperly sharpened; depth 2.

gauges too high.

Sprocket worn. 3.

See ChainTension,page7.

See CarburetorAdjuslments,page21.

Repairorreplaoe,page6 & 18.

ContactSears Se_ce Center.

See Chain Tension, page 7.

See Chain Sharpening Instructions,

page 17 (page 12 for PowerSharp®)

Replace.

Chain wear due to contact with dirt, sand

or frozen wood.

Cutters damaged after striking foreign

material.

Chain cutter tops not filed flat. .:

Guide bar burred or bent; rails uneven.

Clutch slipping.

Cutters damaged on one side. '

Chain dull on one side.

Guide bar bent, or worn.

::: : :: : • :.

4. ResharpenorreplaceChaJn, page6& 18

: (page 12 forPower Sharp®).

5. Contact Sears Service Center. .

1; See Chain Sharpening instnJc'dons,page

16 (page 12for Power Sharp'_);

2. Repair or replace guide bar, page18..

=3. Contact Sears Service Center.

+1. Reeharpen until all cutters have equal

.: angles and lengths, page 17(page I2 for

Power Sharp ®).

2. Resharpen until all cutters have equal

::angles and lengths, page 17(page 12for

.Power Sharp®).

3. Replace guide bar, page18.

SEARS CHAIN SAW REPAIR PARTS--MODEL NO. 358.355060-2.3/16"AV

Figure 1A

Key

No. Part No.

1STD541431

2 STD511010

312058

Decals

A26472

B 26224

C 26477

Qty, Description

1 Nut - Bar Mounting -

5116 - 18 Flange

1 Screw- 10-24 x7/8

1 Bar Clamp

1 Decal- Bar Clamp

1'Decal - Instructions

(Left Half)

1 Decal - Instructions

(Right Half)

SEARS CHAIN SAW REPAIR PARTS-MODEL NO. 358.355070-2.3/16"AV PS

FigurelB

BKey

No. Part No.

1STD541431

2 23759

323762

423761

5 STD511010

6 12061

769027

STD511002

9 69026

Decals

26472

26224

25531

26486

Oty.

Description

Nut - Bar Mounting

-5/16- 18 Flange

Knob Sharpening

Spring

Washer

Screw. 10-24 x7/8

Bar Clamp

Ass'y_Shatpening Stone Arm

(incl. 9)

Screw- 10-24 x 114

Pan Head

Stone & Carrier Ass'y.

(incl. 8)

1 Decal- Bar Clamp

1-Decal - Instructions

(Left Half)

1Decal - Sharpening

Instructions

1 Decal -Instructions

(Right Half)

SEARS CHAIN SAW REPAIR PARTS-MODEL NO. 358.355060-2.3/16 AV =

_i_, .... : 358.355070-2.3/16"AV PS

Figure 2

Clutch Drum

and ,Sprocket

for

Model358.355070

•26

SEARS CHAIN SAW REPAIR PARTS-MODELNO. 358.355060-2.3/i6"AV

.... i 358.355070-2.3/16"AV PS

Figure 2

(EY

_0.

PART

NO. QTY. DESCRIPTION

STD541408 1

23492 1

15236 1

51242- 1

51234 1

5 44247 1

.12

69t66"_ 1 .

69167 1

23792 1

15249 1

10469 1

69142 _ _,: 1

19o59i ' 2

19o89 1

69179 1

14 69165

15 STD510805

16 23802

17 19091

18 23801

19 10195

20 32058

21 22172

,22 21026

23 32079

24 23519

2s 32oss

26 23887

27 23653

28 23656

29 STD6_

30 1949

31 23874

32 10221

36 STD511015

37 23795

38 23843

39 15486

40 32075

41 .10474

Lock Nut #8-32

Pin-Bar AdjusL.-.

Screw-Bar Adjust.

_r 8-32 x 1-% RI Hd..

Chain 16"

358.355060

_i 35B,355070

'(incl.Stone &,CarderAss'y.)

Bar 16" S.N. ,Guide

Clutch Drum & Bearing

Kit (incL23) ._.......

;355060 ' ..

.355070

Pin-Oil TankVent

Stud_.BarMounting

Crankcase Assembly '

_(incL1,2,3,7,8,10,11

12&20)

Check Valve Kit-OilTank

Pressure (incl.12)

Seat Crankshaft

Gasket-Check Valve

ClutchAssembly KR

(incl. washer}

1 Clutch Washer Kit

(outside)

2 Screw #8-32 x 1,_

1 Cover-Oil Pump

2 Gasket-Oil Pump

1 Filter Oil

1 Body Assembly-

Oil Pump

2 Bearing-Crankshaft

1Crankshaft-SolidState

1 Line,Oil Discharge

1 Beadng-Clutch.

1Spacer-Clutch(inside)

1 Be=ing-RoBer

(incl.12 bearings)

1Thrust Washer-

Crankshaft

1 ChaimOll Cap

1Retainer-Chain

1 Screw-8-16 x 3/s

1 O-Ring Oil Cap

1 Cap-Oil

1 Oil Cap Assy.

(incl.27-31)

1Screw #10-24 x IxTAs

1 Cover Muffler -

2 Retainer-Piston Ring

2 Washer-Rod (Top)

1Bearing Rod (Top), _,

(incl.22 bearings)

1 lOt--Connecting Rod

(incl. 25, 39 &40)

Key Nos. Excluded: 33, 34, 35

KEY

NO.

¢3

,,46_i

,Decals

PART

NO.

15551.

_25689

STD551010

t5557

23535

23796

10588

15426

25677

STD511005

19O88

25876

24236

23786

STD511007

15499

STD551025

26163

23797

23794

23787

STD610805

24256

25451

15342

STD360946

12065

15239

3OO54

31O63

62O23

25675

15531

15343

66378

25631

26545

2655O

OTY .... DESCRiPTiON

1Screw-Isolator

•(#V4-20 x 23/%

1_Bracket-Lower Isolator

2. ,.Washer Lower Bracket

Mtg. (#10) •

2Screw-Bracket Mounting

(10-24 x %) i

1 Spacer-MufflerCover •

1Screen-SparkArrestor _ • "

1Piston KR ,

(incl.38, 54 & pin) ,

Bolt-¼-#20 X1/2

,Bracket-Rear ]solat0r

•Screw-#8-32 x;'/16

Pan Head

2Screw-#10-24 x 1/2.

1Gasket-Cylinder

1Piston Ring

1 Knob Ass'y.-Switch

1 Ramp-Switch

7 Screw #10-24 x _As

1 Screw Handlebar

Mtg.-Top (#%-10 x lZ/4)

1Washer Handlebar

,Mtg.-Top (#fl/_-Type B)

4 " Cup-isolator

2 Baffle-Muffler

1Body-Muffler

1Clamp-Switch

1Screw-#8 x _A_

Tapping

2 Isolator

1 Handguard

1Spacer

1 Spark Plug-CJ-8

1Cylinder

2 Screw-%-20 x 3/4

Socket

1Seata_-Orankcase

(Optiona!)

1 Bar Adjusting Tool

1 Chain Repair IO

(358.355060 only)-optional

1 Handlebar w/Insert

1 _Washer-Handlebar

Lower (V_)

1Spacer

Operator's Manual

(notshown)

1Dec_al-Handguard

Decal -Warranty-

(Guide Bar)

(not shown)

Decal - Chain Tensioning-

Not Shown

SEARS CHAIN SAW REPAIR PARTS-MODEL NO. 358.355060-2.3/16"AV

_358.355070-2.3/16"AV PS

Rgure3

13 ..... 26

r15 23

I17

" 60 _

•66

I 58

SEARS CHAIN SAW REPAIR PARTS-MODEL NO. 358.355060-2.3/16" CVA

358.355070-2.3/16" CVA PS

,EY

_10.

Figure 3

PART KEY PART

NO. QTY. DESCRIPTION NO. NO. QTY.

15126 1 34 24256 1

39it I 1 35 , .15245 2

":36 ' 23865 1

3933

24158

39087

STD510807

2._1

25676

15t'68

15157

238O6

STD600603

39082 -

23817

STD541131

15127

1648

15524

25679

24317

STD511005

15428

10373

42023

35181

23791

STD512507

25487

STD600803

12O60

15342

26163

Key-Flywheel

Flywheel Assembly

(incL 15)

I Boot-Spark Plug

1 Connector-Spark Plug

1 Lead-Sw'r_ch

1 Module-Ignition

(incL 14)

2 Screw #8-32 ×3/=Seres

1 Knob-Choke "

1Cover-Carburetor

2Screw-# 10-24 × -%

1 Wave'Washer

1 Lever-Choke

1 Screw-#8-16 x _'e

rTapping

1 Ass'y Lead Spark Plug

(incL #3 & 4)

2 Spring-Starter Dog

1 Nut-SAs-24

1 Washer-Flywheel

1" Screw-l/4-20 × 1¼

Hex Head

1 Screw-Isolator

(#¼-20 x 1_1A6)

1 Bracket-Upper isolator

1 Pad-Isolator

1Screw-#10 x24 x _/_

1 Washer

1 Pulley Starter (incl. 23)

1 Spring-Starter

1 Carburetor-WT-20

1 Air Filter

3 Screw-¼-20 x _1A_

1Baffle-Air Intake

2Screw-Baffle

1 Fan Housing

1 Spacer - :,

2 Cuplsolator _,

9 _, •

40 ,

•41

:43

.•44

4-5

;55

Decals

23805

15254

25978

19117

23366 .......

23367 "

STD6i0603

21035 ....

23373

19045

15252

23364

23363

15528

25683

23808

23783

' 19093

25143

25685

15406

15z

STD541425

25686

25687

15533

25682

25684

25681

15495

26473 :

DESCRIPTION

Isolator

Screw-#10-24#1%

Spacer-Choke

Shutter

1Shutter-Choke

1 Wave Washer

1 Housing-Carburetor

1 Gasket-Carburetor

Housing

1 .Reed ,Valve

1.Washer-Reed Valve

Screw-#6 x sA6

Tapping

1 Fuel Line (Bulk no.

8133)

1 Boot-Throttle Wire

1 " Gasket-Carburetor

1 Washer-Fuel Pick-up

1Filter-Fuel

1'Weight-Fuel Pick-up

1 Washer-Trigger (nylon)

t Trigger-Throttle

1 Fuel-Cap Ass'y.

1 Rope & Handle Starter

1Sea!-Fuel Tank Neck

1 Fuel Tank

1 W_re-ThrotUe

1Screw-#10-24 × _/2

Slotted Pan Head

2 Screw-#10-24 ×3/s

1 Locknut-Handlebar Mtg.

(#,,_-2o)

1 Spring-Trigger

1 SpringThrottle

LockoutLever

1: Screw-Rear Handle-Front

(#10-16 x 1'/_)

1Rear Handle-Right

1 Lever-Throttle Lockout

1 Rear Handle-Left

2Screw, Rear Handle

(#1o-16 x 3/:,)

1'Decat.Fan Housing

SEARS CHAIN SAW REPAIR PARTS-MODEL NO. 358.355060-2.3/16"AV

_ = 358.355070-2.3/16"AV PS

Figure4

9-O

KEY

NO.

13 •

PARr

=NO.

350O6

35015

35034

35024

35171

35023

35169

35167

35162

35163

35017

35159

35O35

35168

35164

DESCRIPTION

Valve Throttle

Screw-Throttle Valve

Shaft Assembty-Throttle

Spring-Throttle Return

Needle-Low Speed Mixture

Spring.Low Speed Mixture Needle

Needle-High Speed Mixture

Spring-High Speed Mixture Needle

"Plug 5/16 Dia. Welch

*Plug 1/4 DiaoWelch

Screw-Pump Cover

Cover-Fuel Pump

Screw-Idle Speed Adjusting

Spring-Idle Speed AdjustingScrew

+ *Gasket-Fuel Pump

KEY

NO.

PART

NO.

35166

35027

35007

35O08

35188

35031

35O28

35016

35165

35014

35003

35021

35161

35173

DESCRIPTION

+*Diaphragm-Fuel Pump

Screen-Fuel Inlet

Ring-Throttle Retainer

*Valve-inlet Needle

*Spring--Metering Lever

*Lever-Metering

*Pin-Metering Lever

"Screw-Metering Lever Pin

+"Gasket-Metering Diaphragm

+'Diaphragm-Metering

Cover--Metering Diaphragm

Screw Assembly-Metering Cover

Kit-Repair (includes partsmarked*)

Kit--Gasket!Diaphragm (includesparts

marked+)

•QUICK REFERENCE PAGE

Read and follow aft Safety Rules, Precautions and Operating Instructions.

Failure to do so can result in serious personal injury.

page

SAFETY RULES AND PRECAUTIONS .................. ....... ........ ............. 3-4

PREPARATION _3

1.. Wear:personal protective gear gloves; safety footwear; snug fitting clothing; and

appropriate eye, hearing and head protection. -_ •

2. Check saw for worn, loose, or damaged parts and repair or replace if necessary.

3. Check',the chain for sharpnessand tension. '

4. Keep children, bystanders and pets out of the work area. -,. -:

5= Plan your sawing operation carefully in advance. .....

FUEL AND OIL ................. 8-9

1. Eliminate all .sources of sparks or flame where fuel is mixed, poured, or stored.

2. Use Ipart air-cooled, 2-cycle engine .oil to 16 parts-regular gasoline. '

3. Use gasoline not over 2 months old. : :_ • ' ,

4. Mix, store and pour fuel in an approved, marked container and in a well-ventilated area.

5. Move aminimum of 10 feet away from fuel and fueling site before starting engine.

6. Fill the oil tank each time the.fuel tank is refueled.

ENGINE.'

STARTING THE .... ' lo

1. Hold saw firmly with the saw chain free to turn without making contact with any object. "..

2. Push saw away from you with your right hand while pulling tl_e starter rope with your left hand.

.3. Use no more than 15-18 inches of rope per pull ..... . ....

4. Pull rope no more than 5.6 times.

5. Release the trigger after, engine starts allowing engine to idle.

OPERATING THE SAW ...... ..... 11

1. Cut wood only. . •

2. Accelerate the engine to full throttle before entering the cut.

3. Begin cutting with the saw frame up against the tog.

4. Cut only at full throttle.

5. Release the trigger as soon as the cut is completed.

6. Stop the engine before setting thesaw down after cutting.

MAINTENANCE ............ ,...., ........ . .. .......... ............................ 17

1. Adjust Or have the carburetoradjusted if thechain moves when the engine idles.

2. Disconnect spark plug before'performing maintenance except for'carburetor adjustment.

3. Check the guide bar for weareach:timel the chain!is sharpened. ' i ': .

4. Clean the air filter:frequentlyand always afterl0tanksof fuel mixture or5 hours of operation,

whichever isless.i: ...... _ . • " :i: :::: : : ::::i'i ::

5. Clean ,igniton, cooling and.exhauSt systems at_teast onceforeach _hours of operation.

6. Drain =fueltank in asafemanneraftereach use=:I _:: ::: : :' :': :: :: :

in a dry p!aceout of the: reachof children, :: ; : : : ::

:2 ........ "

WATCH OUT FOR II THE SAWWHEN \lI ' I USE GRIP "NEVER USETHE SAW A FIRM

WHEN TIRED : ....

l ! BOTHHANDS

.....31.

MODEL NO.

358.355060-

2.3/16"AV

358.355070

2.3/16"AV PS

How to Order

Repair Parts

SEARS SERVICE

_-The Model Number will be found under the handle with the Serial

Number. Always mention the Model Number when requesting ser-

vice or repair parts for your Chain Saw.

All parts listed herein may be ordered from any Sears Service Center

and most Sears Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION AS SHOWN 1N THIS LIST.

1. The PART NUMBER 3. The PART DESCRIPTION

2. The MODEL NUMBER 4.-,The NAME OF ITEM --

358.355060-2.3/16"AV Chain Saw

358.355070-2.3/16"AV PS

if the parts you need.are not stocked locally, your order will be

electronically transmitted to a Sears Repair Parts Distribution

center for expedited handling.

When you buy merchandise

from Sears you get an extra

something that nobody else

can offer ... SearsService.

Across town or across the

country, Sears Service follows

you, providing trustworthy,

competent service technicians

using only Sears specified

factory parts.

•Sears, Roebuck and Co.,Chicago, Ill. 60684 U.S.A.

PRINTED IN U.SJL

66378-I -12084-2-17884

Craftsman 358355060 User Manual GASOLINE CHAIN SAWS Manuals And Guides L0903541

CRAFTSMAN Chainsaw, Gas Manual L0903541 CRAFTSMAN Chainsaw, Gas Owner's Manual, CRAFTSMAN Chainsaw, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
