Craftsman 486240383 User Manual 38 LAWN SWEEPER Manuals And Guides L0910181

CRAFTSMAN Lawn Sweeper Manual L0910181 CRAFTSMAN Lawn Sweeper Owner's Manual, CRAFTSMAN Lawn Sweeper installation guides

User Manual: Craftsman 486240383 486240383 CRAFTSMAN 38 LAWN SWEEPER - Manuals and Guides View the owners manual for your CRAFTSMAN 38 LAWN SWEEPER #486240383. Home:Lawn & Garden Parts:Craftsman Parts:Craftsman 38 LAWN SWEEPER Manual

Open the PDF directly: View PDF .
Page Count: 16

owners

monuol

Model No.

486.240383

CAUTION:

Read Rules for

Safe Operation

and Instructions

Carefully

38" HiGH PERFORMANCE

CRAFTSMAN LAWNSWEEPER

•Assembly

=Operation

°Customer Responsibilities

•Repair Parts

Sears, Roebuck and Coo, Hoffman Estates, IL. 60179 U.SA.

PRINTED IN U.S,A,

RULES FOR SAFE OPERATION

The following safety precautions are suggested. This

lawn sweeper' is designed, engineered and tested to

offer reasonably safe and effective service,

provided it is operated in strict accordance with these

instructions_ Failure to do so may result in personal

injury. Always observe the rules for safe operation.

1, Do not allow anyone to operate the sweeper

without proper' instructions°

2. Do not permit children to operate sweeper.

3. Do not push or tow sweeper too close to a fire,

because the hopper and brush wilt burn°

4, Do not attempt to remove wire or string

wrapped around brush while brush is rotating.

5, Operate sweeper at reduced speed on rough

terrain, in ditches, and on hillsides to prevent

tipping and loss of control. Stay alert for holes

or' other hidden hazards,

6_ This sweeper is not meant for street or highway

use. Watch for traffic when sweeping near

roadways,

7. Keep all nuts, bolts and screws tight to be sure

equipment is in safe working condition.

8o Vehicle and attachments should be stopped and

inspected for damage after striking a foreign

object and damage should be repaired before

restarting and operating the equipment.

9. Follow maintenance instructions as outlined in

this manual,

Your lawnsweeper carton and inner pack parts

carton contains parts as shown in the figure below.

The hardware package contains two separate

packages, see figures 1 and 2 on page 3. Identify

all parts and layout as shown in the figure b'elow and

figures 1and 2.

CARTON CONTENTS

Loose Parts in Carton

1. Sweeper Housing Assembly

2. Brace Rod

3. Bag Retainer strap

4 Bag Frame Strap

5, Bag Pivot Rod (1) 3/8" Dia

6 Bag Support Rods (2) 3/16" Dia

7 Upper Hopper Tube, Right Hand

8, Upper Hopper Tube, Left Hand

9. Lower Hopper Tube, Right Hand

10, Lower Hopper Tube, Left Hand

11_ Hopper Bag

12, Wind Screen

PARTS IN INNER PACK CARTON:

13 Rope

14 Height Adjustment Strap

t5 Hitch Bar

16 Hitch Bracket

17 Hitch Pin Bracket

18 Hopper Mount Arms (2)

19 Hardware Package (Not Shown)

CARTON CONTENTS

15 17

114'" x

NOTE

+--'G

DO NOT mix contents of hardware

packages.

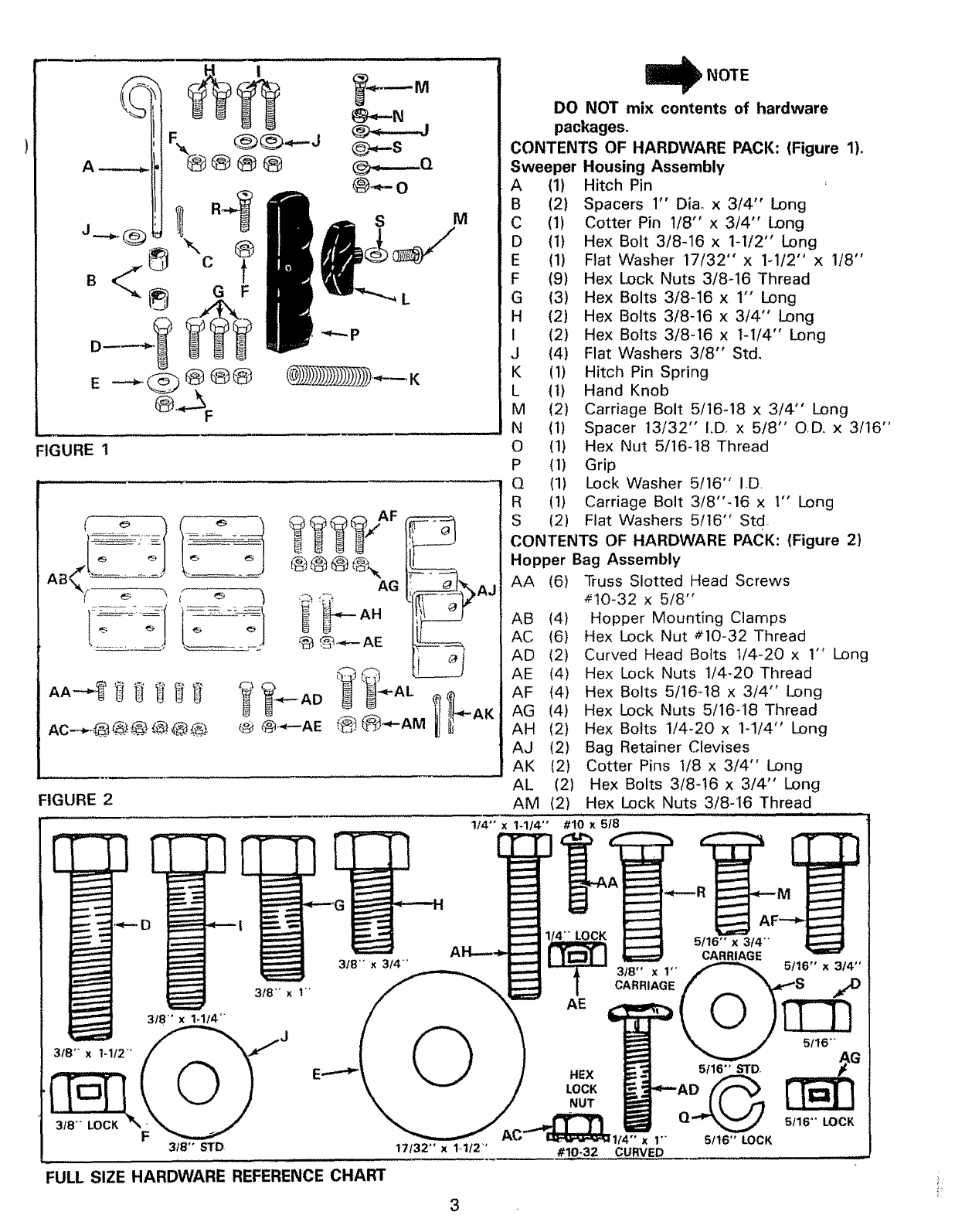

CONTENTS OF HARDWARE PACK: (Figure 1).

Sweeper

A (1)

B (2)

C (1)

D (1)

E (1)

F (9)

G (3)

H (2)

I (2)

J (4)

K(1)

L (I)

M (2)

N (1)

O (1)

P(1)

Q (1)

R (1)

S (2)

FIGURE 2

318- x 1-

318"' x 1-114"

318" x 314-

Housing Assembly

Hitch Pin

Spacers 1" Diao x 3/4" Long

Cotter Pin t/8" x 3/4" Long

Hex Bolt 3/8-16 x 1-1/2" Long

Fiat Washer 17/32" x 1-1/2" x 1/8"

Hex Lock Nuts 3/8-16 Thread

Hex Bolts 3/8-16 x 1" Long

Hex Bolts 3/8-16 x 3/4" Long

Hex Bolts 3/8-16 x 1-I/4" Long

Flat Washers 3/8" Std.

Hitch Pin Spring

Hand Knob

Carriage Bolt 5/t6-18 x 314" Long

Spacer 13/32" I.Do x 5/8" OrD. X 3116"

Hex Nut 5/16-18 Thread

Grip

Lock Washer 5t16" ID

Carriage Bolt 3/8"-16 x 1" Long

Flat Washers 5/16" Std

CONTENTS OF HARDWARE PACK: (Figure 2)

Hopper Bag Assembly

AA (6) Truss Slotted Head Screws

#t0-32 x 5/8"

AB (4) Hopper Mounting Clamps

AC (6) Hex Lock Nut #i0-32 Thread

AD (2) Curved Head Bolts 1/4+20 x 1" Long

AE (4) Hex Lock Nuts 1/4+20 Thread

AF (4) Hex Bolts 5/16-t8 x 3/4" Long

AG (4) Hex Lock Nuts 5/16-18 Thread

AH (2) Hex Bolts 1/4-20 x lq/4" Long

AJ (2) Bag Retainer Clevises

AK (2) Cotter Pins 1/8 x 3/4" Long

AL (2) Hex Bolts 3/8-16 x 3/4" Long

AM (2) Hex Lock Nuts 3/8-16 Thread

t-1t4" #10 x 5f8

1_ 5116" x 3f4"'

CARRIAGE

318" x t" _ 5/16" x 314"

c_(o

_5/16"' P

5f16"' STD,

HEX

LOCK

NUT

318'° STD,

FULL SIZE HARDWARE REFERENCE CHART

17132" x 1..1/2" 114"' x 1" 51t6" LOCK

#10-32 CURVED

5116"" LOCK

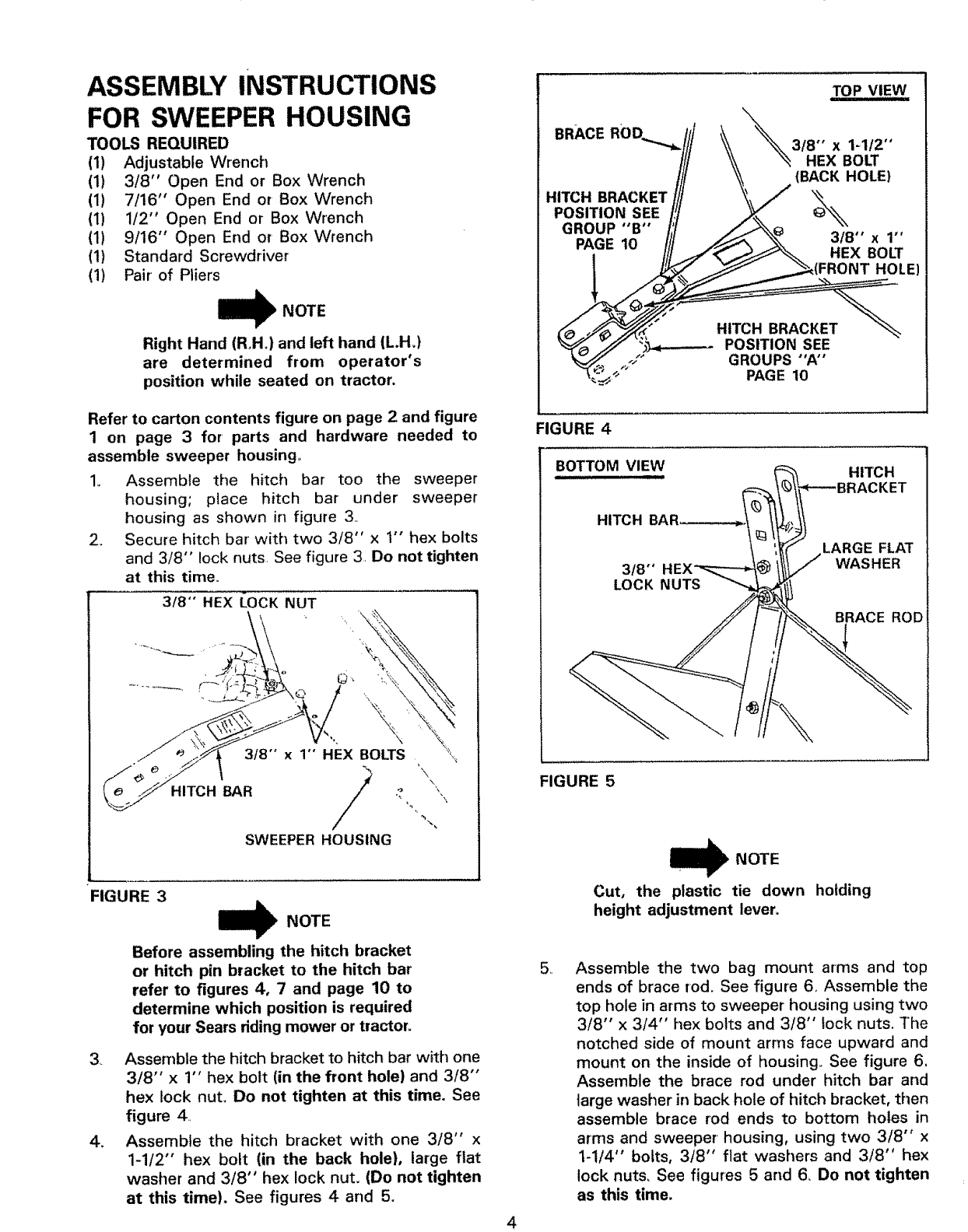

ASSEMBLY INSTRUCTIONS

FOR SWEEPER

TOOLS REQUIRED

(1)

HOUSING

Adjustable Wrench

3/8" Open End or Box Wrench

7/16" Open End or Box Wrench

1/2" Open End or Box Wrench

9/16" Open End or Box Wrench

Standard Screwdriver

Pair of Pliers

NOTE

Right Hand (RHo) and left hand (L.H.)

are determined from operator's

position while seated on tractor.

HITCH BRACKET

POSITION SEE

GROUP "B '°

PAGE 10

TOP VIEW

3/8" x 1-1/2"

HEX BOLT

(BACK HOLE}

3/8" x 1"

HEX BOLT

FRONT HOLE)

HITCH BRACKET

;23._------ POSITION SEE

,/_ GROUPS "A"

_PAGE 10

Refer to carton contents figure on page 2 and figure

1 on page 3 for parts and hardware needed to

assemble sweeper housing,

1o Assemble the hitch bar too the sweeper

housing; place hitch bar under sweeper

housing as shown in figure 3,

2. Secure hitch bar with two 3/8" x 1" hex bolts

and 3/8" lock nuts, See figure 3. Do not tighten

at this time.

3/8" HEX LOCK NUT

\, \

, \

3/8" x 1" HEX BOLTS

,\\

BAR ._ ',

SWEEPER HOUSING

FIGURE 4

BOTTOM VIEW HITCH

HITCH

3/8"'

LOCK NUTS

LARGE FLAT

WASHER

BRACE ROD

FIGURE 5

NOTE

FIGURE 3

NOTE

Before assembling the hitch bracket

or hitch pin bracket to the hitch bar

refer to figures 4, 7 and page 10 to

determine which position is required

for your Sears riding mower or tractor.

3 Assemble the hitch bracket to hitch bar with one

3/8" x 1" hex bolt (in the front hole) and 3/8"

hex lock nut. Do not tighten at this time. See

figure 4,

4. Assemble the hitch bracket with one 3/8" x

1-1/2" hex bolt (in the back hole), large ftat

washer and 3/8" hex lock nut. (Do not tighten

at this time). See figures 4 and 5.

Cut, the plastic tie down holding

height adjustment lever.

5_, Assemble the two bag mount arms and top

ends of brace rod. See figure 6, Assemble the

top hole in arms to sweeper housing using two

3/8" x 3/4" hex bolts and 3/8" lock nut& The

notched side of mount arms face upward and

mount on the inside of housing. See figure 6,

Assemble the brace rod under hitch bar and

large washer in back hole of hitch bracket, then

assemble brace rod ends to bottom holes in

arms and sweeper housing, using two 3/8" x

1-1/4" bolts, 3/8" flat washers and 3/8" hex

lock nuts, See figures 5 and 6 Do not tighten

as this time.

BAGMOUNT

NOTCH

318"HEXLOCKNU1

3f8" FLAT

3/8" HEXLOCK NLJT

3/8" x 3/4"

HEX BOLT

'3/8" x 1-1!4"

HEX BOI_T

BRACE

ROD END

FIGURE 6

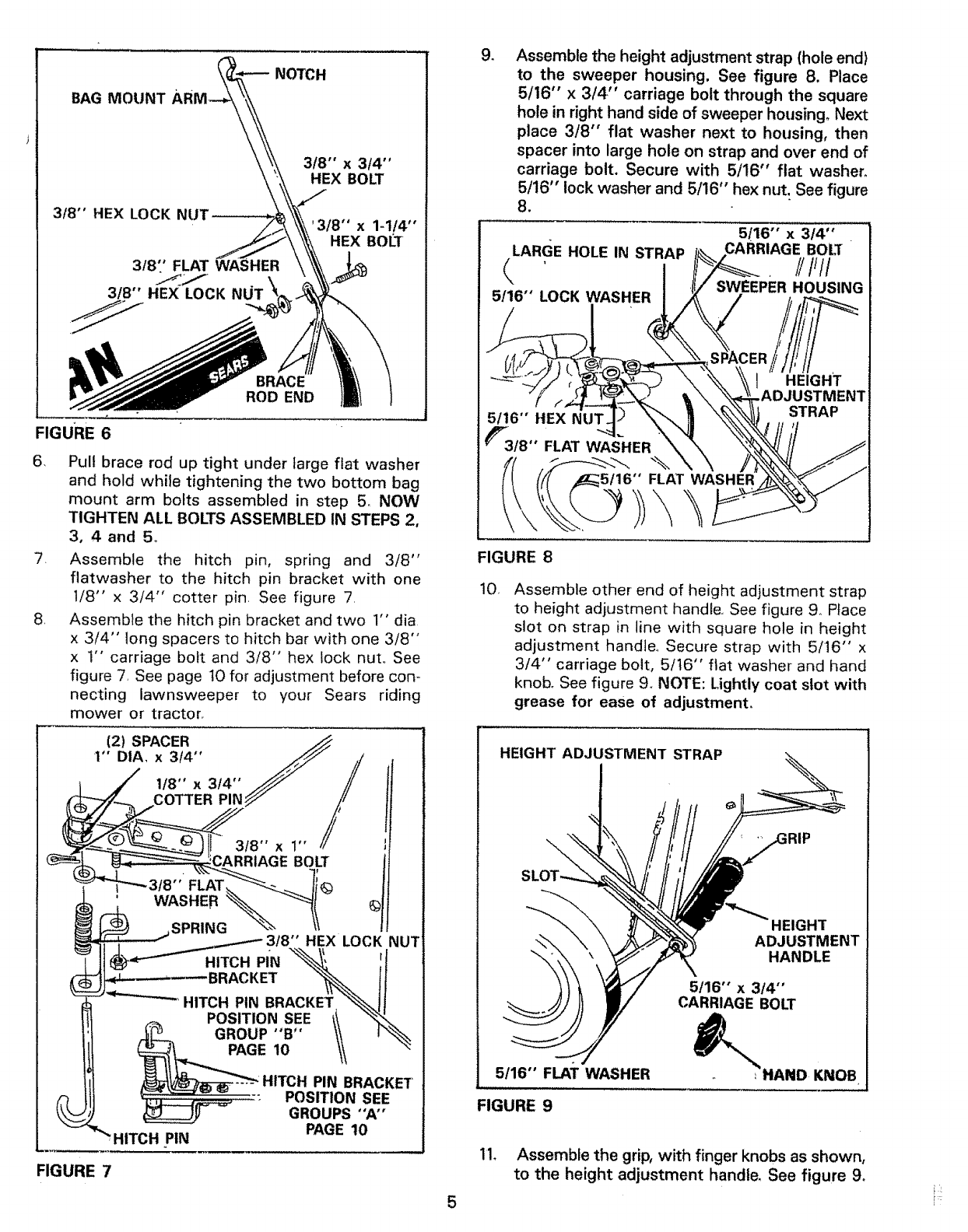

6, Pull brace rod up tight under large flat washer

and hold while tightening the two bottom bag

mount arm bolts assembled in step 5. NOW

TIGHTEN ALL BOLTS ASSEMBLED IN STEPS 2,

3, 4 and 5o

7. Assemble the hitch pin, spring and 3/8"

flatwasher to the hitch pin bracket with one

1/8" x 3/4" cotter pin, See figure 7,

8, Assemble the hitch pin bracket and two 1" dia

x 3/4" long spacers to hitch bar with one 3/8"

x 1" carriage bolt and 3/8" hex lock nut,, See

figure 7, See page t0 for adjustment before con-

necting lawnsweeper to your Sears riding

mower or tractor_

(2) SPACER

I"' DIA, x 3t4"

1t8" x 3t4"

FIGURE 7

Assemble the height adjustment strap (hole end)

to the sweeper housing. See figure 8. Place

5/16" x 3/4" carriage bolt through the square

hole in right hand side of sweeper housing, Next

place 3/8" flat washer next to housing, then

spacer into large hole on strap and over end of

carriage bolt. Secure with 5/16" flat washer,

5/16" lock washer and 5/16" hex nut. See figure

LARGE HOLE IN STRAP

5/16" LOCK WASHER

5_16" x 314"

BOLT "

111111

SWEEPER HOUSING

5/t6" HEX NUT.

_'_3!B" FLAT WASHER -\

5/16"' FLAT WASHER

FIGURE 8

10 Assemble other end of height adjustment strap

to height adjustment handle., See figure 9_ Place

slot on strap in line with square hole in height

adjustment handle,, Secure strap with 5/16" x

3/4" carriage bolt, 5/16" flat washer and hand

knob° See figure 9o NOTE: Lightly coat slot with

grease for ease of adjustment,

HEIGHT ADJUSTMENT STRAP

\_RIP

5/16" FLAT WASHER

HEIGHT

ADJUSTMENT

HANDLE

5/16" x 314"

CARRIAGE BOLT

HAND KNOB

FIGURE 9

11. Assemble the grip, with finger knobs as shown,

to the height adjustment handle. See figure 9.

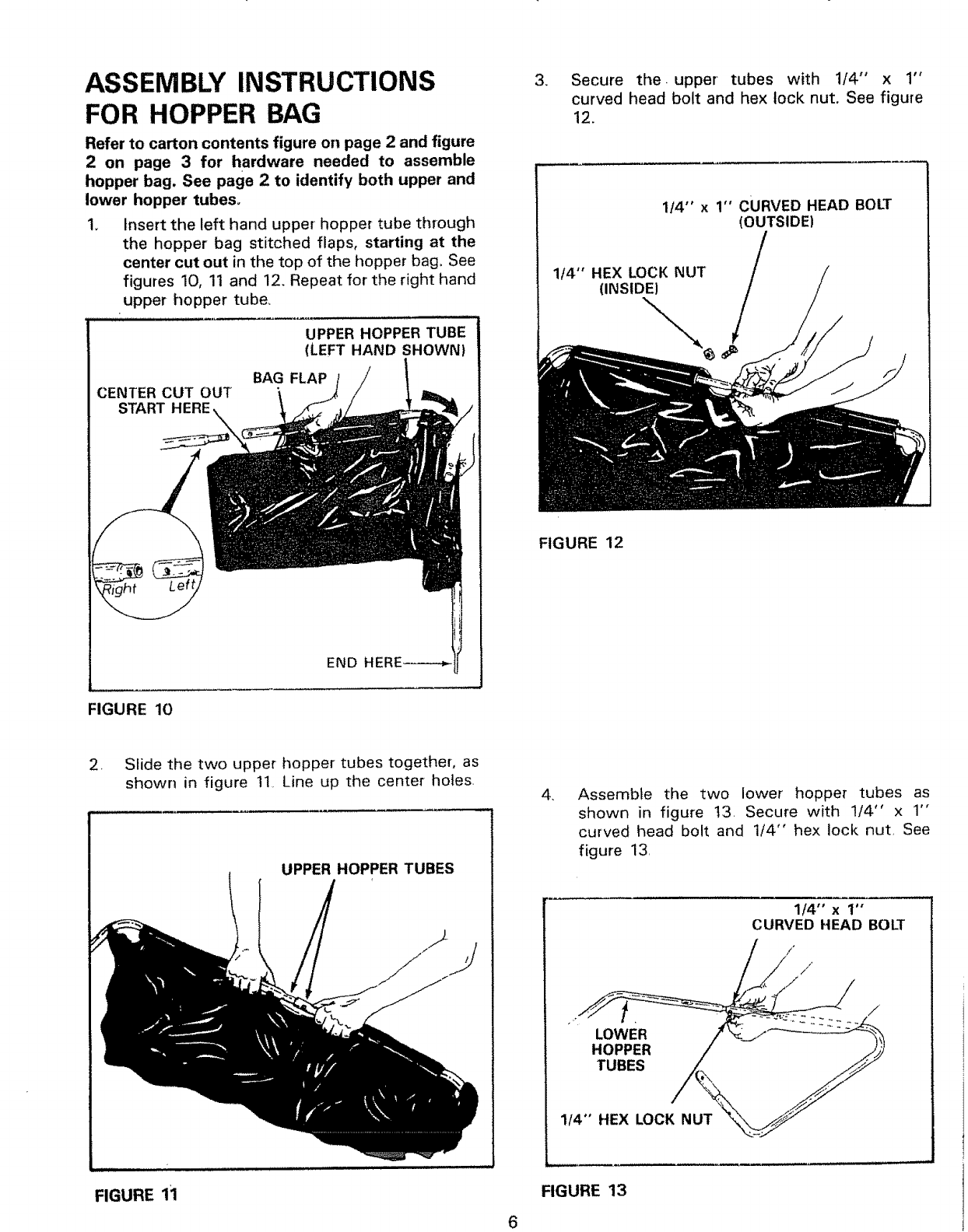

ASSEMBLY INSTRUCTIONS

FOR HOPPER BAG

Refer to carton contents figure on page 2 and figure

2 on page 3 for hardware needed to assemble

hopper bag. See page 2 to identify both upper and

lower hopper tubes°

1. Insert the left hand upper hopper tube through

the hopper bag stitched flaps, starting at the

center cut out in the top of the hopper bag, See

figures 10, 1t and 12. Repeat for the right hand

upper hopper tube.

UPPER HOPPER TUBE

(LEFT HAND SHOWN)

BAG FLAP

CENTER CUT OUT

START

3_ Secure the. upper tubes with 1/4" x 1"

curved head bolt and hex lock nut. See figure

12,

114" HEX LOCK NUT

(INSIDE)

-,,,,o

114" x1" CURVED HEAD BOLT

(OUTSIDE)

FIGURE 12

FIGURE 10

2_ Stide the two upper hopper tubes together, as

shown in figure 11, Line up the center holes.

UPPER HOPPER TUBES

FIGURE 11

.Assemb)e the two lower hopper tubes as

shown in figure t3, Secure with 1/4" x 1"

curved head bolt and 1/4" hex lock nut, See

figure 13,

1/4" x 1"

CURVED HEAD BOLT

LowER

HOPPER

TUBES

1t4" HEX LOCK NUT

FIGURE 13

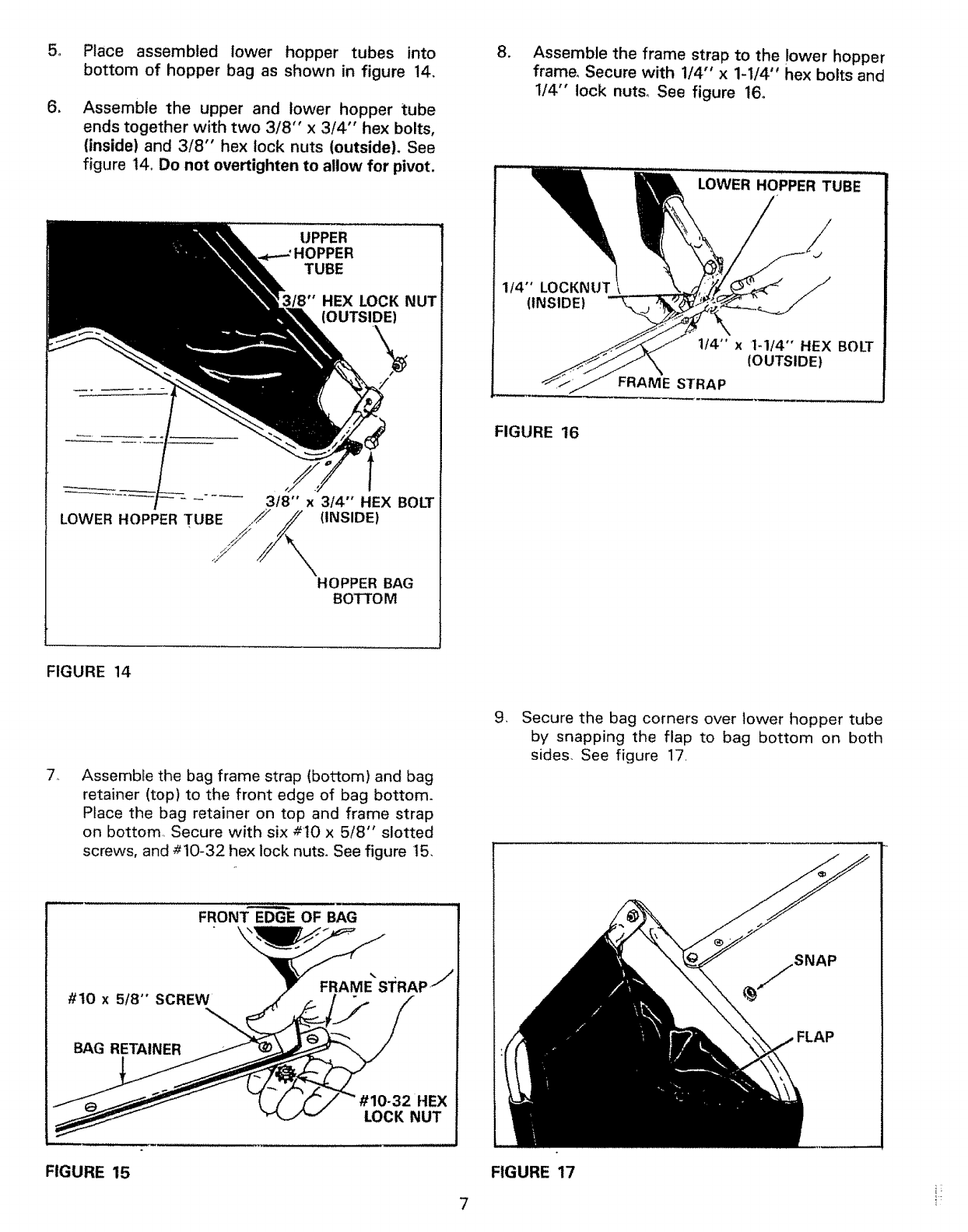

Place assembled lower hopper tubes into

bottom of hopper bag as shown in figure 14.

Assemble the upper and lower hopper tube

ends together with two 3/8" x 3/4" hex bolts,

(inside) and 3/8" hex lock nuts (outside). See

figure 14, Do not overtighten to allow for pivot.

8. Assemble the frame strap to the lower hopper

frame° Secure with !/4" x 1-1/4" hex bolts and

1/4" lock nuts, See figure 16o

LOWER HOPPER TUBE

UPPER

=ER

TUBE

!8" HEX LOCK NUT

(OUTSIDE)

----_ 3f8" x 3/4" HEX BOLT

LOWER HOPPER TUBE _J_ (INSIDE)

HOPPER BAG

BOTTOM

FIGURE 16

1f4" x1-1/4" HEX BOLT

(OUTSIDE)

FRAME STRAP

FIGURE 14

7_ Assemble the bag frame strap (bottom) and bag

retainer (top) to the front edge of bag bottom.

Place the bag retainer on top and frame strap

on bottom Secure with six #t0 x 5/8" slotted

screws, and #10-32 hex lock nuts. See figure t5.

#10 x 5/8" SCREW

FRONT EDGE OF BAG

FRAME_S]:RAP ./

9, Secure the bag corners over lower hopper tube

by snapping the flap to bag bottom on both

sides, See figure 17,

,SNAP

FIGURE 15 FIGURE 17

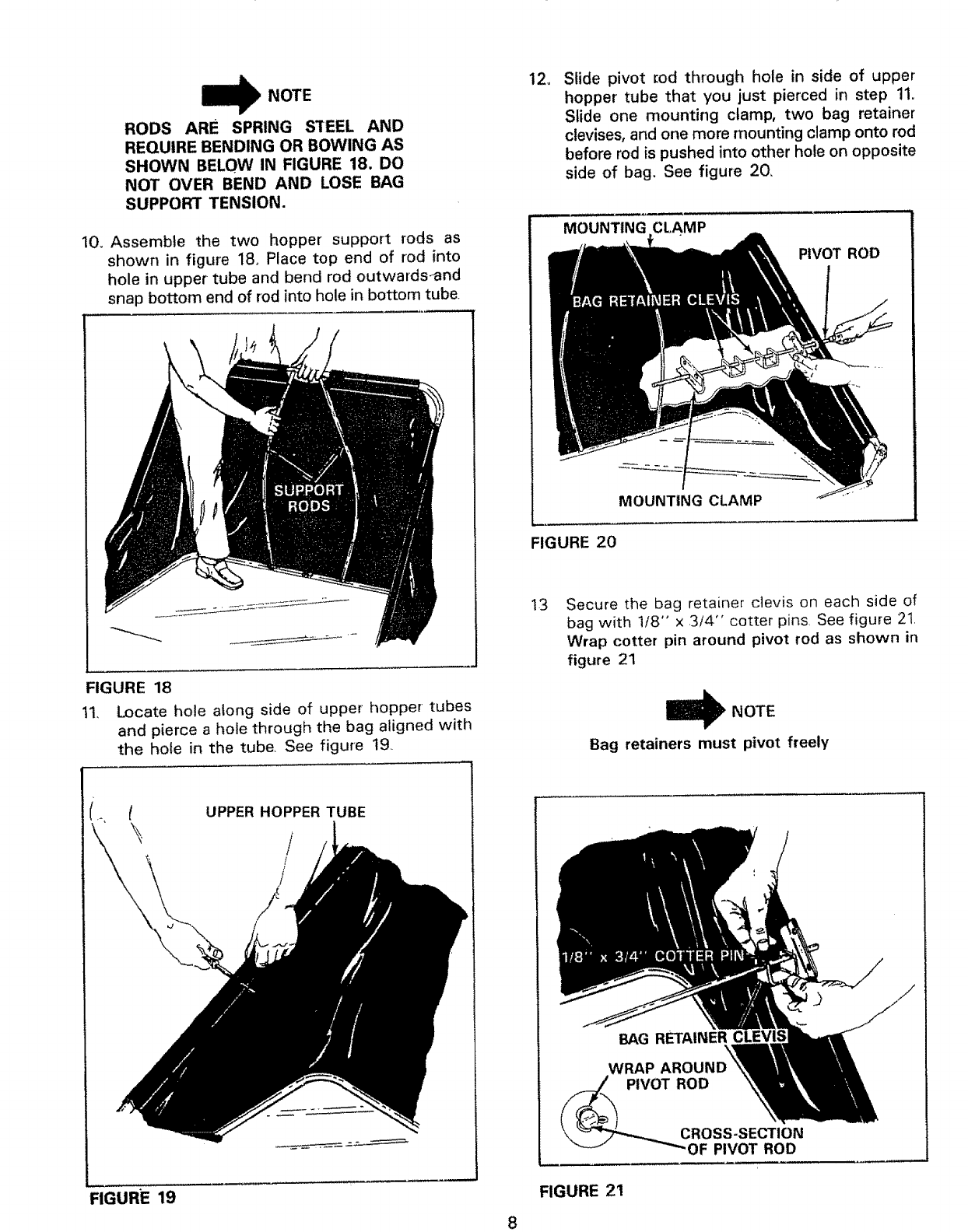

NOTE

RODS ARE SPRING STEEL AND

REQUIRE BENDING OR BOWING AS

SHOWN BELOW IN FIGURE 18. DO

NOT OVER BEND AND LOSE BAG

SUPPORT TENSION.

10. Assemble the two hopper support rods as

shown in figure 18. Place top end of rod into

hole in upper tube and bend rod outwards_and

snap bottom end of rod into hole in bottom tube

FIGURE 18

11, Locate hole along side of upper hopper tubes

and pierce a hole through the bag aligned with

the hole in the tube, See figure 19.

I2_ Slide pivot _od through hole in side of upper

hopper tube that you just pierced in step 11_

Slide one mounting clamp, two bag retainer

clevises, and one more mounting clamp onto rod

before rod is pushed into other hole on opposite

side of bag, See figure 20,

MOUNTING CLAMP

PIVOT ROD

MOUNTING CLAMP

FIGURE 20

13 Secure the bag retainer clevis on each side of

bag with 1/8" x ,3/4" cotter pins, See figure 21.

Wrap cotter pin around pivot rod as shown in

figure 21

_NOTE

Bag retainers must pivot freely

IUPPER HOPPER TUBE

FIGURE 19

BAG RETAINER C

ROD

'_"= _.__..= CROSS-SECTION

_'OF PIVOT ROD

FIGURE 21

14, Assemble the two remaining hopper mounting

clamps to the outside of bag frame ,with 5/16"

x 3/4" hex bolts and 5/16" hex lock nuts. See

figure 22_ Tighten securely.

MOUNTING CLAMP

5/16" x3/4"

HEX BOLTS

51t6" HEX LOCK NuTs

FIGURE 22

15. Secure the rope to the top center of hopper

bag frame as shown in figure 23_

16. Assemble the wind screen over the top of

hopper bag frame by simply hooking the top

corner loops and pull the bottom loops down

over the ends of the pivot rod, See figure 24°

WIND SCREEN TOP CORNER LOOP

FIGURE 24

OF PIVOT

ROD

17, To assemble the hopper bag frame to the

sweeper, simply hook the pivot rod into the

notches in mounting arms. Bag retainers must

pivot freely to lock in position,. See figure 25,.

18. To remove the hopper bag frame from the

sweeper, simply lift up on the bag retainers and

lift off hopper bag. See figure 25

HOPPER BAG FRAME

BAG RETAINER

-" PIVOT ROD

HOPPER MOUNT ARM

FIGURE 23 FIGURE 25

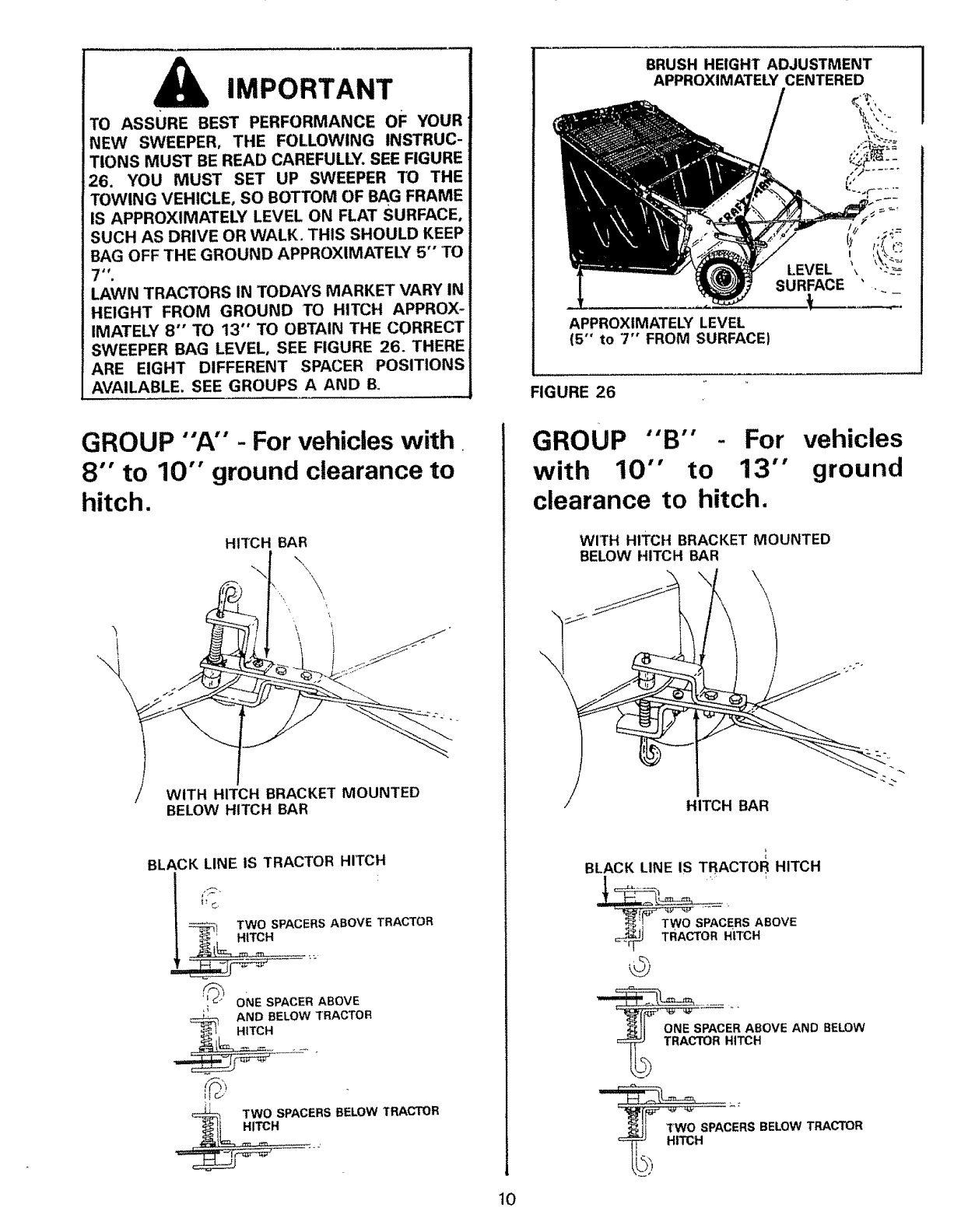

IMPORTANT

TO AssURE BEST PERFORMANCE oF YOUR

NEW SWEEPER, THE FOLLOWING INSTRUC-

TIONS MUST BE READ CAREFULLY. SEE FIGURE

26. YOU MUST SET UP SWEEPER TO THE

TOWING VEHICLE, SO BOTTOM OF BAG FRAME

IS APPROXIMATELY LEVEL ON FLAT SURFACE,

SUCH AS DRIVE OR WALK. THIS SHOULD KEEP

BAG OFF THE GROUND APPROXIMATELY 5" TO

LAWN TRACTORS IN TODAYS MARKET VARY IN

HEIGHT FROM GROUND TO HITCH APPROX_

IMATELY 8" TO 13" TO OBTAIN THE CORRECT

SWEEPER BAG LEVEL, SEE FIGURE 26. THERE

ARE EIGHT DIFFERENT SPACER POSITIONS

AVAILABLE. SEE GROUPS A AND B.

BRUSH HEIGHT ADJUSTMENT

APPROXIMATELY CENTERED

APPROXIMATELY LEVEL

(5" to 7" FROM SURFACE)

LEVEL

SURFACE

FIGURE 26

GROUP "A'" - For vehicles with

8" to 10" ground clearance to

hitch.

HITCH BAR

WITH HITCH BRACKET MOUNTED

BELOW HITCH BAR

BLACK LINE IS TRACTOR HITCH

TWO SPACERS ABOVE TRACTOR

_ONE SPACER ABOVE

AND BELOW TRACTOR

_, HITCH

TWO SPACERS BELOW TRACTOR

HITCH

GROUP "B" -For

with 10" to 13"

clearance to hitch.

vehicles

ground

WITH HITCH BRACKET MOUNTED

BELOW HITCH BAR

HITCH BAR

BLACK LINE IS TRACTOR HITCH

PA;%ER ABOVE AND BELOW

R HITCH

TWO SPACERS BELOW TRACTOR

HITCH

OPERATION

Your sweeper is aprecision piece of equipment.

Engineering skill and experience have been

) combined to provide reasonable safety and

efficiency. However, as with any type of mechanical

equipment, carelessness or error on the part of the

operator can result in damage to your equipment,

Therefore, exercise care at all times and do not

subject your lawnsweeper to misuse.

SWEEPING SPEED

Try sweeping at different speeds to find the one most

suited to your conditions for maximum hopper bag

fill

BRUSH HEIGHT ADJUSTMENT

To adjust your sweeper brushes to the best operating

height, loosen the adjustment knob and push down

on height adjustment lever to raise the brush, See

figure 27, Best adjustment is when brush setting is

1/2" down into grass. Always mow the grass to an

even height before sweeping,

TO LOWER BRUSH

(Pull Back) HEIGHT

]STMENT

LEVER

TO RAISE BRUSH

(Push Down)

FIGURE 27

DUMPING OF SWEEPER

"Your sweeper can be dumped easily without getting

off of the rider or tractor_ Simply pull rope forward

to dump, See figure 28, SEE CAUTION NOTE A AND

Always dump hopper after each use, Damp or wet

grass and leaves will cause damage to hopper if

stored for along period of time..

_CAUTION

Do Not fasten rope to pulling

vehicle where it might become

entangled with driving wheels or

rotating parts.

g_ Do Not drive or dump the

sweeper too close to a fire as the

brushes and bag can be

destroyed by excessive heat or

flame,

FIGURE 28

STORAGE

The bag may be collapsed for storage, Remove the

two support rods and fold bag down

CUSTOMER ' RESPONS0BIMTIES

The bearings in the sweeper have been prelubricated

at the factory; however, it is recommended that a

few drops of light oil should be added to the brush

shaft bearings twice a year Also. the wheels should

be removed every two years to clean sprockets, chain

and gears After cleaning apply an even coat of light

grease, See figures 29 through 31. NOTE: Do not

overtighten wheel bolt and nut upon reassembly to

sweeper housing Wheel must be free to move in slot

with height adjustment° See figure 29 and 30,

FIGURE 29

HUB

-NOTE

To remove wheel just pop off hub cap

with a screw driver and remove hex

bolt, nut and two flatwasherso See

figures 29 and 30.

HEIGHT

ADJUSTMENT

OIL BEARINGS

HEX BOLT

FIGURE 30

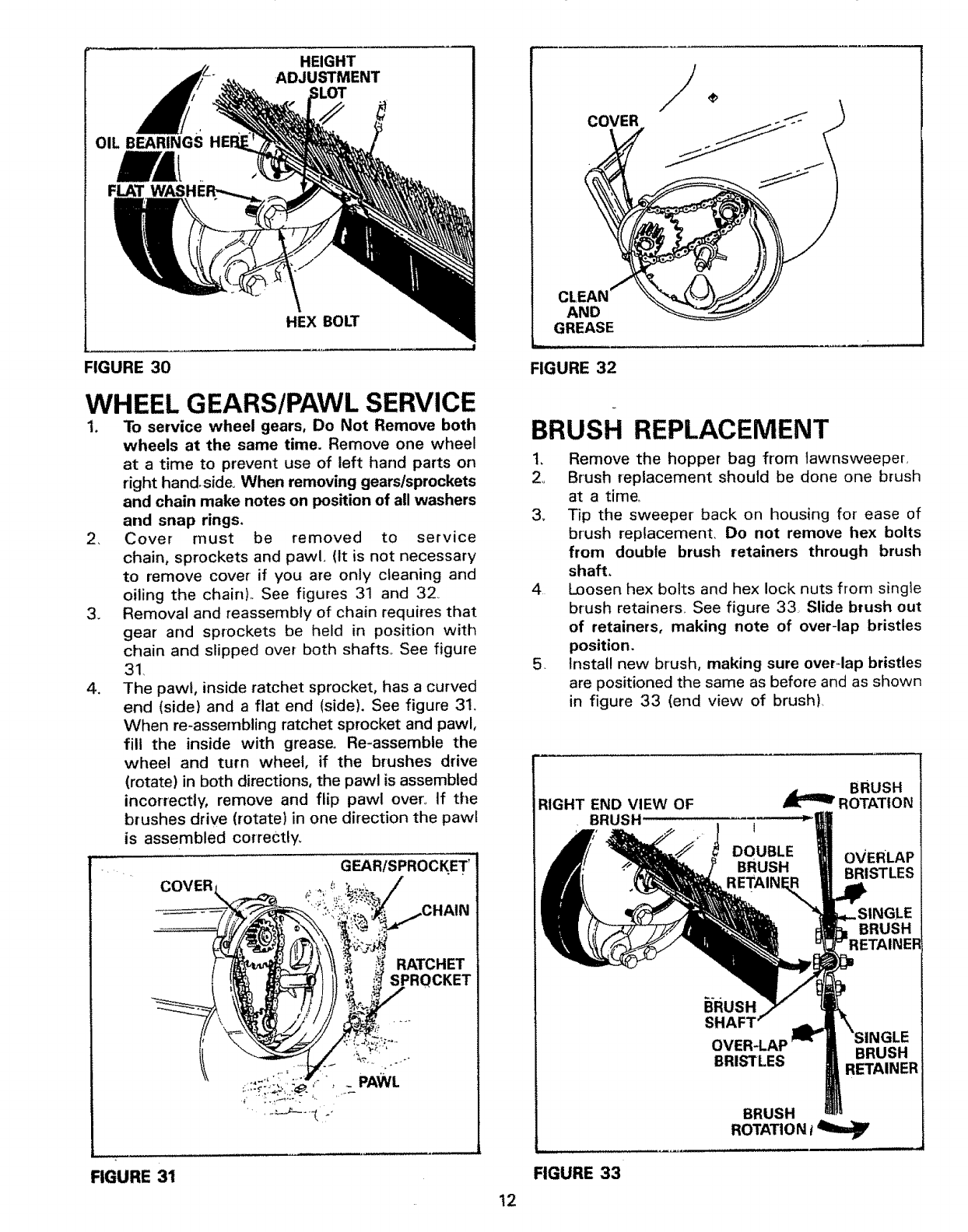

WHEEL GEARS/PAWL SERVICE

1. To service wheel gears, Do Not Remove both

wheels at the same time. Remove one wheel

at a time to prevent use of left hand parts on

right hand.sideo When removing gears/sprockets

and chain make notes on position of all washers

and snap rings.

2, Cover must be removed to service

chain, sprockets and pawL (It is not necessary

to remove cover if you are only cleaning and

oiling the chain).. See figures 31 and 32

3. Removal and reassembly of chain requires that

gear and sprockets be held in position with

chain and slipped over both shafts, See figure

31.

4. The pawl, inside ratchet sprocket, has a curved

end (side) and a flat end (side). See figure 31.

When re-assembling ratchet sprocket and pawl,

fill the inside with grease, Re-assemble the

wheel and turn wheel, if the brushes drive

(rotate) in both directions, the pawl is assembled

incorrectly, remove and flip pawl over° If the

brushes drive (rotate) in one direction the pawl

is assembled correctly,

COVER_

GEAR!SPROCKE T'

FIGURE 31

•

COVER

AND

GREASE

FIGURE 32

BRUSH REPLACEMENT

1, Remove the hopper bag from tawnsweeper,

2, Brush replacement should be done one brush

at a time_

3, Tip the sweeper back on housing for ease of

brush replacement, Do not remove hex bolts

from double brush retainers through brush

shaft,

4 Loosen hex bolts and hex lock nuts from single

brush retainers, See figure 33. Slide brush out

of retainers, making note of over-lap bristles

position.

5. Install new brush, making sure overJap bristles

are positioned the same as before and as shown

in figure 33 (end view of brush)_

BRUSH

RIGHT END VIEW OF JK-'WROTATION

BRUSH I

DOUBLE OVERLAP

BRUSH BRISTLES

BRISTLES BRUSH

RETAINER

BRUSH

ROTATION t

FIGURE 33

NOTES

REPAIR PARTS FOR MODEL 486.240383 38"" LAWNSWEEPER

OPTIONAL: HITCH SHIELD KIT

MODEL NOr: 486.62718

58 /2

19 44

I0.

4€

PART NO.

62500

62801

62489

43081

1652-13

1629-56

23574

23580

2_343 _

23387

23349

23014

23595

2360t

23352

62792

62490

23573

t67!-1

43904

43673

C-9M5732

43655

1650-21

44007

43182

014!-000

43070

1038

43013

2674-32

43661

43012

43894

44004

44542

43932

43890

43889

44137

43958

43966

43967

43936

REPAIR PARTS FOR MODEL 486.240383 38" LAWNSWEEPER

DESCRIPTION

Sweeper Housing Ass'y.

Adjustment Rod Ass'y.

Brush Bushing Ass'y.

Washer, 5/t6" St&

Ball Bearing ,5916 I.D.

Bearing Retainer

Brush Shaft--38"

Brush Retainer-- Double

Brush Retainer-- Single

Wheel Ass'y, Complete

Skirt & Bag Retainer-38"

Height Adjustment Strap

Hitch Bar

Hitch Bracket

Hopper Mount Arm

Hopper Bag Pivot Rod

Baq Frame Strap--38"

Housing Wheel Drive.

Ass'y, (R_H)

Gear Sprocket Sub, Ass'y,

Dust Cover

Pawl

Sweeper Brush

Skirt

Pop Rivet

Retaining Ring-- 3/4"

Retaining Ring-594" I.D.

Shim Wash, 596 x 1125

x 025

Hex Bolt 5/t6 x 3/4" Lg*

FI.-Washer .38x 1,25xo06

Washer, 3/8" Std,

Hex bck Nut 3/8-24,

Thd,

Hex Lock Nut I/4-20

Thd_

Hub Cap

Hex Bolt 1/4-20x!,,0" Lg,*

Hex Bolt 1/4-20 x 3t4"

Lg.* (Gr, 5)

Retaining Ring-- I/2"

Pan Hd,, Screw,#tO-32 x

1" Lg

Roller Chain 318 x 112-34

Hex Bolt 3/8-24 x 3-1/4"

Lg. (Gr. 5)

Ratcher Sprocket RoH.-

11 T. (Not Shown)

Ratcher Sprocket L.H-

11 1".

'Washer .51 x.990 x .02

Brace Rod

Upper Hopper Tube-R.H

Upper Hopper Tube-LH

Hopper Bag

{ER

_i0.

PART NO.

43937

43968

43969

43938

43737

43086

1540-31

1540-107

43001

43062

43082

R19172410

43182

43064

44008

43407

1509-90

45088

43346

44230

43662

0142-000

43080

23684

44231

43080

62791

43083

43720

43087

1534-8

43978

43943

23368

23400

23331

23354

1095

43013

4335O

44623

62718

_Y.

DESCRIPTION

Wind Screen

Lower Hopper Tube-RoHo

Lower Hopper Tube--L.H.

Hopper Support Rod 34"

Lg.

Hopper Rope

Spring Lock Washer 5/16"

FL-Washer .78x1_25 x .062

Ft,-Washer .78x1.25 x .031

Hex Bolt 3/8-16 x 1" Lg,

(Gr.5)

Hex Bolt 3/8-16xl-1/2"Lg.*

Hex Lock Nut 3/8-t6 Thd.

Fl.-Washer 17-32 x 1-1/2 x

10 Ga_

Hex Bolt 5/16 x 3/4" Lg.*

Hex Lock Nut 5/16-18 Thd.

FL-Washer ,78 I.D.

Hex Bolt 3/8-16 x 3/4" Lgo

(Gr.5)

Hex Bolt 1/4-20x1-1/4"Lg*

Wheel Bearing

Slotted Trus Hd. Scr.

#10-32 x 5/8" Lg.*

Hitch Pin Spring

Hex Lock Nut#10-32 Thd*

Cotter Pin 1/8"x3/4" Lg,"

Carriage Bolt 5/16-18 x

3t4" Lg.*

Hitch Pin Bracket

Hitch Pin

Carriage Bolt 5/16_18 x

3f4" Lg_*

Housing Wheel Drive

Ass'y, (LH)

Hex Nut 5/t6-18 Thd.*

Knob, Wing 5/16-18 Thd.

Hex Bolt 3/8-16 x 1-1/4"

Hex Locknut #t0-32 Th&*

Curved Head Boft 1/4-20 x

l"Lg

Grip

Hitch Adjustment Tube

Spacer t3/32 x 5/8 x 3/16

Hopper Mounting Clamps

Bag Retainer Clevis

Slotted Truss Hd Scn

#10-32 x 1/2" Lg.*

Nut, Lock Hex 1/4-20

Th&*

Carriage Bolt 3/8"-16 x 1"

Lg,_

Owner's Manual

Kit, Shield Ass'y.

*Common hardware may be purchased locally.

owners

manual

Model No.

486.240383

How to Order

Repair Parts

38"' HIGH PERFORMANCE

CRAFTSMAN LAWNSWEEPER 1

Always mention the Model Number' when requesting service

or repair parts for your' Lawnsweeper.

All parts listed herein may be ordered from any Sears Service

Center and most Sears stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

OTHE PART NUMBER

O THE PART DESCRIPTION

eTHE MODEL NUMBER

OTHE NAME OF MERCHANDISE

If the parts you need are not stocked locally, your order will

be electronically transmitted to a Sears Repair Parts Distribu-

tion Center for handling.

LIMITED TWO YEAR WARRANTY

ON CRAFTSMAN LAWR

For two years from date of purchase, when this Lawnsweeper is

maintained and lubricated according to the operating and maintenance

instructions in the owner's manual, Seers will repair free of charge any

defect in material or workmanship.

This warranty does not cover:

- repairs necessary because of operator abuse or negligence,

including the failure to maintain the equipment according to

instructions contained in the owner, s manual; and

- Lawnsweeper used for commercial or rental purposes,

WARRANTY SERVICE tS AVAILABLE BY RETURNING IT TO THENEAREST

SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES.

This warranty applies only while this product is in use in the United

States.,

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Sears, Roebuck and Co.. Di817WA, Hoffman Estates, IL 60179

Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S_A.,

FORM NO. 44623 (Rev. 5;93) PRINTED IN USA,

Craftsman 486240383 User Manual 38 LAWN SWEEPER Manuals And Guides L0910181

CRAFTSMAN Lawn Sweeper Manual L0910181 CRAFTSMAN Lawn Sweeper Owner's Manual, CRAFTSMAN Lawn Sweeper installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
