Page Count: 44

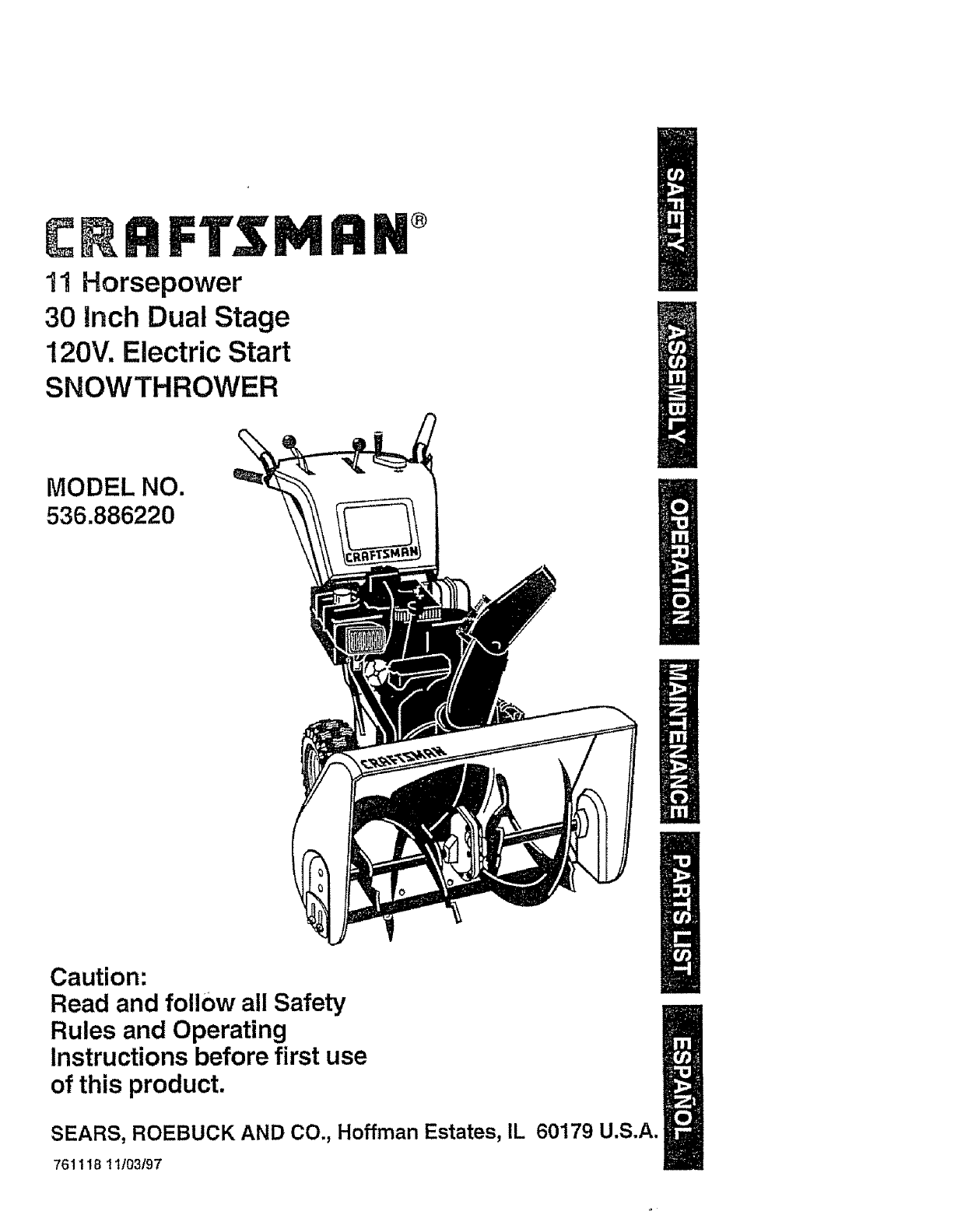

11 Horsepower

30 Inch Dual Stage

120V. Electric Start

SNOWTHROWER

MODEL NO.

536.886220

Caution:

Read and follow all Safety

Rules and Operating

Instructions before first use

of this product.

SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A.

761118 11/03/97

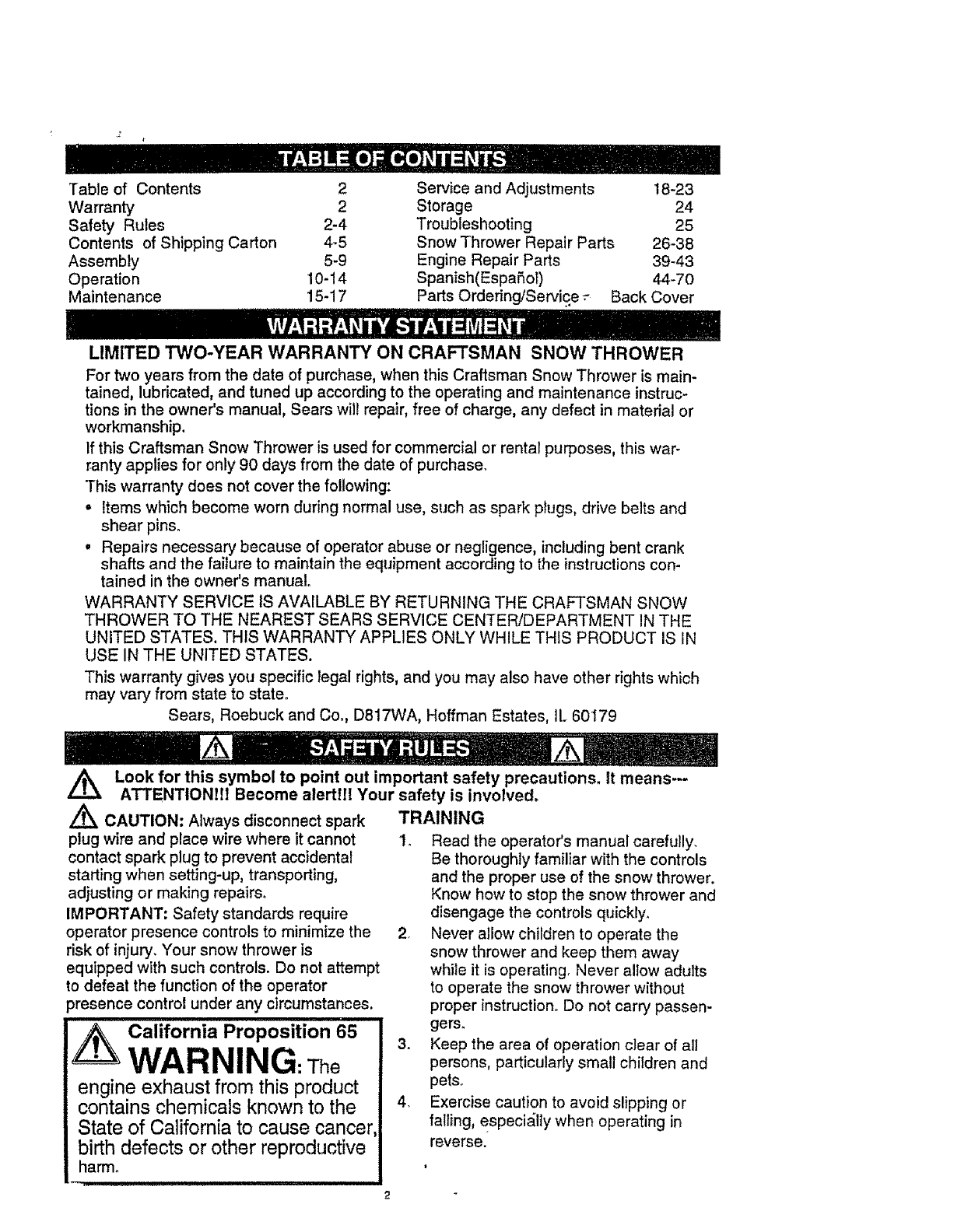

Table of Contents 2

Warranty 2

Safety Rules 2-4

Contents of Shipping Carton 4-5

Assembly 5-9

Operation 10-14

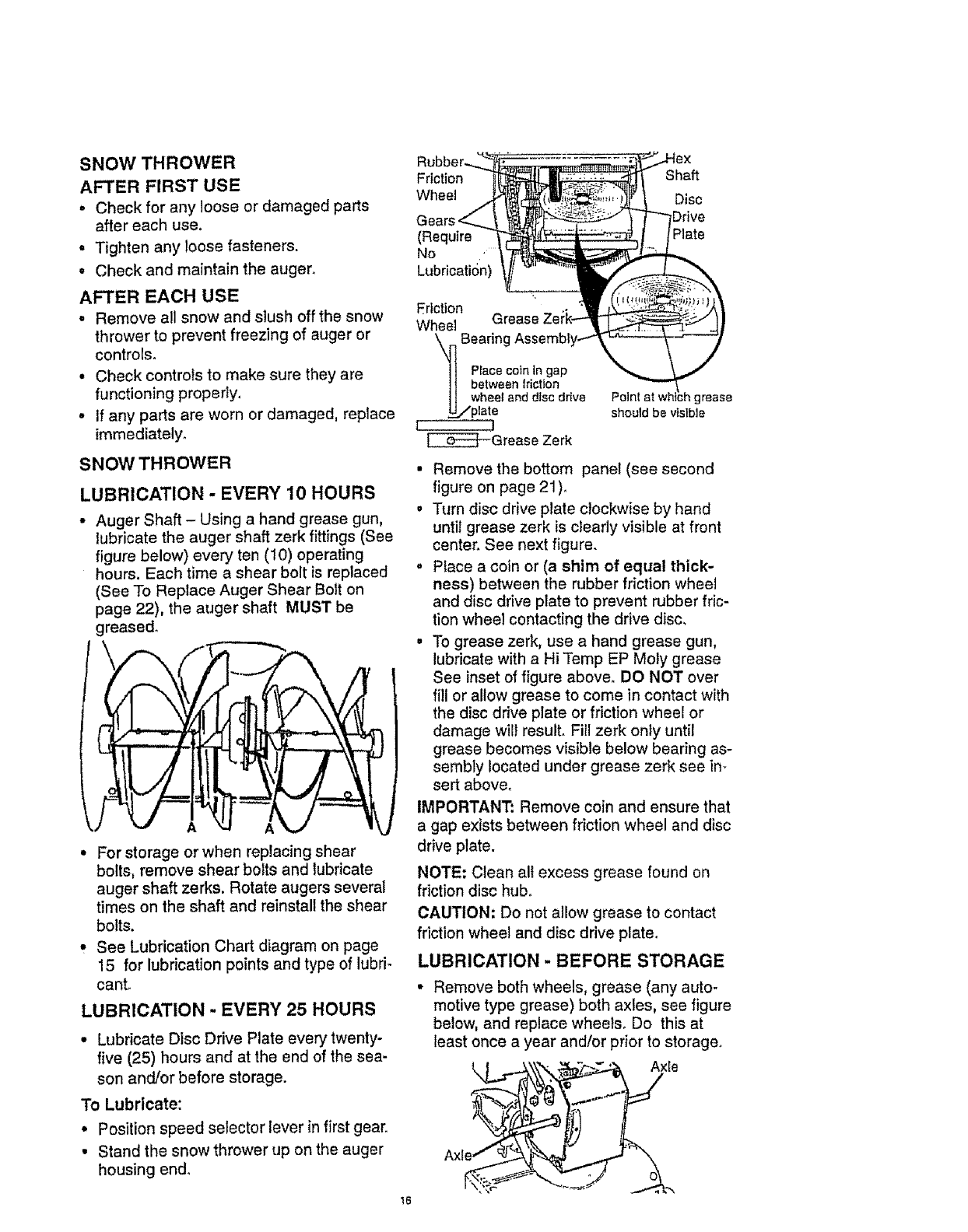

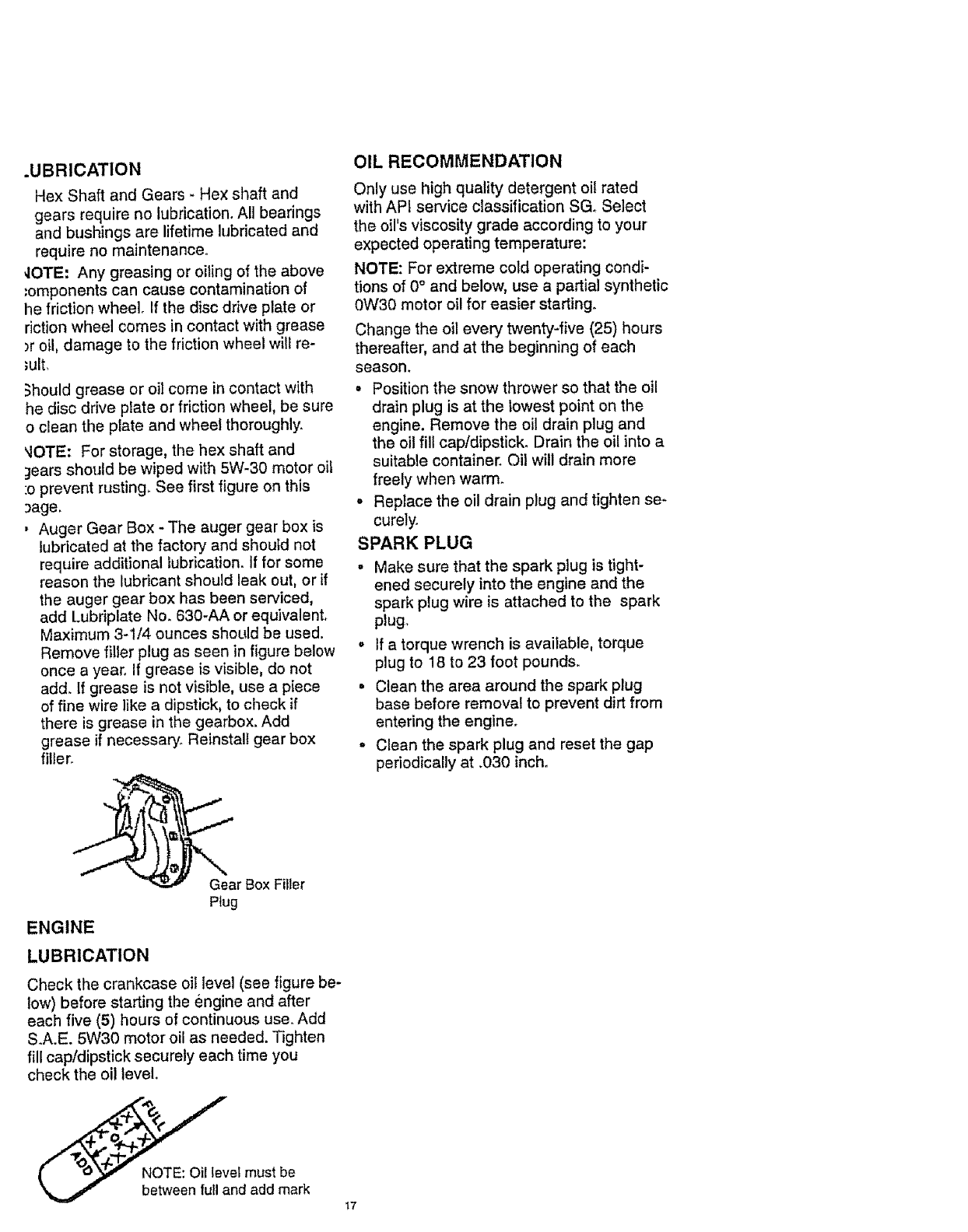

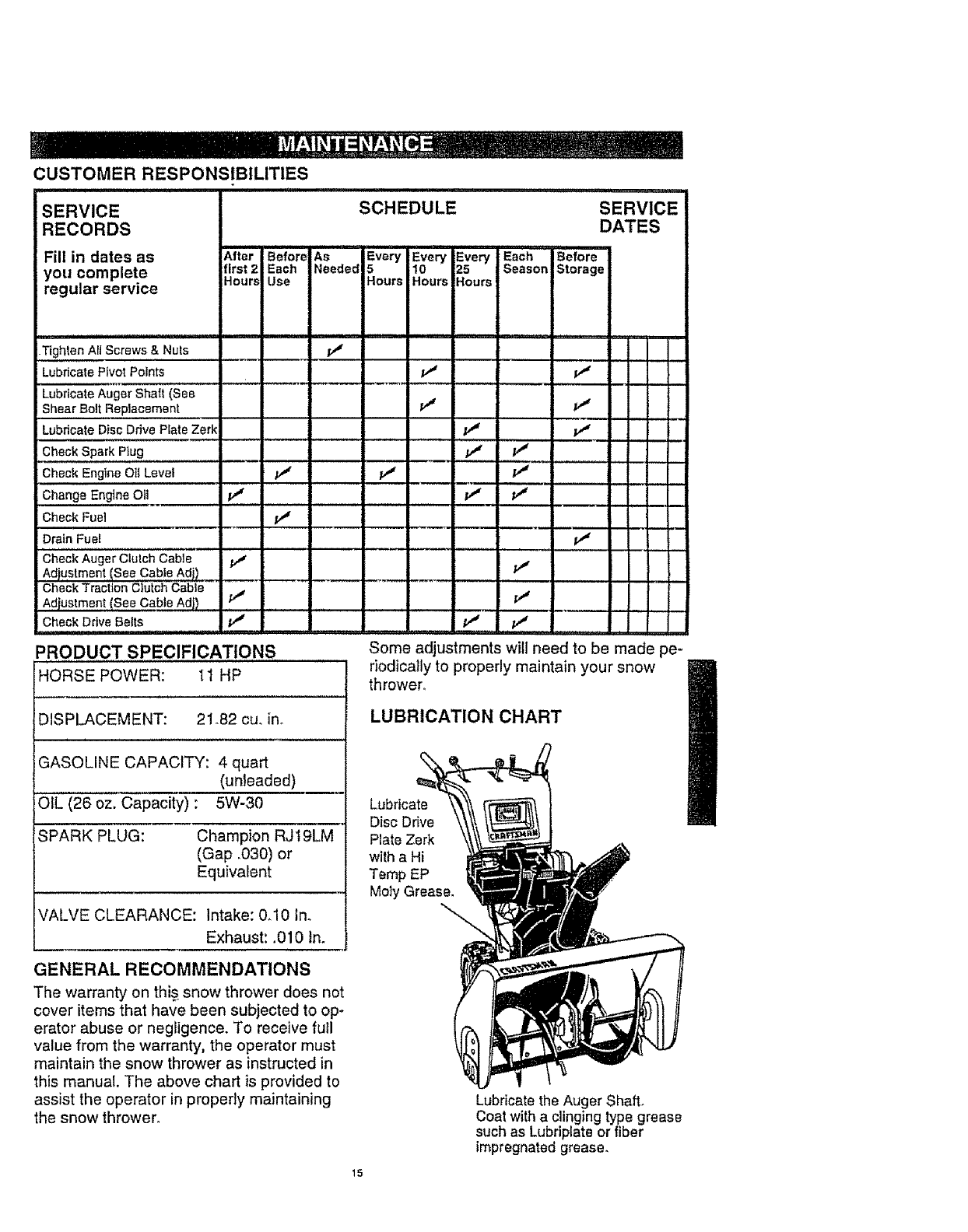

Maintenance 15-17

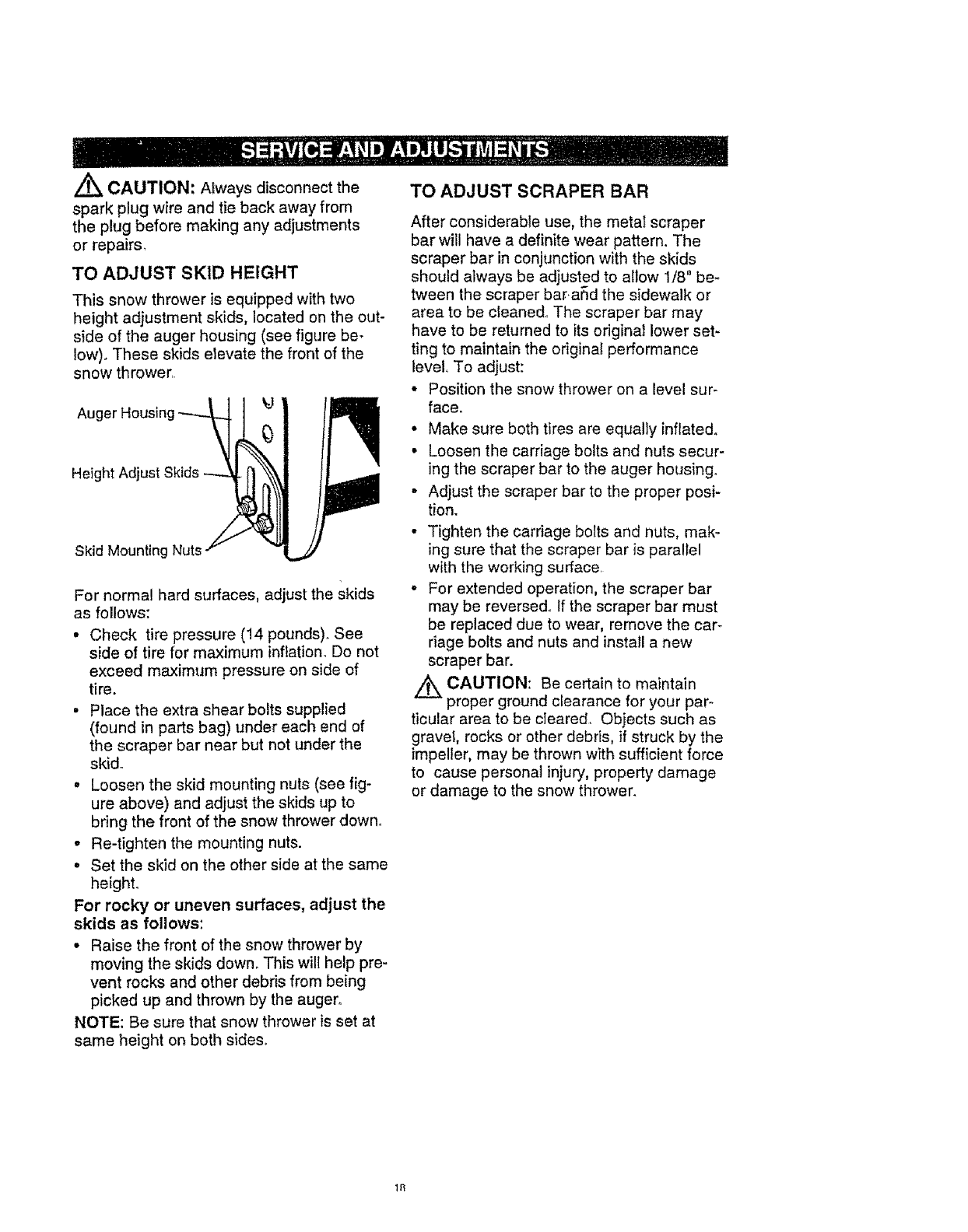

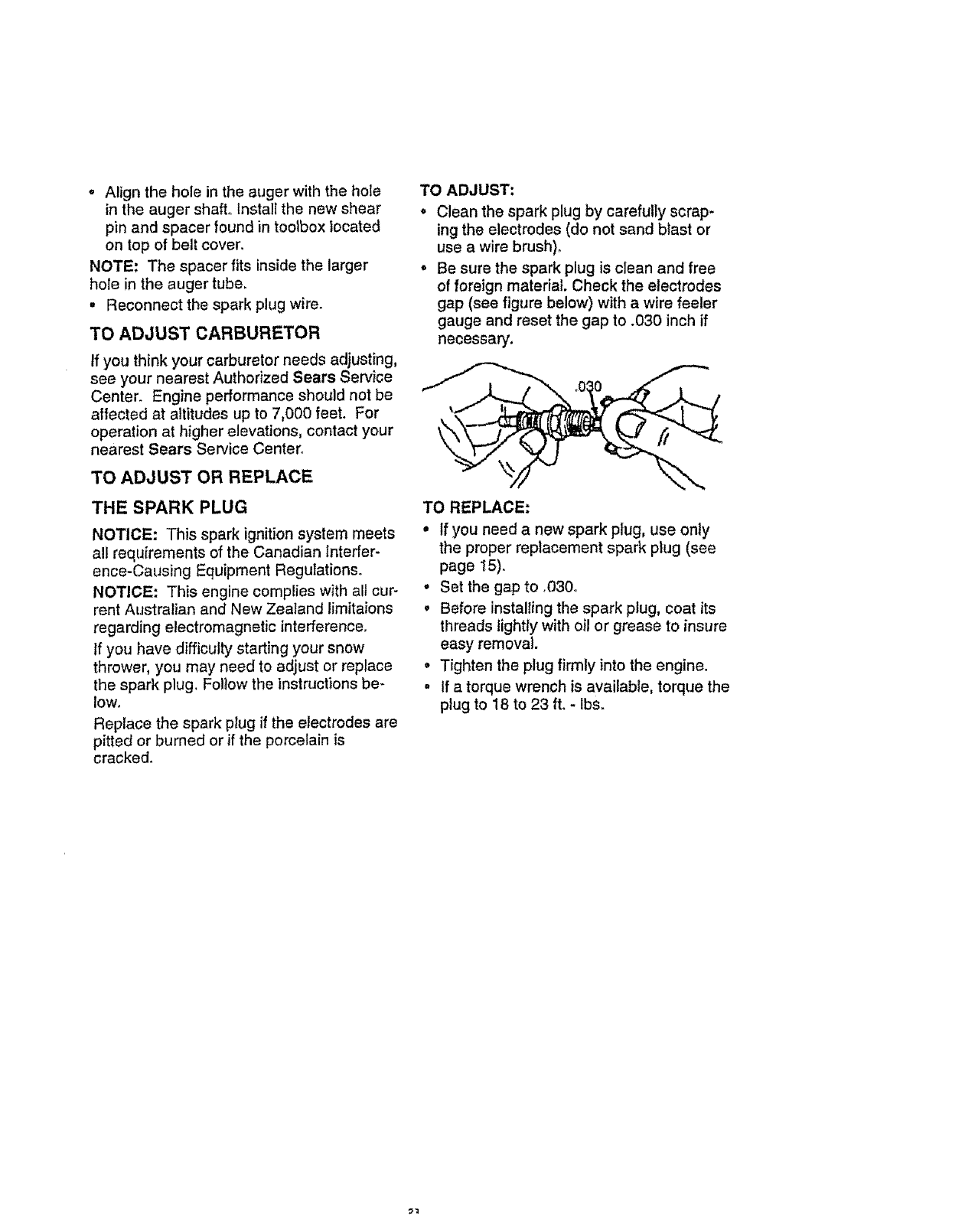

Service and Adjustments t 8-23

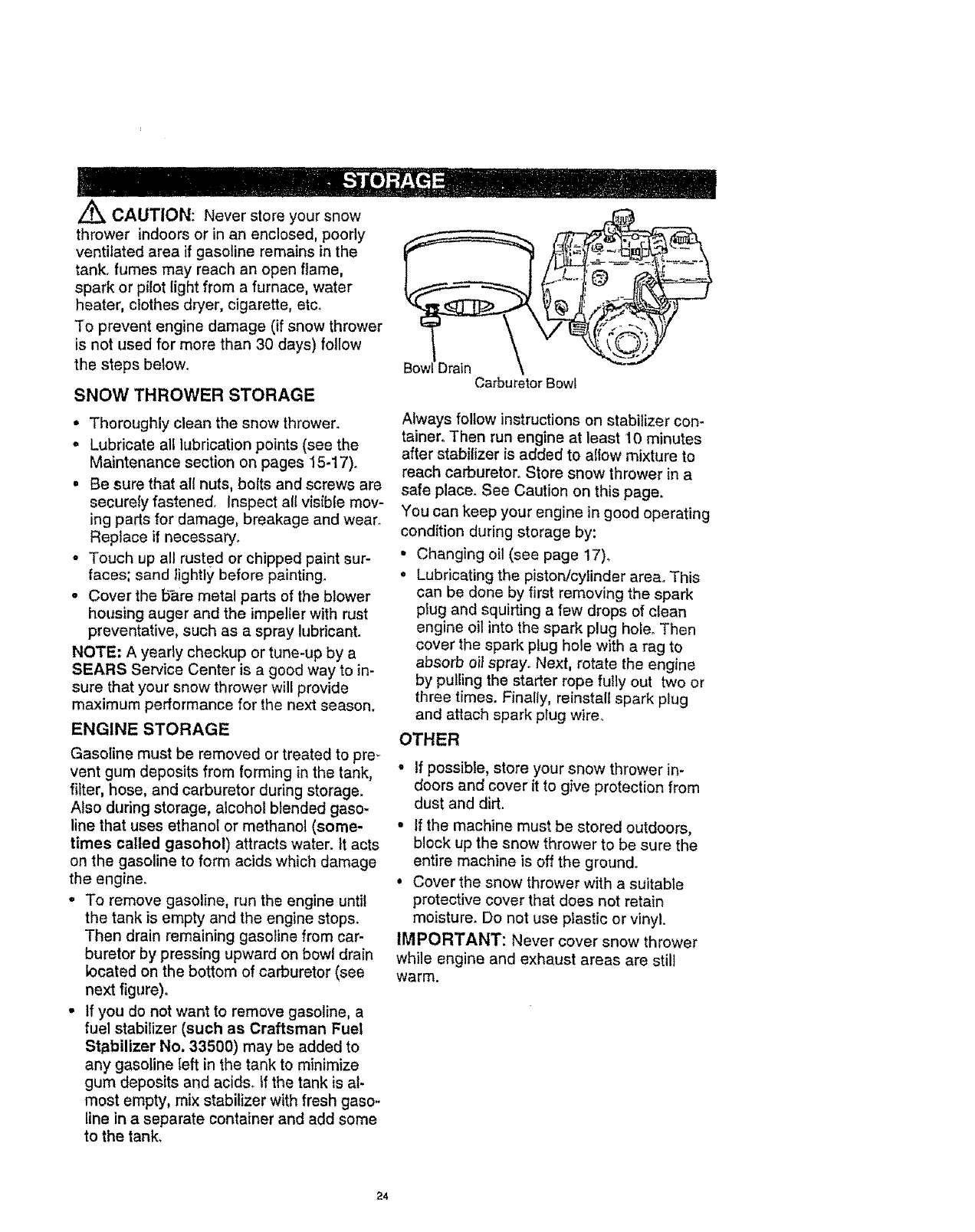

Storage 24

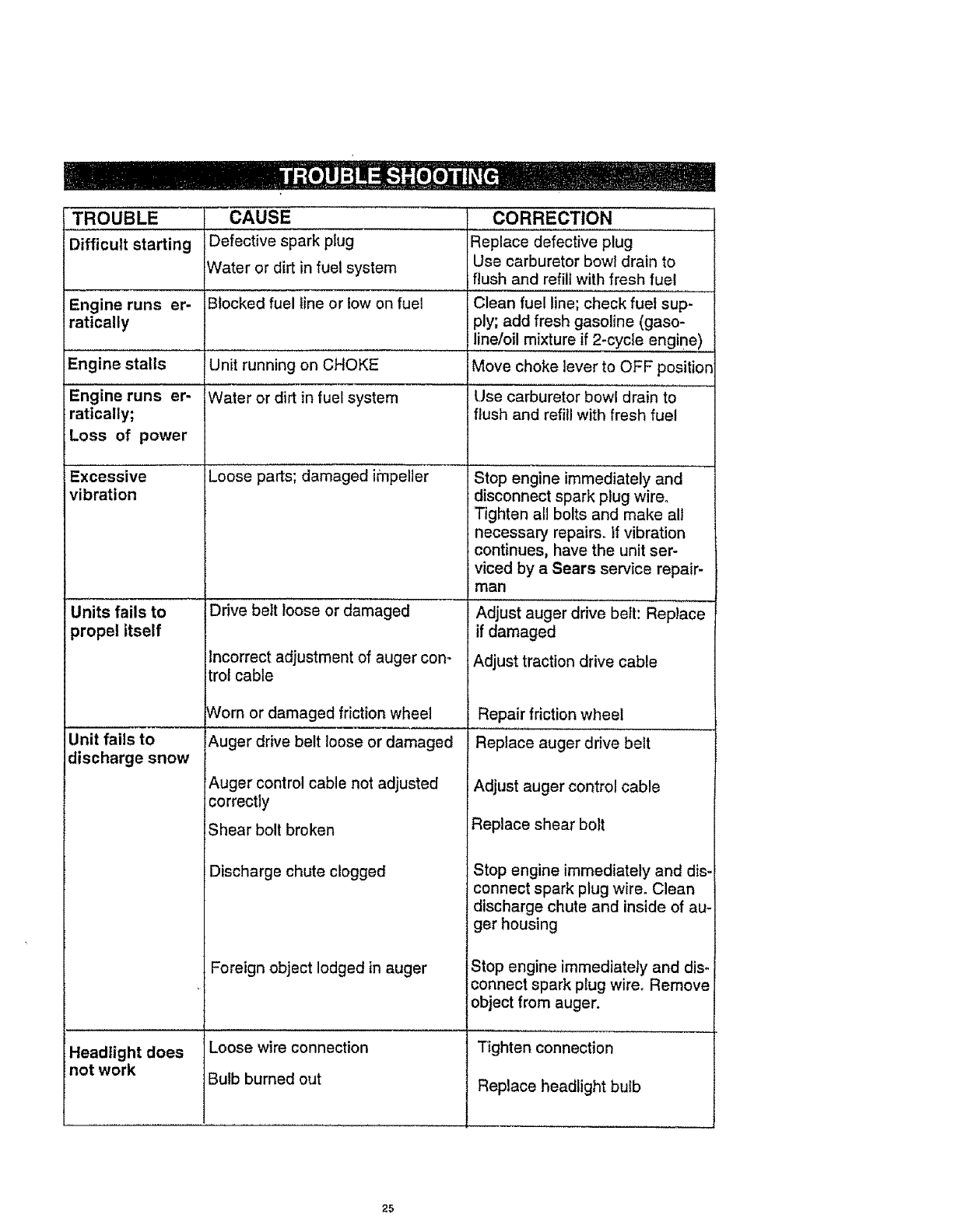

Troubleshooting 25

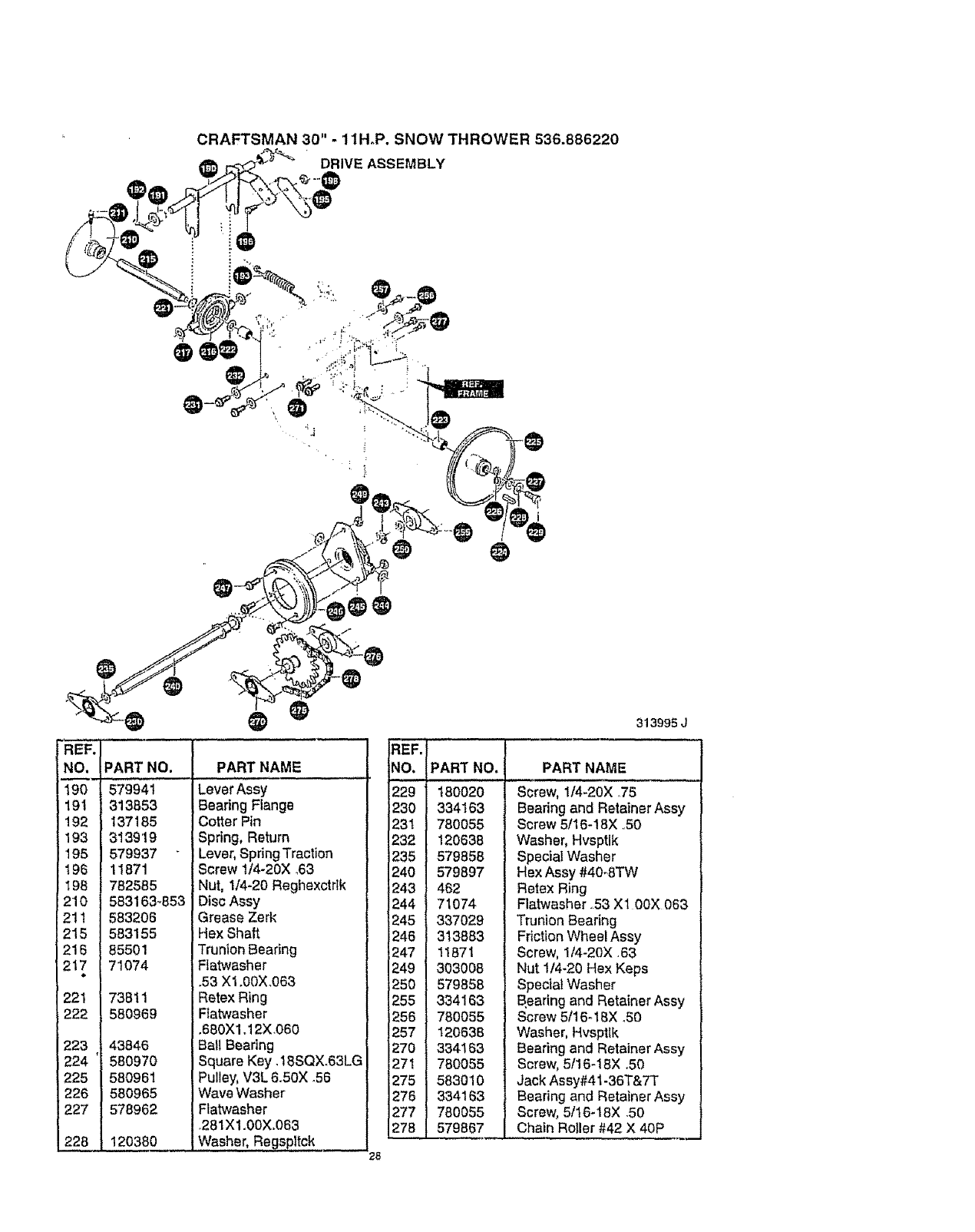

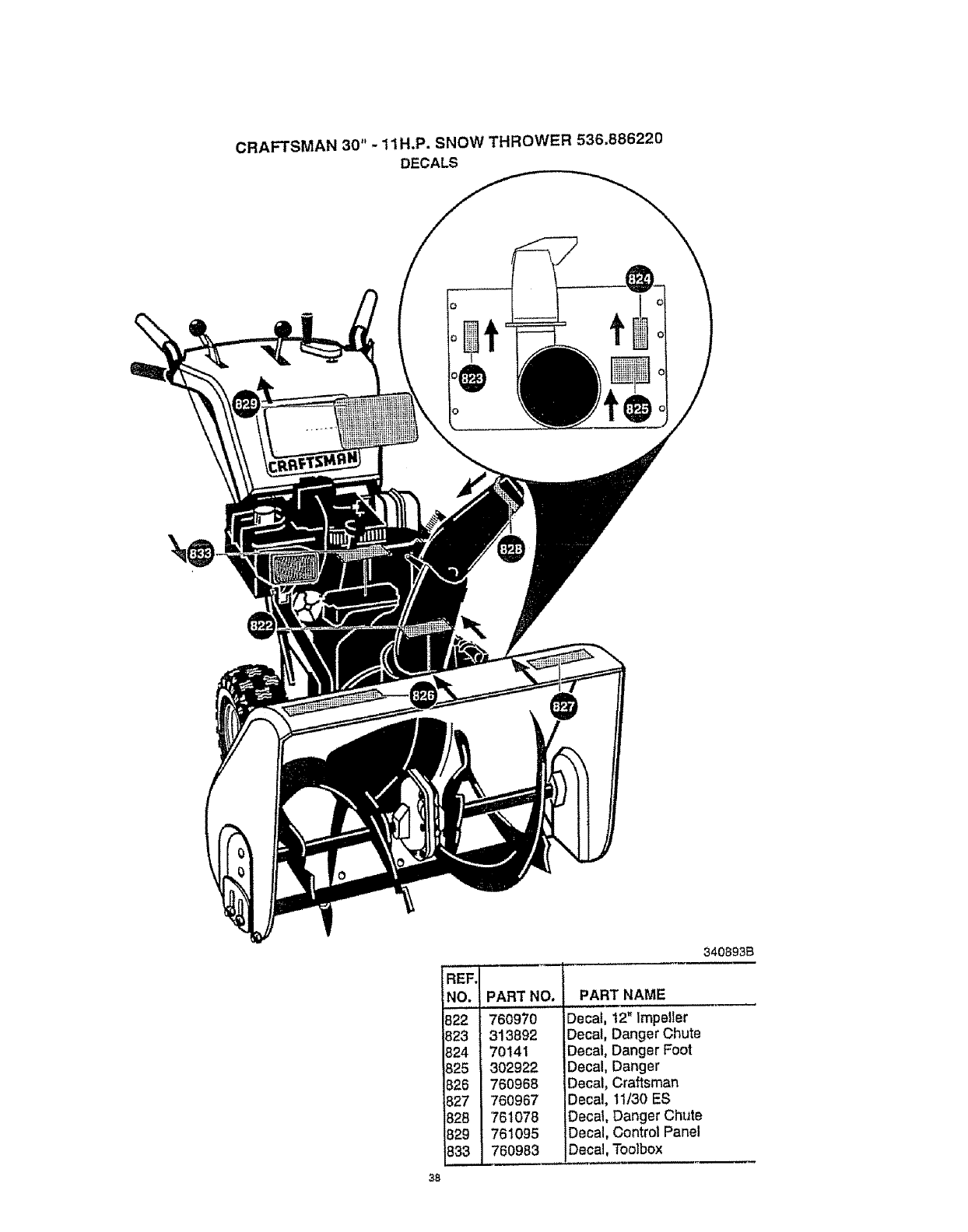

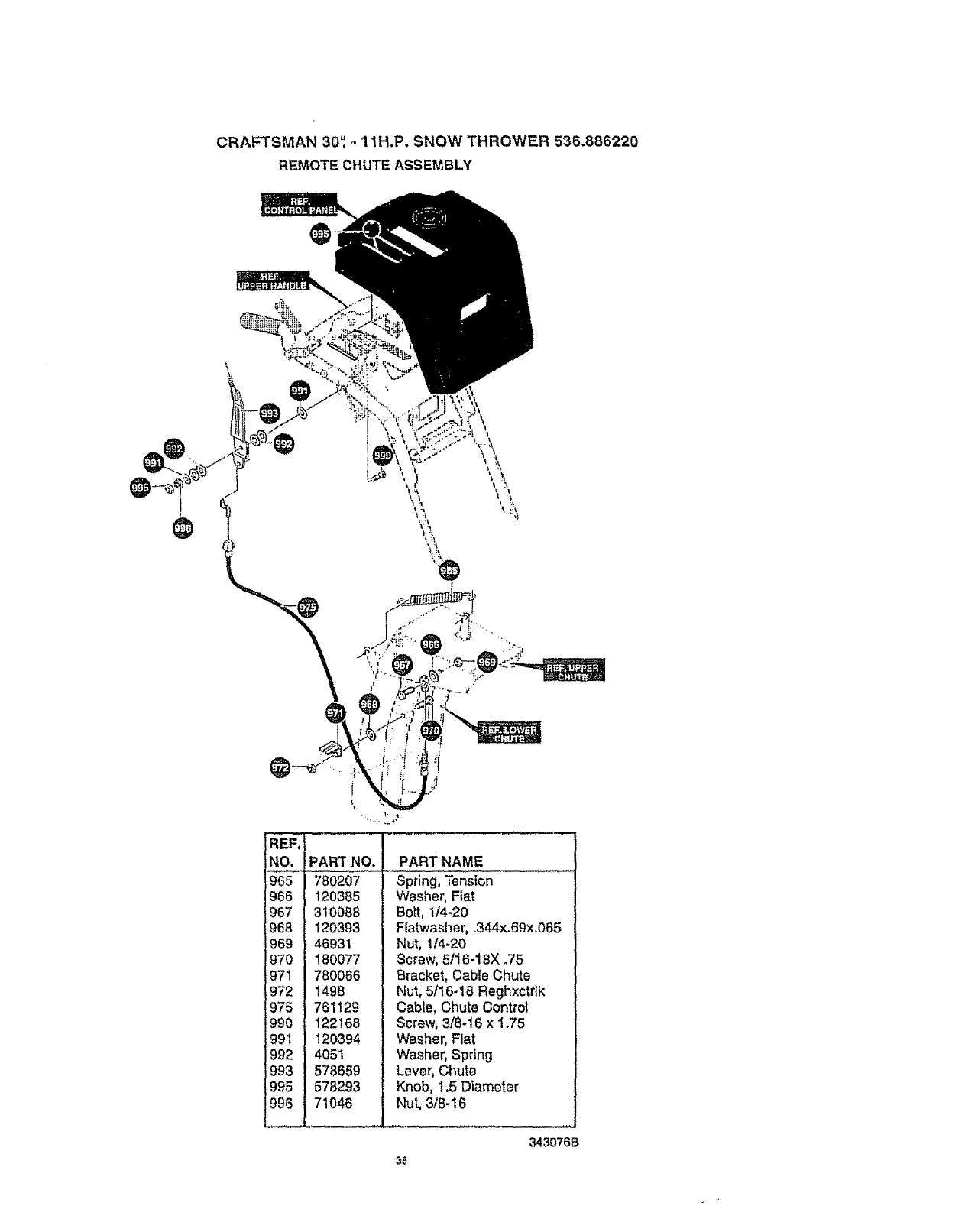

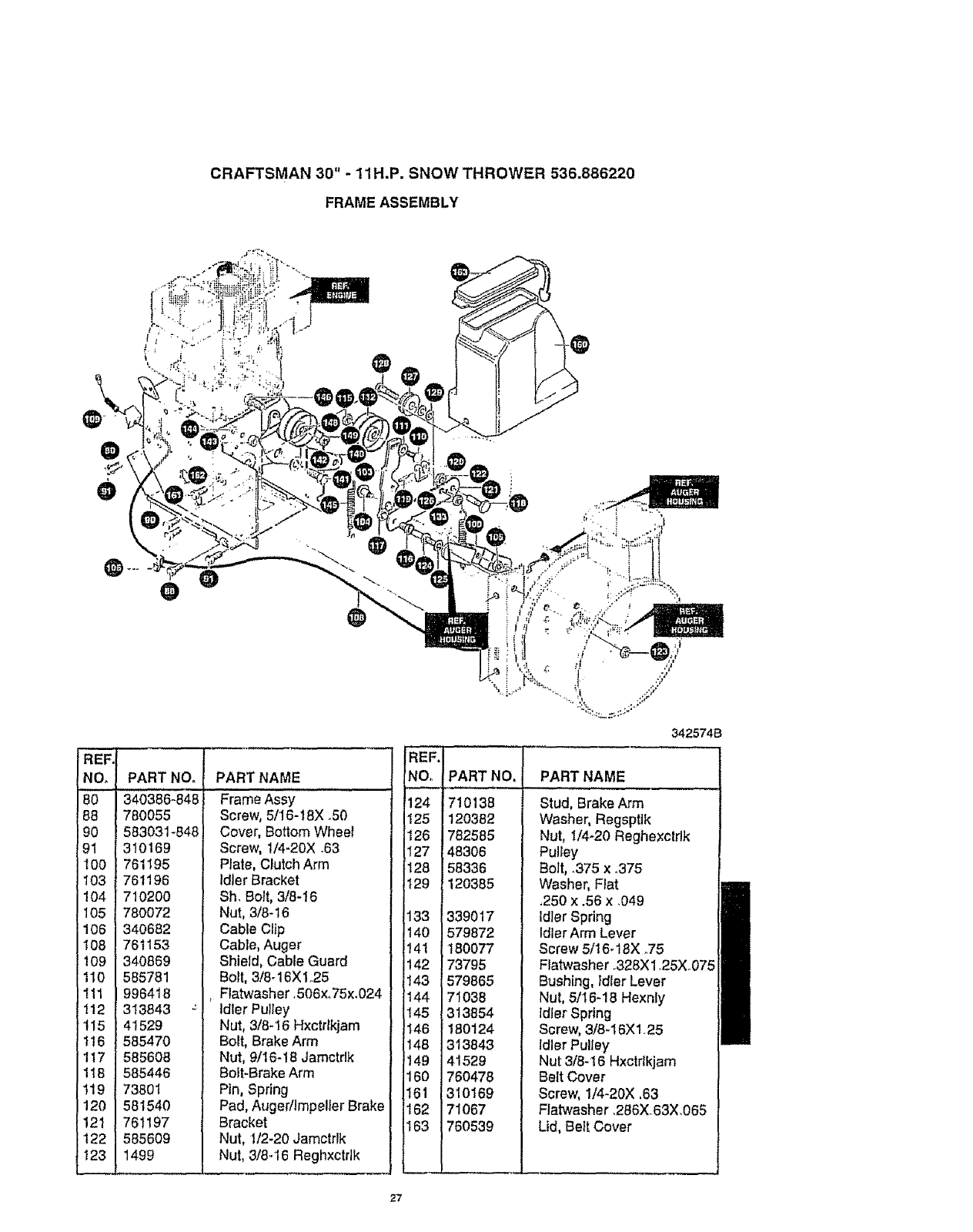

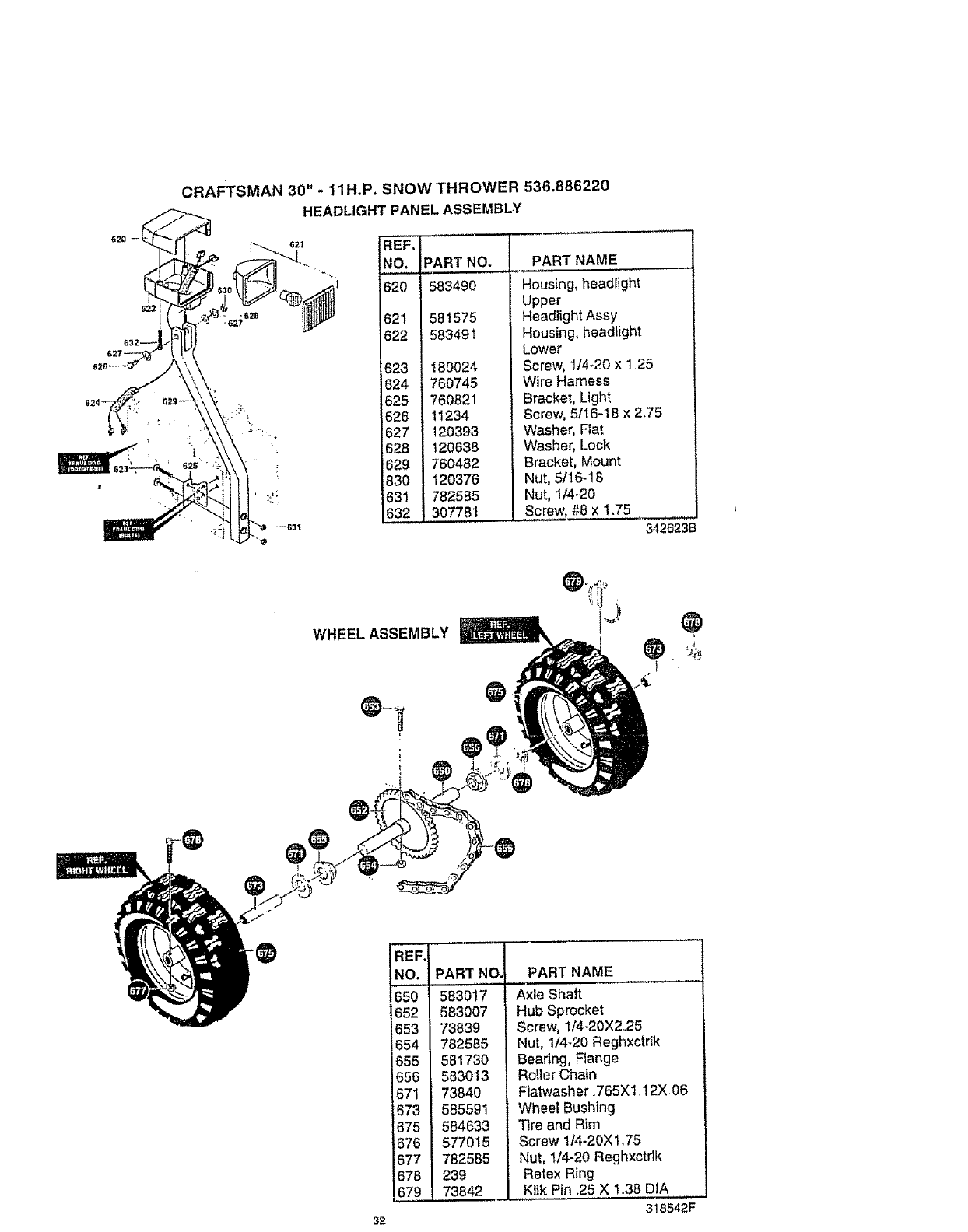

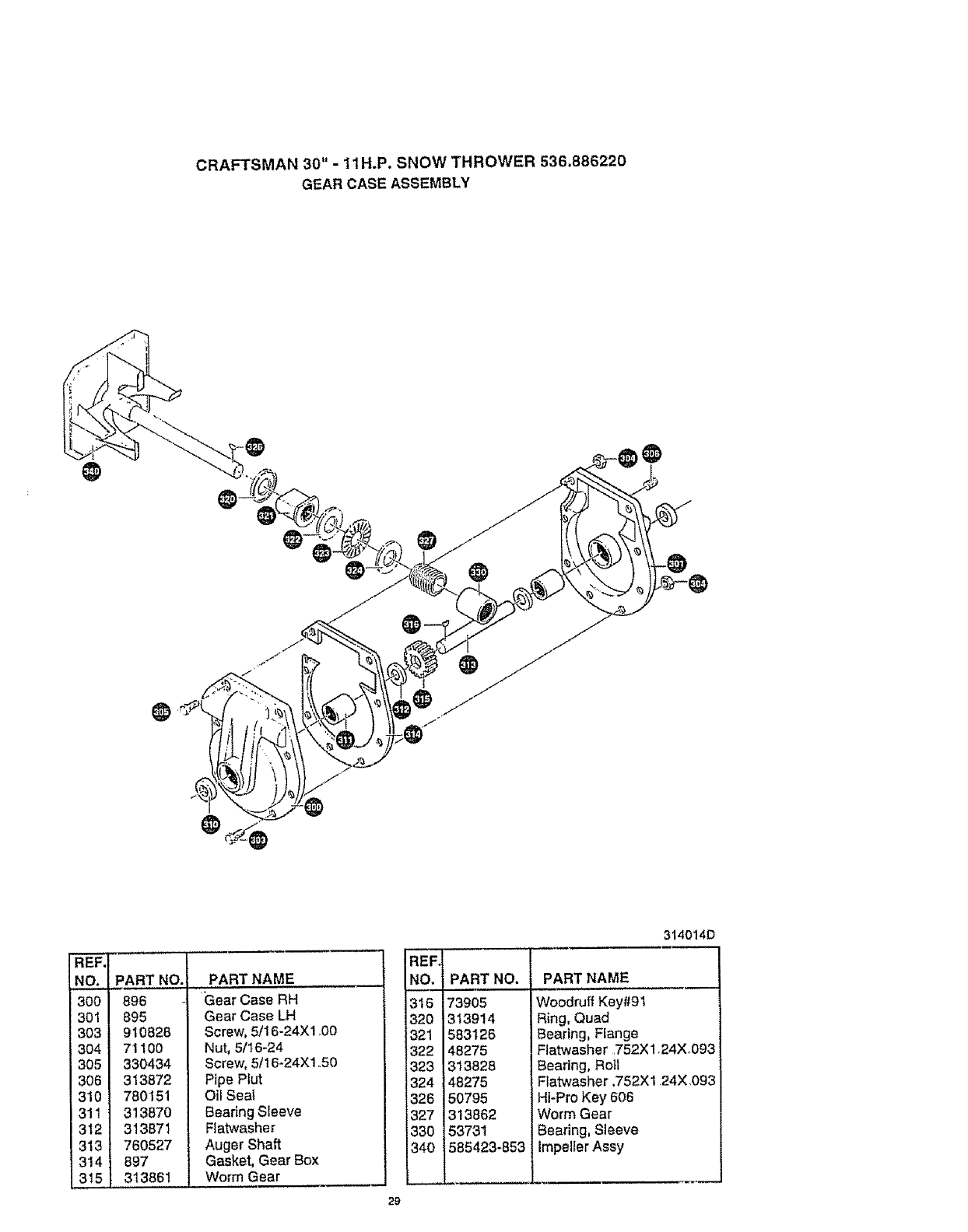

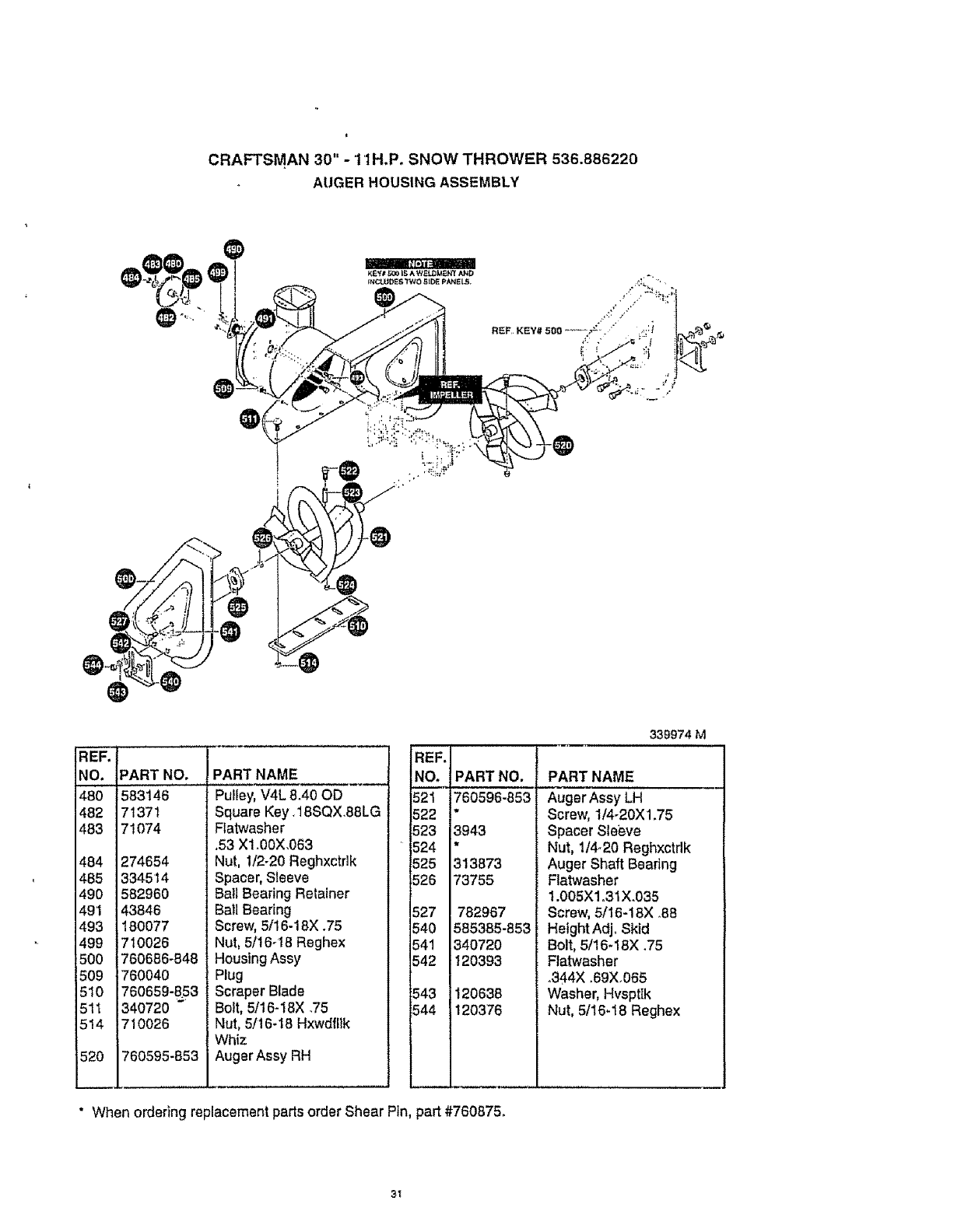

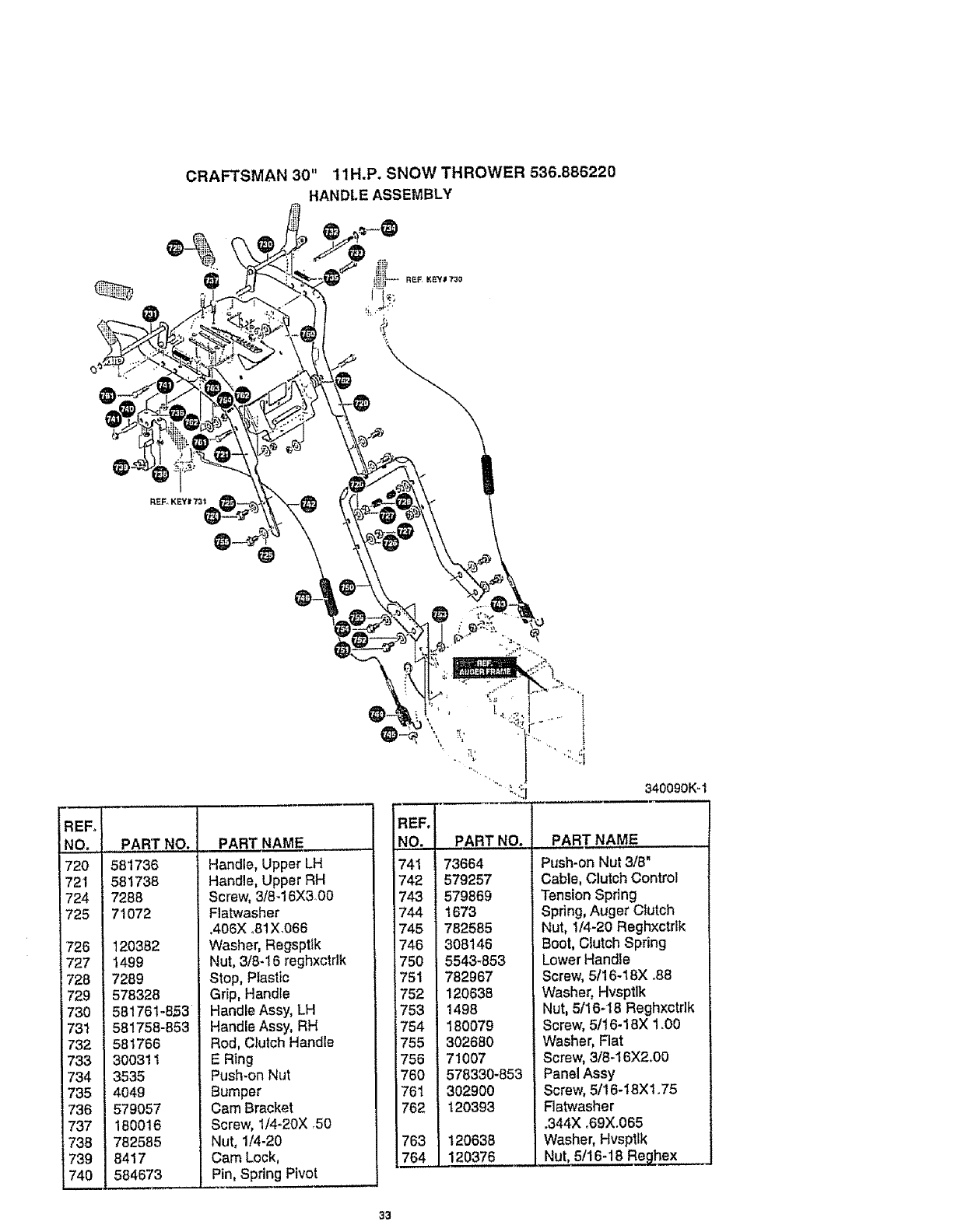

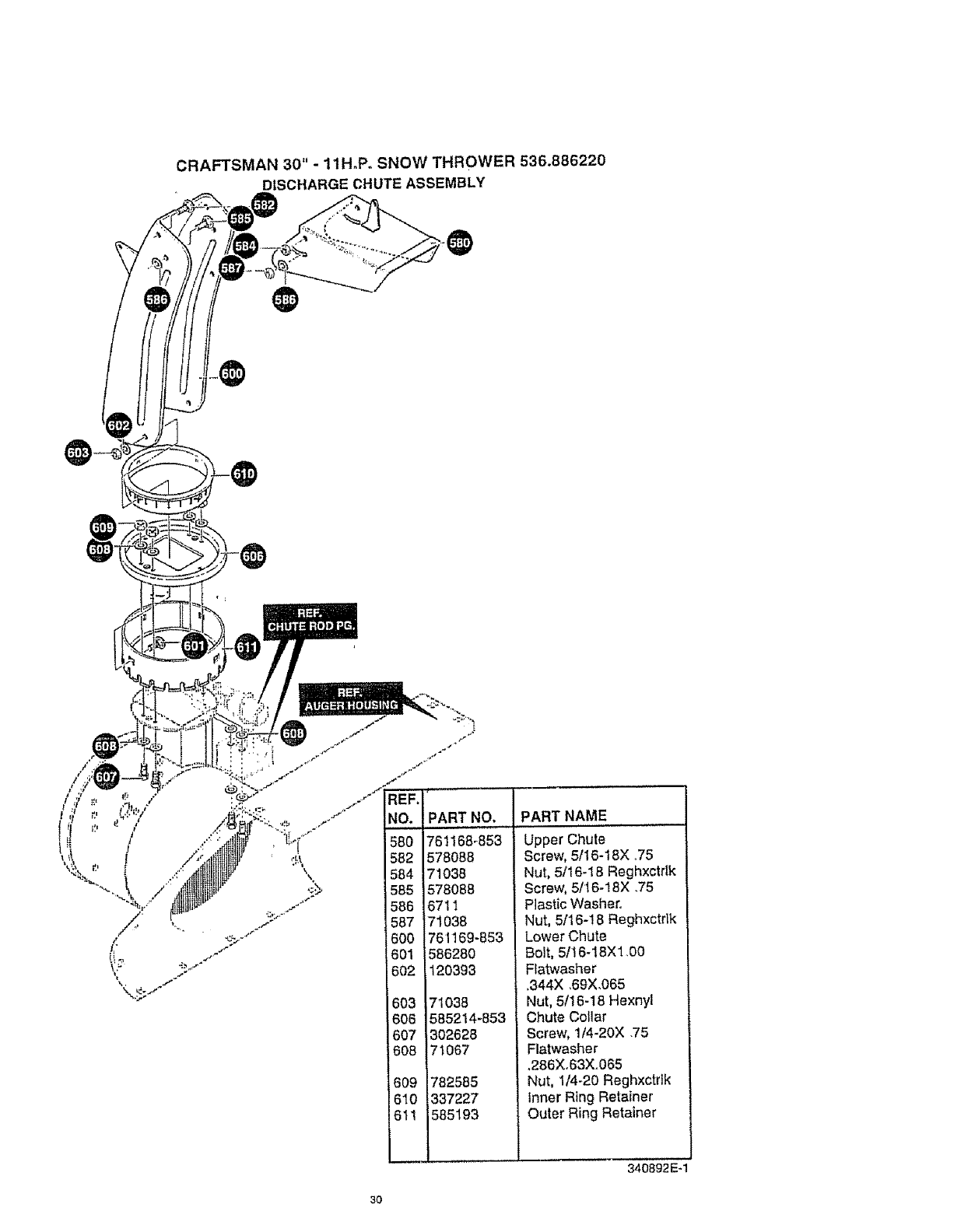

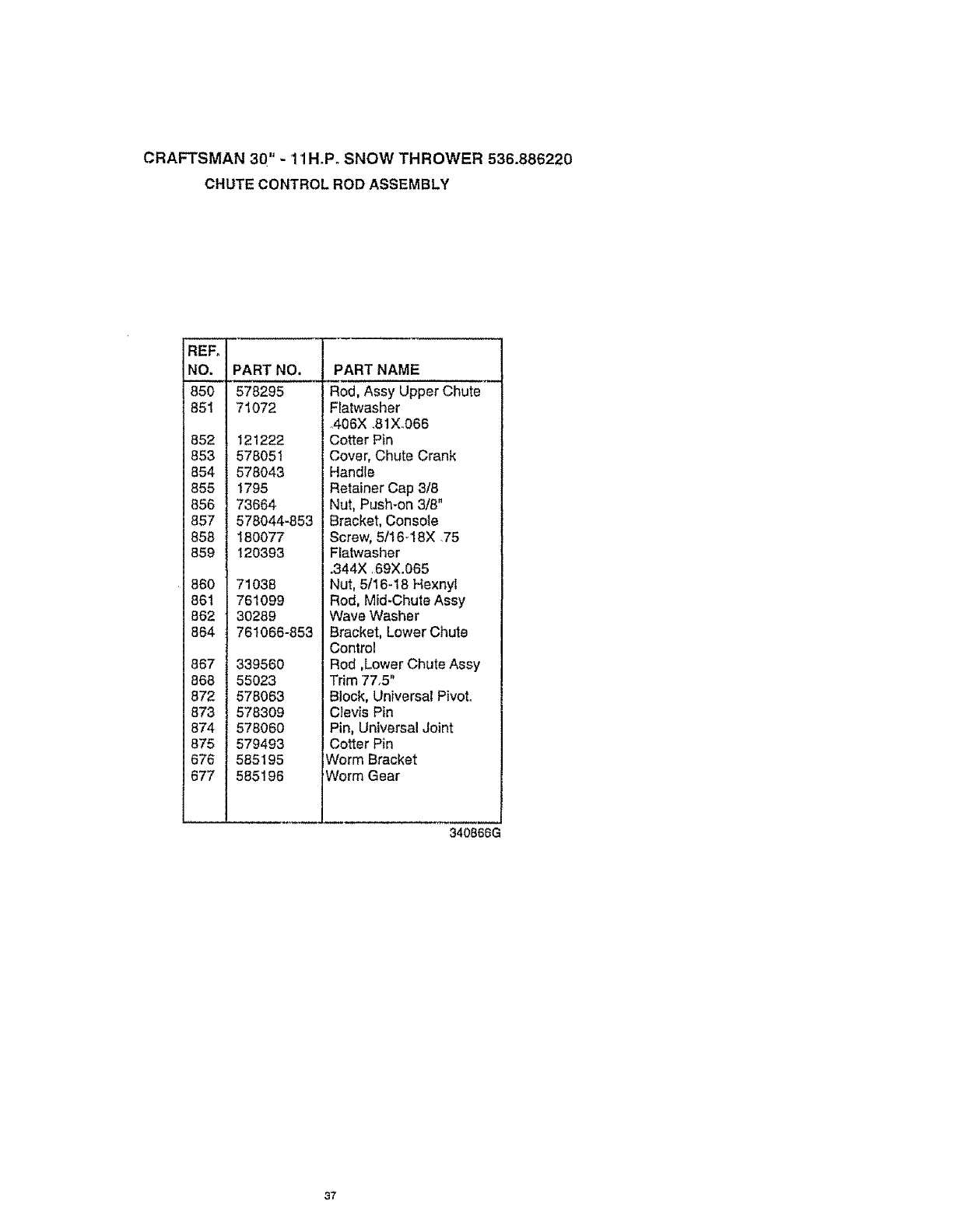

Snow Thrower Repair Parts 26-38

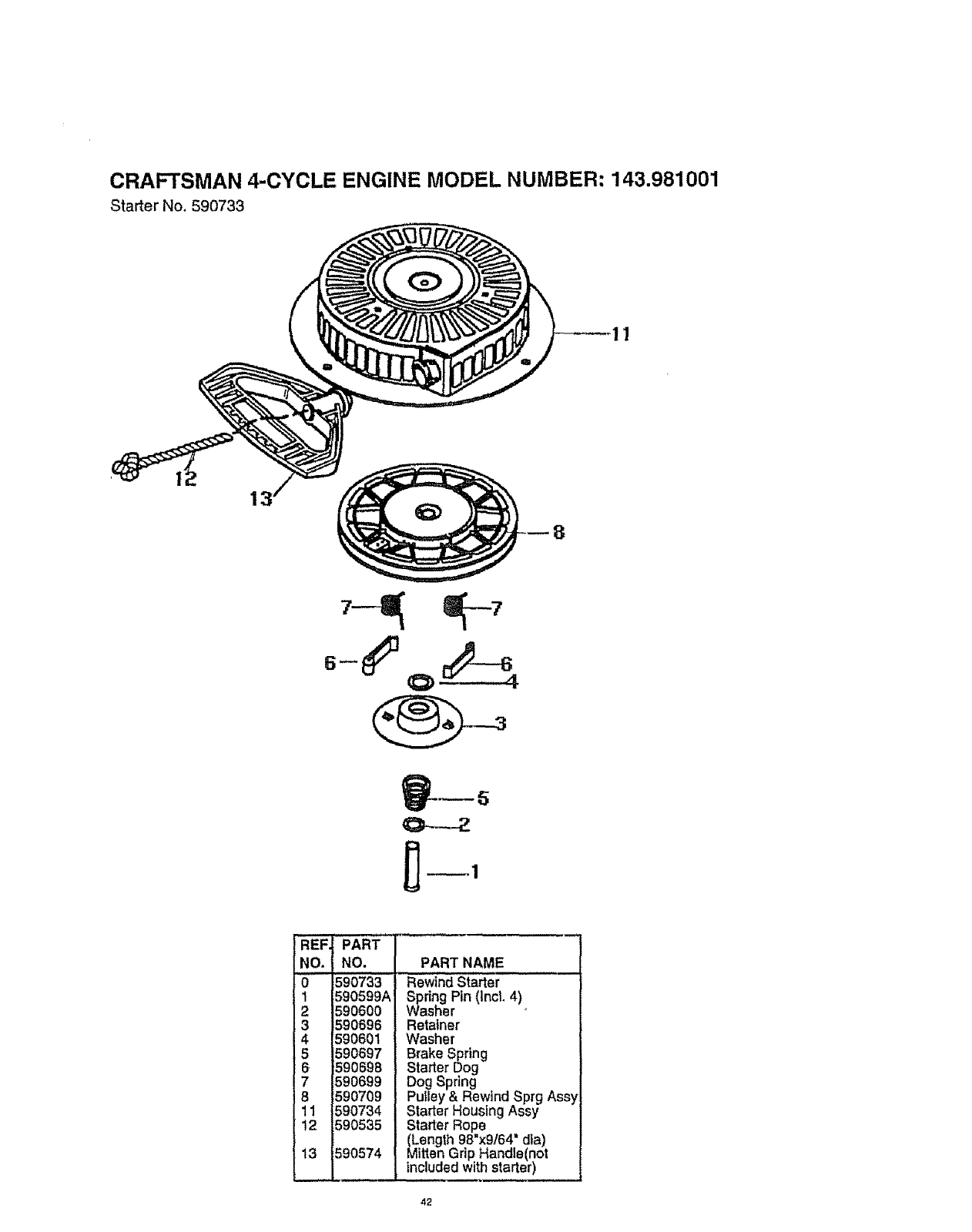

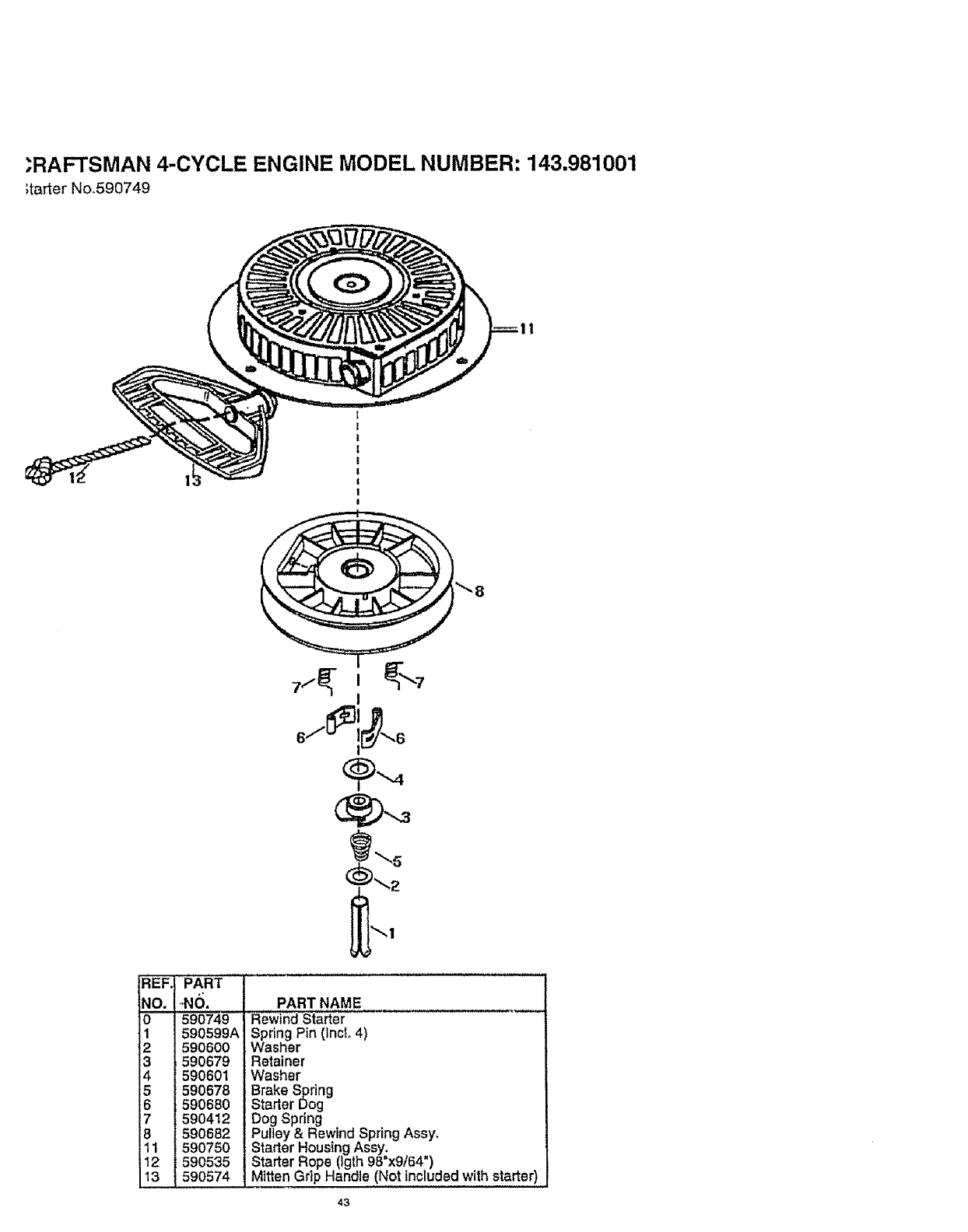

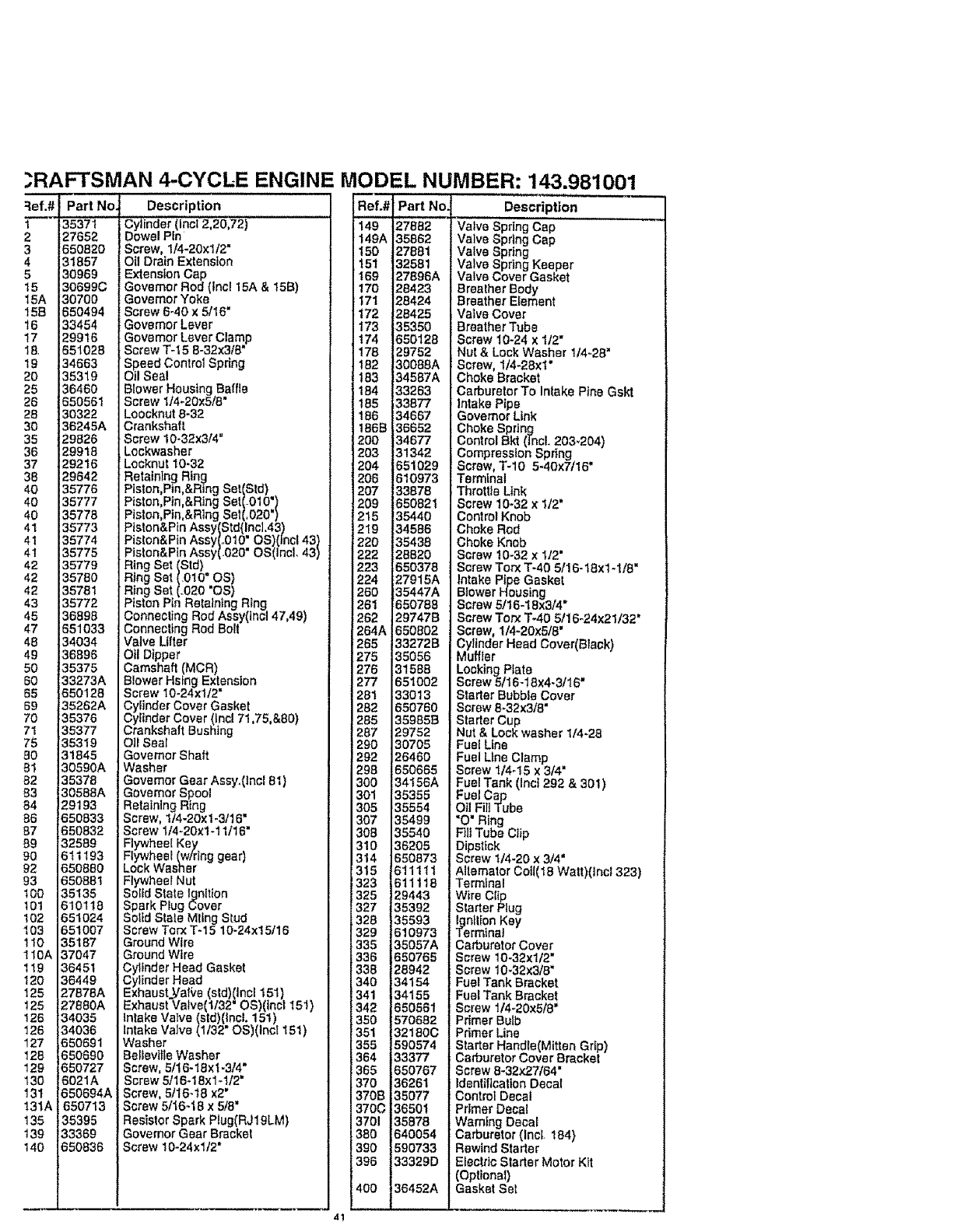

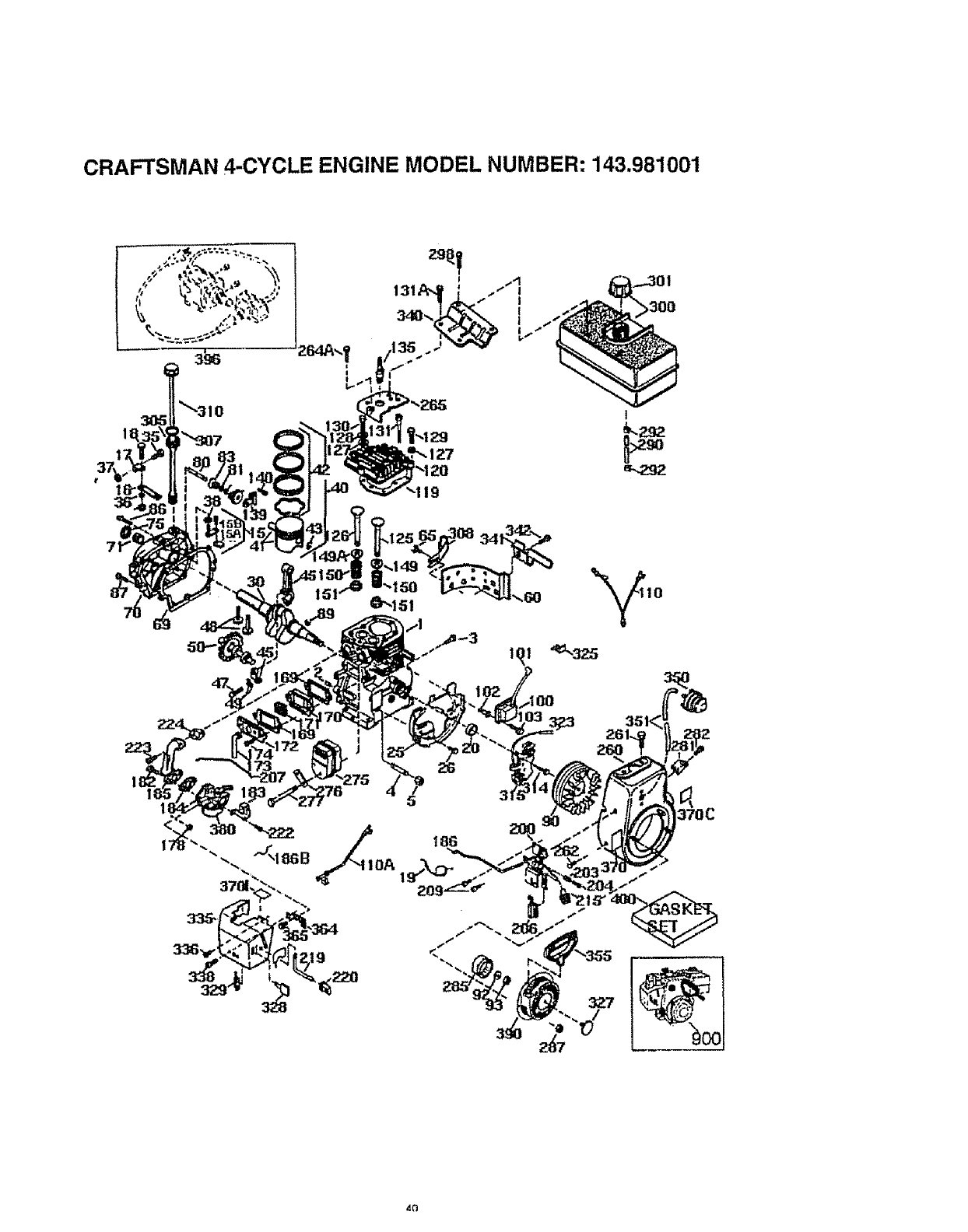

Engine Repair Parts 39-43

Spanish(Espa_ot) 44.70

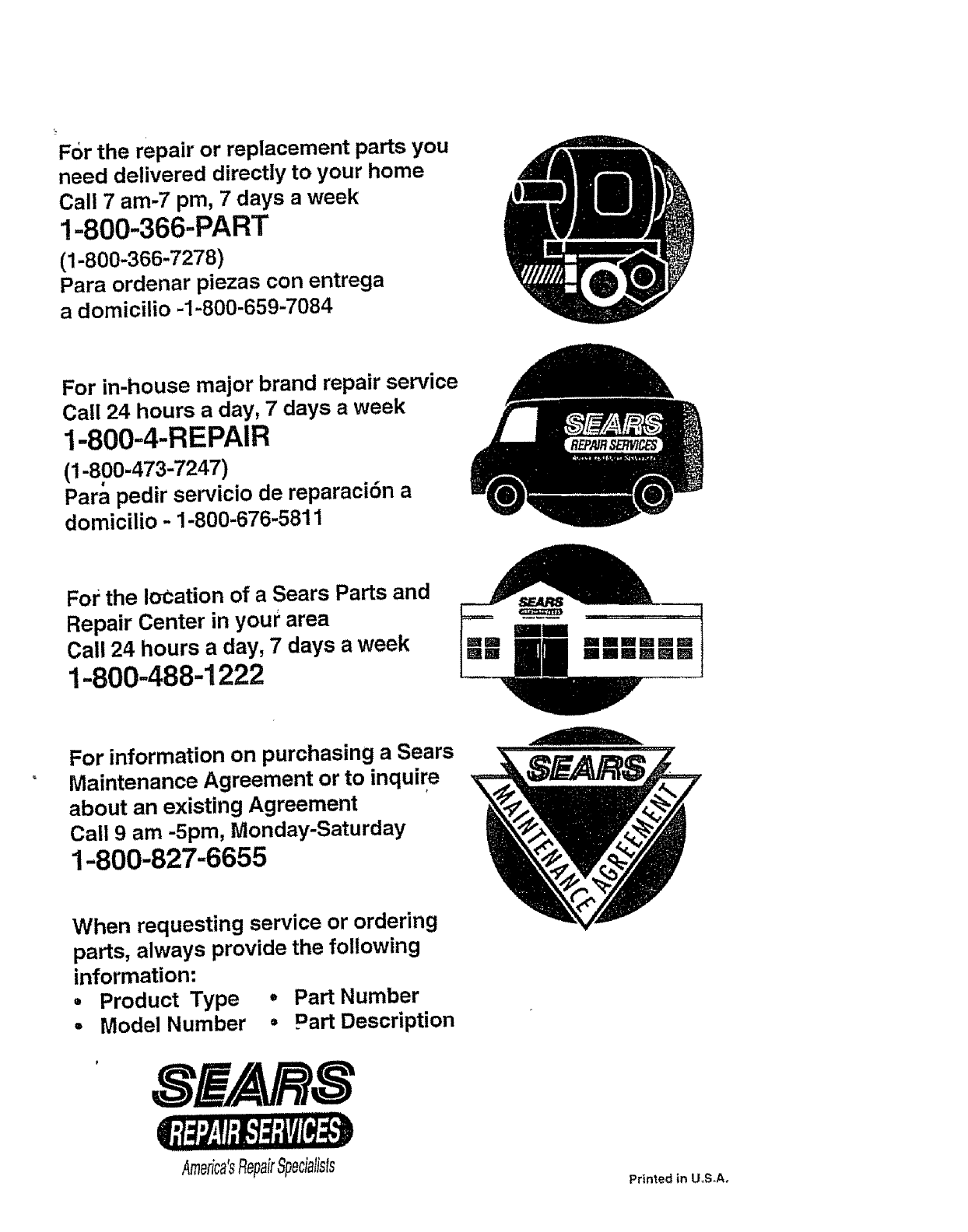

Parts Ordering/Service _ Back Cover

LIMITED TWO-YEAR WARRANTY ON CRAFTSMAN SNOW THROWER

For two years from the date of purchase, when this Craftsman Snow Thrower is main-

tained, lubricated, and tuned up according to the operating and maintenance instruc-

tions in the owner's manual, Sears will repair, free of charge, any defect in material or

workmanship.

If this Craftsman Snow Thrower is used for commemial or rental purposes, this war-

ranty applies for only 90 days from the date of purchaser

"]his warranty does not cover the following:

•Items which become worn during normal use, such as spark ptugs, drive belts and

shear pins.

• Repairs necessary because of operator abuse or negligence, including bent crank

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

WARRANTY SERVICE 1SAVAILABLE BY RETURNING THE CRAFTSMAN SNOW

THROWER TO THE NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE

UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS IN

USE IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Sears, Roebuck and Coo, D817WA0 Hoffman Estates, IL 60179

_CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug to prevent accidental

starting when setting-up, transporting,

adjusting or making repairs_

IMPORTANT: Safety standards require

operator presence controls to minimize the

risk of injury. Your snow thrower is

equipped with such controls. Do not attempt

to defeat the function of the operator

)resence control under any circumstances.

_ California Proposition 65

WARNING=The

engine exhaust from this product

contains chemicals known to the

State of California to cause cancer

birth defects or other reproductive

harm.

Look for this symbol to point out important safety precautions, It means---

ATTENTIONlll Become alerttll Your safety is involved,

TRAINING

1. Read the operator's manual carefully.

Be thoroughly familiar with the controls

and the proper use of the snow thrower.

Know how to stop the snow thrower and

disengage the controls quickly.

2. Never allow children to operate the

snow thrower and keep them away

while it is operating, Never allow adults

to operate the snow thrower without

proper instruction. Do not carry passen-

gers.

3. Keep the area of operation clear of all

persons, particularly small children and

pets.

4. Exercise caution to avoid slipping or

falling, especially when operating in

reverse.

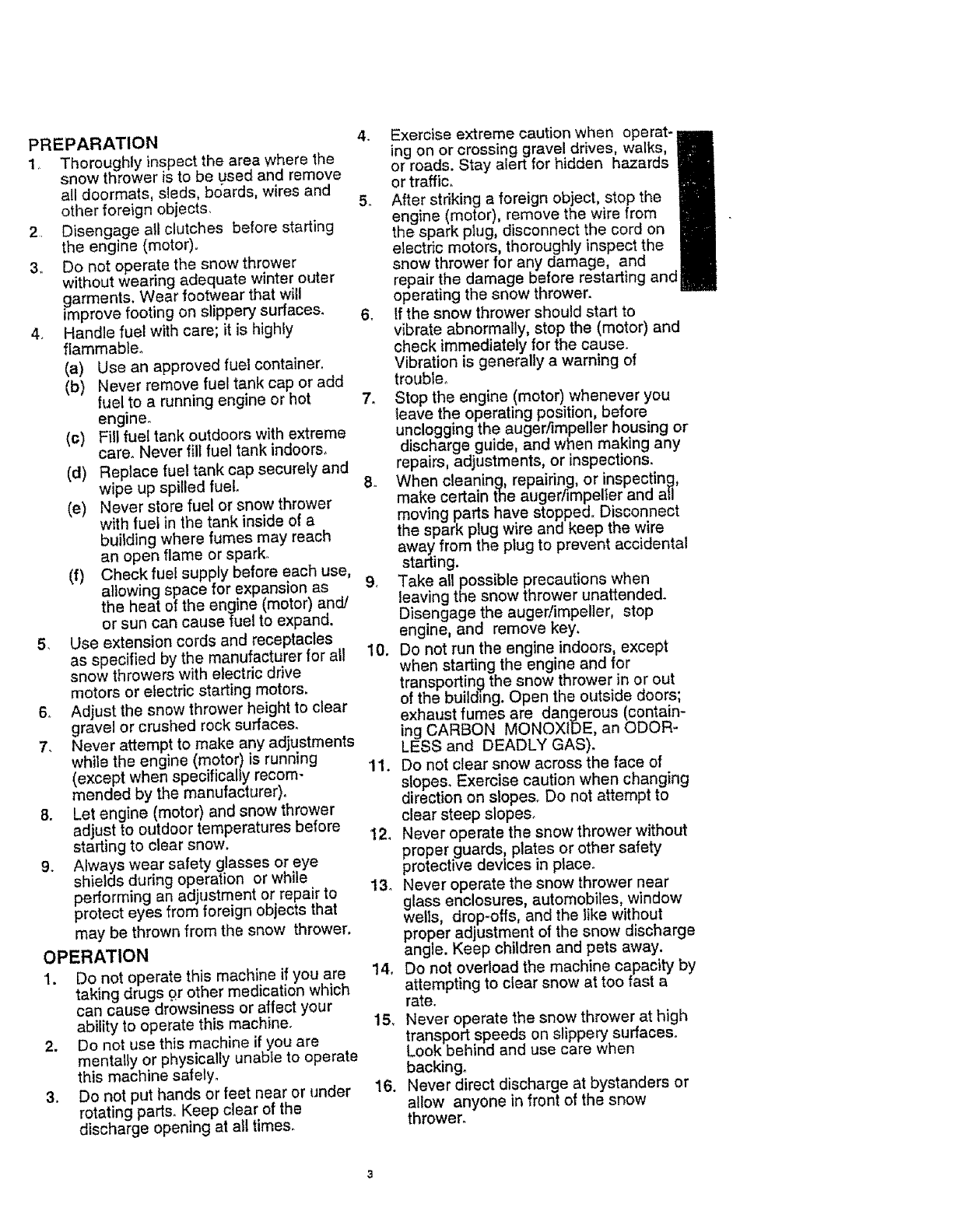

PREPARATION 4.

1. Thoroughly inspect the area where the

snow thrower is to be .used and remove

all doormats, sleds, boards, wires and

other foreign objects. 5.

2Disengage allclutches before starting

the engine (motor)°

3 Do not operate the snow thrower

without wearing adequate winter outer

garments. Wear footwear that will

Improve footing on slippery surfaces. 6.

4. Handle fuel with care; it is highly

flammable.

(a) Use an approved fuel container.

(b) Never remove fuel tank cap or add

fuel to a running engine or hot 7o

engine.

care. Never fill fuel tank indoors.

(d) Replace fuel tank cap securely and

wipe up spiIled fuel. 8_

(e) Never store fuel or snow thrower

with fuel in the tank inside of a

building where fumes may reach

an open flame or spark.

(f) Check fuel supply before each use,

allowing space for expansion as 9.

the heat of the engine (motor) and/

or sun can cause fue! to expand.

5_ Use extension cords and receptacles

as specified by the manufacturer for all 10.

snow throwers with electric drive

motors or electric starting motors,

6. Adjust the snow thrower height to clear

gravel or crushed rock surfaces.

7. Never attempt to make any adjustments

while the engine (motor) is running

(except when specifically recom- 11.

mended by the manufacturer).

8. Let engine (motor) and snow thrower

adjust to outdoor temperatures before

starting to clear snow. 12.

9. Always wear safety glasses or eye

shields during operation or while 13.

performing an adjustment or repair to

protect eyes from foreign objects that

may be thrown from the snow thrower,

OPERATION

1. Do not operate this machine if you are 14,

taking drugs gr other medication which

can cause drowsiness or affect your

ability to operate this machine. 15.

2. Do not use this machine if you are

mentally or physically unable to operate

this machine safely.

3. Do not put hands or feet near or under 16.

rotating parts. Keep clear of the

discharge opening at atl times.

Exercise extreme caution when operat-

ing on or crossing gravel drives, walks,

or roads. Stay alert for hidden hazards

or traffic.

After striking a foreign object, stop the

engine (motor), remove the wire from

the spark plug, disconnect the cord on

electric motors, thoroughly inspect the

snow thrower for any damage, and

repair the damage before restarting and

operating the snow thrower.

If the snow thrower should start to

vibrate abnormally, stop the (motor) and

check immediately for the cause.

Vibration is generally a warning of

troubte.

Stop the engine (motor) whenever you

leave the operating position, before

unclogging the auger/impeller housing or

discharge guide, and when making any

repairs, adjustments, or inspections.

When cleaning, repairing, or inspecting,

make certain the auger/impeller and all

moving parts have stopped. Disconnect

the spark plug wire and keep the wire

away from the plug to prevent accidental

starting.

Take all possible precautions when

leaving the snow thrower unattended.

Disengage the augedimpeller, stop

engine, and remove key,

Do not run the engine indoors, except

when starting the engine and for

transporting the snow thrower in or out

of the building. Open the outside doors;

exhaust fumes are dangerous (contain-

ing CARBON MONOXIDE, an ODOR-

LESS and DEADLY GAS).

Do not clear snow across the face of

slopes. Exercise caution when changing

direction on slopes_ Do not attempt to

clear steep slopes.

Never operate the snow thrower without

proper guards, plates or other safety

protective devices in place_

Never operate the snow thrower near

glass enclosures, automobiles, window

wel_s, drop-offs, and the like without

proper adjustment of the snow discharge

angle. Keep children and pets away,

Do not overload the machine capacity by

attempting to clear snow at too fast a

rate.

Never operate the snow thrower at high

transport speeds on slippery surfaces.

Look behind and use care when

backing.

Never direct discharge at bystanders or

allow anyone in front of the snow

thrower.

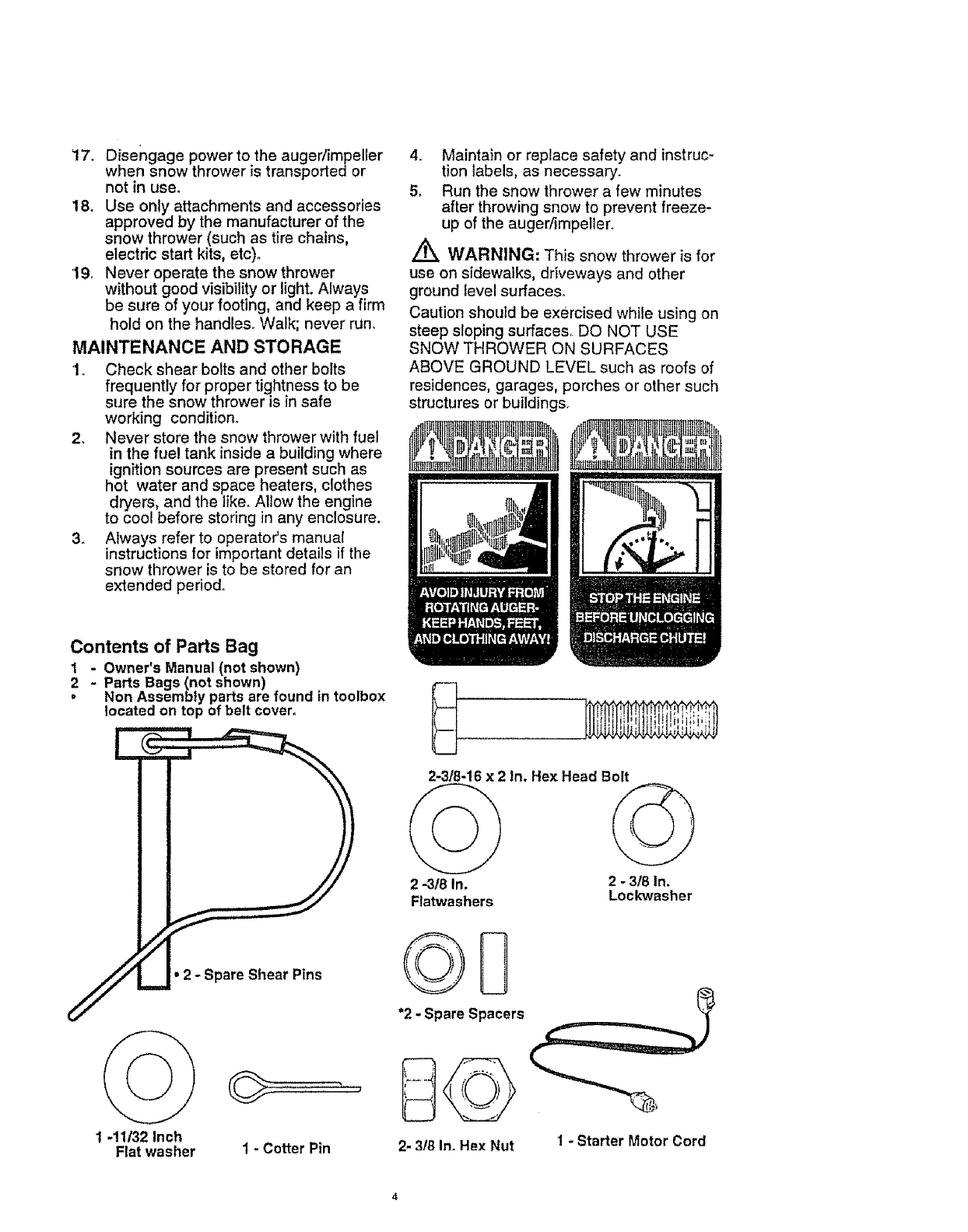

17. Disengage power to the auger/impeller

when snow thrower is transportedor

not in use.

18. Use only attachments and accessories

approved by the manufacturer of the

snow thrower (such as tire chains,

electric start kits, etc)o

19. Never operate the snow thrower

without good visibility or light. Always

be sure of your footing, and keep a firm

hold on the handles° Walk; never run.

MAINTENANCE AND STORAGE

1. Check shear bolts and other bolts

frequently for proper tightness to be

sure the snow thrower is in safe

working condition_

2. Never store the snow thrower with fuel

in the fuel tank inside a building where

ignition sources are present such as

hot water and space heaters, clothes

dryers, and the like. Allow the engine

to cool before storing in any enclosure.

3. Always refer to operator's manual

instructions for important details it the

snow thrower is to be stored for an

extended pedod.

Contents of Parts Bag

-Owner's Manual (not shown)

Parts Bags (not shown)

Non Assembly parts are found in toolbox

located on top of belt cover°

1 -11/32 Inch

Flat washer I - Cotter Pin

4. Maintain or replace safety and instruc-

tion labels, as necessary.

5. Run the snow thrower a few minutes

after throwing snow to prevent freeze-

up of the auger/impeller.

Z_ WARNING" This snow thrower is for

use on sidewalks, driveways and other

ground level surfaces.

Caution should be exercised while using on

steep sloping surfaces. DO NOT USE

SNOW THROWER ON SURFACES

ABOVE GROUND LEVEL such as roofs of

residences, garages, porches or other such

structures or buildings.

2-3/8-16 x 2 In, Hex Head Bolt

2-318In. 2 - 318In.

Flatwashers Lockwasher

©D

*2 - Spare Spacers

2- 318In. Hex Nut 1-Starter Motor Cord

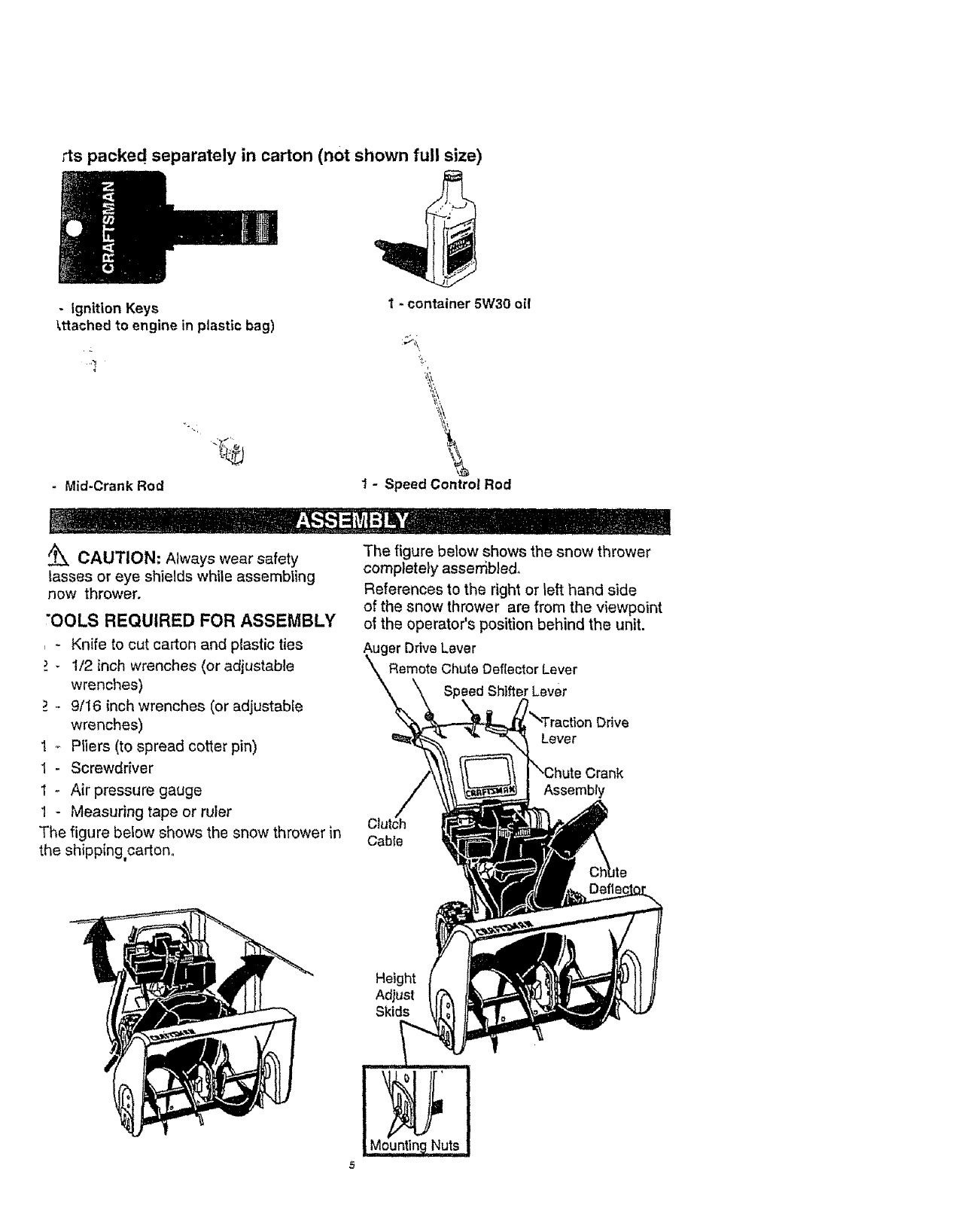

rts packed separately in carton (not shown full size)

- Ignition Keys

_ttached to engine in plastic bag)

-'7

-Mid-Crank Rod

I - container 5W30 oil

1 - Speed Contro! Rod

CAUTION: Always wear safety

lasses or eye shields while assembling

now thrower.

"OOLS REQUIRED FOR ASSEMBLY

- Knife to cut carton and plastic ties

- 1/2 inch wrenches (or adjustable

wrenches)

._,- 9/16 inch wrenches (or adjustable

wrenches)

1 _ Pliers (to spread cotter pin)

1- Screwdriver

1 - Air pressure gauge

1 - Measuring tape or ruler

The figure below shows the snow thrower in

the shipping,carton.

The figure below shows the snow thrower

completely assembled.

References to the right or left hand side

of the snow thrower are from the viewpoint

ot the operator's position behind the unit.

er Drive Lever

Remote Chute Deflector Lever

Speed ShifterLever

rive

Lever

Assembly

CabIe

Height

Adjust

Skids

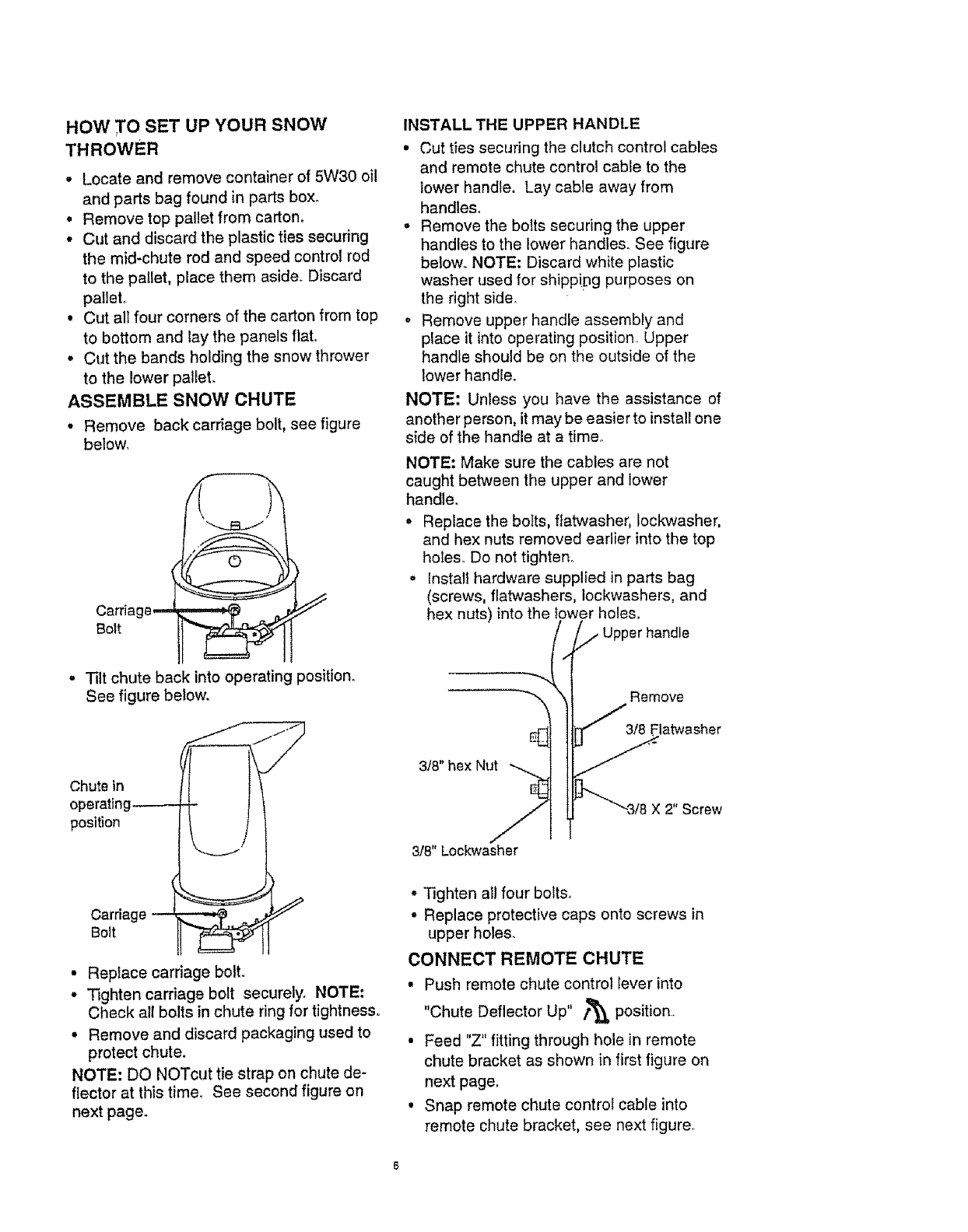

HOW T ° SET UP YOUR SNOW

THROWER

•Locate and remove container of 5W30 oil

and parts bag found in parts box.

• Remove top pallet from carton.

• Cut and discard the plastic ties securing

the mid-chute rod and speed control rod

to the pallet, place them aside. Discard

pallet.

•Cut all four corners of the carton from top

to bottom and lay the panels flat.

• Cut the bands holding the snow thrower

to the lower pallet.

ASSEMBLE SNOW CHUTE

• Remove back carriage bolt, see figure

below,

Carria

Bert

• Tilt chute back into operating position.

See figure below,

Chute in

operating_

position

Carriage

Bolt

• Replace carnage bolt.

•Tighten carriage bolt securely. NOTE:

Check all bolts in chute ring for tightness.

°Remove and discard packaging used to

protect chute.

NOTE: DO NOTcut tie strap on chute de-

flector at this time, See second figure on

next page.

INSTALL THE UPPER HANDLE

• Cut ties securing the clutch control cables

and remote chute control cable to the

lower handle. Lay cable away from

handles.

•Remove the bolts securing the upper

handles to the lower handles. See figure

below. NOTE: Discard white plastic

washer used for shipp!pg purposes on

the right side.

oRemove upper handle assembly and

place it into operating position° Upper

handle should be on the outside of the

lower handle.

NOTE: Unless you have the assistance of

another person, it may be easier to install one

side of the handle at a time,

NOTE: Make sure the cables are not

caught between the upper and lower

handle.

•Replace the boIts, ffatwasher, Iockwasher,

and hex nuts removed earlier into the top

holes° Do not tighten°

•Install hardware supplied in parts bag

(screws, flatwashers, iockwashers, and

hex nuts) into the lower holes.

/ //../Upper handle

--i Remove

__latwasher

_""_3/8 X 2" Screw

3/8" hex Nu__

3/8" Lockwasher

• Tighten all four bolts.

•Replace protective caps onto screws in

upper holes.

CONNECT REMOTE CHUTE

• Push remote chute control lever into

"Chute Deflector Up" f_ position,

• Feed "Z" fitting through hole in remote

chute bracket as shown in first figure on

next page,

• Snap remote chute control cable into

remote chute bracket, see next figure,

_onnect "Z" fitting into remote chute

'.ontrol bracket as shown in figure below.

:mote

_ute Remote Chute

_ntrol Bracket

acket JmoteChute

Control Cable

Mid.Crank

Rod Rod

Push remote chute control lever into

"Chute Deflector Down" '_ position.

,it

Cut tie strap on chute deflector as shown

in figure below.

hute

eflector

',ISTALL MID-CHUTE ROD

;et aside earlier)

Carefully remove cotter pin and clevis

pin from universal joint in the upper crank

rod as shown in next figure.

_OTE: If this removes the universal joint

_nd universal joint pin, Place universal joint

._toyoke of upper crank rod lining up large

iotes, Insert universal joint pin (ensure

_pening in universal joint pin is in line with

;mall openings in universal joint).

_' Upper

C,evis Pin------'-'_/ -"'Crank Rod

Jniversal Joint_'_'''_ Universal

_._ Joint Pin

-'_ Cotter Pin

• Place yoke of open end of mid-crank rod

around universal joint in upper crank rod.

Insert clevis pin through assembly and

secure with cotter pin. Spread ends of

cotter pin to lock in place, See figure

below,

• Cut tie securing the lower crank rod to the

chute rod bracket. See second figure

below.

- Carefully remove cotter pin and clevis

pin from universal joint in lower end of

mid-crank rod as shown in figure below.

NOTE: If this removes the universal joint

and universal joint pin° Place universal joint

into yoke of upper crank rod lining up large

holes° Insert universal joint pin (ensure

opening in universal joint pin is in line with

small openings in universal joint).

---.__ Universal Joint Pin

Lower End_"_.._-_ ....j Universal Joint

of Mid- "1/_ _

Cran_

aSlide universal joint in mid-crank rod into

yoke of lower crank rod, insert clevis pin

through assembly and secure with cotter

pin. Spread ends of cotter pin to lock in

place, See next figure_

Cable Tie

Chute

Bracket Mid-Crank

Rod

Lower

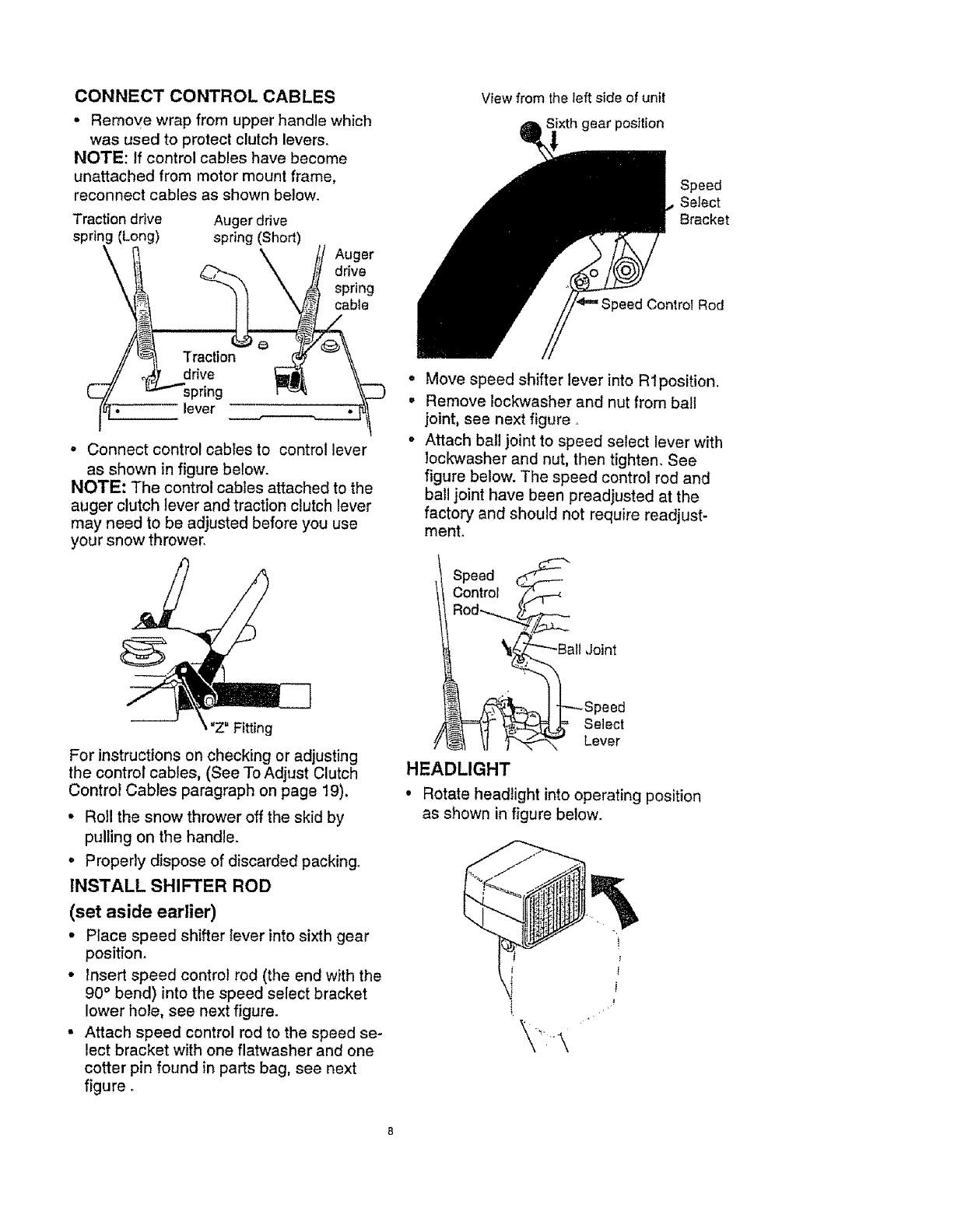

CONNECTCONTROLCABLES

• Removewrapfrom upper handle which

was used to protect clutch levers.

NOTE: If control cables have become

unattached from motor mount frame,

reconnect cables as shown below_

Traction drive Auger drive

spring (Long) spring (Short) Auger

drive

spring

cable

View from the left side of unit

gear position

Speed

Select

Bracket

Control Rod

I lever

• Connect control cables to control lever

as shown in figure below.

NOTE: The control cables attached to the

auger clutch lever and traction clutch lever

may need to be adjusted before you use

your snow thrower

Z" Fitting

For instructions on checking or adjusting

the control cables, (See To Adjust Clutch

Control Cables paragraph on page 19).

•Roll the snow thrower off the skid by

pulling on the handle

, Properly dispose of discarded packing.

INSTALL SHIFTER ROD

(set aside earlier)

•Place speed shifter Iever into sixth gear

position.

•Insert speed control rod (the end with the

90° bend) into the speed select bracket

lower hole, see next figure

•Attach speed control rod to the speed se-

lect bracket with one flatwasher and one

cotter pin found in parts bag, see next

figure _

oMove speed shifter lever into R 1position,

Remove Iockwasher and nut from ball

joint, see next figure

Attach ball joint to speed select lever with

lock'washer and nut, then tighten. See

figure below. The speed control rod and

ball joint have been preadjusted at the

factory and should not require readjust-

ment.

Speed

Control T..m--_

Ball Joint

# _ 1I _',-_'-m'" Lever

HEADLIGHT

•Rotate headlight into operating position

as shown in figure below.

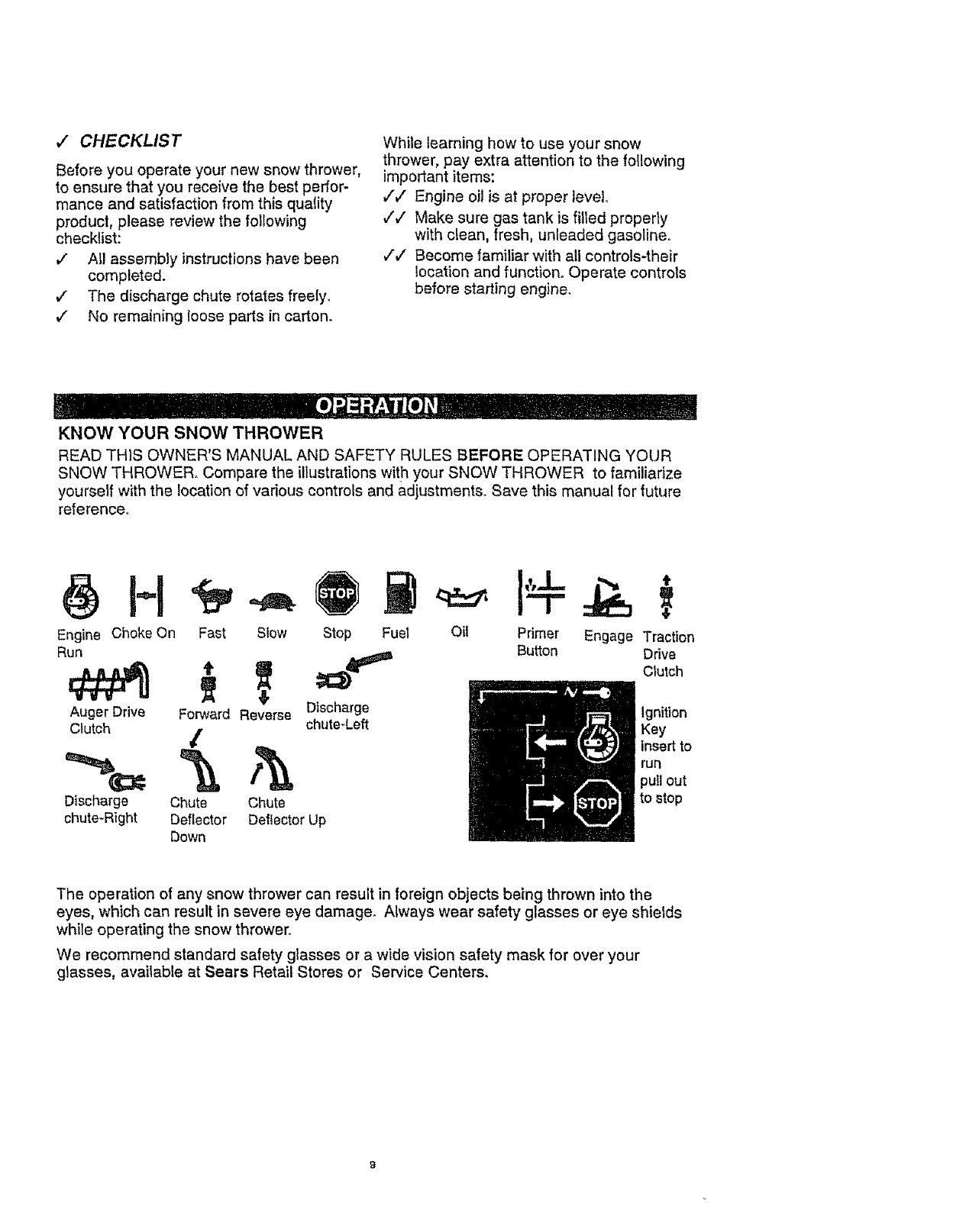

J CHECKLIST

Before you operate your new snow thrower,

to ensure that you receive the best perfor-

mance and satisfaction from this quality

product, please review the following

checklist:

J All assembly instructions have been

completed.

,,I The discharge chute rotates freely.

,.I No remaining loose parts in carton.

While learning how to use your snow

thrower, pay extra attention to the following

important items:

/J" Engine oil is at proper level°

,/# Make sure gas tank is filled properly

with clean, fresh, unleaded gasoline°

#'/ Become familiar with all controls-their

location and function. Operate controls

before starting engine.

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

SNOW THROWER. Compare the illustrations with your SNOW THROWER to familiarize

yourself with the location of various controls and adjustments. Save this manual for future

reference_

Engine Choke On Fast Slow

Run

Auger Drive Forward Reverse

Clutch

Discharge

chute-Right

Stop Fuel

Discharge Ignition

_ chute-Left Key

insert to

_ _ run

)ull out

Chute Chute

Deflector Deflector Up

Down

Oil Primer Engage Traction

Button Drive

Clutch

The operation of any snow thrower can result in foreign objects being thrown into the

eyes, which can result in severe eye damage° Always wear safety glasses or eye shields

while operating the snow thrower°

We recommend standard safety glasses or a wide vision safety mask for over your

glasses, available at Sears Retail Stores or Service Centers.

Ignition

Speed Shifter Lever .

MranK Assembly

Remote Chute Control Lever

Auger Drive

Electric Starter Button

Chute Deflector

Lever

Chute

Control

Aug

Height Adjust \

_erBar Shear Bolt

Auger Drive Lever - Starts and stops the

auger and impeller (snow gathering and

throwing),

Traction Drive Lever - Propels the snow

thrower forward and in reverse.

Headlight - Turns on whenever engine is

running,

Speed Shifter Lever - Selects the speed of

snow thrower (6 speeds forward and 2

speeds reverse).

Crank Assembly - Changes the direction of

snow throwing through the discharge chute.

Chute Deflector - Changes the distance

the snow is thrown,

Discharge Chute - Changes the direction

the snow is thrown.

Choke Control ,- Used to start a cold en-

gine.

Height Adjust Skids - Adjusts the ground

clearance of the auger housing_

Ignition Key - Must be inserted to start the

engine°

Primer Button - Injects fuel directly into the

carburetor manifold for fast starts in cold

weather,

Recoil Starter Handle - Starts the engine

manually°

Throttle Control - Controls the engine

speed,

Electric Starter Button - Used to start the

engine using the 120 V. electric starter°

Remote Chute Control Lever- Push for-

ward to discharge snow high and far_ Pull

remote lever back to discharge snow down,

Shear Bolts - Are special bolts that are de-

signed to break (to protect the

machine) if an object becomes lodged in

the auger housing. Use of a harder bolt will

destroy the protection provided by the shear

bolto

Toolbox - Spare shear pins and spacers

are located in toolbox.

//_ CAUTION: Read owner's manual before operating machine, Never direct discharge

toward bystanders. Release the auger control bar and stop the engine before unclog-

ging discharge chute or auger housing and before leaving the machine.

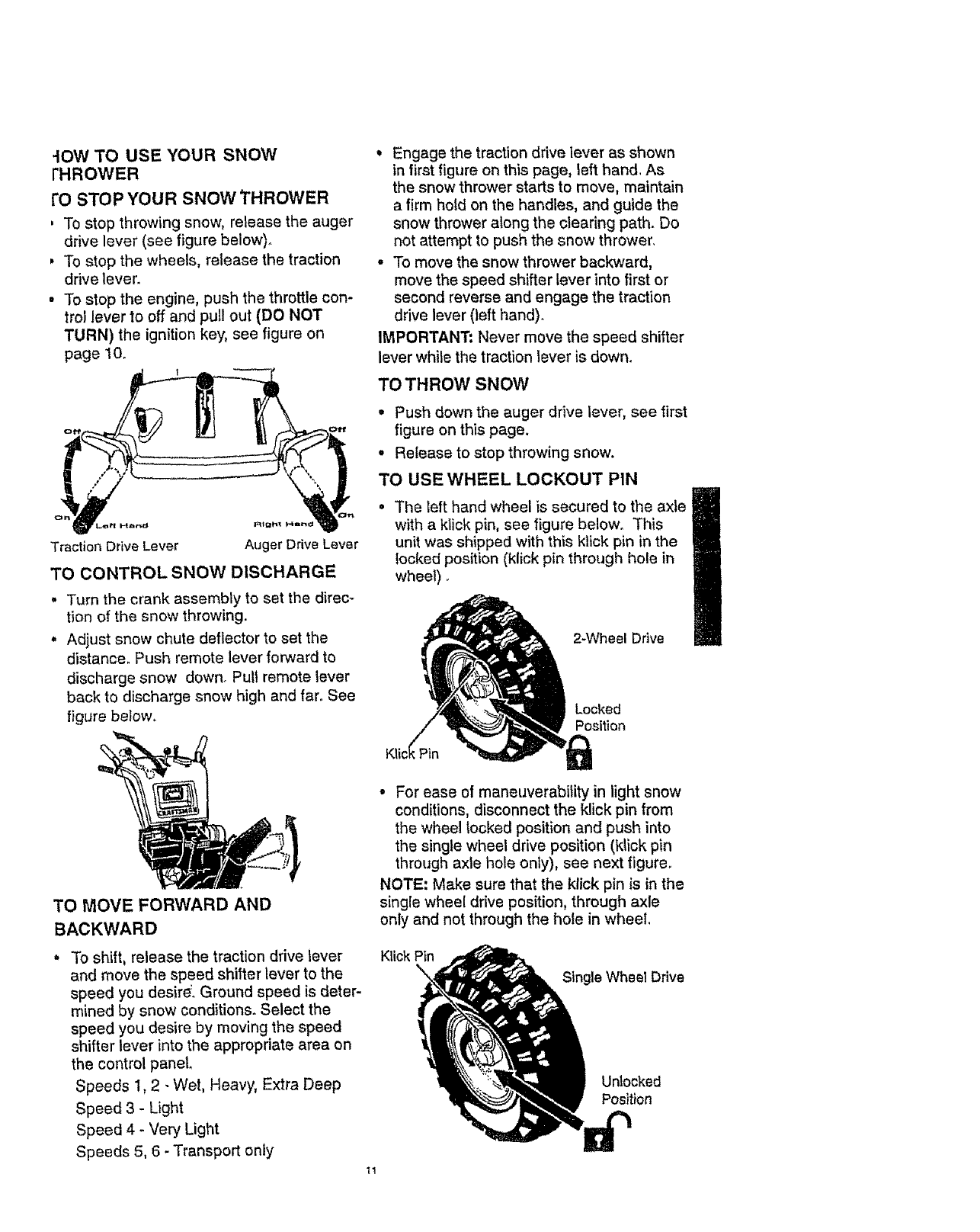

-IOW TO USE YOUR SNOW

tHROWER

rO STOP YOUR SNOW THROWER

,To stop throwing snow, release the auger

drive lever (see figure below).

, To stop the wheels, release the traction

drive lever.

• To stop the engine, push the throttle con-

trol lever to off and pull out (DO NOT

TURN) the ignition key, see figure on

page 10.

All;lht Plan_

Auger Drive Lever

TO CONTROLSNOW DISCHARGE

oTurn the crank assembly to set the direc-

tion of the snow throwing.

Adjust snow chute deflector to set the

distance. Push remote lever forward to

discharge snow down° Pull remote lever

back to discharge snow high and far. See

figure below,

•Engage the traction drive lever as shown

in first figure on this page, left hand. As

the snow thrower starts to move, maintain

a firm hold on the handles, and guide the

snow thrower along the clearing path. Do

not attempt to push the snow thrower,

• To move the snow thrower backward,

move the speed shifter lever into first or

second reverse and engage the traction

drive lever (left hand).

IMPORTANT: Never move the speed shifter

lever while the traction lever is down.

TO THROW SNOW

• Push down the auger drive lever, see first

figure on this page.

• Release to stop throwing snow.

TO USEWHEEL LOCKOUT PIN

,The left hand wheel is secured to the axle

with a klick pin, see figure below. This

unit was shipped with this klick pin in the

locked position (klick pin through hole in

wheel).

2-Wheel Drive

Locked

Position

TO MOVE FORWARD AND

BACKWARD

To shift, release the traction drive lever

and move the speed shifter lever to the

speed you desire'. Ground speed is deter-

mined by snow conditions. Select the

speed you desire by moving the speed

shifter lever into the appropriate area on

the control panel.

Speeds 1, 2 -Wet, Heavy, Extra Deep

Speed 3 - Light

Speed 4 - Very Light

Speeds 5, 6 - Transport only

• For ease of maneuverability in light snow

conditions, disconnect the klick pin from

the wheel locked position and push into

the single wheel drive position (klick pin

through axle hole only), see next figure.

NOTE: Make sure that the klick pin is in the

single wheel drive position, through axle

only and not through the hole in wheel.

Klick Pin

Single Wheel Drive

Unlocked

Position

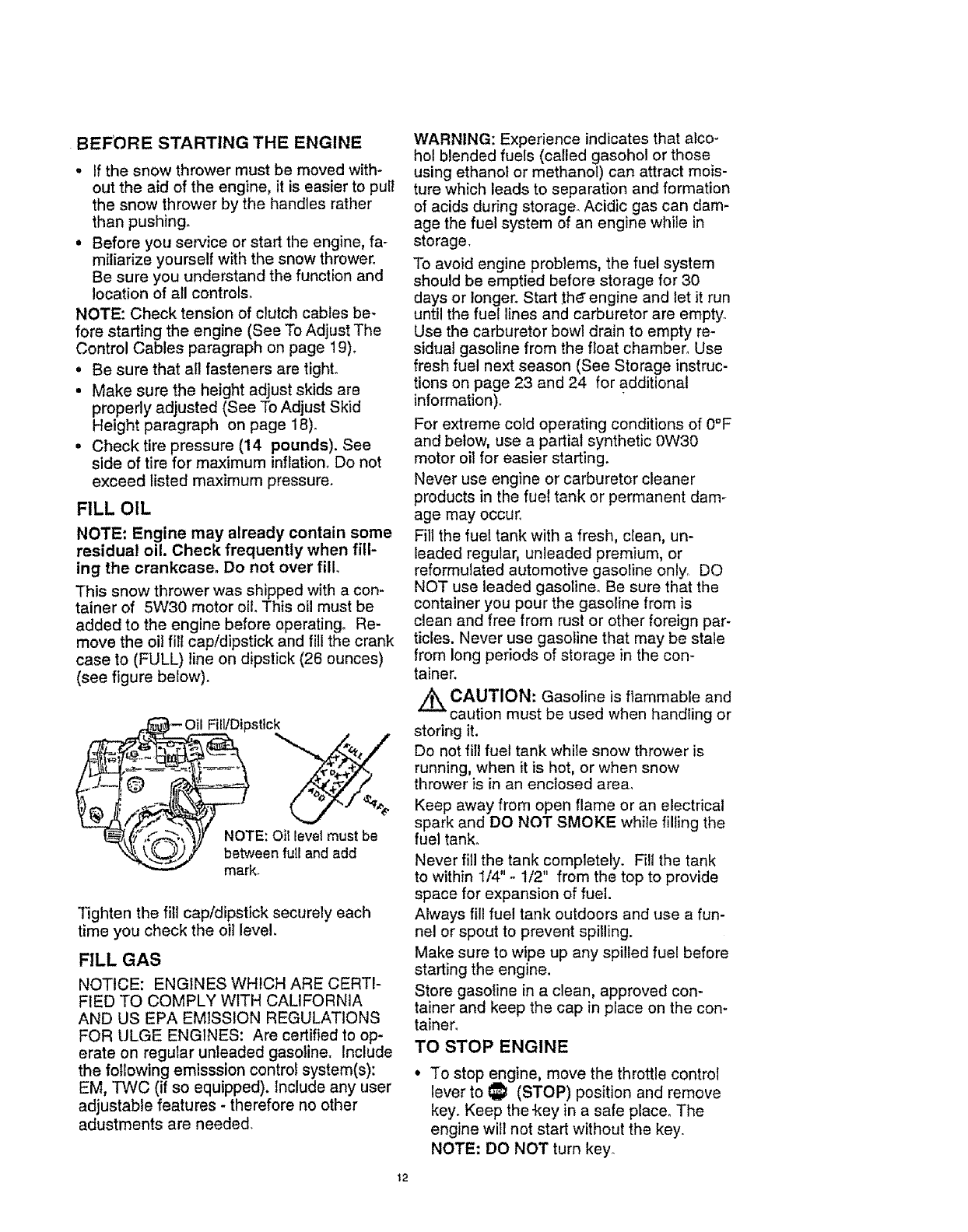

BEFORE STARTING THE ENGINE

.If the snow thrower must be moved with-

out the aid of the engine, it is easier to pull

the snow thrower by the handles rather

than pushing.

° Before you service or start the engine, fa-

miliarize yourself with the snow thrower.

Be sure you understand the function and

location of all controls.

NOTE: Check tension of c_utch cables be-

fore starting the engine (See To Adjust The

Control Cables paragraph on page 19).

o Be sure that all fasteners are tight.

• Make sure the height adjust skids are

properly adjusted (See To Adjust Skid

Height paragraph on page 18)_

• Check tire pressure (14 pounds). See

side of tire for maximum inflation. Do not

exceed listed maximum pressure.

FILL OIL

NOTE: Engine may already contain some

residual oil. Check frequently when fill-

ing the crankcase, Do not over fill,

This snow thrower was shipped with a con-

tainer of 5W30 motor oil. This oil must be

added to the engine before operating_ Re-

move the oi! fill cap/dipstick and fill the crank

case to (FULL) line on dipstick (26 ounces)

(see figure below).

Fill/Dipstick

NOTE: Oit level must be

between full and add

mark.

Tighten the fill cap/dipstick securely each

time you check the oil leve!.

FILL GAS

NOTICE: ENGINES WHICH ARE CERTI-

FIED TO COMPLY WITH CALIFORNIA

AND US EPA EMISSION REGULATIONS

FOR ULGE ENGINES: Are certified to op-

erate on regular unleaded gasoline. Include

the following emisssion control system(s):

EM, TWC (if so equipped). Include any user

adjustable features - therefore no other

adustments are needed.

WARNING: Experience indicates that alco-

hol blended fuels (called gasohol or those

using ethanol or methanol) can attract mois-

ture which leads to separation and formation

of acids during storage,, Acidic gas can dam-

age the fuel system of an engine while in

storage,

To avoid engine problems, the fuel system

should be emptied before storage for 30

days or longer. Start the" engine and let it run

until the fuel lines and carburetor are empty.

Use the carburetor bowl drain to empty re-

sidual gasoline from the float chamber, Use

fresh fuel next season (See Storage instruc-

tions on page 23 and 24 for additional

information).

For extreme cold operating conditions of 0°F

and below, use a partial synthetic 0W30

motor oit for easier starting.

Never use engine or carburetor cleaner

products in the fuel tank or permanent dam-

age may occur,

Fill the fuel tank with a fresh, clean, un-

leaded regular, unleaded premium, or

reformulated automotive gasoline only, DO

NOT use leaded gasoline. Be sure that the

container you pour the gasoline from is

clean and free from rust or other foreign par-

ticles. Never use gasoline that may be stale

from long periods of storage in the con-

tainer.

_ CAUTION: Gasoline is flammable and

caution must be used when handling or

storing it,

Do not fill fuel tank while snow thrower is

running, when it is hot, or when snow

thrower is in an enclosed area,

Keep away from open flame or an electrical

spark and DO NOT SMOKE while filling the

fuel tank.

Never fill the tank completely. Fill the tank

to within 1/4" - 1/2" from the top to provide

space for expansion of fuel.

Always fill fuel tank outdoors and use a fun-

nel or spout to prevent spilling.

Make sure to wipe up any spilled fuel before

starting the engine.

Store gasoline in a clean, approved con-

tainer and keep the cap in place on the con-

tainero

TO STOP ENGINE

To stop engine, move the throttle control

lever to _ (STOP) position and remove

key. Keep the-key in a safe place. The

engine will not start without the key.

NOTE: DO NOT turn key.

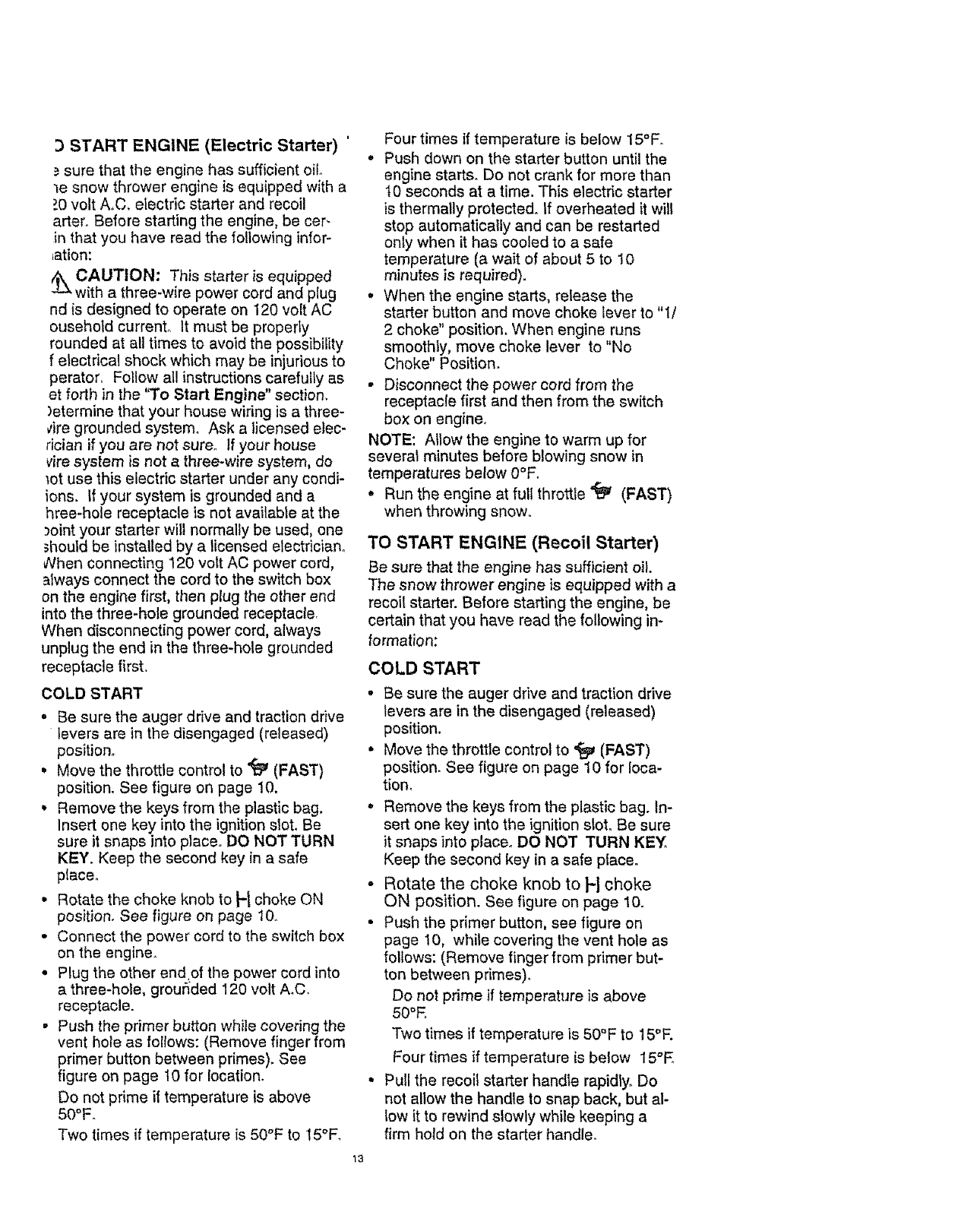

3START ENGINE (Electric Starter)

,_sure that the engine has sufficient oil

_e snow thrower engine is equipped with a

_.0volt A,C. electric starter and recoil

artero Before starting the engine, be cer-

in that you have read the following infor-

mation:

_CAUTION: This starter is equipped

with a three-wire power cord and plug

nd is designed to operate on 120 volt AC

ousehoid current, it must be properly

rounded at all times to avoid the possibility

f electrical shock which may be injurious to

peraton Follow al! instructions carefully as

et forth in the "To Start Engine" section.

)etermine that your house wiring is a three-

cite grounded system° Ask a licensed elec-

t!clan if you are not sure. if your house

vire system is not a three-wire system, do

_ot use this electric starter under any condi-

ions. if your system is grounded and a

brae-hole receptacle is not available at the

_oint your starter will normally be used, one

_hould be installed by a licensed electrician.

_hen connecting 120 volt AC power cord,

_tways connect the cord to the switch box

on the engine first, then plug the other end

into the three-hole grounded receptacle.

When disconnecting power cord, always

unplug the end in the three-hole grounded

receptacle first.

COLD START

. Be sure the auger drive and traction drive

levers are in the disengaged (released)

position,

, Move the throttle control to '_ (FAST)

position, See figure on page 10.

• Remove the keys from the plastic bag.

Insert one key into the ignition slot. Be

sure it snaps into place, DO NOT TURN

KEY. Keep the second key in a safe

place.

• Rotate the choke knob to H choke ON

position. See figure on page 10.

• Connect the power cord to the switch box

on the engine_

• Plug the other end of the power cord into

a three-hole, grour_ded 120 volt ArC.

receptacle.

,Push the primer button while covering the

vent hole as follows: (Remove finger from

primer button between primes). See

figure on page t0 for location.

Do not prime it temperature is above

50°F.

Two times if temperature is 50°F to 15°F.

Four times if temperature is below 15°Fo

,Push down on the starter button until the

engine starts. Do not crank for more than

t0 seconds at a time. This electric starter

is thermally protected. If overheated it will

stop automatically and can be restarted

only when it has cooled to a safe

temperature (a wait of about 5 to 10

minutes is required).

• When the engine starts, release the

starter button and move choke lever to "1/

2 choke" position. When engine runs

smoothly, move choke lever to "No

Choke" Position_

• Disconnect the power cord from the

receptacle first and then from the switch

box on engine.

NOTE: Allow the engine to warm up for

several minutes before blowing snow in

temperatures below 0°Fo

•Run the engine at full throttle "f_ (FAST)

when throwing snow.

TO START ENGINE (Recoil Starter)

Be sure that the engine has sufficient oil.

The snow thrower engine is equipped with a

recoil starter. Before starting the engine, be

certain that you have read the following in-

formation:

COLD START

° Be sure the auger drive and traction drive

levers are in the disengaged (released)

position.

• Move the throttle control to "_ (FAST)

position. See figure on page 10 for loca-

tion,

° Remove the keys from the plastic bag. In-

sert one key into the ignition slot. Be sure

it snaps into place. DO NOT TURN KEY.

Keep the second key in a safe place.

•Rotate the choke knob to H choke

ON position. See figure on page 10.

• Push the primer button, see figure on

page 10, while covering the vent hole as

follows: (Remove finger from primer but-

ton between primes).

Do not prime if temperature is above

50oE

Two times if temperature is 50°F to 15°E

Four times if temperature is below 15°E

• Pull the recoil starter handle rapidly. Do

not allow the handle to snap back, but al-

low it to rewind slowly while keeping a

firm hold on the starter handle.

., As engine starts warms up move choke

lever to "1/2 choke" position. When engine

runs smoothly, move choke lever to "No

Choke" Position

NOTE: Allow the engine to warm up for

several minutes before blowing snow in tem-

peratures below 0°F.

• Run the engine at full throttle _ (FAST)

when throwing snow.

WARM START

If restarting a warm engine after a short

shutdown, leave choke at (OFF) and do not

push the primer button. If the engine fails to

start, follow the Cold Start instructions

above.

FROZEN RECOIL STARTER

If the starter is frozen and will not turn

engine:

, Pull as much rope out of the starter as

possible.

•Release the starter handle and let it snap

back against the starter.

If the starter still fails to turn engine, repeat

the two previous steps until the starter en.

gages, Then continue with the directions for

cold start,

To help prevent possible freeze-up of recoil

starter and engine controls, proceed as fol-

lows after each snow removal job.

• With the engine running, pull the starter

rope hard with a continuous full arm

stroke three or four times. Pulling of

starter rope will produce a loud clattering

sound. This is not harmful to the engine or

starter.

°With the engine not running, wipe al!

snow and moisture from the carburetor

cover in area of control levers. Also move

throttle control, choke control, and starter

handle several times.

Z_ CAUTION: Never run engine indoors

or in enclosed, poorly ventilated areas.

Engine exhaust contains carbon monoxide,

an odorless and deadly gas. Keep hands,

feet, hair and loose clothing away from any

moving parts on engine and snow thrower_

WARNING: Temperature of muffler and

nearby areas may exceed 150 ° F. Avoid

these areas.

DO NOT allow children or young teenagers

to operate or be near snow thrower while it

is operating°

/_ CAUTION: Do no attempt to remove

any item that may become lodged in

auger without taking the following precau-

tions:

•Release auger drive and traction drive

levers°

° Move throttle lever to stop position.

• Remove (DO NOT TURN) ignition key.

• Disconnect spark,prug wire.

• Do not place your hands in the auger or

discharge chute. Use a pry bar.

SNOW THROWING TIPS

•For maximum snow thrower efficiency in

removing snow, adjust ground speed,

NEVER the throttle° Go slower in deep,

freezing, or wet snow. If the wheels slip,

reduce forward speed. The engine is de-

signed to deliver maximum performance

at full throttle and should be run at this

power setting at all times. Most efficient

snow blowing is accomplished when the

snow is removed immediately after it falls.

• Forcomplete snow removal, slightly over-

lap each path previously taken. Use more

overlap in deep snow to prevent overload-

ing,

•The snow should be discharged down

wind whenever possible. In windy condi-

tions, lower the chute deflector to direct

discharged snow close to the ground,

where it is less likely to blow into un-

wanted areas.

• For normal usage, set the skids so that

the scraper bar is 1/8" above the skids.

For extremely hard-packed snow sur-

faces, adjust the skids upward so that the

scraper bar touches the ground°

° On gravel or crushed rock surfaces, set

the skids at t-1/4" below the scraper bar

(See To Adjust Skids Height paragraph on

page I8)_ Stones and gravel must not be

picked up and thrown by the machine.

°After the snow throwing job has been

completed, allow the engine to idle for a

few minutes, which will melt snow and ac-

cumulated ice off the engine.

•Clean the snow thrower thoroughly after

each use.

•Remove ice and snow accumulation and

all debris from the entire snow thrower,

and flush with water (if possible) to re-

move all salt or other chemicals. Wipe

,snow thrower dry_

CUSTOMER RESPONSIBILITIES

SERVICE

RECORDS

Fill in dates as

you complete

regular service

SCHEDULE SERVICE

DATES

............................ ................

After Befor_ As Every Ev Every Each Before

first 2 Each Needed 5 10 25 Season Storage

Hours Use Hours Hours Hours

;TightenAftScrews& Nuts _,_

LubricatePivotPoints -....................... v_

Lubricate Auger Shaft (See

ShearBolt Replacement

LubricateDiscDrivePlateZerl_

Check Spark Plug

Check Engine Oil Level V 't

ChangeEngineOil _'_ ....

CheckFuet ,_J

v" 11

v" _' .,,--4

...j

Drain Fuel

Check Auger Clulch Cable

Adjustment(SeeCabieAdj) _

CheckTractionClutchCable

Adiustment(See Cable Adt) ,_I .......

CheckDriveBelts

PRODUCT SPECIFICATIONS

HORSE POWER: II HP

DISPLACEMENT: 21,82 cu, ino

GASOLINE CAPACITY: 4 quart

(unleaded)

OIL (26 oz. Capacity) : 5W-30

SPARK PLUG: Champion RJ19LM

(Gap .030) or

Equivalent

VALVE CLEARANCE: Intake: 0_10 In,

Exhaust: ,010 In.

v,"

Some adjustments will need to be made pe-

riodically to properly maintain your snow

thrower,

LUBRICATION CHART

Lubricate

Disc Drive

Plate Zerk

witha Hi

Tamp EP

Moiy Grease,

GENERAL RECOMMENDATIONS

The warranty on this. snow thrower does not

cover items that have been subjected to op-

erator abuse or negligence. To receive full

value from the warranty, the operator must

maintain the snow thrower as instructed in

this manual. The above chart is provided to

assist the operator in properly maintaining

the snow thrower, Lubricate the Auger Shaft,

Coat with a clinging type grease

such as Lubriplate or fiber

impregnated grease,

SNOW THROWER

AFTER FIRST USE

oCheck for any loose or damaged parts

after each use,

•Tighten any loose fasteners.

•Check and maintain the auger.

AFTER EACH USE

• Remove all snow and slush off the snow

thrower to prevent freezing of auger or

controls.

• Check controls to make sure they are

functioning properly,

° if any parts are worn or damaged, replace

immediately°

SNOW THROWER

LUBRICATION- EVERY 10 HOURS

• Auger Shaft - Using a hand grease gun,

lubricate the auger shaft zerk fittings (See

figure below) every ten (10) operating

hours. Each time a shear bolt is replaced

(See To Replace Auger Shear Bolt on

page 22), the auger shaft MUST be

greased.

•For storage or when replacing shear

bolts, remove shear bolts and lubricate

auger shaft zerks, Rotate augers several

times on the shaft and reinstall the shear

bolts.

•See Lubrication Chart diagram on page

15 for lubrication points and type of lubri-

cant.

LUBRICATION -EVERY 25 HOURS

• Lubricate Disc Drive Plate every twenty-

five (25) hours and at the end of the sea-

son and/or before storage.

To Lubricate:

• Position speed selector lever in first gear.

•Stand the snow thrower up on the auger

housing end.

Rubber_

Friction _!

Wheel /,_

Gears

(Require 1

No .....

Lubrication)

Shaft

Disc

Plate

Friction

Wheel Grease

kl/Bearing Assembl

Place coin in gap

between friction

wheel and disc drive

plate

I ,,I

[_________--_--!{--Greas e Zerk

grease

should be visible

• Remove the bottom panel (see second

figure on page 21).

, Turn disc drive plate clockwise by hand

until grease zerk is clearly visible at front

center. See next figure.

• Place a coin or (a shim of equal thick-

ness) between the rubber friction wheel

and disc drive plate to prevent rubber fric-

tion wheel contacting the drive disc.

• To grease zerk, use a hand grease gun,

lubricate with a Hi Temp EP Moiy grease

See inset of figure above° DO NOT over

fill or allow grease to come in contact with

the disc drive plate or friction wheel or

damage will result. Fill zerk only until

grease becomes visible below bearing as-

sembly located under grease zerk see im

sert above.

IMPORTANT: Remove coin and ensure that

a gap exists between friction wheel and disc

drive plate.

NOTE: Clean all excess grease found on

friction disc hub.

CAUTION; Do not allow grease to contact

friction wheel and disc drive plate.

LUBRICATION -BEFORE STORAGE

Remove both wheels, grease (any auto-

motive type grease) both axles, see figure

below, and replace wheels° Do this at

least once a year and/or prior to storage°

Axle

.UBRICATION

Hex Shaft and Gears - Hex shaft and

gears require no lubrication. All bearings

and bushings are lifetime lubricated and

require no maintenance°

_IOTE" Any greasing or oiling of the above

:omponents can cause contamination of

he friction wheel. If the disc drive plate or

riction wheel comes in contact with grease

)r oil, damage to the friction wheel will re-

;ult,

_hould grease or oil come in contact with

he disc drive plate or friction wheel, be sure

o clean the plate and wheel thoroughly.

_!OTE: For storage, the hex shaft and

]ears should be wiped with 5W-30 motor oil

:o prevent rusting. See first figure on this

_age.

, Auger Gear Box - The auger gear box is

lubricated at the factory and should not

require additional lubrication. If for some

reason the lubricant should leak out, or if

the auger gear box has been serviced,

add Lubriplate No. 630-AA or equivalent_

Maximum 3-1/4 ounces should be used.

Remove filler plug as seen in figure below

once a year. If grease is visible, do not

add. If grease is not visible, use a piece

of fine wire like a dipstick, to check if

there is grease in the gearbox. Add

grease if necessary. Reinstall gear box

filler.

OIL RECOMMENDATION

Only use high quality detergent oil rated

with API service classification SG. Select

the oil's viscosity grade according to your

expected operating temperature:

NOTE: For extreme cold operating condi-

tions of 0° and below, use a partial synthetic

0W30 motor oil for easier starting.

Change the oil every twenty-five (25) hours

thereafter, and at the beginning of each

season.

• Position the snow thrower so that the oil

drain plug is at the lowest point on the

engine. Remove the oi! drain plug and

the oil fill cap/dipstick. Drain the oil into a

suitable container_ Oil will drain more

freely when warm.

• Replace the oil drain plug and tighten se-

curely.

SPARK PLUG

• Make sure that the spark plug is tight-

ened securely into the engine and the

spark plug wire is attached to the spark

plug_

. If a torque wrench is available, torque

plug to 18 to 23 foot pounds.

. Clean the area around the spark plug

base before removal to prevent dirt from

entering the engine.

o Clean the spark plug and reset the gap

pedodically at .030 inch.

Gear Box Filler

Plug

ENGINE

LUBRICATION

Check the crankcase oil level (see figure be-

low) before starting tbe engine and after

each five (5) hours of continuous use. Add

S_A.E. 5W30 motor oil as needed. Tighten

fill cap/dipstick securely each time you

check the oil level.

el must be

nd add mark 17

Z_ CAUTION: Always disconnect the

spark plug wire and tie back away from

the plug before making any adjustments

or repairs,

TO ADJUST SKID HEIGHT

This snow thrower is equipped with two

height adjustment skids, located on the out-

side of the auger housing (see figure be-

low). These skids elevate the front of the

snow thrower..

Auger Housin

Height Adjust

Skid Mounting Nuts

For normal hard surfaces, adjust the Skids

as follows:

•Check tire pressure (14 pounds). See

side of tire for maximum inflation. Do not

exceed maximum pressure on side of

tire.

• Place the extra shear bolts supplied

(found in parts bag) under each end of

the scraper bar near but not under the

skid.

• Loosen the skid mounting nuts (see fig-

ure above) and adjust the skids up to

bring the front of the snow thrower down.

• Re-tighten the mounting nuts.

° Set the skid on the other side at the same

height.

For rocky or uneven surfaces, adjust the

skids as follows:

•Raise the front of the snow thrower by

moving the skids down. This will help pre-

vent rocks and other debris from being

picked up and thrown by the auger°

NOTE: Be sure that snow thrower is set at

same height on both sides.

TO ADJUST SCRAPER BAR

After considerable use, the metaI scraper

bar will have a definite wear pattern. The

scraper bar in conjunction with the skids

should always be adjusted to allow 1/8" be-

tween the scraper bar.arid the sidewalk or

area to be cleaned° The scraper bar may

have to be returned to its original lower set-

ting to maintain the original performance

level. To adjust:

• Position the snow thrower on a level sur-

face.

• Make sure both tires are equally inflated.

• Loosen the carriage bolts and nuts secur-

ing the scraper bar to the auger housing.

• Adjust the scraper bar to the proper posi-

tion.

• Tighten the carriage bolts and nuts, mak-

ing sure that the scraper bar is parallel

with the working surface.

o For extended operation, the scraper bar

may be reversed. If the scraper bar must

be replaced due to wear, remove the car-

riage bolts and nuts and install a new

scraper bar.

,4k CAUTION: Be certain to maintain

proper ground clearance for your par..

ticular area to be cleared. Objects such as

gravel, rocks or other debris, if struck by the

impeller, may be thrown with sufficient force

to cause personal injury, property damage

or damage to the snow thrower.

:_ _':iii'_i_i_'': °

¸;¸,:8¸¸

i7!_:,:,!i_:¸_,:/__

FO ADJUST'THE CLUTCH CONTROL

3ABLES

%riodic adjustment of the cables may be

"equired due to normal stretch and wear on

:he belts. To check for correct adjustment,

:lisconnect "Z" Fitting at clutch lever, move

clutch lever to the full forward position, just

contacting the plastic bumper. The control

cables are correctly adjusted when the cen-

ter of the "Z" fitting is between the center

and top of the hole and there is no droop in

the cable (see figure below). If adjustment is

necessary: Control Lever

in tuti

Plastic forwardposition

Bumper (JustContacting

PlasticBumper)

whenchecking

"Z" Fitting

Remove fuei from tank, and stand blower

on end.

Pull rubber boot off the top of the spring.

Push the cable through the spring (see

figure below) to expose the threaded por-

tion of the cable.

Cable sprin!

TO ADJUST BELTS

Belts stretch during normal use, If you need

to adjust the belts due to wear or stretch,

proceed as follows:

AUGER DRIVE BELT

If your snow thrower w!ll not discharge

snow, check the control cable adjustment. If

it is correct, then checkthe condition of the

auger drive belt. It may be loose or dam-

aged. If it is damaged, replace it (See To

Replace Belts paragraph on page 20). If the

auger drive belt is loose, adjust as follows:

• Disconnect the spark plug wire.

• Remove the belt cover (See second

figure on page 20)+

• Loosen the nut on the auger idler pulley

(See figure below) and move the pulley

toward the belt about 1/8%

o Tighten the nut.

Traction

Traction Auger Drive Belt Drive

Drive Belt Idler

\ Belt Guide

(Left Hand)

Belt

Guide

(Right

Hand)

nut

uare end

• Hold the square end of the threaded por.-

tion with pliers and adjust the Iocknut in or

out until the excess slack is removed.

•Pull the cable back through the spring

and connect the cable,

• Do the same for the other lever cable, if

Auger Idler

Pultey

,Press the auger drive lever. Check the

tension on the belt (opposite auger idler

pulley). The belt should deflect about

I/2" with moderate pressure (See figure

below)+

NOTE" You may have to move the auger

idler pulley more than once to obtain the

correct tension,

_ Drive Pulley

Auger Idler _ ,._,_112 inch

Pulley /_ Deflection

Engaged

TO REPLACE FRICTION WHEEL

tf the snow thrower will not move forward,

and the friction wheel is worn or damaged,

you need to replace it as follows: (First allow

the engine to cool).

•Drain the gasoline from the fuel tank by

removing the fuel line at the carburetor.

Drain the fuel in a container and reinstall

the fuel line.

Z_ CAUTION: Drain gasoline outdoor

away from fire or flame.

• Disconnect the spark p_ug wire.

• Stand the snow thrower up on the auger

housing end.

•Remove the bottom panel (see second

figure on page 21).

•Remove the three (3) fasteners securing

the friction wheel to the hub (see figure

below),

Friction Wheef'_

Bolt -,-_

Bolt

'_k ,,. Lockwasher

-_H_x Shaft

"-Lockwasher

•Remove the four bolts securing the bear-

ing plates (both sides), (see second fig-

ure on this page).

• Remove right side bearing plate. Leave

hex shaft in original position.

•Remove friction wheel from hub° Slip fric-

tion wheel off hex shaft towards right

side.

• Slip new friction wheel onto hub with re-

cessed or cupped end away from hub

(see figure above).

•Ins'tall bearing plates to odginal position.

Ensure hex shaft is engaged with both

bearing plates,

•Secure bearing plates, using bolts re-

moved earlier.

• Secure friction wheel to hub using fasten-

ers removed earlier. Ensure hex shaft

turns freely.

Friction

Bearing

Plate Bolts

Fasteners

(Bolts, Auger

and nutsl/,, /

{

NOTE: Ensure friction wheel and friction

disc are free from grease or oilo

• Replace bottom panel,

• Lower the snow thrower onto the tires.

TO REPLACE AUGER SHEAR BOLT

The augers are secured to the auger shaft

with special bolts (see figure below) that are

designed to break (to protect the machine)

if an object becomes lodged in the auger

housing. Use of a harder bolt will destroy the

protection provided by the shear bolt.

IMPORTANT; To ensure safety and perfor-

mance levels, only original equipment shear

bolts should be used. When replacing shear

bolts, be sure to replace shear bolt spacers°

Shear Pin

}acer

° To replace a broken shear bolt, proceed

as follows:

• Move the throttle to I_ (STOP) and turn

off all controls.

• Disconnect the spark plug wire. Be sure

all moving parts have stopped.

• Lubricate the auger shaft zerk fitting (See

the Maintenance section on pages 15-

t7).

•Align the hole in the auger with the hole

in the auger shaft° Install the new shear

pin and spacer found in toolbox located

on top of belt cover,

NOTE: The spacer fits inside the larger

hole in the auger tube.

• Reconnect the spark plug wire.

TO ADJUST CARBURETOR

If you think your carburetor needs adjusting,

see your nearest Authorized Sears Service

Center. Engine performance should not be

affected at altitudes up to 7,000 feet. For

operation at higher elevations, contact your

nearest Sears Service Center.

TO ADJUST OR REPLACE

THE SPARK PLUG

NOTICE: This spark ignition system meets

all requirements of the Canadian Interfer-

ence-Causing Equipment Regulations.

NOTICE: This engine complies with all cur-

rent Australian and New Zealand limitaions

regarding electromagnetic interference.

If you have difficulty starting your snow

thrower, you may need to adjust or replace

the spark plug. Follow the instructions be-

low.

Replace the spark plug if the electrodes are

pitted or burned or if the porcelain is

cracked.

TO ADJUST:

• Clean the spark plug by carefully scrap-

ing the electrodes (do not sand blast or

use a wire brush),

• Be sure the spark plug is clean and free

of foreign material. Check the electrodes

gap (see figure below) with a wire feeler

gauge and reset the gap to .030 inch if

necessary,

TO REPLACE:

•tf you need a new spark plug, use only

the proper replacement spark plug (see

page t5).

• Set the gap to .030.

• Before installing the spark plug, coat its

threads lightly with oil or grease to insure

easy removal.

• Tighten the plug firmly into the engine.

. if a torque wrench is available, torque the

plug to 18 to 23 ft. - lbs.

Z_ CAUTION: Never store your snow

thrower indoors or in an enclosed, poorly

ventilated area ff gasoline remains in the

tank. fumes may reach an open flame,

spark or pilot light from a furnace, water

heater, clothes dryer, cigarette, etc.

To prevent engine damage (if snow thrower

is not used for more than 30 days) follow

the steps below.

SNOW THROWER STORAGE

•Thoroughly clean the snow thrower.

o Lubricate all lubrication points (see the

Maintenance section on pages 15-17).

•Be sure that all nuts, bolts and screws are

securely fastened. Inspect all visible mov-

ing pads for damage, breakage and wear.

Replace if necessary.

•Touch up all rusted or chipped paint sur-

faces; sand lightly before painting.

•Cover the b-are metal parts of the blower

housing auger and the impeller with rust

preventative, such as a spray lubricant°

NOTE: A yearly checkup or tune-up by a

SEARS Service Center is a good way to in-

sure that your snow thrower will provide

maximum performance for the next season.

ENGINE STORAGE

Gasoline must be removed or treated to pre-

vent gum deposits from forming in the tank,

filter, hose, and carburetor during storage.

Also during storage, alcohol blended gaso-

line that uses ethanol or methanol (some-

times called gasohol) attracts water. It acts

on the gasoline to form acids which damage

the engine.

• To remove gasoline, run the engine until

the tank is empty and the engine stops.

Then drain remaining gasoline from car-

buretor by pressing upward on bowl drain

located on the bottom of carburetor (see

next figure).

• tf you do not want to remove gasoline, a

fuel stabilizer (such as Craftsman Fuel

Stabilizer No, 33500) may be added to

any gasoline left in the tank to minimize

gum deposits and acids° If the tank is al-

most empty, mix stabilizer with fresh gaso..

line in a separate container and add some

to the tank.

Carburetor Bowl

Always follow instructions on stabilizer con-

tainer. Then run engine at least 10 minutes

after stabilizer is added to allow mixture to

reach carburetor. Store snow thrower in a

safe place. See Caution on this page,

You can keep your engine in good operating

condition during storage by:

° Changing oil (see page 17)4

, Lubricating the piston/cyfinder area.. This

can be done by first removing the spark

plug and squirting a few drops of clean

engine oil into the spark plug holeo Then

cover the spark plug hole with a rag to

absorb oil spray. Next, rotate the engine

by pulling the starter rope fully out two or

three times. Finally, reinstall spark plug

and attach spark plug wire.

OTHER

" If possible, store your snow thrower in-

doors and cover it to give protection from

dust and dirt.

• If the machine must be stored outdoors,

block up the snow thrower to be sure the

entire machine is off the ground.

, Cover the snow thrower with a suitable

protective cover that does not retain

moisture. Do not use plastic or vinyl.

IMPORTANT: Never cover snow thrower

while engine and exhaust areas are still

warm.

TROUBLE CAUSE CORRECTION

Difficult starting Defective spark pIug Replace defective plug

Water or dirt in fuel system Use carburetor bowt drain to

flush and refill with fresh fuel

Engine runs er- Blocked fuel line or tow on fuel Clean fuel line; check fuei sup-

ratically ply; add fresh gasoline (gaso-

line/oil mixture if 2-cycie engine)

Engine stalls Unit running on CHOKE Move choke lever to OFF positior

Engine runs er- Water or dirt in fuel system LJse carburetor bowl drain to

ratically; flush and refill with fresh fuel

Loss of power

Loose parts; damaged impeller

Drive belt loose or damaged

incorrect adjustment of auger con-

tro! cable

Worn or damaged friction wheel

Auger drive belt loose or damaged

Auger control cable not adjusted

correctly

Shear bolt broken

Excessive

vibration

Units fails to

propel itself

Unit fails to

discharge snow

Headlight does

not work

Discharge chute clogged

Foreign object lodged in auger

Loose wire connection

Bulb burned out

Stop engine immediately and

disconnect spark plug wire.

Tighten all bolts and make all

necessary repairs_ if vibration

continues, have the unit ser-

viced by a Sears service repair-

man

Adjust auger drive belt: Replace

if damaged

Adjust traction drive cable

Repair friction wheel

Replace auger drive belt

Adjust auger control cable

Replace shear bolt

Stop engine immediately and dis.

connect spark plug wire° Clean

discharge chute and inside of au-

ger housing

Stop engine immediately and dis_

connect spark plug wire. Remove

object from auger.

Tighten connection

Replace headlight bulb

CRAFTSMAN 30"- 11H.P. SNOW THROWER 536.886220

---i ELECTRIC START ASSEMBLY

REF

.,_-_"_::... NO. PART NO.

_,. 6 6218

.i ::, "_] 7 6216

!_ "" I 8 6217

_ 9 6219

il _ ': 761118

PART NAME

Starter Motor

Screw, 1/4-20X .50

Screw, #6-32X2°50

Cord, Starter Motor

Owner's Manual Eng/Sp

319051B

ENGINE ASSEMBLY

REF_

NO. |

12 J 331216

13 120638

31 3949

33 l 120638

34 I 910828

41 I 3949

43 1 120638

44 91O828

5'1 579855

PART NO. PART NAME

ENGINE Model 143.981001

(See Engine Pages)

Screw, 5/16-18X1.50

Washer, Hvsptlk

Belt Guide RH

Washer, Hvsp_lk

Screw, 5116-24X 1..00

Belt Guide RH

Washer, Hvsptlk

Screw, 5tl 6-24X 1.00

Washer, Crankshaft

Note; Always use original equipment parts. Use of

ser¢i_e/reptacement parts other than odginal parts

may void your warranty°

REF,

NO.

PART NOo

579854

579861

579932

73840

586251

586253

585416

313826

120382

39573

PART NAME

Pulley Half

Flatwasher.752X .91X.02

Belt, V

Flatwasher .765X1.12X_06

Spacer Sleeve

Engine Pulley V4L

Belt, V 4L

Flatwasher

Washer, Regsptlk

Screw 3/8-24X1 00

319042G

All unnumbered items are

interchangeable with opposite side

CRAFTSMAN 30" - 11H.P. SNOW THROWER 536.886220

FRAME ASSEMBLY

IREF.{

_NO. I

i8oi

:91

100 I

103 1

104 I

105 t

106 I

108 !

109 I

110 I

111

112 I

t15 I

116 I

117 I

118 I

119 I

120 I

121

122 I

123 I

PARTNOo

340386-848

780055 i

583031-8481

310169

761195

761196

710200

780072

340682

761153

340869

585781

996418

313843

41529

585470

585608

585446

73801

581540

761197

585609

1499

PART NAME

Frame Assy

Screw, 5/16-t8X 30

Cover, Bottom Wheel

Screw, 1/4-20X .63

Plate, Clutch Arm

ldJer Bracket

Sh. Bolt, 3/8-16

Nut, 3/8-16

Cable Clip

Cable, Auger

Shield, Cable Guard

Bolt, 3/8-16XIo25

, Flatwasher, 506xo75x.024

Idler Pulley

Nut, 3/8-16 Hxctrtkjam

Bolt, Brake Arm

Nut, 9/16-18 Jamctdk

Bolt-Brake Arm

Pin, Spdng

Pad, Auger/Impeller Brake

Bracket

Nut, 1/2-20 Jamctrlk

Nut, 3/8..16 Reghxctrlk

REF.

NO.

124

125

126

I27

t28

t29

133

140

141

142

143

144

145

t46

148

149

160

161

162

t63

342574B

1710138

120382

782585

48306

58336

120385

339017

579872

180077

73795

579865

71038

313854

180124

313843

41529

760478

310169

71067

760539

PART NAME

Stud, Brake Arm

Washer, Regsptlk

Nut, 1/4-20 Reghexctrlk

Pulley

Bolt, .375 x .375

Washer, Flat

,250 x.56 x .049

Idler Spring

Idler Arm Lever

Screw 5/16.18X °75

Flatwasher .328X1.25X.075

Bushing, }dler Lever

Nut, 5/16-18 Hexnly

;dterSpring

Screw, 3/8-16X1.25

Idler Pulley

Nut 3/8-16 Hxctrlkjam

Belt Cover

Screw, 1/4-20X ,63

Flatwasher .286X63X,065

Lid, Belt Cover

CRAFTSMAN 30" - 11H+P. SNOW THROWER 536.886220

DRIVE ASSEMBLY

NO.

190

19t

192

193

195

t96

I98

210

211

215

216

217

221

222

223

224

225

226

227

228

PART NO.

579941

313853

137185

313919

579937

11871

782585

583163+853

583206

583155

85501

71074

73811

580969

43846

580970

580961

580965

578962

120380

PART NAME

LeverAssy

Bearing Flange

Cotter Pin

Spring, Return

Lever, Spring Traction

Screw t/4-20X ,63

Nut, 1/4-20 Reghexctrlk

Disc Assy

Grease Zerk

Hex Shaft

Trunion Bearing

Flatwasher

.53 X1.00X+063

Retex Ring

Ftatwasher

.680X1+12X.060

Ball Bearing

Square Key. 18SQX.63LG

Pulley, V3L 6°50X _56

WaveWasher

Flatwasher

.281X1.00X+063

Washer, Regsp!tck

REF.

[229

230

231

232

i235

240

243

244

245

246

247

249

250

255

256

257

270

271

1275

1276

277

278

313995 J

PART NO.

18002o

334163

780055

120638

579858

579897

462

71074

337029

313883

11871

303008

579858

334163

780055

120638

334163

780055

5830'10

334163

780055

579867

PART NAME ......... I

Screw, 1/4-20X .75

Bearing and Retainer Assy

Screw 5/16-18X .50

Washer, Hvsptik

Special Washer

Hex Assy #40-8TW

Retex Ring

Flatwasher +53X 100X 063

Trunion Bearing

Friction Wheel Assy

Screw, 1/4-20X .63

Nut 1/4-20 Hex Keps

Special Washer

Bearing and Retainer Assy

Screw 5116-18X_80

Washer, Hvsptik

Bearing and Retainer Assy

Screw, 5/16+18X .50

Jack Assy#41-36T&TT

Bearing and Retainer Assy

Screw, 5/16+18X.50

Chain Roller #42 X 40P

CRAFTSMAN30" - 11H.P. SNOW THROWER 536,886220

GEAR CASE ASSEMBLY

REF.I

NO_9

300 I

301 I

303 I

3O4 I

305 I

306 I

310 I

311 I

312 I

313 1

j3141

1315,,,I

=ART NO.

896

895

910828

71100

330434

313872

780151

313870

313871

760527

897

313861

PART NAME

Gear Case RH

Gear Case LH

Screw, 5/16-24Xl ,00

Nut, 5/t6-24

Screw, 5/16=24Xl °50

Pipe Plut

Oil Sea_

Bearing Sleeve

Flat'washer

Auger Shaft

Gasket, Gear Box

Worm Gear

JREF

NO.

3t6

32O

321

322

323

324

326

327

33O

340

314014D

PART NO.

73905

313914

583126

48275

313828

48275

50795

313862

53731

585423-853

PART NAME

Woodruff Key#91

Ring, Quad

Bearing. Flange

Flatwasher .752X1,24Xo093

Bearing, Roll

Flatwasher .752X1 24X,093

HFPro Key 606

Worm Gear

Bearing. Sleeve

impeller Assy

CRAFTSMAN 30" - 11H.P° SNOW THROWER 536.886220

DISCHARGE CHUTE ASSEMBLY

REF,

NO,

580

582

584

585

586

587

600

601

602

603

608

607

608

609

610

611

PART NO.

761168-853

578088

71038

578088

6711

71038

761169-853

586280

120393

71038

585214-853

302628

i71067

782585

337227

585193

PART NAME

Upper Chute

Screw, 5/16-18X ,75

Nut, 5/16-18 Reghxctrtk

Screw, 5/16-18X .75

Plastic Washer,

Nut, 5/16-18 Reghxctrlk

Lower Chute

Bolt, 5/t 6-18X1.00

Flatwasher

.344X ,69X.065

Nut, 5/16-18 Hexnyl

Chute Collar

Screw, 1/4-20X 75

Flatwasher

,286X,63Xo065

Nut, 1/4-20 Reghxctrtk

Inner Ring Retainer

Outer Ring Retainer

340892E-1

CRAFTSMAN 30" -11H.P. SNOW THROWER 536.886220

AUGER HOUSING ASSEMBLY

REF.

NO.

480

482

483

484

485

490

491

493

499

5O0

5O9

510

511

514

520

PART NO.

583146

71371

71074

274654

334514

582960

43846

180077

710026

760666-648

760040

760659-853

340720

710026

760595-853

PART NAME

Pulley, V4L 8.40 OD

Square Key, 16SQX.88LG

Flatwasher

.53 X1_00X,063

Nut, 1/2-20 Reghxctdk

Spacer, Sleeve

Ball Bearing Retainer

Ball Bearing

Screw, 5/16-18X .75

Nut, 5/16-18 Reghex

Housing Assy

Plug

Scraper Blade

Bolt, 5/16-18X .75

Nut, 5/16-18 Hxwdfllk

Whiz

Auger Assy RH

REF.

NO.

52I

522

523

524

525

526

527

540

541

542

543

544

339974 M

PART NO.

760596-853

3943

313873

73755

782967

585385-853

340720

120393

120638

120376

PART NAME

Auger Assy LH

Screw, 114o20X1.75

Spacer Stebve

Nut, 1/4-20 Reghxctrlk

Auger Shaft Bearing

Flatwasher

1.005X1.31X.035

Screw, 5/16-18X .88

Height Adj° Skid

Bolt, 5/16-18X .75

Flatwasher

°344X .69Xo065

Washer, HvsptIk

Nut, 5116-18Reghex

* When ordering replacement parts order Shear Pin, part #760875.

°,,=!41!']J

g21 ':, ,

CRAFTSMAN 30"-11H.P. SNOW THROWER 536.886220

HEADLIGHT PANEL ASSEMBLY

REF.

NO, PART NO.

620 583490

621 581575

622 583491

623

624

625

i626

627

628

629

830

631

832

180024

760745

760821

11234

120393

120638

760482

120376

782585

307781

PART NAME

Housing, headlight

Upper

Headlight Assy

Housing, headlight

Lower

Screw, 114-20x 125

Wire Harness

Bracket, Light

Screw, 5/16-18 x 2.75

Washer, Fiat

Washer, Lock

Bracket, Mount

Nut, 5116-18

Nut, 1/4-20

Screw, #8 x 1.75

3426236

WHEEL ASSEMBLY

REF.

NO. PART NO.

650 5830 7

652 583007

653 73839

i654 782585

655 581730

'656 583013

671 73840

673 585591

675 584633

676 577015

'677 782585

678 239

679 73842

PART NAME

Axle Shaft .....

Hub Sprocket

Screw, 1/4-20X225

Nut, 1/4-20 Reghxctrik

Bearing, Flange

Roller Chain

Flatwasher o765X1.12X06

Wheel Bushing

_re and Rim

Screw 1/4-20X1 ..76

Nut, 1/4-20 Reghxctdk

Retex Ring

Klik Pin .25 X 1.38 DIA

318542F

CRAFTSMAN 30" '11H.P. SNOW THROWER 536.886220

HANDI.E ASSEMBLY

°o

340090K_1

PART NAME

REF,

NO.

720

721

724

725

726

727

728

729

730

731

732

733

734

735

736

737

738

739

740

PAR1"NO,

581736

581738

7268

71072

120382

1499

7289

578328

581761-853

581758-653

581766

300311

3535

4049

579057

180016

782585

8417

584673

PART NAME

Handle, Upper LH

Handle, Upper RH

Screw, 3/8-16X300

Flatwasher

.406X _81X.066

Washer, Regsptik

Nut, 3/8-16 reghxctrlk

Stop, Plastic

Grip, Handte

Handle Assy, LH

Handle Assy, RH

Rod, Clutch Handle

E Ring

Push-onNut

Bumper

Cam Bracket

Screw, 1/4-20X 50

Nut, 1/4-20

Cam Lock,

Pin, Spring Pivot

REF,

'NO.

741

'742

743

744

745

746

750

751

752

753

754

755

756

760

761

762

763

764

PART NO.

73664

579257

579869

I673

782585

308146

5543-853

782967

120638

1498

180079

302680

71007

578330-853

302900

120393

120638

120376

Push-on Nut 3/8"

Cable, Clutch Control

Tension Spring

Spring, Auger Clutch

Nut, 1/4-20 Reghxctrlk

Boot, Clutch Spring

LowerHandle

Screw,5/16-16X .88

Washer,Hvsptlk

Nut, 5/16-18 Reghxctdk

Screw, 5/16-18X 1.00

Washer, Flat

Screw, 3/8-16X2.00

Panel Assy

Screw, 5/16-18X1.75

Flatwasher

.344X °69X.065

Washer, Hvsptlk

, Nut, 5/16-18 Reghex

RAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.981001

lrburetor No.640054

;tEF.

!O.

)

__0

20A

PART

iNO.

640054

631776A

631970

631776

650506

632112

632174

630735

632164

650417

630766

640016

640053

631951

PART NAME

Carburetdr '(incl 184 on engine)

Throttle Shaft & Lever Ass'y.

Throttle Retum Spring

Throtter Shutter

Shutter Screw

Choke Shaft & Lever Assy

Choke Shutter

Choke Positioning Spring

Fuel Fitting

Throttle Crack Screw/Idle

Speed Screw

TensionSpring

Idle Restrictor Screw

Idle Restsfictor Screw Cap

Float Bowl Assy (tncl 32&33)

@"-37

_'-,37

I "-

REF

N_,

PART

No.,

63t 024

632019

631028

631021

631022

27136A

27554

640005

632547

640012

27110

630748

631027

PART NAME

Float Shaft

Float

Float Bowt "O" Ring

Inlet Needle, Seat & Clip

(lnc131)

SpringClip

Bowl Drain Assembly

Drain Plunger Gasket

Main Nozzle Tube

"O" Ring, Main Nozzle Tube

High SpeedBowl Nut

Bowl Nut Washer

Welch Plug, Idle Mixture Well

Welch Plug, Atmospheric Vent

CRAFTSMAN 30'_-'11H.P. SNOW THROWER 536.886220

REMOTE CHUTE ASSEMBLY

REF.

NO, PART NO.

965 780207

966 120385

967 310088

968 120393

969 46931

970 180077

971 780066

972 1498

975 761129

990 122168

991 120394

992 4051

993 578659

995 578293

996 71046

PART NAME

Spring, Tension

Washer, Flat

Bolt, t/4-20

Flatwasher, 344x.69x.065

Nut, 1/4-20

Screw,5/16-18X °75

Bracket, Cable Chute

Nut, 5/16,.18 Reghxctrlk

Cable, Chute Control

Screw, 3/8-16 x 1.75

Washer, Flat

Washer, Spring

Lever, Chute

Knob, 1.5 Diameter

Nut, 3/8-16

343076B

CRAFTSMAN 30" - 11H.P, SNOW THROWER 536.886220

CHUTE CONTROL ROD ASSEMBLY

CRAFTSMAN 30" - 11H°Po SNOW THROWER 536.886220

CHUTE CONTROL ROD ASSEMBLY

REF_

NO.

850

851

852

853

854

855

856

857

858

859

860

861

862

864

867

868

872

873

874

875

676

677

PART NO.

578295

71072

121222

578051

578043

1795

73664

578044-853

180077

120393

71038

761099

30289

761066-853

339560

55023

578063

578309

578060

579493

585195

585196

PART NAME

Rod, Assy Upper Chute

Flatwasher

406X .81X.066

Cotter Pin

Cover, Chute Crank

Handle

Retainer Cap 3/8

Nut, Push-on 3/6"

Bracket, Console

Screw, 5/164 8X ,75

Flatwasher

,344X ,69X,065

Nut, 5116-18Hexnyl

Rod, Mid-Chute Assy

Wave Washer

Bracket, Lower Chute

Control

Rod ,Lower Chute Assy

Trim 77°5"

Block, Universal Pivot°

Clevis Pin

Pin, Universal Joint

Cotter Pin

Worm Bracket

Worm Gear

340866G

CRAFTSMAN 30" -11H.P. SNOW THROWER 536.886220

DECALS

REF

NO.

822

823

824

B25

828

827

828

8291

i833

340893B

PART NO.

760970

313892

70141

302922

760968

760967

761078

761095

760983

PART NAME

Decal, t2" Impeller

Decal, Danger Chute

Decal, Danger Foot

Decal, Danger

Decal, Craftsman

Decal, 11/30 ES

Decal, Danger Chute

Decal, Control Panel

Decal, Toolbox

CRAFTSMAN30" - 1'1H,P. SNOW THROWER 536.886220

HANDLE ASSEMBLY

340090K-2

REF.

NO. PART NO.

770 339966

771 308313

772 300303

774 579440

780 578144-853

78t 122168

782 313842

783 120394

784 71046

785 73787

788 578292

790 121222

791 120393

792 760966

793 120368

795 120638

796 313841

811 579944

812 337436

813 71111

PART NAME

Consote

Plug

Screw, .25X75X.51

Screw, 1/4-20X ,50

Gear Selector Bracket

Screw. 3/8-16X1.75

Spring

Flatwasher ,406X .81X_065

Nut, 3/8-16 Hexnyl

FIatwasher

Knob, to50 DIA

Cotter Pin .090 DIAX _75LG

Fiatwasher ,344X ,69X,065

Shift Red

Nut. 5/16-24 Reghex

Washer, Hvsptlk.328Xo60X.09

Steel Bal! Joint

Bearing Flange

Rod,Assy Yoke "Panel"

Nut 3/8=16

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.981001

3_ z_'T

_1 186

;RAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.981001

Description Ref.# Part No. Desc iptton:_ef.# I Part Noi

35371 ! Cyiinder (incl 2 20 72)

227652 ! Dowel P{n

3 650820 ',Screw, 1/4-20xlt2"

4 31857 ! Oil Drain Extension

530969 i Extension Cap

15 1306990 , Governor Rod (Inc115A & t58)

15A 30700 Governor Yoke =

15B 1650494 Screw 6-40 x 5/16

16 33454 Governor Lover

17 129916 Govemor Lover Clamp

18. 1651026 ScrewT-15 6-32x318"

19 134663 Speed Control Spring

20 135319 Oil Seal

25 J36460 Blower Housing Baffle

26 }650561 Screw 1/4-20x5t8"

28 | 30322 Loocknut 8-32

30 136245A Crankshaft =

35 J29626 Screw 10-32x314

36 |29916 Lockwashor

37 1292t6 Locknut 10-32

38 129642 Retaining Ring

40 |35776 Piston,Pin,&Ring Set(Std)

40 135777 Piston,Ptn,&Rtng Set(-010:)

40 J35776 Piston,Ptn,&Ring Set{,020 )

41 135773 Piston&Pin Assy(Std(Incl.43) .

41 |35774 Piston&Pin Assy(o010. OS)(tnc143)

41 135775 Piston&Pin Assy(.O20 OS(Inel. 43)

42 |35779 Ring Set (Std)

42 J35760 Ring Set (.010 =OS)

42 135781 Ring Set (..020 'OS)

43 135772 Piston Pin Retaining Ring

45 136896 Connecting Rod Assy(tncl 47,49)

47 1651033 Connecting Rod Bolt

48 134034 Vatve Lifter

49 136896 Oil Dipper

50 135375 Camshaft (MCR)

50 I33273A Blower Hsing Extension

55 |650128 Screw 10-24xl/2"

69 _35262A Cylinder Cover Gasket

70 }35376 Cylinder Cover (tncl 71,75,&80)

71 J35377 Crankshaft Bushing

75 ]35319 Oil Sea_

90 131845 Governor Shatt

91 130590A Washer

82 135378 Govemor Gear Assy.(tnc181)

83 |30588A Govemor Spool

84 |29193 Retaining Ring

86 |650833 Screw, 1/4-20xl-3116"

87 |650832 Screw 1/4-20xld 1/16

89 |32589 Flywheel Key

90 1611193 Flywhea_ (w/ring gear)

92 1650860 Lock Washer

93 1650861 Flywheel Nut

100 i35135 Softd State Ignition

101 1610118 Spark Plug Cover

102 1651024 Solid State Mttng Stud

103 1651007 Screw Torx T-15 10-24x15/16

110 135187 Ground Wire

110A 137047 Ground Wire

119 136451 Cylinder Head Gasket

120 136449 Cylinder Heed

125 127878A ExhaustyalL'e (std)!lnc1151)

125 127680A Exhaust Vatve(1/32 OS)(inct I51)

126 134035 Intake Valve {std)(!ncl. 15t)

126 |34036 Intake Valve (1/'32 OS)(tnc1151)

127 {650691 Washer

126 |650690 Belfeviflo Washer

129 |650727 Screw, 5/'16-18xl-3/'4"

130 |6021A Screw 5/'16-18x1-1/2

131 |650694A Screw, 5/'16-18 x2 .

131A _650713 Screw 5/16-16 x 5/'8

t35 |35395 Resistor Spark Ptug(RJ19LM)

t39 |33369 Governor Gear Bracket

140_650836 Screw 10-24xlt2

149 27862 Valve Spring (

149A 35662 Valve Spdng (

150 27881 Valve Spring

151 32561 Valve Sprlng] _or

t69 27896A Valve Cover Cet

170 28423 Breather Bod

171 28424 Breather Elerr

172 28425 Valve Cover

I73 35350 Breather Tub_

t74 650126 Screw 10-24 t/'2"

178 29752 Nut &Lock Washer 1t4-28"

182 30088A Screw, 1/4-28

183 34587A ChokeBraeke

184 33263 Carburetor To _take Pine Gskt

185 33677 intake P_pe

166 34667 Governor Lin_

t868 36652 Choke Spring

200 34677 Control Bkt (tncL 203.204)

203 31342 Compression Spring .

204 651029 Screw, T-10 5-40x7/16

208 610973 Terminal

207 33878 Throttle Unk

209 650821 Screw 10-32 1/2=

215 35440 Control Knob

219 34586 Choke Rod

_20 35438 Choke Knob

222 25620 Screw 10-32 I/2"

223 650378 Screw Torx 1"- 5/'! 6-t8x1-1/8"

224 27915A Intake Pipe Gasket

260 35447A Blower Housi_

26t 650786 Screw 5/16-1E

262 297478 Screw Torx 1". 5/'16-24x21/32'

264A 650602 Screw, 1/4-20

265 332728 Cylinder Hoa_ :_ver(BIack)

275 35056 Muffier

276 31586 Locking Plate

277 651002 Screw 5116-1E 8"

28t 33013 Starter BubbS_ _ver

282 _50760 Screw 8-32x3,

265 359858 Starter Cup

267 29752 Nut & Lock w_ 1/'4-28

290 30705 Fuel Line

292 26460 Fuel Line Clar _p

298 650665 Screw 1/4d5: If4'

300 34156A Fuel Tank (Inci 292 & 301)

301 35355 Fuel Cap

305 35554 Oil Fi]t Tube

307 35499 "O" Ring

306 35540 Fill Tube Ciip

310 36205 Dipstick

314 650973 Screw 1/4-20 x 3/'4

315 !611111 Allemator Coi{(18 Watt)(lnc1323)

1323 i611118 Terminal

325 29443 Wire Clip

327 35392 Starter Plug

328 35593 Ignttton Key

329 1610973 Terminal

335 35057A Carburetor Co

336 i650765 Screw 10-32x'/'2"

338 28942 Screw 10-32x3/8"

340:34154 FuelTank Bracket

341 i34155 FueI Tank Bracket

342 650561 Screw 1/4-20x ;/8"

350 ;570682 Primer Bulb

351 !32160C Primer Line

355 590574 Starter Handi_ (Mitten Grip)

364 33377 Carburetor Co tracker

365 :,650767 Screw 8-32x2_/64"

370 36261 Identification [

3708 i35077 Control Decal

370C 36501 Primer Decal

3701 35878 Wamfng Deca

380 640054 Carburetor (In, 184)

390 590733 Rewind StarVe

396 33329D Electric Starts Motor Kit

(Optional)

400 36452A Gasket Set

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.981001

Starter No. 590733

_,-._w _i _

iREF,

_NO.

PART

NO.

590733

590599A

590600

590696

590601

590697

590698

590699

590709

590734

590535

590574

PART NAME

RewindStarter

SpringPin(lncL4)

Washer

Retainer

Washer

BrakeSpring

Starter[Jog

Dog Spring

Pulley & Rewind Sprg Assy

Starter HousingAssy

StarterRope

(Length 96"x9/64"dta)

Mitten Grip Handle(not

included withstarter)

,RAFTSMAN 4-CYCLE ENGINE MODEL NUMBER: 143.981001

;tarter Noo590749

REF, PART

NO. ,,N(3,

0 590749

1590599A

2 590600

3590679

4 590601

5 590678

6 590680

;;7 590412

181 590682

590750

12 590535

13 590574

PART NAME

Rewind Starter

SpringPin (IncL 4)

Washer

Retainer

Washer

Brake Spring

Starter Dog

Dog Spring

Pulley & Rewind Spring Assy,

StarterHousing Assy; .

Starter Rope (Ig|h 98 x9/64 )

Mitten Grip Handle (Not included with

starter)

For the repair or replacement parts you

need delivered directly to your home

Call 7 am-7 pm, 7 days a week

1-800-366-PART

(1-800-366-7278)

Para ordenar piezas con entrega

a domicilio -1-800-659-7084

For in-house major brand repair service

Call 24 hours a day, 7 days a week

1-800-4-REPAIR

(1-800-473-7247)

Para pedir servicio de reparaci6n a

domicilio - 1-800-676-5811

For the loCation of a Sears Parts and

Repair Center in your area

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears

Maintenance Agreement or to inquire

about an existing Agreement

Call 9 am -5pm, Monday-Saturday

1-800-827-6655

When requesting service or ordering

parts, always provide the following

information:

-Product Type •Part Number

• Model Number • Part Description

Sm/ R8

America'sRepairSpecialists Printed in U_S.A.

Craftsman 536886220 User Manual SNOWTHROWER Manuals And Guides L0712492

CRAFTSMAN Snowthrower, Gas Manual L0712492 CRAFTSMAN Snowthrower, Gas Owner's Manual, CRAFTSMAN Snowthrower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
