ICRRFTSMRN®I

5 Horsepower

24 Inch Dual Stage

120V. Electric Start

SNOW THROWER

MODEL NO.

536.886440

Caution:

Read and follow all Safety Rules

and Operating Instructions before

first use of this product.

SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A.

F-001087J

WARRANTY STATEMENT ......

SAFETY RULES ...............

INTERNATIONAL SYMBOLS ....

ASSEMBLY ...................

OPERATION ..................

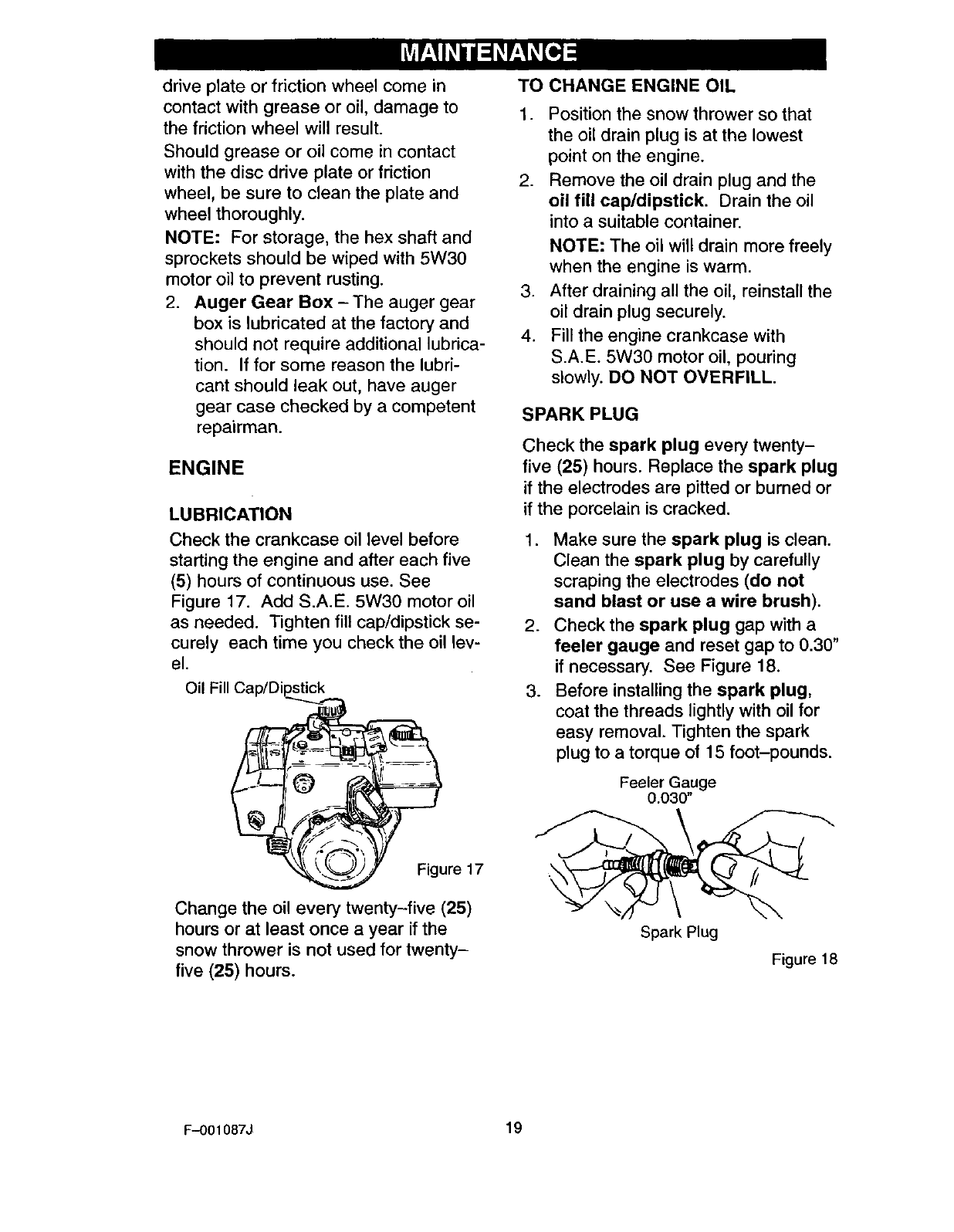

MAINTENANCE ...............

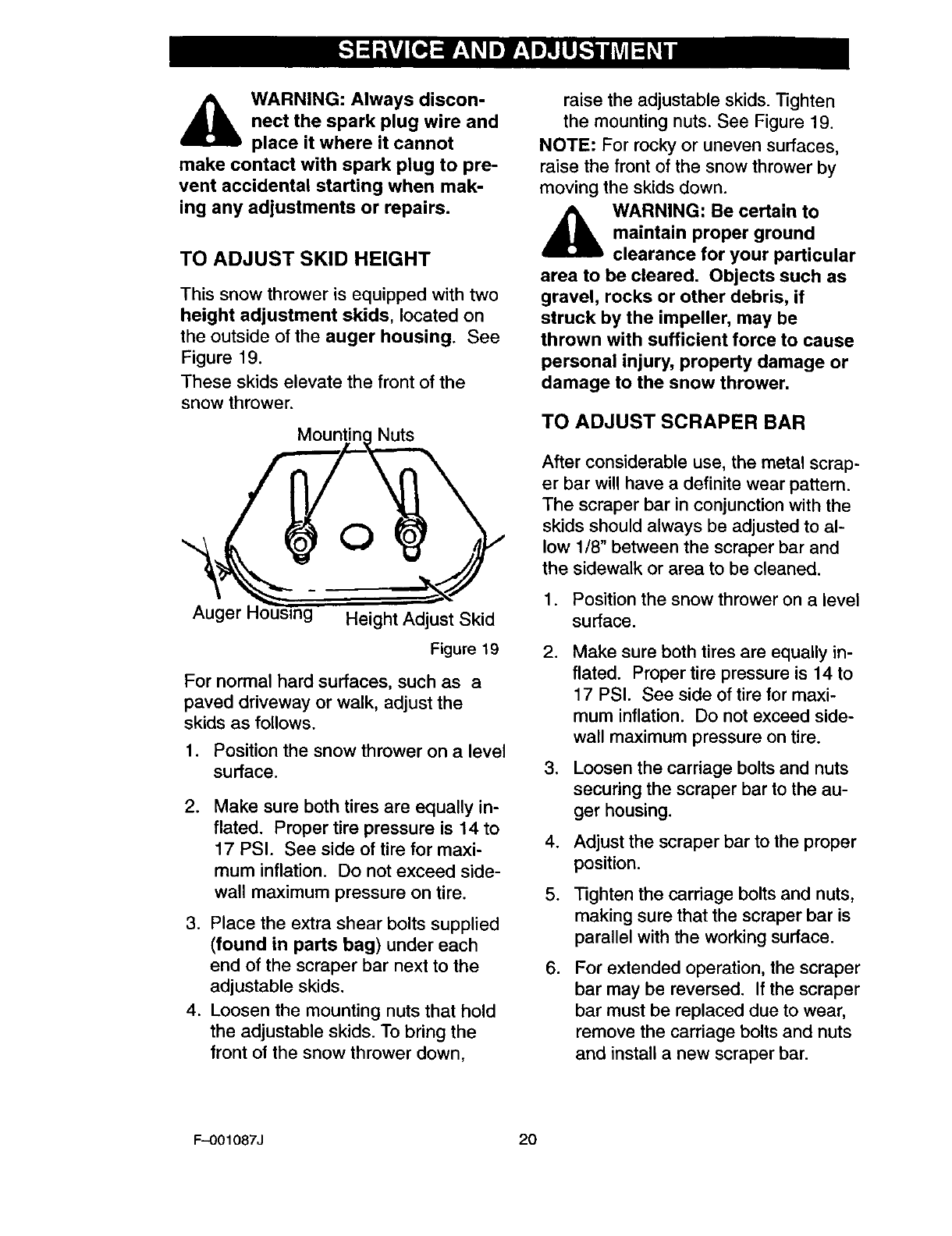

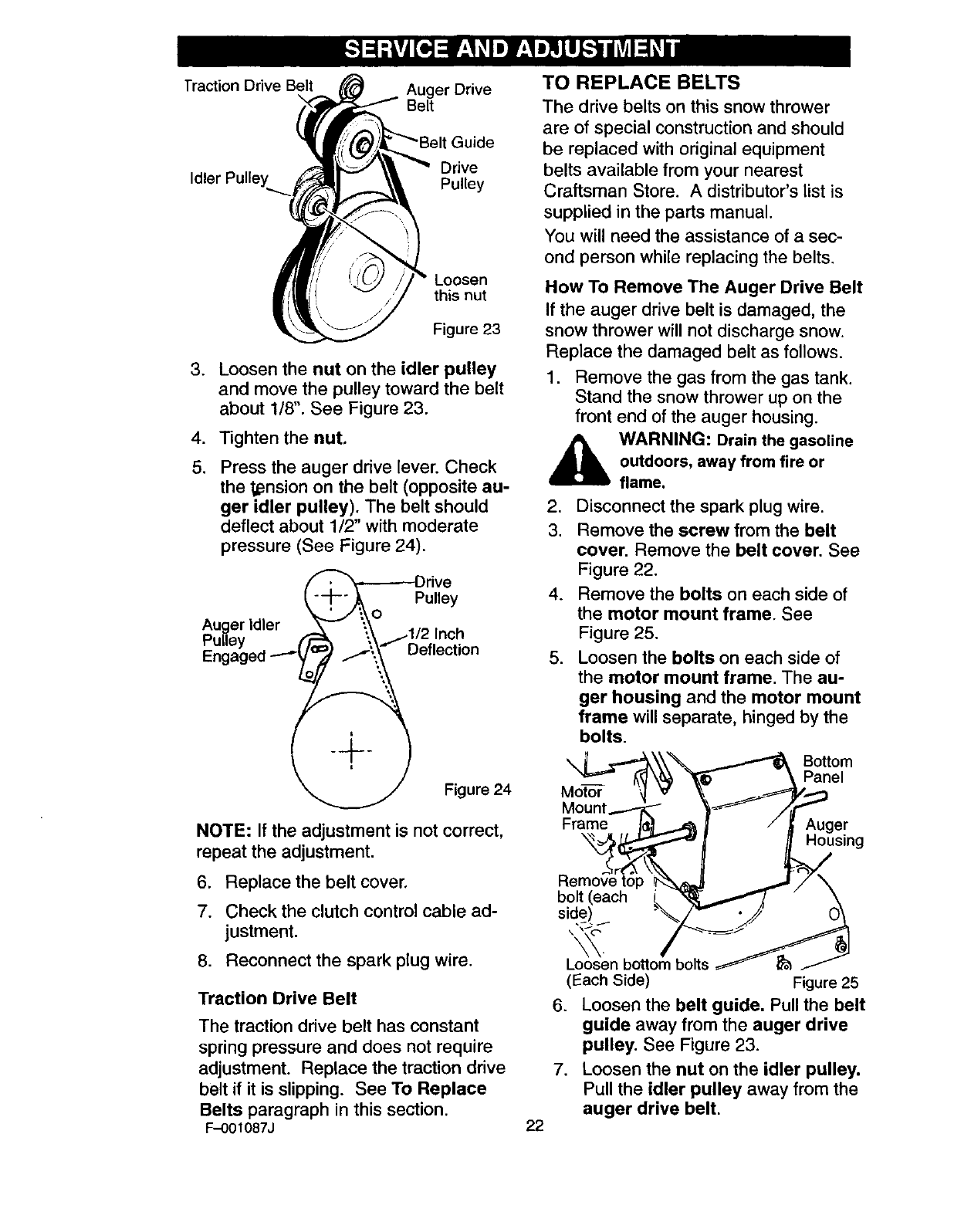

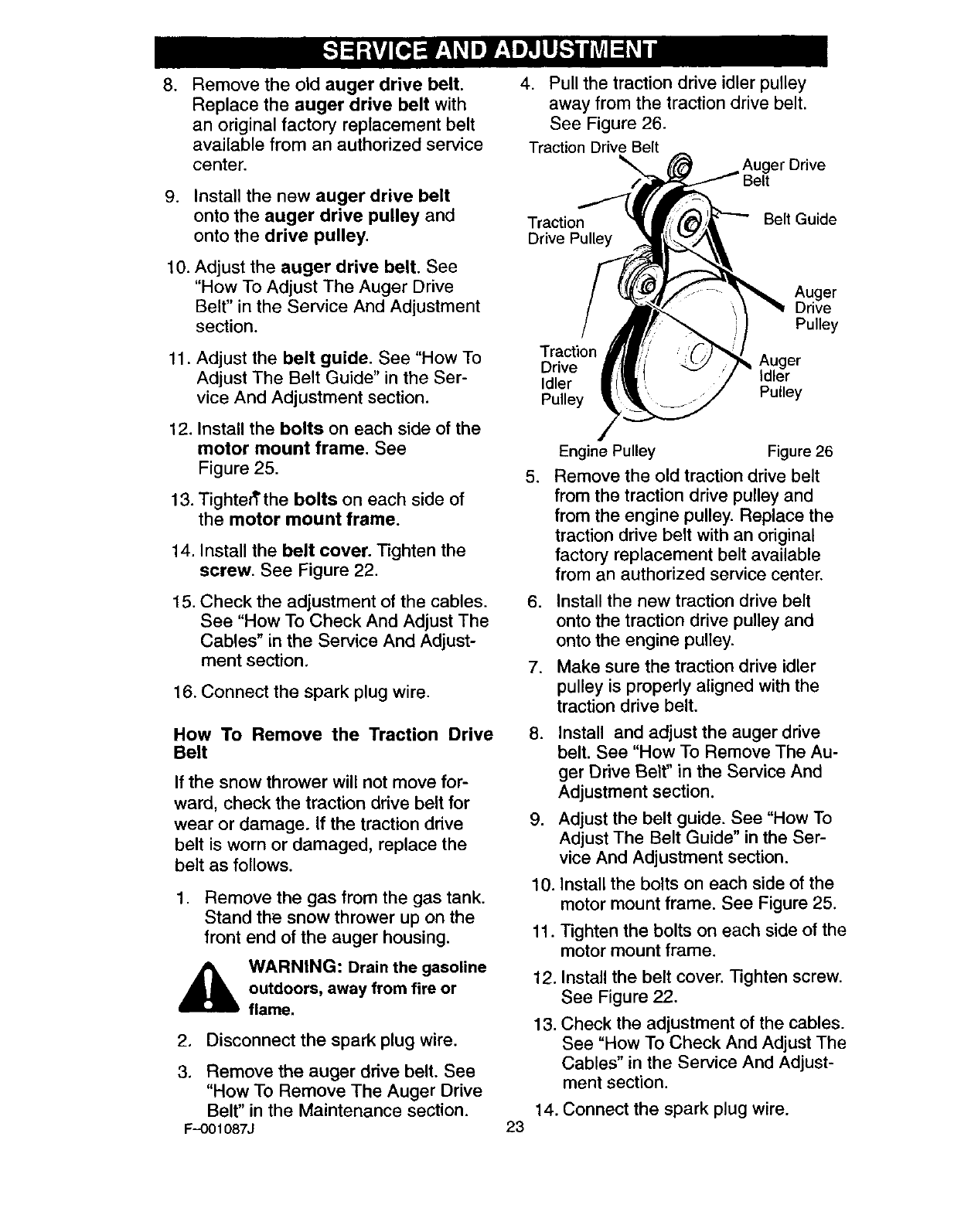

SERVICE AND ADJUSTMENT ..

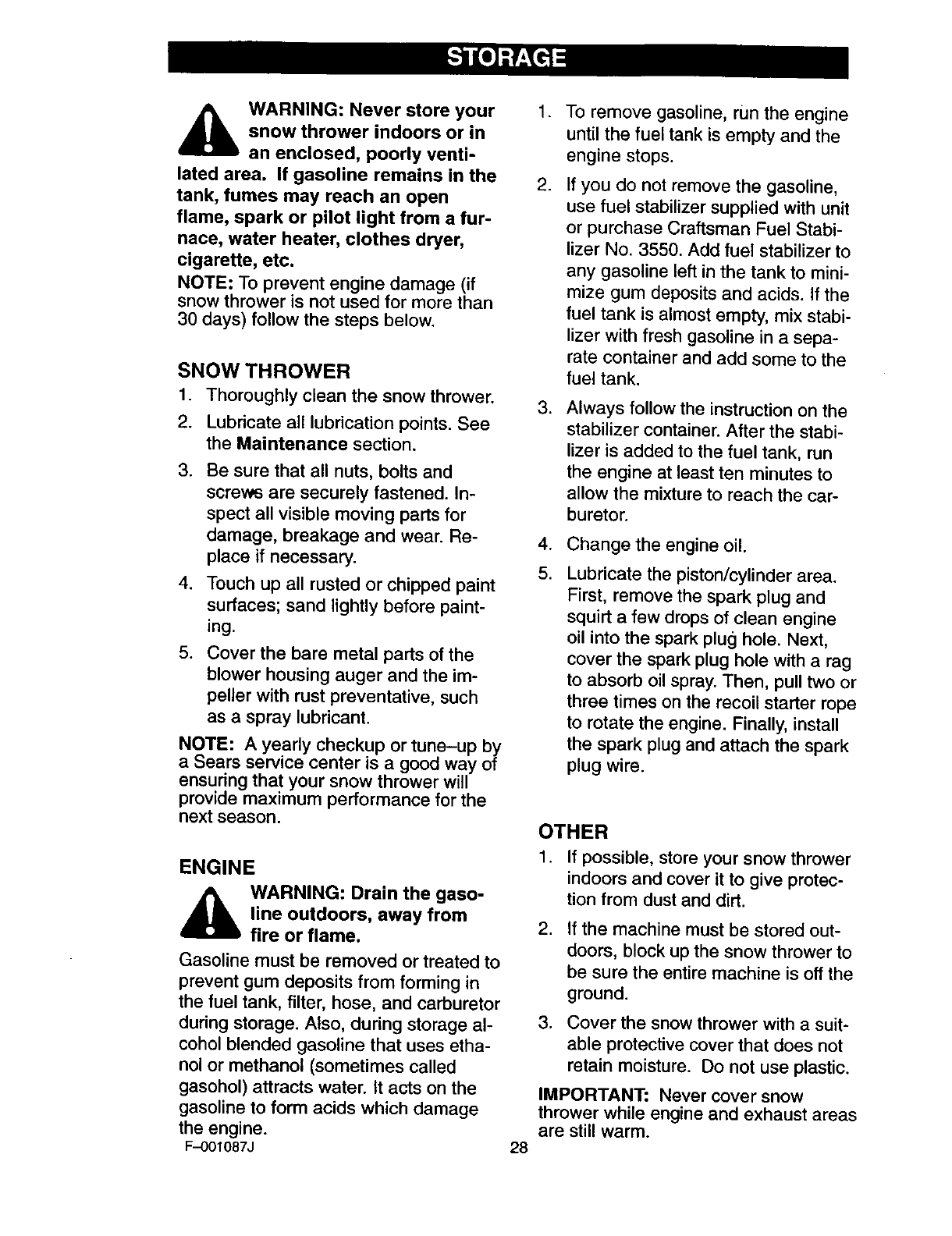

2 STORAGE .................... 28

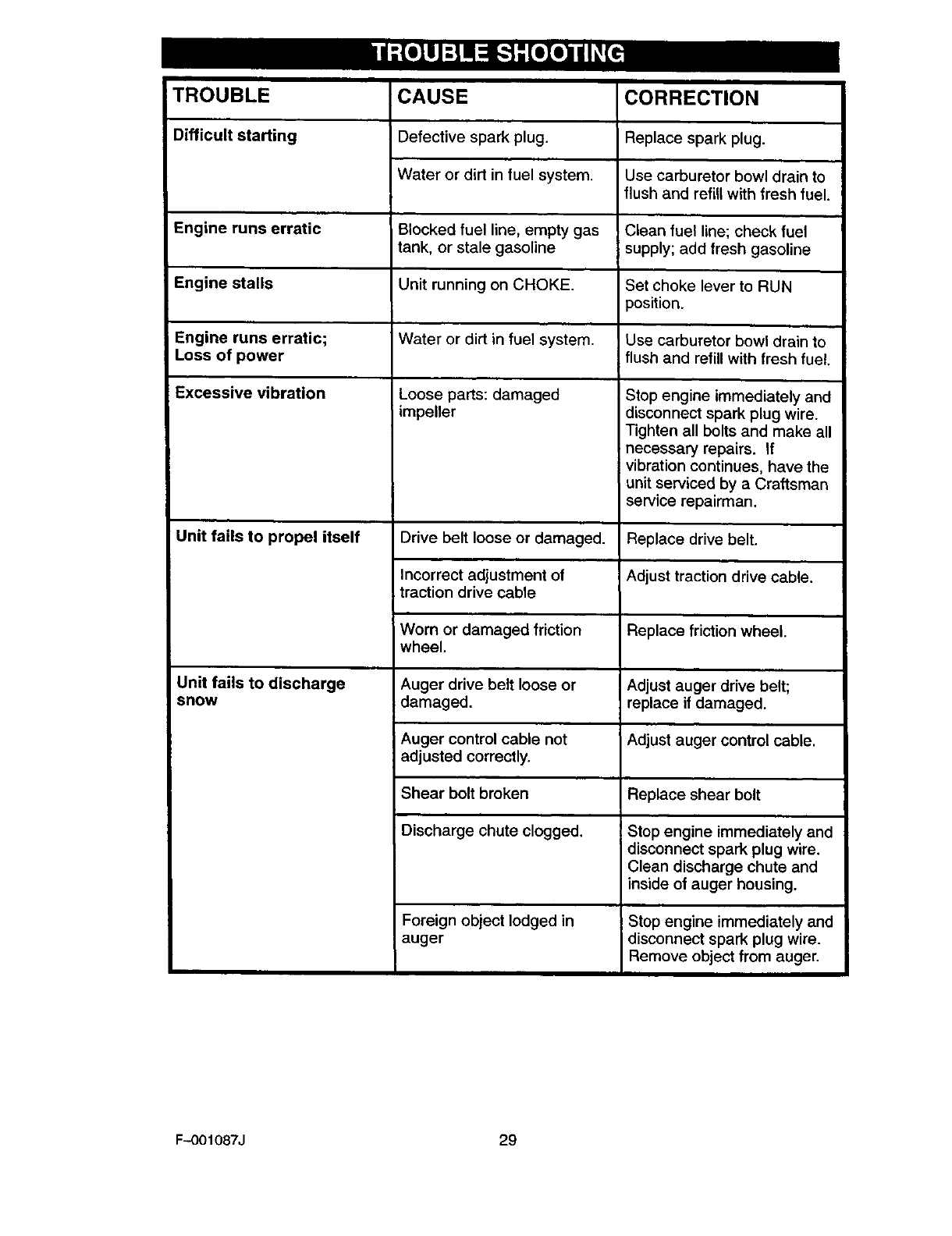

2 TROUBLE SHOOTING CHART .. 29

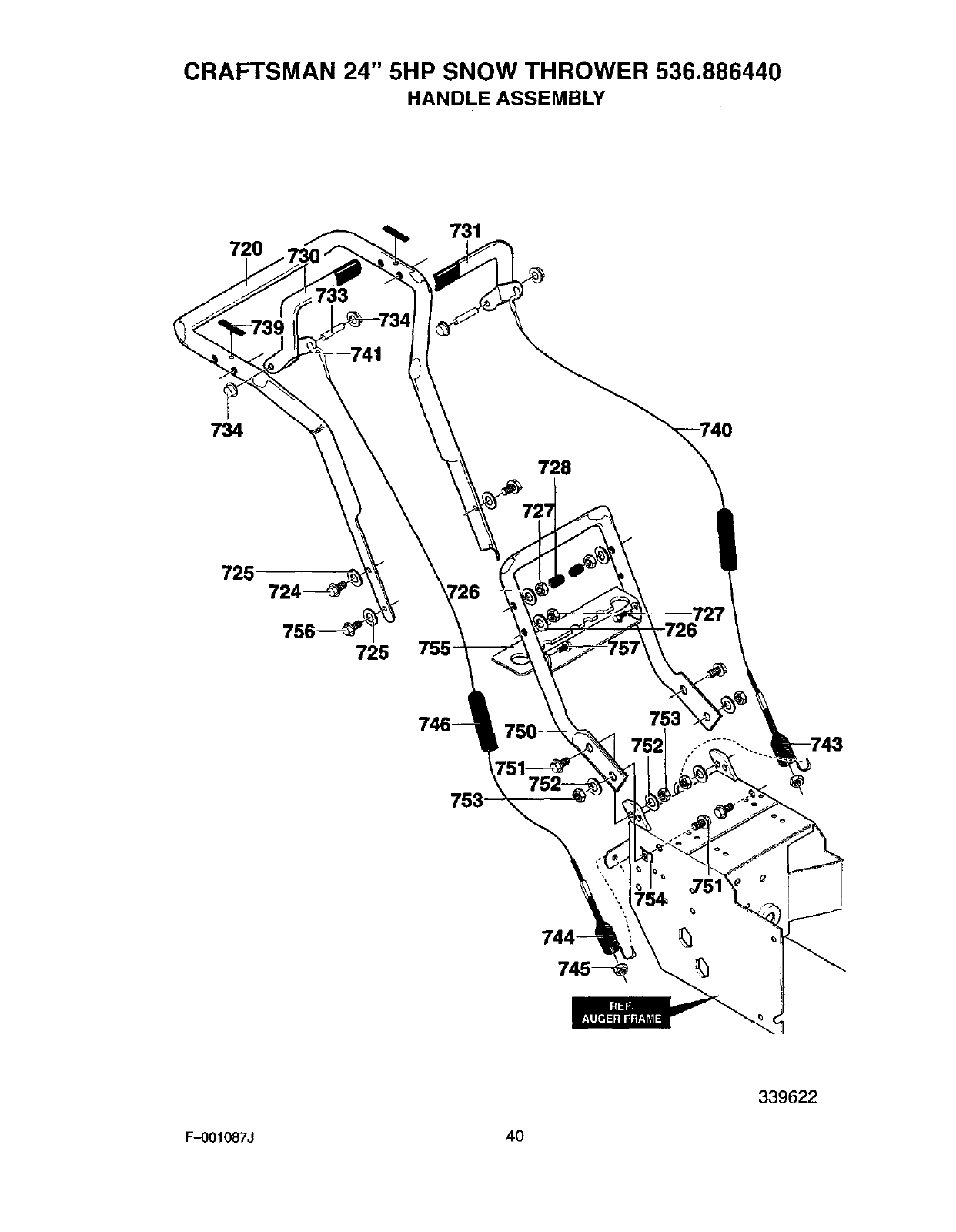

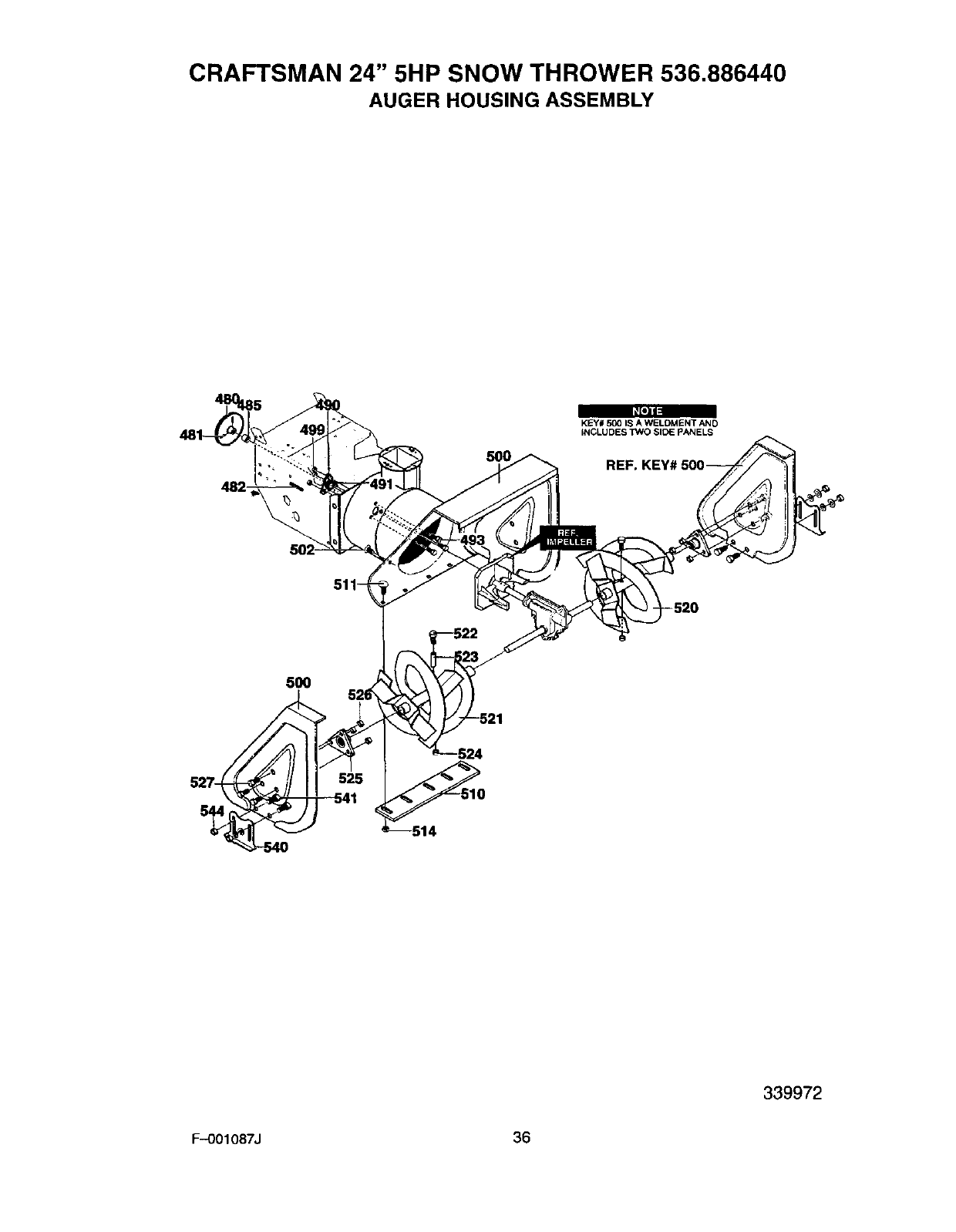

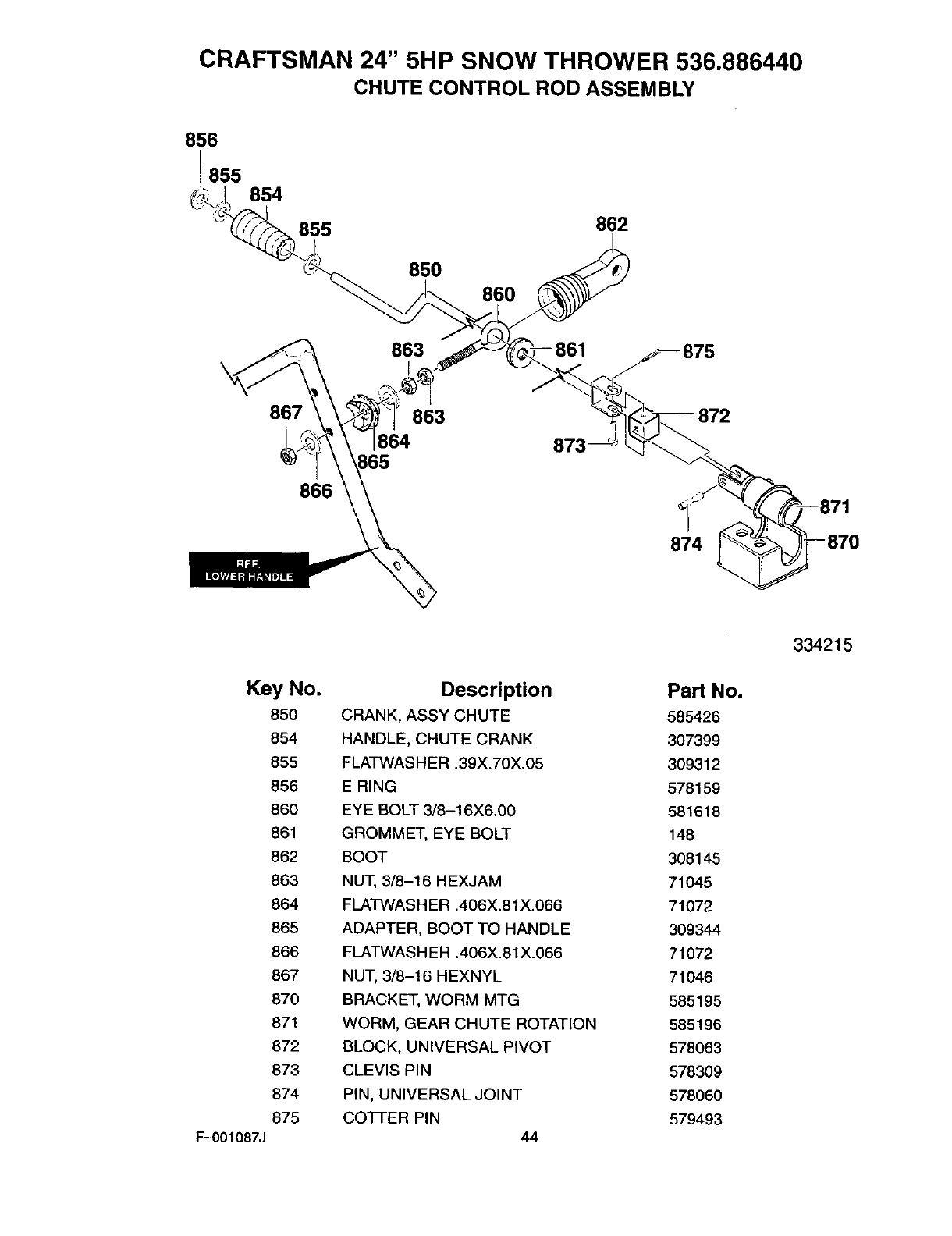

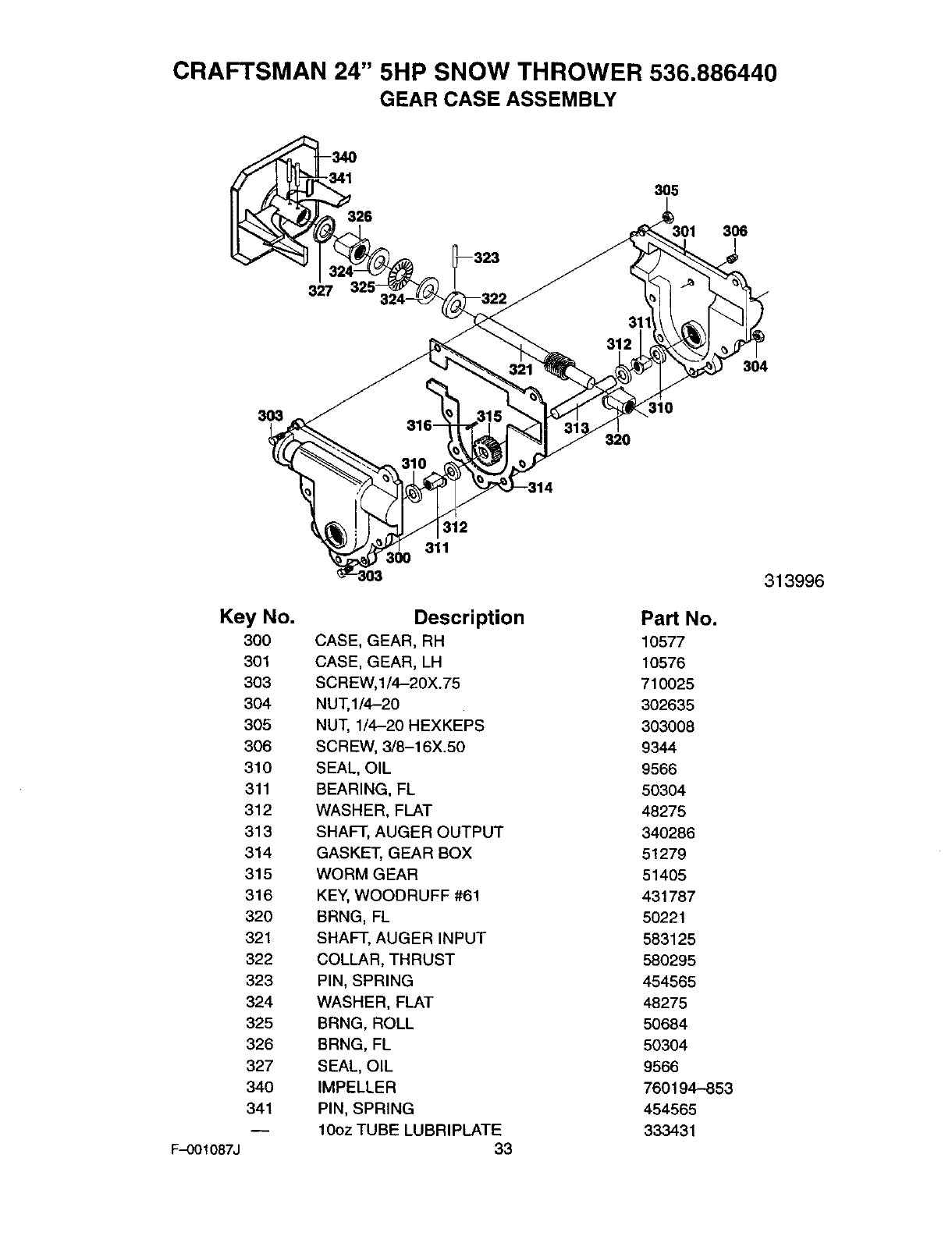

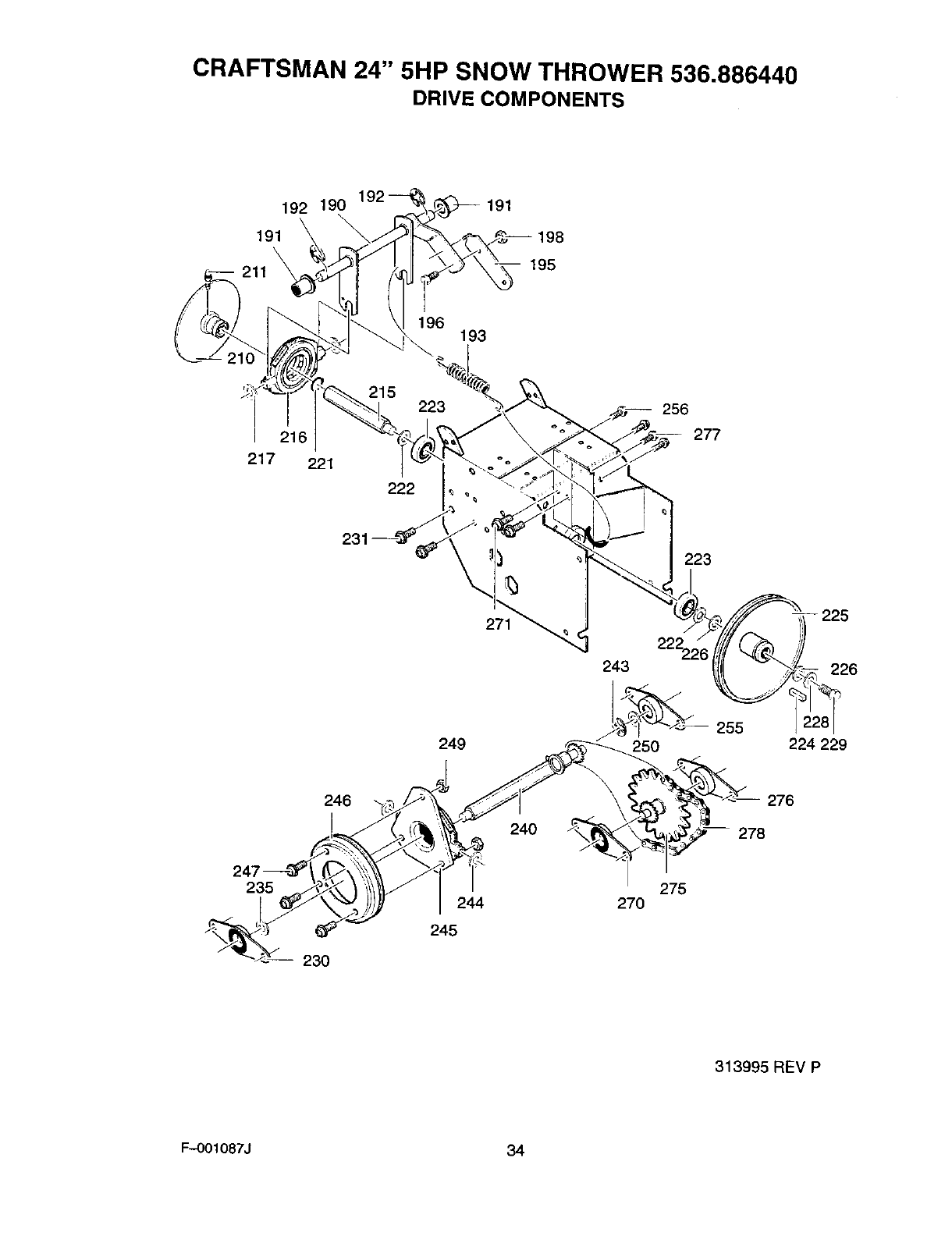

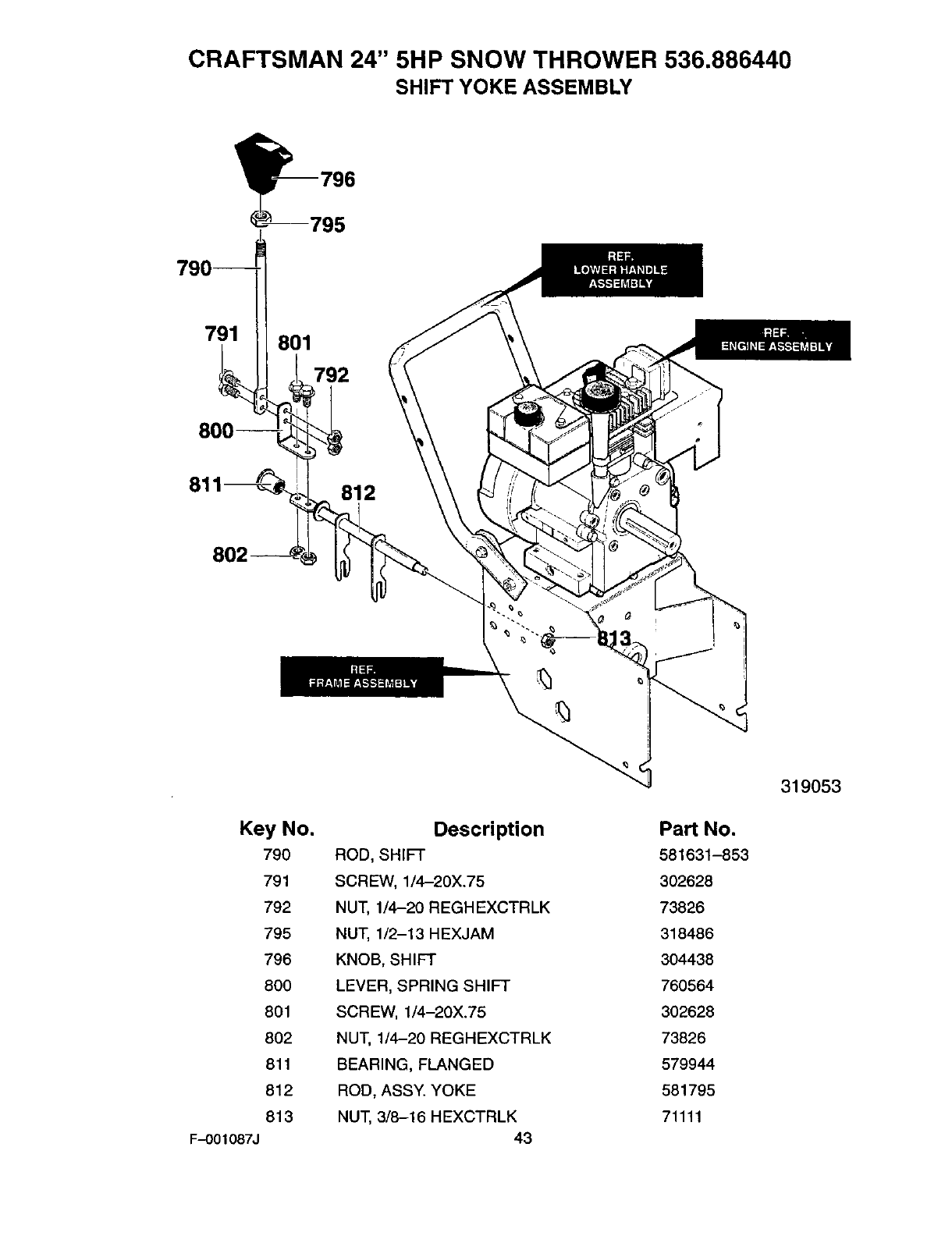

4 REPAIR PARTS ............... 30

6 ENGINE REPAIR PARTS ....... 46

11 SPANISH (ESPANOL) .......... 55

17 PARTS ORDERING/SERVICE.,

20 BACK COVER

LIMITED "13NO--YEAR WARRANTY ON CRAFTSMAN SNOW THROWER

For two years from the date of purchase, when this Craftsman Snow thrower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Craftsman will repair, free of charge, any defect in material or workman-

ship.

If this Craftsman Snow thrower is used for commercial or rental purposes, this warranty ap-

plies for only 90 days from the date of purchase.

This warranty does not cover the following:

•Items which become worn during normal use, such as spark plugs, drive belts and shear

pil_s.

•Repair necessary because of operator abuse or negligence, including bent crankshafts

and the failure to maintain the equipment according to the instructions contained in the

owner's manual.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN SNOW

THROWERTO THE NEAREST CRAFTSMAN SERVICE CENTER/DEPARTMENT IN

THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS

IN USE IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other rights which may

vary from state to state.

Sears, Roebuck and Co., D817WA, Hoffman Estates. IL 60179

LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS.

IT MEANS-- ATrENTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED.

Engine Exhaust, some of its constituents, and

certain vehicle components contain or emit

chemicals known to the State of California to

cause cancer and birth defects or other repro-

ductive harm.

Battery posts, terminals and related accessories

contain lead and lead compounds, chemicals

known to the State of California to cause cancer

and birth defects or other reproductive harm.

WASH HANDS AFTER HANDLING.

,_ WARNING: Always discon-

nect the spark plug wire

and place it where it cannot

make contact with spark plug to

prevent accidental starting during:

Preparation, Maintenance, or Stor-

age of your snow thrower.

IMPORTANT: Safety standards re-

quire operator presence controls to

minimize the risk of injury. Your snow

thrower is equipped with such controls.

Do not attempt to defeat the function of

the operator presence control under any

circumstances.

F-001087J 2

TRAINING

1. Read the operating and service instruction

manual carefully. Be thoroughly familiar

with the controls and the proper use of the

equipment. Know how to stop the unit and

disengage the controls quickly.

2. Never allow children to operate the equip-

ment. Never allow adults to operate the

equipment without proper instruction.

3. Keep the area of operation clear of all per-

sons, particularly small children and pets.

4. Exercise caution to avoid slipping or falling

especially when operating in reverse.

PREPARATION

1. Thoroughly inspect the area where the

equipment is to be used and remove all

doormats, sleds, boards, wires, and other

foreign objects.

2. Disengage all clutches before starting the

engine (motor).

3. Do not operate the equipment without

weadng adequate winter outer garments.

Wear foetwear that will improve footing on

slippery surfaces.

4. Handle fuel with care; it is highly flam-

mable.

a. Use an approved fuel container.

b. Never remove fuel tank cap or add fuel

to a running engine (motor) or hot en-

gine (motor).

c. Fill fuel tank outdoors with extreme

care. Never fill fuel tank indoors.

Replace fuel cap securely and wipe up

spilled fuel.

Never store fuel or snow thrower with

fuel in the tank inside of a building

where fumes may reach an open flame

or spark.

Check fuel supply before each use, al-

lowing space for expansion as the heat

of the engine (motor) and/or sun can

cause fuel to expand.

For all units with electric starting motors

use electric starting extension cords certi-

fied CSAiUL. Use only with a receptacle

that has been installed in accordance with

local inspection authodties.

Adjust the snow thrower height to clear

gravel or crushed rook surface.

Never attempt to make any adjustments

while the engine (motor) is running (except

when specifically recommended by manu-

facturer).

Let engine (motor) and snow thrower ad-

just to outdoor temperatures before starting

to clear snow.

F-O01087J

,Always wear safety glasses or eye shields

during operation or while performing an ad-

justment or repair to protect eyes from

foreign objects that may be thrown from the

snow thrower.

OPERATION

1. Do notoperate this machine if you are tak-

ing drugs or other medication which can

cause drowsiness or affect your ability to

operate this machine.

2. Do not use this machine if you are mentally

or physically unable to operate this ma-

chine safely.

3. Do not put hands or feet near or under ro-

tating pads. Keep clear of the discharge

opening at all times.

4. Exercise extreme caution when operating

on or crossing gravel drives, walks or

roads. Stay alert for hidden hazards or

traffic.

5. After striking a foreign object, stop the en-

gine (motor), remove the wire from the

spark plug, thoroughly inspect snow

thrower for any damage, and repair the

damage before restarting and operating

the snow thrower.

6. If the unit should start to vibrate abnormal-

ly, stop the engine (motor) and check im-

mediately for the cause. Vibration is

generally a warning of trouble.

7. Stop the engine (motor) whenever you

leave the operating position, before un-

clogging the auger/impeller housing or dis-

charge chute and when making any

repairs, adjustments, or inspections.

8. When cleaning, repairing, or inspecting,

make certain the auger/impeller and all

moving parts have stopped and all controls

are disengaged. Disconnect the spark plug

wire and keep the wire away from the spark

plug to prevent accidental starting.

9. Take all possible precautions when leaving

the snow thrower unattended. Disengage

the auger/ impeller, stop engine (motor),

and remove key.

10. Do not run the engine (motor) indoors, ex-

cept when starting the engine (motor) and

for transporting the snow thrower in or out

of the building. Open the outside doors; ex-

haust fumes are dangerous (containing

CARBON MONOXIDE, an ODORLESS

and DEADLY GAS).

11. Do not clear snow across the face of

slopes. Exercise extreme caution when

changing direction on slopes. Do not at-

tempt to clear steep slopes.

12. Never operate the snow thrower without

proper guards, plates or other safety pro-

tective devices in place.

13.

14.

15.

16.

17.

Neveroperate the snow thrower near en-

closures, automobiles, window wells,

drop--offs, and the like without proper ad-

justment of the snow discharge angle.

Keep children and pets away.

Do not overload the machine capacity by

attempting to clear snow at too fast a rate.

Never operate the machine at high trans-

port speeds on slippery surfaces. Look be-

hind and use care when backing up.

Never direct discharge at bystanders or

allow anyone in front of the unit.

Disengage power to the collectodimpeller

when snow thrower is transported or not in

use.

18. Use only attachments and accessories ap-

proved by the manufacturer of the snow

thrower (such as tire chains, electdc start

kits, ect.).

19. Never operate the snow thrower without

good visibility or light. Always be sure of

your footing and keep a firm hold on the

handles. Walk;never run.

20.

21.

Do not over-reach. Keep proper footing

and balance at all times.

Do not attempt to use snow thrower on a

roof.

MAINTENANCE AND STORAGE

1. Check shear bolts and other bolts at fre-

quent intervals for proper tightness to be

sure the equipment is in safe working

condition.

2. Never store the snow thrower with fuel in

the tank inside a building where ignition

sources are present such as hot water and

space heaters, clothes dryers, and the like.

Allow the engine (motor) to cool before

storing in any enclosure.

3. Always refer to operator's guide instruc-

tions for important details if the snow

thrower is to be stored for an extended

period.

4. Maintain or replace safety and instruction

labels, as necessary.

5. Run the snow thrower a few minutes after

throwing snow to prevent freeze-up of the

auger/impeller.

_WARNING: This snow thrower is

for use on sidewalks, driveways

and other ground level surfaces.

Caution should be exercised while using on

steep sloping surfaces. DO NOT USE

SNOW THROWER ON SURFACES ABOVE

GROUND LEVEL such as roofs of resi-

dences, garages, porches or other such

structures or buildings.

IMPORTANT: Many of the following symbols are located on your unit or on literature sup-

plied with the product. Before you operate the unit, learn and understand the purpose for

each symbol.

Control And Operating Symbols

Slow Fast Electric Start Engine Start Engine Run

I H N

Engine Off Engine Stop On Choke Off Choke On Neutral

Throttle Primer Button Ignition Key ®Q

Ignition Off Ignition On

F-001087J 4

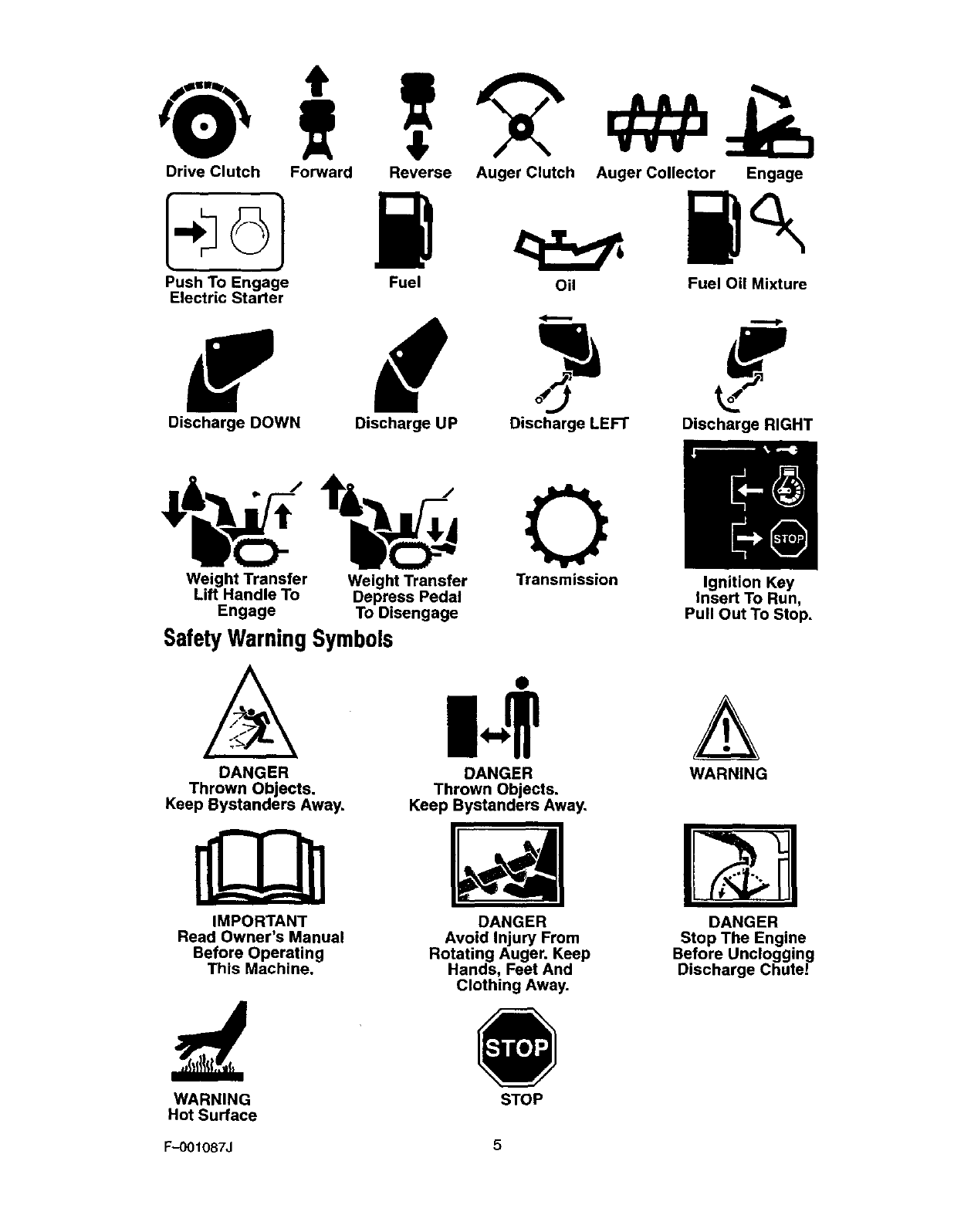

Drive Clutch Forward Reverse Auger Clutch Auger Collector Engage

Push To Engage Fuel

Electric Starter Oil Fuel Oil Mixture

Discharge DOWN Discharge UP Discharge LEFT Discharge RIGHT

Weight Transfer Weight Transfer Transmission

Lift Handle To Depress Pedal

Engage To Disengage

SafetyWarningSymbols

DANGER

Thrown Objects.

Keep Bystanders Away.

IMPORTANT

Read Owner's Manual

Before Operating

This Machine.

DANGER

Thrown Objects.

Keep Bystanders Away.

DANGER

Avoid Injury From

Rotating Auger. Keep

Hands, Feet And

Clothing Away.

Ignition Key

Insert To Run,

Pull Out To Stop.

WARNING

DANGER

Stop The Engine

Before Unclogging

Discharge Chute!

WARNING

Hot Surface STOP

F-OO1087J 5

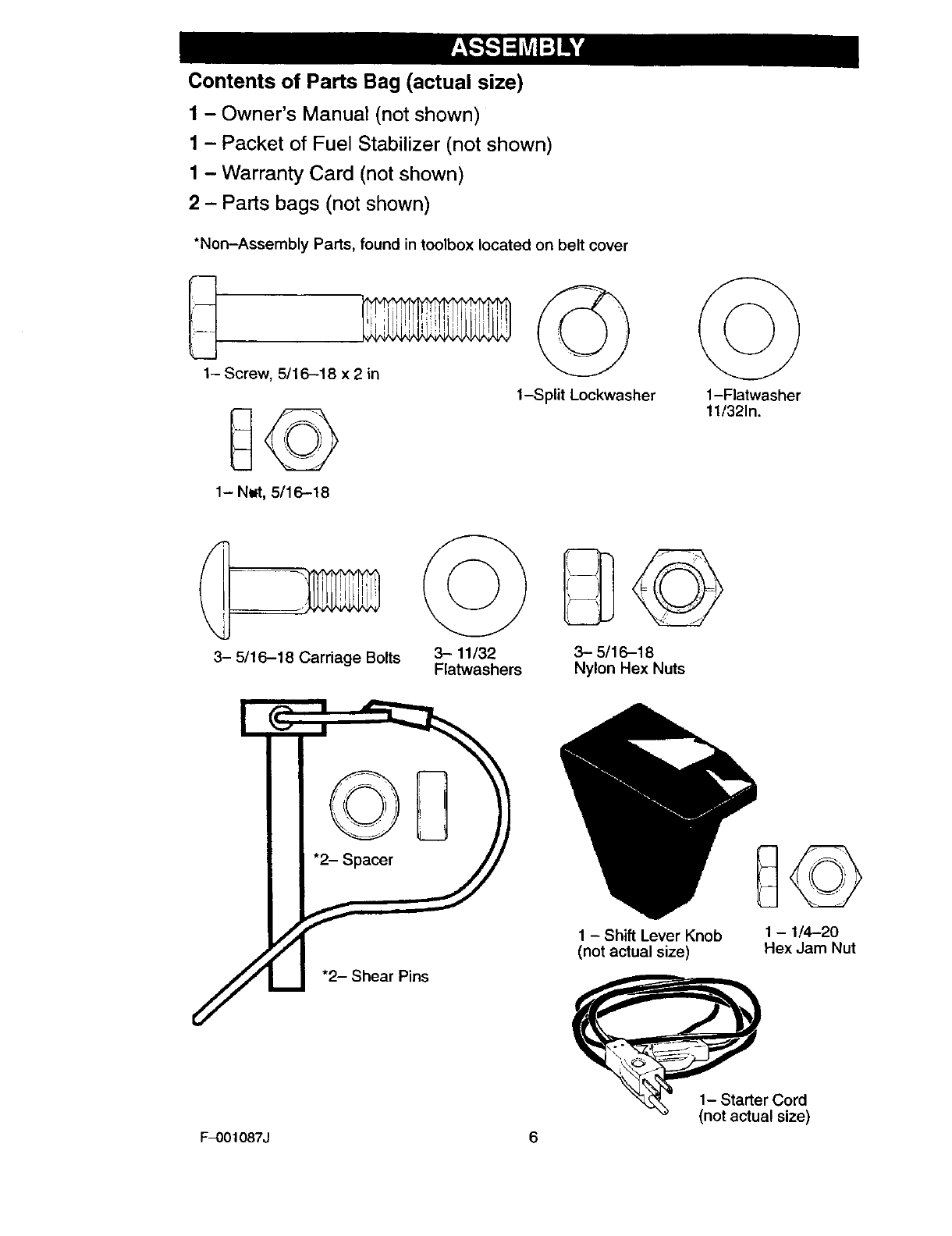

Contents of Parts Bag (actual size)

1 - Owner's Manual (not shown)

1 - Packet of Fuel Stabilizer (not shown)

1 - Warranty Card (not shown)

2 - Parts bags (not shown)

*Non-Assembly Parts, found in toolbox located on belt cover

1- Screw, 5/16--18 x2in

1-Split Lockwasher

1- Nut, 5/16-18

1-Flatwasher

11/321n.

3- 5/16-18 Carriage Bolts 3- 11/32

Flatwashers 3- 5/1 6-18

Nylon Hex Nuts

F-OOlO87J

"2- Shear Pins

1 - Shift Lever Knob

(not actual size)

1 - 1/4-20

Hex Jam Nut

_1-Sta_e._ (not actuarlCord)

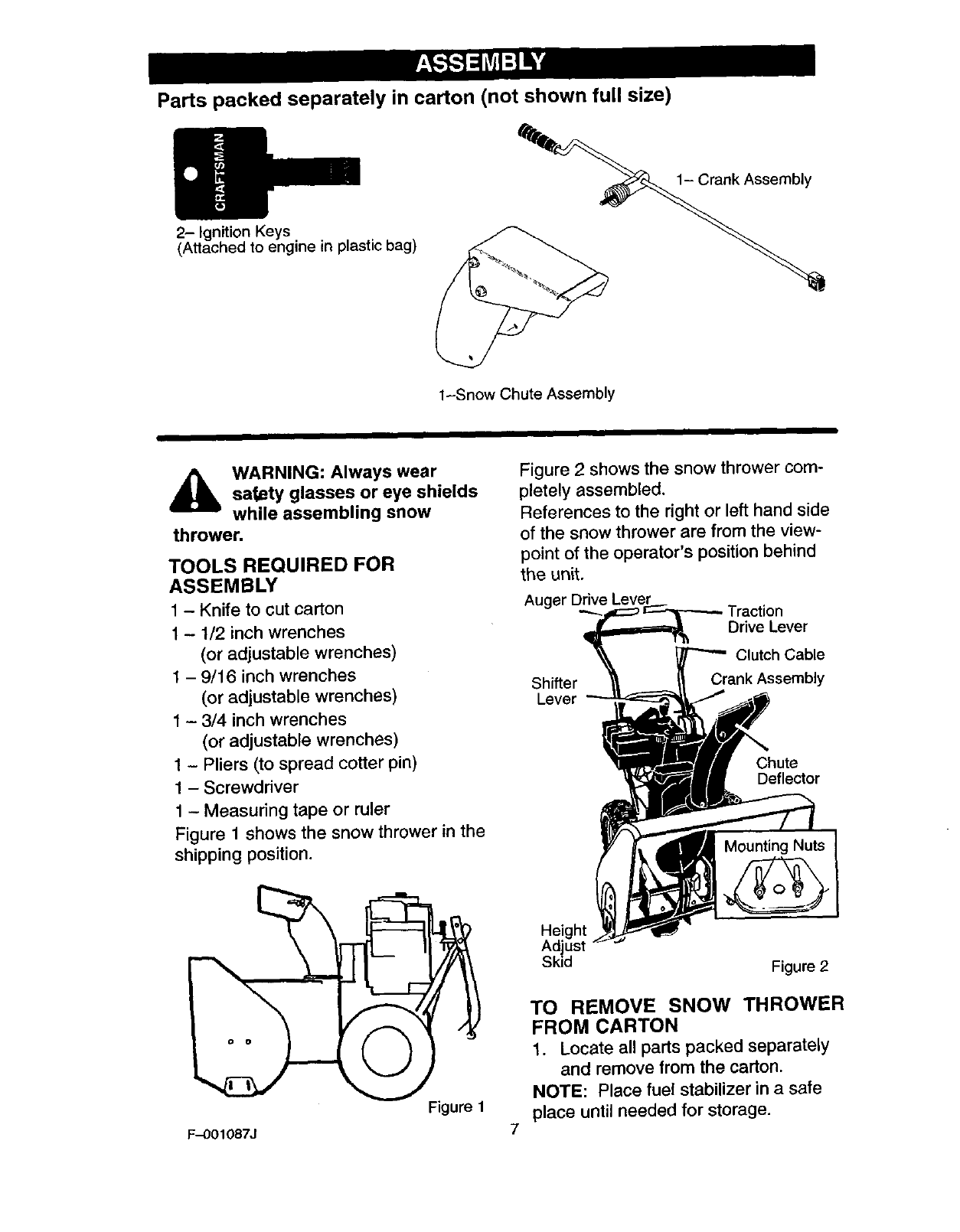

Parts packed separately in carton (not shown full size)

2- Ignition Keys

(Attached to engine in plastic bag)

1-Snow Chute Assembly

IIIIIII I I •

_ARNING: Always wearsatety glasses or eye shields

while assembling snow

thrower.

TOOLS REQUIRED FOR

ASSEMBLY

1- Knife to cut carton

1 - 1/2 inch wrenches

(or adjustable wrenches)

1 - 9/16 inch wrenches

(or adjustable wrenches)

1 - 3/4 inch wrenches

(or adjustable wrenches)

1 - Pliers (to spread cotter pin)

1 - Screwdriver

1 - Measuring tape or ruler

Figure 1 shows the snow thrower in the

shipping position.

Figure 2 shows the snow thrower com-

pletely assembled.

References to the right or left hand side

of the snow thrower are from the view-

point of the operator's position behind

the unit.

Auger Drive Lever Traction

Drive Lever

Shifter

Lever

Clutch Cable

Crank Assembly

Chute

Deflector

F-001087J

Figure 1

Height

Adjust

Skid Figure 2

TO REMOVE SNOW THROWER

FROM CARTON

1. Locate all parts packed separately

and remove from the carton.

NOTE: Place fuel stabilizer in a safe

place until needed for storage.

2. Removeand discardthe packing

materialfrom aroundthe snow

thrower.

3. Cut down all four corners of the car-

ton and lay the panelsflat.

4. Roll snow thrower off the carton by

pulling on the lower handle. CAU-

TION: DO NOTback over cables.

Remove the packing material from

handle assembly.

Cut ties securing the clutch control

cables to the lower handle and lay

cable back away from the motor

frame.

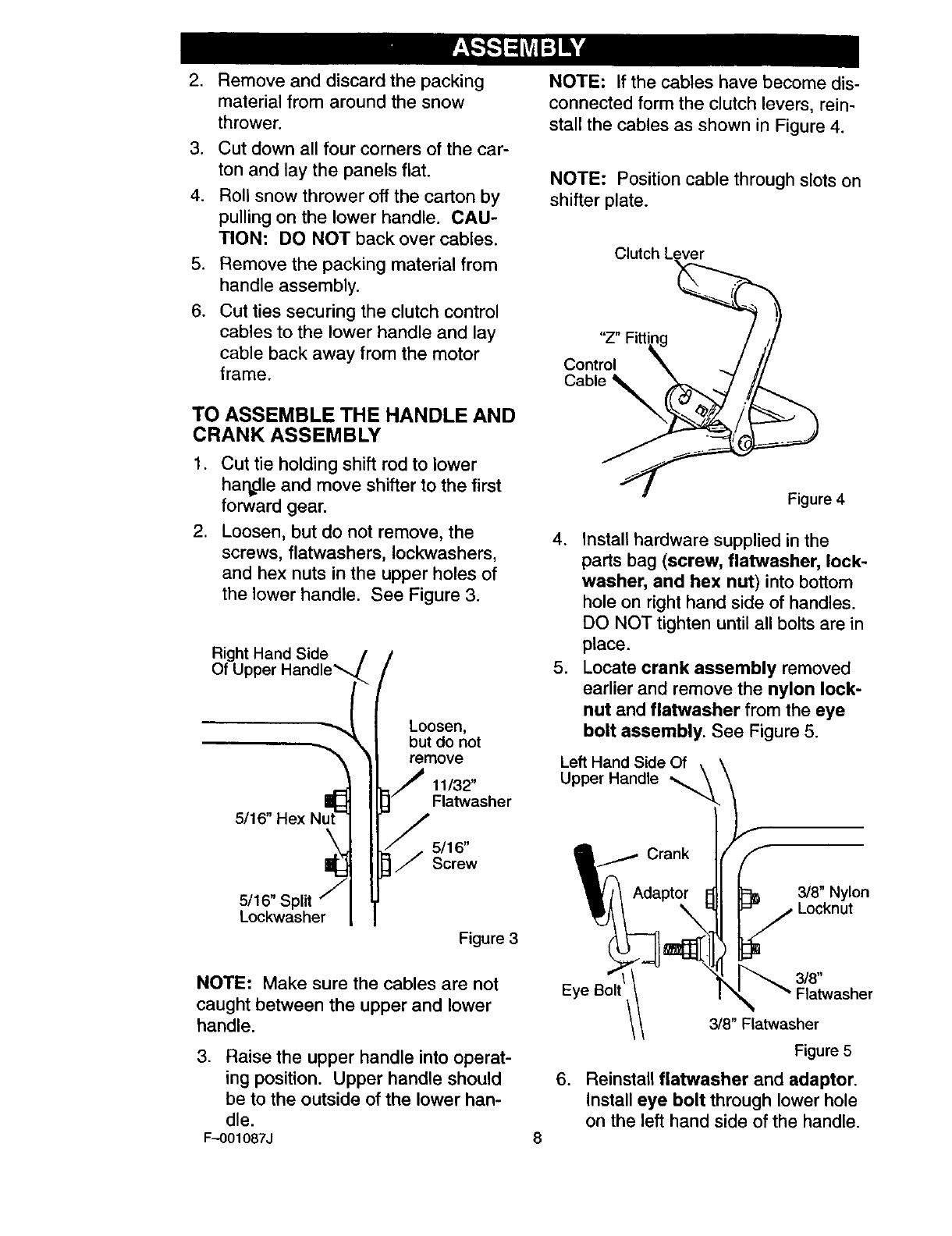

TO ASSEMBLE THE HANDLE AND

CRANK ASSEMBLY

1. Cut tie holding shift rod to lower

har_dle and move shifter to the first

forward gear.

2. Loosen, but do not remove, the

screws, flatwashers, Iockwashers,

and hex nuts in the upper holes of

the lower handle. See Figure 3.

Right Hand Side

Of Upper Handle_

5/16" Hex

5/16" Split

Lockwasher

Loosen,

but do not

remove

11/32"

Flatwasher

5/16"

Screw

Figure 3

NOTE: Make sure the cables are not

caught between the upper and lower

handle.

3. Raise the upper handle into operat-

ing position. Upper handle should

be to the outside of the lower han-

dle.

F--001087J

NOTE: If the cables have become dis-

connected form the clutch levers, rein-

stall the cables as shown in Figure 4.

NOTE: Position cable through slots on

shifter plate.

Clutch Lever

"Z" Fitting

Control

Cable _,,

Figure 4

4. Install hardware supplied in the

parts bag (screw, flatwasher, lock-

washer, and hex nut) into bottom

hole on right hand side of handles.

DO NOT tighten until all bolts are in

place.

5. Locate crank assembly removed

earlier and remove the nylon lock-

nut and flatwasher from the eye

bolt assembly. See Figure 5.

Left Hand Side Of,

Upper Handle

Eye Bolt

Crank f

\3/8" Nylon

y Locknut

3/8"

Flatwasher

3/8" Flatwasher

Figure 5

Reinstall flatwasher and adaptor.

Install eye bolt through lower hole

on the left hand side of the handle.

7. Install the 3/8" flatwasher and the

3/8" nylon Iocknut loosely on the

eye bolt.

.Carefully remove cotter pin, clevis

pin and universal joint pin from

yoke end of crank rod assembly.

See Figure 6.

g. Place universal joint into end of

worm gear lining up large holes. In-

sert universal joint pin (ensure

opening in pin is in line with

small openings in universal

joint).

10. Place yoke end of crank rod

around universal joint, lining up

openings. Insert clevis pin through

assembly and secure with cotter

pin. Spread ends of cotter pin to

lock in place.

11. Tighten nut on eye bolt. Make sure

eye bolt is properly aligned and the

crank can freely rotate.

12. Tighten all handle bolts.

Cotter Pin

Clevis Pin

Crank Rod

Asse_y

Universal

Joint Pin

Figure 6

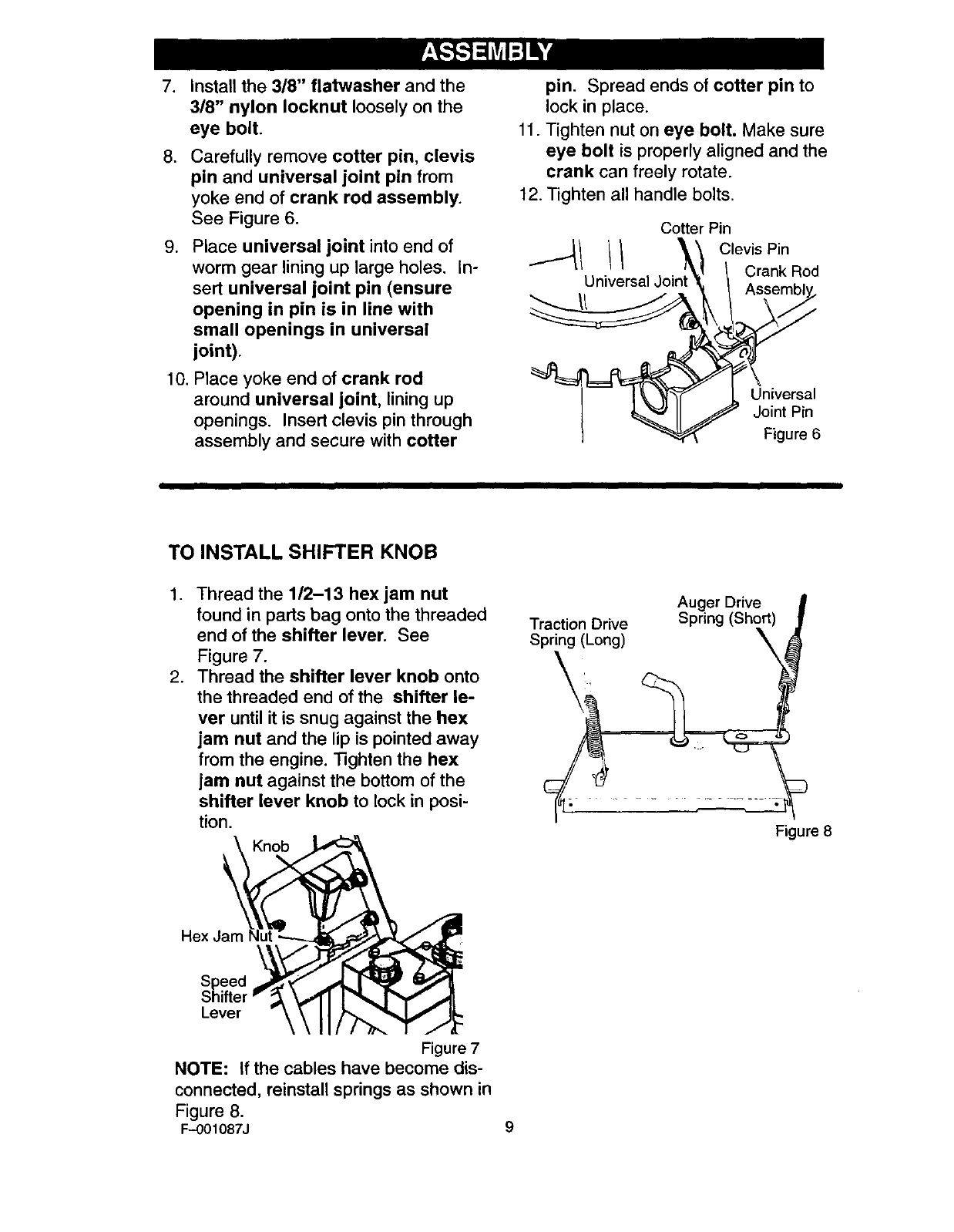

TO INSTALL SHIFTER KNOB

1. Thread the 1/2-13 hex jam nut

found in parts bag onto the threaded

end of the shifter lever. See

Figure 7.

2. Thread the shifter lever knob onto

the threaded end of the shifter le-

ver until it is snug against the hex

jam nut and the lip is pointed away

from the engine. Tighten the hex

jam nut against the bottom of the

shifter lever knob to lock in posi-

tion.

Knob

Traction Drive

Spring (Long)

Auger Drive

Spring (Short)

Figure 8

Hex Jam

Speed

Lever

Figure 7

NOTE: If the cables have become dis-

connected, reinstall springs as shown in

Figure 8.

F-001087J 9

SNOW CHUTE ASSEMBLY

1. Turn crank assembly counterclock-

wise until it stop.

2. Position snow chute on inside of

snow chute flange and align the

three holes in the snow chute with

holes on snow chute flange. (See

Figure 9)

3. Place three 5/16-18 carriage bolts

from inside of chute as shown in

Figure 9. (hardware is found in

parts bag).

4. Place three 5/16-18 flatwashers

and three 5/16-18 nuts on outside

of flange.

5. Tighten all four carriage bolts se-

curely.

NOTE: DO NOT overtighten carriage

bolts.

6. Turn crank assembly clockwise and

make sure all carriage bolts are

tight.

Snow Chute

Flatwasher _3J_

Nut

Figure 9

HOW TO SET THE SKID HEIGHT

Your snow thrower is equipped with

height adjust skids on the outside of the

auger housing. To adjust the skid

height for different conditions, see To

Adjust Skid Height paragraph in the

Service And Adjustment section.

_" CHECKLIST

Before you operate your new snow

thrower, to ensure that you receive the

best performance and satisfaction from

this quality product, please review the

following checklist:

P" All assembly instructions have been

completed.

P" The discharge chute rotates freely.

v" No remaining loose parts in carton.

While learning how to use your snow

thrower, pay extra attention to the fol-

lowing important items:

Engine oil is at proper level.

_' Make sure gas tank is filled properly

with clean, fresh, unleaded gasoline.

_" Become familiar with all controls-

their location and function. Operate

controls before starting engine.

F--001087J 10

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR SNOW THROWER. Compare the illustrations with your SNOW THROWER

to familiarize yourself with the location of various controls and adjustments. Save

this manual for future reference.

Auger__

Electric Drive Lever

Start (right hand)

Button

Primer

nition Bu Switch

Box

-- Traction Drive Lever

(left hand)

, Remote

Chute Control

Lever

Assembly

Deflector

Discharge

Chute

Choke

Control Recoil Height

Throttle Starter Adjust

Control Handle Skid Figure 10

Auger Drive Lever -Starts and stops

the auger and impeller (snow gathering

and throwing)

Traction Drive Lever - Propels the

snow thrower forward and in reverse.

Speed Shifter Lever - Selects the

speed of the snow thrower (6 speeds for-

ward and 2 speeds reverse).

Crank Assembly - Changes the direction

ofsnowthrowingthroughthe dischargechute.

Chute Deflector - Changes the distance

the snow is thrown.

Discharge Chute -Changes the height

and direction the snow is thrown.

Height Adjust Skid - Adjusts the ground

clearance of the auger housing.

Ignition Key - Must be inserted to start

the engine.

Recoil Starter Handle - Starts the en-

gine manually.

F--001087J 11

Choke Control - Used to start a cold

engine.

Primer Button - Injects fuel directly into

the carburetor manifoldfor fast starts in

cold weather.

Remote Chute Control Lever - Push

forward to discharge snow high and far.

Pull remote lever back to discharge snow

down.

Throttle Control - Controls the engine

speed.

Electric Start Button - (if so equipped)

Used to start the engine usingthe 120 V elec-

tric starter.

Shear Pin -Shear pins are designed to

break (to protect the machine) if an ob-

iect becomes lodged in the aguer hous-

ing.

Toolbox --spare shear pins and spacers

are located in toolbox.

The operation of any snow thrower can

result in foreign objects being thrown

into the eyes, which can result in se-

vere eye damage. Always wear safety

glasses or eye shields while operating

the snow thrower.

We recommend standard safety

glasses or a wide vision safety mask for

over your glasses.

_ ARNING: Read Owner's

Manual before operating

machine. Never direct dis-

charge toward bystanders stop the

engine before unclogging discharge

chute or auger housing and before

leaving the machine.

TO STOP YOUR

SNOW THROWER

To stop throwing snow, release the

aug_r drive lever. See Figure 10.

To stop the wheels, release the

traction drive lever.

To stop the engine, push the

throttle control lever to off and pull

out the ignition key.

TO CONTROL SNOW DISCHARGE

1. Turn the chute control rod to set the

direction of the snow throwing.

2. Loosen the wing knob on the chute

deflector and move the deflector to

set the distance. Move the deflector

(Up) for more distance, (Down) for

less distance. Then tighten the

wing knob (See Figure 11).

the speed you desire by moving the

speed shifter lever left into the ap-

propriate notches on the shift lever

plate:

Speeds 1,2 - Wet, Heavy

Speed 3 - Light

Speed 4 - Very Light

Speed 5,6 - Transport only

2. Engage the traction drive lever (left

hand). As the snow thrower starts

to move, maintain a firm hold on the

handles, and guide the snow throw-

er along the clearing path. Do not

attempt to push the snow thrower.

3. To move the snow thrower back-

ward, move the speed shifter lever

right into first or second reverse and

engage the traction drive lever (left

hand).

IMPORTANT: Do not move the speed

shifter lever while the traction lever

is down.

TO THROW SNOW

1. Push down the auger driver lever

(right hand).

2. Release to stop throwing snow.

TO USE WHEEL LOCKOUT PIN

.The left hand wheel is secured to

the axle with aklick pin. This unit

was shipped with this klick pin in the

locked position (through wheel

hole). See Figure 12.

Klick Pin

Figure 11

HOW TO MOVE FORWARD AND

BACKWARD

1. To shift, release the traction drive

lever (left hand) and move the

speed shifter lever to the speed you

desire. Ground speed is deter-

mined by snow conditions. Select

F-O01087J

Locked

Position

2-Wheel Drive Figure 12

.For ease of maneuverability in light

snow conditions, disconnect the

klick pin from the wheel locked

position and push into the single

wheel drive position (unlocked axle

hole only). See Figure 13.

Klick Pin

Unlocked

Position

Single Wheel Drive Figure 13

NOTE: Make sure that the klick pin is

in the single wheel drive position of the

axle only and not through the locked

position.

BEFORE STARTING THE ENGINE

.Before you service or start the en-

gine, familiarize yourself with the

snow thrower. Be sure you under-

stand the function and location of all

control_.

2. Check the tension of clutch cable

before starting the engine. See To

Adjust The Control Cable para-

graph in the Service & Adjust-

ments section of this manual.

Be sure that all fasteners are tight.

Make sure the height adjust skids

are properly adjusted. See To Ad-

just Skid Height paragraph in the

Service & Adjustments section of

this manual.

5. Check tire pressure (14-17

pounds). Do not exceed maximum

amount of pressure.

CHECK THE OIL:

NOTE: The engine was shipped from

the factory filled with oil. Check the lev-

el of the oil. Add oil as needed.

1. Make sure the unit is level.

NOTE: Do not check the level of the

oil while the engine runs.

2. Remove the oil fill cap/dipstick.

Check the oil.

3. If necessary, add oil until the oil

reaches the FULL mark on the oil fill

cap/dipstick (see Figure 14). Do not

add too much oil.

F-001087J

/Dipstick

,, i _. NOTE: Oil level

must be between

full and Add mark

Figure 14

4. Tighten the fill cap/dipstick securely

each time you check the oil level.

NOTE: For extreme cold operating

conditions of 0°F and below, use a par-

tial synthetic 0W30 motor oil for easier

starting.

NOTE: S.A.E. 5W30 motor oil may be

used to make starting easier in areas

where temperature is consistently 20°F.

or lower.

FILL GAS:

NOTICE: ENGINES WHICH ARE

CERTIFIED TO COMPLY WITH CAL-

IFORNIA AND US EPA EMISSION

REGULATIONS FOR ULGE ENGINES:

Are certified to operate on regular un-

leaded gasoline. Include the following

emission control system(s): EM, TWC

(if so equipped). Include any user ad-

justable features-therefore no other ad-

justments are needed.

_ARNING: Experiences in-

dicates that alcohol blended

fuels (called gasohol or

those using ethanol or methanol)

can attract moisture which leads to

separation and formation of acids

during storage, Acidic gas can dam-

age the fuel system of an engine

while in storage.

NOTE: To avoid engine problems, the

fuel system must be emptied before

storage for 30 days or longer. Start the

engine and let it run until the fuel lines

and carburetor are empty. Use the car-

buretor bowl drain to empty residual

gasoline from the float chamber. Use

fresh fuel next season. See the Stor-

age section in this manual for additional

information.

Never use engine or carburetorcleaner

products in the fuel tank or permanent

damage may occur.

1. Fill the fuel tank only with a fresh,

clean, unleaded regular, unleaded

premium, or reformulated automo-

tive gasoline. DO NOT use leaded

gasoline. Make sure that the con-

tainer you pour the gasoline from is

clean and free from rust or other for-

eign particles. Never use gasoline

that may be stale from long periods

of storage in the container.

,_ WARNING: Gasoline is flam-

mable. Always use caution

when handling or storing

gasoline.

Do not fill fuel tank while snow

thrower is running, when it is hot, or

when snow thrower is in an en-

closed area.

Keep away from open flame or an

electrical spark and do not smoke

while filling the fuel tank.

Never fill the tank completely. Fill

the tank to within 1/4"-1/2" from the

top to provide space for expansion

of fuel.

Always fill fuel tank outdoors and

use a funnel or spout to prevent

spilling.

Make sure to wipe up any spilled

fuel before stating the engine.

Store gasoline in a clean, approved

container and keep the cap in place

on the container.

TO STOP ENGINE

To stop engine, move the throttle con-

trol lever to "STOP" position and re-

move key. Keep the key in a safe

place. The engine will not start without

the key.

TO START ENGINE

(electric starter, if equipped)

Be sure that the engine has sufficient

oil. The snow thrower engine is

equipped with a 120 volt A.C. electric

starter and recoil starter. Before start-

F-001087J 14

ing the engine, be certain that you have

read the following information,

,_ WARNING: The starter is

equipped with a three-wire

power cord and plug and is

designed to operate on 120 volt AC

household current.It must be proper-

ly grounded at all times to avoid the

possibility of electrical shock which

may be injurious to operator. Follow

all instructions carefully as set forth

in the "To Start Engine" section. De-

termine that your house wiring is a

three-wire grounded system. Ask a

licensed electrician if you are not

sure. If your house wire system is

not a three-wire system, do not use

this electric starter under any condi-

tions. If your system is grounded

and a three-hole receptacle is not

available at the point your starter will

normally be used, one should be

installed by a licensed electrician.

when connecting 120 volt AC "Power

Cord", always connect the cord to

the Switch Box" on the engine first,

then plug the other end into the

three-hole grounded receptacle.

When disconnecting "Power cord",

always unplug the end in the three-

hole grounded receptacle first.

COLD START

1. Be sure auger drive and traction

drive levers are in the disengaged

(RELEASED) position.

2. Move throttle control to"FAST' posi-

tion.

3. Remove the keys form the plastic

bag. Insert one key into ignition

slot. Make sure it snaps into place.

Do not turn key. Keep the second

key in a safe place.

4. Rotate choke knob clockwise to the

choke ON position.

5. Connect the power cord to the

switch box on the engine.

6. Plug other end of power cord into a

three-hole, grounded 120 VOLT, AC

receptacle. (See WARNING in this

section).

.Push the primer button while cov-

ering the vent hole as follows: Re-

move finger from primer button

between primes.

Do not prime if temperature above

50 ° F (10° C).

Push two time if temperature is 50 °

F (10 ° C) to 15°F (-10 ° C).

Push four times if temperature is

below 15°F (-10 ° C).

8. Push down on the starter button

until the engine starts. Do not crank

for more than 10 seconds at a time.

This electric starter is thermally pro-

tected. If overheated it will stop au-

tomatically and can be restarted

only when it has cooled to a safe

temperature (a wait of about 5 to 10

minutes is required).

9. When t_e engine starts, release the

starter button and move choke le-

ver to "1/2 choke" position. When

engine runs smoothly, move choke

lever to "No Choke" Position.

10. Disconnect power cord from recep-

tacle, first, and then from switch

box.

NOTE: Allow the engine to warm up for

several minutes before blowing snow in

temperatures below 0°K

11. Run engine at full throttle "FAST'

when throwing snow.

WARM START

If restarting a warm engine after a short

shutdown, leave choke at "OFF" and do

not push the primer button. If the en-

gine fails to start, follow the Cold Start

instructions.

TO START ENGINE

(recoil starter)

Be sure that the engine has sufficient

oil. The snow thrower engine is

equipped with a recoil starter. Before

starting the engine, be certain that you

have read the following information.

F--001087J

COLD START

Be sure auger drive and traction

drive levers are in the disengaged

(RELEASED) position.

Move throttle control to"FAST' posi-

tion.

Remove the keys form the plastic

bag. Insert one key into ignition

slot. Make sure it snaps into place.

Do not turn key. Keep the second

key in a safe place.

4. Rotate choke knob clockwise to the

choke ON position.

5. Push the primer button while cov-

ering the vent hole as follows: Re-

move finger from primer button

between primes.

Do not prime if temperature above

50 ° F (10 ° C).

Push two time if temperature is 50 °

F (10 ° C) to 15°F (-10 ° C).

Push four times if temperature is

below 15° F (-10 ° C).

6. Pull the starter handle rapidly. Do

not allow the handle to snap back,

but allow it to rewind slowly while

keeping a firm hold on the starter

handle.

,As the engine warms up, move

choke lever to "1/2 choke" position.

When engine runs smoothly, move

choke lever to "No Choke" Posi-

tion.

NOTE: Allow the engine to warm up for

several minutes before blowing snow in

temperatures below 0°F.

8. Run engine at full throttle "FAST'

when throwing snow.

WARM START

If restarting a warm engine after a short

shutdown, leave choke at "OFF" and do

not push the primer button. If the en-

gine fails to start, follow the Cold Start

instructions.

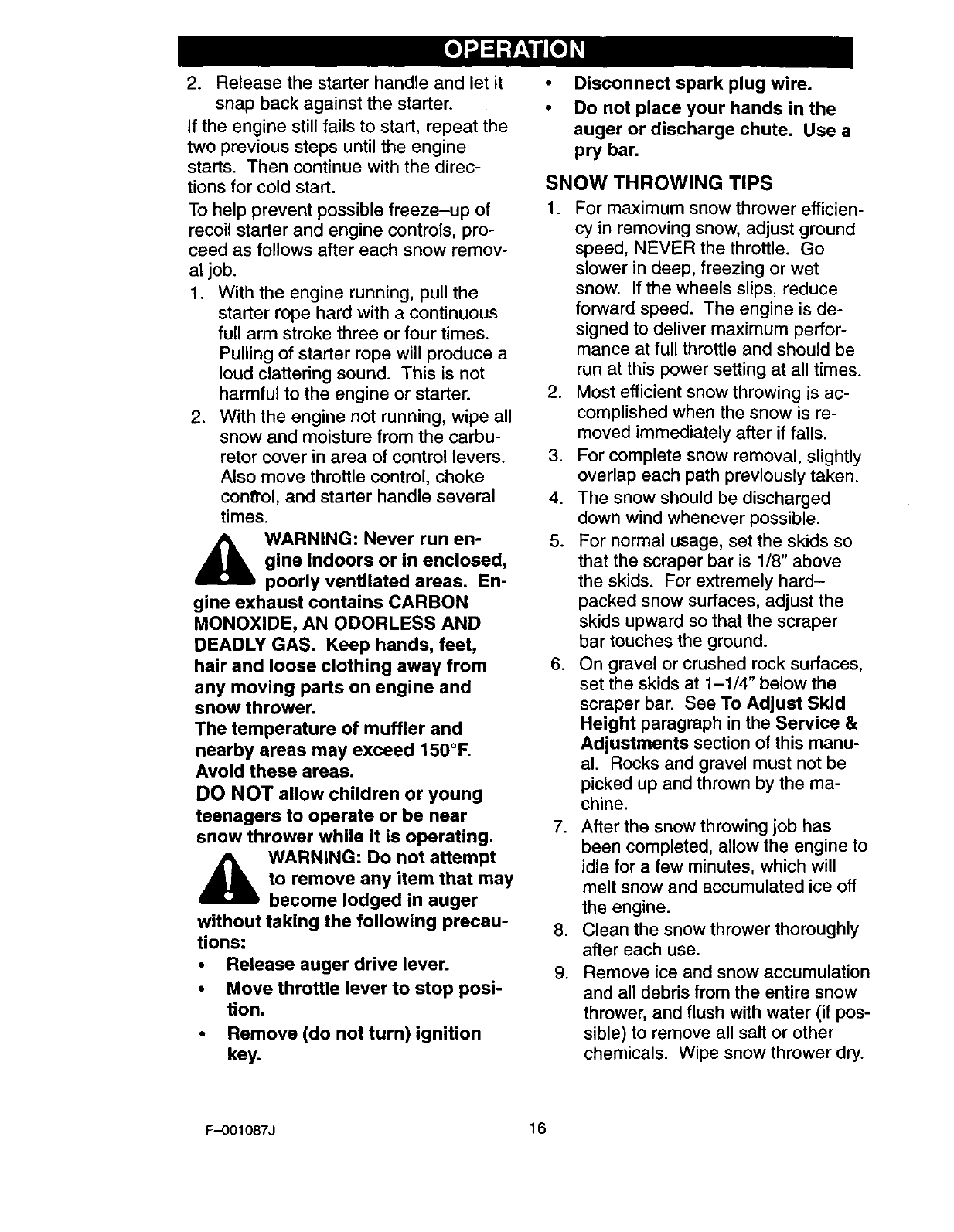

FROZEN STARTER

If the starter is frozen and will not turn

engine:

1. Pull as much rope out of the starter

as possible.

2. Release the starter handle and let it

snap back against the starter.

if the engine still fails to start, repeat the

two previous steps until the engine

starts. Then continue with the direc-

tions for cold start.

To help prevent possible freeze-up of

recoil starter and engine controls, pro-

ceed as follows after each snow remov-

al job.

1. With the engine running, pull the

starter rope hard with a continuous

full arm stroke three or four times.

Pulling of starter rope will produce a

loud clattering sound. This is not

harmful to the engine or starter.

2. With the engine not running, wipe all

snow and moisture from the carbu-

retor cover in area of control levers.

Also move throttle control, choke

conftol, and starter handle several

times.

AARNING: Never run en-

gine indoors or in enclosed,

poorly ventilated areas. En-

gine exhaust contains CARBON

MONOXIDE, AN ODORLESS AND

DEADLY GAS. Keep hands, feet,

hair and loose clothing away from

any moving parts on engine and

snow thrower.

The temperature of muffler and

nearby areas may exceed 150°R

Avoid these areas.

DO NOT allow children or young

teenagers to operate or be near

snow thrower while it is operating.

AARNING: Do not attempt

to remove any item that may

become lodged in auger

without taking the following precau-

tions:

• Release auger drive lever.

•Move throttle lever to stop posi-

tion.

•Remove (do not turn) ignition

key.

Disconnect spark plug wire.

Do not place your hands in the

auger or discharge chute. Use a

pry bar.

SNOW THROWING TIPS

1. For maximum snow thrower efficien-

cy in removing snow, adjust ground

speed, NEVER the throttle. Go

slower in deep, freezing or wet

snow. If the wheels slips, reduce

forward speed. The engine is de-

signed to deliver maximum perfor-

mance at full throttle and should be

run at this power setting at all times.

2. Most efficient snow throwing is ac-

complished when the snow is re-

moved immediately after if falls.

3. For complete snow removal, slightly

overlap each path previously taken.

4. The snow should be discharged

down wind whenever possible.

5. For normal usage, set the skids so

that the scraper bar is 1/8" above

the skids. For extremely hard-

packed snow surfaces, adjust the

skids upward so that the scraper

bar touches the ground.

6. On gravel or crushed rock surfaces,

set the skids at 1-1/4" below the

scraper bar. See To Adjust Skid

Height paragraph in the Service &

Adjustments section of this manu-

al. Rocks and gravel must not be

picked up and thrown by the ma-

chine.

7. After the snow throwing job has

been completed, allow the engine to

idle for a few minutes, which will

melt snow and accumulated ice off

the engine.

8. Clean the snow thrower thoroughly

after each use.

9. Remove ice and snow accumulation

and all debris from the entire snow

thrower, and flush with water (if pos-

sible) to remove all salt or other

chemicals. Wipe snow thrower dry.

F-001087J 16

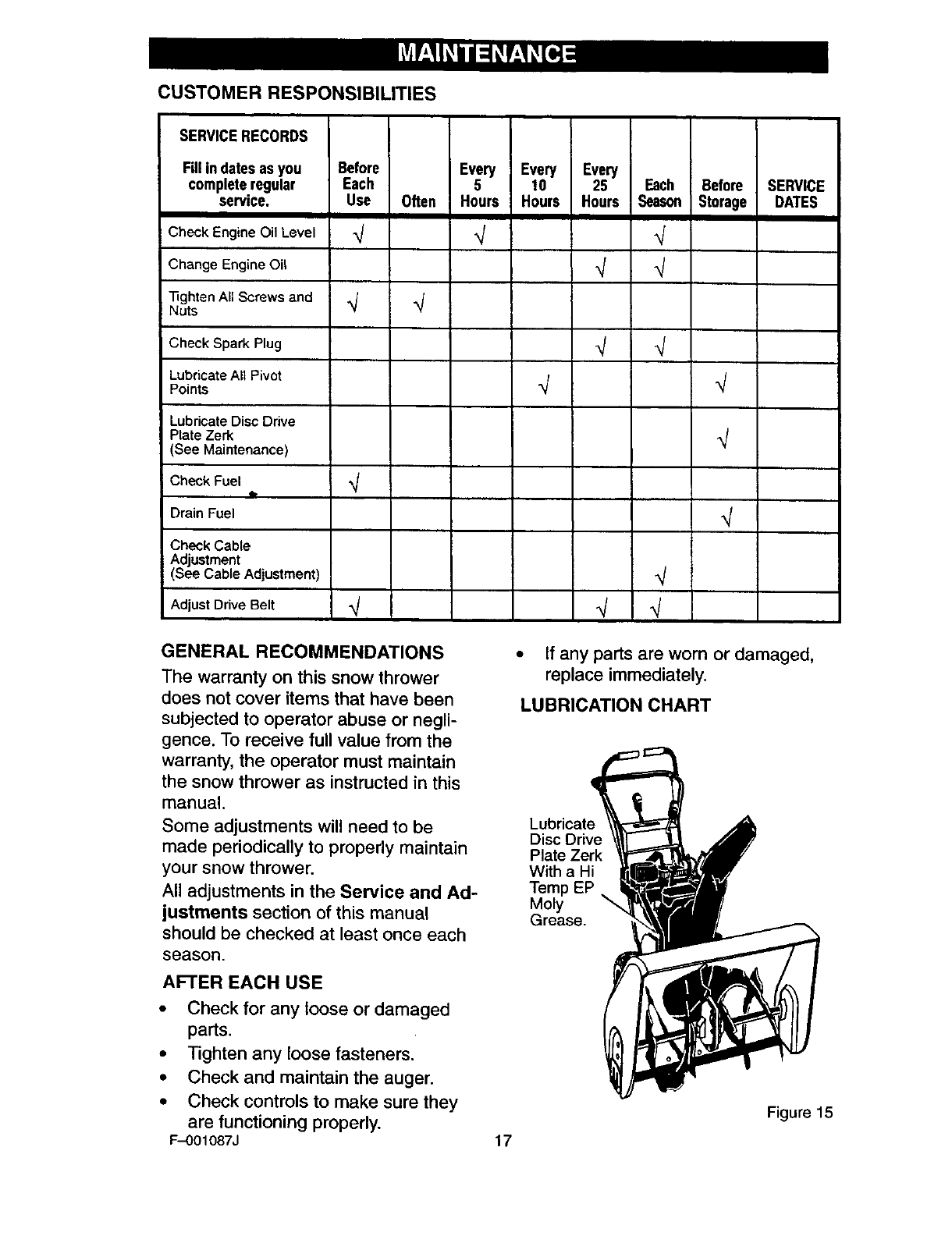

CUSTOMER RESPONSIBILITIES

SERVICERECORDS

Fillin dates asyou Before

completeregular Each

service, Use

Check Engine Oil Level _J

Change Engine Oil

Often

Every Every Every

510 25 Each Before SERVICE

Hours Hours Hours Season Storage DATES

"nghten All Screws and _/ _j

Nuts

Check Spark Plug

Lubricate All Pivot

Points

I Lubricate Disc Drive

Plate Zerk

(See Maintenance)

Check Fuel t

Drain Fuel

Check Cable

Adjustment

(See Cable Adjustment)

Adjust Drive Belt

GENERAL RECOMMENDATIONS

The warranty on this snow thrower

does not cover items that have been

subjected to operator abuse or negli-

gence. To receive full value from the

warranty, the operator must maintain

the snow thrower as instructed in this

manual.

Some adjustments will need to be

made periodically to properly maintain

your snow thrower.

All adjustments in the Service and Ad-

justments section of this manual

should be checked at least once each

season.

AFTER EACH USE

•Check for any loose or damaged

parts.

• _ghten any loose fasteners,

•Check and maintain the auger.

•Check controls to make sure they

are functioning properly.

F-001087J

• If any parts are worn or damaged,

replace immediately.

LUBRICATION CHART

Lubricate

Disc Drive

Plate Zerk

With a Hi

Temp EP.

Moly \

Grease.

Figure 15

PRODUCT SPECIFICATIONS

HORSEPOWER 11.0 HP

DISPLACEMENT 21.82 cu. in.

GASOLINE 4 quarts

CAPACITY (unleaded)

OIL CAPACITY 5W30

(20 oz capacity)

SPARK PLUG: Champion RJ19LM

(Gap .030 in.) or

equivalent

VALVE CLEARANCE: Intake: .010 In.

Exhaust: .010 in.

SNOW THROWER

AS REQUIRED

The following adjustment should be

preformed more than once each sea-

son.

1. Auger drive belt should be adjusted

after the first 2 to 4 hours of use,

again about mid-season and twice

each season thereafter (See to Ad-

just Belts paragraph in the Ser-

vice and Adjustment section).

LUBRICATION-EVERY 25 HOURS

Lubricate Disc Drive Plate every

twenty-five (25) hours and at the end of

the season and/or before storage.

To Lubricate

1. Position speed selector lever in first

gear.

2. Stand the snow thrower up on the

auger housing end.

3. Remove the bottom panel.

4. Turn disc drive plate clockwise by

hand until grease zerk is cleady

visible at front center, See

Figure 16.

5. Place a coin or (a shim of equal

thickness) between the rubber fric-

tion wheel and disc drive plate to

F-001087J

prevent rubber friction wheel con-

tacting the drive disc plate.

6. To grease zerk, use a hand grease

gun, lubricate with a Hi Temp EP

Moly grease. Fill zerk only until

grease becomes visible below bear-

ing assembly located under grease

zerk. DO NOT over fill.

CAUTION: DO NOT allow grease to

come in contract with the disc drive

plate or friction wheel or damage will

result.

IMPORTANT: Remove coin and en-

sure that a gap exists between friction

wheel and disc drive plate.

NOTE: Clean all excess grease found

on friction disc hub.

Sprockets Hex Shaft and Sprockets

(Require No

Lubrication

Friction

Disc

Drive

Plate

Friction Bearing

E_Wheel Assembly Point at which

Coin or Shim grease should

be visible

Gap Between

Friction Wheel

and Disc Drive

Plate

Grease Zerk Figure 16

LUBRICATION-NOT REQUIRED

1. Hex Shaft and Sprockets- Hex

shaft and sprockets require no lu-

brication. All bearings and bushings

are lifetime lubricated and require

no maintenance. See Figure 16.

NOTE: Any greasing or oiling of the

above components can cause contami-

nation of the friction wheel. If the disc

drive plate or friction wheel come in

contact with grease or oil, damage to

the friction wheel will result.

Shouldgrease or oil comein contact

withthe disc drive plate or friction

wheel, be sure to clean the plate and

wheel thoroughly.

NOTE: For storage, the hex shaft and

sprocketsshould be wiped with 5W30

motor oil to prevent rusting.

2. Auger Gear Box - The auger gear

boxis lubricated at the factory and

should not requireadditionallubrica-

tion. If for some reasonthe lubri-

cant should leak out, have auger

gear case checked by a competent

repairman.

ENGINE

LUBRICATION

Check the crankcase oil level before

starting the engine and after each five

(5) hours of continuous use. See

Figure 17. Add S.A.E. 5W30 motor oil

as needed. "13ghten fill cap/dipstick se-

curely each time you check the oil lev-

el.

Oil Fill Cap/Dipstick

Figure 17

Change the oil every twenty-five (25)

hours or at least once a year if the

snow thrower is not used for twenty-

five (25) hours.

TO CHANGE ENGINE OIL

1. Position the snow thrower so that

the oil drain plug is at the lowest

point on the engine.

2. Remove the oil drain plug and the

oil fill cap/dipstick. Drain the oil

into a suitable container.

NOTE: The oil will drain more freely

when the engine is warm.

3. After draining all the oil, reinstall the

oil drain plug securely.

4. Fill the engine crankcase with

S.A.E. 5W30 motor oil, pouring

slowly. DO NOT OVERFILL.

SPARK PLUG

Check the spark plug every twenty-

five (25) hours. Replace the spark plug

if the electrodes are pitted or burned or

if the porcelain is cracked.

1. Make sure the spark plug is clean.

Clean the spark plug by carefully

scraping the electrodes (do not

sand blast or use a wire brush).

2. Check the spark plug gap with a

feeler gauge and reset gap to 0,30"

if necessary. See Figure 18.

3. Before installing the spark plug,

coat the threads lightly with oil for

easy removal. Tighten the spark

plug to a torque of 15 foot-pounds.

Feeler Gauge

0.030"

Spark Plug

Figure 18

F-001087J 19

_lb ARNING: Always discon-

nect the spark plug wire and

place it where it cannot

make contact with spark plug to pre-

vent accidental starting when mak-

ing any adjustments or repairs.

TO ADJUST SKID HEIGHT

This snow thrower is equipped with two

height adjustment skids, located on

the outside of the auger housing. See

Figure 19.

These skids elevate the front of the

snow thrower.

Mountinq Nuts

Auger Housing Height Adjust Skid

Figure 19

For normal hard surfaces, such as a

paved driveway or walk, adjust the

skids as follows.

1. Position the snow thrower on a level

surface.

2. Make sure both tires are equally in-

flated. Proper tire pressure is 14 to

17 PSI. See side of tire for maxi-

mum inflation. Do not exceed side-

wall maximum pressure on tire.

3. Place the extra shear bolts supplied

(found in parts bag) under each

end of the scraper bar next to the

adjustable skids.

4. Loosen the mounting nuts that hold

the adjustable skids. To bring the

front of the snow thrower down,

raise the adjustable skids. Tighten

the mounting nuts. See Figure 19.

NOTE: For rocky or uneven surfaces,

raise the front of the snow thrower by

moving the skids down.

,_ WARNING: Be certain to

maintain proper ground

clearance for your particular

area to be cleared. Objects such as

gravel, rocks or other debris, if

struck by the impeller, may be

thrown with sufficient force to cause

personal injury, property damage or

damage to the snow thrower.

TO ADJUST SCRAPER BAR

After considerable use, the metal scrap-

er bar will have a definite wear pattern.

The scraper bar in conjunction with the

skids should always be adjusted to al-

low 1/8" between the scraper bar and

the sidewalk or area to be cleaned.

1. Position the snow thrower on a level

surface.

.Make sure both tires are equally in-

flated. Proper tire pressure is 14 to

17 PSI. See side of tire for maxi-

mum inflation. Do not exceed side-

wall maximum pressure on tire.

3. Loosen the carriage bolts and nuts

securing the scraper bar to the au-

ger housing.

4. Adjust the scraper bar to the proper

position.

5. Tighten the carriage bolts and nuts,

making sure that the scraper bar is

parallel with the working surface.

.For extended operation, the scraper

bar may be reversed. If the scraper

bar must be replaced due to wear,

remove the carriage bolts and nuts

and install a new scraper bar.

F-001087J 20

HOW TO CHECK AND ADJUST

THE CABLES

The cables are adjusted at the factory

and no adjustment should be neces-

sary. If the cables have become

stretched or are sagging adjustment will

be necessary.

To check for correct adjustment,discon-

nect the Z-fitting at the drive lever,

move the drive lever to the full forward

position, just contacting the plastic

bumper. The control cables are cor-

rectly adjusted when the center of the

"Z" fitting is between the center and

top of the hole in the drive lever and

there in no droop in the cable. See

Figure 20.

Drive Lever

Figure 20

Remove gas from gas tank. Stand

snow thrower on end.

Disconnect the "Z" fitting from

drive lever.

Pull spring cover up to expose

spring. Push the cable through the

spring to expose the threaded por-

tion of the cable. See Figure 21.

Hold the square end of the

threaded portion with pliers and ad-

just the Iocknut in or out until the

excess slack is removed.

Spring,

Square End

Locknut

==_ Figure 21

5. Pull the cable back through the

spring and connect the cable. Do

the same for the other drive lever

cable, if needed.

NOTE: Whenever the traction drive or

auger belts are adjusted or replaced,

the cables will need to be adjusted.

TO ADJUST BELTS

Belts stretch during normal use. If you

need to adjust the belts due to wear or

stretch, proceed as follows:

How To Adjust The Auger Drive Belt

if your snow thrower will not discharge

snow, check the control cable adjust-

ment. If it is correct, then check the

condition of the auger drive belt. It may

be loose or damaged. If it is damaged,

replace it, See To Replace Belts para-

graph in this section. If the auger drive

belt is loose, adjust as follows:

1. Disconnect the spark plug wire.

2. Remove the belt cover. See

Figure 22.

Belt Cover

Flatwasher

Self Tapping Screw Figure 22

F-001087J 21

Traction Drive Belt Auger Drive

Belt

Guide

Drive

Idler Pulley Pulley

Loosen

this nut

Figure 23

3. Loosen the nut on the idler pulley

and move the pulley toward the belt

about 1/8". See Figure 23.

4. Tighten the nut.

5. Press the auger drive lever. Check

the _ension on the belt (opposite au-

ger idler pulley). The belt should

deflect about 1/2" with moderate

pressure (See Figure 24).

_. _k"-_"-D rive

"__o Pulley

Auger idler _ " ;_- t ;.:

". 1/2 Inch

Pulley a " _ •

Engaged ._.__D;_; flectlon

Figure 24

NOTE: If the adjustment is not correct,

repeat the adjustment.

6. Replace the belt cover.

7. Check the clutch control cable ad-

justment.

8. Reconnect the spark plug wire.

Traction Drive Belt

The traction drive belt has constant

spring pressure and does not require

adjustment. Replace the traction drive

belt if it is slipping. See To Replace

Belts paragraph in this section.

F-001087J

TO REPLACE BELTS

The drive belts on this snow thrower

are of special construction and should

be replaced with original equipment

belts available from your nearest

Craftsman Store. A distributor's list is

supplied in the parts manual.

You will need the assistance of a sec-

ond person while replacing the belts.

How To Remove The Auger Drive Belt

If the auger drive belt is damaged, the

snow thrower will not discharge snow.

Replace the damaged belt as follows.

1. Remove the gas from the gas tank.

Stand the snow thrower up on the

front end of the auger housing.

,_ WARNING: Drain the gasoline

outdoors, away from fire or

flame.

2. Disconnect the spark plug wire.

3. Remove the screw from the belt

cover. Remove the belt cover. See

Figure 22.

4. Remove the bolts on each side of

the motor mount frame. See

Figure 25.

5. Loosen the bolts on each side of

the motor mount frame. The au-

ger housing and the motor mount

frame will separate, hinged by the

bolts.

Mount ...._-K_

Frame __"

Remove top

bolt (each L

side)/ %

Loosen bottom

(Each Side)

Bottom

Panel

1_/' Auger

Housing

Figure 25

6. Loosen the belt guide. Pull the belt

guide away from the auger drive

pulley. See Figure 23.

7. Loosen the nut on the idler pulley.

Pull the idler pulley away from the

auger drive belt.

.Remove the old auger drive belt.

Replace the auger drive belt with

an original factory replacement belt

available from an authorized service

center.

9. Install the new auger drive belt

onto the auger drive pulley and

onto the drive pulley.

10. Adjust the auger drive belt. See

"How To Adjust The Auger Drive

Belt" in the Service And Adjustment

section.

11. Adjust the belt guide. See "How To

Adjust The Belt Guide" in the Ser-

vice And Adjustment section.

12. Install the bolts on each side of the

motor mount frame. See

Figure 25.

13. Tighter_the bolts on each side of

the motor mount frame.

14. Install the belt cover. Tighten the

screw. See Figure 22.

15. Check the adjustment of the cables.

See "How To Check And Adjust The

Cables" in the Service And Adjust-

ment section.

16. Connect the spark plug wire.

How To Remove the Traction Drive

Belt

If the snow thrower will not move for-

ward, check the traction drive belt for

wear or damage. If the traction drive

belt is worn or damaged, replace the

belt as follows.

1. Remove the gas from the gas tank.

Stand the snow thrower up on the

front end of the auger housing.

,_ WARNING: Drain the gasoline

outdoors, away from fire or

flame.

2, Disconnect the spark plug wire.

3. Remove the auger drive belt. See

"How To Remove The Auger Drive

Belt" in the Maintenance section.

F-001087J

4. Pull the traction drive idler pulley

away from the traction drive belt.

See Figure 26.

Traction Drive Belt

Auger Drive

Belt

Traction Belt Guide

Drive Pulley

Traction

Drive

Idler

Pulley

Auger

Drive

Pulley

Auger

Idler

Pulley

Engine Pulley Figure 26

Remove the old traction drive belt

from the traction drive pulley and

from the en ine pulley. Replace the

traction drive belt with an original

factory replacement belt available

from an authorized service center.

Install the new traction drive belt

onto the traction drive pulley and

onto the engine pulley.

Make sure the traction drive idler

pulley is properly aligned with the

traction drive belt.

Install and adjust the auger drive

belt. See "How To Remove The Au-

ger Drive Belt" in the Service And

Adjustment section.

Adjust the belt guide. See "How To

Adjust The Belt Guide" in the Ser-

vice And Adjustment section.

10. Install the bolts on each side of the

motor mount frame. See Figure 25.

11. 13ghten the bolts on each side of the

motor mount frame.

12. Install the belt cover. Tighten screw.

See Figure 22.

13. Check the adjustment of the cables.

See "How To Check And Adjust The

Cables" in the Service And Adjust-

ment section.

14. Connect the spark plug wire.

HOW TO ADJUST THE BELT GUIDE

1. Disconnect spark plug wire,

2. Remove the screw. Remove the

belt cover. See Figure 22.

3. Engage the auger drive lever.

4. Measure the distance between the

belt guide and auger drive belt.

The correct distance is 1/8 inch

(3.175 mm). See Figure 27.

_ Belt Guide

Figure 27

.If an adjustment is necessary, loos-

en the mounting bolt for the belt

guide. Move the belt guide to the

correct position. Tighten the

mounting bolt for the belt guide.

6. Install the belt cover. Tighten the

screw. See Figure 22.

7. Connect the spark plug wire.

HOW TO ADJUST OR REPLACE

THE FRICTION WHEEL

How To Check The Friction Wheel

If the snow thrower will not move for-

ward, check the traction drive belt, the

traction drive cable or the friction wheel.

If the friction wheel is worn or damaged,

it must be replaced. See "How To Re-

place the Friction Wheel" in this section.

If the friction wheel is not worn or dam-

aged, check as follows.

1. Remove the gas from the gas tank.

Stand the snow thrower up on the

front end of the auger housing.

F-001087J

WARNING: Drain the gasoline

outdoors, away from fire or

flame.

Disconnect the spark plug wire.

Remove the bolts on each side of

the bottom panel. See Figure 28.

Loosen the bolts on each side of

the bottom panel.

Remove the bottom panel.

Remove Top Bolt

(each side)

Mount ....----_

Frame I_ _ Auger

Loosen bottom o

(Each Side) Figure 28

6. Position the shift speed lever in

the first forward gear.

7. Note the position of the friction

wheel on the disc,drive plate (See

Figure 29). In the correct position,

the right outer side of the disc drive

plate must be three inches

(7.62cm.) from the center of the

friction wheel. If the friction wheel

is not in the correct position, adjust

as follows.

Friction

Wheel

Drive

Plate

Figure 29

How To Adjust The Friction Wheel

1, Loosen the bolts on the speed

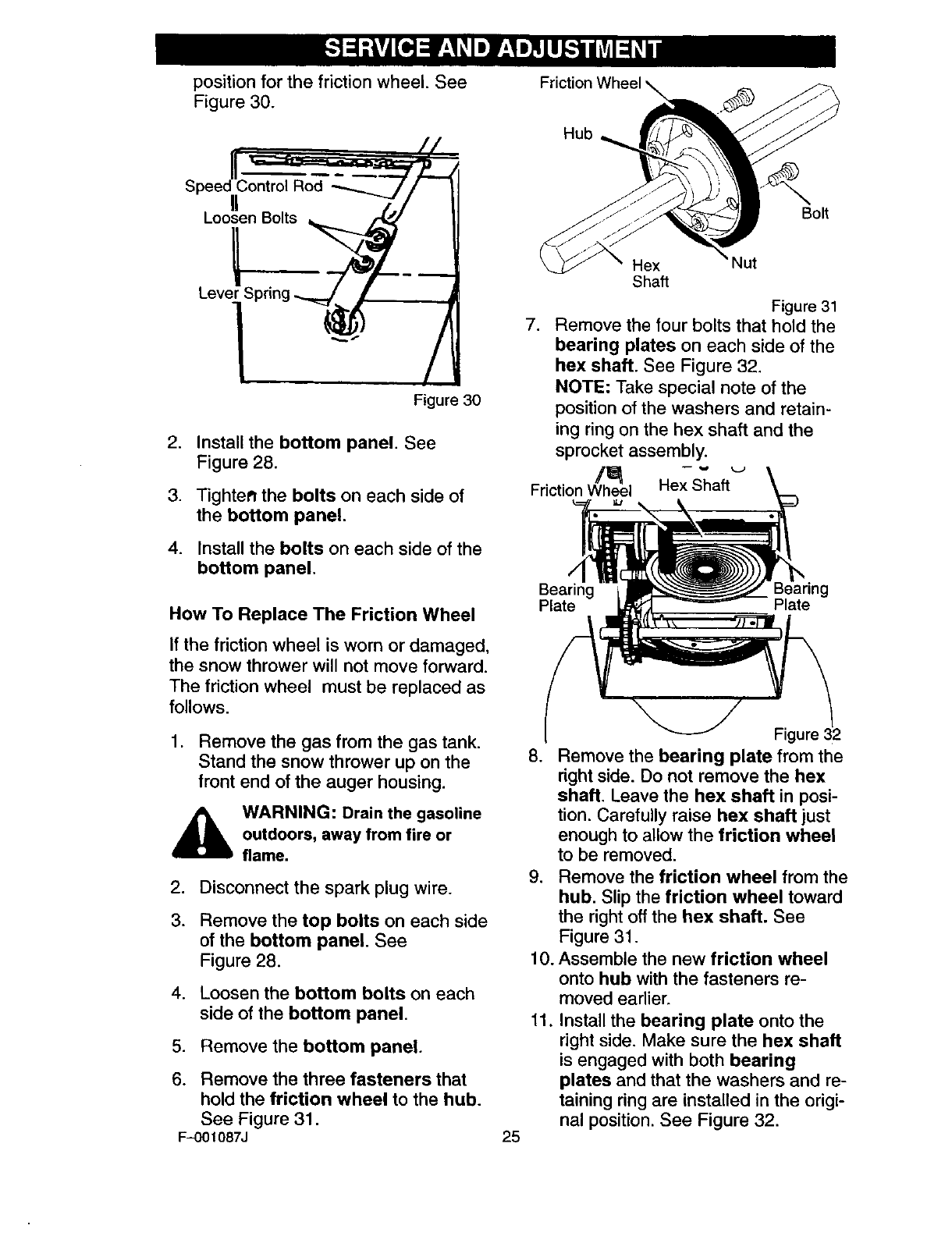

control rod to optain the correct

position for the friction wheel. See Friction Wh

Figure 30.

Loosen Bolts

Lev(

Figure 30

2. Install the bottom panel. See

Figure 28.

3. Tighten the bolts on each side of

the bottom panel.

4. Install the bolts on each side of the

bottom panel.

How To Replace The Friction Wheel

If the friction wheel is worn or damaged,

the snow thrower will not move forward.

The friction wheel must be replaced as

follows.

1. Remove the gas from the gas tank.

Stand the snow thrower up on the

front end of the auger housing.

_IL ARNING: Drain the gasoline

outdoors, away from fire or

flame.

2. Disconnect the spark plug wire.

3. Remove the top bolts on each side

of the bottom panel. See

Figure 28.

4. Loosen the bottom bolts on each

side of the bottom panel.

5. Remove the bottom panel.

6. Remove the three fasteners that

hold the friction wheel to the hub.

See Figure 31.

F-001087J 25

Hub

Bolt

Hex Nut

Shaft

Figure 31

7. Remove the four bolts that hold the

bearing plates on each side of the

hex shaft. See Figure 32.

NOTE: Take special note of the

position of the washers and retain-

ing ring on the hex shaft and the

sprocket assembly.

Friction Wheel Hex Shaft

Bearing _g

Plate Plate

Figure 32

8. Remove the bearing plate from the

right side. Do not remove the hex

shaft. Leave the hex shaft in posi-

tion. Carefully raise hex shaft just

enough to allow the friction wheel

to be removed.

9. Remove the friction wheel from the

hub. Slip the friction wheel toward

the right off the hex shaft. See

Figure 31.

10. Assemble the new friction wheel

onto hub with the fasteners re-

moved earlier.

11. Install the bearing plate onto the

right side. Make sure the hex shaft

is engaged with both bearing

plates and that the washers and re-

taining ring are installed in the origi-

nal position. See Figure 32.

12. Fastenthe bearing plates using

the four bolts removed earlier.

13. Make sure the hex shaft turns free-

ly.

14. Check the adjustment of the friction

wheel. See "How To Adjust The

Friction Wheel" in this section.

15. Make sure the friction wheel and the

disc drive plate are free from grease

or oi!.

16. Install the bottom panel. See

Figure 28.

17. Tighten the bottom bolts on each

side of the bottom panel.

18. Install the top bolts on each side of

the bottom panel.

19. Correct the spark plug wire.

HOW TO REPLACE THE AUGER

SHEAR BOLT

The augers are secured to the auger shaft

with special shear bolts. These shear bolts

are designed to break and protect the ma-

chine if an object becomes lodged in the au-

ger housing. Do not use a harder bolt as the

protection provided by the shear bolt will be

lost.

_ARNING: For safety and to

protect the machine, use only

original equipment shear bolts.

To replace a broken shear bolt, proceed

as follows. Extra shear bolts were pro-

vided in the assembly parts bag.

1. Move the throttle control to the stop

position. Disengage all controls.

2. Disconnect the spark plug wire.

Make sure all moving parts have

stopped.

,Align the hole in the auger with the

hole in the auger shaft, install the

new shear pin and spacer. See

Figure 33.

4. Connect the spark plug wire.

F-001087J

_ar Pin

_-" P! spalcer

_F igure 33

TO ADJUST THE CARBURETOR

If you think your carburetor needs ad-

justing, see your nearest Craftsman

Store. Engine performance should not

be affected at altitudes up to 7,000 feet.

For operation at higher elevations, con-

tact your nearest Craftsman Store.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Over-speeding

the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact your nearest

Craftsman Store, which has the proper

equipment and experience to make any

necessary adjustments.

TO ADJUST OR REPLACE THE

SPARK PLUG

NOTE: This spark ignition system

meets all requirements of the Canadian

Interference-Causing Equipment Regu-

lations.

NOTE: This engine complies with all

current Australian and New Zealand

limitations regarding electromagnetic

interference.

If you have difficulty starting the snow

thrower, adjust or replace the spark

plug. Replace the spark plug is the

electrodes are pitted or bumed or if the

porcelain is cracked. Follow the instruc-

tions below.

To adjust:

1. Clean spark plug by carefully

scraping the electrodes (Do not

sand blast or use a wire brush).

2. Be sure spark plug is clean and

free of foreign material. Check elec-

trodes gap with a wire feeler gauge

and reset gap to 0.030" if neces-

sary. See Figure 34.

To Replace:

1. If you need a new spark plug, use

only the proper replacement spark

plug.

2. Set the gap to 0.030 inches.

.Before installing the spark plug,

lightly coat the spark plug threads

with oil or grease to insure easy re-

moval.

Firmly tighten the spark plug in the

engine.

If a torque wrench is available,

torque the plug to 18 to 23 foot

pounds.

Feeler Gauge

0.030"

Spark Plug

Figure 34

F-001087J 27

_ARNING: Never store your

snow thrower indoors or in

an enclosed, poorly venti-

lated area. If gasoline remains in the

tank, fumes may reach an open

flame, spark or pilot light from a fur-

nace, water heater, clothes dryer,

cigarette, etc.

NOTE: To prevent engine damage (if

snow thrower is not used for more than

30 days) follow the steps below.

SNOW THROWER

1. Thoroughly clean the snow thrower.

2. Lubricate all lubrication points. See

the Maintenance section.

,Be sure that all nuts, bolts and

screws are securely fastened. In-

spect all visible moving parts for

damage, breakage and wear. Re-

place if necessary.

4. Touch up all rusted or chipped paint

surfaces; sand lightly before paint-

ing.

.Cover the bare metal parts of the

blower housing auger and the im-

peller with rust preventative, such

as a spray lubricant.

NOTE: A yearly checkup or tune-up by

a Sears service center is a good way of

ensuring that your snow thrower will

provide maximum performance for the

next season.

ENGINE

_ARNING: Drain the gaso-

line outdoors, away from

fire or flame.

Gasoline must be removed or treated to

prevent gum deposits from forming in

the fuel tank, filter, hose, and carburetor

during storage. Also, during storage al-

cohol blended gasoline that uses etha-

nol or methanol (sometimes called

gasohol) attracts water. It acts on the

gasoline to form acids which damage

the engine.

F-001087J

To remove gasoline, run the engine

until the fuel tank is empty and the

engine stops.

If you do not remove the gasoline,

use fuel stabilizer supplied with unit

or purchase Craftsman Fuel Stabi-

lizer No. 3550. Add fuel stabilizer to

any gasoline left in the tank to mini-

mize gum deposits and acids. If the

fuel tank is almost empty, mix stabi-

lizer with fresh gasoline in a sepa-

rate container and add some to the

fuel tank.

Always follow the instruction on the

stabilizer container. After the stabi-

lizer is added to the fuel tank, run

the engine at least ten minutes to

allow the mixture to reach the car-

buretor.

Change the engine oil.

Lubricate the piston/cylinder area.

First, remove the spark plug and

squirt a few drops of clean engine

oil into the spark plug hole. Next,

cover the spark plug hole with a rag

to absorb oil spray. Then, pull two or

three times on the recoil starter rope

to rotate the engine. Finally, install

the spark plug and attach the spark

plug wire.

OTHER

1. If possible, store your snow thrower

indoors and cover it to give protec-

tion from dust and dirt.

2. If the machine must be stored out-

doors, block up the snow thrower to

be sure the entire machine is off the

ground.

3. Cover the snow thrower with a suit-

able protective cover that does not

retain moisture. Do not use plastic.

IMPORTANT: Never cover snow

thrower while engine and exhaust areas

are still warm.

TROUBLE CORRECTION

Difficult starting Replace spark plug.

CAUSE

Defective spark plug.

Water or dirt in fuel system. Use carburetor bowl drain to

flush and refill with fresh fuel.

Engine runs erratic Blocked fuel line, empty gas Clean fuel line; check fuel

tank, or stale gasoline supply; add fresh gasoline

Engine stalls Unit running on CHOKE. Set choke lever to RUN

)osition.

Engine runs erratic; Water or dirt in fuel system. Use carburetor bowl drain to

Loss of power flush and refill with fresh fuel.

Excessive vibration Loose parts: damaged

impeller

Unit fails to propel itself

Stop engine immediately and

disconnect spark plug wire.

Tighten all bolts and make all

necessary repairs. If

vibration continues, have the

unit serviced by a Craftsman

service repairman.

Drive belt loose or damaged. Replace drive belt.

Incorrect adjustment of Adjust traction drive cable.

traction drive cable

Worn or damaged friction Replace friction wheel.

wheel.

Auger drive belt loose or

damaged.

Unit fails to discharge

snow Adjust auger drive belt;

replace if damaged.

Auger control cable not Adjust auger control cable.

adjusted correctly.

Shear bolt broken Replace shear bolt

Discharge chute clogged. Stop engine immediately and

disconnect spark plug wire.

Clean discharge chute and

inside of auger housing.

Foreign object lodged in Stop engine immediately and

auger disconnect spark plug wire.

Remove object from auger.

F-001087J 29

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

FRAME ASSEMBLY

ENGINE MOUNTS TO FRONT HOLES

ON THE FRAME

12-

13 14

53 59

Key No.

Description

Model 143.015005

SCREW, 5/16-18

WASHER, SPTLK .31X.58X.08

GUIDE, ROD BELT

PLASTIC WASHER

WASHER, SPTLK .31X.58X.08

SCREW, 5/16-24X 1.00

SPACER

PULLEY, HALF

WASHER, FLAT .752X.91X.02

BELT, V 3L 33.13LG

FLATWASH ER .765X1.12X.06

SPACER, SLEEVE

PULLEY, ENGINE

BELT, V 4L35.6 LG

WASHER, FLAT .375Xl .25X. 104

WASHER,HVSPTLK .381D

SCREW, 3/8-24Xl .00

OWNER'S MANUAL

326928

Part No.

ENGINE

710024

71060

3949

6711

71060

910828

762291

579854

579861

579932

712120

586251

586253

581264

50677

71063

71015

F-001087J

F-001087J 30

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

ELECTRIC START ASSEMBLY

319051

Key No.

Description

MOTOR, STARTER

SCREW

CORD, STARTER

Part No.

330783

762226

6217

6219

F-O01087J 31

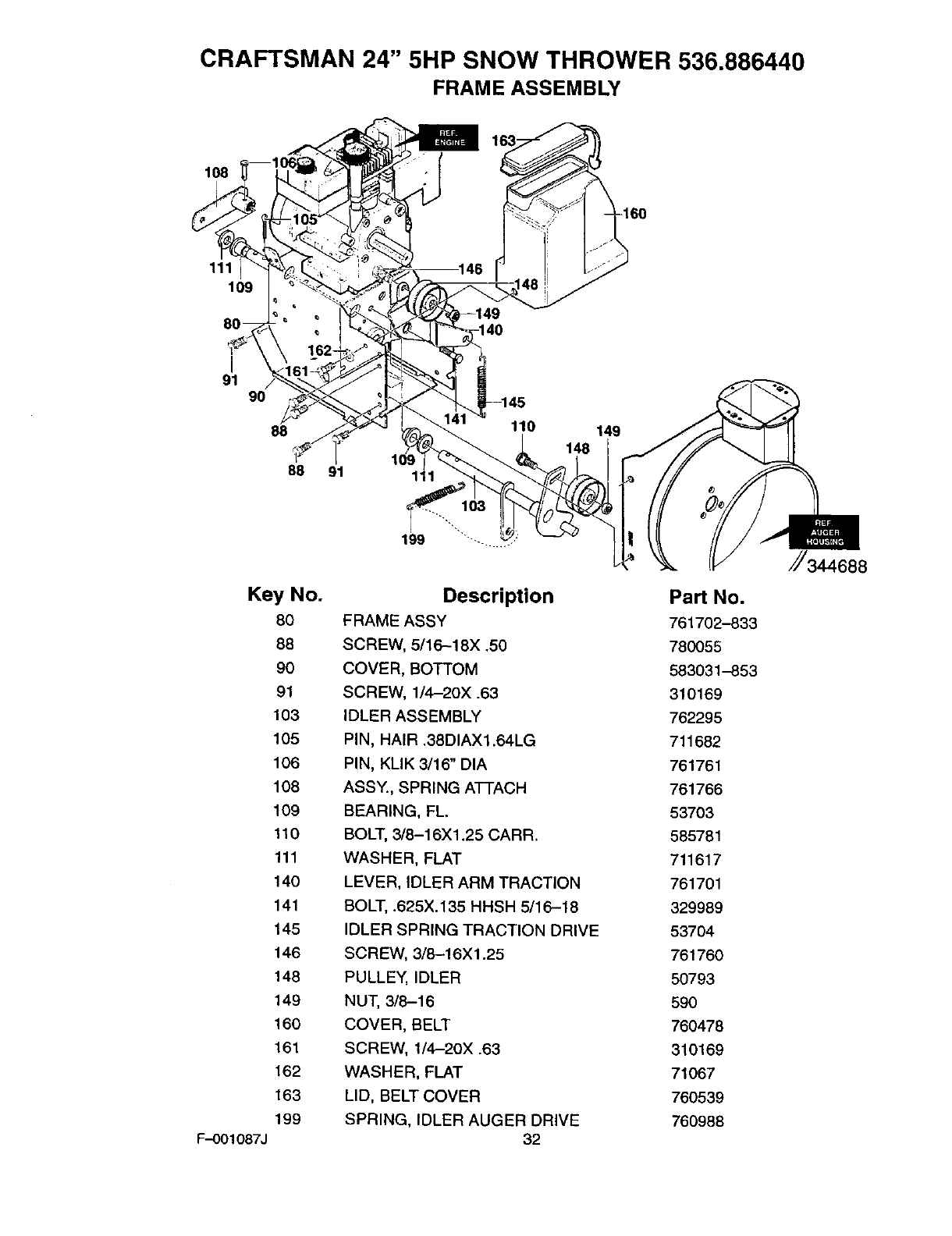

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

FRAME ASSEMBLY

108

111

109

91 90

88 91 111

Key No.

103

105

106

108

109

110

111

140

141

145

146

148

149

160

161

162

163

199

F-001087J

-140

148

Description

FRAME ASSY

SCREW, 5/16--18X .50

COVER, BOTTOM

SCREW, 1/4-20X .63

IDLER ASSEMBLY

PIN, HAIR .38DIAX1.64LG

PIN, KLIK 3/16" DIA

ASSY., SPRING ATTACH

BEARING, FL.

BOLT, 3/8-16Xl .25 CARR.

WASHER, FLAT

LEVER, IDLER ARM TRACTION

BOLT, .625X.135 HHSH 5/16-18

IDLER SPRING TRACTION DRIVE

SCREW, 3/8-16Xl .25

PULLEY, IDLER

NUT, 3/8-16

COVER, BELT

SCREW, 1/4-20X .63

WASHER, FLAT

LID, BELT COVER

SPRING, IDLER AUGER DRIVE

Pa_ No.

761702-833

780055

583031-853

310169

762295

711682

761761

761766

53703

585781

711617

761701

329989

53704

761760

50793

590

760478

310169

71067

760539

760988

344688

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

GEAR CASE ASSEMBLY

-341 3O5

3O6

327

303 310

32O

3O4

312

311

Key No. Description

300 CASE, GEAR, RH

301 CASE, GEAR, LH

303 SCREW,1/4-20X.75

304 NUT, I/4-20

305 NUT, 1/4-20 HEXKEPS

306 SCREW, 3/8-16X.50

310 SEAL, OIL

311 BEARING, FL

312 WASHER, FLAT

313 SHAFT, AUGER OUTPUT

314 GASKET, GEAR BOX

315 WORM GEAR

316 KEY, WOODRUFF #61

320 BRNG, FL

321 SHAFT, AUGER INPUT

322 COLLAR, THRUST

323 PIN, SPRING

324 WASHER, FLAT

325 BRNG, ROLL

326 BRNG, FL

327 SEAL, OIL

340 IMPELLER

341 PIN, SPRING

-- 10oz TUBE LUBRIPLATE

F-001087J 33

Part No.

10577

10576

710025

302635

303008

9344

9566

50304

48275

340286

51279

51405

431787

50221

583125

580295

454565

48275

50684

50304

9566

760194-853

454565

333431

313996

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

DRIVE COMPONENTS

192 190

191\

217 221

215

196 193

223

222 °°

191

195

256

277

223

271

243

222

-- 225

226

249 250

255 224 229

246

240

276

278

235

230

244

245

275

270

313995 REV P

F-001087J 34

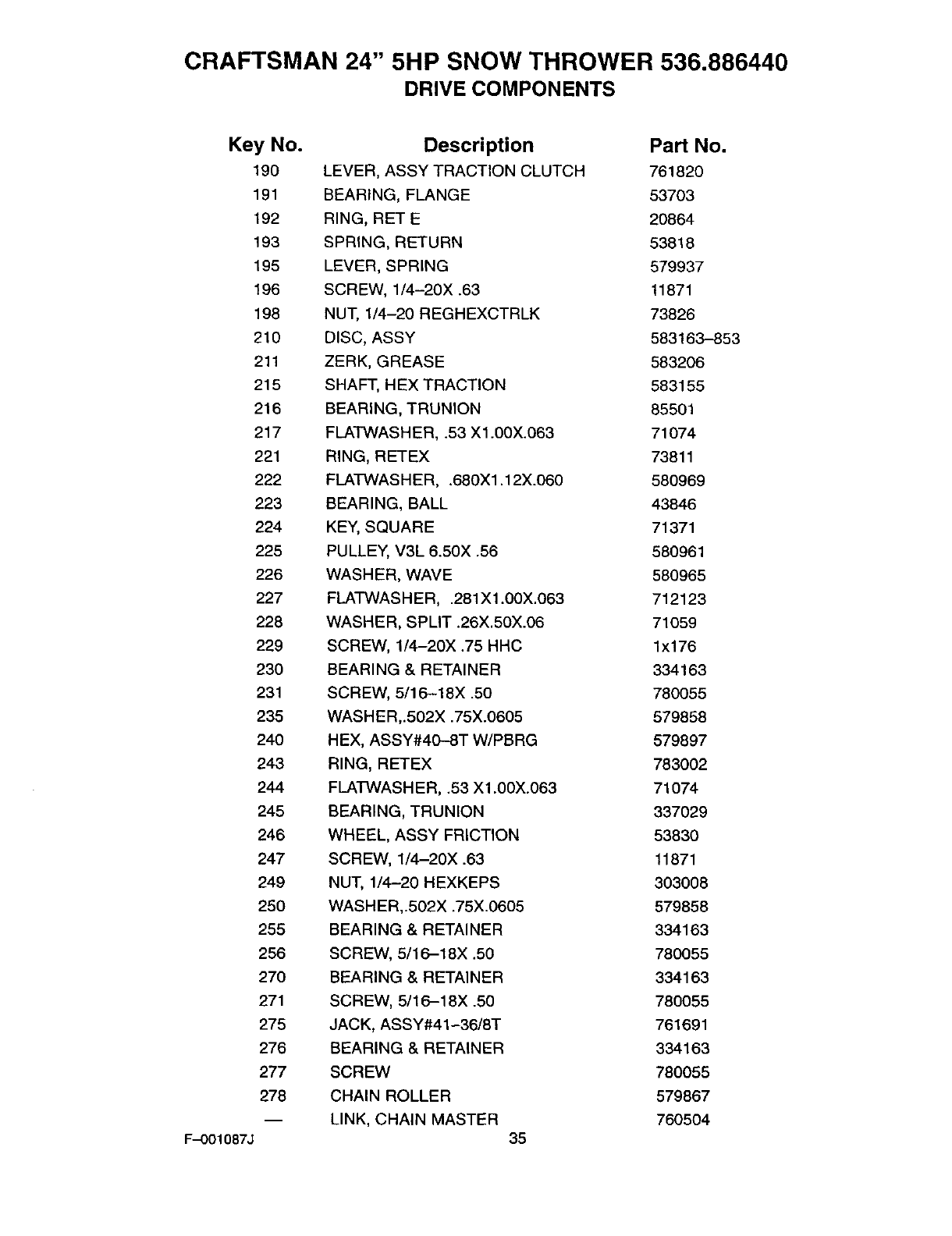

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

DRIVE COMPONENTS

Key No.

190

191

192

193

195

196

198

210

211

215

216

217

221

222

223

224

225

226

227

228

229

230

231

235

240

243

244

245

246

247

249

250

255

256

27O

271

275

278

277

278

F-001087J

Description Part No.

LEVER, ASSY TRACTION CLUTCH 761820

BEARING, FLANGE 53703

RING, RET E 20864

SPRING, RETURN 53818

LEVER, SPRING 579937

SCREW, 1/4-20X .63 11871

NUT, 1/4-20 REGHEXCTRLK 73826

DISC, ASSY 583163-853

ZERK, GREASE 583206

SHAFT, HEX TRACTION 583155

BEARING, TRUNION 85501

FLATWASHER, .53 X1.00X.063 71074

RING, RETEX 73811

FLATWASHER, .680X1.12X.060 580969

BEARING, BALL 43846

KEY, SQUARE 71371

PULLEY, V3L 6.50X .56 580961

WASHER, WAVE 580965

FLATWASHER, .281X1.00X.063 712123

WASHER, SPLIT .26X.50X.06 71059

SCREW, 1/4-20X .75 H HC 1x176

BEARING & RETAINER 334163

SCREW, 5/16-18X .50 780055

WAS HE R,. 502X .75X.0605 579858

HEX, ASSY#40-8T W/PBRG 579897

RING, RETEX 783002

FLATWASHER, .53 X1.00X.063 71074

BEARING, TRUNION 337029

WHEEL, ASSY FRICTION 53830

SCREW, 1/4-20X .63 11871

NUT, 1/4.20 HEXKEPS 303008

WASHER,.502X .75X.0605 579858

BEARING & RETAINER 334163

SCREW, 5/1 6-18X .50 780055

BEARING & RETAINER 334163

SCREW, 5/1 6-18X .50 780055

JACK, ASSY#41-36/8T 761691

BEARING & RETAINER 334163

SCREW 780055

CHAIN ROLLER 579867

LINK, CHAIN MASTER 760504

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

AUGER HOUSING ASSEMBLY

5OO

KEY# 500 IS A WELDMENT AND

iNCLUDES TWO SIDE PANELS

REF,

5OO

339972

F-OO1087J 36

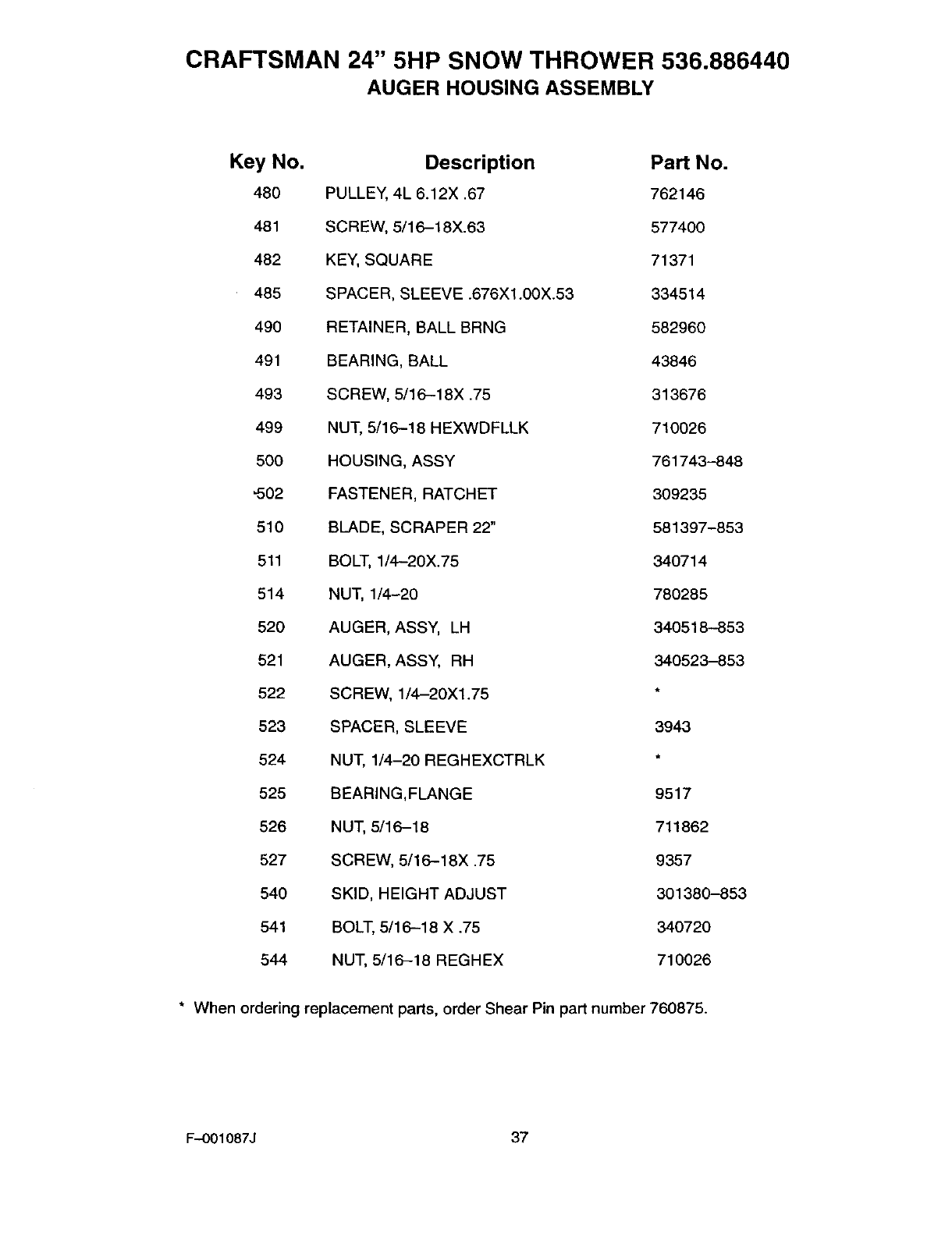

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

AUGER HOUSING ASSEMBLY

Key No.

48O

481

482

485

490

491

493

499

50O

"502

510

511

514

520

521

522

523

524

525

526

527

540

541

544

Description

PULLEY, 4L 6.12X .67

SCREW, 5/16-18X.63

KEY, SQUARE

SPACER, SLEEVE .676Xl .00X.53

RETAINER, BALL BRNG

BEARING, BALL

SCREW, 5/1 6-18X .75

NUT, 5/16-18 HEXWDFLLK

HOUSING, ASSY

FASTENER, RATCHET

BLADE, SCRAPER 22"

BOLT, 1/4-20X.75

NUT, 1/4-20

AUGER, ASSY, LH

AUGER, ASSY, RH

SCREW, 1/4-20Xl.75

SPACER, SLEEVE

NUT, 1/4-20 REGHEXCTRLK

BEARING,FLANGE

NUT, 5/16-18

SCREW, 5/16-18X .75

SKID, HEIGHT ADJUST

BOLT, 5/16-18 X .75

NUT, 5/16-18 REGHEX

Part No.

762146

577400

71371

334514

582960

43846

313676

710026

761743--848

309235

581397-853

340714

780285

340518-853

340523-853

3943

9517

711862

9357

301380-853

340720

710026

*When ordering replacement parts, order Shear Pin part number 760875.

F-001087J 37

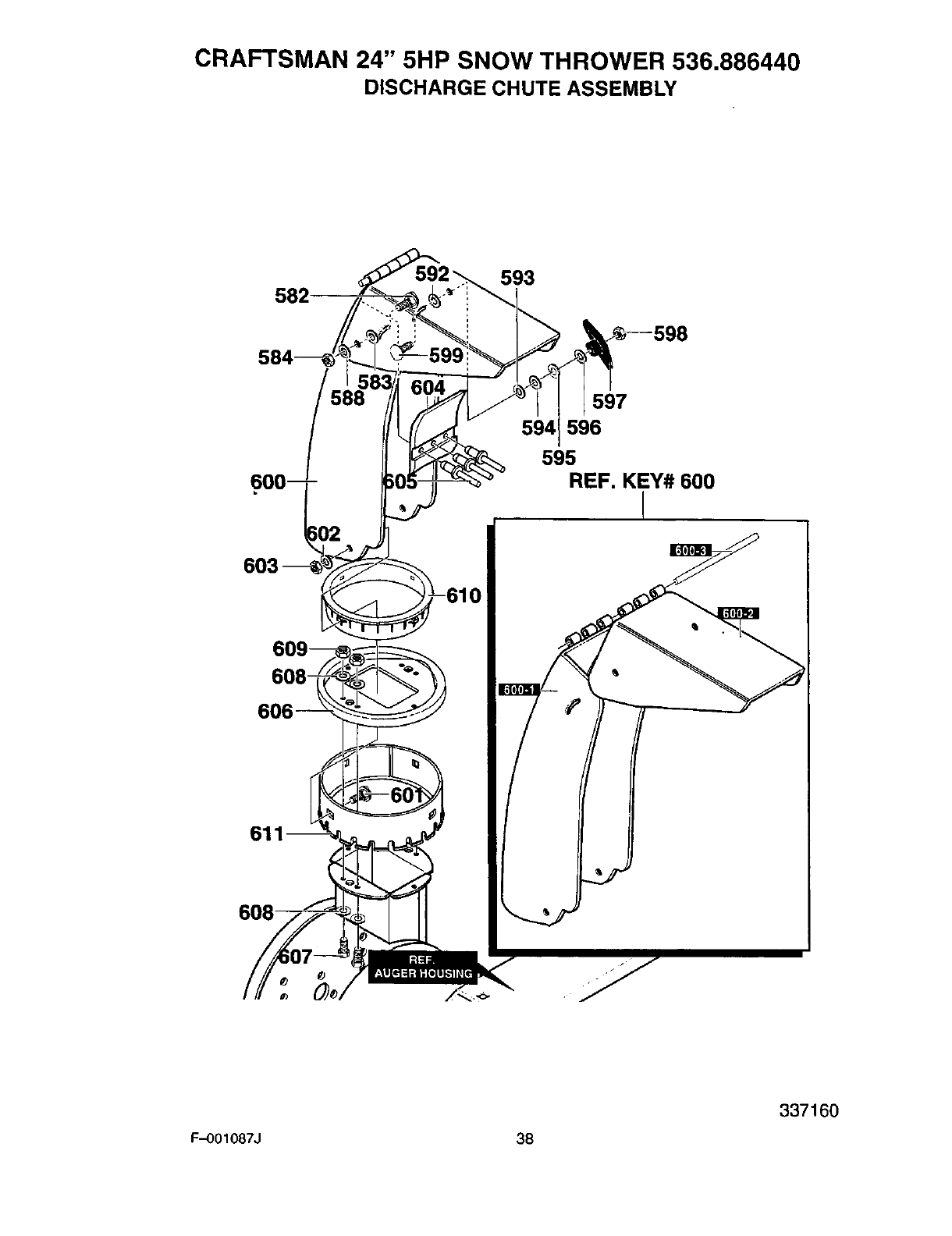

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

DISCHARGE CHUTE ASSEMBLY

593

600 m

597

594 596

595

REF. KEY# 600

608-

337160

F-OO1087J 38

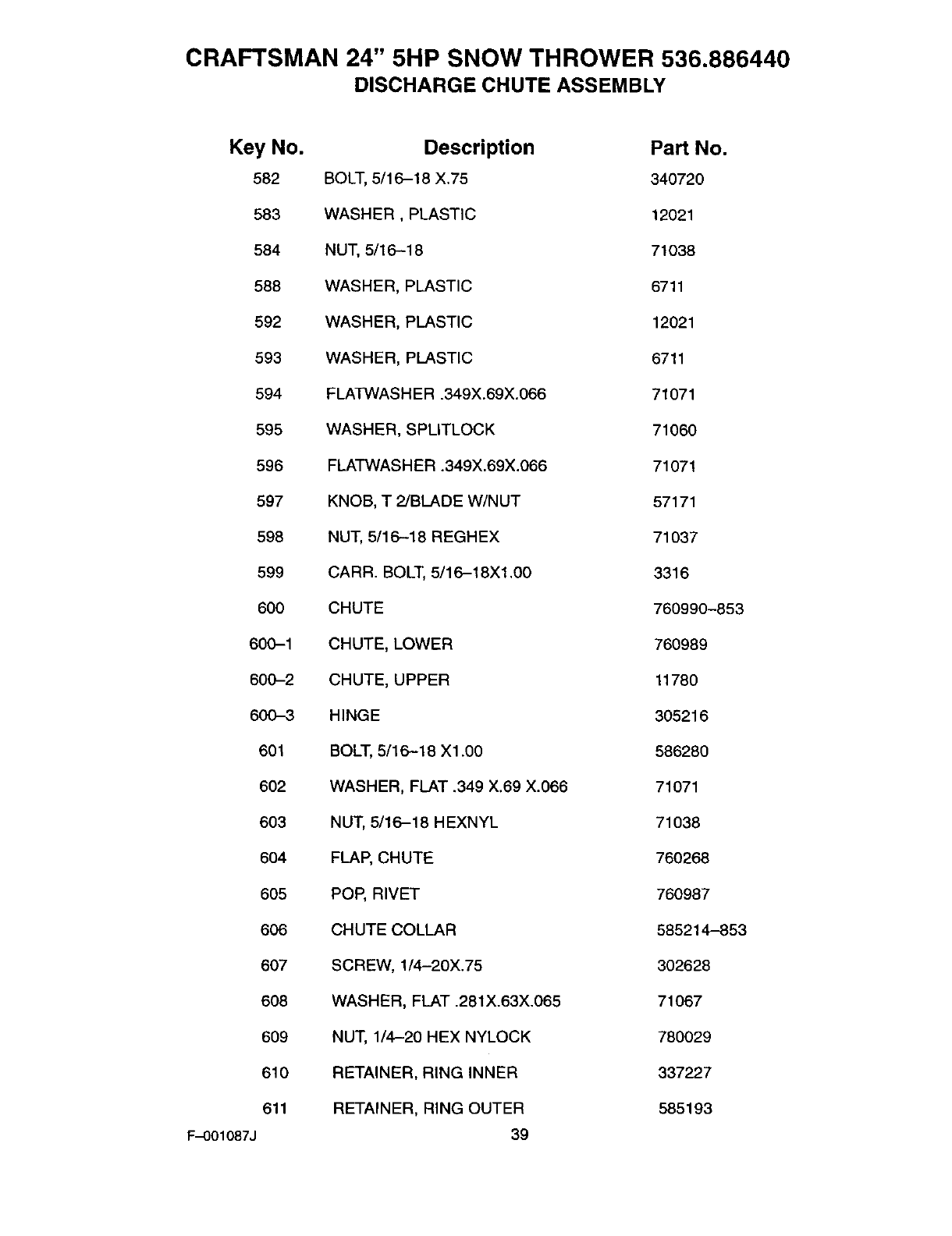

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

DISCHARGE CHUTE ASSEMBLY

Key No. Description Part No.

582 BOLT, 5/16-18 X.75 340720

583 WASHER, PLASTIC 12021

584 NUT, 5/16-18 71038

588 WASHER, PLASTIC 6711

592 WASHER, PLASTIC 12021

593 WASHER, PLASTIC 6711

594 FLATWASHER .349X.69X.066 71071

595 WASHER, SPLITLOCK 71060

596 FLATWASHER .349X.69X.066 71071

597 KNOB, T 2/BLADE W/NUT 57171

598 NUT, 5/16-18 REGHEX 71037

599 CARR. BOLT, 5/16-18X1.00 3316

600 CHUTE 760990-853

600-1 CHUTE, LOWER 760989

600-2 CHUTE, UPPER 11780

600-3 HINGE 305216

601 BOLT, 5/16-18 X1.00 586280

602 WASHER, FLAT .349 X.69 X.066 71071

603 NUT, 5/16-18 HEXNYL 71038

604 FLAP, CHUTE 760268

605 POP, RIVET 760987

606 CHUTE COLLAR 585214-853

607 SCREW, 1/4-20X.75 302628

608 WASHER, FLAT .281X.63X.065 71067

609 NUT, 1/4-20 HEX NYLOCK 780029

610 RETAINER, RING INNER 337227

611 RETAINER, RING OUTER 585193

F-001087J 39

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

HANDLE ASSEMBLY

720

;733

731

734

728

725 724

725 755-

753-

339622

F-OO1087J 40

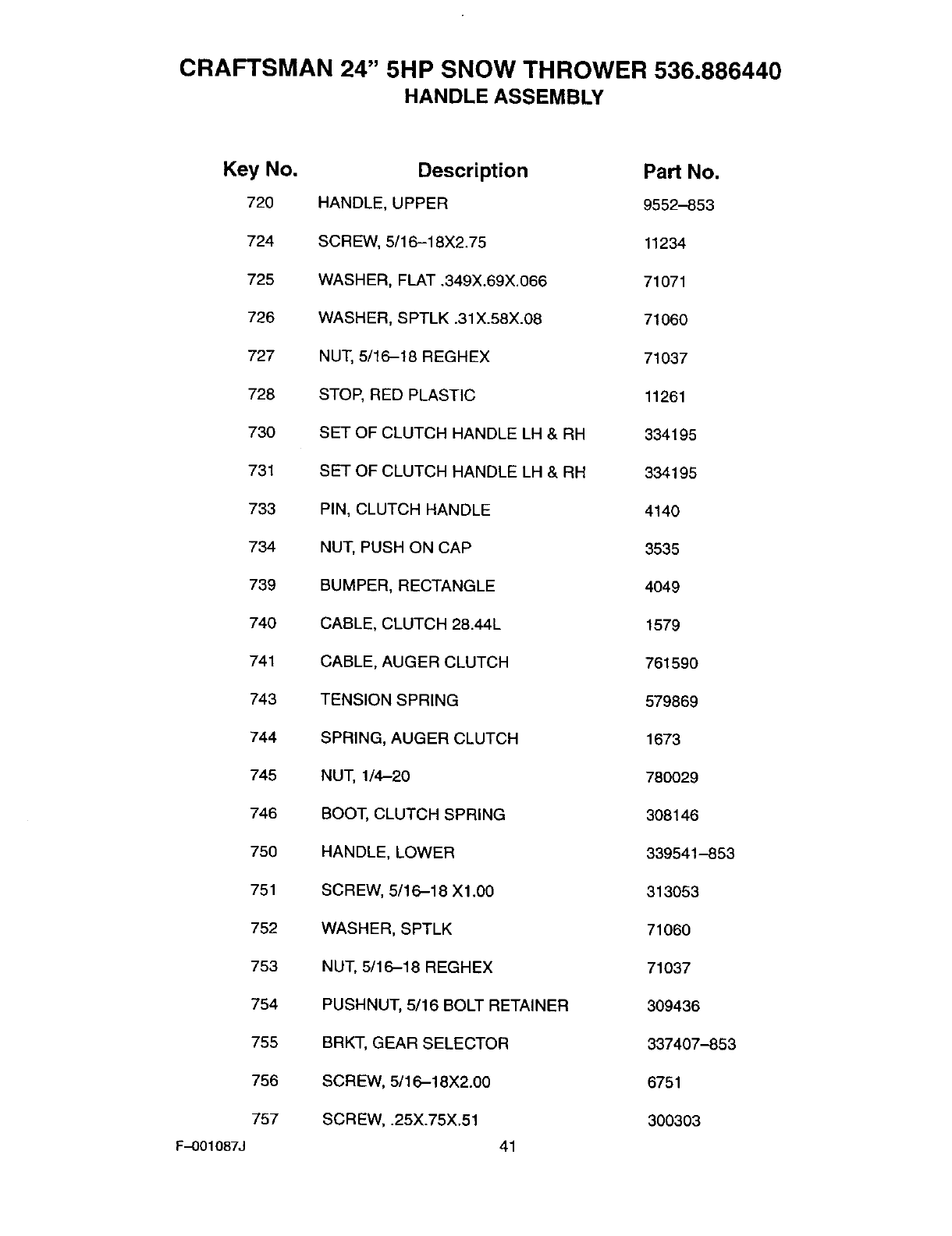

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

HANDLE ASSEMBLY

Key No.

720

724

725

726

727

728

73O

731

733

734

739

740

741

743

744

745

746

750

751

752

753

754

755

756

757

F--O01087J

Description Part No.

HANDLE, UPPER 9552-853

SCR EW, 5/16-18X2.75 11234

WASHER, FLAT .349X.69X.066 71071

WASHER, SPTLK .31X.58X.08 71060

NUT, 5/16-18 REGHEX 71037

STOP, RED PLASTIC 11261

SET OF CLUTCH HANDLE LH & RH 334195

PIN, CLUTCH HANDLE 4140

NUT, PUSH ON CAP 3535

BUMPER, RECTANGLE 4049

CABLE, CLUTCH 28.44L 1579

CABLE, AUGER CLUTCH 761590

TENSION SPRING 579869

SPRING, AUGER CLUTCH 1673

NUT, 1/4-20 780029

BOOT, CLUTCH SPRING 308146

HANDLE, LOWER 339541-853

SCREW, 5/1 6-18 X1.0O 313053

WASHER, SPTLK 71060

NUT, 5/16-18 REGHEX 71037

PUSHNUT, 5/16 BOLT RETAINER 309436

BRKT, GEAR SELECTOR 337407-853

SCREW, 5/1 6-18X2.00 6751

SCREW, .25X.75X.51 300303

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

WHEEL ASSEMBLY

678

673

671

655

650

678

Key No.

650

652

653

654

655

656

671

673

675

676

677

678

679

F-001087J

Description

SHAFT, AXLE

SPRKT & HUB

SCREW, 1/4-20X2.25

NUT, 1/4-20 HEX NYLOCK

BRNG, FL

CHAIN, ROLLER

LINK, CHAIN MASTER

FLA'I'WASH ER .765X1.12X.06

BUSHING, WHEEL

TIRE & RIM

SCREW, 1/4-20X1.75 HH

NUT, 1/4-20 HEX NYLOCK

RING, RE-I-

PIN, KLIK .25 X 1.38 DIA

Part No.

580883

583012

73839

780029

581730

579867

760504

712120

585591

318504

577015

780029

239

73842

318542

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

SHIFT YOKE ASSEMBLY

790--

791 801

792

8 812

Key No. Description Part No.

790 ROD, SHIFT 581631-853

791 SCREW, 1/4-20X.75 302628

792 NUT, 1/4-20 REGHEXCTRLK 73826

795 NUT, 1/2-13 HEXJAM 318486

796 KNOB, SHIFT 304438

800 LEVER, SPRING SHIFT 760564

801 SCREW, 1/4-20X.75 302628

802 NUT, 1/4--20 REGHEXCTRLK 73826

811 BEARING, FLANGED 579944

812 ROD, ASSY. YOKE 581795

813 NUT, 3/8-16 HEXCTRLK 71111

F-O01087J 43

319053

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

CHUTE CONTROL ROD ASSEMBLY

856

_855

854

855

850

860

862

867

866

863

863 1

864 873 _

874

Key No. Description Part No.

850 CRANK, ASSY CHUTE 585426

854 HANDLE, CHUTE CRANK 307399

855 FLATWASHER .39X.70X.05 309312

856 E RING 578159

860 EYE BOLT 3/8-16X6.00 581618

861 GROMMET, EYE BOLT 148

862 BOOT 308145

863 NUT, 3/8-16 HEXJAM 71045

864 FLATWASHER .406X.81X.066 71072

865 ADAPTER, BOOT TO HANDLE 309344

866 FLATWASH ER .406X.81X.066 71072

867 NUT, 3/8-16 HEXNYL 71046

870 BRACKET, WORM MTG 585195

871 WORM, GEAR CHUTE ROTATION 585196

872 BLOCK, UNIVERSAL PIVOT 578063

873 CLEVIS PIN 578309

874 PIN, UNIVERSAL JOINT 578060

875 COFFER PIN 579493

F-001087J 44

334215

CRAFTSMAN 24" 5HP SNOW THROWER 536.886440

DECALS

VIEW FROM

HOUSING REAR

-830

828

I []

VIEW FROM AUGER

FRAME REAR

Key No.

821 MODEL

823 DECAL

824 DECAL

827 DECAL

828 DECAL

829 DECAL

830 DECAL

831 DECAL

833 DECAL

F-001087J

Description

PLATE

DANGER CHUTE HAND

DANGER & FOOT

5/24 CRAFTSMAN

DANGER STRIPE

DRIVE CLUTCH (SYMBOL)

AUGER CLUTCH (SYMBOL)

GEAR SELECTOR

TOOLBOX INFO

Part No.

761916

761776

48X250

761079

3902

3903

340047

760983

344409

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.015005

277

370D.

329'

"135

'" _342A

.-101

396

262

287 390 370K

F-001087J 46

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.015005

KEY

NO.

PART

NO.

36469A

2 26727

5 30969

14 28277

15 31334

16 31510

17 31335

18 651018

19 31426

20 32600

25 36552

25A 35883

26 650802

26A 650926

30 37245

40 36073

40 36074

40 36075

41 36070

41 36071

41 36072

42 36076

42 36077

42 36078

43 20381

45 32875A

46 32610A

48 27241

F-O01087J

KEY PART

DESCRIPTION NO. NO.

RPM High 3550 to 3850 49 32654

RPM Low 1850 to 2150 50 33158

Cylinder 60 29745

(Incl. 2, 20, 72 & 125) 64 30063

Dowel Pin 64A 8345

Oil Drain Extension 65 650128

(Purchase Local) 69 27677A

Extension Cap 70 34674C

Washer

Governor Rod 75 27897

Governor Lever 80 30574A

Governor Lever Clamp 81 30590A

Screw 82 30591

Throttle Spring

Oil Seal 83 30588A

Blower Housing Baffle 86 650488

(Incl. 262) 89 610961

Baffle Extension 90 611199

Screw, 1/4--20 x 5/8" 92 650815

Screw, 8-32 x 21/64" 93 650816

Crankshaft 100 34443B

Piston, Pin & Ring Set 101 610118

(Std.) 102 651024

Piston, Pin & Ring Set

(.010" OS) 103 651007

Piston, Pin & Ring Set 110 35182

(.020" OS) 110A 36874

Piston & Pin Ass'y. (Std.) 119 36443

(Incl. 43) 120 36441

Piston & Pin Ass'y.

(.010" OS) (Incl. 43) 125 36471

Piston &Pin Ass'y.

(.020" OS) (Incl. 43) 125 36472

Ring Set (Std.) 126 32644A

Ring Set (.010" OS)

Ring Set (.020" OS) 127 650691

Piston Pin Retaining Ring 130 6021A

Connecting Rod Ass'y. 130A 650694A

(Incl. 46 & 49) 130B 650818

Connecting Rod Bolt 135 35395

Valve Lifter

DESCRIPTION

Oil Dipper

Camshaft (BCR)

Blower Housing Extension

Screw

Washer

Screw, 10-24 x 1/2"

Cylinder Cover Gasket

Cylinder Cover

(Incl. 75 thru 83)

Oil Seal

Governor Shaft

Washer

Governor Gear Ass'y.

(IncL 81)

Governor Spool

Screw, 1/4--20 x 1-1/4"

Flywheel Key

Flywheel (W/Ring Gear)

Belleville Washer

Flywheel Nut

Solid State Ignition

Spark Plug Cover

Solid State Mounting Stud

Screw

Ground Wire

Cylinder Head Gasket

Cylinder Head (Incl. 131 )

Exhaust Valve (Std.)

(Incl. 151)

Exhaust Valve (1/32" OS)

(IncI, 151)

Intake Valve (Std.)

(Incl. 151)

Washer

Screw, 5/16-18 x 1-1/2"

Screw, 5/16-18 x 2"

Screw, 5/16-18 x 1-1/2"

Spark Plug (RJ19LM)

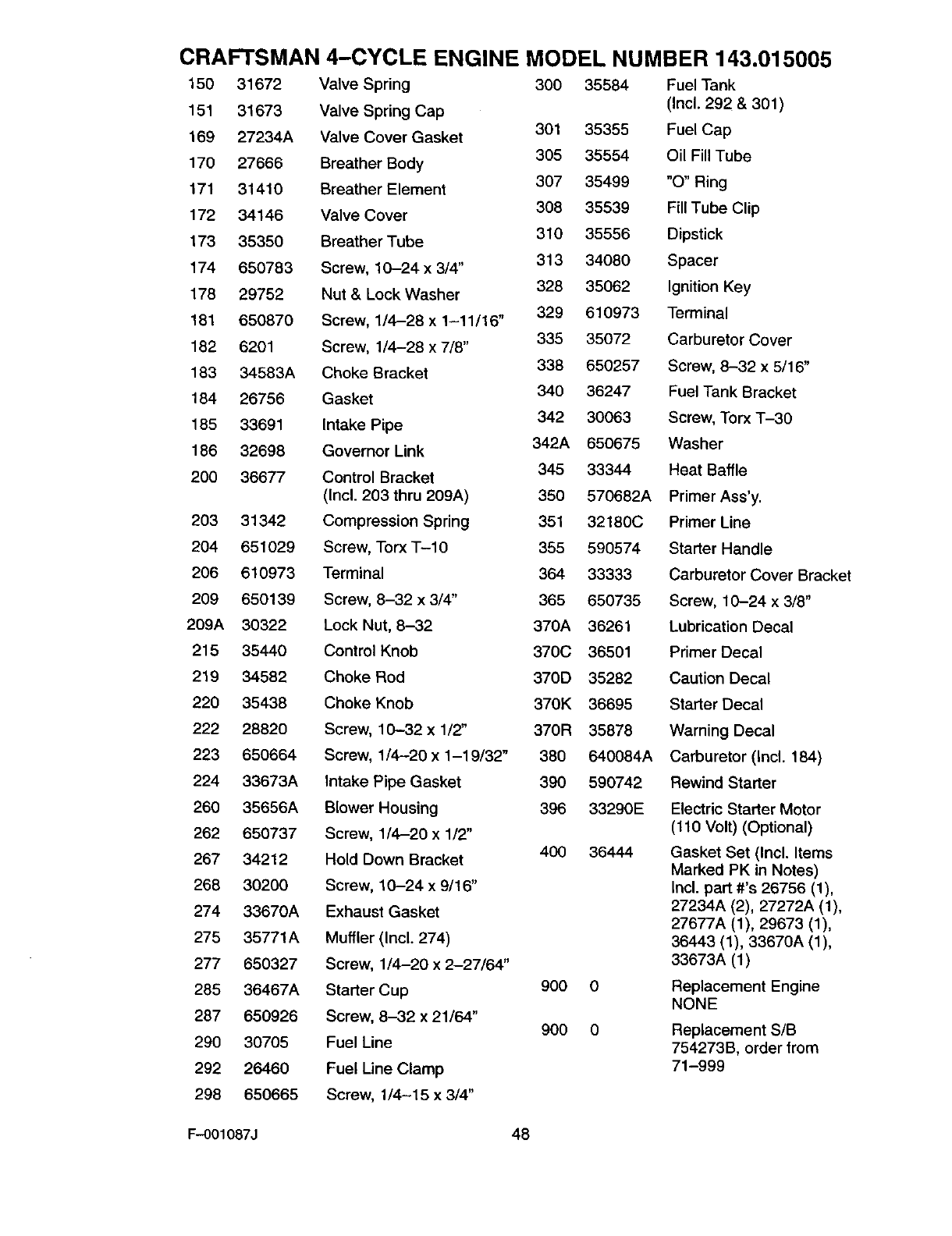

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.015005

150 31672 Valve Spring 300 35584 Fuel Tank

151 31673 Valve Spring Cap (Incl. 292 & 301)

169 27234A Valve Cover Gasket 301 35355 Fuel Cap

170 27666 Breather Body 305 35554 Oil Fill Tube

171 31410 Breather Element 307 35499 "O" Ring

172 34146 Valve Cover 308 35539 Fill Tube Clip

173 35350 Breather Tube 310 35556 Dipstick

174 650783 Screw, 10-24 x 3/4" 313 34080 Spacer

178 29752 Nut & Lock Washer 328 35062 Ignition Key

181 650870 Screw, 1/4-28 x 1-11/16" 329 610973 Terminal

335 35072 Carburetor Cover

182 6201 Screw, 1/4-28 x 7/8"

183 34583A Choke Bracket 338 650257 Screw, 8-32 x 5/16"

184 26756 Gasket 340 36247 Fuel Tank Bracket

185 33691 Intake Pipe 342 30063 Screw, Torx T-30

186 32698 Governor Link 342A 650675 Washer

200 36677 Control Bracket 345 33344 Heat Baffle

(Incl. 203 thru 209A) 350 570682A Primer Ass'y.

203 31342 Compression Spring 351 32180C Primer Line

204 651029 Screw, Torx T-10 355 590574 Starter Handle

206 610973 Terminal 364 33333 Carburetor Cover Bracket

209 650139 Screw, 8-32 x 3/4" 365 650735 Screw, 10-24 x 3/8"

209A 30322 Lock Nut, 8-32 370A 36261 Lubrication Decal

215 35440 Control Knob 370C 36501 Primer Decal

219 34582 Choke Rod 370D 35282 Caution Decal

220 35438 Choke Knob 370K 36695 Starter Decal

222 28820 Screw, 10-32 x1/2" 370R 35878 Warning Decal

223 650664 Screw, 1/4-20 x 1-19/32" 380 640084A Carburetor (incl. 184)

224 33673A Intake Pipe Gasket 390 590742 Rewind Starter

260 35656A Blower Housing 396 33290E

282 650737 Screw, 1/4-20 x 1/2"

267 34212 Hold Down Bracket 400 36444

268 30200 Screw, 10-24 x 9/16"

274 33670A Exhaust Gasket

275 35771A Muffler (Incl. 274)

277 650327 Screw, 1/4-20 x 2-27/64"

285 36467A Starter Cup 900 0

287 650926 Screw, 8-32 x 21/64" 900 0

290 30705 Fuel Line

292 26460 Fuel Line Clamp

Electric Starter Motor

(110 Volt) (Optional)

Gasket Set (Incl. Items

Marked PK in Notes)

Incl. part #'s 26756 (1),

27234A (2), 27272A (1),

27677A (1), 29673 (1),

36443 (1), 33670A (1),

33673A (1)

Replacement Engine

NONE

Replacement S/B

754273B, order from

71-999

298 650665 Screw, 1/4-15 x 3/4"

F-001087J 48

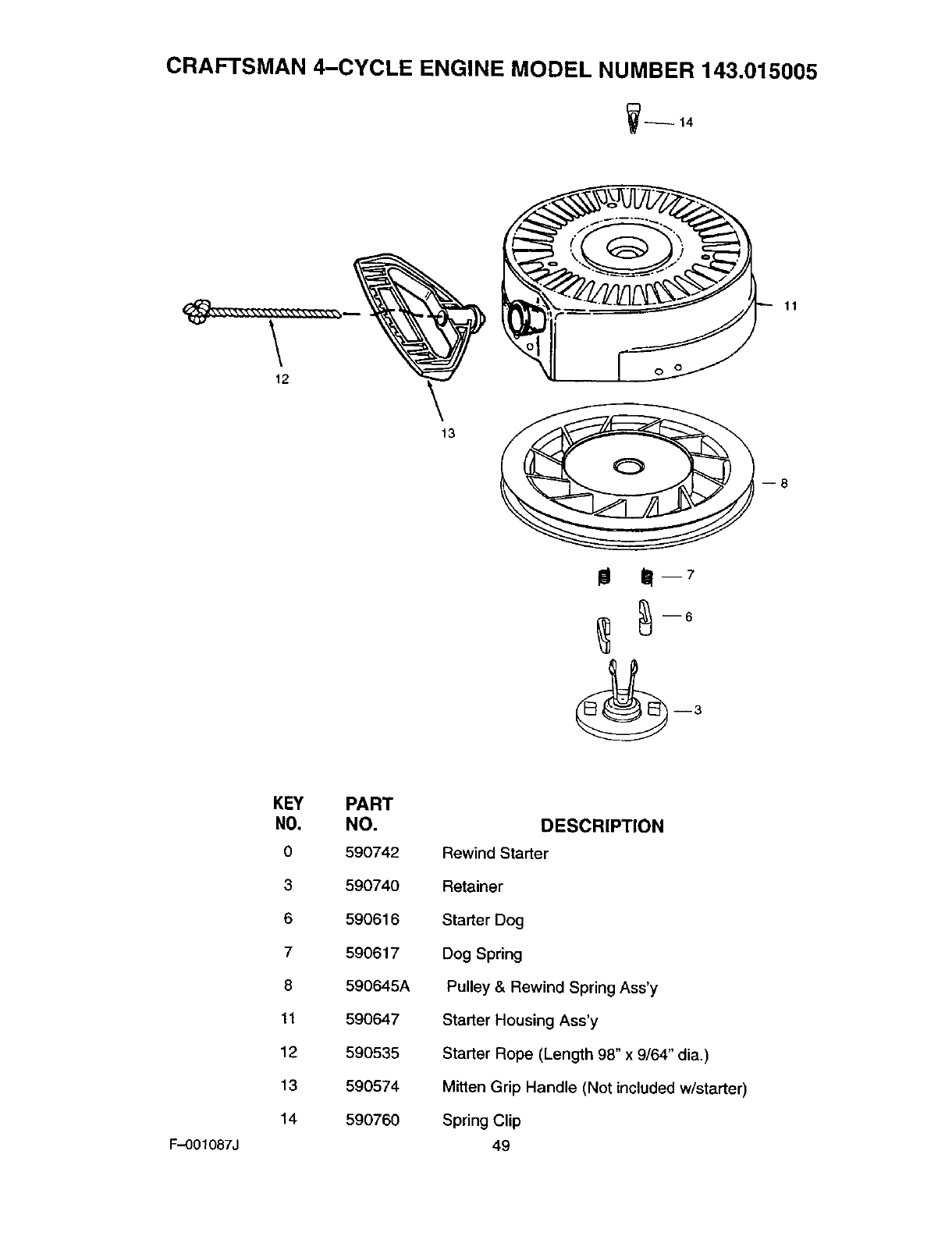

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.015005

_14

lill Ill -7

F-001087J

KEY

NO.

PART

NO.

590742

590740

590616

590617

590645A

590647

590535

590574

590760

DESCRIPTION

Rewind Starter

Retainer

Starter Dog

Dog Spring

Pulley & Rewind Spring Ass'y

Starter Housing Ass'y

Starter Rope (Length 98" x 9/64" dia.)

Mitten Grip Handle (Not included w/starter)

Spring Clip

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.015005

13 15

\IOA

F--OO1087J 50

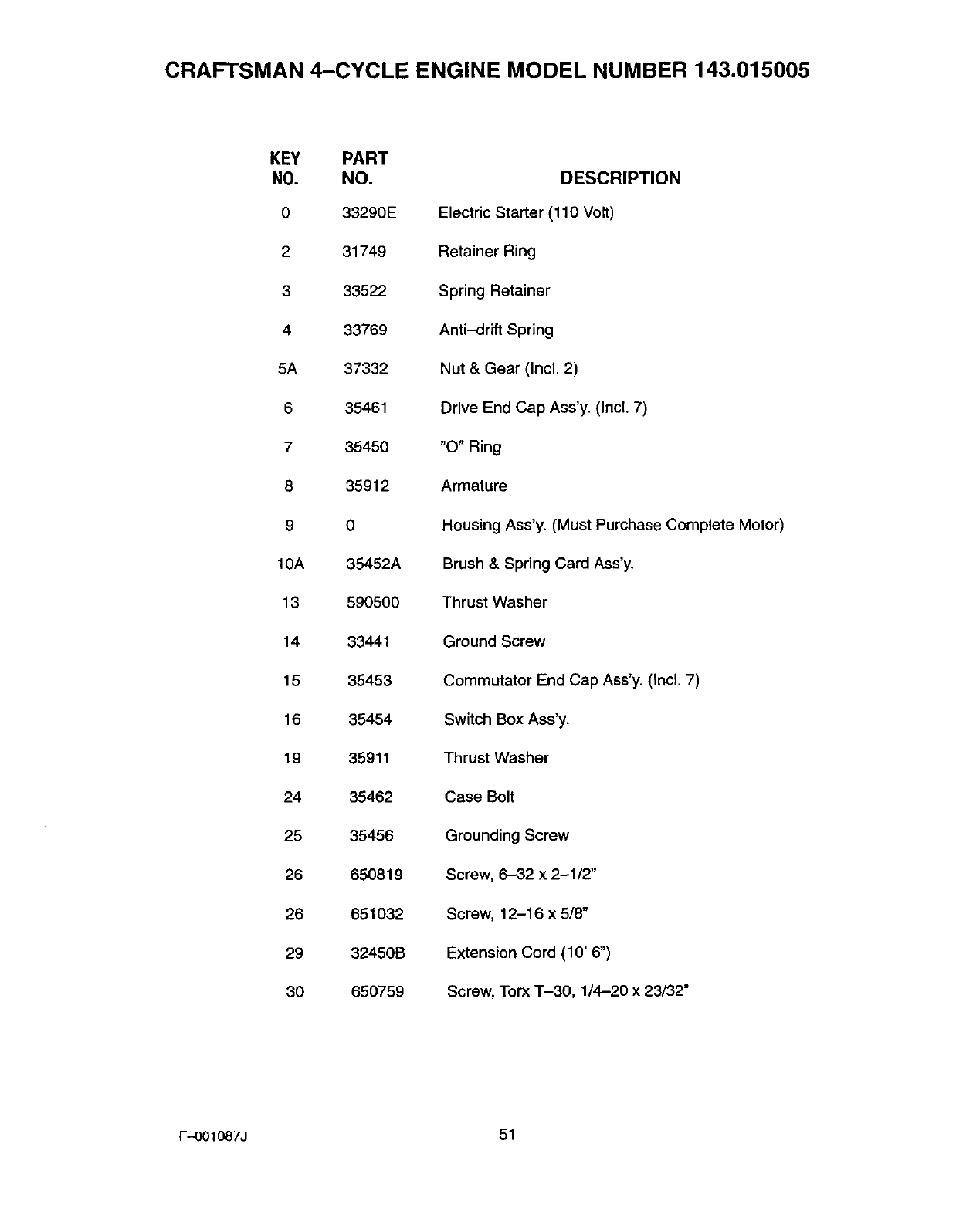

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.015005

KEY PART

NO. NO.

033290E

2 31749

3 33522

4 33769

5A 37332

6 35461

7 35450

8 35912

9 0

10A 35452A

13 590500

14 33441

15 35453

16 35454

19 35911

24 35462

25 35456

26 650819

26 651032

29 32450B

30 650759

DESCRIPTION

Electric Starter (110 Volt)

Retainer Ring

Spring Retainer

Anti-drift Spring

Nut & Gear (Incl. 2)

Drive End Cap Ass'y. (Incl. 7)

"O" Ring

Armature

Housing Ass'y. (Must Purchase Complete Motor)

Brush & Spring Card Ass'y.

Thrust Washer

Ground Screw

Commutator End Cap Ass'y. (Incl. 7)

Switch Box Ass'y.

Thrust Washer

Case Bolt

Grounding Screw

Screw, 6-32 x 2-1/2"

Screw, 12-16 x 5/8"

Extension Cord (10' 6")

Screw, Torx T-30, 1/4-20 x 23/32"

F-OOfO87J 51

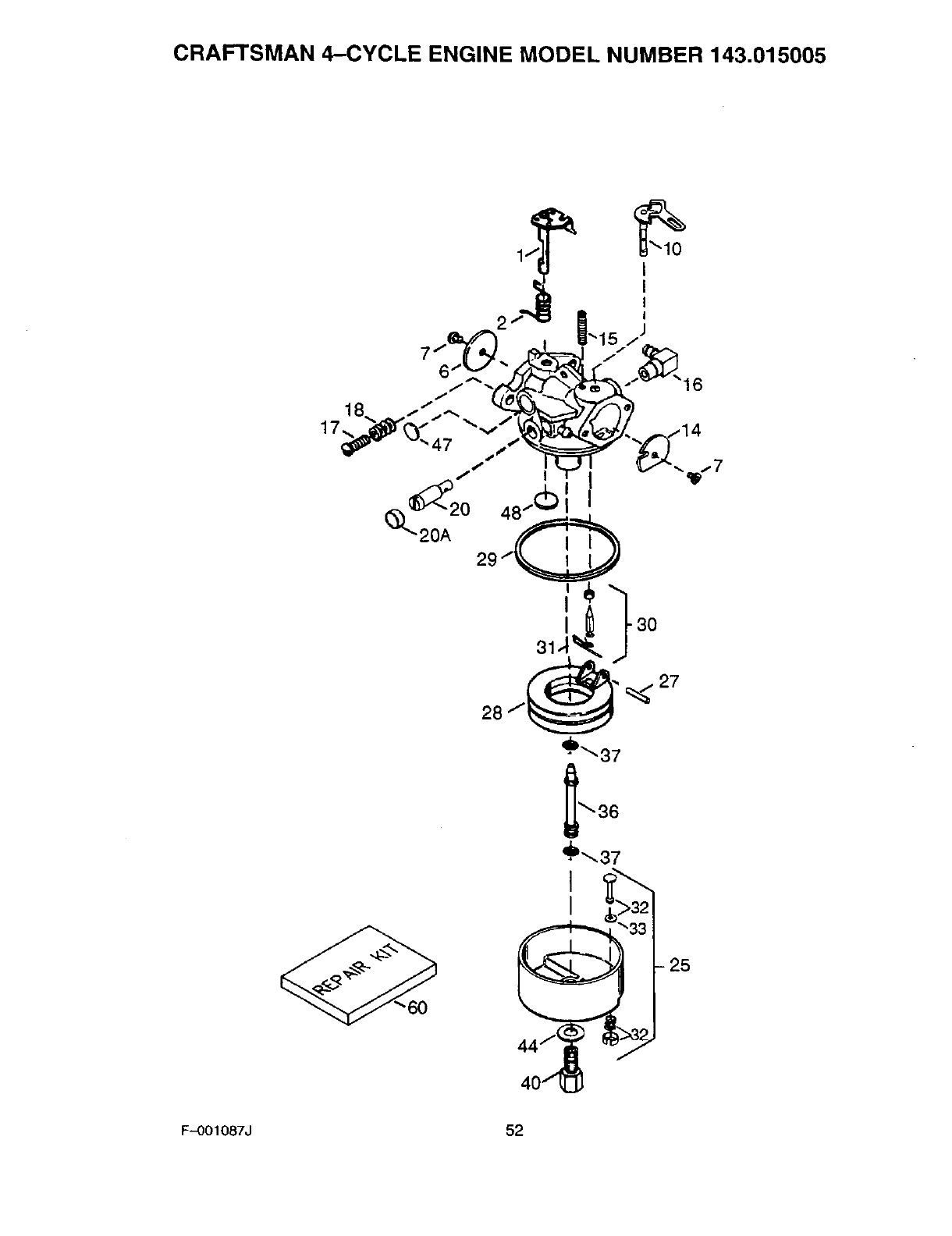

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.015005

I3o

F-OO1087J 52

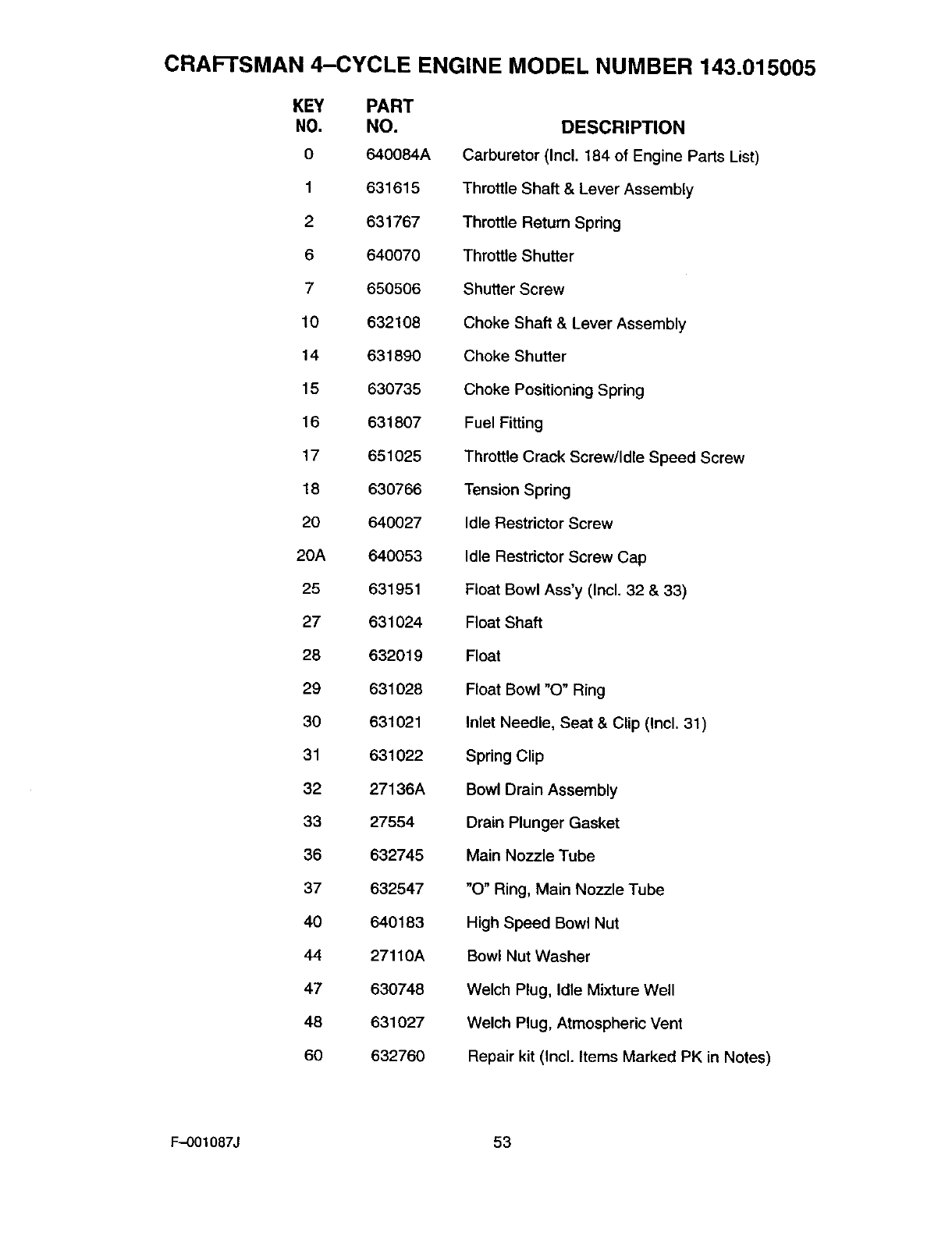

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.015005

KEY PART

NO. NO.

o 640084A

1 631615

2 631767

6 640070

7 650506

10 632108

14 631890

15 630735

16 631807

17 651025

18 630766

20 640027

20A 640053

25 631951

27 631024

28 632019

29 631028

30 631021

31 631022

32 27136A

33 27554

36 632745

37 632547

40 640183

44 27110A

47 630748

48 631027

60 632760

DESCRIPTION

Carburetor (Incl. 184 of Engine Parts List)

Throttle Shaft & Lever Assembly

Throttle Return Spring

Throttle Shutter

Shutter Screw

Choke Shaft & Lever Assembly

Choke Shutter

Choke Positioning Spring

Fuel Fitting

Throttle Crack Screw/Idle Speed Screw

Tension Spring

Idle Restrictor Screw

Idle Restrictor Screw Cap

Float Bowl Ass'y (Incl. 32 & 33)

F_oat Shaft

Float

Float Bowl "0" Ring

Inlet Needle, Seat & Clip (Incl. 31)

Spring Clip

Bowl Drain Assembly

Drain Plunger Gasket

Main Nozzle Tube

"0" Ring, Main Nozzle Tube

High Speed Bowl Nut

Bowl Nut Washer

Welch Plug, Idle Mixture Well

Welch Plug, Atmospheric Vent

Repair kit (Incl. Items Marked PK in Notes)

F-OOlO87J 53

For the repair or replacement parts you

need delivered directly to your home

Call 7am-7pm, 7days a week

1-800-366-PART

(1-800--366-7278)

Para ordenar piezas con entrega

a domicilio - 1-800-659-7084

For in-house major brand repair service

Call 24 hours a day, 7days a week

1-800-4-REPAIR

(1-800-473-7247)

Para pedir servicio de reparaci6n a

domicilio- 1-800-676-5811

For the location of a Sears Parts and

Repair Center in your area

Call 24 hours a day, 7days a week

1--800-488-1222

IDHHHH

H||i|

For information on purchasing a Sears

Maintenance agreement or to inquire

about an existing Agreement

Call 9am-5pm, Monday-Saturday

1-800-827-6655

When requesting service or ordering

parts, always provide the following infor-

mation:

• Product Type • Part Number

•Model Number •Part Description

,SE,4 S

America'sRepairSpecialists PrintedinU.S.A.

Craftsman 536886440 User Manual 5HP SNOW THROWER Manuals And Guides L0010540

CRAFTSMAN Snowthrower, Gas Manual L0010540 CRAFTSMAN Snowthrower, Gas Owner's Manual, CRAFTSMAN Snowthrower, Gas installation guides

53688644 015de305-9c20-4ac7-9cd0-f9826f7c9dd3 Craftsman Snow Blower 536.88644 User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
