Operator's Manual 1

LAW

21.5 HP,*

TRACTO

46" Mower

Electric Start

Automatic Transmission

Model No.

917.25572

This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Operator's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

Gasoline containing up to 10% ethanol (EIO) is acceptable for use in this machine.

The use of any gasoline exceeding 10% ethanol (EIO) will void the product warranty.

Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman *As rated by the engine manufacturer

11551 8528

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

Assembly/Pre-Operation ....................... 7

Operation ............................................... 9

Maintenance Schedule ........................ 16

Maintenance ........................................ 16

Service and Adjustments ..................... 21

Storage ................................................ 27

Troubleshooting ................................... 28

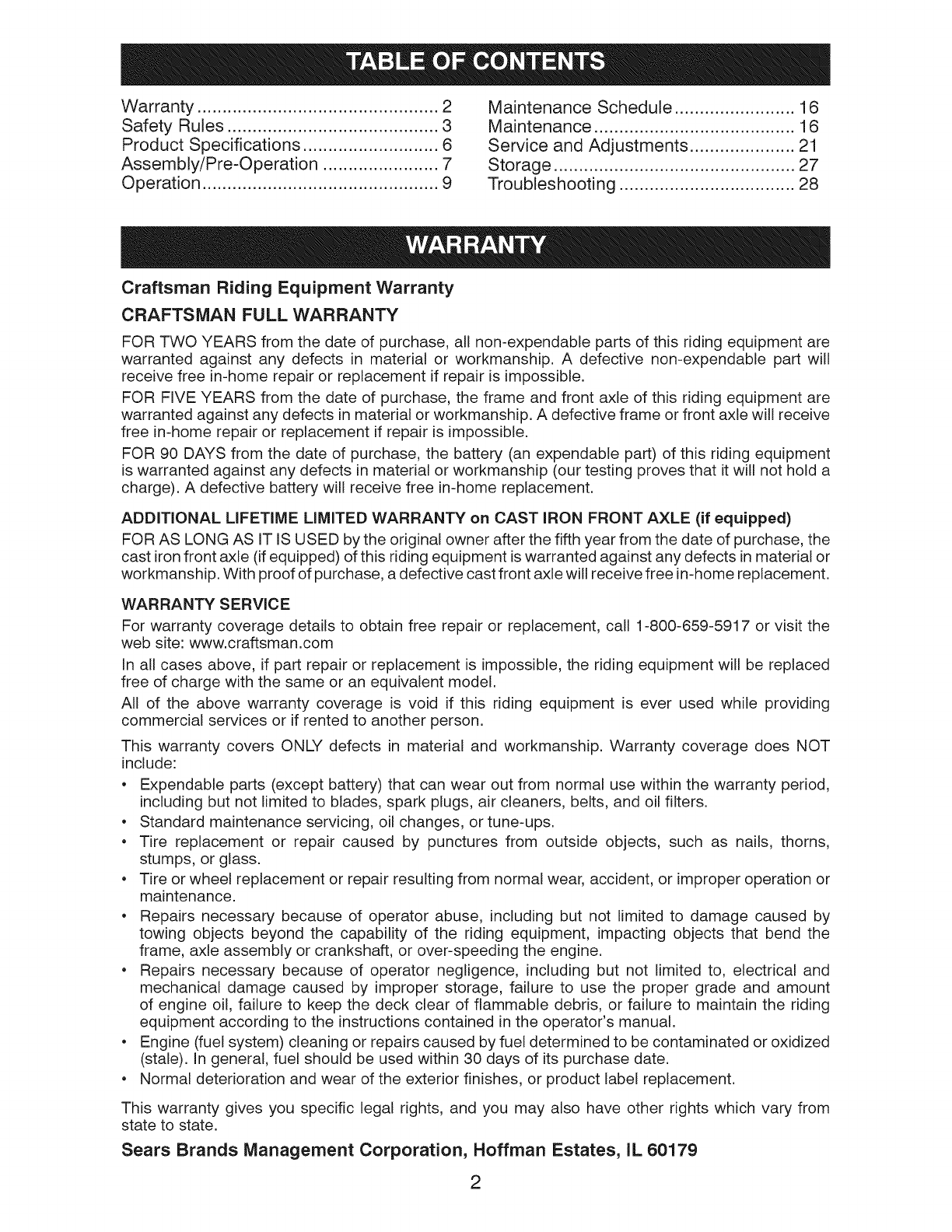

Craftsman Riding Equipment Warranty

CRAFTSMAN FULL WARRANTY

FOR TWO YEARS from the date of purchase, all non-expendable parts of this riding equipment are

warranted against any defects in material or workmanship. A defective non-expendable part will

receive free in-home repair or replacement if repair is impossible.

FOR FIVE YEARS from the date of purchase, the frame and front axle of this riding equipment are

warranted against any defects in material or workmanship. A defective frame or front axle will receive

free in-home repair or replacement if repair is impossible.

FOR 90 DAYS from the date of purchase, the battery (an expendable part) of this riding equipment

is warranted against any defects in material or workmanship (our testing proves that it will not hold a

charge). A defective battery will receive free in-home replacement.

ADDITIONAL LIFETIME LIMITED WARRANTY on CAST IRON FRONT AXLE (if equipped)

FOR AS LONG AS IT IS USED bythe original owner after the fifth year from the date of purchase, the

cast iron front axle (if equipped) of this riding equipment is warranted against any defects in material or

workmanship. With proof of purchase, a defective cast front axle will receive free in-home replacement.

WARRANTY SERVICE

For warranty coverage details to obtain free repair or replacement, call 1-800-659-5917 or visit the

web site: www.craftsman.com

In all cases above, if part repair or replacement is impossible, the riding equipment will be replaced

free of charge with the same or an equivalent model.

All of the above warranty coverage is void if this riding equipment is ever used while providing

commercial services or if rented to another person.

This warranty covers ONLY defects in material and workmanship. Warranty coverage does NOT

include:

• Expendable parts (except battery) that can wear out from normal use within the warranty period,

including but not limited to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard maintenance servicing, oil changes, or tune-ups.

• Tire replacement or repair caused by punctures from outside objects, such as nails, thorns,

stumps, or glass.

• Tire or wheel replacement or repair resulting from normal wear, accident, or improper operation or

maintenance.

• Repairs necessary because of operator abuse, including but not limited to damage caused by

towing objects beyond the capability of the riding equipment, impacting objects that bend the

frame, axle assembly or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, electrical and

mechanical damage caused by improper storage, failure to use the proper grade and amount

of engine oil, failure to keep the deck clear of flammable debris, or failure to maintain the riding

equipment according to the instructions contained in the operator's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contaminated or oxidized

(stale). In general, fuel should be used within 30 days of its purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state.

Sears Brands Management Corporation, Hoffman Estates, [L 60179

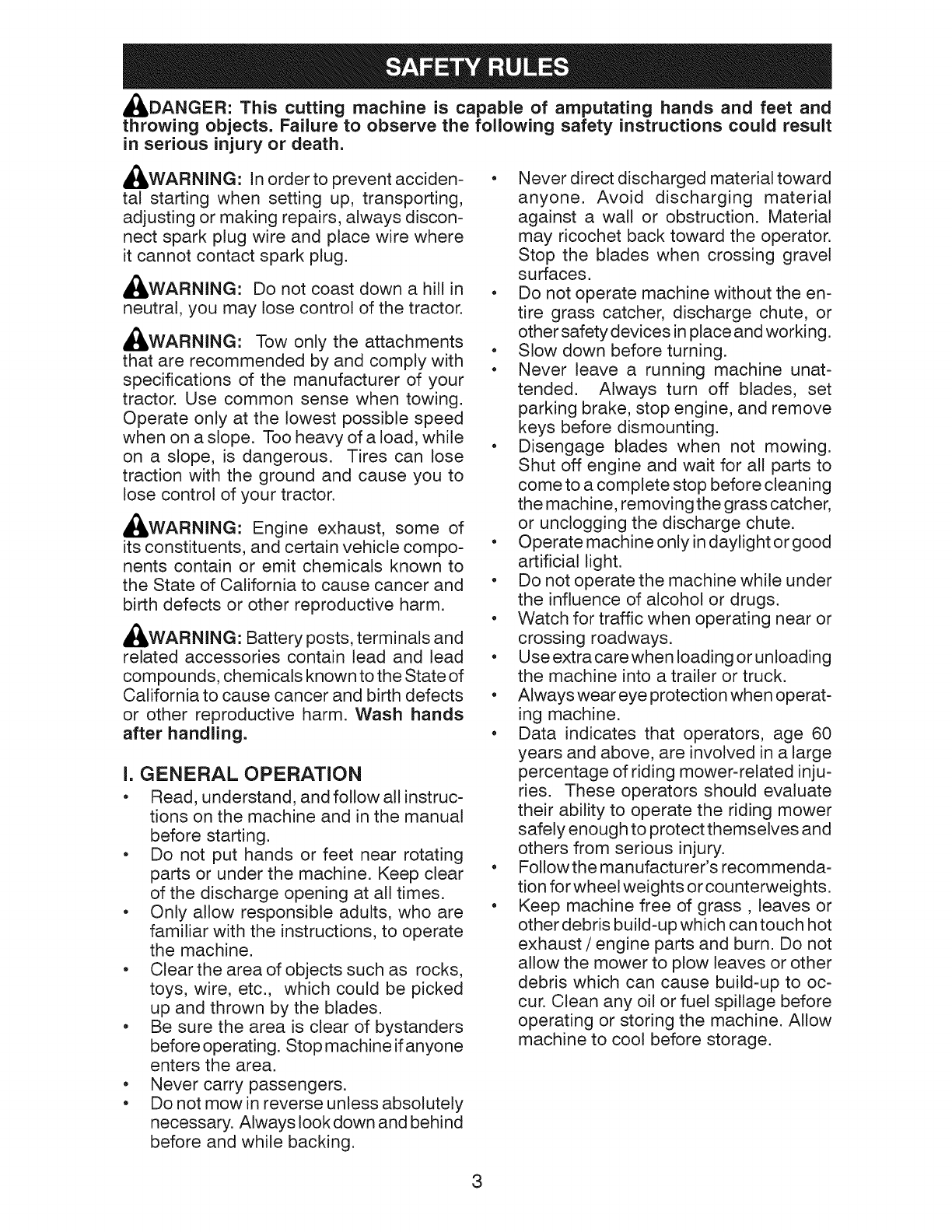

,_DANGER: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result

in serious injury or death.

_,WARNING: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs, always discon-

nect spark plug wire and place wire where

it cannot contact spark plug.

_,WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_,WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load, while

on a slope, is dangerous. Tires can lose

traction with the ground and cause you to

lose control of your tractor.

_,WARNING: Engine exhaust, some of

its constituents, and certain vehicle compo-

nents contain or emit chemicals known to

the State of California to cause cancer and

birth defects or other reproductive harm.

_,WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State of

California to cause cancer and birth defects

or other reproductive harm. Wash hands

after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions on the machine and in the manual

before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blades.

• Be sure the area is clear of bystanders

before operating. Stop machine ifanyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

• Never direct discharged materialtoward

anyone. Avoid discharging material

against a wall or obstruction. Material

may ricochet back toward the operator.

Stop the blades when crossing gravel

surfaces.

• Do not operate machine without the en-

tire grass catcher, discharge chute, or

other safety devices in place and working.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before cleaning

the machine, removing the grass catcher,

or unclogging the discharge chute.

• Operate machine only indaylight or good

artificial light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unloading

the machine into a trailer or truck.

• AIways wear eye protection when operat-

ing machine.

• Data indicates that operators, age 60

years and above, are involved in alarge

percentage of riding mower-related inju-

ries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Followthemanufacturer'srecommenda-

tion for wheel weights or counterweights.

• Keep machine free of grass, leaves or

other debris build-up which can touch hot

exhaust /engine parts and burn. Do not

allow the mower to plow leaves or other

debris which can cause build-up to oc-

cur. Clean any oil or fuel spillage before

operating or storing the machine. Allow

machine to cool before storage.

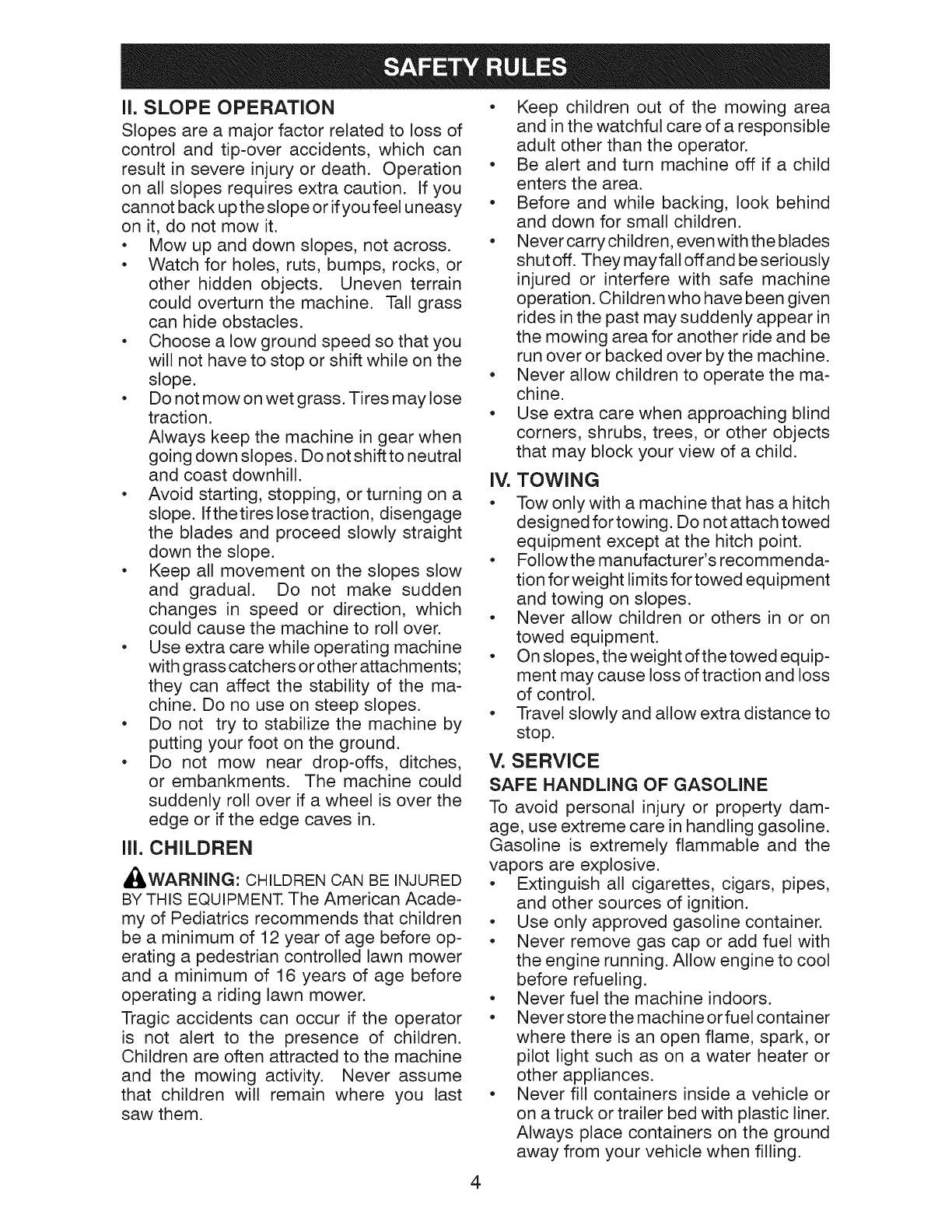

li. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Operation

on all slopes requires extra caution. If you

cannot back up the slope or ifyou feel uneasy

on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

• Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

• Do not mow on wet grass. Tires may lose

traction.

Always keep the machine in gear when

going down slopes. Do not shift to neutral

and coast downhill.

• Avoid starting, stopping, or turning on a

slope. Ifthetires Iosetraction, disengage

the blades and proceed slowly straight

down the slope.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

• Use extra care while operating machine

with grass catchers or other attachments;

they can affect the stability of the ma-

chine. Do no use on steep slopes.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.

Iii. CHILDREN

_WARNING: CHILDREN CAN BE INJURED

BY THIS EQUIPMENT. The American Acade-

my of Pediatrics recommends that children

be a minimum of 12 year of age before op-

erating a pedestrian controlled lawn mower

and a minimum of 16 years of age before

operating a riding lawn mower.

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Nevercarrychildren, even with the blades

shut off. They may fall off and be seriously

injured or interfere with safe machine

operation. Children who have been given

rides in the past may suddenly appear in

the mowing area for another ride and be

run over or backed over by the machine.

• Never allow children to operate the ma-

chine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

• Tow only with a machine that has a hitch

designed for towing. Do not attach towed

equipment except at the hitch point.

•Followthemanufacturer'srecommenda-

tion for weight limits for towed equipment

and towing on slopes.

•Never allow children or others in or on

towed equipment.

•On slopes, the weight ofthetowed equip-

ment may cause loss of traction and loss

of control.

•Travel slowly and allow extra distance to

stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property dam-

age, use extreme care in handling gasoline.

Gasoline is extremely flammable and the

vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling.

• Never fuel the machine indoors.

• Neverstorethe machine orfuel container

where there is an open flame, spark, or

pilot light such as on a water heater or

other appliances.

• Never fill containers inside a vehicle or

on a truck or trailer bed with plastic liner.

Always place containers on the ground

away from your vehicle when filling.

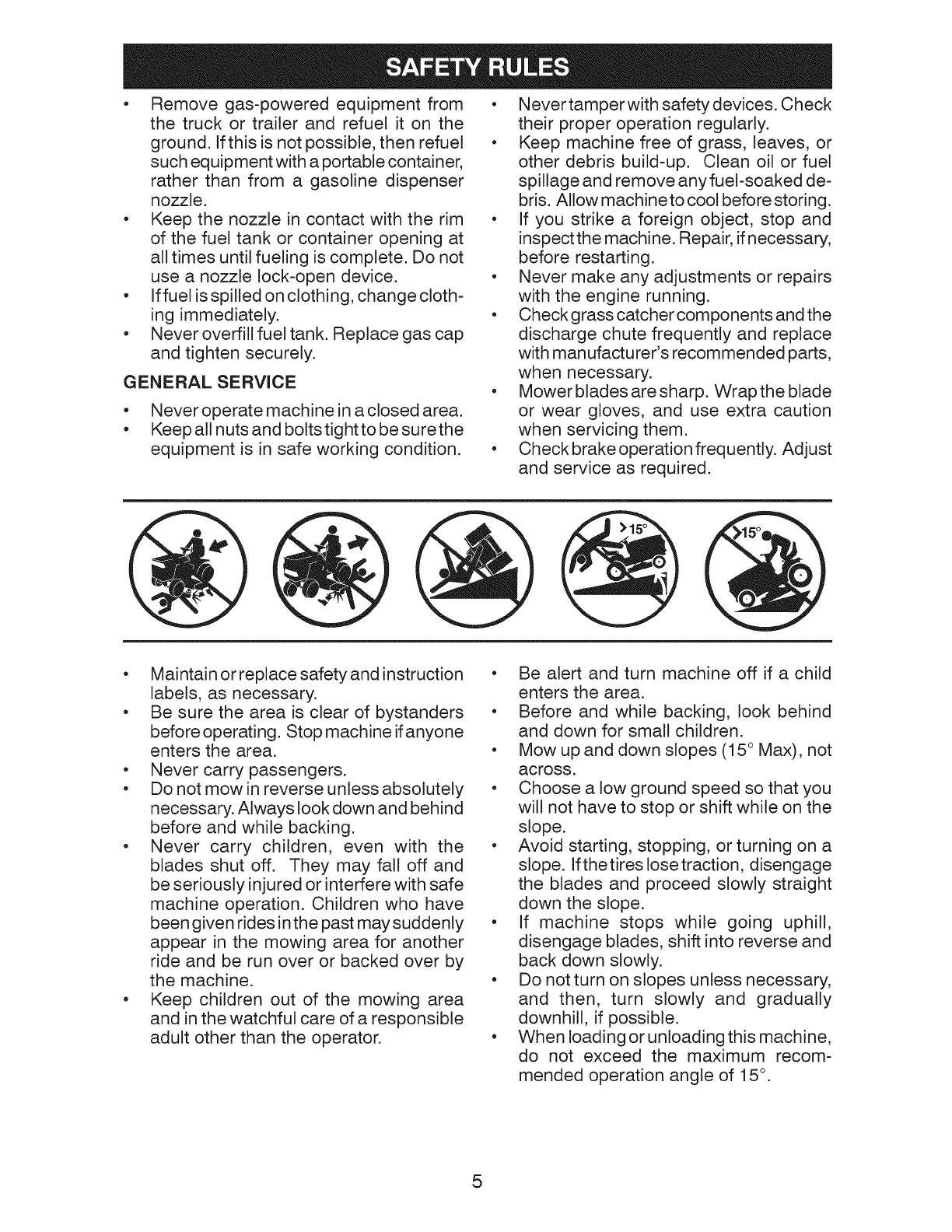

• Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. Ifthis is not possible, then refuel

such equipment with a portable container,

rather than from a gasoline dispenser

nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do not

use a nozzle lock-open device.

• Iffuel is spilled on clothing, change cloth-

ing immediately.

• Never overfill fuel tank. Replace gas cap

and tighten securely.

GENERALSERVlCE

• Never operate machine in aclosed area.

• Keep all nuts and bolts tight to be surethe

equipment is in safe working condition.

• Nevertamperwithsafetydevices. Check

their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked de-

bris. Allow machineto cool before storing.

• If you strike a foreign object, stop and

inspectthe machine. Repair, if necessary,

before restarting.

• Never make any adjustments or repairs

with the engine running.

• Checkgrasscatchercomponentsandthe

discharge chute frequently and replace

with manufacturer's recommended parts,

when necessary.

• Mower blades are sharp. Wrap the blade

or wear gloves, and use extra caution

when servicing them.

• Check brake operation frequently. Adjust

and service as required.

• Maintain orreplace safetyand instruction

labels, as necessary.

• Be sure the area is clear of bystanders

before operating. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and behind

before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with safe

machine operation. Children who have

been given rides in the past may suddenly

appear in the mowing area for another

ride and be run over or backed over by

the machine.

• Keep children out of the mowing area

and in the watchful care of a responsible

adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max), not

across.

• Choose a low ground speed so that you

will not have to stop or shift while on the

slope.

• Avoid starting, stopping, or turning on a

slope. Ifthetires Iosetraction, disengage

the blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• When loading or unloading this machine,

do not exceed the maximum recom-

mended operation angle of 15 °.

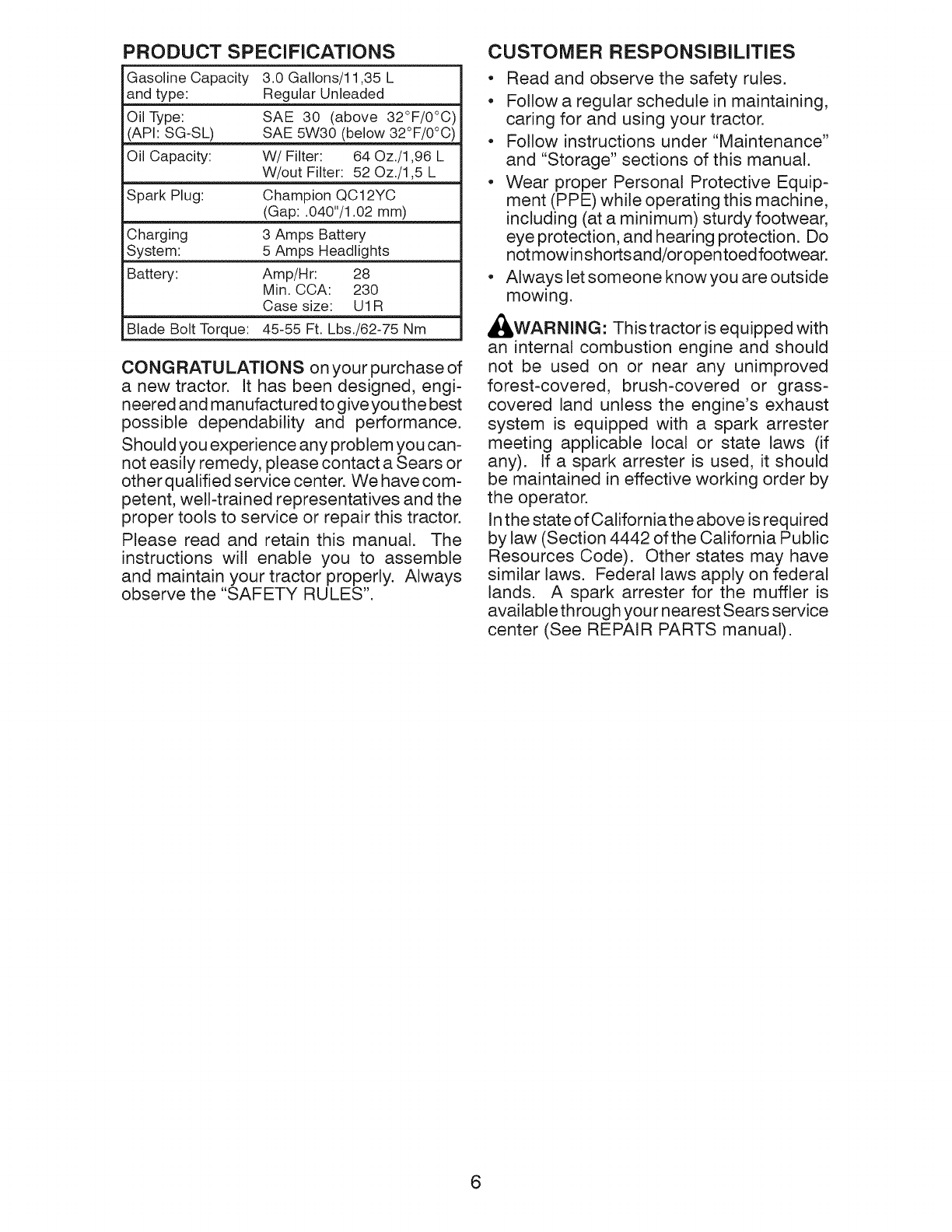

PRODUCT SPECIFICATIONS

Gasoline Capacity 3.0 Gallons/11,35 L

and type: Regular Unleaded

Oil Type: SAE 30 (above 32°F/0°0

API: SG-SL) SAE 5W30 (below 32°F/0°0

Oil Capacity: W/Filter: 64 Oz./1,96 L

W/out Filter: 52 Oz./1,5 L

Spark Plug: Champion QC12YC

(Gap: .040"/1.02 mm)

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs./62-75 Nm

CONGRATULATIONS on your purchase of

a new tractor. It has been designed, engi-

neered and manufactured to give you the best

possible dependability and performance.

Should you experience any problem you can-

not easily remedy, please contact a Sears or

other qualified service center. We have com-

petent, well-trained representatives and the

proper tools to service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining,

caring for and using your tractor.

• Follow instructions under "Maintenance"

and "Storage" sections of this manual.

• Wear proper Personal Protective Equip-

ment (PPE) while operating this machine,

including (at a minimum) sturdy footwear,

eye protection, and hearing protection. Do

not mowin shortsand/oropentoed footwear.

• Always let someone know you are outside

mowing.

,_,WARNING: This tractor is equipped with

an internal combustion engine and should

not be used on or near any unimproved

forest-covered, brush-covered or grass-

covered land unless the engine's exhaust

system is equipped with a spark arrester

meeting applicable local or state laws (if

any). If a spark arrester is used, it should

be maintained in effective working order by

the operator.

In the state of Californiathe above is required

by law (Section 4442 of the California Public

Resources Code). Other states may have

similar laws. Federal laws apply on federal

lands. A spark arrester for the muffler is

available through your nearest Sears service

center (See REPAIR PARTS manual).

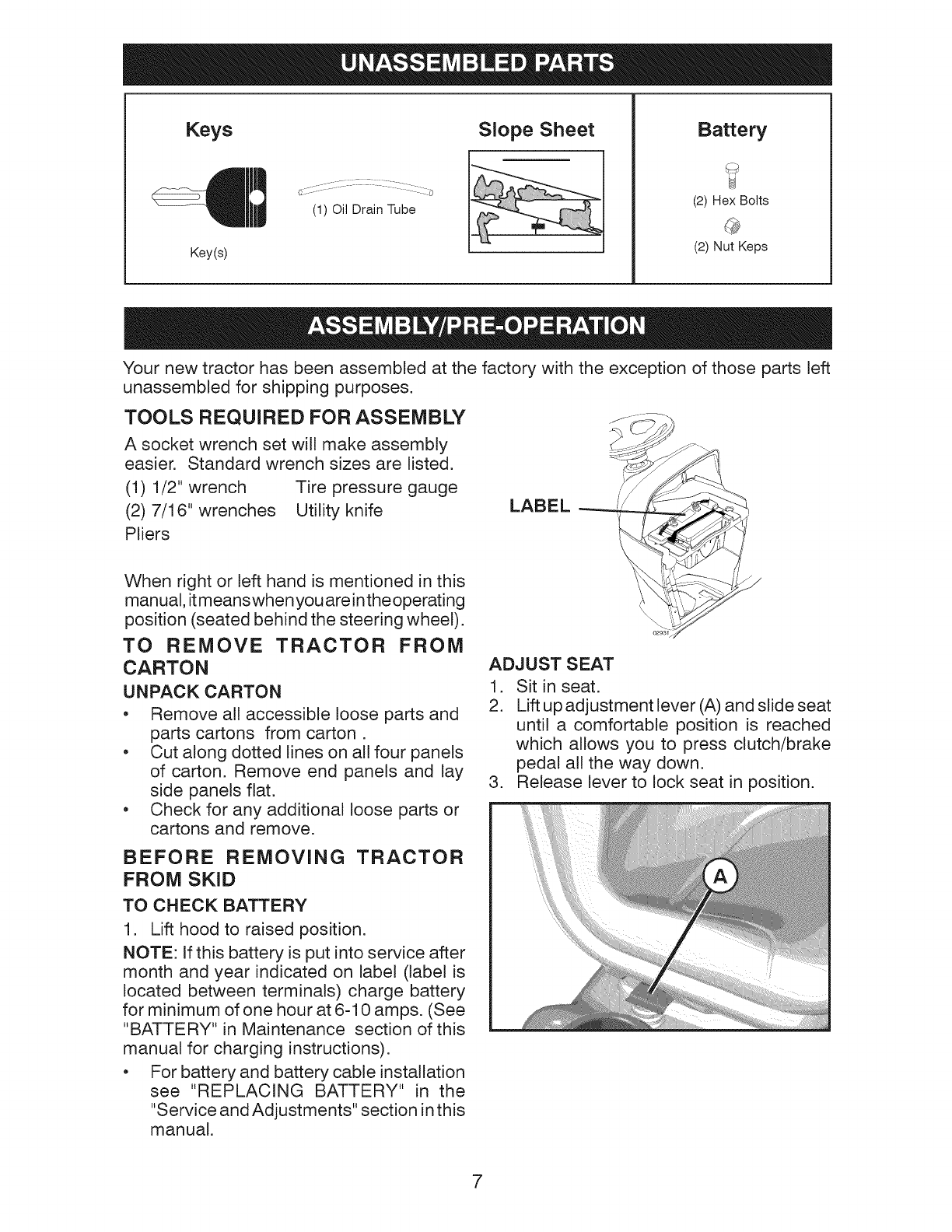

Keys

l',ll

Key(s)

(1) Oil Drain Tube

Slope Sheet Battery

(2) Hex Bolts

(2) Nut Keps

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes are listed.

(1) 1/2" wrench Tire pressure gauge

(2) 7/16" wrenches Utility knife LABEL

Pliers

When right or left hand is mentioned in this

manual, itmeans when you are inthe operating

position (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

• Remove all accessible loose parts and

parts cartons from carton.

• Cut along dotted lines on all four panels

of carton. Remove end panels and lay

side panels flat.

• Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

TO CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service after

month and year indicated on label (label is

located between terminals) charge battery

for minimum of one hour at 6-10 amps. (See

"BATTERY" in Maintenance section of this

manual for charging instructions).

• For battery and battery cable installation

see "REPLACING BATTERY" in the

"Service and Adjustments" section in this

manual.

ADJUST SEAT

1. Sit in seat.

2. Lift up adjustment lever (A) and slide seat

until a comfortable position is reached

which allows you to press clutch/brake

pedal all the way down.

3. Release lever to lock seat in position.

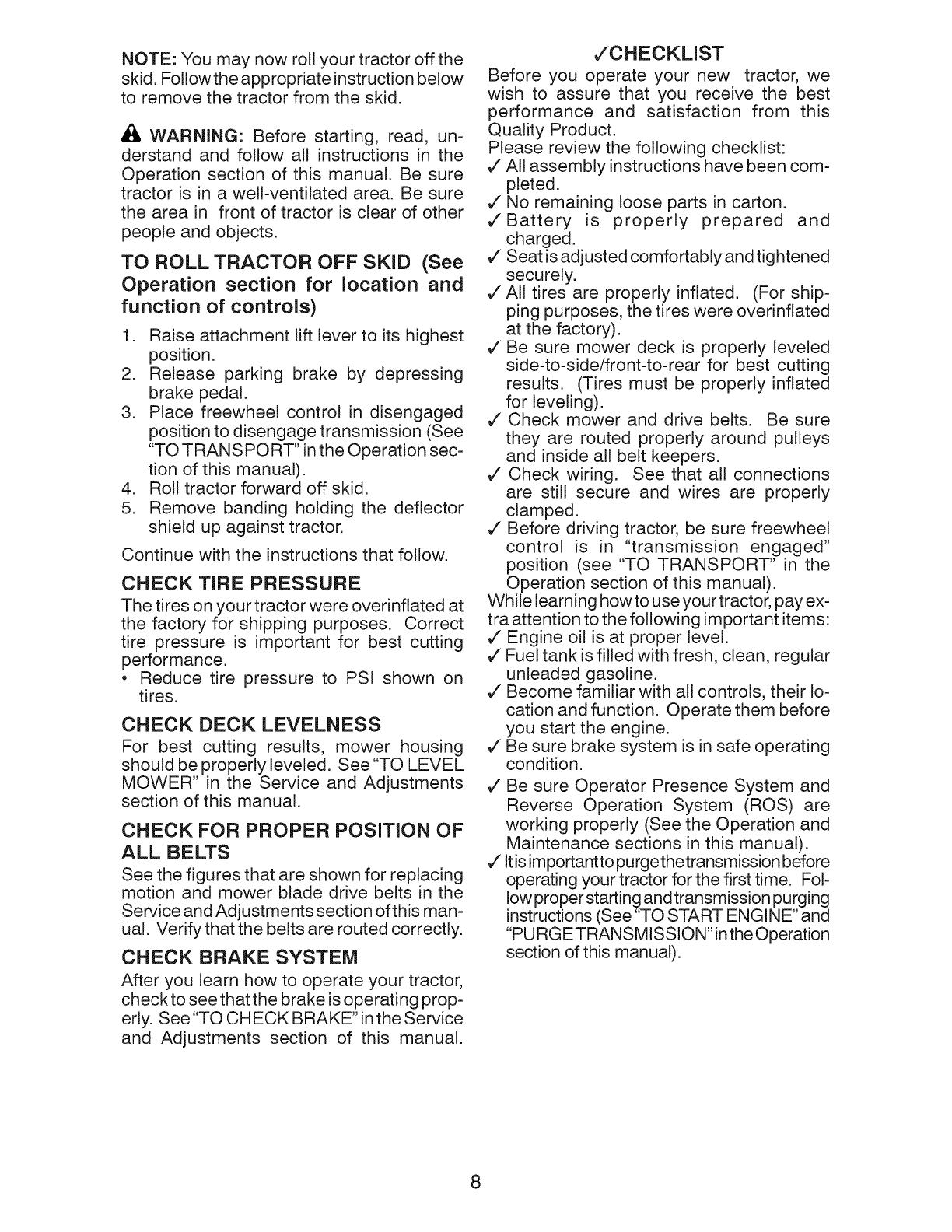

NOTE: You may now roll your tractor off the

skid. Followthe appropriate instruction below

to remove the tractor from the skid.

_l_ WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Raise attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in disengaged

position to disengage transmission (See

"TO TRANSPORT" inthe Operation sec-

tion of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding the deflector

shield up against tractor.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at

the factory for shipping purposes. Correct

tire pressure is important for best cutting

performance.

• Reduce tire pressure to PSI shown on

tires.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO LEVEL

MOWER" in the Service and Adjustments

section of this manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for replacing

motion and mower blade drive belts in the

Service and Adjustments section of this man-

ual. Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor,

check to see that the brake is operating prop-

erly. See "TO CHECK BRAKE" inthe Service

and Adjustments section of this manual.

,/CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

J All assembly instructions have been com-

pleted.

J No remaining loose parts in carton.

J Battery is properly prepared and

charged.

J Seat is adjusted comfortably and tightened

securely.

/All tires are properly inflated. (For ship-

ping purposes, the tires were overinflated

at the factory).

/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

/Check wiring. See that all connections

are still secure and wires are properly

clamped.

/Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay ex-

tra attention to the following important items:

/Engine oil is at proper level.

/Fuel tank is filled with fresh, clean, regular

unleaded gasoline.

/Become familiar with all controls, their lo-

cation and function. Operate them before

you start the engine.

/Be sure brake system is in safe operating

condition.

/Be sure Operator Presence System and

Reverse Operation System (ROS) are

working properly (See the Operation and

Maintenance sections in this manual).

/Itis important to purgethetransmission before

operating your tractor for the first time. Fol-

low proper starting and transmission purging

instructions (See "TO START ENGINE" and

"PU RG ETRANSMISSION" inthe Operation

section of this manual).

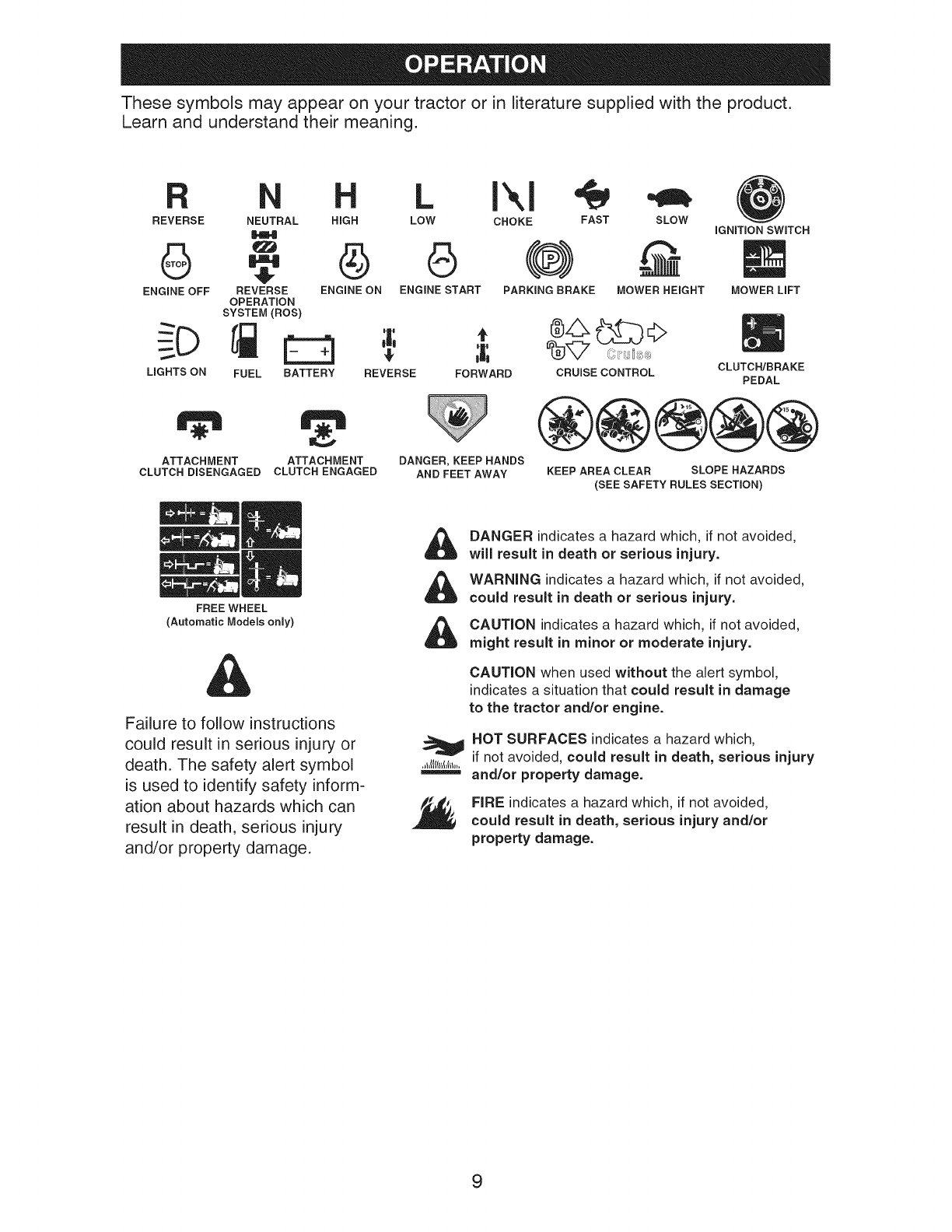

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N N L I',,I @

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW

6 e G (@) -@

ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE MOWER HEIGHT

OPERATION

SYSTEM (ROS)

LIGHTS ON t

FUEL BATTERY

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED

FREE WHEEL

(Automatic ModeJsonly)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

IGNITION SWITCH

MOWER LIFT

REVERSE FORWARD

DANGER, KEEP HANDS

AND FEET AWAY

CRUISE CONTROL CLUTCH/BRAKE

PEDAL

@@®@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

KNOW YOUR TRACTOR

READ THIS MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

03124

Our tractors conform to the applicable safety standards of the

American National Standards Institute.

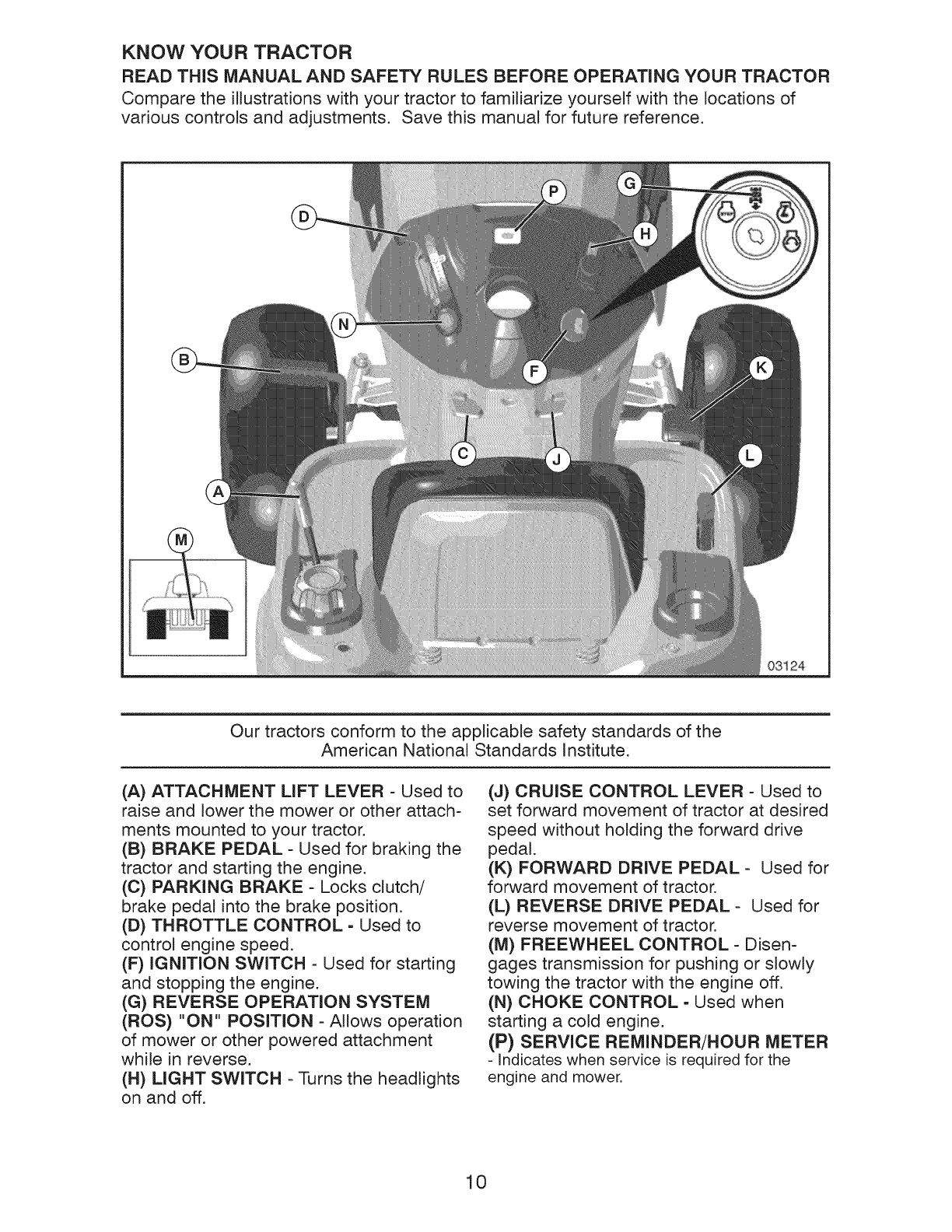

(A) ATTACHMENT LIFT LEVER - Used to

raise and lower the mower or other attach-

ments mounted to your tractor.

(B) BRAKE PEDAL - Used for braking the

tractor and starting the engine.

brake pedal into the brake position.

(D) THROTTLE CONTROL =Used to

control engine speed.

(F) IGNITION SWITCH - Used for starting

and stopping the engine.

(G) REVERSE OPERATION SYSTEM

(ROS) "ON" POSITION - Allows operation

of mower or other powered attachment

while in reverse.

(H) LIGHT SWITCH - Turns the headlights

on and off.

(J) CRUISE CONTROL LEVER - Used to

set forward movement of tractor at desired

speed without holding the forward drive

pedal.

(K) FORWARD DRIVE PEDAL - Used for

forward movement of tractor.

(L) REVERSE DRIVE PEDAL - Used for

reverse movement of tractor.

(M) FREEWHEEL CONTROL - Disen-

gages transmission for pushing or slowly

towing the tractor with the engine off.

(N) CHOKE CONTROL =Used when

starting a cold engine.

(P) SERVICE REMINDER/HOUR METER

- Indicates when service is required for the

engine and mower.

The operation of any tractor can result in foreign objects thrown into I

the eyes, which can result in severe eye damage. Always wear safety !

glasses or eye shields while operating your tractor or performing any_

adjustments or repairs. We recommend standard safety glasses or a_

wide vision safety mask worn over spectacles. J

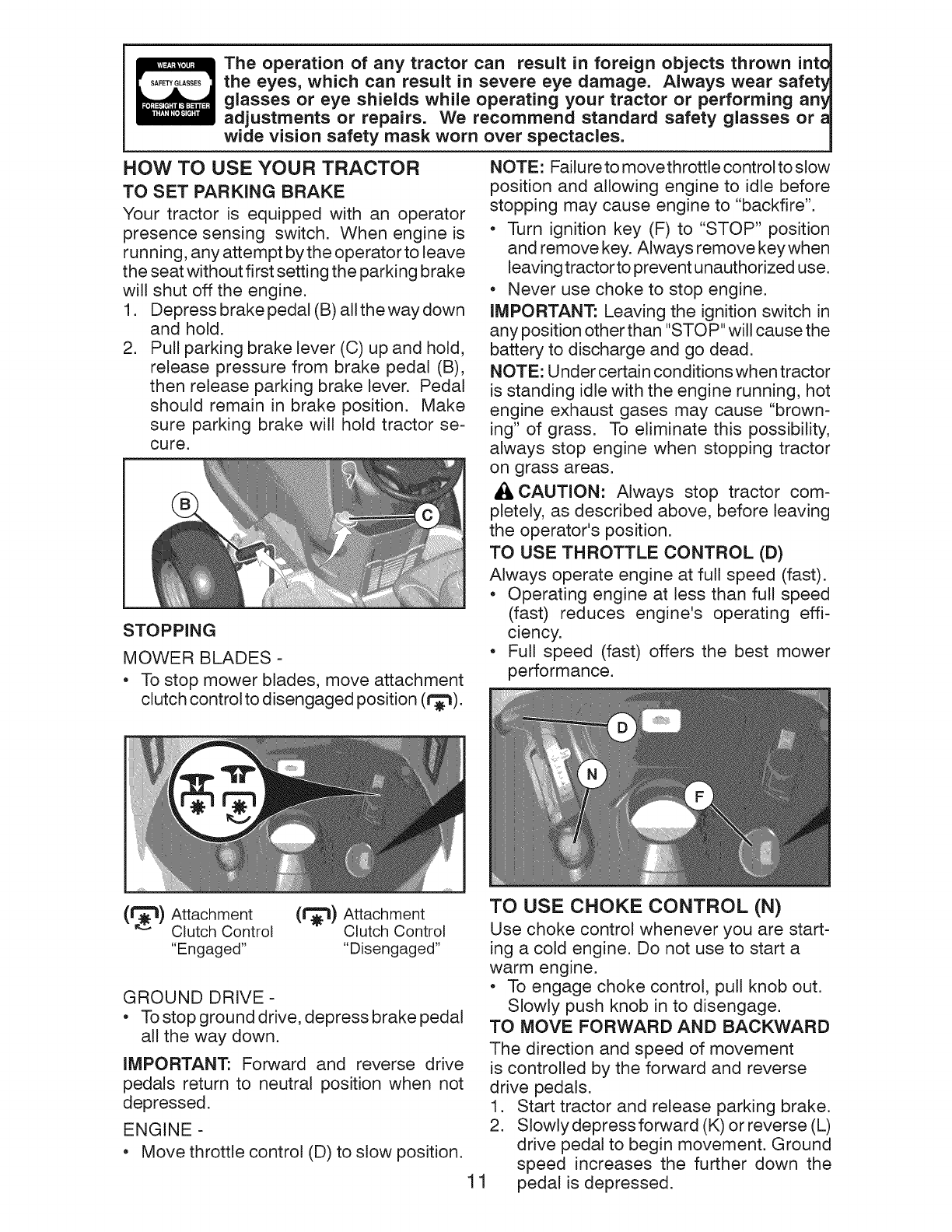

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine is

running, any attempt bythe operator to leave

the seat without first setting the parking brake

will shut off the engine.

1. Depress brake pedal (B) all the way down

and hold.

2. Pull parking brake lever (C) up and hold,

release pressure from brake pedal (B),

then release parking brake lever. Pedal

should remain in brake position. Make

sure parking brake will hold tractor se-

cure.

STOPPING

MOWER BLADES -

, To stop mower blades, move attachment

clutch control to disengaged position (t'_).

NOTE: Failure to move throttle control to slow

position and allowing engine to idle before

stopping may cause engine to "backfire".

• Turn ignition key (F) to "STOP" position

and remove key. Always remove key when

leaving tractor to prevent unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch in

any position other than "STOP" will cause the

battery to discharge and go dead.

NOTE: Under certain conditions when tractor

is standing idle with the engine running, hot

engine exhaust gases may cause "brown-

ing" of grass. To eliminate this possibility,

always stop engine when stopping tractor

on grass areas.

_f_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL (D)

Always operate engine at full speed (fast).

• Operating engine at less than full speed

(fast) reduces engine's operating effi-

ciency.

• Full speed (fast) offers the best mower

performance.

(Ir_) Attachment (t'_) Attachment

Clutch Control Clutch Control

"Engaged .... Disengaged"

GROUND DRIVE-

. To stop ground drive, depress brake pedal

all the way down.

IMPORTANT: Forward and reverse drive

pedals return to neutral position when not

depressed.

ENGINE -

• Move throttle control (D) to slow position.

TO USE CHOKE CONTROL (N)

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement

is controlled by the forward and reverse

drive pedals.

1. Start tractor and release parking brake.

2. Slowly depress forward (K) or reverse (L)

drive pedal to begin movement. Ground

speed increases the further down the

pedal is depressed.

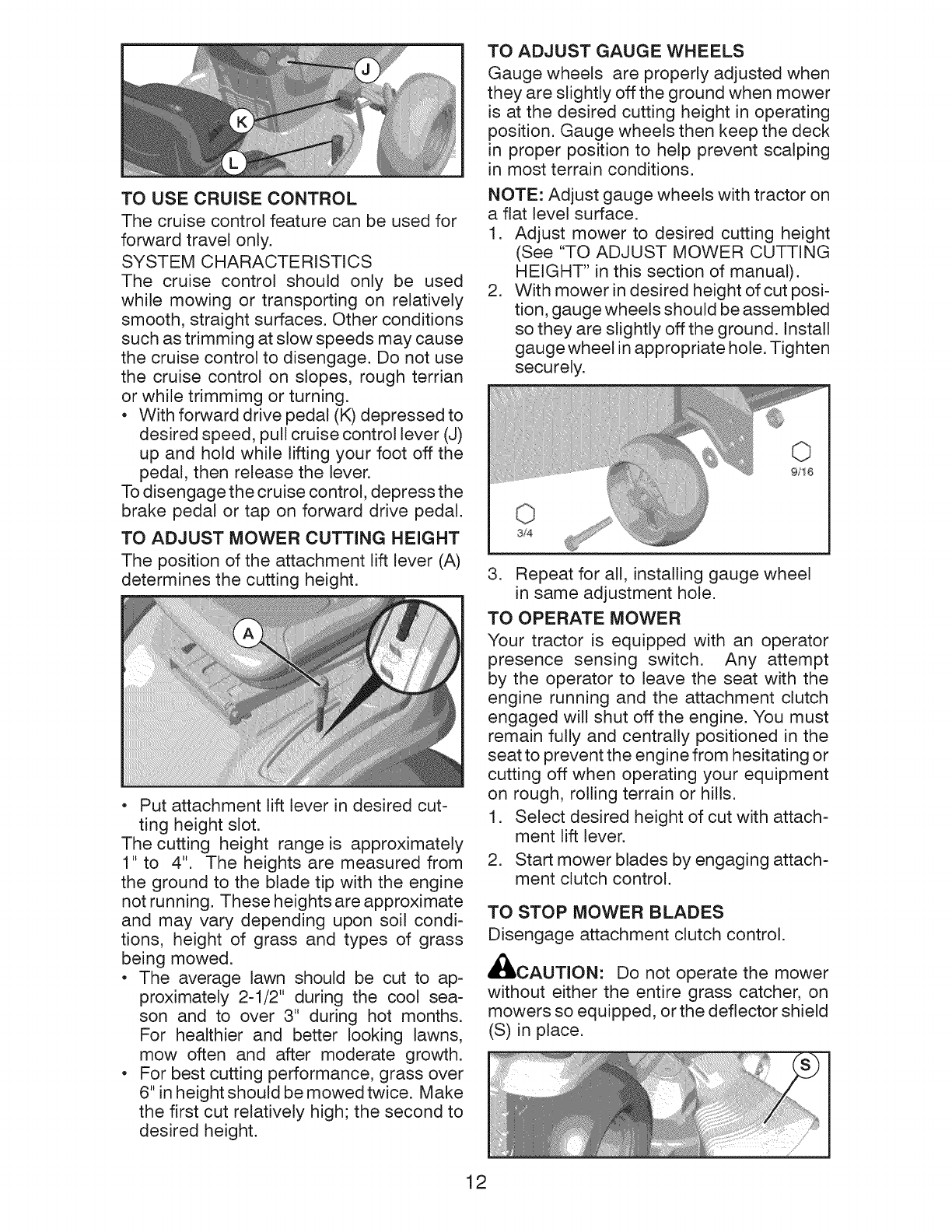

TO USE CRUISE CONTROL

The cruise control feature can be used for

forward travel only.

SYSTEM CHARACTERISTICS

The cruise control should only be used

while mowing or transporting on relatively

smooth, straight surfaces. Other conditions

such as trimming at slow speeds may cause

the cruise control to disengage. Do not use

the cruise control on slopes, rough tertian

or while trimmimg or turning.

• With forward drive pedal (K) depressed to

desired speed, pull cruise control lever (d)

up and hold while lifting your foot off the

pedal, then release the lever.

To disengage the cruise control, depress the

brake pedal or tap on forward drive pedal.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever (A)

determines the cutting height.

• Put attachment lift lever in desired cut-

ting height slot.

The cutting height range is approximately

1" to 4". The heights are measured from

the ground to the blade tip with the engine

not running. These heights are approximate

and may vary depending upon soil condi-

tions, height of grass and types of grass

being mowed.

• The average lawn should be cut to ap-

proximately 2-1/2" during the cool sea-

son and to over 3" during hot months.

For healthier and better looking lawns,

mow often and after moderate growth.

• For best cutting performance, grass over

6" in height should be mowed twice. Make

the first cut relatively high; the second to

desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted when

they are slightly off the ground when mower

is at the desired cutting height in operating

position. Gauge wheels then keep the deck

in proper position to help prevent scalping

in most terrain conditions.

NOTE: Adjust gauge wheels with tractor on

a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in this section of manual).

2. With mower in desired height of cut posi-

tion, gauge wheels should be assembled

so they are slightly off the ground. Install

gauge wheel in appropriate hole. Tighten

securely.

91! 6

3. Repeat for all, installing gauge wheel

in same adjustment hole.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating or

cutting off when operating your equipment

on rough, rolling terrain or hills.

1. Select desired height of cut with attach-

ment lift lever.

2. Start mower blades by engaging attach-

ment clutch control.

TO STOP MOWER BLADES

Disengage attachment clutch control.

_CAUTiON: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector shield

(S) in place.

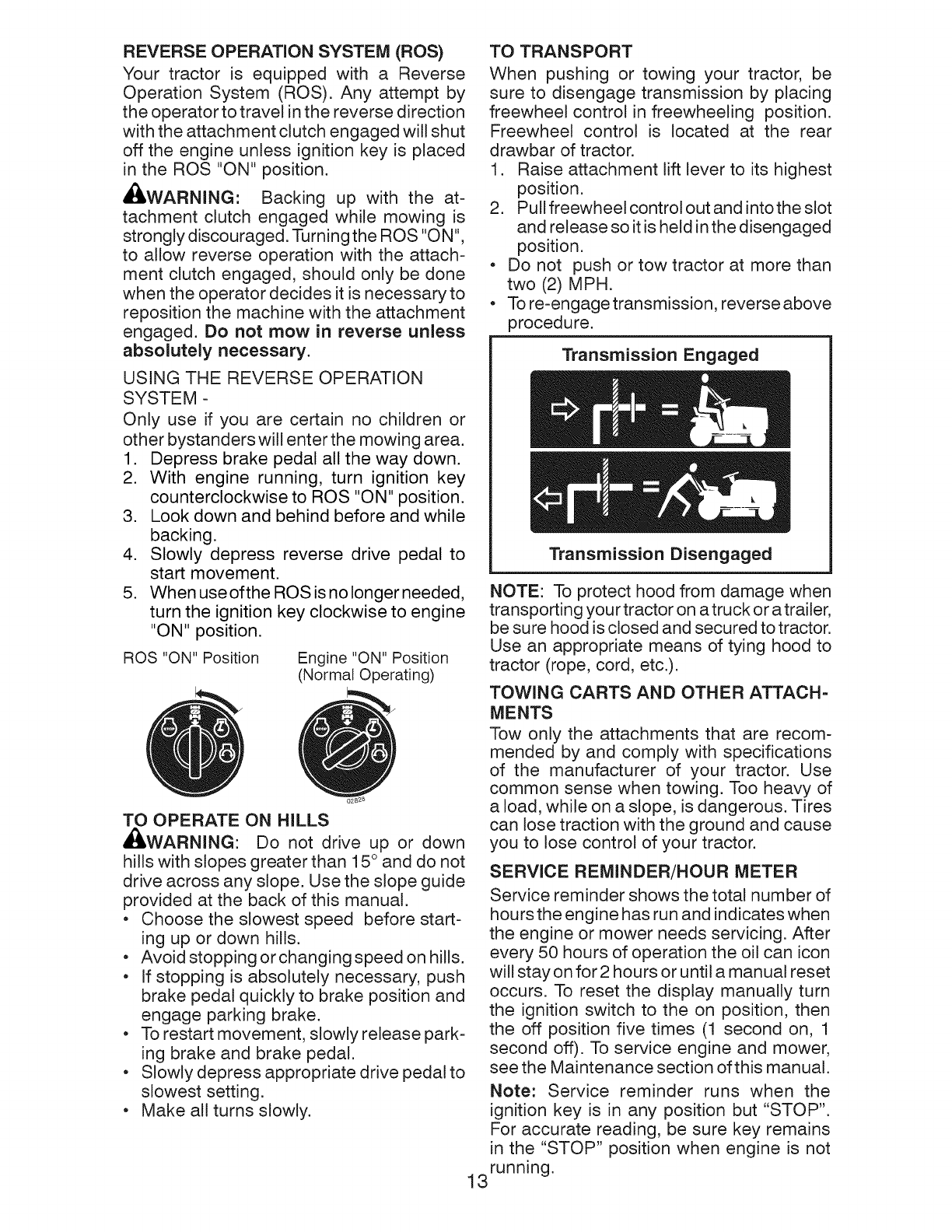

REVERSE OPERATION SYSTEM (ROS)

Your tractor is equipped with a Reverse

Operation System (ROS). Any attempt by

the operator to travel in the reverse direction

with the attachment clutch engaged will shut

off the engine unless ignition key is placed

in the ROS "ON" position.

_,WARNING" Backing up with the at-

tachment clutch engaged while mowing is

strongly discouraged. Turning the ROS "ON",

to allow reverse operation with the attach-

ment clutch engaged, should only be done

when the operator decides it is necessary to

reposition the machine with the attachment

engaged. Do not mow in reverse unless

absolutely necessary.

USING THE REVERSE OPERATION

SYSTEM -

Only use if you are certain no children or

other bystanders will enter the mowing area.

1. Depress brake pedal all the way down.

2. With engine running, turn ignition key

counterclockwise to ROS "ON" position.

3. Look down and behind before and while

backing.

4. Slowly depress reverse drive pedal to

start movement.

5. When use ofthe ROS is no longer needed,

turn the ignition key clockwise to engine

"ON" position.

ROS "ON" Position Engine "ON" Position

(Normal Operating)

TO OPERATE ON HILLS

_L, WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do not

drive across any slope. Use the slope guide

provided at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping orchanging speed on hills.

• If stopping is absolutely necessary, push

brake pedal quickly to brake position and

engage parking brake.

• To restart movement, slowly release park-

ing brake and brake pedal.

• Slowly depress appropriate drive pedal to

slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift lever to its highest

position.

2. Pull freewheel control out and into the slot

and release so it is held in the disengaged

position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse above

procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage when

transporting your tractor on a truck or a trailer,

be sure hood is closed and secured to tractor.

Use an appropriate means of tying hood to

tractor (rope, cord, etc.).

TOWING CARTS AND OTHER ATTACH=

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy of

a load, while on a slope, is dangerous. Tires

can lose traction with the ground and cause

you to lose control of your tractor.

SERVICE REMINDER/HOUR METER

Service reminder shows the total number of

hours the engine has run and indicates when

the engine or mower needs servicing. After

every 50 hours of operation the oil can icon

will stay on for 2 hours or until a manual reset

occurs. To reset the display manually turn

the ignition switch to the on position, then

the off position five times (1 second on, 1

second off). To service engine and mower,

see the Maintenance section of this manual.

Note: Service reminder runs when the

ignition key is in any position but "STOP".

For accurate reading, be sure key remains

in the "STOP" position when engine is not

running.

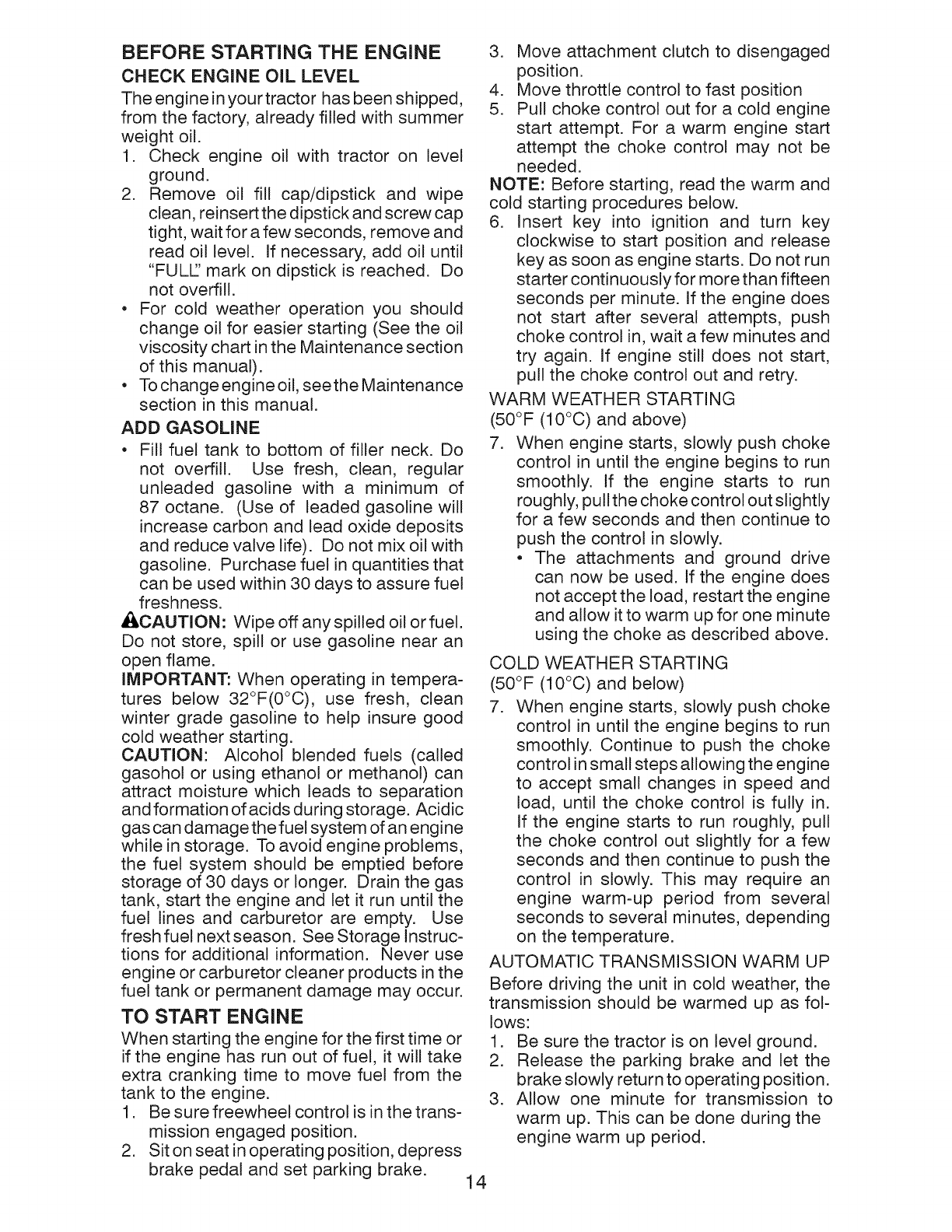

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped,

from the factory, already filled with summer

weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw cap

tight, wait for a few seconds, remove and

read oil level. If necessary, add oil until

"FULL' mark on dipstick is reached. Do

not overfill.

• For cold weather operation you should

change oil for easier starting (See the oil

viscosity chart in the Maintenance section

of this manual).

• To change engine oil, seethe Maintenance

section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with

gasoline. Purchase fuel in quantities that

can be used within 30 days to assure fuel

freshness.

_CAUTION: Wipe off any spilled oil or fuel.

Do not store, spill or use gasoline near an

open flame.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separation

and formation of acids during storage. Acidic

gas can damage the fuel system of an engine

while in storage. To avoid engine problems,

the fuel system should be emptied before

storage of 30 days or longer. Drain the gas

tank, start the engine and let it run until the

fue! lines and carburetor are empty. Use

fresh fuel next season. See Storage Instruc-

tions for additional information. Never use

engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time or

if the engine has run out of fuel, it will take

extra cranking time to move fuel from the

tank to the engine.

1. Be sure freewheel control is in the trans-

mission engaged position.

2. Sit on seat in operating position, depress

brake pedal and set parking brake.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do not run

starter continuously for more than fifteen

seconds per minute. If the engine does

not start after several attempts, push

choke control in, wait a few minutes and

try again. If engine still does not start,

pull the choke control out and retry.

WARM WEATHER STARTING

(50°F (10°0) and above)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. If the engine starts to run

roughly, pull the choke control out slightly

for a few seconds and then continue to

push the control in slowly.

• The attachments and ground drive

can now be used. If the engine does

not accept the load, restart the engine

and allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING

(50°F (10°C) and below)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the engine

to accept small changes in speed and

load, until the choke control is fully in.

If the engine starts to run roughly, pull

the choke control out slightly for a few

seconds and then continue to push the

control in slowly. This may require an

engine warm-up period from several

seconds to several minutes, depending

on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather, the

transmission should be warmed up as fol-

lows:

1. Be sure the tractor is on level ground.

2. Release the parking brake and let the

brake slowly return to operating position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

•The attachments can be used during

the engine warm-up period after the

transmission has been warmed up

and may require the choke control be

pulled out slightly.

NOTE: If at a high altitude (above 3000 feet)

or in cold temperatures (below 32°F (0°C))

the carburetor fuel mixture may need to be

adjusted for best engine performance (see

"TOAD JUST CARBURETOR" in the Service

and Adjustments section of this manual).

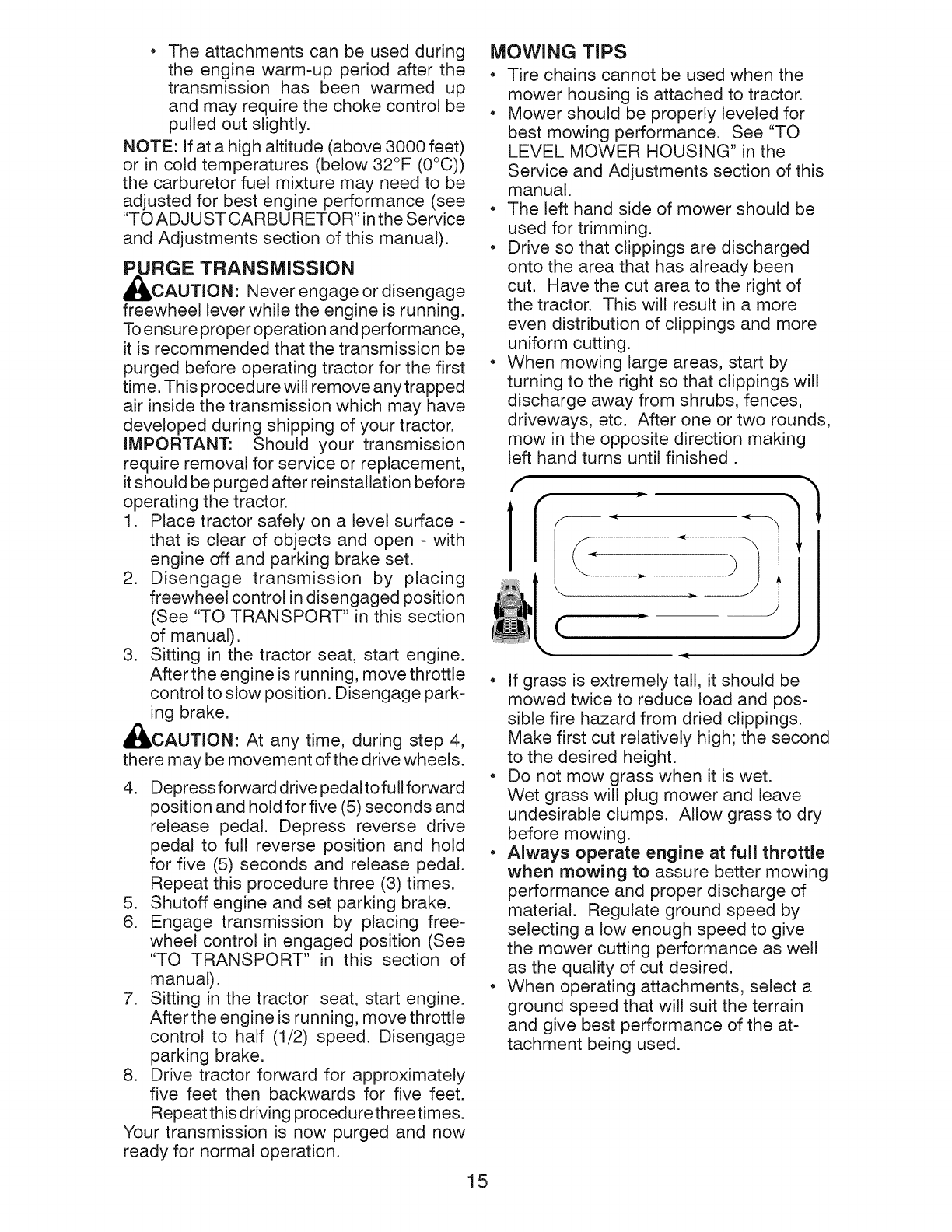

PURGE TRANSMISSION

Jib

_ILCAUTION: Never engage or disengage

freewheel lever while the engine is running.

To ensure proper operation and performance,

it is recommended that the transmission be

purged before operating tractor for the first

time. This procedure will remove any trapped

air inside the transmission which may have

developed during shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reinstallation before

operating the tractor.

1. Place tractor safely on a level surface -

that is clear of objects and open - with

engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in disengaged position

(See "TO TRANSPORT" in this section

of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move throttle

control to slow position. Disengage park-

ing brake.

CAUTION: At any time, during step 4,

there may be movement of the drive wheels.

4. Depressforwarddrivepedaltofullforward

position and hold for five (5) seconds and

release pedal. Depress reverse drive

pedal to full reverse position and hold

for five (5) seconds and release pedal.

Repeat this procedure three (3) times.

5. Shutoff engine and set parking brake.

6. Engage transmission by placing free-

wheel control in engaged position (See

"TO TRANSPORT" in this section of

manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move throttle

control to half (1/2) speed. Disengage

parking brake.

8. Drive tractor forward for approximately

five feet then backwards for five feet.

Repeat this driving procedurethreetimes.

Your transmission is now purged and now

ready for normal operation.

MOWING TiPS

•Tire chains cannot be used when the

mower housing is attached to tractor.

•Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

•The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

•When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

,€ J

•If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

•Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough speed to give

the mower cutting performance as well

as the quality of cut desired.

•When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

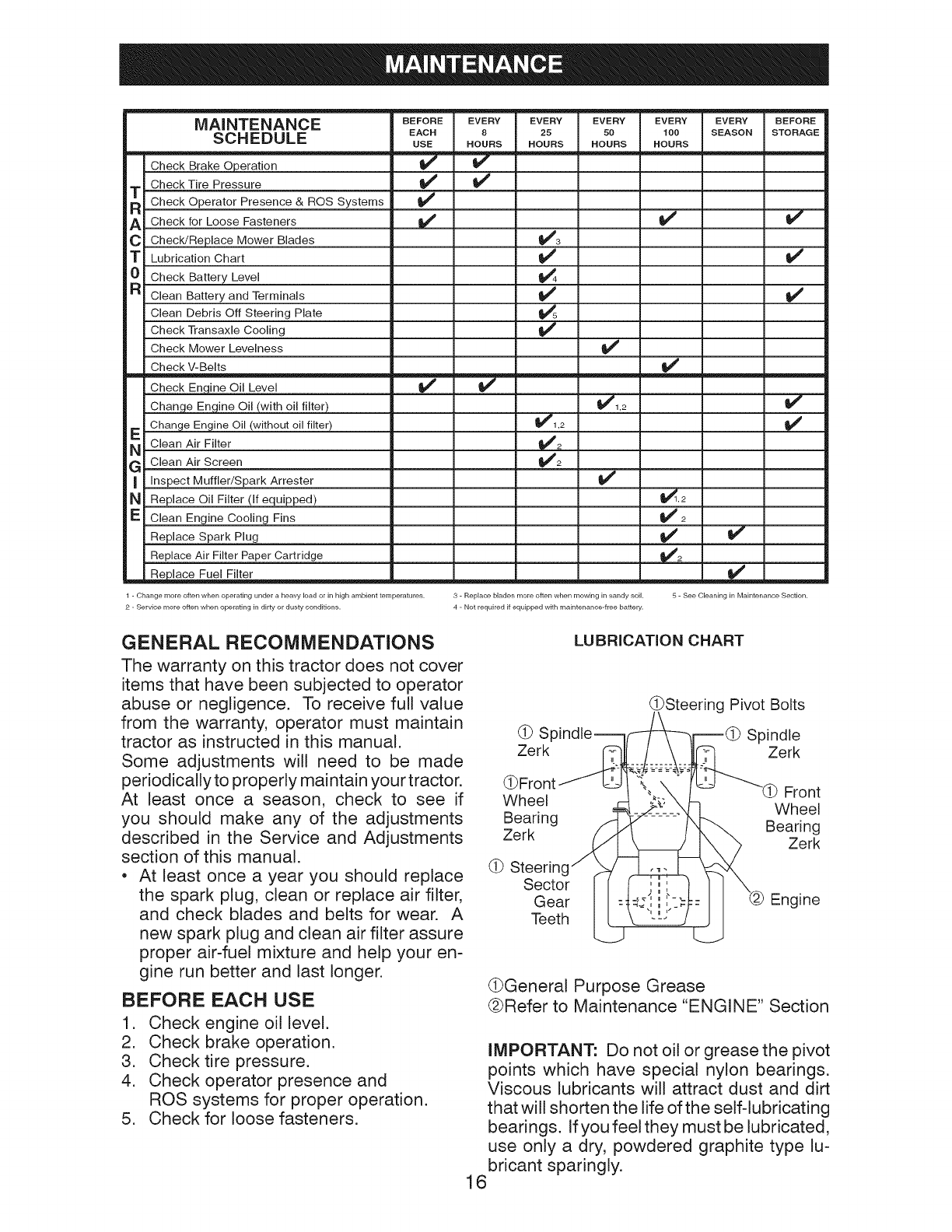

MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE

SCHEDULE EACH 8 25 50 100 SEASON STORAGE

USE HOURS HOURS HOURS HOURS

Check Brake Operation _

Check Tire Pressure _ _'

T Check Operator Presence & ROS Systems

A Check for Loose Fasteners I[_ _

C ChecWReplace Mower Blades _3

TLubrication Chart _f

0 Check Battery Level _4

R Clean Battery and Terminals _

Clean Debris Off Steering Plate _5

Check Transaxle Cooling

Check Mower Levelness

Check V-Belts

Check Engine Oil Level if _'

Change Engine Oil (with oil filter) q_'1,2

Change Engine Oil (without oil filter) _1_1,2

NE Clean Air Filter _2

G Clean Air Screen q_'2

Inspect Muffler/Spark Attester _S'

a Replace Oil Filter (If equipped) _,2

E Clean Engine Cooling Fins _ 2

Replace Spark Plug _#

Replace Air Filter Paper Cartridge _'2

RReplace Fuel Filter _ _

1 - Change more often when operating under a heavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - See (}leaning in Maintenance Section.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodicallyto properly maintain your tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear. A

new spark plug and clean air filter assure

proper air-fuel mixture and help your en-

gine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

ROS systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

(_Steering Pivot Bolts

(_ SI Spindle

Zerk Zerk

(_Front (_ Front

Wheel Wheel

Bearing Bearing

Zerk Zerk

(_ Steerin(

Sector

Gear

Teeth Engine

_General Purpose Grease

@Refer to Maintenance "ENGINE" Section

iMPORTANT: Do not oil or grease the pivot

points which have special nylon bearings.

Viscous lubricants will attract dust and dirt

that will shorten the life of the self-lubricating

bearings. If you feel they must be lubricated,

use only a dry, powdered graphite type lu-

bricant sparingly.

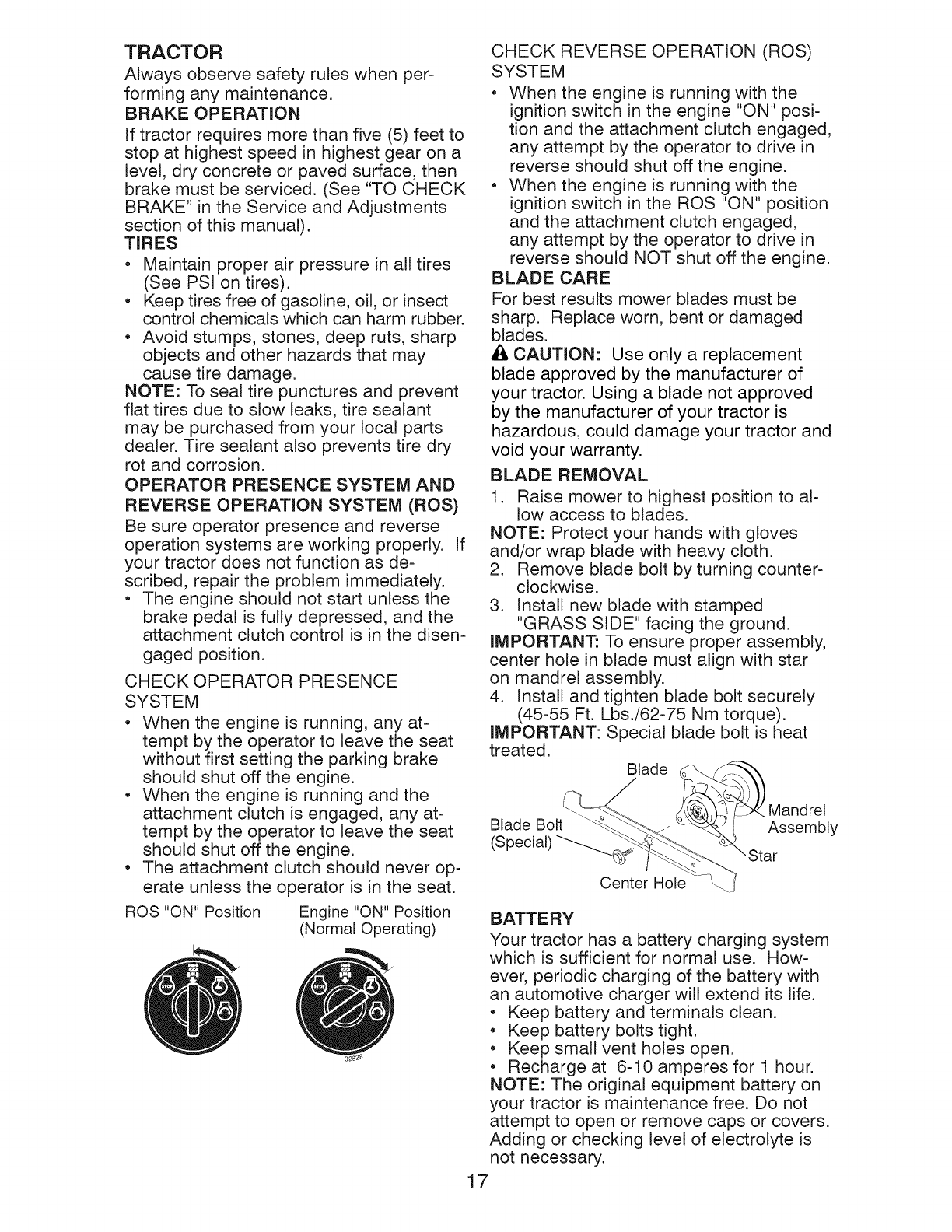

TRACTOR

Always observe safety rubs when per-

forming any maintenance.

BRAKE OPERATION

if tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be serviced. (See "TO CHECK

BRAKE" in the Service and Adjustments

section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See PSI on tires).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM AND

REVERSE OPERATION SYSTEM (ROS)

Be sure operator presence and reverse

operation systems are working properly. If

your tractor does not function as de-

scribed, repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed, and the

attachment clutch control is in the disen-

gaged position.

CHECK OPERATOR PRESENCE

SYSTEM

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

ROS "ON" Position Engine "ON" Position

(Normal Operating)

CHECK REVERSE OPERATION (ROS)

SYSTEM

• When the engine is running with the

ignition switch in the engine "ON" posi-

tion and the attachment clutch engaged,

any attempt by the operator to drive in

reverse should shut off the engine.

• When the engine is running with the

ignition switch in the ROS "ON" position

and the attachment clutch engaged,

any attempt by the operator to drive in

reverse should NOT shut off the engine.

BLADE CARE

For best results mower blades must be

sharp. Replace worn, bent or damaged

blades.

& CAUTION: Use only a replacement

blade approved by the manufacturer of

your tractor. Using a blade not approved

by the manufacturer of your tractor is

hazardous, could damage your tractor and

void your warranty.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new blade with stamped

"GRASS SIDE" facing the ground.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs./62-75 Nm torque).

IMPORTANT: Special blade bolt is heat

treated.

Blade

Blade Bolt

(Special)

Mandrel

Assembly

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

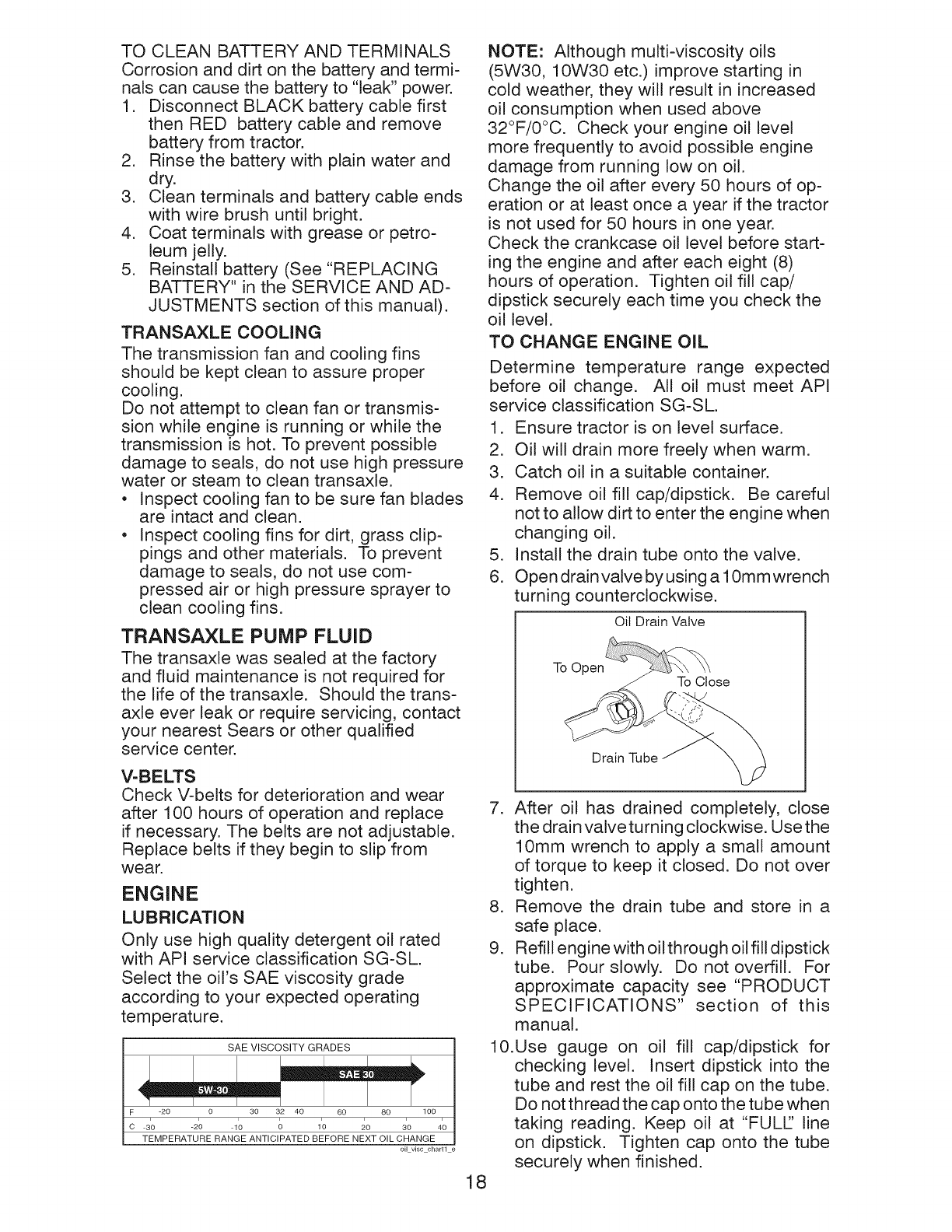

TO CLEAN BATTERYANDTERMINALS

Corrosionand dirt on the batteryand termi-

nals cancausethe batteryto "leak"power.

1. DisconnectBLACK battery cablefirst

then RED battery cable and remove

batteryfrom tractor.

2. Rinsethe batterywith plainwater and

dry.

3. Cleanterminals and battery cable ends

with wire brush until bright.

4. Coatterminalswith greaseor petro-

leumjelly.

5. Reinstallbattery (See"REPLACING

BATTERY"inthe SERVICEAND AD-

JUSTMENTSsection of this manual).

TRANSAXLE COOLING

The transmissionfan and coolingfins

shouldbe kept cleanto assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damageto seals, do not use high pressure

wateror steamto clean transaxle.

• Inspectcooling fan to be sure fan blades

are intactand clean.

• Inspectcooling fins for dirt, grass clip-

pingsand other materials. To prevent

damageto seals,do not use com-

pressedair or high pressure sprayerto

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

your nearest Sears or other qualified

service center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SG-SL.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

F -20 0 30 32 40 60 80 100

i i i i i

C -30 -2_0 -10 0 1_0 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

oil viscchartl e

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, they will result in increased

oil consumption when used above

32°F/0°C. Check your engine oil level

more frequently to avoid possible engine

damage from running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL

1. Ensure tractor is on level surface.

2. Oil will drain more freely when warm.

3. Catch oil in a suitable container.

4. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine when

changing oil.

5. Install the drain tube onto the valve.

6. Open drain valve by using a 10mm wrench

turning counterclockwise.

Oil Drain Valve

To Open

Drain Tube

7. After oil has drained completely, close

the drain valve turning clockwise. Use the

10mm wrench to apply a small amount

of torque to keep it closed. Do not over

tighten.

8. Remove the drain tube and store in a

safe place.

9. Refill engine with oil through oil fill dipstick

tube. Pour slowly. Do not overfill. For

approximate capacity see "PRODUCT

SPECIFICATIONS" section of this

manual.

10.Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into the

tube and rest the oil fill cap on the tube.

Do not thread the cap onto the tube when

taking reading. Keep oil at "FULl" line

on dipstick. Tighten cap onto the tube

securely when finished.

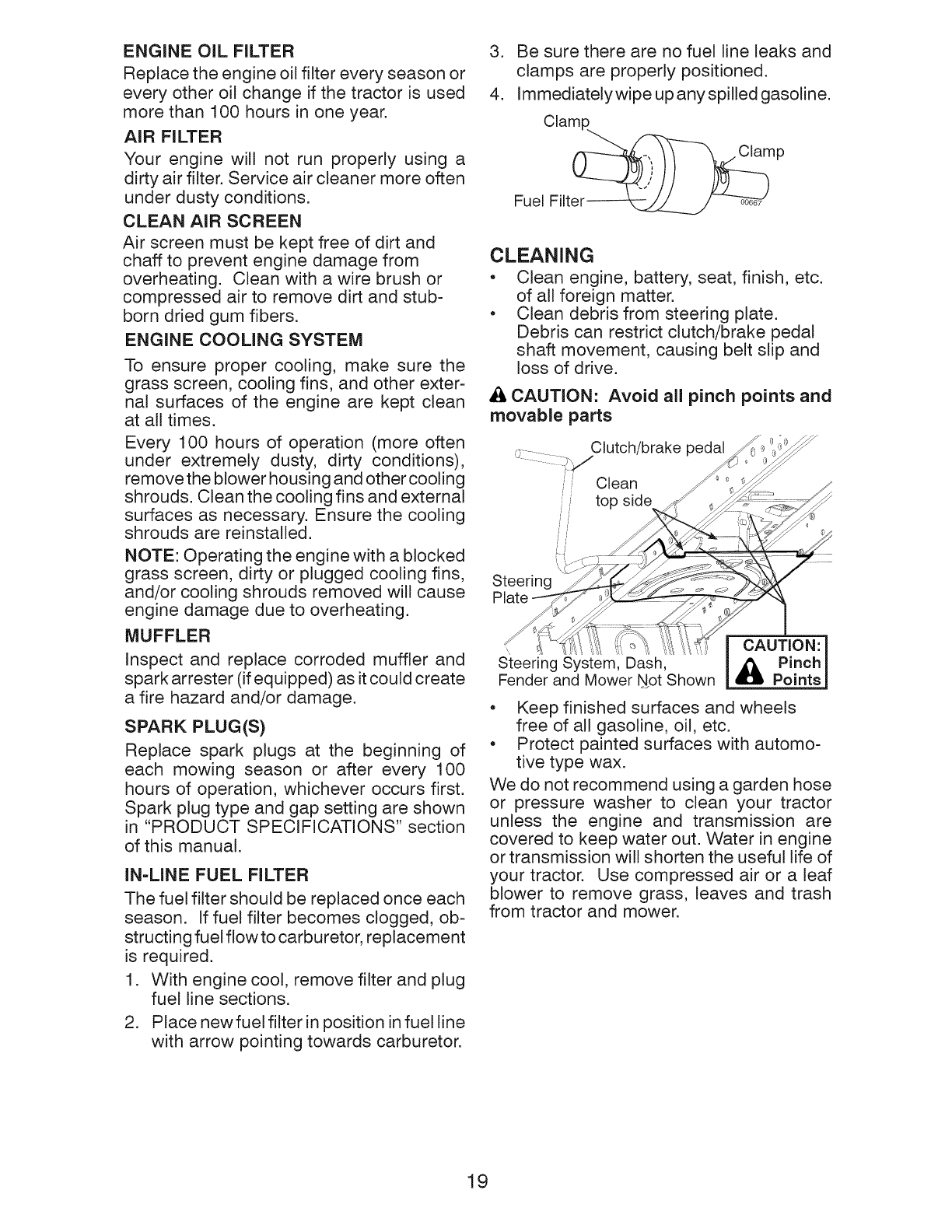

ENGINE OIL FILTER

Replacethe engine oilfilter everyseasonor

every otheroil changeif the tractor is used

morethan 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirtyair filter. Serviceair cleanermore often

under dusty conditions.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGINE COOLING SYSTEM

To ensure proper cooling, make sure the

grass screen, cooling fins, and other exter-

nal surfaces of the engine are kept clean

at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other cooling

shrouds. Clean the cooling fins and external

surfaces as necessary. Ensure the cooling

shrouds are reinstalled.

NOTE: Operating the engine with a blocked

grass screen, dirty or plugged cooling fins,

and/or cooling shrouds removed will cause

engine damage due to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could create

a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are shown

in "PRODUCT SPECIFICATIONS" section

of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once each

season. If fue! filter becomes clogged, ob-

structing fuel flow to carburetor, replacement

is required.

1. With engine cool, remove filter and plug

fuel line sections.

2. Place newfuel filter in position in fuel line

with arrow pointing towards carburetor.

Be sure there are no fuel line leaks and

clamps are properly positioned.

Immediatelywipe up any spilled gasoline.

Clamp

Fuel Filter--_J_.z/ ___

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Clean debris from steering plate.

Debris can restrict clutch/brake pedal

shaft movement, causing belt slip and

loss of drive.

A CAUTION: Avoid all pinch points and

movable parts

Clutch/brake pedal

Clean

top side

Steering

CAUTION:

S:teering System, Dash, _ Pinch

Fender and Mower Not.._Shown _ Points

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden hose

or pressure washer to clean your tractor

unless the engine and transmission are

covered to keep water out. Water in engine

or transmission will shorten the useful life of

your tractor. Use compressed air or a leaf

blower to remove grass, leaves and trash

from tractor and mower.

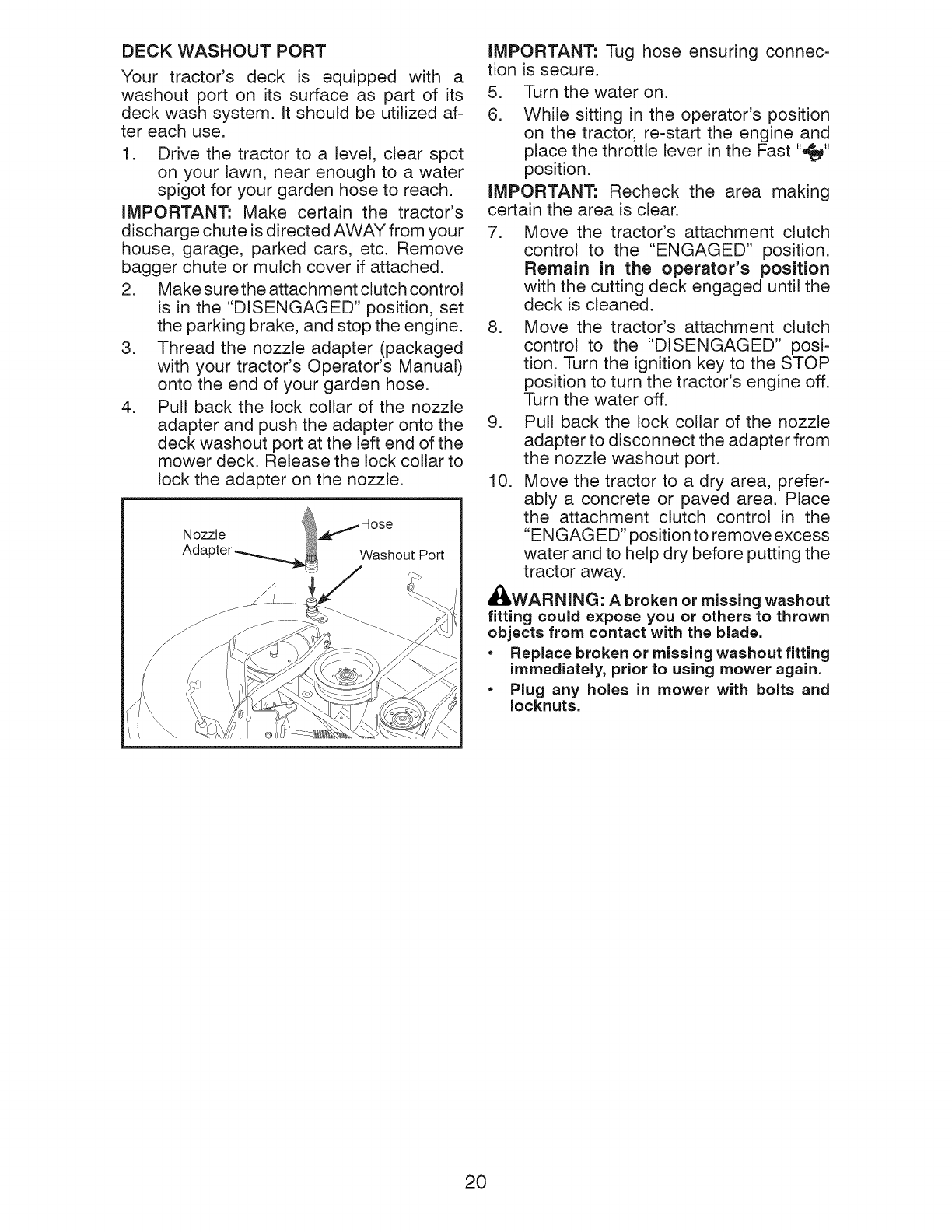

DECK WASHOUT PORT

Your tractor's deck is equipped with a

washout port on its surface as part of its

deck wash system. It should be utilized af-

ter each use.

1. Drive the tractor to a level, clear spot

on your lawn, near enough to a water

spigot for your garden hose to reach.

IMPORTANT: Make certain the tractor's

discharge chute is directed AWAY from your

house, garage, parked cars, etc. Remove

bagger chute or mulch cover if attached.

2. Make sure the attachment clutch control

is in the "DISENGAGED" position, set

the parking brake, and stop the engine.

3. Thread the nozzle adapter (packaged

with your tractor's Operator's Manual)

onto the end of your garden hose.

4. Pull back the lock collar of the nozzle

adapter and push the adapter onto the

deck washout port at the left end of the

mower deck. Release the lock collar to

lock the adapter on the nozzle.

Nozzle

Ada Washout Port

IMPORTANT: Tug hose ensuring connec-

tion is secure.

5. Turn the water on.

6. While sitting in the operator's position

on the tractor, re-start the engine and

place the throttle lever in the Fast ",#_"

position.

IMPORTANT: Recheck the area making

certain the area is clear.

.Move the tractor's attachment clutch

control to the "ENGAGED" position.

Remain in the operator's position

with the cutting deck engaged until the

deck is cleaned.

.Move the tractor's attachment clutch

control to the "DISENGAGED" posi-

tion. Turn the ignition key to the STOP

position to turn the tractor's engine off.

Turn the water off.

9. Pull back the lock collar of the nozzle

adapter to disconnect the adapter from

the nozzle washout port.

10. Move the tractor to a dry area, prefer-

ably a concrete or paved area. Place

the attachment clutch control in the

"ENGAGED" position to remove excess

water and to help dry before putting the

tractor away.

_IbWARNING" A broken or missing washout

fitting could expose you or others to thrown

objects from contact with the blade.

• Replace broken or missing washout fitting

immediately, prior to using mower again.

• Plug any holes in mower with bolts and

Iocknuts.

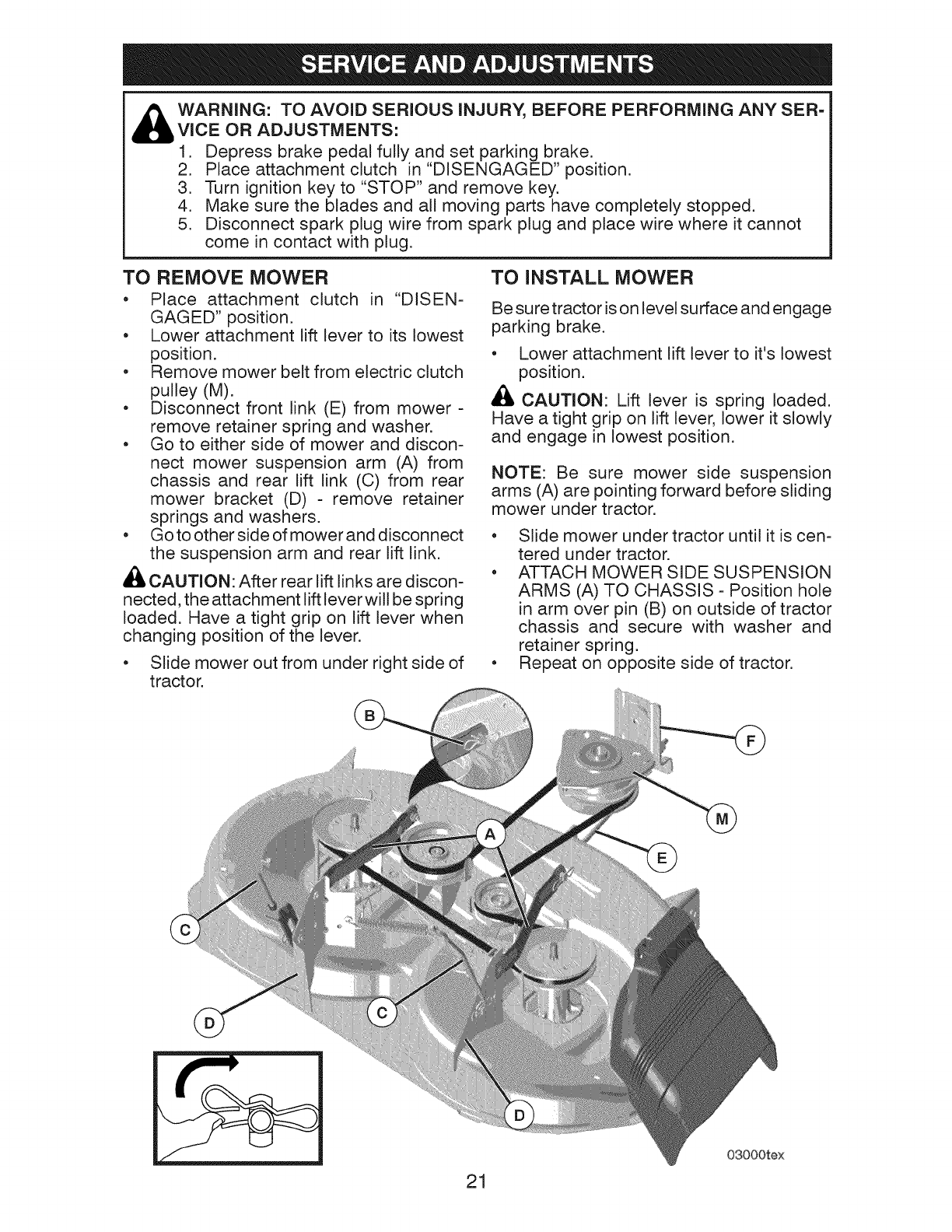

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER=VICE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2. Place attachment clutch in "DISENGAGED" position.

3. Turn ignition key to "STOP" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TO REMOVE MOWER

•Place attachment clutch in "DISEN-

GAGED" position.

• Lower attachment lift lever to its lowest

position.

• Remove mower belt from electric clutch

pulley (M).

• Disconnect front link (E) from mower -

remove retainer spring and washer.

• Go to either side of mower and discon-

nect mower suspension arm (A) from

chassis and rear lift link (C) from rear

mower bracket (D) - remove retainer

springs and washers.

• Goto other side of mower and disconnect

the suspension arm and rear lift link.

_, CAUTION: After rear lift links are discon-

nected, the attachment lift lever will be spring

loaded. Have a tight grip on lift lever when

changing position of the lever.

• Slide mower out from under right side of

tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and engage

parking brake.

• Lower attachment lift lever to it's lowest

position.

,_ CAUTION: Lift lever is spring loaded.

Have a tight grip on lift lever, lower it slowly

and engage in lowest position.

NOTE: Be sure mower side suspension

arms (A) are pointing forward before sliding

mower under tractor.

• Slide mower under tractor until it is cen-

tered under tractor.

• ATTACH MOWER SIDE SUSPENSION

ARMS (A) TO CHASSIS - Position hole

in arm over pin (B) on outside of tractor

chassis and secure with washer and

retainer spring.

• Repeat on opposite side of tractor.

03000tex

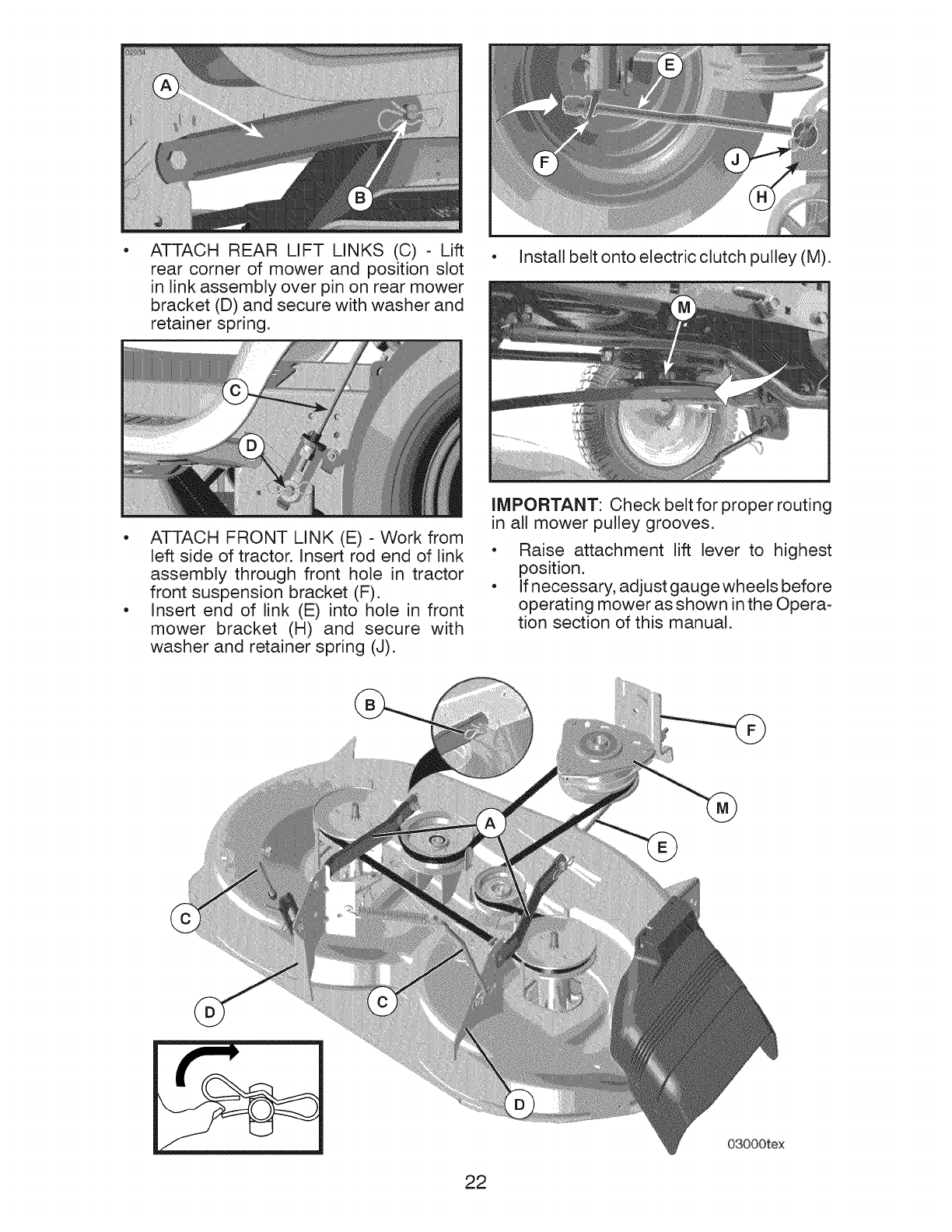

ATTACH REAR LIFT LINKS (C) - Lift

rear corner of mower and position slot

in link assembly over pin on rear mower

bracket (D) and secure with washer and

retainer spring.

• Install belt onto electric clutch pulley (M).

ATTACH FRONT LINK (E) - Work from

left side of tractor. Insert rod end of link

assembly through front hole in tractor

front suspension bracket (F).

Insert end of link (E) into hole in front

mower bracket (H) and secure with

washer and retainer spring (J).

IMPORTANT: Check belt for proper routing

in all mower pulley grooves.

Raise attachment lift lever to highest

position.

If necessary, adjust gauge wheels before

operating mower as shown in the Opera-

tion section of this manual.

03000tex

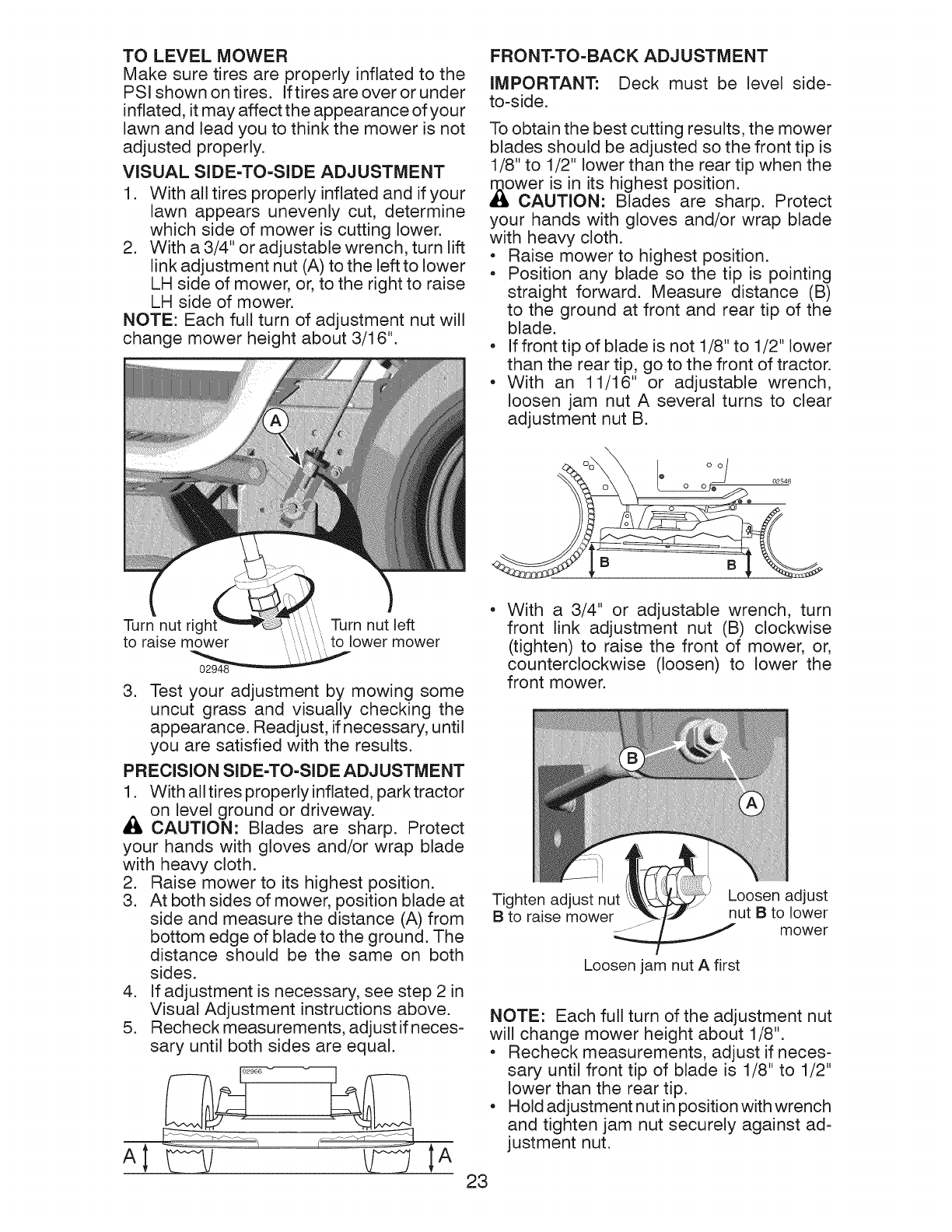

TO LEVEL MOWER

Make sure tires are properly inflated to the

PSI shown on tires. Iftires are over or under

inflated, it may affect the appearance of your

lawn and lead you to think the mower is not

adjusted properly.

VISUAL SIDE-TO-SIDE ADJUSTMENT

1. With all tires properly inflated and if your

lawn appears unevenly cut, determine

which side of mower is cutting lower.

2. With a 3/4" or ad ustable wrench, turn lift

link adjustment nut (A) to the left to lower

LH side of mower, or, to the right to raise

LH side of mower.

NOTE: Each full turn of adjustment nut will

change mower height about 3/16".

FRONT=TO=BACK ADJUSTMENT

IMPORTANT: Deck must be level side-

to-side.

To obtain the best cutting results, the mower

blades should be adjusted so the front tip is

1/8" to 1/2" lower than the rear tip when the

,i_ower is in its highest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap blade

with heavy cloth.

• Raise mower to highest position.

• Position any blade so the tip is pointing

straight forward. Measure distance (B)

to the ground at front and rear tip of the

blade.

• If front tip of blade is not 1/8" to 1/2" lower

than the rear tip, go to the front of tractor.

• With an 11/16" or adjustable wrench,

loosen jam nut A several turns to clear

adjustment nut B.

Turn nut rig Turn nut left

to raise mower . to lower mower

3. Test your adjustment by mowing some

uncut grass and visually checking the

appearance. Readjust, if necessary, until

you are satisfied with the results.

PRECISION SIDE-TO=SIDE ADJUSTMENT

1. With all tires properly inflated, park tractor

on level ground or driveway.

_i, CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap blade

with heavy cloth.

2. Raise mower to its highest position.

3. At both sides of mower, position blade at

side and measure the distance (A) from

bottom edge of blade to the ground. The

distance should be the same on both

sides.

4. If adjustment is necessary, see step 2 in

Visual Adjustment instructions above.

5. Recheck measurements, adjust if neces-

sary until both sides are equal.

: ::::_..............................

AI lA 23

With a 3/4" or adjustable wrench, turn

front link adjustment nut (B) clockwise

(tighten) to raise the front of mower, or,

counterclockwise (loosen) to lower the

front mower.

Tighten adjust nut

B to raise mower

/ °`

Loosen adjust

nut B to lower

mower

Loosen jam nut A first

NOTE: Each full turn of the adjustment nut

will change mower height about 1/8".

• Recheck measurements, adjust if neces-

sary until front tip of blade is 1/8" to 1/2"

lower than the rear tip.

• Hold adjustment nut in position with wrench

and tighten jam nut securely against ad-

justment nut.

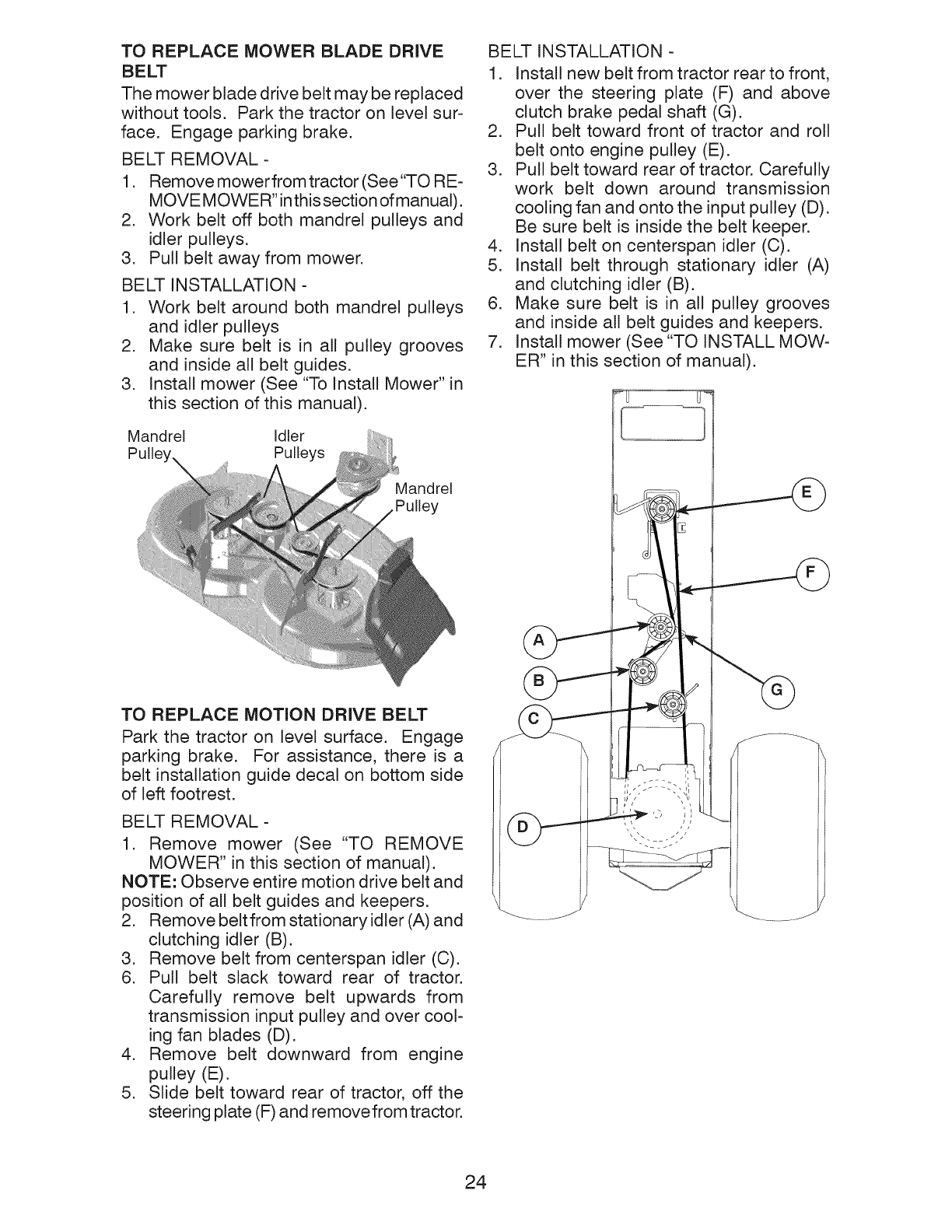

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be replaced

without tools. Park the tractor on level sur-

face. Engage parking brake.

BELT REMOVAL-

1. Remove mowerfrom tractor (See"TO RE-

MOVE MOWER" inthis section ofmanua0.

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

Mandrel Idler

Pulle' Pulleys

Mandrel

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL-

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt and

position of all belt guides and keepers.

2. Remove beltfrom stationary idler (A) and

clutching idler (B).

3. Remove belt from centerspan idler (C).

6. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over cool-

ing fan blades (D).

4. Remove belt downward from engine

pulley (E).

5. Slide belt toward rear of tractor, off the

steering plate (F) and remove from tractor.

BELT INSTALLATION -

1. Install new belt from tractor rear to front,

over the steering plate (F) and above

clutch brake pedal shaft (G).

2. Pull belt toward front of tractor and roll

belt onto engine pulley (E).

3. Pull belt toward rear of tractor. Carefully

work belt down around transmission

cooling fan and onto the input pulley (D).

Be sure belt is inside the belt keeper.

4. Install belt on centerspan idler (C).

5. Install belt through stationary idler (A)

and clutching idler (B).

6. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

7. Install mower (See "TO INSTALL MOW-

ER" in this section of manual).

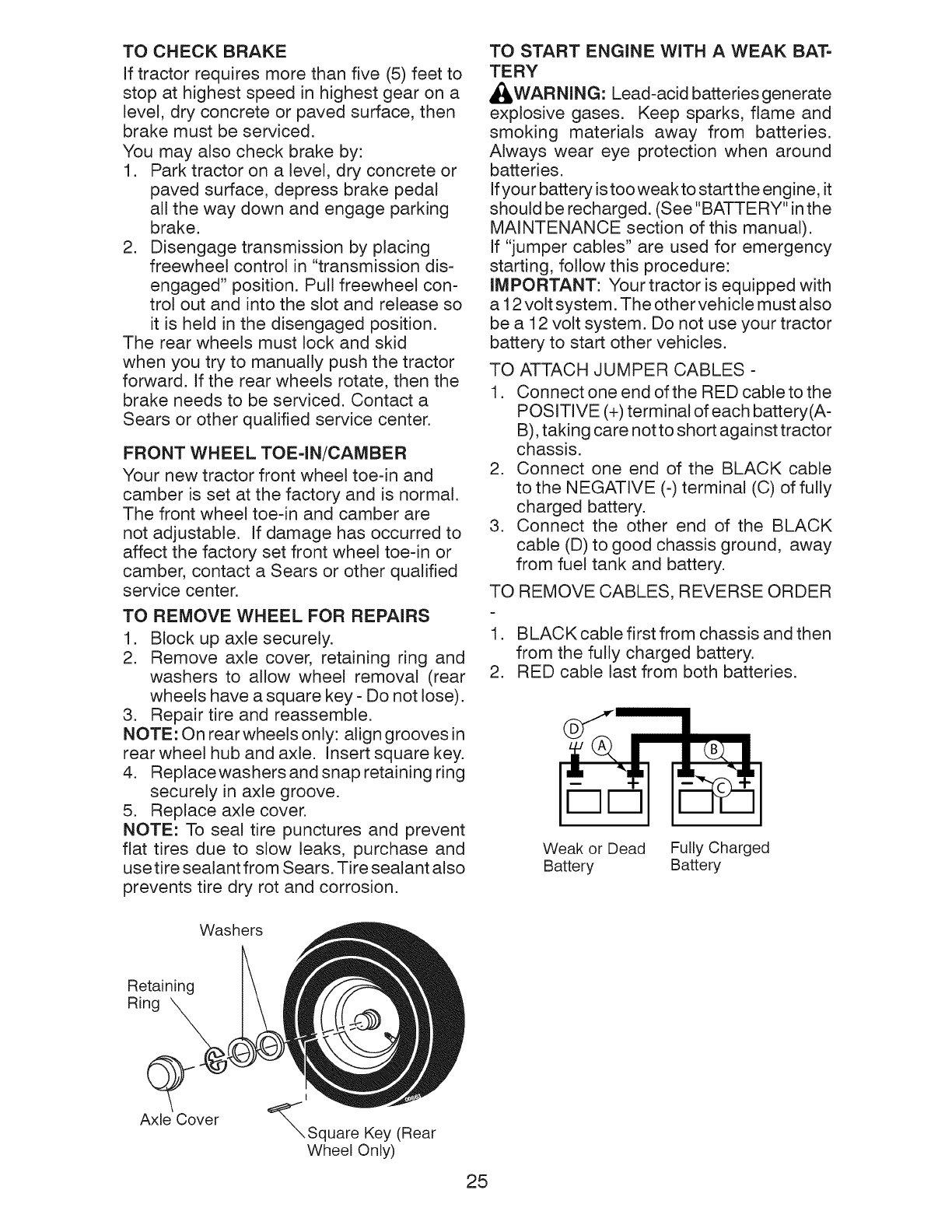

TO CHECK BRAKE

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be serviced.

You may also check brake by:

1. Park tractor on a level, dry concrete or

paved surface, depress brake pedal

all the way down and engage parking

brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid

when you try to manually push the tractor

forward. If the rear wheels rotate, then the

brake needs to be serviced. Contact a

Sears or other qualified service center.

FRONT WHEEL TOE-IN/CAMBER

Your new tractor front wheel toe-in and

camber is set at the factory and is normal.

The front wheel toe-in and camber are

not adjustable. If damage has occurred to

affect the factory set front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align grooves in

rear wheel hub and axle. Insert square key.

4. Replace washers and snap retaining ring

securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

usetire sealant from Sears. Tire sealant also

prevents tire dry rot and corrosion.

TO START ENGINE WITH A WEAK BAT-

TERY

_IbWARNING: Lead-acid batteries generate

explosive gases. Keep sparks, flame and

smoking materials away from batteries.

Always wear eye protection when around

batteries.

If your battery is too weak to start the engine, it

should be recharged. (See "BATTERY" in the

MAINTENANCE section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

iMPORTANT: Your tractor is equipped with

a 12 volt system. The other vehicle must also

be a 12 volt system. Do not use your tractor

battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one endofthe RED cable to the

POSITIVE (+) terminal of each battery(A-

B), taking care not to short against tractor

chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of fully

charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground, away

from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER

1. BLACK cable first from chassis and then

from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

Washers

Retaining

Ring

Axle Cover

_--xSquare Key (Rear

Wheel Only)

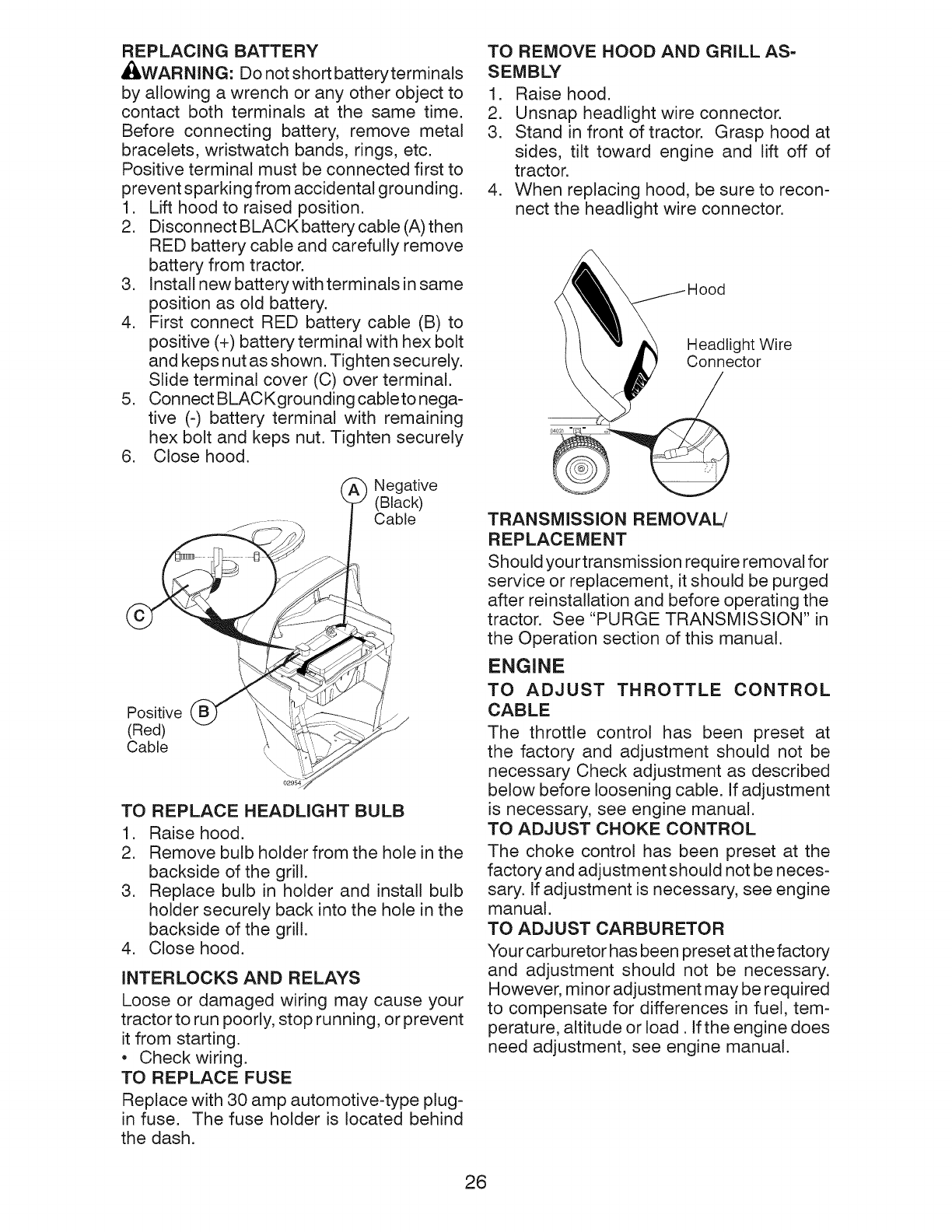

REPLACING BATTERY

_WARNING: Do not short batteryterminals

by allowing a wrench or any other object to

contact both terminals at the same time.

Before connecting battery, remove metal

bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected first to

prevent sparking from accidental grounding.

1. Lift hood to raised position.

2. Disconnect BLACK battery cable (A) then

RED battery cable and carefully remove

battery from tractor.

3. Install new battery with terminals in same

position as old battery.

4. First connect RED battery cable (B) to

positive (+) battery terminal with hex bolt

and keps nut as shown. Tighten securely.

Slide termina! cover (C) over terminal.

5. Connect BLACKgroundingcabletonega-

tive (-) battery terminal with remaining

hex bolt and keps nut. Tighten securely

6. Close hood.

(_ Negative

(Black)

Cable

Positive

(Red)

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Remove bulb holder from the hole in the

backside of the grill.

3. Replace bulb in holder and install bulb

holder securely back into the hole in the

backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or prevent

it from starting.

•Check wiring.

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-

in fuse. The fuse holder is located behind

the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to recon-

nect the headlight wire connector.

Headlight Wire

Connector

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal for

service or replacement, it should be purged

after reinstallation and before operating the

tractor. See "PURGE TRANSMISSION" in

the Operation section of this manual.

ENGINE

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at

the factory and adjustment should not be

necessary Check adjustment as described

below before loosening cable. If adjustment

is necessary, see engine manual.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be neces-

sary. If adjustment is necessary, see engine

manual.

TO ADJUST CARBURETOR

Your carburetor has been preset at the factory

and adjustment should not be necessary.

However, minor adjustment may be required

to compensate for differences in fuel, tem-

perature, altitude or load. Ifthe engine does

need adjustment, see engine manual.

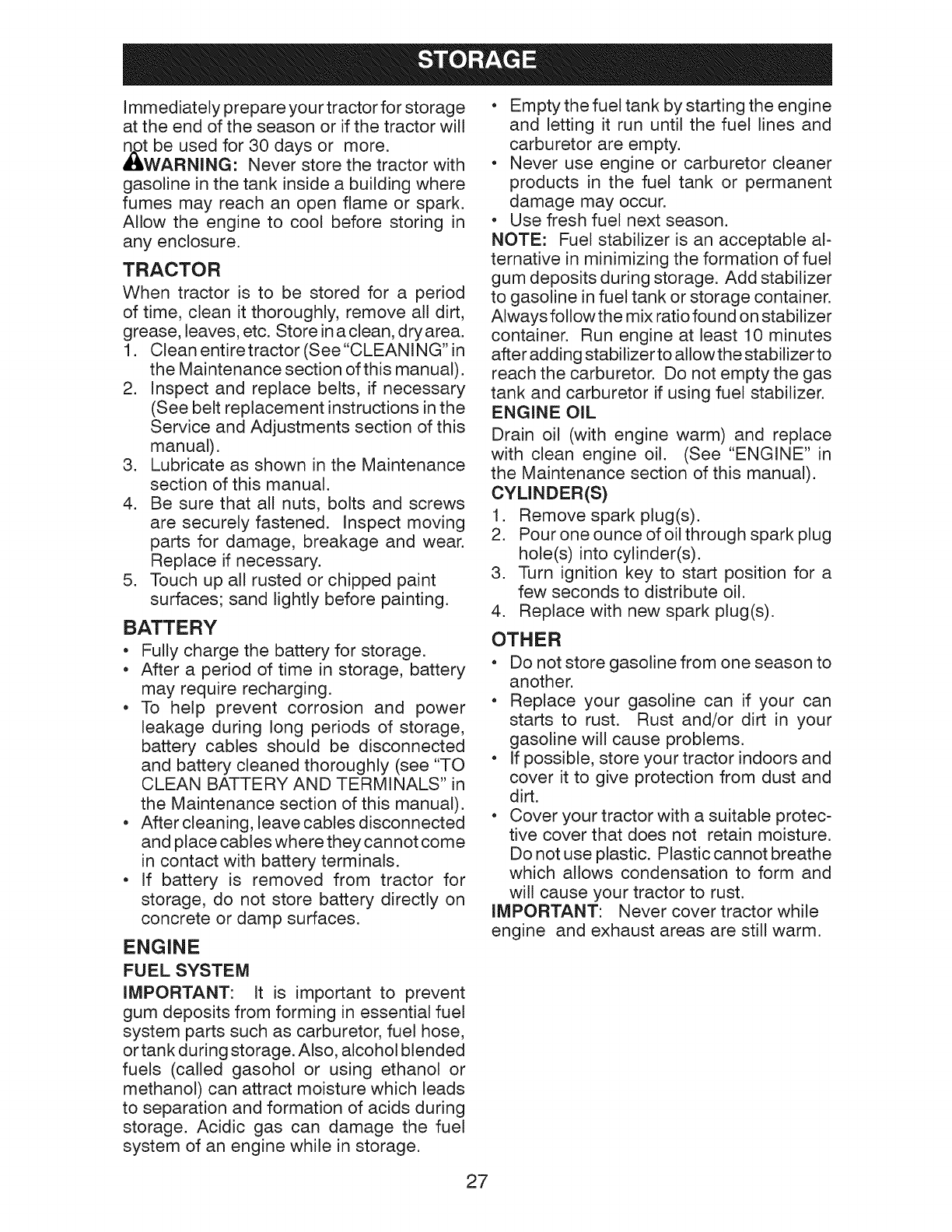

Immediately prepare your tractor for storage

at the end of the season or if the tractor will

not be used for 30 days or more,

_WARNING: Never store the tractor with

gasoline in the tank inside a building where

fumes may reach an open flame or spark.

Allow the engine to cool before storing in

any enclosure.

TRACTOR

When tractor is to be stored for a period

of time, clean it thoroughly, remove all dirt,

grease, leaves, etc. Store in a clean, dryarea.

1. Clean entire tractor (See"CLEANING" in

the Maintenance section of this manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in the

Service and Adjustments section of this

manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables disconnected

and place cables where they cannot come

in contact with battery terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential fuel

system parts such as carburetor, fuel hose,

or tank during storage. Also, alcohol blended

fuels (called gasohol or using ethanol or

methanol) can attract moisture which leads

to separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage.

• Empty the fuel tank by starting the engine

and letting it run until the fuel lines and

carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable a!-

ternative in minimizing the formation of fuel

gum deposits during storage. Add stabilizer

to gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes

after adding stabilizer to allowthe stabilizer to

reach the carburetor. Do not empty the gas

tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark plug

hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to

another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors and

cover it to give protection from dust and

dirt.

• Cover your tractor with a suitable protec-

tive cover that does not retain moisture.

Do not use plastic. Plastic cannot breathe

which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

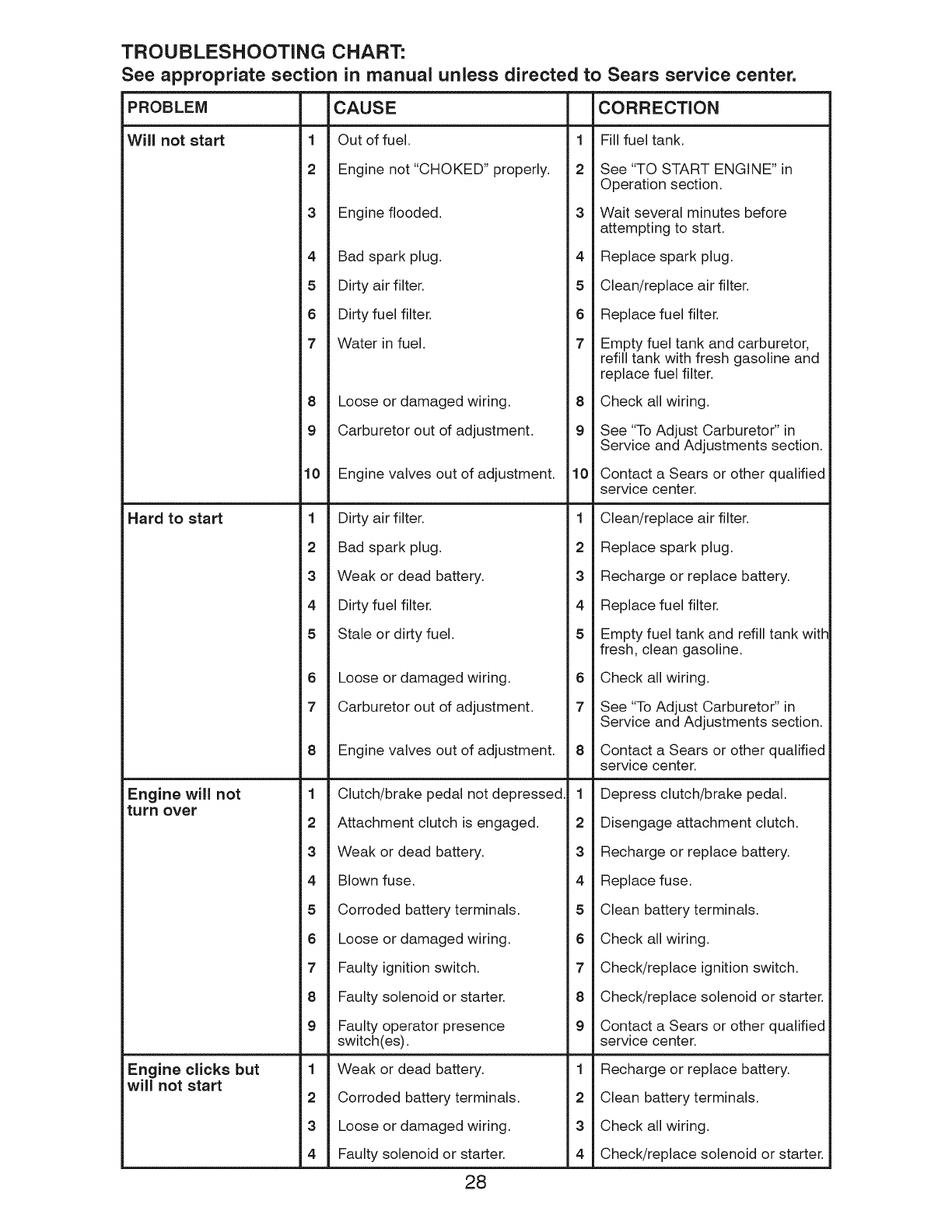

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center.

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Engine will not

turn over

1 Out of fuel.

2 Engine not "CHOKED" properly.

3Engine flooded.

4 Bad spark plug.

5 Dirty air filter.

6 Dirty fuel filter.

7 Water in fuel.

8 Loose or damaged wiring.

9 Carburetor out of adjustment.

10 Engine valves out of adjustment.

1 Dirty air filter.

2 Bad spark plug.

3Weak or dead battery.

4 Dirty fuel filter.

5 Stale or dirty fuel.

6 Loose or damaged wiring.

7 Carburetor out of adjustment.

8 Engine valves out of adjustment.

1 Clutch/brake pedal not depressed.

2 Attachment clutch is engaged.

3 Weak or dead battery.

4 Blown fuse.

5 Corroded battery terminals.

6 Loose or damaged wiring.

7 Faulty ignition switch.

8 Faulty solenoid or starter.

9 Faulty operator presence

switch(es).

1 Weak or dead battery.

2 Corroded battery terminals.

3 Loose or damaged wiring.

4 Faulty solenoid or starter.

Engine clicks but

will not start

1 Fill fuel tank.

2 See "TO START ENGINE" in

Operation section.

3 Wait several minutes before

attempting to start.

4 Replace spark plug.

5 Clean/replace air filter.

6 Replace fuel filter.

7 Empty fuel tank and carburetor,

refill tank with fresh gasoline and

replace fuel filter.

8 Check all wiring.

9 See "To Adjust Carburetor" in

Service and Adjustments section.

10 Contact a Sears or other qualified

service center.

1 Clean/replace air filter.

2 Replace spark plug.

3 Recharge or replace battery.

4 Replace fuel filter.

5 Empty fuel tank and refill tank with

fresh, clean gasoline.

6 Check all wiring.

7 See "To Adjust Carburetor" in

Service and Adjustments section.

8 Contact a Sears or other qualified

service center.

1 Depress clutch/brake pedal.

2 Disengage attachment clutch.

3 Recharge or replace battery.

4 Replace fuse.

5 Clean battery terminals.

6 Check all wiring.

7 Check/replace ignition switch.

8 Check/replace solenoid or starter.

9 Contact a Sears or other qualified

service center.

1 Recharge or replace battery.

2 Clean battery terminals.

3 Check all wiring.

4 Check/replace solenoid or starter.

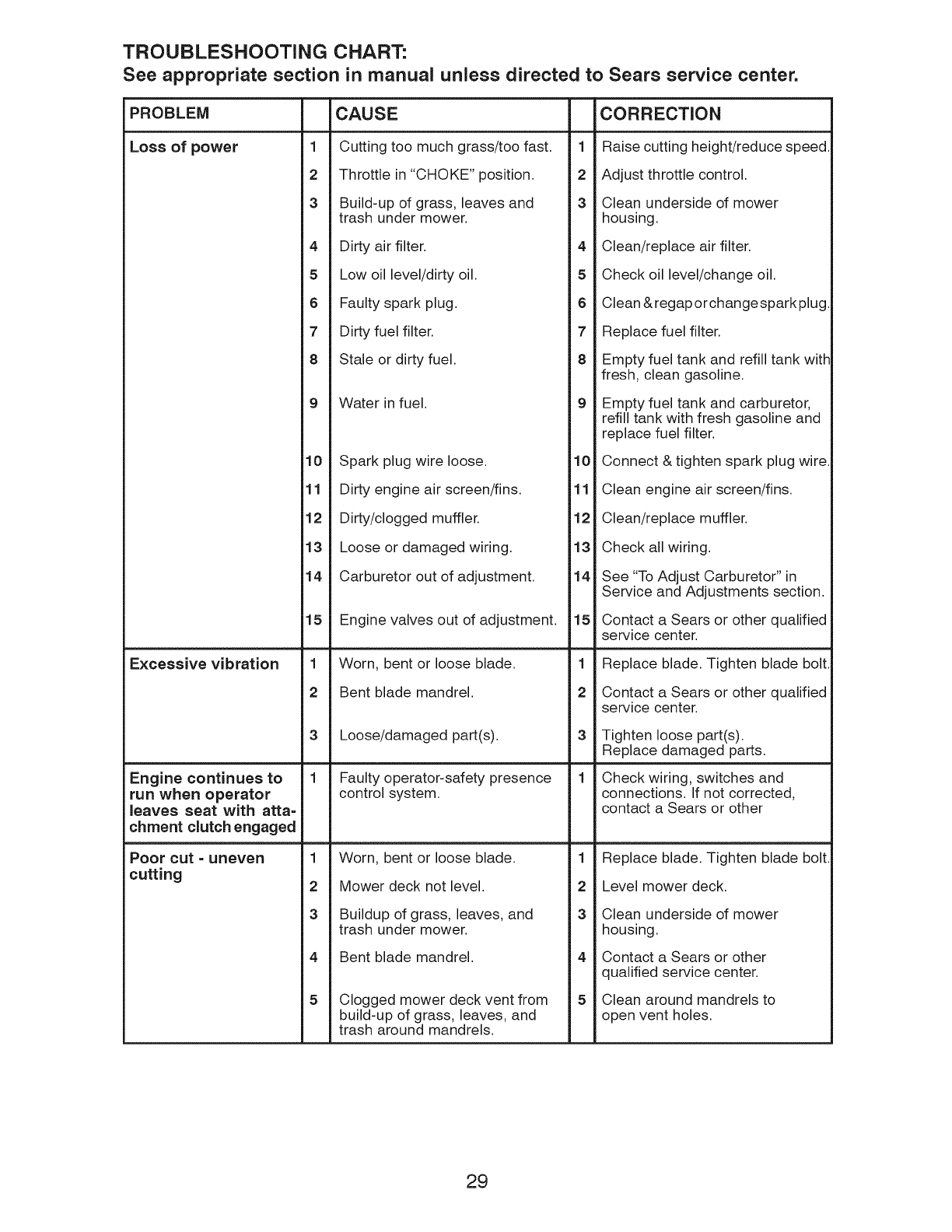

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center.

PROBLEM

Loss of power

CAUSE

1 Cutting too much grass/too fast.

2 Throttle in "CHOKE" position.

3 Build-up of grass, leaves and

CORRECTION

1 Raise cutting height/reducespeed

2 Adjust throttle control.

3 Clean underside of mower

trash under mower.

4 Dirty air filter.

5 Low oil level/dirty oil.

6 Faulty spark plug.

7 Dirty fuel filter.

8 Stale or dirty fuel.

9 Water in fuel.

10 Spark plug wire loose.

housing.

4 Clean/replace air filter.

5 Check oil level/change oil.

6 Clean & regap or changespark plug

7 Replace fuel filter.

8 Empty fuel tank and refill tank witi-

fresh, clean gasoline.

9 Empty fuel tank and carburetor,

refill tank with fresh gasoline and

replace fuel filter.

10 Connect & tighten spark plug wire

11 Dirty engine air screen/fins.

12 Dirty/clogged muffler.

13 Loose or damaged wiring.

14 Carburetor out of adjustment.

11 Clean engine air screen/fins.

Excessive vibration

12 Clean/replace muffler.

13 Check all wiring.

Engine continues to

run when operator

leaves seat with atta-

chment clutch engaged

Poor cut = uneven

cutting

15 Engine valves out of adjustment. 15

1 Worn, bent or loose blade.

2 Bent blade mandrel.

3 Loose/damaged part(s).

1 Faulty operator-safety presence

control system.

1 Worn, bent or loose blade. 1

2 Mower deck not level. 2

3Buildup of grass, leaves, and 3

trash under mower.

4 Bent blade mandrel. 4

See "To Adjust Carburetor" in

Service and Adjustments section.

Contact a Sears or other qualified

service center.

1 Replace blade. Tighten blade bolt

2 Contact a Sears or other qualified

service center.

3 Tighten loose part(s).

Replace damaged parts.

1 Check wiring, switches and

connections. If not corrected,

contact a Sears or other

Replace blade. Tighten blade bolt

Level mower deck.

Clean underside of mower

housing.

Contact a Sears or other

qualified service center.

5 Clogged mower deck vent from 5

build-up of grass, leaves, and

trash around mandrels.

Clean around mandrels to

open vent holes.

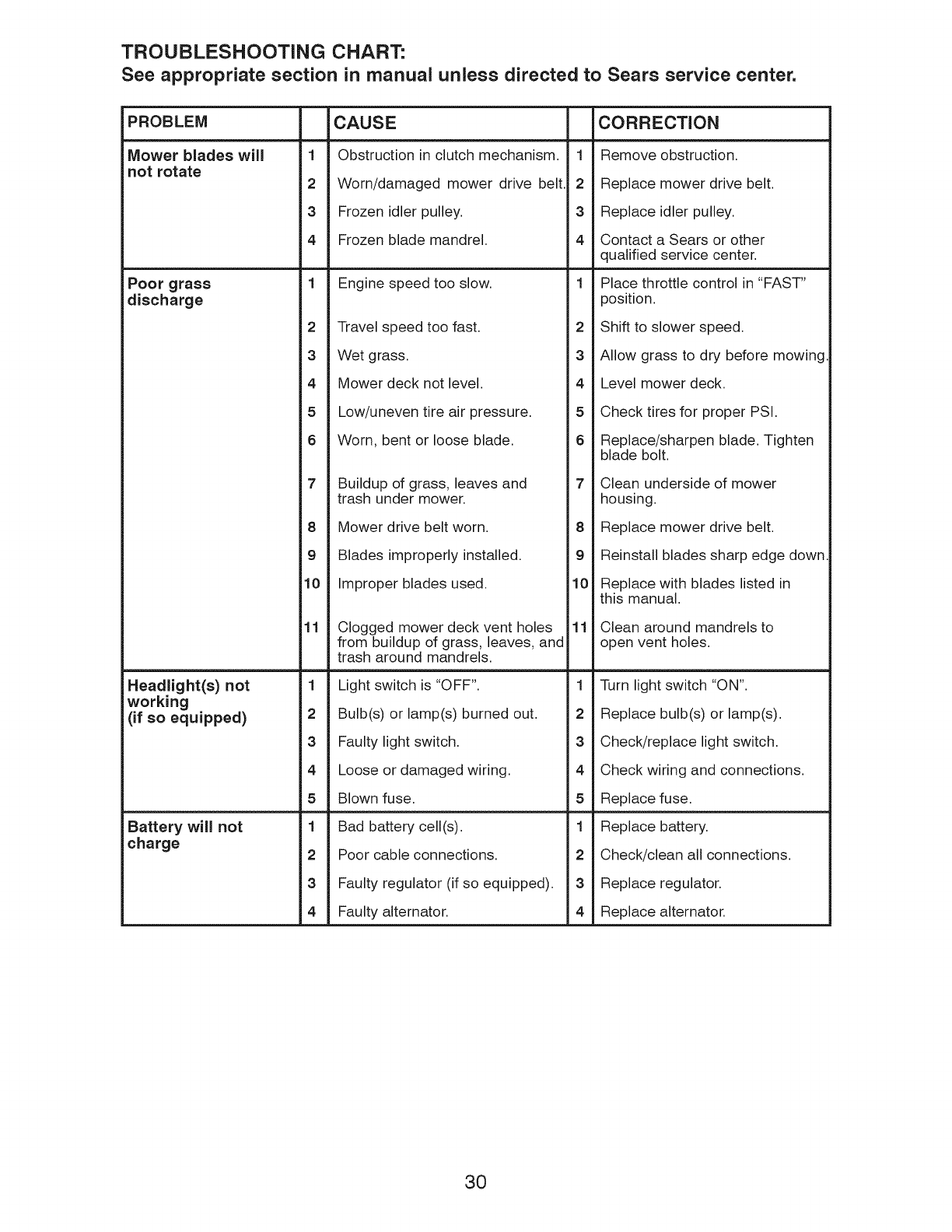

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center.

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

CAUSE

1 Obstruction in clutch mechanism.

2 Worn/damaged mower drive belt.

3 Frozen idler pulley.

4 Frozen blade mandrel.

1 Engine speed too slow.

2Travel speed too fast.

3Wet grass.

4 Mower deck not level.

5 Low/uneven tire air pressure.

6 Worn, bent or loose blade.

7Buildup of grass, leaves and

trash under mower.

8 Mower drive belt worn.

9 Blades improperly installed.

10 Improper blades used.

11 Clogged mower deck vent holes

from buildup of grass, leaves, and

trash around mandrels.

1 Light switch is "OFF".

2 Bulb(s) or lamp(s) burned out.

3 Faulty light switch.

4 Loose or damaged wiring.

5 Blown fuse.

1 Bad battery cell(s).

2 Poor cable connections.

3 Faulty regulator (if so equipped).

4 Faulty alternator.

CORRECTION

1 Remove obstruction.

2 Replace mower drive belt.

3Replace idler pulley.

4 Contact a Sears or other

qualified service center.

1 Place throttle control in "FAST"

position.

2 Shift to slower speed.

3Allow grass to dry before mowing.

4 Level mower deck.

5 Check tires for proper PSI.

6 Replace/sharpen blade. Tighten

blade bolt.

7 Clean underside of mower

housing.

8 Replace mower drive belt.

9 Reinstall blades sharp edge down.

10 Replace with blades listed in

this manual.

Clean around mandrels to

open vent holes.

1 Turn light switch "ON".

2 Replace bulb(s) or lamp(s).

3 Check/replace light switch.

4 Check wiring and connections.

5 Replace fuse.

1 Replace battery.

2 Check/clean all connections.

3 Replace regulator.

4 Replace alternator.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center.

PROBLEM CAUSE CORRECTION

Loss of drive 1 Freewheel control in 1

"DISENGAGED" position.

2 Debris on steering plate (if 2

equipped).

3 Motion drive belt worn, damaged, 3

or broken.

Place freewheel control in

"ENGAGED" position.

See "CLEANING" in the

maintenance section.

Replace motion drive belt.

4 Air trapped in transmission during 4 Purge transmission.

shipment or servicing.

5 Axle key missing. 5 Install axle key at rear wheel. See

"TO REMOVE WHEEL" in the

Service and Adjustments section.

Engine "backfires"

when turning

engine "OFF"

1 Engine throttle control not set 1 Move throttlecontrol between

between half and full speed (fast) half and full speed (fast) position

position before stopping engine, before stopping engine.

Engine dies when 1 Reverseo,peration system (ROS) 1

tractor is shifted is not ON" while mower or other

into reverse attachment is engaged.

Turn ignition key to ROS "ON"

position. See Operation section.

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

I/v_

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_b ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or ether upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

09.19.12 JM Printed in the U.S.A.

Craftsman 917255728 User Manual 46 RIDING LAWN TRACTOR Manuals And Guides 1210224L

Navigation menu

Versions of this User Manual:

Views

Navigation
