Owner's Manual

CRAFTXMRNo

16 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No

917.271071

•Safety

•Assembly

•Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mort - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman Website: ww,x,.sears.com/craftsman

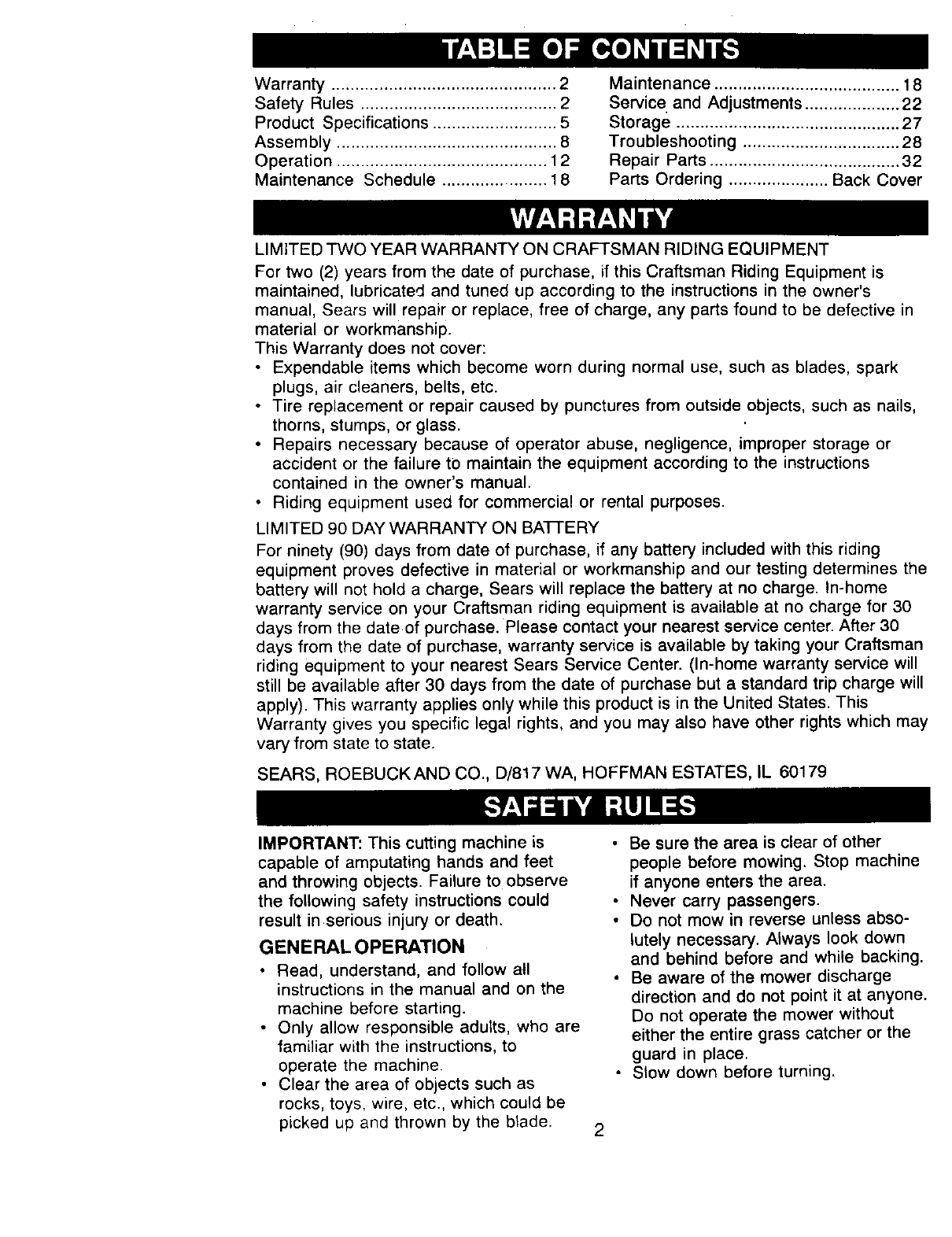

Warranty...............................................2

SafetyRules.........................................2

ProductSpecifications..........................5

Assembly..............................................8

Operation............................................12

MaintenanceSchedule......................18

Maintenance.......................................18

Serviceand Adjustments....................22

Storage...............................................27

Troubleshooting.................................28

RepairParts........................................32

PartsOrdering.....................BackCover

LIMITEDTWOYEARWARRANTYONCRAFTSMANRIDINGEQUIPMENT

Fortwo (2)yearsfromthe dateof purchase,if this CraftsmanRidingEquipmentis

maintained,lubricatedand tuned up accordingto the instructionsin the owner's

manual,Searswill repairor replace,free of charge,anypartsfoundto be defectivein

materialor workmanship.

This Warrantydoesnotcover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

•Repairs necessary because of operator abuse, negligence, improper storage or

accident or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BAFFERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. In-home

warranty service on your Craftsman riding equipment is available at no charge for 30

days from the date of purchase. Please contact your nearest service center. After 30

days from the date of purchase, warranty service is available by taking your Craftsman

riding equipment to your nearest Sears Service Center. (In-home warranty service will

still be available after 30 days from the date of purchase but a standard trip charge will

apply). This warranty applies only while this product is in the United States. This

Warranty gives you specific legal rights, and you may also have other rights which may

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

IMPORTANT: This cutting machine is

capable of amputating hands and feet

and throwing objects. Failure to observe

the following safety instructions could

result in serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all •

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to

operate the machine. .

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blade. 2

Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

Never carry passengers.

Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place.

Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

•Do not operate the machine while

under the influence of alcohol or

drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or

unloading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

serious injury.

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you

cannot back up the slope or if you feel

uneasy on it, do not mow it.

DO"

Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide ob-

stacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommen-

dations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do notturn on slopes unless neces-

sary, and then, turn slowly and

gradually downhill, if possible.

•Do not mow near drop-effs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do nottry to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine'and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adulL

• Be alert and turn machine off if

children enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching

blind corners, shrubs, trees, or other

objects that may obscure vision.

SERVICE

Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container:

Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs

with the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing

them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

• Never carry passengers.

• Do not mew in reverse unless'abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children ou' ff the mowing area

and under the w_ hful care of another

responsible adult.

Be alert and turn machine off if

children enter the area.

• Before and when backing, look behind

and down for small children.

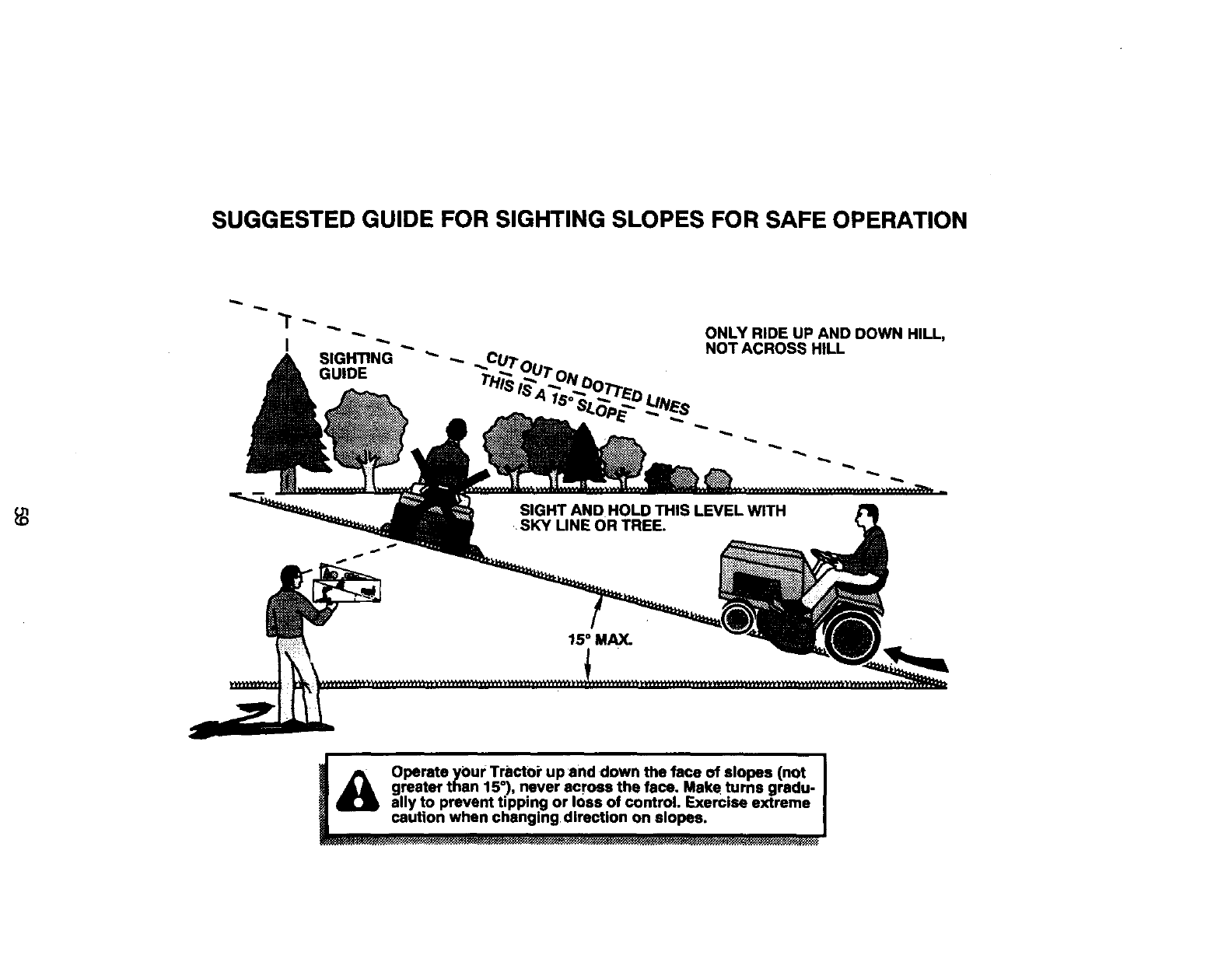

• Mow up and down slopes (15 ° Max),

not across.

Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obsta-

cles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•Do notturn on slopes unless neces-

sary, and then, turn slowly and

gradually downhill, if possible.

• i, Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEAWARE!!!YOUR

SAFETY IS INVOLVED.

_i_CAUTION: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always

disconnect spark plug wire and place

wire where it cannot contact spark plug.

_WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

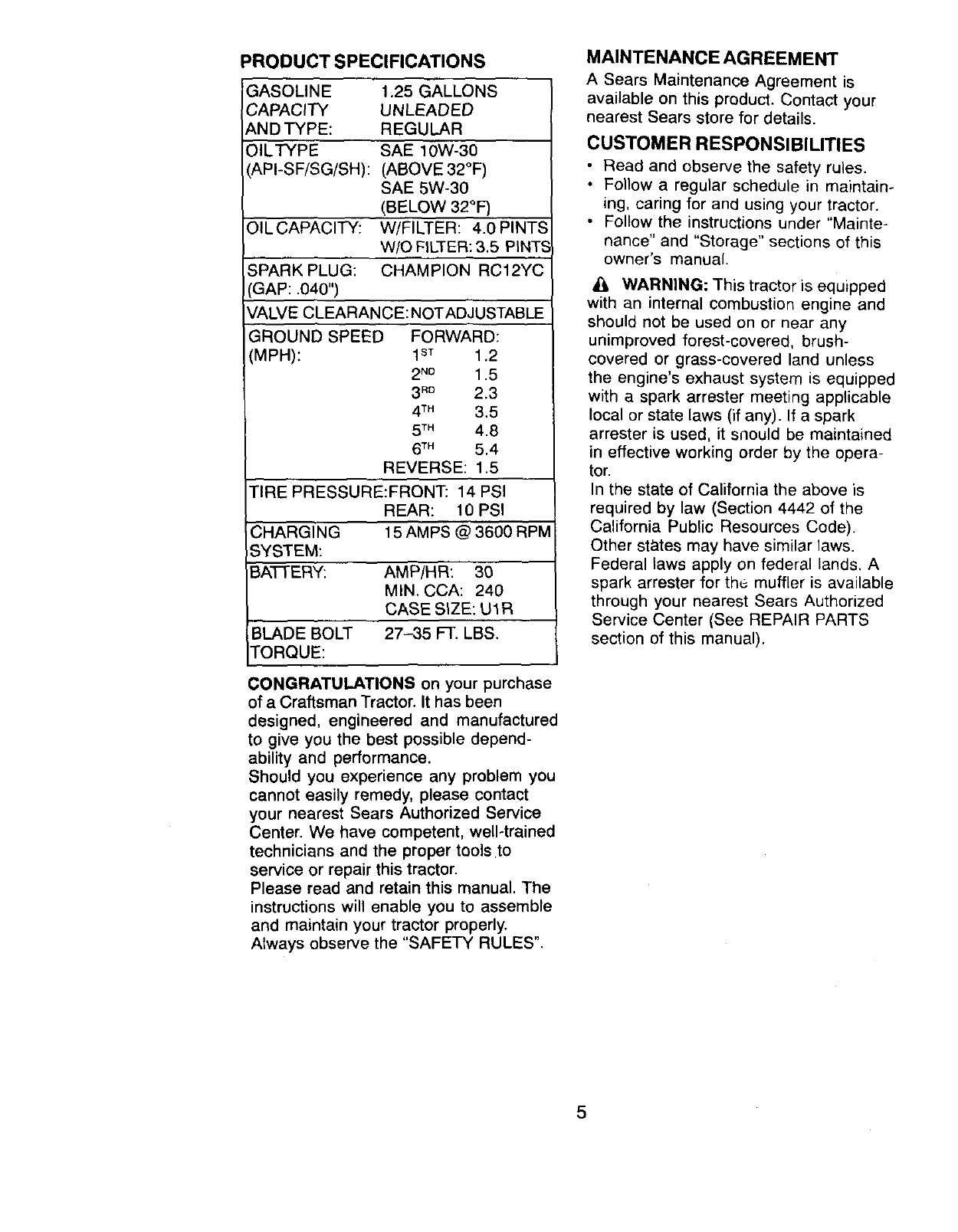

PRODUCT SPECIFICATIONS

GASOLINE t.25 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OILTYPE SAE 10W-30

API-SF/SG/SH): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F}

OILCAPACITY: W/FILTER: 4.0PINTS

W/O FILTER: 3.5 PINT5

SPARK PLUG: CHAMPION RC12YC

GAP: .040")

VALVE CLEARANCE: NOTADJUSTABLE

GROUND SPEED

(MPH):

FORWARD:

1s'r 1.2

2N° 1.5

3R° 2.3

4TM 3.5

5TM 4.8

6TM 5.4

REVERSE: 1.5

TIRE PRESSURE:FRONT: 14 PSI

REAR: 10 PSI

CHARGING 15 AMPS @ 3600 RPM

SYSTEM:

BA"N-ERY: AMP/HR: 30

MIN CCA: 240

I " . CASE SIZE: U1R

BLADE BOLT 27-35 F7". LBS.

ITORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible depend-

ability and performance.

Should you experience any problem you

cannot easily remedy, please contact

your nearest Sears Authorized Service

Center. We have competent, well-trained

technicians and the proper tools to

service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is

available on this product. Contact your

nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

•Follow a regular schedule in maintain-

ing, caring for and using your tractor.

Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_, WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless

the engine's exhaust system is equipped

with a spark arrester meeting applicable

local or state laws (if any). If a spark

arrester is used, it Should be maintained

in effective working order by the opera-

tor.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the, muffler is available

through your nearest Sears Authorized

Service Center (See REPAIR PARTS

section of this manual).

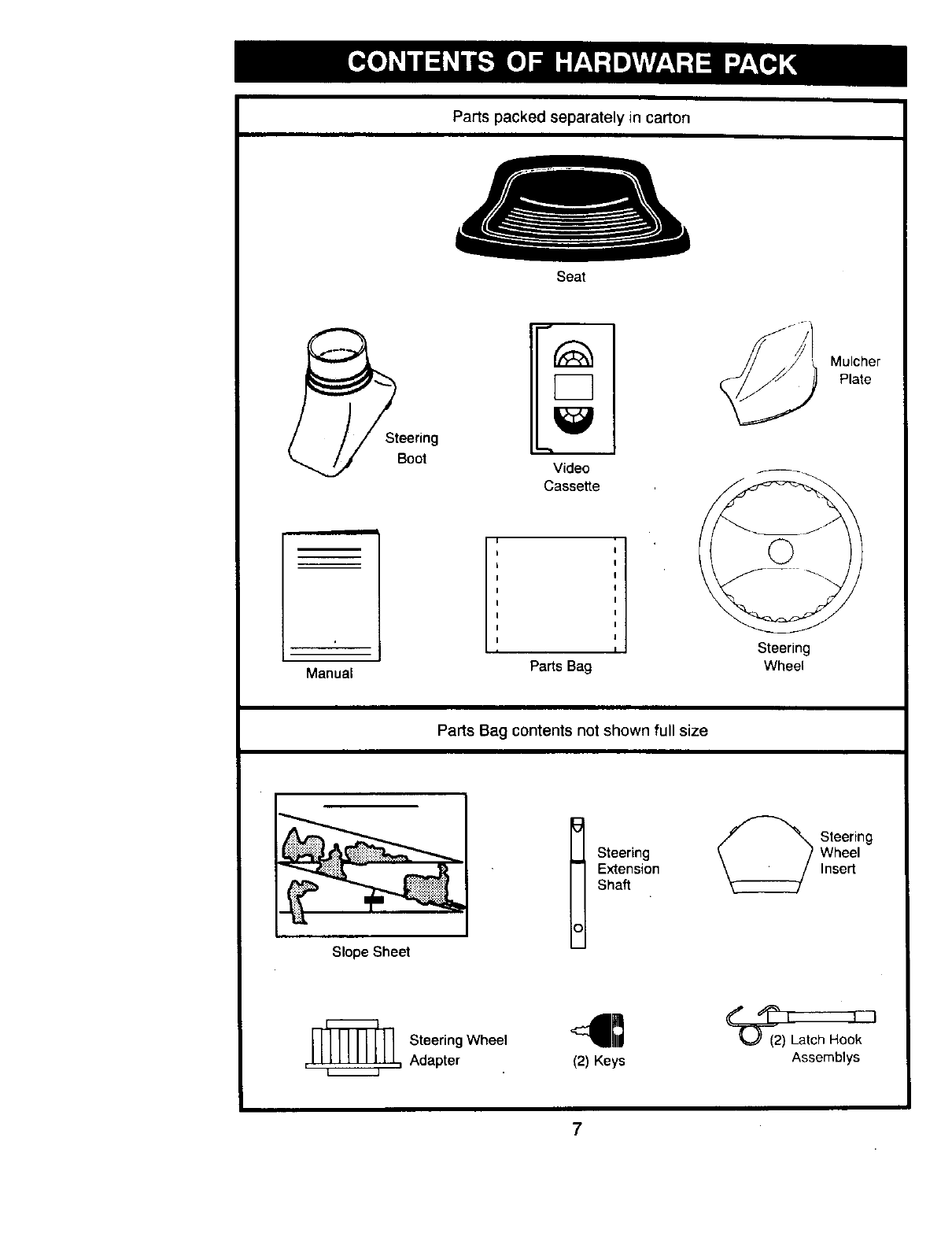

Parts Bag contents shown full size

(1) Hex Bolt 5/16-18 x 1-1/4

(1) Lockwasher 3/8

(1) Large Flat Washer

(1) Hex Bolt

3/8-16 x 1

(1) Locknut 5/16-18

(1) Knob

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Shoulder

Bolt 5/16-18

(2) ckWashers #10

(2) Weld

Nuts #10

(2) Screws #10 x 5/8

(2) Washers

3/16 x 3/4 x 16 Gauge

Parts packed separately in carton

Steering

Boot

Seat

Video

Cassette

Mulcher

Plate

Manual Parts Bag

Steering

Wheel

Parts Bag contents not shown full size

Slope Sheet

t teering

Extension

Shaft

_ teering

Wheel

Insert

Steering Wheel

, , Adapter (2) Keys

_2 I I

) Latch Hook

Assemblys

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe.and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRF") FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) 3/4" Socket w/(1 )

Utility knife drive rachet

(2) 1/2" wrench (1) Phillips Screw-

(1) Tire pressure driver

gauge

When right or left h qd is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRA, ;TOR FROM

CARTON

UNPACK CARTON

•Remove all accessible loose parts

and parts boxes from shipping carton.

• Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flat.

•Check for any additional loose parts or

boxes and remove.

BEFORE ROLLING TRACTOR OFF

SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENS!ON SHAFT AND

BOOT

• Slide extension shaft onto lower

steering shaft. Align mounting holes in

extension and lower shafts and install

5/16 hex bolt and Iocknut. Tighten

securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibs. torque.

•Place tabs of steering boot over tab

slots in dash and push down to

secure.

Insert

r_ _ 3/8 Hex Bolt

3/8

Lockwasher

_ Large Flat

_ -_-_-_Wash er

Stee?ing __ Steering

Wheel _ _,_ Boot

Extension _:> Tabs

Shaft _ _ Adapter

5/16

Locknut 5/16 Hex

Bolt

Tab

Slots

INSTALL STEERING WHEEL

• Position front wheels of the tractor so

they are pointing straight forward.

•Slide steering wheel adapter onto

steering shaft extension.

• Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

• Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

• Snap steering wheel insert into center

of steering wheel.

• Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

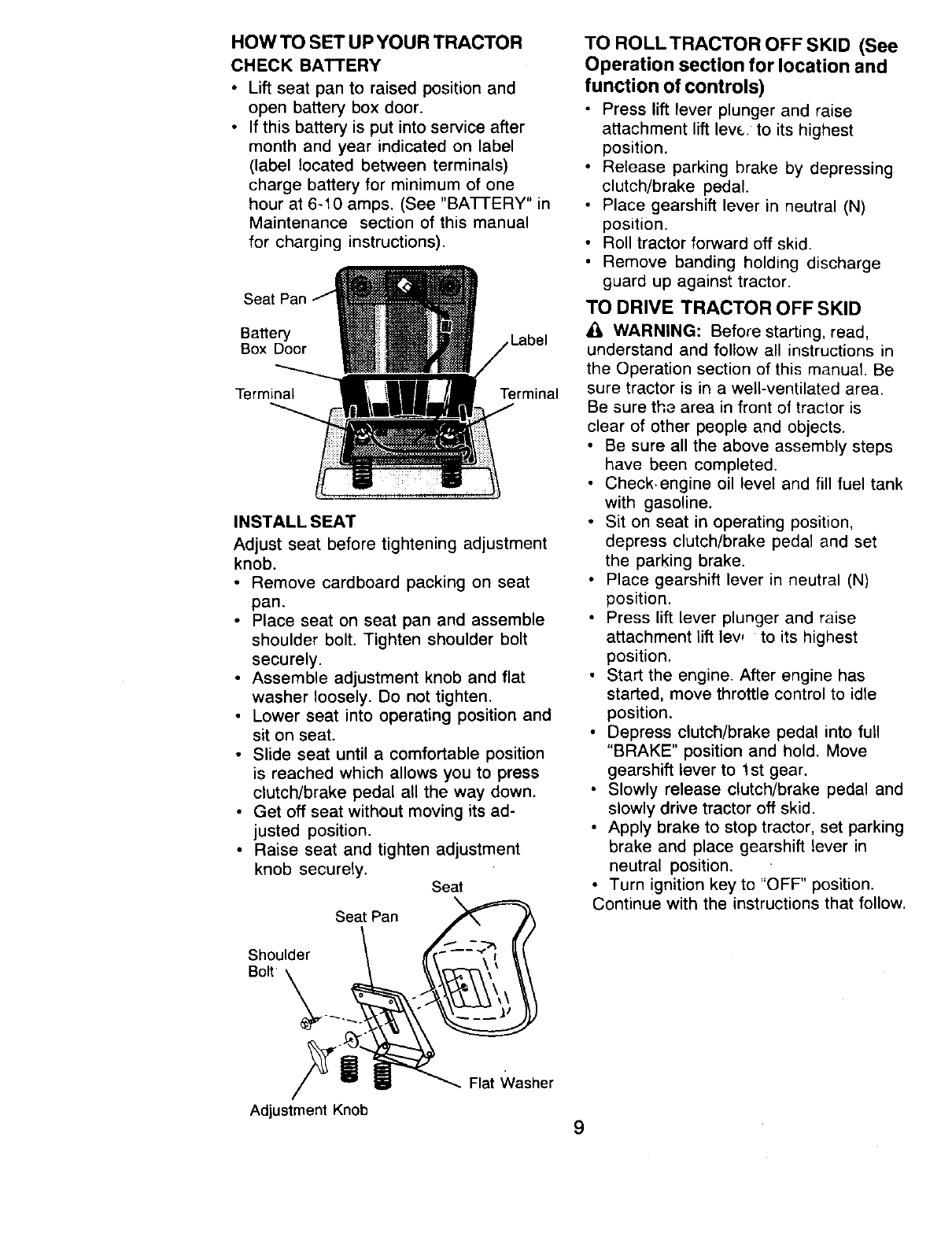

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

•Lift seat pan to raised position and

open battery box door.

• If this battery is put into service after

month and year indicated on label

(label located between terminals)

charge battery for minimum of one

hour at 6-10 amps. (See "BA-i-FERY" in

Maintenance section of this manual

for charging instructions).

Battery Label

Box Door

Terminal Terminal

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

•Remove cardboard packing on seat

pan.

•Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely,

•Assemble adjustment knob and flat

washer loosely, Do not tighten,

•Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

• Get off seat without moving its ad-

justed position.

• Raise seat and tighten adjustment

knob securely. Seat

Seat Pan

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

Press lift lever plunger and raise

attachment lift lev_. to its highest

position.

• Release parking brake by depressing

clutch/brake pedal.

Place gearshift lever in neutral (N)

position.

• Roll tractor forward off skid.

• Remove banding holding discharge

guard up against tractor.

TO DRIVE TRACTOR OFF SKID

_1, WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people and objects.

• Be sure all the above assembly steps

have been completed.

• Check.engine oil level and fill fuel tank

with gasoline.

• Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

• Place gearshift lever in neutral (N)

position.

• Press lift lever plunger and raise

attachment lift lev, to its highest

position.

• Start the engine. After engine has

started, move throttle control to idle

position.

• Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

• Slowly release clutch/brake pedal and

slowly drive tractor off skid.

• Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that follow.

Shoulder

Bolt 'k . .

Adjustment Knob

Flat Washer

CHECK TIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping purpos-

es. Correct tire pressure is important for

best cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS"

section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

sectoin of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

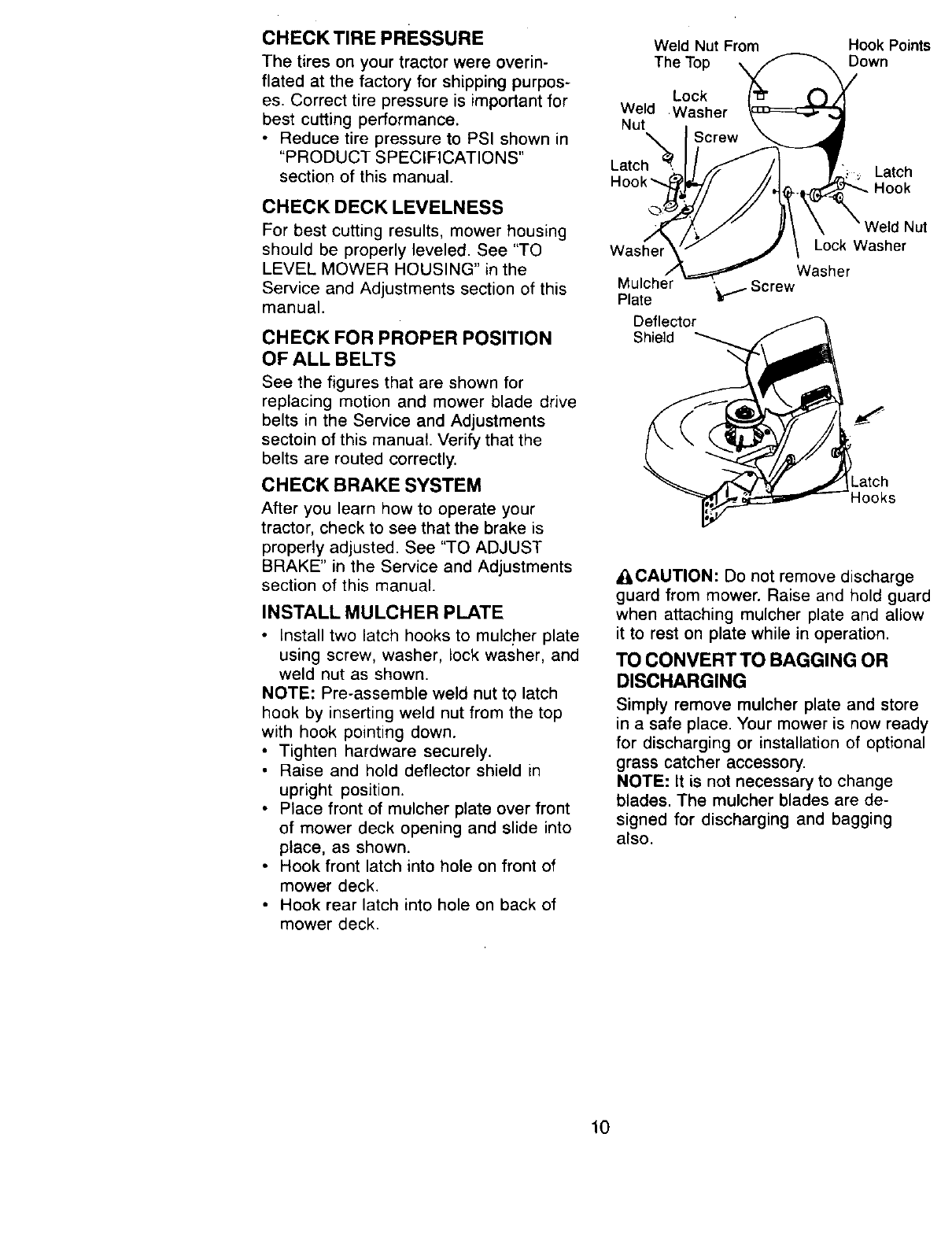

INSTALL MULCHER PLATE

•Install two latch hooks to mulc.her plate

using screw, washer, lock washer, and

weld nut as shown.

NOTE: Pre-assemble weld nut to latch

hook by inserting weld nut from the top

with hook pointing down.

•Tighten hardware securely.

• Raise and hold deflector shield in

upright position.

• Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

• Hook front latch into hole on front of

mower deck.

• Hook rear latch into hole on back of

mower deck.

Weld Nut From

The Top

Lock

Weld .Washer

Nut

Hook Points

Down

Latch Latch

Mulcher

Plate

Deflector

Shield

Lock Washer

Washer

'_/-" Screw

ooks

_I, CAUTION: Do not remove discharge

guard from mower. Raise and hold guard

when attaching mulcher plate and allow

it to rest on plate while in operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store

in a safe place. Your mower is now ready

for discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging

also.

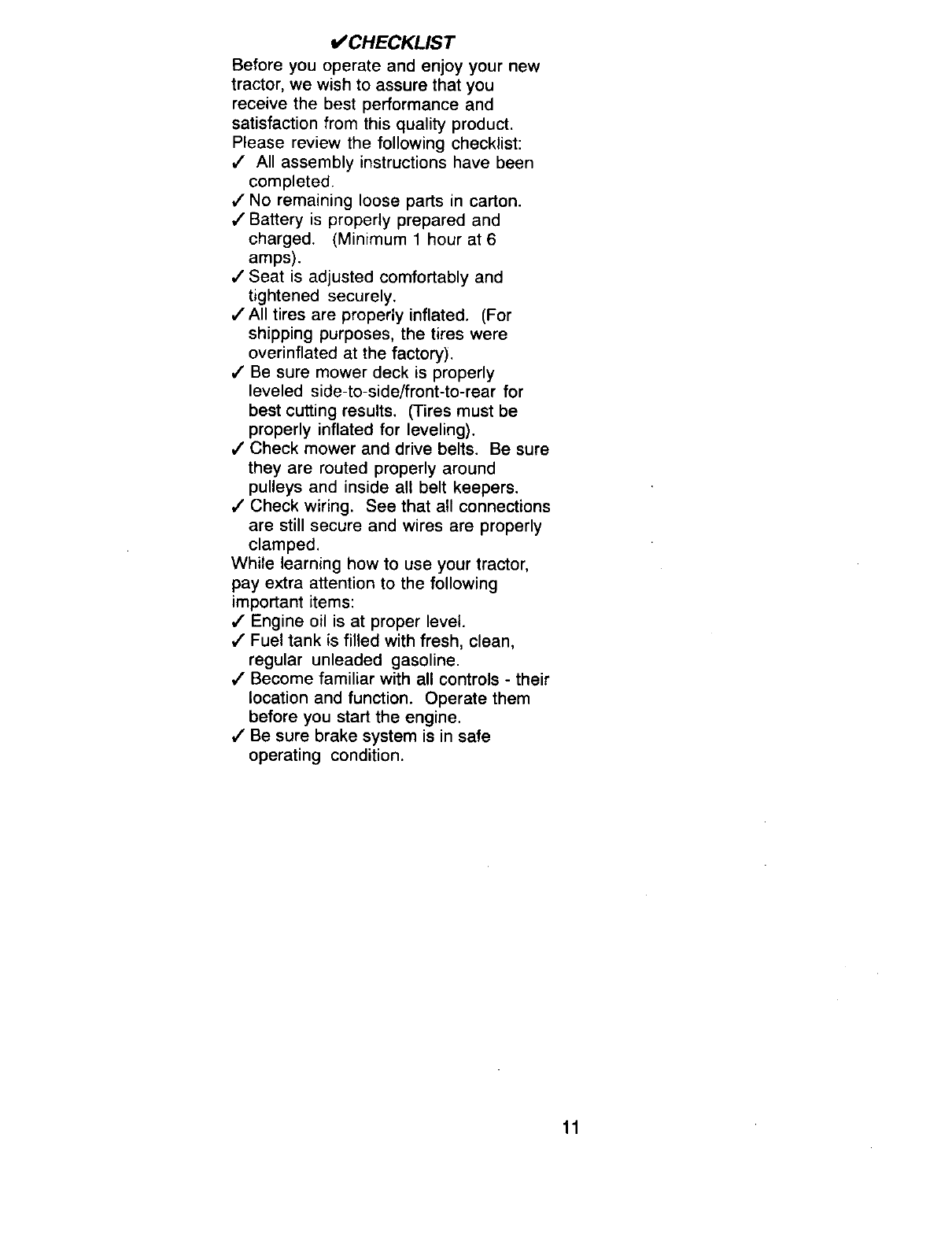

_CHECKUST

Before you operate and enjoy your new

tractor, we wish to assure that you

receive the best performance and

satisfaction from this quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6

amps).

,/Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly

leveled side-to-side/front-to-rear for

best cutting results. (Tires must be

properly inflated for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around

pulleys and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor,

pay extra attention to the following

important items:

4" Engine oil is at proper level.

4" Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

,,, ov .

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

R N H L

ATFACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

KEEP AREA CLEAR SLOPE HAZARDS

'_TTACHMENT

IGNITION C FCH DISENGAGED

DANGER, KEEP HANDS AND FEET AWAY

(SEE SAFETY RULES SECTION)

FREE WHEEL

(Automatic Models only)

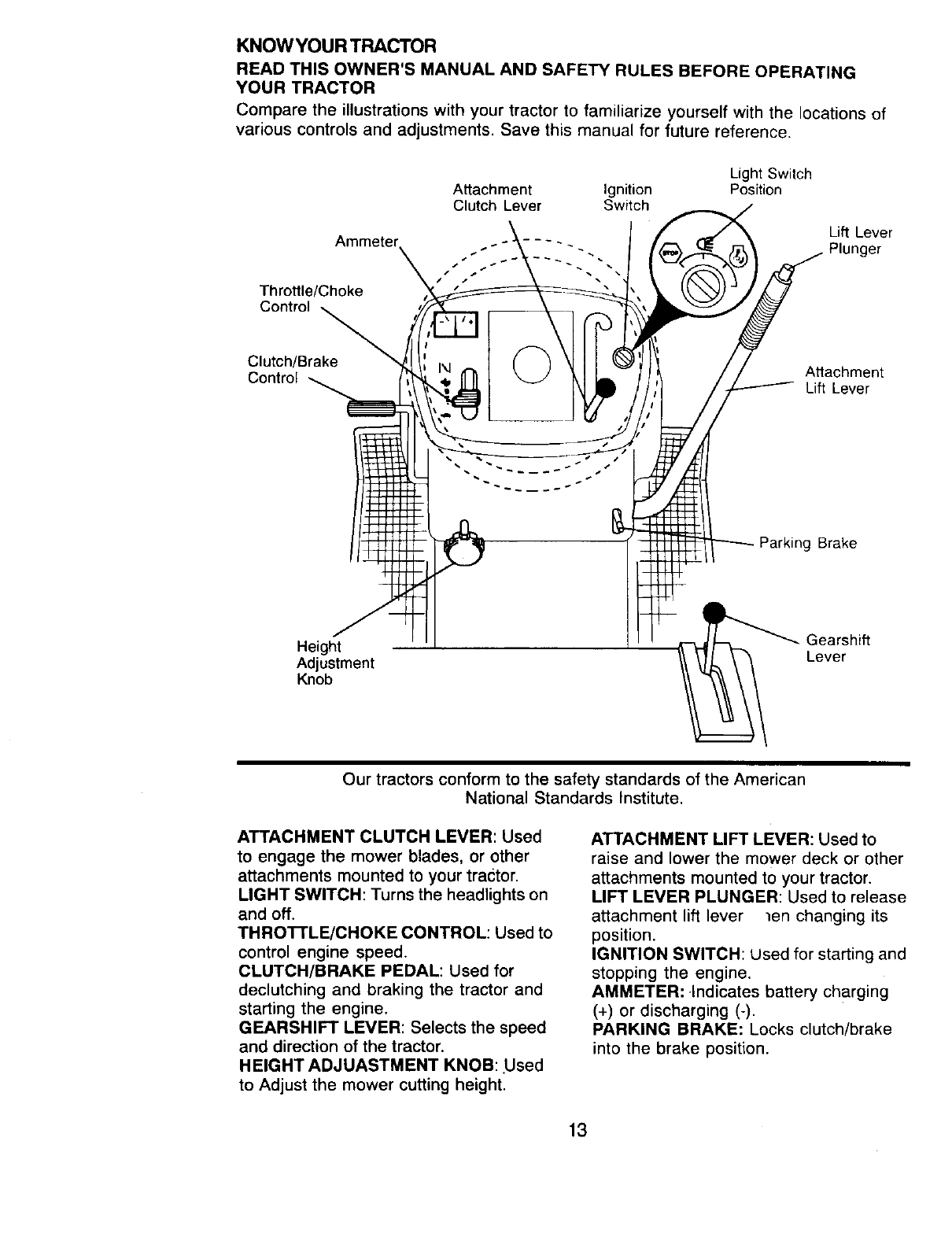

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Attachment Ignition

Clutch Lever Switch

Light Switch

Position

Lift Lever

Throttle/Choke

Control

Clutch/Brake

Control AMachment

Lift Lever

g Brake

Height

Adjustment

Knob

- Gearshift

Lever

Our tractors conform to the safety standards of the American

National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH: Turns the headlights on

and off.

THROTTLE/CHOKE CONTROL: Used to

control engine speed.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER: Selects the speed

and direction of the tractor.

HEIGHT ADJUASTMENT KNOB: .Used

to Adjust the mower cutting height.

ATTACHMENT LIFT LEVER: Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever len changing its

position.

IGNITION SWITCH: Used for starting and

stopping the engine.

AMMETER: .Indicates battery charging

(+) or discharging (-).

PARKING BRAKE: Locks clutch/brake

into the brake position.

The operation of any tractor can result in foreign objects thrown into the I

eyes, which can result in severe eye damage. Always wear safety glasses I

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend a wide vision.safety mask over spectacles, or

standard safety glasses.

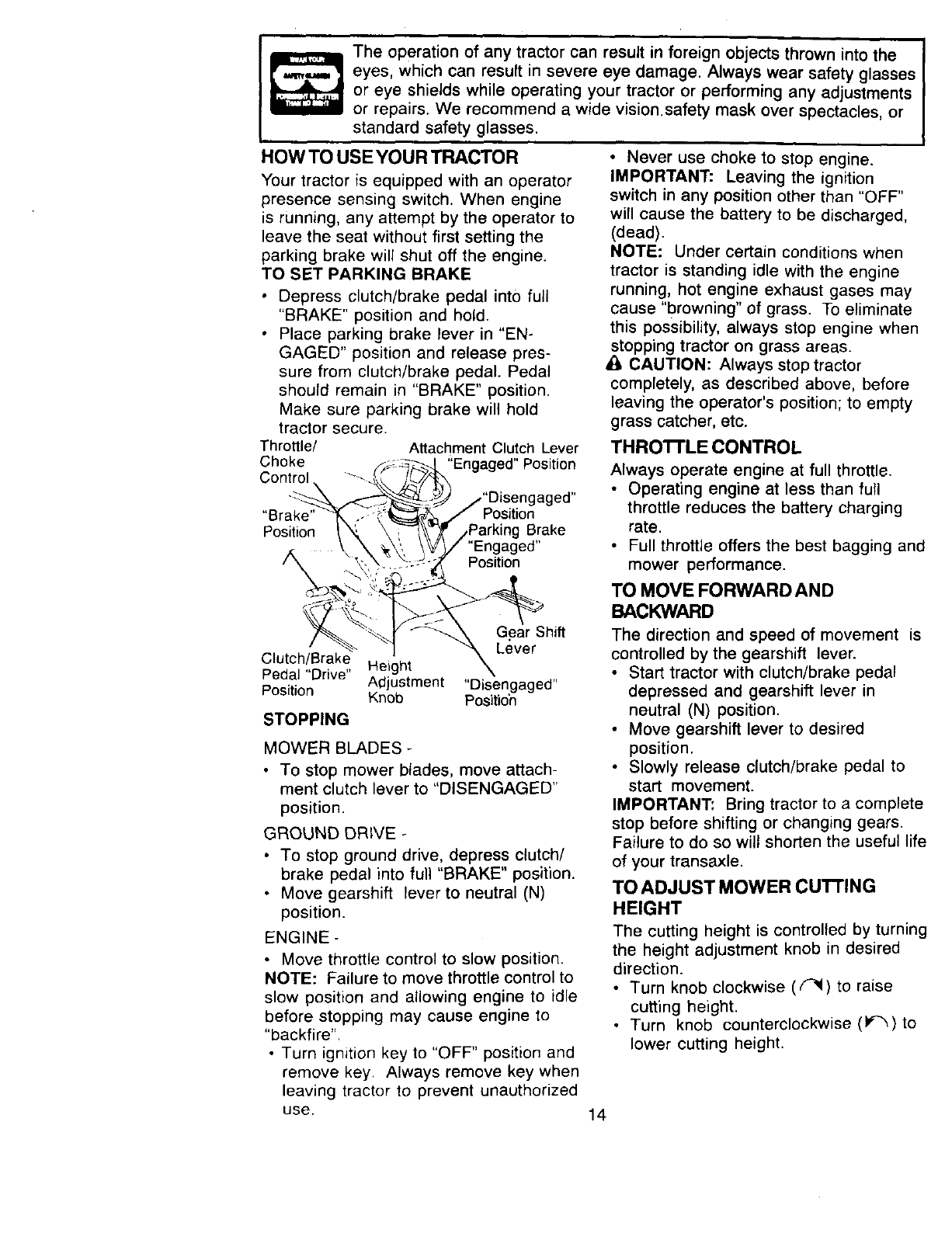

HOW TO USEYOUR TRACTOR

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

TO SET PARKING BRAKE

•Depress clutch/brake pedal into full

"BRAKE" position and hold.

• Place parking brake lever in "EN-

GAGED" position and release pres-

sure from clutch/brake pedal. Pedal

should remain in "BRAKE" position.

Make sure parking brake will hold

tractor secure.

Throttle/ Attachment Clutch Lever

Choke "Engaged" Position

Control

led',

"Brak_ Position

Position ,Parking Brake

ed"

/_ Position

G.ear Shift

Lever

Clutch/Brake Height

Pedal "Drive" Adjustment "Disengaged"

Position Knob Positio'n

STOPPING

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

•Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition

switch in any position other than "OFF"

will cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

THROI-I'LE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

• Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

• Move gearshift lever to desired

position.

• Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER cu'n'ING

HEIGHT

The cutting height is controlled by turning

the height adjustment knob in desired

direction.

• Turn knob clockwise (F_I) to raise

cutting height.

• Turn knob counterclockwise (P_)to

lower cutting height.

The cuttingheightrangeis approxi-

mately1-1/2"to 4". The heightsare

measuredfromthe groundto the blade

tip withthe enginenotrunning.These

heightsareapproximateand mayvary

dependingupon soil conditions,height

of grassandtypesof grassbeing

mowed.

• The averagelawnshouldbecut to

approximately2-1/2 inchesduringthe

cool seasonand to over3 inches

duringhot months. For healthierand

betterlookinglawns,mowoftenand

aftermoderategrowth.

• Forbestcuttingperformance,grass

over6 inchesin heightshouldbe

mowedtwice. Makethefirstcut

relativelyhigh;the secondto desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position, Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions,

•Adjust gauge wheels with tractor on a

flat level surface.

• Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUFFING

HEIGHT" in the Operation section of

this manual).

• With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

• Repeat for opposite side installing

gauge wheel in same adjustment hole.

Gauge

Wheel

Mounting

Bracket --,

3/8-16

Locknut

3/8-1E

Gauge

TO OPERATE MOWER

Shoulder

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment

clutch engaged will shut off the engine.

•Select desired height of cut.

• Lower mower with attachment lift

control.

• Start mower blades by engaging

attachment clutch control.

• TO STOP MOWER BLADES - disen-

gage attachment clutch control.

_CAUTION: Do no_ operate the mower

without either the entire grass catcher, on

mowers so equipped, or the discharge

guard in place.

Attachment Clutch Attachment Lift

Lever "Engage Lever High Position

"Disengaged' Position

Guard

TO OPERATE ON HILLS

h_ilCAUTION: Do not drive up or down

Is with. slopes greater than 15° and do

not drive across any slope.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move gearshift le,,r to 1st gear. Be

sure you have all( ed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest

position with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope,

15 cord, etc.).

TOWING CARTSAND OTHER

A'n'ACHM ENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a toad, while on a slope, is

dangerous. Tires can lose traction with

the ground and cau._e you to lose control

of your tractor.

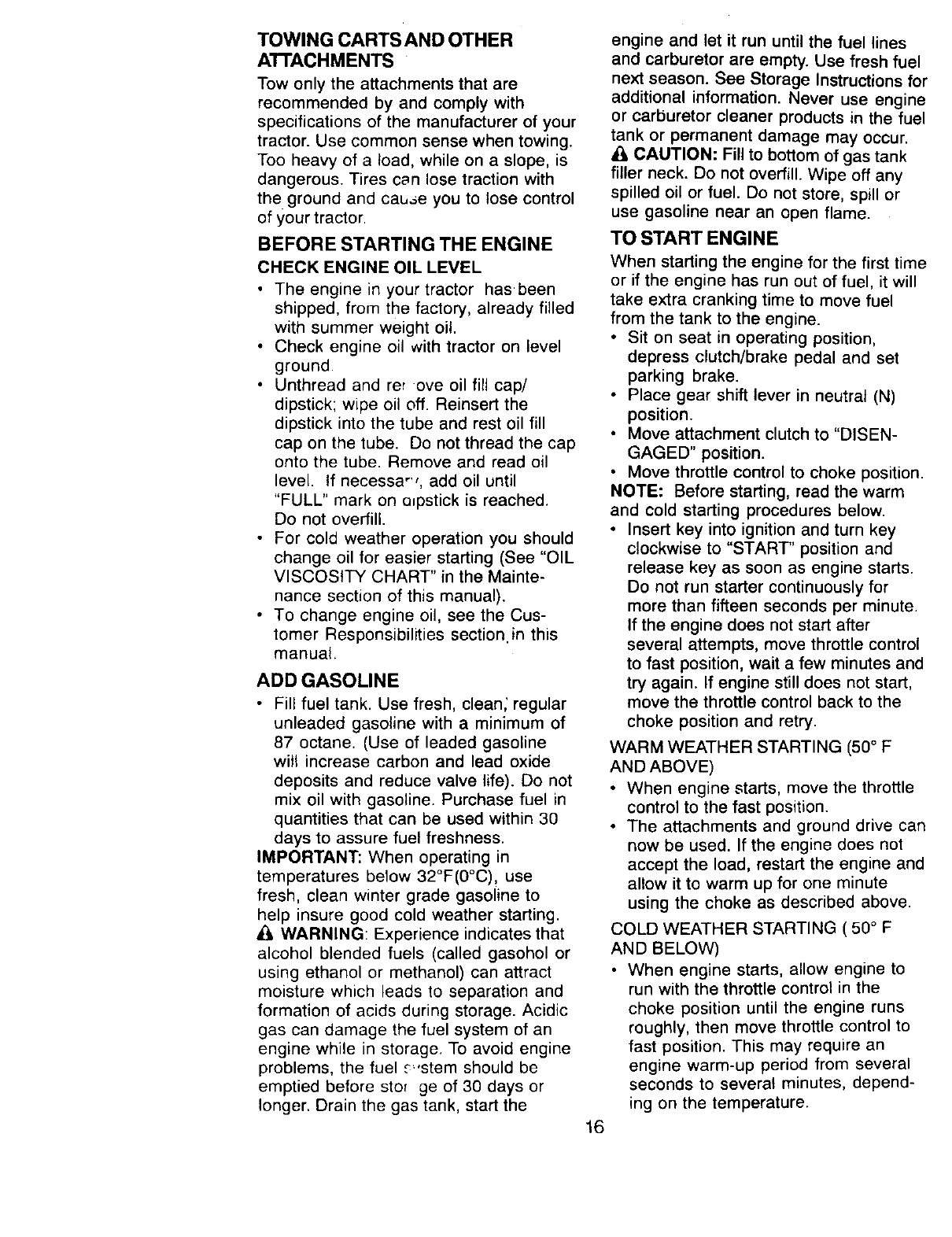

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

•Check engine oil with tractor on level

ground.

• Unthread and re_ ove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the cap

onto the tube. Remove and read oil

level. If necessa,',, add oil until

"FULL" mark on a,pstick is reached.

Do not overfill.

•For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Cus-

tomer Responsibilities section.in this

manual.

ADDGASOLINE

• Fill fuel tank. Use fresh, clean: regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in

temperatures below 32°F(0°C), use

fresh, clean winter grade gasoline to

help insure good cold weather starting.

WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel _,,stem should be

emptied before stor ge of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_, CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel

from the tank to the engine.

• Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

• Place gear shift lever in neutrat (N)

position.

• Move attachment clutch to "DISEN-

GAGED" position.

• Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

• Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, move throttle control

to fast position, wait a few minutes and

try again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F

AND ABOVE)

• When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING ( 50 ° F

AND BELOW)

• When engine starts, allow engine to

run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control to

fast position. This may require an

engine warm-up period from several

seconds to several minutes, depend-

ing on the temperature.

• The attachments can also be used

during the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32

F) the carburetor fuel mixture may need

to be adjusted for best engine perfor-

mance. See "TO ADJUST CARBURE-

TOR" in the Service and Adjustments

section of this manual.

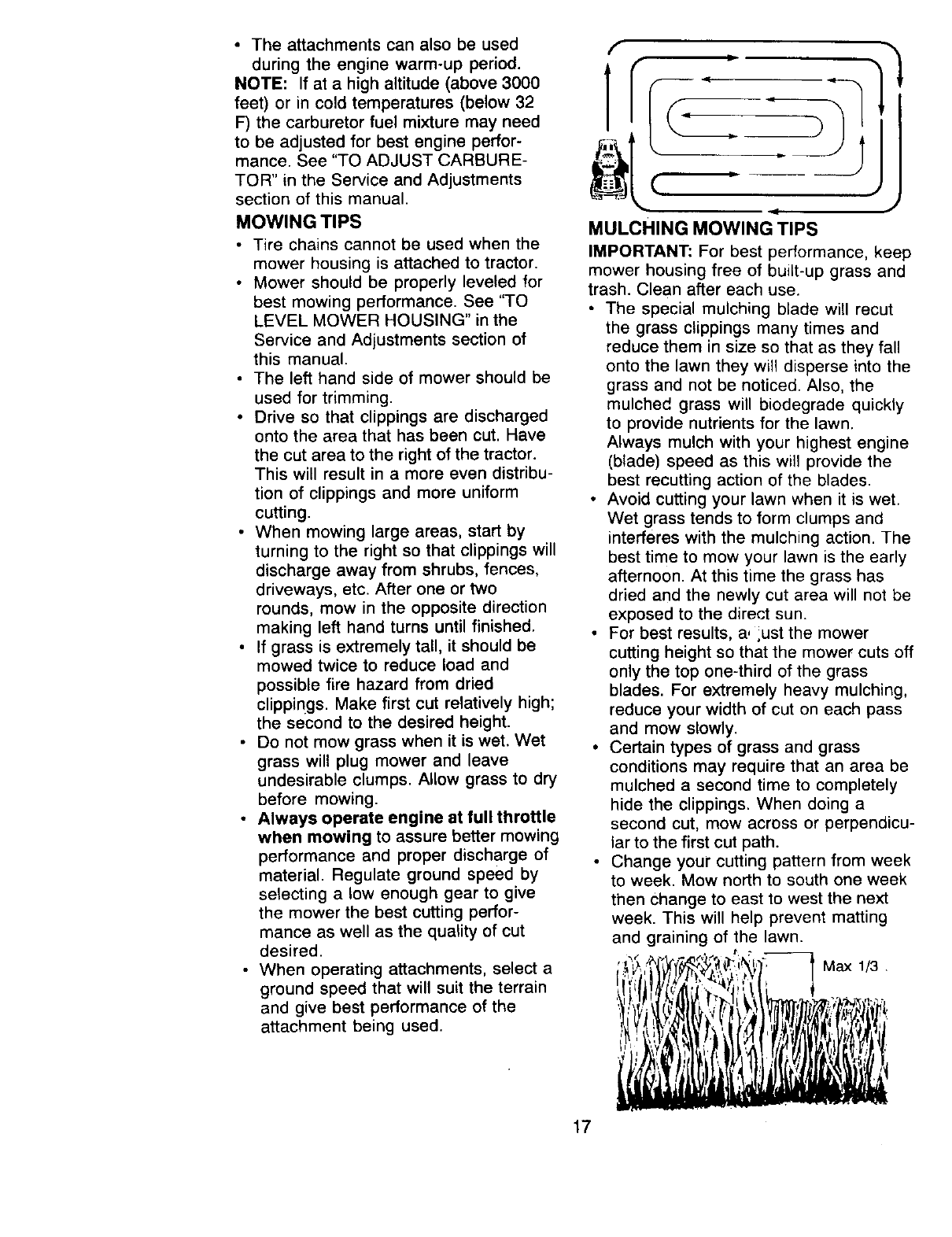

MOWING TIPS

•Tire chains cannot be used when the

mower housing is attached to tractor.

•Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of

this manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried

clippings. Make first cut relatively high;

the second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting alow enough gear to give

the mower the best cutting perfor-

mance as well as the quality of cut

desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

•The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

•For best results, a, _ust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

•Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then Change to east to west the next

week. This will help prevent matting

and graining of the lawn.

Max 1/3

MAINTENANCE SCHEDULE _,'_/_/_o_

Check Brake Operation _

Chock Tire Pressure

Cheek Operator Presence and

TInterlock Systems

R" Check for Loose Fasteners ll_ ¥/z ll_

Sharpen/Replace Mower Blades _I

TLubrication Char[ V#

0Chock Battery Level

a Clean Battery and T_rminals

Check Transaxle Cooling

Adjust Blade Belt(s) Tension _s

Adjust Motion Drive Belt(s) Tension 11_5

Check Engine Oil Level _

Change Engine Oil _2; V#

ECleanAirFilter _2

NClean Air Screen

G Inspect Muffler/Spark Arrester

NReplace Oil Filter (If equipped) 1_1.2

Clean Engine Cooling Fins _11_2

Replace Spark Plug _2

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 Change more ellen when operating under aheaVy Iood or in hngh ambient temperatures. 5 If equipped with adjustable system

2 Service more ellen when operQting in dirty or dusty conditions 6 Not required if equtpped w_th mainlenQP, ce-free bOtter-/

3If equipped w_h oil filter¸ chQnge oil every 50 hours¸ 7 Tighten front aLxle p_vot her to 35 fl .Ibs mRx_mum

4Replace bh_des more o_en when mowin 0in sandy sob Do not overtighten

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items tha_ have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual. Some adjustments will need to

be made periodically to properly

maintain your tractor.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear. A

new spark plug and clean air filter

assure proper air-fuel mixture and

help your engine run better and last

longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and inter-

lock systems for proper operation.

• Check for loose fasteners.

LUBRICATION CHART

_)Spindle )indle Zerk

Wheel Wheel

zerk Bearing

zerk

OSAE 30 or 10w30 motor oil

_)General Purpose Grease

(_)Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be

adjusted. (See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual).

TIRES

• Maintain proper atr pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or

insect control chemicals which can

harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire

sealant may be purchased from your

local parts dealer. Tire sealant also

prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and

interlock systems are working properly. If

your tractor does not function as de-

scribed below, repair the problem

immediately.

•The engine should not start unless the

clutch/brake pedal is fully depressed

and attachment clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

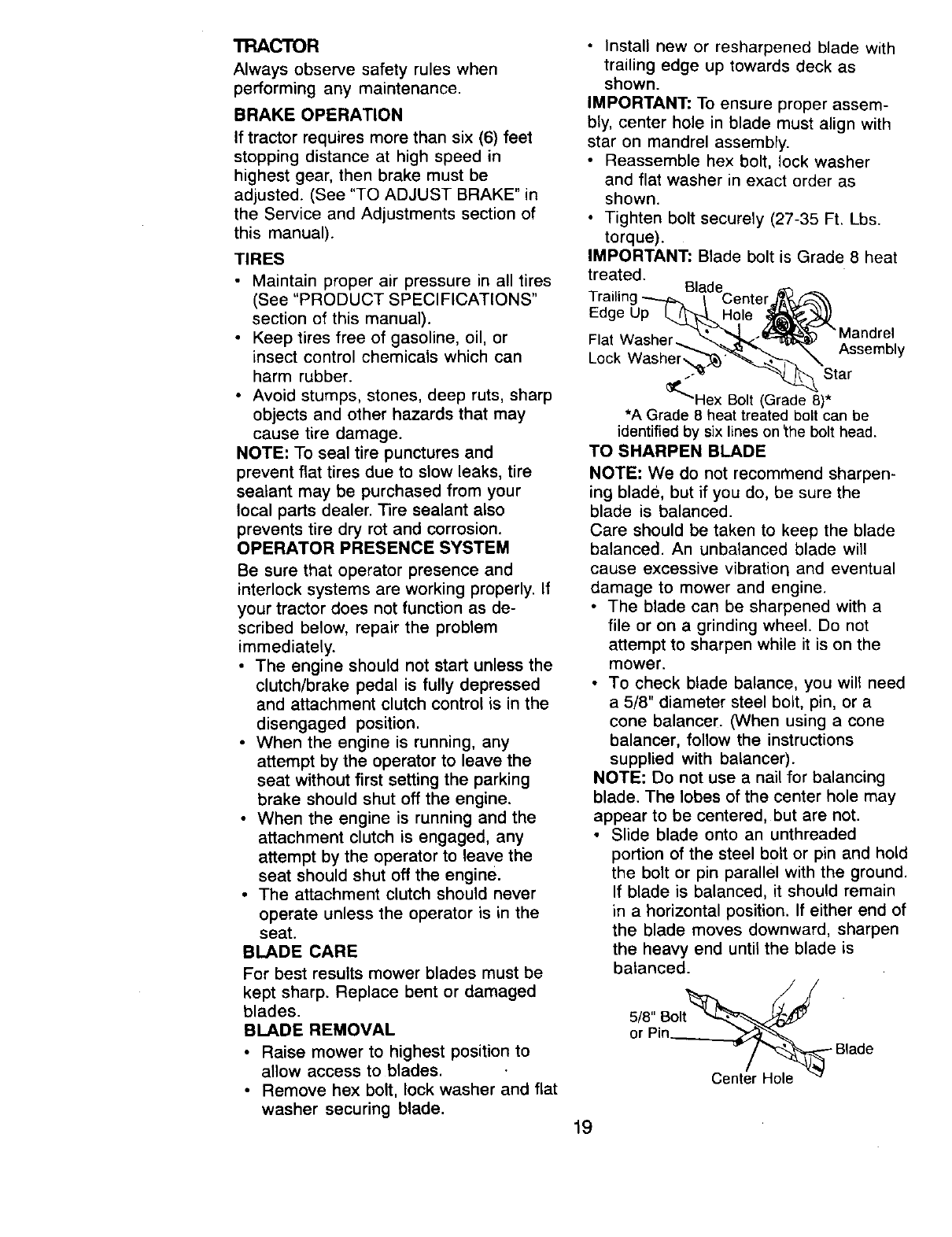

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

•Raise mower to highest position to

allow access to blades.

•Remove hex bolt, lock washer and flat

washer securing blade.

• Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assem-

bly, center hole in blade must align with

star on mandrel assembly.

• Reassemble hex bolt, lock washer

and flat washer in exact order as

shown.

•Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is Grade 8 heat

treated. BladeCenter

Edge Up

Lock Assembly

Star

_'"'Hex Bolt (Grade 8)*

*A Grade 8 heat treated bolt can be

identified by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade, but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a

file or on a grinding wheel. Do not

attempt to sharpen while it is on the

mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a

cone balancer. (When using a cone

balancer, follow the instructions

supplied with balancer).

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade onto an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain

in a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

Center Hole

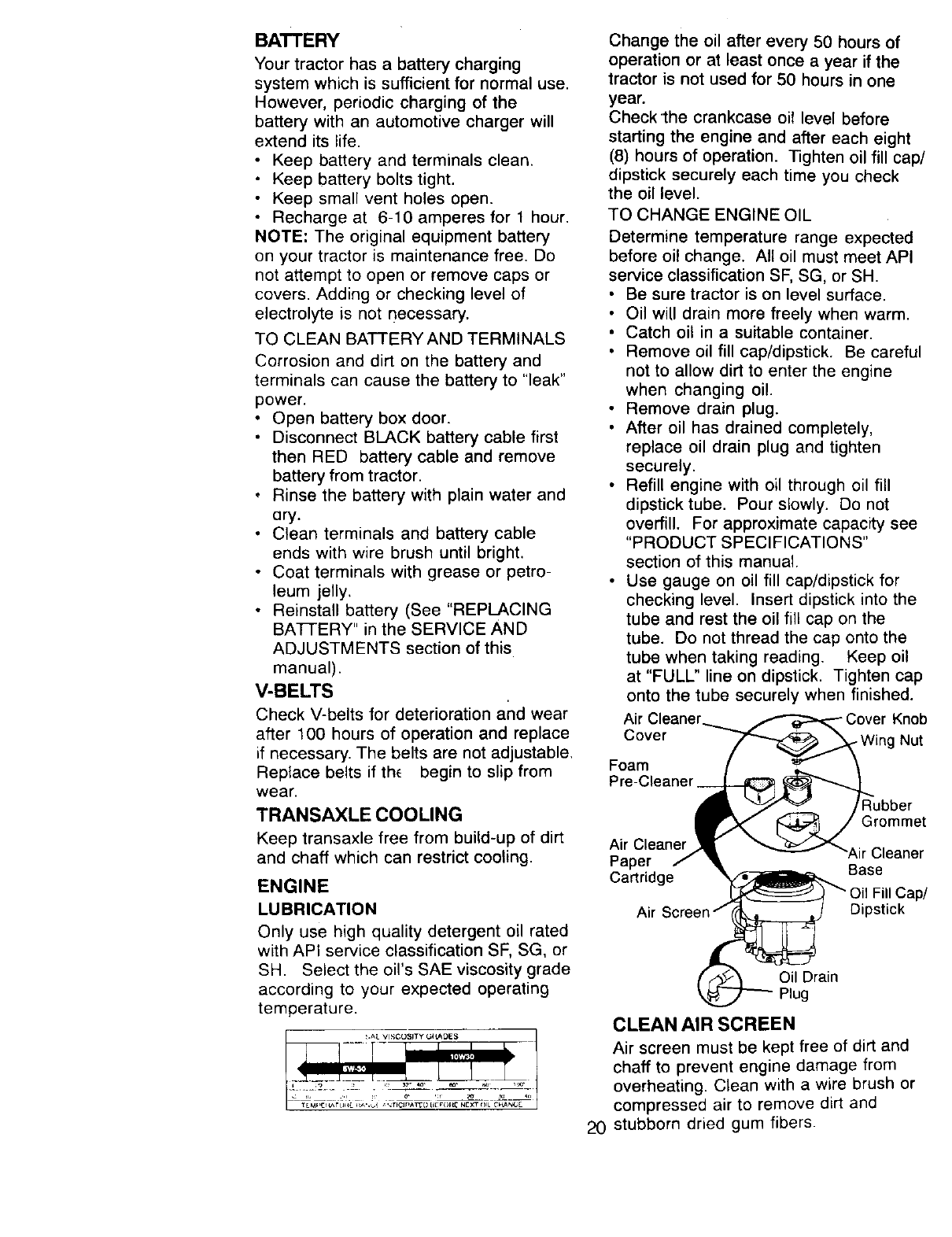

BATTERY

Your tractor has a battery charging

system which is sufficient for normal use.

However, periodic charging of the

battery with an automotive charger will

extend its life.

•Keep battery and terminals clean.

•Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery

on your tractor is maintenance free. Do

not attempt to open or remove caps or

covers. Adding or checking level of

electrolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

•Open battery box door.

• Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

•Rinse the battery with plain water and

ary.

•Clean terminals and battery cable

ends with wire brush until bright.

• Coat terminals with grease or petro-

leum jelly.

• Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if th_ begin to slip from

wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF, SG, or

SH. Select the oil's SAE viscosity grade

according to your expected operating

temperature.

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check

the oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG, or SH.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

• Remove drain plug.

• After oil has drained completely,

replace oil drain plug and tighten

securely.

• Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

• Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into the

tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULL" line on dipstick. Tighten cap

onto the tube securely when finished.

Air Cleane_

Cover -Wing Nut

Foam

Pre-Cleaner

Grommet

Air Cleaner

Paper

Cartridge

Air Screen /

Air Cleaner

Ca ,

Dipstick

)__ Oil Drain

Plug

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

20 stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING

AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary.

Make sure the cooling shrouds are

reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or

every season. Service paper cartridge

every 100 hours of operation or every

season, whichever occurs first.

Service air cleaner more often under

dusty conditions.

•Remove knob and cover.

• Remove wing nut and air cleaner from

base.

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth. Allow

it to dry.

• Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oi1.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged

cartridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will

damage the cartridge.

Reinstall the pre-cleaner (cleaned and

oiled) over the paper cartridge.

• Reassemble air cleaner, wing nut,

cover and tighten knob securely.

ENGINE OIL FILTER

Replace the engine oil filter every

season or every other oil change if the

tractor is used more than 100 hours in

one year.

Drain oil from engine crankcase (See

"TO CHANGE ENGINE OIL" in this

section of this manual, through step

remove drain plug).

• Remove oil filter and wipe off filter

adapter.

• Apply a thin coating of new engine oil

to the rubber gasket on replacement

oil filter.

•install replacement oil filter on filter

adapter. Turn oil filter clockwise until

rubber gasket contacts the filter

adapter, then tighten filter an addi-

tional 1/2 turn.

• Fill crankcase with new oil (See "TO

CHANGE ENGINE OIL" in this section

of this manual). For approximate

capacity see "PRODUCT SPECIFICA-

TIONS" section of this manual.

• Start the engine and check for oil

leaks. Correct any leaks before

placing engine into full operation.

__ Oil

Filter

MUFFLER

Inspect and replace corroded muffler

and spark arrester (if equipped) as it

could create a fire hazard and/or

damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel 'er becomes

clogged, obstructing _el flow to carbure-

tor, replacement is required.

•With engine cool, remove filter and

plug fuel line sections.

•Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

•Be sure there are no fuel line leaks

and clamps are properly positioned.

•Immediately wipe up any spilled

gasoline.

IFilter

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

•Protect painted surfaces with automo-

tive type wax.

We do.not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out

Water in engine can result in a short-

ened engine life.

iii I

CAUTION: Before performing any service or adjustments:

Depress clutch/brake pedal fully and set parking brake.

Place gearshift lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position.

Turn ignition key "OFF" and remove key.

Make sure the blades and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

• Place attachment clutch in "DISEN-

GAGED" position.

• Move attachment lift lever forward to

lower mower to its lowest position.

•Roll belt off engine pulley.

• Remove small retainer spring, and lift

clutch spring off pulley bolt.

• Remove large retainer spring,' slide

collar off and push housing guide out

of bracket.

• Disconnect anti-swaybar from'chassis

bracket by removing retainer spring.

Disconnect suspension arms from rear

deck bracket_ by removing retainer

springs.

• Disconnect front links from deck by

removing retainer springs.

Small Retainer

Clutch Sprin,

• Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch sprir_g onto square hole in

frame.

TO INSTALL MOWER

• Raise attachment lift lever to its

highest position.

• Slide mower under tractor with

discharge guard to right side of tractor.

• Lower lift lever to its lowest position.

• Install mower in reverse order of

removal instructions.

.'-'";,;'-"_"_'-- Square Hole

Suspension Arms ,.J Engine Pulley

Link

Retainer S

Anti-Sway

Collar Retainer Springs

(Both Sides)

Housing Guide

Large Retainer Spring

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS"). If tires are

over or underinflated, you will not

properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

Raise mower to its highest position.

•At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

•If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lilt

link adjustment nut on that side.

•To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

Bottom Edge of _ Bottom Edge of

Mower tof-'-_. _../_lVlower

Ground I {,ll_ _,1 It°

Suspension Arm

Lift Unk Ad}ustment Nut

FRONT-TO-BACK ADJUSTM ENT

IMPORTANT: Deck must be level side-

to-side. If the following front-to-back

adjustment is necessary, be sure to

adjust both front links equally so

mower will stay level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front

and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length. Both links should be

approximately 10-3/8".

•If links are not equal in length, adjust

one link to same length as other link.

•To lower front of mower loosen nut "E"

on both front links an equal number of

turns. 23

When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.

When distance "D' is 1/8" to 1/2" lower

at front than rear, tighten nut "F"

against trunnion on beth front links.

Recheck side-to-side adjustment.

o o ._:-

Both Front kinks Should be Equal in Length

.o, E

Trunn 0n -_

Front kinks

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor

on level surface. Engage parking brake.

BELT REMOVAL -

• Remove mower fr n tractor (See "TO

REMOVE MOWEt_' in this section of

this manual).

• Work belt off both mandrel pulleys and

idler pulleys.

•Pull belt away from mower.

Mandrel

Pulley Idler

Pulle

Jlley

BELT INSTALLATION -

•Install new belt in reverse order of

removal.

• Make sure belt is in all pulley grooves

and inside all belt guides.

• Install mower in reverse order of

removal instructions.

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the right side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be

adjusted.

•Depress clutch/brake pedal and

engage parking brake.

•Measure distance between brake

operating arm and nut "A" on brake

rod.

•If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

• Road test tractor for proper stopping

distance as state above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contactyour nearest authorized

service centeir/department.

1;2

With Parking Brake

'"Engaged"

Nut "A"

Jam Nut

perating Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

• Remove belt from stationary idler and

clutching idler.

• Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

• Pull belt toward front of tractor and

remove downwards from around

engine pulley.

• Install new belt t reversing above

procedure•

Engine Pulley _

Clutching Idler f

• J

Stationary Idler

Transaxle

Pulley

TRANSAXLE GEAR SHIFT LEVER

NEUTRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in the neutral (N)

(lock gate) position. The adjustment is

preset at the factory; however, if adjust-

ment is needed, proceed as follows:

• Make sure transaxle is in neutral (N).

NOTE:-When the tractor rear wheels

move freely, the transaxle is in neutral.

• Loosen adjustment bolt in front of the

right rear wheel.

• Position the gear shift lever in the

neutral (N) position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Neutral

Lock

_ate

•Adj t Bolt

/_ ustmen

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of

this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel

toe-in or camber, contact your nearest

authorized service center.

TO REMOVE WHEEL FOR REPAIRS

•Block up axle securely.

•Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in

rear wheel hub and axle. Insert square

24 key.

• Replacewashersand snap retaining

ring securelyin axle groove.

•Replace axle cover.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire

sealant may be purchased from your

local parts dealer. Tire sealant also

prevents tire dry rot and corrosion.

Washers .,__

Axle Retain]kkn__._

Cover Ring',

Square Key_ r

(Rear Wheel Only)------..--_'

TO START ENGINE WITH A WEAK

BATrERY

_I_CAUTION: Lead-acid batteries gener-

ate explosive gases. Keep sparks, flame

and smoking materials away from batter-

ies. Always wear eye protection when

around batteries.

If your battery is too weak to start the en-

_iEne, it should be recharged. (See "BAT-

RY' in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergen-

cy starting, follow this procedure:

IMPORTANT: Your tractor Is equipped

with a 12 volt negative grounded system.

The other vehicle must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to

the POSITIVE (+) terminal of each bat-

tery, taking care not to short against

chassis.

•Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

• Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE OR-

DER -

• BLACK cable first from chassis and

then from the fully charged battery.

• RED cable last from both batteries.

Positive Terminal Negative Terminal

Positive rminal

REPLACING BATTERY

d[_CAUTION: Do not shod battery

terminals by allowing a wrench or any

other object to Contact both terminals at

the same time. Before connecting battery

remove metal bracel ts, wristwatch

bands,rings,etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

• Lift seat pan to raised position and

open battery box door.

• Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

• Install new battery with terminals in

same position as eld battery.

• First connect RED oattery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

•Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten

securely.

• Close battery box doer.

Seat Pan

Battery

Door

Keps Nut. Hex Bolt

Positive __1 Negative

(Red) ___ (Black)

Cable _-- Cable

TO REPLACE HEADLIGHT BULB

•Raise hood.

•Pull bulb holder out of the hole in the

backside of the grill,

•Replace bulb inholder and push bulb

holder securely back into the hole in

the backside of the grill,

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section of

this manual.

TO REPLACE FUSE

Replace with 15 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

•Raise hood,

Unsnap headlight wire connector.

Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

25 tractor.

•Hood

Headlight Wire

ENGINE

Maintenance, repair, or replacement of

the emission control devices and

systems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs

must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THRO'I-rLE CONTROL

CABLE

The throttle control has been preset at

the factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

ad ustment is necessary, proceed as

fo ows:

• With engine not runnihg, move throttle

control lever from slow to choke

position. Slowly move lever from

choke to fast position.

•Check to see if hole in throttle lever

and hole in speed control bracket are

aligned.

• If holes are not aligned, loosen cable

clamp screw and align the holes by

inserting a pencil or a1/4" drill bit

through both holes.

• Pull throttle cable up to remove slack

and tighten cable clamp screw.

Remove alignment pencil or drill bit.

Cable Clamp "_ -j

Screw - _i

Speed Contr°l Bracket 41_,, _

, , vIF" i

Throttle Lever

TO ADJUST CARBURETOR

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles

out (counterclockwise) increases the

supply of fuel to the engine giving a

richer fuel/air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

needle is turned in too tight.

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

• Be sure you have a clean air filter and

the throttle control cable is adjusted

properly (see above).

•Start engine and allow to warm for five

minutes. Make adjustments with

engine running and shift/motion

control lever in neutral (N) position.

• Idle speed setting - With throttle control

lever in slow position, engine should

idle at 1750 RPM. If engine idles too

slow or fast, turn idle speed adjusting

screw in or out until correct idle is

attained.

• Idle fuel needle setting - With throttle

control lever in slow position, turn idle

fuel adjustment needle in (clockwise)

until engine begins to die and then

turn out (counterclockwise) until

engine runs rough. Turn needle to a

point midway between those two

positions.

•Recheck idle speed. Readjust if

necessary.

ACCELERATION TEST -

• Move throttle control lever from slow to

fast position. If engine hesitates or

dies, turn idle fuel adjusting needle

out (counterclockwise) 1/8 turn.

Repeat test and continue to adjust, if

necessary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest autho-

rized service center/department, which

has proper equipment and experience to

make any necessary adjustments.

Idle Speed _ _

Adjusting II_ .... 1

Screw __._/_L..___

!ii L_ _,--_, fr' '

Adusting .... __ _i

Needle"/ " _!

i' N Ill ' _i '

Immediately prepare your tractor for stor-

age at the end of the season or if the

tractor will not be used for 30 days or

more.

_I, CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. This will allow you to clean it

thoroughly. Remove all dirt, grease,

leaves, etc. Store in a clean, dry area.

•Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

• Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

• Lubricate as shown in the Mainte-

nance section of this manual,

•Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

•Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, bat-

tery may require recharging.

• To help prevent corrosion and power

leakage during long periods of stor-

age, battery cables should be discon-

nected and battery cleaned thoroughly

(see "TO CLEAN BATTERY AND TER-

MINALS" in the Maintenance section

of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

•If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that a_cohol

blended fuels (called gasohol or using

ethanol or methanol) can attract mois-

ture which leads to separation and for-

mation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

• Drain the fuel tank.

• Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor

cleaner products in the fuel tank or

permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ra-

tio found on stabilizer container. Run en-

g,ine at least 10 minutes after adding sta-

bilizer to allow the stabilizer to reach the

carburetor. Do not drain the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and re-

place with clean engine oil (See "EN-

GINE" in the Maintenance section of this

manual).

CYLINDER(S)

•Remove spark plug(s).

•Pour one ounce of oil through spark

plug hole(s) into cylinder(s)

•Turn ignition key to "START" position

for a few seconds to distribute oil

•Replace with new spark plug(s).

OTHER

• Do not store gasoline from one sea-

son to another.

•Replace your gasoline can if it starts

to rust. Rust and/or dirt in your gaso-

line will cause problems.

• If possible, store your tractor indoo[s

and cover it to give protection from

dust and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe, which allows condensation to

form and cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Will not start •Out of fuel,

Hard to start

Engine will not turn

over

Engine clicks but will

not start

Engine not "CHOKED"

properly.

Engine flooded.

Bad spark plug.

Dirty air filter.

Dirty fuel filter.

Water in fuel.

I• Loose or damaged

wiring,

i• Carburetor out of

adjustment.

,• Engine valves out of

adjustment.

•Dirty air filter.

Bad spark plug.

•Weak or dead battery.

• Dirty fuel filter.

• Stale or dirty fuel.

• Loose or damaged

wiring,

• Carburetor out of

adjustment,

•Engine valves out of

adjustment.

•Clutch/brake pedal not

depressed.

• Attachment clutch is

engaged.

• Weak or dead battery.

• Blown fuse.

• Corroded battery

terminals.

• Loose or damaged

wiring,

• Faulty ignition switch.

• Faulty solenoid or

starter.

Faulty operator

presence switch(es).

,o Weak or dead battery.

Corroded battery

terminals.

• Fill fuel tank.

• See "TO START ENGINE"

in Operation section.

• Wait several minutes

before attempting to start.

• Replace spark plug.

• Clean/replace air filter.

• Replace fuel filter.

• Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

• Check all wiring.

• See "To Adjust Carburetor"

in Service Adjustments

section.

• Contact an authorized

service center/department.

• Clean/replace air filter.

• Replace spark plug.

• Recharge or replace

battery.

• Replace fuel filter,

• Drain fuel tank and refill with

fresh gasoline.

• Check a_l wiring.

See "To Adjust Carburetor"

in Service Adjustments

section.

• Contact an authorized

service center/department.

•Depress clutch/brake pedal.

• Disengage attachment

clutch.

• Recharge or replace

battery.

• Replace fuse.

•Clean battery terminals.

• Check all wiring.

• Check/replace ignition

switch.

• Check/replace solenoid or

starter.

• Contact an authorized

service center/department.

• Recharge or replace

• battery.

Clean battery terminals.

PROBLEM

Engine clicks but will

not start (Cont'd)

TROUBLESHOOTING CHART

CAUSE

•Loose or damaged

wiring.

•Faulty solenoid or

starter.

Loss of power

Excessive vibration

Engine continues

to run when operator

leaves seat with

attachment clutch

engaged

Poor cut -uneven

• Cutting too much

grass/too fast.

• Throttle in "CHOKE"

position.

•Build-up of grass,

leaves and trash

under mower.

•Dirty air filter.

• Low oil level/dirty oil.

I• Faulty spark plug.

• Dirty fuel filter.

• Stale or dirty fuel.

Water in fuel.

• Spark plug wire loose.

• Dirty engine air screen/

fins.

• Dirty/clogged muffler.

• Loose or damaged

wiring.

• Carburetor out of

adjustment.

• Engine valves out of

adjustment.

• Worn, bent or loose

blade.

•Bent blade mandrel.

• Loose/damaged part(s).

Faulty operator-safety

presence control

system.

• Worn, bent or loose

blade.

• Mower deck not level.

• Buildup of grass,

leaves, and trash

under mower.

• Bent blade mandrel.

• Clogged mower deck

ventholes from buildup

of grass, leaves, and

trash around mandrels.

CORRECTION

• Check art wir)ng,

• Check/replace solenoid or

starter.

• Set in "Higher Cut" position/

reduce speed.

•Adjust throttle control.

•Clean underside of mower

housing.

Clean/replace air filter.

Check oil level/change oil.

Clean and regap or change

spark plug

• Replace fuel filter.

• Drain fuel tank and refill

with fresh gasoline.

• Drain fuel tank and carbure

tor, refill tank with fresh

gasoline and replace fuel

filter.

• Connect and tighten spark

plug wire.

Clean engine air screen/fins.

• Clean/replace muffler.

• Check all v,; !ng.

• See "To Adjust Carburetor"

in Service Adjustments

section.

• Contact an authorized

service center/department.

• Replace blade. Tighten

blade bolt.

•Replace blade mandrel.

• Tighten loose part(s).

Replace damaged parts.

• Check wiring, switches and

connections. If not corrected,

contact an authorized

service center/department.

• Replace bh 9. "l]ghten

blade bolt.

• Level mower deck.

• Clean underside of mower

housing.

• Replace blade mandrel.

• Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Mower blades will not • Obstruction in clutch Remove obstruction.

rotate mechanism.

• Worn/damaged mower Replace mower drive belt.

drive belt.

• Frozen idler pu!_ey. Replace idler pulley.

• Frozen blade mandrel. Replace blade mandrel.

Poor grass discharge •Engine speed too slow.

Headlight(s) not

working (if so

equipped)

Battery will not charge

Engine "backfires"

when turning engine

"OFF"

• Travel speed too fast.

• Wet grass.

• Mower deck not level.

•Low/uneven tire air

pressure.

• Worn, bent or loose blade.

• Buildup of grass,

leaves and trash under

mower.

• Mower drive belt worn.

• Blades improperly

installed.

• Improper blades used.

•Clogged mower deck

vent holes from buildup

of grass, leaves, and

trash around mandrels.

• Switch is "OFF".

• Bulb(s) burned out.

• Fautty light switch.

• Loose or damaged

wirir_g.

• Blown fuse.

• Bad battery cell(s).

• Poor cable connections.

•Faulty regulator (if so

equipped).

• Faulty alternator.

• Engine throttle control

not set at "SLOW"

position for 30 seconds

before stopping engine.

CORRECTION

Place throttle control in

"FAST' position.

Shift to slower speed.

Allow grass to dry before

mowing,

Level mower deck.

Check tires for proper air

pressure.

Replace/sharpen blade.

Tighten blade bolt.

• Clean underside of mower

housing.

• Replace mower drive belt,

• Reinstall blades sharp edge

down.

• Replace with blades listed

in this manual.

• Clean around mandrels to

open vent holes.

• Turn switch "ON".

• Replace bulb(s).

• Check/replace light switch.

• Check wiring and connec

tions.

• Replace fuse.

• Replace battery.

Check/clean all connec

tions.

Replace regulator.

Replace alternator.

• Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

SCHEMATIC

TRACTOR --MODEL NUMBER 917.271071

llllll; ....

BATTERY SOLENOID

AMMETER

(OPTIONAL) WH,,E

FIED

IGNITION

SWITCH

YELLOW

YELOW

STATOR

BRAKE .

_ RI_I}

FUSE Jl STARTER

CLUTCH /BRAKE q

(PEDAL UP)

_-_ i o_

r , I BLUE I -- i.... t

C _ __UEL,

......... AT_E_TCL-U;CH LINE',

, .... I.... ' (CLUTCH OFF)

_I GREE N

_--_--J =L s_uE ',_8r661FUEL SHUT-OFF

...... ,_ uu__ SOLENOID

SEAT SWITCH I I

(NOT OCCUPIED

, 87A =

OP-EF_.T-O-R - -

....... PRESENCE RELAY #1

BLUE i85 86 '

III _IL_C_

:E7 i 3o:

IGN_

_J_IN CYL ENGINES)

- - IGNITION PLUG

IUNIT •GAP

OPERATORLAY #2 " (2 PLUGS ON

(_ REGULATOR _,_LLOw

IREGUL_ TOR _I_Oi_IECTEO

OPERATOR

PRESENCE RELAY #3 I_I

aLUE -E5 -86 1i _HEADUGHTS

_EJ _ BLAC_

i REn

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

RELAY

IGNITION SWITCH WIRING INSULATED CLIPS

POSITION CIRCUIT "MAKE"

OFF G + M + L NONE

RUN/LIGHT B + L A*Y

RUN B+ L NONE

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD SE REPLACED TO

PROPERLY SECURE YOUR WIRING

START E ÷ L * S N()NE

ELECTRICAL

TRACTOR --MODEL NUMBER 917.271071

ELECTRICAL

TRACTOR --MODEL NUMBER 917.271071

KEY PAFrr

NO. NO.

1163465

2 74760412

8 156417

16 161343

19 STD551125

20 73350400

21 166182

22 4152J

24 4799J

25 146147

26 166160

27 73510400

28 4207J

29 160784

30 140301

31 124211X

32 141226

33 109310X

40 169597

41 71110408

42 131563

43 168327

44 73640400

45 122822X

52 141940

70 166661

81 109748X

DESCRIPTION

Battery,12 Volt 28 Amp

Bolt, Hex 1/4-20 x 3/4

Case, Battery Mech Hinge

Switch, Interlock N. OPN./N.OPN

Washer, Lock 1/4

Nut, Hex, Jam 1/4-20UNC

Harness, Light Socket (w/4152J)

Light Bulb

Cable, Battery, 6 Gauge, Red, 11"

Cable, Battery, 6 Gauge, Red, W16 Wire

Fuse, 15Amp

Nut, Keps Hex 1/4-20 Uric

Cable, Ground, 6 Gauge, Black, 12"

Switch, Plunger Normal OP Olive

Switch, Ignition 4 Position

Nut, Ignition

Cover, Ignition Switch

Key, Molded, Craftsman

Harness, Ignition

Bolt BIk Fin Hex 1/4-20 UNC x 1/2

Cover, Terminal

Solenoid

Nut,Keps BIk Hex 1/4-20 UNC

Ammeter, Rectangular 15Amp

Protection Wire Loop (Hour Meter)

Harness, Engine

Relay Asm.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 rnm

TRACTOR -- MODEL NUMBER 917.271071

CHASSIS AND ENCLOSURES

58 12

55 7

TRACTOR - - MODEL NUMBER 917.271071

CHASSIS AND ENCLOSURES

KEYPART

NO. NO. DESCRIPTION

1166819

2 140356

3 17060612

4 19131216

5 155272

9 165454X013

10 STD533710

11 155927

12 145660

13 169118

14 17490606

17 144983X558

18 126938X

25 19131312

26 STD541437

28 156725X558

29 155217X599

30 t 51287X558

31 139976

37 17490508

38 139886

39 139887

51 73800400

52 19091416

53 145201

54 161464

55 145202

57 STD552507

58 150127

60 STD533707

64 154798

74 STD541437

114 158112

115 17060620

!16 19131614

140 158418

142 165867

143 154966

144 154207

t 45 156524

-- 5479J

Chassis Assembly

Drawbar

Screw 3/8-16 x 3/4

Washer 13/32 x 3/4 x 16 Gauge

Bumper Hood/Dash

Dash

Bolt, Carriage 3/8-16x 1

Panel, Dash, LH

Clip Tinnerman Grille P/L

Panel, Dash, RH

Screw, Thd., Roll. 3/8-16 x 1/2

Hood Assembly

Bumper Hood

Washer 13/32 x 13/16 x 12 Gauge

Locknut

Grille/Lens Asm.

Lens, Grille

Fender/Footrest Pnt STLT N Hold 558

Bracket, Fender/Support

Screw Thdrol 5/16-18 x 1/2

Pivot Bracket Assembly, LH,

Pivot Bracket Assembly, RH,

Nut Lock w/Insert 1/4 - 20 UNC

Washer, 9/32 x 7/6 x 16 Gauge

Bracket, Grille Pickoff LH

Screw, Hex Wshd #6-18 x 7/8 "

Bracket, Grille Pickoff RH

Bolt, FinHex 1/4 -20 UNC x .75

Duct, Air Engine PL/LT

Bolt, Rdhd Sqnk 3/8-16 UNC x 3/4

Dash, Lower STLT •

Nut, Crownlock 3/8-16 UNC

Keeper Belt Rear Lh Stl P930

Screw 3/8-16 x 1-1/4

Washer 13/32 x 1 x 14 Ga.

Bracket, Suspension t=roet

Plate, Reinforcement STLT

Backrest, Swaybar Chassis

Bracket, Footrest STLT

Rod Pivot Chassis/Hood

Plug, Button

NOTE: All component dimensionsgiven inU_.S.inches

1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.271071

GROUND DRIVE

26 27

TRACTOR-- MODEL NUMBER 917.271071

GROUND DRIVE

KEYPART

NO. NO.

2 146682

3123666X

412600028

5 121520X

6 17060512

8165866

10 STD561210

11 105701X

13 74550412

14 STD551125

18 STD523710

19 STD541437

21 106933X

22 130804

24 STD541237

25 106888X

26 STD551037

27 STD56t 210

28 145204

29 124236X

30 130807

31 127275X

32 STD523107

34 155071

35 120183X

36 STD551062

37 STD571810

38 131494

39 STD523727

40 4470J

41 165838

42 19131312

47 127783

48 154407

49 123205X

50 STD523715

51 STD541437

52 STD541431

53 105710X

55 105709X

56 STD523712

57 130801

58 127274X

DESCRIP_ON

Transaxle(See Breakdown)

PeerlessModel 206-545C

Spring, Return, Brake

Pulley, Transaxle

Ring, Retainer

Strap, Torque

Screw 5/16-18 x 3/4

Rod Shifter Fender

Pin, Cotter

Washer, Shift Plate

Bolt 1/4-28 UNF W/Patch Gr 8

Washer

Bolt Hex 3/8-16 UNC x 1. Gr 5

Nut

Knob

Rod, Brake

Nut

Spring, Brake Rod

Washer

Rod, Parking Brake

Cap, Parking Brake, Red

Bracket, Transaxle

Keeper, Belt, L.H.

Bolt

Shaft Assembly, Foot Pedal

Bearing, Nylon

Washer

Roll Pin

Pulley, Idler, Flat

Bolt

Spacer, Split .395 x .59

Keeper, Belt, Idler

Washer 13/32 x 13/16 x 12 Ga

Pulley, Idler, V-Groove, Plastic

Bellcrank Clutch Grnd Dry Stl

RetaLner,Belt

Bolt

Nut Crown Lock 3/8-16 UNC

Nut Crown Lock 5/16-18 UNC

Link, Clutch

Spring, Clutch Return

Bolt Fin Hex 3/8-16 x 1-1/4

V-Belt, Ground Drive

Keeper, Belt, R.H

KEYPART

NO. NO.

59 140312

61 17060612

62 8883R

63 140186

64 164975

65 STD551143

66 154778

70 134683

72 19132012

74 137057

75 121749)(

76 STD581075

77 123583X

78 121748X

79 2228M

80 145090

81 165592

82 165711

83 19171216

84 166231

85 150360

89 158391X428

90 124346X

97 449714

112 19O9121O

113 127285X

116 72110610 • "

145 74490540

150 165850

151 19133210

156 166002

158 165589

159 165494

160 19292016 •

161 72140406

162 73680400

163 74780416

164 19091010

165 165623

166 166880

168 165492

169 165580

DESCRIPTION

Keeper, Belt, Center Span

Screw 3/8-16 x 3/4

Cover, Pedal

Pulley, Engine

Bolt, Hex 7/16-20 x 4 Gr 5

Washer

Keeper, Belt, Engine, Fool-Proof

Guide, Mower Drive Belt, R.H.

Washer 13/32 x 1-1/4 x 12 Ga

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga

E-Ring

Key, Square 2.0 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Ga

Key Woodruff #9 3/16 x 3/4

Arm, Shift

Shaft Assembly

Spring, Torsion •

Washer 17/32 x 3/4 x 16 Gauge

Link Transaxle

Nut, Nylock

Console, Shift, STLT

Nut, Self-Thrd, Washer Hd 1/4

Retainer Spring 1" Zinc/Cad

Washer 9/32 x 3/4 x 10 Ga

Strap Torque 90 Degrees

Bolt Rdhd Sqneck 3/8-16 x 1.25

Bolt, Hex Flghd 5/16-18 Gr 5

Bushing Bellcrank Grd Drive

Washer 13/32 x 2 x,10 Ga.

Washer Srrted 5/161D x 1 .125

Bracket Shift Mount

Hub Tapered Flange Shift LT

Washer 29/32 x 1-1/4 x 16 Ga.

Bolt Rdhd 1/4-20 x 3/4 Gr 5

Nut Crownlock 1/4-20 Uric

Bolt Hex 1/4-20 Uric x 1 Gr 5

Washer 5/8 x .281 x 10 Ga.

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Cross Shf

STLTiCRD

NOTE: All componedt dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271071

STEERING ASSEMBLY

_83

_11

4_ "

;;2:

62 44

TRACTOR o- MODEL N UMBER 917.271071

STEERING ASSEMBLY

KEY PART

NO. NO.

t 139768

2 154427

3 t 56483

4 157473

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 156438

11 STD551137

13 154779

15 73901000

17 156546

18 57079

19 160395

22 165857

23 165851

25 154406

26 126847X

27 136874

28 19131416

29 17060612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133812

40 STD541537

41 100711L

42 145054X428

43 121749X

44 153720

46 121232X

47 6855M

51 STD541431

54 74780520

62 167902

63 STD523710

65 154780

66 154404

67 74781044

68 154429

79 19132012

80 74950612

DESCRIPTION

Wheel, Steering

Axle, Asm Front

Spindle, Asm Lh

Spindle, Asm Rh

Bearing, Race Thrust Harden

Washer, 25/32 x 1 5/8 x 16ga

Washer, 27/32 x 1 1/4 x 16 Ga

Ring, Klip #t5304-75

Bearing, Col Strg BIk

Draglink, Extended Stamped

Washer, Lock Hvy Hlcl Spr 3/8

Bearing, Axle STLT/GT

Locknut, Flange 5/8-11 UNC

Shaft, Asm Strg Private Label

Washer, Thrust 515 x 750 x 033

Support, Shaft

Screw,Hex Wsh Hd Torx

Shaft, Asm Pittman

Bracket, Steering

Bushing, Rod Tie BIk Lt

Gear, Sector

Washer, 13/32 x 7/8 x 16ga

Screw 3/8-16x3/4

Pin, Cotter 1/8 x 3/4 Cad

Rod, Tie Wire Form 1975 Mech

Bushing, Strg 5/8 Id Dash

Screw, TT #10-32 x 5 x 3/8 Flange

Insert, Steering Wheel

Washer, 13/32 x 2-3/8 x 12 Gauge

Gripco Nut

Adaptor, Wheel Strg

Boot Shaft Steering

Washer, 25/32 x 1-1/4 x 16 Gauge

Extension, Steering Non-Adjust

Cap, Spindle FrTop BIk

Fitting, Grease

Nut Lock Hex w/Ins 5/16 -18 UNC

Bolt Fin Hex 5/16 - 1B UNC x 1 -1/4

Kit, Steering Asseml_ly

Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5

Spacer, Axle

Bearing, Arm Pittmee • "

Bolt, Fin Hex 5/8-11 UNC x 2-3/4

Axle, Brace

Washer 13/32 x 1-1/4 x 12 Ga

Bolt Hex Nylon 3/8-16 x 3/4

NOTE: All component dimensions given in U.S. inches

t inch = 25.4 mm

ENGINE

TRACTOR - - MODEL N UMBER 917.271071

"_79

/ 23

OPTIONAL EQUIPMENT

I SparkArrester J __,_3s

ENGINE

TRACTOR -- MODEL NUMBER 91 '.271071

KEYPART

NO. NO.

1 162156

2 17720410

3 .......

4 159420

13 12-041-03

14 13280328

15 13200300

16 STD551231

23 159880

29 137180

31 109202X

32 158990

33 123487X

35 17060512

37 137040

40 124028X

44 17490412

46 19091416

62 STD551131

77 19101216

79 M740108025

80 74760508

81 128861

101 M73030800

DESCRIPllON

Control, Throt

Screw, Hex Thd Cut 1/4-20x5/8 T

Engine (SeeBreakdown)

Kohler, ModelCV 16S-43519

Muffler

Gasket Kohler

Nipple, Pipe 3/8 NPT x 3-1/2

Elbow, Std 90 Degree 3/8-18 Npt

Washer

Shield, BRN/DBR Guard

Arrestor, Spark

Tank, Fuel

Cap Assembly, Fuel Tank, Vented

Clamp, Hose BIk

Screw 5/16-18 x 3/4

Line Fuel

Plug Oil Drain (See Engine Breakdown)

Bushing, Snap, Fuel Line

Screw, Hex WasheP Head, Thd. Roll. 1/4-20 x 3/4

Washer, 9/32 x 7/8 x 16 Gauge

Washer, Lock

Washer 5/16 x 3/4 x 16 Gauge

Bolt, Hex

Bolt, Hex Hd 5/16-18 UNC x 1/2

Nut, Flange 1/4-20.Starter Nut

Nut Flange M8-1.25

NOTE: All component dimensions given in U.S. inches

1 inch = 25,4 mm

TRACTOR - - MODEL NUMBER 917.271071

SEAT ASSEMBLY

KEYPART

NO. 140.

1140123

2 140551

3STD523710

4 19131610

5145006

6STD541437

7 124181X

8 17060616

9 19131614

10 155925

11 166369

12 121246X

KEYPART

DESCRIPTION NO. NO.

Seat 13 121248X

Bracket, Pivot, Seat 14 72050412

Bolt 15 134-3D0

Washer 13!32x 1x10 Gauge 16 121250X

Clip, Push*In Hinged 17 123976X

NUt 21 153236

Spring, Seat 22 STD541431

Screw 3/8-16 x 1-1/2 24 19171912

Washer 13/32 x1x 14 Gauge 25 127018)(

Pan, Seat EmbossQCK Conn.

KnobSeat

Bracket, SwitchMounting

DESCRIPTION

Bushing,Snap

Bolt,Carriage 1/4-20 x1-1/2

Spacer, Split .26 x.68

Spring

Locknut, Flange 1/4 Grade 5

Bo_t,Shoulder 5/16-18 UNC

Nut

Washer 17/32 x 1-3/16 x 12 Ge

Bolt,Shoulder 5/16-16 x .62

NOTE: All component dimensions given inU.S. inches

1 inch = 25.4 mm

TRACTOR --MODEL NUMBER 917.271071

DECALS

613 4 10 20

KEY PART

NO. NO.

1 156368

2 163262

3 163200

4 163202

5 163207

6 133644

7 169638

8 166887

9 163204

10 156439

KEYPART

DESCRIPTION NO. NO.

Decal, Oper. Instr. 11 168921

Decal, Dash Pnl Kohler 12 146046

Decal, Hood, R.H. 14 160396

Decal, Hood, L.H. 20 149516

Decal, Fend Sd Sht 21 138047

Decal, Customer Maintenance 138311

Decal, Replacement Srs - - 154515

Decal, Deck EZ3 -- 154516

Decal, Fender, Craftsman - -169598

DecaI, FenderDanger - 169599

DESCRIP'RON

Decal, HP Engine

Decal_V-Belt Drive Schematic

• Decal, V-Belt Schematic

Decal Battery Dngr/Psn Eng

Decal, Battery Diehard Sears

Decal, Uft Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner's Manual, English

Owner's Manual, Spanish

WHEELS & TIRES

2_5,8

74,10

KEYPART

NO. NO.

1 59192

2 65139

3t06222X

459904

5106732)(427

6278H

7 9040H

8 106108X427

9 122O82X

10 7152J

11 1_75_

-144334

DESCRIFRON

Valve Cap, Tire

Stem, Valve

Tire, Front

Tube,Front Tire

(Not Provided, Service Item Only)

Rim,Front

Fitting,Grease (Front Wheel Only)

Bearing,Flange(FrontWheel

Only)

Rim, Rear

Tire, Rear

Tube, RearTire

(Not Provided, Service Item Only)

Cap, Axle

Sealant, Tire 10 oz.

NOTE: All componeflt dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.271071

LIFTASSEMBLY

(_13 _32 /

TRACTOR -. MODEL NUMBER 917.271071

LIFTASSEMBLY

KEYPART

NO. NO. DESCRIPTION

1 159460 Wire Asm Inner/Sprgw/Plunger LT

2 159471 Shaft Asm. Lift

3 105767X Pin Groove

4 12000002 E Ring #5133-62

5 19211621 Washer 21/32 x 1 x 21 Ga.

6120183X BearingNylon

7 125631X Grip Handle Fluted

8 122365X Button Plunger Red

11 139865 Link Uft Lh Fixed Length

12 139866 Link Lift Rh Fixed Length

13 STD624008 Retainer Spring

15 127218 Link Front

16 73350800 NutJamHex 1/2-13Unc

17 130171 Trunnion BIk Zinc

18 73680800 Nut, Crownlock 1/2:13 UNC

19 139868 Arm, Suspension Rear

20 163552 Retainer Spring

23 110807X Nut Special

24 19131016 Washer 13/32 x 5/8 × 16 Ga.

25 2876H Spring 2-1/8"

26 76020308 Pin Cotter 3/32 x 1/2

27 126971X Rod Adj Lift

28 73550600 Nut Hex Jam 3/8-16uric

29 138057 knob Infin Height

30 150233 Trunnionlnfin Height

31 140302 Bearing, Pivot, Lift Spherical

32 73540600 Nut, Crownlock 3/8-24

36 155097 Pointer Height Indicator

37 123935X Plug Hole

38 17490512 Screw Thdrol5/16-18 x 3/4

40 19112410 Washer 11/32 x 1-1/2x 10 Ga.

41 155098 Indicator Height Stll

49 145212 Nut Hexflange Lock .

50 110452X Nut Push Phos & Oil

NOTE: All component dimensions given in U.S. inches

1 inch - 25.4 mm

MOWER DECK

TRACTOR -- MODEL NUMBER 917.271071

157

115_ 112

118 h

MOWERDECK

TRACTOR --MODEL NUMBER 917.271071

KEY PART

NO, NO.

1 165892

2 STD533107

3 138017

4 165460

5 STD624008

6 130832

8 850857

9 STD551137

10 140296

11 134149

12 129895

13 137645

14 128774

15 110485X

16 140329

18 STD533106

19 132827

20 159770

21 STD541431

22 134753

23 131267

24 105304X

25 123713X

26 110452)(

27 130968

28 19111O16

29 131491

30 157722

31 129963

32 153535

33 137266

34 STD533717

35 133835

36 131494

37 STD551037

40 STD541437

44 140088

45 STD_2.4003

46 137729

48 133944

49 155066

50 131340

51 STD541410

52 139888

53 131845

54 133943

55 155046

56 165723

59 141043

DESCRIPTION

Mower Housing

Bolt

Bracket Assembly,Sway Bar,

Front

Bracket Sway Bar 38/42"

RetainerSpring

Arm, Suspension, Rear

Bolt, Hex 3/8-24 x 1.25 Gr. 8

Washer, Lock

Washer,Hardened

Blade,Mulching

Bearing,Ball

Shaft Assembly, Mandrel, Vented

(Includes Key # 6)

Housing,Mandrel, Vented

Bearing, Ball,Mandrel

Stripper,Vented Mower Deck

Bolt, Carriage 5/16-18 x 5/8

Bolt,Shoulder

Baffle, Vortex

NutCrownlock 5/16-18 UNC

Stiffener Bracket

Bracket, Deflector

Cap, Sleeve

Spring, Torsion, Deflector

Nut, Push

Shield, Deflector

Washer t1/32 x 5/8 x 16 Ca.

Rod,Hinge

Screw ThdrolWasher Head

Washer, Spacer

Pulley, Mandrel

Nut, Toplock, Flanged

Bolt

Fastner, Christmas Tree

Pulley, Idler, Flat

Washer 13/32x13/16x16Ga

Nut Crown lock 3/8-16 UNC

Guard, Mandrel, L.H.

Retainer

Screw, Thd. Roll 1/4-20 x 5/8

Washer, Hardened

Roller Assembly, Cam Follower

Bolt, Shoulder #10-24 Grade 5

Locknut

Bolt, Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard, TUV Idler

KEY PAR'r

NO, NO.

67 149846

68 144959

85 72140614

92 STD541437

101 136420

102 71161010

103 19061216

104 STO551110

105 160793

106 2029J

111 155197

112 155198

113 17060512

114 STD541431

115 72110504

116 4898H

117 165746

118 73930600

119 STD551037

121 143723

128 153390

129 19131312

130 STD523710

131 STD533710

142 165890

143 157109

144 158634

145 165888

146 165891

147 131335

148 169022

149 165898

150 19091216

151 169670

152 169676

153 169674

154 169675

155 169671

156 169672

157 169669

158 17720410

- 130794

--169583

DESCRIP31ON

Knob Custom Oval

V-Belt

Bolt Carriage 3/8-16 x 1-3/4

Nut

MulcherCover

Screw

Washer #10

Washer, Lock

LatchAssembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel L.H.

Bracket, Gauge, Wheel R.H.

Screw 5/16-18 x 3/4

Nut, Hex, Keps 5/16-18 UNC

Bolt,Carriage 5/16 UNC x 1/2

Bolt,Shoulder

Wheel, Gauge

Nut, Centerlock3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Bracket

Washer Felt

Washer 13/32 x 13/16 x 12 Ca.

Bolt,Fin H 3/8-16 UNC x 1Gr. 5

Bolt,RDHD 3/8-16 UNC x 1

ArmSpringBrake Mower

Bracket Arm Idler42"

Keeper Belt 42" Clutch Cable

Pulley IdlerFlat

BoltCarriage Idler

SpringExtension

SpringReturn Idler '

RetainerSpringYellowZinc

Washer 9/32 x 3/4 x 16 Ca.

Bracket ClutchCable

Cable Clutch42 in

Washer Flat 3/8" Type B

Spring Retainer

Spring RetentionLever Clutch Cab

Spacer Clutch Cable

Rod ClutchCable

Screw He)<Thd Cut

1/4-20 x 5/8

Mandrel Assembly (Includes Key

Numbers 8-10, 12-15, 31 and 32)

MowerDeck, Complete (Standard

Deck,Order Separately Mulcher

Plate and Gauge Wheel

Components, Key Nos. 101-106

and 111-t21)

NOTE: All component dimensionsgiven in U.S. inches

1 inch = 25.4 mm

TRACTOR --MODEL N UMBER 917.271071

PEERLESS TRANSAXLE --MODEL NUMBER 206-545C

35A

157

180/_

150

MODEL and SERIAL

NUMBERS HERE

157

42A

J34

_87

TRACTOR-- MODEL NUMBER 917.271071

PEERLESS TRANSAXLE --MODEL NUMBER 206-545C

REFPART REFPART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1772147 Transaxle Cover 41A 790079

2 780086A Needle Bearing 5/8" 42 792073A

3 770128 Transaxle Case 42A 792085A

4776395 Countershaft 43 792075

5 776409 Output Shaft 44 790025

6 778364 Spur Gear (38 teeth) 45 786066

6A 778369 SpurGear (15teeth) 46 786086

7 778330 Spur Gear (11 teeth) 47 774690

8 792180 Shift Key 48 774691

8A 792047 Woodruff Key #9 49 778356

9 784352 Shift Collar 50 778.336

10 784378 Shift Rod & Fork 51 778354

11 778.,934 Bevel Gear (30 teeth) 52 778352

12 778309 _nput Bevel Pinion (13 teeth) 53 778350

13 778368 Bevel Gear (13 teeth) (Include. 14) 54 778346

14 778368 Bevel Pinion (13 teeth) (Include. 56 778355

13) 57 778337

15 778370 Ring Gear (43 teeth) 58 778353

17 786188 DrivePin 59 778351

18 786102 Spacer 1.130 X.695 60 778349

20 792077A Bal15/16"dia 61 778345

21 792078 Set Screw 3/8 - 16 x3/8" 65 780189

22 792079 Spring .310 OD x ,625 L 66 776422

25 792073A Screw 1/4 -20 x1-1/4" 67 776396

25A 792177 Screw 1/4-20 x1-3/8" 69 792170

26 792125 Retaining Ring (pkg of 2) 70 786187

27 792035 RetainingRing 71 788069

28 788040 Retaining Ring 71B 788092

29 780072 ThrustWasher.6271Dx.031W 76 780090

29A 780160 Thrust Washer .762 ID x .031W 77 788078A

296 780051 Thrust Washer .762 ID x .031W 79 792144

29C 780199 Anti-Rotation Washer .632 82 778333

30 780108 CupWasher 1.127 IDx.032W 83 778338

31 780001 Flat Washer .750 ID x ,056W (Use _5 792154

AS Needed) 87 788089A

31A 780195 Flat Washer .750 ID x .062W 150 788093A

32 788083 Oil Seal 5/8" 157 788088A

34 780194 Bushing,563 180 730229A

35 780193 Flanged Bushing 5/8" ID 900 794712

35A 780197 Flanged Bushing .751

36 790075 Brake Disk

37 790007 Brake Pad Plate

38 799021 Brake Pad (pkg of 2)

39 786026 Dowel Pin

40 792076A Flat Washer 312 ID x 059W

Brake Lever

Screw 1/4 - 20 x 1-1/4"

Screw 1/4 -20 x 2 1/4"

Locknut5 /16 -24

Brake Pad Holder

Spacer ,2625 x 1.0

Brake Lever Bracket

Axle (11-15/16" Long)

Axle (16 -1/2" long)

Spur Gear (29 teeth)

Spur Gear (27 teeth)

Spur Gear (23 teeth)

Spur Gear (19 teeth)

Spur Gear (16 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (17 teeth).

Spur Gear (21 teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

Flat Washer .563 ID x ,062W

Input Shaft

Shifter & Brake Shaft

Retaining Ring

Spacer .890

Square Cut Ring

"O" Ring

Flat Washer 1.128 ID x .058W

Inverted Retaining Ring

Spring ,430 OD x 3000 L

Bevel & Spur Gear (30 & 13 teeth)

Spur Gear (27 teeth)

Oil Fill Plug

Oil Seal 9 /16"

Liquid Gasket RTV Silicone

Oil Seal 3/4"

Gear Oil 60W90

Replacement MST- 206-545C

Transaxle

NOTE: All component dimensions given in US. inches

1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271071

KOHLER ENGINE - MODEL NUMBER CV16S, TYPE NUMBER PS-43519

CYLINDER HEAD, VALVE AND BREATHER I

CRANKCASE J

/' 22

: 5

TRACTOR -- MODEL NUMBER 917.271071

KOHLER ENGINE -MODEL NUMBER CV16S, TYPE NUMBER PS-43519

CYLINDERHEADNAL_EATHER

KEY PART

NO. NO.

CRANKCASE

125-351_)1

212+755_1

12-041-01

12-041-02

12-041-03

312+411.01

412-041-10

5 12-017-O1

12-017-02

6 12-016_11

12-016-02

7 X-75*23

8 12-318-19

9 25-186_1

10 12-599-03

11 M-064(X)34

12 12-089-01

13 12-173-01

14 12-755-03

15 12-468-05

16 12 112-13

17 12-086-15

X426-9

12-326-03

M_c45020

21 12-O96-07

22 M_545010

23 12 018-01

24 12-402 02

KEY PART

DESCRIPllON NO. NO. DESCRIPTION

Lifter,valve (2) 1 12-032_)3

Kit, cylinder head (Includes 3- 2 Block, cylinder

17) 3 12-445_2

Carburetor gasket(2) 4 M.0839025

Air cleaner base gasket 5 12-380-17

Exhaust maniferd gasket 6 12-75.5-49

Rod, push (2) 7 12-089-31

Gasket, cylinder head 8 12-422_8

Valve, intake (Std.) 12-422-09

Valve, intake (.25) 12-422-10

Valve, exhaust (Std+) 12-422-11

Valve, exhaust (.25) 12J_22-12

Plug, allen hd. pipe 1/8 12-422-13

Cylinder Head 12422-07

Arm, rocker (2) 9 12-144.-27

Pivot, rocker arm (2) 10 12-874-07

Screw,hex+flange M6xl.0x34 (2)

Spring, valve (2) 24+874-11

Cap, valve spring (2) 12-874-08

Kit, retainer (2) 12-874-09.

Washer, plain 13/32 11 12-018-02

Spacer, head bolt exhaust port 12 12-108-07

Screw, hex. flange MI0xl .5xB1 12-108-08

(5) 12-108-09

Clamp, hose (2) 13 12-067-Q5

Hose, breather 12+067-O9

Screw, hex. flange M6xl,0x20 14 12-380-01

(5) 15 12-043-O9

Cover, valve w/nipple 16 M_6310O9

Screw, hex. flange M5x0,Bxl0 17 12-144-02

Retainer, breather reed 18 52-139-00

Reed, breather 19 12-755-64

21 X-25-102

22 12-032-01

23 SM_631015

24 12-154-0_

Seal, crankshaft

(Use ShortBlock 12 522 1B)

Strap, lifting

Screw, hex. flange M8x1.25x25

Dowel, locating (4)

Kit, camshaft (Includes 7,8)

Spring, actuating

Shim, camshaft (A.R.) blue

Shim, camshaft (AR.) red

Shim, camshaft (A.R.) yellow

Shim, camshaft (A+R.)green

Shim, camshaft (A.R,) gray

Shim, camshaft (,_.R.)black

Shim, camshaft (A.R.) white

Shaft, balance

Piston w/Ring Set (Std.)

(Includes 11-12)

Piston w/Ring Set (.08)

Piston w/Ring Set (.25)

Piston w/Ring Set (.50)

Retainer, piston pin (2i

Ring Set (Std.)

Ring Set (.25)

Ring Set (.50)

Connecting Rod (Std.)

Connecting Rod (.25)

Pin, governor regulating

Gear, governer assembly

Washer, plain6mm

Shaft, governor gear

Plug, cup

Kit, gov. cross shaft w/clip

(inCludes 24)

washer, plain 1/4

Seal, governor cross shaft

Washer, plain 6ram

Clip, hitch pin

TRACTOR - - MODEL NUMBER 917.271071

KOHLER ENGINE -MODEL NUMBER CV16S, TYPE NUMBER PS-43519

,._NmON_LECTRICAL BLOWER HOUSING& BAFFLES

_'Y PART KEY PART

IO. NO, DESCRIPTION NO. NO. DESCRIPTION

1 12-086-14 Screw, hex. flange MIOx1.5x46

212-468-03 Washer, plain 3/8

3 24-162_3 Screen, grass

4 M-0639016 Screw, hex. flange M6x1.0x16

6 12-157-03 Fan

7 41-403-09 Regulator, rectifier

8 X-22-1t Washer, lock (2)

9 236602 Connector

10 X42-15 Key

11 12_25-35 Flywheel

12 41-155-02 Connector (4 contact)

13 M-0548025 Screw, hex. cap M5x0.8x25 (2)

14 12-085-01 Stator assembly - 15 amp

15 12-132-02 Spark Plug

16 X-728-1 Clip, cable

17 M-0545010 Screw, hex.flange M5x-08x10

(2)

18 12-584-08 Module, ignition

19 12-452-02 TermdnaJ

20 12-086-35 Screw, hex. socket M5x0.8x20

(2)

21 M-0461013 Screw, pan head M4.2x13 (2)

22 12-584-12 Module, speed advance

23 25-086-47 Shoulder M6X1,0X16 (4)

_OT ILLUS'II:IATED

25-518-29 Lead

25-518_)5 Lead

12-176-36 Harness

X-25-5 Washer, plain 5/16"

12-155-02 Connector

23-517-03 ClipCable

1 M-0545010 Screw, hex flange M5x0.8xl0

(8)

2 24_168-10 Washer, plain 1/4

3 12-146_7 Plate, blower housing

4 24-086-18 Screw, phillip hd M4x0.7 X8 (2)

5 24-096-05 Cover, pinion

6 22(To34 Washer, plain 5/16 (2)

7 12_)27-54 Housing, blower

8 12-063-10 Baffle, intake side

9 25-154-O2 Clip, mounting (3)

10 12-086-37 Screw,captive washerM5 X0.8

X20(3)

t 1 M_o45016 Screw, hex. flange M6x1-0x16

(2)

12 12-063-08 Baffle, cylinder head

13 12-06309 Baffle, cylinder

NOTI_TED

X-25-92WASHER, PLAIN3/16" (2)

AIRINTAKE/FILTRA'nON

KEY PART

NO. NO. DESCRIPTION

125-341-03

212-09_24

312-083-12

4 12-083-10

5 12"30046

6 12-100-01

7 12-032-11

812-094-07

912-072_

10 12-086-01

11 12-041-0"2

NOTILUJS'mATED

12-113-53

Knob,air cleaner cover

Cover, air cleaner

Precleaner, element

KJtair cleaner element

(Includes 5,7)

Seal 3/4"

VV_ngNut

Seal 1-7/16"

Base, air cleaner(Includes

10,11)

Stud, mounting plate

M6X1.0X75

Screw, #10 Hi-Lo thread forming

(2)

Gasket, air cleaner

Decal, air cleaner

TRACTOR o-MODEL NUMBER 917.271071

KOHLER ENGINE -MODEL NUMBER CV16S, TYPE NUMBER PS-43519

IGNITION ,'ELECTRICAL I

BLOWER HOUSING AND BAFFLES I

L_ • ,'

TRACTOR --MODEL NUMBER 917.271071

KOHLER ENGINE -MODEL NUMBER CV16S, TYPE NUMBER PS-43519

STARTING SYSTEM I

4/1 _'_, 2

s!!p

8 i

ENGINE CONTROLS I

OIL PAN ,'LUBRICATION I

i "1 _ [./_i4 9

0--4

S-- I

6_¢, ;22-

--16

TRACTOR - -MODEL NUMBER 917.271071

KOHLER ENGINE -MODEL NUMBER CV16S, TYPE NUMBER PS-43519

;TAR1]NG SYSTEM

_EY PART

IO. NO.

1 M-0839070

2 25-098-05

3 12-755-54

4 12-227-06

5 12-170-05

6 12-221"01

7 12-227-13

8 12-211-01

)IL PAN/LUBRICA13ON

_-Y PARr

_O. NO.

1 12-035-01

2 25-755-13

3 12-153-03

412-153-02

5 12-123-04

6 M 0545020

7 12-153-01

8 25-162-07

9 12 096-03

10 M-0545016

11 25-462-09

13 52-050-02

14 X-75-10

15 12-393-01

16 12-153-06

17 12-096-34

18 M 0545016

19 12-032-03

20 24-086_16

21 24-08617

22 12-199-53

ENGINECONTROLS

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Screw, hex. flange M8xl 25x70 1 12-07_07

(2) 2 12+237-01

Starter assembly (Includes 3-8) 3 M_664020

Kit, drive end

Cap, drive end 4 24-086-43

Armature 5 12-536-10

Kit, brush & spring

Cap, commutator end 6 M_443025

Bolt, hex. flange 1/4-20x4-5/8 7 M_443020

(2) 8 12-089-11

9 12-089-23

10 12-089-24

11 12-755-83

12 12-100-07

13 52-211-04

DESCRIP_ON 14 12-090-28

15 25-158-08

Dipstick assembly (Includes2-3) 16 12-079-01

Kit,oil fill cap (Includes3) 17 25-168÷11

O-Ring,oil fill cap

O-Ring, upperoilfill tube

Tube, oilfill

Screw, hex.flange M5x0.8x20

O-Ring, loweroilfill tube

Screen, oil pickup

Cover, oilpickup screen

Screw,hex. flange M5xOSx16

Valve,oil pressure relief

Filter,oil

Plug,sq. hd. solid3/8

Pump, oilassembly

O-Ring, oil pumpcover

Cover, oilpump

Screw, hex flange M5xO 8x16

(3)

Seal, oil (PT0 end)

Screw, hex flange

M8x1.25x45 (1t)

Screw, hex flange M6xl 25x45

Assembly,Pan, oil (Incl. 11,15

18)

Linkage, choke

Clamp, cable

Screw, lobed socket M6xl.Ox20

(2)

Screw,hex flange

Control, speed assembly

(Includes 6,6,9)

Screw, pan head M4xO.7x25

Screw, pan head M4xO 7x20

Spring,choke (2)

Spring, choke return

Spring, governor

KJt,governor lever. (Includes 12-

14)

Nut, hex flange 1/4 - 20"

Bolt,1/4 - 20 X 1"

Lever, governor

Bushing,throttle linkage

Linkage, throttle

Bushing, throttle linkage

TRACTOR --MODEL NUMBER 917.271071

KOHLER ENGINE - MODEL NUMBER CV16S, TYPE NUMBER PS-43519

CRANKSHAFT I

EXHAUST I J

----1

3m_

FUEL SYSTEM I

TRACTOR - -MODEL NUMBER 917.271071

KOHLER ENGINE -MODEL NUMBER CV16S, TYPE NUMBER PS-43519

FUELSYSTEM

KEY PARr

NO. NO.

1 M.0641060

3 X-22-11

4 M-0629116

5 12-853-95

612_41.02

7 12-053-95

8 124)41-01

9 12-265-04

10 47-1544)1

11 X-426-09

12 25-353-10

13 2,5-(T:_0.02

NOTIU.USR:IATED

12-757.°02

12-757-03

12.041.01

12-041.02

12-041.05

12.041-06

12-032-06

12-757433

12-041-06

12-454.01

25_152-20

12454-03

M_o610t0

M.0645020

DESCRIP]]ON

Nut, hex. flange M6x1.0 (2)

Washer, star 1/4

StudM6x1.0x116 (2)

Kit,carburetorw/gasket

(InCludes 6,7,8 qty 1

12-454-0t, 25452-20)

Gasket, aircleaner

Carburetorassembly

(For informationonlynot

availableseparately)

Gasket, carburetor(2)

Deflector,heat

Clipcable

Clamp, hose (2)

Une, fuel 9"

Filter,fuel

Kit,float

Kit,carburetor repair

Gasket, carburetor

Gasket, air cleaner

Gasket, bowl

Gasket, bowlscrew

Seal, solenoid

Kit, solenoidrepair

Gasket, bowlscrew

Tie, wire

Tie cable

Screw,threadformingM5X0.SX10

Screw,hex.flange M6X1.0X20 (2)

CRANKSHAFT

KEY PART

NO. NO.

112.01437

2 12439.01

EXHAUST

KEY PART

NO. NO.

125-072-04

2 124)41-03

4 12-126-11

5 12-44,_06

6 M_645(_5

12-522-18

12-755-82

DESCRIPllON

Crankshaft (Includes2)

Plug,cup

DESCRIPllON

Stud(2)

Gasket, exhaustmanifold

Bracket, muffler

Strap, lifting

Screw, hex.flange M6xl.0x25 (2)

ShortBlock

Gasket Set

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

_r _

ISIGHTING

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

,g_ Operate your Tracto_ up and down the face of slopes (not I

Ai,Jk greater than 15°), never across the face. Mak_ turns gredu-

ally to prevent tipping or loss of Control. Exercise extreme

L__ging direction on slopes. .,.

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME s" (1-800-469-4663)

Para pedir servicio de reparaci6n a domicilio

1-800-676-5811

In Canada for all your service and parts needs call

Au Canada pour tout le service ou les pi_ces

1-800-665-4455

For the repair or replacement parts you need:

Call 6 am - 11 pm CST, 7 days a week

PartsDirect s"

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio

1-800-659-7084

For the location of a Sears Parts and Repair Center

in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance

Agreement or to inquire about an existing Agreement:

Call 9 am -5 pro, Monday -Saturday

1-800-827-6655

Home Central°M

169598 Rev. 4 9.8.99 JHFFR Printed in U.S.A

Craftsman 917271071 User Manual LAWN TRACTOR Manuals And Guides L9910389

CRAFTSMAN Lawn, Tractor Manual L9910389 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
