Owner's Manual

i(:RRFTSMRN°i

20.0 HP

ELECTRIC START

42" MOWER

AUTOMATIC

LAWN TRACTOR

Model No.

917.272441

• Safety

• Assembly

• Operation

• Maintenance

• Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructionsbefore

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

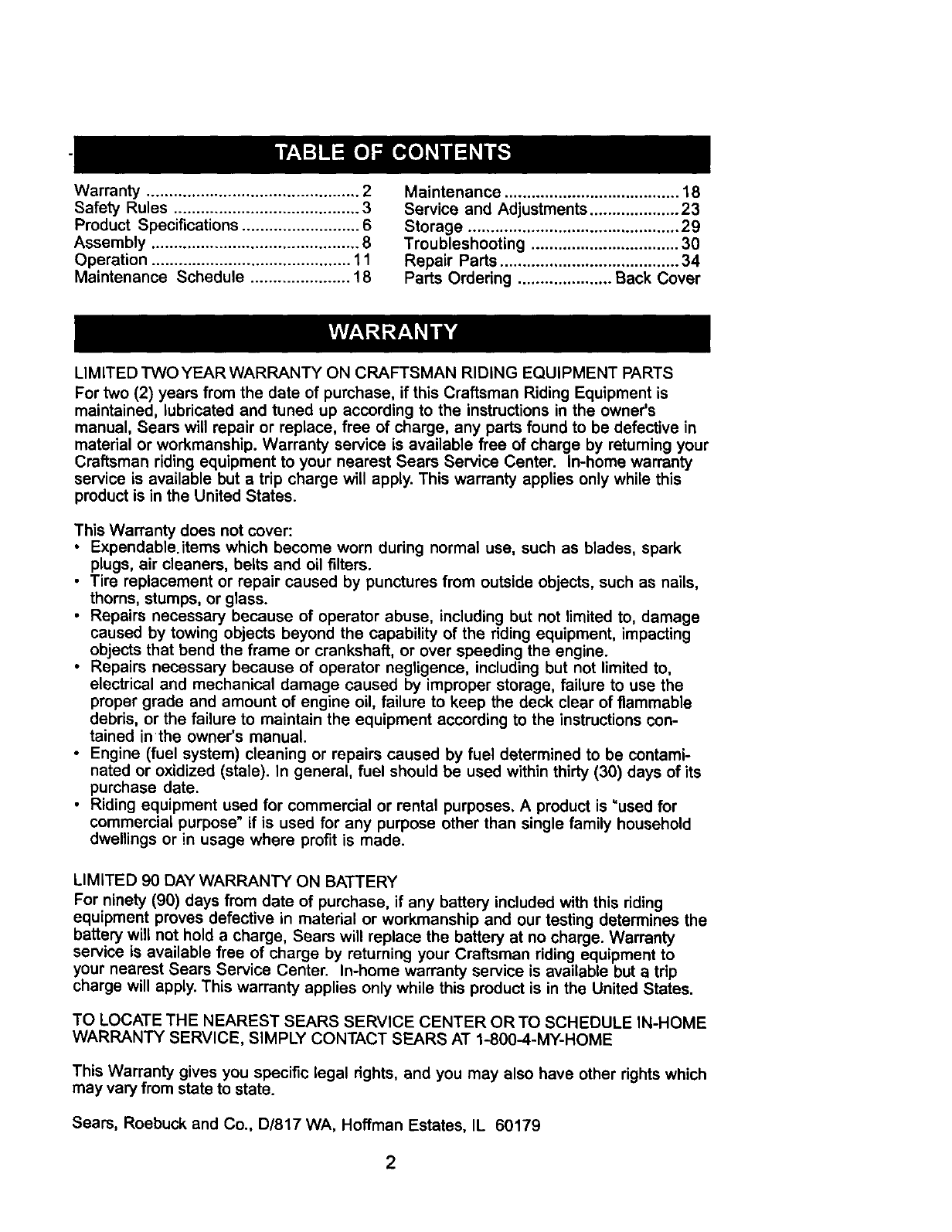

Warranty...............................................2

SafetyRules.........................................3

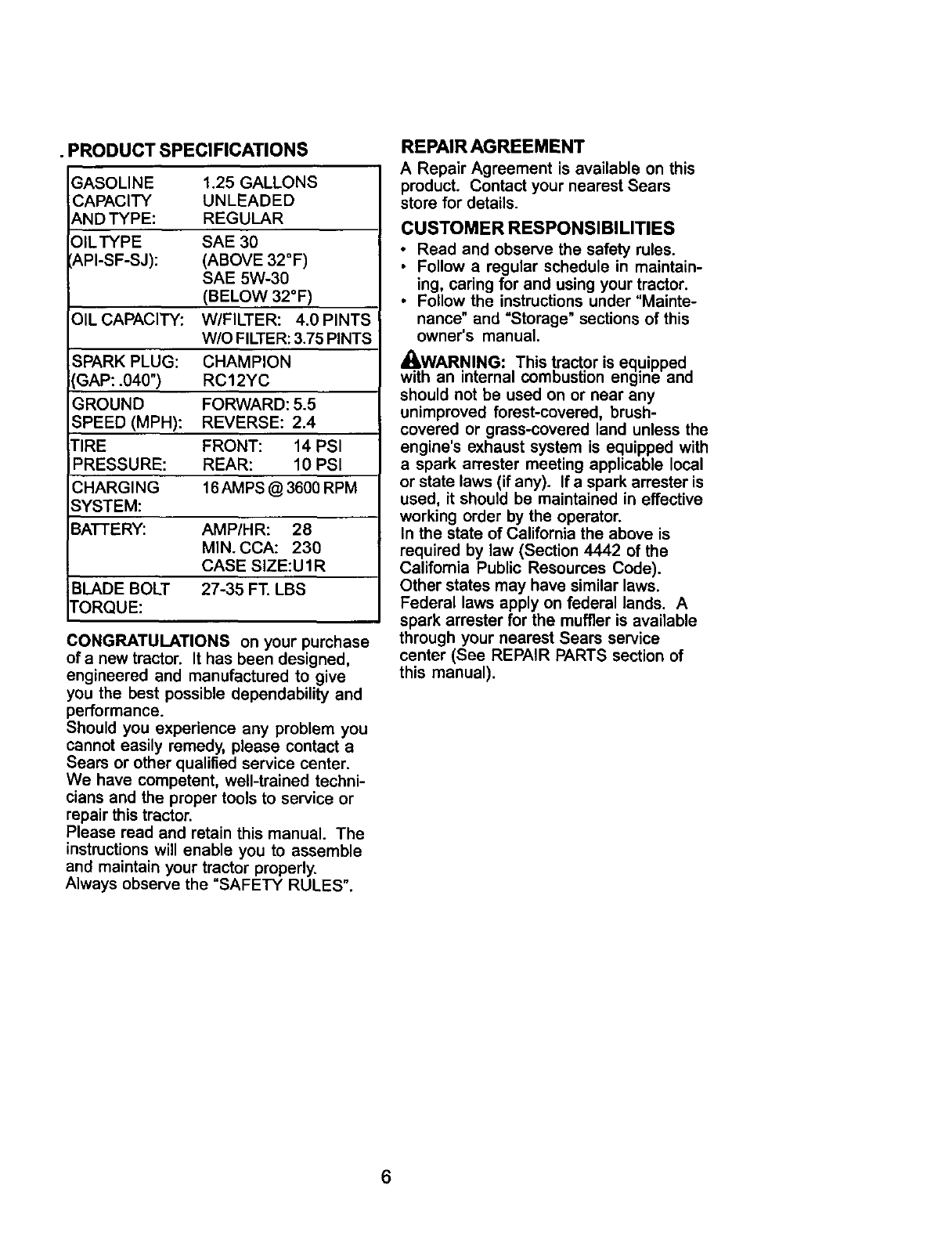

ProductSpecifications..........................6

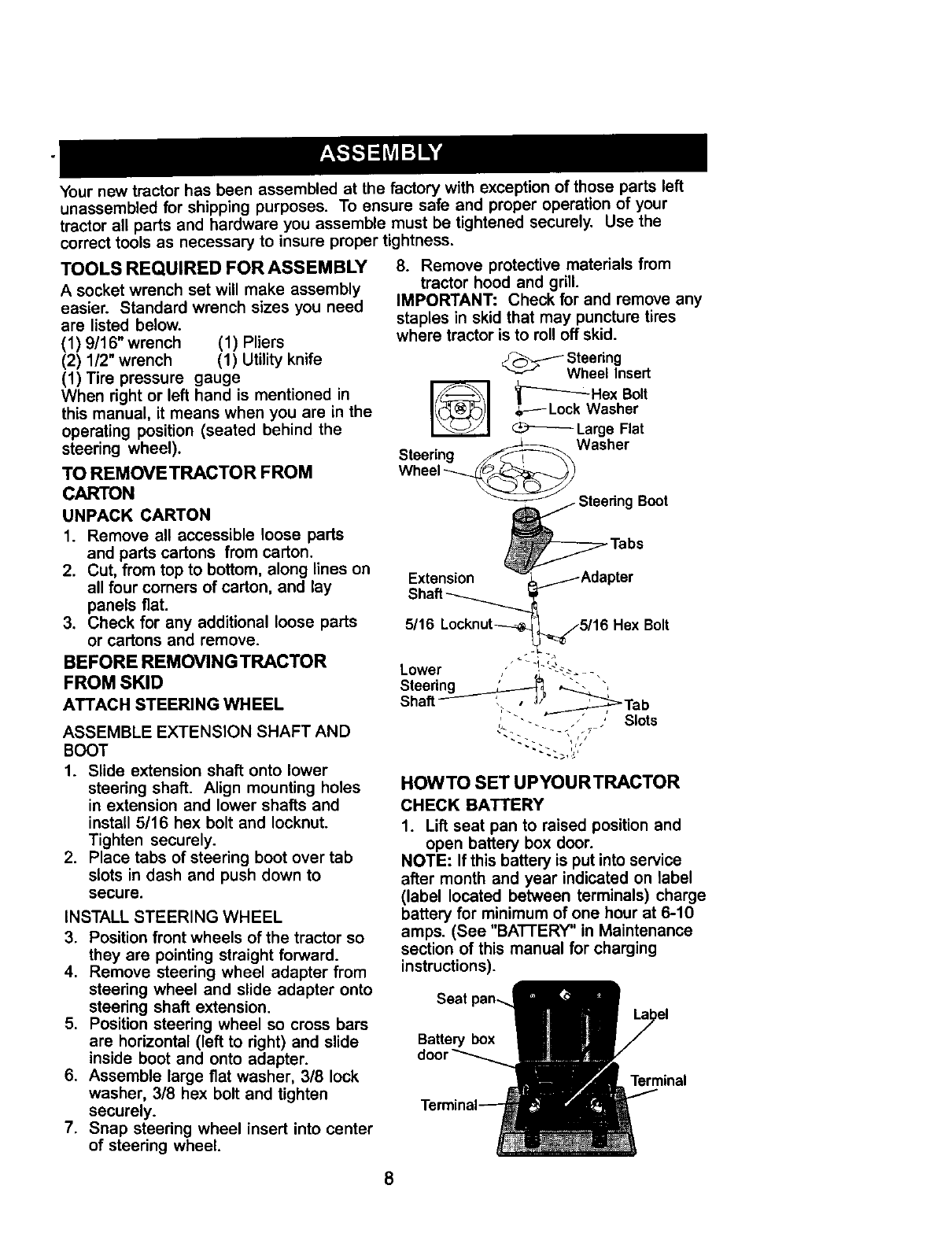

Assembly..............................................8

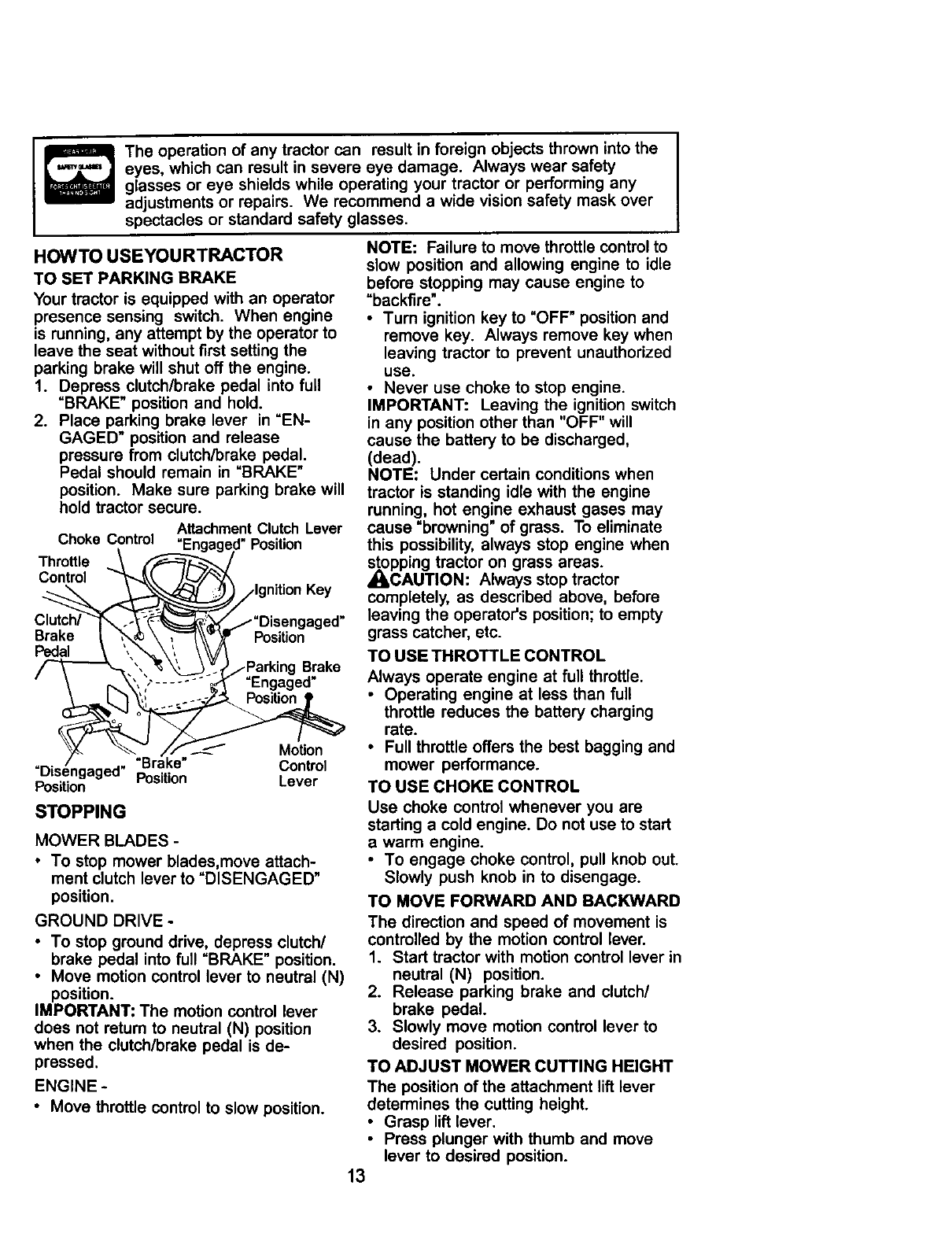

Operation............................................11

MaintenanceSchedule......................18

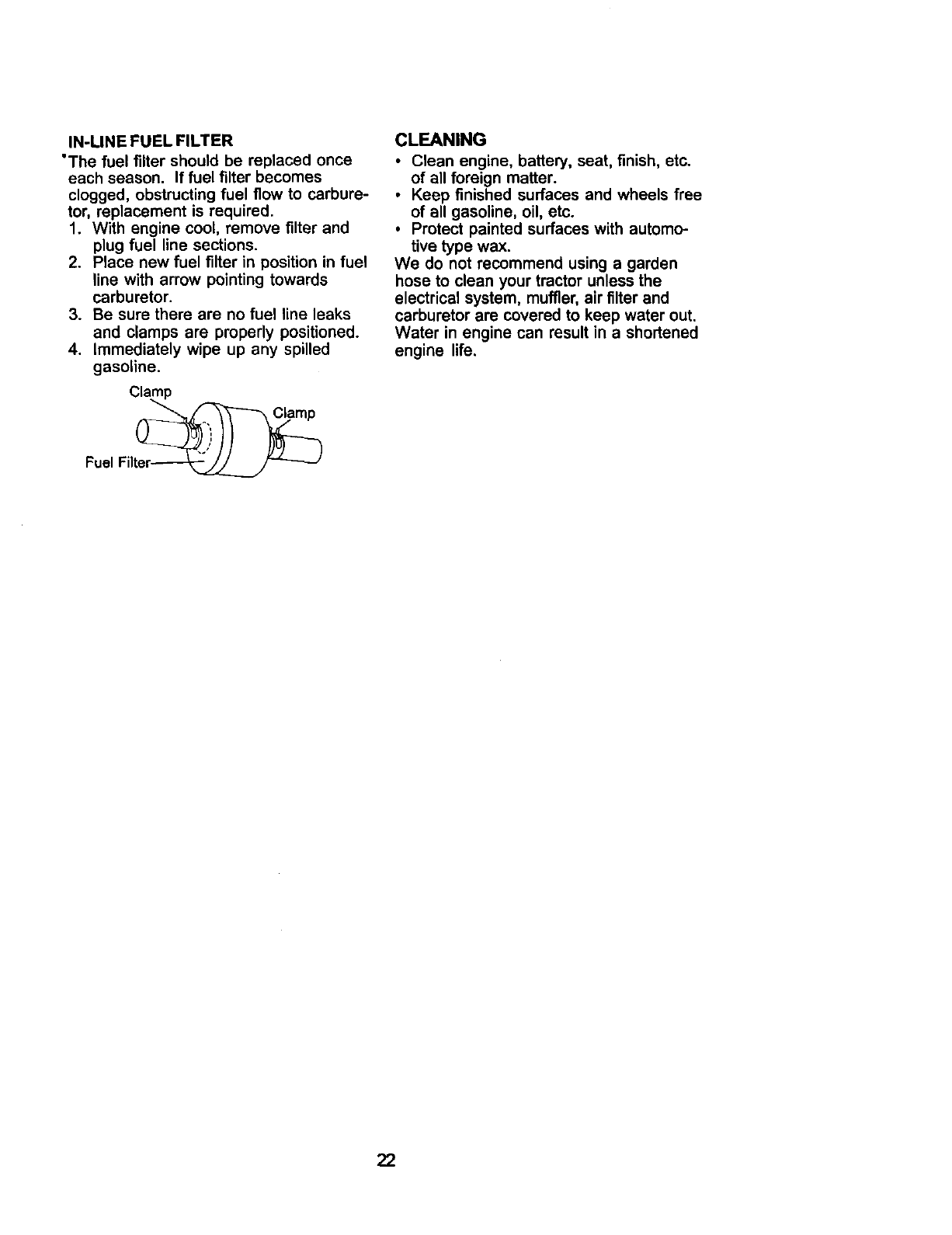

Maintenance.......................................18

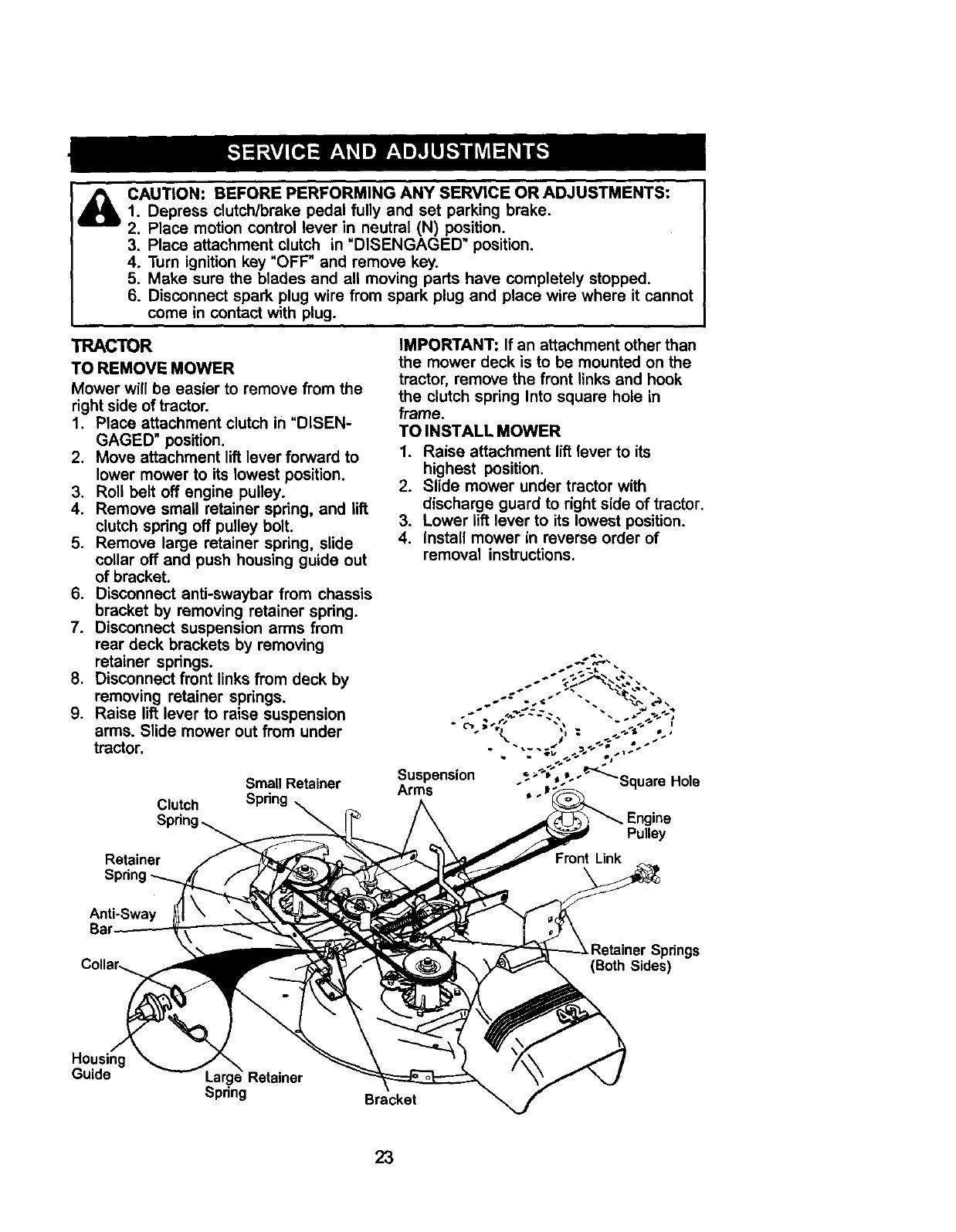

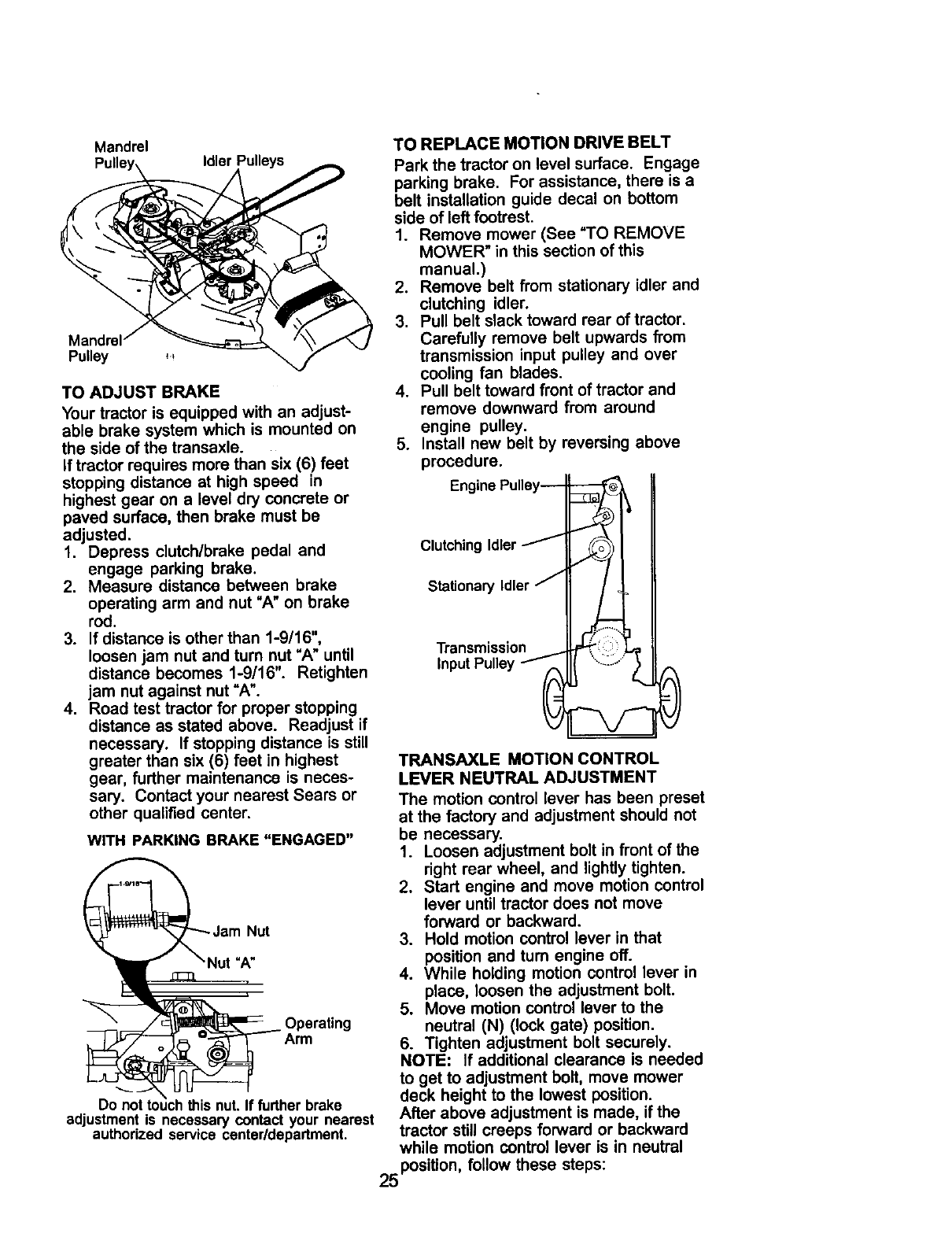

Service and Adjustments .................... 23

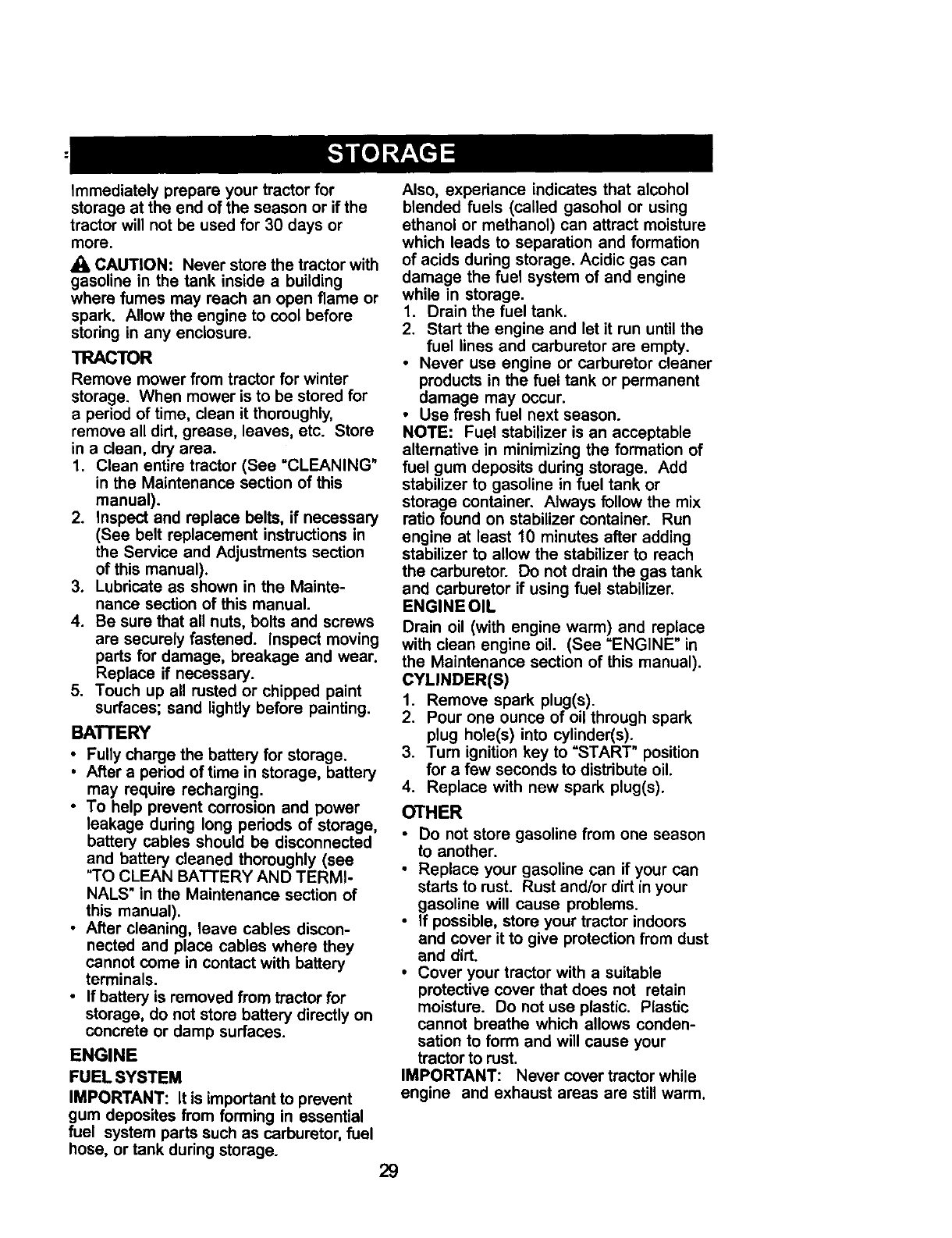

Storage ............................................... 29

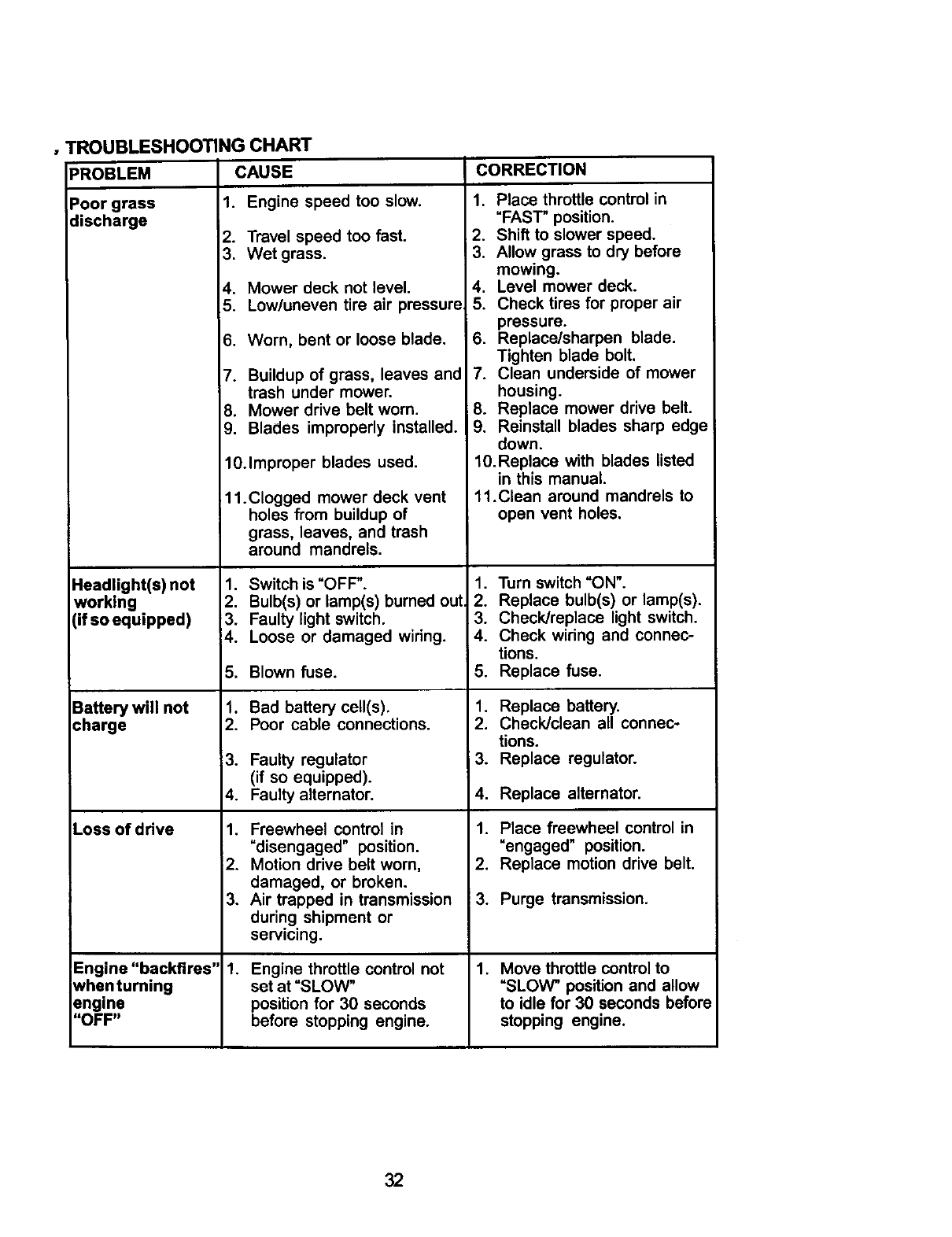

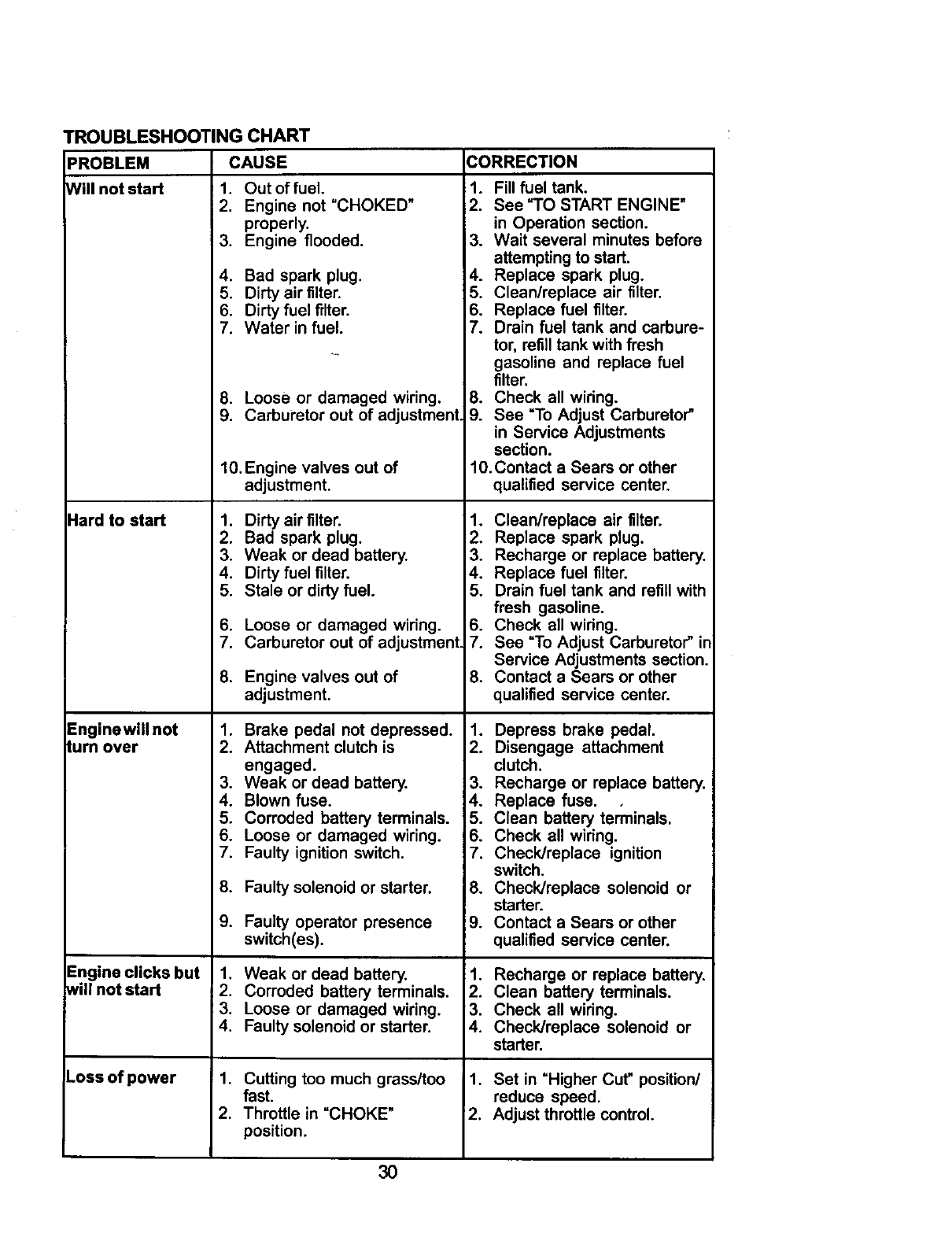

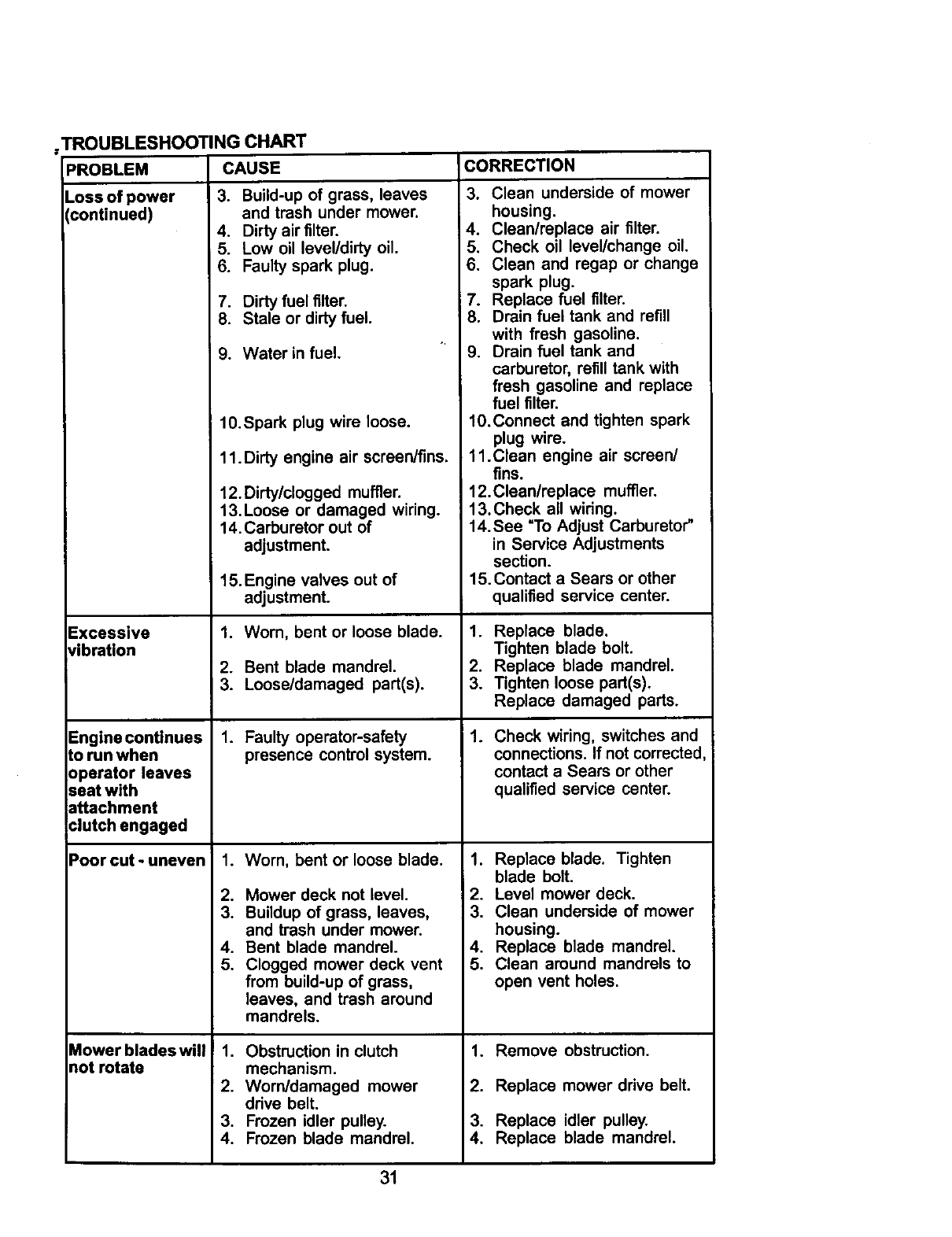

Troubleshooting ................................. 30

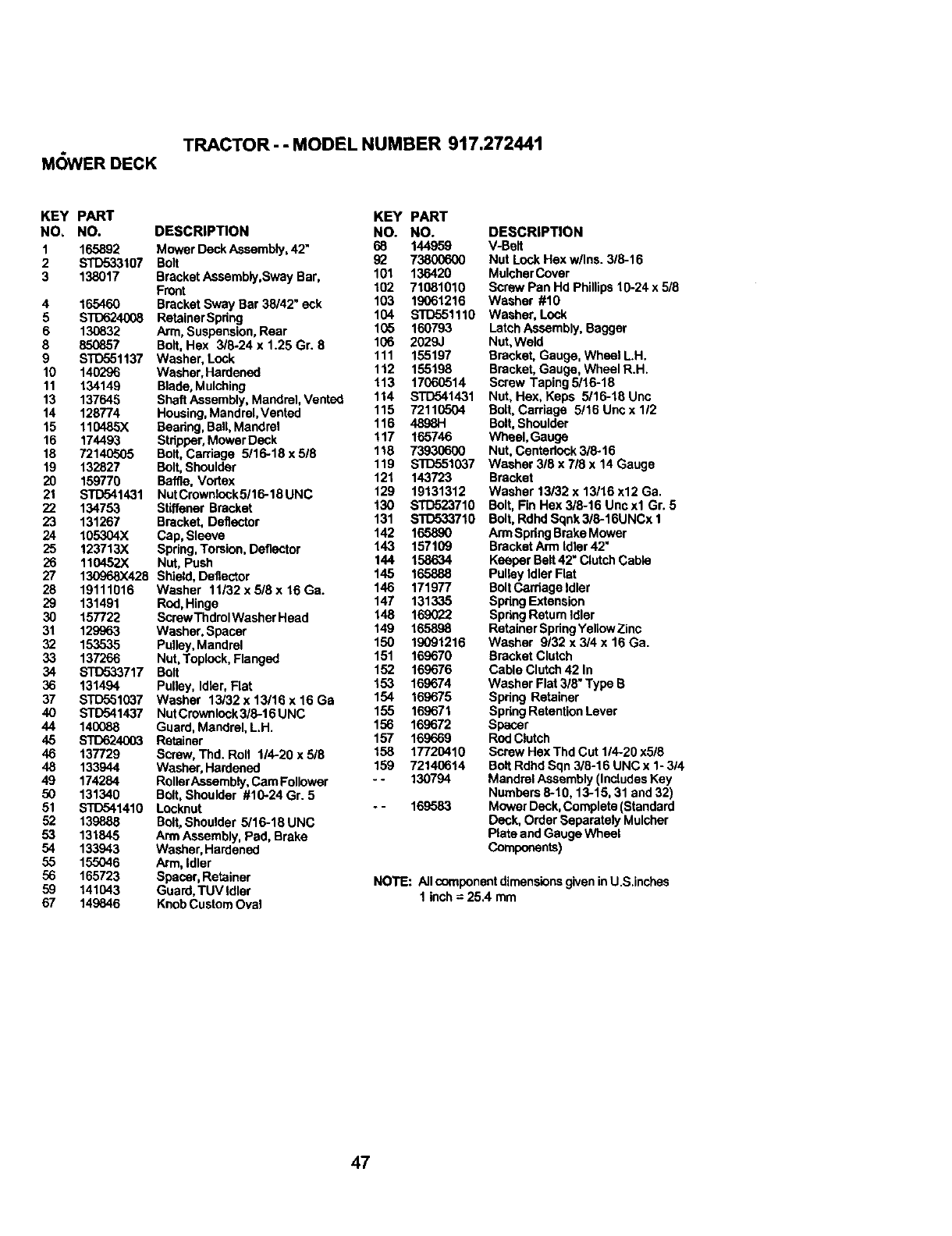

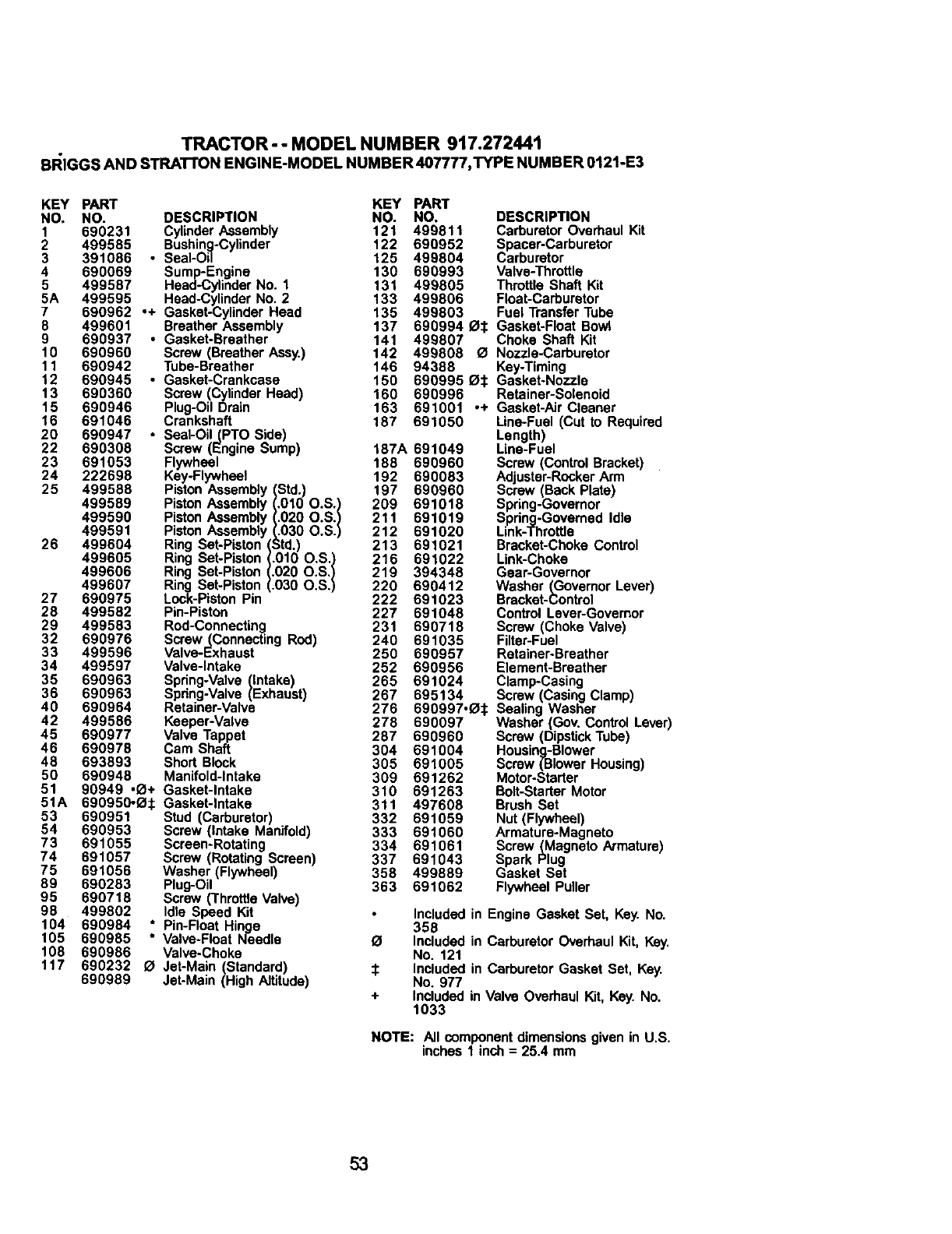

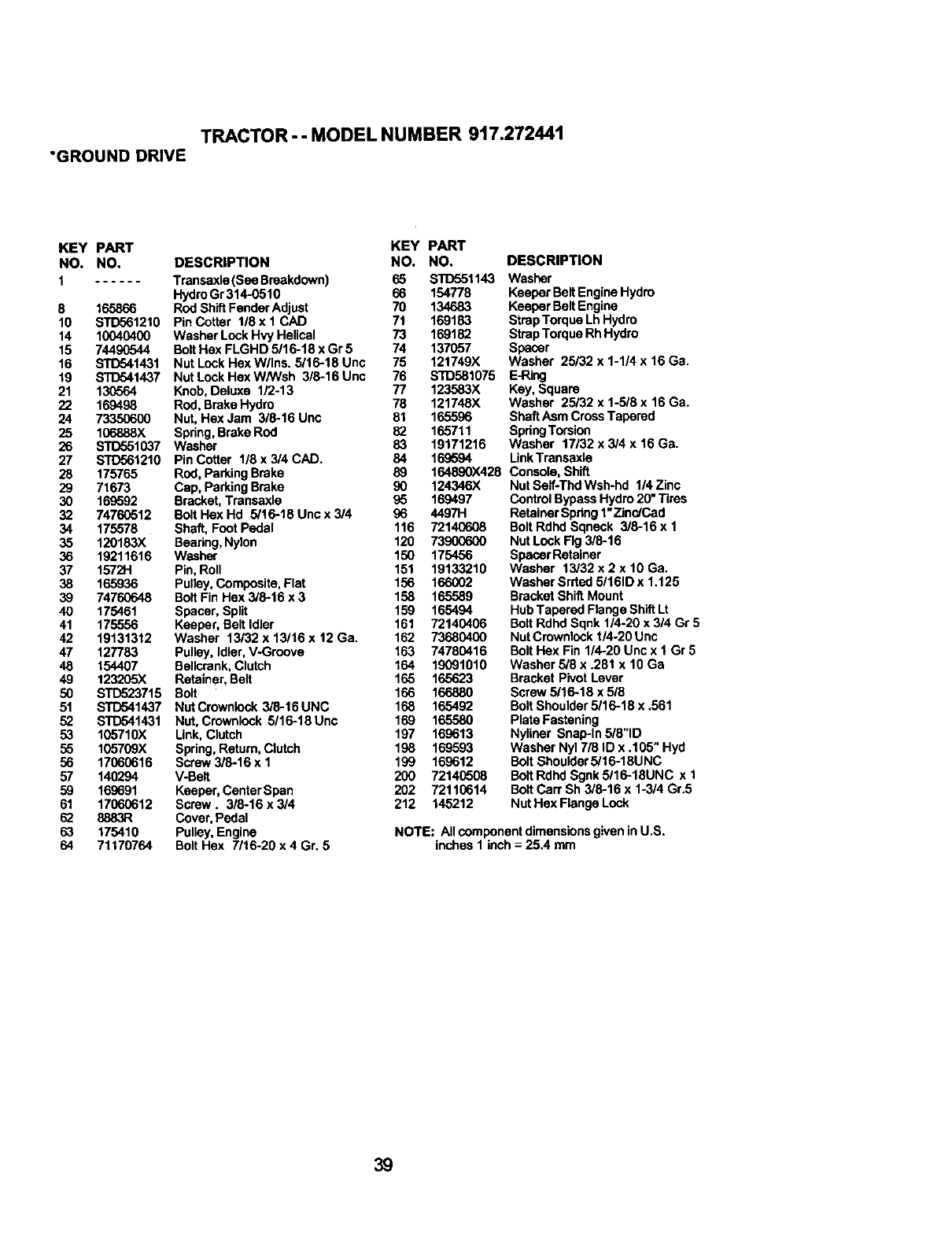

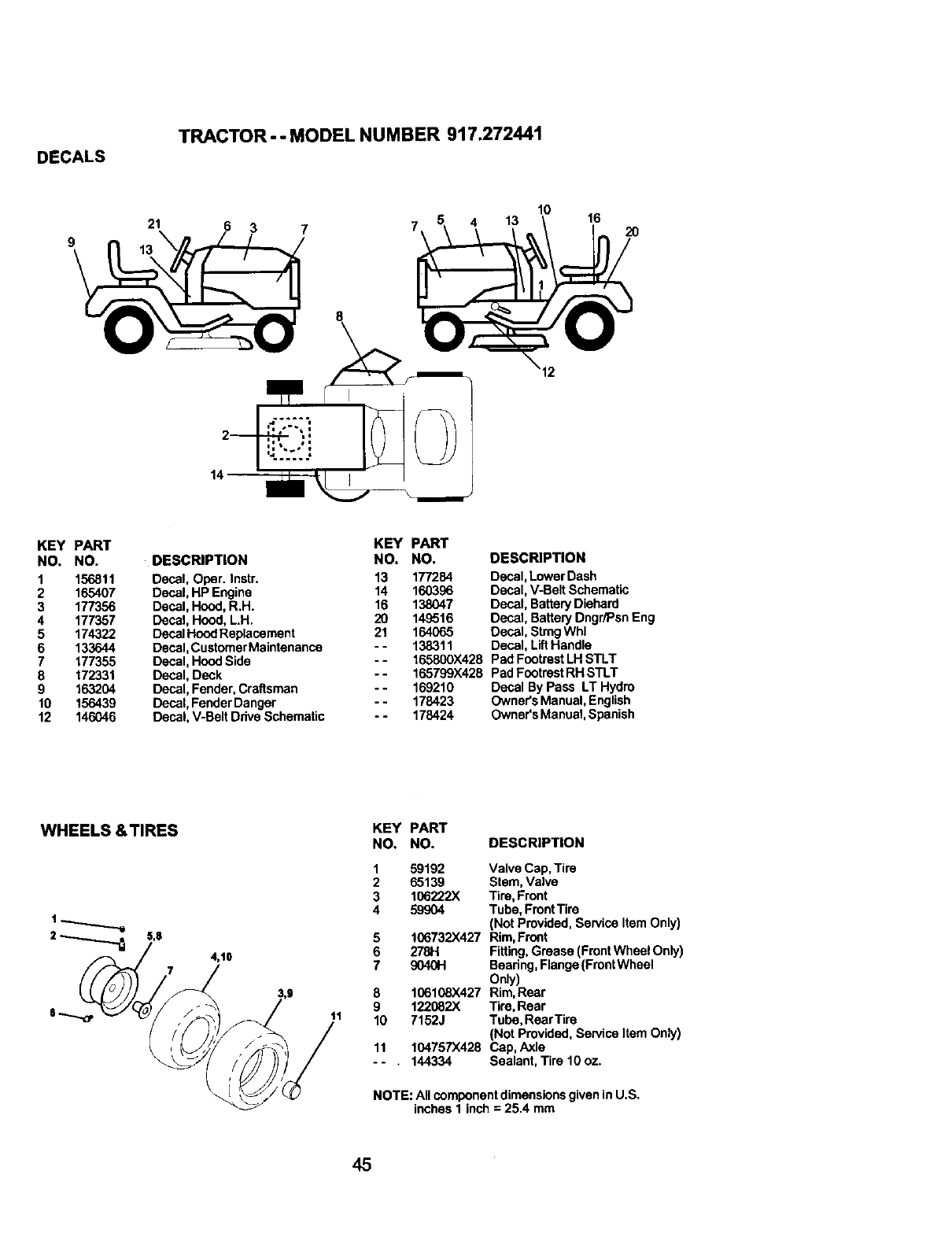

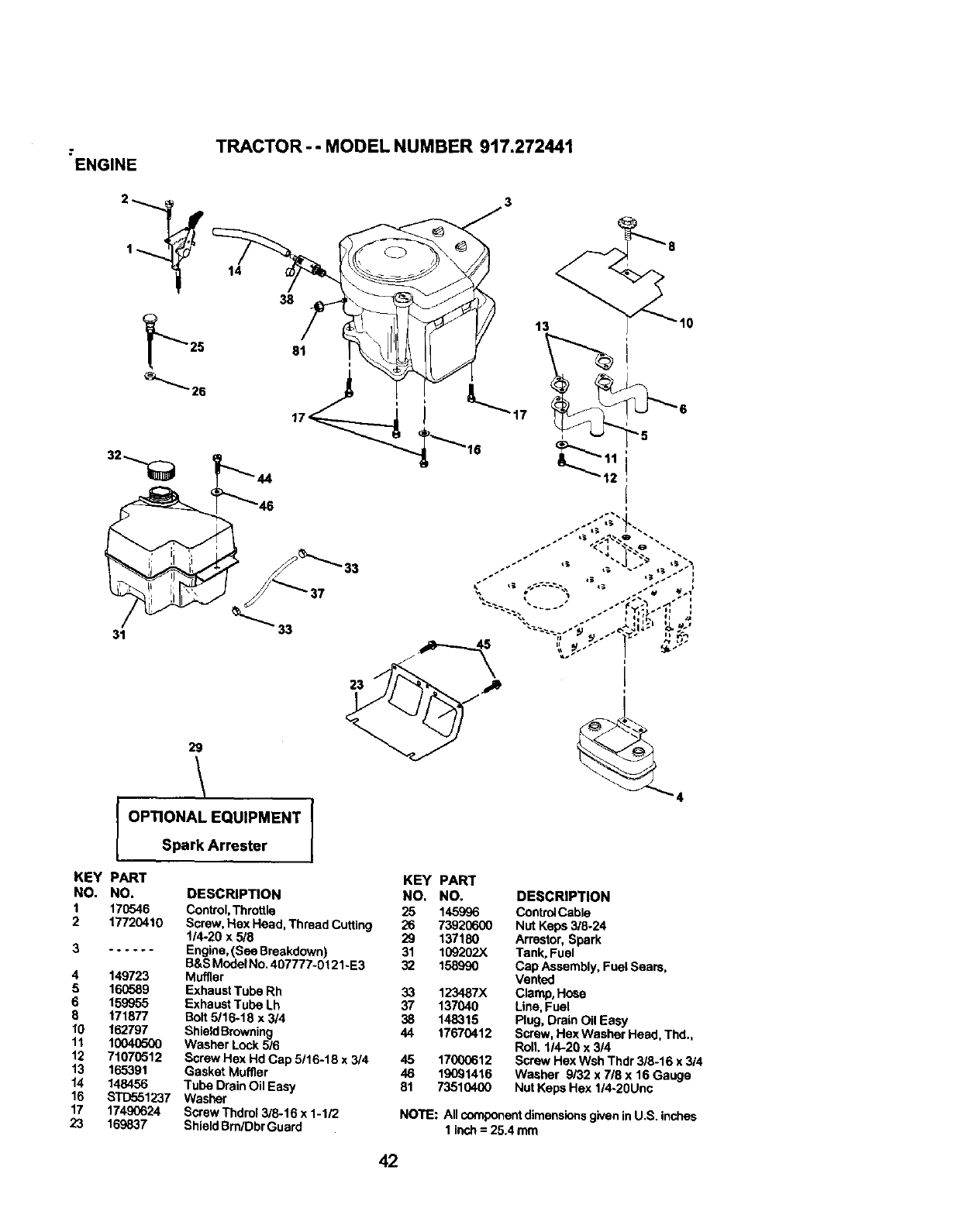

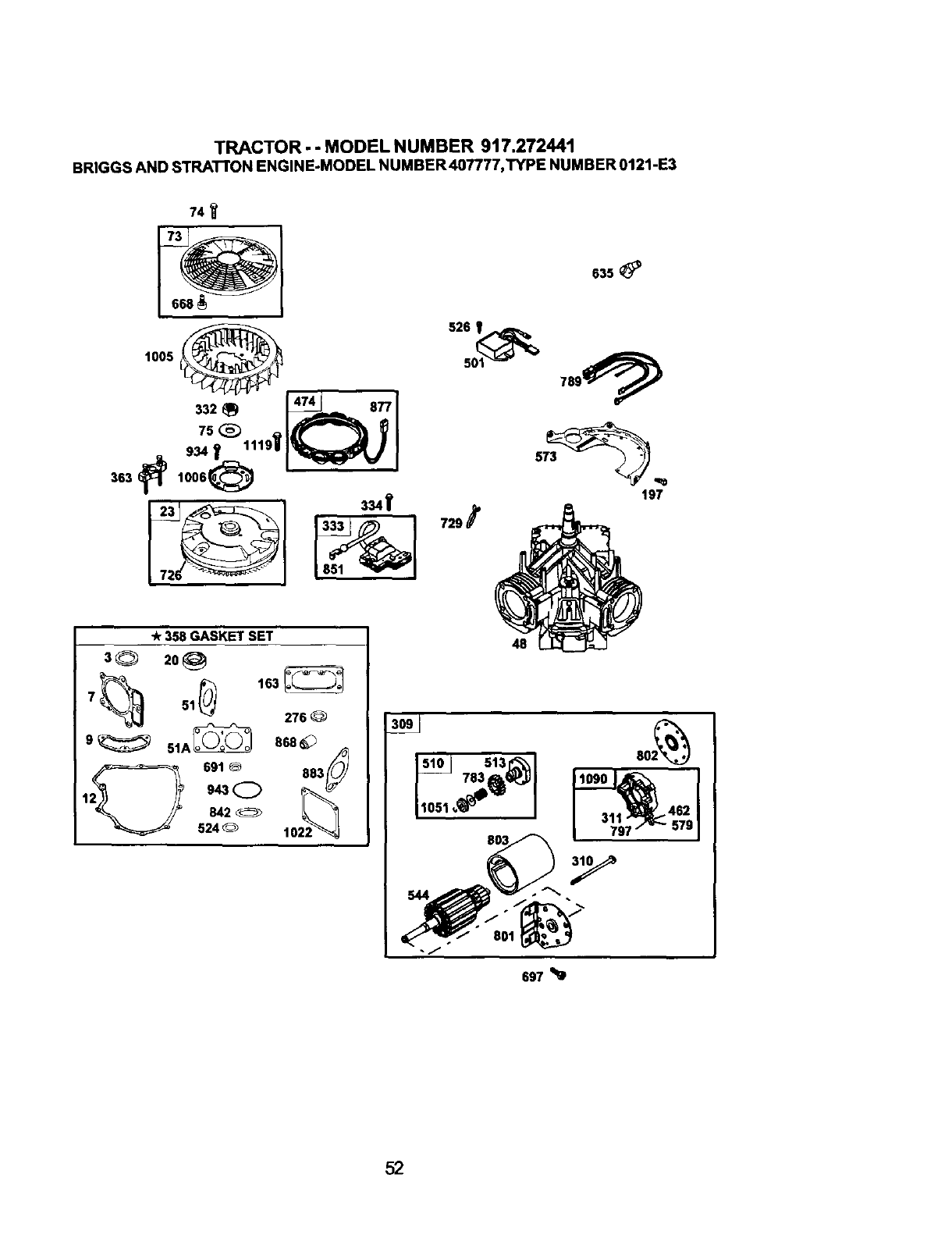

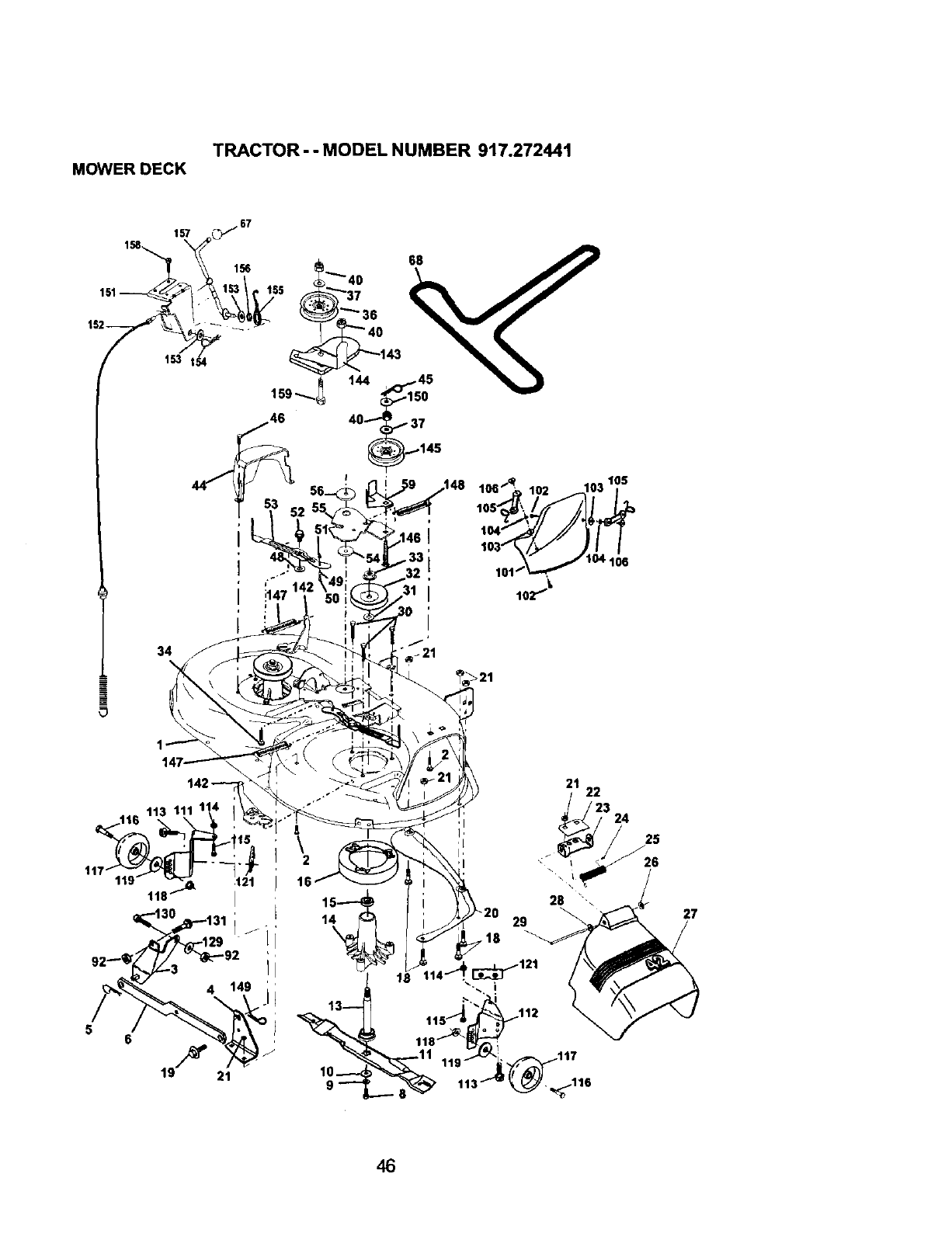

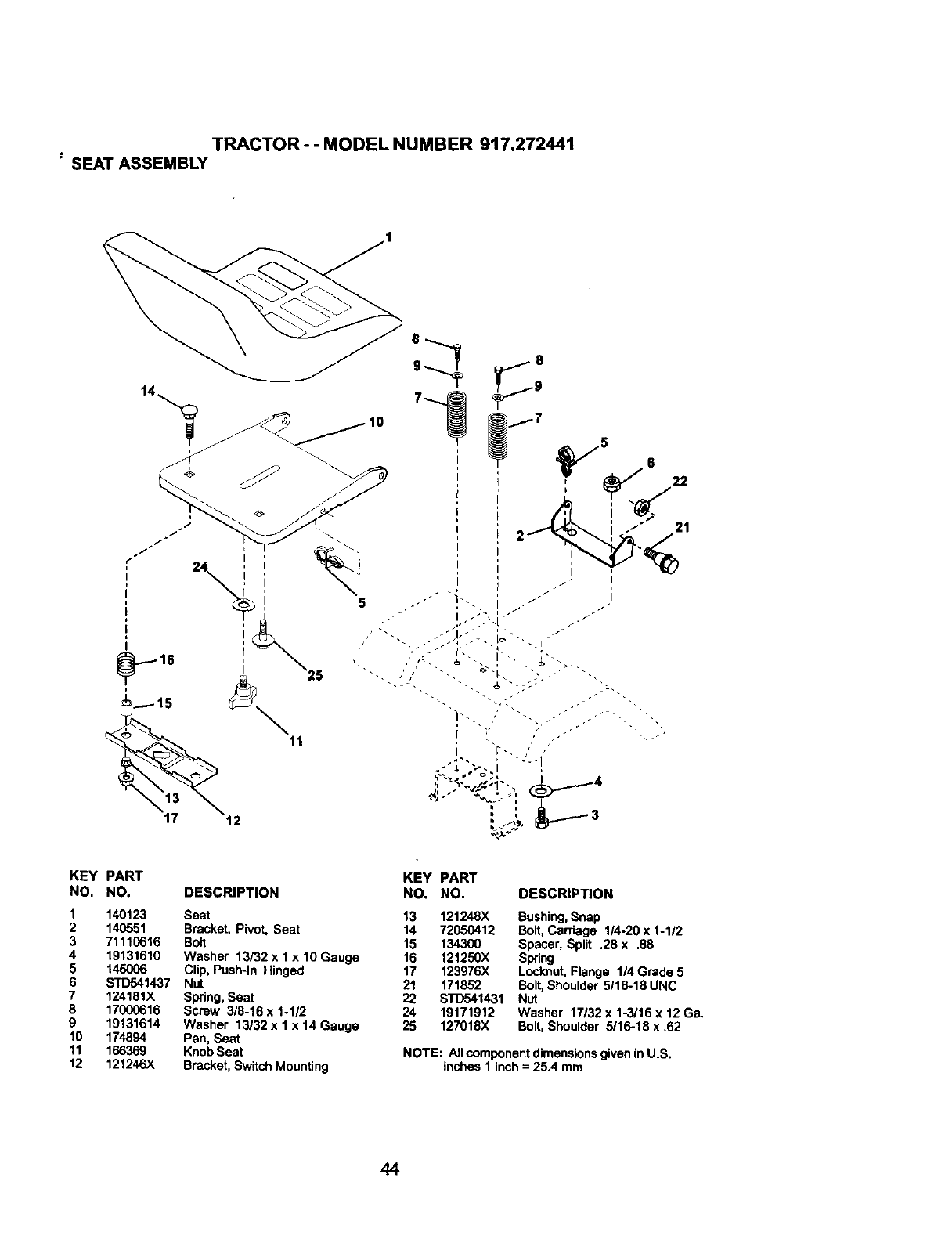

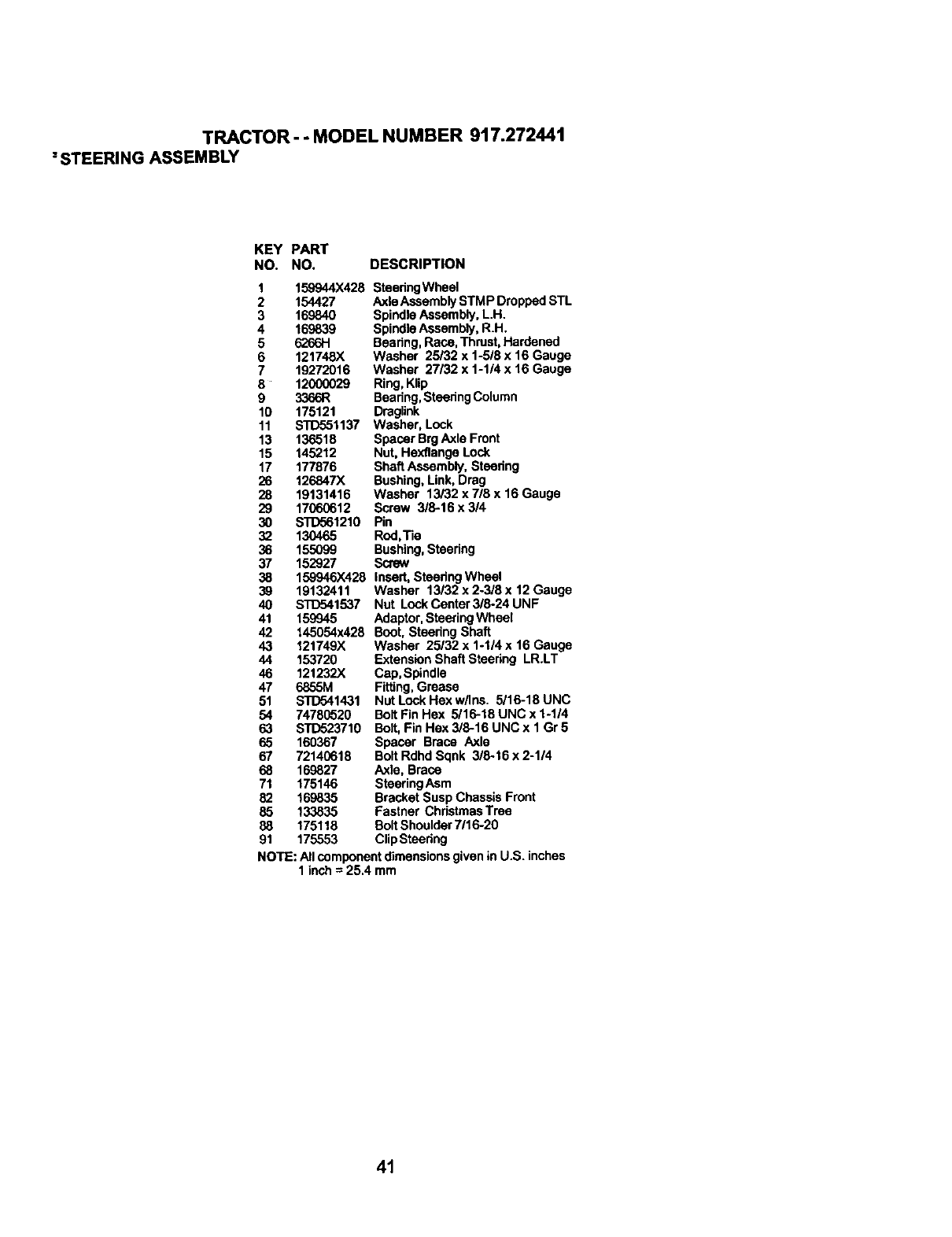

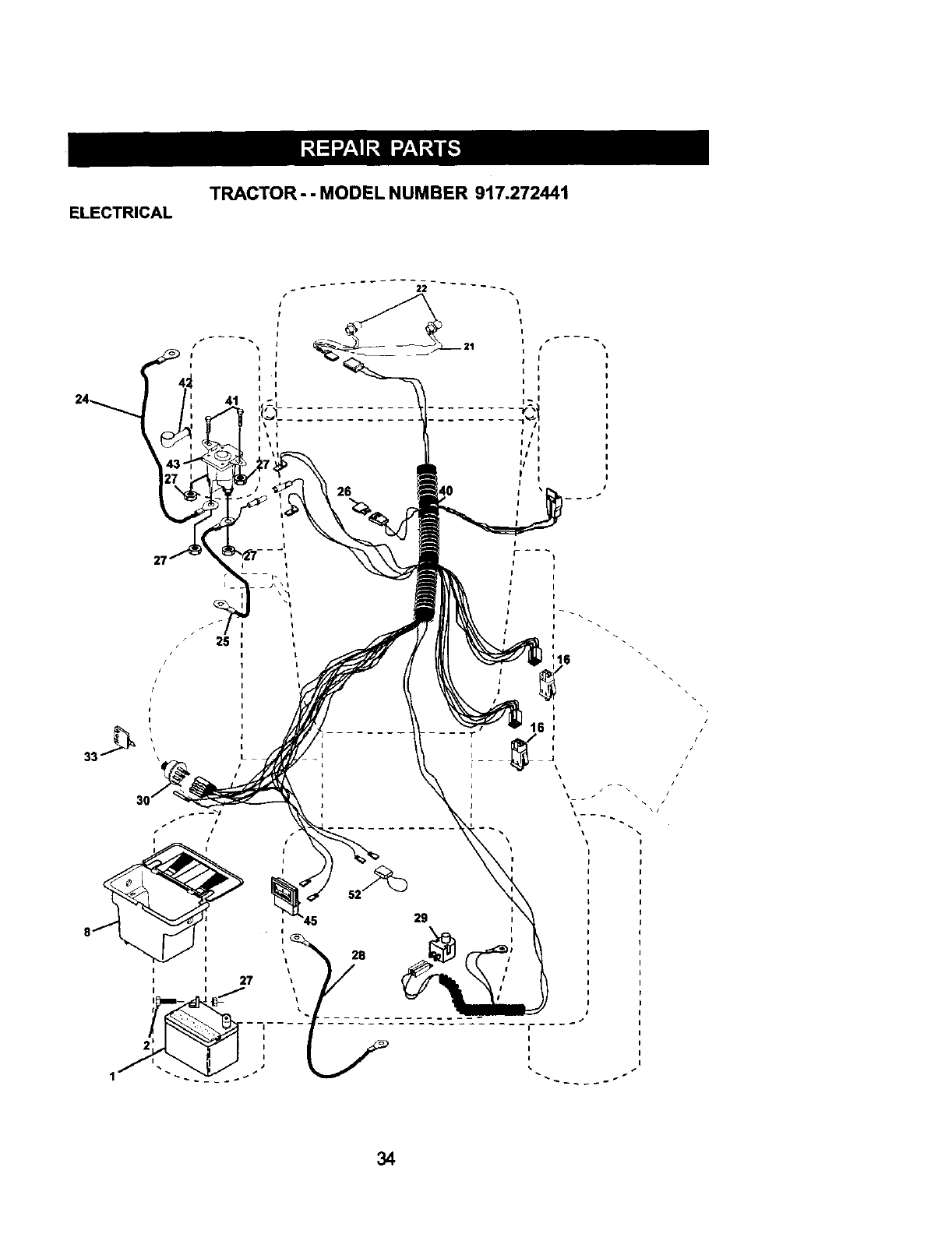

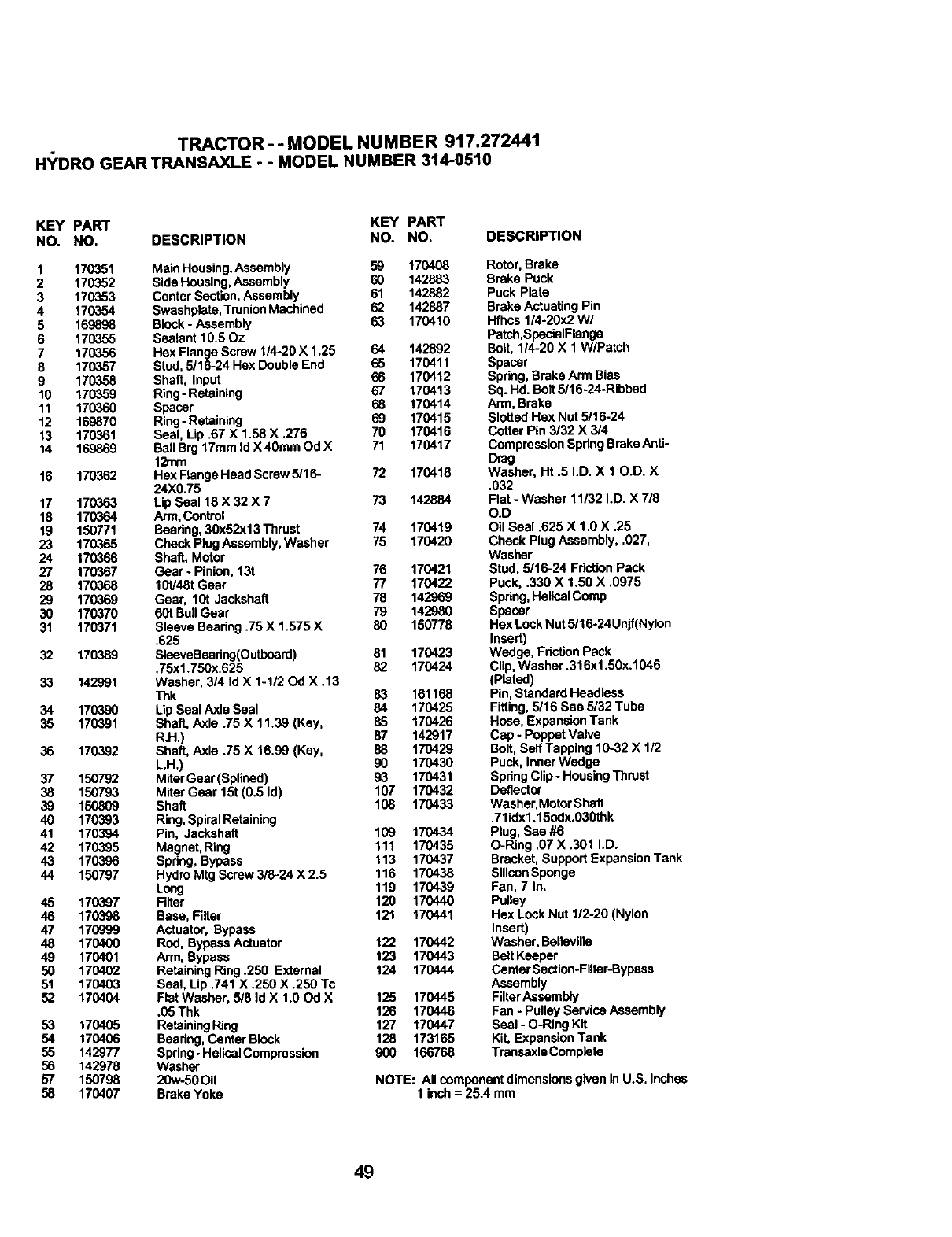

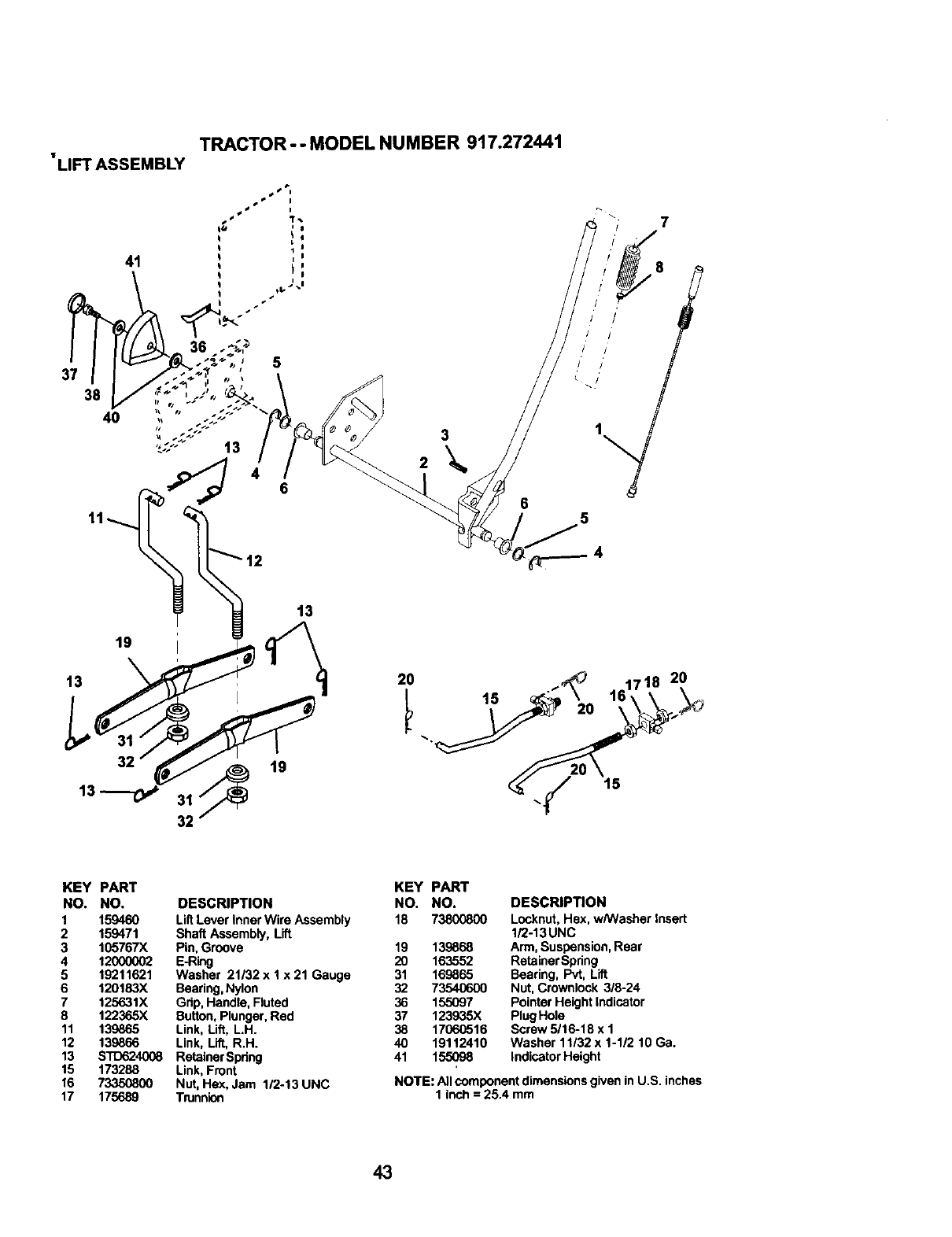

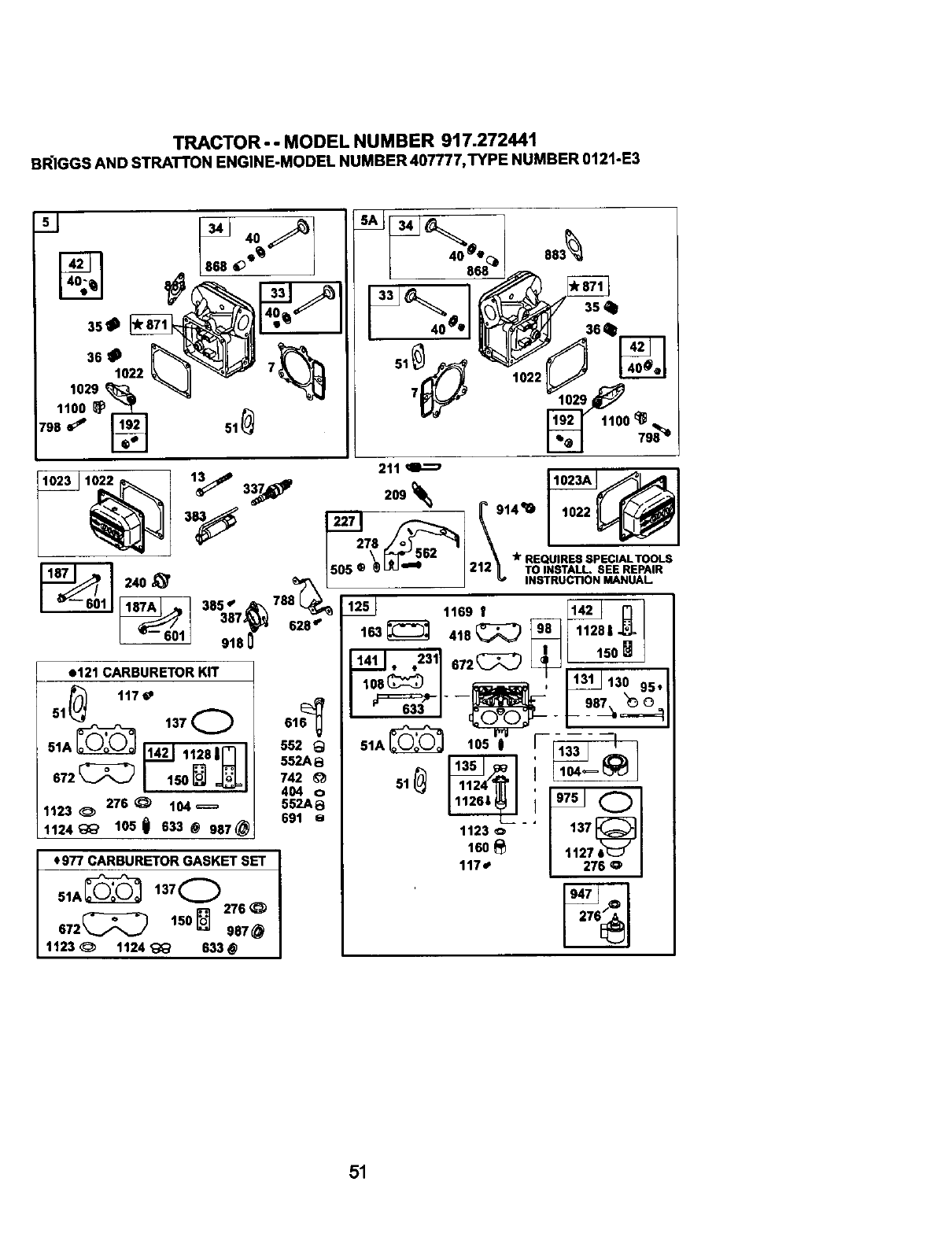

Repair Parts ........................................ 34

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning your

Craftsman riding equipment to your nearest Sears Service Center. In-home warranty

service is available but a trip charge will apply. This warranty applies only while this

product is in the United States.

This Warranty does not cover:

• Expendable.items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained inthe owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service is available free of charge by returning your Craftsman riding equipment to

your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-HOME

WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights which

may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

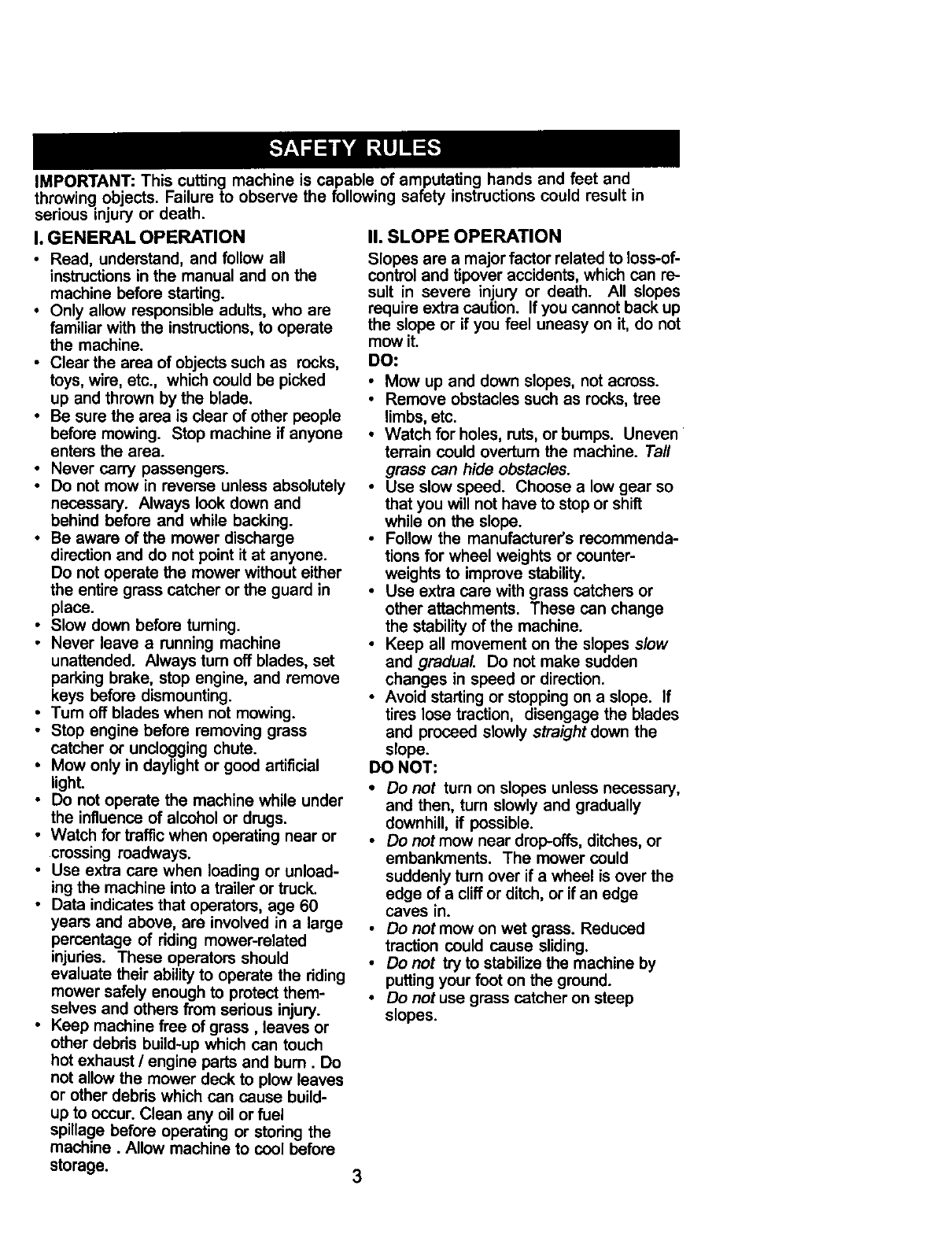

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

I. GENERAL OPERATION

•Read, understand, and follow all

instructions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

•Slow down before turning.

•Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or unload-

ing the machine into a trailer or truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

•Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower dock to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

I1.SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

DO:

•Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Taft

grass can hide obstacles.

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

•Keep all movement on the slopes s/ow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless necessary,

and then, tum slowly and gradually

downhill, if possible.

•Do not mow near dropoffs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do notmow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

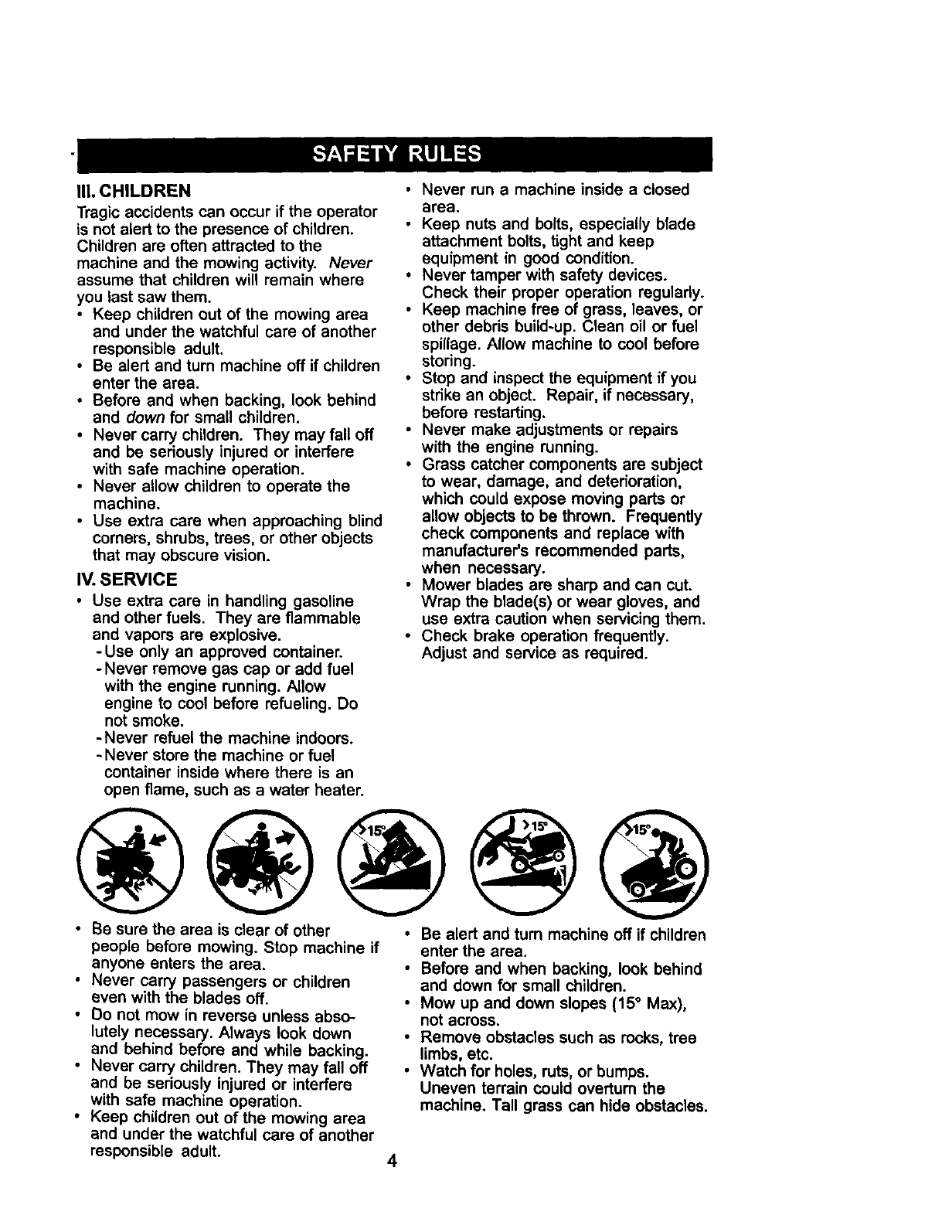

Ul. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

•Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

-Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and re#ace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

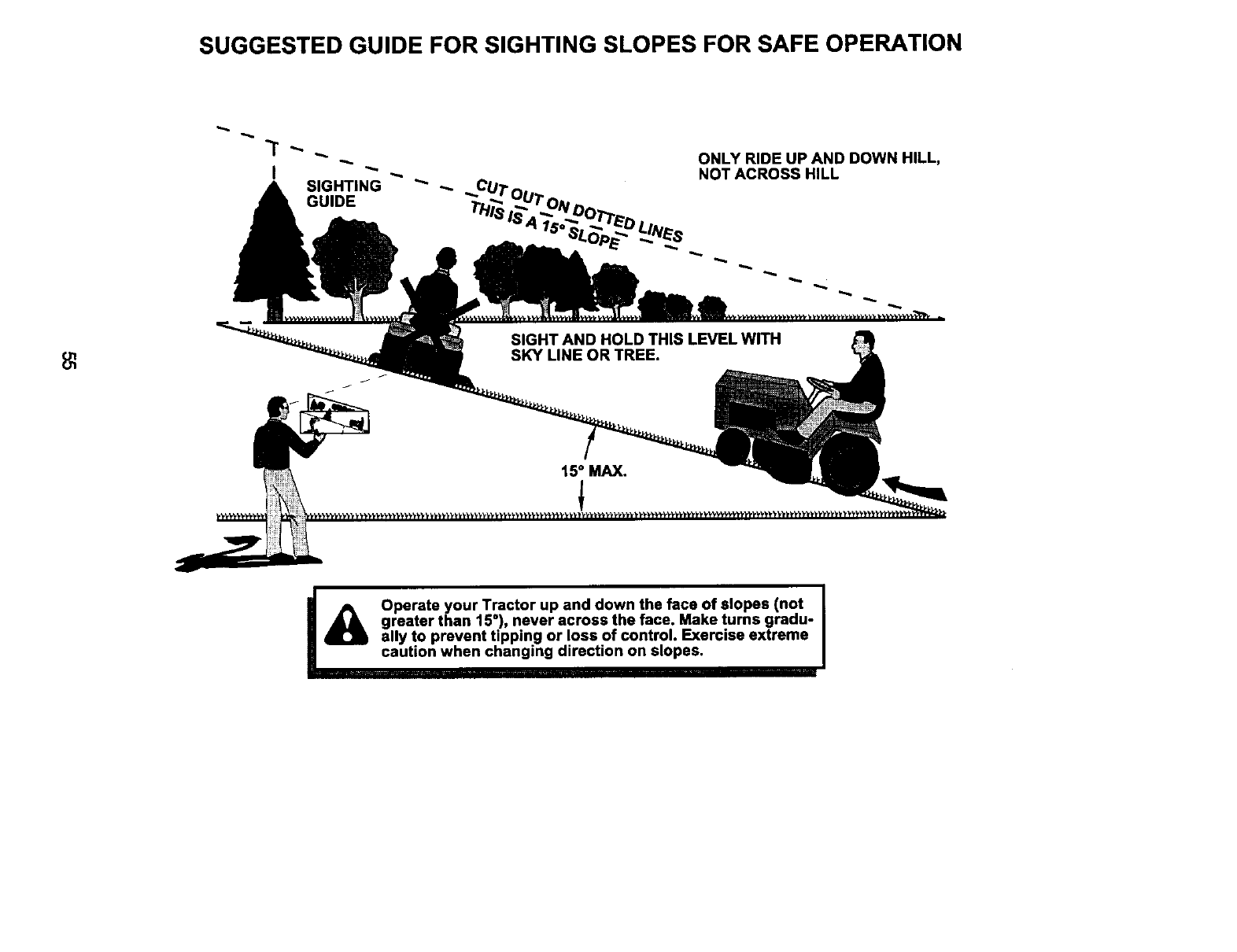

•Mow up and down slopes (15 °Max),

not across.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

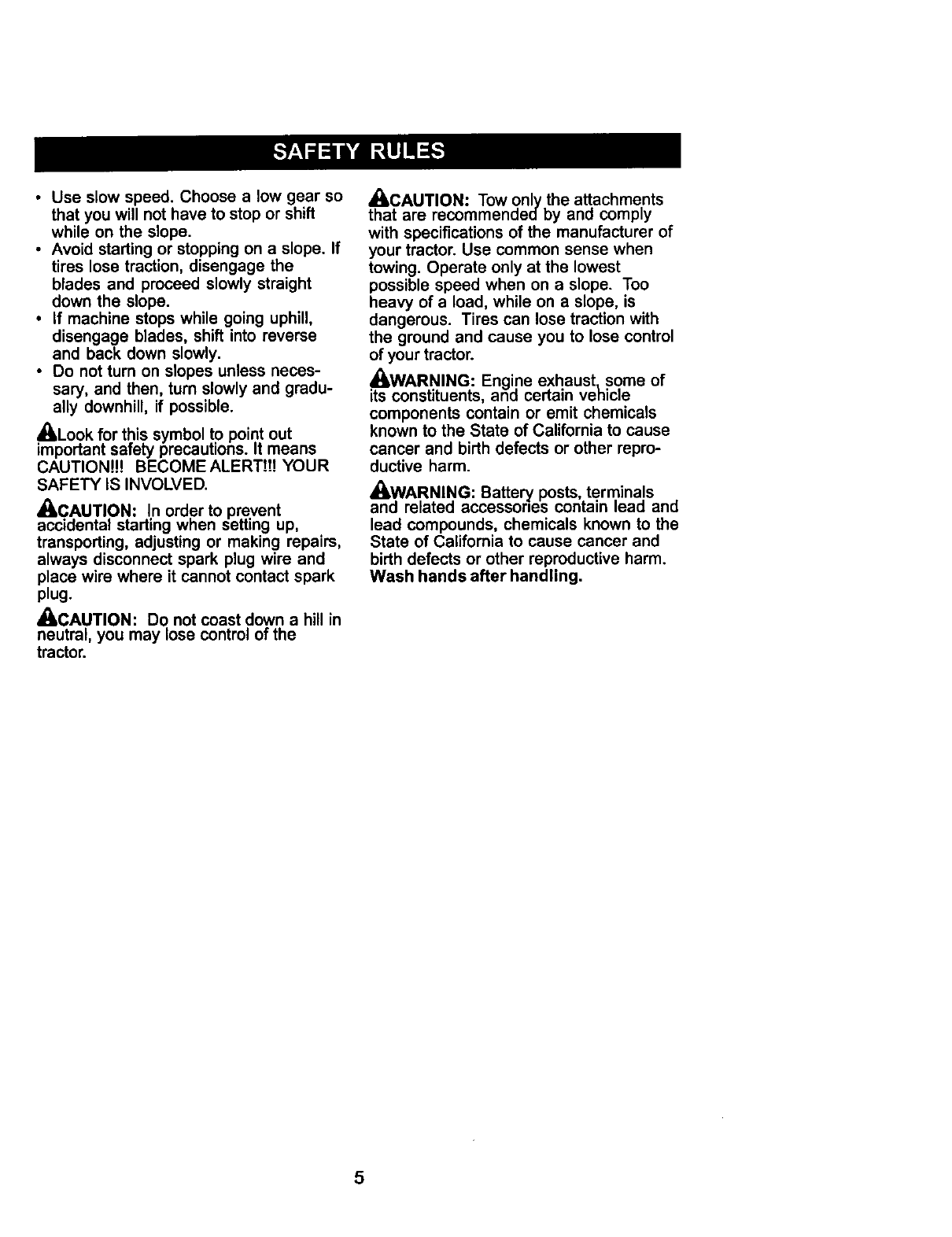

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

_lLLook for this symbol to point out

important saTety precautions. II means

CAUTION!H BECOME ALERT!!! YOUR

SAFETY IS INVOLVED.

_I, CAUTI,ON" In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_,CAUTION: Do not coast down a hill in

neutral, you may lose control of the

tractor.

_CAUTION: Tow only the attachments

that are recommendedby and comply

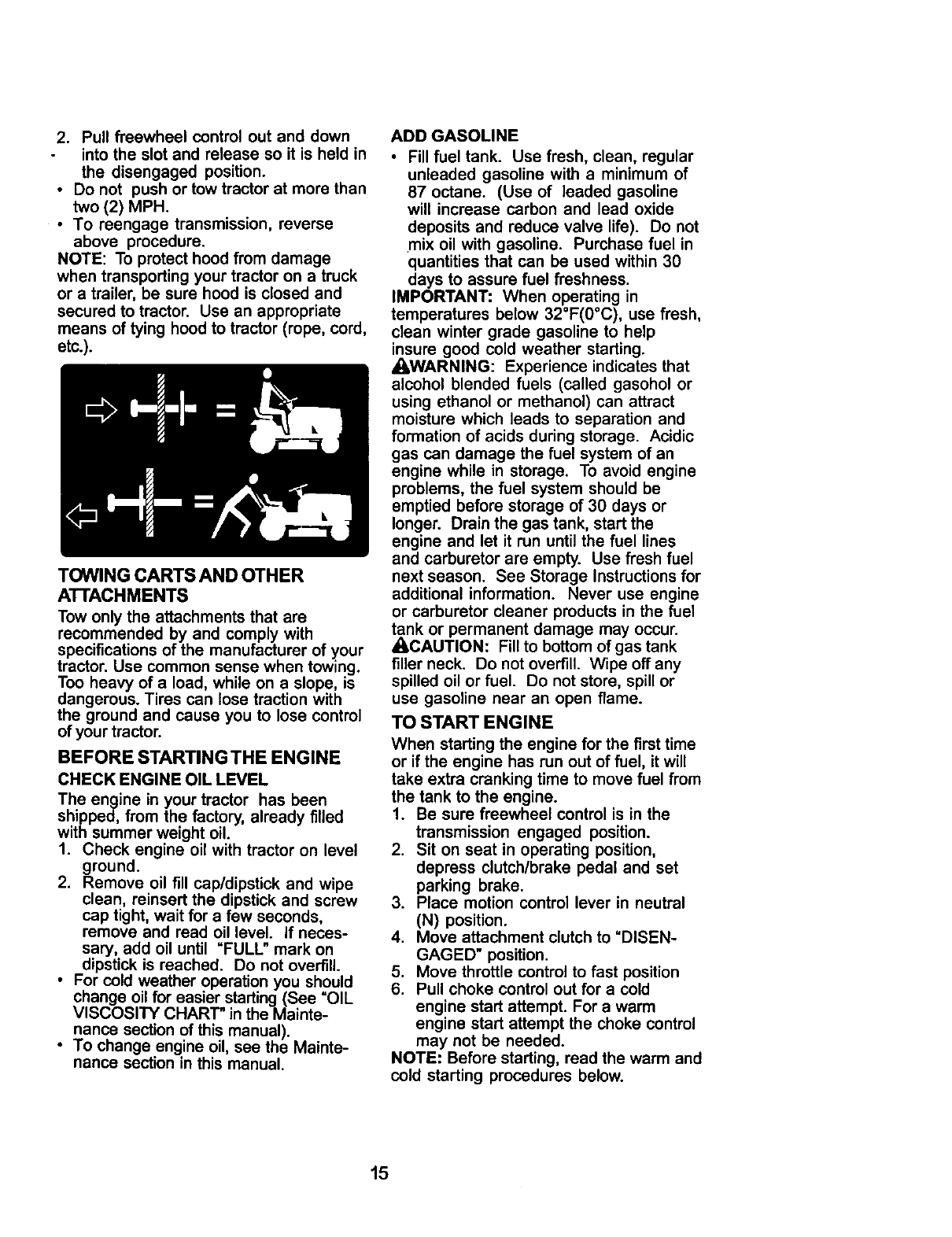

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

_kWARNING: Engine exhaust,some of

its constituents, ana certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

a_r_NrAelRaNING:Battery posts,.te.rmina!s .

tea accessones contain leao ane

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

PRODUCT SPECIFICATIONS

GASOLINE 1.25 GALLONS

CAPACITY UNLEADED

AND TYPE: REGULAR

OILTYPE SAE 30

API-SF-SJ): (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

OIL CAPACITY: W/FILTER: 4.0 PINTS

W/O FILTER: 3.75 PINTS

SPARK PLUG: CHAMPION

GAP: .040") RC12YC

GROUND FORWARD: 5.5

SPEED (MPH): REVERSE: 2.4

]'IRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 16 AMPS @ 3600 RPM

SYSTEM:

BATTERY: AMP/HR: 28

MIN. CCA: 230

CASE SIZE:U 1R

BLADE BOLT 27-35 FT. LBS

tORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARN!NG: This tractor is equipped,

with an imerna_ comoustion engine aria

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

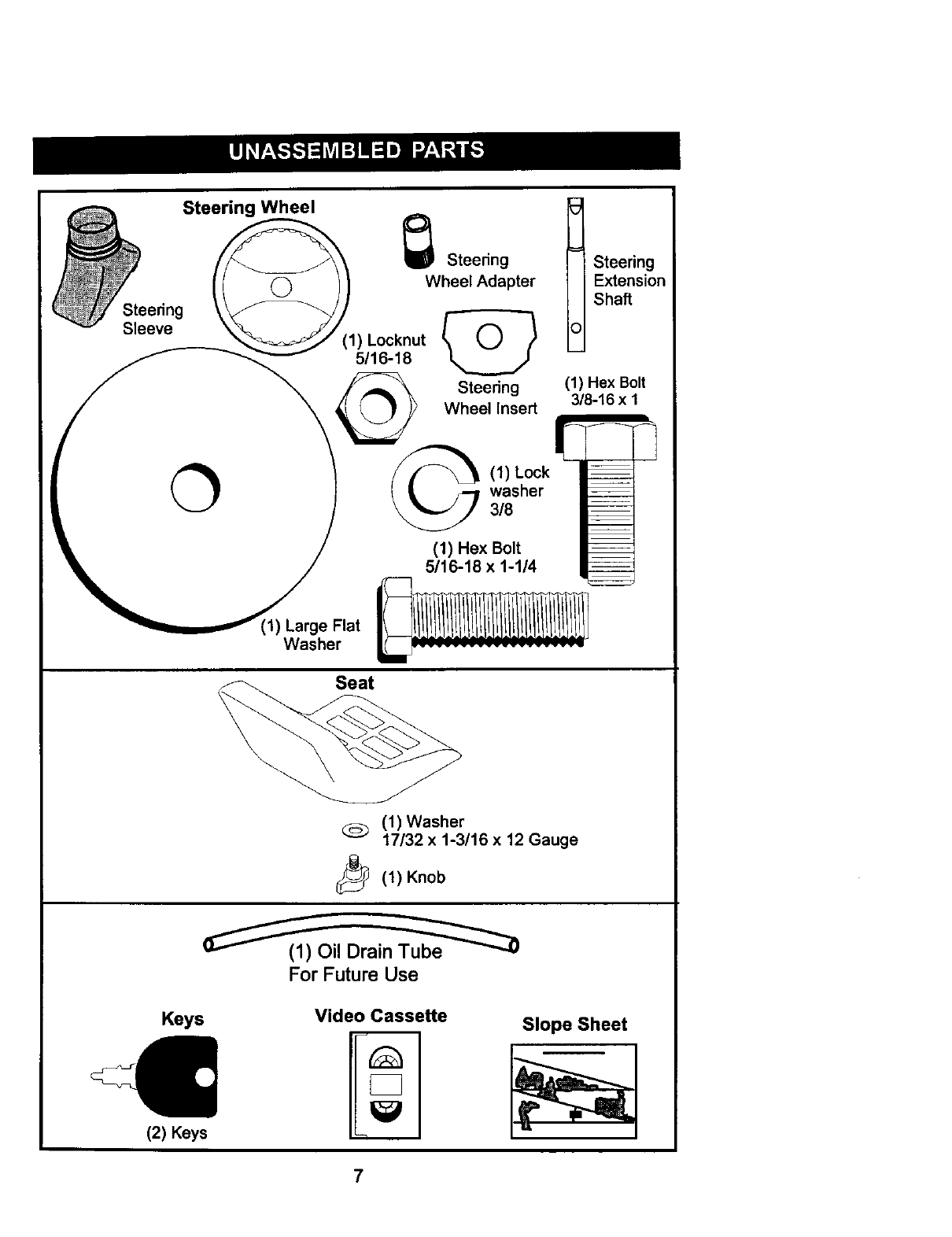

Steering Wheel

Steering

Sleeve

Steedng

Wheel Adapter

(1) Locknut

5/16-18

Steering

Wheel Insert

I teering

Extension

Shaft

(1) Hex Bolt

3/8-16 x 1

©(1) Lock

washer

3/8

11)Large Flat

Washer

(1) Hex Bolt

5/16-18 x 1-1/4

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

_(1) Knob

For Future Use

Keys

(2) Keys

Video Cassette Slope Sheet

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the

steering wheel). Steering

TO REMOVETRACTOR FROM Wheel __

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay Extension

panels flat.

3. Check for any additional loose parts 5/16

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

_/_ Steering

Wheel Insert

._'_. Hex Bolt

,_,----Lock Washer

Large Flat

Washer

Boot

Hex Bolt

HOWTO SET UPYOURTRACTOR

CHECK BATTERY

1. Lift seat pan to raised position and

open battery box door.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

Seat

Battery box

Terminal

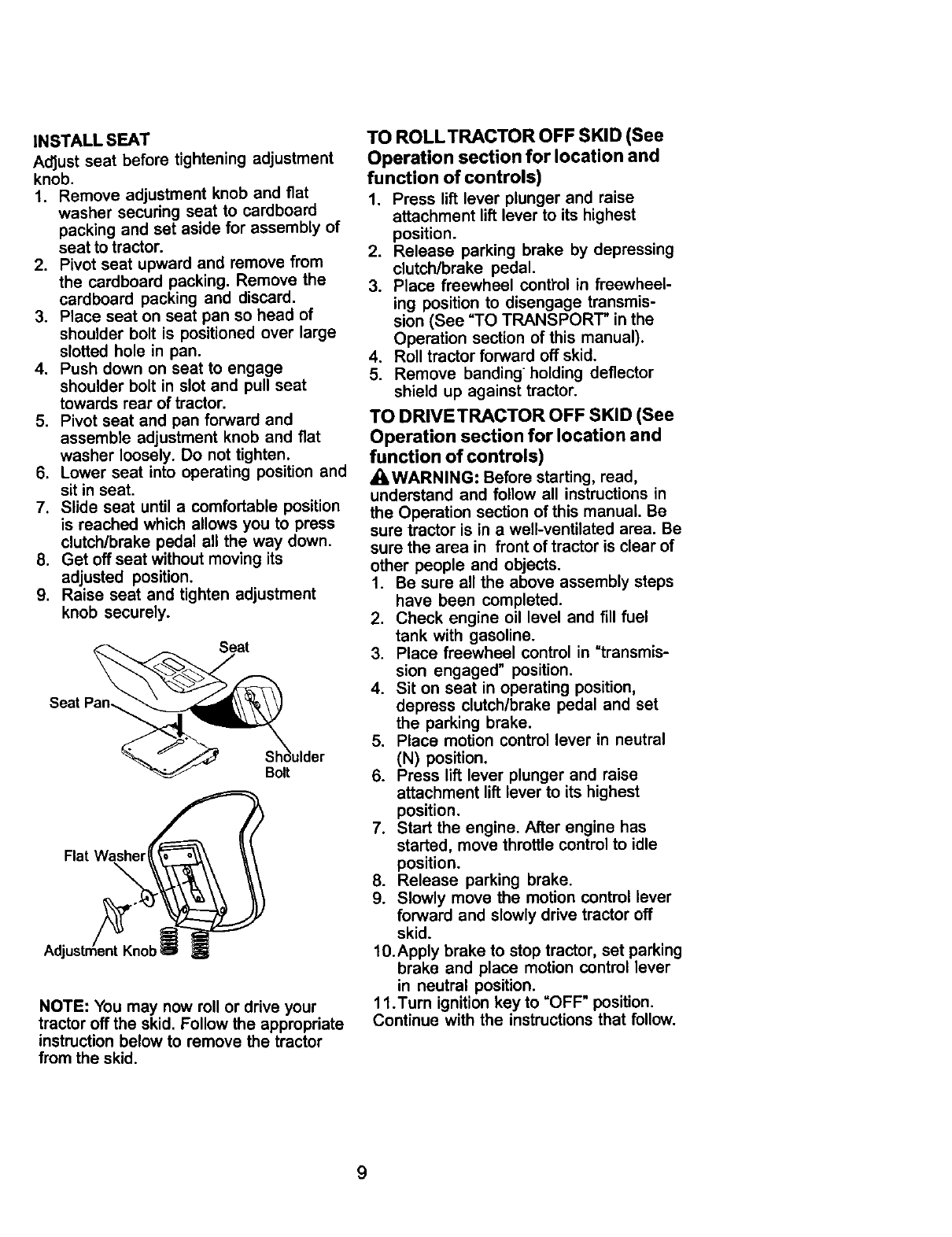

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan..

Bolt

Flat Washer

Adjustn_ent Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel cont_'ol in freewheel-

ing position to disengage transmis-

sion (See "TO TRANSPORT" in the

Operation section of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVETRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in =transmis-

sion engaged" position.

4. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest

position.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever

in neutral position.

11.Turn ignition key to =OFF" position.

Continue with the instructions that follow.

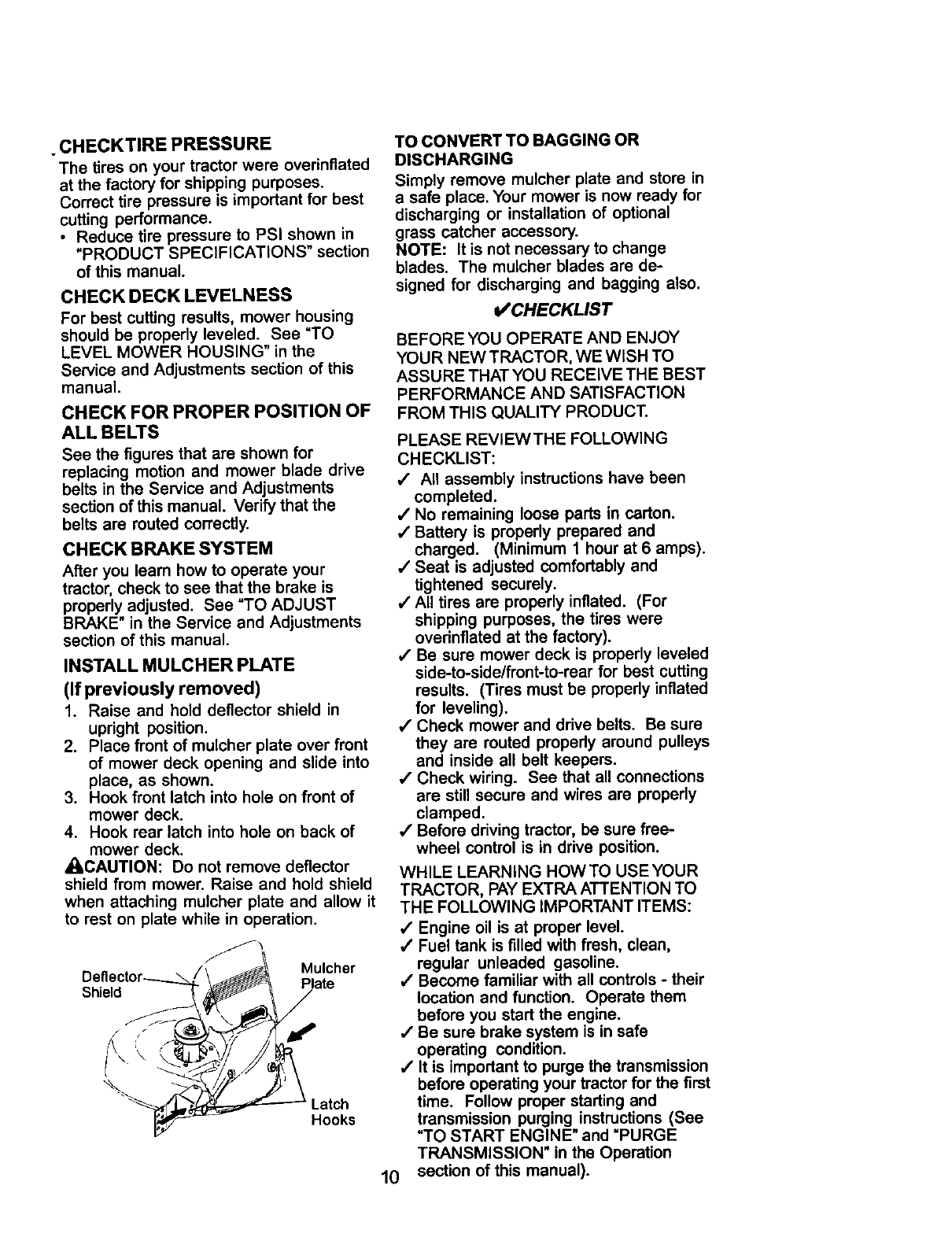

. CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

=PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook roar latch into hole on back of

mower deck.

_kCAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

enector_\. H/ Plate

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

s/CHECKLIST

BEFOREYOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE BEST

PERFORMANCE AND SATISFACTION

FROM THIS QUALITY PRODUCT.

PLEASE REVIEWTHE FOLLOWING

CHECKLIST:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

•/Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is propedy leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed propedy around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are propedy

clamped.

,/Before driving tractor, be sure free-

wheel control is in drive position.

WHILE LEARNING HOWTO USEYOUR

TRACTOR, PAY EXTRA ATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

•(Engine oil is at proper level.

/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and =PURGE

TRANSMISSION" in the Operation

10 section of this manual).

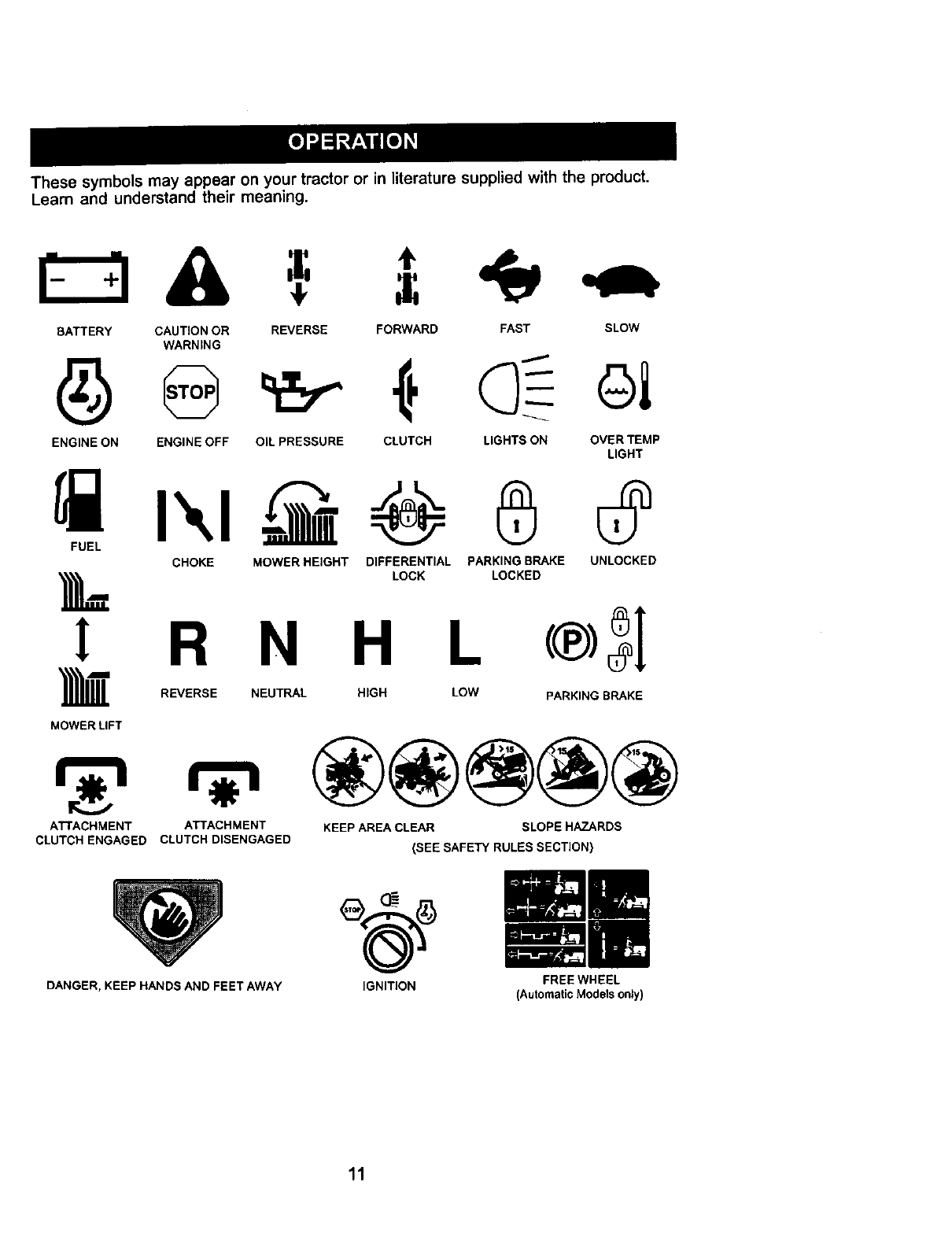

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

I- ;I

BATTERY CAUTION OR

WARNING

ENGINE ON ENGINE OFF

REVERSE FORWARD FAST SLOW

OIL PRESSURE CLUTCH LIGHTS ON OVER TEMP

LIGHT

CHOKE MOWER HEIGHT DIFFERENTIAL PARKING BRAKE UNLOCKED

LOCK LOCKED

IR N H L

REVERSE NEUTRAL HIGH LOW PARKING BRAKE

MOWER LIFT

ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY IGNITION FREE WHEEL

(Automatic Models only)

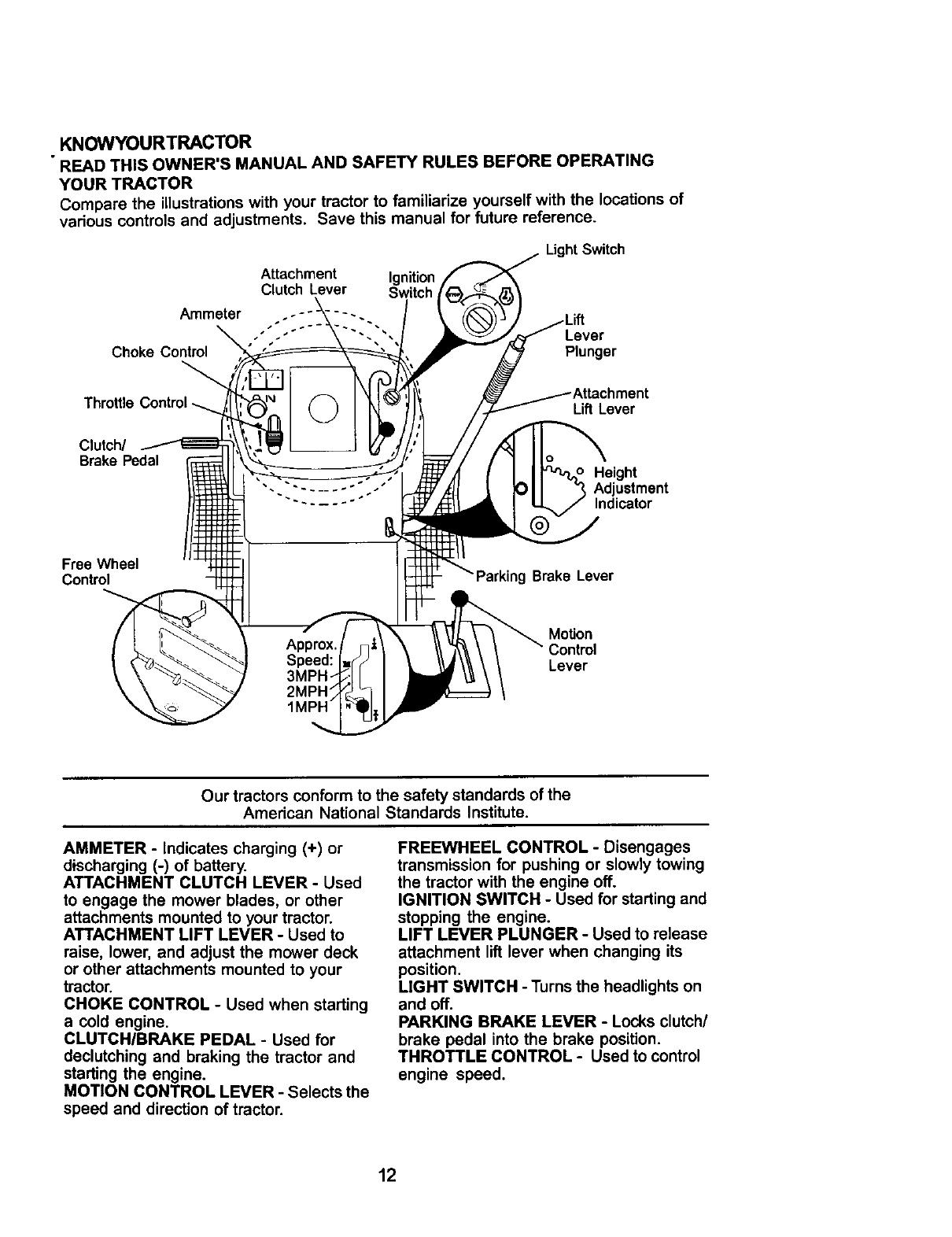

KNOWYOURTRACTOR

•READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment Ignition

Clutch Lever Switch

Light Switch

Ammeter - -- .. Lever

Choke Control Plunger

Clutch/

Brake Pedal

Lift Lever

Height

Adjustment

Indicator

Free Wheel

Control g Brake Lever

MoBon

Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CHOKE CONTROL - Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH - Turns the headlights on

and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE CONTROL - Used to control

engine speed.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOWTO USEYOURTRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal into full

"BRAKE" position and hold.

2. Place parking brake lever in "EN-

GAGED" position and release

pressure from clutch/brake pedal.

Pedal should remain in "BRAKE"

position. Make sure parking brake will

hold tractor secure.

Attachment Clutch Lever

Choke Control Position

Throttle

Control

Brake Position

Pedal Brake

"Engaged"

Motion

"Br= Control

=Disengaged" Position Lever

Position

STOPPING

MOWER BLADES -

• To stop mower blades,move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

•To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

•Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

•Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

•Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF" will

cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

_pping tractor on grass areas.

CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

•Operating engine at less than full

throttle reduces the battery charging

rate.

•Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

•To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake and clutch/

brake pedal.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

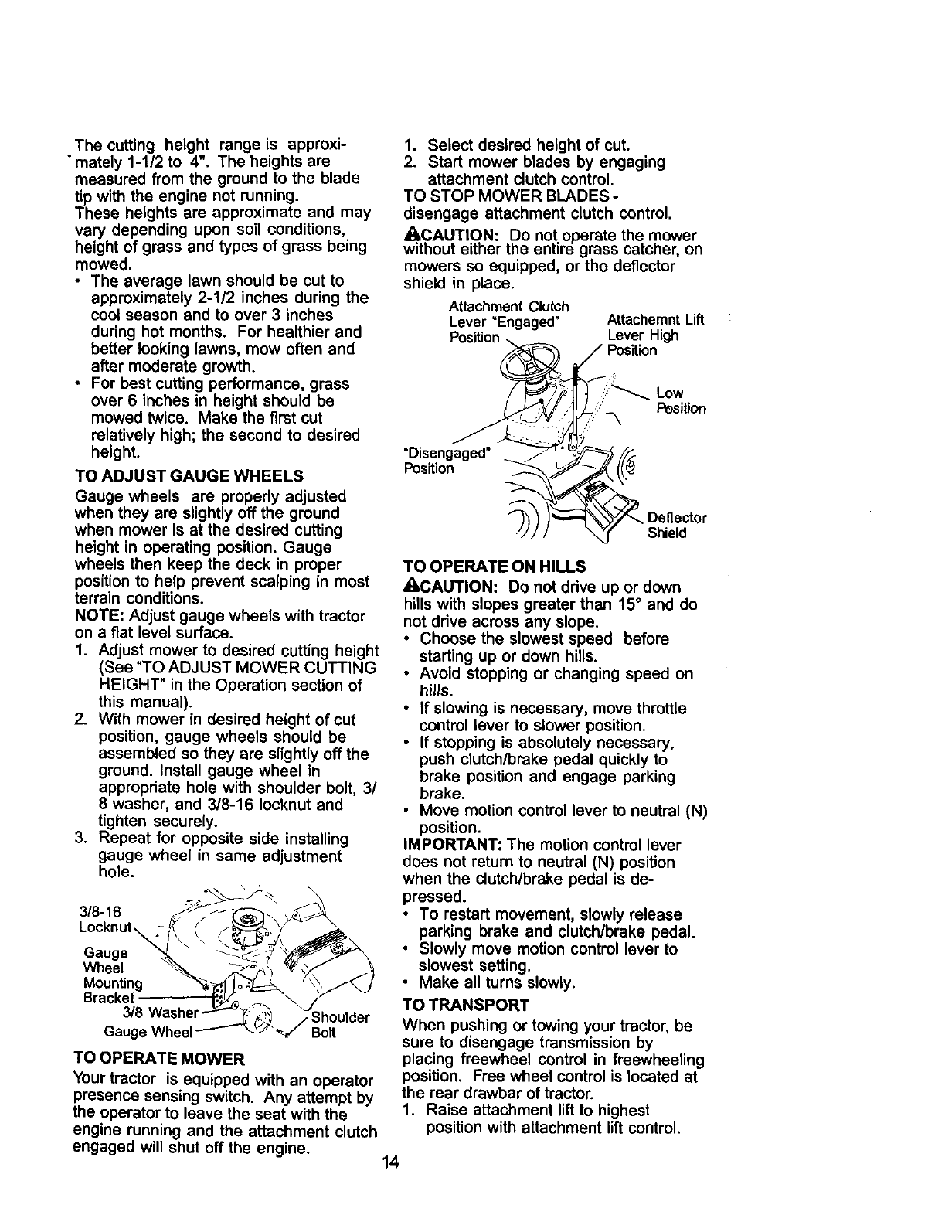

Thecutting height range is approxi-

"mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

•The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in the Operation section of

this manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side installing

gauge wheel in same adjustment

hole.

3/8-16

Locknut_

Gauge

Wheel

Mounting

Bracket

3/8 Was

Gauge Wheel /Shoulder

""_-" Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_,CAUTION: Do not operate the mower

without either the entire grass catcner, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch

Lever =Engaged" AttachemntLift

Lever High

"Disengaged"

Position

Deflector

Shield

TO OPERATE ON HILLS

_CAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope.

• Choose the slowest speed before

starting up or down hills.

•Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

•To restart movement, slowly release

parking brake and clutch/brake pedal.

•Slowly move motion control lever to

slowest setting.

•Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Free wheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

•Do not push or tow tractor at more than

two (2) MPH.

•To reengage transmission, reverse

above procedure.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER

AI-rACHMENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until =FULL" mark on

dipstick is reached. Do not overfill.

•For cold weather operation you should

change oil for easier starting (See =OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

•To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in

temperatures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

_kWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_I_CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to =DISEN-

GAGED" position.

5. Move throttle control to fast position

6. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

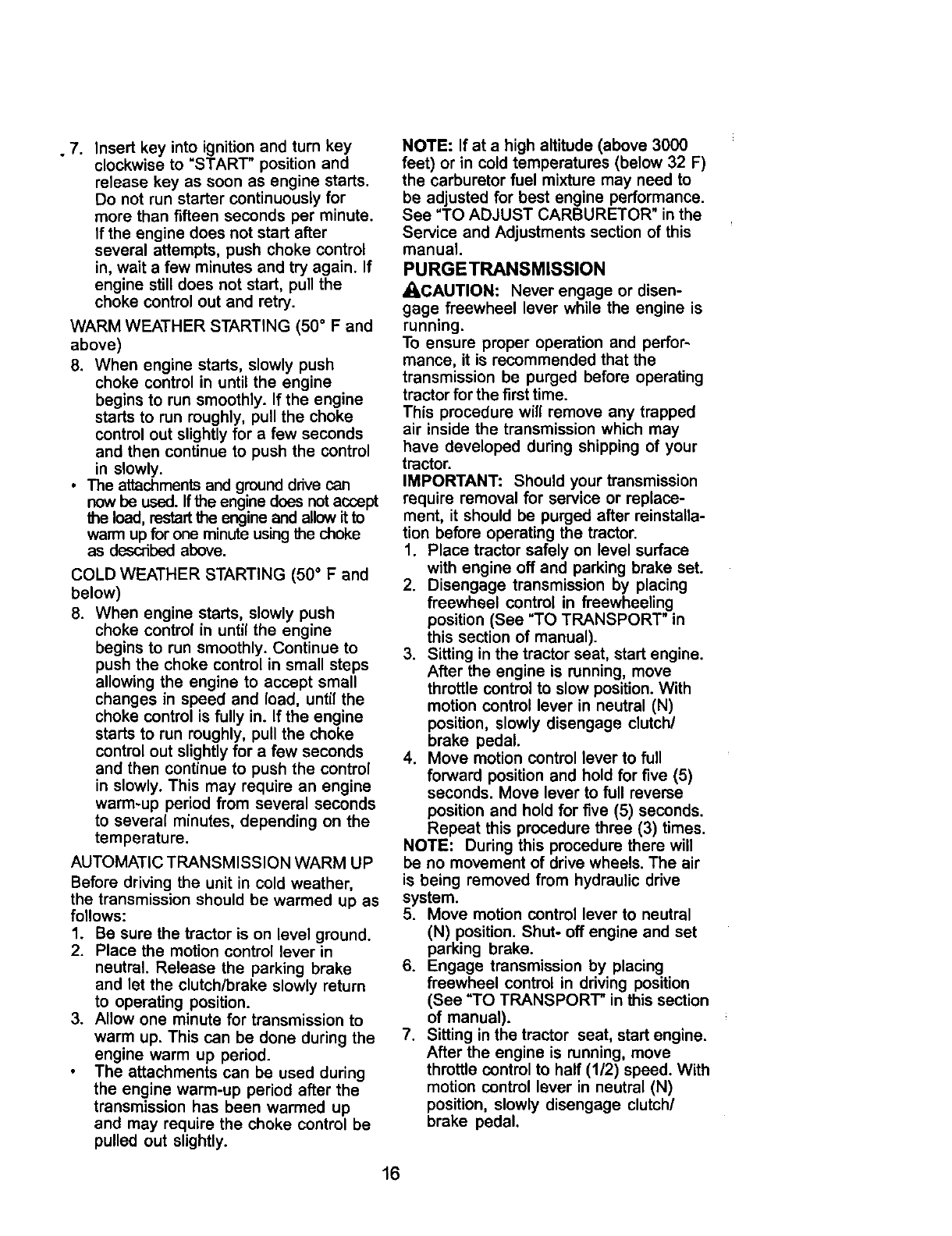

.7. Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

WARM WEATHER STARTING (50 ° F and

above)

8. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not accept

the load, restart the engine and allow it to

warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 ° F and

below)

8. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

The attachments can be used during

the engine warm-up period after the

transmission has been warmed up

and may require the choke control be

pulled out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

PURGETRANSMISSlON

_I_CAUTION: Never engage or disen-

gage freewheel lever while the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the

transmission be purged before operating

tractor for the first time.

This procedure will remove any trapped

air inside the transmission which may

have developed during shipping of your

tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstalla-

tion before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in freewheeling

position (See "TO TRANSPORT" in

this section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this procedure there will

be no movement of drive wheels. The air

is being removed from hydraulic drive

system.

5. Move motion control lever to neutral

(N) position. Shut- off engine and set

parking brake.

6. Engage transmission by placing

freewheel control in driving position

(See "TO TRANSPORT" in this section

of manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

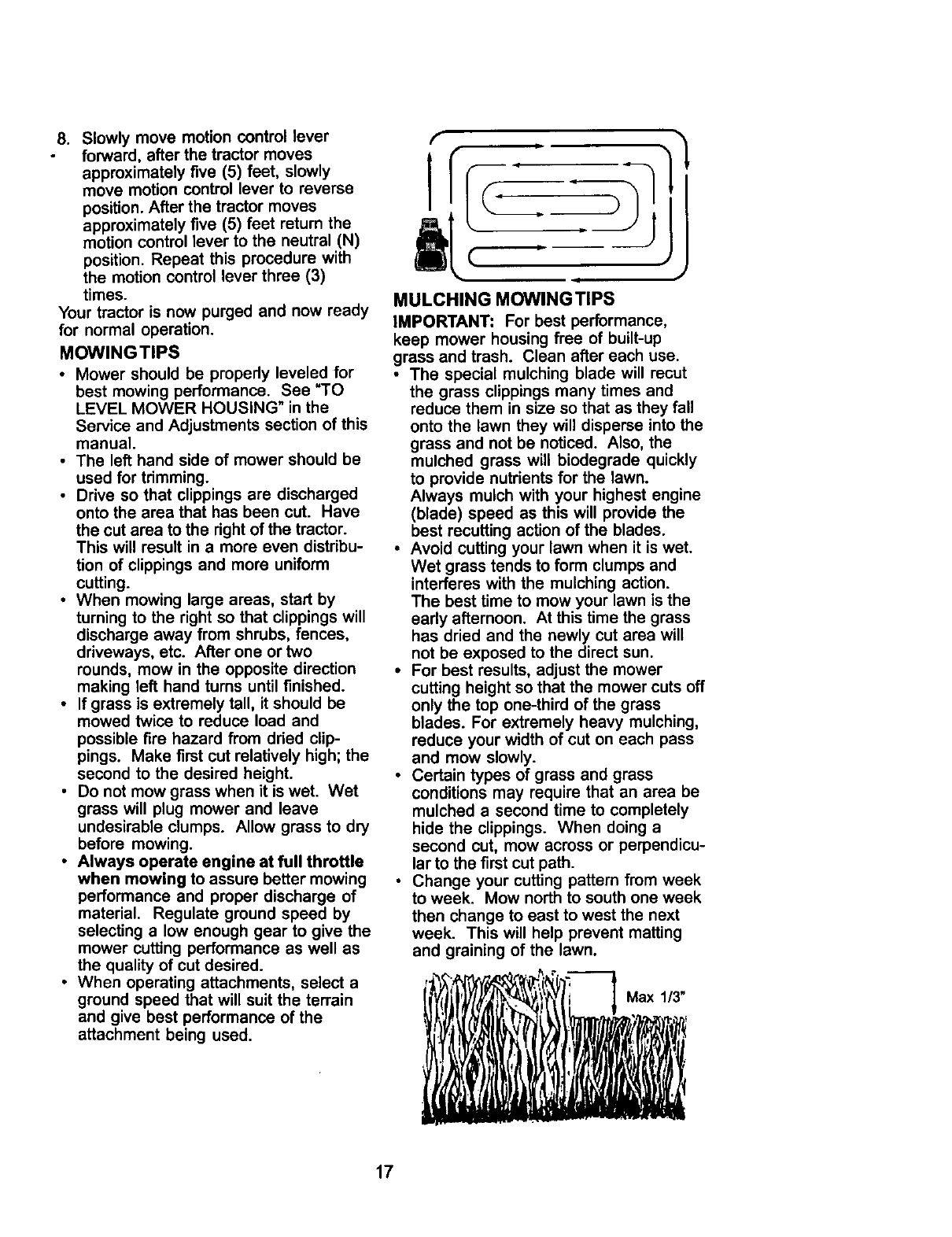

8. Slowlymovemotioncontrollever

forward, after the tractor moves

approximately five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times.

Your tractor is now purged and now ready

for normal operation.

MOWlNGTIPS

• Mower should be properly leveled for

best mowing performance. See =TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

•The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor.

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

•If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

•When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWlNGTIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

•The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

•Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

•For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

•Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

i__i_71" _ Max 1/3"

MAINTENANCE SCHEDULE _e_ s ,_ _ _ ,__o_j_"

FILL IN DATES _, _O_ _O_ _;_ _

AS YOU COMPLETE _ _ ,4,q; ,-,t"j3 _,'_ ,-4_

REGULAR SERVICE __R_V CE DATES

Check Brake Operation _

Check Tire Pressure

Check Operator Presence and

TInterlock Systems V f

RCheCk for Loose Fasteners _11_7

CA Sharpe_Rep_ace Mower Blades

T Lutxication Chart

O Check Battery Level

RClean Battery and Terminals

Check Transaxle Cooling

Adjust BEadeBelt(s) Tension

Adjust Moron Ddve Belt{s) Tension

Check Engine Oil Level

Change Engine Oil

EClean Air Filter

NClean Air Screen

IG Inspect MufflerlSpark Arrester

Replace Oil Filter (If equipped)

EN Clean Engine Co_ing Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

_" i/

i/ v'_

t/ v'

1 - Change more olten when otc_mg under a heavy loador in hig_ ambient lemperaturu. 5 - If equipped wi0_adjustable =P/st_11.

2 * Service mo_ olttm wheq oper=ztingin dm_ or dusty COnditions. 6-NO_required it equipped v_th mainte_znce-free batte_,

3 * If equipped WID1 OH lilt_r, _nge ONeve_, 50 h(XJll=.

4 - Replace blades more olten vA_enrnowlx_ in r.sndy s_J.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear. A

new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

7 - T_ghtenfrofltaxle pivot _dt to 35 IIt.4be.m_ximum.

DO not o_hten.

LUBRICATION CHART

Zerk Zerk

_Front Wheel

Bearingzerk _earing Zerk

-- i

_Engine .. ,__ -..

=___._ =i

= = =

t i

_General Purpose Grease

<_Refer to Maintenance "Engine"Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricatin_ bearings. If you feel

they must be lubncated, use only a dry,

powdered graphite type lubricant

sparingly.

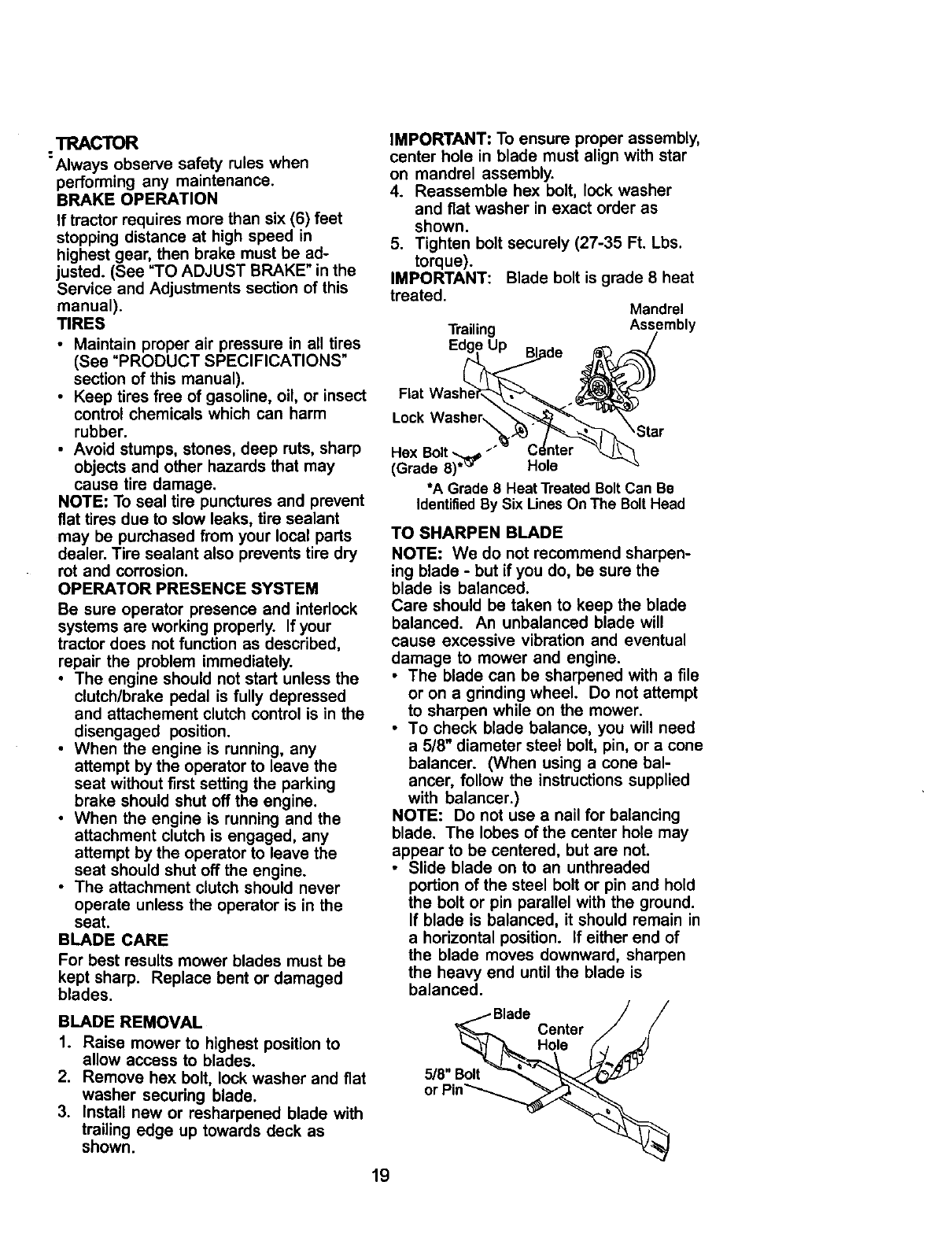

TRACTOR

'Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

fiat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

•The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

•When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

•When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

•The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and fiat

washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble hex bolt, lock washer

and fiat washer in exact order as

shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated. Mandrel

Trailing Assembly

Lock Washer,._"_/'.._/'_'-'_ _Star

HexBo,t_--%anter

(Grade8)*_;_' Hole

*A Grade 8 Heat Treated Bolt Can Be

IdentifiedBy Six Lines On The Bolt Head

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade -but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

•Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

Center

Hole

5/8" Bolt

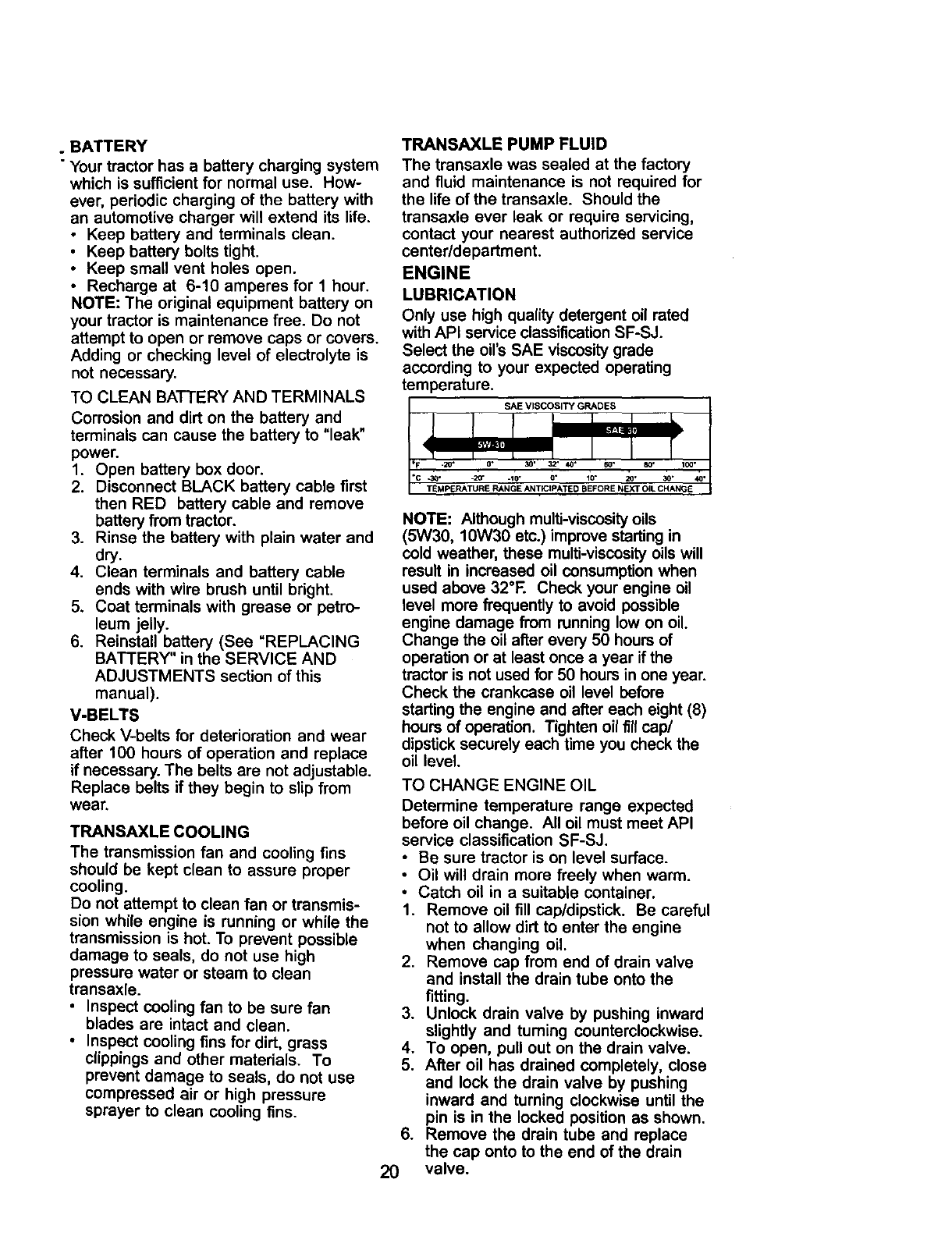

. BATTERY

"Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life,

•Keep battery and terminals clean.

•Keep battery bolts tight.

•Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Open battery box door.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See =REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high

pressure water or steam to clean

transaxle.

•Inspect cooling fan to be sure fan

blades are intact and clean.

• Inspect cooling fins for dirt, grass

clippings and other materials. To

prevent damage to seals, do not use

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest authorized service

center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

-30" 0" 30"

TEMPERATURE _ANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°F. Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one year.

Check the crankcase oil level before

starting the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove cap from end of drain valve

and install the drain tube onto the

fitting.

3. Unlock drain valve by pushing inward

slightly and tuming counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

Remove the drain tube and replace

the cap onto to the end of the drain

valve.

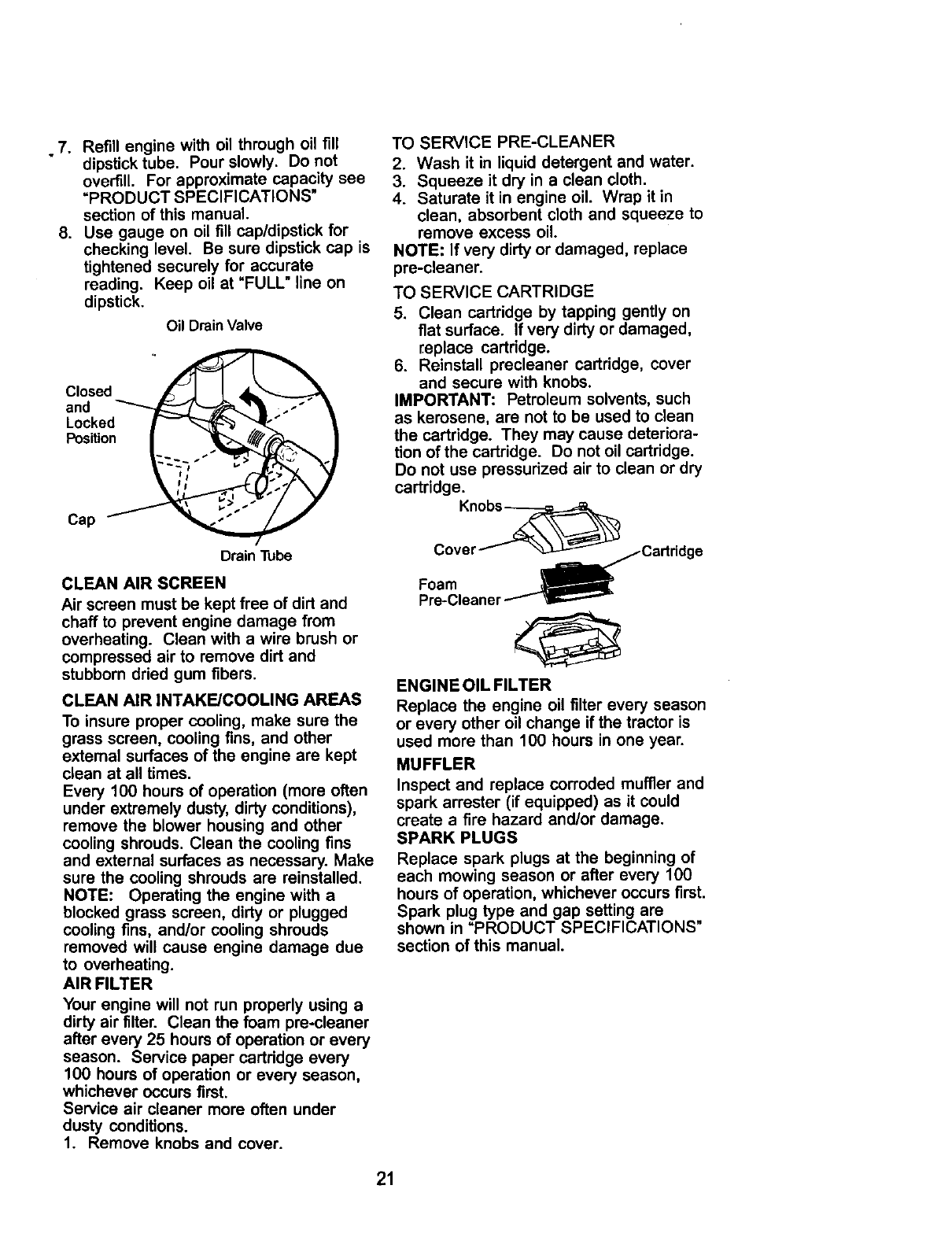

•7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick.

Oil DrainValve

Closed ",_

and __r_ ....-

Locked if--_---------'Tf_c__- -° I

Cap _"_

Drain Tube

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

extemal surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knobs and cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

5. Clean cartridge by tapping gently on

fiat surface. If very dirty or damaged,

replace cartridge.

6. Reinstall precleaner cartridge, cover

and secure with knobs.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

Foam

Pre-Cleanel

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

"The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. immediately wipe up any spilled

gasoline.

Clamp

Fuel Filter_

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

•Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

,_ CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake,

2, Place motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position•

4. Turn ignition key "OFF" and remove key.

5, Make sure the blades and all moving parts have completely stopped,

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in =DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-swaybar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

Small Retainer

Clutch Spring

Spdn_

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

discharge guard to right side of tractor.

3. Lower lift lever to its lowest position.

4. Install mower in reverse order of

removal instructions.

Suspension

Arms •.

Pulley

Retainer

Anti-Sway

(Both Sides)

Housing

Guide \

sRetainer

Spring Bracket

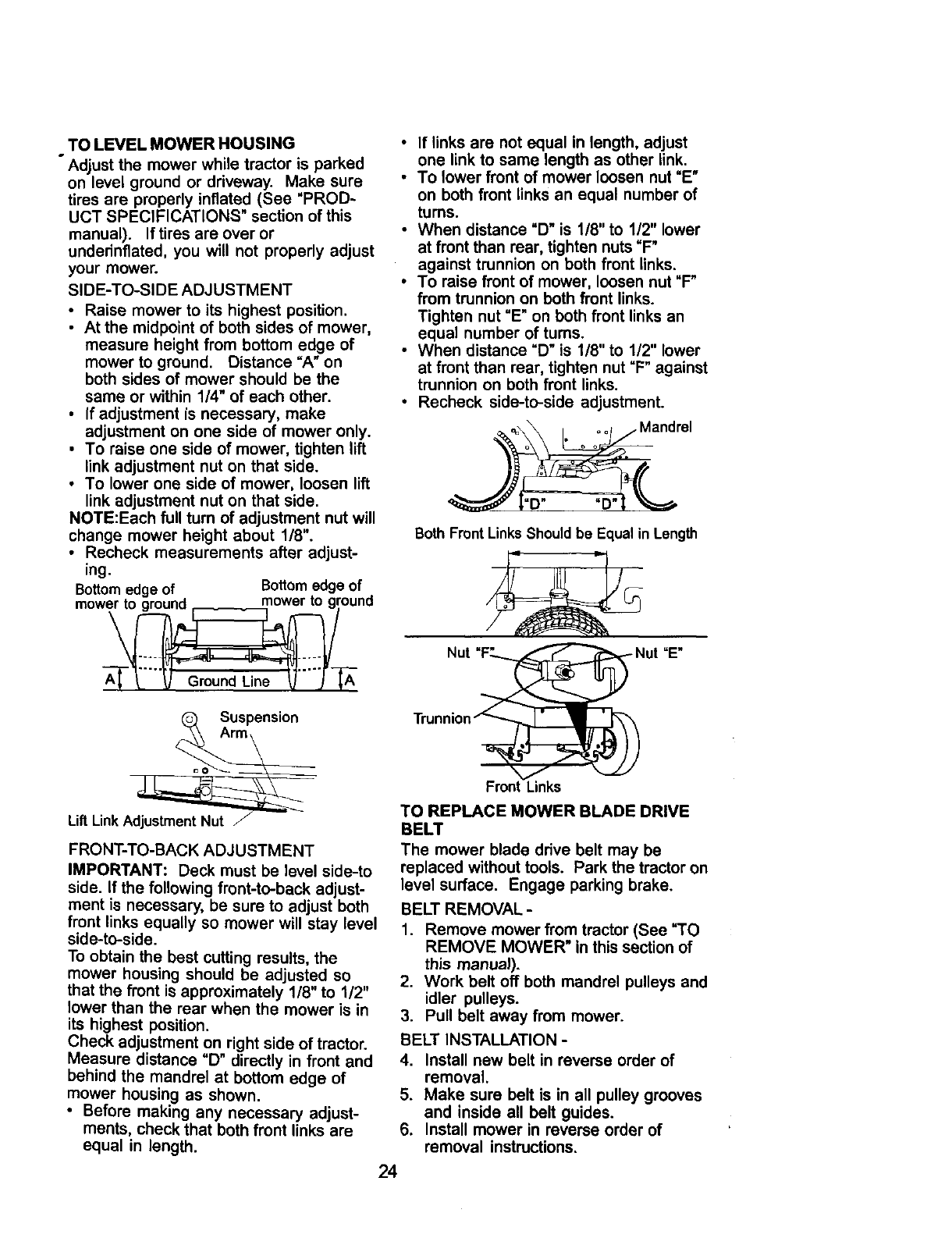

TO LEVEL MOWER HOUSING

"Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT

•Raise mower to its highest position.

•At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance =A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

•To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE:Each full turn of adjustment nut will

change mower height about 118".

•Recheck measurements after adjust-

ing.

Bottomedge of Bottom edge of

mower to ground mower to ground

•If links are not equal in length, adjust

one link to same length as other link.

•To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

•When distance =D" is 1/8" to 1/2" lower

at front than rear, tighten nuts =F"

against trunnion on both front links.

•To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut °E" on both front links an

equal number of turns.

•When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

•Recheck side-to-side adjustment.

_\\ ,. ool ..Mandrel

Nut

Both Front Links Shouldbe Equal in Length

QSuspension

LiRLink A_

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

Front I

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without toots. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

this manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

4. Install new belt in reverse order of

removal.

5. Make sure belt is in all pulley grooves

and inside all belt guides.

6. Install mower in reverse order of

removal instructions.

Mandrel Idler Pulleys

Mandrel

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the side of the transaxle.

if tractor requires more than six (6) feet

stopping distance at high speed in

highest gear on a level dry concrete or

paved surface, then brake must be

adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake

rod.

3. If distance is other than 1-9/16",

loosen jam nut and turn nut "A" until

distance becomes 1-9/16". Retighten

jam nut against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact your nearest Sears or

other qualified center.

WITH PARKING BRAKE "ENGAGED"

. Operating

Arm

If further brake

adjustment is necessary contact your nearest

authorized service center/department.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

1. Remove mower (See =TO REMOVE

MOWER" in this section of this

manual.)

2. Remove belt from stationary idler and

clutching idler.

3. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

4. Pull belt toward front of tractor and

remove downward from around

engine pulley.

5. Install new belt by reversing above

procedure.

EnginePulley--

ClutchingIdler

Stationary Idler j

Transmission

Input Pulley "_ .............

TRANSAXLE MOTION CONTROL

LEVER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel, and lightly tighten.

2. Start engine and move motion control

lever until tractor does not move

forward or backward.

3. Hold motion control lever in that

position and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the

neutral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

25Position, follow these steps:

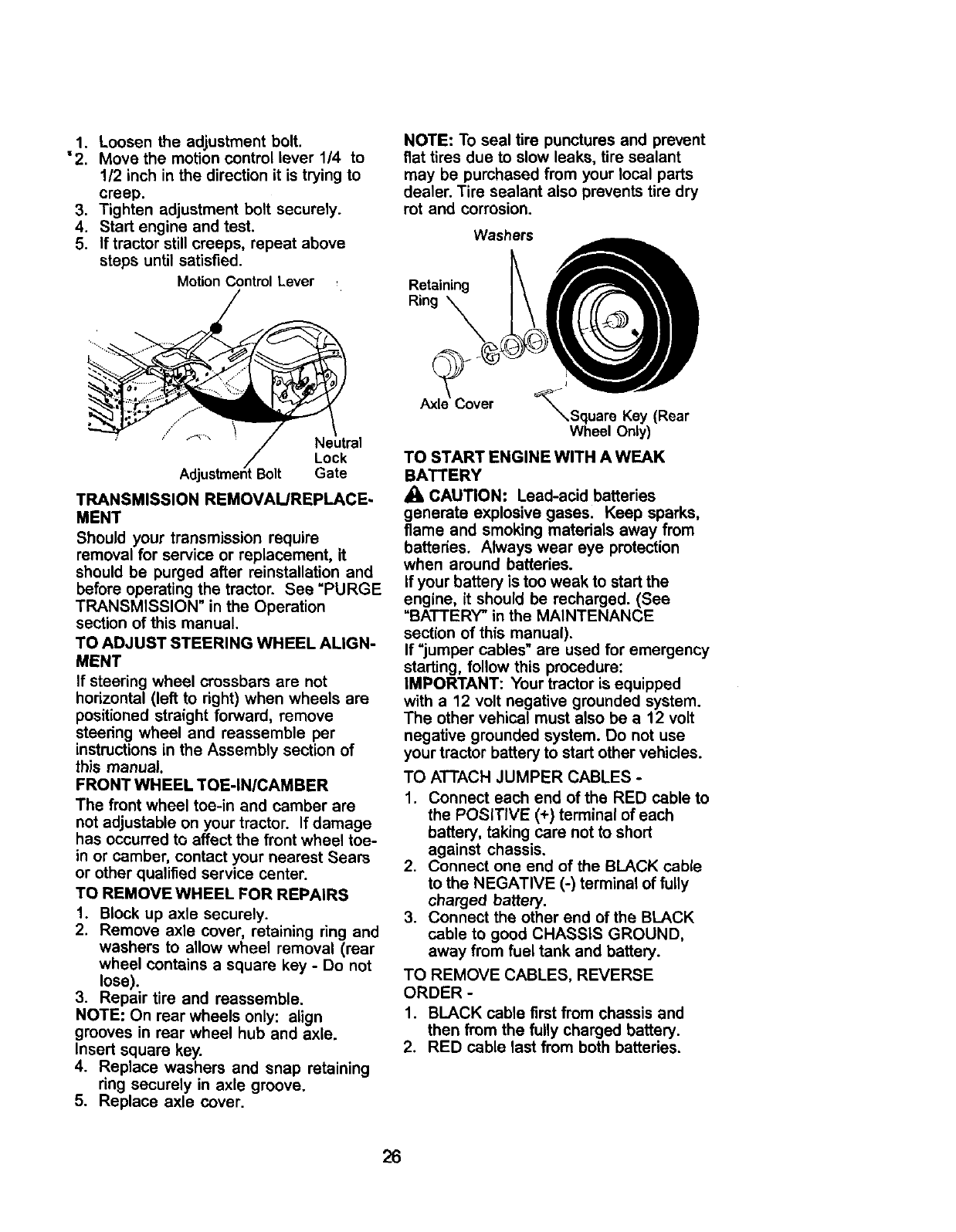

1. Loosentheadjustmentbolt.

'2. Movethe motioncontrollever1/4 to

1/2inchinthedirectionit istryingto

creep.

3. Tightenadjustmentboltsecurely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Motion Control Lever

NOTE: To seal tire punctures and prevent

fiat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining

Ring

Neutral

Lock

Gate

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See =PURGE

TRANSMISSION" in the Operation

section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of

this manual.

FRONT WHEEL TOE-INICAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact your nearest Sears

or other qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key -Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

Axle_Cover

_'_Square Key (Rear

Wheel Only)

TO START ENGINE WITH A WEAK

BATTERY

_k CAUTION: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking matedals away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BATTERY" in the MAINTENANCE

section of this manual).

If =jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt negative grounded system.

The other vehical must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Terminal

Hex

Bolt

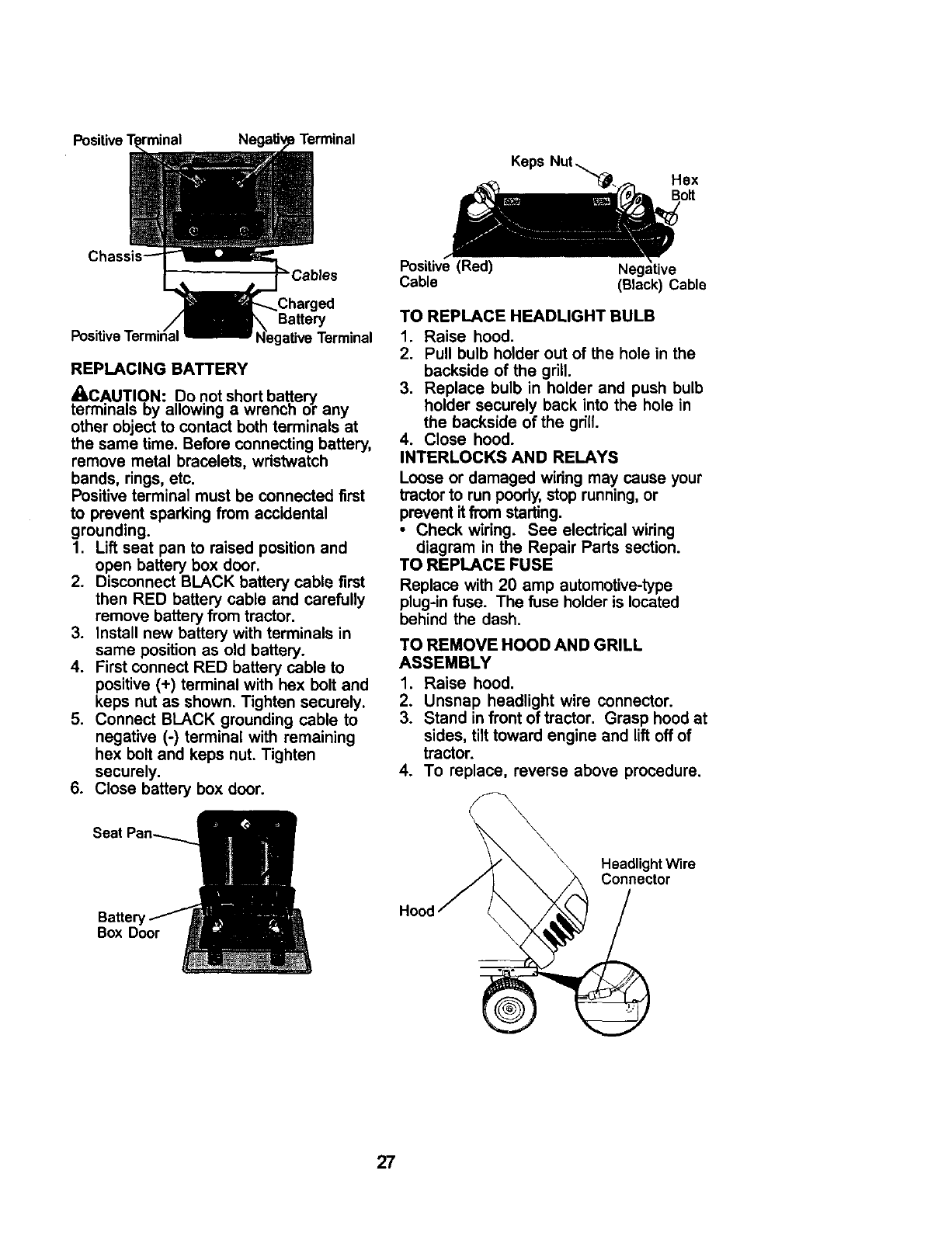

REPLACING BATTERY

_CAUTIQN: Do not short ba.ttery

terminals oy allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, atc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position and

open battery box door.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten

securely.

6. Close battery box door.

Batter

Box Door

Positive (Red) Negative

Cable (Black) Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poody, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. To replace, reverse above procedure.

\ _ht rWire

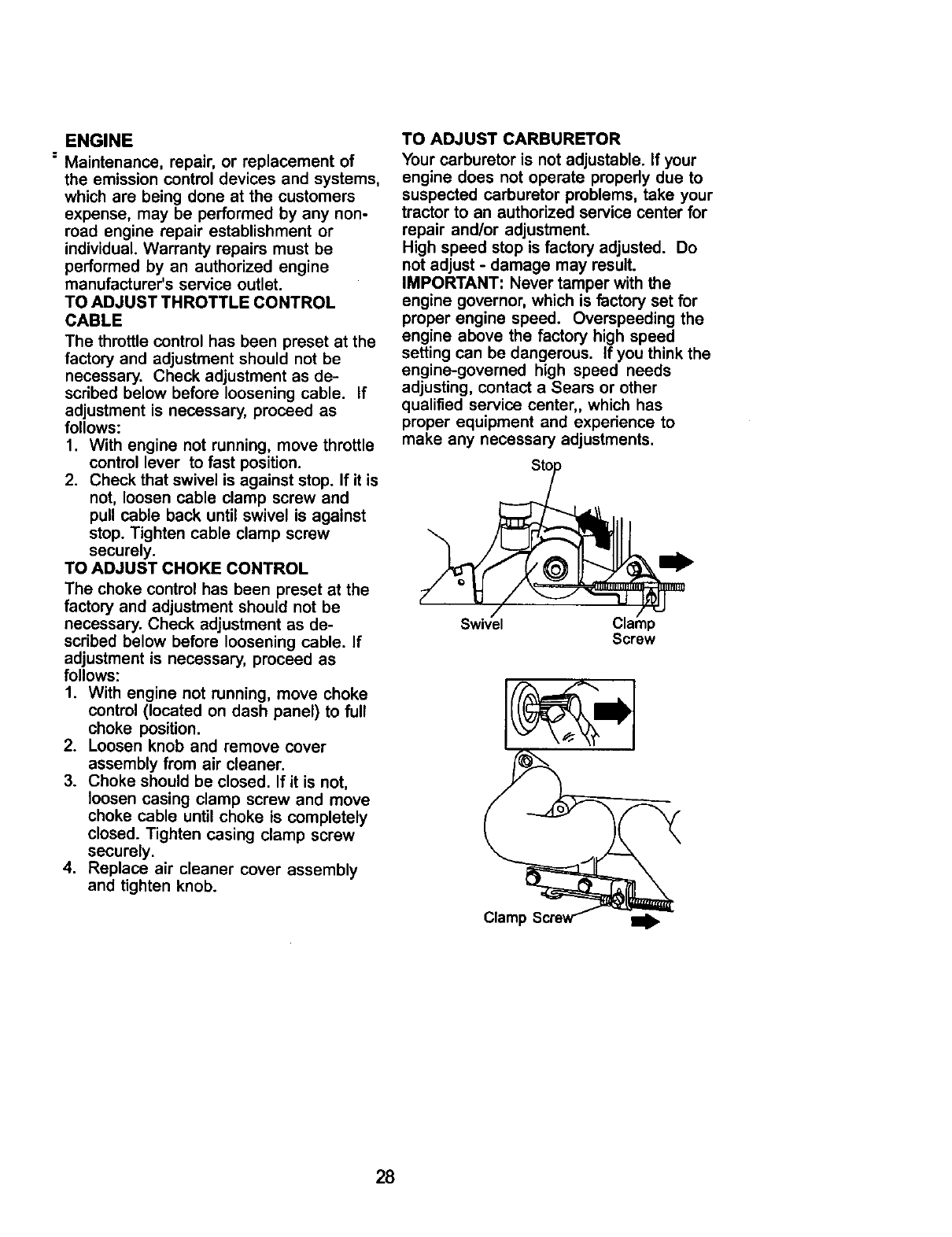

ENGINE

=Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair establishment or

individual. Warranty repairs must be

performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it is

not, loosen cable clamp screw and

pull cable back until swivel is against

stop. Tighten cable clamp screw

securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover

assembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate propedy due to

suspected carburetor problems, take your

tractor to an authorized service center for

repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other

qualified service center,, which has

proper equipment and experience to

make any necessary adjustments.

Swivel Clamp

Screw

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

•ILCAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

•After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

•After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

•If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: it is important to prevent

gum deposites from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, experiance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of and engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes alter adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See =ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to =START" position

for afew seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Enginewill not

turn over

Engine clicks but

_vill not start

Loss of power

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

1. Fill fuel tank.

2. See =TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

8. Check all widng.

9. See "To Adjust Carburetor"

in Service Adjustments

section.

10. Contact aSears or other

qualified service center.

4. Bad spark plug. 4.

5. Dirty airfiltec 5.

6. Dirty fuel filte_ 6.

7. Waterinfuel. 7.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10.Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

Loose or damaged wiring. 6.

Carburetor out of adjustment. 7.

Engine valves out of 8.

adjustment.

Brake pedal not depressed. 1.

Attachment clutch is 2.

engaged.

Weak or dead battery. 3.

Blown fuse. 4.

Corroded battery terminals. 5.

Loose or damaged wiring. 6.

Faulty ignition switch. 7.

Faulty solenoid or starter. 8.

Faulty operator presence 9.

switch(es).

Weak or dead battery. 1.

Corroded battery terminals. 2.

Loose or damaged wiring. 3.

Faulty solenoid or starter. 4.

Cutting too much grass/too 1.

fast.

Throttle in "CHOKE" 2.

position.

Clean/replace air filter.

Replace spark plug.

Recharge or replace battery.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Check all wiring.

See "To Adjust Carburetor" ir

Service Adjustments section.

Contact a Sears or other

qualified service center.

Depress brake pedal.

Disengage attachment

clutch.

Recharge or replace battery.

Replace fuse.

Clean battery ternlinals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

starter.

Set in "Higher Cut" position/

reduce speed.

Adjust throttle control.

.TROUBLESHOOTING CHART

CAUSE CORRECTION

PROBLEM

Loss of power

(continued)

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poorcut-uneven

Mower blades will

not rotate

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/didy oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

1O.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14.Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/

fins.

12.Clean/roplace muffler.

13.Check all wiring.

14.See "To Adjust Carburetor"

in Service Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose pad(s).

Replace damaged parts.

.Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

,TROUBLESHOOTING CHART

PROBLEM CAUSE

Poor grass 1. Engine speed too slow.

discharge 2.

Travel speed too fast.

Wet grass.

Mower deck not level.

Low/uneven tire air pressure

Worn, bent or loose blade.

Buildup of grass, leaves and

trash under mower.

Mower drive belt worn.

Blades improperly installed.

Headlight(s) not

working

if so equipped)

Battery will not

charge

Loss ofddve

Engine "backfires"

when turning

engine

"OFF"

10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

=disengaged" position.

12. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or

servicing.

1. Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

CORRECTION

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

1O.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

.Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

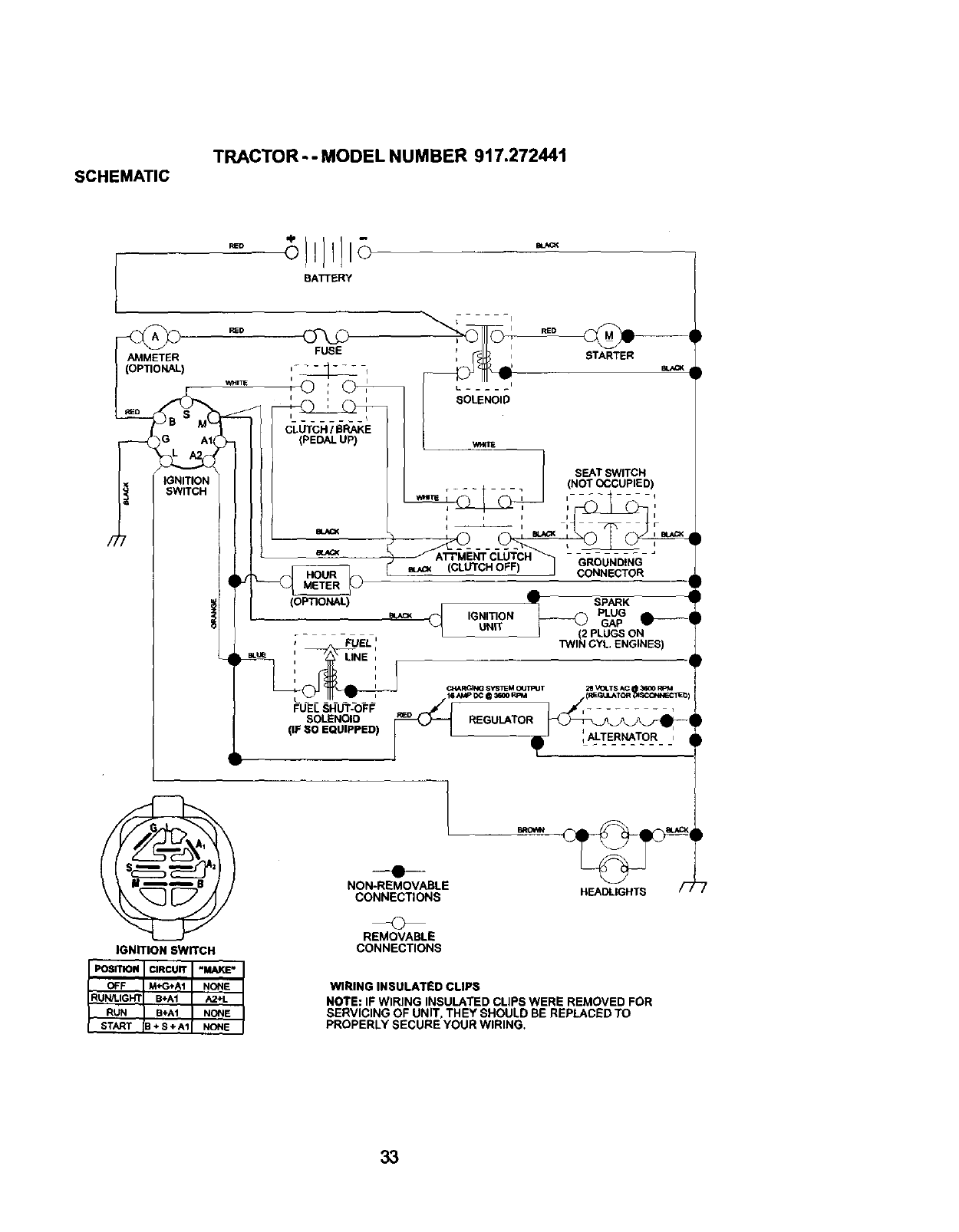

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.272441

BATTERY

AMMETER

(OPTIONAL)

IGNITION

SWITCH

FUSE

SOLENOID

SEAT SWITCH

NOT OCCUPIED)

t i

FUEL SHUT-OFF _

SOLENOID

(IF SO EQUIPPED)

_2(2 SPARK

IGNITION PLUG

UNiT GAP

PLUGS ON

"rWIN CYL ENGINES) -i

IGNITION SWITCH

OFF _'C_A1 NONE

R.UNP,.IGHT B÷At A2+L

. RUN B÷At NONE

START B + S+ AI NONE

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

BROWN

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.272441

33-_

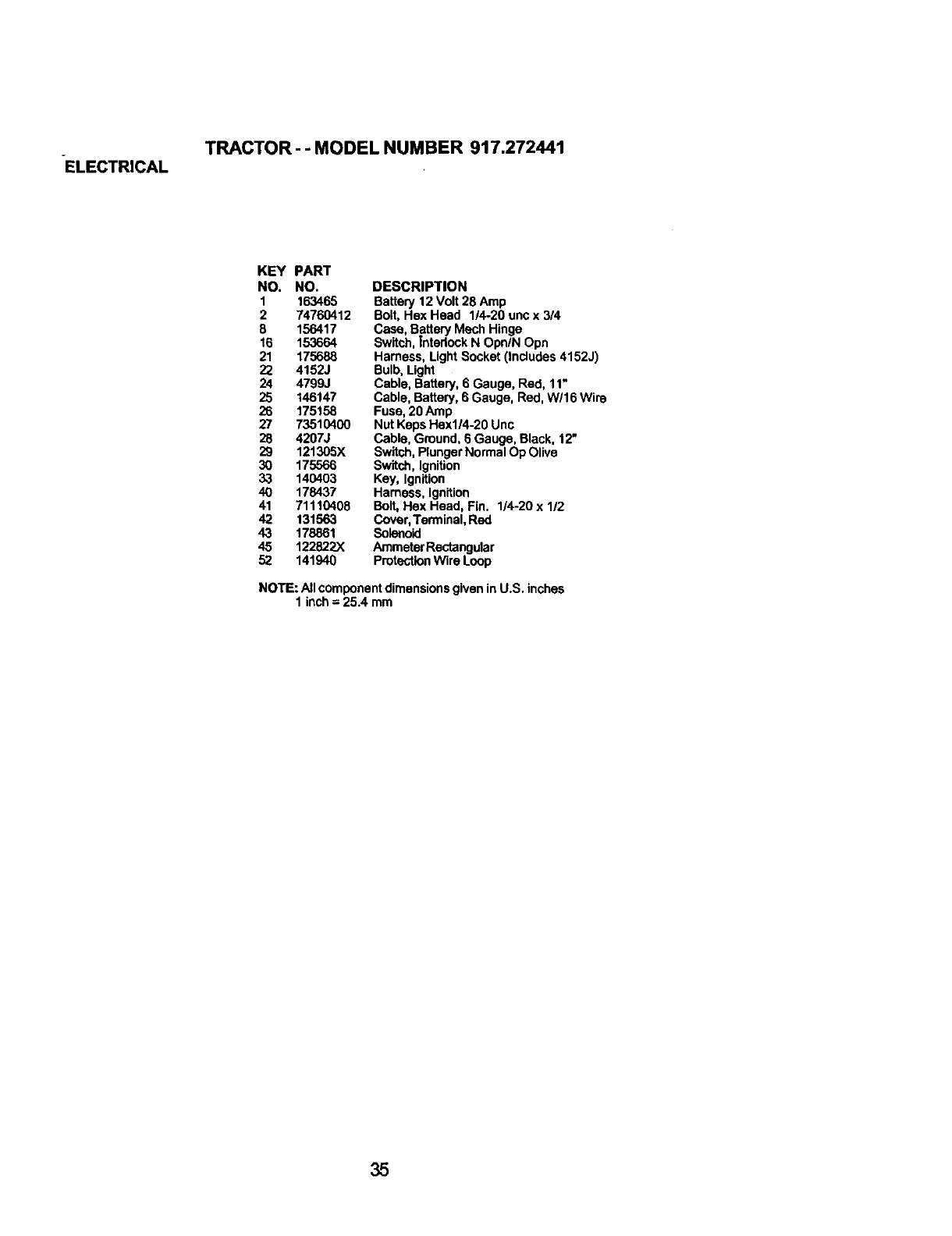

-ELECTRICAL TRACTOR -- MODEL NUMBER 917.272441

KEY PART

NO. NO.

1 163465

2 74760412

8 156417

16 153664

21 175688

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 121305X

30 175566

33 140403

40 178437

41 71110408

42 131563

43 178861

45 122822X

52 141940

DESCRIPTION

Battery12 Volt 28 Amp

Bolt,Hex Head 1/4-20 uric x 3/4

Case, BatteryMech Hinge

Switch,Intedock N OpnlN Opn

Harness,LightSocket (includes4152J)

Bulb,Light

Cable, Battery,6 Gauge, Red, 11"

Cable, Battery,6 Gauge, Red, WI16 Wire

Fuse, 20Amp

Nut Keps Hexll4-20 Unc

Cable, Ground,6 Gauge, Black, 12"

Switch,PlungerNormalOp Olive

Switch,Ignition

Key, Ignition

Harness, Ignition

Bolt,Hex Head, Fin. 1/4-20 x 112

Cover,Terminal,Red

Solenoid

Ammeter Rectangular

ProtectionWire Loop

NOTE: All componentdimensionsgiven inU.S. inches

1 inch= 25.4 mm

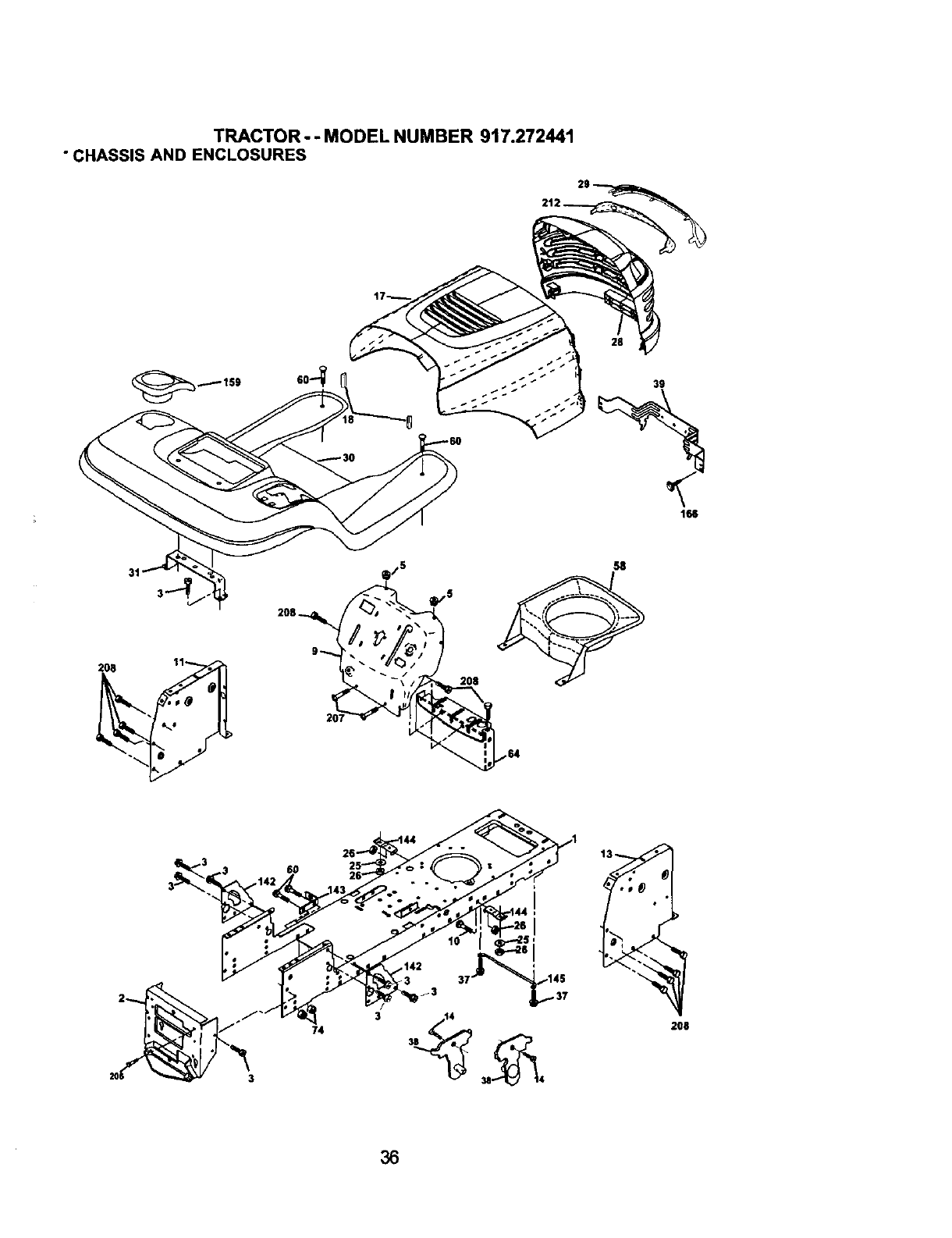

TRACTOR - - MODEL NUMBER 917.272441

"CHASSIS AND ENCLOSURES

166

208.

208

3_4

38 4

208

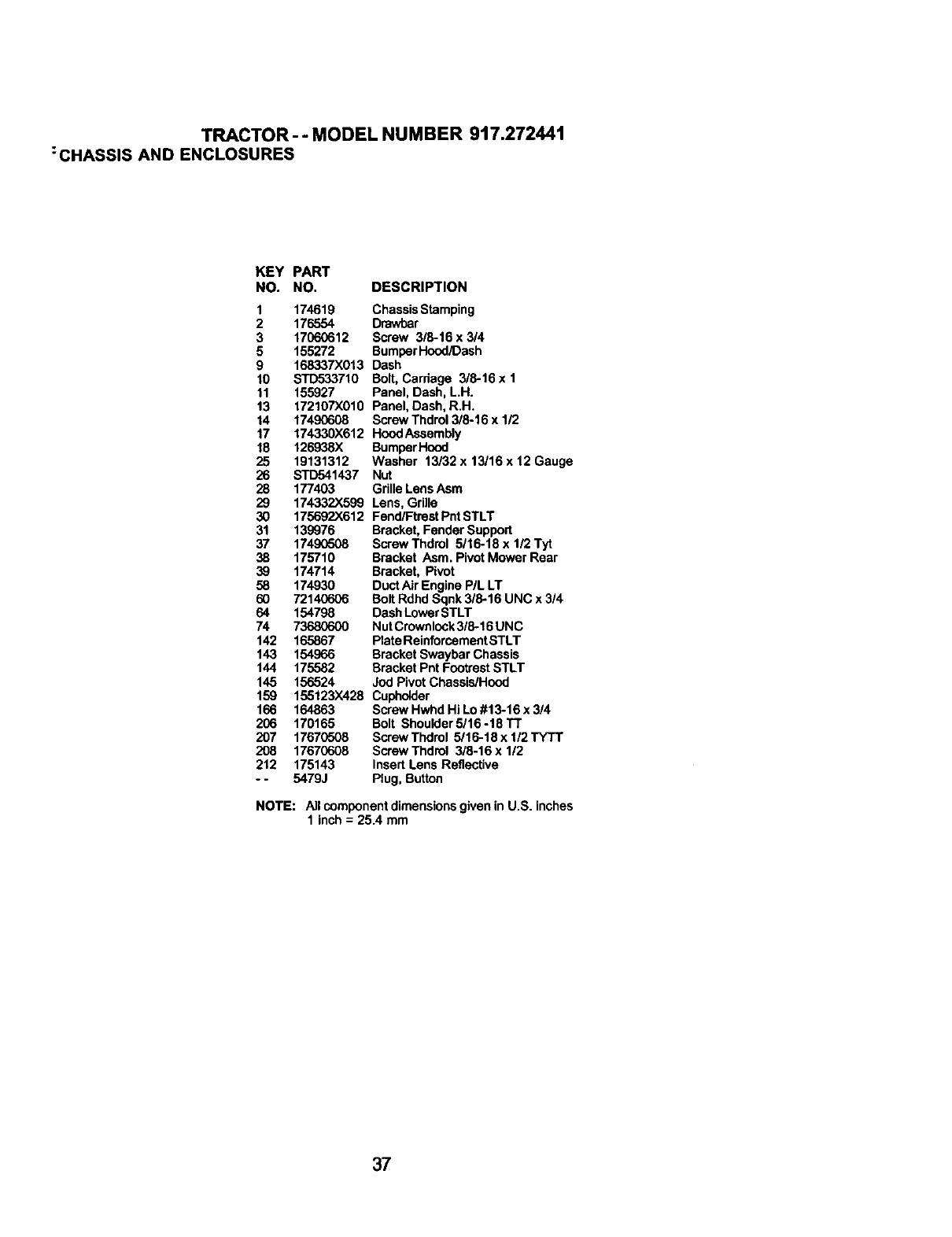

TRACTOR - -MODEL NUMBER 917.272441

:CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

I 174619 ChassisStamping

2 176554 Drawbar

3 17060612 Screw 3/8-16 x 3/4

5 155272 BumperHood/Dash

9 168337X013 Dash

10 STD533710 Bolt, Carriage 3/8-16 x 1

11 155927 Panel, Cash,L.H.

13 172107)(010 Panel, Dash, R.H.

14 17490608 Screw Thdrol3/8-16 x 1/2

17 174330X612 HoodAssembly

18 126938X BumperHood

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD541437 Nut

28 177403 GrilleLens Asm

29 174332X599 Lens,Grille

30 175692X612 Fend/FtrestPnt STLT

31 139976 Bracket,Fender Support

37 1749(3508 Screw Thdrol 5/16-18 x 1/2 Tyt

38 175710 Bracket Asm. PivotMower Rear

39 174714 Bracket, Pivot

58 174930 Duct AirEngine P/L LT

60 72140606 BoltRdhd Sqnk 3/8-16 UNC x 3/4

64 154798 CashLowerSTLT

74 73680600 NutCrownlook318-16UNC

142 165867 PlateReinforcementSTLT

143 154966 BracketSwaybarChassis

144 175582 BracketPnt FootrestSTLT

145 156524 Jod PivotChassis/Hood

159 155123X428 Cupholder

166 164863 Screw HwhdHi Lo#13-16 x 3/4

206 170165 Bolt ShoulderS/16-18TT

207 17670508 ScrewThdrol 5/16-18xl/2TYTT

208 17670608 Screw Thdrol 3/8-16 x 112

212 175143 InsertLens Reflective

- - 5479J Plug, Button

NOTE: Allcomponentdimensionsgivenin U.S. inches

1 inch= 25.4 mm

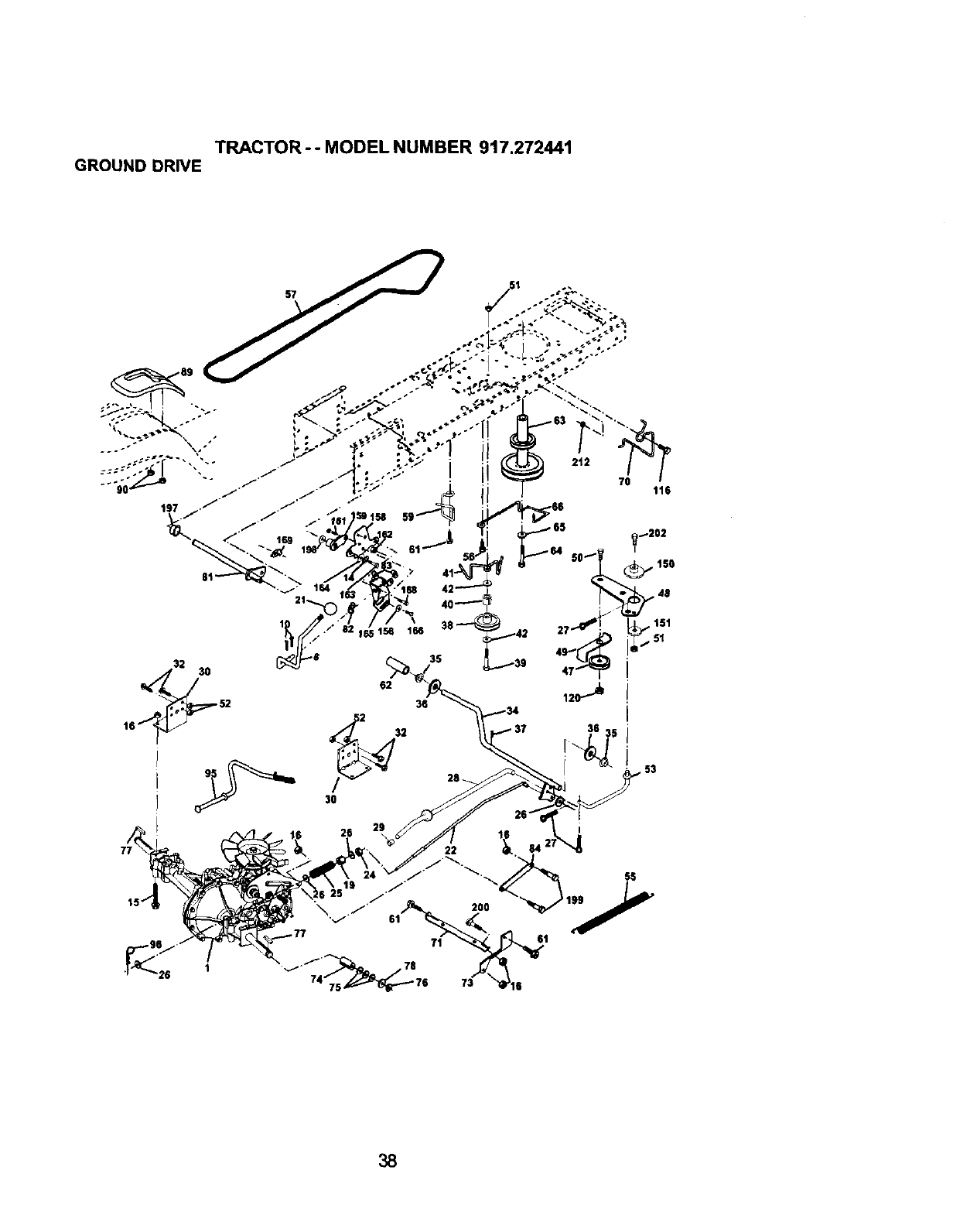

TRACTOR - - MODEL NUMBER 917.272441

GROUND DRIVE

32 30 62

52 36

16 /_32

212

70 116

"26

TRACTOR - - MODEL NUMBER 917.272441

"GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1...... Transaxle(See Breekdown) 65 S'10551143

HydreGr314-0510 66 154778

8 165866 Red ShiftFenderAdjust 70 134683

10 STD561210 Pin Cotter 1/8 x I CAD 71 169183

14 10040400 WasherLook Hvy Helical 73 169182

15 74490544 BoltHex FLGHD 5/16-18 x Gr 5 74 137057

16 ST0541431 Nut LookHex W/Ins. 5/16-18 Unc 75 121749X

19 STD541437 Nut LockHex W/Wsh 3/8-16 Unc 76

21 130564 Knob,Deluxe 1/2-13 77

22 169498 Red, BrakeHydro 78

24 73350600 Nut, Hex Jam 3/6-16 Unc 81

25 106888X Spring,BrakeRed 82

26 STD551037 Washer 83

27 STD561210 Pin Cotter 1/8 x 3/4 CAD. 84

28 175765 Red, ParkingBrake 89

29 71673 Cap, ParkingBrake 90 124346X

30 169592 Bracket,Transaxle 95 169497

32 74760512 Bolt Hex Hd 5/16-18 Uncx 3/4 96 4497H

34 175578 Shaft, Foot Pedal 116 72140608

35 120183X Beering,Nylon 120 73900600

36 19211616 Washer 150 175456

37 1572H Pin,Roll 151 19133210

38 165936 Pulley,Composite,Flat 156 166002

39 74760648 BoltFin Hex 3/8-16 x 3 158 165589

40 175461 Spacer,Split 159 165494

41 175556 Keeper,Belt Idler 161 72140406

42 19131312 Washer 13/32 x 13/16 x 12 Ga. 162 73680400

47 127783 Pulley,Idler,V-Groove 163 74780416

48 154407 Bsllcrank,Clutch 164 19091010

49 123205X Retainer,Belt 165 165623

50 STD523715 Bolt 166 166880

51 STD541437 NutCrownleck 3/6-16UNC 168 165492

52 S'1"D541431 Nut, Crewnlook5/16-18Unc 169 165580

53 105710X Link, Clutch 197 169613

55 105709X Spring,Return,Clutch 198 169593

56 17060616 Screw 3/6-16 x I 199 189612

57 140294 V-Belt 200 72140508

59 169691 Keeper,CenterSpan 202 72110614

61 17060612 Screw. 3/6-16x 3/4 212 145212

62 8883R Cover, Pedal

63 175410 Pulley,Engine

64 71170764 Bolt Hex 7/16-20 x 4 Gr. 5

DESCRIPTION

Washer

KeeperBeltEngineHydro

KeeperBeltEngine

StrapTorqueLh Hydro

StrapTorqueRh Hydro

Spacer

Washer 25/32 x 1-1/4 x 16 Ga.

STD581075 E-Ring

123583X Key, Square

121748X Washer 25/32 x 1-5/8 x 16Ga.

165596 ShaftAsmCressTapered

165711 SpdngTorsion

19171216 Washer 17/32 x 3/4 x 16Ga.

169594 LinkTransaxle

164890X428 Console,Shift

NutSeff-ThdWsh-hd 1/4 Zinc

Control BypassHydro20*Tires

RetainerSpring1"Zinc/cod

BoltRdhd Sqneck 3/8-16 x 1

NutLock Fig3/6-16

SpacarRetainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted51161Dx 1.125

BracketShiftMount

HubTapered FlangeShiftLt

BoltRdhd Sqnk 114-20x 314Gr 5

NutCrewnlockII4-20 Unc

BoltHex Fin 1/4-20 Uncx 1 Gr 5

Washer5/8 x.281 x 10 Ga

BracketPivot Lever

Screw 5/16-18 x 518

BoltShoulder5116-18 x.561

PlateFastening

Nyliner Snap-In 5/8"1D

WasherNyl 718ID x .105" Hyd

Bolt Shoulder5/16-18UNC

BoltRdhd Sgnk5/16-18UNC x 1

BoltCarr Sh 3/8-16 x 1-3/4 Gr.5

Nut Hex Flange Lock

NOTE: AllcomponentdimensionsgiveninU,S.

inches I inch= 25,4 mm

TRACTOR - - MODEL NUMBER 917.272441

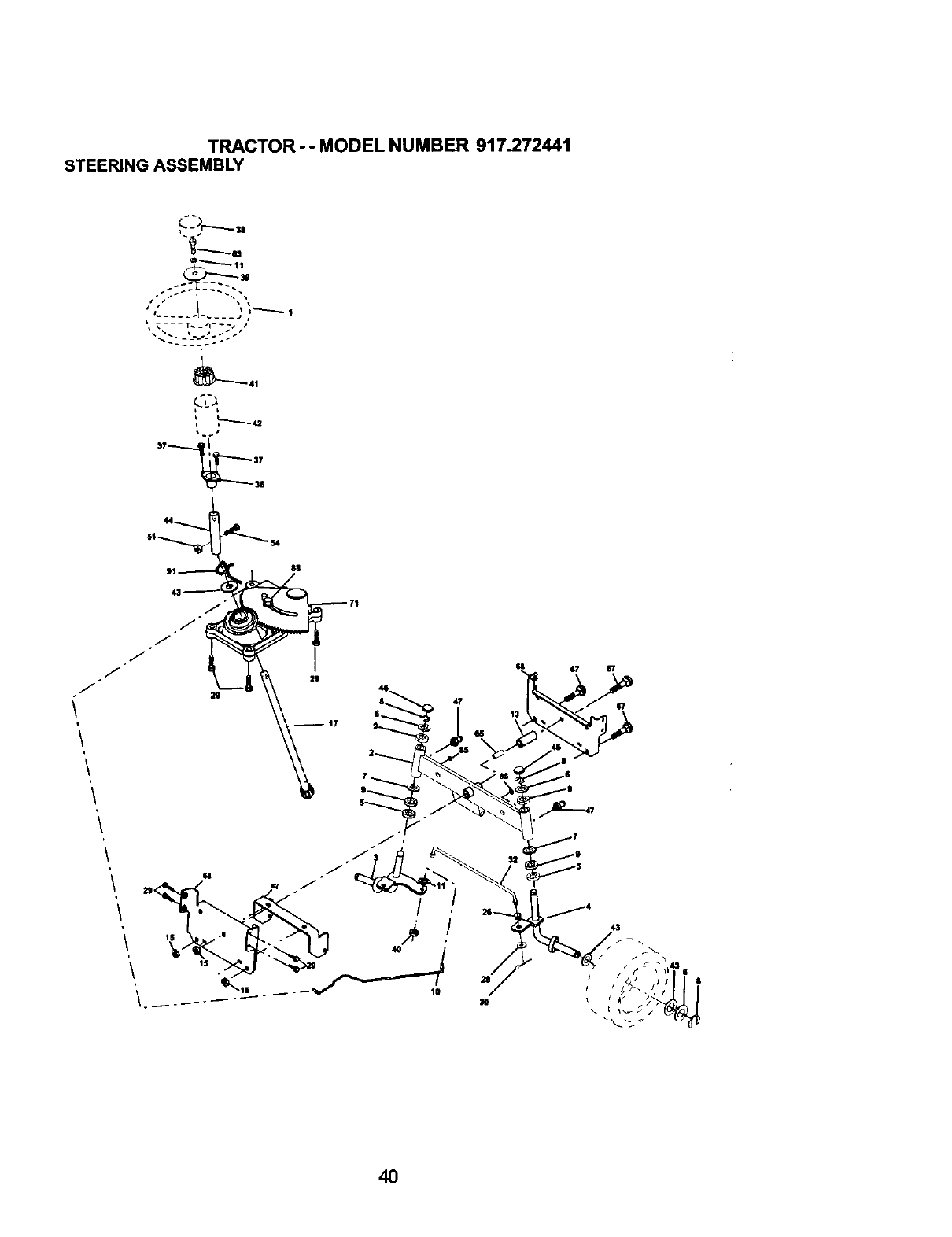

STEERING ASSEMBLY

_-;_---_30

i..... .I-._._ j i '_

TRACTOR-- MODEL NUMBER 917.272441

=STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159944X428 SteeringWheel

2 154427 Axle AssemblySTMP DmppadSTL

3 169840 SpindleAssembly,L.H.

4 169839 SpindleAssembly,R.H.

5 6266H Bearing,Race, Thrust,Hardened

6 121748X Washer 25/32 x 1-518x 16 Gauge

7 19272016 Washer 27/32 x 1-1/4 x 16 Gauge

8 12000029 Ring,Klip

9 3366R Beadng,SteeringColumn

10 175121 DragUnk

11 STD551137 Washer, Lock

13 136518 Spacer Brg AxleFront

15 145212 Nut, Hexflange Lock

17 177876 ShaftAssembly,Steering

26 126847X Bushing,Link, Drag

28 19131416 Washer 13/32 x 718x 16 Gauge

29 17060612 Screw 3/8-16 x 3/4

30 S'1_o61210 Pin

32 130465 Rod,Tie

36 155099 Bushing,Steering

37 152927 Screw

38 159946X428 insert, Steedng Wheel

39 19132411 Washer 13/32 x 2-3/8 x 12 Gauge

40 _1537 Nut LockCenter 3/8-24 UNF

41 159945 Adaptor,SteeringWheel

42 145054x428 Boot, Steedng Shaft

43 121749X Washer 25/32 x 1o114x 16 Gauge

44 153720 ExtensionShaftSteering LR.LT

46 121232X Cap, Spindle

47 6855M Fitting,Grease

51 STD541431 NutLockHexw/Ins. 5/16-18UNC

54 7478(_20 BoltFin Hex 5/16-18 UNC x 1-1/4

63 S'fD523710 Bolt,Fin Hex 3/8-16 UNC x 1 Gr 5

65 160367 Spacer Brace Axle

67 72140618 BoltRdhd Sqnk 3/6-16 x 2-1/4

68 169827 Axle, Brace

71 175146 SteeringASm

82 169835 BracketSusp Chassis Front

85 133835 Fastner ChristmasTree

88 175118 BoltShoulder7/16-20

91 175553 ClipSteering

NOTE: AllcomponentdimensionsgiveninU.S. inches

1 inch = 25.4 mm

ENGINE

TRACTOR - - MODEL NUMBER 917.272441

1_ 14

OPTIONAL EQUIPMENT

Spark Arrester

KEY PART

NO. NO.

1 170546

2 17720410

3......

4 149723

5 160589

6 159955

8 171877

10 162797

11 1004(3500

12 71070512

13 165391

14 148456

16 STD551237

17 17490624

23 169837

KEY PART

DESCRIPTION NO, NO.

Control,Throttle 25 145996

Screw, Hex Head, Thread Cutting 26 73920600

1/4-20 x 5/8 29 137180

Engine,(SeeBreakdown) 31 IG9202X

B&SModeINo,407777-0121-E3 32 158990

Muffler

ExhaustTube Rh 33 123487X

ExhaustTube Lh 37 137040

Bolt 5/16-18 x 3/4 38 148315

ShieldBrowning 44 17670412

WasherLock 516

Screw Hex Hd Cap 5116-18x 3/4 45 17000612

Gasket Muffler 46 19091416

Tube DrainOil Easy 81 73510400

Washer

Screw Thdrol3/8-16 x 1-1/2

ShieldBm/DbrGuard

DESCRIPTION

ControlCable

Hut Keps 316-24

,_d'restor,Spark

Tank,Fuel

Cap Assembly,FuelSears,

Vented

Clamp,Hose

Line, Fuel

Plug. DrainOil Easy

Screw,Hex Washer Head,Thd.

Roll. 114-20x 3/4

Screw Hex Wsh Thdr 3/8-16 x 3/4

Washer 9/32 x 718x 16 Gauge

NutKeps Hex 1/4-20Unc

NOTE: AllcomponentdimensionsgiveninU,S. inches

1 inch= 25.4 mm

'LIFT ASSEMBLY

TRACTOR - - MODEL NUMBER 917.272441

/ /

/' /

20 161718 20

KEY PART

NO. NO. DESCRIPTION

1 159460 Lilt Lever Inner Wire Assembly

2 159471 Shaft Assembly, Lift

3 105767X Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x 1 x 21 Gauge

6 120183X Bearing,Nylon

7 125631X Grip, Handle, Fluted

8 122365X Button, Plunger, Red

11 139865 Link, Lilt, L.H.

12 139866 Link, Lift, R.H.

13 STD624008 Retainer Spring

15 173288 Link, Front

16 73350800 Nut, Hax, Jam 1/2-13 UNC

17 175689 Trunnion

KEY PART

NO. NO. DESCRIPTION

18 73800800 Locknut,Hex,w/Washer Insert

1/2-13UNC

19 139868 Arm,Suspension,Rear

20 163552 RetainerSpring

31 169865 Bearing, Pvt, Lift

32 73540600 Nut. Crownlock3/8-24

36 155097 PointerHeight Indicator

37 123935X PlugHole

38 1706_516 Screw 5/16-18 x 1

40 19112410 Washer 11/32 x 1-1/2 10 Ga.

41 155098 IndicatorHeight

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.272441

"SEAT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 140123 Seat

2 140551 Bracket, Pivot, Seat

3 71110616 Bolt

4 19131610 Washer 13/32 x 1 x 10 Gauge

5 145006 Clip, Push-In Hinged

6 STD541437 Nut

7 124181X Spring,Seat

8 17000616 Screw 3/8-16 x 1-1/2

9 19131614 Washer 13132x 1 x 14 Gauge

10 174894 Pan, Seat

11 166369 KnobSeat

12 121246X Bracket,Switch Mounting

KEY PART

NO. NO. DESCRIPTION

13 121248X Bushing,Snap

14 72050412 Bolt,Carriage 1/4-20 x 1-1/2

15 134300 Spacer, Split .28 x .88

16 121250X Spring

17 123976X Locknut,Flange 1/4 Grade 5

21 171852 Bolt,Shoulder 5116-18UNC

22 S'1_541431 Nut

24 19171912 Washer 17132x 1-3/16 x 12 Ga.

25 127018X Bolt, Shoulder 5/16-18 x .62

NOTE: h31componentdimensionsgiveninU.S.

inches 1 inch= 25.4 mm

DECALS

TRACTOR - - MODEL NUMBER 917.272441

21 4 13 lO 16 2o

KEY PART

NO, NO.

1 156811

2 165407

3 177356

4 177357

5 174322

6 133644

7 177355

8 172331

9 163204

10 156439

12 146046

KEY PART

DESCRIPTION NO. NO.

Decal, Oper. Instr. 13 177284

Decal, HP Engine 14 160396

Decal, Hood,R.H. 16 138047

Decal, Hood, L.H. 20 140616

DecalHead Replacement 21 164065

Decal,CustomerMaintenance - -138311

Decal, HoodSide -- 165800X428

Decal, Deck - - 165799X428

Decal, Fender,Craftsman - -169210

Decal,FenderDanger -- 178423

Decal, V-BeltDriveSchematic - - 178424

DESCRIPTION

Decal, LowerDash

Decal, V-Belt Schematic

Decal, BatteryDiehard

Decal, BatteryDngr/PsnEng

Decal, StingWhl

Decal, LiftHandle

Pad FootrestLHSTLT

PadFootrestRH STLT

Decal By Pass LT Hydro

Owner'sManual,English

Owner'sManual,Spanish

WHEELS &TIRES

2_5,8

74,10

KEY PART

NO, NO.

DESCRIPTION

59192 Valve Cap,Tire

65139 Stem, Valve

106222X Tire,Front

59904 Tube, FrontTire

(NotProvided,Service ItemOnly)

106732X427 Rim,Front

2781-1 Fitting,Grease (FrontWheel Only)

9040H Bearing,Flange(FrontWheal

Only)

106108)(427 Rim,Rear

122082X Tire,Rear

7152J Tube, Rear Tire

(Not Provided,Sewice Item Only)

104757X428 Cap, Axle

144334 Sealant, Tire 10 oz.

NOTE: All component dimensions given in U.S.

inches I inch = 25.4 mm

TRACTOR- - MODEL NUMBER 917.272441

MOWER DECK

21 22

_23 24

29 _

.112

TRACTOR --MODEL NUMBER 917.272441

M(_NER DECK

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO.

I 165892 Mower DeckAssembly,42" 68 144959

2 STD533107 Bolt 92 73800600

3 138017 BracketAssembly,Sway Bar, 101 136420

Front 102 71081010

4 165460 BracketSway Bar 38142"eck 103 19061216

5 STD624008 RetainerSpdng 104 STD551110

6 130832 Arm,Suspension,Rear 105 160793

8 850857 Bolt,Hex 3/6-24 x 1.25 Gr. 8 106 2029J

9 STD551137 Washer, Lock 111 155197

10 140296 Washer,Hardened 112 155198

11 134149 Blede,Mulching 113 17060514

13 137645 ShaftAssembly, Mandrel,Vented 114 STD541431

14 128774 Housing.Mandrel,Vented 115 72110504

15 110485X Beadng.Ball,Mandrel 116 4898H

16 174493 Stripper,MowerDock 117 165746

18 72140505 Bolt,Cardage 5/16-18x5/8 118 73930600

19 132827 Bolt.Shoulder 119 S'1_551037

20 159770 Baffle, Vortex 121 143723

21 STD541431 NutCrownlock5i16-18UNC 129 19131312

22 134753 Stiffener Bracket 130 STD523710

23 131267 Bracket, Deflector 131 $11To33710

24 105304X Cap, Sleeve 142 165890

25 123713X Spring.Torsion.Deflector 143 157109

26 110452X Nut, Push 144 158634

27 130968X428 Shield,Deflector 145 165888

28 19111016 Washer 11132x 5/8 x 16 Ga. 146 171977

29 131491 Rod,Hinge 147 131335

30 157722 ScrewThdmlWasher Head 148 169022

31 129963 Washer,Spacer 149 165898

32 153535 Pulley,Mandrel 150 19091216

33 137266 Nut, Toplock,Flanged 151 169670

34 $30533717 Bolt 152 169676

36 131494 Pulley,Idler,Flat 153 169674

37 STD551037 Washer 13/32 x 13116x 16 Ga 154 169675

40 STD541437 NutCrownlock3/8-16UNC 155 169671

44 140088 Guard,Mandrel,L.H. 156 169672

45 STD624003 Retainer 157 169669

46 137729 Screw,Thd. Roll 1/4-20 x 5/8 158 17720410

48 133944 Washer,Hardened 159 72140614

49 174284 RollerAssembly, CamFollower "° 130794

50 131340 Bolt,Shoulder #10-24 Gr. 5

51 STD541410 Locknut - - 169583

52 139888 Bolt,Shoulder 5/16-18 UNC

53 131845 ArmAssembly, Pad, Brake

54 133943 Washer,Hardened

55 155046 Arm,Idler

56 165723 Spacer,Retainer

59 141043 Guard,TUV Idler

67 149846 KnobCustomOval

DESCRIPTION

V-Bolt

Nut LockHex w/Ins. 3/8-16

MulcherCover

Screw Pan Hd Phillips10-24 x 5/8

Washer #10

Washer, Lock

LatchAssembly,Bagger

Nut,Weld

Bracket,Gauge. Wheel LH.

Bracket,Gauge, Wheel R.H.

Screw Taping5/16-18

Nut, Hex, Keps 5116-18 Uric

Bolt,Carriage 5116Unc x 112

Bolt,Shoulder

Wheel,Gauge

Nut, Centedock318-16

Washer 3/8 x 718x 14 Gauge

Bracket

Washer 13/32 x 13116x12 Ga.

Bolt.FinHex 3/6-16 Uncxl Gr. 5

Bolt,Rdhd Sqnk3/8-16UNCx 1

AnnSpdngBrakeMower

BracketArm Idler42"

Keeper Belt42" ClutchCable

Pulley IdlerFlat

BoltCarriageIdler

SpringExtension

SpringReturnIdler

RetainerSpringYellowZinc

Washer 9132 x 3/4 x 16 Ga.

BracketClutch

CableClutch 42 In

Washer Flat 3/8" Type B

Spring Retainer

SpdngRetentionLever

Spacer

RedClutch

Screw Hex Thd Cut 114-20x5/8

BoltRdhd Sqn3/8-16 UNC x 1-3/4

MandrelAssembly(IncludesKey

Numbers6-10, 13-15, 31 and 32)

MowerDeck,Complete(Standard

Deck, OrderSeparatelyMulcher

PlateandGaugeWheel

Components)

NOTE: AllcomponentdimensionsgiveninU.S.inches

1 inch= 25.4 mm

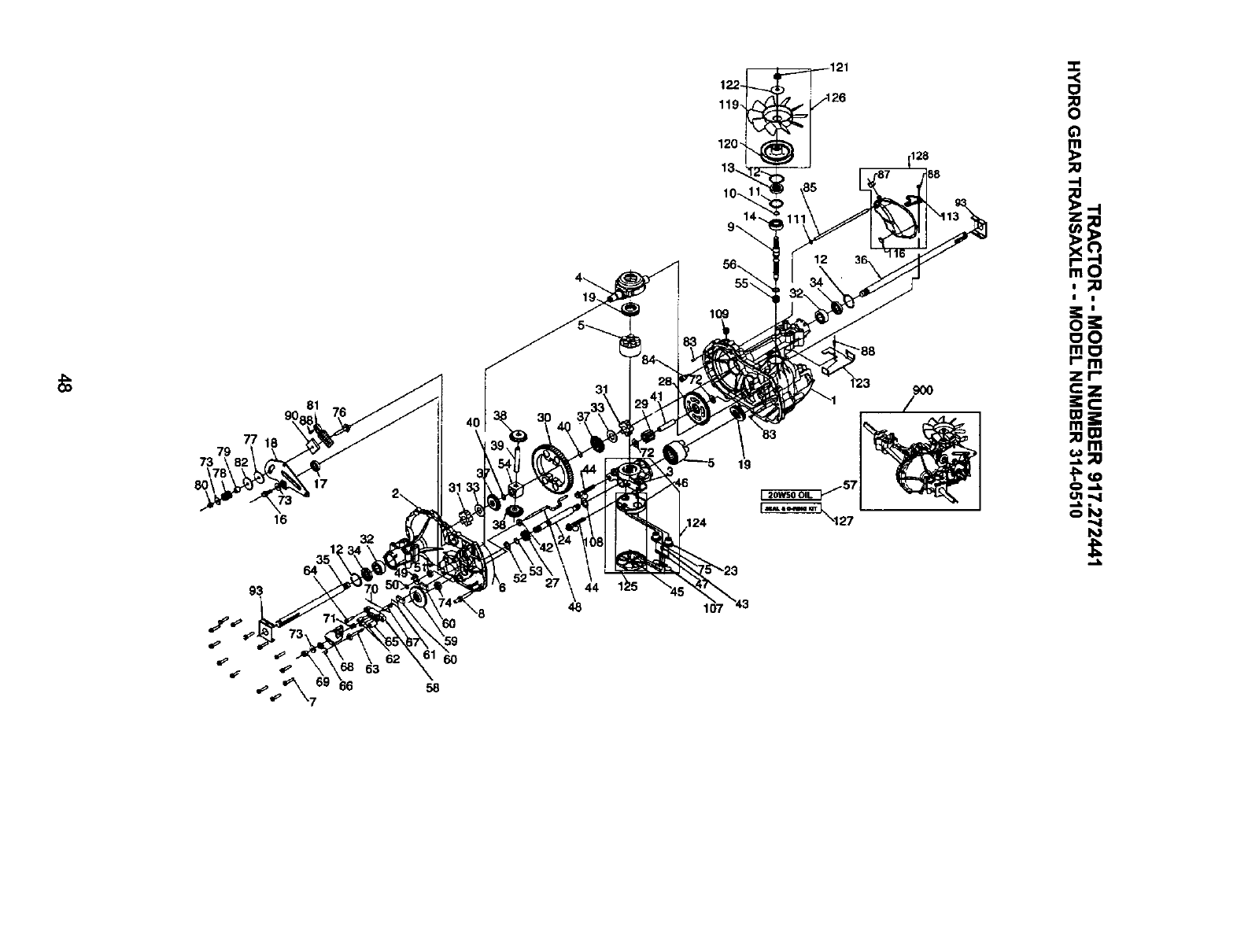

351_

119-

120-

109

124

{128

, ;o

| |

r- m

zl-

ice

O=Jb

TRACTOR -- MODEL NUMBER 917.272441

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 314-0510

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO. DESCRIPTION

1 170351 MainHousing,Assembly 59 170408 Rotor,Brake

2 170352 SideHousing,Assembly 60 142883 Brake Puck

3 170353 Center Section,Assembly 61 142882 Puck Plate

4 170354 Swashplata,TrunionMachined 62 142887 BrakeActuatingPin

5 169898 Block- Assembly 63 170410 Hfhcs 1/4-20x2 W/

6170355 Seelant 10.50z Patch,SpacialFlange

7 170356 Hex Flange Screw114-20X 1.25 64 142892 Bolt,114-20X 1 W/Patch

8 170357 Stud,5/16-24 HexDoubleEnd 65 170411 Spacer

9 170358 Shaft, Input 66 170412 Spdng,BrakeArmBias

10 170359 Ring-Retaining 67 170413 Sq. Hd. Boil5/16-24-Ribbed

11 170360 Spacer 68 170414 Arm, Brake

12 169870 Ring-Retaining 69 170415 SlottedHex Nut 5/16-24

13 170361 Seal, Lip .67 X 1.58 X .276 70 170416 Cotter Pin 3/32 X 3/4

14 169869 Ball Brg17ramIdX 40mm Od X 71 170417 CompressionSpringBrakeAnti-

l_rnrn Drag

16 170362 Hex FlangeHead Screw5/16- 72 170418 Washer, Ht .6 I.D. X 10.D. X

24X0.75 .032

17 170363 LipSeal 18 X 32 X 7 73 142884 Flat- Washer 11/32 I.D. X 718

18 170364 Arm,Control O.D

19 150771 Bearing,30x52x13 Thrust 74 170419 Oil Seal .625 X 1.0 X .25

23 170365 CheckPlugAssembly,Washer 75 170420 Check PlugAssembly, .027,

24 170366 Shaft, Motor Washer

27 170367 Gear -Pinion, 13t 76 170421 Stud, 5/16-24 FrictionPack

28 170368 10U48tGear 77 170422 Puck, .330 X 1.50 X .0975

29 170369 Gear, 10t Jackshaft 78 142969 Spdng,HelicalComp

30 170370 60t BullGear 79 142980 Spacer

31 170371 Staeve Baadng .75 X 1.575X 80 150778 Hex Lock Nut5/16-24Unjf(Nyion

.625 Insert)

32 170389 SleeveBeadng(Outboard) 81 170423 Wedge, FrictionPack

.75x1.750x.625 82 170424 Clip,Washer .316x1.50x.1046

33 142991 Washer, 314Id X 1-112Od X .13 (Plated)

Thk 83 161168 Pin, StandardHeadless

34 170390 Lip SealAxle Seal 84 170425 Fitting,5/16 Sae 5/32 Tube

35 170391 Shaft, Axle .75 X 11.39 {Key, 85 170426 Hose,ExpansionTank

R.H.) 87 142917 Cap - PoppatValve

36 170392 Shaft, Axle .75 X 16.99 (Key, 88 170429 Boil,SelfTapping 10-32 X 1/2

L.H.) 90 170430 Puck, InnerWedge

37 150792 MiterGear (Splined) 93 170431 SpdngClip- HousingThrust

38 150793 MiterGear 15t (0.5 Id) 107 170432 Deflector

39 150809 Shaft 108 170433 Washer,MotorShaft

40 17_93 Ring,SpiralRetaining .71idxl.15odx.O30thk

41 170394 Pin, Jackshaft 109 170434 Plug, Sae #6

42 170395 Magnet,Ring 111 170435 O-Ring .07X.301 I.D.

43 170396 Spdng,Bypass 113 170437 Bracket,SupportExpansionTank

44 150797 HydroMtg Screw 3/8-24 X 2.5 116 170438 SiliconSponge

Long 119 170439 Fan, 7 In.

45 170397 Filler 120 170440 Pulley

46 170398 Base,Filler 121 170441 Hex LockNut 1/2-20 (Nylon

47 170999 Actuator, Bypass Insert)

48 170400 Red, BypassActuator 122 170442 Washer,Belleville

49 170401 Arm, Bypass 123 170443 BeltKeeper

50 170402 RetainingRing.250 External 124 170444 CenterSection-Fiiler-Bypass

51 170403 Seal, Lip .741 X .250 X .250 Tc Assembly

52 170404 Flat Washer, 5/8 Id X 1.00d X 125 170445 FiilerAssembly

.05 Thk 126 170446 Fan-Pu//eyService Assemb/y

53 170405 RetainingRing 127 170447 Seal- O-RingKit

54 170406 Beadng,CenterBlock 128 173165 Kit, ExpansionTank

55 142977 Spdng-HelicalCompression 900 166768 TransaxleComplete

56 142978 Washer

57 150798 20w-50Oil NOTE: AllcomponentdimensionsgiveninU.S. inches

58 170407 BrakeYoke 1 inch= 25.4 mm

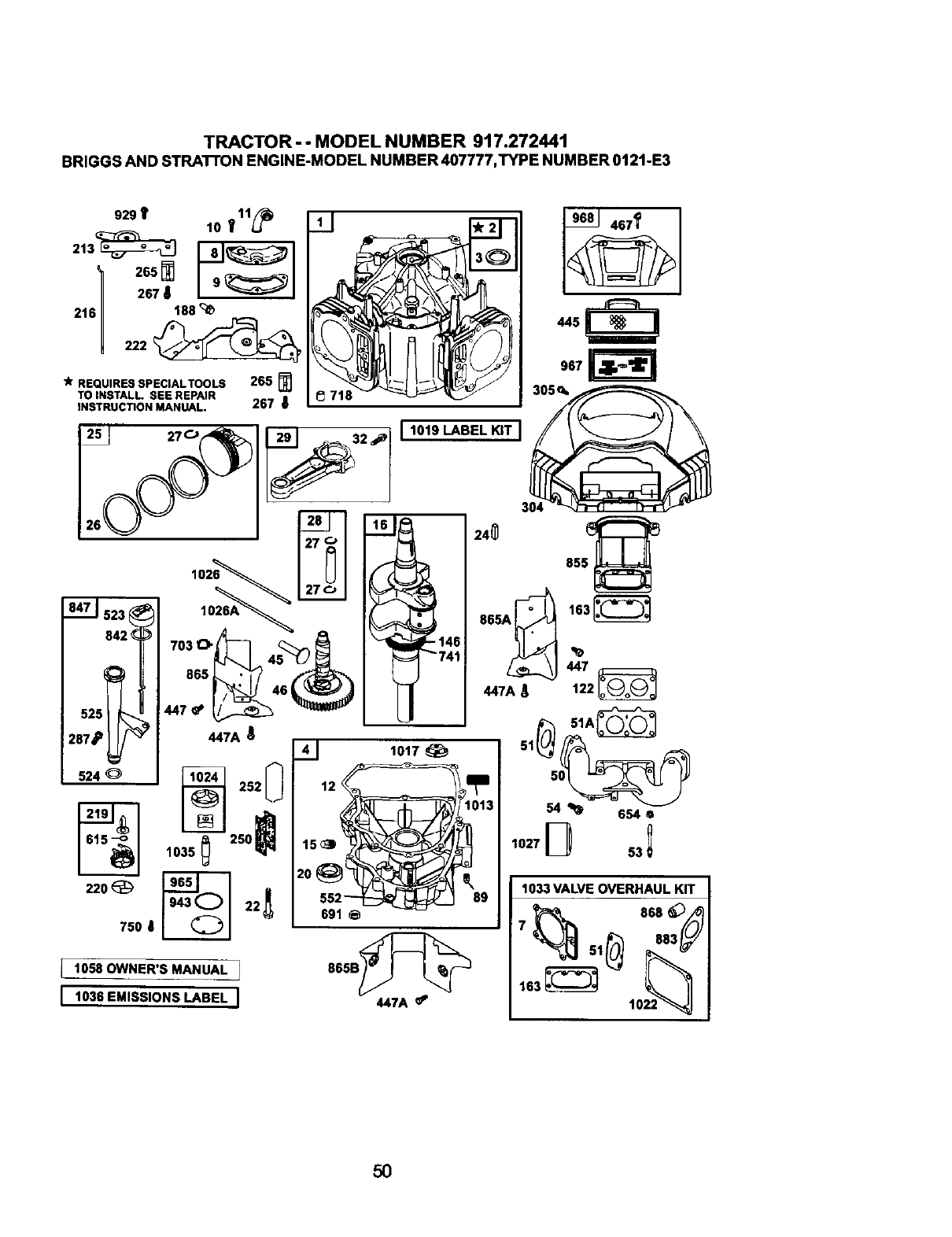

TRACTOR - - MODEL NUMBER 917.272441

BRIGGS AND STRATrON ENGINE-MODEL NUMBER 407777,TYPE NUMBER 0121-E3

929 t

213_]

216 1

lO Ir11_

265 [_

2674 9_

188

222

11_REQUIRES SPECIALTOOLS 265 [_

TOINSTALL SEEREPAIR _718

INSTRUCTIONMANUAL. 267

102_ _ k,_ _

_ 5,_ _O_OA_. _

207_ 447A

524_ _252_'_

_o_ _ ,,_

75O |

865B_

447A

1058 OWNER'S MANUAL 1

[ 1036 EMISSIONS LABEL I

445 = 1

967 r_

447A

163_

1033 VALVE OVERHAUL KIT

868 _/_

7_51_ 883_

TRACTOR-- MODEL NUMBER 917.272441

BI_IGGS AND STRA'rroN ENGINE-MODEL NUMBER 407777,TYPE NUMBER 0121-E3

888 _e

798_ _51{._

5A_

i40_°_,

_o°.

..&

1022 V

_11o2,_

olO 1y 1.: I

_38587_ 788_'_ _11691 _

r_ .... Io0,_--_, l_,_ 13o 95,

fnl 11_ I _ _==_'-633i -I_- I .T _

51A_ 11421,,t_,_lm I[ 552 _51A _J 105 e i--n_]

,,0aoo 105_ 033 _(_';'_1 o=, L-_, -- r-.._al

1124_' 1051 533@ 907_ 1123o /137_;jl

160_ |1127_ I

,I,077CARBURETOR GASKET SET 1174' | 276 o J

51A_ 1370 fl&7

0,2_ 150_ 2,0_ _,0_

987@

1123 ,_ 1124 _' 633@

TRACTOR - -MODEL NUMBER 917.272441

BRIGGS AND STRAI"rON ENGINE-MODEL NUMBER407777,TYPE NUMBER 0121-E3

363 I

1005

332 _) _J 877

10o5

72bJ_ =1851

#r 358 GASKET SET

3Q 2o@

276

9_ 51A_ 868_

2_ 691 _8822_

1 943 (_

842

524_ 10

050_'

573_ ,_

197

_olsOI 513_1 5o_

801

697

TRACTOR - - MODEL NUMBER 917.272441

BI_IGGS AND STRAI-FON ENGINE-MODEL NUMBER 407777,TYPE NUMBER 0121-E3

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 690231 Cylinder Assembly 121 499811 Carburetor Overhaul Kit

2 499585 Bushing-Cylinder 122 690952 Spacer-Carburetor

3 391086 • Seal-Oil 125 499804 Carburetor

4 690069 Sump-Engine 130 690993 Valve-Throttle

5 499587 Heed-Cylinder No. 1 131 499805 Throttle Shaft Kit

5A 499595 Head-Cylinder No. 2 133 499806 Float-Carburetor

7 890962 ,+ Gasket-Cylinder Head 135 499803 Fuel Transfer Tube

8 499601 Breather Assembly 137 690994 O:1: Gasket-Float Bowl

9 690937 , Gasket-Breather 141 499807 Choke Shaft Kit

10 690960 Screw (Breather Assy.) 142 499808 ONozzle-Carburetor

11 690942 Tube-Breather 146 94388 Key-Timing

12 690945 •Gasket-Crankcase 150 690995 O:1: Gasket-Nozzle

13 690360 Screw (Cylinder Head) 160 690996 Retainer-Solenoid

15 690946 Plug-Oil Drain 163 691001 o+ Gasket-Air Cleaner

16 691046 Crankshaft 187 691050 Line-Fuel (Cut to Required

20 690947 ° SeaI-Oil(PTO Side) Length)

22 690308 Screw (Engine Sump) 187A 691049 Line-Fuel

23 691053 Flywheel 188 690960 Screw (Control Bracket)

24 222698 Key-Flywheel 192 690083 Adjuster-Rocker Arm

25 499588 Piston Assembly (Std.) 197 690960 Screw (Back Plate)

499589 Piston Assembly (.010 O.S.) 209 691018 Spring-Governor

499590 Piston Assembly (.020 O.S.) 211 691019 Spring-Governed Idle

499591 Piston Assembly (.030 O.S.) 212 691020 Link-Throttle

26 499604 Ring Set-Piston (Std.) 213 691021 Bracket-Choke Control

499605 Ring Set-Piston (.010 O.S.) 216 691022 Link-Choke

499606 Ring Set-Piston (.020 O.S.) 219 394348 Gear-Governor

499607 Ring Set-Piston (.030 O.S.) 220 690412 Washer (Govemor Lever)

27 690975 Lock-Piston Pin 222 691023 Bracket-Control

28 499582 Pin-Piston 227 691048 Control Lever-Governor

29 499583 Rod-Connecting 231 690718 Screw (Choke Valve)

32 690976 Screw_Connecting Red) 240 691035 Filter-Fuel

33 499596 Valve-Exhaust 250 690957 Retainer-Breather

34 499597 Valve-Intake 252 690956 Element-Breather

35 690963 Spring-Valve (Intake) 265 691024 Clamp-Casing

36 690963 Spdng-Valve (Exhaust) 267 695134 Screw (Casing Clamp)

40 690964 Retainer-Valve 276 690997.O:1: Sealing Washer

42 499586 Keeper-Valve 278 690097 Washer (Gov. Control Lever)

45 690977 Valve Tappet 287 690960 Screw (Dipstick Tube)

46 690978 Cam Shaft 304 691004 Housing-Blower

48 693893 Short Block 305 691005 Screw (Blower Housing)

50 690948 Manifold-Intake 309 691262 Motor-Starter

51 90949 °2}+ Gasket-Intake 310 691263 Bolt-Starter Motor

51A 690950-O:1: Gasket-Intake 311 497608 Brush Set

53 690951 Stud (Carburetor) 332 691059 Nut (Flywheel)

54 690953 Screw (Intake Manifold) 333 691060 Armature-Magneto

73 691055 Screen-Rotating 334 691061 Screw(Magneto Armature)

74 691057 Screw (Rotating Screen) 337 691043 Spark Plug

75 691056 Washer (Flywheel) 358 499889 Gasket Set

89 690283 Plug-Oil 363 691062 Flywheel Puller

95 690718 Screw (ThretSo Valve)

98 499802 Idle Speed Kit Included in Engine Gasket Set, Key. No.

104 690984 * Pin-Float Hinge 358

105 690985 Valve-Float Needle OIncluded in Carburetor Overhaul Kit, Key,

108 690986 Valve-Choke No. 121

117 690232 OJet-Main (Standard) _Included in Carburetor Gasket Sot. Key.

690989 Jet-Main (High Altitude) No. 977

+ Included in Valve Overhaul Kit, Key. No.

1033

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

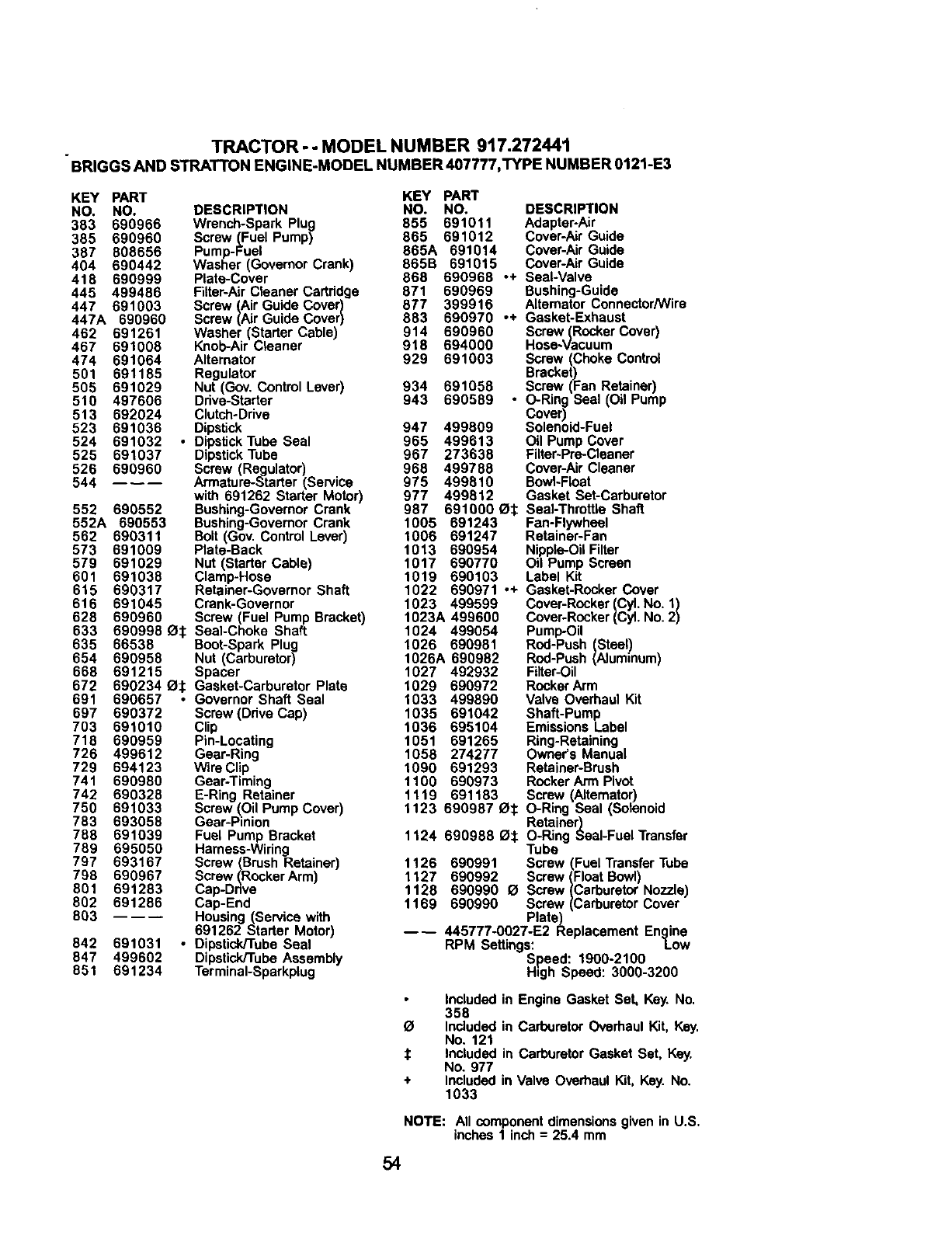

TRACTOR - - MODEL NUMBER 917.272441

BRIGGS AND STRATTON ENGINE-MODEL NUMBER 407777,TYPE NUMBER 0121-E3

KEY PART

NO, NO. DESCRIPTION

383 690966 Wrench-Spark Plug

385 690960 Screw (Fuel Pump)

387 808656 Pump-Fuel

404 690442 Washer (Governor Crank)

418 690999 Plate-Cover

445 499486 Filter-Air Cleaner Cartridge

447 691003 Screw (Air Guide Cover)

447A 690960 Screw (Air Guide Cover)

462 691261 Washer (Starter Cable)

467 691008 Knob-Air Cleaner

474 691064 Alternator

501 691185 Regulator

505 691029 Nut (Gov. Control Lever)

510 497606 Drive-Starter

513 692024 Clutch-Drive

523 691036 Dipstick

524 691032 • Dipstick Tube Seal

525 691037 Dipstick Tube

526 690960 Screw (Regulator)

544 Armature-Starter (Service

with 691262 Starter Motor)

552 690552 Bushing-Governor Crank

552A 690553 Bushing-Governor Crank

562 690311 Bolt (Gov Control Lever)

573 691009 Plate-Back

579 691029 Nut (Starter Cable)

601 691038 Clamp-Hose

615 690317 Retainer-Governor Shaft

616 691045 Crank-Governor

628

633

635

654

668

672

691

697

703

718

726

729

741

742

750

783

788

789

797

798

801

8O2

6O3

842

847

861

690960 Screw (Fuel Pump Bracket)

690998 O:_ Seal-Choke Shaft

66538 Boot-Spark Plug

690958 Nut (Carburetor)

691215 Spacer

690234 O:1: Gasket-Carburetor Plate

690657 • Governor Shaft Seal

690372 Screw (Drive Cap)

691010 Clip

690959 Pin-Locating

499612 Gear-Ring

694123 Wire Clip

690980 Gear-Timing

690328 E-Ring Retainer

691033 Screw (Oil Pump Cover)

693058 Gear-Pinion

691039 Fuel Pump Bracket

695050 Harness-Wiring

693167 Screw (Brush Retainer)

690967 Screw _Rocker Arm)

691283 Cap-Dnve

691286 Cap-End

Housing (Service with

691262 Starter Motor)

691031 • Dipstick/Tube Seal

499602 Dipstick/Tube Assembly

691234 TerminaI-Sparkplug

KEY PART

NO. NO. DESCRIPTION

855 691011 Adapter-Air

865 691012 Cover-Air Guide

865A 691014 Cover-Air Guide

865B 691015 Cover-Air Guide

868 690968 .+ Seal-Valve

871 690969 Bushing-Guide

877 399916 Alternator Connector/Wire

883 690970 .+ Gasket-Exhaust

914 690960 Screw(Rocker Cover)

918 694000 Hose-Vacuum

929 691003 Screw (Choke Control

Bracket)

934 691058 Screw (Fan Retainer)

943 690589 •O-Ring Seal (Oil Pump

Cover)

947 499809 Solenoid-Fuel

965 499613 Oil Pump Cover

967 273638 Filter-Pre-Cleaner

968 499788 Cover-Air Cleaner

975 499810 Bowl-Float

977 499812 Gasket Set-Carburetor

987 691000 O:1: SeeI-ThrotUe Shaft

1005 691243 Fan-Flywheel

1006 691247 Retainer-Fan

1013 690954 Nipple-Oil Filter

1017 690770 Oi/Pump Screen

1019 690103 Label Kit

1022 690971 o+ Gasket-Rocker Cover

1023 499599 Cover-Rocker (Cyl. No. 1)

1023A 499600 Cover-Rocker (Cyl. No. 2)

1024 499054 Pump-Oil

1026 690981 Red-Push (Steel)

1026A 690982 Red-Push (Aluminum)

1027 492932 Filter-Oil

1029 690972 Rocker Arm

1033 499890 Valve Overhaul Kit

1035 691042 Shaft-Pump

1036 695104 Emissions Label

1051 691265 Ring-Retaining

1058 274277 Owner's Manual

1090 691293 Retainer-Brush

1100 690973 Rocker Arm Pivot

1119 691183 Screw (Aitamator)

1123 690987 O:1: O-Ring Seal (Solenoid

Retainer)

1124 690988 O:1: O-Ring Seal-Fuel Transfer

Tube

1126 690991 Screw (Fuel Transfer Tube

1127 690992 Screw (Float Bowl)

1128 690990 OScrew (Carburetor Nozzle)

1169 690990 Screw (Carburetor Cover

Plate)

---- 445777-0027-E2 Replacement Engine

LOW

RPM SellingS_peed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No.

358

OIncluded in Carburetor Overhaul Kit, Key.

No. 121

:[: Included in Carburetor Gasket Sat, Key.

No. 977

+ Included in Valve Overhaul Kit, Key. No.

1033

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

Operate your Tractor up and down the face of slopes (not I

greater than 15°), never across the face. Make turns gradu- I

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

For repairof major brand appliances in your own home...

no matter who made it,no matter who solditJ

1-800-4-MY-HOME _ Anyame,dayor_ht

(1-8oo4694663) (u.sA andCanada)

www._ears.com wwwJ_exs.ca

For repair ofcarry-inproducts likevacuums, lawn equipment,and

electronics,callfor the nearest Sears Parts and Repair Center.

1-800-488-1222 Anytime,dayorright(U.SA only)

V,N_W.seal._com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirect_!

1-800-366-PART 6a.m.- 11P.m.,7 daysaweek

(1-800-366.7278) (U.S.A.only)

www.sears.co.Vpatsdirect

To purchase or inquire about aSears Service Agreement

or Sears Maintenance Agreement

1-800-827-6655 (U.S.&) 1-800-361-6665 (Canada)

7 a.m.-5 p.m.,CST,Mon.- SaL 9a.m.-8p.m. EST,M- F,4p_m.SaL

Parapeclrsewiciodereparaci6na

dom_io,y paraordenarp_ezas:

1_ su

(1-888-784,.6427)

AuCareda poursewiceen_

1-8004JE-FOYEFIMc

(1-800J533-69_'7)

o,,,.oo(sE-./4.sI

®Registered Trademark /TMTrademark /su Service Mark of Sears, Roebuck and Co.

®Marca Rogistrada /"ruMama de F&brica /SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce IMOMarque d6pos6e do Sears, Roebuck and Co.

178423 3.6.01 TR Printed in U.S.A.

Craftsman 917272441 User Manual LAWN TRACTOR Manuals And Guides L0103208

CRAFTSMAN Lawn, Tractor Manual L0103208 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
