Owner's Manual

ICRRFTSMI N°I

5.5 HP

24 INCH TINE WIDTH

FRONT TINE

TILLER

Model No.

917.292393

•Safety

•Assembly

•Operation

•Maintenance

•Espahol

•Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

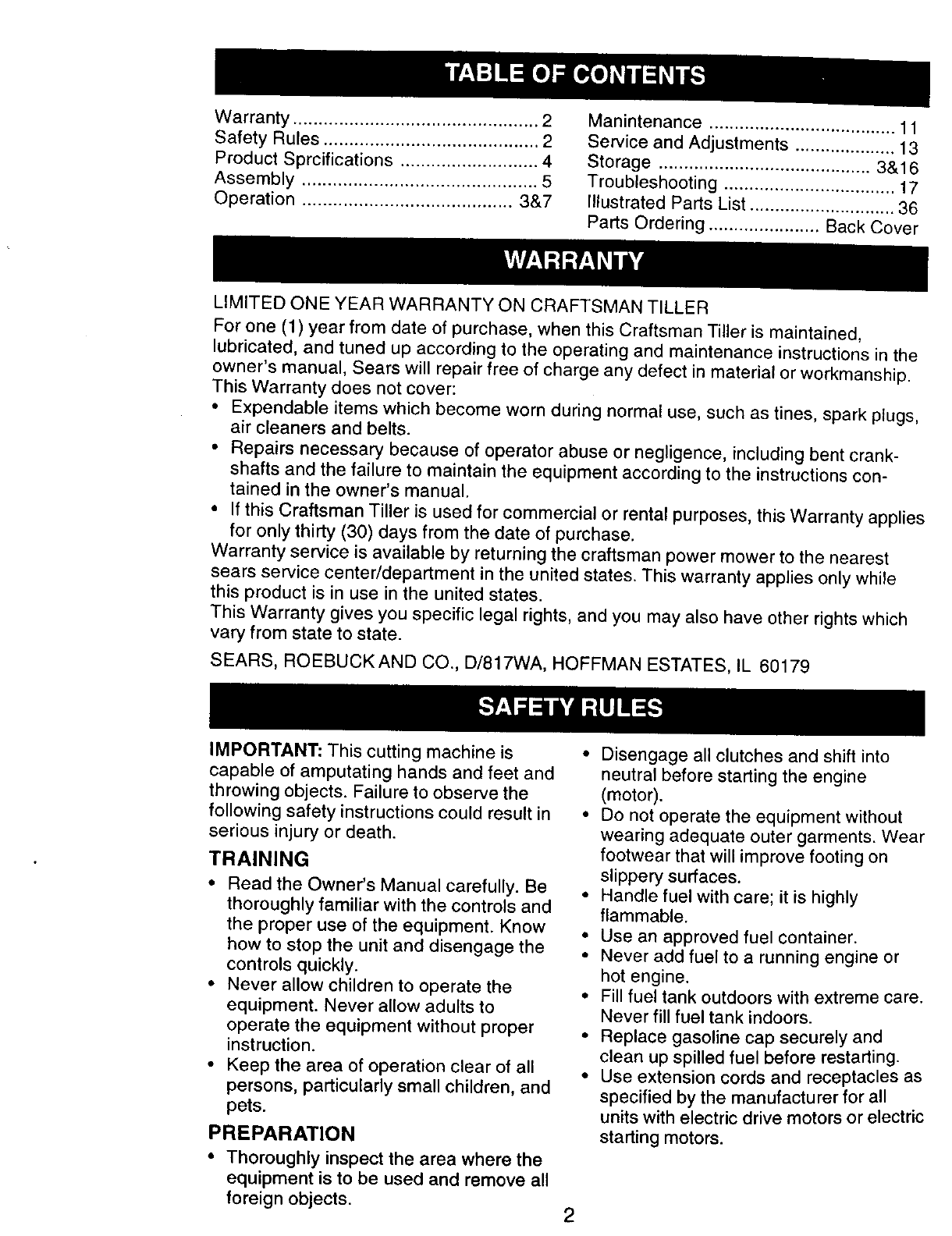

Warranty ................................................2

Safety Rules..........................................2

Product Sprcifications ...........................4

Assembly ..............................................5

Operation ......................................... 3&7

Manintenance .........•........ ....... ............ 11

Service and Adjustments .................... 13

Storage .......................................... 3&16

Troubleshooting .................................. 17

Illustrated Parts List ............................. 36

Parts Ordering ...................... Back Cover

LIMITED ONE YEAR WARRANTY ON CRAFTSMAN TILLER

For one (1) year from date of purchase, when this Craftsman Tiller is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in the

owner's manual, Sears will repair free of charge any defect in material or workmanship.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as tines, spark plugs,

air cleaners and belts.

• Repairs necessary because of operator abuse or negligence, including bent crank-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual.

• If this Craftsman Tiller is used for commercial or rental purposes, this Warranty applies

for only thirty (30) days from the date of purchase.

Warranty service is available by returning the craftsman power mower to the nearest

sears service center/department in the united states. This warranty applies only while

this product is in use in the united states.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817WA, HOFFMAN ESTATES, IL 60179

IMPORTANT: This cutting machine is

capable of amputating hands and feet and

throwing objects. Failure to observe the

following safety instructions could result in

serious injury or death.

TRAINING

•Read the Owner's Manual carefully. Be

thoroughly familiar with the controls and

the proper use of the equipment. Know

how to stop the unit and disengage the

controls quickly.

• Never allow children to operate the

equipment. Never allow adults to

operate the equipment without proper

instruction.

• Keep the area of operation clear of all

persons, particularly small children, and

pets.

PREPARATION

• Thoroughly inspect the area where the

equipment is to be used and remove all

foreign objects.

• Disengage all clutches and shift into

neutral before starting the engine

(motor).

• Do not operate the equipment without

wearing adequate outer garments. Wear

footwear that will improve footing on

slippery surfaces.

• Handle fuel with care; it is highly

flammable.

• Use an approved fuel container.

•Never add fuel to a running engine or

hot engine.

•Fill fuel tank outdoors with extreme care.

Never fill fuel tank indoors.

• Replace gasoline cap securely and

clean up spilled fuel before restarting.

• Use extension cords and receptacles as

specified by the manufacturer for all

units with electric drive motors or electric

starting motors.

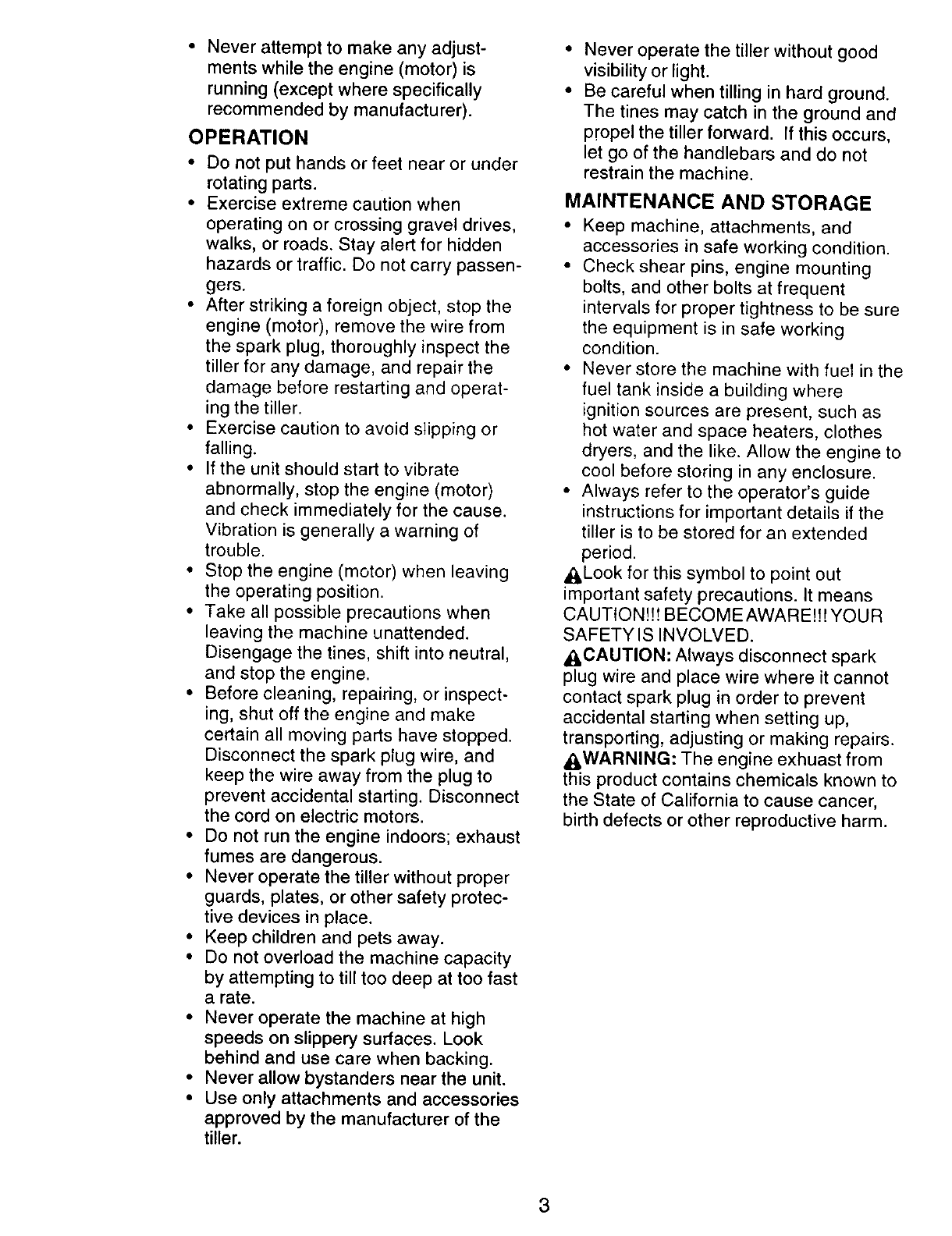

• Never attempt to make any adjust-

ments while the engine (motor) is

running (except where specifically

recommended by manufacturer).

OPERATION

• Do not put hands or feet near or under

rotating parts.

• Exercise extreme caution when

operating on or crossing gravel drives,

walks, or roads. Stay alert for hidden

hazards or traffic. Do not carry passen-

gers.

• After striking a foreign object, stop the

engine (motor), remove the wire from

the spark plug, thoroughly inspect the

tiller for any damage, and repair the

damage before restarting and operat-

ing the tiller.

• Exercise caution to avoid slipping or

falling.

• If the unit should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally a warning of

trouble.

• Stop the engine (motor) when leaving

the operating position.

• Take all possible precautions when

leaving the machine unattended.

Disengage the tines, shift into neutral,

and stop the engine.

• Before cleaning, repairing, or inspect-

ing, shut off the engine and make

certain all moving parts have stopped.

Disconnect the spark plug wire, and

keep the wire away from the plug to

prevent accidental starting. Disconnect

the cord on electric motors.

• Do not run the engine indoors; exhaust

fumes are dangerous.

• Never operate the tiller without proper

guards, plates, or other safety protec-

tive devices in place.

• Keep children and pets away.

• Do not overload the machine capacity

by attempting to till too deep at too fast

arate.

• Never operate the machine at high

speeds on slippery surfaces. Look

behind and use care when backing.

• Never allow bystanders near the unit.

• Use only attachments and accessories

approved by the manufacturer of the

tiller.

• Never operate the tiller without good

visibility or light.

• Be careful when tilling in hard ground.

The tines may catch in the ground and

propel the tiller forward. If this occurs,

let go of the handlebars and do not

restrain the machine.

MAINTENANCE AND STORAGE

• Keep machine, attachments, and

accessories in safe working condition.

• Check shear pins, engine mounting

bolts, and other bolts at frequent

intervals for proper tightness to be sure

the equipment is in safe working

condition.

• Never store the machine with fuet in the

fuel tank inside a building where

ignition sources are present, such as

hot water and space heaters, clothes

dryers, and the like. Allow the engine to

cool before storing in any enclosure.

• Always refer to the operator's guide

instructions for important details if the

tiller is to be stored for an extended

period.

_l, Look for this symbol to point out

important safety precautions. It means

CAUTtON!!t BECOME AWARE!!! YOUR

SAFETY IS INVOLVED.

_CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

_WARNING: The engine exhuast from

this product contains chemicals known to

the State of California to cause cancer,

birth defects or other reproductive harm.

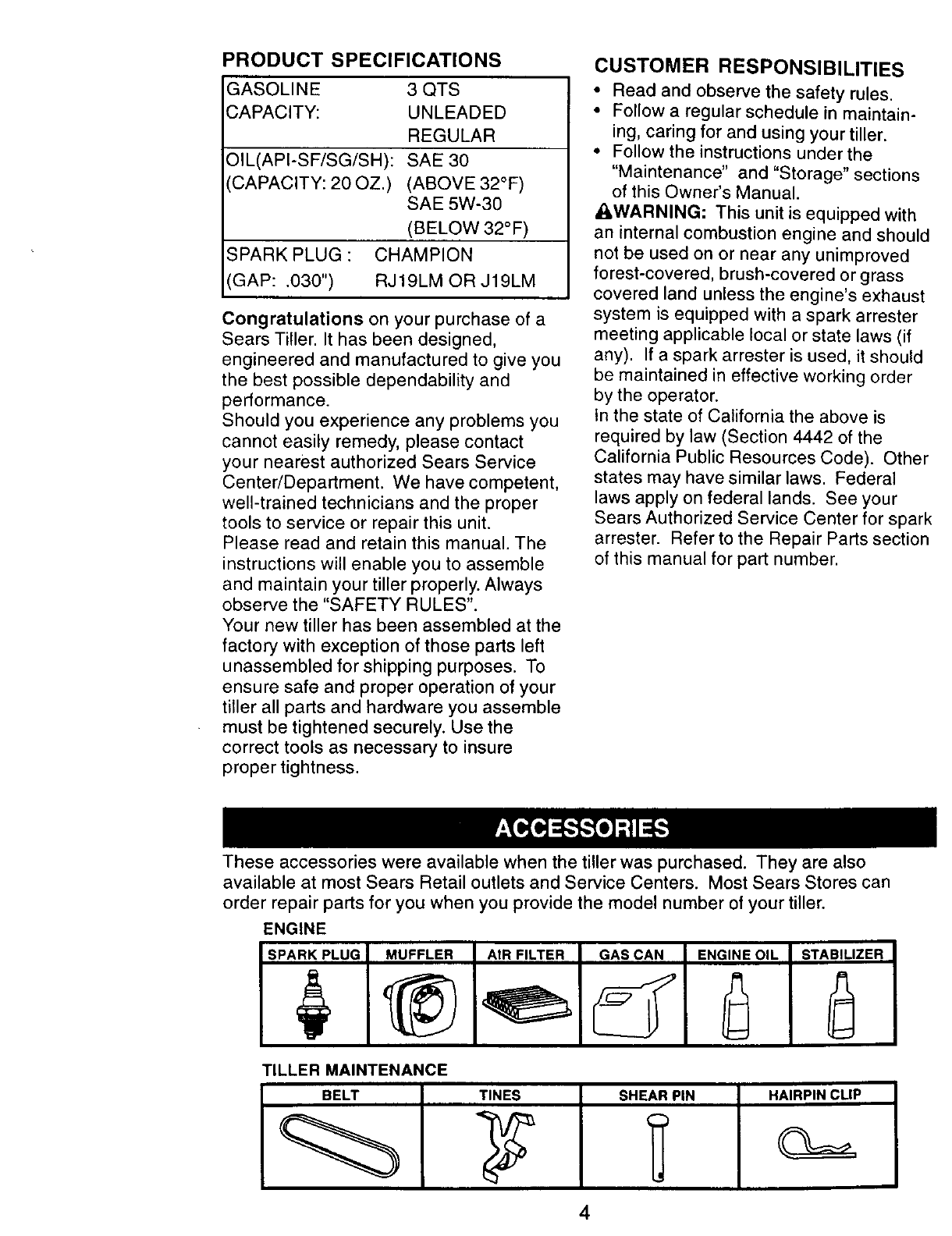

PRODUCT SPECIFICATIONS

GASOLINE 3 QTS

CAPACITY: UNLEADED

REGULAR

OIL(API-SF/SG/SH): SAE 30

'CAPACITY: 20 OZ.) (ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

SPARK PLUG: CHAMPION

(GAP: .030") RJ19LM OR J19LM

Congratulations on your purchase of a

Sears Tiller. It has been designed,

engineered and manufactured to give you

the best possible dependability and

performance.

Should you experience any problems you

cannot easily remedy, please contact

your nearest authorized Sears Service

Center/Department. We have competent,

well-trained technicians and the proper

tools to service or repair this unit.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tiller properly. Always

observe the "SAFETY RULES".

Your new tiller has been assembled at the

factory with exception of those parts left

unassembled for shipping purposes. To

ensure safe and proper operation of your

tiller all parts and hardware you assemble

must be tightened securely. Use the

correct tools as necessary to insure

proper tightness.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tiller.

• Follow the instructions under the

"Maintenance" and "Storage" sections

of this Owner's Manual.

AWARNING: This unit is equipped with

an internal combustion engine and should

not be used on or near any unimproved

forest-covered, brush-covered or grass

covered land unless the engine's exhaust

system is equipped with a spark arrester

meeting applicable local or state laws (if

any). If a spark arrester is used, it should

be maintained in effective working order

by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code). Other

states may have similar laws. Federal

laws apply on federal lands. See your

Sears Authorized Service Center for spark

arrester. Refer to the Repair Parts section

of this manual for part number.

These accessories were available when the tiller was purchased. They are also

available at most Sears Retail outlets and Service Centers. Most Sears Stores can

order repair parts for you when you provide the model number of your tiller.

ENGINE

TILLER MAINTENANCE

BELT TINES SHEAR PiN HAIRPIN CLIP

Your new tiller has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tiller

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes are listed.

(1) Utility knife

(1) Pair of pliers

(2) 1/2 Wrench

OPERATOR'S POSITION

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (standing behind

tiller handles).

FRONT

LEFT RIGHT

OPERATOR'S

POSITION

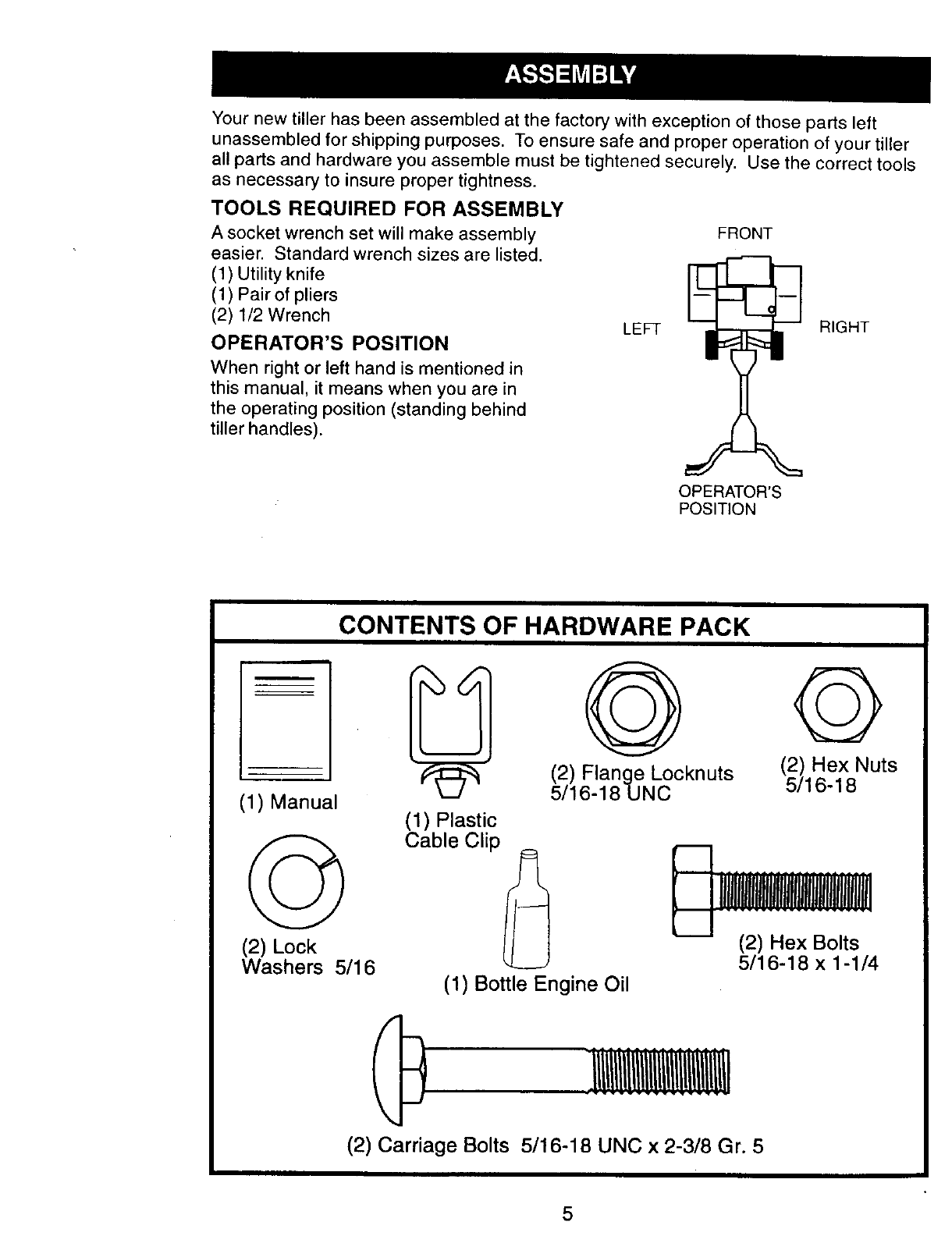

CONTENTS OF HARDWARE PACK

(1) Manual

(2) Lock

Washers 5/16

(1) Plastic

Cable Clip

(2) Flange Locknuts

5/16-18UNC

(1) Bottle Engine Oil

(2) Hex Nuts

5/16-18

ilili iUUU!UiiUUililililU!D!!

(2) Hex Bolts

5/16-18 x 1-1/4

(2) Carriage Bolts 5/16-18 UNC x 2-3/8 Gr. 5

UNPACK CARTON & INSTALL

HANDLE

_I_CAUTION: Be careful of exposed

staples when handling or disposing of

cartoning material.

IMPORTANT: When unpacking and

assembling tiller, be careful not to stretch

or kink cable(s).

• Cut cable ties securing handle column.

• Remove all packing from carton.

• Secure handle column to handle mount

using two (2) carriage bolts and two (2)

flange Iocknuts. Tighten both flange

Iocknuts securely.

• Remove packing material from handle

assembly.

• Route tine control cable through plastic

cable clip on handle column.

• Insert plastic cable clip into hole in

handle column.

• Cut cable ties securing tiller to skid.

• Cut away carton and remove tiller from

skid by pulling backwards.

Tine Control Cable

Handle Moun

Tine

Control

Bolts

INSTALL DEPTH STAKE

ASSEMBLY

•Loosen nut "A".

• Insert stake support between engine

bracket halves with stake spring down.

• Bolt stake support to engine brackets

with bolts, lock washers and nuts.

Tighten securely. Tighten nut "A".

• Depth stake must move freely. If it does

not, loosen support bolt.

\Engine Bracket Halves

Depth Stake

pth

Stake

Support Bolt

Hex Bolts, Lockwashers,

and Hex Nuts

HANDLE HEIGHT

• Handle height may be adjusted to better

suit operator. (See "HANDLE HEIGHT"

in the Service and Adjustments section

of this manual).

TILLING WIDTH

• Tilling width may be adjusted to better

handle your tilling conditions (See "TINE

ARRANGEMENT" in the Service and

Adjustments section of this manual).

TINE OPERATION

• Check tine operation before first use.

(See "TINE OPERATION CHECK" in

the Service and Adjustments section of

this manual).

Flange

Locknuts

These symbols may appear on your Tiller or in literature supplied with the product. Learn

and understand their meeting.

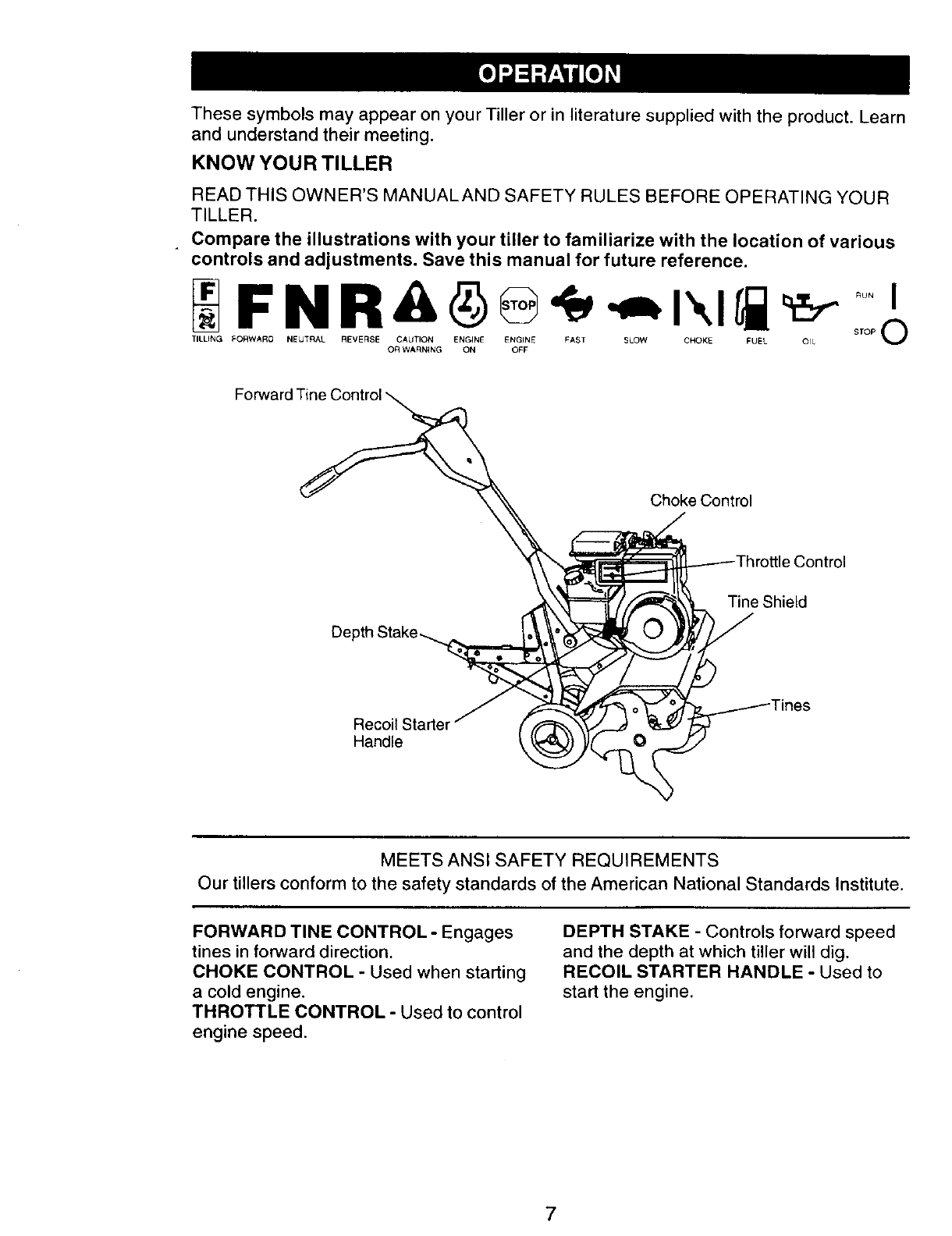

KNOW YOUR TILLER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR

TILLER.

Compare the illustrations with your tiller to familiarize with the location of various

controls and adjustments. Save this manual for future reference.

TILLING FORWARD NEUTRAL REVERSE CAUTION FUE L

ORWARN_NG ON OFF

Choke Control

Depth Stake_

Recoil Starte

Handle O

TineShield

MEETS ANSI SAFETY REQUIREMENTS

Our tillers conform to the safety standards of the American National Standards Institute.

FORWARD TINE CONTROL - Engages

tines in forward direction.

CHOKE CONTROL - Used when starting

a cold engine.

THROTTLE CONTROL - Used to control

engine speed.

DEPTH STAKE -Controls forward speed

and the depth at which tiller will dig.

RECOIL STARTER HANDLE - Used to

start the engine.

The operation of any tiller can result in foreign objects thrown into the eyes,

which can result in severe eye damage. Always wear safety glasses or eye

shields before starting your tiller and while tilling. We recommend a wide

vision safety mask over spectacles or standard safety glasses.

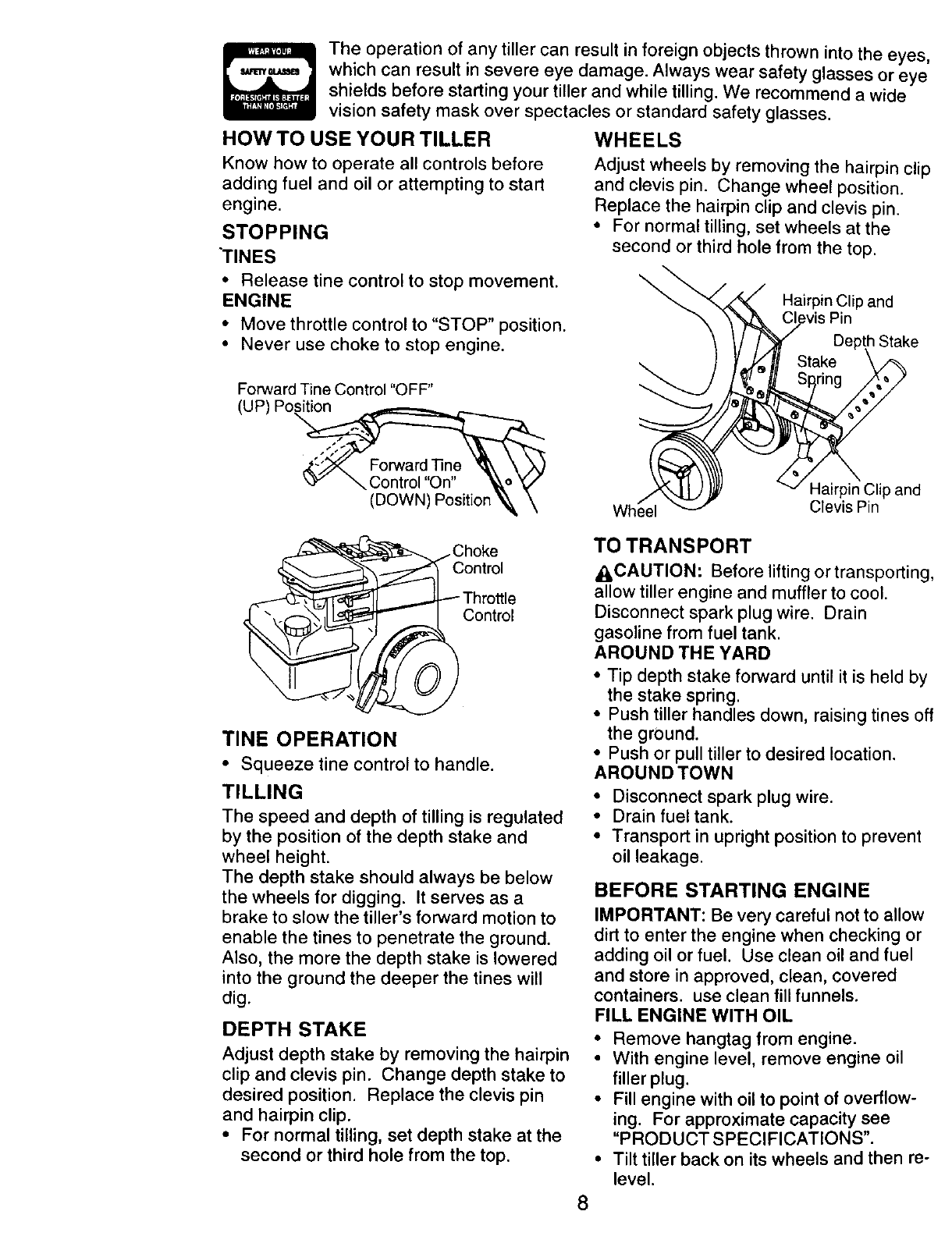

HOW TO USE YOUR TILLER WHEELS

Know how to operate all controls before

adding fuel and oil or attempting to start

engine.

STOPPING

"TINES

Adjust wheels by removing the hairpin clip

and clevis pin. Change wheel position.

Replace the hairpin clip and clevis pin.

• For normal tilling, set wheels at the

second or third hole from the top.

• Release tine control to stop movement.

ENGINE

• Move throttle control to "STOP" position.

• Never use choke to stop engine.

Hairpin Clip and

Depth Stake

Forward Tine Control "OFF"

(UP) Po_

(DOWN) Position _ \

Choke

Control

TINE OPERATION

• Squeeze tine control to handle.

TILLING

The speed and depth of tilling is regulated

by the position of the depth stake and

wheel height.

The depth stake should always be below

the wheels for digging. It serves as a

brake to slow the tiller's forward motion to

enable the tines to penetrate the ground.

Also, the more the depth stake is lowered

into the ground the deeper the tines will

dig.

DEPTH STAKE

Adjust depth stake by removing the hairpin

clip and clevis pin. Change depth stake to

desired position. Replace the clevis pin

and hairpin clip.

• For normal tilling, set depth stake at the

second or third hole from the top.

Hairpin Clip and

Clevis Pin

TOTRANSPORT

ACAUTION: Before lifting or transporting,

allow tiller engine and muffler to cool.

Disconnect spark plug wire. Drain

gasoline from fuel tank.

AROUND THE YARD

• Tip depth stake forward until it is held by

the stake spring.

• Push tiller handles down, raising tines off

the ground.

• Push or pull tiller to desired location.

AROUND TOWN

• Disconnect spark plug wire.

• Drain fueltank.

• Transport in upright position to prevent

oil leakage.

BEFORE STARTING ENGINE

IMPORTANT: Be very careful not to allow

dirt to enter the engine when checking or

adding oil or fuel. Use clean oil and fuel

and store in approved, clean, covered

containers, use clean fill funnels.

FILL ENGINE WITH OIL

• Remove hangtag from engine.

• With engine level, remove engine oil

filler plug.

• Fill engine with oil to point of overflow-

ing. For approximate capacity see

"PRODUCT SPECIFICATIONS".

• Tilt tiller back on its wheels and then re-

level.

• With engine level, refill to point of

overflowing if necessary. Replace oil

filler plug.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section of this manual.

Oil Filler

Plug

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline. (Use of leaded

gasoline will increase carbon and lead

oxide deposits and reduce valve life.)

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean,

winter grade gasoline to help insure good

cold weather starting.

_I,WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines and

carburetor are empty. Use fresh fuel next

season. See Storage section of this

manual for additional information. Never

use engine or carburetor cleaner products

in the fuel tank or permanent damage may

occur.

ACAUTION: Fill to within 1/2 inch of top of

fuel tank to prevent spills and to allow for

fuel expansion. If gasoline is accidentally

spilled, move machine away from area of

spill. Avoid creating any source of ignition

until gasoline vapors have disappeared.

Do not overfill. Wipe off any spilled oil or

f_. Do not store, spill or use gasoline

near an open flame.

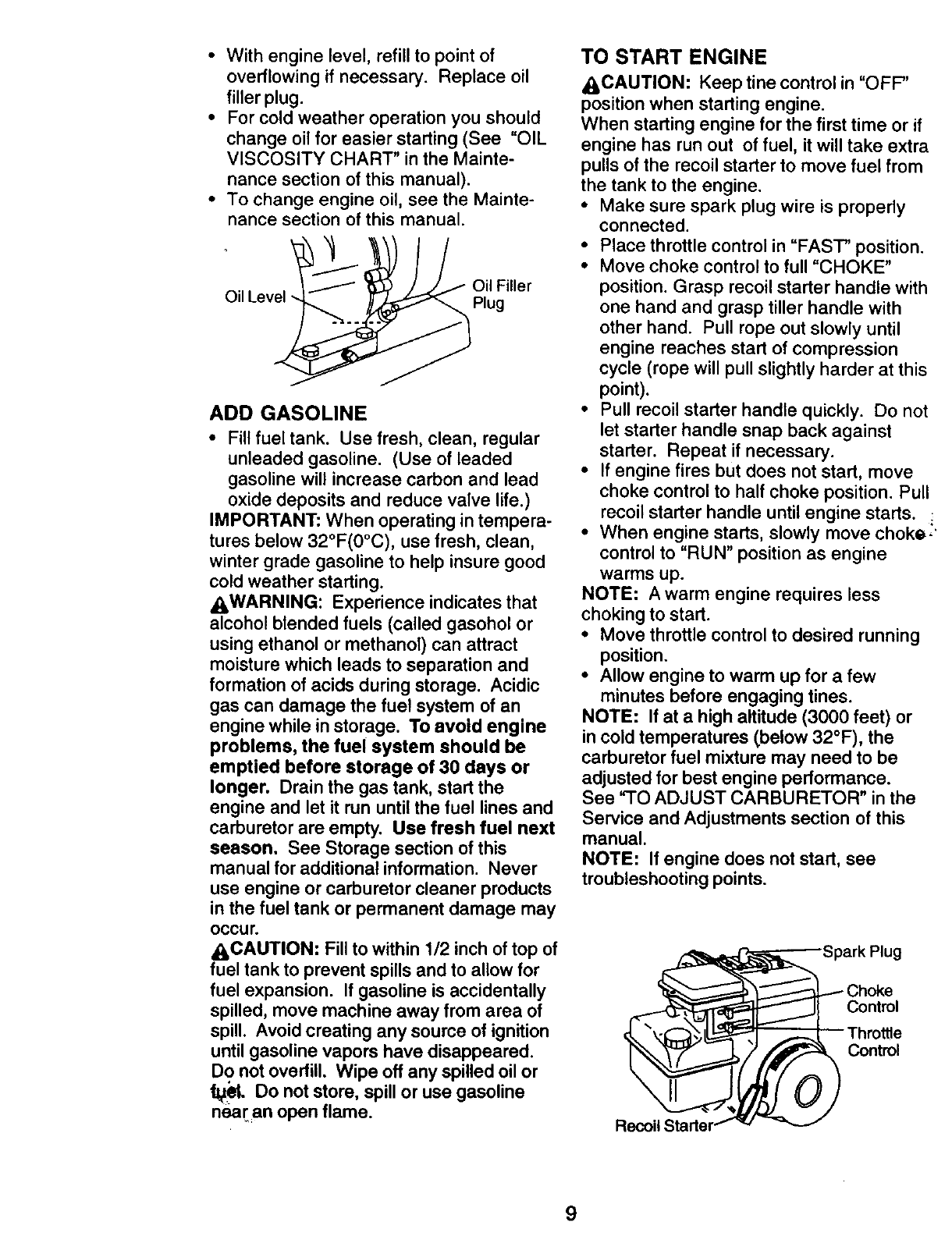

TO START ENGINE

_CAUTION: Keep tine control in "OFF"

position when starting engine.

When starting engine for the first time or if

engine has run out of fuel, it will take extra

pulls of the recoil starter to move fuel from

the tank to the engine.

•Make sure spark plug wire is properly

connected.

•Place throttle control in "FAST" position.

•Move choke control to full "CHOKE"

position. Grasp recoil starter handle with

one hand and grasp tiller handle with

other hand. Pull rope out slowly until

engine reaches start of compression

cycle (rope will pull slightly harder at this

point).

•Pull recoil starter handle quickly. Do not

let starter handle snap back against

starter. Repeat if necessary.

•If engine fires but does not start, move

choke control to half choke position. Pull

recoil starter handle until engine starts. :

•When engine starts, slowly move choke;

control to "RUN" position as engine

warms up.

NOTE: Awarm engine requires less

choking to start.

•Move throttle control to desired running

position.

•Allow engine to warm up for a few

minutes before engaging tines.

NOTE: If at a high altitude (3000 feet) or

in cold temperatures (below 32°F), the

carburetor fuel mixture may need to be

adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

NOTE: If engine does not start, see

troubleshooting points.

Spark Plug

;hoke

Control

BREAKING IN YOUR TILLER

Break-in your belt(s), pulleys and tine

control before you actually begin tilling.

• Start engine, tip tines off ground by

pressing handles down and engage tine

control to start tine rotation. Allow tines

to rotate for five minutes.

• Check tine operation and adjust if

necessary. See "TINE OPERATION

CHECK" in the Service and Adjustments

section of this manual.

TILLING HINTS

_I,CAUTION: Until you are accustomed to

handling your tiller, start actual field use

with throttle in slow position.

To help tiller move forward, lift up the

handles slightly (thus lifting depth stake

out of ground). To slow down the tiller,

press down on handles.

If you are straining or tiller is shaking, the

wheels and depth stake are not set

properly in the soil being tilled. The proper

setting of the wheels and depth stake is

through trial and error and depends upon

the soil condition. (The harder or wetter

the ground, the slower the engine and tine

speed needed. Under these poor condi-

tions, at fast speed the tiller will run and

jump over the ground).

A properly adjusted tiller will dig with little

effort from the operator.

• Tilling is digging into, turning over, and

breaking up packed soil before planting.

Loose, unpacked soil helps root growth.

Best tilling depth is 4"-6". A tiller will

also clear the soil of unwanted vegeta-

tion. The decomposition of this veg-

etable matter enriches the soil. De-

pending on the climate (rainfall and

wind), it may be advisable to till the soil

at the end of the growing season to

further condition the soil.

• Soil conditions are important for proper

tilling. Tines will not readily penetrate

dry, hard soil which may contribute to

excessive bounce and difficult handling

of your tiller. Hard soil should be

moistened before tilling; however,

extremely wet soil will "ball-up" or clump

during tilling. Wait until the soil is less

wet in order to achieve the best results.

When tilling in the fall, remove vines and

long grass to prevent them from

wrapping around the tine shaft and

slowing your tilling operation.

• You will find tilling much easier if you

leave a row untilled between passes.

Then go back between tilled rows.

There are two reasons for doing this.

First, wide turns are much easier to

negotiate than about-faces. Second, the

tiller won't be pulling itself, and you,

toward the row next to it.

• Set depth stake and wheel height for

shallow tilling when working extremely

hard soil or sod. Then work across the

first cuts at normal depth.

CULTIVATING

Cultivating is destroying the weeds be-

tween rows to prevent them from robbing

nourishment and moisture from the plants.

At the same time, breaking up the upper

layer of soil crust will help retain moisture

in the soil. Best digging depth is 1"-3".

• You will probably not need to use the

depth stake. Begin by tipping the depth

stake forward until it is held by the stake

spring.

• Cultivate up and down the rows at a

speed which will allow tines to uproot

weeds and leave the ground in rough

condition, promoting no further growth of

weeds and grass.

QQQQO

O©QQO

©QQQ©

©©QQ©

1(3

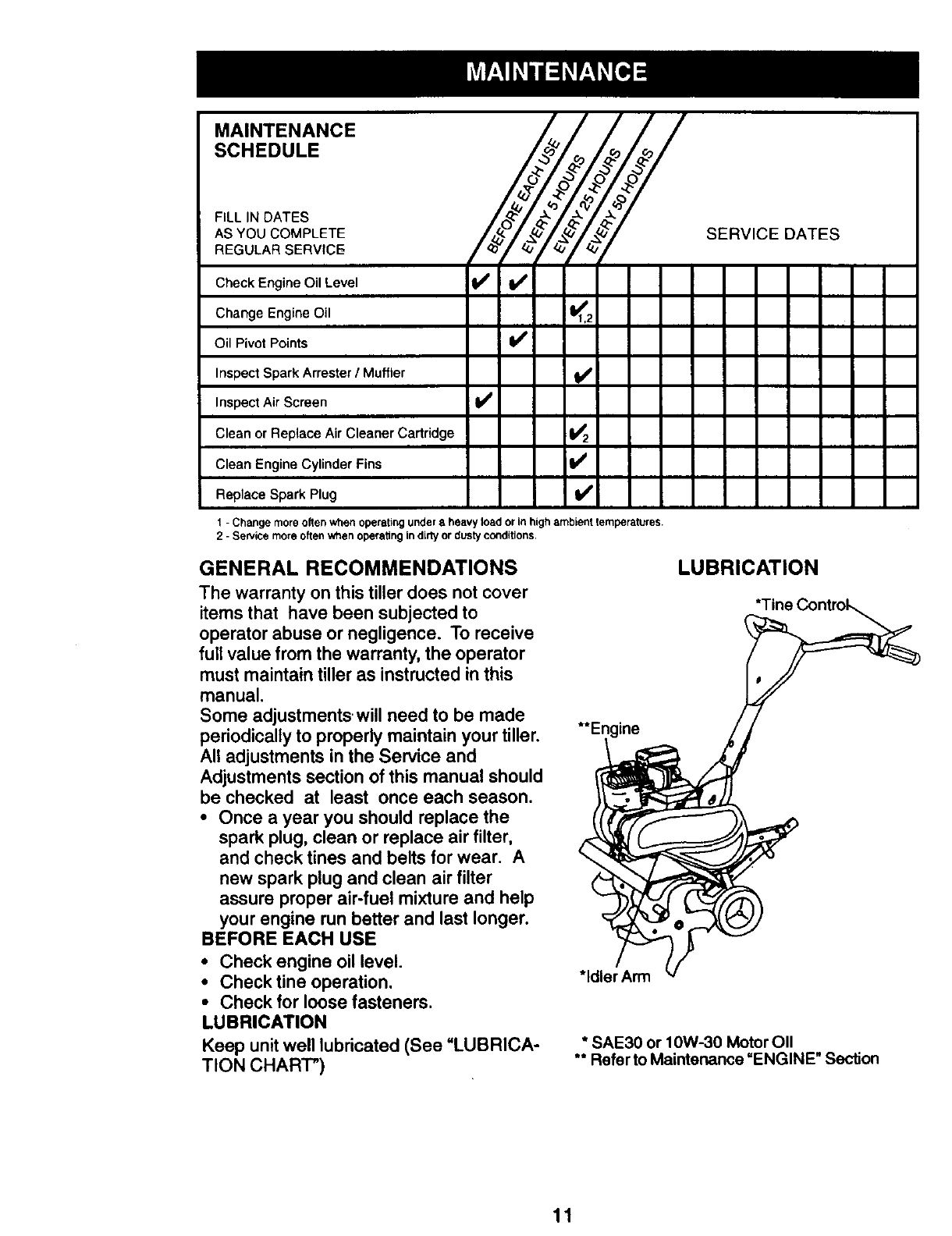

MAINTENANCE /_/_ _

SCHEDULE //_

FILL IN DATES /....q'_/

AS YOU COMPLETE SERVICE DATES

REGULAR SERVICE

Check Engine Oil Level I_ V'

Change Engine Oil 1_,2

Oil Pivot Points V'

Inspect Spark Arrester /Muffler

Inspect Air Screen I_

Clean or Replace Air Cleaner Cartridge I/2

Clean Engine Cylinder Fins I_

Replace Spark Plug t_

1- Change more often when operating under 8 heavy load or In high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tiller does not cover

items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, the operator

must maintain tiller as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your tiller.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter,

and check tines and belts for wear. A

new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

•Check engine oil level.

• Checktine operation.

•Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICA-

TION CHART")

LUBRICATION

*Tin_

**Engine

*Idler Arm

*SAE30 or 10W-30 Motor OII

** Refer to Maintenance =ENGINE" Section

_,CAUTION: Disconnect spark plug wire

before performing any maintenance

(except carburetor adjustment) to prevent

accidental starting of engine.

Prevent fires! Keep the engine free of

grass, leaves, spilled oil, or fuel. Remove

fuel from tank before tipping unit for

maintenance. Clean muffler area of all

grass, dirt, and debris.

Do not touch hot muffler or cylinder fins as

contact may cause 15urns.

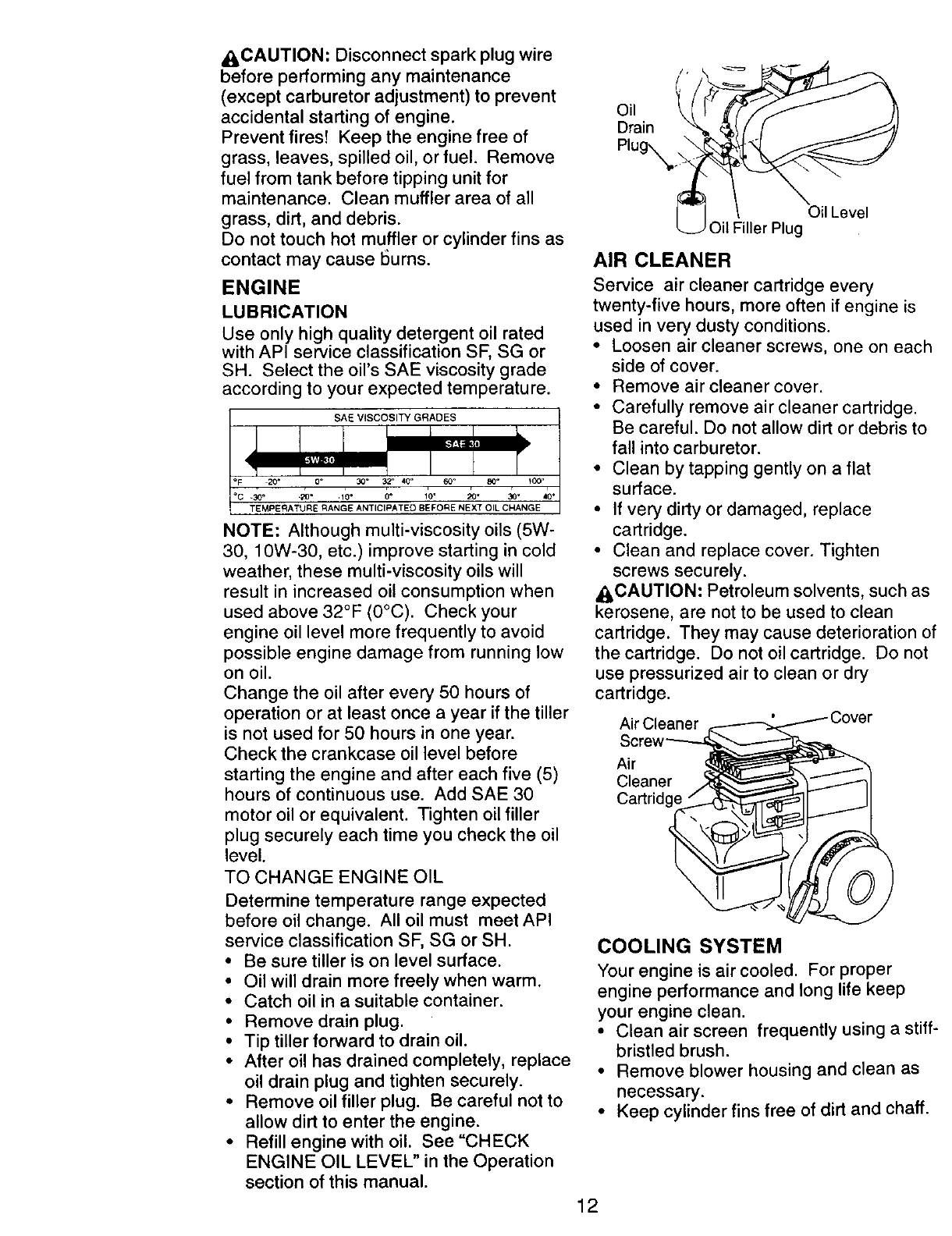

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classification SF, SG or

SH. Select the oil's SAE viscosity grade

according to your expected temperature.

SAE VISCOSITY GRADES

20_ 30°

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils (5W-

30, 10W-30, etc.) improve starting in cold

weather, these multi-viscosity oils will

result in increased oil consumption when

used above 32°F (0°C). Check your

engine oil level more frequently to avoid

possible engine damage from running low

on oil.

Change the oil after every 50 hours of

operation or at least once a year if the tiller

is not used for 50 hours in one year.

Check the crankcase oil level before

starting the engine and after each five (5)

hours of continuous use. Add SAE 30

motor oil or equivalent. Tighten oil filler

plug securely each time you check the oil

level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG or SH.

• Be sure tiller is on level surface.

• Oil will drain more freely when warm.

•Catch oil in a suitable container.

• Remove drain plug.

• Tip tiller forward to drain oil.

• After oil has drained completely, replace

oil drain plug and tighten securely.

•Remove oil filler plug. Be careful not to

allow dirt to enter the engine.

• Refill engine with oil. See"CHECK

ENGINE OIL LEVEL" in the Operation

section of this manual.

Oil

Drain

Plug,,,

Oil Level

Oil Filler Plug

AIR CLEANER

Service air cleaner cartridge every

twenty-five hours, more often if engine is

used in very dusty conditions.

• Loosen air cleaner screws, one on each

side of cover.

• Remove air cleaner cover.

•Carefully remove air cleaner cartridge.

Be careful. Do not allow dirt or debris to

fall into carburetor.

• Clean by tapping gently on a flat

surface.

• If very dirty or damaged, replace

cartridge.

• Clean and replace cover. Tighten

screws securely.

ACAUTION: Petroleum solvents, such as

kerosene, are not to be used to clean

cartridge. They may cause deterioration of

the cartridge. Do not oil cartridge. Do not

use pressurized air to clean or dry

cartridge.

Air Cleaner

Air

Cleaner

Cartridge

COOLING SYSTEM

Your engine is air cooled. For proper

engine performance and long life keep

your engine clean.

• Clean air screen frequently using a stiff-

bristled brush.

• Remove blower housing and clean as

necessary.

• Keep cylinder fins free of dirt and chaff.

Muffler_ Cylin/_er Fins

Blower

_,/H/ousing

__i/_it_ Airreen

MUFFLER

Do not operate tiller without muffler. Do not

tamper with exhaust system. Damaged

mufflers or spark arresters could create a

fire hazard. Inspect periodically and

replace if necessary. If your engine is

equipped with a spark arrester screen

assembly, remove every 50 hours for

cleaning and inspection. Replace if

damaged.

SPARK PLUG

Replace spark plugs at the beginning of

each tilling season or after every 50 hours

of use, whichever comes first. Spark plug

type and gap setting are shown in

"PRODUCT SPECIFICATIONS".

TRANSMISSION

Your transmission is sealed and will not

require lubrication unless serviced.

CLEANING

• Clean engine, wheels, finish, etc. of all

foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

•Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your unit unless the muffler,

air filter and carburetor are covered to

keep water out. Water in engine can result

in a shortened engine life.

ACAUTION" Disconnect spark plug wire

from spark plug and place wire where it

cannot come into contact with plug.

TILLER

TO ADJUST HANDLE HEIGHT

Factory assembly has provided lowest

handle height. Select handle height best

suited for your tilling conditions. Handle

height will be different when tiller digs into

soil.

•If a higher handle height is desired,

loosen the four nuts securing handle

panel to engine brackets.

• Slide handle panel to desired location.

• Tighten the four nuts securely.

wack_Handle Panel

o"I

TINE ARRANGEMENT

Your outer tines can be assembled in

several different ways to suit your tilling or

cultivating needs.

ACAUTION: Tines are sharp. Wear

gloves or other protection when handling

tines.

NORMAL TILLING -24" PATH

• Assemble holes "A" in tine hubs to holes

"B" in tine shaft.

MID-WIDTH TILLING -22" PATH

• Assemble holes "A" in tine hubs to

holes "C" in tine shaft,

NARROW TILLING/CULTIVATING -

12-3/4" PATH

•Remove outer tines.

ner Tines OT

ool

NOTE: When reassembling outer tines,

be sure right tine assembly (marked "R")

and left tine assembly (marked "L") are

mounted to correct side of tine shaft.

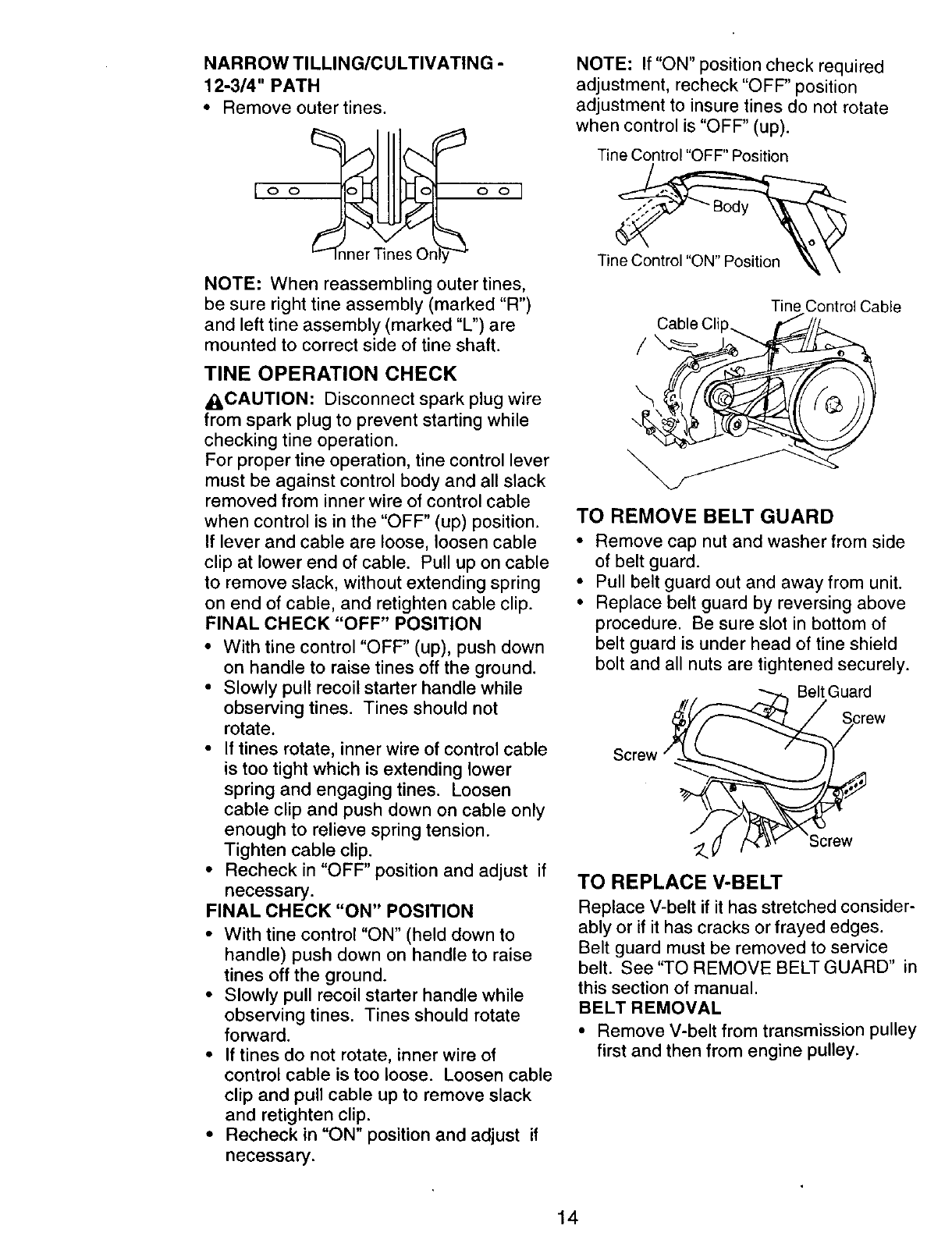

TINE OPERATION CHECK

_I_CAUTION: Disconnect spark plug wire

from spark plug to prevent starting while

checking tine operation.

For proper tine operation, tine control lever

must be against control body and all slack

removed from inner wire of control cable

when control is in the "OFF" (up) position.

If lever and cable are loose, loosen cable

clip at lower end of cable. Pull up on cable

to remove slack, without extending spring

on end of cable, and retighten cable clip.

FINAL CHECK "OFF" POSITION

• With tine control "OFF" (up), push down

on handle to raise tines off the ground.

•Slowly pull recoil starter handle while

observing tines. Tines should not

rotate.

• If tines rotate, inner wire of control cable

is too tight which is extending lower

spring and engaging tines. Loosen

cable clip and push down on cable only

enough to relieve spring tension.

Tighten cable clip.

•Recheck in "OFF" position and adjust if

necessary.

FINAL CHECK "ON" POSITION

• With tine control "ON" (held down to

handle) push down on handle to raise

tines off the ground.

• Slowly pull recoil starter handle while

observing tines. Tines should rotate

forward.

• If tines do not rotate, inner wire of

control cable is too loose. Loosen cable

clip and pull cable up to remove slack

and retighten clip.

• Recheck in "ON" position and adjust if

necessary.

NOTE: If "ON" position check required

adjustment, recheck "OFF" position

adjustment to insure tines do not rotate

when control is "OFF" (up).

Tine Control "OFF" Position

Tine Control Cable

TO REMOVE BELT GUARD

• Remove cap nut and washer from side

of belt guard.

• Pull belt guard out and away from unit.

•Replace belt guard by reversing above

procedure. Be sure slot in bottom of

belt guard is under head of tine shield

bolt and all nuts are tightened securely.

Belt Guard

'Screw

TO REPLACE V-BELT

Replace V-belt if it has stretched consider-

ably or if it has cracks or frayed edges.

Belt guard must be removed to service

belt. See "TO REMOVE BELTGUARD" in

this section of manual.

BELT REMOVAL

• Remove V-belt from transmission pulley

first and then from engine pulley.

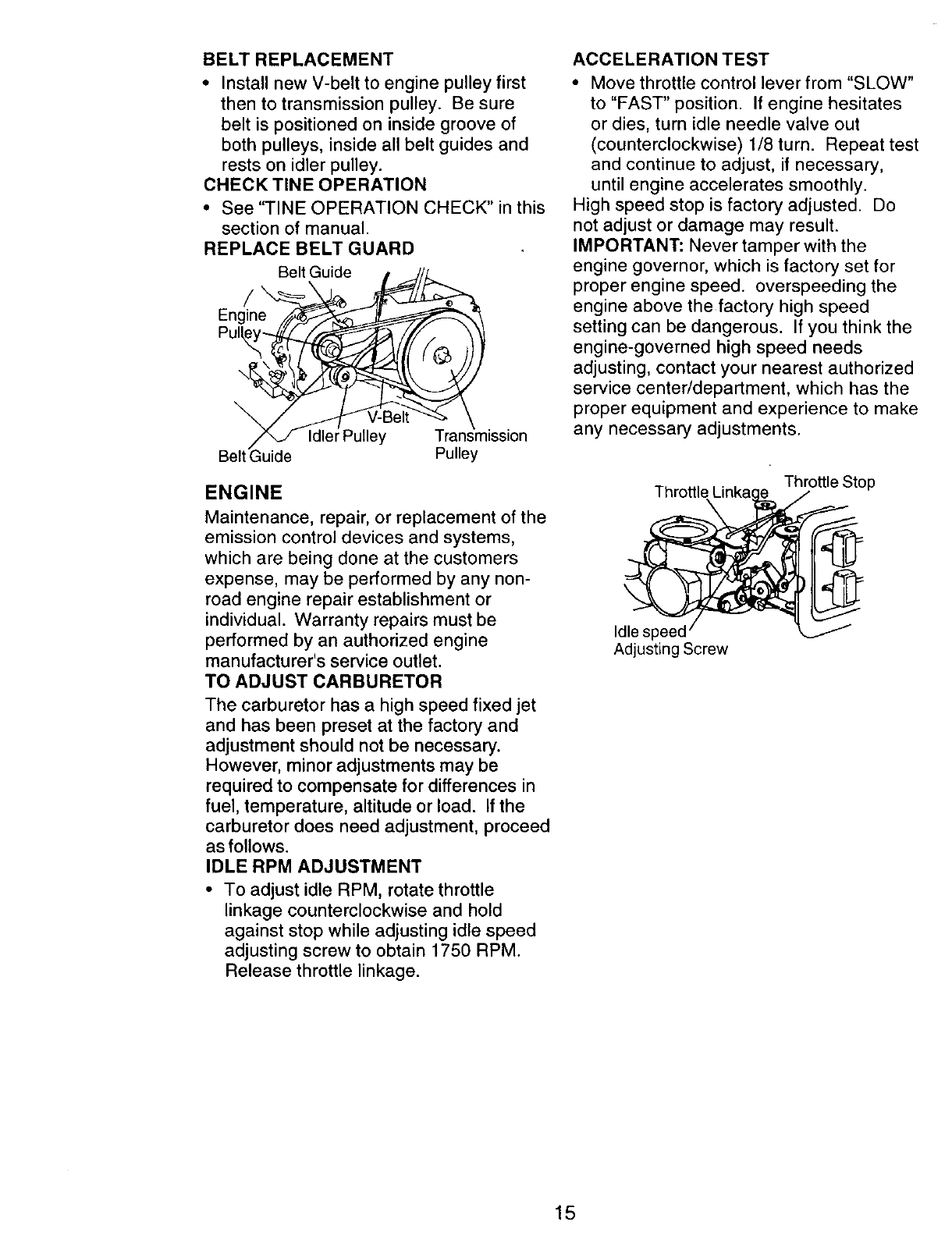

BELT REPLACEMENT

•Install new V-belt to engine pulley first

then to transmission pulley. Be sure

belt is positioned on inside groove of

both pulleys, inside all belt guides and

rests on idler pulley.

CHECK TINE OPERATION

• See "TINE OPERATION CHECK" in this

section of manual.

REPLACE BELT GUARD

Belt Guide

Engine

\Pulley Transmission

Bel' Pulley

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair establishment or

individual. Warranty repairs must be

performed by an authorized engine

manufacturer's service outlet.

TO ADJUST CARBURETOR

The carburetor has a high speed fixed jet

and has been preset at the factory and

adjustment should not be necessary.

However, minor adjustments may be

required to compensate for differences in

fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows.

IDLE RPM ADJUSTMENT

• To adjust idle RPM, rotate throttle

linkage counterclockwise and hold

against stop while adjusting idle speed

adjusting screw to obtain 1750 RPM.

Release throttle linkage.

ACCELERATION TEST

• Move throttle control lever from "SLOW"

to "FAST" position. If engine hesitates

or dies, turn idle needle valve out

(counterclockwise) 1/8 turn. Repeat test

and continue to adjust, if necessary,

until engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust or damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed, overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest authorized

service center/department, which has the

proper equipment and experience to make

any necessary adjustments.

Throttle Stop

Idle speed

Adjusting Screw

Immediately prepare your tiller for storage

at the end of the season or if the unit will

not be used for 30 days or more.

_t, CAUTION: Never store the tiller with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TILLER

• Clean entire tiller (See "CLEANING" in

the Maintenance section of this

manual).

•Inspect and replace belts, if necessary

(See belt replacement instructions in the

Service and Adjustments section of this

manual).

• Lubricate as shown in the Maintenance

section of this manual.

• Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

• Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

ENGINE

FUELSYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as the carburetor,

fuel filter, fuel hose, or tank during storage.

also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

• Drain the fuel tank.

• Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the carbure-

tor. Do not drain the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean oil. (See "ENGINE" in the

Maintenance section of this manual).

CYLINDER(S)

• Remove spark plug.

• Pour 1 ounce (29 ml) of oil through

spark plug hole into cylinder.

• Pull starter handle slowly several times

to distribute oil.

• Replace with new spark plug.

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your unit indoors and

cover it to give protection from dust and

dirt.

• Cover your unit with a suitable protec-

tive cover that does not retain moisture.

Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your unit to rust.

IMPORTANT: Never cover tiller while

engine and exhaust areas are still warm.

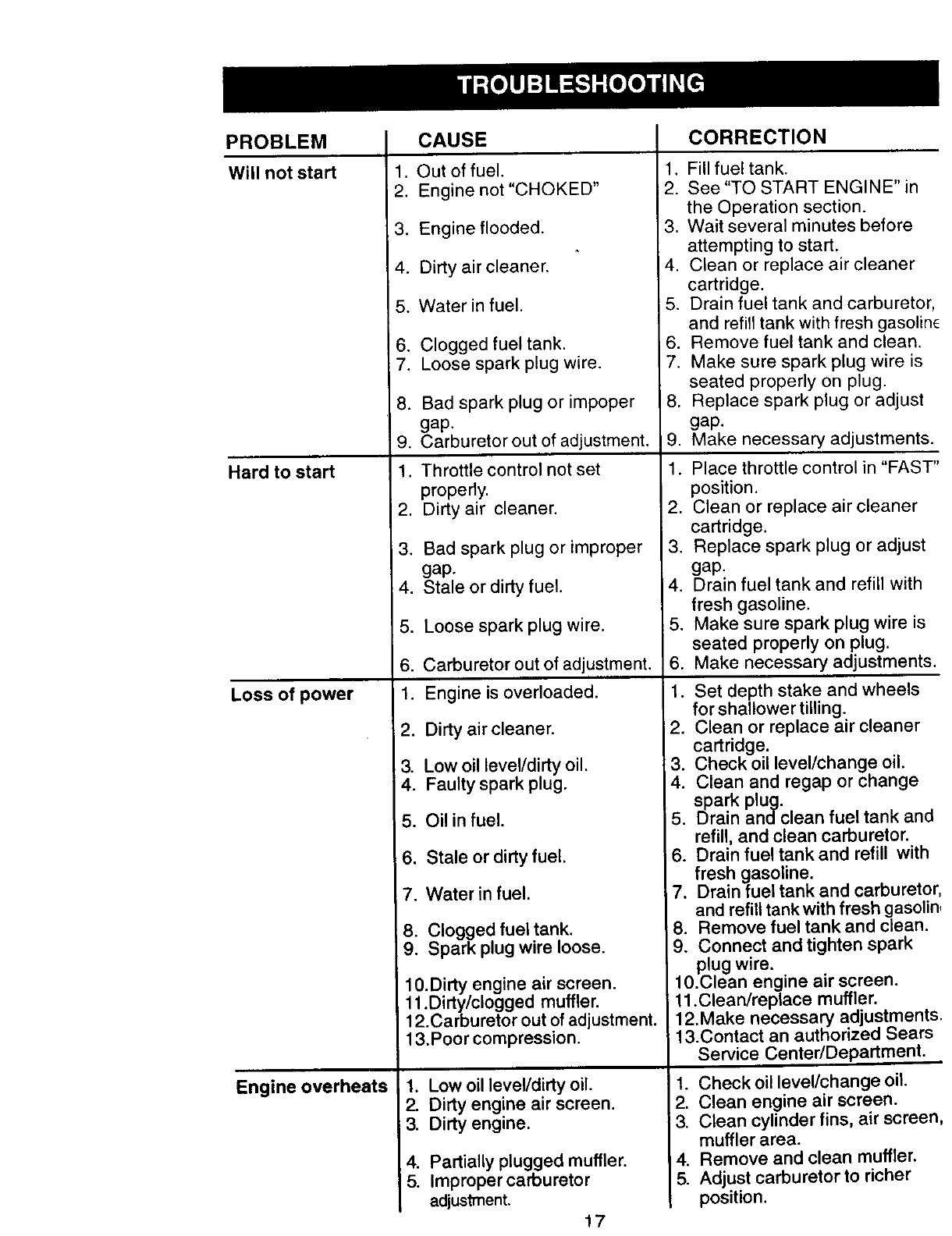

PROBLEM

Wig not start

Hard to start

Loss of power

Engine overheats

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

3. Engine flooded.

4. Dirty air cleaner.

5. Water in fuel.

6. Clogged fuel tank.

7. Loose spark plug wire.

8. Bad spark plug or impoper

gap.

9. Carburetor out of adjustment.

1. Throttle control not set

properly.

2. Dirty air cleaner.

3. Bad spark plug or improper

gap.

4. Stale or dirty fuel.

5. Loose spark plug wire.

6. Carburetor out of adjustment.

1. Engine is overloaded.

2. Dirty air cleaner.

3. Low oil level/dirty oil.

4. Faulty spark plug.

5. Oil in fuel.

6. Stale or dirty fuel.

7. Water in fuel.

8. Clogged fuel tank.

9. Spark plug wire loose.

10.Dirty engine air screen.

11.Dirty/clogged muffler.

12.Carburetor out ofadjustment.

13.Poor compression.

1. Low oil level/dirty oil.

2. Dirty engine air screen.

3. Dirty engine.

4. Partially plugged muffler.

5. Improper carburetor

adjustment.

il.

CORRECTION

Fill fuel tank.

See "TO START ENGINE" in

the Operation section.

Wait several minutes before

attempting to start.

Clean or replace air cleaner

cartridge.

Drain fuel tank and carbureto

and refill tank with fresh gasoli

Remove fuel tank and clean.

Make sure spark plug wire is

seated properly on plug.

Replace spark plug or adjusl

gap.

Make necessary adjustment_

Place throttle control in "FAS

position.

Clean or replace air cleaner

cartridge.

Replace spark plug or adjusl

gap.

Drain fuel tank and refill with

fresh gasoline.

Make sure spark plug wire is

seated properly on plug.

Make necessary adjustment:

Set depth stake and wheels

for shallower tilling.

Clean or replace air cleaner

cartridge.

Check oil level/change oil.

Clean and regap or change

spark plug,

Drain andclean fuel tank an,

refill, and clean carburetor.

Drain fuel tank and refill witl

fresh gasoline.

Drain fuel tank and carburet

and refill tank with fresh gaso

Remove fuel tank and clean

Connect and tighten spark

plug wire.

10.Clean engine air screen.

11.Clean/replace muffler.

12.Make necessary adjustmen

13.Contact an authorized Sear

Service Center/Department

1. Check oil level/change oil.

2. Clean engine air screen.

3. Clean cylinder fins, air scre_

muffler area.

4. Remove and clean muffler.

5. Adjust carburetor to richer

position.

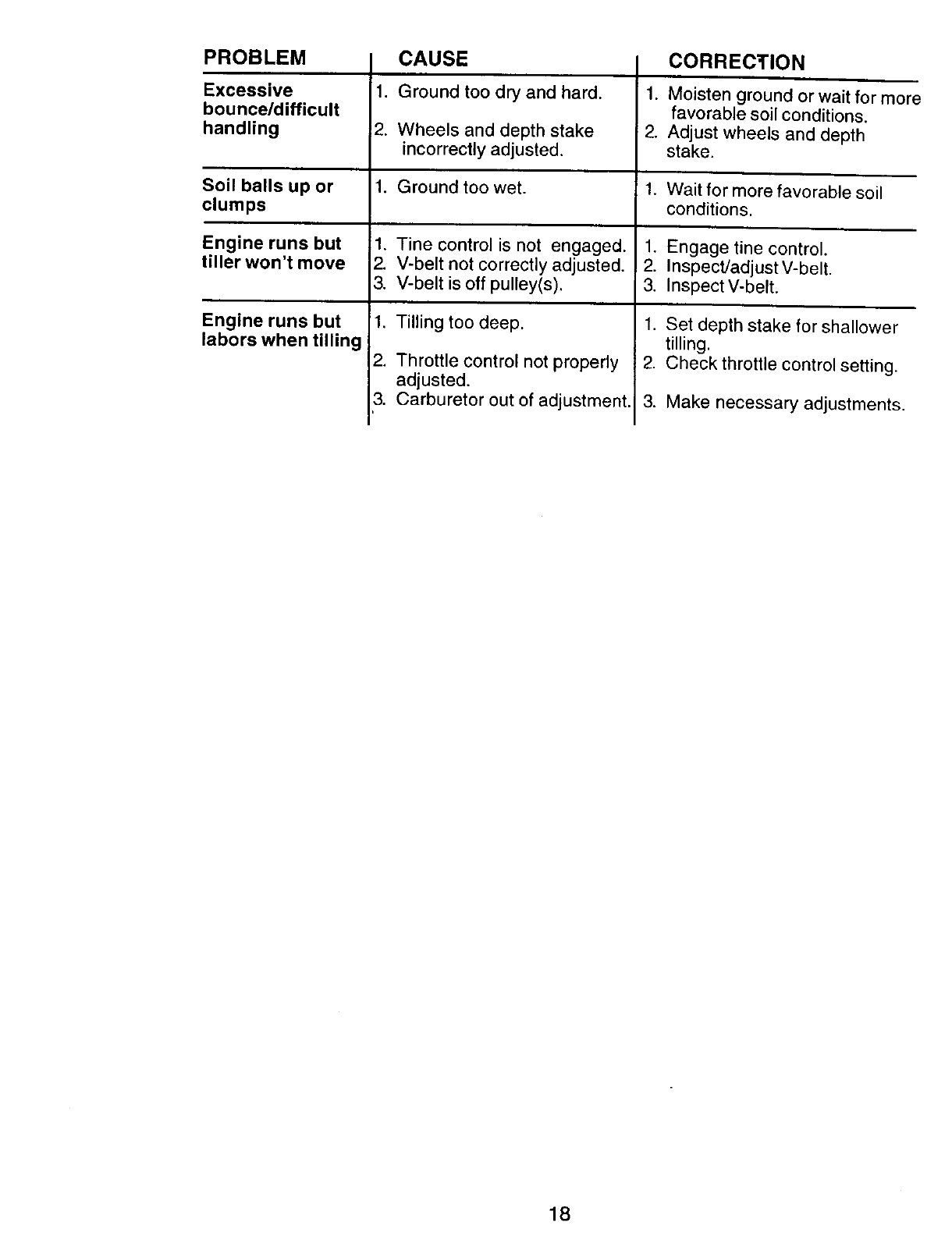

PROBLEM

Excessive

bounce/difficutt

handling

Soil balls up or

clumps

Engine runs but

tiller won't move

Engine runs but

labors when tilling

!2.

CAUSE

Ground too dry and hard.

Wheels and depth stake

incorrectly adjusted.

1. Ground too wet.

Tine control is not engaged.

V-belt not correctly adjusted.

V-belt is off pulley(s).

Tilling too deep.

Throttle control not properly

adjusted.

Carburetor out of adjustment

CORRECTION

1. Moisten ground or wait for more

favorable soil conditions.

2. Adjust wheels and depth

stake.

Wait for more favorable soil

conditions.

Engage tine control.

Inspect/adjust V-belt.

Inspect V-belt.

Set depth stake for shallower

tilling.

Check throttle control setting.

Make necessary adjustments.

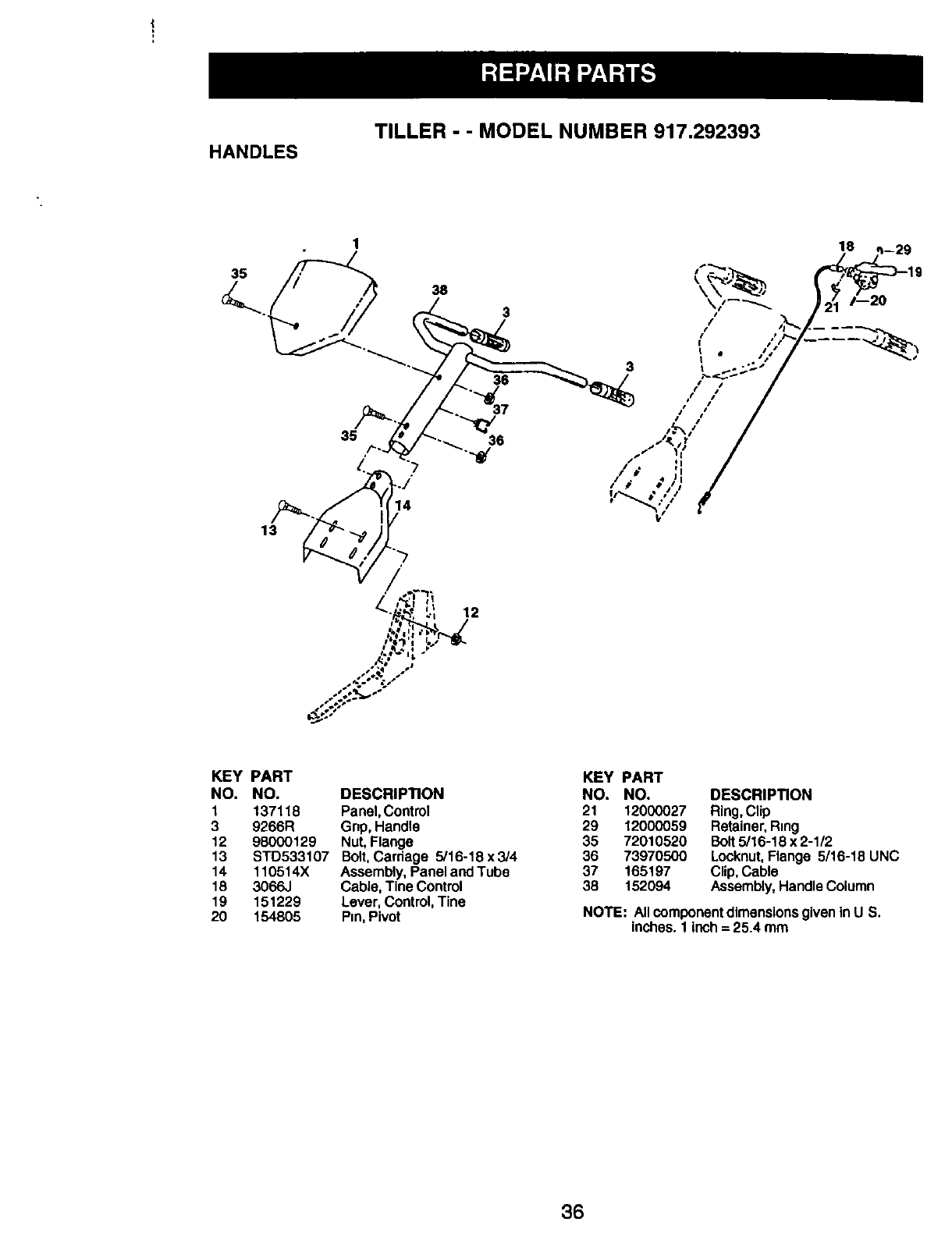

HANDLES TILLER - - MODEL NUMBER 917.292393

KEY PART

NO. NO. DESCRIPTION

1 137118 Panel,Control

3 9266R Gnp, Handle

12 98000129 Nut, Flange

13 STD533107 Bolt,Carriage 5/16-18 x3/4

14 110514X Assembly,PanelandTube

18 3066J Cable,Tine Control

19 151229 Lever, Control,Tine

20 154805 Pin,Pivot

KEY PART

NO. NO. DESCRIPTION

21 12000027 Ring,Clip

29 12000059 Retainer,Ring

35 72010520 Bolt5/16-18 x 2-1/2

36 73970500 Locknut,Flange 5/16-18 UNC

37 165197 Clip,Cable

38 152094 Assembly,HandleColumn

NOTE: All componentdimensionsgivenin U S.

inches.1 inch= 25.4 mm

TILLER - - MODEL NUMBER 917.292393

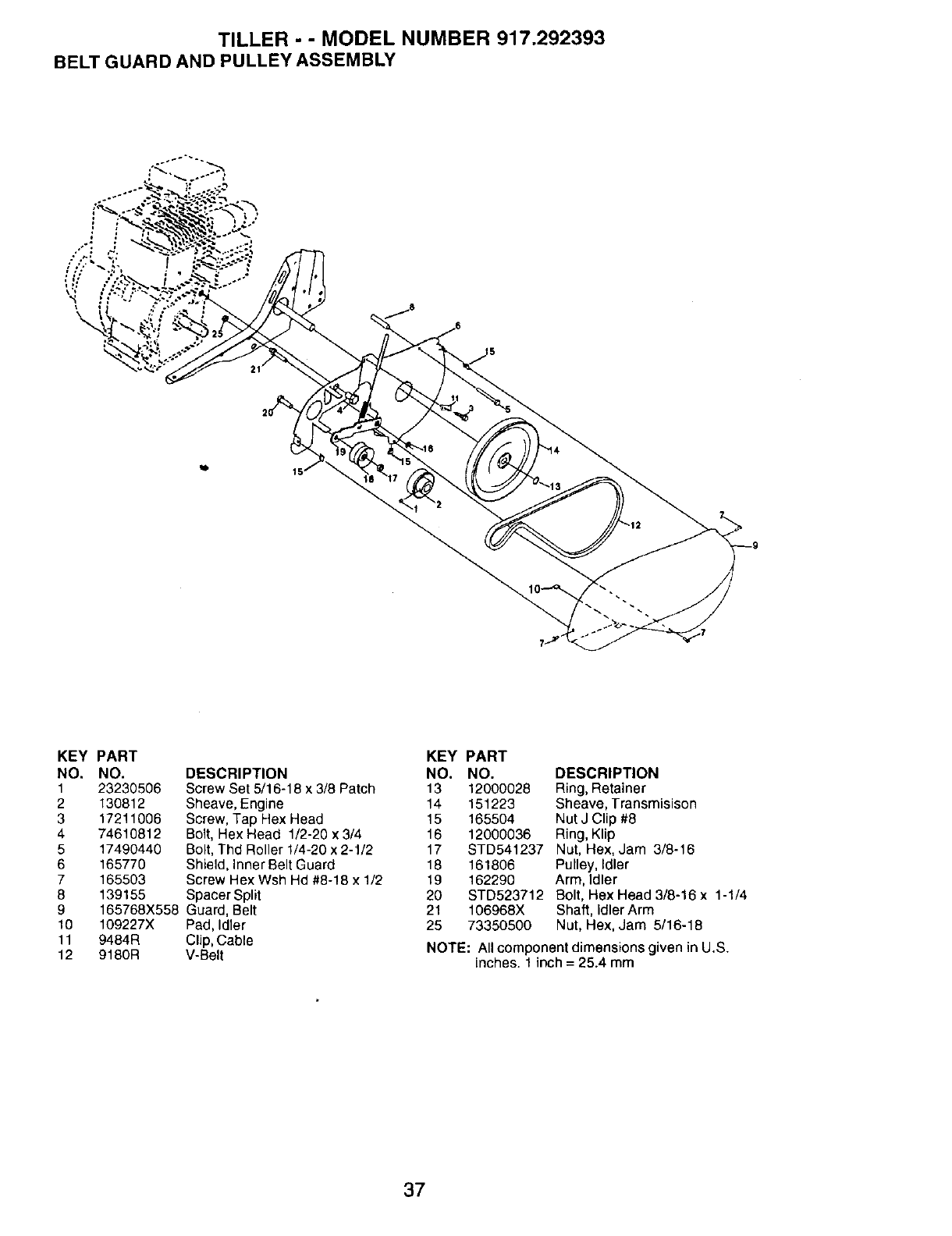

BELT GUARD AND PULLEY ASSEMBLY

KEY PART

NO. NO.

1 23230506

2 130812

317211006

4 74610812

5 17490440

6 165770

7 165503

8 139155

9 165768X558

10 109227X

11 9484R

12 9180R

DESCRIPTION

Screw Set 5/16-18 x 3/8 Patch

Sheave, Engine

Screw, Tap Hex Head

Bolt, Hex Head 1/2-20 x 3/4

Bolt, Thd Roller 1/4-20 x 2-1/2

Shield, Inner Belt Guard

Screw Hex Wsh Hd #8-18 x 1/2

Spacer Split

Guard, Belt

Pad, Idler

Clip, Cable

V-Belt

KEY PART

NO. NO. DESCRIPTION

13 12000028 Ring, Retainer

14 151223 Sheave, Transmisison

15 165504 Nut J Clip #8

16 12000036 Ring, Klip

17 STD541237 Nut, Hex, Jam 3/8-16

18 161806 Pulley, Idler

19 162290 Arm, Idler

20 STD523712 Bolt, Hex Head 3/8-16 x 1-1/4

21 106968X Shaft, Idler Arm

25 73350500 Nut, Hex, Jam 5/16-18

NOTE: All component dimensions given in U.S.

inches. 1 inch = 25.4 mm

TILLER --MODEL NUMBER 917.292393

WHEEL AND DEPTH STAKE ASSEMBLY

2 3

22 11

17 19 20/_"

KEY PART

NO. NO.

1 9194R

2 74760520

3 STD523107

4 STD541031

5 STD551131

6 STD541437

74921H

81952J

9 122233X

10 326=1

11 74780628

DESCRIPTION

Pin, Clevis

Bolt,Hex Head 5/16-18 x 1ol/4

Bolt,Hex Head 5/16-18 x 3/4

Nut, Hex 5/16-18

Washer, Lock 5/16

Locknut,whNasher 3/8-16

Clip, Hairpin

Support,Depth Stake, R.H.

Stake, Depth

Pin, Clevis

Bolt,Hex 3/8-16 x 1-3/4

KEY PART

NO. NO. DESCRIPTION

13 1951J Support, Depth Stake. L.H.

15 5388J Spring, Stake

16 121117X Bolt, Shoulder

17 9188R Wheel

18 STD551037 Washer13/32x13/16x11 Ga

19 9190R Bracket, Wheel

20 STD541437 Locknut, Crown 3/8-16

21 74760516 Bolt, Hex Head 5/16-18 x 1

22 STD541431 Locknut, w/insert 5/16-18

NOTE: All componentdimensionsgiven inU.S.

inches.1inch= 25.4 mm

TILLER --MODEL NUMBER 917.292393

TINE ASSEMBLY

KEY PART

NO. NO.

1156926

23146R

3156924

4156923

DESCRIPTION

Tine, Outer, R.H.

Retainer, Spring Zinc

Tine, Inner, R.H.

Tine, Inner, L,H.

KEY PART

NO. NO. DESCRIPTION

5 156925 Tine, Outer, L.H.

6 4929H Pin, Clevis

NOTE'. All component dimensions given in U.S.

inches. 1 inch = 25.4 mm

TRANSMISSION

TILLER - - MODEL NUMBER 917.292393

14 8

_10

KEY PART

NO. NO.

1 74760524

2 STD523732

3 STD551037

5 STD541437

6 9056R558

7 165835

8 165834

9 STD551131

10 STD541031

11 74760544

12 151222

DESCRIPTION

Bolt, Hex 5/16-18 x 1-1/2 Gr. 2

Bolt, Fin, Hex 3/8-16 x 3-1/4

Washer 13/32 x 13/16 x 11

Locknut, wAvasher 3/8-16

Shield, Tins

Bracket, Engine, R.H.

Bracket, Engine, L.H.

Washer, Lock 5/16

Nut, Hex 5/16-18

Bolt, Hex Head 5/16-18 x 2-3/4

Transmission

KEY PART

NO. NO. DESCRIPTION

14 9173R Spacer, Split

15 STD541431 Nut, Hex, Keps 5/16-18 UNC

16 19091412 Washer 9/32 x 7/8 x 12 Ga.

17 19092016 Washer 9/32 x 1-1/4 x 16 Ga.

18 STD551125 Washer, Lock 1/4

19 74610412 Bolt, Hex 1/4-28 x 3/4 Gr. 5

20 ..... Engine (See Breakdown)

Briggs Model 134202, 1118-E1

NOTE: All component dimensions given in U.S.

inches, 1 inch = 25.4 mm

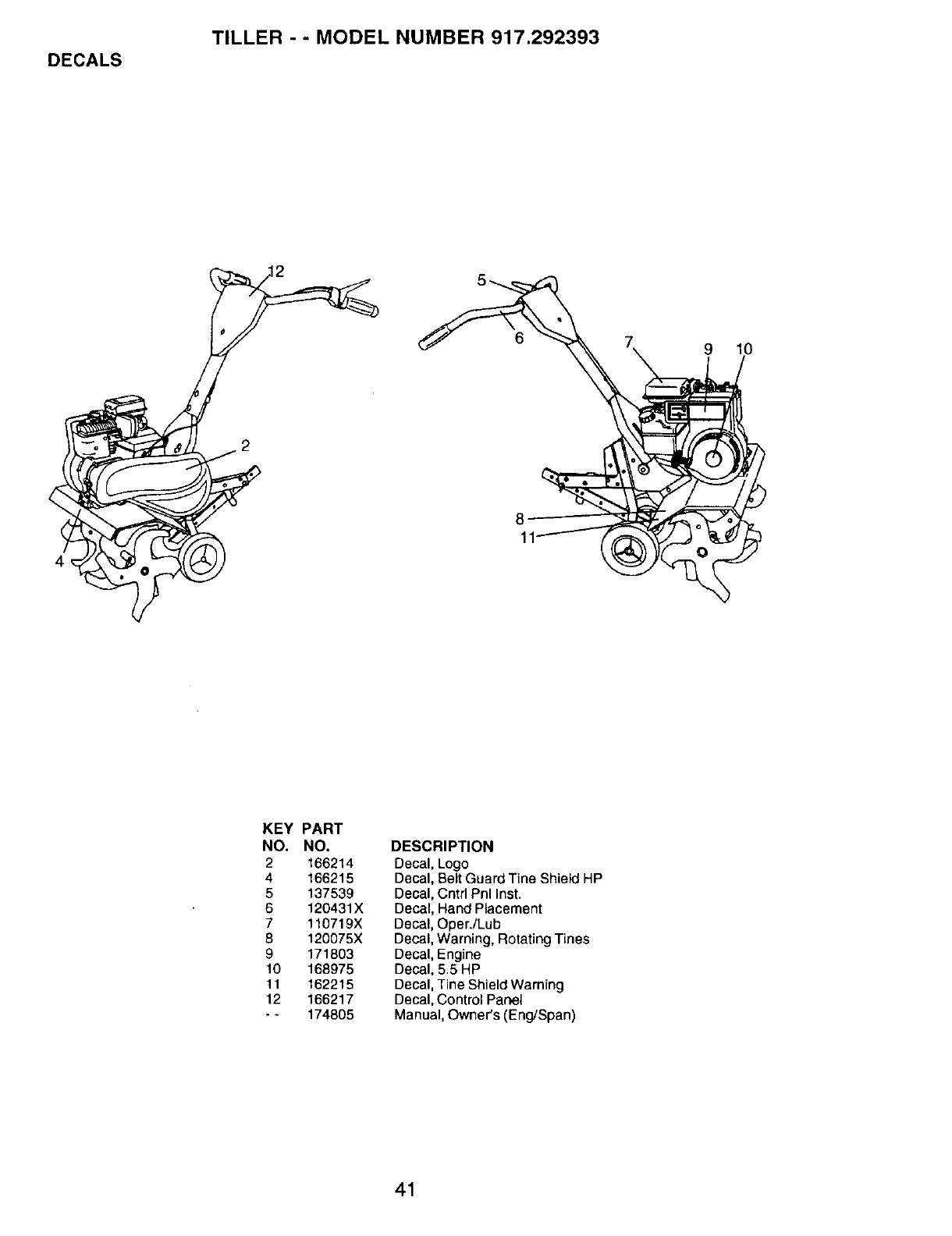

DECALS

TILLER --MODEL NUMBER 917.292393

7 9 o

)

KEY PART

NO. NO.

2 166214

4 166215

5 137539

6 120431X

7 110719X

8 120075X

9 171803

10 168975

11 162215

12 166217

-- 174805

DESCRIPTION

Decal, Logo

Decal, Belt Guard Tine Shield HP

Decal, Cntrl Phi Inst.

Decal, Hand Placement

Decal, Oper./Lub

Decal, Warning, Rotating Tines

Decal, Engine

Decal, 5.5 HP

Decal, Tine Shield Warning

Decal, Control Panel

Manual, Owner's (Eng/Span)

TILLER - - MODEL NUMBER 917.292393

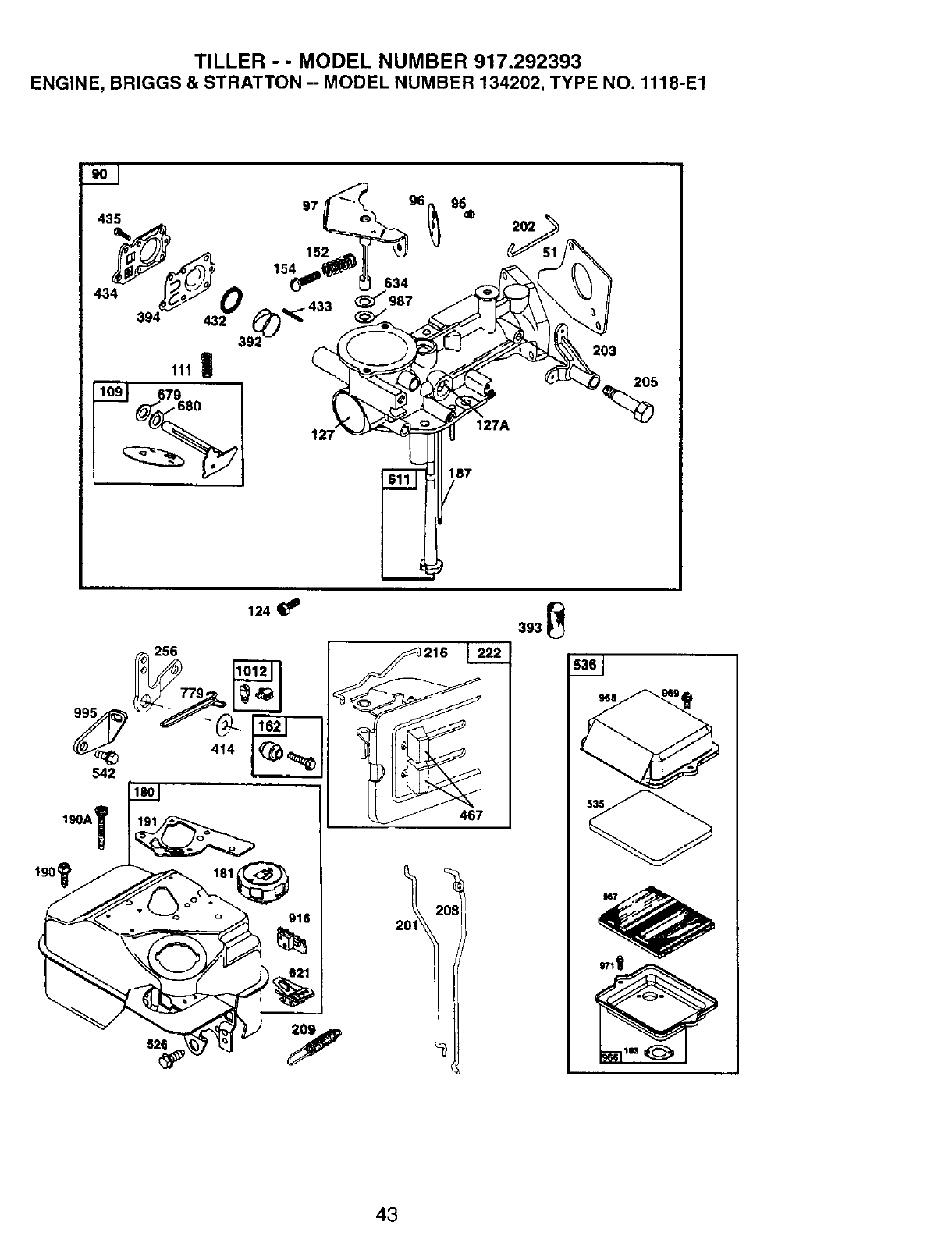

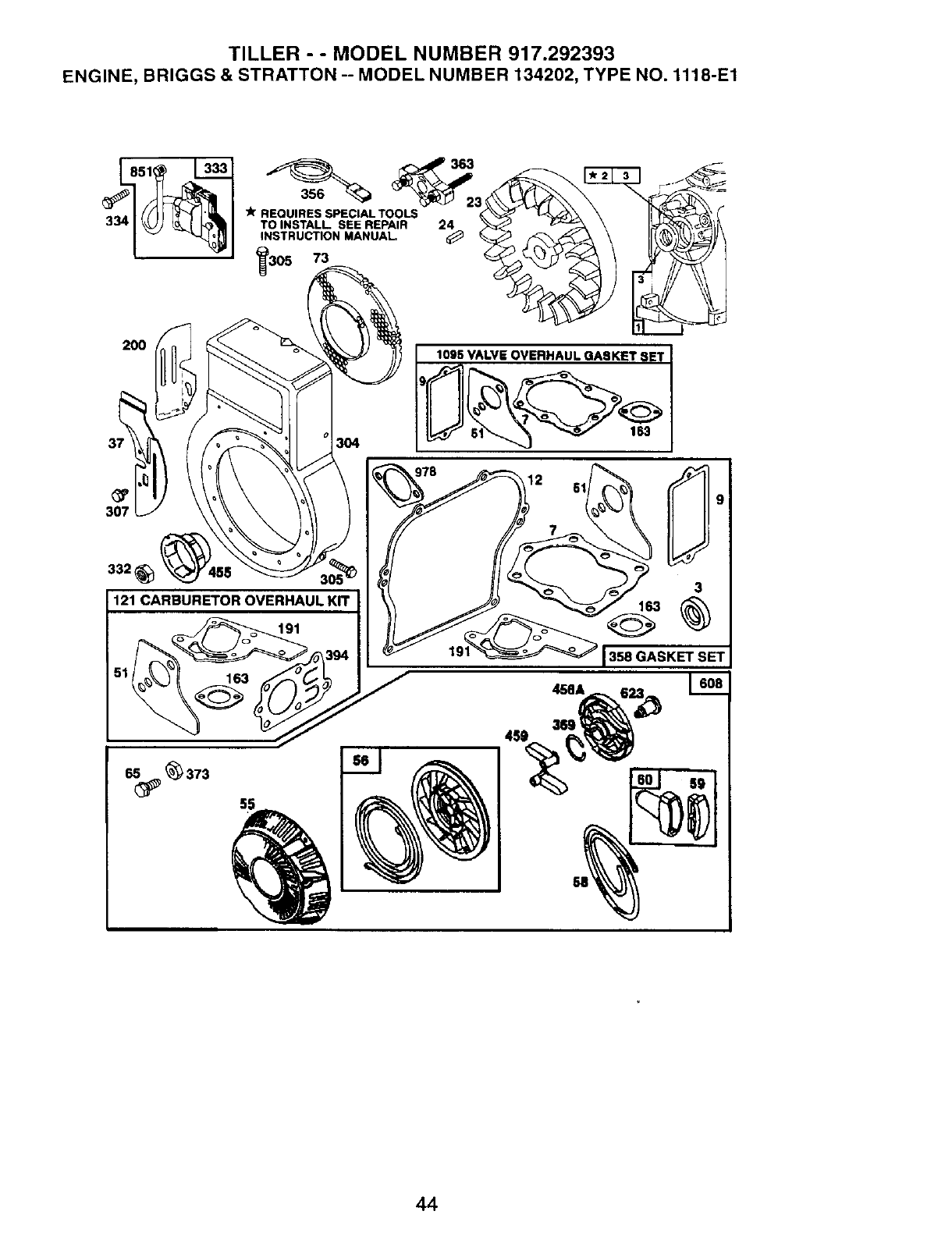

ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 134202, TYPE NO. 1118oE1

524

307

308

33_ 456

36 35

978

614

TILLER - - MODEL NUMBER 917.292393

ENGINE,BRIGGS & STRATTON-- MODEL NUMBER 134202,TYPE NO. 1118-E1

111 I

679 --I

127 127A

187

203

205

124

256

995 _ _L_

414

542

916 2

467

TILLER - - MODEL NUMBER 917.292393

ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 134202, TYPE NO. 1118-E1

200

307

332

REQUIRES SPECIAL TOOLS _"

TO INSTALL SEE REPAIR 24

INSTRUCTION MANUAL. _

305 73

3O4

358 GASKET SET

TILLER - - MODEL NUMBER 917.292393

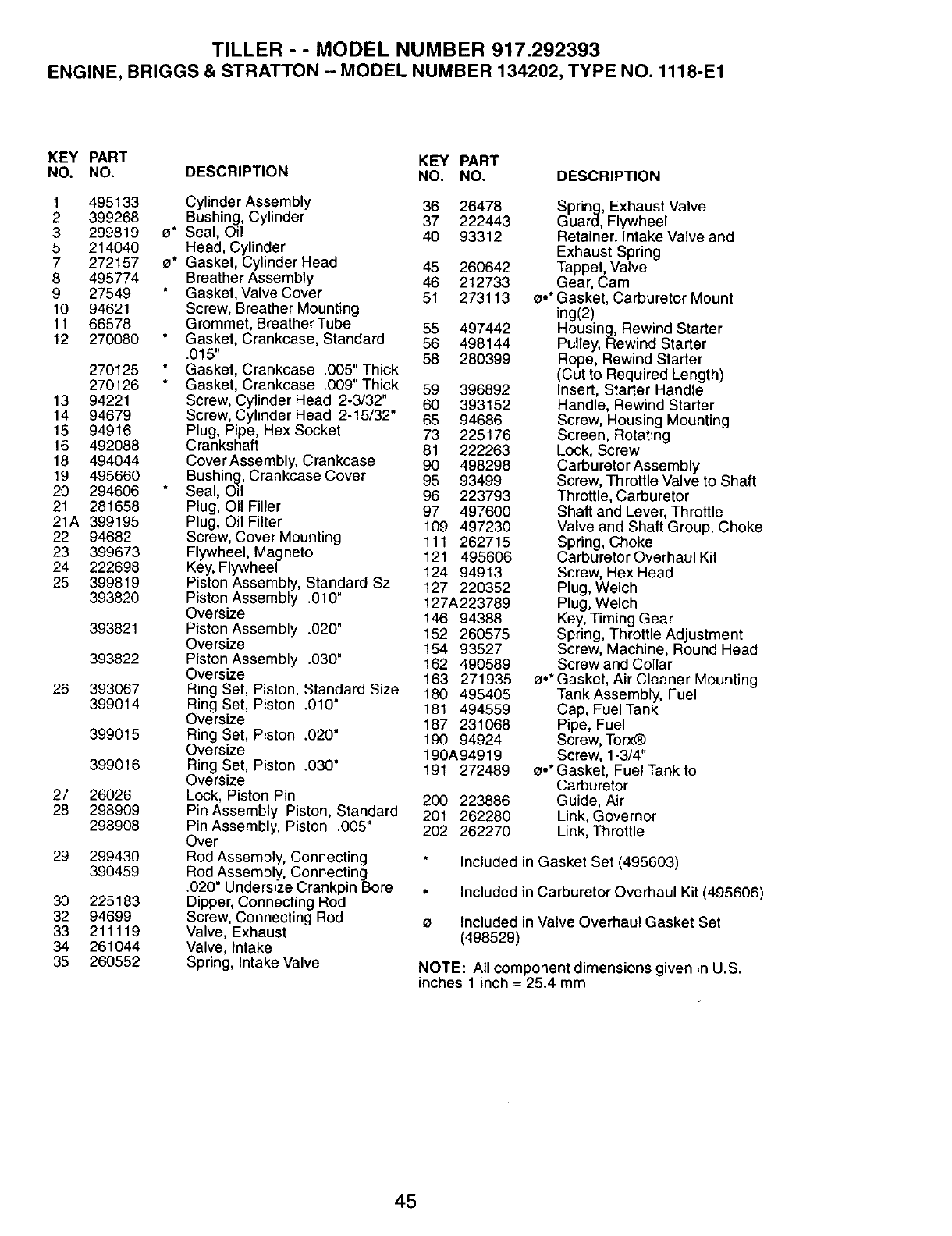

ENGINE, BRIGGS& STRATTON- MODEL NUMBER 134202,TYPE NO. 1118-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 495133

2 399268

3 299819

5 214040

7272157

8 495774

9 27549

10 94621

11 66578

12 270080

270125

270126

13 94221

14 94679

15 94916

16 492088

18 494044

19 495660

20 294606

21 281658

21A 399195

22 94682

23 399673

24 222698

25 399819

393820

393821

393822

26 393067

399014

399015

399016

27 26026

28 298909

298908

29 299430

390459

3O 225183

32 94699

33 211119

34 261044

35 260552

Cylinder Assembly 36 26478

Bushing, Cylinder 37 222443

Seal, Oil 40 93312

Head, Cylinder

Gasket, Cylinder Head 45 260642

Breather Assembly 46 212733

Gasket, Valve Cover 51 273113

Screw, Breather Mounting

Grommet, BreatherTube 55 497442

Gasket, Crankcase, Standard 56 498144

.015" 58 280399

Gasket, Crankcase .005" Thick

Gasket, Crankcase .009" Thick 59 396892

Screw, Cylinder Head 2-3/32" 60 393152

Screw, Cylinder Head 2-15/32" 65 94686

Plug, Pipe, Hex Socket 73 225176

Crankshaft 81 222263

CoverAssembly, Crankcase 90 498298

Bushing, Crankcase Cover 95 93499

Seal, Oil 96 223793

Plug, Oil Filler 97 497600

Plug, OiIFilter 109 497230

Screw, Cover Mounting 111 262715

Flywheel, Magneto 121 495606

Key, Flywheel 124 94913

Piston Assembly, Standard Sz 127 220352

Piston Assembly .010" 127A223789

Oversize 146 94388

Piston Assembly .020" 152 260575

Oversize 154 93527

Piston Assembly .030" 162 490589

Oversize 163 271935

Ring Set, Piston, Standard Size 180 495405

Ring Set, Piston .010" 181 494559

Oversize 187 231068

Ring Set, Piston .020" 190 94924

Oversize 190A94919

Ring Set, Piston .030" 191 272489

Oversize

Lock, Piston Pin 200 223886

Pin Assembly, Piston, Standard 201 262280

Pin Assembly, Piston .005" 202 262270

Over

Rod Assembly, Connecting

.020" Undersize Crankpin Bore

Dipper, Connecting Rod

Screw, Connecting Rod e

Valve, Exhaust

Valve, Intake

Spring, Intake Valve

Spring, Exhaust Valve

Guard, Flywheel

Retainer, Intake Valve and

Exhaust Spring

Tappet, Valve

Gear, Cam

eo*Gasket, Carburetor Mount

ing(2)

Housing, Rewind Starter

Pulley, Rewind Starter

Rope, Rewind Starter

(Cut to Required Length)

Insert, Starter Handle

Handle, Rewind Starter

Screw, Housing Mounting

Screen, Rotating

Lock, Screw

Carburetor Assembly

Screw, Throttle Valve to Shaft

Throttle, Carburetor

Shaft and Lever, Throttle

Valve and Shaft Group, Choke

Spring, Choke

Carburetor Overhaul Kit

Screw, Hex Head

Plug, Welch

Key, Timing Gear

Spring, Throttle Adjustment

Screw, Machine, Round Head

Screw and Collar

eo* Gasket, Air Cleaner Mounting

Tank Assembly, Fuel

Cap, Fuel Tank

Pipe, Fuel

Screw, Torx_

Screw, 1-3/4"

e-* Gasket, Fuel Tank to

Carburetor

Guide, Air

Link, Governor

Link, Throttle

Included in Gasket Set (495603)

• Included in Carburetor Overhaul Kit (495606)

Included in Valve Overhaul Gasket Set

(498529)

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

TILLER - - MODEL NUMBER 917.292393

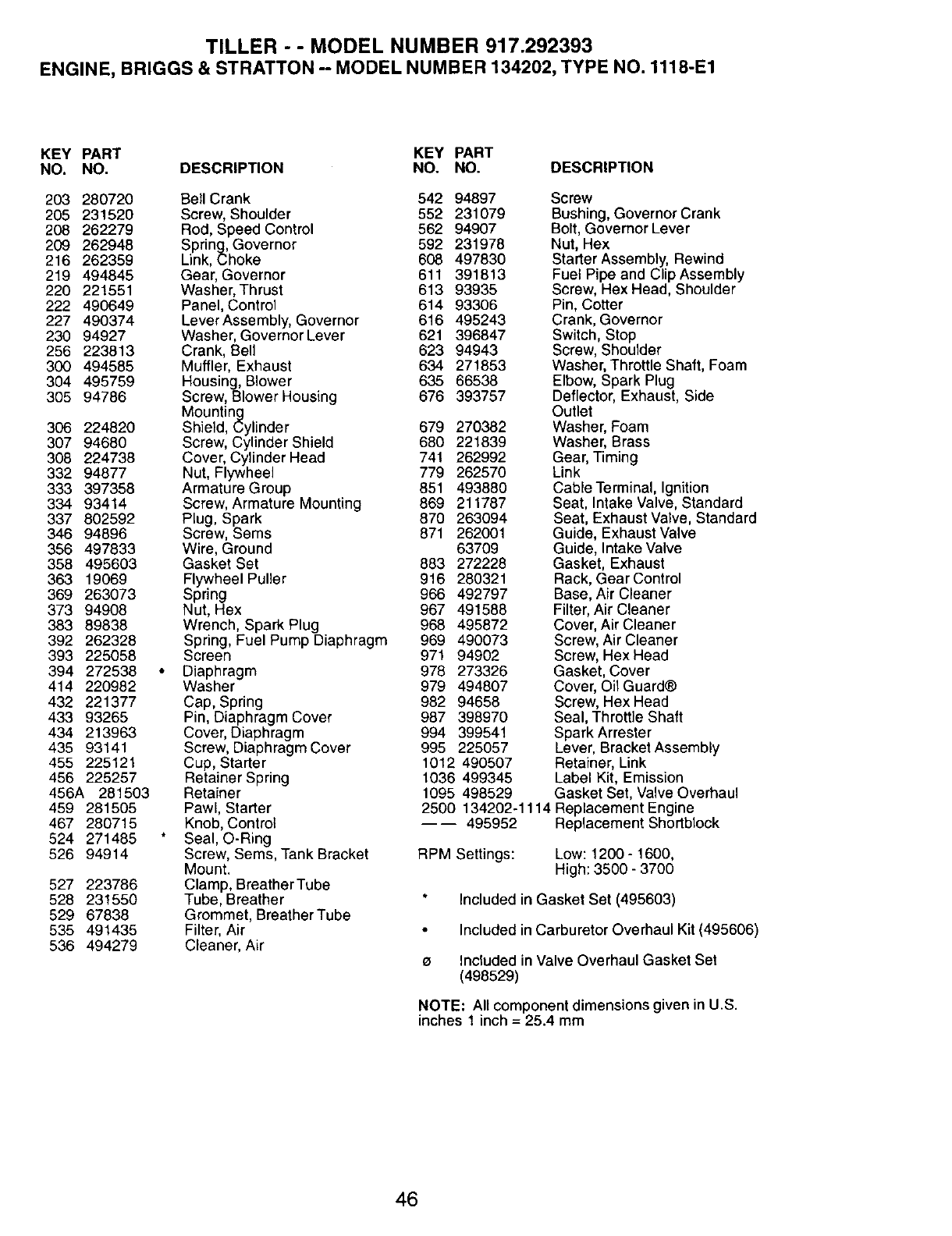

ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 134202, TYPE NO. 1118-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

203 280720

205 231520

208 262279

209 262948

216 262359

219 494845

220 221551

222 490649

227 490374

230 94927

256 223813

300 494585

304 495759

305 94786

308 22482O

3O7 9468O

308 224738

332 94877

333 397358

334 93414

337 802592

346 94896

356 497833

358 495603

363 19069

369 263073

373 94908

383 89838

392 262328

393 225058

394 272538

414 220982

432 221377

433 93265

434 213963

435 93141

455 225121

456 225257

456A 281503

459 281505

467 280715

524 271485

526 94914

527 223786

528 231550

529 67838

535 491435

536 494279

Bell Crank 542 94897

Screw, Shoulder 552 231079

Rod, Speed Control 562 94907

Spring, Governor 592 231978

Link, Choke 608 497830

Gear, Governor 611 391813

Washer, Thrust 613 93935

Panel, Control 614 93306

Lever Assembly, Governor 616 495243

Washer, Governor Lever 621 396847

Crank, Bell 623 94943

Muffler, Exhaust 634 271853

Housing, Blower 635 66538

Screw, Blower Housing 676 393757

Mounting

Shield, Cylinder 679 270382

Screw, Cylinder Shield 680 221839

Cover, Cylinder Head 741 262992

Nut, Flywheel 779 262570

Armature Group 851 493880

Screw, Armature Mounting 869 211787

Plug, Spark 870 263094

Screw, Sems 871 262001

Wire, Ground 63709

Gasket Set 883 272228

Flywheel Puller 916 280321

Spring 966 492797

Nut, Hex 967 491588

Wrench, Spark Plug 968 495872

Spring, Fuel Pump Diaphragm 969 490073

Screen 971 94902

Diaphragm 978 273326

Washer 979 494807

Cap, Spring 982 94658

Pin, Diaphragm Cover 987 398970

Cover, Diaphragm 994 399541

Screw, Diaphragm Cover 995 225057

Cup, StaRer 1012 490507

Retainer Spring 1036 499345

Retainer 1095 498529

Pawl, Staffer

Knob, Control

Seal, O-Ring

Screw, Seres, Tank Bracket

Mount.

Clamp, Breather Tube

Tube, Breather

Grommet, Breather Tube

Filter, Air

Cleaner, Air

Screw

Bushing, Governor Crank

Bolt, Governor Lever

Nut, Hex

Staffer Assembly, Rewind

Fuel Pipe and Clip Assembly

Screw, Hex Head, Shoulder

Pin, Cotter

Crank, Governor

Switch, Stop

Screw, Shoulder

Washer, Throttle Shaft, Foam

Elbow, Spark Plug

Deflector, Exhaust, Side

Outlet

Washer, Foam

Washer, Brass

Gear, Timing

Link

Cable Terminal, Ignition

Seat, Intake Valve, Standard

Seat, Exhaust Valve, Standard

Guide, Exhaust Valve

Guide, Intake Valve

Gasket, Exhaust

Rack, Gear Control

Base, Air Cleaner

Filter, Air Cleaner

Cover, Air Cleaner

Screw, Air Cleaner

Screw, Hex Head

Gasket, Cover

Cover, Oil Guard®

Screw, Hex Head

Seal, Throttle Shaft

Spark Arrester

Lever, Bracket Assembly

Retainer, Link

Label Kit, Emission

Gasket Set, Valve Overhaul

2500 134202-1114 Replacement Engine

---- 495952 Replacement Shortblock

RPM Settings: Low: 1200 - 1600,

High: 3500 - 3700

Included in Gasket Set (495603)

•Included in Carburetor Overhaul Kit (495606)

Included in Valve Overhaul Gasket Set

(498529)

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOME SMAnyt,me, dayor n,ght

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums,

lawn equipment and electronics for repair, call for

the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anyt,me, day or night

www.sears.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirectSM!

1-800-366-PART 6am-11p.m.CST

(1-800-366-7278) 7 days aweek

www.sears.com/partsdlrect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a m. - 5 p.m. CST, Mon- Sat

Para pedlr serwcio de reparaciSn adorniciho,

y para ordenar p=ezas con entrega adom=c=l=o

1-888-SU-HOGAR s.

(1-888-784-6427)

Au Canada pour service en fran(_ats

1"877-LE'FOYER s.

(1-877-533-6937)

,_.t';"l 1_ "_"; "_,.t| II_Reglstered-Tr_:lef_a_k_lT:_Rt'_arkofSears. Roebuck and Co

174805 4.25.00 TR Printed in U.S.A.

Craftsman 917292393 User Manual TILLER Manuals And Guides L0060079

CRAFTSMAN Front Tine, Gas Tiller Manual L0060079 CRAFTSMAN Front Tine, Gas Tiller Owner's Manual, CRAFTSMAN Front Tine, Gas Tiller installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
