Caution:
Readand Foflow
all Safet'yRules
andJnstruclions
BeforeOperating
This Equipment
llllllll ___" "ll,l_,,irll,........
Assembly
Operation
Maintenance

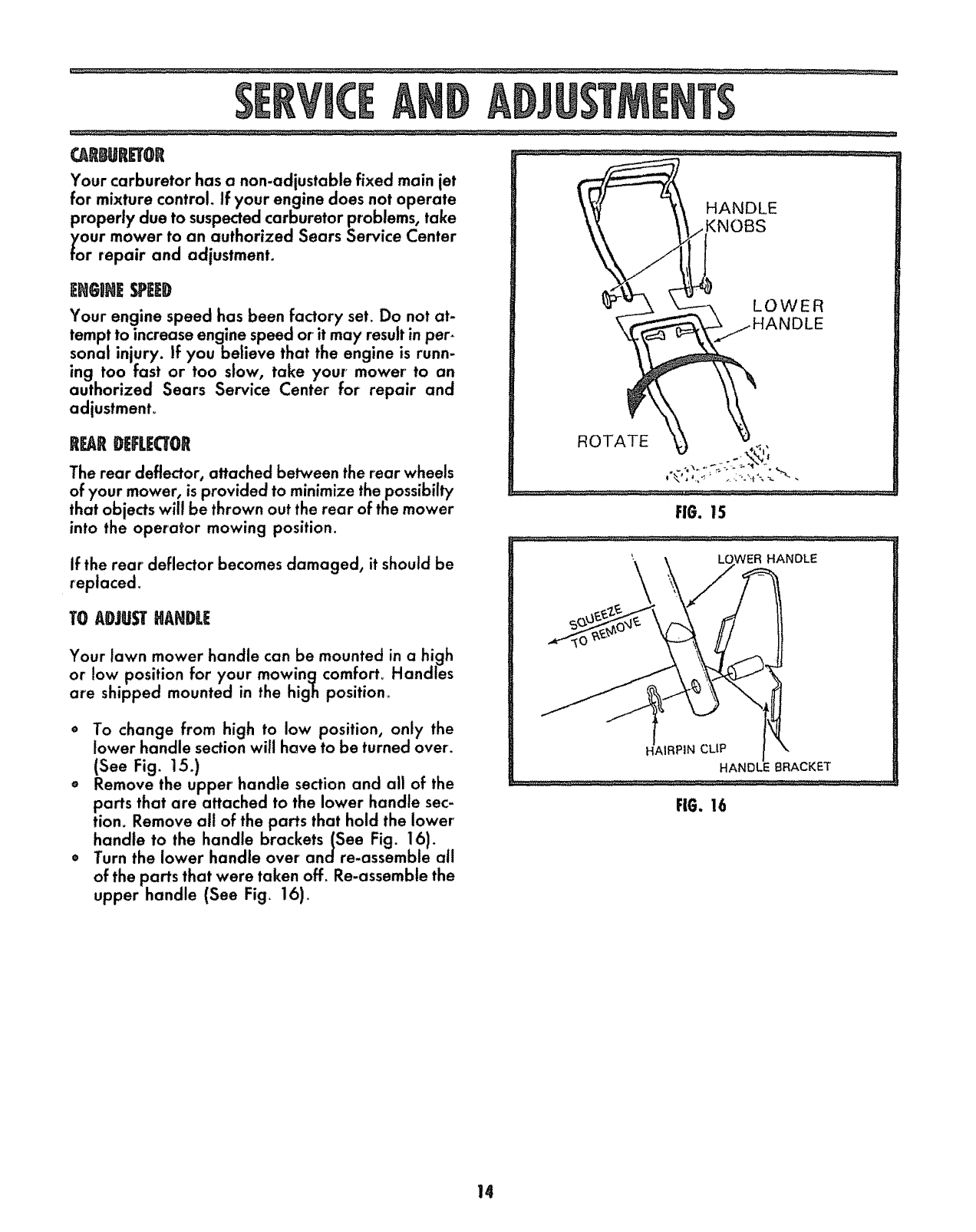

Serviceand Adjustment
RepairParts
...................................... iii ii i iiiill
SEARS,ROEBUCKANDCo., Chicago,IL. 60684 U.S.A.
............ i i_llql .................

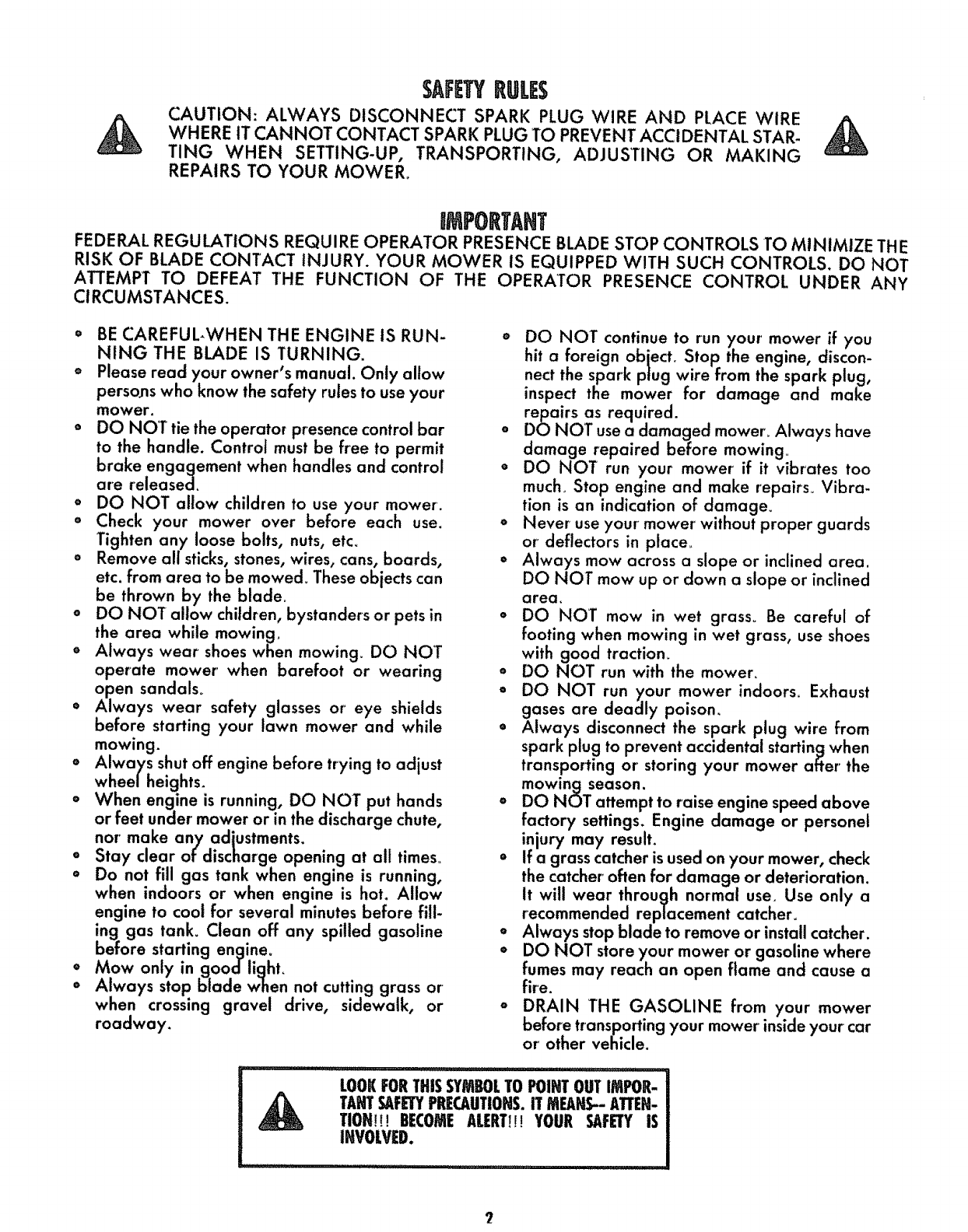

SAFE RULES
_ CAUTION: ALWAYS DISCONNECT SPARK PLUG WIRE AND PLACE WIRE _
WHERE IT CANNOT CONTACT SPARK PLUG TO PREVENT ACCIDENTAL STAR.
TING WHEN SETTING-UP, TRANSPORTING, ADJUSTING OR MAKING
IMPORTANT
FEDERAL REGULATIONS REQU IRE OPERATOR PRESENCE BLADE STOP CONTROLS TO MINIMIZE TH E
RISK OF BLADE CONTACT INJURY. YOUR MOWER IS EQUIPPED WITH SUCH CONTROLS. DO NOT
ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROL UNDER ANY
CIRCUMSTANCES.
• BE CAREFUbWHEN THE ENGINE IS RUN-
NING THE BLADE IS TURNING.
oPlease read your owner's manual. Only allow
persojns who know the safety rules to use your
mower.
o DO NOT tie the operator presence control bar
to the handle. Control must be free to permit
brake engagement when handles and control
are released.
° DO NOT allow children to use your mower'.
• Check your mower over before each use.
Tighten any loose bolts, nuts, etc.
• Remove all sticks, stones, wires, cans, boards,
etc. from area to be mowed. These objects can
be thrown by the blade_
o DO NOT allow children, bystanders or pets in
the area while mowing.
o Always wear shoes when mowing. DO NOT
operate mower' when barefoot or wearing
open sandals.
o Always wear safety glasses or' eye shields
before starting your lawn mower and while
mowing.
o Always shut off engine before trying to adjust
whee/heights.
o When engine is running, DO NOT put hands
or feet under' mower or in the discharge chute,
nor' make any adjustments.
o Stay clear of discharge opening at all times°
o Do not fill gas tank when engine is running,
when indoors or when engine is hot. Allow
engine to cool for several minutes before fill-
ing gas tank_ Clean off any spilled gasoline
before starting engine.
•Mow only in goodlight.
° Always stop blade when not cutting grass or
when crossing gravel drive, sidewalk, or
roadway.
o DO NOT continue to run your' mower if you
hit a foreign object. Stop the engine, discon-
nect the spark ptug wire from the spark plug,
inspect the mower for damage and make
repairs as required.
• DO NOT use a damaged mower'. Always have
damage repaired before mowing_
• DO NOT run your mower if it vibrates too
much_ Stop engine and make repairs, Vibra-
tion is an indication of damage.
° Never' use your"mower without proper guards
or' deflectors in place_
• Always mow across a slope or inclined area.
DO NOT mow up or down a slope or inclined
area.
o DO NOT mow in wet grass° Be careful of
footing when mowing in wet grass, use shoes
with good traction.
oDO NOT run with the mower_
oDO NOT run your mower indoors. Exhaust
gases are deadly poison.
o Always disconnect the spark plug wire from
spark plug to prevent accidental startin_ when
transporting or storing your mower alter" the
mowing season.
oDO NOT attempt to raise engine speed above
factory settings. Engine damage or personet
injury may result.
oIf a grass catcher is used on your mower, check
the catcher often for damage or deterioration.
It will wear through normal use, Use only a
recommended replacement catcher,
° Always stop blade to remove or install catcher.
oDO NOT store your mower or gasoline where
fumes may reach an open flame and cause a
fire.
oDRAIN THE GASOLINE from your mower
before transporting your mower inside your car
or other vehicle.
LOOKFORTHISSYMBOLTOPOINTOUTIMPOR-
TANTSAFETYPRECAUTIONS.IT MEANS.--ATTEN-
TION!!! BECOMEALERT!!!YOUR SAFETYiS
INVOLVED.

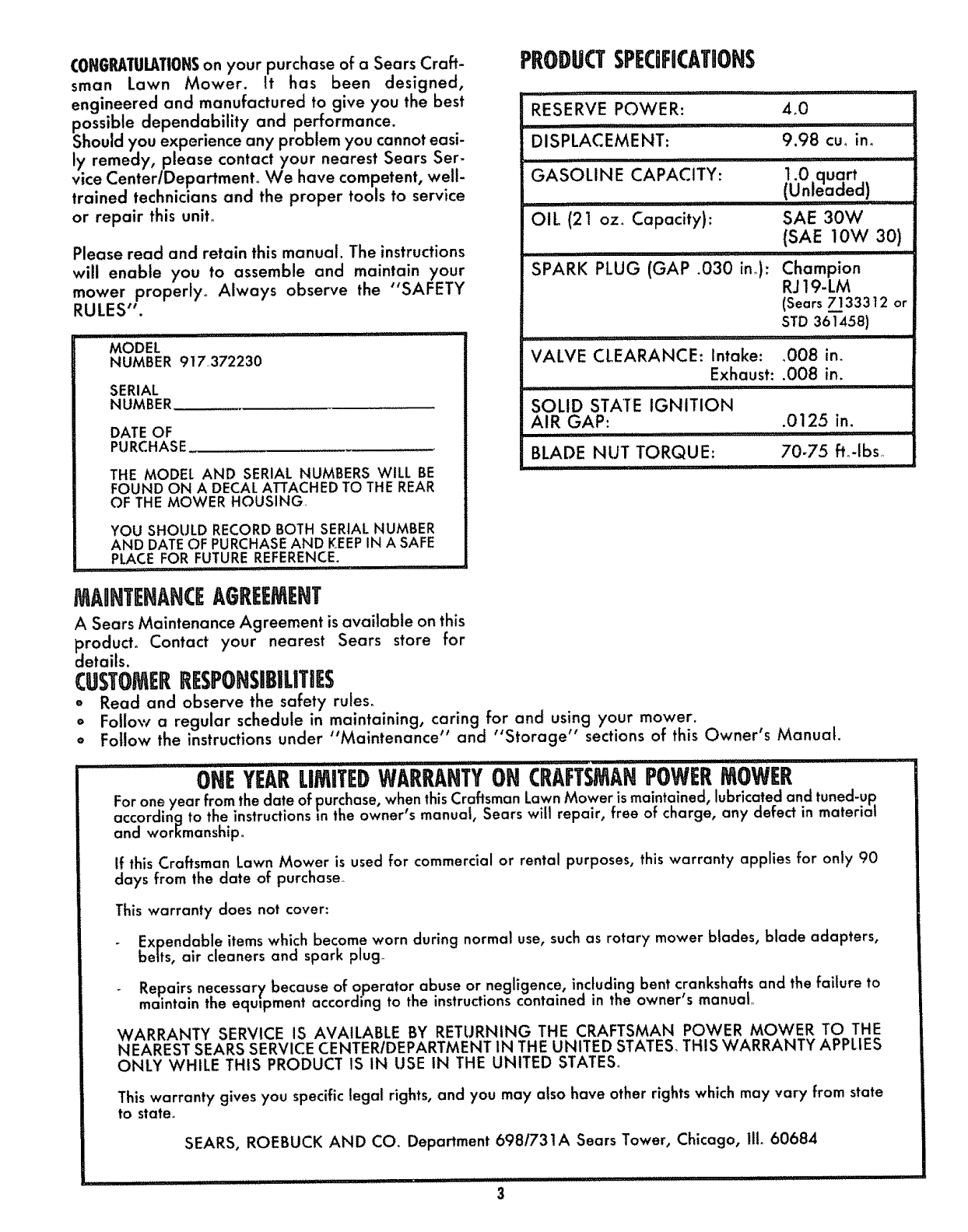

CONGRATULATIONSon your purchase of a Sears Craft-
sman Lawn Mower. It has been designed,
engineered and manufactured to give you the best
possible dependability and performance.
Should you experience any problem you cannot easi-
ly remedy, please contact your nearest Sears Ser-
v°iceCenterlDepartmento We have competent, well-
trained technicians and the proper tools to service
or repair this unit_
Please read and retain this manual. The instructions
will enable you to assemble and maintain your
mower properly_ Always observe the "SAFETY
RULES".
I II _, ,,,,_ _,,_. , i,,11,I i1,,111 _1 '11']_
MODEL
NUMBER 917,372230
SERIAL
NUMBER
DATE OF
PURCHASE
THE MODEL AND SERIAL NUMBERS WILL BE
FOUND ON A DECAL ATTACHED TO THE REAR
OF THE MOWER HOUSING,
YOU SHOLILD RECORD BOTH SERIAL NUMBER
AND DATEOF PURCHASEAND KEEPIN A SAFE
PLACE FOR FUTURE REFERENCE.
i ii1,,,,i,i 1!111, I IIII r ............
PRODUCTSPEaHCATUONS
......... ii ,i,
RESERVE POWER:
DISPLACEMENT:
4.0
9.98 cu0 in.
GASOLINE CAPACITY:
i _,l,ll, illlllJ_l
OIL (21 oz. Capacity):
SPARK PLUG (GAP .030 ino):
VALVE CLEARANCE: Intake:
Exhaust:
I II ii1,1, i, I I'1/1'11
SOLID STATE IGNITION
AIR GAP:
.................... !!,! ,,i,i I I '1 ,i,1,,,,,11,1 .......
BLADE NUT TORQUE:
,1.0,quart
(umeaaeaj
SAE 30W
(SAE10w3o)
Champion
RJ 19.LM
(Sears 71333 t2 or
STD 361458)
,llll_l:: I I I ill
.008 im
.008 in.
I I IIII ,,11111,
.0125 in.
i i
70-75 fl_-Ibso
iill i ,,
MAONTENANCEAGREEMENT
A Sears Maintenance Agreement is available on this
product. Contact your nearest Sears store for
details.
CUSTOMERRESPONSIBWTIES
• Read and observe the safety rules.
o Follow a regular schedule in maintaining, caring for and using your mower.
oFollow the instructions under "Maintenance" and "Storage" sections of this Owner's Manual.
i ,lli,i
...................VE R PowEe,MOWERLIMIT :DWARR, Nf oNCRAFTSMAN
For one year from the date of purchase, when thisCraftsman Lawn Mower ismaintained, lubricated and tuned-up
accordinfl to the instructions mthe owner's manual, Sears will repair, free of charge, any defect in material
and workmanship°
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90
days from the date of purchase_
This warranty does not cover:
Expendable items "which become worn during normal use, such as rotary mower blades, blade adapters,
belts, air cleaners and spark plug
Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to
maintain the equipment according to the instructions contained in the owner's manual.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE
NEAREST SEARS SERVICE CENTERIDEPARTMENT IN THE UNITED STATES_ THIS WARRANTY APPLIES
ONLY WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which may vary from state
to state.
SEARS, ROEBUCK AND CO. Department 698/731A Sears Tower, Chicago, I11o60684
3

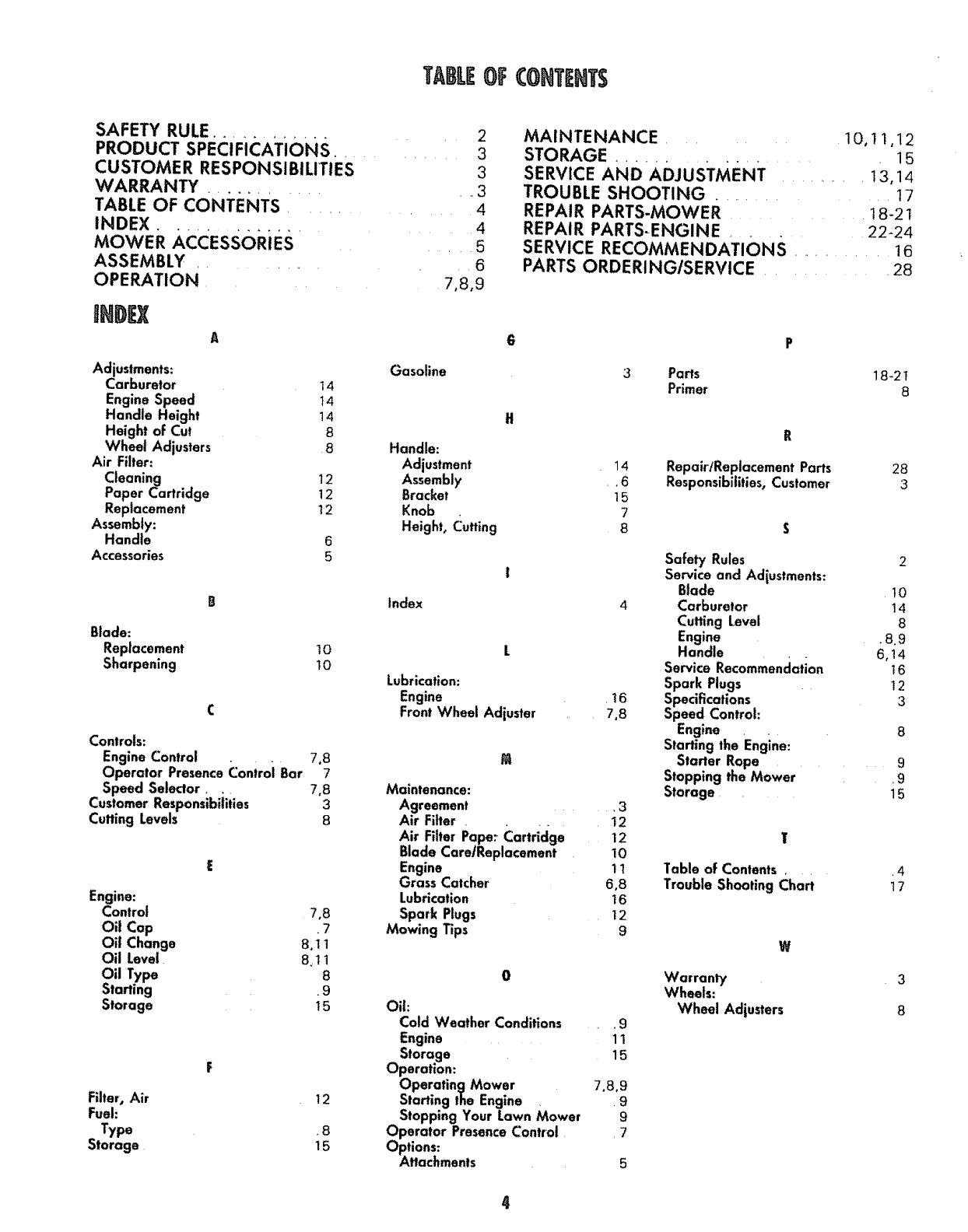

TABLEOFCONTENTS
SAFETY RULE ............... 2
PRODUCT SPECIFICATIONS ....... 3
CUSTOMER RESPONSIBILITIES 3
WARRANTY ............... 3
TABLE OF CONTENTS ............ 4
INDEX ............... 4
MOWER ACCESSORIES , 5
ASSEMBLY ....... 6

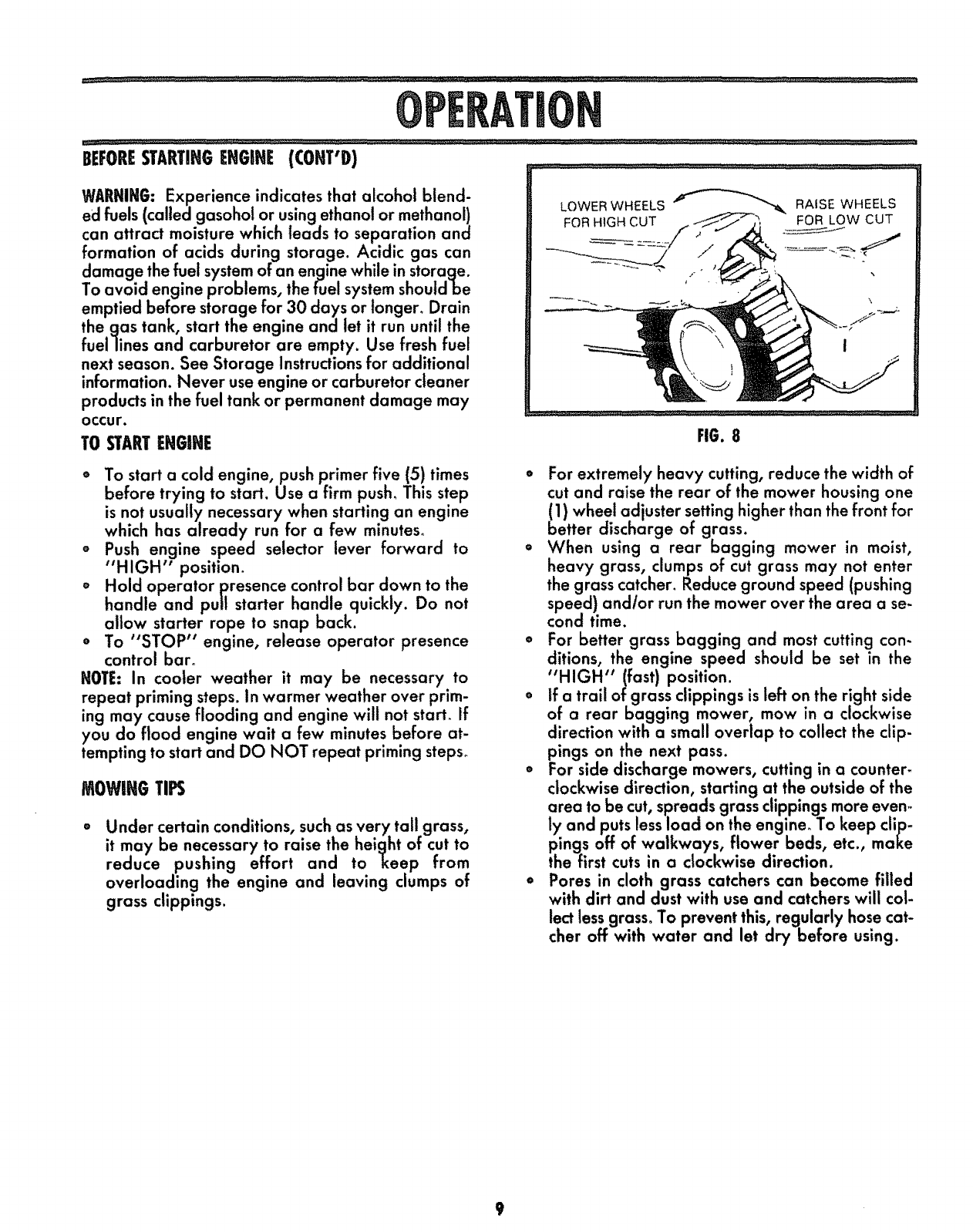

OPERATION 7,8,9

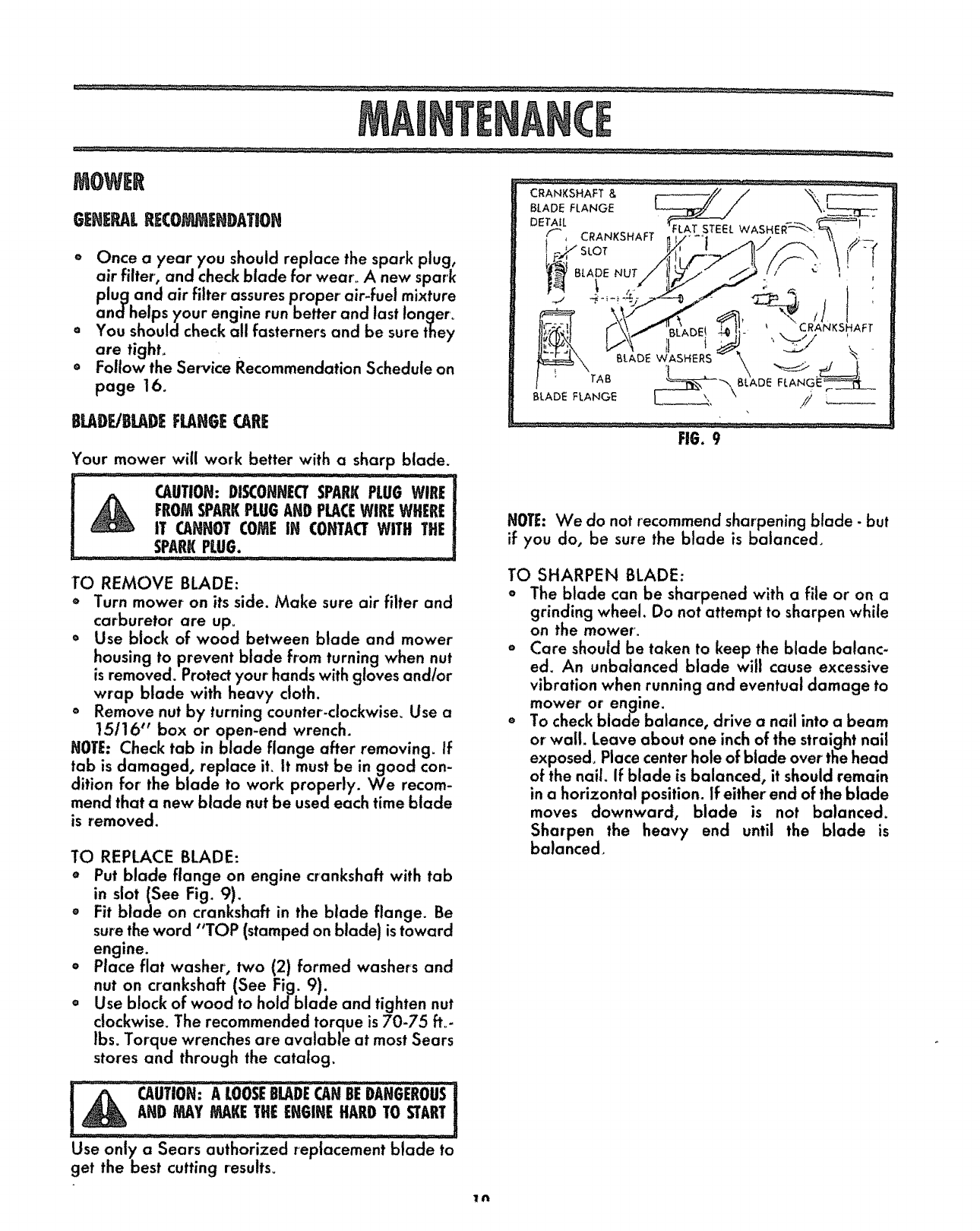

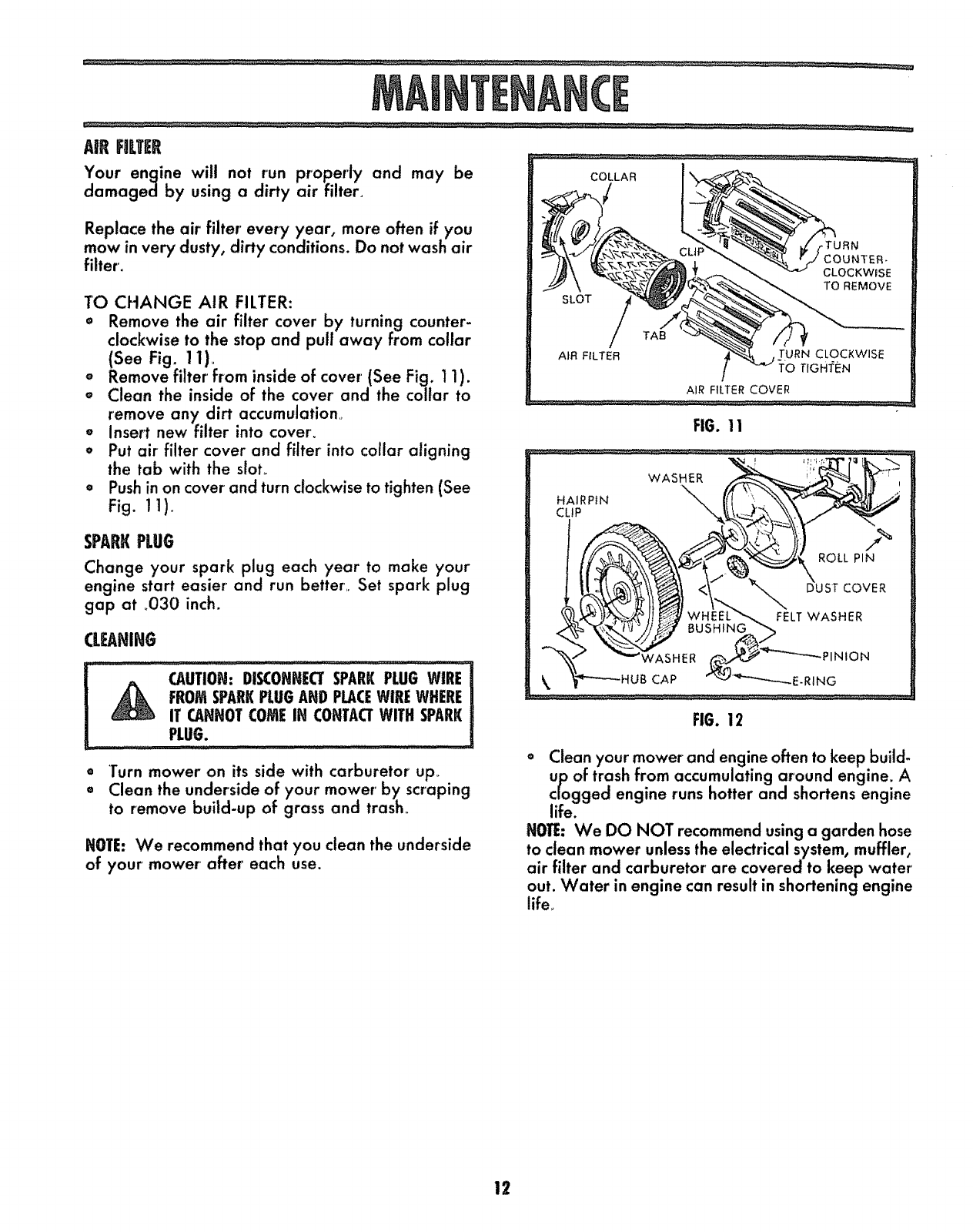

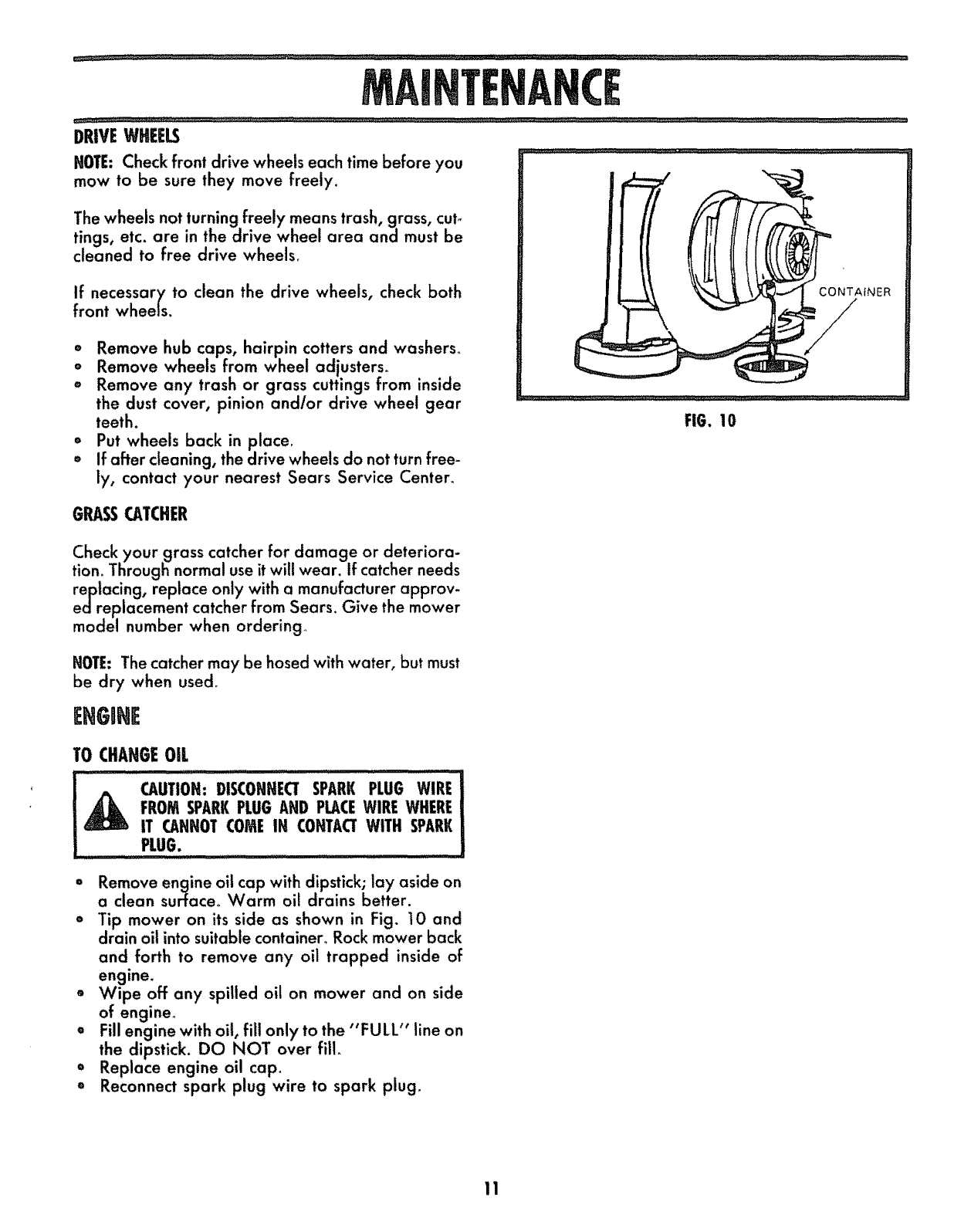

MAINTENANCE 1O, 11,12

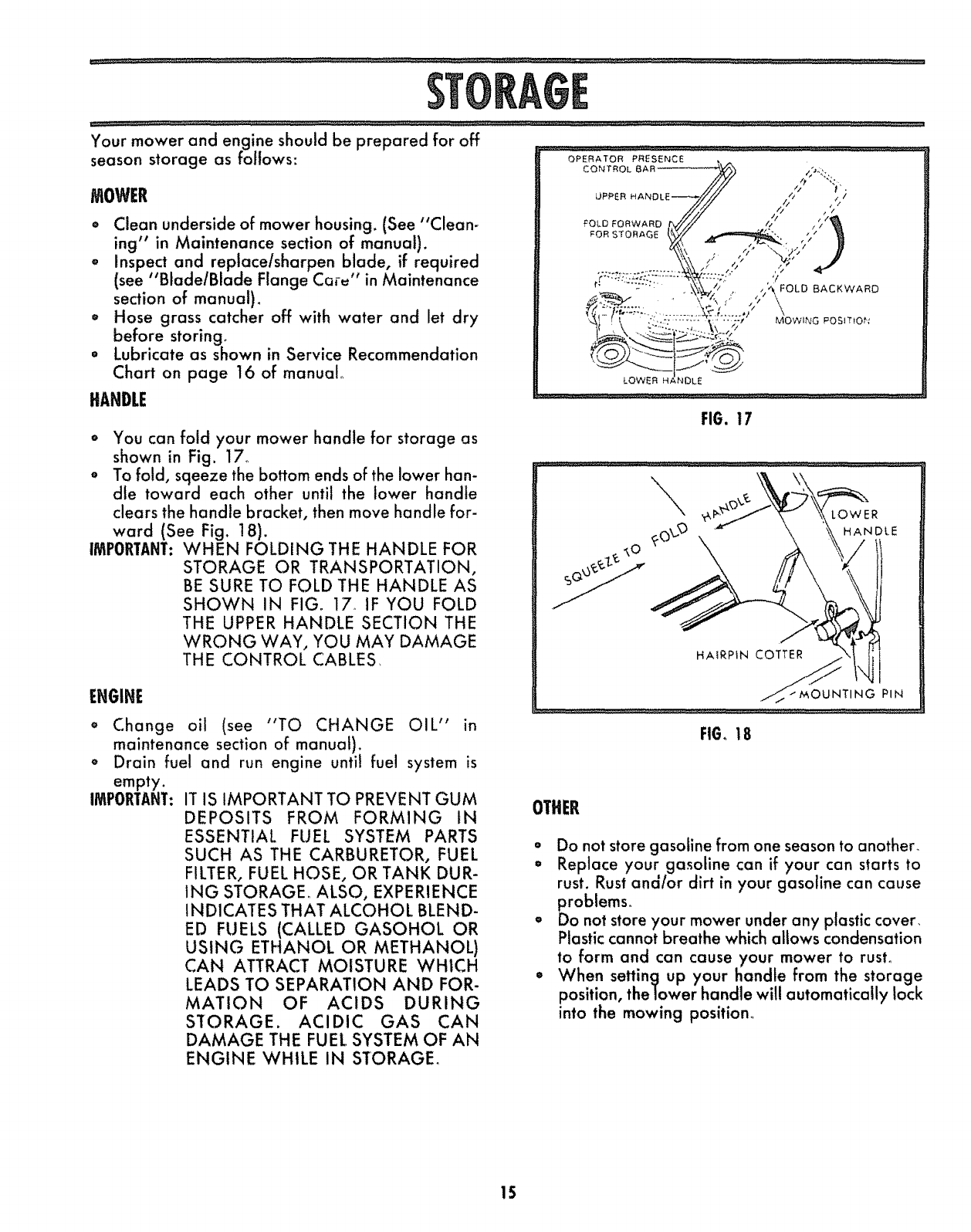

STORAGE ................. 15

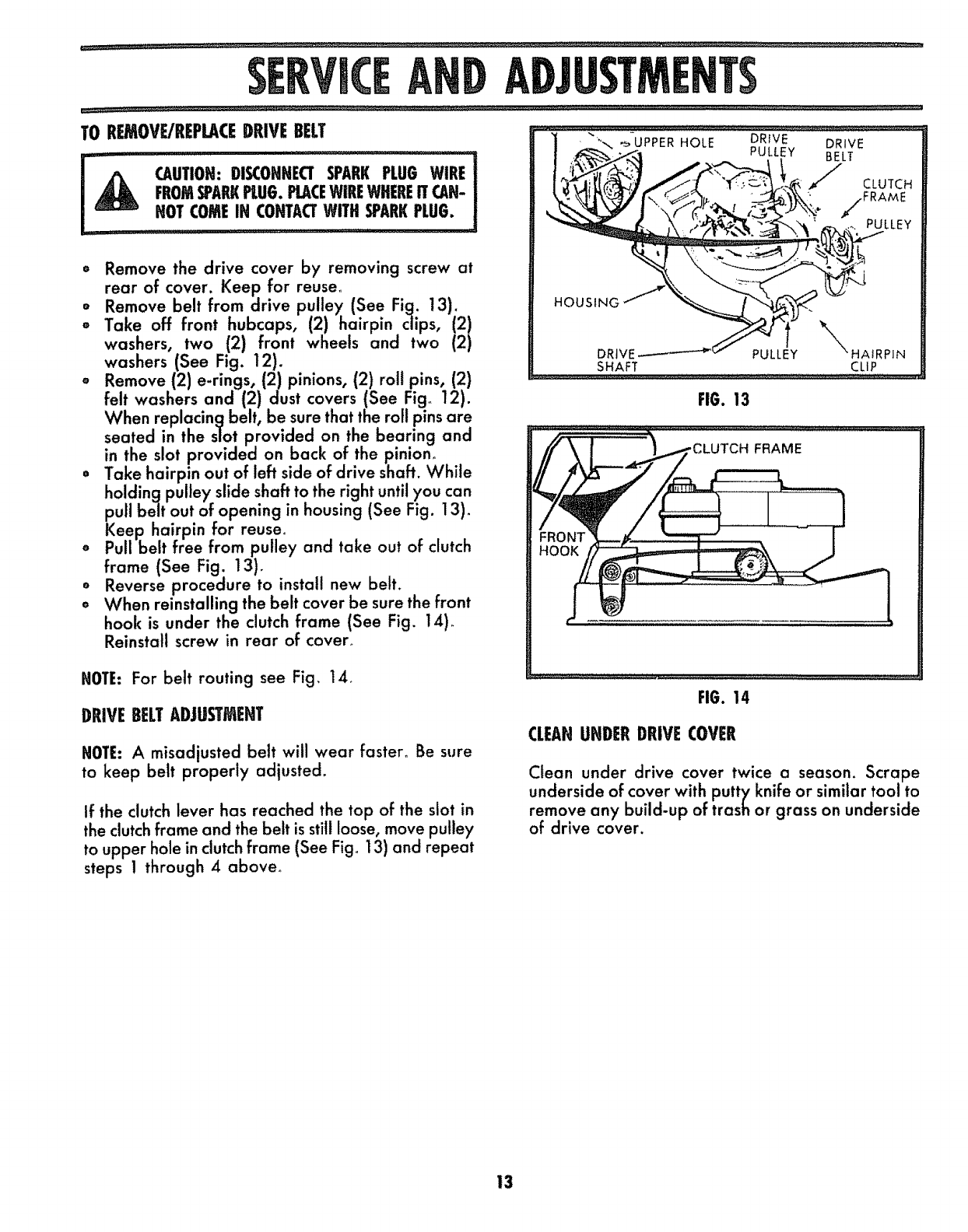

SERVICE AND ADJUSTMENT .......... 13, ] 4

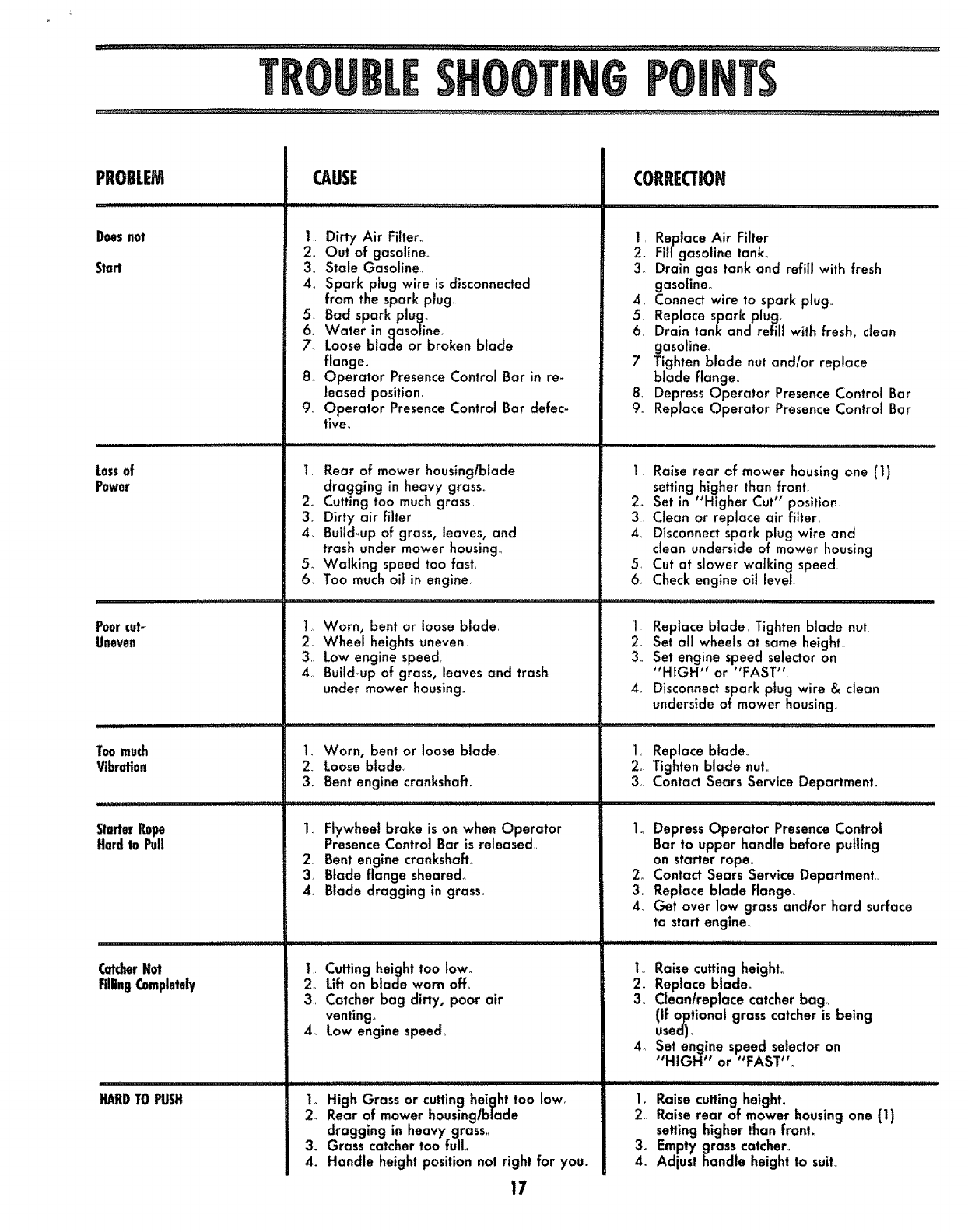

TROUBLE SHOOTING ........... 17

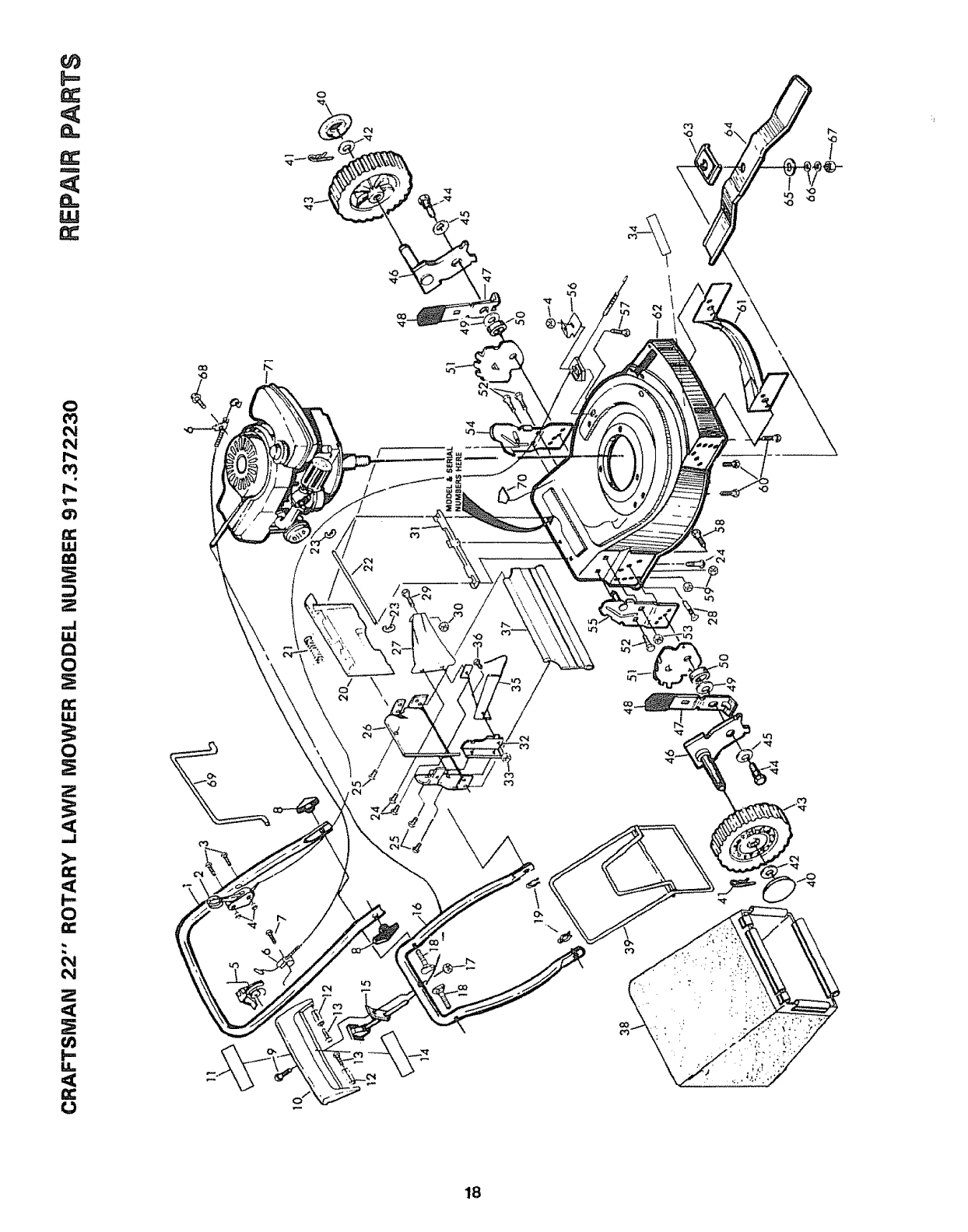

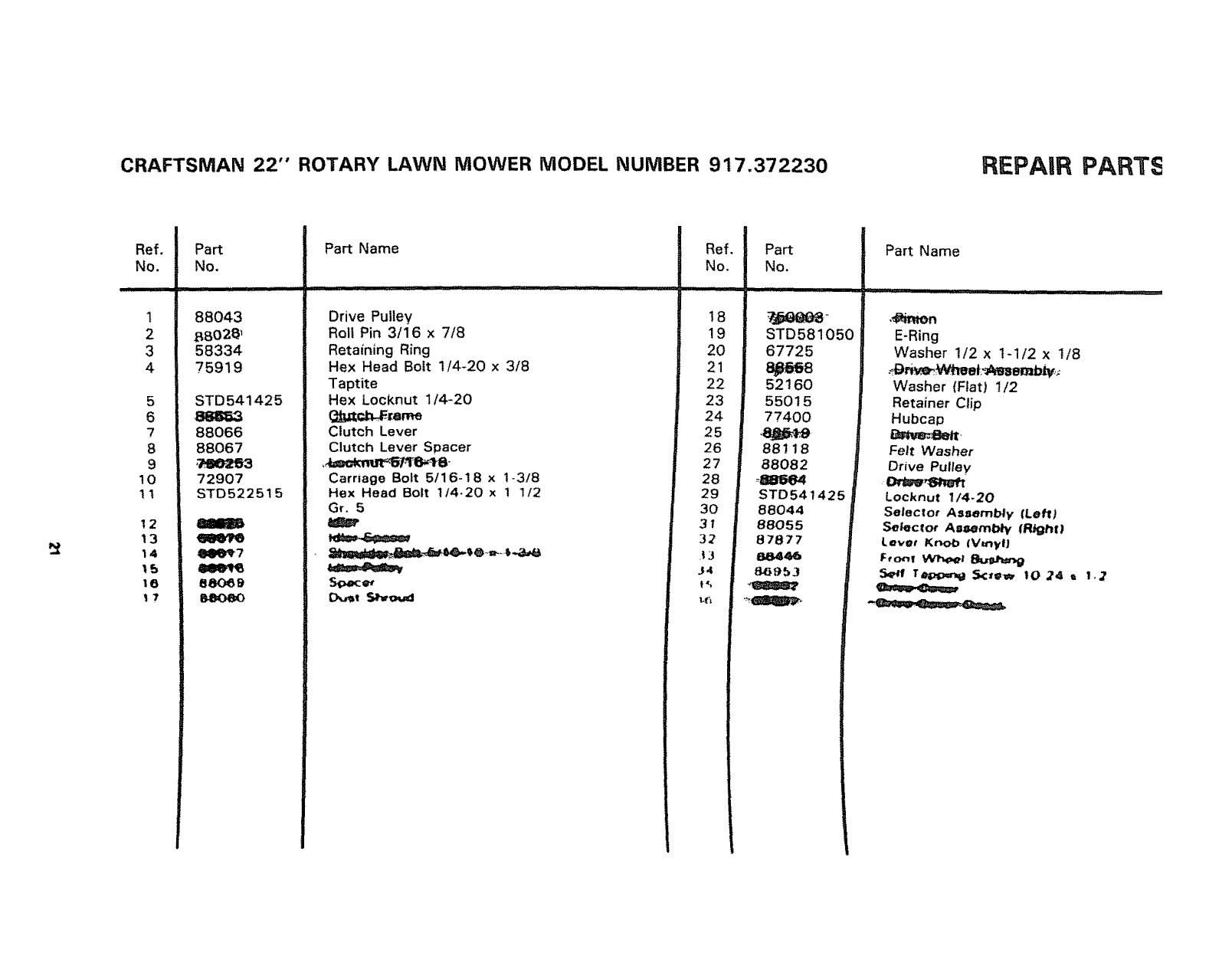

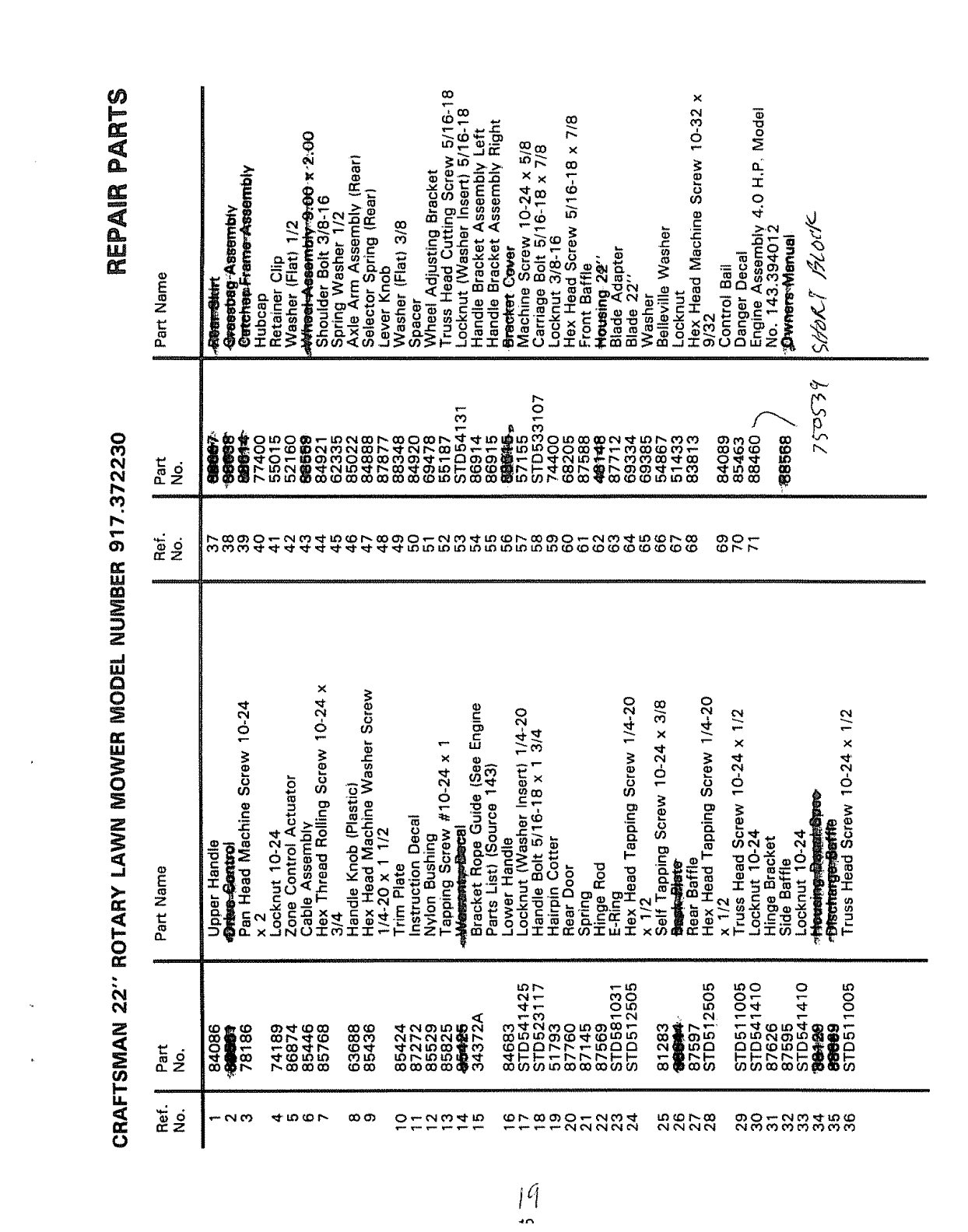

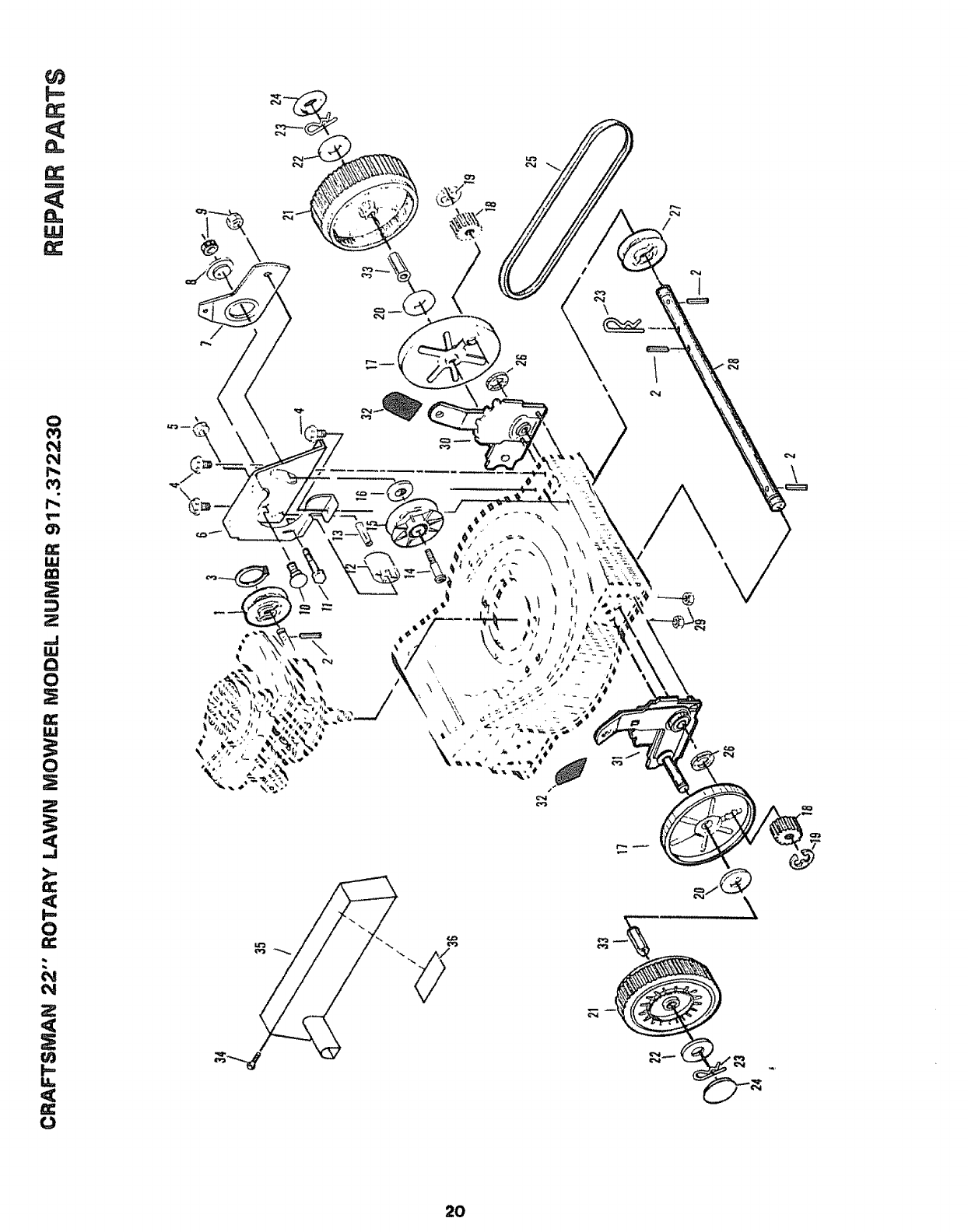

REPAIR PARTS-MOWER ........... 18-21

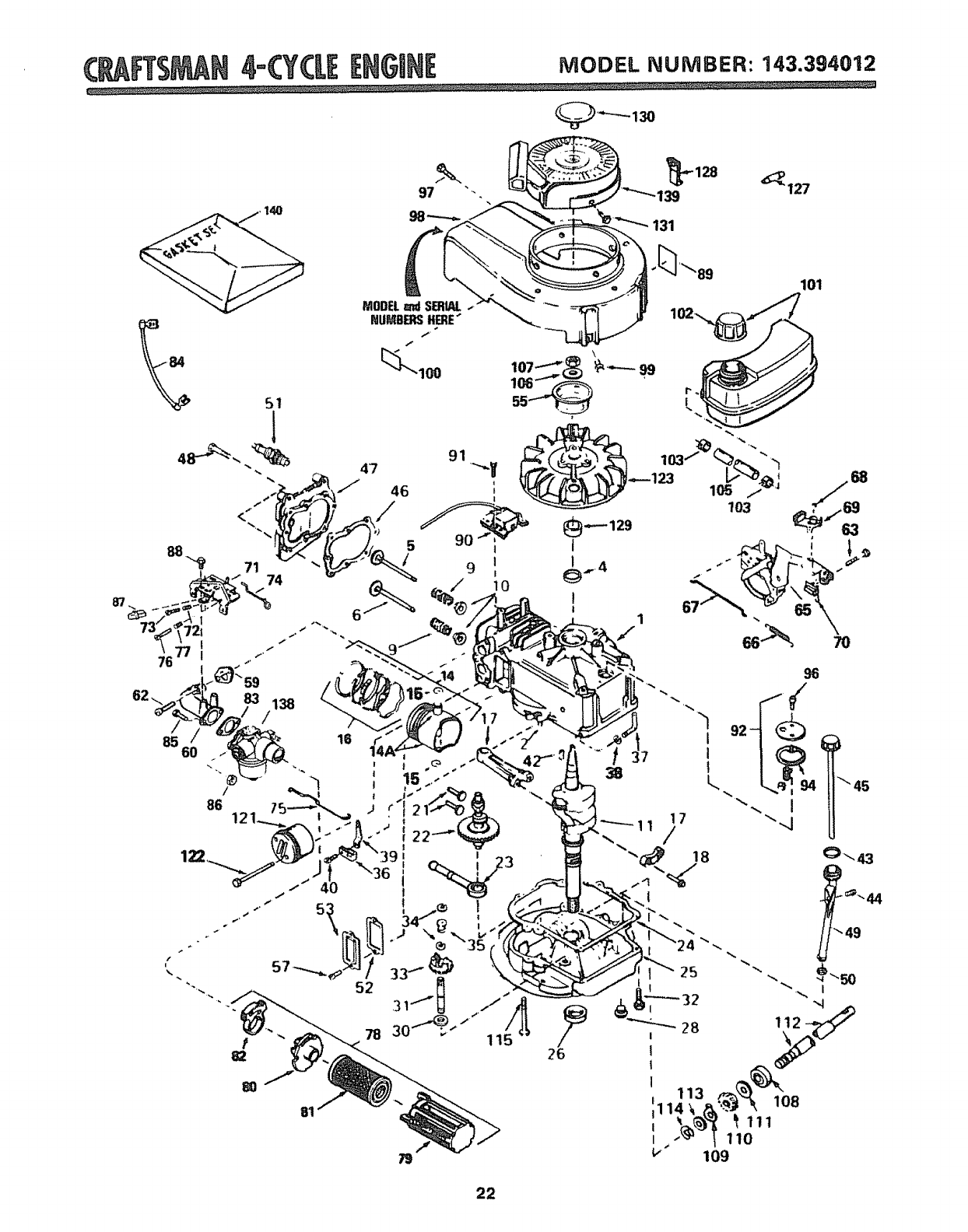

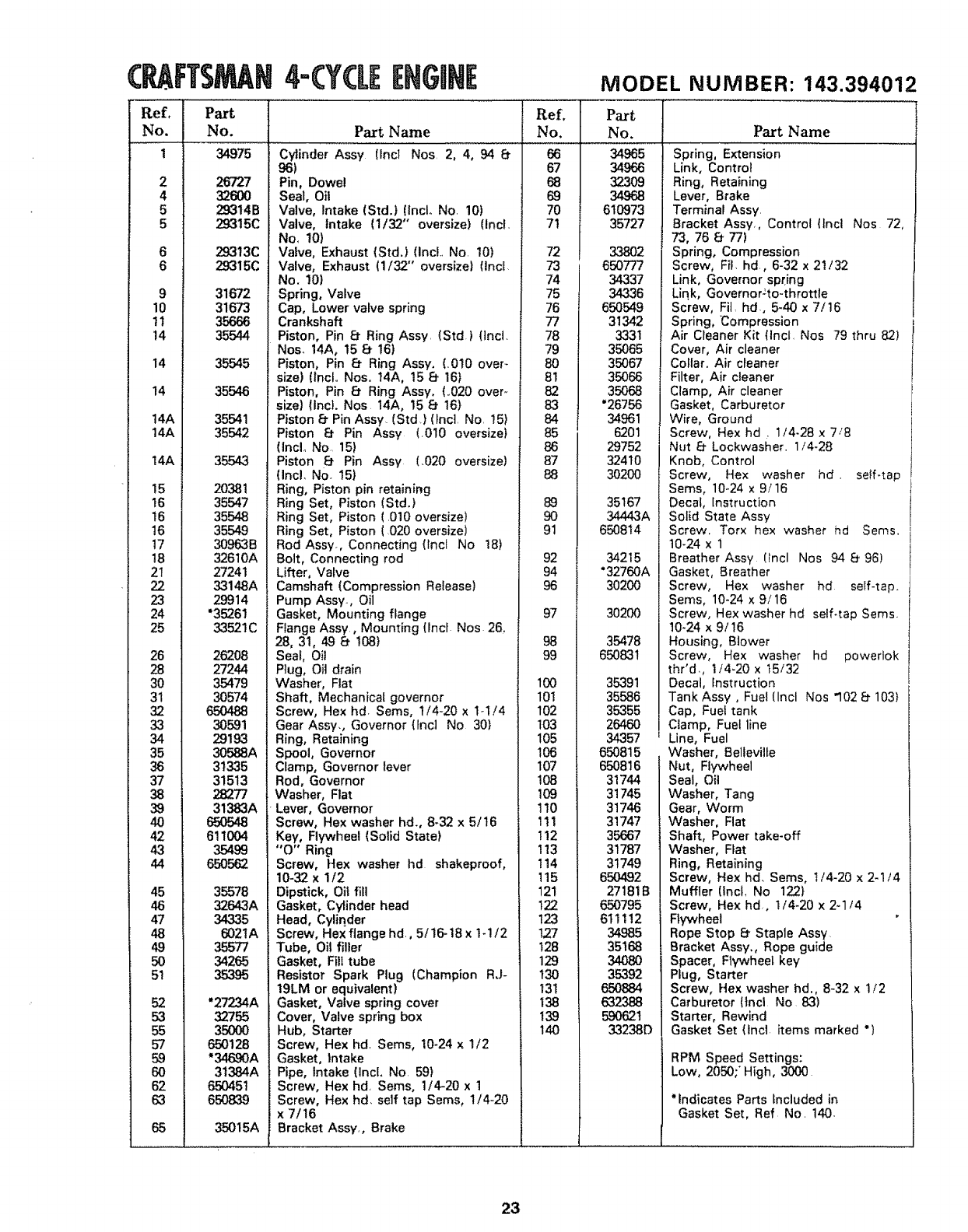

REPAIR PARTS-ENGINE ......... 22-24

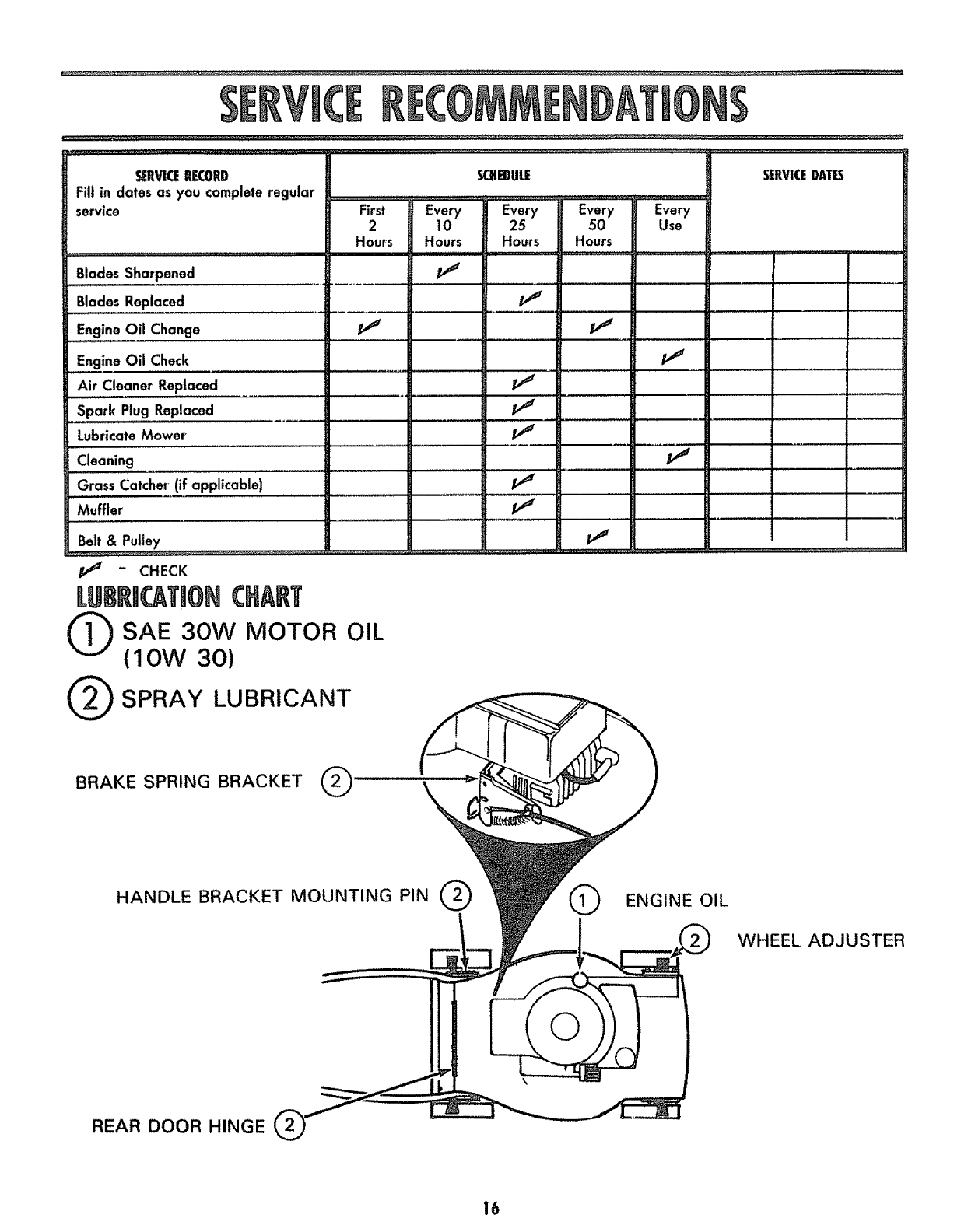

SERVICE RECOMMENDATIONS ........... t6
PARTS ORDERING/SERVICE .......... 28
6
Adjustments:
Carburetor
Engine Speed
Handle Height
Height of Cut
Wheel Adjusters
Air Filter:
Cleaning
Paper Cartridge
Replacement
Assembty:
Handle
Accessories
B
Blade:
Replacement
Sharpening
Gasoline
14
t4
14
8
8 Handle:
Adjustment
12 Assembly
12 Bracket
12 Knob
Height, Cutting
6
5
index
10 L
t0 Lubrication:
Engine
Front Wheel Adjuster
Controls:
Engine Control ..7,8
Operator Presence Control Bar 7
Speed Selector.., 7.8
Customer Responsibilities 3
Cutting Levels 8
Engine:
Control 7,8
Oil Cap .7
Oil Change 8.11
Oil Level 8_11
Oil Type 8
Starting .9
Storage 15
Parts 18-2
Primer 8
Filter, Air 12
Fuel:
Type _8
Storage 15
R
14 Repair/Replacement Parts 28
..6 Responsibilities, Customer 3
15
7
8S
m
Maintenance:
Agreement
Air Filter •
Air Filter Pope._Cartriclge
Blade CarelReplacement
Engine
Grass Catcher
Lubrication
Spark Plugs
Mowing Tips
.16
7,8
0
.3
12
12
10
11
6,8
16
12
9
9
11
15
Oil:
Cold Weather Conditions ,
Engine
Storage
Operation:
Operating Mower 7.8,9
Starting the Engine _ 9
Stopping Your Lawn Mower 9
Operator Presence Control 7
Options:
Attachments 5
Safety Rules 2
Service and Adjustments:
Blade t 0
Carburetor 14
Cutting Level 8
Engine .8.9
Handle 6, t 4
Service Recommendation _6
Spark Plugs 12
Specifications 3
Speed Control:
Engine . • 8
Starting the Engine:
Starter Rope 9
Stopping the Mower .9
Storage ..... 1S
I
Table of Contents , , .4
Trouble Shooting Chart 17
W
Warranty
Wheels:
Wheel Adjusters
3
8
4

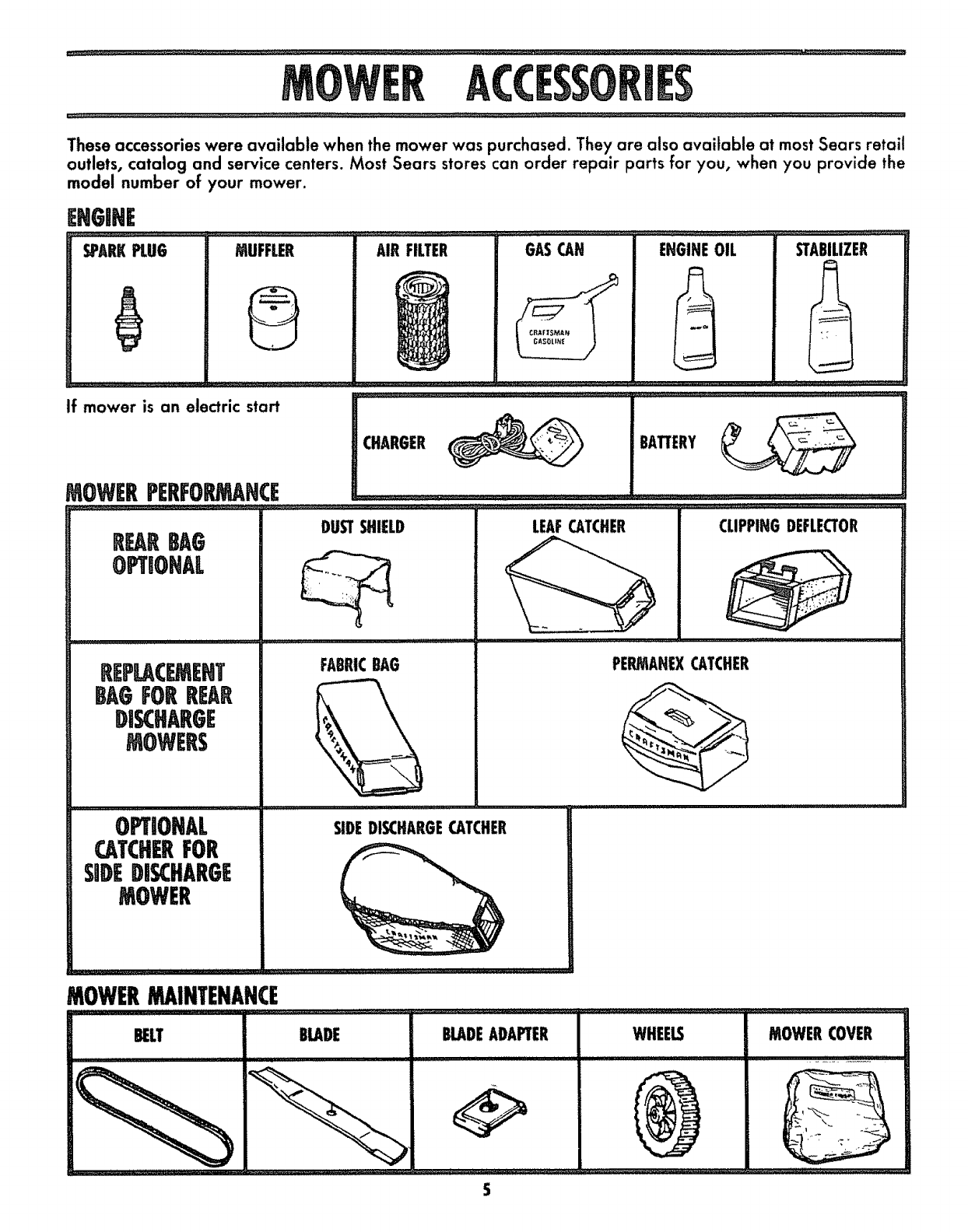

These accessories were available when the mower was purchased. They are also available at most Sears retail
outlets, catalog and service centers. Most Sears stores can order repair parts for you, when you provide the
model number of your mower.
[NGINE
SPARKPLUG MUFFLER AIR FILTER GASCAN ENGINEOIL STABILIZER
If mower is an electric start
MOWERPERFORMANCE
REARBAG
OPTIONAL
A[PLACF_ENT
BAGFORRI[AR
D|_HARG[
MOWiRS
OPTIONAL
CATCHERFOR
SiDEDISCHARGE
MOWER
:._.,: ,,,
,HA,O,, OAn,,,
DUSTSHIELD LEAFCATCHER CLIPPINGDEFLECTOR
FABRICBAG
SIDEDISCHARGECATCHER
PERMANEXCATCHER
MOWERMAINTENANCE
BELT BLADE _MOWERCOVERBLADEADAPTER WHEELS
......................... m............... i1,1,1,1,,, ii,i,1,11,,i,i1,11,i,i,i,i
Your lawn mower has been completely assembled
at the factory except for the grass catcher bag and
the grass catcher frame.
TO RWOV[ _OWER FROM C_RTOH UFr u_
Remove loose parts if.included with mower, (i.e.
grass catcher, catcher frame, hardware pack,
etc.).
•Cut down corners on one end of carton and lay
end down flat,
oRemove packing material.
.e Roll mower out of carton and check carton
thoroughly for loose parts.
!HGWTOSiT-UPYOURL Wfl MOWER
OPERATOR PRESENCE
CONTROL BAR
qG POSITION
LOWER NDLE
FIG. I
TOUNFOLDHAHDLE
Remove tape and paper holding operator presence
control bar to upper handle,
oHold down operator presence control bar to up-
per handle to allow handle to move to mowing
position_
•Raise handles until lower handle section locks in-
to place in the mowing position (See Fig. 1).
oRaise upper' handle section intoplace on lower
handle and tighten one (1) handle knob.
°Release operator presence control bar and
tighten remaining handle knob.
=Your mower' handle can be adjusted for your
mowing comfort. Refer to "ADJUST HANDLE"
in the Service and Adjustment section of this
manual°
CATCHER FRAME
\
\
FRAME OPENING
FIG. 2
TOASSF.MBL[AHDTO ATTACHGRASSCATCHER
°Put grass catcher frame into grass bag with stiff
part on bottom (See Fig_ 2)°
o Slip vinyl bindings over frame (See Fig. 2).
NOTE: If vinyl bindings are too stiff, hold them in
warm water for' a few minutes, tf bag gets wet, let
it dry before using.
=Lift the rear door on the mower housing and place
the grass catcher frame onto the formed up tabs
on the rear door hinge bracket (See Fig. 3).
oThe grass catcher is secured to the mower hous-
:ingwhen the rear' door is iov_ered onto the grass
catcher frame.
..........c uTIo.:'®.oT.u.Your. "MOWE.I
6
HINGE BRACKET /DOOR
FORM_ED UP TABS
GRASS FRAME
FIG. 3
° Never attempt to operate the mower with the rear'
door removed or' propped open.
KHOWYOURMOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING "fOUR ROTARY MOWER°
Compare the illustrations with your Rotary Mower to familiarize yourself with the location of various controls
and adjustments. Save this manual for future reference,
'_--"OPERATOR PRESENCE CONTROL BAR
Z(CONTROL
CONTROL LEVER
KNOB
GRASS(:
BAG
ENGINE 5
SELECTOR LEVER
MUFF
ENGINE OIL CAP WITH DIPSTICK
GASOLINE FILLER CAP
PRIMER
I
AIR FILTER HOUSING
WHEEL ADJUSTER
FIG. 4
.,,,,,._...:,,...,.=..._,_........................... L=L.:=................................. -..L..,_m.,_._ ..................................... J .i zL!J__J.L_m,m_....... ..............................................:. _ :::.__.................... ==============================.................................... ; .=. --..--_.: :._ • -..: ........... :::
MEETSCPSCSAFETYREQUIREM|HTS
Sears Rotary Walk-Behind Power Mowers conform to the safety standards of the American National Stan-
dards institute and the U oS. Consumer Product Safety Commission. The blade turns when the engine is running,
OPERATOR PRESENCE CONTROL BAR - must be
held down to the handle to start the engine° Release
to stop the engine.
ENGINE SPEED SELECTOR LEVER- located on the
right side of the engine which allows you to select
either "HIGH" or T'LOW" engine speed.
PRIMER -pumps additional fue! from the carburetor
to the cylinder for use when starting a cold engine.
STARTER ROPE - used for starting the engine.
DRIVE CONTROL LEVER-used to engage power.
propelled forward motion of mower.
T
HOWTOUSEYOURMOWER ............................................................................................................................................................
ENGaNESPEEDSELECTOR
The en_line speed is controlled by a lever (red knob)
iocatedon the right side of the engine_ "HIGH" posi-
tion is for' starting engine, normal cutting and better
grass bagging. "LOW" position is for light cutting,
trimming and fuel economy (See Fig. 5).
DRIVE CONTROL
o Self-propelling is controlled by holding the
operator presence control bar down to the ham
die and pushing the drive control lever forward
until it clicks; then release the lever (See Fig 6)_
o Forward motion will stop when the operator
presence control bar is released. To stop forward
motion without stopping the engine, release the
operator presence control bar' slightly until the
drive control disengages_ Hold operator presence
control bar down tohandle to continue mowing
without self-propelling_
o To keep drive control engaged when turning cor-
ners, push down on handle and lift front wheels
off .qround while turning mower_
NOTE: When your mower is new, the drive wheels
may rotate without the drive control engaged when
the wheels are lifted off the ground. This is normal
and should stop after the first few hours of operatiom
TO EMPTYGRASSCATCHER
o To remove grass catcher, release operator
presence control bar to stop engine_
o Lift up rear' door' and remove the grass catcher
by the handle (See Fig. 7).
NOTE: Do not drag the bag when emptying; it will
cause unnecessary wear.
TO ADJUSTCUTTINGHEIGHT
o Raise wheels for low cut and lower wheels for
high cut.
o Wheels are set in low cut for shipping. Adjust cut-
ting height to suit your requirements_ Medium
position is best for most lawns.
o To change cutting height, squeeze adjuster lever
toward wheel. Move wheel up or' down to suit
your requirements. Be sure all wheels are in the
same setting (See Fig. 8)_
BEFORESTARTINGENGINE
OIL:
oRemove engine oil cap with dipstick and fill to the
"FULL" line on the dipstick. Use about one (1)
pint or 1t2 liter of Sears 30W oil or equivalent.
SAE 10W 30 oil can also be used° DO NOT
SELECTOR LEVER
FIG. 5
OPERATOR PRESENCE
,.€-_.ZONE/ENGtNE
CONTROL CONTROL
rO ENGAGE DRIVE CONTROL
DRIVE CONTROL DISENGAGED
FIG. 6
FIG. 7
use SAE 10W 40 oil. The total oil capacity of
your engine is 21 oz. or 0.62 liters° Fill only to
the full line on the dipstick. DO NOT overfill. 1'he
first fill on a new engine uses about one (1) pint
of oil. Check oil level and add oil as needed to
bring to the proper" level.
o Pour oil slowly - DO NOT overfill.
GAS:
oFill gasoline tank with fresh, clean unleaded
gasoline. DO NOT USE PREMIUM GASOLINE.
BE CAREFUL NOT TO OVER FILL TANK (SEE
FIG,4).
BEFORESTARTINGENGINE (CONT'D) ................................................................................................... _o...........................!
WARNING: Experience indicates that alcohol blend-
ed fuels (called gasohol or using ethanol or methanol)
can attract moisture which leads to separation and
formation of acids during storage. Acidic gas can
damage the fuel system of an engine while in storage.
To avoid engine problems, the f_Jelsystem shouldbe
emptied before storage for 30 days or longer. Drain
the gas tank, start the engine and let it run until the
fuel/ines and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for additional
information. Never use engine or carburetor cleaner
products in the fuel tank or permanent damage may
occur.
TO STARTENGINE
oTo start a cold engine, push primer five (5) times
before trying to start. Use a firm push_ This step
is not usually necessary when starting an engine
which has already run for a few minutes.
oPush engine speed selector lever forward to
"HIGH" positiom
o Hold operator presence control bar down to the
handle and pull starter handle quickly. Do not
allow starter rope to snap back.
oTo "STOP" engine, release operator presence
control bar°
NOTE: In cooler weather it may be necessary to
repeat priming steps, in warmer weather over prim-
ing may cause flooding and engine will not start_ If
you do flood engine wait a few minutes before at-
tempting to start and DO NOT repeat priming steps°
MOWINGTIPS
Under certain conditions, such as very tall grass,
it may be necessary to raise the height of cut to
reduce pushing effort and to keep from
overloading the engine and leaving clumps of
grass clippings.
LOWER WHEELS _ RAISE WHEELS
FOR HIGH CUT FOR LOW CUT
FIG. 8
°For extremely heavy cutting, reduce the width of
cut and raise the rear of the mower housing one
(1) wheel adjuster setting higher than the front for
better discharge of grass.
oWhen using a rear bagging mower in moist,
heavy grass, clumps of cut grass may not enter
the grass catcher. Reduce ground speed (pushing
speed) and/or run the mower over the area a se-
cond time.
oFor better grass bagging and most cutting con-
ditions, the engine speed should be set in the
"HIGH" (fast) position.
o If a trail of grass clippings is left on the right side
of a rear bagging mower, mow in a clockwise
direction with a small overlap to collect the clip-
pings on the next pass.
_, For side discharge mowers, cutting in a counter-
clockwise direction, starting at the outside of the
area to be cut, spreads grass clippings more even-
ly and puts less load on the engine_ To keep clip-
pings off of walkways, flower beds, etc., make
the first cuts in a clockwise direction.
Pores in cloth grass catchers can become filled
with dirt and dust with use and catchers will col-
lect less grass° To prevent this, regularly hose cat-
cher off with water and let dry before using.
GENERALRECO_|NDATiON
o Once a year you should replace the spark plug,
air filter', and check blade for wear° Anew spark
plug and air filter assures proper air-fuel mixture
andhelps your engine run better and last longer_
oYou should check all fasterners and be sure they
are tighL
Follow the Service Recommendation Schedule on
page 16.
BLADE/BLAD[FLANGEC&R[
Your mower will work better with a sharp blade.
CAUTION: DISCONNECTSPARK PLUG WIRE
FROM SPARKPLUGAND PLACEWIRE WHERE
IT CANNOT COME IN CONTACTWITH THE
SPARKPLUG.
TO REMOVE BLADE:
Turn mower on its side. Make sure air filter and
carburetor are up_
Use block of wood between blade and mower
housing to prevent blade from turning when nut
is removed. Protect your hands with gloves andtor
wrap blade with heavy cloth.
•Remove nut by turning counter<lockwise. Use a
15116" box or open-end wrench.
NOTE: Check tab in blade flange after removing, if
tab is damaged, replace iL It must be in good con-
dition for the blade to work properly. We recom-
mend that a new blade nut be used each time blade
is removed.
TO REPLACE BLADE:
oPut blade flange on engine crankshaft with tab
in slot (See Fig. 9).
oFit blade on crankshaft in the blade flange. Be
sure the word "TOP (stamped on blade) is toward
engine.
oPlace flat washer, two (2) formed washers and
nut on crankshaft (See Fig. 9).
Use block of wood to holdblade and tighten nut
clockwise. The recommended torque is 70-75 fL-
Ibs. Torque wrenches are avalable at most Sears
stores and through the catalog.
CAUTION: A LOOSEBLADECAN BEDANGEROUS_
,_ AND MAY MAKE THE ENGINE HARD TO START!
Use only aSears authorized replacement blade to
get the best cutting results_
FIG. 9
NOTE: We do not recommend sharpening btade - but
if you do, be sure the blade is balanced,
TO SHARPEN BLADE:
oThe blade can be sharpened with a file or on a
grinding wheel. Do not attempt to sharpen while
on the mower.
o Care should be taken to keep the blade balanc-
ed. An unbalanced blade will cause excessive
vibration when running and eventual damage to
mower or engine.
o To check blade balance, drive a nail into a beam
or wail Leave about one inch of the straight nail
exposed. Place center hole of blade over' the head
of the nail. If blade is balanced, it should remain
in a horizontal position. If either end of the blade
moves downward, blade is not balanced.
Sharpen the heavy end until the blade is
balanced_
in
MAINTENANCE
DRIVEWHEELS
NOTE: Check front drive wheels each time before you
mow to be sure they move freely.
The wheels not turning freely means trash, grass, cut_
tings, etc. are in the drive wheel area and must be
cleaned to free drive wheels_
If necessary to clean the drive wheels, check both
front wheels.
oRemove hub caps, hairpin cotters and washers_
oRemove wheels from wheel adjusters_
oRemove any trash or grass cuttings from inside
the dust cover, pinion andtor drive wheel gear
teeth.
•Put wheels back in place.
•If after cleaning, the drive wheels do not turn free-
ly, contact your nearest Sears Service Center.
CONTAINER
FIG. 10
GRASSCATCHER
Check your grass catcher for damage or deteriora-
tiono Throughnormal use it will wear. If catcher needs
replacing, replace only with a manufacturer approv-
ed replacement catcher from Sears. Give the mower
model number when ordering_
NOTE: The catcher may be hosed with water, but must
be dry when use&
ENGBH[
TOCHANGEOIL
''"CAUTmN:DISCONNEaSPARKPLUGW RE
FROM SPARKPLUG AND PLACEWIRE WHERE
IT CANNOT CO_E iN CONTACTWITH SPARK
...... PLUG. ................................
Remove engine oil cap with dipstick; lay aside on
aclean surface° Warm oil drains better.
Tip mower on its side as shown in Fig. 10 and
drain oil into suitable container_ Rock mower back
and forth to remove any oil trapped inside of
engine.
Wipe off any spilled oil on mower and on side
of engine_
Fill engine with oil, fill only to the "FULL" line on
the dipstick. DO NOT over fill
Replace engine oil cap.
Reconnect spark plug wire to spark plug.
11
AIRFSLTIR
Your engine will not run properly and may be
damaged by using a dirty air filter.
Replace the air filter' every year, more often if you
mow in very dusty, dirty conditions. Do not wash air
filter.
TO CHANGE AIR FILTER:
oRemove the air filter cover by turning counter-
clockwise to the stop and pull away from collar
(See Fig. 11).
oRemove filter from inside of cover (See Fig. 11).
oClean the inside of the cover and the collar to
remove any dirt accumulation.
oInsert new filter into cover.
oPut air filter cover and filter into collar aligning
the tab with the sloL
oPushin on cover and turn clockwise to tighten (See
Fig. 11).
SPARK PLUG
Change your spark plug each year to make your
engine start easier and run better Set spark plug
gap at 4030 inch.
CLEANING
............. _ CAUTION: DISCONNECTSPARK PLUG WIRE
F.o.sPA,KPLUGA.DP.CEWi,IEW.'.,
ITCA..OTCOM n.tO.TACTW.,SPA,,
PLUG,,
oTurn mower on its side with carburetor' upo
oClean the underside of your mower by scraping
to remove build-up of grass and trash°
NOTE: We recommend that you clean the underside
of your mower" after' each use.
COLLAR
/
SLO --.
AIR FILTER
AIR FILTERCOVER
FIG. 1!
WASHER
HAIRPIN '_,_
CLIP
ROLL PIN
DUST COVER
FELT WASHER
~PINION
CAP E.RING
FIG. 12
Clean your mower and engine often to keep build-
up of trash from accumulating around engine. A
clogged engine runs hotter and shortens engine
life.
NOTE: We DO NOT recommend using a garden hose
to clean mower unless the electrical system, muffler,
air filter and carburetor' are covered to keep water
out. Water in engine can result in shortening engine
life_
12
T
TO RIOV_RfPLACE DRIVEBELT
CAUTIOIt:DISCONNECTSPARKPLUG WIRE
FROMSPARKPLUG.PLACEWIREWHIRl ITCAN-
HOTCOMEIN COIITACTWITHSPARKPLUG.
oRemove the drive cover by removing screw at
rear of cover. Keep for reuse_
oRemove belt from drive pulley (See Fig. 13).
o Take off front hubcaps, (2) hairpin clips, (2)
washers, two (2) front wheels and two (2)
washers (See Fig. 12).
o Remove (2) e-rings, (2) pinions, (2) roll pins, (2)
felt washers and (2) dust covers (See Fig_ 12).
When replacing belt, be sure that the roll pins are
seated in the slot provided on the bearing and
in the slot provided on back of the pinion°
o Take hairpin out of left side of drive shaft. While
holding pulley slide shaftto the right until you can
pull belt out of opening in housing (See Fig. 13).
Keep hairpin for reuse°
o Pull belt free from pulley and take out of clutch
frame (See Fig. 13).
o Reverse procedure to install new belt.
o When reinstalling the belt cover be sure the front
hook is under the clutch frame (See Fig. 14)_
Reinstall screw in rear of cover°
• _ UPPER HOLE DRIVE DRIVE
PULLEY BELT
CLUTCH
/FRAME
PULLEY
HOUSING J
DRIVE PULLEY _'x HA{RPIN
SHAFT CLIP
FIG. 13
NOTE: For belt routing see Fig. 14,
DRIVEBELTADJUSTMENT
NOTE'. A misad'ustedl belt will wear faster. Be sure
to keep belt properly adjusted.
If the clutch lever has reached the top of the slot in
the clutch frame and the belt is still loose, move pulley
to upper hole in clutch frame (See Fig° 13) and repeat
steps 1 through 4 above°
FIG. 14
CLEAltUNDER DRIVE COVER
Clean under drive cover twice a season. Scrape
underside of cover with putt), knife or similar tool to
remove any build-up of trast_ or grass on underside
of drive cover.
13
T$
_R_RETOR
Your carburetor has a non-adjustable fixed main jet
for mixture control. If your engine does not operate
properly due to suspected carburetor problems, take
,oOUrmower to an authorized Sears Service Center
rrepair and adjustment.
£mGgHESPEED
Your engine speed has been factory set. Do not at-
tempt to increase engine speed or it may result in per+
sonal injury, if you believe that the engine is runn-
ing too fast or too slow, take your mower to an
authorized Sears Service Center for repair and
adjustment.
REARDEFLE_OR
The rear deflector, attached between the rear wheels
of your mower, is provided to minimize the possibilty
that objects will be thrown out the rear of the mower
into the operator mowing position.
if the rear deflector becomes damaged, it should be
replaced.
1"0ADJUSTHANDLE
Your lawn mower handle can be mounted in a high
or low position for your mowing comfort+ Handles
are shipped mounted in the high position
+To change from high to low position, only the
lower handle sectionwill have to be turned over.
(See Fig. 15.)
o Remove the upper handle section and all of the
parts that are attached to the lower handle sec-
tion. Remove all of the parts that hold the lower +
handle to the handle brackets(See Fig. 16).
+Turn the lower handle over and re-assemble atl
of the parts that were taken off. Re-assemble the
upper handle (See Fig. 16)+
HANDLE
LOWER
DLE
ROTATE
FIG. 15
++,, +o+
HANDLE BRACKET
FIG. 16
14
Your mower and engine should be prepared for off
season storage as follows:
MOWER
• Clean underside of mower housing. (See "Clean-
ing" in Maintenance section of manual).
o Inspect and replace/sharpen b!ade, if required
(see "Blade/Blade Flange Car_ 'in Maintenance
section of manual).
o Hose grass catcher off with water and let dry
before storing,
o Lubricate as shown in Service Recommendation
Chart on page 16 of manual°
HANDLE
o You can fold your mower handle for storage as
shown in Fig. 17_
o To fold, sqeeze the bottom ends of the lower han-
dle toward each other until the lower handle
clears the handle bracket, then move handle for-
ward (See Fig. !8).
IMP01tTAHT: WHEN FOLDING THE HANDLE FOR
STORAGE OR TRANSPORTATION,
BE SURE TO FOLD THE HANDLE AS
SHOWN IN FIG. 17_ IF YOU FOLD
THE UPPER HANDLE SECTION THE
WRONG WAY, YOU MAY DAMAGE
THE CONTROL CABLES
ENGINE
o Change oil (see "TO CHANGE OIL" in
maintenance section of manual).
o Drain fue! and run engine until fuel system is
empty.
IMP011TAHT: IT IS IMPORTANT TO PREVENT GUM
DEPOSITS FROM FORMING tN
ESSENTIAL FUEL SYSTEM PARTS
SUCH AS THE CARBURETOR, FUEL
FILTER, FUEL HOSE, OR TANK DUR-
ING STORAGE° ALSO, EXPERIENCE
INDICATES THAT ALCOHOL BLEND-
ED FLIELS (CALLED GASOHOL OR
USING ETHANOL OR METHANOL)
CAN ATTRACT MOISTURE WHICH
LEADS TO SEPARATION AND FOR-
MATION OF ACIDS DURING
STORAGE. ACIDIC GAS CAN
DAMAGE THE FUEL. SYSTEM OF AN
ENGINE WHILE IN STORAGE.
FIG. 17
_0,,.o \ A.D
///j_ MOUNTING PIN
FIG_ 18
OTHE_
• Do not store gasoline from one season to another.
o Replace your gasoline can if your can starts to
rust. Rust and/or dirt in your gasoline can cause
problems°
• Do not store your mower under any plastic cover.
Plastic cannot breathe which allows condensation
to form and can cause your mower to rust°
• When setting up your handle from the storage
position, the lower handle wil! automatically lock
into the mowing position°
15
SERVICERECORD SCHEDULE
Fill in dates as you completeregular
service First Every Every Every Every
2 10 25 50 Use
Hours Hours Hours Hours
Blades Sharpened
Blades Replaced
EngineOil Change
Engine Oil Check
Air Cleaner Replaced
Spark Plug Replaced
Lubricate Mower
Cleaning
Grass Catcher (if applicable)
Muffler ,,,,, ,,,,,
Belt 8, Pulley
J
-CHECK
LUBRm TmONCHART
O SAE 30W MOTOR OIL
(lOW 30)
SPRAY LUBRICANT
v"
SERVICEDATES
II
BRAKE SPRING BRACKET Q
HANDLE BRACKET MOUNTING PIN O ©ENGINE OIL
WHEEL ADJUSTER
REAR DOOR HINGE
16
T TS
PROBLEM
Doesnot
Start
Lossof
Power
i,,
Poorcut-
Uneven
i ii ii_,ll,,,,i,r_l
Too much
Vibration
StatlerRope
Hard to Pull
CatcherNot
FillingCompletely
HARDTOPUSH
CAUSE
I,, Dirty Air Filter°
2,, Out of gasoline_
3,, Stale Gasoline.
4, Spark plug wire is disconnected
from the spark plug
5_ Bad spark plug.
&Water in gasoline.
7_ Loose blade or broken blade
flange.
8.. Operator Presence Control Bar in re-
leased position,
9o Operator Presence Control Bar defec-
tive.
t_ Rear of mower housing/blade
dragging in heavy grass._
2, Cutting too much grass,
3Dirty air filter
Build-up of grass, ]eaves, and
trash under mower housing°
5_ Walking speed too fasL
6_ Too much oil in engine,,
1_,Worn, bent or loose blade,
2 Wheel heights uneven.
3,. Low engine speed,
4, Build_up of grass, leaves and trash
under mower housing_
1, Worn, bent or loose blade,.
2Loose blade,
3o Bent engine crankshaft
1._ Flywheel brake is on when Operator
Presence Control Bar is released,,
2, Bent engine crankshaft,,
3, Blade flange sheared°
4_ Blade dragging in grass_
I,, Cutting height too IOWA
2, Lift on blade worn off°
3_ Catcher bag dirty, poor air
venting°
4_ Low engine speed.
2t_ High Grass or cutting height too Iowa
Rear of mower housing/blade
dragging in heavy grass_
3_ Grass catcher too full
4_ Handle height position not right for you.
11
CORRECTION
1, Replace Air Filter
.Fill gasoline tank_
3o Drain gas tank and refill with fresh
gasoline°
4, Conned wire to spark plug.,
5Replace spark plug.
6, Drain tank and refill with fresh, dean
gasoline_
7 Tighten blade nut and/or replace
blade flange,,
B_ Depress Operator Presence Control Bar
9., Replace Operator Presence Control Bar
1, Raise rear of mower housing one (1)
setting higher than front,
2_ Set in "Higher Cut" position
3Clean or replace air filter,
4, Disconnect spark plug wire and
clean underside of mower housing
5, Cut at slower walking speed
6Check engine oil level.
1Replace blade, Tighten blade nut
2, Set all wheels at same height
3., Set engine speed selector on
"HIGH" or "FAST"
4_ Disconnect spark plug wire & clean
underside of mower housing
,Replace blade,,
• Tighten blade nut,,
3, Contact Sears Service Department°
1_ Depress Operator Presence Control
Bar to upper handle before pulling
on starter rope.
2_ Contact Sears Service Department,,
3. Replace blade ftange_
4. Get over low grass andlor hard surface
to start engine.
I• Raise cutting heighL
2, Replace btade_
3_ Clean/replace catcher bag_
(If optional grass catcher is being
used).
4o Set engine speed selector on
"HIGH" or "FAST"_
1o Raise cutting heighL
2o Raise rear of mower housing one (t)
setting higher than front.
3_ Empty grass catcher,,
4. Adjust handle height to suiL
€_
0
cv)
uU
Z
u,l
I,U
0
Z
0
Z
IB
M.
\
_0
o
f
¢'3
,0
t
o-t _'
\
P
u't
0
u"l
ff,t
18
p_
I
W
0
cO
r,,
C_
r_
Z
ml
U_l
Q
0
0
Z
>.
0
N
Z
I-
Ll.
n-
O
o
E
Z
E
Z
0_
C_Z
O0 x
._ o
Xx 7" 8
_,_ _ _ o
o_ _ _ '4
=o_
x
_: _ _" x
_ _,-6"_ _ .o_,- o.=__.
_ _- ___
_ x_ _ I---_ Z I---
x
8
o
{¢J
a_
IIIi
w
0
€_
N
€_j
lira
O}
ILl
_0
Z
W
C_
OC:
uJ
C_
_E
.ll
C}
N
Z
r_
Im
Q_
a:
€_
\
\
\
t
2O
CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.372230 REPAIR PARTS
Ref.
No,
1
2
3
4
5
6
7
8
9
10
!1
t2
13
14
15
16
17
Part
No.
88043
_802_ _
58334
75919
STD541425
88066
88067
_3
72907
STD522515
m
m
_7
88069
84BOeO
Part Name
Drive Pulley
Roll Pin 3/16 x 7/8
Retaining Ring
Hex Head Bolt 1/4_20 x 3/8
R
N
1
1
20
21
Taptite
Hex Locknut 1/4-20
Clutch Lever
Clutch Lever Spacer
Carnage Bolt 5/16-18 x 1-318
22
2
2,
25
2!
Hex Head Bolt 114-20 xt 1t2
Gr. 5
D_t $1hr,m_
29
3O
3t
32
j4
Part
No.
STD581050
67725
Part Name
lit J j_lllll i i, I Jll[_l
E-Ring
Washer 1/2 x t-1/2 x t/8
_8
52160
55015
77400
88118
88082
4S_i64
STD541425
Washer (Flat) 1/2
Retainer Clip
Hubcap
Felt Washer
Drive Pulley
_'S!_rft
Locknut 1/4-20
88044
88055
87877
88446
86953
Selector Assembly (Left)
Setecfo¢ Ais_lemb_ (Right|
L=ver KrmO IVmlflJ
_,onv Wh_t 8k_m=_
5._f T_ ._:_ew 10 24 Q 1,2
97 'e;_127
131
51
l
[_10o
lOl
#115 //_
82 26
61
7
38
22
CP I:TS N
Re£ Part
No. No.
134975
2 26727
4 32600
529314B
5 29315C
6 29313C
6 29315C
9 31672
10 31673
11 3E,r,r,r,r,r,r,r,_
14 35544
14 35545
14 35546
14A 35541
14A 35542
14A 3554-3
15 20381
16 35547
16 35548
t6 35549
17 30963B
18 32610A
21 27241
33148A
23 29914
24 *35261
25 33521C
26 26208
28 27244
30 35479
31 30574
32 65O488
33 30591
34 29193
35 30588A
36 31335
37 31513
38 28277
39 31353A
4O 650548
42 611004
43 35499
44 650562
45 35578
46 3264.3A
47 34&35
48 6021A
49 35577
5O 34265
5t 35395
52 "27234A
53 32755
55 35OO0
57 650128
59 "34690A
60 3t384A
62 650451
63 650839
65 35015A
4=(Y Ei @NF
Part Name
'"Cylinder hssy (Inc! Nos. 2, 4, 94 8,
96)
Pin, Dowel
Seal, Oit
Valve, Intake (Std.) (lnclo No. 10)
Valve, Intake (1/32" oversize) (Incl.
No, 10)
Valve, Exhaust (Std.) (Incl. No. 10)
Valve, Exhaust (1/32" oversize) (lncl.
No. 10)
Spring, Valve
Cap, Lower valve spring
Crankshaft
Piston, Pin _ Ring Assy. (Std.) (]nct.
Nos. 14A, 15 _ 16)
Piston, Pin 8- Ring Assy, (.010 over-
size) (Incl.. Nos. 14A, 15 _ 16)
Piston, Pin _ Ring Assy, (.020 over_
size} (Incl. Nos. 14A, 15 8, 16)
Piston 8- Pin Assy. (Std.) (Incl. No. 15)
Piston 8, Pin Assy (,010 oversize)
(lncl° No. 15)
Piston 8, Pin Assy (.020 oversize)
(Incl. No. 15)
Ring, Piston pin retaining
Ring Set, Piston (Std.)
Ring Set, Piston (.010 oversize)
Ring Set, Piston (020 oversize)
Rod Assy., Connecting (lncl No 18)
Bolt, Connecting rod
Lifter, Valve
Camshaft (Compression Release)
Pump Assy., Oil
Gasket, Mounting flange
Flange Assy, Mounting (IncI Nos 26,
28, 31, 49 8, t08)
Seal, Oil
Plug, Oildrain
Washer, Flat
Shaft, Mechanicaf governor
Screw, Hex hd Sems, 1/4-20 x lq/4
Gear Assy, Governor (tncl No 30)
Ring, Retaining
Spool, Governor
Clamp, Governor lever
Rod, Governor
Washer, Flat
Lever, Governor
Screw, Hex washer hd,, 8-32 x 5/t6
Key, Flywheel (Solid State)
"O" Ring
Screw, Hex washer hd shakeproof,
10-32 x 1/2
Dipstick, Oil fill
Gasket, Cylinder head
Head, Cyliqder
Screw, Hex flange hal, 5/16-18 x 1-!/2
Tube, Oil filler
Gasket, Fitl tube
Resistor Spark Plug (Champion RJ-
19LM or equivalent)
Gasket, Valve spring cover
Cover, Valve spring box
Hub, Starter
Screw, Hex hd, Sems, 10-24 x1/2
Gasket, Intake
Pipe, Intake {Incl, No. 59)
Screw, Hex hd, Seres, 1/4-20 x1
Screw, Hex hd, self tap Sems, 1/4-20
x 7/16
Bracket Assy,, Brake
Ref.
No.
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
94
96
97
98
99
100
t01
t02
t03
105
t06
107
108
109
110
111
t12
113
114
115
121
122
!23
127
128
129
130
131
138
139
140
P
i
MODEL NUMBER: 143.394012
Part
No.
34965
34966
323O9
34968
610973
35727
33802
650777
34337
34336
650549
31342
3331
35065
35067
35066
35068
"26756
Part Name
34961
6201
29752
32410
30200
35167
34443A
650814
34215
"32760A
30200
30200
35478
650831
35391
35586
35355
26460
34357
650815
650816
31744
31745
31746
31747
35667
31787
31749
65O492
27181B
650795
611112
34985
35168
34O8O
35392
65O884
632388
59O621
33238D
Spring, Extension ........
Link, Control
Ring, Retaining
Lever, Brake
Terminar Assy.
Bracket Assy,, Control {lncl Nos 72,
73, 76 ra 77)
Spring, Compression
Screw, Fil, hd, 6-32 x 21/32
Link, Governor spring
Link, Governor;to-throttle
Screw, Fil hd, 5-40 x 7/16
Spring, Compression
Air Cleaner Kit {Incl. Nos 79 thru 82)
Cover, Air cleaner
Collar. Air c_eaner
Filter, Air cleaner i
Clamp, Air cleaner
Gasket, Carburetor
Wire, Ground
Screw, Hex hd • 1/4-28 x 7,'8
Nut 8- Lockwasher. 1/4-28
Knob, Control
Screw, Hex washer hd. serf-tap
Sems, 10_24 x 9/16
Decal, Instruction
Solid State Assy
Screw. Torx hex washer hd Sems. I
t0-24 x 1
Breather Assy (lncl Nos 94 Et 96)
Gasket, Breather
Screw, Hex washer hd serf-tap, t
Sems, 10-24 x 9/16
Screw, Hex washer hd self-tap Seres. ,
10-24 x 9/16 f
Housing, Blower 1
Screw, Hex washer hd powerlok I
thr'd., 1/4-20 x t5/32
Decal, hstruction
Tank Assy, Fuel (Incl Nos "102 Ef 103} I
Cap, Fuel tank I
Clamp, Fuel line [
Line, Fuel
Washer, Bellevilte I
Nut, Flywheel I
Seal, Oil I
Washer, Tang I
Gear, Worm
Washer, Flat
Shaft, Power take-off
Washer, Flat
Ring, Retaining
Screw, Hex hd, Sems, t/4-20 x 2-1/4
Muffler {Incl, No 122)
Screw, Hex hd, I/4-20 x 2q/4
Flywheel
Rope Stop 8, Staple Assy
Bracket Assy., Rope guide
Spacer, Fry'wheel key
Plug, Starter
Screw, Hex washer hd., 8-32 x 1/2
Carburetor ttncl No 83)
Starter, Rewind .
Gasket Set (Inci items marked }
RPM Speed Settings:
Low, 2050;" High, 3000
*indicates Parts _ncluded in
Gasket Set, Ref No. 140.
23
CARBURETOR NO. 632388
............. ,, ,, ,
I I
II
f* 12
I
t3//
f
t f
_26
_ ....... 2"t
I
_22
15
Ref. Part
No. No. Part Name
632388 Carburetor
631615 Shaft _Lever Assy,, Thmttte
631616 Shutter, Throttle
650506 Screw, Throttle shutter
631767 Spring, Throttle retum
631971 Seat, Dust
631184 Washer, Flat
632047 Primer Assy_
631027 Plug, Welch
631021 Inlet Needle, Seat I_ Qip Assyo
(fncL No. 13)
13 631022 Clip, Inlet needle
14 632019 Float, Carburetor
15 631024 Shaft, Float
16 631700 Bowl, Float
2t 631334 Gasket, Bowl-to-body
22 631935 Nut, Float bowl
25 631028 Gasket, Bowl-to-body
26 631775 F_ing, Fuel inlet
1
3
4
5
6
7
9
tt
12
REWIND STARTER NO. 590621
13
Ref. Part
No. No,
590621
1 5_KF---:_gA
2 5906O0
3 59O615
4 590601
5 59O598
6 590616
7 590617
8 59O618
9 590619
10 59O62O
1t 590622
12 590_5
59o452......
Part Name
Starter, Rewind
Pin, Spring (lncL No_4)
Washer
Retainer
Washer
Spring, Brake
Dog, Starter
Spring, Dog
Pulley
Spring. Rewind
Cover, Spring
Housing Assy. Starter
Rope, Starter (Length 98" _9/64"
die,)
Handle, Starter
3
6
•_'" 2
24
25

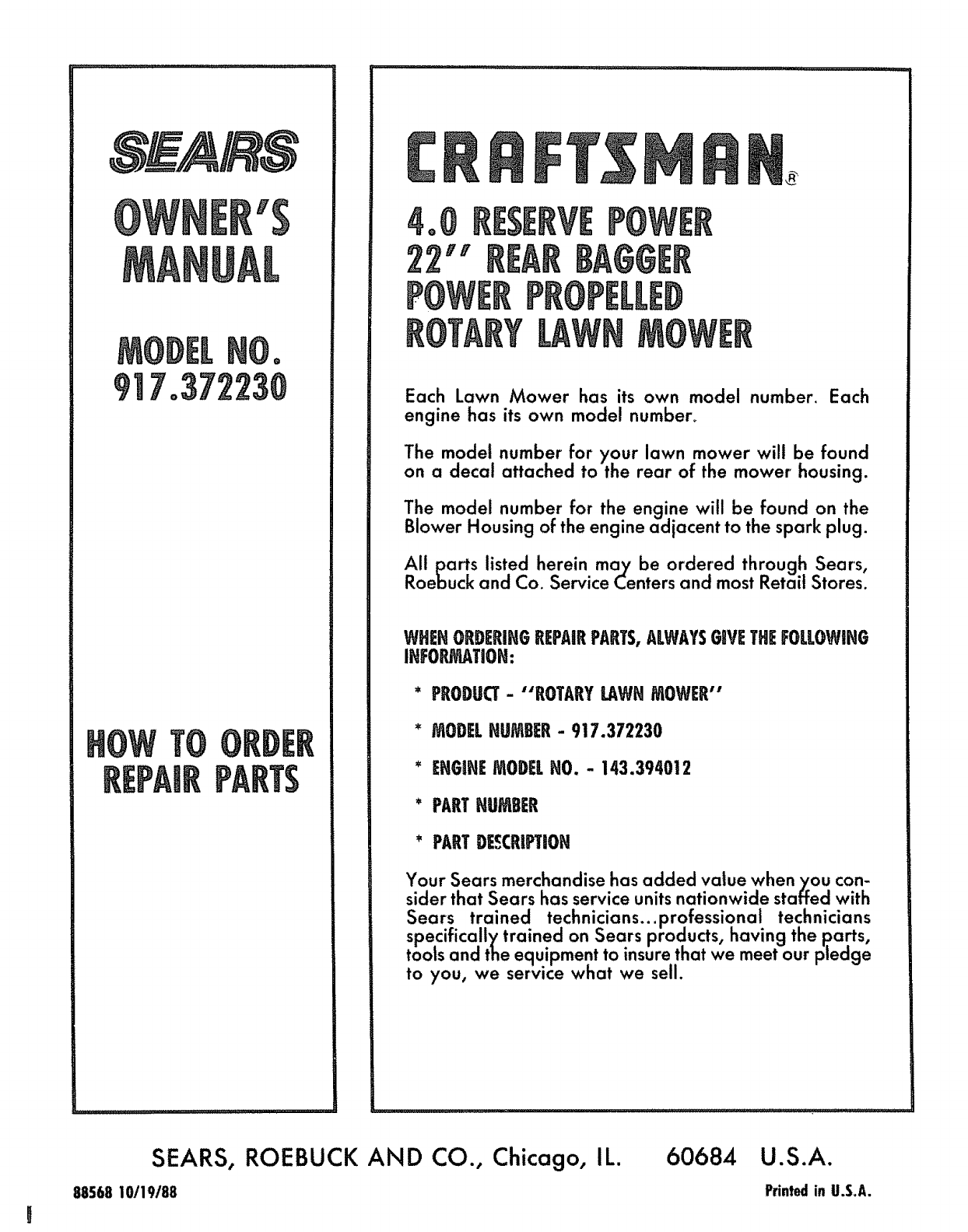

Each Lawn Mower has its own model number. Each
engine has its own model number°
The model number for your lawn mower will be found
on a decal attached to the rear of the mower housing.
The model number for the engine will be found on the
Blower Housing of the engine adjacent to the spark plug.
All parts listed herein may be ordered through Sears,
Roebuck and Co. Service Centers and most Retail Stores.
WHEHORDERIHGREPAIRPARTS,ALWAYSGaVETHEFOLLOWIHG
INFORELATION:
* PRODUCT- "'ROTARYLAWNMOWER"
*MODELNUMB[R- 917.372230
* EflGINEMODELNO. - 143.394012
_' PARTHUMBER
*PARTDEECRIPTION
Your Sears merchandise has added value when you con-
sider that Sears has service units nationwide staffed with
Sears trained technicians...professionai technicians
specifically trained on Sears products, having the .parts,
tools and the equipment to insure that we meet our pledge
to you, we service what we sell.
SEARS, ROEBUCK AND CO., Chicago, IL.
88568 10t!9/88
60684 U.S.A.
Printedin U.S.A.
