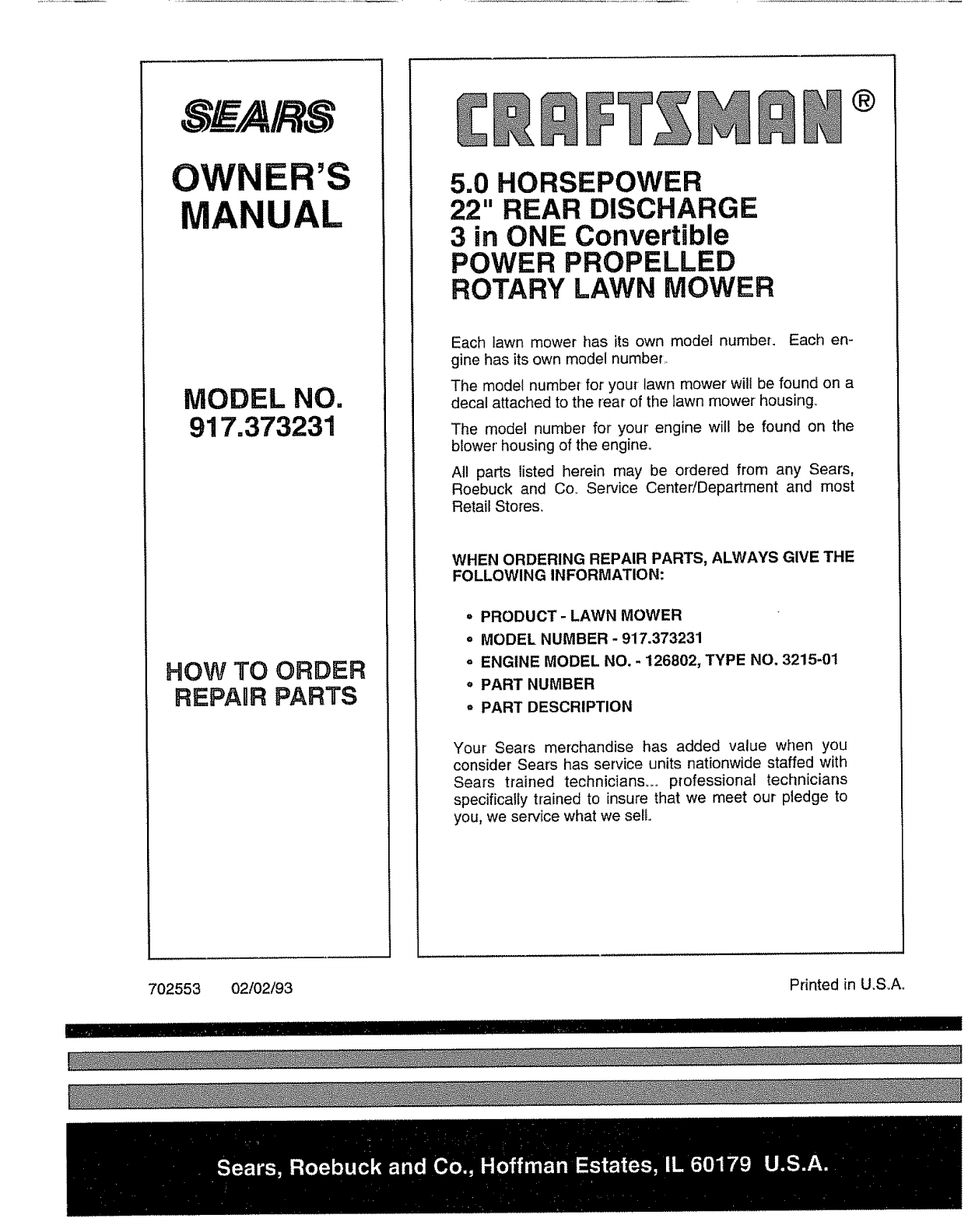

MODEL 917.373231 OWNER'SMANUAL

Conv_rt_bm_

° AssembHy

° Operation

oCustomer

Responsibilities

°Service

°Adjustments

oRepair Parts

Caution:

Read and Follow

all Safety Rules

and Instructions

Before Operating

This Equipment

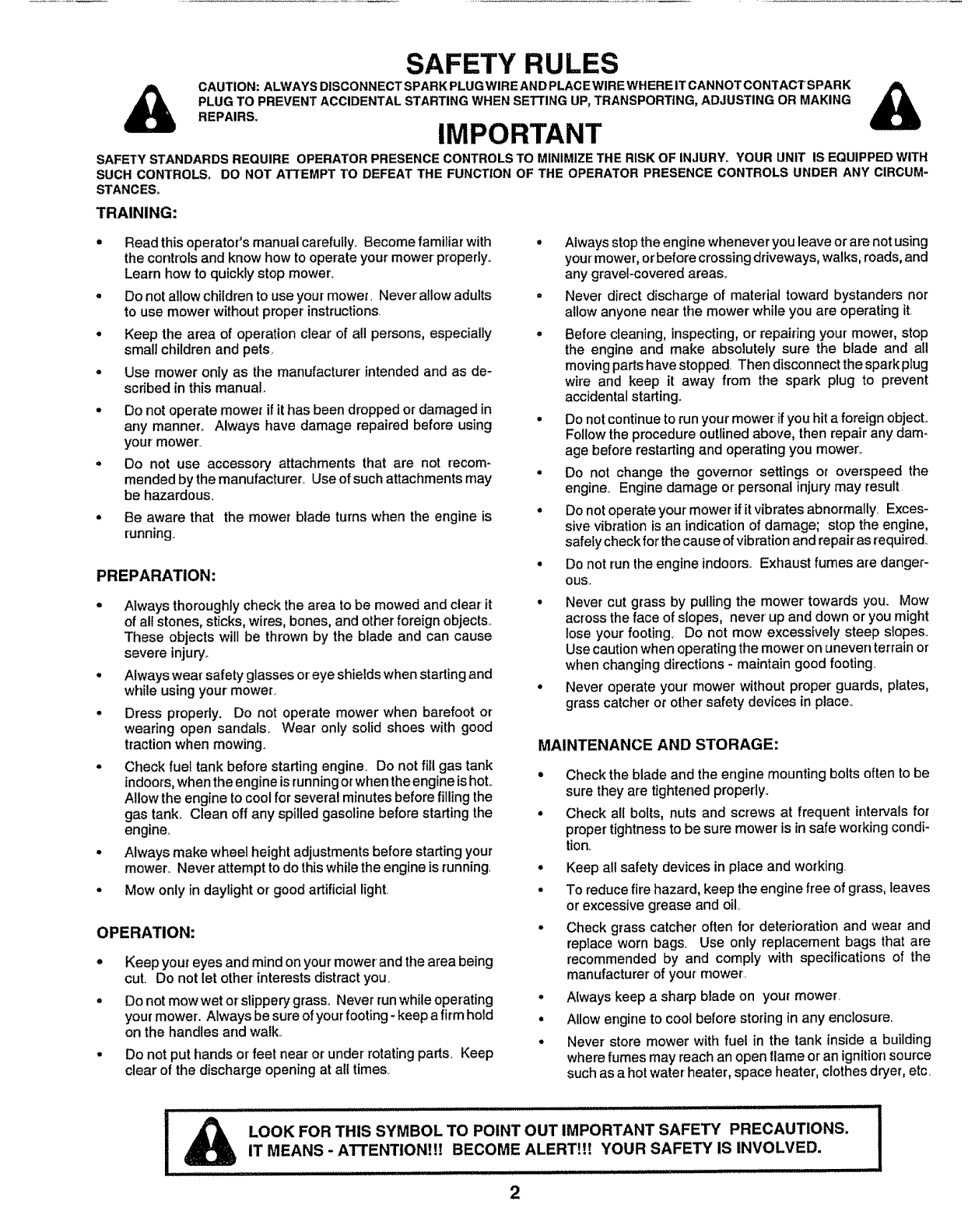

SAFETY RULES

REPAIRS. IMPORTANT

SAFETY STANDARDS REQUIRE OPERATOR PRESENCE CONTROLS TO MINIMIZE THE RISK OF INJURY. YOUR UNIT IS EQUIPPED WITH

SUCH CONTROLS_ DO NOT ATT'EMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROLS UNDER ANY CIRCUM-

STANCES°

TRAINING:

• Read this operator's manual carefully.. Become familiar with

the controls and know how to operate your mower properly.

Learn how to quickly stop mower.

• Do not allow children to use your mower. Never allow adults

to use mower without proper instructions

• Keep the area of operation clear of all persons, especially

small children and pets.

° Use mower only as the manufacturer intended and as de-

scnbed in this manual.

• Do not operate mower if it has been dropped or damaged in

any manner., Always have damage repaired before using

your mower:_

• Do not use accessory attachments that are not recom-

mended by the manufacturer._ Use of such attachments may

be hazardous.

Be aware that the mower blade turns when the engine is

running

PREPARATION:

" Always thoroughly check the area to be mowed and clear it

of all stones, sticks, wires, bones, and other foreign objects..

These objects will be thrown by the blade and can cause

severe injury..

° Always wear safety glasses or' eye shields when starting and

while using your mower_

° Dress properly. Do not operate mower when barefoot or

wearing open sandals. Wear only solid shoes with good

traction when mowing.

• Check fuel tank before starting engine. Do not fill gas tank

indoors, when the engine is runningor when the engine is hot.

Allow the engine to cool for several minutes before filling the

gas tank.. Clean off any spilled gasoline before starting the

engine.

• Always make wheel height adjustments before starting your

mower. Never attempt to do this while the engine is rvnning.

• Mow only in daylight or good artificial light

OPERATION:

• Keep your eyes and mind on your mower and the area being

cuL Do not let other interests distract you.

o Do not mow wet or slippery grass.. Never run while operating

your mower. Always be sure of your footing- keep a firm hold

on the handles and walk.

Do not put hands or feet near or under rotating parts. Keep

clear of the discharge opening at all times.

° Always stop the engine whenever you leave or are not using

your mower, or before crossing driveways, walks, roads, and

any gravel-covered areas.

• Never direct discharge of material toward bystanders nor

allow anyone near tire mower while you are operating it.

• Before cleaning, inspecting, or repairing your mower, stop

the engine and make absolutely sure the blade and all

moving parts have stopped. Then disconnect the spark plug

wire and keep it away from the spark plug to prevent

accidental starting.

• Do not continue to run your mower if you hit a foreign objecL

Follow the procedure outlined above, then repair any dam-

age before restarting and operating you mower..

• Do not change the governor settings or overspeed the

engine_ Engine damage or personal injury may result.

• Do not operate your mower if it vibrates abnormally. Exces-

sive vibration is an indication of damage; stop the engine,

safely check for the cause of vibration and repair as required.

• Do not run the engine indoors.. Exhaust fumes are danger-

OUS,,

•Never cut grass by pulling the mower towards you. Mow

across the face of slopes, never up and down or you might

lose your footing, Do not mow excessively steep slopes..

Use caution when operating the mower on uneven terrain or

when changing directions -maintain good footing.

• Never operate your mower without proper guards, plates,

grass catcher or other safety devices in place_

MAINTENANCE AND STORAGE:

• Check the blade and the engine mounting bolts often to be

sure they are tightened properly.

• Check all bolts, nuts and screws at frequent intervals for

proper tightness to be sure mower is in safe working condi-

tion.

• Keep all safety devices in place and working

• To reduce fire hazard, keep the engine free of grass, leaves

or excessive grease and oil

•Check grass catcher often for deterioration and wear and

replace worn bags. Use only replacement bags that are

recommended by and comply with specifications of the

manufacturer of your rnower_.

• Always keep a sharp blade on your mower.

• Allow engine to cool before storing in any enclosure.

• Never store mower with fuel in the tank inside a building

where fumes may reach an open flame or an ignition source

such as a hot water heater, space heater, clothes dryer, etc.

.................................................... , ,,,, ,,,,,,,,,

LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS.

IT MEANS- ATTENTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED,

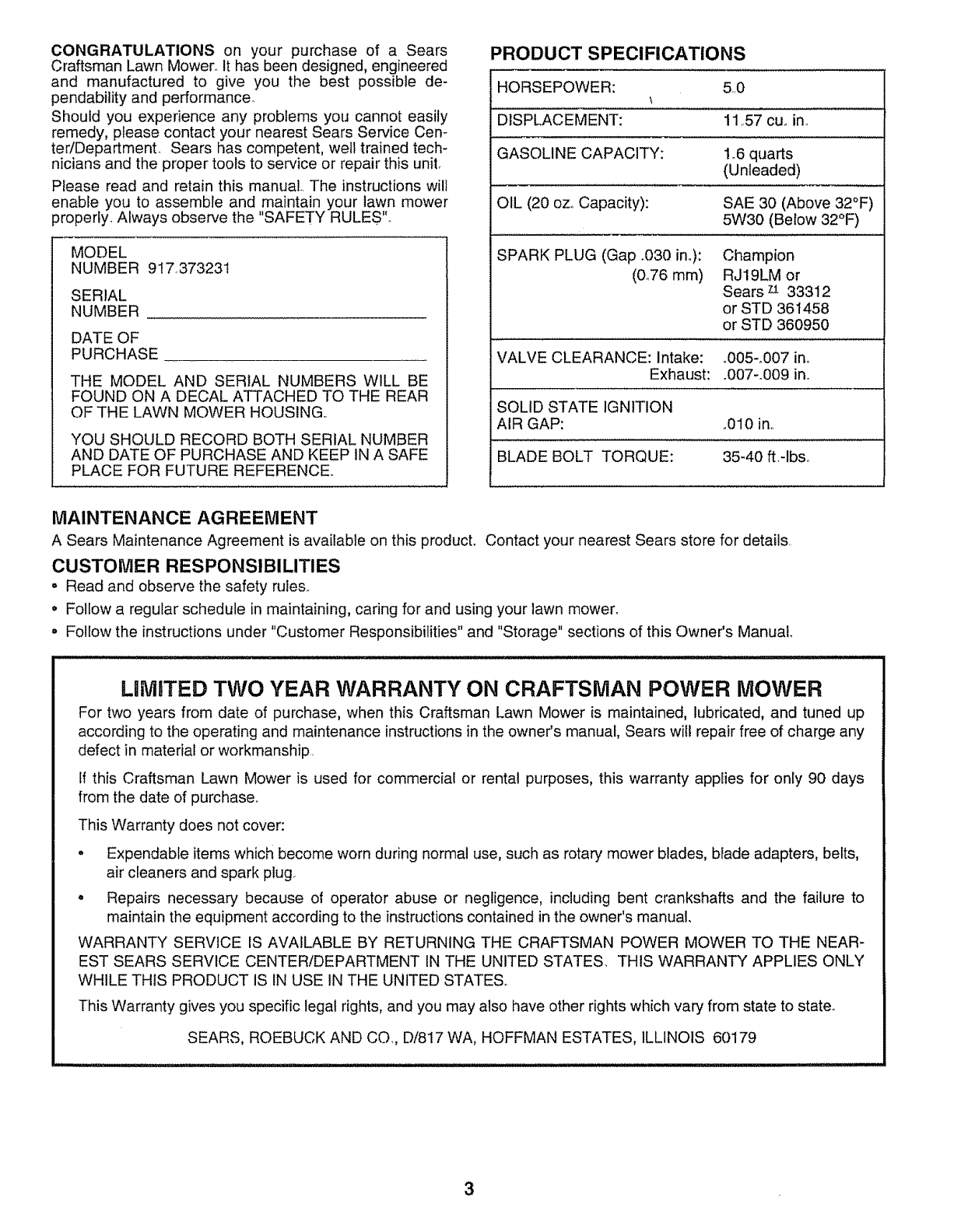

CONGRATULATIONS on your purchase of a Sears

Craftsman Lawn Mower_ It has been designed, engineered

and manufactured to give you the best possible de-

pendability and performance_

Should you experience any problems you cannot easily

remedy, please contact your nearest Sears Service Cen-

tedDepartment. Sears has competent, welt trained tech-

nicians and the proper tools to service or repair this unit.

Please read and retain this manual.. The instructions wilt

enable you to assemble and maintain your lawn mower

properly. Always observe the "SAFETY RULES'L

MODEL

NUMBER 917,373231

SERIAL

NUMBER

DATE OF

PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE

FOUND ON A DECAL ATTACHED TO THE REAR

OF THE LAWN MOWER HOUSING,.

YOU SHOULD RECORD BOTH SERIAL NUMBER

AND DATE OF PURCHASE AND KEEP IN A SAFE

PLACE FOR FUTURE REFERENCE,.

PRODUCT SPECIFICATIONS

HORSEPOWER: 5.0

DISPLACEMENT: 11..57cue in,,

GASOLINE CAPACITY: 1o6quarts

(Unleaded)

OIL (20 ozo Capacity): SAE 30 (Above 32°F)

5W30 (Below 32°F)

SPARK PLUG (Gap ..030 ino):

(0_76 mm)

Champion

RJ19LM or

Sears zt 33312

or STD 361458

or STD 360950

VALVE CLEARANCE: intake: °005-°007 ino

Exhaust: o007-_009 in.

SOLID STATE IGNITION

AIR GAP: o010 in,.

BLADE BOLT TORQUE: 35-40 ft.-Ibs_

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this producL Contact your nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

= Read and observe the safety rules..

•Follow a regular schedule in maintaining, caring for and using your lawn mower.

=Fo]fow the instructions under "Customer Responsibilities" and "Storage" sections of this Owner's Manual

LIMEED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up

according to the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any

defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days

from the date of purchase,_

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower blades, blade adapters, belts,

air cleaners and spark plug.

° Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to

maintain the equipment according to the instructions contained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE NEAR-

EST SEARS SERVICE CENTERIDEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY

WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES_

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO.., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

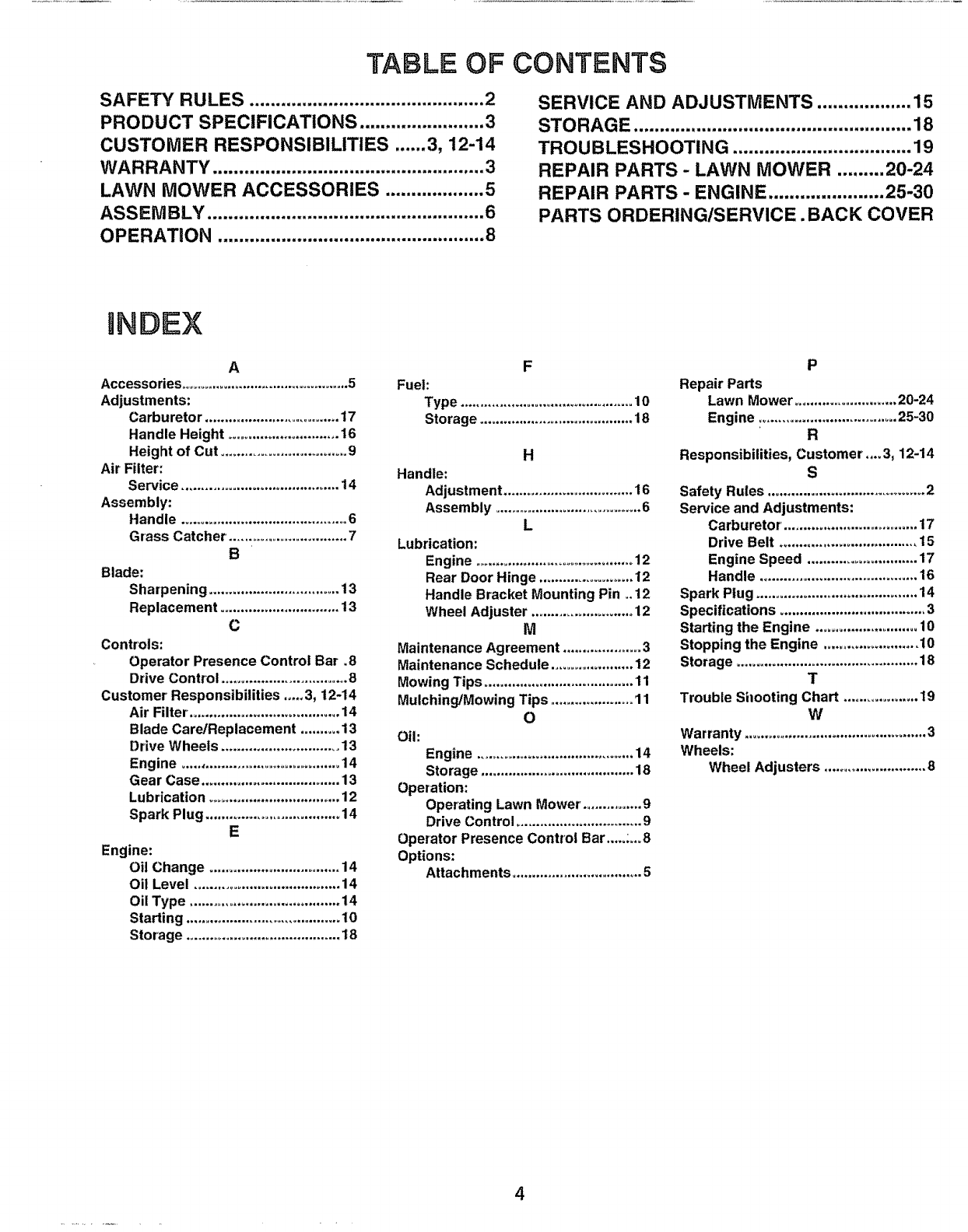

TABLE OF CONTENTS

SAFETY RULES ............................................. 2

PRODUCT SPECIFICATIONS ........................ 3

CUSTOMER RESPONSIBILITIES ...... 3, 12-14

WARRANTY .................................................... 3

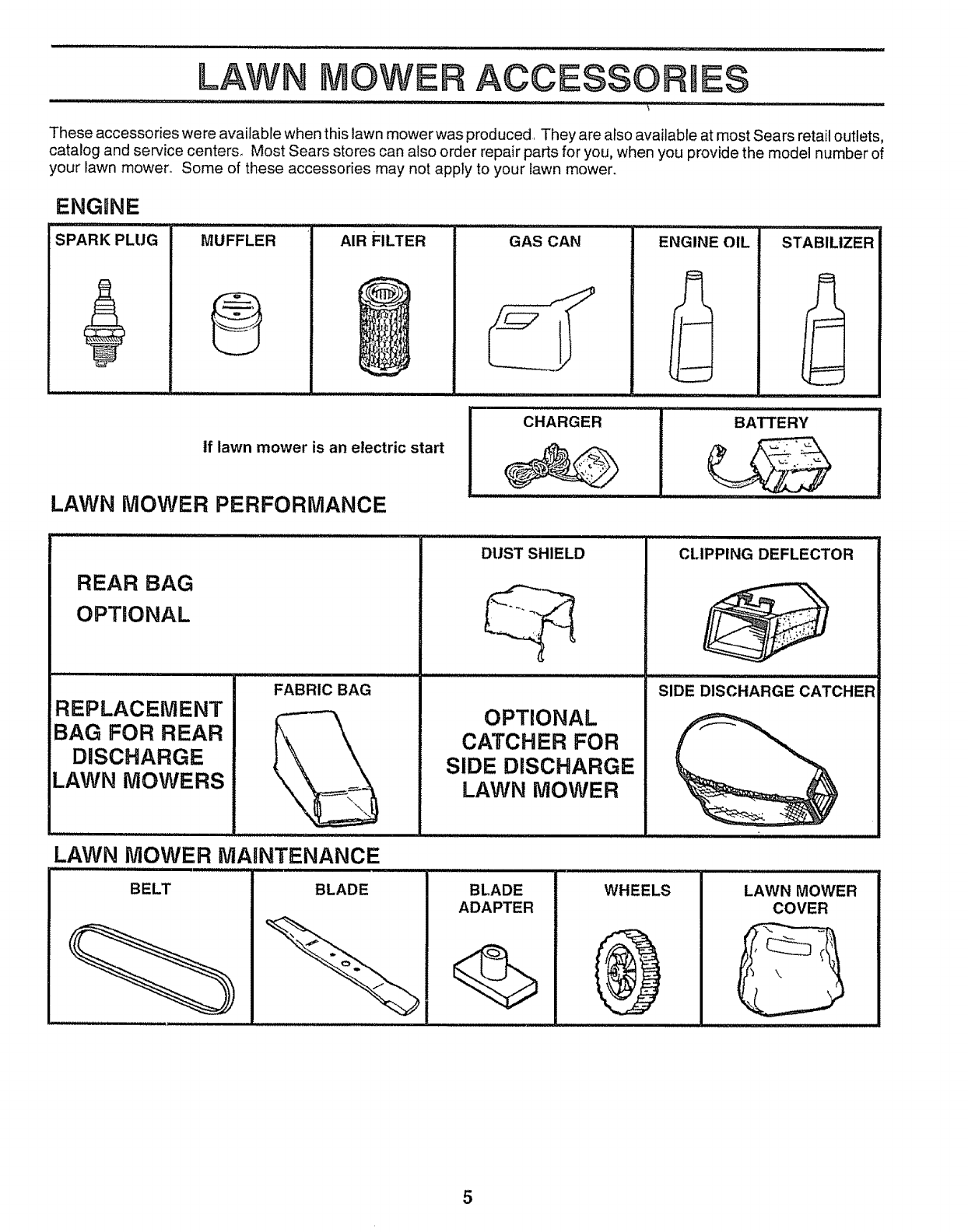

LAWN MOWER ACCESSORIES ................... 5

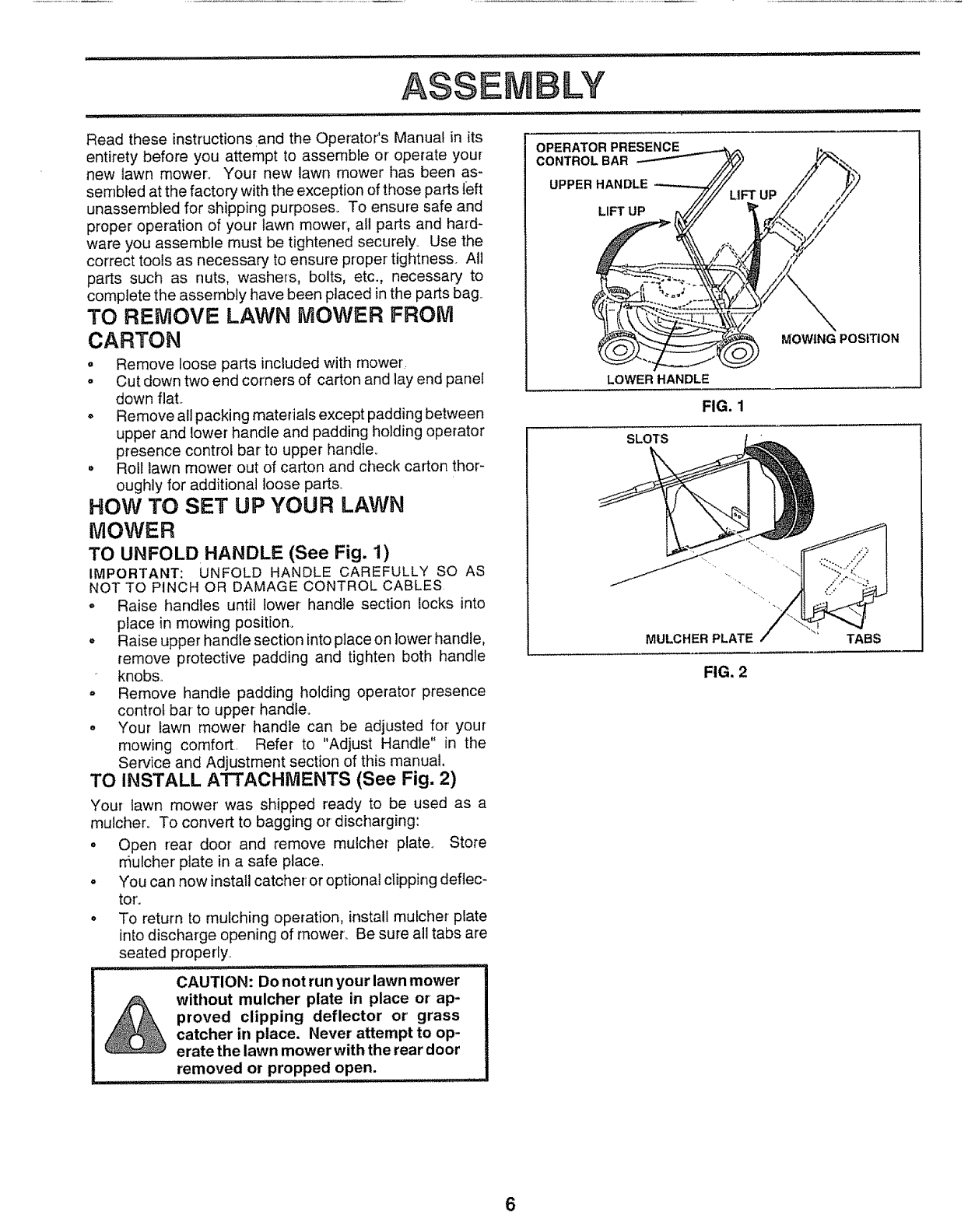

ASSEMBLY ..................................................... 6

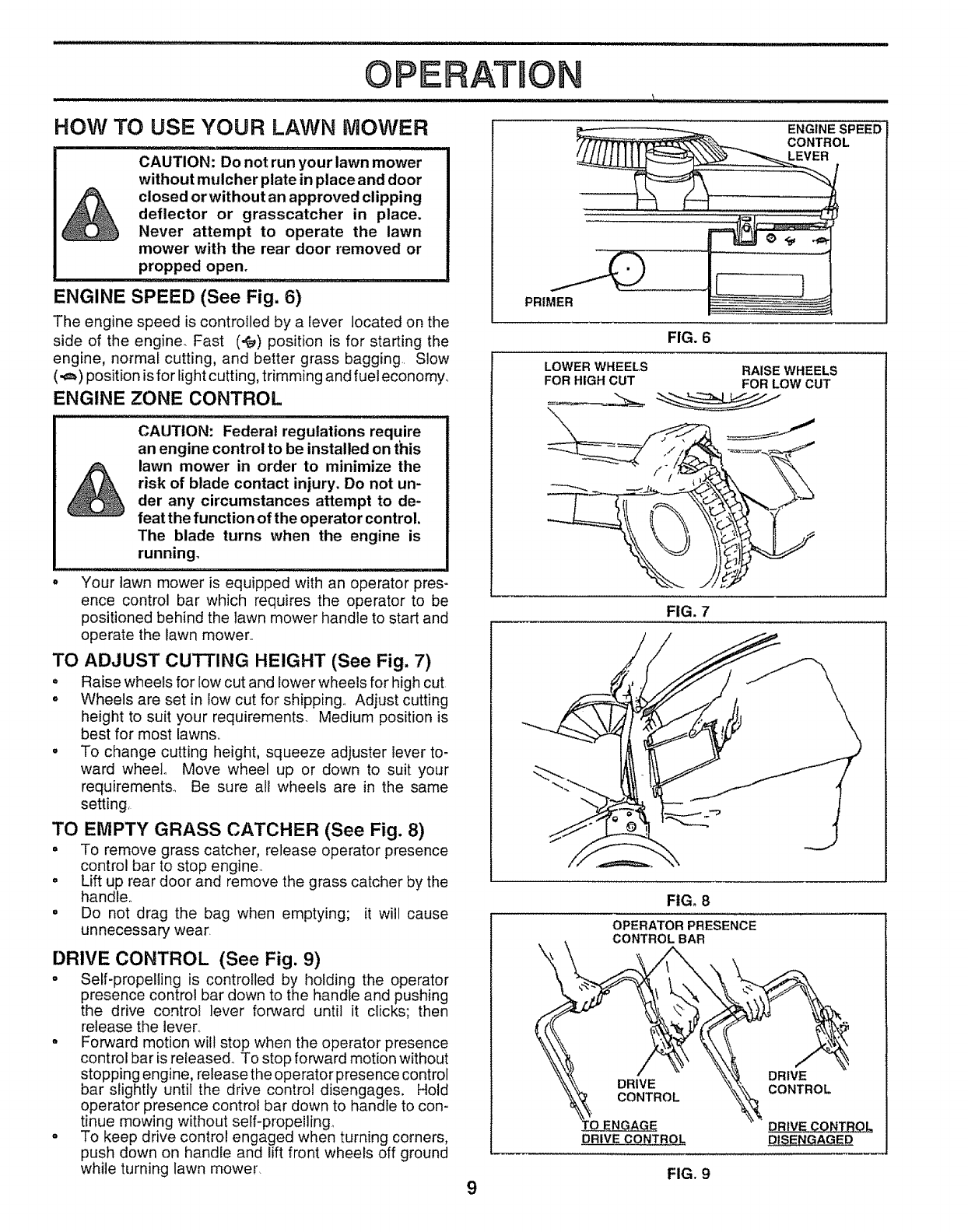

OPERATION ................................................... 8

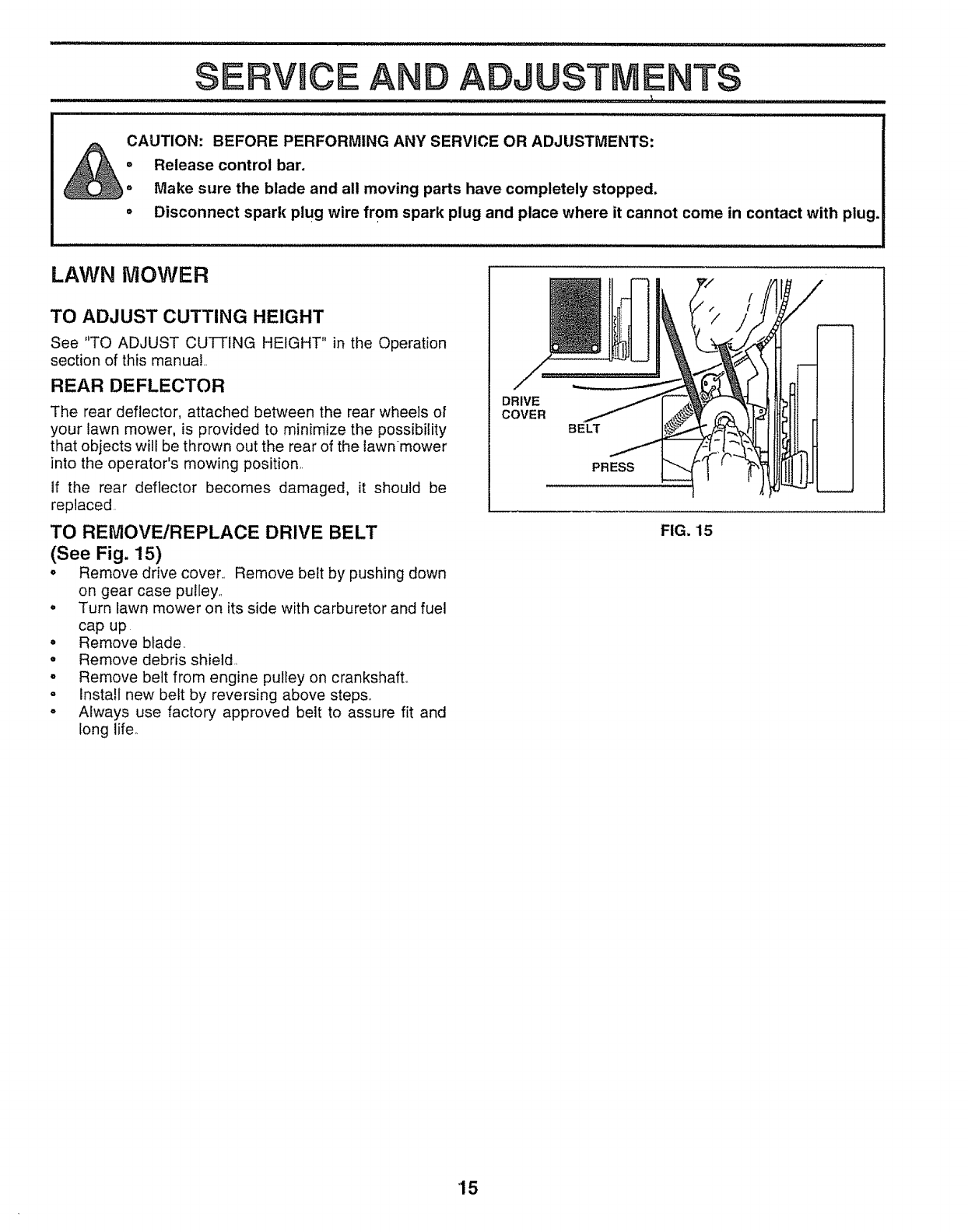

SERVICE AND ADJUSTMENTS .................. 15

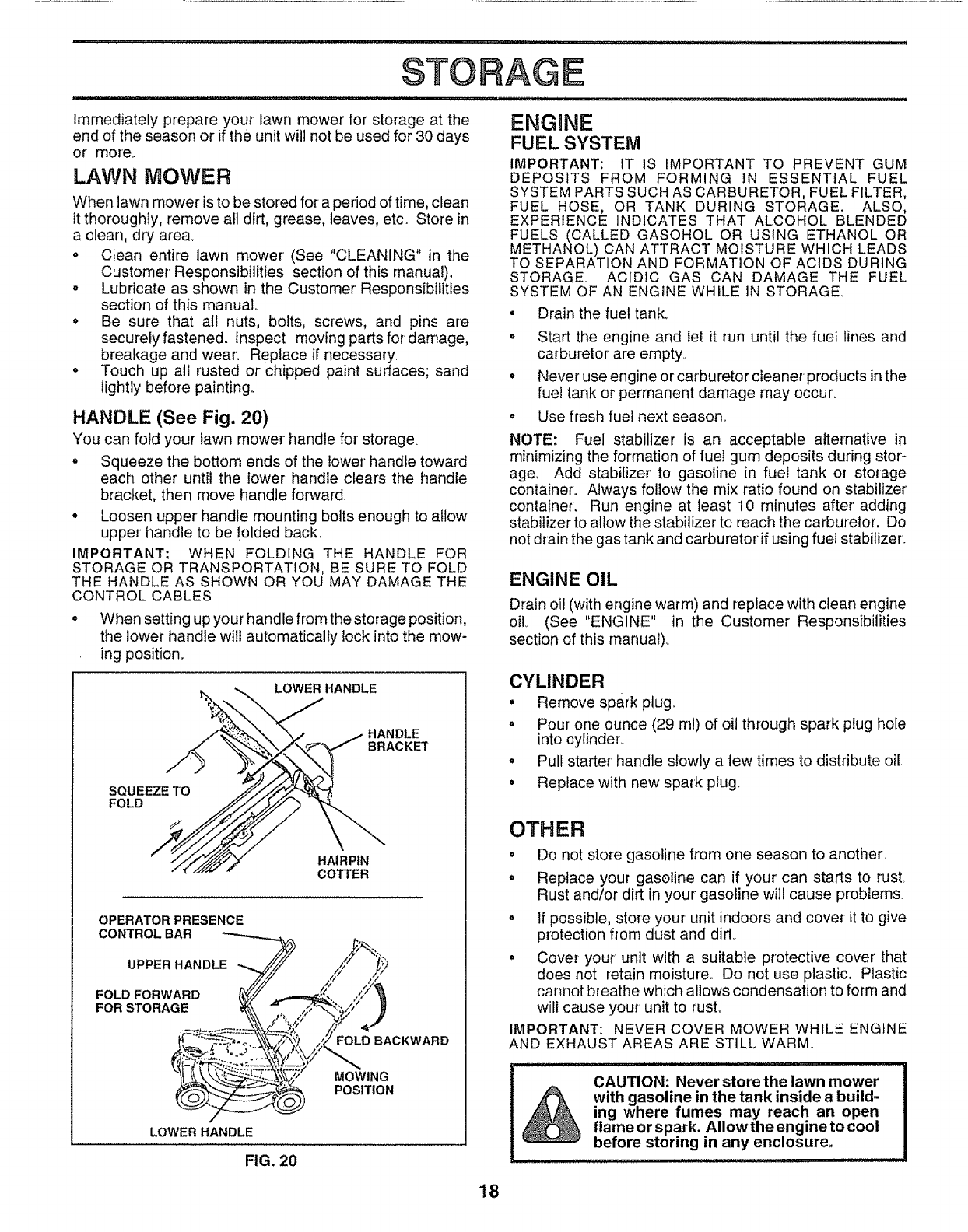

STORAGE ..................................................... 18

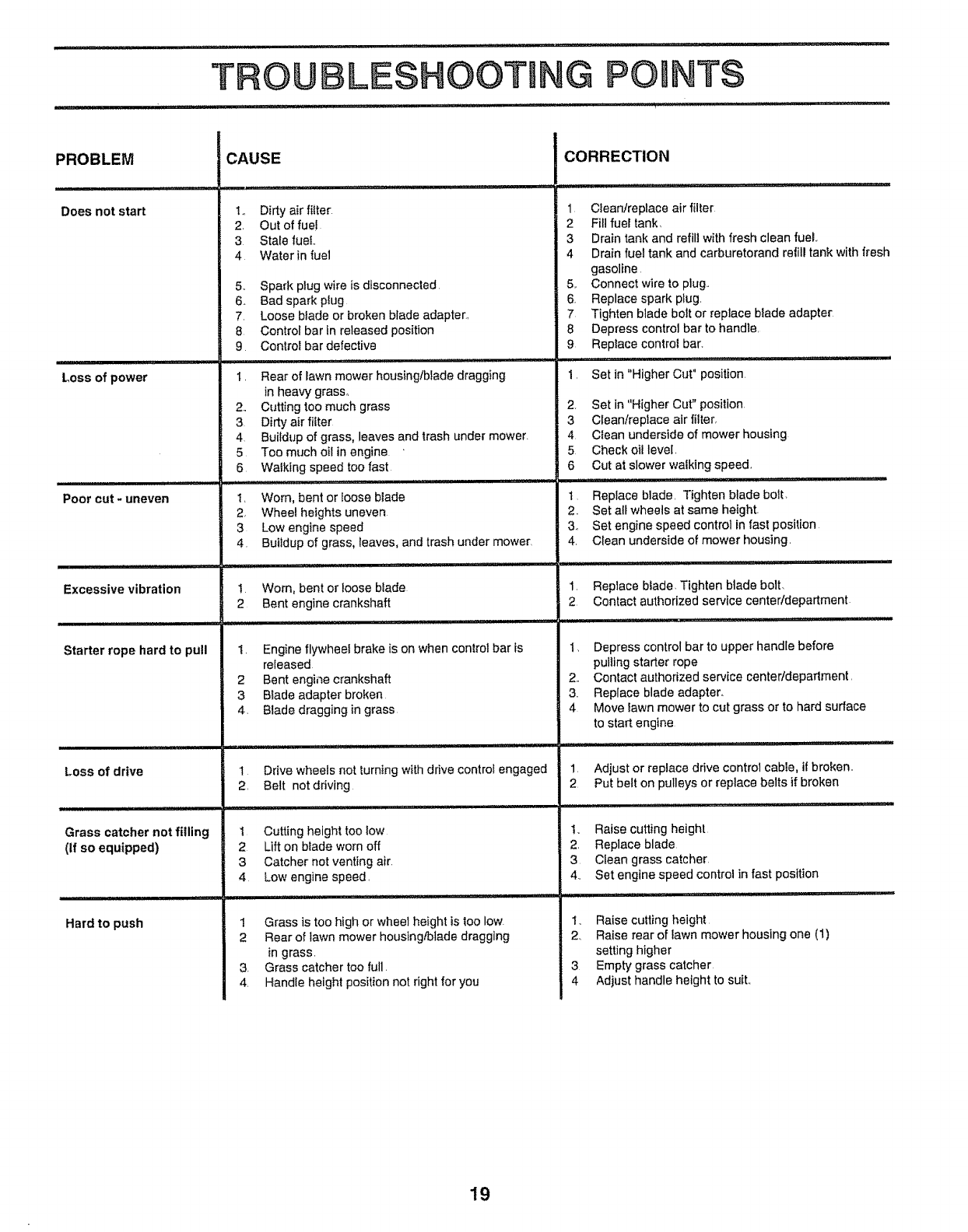

TROU B LESHOOTING .................................. 19

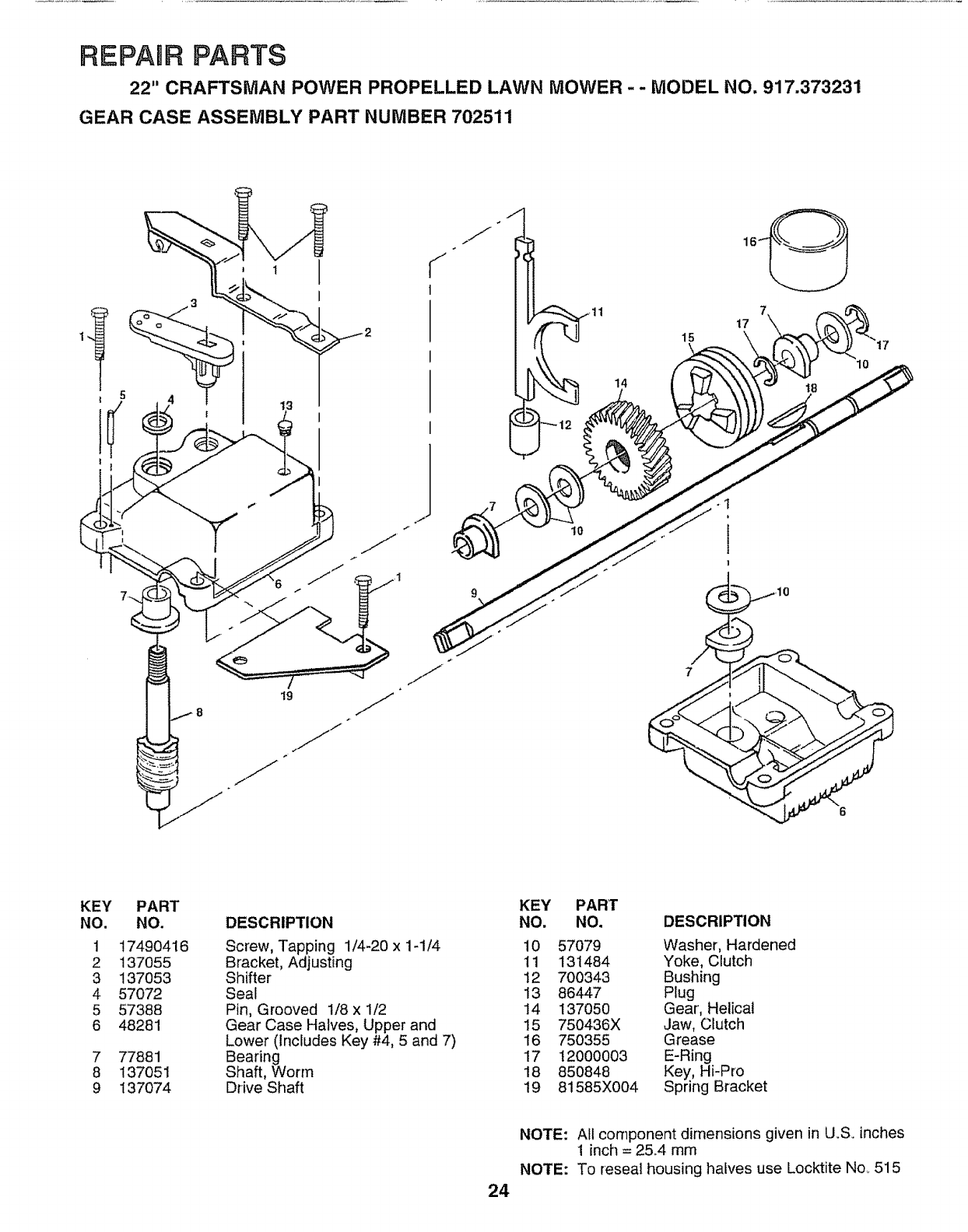

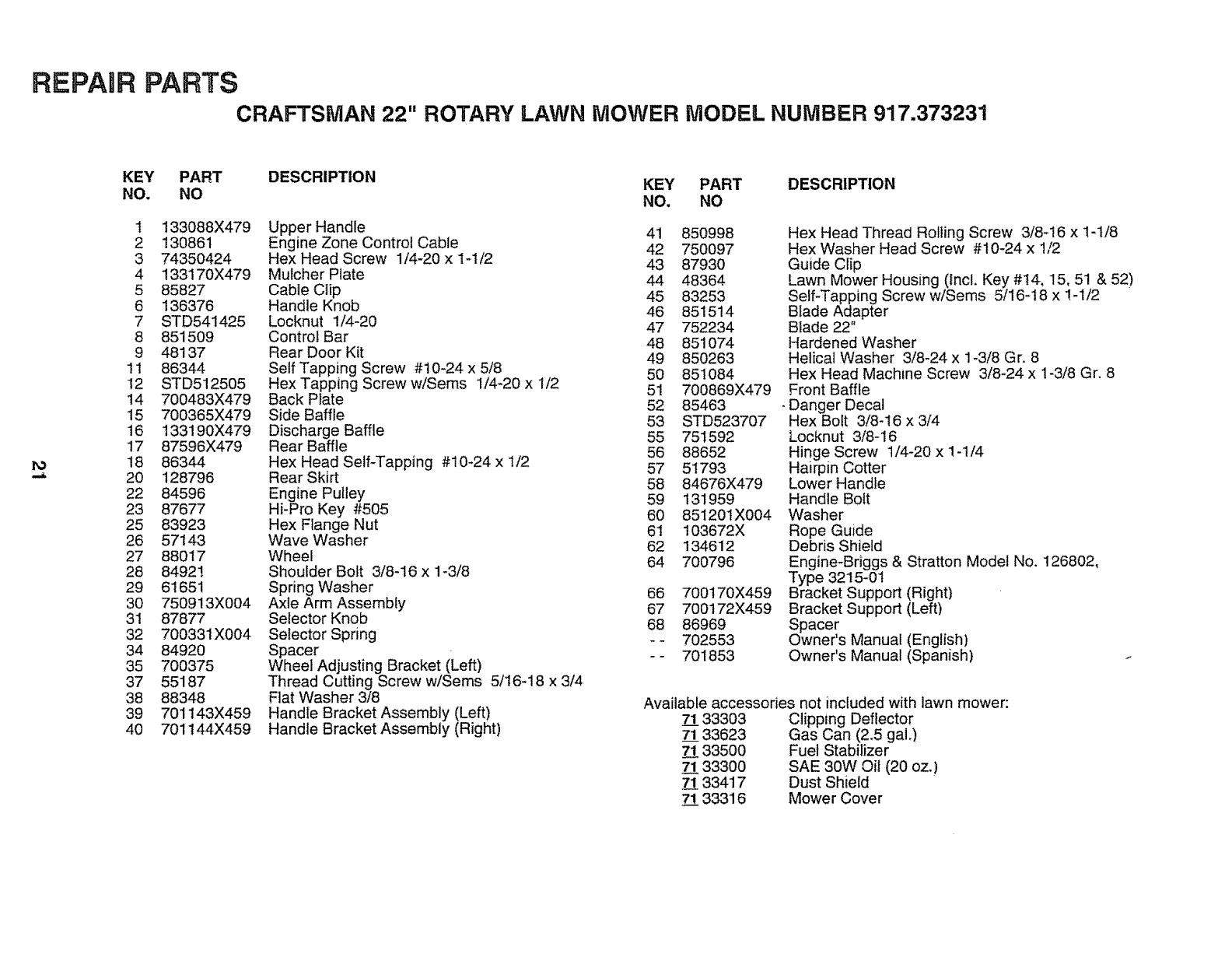

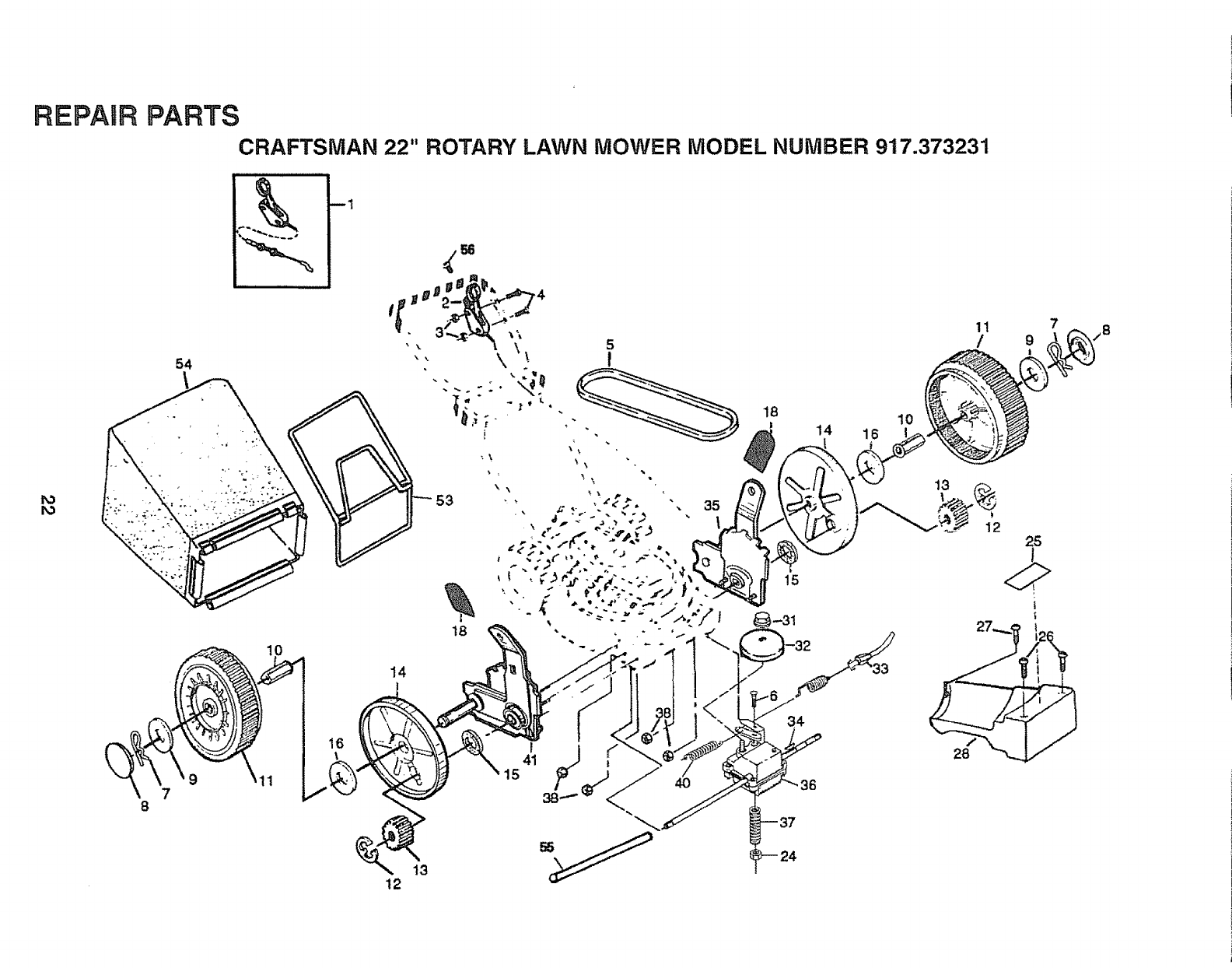

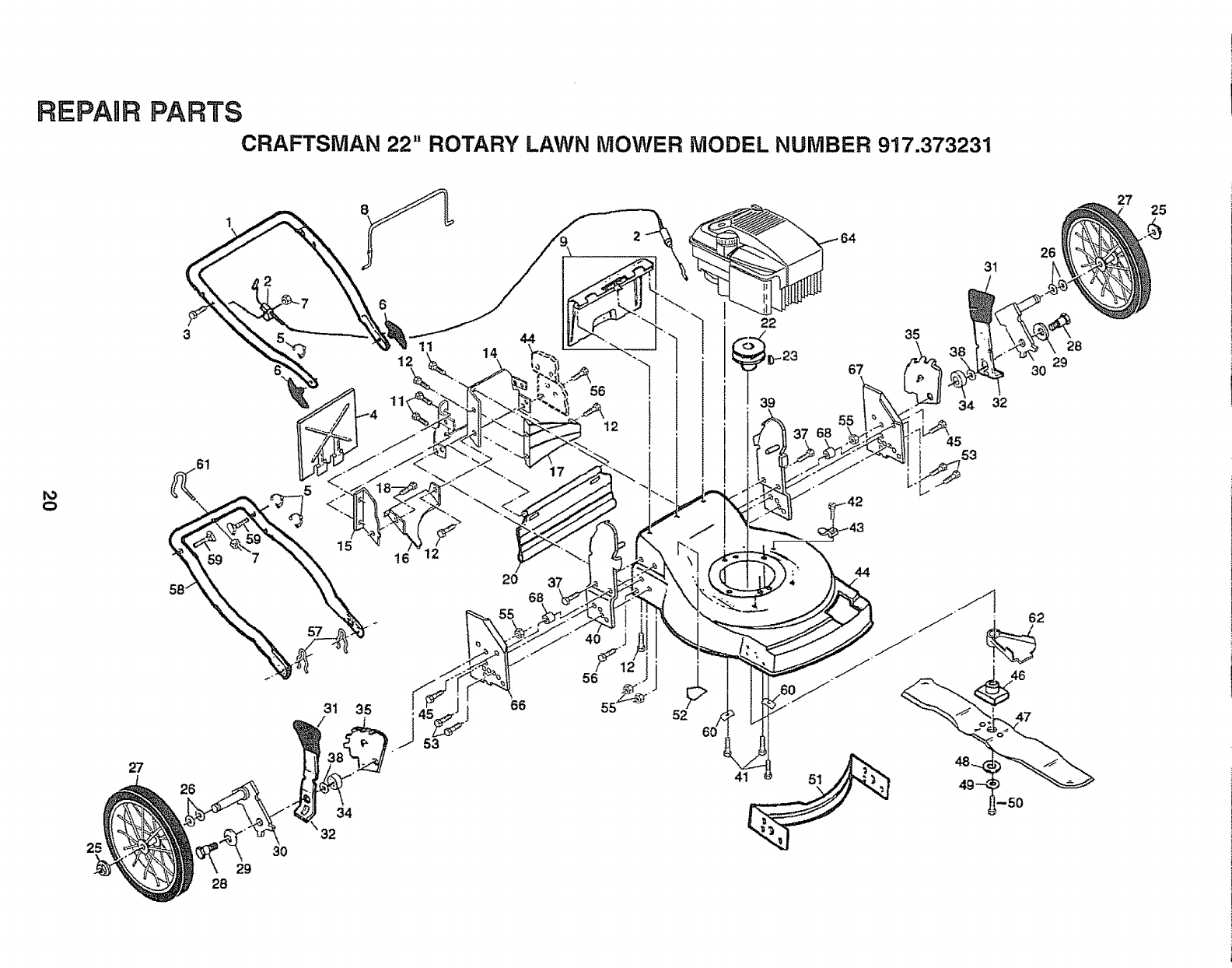

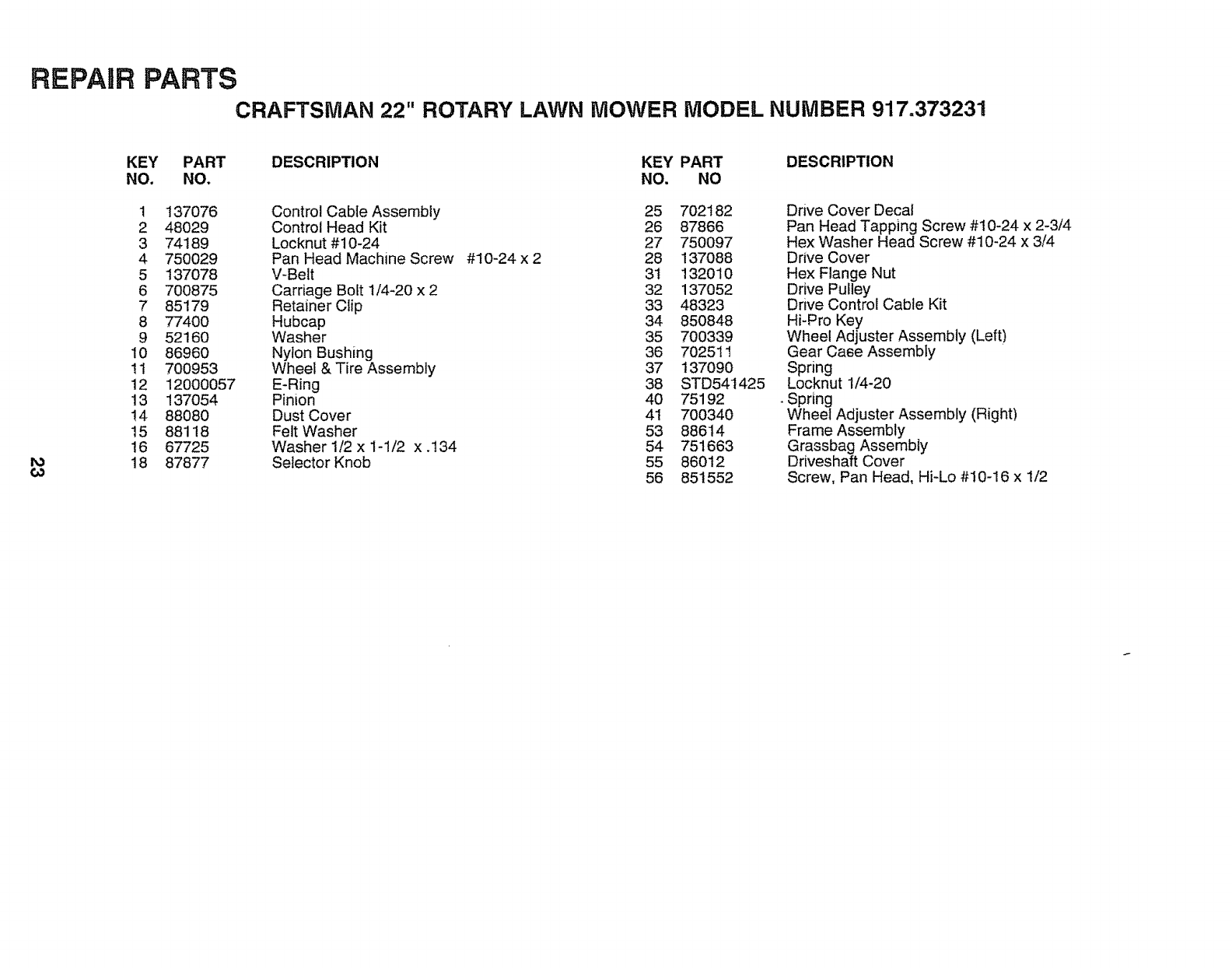

REPAIR PARTS - LAWN MOWER ......... 20-24

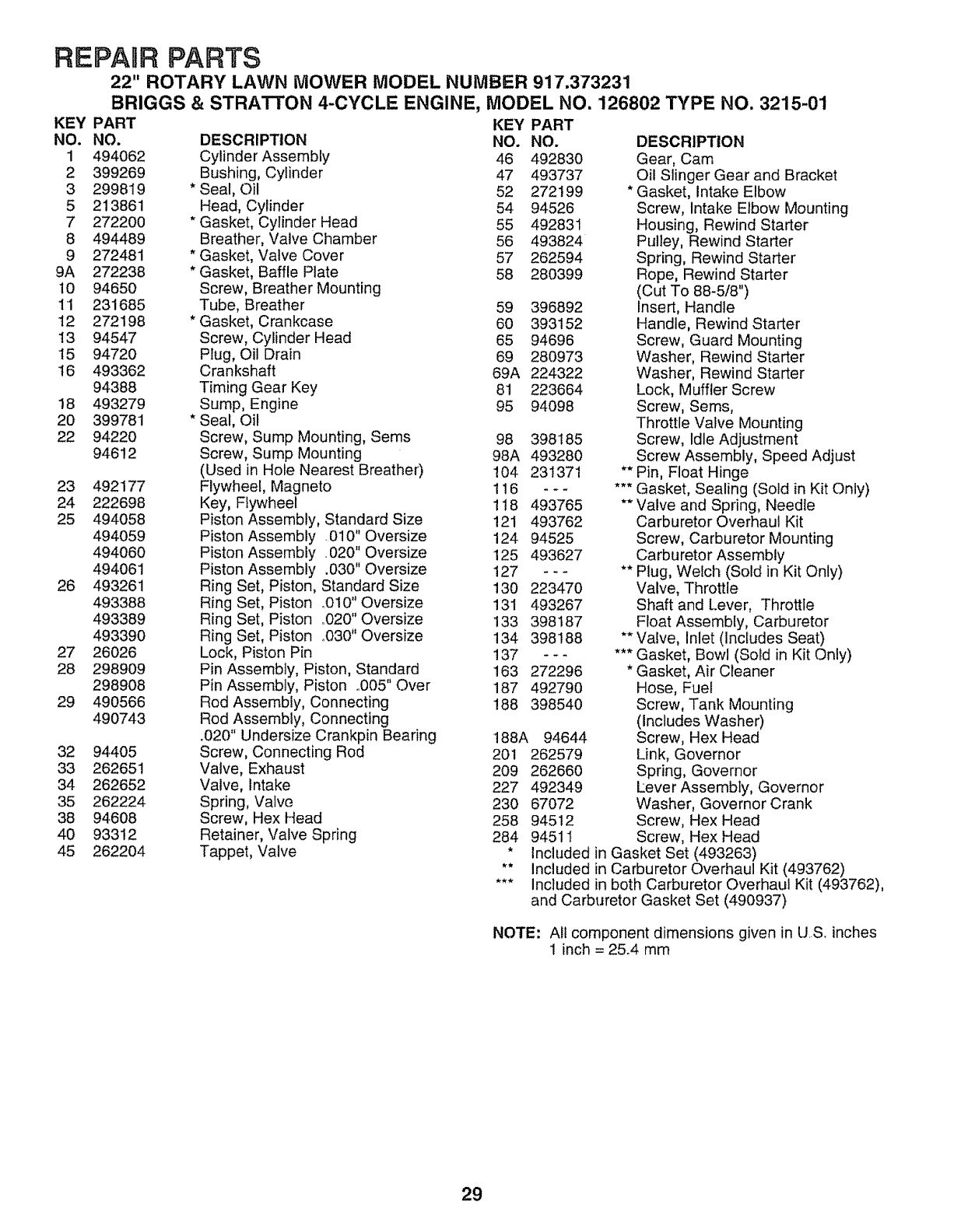

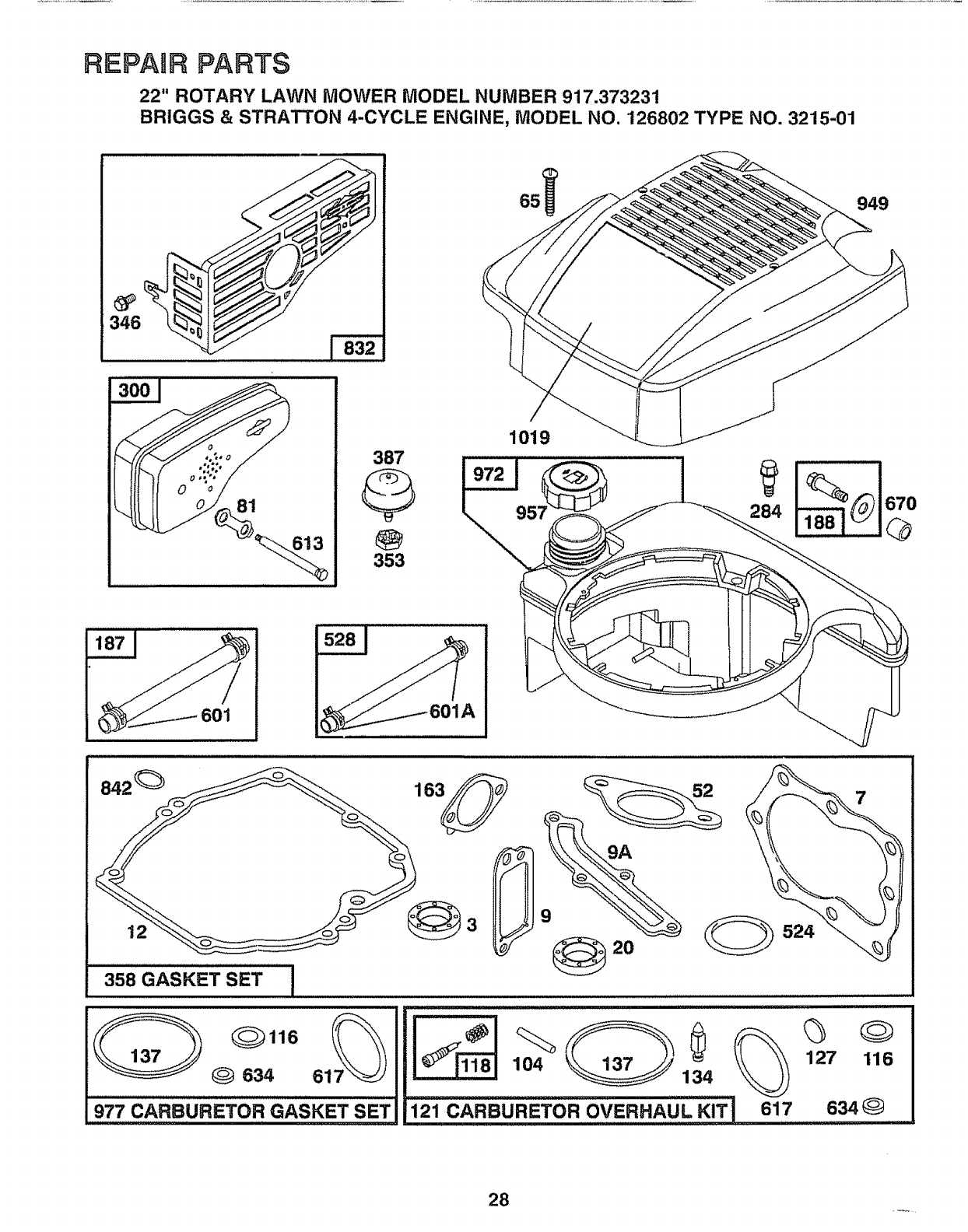

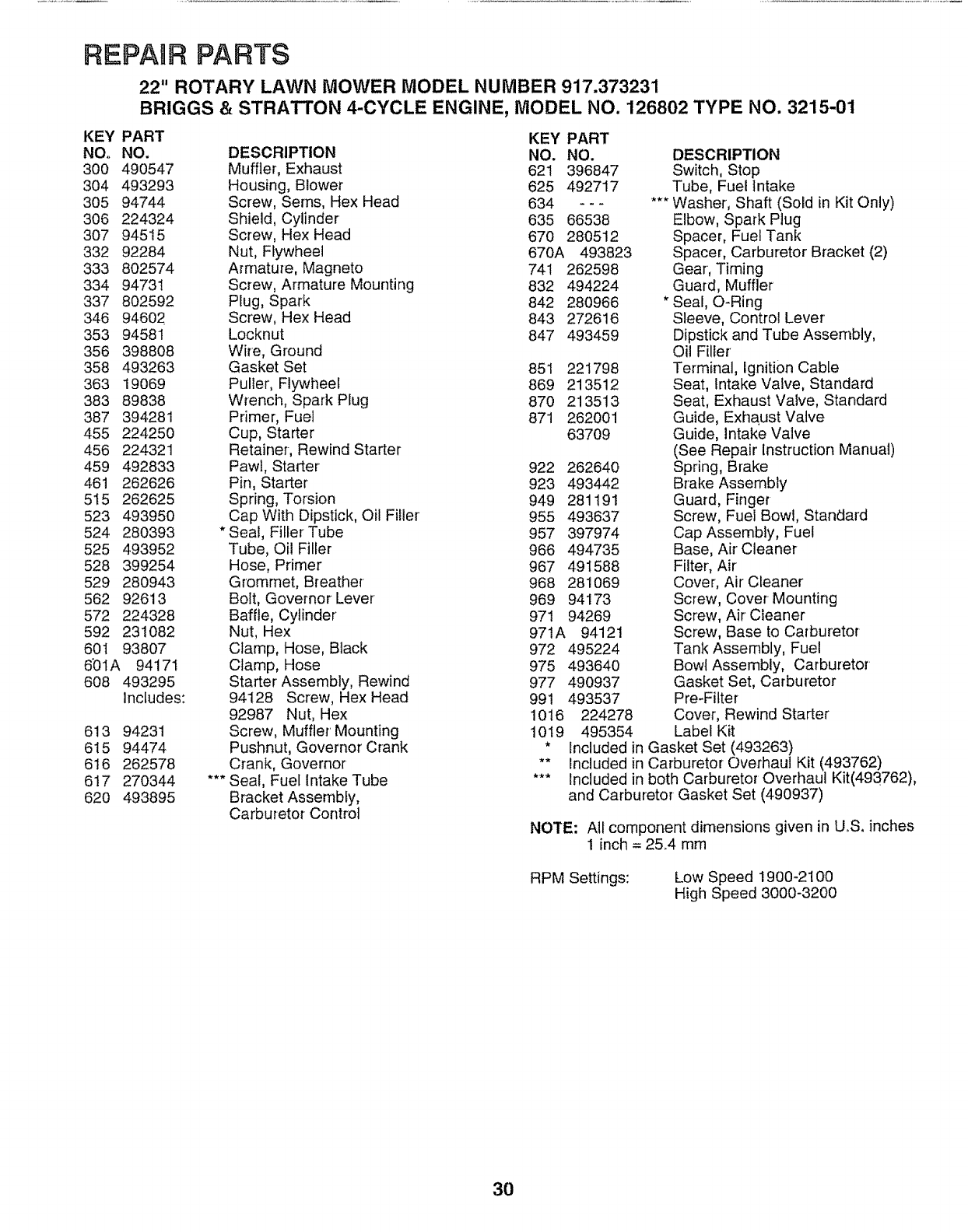

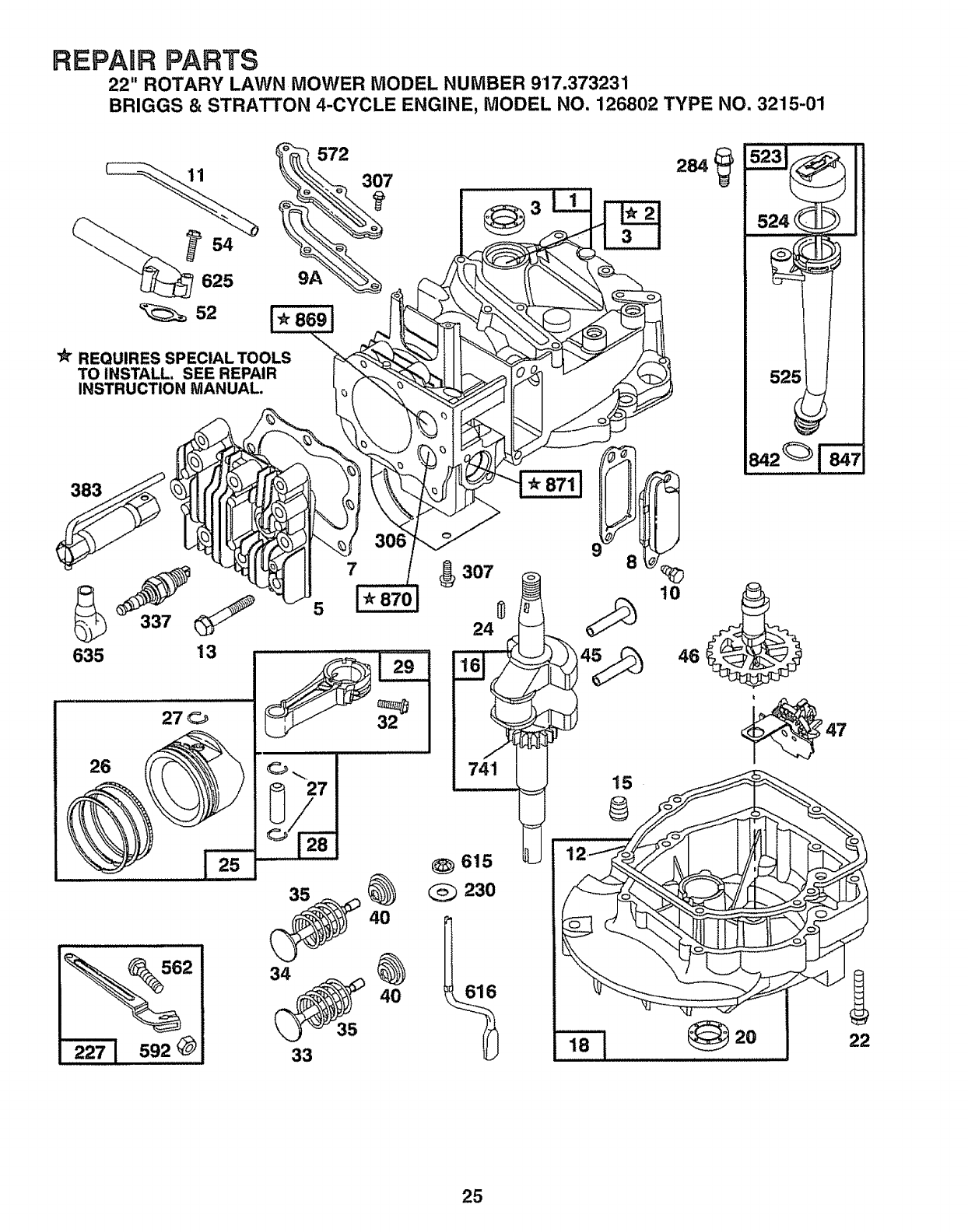

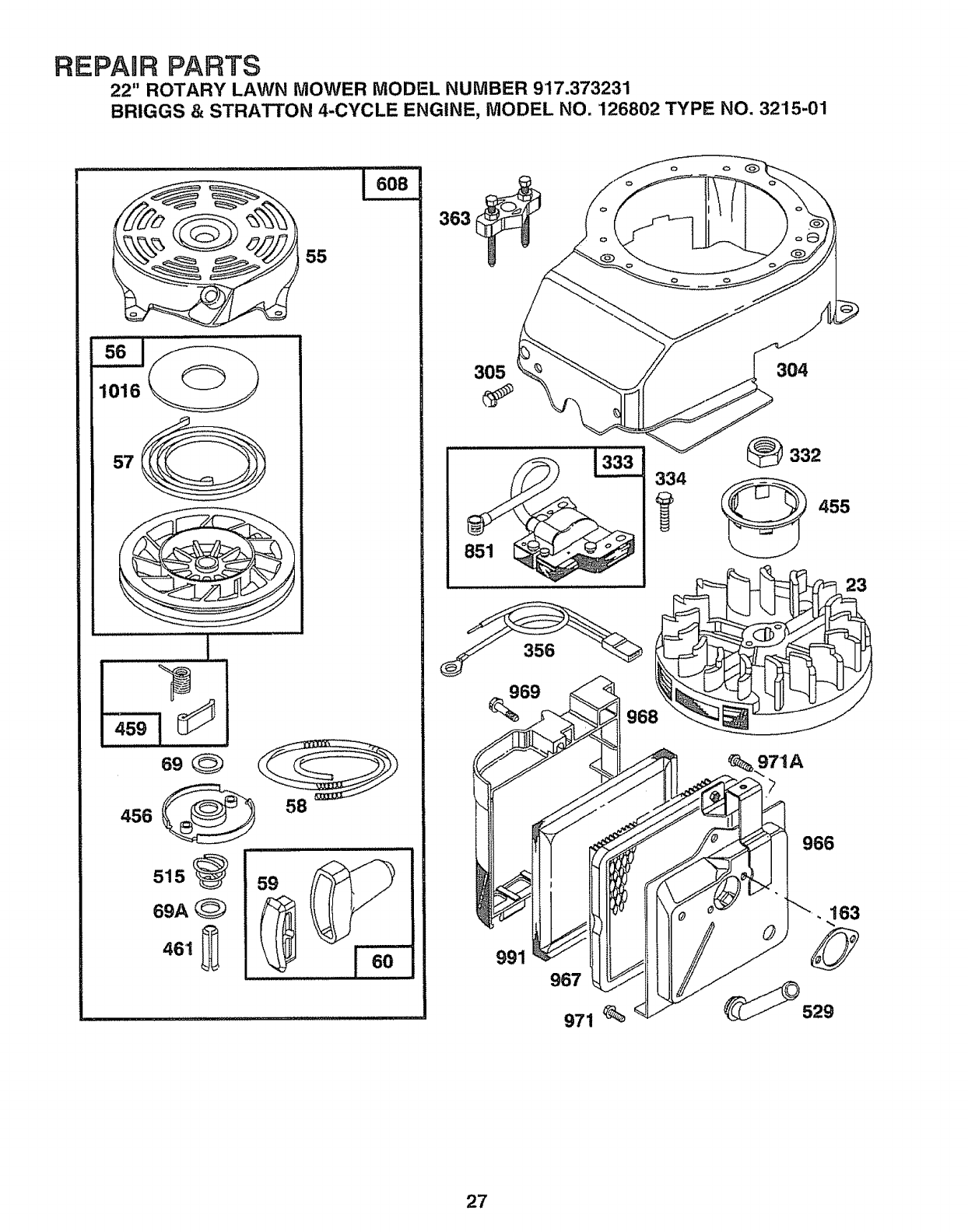

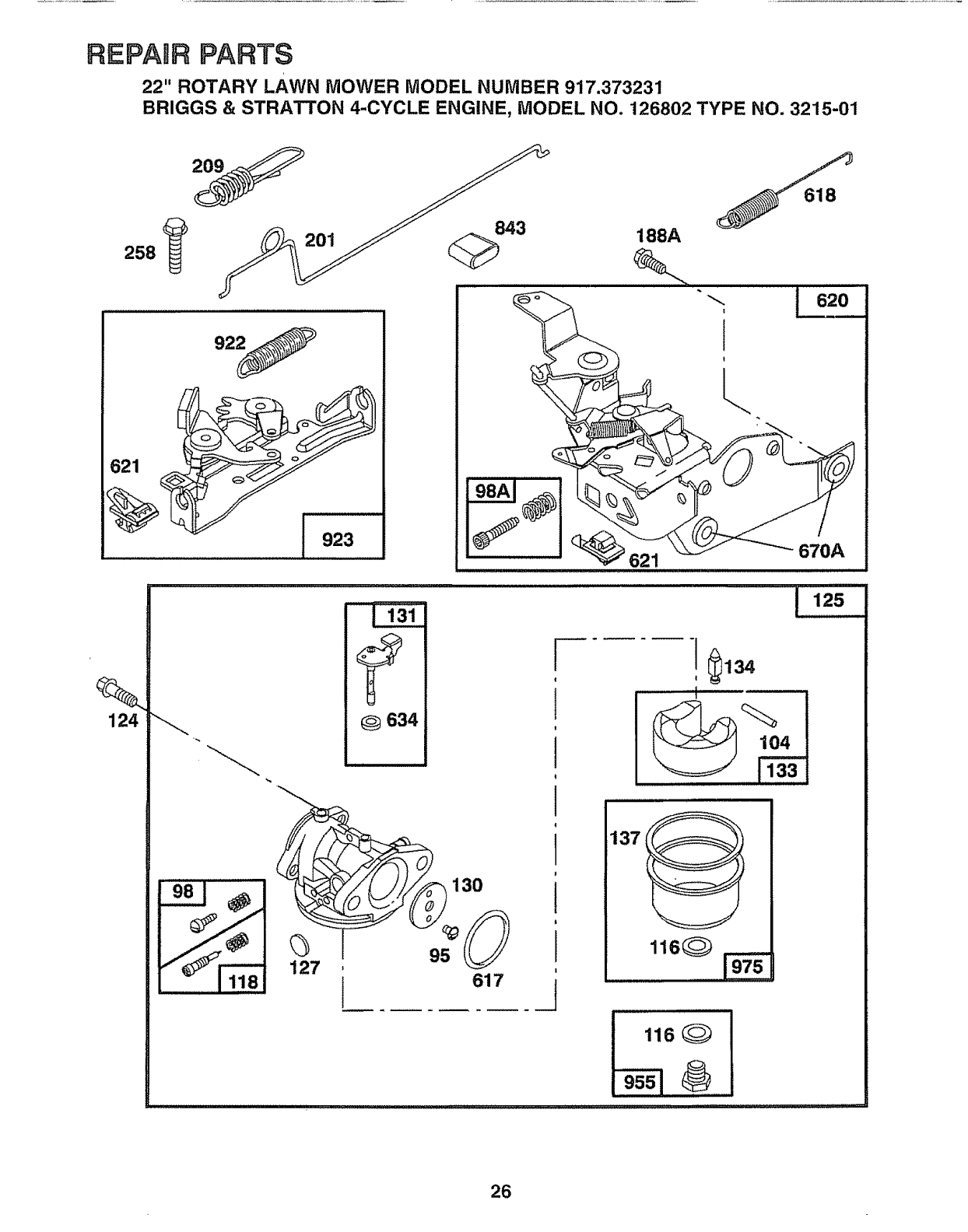

REPAIR PARTS - ENGINE ...................... 25-30

PARTS ORDERING/SERVICE. BACK COVER

mNDEX

Accessories ............................................. 5

Adjustments:

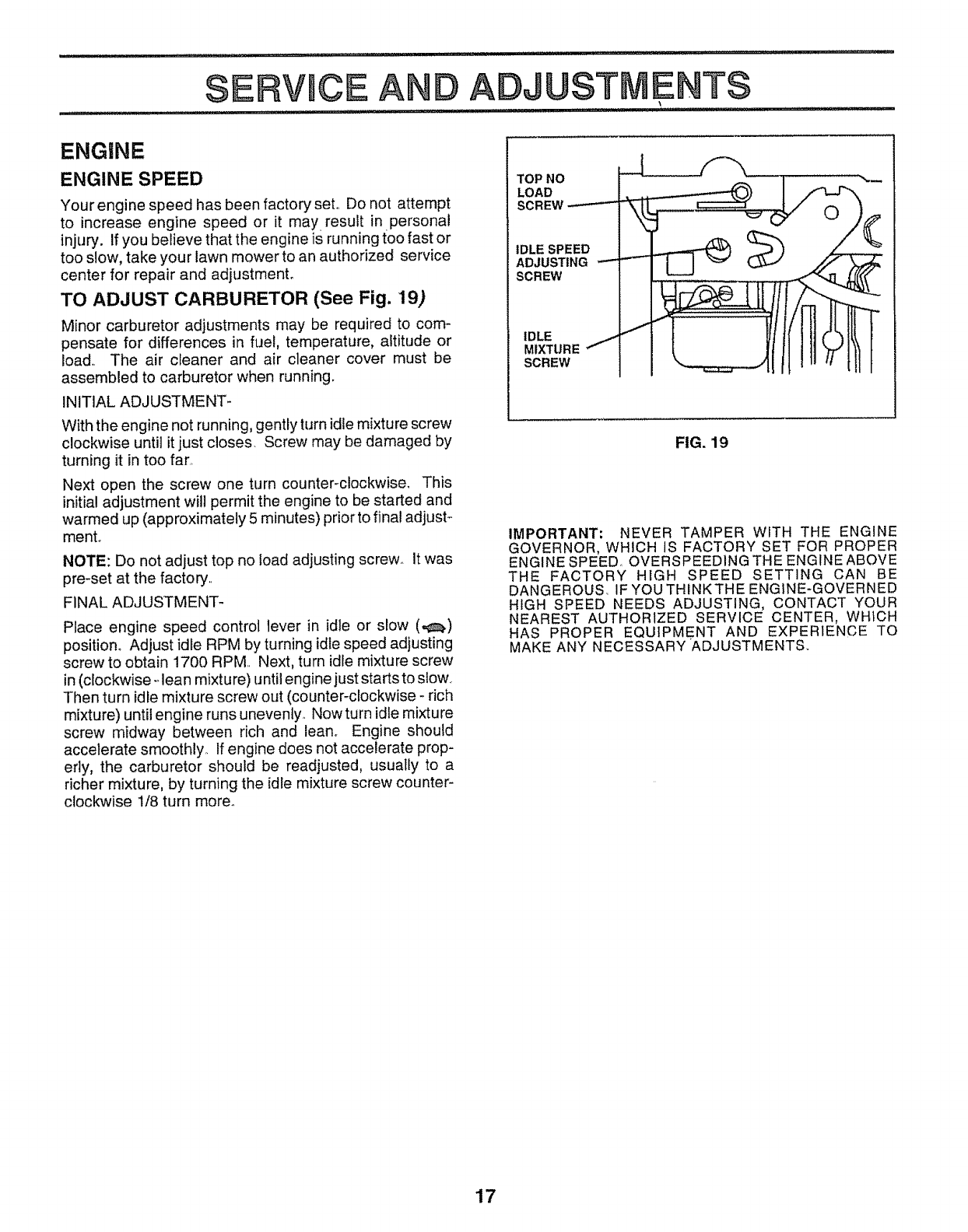

Carburetor .................................. 17

Handle Height ............................ 16

Height of Cut ................................ 9

Air Filter:

Service ........................................ 14

Assembly:

Handle .......................................... 6

Grass Catcher .............................. 7

Blade:

Sharpening ................................. 13

Replacement .............................. 13

Controls:

Operator Presence Control Bar .8

Drive Control ................................ 8

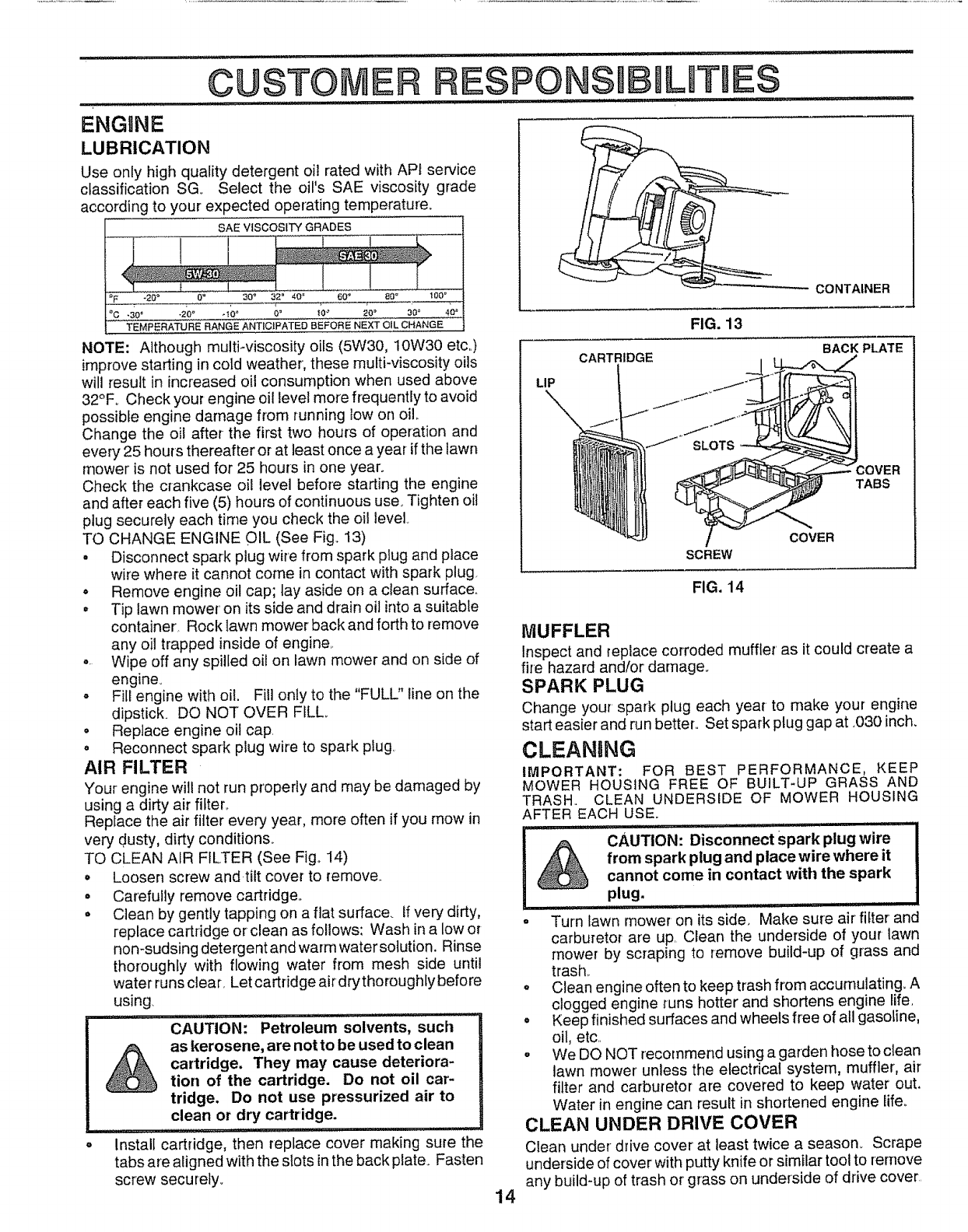

Customer Responsibilities ..... 3, 12-14

Air Filter ...................................... 14

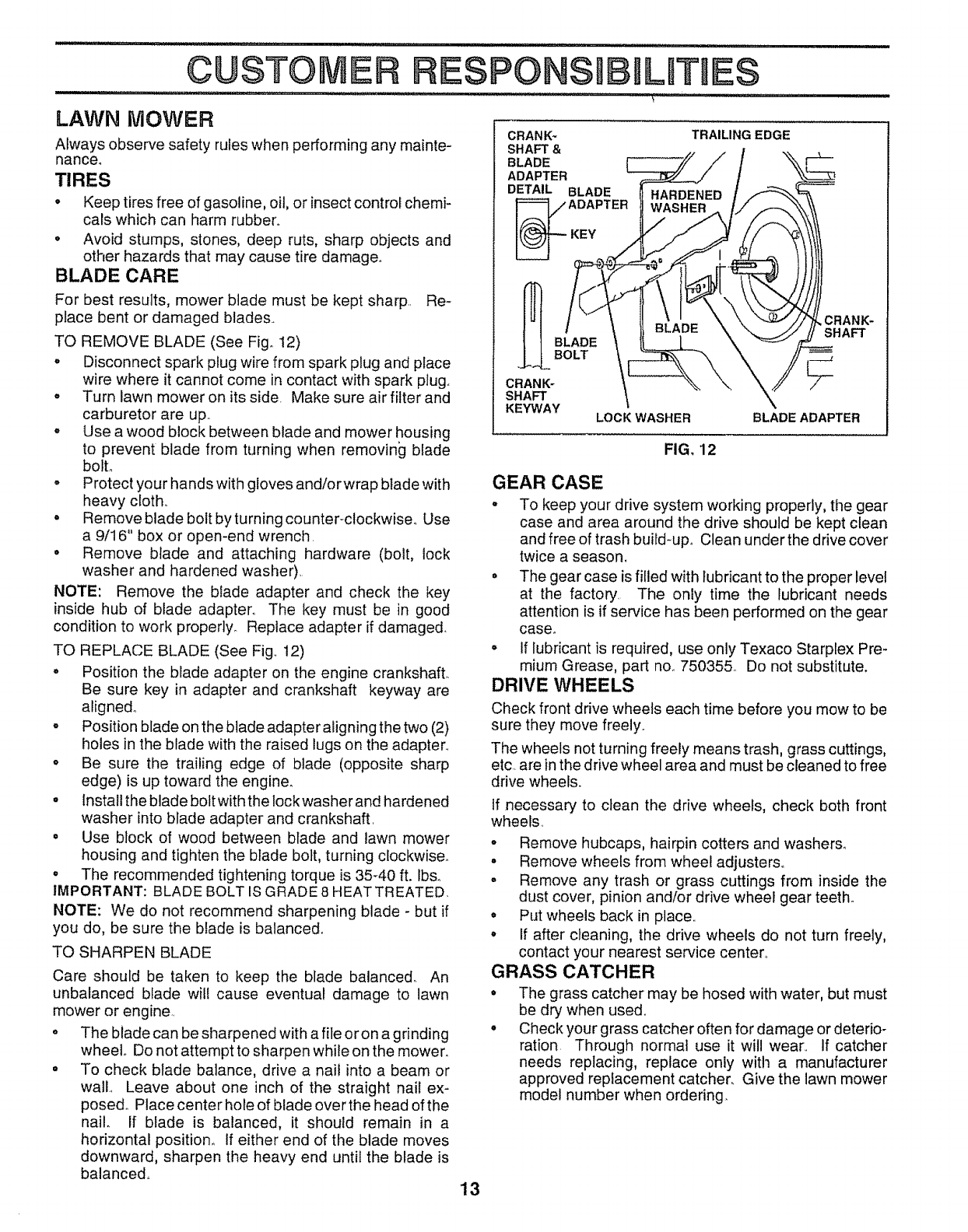

Blade Care/Replacement .......... 13

Drive Wheels .............................. 13

Engine ........................................ 14

Gear Case ................................... 13

Lubrication ................................. 12

Spark Plug .................................. 14

Engine:

Oil Change ................................. 14

Oil Level ..................................... 14

Oil Type ...................................... 14

Starting ....................................... 10

Storage ....................................... 18

Fuel:

Type ............................................. 10

Storage ....................................... 18

Handle:

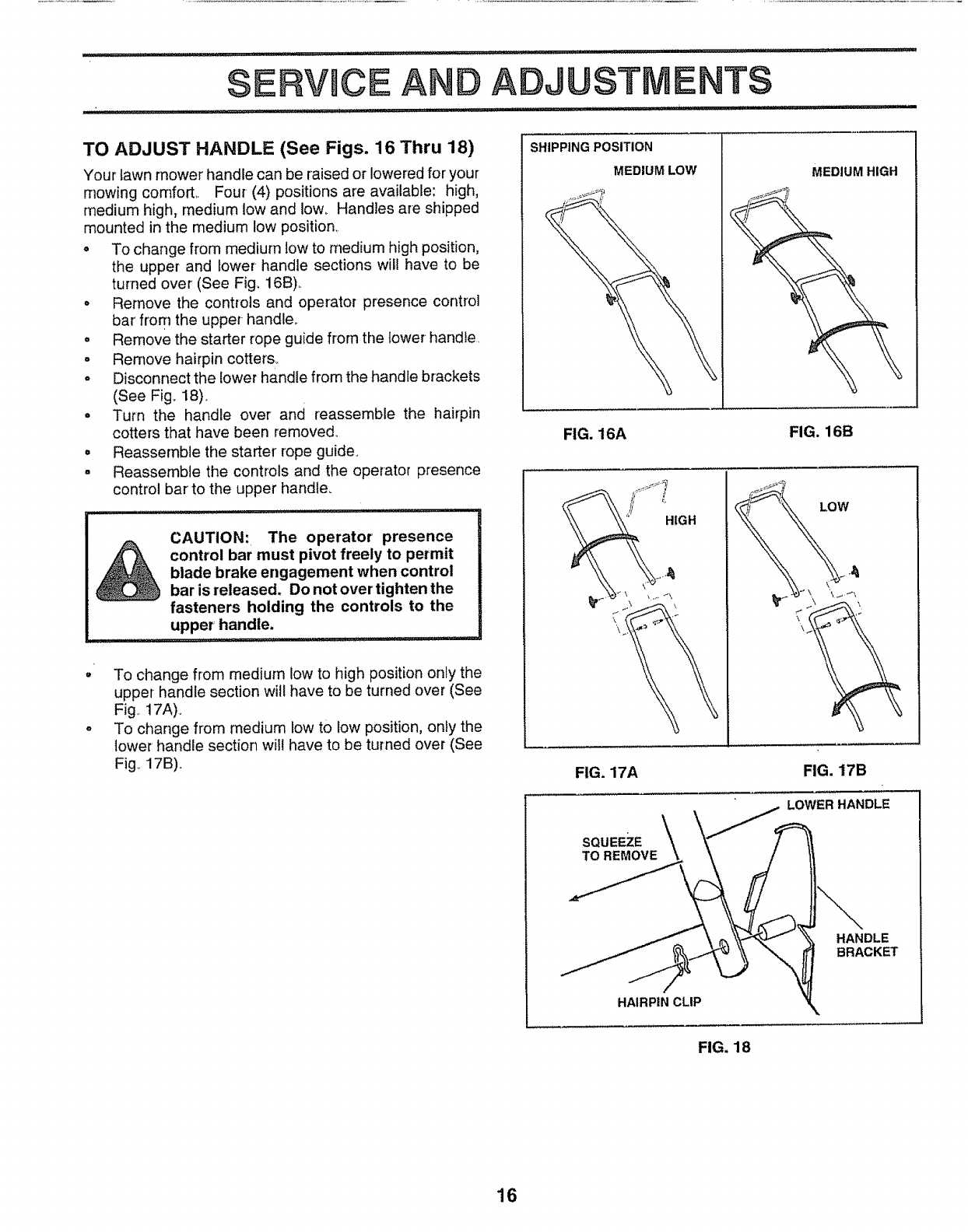

Adjustment .................................. 16

Assembly ........................................ 6

Lubrication:

Engine ........................................ 12

Rear Door Hinge ......................... 12

Handle Bracket Mounting Pin .. 12

Wheel Adjuster .......................... 12

Maintenance Agreement .................... 3

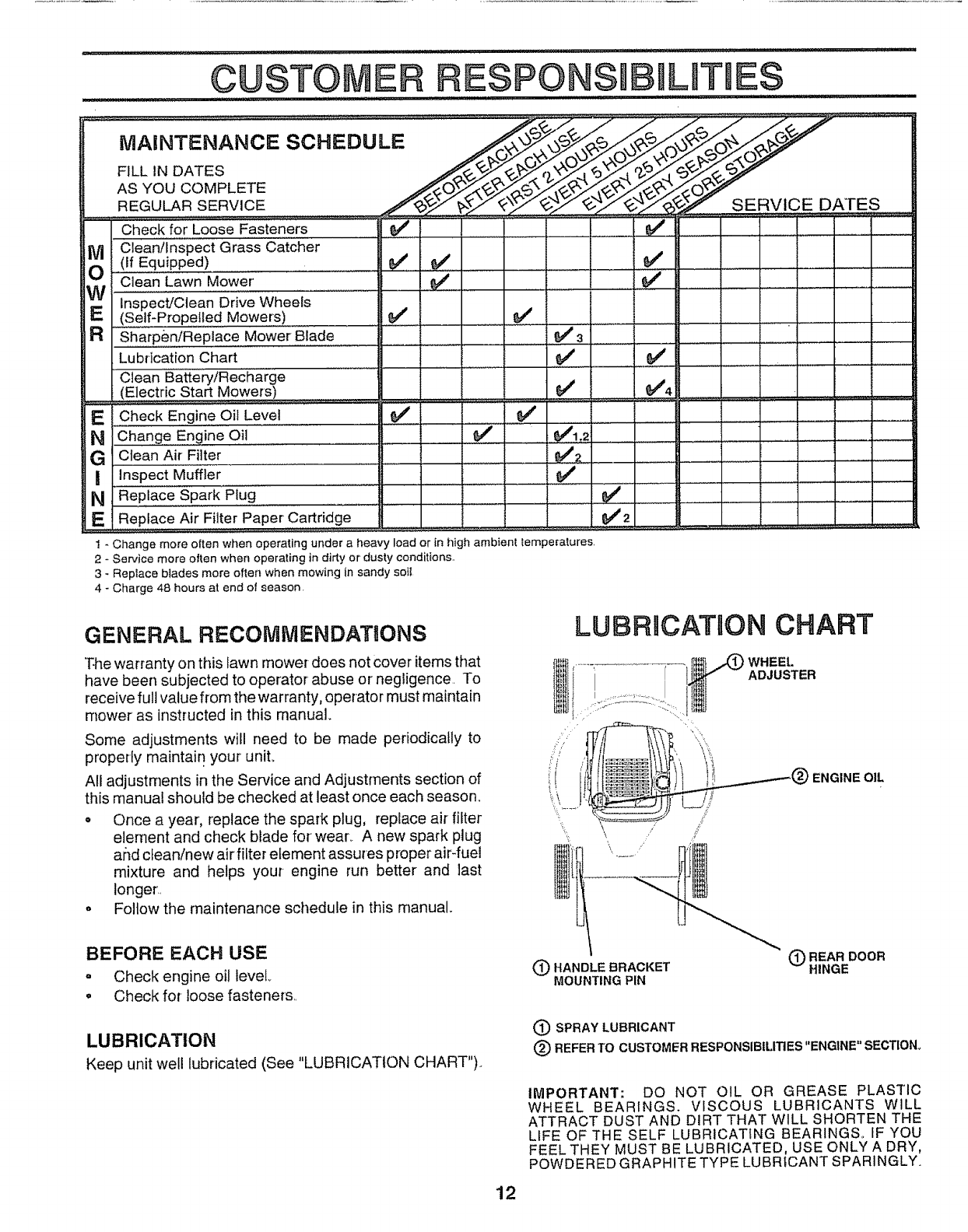

Maintenance Schedule ..................... 12

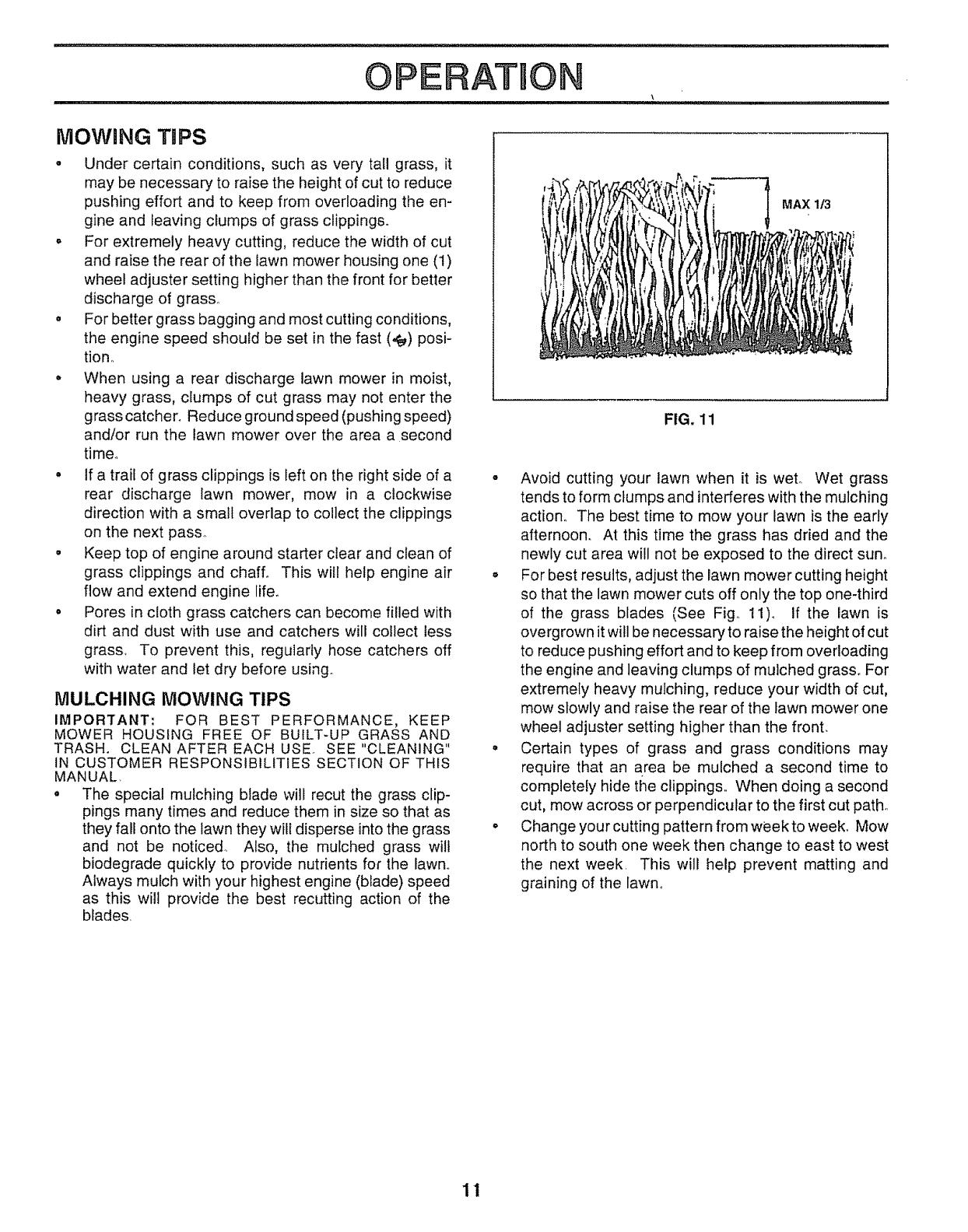

Mowing Tips ...................................... 11

Mulching/Mowing Tips ..................... 11

Oil:

Engine ........................................ 14

Storage ....................................... 18

Operation:

Operating Lawn Mower'. .............. 9

Drive Control ................................ 9

Operator Presence Control Bar ..... ;..8

Options:

Attachments ................................. 5

Repair Parts

Lawn Mower .......................... 20-24

Engine. .................................. 25-30

Responsibilities, Customer ....3, 12-14

Safety Rules ........................................ 2

See,ice and Adjustments:

Carburetor'. ................................. 17

Drive Belt ................................... 15

Engine Speed ............................ 17

Handle ........................................ 16

Spark Plug ......................................... 14

Specifications ..................................... 3

Starting the Engine .......................... 10

Stopping the Engine ........................ 10

Storage .............................................. 18

Trouble Sirooting Chart ................... 19

Warranty .............................................. 3

Wheels:

Wheel Adjusters .......................... 8

These accessories were available when this lawn mowerwas produced _They are also available at most Sears retail outlets,

catalog and service centers_ Most Sears stores can also order repair parts for you, when you provide the model number of

your lawn mower° Some of these accessories may not apply to your lawn mower.

ENGmNE

SPARK PLUG MUFFLER AIR FILTER

if lawn mower is an electric start

LAWN MOWER PERFORMANCE

GAS CAN ENGINE OIL STABILIZER

CHARGER BATTERY

REAR BAG

OPTIONAL

REPLACEMENT

BAG FOR REAR

DISCHARGE

LAWN MOWERS

FABRIC BAG

LAWN P/lOWER MAINTENANCE

,=,ljl ill .......

BELT BLADE

DUST SHIELD

OPTIONAL

CATCHER FOR

SIDE DISCHARGE

LAWN MOWER

CUPPING DEFLECTOR

SIDE DISCHARGE CATCHER

BLADE

ADAPTER

LAWN MOWER

COVER

Read these instructions and the Operator's Manual in its

entirety before you attempt to assemble or operate your

new lawn mower.. Your new lawn mower has been as-

sernbled at the factory with the exception of those parts left

unassernbled for shipping purpose& To ensure safe and

proper operation of your lawn mower, all parts and hard-

ware you assemble must be tightened securelyv Use the

correct tools as necessary to ensure proper tightness. All

parts such as nuts, washers, bolts, etc., necessary to

complete the assembly have been placed in the parts bag

TO REMOVE LAWN MOWER FROM

CARTON

- Remove loose parts included with mower.

° Cut down two end corners of carton and lay end panel

down flat..

• Remove all packing materials except padding between

upper and lower handle and padding holding operator

presence control bar to upper handle_

•Roll lawn mower out of carton and check carton thor-

oughly for additional loose parts.

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE (See Fig. 1)

IMPORTANT: UNFOLD HANDLE CAREFULLY SO AS

NOT TO PINCH OR DAMAGE CONTROL CABLES

o Raise handles until lower handle section locks into

place in mowing position.

o Raise upper handle section into place on lower handle,

remove protective padding and tighten both handle

knobs..

° Remove handle padding holding operator presence

control bar to upper- handle.,

• Your lawn mower handle can be adjusted for your

mowing comfort, Refer to "Adjust Handle" in the

Service and Adjustment section of this manual,

TO INSTALL ATTACHMENTS (See Fig. 2)

Your lawn mower" was shipped ready to be used as a

mulchero To convert to bagging or discharging:

• Open rear door and remove mulcher plate, Store

rfiulcher plate in a safe place..

• You can now install Latchetor optional clipping deflec-

tor',

° To return to mulching operation, install mulcher plate

into discharge opening of mower_ Be sure all tabs are

seated properly,

CAUTION: Do not run your lawn mower

without mulcher plate in place or ap-

proved clipping deflector or grass

catcher in place, Never attempt to op-

erate the lawn mower with the rear door

removed or propped open.

OPERATOR PRESENCE

CONTROLBAR

UPPER HANDLE

LIFT UP

LOWER HANDLE

FIG. 1

SLOTS

MOWING POSITION

MULCHER PLATE

FIG, 2

TABS

ASSE BLY

TO ASSEMBLE & ATTACH GRASS

CATCHER (See Figs. 3-4)

oPut grass catcher frame into grass bag with rigid part

of bag on the bottom.

° Slip vinyl bindings over frame.

NO'[E: If vinyl bindings are too stiff, hold them in warm

water for a few minutes If bag gets wet, let it dry before

using.

o Lift the rear door on the mower housing and place the

grass catcher frame onto the formed tabs on the rear

door hinge bracket_

-The grass catcher is secured to the lawn mower

housing when the rear door is lowered onto the grass

catcher frame.

CATCHER FRAME

HINGE

BRACKET _._

FIG. 3

/REAR DOOR

FORMED

TABS

GRASS CATCHER FRAME

FIG. 4

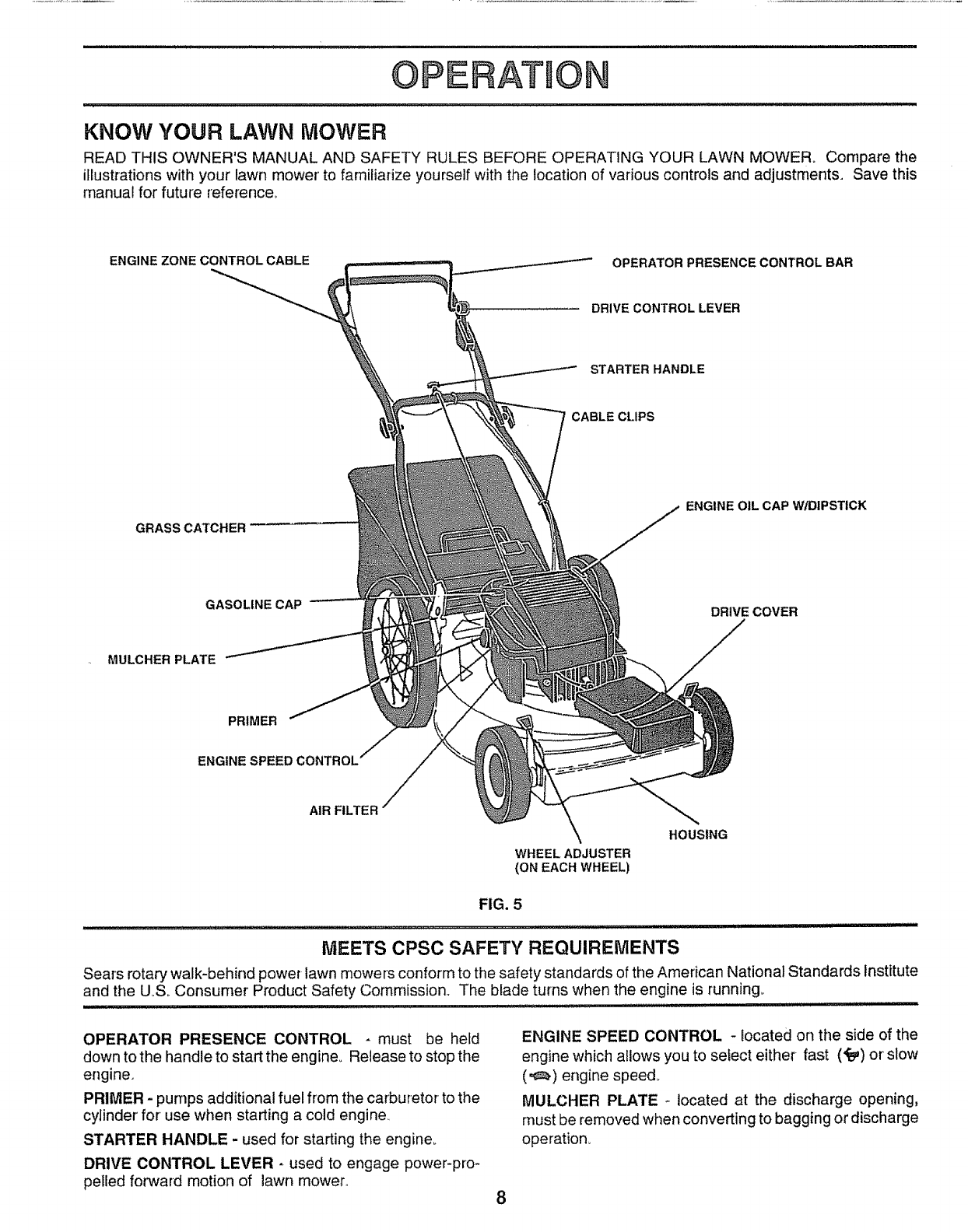

OPERATION

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the

illustrations with your lawn mower' to familiarize yourself with the location of various controls and adjustments. Save this

manual for future reference_

ENGINE ZONE CONTROL CABLE OPERATOR PRESENCECONTROLBAR

DRIVE CONTROL LEVER

STARTER HANDLE

GRASSCATCHER

GASOLINE CAP

CABLE CLIPS

ENGINE OIL CAP W/DIPSTICK

DRIVE COVER

MULCHER PLATE

PRIMER

ENGINE SPEED CONTROL

AIR FILTER

WHEEL ADJUSTER

(ON EACH WHEEL)

HOUSING

FIG. 5

,_llllll .................................

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute

and the U_S_Consumer Product Safety Commission. The blade turns when the engine is running.

_J iLiiii i i illlll ,i, i::ll:u,

OPERATOR PRESENCE CONTROL -must be held

down to the handle to start the engine., Release to stop the

engine.

PRIMER - pumps additional fuel from the carburetor to the

cylinder for use when starting a cold engine_

STARTER HANDLE - used for starting the engine°

DRIVE CONTROL LEVER - used to engage power-pro-

pelled forward motion of lawn mower..

ENGINE SPEED CONTROL - located on the side of the

engine which allows you to select either fast (,r_) or'slow

(,_) engine speed.

MULCHER PLATE - located at the discharge opening,

must be removed when converting to bagging or discharge

operation,

OPERATION

:, ,llll,l,llll: lllll,l,,ll,i, ill,,

HOW TO USE YOUR LAWN MOWER

CAUTION: Do not run your lawn mower

without mtdcher plate in place and door

closed orwithout an approved clipping

deflector or grasscatcher in place.

Never attempt to operate the lawn

mower with the rear door removed or

propped openf

ENGINE SPEED (See Fig. 6)

The engine speed is controlled by a lever located on the

side of the engine. Fast (,_) position is for starting the

engine, normal cutting, and better grass bagging. Slow

(-_) position is for light cutting, trimming and fuel economy.

ENGINE ZONE CONTROL

CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury, Do not un-

der any circumstances attempt to de-

feat the function of the operator control.

The blade turns when the engine is

running,

o Your lawn mower is equipped with an operator pres-

ence control bar which requires the operator to be

positioned behind the lawn mower handle to start and

operate the lawn mower..

TO ADJUST CUTTING HEIGHT (See Fig. 7)

= Raise wheels for low cut and lower wheels for high cut

o Wheels are set in low cut for shipping.. Adjust cutting

height to suit your requirements. Medium position is

best for most lawns..

• To change cutting height, squeeze adjuster lever to-

ward wheel Move wheel up or down to suit your

requirements.. Be sure afl wheels are in the same

setting,

TO EMPTY GRASS CATCHER (See Fig. 8)

• To remove grass catcher, release operator presence

control bar to stop engine.

• Lift up rear door and remove the grass catcher by the

handle°

° Do not drag the bag when emptying; it will cause

unnecessary wear.

DRIVE CONTROL (See Fig. 9)

= Self-propelling is controlled by holding the operator

presence control bar down to the handle and pushing

the drive control lever forward until it clicks; then

release the lever..

° Forward motion will stop when the operator presence

control bar is retease& To stop forward motion without

stopping engine, release the operator presence control

bar slightly until the drive control disengages, Hold

operator presence control bar down to handte to con-

tinue mowing without self-propelling..

o To keep drive control engaged when turning corners,

push down on handle and lift front wheels off ground

while turning lawn mower.

FIG. 6

ENGINE SPEED

LOWER WHEELS RAISE WHEELS

FOR HIGH CUT FOR LOW CUT

FIG. 7

FIG. 8

OPERATOR PRESENCE

CONTROL BAR

DRIVE CONTROL

DRIVE

CONTROL

FIG. 9

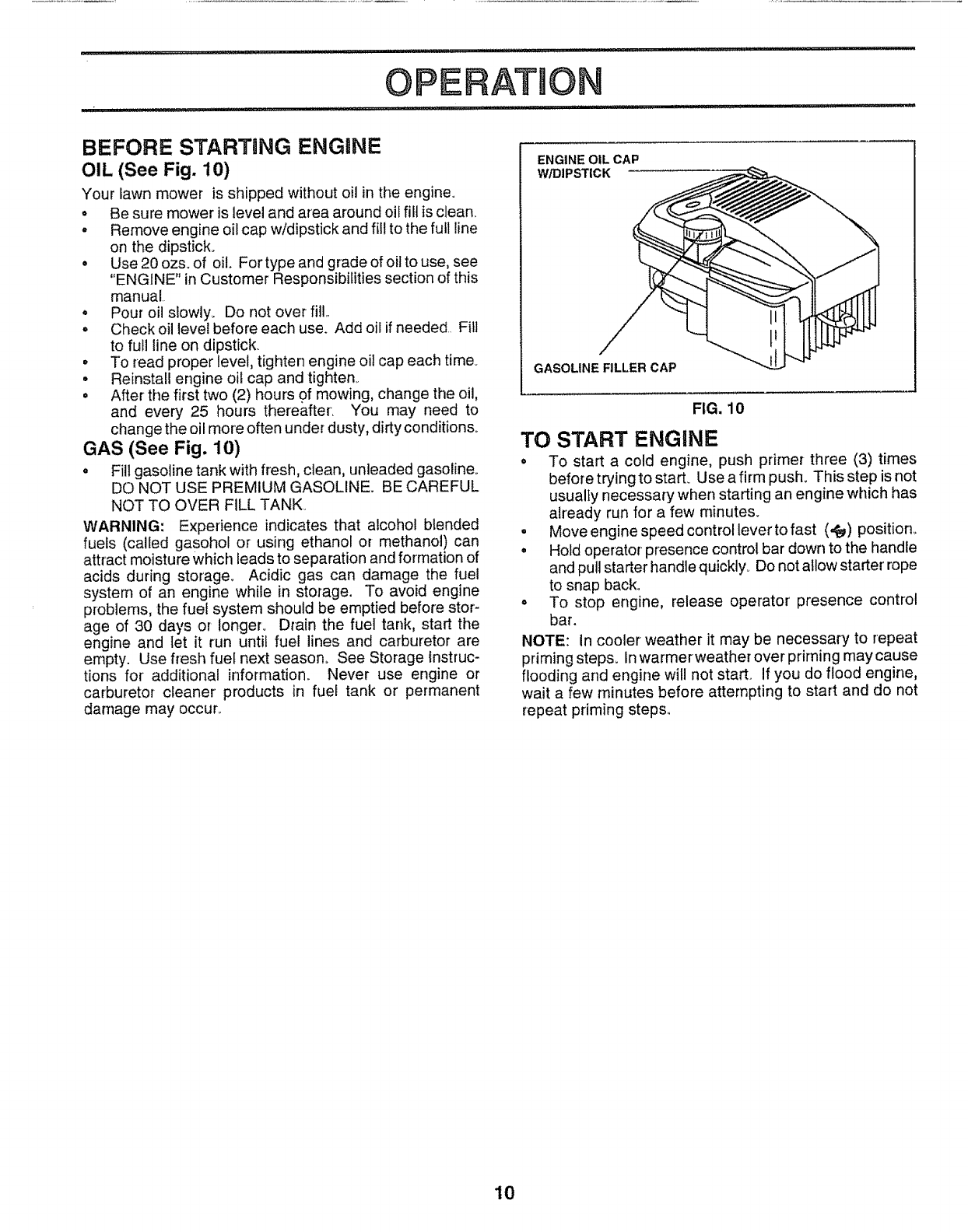

OPERAON

BEFORE STARTONG ENGItNE

OIL (See Fig. 10)

Your lawn mower is shipped without oil in the engine°

. Be sure mower is level and area around oif fill is clean_

oRemove engine oi! cap w/dipstick and fill to the full line

on the dipstick_

•Use 20 ozs. of oi!. For type and grade of oi! to use, see

"ENGINE" in Customer Responsibilities section of this

manual,

o Pour oil siowly_ Do not over fill,,

°Check oil level before each user Add oil if needed,, Fill

to full line on dipstick,

°To read proper level, tighten engine oil cap each timev

° Reinstall engine oil cap and tighten..

•After the first two (2) hours of mowing, change the oil,

and every 25 hours thereafter_ You may need to

change the oil more often under dusty, dirty conditions.

GAS (See Fig. 10)

° Fill gasoline tank with fresh, clean, unleaded gasoline.

DO NOT USE PREMIUM GASOLINE. BE CAREFUL

NOT TO OVER FILL TANK..

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage° Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer.. Drain the fuel tank, start the

engine and let it run until fuel lines and carburetor are

empty. Use fresh fuel next season. See Storage Instruc-

tions for' additional inforrnation_ Never use engine or

carburetor cleaner products in fuel tank or permanent

damage may occur,,

ENGINE OIL CAP

W/DIPSTICK

GASOLINE FILLER CAP

FIG. 10

TO START ENGINE

°To start a cold engine, push pnmer three (3) times

before trying to start. Use a firm push, This step is not

usualty necessary when starting an engine which has

already run for a few minutes.

. Move engine speed control lever to fast (,_) position_

= Hold operator presence control bar down to the handle

and pull starter handle quickly_, Do not allow starter' rope

to snap back.

°To stop engine, release operator' presence control

bar.

NOTE: In cooler weather it may be necessary to repeat

priming steps. In warmerweather over priming may cause

flooding and engine will not start. If you do flood engine,

wait a few minutes before attempting to start and do not

repeat priming steps,,

OPERATIO

MOWING TraPS

o Under certain conditions, such as very tall grass, it

may be necessary to raise the height of cut to reduce

pushing effort and to keep from overloading the en-

gine and leaving dumps of grass clipping&

° For extremely heavy cutting, reduce the width of cut

and raise the rear of the lawn mower housing one (1)

wheel adjuster setting higher than the front for better

discharge of grass.

o For better grass bagging and most cutting conditions,

the engine speed should be set in the fast (,_) posi-

tion°

o When using a rear discharge lawn mower in moist,

heavy grass, clumps of cut grass may not enter the

grass catcher. Reduce ground speed (pushing speed)

and/or run the lawn mower over the area a second

time°

• If a trail of grass clippings is ieft on the right side of a

rear discharge lawn mower, mow in a clockwise

direction with a small overlap to collect the clippings

on the next pass°

• Keep top of engine around starter clear and clean of

grass clippings and chaff. This will help engine air

flow and extend engine life.

°Pores in cloth grass catchers can become filled with

dirt and dust with use and catchers will collect less

grass. To prevent this, regularly hose catchers off

with water and let dry before using°

MULCHING MOWING TIPS

IMPORTANT,' FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH. CLEAN AFTER EACH USE.. SEE "CLEANING"

IN CUSTOMER RESPONSIBILITIES SECTION OF THIS

MANUAL.

° The special mulching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fall onto the lawn they will disperse into the grass

and not be noticed.. Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn..

Always mulch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades.

MAX 1/3

FIG. 11

° Avoid cutting your lawn when it is wet. Wet grass

tends to form clumps and interferes with the mulching

action.. The best time to mow your lawn is the early

afternoon. At this time the grass has dried and the

newly cut area will not be exposed to the direct sun°

• For best results, adjust the lawn mower cutting height

so that the lawn mower cuts off only the top one-third

of the grass blades (See Fig° 11). If the lawn is

overgrown it will be necessary to raise the height of cut

to reduce pushing effort and to keep from overloading

the engine and leaving clumps of mulched grass. For

extremely heavy mulching, reduce your width of cut,

mow slowly and raise the rear of the lawn mower one

wheel adjuster setting higher than the front.

° Certain types of grass and grass conditions may

require that an area be mulched a second time to

completely hide the clippings.. When doing a second

cut, mow across or perpendicular to the first cut path..

, Change your cutting pattern from week to week. Mow

north to south one week then change to east to west

the next week. This will help prevent matting and

graining of the lawn_

CUSTOMER ESIPONSH ILHTI

MAI.TENA.CESC,EDULE

FILL IN DATES _:k_ _,_1 _ _, ,-4, _,, _'-o

YOU ° ....................

Clean/inspect Grass Ca'{'cher _..........

X(If Equipped) , ...................H64_ 6/

Clean Lawn Mower' '............. _ 6/ I

Inspect/Clean Diive Wheels _ .'........

(Self-Propelled Mowers) I

R sharpeniRepiace MoWerBiade

cubi-icat_onCha_ .......................A

Clean Batte ry/R ecii,_rge ..................U ....

(Electric Start Mowers) U 6/ 6/4 ,,..

ECheck Eng,i,ne Oil Level 6/ .......... 6/ :

N Change Engine Oil _ ........

G clean Air Filter

Inspect Muffler

N Replace Spark P!ug ''":':'.".'.'."."."."i....

Replace Air Filter Paper Cartridge ......_2 .....

t - Change more often when operating under a heavy load or in high ambient lemperatures,

2 - Service more often when operating in dirty or' dusty conditions,,

3 - Replace blades more often when mowing in sandy soil

4 - Charge 48 hours at end of season.

GENERAL RECOMMENDATIONS

"]:.hewarranty on this lawn mower does not cover items that

have been subjected to operator abuse or' negligence. To

receive full value from the warranty, operator must maintain

mower as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintair! your unit..

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season°

o Once a year, replace the spark plug, replace air filter

element and check blade for wear_ A new spark plug

and clean/new air filter element assures proper air-fuel

mixture and helps your engine run better and last

longer..

o Follow the maintenance schedule in this manual.

LUBRaCATUON CHART

BEFORE EACH USE

= Check engine oil level..

oCheck for loose fasteners..

LUBRICATION

Keep unit wet! lubricated (See "LUBRICATION CHART").

(_) HANDLE BRACKET

MOUNTING PIN

(_) REAR DOOR

HINGE

(_) SPRAY LUBRICANT

(_) REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION.

IMPORTANT: DO NOT OIL OR GREASE PLASTIC

WHEEL BEARINGS. VISCOUS LUBRICANTS WILL

ATTRACT DUST AND DIRT THAT WILL SHORTEN THE

LIFE OF THE SELF LUBRICATING BEARINGS,. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY,

POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.

CUSTOM ESPO

LAWN MOWER

Always observe safety rules when performing any mainte-

nance.

TIRES

oKeep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber°

o Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

BLADE CARE

For best results, mower blade must be kept sharp., Re-

place bent or damaged blades..

TO REMOVE BLADE (See Fig., 12)

.Disconnect spark plug wire from spark plug and place

wire where it cannot come in contact with spark plug,,

o Turn lawn mower on its side. Make sure air filter and

carburetor are up,,

o Use a wood block between blade and mower housing

to prevent blade from turning when removing blade

boil

° Protect your hands with gloves and/or wrap blade with

heavy cloth,,

• Remove blade bolt by turning counter-clockwise., Use

a 9/16" box or open-end wrench,

•Remove blade and attaching hardware (bolt, lock

washer and hardened washer),

NOTE: Remove the blade adapter and check the key

inside hub of blade adapter., The key must be in good

condition to work properly. Replace adapter if damaged,

TO REPLACE BLADE (See Fig., 12)

.Position the blade adapter on the engine crankshaft.

Be sure key in adapter and crankshaft keyway are

aligned°

-Position blade on the blade adapter aligning the two (2)

holes in the blade with the raised lugs on the adapter.

• Be sure the trailing edge of blade (opposite sharp

edge) is up toward the engine.

o Install the blade bott with the lock washer and hardened

washer into blade adapter and crankshaft,

• Use block of wood between blade and lawn mower

housing and tighten the blade bolt, turning clockwise.

•The recommended tightening torque is 35-40 ft. Ib&

IMPORTANT: BLADE BOLT IS GRADE 8 HEATTREATED.

NOTE: We do not recommend sharpening blade - but if

you do, be sure the blade is balanced°

TO SHARPEN BLADE

Care should be taken to keep the blade balanced. An

unbalanced blade will cause eventual damage to lawn

mower or engine.,

° The biade can be sharpened with a rite or on a grinding

wheel° Do not attempt to sharpen while on the mower.

. To check blade balance, drive a nail into a beam or

wall., Leave about one inch of the straight nail ex-

posed° Place center hole of blade over the head of the

nail. If blade is balanced, it should remain in a

horizontal position,, If either end of the blade moves

downward, sharpen the heavy end until the blade is

balanced,,

IL[['IES

II ,i,1,,i, i1,1,, ii, ,,, ii .... i,

CRANK_

SHAFT &

BLADE

ADAPTER

DETAIL BLADE

ADAPTER

KEY

TRAILING EDGE

_]_[ BLADE

BOLT

CRANK-

SHAFT

KEYWAY

HARDENED

LOCK WASHER

FIG, 12

CRANK-

SHAFT

Check front drive wheels each time before you mow to be

sure they move freely,

The wheels not turning freely means trash, grass cuttings,

etc.,are in the drive wheel area and must be cleaned to free

drive wheel&

If necessary to clean the drive wheels, check both front

wheels,

°Remove hubcaps, hairpin cotters and washers°

• Remove wheels from wheel adjusterso

o Remove any trash or grass cuttings from inside the

dust cover, pinion and/or drive wheel gear teeth°

•Putwheels back in place,.

• If after cleaning, the drive wheels do not turn freely,

contact your nearest service center.,

GRASS CATCHER

•The grass catcher may be hosed with water, but must

be dr,,,when used,.

• Check your grass catcher often for damage or deterio-

ration. Through normal use it will wear_. If catcher

needs replacing, replace only with a manufacturer

approved replacement catcher. Give the lawn mower

model number when ordering.

GEAR CASE

• To keep your drive system working properly, the gear

case and area around the drive should be kept clean

and free of trash build-upo Clean under the drive cover

twice a season.

•The gear case is filled with lubricant to the proper level

at the factory. The only time the lubricant needs

attention is if service has been performed on the gear

case.

° If lubricant is required, use only Texaco Starplex Pre-

mium Grease, part no.. 750355.. Do not substitute.

DRIVE WHEELS

BLADE ADAPTER

CUSTO ESPONSU mLmTJE$

ENGUNE

LUBRICATION

Use only high quality detergent oil rated with API service

classification SG. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

_F "20° 0_ 3o° a2° 40" 60° _0° 100° ,

°c .___3o0.='oo .loo _° ;0_ _oo 30°40"

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils (5W30, 10W30 etc,,)

improve starting in cold weather, these multi-viscosity oi]s

will result in increased oil consumption when used above

32°Fo Check your engine oit level more frequently to avoid

possible engine damage from running low on oil,,

Change the oil after-the first two hours of operation and

every 25 hours thereafter or at least once a year if the lawn

mower is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each five (5) hours of continuous use. Tighten oil

plug securely each time you check the oil level_

TO CHANGE ENGINE OIL (See Fig. 13)

. Disconnect spark plug wke from spark plug and place

wire where it cannot come in contact with spark plug,

•Remove engine oil cap; lay aside on a clean surface,,

o Tip lawn mower' on its side and drain oil into a suitable

container, Rock lawn mower back and forth to remove

any oil trapped inside of engine,,

o, Wipe off any spilled oil on lawn mower and on side of

engine.

- Fill engine with oil. Fill only to the "FULL" line on the

dipstick. DO NOT OVER FILL.

• Replace engine oil cap,

• Reconnect spark plug wire to spark plug,

AIR FILTER

Your engine will not run properly and may be damaged by

using a dirty air' filter,,

Replace the air fiiter every year, more often if you mow in

very dusty, dirty conditions,,

TO CLEAN AIR FILTER (See Fig,, 14)

° Loosen screw and tilt cover to remove,,

• Carefully remove cartridge,.

•Clean by gently tapping on a flat surfacer If very dirty,

replace cartridge or clean as follows: Wash in a low or

non-sudsing detergentandwarmwatersotution. Rinse

thoroughly with flowing water from mesh side until

water runs clear, Let cartridge airdry thoroughly before

using.

CAUTION: Petroleum solvents, such

as kerosene, are not to be used to clean

cartridge. They may cause deteriora-

tion of the cartridge. Do not oil car-

tridge. Do not use pressurized air to

clean or dry cartridge.

install cartridge, then replace cover making sure the

tabs are aligned with the slots in the back plate. Fasten

screw securely. 14

LIP

CARTRIDGE

CONTAINER

FIG. 13

BACK PLATE

3OVER

TABS

SCREW

FIG. 14

COVER

MUFFLER

Inspect and replace corroded muffter as it could create a

fire hazard and/or damage.

SPARK PLUG

Change your spark plug each year to make your engine

start easier and run better.. Set spark plug gap at .030 inch.

CLEANaNG

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT*UP GRASS AND

TRASH., CLEAN UNDERSIDE OF MOWER HOUSING

AFTER EACH USE. ii,i ,..nr'.r, I ill inln ill n.nn

CAUTION: Disconnect Spark plug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

i, .......................... ...................... i i

Turn lawn mower on its side, Make sure air'fifter and

carburetor are up, Clean the underside of your lawn

mower by scraping to remove build-up of grass and

trash.

°Clean engine often to keep trash from accumulating, A

clogged engine runs hotter and shortens engine life,

°Keep finished surfaces and wheels free of all gasoline,

oil, etc.

°We DO NOT recommend using a garden hose to clean

lawn mower' unless the electrical system, muffler', air

filter and carburetor are covered to keep water out.

Water in engine can result in shortened engine life.

CLEAN UNDER DRIVE COVER

Clean under drive cover at least twice a season. Scrape

underside of cover with putty knife or similar tool to remove

any build-up of trash or grass on underside of drive cover,

SERVICE

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

,Release control bar.

Make sure the blade and all moving parts have completely stopped.

,Disconnect spark plug wire from spark plug and place where it cannot come in contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in the Operation

section of this manual..

REAR DEFLECTOR

The rear deflector, attached between the rear wheels o!

your lawn mower, is provided to minimize the possibility

that objects will be thrown out the rear of the lawn-mower

into the operator's mowing position,.

if the rear deflector becomes damaged, it should be

replaced.

TO REiVIOVE/REPLACE DRIVE BELT

(See Fig. 15)

°Remove drive cover,, Remove bett by pushing down

on gear case pulley,,

. Turn lawn mower on its side with carburetor and fuel

cap up

° Remove blade,

o Remove debris shield,

-Remove belt from engine pulley on crankshaft,,

o Install new belt by reversing above steps,,

oAlways use factory approved belt to assure fit and

long life_

DRIVE

COVER

FIG. '15

SERVICE AND ADJUSTMENTS

TO ADJUST HANDLE (See Figs. 16 Thru 18)

Your fawn mower handle can be raised or lowered for' your

mowing comfort.. Four (4) positions are available: high,

medium high, medium low and low. Handles are shipped

mounted in the medium low position_

o To change from medium iow to medium high position,

the upper and lower handle sections will have to be

turned over (See Fig. 16B).

° Remove the controls and operator presence control

bar from the upper handle,,

oRemove the starter rope guide from the lower handle,

o Remove hairpin cotters_

° Disconnect the lower handle from the handle brackets

(See Fig° 18).

o Turn the handle over' and reassemble the hairpin

cotters that have been removed°

° Reassemble the starter rope guide°

. Reassemble the controls and the operator presence

control bar to the upper handte_

................ ill ill , ' .......

CAUTION: The operator presence

control bar must pivot freely to permit

blade brake engagement when control

bar is released. Do not over tighten the

fasteners holding the controls to the

upper handle.

°To change from medium low to high position only the

upper handle section will have to be turned over (See

Fig 17A).

• To change from medium tow to low position, onty the

lower handle section will have to be turned over (See

Fig° 17B)o

SHIPPING POSITION

MEDIUM LOW MEDIUM HIGH

FIG. 16A FIG. 16B

HIGH LOW

FIG. 17A FIG. 17B

LOWER HANDLE

SQUEEZE

TO REMOVE

HANDLE

BRACKET

HAIRPIN CLIP

FIG. 18

ENGINE

ENGINE SPEED

Your engine speed has been factory set,. Do not attempt

to increase engine speed or it may. result in personal

injury. If you believe that the engine is running too fast or

too slow, take your lawn mower to an authorized service

center for repair and adjustment°

TO ADJUST CARBURETOR (See Fig. 19)

Minor carburetor adjustments may be required to com-

pensate for differences in fuel, temperature, altitude or

load,. The air cleaner and air cleaner cover must be

assembled to carburetor when running.

INITIAL ADJUSTMENT-

With the engine not running, gently turn idle mixture screw

clockwise until it just closes. Screw may be damaged by

turning it in too far..

Next open the screw one turn counter-clockwise. This

initial adjustment will permit the engine to be started and

warmed up (approximately 5 minutes) prior to final adjust-

menL

NOTE: Do not adjust top no load adjusting screw_ It was

pre-set at the factory..

FINAL ADJUSTMENT-

Place engine speed control lever in idle or slow (,_.)

position° Adjust idle RPM by turning idle speed adjusting

screw to obtain 1700 RPM Next, turn idle mixture screw

in (clockwise -.lean mixture) until engine just starts to slow,

Then turn idle mixture screw out (counter-clockwise - rich

mixture) until engine runs unevenly.. Now turn idle mixture

screw midway between rich and leano Engine should

accelerate smoothly, If engine does not accelerate prop-

erly, the carburetor should be readjusted, usually to a

richer mixture, by turning the idle mixture screw counter-

clockwise 1/8 turn more.

TOP NO

LOAD

SCF

IDLE SPEED

ADJUSTING

SCREW

IDLE

MIXTURE

SCREW

FIG. 19

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS, IF YOU THINKTHE ENGINE-GOVERNED

HfGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER, WHICH

HAS PROPER EQUIPMENT AND EXPERIENCE TO

MAKE ANY NECESSARY ADJUSTMENTS,,

STORAGE

Immediately prepare your lawn mower for storage at the

end of the season or if the unit will not be used for 30 days

or more.

LAWN MOWER

When lawn mower is to be stored for a period of time, clean

it thoroughly, remove all dirt, grease, leaves, etc. Store in

a clean, dry area.

o Clean entire lawn mower (See "CLEANING" in the

Customer Responsibilities section of this manual).

o Lubricate as shown in the Customer' Responsibilities

section of this manual..

• Be sure that ail nuts, bolts, screws, and pins are

securely fastened.. Inspect moving parts for damage,

breakage and wear'. Replace if necessary.

°Touch up all rusted or chipped paint surfaces; sand

lightly before painting..

HANDLE (See Fig. 20)

You can fold your lawn mower handle for storage.

° Squeeze the bottom ends of the lower handle toward

each other until the lower handle clears the handle

bracket, then move handle forward.

o Loosen upper handle mounting bolts enough to allow

upper' handle to be folded back.

IMPORTANT: WHEN FOLDING THE HANDLE FOR

STORAGE OR TRANSPORTATION, BE SURE TO FOLD

THE HANDLE AS SHOWN OR YOU MAY DAMAGE THE

CONTROL CABLES

° When setting up your handle from the storage position,

the lower handle will automatically lock into the mow-

ing position.

LOWER HANDLE

HANDLE

BRACKET

SQUEEZETO

FOLD

HAIRPIN

COTTER

OPERATOR PRESENCE

CONTROLBAR

UPPER HANDLE

FOLDFORWARD

FOR STORAGE

FOLD BACKWARD

MOWING

POSITION

LOWER HANDLE

FIG. 20

ENGINE

FUEL SYSTEM

IMPORTANT: IT tS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACID1C GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE..

= Drain the fuel tank,

• Start the engine and let it run until the fuel lines and

carburetor are empty°

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

o Use fresh fuel next season,,

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer' to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after' adding

stabilizer to allow the stabilizer to reach the carburetor, Do

not drain the gas tank and carburetor if using fuel stabilizer,.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil (See "ENGINE" in the Customer Responsibilities

section of this manual).

CYLINDER

o Remove spark plug,.

• Pour one ounce (29 rnl) of oil through spark plug hole

into cylinder.

• Pull starter handle slowly a few times to distribute oil,,

• Replace with new spark plug,

OTHER

° Do not store gasoline from one season to another,

* Replace your gasoline can if your can starts to rust,

Rust and/or dirt in your gasoline will cause problems°

o If possible, store your unit indoors and cover it to give

protection from dust and dirt.

° Cover your unit with a suitable protective cover' that

does not retain moisture,. Do not use plastic, Plastic

cannot breathe which allows condensation to form and

will cause your unit to rust.

IMPORTANT: NEVER COVER MOWER WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM

CAUTION: Never store the lawn mower

with gasoline in the tank inside a build-

ing where fumes may reach an open

flame or spark. Allow the engine to cool

before storing in any enclosure,

TROUBLESHOOTING

PROBLEM

Does not start

Loss of power

Poor OUt - uneven

Excessive vibration

CAUSE

iillll illl,,i,l,ii

Starter rope hard to pull

Loss of drive

Grass catcher not filling

(If so equipped)

Hard to push

1., Dirty air filter

2. Out offue{

3 Stale fuel..

4 Water in fuel

5. Spark plug wire is disconnected

6., Bad sparkpIug

7. Loose blade or broken blade adapter..

8 Control bar in released position

9 Control bar defective

1. Rear of lawn mower housing/blade dragging

in heavy grass°

2. Cutting too much grass

3 Dirty air filter

4 Buildup of grass, leaves and trash under mower.

5 Too much oil in engine. "

6 Walking speed too fast

ii ,i

t, Worn, bent or toose blade

2, Wheet heights uneven

3 Low engine speed

4. Buildup of grass, leaves, and trash under mower.

I'I'IIH

I Worn, bent or loose biade

2 Bent engine crankshaft

,H,i,i,i,i,i

1. Engine flywheel brake is on when control bar is

reieased

2 Bent engi_e crankshaft

3 Biade adapter broken

4. Blade dragging in grass

1Drive wheels not turning with drive control engaged

2. Belt not driving

t Cutting height too low

2 Lift on btade worn off

3 Catcher not venting air.

4 Low engine speed.

1 Grass is too high or wheel height is too low.

2Rear of lawn mower housing/blade dragging

in grass.

3. Grass catcher too full.

4. Handle height position not right for you

CORRECTION

1 Cfean/replace air filter

2 Fill fuel tank

3 Drain tank and refill with fresh clean fuel

4 Drain fuel tank and carburetorand refill tank with fresh

gasoline

5,. Connect wire to plug..

6. Replace spark plug.

7 Tighten blade boJt or replace blade adapter

8 Depress control bar tohandle,

9 Reptace control bar.

1. Set in "Higher Cut" position

2. Set in "Higher Cut" position

3 Clean!replace air filter,

4 Clean underside of mower housing

5 Check oilleveL

6 Cut at slower walking speed,

t Replace blade. Tighten blade bott

2, Set all wheels at same height.

3., Set engine speed control in fast position

4. Clean underside of mower housing.

t, Replace blade, Tighten blade bolt,

2 Contact authorized service center/department

1, Depress control bar to upper hand[e before

pulling starter rope

2.. Contact authorized service center/department.

3. Replace blade adapter,

4 Move Eawn mower to cut grass or to hard surface

to start engine

1 Adjust or replace drive control cable, if broken..

2 Put belt on pulleys or replace belts if broken

1,. Raise cutting height

2. Replace blade

3 Clean grass catcher

4. Set engine speed control in fast position

1. Raise cutting height

2, Raise rear of lawn mower housing one (1)

setting higher

3 Emptygrass catcher

4 Adjust handle height to suit.,

RIEPAnR PARTS

CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

c:>

!1 14

20 37

12 I

REPAnR PARTS

CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

KEY PART DESCRIPTION KEY PART DESCRIPTION

NO. NO NO. NO

1133088X479

2 130861

3 74350424

4133170X479

5 85827

6136376

7 STD541425

8 851509

9 48137

1186344

12 STD512505

14 700483X479

15 700365X479

16 133190X479

1787596X479

18 86344

20128796

2284596

23 87677

25 83923

2657143

2788017

28 84921

29 61651

30 750913X004

3187877

32 700331X004

3484920

35 700375

3755187

38 88348

39 701t43X459

40 701144X459

Upper Handle

Engine Zone Control Cable

Hex Head Screw 1/4-20 x 1-1/2

Mulcher Plate

Cable Clip

Handle Knob

Locknut 1/4-20

Control Bar

Rear Door Kit

Self Tapping Screw #!0-24 x 5/8

Hex Tapping Screw wiSems 1/4-20 x 1/2

Back Plate

Side Baffle

Discharge Baffle

Rear Baffle

Hex Head Self-Tapping #10-24 x 1/2

Rear Skirt

Engine Pulley

Hi-Pro Key #505

Hex Flange Nut

Wave Washer

Wheel

Shoulder Bolt 3/8-16 x 1-3/8

Spring Washer

Axle Arm Assembly

Selector Knob

Selector Spring

Spacer

Wheel Adjusting Bracket (Left)

Thread Cutting Screw w!Seres 5/16-18 x 3/4

Flat Washer 3/8

Handle Bracket Assembly (Left)

Handle Bracket Assembly (Right)

41850998

42 750097

43 87930

44 48364

45 83253

46 851514

47752234

48851074

49 850263

50 851084

51 700869X479

52 85463

53 STD523707

55 751592

56 88652

5751793

58 84676X479

59 131959

60 851201X004

61 103672X

62134612

64 700796

66 700170X459

67 700172X459

68 86969

-- 702553

-- 701853

Hex Head Thread Roiling Screw 3/8-16 x 1-1/8

Hex Washer Head Screw #10-24 x 1/2

Guide Clip

Lawn Mower Housing (Incl. Key #t4, 15, 51 & 52)

Self-Tapping Screw w/Sems 5/16-18 x !-1/2

Blade Adapter

Blade 22"

Hardened Washer

Helical Washer 3/8-24 x 1-3/8 Gr. 8

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8

Front Baffle

- Danger Decal

Hex Bolt 3/8-16 x 3/4

Locknut 3/8-16

Hinge Screw 1/4-20 x 1-!/4

Hairpin Cotter

Lower Handle

Handle Bolt

Washer

Rope Guide

Debris Shield

Engine-Briggs & Stratton Model No. 126802,

Type 3215-01

Bracket Support (Right)

Bracket Support (Left)

Spacer

Owner's Manual (English)

Owner's Manual (Spanish)

Available accessories not included with lawn mower:

7_.!_133303 Clipping Deflector

7_$133623 Gas Can (2.5 gal.)

75133500 Fuel Stabilizer

Z.t 33300 SAE 30W Oil (20 oz.)

71_33417 Dust Shield

7_!33316 Mower Cover

REPAIR PARTS 22"

CRAFTSMAN ROTARY LAWN MOWER MODEL NUMBER 917.373231

h,,1

i ,i, i i iii ii --'='_

Ji i i i,

--1

\\\

REPAIR PARTS

CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

¢o

KEY PART DESCRIPTION KEY PART DESCRIPTION

NO. NO. NO. NO

1 137076 Control Cable Assembly 25 702182

2 48029 Control Head Kit 26 87866

3 74189 Locknut #10-24 27 750097

4 750029 Pan Head Machine Screw #10-24 x 2 28 137088

5 137078 V-Belt 31 132010

6 700875 Carriage Bolt 1/4-20 x 2 32 137052

7 85179 Retainer Clip 33 48323

8 77400 Hubcap 34 850848

9 52160 Washer 35 700339

10 86960 Nylon Bushing 36 702511

!1 700953 Wheel & Tire Assembly 37 137090

12 12000057 E-Ring 38 STD541425

13 137054 Pinion 40 75192

!4 88080 Dust Cover 41 700340

15 88118 Felt Washer 53 88614

16 67725 Washer 1/2 x 1-1/2 x.134 54 751663

18 87877 Selector Knob 55 86012

56 851552

Drive Cover Decal

Pan Head Tapping Screw #10-24 x 2-3/4

Hex Washer Head Screw #10-24 x 3/4

Dnve Cover

Hex Flange Nut

Drive Pulley

Drive Control Cable Kit

Hi-Pro Key

Wheel Adjuster Assembly (Left)

Gear Case Assembly

Spring

Locknut 1/4-20

.Spring

Wheel Adjuster Assembly (Right)

Frame Assembly

Grassbag Assembly

Driveshaft Cover

Screw, Pan Head, Hi-Lo #10-16 x 1/2

REPAnR PARTS

22" CRAFTSMAN POWER PROPELLED LAWN MOWER - - MODEL NO. 917.373231

GEAR CASE ASSEMBLY PART NUMBER 702511

KEY

NO.

PART

NO.

17490416

137055

137053

57072

57388

48281

77881

137051

137074

DESCRIPTION

Screw, Tapping 1/4-20 x 1-1/4

Bracket, Adjusting

Shifter

Seal

Pin, Grooved 1/8 x 1/2

Gear Case Halves, Upper and

Lower (Includes Key #4, 5 and 7)

Bearing

Shaft, Worm

Drive Shaft

KEY PART

NO. NO. DESCRIPTION

10 57079 Washer, Hardened

11 131484 Yoke, CEutch

12 700343 Bushing

13 86447 Plug

14 137050 Gear, Helical

15 750436X Jaw, Clutch

16 750355 Grease

17 t2000003 E-Ring

18 850848 Key, Hi-Pro

19 81585X004 Spring Bracket

NOTE:

All component dimensions given in U.S. inches

1 inch = 25,.4 mm

To reseal housing halves use Locktite No_ 515

REPAIR PARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. 126802 TYPE NO. 3215-01

572

_ 52 _

REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

383

.... _4_ _

592

33 _20 22

REPAIR PARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. 126802 TYPE NO. 3215-01

188A

258

iiiiiiiiiii iii ;

618

620

670A

124

127

G634

130 t

0 i

617 _j

116_

REPAnR PARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. '126802 TYPE NO. 32'15-01

456

515

69AO

461

.........................16o8

363

305 304

851

991

967

971 _

334

_332

_971A

455

966

_529

REPAgRPARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. 126802 TYPE NO. 3215-01

949

346

1019

387

353

670

601

358 GASKET SET

_116 7_ _

Q 634 61

977 CARBURETOR GASKET SET

104 1

121 CARBURETOR OVERHAUL KIT! 617 ..................

127 116

634 G

REPA6R

KEY

NO. NO.

1 494062

2 399269

3 299819

5 213861

7 2722OO

8 494489

9 272481

9A 272238

10 94650

11 231685

12 272198

13 94547

I5 94720

16 493362

94388

18 493279

20 399781

22 94220

94612

23 492177

24 222698

25 494058

494059

494060

494061

26 493261

493388

493389

493390

27 26026

28 298909

298908

29 490566

490743

PARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. 126802 TYPE NO. 3215-01

PART KEY PART

94405

262651

262652

262224

94608

93312

262204

DESCRIPTION

Cylinder Assembly

Bushing, Cylinder

* Seal, Oil

Head, Cylinder

"Gasket, Cylinder Head

Breather, Valve Chamber

* Gasket, Valve Cover

* Gasket, Baffle Plate

Screw, Breather Mounting

Tube, Breather

* Gasket, Crankcase

Screw, Cylinder Head

PIug, Oil Drain

Crankshaft

Timing Gear Key

Sump, Engine

* Seal, Oil

Screw, Sump Mounting, Seres

Screw, Sump Mounting

(Used in Hole Nearest Breather)

Flywheel, Magneto

Key, Flywheel

Piston Assembly, Standard Size

Piston Assembly .010" Oversize

Piston Assembly .020" Oversize

Piston Assembly .030" Oversize

Ring Set, Piston, Standard Size

Ring Set, Piston o010" Oversize

Ring Set, Piston ,.020" Oversize

Ring Set, Piston .030" Oversize

Lock, Piston Pin

Pin Assembly, Piston, Standard

Pin Assembly, Piston ,.005" Over

Rod Assembly, Connecting

.020" Undersize Crankpin Bearing

Screw, Connecting Rod

Valve, Exhaust

Valve, Intake

Spring, Valve

Screw, Hex Head

Retainer, Valve Spring

Tappet, Valve

NO. NO.

46 492830

47 493737

52 272199

54 94526

55 492831

56 493824

57 262594

58 280399

59 396892

60 393152

65 94696

69 280973

69A 224322

81 223664

95 94098

98 398185

98A 493280

104 231371

116 ---

118 493765

121 493762

124 94525

125 493627

127 ---

130 223470

131 493267

133 398187

134 398188

137 ---

163 272296

187 492790

!88 398540

188A 94644

201 262579

209 262660

227 492349

230 67072

258 94512

284 94511

DESCRIPTION

Gear, Cam

Oil Slinger Gear and Bracket

* Gasket, intake Elbow

Screw, Intake Elbow Mounting

Housing, Rewind Starter

Pulley, Rewind Starter

Spring, Rewind Starter

Rope, Rewind Starter

(Cut To 88-5/8")

Insert, Handle

Handle, Rewind Starter

Screw, Guard Mounting

Washer, Rewind Starter

Lock, Muffler Screw

Screw, Seres,

Throttle Valve Mounting

Screw, Idle Adjustment

Screw Assembly, Speed Adjust

_* Pin, Float Hinge

*** Gasket, Sealing (Sold in Kit Only)

** Valve and Spring, Needle

Carburetor Overhaul Kit

Screw, Carburetor Mounting

Carburetor Assembly

** Plug, Welch (Sold in Kit Only)

Valve, Throttle

Shaft and Lever, Throttle

Float Assembly, Carburetor

** Valve, Inlet (Includes Seat)

*** Gasket, Bowl (Sold in Kit Only)

* Gasket, Air Cleaner

Hose, Fuel

Screw, Tank Mounting

(Includes Washer)

Screw, Hex Head

Link, Governor

Spring, Governor

Lever Assembly, Governor

Washer, Governor Crank

Screw, Hex Head

Included in Gasket Set (493263)

Included in Carburetor Overhaul Kit (493762)

Included in both Carburetor Overhaul Kit (493762),

and Carburetor Gasket Set (490937)

NOTE: Atl component dimensions given in U..S, inches

1 inch = 25°4 mm

REPAIR PARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. 126802 TYPE NO. 3215-01

KEY PART

NOo NO.

300 490547

304 493293

305 94744

306 224324

307 94515

332 92284

333 802574

334 94731

337 802592

346 94602

353 94581

356 398808

358 493263

363 19069

383 89838

387 394281

455 224250

456 224321

459 492833

461 262626

515 262625

523 493950

524 280393

525 493952

528 399254

529 280943

562 92613

572 224328

592 231082

601 93807

6"01A 94171

608 493295

Includes:

6!3 94231

615 94474

6t6 262578

617 270344

620 493895

DESCRIPTION

Muffler, Exhaust

Housing, Blower

Screw, Seres, Hex Head

Shield, Cylinder

Screw, Hex Head

Nut, Flywheel

Armature, Magneto

Screw, Armature Mounting

Plug, Spark

Screw, Hex Head

Locknut

Wire, Ground

Gasket Set

Puller', Flywheel

Wrench, Spark Plug

Primer, Fuel

Cup, Starter

Retainer-, Rewind Starter

Pawl, Starter

Pin, Starter

Spring, Torsion

Cap With Dipstick, Oi! Filler'

* Seal, Filler Tube

Tube, Oil Filler

Hose, Primer

Grommet, Breather

Bolt, Governor Lever

Baffle, Cylinder

Nut, Hex

Clamp, Hose, Black

Clamp, Hose

Starter Assembly, Rewind

94128 Screw, Hex Head

92987 Nut, Hex

Screw, Muffler' Mounting

Pushnut, Governor Crank

Crank, Governor

*** Seal, Fuel Intake Tube

Bracket Assembly,

Carburetor Control

KEY PART

NO. NO.

621 396847

625 492717

634 - - -

635 66538

670 280512

670A 493823

741 262598

832 494224

842 280966

843 272616

847 493459

851 221798

869 213512

870 213513

871 262001

63709

922 262640

923 493442

949 281191

955 493637

957 397974

966 494735

967 491588

968 281069

969 94173

971 94269

971A 94121

972 495224

975 493640

977 490937

991 493537

1016 224278

1019 495354

DESCRIPTION

Switch, Stop

Tube, Fuel intake

*** Washer, Shaft (Sold in Kit Only)

Elbow, Spark Plug

Spacer, Fuel Tank

Spacer, Carburetor Bracket (2)

Gear, Timing

Guard, Muffler

* Seal, O-Ring

Sleeve, Control Lever'

Dipstick and Tube Assembly,

Oil Filler

Terminal, IgnitiOn Cable

Seat, Intake Valve, Standard

Seat, Exhaust Valve, Standard

Guide, Exhaust Valve

Guide, Intake Valve

(See Repair instruction Manual)

Spring, Brake

Brake Assembly

Guard, Finger

Screw, Fuel Bowl, Standard

Cap Assembly, Fuel

Base, Air Cleaner

Filter, Air

Cover, Air Cleaner

Screw, Cover Mounting

Screw, Air Cleaner

Screw, Base to Carburetor

Tank Assembly, Fuel

Bowl Assembly, Carburetor

Gasket Set, Carburetor

Pre-Filter

Cover, Rewind Starter

Label Kit

Included in Gasket Set (493263)

Included in Carburetor Overhaul Kit (493762)

Included in both Carburetor Overhaul Kit(493762),

and Carburetor Gasket Set (490937)

NOTE: All component dimensions given in U.S. inches

1 inch = 25_4 rnm

RPM Settings: Low Speed 1900-2100

High Speed 3000-3200

SERVICE NOTES

MANUAL

MODEL NO.

917.373231

HOW TO ORDER

REPAUR PARTS

5.0 HORSEPOWER

22" REAR DISCHARGE

3 in ONE Convertible

POWER PROPELLED

ROTARY LAWN MOWER

Each lawn mower has its own model number. Each en-

gine has its own model number,.

The model number for your lawn mower will be found on a

decal attached to the rear of the lawn mower housing_

The model number for your engine will be found on the

blower' housing of the engine.

All parts listed herein may be ordered from any Sears,

Roebuck and Co. Service Center/Department and most

Retail Stores._

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

=PRODUCT- LAWN MOWER

°MODEL NUMBER - 917.373231

°ENGINE MODEL NO. - 126802, TYPE NO. 3215-01

o PART NUMBER

°PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians,_ professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell.

702553 02/02/93 Printed in U.S_A.,

,,, ,,,,,,,'mlllllll llllllllll'llll'll=ll .............................IIII'11111'11II IIIIIIIII1'111111

MODEL 917.373231 OWNER'SMANUAL

Conv_rt_bm_

° AssembHy

° Operation

oCustomer

Responsibilities

°Service

°Adjustments

oRepair Parts

Caution:

Read and Follow

all Safety Rules

and Instructions

Before Operating

This Equipment

SAFETY RULES

REPAIRS. IMPORTANT

SAFETY STANDARDS REQUIRE OPERATOR PRESENCE CONTROLS TO MINIMIZE THE RISK OF INJURY. YOUR UNIT IS EQUIPPED WITH

SUCH CONTROLS_ DO NOT ATT'EMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROLS UNDER ANY CIRCUM-

STANCES°

TRAINING:

• Read this operator's manual carefully.. Become familiar with

the controls and know how to operate your mower properly.

Learn how to quickly stop mower.

• Do not allow children to use your mower. Never allow adults

to use mower without proper instructions

• Keep the area of operation clear of all persons, especially

small children and pets.

° Use mower only as the manufacturer intended and as de-

scnbed in this manual.

• Do not operate mower if ithas been dropped or damaged in

any manner., Always have damage repaired before using

your mower:_

• Do not use accessory attachments that are not recom-

mended by the manufacturer._ Use of such attachments may

be hazardous.

Be aware that the mower blade turns when the engine is

running

PREPARATION:

" Always thoroughly check the area to be mowed and clear it

of all stones, sticks, wires, bones, and other foreign objects..

These objects will be thrown by the blade and can cause

severe injury..

° Always wear safety glasses or' eye shields when starting and

while using your mower_

° Dress properly. Do not operate mower when barefoot or

wearing open sandals. Wear only solid shoes with good

traction when mowing.

• Check fuel tank before starting engine. Do not fill gas tank

indoors, when the engine is runningor when the engine is hot.

Allow the engine to cool for several minutes before filling the

gas tank.. Clean off any spilled gasoline before starting the

engine.

• Always make wheel height adjustments before starting your

mower. Never attempt to do this while the engine is rvnning.

• Mow only in daylight or good artificial light

OPERATION:

• Keep your eyes and mind on your mower and the area being

cuL Do not let other interests distract you.

o Do not mow wet or slippery grass.. Never run while operating

your mower. Always be sure of your footing- keep a firm hold

on the handles and walk.

Do not put hands or feet near or under rotating parts. Keep

clear of the discharge opening at all times.

° Always stop the engine whenever you leave or are not using

your mower, or before crossing driveways, walks, roads, and

any gravel-covered areas.

• Never direct discharge of material toward bystanders nor

allow anyone near tire mower while you are operating it.

• Before cleaning, inspecting, or repairing your mower, stop

the engine and make absolutely sure the blade and all

moving parts have stopped. Then disconnect the spark plug

wire and keep it away from the spark plug to prevent

accidental starting.

• Do not continue to run your mower if you hit a foreign objecL

Follow the procedure outlined above, then repair any dam-

age before restarting and operating you mower..

• Do not change the governor settings or overspeed the

engine_ Engine damage or personal injury may result.

• Do not operate your mower if it vibrates abnormally. Exces-

sive vibration is an indication of damage; stop the engine,

safely check for the cause of vibration and repair as required.

• Do not run the engine indoors.. Exhaust fumes are danger-

OUS,,

•Never cut grass by pulling the mower towards you. Mow

across the face of slopes, never up and down or you might

lose your footing, Do not mow excessively steep slopes..

Use caution when operating the mower on uneven terrain or

when changing directions -maintain good footing.

• Never operate your mower without proper guards, plates,

grass catcher or other safety devices in place_

MAINTENANCE AND STORAGE:

• Check the blade and the engine mounting bolts often to be

sure they are tightened properly.

• Check all bolts, nuts and screws at frequent intervals for

proper tightness to be sure mower is in safe working condi-

tion.

• Keep all safety devices in place and working

• To reduce fire hazard, keep the engine free of grass, leaves

or excessive grease and oil

•Check grass catcher often for deterioration and wear and

replace worn bags. Use only replacement bags that are

recommended by and comply with specifications of the

manufacturer of your rnower_.

• Always keep a sharp blade on your mower.

• Allow engine to cool before storing in any enclosure.

• Never store mower with fuel in the tank inside a building

where fumes may reach an open flame or an ignition source

such as a hot water heater, space heater, clothes dryer, etc.

.................................................... , ,,,, ,,,,,,,,,

LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS.

IT MEANS- ATTENTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED,

CONGRATULATIONS on your purchase of a Sears

Craftsman Lawn Mower_ It has been designed, engineered

and manufactured to give you the best possible de-

pendability and performance_

Should you experience any problems you cannot easily

remedy, please contact your nearest Sears Service Cen-

tedDepartment. Sears has competent, welt trained tech-

nicians and the proper tools to service or repair this unit.

Please read and retain this manual.. The instructions wilt

enable you to assemble and maintain your lawn mower

properly. Always observe the "SAFETY RULES'L

MODEL

NUMBER 917,373231

SERIAL

NUMBER

DATE OF

PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE

FOUND ON A DECAL ATTACHED TO THE REAR

OF THE LAWN MOWER HOUSING,.

YOU SHOULD RECORD BOTH SERIAL NUMBER

AND DATE OF PURCHASE AND KEEP IN A SAFE

PLACE FOR FUTURE REFERENCE,.

PRODUCT SPECIFICATIONS

HORSEPOWER: 5.0

DISPLACEMENT: 11..57cue in,,

GASOLINE CAPACITY: 1o6quarts

(Unleaded)

OIL (20 ozo Capacity): SAE 30 (Above 32°F)

5W30 (Below 32°F)

SPARK PLUG (Gap ..030 ino):

(0_76 mm)

Champion

RJ19LM or

Sears zt 33312

or STD 361458

or STD 360950

VALVE CLEARANCE: intake: °005-°007 ino

Exhaust: o007-_009 in.

SOLID STATE IGNITION

AIR GAP: o010 in,.

BLADE BOLT TORQUE: 35-40 ft.-Ibs_

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this producL Contact your nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

= Read and observe the safety rules..

•Follow a regular schedule in maintaining, caring for and using your lawn mower.

=Fo]fow the instructions under "Customer Responsibilities" and "Storage" sections of this Owner's Manual

LIMEED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up

according to the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any

defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days

from the date of purchase,_

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower blades, blade adapters, belts,

air cleaners and spark plug.

° Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to

maintain the equipment according to the instructions contained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE NEAR-

EST SEARS SERVICE CENTERIDEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY

WHILE THIS PRODUCT IS IN USE IN THE UNITED STATES_

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO.., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

TABLE OF CONTENTS

SAFETY RULES ............................................. 2

PRODUCT SPECIFICATIONS ........................ 3

CUSTOMER RESPONSIBILITIES ...... 3, 12-14

WARRANTY .................................................... 3

LAWN MOWER ACCESSORIES ................... 5

ASSEMBLY ..................................................... 6

OPERATION ................................................... 8

SERVICE AND ADJUSTMENTS .................. 15

STORAGE ..................................................... 18

TROU B LESHOOTING .................................. 19

REPAIR PARTS - LAWN MOWER ......... 20-24

REPAIR PARTS - ENGINE ...................... 25-30

PARTS ORDERING/SERVICE. BACK COVER

mNDEX

Accessories ............................................. 5

Adjustments:

Carburetor .................................. 17

Handle Height ............................ 16

Height of Cut ................................ 9

Air Filter:

Service ........................................ 14

Assembly:

Handle .......................................... 6

Grass Catcher .............................. 7

Blade:

Sharpening ................................. 13

Replacement .............................. 13

Controls:

Operator Presence Control Bar .8

Drive Control ................................ 8

Customer Responsibilities ..... 3, 12-14

Air Filter ...................................... 14

Blade Care/Replacement .......... 13

Drive Wheels .............................. 13

Engine ........................................ 14

Gear Case ................................... 13

Lubrication ................................. 12

Spark Plug .................................. 14

Engine:

Oil Change ................................. 14

Oil Level ..................................... 14

Oil Type ...................................... 14

Starting ....................................... 10

Storage ....................................... 18

Fuel:

Type ............................................. 10

Storage ....................................... 18

Handle:

Adjustment .................................. 16

Assembly ........................................ 6

Lubrication:

Engine ........................................ 12

Rear Door Hinge ......................... 12

Handle Bracket Mounting Pin .. 12

Wheel Adjuster .......................... 12

Maintenance Agreement .................... 3

Maintenance Schedule ..................... 12

Mowing Tips ...................................... 11

Mulching/Mowing Tips ..................... 11

Oil:

Engine ........................................ 14

Storage ....................................... 18

Operation:

Operating Lawn Mower'. .............. 9

Drive Control ................................ 9

Operator Presence Control Bar ..... ;..8

Options:

Attachments ................................. 5

Repair Parts

Lawn Mower .......................... 20-24

Engine. .................................. 25-30

Responsibilities, Customer ....3, 12-14

Safety Rules ........................................ 2

See,ice and Adjustments:

Carburetor'. ................................. 17

Drive Belt ................................... 15

Engine Speed ............................ 17

Handle ........................................ 16

Spark Plug ......................................... 14

Specifications ..................................... 3

Starting the Engine .......................... 10

Stopping the Engine ........................ 10

Storage .............................................. 18

Trouble Sirooting Chart ................... 19

Warranty .............................................. 3

Wheels:

Wheel Adjusters .......................... 8

These accessories were available when this lawn mowerwas produced _They are also available at most Sears retail outlets,

catalog and service centers_ Most Sears stores can also order repair parts for you, when you provide the model number of

your lawn mower° Some of these accessories may not apply to your lawn mower.

ENGmNE

SPARK PLUG MUFFLER AIR FILTER

if lawn mower is an electric start

LAWN MOWER PERFORMANCE

GAS CAN ENGINE OIL STABILIZER

CHARGER BATTERY

REAR BAG

OPTIONAL

REPLACEMENT

BAG FOR REAR

DISCHARGE

LAWN MOWERS

FABRIC BAG

LAWN P/lOWER MAINTENANCE

,=,ljl ill .......

BELT BLADE

DUST SHIELD

OPTIONAL

CATCHER FOR

SIDE DISCHARGE

LAWN MOWER

CUPPING DEFLECTOR

SIDE DISCHARGE CATCHER

BLADE

ADAPTER

LAWN MOWER

COVER

Read these instructions and the Operator's Manual in its

entirety before you attempt to assemble or operate your

new lawn mower.. Your new lawn mower has been as-

sernbled at the factory with the exception of those parts left

unassernbled for shipping purpose& To ensure safe and

proper operation of your lawn mower, all parts and hard-

ware you assemble must be tightened securelyv Use the

correct tools as necessary to ensure proper tightness. All

parts such as nuts, washers, bolts, etc., necessary to

complete the assembly have been placed in the parts bag

TO REMOVE LAWN MOWER FROM

CARTON

- Remove loose parts included with mower.

° Cut down two end corners of carton and lay end panel

down flat..

• Remove all packing materials except padding between

upper and lower handle and padding holding operator

presence control bar to upper handle_

•Roll lawn mower out of carton and check carton thor-

oughly for additional loose parts.

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE (See Fig. 1)

IMPORTANT: UNFOLD HANDLE CAREFULLY SO AS

NOT TO PINCH OR DAMAGE CONTROL CABLES

o Raise handles until lower handle section locks into

place in mowing position.

o Raise upper handle section into place on lower handle,

remove protective padding and tighten both handle

knobs..

° Remove handle padding holding operator presence

control bar to upper- handle.,

• Your lawn mower handle can be adjusted for your

mowing comfort, Refer to "Adjust Handle" in the

Service and Adjustment section of this manual,

TO INSTALL ATTACHMENTS (See Fig. 2)

Your lawn mower" was shipped ready to be used as a

mulchero To convert to bagging or discharging:

• Open rear door and remove mulcher plate, Store

rfiulcher plate in a safe place..

• You can now install Latchetor optional clipping deflec-

tor',

° To return to mulching operation, install mulcher plate

into discharge opening of mower_ Be sure all tabs are

seated properly,

CAUTION: Do not run your lawn mower

without mulcher plate in place or ap-

proved clipping deflector or grass

catcher in place, Never attempt to op-

erate the lawn mower with the rear door

removed or propped open.

OPERATOR PRESENCE

CONTROLBAR

UPPER HANDLE

LIFT UP

LOWER HANDLE

FIG. 1

SLOTS

MOWING POSITION

MULCHER PLATE

FIG, 2

TABS

ASSE BLY

TO ASSEMBLE & ATTACH GRASS

CATCHER (See Figs. 3-4)

oPut grass catcher frame into grass bag with rigid part

of bag on the bottom.

° Slip vinyl bindings over frame.

NO'[E: If vinyl bindings are too stiff, hold them in warm

water for a few minutes If bag gets wet, let it dry before

using.

o Lift the rear door on the mower housing and place the

grass catcher frame onto the formed tabs on the rear

door hinge bracket_

-The grass catcher is secured to the lawn mower

housing when the rear door is lowered onto the grass

catcher frame.

CATCHER FRAME

HINGE

BRACKET _._

FIG. 3

/REAR DOOR

FORMED

TABS

GRASS CATCHER FRAME

FIG. 4

OPERATION

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the

illustrations with your lawn mower' to familiarize yourself with the location of various controls and adjustments. Save this

manual for future reference_

ENGINE ZONE CONTROL CABLE OPERATOR PRESENCECONTROLBAR

DRIVE CONTROL LEVER

STARTER HANDLE

GRASSCATCHER

GASOLINE CAP

CABLE CLIPS

ENGINE OIL CAP W/DIPSTICK

DRIVE COVER

MULCHER PLATE

PRIMER

ENGINE SPEED CONTROL

AIR FILTER

WHEEL ADJUSTER

(ON EACH WHEEL)

HOUSING

FIG. 5

,_llllll .................................

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute

and the U_S_Consumer Product Safety Commission. The blade turns when the engine is running.

_J iLiiii i i illlll ,i, i::ll:u,

OPERATOR PRESENCE CONTROL -must be held

down to the handle to start the engine., Release to stop the

engine.

PRIMER - pumps additional fuel from the carburetor to the

cylinder for use when starting a cold engine_

STARTER HANDLE - used for starting the engine°

DRIVE CONTROL LEVER - used to engage power-pro-

pelled forward motion of lawn mower..

ENGINE SPEED CONTROL - located on the side of the

engine which allows you to select either fast (,r_) or'slow

(,_) engine speed.

MULCHER PLATE - located at the discharge opening,

must be removed when converting to bagging or discharge

operation,

OPERATION

:, ,llll,l,llll: lllll,l,,ll,i, ill,,

HOW TO USE YOUR LAWN MOWER

CAUTION: Do not run your lawn mower

without mtdcher plate in place and door

closed orwithout an approved clipping

deflector or grasscatcher in place.

Never attempt to operate the lawn

mower with the rear door removed or

propped openf

ENGINE SPEED (See Fig. 6)

The engine speed is controlled by a lever located on the

side of the engine. Fast (,_) position is for starting the

engine, normal cutting, and better grass bagging. Slow

(-_) position is for light cutting, trimming and fuel economy.

ENGINE ZONE CONTROL

CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury, Do not un-

der any circumstances attempt to de-

feat the function of the operator control.

The blade turns when the engine is

running,

o Your lawn mower is equipped with an operator pres-

ence control bar which requires the operator to be

positioned behind the lawn mower handle to start and

operate the lawn mower..

TO ADJUST CUTTING HEIGHT (See Fig. 7)

= Raise wheels for low cut and lower wheels for high cut

o Wheels are set in low cut for shipping.. Adjust cutting

height to suit your requirements. Medium position is

best for most lawns..

• To change cutting height, squeeze adjuster lever to-

ward wheel Move wheel up or down to suit your

requirements.. Be sure afl wheels are in the same

setting,

TO EMPTY GRASS CATCHER (See Fig. 8)

• To remove grass catcher, release operator presence

control bar to stop engine.

• Lift up rear door and remove the grass catcher by the

handle°

° Do not drag the bag when emptying; it will cause

unnecessary wear.

DRIVE CONTROL (See Fig. 9)

= Self-propelling is controlled by holding the operator

presence control bar down to the handle and pushing

the drive control lever forward until it clicks; then

release the lever..

° Forward motion will stop when the operator presence

control bar is retease& To stop forward motion without

stopping engine, release the operator presence control

bar slightly until the drive control disengages, Hold

operator presence control bar down to handte to con-

tinue mowing without self-propelling..

o To keep drive control engaged when turning corners,

push down on handle and lift front wheels off ground

while turning lawn mower.

FIG. 6

ENGINE SPEED

LOWER WHEELS RAISE WHEELS

FOR HIGH CUT FOR LOW CUT

FIG. 7

FIG. 8

OPERATOR PRESENCE

CONTROL BAR

DRIVE CONTROL

DRIVE

CONTROL

FIG. 9

OPERAON

BEFORE STARTONG ENGItNE

OIL (See Fig. 10)

Your lawn mower is shipped without oil in the engine°

. Be sure mower is level and area around oif fill is clean_

oRemove engine oi! cap w/dipstick and fill to the full line

on the dipstick_

•Use 20 ozs. of oi!. For type and grade of oi! to use, see

"ENGINE" in Customer Responsibilities section of this

manual,

o Pour oil siowly_ Do not over fill,,

°Check oil level before each user Add oil if needed,, Fill

to full line on dipstick,

°To read proper level, tighten engine oil cap each timev

° Reinstall engine oil cap and tighten..

•After the first two (2) hours of mowing, change the oil,

and every 25 hours thereafter_ You may need to

change the oil more often under dusty, dirty conditions.

GAS (See Fig. 10)

° Fill gasoline tank with fresh, clean, unleaded gasoline.

DO NOT USE PREMIUM GASOLINE. BE CAREFUL

NOT TO OVER FILL TANK..

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage° Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer.. Drain the fuel tank, start the

engine and let it run until fuel lines and carburetor are

empty. Use fresh fuel next season. See Storage Instruc-

tions for' additional inforrnation_ Never use engine or

carburetor cleaner products in fuel tank or permanent

damage may occur,,

ENGINE OIL CAP

W/DIPSTICK

GASOLINE FILLER CAP

FIG. 10

TO START ENGINE

°To start a cold engine, push pnmer three (3) times

before trying to start. Use a firm push, This step is not

usualty necessary when starting an engine which has

already run for a few minutes.

. Move engine speed control lever to fast (,_) position_

= Hold operator presence control bar down to the handle

and pull starter handle quickly_, Do not allow starter' rope

to snap back.

°To stop engine, release operator' presence control

bar.

NOTE: In cooler weather it may be necessary to repeat

priming steps. In warmerweather over priming may cause

flooding and engine will not start. If you do flood engine,

wait a few minutes before attempting to start and do not

repeat priming steps,,

OPERATIO

MOWING TraPS

o Under certain conditions, such as very tall grass, it

may be necessary to raise the height of cut to reduce

pushing effort and to keep from overloading the en-

gine and leaving dumps of grass clipping&

° For extremely heavy cutting, reduce the width of cut

and raise the rear of the lawn mower housing one (1)

wheel adjuster setting higher than the front for better

discharge of grass.

o For better grass bagging and most cutting conditions,

the engine speed should be set in the fast (,_) posi-

tion°

o When using a rear discharge lawn mower in moist,

heavy grass, clumps of cut grass may not enter the

grass catcher. Reduce ground speed (pushing speed)

and/or run the lawn mower over the area a second

time°

• If a trail of grass clippings is ieft on the right side of a

rear discharge lawn mower, mow in a clockwise

direction with a small overlap to collect the clippings

on the next pass°

• Keep top of engine around starter clear and clean of

grass clippings and chaff. This will help engine air

flow and extend engine life.

°Pores in cloth grass catchers can become filled with

dirt and dust with use and catchers will collect less

grass. To prevent this, regularly hose catchers off

with water and let dry before using°

MULCHING MOWING TIPS

IMPORTANT,' FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH. CLEAN AFTER EACH USE.. SEE "CLEANING"

IN CUSTOMER RESPONSIBILITIES SECTION OF THIS

MANUAL.

° The special mulching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fall onto the lawn they will disperse into the grass

and not be noticed.. Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn..

Always mulch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades.

MAX 1/3

FIG. 11

° Avoid cutting your lawn when it is wet. Wet grass

tends to form clumps and interferes with the mulching

action.. The best time to mow your lawn is the early

afternoon. At this time the grass has dried and the

newly cut area will not be exposed to the direct sun°

• For best results, adjust the lawn mower cutting height

so that the lawn mower cuts off only the top one-third

of the grass blades (See Fig° 11). If the lawn is

overgrown it will be necessary to raise the height of cut

to reduce pushing effort and to keep from overloading

the engine and leaving clumps of mulched grass. For

extremely heavy mulching, reduce your width of cut,

mow slowly and raise the rear of the lawn mower one

wheel adjuster setting higher than the front.

° Certain types of grass and grass conditions may

require that an area be mulched a second time to

completely hide the clippings.. When doing a second

cut, mow across or perpendicular to the first cut path..

, Change your cutting pattern from week to week. Mow

north to south one week then change to east to west

the next week. This will help prevent matting and

graining of the lawn_

CUSTOMER ESIPONSH ILHTI

MAI.TENA.CESC,EDULE

FILL IN DATES _:k_ _,_1 _ _, ,-4, _,, _'-o

YOU ° ....................

Clean/inspect Grass Ca'{'cher _..........

X(If Equipped) , ...................H64_ 6/

Clean Lawn Mower' '............. _ 6/ I

Inspect/Clean Diive Wheels _ .'........

(Self-Propelled Mowers) I

R sharpeniRepiace MoWerBiade

cubi-icat_onCha_ .......................A

Clean Batte ry/R ecii,_rge ..................U ....

(Electric Start Mowers) U 6/ 6/4 ,,..

ECheck Eng,i,ne Oil Level 6/ .......... 6/ :

N Change Engine Oil _ ........

G clean Air Filter

Inspect Muffler

N Replace Spark P!ug ''":':'.".'.'."."."."i....

Replace Air Filter Paper Cartridge ......_2 .....

t - Change more often when operating under a heavy load or in high ambient lemperatures,

2 - Service more often when operating in dirty or' dusty conditions,,

3 - Replace blades more often when mowing in sandy soil

4 - Charge 48 hours at end of season.

GENERAL RECOMMENDATIONS

"]:.hewarranty on this lawn mower does not cover items that

have been subjected to operator abuse or' negligence. To

receive full value from the warranty, operator must maintain

mower as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintair! your unit..

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season°

o Once a year, replace the spark plug, replace air filter

element and check blade for wear_ A new spark plug

and clean/new air filter element assures proper air-fuel

mixture and helps your engine run better and last

longer..

o Follow the maintenance schedule in this manual.

LUBRaCATUON CHART

BEFORE EACH USE

= Check engine oil level..

oCheck for loose fasteners..

LUBRICATION

Keep unit wet! lubricated (See "LUBRICATION CHART").

(_) HANDLE BRACKET

MOUNTING PIN

(_) REAR DOOR

HINGE

(_) SPRAY LUBRICANT

(_) REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION.

IMPORTANT: DO NOT OIL OR GREASE PLASTIC

WHEEL BEARINGS. VISCOUS LUBRICANTS WILL

ATTRACT DUST AND DIRT THAT WILL SHORTEN THE

LIFE OF THE SELF LUBRICATING BEARINGS,. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY,

POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.

CUSTOM ESPO

LAWN MOWER

Always observe safety rules when performing any mainte-

nance.

TIRES

oKeep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber°

o Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

BLADE CARE

For best results, mower blade must be kept sharp., Re-

place bent or damaged blades..

TO REMOVE BLADE (See Fig., 12)

.Disconnect spark plug wire from spark plug and place

wire where it cannot come in contact with spark plug,,

o Turn lawn mower on its side. Make sure air filter and

carburetor are up,,

o Use a wood block between blade and mower housing

to prevent blade from turning when removing blade

boil

° Protect your hands with gloves and/or wrap blade with

heavy cloth,,

• Remove blade bolt by turning counter-clockwise., Use

a 9/16" box or open-end wrench,

•Remove blade and attaching hardware (bolt, lock

washer and hardened washer),

NOTE: Remove the blade adapter and check the key

inside hub of blade adapter., The key must be in good

condition to work properly. Replace adapter if damaged,

TO REPLACE BLADE (See Fig., 12)

.Position the blade adapter on the engine crankshaft.

Be sure key in adapter and crankshaft keyway are

aligned°

-Position blade on the blade adapter aligning the two (2)

holes in the blade with the raised lugs on the adapter.

• Be sure the trailing edge of blade (opposite sharp

edge) is up toward the engine.

o Install the blade bott with the lock washer and hardened

washer into blade adapter and crankshaft,

• Use block of wood between blade and lawn mower

housing and tighten the blade bolt, turning clockwise.

•The recommended tightening torque is 35-40 ft. Ib&

IMPORTANT: BLADE BOLT IS GRADE 8 HEATTREATED.

NOTE: We do not recommend sharpening blade - but if

you do, be sure the blade is balanced°

TO SHARPEN BLADE

Care should be taken to keep the blade balanced. An

unbalanced blade will cause eventual damage to lawn

mower or engine.,

° The biade can be sharpened with a rite or on a grinding

wheel° Do not attempt to sharpen while on the mower.

. To check blade balance, drive a nail into a beam or

wall., Leave about one inch of the straight nail ex-

posed° Place center hole of blade over the head of the

nail. If blade is balanced, it should remain in a

horizontal position,, If either end of the blade moves

downward, sharpen the heavy end until the blade is

balanced,,

IL[['IES

II ,i,1,,i, i1,1,, ii, ,,, ii .... i,

CRANK_

SHAFT &

BLADE

ADAPTER

DETAIL BLADE

ADAPTER

KEY

TRAILING EDGE

_]_[ BLADE

BOLT

CRANK-

SHAFT

KEYWAY

HARDENED

LOCK WASHER

FIG, 12

CRANK-

SHAFT

Check front drive wheels each time before you mow to be

sure they move freely,

The wheels not turning freely means trash, grass cuttings,

etc.,are in the drive wheel area and must be cleaned to free

drive wheel&

If necessary to clean the drive wheels, check both front

wheels,

°Remove hubcaps, hairpin cotters and washers°

• Remove wheels from wheel adjusterso

o Remove any trash or grass cuttings from inside the

dust cover, pinion and/or drive wheel gear teeth°

•Putwheels back in place,.

• If after cleaning, the drive wheels do not turn freely,

contact your nearest service center.,

GRASS CATCHER

•The grass catcher may be hosed with water, but must

be dr,,,when used,.

• Check your grass catcher often for damage or deterio-

ration. Through normal use it will wear_. If catcher

needs replacing, replace only with a manufacturer

approved replacement catcher. Give the lawn mower

model number when ordering.

GEAR CASE

• To keep your drive system working properly, the gear

case and area around the drive should be kept clean

and free of trash build-upo Clean under the drive cover

twice a season.

•The gear case is filled with lubricant to the proper level

at the factory. The only time the lubricant needs

attention is if service has been performed on the gear

case.

° If lubricant is required, use only Texaco Starplex Pre-

mium Grease, part no.. 750355.. Do not substitute.

DRIVE WHEELS

BLADE ADAPTER

CUSTO ESPONSU mLmTJE$

ENGUNE

LUBRICATION

Use only high quality detergent oil rated with API service

classification SG. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

_F "20° 0_ 3o° a2° 40" 60° _0° 100° ,

°c .___3o0.='oo .loo _° ;0_ _oo 30°40"

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils (5W30, 10W30 etc,,)

improve starting in cold weather, these multi-viscosity oi]s

will result in increased oil consumption when used above

32°Fo Check your engine oit level more frequently to avoid

possible engine damage from running low on oil,,

Change the oil after-the first two hours of operation and

every 25 hours thereafter or at least once a year if the lawn

mower is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each five (5) hours of continuous use. Tighten oil

plug securely each time you check the oil level_

TO CHANGE ENGINE OIL (See Fig. 13)

. Disconnect spark plug wke from spark plug and place

wire where it cannot come in contact with spark plug,

•Remove engine oil cap; lay aside on a clean surface,,

o Tip lawn mower' on its side and drain oil into a suitable

container, Rock lawn mower back and forth to remove

any oil trapped inside of engine,,

o, Wipe off any spilled oil on lawn mower and on side of

engine.

- Fill engine with oil. Fill only to the "FULL" line on the

dipstick. DO NOT OVER FILL.

• Replace engine oil cap,

• Reconnect spark plug wire to spark plug,

AIR FILTER

Your engine will not run properly and may be damaged by

using a dirty air' filter,,

Replace the air fiiter every year, more often if you mow in

very dusty, dirty conditions,,

TO CLEAN AIR FILTER (See Fig,, 14)

° Loosen screw and tilt cover to remove,,

• Carefully remove cartridge,.

•Clean by gently tapping on a flat surfacer If very dirty,

replace cartridge or clean as follows: Wash in a low or

non-sudsing detergentandwarmwatersotution. Rinse

thoroughly with flowing water from mesh side until

water runs clear, Let cartridge airdry thoroughly before

using.

CAUTION: Petroleum solvents, such

as kerosene, are not to be used to clean

cartridge. They may cause deteriora-

tion of the cartridge. Do not oil car-

tridge. Do not use pressurized air to

clean or dry cartridge.

install cartridge, then replace cover making sure the

tabs are aligned with the slots in the back plate. Fasten

screw securely. 14

LIP

CARTRIDGE

CONTAINER

FIG. 13

BACK PLATE

3OVER

TABS

SCREW

FIG. 14

COVER

MUFFLER

Inspect and replace corroded muffter as it could create a

fire hazard and/or damage.

SPARK PLUG

Change your spark plug each year to make your engine

start easier and run better.. Set spark plug gap at .030 inch.

CLEANaNG

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT*UP GRASS AND

TRASH., CLEAN UNDERSIDE OF MOWER HOUSING

AFTER EACH USE. ii,i ,..nr'.r, I ill inln ill n.nn

CAUTION: Disconnect Spark plug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

i, .......................... ...................... i i

Turn lawn mower on its side, Make sure air'fifter and

carburetor are up, Clean the underside of your lawn

mower by scraping to remove build-up of grass and

trash.

°Clean engine often to keep trash from accumulating, A

clogged engine runs hotter and shortens engine life,

°Keep finished surfaces and wheels free of all gasoline,

oil, etc.

°We DO NOT recommend using a garden hose to clean

lawn mower' unless the electrical system, muffler', air

filter and carburetor are covered to keep water out.

Water in engine can result in shortened engine life.

CLEAN UNDER DRIVE COVER

Clean under drive cover at least twice a season. Scrape

underside of cover with putty knife or similar tool to remove

any build-up of trash or grass on underside of drive cover,

SERVICE

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

,Release control bar.

Make sure the blade and all moving parts have completely stopped.

,Disconnect spark plug wire from spark plug and place where it cannot come in contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in the Operation

section of this manual..

REAR DEFLECTOR

The rear deflector, attached between the rear wheels o!

your lawn mower, is provided to minimize the possibility

that objects will be thrown out the rear of the lawn-mower

into the operator's mowing position,.

if the rear deflector becomes damaged, it should be

replaced.

TO REiVIOVE/REPLACE DRIVE BELT

(See Fig. 15)

°Remove drive cover,, Remove bett by pushing down

on gear case pulley,,

. Turn lawn mower on its side with carburetor and fuel

cap up

° Remove blade,

o Remove debris shield,

-Remove belt from engine pulley on crankshaft,,

o Install new belt by reversing above steps,,

oAlways use factory approved belt to assure fit and

long life_

DRIVE

COVER

FIG. '15

SERVICE AND ADJUSTMENTS

TO ADJUST HANDLE (See Figs. 16 Thru 18)

Your fawn mower handle can be raised or lowered for' your

mowing comfort.. Four (4) positions are available: high,

medium high, medium low and low. Handles are shipped

mounted in the medium low position_

o To change from medium iow to medium high position,

the upper and lower handle sections will have to be

turned over (See Fig. 16B).

° Remove the controls and operator presence control

bar from the upper handle,,

oRemove the starter rope guide from the lower handle,

o Remove hairpin cotters_

° Disconnect the lower handle from the handle brackets

(See Fig° 18).

o Turn the handle over' and reassemble the hairpin

cotters that have been removed°

° Reassemble the starter rope guide°

. Reassemble the controls and the operator presence

control bar to the upper handte_

................ ill ill , ' .......

CAUTION: The operator presence

control bar must pivot freely to permit

blade brake engagement when control

bar is released. Do not over tighten the

fasteners holding the controls to the

upper handle.

°To change from medium low to high position only the

upper handle section will have to be turned over (See

Fig 17A).

• To change from medium tow to low position, onty the

lower handle section will have to be turned over (See

Fig° 17B)o

SHIPPING POSITION

MEDIUM LOW MEDIUM HIGH

FIG. 16A FIG. 16B

HIGH LOW

FIG. 17A FIG. 17B

LOWER HANDLE

SQUEEZE

TO REMOVE

HANDLE

BRACKET

HAIRPIN CLIP

FIG. 18

ENGINE

ENGINE SPEED

Your engine speed has been factory set,. Do not attempt

to increase engine speed or it may. result in personal

injury. If you believe that the engine is running too fast or

too slow, take your lawn mower to an authorized service

center for repair and adjustment°

TO ADJUST CARBURETOR (See Fig. 19)

Minor carburetor adjustments may be required to com-

pensate for differences in fuel, temperature, altitude or

load,. The air cleaner and air cleaner cover must be

assembled to carburetor when running.

INITIAL ADJUSTMENT-

With the engine not running, gently turn idle mixture screw

clockwise until it just closes. Screw may be damaged by

turning it in too far..

Next open the screw one turn counter-clockwise. This

initial adjustment will permit the engine to be started and

warmed up (approximately 5 minutes) prior to final adjust-

menL

NOTE: Do not adjust top no load adjusting screw_ It was

pre-set at the factory..

FINAL ADJUSTMENT-

Place engine speed control lever in idle or slow (,_.)

position° Adjust idle RPM by turning idle speed adjusting

screw to obtain 1700 RPM Next, turn idle mixture screw

in (clockwise -.lean mixture) until engine just starts to slow,

Then turn idle mixture screw out (counter-clockwise - rich

mixture) until engine runs unevenly.. Now turn idle mixture

screw midway between rich and leano Engine should

accelerate smoothly, If engine does not accelerate prop-

erly, the carburetor should be readjusted, usually to a

richer mixture, by turning the idle mixture screw counter-

clockwise 1/8 turn more.

TOP NO

LOAD

SCF

IDLE SPEED

ADJUSTING

SCREW

IDLE

MIXTURE

SCREW

FIG. 19

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS, IF YOU THINKTHE ENGINE-GOVERNED

HfGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER, WHICH

HAS PROPER EQUIPMENT AND EXPERIENCE TO

MAKE ANY NECESSARY ADJUSTMENTS,,

STORAGE

Immediately prepare your lawn mower for storage at the

end of the season or if the unit will not be used for 30 days

or more.

LAWN MOWER

When lawn mower is to be stored for a period of time, clean

it thoroughly, remove all dirt, grease, leaves, etc. Store in

a clean, dry area.

o Clean entire lawn mower (See "CLEANING" in the

Customer Responsibilities section of this manual).

o Lubricate as shown in the Customer' Responsibilities

section of this manual..

• Be sure that ail nuts, bolts, screws, and pins are

securely fastened.. Inspect moving parts for damage,

breakage and wear'. Replace if necessary.

°Touch up all rusted or chipped paint surfaces; sand

lightly before painting..

HANDLE (See Fig. 20)

You can fold your lawn mower handle for storage.

° Squeeze the bottom ends of the lower handle toward

each other until the lower handle clears the handle

bracket, then move handle forward.

o Loosen upper handle mounting bolts enough to allow

upper' handle to be folded back.

IMPORTANT: WHEN FOLDING THE HANDLE FOR

STORAGE OR TRANSPORTATION, BE SURE TO FOLD

THE HANDLE AS SHOWN OR YOU MAY DAMAGE THE

CONTROL CABLES

° When setting up your handle from the storage position,

the lower handle will automatically lock into the mow-

ing position.

LOWER HANDLE

HANDLE

BRACKET

SQUEEZETO

FOLD

HAIRPIN

COTTER

OPERATOR PRESENCE

CONTROLBAR

UPPER HANDLE

FOLDFORWARD

FOR STORAGE

FOLD BACKWARD

MOWING

POSITION

LOWER HANDLE

FIG. 20

ENGINE

FUEL SYSTEM

IMPORTANT: IT tS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACID1C GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE..

= Drain the fuel tank,

• Start the engine and let it run until the fuel lines and

carburetor are empty°

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

o Use fresh fuel next season,,

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer' to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after' adding

stabilizer to allow the stabilizer to reach the carburetor, Do

not drain the gas tank and carburetor if using fuel stabilizer,.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil (See "ENGINE" in the Customer Responsibilities

section of this manual).

CYLINDER

o Remove spark plug,.

• Pour one ounce (29 rnl) of oil through spark plug hole

into cylinder.

• Pull starter handle slowly a few times to distribute oil,,

• Replace with new spark plug,

OTHER

° Do not store gasoline from one season to another,

* Replace your gasoline can if your can starts to rust,

Rust and/or dirt in your gasoline will cause problems°

o If possible, store your unit indoors and cover it to give

protection from dust and dirt.

° Cover your unit with a suitable protective cover' that

does not retain moisture,. Do not use plastic, Plastic

cannot breathe which allows condensation to form and

will cause your unit to rust.

IMPORTANT: NEVER COVER MOWER WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM

CAUTION: Never store the lawn mower

with gasoline in the tank inside a build-

ing where fumes may reach an open

flame or spark. Allow the engine to cool

before storing in any enclosure,

TROUBLESHOOTING

PROBLEM

Does not start

Loss of power

Poor OUt - uneven

Excessive vibration

CAUSE

iillll illl,,i,l,ii

Starter rope hard to pull

Loss of drive

Grass catcher not filling

(If so equipped)

Hard to push

1., Dirty air filter

2. Out offue{

3 Stale fuel..

4 Water in fuel

5. Spark plug wire is disconnected

6., Bad sparkpIug

7. Loose blade or broken blade adapter..

8 Control bar in released position

9 Control bar defective

1. Rear of lawn mower housing/blade dragging

in heavy grass°

2. Cutting too much grass

3 Dirty air filter

4 Buildup of grass, leaves and trash under mower.

5 Too much oil in engine. "

6 Walking speed too fast

ii ,i

t, Worn, bent or toose blade

2, Wheet heights uneven

3 Low engine speed

4. Buildup of grass, leaves, and trash under mower.

I'I'IIH

I Worn, bent or loose biade

2 Bent engine crankshaft

,H,i,i,i,i,i

1. Engine flywheel brake is on when control bar is

reieased

2 Bent engi_e crankshaft

3 Biade adapter broken

4. Blade dragging in grass

1Drive wheels not turning with drive control engaged

2. Belt not driving

t Cutting height too low

2 Lift on btade worn off

3 Catcher not venting air.

4 Low engine speed.

1 Grass is too high or wheel height is too low.

2Rear of lawn mower housing/blade dragging

in grass.

3. Grass catcher too full.

4. Handle height position not right for you

CORRECTION

1 Cfean/replace air filter

2 Fill fuel tank

3 Drain tank and refill with fresh clean fuel

4 Drain fuel tank and carburetorand refill tank with fresh

gasoline

5,. Connect wire to plug..

6. Replace spark plug.

7 Tighten blade boJt or replace blade adapter

8 Depress control bar tohandle,

9 Reptace control bar.

1. Set in "Higher Cut" position

2. Set in "Higher Cut" position

3 Clean!replace air filter,

4 Clean underside of mower housing

5 Check oilleveL

6 Cut at slower walking speed,

t Replace blade. Tighten blade bott

2, Set all wheels at same height.

3., Set engine speed control in fast position

4. Clean underside of mower housing.

t, Replace blade, Tighten blade bolt,

2 Contact authorized service center/department

1, Depress control bar to upper hand[e before

pulling starter rope

2.. Contact authorized service center/department.

3. Replace blade adapter,

4 Move Eawn mower to cut grass or to hard surface

to start engine

1 Adjust or replace drive control cable, if broken..

2 Put belt on pulleys or replace belts if broken

1,. Raise cutting height

2. Replace blade

3 Clean grass catcher

4. Set engine speed control in fast position

1. Raise cutting height

2, Raise rear of lawn mower housing one (1)

setting higher

3 Emptygrass catcher

4 Adjust handle height to suit.,

RIEPAnR PARTS

CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

c:>

!1 14

20 37

12 I

REPAnR PARTS

CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

KEY PART DESCRIPTION KEY PART DESCRIPTION

NO. NO NO. NO

1133088X479

2 130861

3 74350424

4133170X479

5 85827

6136376

7 STD541425

8 851509

9 48137

1186344

12 STD512505

14 700483X479

15 700365X479

16 133190X479

1787596X479

18 86344

20128796

2284596

23 87677

25 83923

2657143

2788017

28 84921

29 61651

30 750913X004

3187877

32 700331X004

3484920

35 700375

3755187

38 88348

39 701t43X459

40 701144X459

Upper Handle

Engine Zone Control Cable

Hex Head Screw 1/4-20 x 1-1/2

Mulcher Plate

Cable Clip

Handle Knob

Locknut 1/4-20

Control Bar

Rear Door Kit

Self Tapping Screw #!0-24 x 5/8

Hex Tapping Screw wiSems 1/4-20 x 1/2

Back Plate

Side Baffle

Discharge Baffle

Rear Baffle

Hex Head Self-Tapping #10-24 x 1/2

Rear Skirt

Engine Pulley

Hi-Pro Key #505

Hex Flange Nut

Wave Washer

Wheel

Shoulder Bolt 3/8-16 x 1-3/8

Spring Washer

Axle Arm Assembly

Selector Knob

Selector Spring

Spacer

Wheel Adjusting Bracket (Left)

Thread Cutting Screw w!Seres 5/16-18 x 3/4

Flat Washer 3/8

Handle Bracket Assembly (Left)

Handle Bracket Assembly (Right)

41850998

42 750097

43 87930

44 48364

45 83253

46 851514

47752234

48851074

49 850263

50 851084

51 700869X479

52 85463

53 STD523707

55 751592

56 88652

5751793

58 84676X479

59 131959

60 851201X004

61 103672X

62134612

64 700796

66 700170X459

67 700172X459

68 86969

-- 702553

-- 701853

Hex Head Thread Roiling Screw 3/8-16 x 1-1/8

Hex Washer Head Screw #10-24 x 1/2

Guide Clip

Lawn Mower Housing (Incl. Key #t4, 15, 51 & 52)

Self-Tapping Screw w/Sems 5/16-18 x !-1/2

Blade Adapter

Blade 22"

Hardened Washer

Helical Washer 3/8-24 x 1-3/8 Gr. 8

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8

Front Baffle

- Danger Decal

Hex Bolt 3/8-16 x 3/4

Locknut 3/8-16

Hinge Screw 1/4-20 x 1-!/4

Hairpin Cotter

Lower Handle

Handle Bolt

Washer

Rope Guide

Debris Shield

Engine-Briggs & Stratton Model No. 126802,

Type 3215-01

Bracket Support (Right)

Bracket Support (Left)

Spacer

Owner's Manual (English)

Owner's Manual (Spanish)

Available accessories not included with lawn mower:

7_.!_133303 Clipping Deflector

7_$133623 Gas Can (2.5 gal.)

75133500 Fuel Stabilizer

Z.t 33300 SAE 30W Oil (20 oz.)

71_33417 Dust Shield

7_!33316 Mower Cover

REPAIR PARTS 22"

CRAFTSMAN ROTARY LAWN MOWER MODEL NUMBER 917.373231

h,,1

i ,i, i i iii ii --'='_

Ji i i i,

--1

\\\

REPAIR PARTS

CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

¢o

KEY PART DESCRIPTION KEY PART DESCRIPTION

NO. NO. NO. NO

1 137076 Control Cable Assembly 25 702182

2 48029 Control Head Kit 26 87866

3 74189 Locknut #10-24 27 750097

4 750029 Pan Head Machine Screw #10-24 x 2 28 137088

5 137078 V-Belt 31 132010

6 700875 Carriage Bolt 1/4-20 x 2 32 137052

7 85179 Retainer Clip 33 48323

8 77400 Hubcap 34 850848

9 52160 Washer 35 700339

10 86960 Nylon Bushing 36 702511

!1 700953 Wheel & Tire Assembly 37 137090

12 12000057 E-Ring 38 STD541425

13 137054 Pinion 40 75192

!4 88080 Dust Cover 41 700340

15 88118 Felt Washer 53 88614

16 67725 Washer 1/2 x 1-1/2 x.134 54 751663

18 87877 Selector Knob 55 86012

56 851552

Drive Cover Decal

Pan Head Tapping Screw #10-24 x 2-3/4

Hex Washer Head Screw #10-24 x 3/4

Dnve Cover

Hex Flange Nut

Drive Pulley

Drive Control Cable Kit

Hi-Pro Key

Wheel Adjuster Assembly (Left)

Gear Case Assembly

Spring

Locknut 1/4-20

.Spring

Wheel Adjuster Assembly (Right)

Frame Assembly

Grassbag Assembly

Driveshaft Cover

Screw, Pan Head, Hi-Lo #10-16 x 1/2

REPAnR PARTS

22" CRAFTSMAN POWER PROPELLED LAWN MOWER - - MODEL NO. 917.373231

GEAR CASE ASSEMBLY PART NUMBER 702511

KEY

NO.

PART

NO.

17490416

137055

137053

57072

57388

48281

77881

137051

137074

DESCRIPTION

Screw, Tapping 1/4-20 x 1-1/4

Bracket, Adjusting

Shifter

Seal

Pin, Grooved 1/8 x 1/2

Gear Case Halves, Upper and

Lower (Includes Key #4, 5 and 7)

Bearing

Shaft, Worm

Drive Shaft

KEY PART

NO. NO. DESCRIPTION

10 57079 Washer, Hardened

11 131484 Yoke, CEutch

12 700343 Bushing

13 86447 Plug

14 137050 Gear, Helical

15 750436X Jaw, Clutch

16 750355 Grease

17 t2000003 E-Ring

18 850848 Key, Hi-Pro

19 81585X004 Spring Bracket

NOTE:

All component dimensions given in U.S. inches

1 inch = 25,.4 mm

To reseal housing halves use Locktite No_ 515

REPAIR PARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. 126802 TYPE NO. 3215-01

572

_ 52 _

REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

383

.... _4_ _

592

33 _20 22

REPAIR PARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. 126802 TYPE NO. 3215-01

188A

258

iiiiiiiiiii iii ;

618

620

670A

124

127

G634

130 t

0 i

617 _j

116_

REPAnR PARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. '126802 TYPE NO. 32'15-01

456

515

69AO

461

.........................16o8

363

305 304

851

991

967

971 _

334

_332

_971A

455

966

_529

REPAgRPARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. 126802 TYPE NO. 3215-01

949

346

1019

387

353

670

601

358 GASKET SET

_116 7_ _

Q 634 61

977 CARBURETOR GASKET SET

104 1

121 CARBURETOR OVERHAUL KIT! 617 ..................

127 116

634 G

REPA6R

KEY

NO. NO.

1 494062

2 399269

3 299819

5 213861

7 2722OO

8 494489

9 272481

9A 272238

10 94650

11 231685

12 272198

13 94547

I5 94720

16 493362

94388

18 493279

20 399781

22 94220

94612

23 492177

24 222698

25 494058

494059

494060

494061

26 493261

493388

493389

493390

27 26026

28 298909

298908

29 490566

490743

PARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. 126802 TYPE NO. 3215-01

PART KEY PART

94405

262651

262652

262224

94608

93312

262204

DESCRIPTION

Cylinder Assembly

Bushing, Cylinder

* Seal, Oil

Head, Cylinder

"Gasket, Cylinder Head

Breather, Valve Chamber

* Gasket, Valve Cover

* Gasket, Baffle Plate

Screw, Breather Mounting

Tube, Breather

* Gasket, Crankcase

Screw, Cylinder Head

PIug, Oil Drain

Crankshaft

Timing Gear Key

Sump, Engine

* Seal, Oil

Screw, Sump Mounting, Seres

Screw, Sump Mounting

(Used in Hole Nearest Breather)

Flywheel, Magneto

Key, Flywheel

Piston Assembly, Standard Size

Piston Assembly .010" Oversize

Piston Assembly .020" Oversize

Piston Assembly .030" Oversize

Ring Set, Piston, Standard Size

Ring Set, Piston o010" Oversize

Ring Set, Piston ,.020" Oversize

Ring Set, Piston .030" Oversize

Lock, Piston Pin

Pin Assembly, Piston, Standard

Pin Assembly, Piston ,.005" Over

Rod Assembly, Connecting

.020" Undersize Crankpin Bearing

Screw, Connecting Rod

Valve, Exhaust

Valve, Intake

Spring, Valve

Screw, Hex Head

Retainer, Valve Spring

Tappet, Valve

NO. NO.

46 492830

47 493737

52 272199

54 94526

55 492831

56 493824

57 262594

58 280399

59 396892

60 393152

65 94696

69 280973

69A 224322

81 223664

95 94098

98 398185

98A 493280

104 231371

116 ---

118 493765

121 493762

124 94525

125 493627

127 ---

130 223470

131 493267

133 398187

134 398188

137 ---

163 272296

187 492790

!88 398540

188A 94644

201 262579

209 262660

227 492349

230 67072

258 94512

284 94511

DESCRIPTION

Gear, Cam

Oil Slinger Gear and Bracket

* Gasket, intake Elbow

Screw, Intake Elbow Mounting

Housing, Rewind Starter

Pulley, Rewind Starter

Spring, Rewind Starter

Rope, Rewind Starter

(Cut To 88-5/8")

Insert, Handle

Handle, Rewind Starter

Screw, Guard Mounting

Washer, Rewind Starter

Lock, Muffler Screw

Screw, Seres,

Throttle Valve Mounting

Screw, Idle Adjustment

Screw Assembly, Speed Adjust

_* Pin, Float Hinge

*** Gasket, Sealing (Sold in Kit Only)

** Valve and Spring, Needle

Carburetor Overhaul Kit

Screw, Carburetor Mounting

Carburetor Assembly

** Plug, Welch (Sold in Kit Only)

Valve, Throttle

Shaft and Lever, Throttle

Float Assembly, Carburetor

** Valve, Inlet (Includes Seat)

*** Gasket, Bowl (Sold in Kit Only)

* Gasket, Air Cleaner

Hose, Fuel

Screw, Tank Mounting

(Includes Washer)

Screw, Hex Head

Link, Governor

Spring, Governor

Lever Assembly, Governor

Washer, Governor Crank

Screw, Hex Head

Included in Gasket Set (493263)

Included in Carburetor Overhaul Kit (493762)

Included in both Carburetor Overhaul Kit (493762),

and Carburetor Gasket Set (490937)

NOTE: Atl component dimensions given in U..S, inches

1 inch = 25°4 mm

REPAIR PARTS

22" ROTARY LAWN MOWER MODEL NUMBER 917.373231

BRIGGS & STRATTON 4-CYCLE ENGINE, MODEL NO. 126802 TYPE NO. 3215-01

KEY PART

NOo NO.

300 490547

304 493293

305 94744

306 224324

307 94515

332 92284

333 802574

334 94731

337 802592

346 94602

353 94581

356 398808

358 493263

363 19069

383 89838

387 394281

455 224250

456 224321

459 492833

461 262626

515 262625

523 493950

524 280393

525 493952

528 399254

529 280943

562 92613

572 224328

592 231082

601 93807

6"01A 94171

608 493295

Includes:

6!3 94231

615 94474

6t6 262578

617 270344

620 493895

DESCRIPTION

Muffler, Exhaust

Housing, Blower

Screw, Seres, Hex Head

Shield, Cylinder

Screw, Hex Head

Nut, Flywheel

Armature, Magneto

Screw, Armature Mounting

Plug, Spark

Screw, Hex Head

Locknut

Wire, Ground

Gasket Set

Puller', Flywheel

Wrench, Spark Plug

Primer, Fuel

Cup, Starter

Retainer-, Rewind Starter

Pawl, Starter

Pin, Starter

Spring, Torsion

Cap With Dipstick, Oi! Filler'

* Seal, Filler Tube

Tube, Oil Filler

Hose, Primer

Grommet, Breather

Bolt, Governor Lever

Baffle, Cylinder

Nut, Hex

Clamp, Hose, Black

Clamp, Hose

Starter Assembly, Rewind

94128 Screw, Hex Head

92987 Nut, Hex

Screw, Muffler' Mounting

Pushnut, Governor Crank

Crank, Governor

*** Seal, Fuel Intake Tube

Bracket Assembly,

Carburetor Control

KEY PART

NO. NO.

621 396847

625 492717

634 - - -

635 66538

670 280512

670A 493823

741 262598

832 494224

842 280966

843 272616

847 493459

851 221798

869 213512

870 213513

871 262001

63709

922 262640

923 493442

949 281191

955 493637

957 397974

966 494735

967 491588

968 281069

969 94173

971 94269

971A 94121

972 495224

975 493640

977 490937

991 493537

1016 224278

1019 495354

DESCRIPTION

Switch, Stop

Tube, Fuel intake

*** Washer, Shaft (Sold in Kit Only)

Elbow, Spark Plug

Spacer, Fuel Tank

Spacer, Carburetor Bracket (2)

Gear, Timing

Guard, Muffler

* Seal, O-Ring

Sleeve, Control Lever'

Dipstick and Tube Assembly,

Oil Filler

Terminal, IgnitiOn Cable

Seat, Intake Valve, Standard

Seat, Exhaust Valve, Standard

Guide, Exhaust Valve

Guide, Intake Valve

(See Repair instruction Manual)

Spring, Brake

Brake Assembly

Guard, Finger

Screw, Fuel Bowl, Standard

Cap Assembly, Fuel

Base, Air Cleaner

Filter, Air

Cover, Air Cleaner

Screw, Cover Mounting

Screw, Air Cleaner

Screw, Base to Carburetor

Tank Assembly, Fuel

Bowl Assembly, Carburetor

Gasket Set, Carburetor

Pre-Filter

Cover, Rewind Starter

Label Kit

Included in Gasket Set (493263)

Included in Carburetor Overhaul Kit (493762)

Included in both Carburetor Overhaul Kit(493762),

and Carburetor Gasket Set (490937)

NOTE: All component dimensions given in U.S. inches

1 inch = 25_4 rnm

RPM Settings: Low Speed 1900-2100

High Speed 3000-3200

SERVICE NOTES

MANUAL

MODEL NO.

917.373231

HOW TO ORDER

REPAUR PARTS

5.0 HORSEPOWER

22" REAR DISCHARGE

3 in ONE Convertible

POWER PROPELLED

ROTARY LAWN MOWER

Each lawn mower has its own model number. Each en-

gine has its own model number,.

The model number for your lawn mower will be found on a

decal attached to the rear of the lawn mower housing_

The model number for your engine will be found on the

blower' housing of the engine.

All parts listed herein may be ordered from any Sears,

Roebuck and Co. Service Center/Department and most

Retail Stores._

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

=PRODUCT- LAWN MOWER

°MODEL NUMBER - 917.373231

°ENGINE MODEL NO. - 126802, TYPE NO. 3215-01

o PART NUMBER

°PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians,_ professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell.

702553 02/02/93 Printed in U.S_A.,

,,, ,,,,,,,'mlllllll llllllllll'llll'll=ll .............................IIII'11111'11II IIIIIIIII1'111111

Craftsman 917373231 User Manual LAWN MOWER Manuals And Guides L0808442

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0808442 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
