SEAAR8 i_t__ __ -
®

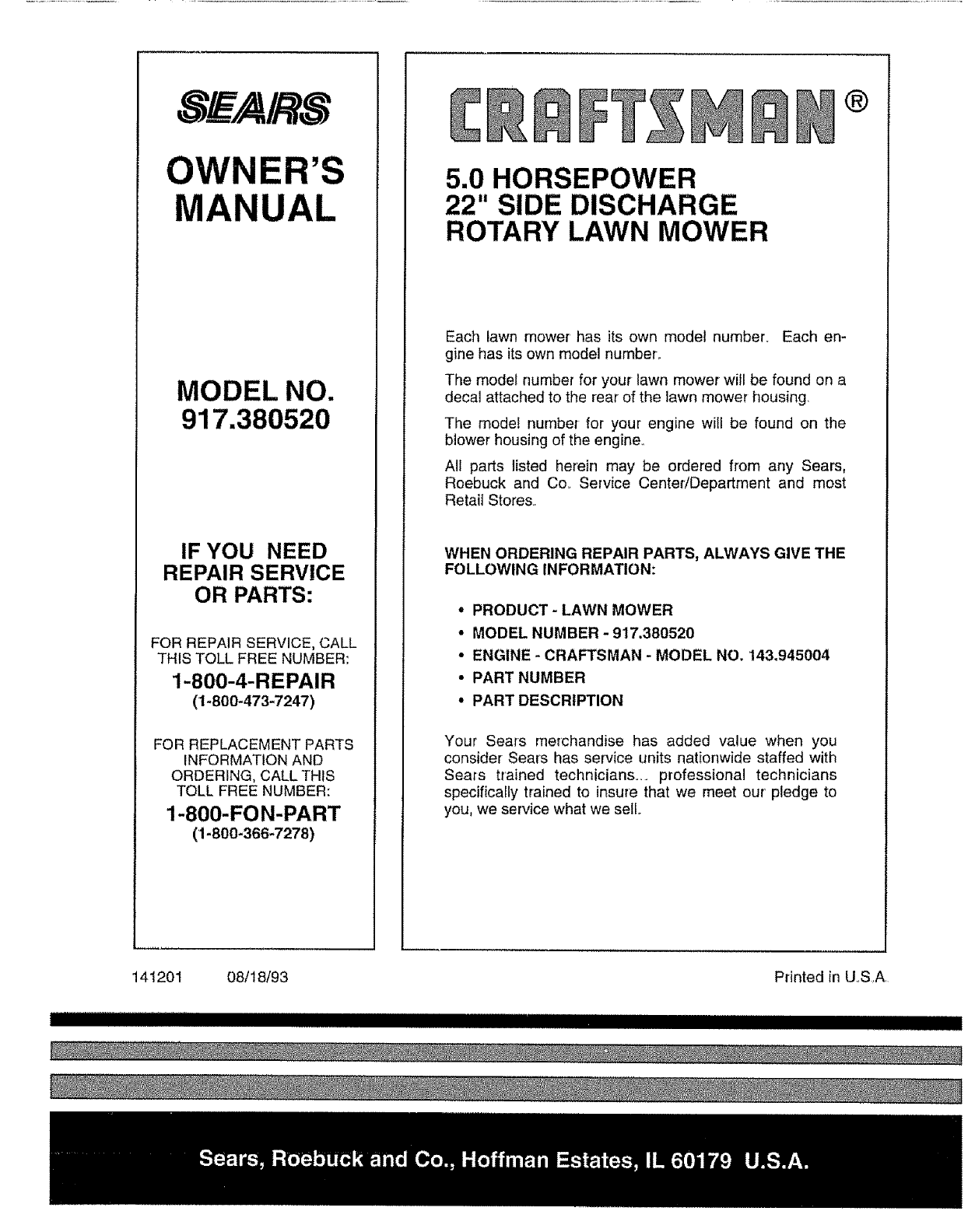

MODEL NUMBER 917.380520 OWNER'SMANUAL
oAssembly
oOperation
oCustomer
Responsibilities
oService
oAdjustments
oRepair Parts
Caution:
Read and Follow
all Safety Rules
and Instructions
Before Operating
This Equipment
IIIIIIIIIIIIIIIIIII'IIIIIIIIIIIIIIIIII IIII
SAFETY RULES
CAUTION: ALWAYS DISCONNECTSPARK PLUGWIRE ANDPLACEWIRE WHEREITCANNOTCONTACT SPARK
PLUG TO PREVENT ACCIDENTAL STARTING WHEN SETTING UP, TRANSPORTING, ADJUSTING OR MAKING
REPA,RS IMPORTANT
SAFETY STANDARDS REQUIRE OPERATOR PRESENCECONTROLS TO MINIMIZE THE RISK OF INJURY° YOUR UNIT IS EQUIPPED WITH
SUCH CONTROLS, DO NOT ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE CONTROLS UNDER ANY CIRCUM-
STANCES.
TRAINING:
" Read this operator's manual carefully Become familiar with
the controls and know how to operate your mower properly
Learn how to quickly stop mower..
°Do not allow children to use your mower Never allow adults
to use mower without proper instructions
* Keep the area of operation clear of all persons, especially
small children and pets
• Use mower only as the manufacturer intended and as de*
scribed in this manual
Do not operate mower if it has been dropped or damaged in
any manner. Always have damage repaired before using
your mower.
Do not use accessory attachments that are not recommended
by the manufacturer Use of such attachments may be
hazardous_
The blade turns when the engine is running.
PREPARATION:
• Always thoroughly check the area to be mowed and clear itof
all stones, sticks, wires, bones, and other foreign objects
These objects will be thrown by the blade and can cause
severe injury
• Always wear safety glasses or eye shields when starting and
while using your mower.
• Dress properly Do not operate mower when barefoot or
wearing open sandals. Wear only solid shoes with good
traction when mowing.
•Check fuel tank before starting engine Do not fill gas tank
indoors, when the engine is running orwhen the engine is hot.
Allow the engine to cool for several minutes before filling the
gas tank. Clean ol,f any spilled gasoline before starting the
engine
• Always make wheel height adjustments before starting your
mower Never attempt to do this while the engine is running.
• Mow only in daylight or good artificial light.
OPERATION:
•Keep your eyes and mind on your- mower and the area being
cut.. Do not Iet other interests distract you
• Do not mow wet or slippery grass Never run while operating
your mower. Always be sure of your footing - keep a firm hold
on the handles and walk..
Do not put hands or feet near or under rotating parts. Keep
clear of the discharge opening at all times..
• Always stop the blade whenever you leave or are not using
your mower, or before crossing driveways, walks, roads, and
any gravel-covered areas
• Never direct discharge of material toward bystanders nor
allow anyone near the mower while you are operating it
• Before cleaning, inspecting, or repairing your mower, stop
the engine and make absolutely sure the blade and all
moving parts have stopped Then disconnect the spark plug
wire and keep it away from the spark plug to prevent
accidental starting
• Do not continue to run your mower ifyou hit a foreign object
Follow the procedure outlined above, then repair any dam-
age before restarting and operating you mower.
• Do not change the governor settings or overspeed the
engine Engine damage or personal injury may result
• Do not operate your mower if itvibrates abnormally_ Exces-
sive vibration is an indication of damage; stop the engine,
safely check for the cause of vibration and repair as required
Do not run the engine indoors. Exhaust fumes are danger-
ous
Never cut grass by pulling the mower towards you Mow
across the face of slopes, never up and down oryou might
lose your footing. Do not mow excessively steep slopes
Use caution when operating the mower on uneven terrain or
when changing directions -maintain good footing.
Never operate your mower without proper guards, plates,
grass catcher or other safety devices in place
MAINTENANCE AND STORAGE:
• Check the blade and the engine mounting bolts often to be
sure they are tightened properly
• Check atl bolts, nuts and screws at frequent intervals for
proper tightness to be sure mower is in safe working condi-
tion.
• Keep alt safety devices in place and working.
• To reduce fire hazard, keep the engine free of grass, leaves
or excessive grease and oil
• Check grass catcher often for deterioration and wear and
replace worn bags Use only repfacement bags that are
recommended by and comply with specifications of the
manufacturer of your mower
• Always keep a sharp blade on your mower.
• Allow engine to cool before storing in any enclosure.
• Never store mower with fuel in the tank inside a building
where fumes may reach an open flame or an ignition source
such as a hot water heater, space heater, clothes dryer, etc
I==H ii i=l=l=l= H=H,HI,I,,H=H=,I= I
LOOK FOR THIS SYMBOL TO POINT OUT IMPORTANT SAFETY PRECAUTIONS. I
IT MEANS -ATTENTION!t! BECOME ALERT!!! YOUR SAFETY IS INVOLVED. I
2
CONGRATULATIONS on your purchase of a Sears Lawn
Mower. It has been designed, engineered and manufac-
tured to give you the best possibte dependability and
performance..
Should you experience any problem you cannot easily
remedy, please contact your nearest Sears Authorized
Service Center/Department. We have competent, well-
trained technicians and the proper tools to service or repair
this lawn mower.
Please read and retain this manual The instructions wilt
enable you to assemble and maintain your lawn mower
properly. Always observe the "SAFETY RULES"..
MODEL
NUMBER 917.380520
SERIAL
NUMBER
DATE OF PURCHASE
THE MODEL AND SERIAL NUMBERS WILL BE FOUND
ON A DECAL ATTACHED TO THE REAR OF THE
LAWN MOWER HOUSING
YOU SHOULD RECORD BOTH SERIAL NUMBER AND
DATE OF PURCHASE AND KEEP IN A SAFE PLACE
FOR FUTURE REFERENCE..
PRODUCT SPECIFICATIONS
4ORSEPOWER: 5 0
DISPLACEMENT: 11 5CU IN
GASOLINE CAPACITY 1.5 QUARTS
AND TYPE: UNLEADED REGULAR
OIL TYPE (API-SG): SAE 30 (ABOVE 32°F)
SAE 5W-30 (below 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG: CHAMPION RJ19q.M
(GAP: 030") STD361458
VALVE CLEARANCE: INTAKE: 008"
EXHAUST: 008"
SOLID STATE IGNITION
_,iR GAP: 0125 IN,
BLADE BOLT TORQUE: 35-40 FT LBS
MAINTENANCE AGREEMENT
A Sears Maintenance Agreement is available on this product. Contact your nearest Sears store for details..

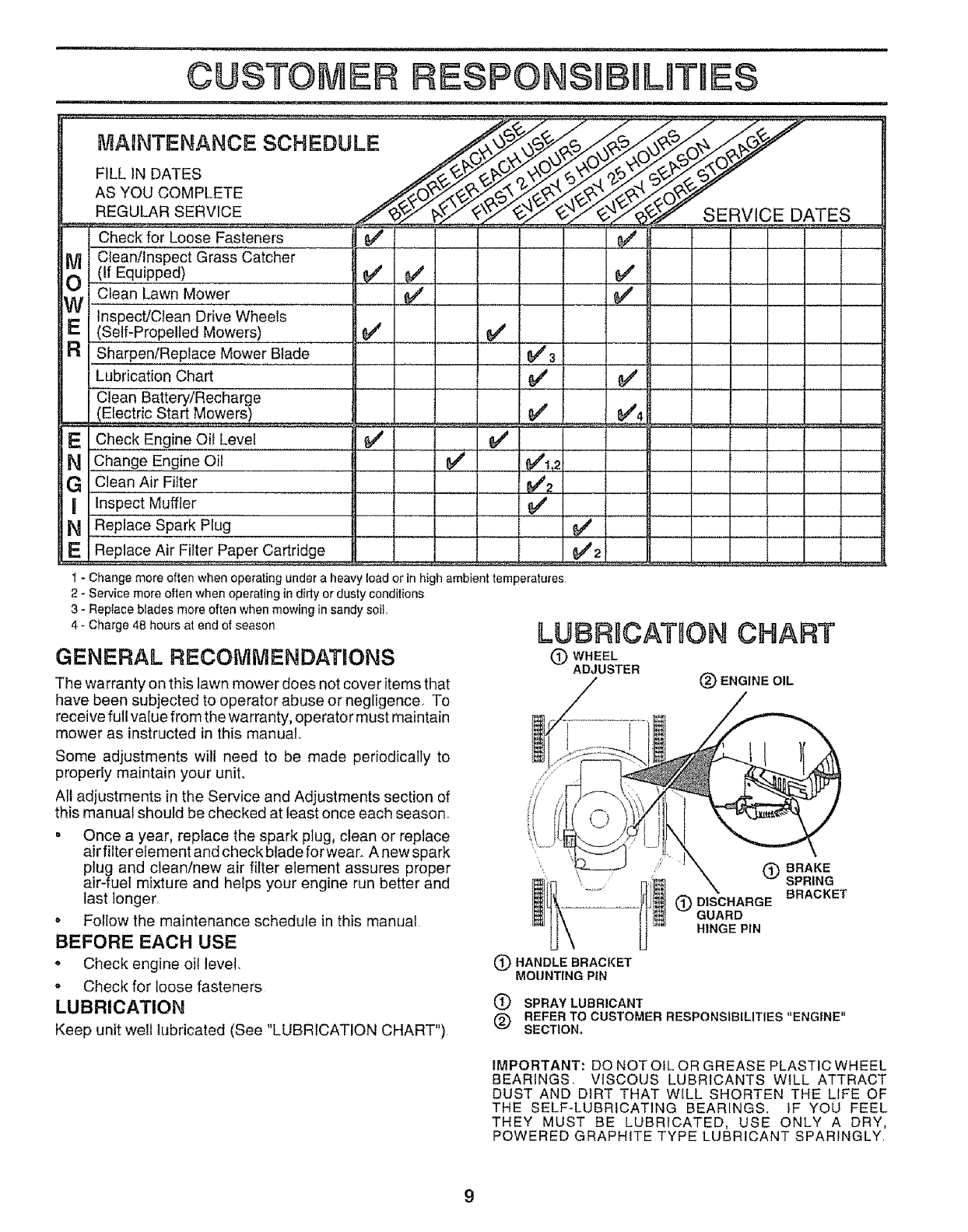

CUSTOMER RESPONSIBILEmES
• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for and using your lawn mower.
•Follow the instructions under "Customer Responsibilities" and "Storage" sections of this owner's manual..
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up
according to the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any
defect in material or workmanshiF
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days from
the date of purchase.
This Warranty does not cover:
oExpendable items which become worn during normal use, such as rotary mower blades, blade adapters, belts,
air cleaners and spark plug
- Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to maintain
the equipment according to the instructions contained in the owner's manual.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE NEAREST
SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE
THIS PRODUCT IS IN USE IN THE UNlTED STATES
This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state°
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, tLLINOIS 60179

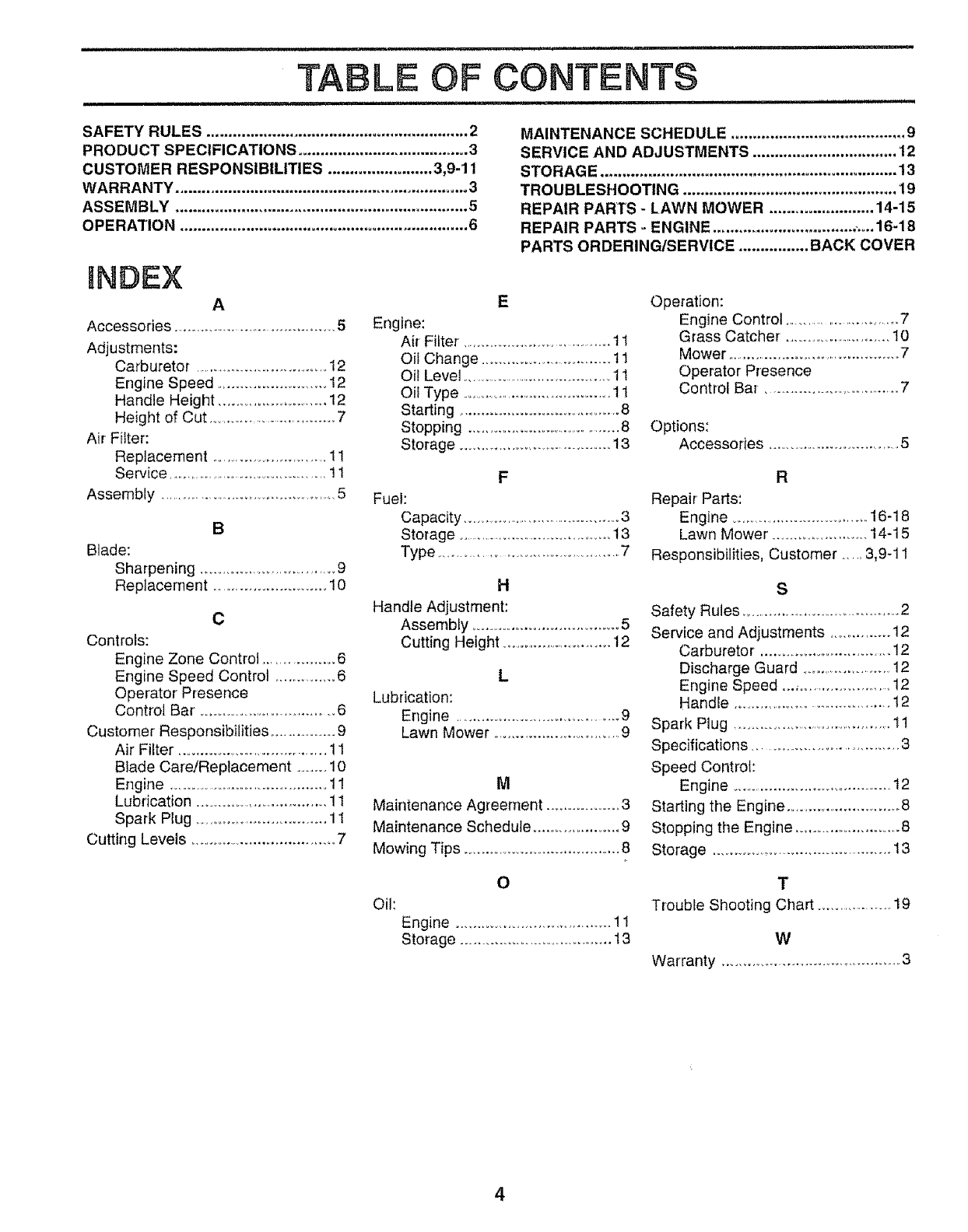

SAFETYRULES ............................................................ 2
PRODUCT SPECIFICATIONS ....................................... 3
CUSTOMER RESPONSIBILITIES ........................ 3,9-11
WARRANTY ................................................................... 3
ASSEMBLY ................................................................... 5
OPERATION .................................................................. 6
MAINTENANCE SCHEDULE ........................................ 9
SERVICE AND ADJUSTMENTS ................................. 12
STORAGE .................................................................... 13

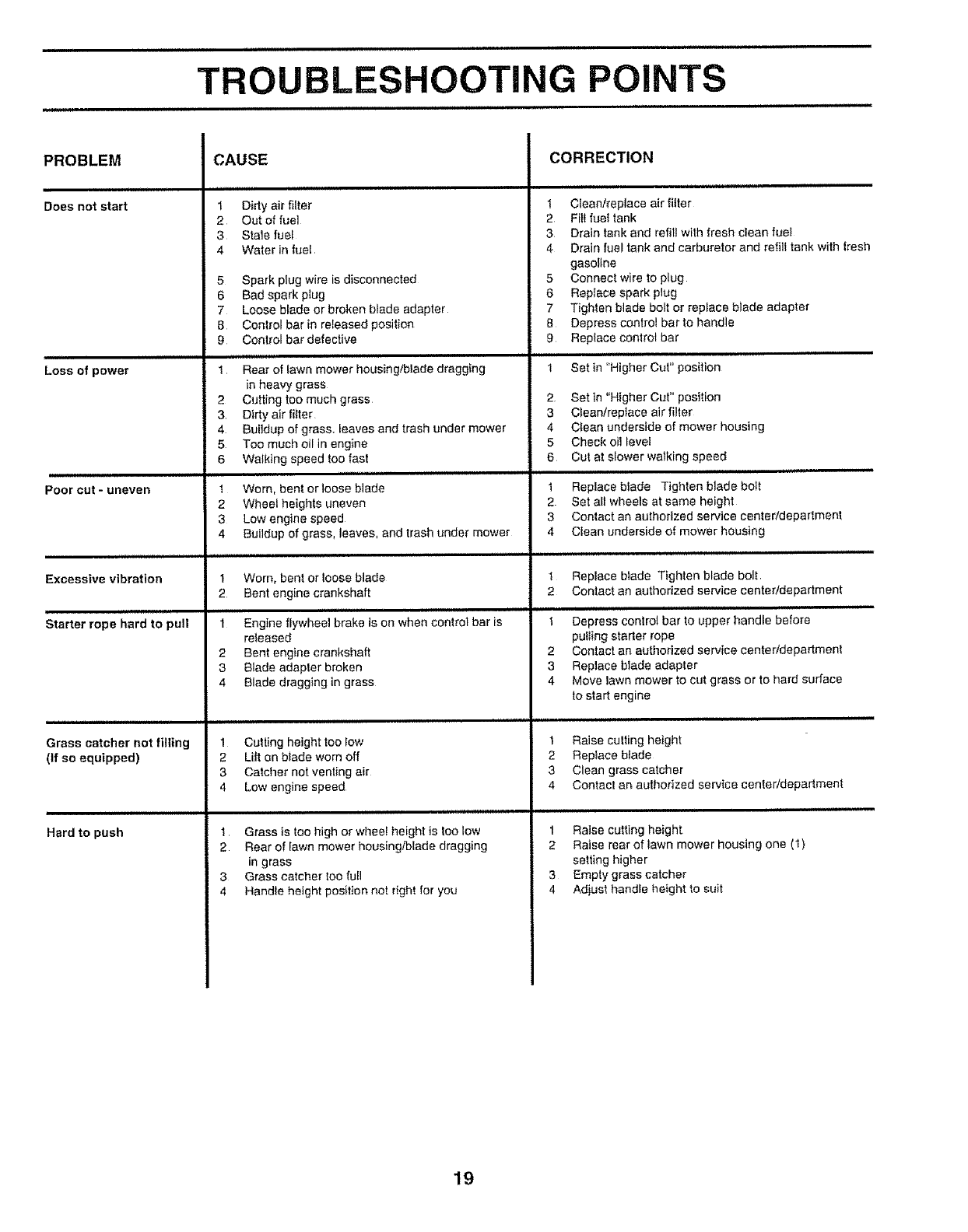

TROUBLESHOOTING ................................................. 19

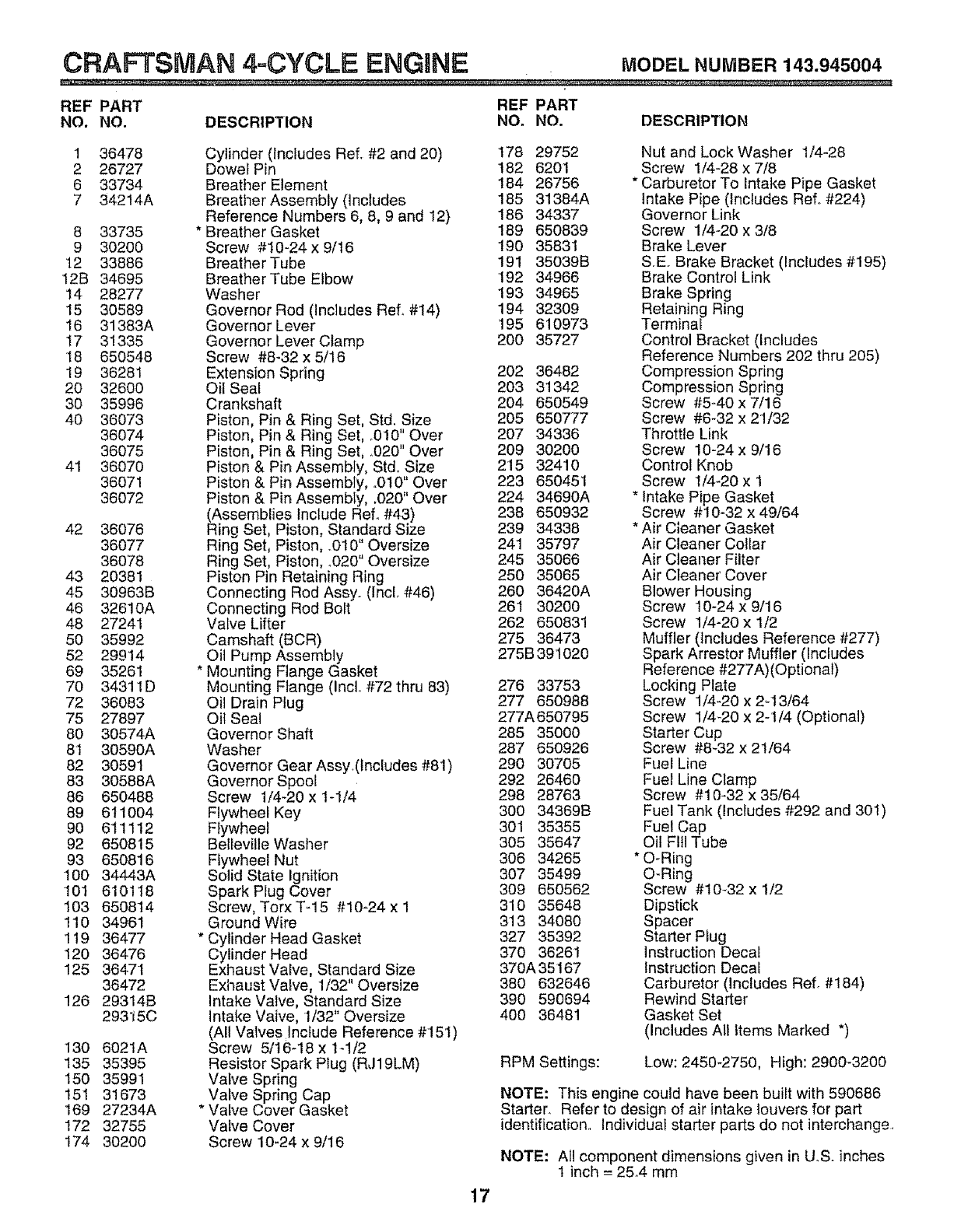

REPAIR PARTS- LAWN MOWER ........................ 14"15
REPAIR PARTS - ENGINE ................................ ,_-..16"18
PARTS ORDERINGtSERVlCE ................ BACK COVER
INDEX
A
Accessories ..........................................5
Adjustments:
Carburetor ....................................12
Engine Speed .......................... 12
Handle Height ............................12
Height of Cut ................................7
Air Filter:
Replacement ..............................11
Service ...........................................11
Assembly .....................................................5
B
Blade:
Sharpening ................................... 9
Replacement ............................. !0
C
Controls:
Engine Zone Control .................. 6
Engine Speed Control .................6
Operator Presence
ControJ Bar. ....................................6
Customer Responsibilities ....................9
Air Filter ........................................11
Blade Care/Replacement ........10
Engine ...........................................11
Lubrication ................................. 11
Spark Plug ....................................11
Cutting Levels .................................... 7
E
Engine:
Ai_ Filter ..................................... t 1
Oi! Change ..................................11
Oil Level ......................................11
Oil Type .............................................11
Starting ...........................................8
Stopping .......................................8
Storage ..................................... 13
F
Fuel:
Capacity ...................................... 3
Storage ........................................t3
Type ........................................... 7
H
Handle Adjustment;
Assembly ..................................... 5
Cutting Height ............................12
L
Lubrication:
Engine ...................................... 9
Lawn Mower .............................. 9
M
Maintenance Agreement ................. 3
Maintenance Schedule .................... 9
Mowing Tips ..................................... 8
Operation:
Engine Control ........................... 7
Grass Catcher ........................... 10
Mower .............................................7
Operator Presence
Control Bar ...................................7
Options:
Accessories ...................................5
R
Repair' Parts:
Engine ....................................16-18
Lawn Mower ....................... 14-15
Responsibilities, Customer ......3,9-11
S
Safety Rules ......................................... 2
Service and Adjustments ............... 12
Carburetor'. .................................12
Discharge Guard ..........................12
Engine Speed .......................... 12
Handle .........................................12
Spark Plug ..........................................11
Specifications .................................. 3
Speed Control:
Engine ....................................... 12
Starting the Engine ............................ 8
Stopping the Engine ...........................8
Storage ................................................13
Oil:
O
Engine ..................................... 11
Storage ..................................... t3
T
Trouble Shooting Chart ................. 19
W
Warranty ........................................... 3
4

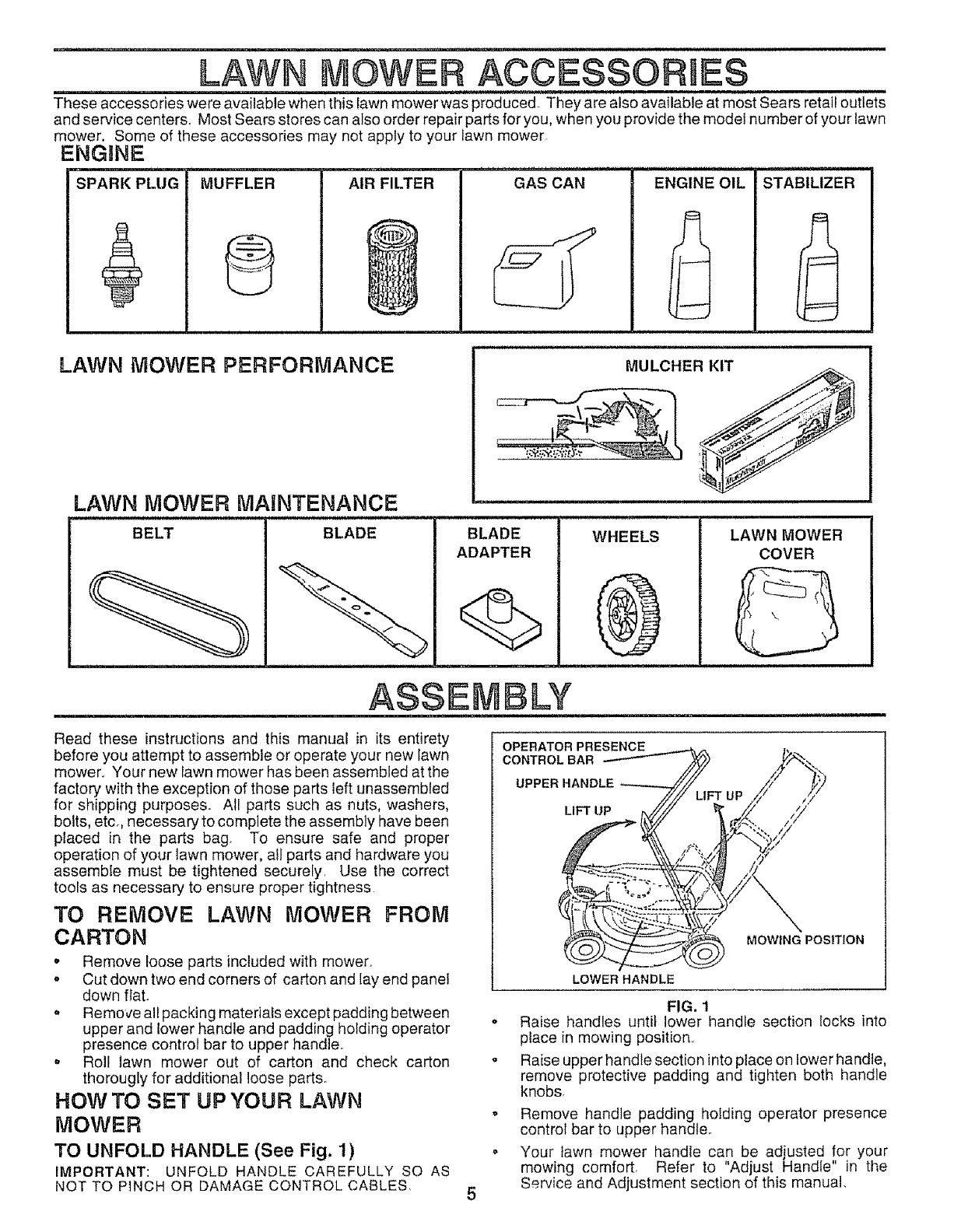

LAWN OWER ACCESSORmES
These accessories were available when this lawn mower was produced+ They are also available at most Sears retail outlets
and service centers.. Most Sears stores can also order repair parts for you, when you provide the model number of your lawn
mower. Some of these accessories may not apply to your lawn mower
ENGBNE
SPARK PLUG MUFFLER
©
i i
AIR FILTER GAS CAN
LAWN MOWER PERFORMANCE
LAWN MOWER MAINTENANCE
ENGINE OIL STABILIZER
MULCHER KIT
LAWN MOWER
COVER
ASS LY
Read these instructions and this manual in its entirety
before you attempt to assemble or operate your new lawn
mower, Your new Iawn mower has been assembled at the
factory with the exception of those parts left unassembled
for shipping purposes. All parts such as nuts, washers,
bolts, etc., necessary to complete the assembly have been
placed in the parts bag. To ensure safe and proper
operation of your lawn mower, all parts and hardware you
assemble must be tightened securely. Use the correct
tools as necessary to ensure proper tightness
TO REMOVE LAWN MOWER FROM
CARTON
• Remove loose parts included with mower+
•Cut down two end corners of carton and lay end panel
down flat.
o Remove all packing materials except padding between
upper and lower handle and padding holding operator
presence control bar to upper handle..
,, Roll lawn mower out of carton and check carton
thorougly for additional loose parts.
HOW TO SET UP YOUR LAWN
MOWER
TO UNFOLD HANDLE (See Fig. 1)
IMPORTANT: UNFOLD HANDLE CAREFULLY SO AS
NOT TO PINCH OR DAMAGE CONTROL CABLES
°
o
OPERATOR PRESENCE
CONTROLBAR
UPPER HANDLE
LIFT UP
MOWING POSITION
LOWER HANDLE
FIG. 1
Raise handles until lower handle section locks into
place in mowing position..
Raise upper handle section into place on lower handle,
remove protective padding and tighten both handle
knobs.
o Remove handle padding holding operator presence
control bar to upper handle.
o Your lawn mower handle can be adjusted !or your
mowing comfort. Refer to "Adjust Handle in the
Service and Adjustment section of this manual.
5
OPERATION
l= iH= Hill= =,H,=====

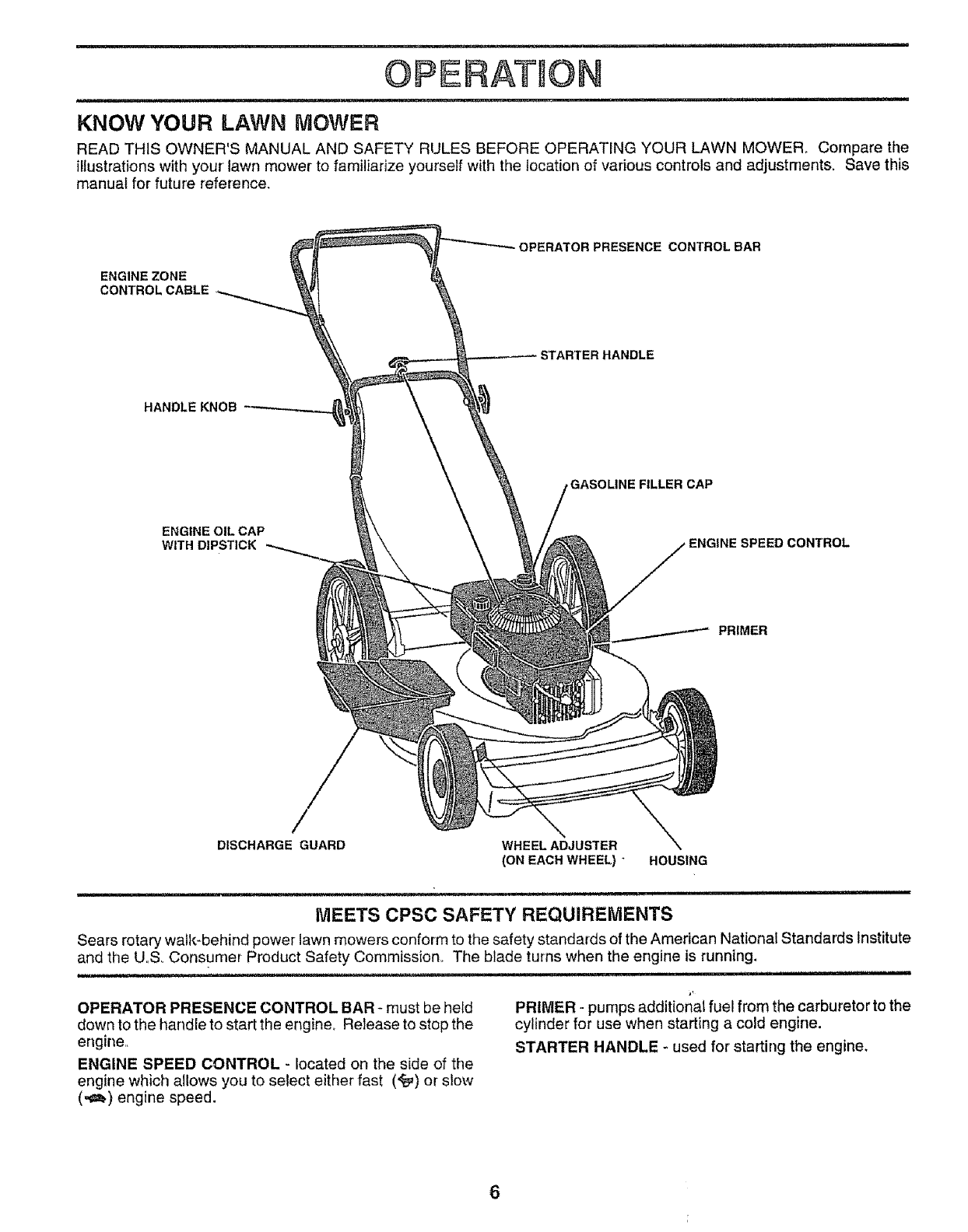

KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER.. Compare the
illustrations with your' lawn mower to familiarize yourself with the location of various controls and adjustrnents. Save this
manual for future reference.
ENGINE ZONE
CONTROL CABLE
OPERATOR PRESENCE CONTROLBAR
STARTER HANDLE
HANDLE KNOB
,GASOLINE FILLER CAP
ENGINE OIL CAP
WITH DIPSTICK ENGINE SPEED CONTROL
PRIMER
DISCHARGE GUARD WHEEL ADJUSTER "_
(ON EACH WHEEL) "HOUSING
i i i HI=IHHH
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute
and the U,,S..Consumer Product Safety Commission._ The blade turns when the engine is running.
................. 11 11 i1 =====,H
OPERATOR PRESENCE CONTROL BAR- must be held
down to the handle to start the engine. Release to stop the
engine,.
ENGINE SPEED CONTROL - located on the side of the
engine which allows you to select either fast ('_) or slow
(,_=_)engine speed.
PRIMER -pumps additional fuel from the carburetor to the
cylinder for use when starting a cold engine.
STARTER HANDLE - used for starting the engine.
6

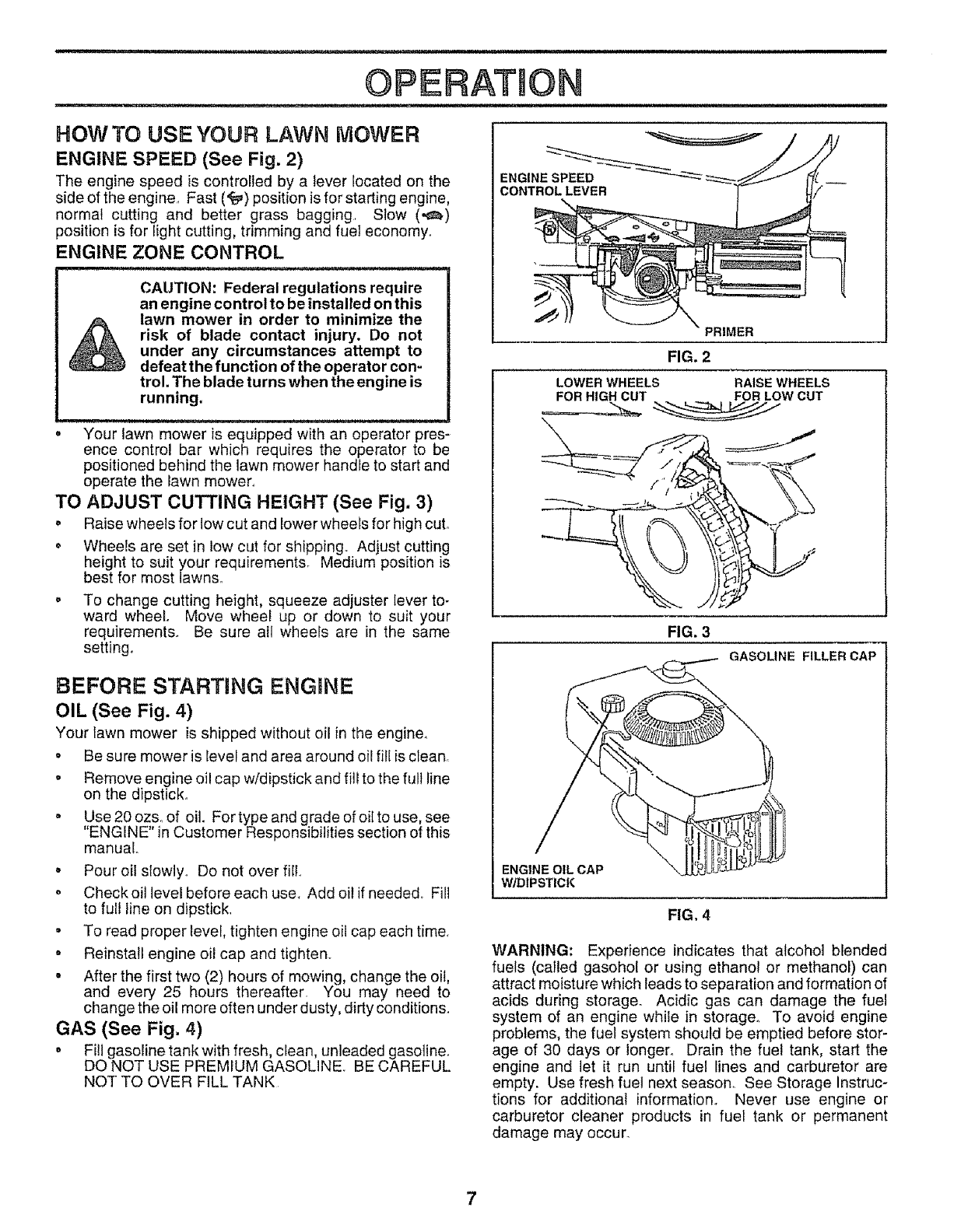

HOW TO USE YOUR LAWN MOWER
ENGINE SPEED (See Fig. 2)
The engine speed is controlled by a lever located on the
side of the engine.. Fast ('_) position is for starting engine,
normal cutting and better grass bagging. Slow (,_)
position is for light cutting, trimming and fuet economy.
ENGINE ZONE CONTROL
CAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the
risk of blade contact injury. Do not
under any circumstances attempt to
defeat the function of the operator con-
trol. The blade turns when the engine is
running.
Your lawn mower"is equipped'with an operator pres-
ence control bar which requires the operator to be
positioned behind the lawn mower handle to start and
operate the lawn mower..
TO ADJUST CUTTING HEIGHT (See Fig. 3)
• Raise wheels for low cut and lower wheels for high cut°
Wheels are set in tow cut for shipping.. Adjust cutting
height to suit your requirements. Medium position is
best for most lawns.1
° To change cutting height, squeeze adjuster lever to-
ward wheel. Move wheel up or down to suit your
requirements. Be sure all wheels are in the same
setting°
BEFORE STARTING ENGINE
OIL (See Fig. 4)
Your lawn mower is shipped without oil in the engine_
= Be sure mower is level and area around oil fill is clean°
o Remove engine oil cap w/dipstick and fill to the full line
on the dipstick.
o Use 20 ozs_ of oil. For type and grade of oil to use, see
ENGINE in Customer Responsibilities section of this
manual.
o Pour oil slowly.. Do not over fill..
• Check oil level before each use.. Add oil if needed_ Fill
to full line on dipstick.
, To read proper level, tighten engine oil cap each time.
° Reinstall engine oil cap and tighten..
o After the first two (2) hours of mowing, change the oil,
and every 25 hours thereafter. You may need to
change the oil more often under dusty, dirty conditions.
GAS (See Fig. 4)
o Fill gasoline tank with fresh, clean, unleaded gasoline.
DO NOT USE PREMIUM GASOLINE BE CAREFUL
NOT TO OVER FILL TANK
ENGINE SPEED
CONTROL LEVER
PRIMER
FIG. 2
LOWER WHEELS RAISE WHEELS
FOR HIGH CUT FOR LOW CUT
FIG. 3
GASOLINE FILLER CAP
ENGINE OIL CAP
W!DIPSTICK
FIG, 4
WARNING: Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or methanol) can
attract moisture which leads to separation and formation of
acids during storage. Acidic gas can damage the fuel
system of an engine while in storage. To avoid engine
problems, the fuel system should be emptied before stor-
age of 30 days or longer° Drain the fuel tank, start the
engine and let it run until fue! lines and carburetor are
empty. Use fresh fuel next season. See Storage Instruc-
tions for additional information.r Never use engine or
carburetor cleaner products in fuel tank or permanent
damage may occur_

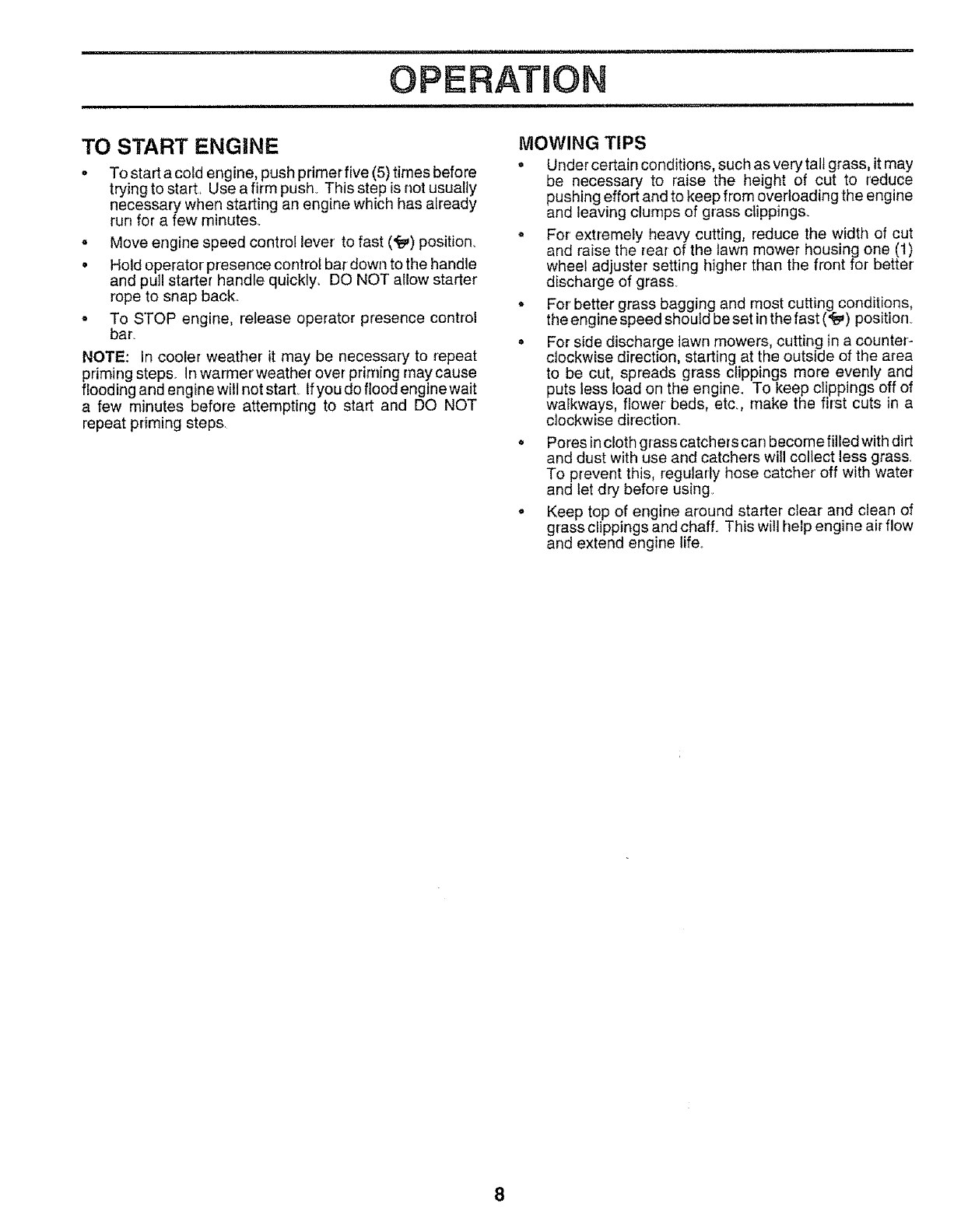

TO START ENGINE
•To start a cold engine, push primerfive (5) times before
trying to start, Use a firm push. This step is not usually
necessary when starting an engine which has already
run for a few minutes,
oMove engine speed control lever to fast (_) position_
oHold operator presence control bar down to the handle
and pull starter handle quickly, DO NOT allow starter
rope to snap back..
- To STOP engine, release operator presence control
bar.
NOTE: in cooler weather it may be necessary to repeat
priming steps. Inwarmerweather over priming rnaycause
flooding and engine will not start. If you do flood enginewait
a few minutes before attempting to start and DO NOT
repeat priming steps.
MOWING TIPS
• Under certain conditions, such as very tall grass, it may
be necessary to raise the height of cut to reduce
pushing effort and to keep from overloading the engine
and teaving clumps of grass c{ippings.
.For extremely heavy cutting, reduce the width of cut
and raise the rear of the lawn mower housing one (t)
wheel adjuster setting higher than the front for better
discharge of grass
•For' better grass bagging and most cutting conditions,
the engine speed should be set in the fast ('_) position
= For side discharge lawn mowers, cutting in a counter-
clockwise direction, starting at the outside of the area
to be cut, spreads grass clippings more evenly and
puts less load on the engine. To keep clippings off of
waikways, flower beds, etc., make the first cuts in a
clockwise direction_
• Pores incloth grass catchers can become filled with dirt
and dust with use and catchers will collect less grass,
To prevent this, regularly hose catcher off with water
and let dry before using
oKeep top of engine around starter clear and clean of
grass clippings and chaff. This witl help engine air flow
and extend engine life.
8
CUSTOMER RESPONSIBILmTIES
FILL1NDATES f X"
ASYouCOMPLETE
_.REGULARSERy!CE.....................,,,.,_. TES _.o
Check for Loose Fasteners
_) lean/Inspect Grass Catcher
(if Equipped)
_Clean Lawn Mower
WE insPect/Clean Drive Wheels
(Self-Propelled Mowers)
R Sharpen/Replace Mower Blade
Lubrication Chart
Clean Battery/Recharge
(Electric Start Mowers)
E Check Engine Oil Leve!
N ,Change ,Engine Oil
G Clean Air Filter
Inspect Muffler
N Replace Spark Plug
E Replace Air Filter Paper Cartridge
v'
J
,,v' e"3
v' _t ,2
1 - Change more often when operating under a heavy toad or in high ambient temperatures
2 - Service more often when operating in dirty or dusty conditions
3 - Replace blades more often when mowing in sandy soil
4 _Charge 48 hours at end of season
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does not cover items that
have been subjected to operator abuse or negligence To
receive full value from the warranty, operator must maintain
mower as instructed in this manual..
Some adjustments will need to be made periodically to
properly maintain your unit°
All adjustments in the Service and Adjustments section of
this manual should be checked at least once each season°
LUBRICATION CHART
(_) WHEEL
ADJUSTER (_) ENGINE OIL
o Once a year, replace the spark plug, clean or replace
air filter element and check blade for wear. A new spark
plug and clean/new air filter element assures proper
air4uet mixture and helps your engine run better and
last longer_
° FoIIow the maintenance schedule in this manual
BEFORE EACH USE
o Check engine oil level.
- Check for loose fasteners
LUBRICATION
Keep unit well lubricated (See "LUBRICATION CHART")
(_ HANDLE BRACKET
MOUNTING PiN
(_) BRAKE
SPRING
BRACKET
(_ DISCHARGE
GUARD
HINGE PIN
(_ SPRAY LUBRICANT
(_) REFER TO CUSTOMER RESPONSIBILITIES "ENGINE"
SECTION.
IMPORTANT: DO NOT OIL OR GREASE PLASTIC WHEEL
BEARINGS. VISCOUS LUBRICANTS WILL ATTRACT
DUST AND DIRT THAT WILL SHORTEN THE LIFE OF
THE SELF-LUBRICATING BEARINGS. IF YOU FEEL
THEY MUST BE LUBRICATED, USE ONLY A DRY,
POWERED GRAPHITE TYPE LUBRICANT SPARINGLY
LAWN MOWER
Always observe safety rules when performing any mainte-
nance.
TIRES
= Keep tires free of gasoline, oil, or insect control chemi-
cals which can harm rubber.
= Avoid stumps, stones, deep ruts, sharp objects and
other hazards that may cause tire damage.

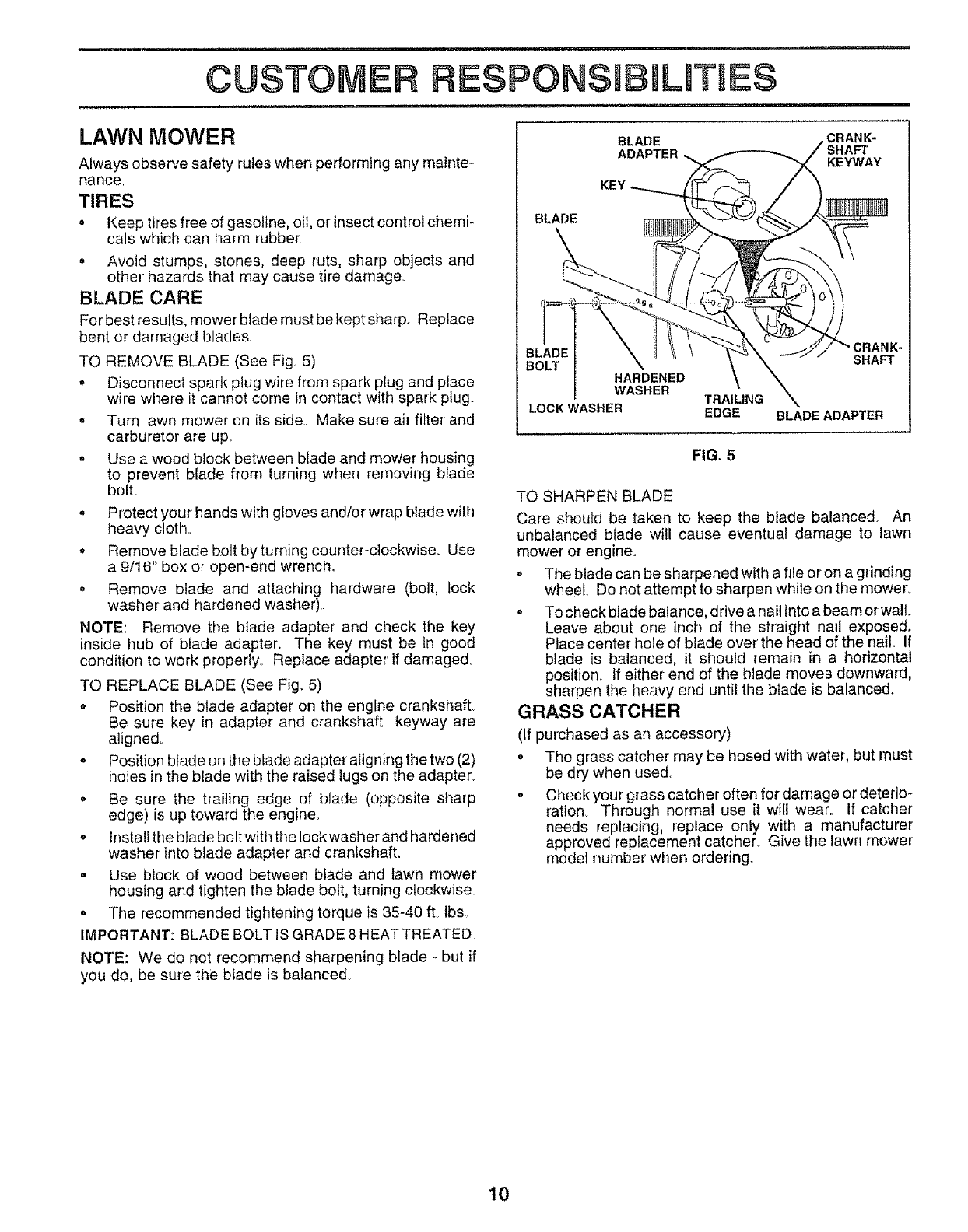

BLADE CARE
For best results, mower' blade must be kept sharp. Replace
bent or damaged blades.
TO REMOVE BLADE (See Fig. 5)
• Disconnect spark plug wire from spark plug and place
wire where it cannot corne in contact with spark plug.
o Turn lawn mower on its side. Make sure air filter and
carburetor are up..
°Use a wood block between blade and mower housing
to prevent blade from turning when removing blade
bolt
,, Protect your hands with gloves and/or wrap blade with
heavy cloth..
oRemove blade bolt by turning counter-clockwise. Use
a 9/16" box or open-end wrench.
=Remove blade and attaching hardware (bolt, lock
washer and hardened washer)
NOTE: Remove the blade adapter and check the key
inside hub of blade adapter, The key must be in good
condition to work properly° Replace adapter if damaged.
TO REPLACE BLADE (See Fig. 5)
- Position the blade adapter on the engine crankshafL
Be sure key in adapter and crankshaft keyway are
aligned.
, Position blade on the blade adapter' aligning the two (2)
holes in the blade with the raised lugs on the adapter.
,Be sure the trailing edge of blade (opposite sharp
edge) is up toward the engine.
o Install the blade bolt with the lockwasher and hardened
washer into blade adapter and crankshaft,
- Use block of wood between blade and lawn mower
housing and tighten the blade bolt, turning clockwise.
o The lecommended tightening torque is 35-40 ft. Ibs
IMPORTANT: BLADE BOLT IS GRADE 8 HEATTREATED
NOTE: We do not recommend sharpening blade -but if
you do, be sure the blade is balanced_
BLADE CRANK-
ADAPTER _KEYWAY
BLADE
\
SHAFT
HARDENED
WASHER TRAILING
LOCK WASHER EDGE BLADE ADAPTER
FIG. 5
TO SHARPEN BLADE
Care should be taken to keep the blade balanced. An
unbalanced blade will cause eventual damage to lawn
mower or engine.
oThe blade can be sharpened with a file or on a grinding
wheel Do not attempt to sharpen while on the mower.
o To check blade balance, drive a nail into a beam orwall.
Leave about one inch of the straight nail exposed.
Place center hole of blade over the head of the nail.. If
blade is balanced, it should remain in a horizontal
position.. If either end of the blade moves downward,
sharpen the heavy end until the blade is balanced.
GRASS CATCHER
(If purchased as an accessory)
, The grass catcher may be hosed with water, but must
be dry when used..
• Check your grass catcher often for damage or deterio*
ration° Through normal use it will wear.. If catcher
needs replacing, replace only with a manufacturer
approved replacement catcher. Give the lawn mower
model number when ordering.
10

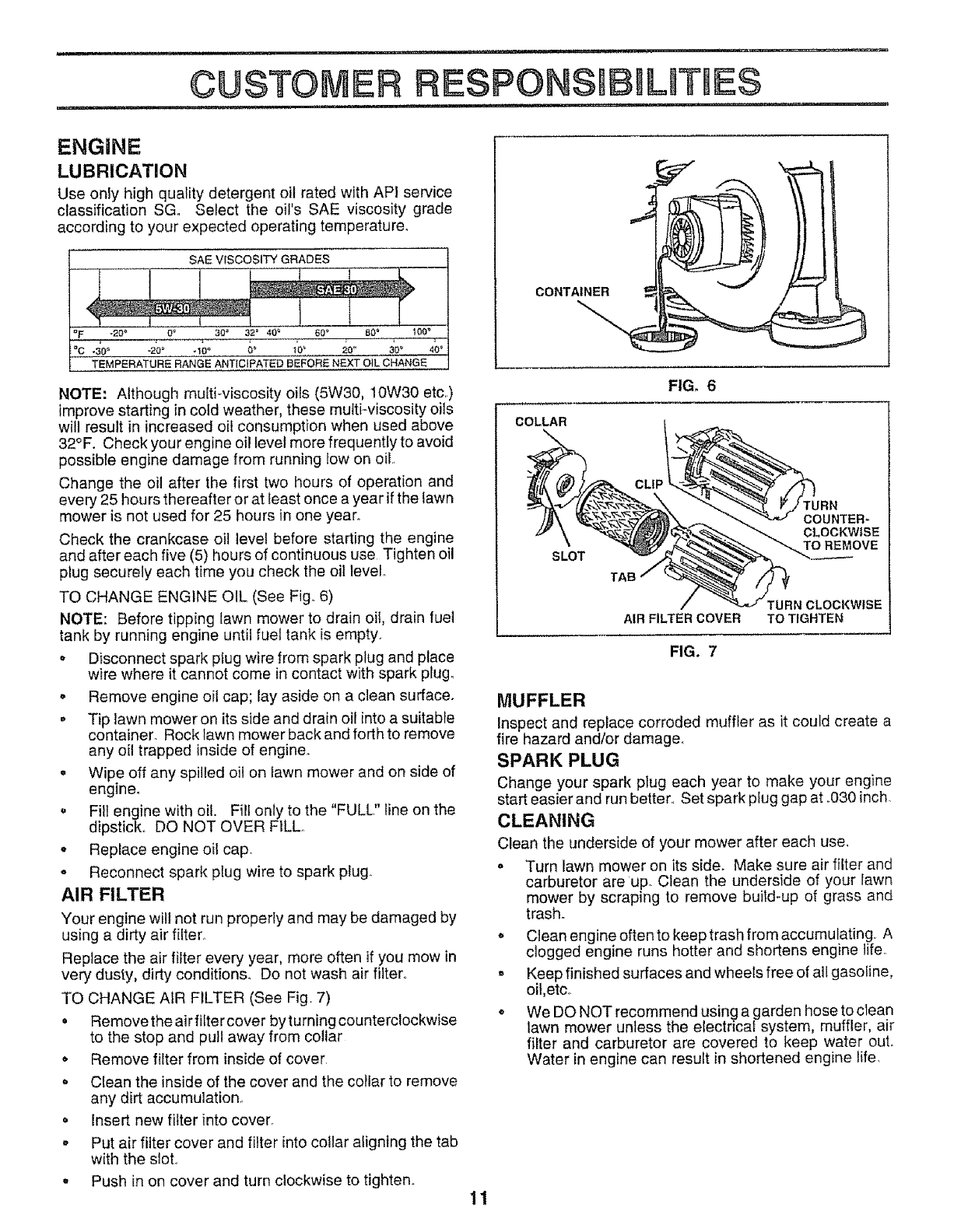

ENGINE
LUBRICATION
Use only high quality detergent oil rated with API service
classification SG. Select the oil's SAE viscosity grade
according to your expected operating temperature.
SAE V_SCOSITY GRADES
_F "20_ O_ 30_32= 40_ 60 ° 80_ t00_
°€ .a0° "2;° -_o° ;° _0° _o° ,3o°
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
NOTE: Although multi-viscosity oils (5W30, 10W30 etc,,)
improve starting in cold weather, these multi-viscosity oils
will result in increased oil consumption when used above
32°F. Check your engine oil level more frequently to avoid
possibte engine damage from running tow on oil,
Change the oil after the first two hours of operation and
every 25 hours thereafter or at least once a year if the lawn
mower is not used for 25 hours in one year.,
Check the crankcase oil level before starting the engine
and after each five (5) hours of continuous use Tighten oil
plug securely each time you check the oil level,
TO CHANGE ENGINE OIL (See Fig. 6)
NOTE: Before tipping lawn mower to drain oil, drain fuel
tank by running engine until fuel tank is empty,,
.Disconnect spark plug wire from spark plug and place
wire where it cannot come in contact with spark plug,
• Remove engine oil cap; lay aside on a clean surface.
•Tip lawn mower on its side and drain oil into a suitable
container. Rock lawn mower back and forth to remove
any oil trapped inside of engine,.
= Wipe off any spilled oil on lawn mower and on side of
engine.
o Fill engine with oii. Fill only to the "FULL" line on the
dipstick,. DO NOT OVER FiLL
•Replace engine oil cap,
•Reconnect spark plug wire to spark plug,
AIR FILTER
Your engine will not run properiy and may be damaged by
using a dirty air filter,
Replace the air filter every year, more often if you mow in
very dusty, dirty conditions. Do not wash air filter.
TO CHANGE AIR FILTER (See Fig. 7)
=Remove the air _ter cover by t urningcounterclockwise
to the stop and pull away from collar
•Remove filter from inside of cover
.Clean the inside of the cover and the collar to remove
any dirt accumulation,
•Insert new filter into cover.
o Put air filter cover and filter into collar aligning the tab
with the slot.,
• Push in on cover and turn clockwise to tighten. 11
CONTAINER
FIG, 6
COLLAR
SLOT
CLIF
TAB
TURN
COUNTER-
CLOCKWISE
TO REMOVE
TURN CLOCKWISE
AIR FILTER COVER TO TIGHTEN
FIG. 7
MUFFLER
Inspect and replace corroded muffler as it could create a
fire hazard and/or damage.
SPARK PLUG
Change your spark plug each year to make your engine
start easierand run better. Set spark plug gap at ,030 inch
CLEANING
Clean the underside of your mower after each use,
° Turn lawn mower on its sider Make sure air filter and
carburetor are up. Clean the underside of your lawn
mower by scraping to remove build-up of grass and
trash.
o Clean engine often to keeptrash from accumulating, A
clogged engine runs hotter and shortens engine life.
.Keep finished surfaces and wheels free of all gasoline,
oit,etco
,, We DO NOT recommend using a garden hose to clean
lawn mower unless the electrical system, muffler, air
filter and carburetor are covered to keep water out.
Water in engine can result in shortened engine life,

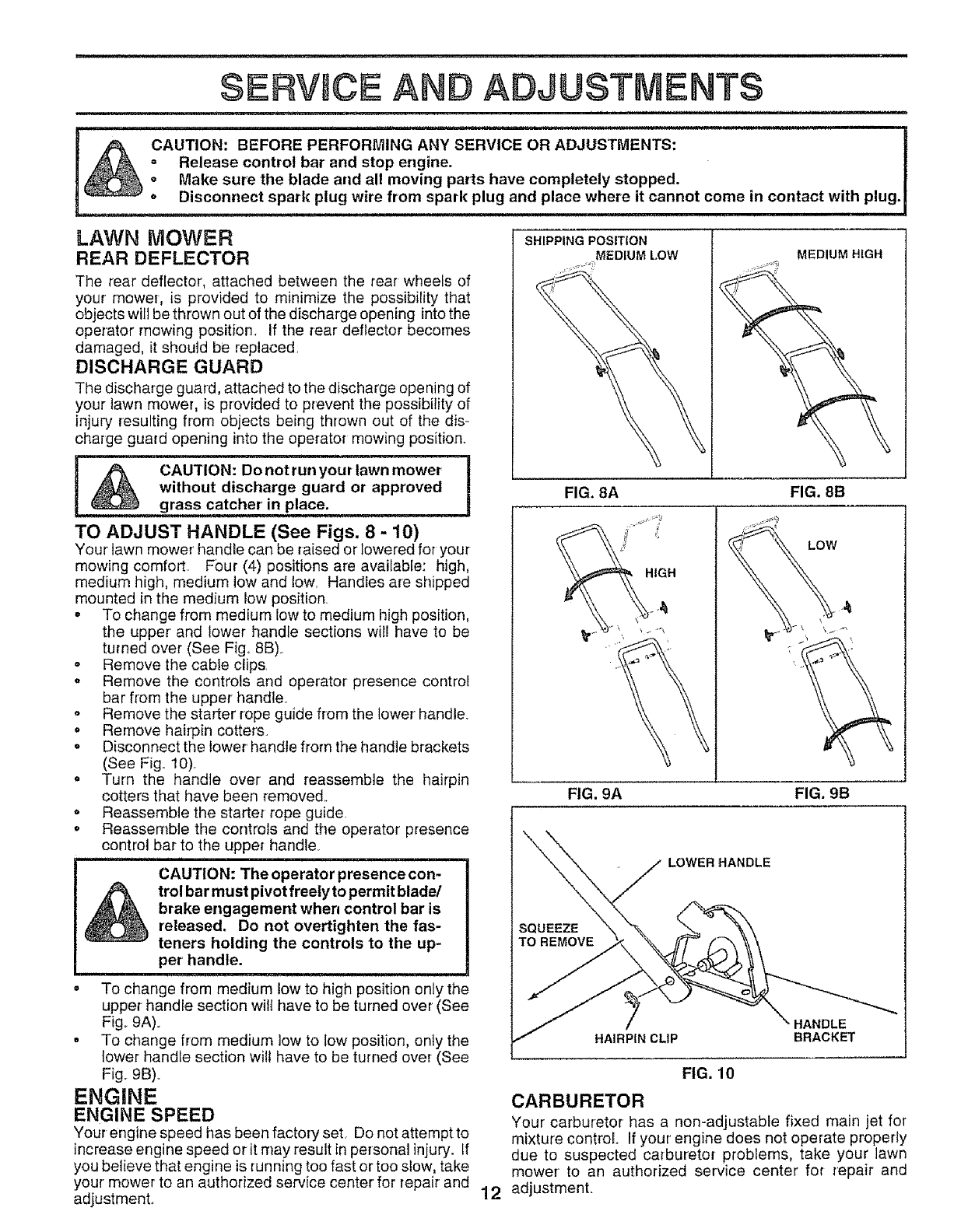

SERVICE AN ADJUSTMENTS
i
m
CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
Release control bar and stop engine. I
oMake sure the blade and all moving parts have completely stopped.
•Disconnect spark plug wire from spark plug and place where it cannot come in contact with plug.
LAWN MOWER
REAR DEFLECTOR
The rear deflector, attached between the rear wheels of
your mower, is provided to minimize the possibility that
objects will be thrown out of the discharge opening into the
operator mowing position, If the rear deflector becomes
damaged, it should be replaced
DISCHARGE GUARD
The discharge guard, attached to the discharge opening of
your lawn mower, is provided to prevent the possibility of
injury resulting from objects being thrown out of the dis-
charge guard opening into the operator mowing position,,
_ CAUTION: Donot runyour lawn mower
without discharge guard or approved
gras scatcher in place.
TO ADJUST HANDLE (See Figs. 8 - 10)
Your lawn mower' handle can be raised or lowered for your
mowing comfort Four (4) positions are available: high,
medium high, medium low and low Handles are shipped
mounted in the medium low position.
= To change from medium low to medium high position,
the upper' and lower handle sections will have to be
turned over (See Fig_ 8B).
o Remove the cable clips
° Remove the controls and operator presence control
bar from the upper' handle,.
o Remove the starter rope guide from the lower handler
° Remove hairpin cotters
= Disconnect the lower handle from the handle brackets
(See Fig,, 10),
= Turn the handle over and reassemble the hairpin
cotters that have been removed.
. Reassemble the starter rope guide
• Reassemble the controls and the operator presence
control bar to the upper handle,
H = H ,=
CAUTION: The operator presence con-
trol bar must pivot freely to permit blade/
brake engagement when control bar is
released. Do not overtighten the fas-
teners holding the controls to the up-
per handle.
= To change from medium low to high position only the
upper handle section wilt have to be turned over (See
Fig° 9A)o
. To change from medium low to tow position, only the
lower handle section will have to be turned over (See
Fig. 9B).
ENGINE
ENGINE SPEED
Yourenginespeed has been factory set. Donot attemptto
increase engine speed orit may result in personal injury.. If
you believe that engine is running too fast ortoo slow, take
your mower to an authorized service center' for repair and
adjustment..
SHIPPING POSITION
MEDIUM LOW MEDIUM HIGH
FIG. 8A FIG. 8B
LOW
FIG. 9A FIG. 9B
LOWER HANDLE
HAIRPIN CLIP
HANDLE
BRACKET
FIG. 10
CARBURETOR
Your carburetor has a non-adjustable fixed main jet for
mixture control If your' engine does not operate properly
due to suspected carburetor problems, take your lawn
mower to an authorized service center fo_ repair and
12 adjustment.

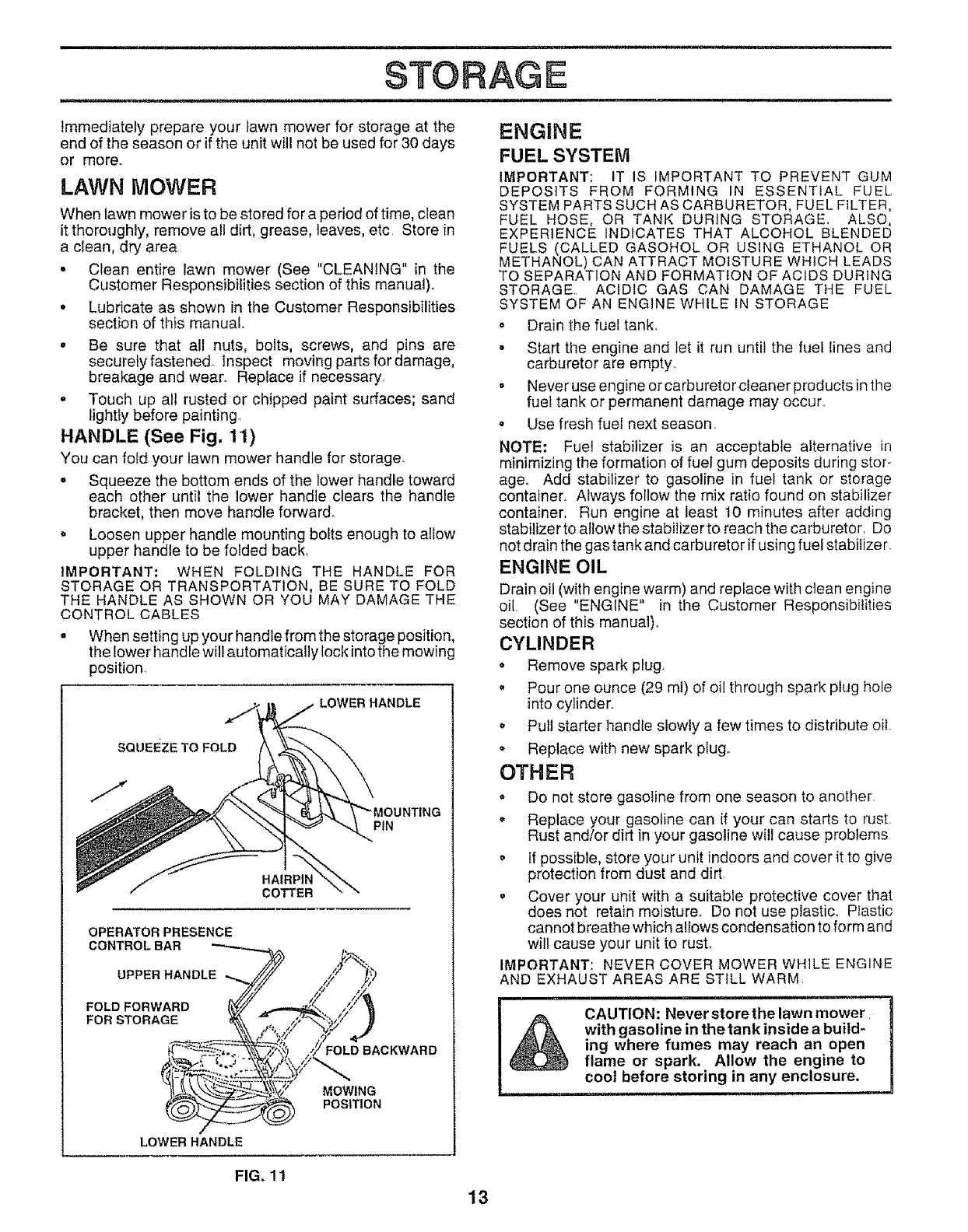

STORAGE
Immediately prepare your fawn mower for storage at the
end of the season or if the unit will not be used for 30 days
or more.
LAWN MOWER
When lawn mower is to be stored for a period of time, clean
it thoroughly, remove all dirt, grease, leaves, etc. Store in
a clean, dry area
• Clean entire lawn mower (See "CLEANING" in the
Customer Responsibilities section of this manual).
• Lubricate as shown in the Customer Responsibilities
section of this manual.
oBe sure that all nuts, bolts, screws, and pins are
securetyfastened. Inspect moving partsfordamage,
breakage and wear. Replace if necessary.
o Touch up all rusted or chipped paint surfaces; sand
lightly before painting,
HANDLE (See Fig, 11)
You can fold your lawn mower handle for storage.
° Squeeze the bottom ends of the lower handle toward
each other until the lower handle clears the handle
bracket, then move handle forwar&
• Loosen upper handle mounting bolts enough to allow
upper handle to be folded back°
IMPORTANT: WHEN FOLDING THE HANDLE FOR
STORAGE OR TRANSPORTATION, BE SURE TO FOLD
THE HANDLE AS SHOWN OR YOU MAY DAMAGE THE
CONTROL CABLES
.When setting up your handle from the storage position,
the lower handle wilI automatically lock intothe mowing
position.
LOWER HANDLE
SQUEEZE TO FOLD
_OUNTING
PIN
HAl
COTTER
OPERATOR PRESENCE
OONTROLBAR
UPPER HANDLE
FOLD FORWARD
FORSTORAGE
FOLD BACKWARD
LOWER HANDLE
MOWING
POSITION
ENGINE
FUEL SYSTEM
IMPORTANT: IT IS IMPORTANT TO PREVENT GUM
DEPOSITS FROM FORMING IN ESSENTIAL FUEL
SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,
FUEL HOSE, OR TANK DURING STORAGE, ALSO,
EXPERIENCE INDICATES THAT ALCOHOL BLENDED
FUELS (CALLED GASOHOL OR USING ETHANOL OR
METHANOL) CAN ATTRACT MOISTURE WHICH LEADS
TO SEPARATION AND FORMATION OF ACIDS DURING
STORAGE ACIDIC GAS CAN DAMAGE THE FUEL
SYSTEM OF AN ENGINE WHILE IN STORAGE
°Drain the fuel tank.
- Start the engine and let it run until the fuel lines and
carburetor are empty.
, Never use engine or carburetor cleaner products in the
fuel tank or permanent damage may occur..
- Use fresh fuel next season
NOTE: Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits during stor-
age. Add stabilizer to gasoline in fuel tank or storage
container. Always follow the mix ratio found on stabilizer
container. Run engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach the carburetor. Do
not drain the gas tank and carburetor if using fuel stabilizer
ENGINE OIL
Drain oil (with engine warm) and replace with clean engine
oil (See "ENGINE" in the Customer Responsibilities
section of this manual)..
CYLINDER
o Remove spark plug,
Pour one ounce (29 ml) of oil through spark plug hole
into cylinde[.
o Pull starter handle slowly a few times to distribute oil
° Replace with new spark plug..
OTHER
,, Do not store gasotine from one season to another
= Replace your gasoline can if your can starts to rust
Rust and/or dirt in your gasoline will cause problems
o If possible, store your unit indoors and cover it to give
protection from dust and dirt.
° Cover your unit with a suitable protective cover that
does net retain moisture. Do not use plastic. Plastic
cannot breathe which allows condensation to form and
will cause your unit to rust.
IMPORTANT: NEVER COVER MOWER WHILE ENGINE
AND EXHAUST AREAS ARE STILL WARM.
l& AUTION: Neverstorethelawnmower
with gasoline in the tank inside a build-
ing where fumes may reach an open
flame or spark. Allow the engine to
cool before storing in any enclosure.
FIG. 11
13

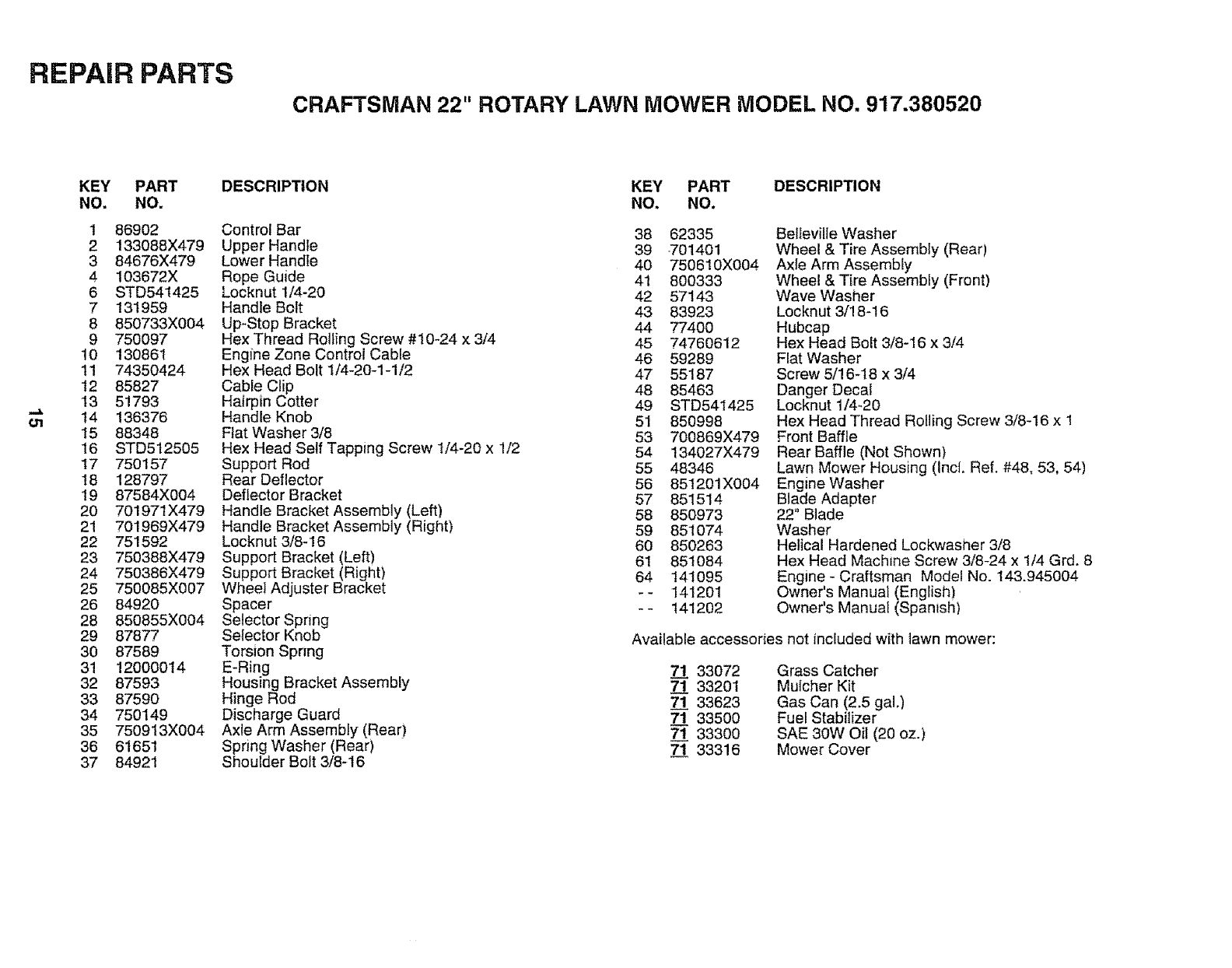

REPAIR PARTS
CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NO. 917.380520
,,=&
1 2
13
34
39 31-_
35
41 42 40
20
25
23 25
45
35
15
39 43
\ _
42
53
44
\
43
\
REPAIR PARTS
CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NO. 917.380520
.,,&
KEY PART
NO. NO.
1 86902
2 133088X479
3 84676X479
4 103672X
6 STD541425
7 131959
8 850733X004
9 750097
10 130861
11 74350424
t2 85827
t3 51793
I4 136376
I5 88348
16 STD512505
17 750157
I8 128797
19 87584X004
20 701971X479
21 701969X479
22 751592
23 750388X479
24 750386X479
25 750085X007
26 84920
28 850855X004
29 87877
30 87589
31 12000014
32 87593
33 87590
34 750149
35 750913X004
36 61651
37 84921
DESCRIPTION
Control Bar
Upper Handle
Lower Handle
Rope Guide
Locknut 1/4-20
Handle Bolt
Up-Stop Bracket
Hex Thread Rolling Screw #10-24 x 3/4
Engine Zone Control Cable
Hex Head Bolt 1/4-20-1-1/2
Cable Clip
Hairpin Cotter
Handle Knob
Flat Washer 3/8
Hex Head Self Tapping Screw 1/4-20 x 1/2
Support Rod
Rear Deflector
Deflector Bracket
Handle Bracket Assembly (Left)
Handle Bracket Assembly (Right)
Locknut 3/8-16
Support Bracket (Left)
Support Bracket (Right)
Wheel Adjuster Bracket
Spacer
Selector Spring
Selector Knob
Torsion Spring
E-Ring
Housing Bracket Assembly
Hinge Rod
Discharge Guard
Axle Arm Assembly (Rear)
Spring Washer (Rear)
Shoulder Bolt 3/8-16
KEY PART DESCRIPTION
NO. NO.
38 62335
39 701401
40 750610X004
41 800333
42 57143
43 83923
44 77400
45 74760612
46 59289
47 55187
48 85463
49 STD541425
51 850998
53 700869X479
54 134027X479
55 48346
56 851201X004
57 851514
58 850973
59 851074
60 850263
61 851084
64 141095
-- 141201
-- 141202
BelIeville Washer
Wheel & Tire Assembly (Rear)
Axle Arm Assembly
Wheel & Tire Assembly (Front)
Wave Washer
Locknut 3/!8-16
Hubcap
Hex Head Bolt 3/8-16 x 3/4
Flat Washer
Screw 5/! 6-18 x 3/4
Danger Decal
Locknut 1/4_20
Hex Head Thread Rolling Screw 3/8-16 x 1
Front Baffle
Rear Baffle (Not Shown)
Lawn Mower Housing (Inct, Ref. #48, 53, 54)
Engine Washer
Blade Adapter
22" Blade
Washer
Helical Hardened Lockwasher 3/8
Hex Head Machine Screw 3/8-24 x 1/4 Grd. 8
Engine - Craftsman Model No. 143.945004
Owner's Manual (English)
Owner's Manual (Spanish)
Available accessories not included with lawn mower:
71 33072
7_! 33201
7"1 33623
7"1 33500
7"1 33300
711 33316
Grass Catcher
Mulcher Kit
Gas Can (2.5 gal,)
Fuel Stabilizer
SAE 30W Oil (20 oz.)
Mower Cover

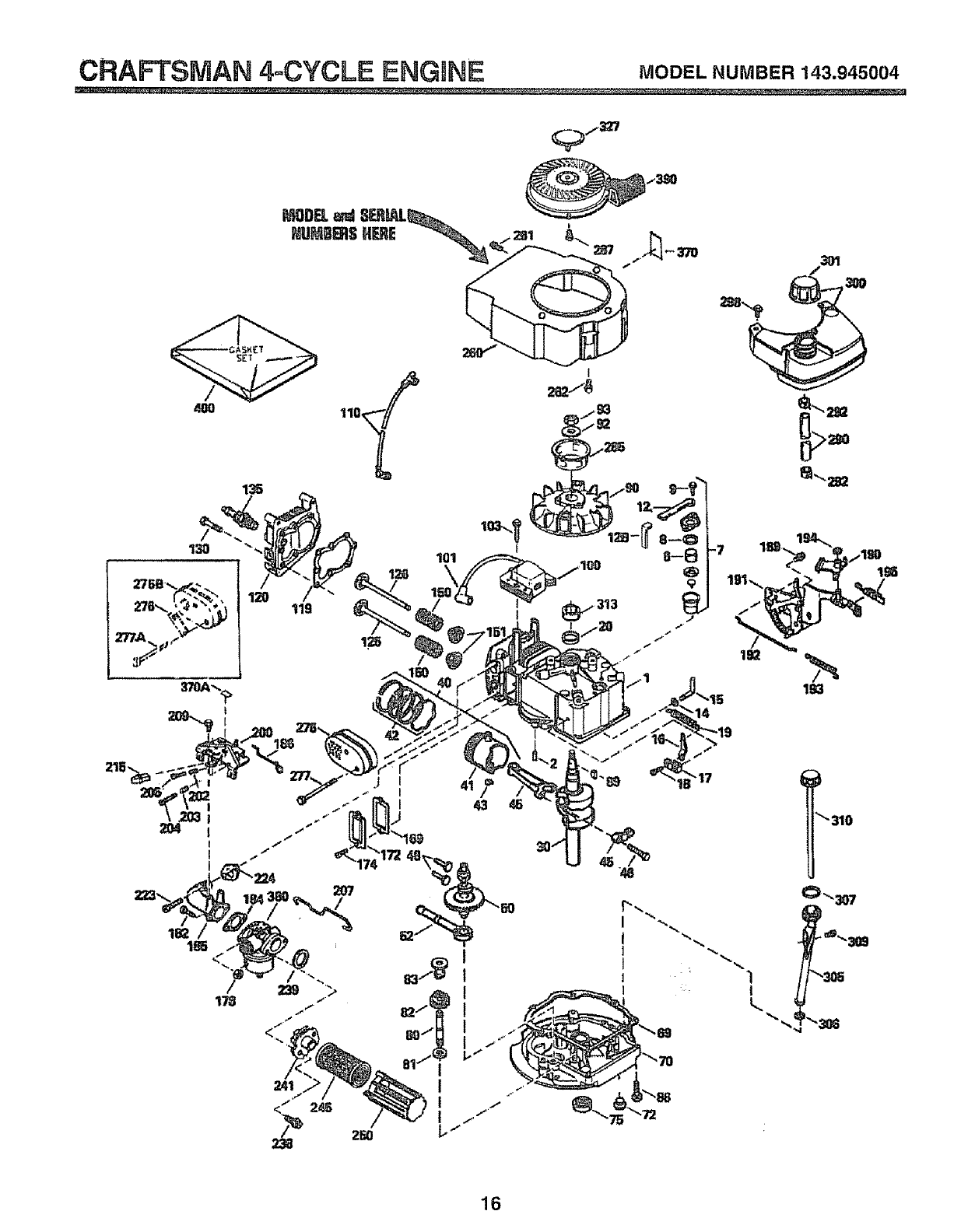

CRAFTSMAN 4-CYCLE ENGINE MODELNUMBER143.945004
MODEL _ 8ER_LI
HUMBmSHERE
20"/
101
41
43
f
81
I
I t
14
i-- I
16
CRAFTSMAN 4=CYCLE ENGaNE MODELNUMBER143.945004
REF PART
NO. NO.
1 36478
2 26727
6 33734
7 34214A
8 33735
9 30200
12 33886
12B 34695
14 28277
15 30589
16 31383A
17 31335
18 650548
19 36281
20 32600
30 35996
40 36073
36074
36075
41 36070
36071
36072
42 36076
36077
36078
43 20381
45 30963B
46 32610A
48 27241
50 35992
52 29914
69 35261
7O 34311D
72 36083
75 27897
80 30574A
81 30590A
82 30591
83 30588A
86 650488
89 611004
90 611112
92 650815
93 650816
100 34443A
I01 610118
I03 650814
110 34961
119 36477
120 36476
125 3647t
36472
126 29314B
29315C
130 6021A
135 35395
150 35991
151 31673
169 27234A
172 32755
174 30200
DESCRIPTION
Cylinder (Includes Ref #2 and 20)
Dowel Pin
Breather Element
Breather Assembly (includes
Reference Numbers 6, 8, 9 and 12)
* Breather Gasket
Screw #t0-24 x 9/16
Breather Tube
Breather Tube Elbow
Washer
Governer Rod (Includes Refo#14)
Governor Lever
Governor Lever Clamp
Screw #8-32 x 5/16
Extension Spring
Oil Seal
Crankshaft
Piston, Pin & Ring Set, Std. Size
Piston, Pin & Ring Set, oO10"Over
Piston, Pin & Ring Set, ..020" Over
Piston & Pin Assembly, Std. Size
Piston & Pin Assembly, .010" Over
Piston & Pin Assembly, .020" Over
(Assemblies Include Ref. #43)
Ring Set, Piston, Standard Size
Ring Set, Piston, _.0t0" Oversize
Ring Set, Piston, °020" Oversize
Piston Pin Retaining Ring
Connecting Rod Assy.. (IncL #46)
Connecting Rod Bolt
Valve Lifter
Camshaft (BCR)
Oil Pump Assembly
* Mounting Flange Gasket
Mounting Flange (Inclo #72 thru 83)
Oil Drain Plug
Oil Seal
Governor Shaft
Washer
Governor Gear Assyr(tncludes #81)
Governor Spool
Screw 1/4-20 x 1-1/4
Flywheel Key
Flywheel
Belleville Washer
Flywheel Nut
Solid State Ignition
Spark Plug Cover
Screw, Torx T-15 #10-24 x 1
Ground Wire
* Cylinder Head Gasket
Cylinder Head
Exhaust Valve, Standard Size
Exhaust Valve, 1/32" Oversize
Intake Valve, Standard Size
intake Valve, 1/32" Oversize
(All Valves Include Reference #151)
Screw 5/16-18 x 1-1/2
Resistor Spark Plug (RJ19LM)
Valve Spring
Valve Spring Cap
* Valve Cover Gasket
Valve Cover
Screw 10-24 x 9/16
REF PART
NO. NO. DESCRIPTION
178 29752
182 6201
184 26756
185 31384A
186 34337
189 650839
!90 35831
!91 35039B
192 34966
193 34965
194 32309
195 610973
200 35727
202 36482
203 31342
204 650549
205 650777
207 34336
209 30200
215 32410
223 650451
224 34690A
238 650932
239 34338
241 35797
245 35066
250 35065
260 36420A
261 30200
262 650831
275 36473
275B391020
276 33753
277 650988
277A650795
285 35000
287 650926
290 30705
292 26460
298 28763
300 34369B
301 35355
305 35647
306 34265
307 35499
309 650562
310 35648
313 34080
327 35392
370 36261
370A35167
380 632646
390 590694
400 36481
Nut and Lock Washer I/4-28
Screw 1/4-28 x 7/8
* Carburetor To Intake Pipe Gasket
intake Pipe (Includes Ref #224)
Governor Link
Screw 1/4-20 x 3/8
Brake Lever
SEo Brake Bracket (Includes #195)
Brake Control Link
Brake Spring
Retaining Ring
Terminal
Control Bracket (Includes
Reference Numbers 202 thru 205)
Compression Spring
Compression Spring
Screw #5-40 x 7/16
Screw #6-32 x 21/32
Throttle Link
Screw 10-24 x 9/16
Control Knob
Screw 1/4-20 x 1
* Intake Pipe Gasket
Screw #10-32 x 49/64
* Air Cleaner Gasket
Air Cleaner Collar
Air Cleaner Filter
Air Cleaner Cover
Blower Housing
Screw 10-24 x 9/16
Screw 1/4-20 x t/2
Muffler (includes Reference #277)
Spark Arrestor Muffler (Includes
Reference #277A)(Optional)
Locking Plate
Screw 1/4_20 x 2q3/64
Screw 1/4-20 x 2-1/4 (Optional)
Starter Cup
Screw #8_32 x 21/64
Fuel Line
Fuel Line Clamp
Screw #10-32 x 35/64
Fuel Tank (Includes #292 and 301)
Fuel Cap
Oil Fill Tube
* O-Ring
O-Ring
Screw #10-32 x 1/2
Dipstick
Spacer
Starter Plug
Instruction Decal
Instruction Decal
Carburetor (Includes Ref. #184)
Rewind Starter
Gasket Set
(Includes All Items Marked *)
RPM Settings: Low: 2450-2750, High: 2900-3200
NOTE: This engine could have been built with 590686
Starter_ Refer to design of air intake louvers for part
identification.. Individual starter parts do not interchange.
NOTE: Al! component dimensions given in U.S° inches
I inch = 25.4 mm
17
CRAFTSMAN 4-CYCLE ENGaNE MODELNUMBER143.945004
CARBURETOR NO. 632646 REF PART
I
!
I
NO, NO. DESCRIPTION
-- 632646
1 631615
2 631767
4 631184
5 631183
6 632504
7 650506
16 631807
25 631867
27 631024
28 632019
29 631028
3O 631021
31 631022
35 632694
35A 632647
40 632503
44 27110
48 631027
Carburetor, Complete
(Includes #184 of Engine Parts List)
Throttle Shaft and Lever Assembly
Throttle Return Spring
Dust Seal Washer', Throttle
Dust Seal, Throttle
Throttle Shutter
Shutter Screw
Fuel Fitting
Float Bowl
Float Shaft
Float
Float Bowl "O" Ring
Inlet Needle, Seat & Clip
(Includes Reference Number 31)
Spring Clip
Primer Bulb/Retaining Ring
Primer' Bulb Filter
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Atmospheric Vent
REWIND STARTER NO. 590694 REF PART
NO. NO. DESCRIPTION
/
13
3_--.5
[} '
-- 590694 Recoil Starter, Complete
1 590599A Spring Pin (Includes Reference #4)
2 590600 Washer
3 590696 Retainer
4 590601 Washer
5 590697 Brake Spring
6 590698 Starter Dog
7 590699 Dog Spring
8 590700 Pulley & Rewind Spring Assembly
11 590695 Starter Housing Assembly
(40 Degree Grommet)
12 590535 Starter Rope (98" Long, 9/64" Dia.)
13 590701 Starter Handle
NOTE: All component dimensions given in U,.S. inches
1 inch = 25.4 mm
REWIND STARTER NO. 590686
--1
REF PART
NO. NO. DESCRIPTION
-- 590686
1 590599A
2590600
3 590615
4 590601
5 590598
6 590616
7 590617
8 590618A
9 590619
10 590620
11 590687
12 590535
13 590452
Recoil Starter
Spring Pin (Includes Reference #4)
Washer
Retainer
Washer
Brake Spring
Starter Dog
Dog Spring
Pulley Assembly (Includes
Reference Number's 9 and 10)
Rewind Spring
Spring Cover
Starter Housing Assembly
(40 Degree Grommet)
Starter Rope (98" Long, 9/64" Di&)
Starter Handle
NOTE: All component dimensions given in U°S, inches
1 inch = 25..4 mm
18
n,m n,,=,,
TROUBLESHOOTING POINTS
, ,,, H,nu,,,,,,,,,,,,, ,,,, H =,=======,,,1=, = n ,,u,,,,,,,
PROBLEM
Does not start
Loss of power
CAUSE
===,,
1 Dirty air filter
2 Out of fuel
3 Stale fuel
4 Water in fuel
CORRECTION
1 Clean/replace air filter
2 Flit fuel tank
3 Drain tank and refill wilh fresh clean fuel
4 Drain fuel tank and carburetor and refill tank with Iresh
gasoline
lJuu_J=
Poor cut _uneven
5 Spark plug wire is disconnected
6 Bad spark piug
7Loose blade or broken blade adapter
B Control bar in released position
9 Control bar defective
n n ui=,,,,,,
1 Rear of lawn mower housing/blade dragging
in heavy grass
2 Cutting too much grass
3 Dirty air filter
4 Buildup of grass, leaves and trash under mower
5 Too much oil in engine
6 Walking speed too fast
= HH,H,,
I Worn, bent or loose blade
2 Wheef heights uneven
3 Low engine speed
4 Buildup of grass, leaves, and trash under mower
Connect wire to plug
Replace spark plug
Tighten blade bolt or replace blade adapter
Depress control bar to handle
Replace control bar
5
6
7
8
9
=
1
2
3
4
5
6
1
2
3
4
!
2
1
Set in 'Higher Cut" position
Set in "Higher Cut" position
Ctean/rep}ace air filter
CIean underside of mower housing
Check oil level
Cut at slower walking speed
Replace btade Tighten blade boil
Set all wheels at same height
Contact an authorized service center/department
Ciean underside of mower housing
Excessive vibration 1 Worn, bent or loose blade Replace blade Tighten blade bolt
2 Bent engine crankshaft Contact an authorized service centeddepadment
Starter rope hard to pull 1 Engine flywheel brake is on when control bar is Depress control bar to upper handle before
released
2 Bent engine crankshaft
3 Blade adapter broken
4 Blade dragging in grass
Grass catcher not filling
(if so equipped)
Hard to push
1 Cutting height too Iow
2 Lift on blade worn off
3 Catcher not venting air
4 Low engine speed
putting starter rope
2 Contact an authorized service center/department
3 Replace blade adapter
4 Move lawn mower to cut grass or to hard surface
to start engine
1 Grass is too high or wf_ee! height is too low
2 Rear of Iawn mower housingib_ade dragging
in grass
3 Grass catcher too full
4 Handle height position not right for you
1Raise cutting height
2 Replace blade
3 Clean grass catcher
4 Contact an authorized service centeddepadment
1 Raise cutting height
2 Raise rear of _awn mower housing one (t)
setting higher
3 Emptygrass catcher
4 Adjust handle height to suit
19
, W/A/R8
OWNER'S
MANUAL
MODEL NO.
917.380520
IF YOU NEED
REPAIR SERVICE
OR PARTS:
FOR REPAIR SERVICE, CALL
THIS TOLL FREE NUMBER:
1-800-4-REPAIR
(1-800-473-7247)
FOR REPLACEMENT PARTS
INFORMATION AND
ORDERING, CALL THIS
TOLL FREE NUMBER:
1-800-FON-PART
(1-800-366-7278)
®
5.0 HORSEPOWER
22" SIDE DISCHARGE
ROTARY LAWN MOWER
Each lawn mower has its own model number. Each en-
gine has its own model number..
The model number for your lawn mower' will be found on a
decal attached to the rear of the lawn mower housing.
The model number for your engine will be found on the
blower housing of the engine.
All parts listed herein may be ordered from any Sears,
Roebuck and COr. Service Center/Department and most
Retail Stores..
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
•PRODUCT - LAWN MOWER
•MODEL NUMBER - 917.380520
•ENGINE - CRAFTSMAN - MODEL NO. 143.945004
•PART NUMBER
"PART DESCRIPTION
Your Sears merchandise has added value when you
consider Sears has service units nationwide staffed with
Seats trained technicians_, professional technicians
specifically trained to insure that we meet our pledge to
you, we service what we sell.
141201 08/18/93 Printed in USA
I IIIIIIIIIIII

Navigation menu
