Craftsman 10 Portable Table Saw Owners Manual 41503_JT2504RC_English_010614_Rev 1

: Craftsman Craftsman-10-Portable-Table-Saw-Owners-Manual-661861 craftsman-10-portable-table-saw-owners-manual-661861 craftsman pdf

Open the PDF directly: View PDF .
Page Count: 56

1 1

Operator’s Manual

10 IN. PORTABLE TABLE SAW

Model No. 137.415030

CAUTION:

Before using this Table Saw,

read this manual and follow

all its Safety Rules and

Operating Instructions

● Safety Instructions

● Assembly

● Operation

● Maintenance

● Parts List

Customer Help Line

For Technical Support

1-800-843-1682

Sears Parts &

Repair Center

1-888-331-4569

Sears Brands Management Corporation Hoffman Estates, IL 60179 USA

See the full line of Craftsman® products at craftsman.com

Click on the Craftsman Club® link and join today!

Part No. 137415030001 Printed in China

2

3

2 3

2014/01

TABLE OF CONTENTS

SECTION PAGE

Warranty ................................................................................................................ 2

Product Specifications ........................................................................................... 3

Symbols.................................................................................................................. 4

Power Tool Safety .................................................................................................. 5

Table Saw Safety ................................................................................................... 8

Electrical Requirements and Safety ....................................................................... 12

Accessories and Attachments ................................................................................ 14

Tools Needed for Assembly ................................................................................... 14

Carton Contents .................................................................................................... 15

Know Your Table Saw ............................................................................................ 17

Glossary of Terms .................................................................................................. 18

Assembly ............................................................................................................... 20

Adjustments ........................................................................................................... 29

Operation ............................................................................................................... 35

Maintenance .......................................................................................................... 45

Troubleshooting Guide .......................................................................................... 48

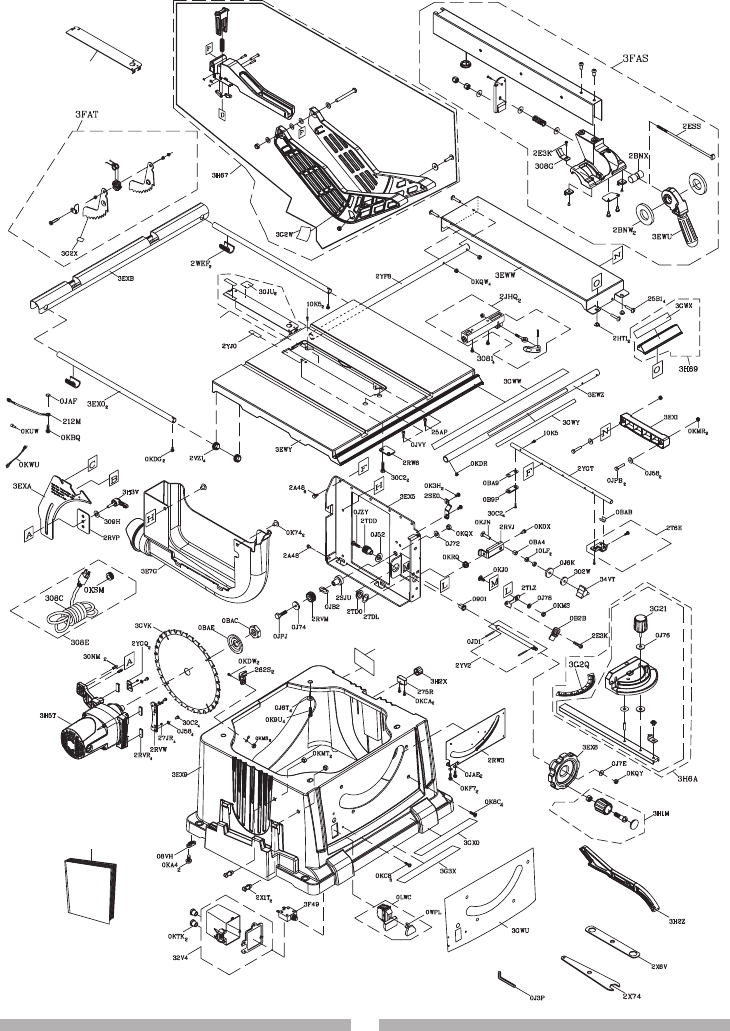

Parts List ................................................................................................................ 51

Repair Protection Agreement ................................................................................. 56

WARRANTY

CRAFTSMAN ONE YEAR LIMITED WARRANTY

FOR ONE YEAR from the date of purchase, this product is warranted against defects in

material or workmanship. With proof of purchase, a defective product will receive free repair

or replacement at option of seller. For warranty coverage details or to obtain free repair or

replacement, visit the web page: www.craftsman.com/warranty

This warranty does not cover the blade, which is an expendable part that can wear out from

normal use within the warranty period. This ONE YEAR warranty is void if this product is

ever used while providing commercial services or if rented to another person. For 90 DAY

commercial and rental use terms, see the Craftsman warranty web page. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

CALIFORNIA PROPOSITION 65

Some dust created by power sanding, sawing, grinding, drilling and other construction

activities contains chemicals known to the state of California to cause cancer, birth defects

or other reproductive harm. Some examples of these chemicals are:

● Lead from lead-based paints,

● Crystalline silica from bricks, cement and other masonry products, and

● Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work.

To reduce your exposure to these chemicals: work in a well ventilated area, and work

with approved safety equipment, such as those dust masks that are specially designed to

filter out microscopic particles. Avoid prolonged contact with dust from power sanding,

sawing, grinding, drilling, and other construction activities. Wear protective clothing and

wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or

lay on the skin may promote absorption of harmful chemicals.

WARNING

!

2 3

2

3

MOTOR

Type.............................................................................. Universal

Amperes....................................................................... 15 Amp

Voltage......................................................................... 120 V AC

Hz................................................................................. 60 Hz

RPM (no load) ............................................................. 5000 RPM (No load)

Overload Protection..................................................... Yes

BLADE SIZE

Diameter...................................................................... 10 in.

Arbor Size.................................................................... 5/8 in.

SAW

Rip Fence...................................................................... Yes

Miter Gauge.................................................................. Yes

Rip Capacity ................................................................ 8-1/2 in. Left

24 in. Right

Maximum Cut Depth @ 90º ......................................... 3 in.

Maximum Cut Depth @ 45º ......................................... 2-1/2 in.

Maximum Diameter Dado ............................................ 6 in. (Stackable only)

Maximum Dado Cut Width ........................................... 1/2 in.

WARNING

!

To avoid electrical hazards, fire hazards or damage to the tool, use proper

circuit protection. This tool is wired at the factory for 110-120 Volt operation.

It must be connected to a 110-120 Volt / 15 Ampere time delay fuse or circuit

breaker. To avoid shock or fire, replace power cord immediately if it is worn,

cut or damaged in any way. Before using your tool, it is critical that you read

and understand these safety rules. Failure to follow these rules could result

in serious injury to you or damage to the tool.

PRODUCT SPECIFICATIONS

4

5

4 5

WARNING ICONS

Your power tool and its Operator’s Manual may contain “WARNING ICONS”

(a picture symbol intended to alert you to, and/or instruct you how to avoid,

a potentially hazardous condition). Understanding and heeding these

symbols will help you operate your tool better and safer. Shown below are

some of the symbols you may see.

DANGER



!

WARNING



!

CAUTION



!

CAUTION

DANGER: indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING: indicates a potentially hazardous situation

which, if not avoided, could result in death or serious injury.

CAUTION: indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate injury.

CAUTION: used without the safety alert symbol indicates

a potentially hazardous situation which, if not avoided, may

result in property damage.

SYMBOLS

SAFETY ALERT: Precautions that involve your safety.

PROHIBITION

WEAR EYE PROTECTION: Always wear safety goggles or safety

glasses with side shields.

READ AND UNDERSTAND INSTRUCTION MANUAL: To reduce

the risk of injury, user and all bystanders must read and understand

instruction manual before using this product.

SUPPORT AND CLAMP WORK

KEEP HANDS AWAY FROM BLADE: Failure to keep your hands

away from the blade will result in serious personal injury.

WEAR RESPIRATORY AND HEARING PROTECTION: Always wear

respiratory and hearing protection.

4 5

4

5

POWER TOOL SAFETY

GENERAL SAFETY INSTRUCTIONS

BEFORE USING THIS POWER TOOL

Safety is a combination of common

sense, staying alert and knowing how

to use your power tool.

● To avoid mistakes that could

cause serious injury, do not plug

the tool in until you have read

and understood the following.

● Read all instructions before

operating product. Failure to

follow all instructions listed

below may result in electric

shock, fire and/or serious injury.

1. READ and become familiar

with the entire Operator’s

Manual. LEARN the tool’s

application, limitations and possible

hazards.

2. KEEP GUARDS IN PLACE and in

working order.

3. REMOVE ADJUSTING KEYS

AND WRENCHES. Form the habit

of checking to see that keys and

adjusting wrenches are removed

from the tool before turning ON.

4. KEEP WORK AREA CLEAN.

Cluttered areas and benches

invite accidents.

5. DO NOT USE IN DANGEROUS

ENVIRONMENTS. Do not use

power tools in damp locations, or

expose them to rain or snow. Keep

work area well lit.

6. KEEP CHILDREN AWAY. All

visitors and bystanders should be

kept a safe distance from work area.

7.

MAKE WORKSHOP CHILD PROOF

with padlocks, master switches or by

removing starter keys.

8. DO NOT FORCE THE TOOL. It will

do the job better and safer at the

rate for which it was designed.

9. USE THE RIGHT TOOL. Do not

force the tool or an attachment to do

a job for which it was not designed.

10. USE PROPER EXTENSION

CORDS. Make sure your extension

cord is in good condition. When

using an extension cord, be sure to

use the one heavy enough to carry

the current that the product will

draw. An undersized cord will result

in a drop in line voltage and in loss

of power which will cause the tool

overheat. The table on page 13

shows the proper wire gauge size

usage to each extension cord length

and ampere rating. If in doubt, use

the next heavier gauge. The smaller

the gauge number, the heavier

the cord.

WARNING

!

6

7

6 7

11. WEAR PROPER APPAREL. Do

not wear loose clothing, gloves,

neckties, rings, bracelets or other

jewelry which may get caught in

moving parts. Nonslip footwear is

recommended. Wear protective hair

covering to contain long hair.

12. ALWAYS WEAR EYE

PROTECTION. Any power

tool can throw foreign

objects into the eyes and could

cause permanent eye damage.

ALWAYS wear Safety Goggles (not

glasses) that comply with ANSI

Safety standard Z87.1. Everyday

eyeglasses have only impact–

resistant lenses. They ARE NOT

safety glasses. Safety Goggles are

available at Sears.

NOTE: Glasses

or goggles not in compliance with

ANSI Z87.1 could seriously injure

you when they break.

13. WEAR A FACE MASK

OR DUST MASK. Sawing

operation produces dust.

1 4 . SECURE WORK. Use

clamps or a vice to hold work

when practical. It is safer

than using your hand and

it frees both hands to operate

the tool.

15. DISCONNECT TOOLS FROM

POWER SOURCE before servicing,

and when changing accessories

such as blades, bits and cutters.

16. REDUCE THE RISK OF

UNINTENTIONAL STARTING.

Make sure switch is in the OFF

position before plugging the tool in.

17. USE RECOMMENDED

ACCESSORIES. Consult

this Operator’s Manual for

recommended accessories.

The use of improper accessories

may cause risk of injury to yourself

or others.

18. NEVER STAND ON THE TOOL.

Serious injury could occur if the

tool is tipped or if the cutting tool is

unintentionally contacted.

19. CHECK FOR DAMAGED PARTS.

Before further use of the tool, a

guard or other part that is damaged

should be carefully checked to

determine that it will operate

properly and perform its intended

function – check for alignment of

moving parts, binding of moving

parts, breakage of parts, mounting

and any other conditions that may

affect its operation. A guard or other

part that is damaged should be

properly repaired or replaced.

20. NEVER LEAVE THE TOOL

RUNNING UNATTENDED. TURN

THE POWER “OFF”. Do not walk

away from a running tool until the

blade comes to a complete stop

and the tool is unplugged from the

power source.

6 7

6

7

21. DO NOT OVERREACH. Keep

proper footing and balance at all

times. NEVER reach across the

path of the cutting blade while tool is

in operation.

22. MAINTAIN TOOLS WITH CARE.

Keep tools sharp and clean for best

and safest performance. Follow

instructions for lubricating and

changing accessories.

23. DO NOT use power tool in presence

of flammable liquids or gases.

24. DO NOT operate the tool if you are

under the influence of any drugs,

alcohol or medication that could

affect your ability to use the tool

properly.

25. Dust generated

from certain

materials can be hazardous to your

health. Always operate saw in well-

ventilated area and provide for

proper dust removal.

26. People with

electronic

devices, such as pacemakers,

should consult their physician(s)

before using this product. Operation

of electrical equipment in close

proximity to a heart pacemaker

could cause interference or failure

of the pacemaker.

27. WEAR HEARING

PROTECTION to reduce the

risk of induced hearing loss.

DANGER



!

WARNING



!

8

9

8 9

TABLE SAW SAFETY

1. ALWAYS USE SAW BLADE

GUARD, riving knife and anti-

kickback pawls assembly for every

through–sawing operation. Through

–sawing operations are those in

which the blade cuts completely

through the workpiece when ripping

or crosscutting. Always be sure

blade guard is tightened securely.

2. ALWAYS HOLD WORKPIECE

FIRMLY against the miter gauge or

rip fence.

3. ALWAYS USE a push stick or push

block, especially when ripping

narrow stock. Refer to ripping

instructions in this Operator’s Manual

where the push stick is covered in

detail. A pattern for making your own

push stick is included on page 50.

4. NEVER PERFORM ANY

OPERATION FREEHAND, which

means can using hands to support

the workpiece, but always use either

the fence OR the miter gauge to

position and guide the workpiece.

FREEHAND CUTTING IS THE

MAJOR CAUSE OF KICKBACK AND

FINGER/HAND AMPUTATIONS.

NEVER USE THE MITER GAUGE

AND FENCE SIMULTANEOUSLY.

5. NEVER STAND or have any part of

your body in line with the path of the

saw blade. Keep your hands out of

the saw blade path.

6. NEVER REACH behind or over the

cutting tool for any reason.

7. REMOVE the rip fence when

crosscutting.

8. DO NOT USE a molding head with

this saw.

9. DIRECTION OF FEED. Feed work

into a blade against the direction of

rotation of the blade.

10.NEVER use the rip fence as a

cut-off gauge when crosscutting.

11.NEVER ATTEMPT TO FREE A

STALLED SAW BLADE without

first turning the saw OFF. Turn

power switch OFF immediately to

prevent motor damage.

12.PROVIDE ADEQUATE SUPPORT

to the rear and the sides of the saw

table for long or wide workpieces.

13.AVOID KICKBACKS (work thrown

back towards you) by keeping the

blade sharp, the rip fence parallel

to the saw blade and by keeping

the riving knife, anti-kickback pawls

assembly and guards in place,

aligned and functioning. Do not

release work before passing it

completely beyond the saw blade.

Do not rip work that is twisted,

warped or does not have a straight

edge to guide it along the fence.

Do not attempt to reverse out of a

cut with the blade running.

WARNING

!

8 9

8

9

14.AVOID AWKWARD OPERATIONS

and hand positions where a sudden

slip could cause your hand to move

into the saw blade.

15.NEVER USE SOLVENTS to

clean plastic parts. Solvents could

possibly dissolve or otherwise

damage the material. Only a soft

damp cloth should be used to clean

plastic parts.

16.MOUNT your table saw on a

bench or stand before performing

any cutting operations. Refer to

ASSEMBLY on page 20. Secure

tool properly to prevent unexpected

movement.

17.

Never cut metals or masonry

products with this tool. This table

saw is designed for use on wood

and wood-like products only.

18.ALWAYS USE IN A WELL-

VENTILATED AREA. Remove

sawdust frequently. Clean out

sawdust from the interior of the saw

to prevent a potential fire hazard.

Attach a vacuum to the dust port for

additional sawdust removal.

19.NEVER LEAVE THE SAW

RUNNING UNATTENDED. Do not

leave the saw until the blade comes

to a complete stop.

20.For proper operation follow the

instructions in this Instruction

Manual entitled ASSEMBLY AND

ADJUSTMENTS (Page 20). Failure

to provide sawdust fall-through and

removal hole will allow sawdust

to build up in the motor area

resulting in a fire hazard and

potential motor damage.

21.USE ONLY saw blades

recommended with the warning that

the riving knife shall not be thicker

than the width of the groove cut by

the saw blade and not thinner than

the body of the saw blade.

22.USE PUSH-STICK OR PUSH

BLOCK to feed the workpiece past

the saw blade. The push-stick or

push block should always be stored

with the machine when not in use.

WARNING

!

10

11

10 11

SAW BLADE GUARD ASSEMBLY,

ANTI-KICKBACK ASSEMBLY AND

RIVING KNIFE

Your table saw is equipped with a

blade guard assembly, anti-kickback

assembly and riving knife that covers

the blade and reduces the possibility

of accidental blade contact. The riving

knife is a flat plate that fits into the cut

made by the saw blade and effectively

fights kickback by lessening the

tendency of the blade to bind in the cut.

The blade guard assembly and anti-

kickback assembly can only be used

when making through cuts that sever

the wood. When making rabbets and

other cuts that make non through cuts,

the blade guard assembly and anti-

kickback assembly must be removed

and riving knife lowered to the

non through cut position marked on the

riving knife. Two anti-kickback pawls are

located on the sides of the riving knife

that allow the wood to pass through the

blade in the cutting direction but reduce

the possibility of the material being

thrown backwards toward the operator.

Use all components of the guarding

system (blade guard assembly, riving

knife and anti-kickback assembly) for

every operation for which they can

be used including all through cutting.

If you elect not to use any of these

components for a particular application

exercise additional caution regarding

control of the workpiece, the use of

push sticks, the position of your hands

relative to the blade, the use of safety

glasses, the means to avoid kickback

and all other warnings contained in this

manual and on the saw itself. Replace

the guarding systems as soon as you

return to thru-cutting operations. Keep

the guard assembly in working order.

KICKBACKS

KICKBACKS: Kickbacks can cause

serious injury. A kickback occurs when

a part of the workpiece binds between

the saw blade and the rip fence, or

other fixed object, and rises from the

table and is thrown toward the operator.

Kickbacks can be avoided by attention

to the following conditions.

How to Avoid Kickbacks and Protect

Yourself from Possible Injury:

a. Be certain that the rip fence is

parallel to the saw blade.

b. Do not rip by applying the feed force

to the section of the workpiece that

will become the cut-off (free) piece.

Feed force when ripping should

always be applied between the saw

blade and the fence; use a push

stick for narrow work, 6 in. (152

mm) wide or less.

c. Keep saw blade guard assembly,

riving knife and anti-kickback

assembly in place and operating

properly. If anti-kickback assembly

is not operational, return your unit

to the nearest authorized service

center for repair. The riving knife

must be in alignment with the saw

blade and the anti-kickback pawls

assembly must stop a kickback

TABLE SAW SAFETY

10 11

10

11

once it has started. Check their

action before ripping by pushing

the wood under the anti-kickback

assembly. The teeth must prevent

the wood from being pulled toward

the front of the saw.

d. Plastic and composite (like

hardboard) materials may be cut on

your saw. However, since these are

usually quite hard and slippery, the

anti-kickback pawls may not stop a

kickback. Therefore, be especially

attentive to following proper set up

and cutting procedures for ripping.

e. Use saw blade guard assembly,

anti-kickback pawls assembly and

riving knife for every operation for

which it can be used, including all

through-sawing.

f. Push the workpiece past the saw

blade prior to release.

g. Never rip a workpiece that is

twisted or warped, or does not

have a straight edge to guide along

the fence.

h. Never saw a large workpiece that

cannot be controlled.

i. Never use the fence as a guide or

length stop when crosscutting.

j. Never saw a workpiece with loose

knots, flaws, nails or other foreign

objects.

k. Never rip a workpiece shorter than

10 in. (254 mm).

l. NEVER use a dull blade – replace

or have resharpened.

m. NEVER use a rip fence and miter

gauge together.

n. Keep hands out of saw blade.

12

13

12 13

ELECTRICAL REQUIREMENTS AND SAFETY

POWER SUPPLY AND MOTOR

SPECIFICATIONS

To avoid electrical hazards, fire

hazards, or damage to the tool, use

proper circuit protection. Use a

seperate electrical circuit for your

tool. Your table saw is wired at the

factory for 120 V operation. Connect

to a 120 V, 15 Amp circuit and use

a 15 Amp time delay fuse or circuit

breaker. To avoid shock or fire,

if power cord is worn, cut, or

damaged in any way, have it

replaced immediately.

GROUNDING INSTRUCTIONS

This tool must be grounded while

in use to protect the operator from

electrical shock.

IN THE EVENT OF A MALFUNCTION

OR BREAKDOWN, grounding provides

a path of least resistance for electric

currents and reduces the risk of electric

shock. This tool is equipped with an

electrical cord that has an equipment

grounding conductor and a grounding

plug. The plug must be plugged into

a matching receptacle that is properly

installed and grounded in accordance

with all local codes and ordinances.

DO NOT MODIFY THE PLUG

PROVIDED. If it will not fit the

receptacle, have the proper receptacle

installed by a qualified electrician.

IMPROPER CONNECTION of the

equipment grounding conductor can

result in risk of electric shock. The

conductor with the green insulation

(with or without yellow stripes) is the

equipment grounding conductor. If

repair or replacement of the electrical

cord or plug is necessary, do not

connect the equipment grounding

conductor to a live terminal.

CHECK with a qualified electrician or

service person if you do not completely

understand the grounding instructions,

or if you are not certain the tool is

properly grounded.

USE only 3-wire extension cords

that have three-pronged grounding

plugs with three-pole receptacles

that accept the tool’s plug. Repair

or replace damaged or worn cords

immediately.

Use a separate electrical circuit for

your tool. This circuit must not be less

than # 14 wire and should be protected

with a 15 Amp time delay fuse. Before

connecting the motor to the power

line, make sure the switch is in the

off position and the electric current is

rated the same as the current stamped

on the motor nameplate. Running at a

lower voltage will damage the motor.

USE THE PROPER EXTENSION

CORD. Make sure your extension cord

is in good condition. Use an extension

cord heavy enough to carry the current

your product will draw. draw. An

undersized cord will cause a drop in

line voltage resulting in loss of power,

WARNING

!

WARNING

!

12 13

12

13

The adapter (Fig. 2) has a grounding

lug extending from it that MUST be

connected to a permanent earth

ground, such as a properly grounded

receptacle box.

In all cases, make certain the

receptacle is properly grounded. If

you are not sure, have a qualified

electrician check the receptacle.

overheating and burning out of the

motor. The table below shows the

correct size to use depending on cord

length and nameplate ampere rating. If

in doubt, use the next heavier gauge.

The smaller the gauge number, the

heavier the cord.

GUIDELINES FOR EXTENSION

CORDS

Make sure your extension cord is

properly wired and in good condition.

Always replace a damaged extension

cord or have it repaired by a qualified

technician before using it. Protect your

extension cords from sharp objects,

excessive heat and damp or wet areas.

This tool is for indoor use only. Do

not expose to rain or use in damp

locations.

This tool is intended for use on a

circuit that has a receptacle like the

one illustrated in Fig. 1. Fig. 1 shows

a three-pronged electrical plug and

receptacle that has a grounding

conductor. If a properly grounded

receptacle is not available, an adapter

(Fig. 2) can be used to temporarily

connect this plug to a two-contact

grounded receptacle.

MINIMUM GAUGE FOR EXTENSION CORDS (AWG)

(When usng 120 volts only)

Ampere Rating Total length of Cord

More Than Not More Than

25ft. 50ft. 100ft. 150 ft.

(

7.62 15.24 30.48 45.72 m

)

AWG- American Wire Gauge

0 6 18 16 16 14

6 10 18 16 14 12

10 12 16 16 14 12

12 16 14 12

Not Recommended

WARNING

!

CAUTION



!

Three-Pronged Plug

Grounding Prong

Properly Grounded

Three-Pronged Receptacle

Fig. 1

Fig. 2

Grounding Lug

Make sure this

is connected

to a known

ground.

Two-Pronged

Receptacle

Adapter

14

15

14 15

ACCESSORIES AND

ATTACHMENTS

RECOMMENDED ACCESSORIES

Visit your Sears Hardware

Department or see the

Craftsman Power and Hand Tools

Catalog to purchase recommended

accessories for this power tool.

308K DADO INSERT PLATE

To avoid the risk of personal injury:

● Do not use adjustable (wobble)

type dadoes or carbide tipped

dado blades.

● Only use stackable dadoes.

● Maximum dado width is 1/2 in.

● Do not use a dado with a diameter

larger than 6 in.

● Do not use molding head set with

this saw.

● Do not modify this power

tool or use accessories not

recommended by Sears.

WARNING



!

WARNING



!

TOOLS NEEDED FOR

ASSEMBLY

NOT SUPPLIED

Flat bladed

screwdriver

Adjustable wrench

and/or 5 mm, 8 mm,

10 mm, 13 mm, and

17 mm wrench

Phillips screwdriver

Combination square

Straight edge

SUPPLIED

Box-end

wrench

Open-end

wrench

4 mm hex

wrench

14 15

14

15

If any part is missing or damaged,

do not attempt to assemble the

table saw, plug in the power

cord, or turn the switch ON until

the missing or damaged part is

obtained and is installed correctly.

Call 1-800-843-1682 for missing or

damaged parts.

Separate all parts from packing

materials. Check each part with the

illustration on the next page and the

“Table of Loose Parts” to make certain

all items are accounted for, before

discarding any packing material.

NOTE: To make assembly easier, keep

contents of box together.

TABLE OF LOOSE PARTS

TABLE SAW

ITEM DESCRIPTION QUANTITY

A Table saw assembly 1

B Blade guard assembly 1

C Anti-kickback pawls assembly 1

D Riving knife assembly hardware bag 1

E Rip fence 1

F Miter gauge 1

G Blade wrenches 2

H 4 mm hex wrench 1

I Push stick 1

J Rear outfeed support 1

K Rear outfeed support tubes 2

L Rear outfeed support hardware bag 1

M Blade 1

N Handwheel handle 1

O Power cord storage 1

P Table saw mounting hardware bag 4 each

STAND

Q Leg handle hardware bag 1

R Wheel hardware assembly 1

S Stand assembly 1

WARNING



!

CARTON CONTENTS

16

17

16 17

UNPACKING YOUR TABLE SAW

ABCD

E F G H I

J K L M

N O P Q

S

R

16 17

16

17

KNOW YOUR TABLE SAW

Blade

Table insert

Anti-kickback pawls

assembly

Riving knife

Rear outfeed

support

Dust port

Blade guard

Rip fence

Extension table

locking lever

Blade elevation/

tilting handwheel

Overload reset switch

Miter gauge storage

Wheel

Push stick storage

ON/OFF switch

with safety key

Miter gauge

Stand handle

Leveling foot

Right extension table

Stand lock lever

Power cord

storage

Stand

Locking hook

Leg clamp

18

19

18 19

GLOSSARY OF TERMS

ANTI-KICKBACK PAWLS ASSEMBLY

– Prevents the workpiece from being

kicked upward or back toward the front

of the table saw by the spinning blade.

ARBOR – The shaft on which the blade

or dado is mounted.

BEVEL CUT – An angle cut made

through the face of the workpiece.

BLADE BEVEL SCALE – Measures

the angle the blade is tilted when set

for a bevel cut.

BLADE ELEVATION/TILTING

HANDWHEEL – Raises and lowers

the blade or tilts the blade to angle

between 0º and 45º for bevel cuts.

BLADE GUARD – Clear plastic cover

that positions itself over the blade while

cutting.

COMPOUND CUT – A simultaneous

bevel and miter cut.

CROSSCUT – A cut made across the

width of the workpiece.

DADO – Special cutting blades that are

used to cut grooves in a workpiece.

FEATHERBOARD – When ripping

a workpiece on your table saw, this

keeps it firmly and safely against the

rip fence. It also helps prevent chatter,

gouging, and dangerous kickback.

FREEHAND – Performing a cut without

using a rip fence, miter gauge, hold

down or other proper device to prevent

the workpiece from twisting during the

cutting operation.

GUM – A sticky sap from wood

products.

HEEL – Misalignment of the blade.

JAMB NUT – Nut used to lock another

nut in place on a threaded rod or bolt.

KERF – The amount of material

removed by the blade cut.

KICKBACK – Occurs when the saw

blade binds in the cut and violently

thrusts the workpiece back toward

the operator.

MITER CUT – An angle cut made

across the width of the workpiece.

MITER GAUGE – A guide used for

crosscutting operations that slides

in the table top channels (grooves)

located on either side of the blade.

It helps make accurate straight or

angle crosscuts.

NON-THROUGH SAWING – Refers

to any cut that does not completely cut

through the workpiece.

18 19

18

19

SAW BLADE PATH – The area of the

workpiece or table top directly in line

with the travel of the blade or the part

of the workpiece that will be cut.

SET – The distance between two saw

blade tips, bent outward in opposite

directions to each other. The further

apart the tips are, the greater the set.

TABLE INSERT – Insert that is

removed from the table to install /

remove blades. When dado cutting, a

dado insert plate must be used.

THROUGH SAWING – Making a cut

completely through the length or width

of a workpiece.

WORKPIECE – Material to be cut.

NOTE: Blade guard assembly is

removed for purposes of illustration only.

OVERLOAD RESET SWITCH –

Protects the motor if it overloads during

operation, provides a way to restart the

saw.

PUSH STICK – Used to push

workpieces when performing ripping

operations.

PUSH BLOCK – Used for ripping

operation when the workpiece is too

narrow to use a push stick. Always use

a push block for rip widths less than 2 in.

(50.8 mm).

RESAWING – Flipping material to

make a cut the saw is not capable of

making in one pass.

Do not resaw material with this saw.

REVOLUTIONS PER MINUTE (RPM)

– The number of turns completed by a

spinning object in one minute.

RIP FENCE – A guide used for rip

cutting which allows the workpiece to

cut straight.

RIPPING – Cutting with the grain of

the wood or along the length of the

workpiece.

RIVING KNIFE – A metal piece of the

guard assembly located behind and

in-line with the blade. Slightly thinner

than the saw blade, it helps keep the

kerf open and prevents kickback.

WARNING

!

Leading edge

Kerf

Surface

Saw blade path

Trailing

edge

Workpiece

Direction of

workpiece

20

21

20 21

ASSEMBLY

For your safety, never connect plug

to power source receptacle until all

assembly and adjustment steps are

complete, and you have read and

understood the safety instructions.

ASSEMBLING THE ROLLER

WHEELS AND HANDLES TO STAND

(FIG. A, B, C)

1. Remove the bolts (2), washers (3)

and nuts (4) from the stand tube.

Insert one leg handle (1) into one

left stand tube and align the holes

on the handle and tube. Use two

bolts (2), two washers (3) and two

nuts (4) to secure the leg handle.

(Fig. A)

2. Tighten with a phillips screwdriver

and 10 mm wrench.

3. Repeat steps 1 - 2 for assembling

the other leg handle.

4. Attach one wheel (5) to the outer

side of one right stand leg using the

hex bolt (6), the sleeve (7), two flat

washers (8) and the nut (9). (Fig. B)

NOTE: Verify that the side of the

wheel that has the concavities (10)

is facing toward the stand as shown

in Fig. B.

5. Tighten using two 17 mm wrenches

for the nut and bolt.

NOTE: Do not overtighten. Doing so

will not allow the wheels to turn.

6. Repeat the steps 4 - 5 for

assembling the other wheel.

WARNING

!

SETTING UP THE STAND (FIG. C, D)

1. Lift the stand to its upright position.

2. Raise leg set (1) all the way up.

Then, lower the stand until leg set (1)

rests on floor.

3. Release the locking hook (2) from

the stop screw (3).

4. Step on the bottom right stand

bar (4) for leverage, grasp right

side of stand frame (7) with both

hands and pull stand up to the

highest position.

NOTE: You should hear a "click"

sound when the stand locks

in place.

1

2

3

4

Fig. A

Fig. B

67

5

889

10

20 21

20

21

NOTE: Do not overtighten the four

bolts as this may cause damage to

the base of the saw.

4. Place the stand on a level surface

and adjust the leveling foot (6)

located on the left front stand leg.

Adjust until all legs are contacting

the floor and are at a similar angle

to the floor.

NOTE: Before using the saw, verify

that the table saw is securely locked

in position.

FOLDING THE STAND FOR

TRANSPORT OR STORAGE

(FIG. C, D, F)

1. Lift slightly the right side of table

saw (8 - Fig. F), raise the cover

plate (6) on the right side of stand,

pull the stand lock lever (5) to the

right as the release direction, and

then move the saw slowly close to

the wheel. (Fig. D)

2. Rotate the hook (2) to the stop

screw (3) to secure the legs of the

stand in position. (Fig. C)

3. Rest the right side of the saw onto

the floor.

4. Fold the leg set (1) close to the

base until the leg clamp (9) holds

the right side leg. (Fig. C)

5. Check to be sure the stand lock

lever (5) is in the slot of the cover

plate (6). (Fig. D)

ASSEMBLING TABLE SAW TO

STAND (FIG. E)

1. Lift the saw body (1) and place

on the stand (2), aligning the four

mounting holds (3) on the saw base

with the four threaded mounting

holes on the top plate of stand.

2. Attach the table saw to the stand

with four hex head bolts (4) and

washers (5).

3. Tighten all mounting bolts with a

13 mm wrench.

Fig. C

Fig. D

Fig. E

5

6

stand lock lever

release direction

1

23

4

9

7

1

23

4

5

6

22

23

22 23

Push stick (Fig. I)

A storage holder for the push stick (1)

is located on the left side of the

saw housing.

1. Store the push stick (1) by hanging

it on the holders (2) through the

holes (3) of the push stick (1).

Installing the power cord storage

clamps (Fig. J)

1. Attach the power cord storage

clamp (1) into the hole set on the

rear side of the table saw base with

screw (2) and nut (3).

NOTE: The nut is placed inside

the base.

2. Repeat for the other clamp, to be

located on the bottom right on

saw base.

5. Fold the stand slowly downward as

shown in Fig. F.

6. Move the saw to the desired

location for operation or store the

saw in a dry environment by using

the left side stand handles (10).

STORAGE

Rip fence and miter gauge (Fig. G)

Storage for the rip fence (1) and miter

gauge (2) are located on the left side of

the saw housing.

Extra saw blade and blade wrenches

(Fig. H)

1. Loosen and remove the knob (1) on

the right side of the saw housing.

2. Place blade wrenches (2), extra

blades (not included) onto the arbor.

Fig. F

8

Folding

Transporting

10

Fig. G

1

2

Fig. H

1

2

Fig. I

1

2

3

22 23

22

23

Power cord (Fig. J-1)

Wrap the power cord (1) as shown. Do

not wrap the power cord around the

dust port (2).

INSTALLING THE HANDWHEEL

HANDLE (FIG. K)

NOTE: UP-DOWN is printed on this

handwheel.

1. Thread the handwheel handle (1)

into the handwheel hole (2), and

then tighten.

INSTALLING THE REAR OUTFEED

SUPPORT (FIG. L, M)

1. Insert the two rear outfeed support

tubes (2) into the rear outfeed

support (1). (Fig. L)

NOTE: They must be inserted into

the back of the extension with the

dimple end so that the bar will hold

the extension in place.

2. Snap two black plastic stops (3)

over the two rear outfeed support

tubes (2). Make sure the locating

pin in the black plastic stops fits into

the matching hole in the support

tube. This will “lock” the tube into

the support. (Fig. L)

NOTE: The plastic stops (3) must

be installed underneath the rear

outfeed support tubes (2).

3. Insert the rear outfeed support

tubes (2) into the two holes in the

rear of the saw table, and into the

support tube brackets under the

table. Position the rear outfeed

support so that the instruction labels

are facing up. (Fig. M)

4. Tighten one rear outfeed support

stop screw (4) on the end of the

left rear outfeed support tubes (2).

Verify that the screw is fully inserted

into the corresponding hole in the

support tube. (Fig. M)

Fig. L

dimple end

1

2

3

1

2

Fig. J-1

Fig. K

Fig. J

1

3

2

1

2

24

25

24 25

INSTALLING THE BLADE (FIG. N, O, P)

To avoid injury from an accidental

start, make sure the switch is in the

OFF position and the plug is not

connected to the power source outlet.

NOTE: The saw blade is packed in the

blade storage located on the right side

of base.

1. Remove the table insert (1) by

inserting your finger into the

opening (2) and pulling up.

Raise the blade to the maximum

height position by turning the

blade elevation/tilting handwheel

clockwise. (Fig. N)

Fig. M

2

4

2

WARNING

!

Fig. N

1

2

2. Remove the arbor nut (3) and outer

blade flange (4). (Fig. O)

3. Place the blade (7) onto the arbor (5)

with the blade teeth pointing forward

to the front of the saw. (Fig. P)

NOTE: Leave the plastic strip

around the saw blade at this time.

Remove before using the saw for

the first time.

4. Make sure the blade fits flush

against the inner flange (6). (Fig. O)

5. Clean the outer blade flange (4)

and install it onto the arbor (5) and

against the blade (7). (Fig. P)

6. Thread the arbor nut (3) onto the

arbor, making sure the flat side of

the nut is against the blade, then

hand-tighten.

7. To tighten the arbor nut (3), place

the open-end wrench (8) on the flats

of the saw arbor to keep the arbor

from turning. (Fig. P)

8. Place the box-end wrench (9) on

the arbor nut (3) and turn clockwise

(to the rear of the saw table). (Fig. P)

9. Lower the blade to its lowest

position and place table insert (1)

into position. (Fig. N)

543

6

Fig. O

24 25

24

25

To avoid possible injury and damage

to the workpiece, be sure to INSTALL

THE BLADE WITH THE TEETH

POINTING TOWARD THE FRONT OF

TABLE in the direction of the rotation

arrow on the blade guard.

REMOVING THE BLADE (FIG. N, P)

To avoid injury from an accidental

start, make sure the switch is in the

OFF position and the plug is not

connected to the power source outlet.

1. Remove the table insert (1) by

inserting your finger into the

opening (2) and pulling up.

Raise the blade to the maximum

height position by turning the

blade elevation/tilting handwheel

clockwise. (Fig. N)

2. To loosen the arbor nut (3), place

the open-end wrench (8) on the flats

of the saw arbor to keep the arbor

from turning. (Fig. P)

3. Place the box-end wrench (9)

on the arbor nut (3) and turn

counterclockwise. (Fig. P)

4. Remove the arbor nut (3), outer

blade flange (4) and blade (7).

Clean but do not remove the inner

blade flange before reassembling

the blade. (Fig. P)

INSTALLING THE RIVING KNIFE

(FIG. P, Q, R)

● To avoid injury from an accidental

start, make sure the switch is in

the OFF position and the plug

is disconnected from the power

source outlet.

● Never operate this saw without

the riving knife in the correct

position.

1. Remove the table insert.

2. Raise the blade to the maximum

height position by turning the blade

elevation/tilting handwheel (1)

clockwise. (Fig. P)

3. Loosen the blade lock knob (2).

Turn and move the handwheel (1)

to 45° on the bevel scale.

4. Tighten the blade lock knob (2).

WARNING

!

WARNING

!

Fig. P

12

Fig. P

3

5

9

87

4

WARNING

!

26

27

26 27

5. Place the riving knife (3) on the

mounting bracket (4) located behind

the saw blade. The two pins (5) on

the bracket should fit into the slot on

the riving knife. (Fig. Q)

6. Make sure the riving knife (3) is in

its highest position.

7. Insert the set plate (6), making sure

the two outer holes fit into the two

pins on the mounting bracket.

8. Insert the washer (7) into the lock

lever (8) and insert into the middle

hole of the set plate (6) and tighten.

9. Loosen the blade lock knob (2) and

return the blade to 0° and lock.

10. Place the table insert back into

position.

● To avoid the lock lever interfering

with the table insert, after tighten

the riving knife, position the lock

lever pointing downward before

using saw. Failure to maintain a

level insert can result in serious

injury to the operator.

● The lever can be pulled out to

allow it to be turned to a new

position downward. (Fig. R)

BLADE GUARD AND ANTI-KICKBACK

PAWLS ASSEMBLY (FIG. S, T, U, V)

To avoid injury from an accidental start,

make sure the switch is in the OFF

position and the plug is disconnected

from the power source outlet.

● When installing the blade guard,

cover the blade teeth with a piece of

folded cardboard to protect yourself

from possible injury.

● Never operate this machine without

the blade guard in place for all

through sawing operations.

Installing the blade guard and anti-

kickback pawls assembly

(Fig. S, T, U, V)

1. Make sure the blade is elevated to

its maximum height and the bevel is

set at 0°. Make sure the blade lock

knob is tight.

2.

Raise the riving knife (1) to its highest

position (through cut position). Take

the anti-kickback pawls assembly

and lift up the locking lever (2)

located on top. (Fig. S)

WARNING

!

Fig. Q

Fig. R

cavity side face

to lock lever

3

4

5

67

8

3

6

8

WARNING

!

26 27

26

27

7. Make sure that the assembly is

locked in place both in front and

back. (Fig. V)

To reduce the risk of serious injury,

use saw blade guard and riving knife

for every operation for which it can

be used including all through sawing.

3. Place the front of assembly into

slot (3) and push down, making

sure the assembly is engaged in

the slots. Push down on the locking

lever (2) to lock. (Fig. S, T)

NOTE: Make sure the anti-kickback

pawls assembly is locked in position

before operating saw.

4. Take the blade guard (4) and press

down on the red spring button (5)

located on the top of assembly.

(Fig. U)

5. Position blade guard over the riving

knife (1) and align the slot (6) to the

riving knife (1) as shown in Fig. U.

6. Lower the guard assembly (4) onto

riving knife (1). Release the red

spring button (5) so that two

latches (7) engage into two locking

hooks (8) completely. (Fig. U, V)

Fig. S

Fig. T

Loosen

1

2

3

2

Tighten

WARNING

!

Fig. V

5

Fig. U

1

8

455

6

7

Press down

28

29

28 29

Removing the blade guard and anti-

kickback pawls assembly (Fig. S, V)

To avoid injury from an accidental

start, make sure the switch is in

the OFF position and the plug is

disconnected from the power

source outlet.

1. Raise the blade to the maximum

height position by turning the

blade elevation/tilting handwheel

clockwise.

2. Loosen the blade bevel lock knob

and turn the handwheel to 90° on the

bevel scale.

3. Tighten the blade bevel lock knob.

4. Remove the anti-kickback pawls

assembly by lifting the anti-kickback

pawls lever (2). (Fig. S)

5. Remove the blade guard assembly

by pressing down the red spring

button (5) and lifting up the

assembly. (Fig. V)

AVOIDING KICKBACKS (FIG. W)

To avoid kickback (having the work

thrown violently back toward you), keep

the blade sharp, keep the rip fence

parallel to the saw blade and keep

the riving knife, blade guard and anti-

kickback pawls in place, aligned and

functioning. Do not release the work

before passing it completely beyond

the saw blade. Do not rip work that

is twisted, warped or does not have

a straight edge to guide it along the

fence. Do not attempt to back out of a

cut with the blade running.

WARNING

!

Improper riving knife alignment can

cause “kickback” and serious injury.

INSTALLING THE RIP FENCE (FIG. X)

1. Lift upward on the rip fence handle (1)

so that the holding clamp (2) is fully

extended.

2. Place the rip fence on the saw table

and engage the holding clamp (2)

to the table rear rail. Lower the front

end onto the front rail (3).

3. Push down the rip fence handle (1)

to lock.

Never use a rip fence and miter

gauge together.

WARNING

!

Anti-kickback Pawls

Fig. W

Fig. X

2

1

3

WARNING

!

28 29

28

29

ADJUSTMENT

RIP FENCE ADJUSTMENT (FIG. Y)

1. The fence (1) can be repositioned

by lifting up the handle (2) and

sliding the fence to the desired

location. Pushing down the handle

locks the fence in position.

2. Position the fence (1) on the right

side of the table, and along one

edge of the miter gauge grooves.

3. Lock the fence handle (2). The

fence should be parallel with the

miter gauge groove.

4. If adjustment is needed to make the

fence parallel to the groove, do the

following:

● Loosen the two screws (3) and

lift up on the handle (2).

● Hold the fence bracket (4) firmly

against the front of the saw

table. Move the rip fence until

it is parallel with the miter

gauge groove.

● Tighten both screws and push

the handle to lock.

5. If fence is loose when the handle is

in the locked (downward) position,

do the following:

● Lift the handle (2) upward

and turn the adjusting nut (5)

clockwise using a 10 mm wrench

until the rear clamp is snug. Do

not turn the adjusting nut more

than 1/4 turn at a time.

● Over-tightening the adjusting nut

will cause the fence to come out

of alignment.

Failure to properly align the fence

can cause “kickback” and serious

injury could occur.

RIP FENCE INDICATOR ADJUSTMENT

(FIG. Z)

1. The rip fence indicator (1) points

to the measurement scale (2). The

scale shows the distance from the

side of the fence to nearest side of

the blade.

2. Measure the actual distance with a

rule. If there is a difference between

the measurement and the indicator,

adjust the indicator (1).

3. Loosen the screw (3) and slide the

indicator to the correct measurement

on the scale (2). Tighten the screw

and remeasure with the rule.

Fig. Y

1

2

3

4

5

WARNING

!

30

31

30 31

ADJUSTING MITER GAUGE (FIG. AA)

1. Loosen the lock handle (1) to allow

the miter body (2) to rotate freely.

Position the miter body (2) at 90°

so the positive detent secures its

position. Tighten the lock handle to

hold the miter body in position.

2. If the pointer (3) requires

adjustment, loosen the screw (4)

with a screwdriver. Adjust the

pointer to 90° on the scale, then

firmly tighten the adjustment screw.

3. To change angles on the miter

gauge, loosen the lock handle (1)

and rotate the miter body (2) to

the desired angle as indicated by

the scale. Secure in position by

tightening the lock handle (1).

Fig. Z

3

Fig. AA

1

2

34

ADJUSTING THE TABLE INSERT

(FIG. BB)

To avoid serious injury, the table

insert (1) must be level with the table.

If the table insert is not flush with the

table, adjust the two bolts (2) with a

4 mm hex wrench until it is parallel with

the table.

NOTE: To raise the insert, turn the hex

screws counterclockwise, to lower the

insert, turn the hex screws clockwise.

Do not remove the insert, adjustments

need to be made with the insert in

place to get the proper level.

ADJUSTING THE 90° AND 45°

POSTIVE STOPS

(FIG. CC, DD)

Your saw has positive stops that will

quickly position the saw blade at 90°

and 45° to the table. Make adjustments

only if necessary.

90° Stop

1 Disconnect the saw from the power

source.

2. Raise the blade to the maximum

elevation.

WARNING

!

Fig. BB

1

1

2

2

1

30 31

30

31

3. Loosen the blade lock knob and

move the blade to the maximum

vertical position and tighten the

blade lock knob.

4. Place a combination square on the

table and against the blade (1) to

determine if the blade is 90° to the

table. (Fig. CC)

5. If the blade is not 90° to the table,

loosen or tighten (depending on

whether you are increasing or

decreasing the degrees) the hex

bolt (3) with a 5 mm hex wrench

until you achieve 90°. (Fig. DD)

6. Loosen the blade lock knob and

reset the blade at the maximum

vertical position, then tighten the

blade lock knob.

7. Check again to see if the blade is

90° to the table. If not, repeat step 5.

8. Lastly, check the bevel angle scale.

If the pointer does not read 90°,

loosen the screw holding the

pointer and move the pointer so it

is accurate at 0° and retighten the

pointer screw.

Fig. CC

90°

12

45°

45° Stop

1. Disconnect the saw from the power

source.

2. Raise the blade to the maximum

elevation.

3. Loosen the blade lock knob and

move the blade to the maximum

bevel position and tighten the blade

lock knob.

4. Place a combination square on the

table and against the blade (2) to

determine if the blade is 45° to the

table. (Fig. CC)

5. If the blade is not 45° to the table,

loosen or tighten (depending on

whether you are increasing or

decreasing the degrees) the hex

bolt (4) with a 5 mm hex wrench until

you achieve 45°. (Fig. DD)

6. Loosen the blade lock knob and

reset the blade at the maximum

bevel position (45°), then tighten the

blade lock knob.

7. Check again to see if the blade is

45° to the table. If not, repeat step 5.

Fig. DD

34

32

33

32 33

BLADE TILT POINTER (FIG. EE)

1. When the blade is positioned at 90°,

adjust the blade tilt pointer (1) to

read 0° on the scale.

2. Loosen the holding screw (2),

position the pointer over 0° and

tighten the screw.

NOTE: Make a trial cut on scrap

wood before making critical cuts.

Measure for exactness.

BLADE PARALLEL TO THE MITER

GAUGE GROOVE (FIG. FF)

This adjustment was made at the

factory, but it must be rechecked

and adjusted if necessary.

To prevent personal injury:

● Always disconnect plug from the

power source when making any

adjustments.

● Inaccurate adjustment can result

in kickback and serious personal

injury. This adjustment must be

correct or accurate cuts cannot

be made.

Fig. EE

1

2

WARNING

!

WARNING

!

1. Remove the safety switch key and

unplug the saw.

2. Remove the blade guard for this

procedure but reinstall and realign

after adjustment.

3. Raise the blade to the highest

position and set at the 0° angle

(90° straight up).

4.

Select and mark, with a felt tip

marker, a blade tooth having a

“right set” and rotate the blade so the

marked tooth is 1/2 in. above

the table.

5. Place the combination square

base (1) into the right side miter

gauge groove (2).

6. Adjust the rule so it touches the front

marked tooth and lock ruler so it holds

its position in the square assembly.

7. Rotate the blade bringing the

marked tooth to the rear and about

1/2 in. above the blade.

8. Carefully slide the combination

square to the rear until the ruler

touches the marked tooth.

9. If the ruler touches the marked tooth

at the front and rear position, no

adjustment is needed at this time.

If not or the base of the rule is no

longer parallel with the edge of the

miter gauge groove, see adjustment

procedure described in next section.

Fig. FF

2

1

32 33

32

33

ADDITIONAL BLADE ADJUSTMENTS

(FIG. GG)

NOTE: The adjusting mechanism is

located above the the blade elevation/

tilting handwheel under the table top.

If the front and rear measurements are

not the same:

If the blade is partial to right side:

1. Turn the left adjustment screw (1)

counterclockwise and adjust the

right side adjustment screw (2)

clockwise.

2. Remeasure, as described in steps 4

to 9 in the prior section.

3. When alignment is achieved, turn

the left adjustment screw (1) until it

touches the pivot rod (3).

If the blade is partial to left side:

1. Turn the right adjustment screw (2)

counterclockwise and adjust the

left side adjustment screw (1)

clockwise.

2. Remeasure, as described in steps 4

to 9 in the prior section.

3. When alignment is achieved, turn

the right adjustment screw (2) until

it touches the pivot rod (3).

Fig. GG

12

3

ALIGNING THE RIVING KNIFE

(FIG. HH)

● To avoid injury from an accidental

start, make sure the switch is in

the OFF position and the plug

is disconnected from the power

source outlet.

● Never operate this tool without

the riving knife in the correct

position.

● Never operate this tool without

the blade guard in place for all

through sawing operations.

● This adjustment was made at the

factory, but it should be rechecked

and adjusted if necessary.

1. Remove the table insert and raise

the blade to the maximum height

by turning the blade elevation/tilting

handwheel clockwise.

2. Remove the blade guard and anti-

kickback pawls assembly.

3. Loosen the blade lock knob. Turn

and move the blade elevation/tilting

handwheel to 0° on the bevel

scale, and then tighten the blade

lock knob.

4. To see if the blade (1) and riving

knife (2) are correctly aligned, lay

a combination square (3) along the

side of the blade and against the

riving knife (making sure the square

is between the teeth of the blade).

5. Tilt the blade to the 45° position and

check the alignment again.

6. If the blade and riving knife are not

correctly aligned:

WARNING

!

34

35

34 35

● The tip of the riving knife shall not

be lower than 0.04 in. ~ 0.2 in.

from the tooth peak.

● The riving knife is thinner than the

width of the kerf by approximately

1/64 in. on each side.

● The blade body must be thinner

than the thickness of the riving knife

but the blade kerf must be thicker

than the riving knife.

ADJUSTING CAM LOCKING LEVER

(FIG. II)

If the extension table moves when

it is open and locked, then the cam

locking lever (1) may be loose and need

adjustment. To adjust the locking lever

tension, turn the nut (2) with an 8 mm

wrench until it is tightened, but do not

over tighten.

Under Table View

Fig. II 1

2

a. Remove the lock lever (4),

washer (5), set plate (6) and

riving knife (2) from the mounting

bracket (7).

b. Insert the washer (8) between

the riving knife and bracket (7).

c. Replace the riving knife (2), set

plate (6), washer (5) and lock

lever (4). Then, retighten the

lock lever (4)

7. Check the riving knife and blade

alignment again at both 0° and 45°.

8. Add or remove the washers until the

alignment is correct.

9. Replace the table insert, blade guard

and anti-kickback pawls assembly.

NOTE:

● This table saw is provided with a

10 in. diameter blade with a body

thickness of 0.07 in. thick with a kerf

of 0.10 in. The riving knife is 0.09 in.

thick. The blade diameter and the

blade body and kerf dimensions

must be properly matched with the

riving knife thickness.

● The maximum radial distance

between the riving knife and the

toothed rim of the saw blade is

0.12 in ~ 0.31 in.

Fig. HH

1

2

3

4

5

6

7

82

34 35

34

35

OPERATION

BASIC SAW OPERATIONS

RAISING THE BLADE (FIG. JJ)

To raise or lower the blade, turn the

blade elevation/tilting handwheel (1) to

the desired blade height.

TILTING THE BLADE (FIG. JJ)

Loosen the blade lock knob (2), move

the handwheel (1) to the desired angle,

then tighten the blade lock knob (2).

ON/OFF SWITCH (FIG. KK)

The ON/OFF switch has a safety switch

key (1). With the key removed from the

switch, unauthorized and hazardous

use by children and others is minimized.

1. To turn the saw ON, insert the

safety switch key (1) into the slot

in the switch (2). Move the switch

upward to the ON position.

2. To turn the saw OFF, press the

switch downward.

3. To lock the switch in the OFF

position, grasp the yellow part of the

safety switch key (1), and pull it out.

4. With the safety switch key removed,

the switch will not operate.

5. If the safety switch key is removed

while the saw is running, it can be

turned OFF but cannot be restarted

without inserting the safety switch

key (1).

ALWAYS lock the switch “OFF”

when the saw is not in use. Remove

the safety switch key and keep it in

a safe place. In the event of a power

failure, blown fuse, or tripped circuit

breaker, turn the switch “OFF”

and remove the safety switch key,

preventing an accidental startup

when power comes on.

OVERLOAD PROTECTION (FIG. KK)

This saw has an overload reset

button (3) that resets the motor after

it shuts off due to overloading or low

voltage. If the motor stops during

operation, turn the ON/OFF switch

to the OFF position. Wait about five

minutes for the motor to cool, then

push the reset button (3) and turn the

switch to the ON position.

To avoid injury, the ON/OFF switch

should be in the OFF position and

the plug removed from the power

source while the cool down takes

place, to prevent accidental starting

when the reset button is pushed.

Overheating may be caused by

misaligned parts or a dull blade or

Fig. JJ

12

Fig. KK

1

2

3

WARNING

!

WARNING

!

36

37

36 37

undersized extensing cord. Inspect

your saw for proper setup before

using it again.

USING THE DUST PORT (FIG. LL)

To prevent fire hazard, clean and

remove sawdust from under the

saw frequently.

To prevent sawdust buildup inside the

saw housing, attach a vacuum hose (1)

(hose is not included) to the dust port (2)

at the rear of the table saw. DO NOT

operate the saw with the hose in place

unless the vacuum is turned on.

USING THE TABLE EXTENSION

(FIG. MM)

1. Release the extension cam locking

levers (1) in the front and rear table

positions.

2. Slide the table extension (2) out

until the correct measurement is

displayed on the tube scale (3). The

user sights the scale off the edge of

the table.

3. Tighten all extension cam locking

levers (1).

WARNING

!

Fig. LL

1

2

CUTTING OPERATIONS

There are two basic types of cuts:

ripping and crosscutting. Ripping is

cutting along the length and the grain of

the workpiece. Crosscutting is cutting

either across the width or across the

grain of the workpiece. (It is not safe to

rip or crosscut by freehand). Ripping

requires the use of the rip fence, and

crosscutting requires the miter gauge.

NEVER USE A RIP FENCE AND

MITER GAUGE TOGETHER.

Before using the saw each time,

check the following:

1. The blade is tightened to

the arbor.

2. The blade lock knob is tightened.

3. If ripping, make sure the fence is

locked into position and is parallel

to the miter gauge groove.

4. The blade guard is in place and

working properly.

5. Safety glasses are worn.

Failure to adhere to these common

safety rules, and those printed in

the front of this manual, can greatly

increase the likelihood of injury.

2

1

13

WARNING

!

Fig. MM

36 37

36

37

RIPPING (FIG. NN, OO)

To prevent serious injury:

● Never use a miter gauge when

ripping.

● Never use more than one rip

fence during a single cut.

● Do not allow familiarity or

frequent use of your table saw

to cause careless mistakes.

Remember that even a careless

fraction of a second is enough to

cause a severe injury.

● Keep both hands away from the

blade and clear from the path of

the blade.

● The workpiece must have a

straight edge against the fence

and must not be warped, twisted,

or bowed when ripping.

1. Remove the miter gauge and store

it in the “storage” compartment in

the base of the saw.

2. Secure the rip fence to the table.

3. Raise the blade so it is about 1/8 in.

higher than the top of the workpiece.

4. Place the workpiece flat on the table

and against the fence. Keep the

workpiece away from the blade.

5. Turn the saw ON and wait for the

blade to come to full speed.

6. Slowly feed the workpiece into the

blade by pushing forward only on

the workpiece section (1) that will

pass between the blade and the

fence. (Fig. NN)

7. Keep your thumbs off the table top.

When both of your thumbs touch

the front edge of the table (2), finish

the cut with a push stick (3).

WARNING

!

To make an additional push stick, use

the pattern on page 50. (Fig. OO)

AVOID KICKBACK by pushing

forward on the section of the

workpiece that passes between the

blade and the fence. Never perform

any freehand operations.

When width or rip is narrower than

2 in., the push stick cannot be used

because the blade guard will interfere.

Use the auxiliary fence (5) and push

block (6) as shown in Fig. OO.

8. Continue pushing the workpiece (4)

with the push stick (3) or push

block (6 - Fig. OO) until it passes

through the blade guard and clears

the rear of the table. (Fig. NN)

WARNING

!

Fig. NN

213

4

Fig. OO

4

7

6

5

WARNING

!

38

39

38 39

9. Never pull the piece back when the

blade is turning. Turn the switch Off.

When the blade completely stops,

you can then remove the workpiece.

Never attempt to pull the workpiece

backwards during a cutting operation.

This will cause kickback and serious

injury to the user can occur. When

the blade completely stops, raise the

anti-kickback pawls assembly (7) on

each side of the riving knife and slide

the workpiece out. (Fig. OO)

BEVEL RIPPING

This cut is the same as ripping except

the blade bevel angle is set to an angle

other than 0°.

RIPPING SMALL PIECES

To avoid injury from blade contact,

never make cuts narrower than

3/4 in. wide.

1. It is unsafe to rip small pieces.

Instead, rip a larger piece to obtain

the size of the desired piece.

2. When a small width is to be ripped,

and your hand cannot be safely

put between the blade and the rip

fence, use push stick or push block

to pass the workpiece completely

through and past the blade.

HELPFUL DEVICES

In order to make some cuts, it is

necessary to use devices like a push

block, featherboard or auxiliary fence,

which you can make yourself. Here are

some templates for your reference.

WARNING

!

FEATHERBOARD (FIG. PP, QQ)

A featherboard is a device used to

help control the workpiece by guiding

it securely against the table or fence.

Featherboards are especially useful

when ripping small workpieces and for

completing non-through cuts.

The end is angled with a number of

short kerfs to give a friction hold on the

workpiece and locked in place on the

table with C-clamps. Test that it can

resist kickback.

Place the featherboard against the

uncut portion of the workpiece to

avoid kickback that could cause

serious personal injury.

MAKE A FEATHERBOARD (FIG. PP)

Select a solid piece of lumber

approximately 3/4 in. thick, 4 in. wide

and 18 in. long. To make a featherboard,

cut one end of the lumber at 60 degrees,

then cut 8 in. long slots 1/4 in. apart on

the angled end as shown in Fig. PP.

WARNING

!

4 in.

1/8 in.

3/4 in.

2.3 in.

8 in.

18 in.

60o

Fig. PP

38 39

38

39

USE A FEATHERBOARD (FIG. QQ)

1. Lower the saw blade (1).

2. Position the rip fence (2) to the

desired position and lock the

rip fence.

3. Place the workpiece (3) against the

fence and over the saw blade area.

4. Adjust the featherboard (4) to resist

the workpiece forward of the blade.

5. Attached the C-clamps (5) to secure

the featherboard to the edge of

the table.

AUXILIARY FENCE (FIG. RR)

Making the base:

● Start with a piece of 3/8 in. plywood

at least 5-1/2 in. wide or wider and

21 in. long or longer.

● Cut the piece to shape and size

as shown.

Making the side:

● Start with a piece of 3/4 in.

hardwood at least 1-3/4 in. wide or

wider and 21 in. long or longer.

● Cut the piece to shape and size

as shown.

Putting it together:

● Fasten the pieces together with glue

and woodscrews.

1

2

3

4

5

Fig. QQ

Make sure the screw heads do

not stick out from the bottom of

the base; they must be flush or

recessed. The bottom must be flat

and smooth enough to rest on the

saw table without rocking.

PUSH BLOCK

Use for ripping operation when the

workpiece is too narrow to use a push

stick. Always use a push block for rip

widths less than 2 inches.

MAKE A PUSH BLOCK (FIG. SS)

Making the base:

● Start with 3/8 in. plywood at least

5-1/2 in. wide or wider and 12 in.

long or longer.

● Cut the piece to shape and size

as shown.

Making the handle:

● Start with 3/4 in. hardwood at least

5 in. wide or wider and 7 in. long or

longer.

● Cut the piece to shape and size

as shown.

WARNING

!

Fig. RR

21 in.

5-1/2 in.

3/8 in.

1-3/4 in.

The edge must be

parallel with the face

3/8 in. thick plywood base

3/4 in. hardwood

3/8 in. plywood

40

41

40 41

Making the bracket:

● Start with 3/8 in. wood at least

3/8 in. wide or wider and 2-1/2 in.

long or longer.

● Cut the piece to shape and size

as shown.

Putting it together:

● Fasten the base and handle

together with glue and woodscrews.

Make sure the screw heads do not

stick out from the bottom of the base,

they must be flush or recessed.

● Fasten the base and bracket

together with glue.

To avoid injury, do not use the screws

to fasten the base and bracket.

CROSSCUTTING (FIG. TT)

To prevent serious injury:

● Do not allow familiarity or

frequent use of your table saw

to cause careless mistakes.

Remember that even a careless

fraction of a second is enough to

cause a severe injury.

WARNING

!

WARNING

!

12 in.

2-1/2 in.

5-1/2 in.

3/8 in.

3/8 in.

2-1/2 in.

3

/

8

in

.

5 in.

 in

.

1

3/8 in. thick plywood base

2

Fig. SS

● Keep both hands away from the

blade and the path of the blade.

● Never attempt to pull the

workpiece backwards during a

cutting operation. This will cause

kickback and serious injury to

the user can occur.

1. Remove the rip fence and place

the miter gauge in the miter gauge

groove on the table.

2. Adjust the blade height so that it

is 1/8 in. higher than the top of

the workpiece.

3. Hold the workpiece firmly against

the miter gauge with the blade path

in line with the desired cut location.

Move the workpiece to a 1 in.

distance from the blade.

4. Start the saw and wait for the

blade to come up to full speed.

Never stand directly in line of the

saw blade path, always stand to

the side of the blade that you are

cutting on.

5. Keep the workpiece (1) against the

face of the miter gauge (2) and flat

against the table. Then slowly push

the workpiece through the blade.

6. Do not try to pull the workpiece

back with the blade turning. Turn

the switch OFF, and carefully slide

the workpiece out when the blade

has completely stopped.

Always position the larger surface

of the workpiece on the table

when crosscutting and/or bevel

crosscutting to avoid instability.

WARNING

!

WARNING

!

40 41

40

41

USING THE WOOD FACING ON THE

MITER GAUGE (FIG. UU)

Slots are provided in the miter gauge

for attaching an auxiliary facing (1)

to make it easier to cut very long or

short pieces. Select a suitable piece of

smooth wood, drill two holes through

it and attach it to the miter gauge with

screws. Make sure the facing does not

interfere with the proper operation of

the saw blade guard. When cutting long

workpieces, you can make a simple

outfeed support by clamping a piece of

plywood to a sawhorse.

BEVEL CROSSCUTTING (FIG. VV)

0°~45° BLADE BEVEL & 90° MITER

ANGLE

This cutting operation is the same as

crosscutting except the blade is at a

bevel angle other than 0°.

Fig. TT

1

2

Fig. UU

1

Always work to the right side of the

blade during this type of cut. The

miter gauge must be in the right

side groove because the bevel

angle may cause the blade guard to

interfere with the cut if used on the

left side groove.

1.

Lower the blade to the down position.

2. Adjust the blade (1) to the desired

angle, and tighten the blade lock

knob.

3. Tighten the miter gauge lock

handle (2) at 90°.

4. Hold workpiece (3) firmly against the

face of the miter gauge throughout

the cutting operation.

COMPOUND MITER CROSSCUTTING

(FIG. WW)

0°~45° BLADE BEVEL & 0°~45°

MITER ANGLE

This sawing operation combines a

miter angle with a bevel angle.

Always work to the right side of the

blade during this type of cut. The

miter gauge must be in the right side

WARNING

!

Fig. VV

1

23

WARNING

!

42

43

42 43

groove because the bevel angle

may cause the blade guard to

interfere with the cut if used on the

left side groove.

1. Set the miter gauge (1) to the

desired angle.

2. Place the miter gauge in the right

side groove of the table.

3. Set the blade (2) bevel to the

desired bevel angle.

4. Hold workpiece (3) firmly against the

face of the miter gauge throughout

the cutting operation.

MITERING (FIG. XX)

0°~45° MITER ANGLE

This sawing operation is the same as

crosscutting except the miter gauge is

locked at an angle other than 90°.

1. Set the blade (1) to 0° bevel angle.

2. Set the miter gauge (2) at the

desired miter angle and lock in

position by tightening the miter

gauge lock handle.

3. Hold the workpiece (3) firmly

against the face of the miter gauge

throughout the cutting operation.

Fig. WW

1

2

3

USING THE WOOD FACING ON THE

RIP FENCE (FIG. YY)

When performing some special cutting

operations, you can add a wood facing

to either side of the rip fence (1).

1. Use a smooth straight 3/4 in. thick

wood board (2) that is as long as

the rip fence.

2. Attach the wood facing to the

fence with wood screws (3) (not

included) through the holes in the

fence. A wood fence should be used

when ripping material such as thin

paneling to prevent the material

from catching between the bottom

of the fence and the table.

Fig. XX

1

2

3

Fig. YY

3

1

2

42 43

42

43

NON-THROUGH CUT (FIG. ZZ)

A non-through cut is used to cut

grooves and rabbets in the workpiece

without exposed the blade.

● Only this type cut is made

without installing the blade guard

assembly and anti-kickback

pawls assembly.

● To avoid injury from an accidental

start, make sure the switch is in

the OFF position and the plug

is disconnected from the power

source outlet.

● To avoid the risk of personal

injury. Always use push block,

auxiliary fence and featherboard

when making non-through cut.

1. Before starting the table saw, lower

the blade and riving knife assembly

to the down position.

2. Remove the blade guard assembly

and anti-kickback pawls assembly

for non-through cut.

3. Use the featherboard (1) with

C-clamps (3) to fasten the

workpiece securely.

4. Mount the auxiliary fence (4) with

C-clamps.

5. Use the push block (2) to move the

workpiece.

NOTE: Mount the featherboard to

table as shown, so the leading edges

of featherboard will help workpiece

complete cutting.

WARNING

!

DADO CUTS (FIG. aa, bb)

● Only Stackable dado blades can

be used on this saw.

● DO NOT use Adjustable or

Wobble type dadoes.

● The maximum dado cut width is

1/2 in.

● The maximum dado blade

diameter is 6 in.

NOTE: An dado insert plate (part

number 308K not included) is required

for this procedure.

1. Remove the table insert, saw blade,

anti-kickback pawls assembly,

blade guard assembly and riving

knife assembly for dado cuts ONLY.

Reinstall and realign blade guard

for all through-sawing operations.

Install a dado not exceeding 6 in. in

diameter and 1/2 in. in width.

Fig. ZZ

Non-through Cut

3 1

2

4

WARNING

!

44

45

44 45

2. Install the dado table insert making

sure that the rear of the insert is

flush with the table. If the dado

insert is not flush with the table,

adjust the two bolts on the insert

with a 4 mm hex wrench until it is

parallel with the table.

3. Instruction for operating the dado

is packed with the separately

purchased dado set (not included

with unit).

4. The arbor (1) on this saw restricts

the maximum width of the cut to

1/2 in.

5. It is not necessary to install the

outside flange (2) before threading

on the arbor nut (3) for the

maximum 1/2 in. dado cuts. Make

sure that the arbor nut (3) is tight,

and that at least one thread of the

arbor sticks out past the nut.

6. Use only the correct number of

round outside blades and inside

chippers as shown in the dado set’s

instruction manual. Blade or

chippers must not exceed 1/2 in.

total in width.

7. Check the saw to ensure that the

dado will not strike the housing,

insert, or motor when in operation.

Fig. aa

2

1

3

For your own safety, always replace

the blade, blade guard assembly,

anti-kickback pawls assembly, riving

knife assembly and table insert when

you finish the dado operation.

WARNING

!

Fig. bb

Dado cut

44 45

44

45

MAINTENANCE

MAINTAINING YOUR TABLE SAW

GENERAL MAINTENANCE

For your own safety, turn the switch

OFF and remove the switch key.

Remove the plug from the power

source outlet before maintaining or

lubricating your saw.

1. Clean out all sawdust that has

accumulated inside the saw cabinet

and the motor.

2. Polish the saw table with an

automotive wax to keep it clean

and to make it easier to slide the

workpiece.

3. Clean cutting blades with pitch and

gum remover.

4. A worn, cut, or damaged power cord

should be replaced immediately.

All electrical or mechanical repairs

should be attempted only by a

trained repair technician. Contact

customer service for assistance. Use

only identical replacement parts. Any

other parts may create a hazard.

5. Use liquid dishwashing detergent

and water to clean all plastic parts.

NOTE: Certain cleaning chemicals

can damage plastic parts.

6. Avoid use of cleaning chemicals or

solvents, ammonia and household

detergents containing ammonia.

WARNING

!

WARNING

!

BLADE RAISING AND TILTING

MECHANISM (FIG. cc, dd)

After every five hours of operation,

the blade raising mechanism and

tilting mechanism should be checked

for looseness, binding, or any other

abnormalities.

1. With the saw disconnected from the

power source, turn the saw upside

down and pull up and push down on

the motor unit.

2. Observe any movement of the

motor mounting mechanism.

3. Loosen or tighten the four hex

screws (1) by hex wrench for smooth

operation. Adjust only 1/8 turn at a

time. (Fig. cc)

NOTE: Do not adjust the screw

more than 1/2 turn in total as this

may damage the mechanism.

4. Place a small amount of dry

lubricant on the bevel gear (2). The

worm gear (3) must be kept clean

and free of sawdust, gum, pitch,

and other contaminants for smooth

operations. (Fig. dd)

Fig. cc

1

1

1

46

47

46 47

NOTE: If excessive looseness

is observed in any part of the

blade raising mechanism or tilting

mechanism, take the complete unit to a

Service Center.

LUBRICATION

All motor bearings are permanently

lubricated at the factory and require no

additional lubrication. On all mechanical

parts of your table saw where a pivot

or threaded rod are present, lubricate

using graphite or silicone. These dry

lubricants will not hold sawdust as

would oil or grease.

REPLACING THE CARBON

BRUSHES (FIG. ee, ff)

Always disconnect the plug from

the power source before inspecting

the brushes.

Fig. dd

23

WARNING

!

The carbon brushes included with the

unit will last approximately 50 hours

of running time, or 10,000 ON/OFF

cycles. Replace both carbon brushes

when either has less than 1/4 in. length

of carbon remaining, or if the spring or

wire is damaged or burned.

1.

Remove the blade guard, blade,

rip fence, miter gauge and stand

assembly from the table saw.

2. Lower the blade height to its

minimum setting. This will make the

brush locations easier to access.

3.

Place cardboard or an old blanket

on the floor to protect the saw table

surface.

4.

Place the saw upside down on the

protective material.

5.

Tilt the blade elevation/tilting

handwheel (1) to the 45° position.

(Fig. ee)

6.

Remove the black plastic cap (2)

from the side of the motor (3).

Fig. ee

3

2

1

46 47

46

47

7.

Carefully remove the spring-loaded

cap, and then pull out the brush (4)

and replace. (Fig. ff)

8.

Repeat step 6 and 7 for the other

side of motor.

9.

Place the new brush into the

opening of motor, making sure the

ears on the metal end of the

assembly go in the same hole the

carbon part fits into. Do not

overtighten the plastic cap.

10. Carefully set the saw in a upright

position on a clean level surface.

11. Replace the blade guard, blade,

rip fence, miter gauge and stand

assembly to the table saw.

NOTE: To reinstall the same brushes,

first make sure the brushes go back in

the same sides they came out.

This will avoid a break-in period that

reduces motor performance and

increases wear.

Fig. ff

4

3

2

48

49

48 49

To avoid injury from accidental starting, always turn switch OFF and unplug

the tool before moving, replacing the blade or making adjustments.

WARNING

!

TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION

Saw will not

start.

1. Saw is not plugged in.

2. Fuse blown or circuit breaker

tripped.

3. Cord is damaged.

4. Debris in on/off switch

1. Plug in saw.

2. Replace fuse or reset circuit

breaker.

3. Replace power cord.

4. Remove switch from saw

and separate in half. Clean

any debris accumulated

within.

Does not make

accurate 45°

and 90° rip cuts.

1. Positive stop not adjusted

correctly.

2. Tilt angle pointer not set

accurately.

1. Check blade with square

and adjust positive stop.

2. Check blade with square

and adjust to zero.

Material pinched

blade when

ripping.

1. Rip fence not aligned with

blade.

2. Warped wood, edge against

fence is not straight.

1. Check and adjust rip fence.

2. Select another piece of

wood.

Material binds

on riving knife.

1. Riving knife not aligned

correctly with blade.

1. Check and align riving knife

with blade.

Saw makes

unsatisfactory

cuts.

1. Dull blade.

2. Blade mounted backwards.

3. Gum or pitch on blade.

4. Incorrect blade for work being

done.

5. Gum or pitch on blade

causing erratic feed.

1. Replace blade.

2. Turn the blade around.

3. Remove blade and clean

with turpentine and coarse

steel wool.

4. Change the blade.

5. Clean table with turpentine

and steel wool.

48 49

48

49

PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION

Material kicked

back from blade.

1. Rip fence out of adjustment.

2. Riving knife not aligned with

blade.

3. Feeding stock without rip

fence.

4. Riving knife not in place.

5. Dull blade.

6. The operator letting go of

material before it is past saw

blade.

7. Miter angle lock knob is not

tight.

1. Align rip fence with miter

gauge slot.

2. Align riving knife with blade.

3. Install and use rip fence.

4. Install and use riving knife.

(with guard)

5. Replace blade.

6. Push material all the way

past saw blade before

releasing work.

7. Tighten knob.

Blade does

not raise or tilt

freely.

1. Sawdust and dirt in elevation/

tilting mechanisms.

1. Brush or blow out loose dust

and dirt.

Blade does

not come up to

speed. Reset

trips too easily.

1. Extension cord too light or

too long.

2. Low house voltage.

1. Replace with adequate size

cord.

2. Contact your electric

company.

Machine

vibrates

excessively.

1. Saw not mounted securely to

workbench.

2. Bench on uneven floor.

3. Damaged saw blade.

1. Tighten all mounting

hardware.

2. Reposition on flat level

surface.

3. Replace blade.

Does not make

accurate 45° and

90° crosscuts.

1. Miter gauge out of

adjustment.

1. Adjust miter gauge.

To avoid injury from accidental starting, always turn switch OFF and unplug

the tool before moving, replacing the blade or making adjustments.

WARNING

!

50

51

50 51

PUSH STICK CONSTRUCTION

● Use good quality plywood or solid wood

● Use 1/2 in. or 3/4 in. material

● Push stick MUST be thinner than the width of

material being cut

Drill Hole

For Hanging

Cut Here To

Push 3/4 in. Wood

Notch To

Prevent Hand

From Slipping

Cut Here To

Push 1/2 in. Wood

90°

20° - 30°

15-3/4 in. (400 mm)

50 51

50

51

I.D. Description Size Q'ty I.D. Description Size Q'ty

08VH CORD CLAMP 6# 10KA4 CR. RE. PAN HD. TAPPING SCREW M4*16-16 2

0901 BUSH 10KBQ CR. RE. PAN HD. TAPPING SCREW M5*16-10 1

0B2B NEEDLE POINTER 10KC8 CR. RE. TRUSS HD. TAPPING SCREW M4*16-16 3

0B9P CLAMP 10KCA CR. RE. TRUSS HD. TAPPING SCREW M5*12-12 2

0BA4 SPACER 10KDG CR. RE. PAN HD. SCREW M5*0.8-6 2

0BA9 SPACER 10KDR CR. RE. PAN HD. SCREW M5*0.8-10 1

0BAB SHIM 10KDW CR. RE. PAN HD. SCREW M6*1.0-20 2

0BAC SET NUT 10KF7 CR. RE. PAN HD. SCREW M4*0.7-12 2

0BAE ARBOR COLLAR 10KJ0 CAP HD. SQ. NECK BOLT M6*1.0-16 1

0J3P HEX. WRENCH 4 MM 10KJN CAP HD. SQ. NECK BOLT M6*1.0-35 1

0J52 FLAT WASHER φ16*25-1.2 10KMR HEX. NUT M5*0.8 T=4 2

0J58 FLAT WASHER φ5*14-1 60KMS HEX. NUT M6*1.0 T=5 3

0J6K FLAT WASHER φ6*30-4 10KMT HEX. NUT M8*1.25 T=5 2

0J6T FLAT WASHER 3/16*3/4-1/16 40KQW LOCK NUT M5*0.8 T=5 4

0J72 FLAT WASHER 1/4*5/8-1/16 10KQX NUT M6*1.0 T=6 1

0J74 FLAT WASHER 1/4*5/8-3/32 10KQY LOCK NUT M8*1.25 T=8 1

0J76 FLAT WASHER 1/4*3/4-1/16 10KRQ SERRATED TOOTHED HEX. FLANGE NUT M6*1.0 T=6 1

0J78 FLAT WASHER 1/4*1/2-3/32 10KSM STRAIN RELIEF 1

0J7E FLAT WASHER

5/16*11/16-1/16

10KTK STRAIN RELIEF 2

0JAE EXTERNAL TOOTH LOCK WASHER φ4 20KUW TERMINAL 1

0JAF EXTERNAL TOOTH LOCK WASHER φ5 10KWU LEAD WIRE ASS’Y 1

0JB2 WAVE WASHER WW-12 10LWC ROCKER SWITCH 1

0JD1 SPRING PIN 10WPL SWITCH KEY 1

0JPB HEX. HD. BOLT M5*0.8-20 210K5 HEX. SOC. HD. CAP BOLT M5*0.8-8 3

0JPJ HEX. HD. BOLT M6*1.0-40 110LF HEX. NUT M6*1.0 T=4 2

0JVY HEX. SOC. HD. CAP BOLT M6*1.0-16 1212M LEAD WIRE ASS’Y 1

0JZY HEX. SOC. TRUSS HD. SCREW M6*1.0-12 125AP HEX. SOC. HD. CAP BOLT M6*1.0-25 1

0K0X HEX. HD. SCREW AND WASHER M6*1.0-16 125B1 CR. RE. TRUSS HD. SCREW M5*0.8-25 4

0K3H CR. RE. PAN HD. SCREW & WASHER M6*1.0-12 2262S POWER CORD CLAMP 2

0K74 CR. RE. TRUSS HD. SCREW M6*1.0-8 2275R LOCATION SEAT 6# 1

0K8C

CR. RE.COUNT HD. TAPPING SCREW

M4*18-10 427JR HEX. SOC. SET SCREW M5*0.8-6 4

0K9U HEX. HD. TAPPING SCREW M5*16-25 42A48 HEX. HD. SCREW AND WASHER M5*0.8-16 7

10 IN. PORTABLE TABLE SAW MODEL NO. 137.415030

When servicing use only CRAFTSMAN replacement parts. Use of any other

parts many create a HAZARD or cause product damage. Any attempt to

repair or replace electrical parts on this Table Saw may create a HAZARD

unless repair is done by a qualified service technician. Repair service is

available at your nearest Sears Service Center.

PARTS LIST FOR TABLE SAW (A)

WARNING

!

PARTS LIST

52

53

52 53

I.D. Description Size Q'ty I.D. Description Size Q'ty

2BNW SEAT 232V4 SWITCH BOX ASS'Y 1

2BNX SHAFT 134VT LOCK KNOB KR# 1

2E3K CR. RE. ROUND WASHER HD. SCREW M5*0.8-10 23E7G DUST COLLECTOR 6# 1

2ESS LOCKING ROD 13EWU HANDLE KR#+6# 1

2HT1 CR. RE. TRUSS HD. TAPPING SCREW M5*12-8 23EWW EXTENSION WING (RIGHT) CQ# 1

2JHQ SLIDING BASE ASS'Y 23EWY TABLE CQ# 1

2RVJ CLAMPER BRACKET 13EWZ UPPER TUBE 1

2RVM GEAR 13EX0 REAR OUTFEED SUPPORT TUBE 2

2RVP SET PLATE 13EX1 HANDLE 6# 1

2RVR GUIDE CLAMP 43EX5 BODY 1

2RVW RETAINING CLIP 13EX8 WHEEL 6# 1

2RW3 RETAINING CLIP 13EX9 BODY SHELL KQ# 1

2RW6 SET PLATE 6# 13EXA RIVING KNIFE 1

2SE0 ANCHOR PLATE 13EXB REAR OUTFEED SUPPORT 1

2SJU SPACER 13F49 CIRCUIT BREAKER SWITCH 1

2T6E CLAMP ASS'Y 13FAS RIP FENCE ASS'Y 1

2TD0 COLLAR 13FAT ANTII-KICKBACK PAWLS ASS'Y 1

2TDD WORM 13H1M HANDLE BAR ASS’Y 1

2TDL FLAT WASHER 13H2X KNOB KR# 1

2TLZ POINTER BRACKET 13H2Z PUSH STICK KR# 1

2VZ1 RUBBER INSERT 43H3V LOCKING HANDLE ASS’Y 1

2WEF LOCATION SEAT 23G21 CLAMP HANDLE ASS'Y KR#+6# 1

2X1T PUSH IN PIN 23G2Q TILTING SCALE 1

2X6V BOX-END WRENCH 13G2W WARNING LABEL 1

2X74 OPEN-END WRENCH 13G2X WARNING LABEL 1

2YF8 BACK UPPER TUBE (RIGHT) 13G3X WARNING LABEL 1

2YGQ RETAINING CLIP 23GSM OPERATOR'S MANUAL 1

2YGT ANGLE ROD 13GVK BLADE 1

2YJ0 SPACER 13GWU LABEL 1

2YV2 HEIGHT REGULATING BOLT ASS'Y 13GWW SCALE 1

302W FLAT WASHER φ6*21-3 13GWX SCALE 1

3081 CR. RE. PAN HD PLAIN WASHER

TAPPING SCREW

M5*0.8-12 43GWY SCALE 1

3GX0 TRADEMARK LABEL 1

308C POWER CABLE 13GY5 TABLE INSERT ASS'Y 1

308E POWER CABLE ASS'Y 13GZC STICKER 1

308G NEEDLE POINTER 13H5T MOTOR ASS'Y 1

309H WASHER 13H67 BLADE GUARD ASS’Y 1

30C2 HEX. HD. TAPPING SCREW M5*16-16 10 3H69 SUPPORT 1

30JU WARNING LABEL 23H6A MITER GAUGE ASS'Y 1

30NM SPECIAL BOLT 2*308K DADO INSERT PLATE (not included)

10 IN. PORTABLE TABLE SAW MODEL NO. 137.415030

PARTS LIST FOR TABLE SAW (B)

52 53

52

53

10 IN. PORTABLE TABLE SAW MODEL NO. 137.415030

SCHEMATIC

*308K

 n 

n in

3GSM

3GY5

3GZC

54

55

54 55

10 IN. PORTABLE TABLE SAW MODEL NO. 137.415030

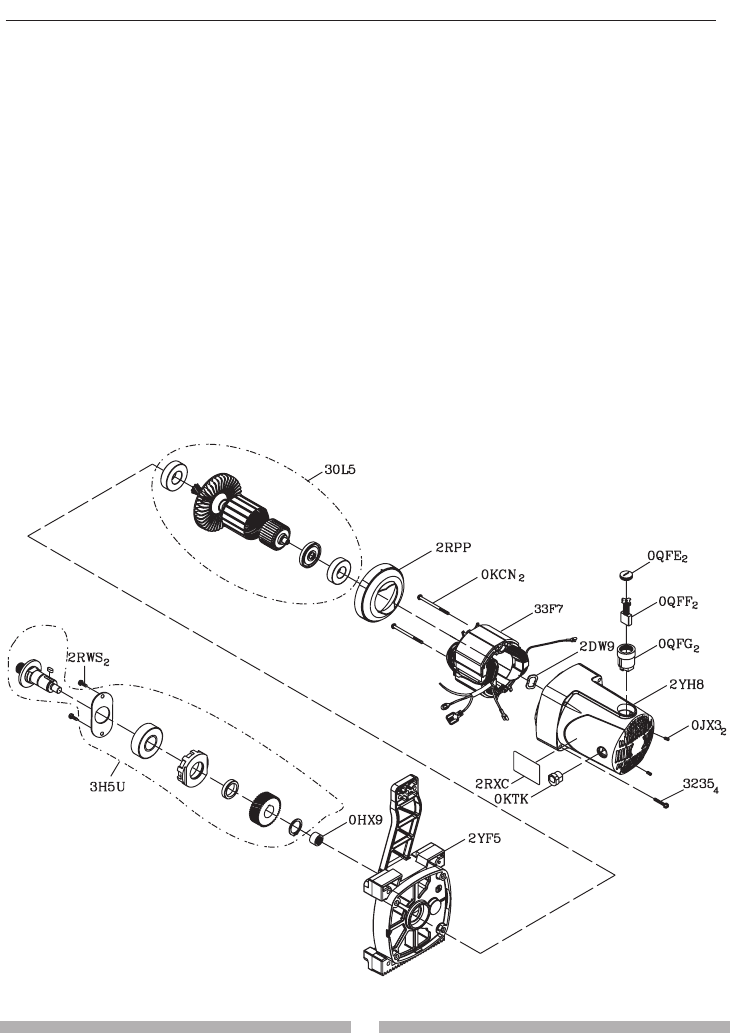

PARTS LIST FOR MOTOR

I.D. Description Size Q’ty

0HX9 NEEDLE BEARING 1

0JX3 HEX. SOC. SET SCREW M5*0.8-8 2

0KCN CR. RE. PAN HEAD TAPPING & WASHER SCREW M5*12-50 2

0KTK STRAIN RELIEF 1

0QFE BRUSH COVER 2

0QFF CARBON BRUSH ASS’Y 2

0QFG BRUSH HOLDER ASS’Y 2

2DW9 WAVE WASHER 1

2RPP FLOW GUIDE 1

2RWS CR. RE. COUNTER-SUN HEAD SCREW M5*0.8-10 2

2RXC LABEL 1

2YF5 BRACKET 1

2YH8 MOTOR COVER 6# 1

30L5 ARMATURE ASS’Y 1

3235 CR. RE. PAN HD. SCREW & WASHER M5*0.8-55 4

33F7 FIELD ASS’Y 1

3H5U CUTTER SHAFT ASS’Y 1

54 55

54

55

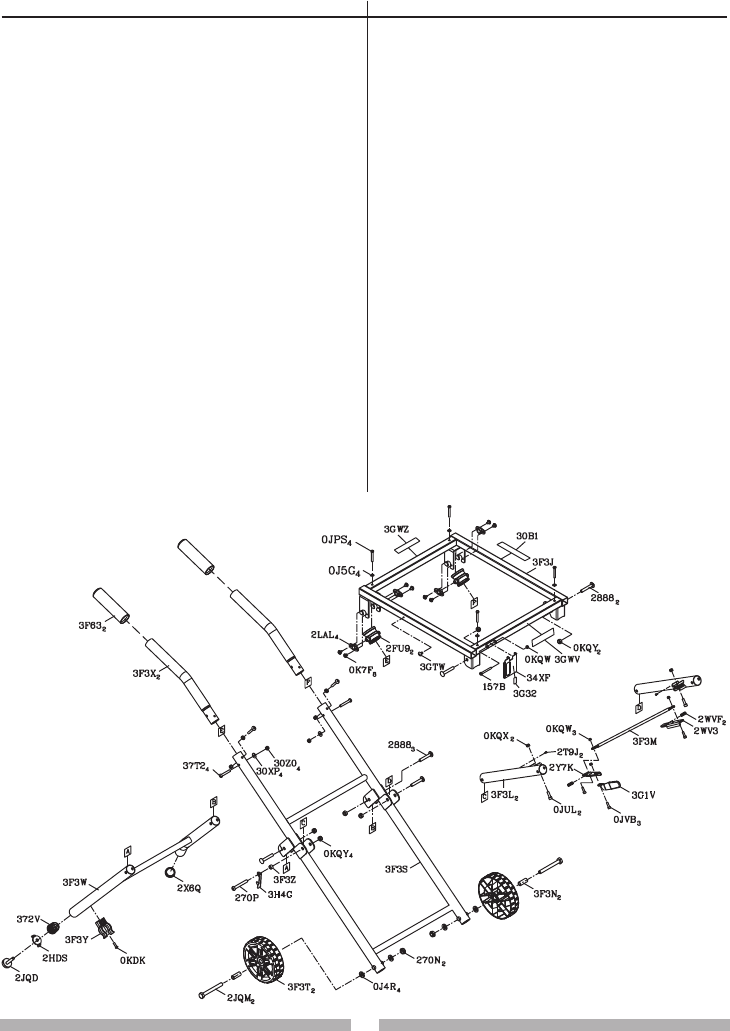

I.D. Description Size Q'ty I.D. Description Size Q'ty

0J4R FLAT WASHER φ10*20-3 430B1 WARNING LABEL 1

0J5G FLAT WASHER φ8*18-1.5 430XP FLAT WASHER φ6*13-1 4

0JPS HEX. HD. BOLT M8*1.25-45 430Z0 NUT CHUCK M6*1.0 T=6 4

0JUL HEX. SOC. HD. CAP BOLT M6*1.0-20 234XF PLATE 1

0JVB HEX. SOC. HD. CAP BOLT M5*0.8-16 3372V END-CAP 6# 1

0K7F CR. RE. ROUND WASHER HD. SCREW M5*0.8-8 837T2 CR. RE. TRUSS HD. SCREW M6*1.0-40 4

0KDK CR. RE. PAN HD. SCREW M5*0.8-16 13F3J SUPPORT 6# 1

0KQW LOCK NUT M5*0.8 T=5 43F3L CONNECTOR TUBE 6# 2

0KQX NUT M6*1.0 T=6 23F3M ROD 1

0KQY LOCK NUT M8*1.25 T=8 63F3N SLEEVE 2

157B HEX. SOC. HD. CAP BOLT M5*0.8-45 13F3S BOTTOM BRACKET ASS'Y 6# 1

270N NUT CHUCK M10*1.5 T=8 23F3T CASTER 6# 2

270P HEX. SOC. TRUSS HD. SCREW M8*1.25-60 13F3W BOTTOM BRACKET 6# 1

2888 CAP HD. SQ. NECK BOLT M8*1.25-50 53F3X HANDLE 6# 2

2FU9 COLLAR 6# 23F3Y PLUNGER HOUSING 6# 1

2HDS WING NUT M8*1.25-2B 13F3Z COLLAR 1

2JQD LEVELING PAD 6# 13F63 GRIP 2

2JQM HEX. HD. BOLT M10*1.5-90 23G1V HANDLE KR# 1

2LAL BUSH 43G32 WARNING LABEL 1

2T9J CR. RE. PAN HD. TAPPING SCREW M3.5*20-8 23GTW

CR. RE. TRUSS HD. ROUND NECK SCREW

M6*1.0-10 1

2WV3 ANCHOR PLATE 13GWV CAUTION LABEL 1

2WVF COMPRESSION SPRING 23GWZ SCALE 1

2X6Q END CAP 6# 13H4G HINGA KR# 1

2Y7K ANCHOR PLATE 1

10 IN. PORTABLE TABLE SAW MODEL NO. 137.415030

PARTS LIST FOR STAND

56 56

Congratulations on making a smart purchase.

Your new Craftsman® product

is designed and manufactured for years of dependable operation. But like all

products, it may require repair from time to time. That’s when having a Repair

Protection Agreement can save you money and aggravation.

Here’s what the Repair Protection Agreement* includes:

 Expert service by our 10,000 professional repair specialists

 Unlimited service and no charge for parts and labor on all covered

repairs

 Product replacement up to $1500 if your covered product can’t be fixed

 Discount of 25% from regular price of service and related installed

parts not covered by the agreement; also, 25% off regular price of

preventive maintenance check

 Fast help by phone – we call it Rapid Resolution – phone support from a

Sears representative. Think of us as a “talking owner’s manual.”

Once you purchase the Repair Protection Agreement, a simple phone call is all

that it takes for you to schedule service. You can call anytime day or night, or

schedule a service appointment online.

The Repair Protection Agreement is a risk-free purchase. If you cancel for any

reason during the product warranty period, we will provide a full refund. Or, a

prorated refund anytime after the product warranty period expires. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply. For prices and additional

information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full details call Sears

Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers,

water heaters, and other major home items, in the U.S.A. or Canada call

1-800-4-MY-HOME®.

REPAIR PROTECTION AGREEMENTS
