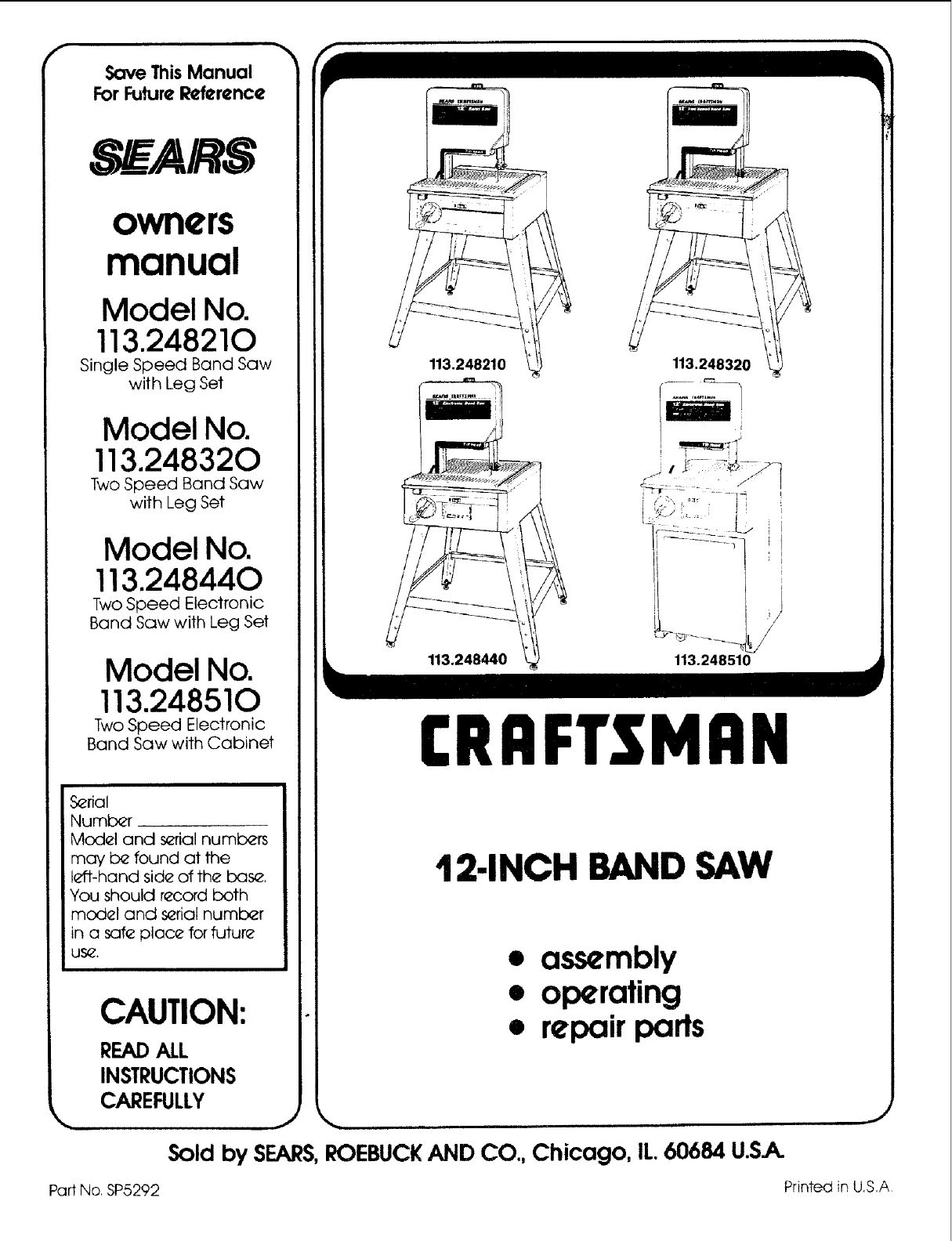

owners

manual

Model No.

113.248210

Single Speed Band Saw

with Leg Set

Model No.

113.248320

Two Speed Band Saw

with Leg Set

Model No.

113.248440

Two Speed Electronic

Band Saw with Leg Set

Model No.

113.248510

Two Speed Electronic

Band Saw with Cabinet

S_rial

Number .

Model and s_rial numbers

may b_ found at the

left-hand side of the bas_.

You should record both

model and s_rial number

in a safe place for futur_

US_.

CAUTION:

READALL

INSTRUCTIONS

CAREFULLY

113.248440

113.248320

J

113.248510

CRRFTSMRN

12-INCH BAND SAW

• assembly

• operating

•repairparts

Sold by SEARS,ROEBUCKAND CO., Chicago, IL.60684 U.S.A.

J

Part No. SP5292 Printed in U.S,A

FULL ONE YEAR WARRANTY ON CRAFTSMAN BAND SAW

If within one year from the date of purchase, this Craftsman Band Saw tails due to adefect in material or workmanship,

Sears will repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST BEARS SERVICE

CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

This warranty applies only while this product is used in the Unltad States.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., DEPT. 698/731A Sears Tower, Chicago, IL 60684

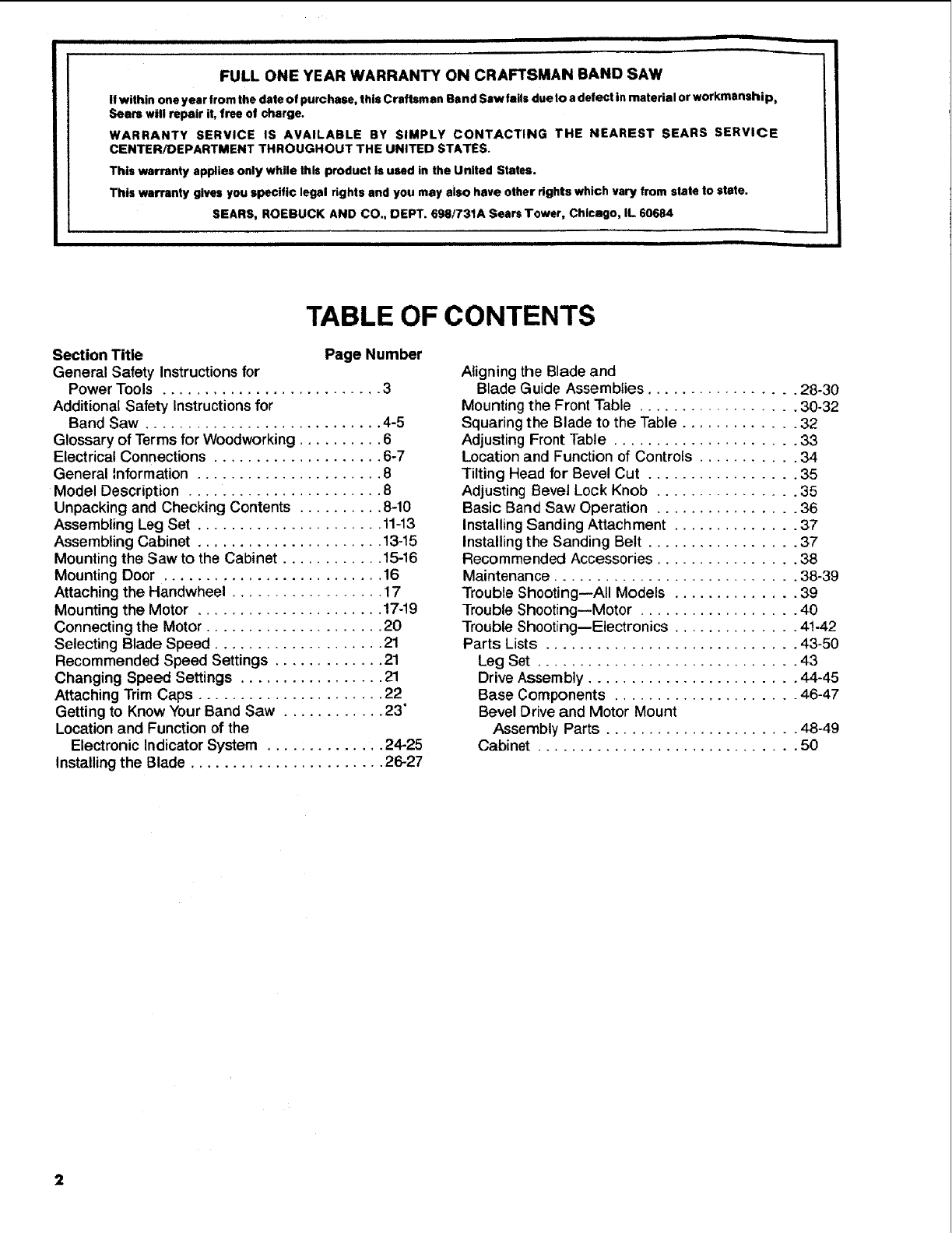

TABLE OF CONTENTS

Section Title Page Number

General Safety Instructions for

Power Tools .......................... 3

Additional Safety Instructions for

Band Saw ............................ 4-5

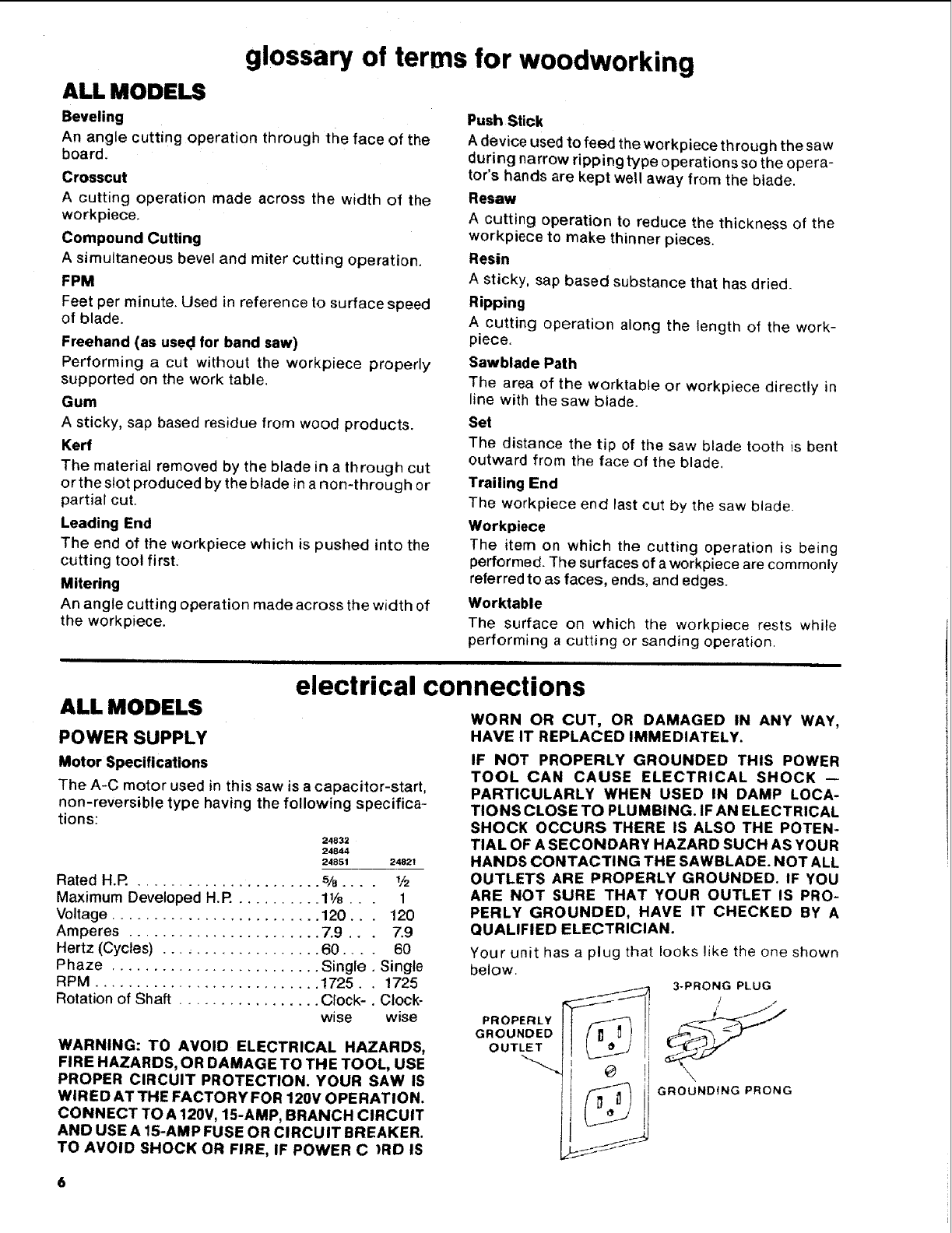

Glossary of Terms for Woodworking .......... 6

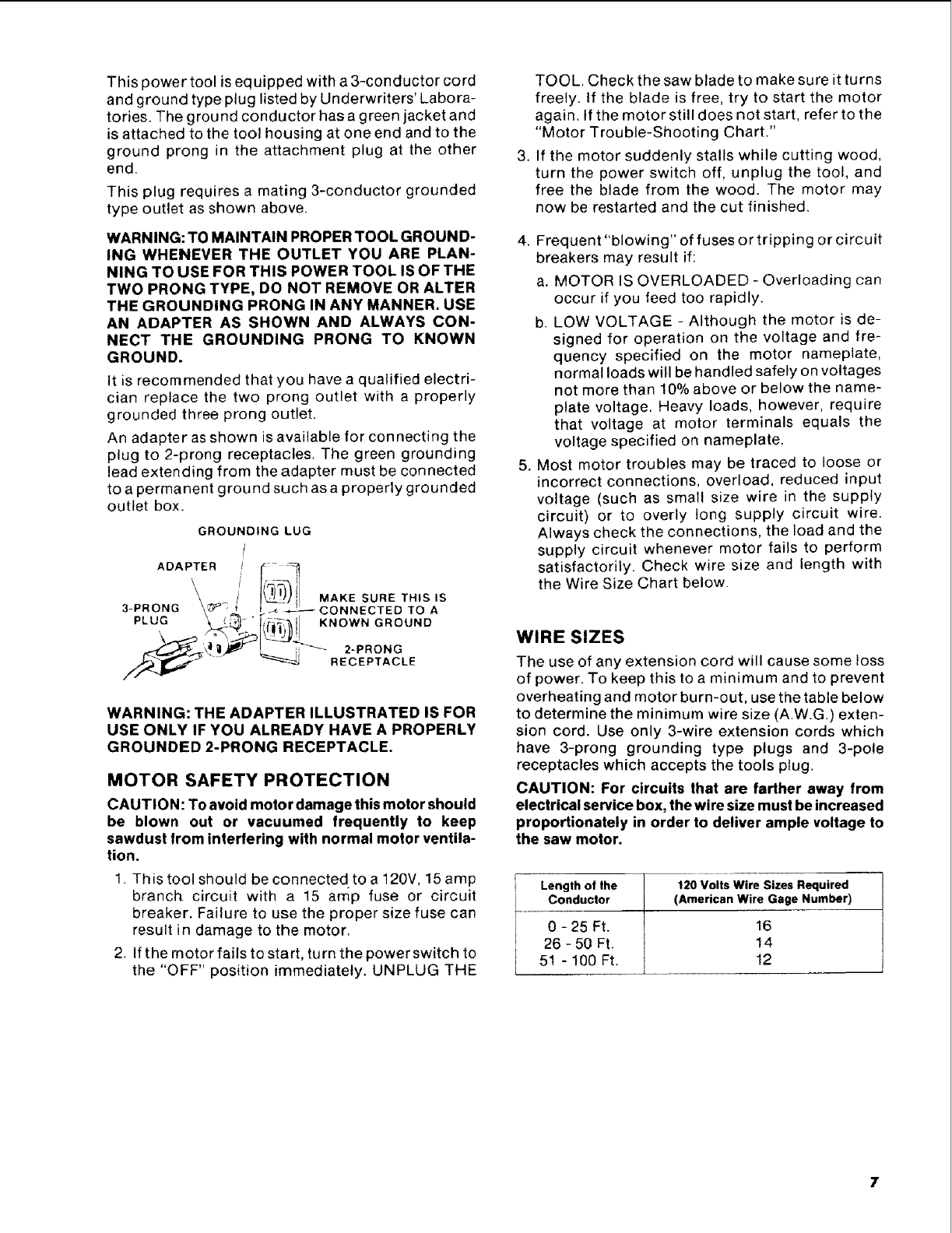

Electrical Connections .................... 6-7

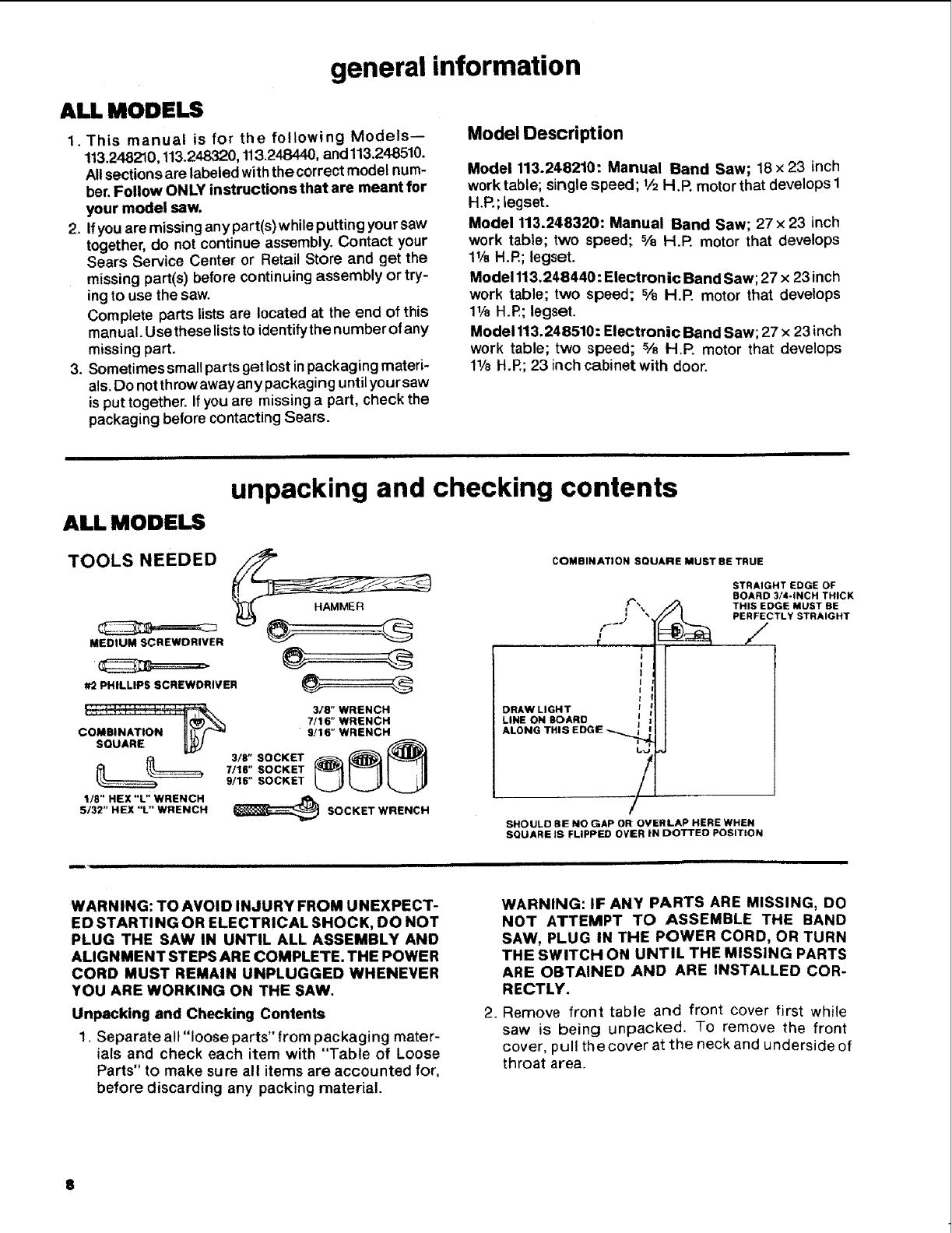

General Information ...................... 8

Model Description ....................... 8

Unpacking and Checking Contents .......... 8-10

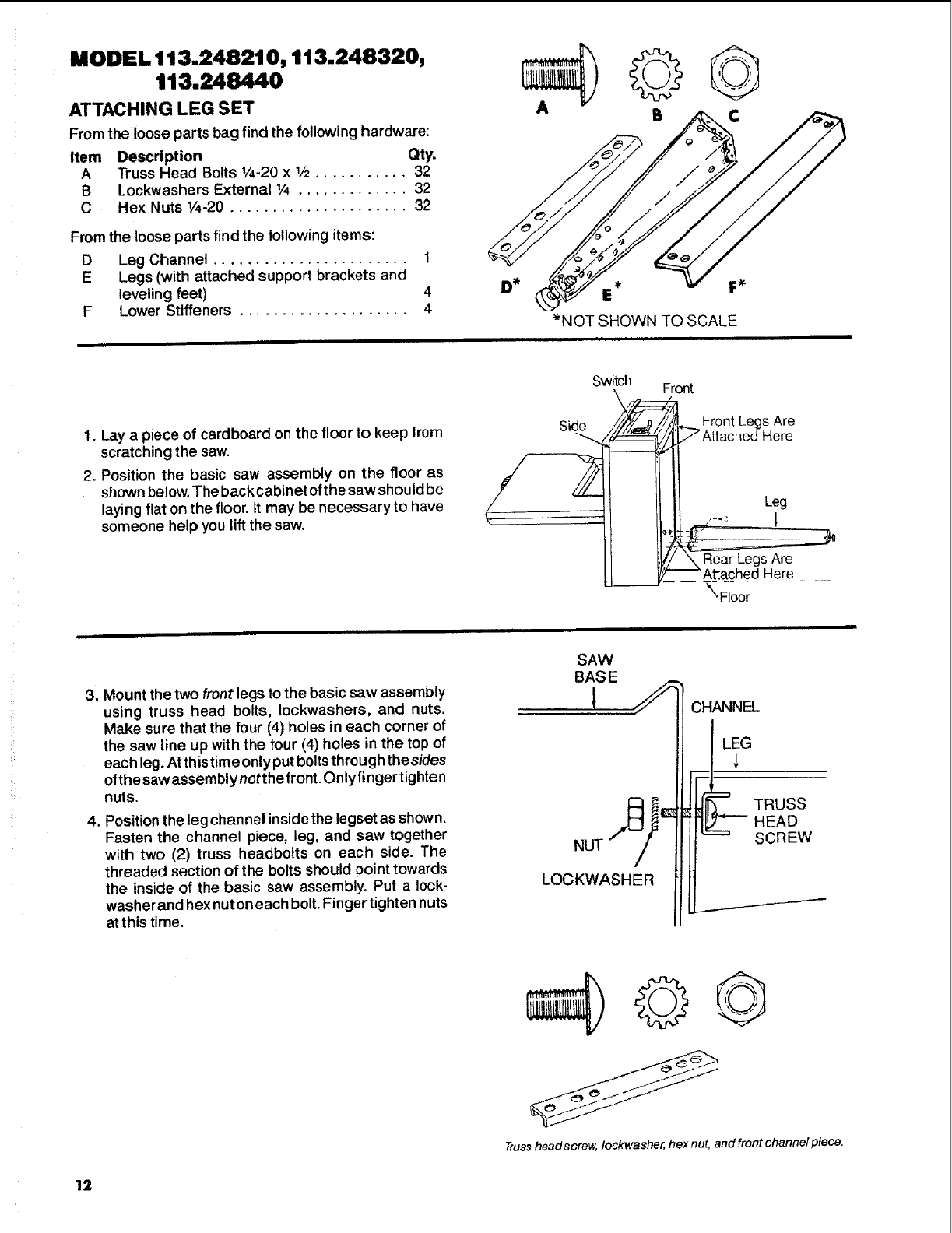

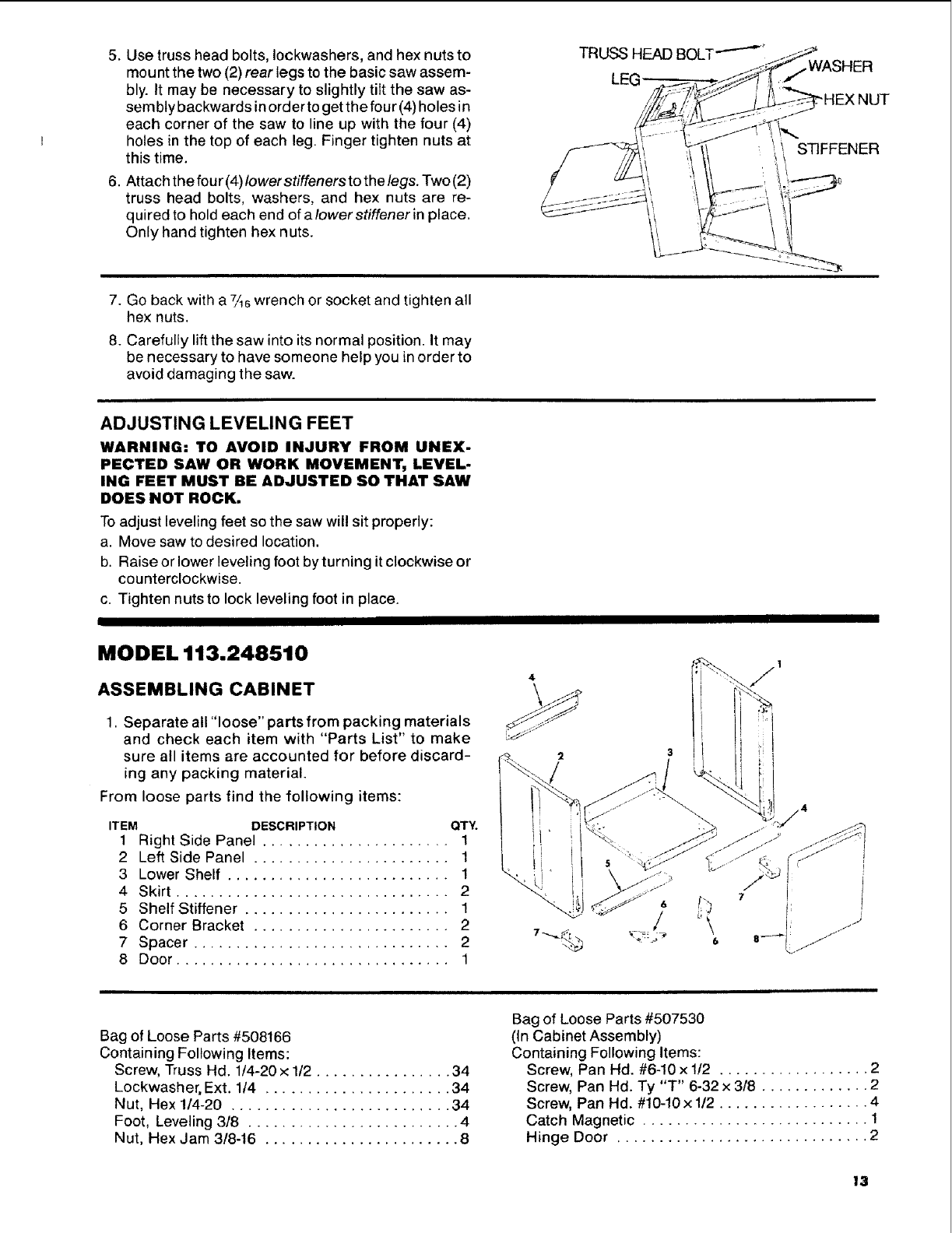

Assembling Leg Set ...................... 11-13

Assembling Cabinet ...................... 13-15

Mounting the Saw to the Cabinet ............ 15-16

Mounting Door .......................... 16

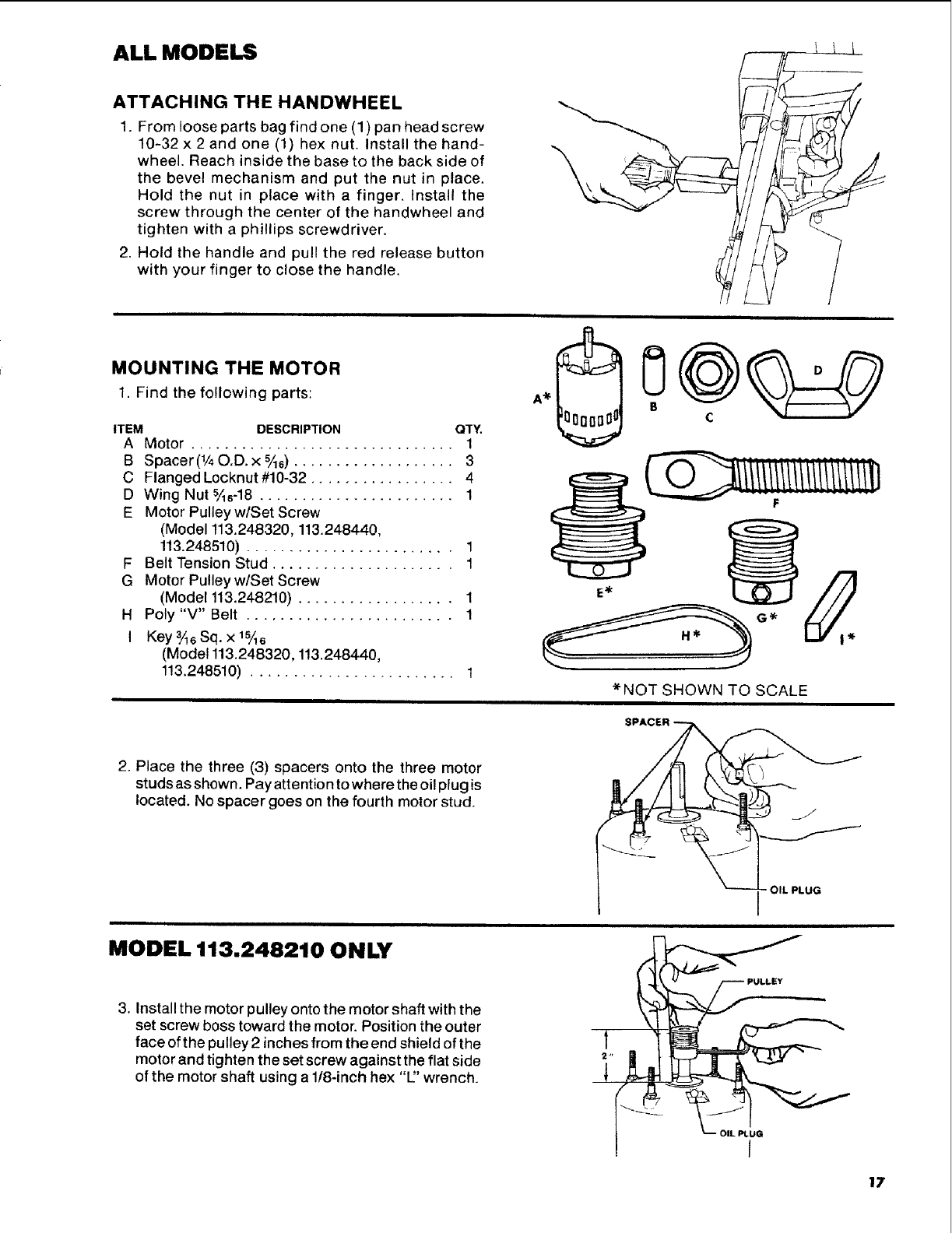

Attaching the Handwheel .................. 17

Mounting the Motor ...................... 17-19

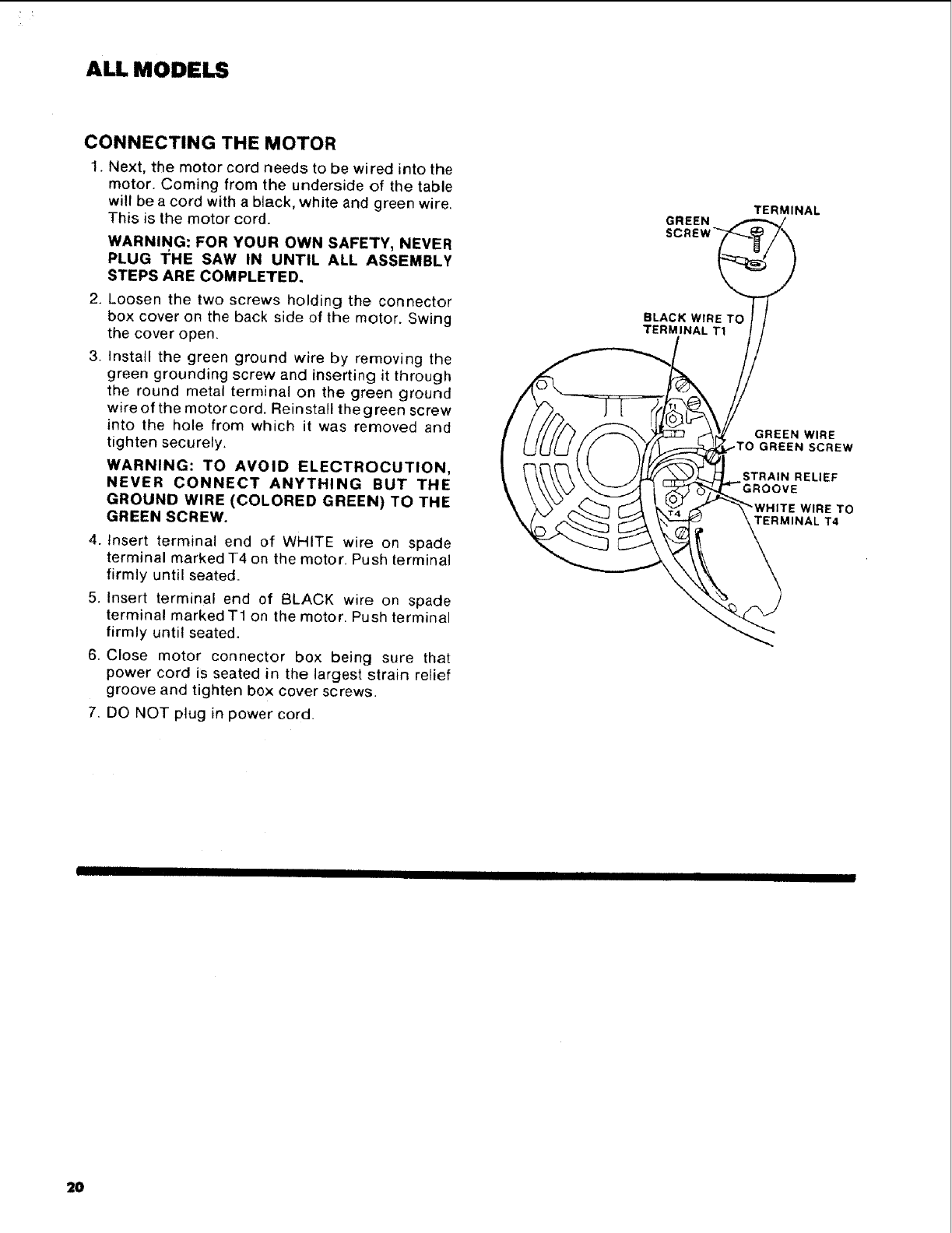

Connecting the Motor ..................... 20

Selecting Blade Speed .................... 21

Recommended Speed Settings ............. 21

Changing Speed Settings ................. 21

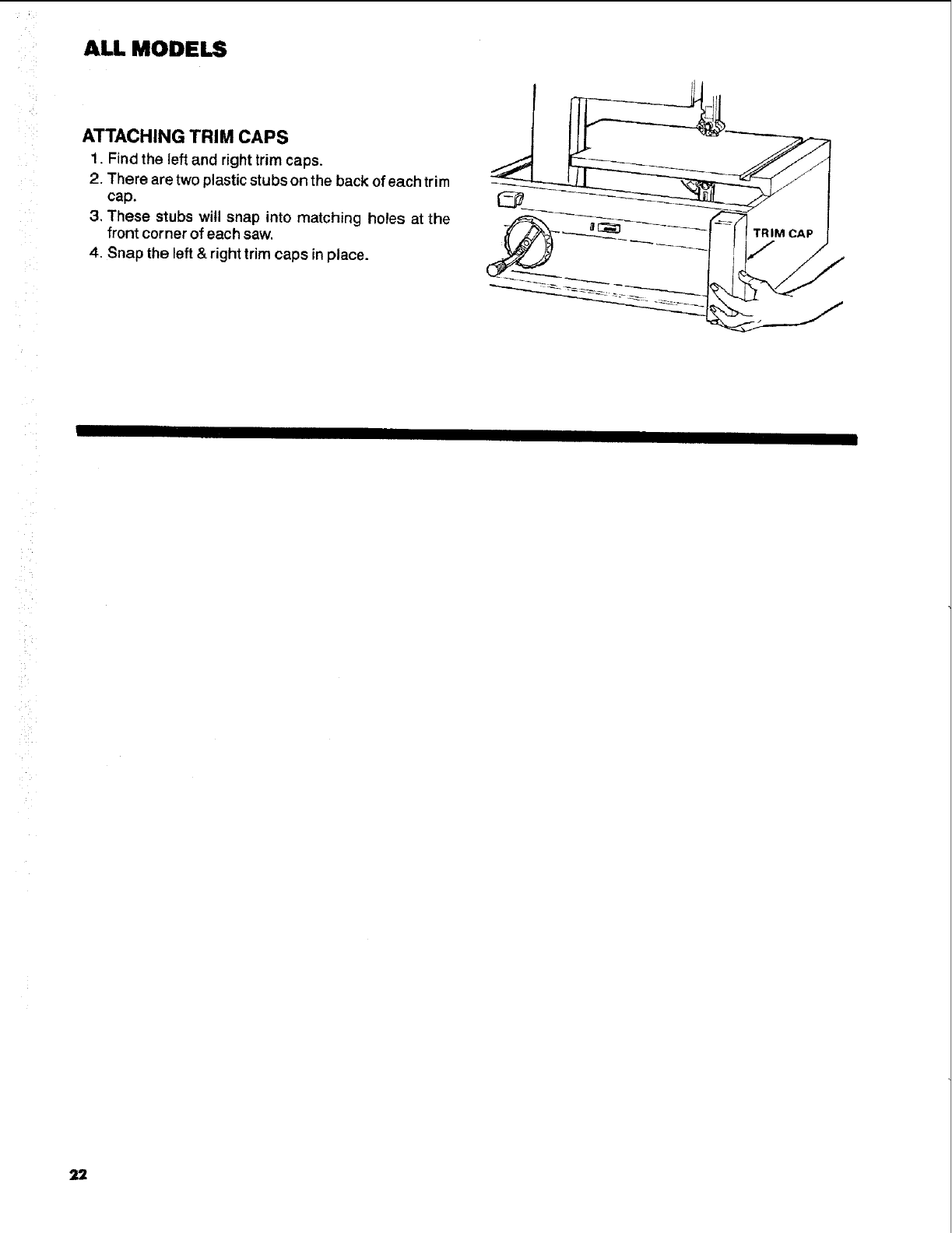

Attaching Trim Caps ...................... 22

Getting to Know Your Band Saw ............ 23'

Location and Function of the

Electronic Indicator System .............. 24-25

Installingthe Blade ....................... 26-27

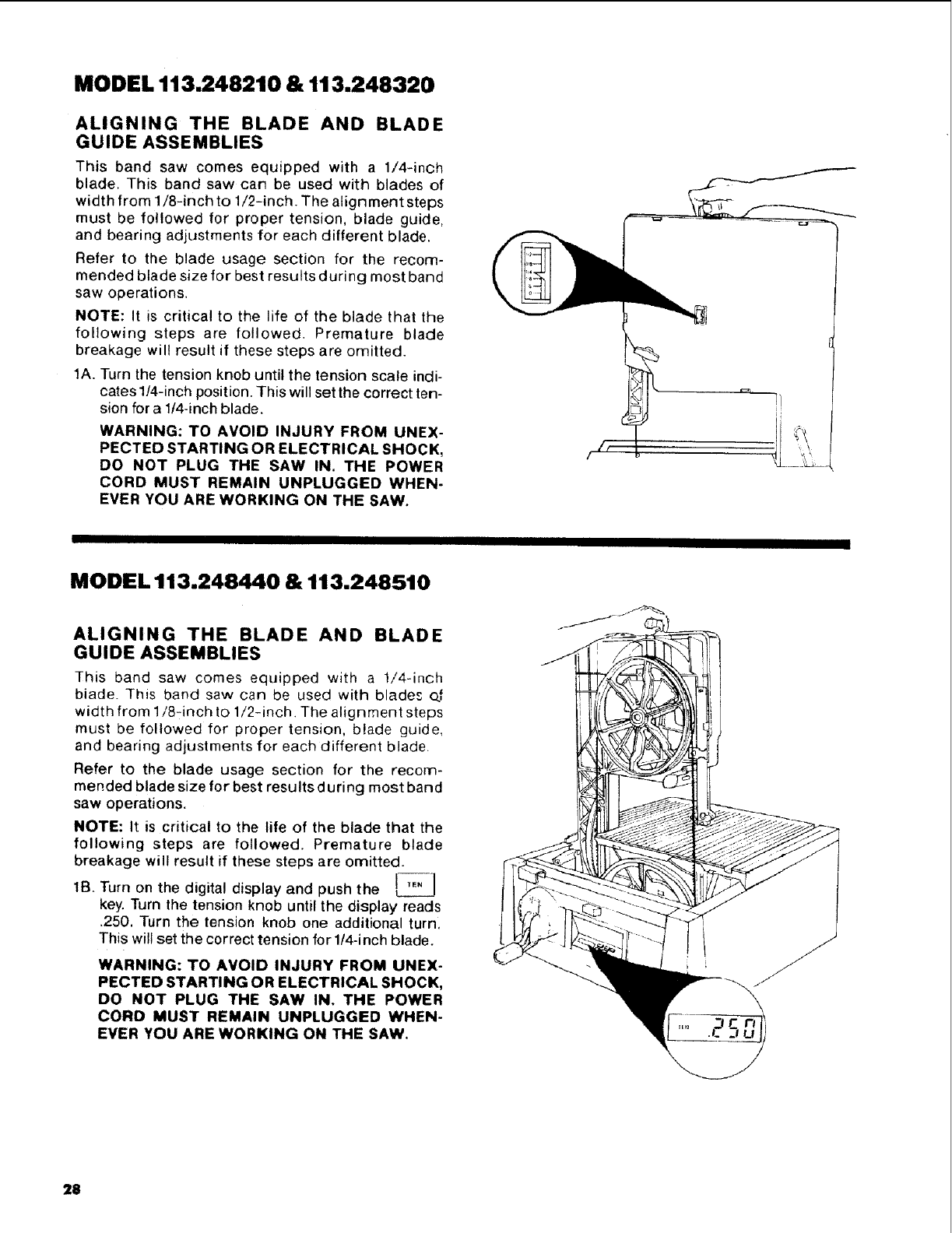

Aligning the Blade and

Blade Guide Assemblies ................. 28-30

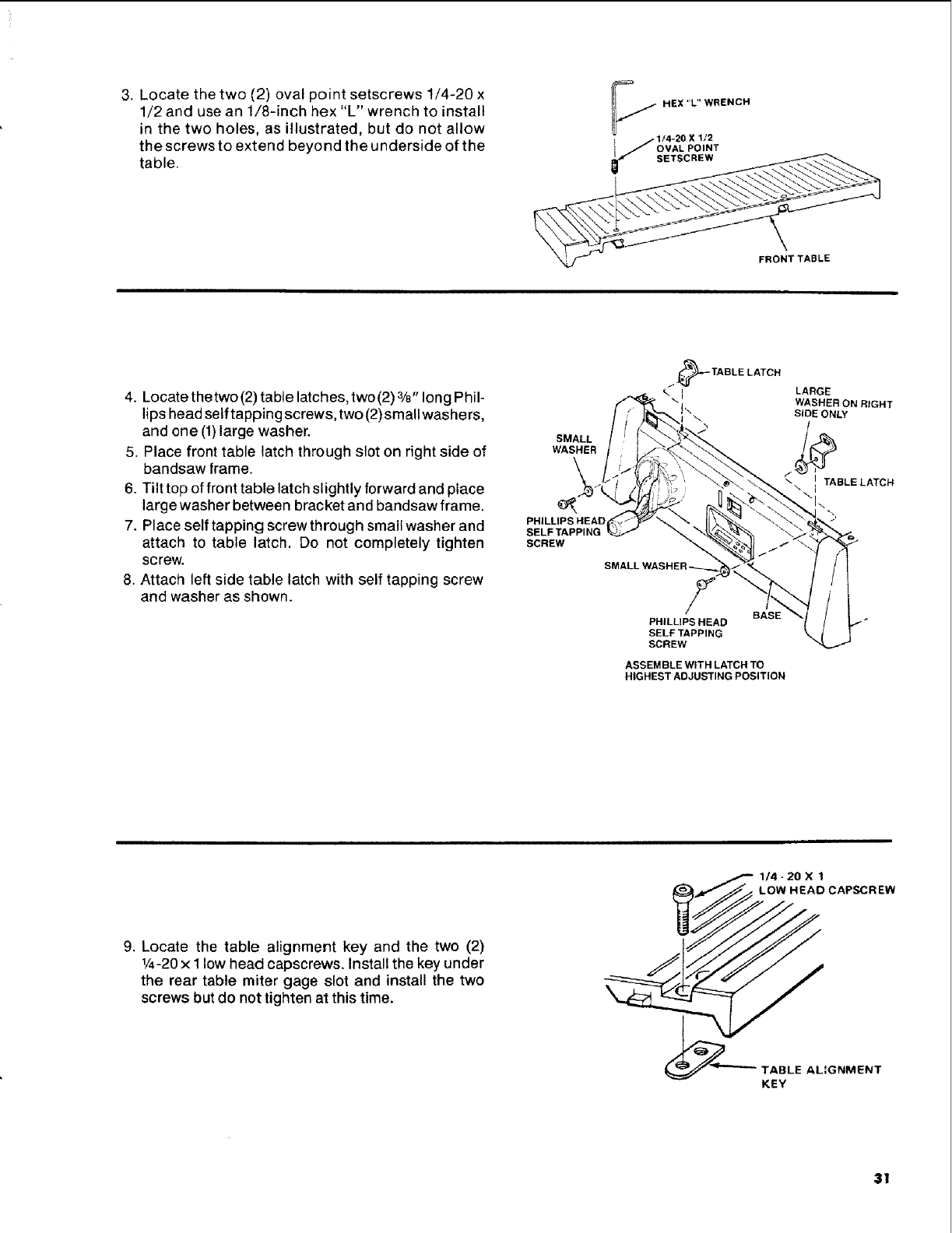

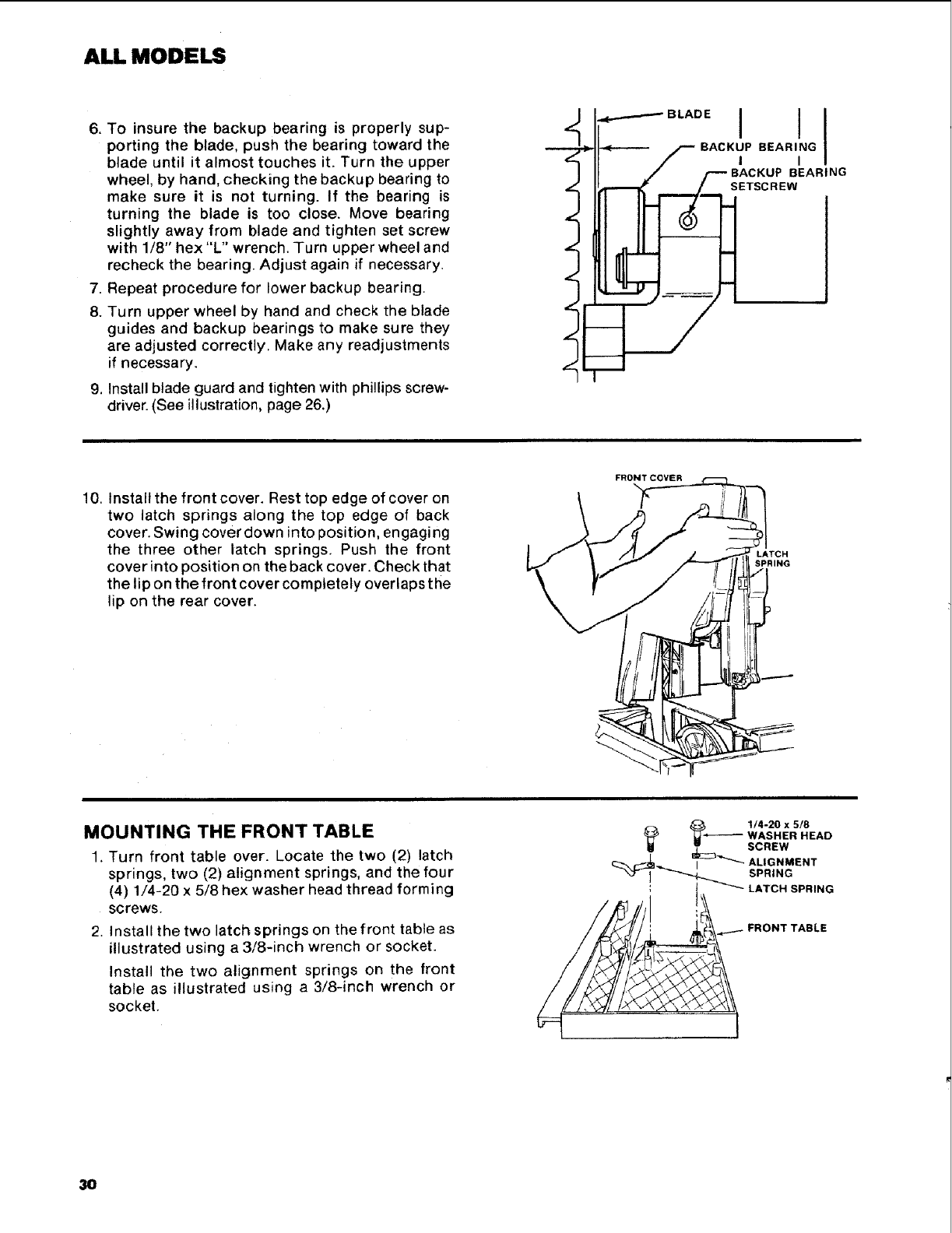

Mounting the Front Table .................. 30-32

Squaring the Blade to the Table ............. 32

Adjusting Front Table ..................... 33

Location and Function of Controls ........... 34

Tilting Head for Bevel Cut ................. 35

Adjusting Bevel Lock Knob ................ 35

Basic Band Saw Operation ................ 36

Installing Sanding Attachment .............. 37

Installing the Sanding Belt ................. 37

Recommended Accessories ................ 38

Maintenance ............................ 38-39

Trouble Shooting--All Models .............. 39

Trouble Shooting--Motor .................. 40

Trouble Shooting--Electronics .............. 41-42

Parts Lists ............................. 43-50

Leg Set .............................. 43

Drive Assembly ........................ 44-45

Base Components ..................... 46-47

Bevel Drive and Motor Mount

Assembly Parts ...................... 48-49

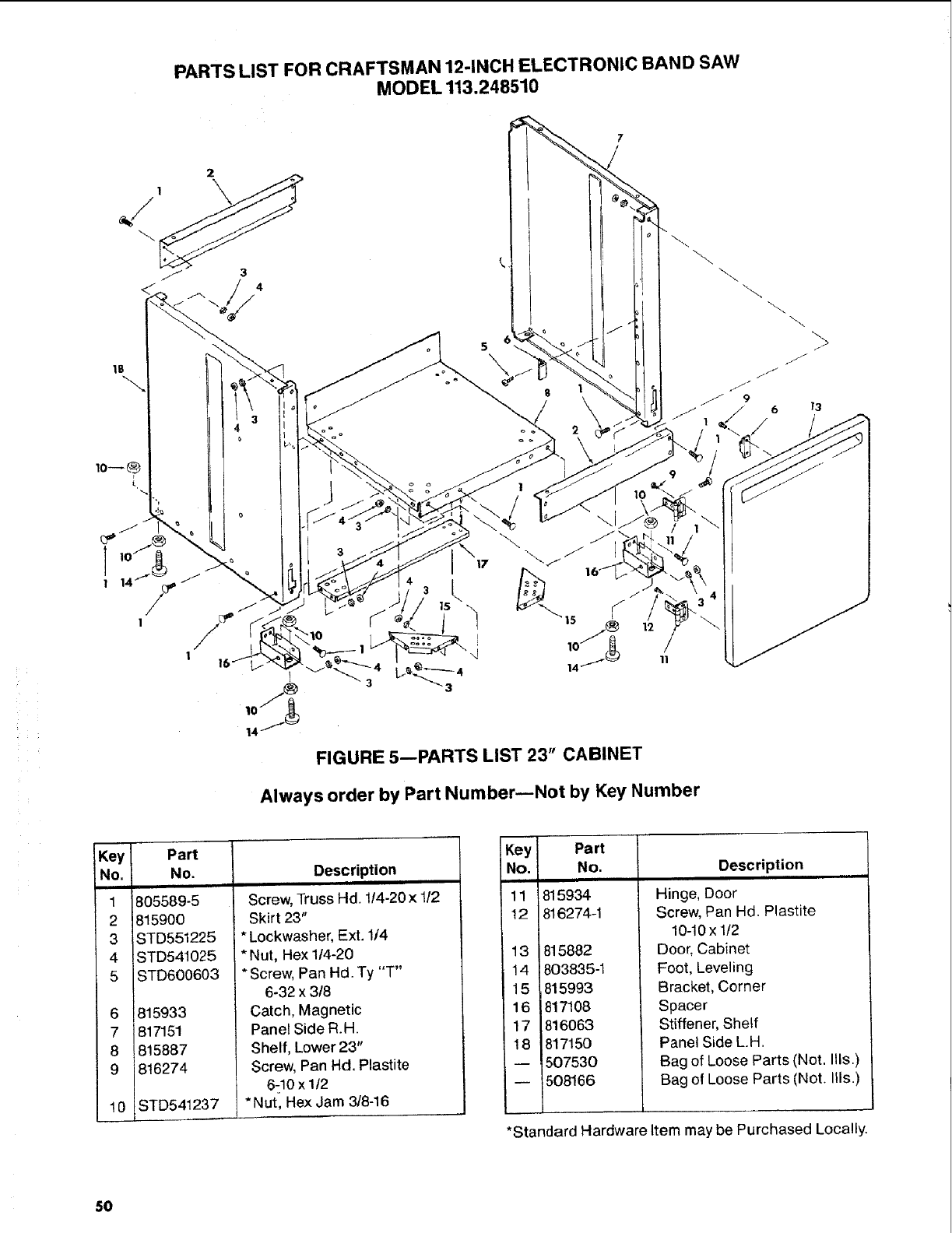

Cabinet .............................. 50

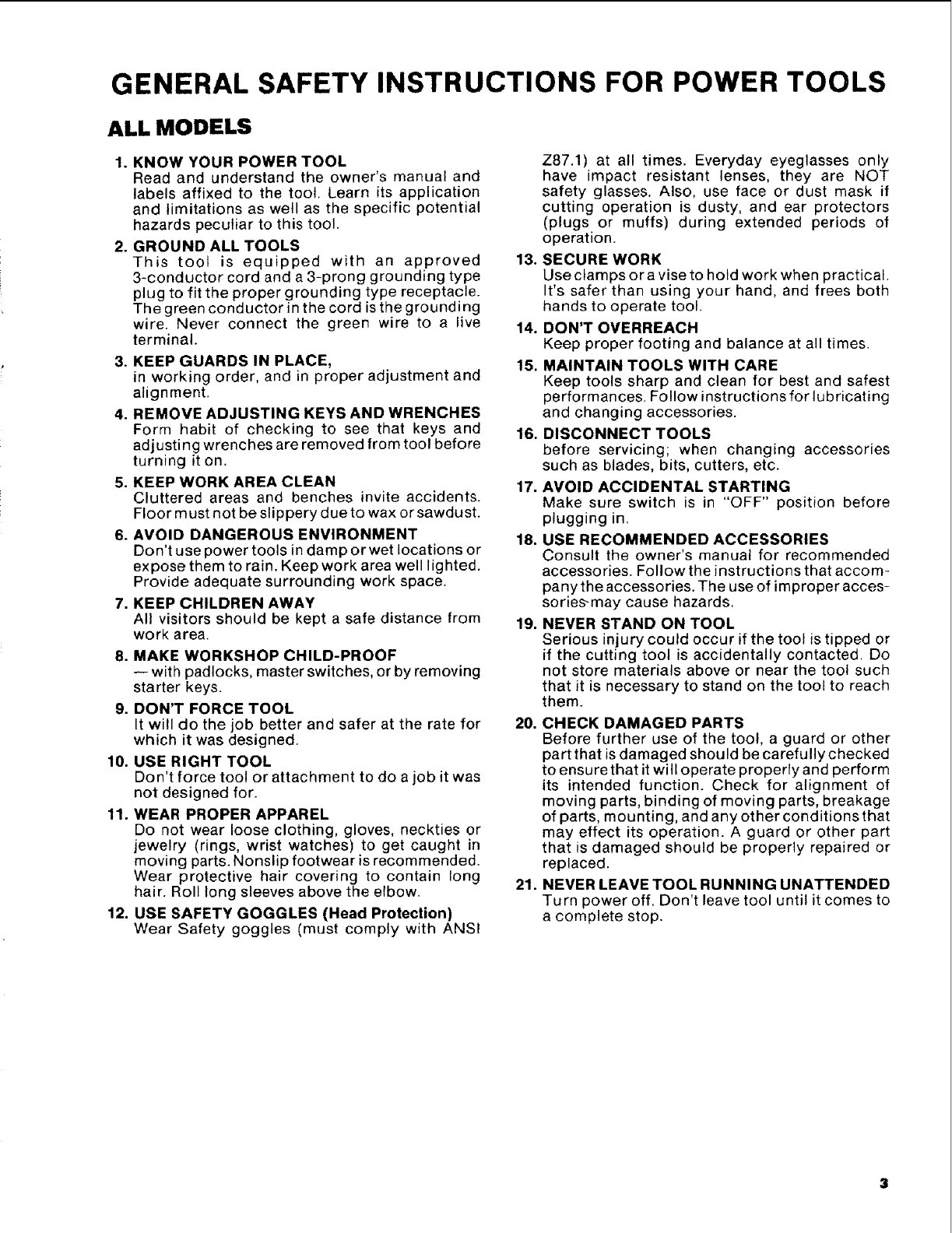

GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS

ALL MODELS

1. KNOW YOUR POWER TOOL

Read and understand the owner's manual and

labels affixed to the tool. Learn its application

and limitations as well as the specific potential

hazards peculiar to this tool.

2. GROUND ALL TOOLS

This tool is equipped with an approved

3-conductor cord and a 3-prong grounding type

plug to fit the proper grounding type receptacle.

The green conductor in the cord isthe groundi ng

wire. Never connect the green wire to a live

terminal.

3. KEEP GUARDS IN PLACE,

in working order, and in proper adjustment and

alignment.

4. REMOVE ADJUSTING KEYS AND WRENCHES

Form habit of checking to see that keys and

adj usti ng wrenches are removed from tool before

turning it on.

5. KEEP WORK AREA CLEAN

Cluttered areas and benches invite accidents.

Floor must not be slippery due to wax or sawdust.

6. AVOID DANGEROUS ENVIRONMENT

Don't use power tools indamp orwet locations or

expose them to rain. Keep work area well lighted.

Provide adequate surrounding work space.

7. KEEP CHILDREN AWAY

All visitors should be kept a safe distance from

work area.

8. MAKE WORKSHOP CHILD-PROOF

-- with padlocks, master switches, or by removing

starter keys.

9. DON'T FORCE TOOL

It will do the job better and safer at the rate for

which it was designed.

10. USE RIGHT TOOL

Don't force tool or attachment to do a job it was

not designed for.

11. WEAR PROPER APPAREL

Do not wear loose clothing, gloves, neckties or

jewelry (rings, wrist watches) to get caught in

moving parts. Nonslip footwear is recommended.

Wear protective hair covering to contain long

hair. Roll long sleeves above the elbow.

12. USE SAFETY GOGGLES (Head Protection)

Wear Safety goggles (must comply with ANSI

Z87.1) at all times. Everyday eyeglasses only

have impact resistant lenses, they are NOT

safety glasses. Also, use face or dust mask if

cutting operation is dusty, and ear protectors

(plugs or muffs) during extended periods of

operation.

13. SECURE WORK

Use clamps or a vise to hold work when practical.

It's safer than using your hand, and frees both

hands to operate tool.

14. DON'T OVERREACH

Keep proper footing and balance at all times.

15. MAINTAIN TOOLS WITH CARE

Keep tools sharp and clean for best and safest

performances. Follow instructions for lubricating

and changing accessories.

16. DISCONNECT TOOLS

before servicing; when changing accessories

such as blades, bits, cutters, etc.

17. AVOID ACCIDENTAL STARTING

Make sure switch is in "OFF" position before

plugging in.

18. USE RECOMMENDED ACCESSORIES

Consult the owner's manual for recommended

accessories. Follow the instructions that accom-

pany the accessories. The use of improper acces-

sories-may cause hazards.

19. NEVER STAND ON TOOL

Serious injury could occur if the tool is tipped or

if the cutting tool is accidentally contacted. Do

not store materials above or near the tool such

that it is necessary to stand on the tool to reach

them.

20. CHECK DAMAGED PARTS

Before further use of the tool, a guard or other

part that is damaged should be carefully checked

to ensure that it will operate properly and perform

its intended function. Check for alignment of

moving parts, binding of moving parts, breakage

of parts, mounting, and any other conditions that

may effect its operation. A guard or other part

that is damaged should be properly repaired or

replaced.

21. NEVER LEAVE TOOL RUNNING UNATTENDED

Turn power off. Don't leave tool until it comes to

a complete stop.

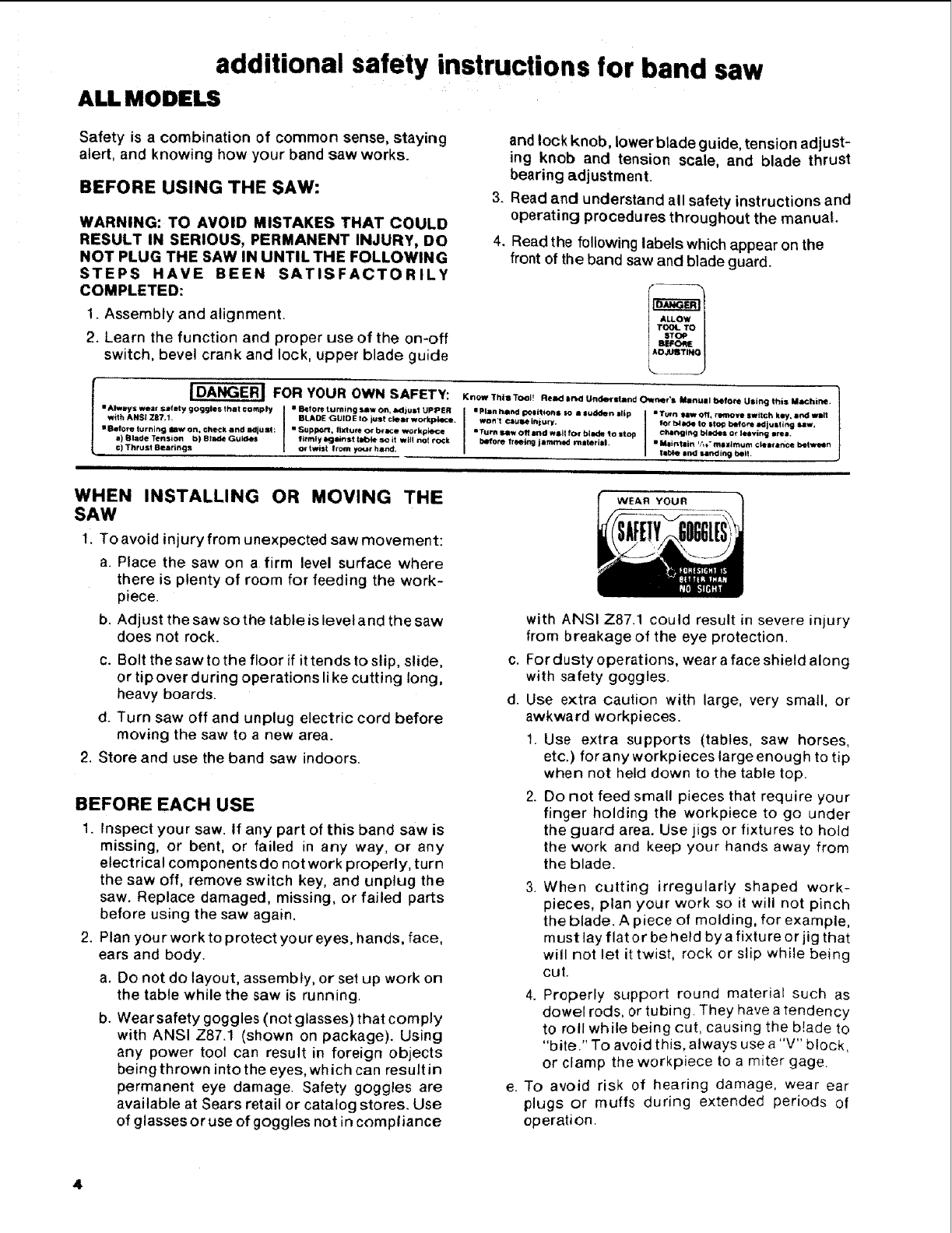

additional safety instructions for band saw

ALL MODELS

Safety is acombination of common sense, staying

alert, and knowing how your band saw works.

BEFORE USING THE SAW:

WARNING: TO AVOID MISTAKES THAT COULD

RESULT IN SERIOUS, PERMANENT INJURY, DO

NOT PLUG THE SAW IN UNTIL THE FOLLOWING

STEPS HAVE BEEN SATISFACTORILY

COMPLETED:

1. Assembly and alignment.

2. Learn the function and proper use of the on-off

switch, bevel crank and lock, upper blade guide

IDANGER I FOR YOUR OWN SAFETY:

• Always wear sM_ty goggles that comply • Before turning saw on, a_lj ust UPPER

with ANSI Z87.t BLADE GUIDE to ius! ciell workptece÷

• Before turning law on, check and adju st: •Supp_, fixture or braK;e workpJe_e

a) Blade Tensic)n b) Blade Guides firmly _mnst tabht so it will not rock

c) Thrust Searingl or twist Irom y_r hand,

and lock knob, lower blade guide, tension adjust-

ing knob and tension scale, and blade thrust

bearing adjustment.

3. Read and understand all safety instructions and

operating procedures throughout the manual.

4. Read the following labels which appear on the

front of the band saw and blade guard.

f----

L___J

Krlow This Tool! Read ind Undersland Owner's Manual before Using this MaChine.

•Plan hand politt _0ns so • sudden •lip • Tt.n _Off. fro'hove switch key, •rid wMt

won't cau_ injury, tot" _4a4e to s|o_ b.efom adjusting _w.

•Turn sew O11 and wa_t for blade to stop char_ltrsg bla<_s or leevir_g arel.

b4r/0fe treeing jammed rnaterlal_ • Meintain _/*1"ma=lmum cl4arance betmn

fiM.e and sanding belt.

WHEN INSTALLING OR MOVING THE

SAW

1. To avoid injury from unexpected saw movement:

a. Place the saw on afirm level surface where

there is plenty of room for feeding the work-

piece.

b. Adjust the saw so the table is level and the saw

does not rock.

c. Bolt the saw to the floor if it tends to slip, slide,

or tip over during operations like cutting long,

heavy boards.

d. Turn saw off and unplug electric cord before

moving the saw to a new area.

2. Store and use the band saw indoors.

BEFORE EACH USE

1. Inspect your saw. If any part of this band saw is

missing, or bent, or failed in any way, or any

electrical componentsdo not work properly, turn

the saw off, remove switch key, and unplug the

saw. Replace damaged, missing, or failed parts

before using the saw again.

2. Plan your work to protect your eyes, hands, face,

ears and body.

a. Do not do layout, assembly, or set up work on

the table while the saw is running.

b. Wear safety goggles (not glasses) that comply

with ANSI Z87.1 (shown on package). Using

any power tool can result in foreign objects

being thrown into the eyes, which can result in

permanent eye damage. Safety goggles are

available at Sears retail or catalog stores. Use

of glasses or use of goggles not in compliance

WEAR YOUR

with ANSI Z87.1 could result in severe injury

from breakage of the eye protection.

c. For dusty operations, wear a face shield along

with safety goggles.

d. Use extra caution with large, very small, or

awkward workpieces.

1. Use extra supports (tables, saw horses,

etc.) forany workpieces large enough to tip

when not held down to the table top.

2. Do not feed small pieces that require your

finger holding the workpiece to go under

the guard area. Use jigs or fixtures to hold

the work and keep your hands away from

the blade.

.When cutting irregularly shaped work-

pieces, plan your work so it will not pinch

the blade. A piece of molding, for example,

must lay flat or be held by a fixtu re or jig that

will not let it twist, rock or slip while being

cut.

4. Properly support round material such as

dowel rods, or tubing. They have a tendency

to roll while being cut, causing the b!ade to

"bite." To avoid this, always use a "V" block,

or clamp the workpiece to a miter gage.

e. To avoid risk of hearing damage, wear ear

plugs or muffs during extended periods of

operation.

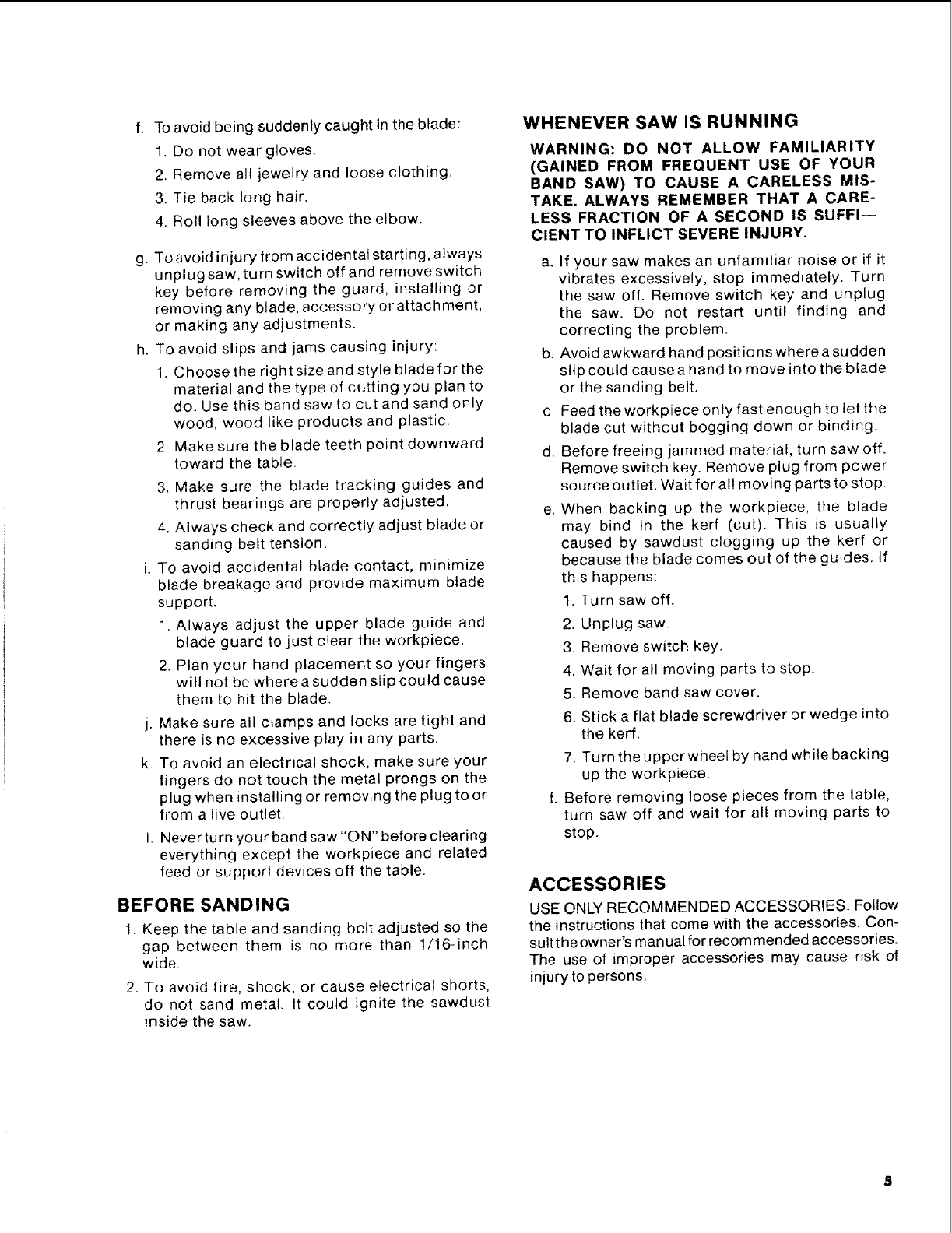

Toavoidbeingsuddenlycaughtintheblade:

1.Donotwear gloves.

2. Remove all jewelry and loose clothing.

3. Tie back long hair.

4. Roll long sleeves above the elbow.

g.

h,

j.

k.

To avoid injury from accidental starting, always

unplug saw, turn switch off and remove switch

key before removing the guard, installing or

removing any blade, accessory or attach ment,

or making any adjustments.

To avoid slips and jams causing injury:

1. Choose the right size and style blade for the

material and the type of cutting you plan to

do. Use this band saw to cut and sand only

wood, wood like products and plastic.

2. Make sure the blade teeth point downward

toward the table.

3. Make sure the blade tracking guides and

thrust bearings are properly adjusted.

4. Always check and correctly adjust blade or

sanding belt tension.

To avoid accidental blade contact, minimize

blade breakage and provide maximum blade

support.

1. Always adjust the upper blade guide and

blade guard to just clear the workpiece.

2. Plan your hand placement so your fingers

will not be where a sudden slip could cause

them to hit the blade.

Make sure all clamps and locks are tight and

there is no excessive play in any parts.

To avoid an electrical shock, make sure your

fingers do not touch the metal prongs on the

plug when installing or removing the plug to or

from a live outlet.

Never turn your band saw "ON" before clearing

everything except the workpiece and related

feed or support devices off the table,

BEFORE SANDING

1. Keep the table and sanding belt adjusted so the

gap between them is no more than 1/16-inch

wide.

2. To avoid fire, shock, or cause electrical shorts,

do not sand metal. It could ignite the sawdust

inside the saw.

WHENEVER SAW IS RUNNING

WARNING: DO NOT ALLOW FAMILIARITY

(GAINED FROM FREQUENT USE OF YOUR

BAND SAW) TO CAUSE A CARELESS MIS-

TAKE. ALWAYS REMEMBER THAT A CARE-

LESS FRACTION OF A SECOND IS SUFFI-

CIENT TO INFLICT SEVERE INJURY.

a. If your saw makes an unfamiliar noise or if it

vibrates excessively, stop immediately. Turn

the saw off. Remove switch key and unplug

the saw. Do not restart until finding and

correcting the problem.

b. Avoid awkward hand positions where a sudden

slip could cause a hand to move into the blade

or the sanding belt.

c, Feed the workpiece only fast enough to let the

blade cut without bogging down or binding.

d. Before freeing jammed material, turn saw off.

Remove switch key. Remove plug from power

source outlet. Wait for all moving parts to stop.

e. When backing up the workpiece, the blade

may bind in the kerf (cut). This Js usually

caused by sawdust clogging up the kerr or

because the blade comes out of the guides. If

this happens:

1, Turn saw off.

2. Unplug saw.

3. Remove switch key.

4, Wait for all moving parts to stop.

5. Remove band saw cover.

6. Stick a flat blade screwdriver or wedge into

the kerf.

7. Turn the upper wheel by hand while backing

up the workpiece.

Before removing loose pieces from the table,

turn saw off and wait for all moving parts to

stop.

ACCESSORIES

USE ONLY RECOMMENDED ACCESSORIES. Follow

the instructions that come with the accessories. Con-

sult the owner's manual for recommended accessories.

The use of improper accessories may cause risk of

injury to persons.

glossary of terms for woodworking

ALL MODELS

Beveling

An angle cutting operation through the face of the

board,

Crosscut

A cutting operation made across the width of the

workpiece.

Compound Cutting

A simultaneous bevel and miter cutting operation.

FPM

Feet per minute. Used in reference to surface speed

of blade.

Freehand (as used for band saw)

Performing acut without the workpiece properly

supported on the work table.

Gum

A sticky, sap based residue from wood products.

Kerr

The material removed by the blade in a through cut

or the slot produced by the blade in a non-through or

partial cut.

Leading End

The end of the workpiece which is pushed into the

cutting tool first.

Mitering

An angle cutting operation made across the width of

the workpiece.

Push Stick

A device used to feed the workpiece through the saw

during narrow ripping type operations so the opera-

tor's hands are kept well away from the blade.

Resaw

A cutting operation to reduce the thickness of the

workpiece to make thinner pieces.

Resin

A sticky, sap based substance that has dried.

Ripping

A cutting operation along the length of the work-

piece.

Sawblade Path

The area of the worktable or workpiece directly in

line with the saw blade.

Set

The distance the tip of the saw blade tooth is bent

outward from the face of the blade,

Trailing End

The workpiece end last cut by the saw blade.

Workpiece

The item on which the cutting operation is being

performed. The surfaces of a workpiece are commonly

referred to as faces, ends, and edges.

Worktable

The surface on which the workpiece rests while

performing a cutting or sanding operation.

ALL MODELS electrical connections

POWER SUPPLY

Motor Specifications

The A-C motor used in this saw is a capacitor-start,

non-reversible type having the following specifica-

tions:

24821

1/2

1

120

7.9

60

Single

1725

Clock-

wise

24832

24844

24851

Rated H.P. ...................... 5/8...

Maximum Developed H.R .......... 11/8..

Voltage ......................... 120..

Amperes ....................... 7.9,.

Hertz (Cycles) ................... 60...

Phaze ......................... Single

RPM ........................... 1725.

Rotation of Shaft ................. Clock-

wise

WARNING: TO AVOID ELECTRICAL HAZARDS,

FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE

PROPER CIRCUIT PROTECTION. YOUR SAW IS

WIRED AT THE FACTORY FOR 120V OPERATION.

CONNECT TO A120V, 15-AMP, BRANCH CIRCUIT

AND USE A 15-AMP FUSE OR CIRCUIT BREAKER.

TO AVOID SHOCK OR FIRE, IF POWER C )RD IS

WORN OR CUT, OR DAMAGED IN ANY WAY,

HAVE IT REPLACED IMMEDIATELY.

IF NOT PROPERLY GROUNDED THIS POWER

TOOL CAN CAUSE ELECTRICAL SHOCK --

PARTICULARLY WHEN USED IN DAMP LOCA-

TIONS CLOSE TO PLUMBING. IF AN ELECTRICAL

SHOCK OCCURS THERE IS ALSO THE POTEN-

TIAL OF A SECONDARY HAZARD SUCH AS YOUR

HANDS CONTACTING THE SAWBLADE. NOT ALL

OUTLETS ARE PROPERLY GROUNDED. IF YOU

ARE NOT SURE THAT YOUR OUTLET IS PRO-

PERLY GROUNDED, HAVE IT CHECKED BY A

QUALIFIED ELECTRICIAN.

Your unit has a plug that looks like the one shown

below.

3-PRONG PLUG

PROPERLY _-_i /

GROUNDED

OUTLET

GROUNDING PRONG

e

This power tool is equipped with a 3-conductor cord

and ground type plug listed by Underwriters' Labora-

tories. The ground conductor has a green jacket and

is attached to the tool housing at one end and to the

ground prong in the attachment plug at the other

end.

This plug requires a mating 3-conductor grounded

type outlet as shown above.

WARNING: TO MAINTAIN PROPER TOOL GROUND-

ING WHENEVER THE OUTLET YOU ARE PLAN-

NING TO USE FOR THIS POWER TOOL IS OF THE

TWO PRONG TYPE, DO NOT REMOVE OR ALTER

THE GROUNDING PRONG IN ANY MANNER. USE

AN ADAPTER AS SHOWN AND ALWAYS CON-

NECT THE GROUNDING PRONG TO KNOWN

GROUND.

It is recommended that you have a qualified electri-

cian replace the two prong outlet with a properly

grounded three prong outlet.

An adapter as shown is available for connecting the

plug to 2-prong receptacles. The green grounding

lead extending from the adapter must be connected

to a permanent ground such as a properly grounded

outlet box.

GROUNDING LUG

/

ADAPTER I _: _

\\ _ II{'_T_) il MAKE SURE THIS IS

3-PRONG \_ '._._ _._--< _ CONNECTED TO A

PLUG \ _ "I_II KNOWN GROUND

\_ "/_'"_l_JJJ_l --'" 2 PRONG

__._'_' ____,; -.

_" " _"_--_"_ RECEPTACLE

WARNING: THE ADAPTER ILLUSTRATED IS FOR

USE ONLY IF YOU ALREADY HAVE A PROPERLY

GROUNDED 2-PRONG RECEPTACLE.

MOTOR SAFETY PROTECTION

CAUTION: To avoid motor damage this motor should

be blown out or vacuumed frequently to keep

sawdust from interfering with normal motor ventila-

tion.

1. This tool should be connected to a 120V, 15 amp

branch circuit with a 15 amp fuse or circuit

breaker. Failure to use the proper size fuse can

result in damage to the motor.

2. If the motor fails to start, turn the power switch to

the "OFF" position immediately. UNPLUG THE

.

TOOL. Check the saw blade to make sure it turns

freely. If the blade is free, try to start the motor

again. If the motor still does not start, refer to the

"Motor Trouble-Shooting Chart."

If the motor suddenly stalls while cutting wood,

turn the power switch off, unplug the tool, and

free the blade from the wood. The motor may

now be restarted and the cut finished.

4. Frequent "blowing" of fuses or tripping or circuit

breakers may result if:

a. MOTOR IS OVERLOADED - Overloading can

occur if you feed too rapidly.

b. LOW VOLTAGE - Although the motor is de-

signed for operation on the voltage and fre-

quency specified on the motor nameplate,

normal loads will be handled safely on voltages

not more than 10% above or below the name-

plate voltage. Heavy loads, however, require

that voltage at motor terminals equals the

voltage specified on nameplate.

5. Most motor troubles may be traced to loose or

incorrect connections, overload, reduced input

voltage (such as small size wire in the supply

circuit) or to overly long supply circuit wire.

Always check the connections, the load and the

supply circuit whenever motor fails to perform

satisfactorily. Check wire size and length with

the Wire Size Chart below.

WIRE SIZES

The use of any extension cord will cause some loss

of power. To keep this to a minimum and to prevent

overheating and motor burn-out, use the table below

to determine the minimum wire size (AW.G.) exten-

sion cord. Use only 3-wire extension cords which

have 3-prong grounding type plugs and 3-pole

receptacles which accepts the tools plug.

CAUTION: For circuits that are farther away from

electrical service box, the wire size must be increased

proportionately in order to deliver ample voltage to

the saw motor.

Length of the 120 Volts Wire Sizes Required

Conductor (American Wire Gage Number)

0 - 25 Ft. 16

26 - 50 Ft. 14

51 - 100 Ft. 12

general information

ALL MODELS

1. This manual is for the following Models--

113.248210,113.248320,113.248440, and113.248510.

All sections are labeled withthe correct model num-

ber. Follow ONLY instructions that are meant for

your model saw.

2. Ifyou aremissing anypart(s)whileputtingyour saw

together, do not continue assembly. Contact your

Sears Service Center or Retail Store and get the

missing part(s) before continuing assembly or try-

ing to use the saw.

Complete parts lists are located at the end of this

manual. Use these liststo identifythe number of any

missingpart.

3. Sometimes small parts get lost inpackaging materi-

als.Do notthrow away any packaging untilyour saw

is put together. If you are missingapart, check the

packaging before contacting Sears.

Model Description

Model 113.248210: Manual Band Saw; 18x 23 inch

work table; sLngle speed; 1/2H.P. motor that develops 1

H.P.; legset.

Model 113.248320: Manual Band Saw; 27 x 23 inch

work table; two speed; 5/a H.P. motor that develops

11/8H.R; legset.

Model 113.248440: Electronic Band Saw; 27 x 23 inch

work table; two speed; % H.P. motor that develops

11/8H.P.; legset.

Model 113.248510: Electronic Band Saw; 27 x 23 inch

work table; two speed; 5/8 HP. motor that develops

11/8H.P.;23 inch cabinet with door.

unpacking and checking contents

ALL MODELS

TOOLS NEEDED

MEDIUM SCREWDRIVER

PRI-,, SSCREWDRmVE. @

.......... 318" WRENCH

:_ 7/16" WRENCH

9/16" WRENCH

SQUARE _/

7116" SOCKET

9/16" SOCKET

1/8" HEX "L" WRENCH

5/32" HEX "L" WRENCH _SOCKET WRENCH

COMBINATION SQUARE MUST BE TRUE

f__./

€

STRAIGHT EDGE GF

BOARD 3/4-INCH THICK

THIS EDGE MUST BE

PER_CTLY STRAIGHT

DRAW LIGHT

LINE ON BOARD

ALONG THIS EDGIE

t,_

/

SHOULD BE NO GAP OR OVERLAP HERE WHEN

SQUARE IS FLIPPED OVER IN DOTTED POSITION

WARNING: TO AVOID INJURY FROM UNEXPECT-

ED STARTING OR ELECTRICAL SHOCK, DO NOT

PLUG THE SAW IN UNTIL ALL ASSEMBLY AND

ALIGNMENT STEPS ARE COMPLETE. THE POWER

CORD MUST REMAIN UNPLUGGED WHENEVER

YOU ARE WORKING ON THE SAW.

Unpacking and Checking Contents

1. Separate all "loose parts" from packaging mater-

ials and check each item with "Table of Loose

Parts" to make sure all items are accounted for,

before discarding any packing material.

WARNING: IF ANY PARTS ARE MISSING, DO

NOT ATTEMPT TO ASSEMBLE THE BAND

SAW, PLUG IN THE POWER CORD, OR TURN

THE SWITCH ON UNTIL THE MISSING PARTS

ARE OBTAINED AND ARE INSTALLED COR-

RECTLY.

2. Remove front table and front cover first while

saw is being unpacked. TO remove the front

cover, pull thecover at the neck and underside of

throat area.

TABLE OF LOOSE PARTS

ITEM DESCRIPTION QTY.

A Motor ............................... 1

B Basic Saw Assembly .................. 1

(Models 113.248210 and 113.248320

Do not include electronic

indicator system)

C Owners Manual ....................... 1

D Trim Cap, L.H ......................... 1

E Trim Cap, R.H ........................ 1

F Leg ................................ 4

G Lower Stiffener ....................... 4

H Sanding Platen ....................... 1

I Poly "V" Drive Belt .................... 1

J Pulley ............................... 1

K Loose Parts Bag

containing the following items:

Band Saw Blade 1/4 x 80 ................ 1

Sanding Belt 1/2 x 80 ................... 1

Handwheel Asembly ................... 1

Bag of Loose Parts #508014 ............. 1

Bag of Loose Parts #507968 ............ 1

Bag of Loose Parts #507741 ............. 1

Battery (Electronic Models Only) ......... 1

L Cabinet Assembly (Model 113.248510 Only) 1

M Leg Channel ........................ 1

NOTE: To avoid damage to the band saw leave it

laying on its left side until you are ready to mount it

to the leg set or cabinet. To prevent scratching the

finish, lay a piece of the packing box under the saw.

D E

I(

ALL MODELS

LIST OF LOOSE PARTS IN BAG #507968

ITEM DESCRIPTION QTY.

A Truss Head Screw 1/4-20x12 ............ 32

B Lockwasher Ext. t/4 .................... 32

C Hex Nut 1/4-20 ........................ 32

D Leveling Foot ......................... 4

E Hex Jam Nut 3/8-16 .................... 8

F Bracket Leg .......................... 4

LIST OF LOOSE PARTS IN BAG #508014

ITEM DESCRIPTION QTY.

G Pan Hd. Screw 10-32 x2................ 1

H Hex Nut 10-32 ........................ 1

I Switch Key ........................... 1

J Lo Hd. Screw Cap 1/4-20x si8 ............ 2

K Spacer #10 x 5As ...................... 3

L Hex Flange Lock Nut 10-32 .............. 4-

M Locking Setscrew 1/4-20x 1/2............. 3

N Wingnut %s-18 ........................ 1

O Washer 7/32x 1 x11,4s .................. 1

0 Washer 13/64x s/ex 1/32.................. 2

P Pan Hd. Screw Type TT 10-32 x 3/8 ........ 2

Q Hex Hd. Screw Ty TT 1/4-20x%.......... 4

A

_] t_\\\/\\\_\\\\\\\_\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\_e

i,v

K L M

PO*

LIST OF LOOSE PARTS IN BAG #507741

ITEM DESCRIPTION QTY.

R Table Alignment Key ................... 1

S Table Latch .......................... 2

T Belt Tension Stud ..................... 1

U Table Latch Spring .................... 2

V Table Alignment Spring ................. 2

W Key 3/16Sq. x 15,46 ..................... 1

R*

T

*NOT SHOWN TO SCALE

10

assembly and alignment

MODEL 113.248210, 113.248320,

113.248440

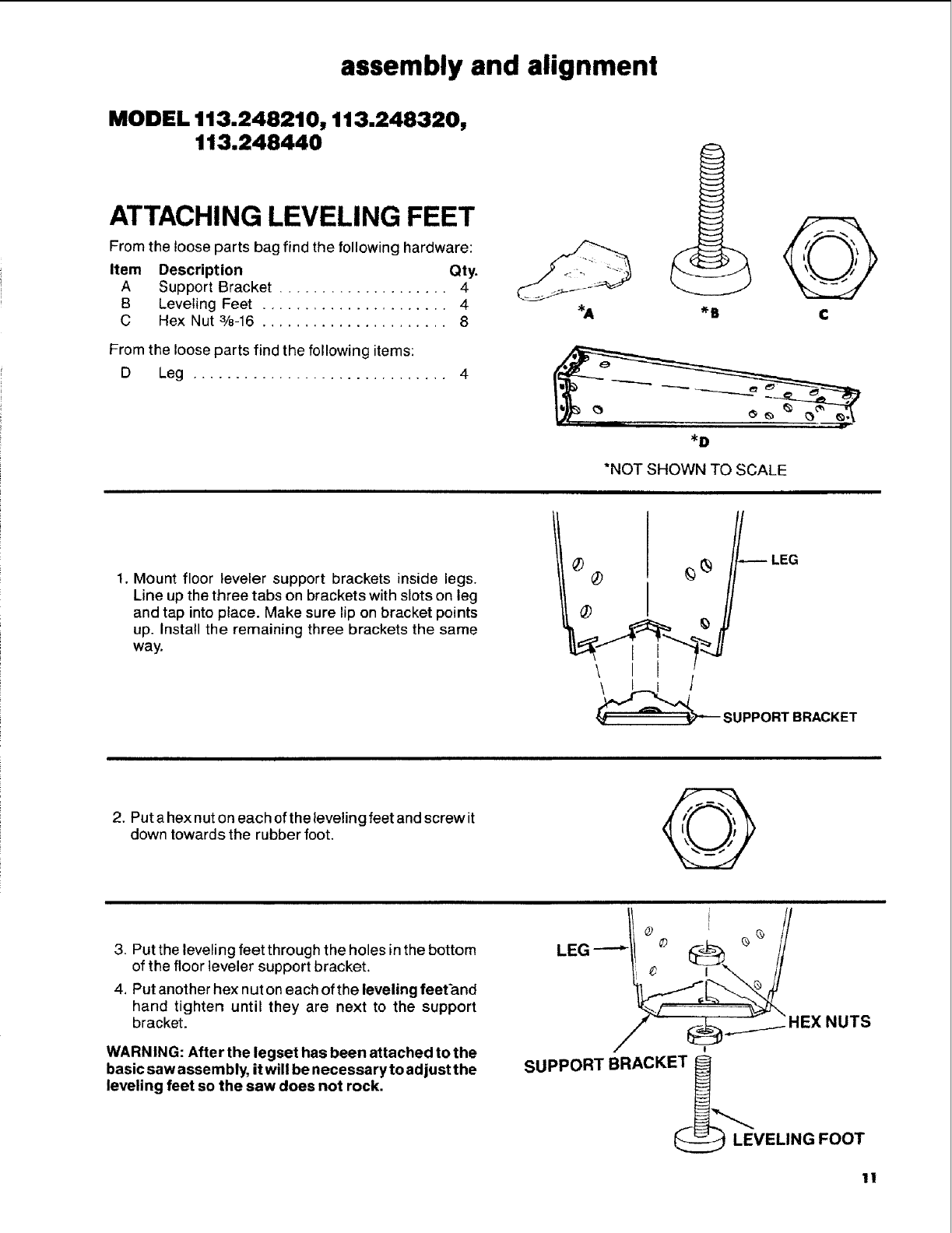

ATTACHING LEVELING FEET

From the loose parts bag find the following hardware:

Item Description Qty.

A Support Bracket .................... 4

B Leveling Feet ...................... 4

CHex Nut 3/8-16 ...................... 8

From the loose parts find the following items:

D Leg .............................. 4

_D

*NOT SHOWN TO SCALE

1. Mount floor leveler support brackets inside legs.

Line up the three tabs on brackets with slots on leg

and tap into place. Make sure lip on bracket points

up. Install the remaining three brackets the same

way.

®

LEG

SUPPORTBRACKET

2. Put a hex nut on each of the leveling feet and screw it

down towards the rubber foot.

3. Put the leveling feet through the holes in the bottom

of the floor leveler support bracket.

4. Put another hex nut on each of the leveling feet_.nd

hand tighten until they are next to the support

bracket.

WARNING: After the legset has been attached to the

basic saw assernbly, it will be necessary to adjust the

leveling feet so the saw does not rock.

NUTS

SUPPORT BRACKE ___,,.,_,.

LEVELING FOOT

11

MODEL 113.24821 O, 113.248320,

1113.248440

ATTACHING LEG SET

From the loose parts bag find the following hardware:

Item Description Qty.

ATruss Head Bolts 1/4.20x 1/2........... 32

B Lockwashers External 1/4 ............. 32

CHex Nuts 1/4-20 ..................... 32

From the loose parts find the following items:

D Leg Channel ....................... 1

E Legs (with attached support brackets and

leveling feet) 4

F Lower Stiffeners .................... 4 _*NOT SHOWN TO SCALE

1. Lay a piece of cardboard on the floor to keep from

scratching the saw.

2. Position the basic saw assembly on the floor as

shown below. The back cabin et of the saw should be

laying flat on the floor. It may be necessary to have

someone help you lift the saw.

Switch

=_ont

Side ,/_/_J_//_1 __.Front Leg s Are

tt__._ _ Artac bed Here

_ Leg

J[ t_'/ \ Rear Legs Are

L_._/_Attached_ __ _ Here

\ Floor

3. Mount the two front legs to the basic saw assembly

using truss head bolts, Iockwashers, and nuts.

Make sure that the four (4) holes in each corner of

the saw line up with the four (4) holes in the top of

each leg. At this time only put bolts through thesides

of the saw assembly notthe front. Onlyfinger tighten

nuts.

4. Position the leg channel inside the legset as shown.

Fasten the channel piece, leg, and saw together

with two (2) truss headbolts on each side. The

threaded section of the bolts should point towards

the inside of the basic saw assembly. Put a lock-

washer and hex nuton each bolt. Finger tighten nuts

atthis time.

SAW

BAS E

LEG

!

LOCKWASHER

TRUSS

HEAD

SCREW

Trusshead screw, Iockwasher, hex nut, and front channel piece.

12

.

.

Use truss head bolts, Iockwashers, and hex nuts to

mount the two (2) rear legs to the basic saw assem-

bly. It may be necessary to slightly tilt the saw as-

sembly backwards in order to get the four (4)holes in

each corner of the saw to line up with the four (4)

holes in the top of each leg. Finger tighten nuts at

this time.

Attach the four (4) lower stiffeners to the legs. Two (2)

truss head bolts, washers, and hex nuts are re-

quired to hold each end of alowerstiffener in place.

Only hand tighten hex nuts.

TRUSS HEAD BOLT "-'-'_' .-J.__

,._j_ WASHER

LEG . _ _S_/_ :1iHEXNu,

///_ ,,/LL_--_ --

i S FFE.ER

7. Go back with a 7/_6wrench or socket and tighten all

hex nuts.

8. Carefully lift the saw into its normal position. It may

be necessary to have someone help you in order to

avoid damaging the saw.

ADJUSTING LEVELING FEET

WARNING: TO AVOID INJURY FROM UNEX-

PECTED SAW OR WORK MOVEMENT, LEVEL-

ING FEET MUST BE ADJUSTED SO THAT SAW

DOES NOT ROCK.

To adjust leveling feet so the saw will sit properly:

a. Move saw to desired location.

b. Raise or lower leveling foot by turning it clockwise or

counterclockwise.

c. Tighten nuts to lock leveling foot in place.

MODEL 113.248510

ASSEMBLING CABINET

1. Separate all "loose" parts from packing materials

and check each item with "Parts List" to make

sure all items are accounted for before discard-

ing any packing material.

From loose parts find the following items:

ITEM DESCRIPTION QTY.

1 Right Side Panel ...................... 1

2 Left Side Panel ....................... 1

3 Lower Shelf .......................... 1

4 Skirt ................................ 2

5 Shelf Stiffener ........................ 1

6 Corner Bracket ....................... 2

7 Spacer .............................. 2

8 Door ................................ 1

Bag of Loose Parts #508166

Containing Following Items:

Screw, Truss Hd. 1/4-20 x 1/2 ................ 34

Lockwasher, Ext. 1/4 ...................... 34

Nut, Hex 1/4-20 .......................... 34

Foot, Leveling 3/8 ......................... 4

Nut, Hex Jam 3/8-16 ....................... 8

Bag of Loose Parts #507530

(In Cabinet Assembly)

Containing Following Items:

Screw, Pan Hd. #6-10 x 1/2 .................. 2

Screw, Pan Hd. Ty "T" 6-32 x 318 ............. 2

Screw, Pan Hd. #10-10x 1/2 .................. 4

Catch Magnetic ........................... 1

Hinge Door .............................. 2

13

MODEL 113.248510

2. After layout of cabinet parts, take the lower shelf

and turn upside down on floor. Small front flange

should be pointing upward.

3. Locate the two (2) corner brackets, four (4) 1/4-

20 x 1/2 truss head bolts, Iockwashers, and nuts.

Attach the corner brackets to the front flange in

holes as illustrated. Attach both corner brackets.

o o o o

o o o o

LOWER

SHELF

CORNER /_

BRACKETS 7_

\ ,/:o:

CORNER BRACKETS

4. Locate the two (2) side panels, one (1) shelf

stiffener, and six (6) 1/4-20 x 1/2truss head bolts,

Iockwashers and hex nuts. Place the right side

panel on its back side as illustrated. Stand up the

lower shelf on the rear flange and line up the

holes on the corner bracket and shelf stiffener

with the holes in the side panel. Mount the bolts

in the three holes and tighten hex nuts with a

7/16-inch wrench or socket. Repeat procedure

for left side panel.

SHELF

RIGHT SIDE

SHELF STIFFENER PANEL

REAR FLANGE

5. Locate the two(2) skirts, eight(8) truss head bolts,

Iockwashers and hex nuts. Assemble one(l) skirt to

the front of the cabinet using four(4) bolts, lock-

washers and nuts. Hand tighten only. Stand the cab-

inet upright and assemble the rear skirt to the

cabinet using two(2) truss head bolts Iockwashers

and nuts using the top two holes only. From inside

the cabinet insert two bolts out through the two

remaining holes in the rearskirt. Installlockwashers

and nuts hand tightened only.

REAR SKIRT

/...i RIGHT SIDE PANEL

\\

FRONT

SKIRT

LEFT SI DE

PANEL

SHELF

14

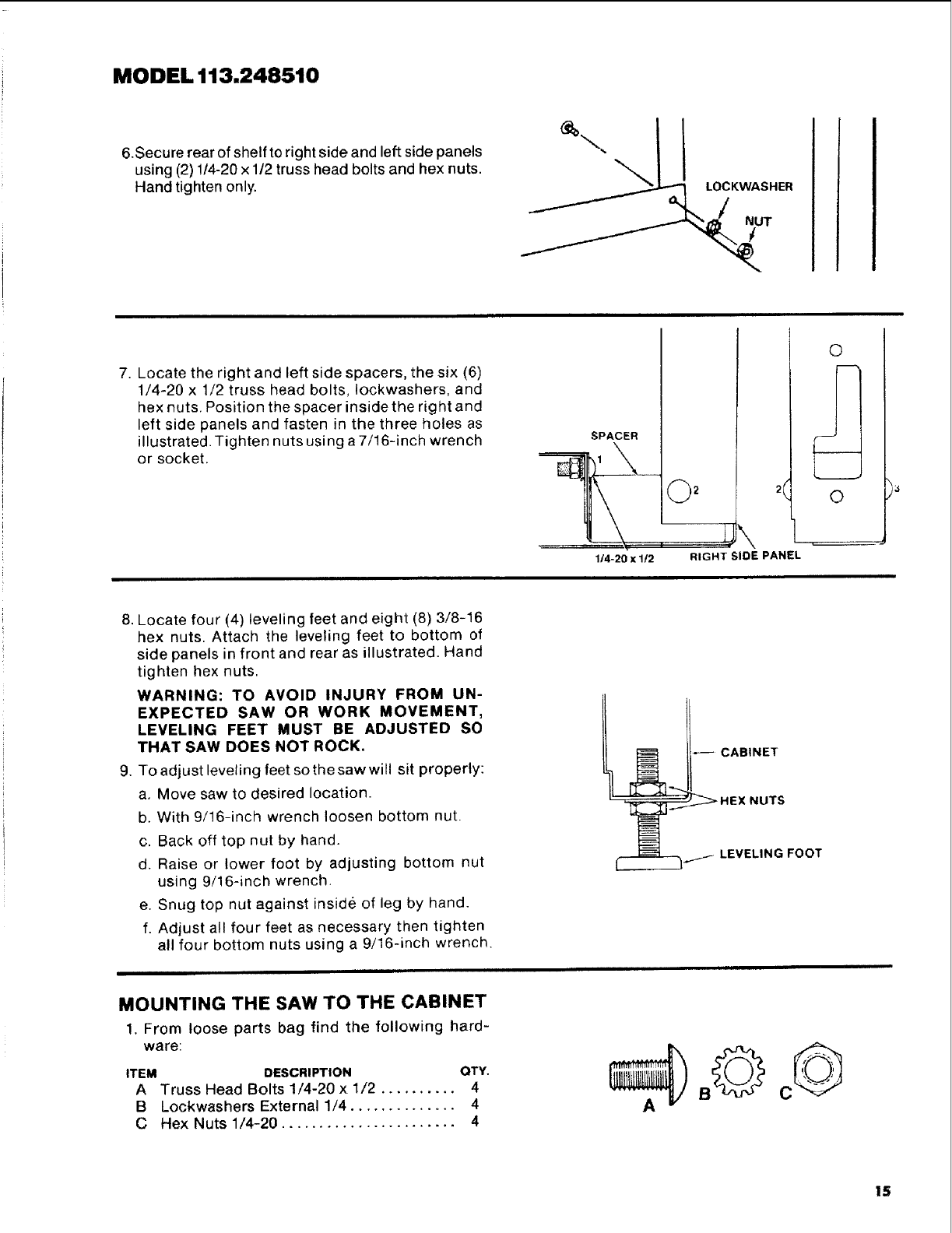

MODEL 113.248510

6.Secure rear of shelf to right side and left side panels

using (2) 1/4-20 x 1/2 truss head bolts and hex nuts.

Hand tighten only. LOCKWASHER

NUT

I

7. Locate the right and left side spacers, the six (6)

1/4-20 x 1/2 truss head bolts, Iockwashers, and

hex nuts. Position the spacer inside the right and

left side panels and fasten in the three holes as

illustrated. Tighten nuts using a 7/16-inch wrench

or socket.

SPACER

2

©

©

1/'4-20 x1!2 RIGHT SIDE PANEL

g.

Locate four (4) leveling feet and eight (8) 3/8-16

hex nuts. Attach the leveling feet to bottom of

side panels in front and rear as illustrated. Hand

tighten hex nuts.

WARNING: TO AVOID INJURY FROM UN-

EXPECTED SAW OR WORK MOVEMENT,

LEVELING FEET MUST BE ADJUSTED SO

THAT SAW DOES NOT ROCK.

To adjust leveling feet so the saw will sit properly:

a. Move saw to desired location.

b. With 9/16-inch wrench loosen bottom nut.

c. Back off top nut by hand.

d. Raise or lower foot by adjusting bottom nut

using 9/16-inch wrench.

e. Snug top nut against inside of leg by hand.

f. Adjust all four feet as necessary then tighten

all four bottom nuts using a 9/16-inch wrench.

MOUNTING THE SAW TO THE CABINET

1, From loose parts bag find the following hard-

ware:

ITEM DESCRIPTION QTY.

A Truss Head Bolts 1/4-20 x 1/2 .......... 4

BLockwashers External 1/4 .............. 4

C Hex Nuts 1/4-20 ....................... 4

c©

t5

MODEL 113.248510

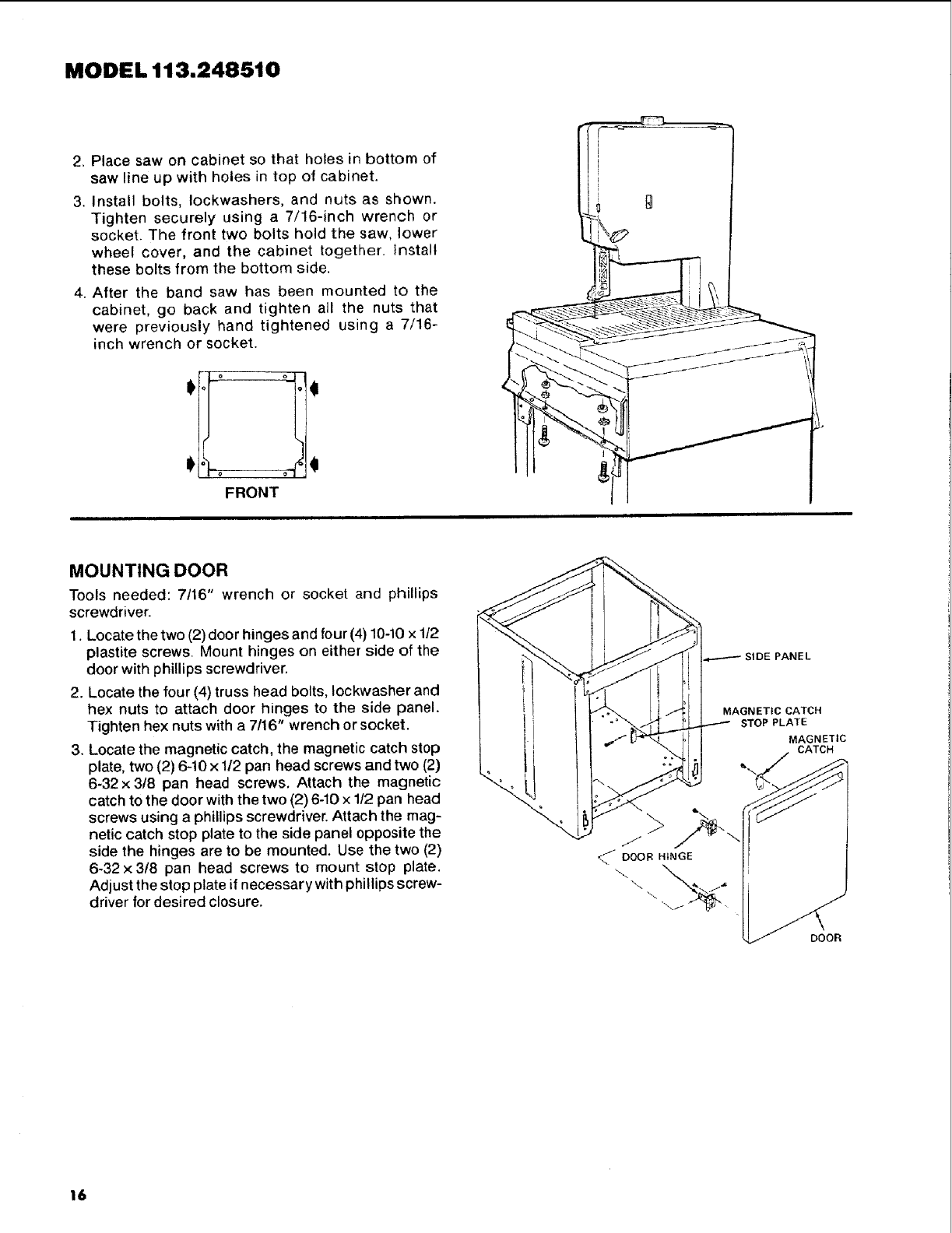

2. Place saw on cabinet so that holes in bottom of

saw line up with holes in top of cabinet.

3. Install bolts, Iockwashers, and nuts as shown.

Tighten securely using a 7/16-inch wrench or

socket. The front two bolts hold the saw, lower

wheel cover, and the cabinet together. Install

these bolts from the bottom side,

4. After the band saw has been mounted to the

cabinet, go back and tighten all the nuts that

were previously hand tightened using a 7/16-

inch wrench or socket.

FRONT

MOUNTING DOOR

Tools needed: 7/16" wrench or socket and phillips

screwdriver.

1. Locate the two (2) door hinges and four (4) 10-10 x1t2

plastite screws. Mount hinges on either side of the

door with phillips screwdriver.

2. Locate the four (4) truss head bolts, Iockwasher and

hex nuts to attach door hinges to the side panel.

Tighten hex nuts with a 7/16" wrench or socket.

3. Locate the magnetic catch, the magnetic catch stop

plate, two (2) 6-10 x 1/2 pan head screws and two (2)

6-32 x 3t8 pan head screws. Attach the magnetic

catch to the door with the two (2) 6-10 x 1/2 pan head

screws using a phillips screwdriver. Attach the mag-

netic catch stop plate to the side panel opposite the

side the hinges are to be mounted. Use the two (2)

6-32 x 3/8 pan head screws to mount stop plate.

Adjust the stop plate if necessary with phillips screw-

driver for desired closure.

;IDE PANEL

MAGNETIC CATCH

STOP PLATE

MAGNETIC

CATCH

16

ALL MODELS

ATTACHING THE HANDWHEEL

1. From loose parts bag find one (1) pan head screw

10-32 x 2 and one (1) hex nut. Install the hand-

wheel. Reach inside the base to the back side of

the bevel mechanism and put the nut in place.

Hold the nut in place with a finger. Install the

screw through the center of the handwheel and

tighten with a phillips screwdriver.

2. Hold the handle and pull the red release button

with your finger to close the handle.

1

7

_T _-_

( i¸ '

MOUNTING THE MOTOR

1. Find the following parts:

ITEM DESCRIPTION QTY.

A Motor ............................... 1

B Spacer(I/40.D. x %6) ................... 3

C Flanged Locknut #10-32 ................. 4

D Wing Nut %6-18 ....................... 1

E Motor Pulleyw/Set Screw

(Model 113.248320, 113.248440,

113.248510) ........................ 1

F Belt Tension Stud ..................... 1

G Motor Pulleyw/Set Screw

(Model 113.248210) .................. 1

H Poly "V" Belt ........................ 1

I Key 3/%Sq. x 1%6

(Model 113.248320, 1!3.248440,

113.248510) ........................ 1

F

*NOT SHOWN TO SCALE

2. Place the three (3) spacers onto the three motor

studs as shown. Pay attention to where the oil plug is

located. No spacer goes on the fourth motor stud.

MODEL 113.248210 ONLY

3. Install the motor pulley onto the motor shaft with the

set screw boss toward the motor. Position the outer

face of the pulley 2 inches from the end shield of the

motor and tighten the set screw against the flat side

of the motor shaft using a 1/8-inch hex "E' wrench.

1

1

OIL PLUG

r

- OIL PLUG

17

MODELS 113.248320,

113.248440, and

113.248510

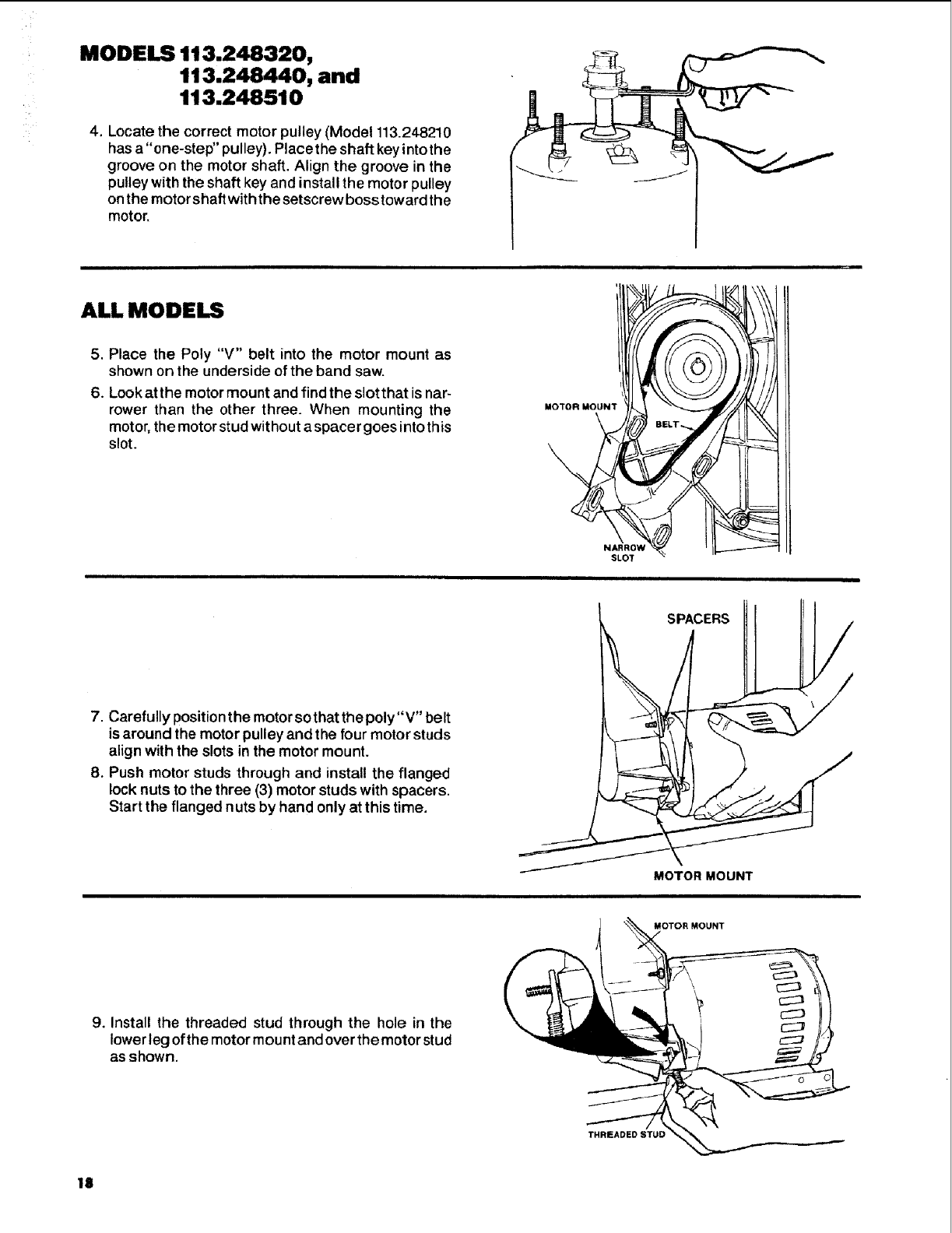

4. Locate the correct motor pulley (Model 113.248210

has a "one-step" pulley). Placethe shaft key intothe

groove on the motor shaft. Align the groove in the

pulley with the shaft key and install the motor pulley

on the motor shaft with the setscrew boss toward the

motor.

ALL MODELS

5. Place the Poly "V" belt into the motor mount as

shown on the underside of the band saw.

6. Look atthe motor mount and find the slot that is nar-

rower than the other three. When mounting the

motor, the motor stud without a spacer goes into this

slot.

MOTOR MOUNT

NARROW

SLOT

7. Carefully position the motor sothat the poly"V" belt

is around the motor pulley and the four motor studs

align with the slots in the motor mount.

8. Push motor studs through and install the flanged

lock nuts to the three (3) motor studs with spacers.

Start the flanged nuts by hand only at this time.

MOTOR MOUNT

9. Install the threaded stud through the hole in the

lower leg of the motor mount and over the motor stud

as shown.

MOTOR MOUNT

THREADED STUD

18

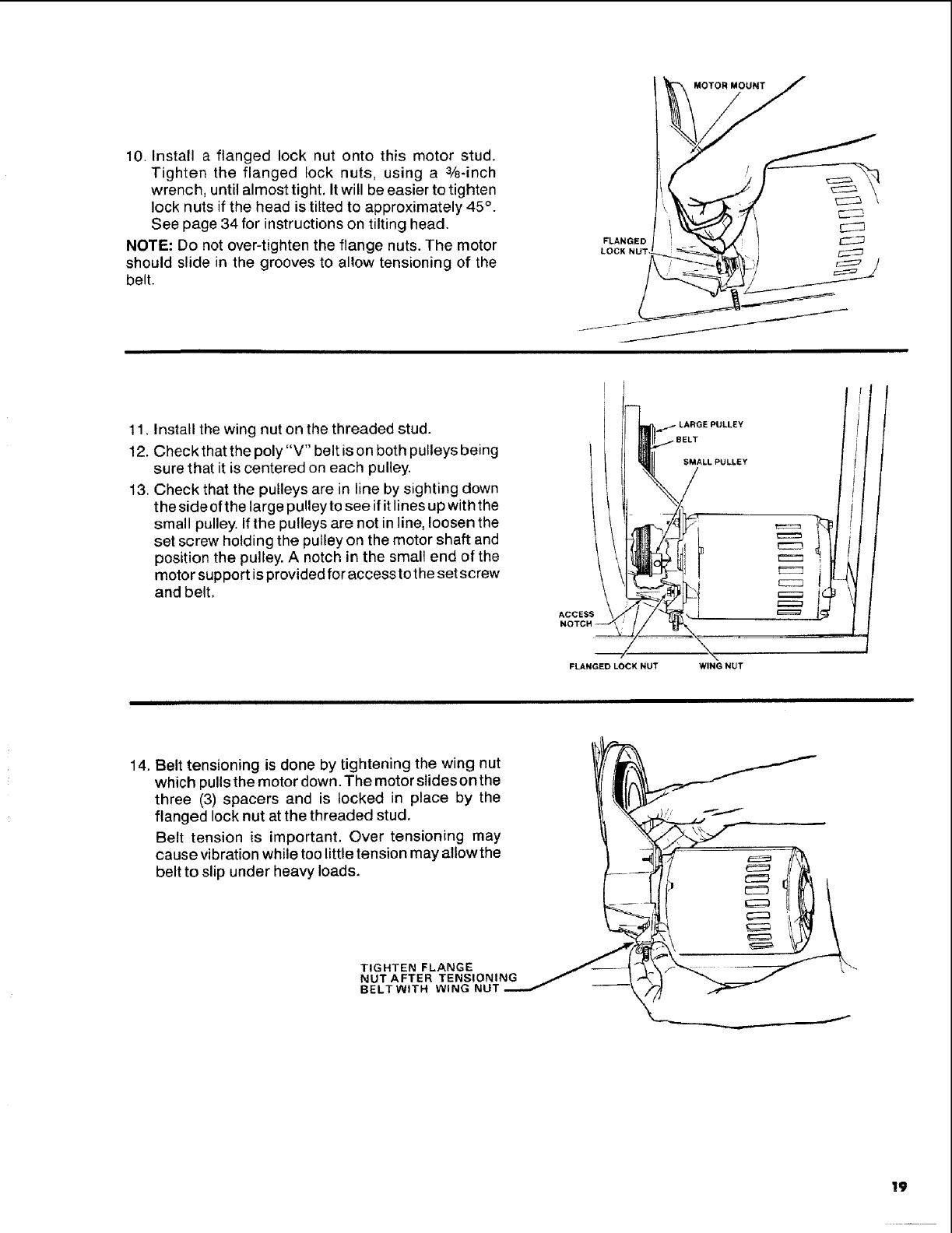

10. Install a flanged lock nut onto this motor stud.

Tighten the flanged lock nuts, using a %-inch

wrench, until almost tight. It will be easier to tighten

lock nuts if the head is tilted to approximately 45 ° .

See page 34 for instructions on tilting head.

NOTE: Do not over-tighten the flange nuts. The motor

should slide in the grooves to allow tensioning of the

belt.

_//- /

11. Install the wing nut on the threaded stud.

12. Check that the poly "V" belt is on both pulleys being

sure that it is centered on each pulley.

13. Check that the pulleys are in line by sighting down

the side of the large pulley te see if it lines up with the

small pulley. If the pulleys are not in line, loosen the

set screw holding the pulley on the motor shaft and

position the pulley. A notch in the small end of the

motor support is provided for access to the set screw

and belt.

SMALLPULLEY

FLANGED LOCK NUT WING NUT

J!J/

14. Belt tensioning is done by tightening the wing nut

which pulls the motor down. The motor slides on the

three (3) spacers and is locked in place by the

flanged lock nut at the threaded stud.

Belt tension is important. Over tensioning may

cause vibration while too little tension may allowthe

belt to slip under heavy loads,

TIGHTEN FLANGE

NUT AFTER TENSIONING

BELTWITH WING NUT

19

ALL MODELS

CONNECTING THE MOTOR

1. Next, the motor cord needs to be wired into the

motor. Coming from the underside of the table

will be a cord with a black, white and green wire.

This is the motor cord.

WARNING: FOR YOUR OWN SAFETY, NEVER

PLUG I_HE SAW IN UNTIL ALL ASSEMBLY

STEPS ARE COMPLETED.

2. Loosen the two screws holding the connector

box cover on the back side of the motor. Swing

the cover open.

3. Install the green ground wire by removing the

green grounding screw and inserting it through

the round metal terminal on the green ground

wire of the motor cord. Reinstall the green screw

into the hole from which it was removed and

tighten securely.

WARNING: TO AVOID ELECTROCUTION,

NEVER CONNECT ANYTHING BUT THE

GROUND WIRE (COLORED GREEN) TO THE

GREEN SCREW.

4. Insert terminal end of WHITE wire on spade

terminal marked T4 on the motor. Push terminal

firmly until seated.

5. Insert terminal end of BLACK wire on spade

terminal marked T1 on the motor. Push terminal

firmly until seated.

6. Close motor connector box being sure that

power cord is seated in the largest strain relief

groove and tighten box cover screws.

7. DQ NOT plug in power cord.

GREEN

BLACK WIRE

TERMINAL Tt

TERMINAL

GREEN WIRE

.TO GREEN SCREW

STRAIN RELIEF

WtRE TO

TERMINAL T4

2O

MODEL 113.248320, 113.248440

& 113.248510

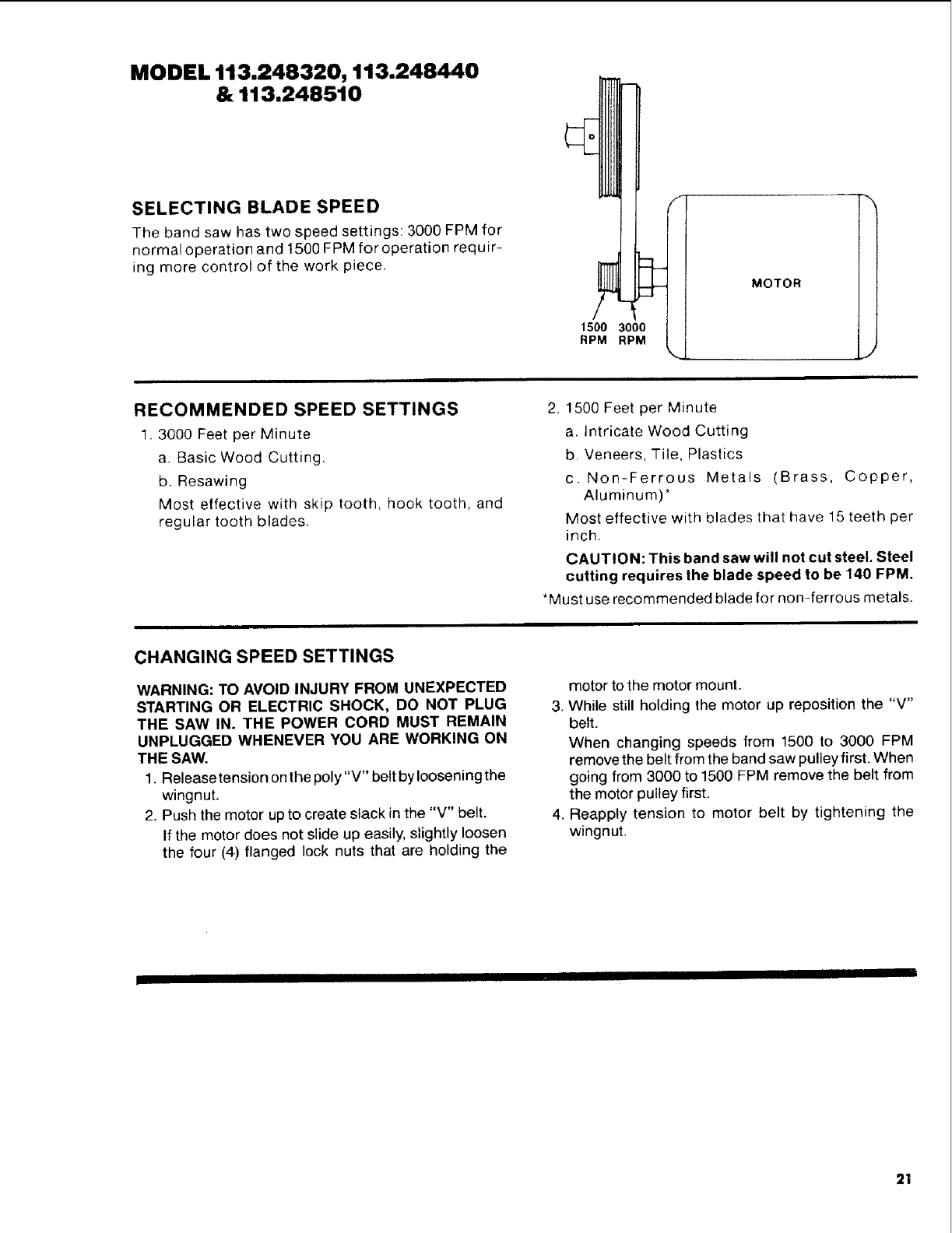

SELECTING BLADE SPEED

The band saw has two speed settings: 3000 FPM for

normal operation and 1500 FPM for operation requir-

ing more control of the work piece,

1500 3000

RPM RPM

MOTOR

J

RECOMMENDED SPEED SETTINGS

1. 3000 Feet per Minute

a. Basic Wood Cutting.

b. Resawing

Most effective with skip tooth, hook tooth, and

regular tooth blades.

2. 1500 Feet per Minute

a. Intricate Wood Cutting

b. Veneers, Tile, Plastics

c. Non-Ferrous Metals (Brass, Copper,

Aluminum)*

Most effective with blades that have 15 teeth per

inch.

CAUTION: This band saw will not cut steel. Steel

cutting requires the blade speed to be 140 FPM.

*Must use recommended blade for non-ferrous metals.

CHANGING SPEED SETTINGS

WARNING: TO AVOID INJURY FROM UNEXPECTED

STARTING OR ELECTRIC SHOCK, DO NOT PLUG

THE SAW IN. THE POWER CORD MUST REMAIN

UNPLUGGED WHENEVER YOU ARE WORKING ON

THE SAW,

1. Releasetension onthe poly "V" belt by Iooseningthe

wingnut,

2. Push the motor up to create slack in the "V" belt.

If the motor does not slide up easily, slightly loosen

the four (4) flanged lock nuts that are holding the

motor to the motor mount.

3. While still holding the motor up reposition the "V"

belt.

When changing speeds from 1500 to 3000 FPM

remove the belt from the band saw pulley first. When

going from 3000 to 1500 FPM remove the belt from

the motor pulley first.

4. Reapply tension to motor belt by tightening the

wingnut.

21

ALL MODELS

ATTACHING TRIM CAPS

1. Find the left and right trim caps.

2. There are two plastic stubson the back of each trim

cap.

3. These stubs will snap into matching holes at the

front corner of each saw.

4. Snap the left & right trim caps in place.

TRIM CAP

22

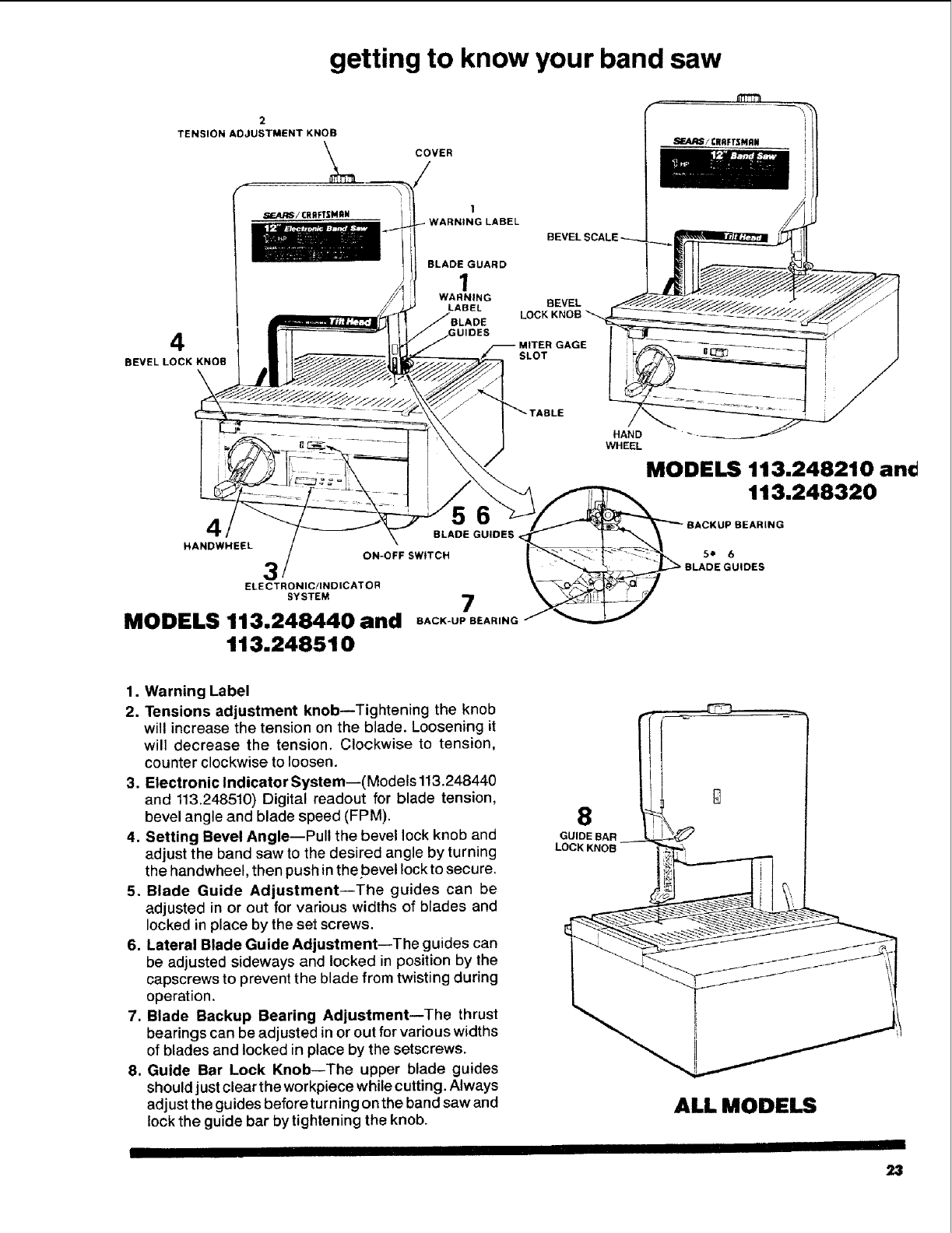

getting to know your band saw

2

TENSION ADJUSTMENT KNOB

COVER

1

WARNING LABEL

BEVEL

BLADE GUARD

WARNING

LABEL BEVEL

4

BEVEL LOCK KNOB

GAGE

SLOT

BLADE GUIDES

HANDWHEEL

ON-OFF SWITCH

3

ELECTRONIC/INDICATOR

SYSTEM 7

MODELS 113.248440 and BACK-UPBEA.,NG

113.248510

HAND

WHEEL

MODELS113.248210an¢

113.248320

BACKUP BEARING

5+ 0

JIDES

1. Warning Label

2. Tensions adjustment knob--Tightening the knob

will increase the tension on the blade. Loosening it

will decrease the tension. Clockwise to tension,

counter clockwise to loosen.

3. Electronic IndicatorSystem--(Models113.248440

and 113.248510) Digital readout for blade tension,

bevel angle and blade speed (FPM).

4. Setting Bevel Angle--Pull the bevel lock knob and

adjust the band saw to the desired angle by turning

the handwheel, then push in the bevel lockto secure.

5. Blade Guide Adjustment--The guides can be

adjusted in or out for various widths of blades and

locked in place by the set screws.

6. Lateral Blade Guide Adjustment--The guides can

be adjusted sideways and locked in position by the

capscrews to prevent the blade from twisting during

operation.

7. Blade Backup Bearing Adjustment--The thrust

bearings can be adjusted in or out for various widths

of blades and locked in place by the setscrews.

8. Guide Bar Lock Knob--The upper blade guides

should justclear the workpiece while cutting. Always

adjust the guides before turning on the band saw and

lock the guide bar by tightening the knob.

8

GUIDE BAR

LOCK KNOB

ALL MODELS

23

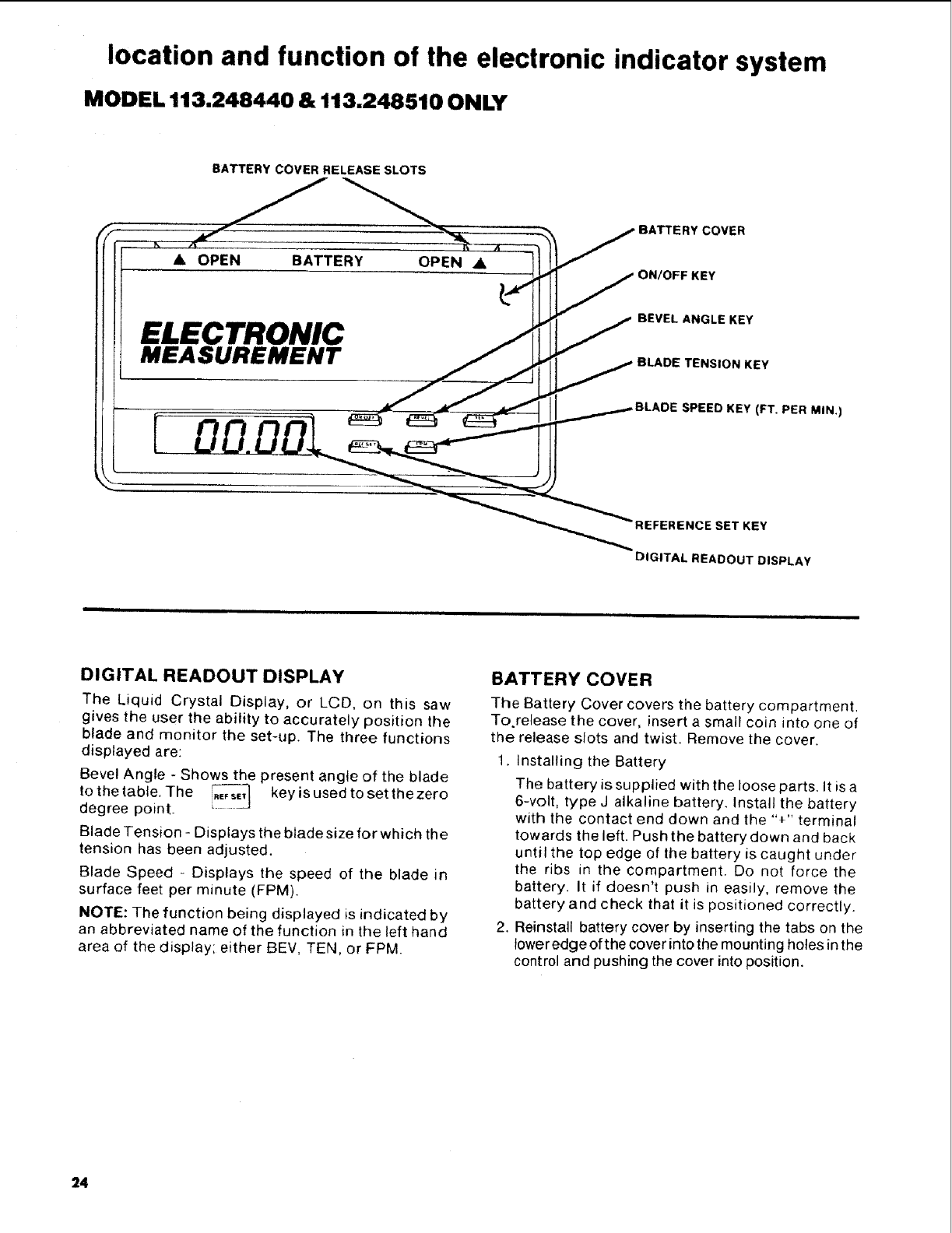

location and function of the electronic indicator system

MODEL 113.248440 & 113.248510 ON LY

BATTERY COVER RELEASE SLOTS

&OPEN BATTERY OPEN •

BATTERY COVER

KEY

ELECTRONIC

MEASUREMENT

BEVEL ANGLE KEY

SION KEY

SPEED KEY (FT. PER MIN.)

_ IEFERENCE SET KEY

DIGITAL READOUT DISPLAY

DIGITAL READOUT DISPLAY

The Liquid Crystal Display, or LCD, on this saw

gives the user the ability to accurately position the

blade and monitor the set-up. The three functions

displayed are:

Bevel Angle - Shows the present angle of the blade

to the table. The _ keyis used toset thezero

degree point.

Blade Tension - Displays the blade size for which the

tension has been adjusted.

Blade Speed - Displays the speed of the blade in

surface feet per minute (FPM).

NOTE: The function being displayed is indicated by

an abbreviated name of the function in the left hand

area of the display; either BEV, TEN, or FPM.

BATTERY COVER

The Battery Cover covers the battery compartment,

To.release the cover, insert a small coin into one of

the release slots and twist. Remove the cover.

1. Installing the Battery

The battery is supplied with the loose parts. It is a

6-volt, type J alkaline battery. Install the battery

with the contact end down and the "+" terminal

towards the left. Push the battery down and back

until the top edge of the battery is caught under

the ribs in the compartment. Do not force the

battery. It if doesn't push in easily, remove the

battery and check that it is positioned correctly.

2. Reinstall battery cover by inserting the tabs on the

lower edge of the cover into the mounting holes in the

control and pushing the cover into position.

24

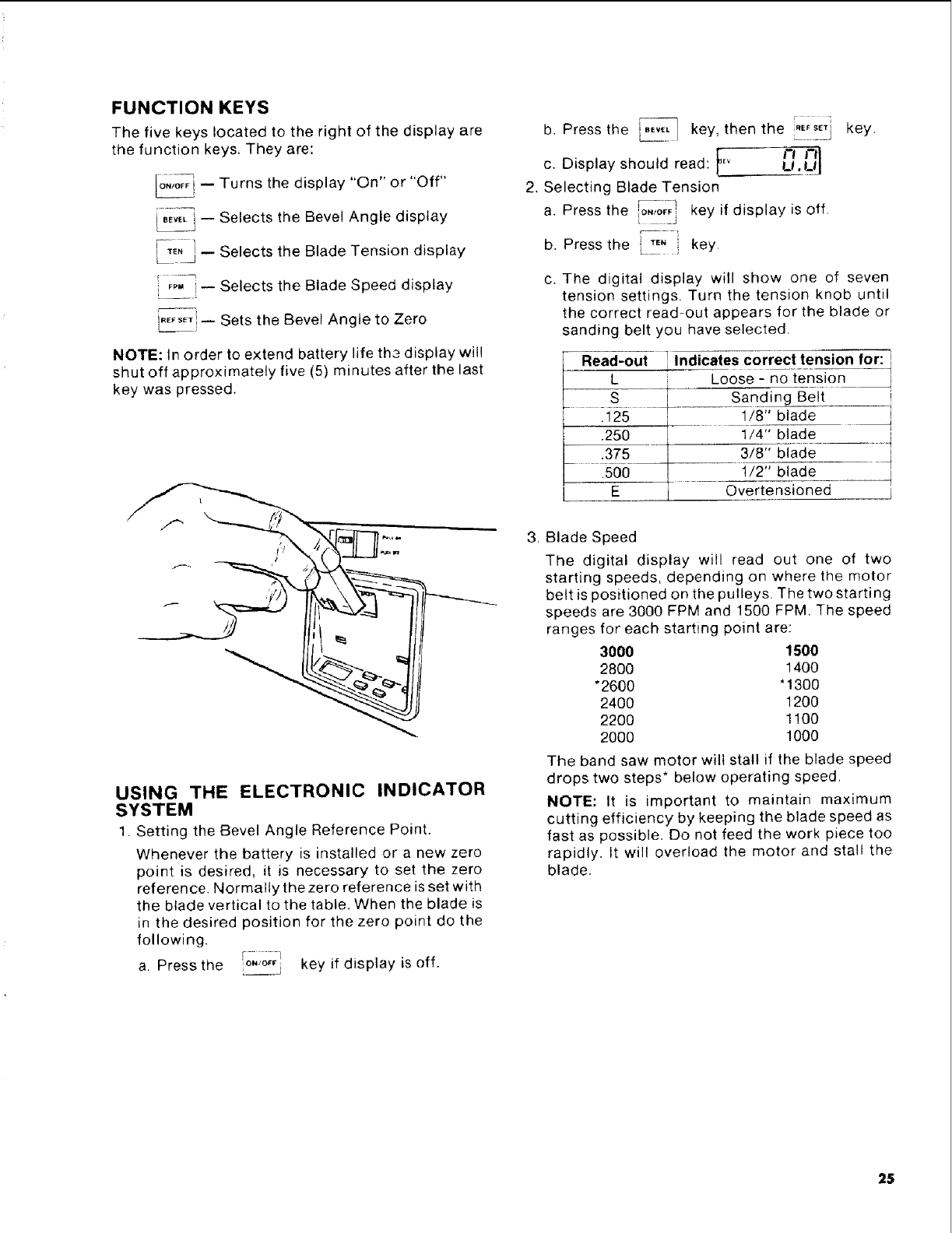

FUNCTION KEYS

The five keys located to the right of the display are

the function keys. They are:

io._o_ -- Turns the display "On" or "Off"

_j -- Selects the Bevel Angle display

i-_. _j-- Selects the Blade Tension display

E_p_- Selects the Blade Speed display

-- Sets the Bevel Angle to Zero

NOTE: In order to extend battery life the display will

shut off approximately five (5) minutes after the last

key was pressed.

USING THE ELECTRONIC INDICATOR

SYSTEM

1. Setting the Bevel Angle Reference Point.

Whenever the battery is installed or a new zero

point is desired, it is necessary to set the zero

reference. Normally the zero reference is set with

the blade vertical to the table. When the blade is

in the desired position for the zero point do the

following.

a. Press the IONIOFI¢I key if display is off.

b. Press the _E._--_ key, then the ._,s_j

F '-'ic. Display should read: _v U.U

2. Selecting Blade Tension

n

a. Press the IoF_.IQF_!key if display is off.

b. Press the _ T,. key.

key.

c. The digital display will show one of seven

tension settings. Turn the tension knob until

the correct read-out appears for the blade or

sanding belt you have selected.

Read-out iIndicates correct tension for:

L Loose - no tension

S Sanding Belt

.125 1/8" blade

.250 1/4" blade

.375 3/8" blade

.500 1/2" blade

E Overtensioned

3. Blade Speed

The digital display will read out one of two

starting speeds, depending on where the motor

belt is positioned on the pulleys. The two starting

speeds are 3000 FPM and 1500 FPM. The speed

ranges for each starting point are:

3000 1500

2800 1400

*2600 '1300

2400 1200

2200 1100

2OOO 1000

The band saw motor wilt stall if the blade speed

drops two steps* below operating speed,

NOTE: It is important to maintain maximum

cutting efficiency by keeping the blade speed as

fast as possible. Do not feed the work piece too

rapidly, tt will overload the motor and stall the

blade,

25

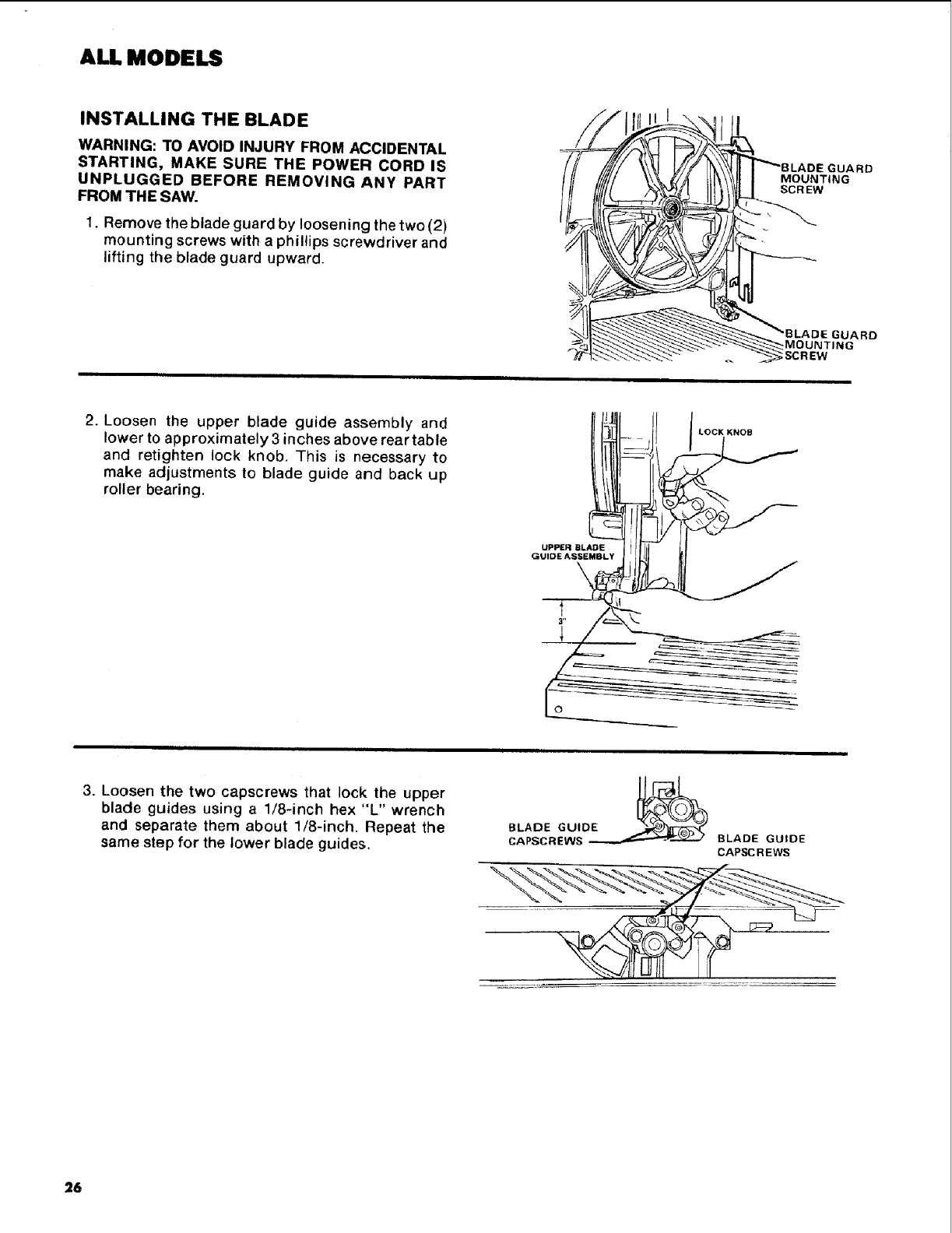

ALL MODELS

INSTALLING THE BLADE

WARNING: TO AVOID INJURY FROM ACCIDENTAL

STARTING, MAKE SURE THE POWER CORD IS

UNPLUGGED BEFORE REMOVING ANY PART

FROM THE SAW.

1. Remove the blade guard by loosening the two (2)

mounting screws with a phillips screwdriver and

lifting the blade guard upward.

.IGNUGARD

2. Loosen the upper blade guide assembly and

lower to approximately 3 inches above rear table

and retighten lock knob. This is necessary to

make adjustments to blade guide and back up

roller bearing.

|_.j LOCK KNOB

Jrt[,t] I

3. Loosen the two capscrews that lock the upper

blade guides using a 1/8-inch hex "L,' wrench

and separate them about 1/8-inch. Repeat the

same step for the lower blade guides. BLADE GUIDE

CAPSCREWS

26

4. Loosen the setscrew which locks the blade guide

support and push the support all the way back.

Repeat for lower blade guide support.

UPPERBLADE tl t

GU,DEsuPPO.TII_l-r L

SETSCREW _

"<_-_-"_,J/l[I L.U ql I '1 GUIDE SUPPORT

_---_--_--'=_ SETSCREW

5. Loosen the setscrew which locks the upper back

up bearing and push the bearing all the way

back. Repeat procedure for lower back up bear-

ing.

_f UPPER BACKUP

BEAR NG SETSCRE_

LOWER BACKUP

BEARING SETSCREW

WARNING: TO AVOID SERIOUS EYE INJURY OR

SCRAPES IF THE BLADE SHOULD SUDDENLY

UNCOIL, WEAR SAFETY GOGGLES. CAREFULLY

UNCOIL THE BLADE HOLDING IT AT ARMS

LENGTH.

6. Uncoil the blade.

7. Place the blade over the wheels with the teeth

pointing downwards toward the table as shown.

Make sure the blade is between the blade guides

and is in the center of the rubber tires.

NOTE: If the blade wi!t not reach around both

wheels, lower the upper wheel by turning the tension

knob counterclockwise.

BLADE CENTERED

ON RUBBER TIRE

27

MODEL 113.248210 & 113.248320

ALIGNING THE BLADE AND BLADE

GUIDE ASSEMBLIES

This band saw comes equipped with a 1/4-inch

blade, This band saw can be used with blades of

width from 1/8-inch to 1/2-inch. The align merit steps

must be followed for proper tension, blade guide,

and bearing adjustments for each different blade.

Refer to the blade usage section for the recom-

mended blade size for best results during most band

saw operations.

NOTE: It is critical to the life of the blade that the

following steps are followed. Premature blade

breakage wilt result if these steps are omitted.

1A. Turn the tension knob until the tension scale indi-

cates 1/4-inch position. This will set the correct ten-

sion for a lt4-inch blade.

WARNING: TO AVOID INJURY FROM UNEX-

PECTED STARTING OR ELECTRICAL SHOCK,

DO NOT PLUG THE SAW IN. THE POWER

CORD MUST REMAIN UNPLUGGED WHEN-

EVER YOU ARE WORKING ON THE SAW.

MODEL 113.248440 & 113.248510

ALIGNING THE BLADE AND BLADE

GUIDE ASSEMBLIES

This band saw comes equipped with a 1/4-inch

biade. This band saw can be used with blades o.f

width from 1/8-inch to 1/2-inch. The alignment steps

must be followed for proper tension, blade guide,

and bearing adjustments for each different blade.

Refer to the blade usage section for the recom-

mended blade size for best results during most band

saw operations.

NOTE: It is critical to the life of the blade that the

following steps are followed. Premature blade

breakage wilt result if these steps are omitted.

lB. Turn on the digital display and push the

key. Turn the tension knob until the display reads

.250, Turn the tension knob one additional turn,

This wilt set the correct tension for 1/4-inch blade.

WARNING: TO AVOID INJURY FROM UNEX-

PECTED STARTING OR ELECTRICAL SHOCK,

DO NOT PLUG THE SAW IN. THE POWER

CORD MUST REMAIN UNPLUGGED WHEN-

EVER YOU ARE WORKING ON THE SAW.

28

ALL MODELS

2. Turn the upper wheel by hand a few times and

notice if the blade remains in the center of the tire

on the top wheel.

If the blade moves away from the center of the

tire while you are turning it, the blade is not

tracking properly.

The top wheel shaft is hinged so the blade can be

tracked. Tilt the wheel by turning the tracking

adjustment screw using a medium screw driver.

(See illustration.)

a. If the bladel moves toward the front of the

band saw:

Turn the tracking adjustment screw clockwise

about 1/4 of a turn, as though you were

tightening it.

b. If the blade moves toward the back of the band

saw:

Turn the tracking adjustment screw counter-

clockwise about 1/4 of a turn as though you

were loosening it.

c. Check adjustment by turning wheel by hand.

TRACKING ADJUSTMENT SCREW

3. The upper and lower blade guides support the

blade and keep it from twisting during operation.

Adjust blade guide support whenever blades are

changed or replaced with a different width.

4. Push the blade guide support toward the blade

and adjust the blade guides so they are about

1/32-inch from the deepest part of the blade

teeth. This deep part is called a gullet. Tighten

the set screw locking the blade guide support.

Turn the upper wheel, by hand, checking the

position of the blade guide support.

NOTE: Letting the blade teeth hit the blade

guides while using the band saw will ruin the

blade. The set of the teeth and the sharpened

edge of the teeth would be damaged. Proper

adjustment of the upper and lower blade guide

assemblies will prevent this from happening.

Repeat procedu re for lower blade guide support.

5. Slide the two blade guides evenly against the

sides of the blade. Do not push the blade guides

or pinch the blade guides against the blade.

Rotate the upper wheel by hand so the blade

travels downward. This leaves proper space for

blade. Make sure one guide is not further from

the blade than the other. Tighten both setscrews

with a 1/8-inch hex "L" wrench, Repeat proce-

dure for lower blade guides.

NOTE: The backup bearings support the blade

from the rear and will spin when the blade is

pushed against them while you are cutting, As

soon as you stop cutting, the bearings should

stop spinning.

GULLET

BLADE GUIDE

29

BL BEARING

BLADE GUIDE BLADE GUIDE

ALL MODELS

6. To insure the backup bearing is properly sup-

porting the blade, push the bearing toward the

blade until it almost touches it. Turn the upper

wheel, by hand, checking the backup bearing to

make sure it is not turning. If the bearing is

turning the blade is too close. Move bearing

slightly away from blade and tighten set screw

with 1/8" hex "L" wrench. Turn upper wheel and

recheck the bearing. Adjust again if necessary.

7. Repeat procedure for lower backup bearing.

8. Turn upper wheel by hand and check the blade

guides and backup bearings to make sure they

are adjusted correctly. Make any readjustments

if necessary.

9. Install blade guard and tighten with phillips screw-

driver. (See illustration, page 26.)

I----""°° I I

10. Install the front cover. Rest top edge of cover on

two latch springs along the top edge of back

cover. Swing cover down into position, engaging

the three other latch springs. Push the front

cover into position on the back cover. Check that

the lip on the front cover completely overlaps the

lip on the rear cover.

FRONTCOYER

SPRING

MOUNTING THE FRONT TABLE

1. Turn front table over. Locate the two (2) latch

springs, two (2) alignment springs, and the four

(4) 1/4-20 x 5/8 hex washer head thread forming

screws.

2. Install the two latch springs on the front table as

illustrated using a 3/8-inch wrench or socket.

Install the two alignment springs on the front

table as illustrated using a 3!8-inch wrench or

socket.

_1/4-20 x 5/8

_WASHER HEAD

_' _ SCREW

,_ _'-_'"_ ALIGNMENT

,, t ATO.S...NG

_FRONT TABLE

3O

3. Locate the two (2) oval point setscrews 1/4-20 x

1/2 and use an 1/8-inch hex "L" wrench to install

in the two holes, as illustrated, but do not allow

the screws to extend beyond the underside of the

table.

_.//HEX"L"WRENCH

j-1/4-20X1/2

I//OVAL POINT

fSETSCREW

FRONT TABLE

4. Locate thetwo(2)table latches,two(2)3/8 " long Phil-

lips head self tapping screws, two (2)small washers,

and one (1)large washer.

5. Place front table latch through slot on right side of

bandsaw frame.

6. Tilt top of front table latch slightly forward and place

large washer between bracket and bandsaw frame.

7. Place self tapping screw through small washer and

attach to table latch. Do not completely tighten

screw.

8. Attach left side table latch with self tapping screw

and washer as shown.

WASHER

\

PHILLIPS HEAD

SELF TAPPING

SCREW

/_TABLE LATCH

BASE

PHILLIPS HEAD

SELFTAPPING

SCREW

ASSEMBLE WITH LATCH TO

HIGHEST ADJUSTING POSITION

LARGE

WASHER ON RIGHT

SIDE ONLY

ITABLE LATCH

9. Locate the table alignment key and the two (2)

1/4-20x I low head capscrews, Installthe key under

the rear table miter gage slot and install the two

screws but do not tighten at this time.

I- 1/4-20 X 1

_J_ _ HEAD CAPSCREW

TABLE AL:GNMENT

KEY

31

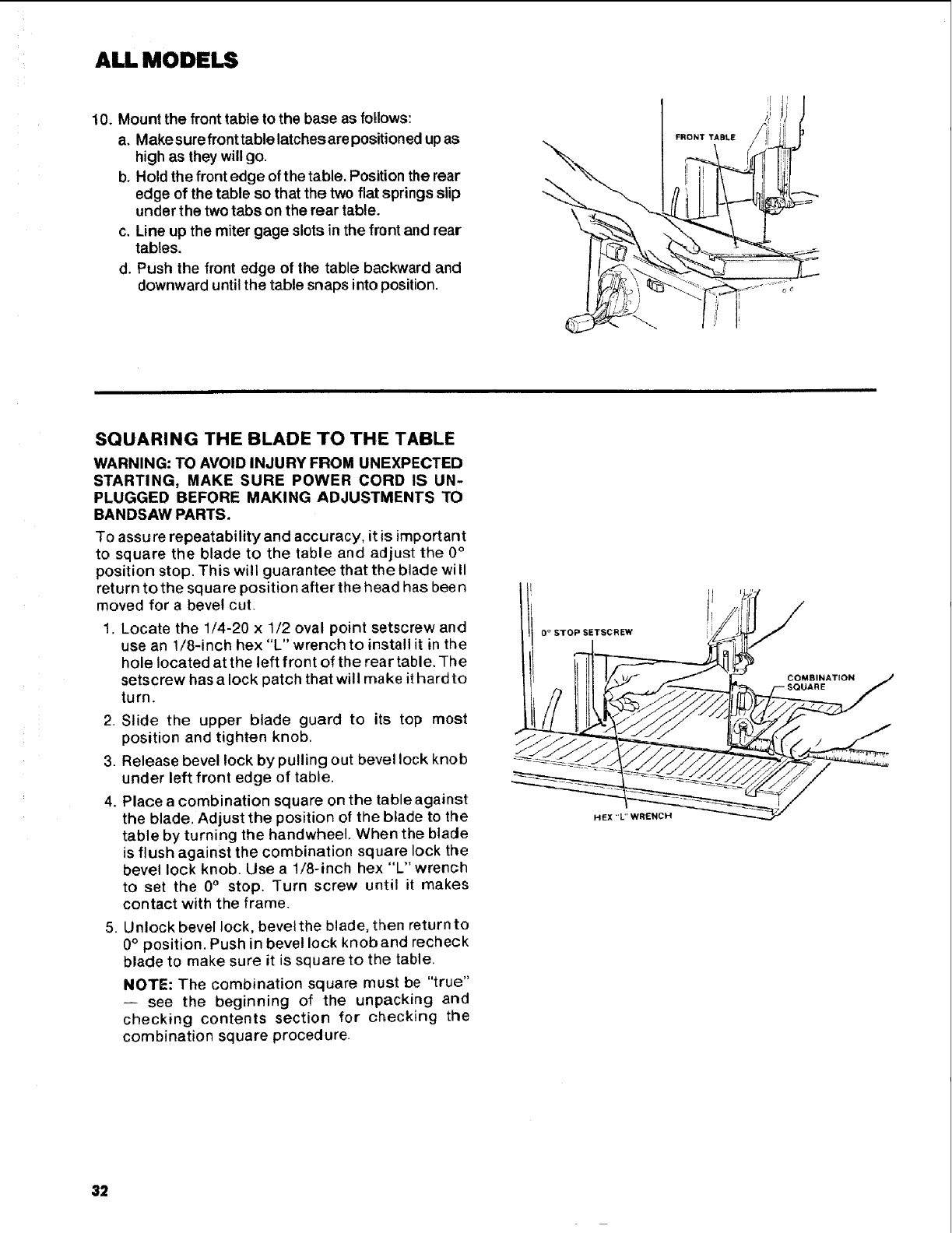

ALL MODELS

10. Mount the front table to the base as follows:

a. Makesurefronttablelatchesarepositioned upas

high as they will go.

b. Hold the front edge of the table. Position the rear

edge of the table so that the two flat springs slip

under the two tabs on the rear table.

c. Line up the miter gage slots in the front and rear

tables.

d. Push the front edge of the table backward and

downward until the table snaps into position.

FRONT TABLE

SQUARING THE BLADE TO THE TABLE

WARNING: TO AVOID INJURY FROM UNEXPECTED

STARTING, MAKE SURE POWER CORD IS UN-

PLUGGED BEFORE MAKING ADJUSTMENTS TO

BANDSAW PARTS.

To assu re repeatability and accuracy, it is important

to square the blade to the table and adjust the 0°

position stop. This will guarantee that the blade wi II

return to the square position after the head has been

moved for a bevel cut.

1. Locate the 1/4-20 x 1/2 oval point setscrew and

use an 1/8-inch hex "L" wrench to install it in the

hole located at the left front of the rear table. -The

setscrew has a lock patch that will make it hard to

turn.

2. Slide the upper blade guard to its top most

position and tighten knob.

3. Release bevel lock by pulling out bevel lock knob

under left front edge of table.

4. Place a combination square on the table against

the blade. Adjust the position of the blade to the

table by turning the handwheel. When the blade

is flush against the combination square lock the

bevel lock knob. Use a 1/8-inch hex "'L" wrench

to set the 0°stop. Turn screw until it makes

contact with the frame.

5. Unlock bevel lock, bevel the blade, then return to

0°position. Push in bevel lock knob and recheck

blade to make sure it is square to the table.

NOTE: The combination square must be "true"

-- see the beginning of the unpacking and

checking contents section for checking the

combination square procedure.

I _, il

l ir, /

0 ° STOP SETSCREW i_/_ /"

32

ADJUSTING FRONT TABLE

1. Adjust the front table so it is the same height as the

rear table as follows:

a, Lay a straight edge across front table to rear

table.

b. Gentlytap the fronttable down until it is in line with

the rear table,

c. Tighten the Phillips head self tapping screw once

the front table is in the correct position.

d. If necessary adjust the two (2) oval point set

screws (see Step 3) as needed to help line up the

table.

e. Both the left and right sides of the front table

should be adjusted simultaneously.

TABLE LEVELING

SETSCREWS

2, To keep the miter gage grooves in line, use a flat

blade screwdriver against the head of one of the low

head capscrews in the miter gage groove to force

the table alignment key firmly forward intothe notch

in the front table.

3. While holding the alignment key into the notch,

tighten theother capscrew. Removethe screwdriver

and tighten the remaining screw. Check that the

miter gage grooves line up,

4. Check the operation of springs and tabs by remov-

ing the front table and reinstalling. Removethetable

by lifting up on two spring tabs under front edge of

the table until springs are free, then pulling forward.

33

ALL MODELS

location and function of controls

ON-OFF SWITCH

NOTE: The On-Off switch has a locking feature. This

featu re is intended to help prevent unauthorized and

possibly hazardous use by children and others.

1. Insert yellow key into switch.

2. To turn on, insert finger under end of red switch

lever and pull end out.

3. To turn off switch, push red lever in towards the

base.

4WARNING: The locking feature provided is to

help prevent unauthorized use of your saw.

Always remove the yellow key and keep it in a

safe place. To remove yellow key, hold thumb on

the end of red lever to keep switch in "Off"

position and pull yellow key straight out.

3

MODEL 113.248210 & 113,248320

TILTING HEAD FOR BEVEL CUT

/

1. Unlock bevel lock by pulling outon knob located

under the left front edge of the table:

2. Turn handwheel counter-clockwise to increase

the tilt angle of the blade. The bevel scale printed

on the front cover shows the approximate angle

and is read at table level.

3. Lock the bevel lock by pushing in on knob until it

is fully seated when desired bevel angle is

reached.

BEVEL SCALE

BEVEL LOCK KNOB

HANDWHEEL

34

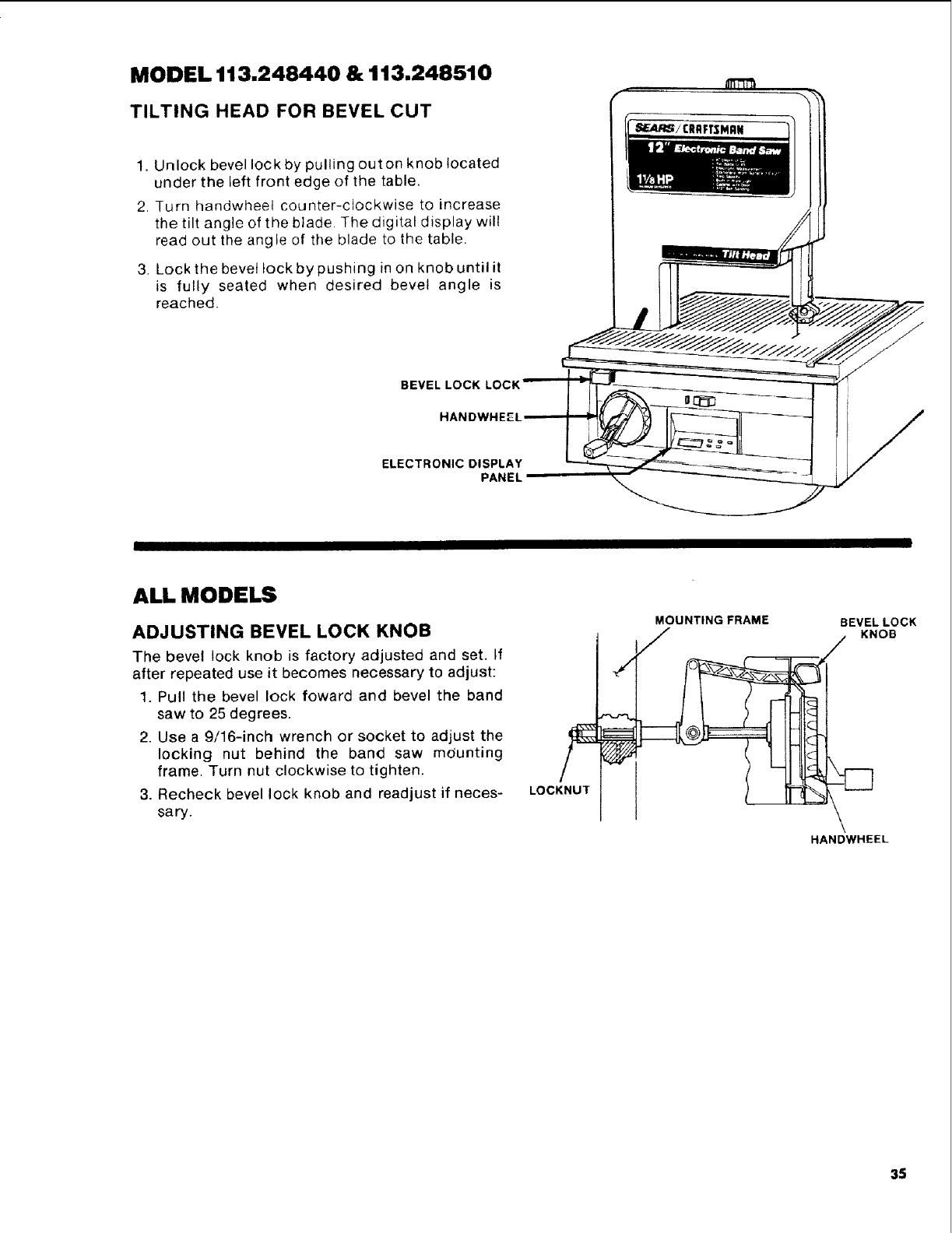

MODEL 113.248440 & 113.248510

TILTING HEAD FOR BEVEL CUT

1, Unlock bevel lock by pulling outon knob located

under the left front edge of the table,

2. Turn handwhee4 counter-clockwise to increase

the tilt angle of the blade. The digital display will

read out the angle of the blade to the table.

3. Lock the bevel lock by pushing in on knob until it

is fully seated when desired bevel angle is

reached.

BEVEL LOCK

HANDWHEf

ELECTRONIC DISPLAY

PANEL

ALL MODELS

ADJUSTING BEVEL LOCK KNOB

The bevel lock knob is factory adjusted and set, If

after repeated use it becomes necessary to adjust:

1. Pull the bevel lock foward and bevel the band

saw to 25 degrees.

2. Use a 9/16-inch wrench or socket to adjust the

locking nut behind the band saw mdunting

frame. Turn nut clockwise to tighten.

3. Recheck bevel lock knob and readjust if neces-

sa ry.

LOCKNUT

MOUNTING FRAME

FBEVEL LOCK

•KNOB

HANDWHEEL

35

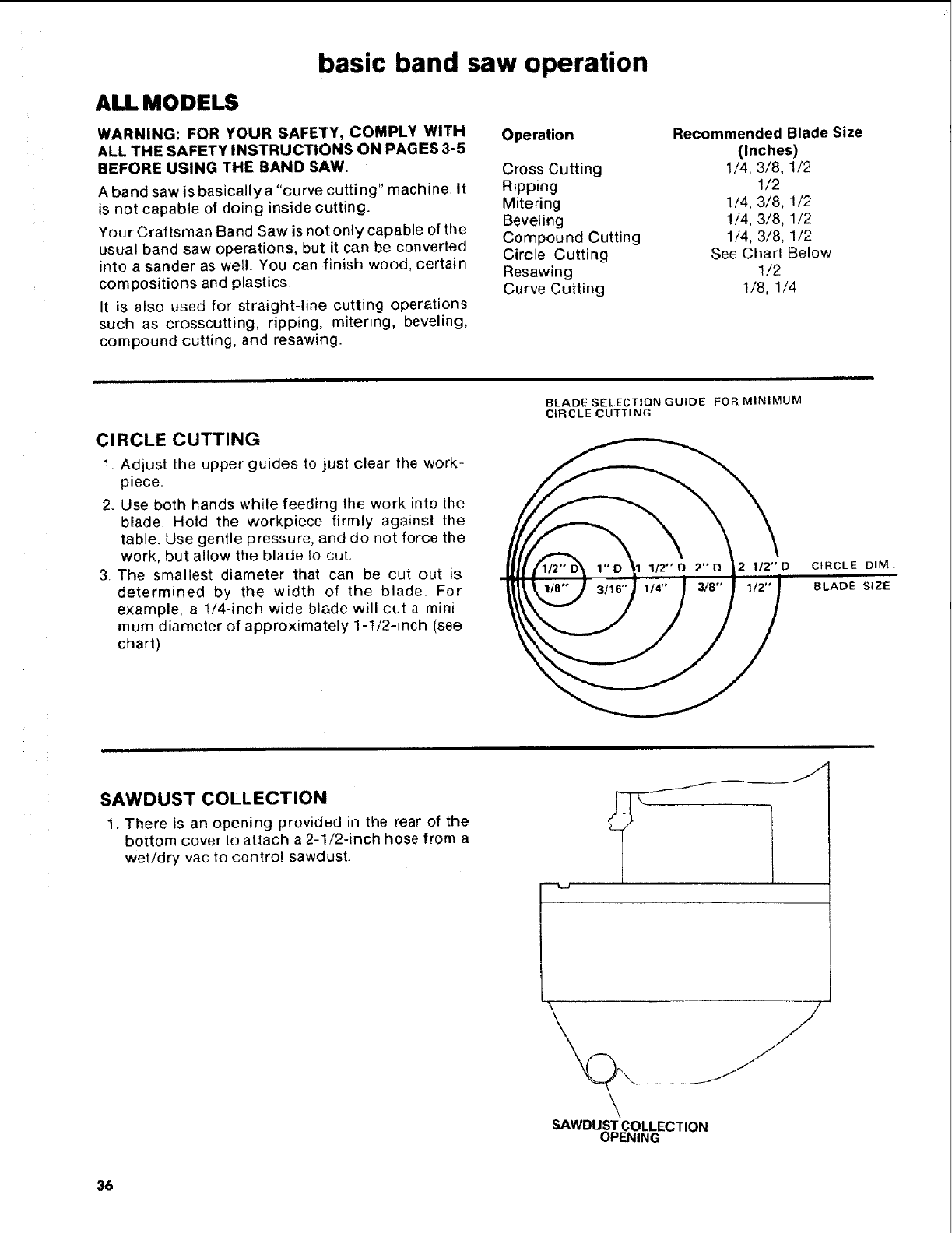

basic band saw operation

ALL MODELS

WARNING: FOR YOUR SAFETY, COMPLY WITH

ALL THE SAFETY INSTRUCTIONS ON PAGES 3-5

BEFORE USING THE BAND SAW.

Aband saw is basically a "curve cutting" machine. It

is not capable of doing inside cutting.

Your Craftsman Band Saw is not only capable of the

usual band saw operations, but it can be converted

into a sander as well. You can finish wood, certain

compositions and plastics.

It is also used for straight-line cutting operations

such as crosscutting, ripping, mitering, beveling,

compound cutting, and resawing.

Operation Recommended Blade Size

(Inches)

Cross Cutting 1/4, 3/8, 1/2

Ripping 1/2

Mitering 1/4, 3/8, 1/2

Beveling 1/4, 3/8, 1/2

Compound Cutting 1/4, 3/8, 1/2

Circle Cutting See Chart Below

Resawing 1/2

Curve Cutting 1/8, 1/4

CIRCLE CUTTING

t. Adjust the upper guides to just clear the work-

piece.

2. Use both hands while feeding the work into the

blade. Hold the workpiece firmly against the

table. Use gentle pressure, and do not force the

work, but allow the blade to cut.

3. The smallest diameter that can be cut out is

determined by the width of the blade. For

example, a 1/4-inch wide blade will cut a mini-

mum diameter of approximately 1-1/2-inch (see

chart).

BLADE SELECTION GUIDE FOR MINIMUM

CIRCLE CUTTING

2 112"D CIRCLE DIM.

BLADE SIZE

SAWDUST COLLECTION

1. There is an opening provided in the rear of the

bottom cover to attach a 2-1/2-inch hose from a

wet/dry vac to control sawdust.

SAWDUST COLLECTION

OPENING

36

INSTALLING SANDING ATTACHMENT

WARNING: TO AVOID INJURY FROM UNEXPECTED

STARTING, MAKE SURE POWER CORD IS UNPLUG-

GED BEFORE MAKING ADJUSTMENTS TO BAND-

SAW PARTS.

NOTE: The sanding bett cuts very rapidly. Practice

with some scraps of wood first before you attempt to

sand your actual workpiece.

1. To install the sanding belt and sanding platen,

remove the front table, front cover, blade guard,

and the blade.

2. Use a 1/8-inch hex "L" wrench and remove the

upper and lower right blade guides. The mount-

ing screw used for the upper blade guide will be

used to hold the sanding platen in place.

3. Loosen the setscrews that hold the upper and

lower backup bearings in place and push the

bearings all the way back_ Tighten setscrews so

bearings will remain.

4. Slide the sanding platen into the blade slot in the

table and fasten to the upper blade guide

assembly where the right blade guide mounts. It

may be necessary to loosen the left blade guide

and slide it backwards until platen is in place.

5, Slide the upper left blade guide towards the

sanding platen and tighten mounting screw

securely.

6. Slide the lower teft blade guide towards the

sanding platen until the platen rests 1/8-inch

away from the right edge of the slot in the work

table, SANDING PLATEN

INSTALLING THE SANDING BELT

1. Install the sanding belt and adjust tension to the

sanding position. (The letter "S" on the scale.)

2. Rotate the upper wheel by hand (clockwise) to

check the sanding belt tracking. Adjust tracking

if necessary. (Reference the blade tracking sec-

tion for tracking procedure.)

3. After tracking the sanding belt if the belt and the

platen do not align loosen the upper blade guide

support and slide the support in or out to align.

Then tighten set screws to hold support and

platen in place, it may also be necessary to adjust

the lower blade guide support to align the blade

guide with the sanding platen.

NOTE: A new sanding belt will stretch with use, so

check the tension often.

SANDING

BELT

,Ii I

'%

. i_ii

!1-'2

Sears recommends the following Accessories

Caster Set for Leg Set ........... 9-22222, 9-22221

Miter Gauge ............................ 9-29929

Hold-Down Clamp for Miter Gauge ....... 9-29928

Stop-Rods for Miter Gauge .............. 9-29924

Rip Fence .............................. 9-23402

Blades and Sanding Belts ............ See Catalog

Circle Cutting Attachment ............... 9-23411

Power Tool Know How Handbooks

Radial Saw (includes band saw section)., 9-2917

Table Saw (includes band saw section)... 9-2918

Sears may recommend other accessories net listed in

the manual. See your nearest Sears store or Catalog

department for other accessories.

Do not use any accessory unless you have received and

read complete instructions for its use.

ALL MODELS

maintenance

WARNING: FOR YOUR OWN SAFETY, TURN

SWITCH "OFF" AND REMOVE PLUG FROM POWER

SOURCE OUTLET BEFORE MAINTAINING OR

LUBRICATING YOUR BAND SAW.

Tires

Pitch and sawdust that build up on the tires should

be removed with a stiff brush or scraped off with a

piece of wood.

CAUTION: To avoid damaging the tires do not use a

sharp knife or any kind of solvent.

When the tires become worn they should be replaced.

When replacing the tires, stretch them around the

wheels but do not glue them on.

ADJUSTING BAND SAW BEVEL TRAVEL

If the band saw will not hold its position when at a

bevel angle, and before the bevel look is locked, or if

it is difficult to change the bevel angle, an adjustment

is necessary to correct the force required to bevel

the band saw.

To adjust the force required to bevel the band saw,

locate the three (3) capscrews holding the frame to

the motor mount. The capscrews are located in the

recessed area behind the hub of the lower wheel at

the 2 o'clock, 6 o'clock, and 10 o'clock positions. Use

a 3/16-inch hexagonal "L" wrench that has a 4-inch

leg, reach between the spokes of the lower wheel to

the capscrews. Adjust the capscrews equally until

the bevel action is smooth and the saw wilt hold its

position before the bevel lock is locked.

ADJUSTING THE UPPER BLADE GUIDE

TRAVEL

If the upper guide bar will not move up and down

easily or falls when the lock knob is loosened, the

following adjustment should be performed.

1. Remove the Guide Bar Lock Knob and the

washer which is under it.

2. Using a 7/16" socket or wrench, tighten the nut

which is under the washer to just tight.

3. Then loosen the same nut 1 turn.

4. Move the guide bar up and down to check for

smooth movement while still holding its position

when released.

5. Make further adjustments to the nut as required

to get the guide bar to move smoothly and hold

its position when released.

6. Reinstafl the washer and Guide Bar Lock Knob.

General Maintenance

Keep your band saw clean. Remove the sawdust

from the inside. Vacuum or blow out frequently.

Do not allow filth to build up on the table, the guides

orthe back-up bearings. Clean them with Craftsman

Gum and Pitch Remover.

CAUTION: Do not immerse the backup bearings in

the gum and pitch remover.

Put a thin coat of paste wax on the table so that the

wood slides easily while cutting.

38

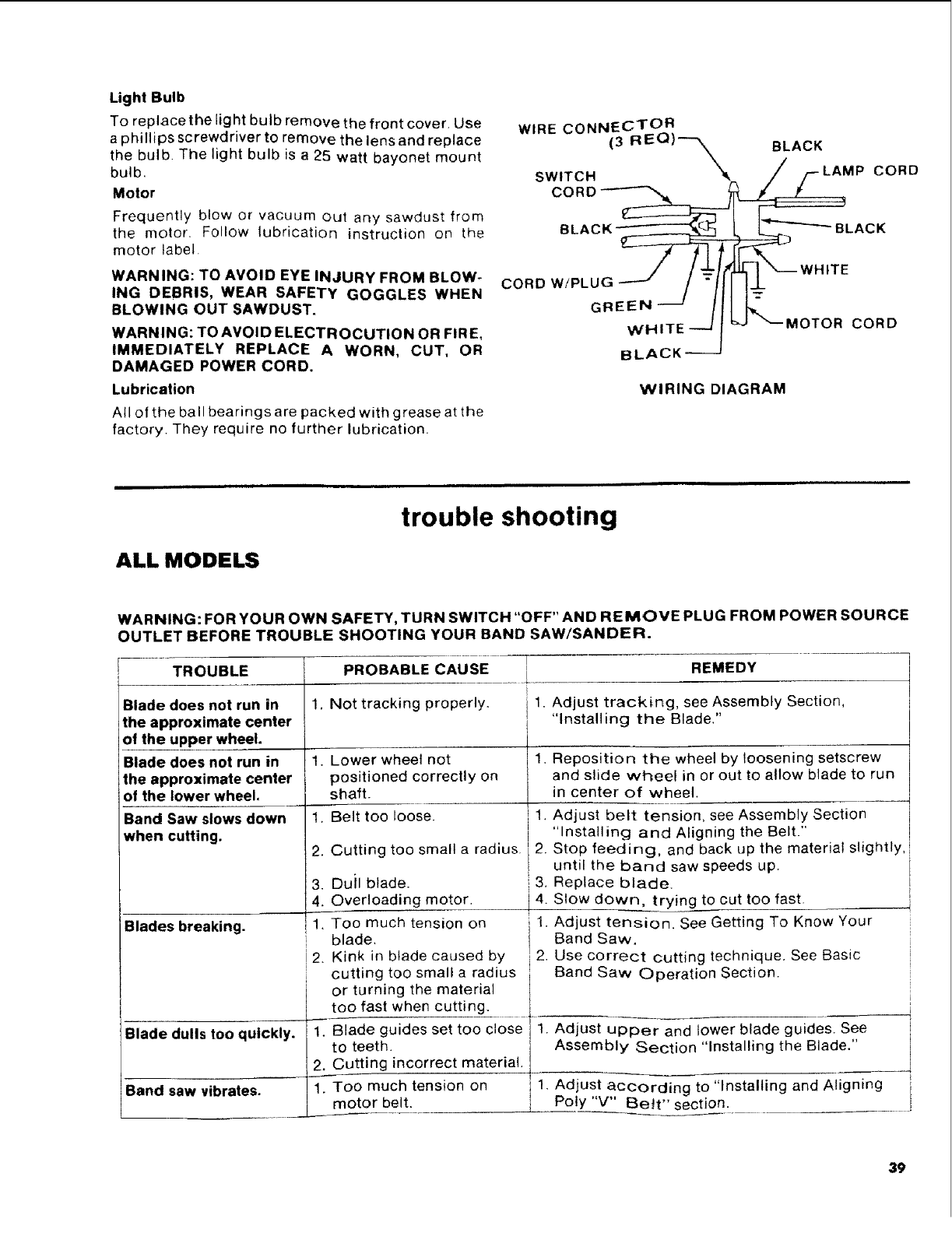

Light Bulb

To replace the light bulb remove the front cover. Use

a phillips screwdriver to remove the lens and replace

the bulb. The light bulb is a 25 watt bayonet mount

bulb.

Motor

Frequently blow or vacuum out any sawdust from

the motor, Follow lubrication instruction on the

motor label.

WARNING: TO AVOID EYE INJURY FROM BLOW-

ING DEBRIS, WEAR SAFETY GOGGLES WHEN

BLOWING OUT SAWDUST.

WARNING: TO AVOID ELECTROCUTION OR FIRE,

IMMEDIATELY REPLACE AWORN, CUT, OR

DAMAGED POWER CORD.

Lubrication

All of the ball bearings are packed with grease at the

factory. They require no further lubrication.

WIRE CONNECTOR

(3 REO)---_ BLACK

SWITCH "_k /F-LAMP CORD

/ / _r_JJ.1] "_----WHITE

CORD W!PLUG_ /"II€

GRE_NHI--_E__ L_MOTOR CORD

BLACK_

WIRING DIAGRAM

ALL MODELS

trouble shooting

WARNING: FOR YOUR OWN SAFETY, TURN SWITCH "OFF" AND REMOVE PLUG FROM POWER SOURCE

OUTLET BEFORE TROUBLE SHOOTING YOUR BAND SAW/SANDER.

TROUBLE PROBABLE CAUSE REMEDY

1. Not tracking properly. 1. Adjust tracking, see Assembly Section,

I "Installing the Blade."

1.

Blade does not run in

the approximate center

of the upper wheel.

Blade does not run in

the approximate center

of the lower wheel.

Band Saw slows down

when cutting.

Blades breaking.

I

Blade dulls too quickly.

Band saw vibrates.

1,

2.

3.

4.

1.

2.

2.

Lower wheel not 1,

positioned correctly on

shaft.

Belt too loose. 1,

Cutting too small a radius 2.

Duil blade. 3.

Overloading motor, i 4.

Too much tension on 1.

blade.

Kink in blade caused by 2.

cutting too small a radius

or turning the material

too fast when cutting.

Blade guides set too close 1.

to teeth.

Cutting incorrect material.

Too much tension on -11

motor belt.

Reposition the wheel by loosening setscrew

and slide wheel in or out to allow blade to run

in center of wheel.

Adjust belt tension, see Assembly Section

"Installing and Aligning the Belt."

Stop feeding, and back up the material slightly,

until the band saw speeds up.

Replace blade.

Slow down, trying to cut too fast.

Adjust tension. See Getting To Know Your

Band Saw,

Use correct cutting technique. See Basic

Band Saw Operation Section.

Adjust upper and lower blade guides. See

Assembly Section "Installing the Blade."

Adjust according to "Installing and Aligning {r

Poly "V" E_e_t" section.

39

trouble shooting--motor

ALL MODELS

NOTE: Motors used on wood-working tools are particularly susceptible to the

accumulation of sawdust and wood chips and should be blown out or "vacuumed"

frequently to prevent interference with normal motor ventilation and proper

operation of the centrifugally-operated starting switch.

TROUBLE PROBABLE CAUSE REMEDY

Excessive noise. 1. Motor. 1. Have motor checked by qualified service

technician. Repair service is available at your

nearest Sears store.

1.

Motor tails to develop

full power. NOTE:

LOW VOLTAGE: (Power

output of motor

decreases rapidly with

decrease in voltage at

motor terminals, For

example, a reduction of

10% in voltage causes

areduction of 19% in

maximum power output

of which the motor is

capable, and a reduction

of 20% in voltage causes

a reduction of 36% in

maximum power

output.)

Motor starts slowly

or fails to come up

to full speed.

Motor overheats.

Starting switch in

motor will not operate.

Motor stalls

(resulting in blown

fuses or tripped

circuit breakers).

Frequent opening of

fuses or circuit

breakers.

Circuit overloaded with

lights, appliances and

other motors.

Undersize wires or circuit

too long.

General overloading of

power company

facilities.

1. Low voltage.

2. Windings burned out

or open.

3. Starting switch not

operating.

1. Motor overloaded.

2. Improper cooling (Air

circulation restricted

through motor due to

sawdust accumulation_

1. Burned switch contacts

(due to extended hold-in

periods caused by low line

voltage_ etc.)

2. Shorted capacitor.

3. Loose or broken

connections.

1. Starting switch not

operating.

2. Voltage too low to permit

motor to reach operating

speed.

3. Fuses or circuit breakers

do not have sufficient

capacity.

1. Motor overloaded.

2. Fuses or circuit breakers

do not have sufficient

capacity.

3. Starting switch not

operating (motor does not

reach speed).

1. Do not use other appliances or motors on

same circuit when using the saw.

2. Increase wire sizes, or reduce length of wiring.

See "Motor Specifications and Electrical

Requirements" section.

3. Request a voltage check from the power

company.

1. Request voltage check from the power

company_ Check size of circuit wiring.

2. Have motor repaired or replaced.

3. Blow out sawdust from motor. Have motor

repaired.

1. Feed work slower into blade.

2. Clean out sawdust to provide normal air

circulation through motor. See "Maintenance

and Lubrication" section.

1. Have switch replaced and request a voltage

check from the power company.

2. Have capacitor tested and replace if defective.

3. Have wiring checked and repaired.

1. Have switch replaced.

2. Request voltage check from the power

company.

3. Install proper size fuses or circuit breakers.

1.

2. Feed work slower into blade_ .........

Install proper size fuses or circuit breakers.

Check: that wiring will handle load.

3. Have switch replaced. Blow out sawdust.

40

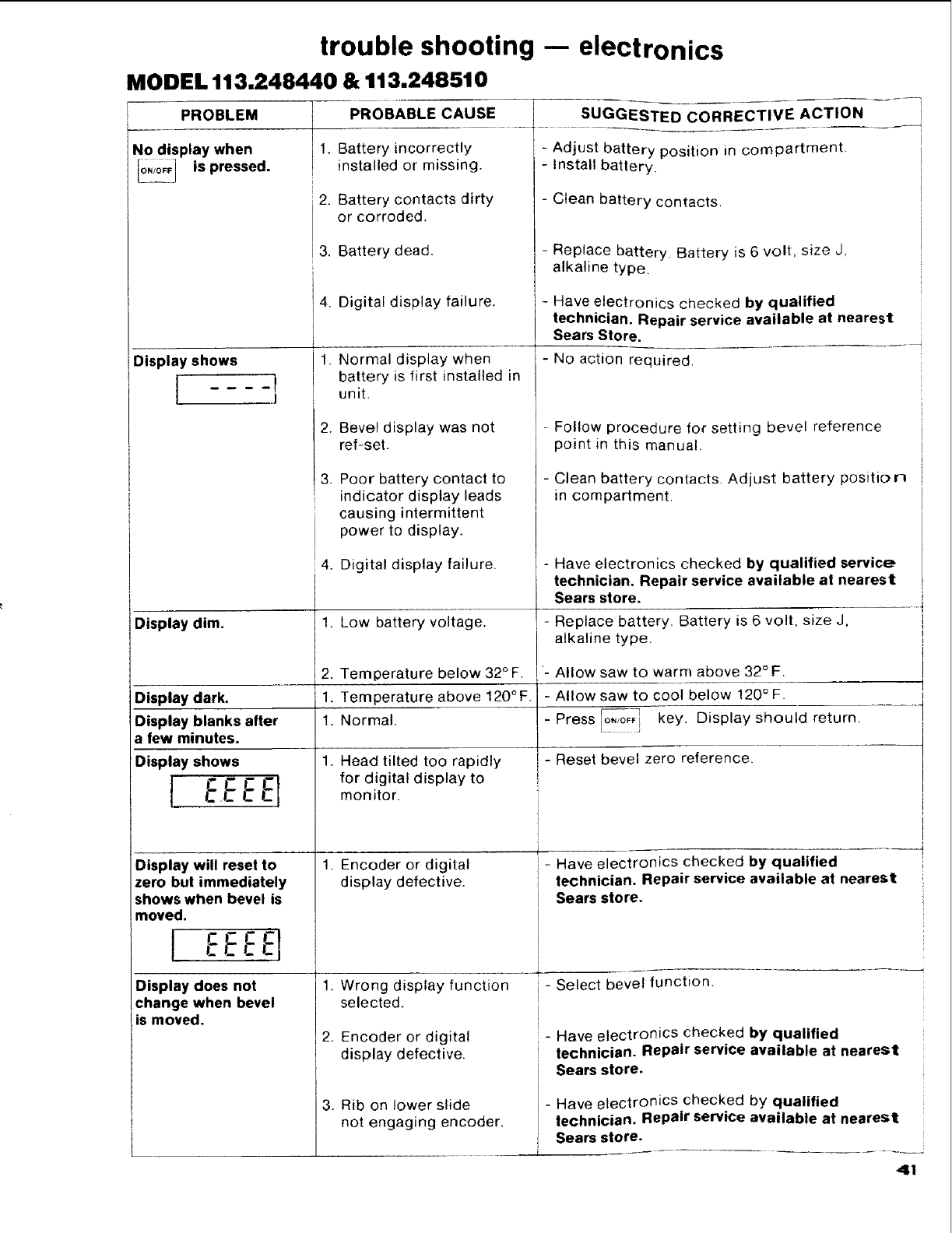

trouble shooting -- electronics

MODEL 113.248440 & 113.248510

PROBLEM

I

No display when

is pressed.

Display shows

I1

PROBABLE CAUSE

1. Battery incorrectly

installed or missing.

2. Battery contacts dirty

or corroded.

3. Battery dead.

4. Digital display failure.

1. Normal display when

battery is first installed in

unit.

2. Bevel display was not

ref-set.

3. Poor battery contact to

indicator display leads

causing intermittent

power to display.

4. Digital display failure.

SUGGESTED CORRECTIVE ACTION

.......... _ ...... -- ..... __ ...... --H

- Adjust battery position in compartment.

- Install battery.

- Clean battery contacts.

-Replace battery Battery is 6 volt, size J, !

alkaline type. ,

- Have electronics checked by qualified

technician. Repair service available at nearest

Sears Store. --

- No action required.

- Follow procedure for setting bevel reference

point in this manual.

- Clean battery contacts. Adjust battery position

in compartment.

- Have electronics checked by qualified service

technician. Repair service available at nearest

Sears store.

Display dim. 1. Low battery voltage. - Replace battery. Battery is 6 volt, size J.

alkaline type.

2. Temperature below 32° F. - Allow saw to warm above 32° F.

Display dark. 1. Temperature above 120°F. - Allow saw to cool below 120° F.

Display blanks after 1. Normal. - Press IO"_OF_]key. Display should return.

a few minutes.

Display shows 1. - Reset bevel zero reference.

FFc,:EEl

Display will reset to

zero but immediately

shows when bevel is

moved,

IEEEEI

Head tilted too rapidly

for digital display to

monitor.

1. Encoder or digital

display defective.

1. Wrong display function

selected.

2. Encoder or digital

display defective.

3. Rib on lower slide

not engaging encoder.

i _ Have electronics checked by qualified

itechnician, Repair service available at nearest

Sears store.

- Select bevel function.

- Have electronics checked by qualified

technician. Repair service available at nearest

Sears store.

- Have electronics checked by qualified

technician. Repair service available at nearest

Sears store.

Display does not

change when bevel

is moved.

41

trouble shooting --- electronics

MODEL 113.248440 & 113.2485t 0

PROBLEM

Display does not

change when blade

speed is changed.

Display changes back

and forth between

3000 & 2800 in fpm

function.

Display does not

change when blade

tension is changed.

PROBABLE CAUSE

1. Wrong display

function selected.

2. Encoder or digital

display defective.

1. Slight variations in

in blade speed.

1. Wrong display function

selected.

2. Encoder or digital

display defective.

3. Encoder not engaged

with tab on actuator.

Display shows 1

in tension function.

! E 1

Blade too tight.

SUGGESTED CORRECTIVE ACTION

- Select FPM function.

-Have electronics checked by qualified

technician. Repair service available at nearest

Sears store.

- Normal.

- Select _ function.

- Have electronics checked by qualified

technician. Repair service available at nearest

Sears store.

- Engage tab of actuator with encoder.

- Normal. Reduce blade tension.

42

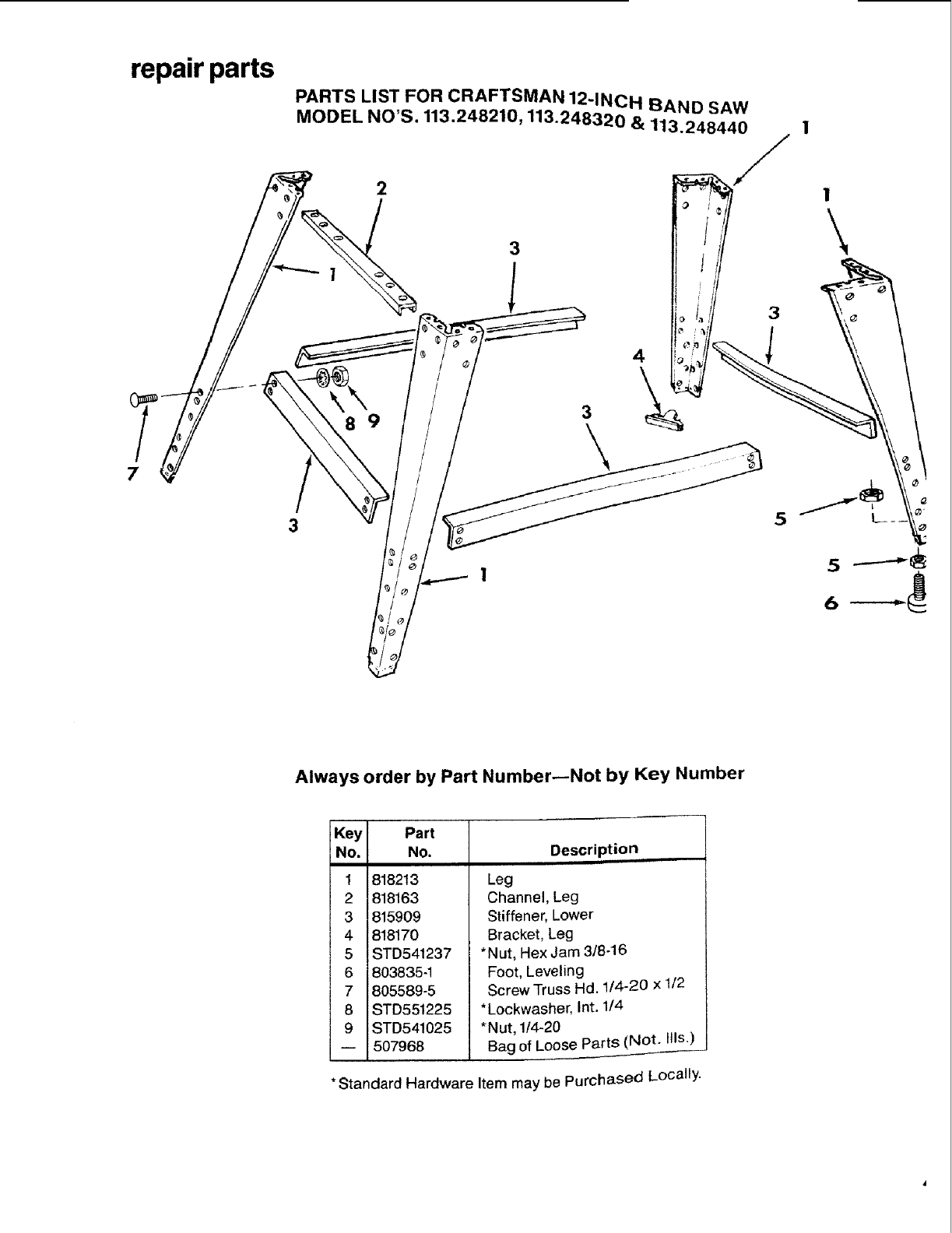

repair parts

PARTS LIST FOR CRAFTSMAN 12-INCH BAND SAW

MODEL NO'S. 113.248210, 113.248320 & 113.248440

7

89

3

3

\

4

\

3

Always order by Part Number--Not by Key Number

Key

No.

1

2

3

4

5

6

7

8

9

Part

No.

818213

818163

815909

818170

STD541237

803835-1

805589-5

STD551225

STD541025

507968

Description

Leg

Channel, Leg

Stiffener, Lower

Bracket, Leg

*Nut, Hex Jam 3J8-16

Foot, Leveling

Screw Truss Hd. 1/4-20 x 112

*Lockwasher, Int. 1/4

*Nut, 1/4-20

Bag of Loose Parts (Not. _lls.)

*Standard Hardware Item may be Purchased Locally.

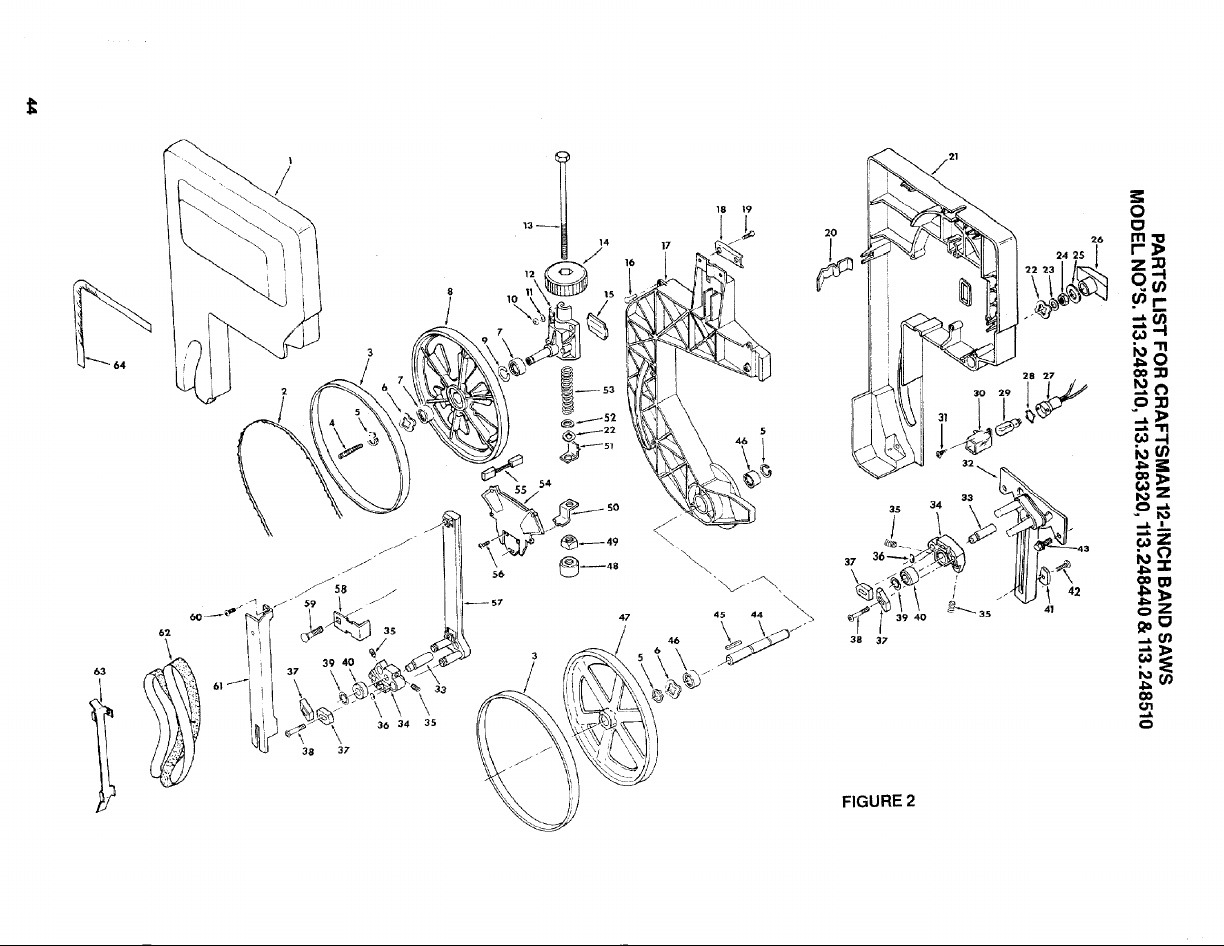

63

64

2

3

36 34

38 37

47

t7

\

\\

46

18 19

\

45 44 _,_

35

/

37

38 3;'

33

34

FIGURE 2

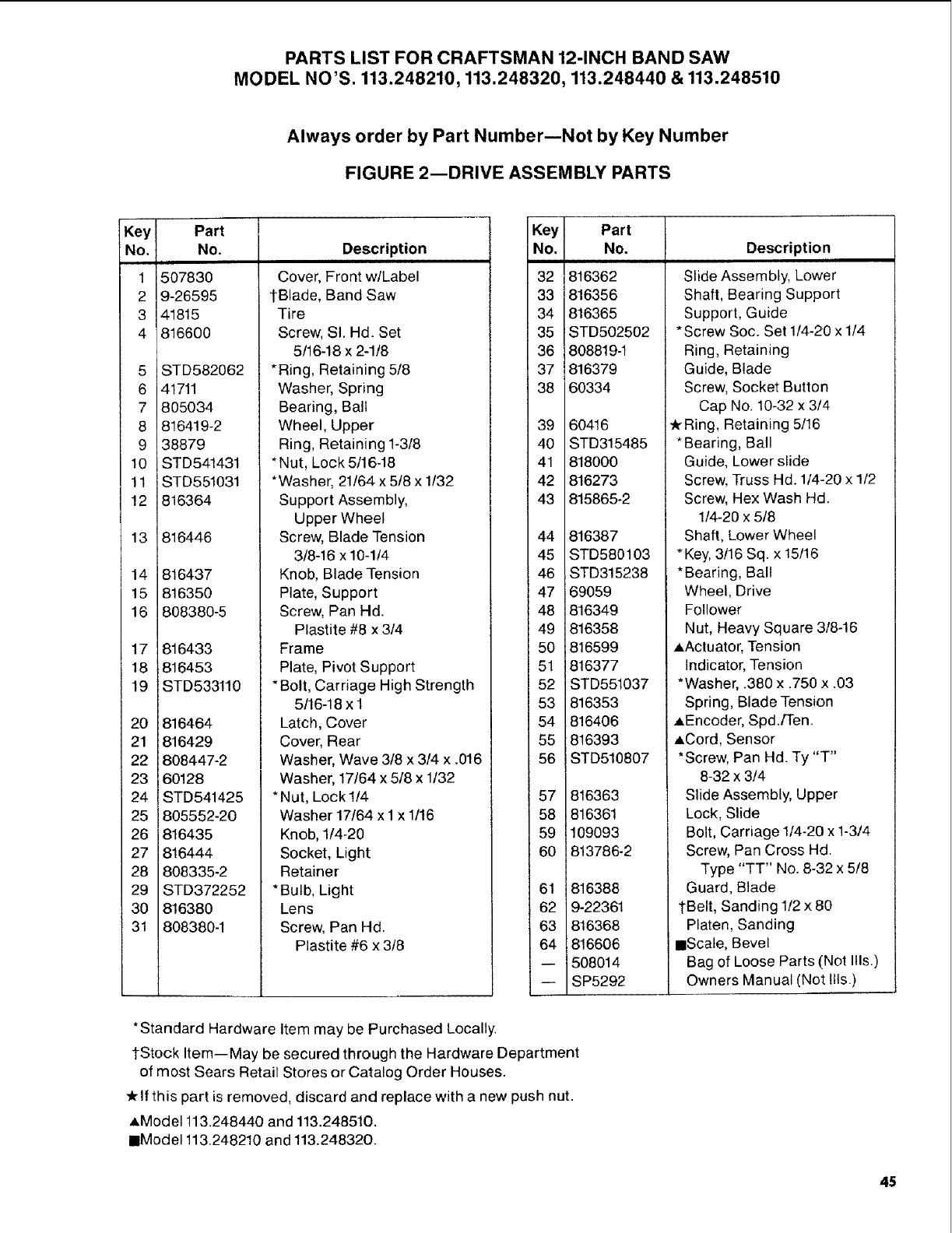

PARTS LIST FOR CRAFTSMAN 12-INCH BAND SAW

MODEL NO'S. 113.248210, 113.248320, 113.248440 & 113.248510

Always order by Part Number--Not by Key Number

FIGURE 2--DRIVE ASSEMBLY PARTS

Key Part

No, No.

1 507830

2 9-26595

3 41815

4 816600

5 STD582062

6 41711

7 805034

8 816419-2

9 38879

10 STD541431

11 STD551031

12 816364

13 816446

14 816437

15 816350

16 808380-5

17 816433

18 816453

19 STD533110

Description

Cover, Front w/Label

1-Blade, Band Saw

Tire

Screw, SI. Hd. Set

5/16-18 x 2-1/8

*Ring, Retaining 5/8

Washer, Spring

Bearing, Ball

Wheel, Upper

Ring, Retaining 1-3/8

* Nut, Lock 5/16-18

*Washer, 21/64 x 5/8 x !132

Support Assembly,

20 816464

21 816429

22 808447-2

23 60128

24 STD541425

25 i805552-20

26 816435

27 816444

28 808335-2

29 STD372252

30 816380

31 808380-1

Upper Wheel

Screw, Blade Tension

3/8-16 x 10-1/4

Knob, Blade Tension

Plate, Support

Screw, Pan Hd.

Plastite #8 x 3/4

Frame

Plate, Pivot Support

* Bolt, Carriage High Strength

5/16-18 x 1

Latch, Cover

Cover, Rear

Washer, Wave 3/8 x 3/4 x .016

Washer, 17/64 x 5/8 x 1/32

* Nut, Lock 1/4

Washer 17/64 x 1x 1116

Knob, 1/4-20

Socket, Light

Retainer

*Bulb, Light

Lens

Screw, Pan Hd.

Plastite #6 x 3t8

Key Part

No. No.

32 816362

33 816356

34 816365

35 STD502502

36 808819-1

37 816379

38 60334

39 60416

40 STD315485

41 818000

42 816273

43 815865-2

44 816387

45 STD580103

46 STD315238

47 69059

48 816349

49 816358

50 816599

51 816377

52 STD551037

53 816353

54 816406

55 816393

56 STD510807

57 816363

58 816361

59 109093

60 813786-2

61 816388

62 9-22361

63 816368

64 816606

5O8014

-- SP5292

Description

Slide Assembly, Lower

Shaft, Bearing Support

Support, Guide

*Screw Soc. Set 1/4-20 x 1/4

Ring, Retaining

Guide, Blade

Screw, Socket Button

Cap No. 10-32 x 3/4

-kRing, Retaining 5/16

*Bearing, Ball

Guide, Lower slide

Screw, Truss Hd. 1/4-20 x 1/2

Screw, Hex Wash Hal.

1/4-20 x 5/8

Shaft, Lower Wheel

*Key, 3/16 Sq. x 15116

*Bearing, Ball

Wheel, Drive

Follower

Nut, Heavy Square 3/8-16

AActuator, Tension

Indicator, Tension

*Washer, .380 x .750 x .03

Spring, Blade Tension

AEncoder, Spd./Ten.

,,Cord, Sensor

*Screw, Pan Hd. Ty "T"

8-32 x 3/4

Slide Assembly, Upper

Lock, Slide

Bolt, Carriage 1/4-20 x 1-3/4

Screw, Pan Cross Hd.

Type "TT" No. 8-32 x 5/8

Guard, Blade

1"Belt, Sanding 1/2 x 80

Platen, Sanding

==Scale, Bevel

Bag of Loose Parts (Not Ills.)

Owners Manual (Not Ills.)

*Standard Hardware Item may be Purchased Locally.

1-Stock Item--May be secured through the Hardware Department

of most Sears Retail Stores or Catalog Order Houses.

If this part is removed, discard and replace with a new push nut.

AMode1113.248440 and 113.248510.

==Model 113.248210 and 113.248320.

45

PARTS LIST FOR CRAFTSMAN 12-INCH BAND SAW

MODEL NO'S. 113.248210,113.248320, 113.248440 & 113.248510

5

17

16

14

18 5

f9

28

\23

46

PARTS LIST FOR CRAFTSMAN 12-INCH BAND SAW

MODEL NO'S. 113.248210, 113.248320, 113.248440 & 113.248510

Always order by Part Number--Not by Key Number

FIGURE 3mBASE COMPONENTS

Key Part

iNo. No.

1 816421

2

3

5

6

7

8

9

816420

806036-2

816423

815868

810214-2

816371

62204

STD522505

10 816372

11 816333-2

12 STD551210

13 169123-12

14 816448

15 816436

16 STD375006

17 816888

18 816434

t9 816417

20 818529

21 816370

22 815865-2

23 818390

Description

Table, Rear

(Model 113.248210 only)

mOATable, Rear

Screw, Locking Set

1/4-20 x 1/2

Cover Base

(Model 113.248210 only)

Relief, Strain

Screw, Low Hd. Cap

1/4-20 x 5/8

Key,Table Alignment

Clip, Cord

*Screw, Hex Wash Hd.

1/4-20 x 1/2

Plate, Cover

Screw, Pan Hd. Type "TT"

10-32 x 3/8

* Lockwasher, Int. #10

Relief, Strain

Cord, w/Plug

Cord, Switch

*Connector, Wire

Cord, Motor

Table, Front

Cover, Bottom

Spring, Table Latch

Spring, Table Alignment

Screw, Hex Washer Hd.

Type "TT" 1/4-20 x 518

Base Asserpbly Model

(113.248210 & 113.248320)

Key IPart

No. No.

23 818391

24 816403

25 STD541110

26 STD611005

27 STD551012

28 818777

29 816113

30 808380-2

31 818569

32 STD51!105

33 9-22256

34 STD551010

35 818193

36 STD363569

37 816376

38 816404

39 818192

4O STD551206

41 808380-1

42 60419

507741

Description

B_,Base Assembly

Box, Switch

*Nut, Hex 10-32

*Screw, Pan Hd. TyAB

10 x1/2

(Model 113.248210 only)

*Washer, Large 7/32 x 1x

1/16

Latch, Table

Switch, Locking

Screw, Pan Hd. Plastite

#8 x 3/8

Gasket

*Screw, Pan Cross

10-32 x 1/2

1-Key,Switch

*Washer, Small 13/64 x 5/8 x

1t32

Cap, Trim, L.H.

IA-A-Battery

i_,Lid Battery

IAControl, Band Saw

Cap, Trim R.H.

IA * Lockwasher, Internal #6

iAScrew, Pan Hd. Plastite

#6 x 3t8

Screw, Pan Hd. Plastite

#8 x t/2

Bag of Loose Parts

(Not Ills.)

I

*Standard Hardware Item may be Purchased Locally.

AMode1113.248440 Only

OMode1113.248320 Only

==Model113.248510 Only

_Can also use these battery numbers:

Eveready #539

Rayovac #867

Duracel #7K67

1-Stock Item--May be secured through the

Hardware Department of Most Sears Retail Stores

or Catalog Order Houses.

47

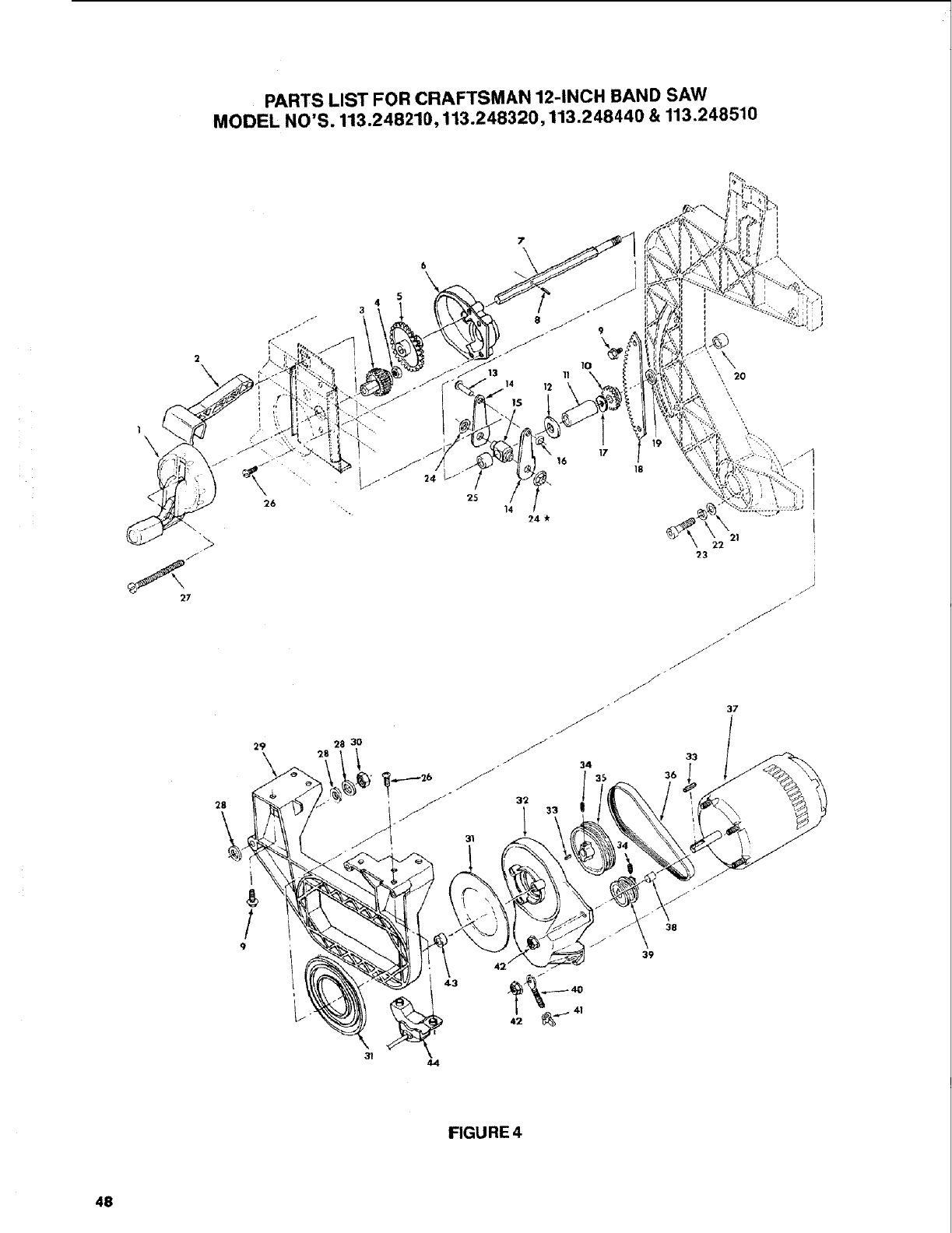

PARTS LIST FOR CRAFTSMAN 12-INCH BAND SAW

MODEL NO'S. 113.248210,113.248320,113.248440 & 113.248510

29

28

/

9

4

3

28 30

F

4,4

7

\ I

17

16 18

14 24

22

23

\

J

J

_J

33

36

FIGURE 4

48

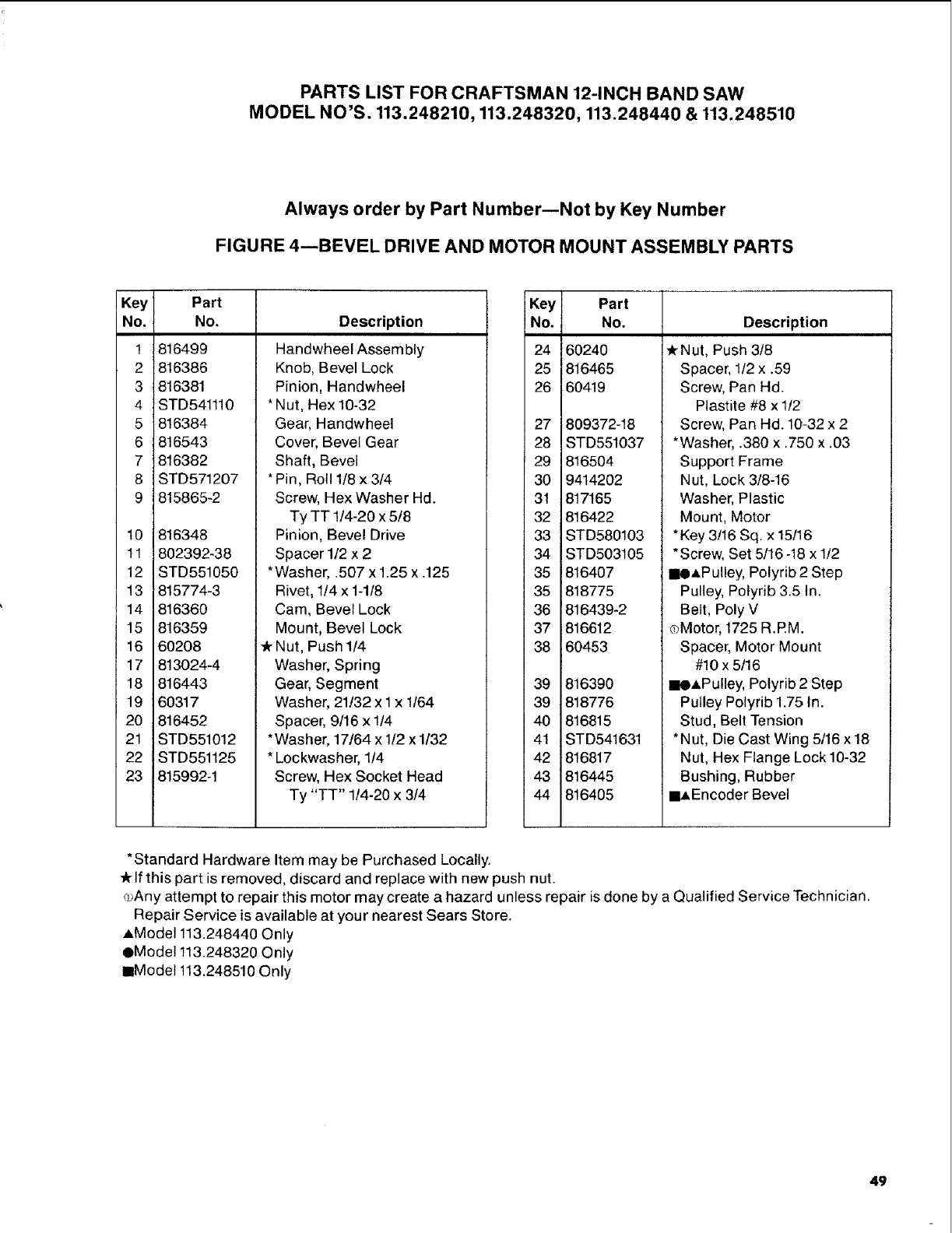

PARTS LIST FOR CRAFTSMAN 12-INCH BAND SAW

MODEL NO'S. 113.248210, 113.248320, 113.248440 & 113.248510

Always order by Part Number--Not by Key Number

FIGURE 4--BEVEL DRIVE AND MOTOR MOUNT ASSEMBLY PARTS

Key Part

No. No,

1 816499

2 816386

3 816381

4 STD541110

5 8t6384

6 816543

7 816382

8 STD571207

9 815865-2

10 816348

11 802392-38

12 STD551050

13 815774-3

14 816360

15 816359

16 60208

17 813024-4

18 816443

19 60317

20 816452

21 STD551012

22 STD551125

23 815992-1

Description

Handwheel Assembly

Knob, Bevel Lock

Pinion, Handwheel

* Nut, Hex 10-32

Gear, Handwheel

Cover, Bevel Gear

Shaft, Bevel

*Pin, Roll 1/8 x 3/4

Screw, Hex Washer Hd.

Ty TT 1/4-20 x 5/8

Pinion, Bevel Drive

Spacer 1/2 x 2

*Washer, .507 x 1.25 x .125

Rivet, 1/4 x 1-1/8

Cam, Bevel Lock

Mount, Bevel Lock

-k Nut, Push 1/4

Washer, Spring

Gear, Segment

Washer, 21132x 1x 1/64

Spacer, 9/16 x 1/4

*Washer, 17/64 x 1/2 x 1/32

* Lockwasher, 1/4

Screw, Hex Socket Head

Ty "TT" 1/4-20 x 3t4

Key Part

No. No.

24 60240

25 816465

26 60419

27 809372-18

28 STD551037

29 816504

30 9414202

31 817165

32 816422

33 STD580103

34 STD503105

35 816407

35 818775

36 816439-2

37 816612

38 60453

39 816390

39 818776

40 816815

41 STD541631

42 816817

43 816445

44 816405

Description

_Nut, Push 3/8

Spacer, 1/2 x .59

Screw, Pan Hd.

Plastite #8 x 1/2

Screw, Pan Hd. 10-32 x 2

*Washer, .380 x .750 x .03

Support Frame

Nut, Lock 3/8-16

Washer, Plastic

Mount, Motor

*Key 3t16 Sq. x 15/16

*Screw, Set 5/16 -18 x 1t2

IIoAPulley, Polyrib 2 Step

Pulley, Polyrib 3.5 In.

Belt, Poly V

®Motor, 1725 R.P.M.

Spacer, Motor Mount

#10 x 5/16

imAPulley, Polyrib 2 Step

Pulley Polyrib 1.75 In.

Stud, Belt Tension

*Nut, Die Cast Wing 5/16 x 18

Nut, Hex Flange Lock 10-32

Bushing, Rubber

IlAEncoder Bevel

*Standard Hardware Item may be Purchased Locally.

_lf this part is removed, discard and replace with new push nut.

_,_,Anyattempt to repair this motor may create a hazard unless repair is done by a Qualified Service Technician.

Repair Service is available at your nearest Sears Store.

,&Model 113.248440 Only

OMode1113.248320 Only

==Model 113.248510 Only

49

PARTS LIST FOR CRAFTSMAN 12-INCH ELECTRONIC BAND SAW

MODEL 113.248510

10

FIGURE 5--PARTS LIST 23" CABINET

Always order by Part Number--Not by Key Number

13

Key Part

No. No.

1 805589-5

2 815900

3 STD551225

4ISTD541025

5 STD600603

6

7

8

9

10

81593 3

817151

815887

816274

STD541237

Description

Screw, Truss Hd. 1/4-20 x1/2

Skirt 23"

* Lockwasher, Ext. 1/4

*Nut, Hex 1/4-20

* Screw, Pan Hd. Ty "T"

6-32 x 3/8

Catch, Magnetic

Panel Side R.H.

Shelf, Lower 23"

Screw, Pan Hd. Plastite

6-10 x 1/2

* Nut, Hex Jam 3/8-16

Key Part

No. No.

II

11 815934

12 816274-1

13

14

15

16

17

18

815882

803835-1

815993

817108

816063

817150

507530

508166

Description

Hinge, Door

Screw, Pan Hd. Plastite

10-10x 1/2

Door, Cabinet

Foot, Leveling

Bracket, Corner

Spacer

Stiffener, Shelf

Panel Side L.H.

Bag of Loose Parts (Not. Ills.)

Bag of Loose Parts (Not. Ills.)

*Standard Hardware Item may be Purchased Locally.

50

NOTES

51

f _,, f

_AIRS

owners

manual

SERVICE

MODEL NO.

113.248210

Single Speed Band Saw

with Leg Set

MODEL NO.

113.248320

Two Speed Band Saw

with Leg Set

MODEL NO.

113.248440

Two Speed Electronic

Band Saw with Leg Set

MODEL NO.

113.248510

Two Speed Electronic

Band Saw with Cabinet

HOW TO ORDER

REPAIRPARTS

12-INCH BAND SAW

Nowthat you have purchased your 'I2-Inch Band Saw, should

a need _*verexist for repair parts or service, simply contact any

Sears Service Center and most Sears, Roebuck and Co. stores,

Be sure to provide all pertinent facts when you calJ or visit.

The model number of your fl2-1nch Band Sawwill b_ found on

a plate attached to your saw, at the I_fft-hand side of the base.

WHEN ORDERING REPAIR PARTS,ALWAYS GIVE THEFOLLOWING

INFORMATION:

PART NUMBER PARTDESCRIPTION

MODEL NUMBER NAME OF ITEM

113.248210, 113.248320, fl2-1nch Band Saw

113.248440 or 113.248510

All parts listed may b_ ordered from any S_ars S_rvice Center

and most S_ars stor_s. If the parts you need are not stocked

locally, your order will be el_ctronically transmitted to a Sears

Repair Parts Di.-_rribution C__nter for handling.

Sold by SEARS,ROEBUCK AND CO., Chicago, IL. 60684 U.SA

J

Part No. SP5292 Form No. SP5292-5 Printed in U.S.A. 1/93
