Owner's Manual

10 in. Stationary

RADIAL ARM SAW

Model No.

315.220380

Save this manual for

future reference.

CAUTION: Read and follow all

Safety Rules and Operating

Instructions before first use of this

product.

Customer Help Line: 1-800-932-3188

Sears, Roebuck and Co., Hoffrnan Estates, IL 60179 USA

Visit the Craftsman web page: www.sears.com/craftsman

972000-505

12-98

•Safety

•Features

•Assembly

•Operation

•Maintenance

•Parts List ®

FULL ONE YEAR WARRANTY ON CRAFTSMAN RADIAL ARM SAW

If this rRRFTSMRN" Radial Arm Saw fails due to a defect in material or workmanship within one year from the

date of purchase, Sears will repair it, free of charge.

Contact a Sears Service Center for repair.

If this product is used for commercial or rental purposes, this warranty applies only for 90 days from the date of

purchase.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Your saw has many features for making cutting operations more pleasant and enjoyable. Safety, performance

and dependability have been given top priority in the design of this saw making it easy to maintain and operate.

_i, CAUTION: Carefully read through this entire owner's manual before using your new saw. Pay close

attention to the Rules For Safe Operation, and all Safety Alert Symbols, including Danger, Warning and

Caution. If you use your saw properly and only for what it is intended, you will enjoy years of safe, reliable

service.

_Look for this symbol to point out important safety precautions. It means attention!!! Your safety is

involved,

WARNING:

The operation of any power tool can result in foreign objects being thrown into your eyes,

which can result in severe eye damage. Before beginning power tool operation, always wear

safety goggles or safety glasses with side shields and afull face shield when needed. We

recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses

with side shields, available at Sears Retail Stores.

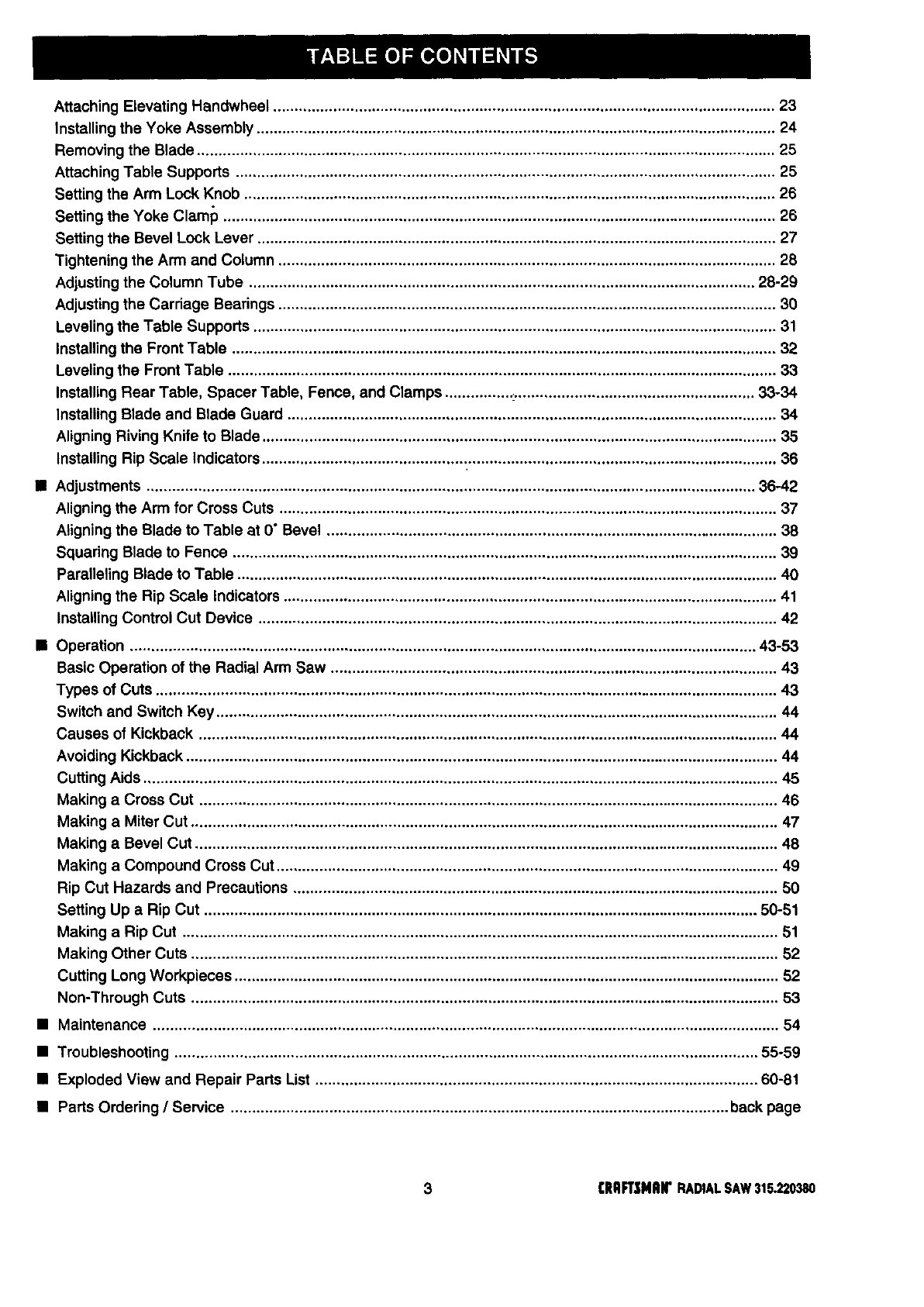

•Warranty and Introduction ............................................................................................................................... 2

•Table of Contents .......................................................................................................................................... 2-3

•Rules For Safe Operation ............................................................................................................................. 4-7

•Electrical ........................................................................................................................................................ 8-9

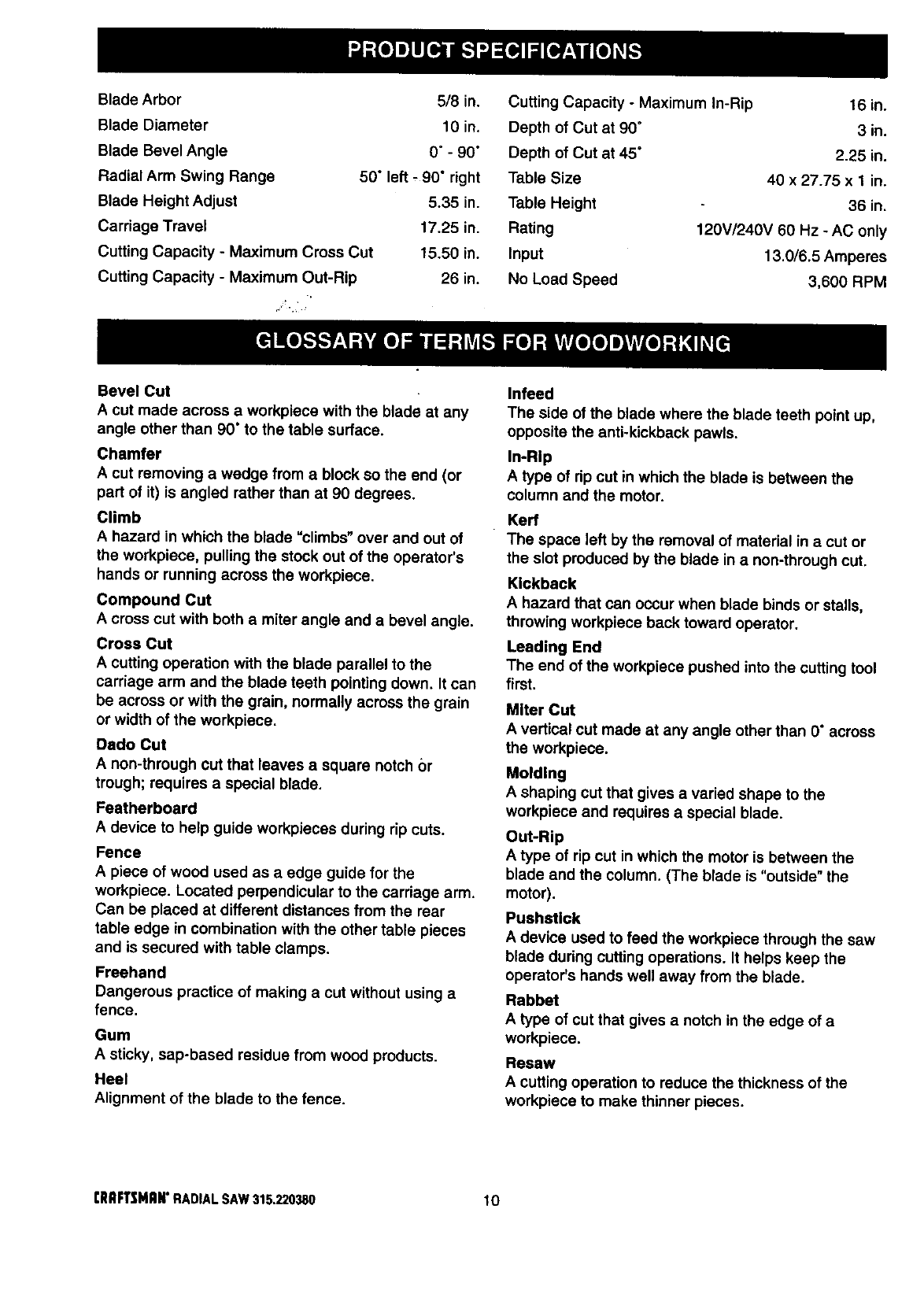

•Product Specifications and Glossary ........................................................................................................ 10-11

•Unpacking and Accessories .......................................................................................................................... 11

•Loose Parts List ........................................................................................................................................ 12-14

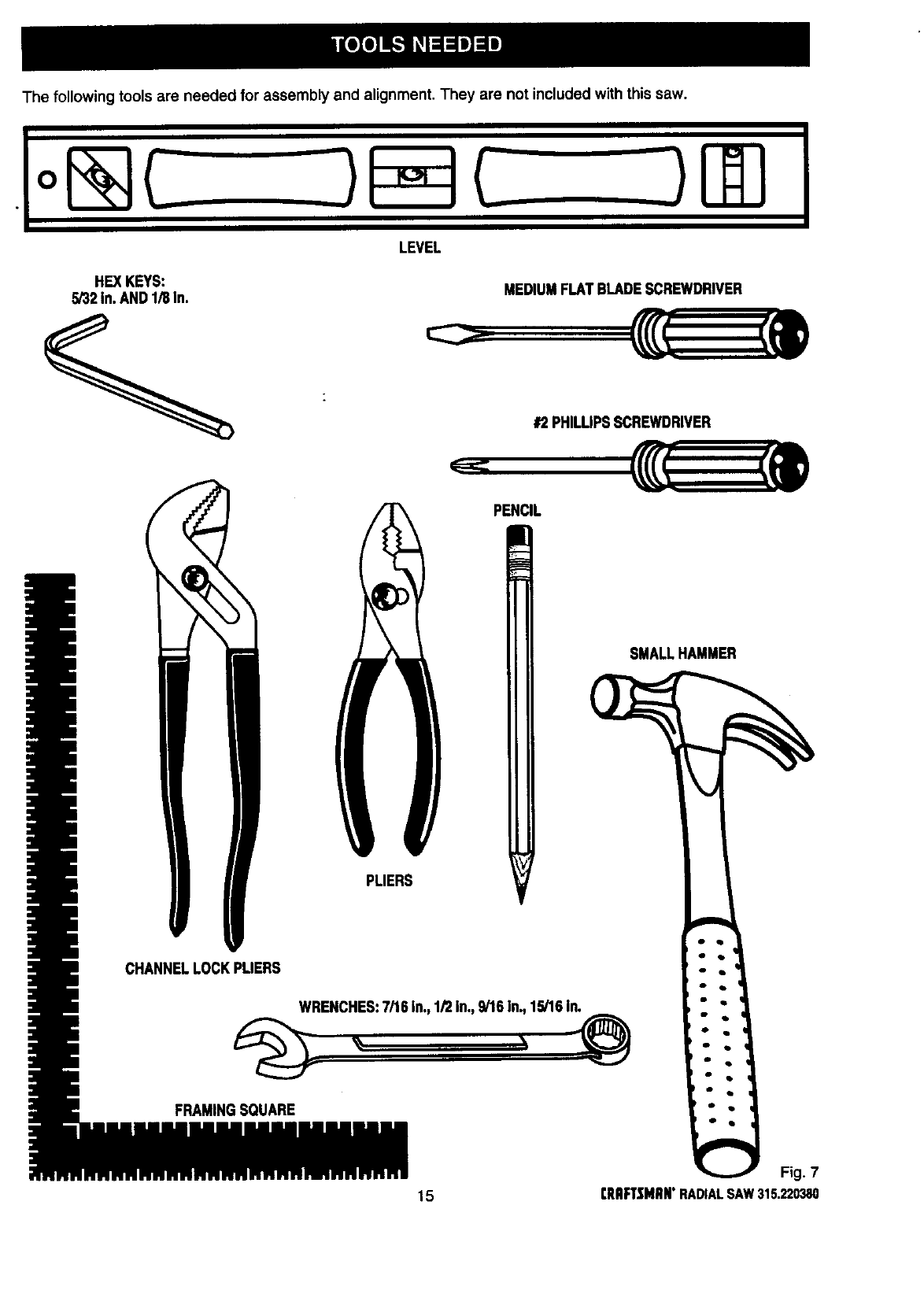

•Tools Needed ................................................................................................................................................. 15

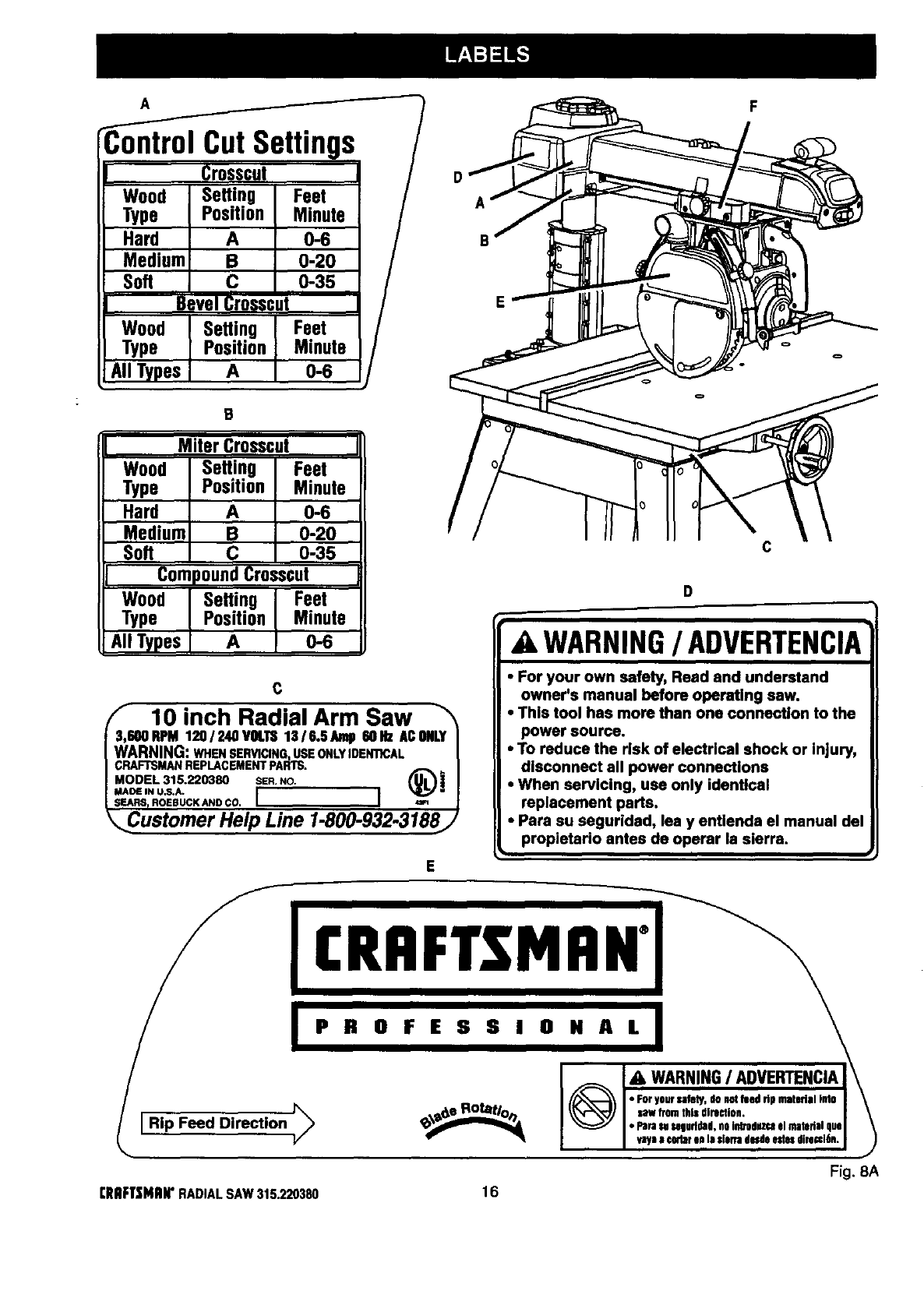

•Labels ........................................................................................................................................................ 16-17

•Features .................................................................................................................................................... 18-21

•Assembly ................................................................................................................................................... 22-36

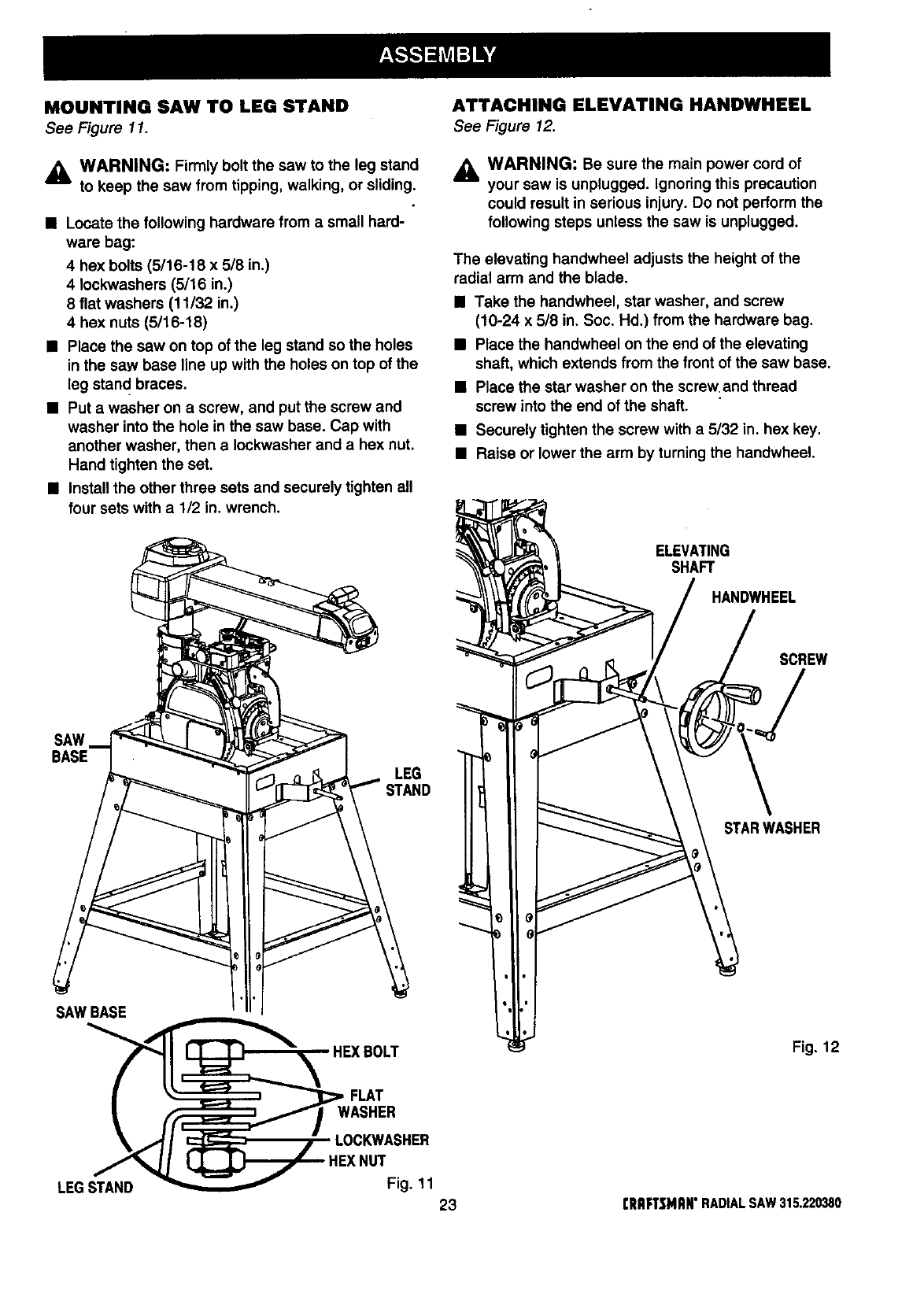

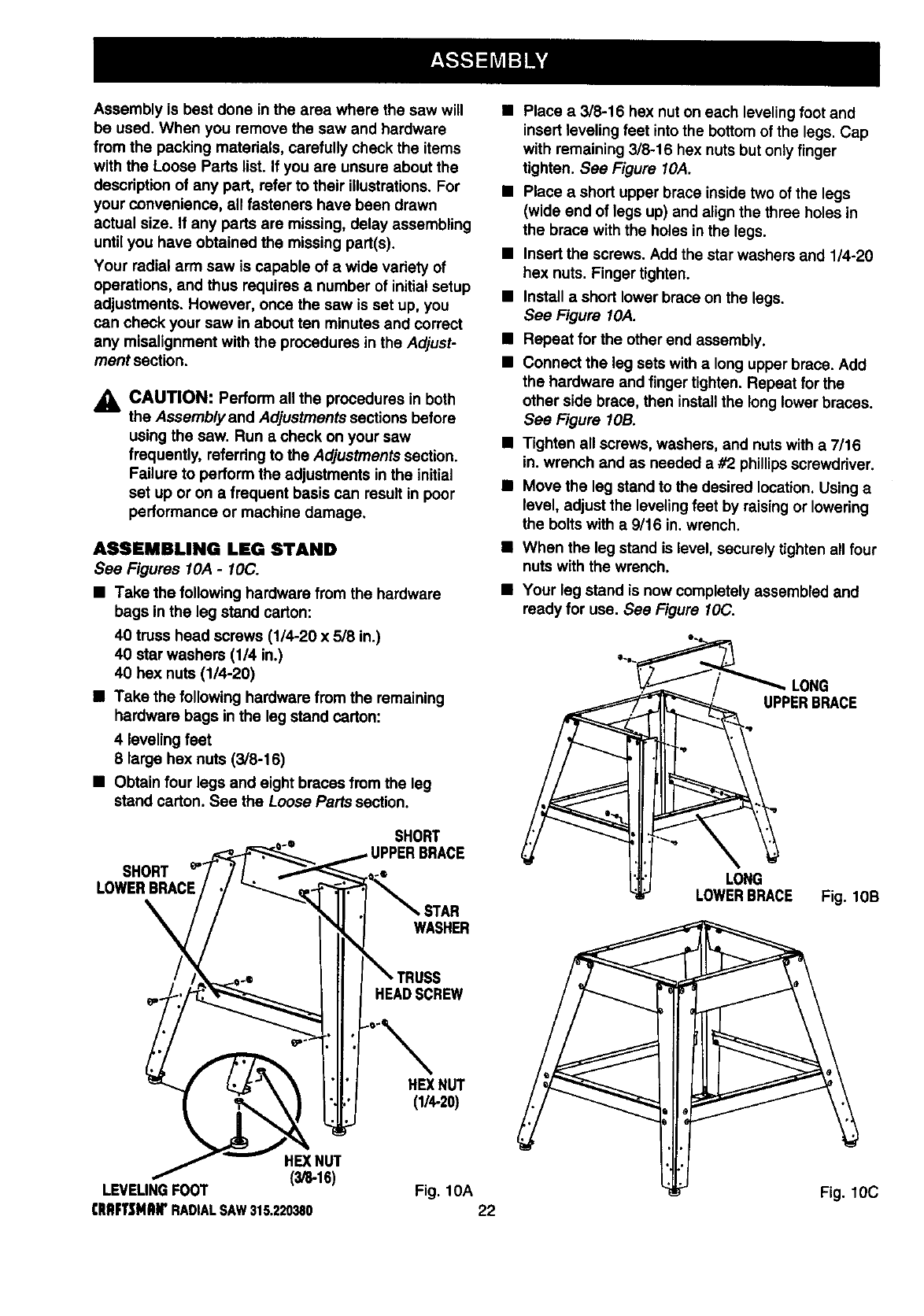

Assembling Leg Stand ................................................................................................................................... 22

Mounting Saw to Leg Stand ........................................................................................................................... 23

[RRFT._HRN"RADIALSAW315.220380 2

Attaching Elevating Handwheel ..................................................................................................................... 23

Installing the Yoke Assembly ......................................................................................................................... 24

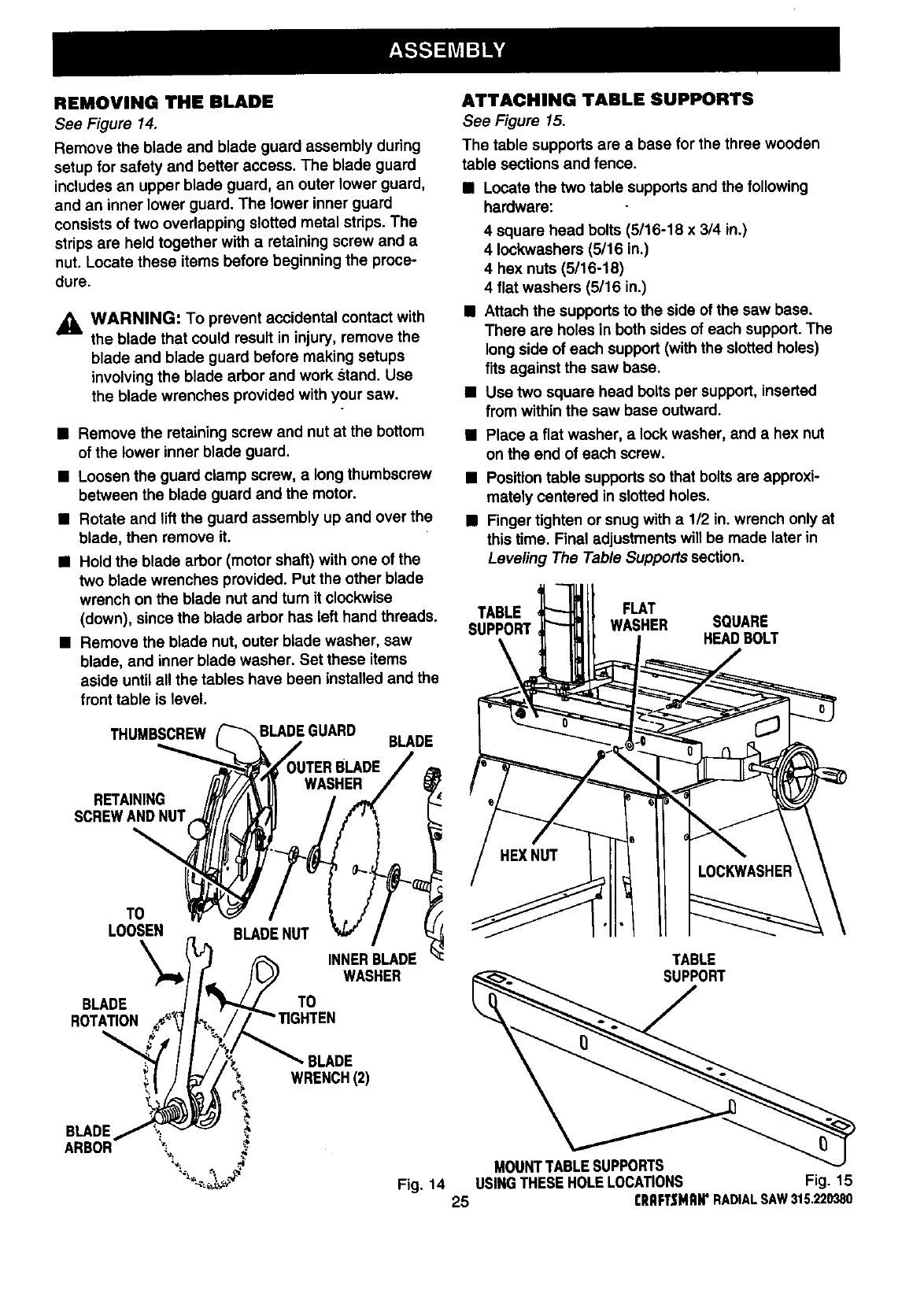

Removing the Blade ....................................................................................................................................... 25

Attaching Table Supports .............................................................................................................................. 25

Setting the Arm Lock Knob ............................................................................................................................ 26

Setting the Yoke Claml) ................................................................................................................................. 26

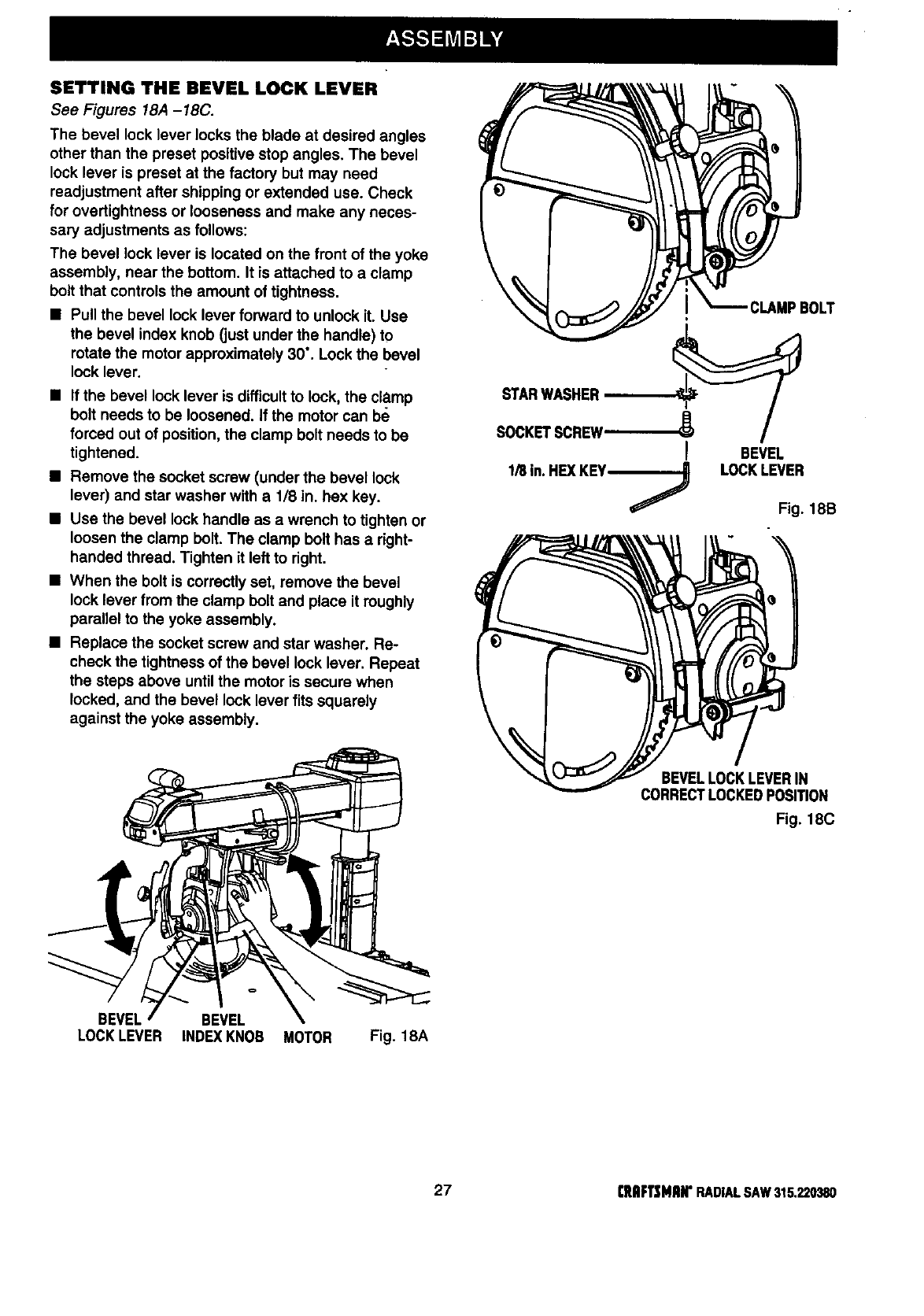

Setting the Bevel Lock Lever ......................................................................................................................... 27

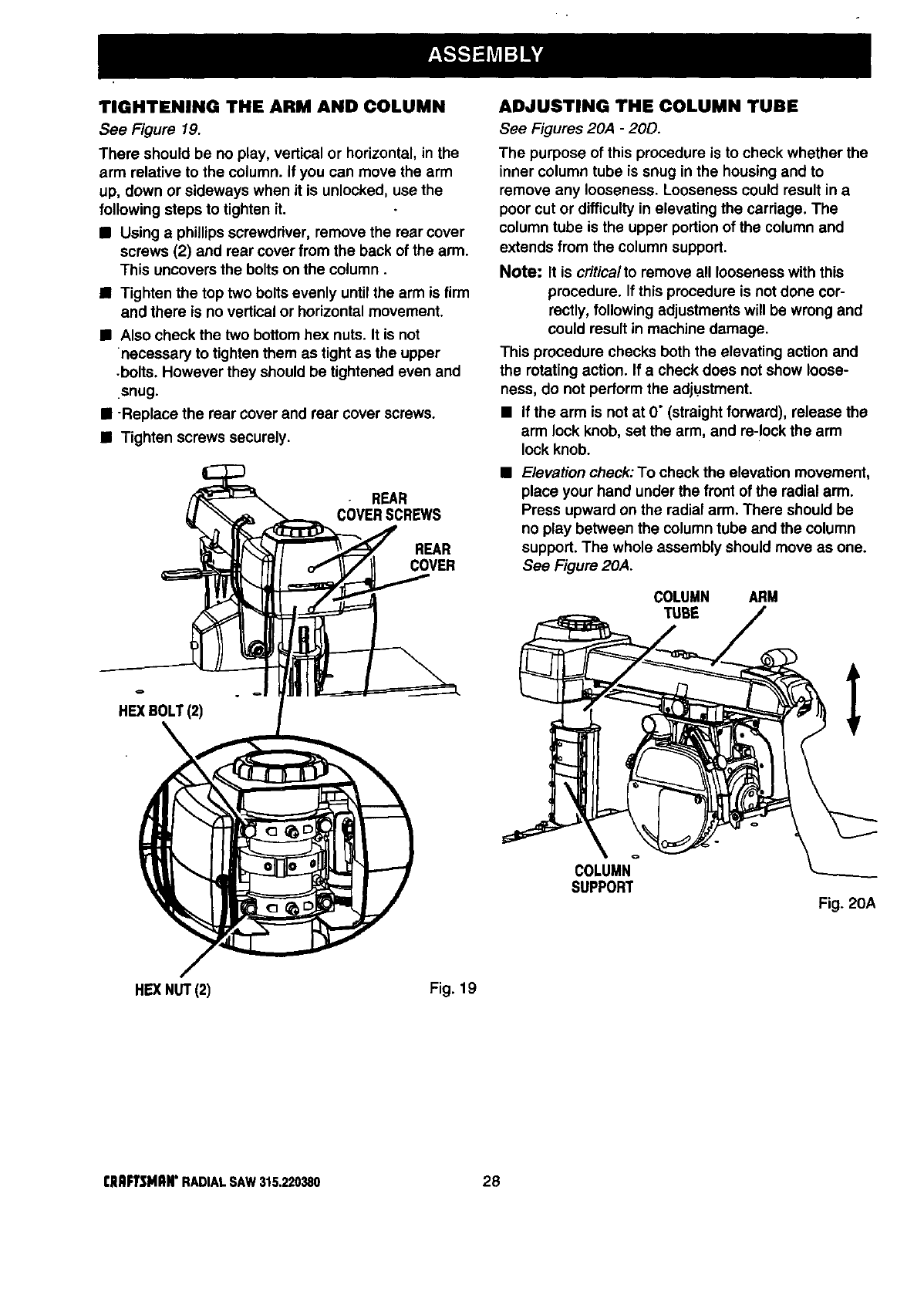

Tightening the Arm and Column .................................................................................................................... 28

Adjusting the Column Tube ...................................................................................................................... 28-29

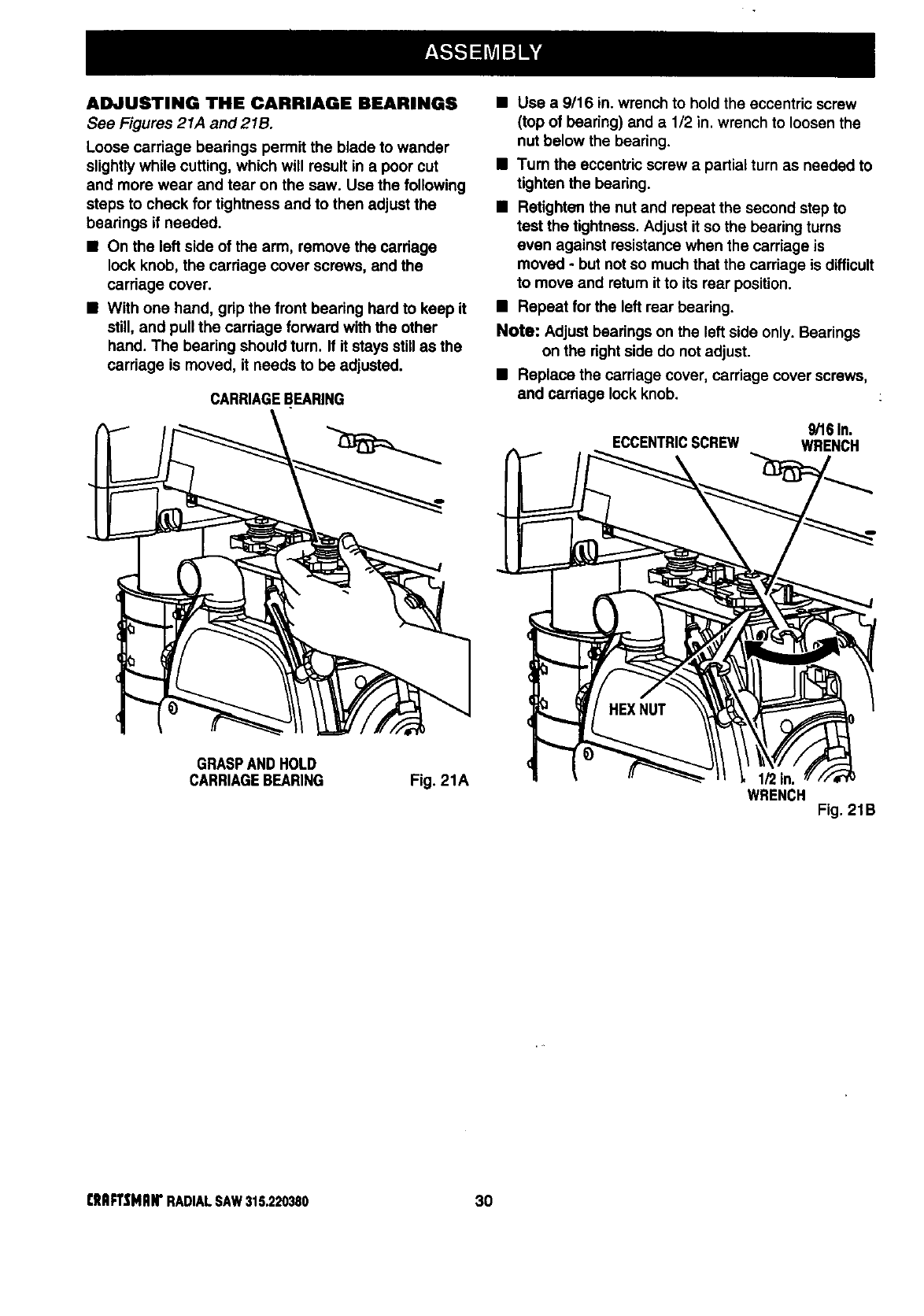

Adjusting the Carriage Bearings .................................................................................................................... 30

Leveling the Table Supports .......................................................................................................................... 31

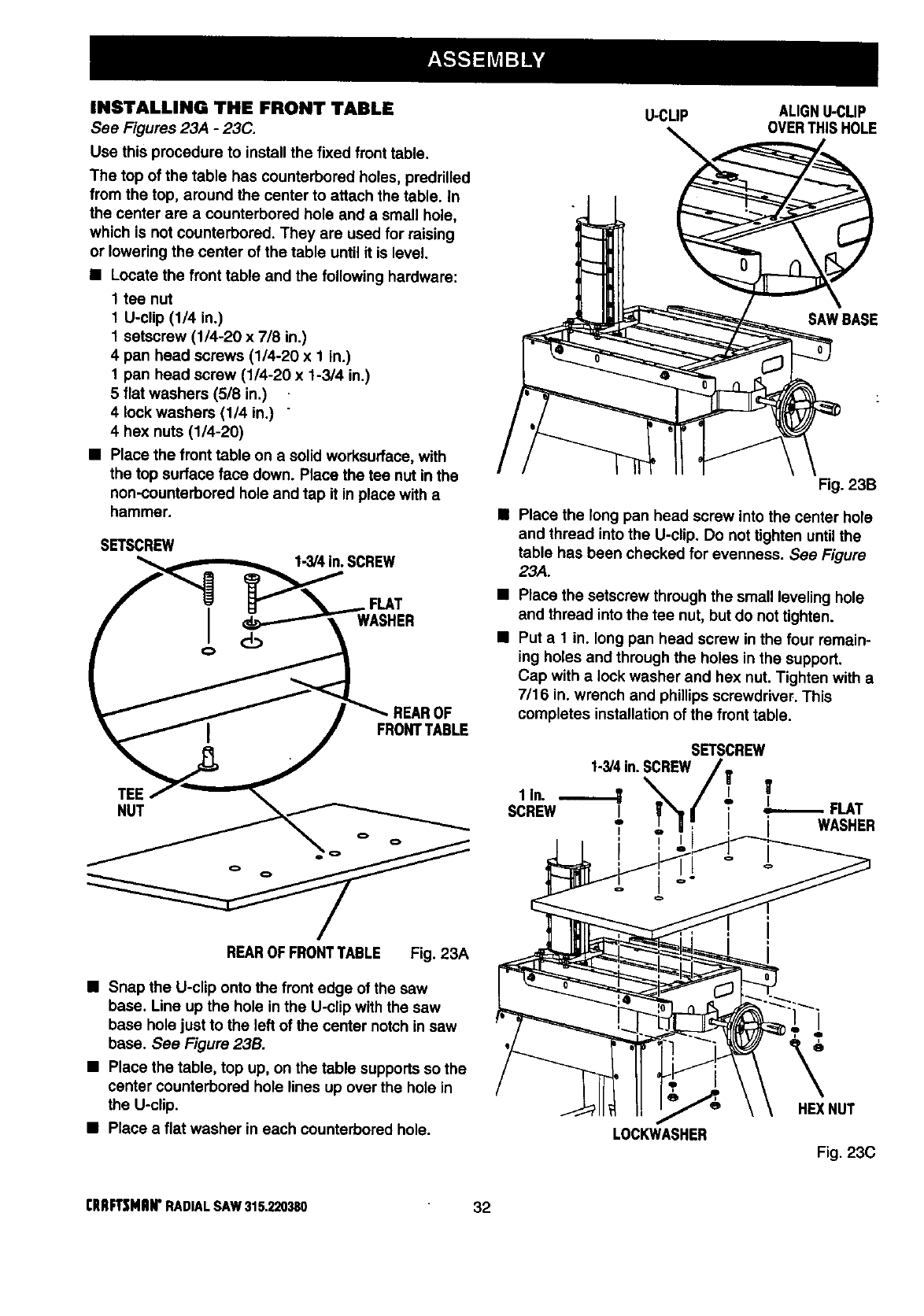

Installing the Front Table ............................................................................................................................... 32

Leveling the Front Table ................................................................................................................................ 33

Installing Rear Table, Spacer Table, Fence, and Clamps ............... .:........................................................ 33-34

Installing Blade and Blade Guard .................................................................................................................. 34

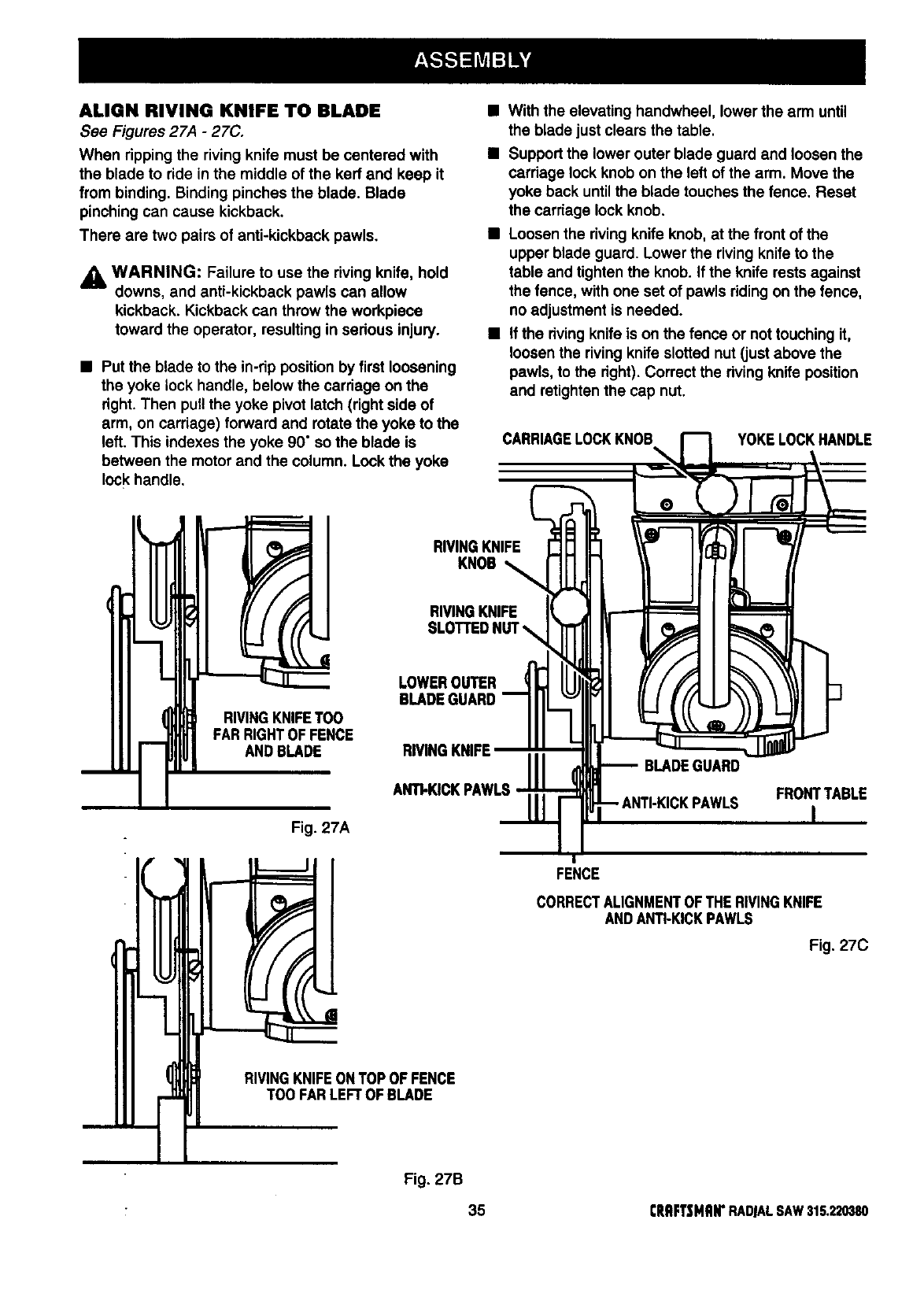

Aligning Riving Knife to Blade ........................................................................................................................ 35

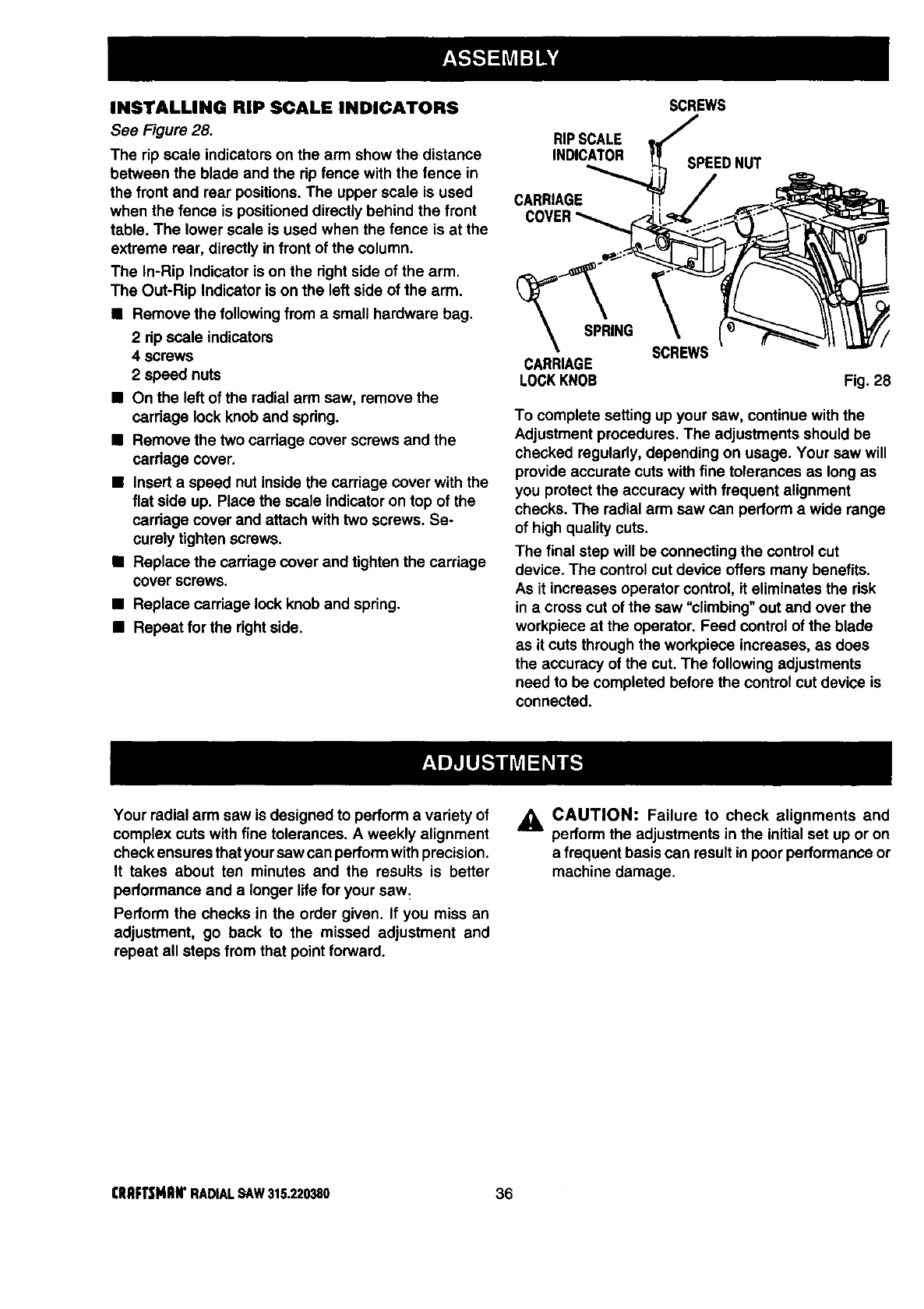

Installing Rip Scale Indicators ........................................................................................................................ 36

•Adjustments .............................................................................................................................................. 36-42

Aligning the Arm for Cross Cuts .................................................................................................................... 37

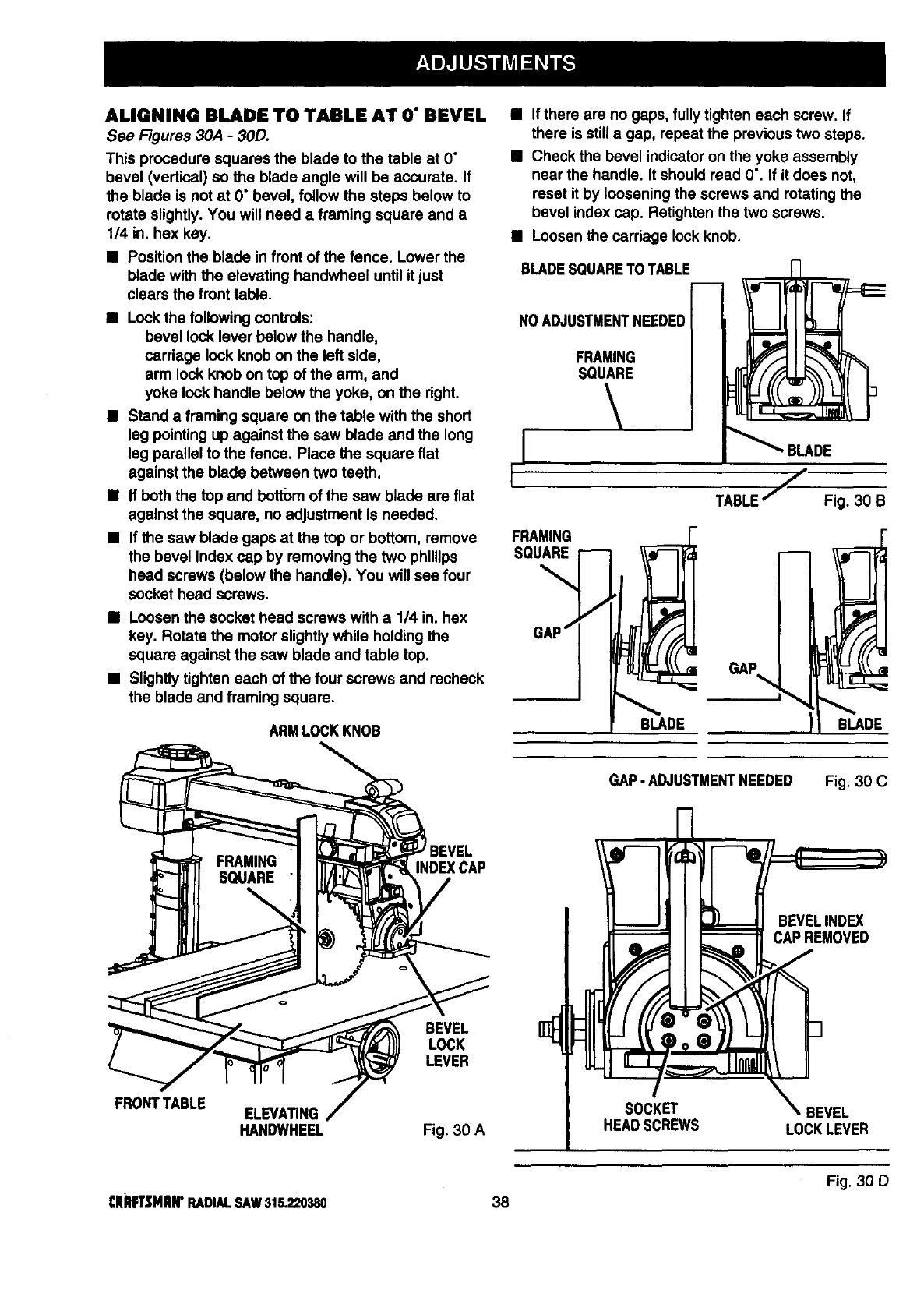

Aligning the Blade to Table at 0" Bevel ......................................................................................................... 38

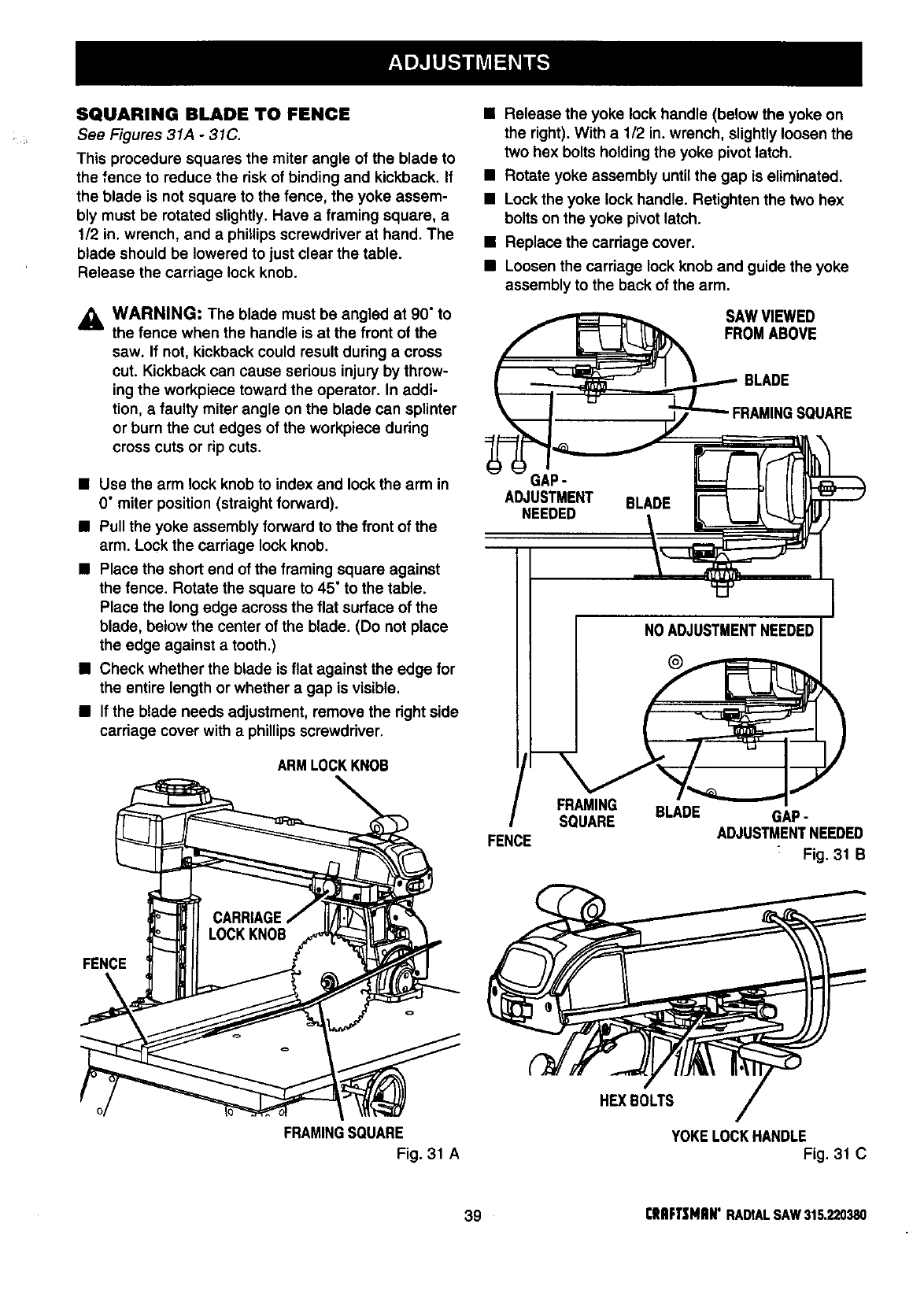

Squaring Blade to Fence ............................................................................................................................... 39

Paralleling Blade to Table .............................................................................................................................. 40

Aligning the Rip Scale Indicators ................................................................................................................... 41

Installing Control Cut Device ......................................................................................................................... 42

• Operation .................................................................................................................................................. 43-53

Basic Operation of the Radial Arm Saw ........................................................................................................ 43

Types of Cuts ................................................................................................................................................. 43

Switch and Switch Key ................................................................................................................................... 44

Causes of Kickback ....................................................................................................................................... 44

Avoiding Kickback .......................................................................................................................................... 44

Cutting Aids .................................................................................................................................................... 45

Making a Cross Cut ....................................................................................................................................... 46

Making a Miter Cut ......................................................................................................................................... 47

Making a Bevel Cut ........................................................................................................................................ 48

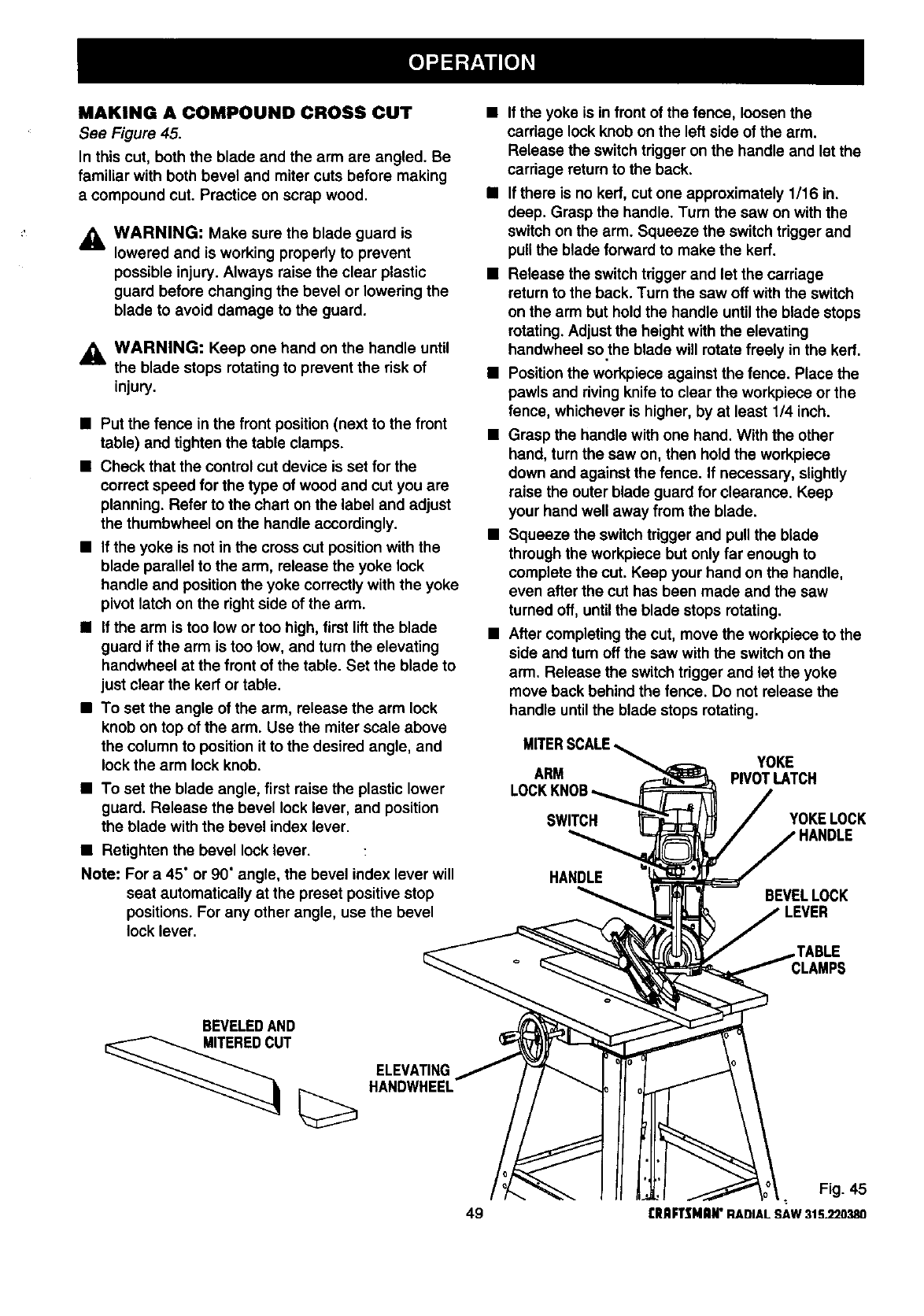

Making a Compound Cross Cut ..................................................................................................................... 49

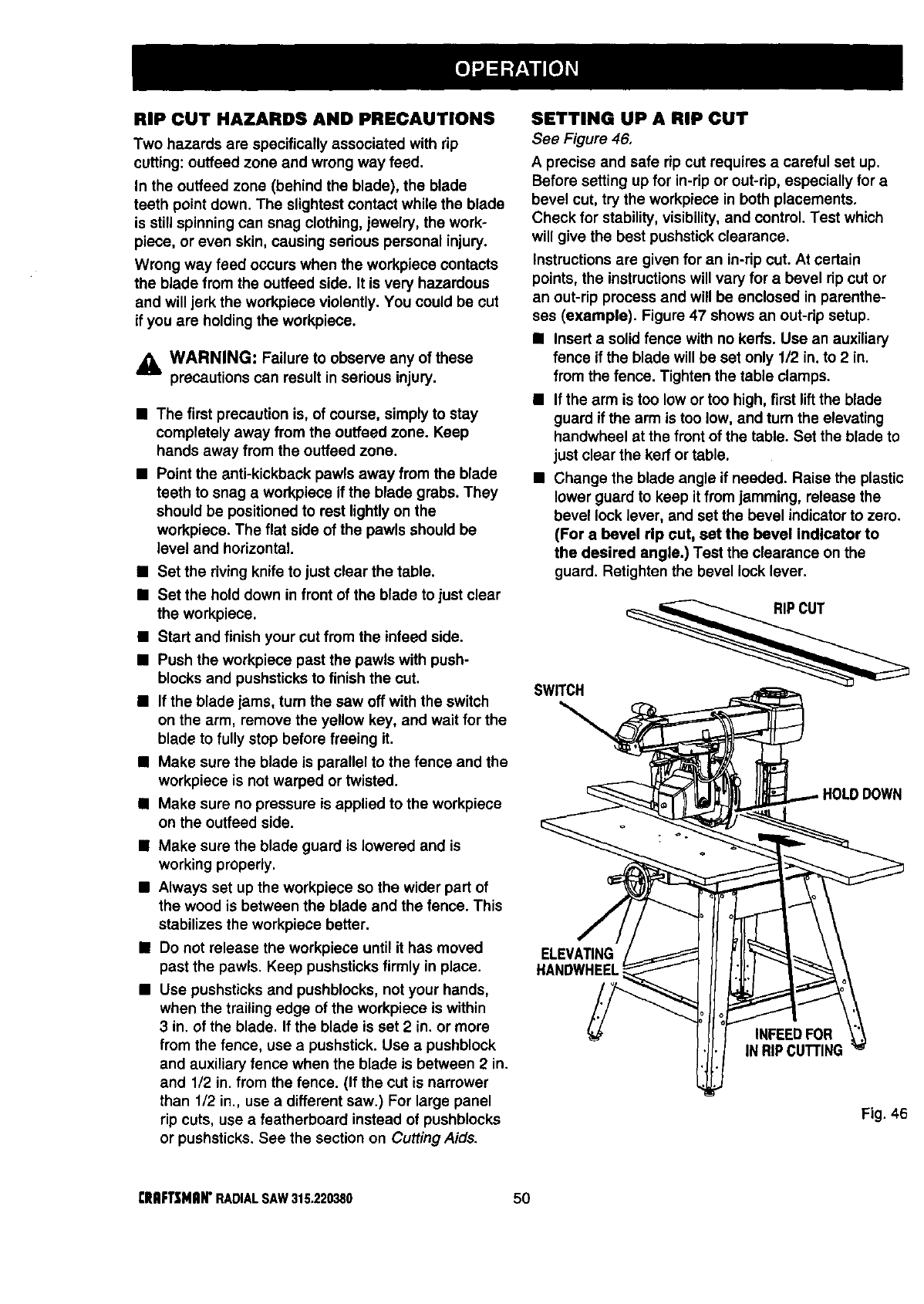

Rip Cut Hazards and Precautions ................................................................................................................. 50

Setting Up a Rip Cut ................................................................................................................................. 50-51

Making a Rip Cut ........................................................................................................................................... 51

Making Other Cuts ......................................................................................................................................... 52

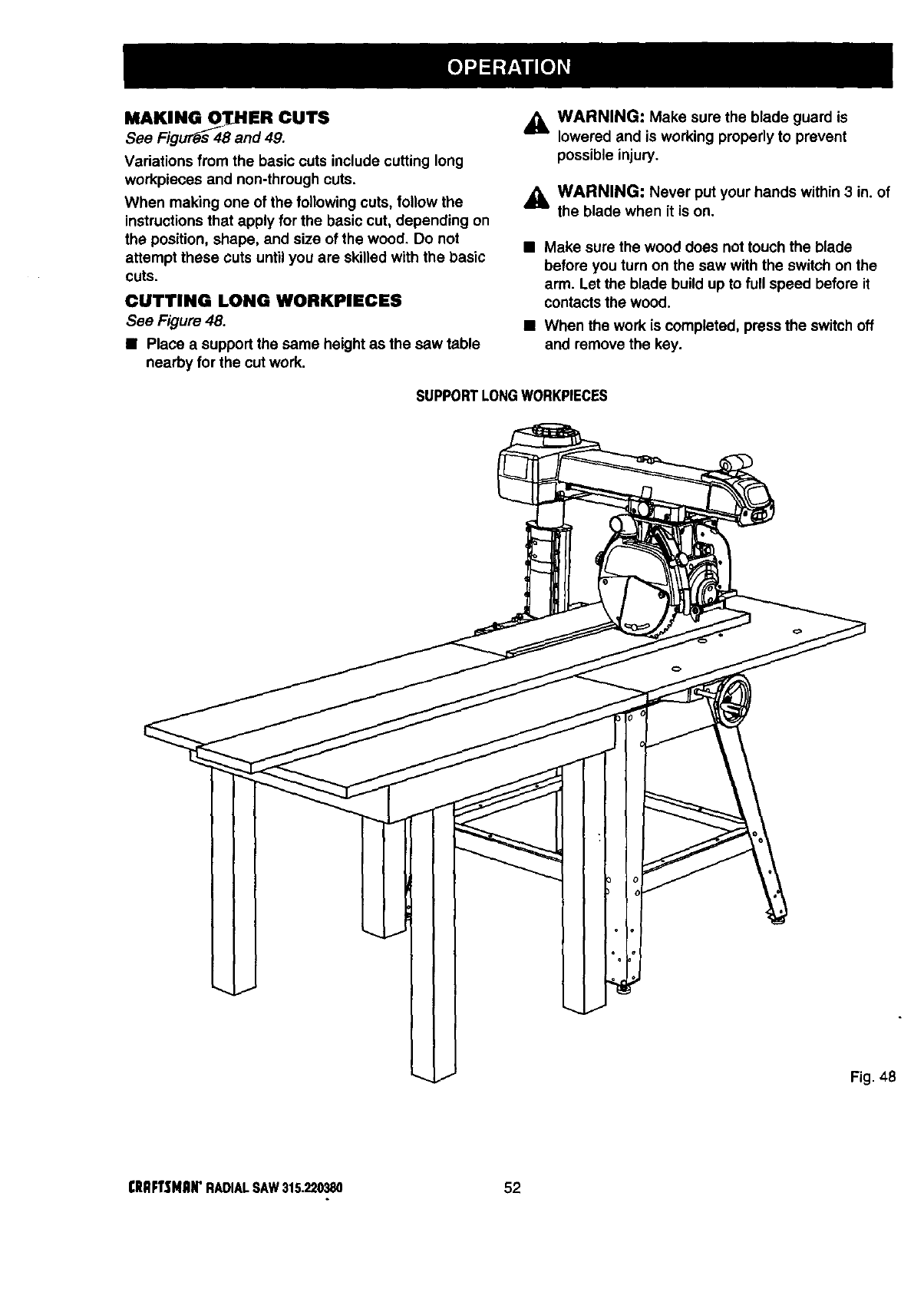

Cutting Long Workpieces ............................................................................................................................... 52

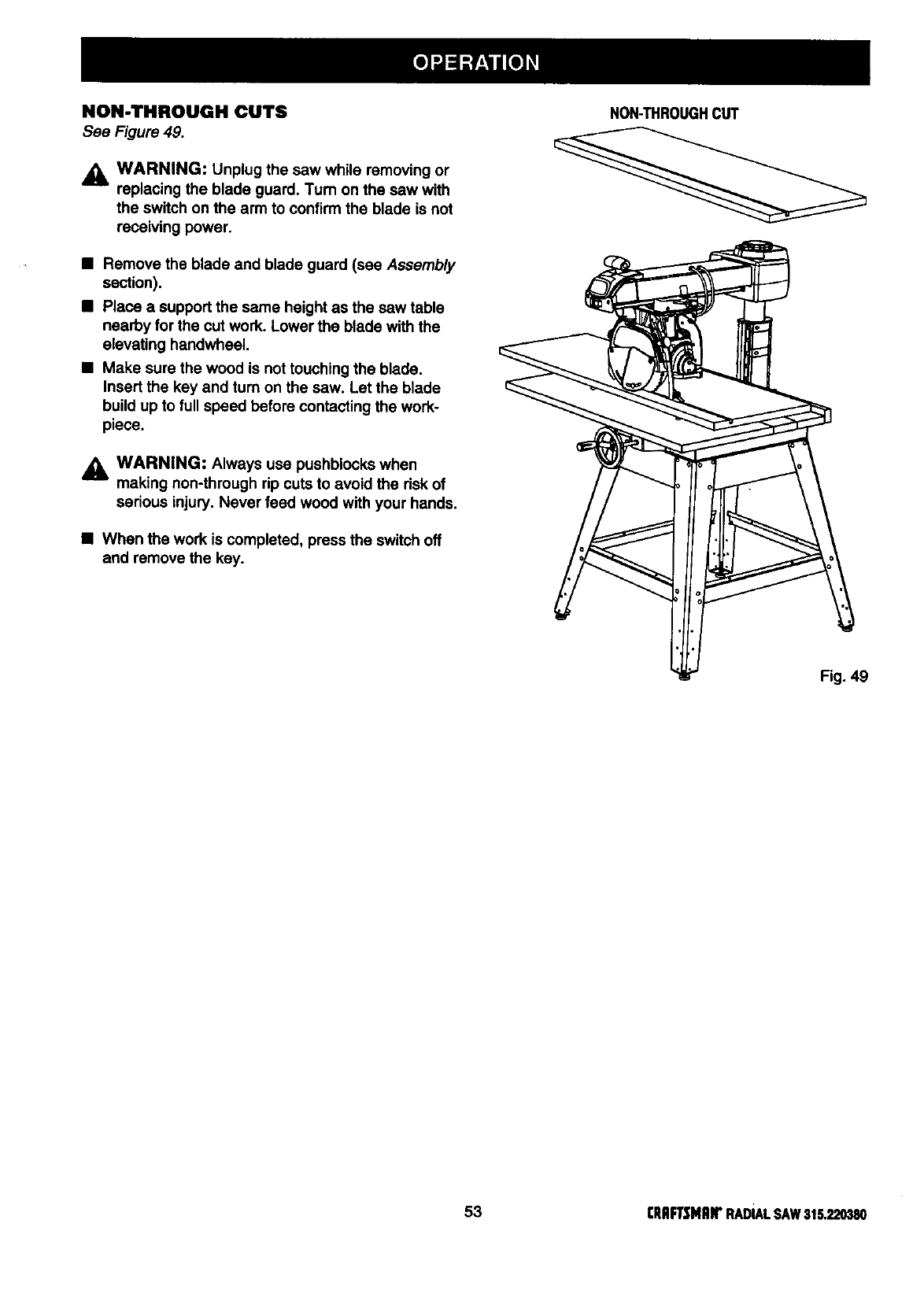

Non-Through Cuts ......................................................................................................................................... 53

•Maintenance .................................................................................................................................................. 54

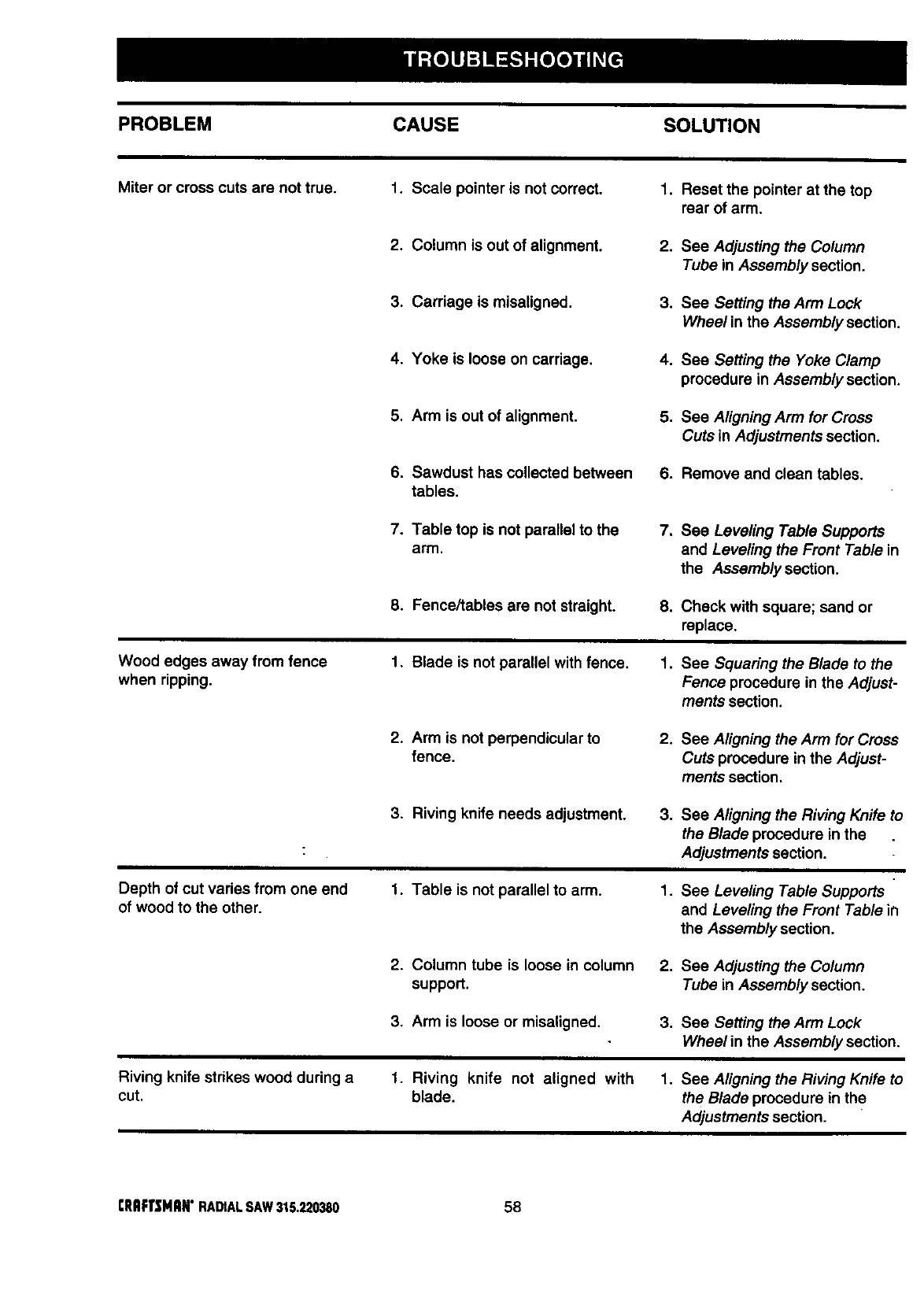

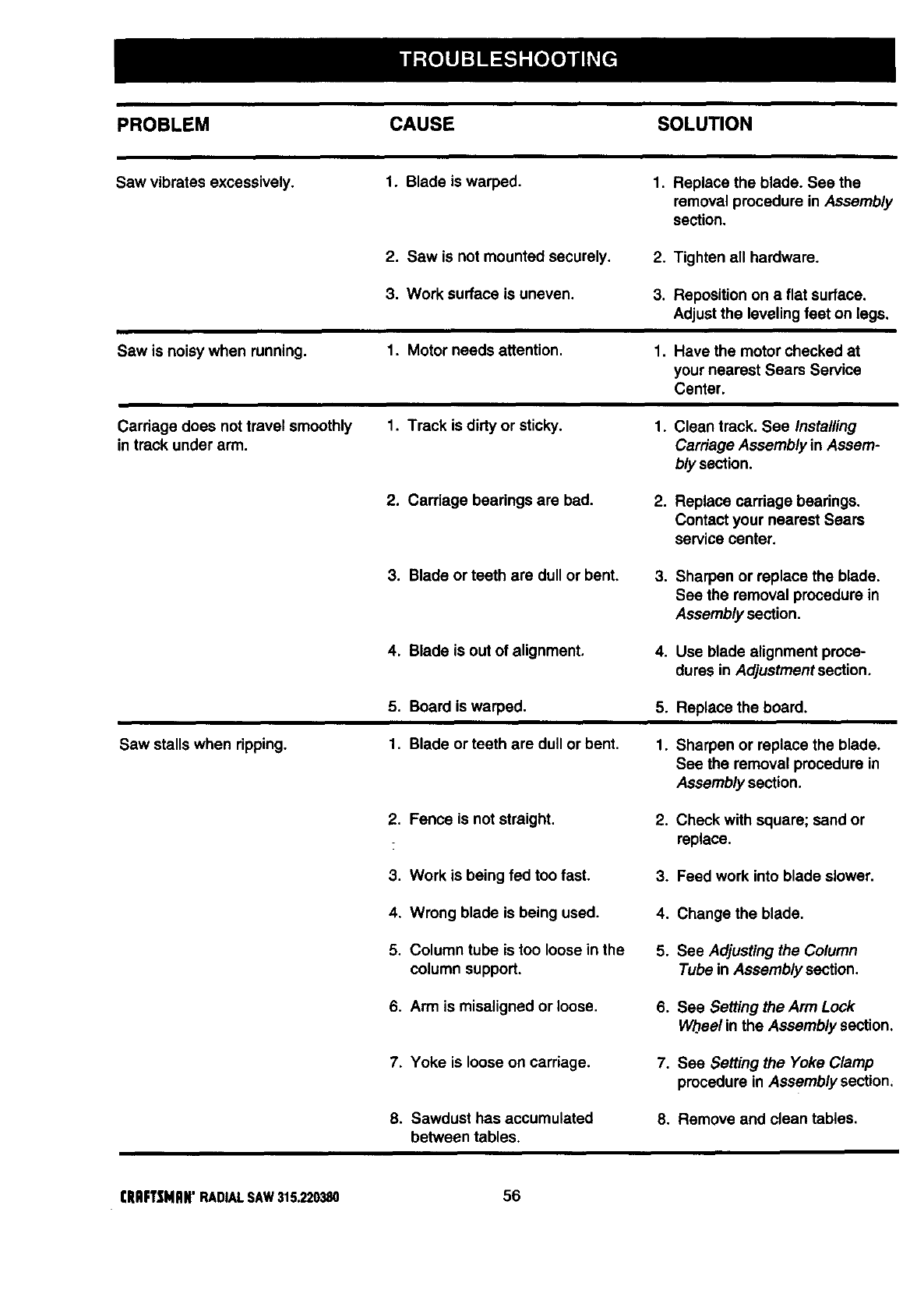

•Troubleshooting ........................................................................................................................................ 55-59

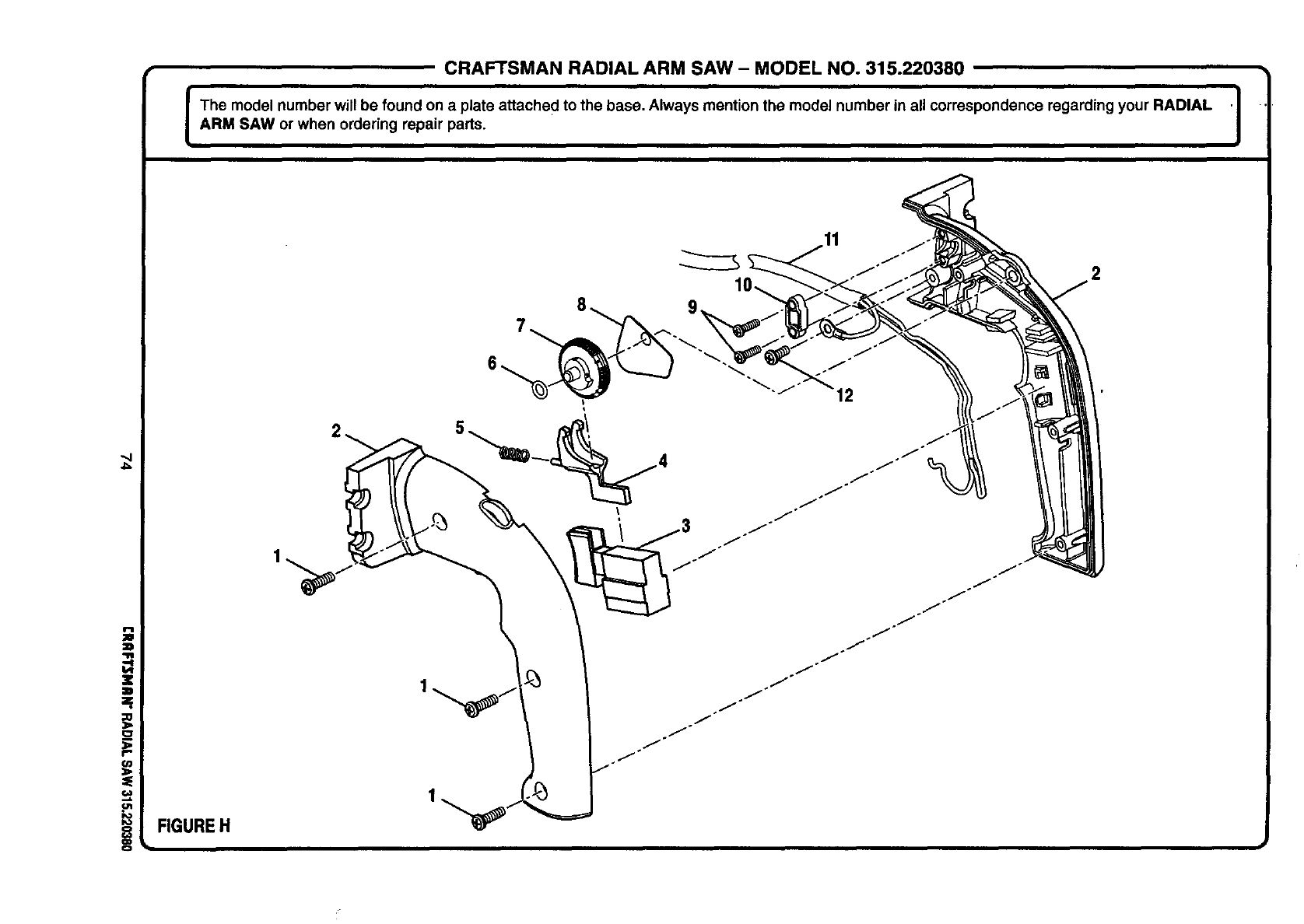

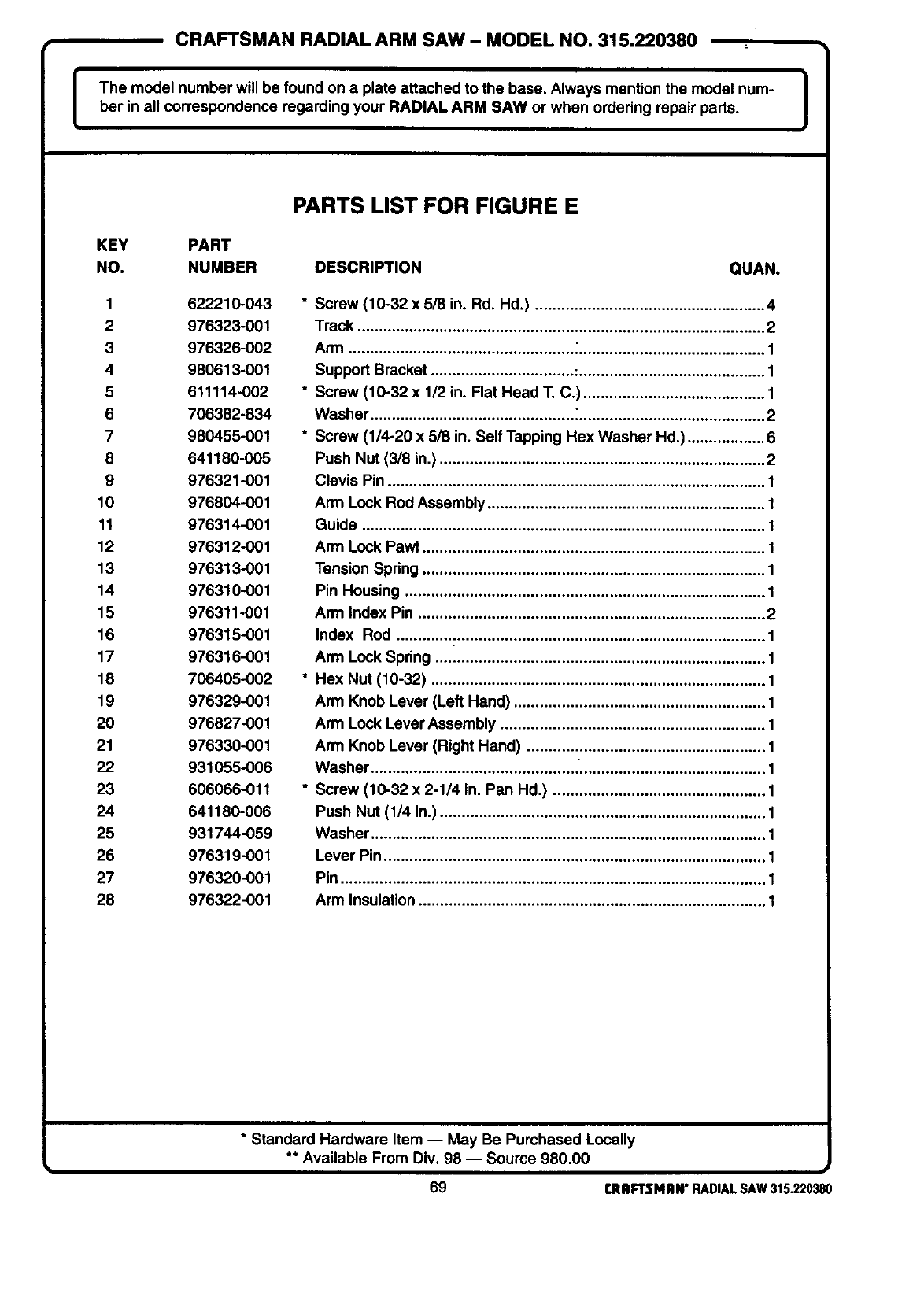

•Exploded View and Repair Parts List ....................................................................................................... 60-81

•Parts Ordering /Service .................................................................................................................... back page

3 CliaFTtHIIIr RADIALSAW315.220380

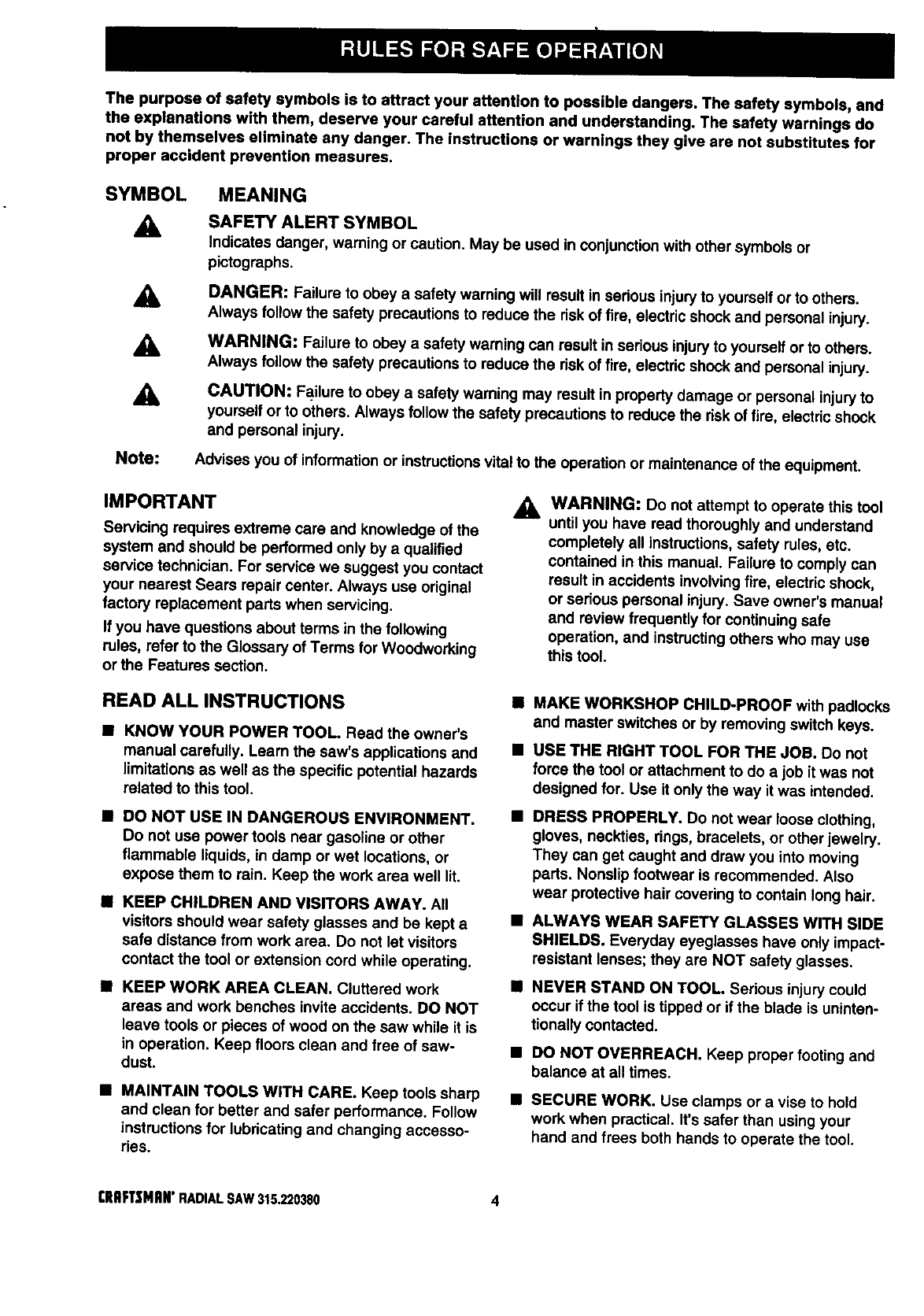

The purpose of safety symbols Is to attract your attention to possible dangers. The safety symbols, and

the explanations with them, deserve your careful attention and understanding. The safety warnings do

not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for

proper accident prevention measures.

SYMBOL

Note:

MEANING

SAFETY ALERT SYMBOL

Indicates danger, warning or caution, May be used in conjunction with other symbols or

pictographs.

DANGER: Failure to obey asafety warning will result in serious injury to yourself or to others.

Always follow the safety precautions to reduce the risk of tire, electric shock and personal injury.

WARNING: Failure to obey a safety warning can result in serious injury to yourself or to others.

Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

CAUTION: Failure to obey a safety warning may result in property damage or personal injury to

yoursetl or to others. Always follow the safety precautions to reduce the risk of tire, electric shock

and personal injury.

Advises you of information or instructionsvital to the operation or maintenance of the equipment.

IMPORTANT

Servicing requires extreme care and knowledge of the

system and should be performed only by a qualified

service technician. For service we suggest you contact

your nearest Sears repair center. Always use original

factory replacement parts when servicing.

If you have questions about terms in the following

rules, refer to the Glossary of Terms for Woodworking

or the Features section.

_. WARNING: Do not attempt to operate this tool

until you have read thoroughly and understand

completely all instructions, safety rules, etc.

contained in this manual. Failure to comply can

result in accidents involving fire, electric shock,

or serious personal injury. Save owner's manual

and review frequently for continuing safe

operation, and instructing others who may usa

this tool.

READ ALL INSTRUCTIONS

BKNOW YOUR POWER TOOL. Read the owner's

manual carefully. Learn the saw's applications and

limitations as well as the specific potential hazards

related to this tool.

III DO NOT USE IN DANGEROUS ENVIRONMENT.

Do not use power tools near gasoline or other

flammable liquids, in damp or wet locations, or

expose them to rain. Keep the work area well lit.

II KEEP CHILDREN AND VISITORS AWAY. All

visitors should wear safety glasses and be kept a

safe distance from work area. Do not let visitors

contact the tool or extension cord while operating.

III KEEP WORK AREA CLEAN. Cluttered work

areas and work benches invite accidents. DO NOT

leave tools or pieces of wood on the saw while it is

in operation. Keep floors clean and free of saw-

dust.

BMAINTAIN TOOLS WITH CARE. Keep tools sharp

and clean for better and safer performance. Follow

instructions for lubricating and changing accesso-

ries.

II MAKE WORKSHOP CHILD-PROOF with padlocks

and master switches or by removing switch keys.

•USE THE RIGHT TOOL FOR THE JOB. Do not

force the tool or attachment to do a job it was not

designed for. Use it only the way it was intended.

•DRESS PROPERLY. Do not wear loose clothing,

gloves, neckties, rings, bracelets, or other jewelry.

They can get caught and draw you into moving

parts. Nonslip footwear is recommended. Also

wear protective hair covering to contain long hair.

•ALWAYS WEAR SAFETY GLASSES WITH SIDE

SHIELDS. Everyday eyeglasses have only impact-

resistant lenses; they are NOT safety glasses.

•NEVER STAND ON TOOL. Serious injury could

occur if the tool is tipped or if the blade is uninten-

tionally contacted.

•DO NOT OVERREACH. Keep proper footing and

balance at all times.

•SECURE WORK. Usa clamps or a vise to hold

work when practical. It's safer than using your

hand and frees both hands to operate the tool.

CRRFTSNRN'RADIALSAW 315.220380 4

mUSE THE PROPER EXTENSION CORD. Make

sure your extension cord is in good condition. Use

only a cord heavy enough to carry the current your

product will draw. An undersized cord will cause a

drop in line voltage resulting in loss of power and

overheating. A wire gage size (A.W.G.) of at least

14 is recommended for an extension cord 25 feet

or less in length. If in doubt, use the next heavier

gage. The smaller the gage number, the heavier

the cord.

•AVOID ACCIDENTAL STARTING. Be sure switch

is off when plugging in the tool.

•REMOVE WRENCHES AND ADJUSTING KEYS.

Get in the habit of checking -before tuming on the

tool -that hex keys and adjusting wrenches are

removed from tool.

•CHECK DAMAGED PARTS. Before using the tool

again, check any damaged parts, including guards,

for proper operation and performance. Check

alignment of moving pads, binding of moving parts,

breakage of pads, saw stability, mounting, and any

other conditions that may affect its operation. A

damaged part must be properly repaired or re-

placed by a qualified service technician at a Sears

repair center to avoid risk of personal injury.

•USE ONLY CORRECT BLADES. Use the right

blade style for the material and the type of cut.

Use only blades marked for at least 5,000 rpm and

10 in. or smaller, with a5/8 in. arbor hole.

•KEEP GUARDS IN PLACE and in good working

order. This includes the blade guard, the dving

knife, and the anti-kickback pawls.

•CHECK DIRECTION OF FEED. When ripping,

feed work into a blade or cutter against the direc-

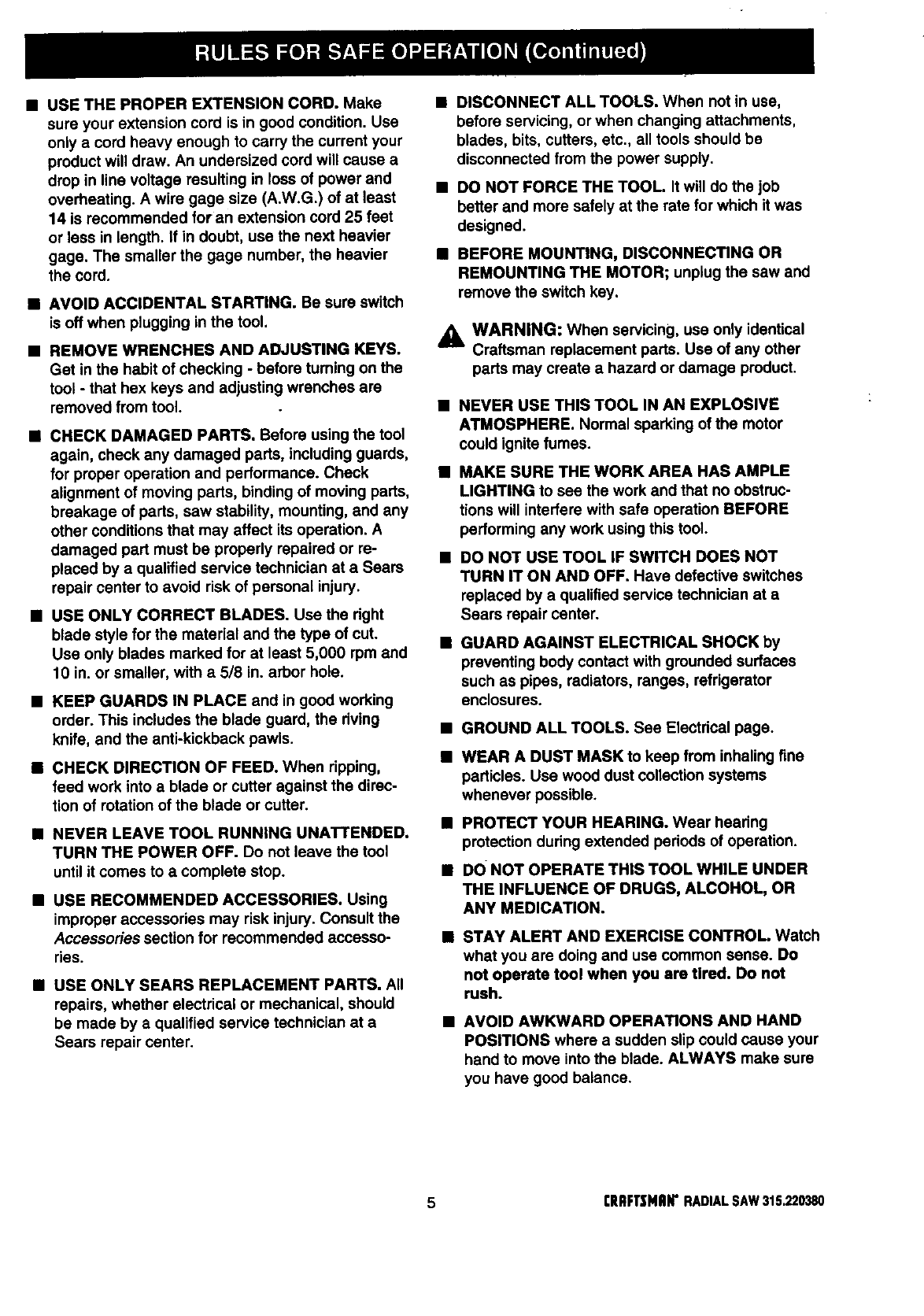

tion of rotation of the blade or cutter.

nNEVER LEAVE TOOL RUNNING UNA'I-FENDED.

TURN THE POWER OFF. Do not leave the tool

until it comes to a complete stop.

•USE RECOMMENDED ACCESSORIES. Using

improper accessories may risk injury. Consult the

Accessories section for recommended accesso-

ries.

•USE ONLY SEARS REPLACEMENT PARTS. All

repairs, whether electrical or mechanical, should

be made by a qualified service technician at a

Sears repair center.

DISCONNECT ALL TOOLS. When not in use,

before servicing, or when changing attachments,

blades, bits, cutters, etc., all tools should be

disconnected from the power supply.

•DO NOT FORCE THE TOOL. It will do the job

better and more safely at the rate for which it was

designed.

mBEFORE MOUNTING, DISCONNECTING OR

REMOUNTING THE MOTOR; unplug the saw and

remove the switch key.

,_, WARNING: When servicing, use only identical

Craftsman replacement parts. Use of any other

parts may create a hazard or damage product.

• NEVER USE THIS TOOL IN AN EXPLOSIVE

ATMOSPHERE. Normal sparking of the motor

could ignite fumes.

•MAKE SURE THE WORK AREA HAS AMPLE

LIGHTING to see the work and that no obstruc-

tions will interfere with safe operation BEFORE

performing any work using this tool.

•DO NOT USE TOOL IF SWITCH DOES NOT

TURN IT ON AND OFF. Have defective switches

replaced by a qualified service technician at a

Sears repair center.

•GUARD AGAINST ELECTRICAL SHOCK by

preventing body contact with grounded surfaces

such as pipes, radiatom, ranges, refrigerator

enclosures.

•GROUND ALL TOOLS. See Electrical page.

•WEAR A DUST MASK to keep from inhaling fine

particles. Use wood dust collection systems

whenever possible.

mPROTECT YOUR HEARING. Wear hearing

protection during extended periods of operation.

•DO NOT OPERATE THIS TOOL WHILE UNDER

THE INFLUENCE OF DRUGS, ALCOHOL, OR

ANY MEDICATION.

mSTAY ALERT AND EXERCISE CONTROL. Watch

what you are doing and use common sense. Do

not operate tool when you are tired. Do not

rush.

AVOID AWKWARD OPERATIONS AND HAND

POSITIONS where a sudden slip could cause your

hand to move into the blade. ALWAYS make sure

you have good balance.

5 rRRFTSNAN"RADIALSAW315.220380

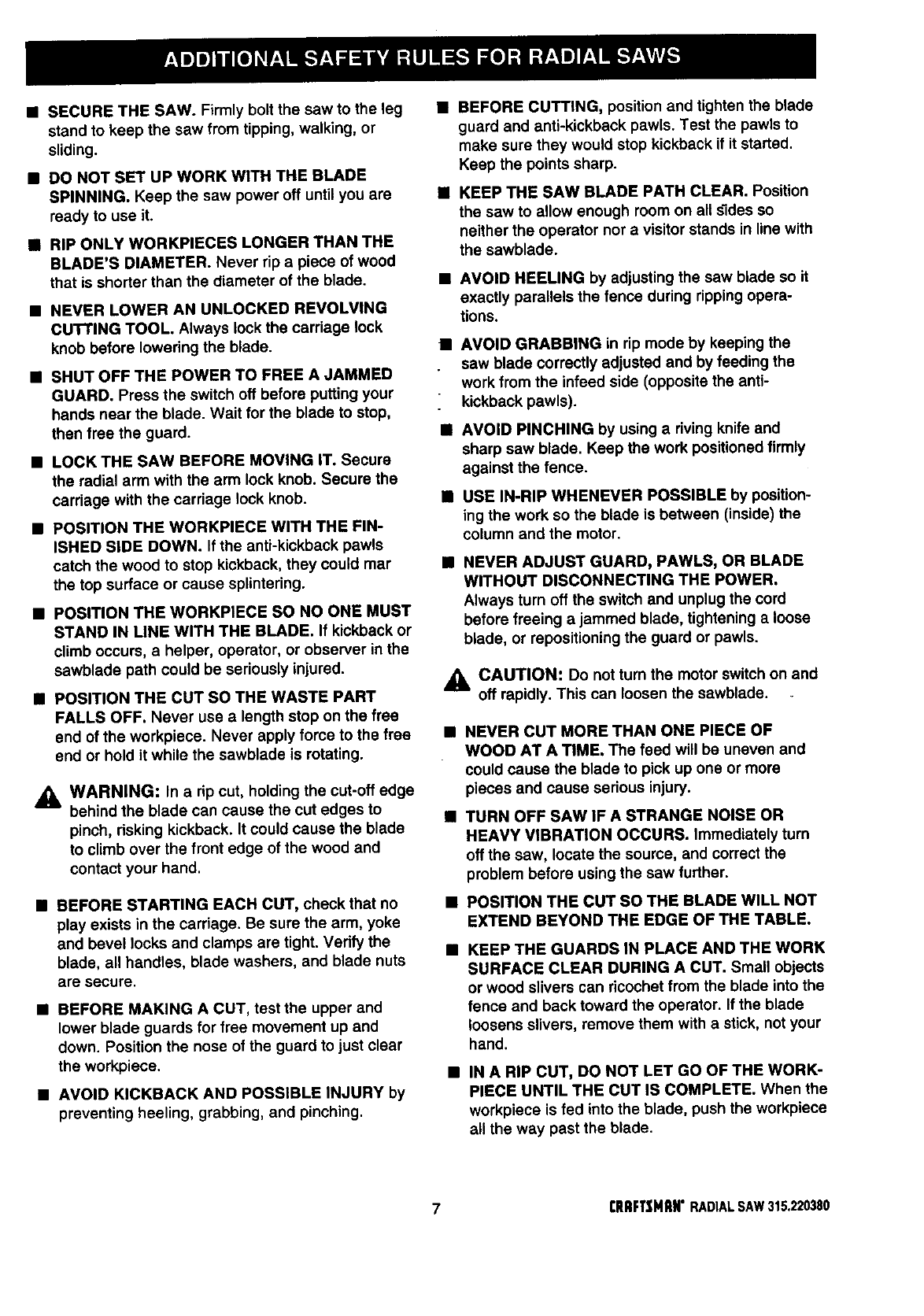

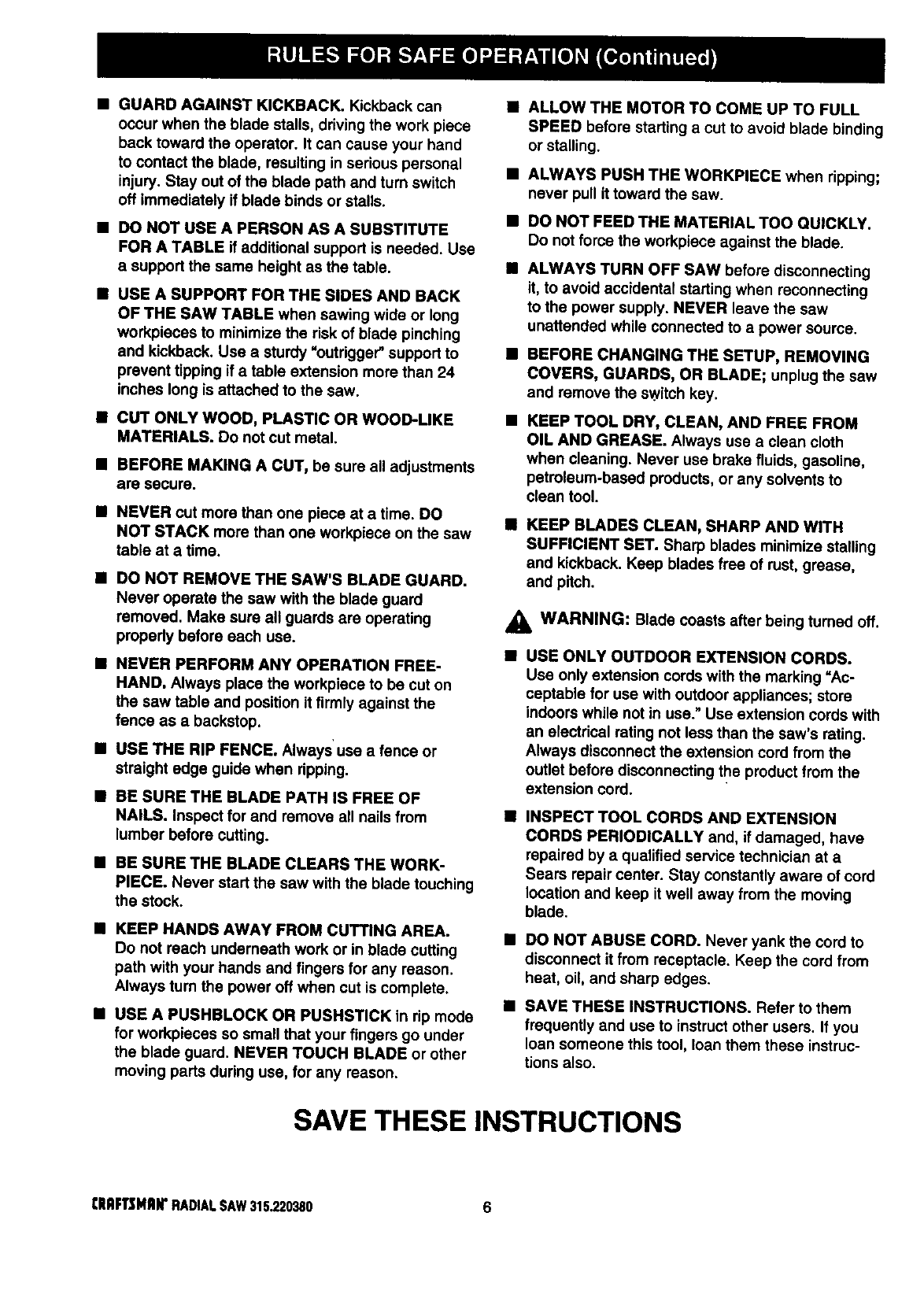

•GUARD AGAINST KICKBACK. Kickback can

occur when the blade stalls, driving the work piece

back toward the operator. It can cause your hand

to contact the blade, resulting in serious personal

injury. Stay out of the blade path end turn switch

off immediately if blade binds or stalls.

•DO NOT USE A PERSON AS A SUBSTITUTE

FOR A TABLE if additional support is needed. Use

a support the same height as the table.

•USE A SUPPORT FOR THE SIDES AND BACK

OF THE SAW TABLE when sawing wide or long

workpieces to minimize the risk of blade pinching

and kickback. Use e sturdy "outrigger"support to

prevent tipping if a table extension more than 24

inches long is attached to the saw.

•CUT ONLY WOOD, PLASTIC OR WOOD-LIKE

MATERIALS. Do not cut metal.

•BEFORE MAKING A CUT, be sure all adjustments

are secure.

•NEVER cut more than one piece at a time. DO

NOT STACK more than one workpiece on the saw

table at a time.

•DO NOT REMOVE THE SAW'S BLADE GUARD.

Never operate the saw with the blade guard

removed. Make sure all guards are operating

propedy before each use.

•NEVER PERFORM ANY OPERATION FREE-

HAND. Always place the workpiece to be cut on

the sew table and position it firmly against the

fence as a backstop.

•USE THE RIP FENCE. Always'use a fence or

straight edge guide when ripping.

•BE SURE THE BLADE PATH IS FREE OF

NAILS. Inspect for and remove all nails from

lumber before cutting.

•BE SURE THE BLADE CLEARS THE WORK-

PIECE. Never start the saw with the blade touching

the stock.

•KEEP HANDS AWAY FROM CUTTING AREA.

Do not reach underneath work or in blade cutting

path with your hands and fingers for any reason.

Always tum the power off when cut is complete.

•USE A PUSHBLOCK OR PUSHSTICK in rip mode

for workpieces so small that your fingers go under

the blade guard. NEVER TOUCH BLADE or other

moving parts during use, for any reason.

•ALLOW THE MOTOR TO COME UP TO FULL

SPEED before starting a cut to avoid blade binding

or stalling.

•ALWAYS PUSH THE WORKPIECE when ripping;

never pull it toward the saw.

•DO NOT FEED THE MATERIAL TOO QUICKLY.

Do not force the workpiece against the blade.

•ALWAYS TURN OFF SAW before disconnecting

it, to avoid accidental starting when reconnecting

to the power supply. NEVER leave the saw

unattended while connected to apower source.

•BEFORE CHANGING THE SETUP, REMOVING

COVERS, GUARDS, OR BLADE; unplug the saw

and remove the switch key.

KEEP TOOL DRY, CLEAN, AND FREE FROM

OIL AND GREASE. Always use a clean cloth

when cleaning. Never use brake fluids, gasoline,

petroleum-based products, or any solvents to

clean tool.

KEEP BLADES CLEAN, SHARP AND WITH

SUFFICIENT SET. Sharp blades minimize stalling

and kickback. Keep blades free of rust, grease,

and pitch.

_, WARNING: Blade coasts after being turned off.

USE ONLY OUTDOOR EXTENSION CORDS.

Use only extension cords with the marking "Ac-

ceptable for use with outdoor appliances; store

indoors while not in use." Use extension cords with

an electrical rating not less than the saw's rating.

Always disconnect the extension cord from the

outlet before disconnecting the product from the

extension cord.

INSPECT TOOL CORDS AND EXTENSION

CORDS PERIODICALLY and, if damaged, have

repaired by a qualified service technician at a

Sears repair center. Stay constantly aware of cord

location and keep it well away from the moving

blade.

•DO NOT ABUSE CORD. Never yank the cord to

disconnect it from receptacle. Keep the cord from

heat, oil, and sharp edges.

•SAVE THESE INSTRUCTIONS. Refer to them

frequently and use to instruct other users. If you

loan someone this tool, loan them these instruc-

tions also.

SAVE THESE INSTRUCTIONS

I:RRFTSHRIrRADIALSAW315.220380 6

• SECURE THE SAW. Firmly bolt the saw to the leg

stand to keep the saw from tipping, walking, or

sliding.

•DO NOT SET UP WORK WITH THE BLADE

SPINNING. Keep the saw power off until you are

ready to use it.

MRIP ONLY WORKPIECES LONGER THAN THE

BLADE'S DIAMETER. Never rip apiece of wood

that is shorter than the diameter of the blade.

•NEVER LOWER AN UNLOCKED REVOLVING

CU'FrlNG TOOL. Always lock the carriage lock

knob before Iowedng the blade.

•SHUT OFF THE POWER TO FREE A JAMMED

GUARD. Press the switch off before putting your

hands near the blade. Wait for the blade to stop,

then free the guard.

•LOCK THE SAW BEFORE MOVING IT. Secure

the radial arm with the arm lock knob. Secure the

carriage with the carriage lock knob.

•POSITION THE WORKPIECE WITH THE FIN-

ISHED SIDE DOWN. If the anti-kickback pawls

catch the wood to stop kickback, they could mar

the top surface or cause splintering.

•POSITION THE WORKPIECE SO NO ONE MUST

STAND IN LINE WITH THE BLADE. If kickback or

climb occurs, a helper, operator, or observer in the

sawblade path could be seriously injured.

•POSITION THE CUT SO THE WASTE PART

FALLS OFF. Never use a length stop on the free

end of the workpiece. Never apply force to the free

end or hold it while the sawblade is rotating.

_k WARNING: In a rip cut, holding the cut-off edge

behind the blade can cause the cut edges to

pinch, risking kickback. It could cause the blade

to climb over the front edge of the wood and

contact your hand.

•BEFORE STARTING EACH CUT, check that no

play exists in the carriage. Be sure the arm, yoke

and bevel locks and clamps are tight. Verify the

blade, all handles, blade washers, and blade nuts

are secure.

•BEFORE MAKING A CUT, test the upper and

lower blade guards for free movement up and

down. Position the nose of the guard to just clear

the workpiece.

•AVOID KICKBACK AND POSSIBLE INJURY by

preventing heeling, grabbing, and pinching.

BEFORE CUTTING, position and tighten the blade

guard and anti-kickback pawls. Test the pawls to

make sure they would stop kickback if it started.

Keep the points sharp.

KEEP THE SAW BLADE PATH CLEAR. Position

the saw to allow enough room on all sides so

neither the operator nor a visitor stands in line with

the sawblade.

•AVOID HEELING by adjusting the saw blade so it

exactly parallels the fence during ripping opera-

tions.

•AVOID GRABBING in rip mode by keeping the

saw blade correctly adjusted and by feeding the

work from the infeed side (opposite the anti-

kickback pawls).

mAVOID PINCHING by using a riving knife and

sharp saw blade. Keep the work positioned firmly

against the fence.

M USE IN-RIP WHENEVER POSSIBLE by position-

ing the work so the blade is between (inside) the

column and the motor.

•NEVER ADJUST GUARD, PAWLS, OR BLADE

WITHOUT DISCONNECTING THE POWER.

Always turn off the switch and unplug the cord

before freeing a jammed blade, tightening a loose

blade, or repositioning the guard or pawls.

,_ CAUTION: Do not turn the motor switch on and

off rapidly. This can loosen the sawblade.

•NEVER CUT MORE THAN ONE PIECE OF

WOOD AT A TIME. The feed will be uneven and

could cause the blade to pick up one or more

pieces and cause serious injury.

•TURN OFF SAW IF A STRANGE NOISE OR

HEAVY VIBRATION OCCURS. Immediately turn

off the saw, locate the source, and correct the

problem before using the saw further.

•POSITION THE CUT SO THE BLADE WILL NOT

EXTEND BEYOND THE EDGE OF THE TABLE.

KEEP THE GUARDS IN PLACE AND THE WORK

SURFACE CLEAR DURING A CUT. Small objects

or wood slivers can ricochet from the blade into the

fence and back toward the operator. If the blade

loosens slivers, remove them with a stick, not your

hand.

IN A RIP CUT, DO NOT LET GO OF THE WORK-

PIECE UNTIL THE CUT IS COMPLETE. When the

workpiece is fed into the blade, push the workpiece

all the way past the blade.

7 rRRFTSMAN"RADIALSAW315.220380

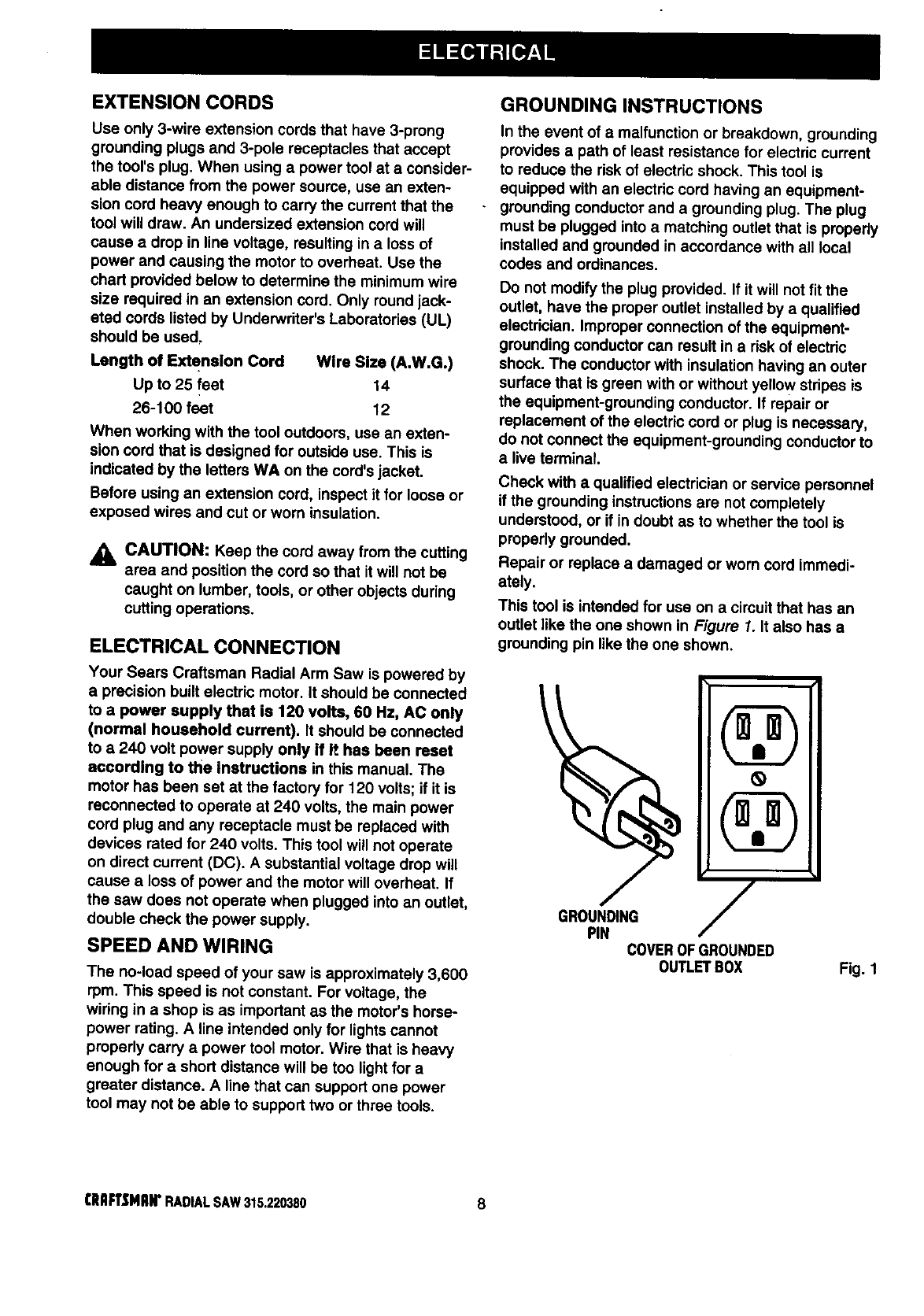

EXTENSION CORDS

Use only 3-wire extension cords that have 3-prong

grounding plugs and 3-pole receptacles that accept

the tool's plug. When using a power tool at a consider-

able distance from the power source, use an exten-

sion cord heavy enough to carry the current that the

tool will draw. An undersized extension cord will

cause a drop in line voltage, resulting in a loss of

power and causing the motor to overheat. Use the

chart provided below to determine the minimum wire

size required in an extension cord. Only round jack°

eted cords listed by Underwriter's Laboratories (UL)

should be used,

Length of Extension Cord Wire Size (A.W.G.)

Up to 25 .feet 14

26-100 feet 12

When working with the tool outdoors, use an exten-

sion cord that is designed for outside use. This is

indicated by the letters WA on the cord's jacket.

Before using an extension cord, inspect it for loose or

exposed wires and cut or worn insulation.

,_ CAUTION: Keep the cord away from the cutting

area and position the cord so that it will not be

caught on lumber, tools, or other objects during

cutting operations.

ELECTRICAL CONNECTION

Your Sears Craftsman Radial Arm Saw is powered by

a precision built electric motor. It should be connected

to a power supply that is 120 volts, 60 Hz, AC only

(normal household current). It should be connected

to a240 volt power supply only If It has been reset

according to the instructions in this manual. The

motor has been set at the factory for 120 volts; if it is

reconnected to operate at 240 volts, the main power

cord plug and any receptacle must be replaced with

devices rated for 240 volts. This tool will not operate

on direct current (DC). A substantial voltage drop will

cause a loss of power and the motor will overheat. If

the saw does not operate when plugged into an outlet,

double check the power supply.

SPEED AND WIRING

The no-load speed of your saw is approximately 3,600

rpm. This speed is not constant. For voltage, the

wiring in a shop is as important as the motor's horse-

power rating. A line intended only for lights cannot

properly carry a power tool motor. Wire that is heavy

enough for a short distance will be too light for a

greater distance. A line that can support one power

tool may not be able to support two or three tools.

GROUNDING INSTRUCTIONS

In the event of amalfunction or breakdown, grounding

provides a path of least resistance for electric current

to reduce the risk of electric shock. This tool is

equipped with an electric cord having an equipment-

grounding conductor and a grounding plug. The plug

must be plugged into a matching outlet that is properly

installed and grounded in accordance with all local

codes and ordinances.

Do not modify the plug provided. If it will not fit the

outlet, have the proper outlet installed by a qualified

electrician. Improper connection of the equipment-

grounding conductor can result in a risk of electric

shock. The conductor with insulation having an outer

surface that is green with or without yello w stripes is

the equipment-grounding conductor. If repair or

replacement of the electric cord or plug is necessary,

do not connect the equipment-grounding conductor to

a live terminal.

Check with a qualified electrician or service personnel

if the grounding instructions are not completely

understood, or if in doubt as to whether the tool is

properly grounded.

Repair or replace a damaged or worn cord immedi-

ately.

This tool is intended for use on a circuit that has an

outlet like the one shown in Figure 1. It also has a

grounding pin like the one shown.

PIN COVEROF GROUNDED

OUTLETBOX Fig. 1

CRIIFTSMIIWRADIALSAW 315.220380 8

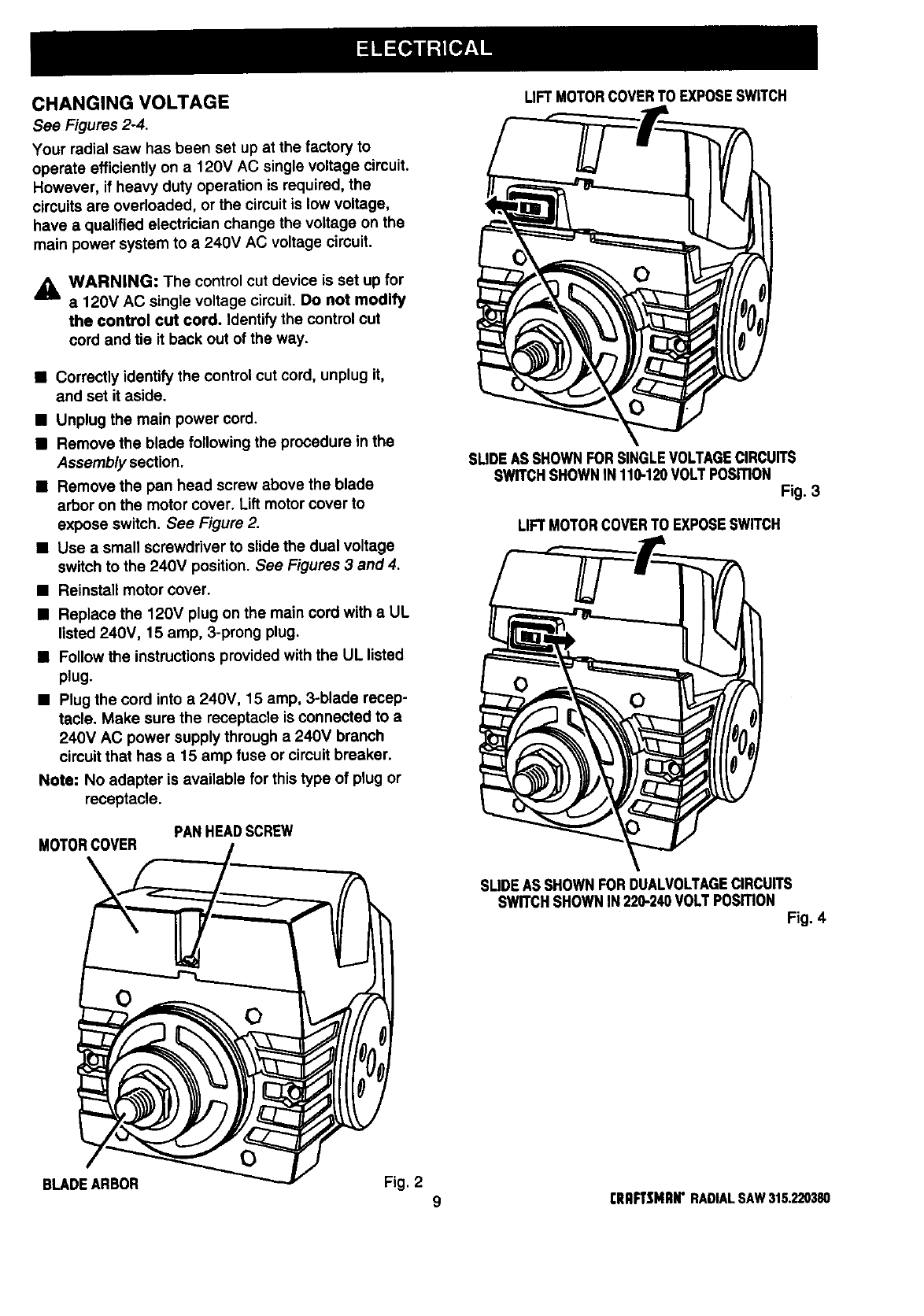

CHANGING VOLTAGE

See Figures 2-4.

Your radial saw has been set up at the factory to

operate efficiently on a 120V AC single voltage circuit.

However, if heavy duty operation is required, the

circuits are overloaded, or the circuit is low voltage,

have a qualified electrician change the voltage on the

main power system to a 240V AC voltage circuit.

AWARNING: The control cut device is set up for

a 120V AC single voltage circuit, Do not modify

the control cut cord. identify the control cut

cord and tie it back out of the way.

•Correctly identify the control cut cord, unplug it,

and set it aside.

•Unplug the main power cord.

•Remove the blade following the procedure in the

Assembly section.

•Remove the pan head screw above the blade

arbor on the motor cover. Lift motor cover to

expose switch. See Figure 2.

•Use a small screwdriver to slide the dual voltage

switch to the 240V position. See Figures 3 and 4.

• Reinstall motor cover.

•Replace the 120V plug on the main cord with a UL

listed 240V, 15 amp, 3-prong plug.

•Follow the instructions provided with the UL listed

plug.

•Plug the cord into a240V, 15 amp, 3-blade recep-

tacle. Make sure the receptacle is connected to a

240V AC power supply through a 240V branch

circuit that has a 15 amp fuse or circuit breaker.

Note: No adapter is available for this type of plug or

receptacle.

PANHEADSCREW

MOTORCOVER

UFT MOTORCOVERTO EXPOSESWITCH

SLIDEAS SHOWNFORSINGLEVOLTAGECIRCUITS

SWITCHSHOWNIN 110-120VOLTPOSITION Fig. 3

LIFTMOTORCOVERTO EXPOSESWITCH

SLIDEASSHOWNFORDUALVOLTAGECIRCUITS

SWITCHSHOWNIN 220-240VOLTPOSITION

Fig. 4

BLADEARBOR Fig. 2 9 [RRFTSMRN"RADIALSAW315.220380

Blade Arbor 5/8 in.

Blade Diameter 10 in.

Blade Bevel Angle 0" - 90"

Radial Arm Swing Range 50" left - 90" right

Blade Height Adjust 5.35 in.

Carriage Travel 17.25 in.

Cutting Capacity - Maximum Cross Cut 15.50 in.

Cutting Capacity - Maximum Out-Rip 26 in.

Cutting Capacity - Maximum In-Rip

Depth of Cut at 90"

Depth of Cut at 45"

Table Size

Table Height

Rating

Input

No Load Speed

16 in.

3 in.

2.25 in.

40 x 27.75 x 1 in.

36 in.

120V/240V 60 Hz - AC only

13.0/6.5 Amperes

3,600 RPM

Bevel Cut

Acut made across a workpiece with the blade at any

angle other than 90" to the table surface.

Chamfer

A cut removing awedge from a block so the end (or

part of it) is angled rather than at 90 degrees.

Climb

Ahazard in which the blade "climbs" over and out of

the workpiece, pulling the stock out of the operator's

hands or running across the workpiece.

Compound Cut

Across cut with both a miter angle and a bevel angle.

Cross Cut

A cutting operation with the blade parallel to the

carriage arm and the blade teeth pointing down. It can

be across or with the grain, normally across the grain

or width of the workpiece.

Dado Cut

A non-through cut that leaves a square notch Or

trough; requires a special blade.

Featherboard

A device to help guide workpieces during rip cuts.

Fence

A piece of wood used as a edge guide for the

workpiece. Located perpendicular to the carriage arm.

Can be placed at different distances from the rear

table edge in combination with the other table pieces

and is secured with table clamps.

Freehand

Dangerous practice of making a cut withoutusing a

fence,

Gum

A sticky, sap-based residue from wood products.

Heel

Alignment of the blade to the fence.

Infeed

The side of the bJadewhere the blade teeth point up,

opposite the anti-kickbeck pawls.

In-Rip

Atype of rip cut in which the blade is between the

column and the motor.

Kerr

The space left by the removal of material in a cut or

the slot produced by the blade in a non-through cut.

Kickback

A hazard that can occur when blade binds or stalls,

throwing workpiece back toward operator.

Leading End

The end of the workpiece pushed into the cutting tool

first.

Miter Cut

A vertical cut made at any angle other than 0° across

the workpiece.

Molding

A shaping cut that gives a varied shape to the

workpiece and requires a special blade.

Out-Rip

Atype of rip cut in which the motor is between the

blade and the column. (The blade is "outside" the

motor).

Pushatlck

Adevice used to feed the workpiece through the saw

blade during cutting operations. It helps keep the

operator's hands well away from the blade.

Rabbet

A type of cut that gives a notch in the edge of a

workpiece.

Resaw

A cutting operation to reduce the thickness of the

workpiece to make thinner pieces.

CRRFTSMRWRADIALSAW315.220380 10

Resin

A sticky,sap-basedsubstance.

Rip Cut

In a radial saw, a cut made with the blade pa_rallelto

the fence and perpendicular to the arm. Can be

across or with the grain. The teeth point up at the

point of contact with the wood.

Sawblade Path

The area directly in line with the blade -- over, under,

behind, or in front of it. Also, the workpiece area which

will be or has been cut by the blade.

Set

The distance that the tip of the saw blade tooth is off

set from the face of the blade.

Throw-Back

Saw throwing back a workpiece similar to kickback.

Through Sawing

Any cutting operation where the blade extends

completely through the workpiece.

Trailing End

The workpiece end last cut by the blade in a rip cut.

Workplece

The item on which the cutting operation is being done.

The surfaces of a workpiece are commonly referred to

as faces, ends, and edges.

Worktable

The surface on which the workpiece rests while

performing a cutting operation.

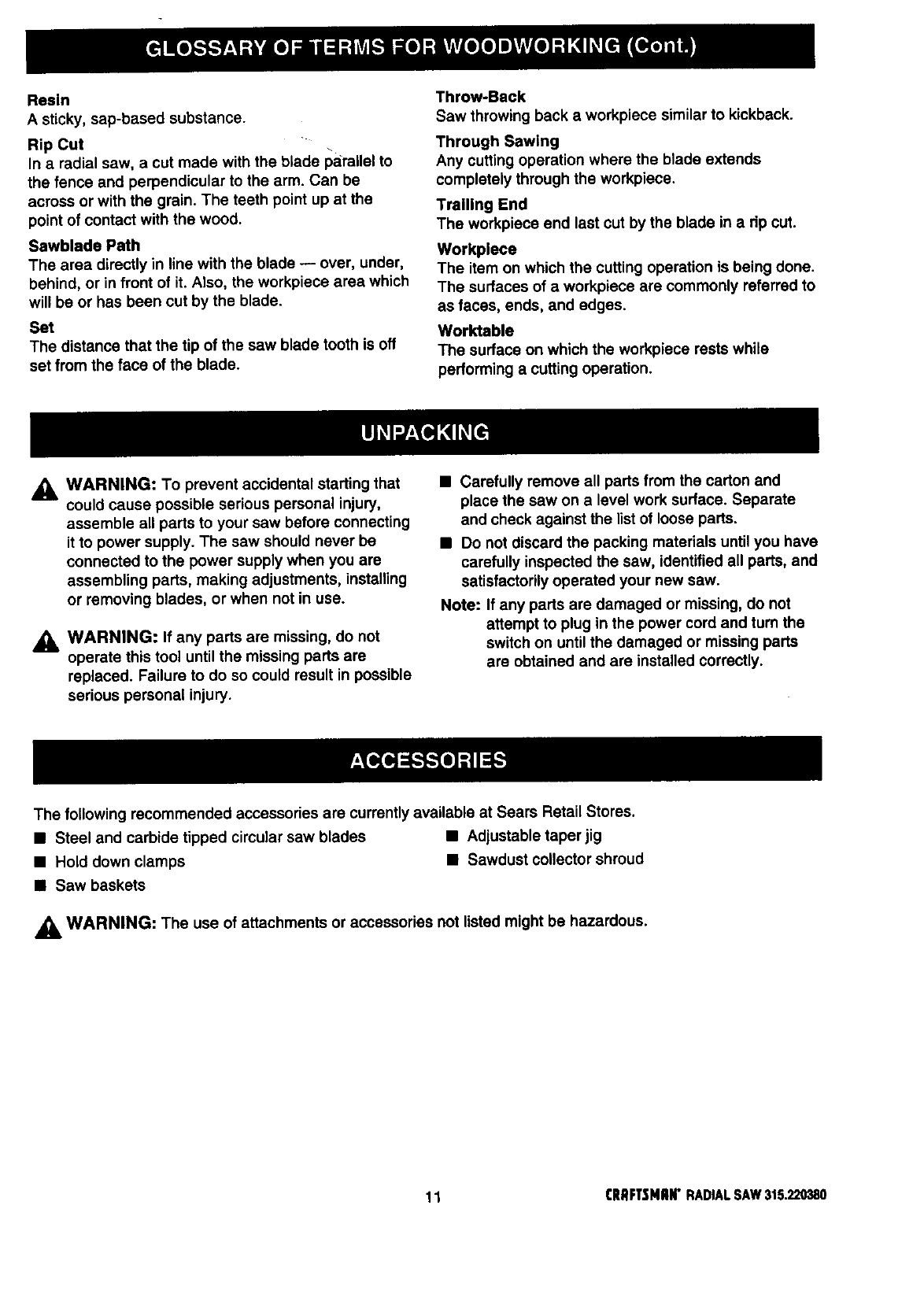

_k WARNING: To prevent accidental starting that

could cause possible serious personal injury,

assemble all parts to your saw before connecting

it to power supply. The saw should never be

connected to the power supply when you are

assembling pads, making adjustments, installing

or removing blades, or when not in use.

_k WARNING: If any parts are missing, do not

operate this tool until the missing parts are

replaced. Failure to do so could result in possible

serious personal injury.

• Carefully remove all parts from the carton and

place the saw on a level work surface. Separate

and check against the listof loose parts.

•Do not discard the packing materials until you have

carefully inspected the saw, identified all parts, and

satisfactorily operated your new saw.

Note: If any parts are damaged or missing, do not

attempt to plug in the power cord and tum the

switch on until the damaged or missing parts

are obtained and are installed correctly.

The following recommended accessories are currently available at Sears Retail Stores.

•Steel and carbide tipped circular saw blades •Adjustable taper jig

•Hold down clamps •Sawdust collector shroud

•Saw baskets

_1= WARNING: The use of attachments or accessories not listed might be hazardous.

11 CR_FtSHIIN"RADIALSAW315.220380

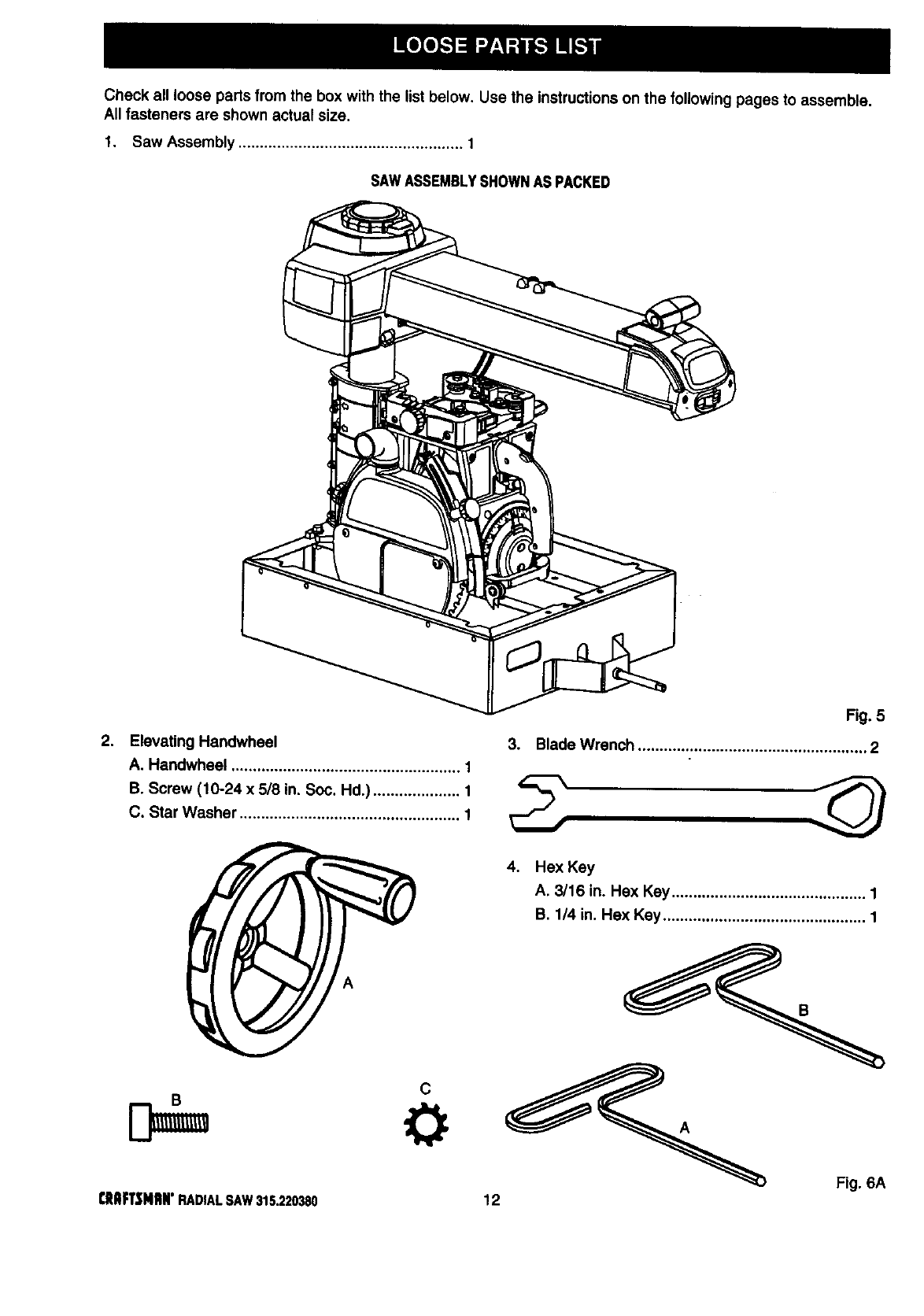

Check all loose parts from the box with the list below. Use the instructions on the following pages to assemble.

All fasteners are shown actual size.

1, Saw Assembly .................................................... 1

SAWASSEMBLYSHOWNAS PACKED

.Elevating Handwheel

A, Handwheel ..................................................... 1

B. Screw (10-24 x 5/8 in. Soc. Hd.) .................... 1

C. Star Washer ................................................... 1

CRRFTSNRN'RADIALSAW315.220380

Fig. 5

3. Blade Wrench ..................................................... 2

4. Hex Key

A. 3/16 in. Hex Key ............................................. 1

B. 1/4 in. Hex Key ............................................... 1

Fig. 6A

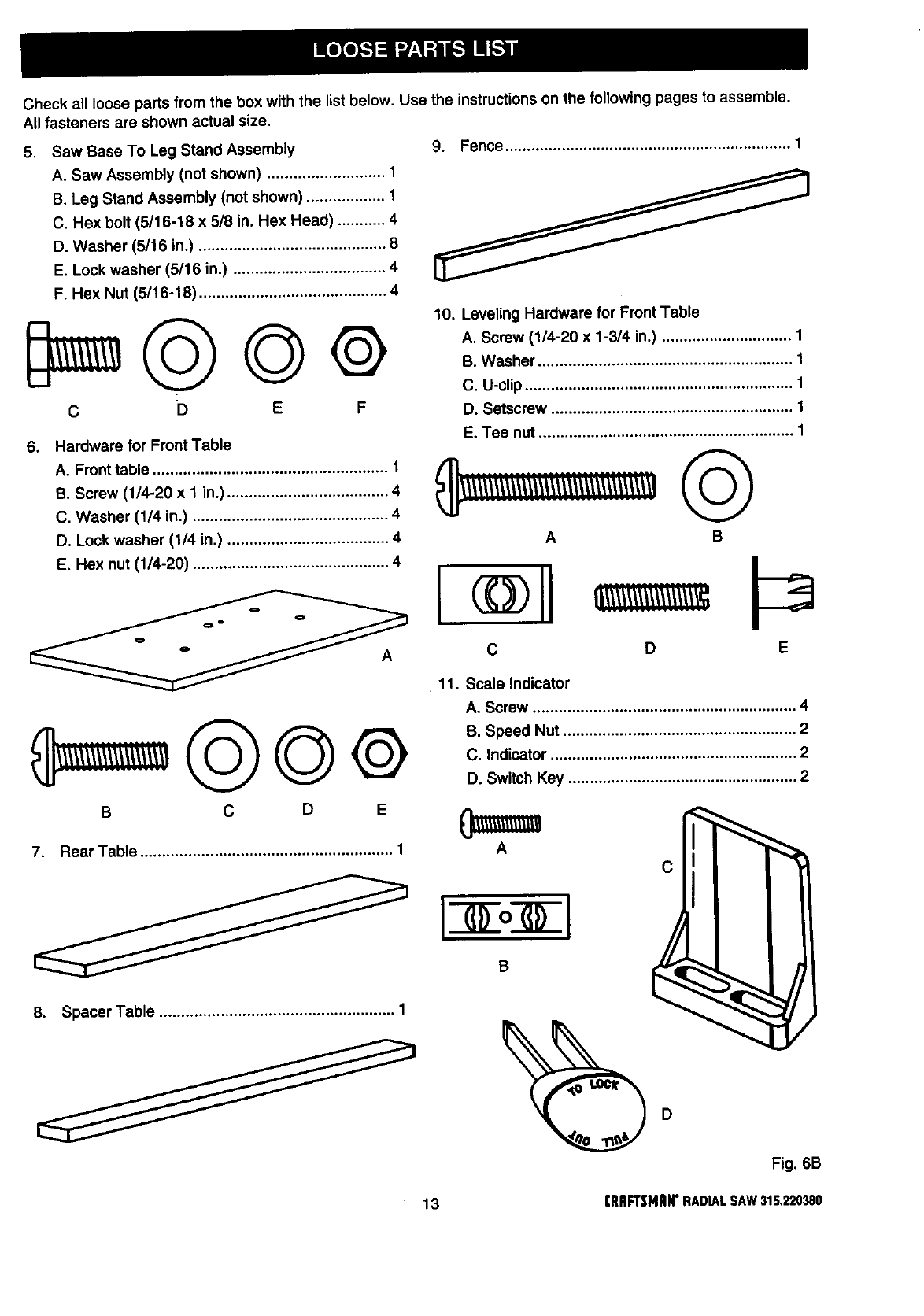

Check all loose parts from the box with the list below. Use the instructions on the following pages to assemble.

All fasteners are shown actual size.

,Saw Base To Leg Stand Assembly

A. Saw Assembly (not shown) ........................... 1

B. Leg Stand Assembly (not shown) .................. 1

C, Hex bolt (5/16-18 x 5/8 in. Hex Head) ........... 4

D. Washer (5/16 in.) ........................................... 8

E. Lock washer (5/16 in.) ................................... 4

F. Hex Nut (5/16-18) ........................................... 4

CD E F

9. Fence .................................................................. 1

6. Hardware for Front Table

A. Front table ...................................................... 1

B. Screw (I/4-20 x 1in.) ..................................... 4

C. Washer (1/4 in.) ............................................. 4

D. Lock washer (1/4 in.) ..................................... 4

E. Hex nut (1/4-20) ............................................. 4l c'tor

10. Leveling Hardware for Front Table

A. Screw (114-20 x 1-3/4 in.) .............................. 1

B. Washer ........................................................... 1

C. U-clip .............................................................. 1

D. Setscrew ........................................................ 1

E. Tee nut ........................................................... 1

A B

A. Screw ............................................................. 4

B. Speed Nut ...................................................... 2

C. Indicator ......................................................... 2

D. Switch Key ..................................................... 2

8. Spacer Table ...................................................... 1

Fig. 6B

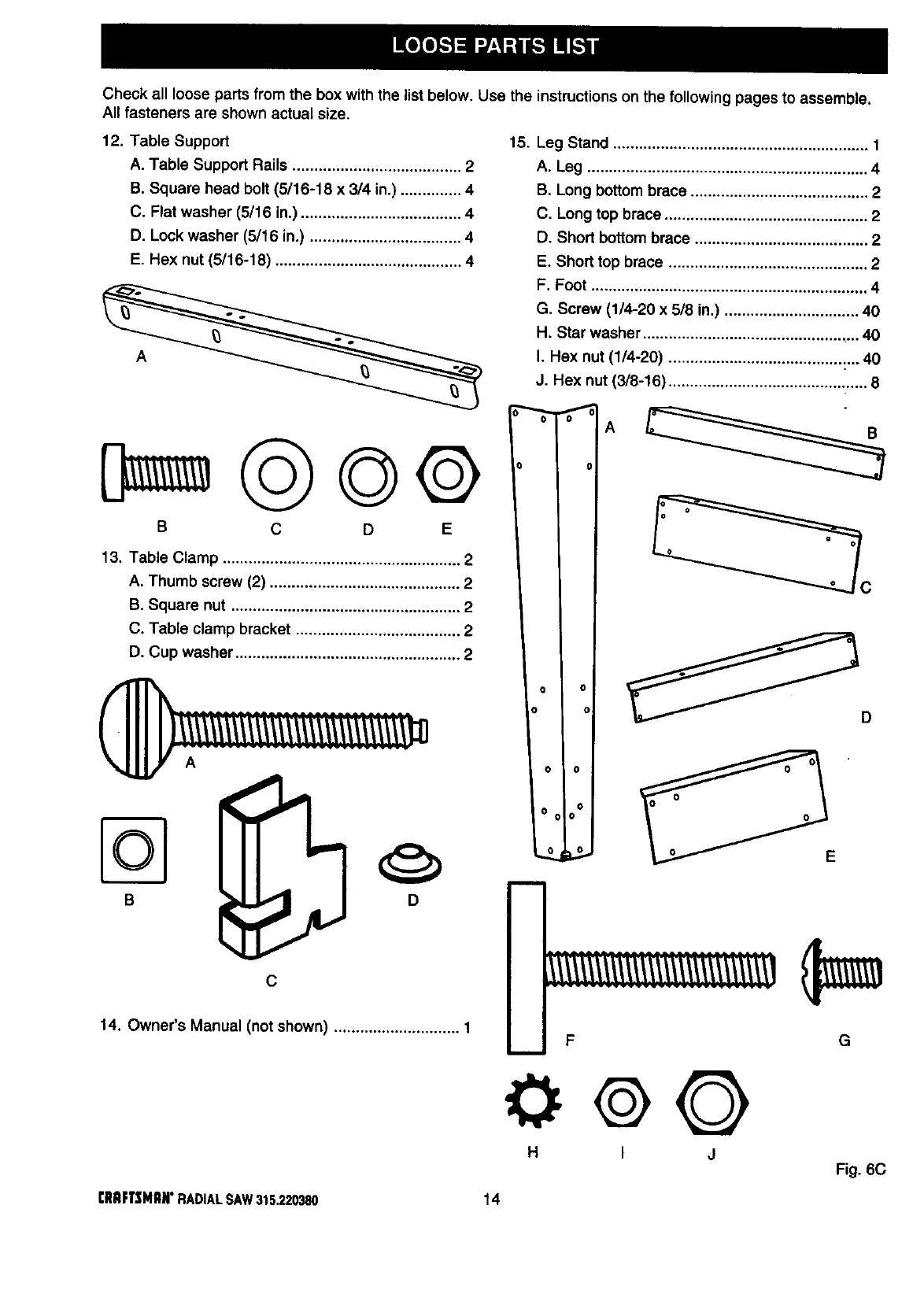

13 CRRFTSMflN"RADIALSAW 315,220380

Check all loose parts from the box with the list below, Use the instructions on the following pages to assemble.

All fasteners are shown actual size.

12. Table Support

A. Table Support Rails ....................................... 2

B. Square head bolt (5/16-18 x 3/4 in.) .............. 4

C. Flat washer (5/16 in.) ..................................... 4

D. Lock washer (5/16 in.) ................................... 4

E. Hex nut (5/16-18) ........................................... 4

B C DE

13. Table Clamp ....................................................... 2

A. Thumb screw (2) ............................................ 2

B. Square nut ..................................................... 2

C. Table clamp bracket ...................................... 2

D. Cup washer .................................................... 2

14. Owner's Manual (not shown) ............................. 1

15. Leg Stand ........................................................... 1

A. Leg ................................................................. 4

B. Long bottom brace ......................................... 2

C. Long top brace ............................................... 2

D. Short bottom brace ........................................ 2

E. Short top brace .............................................. 2

F. Foot ................................................................ 4

G. Screw (1/4-20 x 5/8 in.) ............................... 40

H. Star washer .................................................. 40

I. Hex nut (1/4-20) ............................................ 40

J. Hex nut (3/8-16) .............................................. 8

)

L.2

oo0

H I J Fig. 6C

rRAFTSMRN"RADIALSAW315.220380 14

The following tools are needed for assembly and alignment. They are not included with this saw.

HEXKEYS:

5/32 In.AND 1/8 In.

LEVEL

MEDIUMFLATBLADESCREWDRIVER

#2 PHILLIPSSCREWDRIVER

PENCIL

PLIERS

CHANNELLOCKPLIERS

WRENCHES:7/16in., 1/2in.,9/16 In.,15/16 in.

FRAMINGSQUARE

SMALLHAMMER

Fig. 7

15 [RIIFTIMRN'RADIALSAW315.220380

Wood J SetUng J Feet I /A

Type [Position [ Minute [ /

Hard I A [0-6 I /B

Medium] B Io-2ol /

soil ! c I 0.361 /

BevelCrosscut I /E

WoodIptt;,.,.gI l/

Type J PositionJ Minute I/

All TypesJ A J 0-6 r/

Miter Crosscut

Wood

Type

Hard

Medium

SoftCofln

Setting Feet

Position Minute

A 0-6

0-20

0-36

Iound Crosscut

Wood Setting Feet

Type Position Minute

All Types A 0-6

10 inch Radial Arm Saw _'_

RPM 120/240VOLTS13/6.6knp 60Hz ACOHLYI

NING: WHEN SERVICING,USEONLYIDENtiCAL i

FTSMANREPLACEMENTPARTS. -- /

OEL315.220380 SERNO CUI_|I

INU,S.A. | / _*I

F..A.RSpROEBUCK AND CO, L _ _ ,a_

_Customer Help Line 1-800-932.3188J

WARNING/ADVERTENCIA_

• For your own safety, Read and understand

owner's manual before operating saw.

• This tool has more than one connection to the

power source.

•To reduce the risk of electrical shock or injury,

disconnect all power connections

•When servicing, use only identical

replacement parts.

•Pars su seguridsd, lea y entlenda el manual del

propietario antes de operar la sierra. Jk i

nNJ

NAL i

WARNING/ADVEITI'ENCIA

CRRFTSM

R 0 F E S S I 0

• Foryoursafety,donotfeedripmathdallath

sawfromthisdirection.

•Para sulelUridad,noirdzodUZCael material(lUe

vayliOeorisronis sienadude estesdim_i6n,

Fig. 8A

[RRFT|MRN"RADIALSAW315.220380 16

/AWARNING

_ADVERTENCIA,

,/. mannnlhoto*eng.,c,

/. w.,'.%_ueggl-_

f•Onnotp_d_rmt_ehoedcuts.

_" • RnWrncu_aga to fell roarpssiUen alter each crosscut,

,/" • Seninsbulotgnuonhowto reducethe risk ut kickback.

/" • Wha rlppfeO,usepushotickwhengladn is set 2 inches or more from

/line.

/eWhon pdping, use puskblockandauxiliaryfencewhenblade is netbetween

i1/2 and2 lachesfrom fence. Doe0t makerip nutsnarrowerthan 1/2 inch.

oKoop holutS eut ofpathofDi.ade.

| • On nut _h a_und saw glade.

|_nd walt far Made to stop beforereevingworkpieceor

|changingssWnos.. ......

|_utoro choeginO.hio.hlahoor sorotcing.

_Pa_ sgaegoddag,My Oot_h ot maoml dat p_ptstor_ soils da_pm_' tcnhora,

AWARNING

ADVERTENCIA

• Read and understand owners manual

before operating saw.

• For your safety, do not use

accessories without proper guarding.

•Provide proper workpiece support

•Position cutting tool behind the

fence.

•With power off and switch key

removed, turn cutting tool by hand to

make sure it does not strike guard,

fence or any other saw parts.

•Para su saguridad, lea y entienda el

manual del propietario antes de

operar la sierra.

LOCKED

UNLOCKED

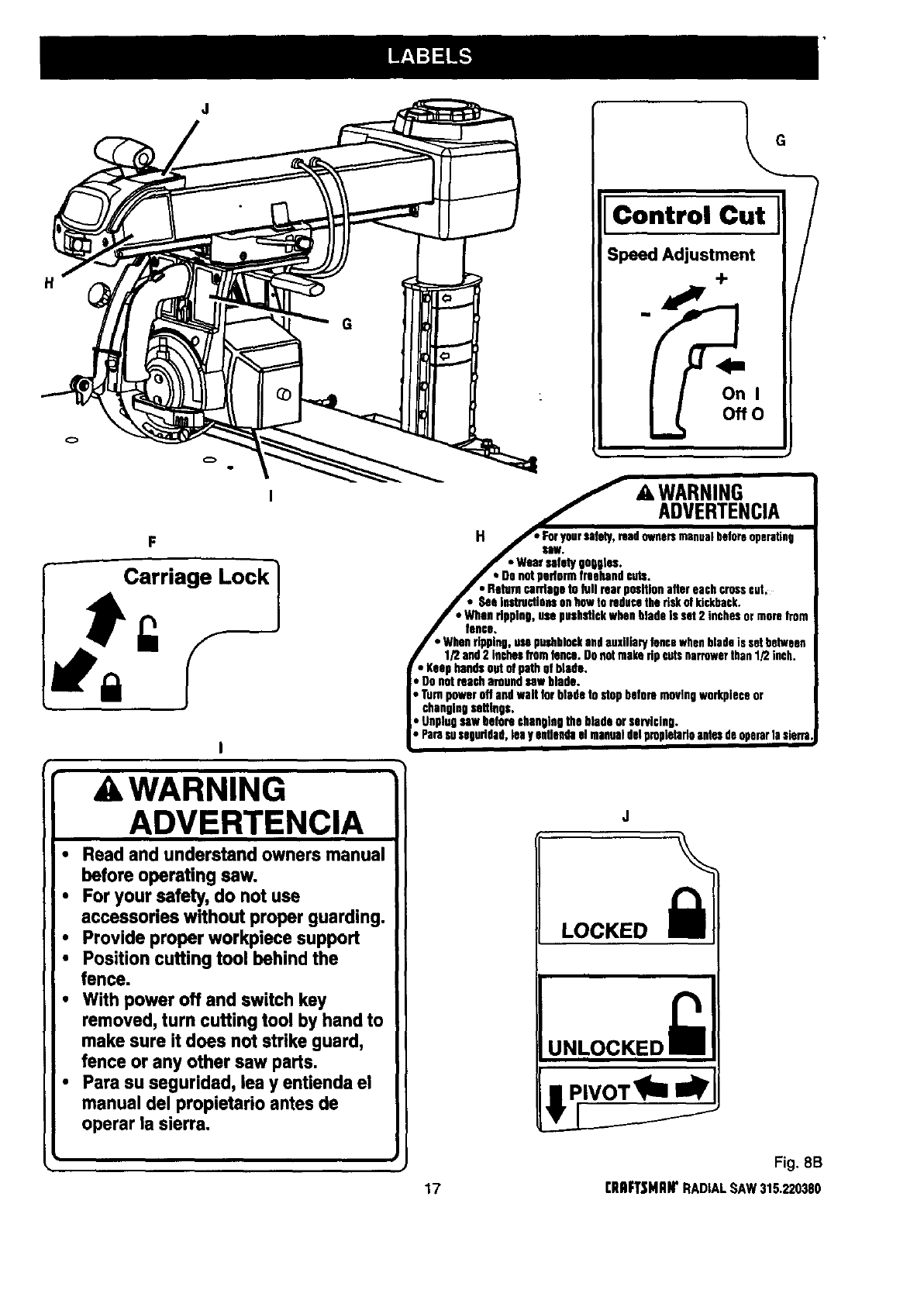

Fig. 8B

17 CRAFTSMAN'RADIALSAW315.220380

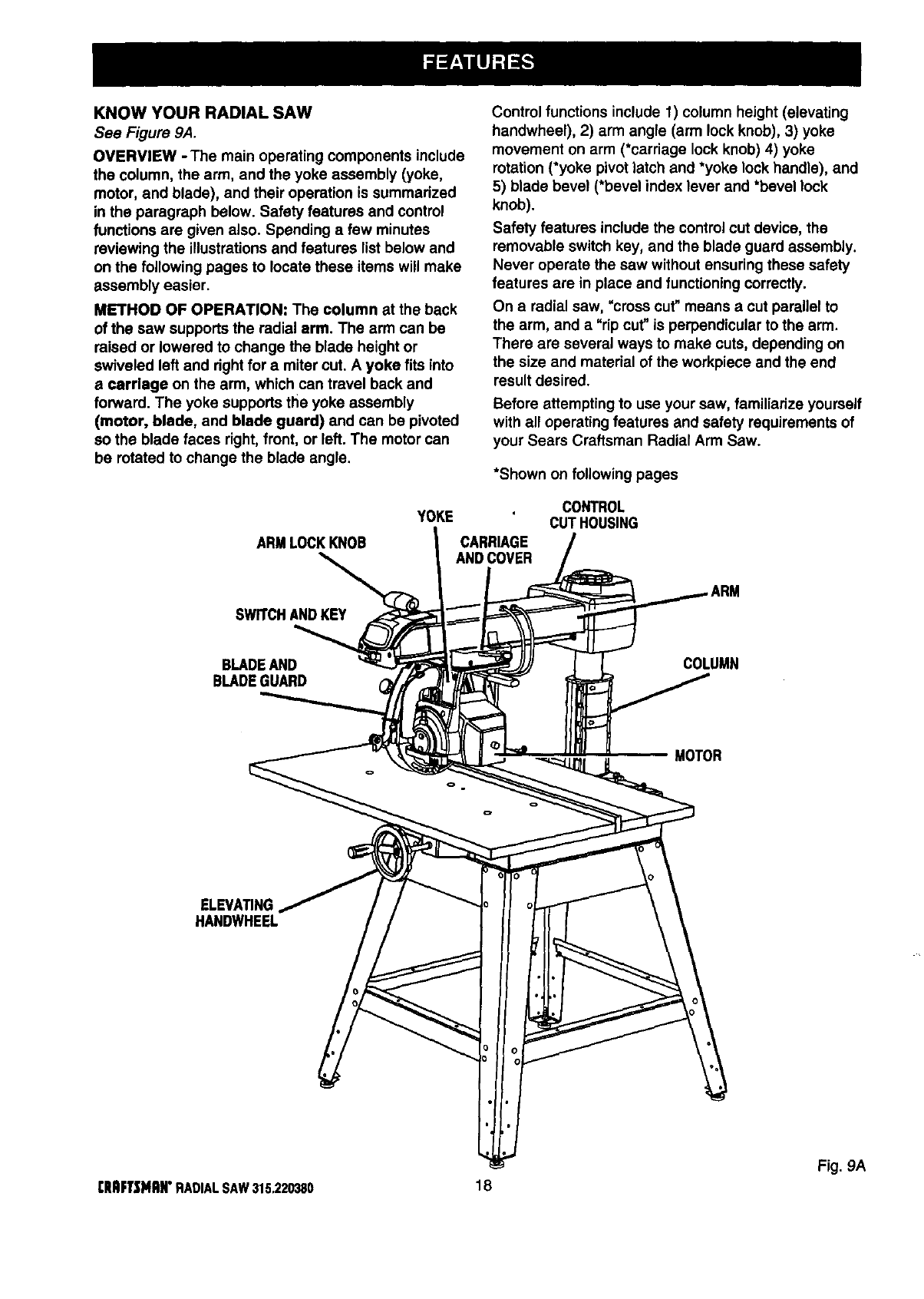

KNOW YOUR RADIAL SAW

See Figure 9A.

OVERVIEW -The main operating components include

the column, the arm, and the yoke assembly (yoke,

motor, and blade), and their operation is summarized

in the paragraph below. Safety features and control

functions are given also. Spending a few minutes

reviewing the illustrations and features list below and

on the following pages to locate these items will make

assembly easier.

METHOD OF OPERATION: The column at the back

of the saw supports the radial arm. The arm can be

raised or lowered to change the blade height or

swiveled left and dght for a miter cut. A yoke fits into

a carriage on the arm, which can travel back and

forward. The yoke supports the yoke assembly

(motor, blade, and blade guard) and can be pivoted

so the blade faces right, front, or left. The motor can

be rotated to change the blade angle.

Control functions include 1) column height (elevating

handwheel), 2) arm angle (arm lock knob), 3) yoke

movement on arm (*carriage lock knob) 4) yoke

rotation (*yoke pivot latch and *yoke lock handle), and

5) blade bevel (*bevel index lever and *bevel lock

knob).

Safety features include the control cut device, the

removable switch key, and the blade guard assembly.

Never operate the saw without ensuring these safety

features are in place and functioning correctly.

On a radial saw, "cross cut" means a cut parallel to

the arm, and a "rip cut" is perpendicular to the arm.

There are several ways to make cuts, depending on

the size and material of the workpiece and the end

result desired.

Before attempting to use your saw, familiadze yourself

with all operating features and safety requirements of

your Sears Craftsman Radial Arm Saw.

*Shown on following pages

ARMLOCKKNOB

YOKE

CARRIAGE

ANDCOVER

CONTROL

CUTHOUSlNG

SWITCHANDKEV

BLADEAND

BLADEGUARD COLUMN

MOTOR

ELEVATING

HANDWHEEL

Fig. 9A

[RRFTSNRN'RADIALSAW315.220380 18

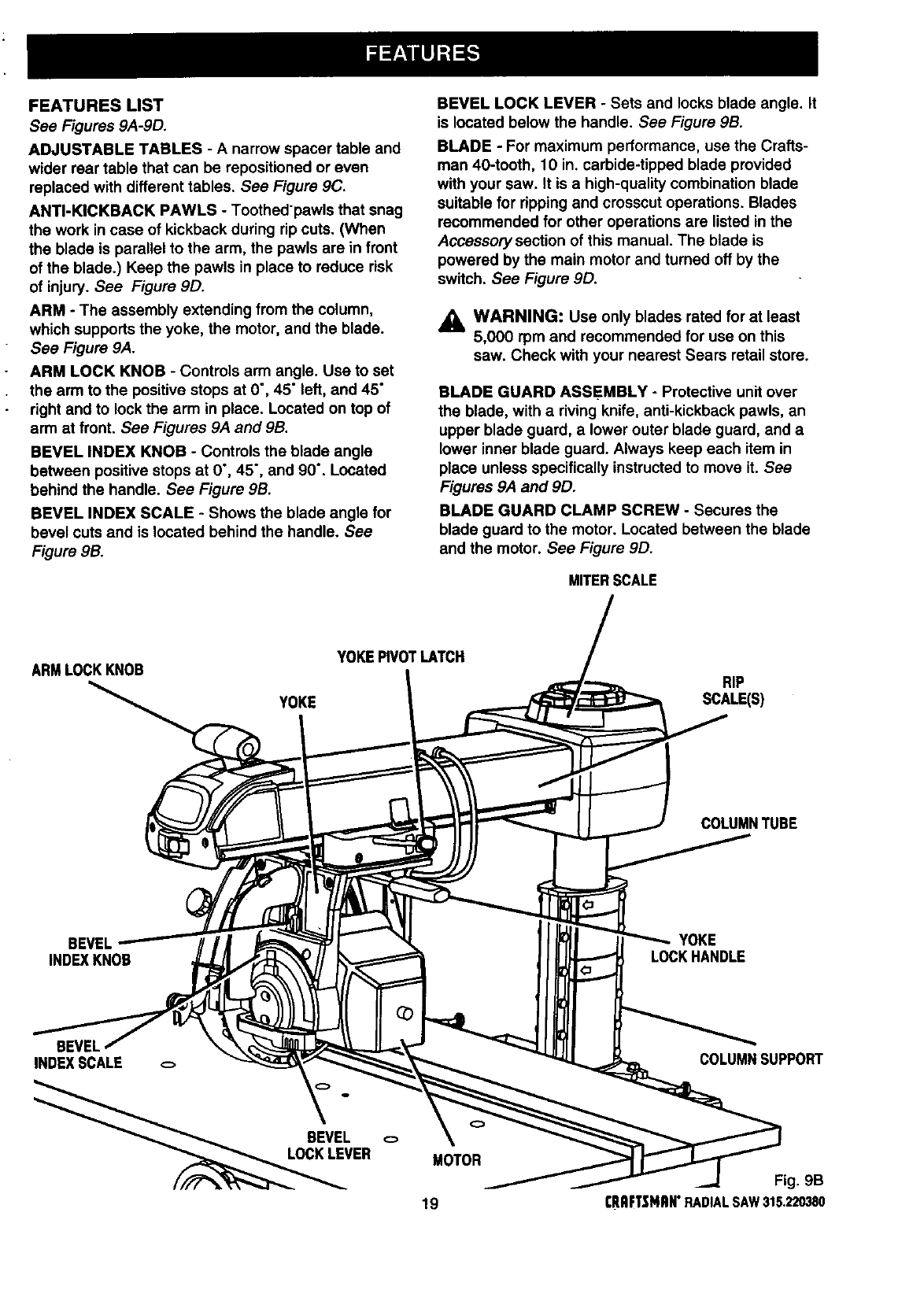

FEATURESLIST

See Figures 9A-9D.

ADJUSTABLE TABLES - A narrow spacer table and

wider rear table that can be repositioned or even

replaced with different tables. See Figure 9C.

ANTI-KICKBACK PAWLS - Toothedpawls that snag

the work in case of kickback during rip cuts. (When

the blade is parallel to the arm, the pawls are in front

of the blade.) Keep the pawls in place to reduce risk

of injury. See Figure 9D.

ARM - The assembly extending from the column,

which supports the yoke, the motor, and the blade.

See Figure 9A.

ARM LOCK KNOB - Controls arm angle. Use to set

the arm to the positive stops at 0", 45" left, and 45"

dght and to lock the arm in place. Located on top of

arm at front. See Figures 9,4 and 9B.

BEVEL INDEX KNOB - Controls the blade angle

between positive stops at 0", 45", and 90". Located

behind the handle. See Figure 9B.

BEVEL INDEX SCALE -Shows the blade angle for

bevel cuts and is located behind the handle. See

Figure 9B.

BEVEL LOCK LEVER -Sets and locks blade angle. It

is located below the handle. See Figure 9B.

BLADE - For maximum performance, use the Crafts-

man 40-tooth, 10 in. carbide-tipped blade provided

with your saw. it is a high-quality combination blade

suitable for ripping and crosscut operations. Blades

recommended for other operations are listed in the

Accessory section of this manual. The blade is

switch. See Figure 9D.

_, WARNING: Use only blades rated for at least

5,000 rpm and recommended for use on this

saw. Check with your nearest Sears retail store.

BLADE GUARD ASSEMBLY - Protective unit over

the blade, with ariving knife, anti-kickback pawls, an

upper blade guard, a lower outer blade guard, and a

lower inner blade guard. Always keep each item in

place unless specifically instructed to move it. See

Figures 9A and 9D.

BLADE GUARD CLAMP SCREW -Secures the

blade guard to the motor. Located between the blade

and the motor. See Figure 9D.

MITERSCALE

ARMLOCK KNOB

YOKE

YOKEPIVOTLATCH

RIP

SCALE(S)

COLUMNTUBE

BEVEL

INDEXKNOB

YOKE

LOCKHANDLE

BEVEL

INDEXSCALE

MOTOR

COLUMNSUPPORT

Fig. 9B

CRAFTSMAN"RADIALSAW315.220380

CARRIAGE-Slides along track under arm and

supports yoke. Contained in two carriage covers, one

on each side of the arm. See Figure 9C.

CARRIAGE LOCK KNOB - Controls whether the

carriage is locked or can travel. Located on the left

side of the arm on the cardage cover. See Figure 9C.

COLUMN - Upright housing at the back of the saw,

consisting of a column support and a column tube.

The column tube can be raised or lowered with the

elevating handwheel at the front of the saw. See

Figures 9A and 9B.

CONTROL CUT DEVICE - Limits carriage speed to

prevent climb, using a cable from the carriage to the

column. Has a separate motor on left side, which is

activated by the switch trigger in the handle. The

cable returns the carriage to the column when the

motor is not activated. Speed is adjusted with a

thumbwheel on the handle. It runs on a separate

t20V AC single voltage circuit. See Figure 9C.

_k WARNING: When connecting only one of the

cords, squeeze the switch trigger inthe handle. If

the main motor cord atone is connected, the

switch trigger in the handle will not operate the

control cut device. The cardage cannot be

advanced without power to the control cut device.

DUAL VOLTAGE -If needed, your main power

source may be rewired by a qualified electrician to

provide a 240V AC circuit. See the E/ectrica/section.

DUST GUIDE - Directs sawdust, created from the cut

being made, in the direction you set. Located at the

rear of the upper blade guard. See Figure 9D.

ELEVATING HANDWHEEL - The handwheel below

the worktable (in front) that changes the height of the

arm and the blade. See Figure 9C.

FENCE - Removable guide for work, which extends

across width of table. See Figure 9C.

FRONT TABLE - Fixed portion of the worktable that

supports the work. See Figure 9C.

HANDLE -Used to puUthe yoke assembly. Mounted

on the yoke to the right of the blade. See Figure 9C.

HOLD DOWN - A metal guard to control workpiece

climb during rip cuts. When blade parallels arm, hold

down is over the back of the blade. See Figure 9D.

HOLD DOWN KNOB - Controls placement of the hold

down and locks it in place. See Figure 9D.

MITER SCALE - Shows the miter angle setting of the

arm. See Figure 9B.

TRACK CARRIAGE CARRIAGE

LOCK KNOB ANDCOVER

CONTROL

CUTMOTOR

CONTROL

CUTCABLE

REAR

TABLE

SPACER

TABLE

SWITCH

ANDKEY

CONTROLCUT

THUMBWHEEL

FRONTTABLE

ELEVATING

HANDWHEEL

Fig. 9C

(RRFt'SNItN*RADIALSAW315.220380 20

MOTOR(13/6.5AMP)- Powersthe blade and is

controlled by the switch and key at the front of the

arm. The powerful induction motor has a capacitor

start. It is mounted in the yoke and rotated with the

bevel index knob and bevel lock lever. See Figure 9B.

RIP SCALES - Show the distance from the fence to.

the blade. (In-rip scales are on the right side of the

arm, and out-rip scales are on the left side.) Upper

scales show the distance with the fence beside the

front table. Lower scales show the distance with the

fence in farthest back position. See Figure 9B.

RIVING KNIFE OR SPREADER - Located directly in

front of the blade and beside the anti-kickback pawls,

the riving knife keeps cut edges from binding during

rip cuts. See Figure 9D.

RIVING KNIFE BRACKET - Allows adjustment of the

riving knife. Located midway along the riving knife.

See Figure 9D.

RIVING KNIFE KNOB - Adjusts the riving knife and

locks both the pawls and the riving knife in place.

Located toward the top and front of the blade guard,

See Figure 9D.

SWITCH TRIGGER - Used to power the control cut

device to allow yoke assembly to be pulled forward.

Mounted in the handle. See Figure 9D.

SWITCH WITH KEY - Powers the blade motor.

Placed on the front of the arm for easy access. To

lock the switch once it has been pressed to OFF,

remove the yellow key. Place the key in a location that

is inaccessible to children and others not qualified to

use the tool. See Figures 9A and 9C.

YOKE - Supports the blade and motor. Can be

pivoted to index the blade between rip and cross cuts.

Located between the carriage and the motor. See

Figure 9B.

YOKE PIVOT LATCH - Indexes the yoke (after it is

released) to position the blade to face right (out-rip

cut), front (cross cut), or left (in-rip cut). Located on

the right carriage cover. See Figure 9B.

YOKE LOCK HANDLE - Releases the yoke to allow

indexing for rip cut or cross cut. Located below the

yoke, on the right. See Figure 9B.

BLADEGUARD

CLAMPSCREW

DUSTGUIDE

HOLDDOWN

HOLD

DOWNKNOB

SWITCH

RIVING

KNIFEKNOB

UPPER

BLADEGUARD

RIVINGKNIFE

LOWER

BLADEGUARD

BLADE

RIVING

'_' KNIFEBRACKET

ANTI-KICKBACK

PAWLS

_Fig. 9D

CRAFTSMRN'RADIALSAW315.220380

Assembly is best done in the area where the saw will

be used. When you remove the saw and hardware

from the packing materials, carefully check the items

with the Loose Parts list. If you are unsure about the

description of any part, refer to their illustrations. For

your convenience, all fasteners have been drawn

actual size. If any parts are missing, delay assembling

until you have obtained the missing part(s).

Your radial arm saw is capable of awide variety of

operations, and thus requires a number of initial setup

adjustments. However, once the saw is set up, you

can check your saw in about ten minutes and correct

any misalignment with the procedures in the Adjust-

ment section.

,_ CAUTION: Perform all the procedures in both

the Assembly and Adjustments sections before

using the saw. Run a check on your saw

frequently, referring to the Adjustments section.

Failure to perform the adjustments in the initial

set up or on a frequent basis can result in poor

performance or machine damage.

ASSEMBLING LEG STAND

See Figures 10,4 - 10C.

•Take the following hardware from the hardware

bags in the leg stand carton:

40 truss head screws (1/4-20 x 5/8 in.)

40 star washers (1/4 in.)

40 hex nuts (1/4-20)

•Take the following hardware from the remaining

hardware bags in the leg stand carton:

4 leveling feet

8 large hex nuts (3/8-16)

•Obtain four legs and sight braces from the leg

stand carton. See the Loose Parts section.

•Place a 3/8-16 hex nut on each leveling foot and

insert leveling feet into the bottom of the legs, Cap

with remaining 3/8-16 hex nuts but only finger

tighten. See Figure 10,4.

•Place a short upper brace inside two of the legs

(wide end of legs up) and align the three holes in

the brace with the holes in the legs.

•Insert the screws. Add the star washers and 1/4-20

hex nuts. Finger tighten.

•Install a short lower brace on the legs.

See Figure I OA.

•Repeat for the other end assembly.

•Connect the leg sets with a long upper brace. Add

the hardware and finger tighten. Repeat for the

other side brace, then installthe long lower braces.

See Figure lOB.

•Tighten all screws, washers, and nuts with a 7/16

in. wrench and as needed a #2 phillips screwdriver.

•Move the leg stand to the desired location. Using a

level, adjust the leveling feet by raising or lowering

the botts with a9/16 in. wrench.

•When the leg stand is level, securely tighten all four

nuts with the wrench.

• Your leg stand is now completely assembled and

reedy for use. See Figure 10C.

.LONG

UPPERBRACE

SHORT

LOWERBRACE

HEXNUT

(3/8-16)

LEVELINGFOOT

CIIIIFTSMAIr RADIALSAW 315.220380

WASHER

HEADSCREW

HEXNUT

(1/4-20)

Fig. 10A 22

LONG

LOWERBRACE Fig. lOB

MOUNTING SAW TO LEG STAND

See Figure 11.

,_ WARNING: Firmly bolt the saw to the leg stand

to keep the saw from tipping, walking, or sliding.

•Locate the following hardware from a small hard-

ware bag:

4 hex bolts (5/16-18 x 5/8 in.)

4 Iockwashers (5/16 in.)

8flat washers (11/32 in.)

4 hex nuts (5/16-18)

•Place the saw on top of the leg stand so the holes

in the saw base line up with the holes on top of the

leg stand braces.

•Put a washer on a screw, and put the screw and

washer into the hole in the saw base. Cap with

another washer, then a Iockwasher and a hex nut.

Hand tighten the set.

•Install the other three sets and securely tighten all

four sets with a1/2 in. wrench.

ATTACHING ELEVATING HANDWHEEL

See Figure 12.

_1= WARNING: Be sure the main power cord of

nyour saw is unplugged. Ignoring this precaution

could result in serious injury. Do not perform the

following steps unless the saw is unplugged.

The elevating handwheel adjusts the height of the

radial arm and the blade.

• Take the handwheel, star washer, and screw

(10-24 x 5/8 in. Soc. Hd.) from the hardware bag.

• Place the handwheel on the end of the elevating

shaft, which extends from the front of the saw base.

•Place the star washer on the screw and thread

screw into the end of the shaft.

• Securely tighten the screw with a 5/32 in. hex key.

•Raise or lower the arm by turning the handwheel.

ELEVATING

SHAFT

HANDWHEEL

SAW

BASE LEG

STAND

SCREW

STARWASHER

SAWBASE

Fig. 12

FLAT

LOCKWASHER

LEGSTAND Fig. 11

23 rRRFTSMRN"RADIALSAW315.220380

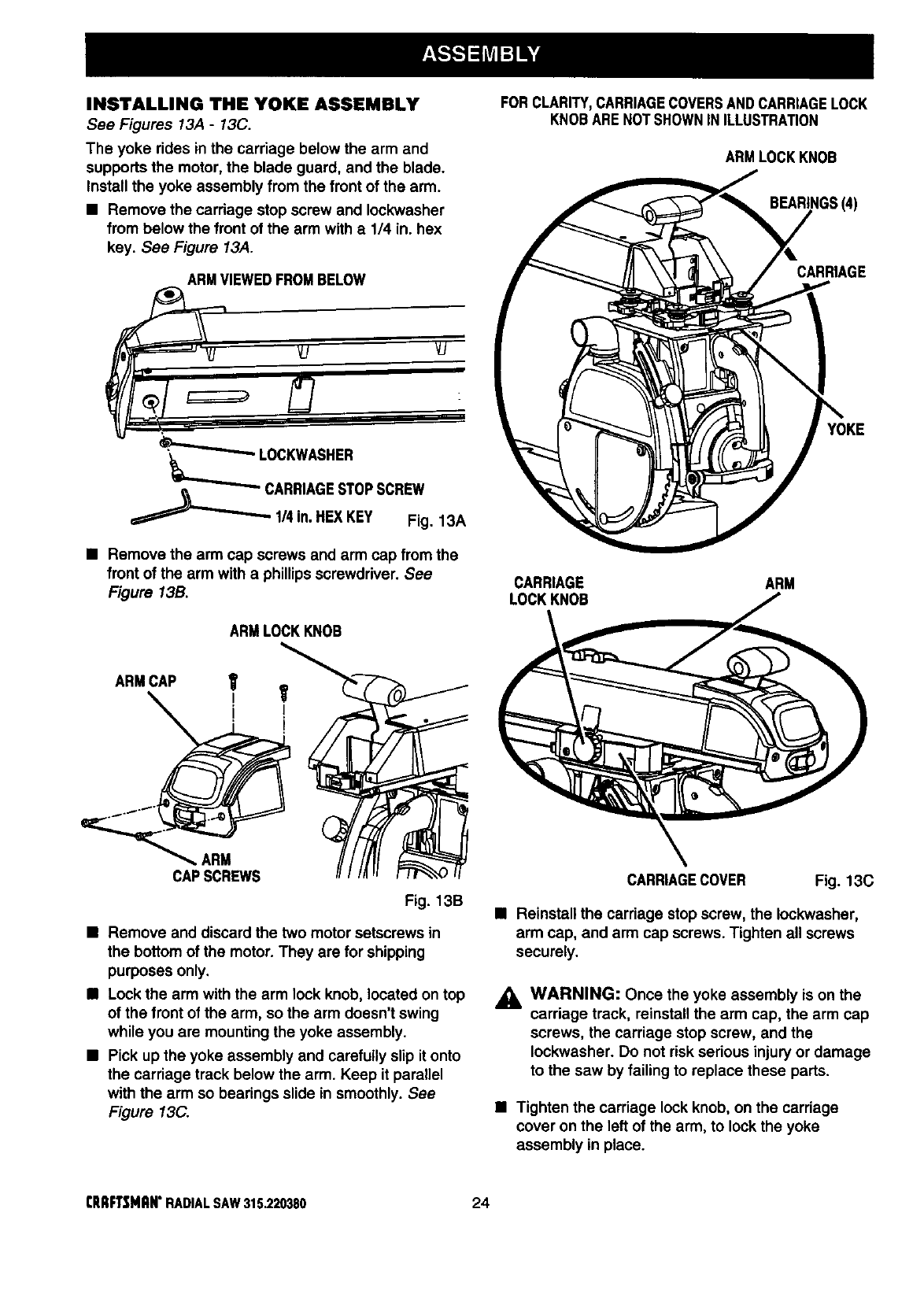

INSTALLING THE YOKE ASSEMBLY

See Figures 13A -13C.

The yoke rides in the carriage below the arm and

supports the motor, the blade guard, and the blade.

Install the yoke assembly from the front of the arm.

•Remove the cardage stop screw and Iockwasher

from below the front of the arm with a 1/4 in. hex

key. See Figure 13A.

ARMVIEWEDFROMBELOW

___.C LOCKWASHER

_R:InA::;::: SCREFWg.13A

• Remove the arm cap screws and arm cap from the

front of the arm with a phillips screwdriver. See

Figure 13B.

ARMLOCKKNOB

ARMCAPT. T

ARM

CAPSCREWS

Fig. 13B

•Remove and discard the two motor setscrews in

the bottom of the motor. They are for shipping

purposes only.

• Lock the arm with the arm lock knob, located on top

of the front of the arm, so the arm doesn't swing

while you are mounting the yoke assembly.

• Pick up the yoke assembly and carefully slip it onto

the carriage track below the arm. Keep it parallel

with the arm so bearings slide in smoothly. See

Figure 13C.

FORCLARITY,CARRIAGECOVERSAND CARRIAGELOCK

KNOBARENOTSHOWNIN ILLUSTRATION

ARMLOCK KNOB

BEARINGS(4)

CARRIAGE

YOKE

CARRIAGE ARM

LOCKKNOB

CARRIAGECOVER Fig. 13C

•Reinstall the carriage stop screw, the Iockwasher,

arm cap, and arm cap screws. Tighten all screws

securely.

,_, WARNING: Once the yoke assembly is on the

carriage track, reinstall the arm cap, the arm cap

screws, the carriage stop screw, and the

Iockwasher. Do not risk serious injury or damage

to the saw by failing to replace these parts.

•Tighten the carriage lock knob, on the carriage

cover on the left of the arm, to lock the yoke

assembly in place.

[RRFTSHRN"RADIALSAW315.220380 24

REMOVING THE BLADE

See Figure 14.

Remove the blade and blade guard assembly during

setup for safety and better access. The blade guard

includes an upper blade guard, an outer lower guard,

and an inner lower guard. The lower inner guard

consists of two overlapping slotted metal strips. The

strips are held together with a retaining screw and a

nut. Locate these items before beginning the proce-

dure.

,_ WARNING: To prevent accidental contact with

the blade that could result in injury, remove the

blade and blade guard before making setups

involving the blade arbor and work stand. Use

the blade wrenches provided with your saw.

• Remove the retaining screw and nut at the bottom

of the lower inner blade guard.

•Loosen the guard clamp screw, a long thumbscrew

between the blade guard and the motor.

•Rotate and liftthe guard assembly up and over the

blade, then remove it.

•Hold the blade arbor (motor shaft) with one of the

two blade wrenches provided. Put the other blade

wrench on the blade nut and turn it clockwise

(down), since the blade arbor has left hand threads.

•Remove the blade nut, outer blade washer, saw

blade, and inner blade washer. Set these items

aside until all the tables have been installed and the

front table is level.

THUMBSCREW BLADEGUARD BLADE

RETAINING

SCREWANDNUT

LOOSEN BLADENUT

BLADE

ROTATION

INNERBLADE

WASHER

BLADE

ARBOR

BLADE

WRENCH(2)

ATTACHING TABLE SUPPORTS

See Figure 15.

The table supports are a base for the three wooden

table sections and fence.

•Locate the two table supports and the following

hardware:

4 square head bolts (5/16-18 x 3/4 in.)

4 Icckwashers (5/16 in.)

4 hex nuts (5/16-18)

4flat washers (5/16 in.)

•Attach the supports to the side of the saw base.

There are holes in both sides of each support. The

long side of each support (with the slotted holes)

fits against the saw base.

•Use two square head bolts per support, inserted

from within the saw base outward.

• Place a flat washer, a lock washer, and a hex nut

on the end of each screw.

•Position table supports so that bolts are approxi-

mately centered in slotted holes.

•Finger tighten or snug with a 1/2 in. wrench only at

this time. Final adjustments will be made later in

Leveling The Table Supports section.

TABLE FLAT

SUPPORT WASHER SQUARE

HEADBOLT

Fig. 14 25

TABLE

USINGTHESEHOLELOCATIONS Fig. 15

CRIII:TJ_MIIN"RADIALSAW315,220380

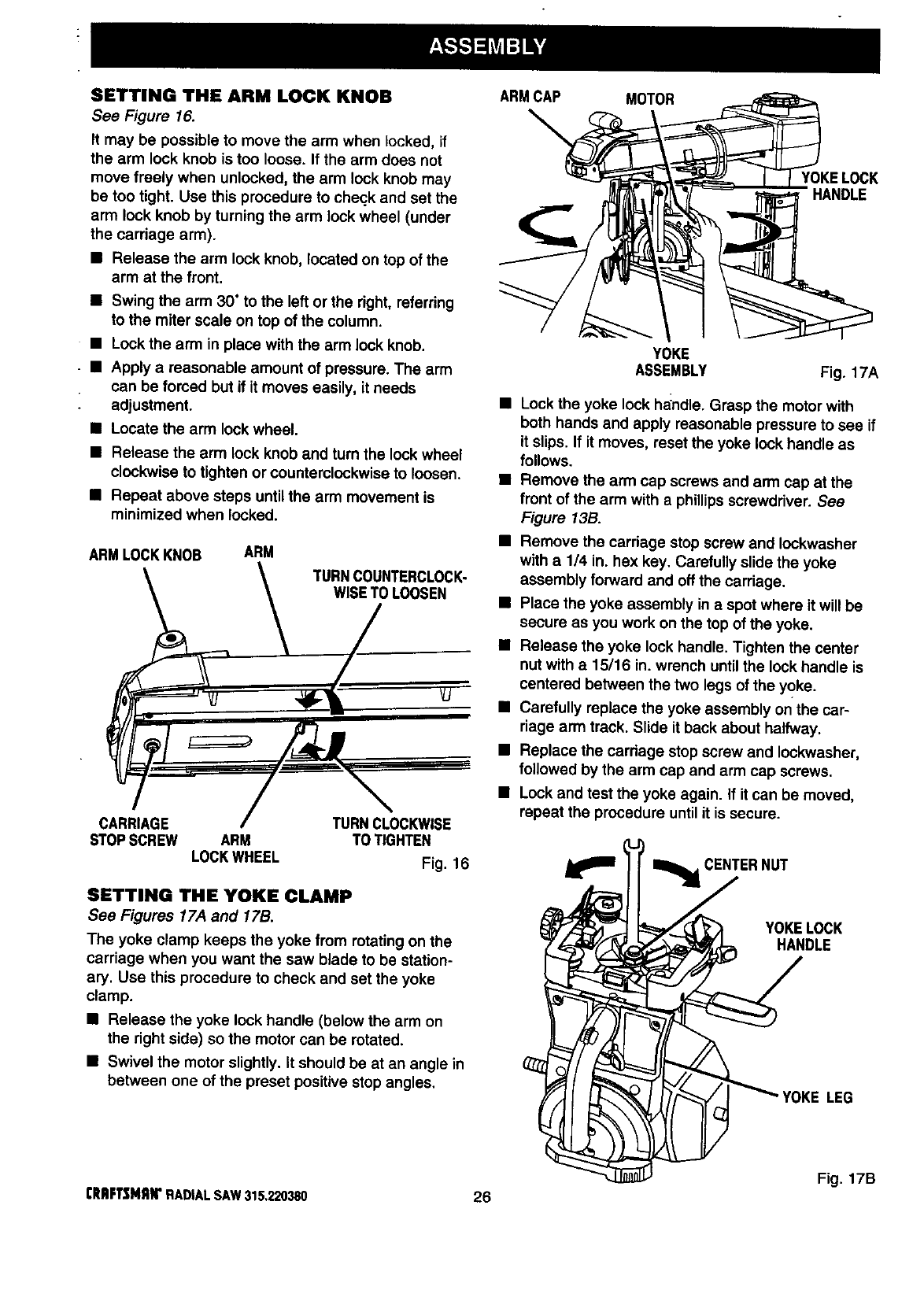

SETTING THE ARM LOCK KNOB

See Figure 16.

It may be possible to move the arm when locked, if

the arm lock knob is too loose. If the arm does not

move freely when unlocked, the arm lock knob may

be too tight. Use this procedure to chec.k and set the

arm lock knob by turning the arm lock wheel (under

the carriage arm).

• Release the arm lock knob, located on top of the

arm at the front.

• Swing the arm 30" to the left or the right, referring

to the miter scale on top of the column.

•Lock the arm in place with the arm lock knob.

•Apply areasonable amount of pressure. The arm

can be forced but if it moves easily, it needs

adjustment.

•Locate the arm lock wheel.

•Release the arm lock knob and turn the lock wheel

clockwise to tighten or counterclockwise to loosen.

•Repeat above steps untilthe arm movement is

minimized when locked.

ARM LOCK KNOB ARM

TURNCOUNTERCLOCK-

WISETOLOOSEN

CARRIAGE TURNCLOCKWISE

STOPSCREW ARM TO TIGHTEN

LOCKWHEEL Fig. 16

SETTING THE YOKE CLAMP

See Figures 17A and 17B.

The yoke clamp keeps the yoke from rotating on the

carriage when you want the saw blade to be station-

ary. Use this procedure to check and set the yoke

clamp.

•Release the yoke lock handle (below the arm on

the right side) so the motor can be rotated.

•Swivel the motor slightly. It should be at an angle in

between one of the preset positive stop angles.

ARMCAP MOTOR

YOKELOCK

HANDLE

YOKE

ASSEMBLY Fig. 17A

•Lock the yoke lock handle. Grasp the motor with

both hands and apply reasonable pressure to see if

it slips. If it moves, reset the yoke lock handle as

follows.

•Remove the arm cap screws and arm cap at the

front of the arm with a phillips screwdriver. See

Figure 13B.

• Remove the carriage stop screw and Iockwasher

with a 1/4 in. hex key. Carefully slide the yoke

assembly forward and off the carriage.

• Place the yoke assembly in a spot where it will be

secure as you work on the top of the yoke,

• Release the yoke lock handle. Tighten the center

nut with a 15/16 in. wrench until the lock handle is

centered between the two legs of the yoke.

• Carefully replace the yoke assembly on the car-

riage arm track. Slide it back about halfway.

•Replace the cardage stop screw and Iockwasher,

followed by the arm cap and arm cap screws.

•Lock and test the yoke again. If it can be moved,

repeat the procedure until it is secure.

I_I_CENTER NUT

YOKELOCK

HANDLE

LEG

Fig. 17B

[RAFTSMAN"RADIALSAW315.220380 26

SETTING THE BEVEL LOCK LEVER

See Figures 18A -18C.

The bevel lock lever locks the blade at desired angles

other than the preset positive stop angles, The bevel

lock lever is preset at the factory but may need

readjustment after shipping or extended use. Check

for overtightness or looseness and make any neces-

sary adjustments as follows:

The bevel lock lever is located on the front of the yoke

assembly, near the bottom. It is attached to a clamp

bolt that controls the amount of tightness.

•Pull the bevel lock lever forward to unlock it. Use

the bevel index knob (just under the handle) to

rotate the motor approximately 30 °. Lock the bevel

lock lever.

• If the bevel lock lever is difficult to lock, the clamp

bolt needs to be loosened. If the motor can be

forced out of position, the clamp bolt needs to be

tightened.

•Remove the socket screw (under the bevel lock

lever) and star washer with a 1/8 in. hex key.

•Use the bevel lock handle as awrench to tighten or

loosen the clamp bolt. The clamp bolt has a right-

handed thread. Tighten it left to right.

•When the bolt is correctly set, remove the bevel

lock lever from the clamp bolt and place it roughly

parallel to the yoke assembly.

•Replace the socket screw and star washer. Re-

check the tightness of the bevel lock lever. Repeat

the steps above untilthe motor is secure when

locked, and the bevel lock lever fits squarely

against the yoke assembly.

STARWASHER

SOCKETSCREW-'---"_

1/8in. HEXKEY_.._

;LAMP BOLT

IBEVEL

LOCKLEVER

Fig. 18B

BEVELLOCKLEVERIN

CORRECTLOCKEDPOSITION

Fig. 18C

BEVEL

LOCK LEVER INDEXKNOB MOTOR Fig. 18A

27 [RRFTSNRIrRADIALSAW315.220380

TIGHTENING THE ARM AND COLUMN ADJUSTING THE COLUMN TUBE

See Figure 19.

There should be no play, vertical or horizontal, in the

arm relative to the column. If you can move the arm

up, down or sideways when it is unlocked, use the

following steps to tighten it.

• Using aphillips screwdriver, remove the rear cover

screws (2) and rear cover from the back of the arm.

This uncovers the bolts on the column.

•Tighten the top two bolts evenly untilthe arm is firm

and there is no vertical or horizontal movement.

• Also check the two bottom hex nuts. It is not

necessary to tighten them as tight as the upper

.bolts. However they should be tightened even and

.snug.

• -Replace the rear cover and rear cover screws.

•Tighten screws securely.

-REAR

COVERSCREWS

REAR

COVER

HEXBOLT(2)

See Figures 20A -20D.

The purpose of this procedure is to check whether the

inner column tube is snug in the housing and to

remove any looseness. Looseness could result in a

poor cut or difficulty in elevating the carriage. The

column tube is the upper portion of the column and

extends from the column support.

Note: It is critica/to remove all looseness with this

procedure. If this procedure is not done cor-

rectly, following adjustments will be wrong and

could result in machine damage.

This procedure checks both the elevating action and

the rotating action. If a check does not show loose-

ness, do not perform the adju.stment.

• If the arm is not at 0" (straight forward), release the

arm lock knob, set the arm, and re-lock the arm

lock knob.

•Elevation check: To check the elevation movement,

place your hand under the front of the radial arm.

Press upward on the radial arm. There should be

no play between the column tube and the column

support. The whole assembly should move as one.

See Figure 20A.

COLUMN ARM

TUBE

COLUMN

SUPPORT

Fig. 20A

HEX NUT(2) Fig. 19

I:RRFI"$MRN"RADIALSAW 315.220380 28

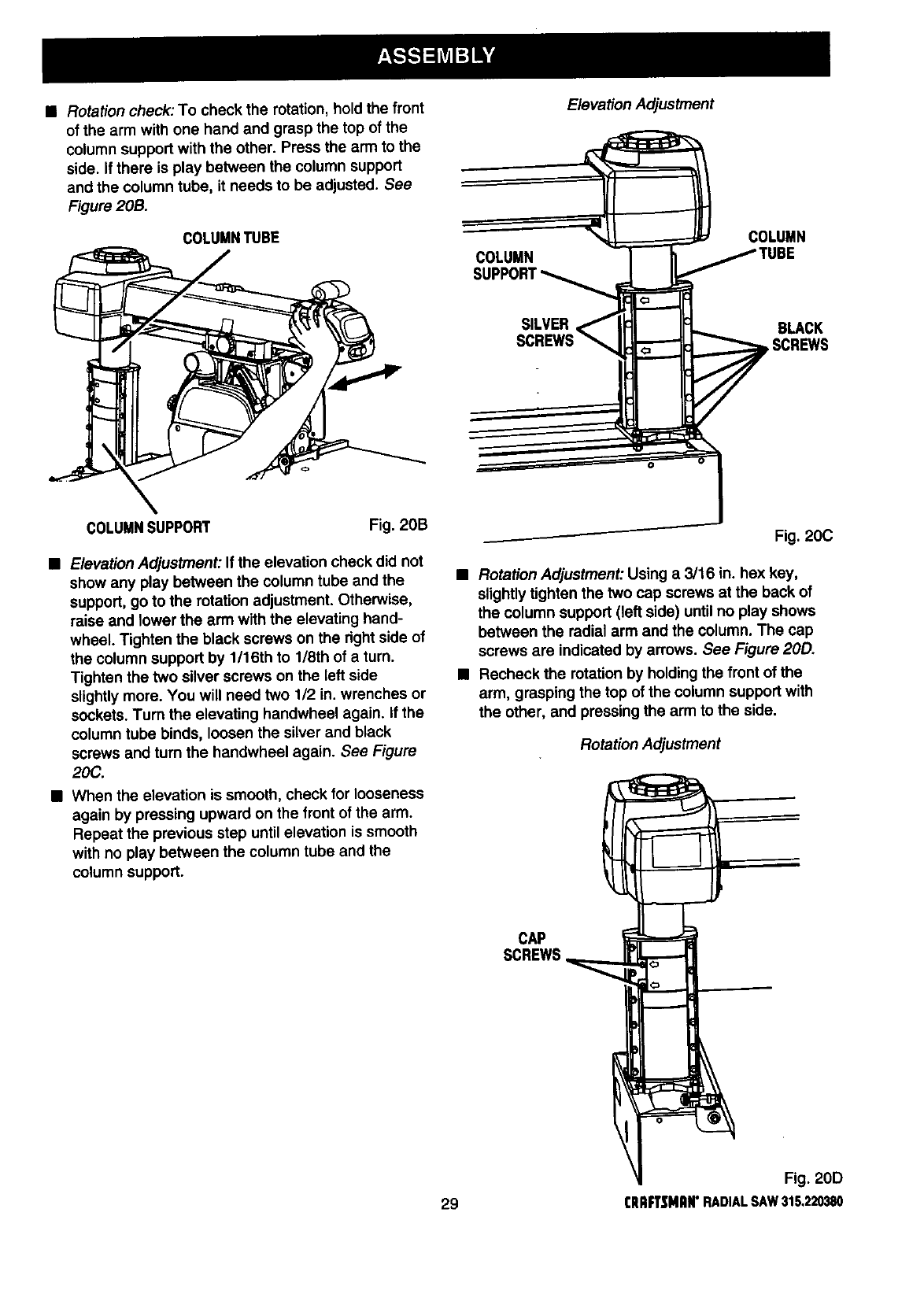

•Rotation check: To check the rotation, holdthe front

of the arm with one hand and grasp the top of the

column support with the other. Press the arm to the

side. If there is play between the column support

and the column tube, it needs to be adjusted. See

Figure 20B.

COLUMNTUBE

COLUMN

Elevation Adjustment

COLUMN

SILVER BLACK

SCREWS

COLUMNSUPPORT Fig. 20B

•Elevation Adjustment: If the elevation check did not

show any play between the column tube and the

support, go to the rotation adjustment. Otherwise,

raise and lower the arm with the elevating hand-

wheel. Tighten the black screws on the rightside of

the column support by 1/16th to 1/8th of a turn.

Tighten the two silver screws on the left side

slightly more. You will need two 1/2 in. wrenches or

sockets. Turn the elevating handwheel again. If the

column tube binds, loosen the silver and black

screws and turn the handwheel again. See Figure

20C.

•When the elevation is smooth, check for looseness

again by pressing upward on the front of the arm.

Repeat the previous step until elevation is smooth

with no play between the column tube and the

column support.

Fig. 20C

•Rotation Adjustment: Using a 3/16 in. hex key,

slightly tighten the two cap screws at the back of

the column support (left side) untilno play shows

between the radial arm and the column. The cap

screws are indicated by arrows. See Figure 20D.

•Recheck the rotation by holding the front of the

arm, grasping the top of the column support with

the other, and pressing the arm to the side.

Rotation Adjustment

CAP

SCREWS,

Fig. 20D

29 (RRFTSMI_WRADIALSAW315,220380

ADJUSTING THE CARRIAGE BEARINGS

See Figures 21A and 21B.

Loose carriage bearings permit the blade to wander

slightly while cutting, which will result in a poor cut

and more wear and tear on the saw. Use the following

steps to check for tightness and to then adjust the

bearings if needed.

•On the left side of the arm, remove the carriage

lock knob, the carriage cover screws, and the

carriage cover.

•With one hand, grip the front bearing hard to keep it

still, and pull the carriage forward with the other

hand. The bearing should turn. If it stays still as the

carriage is moved, it needs to be adjusted.

CARRIAGEBEARING

•Use a 9/16 in. wrench to hold the eccentric screw

(top of bearing) and a1/2 in. wrench to loosen the

nut below the bearing.

•Turn the eccentric screw apartial turn as needed to

tighten the bearing.

•Retighten the nut and repeat the second step to

test the tightness. Adjust it so the bearing turns

even against resistance when the carriage is

moved -but not so much that the carriage is difficult

to move and return it to its rear position.

•Repeat for the left rear bearing.

Note: Adjust bearings on the left side only. Bearings

on the right side do not adjust.

•Replace the carriage cover, carriage cover screws,

and carriage lock knob.

ECCENTRICSCREW 9/16 In.

WRENCH

GRASPAND HOLD

CARRIAGEBEARING Fig. 21A 1/2 in,

WRENCH Fig. 21B

rRAFTSMnN"RADIALSAW315.220380 30

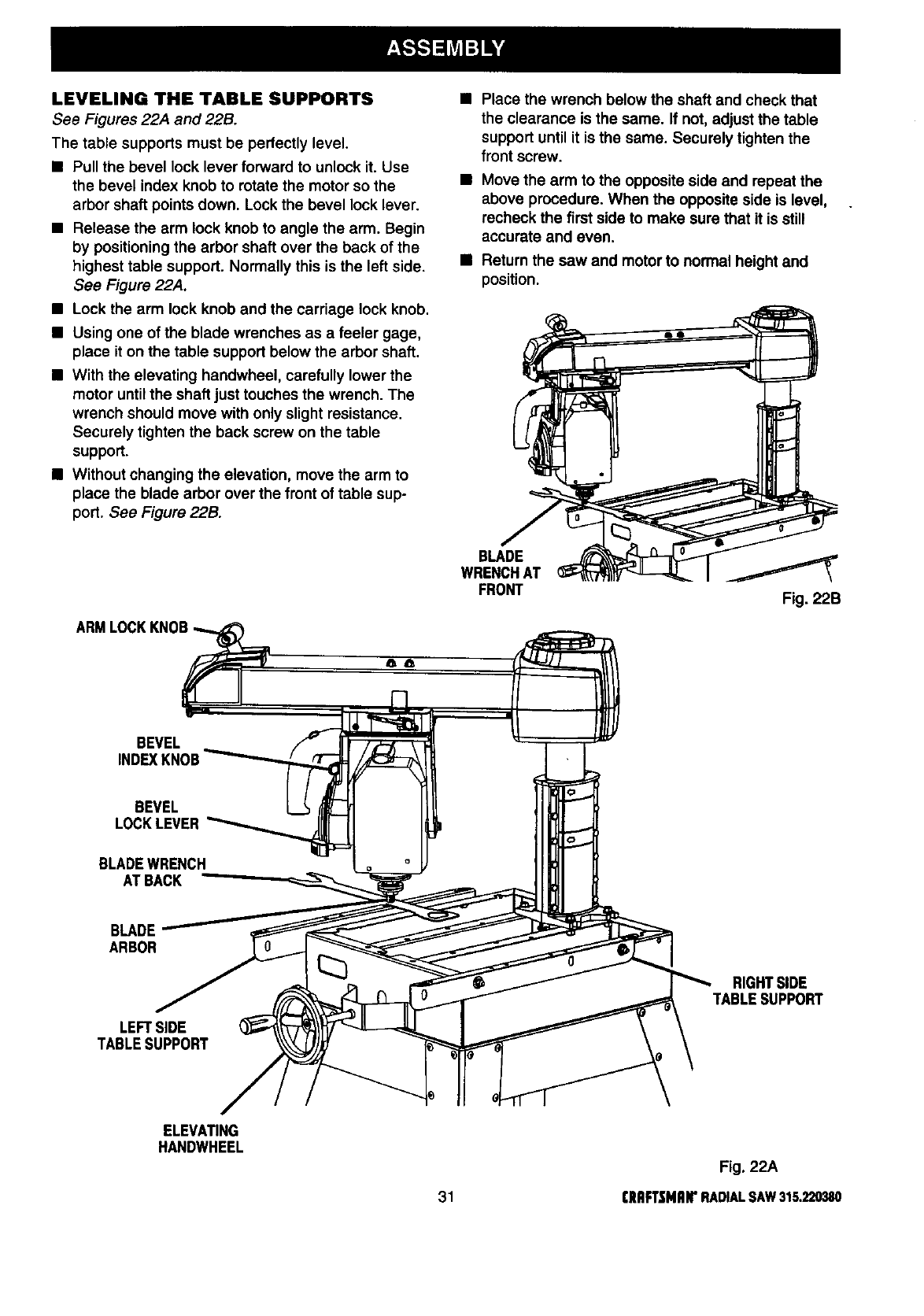

LEVELING THE TABLE SUPPORTS

See Figures 22A and 22B.

The table supports must be perfectly level.

• Pull the bevel lock lever forward to unlock it. Use

the bevel index knob to rotate the motor so the

arbor shaft points down. Lock the bevel lock lever.

• Release the arm lock knob to angle the arm. Begin

by positioning the arbor shaft over the back of the

highest table support. Normally this is the left side.

See Figure 22,4.

• Lock the arm lock knob and the carriage lock knob.

• Using one of the blade wrenches as a feeler gage,

place it on the table support below the arbor shaft.

• With the elevating handwheel, carefully lower the

motor until the shaft just touches the wrench. The

wrench should move with only slight resistance.

Securely tighten the back screw on the table

support.

• Without changing the elevation, move the arm to

place the blade arbor over the front of table sup-

port. See Figure 22B.

Place the wrench below the shaft and check that

the clearance is the same. If not, adjust the table

support until it is the same. Securely tighten the

front screw.

•Move the arm to the opposite side and repeat the

above procedure. When the opposite side is level,

recheck the first side to make sure that it is still

accurate and even.

• Return the saw and motor to normal height and

position.

ARMLOCK KNOB_

BEVEL

INDEXKNOB

BLADE

WRENCHAT

FRONT Fig. 22B

BEVEL

LOCK LEVER

BLADEWRENCH

ATBACK

BLADE

ARBOR

LEFTSIDE

TABLESUPPORT

RIGHTSIDE

TABLESUPPORT

ELEVATING

HANDWHEEL

Fig. 22A

31 [RRFTJ;MAIrRADIALSAW315.220380

INSTALLING THE FRONT TABLE

See Figures 23A -23C.

Use this procedure to install the fixed front table.

The top of the table has counterbored holes, predrilled

from the top, around the center to attach the table. In

the center are a counterbored hole and a small hole,

which is not counterbored. They are used for raising

or lowering the center of the table until it is level.

•Locate the front table and the following hardware:

1 tee nut

1 U-clip (1/4 in.)

1 setscrew (1/4-20 x 7/8 in.)

4 pan head screws (1/4-20 x 1 in.)

1 pan head screw (1/4-20 x 1-3/4 in.)

5flat washers (5/8 in.)

4 lock washers (1/4 in.) "

4 hex nuts (1/4-20)

•Place the front table on a solid worksurface, with

the top surface face down. Place the tee nut in the

non-counterbored hole and tap it in place with a

hammer.

SETSCREW 1-3/4In. SCREW

FLAT

FRONTTABLE

TEE

NUT

REAROF FRONTTABLE Fig. 23A

•Snap the U-clip onto the front edge of the saw

base. Line up the hole in the U-clip with the saw

base hole just to the left of the center notch in saw

base. See Figure 23B.

•Place the table, top up, on the table supports so the

center counterbored hole lines up over the hole in

the U-clip.

•Place a flat washer in each counterbored hole.

U-CLIP ALIGNU-CLIP

OVERTHISHOLE

SAWBASE

Fig. 23B

Place the long pan head screw into the center hole

and thread into the U-clip. Do not tighten untilthe

table has been checked for evenness. See Figure

23A.

•Place the setscrew through the small leveling hole

and thread into the tee nut, but do not tighten.

•Put a 1 in. long pan head screw in the four remain-

ing holes and through the holes in the support.

Cap with alock washer and hex nut. Tighten with a

7/16 in. wrench and phillips screwdriver. This

completes installation of the front table.

SETSCREW

1-3/4in.SCREW/_

1,,. /., T

SCREW / _1 J[ ' !FLAT

I , i i WASHER

LOCKWASHER

HEXNUT

Fig. 23C

I:RRFTSMRIrRADIALSAW 315.220380 32

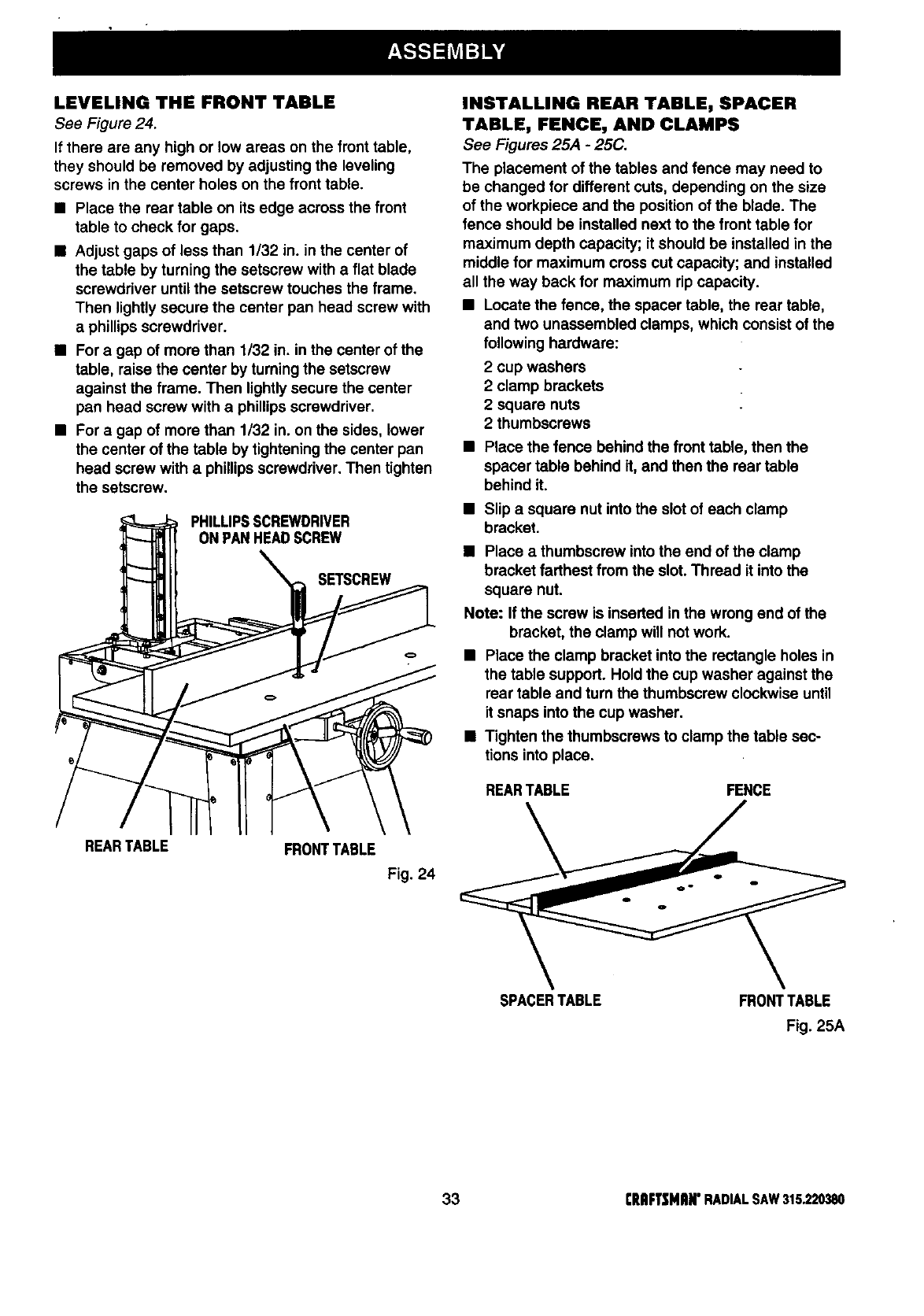

LEVELING THE FRONT TABLE

See Figure 24.

If there are any high or low areas on the front table,

they should be removed by adjusting the leveling

screws in the center holes on the front table.

• Place the rear table on its edge across the front

table to check for gaps.

• Adjust gaps of less than 1/32 in. in the center of

the table by turning the setscrew with aflat blade

screwdriver until the setscrew touches the frame.

Then lightly secure the center pan head screw with

a phillips screwdriver.

• For a gap of more than 1/32 in. in the center of the

table, raise the center by turning the setscrew

against the frame. Then lightly secure the center

pan head screw with a phillips screwdriver.

• For a gap of more than 1/32 in. on the sides, lower

the center of the table by tightening the center pan

head screw with a phillips screwdriver. Then tighten

the setscrew.

PHILLIPSSCREWDRIVER

ON PANHEADSCREW

/REARTABLE FRONTTABLE

Fig. 24

INSTALLING REAR TABLE, SPACER

TABLE, FENCE, AND CLAMPS

See Figures 25A -25C.

The placement of the tables and fence may need to

be changed for different cuts, depending on the size

of the workpiece and the position of the blade. The

fence should be installed next to the front table for

maximum depth capacity; it should be installed in the

middle for maximum cross cut capacity; and installed

all the way back for maximum rip capacity.

• Locate the fence, the spacer table, the rear table,

and two unassembled clamps, which consist of the

following hardware:

2 cup washers

2 clamp brackets

2 square nuts

2 thumbscrews

•Place the fence behind the front table, then the

spacer table behind it, and then the rear table

behind it.

• Slip a square nut into the slot of each clamp

bracket.

•Place a thumbscrew into the end of the clamp

bracket farthest from the slot. Thread it into the

square nut.

Note: If the screw is inserted in the wrong end of the

bracket, the clamp will not work.

•Place the clamp bracket into the rectangle holes in

the table support. Hold the cup washer against the

rear table and turn the thumbscrew clockwise until

it snaps into the cup washer.

•Tighten the thumbscrews to clamp the table sec-

tions into place.

REARTABLE FENCE

SPACERTABLE FRONTTABLE

Fig. 25A

33 CRAFTSMAN"RADIALSAW315.220380

THUMBSCREW

CLAMP

BRACKET

SQUARENUT

CUP

WASHER

HOLE

CUP

TO WASHER

LOOSEN

TIGHTEN

SCREW

CRI_FTZMRN"RADIALSAW 315.220380

CLAMPSHOWN

ASSEMBLED

SLOT

Fig. 25B

TABLE

SUPPORT

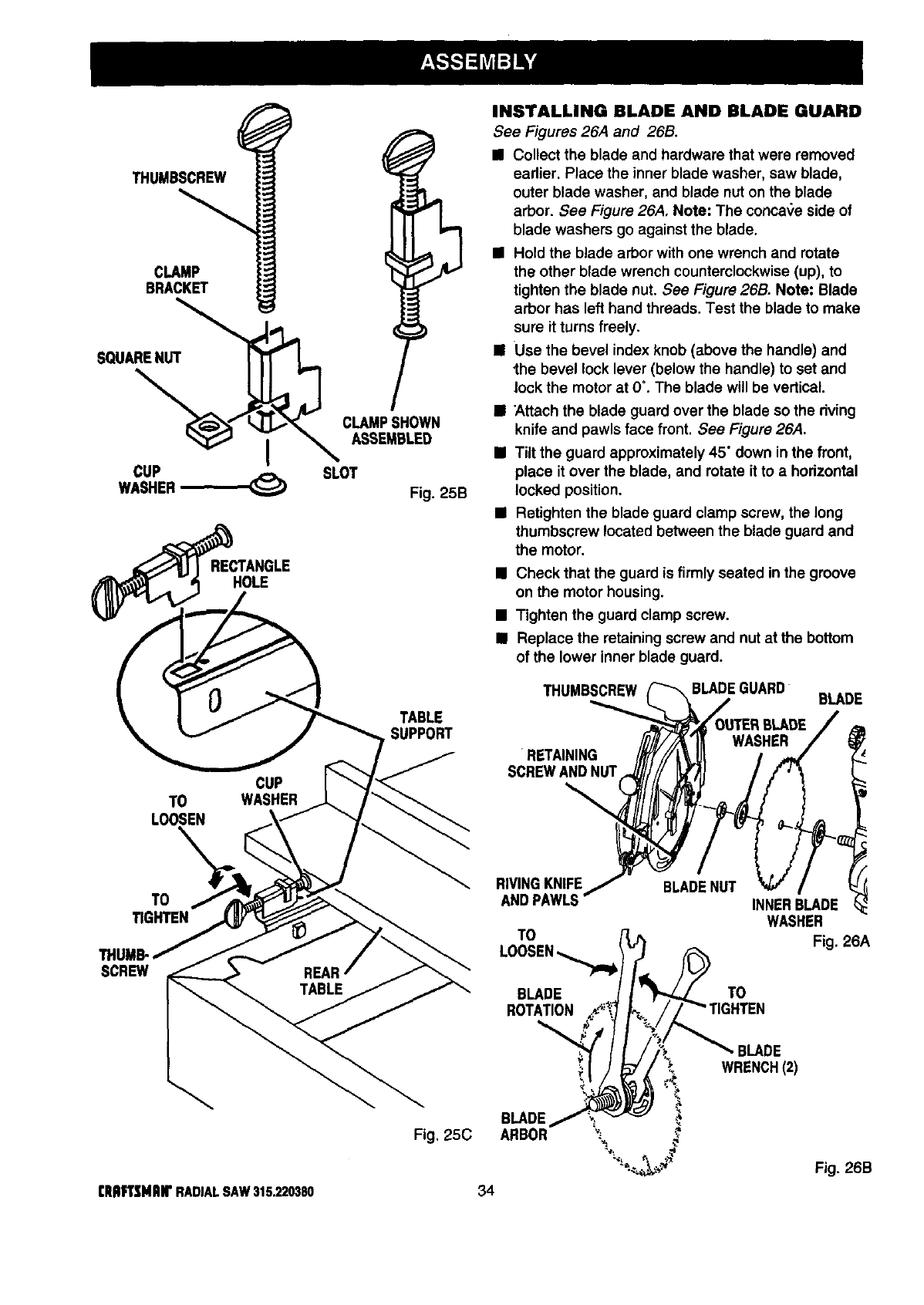

INSTALLING BLADE AND BLADE GUARD

See Figures 26A and 26B.

• Collect the blade and hardware that were removed

earlier. Place the inner blade washer, saw blade,

outer blade washer, and blade nut on the blade

arbor. See Figure 26A, Note: The conca've side of

blade washers go against the blade.

• Hold the blade arbor with one wrench and rotate

the other blade wrench counterclockwise (up), to

tighten the blade nut. See Figure 26B. Note: Blade

arbor has left hand threads. Test the blade to make

sure it turns freely.

• Use the bevel index knob (above the handle) and

"thebevel lock lever (below the handle) to set and

lock the motor at O'. The blade will be vertical.

• Attach the blade guard over the blade so the riving

knife and pawls face front. See Figure 26,4.

• Tilt the guard approximately 45" down in the front,

place it over the blade, and rotate it to a hodzontal

locked position.

• Retighten the blade guard clamp screw, the long

thumbscrew located between the blade guard and

the motor.

• Check that the guard is firmly seated in the groove

on the motor housing.

• Tighten the guard clamp screw.

• Replace the retaining screw and nut at the bottom

of the lower inner blade guard.

THUMBSCREW BLADEGUARD BLADE

RETAINING

SCREWANDNUT

RIVINGKNIFE

AND PAWLS BLADENUT INNERBLADE

WASHER

Fig. 26A

Fig. 26B

ALIGN RIVING KNIFE TO BLADE

See Figures 27A -27C.

When ripping the riving knife must be centered with

the blade to ride in the middle of the kerr and keep it

from binding. Binding pinches the blade. Blade

pinching can cause kickback.

There are two pairs of anti-kickback pawls.

_WARNING: Failure to use the riving knife, hold

downs, and anti-kickback pawls can allow

kickback. Kickback can throw the workpiece

toward the operator, resulting in serious injury.

• Put the blade to the in-rip position by first loosening

the yoke lock handle, below the carriage on the

right. Then pull the yoke pivot latch (right side of

arm, on carriage) forward and rotate the yoke to the

left. This indexes the yoke 90" so the blade is

between the motor and the column. Lock the yoke

lock handle.

•With the elevating handwheel, lower the arm until

the blade just clears the table.

•Support the lower outer blade guard and loosen the

carriage lock knob on the left of the arm. Move the

yoke back untilthe blade touches the fence. Reset

the carriage lock knob.

•Loosen the riving knife knob, at the front of the

upper blade guard. Lower the riving knife to the

table and tighten the knob. If the knife rests against

the fence, with one set of pawls riding on the fence,

no adjustment is needed.

•If the riving knife is on the fence or not touching it,

loosen the riving knife slotted nut (just above the

pawls, to the right). Correct the riving knife position

and retighten the cap nut.

CARRIAGELOCKKNOB YOKELOCKHANDLE

RIVINGKNIFETOO

FAR RIGHTOF FENCE

AND BLADE

Fig. 27A

RIVINGKNIFE

KNOB

RIVINGKNIFE

LOWEROUTER

RIVINGKNIFE

ANTI-KICKPAWLS

RIVINGKNIFEONTOP OF FENCE

TOO FARLEFTOF BLADE

BLADEGUARD

FRONTTABLE

FENCE

CORRECTALIGNMENTOFTHERIVINGKNIFE

ANDANTI-KICKPAWLS

Fig. 27C

Fig. 27B

35 CRRFTSHRIrRADIALSAW315.220380

INSTALLING RIP SCALE INDICATORS

See Figure 28.

The rip scale indicators on the arm show the distance

between the blade and the dp fence with the fence in

the front and rear positions. The upper scale is used

when the fence is positioned directly behind the front

table. The lower scale is used when the fence is at the

extreme roar, directly in front of the column.

The In-Rip Indicator is on the right side of the arm.

The Out-Rip Indicator is on the left side of the arm.

•Remove the following from a small hardware bag.

2 rip scale indicators

4 screws

2 speed nuts

•On the left of the radial arm saw, remove the

carriage lock knob and spring.

•Remove the two carriage cover screws and the

carriage cover.

•Insert a speed nut inside the carriage cover with the

flat side up. Place the scale indicator on top of the

carriage cover and attach with two screws. Se-

curely tighten screws.

•Replace the carriage cover and tighten the carriage

cover screws.

•Replace carriage lock knob and spring.

•Repeat for the right side.

RIPSCALE

INDICATOR

CARRIAGE

SCREWS

SPEEDNUT

__SPRING

CARRIAGE

LOCKKNOB

SCREWS

Fig. 28

To complete setting up your saw, continue with the

Adjustment prroceduros.The adjustments should be

checked regularly, depending on usage. Your saw will

provide accurate cuts with fine tolerances as long as

you protect the accuracy with frequent alignment

checks. The radial arm saw can perform a wide range

of high quality cuts.

The final step will be connecting the control cut

device. The control cut device offers many benefits.

As it increases operator control, it eliminates the risk

in a cross cut of the saw "climbing" out and over the

workpiece at the operator. Feed controlof the blade

as it cuts through the workpiece increases, as does

the accuracy of the cut. The following adjustments

need to be completed before the control cut device is

connected.

Your radial arm saw is designed to perform a variety of

complex cuts with fine tolerances. A weekly alignment

check ensures that your saw can perform with precision.

It takes about ten minutes and the results is better

performance and a longer life for your saw:

Perform the checks in the order given. If you miss an

adjustment, go back to the missed adjustment and

repeat all steps from that point forward.

,_ CAUTION: Failure to check alignments and

perform the adjustments in the initial set up or on

afrequent basis can result in poor performance or

machine damage.

CRAFt'SHAWRADIALSAW315.220380 36

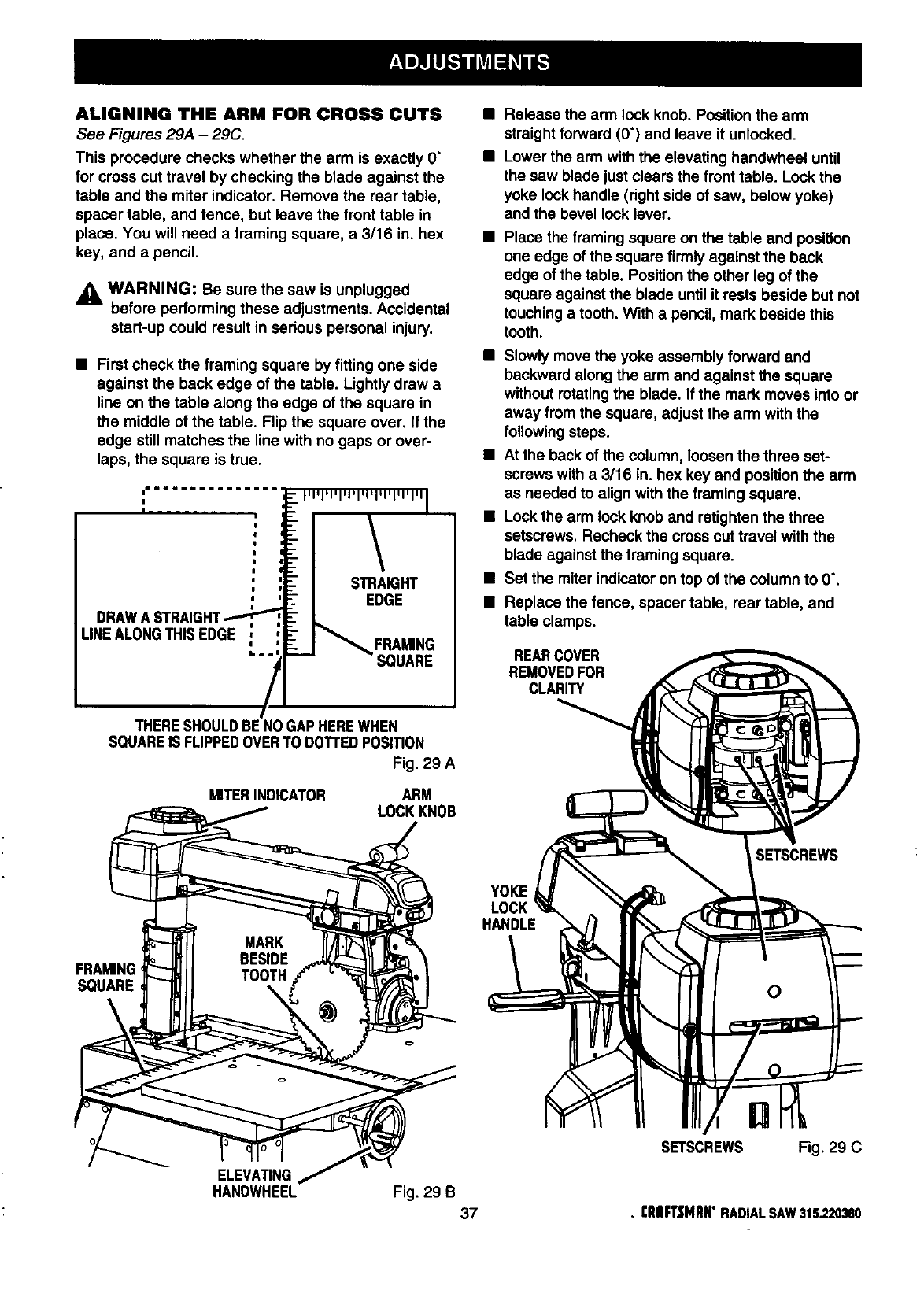

ALIGNING THE ARM FOR CROSS CUTS

See Figures 29A -29C.

This procedure checks whether the arm is exactly 0"

for cross cut travel by checking the blade against the

table and the miter indicator. Remove the rear table,

spacer table, and fence, but leave the front table in

place. You will need a framing square, a 3/16 in. hex

key, and a pencil.

_1, WARNING: Be sure the saw is unplugged

before performing these adjustments. Accidental

start-up could result in serious personal injury.

•First check the framing square by fitting one side

against the back edge of the table. Lightly draw a

line on the table along the edge of the square in

the middle of the table. Flip the square over. If the

edge still matches the line with no gaps or over-

laps, the square is true.

STRAIGHT

EDGE

FRAMING

SQUARE

THERESHOULDBENO GAPHEREWHEN

SQUAREIS FLIPPEDOVERTO DoI"rEDPOSITION

Fig. 29 A

MITERINDICATOR ARM

LOCKKNOB

FRAMING

SQUARE

• Release the arm lock knob. Position the arm

straight forward (0") and leave it unlocked.

•Lower the arm with the elevating handwheel until

the saw blade just clears the front table. Lock the

yoke lock handle (right side of saw, below yoke)

and the bevel lock lever.

•Place the framing square on the table and position

one edge of the square firmly against the back

edge of the table. Position the other leg of the

square against the blade until it rests beside but not

touching a tooth. With a pencil, mark beside this

tooth.

•Slowly move the yoke assembly forward and

backward along the arm and against the square

without rotating the blade. If the mark moves into or

away from the square, adjust the arm with the

following steps.

•At the back of the column, loosen the three sat-

screws with a 3/16 in. hex key and position the arm

as needed to align with the framing square.

•Lock the arm lock knob and retighten the three

setscrews. Recheck the cross cut travel with the

blade against the framing square.

•Set the miter indicator on top of the column to O°.

•Replace the fence, spacer table, rear table, and

table clamps.

REARCOVER

REMOVEDFOR

CLARITY

YOKE

HANDLE

SETSCREWS

SETSCREWS Fig. 29 C

ELEVATING

HANDWHEEL Fig. 29 B 37 ,I:RAF'r|MH"RADIALSAW315.220380

ALIGNING BLADE TO TABLE AT O"BEVEL

See Figures 3OA -30D.

This procedure squares the blade to the table at O"

bevel (vertical) so the blade angle will be accurate. If

the blade is not at O° bevel, follow the steps below to

rotate slightly. You will need a framing square and a

1/4 in. hex key.

•Position the blade in front of the fence. Lower the

blade with the elevating handwheel until it just

clears the front table.

•Lock the following controls:

bevel lock lever below the handle,

carriage lock knob on the left side,

arm lock knob on top of the arm, and

yoke lock handle below the yoke, on the right.

•Stand a framing square on the table with the short

leg pointing up against the saw blade and the long

lag parallel to the fence. Place the square flat

against the blade between two teeth.

•If both the top and bottom of the saw blade are flat

against the square, no adjustment is needed.

•If the saw blade gaps at the top or bottom, remove

the bevel indexcap by removing the two phillips

head screws (below the handle). You will see four

socket head screws.

•Loosen the socket head screws with a 1/4 in. hex

key. Rotate the motor slightly while holding the

square against the saw blade and table top.

•Slightly tighten each of the four screws and recheck

the blade and framing square.

ARM LOCKKNOB

•if there are no gaps, fully tighten each screw. If

there is still a gap, repeat the previous two steps.

•Check the bevel indicatoron the yoke assembly

near the handle. It should read 0". If it does not,

reset it by loosening the screws and rotating the

bevel index cap. Retighten the two screws.

•Loosen the carriage lock knob.

BLADESQUARETOTABLE

NOADJUSTMENTNEEDED

FRAMING

SQUARE

_BLADE

TABLE/Fig. 30 B

FRONTTABLE

INDEXCAP

BEVEL

LOCK

LEVER

GAP -ADJUSTMENTNEEDED Fig. 30 C

BEVELINDEX

CAPREMOVED

ELEVATING SOCKET

HANDWHEEL Fig. 30 A HEADSCREWS LOCK LEVER

Fig. 30 D

CRRFTSMIIII"RADIALSAW315.220380 38

SQUARING BLADE TO FENCE

See Figures 31A -31C.

This procedure squares the miter angle of the blade to

the fence to reduce the risk of binding and kickback. If

the blade is not square to the fence, the yoke assem-

bly must be rotated slightly. Have a framing square, a

1/2 in. wrench, and a phillips screwdriver at hand. The

blade should be lowered to just clear the table.

Release the carriage lock knob.

WARNING: The blade must be angled at 90" to

the fence when the handle is at the front of the

saw. If not, kickback could result during a cross

cut. Kickback can cause serious injury by throw-

ing the workpiece toward the operator. In addi-

tion, afaulty miter angle on the blade can splinter

or burn the cut edges of the workpiece during

cross cuts or rip cuts.

•Use the arm lock knob to index and lockthe arm in

O"miter position (straight forward).

•Pull the yoke assembly forward to the front of the

arm. Lock the carriage lock knob.

•Place the short end of the framing square against

the fence. Rotate the square to 45" to the table.

Place the long edge across the flat surface of the

blade, below the center of the blade. (Do not place

the edge against a tooth.)

•Check whether the blade is flat against the edge for

the entire length or whether agap is visible.

•If the blade needs adjustment, remove the dght side

carriage cover with a phillipsscrewdriver.

ARMLOCKKNOB

FENCE

FRAMINGSQUARE

Fig. 31 A

•Release the yoke lock handle (below the yoke on

the right). With a 1/2 in. wrench, slightly loosen the

two hex bolts holding the yoke pivot latch.

•Rotate yoke assembly until the gap is eliminated.

•Lock the yoke lock handle. Retighten the two hex

bolts on the yoke pivot latch.

•Replace the carriage cover.

• Loosen the carriage lock knob and guide the yoke

assembly to the back of the arm.

SAWVIEWED

FROM ABOVE

BLADE

SQUARE

ADJUSTMENT BLADE

NEEDED

NOADJUSTMENTNEEDED

FENCE

FRAMING

SQUARE BLADE GAP-

ADJUSTMENTNEEDED

:Fig. 31B

HEXBOLTS

YOKELOCK HANDLE

Fig. 31 C

39 CRAFTSMAN'RADIALSAW315.220380

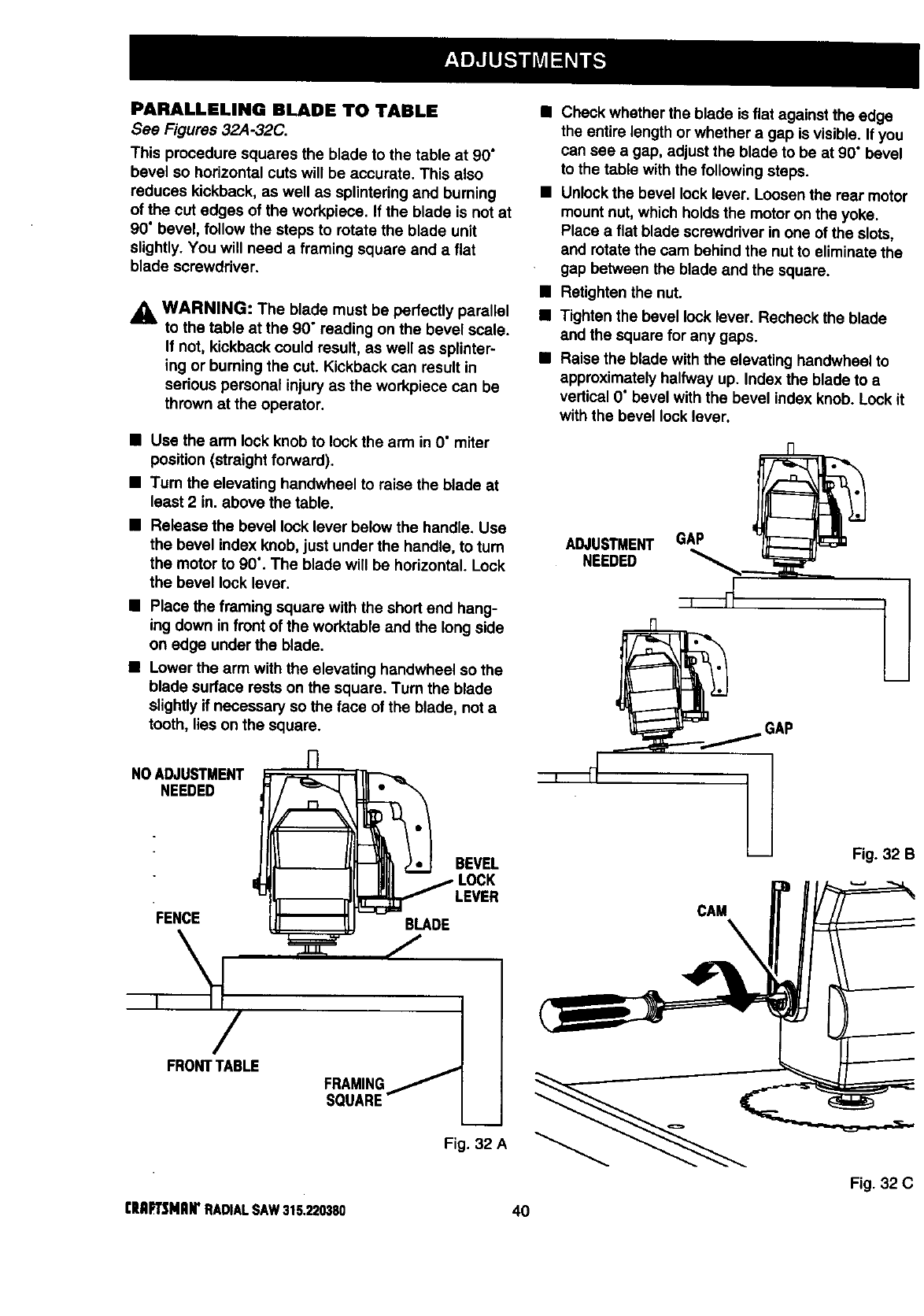

PARALLELING BLADE TO TABLE

See Figures 32A-32C.

This procedure squares the blade to the table at 90"

bevel so horizontal cuts will be accurate. This also

reduces kickback, as well as splintering and burning

of the cut edges of the workpieca. If the blade is not at

90" bevel, follow the steps to rotate the blade unit

slightly. You will need a framing square and a flat

blade screwdriver.

_1= WARNING: The blade must be perfectly parallel

to the table at the 90" reading on the bevel scale.

If not, kickback could result, as well as splinter-

ing or burning the cut. Kickback can result in

sarious personal injury as the workpiece can be

thrown at the operator.

BUse the arm lock knob to lock the arm in 0" miter

position (straight forward).

•Turn the elevating handwheel to raise the blade at

least 2 in. above the table.

BRelease the bevel lock lever below the handle. Use

the bevel index knob, just under the handle, to tum

the motor to 90 °. The blade will be horizontal. Lock

the bevel lock lever.

BPlace the framing square with the short end hang-

ing down in front of the worktable and the long side

on edge under the blade.

•Lower the arm with the elevating handwheel so the

blade surface rests on the square. Tum the blade

slightly if necessary so the face of the blade, not a

tooth, lies on the square.

NO ADJUSTMENT

NEEDED

FENCE

BEVEL

LOCK

BLADE

FRONTTABLE

FRAMINGJ

SQUARE

Fig. 32 A

E Check whether the blade is flat against the edge

the entire length or whether a gap is visible. If you

can see a gap, adjust the blade to be at 90" bevel

to the table with the following steps.

•Unlock the bevel lock lever. Loosen the rear motor

mount nut, which holds the motor on the yoke.

Place a flat blade screwdriver in one of the slots,

and rotate the cam behind the nut to eliminate the

gap between the blade and the square.

•Retighten the nut.

ETighten the bevel lock lever. Recheck the blade

and the square for any gaps.

•Raise the blade with the elevating handwheel to

approximately halfway up. Index the blade to a

vertical 0°bevel with the bevel index knob. Lock it

with the bevel lock lever.

ADJUSTMENT GAP

NEEDED

GAP

dFig. 32 B

CAM

Fig. 32 C

CRAFTSMAN'RADIALSAW315.220380 40

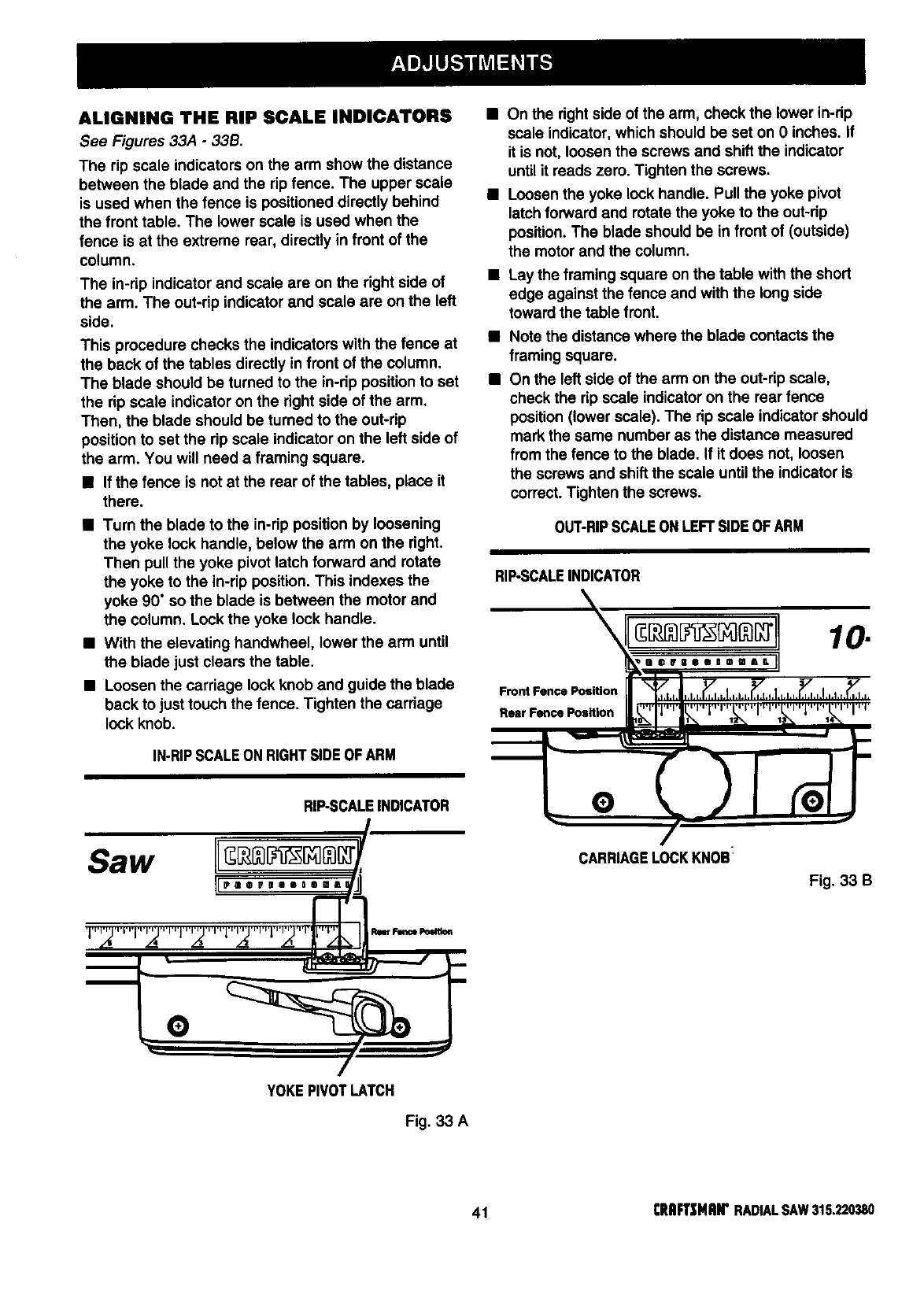

ALIGNING THE RIP SCALE INDICATORS

See Figures 33A -33B.

The rip scale indicators on the arm show the distance

between the blade and the rip fence. The upper scale

is used when the fence is positioned directly behind

the front table. The lower scale is used when the

fence is at the extreme rear, directly in front of the

column.

The in-rip indicator and scale are on the right side of

the arm. The out-rip indicator and scale ere on the left

side.

This procedure checks the indicators with the fence at

the back of the tables directly in front of the column.

The blade should be turned to the in-dp positionto sat

the rip scale indicator on the right side of the arm.

Then, the blade should be turned to the out-rip

position to set the rip scale indicator on the left side of

the arm. You will need a framing square.

•If the fence is not at the rear of the tables, place it

there.

•Turn the blade to the in-dp position by loosening

the yoke lock handle, below the arm on the right.

Then pull the yoke pivot latch forward and rotate

the yoke to the in-rip position. This indexes the

yoke 90" so the blade is between the motor and

the column. Lock the yoke lock handle.

•With the elevating handwheel, lower the arm until

the blade just clears the table.

•Loosen the carriage lock knob and guide the blade

back to just touch the fence. Tighten the carriage

lock knob.

IN-RIPSCALEON RIGHTSIDEOF ARM

RIP-SCALEINDICATOR

Saw

pBI[I_IIIODelI_

_/__ __ -- L

• On the right side of the arm, check the lower in-dp

scala indicator, which should be set on 0 inches. If

it is not, loosen the screws and shift the indicator

untilit reads zero. Tighten the screws.

•Loosen the yoke lock handle. Pull the yoke pivot

latch forward and rotate the yoke to the out-dp

position. The blade should be in front of (outside)

the motor and the column.

•Lay the framing square on the table with the short

edge against the fence and with the long side

toward the table front.

•Note the distance where the blade contacts the

framing square.

•On the left side of the arm on the out-dp scale,

check the rip scale indicator on the rear fence

position (lower scale). The dp scale indicator should

mark the same number as the distance measured

from the fence to the blade. If it does not, loosen

the screws and shift the scale until the indicator is

correct. Tighten the screws.

OUT-RIPSCALEONLEFTSIDEOF ARM

RIP-SCALEINDICATOR

\11P-

_oFgaeomme_

Front Fence Position _,7.u.I ,.n.,..,l_.l.,.I.,.L,..,_.I.,.I.,.L,..,_.U.I.,.U._'

Rear Fence Po61tlon I_ 'l'"l"l _[_'T"l'"r "_" r ire'iT" _" T "l" T r _ _'"1=_, t_ :4_

CARRIAGELOCKKNOB:

Fig. 33 B

YOKEPIVOTLATCH

Fig. 33 A

41 [IIRFTSHRIrRADIALSAW316.220380

INSTALLING CONTROL CUT DEVICE

See Figure 34.

Note: Before installing the control cut device, the yoke

assembly will travel back and forward on the

carriage by pulling the handle. After installing

the control cut device, the power cord for the

control cut device must be plugged in and

switch trigger pressed to move the yoke

assembly and carriage on the arm.

_k WARNING: Do not install the control cut device

until after all of the initial adjustments and

alignments are made to prevent accidental

starting of the saw that could result in serious

personal injury.

The control cut device offers many benefits. As it

increases operator control, it eliminates the risk in a

cross cut of the saw "climbing" out and over the

workpiece at the operator. Feed control of the blade

as it cuts through the workpiece increases, as does

the accuracy of the cut.

The control cut cable maintains a steady pull on the

carriage assembly from the column. This tension

keeps the assembly at the column, unless you

squeeze the switch trigger in the handle. The switch

trigger activates the motor to counter the pull of the

cable.

After a cut is completed, press the switch on the arm

off, then release the switch trigger to prevent further

forward motion. Hold the handle until the blade has

stopped rotating. The yoke assembly will not roll

forward unless you are squeezing the switch trigger.

The control cut power cord is designed to operate on

asingle voltage AC circuit. The speed can be set with

a thumbwheel on top of the handle. The three speed

settings are described on the label located on the left

side of the control cut housing.

,_ WARNING." Do not use the saw without the

control cut and blade guards in place unless

specifically instructed to do so. Otherwise

uncontrolled contact with the blade could occur,

resulting in personal injury.

,_= WARNING: Take great care when working with

either cord to ensure you have the correct one. If

you intend to unplug the main power cord but

remove the control cut cord instead, the

blade could be accidentally started and cause

injury.

•Plug in the control cut cord, leaving the main power

cord disconnected. Squeeze the switchtrigger to

confirm the control cut motor is receiving power.

•On the left side of the saw, remove the carriage

lockknob and spring. Remove the two screws that

attach the carriage cover and remove the cover.

•Replace the spdng and carriage lock knob. Pull the

carriage assembly about halfway to the front.

Tighten the carriage lock knob.

•Squeeze the switch trigger in the handle with your

righthand and pull the spring loaded cable from the

column with your left hand. If you prefer to use a

pair of pliers, do not damage the cable. Note: Do

not to let the spring loaded cable clamp slip out of

your hand or pliers. If it slips past the cable bracket

and goes up into the control cut motor housing,

then disassembly of the control cut assembly will be

required to get it back out.

•Place the barrel fitting into the socket at the back of

the carriage assembly.

nRemove the carriage lock knob and spdng. Replace

the carriage cover and screws, then replace the

spring and carriage lock knob.

•Set the speed thumbwheel, using the chart on the

label. If you are unsure of the proper speed setting,

use the lowest setting.

BARREL

CARRIAGE

ASSEMBLY

SOCKET Fig. 34

CRRFTSMRN"RADIALSAW 315.220380 42

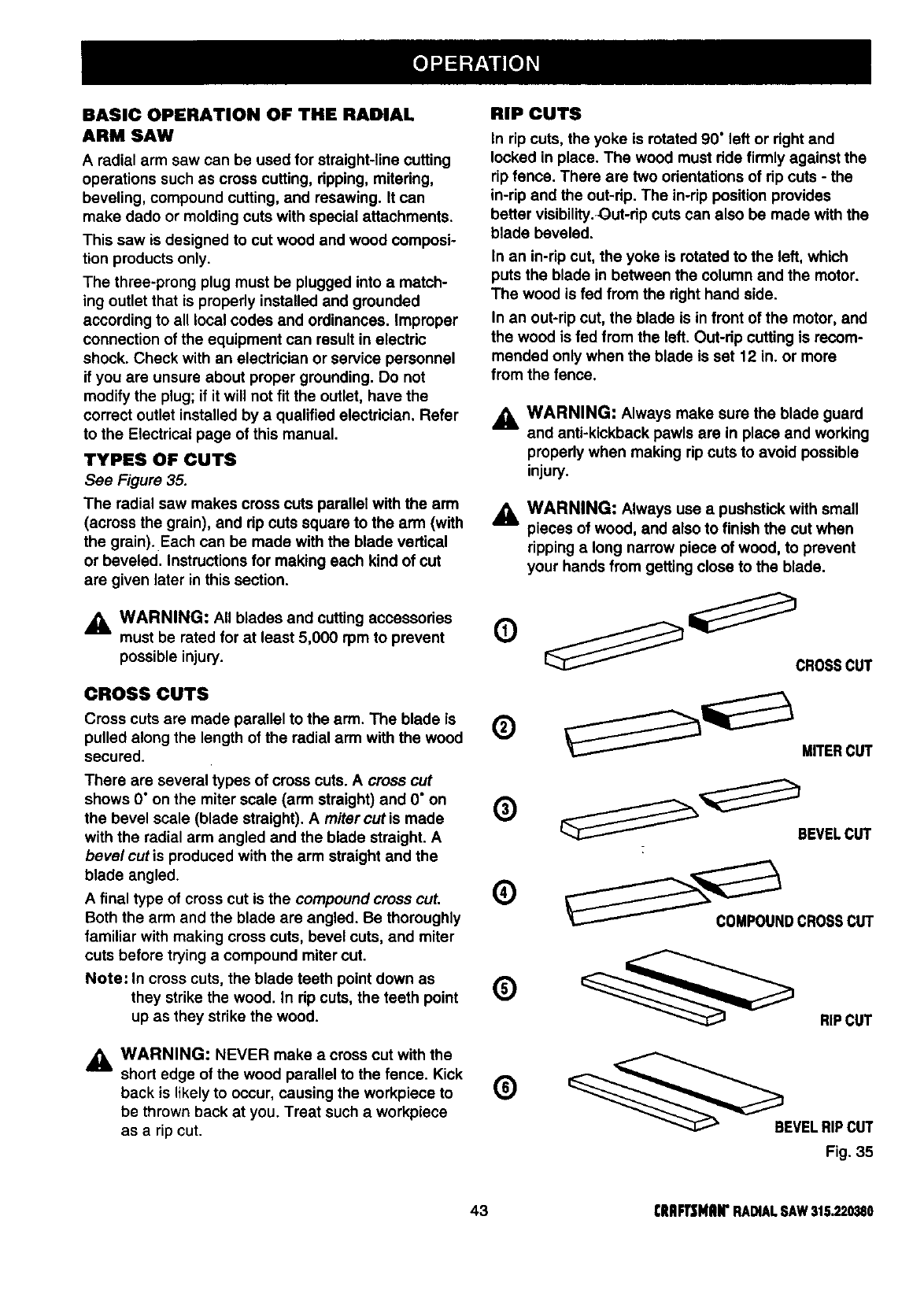

BASIC OPERATION OF THE RADIAL

ARM SAW

A radial arm saw can be used for straight-line cutting

operations such as cross cutting, dpping, mitedng,

beveling, compound cutting, and resawing. It can

make dado or molding cuts with special attachments.

This saw is designed to cut wood and wood composi-

tion products only.

The three-prong plug must be plugged into a match-

ing outlet that is propedy installed and grounded

according to all local codes and ordinances. Improper

connection of the equipment can result in electric

shock. Check with an electrician or service personnel

if you are unsure about proper grounding. Do not

modify the plug; if it will not fit the outlet, have the

correct outlet installed by a qualified electrician. Refer

to the Electrical page of this manual.

TYPES OF CUTS

See Figure 35.

The radial saw makes cross cuts parallel with the arm

(across the grain), and dp cuts square to the arm (with

the grain). Each can be made with the blade vertical

or beveled. Instructions for making each kind of cut

are given later in this section.

,_ WARNING: All blades and cutting accessodes

must be rated for at least 5,000 rpm to prevent

possible injury.

CROSSCUTS

Cross cuts are made parallel to the arm. The blade is

pulled along the length of the radial arm with the wood

secured.

There are several types of cross cuts. A cross cut

shows 0" on the miter scale (arm straight) and 0" on

the bevel scale (blade straight). A miter cut is made

with the radial arm angled and the blade straight. A

bevel cut is produced with the arm straight and the

blade angled.

Afinal type of cross cut is the compound cross cut.

Both the arm and the blade are angled. Be thoroughly

familiar with making cross cuts, bevel cuts, and miter

cuts before trying a compound miter cut.

Note: In cross cuts, the blade teeth point down as

they strike the wood. In dp cuts, the teeth point

up as they strike the wood.

AWARNING: NEVER make a cross cut with the

short edge ofthe wood parallel to the fence. Kick

back is likely to occur, causing the workpiece to

be thrown back at you. Treat such a workpiece

as a rip cut.

RIP CUTS

In rip cuts, the yoke is rotated 90 ° left or dght and

locked in place. The wood must dde firmly against the

rip fence. There are two orientations of dp cuts - the

in-rip and the out-rip. The in-rip position provides

better visibility.Out-dp cuts can also be made with the

blade beveled.

In an in-dp cut, the yoke is rotated to the left, which

puts the blade in between the column and the motor.

The wood is fed from the dght hand side.

In an out-rip cut, the blade is in front of the motor, and

the wood is fed from the left. Out-dp cutting is recom-

mended only when the blade is set 12 in. or more

from the fence.

AWARNING: Always make sure the blade guard

and anti-kickback pawls are in place and working

properly when making rip cuts to avoid possible

injury.

_1, WARNING: Always use a pushstick with small

pieces of wood, and also to finish the cut when

ripping along narrow piece of wood, to prevent

your hands from getting close to the blade.

CROSSCUT

Q __ MITERCUT

BEVELCUT

COMPOUNDCROSSCUT

__ RIPCUT

Q ___BEVEL RiPCUT

Fig. 35

43 CRIIF13HAIrRADIALSAW315_20380

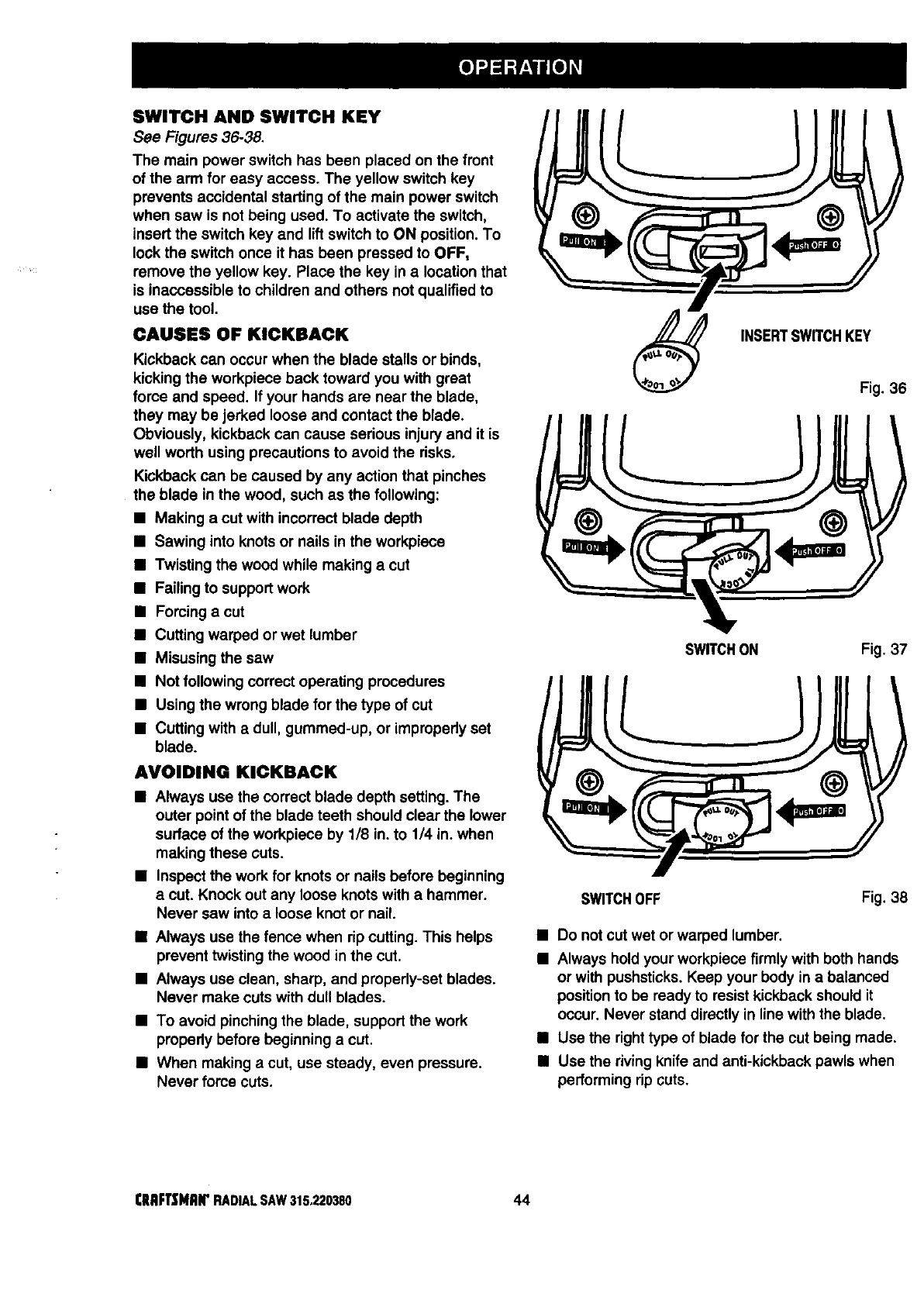

SWITCH AND SWITCH KEY

See Figures 36-38.

The main power switch has been placed on the front

of the arm for easy access. The yellow switch key

prevents accidental starting of the main power switch

when saw is not being used. To activate the switch,

insert the switch key and lift switch to ON position. To

lock the switch once it has been pressed to OFF,

remove the yellow key. Place the key in a location that

is inaccessible to children and others not qualified to

use the tool.

CAUSES OF KICKBACK

Kickback can occur when the blade stalls or binds,

kicking the workpiece back toward you with great

force and speed. If your hands are near the blade,

they may be jerked loose and contact the blade.

Obviously, kickback can cause serious injury and it is

well worth using precautions to avoid the risks.

Kickback can be caused by any action that pinches

the blade in the wood, such as the following:

•Making a cut with incorrect blade depth

•Sawing into knots or nails in the workpiece

•Twisting the wood while making a cut

•Failing to support work

•Forcing a cut

•Cutting warped or wet lumber

•Misusing the saw

•Not following correct operating procedures

•Using the wrong blade for the type of cut

•Cutting with adull, gummed-up, or improperly set

blade.

AVOIDING KICKBACK

•Always use the correct blade depth setting. The

outer point of the blade teeth should clear the lower

surface of the workpiece by 1/8 in. to 1/4 in. when

making these cuts.

•Inspect the work for knots or nails before beginning

acut. Knock out any loose knots with a hammer.

Never saw into a loose knot or nail.

•Always use the fence when rip cutting. This helps

prevent twisting the wood in the cut.

• Always use clean, sharp, and properly-set blades.

Never make cuts with dull blades.

•To avoid pinching the blade, support the work

propedy before beginning a cut.

•When making a cut, use steady, even pressure.

Never force cuts.

INSERTSWITCHKEY

LFig. 36

SWITCHON Fig. 37

SWITCHOFF Fig. 38

• Do not cut wet or warped lumber.

•Always hold your workpiece firmly with both hands

or with pushsticks. Keep your body in a balanced

position to be ready to resist kickback should it

occur. Never stand directly in line with the blade.

• Use the right type of blade for the cut being made.

• Use the riving knife and anti-kickback pawls when

performing rip cuts.

CRIIFTSMAWRADIALSAW315.220380 44

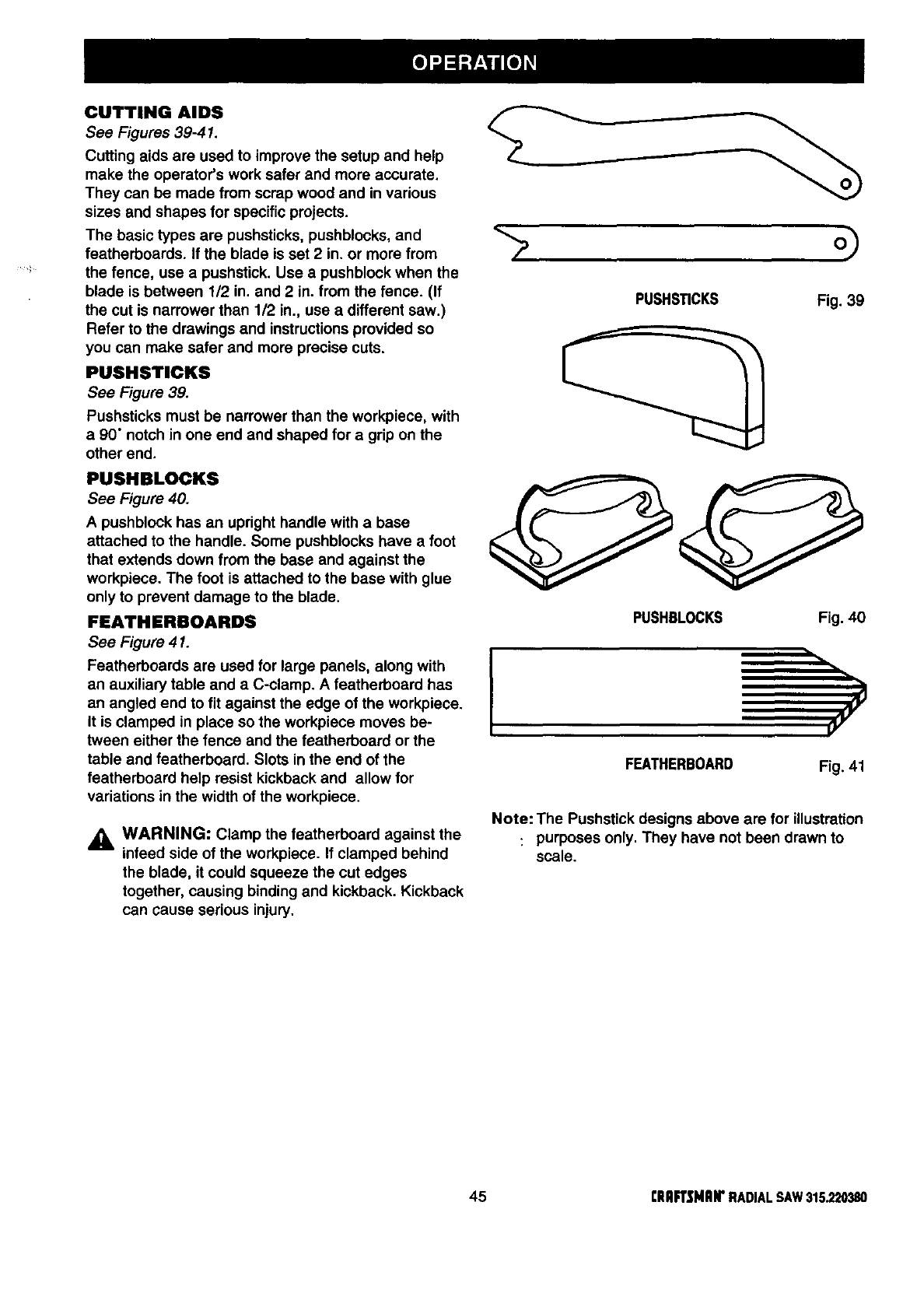

CUTTING AIDS

See Figures 39-41.

Cutting aids are used to improve the setup and help

make the operator's work safer and more accurate.

They can be made from scrap wood and in various

sizes and shapes for specific projects.

The basic types are pushsticks, pushblocks, and

featherboards. If the blade is set 2 in. or more from

the fence, use a pushstick. Use a pushblock when the

blade is between 1/2 in. and 2 in. from the fence. (If

the cut is narrower than 1/2 in., use a different saw.)

Refer to the drawings and instructions provided so

you can make safer and more precise cuts.

PUSHSTICKS

See Figure 39.

Pushsticks must be narrower than the workpiece, with

a 90" notch in one end and shaped for a grip on the

other end.

PUSHBLOCKS

See Figure 40.

Apushblock has an upright handle with a base

attached to the handle. Some pushblocks have a foot

that extends down from the base and against the

workpiece. The foot is attached to the base with glue

only to prevent damage to the blade.

FEATHERBOARDS

See Figure 4 I.

Featherboards are used for large panels, along with

an auxiliary table and a C-clamp. A featherboard has

an angled end to fit against the edge of the workpiece.

It is clamped in place so the workpiece moves be-

tween either the fence and the featherboard or the

table and featherboard. Slots in the end of the

featherboard help resist kickback and allow for

variations in the width of the workpiece.

_i, WARNING: Clamp the featherboard against the

infeed side of the workpiece. If clamped behind

the blade, it could squeeze the cut edges

together, causing binding and kickback. Kickback

can cause serious injury.

PUSHSTICKS Fig. 39

PUSHBLOCKS Fig. 40

FEATHERBOARD Fig. 41

Note: The Pushstick designs above are for illustration

: purposes only. They have not been drawn to

scale.

45 I;RRFTSMRIrRADIALSAW315.220380

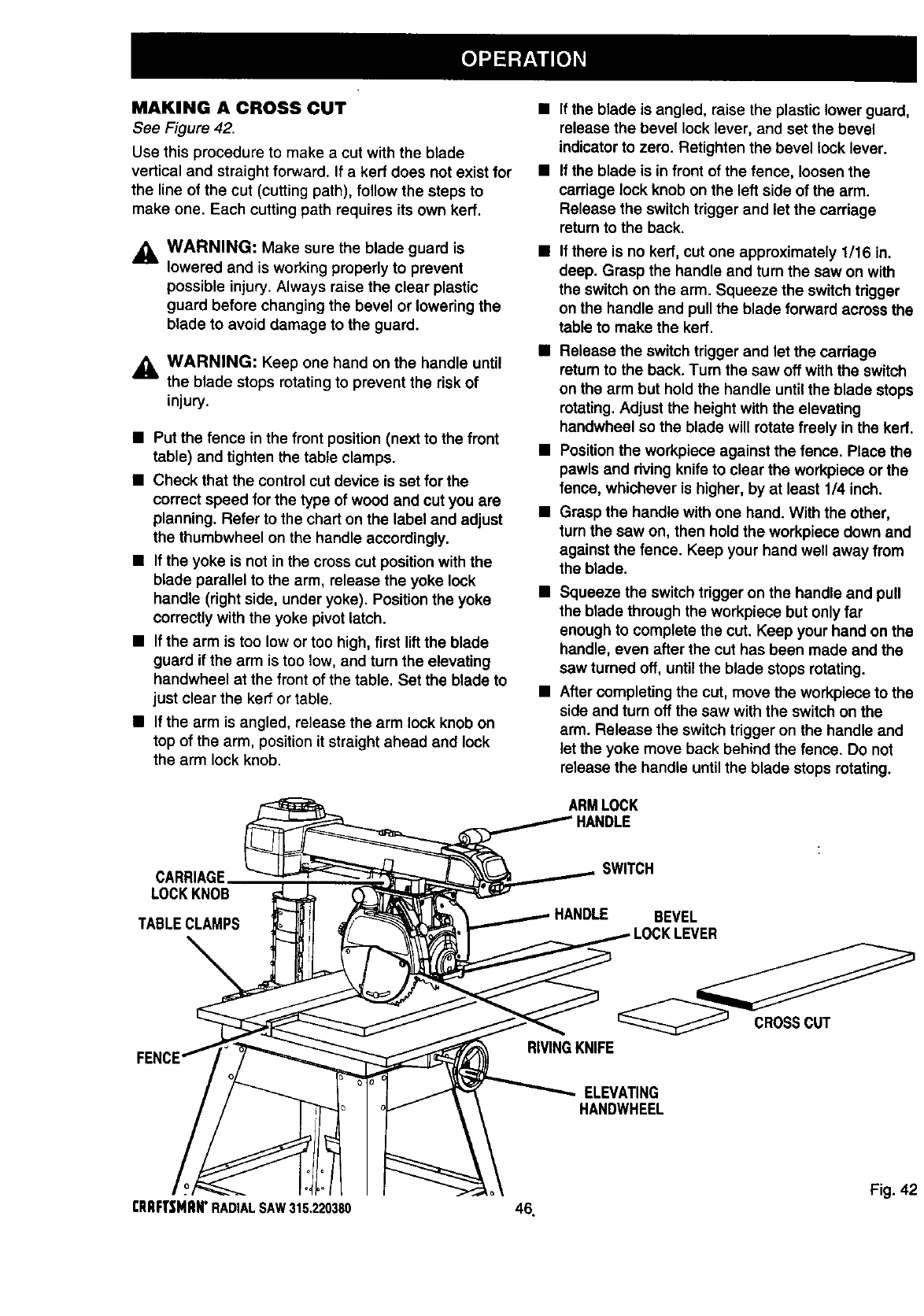

MAKING A CROSS CUT

See Figure 42.

Use this procedure to make a cut with the blade

vertical and straight forward. If a keff does not exist for

the line of the cut (cutting path), follow the steps to

make one. Each cutting path requires its own kerr.

,_ WARNING: Make sure the blade guard is

lowered and is working properly to prevent

possible injury. Always raise the clear plastic

guard before changing the bevel or lowering the

blade to avoid damage to the guard.

,_ WARNING: Keep one hand on the handle until

the blade stops rotating to prevent the risk of

injury.

• Put the fence in the front position (next to the front

table) and tighten the table clamps.

• Check that the control cut device is set for the

correct speed for the type of wood and cut you are

planning. Refer to the chart on the label and adjust

the thumbwheel on the handle accordingly.

• If the yoke is not in the cross cut position with the

blade parallel to the arm, release the yoke lock

handle (right side, under yoke). Position the yoke

correctly with the yoke pivot latch.

• If the arm is too low or too high, first lift the blade

guard if the arm is too low, and turn the elevating

handwheel at the front of the table. Set the blade to

just clear the kerf or table.

• If the arm is angled, release the arm lock knob on

top of the arm, position it straight ahead and lock

the arm lock knob.

• If the blade is angled, raise the plastic lower guard,

release the bevel lock lever, and set the bevel

indicator to zero. Retighten the bevel lock lever.

• If the blade is in front of the fence, loosen the

carriage lock knob on the left side of the arm.

Release the switch trigger and let the carriage

return to the back.

•If there is no kerr, cut one approximately 1/16 in.

deep. Grasp the handle and turn the saw on with

the switch on the arm. Squeeze the switch trigger

on the handle and pull the blade forward across the

table to make the kerr.

• Release the switch trigger and let the carriage

return to the back. Turn the saw off with the switch

on the arm but hold the handle until the blade stops

rotating. Adjust the height with the elevating

handwheel so the blade will rotate freely in the kerr.

•Position the workpiece against the fence. Place the

pawls and riving knife to clear the workpiece or the

fence, whichever is higher, by at least 1/4 inch.

•Grasp the handle with one hand. With the other,

turn the saw on, then hold the workpiece down and

against the fence. Keep your hand well away from

the blade.

•Squeeze the switch trigger on the handle and pull

the blade through the workpiece but only far

enough to complete the cut. Keep your hand on the

handle, even after the cut has been made and the

saw turned off, until the blade stops rotating.

•After completing the cut, move the workpiece to the

side and turn off the saw with the switch on the

arm. Release the switch trigger on the handle and

let the yoke move back behind the fence. Do not

release the handle untilthe blade stops rotating.

ARMLOCK

CARRIAGE_

LOCKKNOB

TABLECLAMPS

SWITCH

BEVEL

LOCKLEVER

CROSSCUT

RIVINGKNIFE

ELEVATING

HANDWHEEL

Fig. 42

tRRFTSHRN'RADIALSAW315.220380 46,

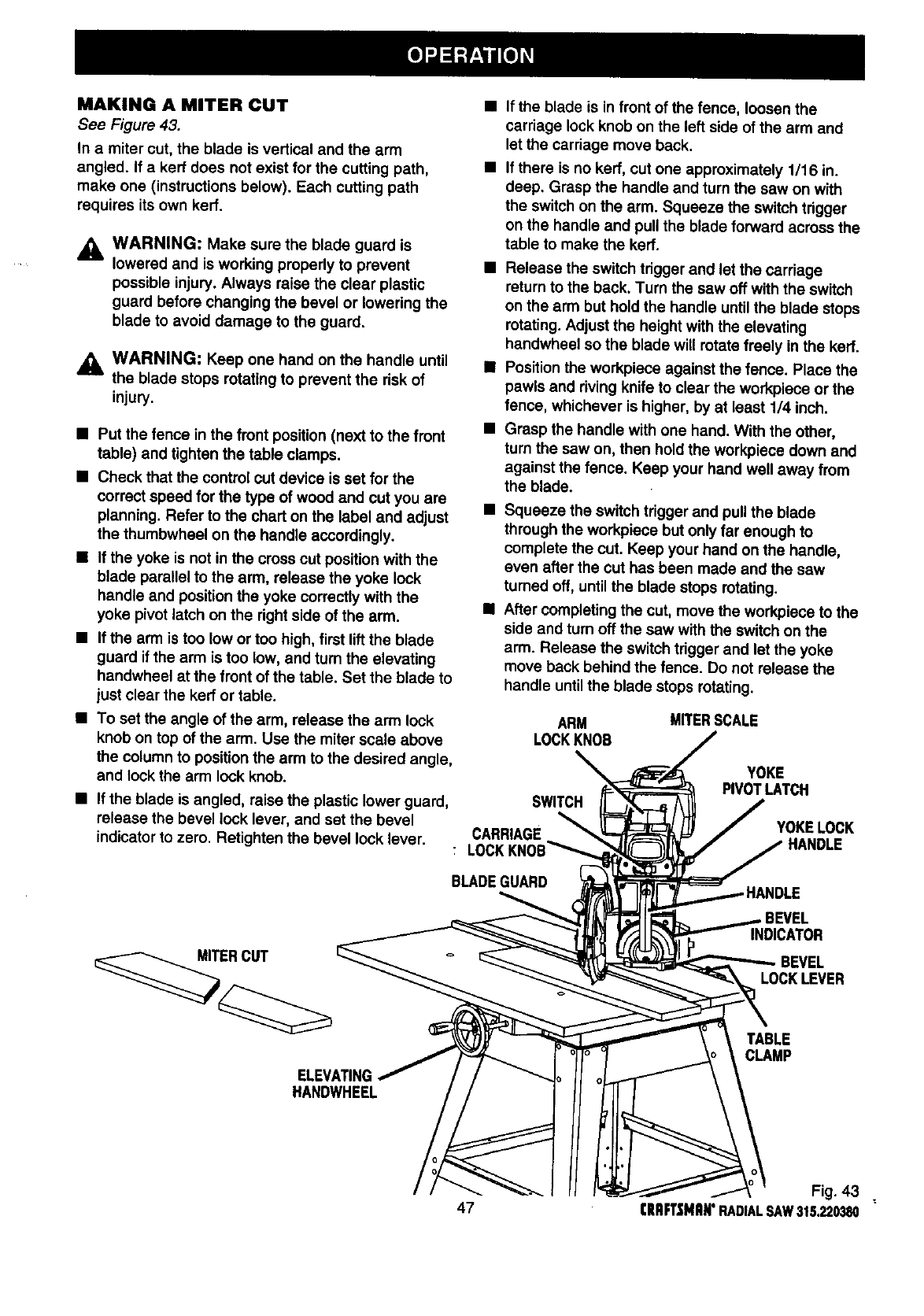

MAKING A MITER CUT

See Figure 43.

In amiter cut, the blade is vertical and the arm

angled. If a kert does not exist for the cutting path,

make one (instructions below). Each cutting path

requires its own keff.

WARNING: Make sure the blade guard is

lowered and is working properly to prevent

possible injury. Always raise the clear plastic

guard before changing the bevel or lowering the

blade to avoid damage to the guard.

_i, WARNING: Keep one hand on the handle until

the blade stops rotating to prevent the risk of

injury.

•Put the fence in the front position (next to the front

table) and tighten the table clamps.

•Check that the control cut device is set for the

correct speed for the type of wood and cut you are

planning. Refer to the chart on the label and adjust

the thumbwheel on the handle accordingly.

•If the yoke is not in the cross cut position with the

blade parallel to the arm, release the yoke lock

handle and positionthe yoke correctly with the

yoke pivot latch on the rightside of the arm.

•If the arm is too Lowor too high, first liftthe blade

guard if the arm is too low, and turn the elevating

handwheel at the front of the table. Set the blade to

just clear the ked or table.

•To set the angle of the arm, release the arm lock

knob on top of the arm. Use the miter scale above

the column to position the arm to the desired angle,

and lock the arm lock knob.

•If the blade is angled, raise the plastic lower guard,

release the bevel lock lever, and set the bevel

indicator to zero. Retighten the bevel lock lever.

•If the blade is in front of the fence, loosen the

carriage lock knob on the left side of the arm and

let the carriage move back.

•If there is no kerr, cut one approximately 1/16 in.

deep. Grasp the handle and turn the saw on with

the switch on the arm. Squeeze the switch trigger

on the handle and pull the blade forward across the

table to make the kerf.

•Release the switch trigger and let the carriage

return to the back. Turn the saw off with the switch

on the arm but hold the handle until the blade stops

rotating. Adjust the height with the elevating

handwheel so the blade will rotate freely in the kerf.

• Position the workpiece against the fence. Place the

pawls and riving knife to clear the workpiece or the

fence, whichever is higher, by at least 1/4 inch.

• Grasp the handle with one hand. With the other,

tum the saw on, then hold the workpiece down and

against the fence. Keep your hand well away from

the blade.

•Squeeze the switch trigger and pull the blade

through the workpiece but only far enough to

complete the cut. Keep your hand on the handle,

even after the cut has been made and the saw

turned off, until the blade stops rotating.

•After completing the cut, move the workpiece to the

side and turn off the saw with the switch on the

arm. Release the switch trigger and let the yoke

move back behind the fence. Do not release the

handle until the blade stops rotating.

ARM

LOCKKNOB

MITERSCALE

SWITCH

CARRIAGE

YOKE

PIVOTLATCH

YOKELOCK

HANDLE

BLADEGUARD

ERCUT

ELEVATING

HANDWHEEL

INDICATOR

BEVEL

LOCKLEVER

TABLE

CLAMP

Fig. 43 _.

47 rRRFT,_NJN'RADIALSAW315.220380

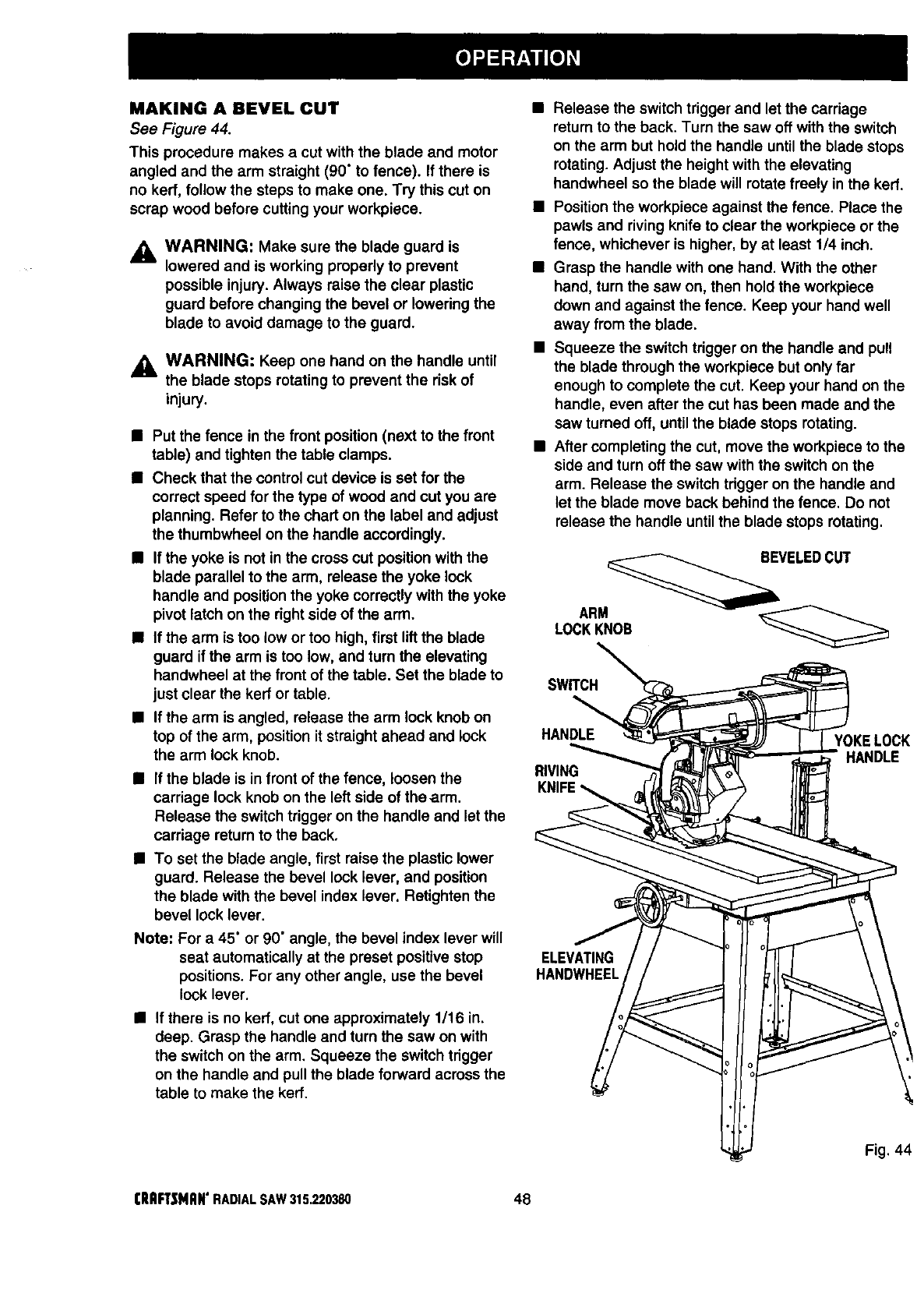

MAKING A BEVEL CUT

See Figure 44.

This procedure makes a cut with the blade and motor

angled and the arm straight (90" to fence). If there is

no kerf, follow the steps to make one. Try this cut on

scrap wood before cutting your workpiece.

_k WARNING: Make sure the blade guard is

lowered and is working properly to prevent

possible injury. Always raise the clear plastic

guard before changing the bevel or Iowedng the

blade to avoid damage to the guard.

_1, WARNING: Keep one hand on the handle until

the blade stops rotating to prevent the risk of

injury.

•Put the fence in the front position (next to the front

table) and tighten the table clamps.

•Check that the control cut device is set for the

correct speed for the type of wood and cut you are

planning. Refer to the chart on the label and adjust

the thumbwheel on the handle accordingly.

•If the yoke is not in the cross cut position with the

blade parallel to the arm, release the yoke lock

handle and position the yoke correctly with the yoke

pivot latch on the right side of the arm.

•If the arm is too low or too high, first liftthe blade

guard if the arm is too low, and turn the elevating

handwheel at the front of the table. Set the blade to

just clear the kerr or table.

•If the arm is angled, release the arm lock knob on

top of the arm, position it straight ahead and lock

the arm lock knob.

•If the blade is in front of the fence, loosen the

carriage lock knobon the left side of thearm.

Release the switch trigger on the handle and let the

carriage return to the back.

•To set the blade angle, first raise the plastic lower

guard. Release the bevel lock lever, and position

the blade with the bevel index lever, Retighten the

bevel lock lever.

Note: For a 45" or 90" angle, the bevel index lever will

seat automatically at the preset positive stop

positions. For any other angle, use the bevel

lock lever.

•If there is no kerf, cut one approximately 1/16 in.

deep. Grasp the handle and turn the saw on with

the switch on the arm. Squeeze the switch trigger

on the handle and pull the blade forward across the

table to make the kerf.

• Release the switch trigger and let the cardage

return to the back. Turn the saw off with the switch

on the arm but hold the handle until the blade stops

rotating. Adjust the height with the elevating

handwheel so the blade will rotate freely in the kert.

• Position the workpiece against the fence. Place the

pawls and riving knife to clear the workpiece or the

fence, whichever is higher, by at least 1/4 inch.

• Grasp the handle with one hand. With the other

hand, turn the saw on, then hold the workpiece

down and against the fence. Keep your hand well

away from the blade.

• Squeeze the switch tdgger on the handle and pull

the blade through the workpiece but only far

enough to complete the cut. Keep your hand on the

handle, even after the cut has been made and the

saw turned off, untilthe blade stops rotating.

•After completing the cut, move the workpieca to the

side and turn off the saw with the switch on the

arm. Release the switch tdgger on the handle and

let the blade move back behind the fence. Do not

release the handle until the blade stops rotating.

SWITCH

HANDLE

RIVING

YOKELOCK

HANDLE

ELEVATING

HANDWHEEL

Fig. 44

{RAFTSMAN"RADIALSAW 315.220380 48

MAKING A COMPOUND CROSS CUT

See Figure 45.

In this cut, both the blade and the arm are angled. Be

familiar with both bevel and miter cuts before making

a compound cut. Practice on scrap wood.

WARNING: Make sure the blade guard is

lowered and is working properly to prevent

possible injury. Always raise the clear plastic

guard before changing the bevel or lowering the

blade to avoid damage to the guard.

,_ WARNING: Keep one hand on the handle until

the blade stops rotating to prevent the risk of

injury.

• Put the fence in the front position (next to the front

table) and tighten the table clamps.

•Check that the control cut device is set for the

correct speed for the type of wood and cut you are

planning. Refer to the chart on the label and adjust

the thumbwheel on the handle accordingly.

•If the yoke is not in the cross cut position with the

blade parallel to the arm, release the yoke lock

handle and position the yoke correctly with the yoke

pivot latch on the right side of the arm.

•If the arm is too low or too high, first liftthe blade

guard if the arm is too low, and tum the elevating

handwheel at the front of the table. Set the blade to

just clear the kerr or table.

•To set the angle of the arm, release the arm lock

knob on top of the arm. Use the miter scale above

the column to position it to the desired angle, and

lock the arm lock knob.

•To set the blade angle, first raise the plastic lower

guard. Release the bevel lock lever, and position

the blade with the bevel index lever.

•Retighten the bevel lock lever.

Note: For a 45" or 90" angle, the bevel index lever will

seat automatically at the preset positive stop

positions. For any other angle, use the bevel

lock lever.

• If the yoke is in front of the fence, loosen the

carriage lock knob on the left side of the arm.

Release the switch trigger on the handle and let the

carriage retum to the back.

•If there is no kerr, cut one approximately 1/16 in.

deep. Grasp the handle. Tum the saw on with the

switch on the arm. Squeeze the switch trigger and

pull the blade forward to make the keff.

•Release the switchtrigger and let the carriage

return to the back. Turn the saw off with the switch

on the arm but hold the handle until the blade stops

rotating. Adjust the height with the elevating

handwheel so the blade will rotate freely in the keff.

•Position the workpiece against the fence. Place the

pawls and riving knife to clear the workpiece or the

fence, whichever is higher, by at least 1/4 inch.

• Grasp the handle with one hand. With the other

hand, turn the saw on, then hold the workpiece

down and against the fence. If necessary, slightly

raise the outer blade guard for clearance. Keep

your hand well away from the blade.

• Squeeze the switch tdgger and pull the blade

through the workpiece but only far enough to

complete the cut. Keep your hand on the handle,

even after the cut has been made and the saw

turned off, until the blade stops rotating.

• After completing the cut, move the workpiece to the

side and turn off the saw with the switch on the

arm. Release the switch trigger and let the yoke

move back behind the fence. Do not release the

handle until the blade stops rotating.

MITER

YOKE

ARM PIVOTLATCH

SWITCH YOKELOCK

HANDLE

BEVELLOCK

LEVER

CLAMPS

BEVELEDAND

ELEVATING

HANDWHEEL

Fig. 45

49 £RAFTIMAN" RADIAL _,W 31E_2"20._BO

RIP CUT HAZARDS AND PRECAUTIONS

Two hazards are specifically associated with rip

cutting: ouffeed zone and wrong way feed.

In the outfeed zone (behind the blade), the blade

teeth point down. The slightest contact while the blade

is still spinning can snag clothing, jewelry, the work-

piece, or even skin, causing sedous personal injury.

Wrong way feed occurs when the workpiece contacts

the blade from the outfeed side. It is very hazardous

and will jerk the workpiece violently. You could be cut

if you are holding the workpiece.

WARNING: Failure to observe any of these

precautions can result in serious injury.

•The first precaution is, of course, simply to stay

completely away from the outfeed zone. Keep

hands away from the ouffeed zone.

•Point the anti-kickback pawls away from the blade

teeth to snag aworkpiece if the blade grabs. They

should be positioned to rest lightly on the

workpiece. The flat side of the pawls should be

level and horizontal.

•Set the riving knife to just clear the table.

•Set the hold down in front of the blade to just clear

the workpiece.

•Start and finish your cut from the infeed side.

•Push the workpiece past the pawls with push-

blocks and pushsticksto finish the cut.

•If the blade jams, tum the saw off with the switch

on the arm, remove the yellow key, and wait for the

blade to fully stop before freeing it.

•Make sure the blade is parallel to the fence and the

workpiece is not warped or twisted.

•Make sure no pressure is applied to the workpiece

on the outfeed side.

•Make sure the blade guard is lowered and is

working properly.

•Always set up the workpiece so the wider part of

the wood is between the blade and the fence. This

stabilizes the workpiece better.

•Do not release the workpiece until it has moved

past the pawls. Keep pushsticks firmly in place.

•Use pushsticks end pushblocks, not your hands,

when the trailing edge of the workpiece is within

3 in. of the blade. If the blade is set 2 in. or more

from the fence, use apushstick. Use apushblock

and auxiliary fence when the blade is between 2 in.

and 1/2 in. from the fence. (If the cut is narrower

than 1/2 in., use a different saw.) For large panel

rip cuts, use a featherboard instead of pushblocks

or pushsticks. See the section on Cutting Aids.

SETTING UP A RIP CUT

See Figure 46.

Aprecise and safe rip cut requires a careful set up.

Before setting up for in-rip or out-rip, especially for a

bevel cut, try the workpiece in both placements.

Check for stability, visibility, and control. Test which

will give the best pushstick clearance.

Instructions are given for an in-rip cut. At certain

points, the instructions will vary for a bevel rip cut or

an out-rip process and will be enclosed in parenthe-

ses (example). Figure 47 shows an out-dp setup.

•Insert a solid fence with no kerfs. Use an auxiliary

fence if the blade will be set only 1/2 in. to 2 in.

from the fence. Tighten the table clamps.

•If the arm is too low or too high, first lift the blade

guard ifthe arm is too low, and turn the elevating

handwheel at the front of the table. Set the blade to

just clear the kerf or table.

• Change the blade angle if needed. Raise the plastic

lower guard to keep it from jamming, release the

bevel lock lever, and set the bevel indicator to zero.

(For a bevel rip cut, set the bevel Indicator to

the desired angle.) Test the clearance on the

guard. Retighten the bevel lock lever.

SWITCH

ELEVATING

HANDWHEEL

INFEEDFOR

INRIPcu'rrlNG

Fig. 46

[RRFT_[MAWRADIALSAW 315,220380 50

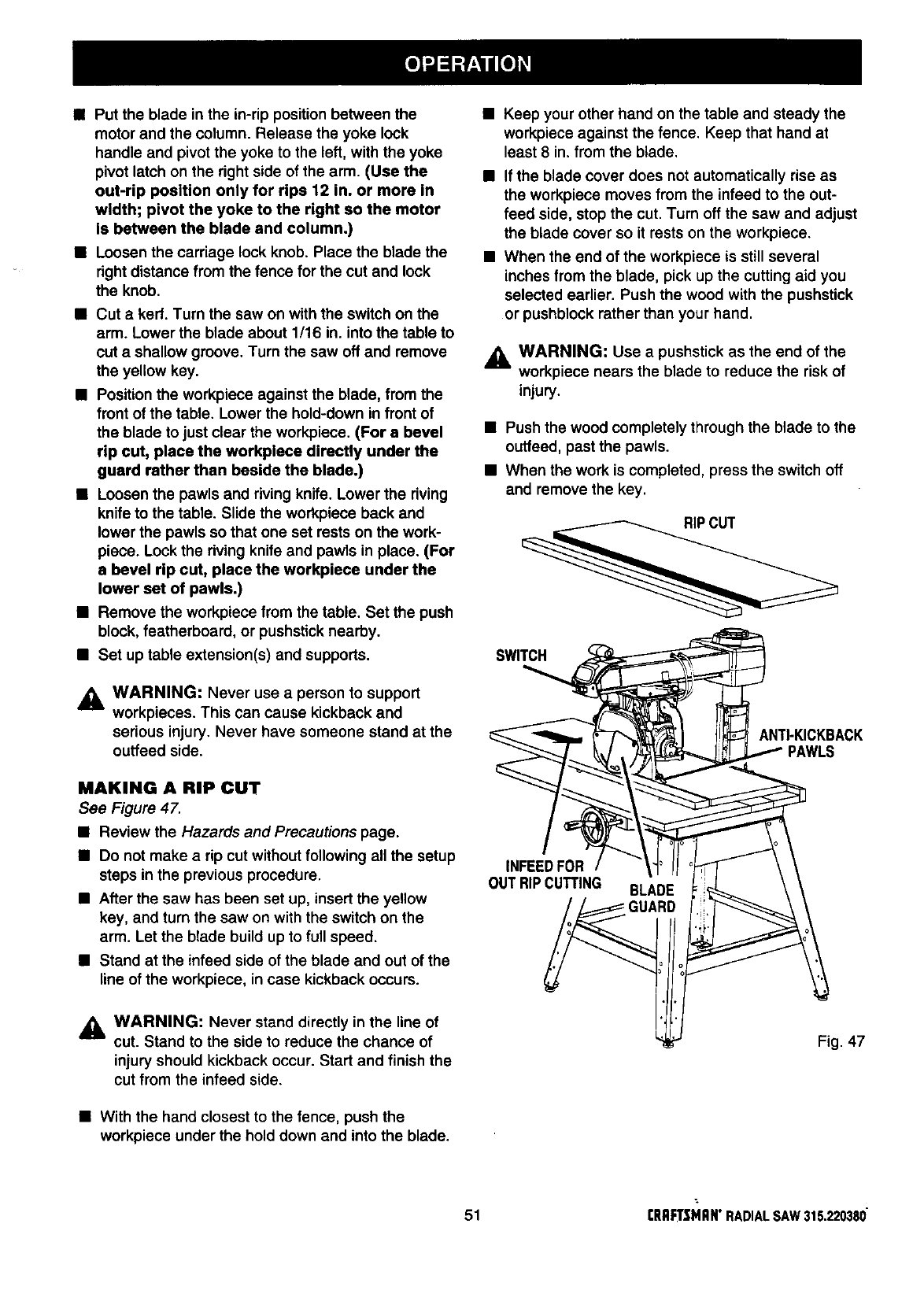

•Put the blade in the in-rip position between the

motor and the column. Release the yoke lock

handle and pivot the yoke to the left, with the yoke

pivot latch on the right side of the arm. (Use the

out-rip position only for rips 12 in. or more in

wldth; pivot the yoke to the right so the motor

is between the blade and column.)

• Loosen the carriage lock knob. Place the blade the

right distance from the fence for the cut and lock

the knob.

• Cut a kerf. Turn the saw on with the switch on the

arm. Lower the blade about 1/16 in. into the table to

cut ashallow groove. Turn the saw off and remove

the yellow key.

• Position the workpiece against the blade, from the

front of the table. Lower the hold-down in front of

the blade to just clear the workpiece. (For a bevel

rip cut, place the workplece directly under the

guard rather than beside the blade.)

• Loosen the pawls and riving knife. Lower the riving

knife to the table. Slide the workpiece back and

lower the pawls so that one set rests on the work-

piece° Lock the dving knife and pawls in place. (For

abevel rip cut, place the workpiece under the

lower set of pawls.)

•Remove the workpiece from the table. Set the push

block, featherboard, or pushstick nearby.

• Set up table extension(s) and supports.

,_ WARNING: Never use a person to support

workpieces. This can cause kickback and

serious injury. Never have someone stand at the

outfeed side.

MAKING A RIP CUT

See Figure 47.

• Review the Hazards and Precautions page.

•Do not make arip cut without following all the setup

steps in the previous procedure.

•After the saw has been set up, insert the yellow

key, and turn the saw on with the switch on the

arm. Let the blade build up to full speed.

•Stand at the infeed side of the blade and out of the

line of the workpiece, in case kickback occurs.

• Keep your other hand on the table and steady the

workpiece against the fence. Keep that hand at

least 8 in. from the blade.

If the blade cover does not automatically rise as

the workpiece moves from the infeed to the out-

feed side, stop the cut. Turn off the saw and adjust

the blade cover so it rests on the workpiece.

• When the end of the workpiece is still several

inches from the blade, pick up the cutting aid you

selected earlier. Push the wood with the pushstick

or pushblock rather than your hand.

_i, WARNING: Use apushstick as the end of the

workpiece nears the blade to reduce the risk of

injury.

• Push the wood completely through the blade to the

ouffeed, past the pawls.

• When the work is completed, press the switch off

and remove the key.

SWITCH

ANTI-KICKBACK

PAWLS

INFEEDFOR

OUTRIPCUTTING BLADE

_WARNING: Never stand directly in the line of

cut. Stand to the side to reduce the chance of

injury should kickback occur. Start and finish the

cut from the infeed side.

• With the hand closest to the fence, push the

workpiece under the hold down and into the blade.

Fig. 47

51 CRAFT._I_RN"RADIALSAW315.220380:

MAKING O_HER CUTS

See Figur_48 and 49.

Variations from the basic cuts include cutting long

workpieces and non-through cuts.

When making one of the following cuts, follow the

instructions that apply for the basic cut, depending on

the position, shape, and size of the wood. Do not

attempt these cuts untilyou are skilled with the basic

cuts.

CUTTING LONG WORKPIECES

See Figure 48.

•Place a support the same height as the saw table

nearby for the cut work.

WARNING: Make sure the blade guard is

lowered and is working properly to prevent

possible injury.

WARNING: Never put your hands within 3 in. of

the blade when it is on.

•Make sure the wood does not touch the blade

before you turn on the saw with the switch on the

arm. Let the blade build up to full speed before it

contacts the wood.

•When the work is completed, press the switch off

and remove the key.

SUPPORTLONGWORKPIECES

Fig. 48

I'RAFT:NIIN"RADIALSAW315.220380 52

NON-THROUGH CUTS

See Figure 49.

WARNING: Unplug the saw while removing or

replacing the blade guard. Tum on the saw with

the switch on the arm to confirm the blade is not

receiving power.

• Remove the blade and blade guard (see Assembly

section).

• Place a support the same height as the saw table

nearby for the cut work. Lower the blade with the

elevating handwheel.

•Make sure the wood is not touching the blade,

Insert the key and turn on the saw, Let the blade

build up to full speed before contacting the work-

piece.

_1= WARNING: Always use pushblocks when

making non-through rip cuts to avoid the risk of

serious injury, Never feed wood with your hands.

•When the work is completed, press the switch off

and remove the key.

NON-THROUGHCUT

Fig. 49

53 CRRFI"SNRIrRADIALSAW315.220380

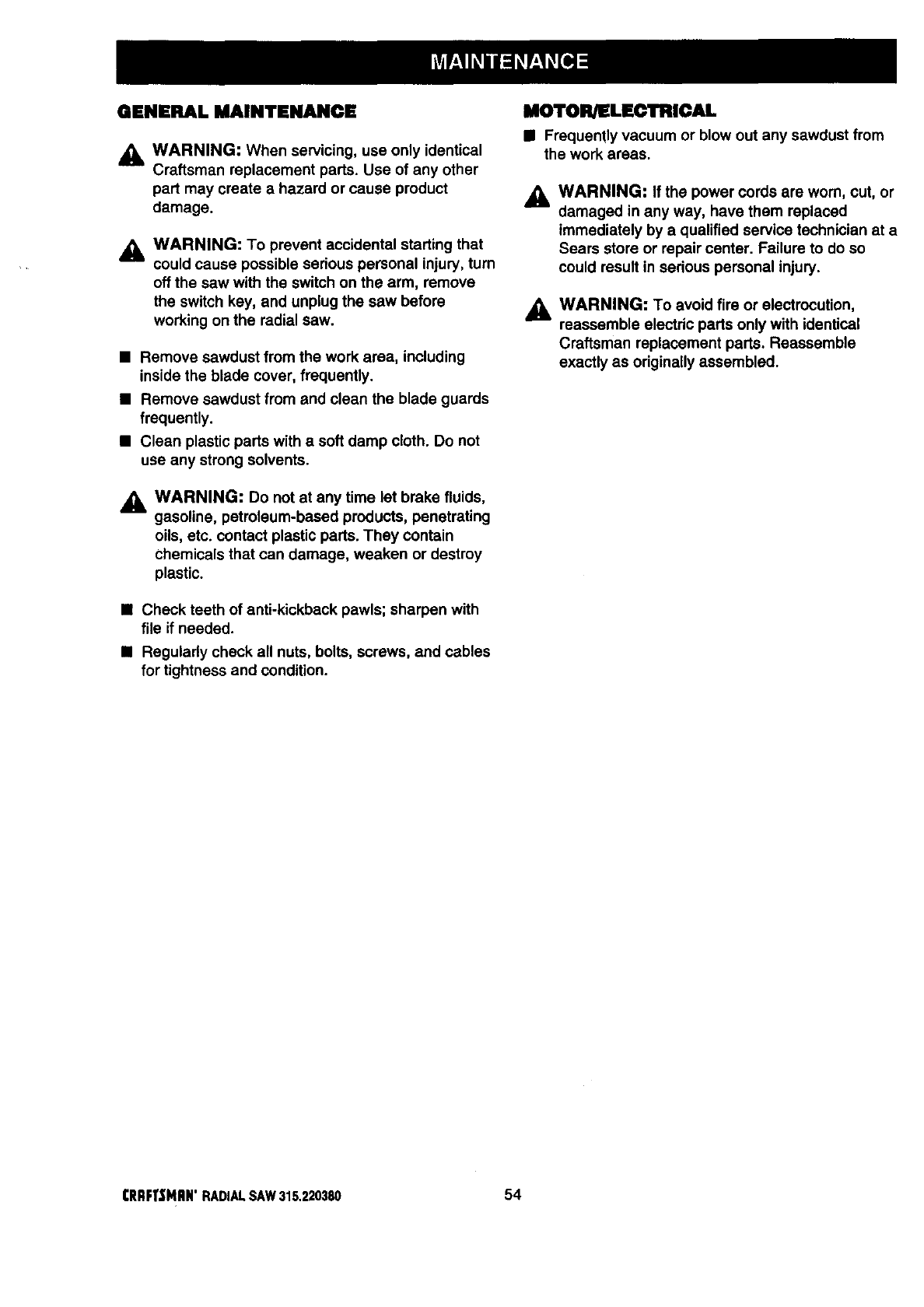

GENERAL MAINTENANCE

AWARNING: When servicing, use only identical

Craftsman replacement pads. Use of any other

part may create ahazard or cause product

damage.

AWARNING: To prevent accidental starting that

could cause possible serious personal injury, turn

off the saw with the switch on the arm, remove

the switch key, and unplug the saw before

working on the radial saw.

• Remove sawdust from the work area, including

inside the blade cover, frequently.

•Remove sawdust from and clean the blade guards

frequently.

•Clean plastic parts with a soft damp cloth. Do not

use any strong solvents.

,_, WARNING: Do not at any time let brake fluids,

gasoline, petroleum-based products, penetrating

oils, etc. contact plastic pads. They contain

Chemicals that can damage, weaken or destroy

plastic.

• Check teeth of anti-kickback pawls; sharpen with

file if needed.

•Regularly check all nuts, bolts, screws, and cables

for tightness and condition.

MOTOR/ELECTRICAL

• Frequently vacuum or blow out any sawdust from

the work areas.

_1= WARNING: If the power cords are worn, cut, or

damaged in any way, have them replaced

immediately by a qualified service technician at a

Sears store or repair center. Failure to do so

could result in sedous personal injury.

,_ WARNING: To avoid fire or electrocution,

reassemble electdc parts only with identical

Craftsman replacement parts. Reassemble

exactly as odginaily assembled.

CRAFTSMAN'RADIALSAW 315.220380 54

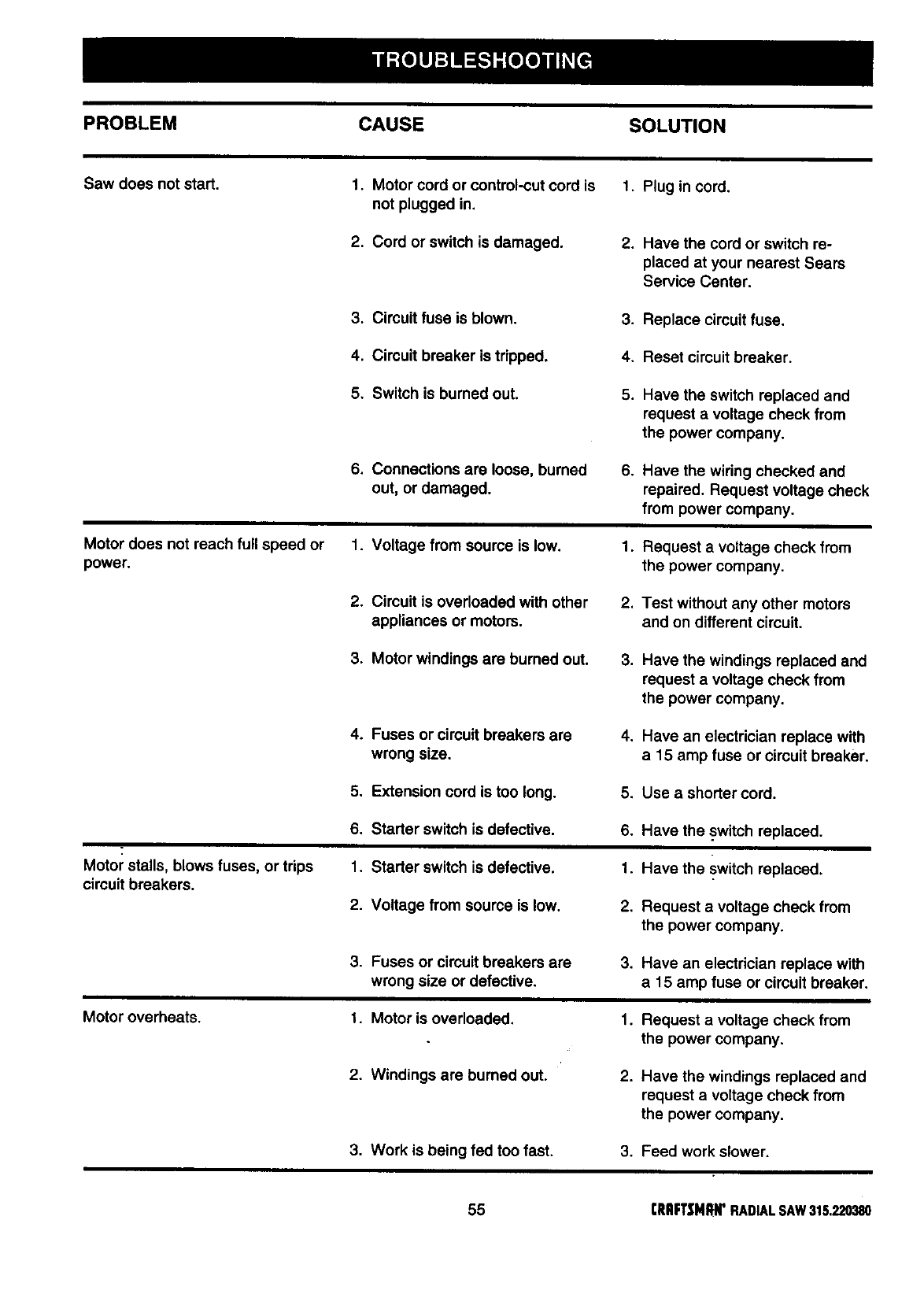

PROBLEM CAUSE SOLUTION

Saw does not start. 1. Motor cord or control-cut cord is 1. Plug in cord.

not plugged in.

2. Cord or switch is damaged. 2. Have the cord or switch re-

placed at your nearest Sears

Service Center.

3. Circuit fuse is blown. 3. Replace circuit fuse.

4. Circuit breaker is tripped. 4. Reset circuit breaker.

5. Switch is burned out. 5. Have the switch replaced and

request avoltage check from

the power company.

6. Connections are loose, burned

out, or damaged. 6. Have the wiring checked and

repaired. Request voltage check

from power company.

Motor does not reach full speed or 1. Voltage from source is low.

power. 1. Request a voltage check from

the power company.

2. Circuit is overloaded with other

appliances or motors. 2. Test without any other motors

and on different circuit.

3. Motor windings are burned out. 3. Have the windings replaced and

request a voltage check from

the power company.

4. Fuses or circuit breakers are

wrong size. 4. Have an electrician replace with

a 15 amp fuse or circuit breaker.

5. Extension cord is too long. 5. Use a shorter cord.

Motor stalls, blows fuses, or trips

circuit breakers.

6. Starter switch is defective.

1. Starter switch is defective.

2. Voltage from source is low.

6. Have the switch replaced.

1. Have the switch replaced.

2. Request avoltage check from

the power company.

3. Fuses or circuit breakers are

wrong size or defective. 3. Have an electrician replace with

a15 amp fuse or circuit breaker.

Motor overheats. 1. Motor is overloaded. 1. Request a voltage check from

the power company.

2. Windings are burned out. 2. Have the windings replaced and

request a voltage check from

the power company.

3. Work is being fed too fast. 3. Feed work slower.

55 rRIIFTSNRlrRADIALSAW315.220380

PROBLEM CAUSE SOLUTION

Saw vibrates excessively. 1. Blade is warped. 1. Replace the blade. See the

removal procedure in Assembly

section.

2. Saw is not mounted securely. 2. Tighten all hardware.

3. Work surface is uneven. 3. Reposition on a flat surface.

Adjust the leveling feet on legs.

Saw is noisy when running. 1. Motor needs attention. 1. Have the motor checked at

your nearest Sears Service

Center.

Cardage does not travel smoothly 1. Track is dirty or sticky. 1. Clean track. See Installing

in track under arm. Carriage Assembly in Assam-

bly section.

2. Carriage bearings are bad. 2. Replace cardage bearings.

Contact your nearest Sears

service center.

3. Blade or teeth are dull or bent. 3. Sharpen or replace the blade.

See the removal procedure in

Assembly section.

4. Blade is out of alignment. 4. Use blade alignment proce-

dures in Adjustment section.

5. Board is warped. 5. Replace the board.

Saw stalls when ripping. 1. Blade or teeth are dull or bent. 1. Sharpen or replace the blade,

See the removal procedure in

Assembly section.

2. Fence is not straight, 2. Check with square; sand or

:replace.

3. Work is being fed too fast. 3. Feed work into blade slower.

4. Wrong blade is being used. 4. Change the blade.

5. Column tube is too loose in the

column support. 5. See Adjusting the Column

Tube in Assembly section.

6. Arm is misalJgned or loose. 6. See Setting the Arm Lock

Wl_eel in the Assembly section.

7. Yoke is loose on carriage. 7. See Setting the Yoke Clamp

procedure in Assembly section,

8. Sawdust has accumulated

between tables. 8. Remove and clean tables.

CRIIFTSHFIN'RADIALSAW315.220380 56

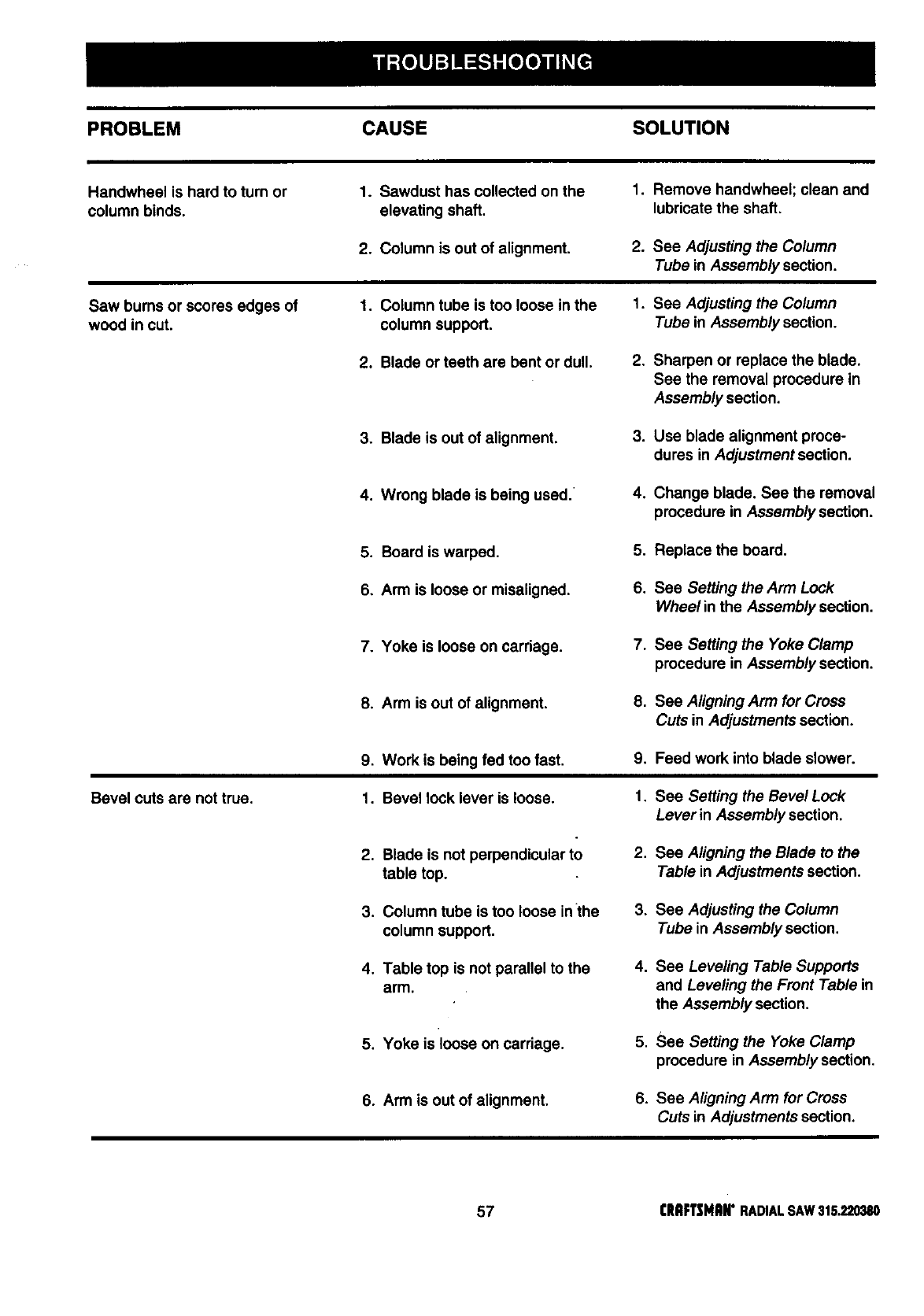

PROBLEM CAUSE SOLUTION

Handwheel is hard to turn or

column binds.

1. Sawdust has collected on the

elevating shaft.

1. Remove handwheel; clean and

lubricate the shaft.

2. Column is out of alignment. 2. See Adjusting the Column

Tube in Assembly section.

Saw bums or scores edges of

wood in cut.

1. Column tube is too loose in the

column support.

1. See Adjusting the Column

Tube in Assembly section.

2. Blade or teeth are bent or dull. 2. Sharpen or replace the blade.

See the removal procedure in

Assembly section.

3. Blade is out of alignment. 3. Use blade alignment proce-

dures in Adjustment section.

4. Wrong blade is being used, 4. Change blade. See the removal

procedure in Assembly section.

5. Board is warped. 5. Replace the board.

6, Arm is loose or misaligned. 6. See Setting the Arm Lock

Wheel in the Assembly section.

7. Yoke is loose on carriage. 7. See Setting the Yoke Clamp

procedure in Assembly section.

8. Arm is out of alignment. 8. See Aligning Arm for Cross

Cuts in Adjustments section.

9. Work is being fed too fast. 9. Feed work into blade slower.

Bevel cuts are not true. 1. Bevel lock lever is loose. 1. See Setting the Bevel Lock

Lever in Assembly section.

2. Blade is not perpendicular to

table top.

2. See Aligning the Blade to the

Table in Adjustments section.

3. Column tube is too loose inthe

column support.

3. See Adjusting the Column

Tube in Assembly section.

4. Table top is not parallel to the

arm.

4, See Leveling Table Supports

and Leveling the Front Table in

the Assembly section.

5. Yoke is loose on carriage. 5, See Setting the Yoke Clamp

procedure in Assembly section.

6. Arm is out of alignment, 6. See Aligning Arm for Cross

Cuts in Adjustments section.

57 CRRFTSMAN'RADIALSAW315.220380

PROBLEM CAUSE SOLUTION

Miter or cross cuts are not true. 1. Scale pointer is not correct. 1. Reset the pointer at the top

rear of arm.

2. Column is out of alignment. 2. See Adjusting the Column

Tube in Assembly section.

3. Carriage is misaligned. 3. See Setting the Arm Lock

Wheel in the Assembly section.

4. Yoke is loose on carriage. 4. See Setting the Yoke Clamp

procedure in Assembly section.

5. Arm is out of alignment. 5. See Aligning Arm for Cross

Cuts in Adjustments section.

6, Sawdust has collected between 6. Remove and clean tables.

tables.

7. Table top is not parallel to the

arm. 7. See Leveling Table Supports

and Leveling the Front Table in

the Assembly section.

8. Fence/tables are not straight. 8. Check with square; sand or

replace.

Wood edges away from fence

when ripping. 1. Blade is not parallel with fence. 1. See Squaring the Blade to the

Fence procedure in the Adjust-

ments section.

2. Arm is not perpendicular to

fence. 2. See Aligning the Arm for Cross

Cuts procedure in the Adjust-

ments section.

3. Riving knife needs adjustment. 3. See Aligning the Riving Knife to

the Blade procedure in the

Adjustments section.

Depth of cut varies from one end

of wood to the other. 1. Table is not parallel to arm. 1. See Leveling Table Supports

and Leveling the Front Table in

the Assembly section.

2. Column tube is loose in column 2. See Adjusting the Column

support. Tube in Assembly section.

3. Arm is loose or misaligned. 3. See Setting the Arm Lock

Wheel in the Assembly section.

Riving knife strikes wood dudng a

cut. 1. Riving knife not aligned with 1, See Aligning the Riving Knife to

blade, the Blade procedure in the

Adjustments section•

rRAFTSNRN° RADIALSAW315.220380 58

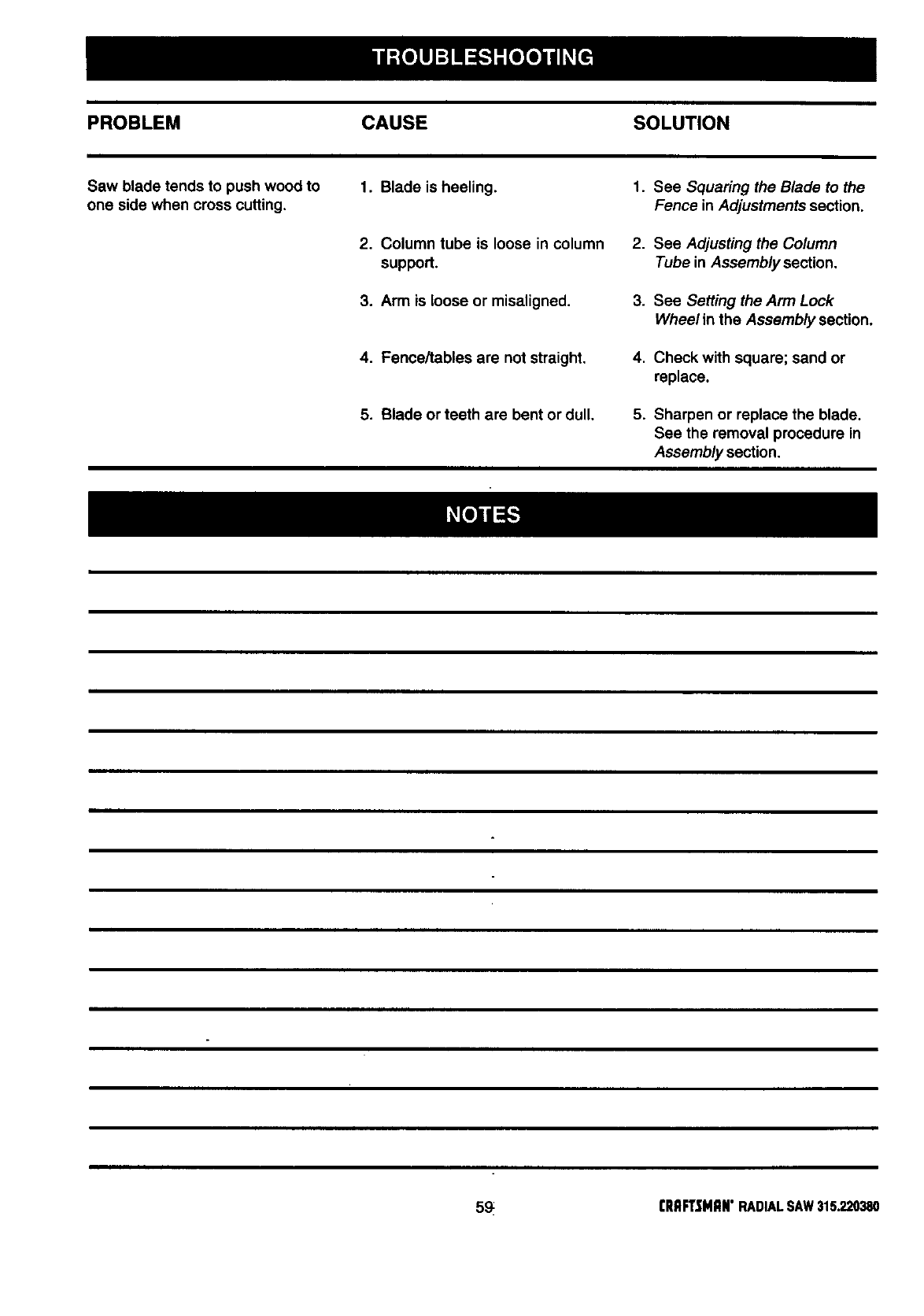

PROBLEM CAUSE SOLUTION

Saw blade tends to push wood to 1. Blade is heeling. 1. See Squaring the Blade to the

one side when cross cutting. Fence in Adjustments section.

2. Column tube is loose in column 2. See Adjusting the Column

support. Tube in Assembly section.

3. Arm is loose or misaligned. 3. See Setting the Arm Lock

Wheel in the Assembly section.

4. Fence/tables are not straight. 4. Check with square; sand or

replace.

5. Blade or teeth are bent or dull. 5. Sharpen or replace the blade.

See the removal procedure in

Assembly section.

59- (RRFT$14RN"RADIALSAW315.220380

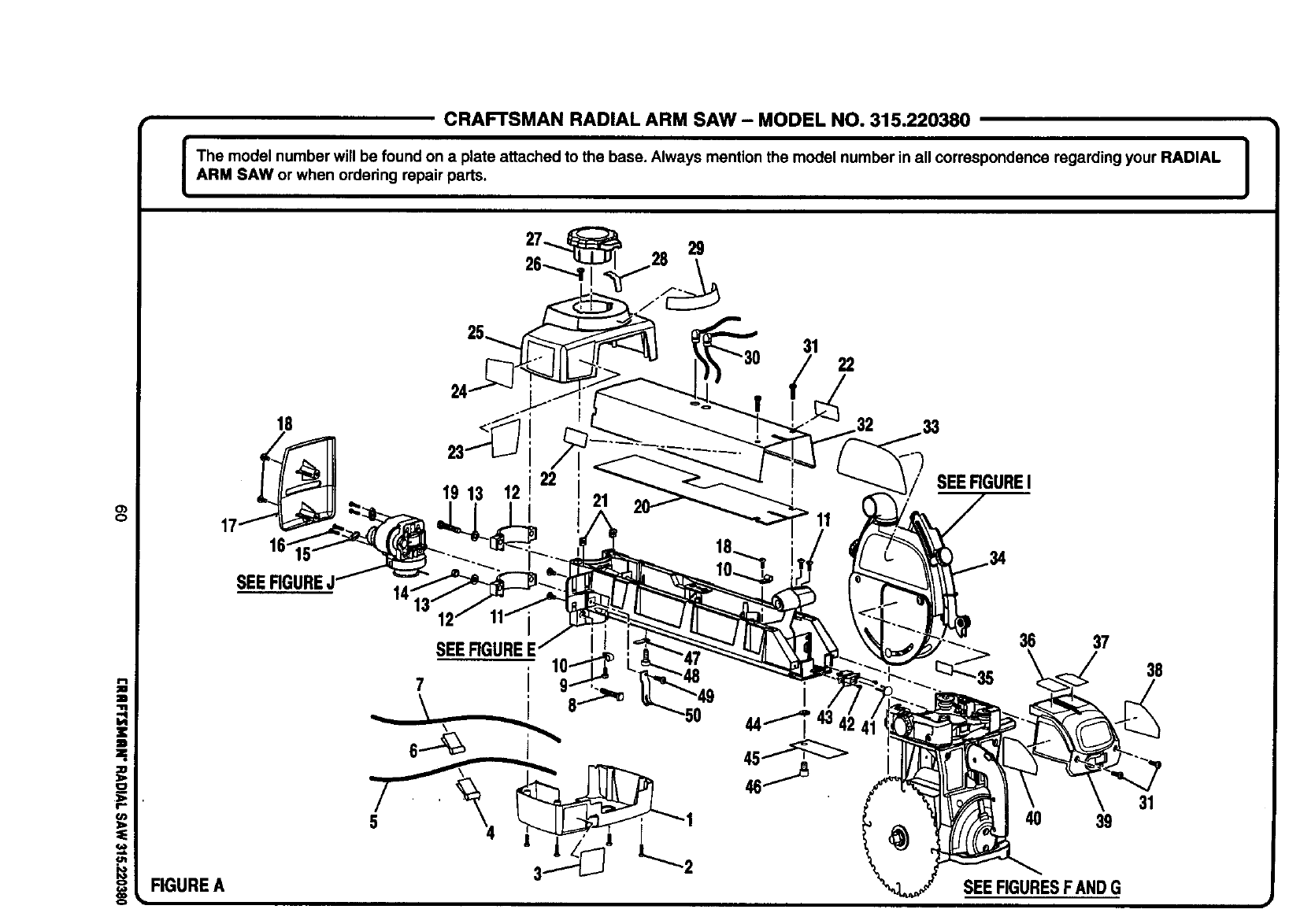

CRAFTSMAN RADIAL ARM SAW - MODEL NO. 315.220380

The model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your RADIAL [

ARM SAW or when ordering repair parts. I

FIGUREA

31 22

19 13 12 22

.32

SEERGUREI

SEERGUREE'

5 r 1

36 37

'35

40 39

SEEFIGURESFANDG

CRAFTSMAN RADIAL ARM SAW- MODEL NO. 315.220380

I" I

The model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your RADIAL

ARM SAW or when ordering repair parts.

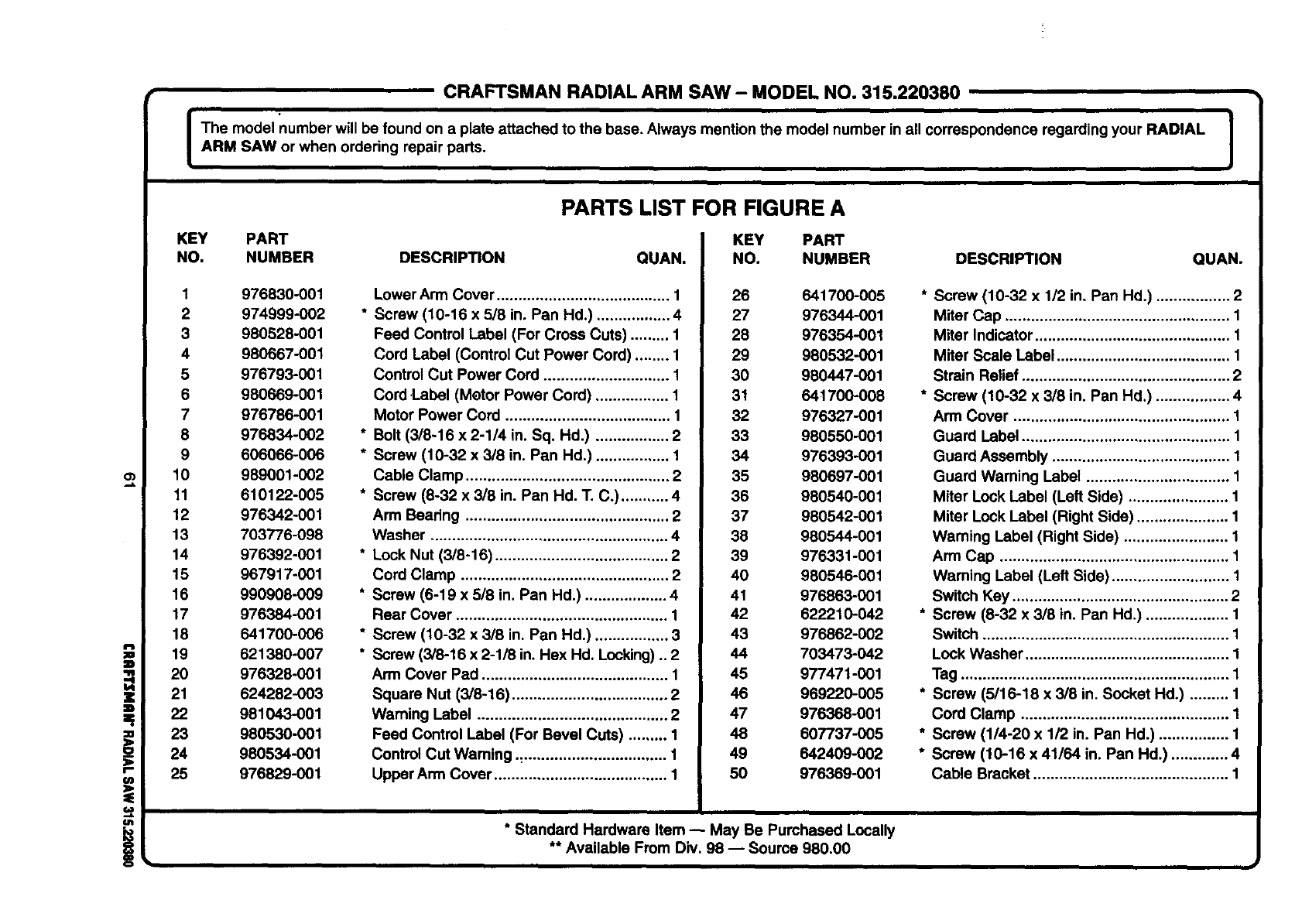

PARTS LIST FOR FIGURE A

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 976830-001

2 974999-002

3 980528-001

4 980667-001

5 976793-001

6 980669-001

7 976786-001

8 976834-002

9 606066-006

10 989001-002

11 610122-005

12 976342-001

13 703776-098

14 976392-001

15 967917-001

16 990908-009

17 976384-001

18 641700-006

19 621380-007

20 976328-001

21 624282-003

22 981043-001

23 980530-001

24 980534-001

25 976829-001

Lower Arm Cover ........................................ 1

* Screw (10-16 x 5/8 in. Pan Hd.) ................. 4

Feed Control Label (For Cross Cuts) ......... 1

Cord Label (Control Cut Power Cord) ........ 1

Control Cut Power Cord ............................. 1

Cord Label (Metor Power Cord) ................. 1

Motor Power Cord ...................................... 1

*Bolt (3/8-16 x 2-1/4 in. Sq. Hd.) ................. 2

* Screw (10-32 x 3/8 in. Pan Hd.) ................. 1

Cable Clamp ............................................... 2

*Screw (8-32 x 3/8 in. Pan Hd. T. C.) ........... 4

Arm Bearing ............................................... 2

Washer ....................................................... 4

* Lock Nut (3/8-16) ........................................ 2

Cord Clamp ................................................ 2

* Screw (6-19 x 518 in. Pan Hd.) ................... 4

Rear Cover ................................................. 1

*Screw (10032 x 3/8 in. Pan Hd.) ................. 3

* Screw (3/8-16 x 2-1/8 in. Hex Hd. Locking) .. 2

Arm Cover Pad ........................................... 1

Square Nut (3/8-16) .................................... 2

Warning Label ............................................ 2

Feed Control Label (For Bevel Cuts) ......... 1

Control Cut Warning., ................................. 1

Upper Arm Cover ........................................ 1

KEY PART

NO. NUMBER DESCRIPTION QUAN.

26 641700-005

27 976344-001

28 976354-001

29 980532-001

30 980447-001

31 641700°008

32 976327-001

33 980550-001

34 976393-001

35 980697-001

36 980540-001

37 980542-001

38 980544-001

39 976331-001

40 980546-001

41 976863-001

42 62221 00042

43 976862-002

44 703473-042

45 977471-001

46 969220-005

47 976368-001

48 607737-005

49 642409-002

50 976369-001

*Standard Hardware Item -- May Be Purchased Locally

** Available From Div, 98 -- Source 980.00

* Screw (10-32 x 1/2 in, Pan Hd.) ................. 2

Miter Cap .................................................... 1

Miter Indicator ............................................. 1

Miter Scale Label ........................................ 1

Strain Relief ................................................ 2

* Screw (10-32 x 3/8 in. Pan Hd.) ................. 4

Arm Cover .................................................. 1

Guard Label ................................................ 1

Guard Assembly ......................................... 1

Guard Warning Label ................................. 1

Miter Lock Label (Left Side) ....................... 1

Miter Lock Label (Right Side) ..................... 1

Waming Label (Right Side) ........................ 1

Arm Cap ..................................................... 1

Waming Label (Left Side) ........................... 1

Switch Key .................................................. 2

* Screw (8-32 x 3/8 in. Pan Hd.) ................... 1

Switch ......................................................... 1

Lock Washer ............................................... 1

Tag **.,° ......... .,. ......... ...o .......... ,°... ........ .,.°°,.., 1

* Screw (5/16-18 x 3/8 in. Socket Hd.) ......... 1

Cord Clamp ................................................ 1

*Screw (1/4-20 x 1/2 in. Pan Hd.) ................ 1

* Screw (10016 x 41164 in. Pan Hd.) ............. 4

Cable Bracket ............................................. 1

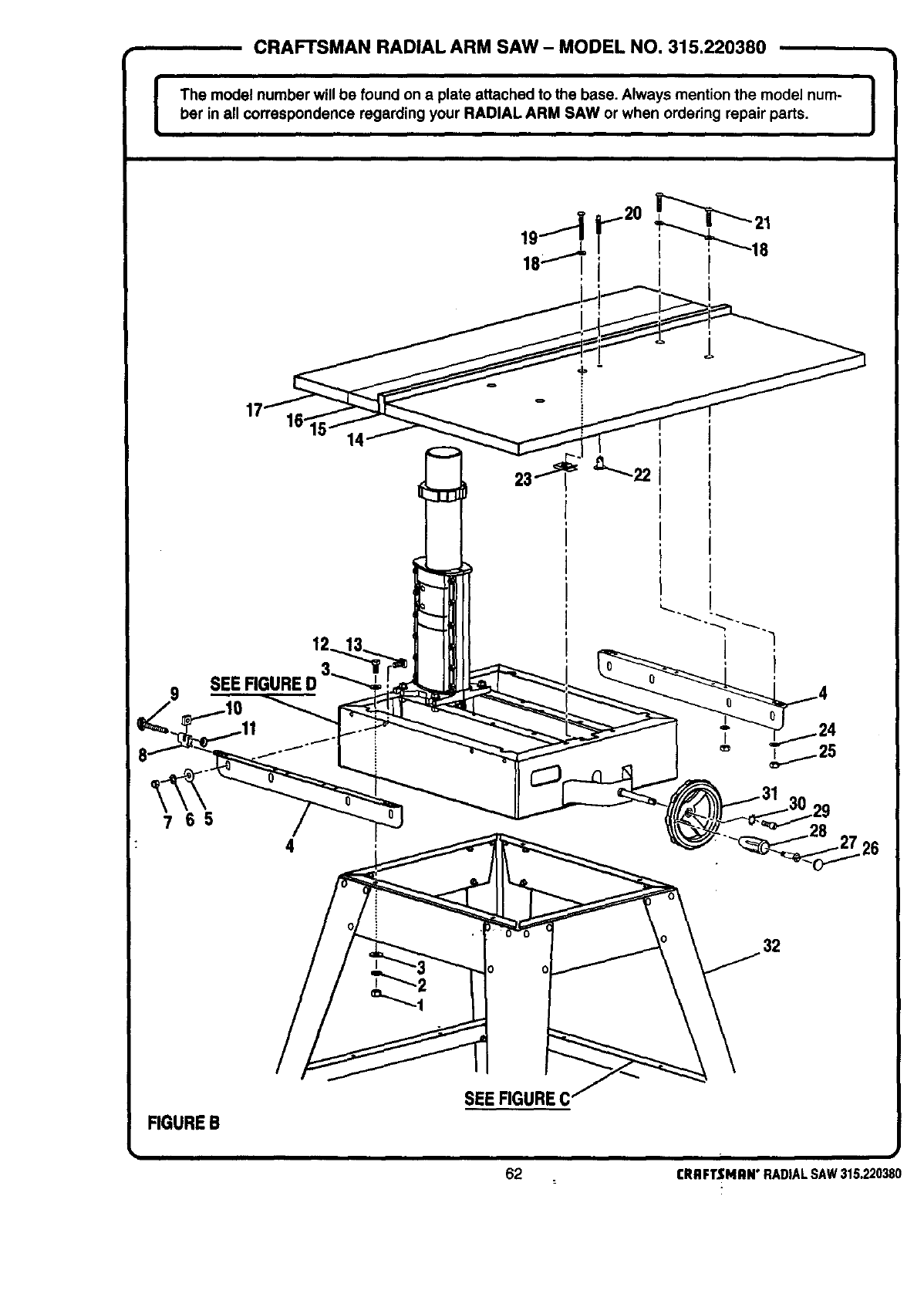

[CRAFTSMAN RADIAL ARM SAW -MODEL NO. 315.220380

The model number will be found on aplate attached to the base. Always mention the model hum- I

ber in all correspondence regarding your RADIAL ARM SAW or when ordering repair parts. J

9SEE FIGURE

FIGUREB

62 [RRFTSMRN °RADIALSAW315.220380

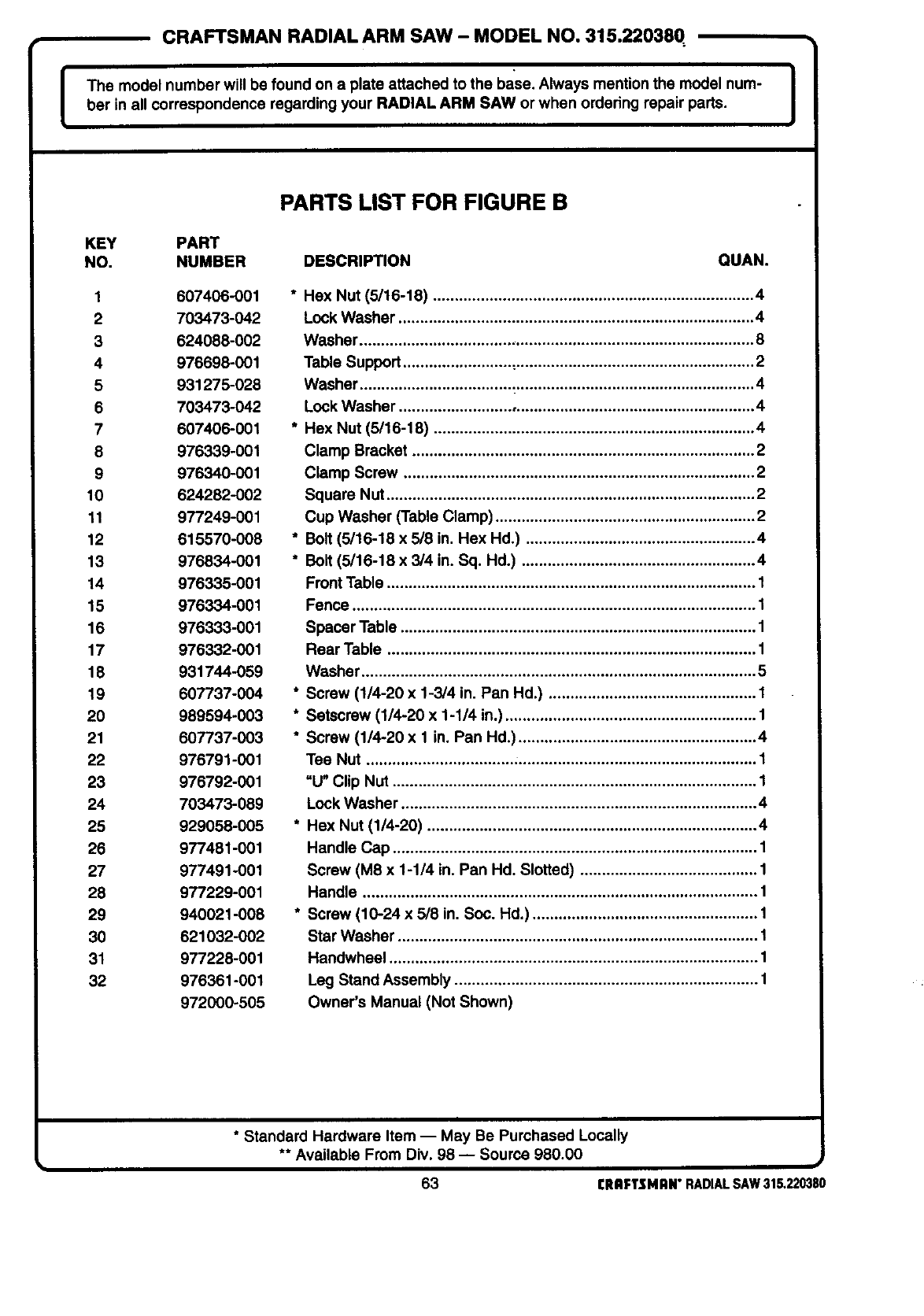

[CRAFTSMAN RADIAL ARM SAW - MODEL NO. 315.22038Q

The model number will be found on aplate attached to the base. Always mention the model num-

ber in all correspondence regarding your RADIAL ARM SAW or when ordering repair parts. I

PARTS LIST FOR FIGURE B

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 607406-001

2 703473-042

3 624088-002

4 976696-001

5 931275-028

6 703473-042

7 607406-001

8 976339-001

9 976340-001

10 624282-002

11 977249-001

12 615570-008

13 976834-001

14 976335-001

15 976334-001

16 976333-001

17 976332-001

18 931744-059

19 607737-004

20 989594-003

21 607737-003

22 976791-001

23 976792-001

24 703473-089

25 929058-005

26 977481-001

27 977491-001

28 977229-001

29 940021-008

30 621032-002

31 977228-001

32 976361-001

972000-505

* Hex Nut (5/16-18) .......................................................................... 4

Lock Washer .................................................................................. 4

Washer ........................................................................................... 8

Table Support ......................... ;....................................................... 2

Washer ........................................................................................... 4

Lock Washer .................................................................................. 4

* Hex Nut (5/16-18) .......................................................................... 4

Clamp Bracket ............................................................................... 2

Clamp Screw ................................................................................. 2

Square Nut ..................................................................................... 2

Cup Washer (Table Clamp) ............................................................ 2

* Bolt (5/16-18 x 5/8 in. Hex Hd.) ..................................................... 4

* Bolt (5/16-18 x 3/4 in. Sq. Hd.) ...................................................... 4

Front Table ..................................................................................... 1

Fence ............................................................................................. 1

Spacer Table .................................................................................. 1

Rear Table .....................................................................................

Washer ...........................................................................................

* Screw (1/4-20 x 1-3/4 in. Pan Hd.) ................................................

* Setscrew (1/4-20 x 1-1/4 in.) ..........................................................

* Screw (1/4-20 x 1 in. Pan Hd.) .......................................................

Tee Nut .................................. :.......................................................

=U" Clip Nut ....................................................................................

Lock Washer .................................................................................. 4

* Hex Nut (1/4-20) ............................................................................ 4

Handle Cap .................................................................................... 1

Screw (M8 x 1-114 in. Pan Hd. Slotted) ......................................... 1

Handle ........................................................................................... 1

* Screw (10-24 x 5/8 in. Soc. Hal.) .................................................... 1

Star Washer ................................................................................... 1

Handwheel ..................................................................................... 1

Leg Stand Assembly ...................................................................... 1

Owner's Manual (Not Shown)

* Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

63 CRRFTSMRN"RADIALSAW 315.220380

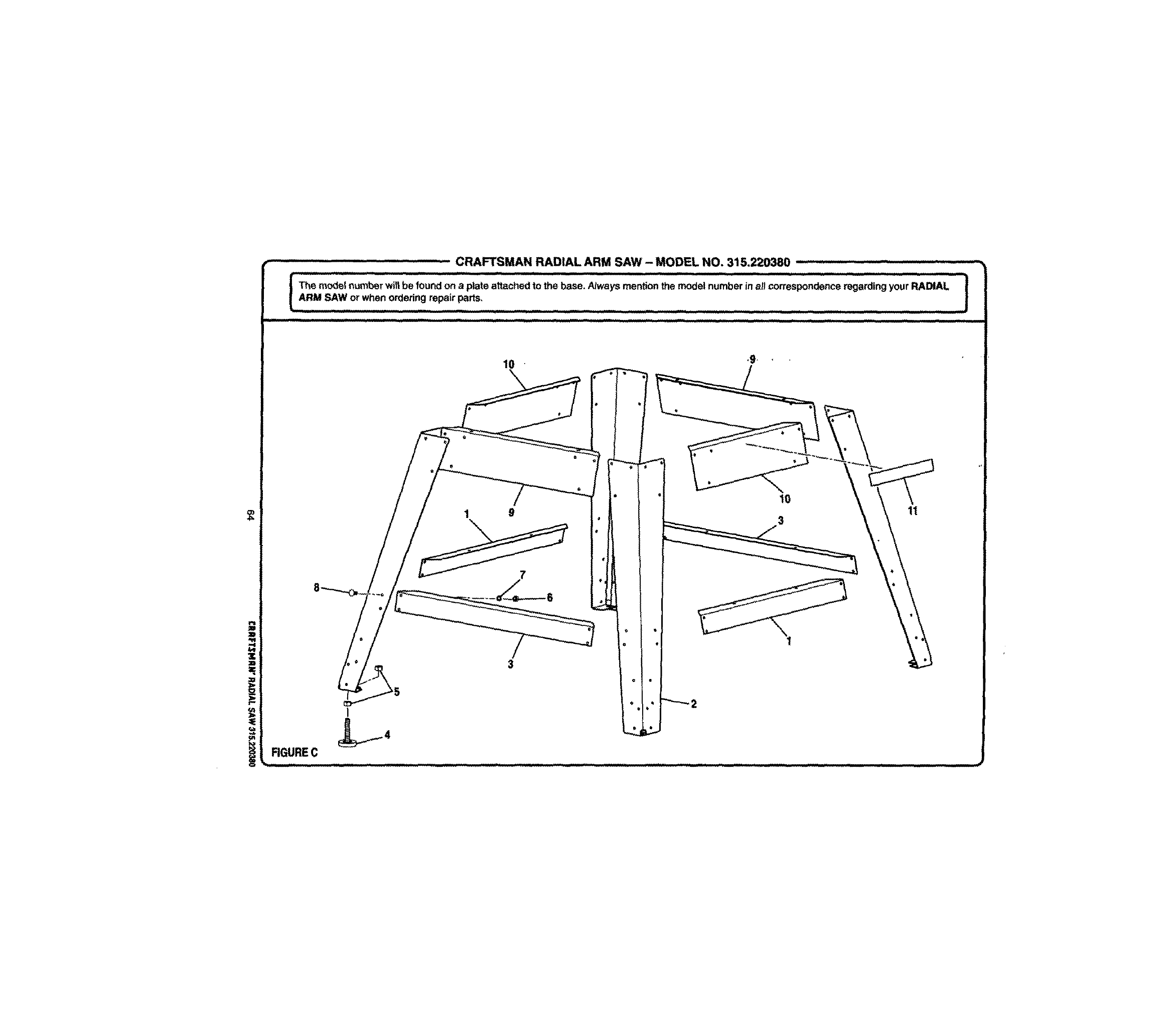

.......... CRAFTSMAN RADIAL ARM SAW - MODEL NO. 315.220380 ................

,,,, ,,, , ................................................................................

[ The model number will be found on a plate attached to the base, A_ways mention the model number in all _:orrespondence regarding your RADIAL 1

ARM SAW or when ordering repair parts, I

FIGURE C

CRAFTSMAN RADIAL ARM SAW - MODEL NO. 315.220380

The model number will be found on aplate attached to the base. Always mention the model number in all correspondence regarding your RADIAL |

ARM SAW or when ordering repair pads. I

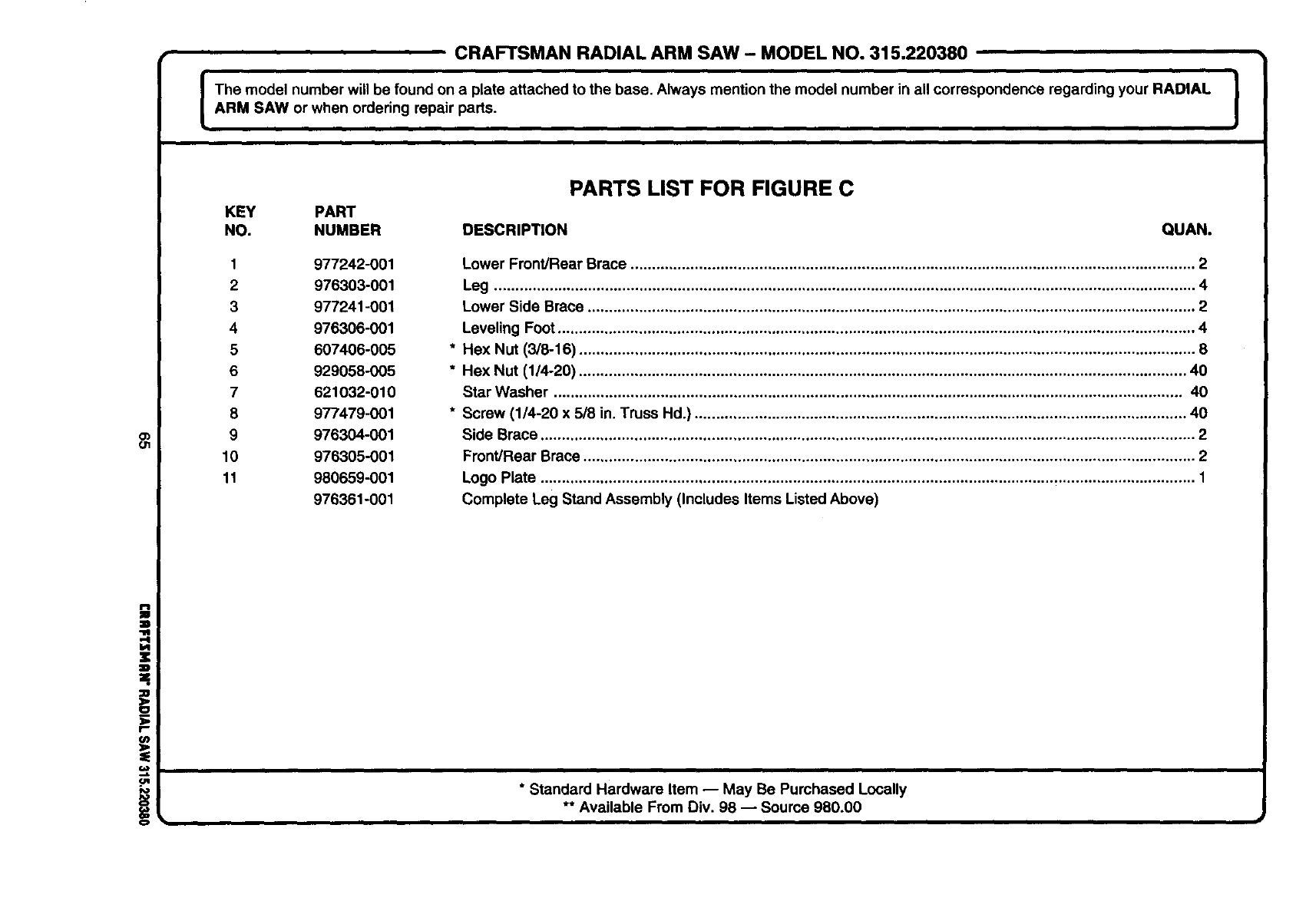

PARTS LIST FOR FIGURE C

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 977242-001

2 976303-001

3 977241-001

4 976306-001

5 607406-005

6 929058-005

7 621032-010

8 977479-001

9 976304-001

10 976305-001

11 980659-001

976361-001

Lower Front/Rear Brace .................................................................................................................................... 2

Leg .................................................................................................................................................................... 4

Lower Side Brace .............................................................................................................................................. 2

Leveling Foot ..................................................................................................................................................... 4

Hex Nut (3/8-16) ................................................................................................................................................ 8

Hex Nut (1/4-20) .............................................................................................................................................. 40

Star Washer ................................................................................................................................................... 40

Screw (1/4-20 x 5/8 in. Truss Hd.) ................................................................................................................... 40

Side Brace ......................................................................................................................................................... 2

Front/Rear Brace ............................................................................................................................................... 2

Logo Plate ......................................................................................................................................................... 1

Complete Leg Stand Assembly (Includes Items Listed Above)

* Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

CRAFTSMAN RADIAL ARM SAW -MODEL NO. 315.220380

The model number will be found on a plate attached to the base. Always mention the model num- _

bet in all correspondence regarding your RADIAL ARM SAW or when ordering repair parts.

11 12

3_-'_

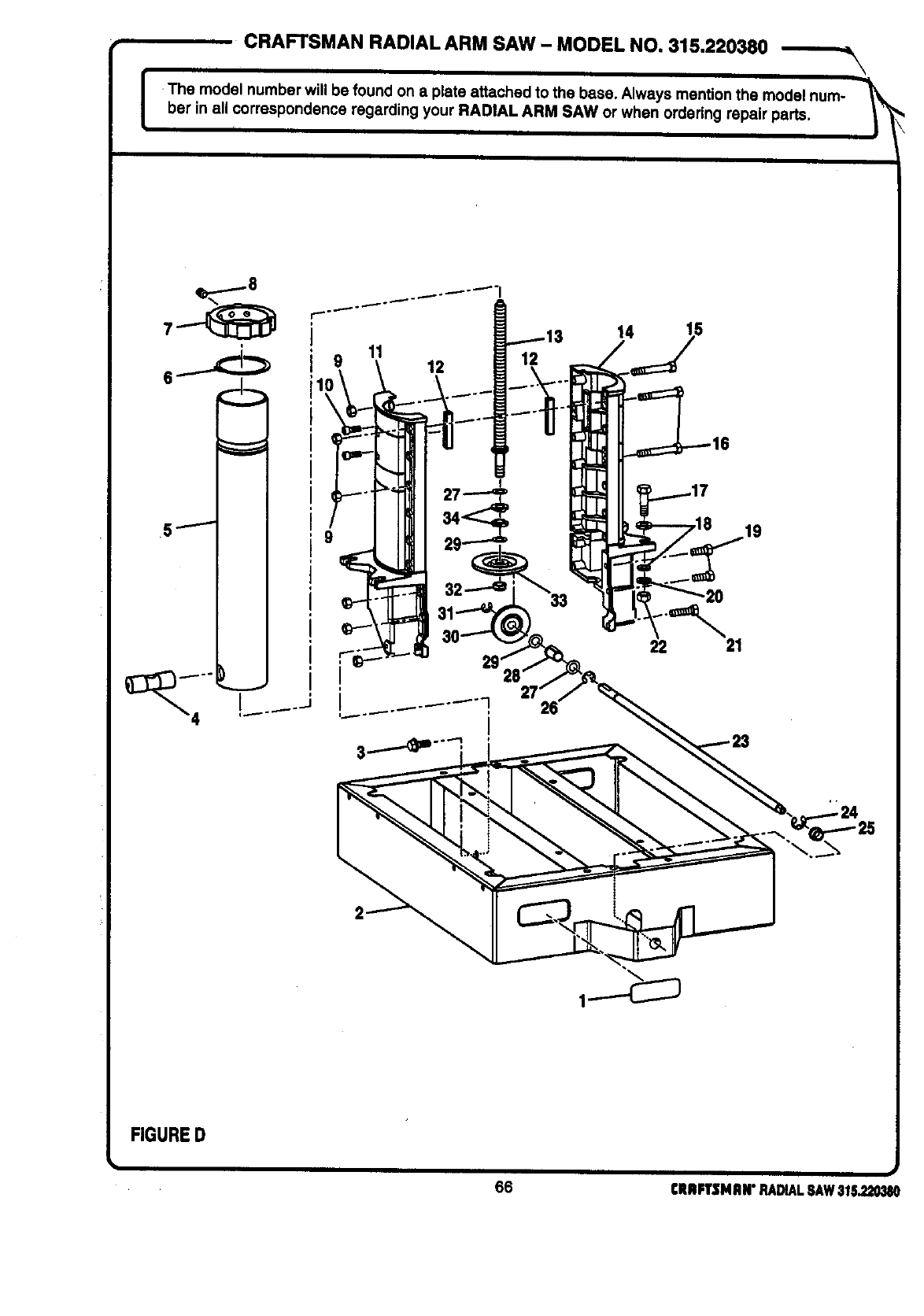

FIGURE D

66 CRRFT$14RN"RADIALSAW316.220380

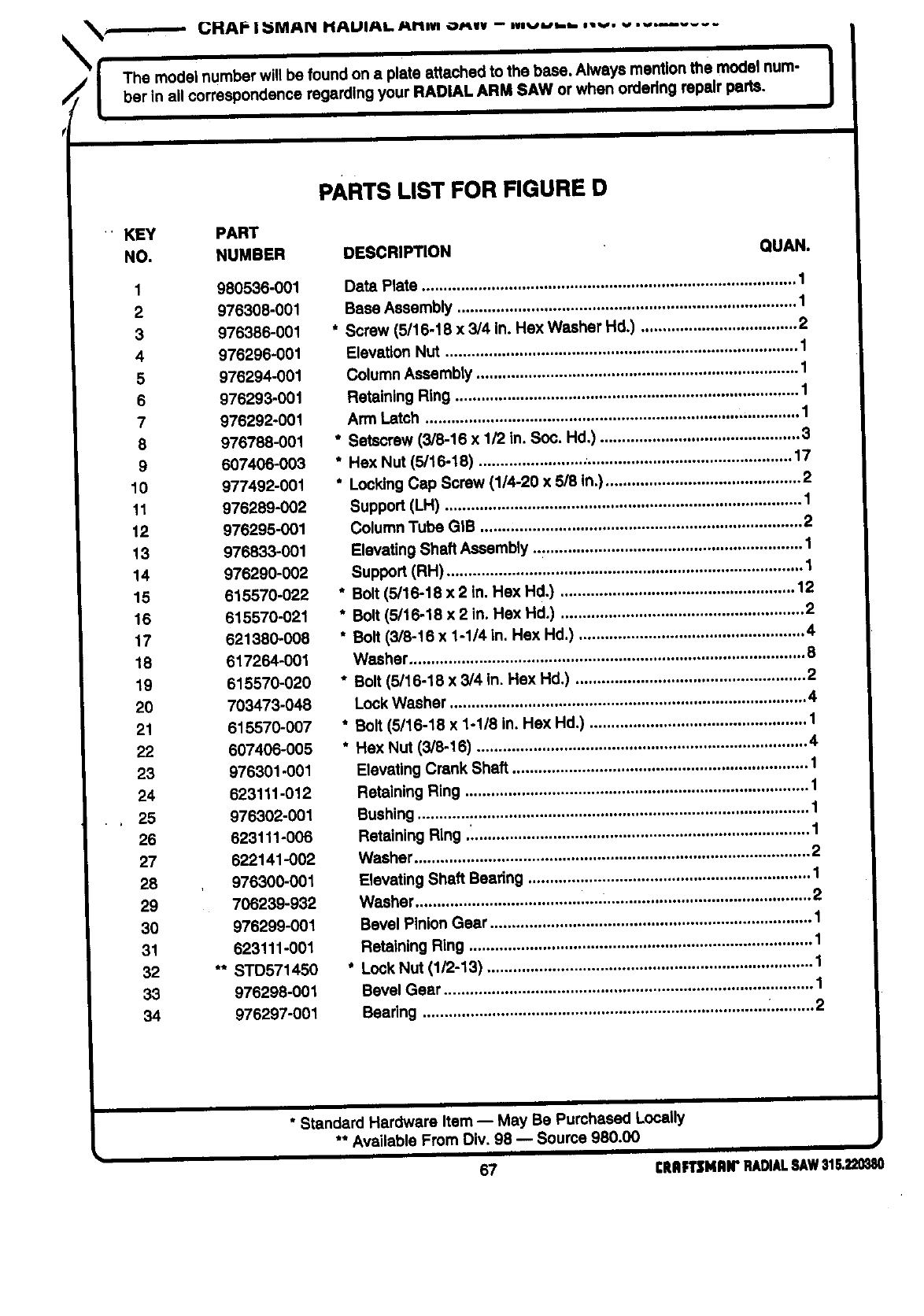

_"--"--" tRAP" |:_MAN HAUIAI. APIWl O_vv --wsv_J.._. ,,_., ..........

( The model number will be found on aplate attached to the base. Always mention the model num- I

/_ber in all correspondence regarding your RADIAL ARM SAW or when ordedng repair pads, J

PARTS LIST FOR FIGURE O

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 980536-001

2 976306-001

3 976386-001

4 976296-001

5 976294-001

6 976293-001

7 976292-001

8 976788-001

9 607406-003

10 977492-001

t 1 976289-002

12 976295-001

13 976833-001

14 976290-002

15 615570-022

16 615570-021

17 621350-008

18 617264-001

19 615570-020

20 703473-048

21 615570-007

22 607406-005

23 976301-001

24 623111-012

25 976302-001

26 623111-006

27 622141-002

28 976300-001

29 706239-932

30 976299-001

31 623111-001

32 ** STD571450

33 976298-001

34 976297-001

Data Plate ...................................................................................... 1

Base Assembly .............................................................................. 1

* Screw (5/1 6-18 x 3/4 In. Hex Washer Hd.) .................................... 2

Elevation Nut ................................................................................. 1

Column Assembly .......................................................................... 1

Retaining Ring ............................................................................... 1

Arm Latch ......................................................................... ,............ 1

* Setscrew (3/8-16 x 1/2 in. Sac. Hd.) .............................................. 3

* Hex Nut (5/16-18) ........................................................................ 17

* Locking Cap Screw (1/4-20 x 5/8 in.) ............................................. 2

Support (LH) .................................................................................. 1

Column Tube GIB ....... ;.................................................................. 2

Elevating Shaft Assembly .............................................................. 1

Support (RH) .................................................................................. 1

* Bolt (5/16-18 x 2 in. Hex Hd.) ...................................................... 12

* Bolt (5/16-15 x 2 in. Hex Hd.) ........................................................ 2

* Bolt (3/8-16 x 1-1/4 in. Hex Hd.) .................................................... 4

Washer ........................................................................................... 8

*Bolt (5/16-15 x 3/4 In. Hex Hal.) ..................................................... 2

Lock Washer .................................................................................. 4

* Bolt (5/16-15 x 1-1/8 in. Hex Hd.) .................................................. 1

* Hex Nut (3/5-15) ............................................................................ 4

Elevating Crank Shaft .................................................................... 1

Retaining Ring ............................................................................... 1

Bushing .......................................................................................... 1

Retaining Ring ............................................................................... 1

Washer ........................................................................................... 2

Elevating Shaft Bearing ................................................................. 1

Washer ........................................... ................................................ 2

Bevel Pinion Gear .......................................................................... 1

Retaining Ring ............................................................................... 1

*Lock Nut (1/2-13) ........................................................................... 1

Bevel Gear ..................................................................................... 1

Bearing ............................................................................... _.......... 2

* Standard Hardware Item -- May Be Purchased Locally =

** Available From Div. 98 -- Source 980.00

= I d

67 rRRt=TSMIIIrRADIALSAW31S.220_80

CRAFTSMAN RADIAL ARM SAW- MODEL NO. 315.220380

IThe model number will be found on a plate attached to the base. Always mention the model num-

ber in alt correspondence regarding your RADIAL ARM SAW or when ordedng repair parts. I

16 19

11 26

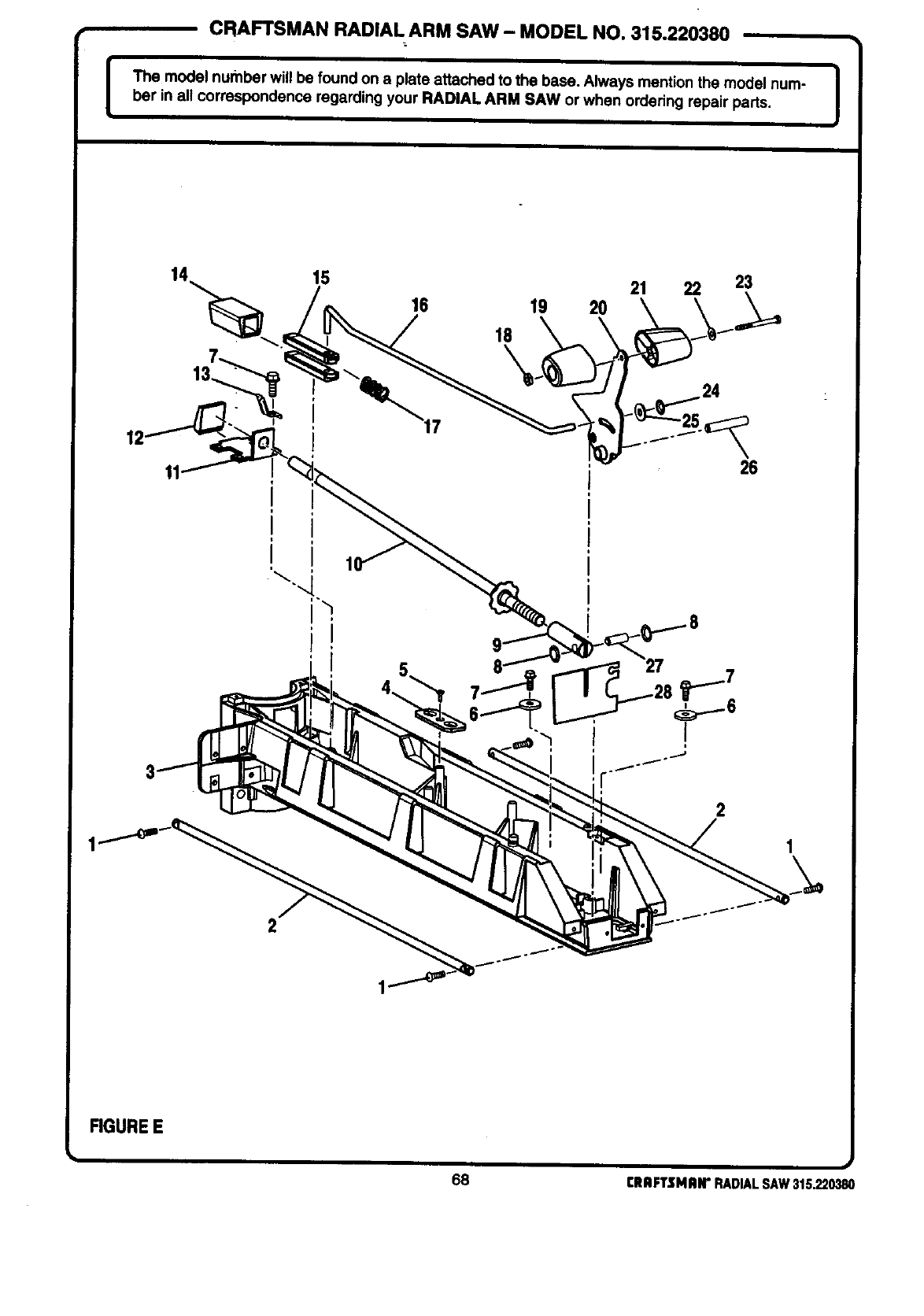

RGURE E

68 rltRFTSMRN" RADIALSAW 315.220380

CRAFTSMAN RADIAL ARM SAW- MODEL NO. 315.220380

IThe model number will be found on a plate attached to the base. Always mention the model num-

ber in all correspondence regarding your RADIAL ARM SAW or when ordering repair parts. I

PARTS LIST FOR FIGURE E

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 622210-043

2 976323-001

3 976326-002

4 980613-001

5 611114-002

6 706382-834

7 980455-001

8 641180-005

9 976321-001

10 976804-001

11 976314-001

12 976312-001

13 976313-001

14 97631 0-001

15 976311-001

16 976315-001

17 976316-001

18 706405-002

19 976329-001

20 976827-001

21 976330-001

22 931055-006

23 606066-011

24 641180-006

25 931744-059

26 976319-001

27 976320-001

28 976322-001

* Screw (10-32 x 5/8 in. Rd. Hd.) ..................................................... 4

Track .............................................................................................. 2

Arm .................................................... _........................................... 1

Support Bracket ................................. :........................................... 1

*Screw (10-32 x112in. Flat Head T. C.) .......................................... I

Washer ............................................... :........................................... 2

*Screw (1/4-20 x 5/8 in. Self Tapping Hex Washer Hd.) .................. 6

Push Nut (3/8 in,) ........................................................................... 2

Clevis Pin ....................................................................................... 1

Arm Lock Rod Assembly ................................................................ 1

Guide ............................................................................................. 1

Arm Lock Pawl ............................................................................... 1

Tension Spring ............................................................................... 1

Pin Housing ................................................................................... 1

Arm Index Pin ................................................................................ 2

Index Rod ..................................................................................... 1

Arm Lock Spring ............................................................................ 1

* Hex Nut (10-32) ............................................................................. 1

Arm Knob Lever (Left Hand) .......................................................... 1

Arm Lock Lever Assembly ............................................................. 1

Arm Knob Lever (Right Hand) ....................................................... 1

Washer ............................................... ............................................ 1

* Screw (10-32 x 2-1/4 in, Pan Hd.) ................................................. 1

Push Nut (1/4 in.) ........................................................................... 1

Washer ........................................................................................... 1

Lever Pin ........................................................................................ 1

Pin .................................................................................................. 1

Arm Insulation ................................................................................ 1

* Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

69 CRRFTSMBWRADIALSAW315.220380

CRAFTSMAN RADIAL-ARM SAW -MODEL NO. 315.220380

IThe model number will be found on a plate attached to the base. Always mention the model num- I

her in all correspondence regarding your RADIAL ARM SAW or when ordering repair parts. I

I 15

7 8

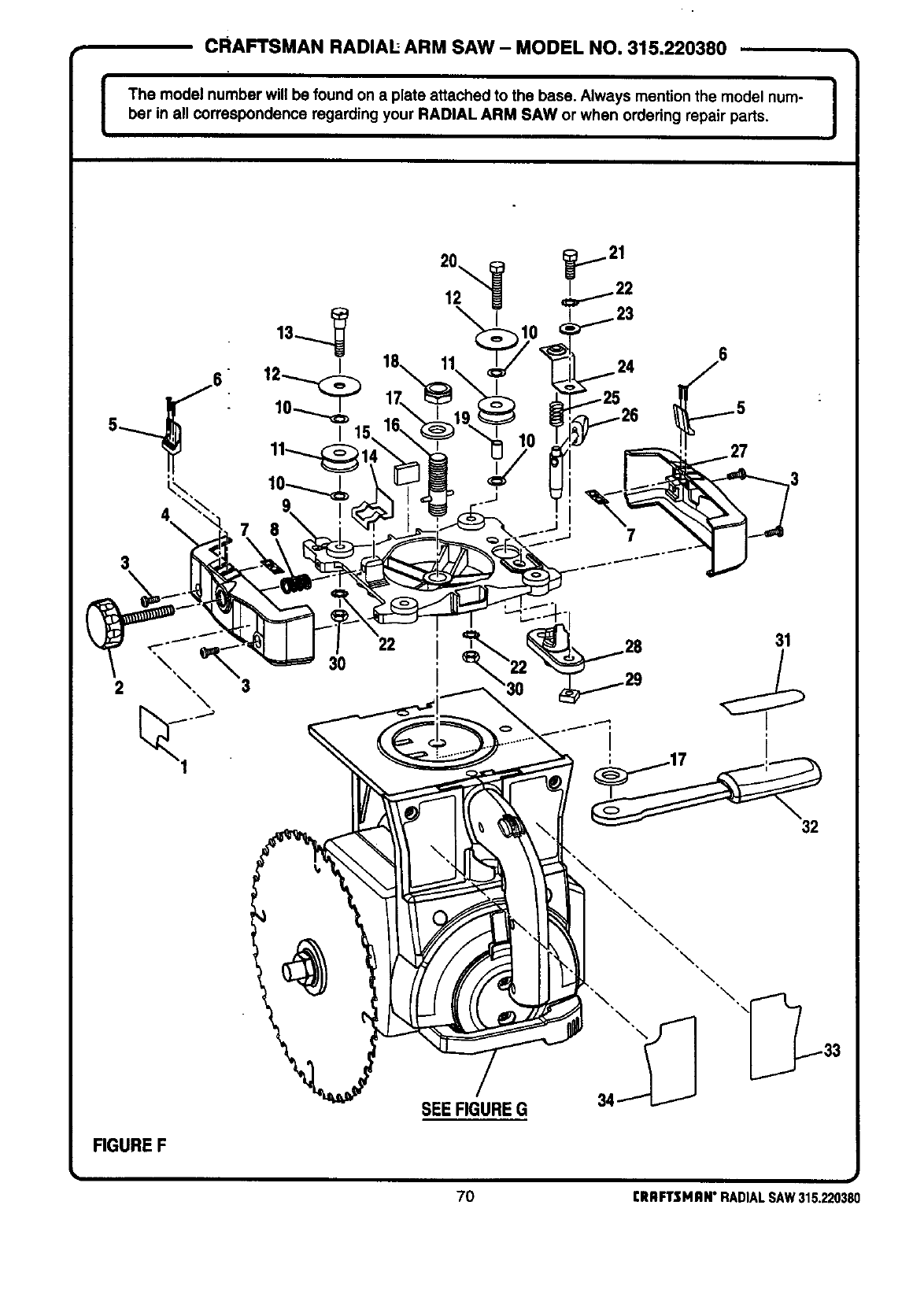

FIGURE F

SEEFIGUREG

70 CRRFT$14RN"RADIALSAW315.220380

LCRAFTSMAN RADIAL ARM SAW - MODEL NO. 315.220380

The model number will be found on a plate attached to the base. Always mention the model num- I

per in all correspondence regarding your RADIAL ARM SAW or when ordering repair parts, J

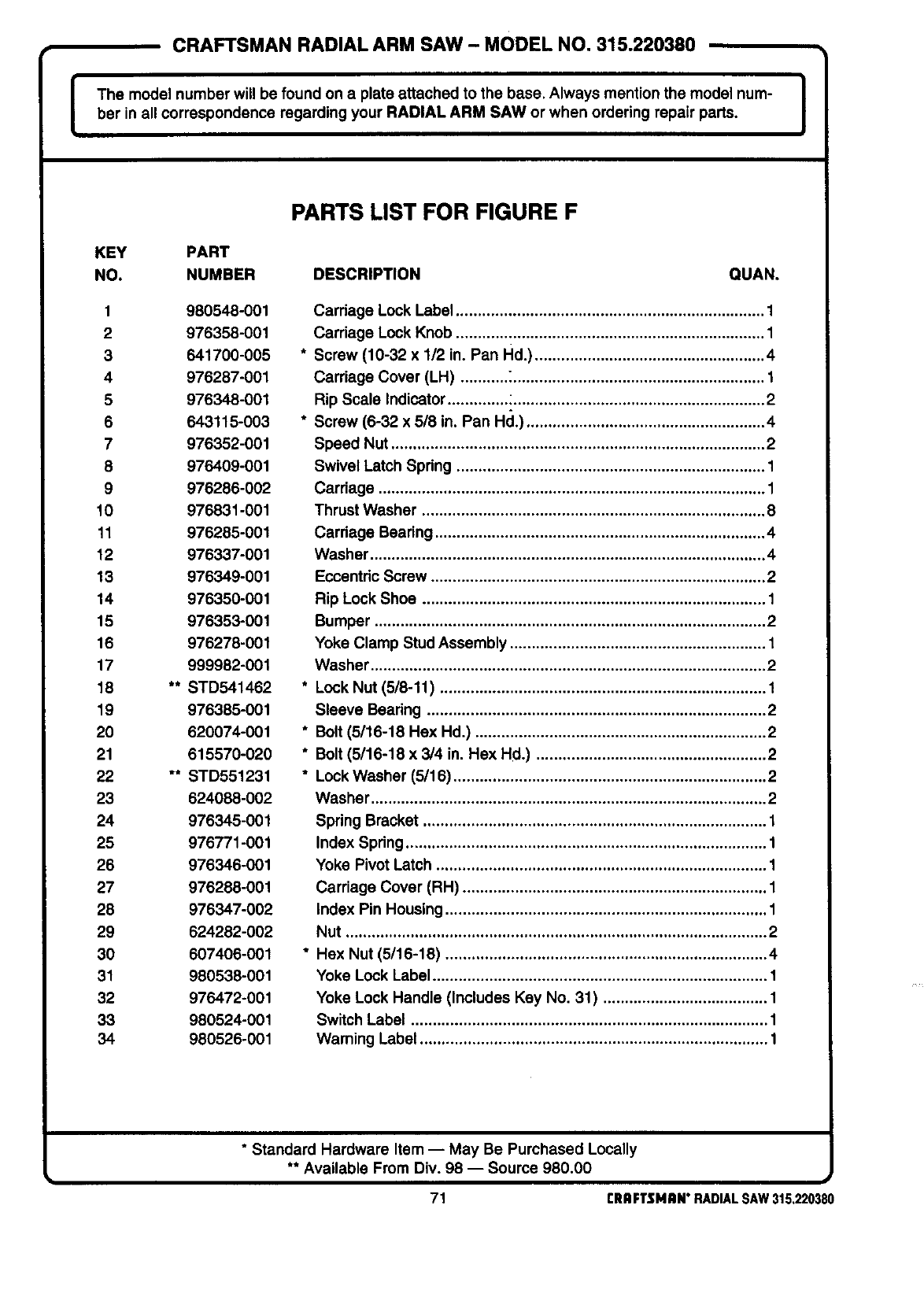

PARTS LIST FOR FIGURE F

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 980548-001

2 976358-001

3 641700-005

4976287-001

5 976348-001

6643115-003

7 976352-001

8 976409-001

9 976286-002

10 976831-001

11 976285-001

12 976337-001

13 976349-001

14 976350-001

15 976353-001

16 976278-001

17 999982-001

18 ** STD541462

19 976385-001

20 620074-001

21 615570-020

22 ** STD551231

23 624088-002

24 976345-001

25 976771-001

26 976346-001

27 976288-001

28 976347-002

29 624282-002

30 607406-001

31 980538-001

32 976472-001

33 980524-001

34 980526-001

Carriage Lock Label ....................................................................... 1

Carriage Lock Knob ....................................................................... 1

* Screw (10-32 x 1/2 in. Pan Hd.) ..................................................... 4

Carriage Cover (LH) ........... ;.......................................................... 1

Rip Scale Indicator.............. :.......................................................... 2

*Screw (6-32 x 5/8 in. Pan Hcl.)....................................................... 4

Speed Nut ...................................................................................... 2

Swivel Latch Spring ....................................................................... 1

Carriage ......................................................................................... 1

Thrust Washer ............................................................................... 8

Carriage Bearing ............................................................................ 4

Washer ........................................................................................... 4

Eccentric Screw ............................................................................. 2

Rip Lock Shoe ............................................................................... 1

Bumper .......................................................................................... 2

Yoke Clamp Stud Assembly ........................................................... 1

Washer ........................................................................................... 2

*Lock Nut (5/8-11) ........................................................................... 1

Sleeve Bearing .............................................................................. 2

*Bolt (5/16-18 Hex Hd.) ................................................................... 2

* Bolt (5/16-18 x 3/4 in. Hex Hal.) ..................................................... 2

*Lock Washer (5/16) ........................................................................ 2

Washer ........................................................................................... 2

Spring Bracket ............................................................................... 1

Index Spring ................................................................................... 1

Yoke Pivot Latch ............................................................................ 1

Carriage Cover (RH) ...................................................................... 1

Index Pin Housing .......................................................................... 1

Nut ................................................................................................. 2

* Hex Nut (5/16-18) .......................................................................... 4

Yoke Lock Label ............................................................................. 1

Yoke Lock Handle (Includes Key No. 31) ...................................... 1

Switch Label .................................................................................. 1

Waming Label ................................................................................ 1

"Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

71 [RAFTSMAN" RADIALSAW 315,220380

;CRAFTSMAN RADIAL ARM SAW- MODEL NO. 315.220380

The model number will be found on a plate attached to the base. Always mention the model num- I

ber in all correspondence regarding your RADIAL ARM SAW or when ordering repair parts. I

SEE FIGURE F

!21

I 22

37""_ 8 _"

FIGURE G

72 rRRFTSMRW RADIALSAW315.220380

[CRAFTSMAN RADIAL ARM SAW - MODEL NO. 315.220380

The model number will be found on a plate attached to the base. Always mention the model num-

ber in all correspondence regarding your RADIAL ARM SAW or when ordering repair parts. I

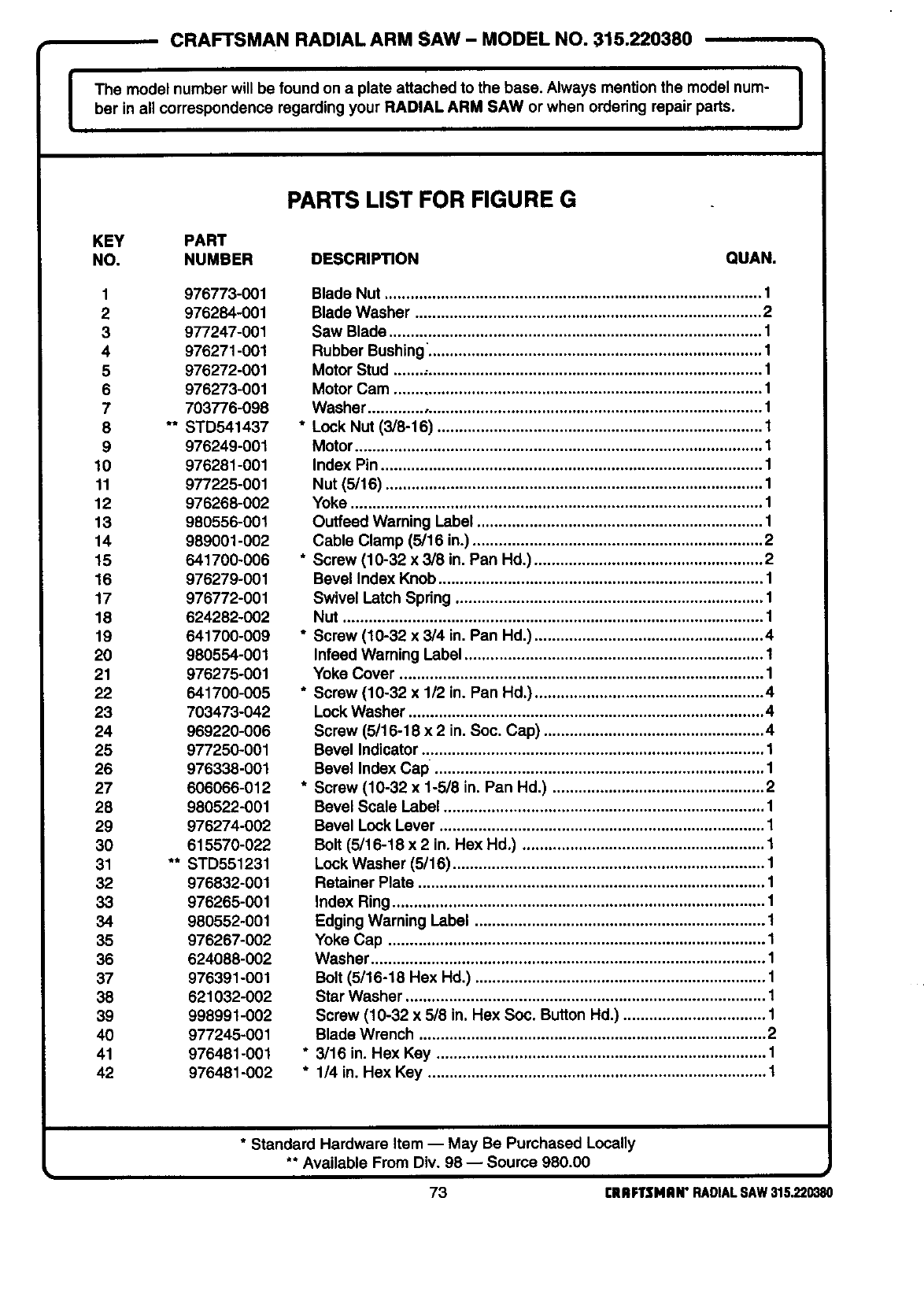

PARTS LIST FOR FIGURE G

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 976773-001

2 976284-001

3 977247-001

4 976271-001

5 976272-001

6 976273-001

7 703776-098

8 ** STD541437

9 976249-001

10 976281-001

11 977225-001

12 976268-002

13 980556-001

14 989001-002

15 641700-006

16 976279-001

17 976772-001

18 624282-002

19 641700-009

20 980554-001

21 976275-001

22 641700-005

23 703473-042

24 969220-006

25 977250-001

26 976338-001

27 606066-012

28 980522-001

29 976274-002

30 615570-022

31 ** STD551231

32 976832-001

33 976265-001

34 980552-001

35 976267-002

36 624088-002

37 976391-001

38 621032-002

39 998991-002

40 977245-001

41 976481-001

42 976481-002

Blade Nut ....................................................................................... 1

Blade Washer ................................................................................ 2

Saw Blade ...................................................................................... 1

Rubber Bushing. ............................................................................ 1

Motor Stud ..................................................................................... 1

Motor Cam ..................................................................................... 1

Washer ........................................................................................... 1

* Lock Nut (3/8-16) ........................................................................... 1

Motor .............................................................................................. 1

Index Pin ........................................................................................ 1

Nut (5/16) ....................................................................................... 1

Yoke ....................... ..........,.....,.,,,.,., .......... _....................... • ........... ,1

Ouffeed Warning Label .................................................................. 1

Cable Clamp (5/16 in.) ................................................................... 2

* Screw (10-32 x 3/8 in. Pan Hd.) ..................................................... 2

Bevel Index Knob ........................................................................... 1

Swivel Latch Spring ....................................................................... 1

Nut ................................................................................................. 1

* Screw (10-32 x 3/4 in. Pan Hd.) ..................................................... 4

Infeed Warning Label ..................................................................... 1

Yoke Cover .................................................................................... 1

* Screw (10-32 x 1/2 in. Pan Hd.) ..................................................... 4

Lock Washer .................................................................................. 4

Screw (5/16-18 x 2 in. Soc. Cap) ................................................... 4

Bevel Indicator ............................................................................... 1

Bevel Index Cap ............................................................................ 1

* Screw (10-32 x 1-5/8 in. Pan Hd.) ................................................. 2

Bevel Scale Label .......................................................................... 1

Bevel Lock Lever ........................................................................... 1

Bolt (5/16-18 x 2 in. Hex Hd.) ........................................................ 1

Lock Washer (5/16) ........................................................................ 1

Retainer Plate ................................................................................ 1

Index Ring ...................................................................................... 1

Edging Warning Label ................................................................... 1

Yoke Cap ....................................................................................... 1

Washer ........................................................................................... 1

Bolt (5/16-18 Hex Hd.) ................................................................... 1

Star Washer ................................................................................... 1

Screw (10-32 x 5/8 in. Hex Soc. Button Hd.) ................................. 1

Blade Wrench ................................................................................ 2

*3/16 in. Hex Key ............................................................................ 1

* 1/4 in. Hex Key .............................................................................. 1

* Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

73 [RRFTSMIIN"RADIALSAW315.220380

4:,

:D,

f.-

:11.

CRAFTSMAN RADIAL ARM SAW- MODEL NO. 315.220380

The model number will be found on a plate attached to the base, Always mention the model number in all correspondence regarding your RADIAL ,|

ARM SAW or when ordering repair parts. I

FIGURE H

[CRAFTSMAN RADIAL ARM SAW - MODEL NO. 315.220380

The model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your RADIAL I

ARM SAW or when ordering repair pads. J

PARTS LIST FOR FIGURE H

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1610122-006

2 976449-001

3 971665-001

4977207-001

5998196-001

6 607617-003

7 977203-001

8 976336-001

9 989684-003

10 967917-001

11 976785-001

12 610122-005

*Screw (8-32 x 5/8 in.Pan Hd.) .......................................................................................................................... 3

Handle Assembly ............................................................................................................................................. 1

Switch Tdggel" ............................................................................. _...'.....'......_..................................................... 1

Cam Lever ........................................................................................................................................................ 1

Spdng ............................................................................................................................................................... 1

O-Ring ............................................................................................................... _.............................................. 1

Knob ................................................................................................................................................................. 1

Wiring Insulator ................................................................................................................................................ 1

* Screw (5-32 x 1/2 in. Pan Hal. T.C.) ................................................................................................................. 2

Cord Clamp ...................................................................................................................................................... 1

Cord Hamess ................................................................................................................................................... 1

* Screw (8-32 x 3/8 in. Pan Hd.) ......................................................................................................................... 1

*Standard Hardware Item mMay Be Purchased Locally

** Available From Div. 98 -- Source 980.00

CRAFTSMAN RADIAL ARM SAW - MODEL NO. 315.220380

IThe model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your RADIAL

ARM SAW or when ordering repair parts. I

17 25

18 24

13 10 1

11 12 I.

11 9 8

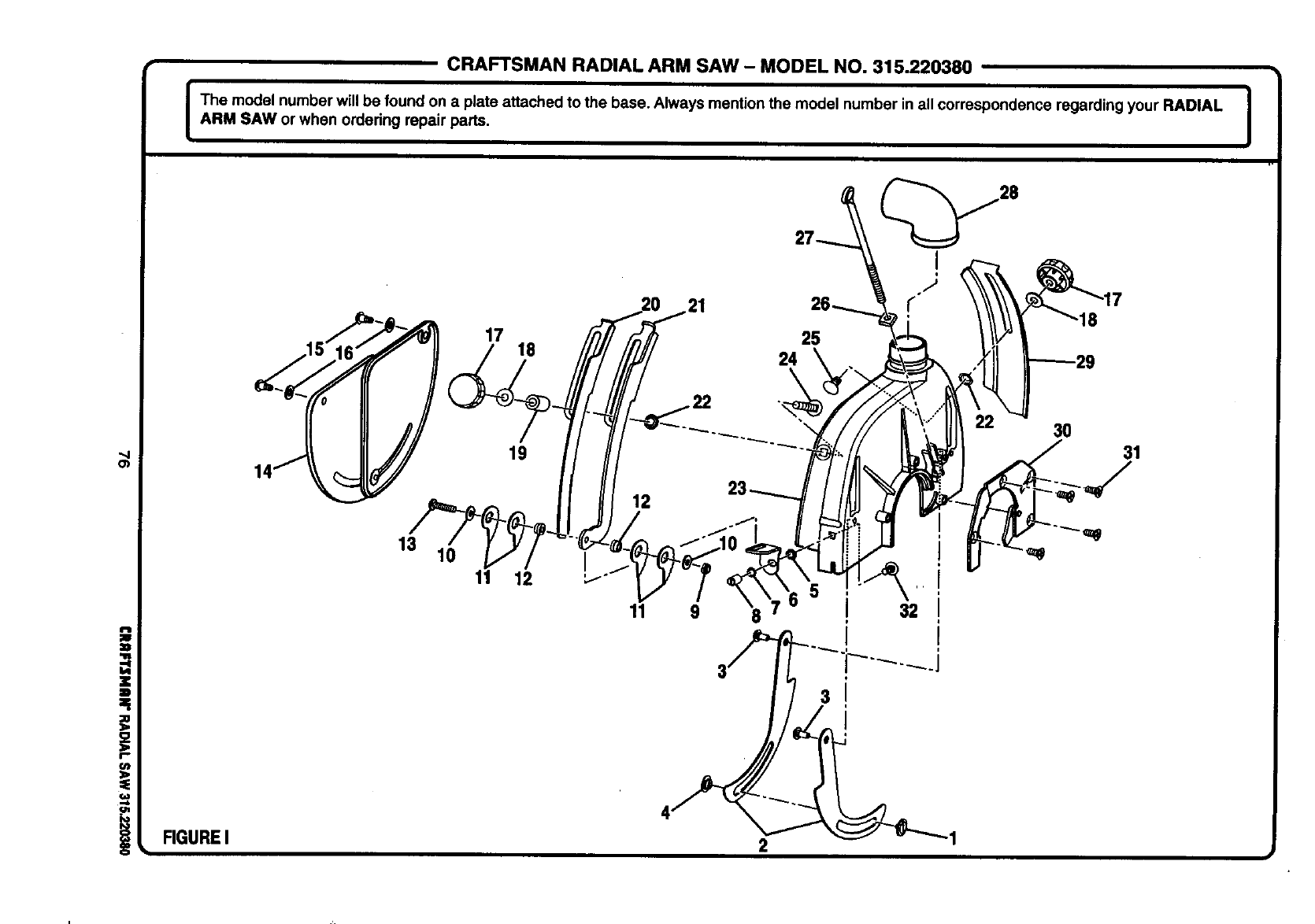

, FIGUREI 2

tat

CRAFTSMAN RADIAL ARM SAW - MODEL NO. 315.220380

IThe model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your RADIAL I

ARM SAW or when ordering repair parts. I

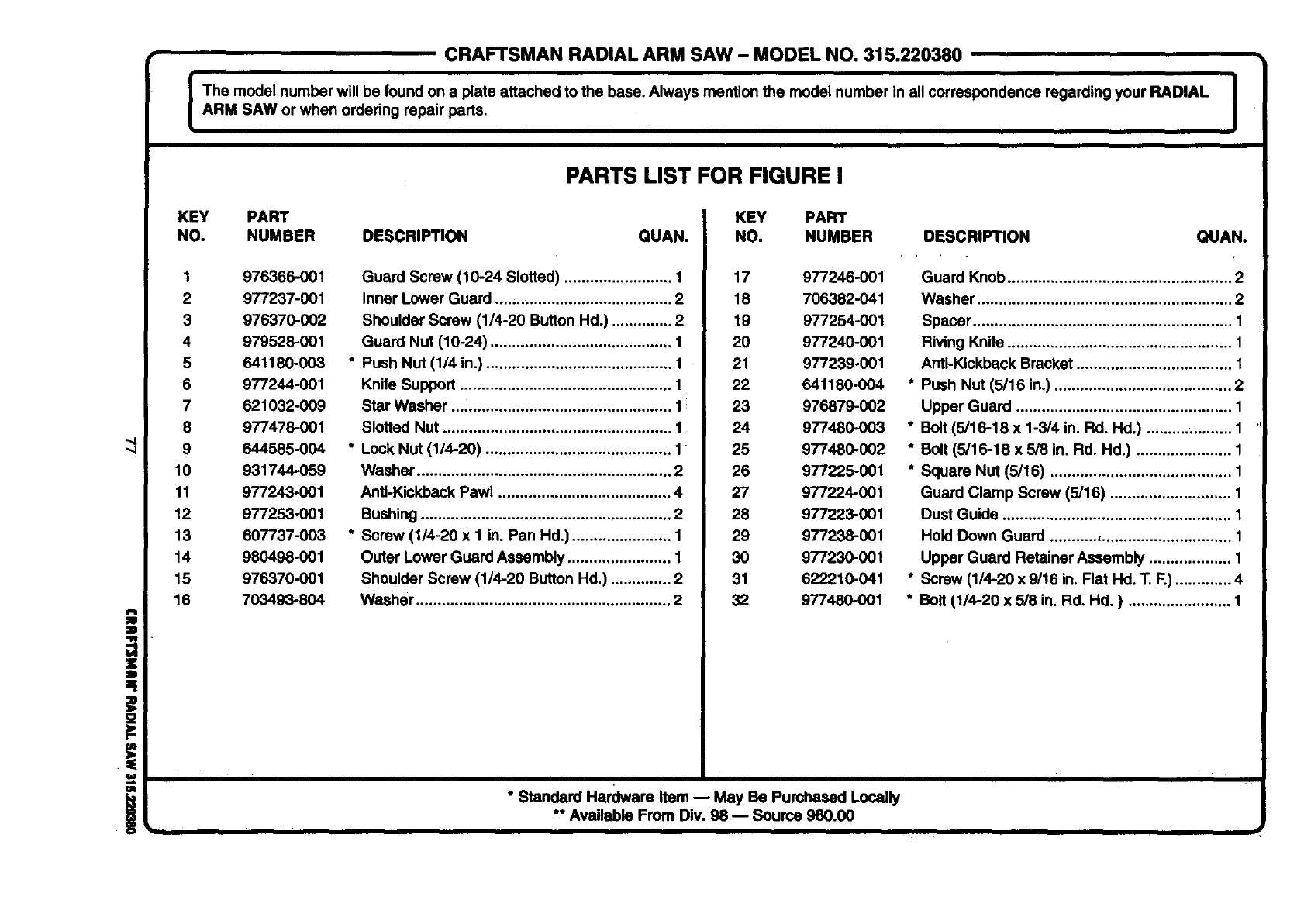

PARTS LIST FOR FIGURE I

_Iilll

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 976366-001

2 977237-001

3 976370-002

4979526-001

5 641180-003

6 977244-001

7 621032-009

8 977478-001

9 644585-004

10 931744-059

11 977243-001

12 977253-001

13 607737-003

14 980498-001

15 976370-001

16 703493-804

Guard Screw (10-24 Slotted) ......................... 1

Inner Lower Guard ......................................... 2

Shoulder Screw (1/4-20 Button Hd.) .............. 2

Guard Nut (10-24) .......................................... 1

* Push Nut (1/4 in.) ........................................... 1

Knife Support ................................................. 1

Star Washer .., ............................................... 1

Slotted Nut ..................................................... 1

* Lock Nut (1/4-20) ........................................... 1

Washer ........................................................... 2

Anti-Kickback Pawl ........................................ 4

Bushing .......................................................... 2

* Screw (1/4-20 x I in. Pan Hd.) ....................... 1

Outer Lower Guard Assembly ........................ 1

Shoulder Screw (1/4-20 Button Hd.) .............. 2

Washer ........................................................... 2

KEY PART

NO. NUMBER DESCRIPTION QUAN.

17 977246-001

18 706382-041

19 977254-001

20 977240-001

21 977239o001

22 641180-004

23 976879-002

24 977480003

25 977480-002

26 977225-001

27 977224-001

28 977223-001

29 977238-001

30 977230-001

31 622210-041

32 977480-001

Guard Knob .................................................... 2

Washer ........................................................... 2

Spacer ............................................................ 1

Riving Knife .................................................... 1

Anti-Kickback Bracket .................................... 1

* Push Nut (5/16 in.) ......................................... 2

Upper Guard .................................................. 1

* Bolt (5/16-18 x 1-3/4 in. Rd. Hd.) .......... ; ......... 1

* Bolt (5/16-18 x 5/8 in. Rd. Hd.) ...................... 1

* Square NUt (5/16) .......................................... 1

Guard Clamp Screw (5/16) ............................ 1

Dust Guide ..................................................... 1

Hold Down Guard .......................................... 1

Upper Guard Retainer Assembly ................... 1

*Screw (114-20 x 9/16 in. Flat Hd. T. F.) ............. 4

*Bolt (1/4-20 x 5/8 in. Rd. Hd. ) ........................ 1

* Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00

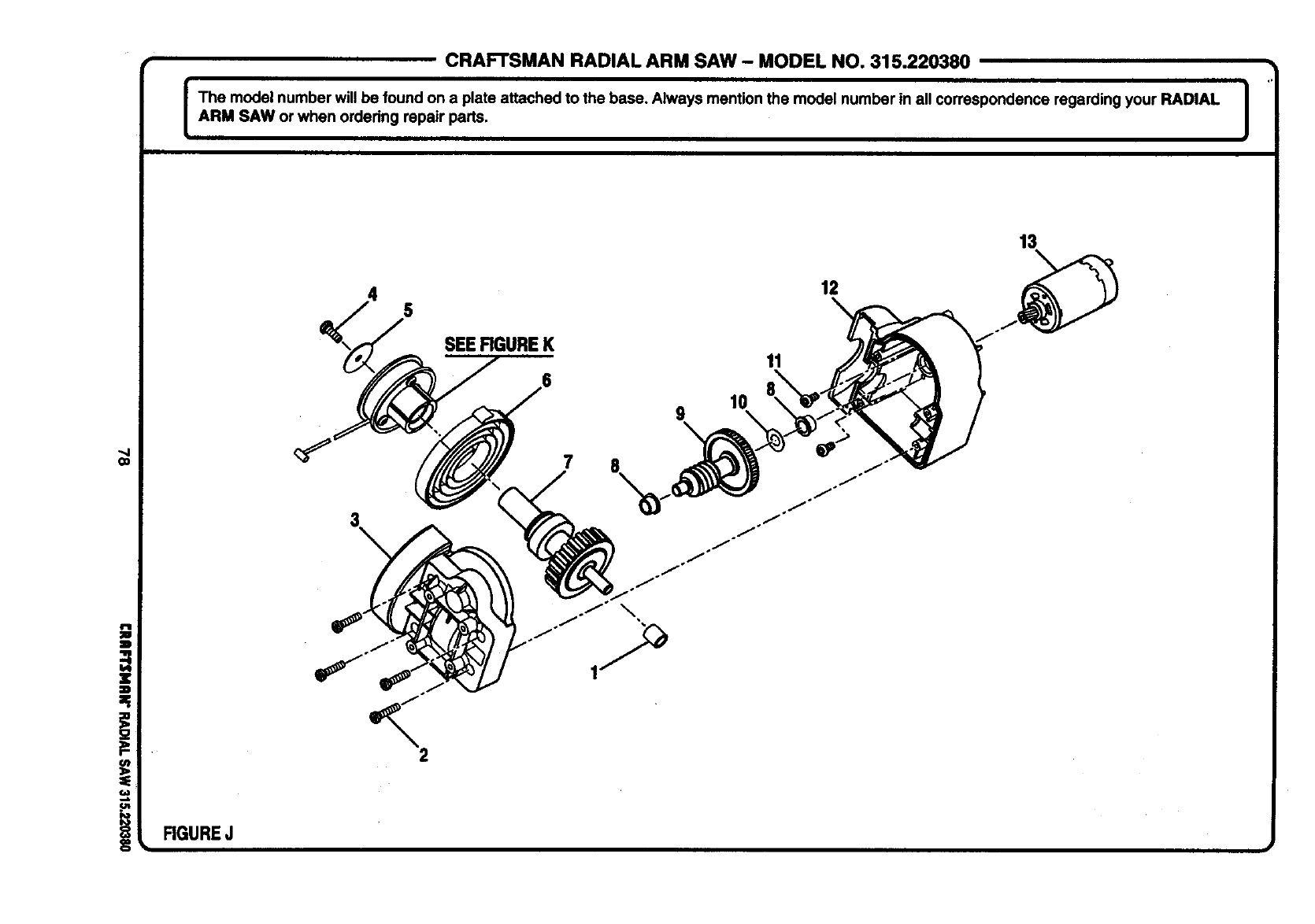

CRAFTSMAN RADIAL ARM SAW- MODEL NO. 315.220380

J The model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your RADIAL |

ARM SAW or when ordedng repair pads. !

SEERGUREK 11

-,J

RGURE J

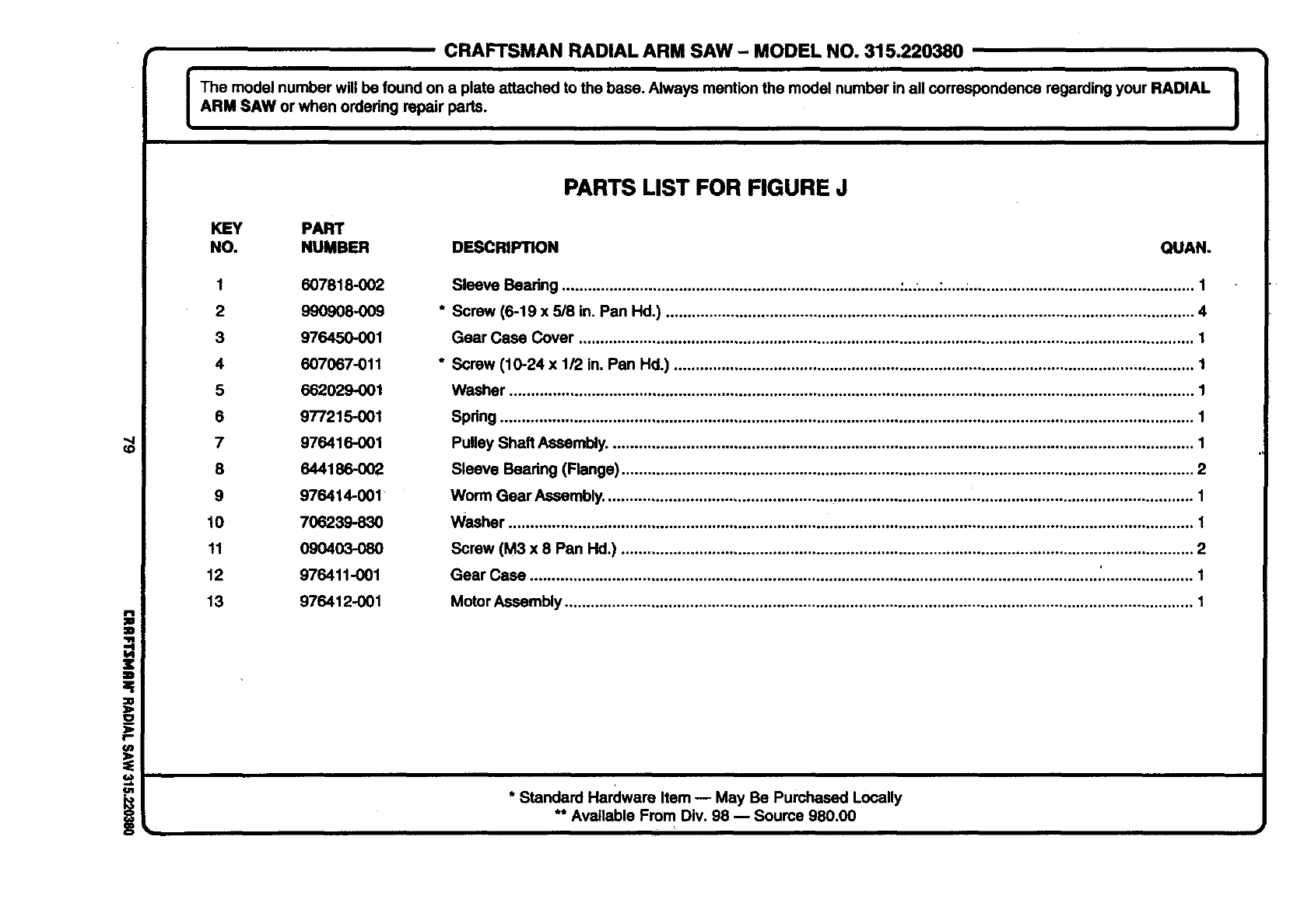

CRAFTSMAN RADIAL ARM SAW- MODEL NO. 315.220380

J The model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your RADIAL I

ARM SAW or when ordedng repair parts. I

PARTS LIST FOR FIGURE J

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 607818-002

2 990908-009

3 976450-(X)1

4 607067-011

5 662029001

6 977215-001

7 976416-001

8 644186-002

9 976414-001

10 706239-830

11 090403-080

12 976411-001

13 976412-001

Sleeve Beadng .............................................................................. :.........:.....;.................................................... 1

* Screw (6-19 x 5/8 in. Pan Hd.) .......................................................................................................................... 4

Gear Case Cover .............................................................................................................................................. t

* Screw (10-24 x 1/2 in. Pan Hd.) ........................................................................................................................ t

Washer .............................................................................................................................................................. 1

Spdng ................................................................................................................................................................ 1

Pulley Shaft Assembly. ...................................................................................................................................... 1

Sleeve Beadng (Flange) .................................................................................................................................... 2

Worm Gear Assembly. ....................................................................................................................................... 1

Washer .............................................................................................................................................................. 1

Screw (M3 x 8 Pan Hd.) .................................................................................................................................... 2

Gear Case ................................................................................................................................... _..................... 1

Motor Assembly ................................................................................................................................................. 1

* Standard Hardware Item -- May Be Purchased Locally

** Available From Div, 98 -- Source 980.00

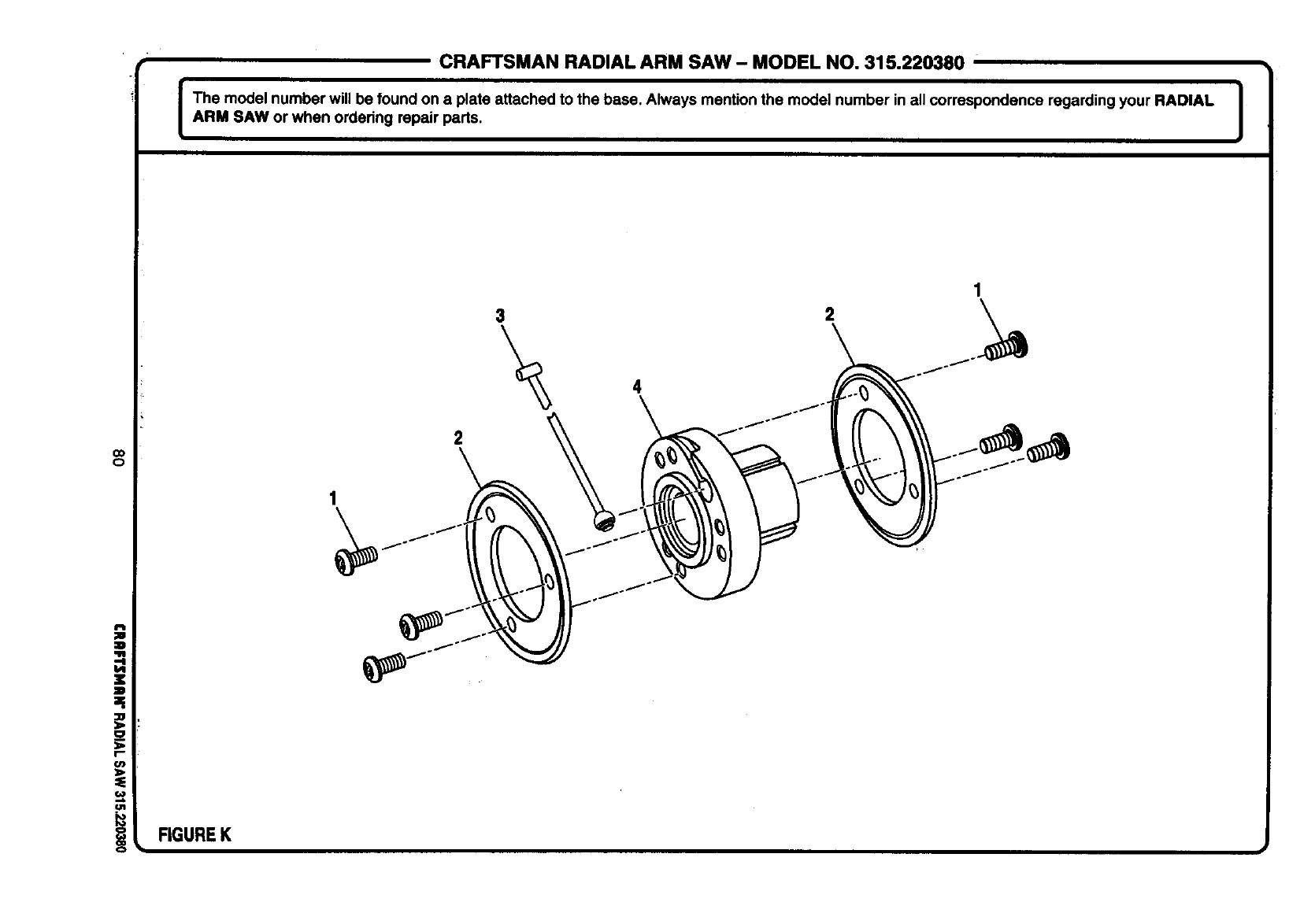

CRAFTSMAN RADIAL ARM SAW- MODEL NO. 315.220380

The model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your RADIAL |

ARM SAW or when ordering repair parts. J

FIGURE K

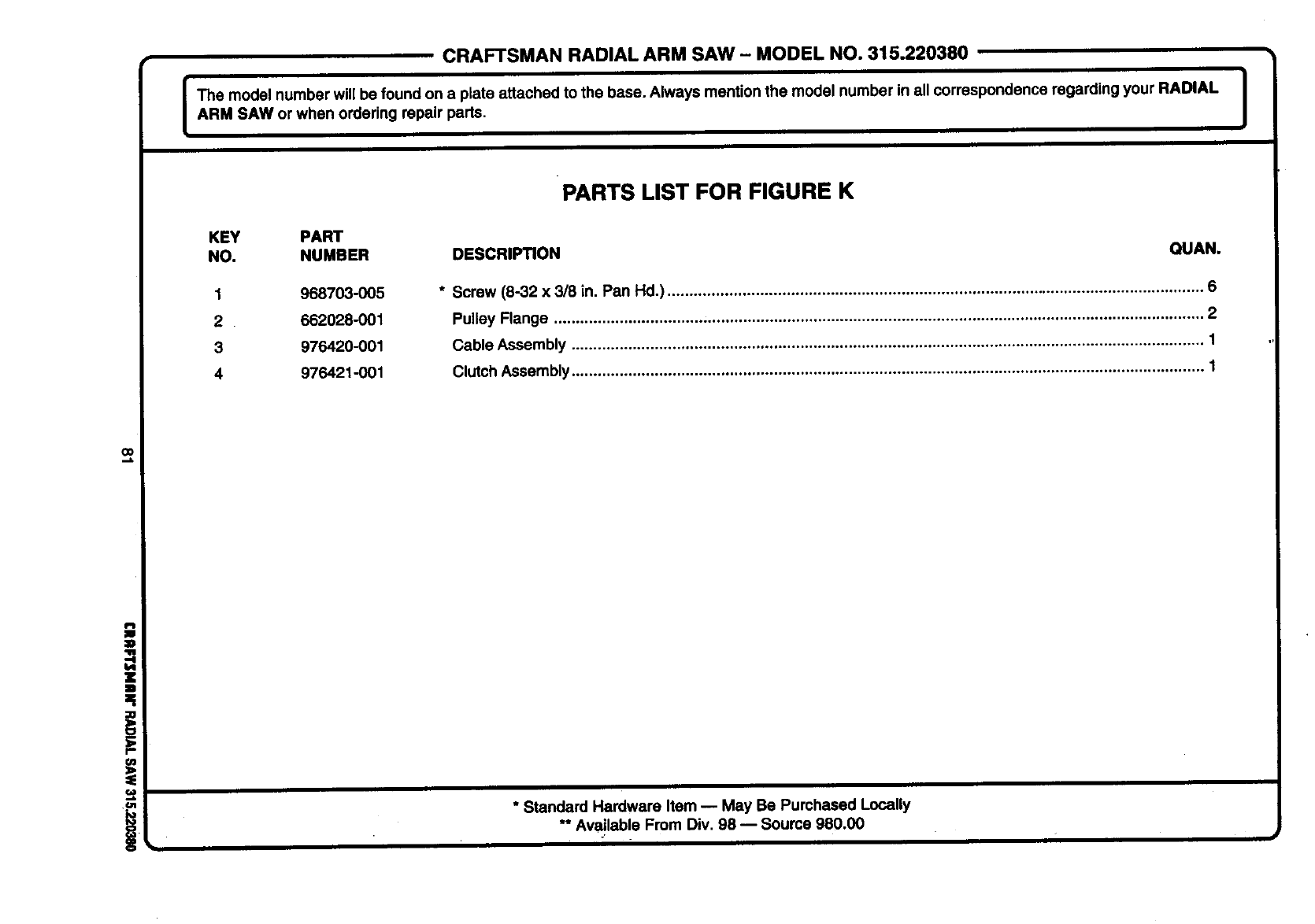

ICRAFTSMAN RADIAL ARM SAW - MODEL NO. 315.220380

The model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your RADIAL I

ARM SAW or when ordering repair parts. I

PARTS LIST FOR FIGURE K

KEY PART

NO. NUMBER DESCRIPTION QUAN.

1 968703-005

2 662028-001

3 976420-001

4 976421-001

* Screw (8-32 x 318 in. Pan Hd.) .......................................................................................................................... 6

Pulley Flange .................................. .................................................................................................................. 2

Cable Assembly ................................................................................................................................................ 1

Clutch Assembly ................................................................................................................................................ 1

r-.

* Standard Hardware Item -- May Be Purchased Locally

** Available From Div. 98 -- Source 980.00 J

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME s" (1-800-469-4663)

Pars pedir servicio de reparaci6n a domicilio - 1-800-676-5811

In Canada for all your service and parts needs cell _-

- 1-800-665-4455

Au Canada pour tout le service ou les pi_ces

For the repair or replacement parts you need:

Call 6 am - 11 pm CST, 7 days a week

PartsDirect .

1-800-366-PART (1-800-366-7278)

Para ordenar plezas con entrega a domicilio - 1-800-659-7084

For the location of a Sears Parts and Repair Center in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance Agreement

or to inquire about an existing Agreement:

Call 9 am - 5 pro, Monday - Saturday

1-800-827-6655

The Service Side of Sears

Craftsman 315 22038 Users Manual

CRAFTSMAN Saw Radial Manual 99020056 CRAFTSMAN Saw Radial Owner's Manual, CRAFTSMAN Saw Radial installation guides

31522038 bec821de-89c8-4dec-b2a8-c6197adfcfff Craftsman Saw 315.22038 User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
