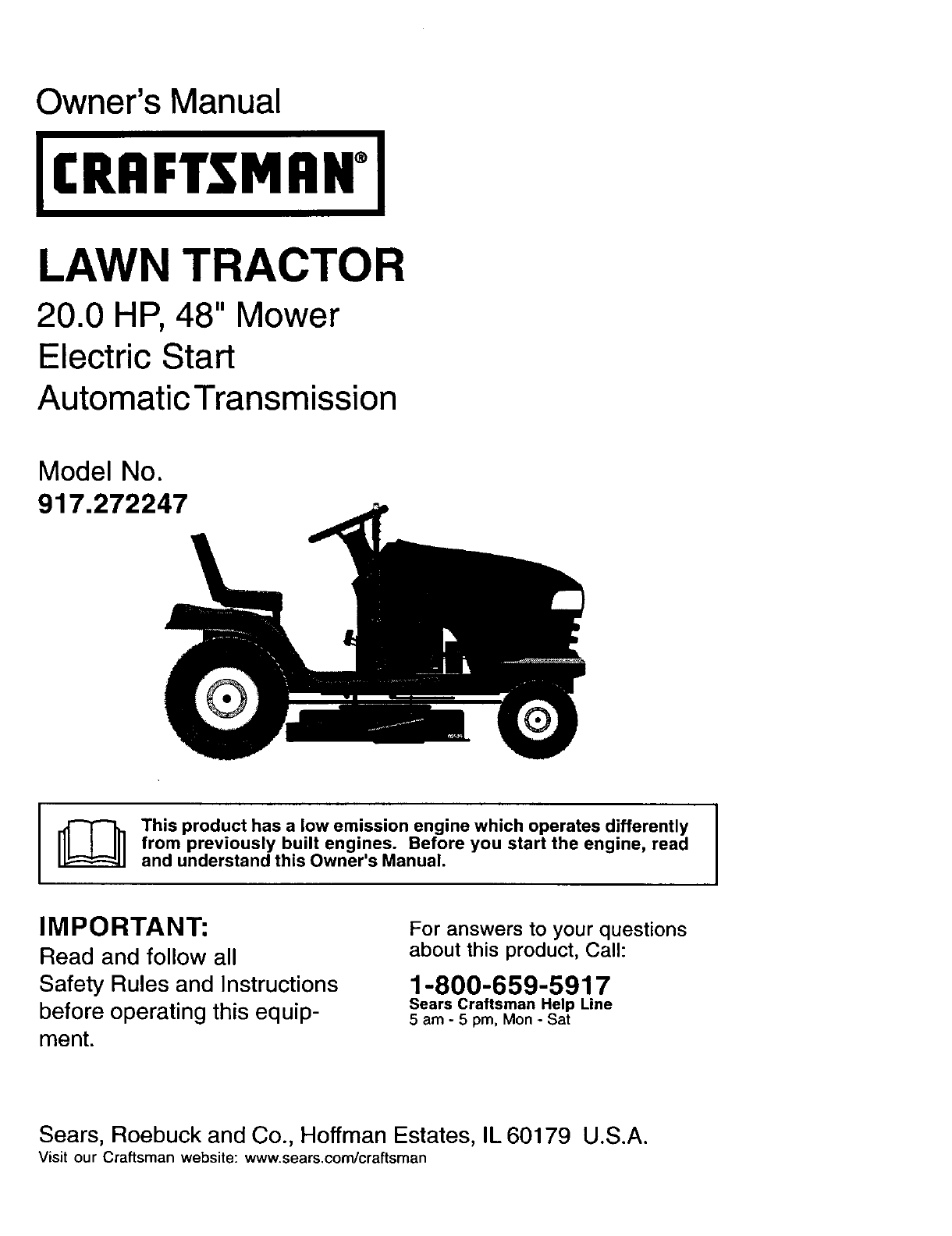

Owner's Manual

JCRRFTSMIIWI

LAWN TRACTOR

20.0 HP, 48" Mower

Electric Start

AutomaticTransmission

Model No.

917.272247

i]_ This product has alow emission engine which operates differently

from previously built engines. Before you start the engine, read

and understand this Owner's Manual.

IMPORTANT:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am -5 pm, Mon -Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

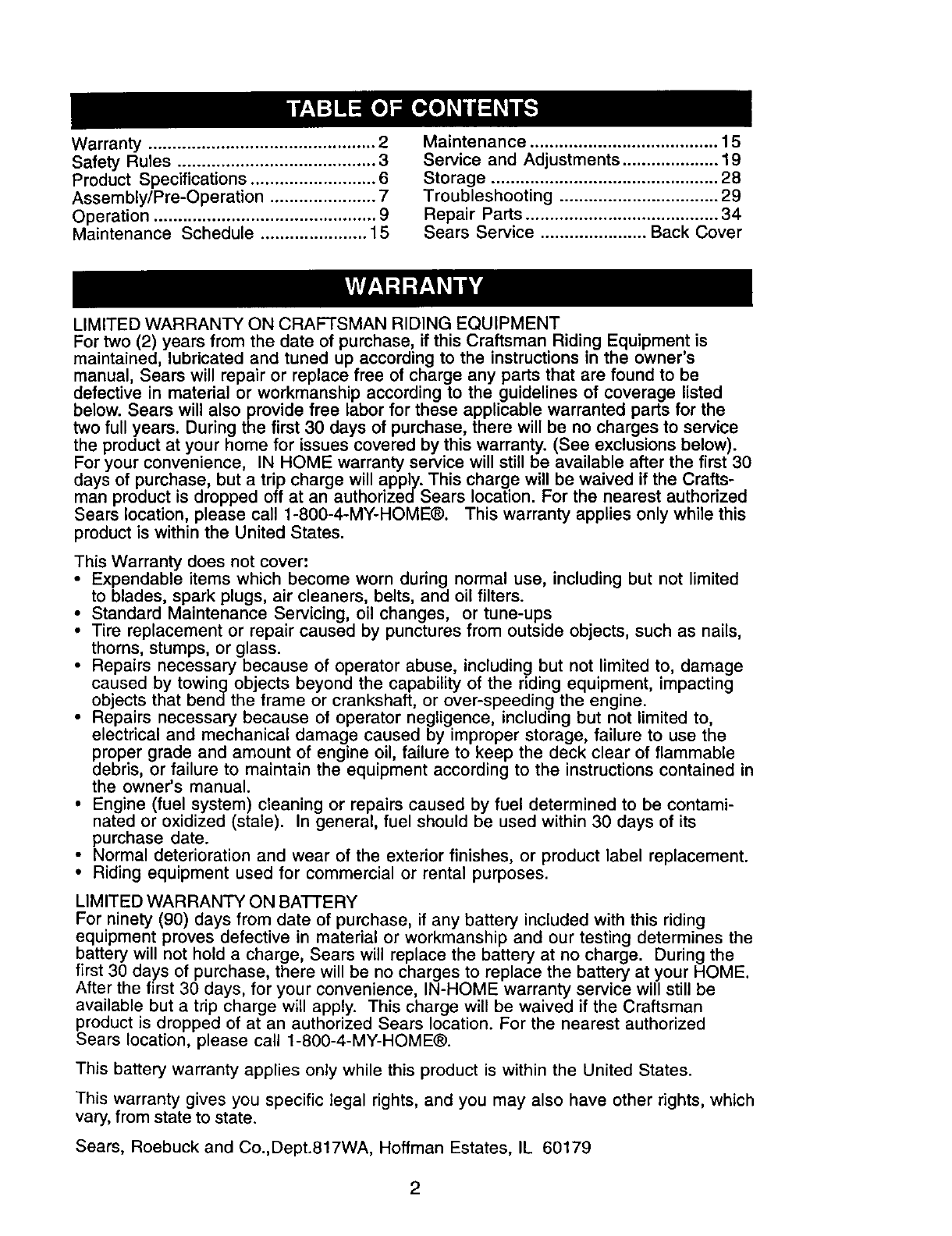

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

Assem bly/Pre-Ope ration ...................... 7

Operation .............................................. 9

Maintenance Schedule ...................... 15

Maintenance ....................................... 15

Service and Adjustments .................... 19

Storage ............................................... 28

Troubleshooting ................................. 29

Repair Parts ........................................ 34

Sears Service ...................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will also provide free labor for these applicable warranted parts for the

two full years. During the first 30 days of purchase, there will be no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will still be available after the first 30

days of purchase, but a trip charge will apply. This charge will be waived if the Crafts-

man product is dropped off at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructions contained in

the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

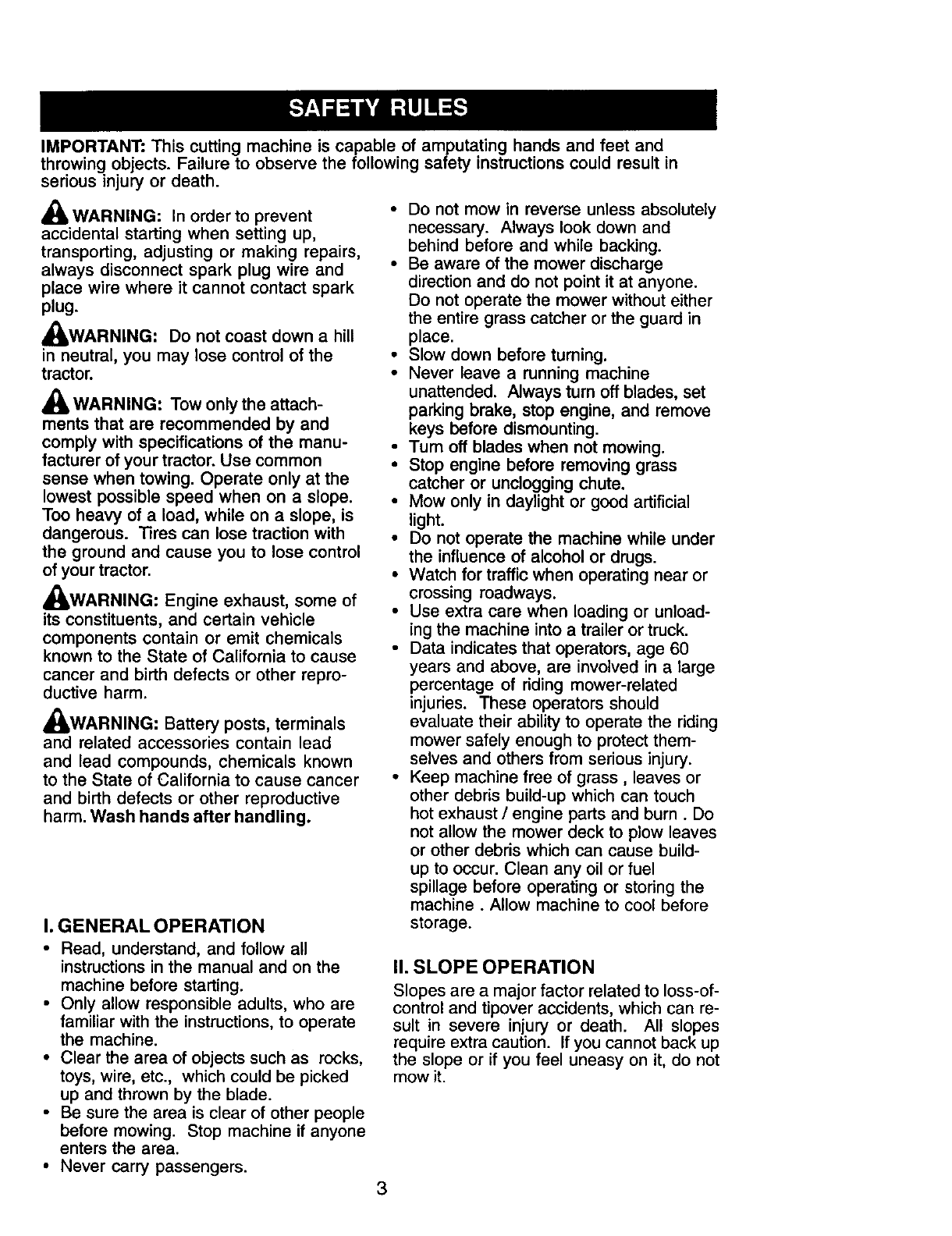

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

_II, WARNING: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_WARNING: Do not coast down a hill

in neutral, you may lose control of the

tractor.

WARNING: Tow onlythe attach-

ments that are recommended by and

comply with specifications of the manu-

facturer of your tractor. Use common

sense when towing. Operate only at the

lowest possible speed when on a slope.

Too heavy of a load, while on aslope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

_KWARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_ILWARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

•Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower withouteither

the entire grass catcher or the guard in

place.

•Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Turn off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or unload-

ing the machine into a trailer or truck.

•Data indicates that operators, age 60

years and above, are involved in alarge

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

•Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust /engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

I1.SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

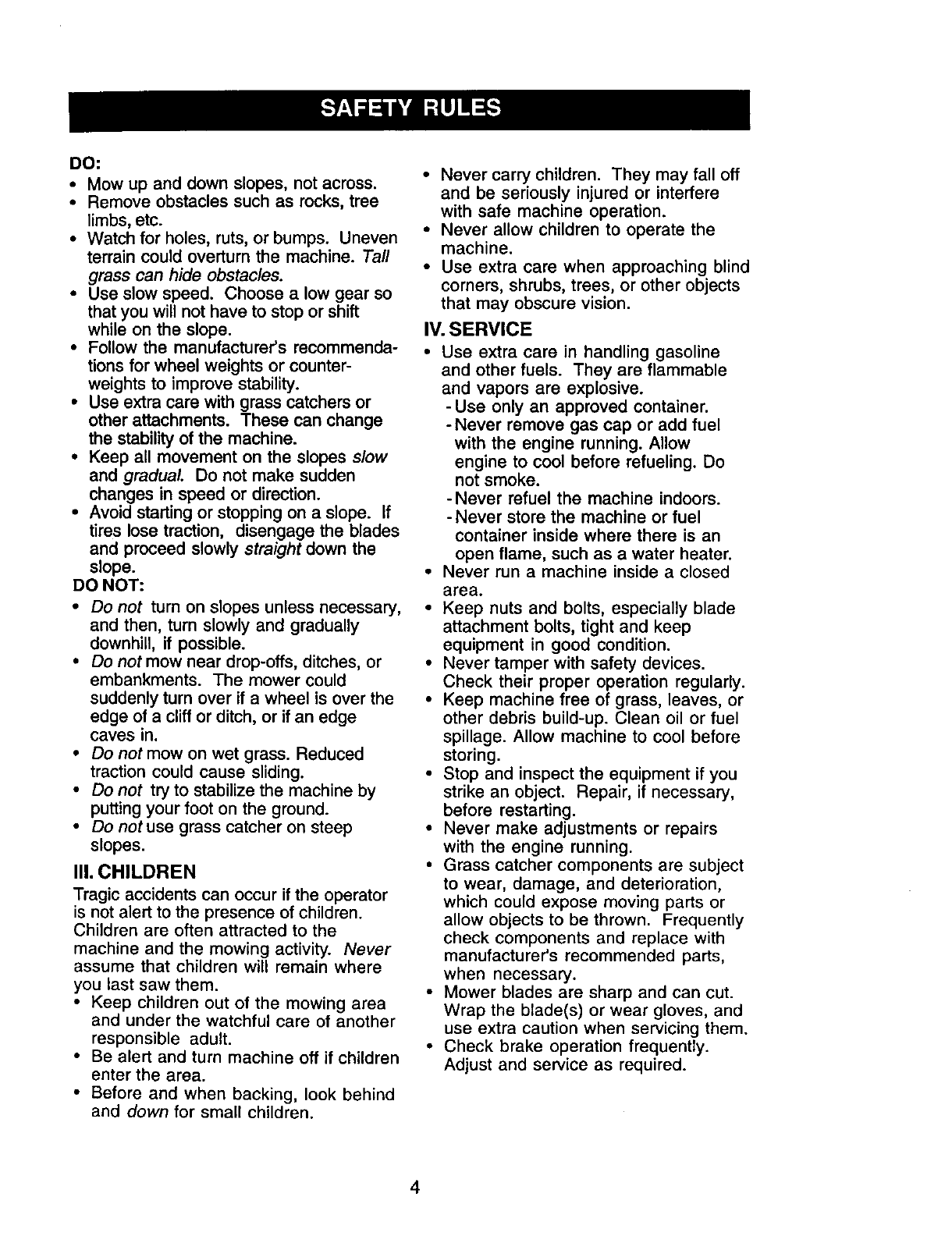

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

•Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

IlL CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

•Be sure the area is clear of other

people before mowing. Stop machine if

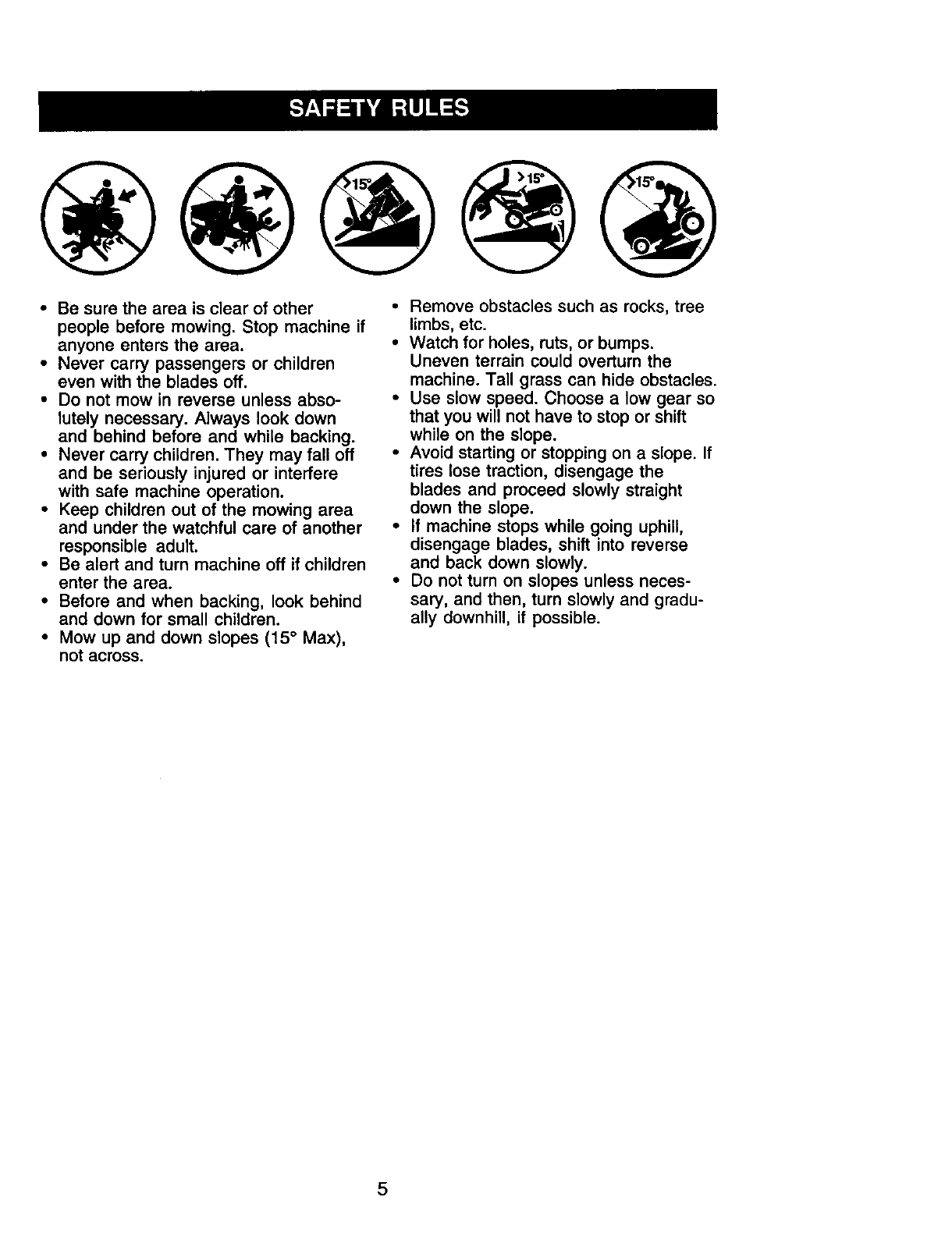

anyone enters the area.

•Never carry passengers or children

even with the blades off.

•DO not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as recks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

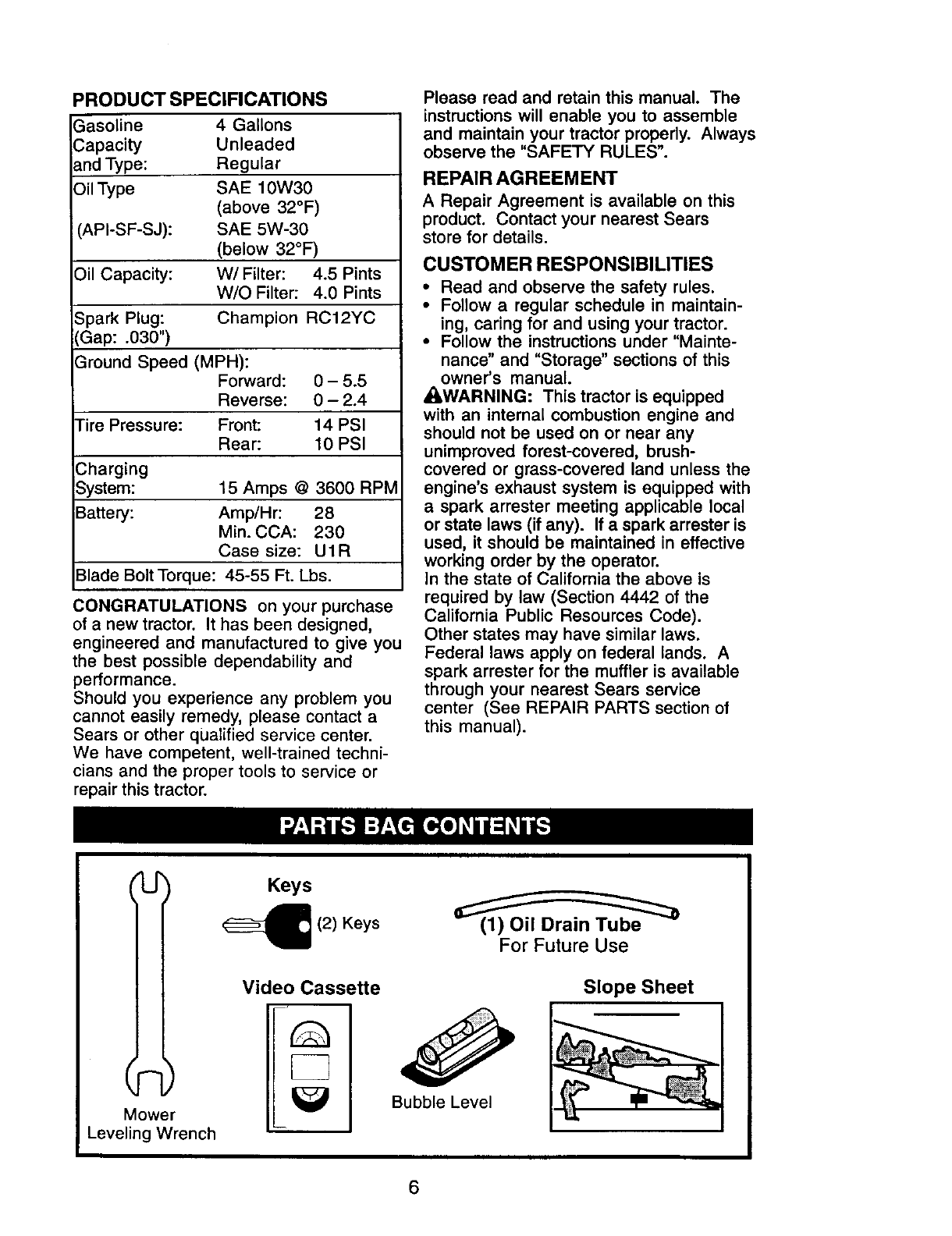

PRODUCT SPECIFICATIONS

Gasoline 4 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 10W30

(above 32°F)

API-SF-SJ): SAE 5W-30

(below 32°F)

Dil Capacity: W/Filter: 4.5 Pints

W/O Filter: 4.0 Pints

Spark Plug: Champion RC12YC

_Gap: .030")

3round Speed (MPH):

Forward: 0 - 5.5

Reverse: 0 - 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging

System: 15 Amps @ 3600 RPM

Battery: Amp/Hr: 28

Min. CCA: 230

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give you

the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow aregular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

AWARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

Mower

Leveling Wrench

Keys

(2) Keys

Video Cassette

For Future Use

Bubble Level

Slope Sheet

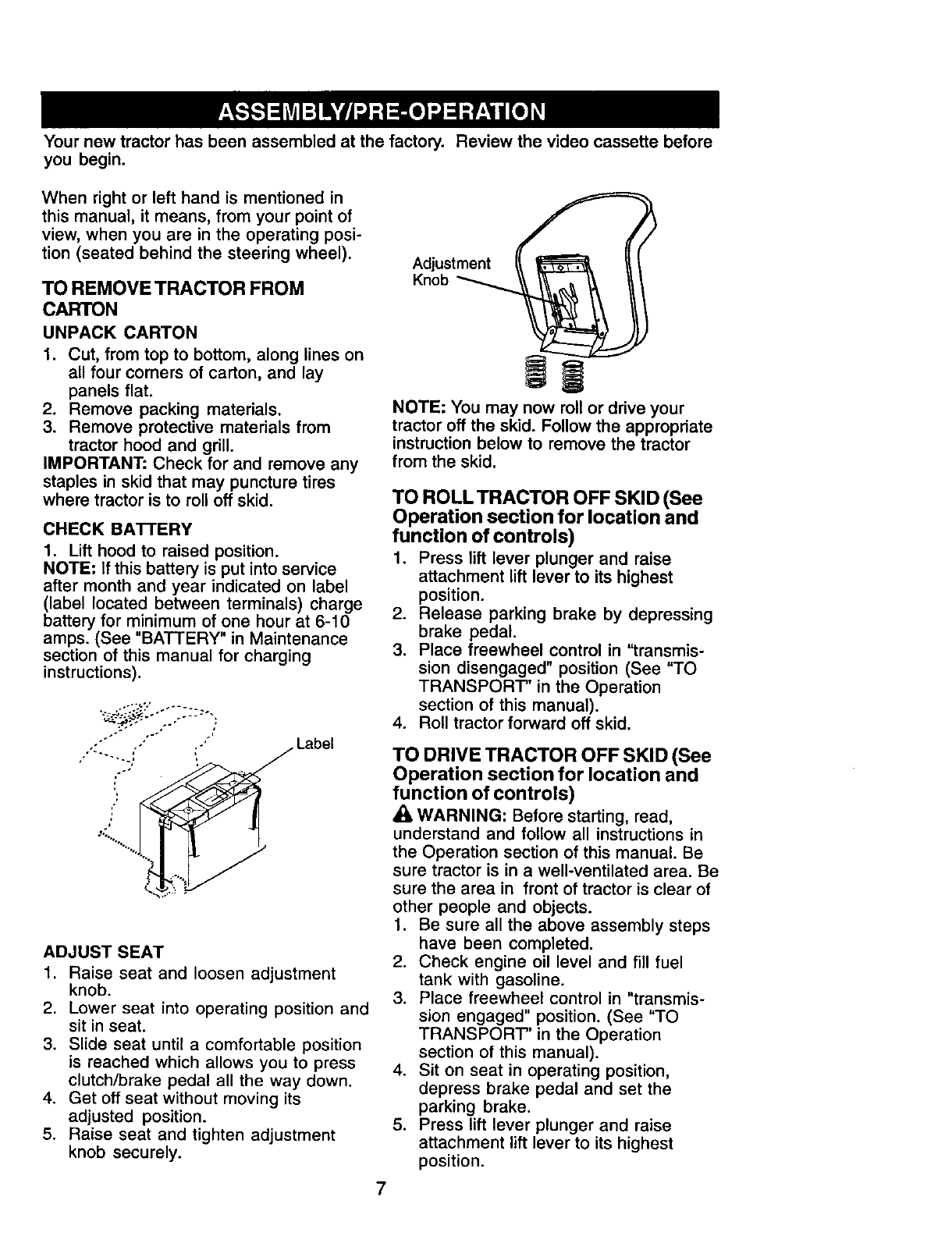

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

2. Remove packing materials.

3. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

CHECK BA'n'ERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

/"°" ,,.."'" .-'°' Label

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its

adjusted position.

5. Raise seat and tighten adjustment

knob securely.

Adiostment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift Fever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in "transmis-

sion disengaged" position (See "TO

TRANSPORT' in the Operation

section of this manual).

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

A WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged" position. (See "TO

TRANSPORT' in the Operation

section of this manual).

4. Sit on seat in operating position,

depress brake pedal and set the

parking brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly depress forward drive pedal

and drive tractor off skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See '_O

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See 'qO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

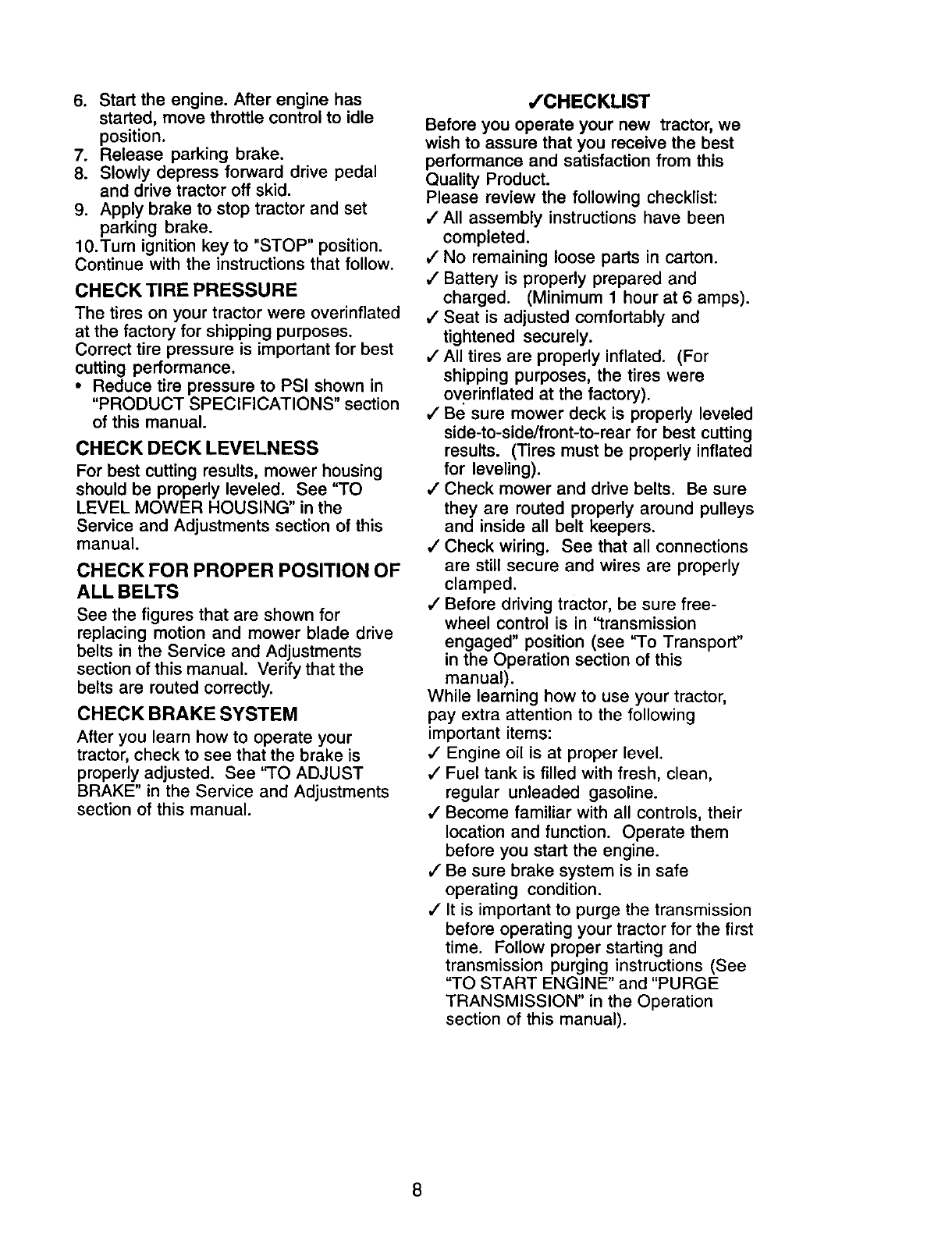

,/'CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,I All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and

tightened securely.

•/ All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

•/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure free-

wheel control is in '_transmission

engaged" position (see 'qo Transport"

in the Operation section of this

manual).

While learning how to use your tractor,

pay extra attention to the following

important items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,I Be sure brake system is in safe

operating condition.

,/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and

transmission purging instructions (See

"TO START ENGINE" and "PURGE

TRANSMISSION" in the Operation

section of this manual).

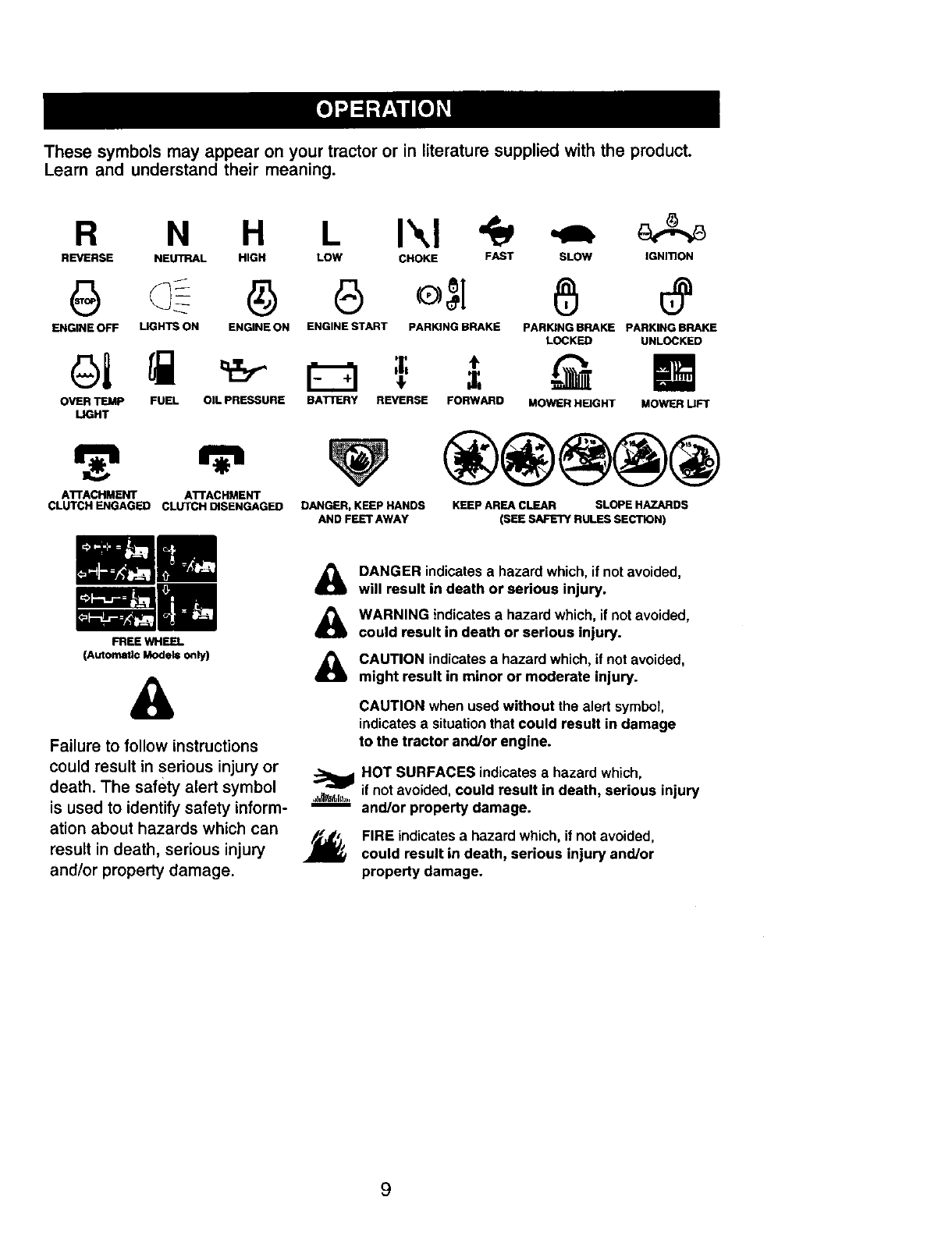

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I',,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURS BATI]ERY REVERSE FORWARD MOWER HEIGHT MOWER UFT

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGF.O CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicatesa hazard which,if Rot avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symboT,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicatesa hazard which,

.,_,_l,,,. if not avoided,could result in death, serious injury

and/or property damage.

.a_ FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

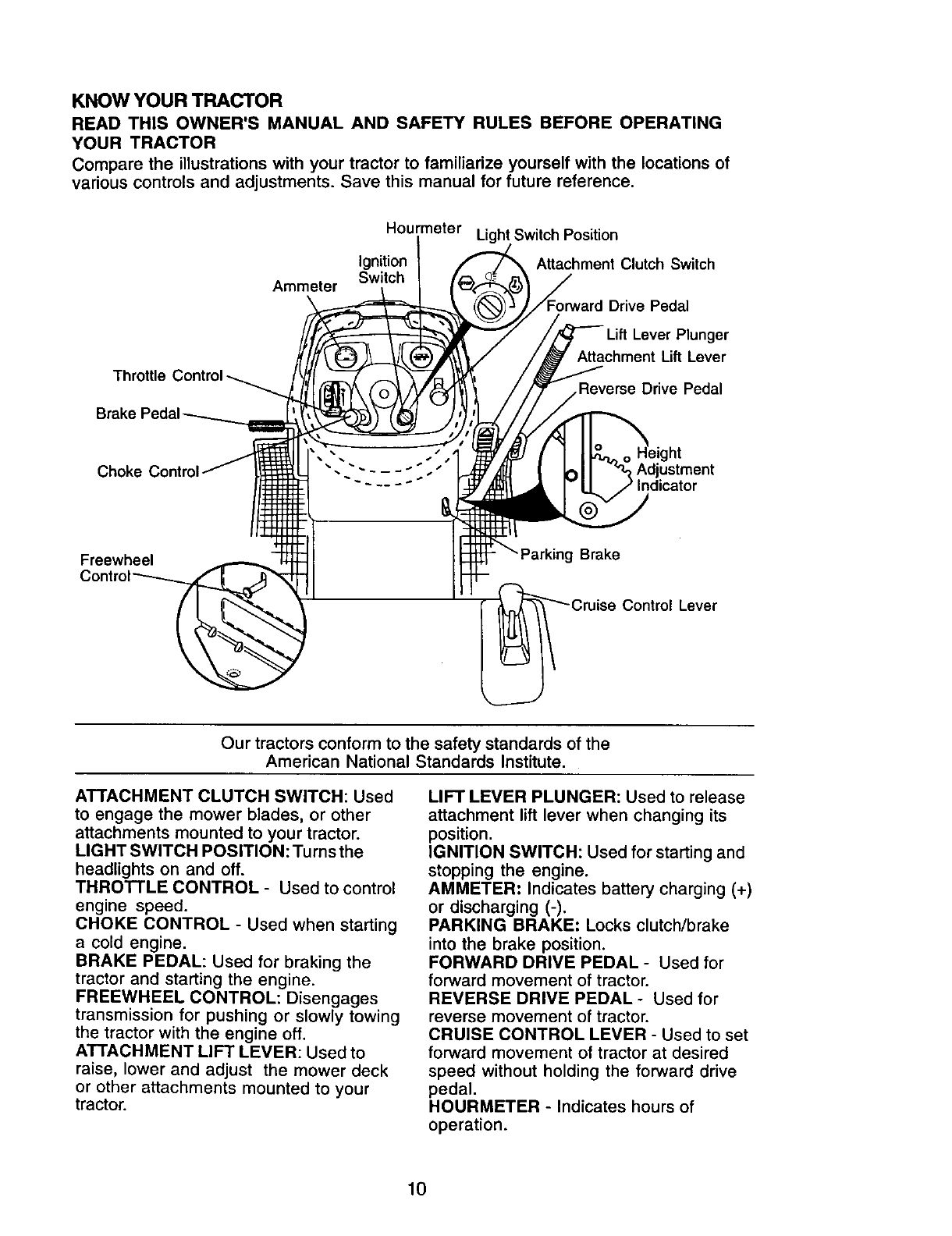

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Throttle

Ammeter

Hourmeter

Ignition

Switch

Light Switch Position

Attachment Clutch Switch

Drive Pedal

ger

Attachment Lift Lever

.Reverse Drive Pedal

Freewheel Brake

Cruise Control Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH POSITION: Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

CHOKE CONTROL - Used when starting

a cold engine.

BRAKE PEDAL: Used for braking the

tractor and starting the engine.

FREEWHEEL CONTROL: Disengages

transmission for pushing or slowly towing

the tractor with the engine off.

ATTACHMENT LIFT LEVER: Used to

raise, lower and adjust the mower deck

or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting and

stopping the engine.

AMMETER: Indicates battery charging (+)

or discharging (-).

PARKING BRAKE: Locks clutch/brake

into the brake position.

FORWARD DRIVE PEDAL - Used for

forward movement of tractor.

REVERSE DRIVE PEDAL - Used for

reverse movement of tractor.

CRUISE CONTROL LEVER - Used to set

forward movement of tractor at desired

speed without holding the forward drive

pedal.

HOURMETER - Indicates hours of

operation.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

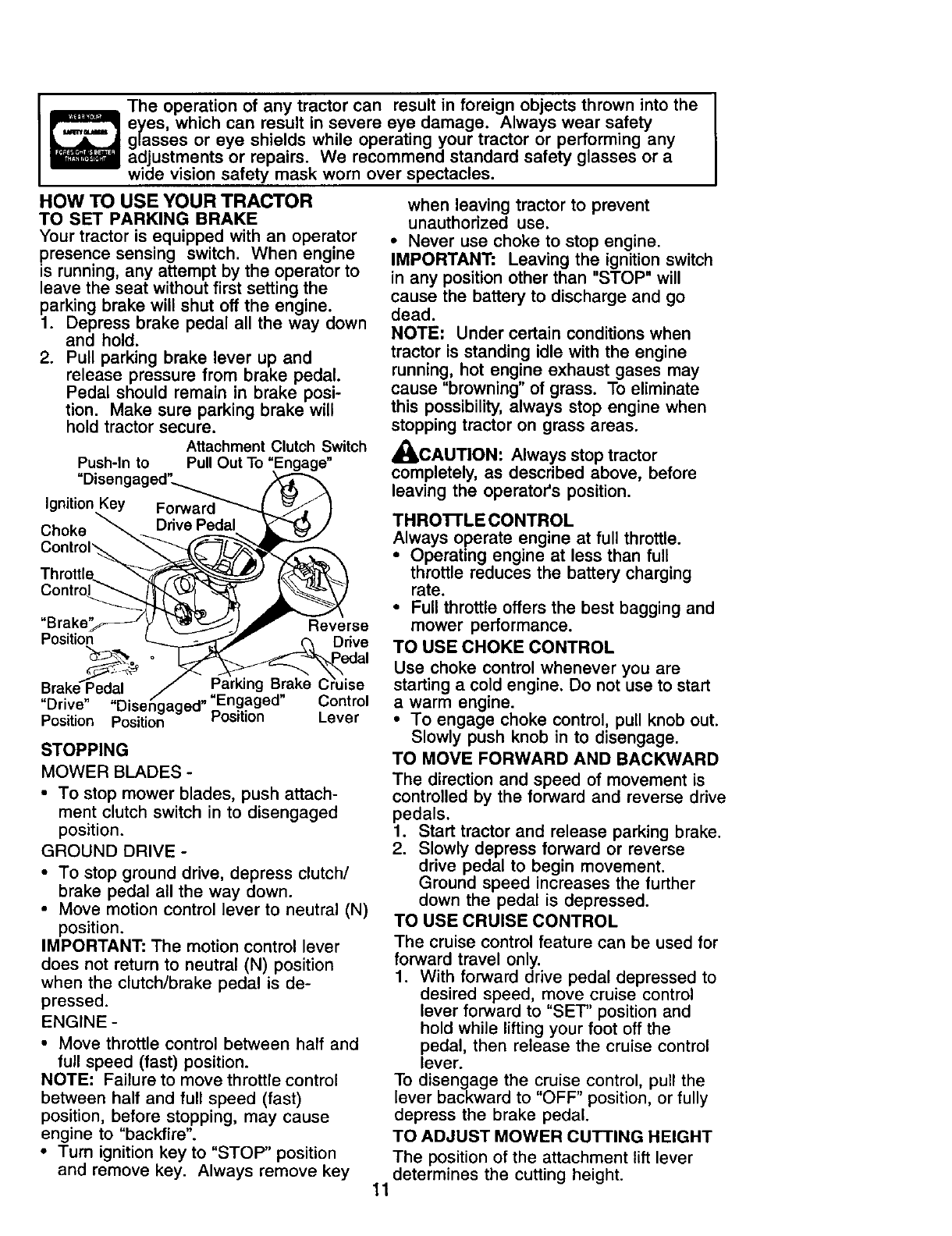

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal all the way down

and hold.

2. Pull parking brake lever up and

release pressure from brake pedal.

Pedal should remain in brake posi-

tion. Make sure parking brake will

hold tractor secure.

Attachment Clutch Switch

Push-in to Pull Out To "Engage"

"Disen(

Ignition Key

Choke

"Brake' Reverse

Position Drive

Brak Brake CL_ise

"Drive" "Disehgaged" "Engaged" Control

Position Position _osmon Lever

STOPPING

MOWER BLADES -

• To stop mower blades, push attach-

ment clutch switch in to disengaged

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

• Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast)

position, before stopping, may cause

engine to "backfire".

• Turn ignition key to "STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

•Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE" Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_,CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position.

THRO'n'LE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

•To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the forward and reverse drive

pedals.

1. Start tractor and release parking brake.

2. Slowly depress forward or reverse

drive pedal to begin movement.

Ground speed increases the further

down the pedal is depressed.

TO USE CRUISE CONTROL

The cruise control feature can be used for

forward travel only.

1. With forward drive pedal depressed to

desired speed, move cruise control

lever forward to "SET' position and

hold while lifting your foot off the

pedal, then release the cruise control

lever.

To disengage the cruise control, pull the

lever backward to "OFF" position, or fully

depress the brake pedal.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

•Grasp lift lever.

•Press plunger with thumb and move

lever to desired position•

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running.

These heights are approximate and may

vary depending upon soil conditions,

height of grass and types of grass being

mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to

desired cutting height.

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes in

bracket and gauge wheel bar and

insert clevis pin. Gauge wheels

should be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.J

Retainer

Spring

•.Clevis Pin

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control•

TO STOP MOWER BLADES -

disengage attachment clutch control•

_,CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch

Switch Pull Out To

"Engage" _ "

Push In To

"Disengage _"_----_ _

Attachment Lift

Lever High Position

.f_ Low

Position

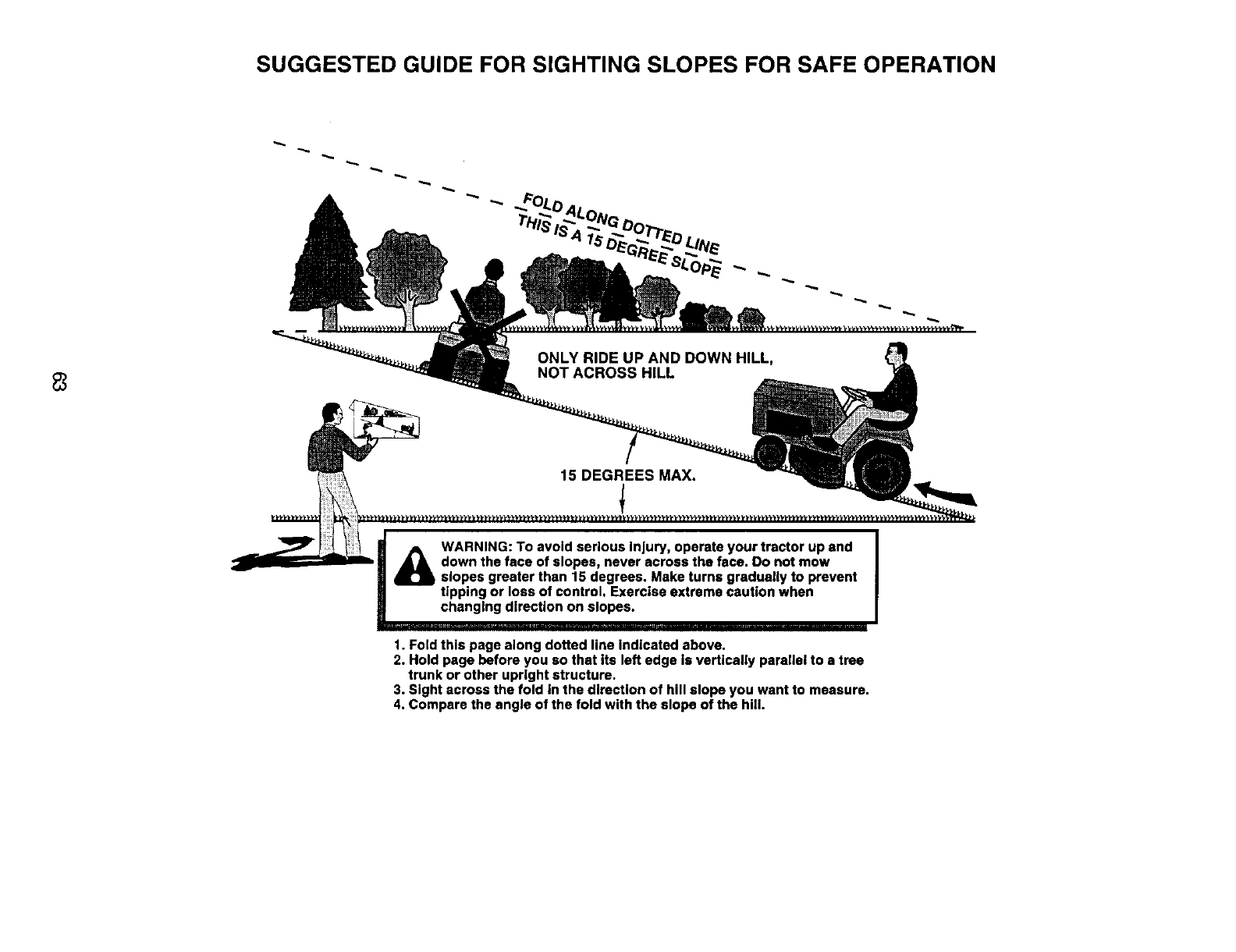

TO OPERATE ON HILLS

_WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

•Choose the slowest speed before

starting up or down hills.

•Avoid stopping or changing speed on

hills.

•If stopping is absolutely necessary,

push brake pedal quickly to brake

position and engage parking brake.

•To restart movement, slowly release

parking brake and brake pedal.

•Slowly depress appropriate drive pedal

to slowest setting.

• Make all turns slowly•

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Freewheel control is located at

the rear drawbar of tractor.

1. Raise attachment lift to highest

position with attachment lift control•

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position•

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure•

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

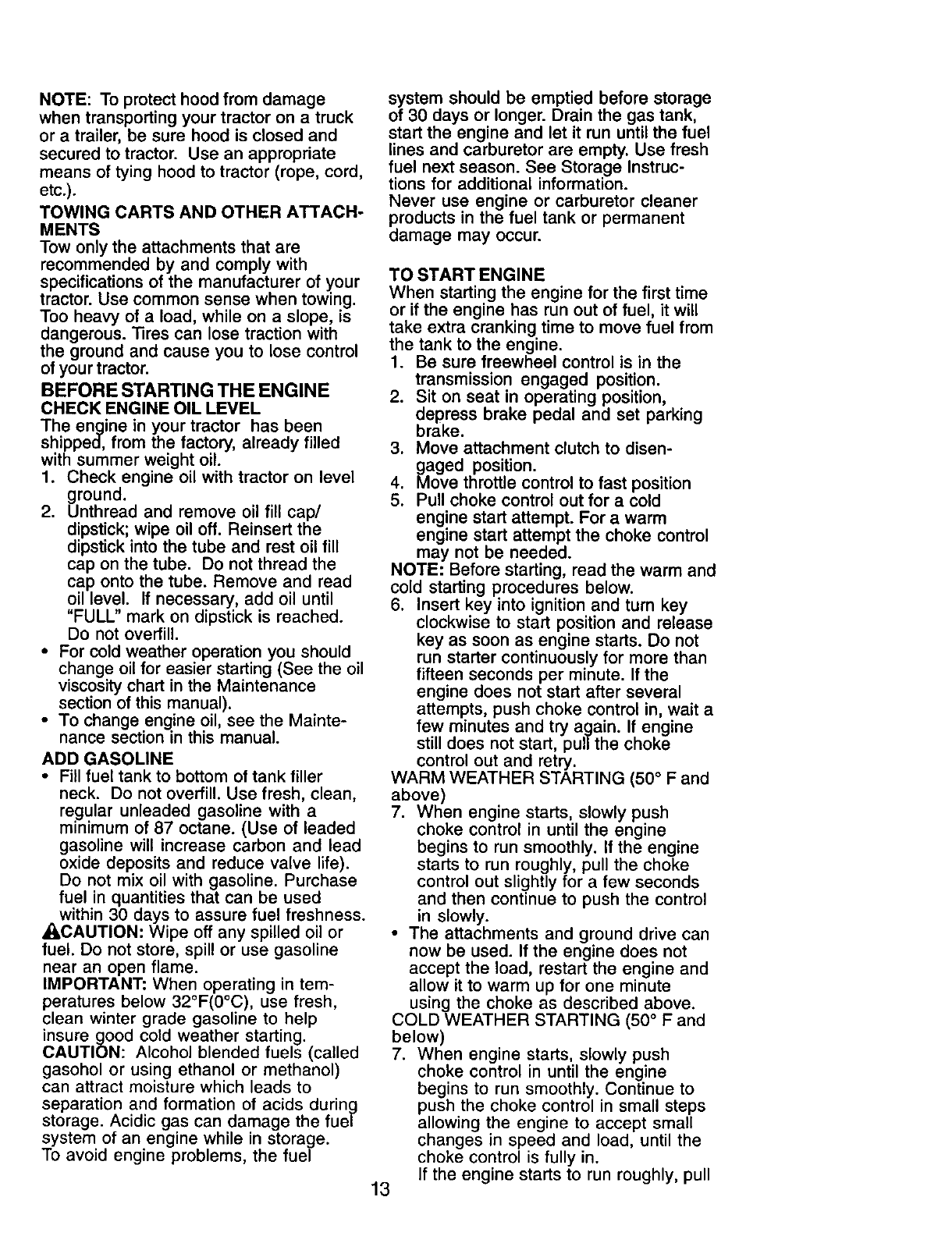

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the

cap onto the tube. Remove and read

oil level. If necessary, add oil until

"FULL" mark on dipstick is reached.

Do not overfill.

•For cold weather operation you should

change oil for easier starting (See the oil

viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

•Fill fuel tank to bottom of tank filler

neck. Do not overfill. Use fresh, clean,

regular unleaded gasoline with a

minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead

oxide deposits and reduce valve life).

Do not mix oil with gasoline. Purchase

fuel in quantities that can be used

within 30 days to assure fuel freshness.

•,CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol)

can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage.

To avoid engine problems, the fuel

system should be emptied before storage

of 30 days or longer. Drain the gas tank,

start the engine and let it run until the fuel

lines and carburetor are empty. Use fresh

fuel next season. See Storage Instruc-

tions for additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to disen-

gaged position.

4. Move throttle control to fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do not

run starter continuously for more than

fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait a

few minutes and try again. If engine

still does not start, pull the choke

control out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLDWEATHER STARTING (50 F and

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in.

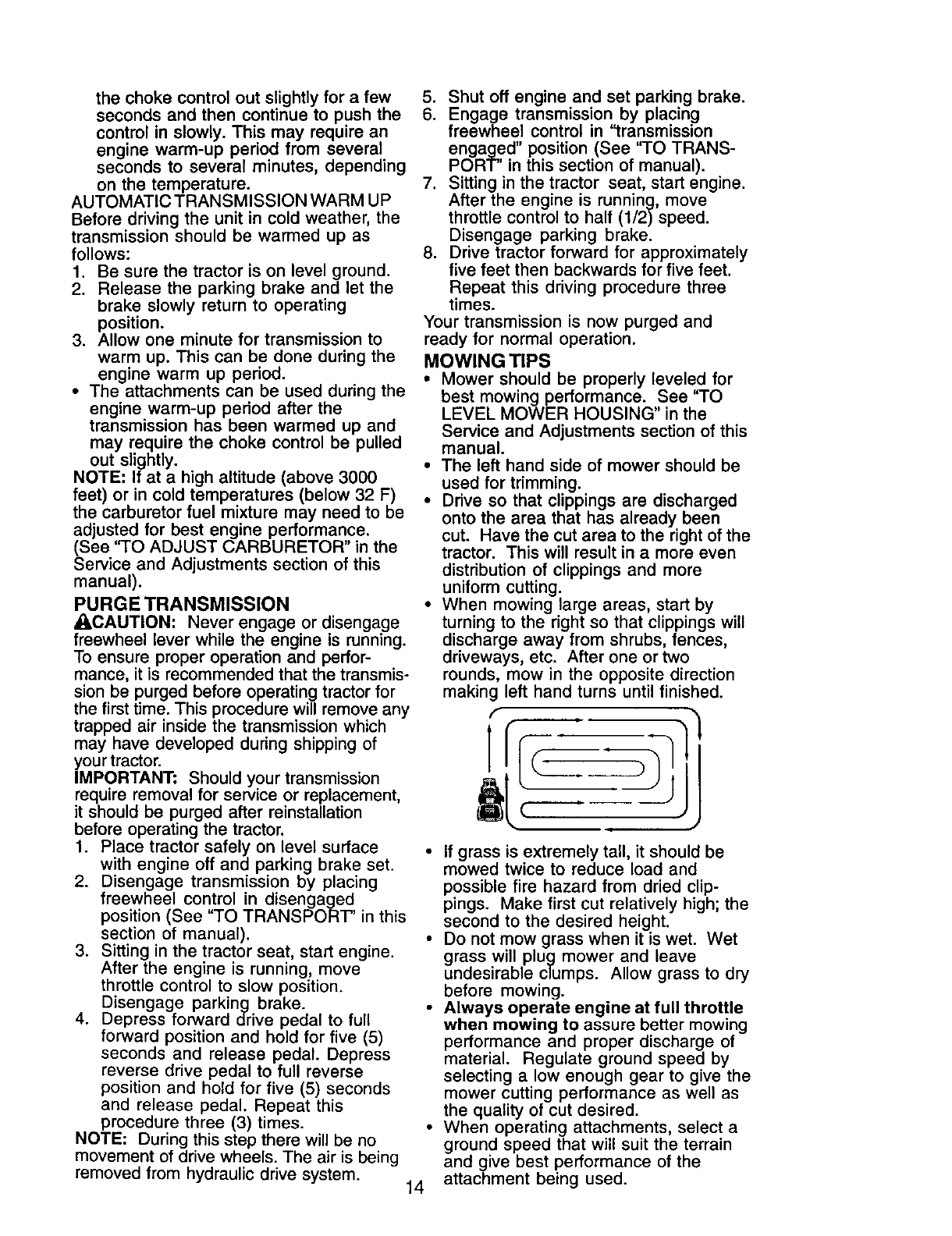

If the engine starts to run roughly, pull

the choke control out slightly for a few

seconds and then continue to push the

control in slowly. This may require an

engine warm-up period from several

seconds to several minutes, depending

on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather, the

transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Release the parking brake and let the

brake slowly return to operating

position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

• The attachments can be used during the

engine warm-up period after the

transmission has been warmed up and

may require the choke control be pulled

out slightly.

NOTE" If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to be

adjusted for best engine performance.

(See 'q'O ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

PURGE TRANSMISSION

_il,CAUTION" Never engage or disengage

freewheel lever while the engine is running.

To ensure proper operation and perfor-

mance, it is recommended that the transmis-

sion be purged before operating tractor for

the first time. This procedure will remove any

trapped air inside the transmission which

may have developed during shipping of

your tractor.

IMPORTANT: Should your transmission

require removal for service or replacement,

it should be purged after reinstallation

before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in disengaged

position (See "TO TRANSPORT" in this

section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position.

Disengage parking brake.

4. Depress forward drive pedal to full

forward position and hold for five (5)

seconds and release pedal. Depress

reverse drive pedal to full reverse

position and hold for five (5) seconds

and release pedal. Repeat this

procedure three (3) times.

NOTE" During this step there will be no

movement of drive wheels. The air is being

removed from hydraulic drive system. 14

5. Shut off engine and set parking brake.

6. Engage transmission by placing

freewheel control in "transmission

engaged" position (See "TO TRANS-

PORT' in this section of manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2)speed.

Disengage parking brake.

8. Drive tractor forward for approximately

five feet then backwards for five feet.

Repeat this driving procedure three

times.

Your transmission is now purged and

ready for normal operation.

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See 'q'O

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of the

tractor. This will result in a more even

distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

•Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

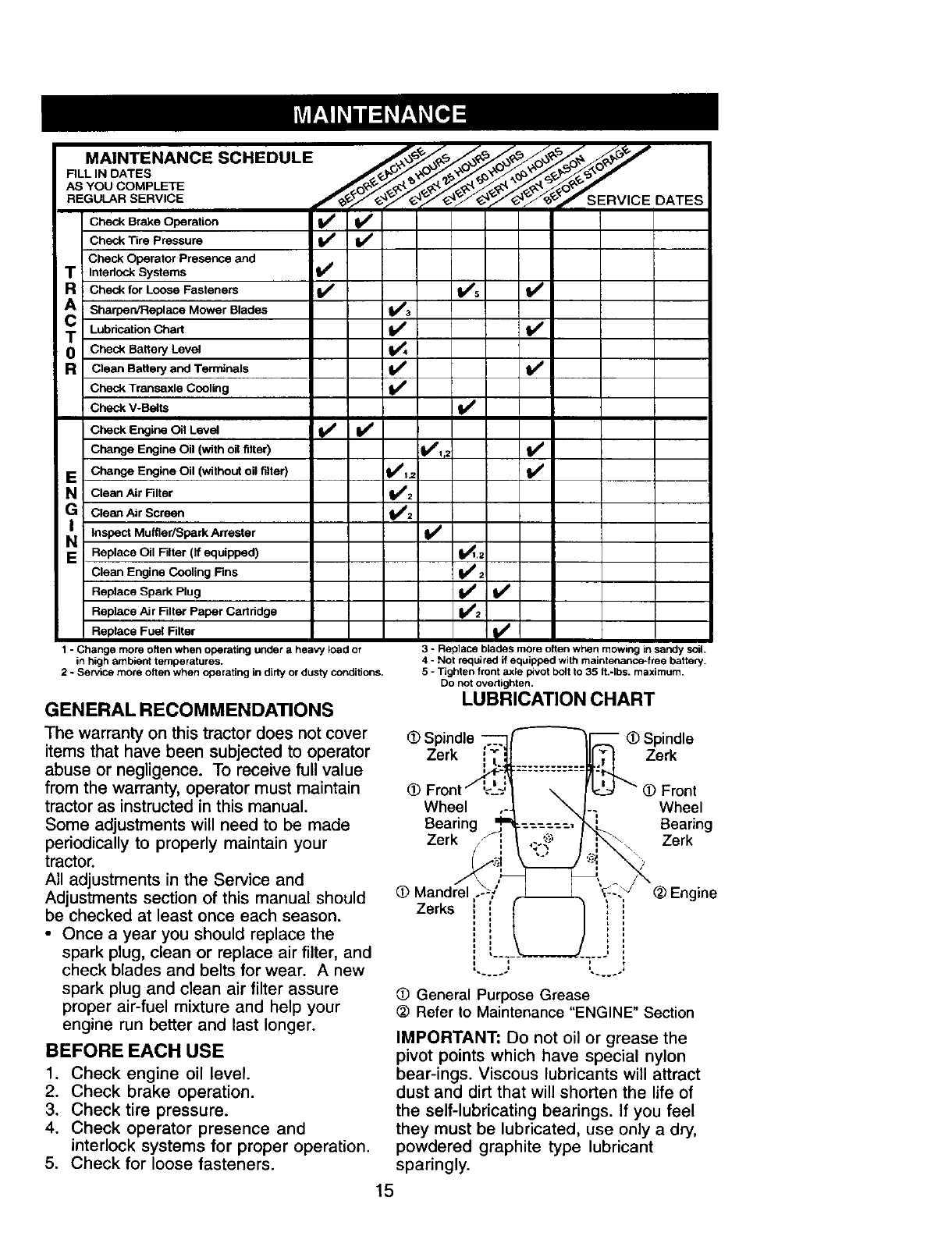

MA,NTENANC SCR DU' ""

Check Brake Operation _ _V'

Check Tire Pressure

Check Operator Presence and

T Interlock Systems _VW

Check for Loose Fasteners II_s V#

A Sharpen/Replace Mower Blades i3

Lubrication Chart

T Check Battery Level

gClean Battery and Terminals I_ /

Check Transaxle Cooling (1_

CheCk V-Belts

CheckEr_r_ O, L_ l/ V'

Change Erlgine Oil (with oil filter) VWl,= V w

NE Change Engine Oil (withOutOillifter)CleanAir Filter _i _

G Clean Air Screen

Inspect Muffler/Spark An.ester

EN Replace Oil Filter (If equipped) _.=

Clean Engine Cooling Fins _ 2

Replace Spark Plug I1_ (1_

Replace Air Filter Paper Cartridge

Replace Fuel Filter I##

1 - Change more often when operating under a heavy load or 3 -Replace blades more often when mowing in sandy soil.

in high ambient temperatures. 4 - Not required if equipped with maintenance-free battery.

2 - Service more often when operating in dirty or dusty conditions. 5 - Tighten front axle pivot bolt to 35 ft.-_bs, maximum.

Do not overtighten.

LUBRICATION CHART

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover _) Spindle

items that have been subjected to operator Zerk

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual. Wheel

Some adjustments will need to be made Bearing

periodically to properly maintain your Zerk

tractor.

All adjustments in the Service and

Adjustments section of this manual should _Mandrel

be checked at least once each season. Zerks

•Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. Anew

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

(_ Spindle

Zerk

(D Front

._ Wheel

Bearing

Zerk

•General Purpose Grease

(_ Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bear-ings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

Engine

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and

interlock systems are working properly. If

your tractor does not function as de-

scribed below, repair the problem

immediately.

• The engine should not start unless the

brake pedal is fully depressed and

attachment clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

•The attachment clutch should never

operate unless the operator is in the

seat.

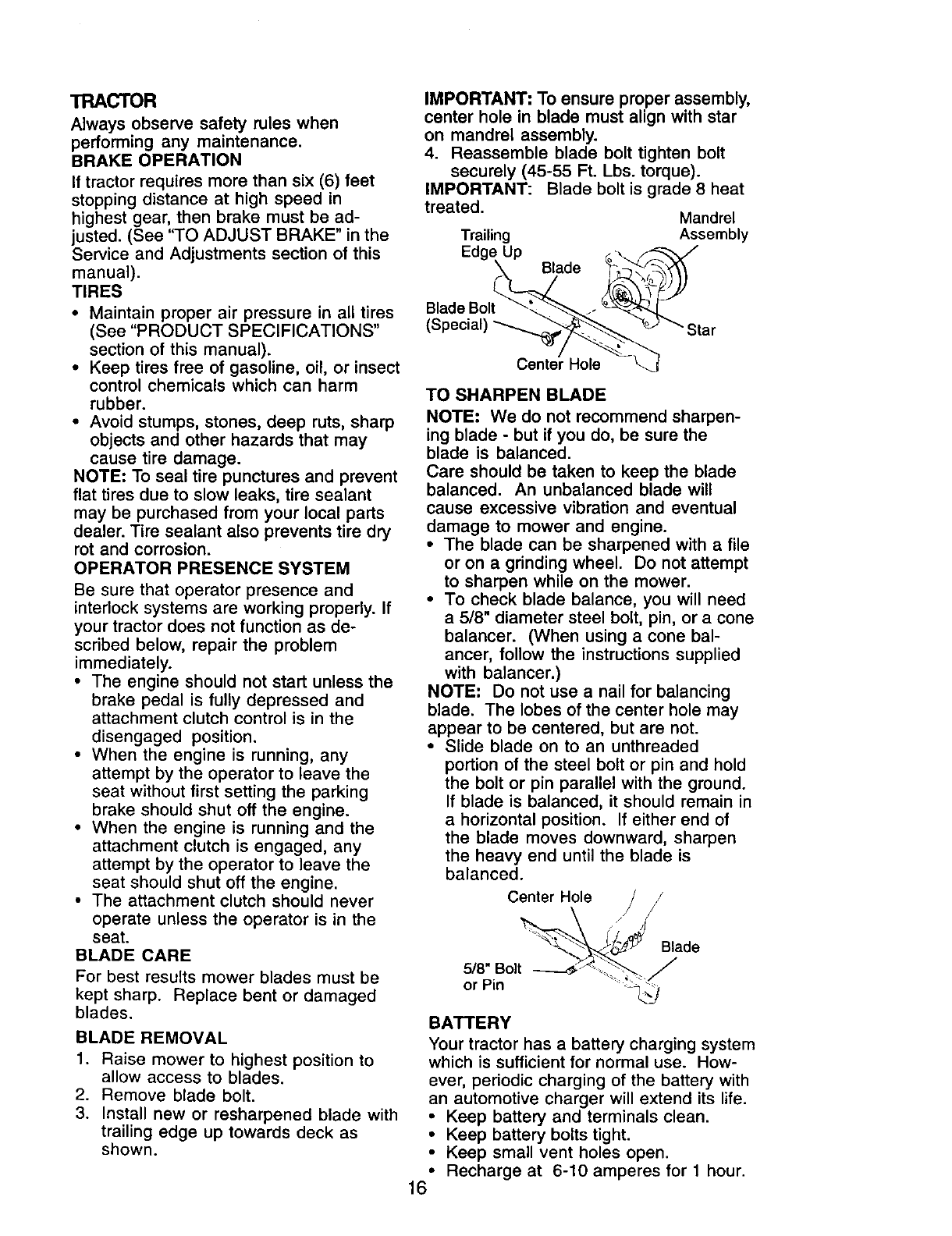

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove blade bolt.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt tighten bolt

securely (45-55 Ft. Lbs. torque).

IMPORTANT: Blade bolt is grade 8 heat

treated. Mandrel

Trailing Assembly

Edge

B,odeBo,t

Center Hole L.j

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade -but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

•The blade can be sharpened with afile

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

•Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

ahorizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

Center Hole

5/8" Bolt

or Pin

Blade

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

•Keep battery and terminals clean.

•Keep battery bolts tight.

•Keep small vent holes open.

•Recharge at 6-10 amperes for 1 hour.

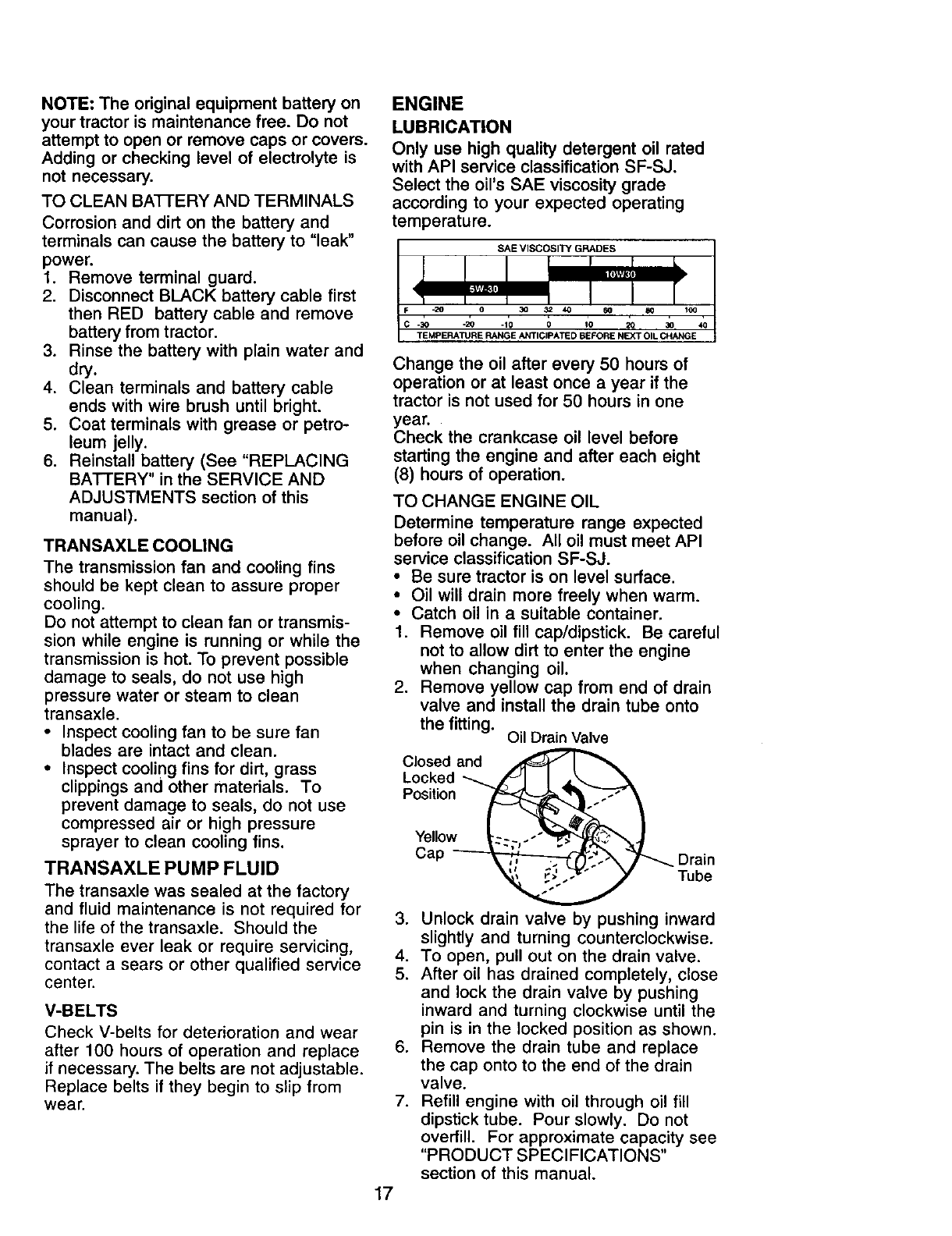

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BA'I-I'ERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high

pressure water or steam to clean

transaxle.

•Inspect cooling fan to be sure fan

blades are intact and clean.

•Inspect cooling fins for dirt, grass

clippings and other materials. To

prevent damage to seals, do not use

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact a sears or other qualified service

center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

._ .20 .10 010 20

TEMPERATURE RANGE _rrlCIPATED BEFORE NEXT OIL CHANGE

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

•Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting. Oil Drain Valve

Closed and _

Locked ___1 I_'_

Position __° _

Yellow _._ _, , -_r-,._-,_ ._

Cap _ Drain

Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto to the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

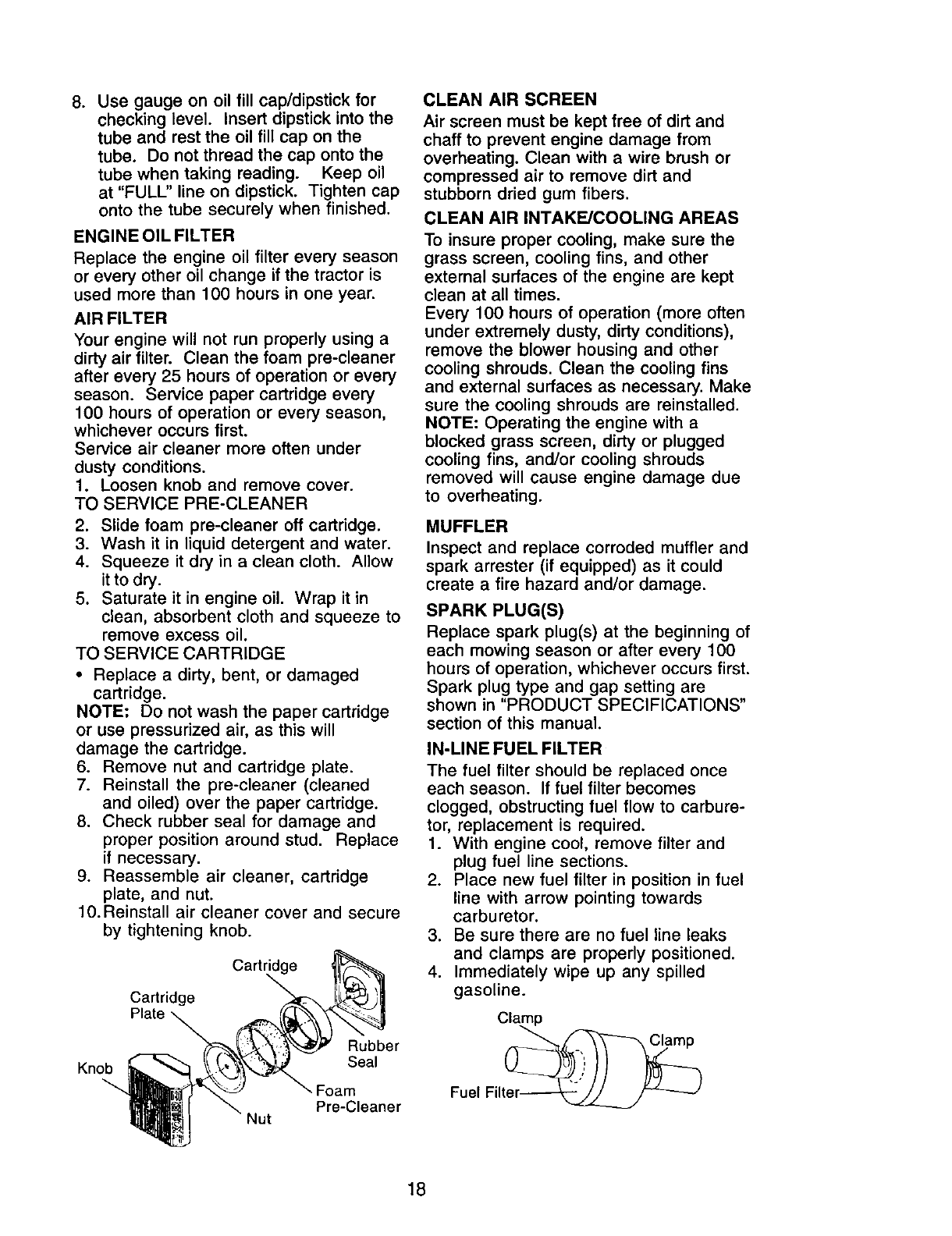

8. Usegaugeon oil fill cap/dipstickfor

checkinglevel. Insertdipstickintothe

tubeand restthe oil fill capon the

tube. Donot threadthe capontothe

tubewhen taking reading. Keepoil

at "FULL"lineon dipstick. Tightencap

ontothe tube securelywhen finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth. Allow

it to dry.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged

cartridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will

damage the cartridge.

6. Remove nut and cartridge plate.

7. Reinstall the pre-cleaner (cleaned

and oiled) over the paper cartridge.

8. Check rubber seal for damage and

proper position around stud. Replace

if necessary.

9. Reassemble air cleaner, cartridge

plate, and nut.

10.Reinstall air cleaner cover and secure

by tightening knob.

Cartridge

Cartridge "_. _'ll_.,_)-_j

P,a,e

_i_'_ri!_ 'F Rubber

,no :ea

_Nut Pre-Cleaner

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with awire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carbu retor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

Clamp

Fuel Filter_

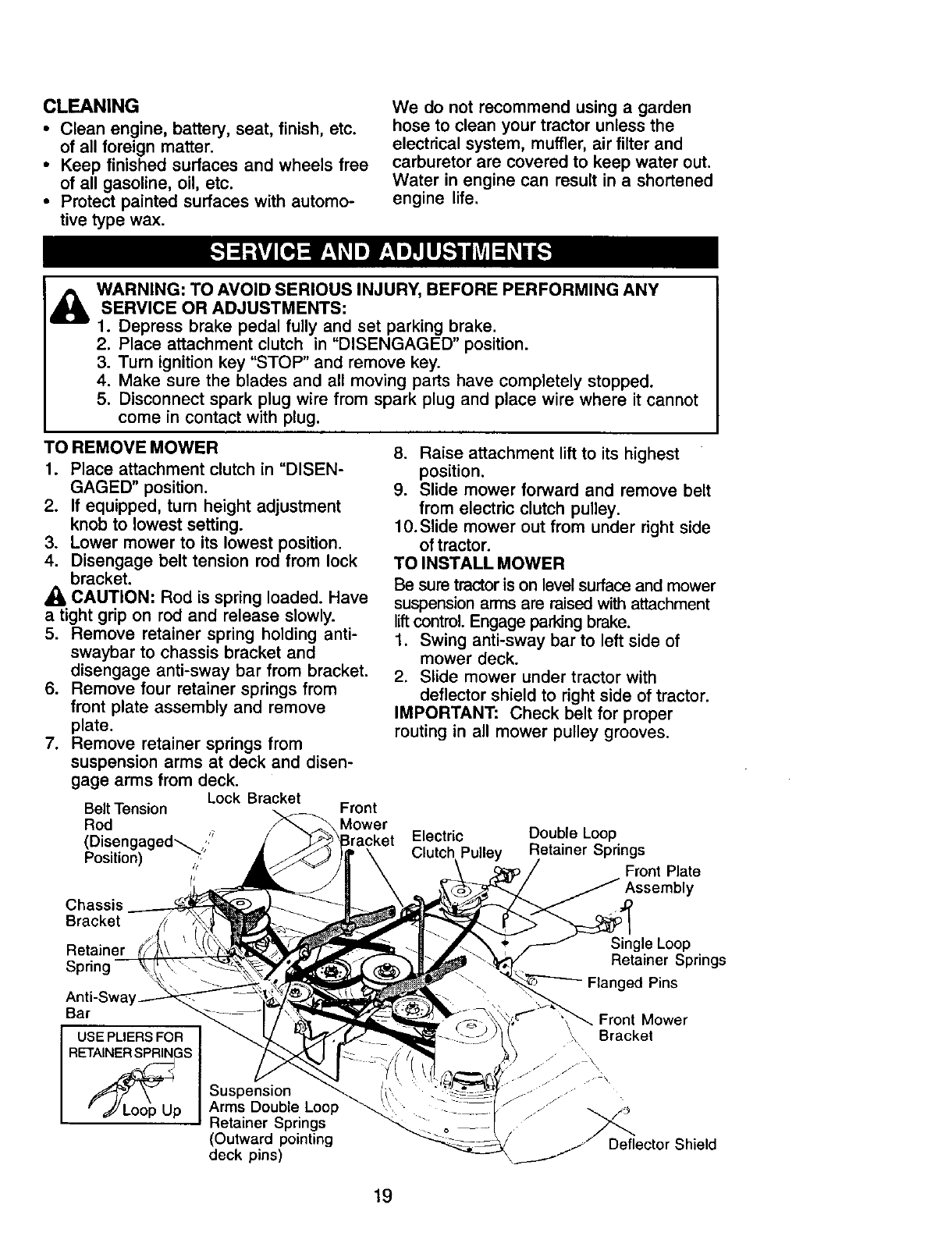

CLEANING

•Clean engine, battery, seat, finish, etc.

of all foreign matter.

•Keep finished surfaces and wheels free

of all gasoline, oil, etc.

•Protect painted surfaces with automo-

tive type wax.

We do not recommend using agarden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2. Place attachment clutch in "DISENGAGED" position.

3. Turn ignition key "STOP" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. If equipped, turn height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Disengage belt tension rod from lock

bracket.

CAUTION: Rod is spring loaded. Have

a tight grip on rod and release slowly.

5. Remove retainer spring holding anti-

swaybar to chassis bracket and

disengage anti-sway bar from bracket.

6. Remove four retainer springs from

front plate assembly and remove

plate.

7. Remove retainer springs from

suspension arms at deck and disen-

gage arms from deck.

Lock Bracket

Belt Tension Front

Rod Mower

(Disengaged_,;. '_

Position)

Chassis

Bracket

Spring

Anti-

Bar

USE PLIERS FOR

Suspension

Arms Double Loop

Retainer Springs

(Outward pointing

deck pins)

8. Raise attachment lift to its highest

position.

9. Slide mower forward and remove belt

from electric clutch pulley.

10.Slide mower out from under right side

of tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and mower

suspension arms are raised with attachment

lift control. Engage parking brake.

1. Swing anti-sway bar to left side of

mower deck.

2. Slide mower under tractor with

deflector shield to right side of tractor.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

Electric Double Loop

Clutch Pulley Retainer Springs

Front Plate

Assembly

Single Loop

Retainer Springs

,ged Pins

Front Mower

_\ Bracket

Deflector Shield

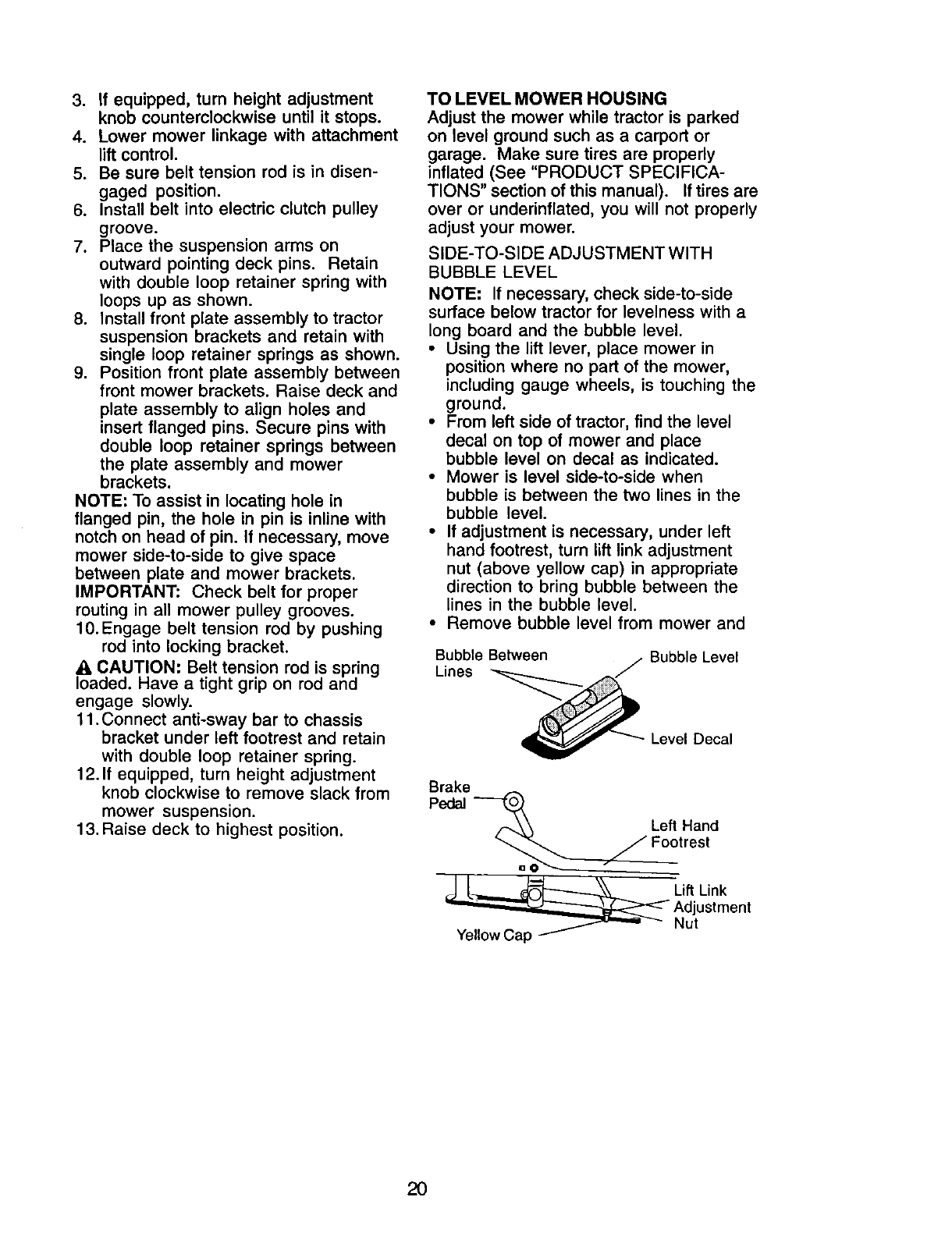

3. If equipped, tum height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Be sure belt tension rod is in disen-

gaged position.

6. Install belt into electric clutch pulley

groove.

7. Place the suspension arms on

outward pointing deck pins. Retain

with double loop retainer spring with

loops up as shown.

8. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

9. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate assembly and mower

brackets.

NOTE: To assist in locating hole in

flanged pin, the hole in pin is inline with

notch on head of pin. if necessary, move

mower side-to-side to give space

between plate and mower brackets.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

10.Engage belt tension rod by pushing

rod into locking bracket.

ACAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and

engage slowly.

11.Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

12.1f equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

13. Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground such as a carport or

garage. Make sure tires are properly

inflated (See "PRODUCT SPECIFICA-

TIONS" section of this manual). If tires are

over or underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

• Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

• From left side of tractor, find the level

decal on top of mower and place

bubble level on decal as indicated.

• Mower is level side-to-side when

bubble is between the two lines in the

bubble level.

• If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

• Remove bubble level from mower and

Bubble Between Bubble Level

Lines

Level Decal

Brake

Pedal

Left Hand

Footrest

J ,i,Link

_ Adjustment

Yellow Cao _ _ Nut

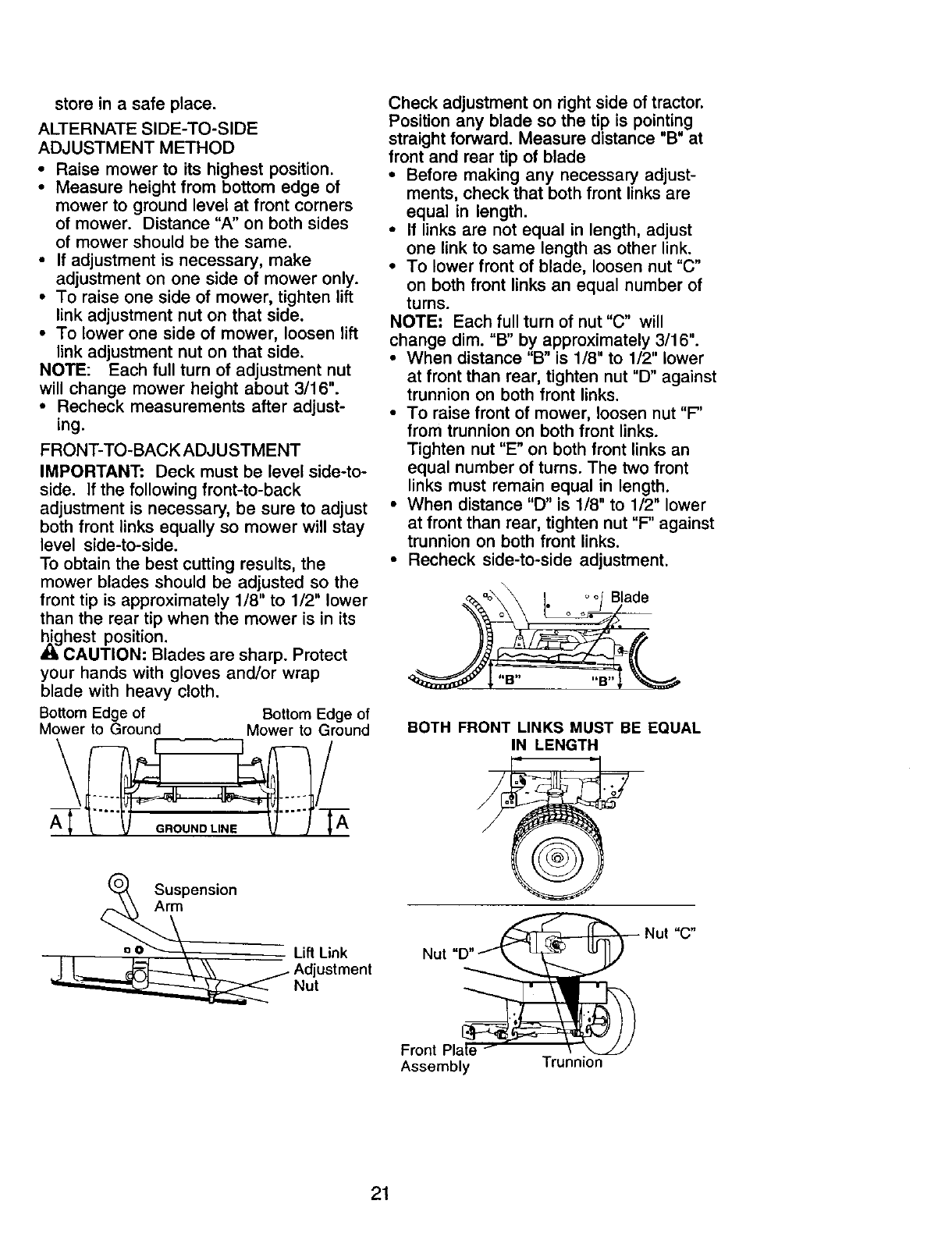

store in a safe place.

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance "A" on both sides

of mower should be the same.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjust-

ing.

FRON_TO-BACKADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2" lower

than the rear tip when the mower is in its

,_ghest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap

blade with heavy cloth.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

Suspension

Arm

Lift Link

Nut

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and rear tip of blade

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of blade, loosen nut "C"

on both front links an equal number of

turns.

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

• To raise front of mower, loosen nut "F'

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns. The two front

links must remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F' against

trunnion on both front links.

• Recheck side-to-side adjustment.

Blade

BOTH FRONT LINKS MUST BE EQUAL

IN LENGTH

"C"

Front

Assembly Trunnion

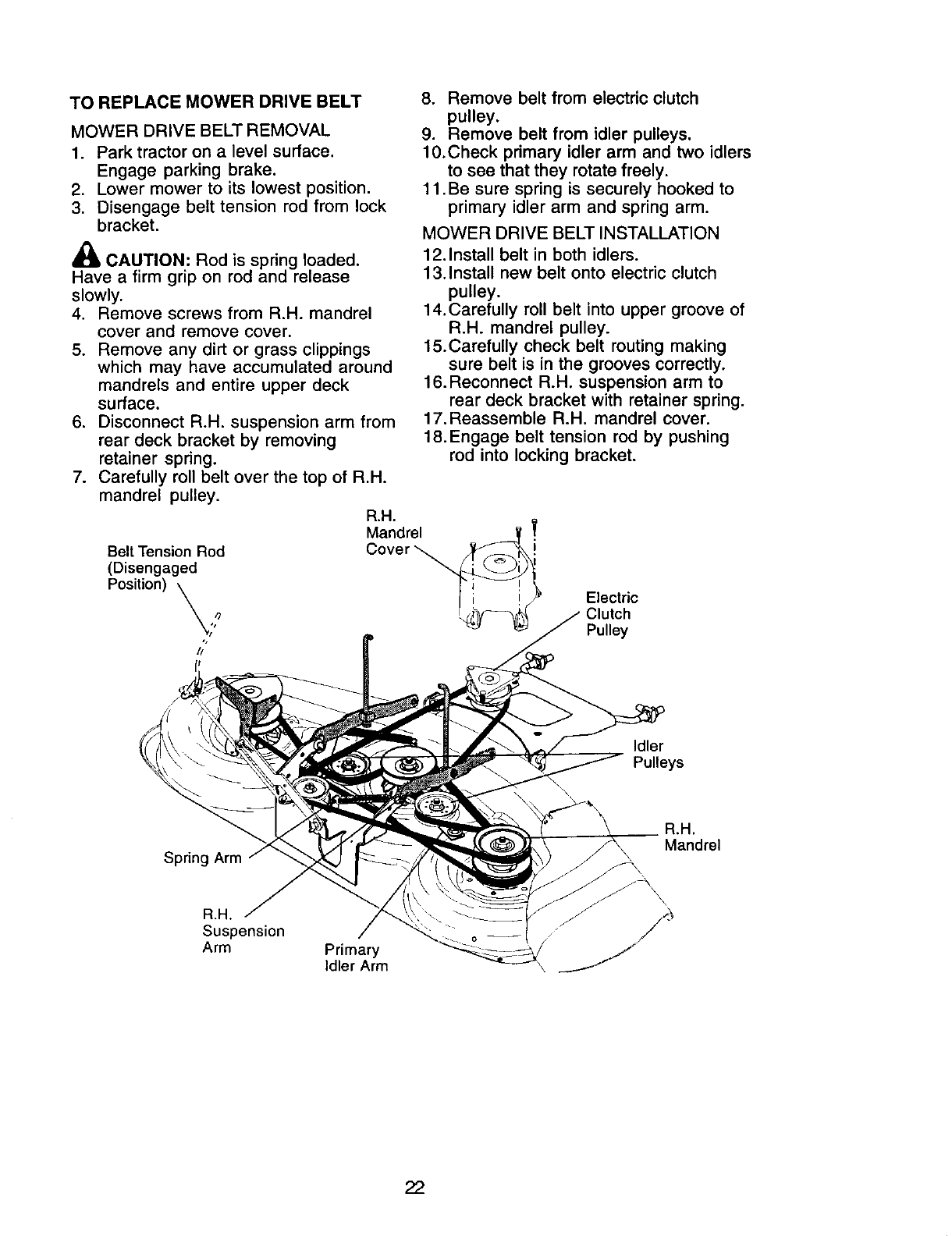

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface.

Engage parking brake.

2. Lower mower to its lowest position.

3. Disengage belt tension rod from lock

bracket.

CAUTION: Rod is spring loaded.

Have a firm grip on rod and release

slowly.

4. Remove screws from R.H. mandrel

cover and remove cover.

5. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck

surface.

6. Disconnect R.H. suspension arm from

rear deck bracket by removing

retainer spring.

7. Carefully roll belt over the top of R.H.

mandrel pulley.

Belt Tension Rod

(Disengaged

Position) _,?

8. Remove belt from electric clutch

pulley.

9. Remove belt from idler pulleys.

10.Check primary idler arm and two idlers

to see that they rotate freely.

11.Be sure spring is securely hooked to

primary idler arm and spring arm.

MOWER DRIVE BELT INSTALLATION

12.Install belt in both idlers.

13.Install new belt onto electric clutch

pulley.

14.Carefully roll belt into upper groove of

R.H. mandrel pulley.

15.Carefully check belt routing making

sure belt is in the grooves correctly.

16.Reconnect R.H. suspension arm to

rear deck bracket with retainer spring.

17.Reassemble R.H. mandrel cover.

18.Engage belt tension rod by pushing

rod into locking bracket.

a.H.

Mandrel

Cover _

! Electric

Clutch

Pulley

Idler

Pulleys

Spring Arm

a.H,

Mandrel

a.H.

Suspension

Arm Primary

Idler Arm

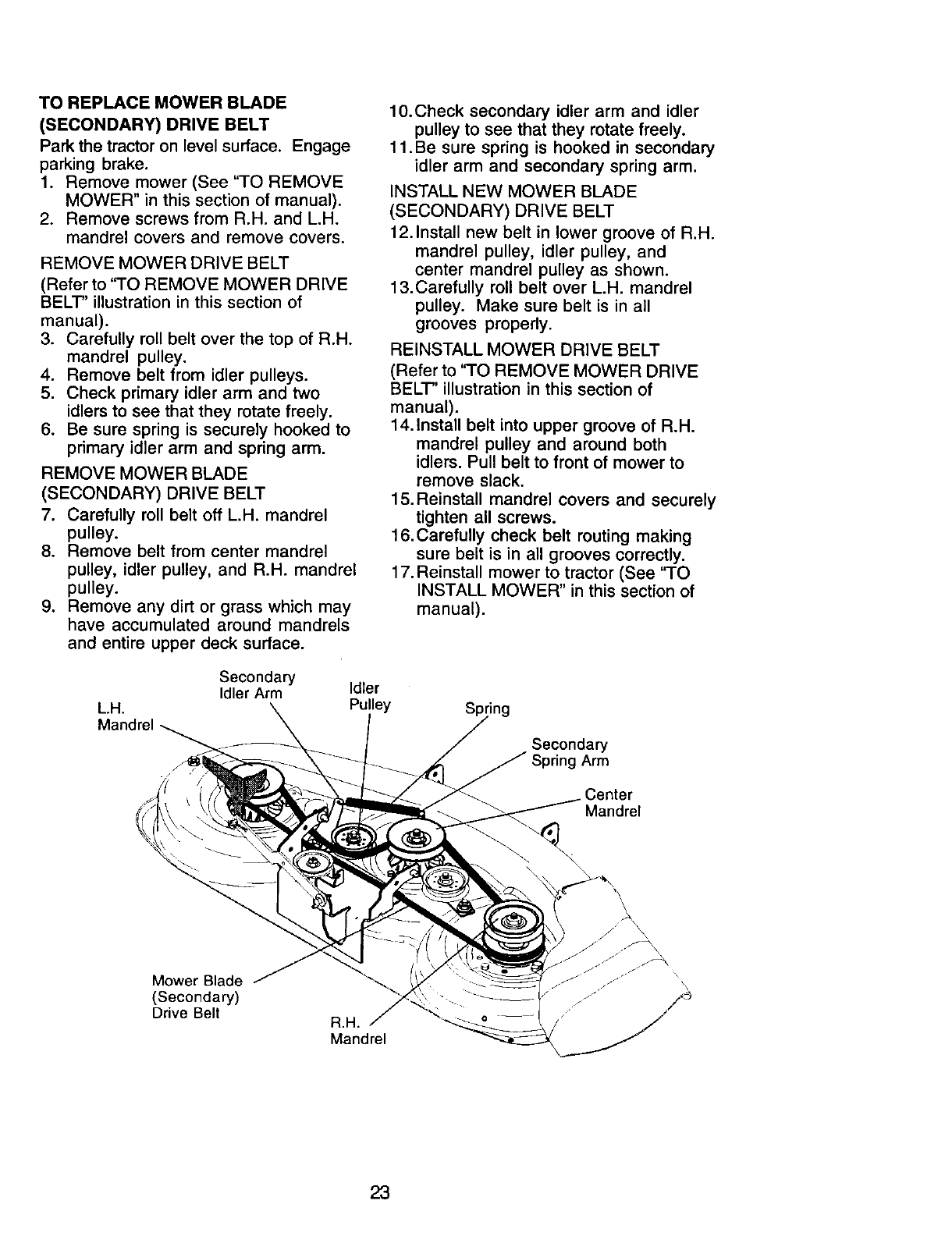

TO REPLACE MOWER BLADE

(SECONDARY) DRIVE BELT

Park the tractor on level surface, Engage

parking brake.

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

2. Remove screws from R.H. and L.H.

mandrel covers and remove covers,

REMOVE MOWER DRIVE BELT

(Refer to "1"O REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

3. Carefully roll belt over the top of R.H.

mandrel pulley.

4. Remove belt from idler pulleys.

5. Check primary idler arm and two

idlers to see that they rotate freely.

6. Be sure spring is securely hooked to

primary idler arm and spring arm.

REMOVE MOWER BLADE

(SECONDARY) DRIVE BELT

7. Carefully roll belt off L.H. mandrel

pulley.

8. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel

pulley.

9. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

Secondary

Idler Arm Idler

L.H. Pulley

Mandrel

10.Check secondary idler arm and idler

pulley to see that they rotate freely.

11. Be sure spring is hooked in secondary

idler arm and secondary spring arm.

INSTALL NEW MOWER BLADE

(SECONDARY) DRIVE BELT

12.Install new belt in lower groove of R.H.

mandrel pulley, idler pulley, and

center mandrel pulley as shown.

13.Carefully roll belt over L.H. mandrel

pulley. Make sure belt is in all

grooves properly.

REINSTALL MOWER DRIVE BELT

(Refer to 'q'O REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

14.Install belt into upper groove of R.H.

mandrel pulley and around both

idlers. Pull belt to front of mower to

remove slack.

15.Reinstall mandrel covers and securely

tighten all screws.

16.Carefully check belt routing making

sure belt is in all grooves correctly.

17. Reinstall mower to tractor (See "TO

INSTALL MOWER" in this section of

manual).

ring

Secondary

g Arm

Center

Mandrel

Mower Blade

(Secondary)

Drive Belt a,H,

Mandrel

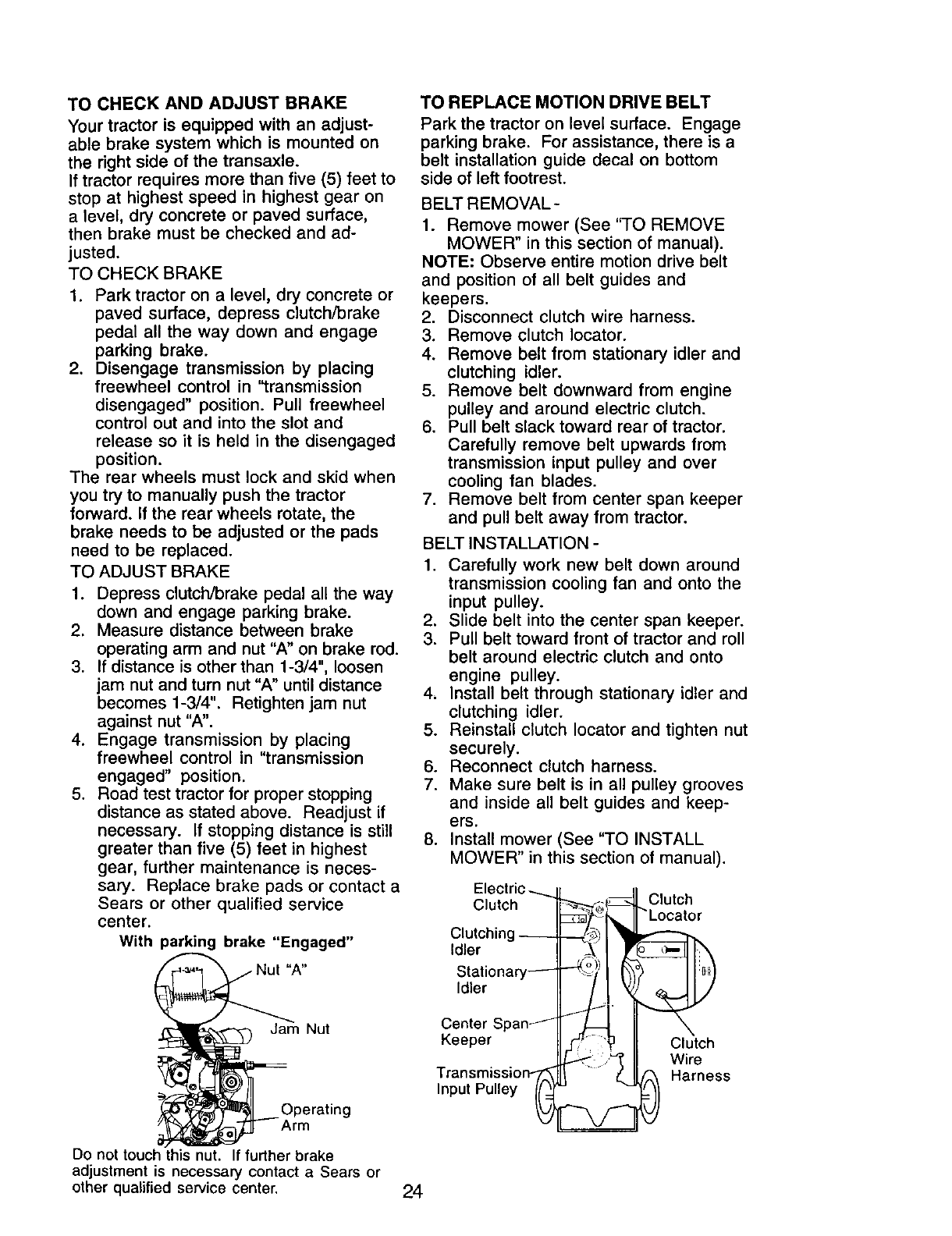

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on

a level, dry concrete or paved surface,

then brake must be checked and ad-

justed.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in '_ransmission

disengaged" position. Pull freewheel

control out and into the slot and

release so it is held in the disengaged

position.

The rear wheels must lock and skid when

you try to manually push the tractor

forward. If the rear wheels rotate, the

brake needs to be adjusted or the pads

need to be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake rod.

3. If distance is other than 1-3/4", loosen

jam nut and turn nut "A" until distance

becomes 1-3/4". Retighten jam nut

against nut "A".

4. Engage transmission by placing

freewheel control in "transmission

engaged" position.

5. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service

center.

With parking brake "Engaged"

Nut "A"

Jam Nut

Operating

Do not touch this nut. If further brake

adjustment is necessary contact a Sears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL-

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and

keepers.

2. Disconnect clutch wire harness.

3. Remove clutch Iocator.

4. Remove belt from stationary idler and

clutching idler.

5. Remove belt downward from engine

pulley and around electric clutch.

6. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

7. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around

transmission cooling fan and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

belt around electric clutch and onto

engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Reinstall clutch locater and tighten nut

securely.

6. Reconnect clutch harness.

7. Make sure belt is in all pulley grooves

and inside all belt guides and keep-

ers.

8. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Electric-.....

Clutch

Clutching--

Idler

Stationary_

Idler

Center Span//

Keeper

Transmission_

Input Pulley _

-_-_ Clutch

_,. IF Locator

tlF II Clutch

II Wire

Harness

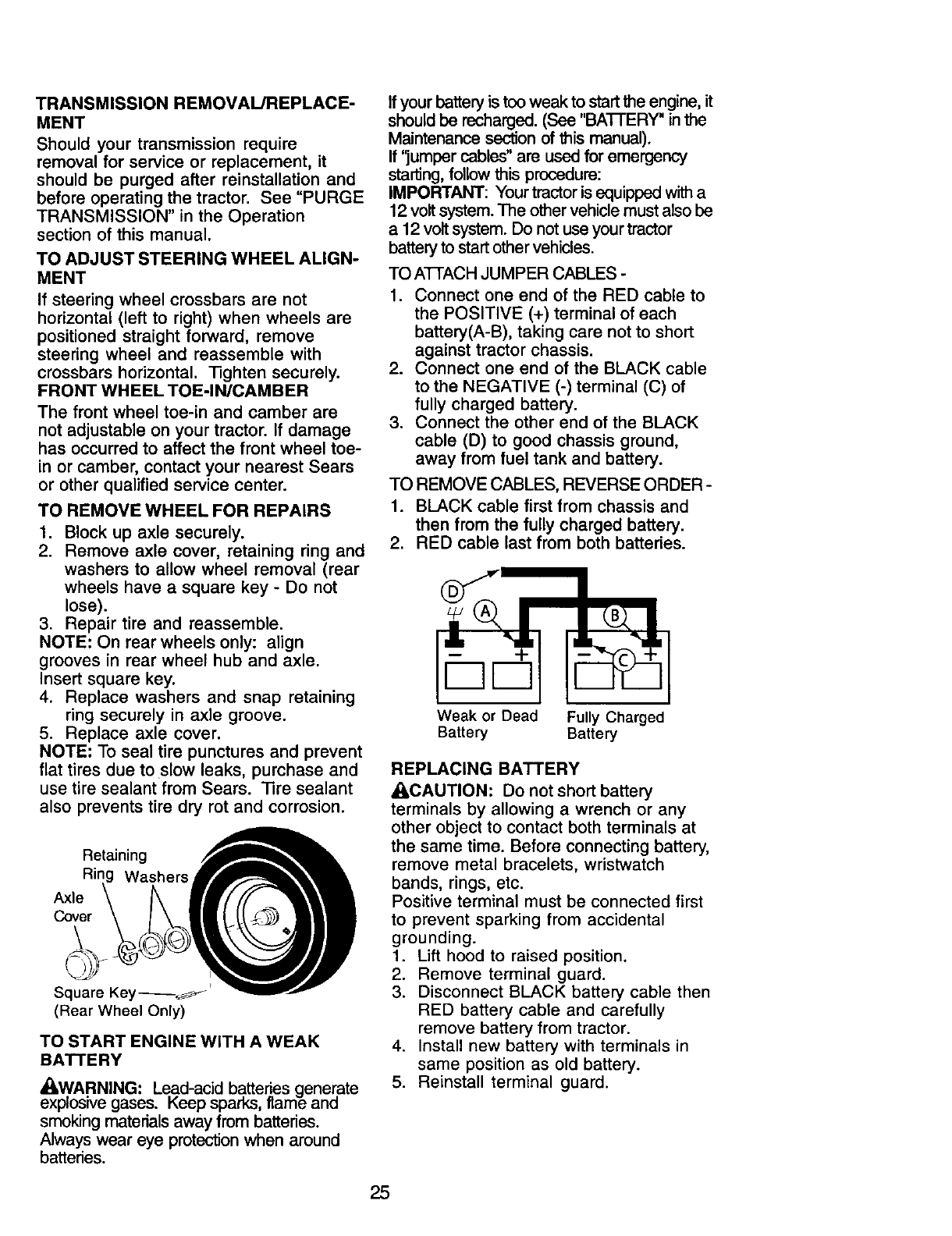

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See "PURGE

TRANSMISSION" in the Operation

section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble with

crossbars horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact your nearest Sears

or other qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE; On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE; To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Retaining

Rin( Washers

Axle

Cover

Square Key _

(Rear Wheel Only)

TO START ENGINE WITH A WEAK

BATTERY

_,WARNING: Lead-acid batteries generate

explosive gases. Keep sparks, flame and

smoking materials away from batteries.

Always wear eye protec'don when around

batteries.

If your battery is too weak to start the engine, it

should be recharged. (See "BA'I-I'ERY" in the

Maintenance section of this manual).

If '_umper cables" are used for emergency

sta_ng, follow this procedure:

IMPORTANT: Your tractor is equipped with a

12 volt system. The other vehicle must also be

a 12 volt system. Do not use your tractor

battery to start other vehicles.

TO A]-FACH JUMPER CABLES -

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

[LCAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

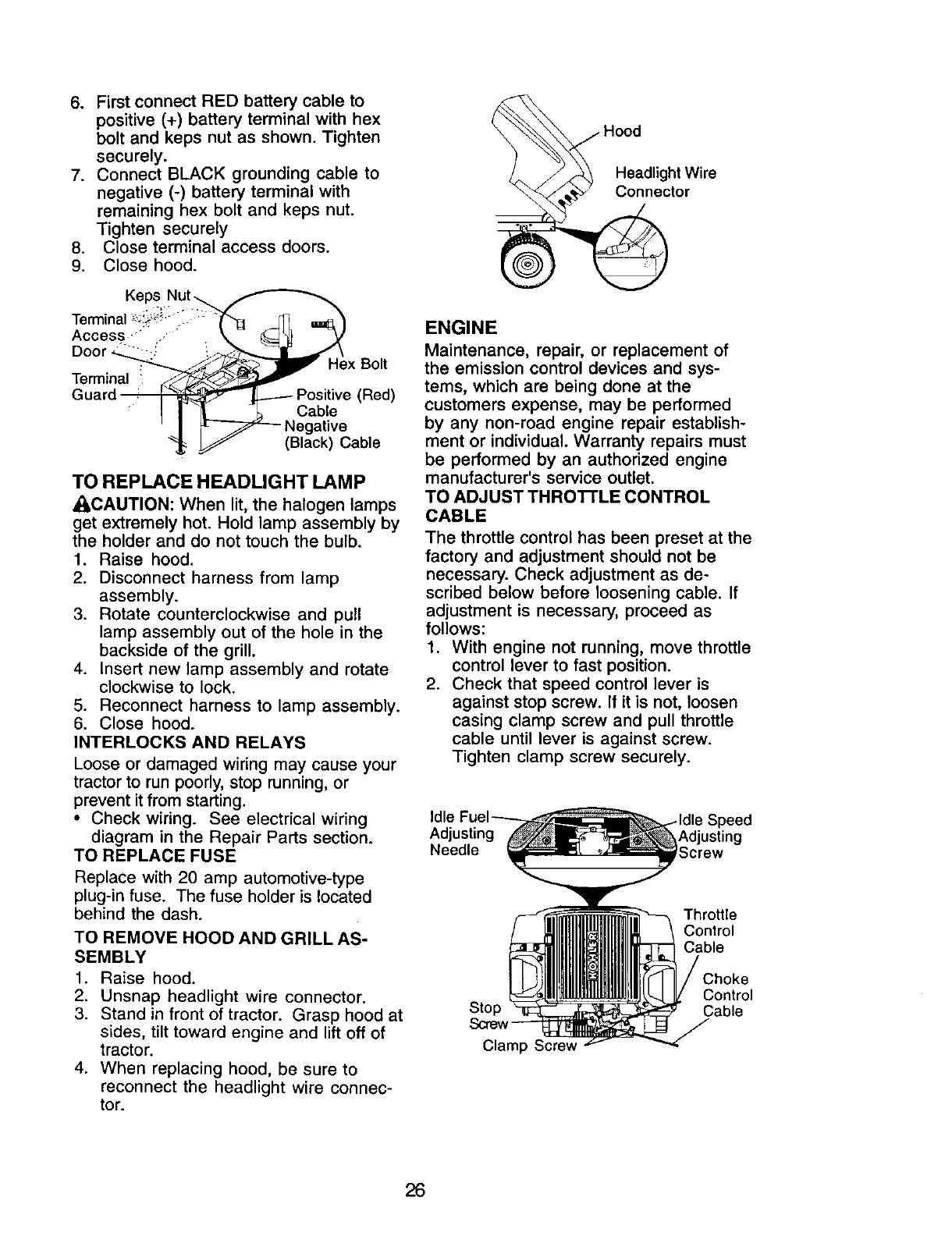

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Keps,.Nut _

Access .... ..' . _ L:_ ,Y

Door_: !_ _f _\ RexBolt

Terrnina_ _.__<:_?=_wy

Guard ---;_---_E_J_ _-- -- Positive (Red)

I I _ _ Cable

I _ Negative

"_ V (Black) Cable

TO REPLACE HEADLIGHT LAMP

_CAUTION: When lit, the halogen lamps

get extremely hot. Hold lamp assembly by

the holder and do not touch the bulb.

1. Raise hood.

2. Disconnect harness from lamp

assembly.

3. Rotate counterclockwise and pull

lamp assembly out of the hole in the

backside of the grill.

4. Insert new lamp assembly and rotate

clockwise to lock.

5. Reconnect harness to lamp assembly.

6. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

•Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to

reconnect the headlight wire connec-

tor.

_Hood

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and sys-

tems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual. Warranty repairs must

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THRO'I-rLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

Idle

Adjusting

Needle

Throttle

Control

Cable

Control

Stop Cable

Clamp Screw

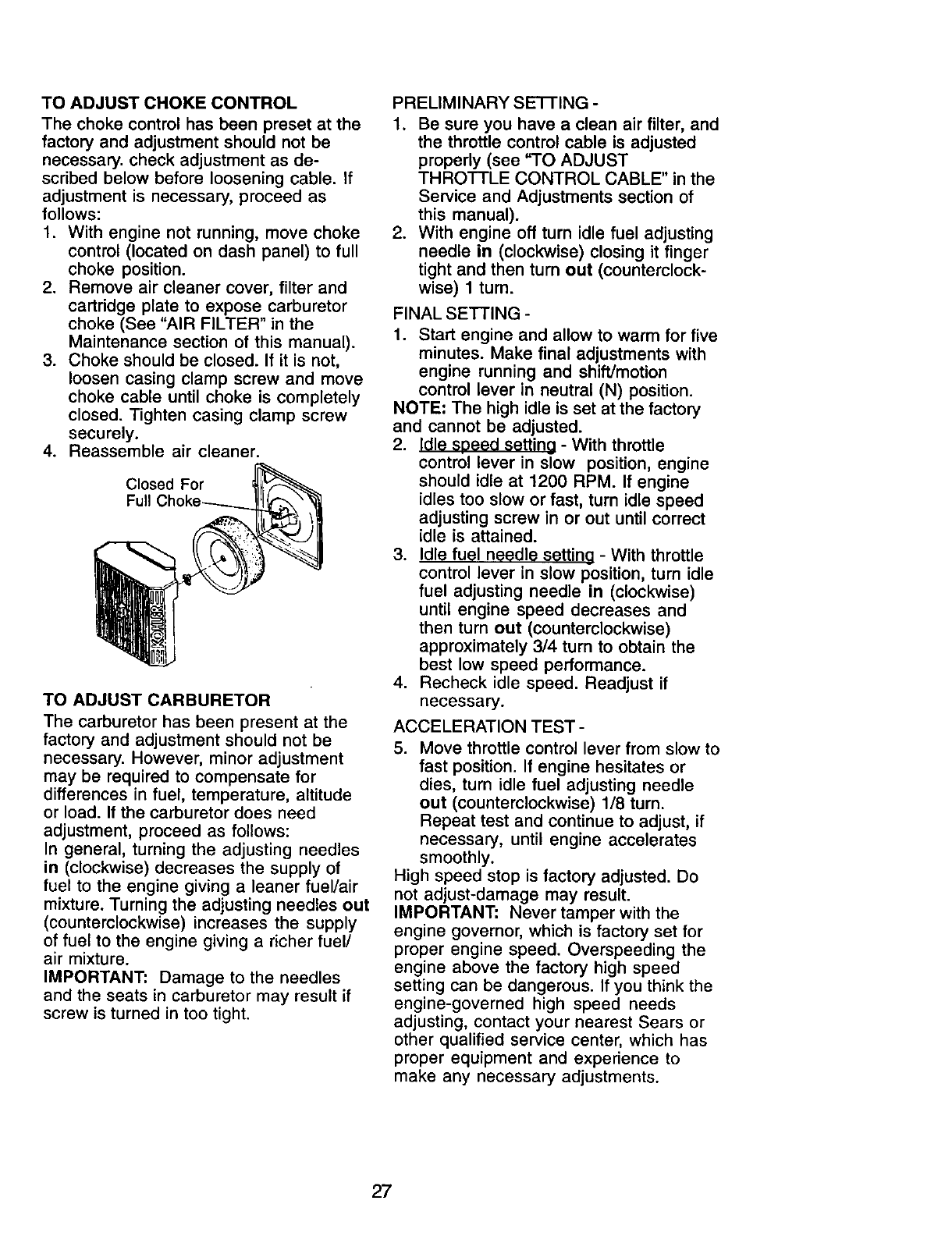

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary, check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See "AIR FILTER" in the

Maintenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Reassemble air cleaner.

Closed For

Full,

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/

air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SE'I-I-ING -

1. Be sure you have a clean air filter, and

the throttle control cable is adjusted

properly (see "TO ADJUST

THROTTLE CONTROL CABLE" in the

Service and Adjustments section of

this manual).

2. With engine off turn idle fuel adjusting

needle in (clockwise) closing it finger

tight and then turn out (counterclock-

wise) 1 turn.

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

NOTE" The high idle is set at the factory

and cannot be adjusted.

2. Idle soeed setting - With throttle

control lever in slow position, engine

should idle at 1200 RPM. If engine

idles too slow or fast, turn idle speed

adjusting screw in or out until correct

idle is attained.

3. Idle fuel needle setting - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and

then turn out (counterclockwise)

approximately 3/4 turn to obtain the

best low speed performance.

4. Recheck idle speed. Readjust if

necessary.

ACCELERATION TEST -

5. Move throttle control lever from slow to

fast position. If engine hesitates or

dies, turn idle fuel adjusting needle

out (counterclockwise) 1/8 turn.

Repeat test and continue to adjust, if

necessary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest Sears or

other qualified service center, which has

proper equipment and experience to

make any necessary adjustments.

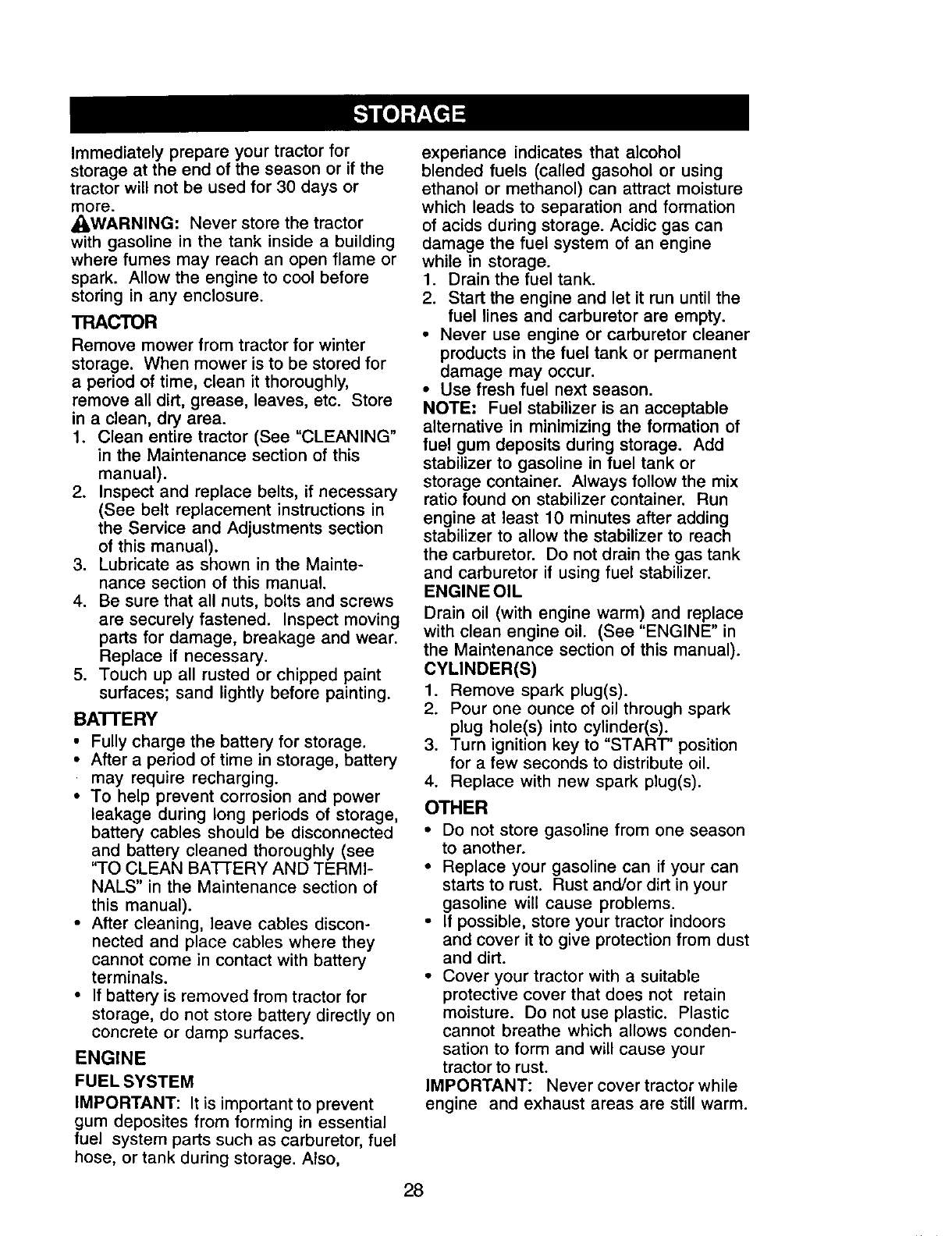

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

_ILWARNING" Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

•Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BA-I-FERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is importantto prevent

gum deposites from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also,

experiance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE; Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START' position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

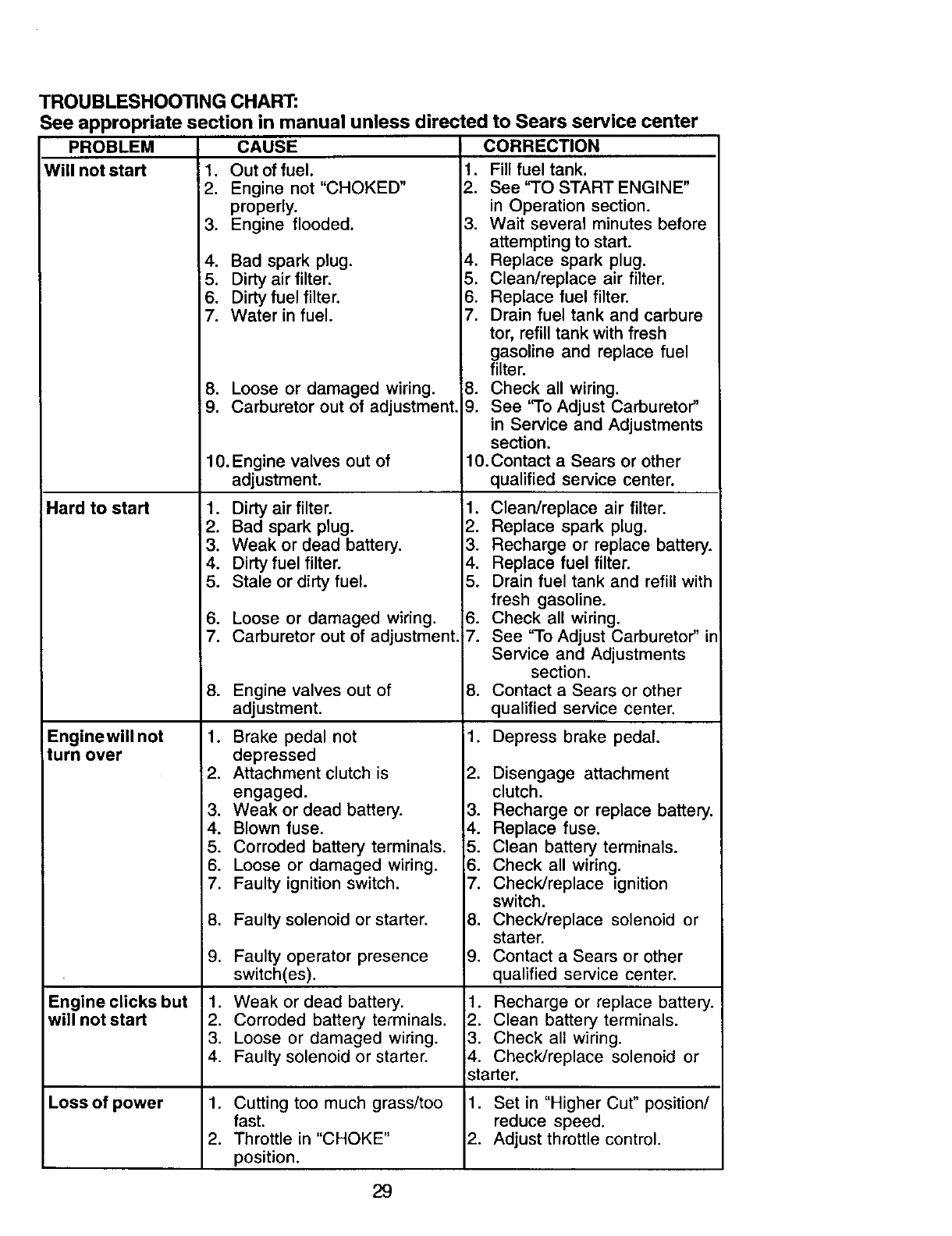

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start 1.

Hard to start

Enginewill not

turn over

Engine clicks but

will not start

Loss of power

CAUSE

Out of fuel.

Engine not "CHOKED"

properly.

Engine flooded. 3,

Bad spark plug, 4.

Dirty air filter, 5.

Dirty fuel filter, 6.

Water in fuel. 7.

8. Loose or damaged wiring. 8.

9. Carburetor out of adjustment. 9.

10. Engine valves out of

adjustment.

1. Dirty air filter. 1.

2. Bad spark plug. 2.

3. Weak or dead battery. 3.

4. Dirty fuel filter. 4.

5. Stale or dirty fuel. 5.

6. Loose or damaged wiring. 6.

7. Carburetor out of adjustment. 7.

8. Engine valves out of 8.

adjustment.

1. Brake pedal not 1.

depressed

2. Attachment clutch is 2.

engaged.

3. Weak or dead battery. 3.

4. Blown fuse. 4.

5. Corroded battery terminals. 5.

6. Loose or damaged wiring. 6.

7. Faulty ignition switch. 7.

8. Faulty solenoid or starter, 8.

9. Faulty operator presence 9.

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position,

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

Wait several minutes before

attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Drain fuel tank and carbure

tor, refill tank with fresh

gasoline and replace fuel

filter.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

Clean/replace air filter.

Replace spark plug.

Recharge or replace battery.

Replace fuel filter.

Drain fuel tank and refill with

fresh gasoline.

Check all wiring.

See ',To Adjust Carburetor" ir

Service and Adjustments

section.

Contact a Sears or other

qualified service center.

Depress brake pedal.

Disengage attachment

clutch.

Recharge or replace battery.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

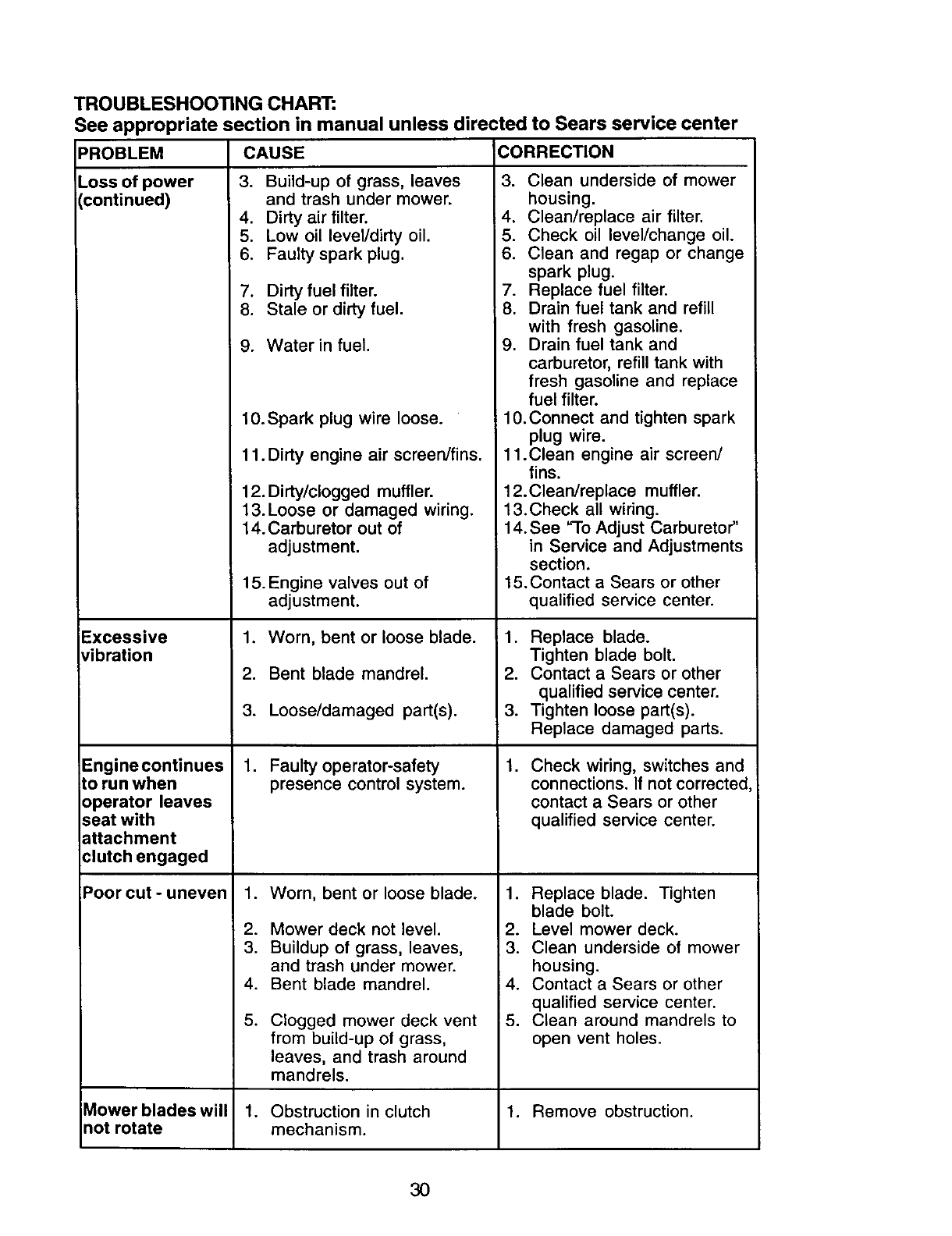

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Loss of power

(continued)

Excessive

vibration

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

Poorcut-uneven

CAUSE CORRECTION

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

.Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/

fins.

12.Clean/replace muffler.

13.Check all wiring.

14. See 'q'o Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

.Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

i 4. Contact a Sears or other

qualified service center.

15. Clean around mandrels to

open vent holes.

_ower blades will 1. Obstruction in clutch 1. Remove obstruction.

rmt rotate mechanism.

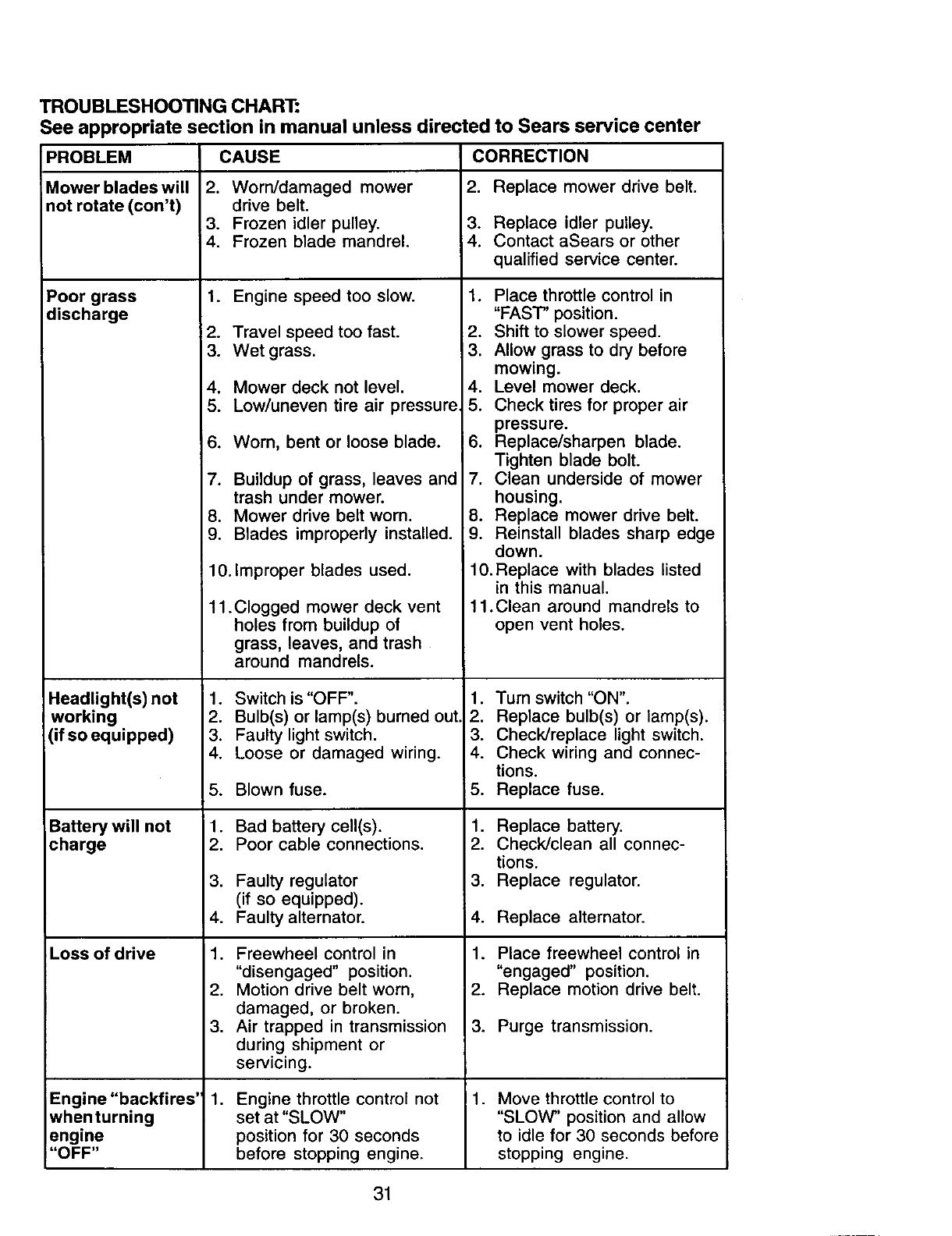

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Mower blades will 2. Worn/damaged mower 2, Replace mower drive belt.

not rotate (con't) drive belt,

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Contact aSears or other

qualified service center.

Poor grass 1. Engine speed too slow.

discharge 2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11 .Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Headlight(s) not 1.

working 2.

(if so equipped) 3.

Battery will not 1.

charge 2,

Loss of drive 1.

Engine "backfires" 1,

when turning

engine

"OFF"

Switch is "OFF".

Bulb(s) or lamp(s) burned out

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Freewheel control in

"disengaged" position.

Motion drive belt worn,

damaged, or broken.

Air trapped in transmission

during, shipment or

servicing.

Engine throttle control not

set at "SLOW"

position for 30 seconds

before stopping engine.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

!6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

.Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

SERVICE NOTE

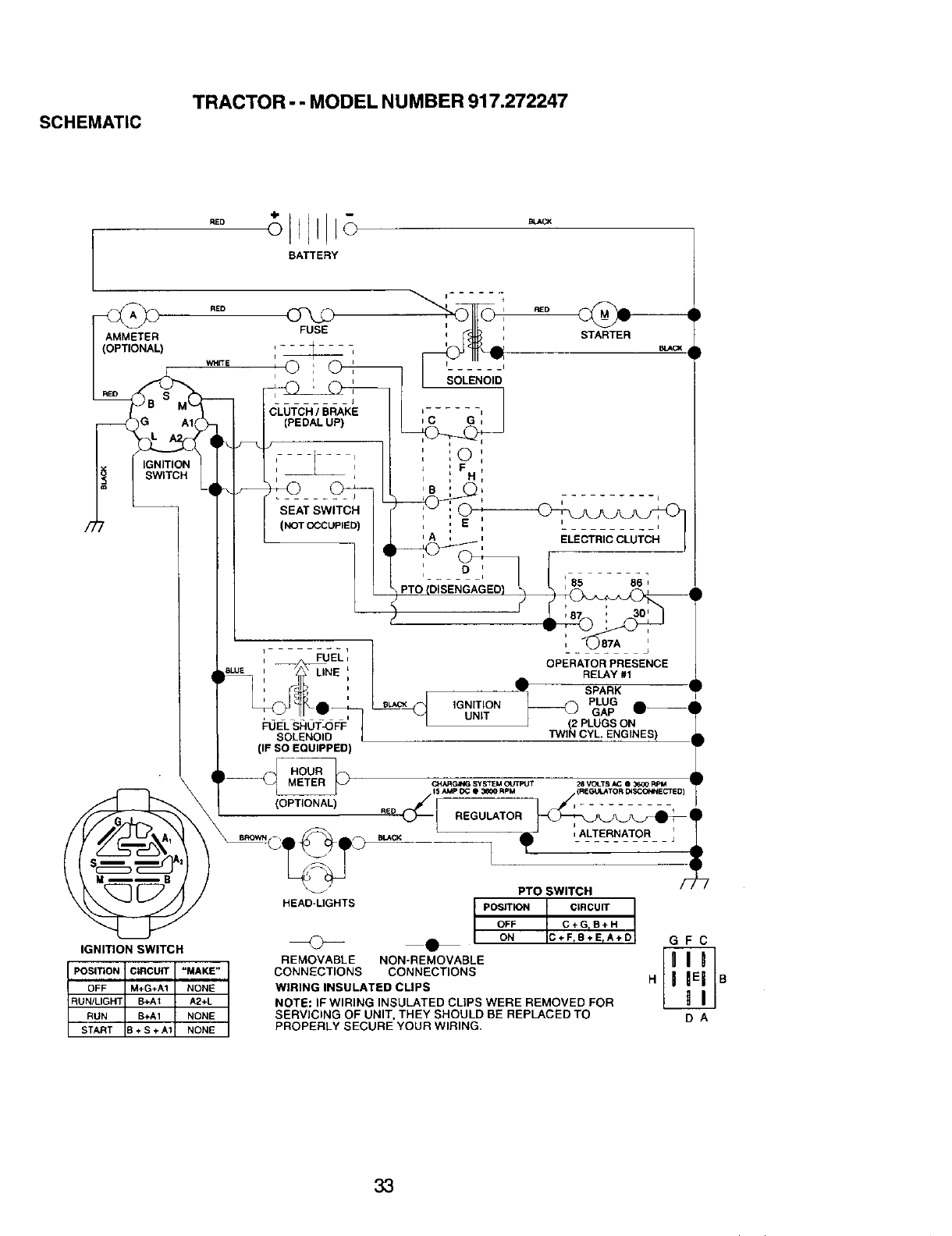

TRACTOR -- MODEL NUMBER 917.272247

SCHEMATIC

BATTERY

AMMETER

(OPTIONAL)

)G AI(

IGNmON

SWITCH

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+AI A2+L

RUN B+A1 NONE

START B + S + A1 NONE

,_°

FUSE ' bSTARTER

i L ; t

©<::::_ i _--:--

_:_:_ I __ i ' SOLENOID

CLUTCH /BRAKE b...... ,

(PEDAL

....... I t i

r i

(NOTOCCUPIED) , : E ', -- L .... _J_', -- J

tA , _ELECTRIC CLUTCH [

i85 86 I

F87 i 30

:©, ,

iFUEL i

awe ' _"LINE = OPERATORRELAY#1PRESENCE

-SPAR

,G.IT,ON_ PL_ O--"

FOELs.O+_FF"I UN,T• _P&SON T

SOLENOIDOFF l -- --. TWIN CYLENOINEB_Ill

{IF SO EQUIPPED)

)___ HOUR CHAq_OUT__ T

(OPT,ONAL,'°°d--IREOU 'TOR

PTO SWITCH

HEAD-LIGHTS POSITION

OFF

•ON

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

CIRCUIT

C+GrB+H

C+FrB+ErA+D GFC

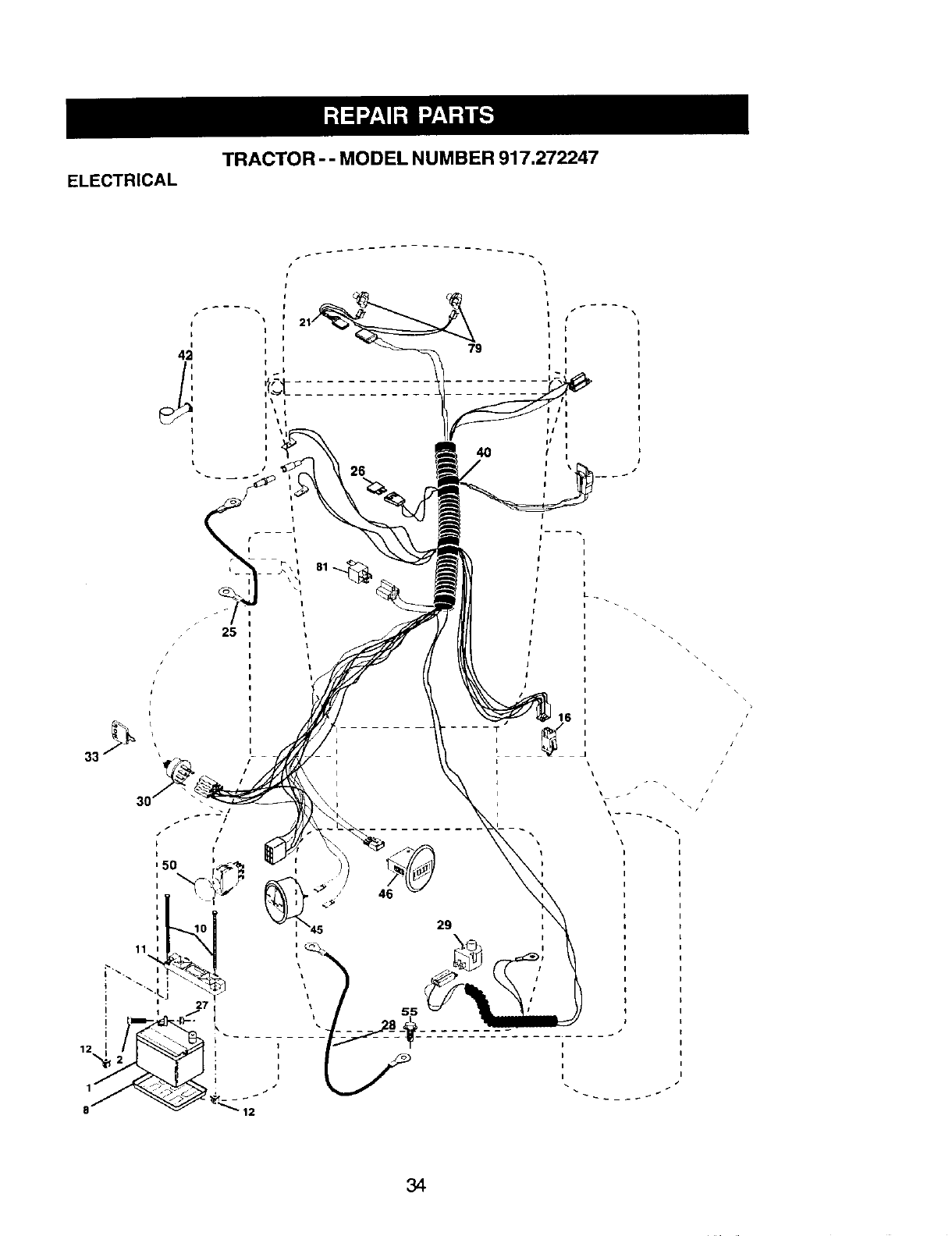

TRACTOR - - MODEL NUMBER 917,272247

ELECTRICAL

I i

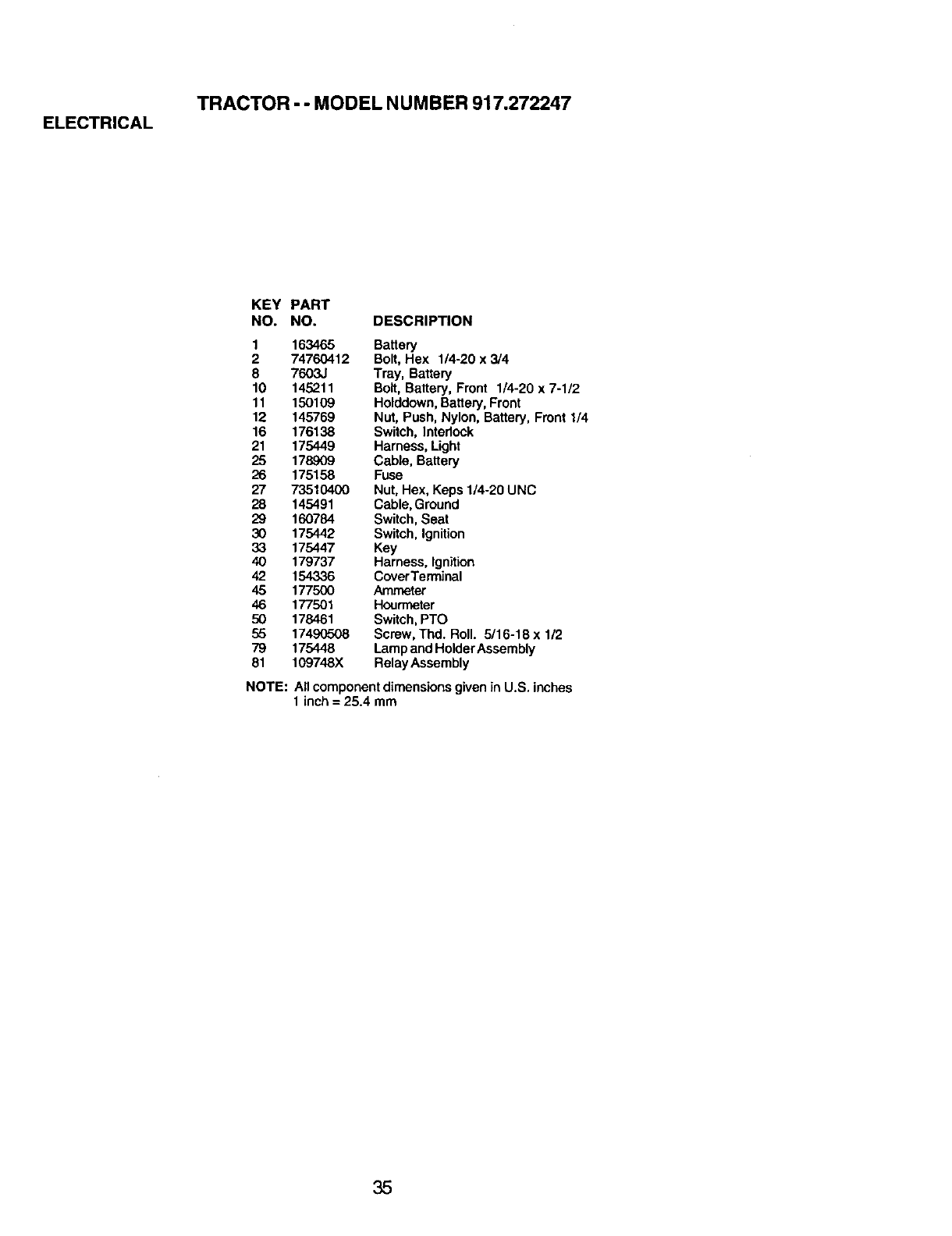

TRACTOR -- MODEL NUMBER 917.272247

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt, Battery, Front 1/4-20 x 7-1/2

11 150109 Holddown, Battery,Front

12 145769 Nut, Push, Nylon, Battery, Front 1/4

16 176138 Switch, Interlock

21 175449 Harness, Light

25 178909 Cable, Battery

26 175158 Fuse

27 73510400 Nut, Hex, Keps 1/4-20 UNC

28 145491 Cable, Ground

29 160784 Switch, Seat

30 175442 Switch, Ignition

33 175447 Key

40 179737 Harness, Ignition

42 154336 Cover Terminal

45 177500 Ammeter

46 177501 Hourmeter

50 178461 Switch, PTO

55 17490508 Screw, Thd. Roll. 5/16-18 x 1/2

79 175448 Lamp and HolderAssembly

81 109748X Relay Assembly

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

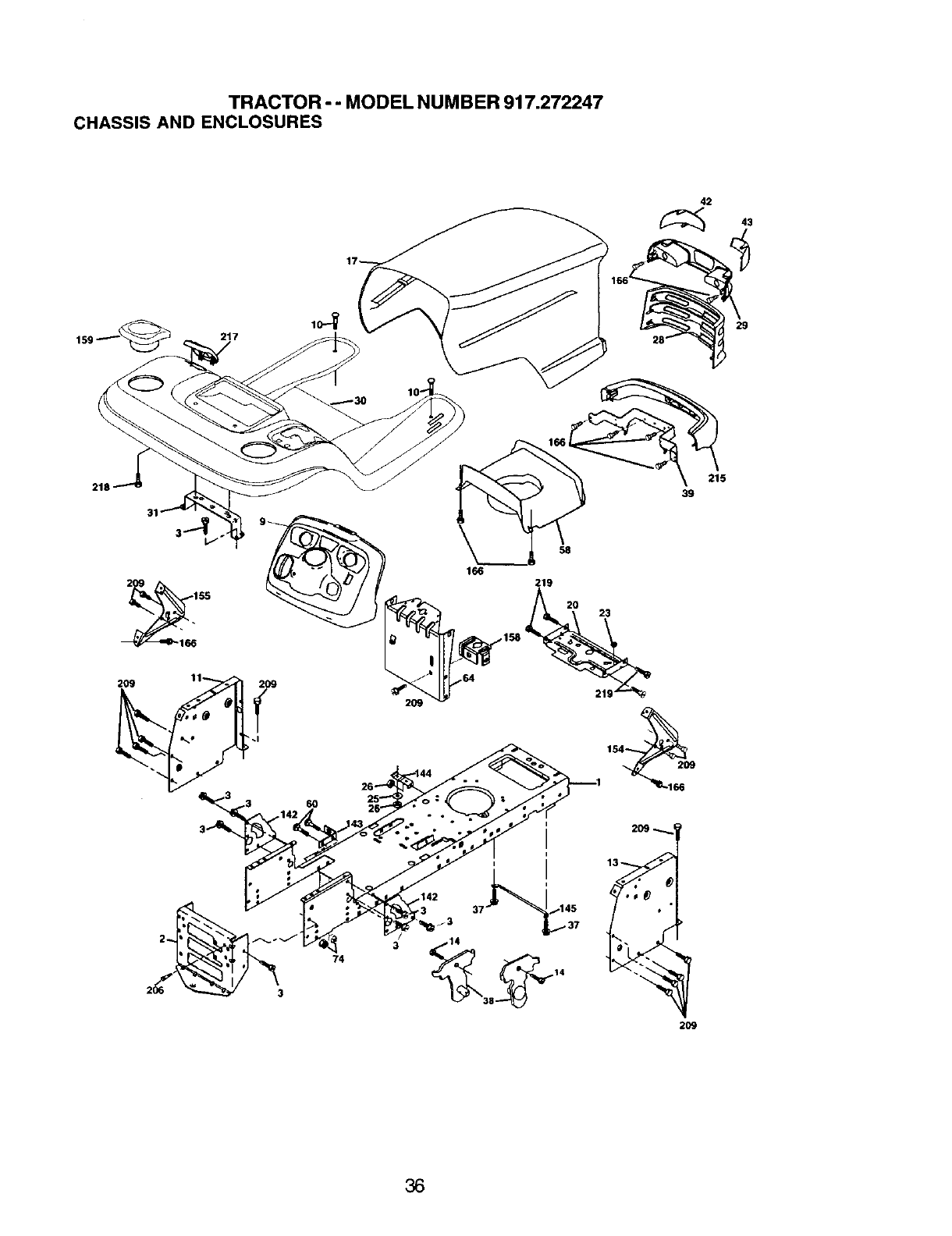

TRACTOR - - MODEL NUMBER 917.272247

CHASSIS AND ENCLOSURES

217 29

218

166

20 23

215

2O9

219"

154

2O9

13 , •

2O9

:36

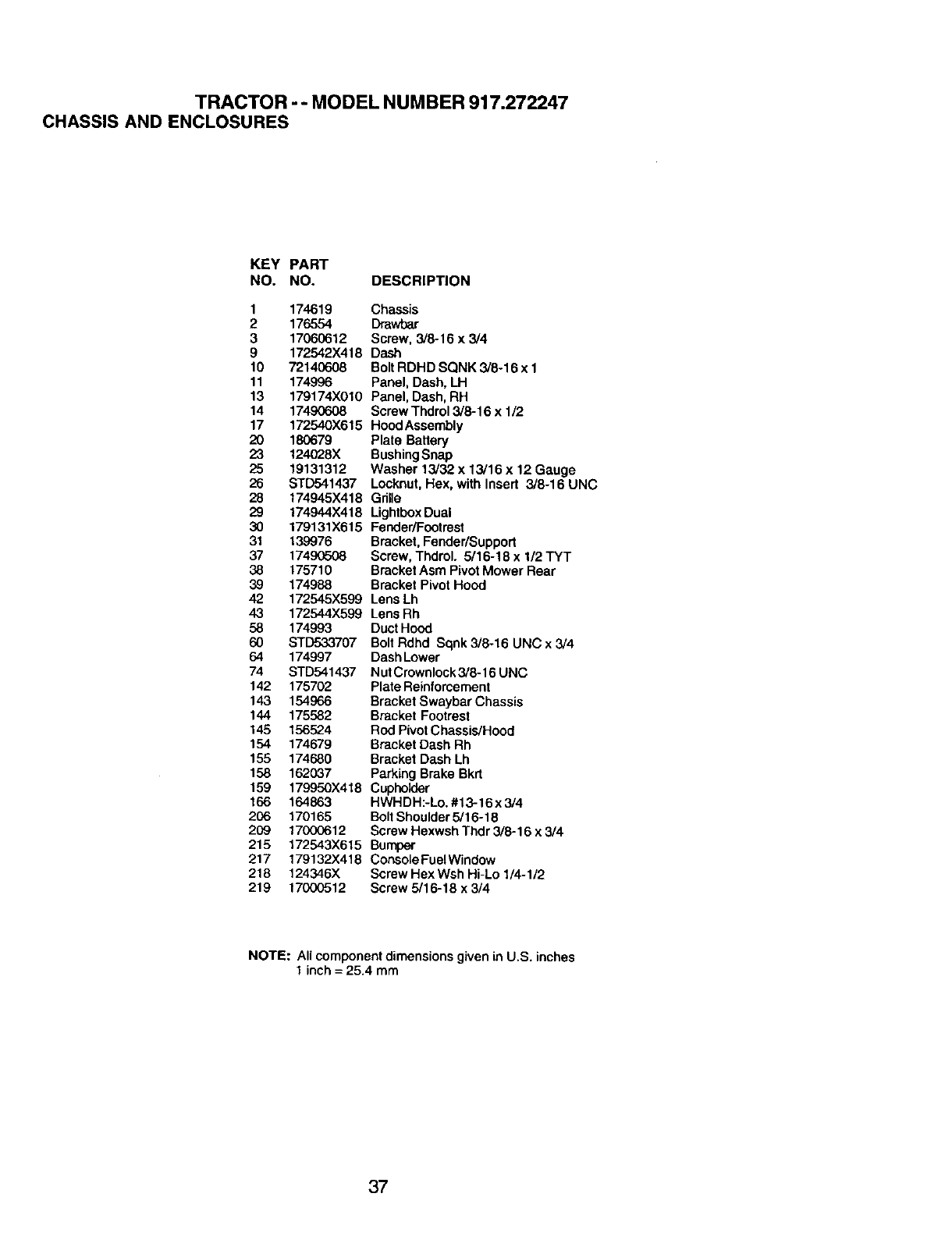

TRACTOR - - MODEL NUMBER 917.272247

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2176554 Drawbar

3 17060612 Screw, 3/8-16 x 3/4

9172542)(418 Dash

10 72140608 Bolt RDHD SQNK 3/8-16 x 1

11 174996 Panel, Dash, LH

13 179174X010 Panel, Dash, RH

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 172540X615 Hood Assembly

20 180679 Plate Battery

23 124028X BushingSnap

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD541437 Looknut,Hex, with Insert 3/8-16 UNC

28 174945X418 Grille

29 174944X418 LightboxDual

30 179131X615 Fender/Footrest

31 139976 Bracket, Fender/Support

37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT

38 175710 Bracket Asm Pivot Mower Rear

39 174988 Bracket Pivot Hood

42 172545)(599 Lens Lh

43 172544X599 Lens Rh

58 174993 Duct Hood

60 STD533707 Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

64 174997 Dash Lower

74 STD541437 Nut Crownlock3/8-16 UNC

142 175702 Plate Reinfomement

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 156524 Rod PivotChassis/Hood

154 174679 Bracket Dash Rh

155 174680 Bracket Dash Lh

158 162037 Parking Brake Bkrt

159 179950X418 Cupholder

166 164863 HWHDH:-Lo. #13-16 x 3/4

206 170165 Bolt Shoulder 5/16-18

209 17000612 Screw Hexwsh Thdr 3/8-16 x3/4

215 1725,43X615 Bumper

217 179132X418 ConsoleFuelWindow

218 124346X Screw Hex Wsh Hi-Lo 1/4-1/2

219 17000512 Screw 5/16-18 x3/4

NOTE: All componentdimensions given in U.S. inches

1inch = 25.4 mm

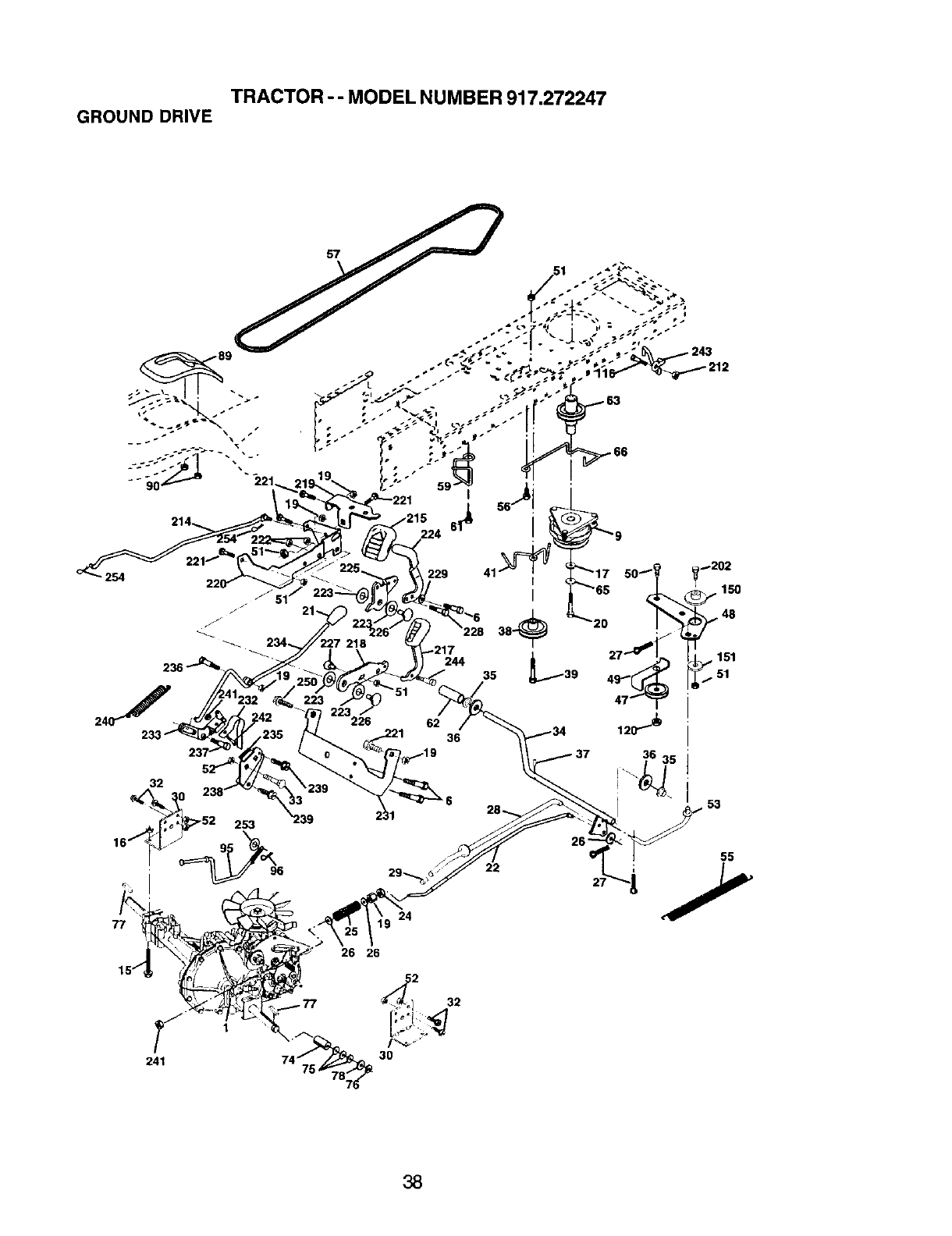

TRACTOR -- MODEL NUMBER 917.272247

GROUND DRIVE

_52 253

241

26 26

229 41

244

.. 53

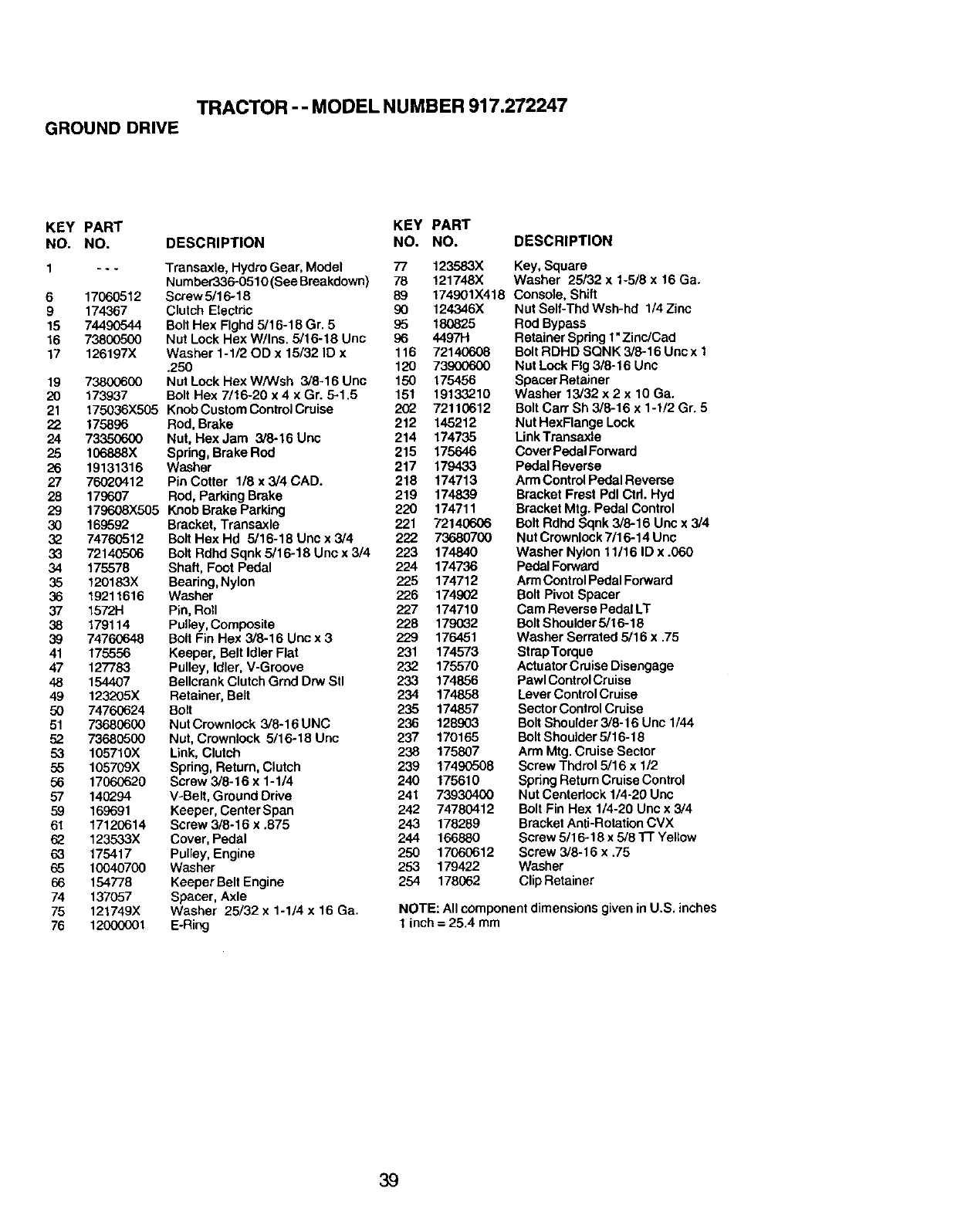

TRACTOR -- MODEL NUMBER 917.272247

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1---Transaxle, HydroGear, Model 77

Number336-0510 (See Breakdown) 78

6 17060512 Screw 5/16-18 89

9 174367 Clutch Electric 90 124346X

15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 95 180825

16 73800500 Nut Lock Hex W/Ins. 5/16-18 Unc 96 4497H

17 126197X Washer 1-1/20D x 15/32 ID x 116 72140608

.250 120 73_O0600

19 73800600 Nut Lock Hex W/Wsh 3/8-16 Unc 150 175456

20 173937 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 151 19133210

21 175036X505 KnobCustomControICruise 202 72110612

22 175896 Rod, Brake 212 145212

24 73350600 Nut, Hex Jam 3/8-16 Unc 214 174735

25 106888X Spring, Brake Rod 215 175646

26 19131316 Washer 217 179433

27 76020412 Pin Cotter 1/8 x 3/4 CAD. 218 174713

28 179607 Rod, Parking Brake 219 174839

29 179608X505 Knob Brake Parking 220 174711

30 169592 Bracket, Transaxle 221 72140606

32 74760512 Bolt Hex Hd 5116-18 Unc x 3/4 222 73680700

33 72140506 Bolt Rdhd Sqnk 5/16-18 Unc x 3/4 223 174840

34 175578 Shaft, Foot Pedal 224 174736

35 120183X Bearing,Nylon 225 174712

36 19211616 Washer 226 174902

37 1572H Pin, Roll 227 174710

38 179114 Pulley, Composite 228 179032

39 74760648 Bolt Fin Hex 3/6-16 Unc x 3 229 176451

41 175556 Keeper, Belt Idler Flat 231 174573

47 127783 Pulley, Idler, V-Groove 232 175570

48 154407 Bellcrank Clutch Grnd Drw Stl 233 174856

49 123205X Retainer, Belt 234 174858

50 74760624 Bolt 235 174857

51 73680600 NutCrownlock 3/6-16UNC 236 128903

52 73680500 Nut, Cruwnlock 5/16-18 Unc 237 170165

53 105710X Link, Clutch 238 175807

55 105709X Spdng, Return, Clutch 239 17490508

56 17060620 Screw 3/6-16 x 1-1/4 240 175610

57 140294 V-Belt, Ground Drive 241 73930400

59 169691 Keeper, Center Span 242 74780412

61 17120614 Screw 3/6-16 x.875 243 178289

62 123533X Cover, Pedal 244 166880

63 175417 Pulley, Engine 250 17060612

65 10040700 Washer 253 179422

66 154778 KeeperBelt Engine 254 178062

74 137057 Spacer, Axle

75 121749X Washer 25/32 x 1-1/4 x 16 Ga.

76 12000001 E-Ring

123583X Key, Square

!21748X Washer 25/32 x 1-5/8 x16 Ga.

174901X418 Console, Shift

Nut Self-Thd Wsh-hd 1/4 Zinc

Rod Bypass

Retainer Spring I • Zinc/Cad

Bolt RDHD SQNK 3/8-16 Unc x 1

Nut Lock Fig 3/8-16 Unc

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Bolt Cart Sh 3/6-16 x 1-1/2 Gr. 5

Nut HexFlange Lock

Unk Transaxle

Cover Pedal Forward

Pedal Reverse

Arm Control Pedal Reverse

Bracket Frest Pdl Ctrl. Hyd

Bracket Mtg. Pedal Control

Bolt Rdhd Sqnk 3/6-16 Unc x 3/4

Nut Crownlock 7/16-14 Unc

Washer Nylon 11116 ID x.060

Pedal Fo_ard

Arm Control Pedal Forward

Solt Pivot Spacer

Cam Reverse Pedal LT

Bolt Shoulder 5/16-18

Washer Serrated 5/16 x .75

StrapTorque

Actuator Cruise Disengage

PawlControl Cruise

Lever Control Cruise

Sector ControlCruise

Bolt Shoulder 3/6-16 Unc 1/44

Bolt Shoulder 5116-18

Arm Mtg. Cruise Sector

Screw Thdrol 5/16 x 1/2

Spring ReturnCruiseControl

Nut Centedock 1/4-20 Unc

Bolt Fin Hex 1/4-20 Unc x 3/4

Bracket Anti-Rotation CVX

Screw 5/16-18 x 5/8 TT Yellow

Screw 3/8-16 x.75

Washer

ClipRetainer

NOTE: All component dimensions given inU.S. inches

1 inch = 25.4 mm

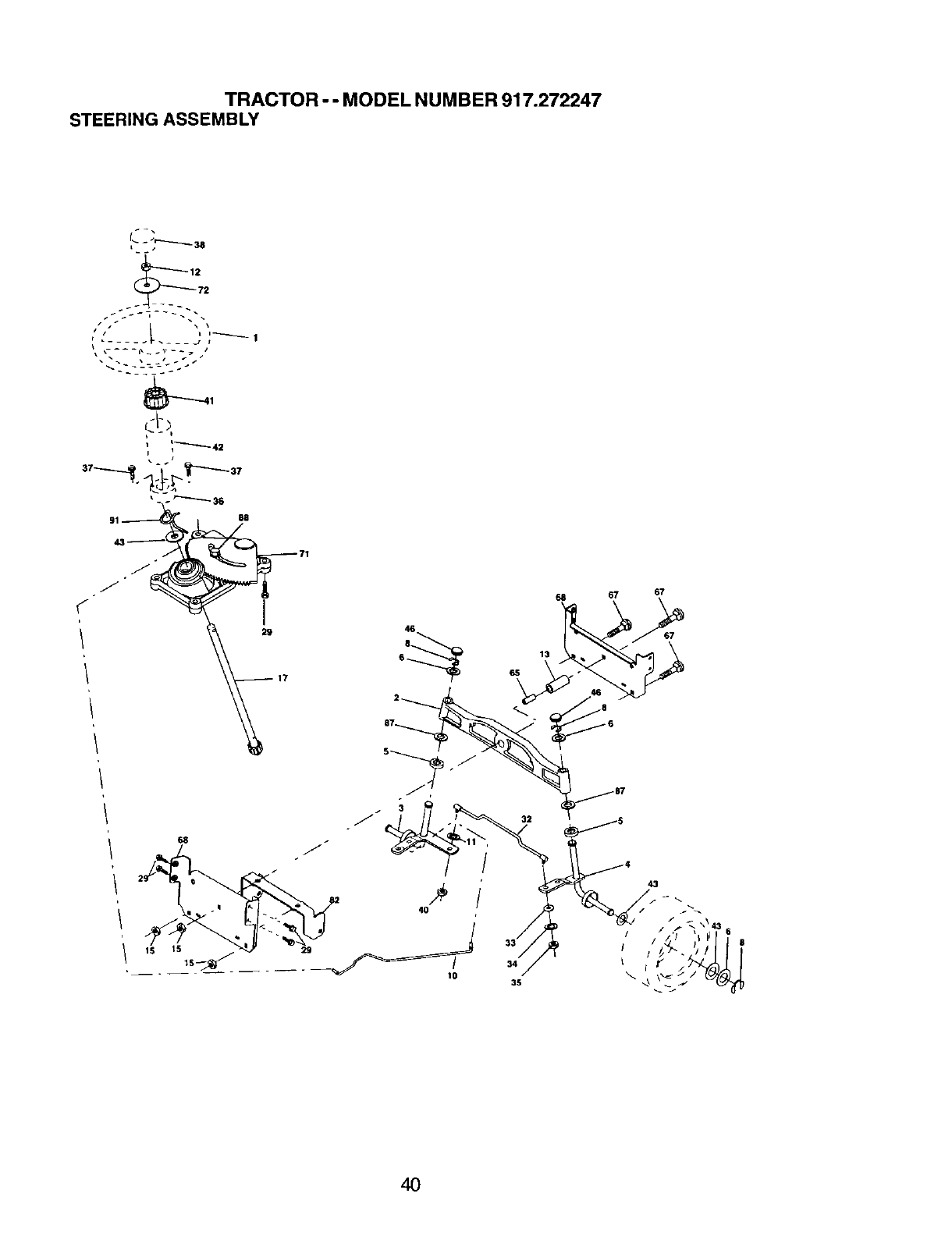

TRACTOR - - MODEL NUMBER 917.272247

STEERING ASSEMBLY

7 Z "_

6 13

/34

10 3S

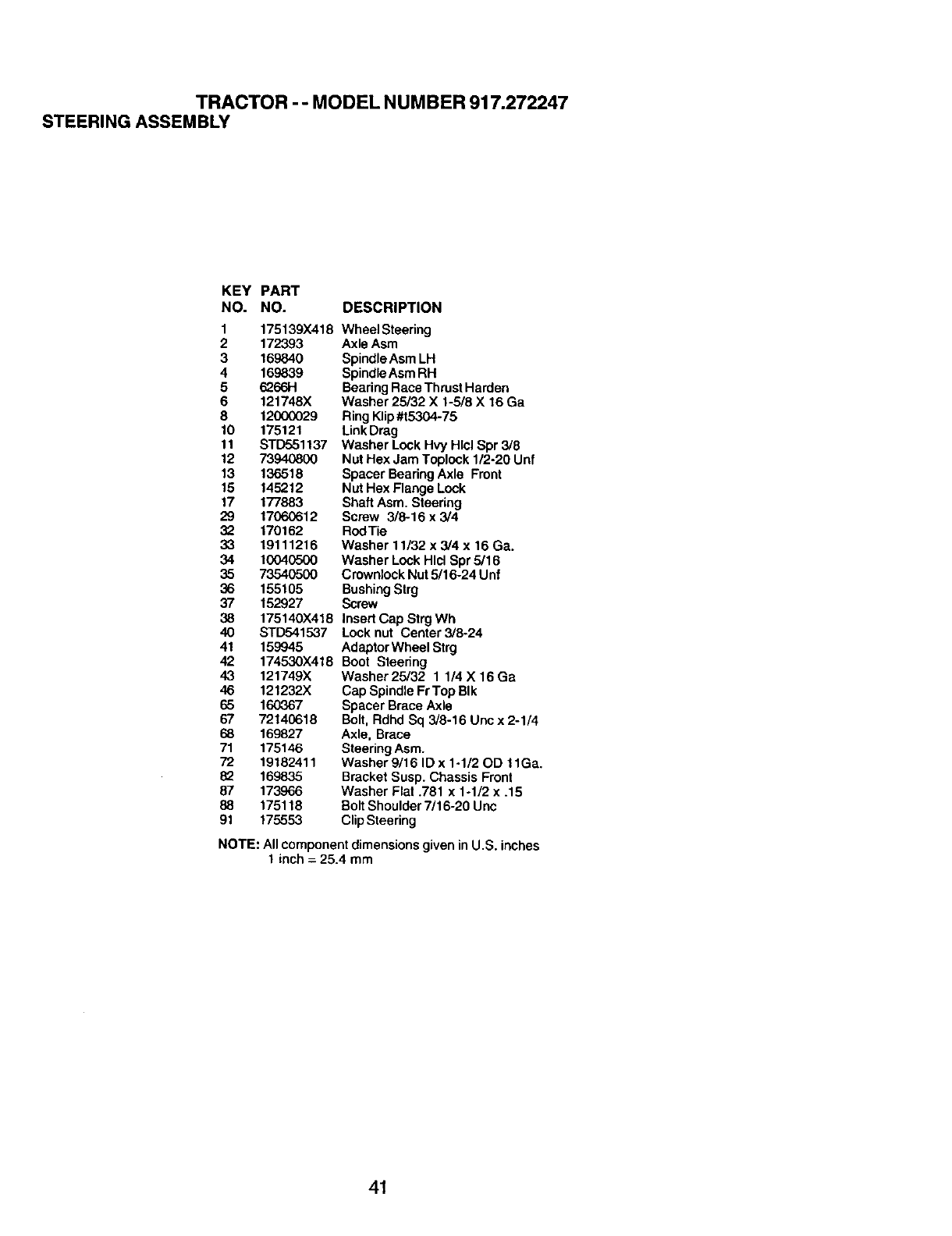

TRACTOR - - MODEL NUMBER 917.272247

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 175139X418 Wheel Steering

2 172393 Axle Asm

3 169840 SpindleAsm LH

4 169839 SpindleAsm RH

5 6266H Beadng Race Thrust Harden

6 121748X Washer 25/32 X 1-5/8 X 16 Ga

8 12000029 RingKlip#t5304-75

10 175121 LinkDrag

11 STD551137 Washer Lock Hvy Hlcl Spr 3/8

12 73940800 Nut Hex Jam Toplock 1/2-20 Unf

13 136518 Spacer BearingAxle Front

15 145212 Nut Hex Flange Lock

17 177883 Shaft Asm. Steering

29 17060612 Screw 5/8-16 x 3/4

32 170162 RodTie

33 19111216 Washer 11/32 x 3/4 x 16 Ga.

34 10040500 Washer Lock Hlcl Spr 5/16

35 73540500 Crownlock Nut 5/16-24 Unf

36 155105 BushingStrg

37 152927 Screw

38 175140X418 Insert Cap Strg Wh

40 STD541537 Lock nut Center 3/8-24

41 159945 Adaptor Wheel Strg

42 174530X418 Boot Steering

43 121749X Washer 25/32 1 1/4 X 16 Ga

46 121232X Cap Spindle Fr Top BIk

65 160367 Spacer Brace Axle

67 72140618 Bolt, Rdhd Sq 3/8-16 Unc x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm.

72 19182411 Washer 9/16 ID x 1-1/20D 11Ga.

82 169835 Bracket Susp. Chassis Front

87 173966 Washer Flat .781 x 1-1/2 x .15

88 175118 Bolt Shoulder 7/16-20 Unc

91 175553 Clip Steering

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

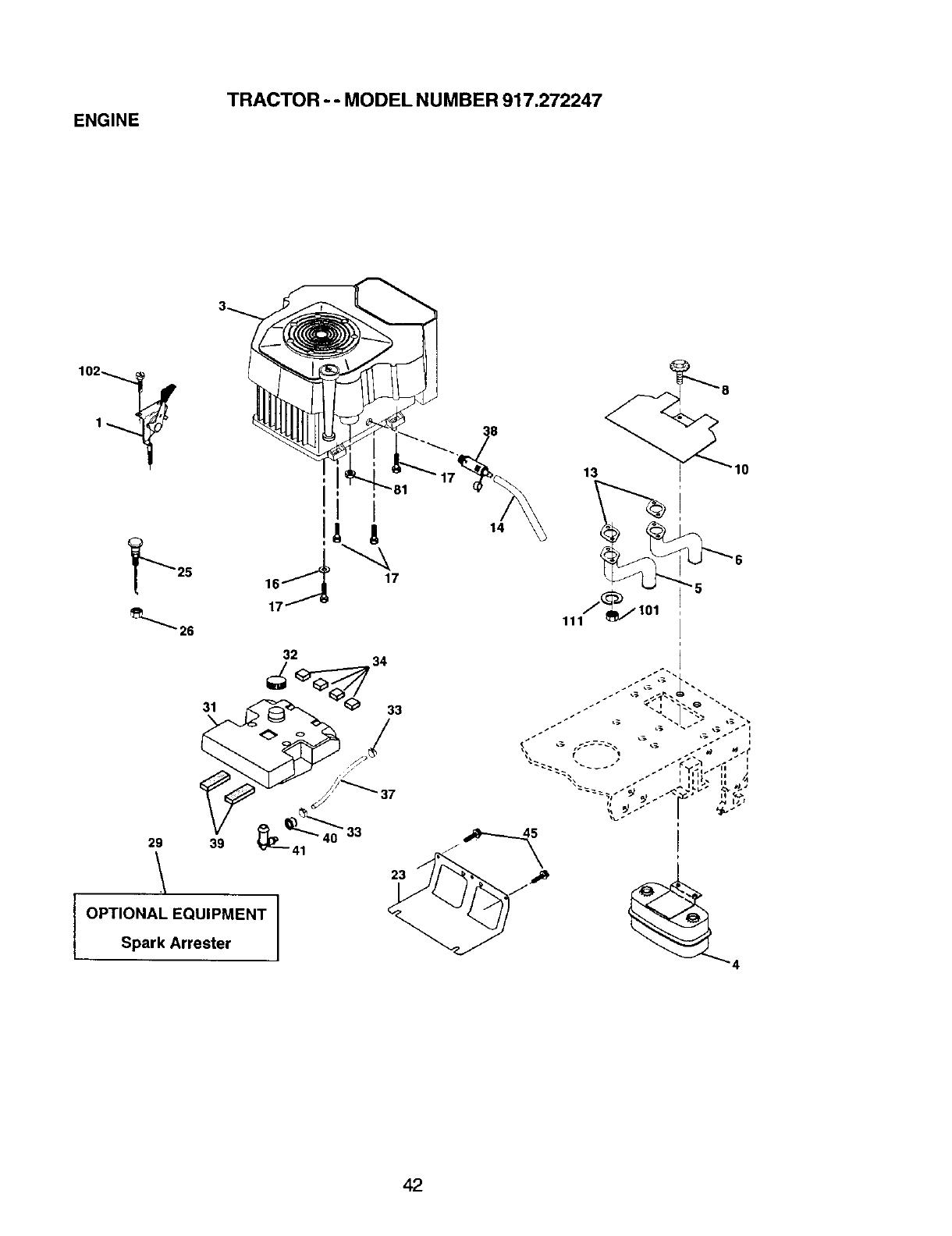

TRACTOR - - MODEL NUMBER 917.272247

ENGINE

_"_ 26

ii i 8'

!A A

31 33

29 39 _..__'_40 33

OPTIONAL EQUIPMENT

Spark Arrester

13 _10

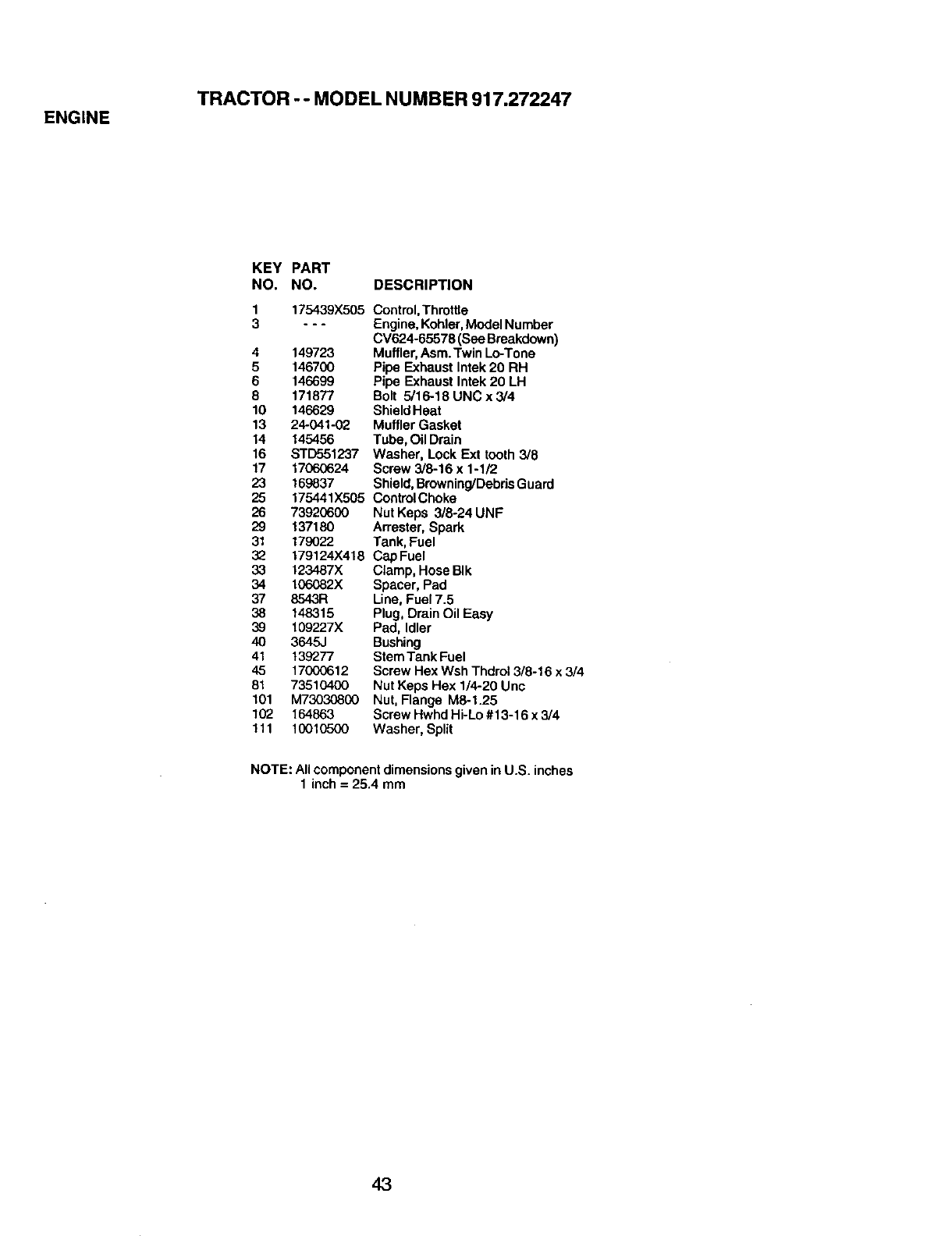

TRACTOR - -MODEL NUMBER 917.272247

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 175439X505 Control,Throttle

3- - - Engine, Kohler,Model Number

CV624-65578 (See Breakdown)

4 149723 Muffler,Asm. Twin Lo-Tone

5 146700 Pipe Exhaust Intek 20 RH

6 146699 Pipe Exhaust Intek 20 LH

8 171877 Bolt 5/16-18 UNC x 3/4

10 146629 ShieldHeat

13 24-041-02 Muffler Gasket

14 145456 Tube, Oil Drain

16 STD5512"37 Washer, Lock Ext tooth 3/8

17 17060624 Screw 3/8-16 x 1-1/2

23 169837 Shield,Browning/DebrisGuard

25 175441X505 ContrelChoke

26 73920600 Nut Keps 3/8-24 UNF

29 137180 Arrester, Spark

31 179022 Tank, Fuel

32 179124X418 Cap Fuel

33 123487X Clamp, Hose BIk

34 106082X Spacer, Pad

37 8543R Line, Fuel 7.5

38 148315 Plug, Drain Oil Easy

39 109227X Pad, Idler

40 3645J Bushing

41 139277 Stem Tank Fuel

45 17000612 Screw Hex Wsh Thdrol 3/8-16 x 3/4

81 73510400 Nut Keps Hex 1/4-20 Unc

101 M73030800 Nut, Flange M8-1.25

102 164863 Screw Hwhd Hi-Lo #13-16 x 3/4

111 10010500 Washer, Split

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

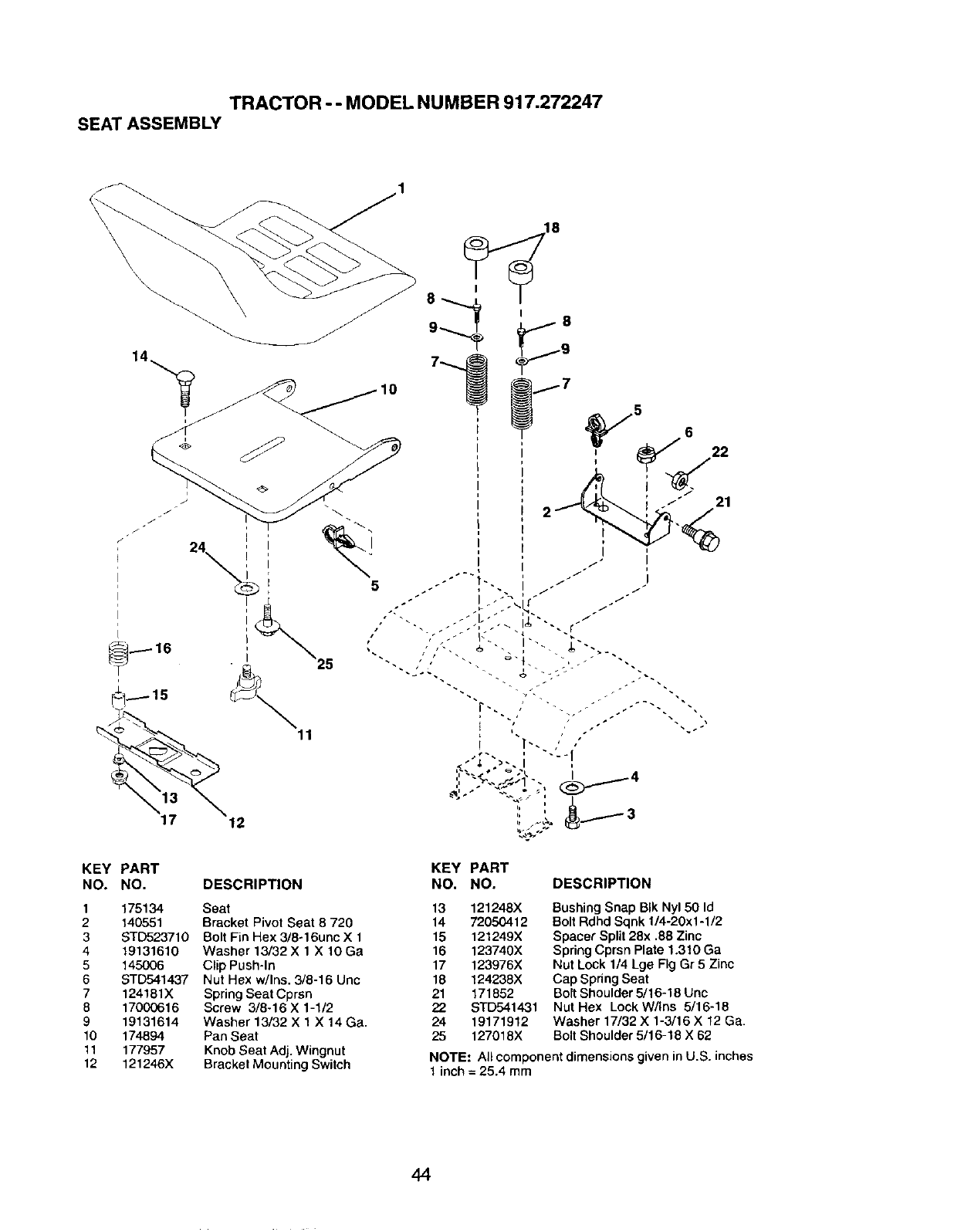

TRACTOR - - MODEL NUMBER 917.272247

SEAT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1175134 Seat

2140551 Bracket Pivot Seat 8 720

3 STD523710 Bolt Fin Hex 3/8-16unc X 1

4 19131610 Washer 13/32 X 1 X 10 Ga

5 145006 Clip Push-In

6 STD541437 Nut Hex w/Ins. 3/8-16 Unc

7 124181X Spring Seat Cprsn

8 17000616 Screw 3/8-16 X 1-1/2

9 19131614 Washer 13/32 X 1 X 14 Ga.

10 174894 Pan Seat

11 177957 Knob Seat Adj. Wingnut

12 121246X Bracket Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 121249X

16 123740X

17 123976X

18 124238X

21 171852

22 STD541431

24 19171912

25 127018X

Bushing Snap BIk Ny150 Id

Bolt Rdhd Sqnk 1/4-20x1-1/2

Spacer Split 28x .88 Zinc

Spring Cprsn Plate 1.310 Ga

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Cap Spring Seat

Bolt Shoulder 5/16-18 Unc

Nut Hex Lock W/Ins 5/16-18

Washer 17/32 X 1-3/16 X 12 Ga.

Bolt Shoulder 5/16-18 X 62

NOTE: Allcomponent dimensions given in U.S. inches

1 inch = 25.4 mm

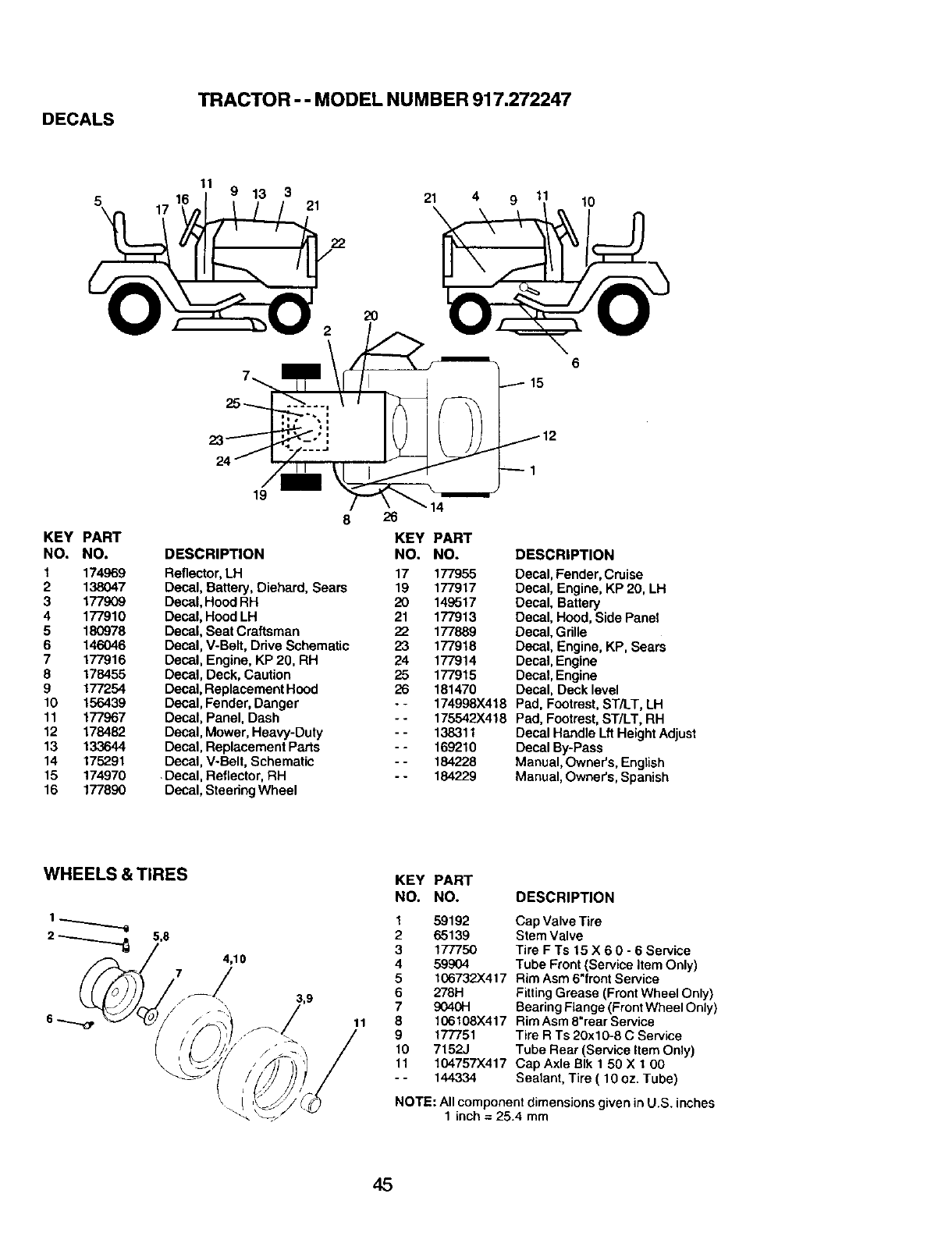

DECALS

TRACTOR -- MODEL NUMBER 917.272247

11 9 13 3 21 4 9 11 10

16 21

KEY PART

NO. NO.

1174969

2 138047

3 177909

4 177910

5 180978

6 146046

7177916

8 178455

9177254

10 156439

11 177967

12 178482

13 133644

14 175291

15 174970

16 177890

826

KEY PART

DESCRIPTION NO. NO.

Reflector,LH 17 177955

Decal, Battery, Diehard, Sears 19 177917

Decal, Hood RH 20 149517

Decal, Hood LH 21 177913

Decal, Seat Craftsman 22 177889

Decal, V-Belt, Drive Schematic 23 177918

Decal, Engine, KP 20, RH 24 177914

Decal, Deck, Caution 25 177915

Decal, Replacement Hood 26 181470

Decal, Fender, Danger . - 174998X418

Decal, Panel, Dash . - 175542X418

Decal, Mower, Heavy-Duty . - 138311

Decal, Replacement Ps.r'ts . - 169210

Decal, V-Belt, Schematic -- 184228

Decal, Reflector, RH .- 184229

Decal, Steering Wheel

DESCRIPTION

Decal, Fender, Cruise

Decal, Engine, KP 20, LH

Decal, Battery

Decal, Hood, Side Pane_

Decal, Gdlle

Decal, Engine, KP, Sears

Decal, Engine

Decal, Deck level

Pad, Footrest, ST/LT, LH

Pad, Footrest, STILT, RH

Decal Handle LftHeight Adjust

Decal By-Pass

Manual, Owner's, English

Manual, Owner's, Spanish

4,10

3,9 11

KEY PART

NO. NO. DESCRIPTION

1 59192

265139

3 177750

4 59904

5 106732X417

6 278R

79040H

81(36108)(417

9 177751

10 7152J

11 104757X417

-- 144334

Cap Valve Tire

Stem Valve

Tire F Ts 15 X6 0 - 6 Service

Tube Front (Service Item Only)

Rim Asm 6"front Service

FittingGrease _FrontWheel Only)

Bearing Flange (Front Wheel Only)

Rim Asm 8"rear Service

Tire R TS20x10-8 C Service

Tube Rear (Service Item Only)

Cap Axle BIk 150 X1 00

Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensionsgiven in U.S. inches

1 inch = 25.4 mm

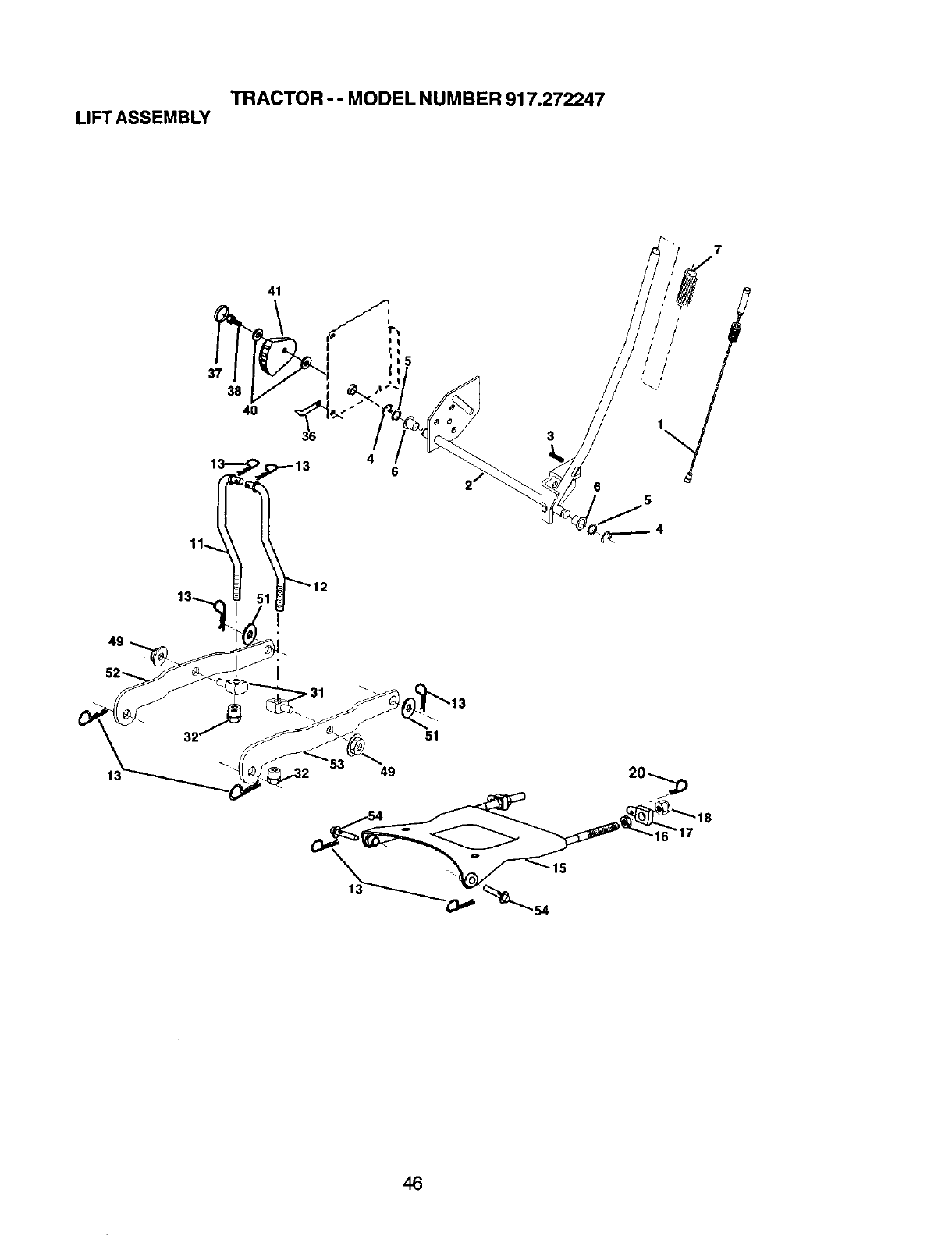

TRACTOR --MODEL NUMBER 917.272247

LIFT ASSEMBLY

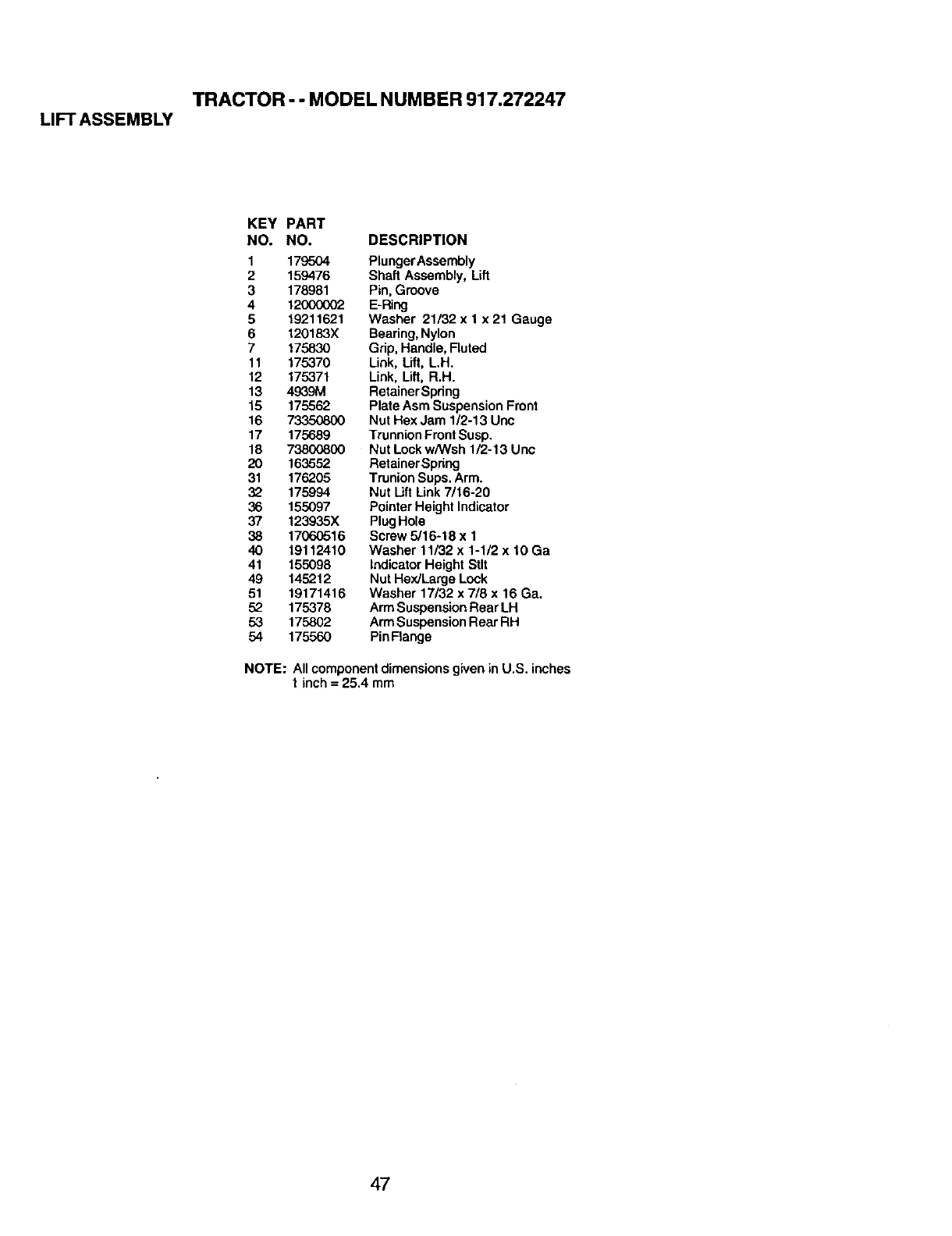

TRACTOR - - MODEL NUMBER 917.272247

LIFT ASSEMBLY

KEY PART

NO. NO, DESCRIPTION

1 179504 PlungerAssembly

2 159476 Shaft Assembly, Lift

3 178981 Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32 x 1x 21 Gauge

6 120183X Bearing, Nylon

7 175830 Grip, Handle, Fluted

11 175370 Link, Lift, LH.

12 175371 Link, Lift, R.H.

13 49_9M Retainer Spring

15 175562 Plate Asm Suspension Front

16 73350800 Nut Hex Jam 1/2-13 Unc

17 175689 Trunnion Front Susp.

18 73800800 Nut Lock w/Wsh 1/2-13 Unc

20 163552 Retainer Spdng

31 176205 Trunion Sups. Arm.

32 175994 Nut Lift Link 7/16-20

36 155097 Pointer Height Indicator

37 123935X Plug Hole

38 17060516 Screw 5/16-18 x 1

40 19112410 Washer 11/32 x 1-1/3 x 10 Ga

41 155098 Indicator Height Stir

49 145212 Nut Hex/Large Lock

51 19171416 Washer 17/32 x 7/3 x 16 Ga.

52 175378 Arm Suspension Rear LH

53 175802 Arm Suspension Rear RH

54 175560 Pin Flange

NOTE: All component dimensions given in U.S. inches

1 inch =25.4 mm

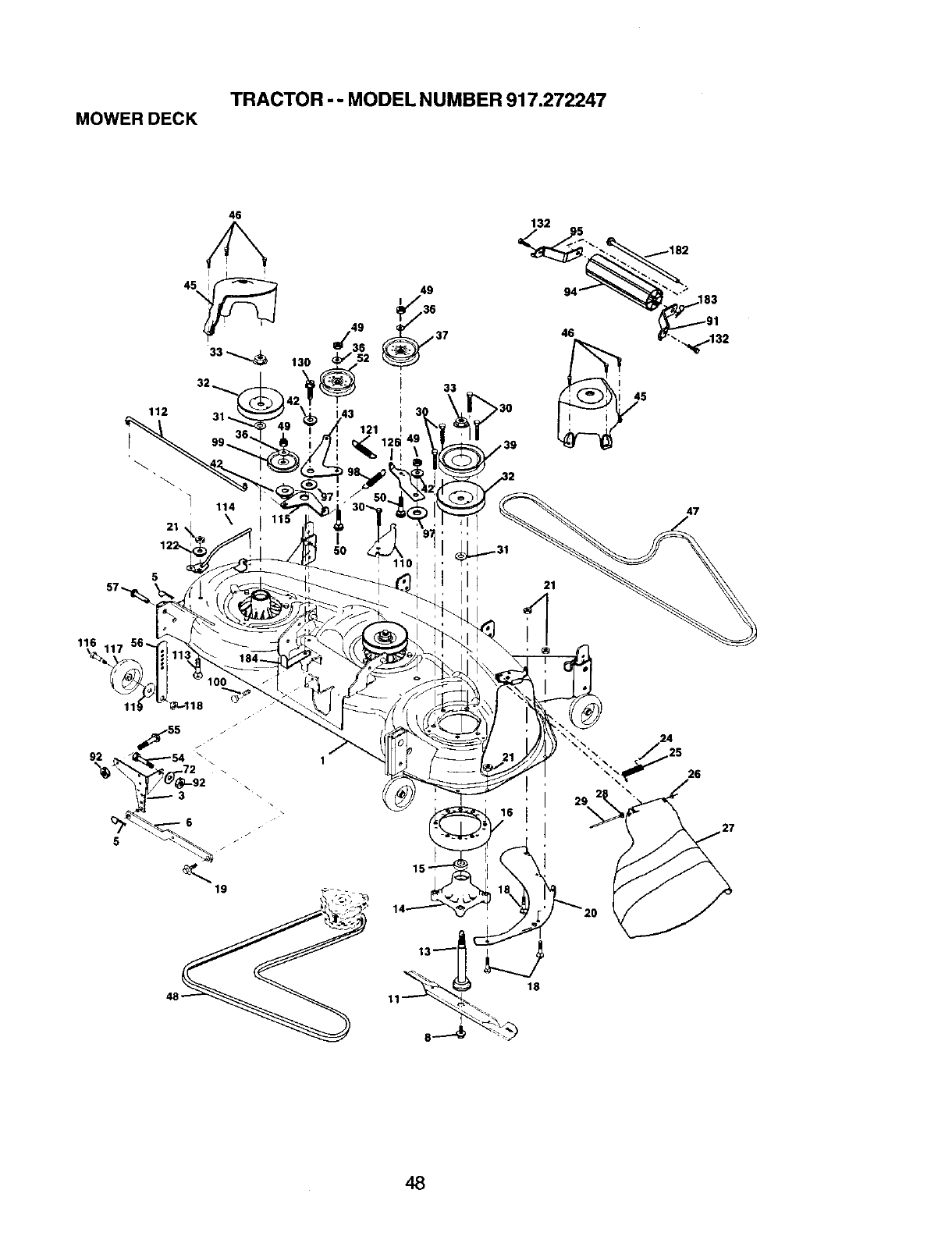

TRACTOR -- MODEL NUMBER 917.272247

MOWER DECK

46 132

116

I• I

112 31_

122.,

114

130

//3o

121

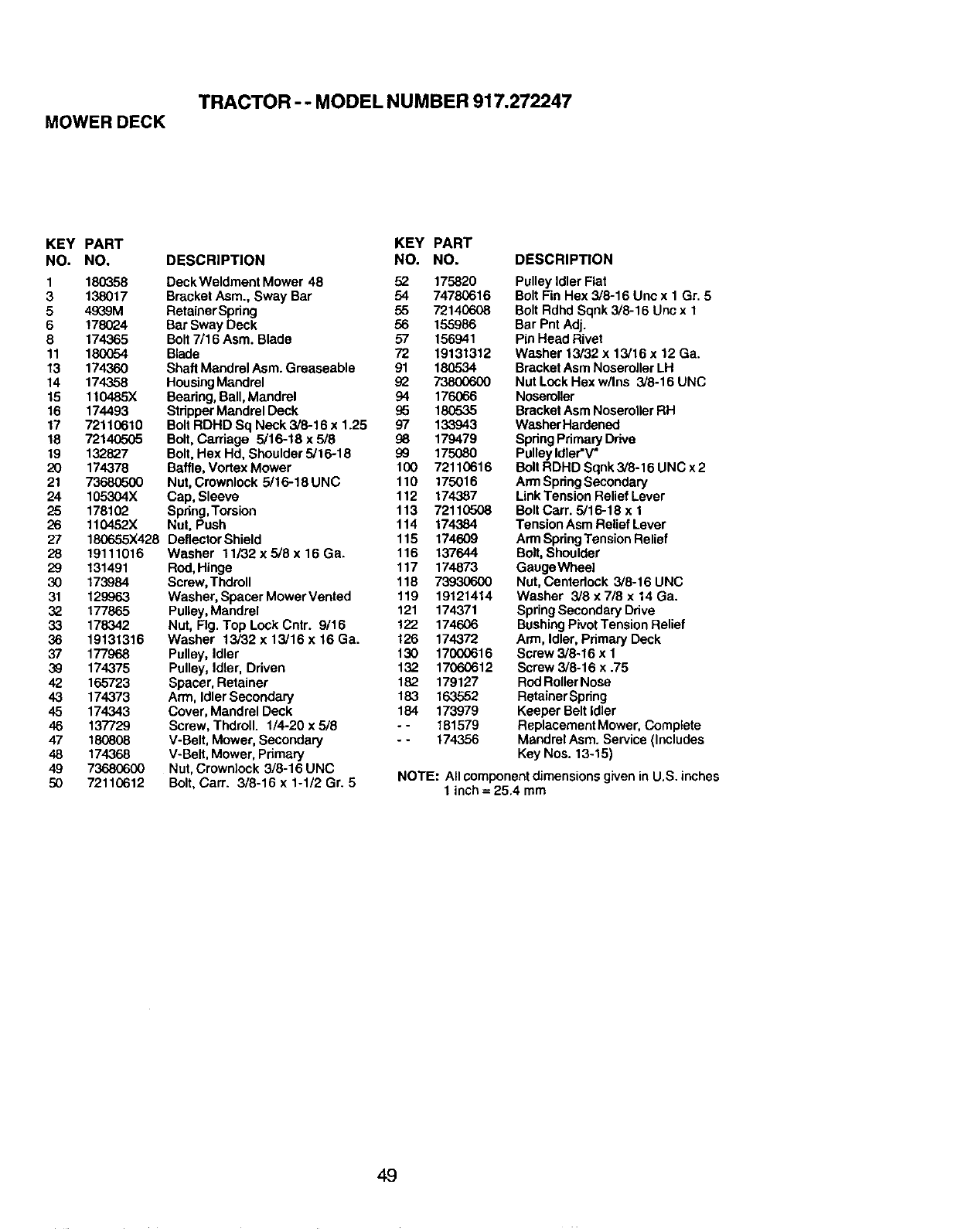

TRACTOR - - MODEL NUMBER 917.272247

MOWER DECK

KEY PART KEY

NO. NO. DESCRIPTION NO.

1 180358 Deck Weldment Mower 48 52 175820

3 138017 Bracket Asm., Sway Bar 54 74780616

5 49G9M Retainer Spring 55 72140608

6178024 Bar Sway Deck 56 155986

8 174365 Bolt7/16 Asm. Blade 57 156941

11 180054 Blade 72 19131312

13 174360 Shaft Mandrel Asm. Greaseable 91 180534

14 174358 HousingMandrel 92 73800600

15 110485X Bearing,Ball, Mandrel 94 176066

16 174493 StripperMandrel Deck 95 180535

17 72110610 Bolt RDHD Sq Neck 3/8-16 x 1.25 97 13,3943

18 72140505 Bolt,Carriage 5/16-18 x 5/8 98 179479

19 132827 Bolt,Hex Hd, Shoulder 5/16-18 99 175080

20 174378 Baffle, Vortex Mower 100 72110616

21 73680500 Nut, Crownlock 5/16-18UNC 110 175016

24 105304X Cap, Sleeve 112 174387

25 178102 Spdng,Torsion 113 72110508

26 110452X Nut, Push 114 174384

27 180655X428 DeflectorShield 115 174609

28 19111016 Washer 11/32x5/8x16Ga. 116 137644

29 131491 Rod,Hinge 117 174873

30 173984 Screw,Thdrell 118 73930600

31 129963 Washer, Specer Mower Vented 119 19121414

32 177865 Pulley,Mandrel 121 174371

33 178342 Nut, Fig. Top Lock Cntr. 9/16 122 174606

36 19131316 Washer 13/32 x 13/16 x 16 Ga. 126 174372

37 177968 Pulley, Idler 130 17(X)0616

39 174375 Pulley, Idler, Driven 132 17060612

42 165723 Spacer, Retainer 182 179127

43 174373 Arm, Idler Secondary 183 163552

45 174343 Cover, Mandrel Deck 184 173979

46 137729 Screw, ThdreU. 1/4-20 x5/8 - - 181579

47 180808 V-Belt, Mower, Secondary - - 174356

48 174368 V-Belt, Mower, Primery

49 73680600 Nut, Crownlock 3/8-16 UNC

50 72110612 Bolt,Cart. 3/8-16 x 1-1/2 Gr. 6

PART

NO. DESCRIPTION

Pulley Idler Fiat

Bolt Fin Hex 3/6-16 Unc x 1 Gr. 5

Bolt Rdhd Sqnk 3/6-16 Unc x 1

Bar PntAdj.

Pin Head Rivet

Washer 13/32 x 13/16 x 12 Ga.

BracketAsm Nosereller LH

Nut Lock Hex w/Ins 3/6-16 UNC

Nosereller

Bracket Asm NoserotlerRH

WasherHardened

Spring PrimaryDrive

Pulley Idler'V*

Belt RDHD Sqnk 3/8-16 UNC x2

Arm SpringSecondary

Link Tension Relief Lever

Bolt Carr. 5/16-18 x 1

Tension Asm Relief Lever

Arm SpringTension Relief

Bolt,Shoulder

GaugeWheel

Nut, Centedock 3/8-16 UNC

Washer 3/8 x 7/8 x 14 Ga.

SpringSecondary Drive

BushingPivot Tension Relief

Arm, Idler, Primary Deck

Screw 3/8-16 x 1

Screw 3/8-16 x .75

Rod Roller Nose

RetainerSpring

Keeper Belt IdJer

Replacement Mower, Complete

Mandrel Asm. Service (Includes

Key Nos. 13-15)

NOTE: All component dimensions givenin U.S. inches

1inch = 25.4 mm

130

124

_-19

128

123

=ooo

,O_cD

0,ml,

u_.,J

6-Sealant (Joint d' etancheite)

57-20W50 011 - 78.80Z (OZ de 78.820 d' Hulle)

127 *Seal and O-ring Kit (Phoque 0 Sonne Jeu)

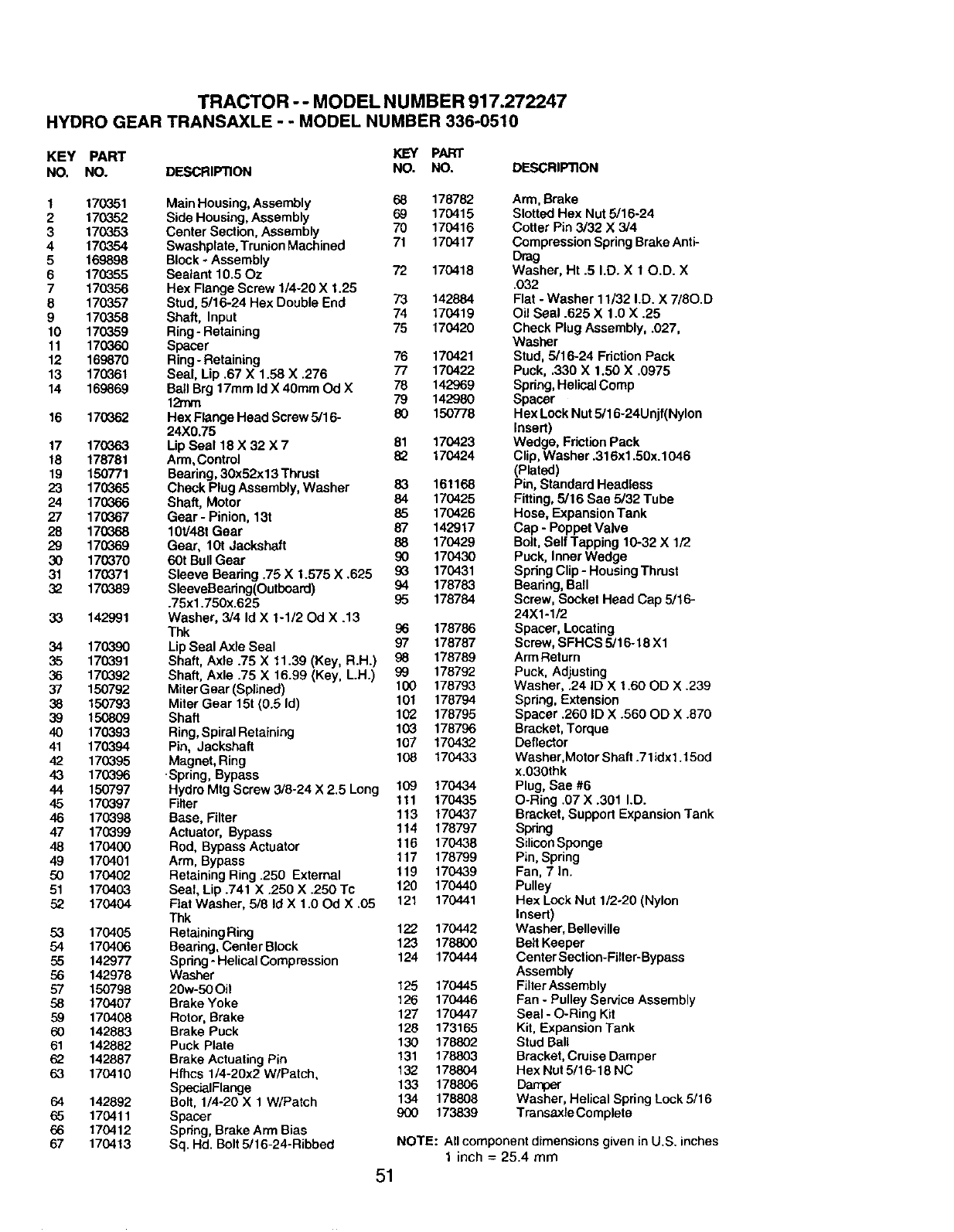

TRACTOR - - MODEL NUMBER 917.272247

HYDRO GEAR TRANSAXLE --MODEL NUMBER 336-0510

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO. DESCRIPTION

1 170_51 Main Housing, Assembly 68 178782

2 170552 Side Housing, Assembly 69 170415

3 170353 Center Section, Assembly 70 170416

4170354 Swashplate, TrunionMachined 71 170417

5169898 Block _Assembly

6 170355 Sealant 10.50z 72 170418

7170356 Hex Flange Screw 1/4-20 X 1.25

8 170357 Stud,5/16-24 Hex Double End 73 142884

9 170358 Shaft, Input 74 170419

10 170359 Ring- Retaining 75 170420

11 170360 Spacer

12 169870 Ring-Retaining 76 170421

13 170361 Seal, Lip ,67 X 1.58 X .276 77 170422

14 169869 BallBrg 17rein Id X 40mm Od X 78 142969

12mm 79 142980

16 170362 Hex Flange Head Screw 5/16- 80 150778

24X0.76

17 170363 Lip Seal 18 X 32 X 7 81 170423

18 178781 Arm,Control 82 170424

19 150771 Bearing, 30x52x13 Thrust

23 170365 Check Plug Assembly, Washer 83 161168

24 170366 Shaft, Motor 84 170425

27 170367 Gear- Pinion, 13t 85 170426

28 170368 10t/48t Gear 87 142917

29 170_69 Gear, 101Jackshaft 88 170429

30 170370 60t Bull Gear 90 170430

31 170371 Sleeve Bearing .75 X1.575 X .625 9G 170431

32 170_89 SleeveBeadng(Outboard) 94 178783

.75xl .750x.625 95 178784

33 142991 Washer, 3/4 Id X 1-1/20d X .13

Thk 96 178786

34 170390 Lip Seal Axle Seal 97 178787

35 170391 Shaft, Axla .75 X11.39 (Key, R.H.) 98 178789

36 170392 Shaft, Axle .75 X16.99 (Key, LH.) 99 178792

37 150792 Miter Gear (Splined) 100 178793

38 150793 Miter Gear 15t (0.5 Id) 101 178794

39 150809 Shaft 102 178795

40 170393 Ring, Spiral Retaining 103 178796

41 170394 Pin, Jackshaft 107 170432

42 170395 Magnet, Ring 108 170433

43 17(_96 .Spring, Bypass

44 150797 Hydro Mtg Screw 3/8-24 X 2.5 Long 109 170434

45 170397 F}lter 111 170435

46 170398 Base, Filter 113 170437

47 170399 Actuator, Bypass 114 178797

48 170400 Rod, Bypass Actuator 116 170438

49 170401 Arm, Bypass 117 178799

50 170402 Retaining Ring .250 External 119 170439

51 170403 Seal, Lip .741 X .250 X .250 Tc 120 170440

52 170404 Flat Washer, 5/8 Id X1.00d X .05 121 170441

Thk

53 170405 Retaining Ring 122 170442

54 170406 Bearing, Center Block 123 178800

55 142977 Spdng- Helical Compression 124 170444

56 142978 Washer

57 150798 20w-50 Oil 125 170445

58 170407 Brake Yoke 126 170446

59 170408 Rotor, Brake 127 170447

60 142883 Brake Puck 128 173165

61 142882 Puck Plate 130 178802

62 142887 Brake Actuating Pin 131 178803

63 170410 Hfhcs 1/4-20x2 W/Patch, 132 178804

SpecialFlange 133 178806

64 142892 Bolt, 1/4-20 X 1 W/Patch 134 178808

65 170411 Spacer 900 173839

66 170412 Spring, Brake Arm Bias

67 170413 Sq. Hal. Bolt 5/16-24-Ribbed

Arm, Brake

Slotted Hex Nut 5/16-24

Cotter Pin 3/32 X3/4

Compression SpringBrake Anti-

Drag

Washer, Ht .5 I.O. X 10.D. X

.032

Flat - Washer 11/32 I.D. X 7/80.D

Oil Seal .625 X 1.0 X .25

Check Plug Assembly, .027,

Washer

Stud, 5/16-24 Friction Pack

Puck, .330 X 1.50 X .0975

Spring, Helical Comp

Spacer

Hex Lock Nut 5/16-24Unjf(Nylon

Insert)

Wedge, Friction Pack

Clip, Washer .316xl .50x.1046

(Plated)

Pin, Standard Headless

Fitting, 5/16 Sae 5/32 Tube

Hose, Expansion Tank

Cap - Poppet Valve

Bolt, Self Tapping 10-32 X 1/2

Puck, Inner Wedge

Spring Clip - Housing Thrust

Bearing, Ball

Screw, Socket Head Cap 5/16-

24X1-1/2

Spacer, Locating

Screw, SFHCS 5/16-18 Xl

ArmReturn

Puck, Adjusting

Washer, .24 ID X1.60 OD X .239

Spring, Extension

Spacer .260 ID X .560 OD X .870

Bracket, Torque

Deflector

Washer,Motor Shaft .71idx1.15od

x.030thk

Plug, Sae #6

O-Ring .07 X .301 I.D.

Bracket, Support Expansion Tank

S_ng

SiliconSponge

Pin, Spring

Fan, 7 In.

Pulley

Hex Lock Nut 1/2o20 (Nylon

Insert)

Washer, Belleville

Belt Keeper

Center Section-Filter-Bypass

Assembly

Filter Assembly

Fan - Pulley Service Assembly

Seal - O-Ring Kit

Kit, Expansion Tank

Stud Ball

Bracket, Cruise Damper

Hex Nut 5/16-18 NC

Damper

Washer, Helical Spring Lock 5/16

Transaxla Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 rein

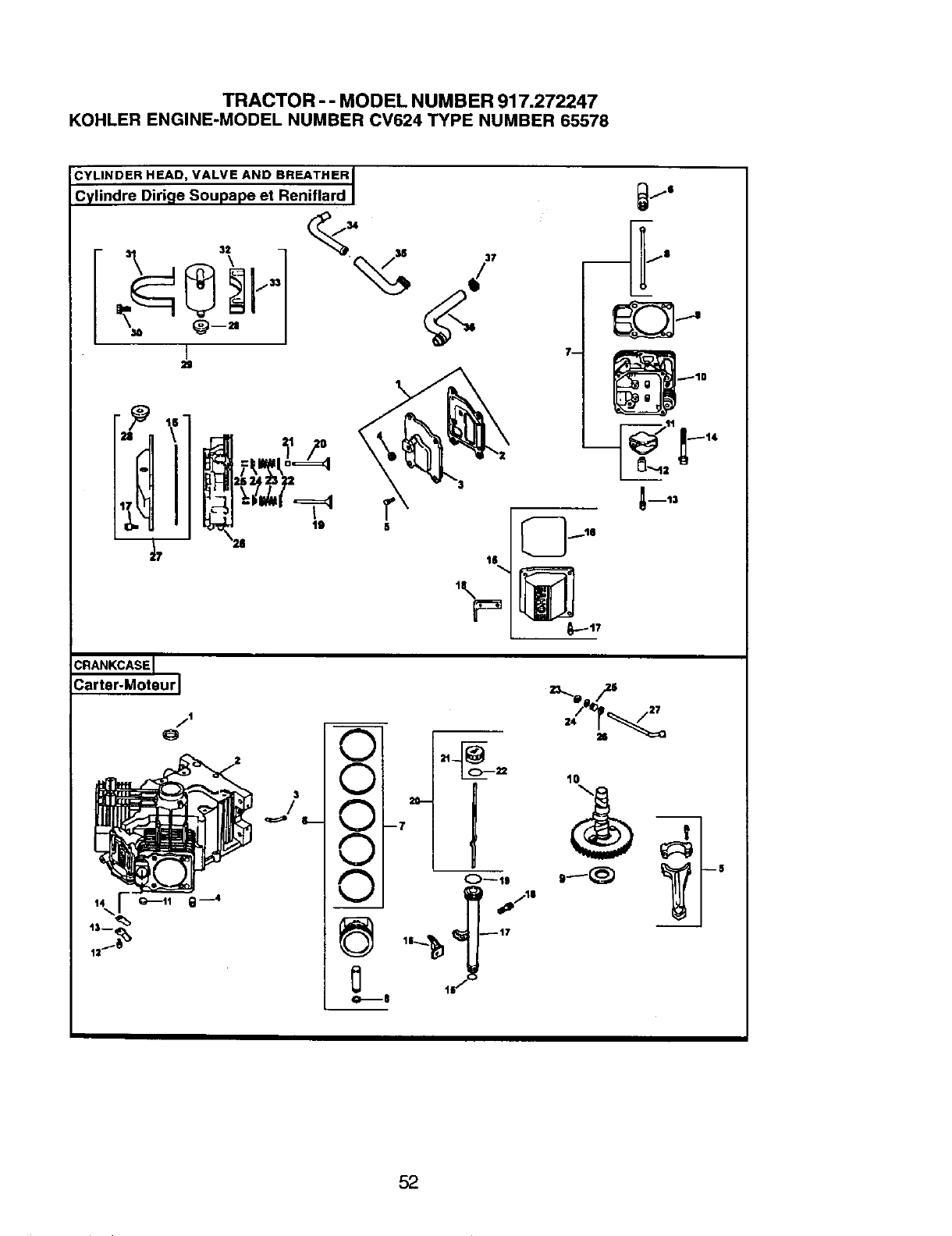

TRACTOR -- MODEL NUMBER 917.272247

KOHLER ENGINE-MODEL NUMBER CV624 TYPE NUMBER 65578

',YLINDER HEAD, VALVE AND BREATHERI

c___l'

21 n

I_11 I

,3 _,ql

! x._l

o. U

r, lg

,\ P

_mt3

CRANKCASEI

Carter-MoteurJ

/m10

_....-|

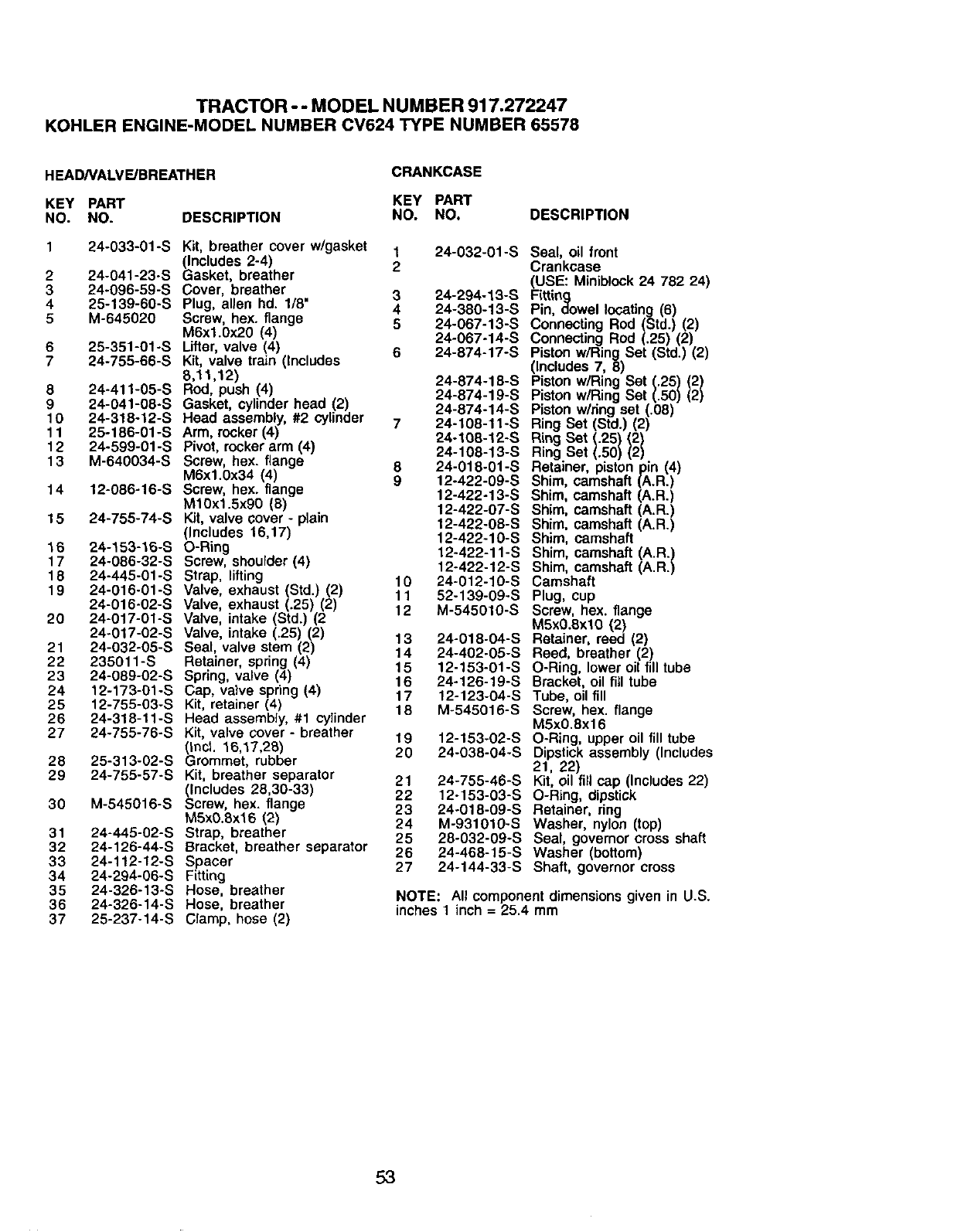

TRACTOR - - MODEL NUMBER 917.272247

KOHLER ENGINE-MODEL NUMBER CV624 TYPE NUMBER 65578

HEAD/VALVE/BREATHER CRANKCASE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIP_ON

1 24-033-01-S Kit, breather cover w/gasket 1 24-032-01-S Seal, oil front

(Includes 2-4) 2 Crankcase

2 24-041-23-S Gasket, breather (USE: Miniblock 24 782 24)

3 24-096-59-S Cover, breather 3 24-294-13-S Fitting

4 25-139-60-S Plug, allen hd. 1/8" 4 24-380-13-S Pin, dowel locating (6)

5 M-645020 Screw, hex. flange 5 24-067-13-S Connecting Rod (Std.) (2)

M6xl.0x20 (4) 24-067-14-S Connecting Rod (.25) (2)

6 25-351-01-S Lifter, valve (4) 6 24-874-17-S Piston w/Ring Set (Std.) (2)

7 24-755-66-S Kit, valve train (Includes (Includes 7, 8)

8,11,12) 24-874-18-S Piston w/Ring Set (.25) (2)

8 24-411-05-S Rod, push (4) 24-874-19-S Piston wiring Set (.50) (2)

9 24-041-08-S Gasket, cylinder head (2) 24-874-14-S Piston w/ring set (.08)

10 24-318-12-S Head assembly, #2 cylinder

11 25-186-01-S Arm, rocker (4) 7 24-108-11°S Ring Set (Std.) (2)

24-108-12-S Ring Set 4.25) (2)

12 24-599-01-S Pivot, rocker arm (4) 24-108-13-S Ring Set (.50) (2)

13 M-640034-S Screw, hex. flange 8 24-018-01-S Retainer, piston pin (4)

MSx1.0x34 (4) 9 12-422-09-S Shim, camshaft (A.R.)

14 12-086-16-S Screw, hex. flange 12-422-13-S Shim, camshaft (A.R.)

M10x1.5xg0 (8) 12-422-07-S Shim, camshaft (A.R.)

15 24-755-74-S Kit, valve cover -plain 12-422-08-S Shim, camshaft (A.R.)

(Includes 16,17) 12-422-10-S Shim, camshaft

16 24-153-16-S O-Ring 12-422-11-S Shim, camshaft (A.R.)

17 24-086-32-S Screw, shoulder (4) 12-422-12-S Shim, camshaft (A.R.)

18 24-445-01-S Strap, lifting 10 24-012-10-S Camshaft

19 24-016-01-S Valve, exhaust (Std.) (2) 11 52-139-09-S Plug, cup

24-016-02-S Valve, exhaust (.25) (2)

20 24-017-01-S Valve, intake (Std.) (2 12 M-545010-S Screw, hex. flange

MSxO.8xl0 (2)

24-017-02-S Valve, intake (.25) (2) 13 24-018-04-S Retainer, reed (2)

21 24-032-05-S Seal, valve stem (2) 14 24-402-05-S Reed, breather (2)

22 235011-S Retainer, spring (4)

23 24-089-02-S Spring, valve (4) 15 12-153-01-S O-Ring, lower oil fill tube

16 24-126-19-S Bracket, oil fill tube

24 12-173-01-S Cap, valve spring (4) 17 12-123-04-S Tube, oil fill

25 12-755-03-S Kit, retainer (4) 18 M°545016-S Screw, hex. flange

26 24-318-11-S Head assembly, #1 cylinder M5x0.8x16

27 24-755-76-S Kit, valve cover - breather 19 12-153-02-S O-Ring, upper oil fill tube

(incl. 16,17',28) 20 24-038-04-S Dipstick assembly (Includes

28 25-313-02-S Grommet, rubber 21, 22)

29 24-755-57-S Kit, breather separator

(Includes 28,30-33) 21 24-755-46-S Kit, oil fill cap (Includes 22)

22 12-153-03-S O-Ring, dipstick

30 M-545016-S Screw, hex. flange

M5x0.Sx16 (2) 23 24°018-09-S Retainer, ring

24 M-931010-S Washer, nylon (top)

31 24-445-02-S Strap, breather 25 28-032-09-S Seal, govemor cross shaft

32 24-126-44-S Bracket, breather separator 26 24-468-15-S Washer (bottom)

33 24-112-12-S Spacer 27 24-144-33-S Shaft, governor cross

34 24-294-06-S Fitting

35 24-326-13-S Hose, breather NOTE: All component dimensions given in U.S.

36 24-326-14-S Hose, breather inches 1 inch = 25.4 mm

37 25-237-14-S Clamp, hose (2)

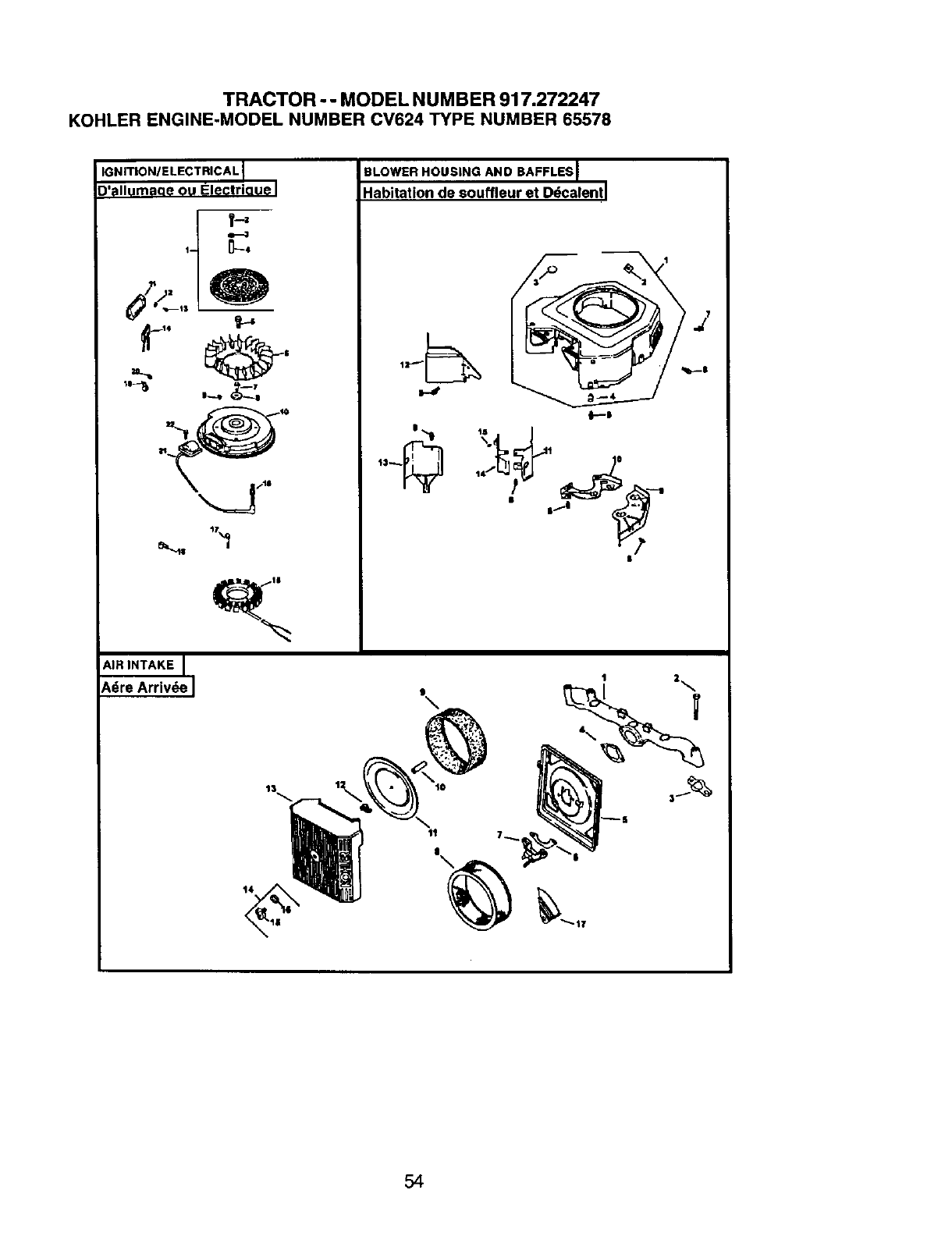

TRACTOR o- MODEL NUMBER 917.272247

KOHLER ENGINE-MODEL NUMBER CV624 TYPE NUMBER 65578

IGNITION/ELECTRICALI

D' II m El tri

AIRINTAKE I

_.dre Arriv_eJ

BLOWER HOUSING AND BAFFLES I

Habitation de souffleur et Ddcalentl

_p--i

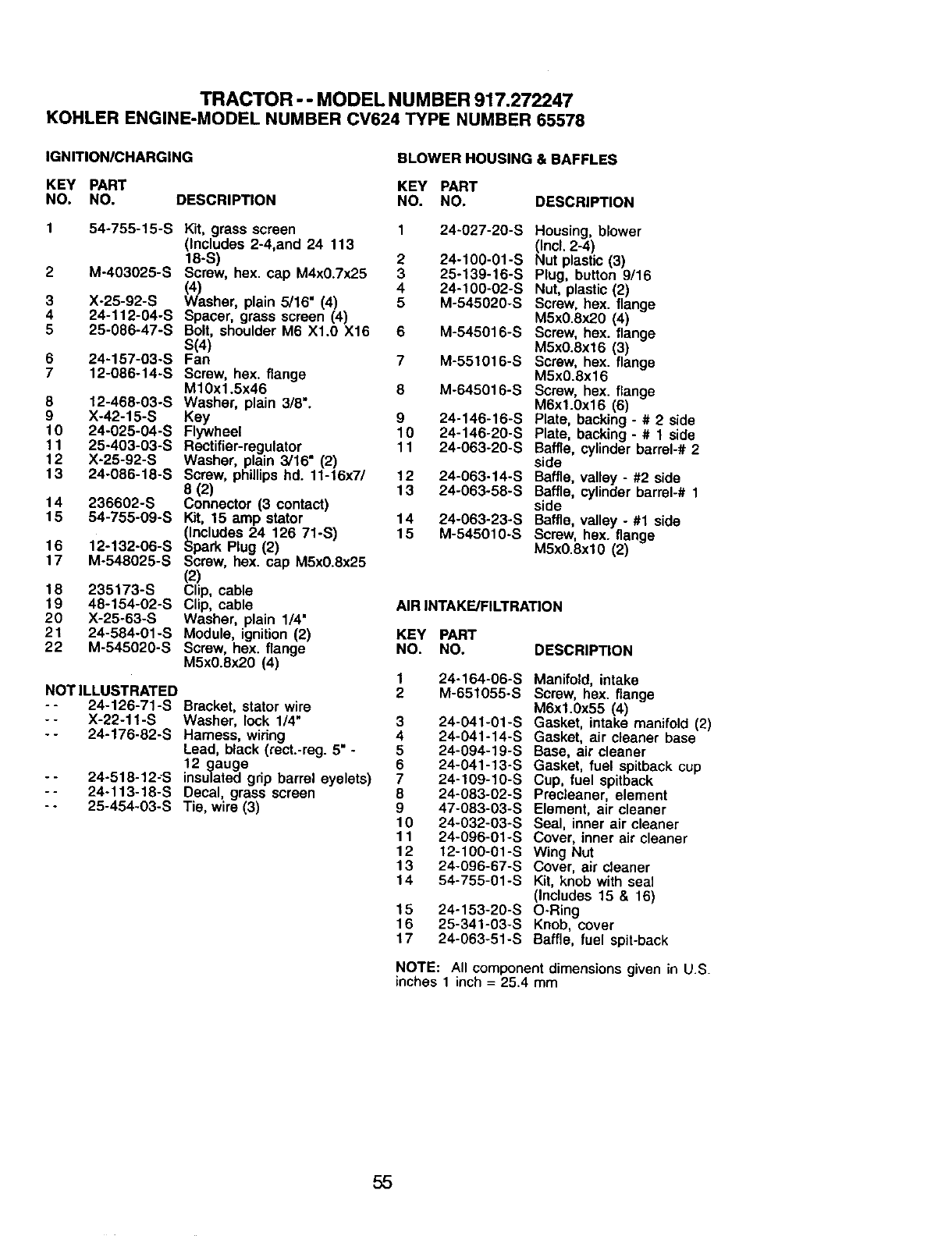

TRACTOR -- MODEL NUMBER 917.272247

KOHLER ENGINE-MODEL NUMBER CV624 TYPE NUMBER 65578

IGNITION/CHARGING SLOWER HOUSING & BAFFLES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

54-755-15-S Kit, grass screen 1 24-027-20-S

(Includes 2-4,and 24 113

18-S) 2 24-100-01-S

M-403025-S Screw, hex. cap M4xO.7x25 3 25-139-16-S

(4) 424-100-02-S

X-25-92-S Washer, plain 5/16" (4) 5 M-545020-S

24-112-04-S Spacer, grass screen (4)

25-086-47-S Bolt, shoulder M6 X1.0 X16 6 M-545016-S

S(4)

24-157-03-S Fan 7 M-551016-S

12-086-14-S Screw, hex. flange

M10xl.5x46 8 M-645016-S

12-468-03-S Washer, plain 3/8".

X-42-15-S Key 9 24-146-16-S

24-025-04-S Flywheel 10 24-146°20-S

25-403-03-S Rectifier-regulator 11 24-063-20-S

X-25-92-S Washer, plain 3/16" (2)

24-086-18-S Screw, phillips hd. 11-16x7/ 12 24-063-14-S

8 (2) 13 24-063-58-S

236602-S Connector (3 contact)

54-755-09-S Kit, 15 amp stator 14 24-063-23-S

(Includes 24 126 71-S) 15 M-545010-S

12-132-06-S Spark Plug (2)

M-548025-S Screw, hex. cap M5x0.8x25

(2)

235173-S Clip, cable

48-154-02-S Clip, cable AIR INTAKE/FILTRATION

X-25-63-S Washer, plain 1/4"

24-584-01-S Module, ignition (2) KEY PART

M-545020-S Screw, hex. flange NO. NO.

M5x0.8x20 (4)

NOT ILLUSTRATED

- - 24-126-71-S

- - X-22-11-S

- - 24-176-82-S

Bracket, stator wire

Washer, lock 1/4"

Harness, wiring

Lead, black (rect,-reg. 5" -

12 gauge

insulatedgrip barrel eyelets)

Decal, grass screen

Tie, wire (3)

- - 24-518-12,S

-- 24-113-18-S

- - 25-454-03-S

Housing, blower

(Incl. 2-4)

Nut plastic (3)

Plug, button 9/16

Nut, plastic (2)

Screw, hex. flange

M5x0.8x2O (4)

Screw, hex. flange

M5x0.8x16 (3)

Screw, hex. flange

M5x0.8x16

Screw, hex. flange

M6x1.0x16 (6)

Plate, backing- # 2 side

Plate, backing- # 1 side

Baffle, cylinder barrel-# 2

side

Baffle, valley - #2 side

Baffle, cylinder barrel-# 1

side

Baffle, valley - #1 side

Screw, hex. flange

M5xO.8xl0 (2)

DESCRIPTION

124-164-06-S Manifold, intake

2 M-651055-S Screw, hsx. flange

M6xl.0x55 (4)

3 24-041-01-S Gasket, intake manifold (2)

4 24-041-14-S Gasket, air cleaner base

5 24-094-19-S Base, air cleaner

6 24-041-13-S Gasket, fuel spitback cup

7 24-109-10-S Cup, fuel spitback

8 24-083-02-S Precleansr, element

9 47-083-03-S Element, air cleaner

10 24-032-03-S Seal, inner air cleaner

11 24-096-01-S Cover, inner air cleaner

12 12-100-01-S Wing Nut

13 24-096-67-S Cover, air cleaner

14 54-755-01-S Kit, knob with seal

(Includes 15 & 16)

15 24-153-20-S O-Ring

16 25-341-03-S Knob, cover

17 24-063-51-S Baffle, fuel spit-back

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

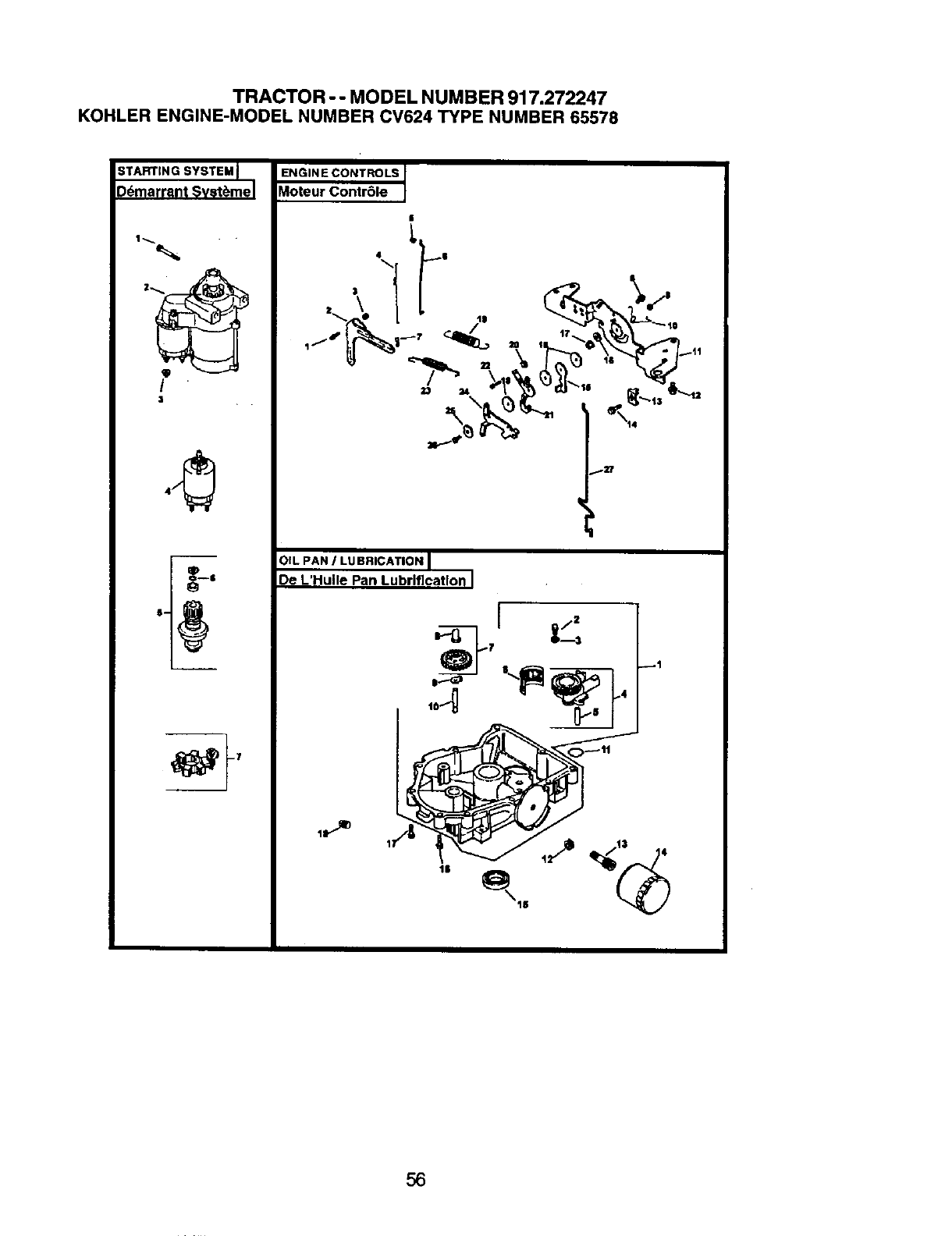

TRACTOR --MODEL NUMBER 917.272247

KOHLER ENGINE-MODEL NUMBER CV624 TYPE NUMBER 65578

START[N G SYSTEM j

D_marrant Svst_me I

ENGIN E CONTROLS

Moteur Contr61e

OIL PAN ILUBRICATION I

De L'Huile Pan Lubrlflcatlon J

127

[

.--1

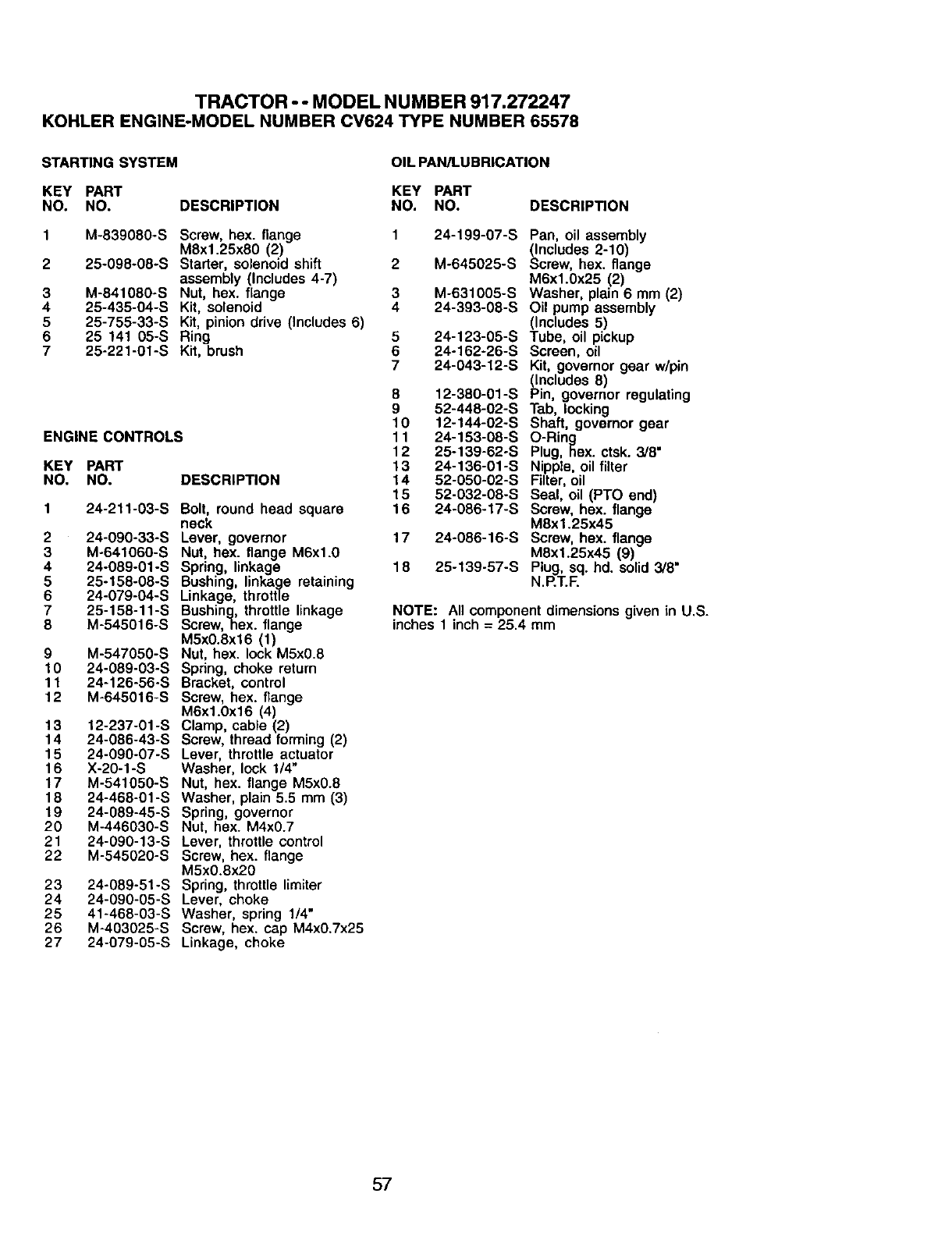

TRACTOR -- MODEL NUMBER 917.272247

KOHLER ENGINE-MODEL NUMBER CV624 TYPE NUMBER 65578

STARTING SYSTEM OIL PAN/LUBRICATION

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

M-839080-S Screw, hex. flange 1

M8x1.25x80 (2)

25-098-08-S Starter, solenoid shift 2

assembly (Includes 4-7)

M-841080-S Nut, hex. flange 3

25-435-04-S Kit, solenoid 4

25-755-33-S Kit, pinion ddve (Includes 6)

25 141 05-S Ring 5

25-221-01-S Kit, brush 6

ENGINE CONTROLS

DESCRIPTION

KEY PART

NO. NO,

24-211-03-S

24-090-33-S

M-641060-S

24-089-01-S

25-158-08-S

24-079-04-S

25-158-11-S

M-545016-S

M-547050-S

24-089-03-S

24-126-56-S

M-645016-S

12-237-01-S

24-086-43-S

24-090-07-S

X-20-1-S

M-541050-S

24-468-01-S

24-089-45-S

M-446030-S

24-090-13-S

M-545020-S

24-089-51-S

24-090-05-S

41-468-03-S

M-403025-S

24-079-05-S

Bolt, round head square

neck

Lever, governor

Nut, hex. flange M6xl.0

Spring, linkage

Bushing, linkage retaining

Linkage, throttle

Bushing, throttle linkage

Screw, hex. flange

M5x0.8x16 (1)

Nut, hex. lock M5x0.8

Spdng, choke return

Bracket, control

Screw, hex. flange

M6x1.0x16 (4)

Clamp, cable (2)

Screw, thread forming (2)

Lever, throttle actuator

Washer, lock 1/4"

Nut, hex. flange M5xO.8

Washer, plain 5.5 mm (3)

Spring, governor

Nut, hex. M4x0.7

Lever, throttle control

Screw, hex. flange

M5x0.8x20

Spring, throttle limiter

Lever, choke

Washer, spring 1/4"

Screw, hex. cap M4x0.7x25

Linkage, choke

DESCRIPTION

24-199-07-S

M-645025-S

M-631005-S

24-393-08-S

24-123-05-S

24-162-26-S

24-043-12-S

12-380-01 -S

52-448-02-S

12-144-02-S

24-153-08-S

25-139-62-S

24-136-01-S

52-050-02-S

52-032-08-S

24-086-17-S

24-086-16-S

25-139-57-S

Pan, oil assembly

(Includes 2-10)

Screw, hex. flange

M6x1.0x25 (2)

Washer, plain 6 mm (2)

Oil pump assembly

(Includes 5)

Tube, oil pickup

Screen, oil

Kit, governor gear w/pin

(Includes 8)

Pin, governor regulating

Tab, locking

Shaft, governor gear

O-Ring

Plug, hex. ctsk. 3/8"

Nipple, oil filter

Filter, oil

Seal, oil (PTO end)

Screw, hex. flange

M8x1.25x45

Screw, hex. flange

M8x1.25x45 (9)

Plug, sq. hd. solid 3/8"

N.P.T.F.

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

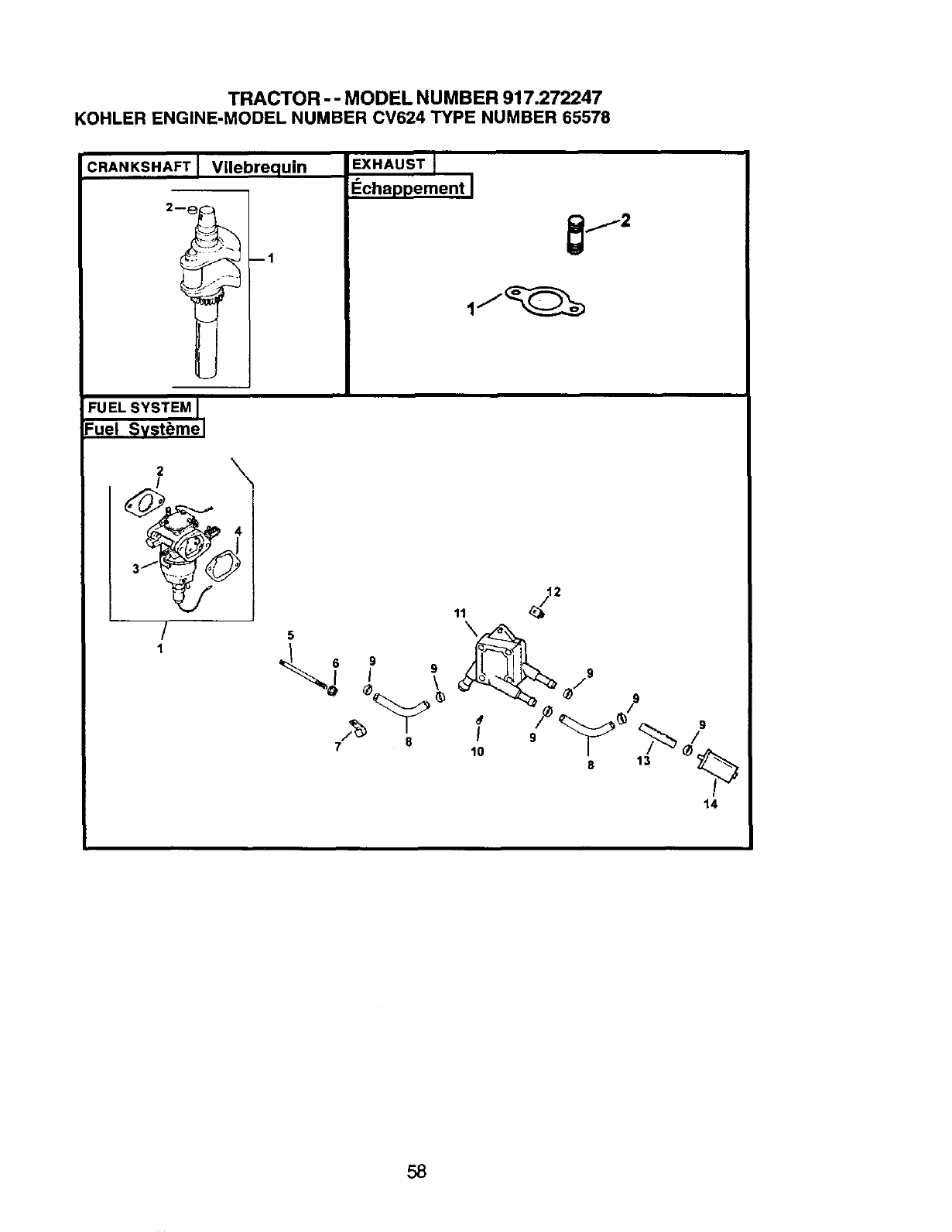

TRACTOR -- MODEL NUMBER 917.272247

KOHLER ENGINE-MODEL NUMBER CV624 TYPE NUMBER 65578

CRANKSHAFT I Vllebrequin

2--_ --1

EXHAUST

Echappement

FUEL SYSTEM

Fuel Svst_me

41 _2

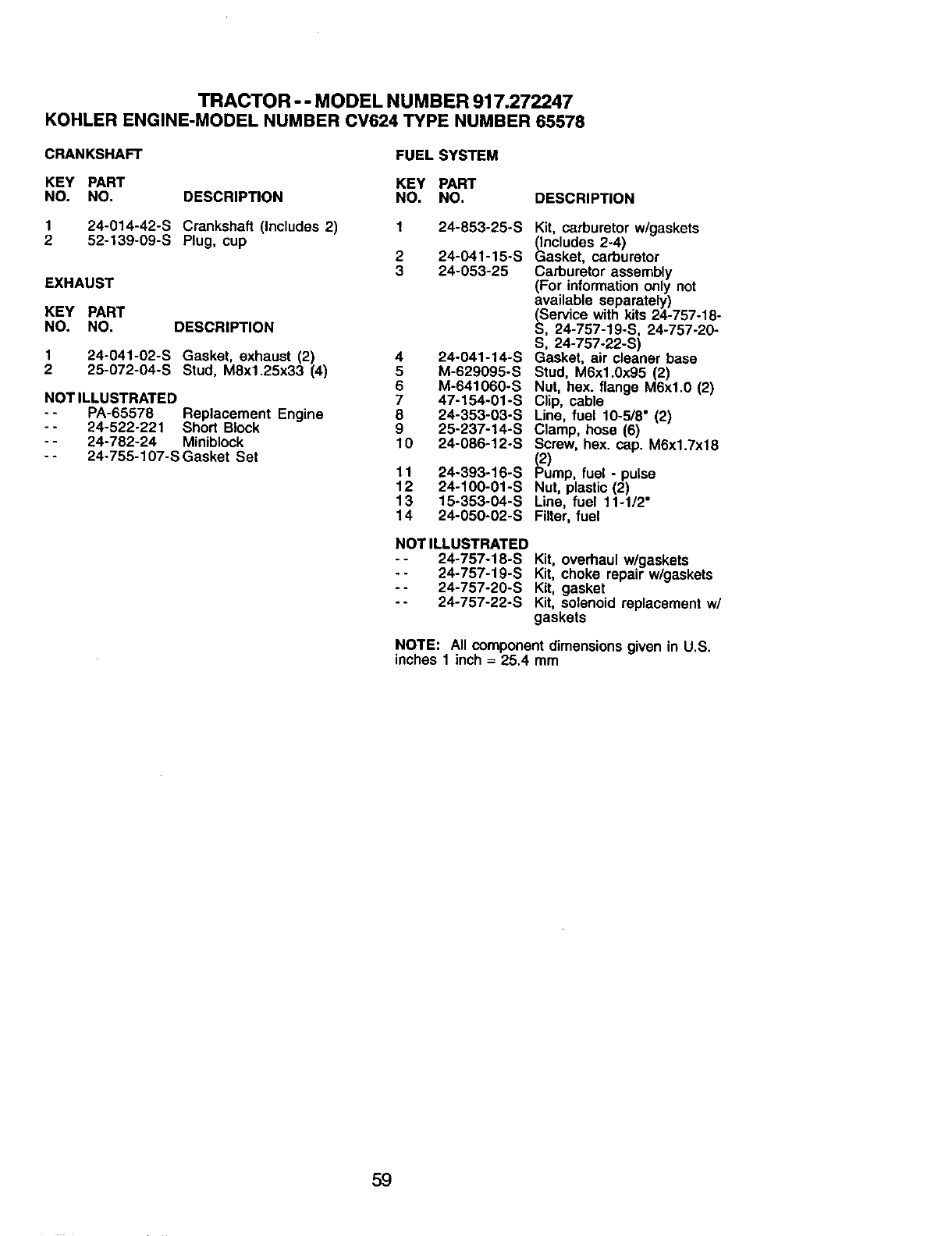

TRACTOR - - MODEL NUMBER 917.272247

KOHLER ENGINE-MODEL NUMBER CV624 TYPE NUMBER 65578

CRANKSHAFT

KEY PART

NO. NO. DESCRIPTION

1 24-014-42-S Crankshaft (Includes 2)

2 52-139-09-S Plug, cup

EXHAUST

KEY PART

NO. NO. DESCRIPTION

24-041-02-S Gasket, exhaust (2)

25-072-04-S Stud, MSxl.25x33 (4)

NOT ILLUSTRATED

-- PA-65578 Replacement Engine

-- 24-522-221 Short Block

- - 24-782-24 Miniblock

-- 24-755-107-S Gasket Set

FUEL SYSTEM

KEY PART

NO. NO. DESCRIPTION

24-853-25-S

24-041-15-S

24°053-25

24*041-14-S

M-629095-S

M-641060-S

47-154-01-S

24-353-03-S

25-237-14-S

24-086-12-S

24-393-16-S

24-100-01-S

15-353-04-S

24-050-02-S

Kit, carburetor w/gaskets

(Includes 2-4)

Gasket, carburetor

Carburetor assembly

(For information only not

available separately)

(Service with kits 24-757-18-

S, 24-757-19-S, 24-757-20-

S, 24-757-22-S)

Gasket, air cleaner base

Stud, M6xl.0x95 (2)

Nut, hex. flange M6xl.0 (2)

Clip, cable

Line, fuel 10-5/8" (2)

Clamp, hose (6)

Screw, hex. cap. M6xl.7x18

(2)

Pump, fuel -pulse

Nut, plastic (2)

Line, fuel 11-1/2"

Filter, fuel

NOT ILLUSTRATED

-- 24-757-18-S Kit, overhaul w/gaskets

-- 24-757-19-S Kit, choke repair w/gaskets

-- 24-757-20-S Kit, gasket

-- 24-757-22-S Kit, solenoid replacementw/

gaskets

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line indicated above.

2, Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure,

4. Compare the angle of the fold with the slope of the hill.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME _Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (u.s_) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en franc.,ais:

1-800-LE-FOYER Mc

(1-800-_7)

www.sears.ca

©Seazs,_andCo.

®Registered Trademark /TMTrademark /SMService Mark of Sears, Roebuck and Co.

® Marca Registrada /TMMarca de Fdbdca /sMMarca de Servicio de Seam, Roebuck and Co.

McMarque de commerce /_ Marque ddpos_e de Sears, Roebuck and Co.

184228 7.2.02 RD Printed in U.S.A.

Craftsman 917 272247 Users Manual

917272247 917272247 CRAFTSMAN LAWN TRACTOR - Manuals and Guides L0207062 View the owners manual for your CRAFTSMAN LAWN TRACTOR #917272247. Home:Lawn & Garden Parts:Craftsman Parts:Craftsman LAWN TRACTOR Manual

CRAFTSMAN Lawn, Tractor Manual L0207062 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
