Repair Parts Manual

Z7400 ZERO TURN MOWER

26 HP* 54" Mower

Model No.

917.204170

For answers to your

questions about this product

Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears Brands Management Corporation

Hoffman Estates, IL 60179 U.S.A.

*as rated by the manufacturer

Visit our Craftsman website:

www.sears.com/craftsman

P/N 115 66 31-27 Rev F

REPAIR PROTECTION AGREEMENTS

Congratulations on making a smart purchase. Your new

Craftsman® product is designed and manufactured for

years of dependable operation. But like all products, it

may require repair from time to time. That’s when having

a Repair Protection Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement. now and

protect yourself from unexpected. hassle and expense.

Here’s what’s included in the Agreement:

• Expert service by our 12,000 professional repair

specialists.

• Unlimited service and no charge for parts and labor

on all covered repairs.

• Product replacement if your covered product can’t

be ﬁxed.

• Discount of 10% from regular price of service and

service-related parts not covered by the agreement;

also, 10% off regular price of preventive maintenance

check.

• Fast help by phone – phone support from a Sears

representative on products requiring in-home repair,

plus convenient repair scheduling.

Once you purchase the Agreement, a simple phone call

is all that it takes for you to schedule service. You can call

anytime day or night, or schedule a service appointment

online.

Sears has over 12,000 professional repair specialists,

who have access to over 4.5 million quality parts and

accessories. That’s the kind of professionalism you can

count on to help prolong the life of your new purchase

for years to come. Purchase your Repair Protection

Agreement today!

Some limitations and exclusions apply.

For prices and additional information call

1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. call 1-800-4-MY-HOME®

WARNING! This mower is equipped with an

internal combustion engine and should not be used on or

near any unimproved forested, bush covered or grassy

lands unless the engine’s system is equipped with a

spark arrestor meeting applicable local or state laws (if

any).

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws. Federal laws apply

on federal lands.

A spark arrestor for the mufﬂer is available through any

authorized Sears service center.

CONTENTS

NOTE: ALL FASTENERS ARE GRADE 5 UNLESS OTHERWISE SPECIFIED.

FRAME ........................................................................ 4

ENGINE PLATE ........................................................... 6

ENGINE

Crankcase ..............................................................8

Oil Pan ..................................................................10

Cylinder Head ......................................................12

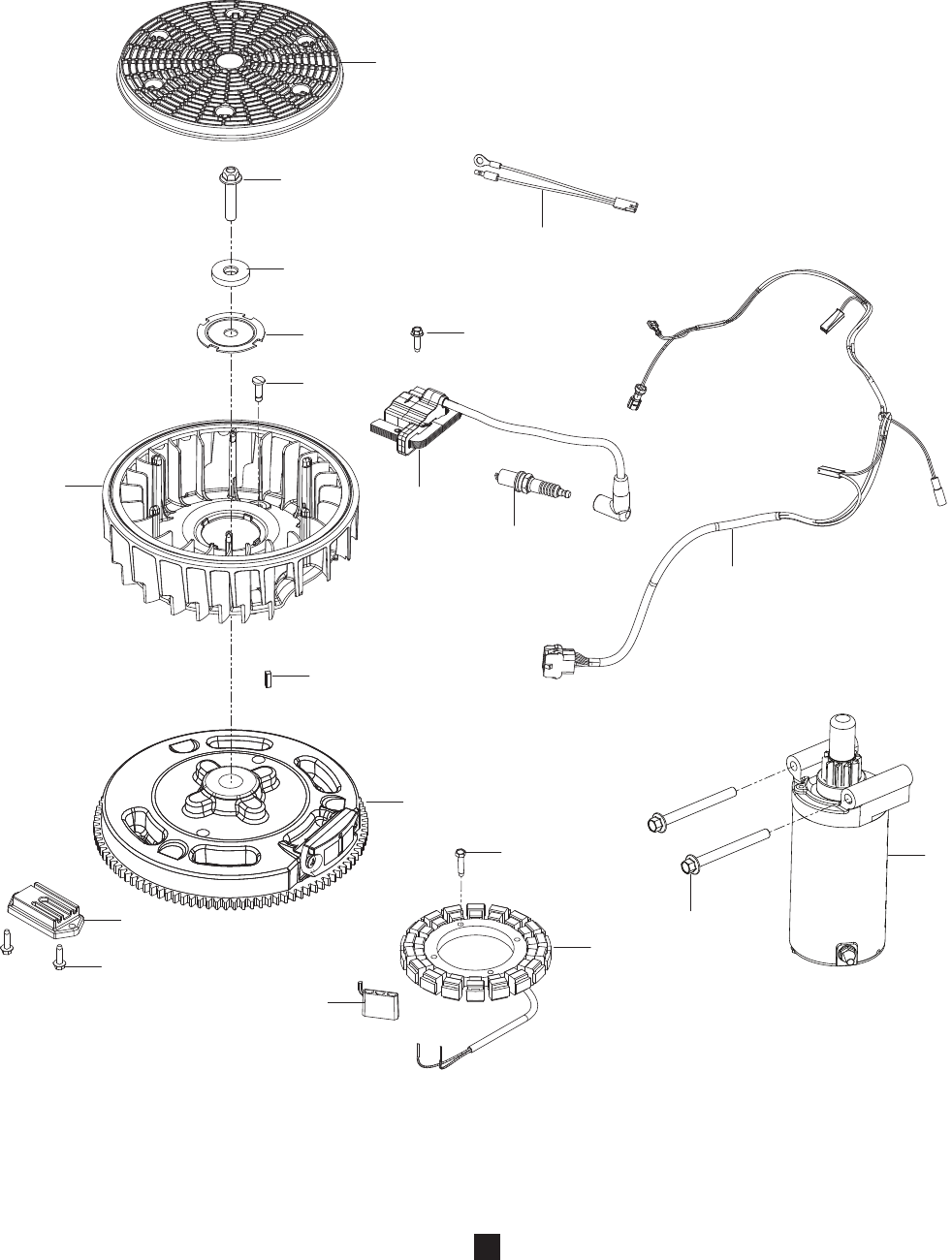

Ignition ..................................................................14

Housing ................................................................16

Fuel System ..........................................................18

STEERING ................................................................ 20

IGNITION .................................................................. 22

PARK BRAKE ............................................................ 24

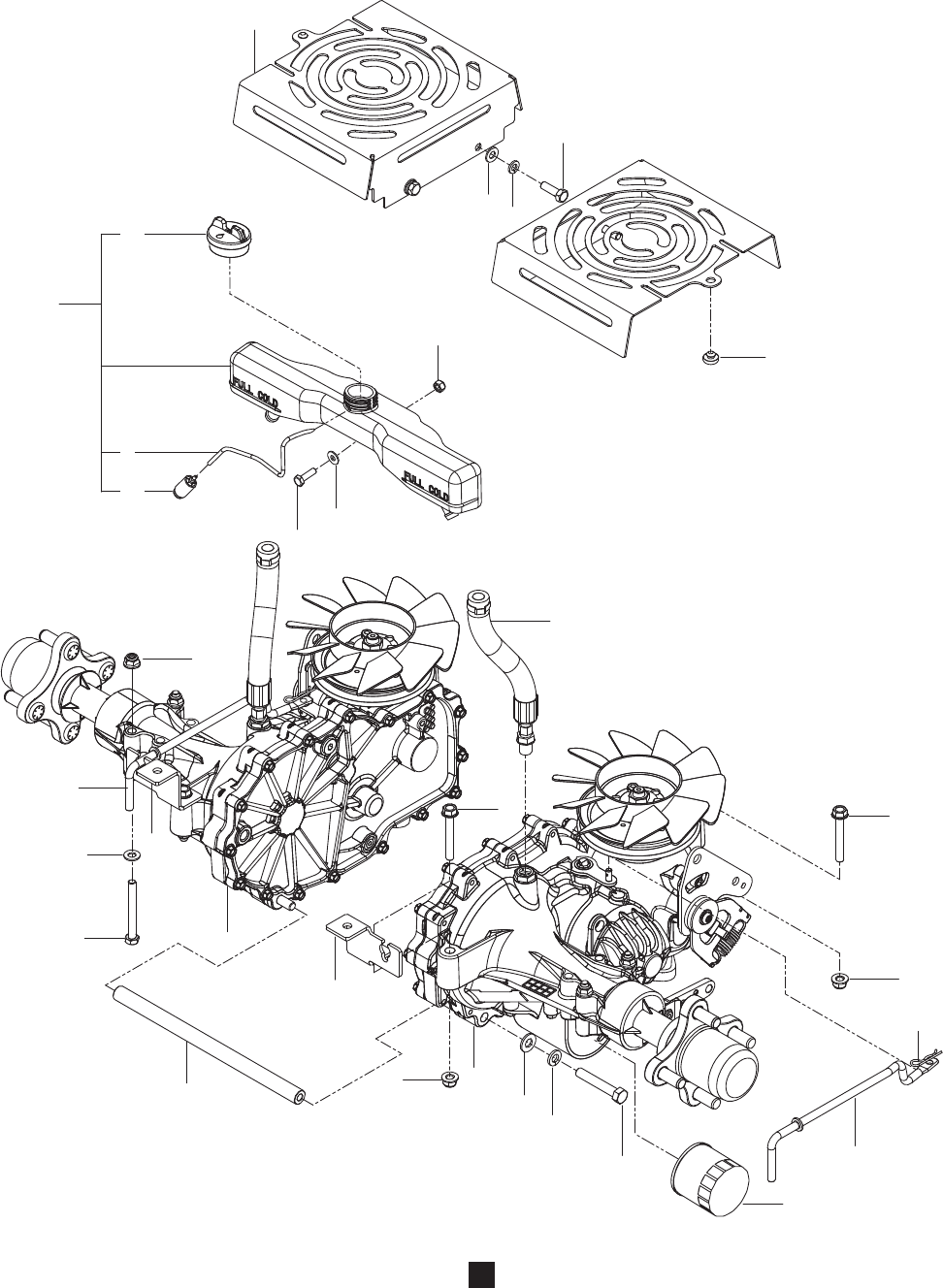

HYDRAULIC PUMP-MOTOR .................................... 26

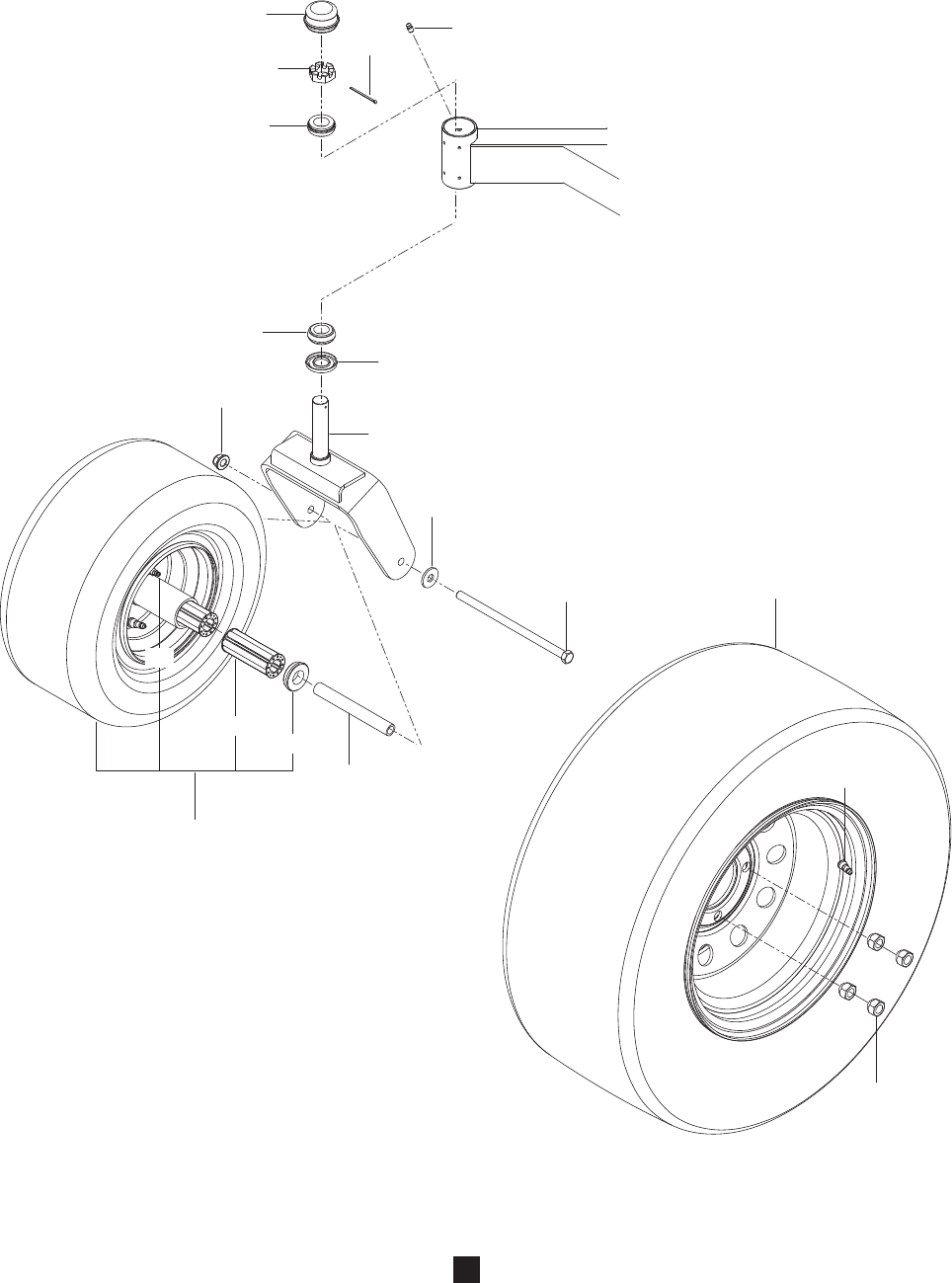

WHEELS ................................................................... 28

MOWER LIFT / DECK LIFT ....................................... 30

MOWER DECK / CUTTING DECK ............................ 32

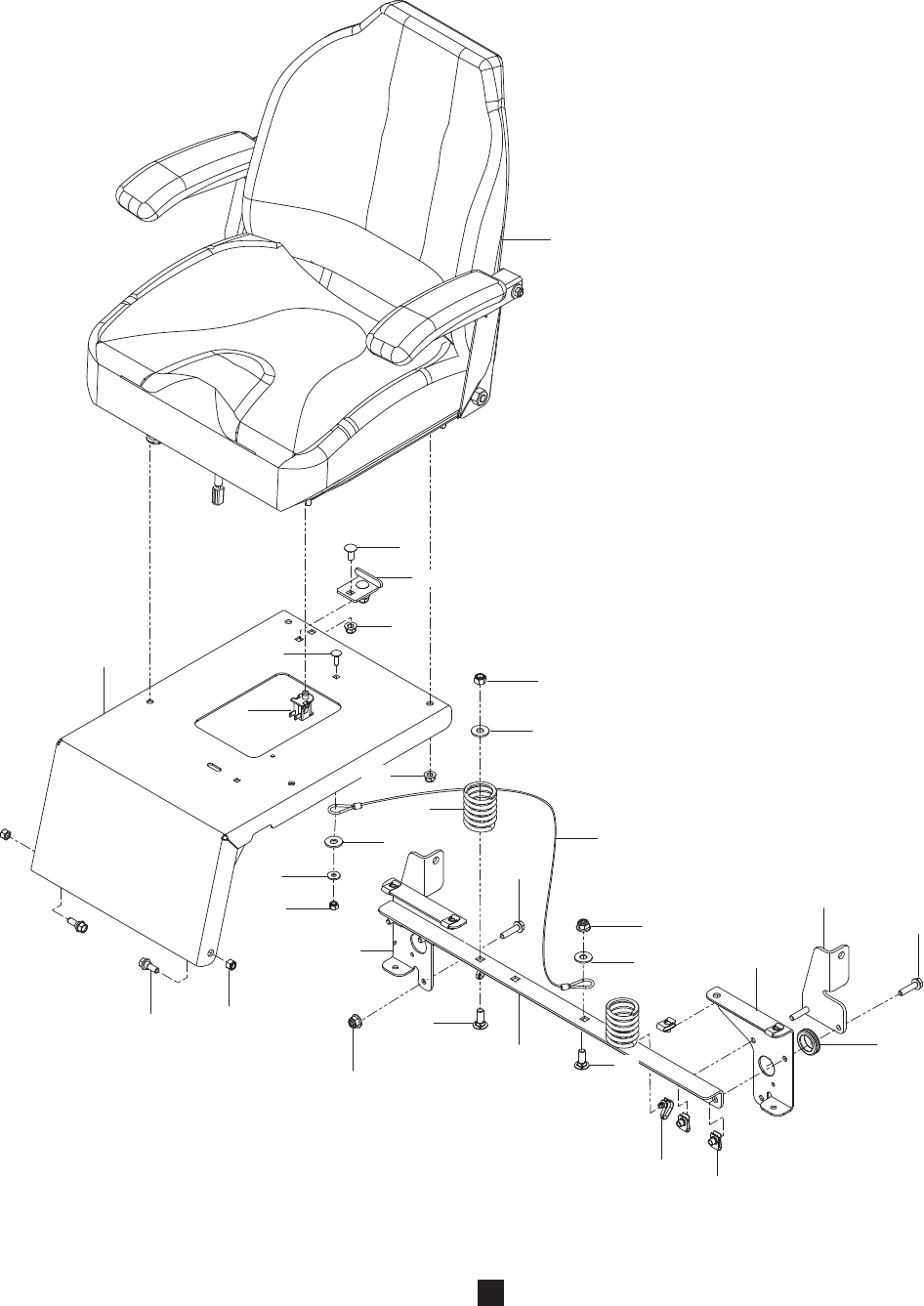

SEAT ......................................................................... 34

DECALS .................................................................... 36

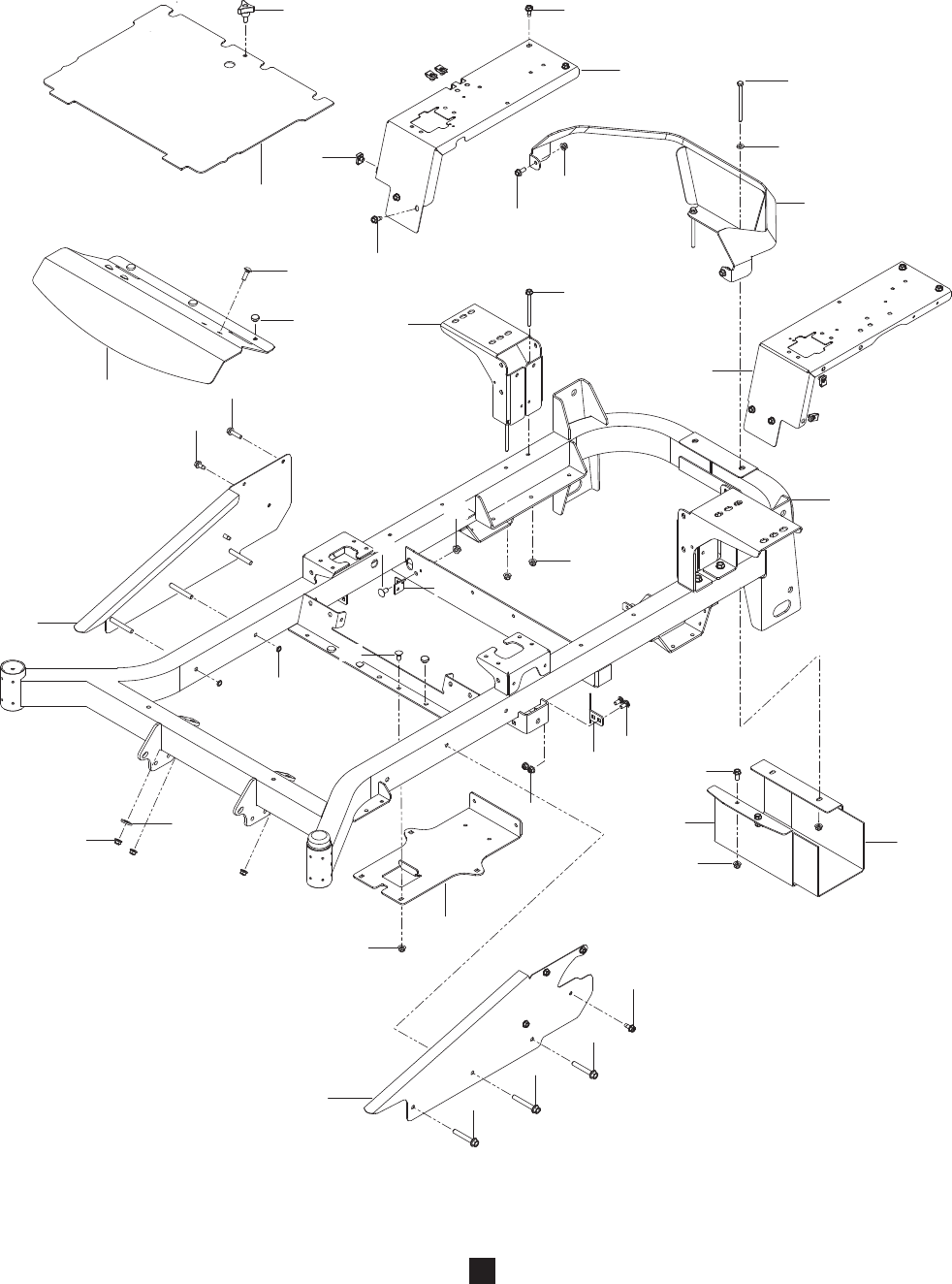

FRAME

917.204170

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

FRAME

1.. 576 69 49-05 ..... 2 .... FRAME, BLK

2.. 575 34 84-04 ..... 1 .... GUARD, REAR BLK

3.. 577 25 68-05 ..... 1 .... PANEL, LT BLK

4.. 577 25 69-05 ..... 1 .... PANEL, RT BLK

5.. 586 40 01-01 ..... 1 .... PLATE w/ SAFTY DECAL BLK

6.. 586 43 22-02 ..... 1 .... PLATE, FOOTREST BLK

7.. 586 43 21-02 ..... 1 .... SIDE, RT BLK

8.. 586 43 20-02 ..... 1 .... SIDE, LT BLK

9.. 575 01 72-02 ..... 1 .... PLATE, BATTERY, BLK

10.. 539 13 28-59 ..... 1 .... SHIELD, HEAT

11.. 575 24 52-02 ..... 2 .... BRACKET, DAMPENER

12.. 575 23 04-02 ..... 1 .... SHIELD, MUFFLER BLK

13.. 505 25 64-01 ..... 2 .... STOP, DECK

14.. 575 53 36-02 ..... 2 .... MOUNT, TANK BLK

15.. 539 10 25-87 ..... 5 .... BUMPER

16.. 539 10 44-11 ..... 1 .... KNOB w/ STUD

17.. 539 10 47-63 ..... 8 .... RETAINER, U TYPE 5/16-18

18.. 539 10 23-35 ..... 2 .... HCS 5/16-18 X 4

19.. 817 49 05-12 ... 18 .... BOLT 5/16-18 x ¾ THD FRM

20.. 539 13 17-80 ..... 4 .... HHFS 5/16-18 x 3¾

21.. 525 54 40-01 ..... 1 .... HHFS 5/16-18 x 1¼ TPBLT

22.. 874 49 06-44 ..... 2 .... HHFS 3/8-16 x 2¾

23.. 539 13 30-06 ..... 4 .... HHFS 3/8-16 x 2½

24.. 539 10 91-00 ..... 2 .... RHSNB 3/8-16 x ¾

25.. 539 99 03-16 ..... 6 .... RHSNB 5/16-18 x ¾

26.. 539 99 02-08 ..... 3 .... RHSNB 5/16-18 x 1

27.. 539 10 91-00 ..... 2 .... RHSNB 3/8-16 x ¾

28.. 521 99 65-01 ..... 2 .... NUT 3/8-16 HEX FLG NYLOC

29.. 539 20 02-82 ..... 6 .... NUT 3/8-16 HEX JAM NYLOC

30.. 539 11 28-99 ..... 6 .... NUT 5/16-18 HEX FLG NYLOC

31.. 819 11 11-16 ..... 2 .... WASHER 5/16 SAE FLT

32.. 539 99 02-50 ..... 1 .... WASHER

ENGINE PLATE

917.204170

44 26

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

ENGINE PLATE

1.. 574 84 63-02 ..... 1 .... PLATE, ENGINE BLK

2.. 574 84 64-02 ..... 1 .... PLATE, IDLER SUPPORT BLK

3.. 574 87 09-01 ..... 1 .... BELT, HYDRO

4.. 585 81 37-01 ..... 1 .... PULLEY

5.. 539 97 66-88 ..... 1 .... PULLEY, IDLER

6.. 539 10 76-20 ..... 1 .... PULLEY, IDLER SECONDARY

7.. 510 04 16-03 ..... 1 .... ARM, IDLER w/ BEARINGS

8.. 583 95 48-01 ..... 1 .... EXHAUST TUBE, RT

9.. 583 95 45-01 ..... 1 .... EXHAUST TUBE, LT

10.. 510 20 63-01 ..... 1 .... PIVOT, BEARING

11.. 525 43 56-01 ..... 1 .... PIVOT, IDLER

12.. 532 17 93-35 ..... 1 .... CLUTCH

13.. 539 10 47-63 ..... 4 .... RETAINER, U TYPE

14.. 510 25 44-01 ..... 1 .... SPRING, PUMP

15.. 539 11 46-62 ..... 1 .... SHIELD, DUST

16.. 510 25 45-01 ..... 2 .... SHIELD, DUST

17.. 575 22 99-02 ..... 1 .... BRACKET, MUFFLER BLK

18.. 539 13 16-04 ..... 1 .... MUFFLER

19.. 532 19 25-07 ..... 1 .... SOLENOID

20.. 585 81 36-01 ..... 1 .... STOP, CLUTCH

21.. 532 13 15-63 ..... 3 .... INSULATOR

22.. 584 82 55-01 ..... 1 .... HOSE, DRAIN

23.. 539 10 27-57 ..... 1 .... CABLE, POSITIVE

24.. 539 10 13-63 ..... 1 .... CLAMP

25.. 539 91 27-57 ..... 1 .... KEY ¼ SQ x 1¼

26.. 585 80 71-01 ..... 1 .... PLUG, OIL DRAIN

27.. 874 49 06-32 ..... 1 .... HHFS 3/8-16 x 2

28.. 874 49 05-12 ... 11 .... HHFS 5/16-18 x ¾

29.. 817 12 06-16 ..... 4 .... HHFS 3/8-16 x 1 THD FRM

30.. 539 99 00-71 ..... 1 .... HCS ¼-20 x ½

31.. 581 33 28-02 ..... 1 .... HCS 7/16-20 x 2½

32.. 539 10 34-33 ..... 1 .... HCS ½-13 x 3¼

33.. 539 99 02-09 ..... 2 .... HCS 5/16-18 x 1

34.. 539 99 03-02 ..... 2 .... SCREW ¼-20 x 3/8 THD FRM

35.. 539 10 04-13 ..... 1 .... RHSNB 3/8-16 x 1¼

36.. 539 10 72-71 ..... 2 .... RHSNB 5/16-18 x 1

37.. 539 13 02-35 ..... 1 .... RHSNB 3/8-16 x 2¾

38.. 539 10 74-75 ..... 2 .... BOLT 5/16-18 x ¾ THD FRM

39.. 521 99 11-01 ..... 1 .... NUT ½-13 FLG NYLOC

40.. 539 10 81-20 ..... 4 .... NUT ¼-20 THIN NYLOC

41.. 539 11 28-99 ... 15 .... NUT 5/16-18 HEX FLG NYLOC

42.. 539 99 06-13 ..... 1 .... NUT 3/8-16 WHIZLK

43.. 539 20 02-82 ..... 4 .... NUT 3/8-16 JAM NYLOC

44.. 521 99 65-01 ..... 2 .... NUT 3/8-16 FLG NYLOC

45.. 539 11 18-97 ..... 1 .... WASHER 3/8 SPECIAL

46.. 539 99 02-47 ..... 1 .... WASHER 7/16 SLW

47.. 539 99 01-88 ..... 2 .... WASHER 5/16 SAE

48.. 539 99 00-53 ..... 1 .... WASHER ¼ INT TOOTH LK

49.. 539 10 95-54 ..... 2 .... WASHER ½

50.. 539 11 55-28 ..... 1 .... WASHER ½ BELLEVILLE

51.. 539 10 95-62 ..... 1 .... WASHER 3/8

52.. 539 10 65-04 ..... 1 .... WASHER, HARDEN

NOT SHOWN

532 19 83-16 .... 1 .....ADAPTER, CLUTCH

ENGINE

917.204170

Crankcase

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

ENGINE

Kohler Engine - PS-KT745-3042

1.. 16 014 11-S ...... 1 .... CRANKSHAFT ASSY

2.. 52 139 09-S ...... 1 .... PLUG, CUP

3.. 24 126 243-S .... 1 .... LIFTING STRAP

4.. 32 010 07-S ...... 1 .... CAMSHAFT ASSY

5.. 32 038 12-S ...... 1 .... DIPSTICK ASSY

6.. 32 123 14-S ...... 1 .... TUBE ASSY, OIL FILL

7.. 24 144 38-S ...... 1 .... SHAFT, CROSS

8.. 24 067 28-S ...... 2 .... ROD, ASSY CONNECTING

9.. 24 380 16-S ...... 6 .... PIN, LOCATING

10.. 25 041 49-S ...... 2 .... GASKET, EXHAUST

11.. 24 032 19-S ...... 1 .... SEAL, OIL

12.. 28 032 09-S ...... 1 .... SEAL, CROSS SHAFT

13.. 12 153 07-S ...... 1 .... O-RING

14.. 25 153 09-S ...... 1 .... O-RING

15.. 25 108 01-S ...... 2 .... RING SET (STD)

25 108 02-S ...... 2 .....RING SET (0.08)

25 108 03-S ...... 2 .....RING SET (0.25)

25 108 04-S ...... 2 .....RING SET (0.50)

16.. 25 874 14-S ...... 2 .... PISTON KIT, 745CC (STD)

25 874 18-S ...... 2 .....PISTON KIT, 745CC ( 0.08)

25 874 19-S ...... 2 .....PISTON KIT, 745CC (+0.25)

25 874 20-S ...... 2 .....PISTON KIT, 745CC (+0.50)

17.. 24 018 01-S ...... 4 .... RETAINER, PISTON PIN

18.. 24 018 09-S ...... 1 .... RETAINER, RING

19.. 25 086 398-S .... 1 .... SCREW, THD FRM

20.. 24 468 15-S ...... 1 .... WASHER, FLAT 11/3"

21.. M-931010-S ...... 1 .... WASHER, FLAT 9 MM

ENGINE

917.204170

Oil Pan

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

ENGINE

Kohler Engine - PS-KT745-3042

1.. 32 199 17-S ...... 1 .... PAN ASSEMBLY, OIL

2.. 24 393 51-S ...... 1 .... PUMP ASSEMBLY, OIL

3.. 32 310 02-S ...... 1 .... KIT, GOVERNOR GEAR

4.. 25 032 06-S ...... 1 .... SEAL, OIL

5.. 25 139 57-S ...... 2 .... PLUG, SQ HD PIPE 3/8"

6.. 25 139 60-S ...... 1 .... PLUG, CTSK PIPE 1/8"

7.. 12 144 02-S ...... 1 .... SHAFT, GOVERNOR GEAR

8.. 32 162 06-S ...... 1 .... SCREEN, OIL

9.. 12 380 01-S ...... 1 .... PIN, REGULATING

10.. 24 448 02-S ...... 1 .... TAB, LOCKING

11.. 52 050 02-S ...... 1 .... FILTER, OIL

12.. 32 089 06-S ...... 1 .... SPRING, COMPRESSION

13.. 25 086 414-S .... 3 .... SCREW, BUTTON HEAD

14.. 24 086 17-S .... 10 .... SCREW, FLG M8X1.25X45

ENGINE

917.204170

Cylinder Head

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

ENGINE

Kohler Engine - PS-KT745-3042

1.. 32 841 02-S ...... 2 .... KIT, HEAD GASKET

2.. 12 755 03-S ...... 8 .... KIT, RETAINER

3.. 32 318 21-S ...... 1 .... HEAD, ASSY CYLINDER (#1)

4.. 32 318 22-S ...... 1 .... HEAD, ASSY CYLINDER (#2)

5.. 32 017 01-S ...... 2 .... VALVE, INTAKE

6.. 32 016 01-S ...... 2 .... VALVE, EXHAUST

7.. 275067-S .......... 2 .... SPACER (.010")

8.. 24 112 27-S ...... 1 .... SPACER, CONTROL

9.. 25 032 14-S ...... 2 .... SEAL, VALVE BAND

10.. 25 173 28-S ...... 4 .... CAP, VALVE SPRING

11.. 25 599 01-S ...... 4 .... PIVOT, ROCKER ARM

12.. 32 019 02-S ...... 4 .... TAPPET

13.. 32 072 04-S ...... 4 .... STUD, ROCKER

14.. 32 072 05-S ...... 1 .... STUD

15.. 32 100 05-S ...... 4 .... HEX NUT ASSY

16.. 32 146 09-S ...... 2 .... PLATE, GUIDE

17.. 32 186 03-S ...... 4 .... ARM, ROCKER

18.. 32 411 04-S ...... 4 .... ROD, PUSH

19.. 25 096 09-S ...... 1 .... COVER, ROCKER STEEL

20.. 25 096 11-S ...... 1 .... COVER, ROCKER STEEL

21.. 16 096 02-S ...... 1 .... COVER, BREATHER MEDIA

22.. 32 096 16-S ...... 1 .... COVER, BREATHER REED

23.. 12 402 02-S ...... 1 .... REED, BREATHER

24.. 32 050 06-S ...... 1 .... FILTER, BREATHER

25.. 25 326 62-S ...... 1 .... HOSE, BREATHER

26.. 66 018 04-S ...... 1 .... RETAINER, REED

27.. 24 090 05-S ...... 1 .... LEVER, CHOKE

28.. 24 090 57-S ...... 1 .... LEVER, GOVERNOR

29.. 24 090 13-S ...... 1 .... LEVER, CONTROL

30.. 24 090 47-S ...... 1 .... LEVER, ACTUATOR

31.. 32 126 04-S ...... 1 .... BRACKET, CONTROL

32.. 12 237 01-S ...... 2 .... CLAMP, CABLE

33.. 24 079 22-S ...... 1 .... LINKAGE, CHOKE

34.. 32 079 01-S ...... 1 .... LINKAGE, THROTTLE

35.. 24 089 03-S ...... 1 .... SPRING, CHOKE RETURN

36.. 32 089 05-S ...... 4 .... SPRING, VALVE

37.. 24 089 25-S ...... 1 .... SPRING, GOVERNOR

38.. 24 089 55-S ...... 1 .... SPRING, GOVERNED IDLE

39.. 32 089 07-S ...... 1 .... SPRING, LINKAGE

40.. 25 158 08-S ...... 1 .... BUSHING, RETAINING

41.. 25 158 11-S ...... 1 .... BUSHING, LINKAGE

42.. 25 086 168-S .... 4 .... SCREW, SET

43.. 25 086 374-S .... 8 .... SCREW, PAN HEAD

44.. 25 086 405-S .... 2 .... SCREW, THREAD FORMING

45.. M-403025-S ...... 1 .... SCREW, SLT HD M4 x 0.7 x 25

46.. 62 086 08-S ...... 8 .... SCREW, FLG M10 x 1.5 x 90

47.. 25 086 473-S .... 1 .... SCREW, THD FRM

48.. 25 086 400-S .... 4 .... SCREW, THD FRM

49.. 25 086 397-S .... 4 .... SCREW, THD FRM

50.. 24 211 03-S ...... 1 .... BOLT, RD HD M6 x 1.0 x 25

51.. 24 211 03-S ...... 1 .... NUT, FLG M6 x 1.0

52.. M-547050-S ...... 2 .... NUT, LOCK M5 x .8

53.. 24 468 20-S ...... 1 .... WASHER, FLAT 5 MM

54.. 41 468 03-S ...... 1 .... WASHER, SPRING ¼"

55.. 32 468 01-S ...... 1 .... WASHER, SEALING

56.. 24 468 01-S ...... 1 .... WASHER, FLAT 5.5 MM

ENGINE

917.204170

Ignition

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

ENGINE

Kohler Engine - PS-KT745-3042

1.. 32 162 03-S ...... 1 .... SCREEN, GRASS

2.. 32 176 33-S ...... 1 .... HARNESS

3.. 32 157 04-S ...... 1 .... FAN

4.. 32 025 25-S ...... 1 .... FLYWHEEL ASSY

5.. 25 132 12-S ...... 2 .... PLUG, SPARK (PRO SERIES)

6.. 32 518 02-S ...... 1 .... LEAD, JUMPER

7.. 237878-S .......... 1 .... KIT, 15 / 20 AMP STATOR

8.. 25 340 04-S ...... 1 .... KEY, SQUARE

9.. 20 146 05-S ...... 1 .... PLATE, FAN MOUNTING

10.. 32 018 03-S ...... 2 .... RETAINER, FLYWHEEL FAN

11.. 25 155 41-S ...... 1 .... CONNECTOR

12.. 32 584 06-S ...... 2 .... MODULE, IGNITION

13.. 41 403 10-S ...... 1 .... REGULATOR / RECTIFIER

14.. 32 098 04-S ...... 1 .... STARTER

15.. 25 086 399-S .... 4 .... SCREW, THD FRM

16.. 25 086 361-S .... 1 .... SCREW, HEX FLANGE

17.. 25 086 402-S .... 2 .... SCREW, THD FRM

18.. M-851080-S ...... 2 .... SCREW, FLG M8X1.25x 80

19.. 25 468 09-S ...... 1 .... WASHER, FLAT

ENGINE

917.204170

Housing

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

ENGINE

Kohler Engine - PS-KT745-3042

1.. 32 094 13-S ...... 1 .... BASE ASSY, AIR CLEANER

2.. 32 096 22-S ...... 1 .... COVER ASSY, AIR CLEANER

3.. 32 146 15-S ...... 1 .... PLATE, BACKING

4.. 32 063 19-S ...... 1 .... BAFFLE, VALLEY #1

5.. 32 063 20-S ...... 1 .... BAFFLE, VALLEY #2

6.. 32 063 17-S ...... 1 .... BAFFLE, LT BARREL

7.. 32 063 18-S ...... 1 .... BAFFLE, RT BARREL

8.. 32 445 01-S ...... 2 .... STRAP, LIFTING

9.. 32 027 17-S ...... 1 .... HOUSING, BLOWER

10.. 32 314 06-S ...... 1 .... GUARD, FIXED

11.. 25 173 09-S ...... 1 .... CAP, MASKING

12.. 16 083 04-S ...... 1 .... ELEMENT, AIR FILTER

13.. 16 083 05-S ...... 1 .... ELEMENT, PRECLEANER

14.. 32 041 04-S ...... 1 .... GASKET, AIR CLEANER BASE

15.. 25 153 15-S ...... 2 .... O-RING

16.. 25 086 400-S .... 2 .... SCREW, THD FRM

17.. 25 086 406-S .... 2 .... SCREW, THD FRM

18.. 25 086 399-S .... 6 .... SCREW, THD FRM

19.. 25 086 397-S .... 8 .... SCREW, THD FRM

20.. 25 086 450-S .... 3 .... SCREW, HI-LOW

21.. 25 086 449-S .... 1 .... SCREW, M5-2.42

ENGINE

917.204170

Fuel System

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

ENGINE

Kohler Engine - PS-KT745-3042

1.. 24 164 91-S ...... 1 .... KIT, INTAKE MANIFOLD

2.. 32 853 43-S ...... 1 .... KIT, CARBURETOR

3.. 24 393 16-S ...... 1 .... PUMP, FUEL

4.. 24 050 13-S ...... 1 .... FILTER, FUEL

5.. 25 050 22-S ...... 1 .... FILTER, FUEL PUMP

6.. 32 326 08-S ...... 1 .... HOSE, PULSE PUMP

7.. 25 111 34-S ...... 1 .... HOSE, PERM

8.. 25 139 60-S ...... 1 .... PLUG, CTSK PIPE 1/8"

9.. 24 041 52-S ...... 1 .... GASKET, CARBURETOR

10.. 32 041 04-S ...... 1 .... GASKET, AIR CLEANER BASE

11.. 47 154 01-S ...... 1 .... CLIP, CABLE

12.. 25 072 25-S ...... 2 .... STUD

13.. 24 153 27-S ...... 2 .... O-RING, INTAKE PORT

14.. 25 237 37-S ...... 4 .... CLAMP SPRING HOSE

15.. 25 086 400-S .... 1 .... SCREW, THD FRM

16.. M-651040-S ...... 4 .... SCREW, FLG M6 x 1.0 x 40

17.. 24 086 12-S ...... 2 .... SCREW, TAP M6 x 1.7 x 18

18.. 25 086 398-S .... 1 .... SCREW, THD FRM

19.. M-641060-S ...... 2 .... NUT, FLG M6X1.0

STEERING

917.204170

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

STEERING

1.. 539 13 20-09 ..... 1 .... LEVER w/ GRIP RT

2.. 539 13 20-10 ..... 1 .... LEVER w/ GRIP LT

3.. 539 13 08-94 ..... 2 .... GRIP, FOAM

4.. 577 25 17-01 ..... 2 .... BRACKET, CONTROL

5.. 539 13 15-18 ..... 4 .... BEARING, FLANGE

6.. 576 14 03-01 ..... 2 .... LEVER, CONTROL

7.. 577 42 00-01 ..... 2 .... LEVER, HANDLE

8.. 577 25 24-01 ..... 2 .... SPACER, PIVOT CONTROL

9.. 539 10 27-20 ..... 2 .... DAMPENER

10.. 581 43 75-01 .... 2 .... BLOCK, TRACKING

11.. 539 10 28-45 ..... 1 .... SPRING

12.. 576 85 03-01 ..... 1 .... SPRING

13.. 539 13 17-99 ..... 1 .... KNOB

14.. 574 81 14-01 ..... 2 .... ROD, MOTION CONTROL

15.. 539 11 66-89 ..... 2 .... COUPLER, ROD END

16.. 539 11 66-90 ..... 2 .... ROD END LT

17.. 539 11 57-29 ..... 2 .... ROD END RT

18.. 874 78 05-20 ..... 5 .... HCS 5/16-18 x 1¼

19.. 874 78 08-44 ..... 2 .... HCS ½-13 x 2¾

20.. 874 78 05-24 ..... 4 .... HCS 5/16-18 x 1½

21.. 576 85 04-02 ..... 2 .... SCREW 5/16-18 X 1¾ BTN HD

22.. 874 49 05-12 ..... 8 .... HHFS 5/16-18 X ¾

23.. 525 54 40-01 ..... 4 .... HHFS 5/16-18 x 1¼ TPBLT

24.. 539 99 02-23 ..... 4 .... NUT 5/16-24 HEX

25.. 539 10 80-10 ..... 2 .... NUT ½-13 HEX JAM NYL GR2

26.. 539 99 10-73 ..... 2 .... NUT 5/16-24 HEX JAM LH

27.. 539 11 28-99 ... 10 .... NUT 5/16-18 HEX FLG NYLOC

28.. 539 99 07-17 ..... 6 .... NUT 5/16-18 HEX NYLOC

29.. 539 99 05-85 ..... 4 .... NUT 5/16-18 HEX WHIZLK

30.. 819 11 11-16 ... 12 .... WASHER 5/16 SAE FLT

IGNITION

917.204170

22 24

35 40

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

IGNITION

1.. 574 84 12-04 ..... 1 .... PLATE, CONSOLE, BLK

2.. 539 10 27-32 ..... 1 .... CABLE, THROTTLE

3.. 539 13 16-27 ..... 1 .... SWITCH, PTO 10 AMP

4.. 574 45 54-01 ..... 1 .... SWITCH, IGNITION

5.. 532 10 95-53 ..... 2 .... SWITCH, INTERLOCK

6.. 576 68 37-01 ..... 1 .... CONSOLE, RT

7.. 539 11 34-58 ..... 1 .... CHOKE CONTROL

8.. 576 54 78-01 ..... 1 .... ASSY, FUEL LINE

9.. 576 46 92-01 ..... 1 .... FITTING, FUEL

10.. 539 13 16-71 ..... 2 .... SUPPORT, TANK, BLK

11.. 585 72 23-02 ..... 1 .... TANK ASSY LT BLK

12.. 539 91 63-25 ..... 1 .... VALVE, FUEL

13.. 576 61 81-01 ..... 1 .... VALVE, FUEL CHECK

14.. 539 10 28-45 ..... 6 .... SPRING

15.. 539 10 25-02 ..... 6 .... STUD 5/16-18

16.. 575 01 81-01 ..... 1 .... FUEL CAP w /TETHER

17.. 539 10 31-78 ..... 1 .... CAP, IGNITION SWITCH NUT

18.. 539 10 77-65 ..... 1 .... HOSE, FUEL 26"

19.. 539 93 29-56 ..... 1 .... HOSE, FUEL 10"

20.. 576 66 06-11 ..... 1 .... HOSE 3/16 VAPOR 36"

21.. 575 43 65-01 ..... 2 .... CLAMP, HOSE

22.. 532 12 34-87 ..... 4 .... CLAMP, HOSE

23.. 539 10 52-45 ..... 1 .... GROMMET, RUBBER

24.. 576 61 82-01 ..... 1 .... GROMMET, CHECK VALVE

25.. 586 16 18-01 ..... 1 .... MINDER, SERVICE

26.. 539 13 30-49 ..... 1 .... KNOB

27.. 539 10 24-36 ..... 1 .... BATTERY

28.. 539 10 76-28 ..... 1 .... BATTERY HOLD DOWN

29.. 581 22 30-01 ..... 2 .... PLATE, TAPPED

30.. 539 10 49-74 ..... 1 .... CABLE, POSITIVE 31"

31.. 539 10 76-45 ..... 1 .... CABLE, NEGATIVE 32"

32.. 574 45 55-01 ..... 1 .... KEY, IGNIITION

33.. 539 99 04-11 ..... 6 .... SCREW #10-24 x ½ SLT

34.. 574 82 27-01 ..... 4 .... SCREW #10-24 x ¾ SKT HD

35.. 539 99 03-16 ..... 2 .... RHSNB 5/16-18 x ¾

36.. 539 97 69-34 ..... 2 .... HCS 5/16-18 x ¾

37.. 539 11 32-26 ..... 3 .... BOLT 5/16-18 x 1 THD FRM

38.. 539 10 76-32 ..... 2 .... BOLT ¼ x 7½

39.. 539 10 76-29 ..... 2 .... NUT ¼ PUSH NYLON

40.. 539 11 28-99 ... 12 .... NUT 5/16-18 HEX FLANGE NYL

41.. 539 97 69-77 ..... 2 .... NUT #10-24 NYLOC

42.. 539 10 54-08 ..... 4 .... WASHER #10

43.. 539 99 01-87 ..... 2 .... WASHER 5/16 SLW

44.. 819 11 11-16 ..... 8 .... WASHER 5/16 SAE FLT

NOT SHOWN

585 99 97-01 .... 1 .....HARNESS, MAIN

PARK BRAKE

917.204170

18 23

35 36

37 38

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

PARK BRAKE

1.. 539 13 21-51 ..... 1 .... ARM, BRAKE BLK

2.. 539 10 50-36 ..... 1 .... GRIP, BRAKE HANDLE

3.. 575 22 96-02 ..... 1 .... BRACKET, RT BLK

4.. 575 22 97-02 ..... 1 .... BRACKET, LT BLK

5.. 539 13 24-23 ..... 1 .... LEVER, BRAKE

6.. 575 23 02-01 ..... 2 .... SPRING, RETURN

7.. 575 23 03-01 ..... 2 .... SPRING, ENGAGEMENT

8.. 539 13 21-58 ..... 1 .... MOUNT, BRAKE BLK

9.. 539 13 21-54 ..... 1 .... ACTUATOR, SWITCH

10.. 539 13 21-53 ..... 1 .... BELLCRANK, BRAKE

11.. 539 13 24-24 ..... 1 .... LINKAGE, BRAKE

12.. 575 22 98-02 ..... 2 .... BRACKET, BRAKE

13.. 539 13 21-61 ..... 4 .... BUSHING, BRAKE

14.. 539 10 47-63 ..... 3 .... RETAINER, U TYPE 5/16-18

15.. 539 13 21-73 ..... 1 .... CABLE, BRAKE SHORT

16.. 539 13 21-74 ..... 2 .... CABLE, BRAKE LONG

17.. 505 28 00-01 ..... 2 .... TIE w/ CLIP

18.. 539 99 06-43 ..... 4 .... HCS ¼-20 x 7/8

19.. 539 10 83-96 ..... 1 .... HCS 5/16-18 x 2½ TPBLT

20.. 539 99 05-63 ..... 2 .... HCS 3/8-16 x 1

21.. 539 99 02-09 ..... 1 .... HCS 5/16-18 x 1

22.. 539 11 03-03 ..... 2 .... BOLT 5/16 SHOULDER

23.. 539 99 06-45 ..... 2 .... RHSNB 3/8-16 x 1

24.. 539 99 03-16 ..... 1 .... RHSNB 5/16-18 x ¾

25.. 539 13 17-80 ..... 1 .... HHFS 5/16-18 x 3¾

26.. 539 10 74-75 ..... 1 .... BOLT 5/16-18 x ¾ THD FRM

27.. 539 11 28-99 ..... 4 .... NUT 5/16-18 FLANGE NYLOC

28.. 539 99 05-85 ..... 5 .... NUT 5/16-18 HEX WHIZLK

29.. 539 99 07-17 ..... 1 .... NUT 5/16-18 HEX NYLOC

30.. 521 99 65-01 ..... 2 .... NUT 3/8-16 HEX FLG NYLOC

31.. 539 11 56-17 ..... 2 .... NUT 5/16 HEX NYLOC

32.. 539 20 02-82 ..... 2 .... NUT 3/8-16 HEX JAM NYLOC

33.. 539 97 69-78 ..... 4 .... NUT ¼-20 HEX NYLOC

34.. 539 10 78-97 ..... 2 .... NUT 5/16-18 HEX JAM

35.. 539 99 00-55 ..... 8 .... WASHER ¼ SAE FLT

36.. 539 13 30-07 ..... 1 .... WASHER .825 WAVE

37.. 539 99 01-22 ..... 2 .... WASHER 3/8 SAE

38.. 539 10 95-54 ..... 1 .... WASHER ½ FLT

HYDRAULIC PUMP-MOTOR

917.204170

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

HYDRAULIC PUMP-MOTOR

1.. 577 22 77-02 ..... 1 .... TRANS, ZT-3100, LT

2.. 577 22 77-01 ..... 1 .... TRANS, ZT-3100, RT

3.. 575 01 71-02 ..... 1 .... BRACKET, TRANS, LT

4.. 575 01 70-02 ..... 1 .... BRACKET, TRANS, RT

5.. 539 13 16-16 ..... 1 .... LINKAGE, BYPASS LT

6.. 539 13 16-18 ..... 1 .... LINKAGE, BYPASS RT

7.. 586 16 58-01 ..... 2 .... HOSE, EXPANSION

8.. 586 06 75-01 ..... 1 .... HOSE, FUEL

9.. 585 31 82-01 ..... 1 .... TANK, EXPANSION

10.. 575 77 82-02 ..... 2 .... COVER, FAN

11.. 539 11 34-66 ..... 2 .... FILTER, HYDRO

12.. 530 09 56-46 ..... 1 .... FILTER

13.. 586 07 27-01 ..... 1 .... CAP, TANK

14.. 574 86 85-01 ..... 1 .... TUBE 103/8 " SPACER

15.. 539 10 25-87 ..... 2 .... GROMMET, BUMPER

16.. 539 97 69-88 ..... 2 .... HAIRPIN COTTER

17.. 539 99 06-43 ..... 1 .... HCS ¼-20 x 7/8

18.. 539 99 02-09 ..... 4 .... HCS 5/16-18 x 1

19.. 539 10 17-21 ..... 4 .... HCS 5/16-18 x 2¾

20.. 539 10 85-51 ..... 2 .... HCS 3/8-16 x 2½ GR8

21.. 574 23 38-01 ..... 4 .... HHFS 5/16-18 x 2¼

22.. 539 97 69-78 ..... 1 .... NUT ¼-20 HEX NYLOC

23.. 539 11 28-99 ..... 8 .... NUT 5/16-18 HEX FLG NYLOC

24.. 539 99 01-88 ..... 8 .... WASHER 5/16 SAE FLT

25.. 539 99 01-18 ..... 2 .... WASHER 3/8 SPLT LK

26.. 539 99 01-87 ..... 4 .... WASHER 5/16 SLW

27.. 539 99 00-55 ..... 1 .... WASHER ¼ SAE FLT

28.. 539 99 01-22 ..... 2 .... WASHER 3/8 SAE FLT

WHEELS

917.204170

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

WHEELS

1.. 581 19 95-02 ..... 2 .... WHEEL ASSY 13 x 6.5

2.. 580 74 70-02 ..... 2 .... WHEEL ASSY, 22 x 10-10

3.. 539 10 53-07 ..... 4 .... BEARING 3¼ CAGE

4.. 539 10 24-84 ..... 4 .... FLANGE, BEARING

5.. 539 10 25-43 ..... 4 .... BEARING

6.. 539 91 22-34 ..... 4 .... AIR VALVE

7.. 539 10 28-51 ..... 2 .... SEAL

8.. 575 33 49-01 ..... 2 .... SPACER, PIVOT

9.. 539 10 28-89 ..... 2 .... COTTER PIN 1/8 x 2

10.. 575 32 92-05 ..... 2 .... YOKE, CASTER, BLK

11.. 539 10 25-35 ..... 2 .... CAP, GREASE

12.. 539 10 28-52 ..... 2 .... SLOTTED JAM NUT 1"-14

13.. 539 10 14-74 ..... 2 .... ZERK

14.. 539 10 33-00 ..... 2 .... ZERK

15.. 539 10 95-54 ..... 2 .... WASHER ½ FLAT

16.. 539 10 28-55 ..... 2 .... HCS ½-13 x 7½

17.. 521 99 11-01 .... 2 .... NUT ½-13 HEX FLG NYLOC

18.. 539 10 11-73 ..... 8 .... NUT ½-20 LUG

MOWER LIFT / DECK LIFT

917.204170

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

MOWER LIFT / DECK LIFT

1.. 539 10 48-08 ..... 4 .... PILLOW BLOCK

2.. 539 11 08-08 ..... 2 .... LINK, DECK LIFT

3.. 539 11 89-37 ..... 2 .... SPACER, IDLER

4.. 539 13 18-61 ..... 1 .... SPACER

5.. 581 21 52-02 ..... 1 .... SHAFT, FRONT LIFT BLK

6.. 539 10 48-07 ..... 2 .... REINFORCEMENT BAR

7.. 539 13 18-97 ..... 1 .... BELLCRANK, RR, LIFT BLK

8.. 539 13 18-53 ..... 1 .... BELLCRANK, RR, RT BLK

9.. 539 11 22-23 ..... 2 .... LINKAGE, STRUT

10.. 539 10 96-93 ..... 4 .... LIFT CHAIN-3 LINK

11.. 539 13 15-66 ..... 1 .... LATCH, TRANSPORT

12.. 539 10 50-59 ..... 1 .... LANYARD

13.. 539 13 17-91 ..... 1 .... MOUNT, SPRING

14.. 539 13 20-17 ..... 2 .... MOUNT, STRUT

15.. 539 13 17-92 ..... 1 .... TAB, SPRING

16.. 539 11 28-96 ..... 1 .... J-BOLT

17.. 539 10 26-42 ..... 1 .... SPRING

18.. 539 13 27-34 ..... 1 .... SPRING, TORSION

19.. 539 13 18-50 ..... 1 .... HEIGHT ADJUST, DECK

20.. 539 13 18-60 ..... 1 .... PIVOT LATCH, TRANSPORT

21.. 510 40 83-01 ..... 1 .... PEDAL, FOOT

22.. 539 13 21-82 ..... 1 .... PIN ½ x 1½ DETENT RING

23.. 539 99 10-43 ... 10 .... BUSHING .625

24.. 539 13 28-51 ..... 1 .... GRIP

25.. 539 11 55-01 ..... 6 .... PIN, COTTER 1¾

26.. 539 10 17-21 ..... 4 .... HCS 5/16-18 x 2¾

27.. 539 10 81-81 ..... 2 .... HCS ½-13 x 1¾ GR 8

28.. 539 97 69-41 ..... 4 .... HCS 3/8-16 X 1¼

29.. 539 10 11-75 ..... 4 .... HCS 7/16-14 x 1½

30.. 874 78 06-48 ..... 1 .... HCS 3/8-16 x 3

31.. 539 99 06-46 ..... 1 .... HCS ½-13 x 1¾

32.. 539 10 80-73 ..... 4 .... HCS 7/16-14 x 1¾

33.. 539 20 02-82 ..... 2 .... NUT 3/8-16 HEX JAM NYLOC

34.. 539 13 20-19 ..... 8 .... NUT 7/16-14 HEX WHIZ LK

35.. 539 10 13-31 ..... 2 .... NUT ½ HEX NYLOC

36.. 539 11 28-99 ..... 5 .... NUT 5/16-18 HEX FLG NYLOC

37.. 539 97 69-79 ..... 4 .... NUT 3/8-16 HEX NYLOC

38.. 539 10 25-82 ..... 8 .... NUT 7/16-14 HEX WHIZ LK

39.. 539 10 28-43 ..... 1 .... WASHER 7/16 SPRING

40.. 539 10 95-54 ..... 2 .... WASHER ½ FLT

MOWER DECK / CUTTING DECK

917.204170

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

MOWER DECK / CUTTING DECK

1.. 522 74 44-03 ..... 1 .... DECK w/ SFTY DECALS YEL

2.. 532 18 72-56 ..... 3 .... BLADE

3.. 577 50 36-01 ..... 1 .... BELT

4.. 532 18 72-92 ..... 3 .... MANDREL ASSY

5.. 532 17 34-36 ..... 3 .... PULLEY

6.. 539 13 27-28 ..... 3 .... PULLEY, IDLER

7.. 539 97 69-98 ..... 1 .... ZERK

8.. 539 11 20-56 ..... 1 .... SHAFT, MANDREL

9.. 532 13 39-57 ..... 2 .... WHEEL

10.. 532 18 72-57 ..... 1 .... DEFLECTOR

11.. 532 18 73-42 ..... 1 .... BAFFLE RT

12.. 532 18 76-07 ..... 1 .... BAFFLE, CNTR

13.. 532 18 73-44 ..... 1 .... BAFFLE, LT

14.. 584 85 94-02 ..... 2 .... BRACKET, ADJUST RT

15.. 584 85 94-04 ..... 2 .... BRACKET, ADJUST LT

16.. 539 13 18-59 ..... 2 .... TRUNNION, PITCH

17.. 532 18 81-87 ..... 1 .... COVER, MANDREL RT

18.. 532 18 72-97 ..... 1 .... COVER, MANDREL LT

19.. 539 11 20-76 ..... 2 .... BUSHING, IDLER

20.. 539 10 34-27 ..... 1 .... BUSHING, PIVOT

21.. 532 17 81-02 ..... 1 .... SPRING, TORSION

22.. 539 10 32-56 ..... 1 .... SPRING

23.. 539 11 20-50 ..... 1 .... BEARING, BALL

24.. 532 17 60-66 ..... 1 .... ROLLER, NOSE

25.. 532 17 91-27 ..... 1 .... ROD, ROLLER

26.. 532 13 14-91 ..... 1 .... ROD, HINGE

27.. 585 32 26-05 ..... 1 .... PLATE, FRT

28.. 585 32 28-05 ..... 1 .... PLATE, SIDE

29.. 539 11 21-98 ..... 1 .... ARM, IDLER

30.. 532 41 55-98 ..... 1 .... PORT, WASHOUT

31.. 577 92 32-01 ..... 2 .... HCS 5/16-18 x 3 TPBLT

32.. 874 78 06-32 ..... 3 .... HCS 3/8-16 x 2

33.. 539 99 05-63 ..... 2 .... HCS 3/8-16 x 1

34.. 539 99 05-82 ..... 1 .... HCS 3/8-16 x 1 WHIZLK

35.. 539 10 34-33 ..... 1 .... HCS ½-13 x 3¼

36.. 539 10 04-72 ..... 7 .... RHSNB 5/16-18 x 1¼

37.. 539 99 07-99 ..... 6 .... RHSNB 5/16-18 x 5/8

38.. 532 19 34-06 ..... 2 .... BOLT, SHLDR 3/8-16 x 35/8

39.. 539 10 84-61 ..... 1 .... BOLT ¼-20 x ½ HWST

40.. 532 17 39-84 ... 12 .... SCREW 5/16-18 WSHR HEAD

41.. 539 10 76-31 ..... 4 .... SCREW ¼ -20 x 5/16 THDROLL

42.. 873 68 05-00 ... 12 .... NUT 5/16-18 CROWN LK

43.. 539 97 69-79 ..... 7 .... NUT 3/8-16 HEX NYLOC

44.. 539 99 06-13 ..... 1 .... NUT 3/8-16 HEX WHIZLK

45.. 532 40 02-34 ..... 3 .... NUT 9/16 TOP CENTER LOCK

46.. 539 10 76-26 ..... 1 .... PUSHNUT

47.. 539 99 01-96 ..... 4 .... NUT 5/16-18 HEX

48.. 539 10 13-31 ..... 1 .... NUT ½ HEX NYLOC

49.. 539 10 65-04 ..... 2 .... WASHER, HEAVY

50.. 539 10 22-43 ..... 1 .... WASHER, SUPPORT

51.. 532 18 76-90 ..... 3 .... WASHER, SPACER

52.. 539 99 05-50 ..... 1 .... WASHER ½ STD FLT

53.. 539 99 05-17 ..... 7 .... WASHER 3/8 FLAT STD

54.. 532 19 30-03 ..... 3 .... WASHER/BOLT ASSY

55.. 819 11 11-16 ... 11 .... WASHER 5/16 SAE FLT

SEAT

917.204170

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

SEAT

1.. 586 18 84-01 ..... 1 .... SEAT

2.. 539 13 28-39 ..... 1 .... MOUNT, SEAT w/ DECAL BLK

3.. 584 91 68-02 ..... 2 .... MOUNT, SEAT BELT BLK

4.. 532 42 10-62 ..... 1 .... SWITCH, SEAT

5.. 584 80 91-02 ..... 1 .... SUPPORT, SEAT BLK

6.. 584 99 01-02 ..... 1 .... SUPPORT, RT BLK

7.. 584 99 02-02 ..... 1 .... SUPPORT, LT BLK

8.. 532 12 41-81 ..... 2 .... SPRING, SEAT

9.. 539 10 32-47 ..... 1 .... LANYARD, SEAT

10.. 539 13 07-93 ..... 1 .... SEAT STOP

11.. 539 10 59-74 ..... 1 .... GROMMET RUBBER

12.. 505 28 00-01 ..... 2 .... TIE WRAP w/ CLIP

13.. 539 10 47-63 ..... 8 .... RETAINER, U TYPE

14.. 539 99 06-45 ..... 3 .... RHSNB 3/8-16 x 1

15.. 539 10 91-00 ..... 2 .... RHSNB 5/16-18 x ¾

16.. 539 99 00-74 ..... 1 .... RHSNB ¼-20 x ¾

17.. 525 54 40-01 ..... 4 .... HHFS 5/16-18 x 1¼ TPBLT

18.. 539 11 32-26 ..... 2 .... BOLT 5/16-18 x 1 HX THD FRM

19.. 539 13 08-96 ..... 2 .... BOLT 5/16-18 HEX HD

20.. 539 97 69-78 ..... 1 .... NUT ¼-20 HEX NYLOC

21.. 539 99 07-17 ..... 2 .... NUT 5/16-18 HEX NYLOC

22.. 539 97 69-79 ..... 2 .... NUT 3/8-16 HEX NYLOC

23.. 521 99 65-01 ..... 1 .... NUT 3/8-16 FLG HEX NYLOC

24.. 539 11 28-99 ... 10 .... NUT 5/16-18 HEX FLG NYLOC

25.. 539 99 05-98 ..... 1 .... WASHER ¼ FLT

26.. 539 99 05-17 ..... 4 .... WASHER 3/8 FLT STD

DECALS

917.204170

ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION

DECALS

1.. 583 93 40-01 .... 1 ... DECAL, WARNINGS

2.. 539 10 57-45 .... 1 ... DECAL, BATTERY WARNING

3.. 581 28 94-01 .... 2 ... DECAL, MOTION CONTROL

4.. 539 91 30-10 .... 1 ... DECAL, BLADE WARNING

5.. 539 10 57-44 .... 1 ... DECAL, DANGER BLT DRIVE

6.. 586 22 09-01 ..... 1 .... DECAL, Z7400

7.. 586 22 10-01 ..... 1 .... DECAL, CONTROL

8.. 539 10 57-46 .... 1 ... DECAL, SEVERING

9.. 539 11 26-20 .... 1 ... DECAL, BELT ROUTING

10.. 586 31 81-01 .... 1 .... DECAL, LOGO

11.. 581 72 44-01 .... 1 ... DECAL, DEFLECTOR

12.. 581 28 93-01 .... 2 ... DECAL, TRACKING

13.. 586 22 11-01 .... 1 ... DECAL, HEIGHT ADJUST

14.. 539 13 21-87 .... 1 ... DECAL, SERVICE

15.. 586 45 64-01 .... 2 .... DECAL, CRAFTSMAN

16.. 586 50 63-01 ..... 1 .... DECAL, START

17.. 539 97 77-78 .... 2 .... PAD, ABRASIVE

18.. 539 12 13-22 ..... 2 .... PAD, FOOT

NOT SHOWN

574 81 55-03 .... 1 .....DECAL, HYDROGEAR

NEED MORE HELP?

You’ll find the answer and more on managemyhome.com - for free!

•Findthisandallyourotherproductmanualsonline.

•Getanswersfromourteamofhomeexperts.

•Getapersonalizedmaintenanceplanforyourhome.

•Findinformationandtoolstohelpwithhomeprojects.

manage my home

brought to you by Craftsman

Get it fixed, at your home or ours!

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME®

(1-800-469-4663)

www.sears.com

Anytime, day or night

(U.S.A. and Canada)

www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6655 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®

(1-888-784-6427)

Au Canada pour service en français:

1-800-LE-FOYERMC

(1-800-533-6937)

www.sears.ca

2014-06-15 Printed in the U.S.A.

® Registered Trademark / TM Trademark / SM Service Mark of Sears Brands, LLC

® Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears Brands, LLC

MC Marque de commerce / MD Marque déposée de Sears Brands, LLC

Craftsman Pro Series 54 26 Hp V Twin Z7400 Zero Turn Riding Mower Non Ca Owners Manual IPL, SEARS Z7400, 2014 06,

Navigation menu

Versions of this User Manual:

Views

Navigation
