Creative Industry PC-68A Oximeter User Manual
Shenzhen Creative Industry Co., Ltd. Oximeter
User Manual
Pulse Oximeter
Directions for Use
Intended Use
This oximeter is intended to be used
with Baby Monitor, and it is an
additional or optional accessory to
measure the functional arterial oxygen
saturation (SpO2) and pulse rate (PR)
for infant or baby in the way of
non-invasive and long term monitoring.
Contraindications
This oximeter including its sensor is
contraindicated for use on the baby with
excessive movement or for prolonged
use at the same measuring site.
Instructions for Connection
1) Insert the sensor tips into the slots on the
probe holders. Place the sensor tip labeled
“LED” into the stationary probe holder on
the silicone wrap belt, and place the sensor
tip labeled “PD” into the sliding probe holder,
as illustrated in Figure 1 and Figure 2.
Figure 1 Probe tip and holder
Figure 2 Y-type SpO2 Sensor with Rubber Wrap
NOTE: Make sure that the silicone button
seat fully into the hole in the back of the probe
holder.
2) Bind the oximeter on the leg near ankle with
its belts and position the front panel to a
proper place for convenient operation, as
shown in Figure 4.
3) Wrap up the Y-type sensor onto the baby’s
sole by the rubber wrapper, as illustrated in
Figure 3. Make sure the alignment of the
light-emitting tip (LED) and the photo-
detecting tip (PD) for aiming at each other,
then thread the end of wrap belt through the
outside slots on the probe holders and tighten
the rubber belt with proper force. The final
placement is shown in Figure 4.

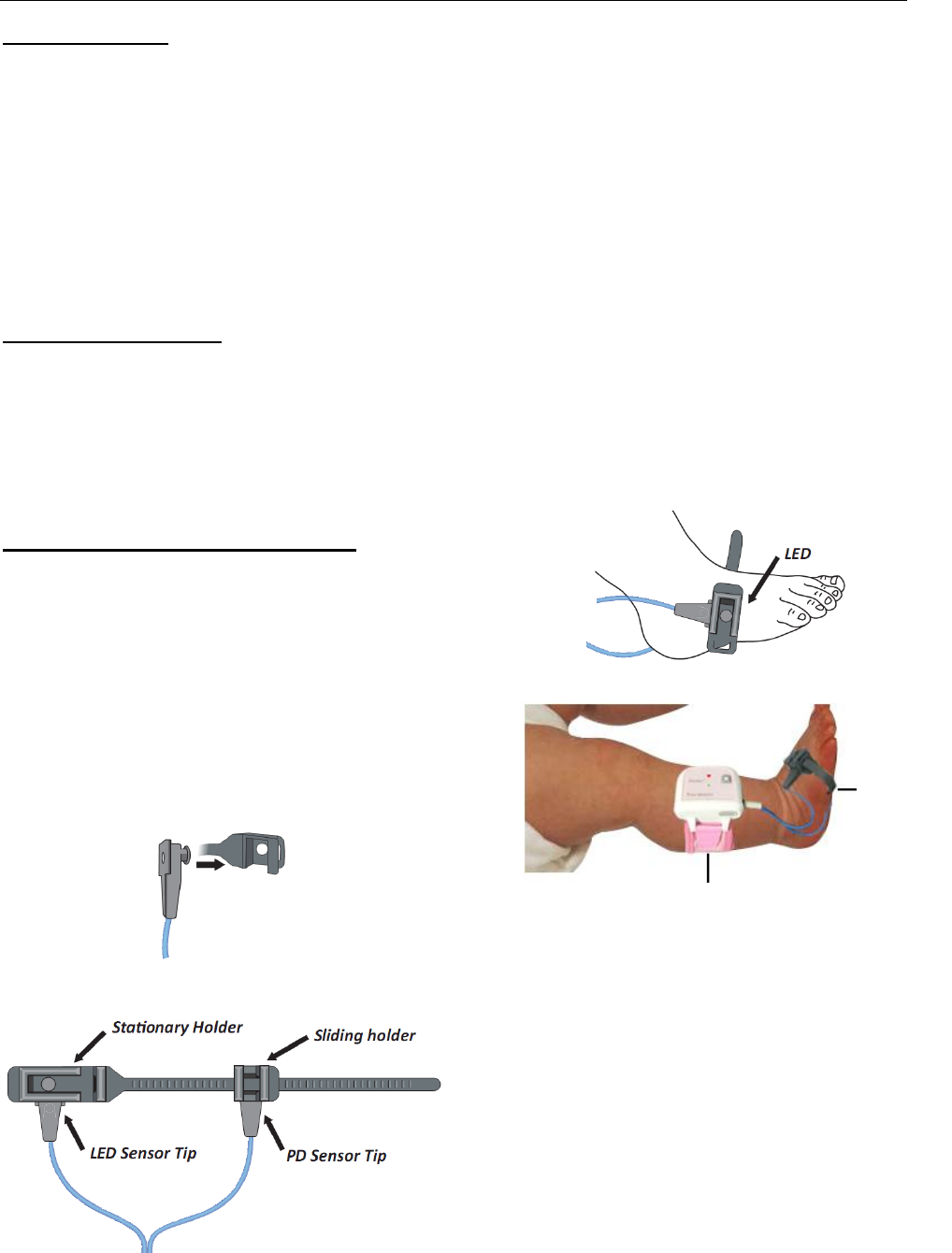

Figure 3 Sensor wrapping up
Figure 4 Placement of the Oximeter and the Sensor
NOTE: The sensor connection is critical for
the signal strength and quality. Try to make
LED and PD facing each other in opposite side,
so that the light beam is as vertically
transmitted as possible and the light path is as
short as possible.
Pulse Oximeter
Y-type
SpO2
Sensor
with
Rubber
Wrapper
Shenzhen Creative Industry Co.,Ltd. Tel:+86-755-2643 3514
2/F,Block 3,Nanyou Tian’an Industry Town, Fax: Tel:+86-755-2643 2832
Shenzhen, GD 518054, P.R. China
E-mail:market@creative-sz.com
Sep. 5, 2014 V1.0
Instructions for Operation
After all connection completed, press the Power
Button ( ) for 3 seconds to power on the
oximeter, referring to Figure 5. When the
oximeter is powered up, the Power Indicator
(yellow lamp ) will light constantly. If the heart
beat is detected, the Heartbeat Indicator (red
lamp ) flashes according with the heart rate. At
the same time the oximeter sends the measured
data (SpO2 and PR) to Baby Monitor in a given
time interval via wireless communication, and
the SpO2 and PR value will be displayed on the
terminal side of Baby Monitor.

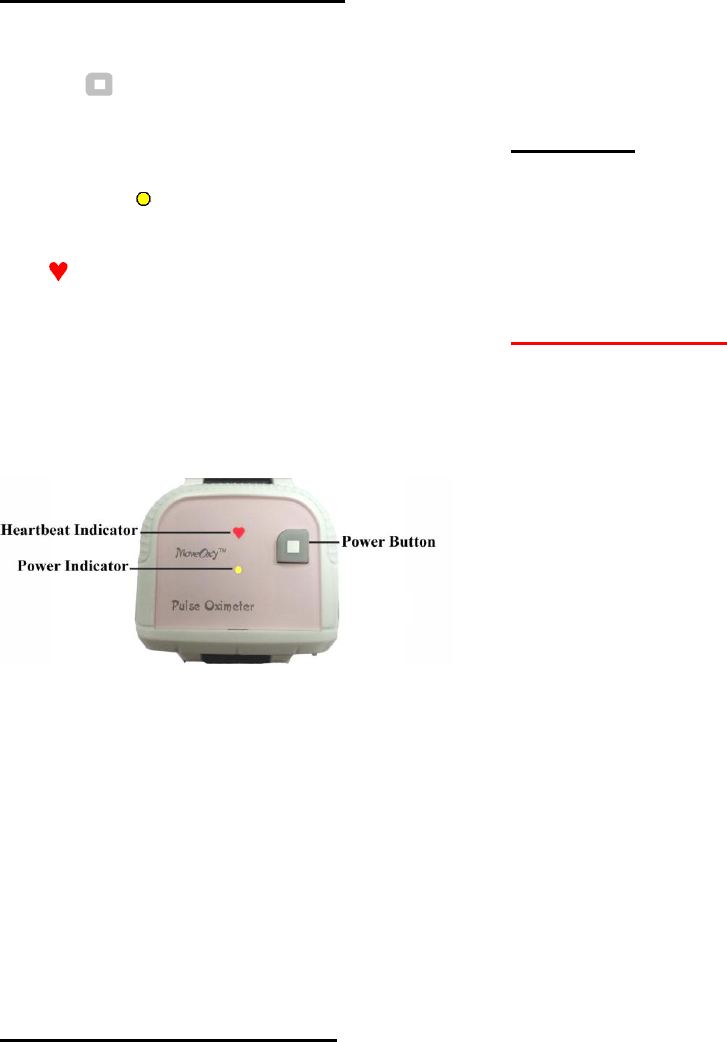

Figure 5 Appearance of the Pulse Oximeter
NOTE: ①The oximeter has not automatic
power-off function. Press the Power Button for
3 seconds to turn it off after the end of use
each time.②If the Power Indicator flashes,
that means the battery voltage is low for the
oximeter, please replace the batteries.
Cleaning and Disinfection
It is recommended to clean the oximeter
including its sensor with 75% Alcohol wipes or
70% Ispropanol (Isopropyl) before use.
Caution:①Do not sterilize by irradiation,
steam, or ethylene oxide. ②Make sure the
sensor is dry and clean before use.
Warranty
Our company offers a 12-month warranty
against manufacturing defects for this product in
its undamaged condition.
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority to
operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates uses and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
Pulse Oximeter
Directions for Use
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the
equipment and receiver.
-Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
* RF warning for Portable device:
The device has been evaluated to meet general
RF exposure requirement. The device can be u
sed in portable
exposure condition without restriction.
