User Guide
![](/img.php?id=2479156&img=bg1.png)
Introduction
Thank you for choosing the Sound Blaster JAM(GH0300)Bluetooth®headset! The ultra light weight
headset offers you hands-free communication and audio streaming when connected to your Bluetooth
device. With all necessary controls easily accessible on one earcup, it also provides you with one-click
audio enhancements.
Package Checklist
Your Sound Blaster JAM package comes with the following:
lThe Sound Blaster JAM headset
l1m USB cable
lQuick Start leaflet
lWarranty leaflet
System Requirements
For Windows®OS
lIntel® Core™2 Duo or AMD equivalent processor, 2.8 GHz or faster recommended
lMicrosoft®Windows 8.1 64-bit or 32-bit, Windows 8 64-bit or 32-bit, Windows 7 64-bit or 32-bit,
Windows Vista®64-bit or 32-bit
l1 GBRAM
l600 MB of free hard disk space
lPowered USB 2.0 / USB 3.0 port
For Mac®OS
lIntel® Core™2 Duo, 2.8 GHz or faster recommended
lMac OS X® 10.6.8 or higher
l1 GB RAM
l600 MB of free hard disk space
lPowered USB 2.0 / USB 3.0 port
For iOS device
liPhone®/ iPad®running iOS 5.1.1 or higher for Bluetooth
For Android device
lPhone / tablet running Android 2.3 or higher for Bluetooth
Registering Your Product
Registering your product ensures you receive the most appropriate service and product support
available. You can register your product during installation or at register.creative.com. Please note that
your warranty rights are not dependent on registration.
Introduction 1
![](/img.php?id=2479156&img=bg2.png)
More Help
For the latest news and products for the Sound Blaster, please visit www.soundblaster.com. The site
also includes information on making purchases, technical help and the latest software updates.
Using Creative Software AutoUpdate
Locating, downloading and installing updates for your Creative products is now simpler and faster with
the web-based Creative Software AutoUpdate system.
When you connect to Creative Software AutoUpdate via the Internet, the website will analyze your
computer system to determine your operating system, language and which Creative products are
connected to your system.
When this analysis is completed, you will then be given a list of only the most relevant software updates
for your connected products. The files can then be retrieved and installed.
To learn more about the Creative Software AutoUpdate, please visit support.soundblaster.com.
Note:
First-time users of Creative Software AutoUpdate may be prompted to authorize the download of a
browser component required for system analysis. Check to ensure that this content is signed by
Creative Labs, Inc., then click the Yes button.
Please ensure that all your Creative products are connected and installed on the same computer
running Creative Software AutoUpdate.
Introduction 2
![](/img.php?id=2479156&img=bg3.png)

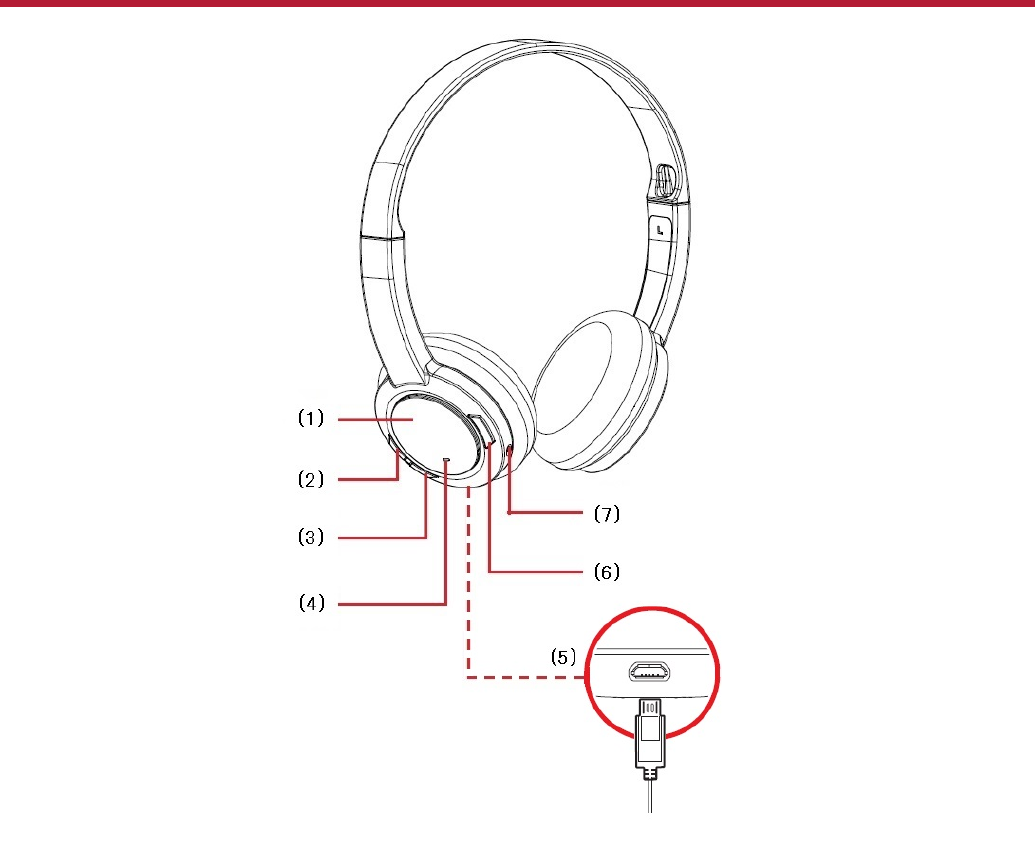

Product Overview
(1) Multifunction button /
NFC receptor
(2) Volume +
(3) Volume -
(4) LED indicator
(5) USBport
(6) Bass Boost button
(7) Microphone
Product Overview 3
![](/img.php?id=2479156&img=bg4.png)
Setting Up Your Headset
Set up your headset in three simple steps:
1. Charge your headset
2. Connect your headset
3. Install the software
Step 1:Charge Your Headset
You are recommended to charge your headset before it is used for the first time. Connect your headset
to your computer using the USB cable, or connect it to a power supply via an adapter (available
separately). The LED will light in red when charging.
Using Your Headset While Charging
During subsequent charges, you can use your headset while it charges. The LED will light in red while
charging and return to its last status when fully charged.
You can also check the status of the battery via the battery indicator at the top right corner of the Sound
Blaster JAM Control Panel. Please refer to Using the Software for details.
Note:
The low battery tone will start beeping to inform users of its status 15 minutes before the headset is
completely powered off.
Setting Up Your Headset 4
![](/img.php?id=2479156&img=bg5.png)
Step 2:Connect Your Headset
Turn on your Sound Blaster JAM by pressing the Multifunction button.
lTurn ON: Press and hold 2 seconds
lTurn OFF:Press and hold 4 seconds

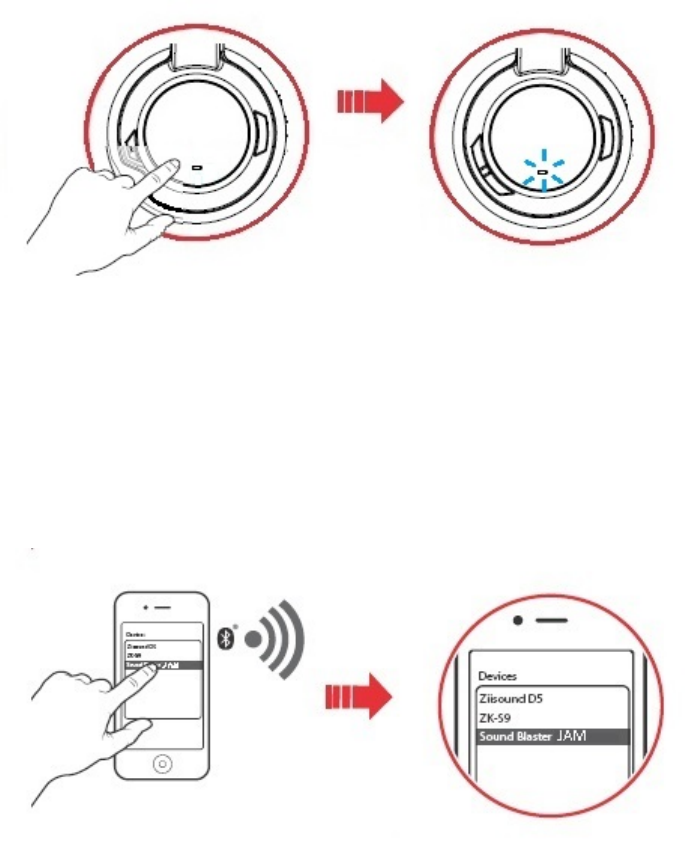

Bluetooth Pairing
1. Activate pairing mode on the headset
Turn on your headset. If the headset has not been paired with any devices previously, it will go into
Bluetooth discoverable mode. Otherwise, it will be automatically paired to previously paired devices.
The Bluetooth discoverable mode is only available for 60 seconds after the headset is turned on. To
activate Bluetooth again, press the Multifunction button for 2 seconds. The LED will begin to blink
quickly in blue for 60 seconds while waiting to be connected.
2. Activate pairing mode on your device
Activate Bluetooth on your smart device. From the list of discovered Bluetooth devices, select "Sound
Blaster JAM".
Note:
Bluetooth pairing between these devices may vary depending upon the model type. Consult your
device’s manual on how to pair.
Setting Up Your Headset 5
![](/img.php?id=2479156&img=bg6.png)

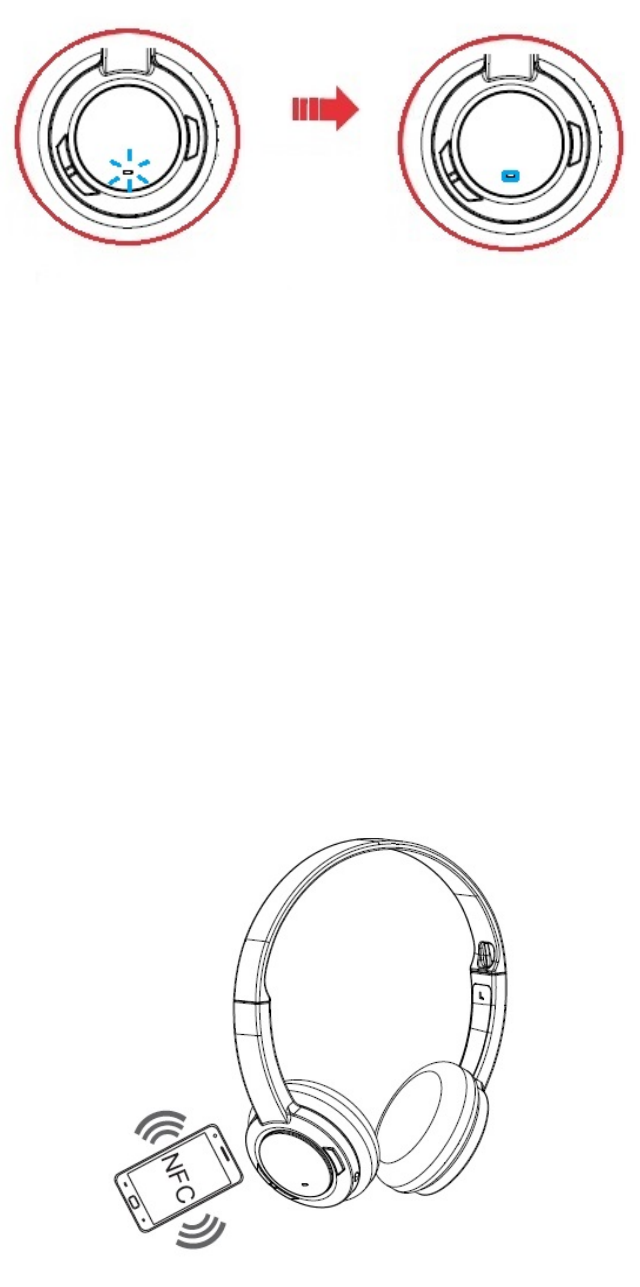

3. Pairing success
When the headset and the Bluetooth device are paired, the LED will flash slowly in blue to indicate
successful pairing before returning to its default / last status.
Pairing Multiple Devices
The Sound Blaster JAM is able to pair up to two smart devices at the same time! To have the second
device paired, repeat steps 1 to 3. If a user wishes to pair the headset with a third smart device, one of
the two devices that are currently paired with the headset has to be unpaired.
Note:
Only one of the devices is able to play music at one time. The last paired smart device takes
precedence over the other device.
When there's an incoming call, the call takes precedence over audio playback -- music fades out and
the ringtone will be heard.
NFCPairing
Bring your NFC-enabled device close (20mm) to the NFC zone / Multifunction button. The LED will
blink slowly in blue and a 3-note tone will be heard to indicate successful pairing. Play music from your
device and experience superb audio realism and stunning 3D surround effects.
If you wish to unpair the devices, simply tap your NFC device on the headset again.
Setting Up Your Headset 6
![](/img.php?id=2479156&img=bg7.png)

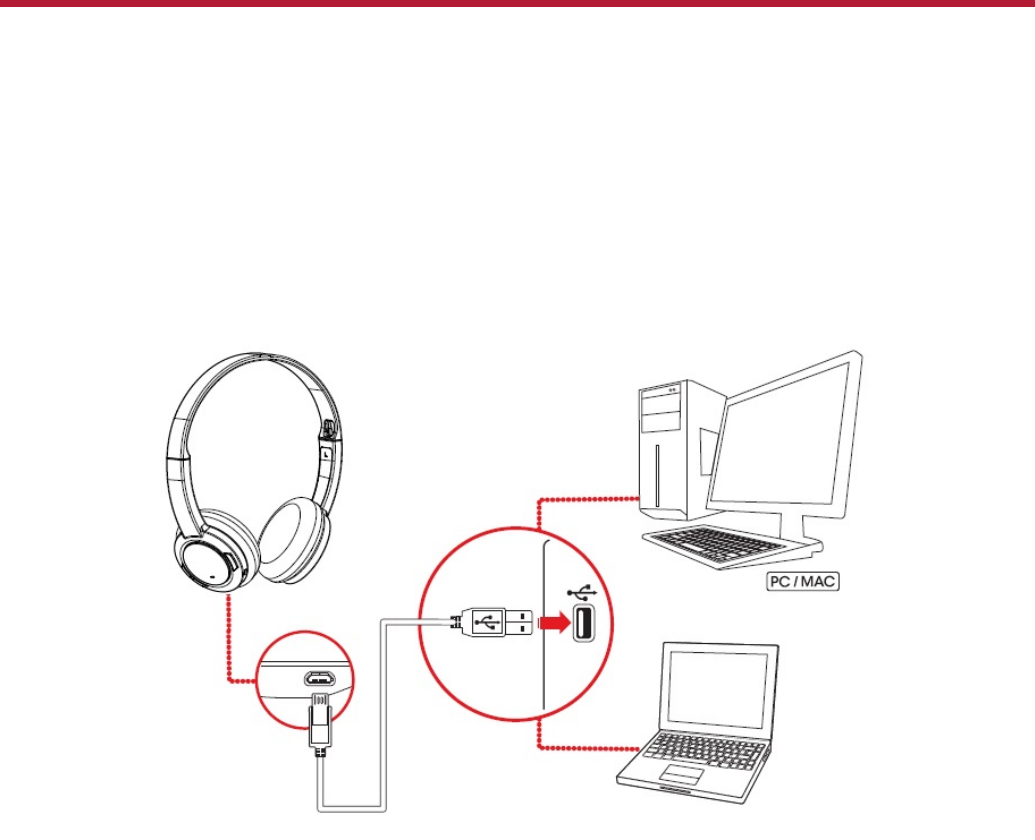

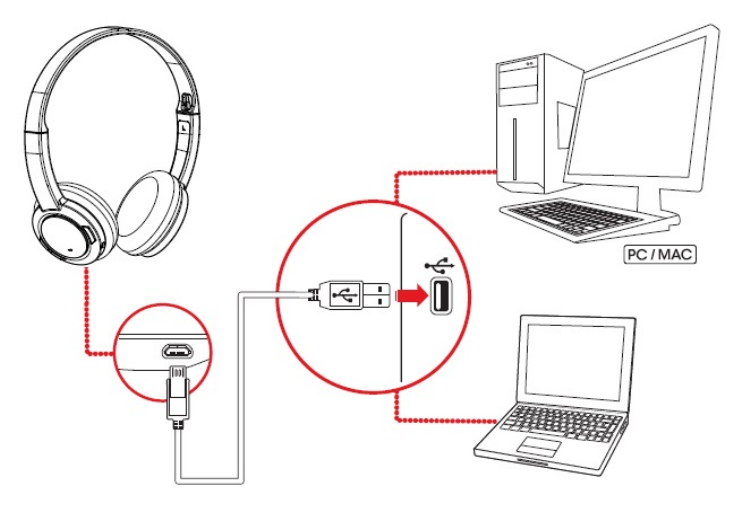

USBConnection
Connect your headset to a computer using the USB cable. Turn it on by pressing and holding the
Multifunction button for 2 seconds. The LED will light in green when it is successfully turned on. You
can stream audio from your computer through the USB connection.
Note:
Profile setting adjustments via Sound Blaster JAM Control Panel is only available in USB Digital Mode.
Refer to Using the Software for more information.
Set the default audio device (Mac OS ONLY)
1. Go to System Preferences and click Sound.
2. Select Sound Blaster JAM in both the Output and Input tabs.
Setting Up Your Headset 7
![](/img.php?id=2479156&img=bg8.png)
Step 3:Install the Software
Your headset is now ready for use. However, you can enhance your audio and voice experience via an
optional software package that can be downloaded and installed into your PC. We recommend that you
download and install this software to make full use of all the features that your headset is equipped
with.
Note:
Ensure that your headset is turned on and plugged into your computer before downloading and
installing the software.
For Windows
1. Using a standard web browser, visit www.soundblaster.com and locate the software package for the
Windows operating system for your product.
2. Download this package into your local hard disk.
3. Locate and launch the software package.
4. Follow the on-screen instructions to complete the installation.
5. When prompted, restart your computer.
6. Launch the application by clicking Start > Programs or All Programs > Creative > Sound
Blaster JAM > Sound Blaster JAM Control Panel.
For Mac
1. Using your web browser, visit www.soundblaster.com and locate the software package for the Mac
OS for your product.
2. Download this package into your local hard disk.
3. Double-click the downloaded file to decompress it.
4. Double-click the uncompressed DMG file.
5. Double-click the Install icon and follow the subsequent on-screen instructions to complete the
installation.
6. Launch the Sound Blaster JAM Control Panel from the Applications > Creative > Sound
Blaster JAM folder.
For more details on the software and the various features it has to offer, refer to Using the Software.
Setting Up Your Headset 8
![](/img.php?id=2479156&img=bg9.png)
Using Your Headset

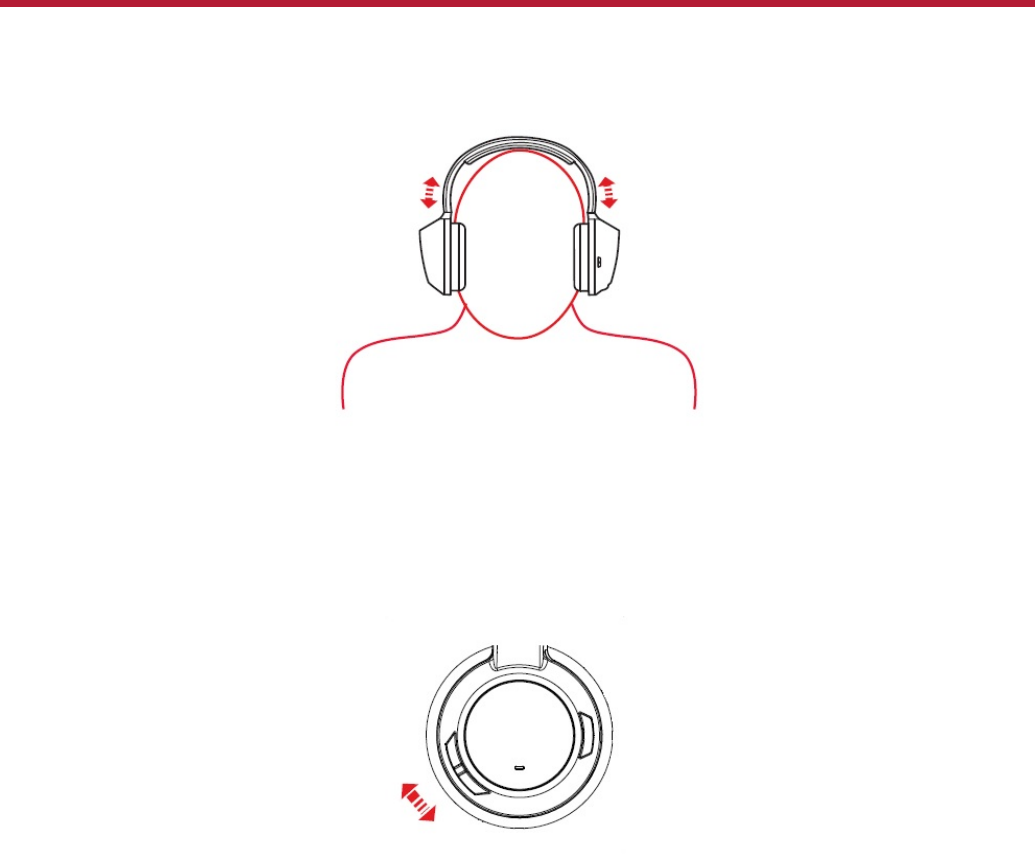

Wearing the Headset
Adjust the headband so that the headset rests lightly on your head. Do not tighten excessively.
Adjusting the Volume
The Volume Control on the headset cup can be used to adjust your headset volume to a comfortable
level. You can also adjust the volume via the software or the built-in volume settings on your computer.
CAUTION:
Do not listen to audio on your headset at high volumes for prolonged periods of time to avoid
impairing your hearing.
Using Your Headset 9
![](/img.php?id=2479156&img=bga.png)

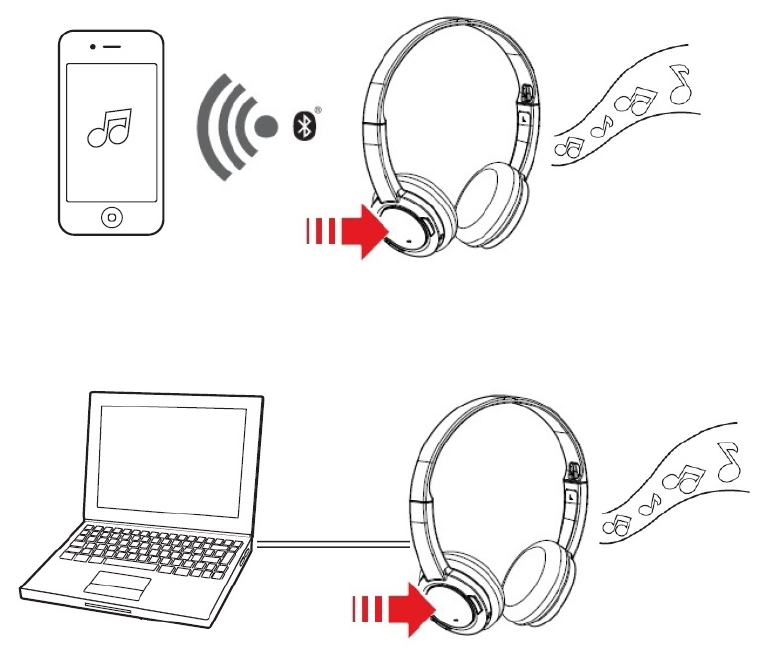

Playing Music or Movies
Connect your Sound Blaster JAM wirelessly to a portable entertainment device such as mobile phones
and tablets and enjoy clear audio quality on the go! Alternatively, you may connect it to your computer
via USB to enjoy the legendary Sound Blaster audio quality.
OR

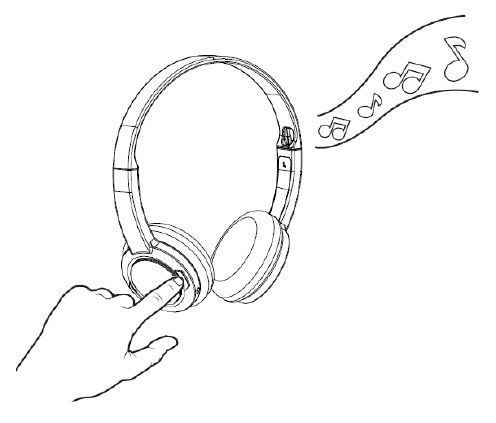

Play, Pause or Resume Music
Tap on the Multifunction button once to play music and again to pause it. Similarly, tap on the same
button to resume.
Adjusting Volume
When listening to music, you may adjust the volume control to increase or decrease the music level.
Next Track or Previous Track
Press and hold the Volume + or Volume - button to skip to the next or previous track.
Note:
You can connect Sound Blaster JAM to a mobile device wirelessly and to your computer via USB at the
same time, and toggle between them.
Using Your Headset 10
![](/img.php?id=2479156&img=bgb.png)

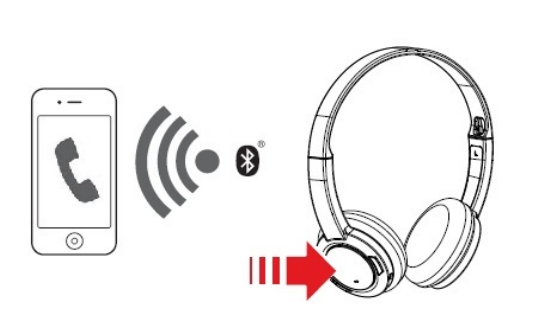

Answering and Ending Calls
When the headset is turned on, it goes into standby mode and waits for calls passively. After you have
ended a call on your mobile phone, the headset returns to standby mode or resumes your music again.
Answer or End a Call
When there's an incoming call from your mobile device while you are listening to music, the music fades
out and the ringtone will gradually be heard.
Tap on the Multifunction button once to answer the call, and tap on the same button again to end it.
The music will resume after the call has ended.
Reject a Call
Alternatively, you can also reject the incoming call by pressing and holding the Multifunction button.
Redial Last Number
Press and hold the Multifunction button to redial the last called number.
Note:
This feature is only available when the headset is connected via Bluetooth.
Using Your Headset 11
![](/img.php?id=2479156&img=bgc.png)
Enhancing Your Audio
Press the Bass Boost button during music playback to boost audio levels and produce better, louder
and more immersive surround sound. Press again to turn off Bass Boost.
Note:
This feature is only available when the headset is connected via Bluetooth.
Using Your Headset 12
![](/img.php?id=2479156&img=bgd.png)

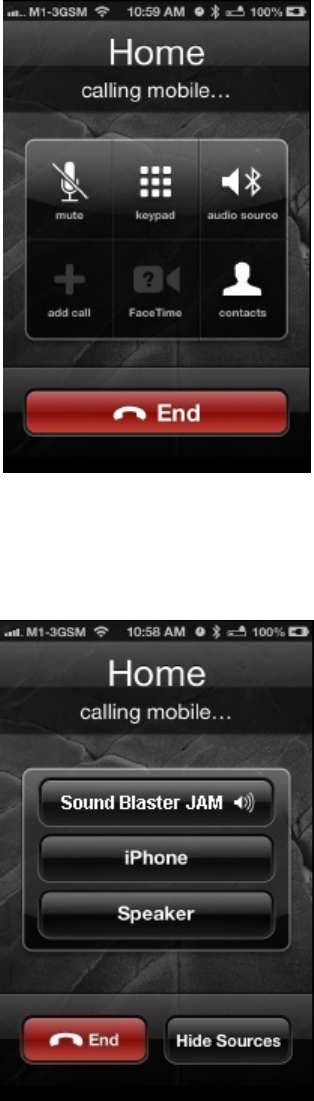

Tips for iPhone Users
When your iPhone is paired with the Sound Blaster JAM during a call, you have the option to switch the
audio source to either the Sound Blaster JAM or your phone, so you are able to speak on the desired
device or headset. Note: By default, the selected device will be your iPhone.
a. To change the audio source, tap the "audio source" icon on the screen.
b. Then, tap on the desired device, e.g. "Sound Blaster JAM".
Using Your Headset 13
![](/img.php?id=2479156&img=bge.png)
Using the Creative Software
A specialized software for the Sound Blaster JAM Control Panel is developed to provide additional
enhancements to the audio and voice inputs and outputs of the product. The software bundle supports a
range of operating systems including:
lWindows 8, Windows 7, Windows Vista
lMac OS X 10.5.8 or higher
To take full advantage of your Sound Blaster JAM, we recommend downloading and installing this
software into your computer. The following applications are included in the software bundle:
For Windows OS,
lSound Blaster JAM Control Panel
lCreative Host OpenAL
lCreative ALchemy
lEAXAHD5.0
lCreative SoftwareAutoUpdate
lCreative System Information
lProduct Registration
For Mac OS,
lSound Blaster JAM Control Panel
lProduct Registration
Note:
Some applications are available only for certain operating systems. To learn more about each
application, please consult its respective Online Help.
Using the Creative Software 14
![](/img.php?id=2479156&img=bgf.png)
Sound Blaster JAM Control Panel
The rest of this chapter explains how to use the Sound Blaster JAM Control Panel to view and adjust the
various features of your Sound Blaster JAM. The examples and screenshots below uses Windows as an
example. The UI for other operating systems may differ slightly.
Managing Your Profiles
The Sound Blaster JAM Control Panel comes equipped with a set of pre-configured profiles to suit your
different needs including:
lMusic
lMovies
lGaming
To activate a profile,
Using the Creative Software 15
![](/img.php?id=2479156&img=bg10.png)
1. Click the SBX Profile menu on the left to view the SBX Profile screen.
2. Select your desired profile from the screen.
To modify and save changes to the active profile,
1. Click the Edit button to modify the profile you have selected.
2. Navigate through the various other menu options of the Sound Blaster JAM Control Panel and modify
the configurations as desired.
Configuring Your General Settings
You can change the language settings or restore settings to their default values. Click from the top
right corner of the interface and select the option from the list.
The battery icon indicates the battery status of the Sound Blaster JAM.
Using the Creative Software 16
![](/img.php?id=2479156&img=bg11.png)
SBX Pro Studio Settings
To configure SBX Pro Studio, go to the SBX Profile screen, select a profile and click Edit to enter the
SBX Pro Studio screen. By default, the SBX effect is turned on. You may adjust the effects on this
screen.
1. Click the power button to toggle ON SBX Pro Studio.
2. Select the type(s) of enhancements to apply and drag the sliders to adjust the level for each
enhancement.
3. Click to test the audio output, if necessary.
4. Click Save to save the adjusted settings or Reset to restore default settings.
Note:
You can also toggle SBX Pro Studio ON via the physical touchscreen of the Sound Blaster JAM.
Enhancement adjustments can only be made via the software.
SBX Pro Studio includes a number of enhancements for movies and gaming, elevating your movie and
gaming experience to the next level. These include:
lSBX Surround - designed to work best when you connect a pair of headphones to the Sound Blaster
JAM, this technology provides immersion control to enhance the natural sense of audio depth and
spaciousness by creating virtual surround sound channels. Stereo content or multichannel content
will sound as if its coming from all sides while voices remain centered in front and original balance
and timbre is preserved.
lSBX Crystalizer - restores the natural dynamic range that is lost when music files (iTunes and
MP3) gets compressed. This makes the music sound as good as the artist originally intended, and
adds an enhanced level of realism for movies and games.
lSBX Bass - fills in the missing low frequency tones and gives the extra impact for a better
entertainment experience. Consumers no longer have to tolerate a lack of bass in speakers as the
SBX Pro Studio Bass technology dramatically improves the sound experience even in the absence of
a subwoofer.
Using the Creative Software 17
![](/img.php?id=2479156&img=bg12.png)
lSBX Smart Volume - addresses the problem of abrupt volume level changes during playback and
between songs by continously measuring volume automatically, applying gain and attenuation
intelligently to compensate for any changes.
lSBX Dialog Plus - enhances the voices in movies for clearer dialog, allowing the listener to hear
the dialog over the rest of the soundtrack and over ambient noise in the listening environment.
Equalizer Settings
To configure Equalizer settings, select a profile from the SBX Profile screen. Click Edit and then click
Equalizer.
To adjust and apply an equalizer preset,
1. Check the EQ checkbox to enable the use of the equalizer.
2. From the drop down menu, select the preset to use.
3. Adjust the vertical slider bars to achieve your desired level.
4. Click Save to save the changes to the active preset or to a new preset.
You can also delete any user created equalizer presets by selecting the preset from the drop down menu
and clicking Delete.
Note:
All default equalizer presets cannot be deleted.
Using the Creative Software 18
![](/img.php?id=2479156&img=bg13.png)
Headphones Settings
The Sound Blaster JAM Control Panel enables you to enjoy stereo audio effects from your headset.
1. View the current settings for the speakers.
2. Click Test to hear a sample audio clip played back based on the settings.
Using the Creative Software 19
![](/img.php?id=2479156&img=bg14.png)
Mixer Settings
A mixer is also available via the software, allowing you to adjust the volume levels of individual outputs
and channels including the microphone, speakers, etc. Simply click the Mixer option on the menu and
adjust the volumes using the sliders.
Using the Creative Software 20
![](/img.php?id=2479156&img=bg15.png)
Advanced Features
The Advanced Features screen allows you to turn the red LED on / off based on your preference.
Using the Creative Software 21
Playing Games
Your headset is equipped with cutting edge audio technologies and software to enhance the audio in your
games. SBX Pro Studio will elevate your gaming experience to the next level, allowing you to hear
sound details in games you have never heard before! For more details on the various SBX Pro Studio
effects and their setup, please refer to SBX Pro Studio Settings.
Restoring Audio Effects in Games with Creative ALchemy
When playing DirectSound®3D on Windows 8, Windows 7 and Windows Vista, the game loses its
immersiveness and environmental effects due to changes in audio architecture.
To restore these effects and experience the full audio immersion, follow the steps below:
Enable the game in Creative ALchemy
1. Click Start > Programs or All Programs > Creative > ALchemy > Creative ALchemy. The
game should be detected automatically and appear in the left column.
2. Select the game and click >> to move it to the right column.
3. Close the application.
When you launch the game, you should hear the original effects.
Note:
If the game is not detected, do the following:
- Navigate to the folder where you have installed the game.
- Right-click the game's launched and select Run as administrator.
- Exit the application and launch Creative ALchemy again. The game should now appear in the left
column.
Using the Creative Software 22
![](/img.php?id=2479156&img=bg17.png)
General Specifications
Connectivity
lBluetooth
lNFC
lUSB port for charging and connection to computers
Technical Specifications
Bluetooth Version: Bluetooth 4.1
Bluetooth Profiles:
lA2DP (Wireless Stereo Bluetooth)
lAVRCP (Bluetooth Remote Control)
lHFP (Hands-Free Profile)
Bluetooth Operating Frequency: 2402 - 2480 MHz
Bluetooth Operating Range: Up to 15 meters
(Measured in open space. Walls and structures may affect range of device.)
Audio Codec: SBC
Operating Temperature range: 0°C to 45°C
Number of RFchannels:79
RF transmitter power output:0dBm (typical)
Lithium Ion Battery: 3.7 V200 mAh
General Specifications 23
![](/img.php?id=2479156&img=bg18.png)
Troubleshooting
Sound Blaster JAM Controls and Indicators
Different actions can trigger the Sound Blaster JAM to go into different states. The table below lists the
controls and related actions, and the meaning of the LED indications.
Action LED Status
Power On/Off Green
(with power up tone)
Power ON
Green
(with power down tone)
Power OFF
Battery Charging
(headset status is OFF)
Red Headset battery is charging
Off Battery charging is complete
Battery Charging
(headset status is ON)
Red Headset battery is charging
LED returns to the last status Battery charging is complete
Bluetooth Pairing Blinks quickly in blue
(60 seconds)
Headset is searching for
Bluetooth-enabled devices
Blinks slowly in blue
(Bluetooth connected tone)
Headset is paired successfully
Blue
(Bluetooth disconnected tone)
Headset is unpaired
Incoming Phone Call 3 quick blue blinks every 2
seconds
(Ring tone)
Phone ringing
2 quick blue blinks every 2
seconds
Answer call / active call
Blinks slowly in blue Reject call / end call
The onboard audio chipset seems to be in conflict with Sound Blaster JAM.
Ensure that the Sound Blaster JAM headset is properly inserted into the USB port.
No sound from the headset.
Check the following:
lThe headset and your Bluetooth device are turned on.
lThe headset has sufficient battery power.
lThe volume settings in Sound Blaster JAM Control Panel and system audio are properly adjusted and
not muted.
lThere is no hardware conflict between the headset and a peripheral device.
Troubleshooting 24
lThe headset is selected as the default audio device. Ensure that existing analog headset is dis-
connected.
There is clipping/distortion during audio playback.
Check the following:
lYour computer system should be running in high performance mode. You may need to disable any
power saving features.
lThe music source may be distorted. Ensure that the music played has no distortion.
lEnsure that the software graphical equalizer or sound processing effects found in third party media
players are disabled.
Some features are disabled when playing certain games.
When playing games that use DirectSound3D or OpenAL sound engines, certain audio features will be
disabled automatically. This is to avoid distorting the environmental audio cues present in the game.
These features will be re-enabled automatically when you exit the game.
Electronic interferences is occurring with other wireless devices.
Do the following:
lSet your wireless LAN router's channel to Auto, 1 or 11. To do this, refer to your router's user doc-
umentation.
lPlace your Bluetooth device away from other devices (for example, wireless routers) that transmit
wireless signals.
lPlace your Bluetooth device away from large metal surfaces.
lRefrain from doing large file transfers via the wireless Internet or Bluetooth connection while lis-
tening to music wirelessly. Alternatively, do not use your headset during intensive file transfers.
lDisconnect existing Bluetooth device.
Music is not being transmitted to my headset.
Check the following:
lYour Bluetooth device and your headset are turned on.
lYour Bluetooth device and your headset are paired with each other.
lFor Android phone, launch "Bluetooth setting" and click on the headset device's name. Under "Pro-
file", make sure both "Call audio" and "Media audio" are checked.
lEnsure that the headset is set as the default Bluetooth output device on mobile phones or tablets.
Additional Support
If you encounter any other issues or have any other enquiries about your Sound Blaster JAMor any
other Creative products, please visit our comprehensive knowledge base at support.creative.com or
www.soundblaster.com for additional information.
Troubleshooting 25
![](/img.php?id=2479156&img=bg1a.png)
Regulatory Information
The following sections contains notices for various countries.
Caution:
This product is intended for use with FCC/CE certified computer equipment. Please check the
equipment operating/installation manual and/or the equipment manufacturer to verify/confirm if
your equipment is suitable prior to the installation or use of the product.
Notice for the USA
Federal Communication Commission (FCC) Interference Statement
FCC PART 15: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
lConsult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules,
this device must be installed with computer equipment certified to comply with Class B limits.
All cables used to connect to the computer and peripherals must be shielded and grounded. Operation
with non-certified computers or non-shielded cables may result in interference to radio or television
reception.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device
could void the user’s authority to operate the device.
Federal Communication Commission (FCC) Radiation Exposure Statement
(For USB transmitter)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator and
your body. This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
(For Headset)
Power is so low that no RF exposure calculation is needed.
Regulatory Information 26
![](/img.php?id=2479156&img=bg1b.png)
European Compliance
This product conforms to the following:
RoHS Directive 2011/65/EU.
EMC Directive 2004/108/EC.
Mains operated products for the European market comply with Low Voltage Directive 2006/95/EC and
Commission Regulation(s) Implementing Directive 2009/125/EC.
Communication / RF wireless products for the European market comply with R&TTE Directive
1999/5/EC.
CAUTION: To comply with the Europe CE requirement, this device must be installed with CE certified
computer equipment which meet with Class B lmits.
All cables used to connect this device must be shielded, grounded and no longer than 3m in length.
Operation with non-certified computers or incorrect cables may result in interference to other devices
or undesired effects to the product.
MODIFICATION: Any changes or modifications not expressly approved by Creative Technology Limited
or one of its affliated companies could void the user's warranty and guarantee rights.
[FR] European Compliance
Ce produit est conforme aux normes suivantes :
Directive 2004/108/CE sur les émissions électromagnétiques.
Directive RoHS 2011/65/UE.
Les produits secteur pour le marché européen sont conformes à la Directive sur la faible tension
2006/95/CE et à la réglementation de la Commission exécutant la Directive 2009/125/CE.
Les produits de communication/sans fil RF destinés au marché européen sont conformes à la directive
R&TTE 1999/5/CE.
ATTENTION : pour respecter les critères CE d'Europe, cet appareil doit être installé avec du matériel
informatique certifié CE respectant les limites de la classe B. Tous les câbles utilisés pour connecter cet
appareil doivent être blindés, reliés à la terre et ne pas faire plus de 3 m de long. L'utilisation
d'ordinateurs non certifiés ou de câbles inappropriés peut entraîner des interférences avec d'autres
appareils ou des effets indésirables sur le produit.
MODIFICATION : toute modification non approuvée explicitement par Creative Technology Limited ou
l'une de ses sociétés affiliées peut entraîner l'annulation de la garantie et des droits de garantie de
l'utilisateur.
[IT] Conformità alle normative europee
Questo prodotto è conforme alla seguente normativa:
Direttiva EMC 2004/108/CE.
Direttiva RoHS 2011/65/UE.
I prodotti che funzionano con corrente di rete per il mercato europeo sono conformi alla direttiva bassa
tensione 2006/95/CE e alla direttiva di implementazione nelle normative europee 2009/125/CE.
I prodotti di comunicazione/wireless RF per il mercato europeo sono conformi alla Direttiva R&TTE
1999/5/CE.
ATTENZIONE: ai fini della conformità con i requisiti del marchio CE europeo, il dispositivo deve essere
installato in un computer certificato CE conforme ai limiti di Classe B. Tutti i cavi usati per collegare il
Regulatory Information 27
dispositivo devono essere schermati, dotati di idonea messa a terra e avere una lunghezza massima di
3 metri. L'uso del dispositivo con computer non certificati o cavi non idonei può provocare interferenze
ad altri dispositivi nonché danneggiare il prodotto stesso.
MODIFICHE: eventuali modifiche o alterazioni non espressamente approvate da Creative Technology
Limited o dalle sue società controllate possono rendere nulli la garanzia e il diritto dell'utente a
utilizzare il prodotto.
[DE] Einhaltung der europäischen Bestimmungen
Dieses Produkt erfüllt die folgenden Bestimmungen:
EMC-Richtlinie 2004/108/EG.
RoHS-richtlinie 2011/65/EU.
Netzbetriebene Produkte für den europäischen Markt erfüllen die Niederspannungsverordnung
2006/95/EG und der Commission Regulation(s) Implementing-Verordnung 2009/125/EG.
Drahtlose Kommunikationsgeräte/Funksender und -empfänger für den europäischen Markt erfüllen die
R&TTE-Richtlinie 1999/5/EG.
ACHTUNG: Um die Anforderungen der europäischen CE-Norm zu erfüllen, muss dieses Produkt an
einem CE-geprüften Computer der Klasse B angeschlossen werden.Alle Verbindungskabel zu diesem
Gerät müssen abgeschirmt und geerdet sein und dürfen nicht länger als 3 m sein. Der Betrieb mit nicht
zertifizierten Computern oder nicht ordnungsgemäßen Kabeln kann zu Störungen anderer Geräte oder
unerwünschten Auswirkungen auf das Produkt führen.
MODIFIZIERUNG: Jegliche Änderung oder Modifizierung des Produkts, die nicht ausdrücklich von
Creative Technology Limited oder einer der zugehörigen Firmen genehmigt worden ist, kann für den
Benutzer zum Erlöschen der Garantie und der Gewährleistungsrechte führen.
[ES] Homologación para Europa
Este producto cumple:
la Directiva de compatibilidad electromagnética 2004/108/CE.
Directiva RoHS 2011/65/UE.
Los productos funcionando con corriente electrica cumplen con la Directiva 2006/95/CE de baja tensión
y con la implementación de los requisitos de la Comisión para la directiva 2009/125/CE.
Los productos inalámbricos de comunicación o frecuencias de radio para el mercado europeo cumplen la
Directiva 1999/5/CE de equipos de radio y terminales de telecomunicaciones.
ATENCIÓN: para cumplir con los requisitos de Homologación para Europa, este dispositivo debe
instalarse con un equipo informático con certificación CE que cumpla los límites de la Clase B. Todos los
cables utilizados para conectar este dispositivo deben estar protegidos, conectados a tierra y no tener
más de 3 m de longitud. El funcionamiento del dispositivo con equipos no certificados o cables
incorrectos podría provocar interferencias a otros dispositivos o efectos no deseados al producto.
MODIFICACIÓN: los cambios o modificaciones no aprobados expresamente por Creative Technology
Limited o una de sus empresas afiliadas podrían invalidar la garantía del usuario y los derechos de la
garantía.
[NL] Europese naleving
Dit product voldoet aan de volgende voorschriften:
EMC-richtlijn 2004/108/EG.
RoHS-richtlijn 2011/65/EU.
Regulatory Information 28
Electrische producten voor de Europese markt voldoen aan de Laagspanningsrichtlijn 2006/95/EG en EC
and Verordening(en) voor uitvoering van Richtlijn 2009/125/EG.
Communicatie- of draadloze RF-producten voor de Europese markt voldoen aan de richtlijn R&TTE
1999/5/EG.
LET OP: Om te voldoen aan de Europese CE-norm, moet dit apparaat zijn geïnstalleerd in
computerapparatuur die CE-gecertificeerd is voor de Klasse B-limieten. Alle kabels die worden gebruikt
om dit apparaat aan te sluiten, moeten zijn afgeschermd en geaard, en mogen niet langer dan 3 meter
zijn. Gebruik met niet-gecertificeerde computers of incorrecte kabels kan leiden tot interferentie van
andere apparaten of ongewenste effecten op het product.
AANPASSING: Alle wijzigingen of modificaties die niet uitdrukkelijk zijn goedgekeurd door Creative
Technology Limited of een van de gelieerde maatschappijen, kunnen ertoe leiden dat de rechten van de
gebruiker met betrekking tot garantie en vrijwaring vervallen.
[PT] Conformidade Europeia
Este produto está em conformidade com a seguinte regulamentação:
Directiva EMC 2004/108/EC.
Directiva RoHS 2011/65/UE.
Os produtos com ligação à rede destinados ao mercado europeu estão em conformidade com a directiva
de baixa voltagem 2006/95/CE. Directiva de Implementação do(s) Regulamento(s) da Comissão
2009/125/CE.
Os produtos de comunicação/radiofrequência sem fios destinados ao mercado europeu estão em
conformidade com a directiva R&TTE 1999/5/CE.
ATENÇÃO: De modo a cumprir com os requisitos da marca CE Europeia, este dispsotivo deve ser
instalado com equipamento informático com certificação CE que cumpra com os limites de Classe B
limits. Todos os cabos usados para ligar este dispositivo devem ser blindados, ligados à terra e não
devem exceder os 3m de comprimento. O funcioanemnto com computadores não certificados ou cabos
incorrectos pode resultar em interferências em outros dispositivos ou provocar efeitos indesejados no
produto.
MODIFICAÇÃO: Quaisquer alterações ou modificações que não sejam expressamente aprovadas pela
Creative Technology Limited ou por uma das suas afiliadas, pode anular a garantia do utilizador e os
direitos inerentes à mesma.
[DK] Overholdelse af Europæiske regler og standarder
Dette produkt overholder følgende:
EMC-direktivet 2004/108/EC.
RoHS-Direktivet 2011/65/EU.
Produkter til det Europæiske marked, skal ovberholde Lavspændingsdirektivet 2006/95/EC og
Kommissionens forordninger for implementering af direktivet 2009/125/EF.
Kommunikations- / RF-trådløse produkter til det Europæiske overholder R&TTE-direktivet 1999/5/EC.
ADVARSEL: For at overholde Europe CE-kravet, skal denne enheden installeres med CE-certificeret
computerudstyr, der opfylder klasse B-grænserne. Alle kabler der anvendes til at tilslutte enheden skal
være skærmede, jordforbundne og ikke længere end 3 m lange. Drift med ikke-certificerede computere
og ukorrekte kabler kan medføre interferens for andre enheder eller uønskede effekter på produktet.
MODIFIKATION: Enhver ændring eller modifikation, der ikke er udtrykkeligt godkendt af Creative
Technology Limited eller et associerede selskab, vil gøre brugerens garanti og garanterede rettigheder
ugyldig.
Regulatory Information 29
[SV] Europeisk efterlevnad
Denna produkt uppfyller följande:
EMC-direktivet 2004/108/EC.
RoHS Direktivet 2011/65/EU.
Produkter för den europeiska marknaden som drivs via elnätet uppfyller Lågspänningsdirektivet
2006/95/EC och Kommissionens regleringsimplementeringsdirektiv 2009/125/EG.
Trådlösa kommunikations/RF-produkter för den europeiska marknaden uppfyller R&TTE-direktivet
1999/5/EC.
VARNING: För att uppfylla CE-kraven i Europa måste denna produkt installeras med CE-certifierad
datorutrustning som uppfyller gränsvärdena för klass B. Alla kablar som används för anslutning av
denna produkt måste vara avskärmade, jordade och får inte vara längre än 3 m. Användning med icke
certifierade datorer eller felaktiga kablar kan leda till interferens på annan utrustning eller oönskade
effekter på produkten.
MODIFIERING: Alla förändringar och modifieringar som inte är uttryckligen tillåtna av Creative
Technology limited eller något av dess filialföretag kan göra användarens garanti och garantirättigheter
ogiltiga.
[NO] Europeisk samsvar
Dette produktet er i samsvar med følgende:
EMC-direktivet 2004/108/EC.
RoHS-Direktivet 2011/65/EU.
Elektriske produkter til det europeiske markedet er i samsvar med Lavspenningsdirektivet 2006/95/EC
og Økodesigndirektivet 2009/125/EC.
Kommunikasjon/RF trådløse produkter til det europeiske markedet er i samsvar med R&TTEdirektivet
1999/5/EC.
ADVARSEL: For å overholde det europeiske CE-kravet må denne enheten installeres med CEsertifisert
datautstyr som tilfredsstiller klasse B-grensene. Alle kabler som kobles til enheten må være skjermet,
jordet og ikke lenger enn 3 m i lengde. Bruk av ikke-sertifiserte datamaskiner eller feil kabler kan føre
til forstyrrelse av andre enheter eller uønsket effekt på produktet.
MODIFIKASJON: Eventuelle endringer eller modifikasjoner som ikke uttrykkelig er godkjent av
Creative Technology Limited eller et av dets tilknyttede selskaper, kan ugyldiggjøre garantien eller
garantirettighetene.
[FI] Eurooppalainen yhdenmukaisuus
Tämä tuote täyttää seuraavat tuotemääritykset:
TEMC-direktiivin 2004/108/EC.
RoHS-direktiivin 2011/65/EU.
Euroopan markkinoiden verkkovirtaa käyttävät tuotteet ovat matalajännitedirektiivin 2006/95/EY
mukaisia. Euroopan parlamentin ja neuvoston ohjaava direktiivi 2009/125/EY.
Euroopan markkinoiden tietoliikenne- ja langattomat radiotaajuustuotteet noudattavat R&TTEdirektiiviä
1999/5/EY.
VAROITUS: Jotta tämä laite noudattaisi Euroopan CE-vaatimuksia , tämä laite on asennettava
CEsertifioituun tietokoneeseen, joka noudattaa luokan B rajoituksia. Kaikki tämän laitteen liittämiseen
Regulatory Information 30
käytetyt kaapelit tulee suojata ja maadoittaa eivätkä ne saa olla 3 m pidempiä. Luokan rajoituksia
noudattamattoman tietokoneen tai vääränlaisten kaapeleiden käyttäminen voi aiheuttaa häiriöitä
muihin laitteisiin tai haitata itse laitteen toimintaa.
MUOKKAUKSET: Muutokset tai muokkaukset, joita Creative Technology Limited tai sen tytäryhtiöt
eivät nimenomaisesti ole hyväksyneet, voivat mitätöidä tuotteelle annetun takuun.
[EL] Ευρωπαϊκή συμμόρφωση
Το παρόν προϊόν συμμορφώνεται με τα παρακάτω:
Οδηγία ΗΜΣ 2004/108/EΚ.
Οδηγία RoHS 2011/65/EE.
Τα προϊόντα που λειτουργούν με ρεύμα για την ευρωπαϊκή αγορά συμμορφώνονται με την Οδηγία περί
χαμηλής τάσης 2006/95/EΚ και τους κανονισμούς της επιτροπής που υλοποιούν την οδηγία 2009/125/EK.
Τα ασύρματα προϊόντα επικοινωνιών / RF για την ευρωπαϊκή αγορά συμμορφώνονται με την οδηγία
R&TTE 1999/5/EK.
ΠΡΟΣΟΧΗ: Για τη συμμόρφωση με τις απαιτήσεις του ευρωπαϊκού CE, αυτή η συσκευή θα πρέπει να
εγκατασταθεί σε εξοπλισμό υπολογιστή με πιστοποίηση CE ο οποίος πληροί τα όρια της κατηγορίας Β.
Όλα τα καλώδια που χρησιμοποιούνται για τη σύνδεση της συσκευής θα πρέπει να είναι θωρακισμένα,
γειωμένα και να μην υπερβαίνουν σε μήκος τα 3μ. Η λειτουργία με μη πιστοποιημένους υπολογιστές ή
λάθος καλώδια μπορεί να οδηγήσει σε παρεμβολές με άλλες συσκευές ή ανεπιθύμητες επιδράσεις στο
προϊόν.
ΤΡΟΠΟΠΟΙΗΣΗ: Οι όποιες αλλαγές ή τροποποιήσεις που δεν έχουν εγκριθεί ρητά από την Creative
Technology Limited ή κάποια από τις θυγατρικές της ενδέχεται να ακυρώσουν την εγγύηση του χρήστη
και τα δικαιώματα που απορρέουν από αυτήν.
[PL] Zgodność z przepisami europejskimi
Urządzenie jest zgodne z
dyrektywą EMC 2004/108/EC.
Dyrektywa RoHS 2011/65/UE.
Urządzenia zasilane z sieci elektrycznej przeznaczone na rynek europejski muszą być zgodne z
dyrektywą dotyczącą urządzeń niskonapięciowych 2006/95/EC oraz z dyrektywą wdrażającą komisji
regulacyjnej 2009/125/WE.
Urządzenia komunikacyjne / bezprzewodowe wykorzystujące transmisję radiową przeznaczone na
rynek europejski spełniają warunki dyrektywy RTTE 1999/5/EC.
UWAGA: Aby uzyskać zgodność z wymogami europejskiej normy CE urządzenie musi być
zainstalowane wraz ze sprzętem komputerowym mającym certyfikat CE z ograniczeniami klasy B.
Wszystkie przewody używane do podłączania niniejszego urządzenia muszą być ekranowane, uziemione
i nie dłuższe niż 3 metry. Użytkowanie z komputerami nie posiadającymi certyfikatów lub
wykorzystanie niewłaściwych przewodów może powodować zakłócenia pracy innych urządzeń lub
opisywanego urządzenia.
MODYFIKACJE: Dokonanie jakichkolwiek zmian lub modyfikacji, na które firma Creative Technology
Limited lub spółki z nią stowarzyszone nie udzielają wyraźnej zgody, może doprowadzić do
unieważnienia praw gwarancji i rękojmi użytkownika.
[CZ] Evropská shoda
Tento výrobek splňuje následující směrnice:
Směrnice EMC 2004/108/EC.
Regulatory Information 31
Směrnice RoHS 2011/65/EU.
Výrobky napájené z elektrické zásuvky pro evropský trh splňují směrnici o nízkém napětí 2006/95/EC a
směrnici komise 2009/125/EC o zavádění předpisů.
Komunikační / vysokofrekvenční bezdrátové výrobky pro evropský trh splňují směrnici R&TTE
1999/5/EC.
UPOZORNĚNÍ: Aby toto zařízení splňovalo evropský požadavek CE, musí být nainstalováno s
počítačovým vybavením s certifikátem CE, které splňuje limity pro zařízení třídy B. Veškeré kabely
používané pro připojení tohoto zařízení musí být stíněné, uzemněné a nesmí být delší než 3 metry. Při
používání s necertifikovanými počítači nebo nesprávnými kabely může dojít k rušení jiných zařízení
nebo k nežádoucím vlivům na produkt.
ÚPRAVY: Jakékoli změny nebo úpravy, které nebyly vysloveně schváleny společností Creative
Technology Limited nebo některou z jejích dceřiných společností, mohou způsobit propadnutí záruky
uživatele a záručních práv.
[SK] Dodržiavanie predpisov Európskej únie
Tento výrobok spĺňa nasledujúce normy:
Smernica EMC 2004/108/ES.
Smernica RoHS 2011/65/EÚ.
VAROVANIE: Toto zariadenie musí byť nainštalované s počítačovým zariadením s certifikáciou CE,
ktoré spĺňa limity triedy B, aby bolo v súlade s európskymi požiadavkami CE. Všetky káble použité na
pripojenie tohto zariadenia musia byť tienené, uzemnené a nie dlhšie ako 3 m. Prevádzka pomocou
necertifikovaných počítačov alebo nesprávnych káblov môže mať za následok rušenie iných zariadení
alebo nežiaduce účinky na výrobok.
ÚPRAVY: Akékoľvek zmeny alebo úpravy, ktoré neboli výslovne odsúhlasené spoločnosťou Creative
Technology Limited alebo jednou z jej sesterských spoločností, môžu zrušiť platnosť záruky a záručných
práv používateľa.
[HU] Európai megfelelőség
Ez a termék megfelel a következőknek:
2004/108/EGK sz., az elektromágneses összeférhetőségre. 2011/65/EU, RoHS.
Az Európa területére szánt hálózati termékek megfelelnek az alacsony feszültségre vonatkozó
2006/95/EC irányelvnek.
Az irányelvet 2009/125/EK végrehajtó bizottsági rendeletek.
Az Európa területére szánt, távközlési, illetve rádiófrekvenciás vezeték nélküli termékek megfelelnek a
rádióés távközlő végberendezésekre vonatkozó 1999/5/EK irányelvnek.
FIGYELEM!: Az európai CE követelmények teljesítéséhez ezt a készüléket a B kategóriájú értékeknek
megfelelő, CE minősítésű számítógéppel együtt kell telepíteni. A készülék csatlakoztatására használt
valamennyi kábelnek árnyékoltnak és földeltnek kell lennie, továbbá hosszúsága nem haladhatja meg a
3 métert. A nem hitelesített számítógépekkel vagy helytelen kábelekkel való használat más készülékek
zavarását vagy a termék nem kívánatos befolyásolását okozhatja.
MÓDOSÍTÁS: Minden módosítás vagy változtatás, amit kifejezetten nem hagyott jóvá a Creative
Technology Limited vagy valamelyik leányvállalata, érvénytelenítheti a készülék garanciáját és
felhasználó garanciális jogait.
[LT] Europos Sąjungos atitiktis
Šis gaminys atitinka šiuos reikalavimus:
Regulatory Information 32
„Elektromagnetinės atitikties“ („EMC“) direktyva 2004/108/EC.
RoHS direktyva 2011/65/ES.
Produktai, kurie veikia maitinami iš elektros tinklo, skirti Europos rinkai, atitinka Žemos įtampos
direktyvą 2006/95/EB.
Komisijos reglamentas(-ai) dėl Direktyvos 2009/125/EB įgyvendinimo.
Europos Sąjungos rinkai skirti ryšių / radijo dažnių bevieliai gaminiai atitinka 1999/5/EB direktyvą „Dėl
radijo ryšio įrenginių ir telekomunikacijų galinių įrenginių bei abipusio jų atitikties pripažinimo“.
ATSARGIAI: Tam, kad šis prietaisas atitiktų Europos Sąjungos „CE“ reikalavimus, jis turi būti įdiegtas į
„CE“ sertifikuotą kompiuterinę įrangą, atitinkančią „B“ klasės ribas. Visi su šiuo prietaisu naudojami
laidai turi būti ekranuoti, įžeminti ir neviršyti 3 m ilgio. Nesertifikuotų kompiuterių ar netinkamų laidų
naudojimas gali tapti trikdžių kitiems prietaisams arba nepageidaujamų šio gaminio veikimo pasekmių
priežastimi.
MODIFIKAVIMAS: Bet kokie pakeitimai ar modifikavimai neturint aiškiai patvirtinto „Creative
Technology Limited“ ar vienos iš su ja susijusių bendrovių leidimo gali panaikinti vartotojo garantiją ir
garantijos teises.
[RU] Соответствие европейским нормам
Данное изделие соответствует следующим стандартам:
EMC Директива 2004/108/EC.
RoHS директива 2011/65/EU.
Продукция с питанием от сети, поставляемая на европейский рынок, соответствует Директиве по
низковольтному оборудованию 2006/95/EC и Имплементирующей директиве постановления (- й)
комиссии 2009/125/EC.
Коммуникационное/радио- беспроводное оборудование, поставляемое на европейский рынок,
соответствует Директиве по оконечному радио- и телекоммуникационному оборудованию
1999/5/EC.
ВНИМАНИЕ! Для обеспечения соответствия европейским требованиям CE, это устройство должно
устанавливаться с компьютерным оборудованием, сертифицированным по стандарту CE и
удовлетворяющим нормам класса B. Все кабели, используемые для подключения данного
устройства, должны быть экранированы, заземлены и иметь длину не более 3 м. Работа с
несертифицированными компьютерами или неподходящими кабелями может привести к
возникновению помех другим устройствам или негативному влиянию на работу самого изделия.
ИЗМЕНЕНИЯ КОНСТРУКЦИИЛюбые изменения конструкции, на которые не было получено
прямое разрешение компании Creative Technology Limited или ее дочерней компании, может
привести к аннуляции гарантии и связанных с нею прав.
[TR] Avrupa Uyumu
Bu ürün aşağıdakilere uygundur:
2004/108/EC EMC (Elektromanyetik Uyumluluk) Yönetmeliği.
2011/65/EU RoHS (Tehlikeli Maddelerin Kısıtlanması) Yönetmeliği
Avrupa piyasasına yönelik, elektrik şebekesi tarafından çalıştırılan ürünler 2006/95/EC Alçak Gerilim
Yönetmeliği (LVD ) ve 2009/125/EC Enerji ile İlgili Ürünlerin Çevreye Duyarlı Tasarımına İlişkin
Yönetmeliğe uygundur.
Avrupa piyasasına yönelik İletişim / RF kablosuz ürünleri Yönetmelik R&TTE 1999/5/EC ile uyumludur.
Regulatory Information 33
![](/img.php?id=2479156&img=bg22.png)
DİKKAT: Avrupa CE gereksinimleriyle uyumlu olması için bu cihazın, B Sınıfı sınırlarına uygun olan CE
sertifikalı bilgisayar donanımları ile birlikte kurulması gerekir. Bu cihazı bağlamak için kullanılan tüm
kabloların koruyuculu ve topraklanmış olması ve 3 metreden uzun olmaması gerekir. Sertifikalı
olmayan bilgisayarlarla veya yanlış kablolarla birlikte kullanılması, diğer cihazların düzgün
çalışmamasına veya üründe istenmeyen etkiler görülmesine neden olabilir.
DEĞİŞİKLİKLER: Creative Technology Limited veya bağlı şirketlerinden biri tarafından açıkça
onaylanmamış tüm değişiklikler kullanıcının garanti ve teminat haklarını geçersiz kılabilir.
Ukraine RoHS Statement
Обладнання відповідає вимогам Технічного регламенту щодо обмеження використання деяких
небезпечних речовин в електричному та електронному обладнанні, затвердженого постановою
Кабінету Міністрів України від 3 грудня 2008 № 1057
Notice for Singapore
Notice for Japan
Recycling Rechargeable Battery
Lithium rechargeable battery is a resource that can be recycled.
lFor recycling of embedded lithium rechargeable batteries inside Creative products, please do not
attempt to remove the battery from the device. For recycling information and instruction, please go
to Creative Media K K customer support at http://jp.creative.com/support/contact/ (in Japanese)
lFor recycling of replaceable (removable) lithium rechargeable batteries:
oIt is recommended to remove the rechargeable batteries when they are fully
discharged.
oPrecaution needs to be taken on metal parts of the battery by covering them with
isolation materials such as scotch tape.
oRefer to the homepage of JBRC for information on recycling and recovery of
rechargeable batteries and supporting shops. (http://www.jbrc.com/)
Notice for Korea
B급기기
(가정용방송통신기자재)
이기기는가정용(B급)전자파적합기기로서주로가정에서사용하는것을목적으로하며
,모든지역에서사용할수있습니다.
Regulatory Information 34
![](/img.php?id=2479156&img=bg23.png)
Vietnam RoHS Statement
This product is in compliance with Circular 30/2011/TTBCT of the Ministry of Trade of the Socialist
Republic of Vietnam (“Circular”), it does not contain the following substances in concentration greater
than the Maximum Limit value as specified in the Circular.
Substance Maximum Limit (ppm) 1, 2
llead 1000
lmercury 1000
lcadmium 100
lhexavalent chromium 1000
lpolybrominated biphenyls (PBB) 1000
lpolybrominated diphenyl ethers (PBDE) 1000
1Maximum Limit does not apply to applications exempted from the Circular.
2Maximum Limit refers to concentration by weight in homogeneous materials.
Regulatory Information 35
![](/img.php?id=2479156&img=bg24.png)
DECLARATION OF CONFORMITY
According to the FCC96 208
Manufacturer/Importer’s Name: Creative Labs, Inc.
Manufacturer/Importer’s Address: 1901 McCarthy Boulevard
Milpitas, CA. 95035
Tel: (408)428-6600
declares under its sole responsibility that the product
Trade Name: Creative
Model Numbers: GH0300
has been tested according to the FCC / CISPR22 requirement for Class
B devices and found compliant with the following standards:
EMI/EMC: ANSI C63.4 , FCC Part 15 Subpart B& C
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
Interference that may cause undesirable operation.
Supplementary Information:
Compliance Manager
Creative Labs, Inc.
January 15, 2015
![](/img.php?id=2479156&img=bg25.png)
Safety Information
Refer to the following information to use your product safely, and to reduce the chance of electric shock,
short-circuiting, damage, fire, hearing impairment or other hazards. Improper handling may void the
warranty for your product. For more information, read the warranty available with your product.
lDo not dismantle or attempt to repair your product.
Refer all servicing to authorized repair agents.
lDo not expose your product to temperatures outside the range of 0°C to 45°C (32°F to 113°F).
lDo not pierce, crush or set fire to your product.
lKeep your product away from strong magnetic objects.
lDo not subject your product to excessive force or impact.
lDo not expose your product to water or moisture.
If your product is moisture-resistant, take care not to immerse your product in water or expose it to
rain.
Bluetooth Product
lThe short wave radio frequency signals of a Bluetooth device may impair the operation of other
electronic and medical devices.
lSwitch off the device where it is prohibited. Do not use the device in medical facilities, aircraft,
refueling points, close to automatic doors, automatic fire alarms or other automatically controlled
devices.
lKeep this device at least 20 cm from pacemakers and other medical devices. Radio waves may
impair the operation of pacemakers and other medical devices.
Embedded Battery
lDo not attempt to remove the embedded battery.
The product must be disposed of according to local environmental regulations. To replace the
battery, return your product to your regional support office. For product service information, go to
www.creative.com.
lDo not expose to excessive heat such as sunlight, fire or the like.
CAUTION: Risk of explosion if battery is replaced by incorrect types.
Earphones
lWhen a conductive apparatus, such as earphones, is used in close proximity with a CRT television or
CRT monitor, the latter may emit an electrostatic discharge. This electrostatic discharge can be felt
as a static shock. While this static shock is usually harmless, it is good practice to avoid close con-
tact with CRT devices when using earphones.
lDo not listen to audio on your earbuds or headphones at high volume for prolonged periods of time
as hearing loss may result. For users in the United States, go to www.hei.org for more information.
lDo not listen to your audio device at high volume when driving, cycling or crossing the road, espe-
cially in heavy traffic or any other traffic condition where such use will hinder safe travel on the
roads. We recommend that consumers be extremely cautious when using this device on the road.
Safety Information 36
Avoid Hearing Damage
Permanent hearing loss may occur if the headphone is used at high volume. Set the volume to a safe
level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging
to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your
hearing checked. The louder the volume, the less time is required before your hearing could be
affected. Hearing experts suggest that to protect your hearing:
lLimit the amount of time you use the headphone at high volume.
lAvoid turning up the volume to block out noisy surroundings.
lTurn the volume down if you can't hear people speaking near you.
IMPORTANT — A LIRE AVEC ATTENTION
Ecouter de manière prolongée, à un très haut volume sonore de la musique (au dessus de 80 decibels),
aumoyen d'un casque ou d'écouteurs, peut entraîner une détérioration irreversible et définitive de vos
facultés auditives. L’usage répété et habituel d’un casque ou d’écouteurs à un niveau de volume
sonoretrop élevé peut donner l'impression à l'utilisateur que le volume sonore émis par l’appareil n'est
pas suffisant. L’utilisateur sera tenté d’augmenter, petit à petit, son réglage habituel, risquant ainsi
d'atteindre un niveau dangereux pour ses oreilles. Afin de protéger votre santé, et vos oreilles, veillez à
maintenir le volume de la sortie casque de votre appareil à un niveau adapté et à interrompre son
utilisation régulièrement et particulièrement si des symptômes, comme des troubles de l'ouïe, se
manifestent.
N'utilisez pas le casque ou les écouteurs pendant la conduite d'une voiture, d'une bicyclette ou de tout
autre véhicule motorisé, afin d'éviter tout accident de le circulation. En outre, il est interdit dans
certains pays d'utiliser un casque ou des écouteurs en conduisant. Il peut être également dangereux
d'écouter à volume élevé tout en marchant, spécialement aux passages piétons. Soyez toujours
extrêment prudent et cessez d'utiliser cet appareil dans les situations présentant des risques d'accident.
Evitez d'utiliser le casque ou les écouteurs à volume élevé. Les médecins spécialistes de l'audition
déconseillent une écoute continue à volume trop élevé. Si vous percevez un sifflement dans les oreilles,
réduisez le volume ou cessez l'écoute.
Maintenez un volume d'écoute modéré. Vous pourrez ainsi entendre les sons extérieurs et être attentif
aux gens qui vous entourent.
Votre produit Creative accompagné des écouteurs fournis, est conforme à la règlementation française
concernant les baladeurs musicaux (Arrêté du 24 Juillet 1998). Les caractéristiques techniques de ces
écouteurs se trouvent dans le manuel en ligne et/ou sur le site internet de Creative. Si vous choisissez
d'utiliser un autre casque ou d'autres écouteurs, veuillez vous assurer au préalable que leurs
caractéristiques techniques soient les mêmes.
срок эксплуатационнoй долговечности
В соответствии с законодательством Российской Федерации компания Creative устанавливает для
данного товара срок службы 2 года. Указанный срок – это период времени, в течение которого
компания Creative гарантирует возможность использования продукции в соответствии с ее
назначением. Кроме того, во время этого срока компания Creative гарантирует:
(i) безопасность товара, (ii) возможность выполнения его ремонта и получения технической
поддержки, (iii) поставку запасных частей. Однако установление срока службы не означает
автоматического бесплатного предоставления технической поддержки и обслуживания. Эти виды
услуг предоставляются бесплатно только в течение гарантийного периода в соответствии с
гарантийными обязательствами.
Safety Information 37
![](/img.php?id=2479156&img=bg27.png)
Safe Removal of Built-in Battery
This product contains an integrated battery which should ONLY be removed by service centers or
recycling facilitates with reference to the instructions herein. Creative and its affiliates will not be liable
for any damages resulting from attempting to remove and/or tampering with the battery or any part of
the product by an end user.
CAUTION:
"Make sure the product is disconnected from the charging cable before removing the battery"
"Cover one of the battery terminals with insulation tape to prevent short circuit" - not applicable to
battery with connector
Battery removal instruction:
1. Remove ear pad
2. Unfasten the screws
3. Remove speaker stand
4. Open the bottom housing
5. Remove the battery
Safety Information 38
![](/img.php?id=2479156&img=bg28.png)
License and Copyright
Information in this document is subject to change without notice and does not represent a commitment
on the part of Creative Technology Ltd. No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including photocopying and recording, for any purpose
without the written permission of Creative Technology Ltd.
Copyright © 2014 Creative Technology Ltd. All rights reserved. Creative, the Creative logo, SBX Pro
Studio and the SBX logo are trademarks or registered trademarks of Creative Technology Ltd. in the
United States and/or other countries. iPhone is a trademark of Apple Inc., registered in the U.S. and
other countries. Android is a trademark of Google Inc. Windows is a registered trademark of Microsoft
Corporation in the United States and other countries. The Bluetooth®word mark and logos are
registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Creative Technology
Ltd is under license. Other trademarks and trade names are those of their respective owners. All
specifications are subject to change without prior notice. Use of this product is subject to a limited
hardware warranty. Actual contents may differ slightly from those pictured. The software included in
this packaging may not be used separately from the hardware. Before using the software, you must
agree to be bound by the terms and conditions of the end user license agreement.
Version 1.0
December 2014
License and Copyright 39
